Grundig LCD TV Schematic

TV Service Manual

Service
Manual

Chassis

L5C-14"…20" (LC)

Amira 15

LCD 38-6605 BS GBE4800

Amira 17

LW 45-6605 BS GBE4700

Amira 20

LCD 51-6605 BS GBE4600

Davio 20

LCD 51-4505 Top GBE5600

Lenaro 20

LCD 51-7606 Top GBD2600

Zusätzlich erforderliche Unterlagen für den Komplettservice
Additionally required Service Documents for the Complete Service

Sicherheit

Safety

Materialnr./Part No.

720108000001

Monaco 20

LCD 51-9622 DL GBE4000
LCD 51-9622 DL GBF0300

Vision 20

LCD 51-8610 Top GBE3800
LCD 51-8610 Top GBF0800

Xephia 15

LCD 38-5501 Top GBE4900

Materialnummer / Part Number 720100491000
Änderungen vorbehalten / Subject to alteration
TCC 0606 MP • Prepared in Germany
http://www.grundig.com

GRUNDIG Service Chassis L5C-14"…20"

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem
Service Manual "Sicherheit", Materialnummer 720108000001,
sowie zusätzlich die eventuell abweichenden, landesspezifi­schen Vorschriften!

Inhaltsverzeichnis

Seite

Allgemeiner Teil .................................. 1-2…1-12

Allgemeine Hinweise .....................................................................1-2

Technische Daten ..........................................................................1-3

Bedienhinweise .............................................................................1-7

Service- und Sonderfunktionen ...................................................1-11

Platinenabbildungen

und Schaltpläne .................................. 2-1…2-26

Blockschaltplan ..............................................................................2-1

Hauptplatte QW1190-3 ..................................................................2-2

– Netzteil .......................................................................................2-6

– Tuner ..........................................................................................2-6

– IN/OUT, CVT-IF ..........................................................................2-7

– VGA-Eingang und RGB-Umschalter ..........................................2-8

– Audio-Umschalter ......................................................................2-9

– Kopfhörer ...................................................................................2-9

– Inverter-Steuerung .....................................................................2-9

– Verstärker .................................................................................2-10

– Scaler.......................................................................................2-10

Hauptplatte QW1190-8 ................................................................2-12

– Netzteil .....................................................................................2-16

– Tuner ........................................................................................2-16

– IN/OUT, CVT-IF ........................................................................2-17

– VGA-Eingang und RGB-Umschalter ........................................2-18

– Audio-Umschalter ....................................................................2-19

– Kopfhörer .................................................................................2-19

– Inverter-Steuerung ...................................................................2-19

– Verstärker .................................................................................2-20

– Scaler.......................................................................................2-20

Zusatzplatte "Daughter Board" (Y48192, Y48194) ......................2-22

Bedieneinheiten (ZG8191, ZG9191, ZN2191).............................2-23

Bedieneinheiten (ZN7191, ZP3191, ZR6191) .............................2-24

Bedieneinheit (ZR7191)...............................................................2-25

IR/LED-Platte (ZG5192, ZP3193, ZP8191) .................................2-25

Kopfhörer-Platte (8R9198) ..........................................................2-26

Netzschalter-Platten (ZG9193, ZP3195, ZR6192) ......................2-26

The regulations and safety instructions shall be valid as
provided by the "Safety" Service Manual, part number
720108000001, as well as the respective national devia­tions.

Table of Contents

Page

General Section .................................. 1-2…1-12

General Notes ...............................................................................1-2

Technical Data ...............................................................................1-3

Operating Hints ..............................................................................1-9

Service and Special Functions ....................................................1-11

Layout of the PCBs

and Circuit Diagrams ......................... 2-1…2-26

Block Circuit Diagram ....................................................................2-1

Main Board QW1190-3 QW1190-3 ..................................................................2-2

– Power Supply .............................................................................2-6

– Tuner ..........................................................................................2-6

– IN/OUT, CVT-IFIN/OUT, CVT-IF ..........................................................................2-7

– VGA Input and RGB Switches ...................................................2-8

– Audio Switches ..........................................................................2-9

– Headphone ................................................................................2-9

– Inverter Control ..........................................................................2-9

– Amplifier ...................................................................................2-10

– Scaler.......................................................................................2-10

Main Board QW1190-8 QW1190-8 ................................................................2-12

– Power Supply ...........................................................................2-16

– Tuner ........................................................................................2-16

– IN/OUT, CVT-IFIN/OUT, CVT-IF ........................................................................2-17

– VGA Input and RGB Switches .................................................2-18

– Audio Switches ........................................................................2-19

– Headphone ..............................................................................2-19

– Inverter Control ........................................................................2-19

– Amplifier ...................................................................................2-20

– Scaler.......................................................................................2-20

Daughter Board (Y48192, Y48194) (Y48192, Y48194) .............................................2-22

Keyboards (ZG8191, ZG9191, ZN2191) (ZG8191, ZG9191, ZN2191) .....................................2-23

Keyboards (ZG8191, ZG9191, ZN2191) (ZG8191, ZG9191, ZN2191) .....................................2-24

Keyboard (ZR7191) (ZR7191) .....................................................................2-25

IR/LED Board (ZG5192, ZP3193, ZP8191) (ZG5192, ZP3193, ZP8191) .................................2-25

Headphone Board (8R9198) (8R9198) .......................................................2-26

Power Switch Boards (ZG9193, ZP3195, ZR6192)(ZG9193, ZP3195, ZR6192) ..................... 2-26

Ersatzteillisten .................................... 3-1…3-10

Allgemeiner Teil

Allgemeine Hinweise

Vor dem Öffnen des Gehäuses den Netzstecker ziehen!

Achtung: ESD-Vorschriften beachten

Leitungsverlegung

Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen,
muss die Leitungsverlegung zu den einzelnen Baugruppen beachtet
werden. Nach erfolgter Reparatur ist es notwendig, die Leitungsführung
wieder in den werkseitigen Zustand zu versetzen um evtl. spätere
Ausfälle oder Störungen zu vermeiden.

Durchführen von Messungen

Bei Messungen mit dem Oszilloskop an Halbleitern sollten Sie nur
Tastköpfe mit 10:1 - Teiler verwenden. Außerdem ist zu beachten, dass
nach vorheriger Messung mit AC-Kopplung der Koppelkondensator
des Oszilloskops aufgeladen sein kann. Durch die Entladung über das
Messobjekt können Bauteile beschädigt werden.

Messwerte und Oszillogramme

Bei den in den Schaltplänen und Oszillogrammen angegebenen
Messwerten handelt es sich um Näherungswerte!

Spare Parts Lists ................................ 3-1…3-10

General Section

General Notes

Before opening the cabinet disconnect the mains plug!

Attention: Observe the ESD safety regulations

Wiring

Before disconnecting any leads and especially the earth connecting
leads observe the way they are routed to the individual assemblies.
On completion of the repairs the leads must be laid out as originally
fitted at the factory to avoid later failures or disturbances.

Carrying out Measurements

When making measurements on semi-conductors with an oscilloscope,
ensure that the test probe is set to 10:1 dividing factor. If the previous
measurement was made on AC input, please note that the coupling
capacitor in the oscilloscope will be charged. Discharge via the item
being checked can damage the components.

Measured Values and Oscillograms

The measured values given in the circuit diagrams and oscillograms
are approximates!

1 - 2

Chassis L5C-14"…20"GRUNDIG Service

Displayvarianten

Je nach Verfügbarkeit werden Dis­plays verschiedener Hersteller ein­gebaut. Dies führt zu unterschiedli­chen Chassis-Bestückungen, sowie
zu Änderungen in der Software. Bei
Ersatzteilbestellungen und Soft­ware-Updates achten Sie bitte auf
das eingebaute Display, sowie auf
den "Product Code". Angaben dazu
finden Sie auf der Geräterückseite.
Sollte in der Ersatzteilliste eine Dis­playvariante nicht aufgeführt sein,
wenden Sie sich bitte an die techni­sche Hotline.

Überprüfen Sie vor Austausch der
Hauptplatte, ob die Aufkleber der
Platinen identisch sind.

Display Variants

Depending on availability displays
of different manufacturer are built
in. This results in different chassis
mountings as well as a different
software. On spare parts orders as
well as software updates take care
of the fitted display as well as of the
"Product Code". Therefore you can
find information on the labels on the
rear side. If a display variant is not
mentioned in the spare parts list
please contact the technical hotline.

Before changing the main board
please check whether the labels on
the boards are identical.

Technische Daten / Technical Data

Order No.
Destination
Approbations

IM-Languages
Remote control

Develop. order No.
EAN
Color
DISPLAY

Panel
16:9 wide-screen format

Response time
Brightness
Contrast ratio
Viewing angle ca.
Physical display resolution max. pixel
Digital Reference-Technology
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction (DNR)
CCS (Clear Color Screen)
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background

Amira 15 LCD 38-6605 BS Amira 17 LW 45-6605 BS Amira 20 LCD 51-6605 BS Davio 20 LCD 51-4505 TOP

G.BE 48-00

D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,TR

CE,CB,I,C-TICK,ME67

D, CH, I, F, E, P, NL, Nordic, PL, H, HR,

CZ, CIS

TP 160 C

M3Z

40 13833-60377 1

silver

15" / 38cm

Active Matrix TFT-LC-Display

135° vertical / 160° horizontal

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

XGA 1024 x 768

\\
\
\
\
[
\
\
\

user, natural, rich, soft
Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[
[[[[

G.BE 47-00

D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,TR

CE,I,C-TICK,ME67

CH, E, P, Nordic, HR, CZ, CIS

TP 160 C

M4A

40 13833-60376 4

silver

20" / 51cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

VGA 640 x 480

\
\
\
[
\
\
\

user, natural, rich, soft
Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[

G.BE 46-00

D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,TR

CE,CB,I,C-TICK,ME67

D, CH, I, F, E, NL, Nordic, PL, HR, CIS

TP 160 C

M3J

40 13833-60375 7

silver

20" / 51cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

VGA 640 x 480

\\
\
\
\
[
\
\
\

user, natural, rich, soft
Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[

G.BE 56-00
D,F,I,E,P,PL

CE,CB,I,ME67

D, CH, F, I, E, P, PL, CIS, HR

TP 160 C

M3M

40 13833-60448 8

silver

20" / 51cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

VGA 640 x 480

\
\
\
[
\
\
\

user, natural, rich, soft
Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[

1 - 3

Chassis L5C-14"…20"GRUNDIG Service

CHASSIS
TV-Chassis
Progressive
Tuner
µ-Processor

Keyboard
ELECTRONIC

Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock

Menue languages OSD

SWAP (Recall function)
Service mode

Hotel mode
TUNING

Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection

PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3,58/4,43)

Cable TV / Hyperband (S1-S41)
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
Virtual Dolby
Magic Fidelity Sound System
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
POWER SUPPLY / CABINET
Power voltage
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption

Cabinet (WxHxD, cm) / Weight
FRONT PANEL CONNECTIONS

Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Headphones
Audio out

Antenna for terrestrial reception
DC-connector

Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)

Power cord
Cables

Instruction manual
Circuit diagram

Wall fixture
Warning sticker in rear panel

Warranty info

Amira 15 LCD 38-6605 BS Amira 17 LW 45-6605 BS Amira 20 LCD 51-6605 BS Davio 20 LCD 51-4505 TOP

LC

PLL frequency synthesizer tuning

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

[

, SECAM L'/L available from end of

cinema, music, sport, speech, user[cinema, music, sport, speech, user

44 x 36 x 6,5cm (16cm with stand) / ca.

CVBS in-/output, RGB input CVBS in-/output, RGB input

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 12V- / 4A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

\

GM2221

5 keys:

red LED

\
\
\
[
[
[
[
[
\
\

99 / 4

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

January 2006 onwards

[
[

[

/ [ /

[[

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

[

PLL frequency synthesizer tuning

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

, SECAM L'/L available from end of

[

2 x 2 / 3W (nominal/music) 2 x 5 / 10W (nominal/music)

100 - 240V, 50/60Hz

stand-by switch

\

AC/DC-Adaptor 12V- / 4A

ca. 40W, standby < 3W

4,4kg

\\
\
\

\
\

Hosiden

3x Cinch socket in

\
\

Multisync XGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

TP 160 C silver TP 160 C silver

\
[
[

75 x 75

[
[[

58 x 44 x 8cm (19,5cm with stand) / ca.

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 15V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

LC

\

GM2221

5 keys:

red LED

\
\
\
[
[
[
[
[
\
\

99 / 5

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

January 2006 onwards

[
[

/ [ /

[

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 15V- / 5A

ca. 70W, standby < 3W

8kg

\
\

CVBS in-/output

\

Hosiden

3x Cinch socket in

\
\

VGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

\
[
[

100 x 100

[

LC

PLL frequency synthesizer tuning

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

[

, SECAM L'/L available from end of

cinema, music, sport, speech, user[cinema, music, sport, speech, user

2 x 5 / 10W (nominal/music) 2 x 5 / 10W (nominal/music)

58 x 44 x 8cm (19,5cm with stand) / ca.

CVBS in-/output, RGB input CVBS in-/output, RGB input

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 15V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

\

GM2221

5 keys:

red LED

\
\
\
[
[
[
[
[
\
\

99 / 5

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

January 2006 onwards

[
[

[

/ [ /

[[

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

[

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 15V- / 5A

ca. 70W, standby < 3W

8kg

\\
\
\

CVBS in-/output

\

Hosiden

3x Cinch socket in

\
\

VGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

TP 160 C silver TP 160 C silver

\
[
[

100 x 100

[
[[

PLL frequency synthesizer tuning

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

, SECAM L'/L available from end of

[

50,4 x 46,0 x 7,9cm (17,7cm with

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 15V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

LC

\

GM2221

5 keys:

red LED

\
\
\
[
[
[
[
[
\
\

99 / 5

[

/ [ /

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

January 2006 onwards

[
[

/ [ /

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 15V- / 5A

ca. 70W, standby < 3W

stand) / ca. 8,6kg

\
\

CVBS in-/output

\

Hosiden

3x Cinch socket in

\
\

VGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

\
[
[

100 x 100

[

[

[

1 - 4

Chassis L5C-14"…20"GRUNDIG Service

Order No.
Destination
Approbations

IM-Languages
Remote control

Develop. order No.
EAN
Color
DISPLAY

Panel
16:9 wide-screen format

Response time
Brightness
Contrast ratio
Viewing angle ca.
Physical display resolution max. pixel
Digital Reference-Technology
Motion Adaptive Deinterlacing
Line Flicker Reduction
Digital Color Transition Improv. (DCTI)
Digital Combfilter
Digital Luminance Transition Improv. (DLTI)
Picture Noise Reduction (DNR)
CCS (Clear Color Screen)
Preset picture modes
Aspect ratios (Format switching)
Blackline detection
PIP
Multifold Tuner scan (Mosaic Picture)
PAT: Split screen (PICTURE + TEXT)
PAP: Double Window (PICTURE + PICTURE)
P2AT: Double Window + TXT
POP: PICTURE on PICTURE
Picture freezing
Zoom with point function
Auto 16:9 selection via Scart
Sharpness control
Blue Background
CHASSIS
TV-Chassis
Progressive
Tuner
µ-Processor

Keyboard
ELECTRONIC

Stand by indicator
EPG (Electronic Programme Guide)
Easy Dialog
Megalogic
Manual & autom. labeling of prog.
Programmable off timer
Programmable on timer
Intelligent channel search (Zapping funct.)
Programme Edit
Intelligent Programme Switch
Auto switch off
Programme memory TV/AV (opt.)
Teletext/Fasttext/Toptext
Teletext options
Childlock

Menue languages OSD

SWAP (Recall function)
Service mode

Hotel mode
TUNING

Autom. Tuning System with country selection
Frequency Based Auto Search
Automatic Micro-search
Automatic Programming
Manual fine tuning
Direct channel selection
Direct frequency selection

PAL/SECAM/BG/DK/I/L'/L
NTSC-Playback via Scart (3,58/4,43)

Cable TV / Hyperband (S1-S41)
AUDIO
Mono/Stereo/Nicam
AV Stereo
Loudspeaker
Virtual Dolby
Magic Fidelity Sound System
Matched Sound Delay (Lip synchronous)
Subwoofer
Dynamic Bass
DSP (Digital Sound Processor)
Balance Adjustment
AVL (Audio Volume Level)
PIP listening via Headphone.jack
Equalizer
Space Sound Effect
Audio mode
Audio amplifier
POWER SUPPLY / CABINET
Power voltage
Power switch
Integrated supply
Plug-in AC adaptor
Power consumption

Cabinet (WxHxD, cm) / Weight

Lenaro 20 LCD 51-7606 TOP Monaco 20 LCD 51-9622 DL Vision 20 LCD 51-8610 TOP Xephia 15 LCD 38-5501 TOP

G.BD 26-00

D,F,I,E,PL

CE,I,ME67

D, CH, I, E, Pl, H, CIS, CZ

TP 160 C

M7T

40 13833-60015 2

silver/black

20" / 51cm

Active Matrix TFT-LC-Display

170° vertical / 170° horizontal

PLL frequency synthesizer tuning

± for programme, ± for volume, AV/TV

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

cinema, music, sport, speech, user[cinema, music, sport, speech, user

2 x 5 / 10W (nominal/music) 2 x 5 / 10W (nominal/music)

53,5 x 47,6 x 9,5cm (19,6cm with

\

ca. 20ms

ca. 500cd/m2

ca. 800:1

VGA 640 x 480

\\
\
\
\
[
\
\
\

user, natural, rich, soft

\
\
\
\
\
\
\
\
\
\
[
[
[[

LC

\

GM2221

6 keys: menue,

red LED

\
\
\
[
[
[
[
[
\
\

99 / 5

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

[

[
[

[

/ [ /

[[

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

[

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 24V- / 5A

ca. 70W, standby < 3W

stand) / ca. 7,5kg

G.BE 40-00, G.BF 03-00

D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,TR

CE,I,C-TICK,ME67

All NSOs
TP 160 C

M3L/M7S, R2A

40 13833-60328 3, 40 13833-60656 7

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

[

50,5 x 49,5 x 8cm (19,2cm with stand) /

silver/black

20" / 51cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

PLL frequency synthesizer tuning

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

VGA 640 x 480

\
\
[
[
[
\
\

user, natural, rich, soft

Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[

LC

\

GM2221

5 keys:

blue LED

\
\
\
[
[
[
[
[
[
\

99 / 5

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[

, SECAM L'/L available from end of

\

January 2006 onwards

[
[

/ [ /

[

[

2 wide band lateral

[
\
\
\
\
\
[
\
\

5 Band

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 15V- / 5A

ca. 70W, standby < 3W

ca. 11kg

G.BE 38-00, G.BF 08-00

D,GB,F,I,NL,DK,N,S,FIN,E,P,PL,TR

CE,CB,I,C-TICK,ME67

All NSOs
TP 160 C

40 13833-60326 9, 40 13833-60662 8

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

[

50,5 x 49,5 x 8cm (19,2cm with stand) /

M3K, R1Z

black

20" / 51cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

PLL frequency synthesizer tuning

, SECAM L'/L available from end of

cinema, music, sport, speech, user[cinema, music, sport, speech, user

2 x 5 / 10W (nominal/music) 2 x 2 / 3W (nominal/music)

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

VGA 640 x 480

\\
\
\
[
[
[
\
\

user, natural, rich, soft
Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[
[[

LC

\

GM2221

5 keys:

blue LED

\
\
\
[
[
[
[
[
[
\

99 / 5

[

/ [ /

[

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

January 2006 onwards

[
[

[

/ [ /

[[

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

[

100 - 240V, 50/60Hz

[
\

AC/DC-Adaptor 15V- / 5A

ca. 70W, standby < 3W

ca. 11kg

menue, ± for programme, ± for volume

22 languages, D, GB, F, I, E, P, NL, HR,

RUS, GR, DK, S, FIN, N, TR, PL, CZ,

Simple hotel mode possible via service

39 x 36 x 9,5cm (16cm with stand) / ca.

G.BE 49-00

F, N L

CE

F

TP 160 C

M4D

40 13833-60386 3

silver

15" / 38cm

Active Matrix TFT-LC-Display

140° vertical / 160° horizontal

PLL frequency synthesizer tuning

\

ca. 16ms

ca. 450cd/m2

ca. 500:1

XGA 1024 x 768

\
\
\
[
\
\
\

user, natural, rich, soft

Auto (WSS), 4:3 / 16:9

\
\
\
\
\
\
\
\
\
[
[

LC

\

GM2221

5 keys:

red LED

\
\
\
[
[
[
[
[
\
\

99 / 4

[

/ [ /

10 pages

[

SK, SLO, H, RO, BG

[
[

adjustment

full automatic sorting

\
[
\
[
[
\

[

[
[

/ [ /

[

2 wide band lateral

\
\
\
\
\
\
[
[
\

5 Band

100 - 240V, 50/60Hz

stand-by switch

\

AC/DC-Adaptor 12V- / 4A

ca. 40W, standby < 3W

4,4kg

[

[

1 - 5

Chassis L5C-14"…20"GRUNDIG Service

FRONT PANEL CONNECTIONS
Headphones
Cinch-AV socket
S-Video
REAR PANEL CONNECTIONS
Euro-AV-Socket AV1
Euro-AV Socket AV2
Euro-AV Socket AV3
S-Video
Camera-AV
Wireless
YUV input / progressive
PC-input
PC-Audio in
DVI
HDMI
HD ready including HDCP
Headphones
Audio out

Antenna for terrestrial reception
DC-connector

Power supply plug
SUPPLIED ACCESSORIES
Remote control (incl. battery)

Power cord
Cables

Instruction manual
Circuit diagram

Wall fixture
Warning sticker in rear panel

Warranty info

Lenaro 20 LCD 51-7606 TOP Monaco 20 LCD 51-9622 DL Vision 20 LCD 51-8610 TOP Xephia 15 LCD 38-5501 TOP

[

3 x Cinch - Video in, Audio in L/R (side)

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 24V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

, (side)

Hosiden (side)

CVBS in-/output, RGB input CVBS in-/output, RGB input

CVBS in-/output

\
\
\
\
\

Multisync WXGA

\
\
\
\
\

2 x Cinch

cording to DIN 45325

[
\

TP 160 C silver TP 160 C silver

VGA-monitor cable

[
[

100 x 100

[
[[

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 15V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

\
\
\

CVBS in-/output

\

Hosiden

3x Cinch socket in

\
\

VGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

VGA-monitor cable

[
[

100 x 100

[

CVBS in-/output, RGB input CVBS in-/output, RGB input

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 15V- / 5A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

\\
\
\

CVBS in-/output

\

Hosiden

3x Cinch socket in

\
\

VGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

TP 160 C black TP 160 C silver

\
[
[

100 x 100

[
[[

1 x Coaxial-socket for TV-tuner-in, ac-

AC/DC-Adaptor 12V- / 4A, power cord

(non grounded) lengthmin. 1,5m

Prepared for VESA standard adaptor

\
\

\
\

Hosiden

3x Cinch socket in

\
\

Multisync XGA

\
\
\
\

3.5mm jack
2 x Cinch

cording to DIN 45325

[
\

\
[
\

75 x 75

\

1 - 6

Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung.

Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, deren Materialnummer Sie in der entsprechenden Ersatzteilliste finden.

1 - 7

Chassis L5C-14"…20"GRUNDIG Service

1 - 8

Chassis L5C-14"…20"GRUNDIG Service

Operating Hints This chapter contains excerpts from the operating instructions.

For further particulars please refer to the appropriate user instructions the part number of which is indicated in the relevant spare parts list.

1 - 9

1 - 9

Chassis L5C-14"…20"GRUNDIG Service

Chassis L5C-14"…20"GRUNDIG Service

1 - 10

Chassis L5C-14"…20"GRUNDIG Service

Chassis L5C-14"…20"GRUNDIG Service

g

g

AMIRA 17GRUNDIG Service

Service- und Sonderfunktionen

Tastenfunktionen

i
OK
P+/P–

ǸǸ

ǸǸ

TXT

Service-Mode aktivieren

– Taste "
– Zahlenfolge "8500" eingeben. Auf dem Bildschirm wird das

– Service Menüs "ADJUSTMENTS" und "SELECTIONS" mit der

Service-Mode beenden

– Taste "

1. Grundeinstellwerte

Die Grundeinstellwerte im Service Mode sind in der Tabelle enthal­ten.

Aufrufen des Dialog Centers
Aufrufen der Service Menüs
Menü-Zeile (Menüpunkt) wählen

/ Ƿ Wert ändern

Beenden des Service Mode

i

" (INFO-Menü) drücken.

Service Menü "OPTIONS" und der Softwarestand angezeigt.

OK

Taste "

Service

Menü
Menu

OK

" nacheinander aufrufen.

TXT

" drücken.

Menüpunkt

Point of Menu

P+ / P–

SCART 2
FAV
SVHS

HOTEL MODE

STBY RECALL

RECALL LAST AV

OPTIONS

MSP CARRIER MUTE

WSS RF

AUTO AV 16:9

FIRST ATS
BACKLIGHT POL

FACTORY MODE

WHITE R
WHITE G
WHITE B
BRI
CON
COL
PRESCALE FM
PRESCALE NICAM
PRESCALE SCART

ADJUSTMENTS

HOTEL VOLUME
AGC
FACTORY RESET
SW DOWNLOAD

Einstellung
Adjustment

Ǹ

/

Ƿ

Scart 2 Buchse / Socket
Front-AV-Buchsen / Sockets
S-VHS-Buchse / Socket

Das Menü "SUCHEN / ABSTIMMUNG" ist nicht mehr aufrufbar. Die
maximale Lautstärke ist begrenzt (siehe Service-Menü "ADJUST­MENTS" – "HOTEL VOLUME").
The "SETUP" Menu is not accessible. The maximum adjustable volume
value is limited (see service menu "ADJUSTMENTS" – "HOTEL VOLU­ME").

OFF: Netz-Ein –> Standby / Power on –> standby
ON: Netz-Ein –> Pro

OFF: Netz-Ein –> Programm 1 / Power on –> Programme 1
ON: Netz-Ein –> zuletzt gesehenes AV-Programm / Power on –> last
used AV programme

Bei schlechtem Eingangs-Signal mutet der Sound-Prozessor MSP.
The Sound Processor MSP will mute the sound automatically if the si­gnal quality is bad.

Automatische Bild-Formatumschaltung auf 16:9 bei Empfang des
"WSS"-Signales.
Automatic picture format switching to 16:9 during "WSS" signal recepti­on.

Schaltspannung an Pin 8 der AV-Buchse schaltet automatisch auf das
Bild-Format 16:9.
Voltage at pin 8 of AV socket, picture format is switching to 16:9.

Beim nächsten Einschalten startet das Gerät mit ATS-Suchlauf.
Intensität der Hinter

Service-Mode ist mit der Taste "SCAN" direkt aufrufbar.
Service mode was accessible by pressing button "SCAN".

Weißabgleich – Rot / White adjustement – red
Weißabgleich – Grün / White adjustement – green
Weißabgleich – Blau / White adjustement – blue
Grundeinstellwert für Helligkeit / Basic setting value for Brightness
Grundeinstellwert für Kontrast / Basic setting value for Contrast
Grundeinstellwert für Farbe / Basic setting value for Color
Grundlautstärke für FM-Ton / Basic setting value for FM sound
Grundlautstärke für NICAM-Ton / Basic setting value for NICAM sound1940
Grundlautstärke für SCART-Ton / Basic setting value for SCART sound
Maximale Lautstärke im Hotel-Mode / Hotel mode – volume maximum1630
AGC-Abgleich / AGC adjustment
Grundwerte werden geladen / Loading basic values
Software Download

rundbeleuchtung / Intensity of backlight

ramm 1 / Programme 1

Hinweis

Hint

Service and Special Functions

Functions of the buttons

i
OK
P+/P–

ǸǸ

ǸǸ

TXT

Calling up the Service Mode

– Press button "
– Enter the code number "8500". The Service Menu "OPTIONS"

– Step by step call up the Service Menu "ADJUSTMENTS" and

Exit the Service Mode

– Press button "

1. Basic Settings

The table shows all basic specific settings in the service mode.

Call up the Dialog Center
Call up the Service Menus
Call up the dialogue line (point of menu)

/ Ƿ Changing the settings

Exit the Service Mode

i

" (INFO Menu).

and the software version number are shown on the screen.

OK

"SELECTIONS" with the button "

TXT

".

Amira 15

LCD 38-6605 BS

OFFONONONON

ON

ON

OFF

OFFONOFF

OFF

OFF

OFF

OFF

ONONON

ON

ON

ON

ON

OFFONOFF

OFF

ON

ON

OFF

OFFONOFF

128

128

128

128
128

128

130

130

158

158

128

128

19

" .

Amira 17

LW 45-6605 BS

Amira 20

LCD 51-6605 BS

ON

OFF

OFF

ON

128
128
128
130
158
128

194019

40

163016

30

19 19

Davio 20

LCD 51-4505 TOP

Lenaro 20

LCD 51-7606 TOP

Monaco 20

ON

128
128
128
130
158
128

40

30

LCD 51-9622 DL

ON

ON

OFFONOFF

OFF

OFF

OFF

OFF

ONONON

ON

ON

OFFONOFF

ON

OFFONOFF

128

128

128

128

128

128

130

130

158

158

128

128

194019

40

163016

30

ONONONONONONON

ON

OFFONOFF

OFF

OFF

OFF

OFF

ONONON

ON

OFFONOFF

ON

OFFONOFF

128
128
128
130
158
128

194019

163016

19 19 19 19 19

Vision 20

LCD 51-8610 TOP

OFF

ON
ON

OFF

OFF

OFF

ON

ON

ON

OFF

ON

OFF

128
128
128
130
158
128

Xephia 15

19
40
16
30

LCD 38-5501 TOP

1 - 11

1 - 11

Chassis L5C-14"…20"GRUNDIG Service

(

)

AMIRA 17GRUNDIG Service

Service

Menü
Menu

OK

SELECTIONS

Menüpunkt

Point of Menu

P+ / P–

TUNER TYPE

TELETEXT

TIMER MODE

MSP CLIP

SWAP/ZAPP

DOLBY VIRTUAL
LTI
CTI

Einstellung
Adjustment

Ǹ

/

Ƿ

SS_TECC2949
TH_CTF554X
FAST&TOP
FAST
NO TEXT
OFF TIMER
SLEEP TIMER
REDUCE VOL
REDUCE TONE
COMPROMISE
DYNAMIC
ZAPP
SWAP

Eingebauten Tuner wählen
Select used tuner

FAST & TOP-Text X
FAST-Text

Fester Ausschaltzeitpunkt / Fixed switch off timer
Ausschaltzeitpunkt in 15…120 Minuten / sleep timer

MSP Sound-Optionen / Sound options MSP

2. Austausch der Hauptplatte oder des U201

Nach dem Austausch der Hauptplatte oder des U201 sind Grund­einstellwerte im Service Mode entsprechend der Tabelle einzustel­len.

3. Software-Versionsnummer

Die Software-Versionsnummer wird oben im Service-Menü ange­zeigt, z.B.:

L5CGNA_V1.38 - 14.04.2006

SLC 20G-SH01-T 38 -S 6

VCTI V 8 1

PVCS V 38

4. Programmsuchlauf

i

– Taste "
– "SUCHEN / ABSTIMMUNG" mit den Tasten

– "PROGRAMMSUCHLAUF" mit den Tasten

– Gewünschtes Land mit den Tasten

" (INFO-Menü) drücken.

und mit der Taste "

mit der Taste "

MENU

MENU

" bestätigen.

" bestätigen.

P+ / P–

P+ / P–

P+ / P–

, Ǹ / Ƿ auswählen und

anwählen

anwählen und

mit der Taste "OK" bestätigen.
Das automatische Sendersuchsystem stoppt bei jedem emp­fangswürdigen Sender (AFC und Koinzidenz) und speichert auto­matisch die entsprechenden Senderdaten mit dem jeweiligen
Standard. Danach wird der Suchlauf fortgesetzt.

Zum Abbrechen des Suchlaufes die blaue Taste drücken.

Hinweis

Hint

Amira 15

LCD 38-6605 BS

Amira 17

LW 45-6605 BS

Amira 20

LCD 51-6605 BS

Davio 20

LCD 51-4505 TOP

Lenaro 20

LCD 51-7606 TOP

Monaco 20

LCD 51-9622 DL

Vision 20

LCD 51-8610 TOP

Xephia 15

15…120 minutes

XX

X

XX

X

XX

XXX

OFF

OFF

OFF

OFF

OFF

OFF OFF

XXXXX

XX

XX

XXXX

OFF

OFF

OFF

OFF
OFF OFF

OFF
OFF

XX

XX

ONONOFF

ON ON

ON

X

X

X

OFF
OFF
OFF

2. Change of the Main Board or U201

After changing the Main Board or U201 all basic settings in the ser­vice mode must be done according to the table.

3. Software Version Number

The software version number is shown on the upper part of the ser­vice menu, e.g.:

L5CGNA_V1.38 - 14.04.2006

SLC 20G-SH01-T 38 -S 6

VCTI V 8 1

PVCS V 38

4. Programme Search

i

– Press button "
– Select "SETUP" with the buttons

"

MENU

".

– Select "STATION SEARCH" with the buttons

with button "

– Select the required Country with the buttons

" (INFO Menu).

MENU

".

P+ / P–

and confirm with button

P+ / P–

P+ / P–

and confirm

, Ǹ / Ƿ and

confirm with button "OK".
The autoprogrammes system stops at every station of acceptable
reception quality (AFC and coincidence) and stores the station
data and the respective standard automatically. The system then
continues searching.

Pressing the blue button stops the programme search.

LCD 38-5501 TOP

1 - 12

1 - 12

U604

SI9933

MOSFET

POWER

SWITCH

U603

LM1117

2 1

12V 15"-17"
15V 20"

S601

INV_POW

AMP_POW

S600

F600

FUSE 5A

U600 MP1593

STEP DOWN

CONVERTOR

U601

LM1117

1.8V STBY

3.3V STBY

5V_STBY

VOLTAGE
DOUBLER

33V

For Tuner

PNL_EN

STBY

U606

LM1117

U605

MC78L08

8V

PANEL POWER

5V

3.3V

HEADPHONE

AMPL.TDA1308

AUDIO AMPL.

MAX9704

MULTISYSTEM

TUNER

SAW

FILTER

IF INPUT

SC1-AUDIO-OUT
SC2-AUDIO-OUT

SC1 AUDIO-IN

SC2 AUDIO-IN

RGB-IN

SC1-CVBS-IN

SC2-CVBS-IN

SVHS-C/Y IN

RCA-CVBS-IN

SC1-CVBS-OUT

SC2-CVBS-OUT

VCTI IC

PSS DIP88

U303

VCT-RGB-OUT

VS-VCT

HS-VCT

SUBWOOF.

SUBWOOFER AMP.

MP7731

SUBWOOFER

SPEAKER

RESET Q

L/R OUT

MUTE

HEADPHONE
JACK

SPEAKERS

SCART 1

SCART 2

CVBS

RCA-IN

SVHS IN

EEPROM

24LC02

VGA

SOCKET

MEMORY

CARD

RGB-DSUB

HS/VS-DSUB

RGB-SD

HS/VS-SD

RGB
SWITCH
PI3V512

PC-SD-SW

RGB-SW

HS/VS-SW

2nd RGB
SWITCH
PI3V512

S1-MAIN-SW

RGB-G

HS/VS-G

RGB-G

HS/VS-G

AUDIO-R/L

MEMORY CARD

AUDIO-R/L-RCA

CD4053

AUDIO

SWITCH

MEMORY CARD

RCA SWITCH

CD4053

AUDIO

SWITCH

AUDIO-R/L-SC2

MR-R/L

RCA-S2­SWITCH

Ain1R

Ain1L

LANOITPO

LANOITPO

OPTIONAL

OPTIONAL

U200

GM2221
GM5221

GENESIS

LCD TV

CONTROLLER

RESET Q

KEYBOARD

IR INPUT

U201 EEPROM

24LC16

U203

SERIAL FLASH

25VF040

SCART1 PIN 8

SCART2 PIN 8

STANDBY

STANDBY 2

24 BIT RGB OUTPUT

TO LVDS INTERFACE

HS/VS

PANEL CTRL

DISPLAY

DE

CLOCK

PANEL EN

LED

LED 2

S1-MAIN-SW

PC-SD-SW

MEMORY CARD-RCA SW

RCA-S2-SW

BACKLIGHT-EN

BRT-ADJ.

PANEL PWR

BACK LIGHT

CONNECTOR

MUTE

S202 SW

UPDATE CONN.

UART RX/TX

GRUNDIG Service Chassis L5C–14"…20"

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

Blockschaltplan / Block Circuit Diagram

2 - 1

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte / Main Board QW1190-3

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

C200 136 99
C201 137 95
C202 140 99
C203 143 99
C204 153 95

C205 161 99
C206 151 95
C207 131 91
C208 142 95
C209 158 89

C210 155 95
C211 161 101
C212 134 99
C213 120 127
C214 120 125

C215 161 139
C216 113 107
C217 120 117
C218 120 123
C219 153 138

C220 174 152
C221 120 119
C222 159 139
C223 105 129
C224 113 104

C225 117 116
C226 117 118
C227 168 99
C228 138 87
C229 119 130

C230 161 143
C231 107 129
C232 113 125
C233 134 91
C234 135 95

C235 164 101
C236 164 99
C237 139 95
C238 138 99
C239 120 116

C241 55 155
C242 163 143
C243 156 89
C244 113 123
C245 136 87

C246 136 91
C247 152 90
C248 167 151
C249 112 130
C250 143 90

C251 164 103
C252 161 103
C253 111 125
C254 62 157
C255 35 149

C256 109 125
C300 83 73
C301 103 73
C302 42 146
C303 83 107

C304 80 73
C305 88 51
C306 80 70
C307 73 106
C308 51 84

C309 53 75
C310 72 72
C311 33 98
C312 30 98
C313 77 107

C314 56 138
C315 49 142
C316 42 130
C317 35 74
C318 18 133

C319 18 139
C320 18 142
C321 23 143
C322 56 104
C323 15 84

C324 19 91
C325 25 109
C326 82 41
C327 119 50
C329 101 73

C330 31 72
C331 33 75

C332 86 13
C333 17 111
C334 28 123
C335 115 88
C336 114 67

C337 99 61
C338 109 107
C339 81 107
C340 87 107
C341 98 56

C342 107 57
C343 24 136
C344 96 119
C345 82 120
C346 85 60

C347 24 87
C348 78 113
C349 83 20
C350 75 54
C351 90 20

C352 84 46
C353 76 24
C354 74 120
C355 76 16
C356 57 69

C357 77 45
C358 86 113
C359 40 94
C360 62 135
C361 43 121

C362 36 121
C363 108 66
C364 22 116
C365 39 102
C366 24 97

C367 21 104
C368 37 133
C369 37 140
C370 61 142
C371 108 62

C372 30 129
C373 33 142
C374 70 65
C375 70 67
C376 14 131

C377 14 126
C378 18 124
C379 15 102
C380 15 119
C381 28 118

C382 15 75
C383 15 73
C384 49 97
C385 117 45
C386 19 100

C387 37 127
C388 18 67
C389 15 71
C390 69 74
C391 30 11

C392 67 74
C393 13 11
C394 44 132
C395 45 147
C396 52 132

C397 56 142
C398 18 130
C399 22 124
C400 19 79
C401 19 77

C402 88 13
C403 44 11
C404 58 11
C405 52 134
C406 47 134

C407 51 142
C408 53 138
C409 47 72
C410 38 69
C411 51 79

C412 68 113
C413 91 67
C414 91 71
C417 18 128
C418 22 126

C419 15 80
C420 19 75

C421 40 11
C422 55 11
C441 24 71
C442 24 79
C443 30 93

C444 39 86
C446 153 9
C447 122 31
C448 136 34
C449 119 69

C450 123 70
C451 123 68
C452 122 34
C453 122 36
C454 136 25

C455 136 28
C456 126 82
C457 136 80
C458 136 78
C459 136 76

C460 136 74
C461 136 71
C462 136 69
C463 136 67
C464 119 23

C465 134 87
C466 134 84
C500 87 144
C501 70 141
C502 70 161

C503 70 138
C504 85 161
C505 163 40
C506 166 36
C507 70 133

C508 87 138
C509 162 30
C510 181 30
C511 67 158
C512 69 164

C513 70 159
C514 73 161
C515 73 159
C516 81 159
C517 81 161

C518 85 159
C519 88 161
C520 88 159
C521 76 137
C522 77 133

C523 80 133
C524 79 137
C525 81 137
C526 83 133
C527 177 6

C528 171 2
C529 165 6
C530 75 133
C531 85 133
C532 73 137

C533 160 36
C534 156 40
C535 174 25
C536 169 25
C537 183 21

C538 159 21
C539 177 18
C540 170 18
C541 168 45
C600 180 80

C601 180 78
C602 167 78
C603 180 60
C604 185 40
C605 167 51

C606 164 51
C607 160 51
C608 156 51
C609 122 54
C610 137 64

C611 166 57
C612 163 57
C613 159 57
C614 155 57
C615 174 111

C616 167 90
C617 98 140

C618 95 128
C619 65 74
C620 53 73
C621 103 140
C622 103 129

C623 59 130
C624 71 106
C625 180 74
C626 166 70
C627 110 28

C628 175 54
C629 177 42
C630 133 44
C631 177 115
C632 172 92

C633 65 69
C634 68 126
C635 59 108
C636 180 76
C637 156 72

C638 170 80
C639 143 61

D200 10 115
D201 11 103
D300 155 47
D301 114 54
D302 45 104

D400 154 13
D401 125 19
D402 143 9
D403 129 19
D404 143 13

D405 133 19
D500 179 22
D501 164 22
D502 174 22
D503 169 22

D504 174 13
D505 168 13
D600 167 54
D601 163 54
D602 159 54

D603 155 54
D608 165 74

F600 100 29

J200 151 138
J201 150 142
J202 149 138
J203 148 142
J204 146 138

J205 145 142
J206 144 138
J207 143 142
J208 142 138
J209 141 142

J210 140 138
J211 138 142
J212 137 138
J213 136 142
J214 135 138

J215 134 142
J216 133 138
J217 132 142
J218 130 138
J219 129 142

J220 128 138
J221 127 142
J222 126 138
J223 125 142
J224 119 61

J225 129 61
J226 57 155
J227 95 107
J228 55 151
J231 122 99

J232 107 125
J233 90 132
J234 88 132
J235 117 123
J300 39 107

J301 35 90
J302 74 35
J303 82 25
J304 29 68
J305 110 107

J306 14 145

J307 87 5
J308 43 5
J309 29 5
J310 15 5

J311 57 5
J312 71 5
J313 80 67
J314 107 107
J315 114 99

J316 45 86
J400 129 28
J401 131 28
J402 133 28
J403 126 28

J404 142 27
J405 142 25
J406 124 28
J407 142 23
J408 142 19

J409 142 21
J500 91 155
J501 93 155
J502 89 155
J503 87 155

J600 95 134
J601 95 132
J602 95 130
JP200 105 147
JP201 31 159

JP202 83 125
JP203 84 125
JP300 153 27

L200 163 92
L201 172 152
L202 153 82
L203 138 91
L205 43 154

L300 103 65
L301 103 51
L302 91 119
L303 87 119
L304 90 54

L305 73 112
L306 90 49
L307 81 52
L308 69 119
L309 116 91

L310 91 112
L311 56 133
L312 41 77
L313 80 62
L314 81 55

L315 90 60
L316 45 82
L317 15 100
L318 15 66
L319 34 127

L321 15 69
L323 15 124
L324 15 121
L400 120 29
L500 66 139

L501 156 43
L502 70 146
L503 68 153
L504 75 155
L505 83 154

L506 179 13
L507 163 12
L600 153 63
L601 183 49
L602 148 46

L603 173 68
L605 27 144
L609 173 65

P400 124 11

Q200 122 64
Q201 126 64
Q202 58 151
Q203 52 155
Q204 52 150

Q205 11 107
Q206 11 111
Q207 97 111
Q300 87 28
Q301 36 114

Q302 101 111
Q303 19 155
Q304 14 92
Q305 31 82

Q306 31 88
Q307 23 153
Q308 19 87
Q309 19 146
Q310 114 59

Q311 117 84
Q312 114 72
Q313 107 72
Q314 48 91
Q600 105 134

R200 112 119
R201 104 125
R202 126 61
R203 130 64
R204 165 130

R205 160 129
R206 165 128
R207 160 127
R208 165 126
R209 160 125

R210 165 124
R211 160 123
R212 62 150
R213 165 122
R214 160 121

R215 165 121
R216 160 120
R217 165 119
R219 160 118
R220 165 117

R222 160 115
R223 49 155
R224 165 114
R225 160 113
R226 49 148

R227 166 139
R228 160 111
R229 160 131
R230 166 143
R231 164 139

R232 121 130
R233 123 61
R234 118 64
R235 120 111
R236 120 109

R237 133 95
R238 62 152
R239 58 147
R240 49 151
R241 55 147

R242 14 115
R243 15 117
R244 15 104
R245 15 106
R246 99 107

R247 123 95
R248 126 99
R249 127 95
R250 130 99
R251 129 95

R252 132 99
R253 120 114
R254 120 107
R255 101 107
R256 97 107

R257 113 116
R258 91 132
R260 124 92
R261 124 99
R262 125 95

R263 128 99
R264 129 91
R265 131 95
R273 121 92
R300 23 149

R301 19 84
R302 49 138
R303 86 33
R304 51 138
R305 88 33

R306 88 37
R307 86 37
R308 75 31

R309 73 31
R310 82 27
R311 75 38
R312 73 38

R313 32 115
R314 32 113
R315 28 113
R316 28 115
R317 33 102

R318 33 100
R319 38 110
R320 29 102
R321 29 100
R322 23 146

R323 14 147
R324 18 136
R325 117 50
R326 117 88
R327 114 65

R328 107 68
R329 115 50
R330 119 88
R331 114 69
R332 101 70

R333 19 82
R334 103 107
R335 30 78
R336 31 85
R337 92 107

R338 90 107
R339 93 13
R340 74 33
R341 33 68
R342 31 68

R343 40 110
R344 35 98
R345 18 122
R346 18 119
R347 114 84

R348 114 62
R351 19 151
R352 15 88
R353 14 129
R354 18 126

R355 15 78
R356 19 72
R357 107 75
R358 79 107
R359 34 81

R360 35 85
R361 19 149
R362 15 86
R363 14 152
R364 15 96

R365 14 133
R366 14 154
R367 14 139
R368 14 142
R369 14 149

R370 15 98
R371 83 13
R372 90 13
R373 71 11
R374 23 156

R375 26 151
R376 19 93
R377 19 95
R378 44 134
R379 45 145

R380 49 134
R381 53 142
R382 87 25
R383 47 86
R384 39 115

R385 33 72
R386 14 136
R387 15 82
R398 101 115
R399 21 68

R400 19 70
R401 27 11
R402 15 11
R403 143 5
R404 131 87

R405 131 84
R406 132 80
R407 132 78

R408 132 74
R409 132 71
R410 132 69
R411 132 67

R412 149 5
R413 147 5
R414 132 76
R415 122 19
R416 131 22

R417 136 20
R418 129 86
R419 129 83
R420 153 5
R421 156 5

R422 31 75
R500 160 40
R501 67 164
R502 76 160
R503 78 160

R504 88 163
R505 181 21
R506 161 21
R507 172 18
R508 166 18

R509 163 36
R510 175 18
R511 168 18
R512 166 40
R513 170 40

R600 184 77
R601 180 70
R602 99 129
R603 108 135
R604 101 129

R605 163 70
R606 153 51
R607 101 125
R608 180 72

RG200 138 154
RG201 134 154
RG202 146 154
RG203 142 154
RG204 127 148
RG205 123 148

S200 138 162
S201 145 149
S202 105 119
S203 50 161
S204 118 100

S300 31 135
S301 8 139
S303 8 80
S304 66 107
S400 146 29

S500 77 164
S501 171 6
S600 101 19
S601 104 8

SAW300 75 67

SW201 170 122

TU300 43 38
TU301 43 41
TU351 42 36

U200 139 118
U201 115 112
U203 170 142
U300 45 140
U301 80 34

U302 31 108
U303 83 90
U400 149 11
U401 129 28
U402 122 76

U500 171 31
U501 79 145
U600 173 76
U601 130 54
U603 177 104

U604 100 134
U605 61 75
U606 60 123

Y200 162 107
Y300 86 70

2 - 2

Hauptplatte / Main Board QW1190-3

Ansicht von der Bestückungsseite
View of Component Side

2 - 3

GRUNDIG Service Chassis L5C–14"…20"

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte / Main Board

QW1190-3

Vergrößerte Ansicht von der Bestückungsseite
Enlarged view of Component Side

2 - 4

GRUNDIG Service Chassis L5C–14"…20"

2 - 5

1

2

S600
MOLCON2

12V

C627
470U25V

3.3uH

L600

S601

CONN-POWER

GND

GND

C602
100N

GND

F600

FUSE 5A

C638

22N

GND

C600

100N

C601

100N

GND

GND

GND

R600

10K

GND

C637
470U25V

GND

C626
10N

D608

MBRS130LTR

R605

100R

C628
1000U16V

C603
100N

3.3uH

L601

C629
1000U16V

C604
100N

C625

10N

C636

1N5

GND

5V_STBY

GND

GND GND GND GND

TUNER_SU

10uH

L603

BS

1

VIN

2

OUT

3

GND

4

FB

5

COMP

6

EN

7

SS

8

U600

MP1593

C611

100N

C605

220N

R603

10K

J600

0R
J601

0R
J602

0R

R602
10K

Q600
BC848B

C618
100N

GND

GND

5V_STBY

3V3_STBY

12V

C609
100N

C610
100N

C630
100U16V

C639
470U16V

IN

3

1

OUT

2

ADJ

U601 LM1117 3V3

5V_STBY 3V3_STBY

GND

GND GND

GND

GND

S1

1

G1

2

S2

3

G2

4

D1

8

D1

7

D2

6

D2

5

U604

SI9933ADY

C622
100N

GND

R604
10K

C617
100N

GND

GND

5V

C621
100N

C615
100N

C616
100N

C631
100U16V

IN

3

1

OUT

2

ADJ

U603 LM1117 3V3

5V_STBY 1V8_STBY

GND

GND

GNDGND GND

C632
100U16V

C619
100N

C633
100U16V

C620
100N

12V

8V

GND GND GND

GND

C623
100N

C624
100N

C634
100U16V

5V

3V3

GND

GND GNDGND

GND

C635
100U16V

1K

R607

GND

TUNER_SU

1K

R606

REGULATORS

12V INPUT

33V

33V

47,5V

PANELPWR

PANELPWR

PNL_EN

PNL_EN

STBY

STBY

5V_STBY

1 2

3

D600
BAV99L

1 2

3

D601
BAV99L

1 2

3

D602
BAV99L

1 2

3

D603
BAV99L

C606

220N

C607

220N

C608

220N

C612

220N

C613

220N

C614

220N

IN

3

2

OUT

1

GND

U605

MC78L08CP

12V INV_POW

4.7uH

L605

IN

3

1

OUT

2

ADJ

U606 LM1117 3V3

R601

18K

R608

33K

4.7uH

L602

12V

AMP_POW

L609

10uH - CDRH104R

1

AGC

1

TU

2

ADD

3

SCL

4

SDA

5

NC

6

VCC+5V

7

NC/ADC

8

VST

9

IF2/NC

10

IF1

11

TU300

ENV57K##08G3F

AGC

1

TU

2

AS

3

SCL

4

SDA

5

NC

6

VCC+5V

7

NC/ADC

8

VST

9

NC

10

IF1

11

TU301

DTQS441IH241C

C374

1N

C375

1N

L313 1uH

X6966D

1

2

3

4

5

SAW300

IF1

IF2

GND

C331
10N

C330
10N

R385

5K1

GND GND

33V

2,4V

R341

100R

R342

100R

J304

0R

GND

J313

0R

D300

GND

33V

33V

C409
10U25V

IFIN-

IFIN+

AGC

SDA5V

SCL5V

GND

5V

L312

coilrad10

C410
100U10V

C317
100N

GND

GND

AGC

1

TU

2

AS

3

SCL

4

SDA

5

UB

6

VCC+5V

7

NC

8

VT

9

IF2

10

IF1

11

TU351

CTF5540

8

4

3

1

3

4

8

MP1593

3A, 28V, 385KHz
STEP-DOWN CONVERTER

LOCKOUT

COMPARATOR

ERROR

AMPLIFIER

FREQUENCY

FOLDBACK

COMPARATOR

INTERNAL

REGULATORS

1.8V

SLOPE
COMP

CLK

CURRENT

COMPARATOR

CURRENT

SENSE

AMPLIFIER

SHUTDOWN

COMPARATOR

SS

8

COMP

6

IN

2

EN

7

GND

4

OSCILLATOR

40/385KHz

SRQ

SW

3

BS

M1

M2

1

5V

+

Q

0.7V

+

+

2.3V/

2.6V
+

1.22V0.7V

+

+

FB

5

--

--

--

--

--

--

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Netzteil / Main Board – Power Supply QW1190-3

Hauptplatte / Main Board – Tuner QW1190-3

2 - 6

GND

1

VSUP8.0AU

2

VREFAU

3

SPEAKERL

4

SPEAKERR

5

AOUT1L

6

AOUT1R

7

AIN3L/AOUT2L

8

AIN3R/AOUT2R

9

AIN2L

10

AIN2R

11

AIN1L

12

SIF/AIN1R

13

TAGC

14

VREFIF

15

IFIN-

16

IFIN+

17

RESETQ

18

VSUP5.0FE

19

VSUP5.0IF

20

VSUP3.3DIG

21

GND

22

GND

23

VSUP1.8DIG

24

XTAL1

25

XTAL2

26

P22

27

P23

28

VIN11

29

VIN10

30

VIN9

31

VIN8

32

VIN7

33

VIN6

34

VIN5

35

VIN4

36

VIN3

37

VIN2

38

VIN1

39

VOUT1

40

VOUT2

41

VOUT3

42

VSUP1.8FE

43

GND

44

GND

45

VSUP3.3VFE

46

P10

47

P11

48

P12

49

P13

50

P14

51

P15

52

P16

53

P17

54

P20

55

P21

56

SCL

57

SDA

58

VPROT

59

HOUT

60

HFLB

61

SAFETY

62

GNDDAC

63

VSUP3.3DAC

64

VSUP3.3IO

65

GND

66

GND

67

VSUP3.3BE

68

XREF

69

VRD

70

BOUT

71

GOUT

72

ROUT

73

SVMOUT

74

BIN

75

GIN

76

RIN

77

FBIN

78

GNDM

79

SENSE

80

RSW1

81

RSW2

82

EW

83

VERT-

84

VERT+

85

TEST/SUBW

86

VSUP5.0BE

87

GND

88

U303

VCT-IF PSSDIP88(2)

VDD1V8D1V8_STBY

1V8_STBY VDD1V8FE

3V3_STBY VDD3V3FE

3V3_STBY VDD3V3IO

3V3

3V3

VDD3V3D

VDD3V3BE

5V VDD5VFE

5V VDD5VIF

5V VDD5VBE

3V3 VDD3V3DAC

C308
100N

C411

3.3U50V

1K

R358

GND

GND

1 2

Y300

20.25MHz

C413
22P

C414
22P

GND

GND
GND

GND

GND

GND GND

GND

GND

L300

10uH

L301

10uH

L310

10uH

L302

10uH

L303

10uH

L304

10uH

L306

10uH

L305

10uH

L307

10uH

L308

10uH

C341
10U25V

C300
100N

C337
470P

GND

VDD1V8D

C342
10U25V

C301
100N

C371
1N

GND

VDD1V8FE

C344
10U25V

C338
470P

GND

VDD3V3FE

C345
10U25V

C303
100N

GND

VDD3V3IO

GND

GND

GND

GND

GND

C346
10U25V

C304
100N

VDD3V3D

C348
10U25V

C339
470P

VDD3V3BE

C305
100N

VDD5VFE

C350
10U25V

C306
100N

VDD5VIF

C354
10U25V

C307
100N

8V

C358
10U25V

C340
470P

GND

VDD3V3DAC

C310
100N

GND

VCT-IF

AO_R

1

AIN_R

2

AO_LM

3

AGND

4

B_GND

5

AIN_L

6

B

7

SWTCH

8

G_GND

9

CLKOUT

10

G

11

DATA

12

R_GND

13

D_GND

14

R

15

BLNK

16

V_GND

17

BL_GND

18

VOUT

19

VIN

20

SHIELD

21

S301

SCART1

AO_R

1

AIN_R

2

AO_LM

3

AGND

4

B_GND

5

AIN_L

6

B

7

SWTCH

8

G_GND

9

CLKOUT

10

G

11

DATA

12

R_GND

13

D_GND

14

R

15

BLNK

16

V_GND

17

BL_GND

18

VOUT

19

VIN

20

SHIELD

21

S303

SCART2

GND

SC1_OUT_R

SC1_IN_R

SC1_OUT_L

GND

GND

SC1_IN_L

SC1_BLUE

SC1_GREEN

SC1_RED

R324
10K

GND

GND

GND

GND

GND

GND

SC1_CVBS_OUT

R366
75R

GND

SC1_CVBS_IN

R345

100R

R346

100R

C334

22U50V

C333

22U50V

C378
1N

C380
1N

C379
1N

C381
1N

GND

GNDGND

GND

SC1_OUT_L

SC1_OUT_R

AOUT1L

AOUT1R

AOUT1R

AOUT1L

C377
1N

R354

470R

C418
330P

C399

220N

C376
1N

R353

470R

C417
330P

C398

220N

GND

GND

GND

GND

SC1_IN_L

R2NI

AR_NI_1C

S

AIN2L

AIN2L
AIN2R

SPEAKERL
SPEAKERR

RIN

GIN

BIN

C332
100N

C402

100N

SVHS_C
SVHS_Y

1

2

J312

RCA VIDEO

GND

R373
75R

2341

4

3

2

1

J307

CONN-DIN4

GND

GND

R371
75R

R372
75R

GND

GND

SVHS_C

SVHS_Y

GND

C329

100N

RCA_CVBS

RCA_CVBS

GND

GND
GND

GND
GND

GND

GND
GND

R370
75R

GND

SC2_CVBS_IN
SC2_CVBS_OUT

SC2_IN_L

SC2_IN_R
SC2_OUT_R

SC2_OUT_L

R333
10K

GND

SC1_PIN8

SC1_FBL

FBLIN

SC1_CVBS_IN
SC2_CVBS_IN

AIN1L
AIN1R

AOUT2L
AOUT2R

C383
1N

R356

470R

C420
330P

C401

220N

C382
1N

R355

470R

C419
330P

C400

220N

GND

GND

GND GND

SC2_IN_L

SC2_IN_R

1

2

J308

RCA VIDEO

1

2

J311
RCA VIDEO

GND

C421
330P

C422
330P

C403

220N

C404

220N

RCA_LEFT

RCA_RIGHT

VOUT1
VOUT2

SC2_I_L

SC2_I_R

C444

47U16V

C392
1N

C393
1N

R402

330R

1K

R360

Q306
BC858B

R336

3K3

C442

47U16V

R400

330R

C389
1N

1

2

J310

RCA VIDEO

GND

GND

GND

GND

8V

GND

AOUT2L

SC2_OUT_L

C443

47U16V

C390
1N

C391
1N

R401

330R

1K

R359

Q305
BC858B

R335

3K3

C441

47U16V

R399

330R

C388
1N

1

2

J309

RCA VIDEO

GND

GNDGND

GND

8V

GND

AOUT2R

SC2_OUT_R

GND

UART_RX

UART_RX

VS_VCT

HS_VCT

C313
100N

C412

4.7U50V

GND GND

VDD5VBE

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

5V

VDD5VAUD

L311

10uH

GND

C314
100N

C360
10U25V

R386
15K

SDA3V3
SCL3V3

SC2_PIN8

R387
15K

UART_TX

R337
3K3

R338
3K3

3V3_STBY

VIDEO I/O

CLKOUT

DATA

UART_TX

UART_RX

HS_VCT

VS_VCT

RESETQ

RESETQ

BLUE

GREEN

RED

BLUE_VCT GREEN_VCT RED_VCT

SUBWOOFER

SUBWOOFER

DATA

CLKOUT

R422
6K8

VDD5VFE

175mA

225mA

48mA

11mA

95mA

25mA

65mA

18mA

26mA

150mA

SPEAKERL
SPEAKERR

C316

100N

C322

100N

C356

10U25V

C309
100N

GND GND

GND

Q311
BC858ALT1

Q310
BC848

8V

GND

C327
100N

R325

22R
R329

2K7

12

3

D301
BAV99L

R326
33R

C335
560P

BLUE

R330
150R

5V

5V

R347
270R

GND

Q312
BC858ALT1

R327
33R

C336
560P

GREEN

R331
150R

5V

R348
270R

GND

Q313
BC858ALT1

R328
33R

C363
560P

RED

R332
150R

5V

R357
270R

GND

SC1_PIN8

SC2_PIN8

J3140R
J3150R

J305

0R

GND

12V 12V-A

C359
10U25V

GND

C311
100N

C312
100N

L316

10uH

125mA

Q314

BC337-16

R383

220R

J316

0R

C384
47U16V

GND

D302
BZX84C12 SOT23

GND

This circuit is used for 15V panels.
Otherwise the jumper is mounted.

C385
47U16V

GND

IFIN+

IFIN-

AGC

R363

75R

R374

150R

R375
150R

R351
470R

R300
10K

R361
18K

Q303
BC858B

Q307
BC848

5V

GND

GND

C343

10U25V

VOUT1

SC1_CVBS_OUT

C323
100N

R364

75R

R376

150R

R377
150R

R352
470R

R301
10K

R362
18K

Q304
BC858B

Q308
BC848

5V

GND

GND

SC2_CVBS_OUT

C324
100N

C347

10U25V

VOUT2

L309

8.2uH

R365
75R

R367
75R

R368
75R

R369
75R

C318

100N

C319

100N

C320

100N

SC1_BLUE

SC1_RED

SC1_GREEN

BIN

GIN

RIN

GND

GND

GND

GND

SC1_FBL

R323

10K

R322

10K

Q309
BC848

VDD3V3D

GND

C321
100N

GND

FBLIN

J306

0R

FBLINSC1_FBL

Optional

L317

10uH

L319

10uH

C386
47P

C387
47P

GND

GND

L318

10uH

L321

10uH

A connector for the
Light Sensor option.

L314 Ferrite Bead

L315

Ferrite Bead

L323

10uH

L324

10uH

1

2

3

4

5

6

7

JP300

MOLCON7

Option for Side AV

SVHS_C

SVHS_Y

GND

CVBS_AV
RIGHT_AV

GND

LEFT_AV

1

2

S304

CVBS_AV

LEFT_AV

RIGHT_AV

VDD5VBE

Q201
2N7002

Q200

2N7002

R233
3K3

R234
3K3

R202
10K

R203
10K

J224

0R

0R

J225

3V3_STBY

5V_STBY

SCL3V3

SDA3V3

SDA5V

SCL5V

SCL3V3

SDA3V3

SDA5V

SCL5V

26

2

10

11

9

5

7

3

4

5

6

6

13

12

Hauptplatte / Main Board – IN/OUT, VCT-IF QW1190-3

2

power on (trigger: +12V)

2

switch on with RC

3 4 5

6

7

9

0

!

@

#

§

XTAL1

IF

Frontend

Slicer

Video

Backend

IF

Processor

Sound

Demod.

Audio

Processor

Display

Generator

Bus

Arbiter

20k BX

RAM

256kB

ProgROM

Clock

Generator

Reset &

TestLogic

I2C

24kB

CharROM

TEST

RESETQ

XTAL2

I2C

Pxy

CVBS in

IFIN-

IFIN+

T

A

G

C

S

IF

YCrCb in

CVBS out

RGB in

AO

U

T

S

PE

A

K

E

R

RGB out

SVM

RGB in
SENSE

RSW

VERT
EW

HOUT

PROT

HFLB

Panorama

Scaler

Display

&
Deflection
Processor

Timer

CRT/PWM

ADC/UART

Watchdog

RTC

I/O-Ports

Memory

Interface

ADB, DB, PSENQ,

PSWEQ, WRQ, RDQ

CPU
8051

A

IN

Video

Frontend

Color

Decoder

Component

Interface

Comb

Filter

2 - 7

GRUNDIG Service Chassis L5C–14"…20"

GND

1 2

3

D404
BAV99L

1 2

3

D402
BAV99L

GND

GND

GND

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

U400

HT24LC02

1N4148

D400

5V_STBY

5V

5V

C446
100N

GND

R420
47K

R421
47K

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1617

P400

DB15HF

R412

100R

R413

100R

GND

1 2

3

D405
BAV99L

1 2

3

D401
BAV99L

1 2

3

D403
BAV99L

J402

0R

J401

0R

J400

0R

J406

0R

J403

0R

R417
75R

R415
75R

R416

75R

R408

47R

R406

47R

R410

47R

C462

10N

GND GND

5V

RED_DSUB RED_SW

GND

5V

GND

GREEN_SWGREEN_DSUB

GND

5V

GND

BLUE_DSUB BLUE_SW

R414

470R

C460

10N

C459

10N

C457

10N

R403

10K

VS_DSUB

HS_DSUB

R418

75R

R419

75R

R404
10K

R405
10K

GND

GND

HS_SW

VS_SW

C465
22P

C466
22P

GND

GND

R407

47R

R409

47R

R411

47R

GND

C458

10N

C461

10N

C463

10N

VDD

1

YA

2

GND

3

VDD

4

YB

5

YC

6

GND

7

YD

8

VDD

9

GND

10

YE

11

SEL

12

E1

13

E0

14

D1

15

C1

16

D0

17

C0

18

VDD

19

GND

20

B1

21

B0

22

A1

23

A0

24

U401

PI3V512

VDD

1

YA

2

GND

3

VDD

4

YB

5

YC

6

GND

7

YD

8

VDD

9

GND

10

YE

11

SEL

12

E1

13

E0

14

D1

15

C1

16

D0

17

C0

18

VDD

19

GND

20

B1

21

B0

22

A1

23

A0

24

U402

PI3V512

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

S400

5V_STBY

GND

AUDIO_R_SD
AUDIO_L_SD

BLUE_SD
GREEN_SD
RED_SD

HS_SD

VS_SD

GND

3V3

L400

10uH

3V3_RGB

C448
100N

GND

C464

10U25V

GND

3V3_RGB

GND

GND

GND

RED_SD

RED_DSUB

GREEN_SD

GREEN_DSUB

BLUE_SD

BLUE_DSUB
HS_SD

HS_DSUB

VS_SD

VS_DSUB

C447
100N

GND

VS_SW

C449
100N

C450

100N

C451

100N

GND

GND

GND

3V3_RGB

3V3_RGB

3V3_RGB

HS_SW

BLUE_SW
GREEN_SW

RED_SW

C456
100N

GND

C452

100N

C453

100N

C454

100N

C455

100N

GND GND GND GND

RED_SW

GREEN_SW

BLUE_SW

HS_SW

VS_SW

GND

GND

GND

GND

3V3_RGB

3V3_RGB

3V3_RGB

3V3_RGB

VS_G

HS_G

BLUE_G
GREEN_G

RED_G

VS_VCT

HS_VCT
BLUE_VCT

GREEN_VCT

RED_VCT

VS_G

HS_G

BLUE_G

GREEN_G

RED_G

TO GENESIS

RGB SWITCHES

EDID

VGA

2nd RGB Switch

AUDIO_R_SD
AUDIO_L_SD

DDC_SCL_VGA

DDC_SDA_VGA

DDC_SDA_VGA

DDC_SCL_VGA

VS_VCT

HS_VCT

BLUE_VCT

GREEN_VCT

RED_VCT

S1_MAIN_SW

S1_MAIN_SW

PC_SD_SW

PC_SD_SW

HS_PC

HS_PC

VS_PC

VS_PC

RED-

RED+

GREEN-

GREEN+

SOG_MCSS

BLUE+

BLUE-

BLUE+

BLUE-

SOG_MCSS

GREEN+

GREEN-

RED+

RED-

UART_TX
UART_RX

GND

J407

0R

J404

0R

J409

0R

J408

0R

J405

0R

WS_SVDS_SV

WS_SHDS_SH

RED_SD RED_SW

GREEN_SD GREEN_SW

BLUE_SD BLUE_SW

18

17

16

15

14

Hauptplatte – VGA-Eingang und RGB-Umschalter / Main Board – VGA Input and RGB Switches QW1190-3

$ % ^ * &

PI3V512

SEL

2

5

6

8

11

12

OUT_A

OUT_B

OUT_C

OUT_D

OUT_E

24

23

22

21

18

17

16

15

14

13

A0

A1

B0

B1

C0

D0

C1

D1

E0

E1

GRUNDIG Service Chassis L5C–14"…20"

2 - 8

2Y1

1

2Y0

2

3Y1

3

3Z

4

3Y0

5

E6VEE7GND

8

S3

9

S2

10

S1

11

1Y0

12

1Y1

13

1Z

14

2Z

15

VCC

16

U301

CD4053

GNDGNDGND

12V-A

C349

10U25V

C352

10U25V

R305

10K

R303

10K

12V-A

GND

R307

10K

R306

10K

12V-A

GND

GND
GND

R309

10K

R308

10K

12V-A

GND

R312

10K

R311

10K

12V-A

GND

C355

10U25V

C357

10U25V

C353

10U25V

C351

10U25V

R339

100R

R340

100R

R310

10K

12V-A

Q300
BC848B

GND

MR_R

MR_L

J302

0R

J303

0R

MR_L

MR_R

RCA_LEFT

2Y1

1

2Y0

2

3Y1

3

3Z

4

3Y0

5

E6VEE7GND

8

S3

9

S2

10

S1

11

1Y0

12

1Y1

13

1Z

14

2Z

15

VCC

16

U302

CD4053

GNDGNDGND

12V-A

C361

10U25V

C364

10U25V

R314

10K

R313

10K

12V-A

GND

MR_R

R316

10K

R315

10K

12V-A

GND

GND
GND

R318

10K

R317

10K

12V-A

GND

R321

10K

R320

10K

12V-A

GND

C366

10U25V

C367

10U25V

MR_L

C365

10U25V

C362

10U25V

R343

100R

R344

100R

R319

10K

12V-A

Q301
BC848B

GND

AIN1L

AIN1R

SC2_I_L

Optional

R382

4K7

R384

4K7

MEMCRD_RCA_S

RCA_S2_S

RCA_S2_S

C325
100N

C326
100N

GND

GND

SC2_I_R

RCA_RIGHT

RCA_LEFT

AUDIO_L_SD

AUDIO_L_SD

AUDIO_R_SD

AUDIO_R_SD

Optional

MEMCRD_RCA_S

J300

0R
J301

0R

MR_R

MR_L

AIN1R

AIN1L

C406
2N2

GND

R381

4K7

C407
2N2

C408
2N2

C397

220N

GND GND

C368

100U16V

C369

100U16V

C372
1N

C373
1N

GND

GND

1

2

3

S300

GND

SPEAKERL

GND

OUTA

1

INA(NEG)

2

INA(POS)

3

VSS

4

INB(POS)

5

INB(NEG)

6

OUTB

7

VDD

8

U300

TDA1308

GND

C315
100N

VDD5VAUD

C302
100N

GND

VDD5VAUD

R302

10K

R304
10K

C370
100U16V

GND

GND

C394
1N5

R378
5K6

C395
1N5

R379
5K6

R380

4K7

C405
2N2

C396

220N

GND

SPEAKERR

SPEAKERL

SPEAKERR

1
2
3
4
5
6
7
8
9
10
11
12

S203

MOLCON12

1

2

3

4

5

6

7

JP201

MOLCON7

GND

4.7uH

L205

C255
1000U16V

C254
22U50V

C241
100N

R238

470R

R212
10K

1K

R239

Q202
BC848B

GND

5V

GND

GND

J226

0R

BRT_ADJ

R223
10K

R226
10K

1K

R241

1K

R240

J228

0R

Q203
BC848B

Q204
BC848B

GND

5V

5V

GND

BKL_EN

INV_POW

BKL_EN

BRT_ADJ

0V

4,8V

14,6V

2

1

3

4

8

7

6

5

INA(neg)

TDA1308(A)

OUTA

V

SS

V

DD

INA(pos)

INB(neg)

INB(pos)

OUTB

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Audio-Umschalter / Main Board – Audio Switches QW1190-3

Hauptplatte – Kopfhörer / Main Board – Headphone QW1190-3

Hauptplatte – Inverter-Steuerung / Main Board – Inverter-Control QW1190-3

2 - 9

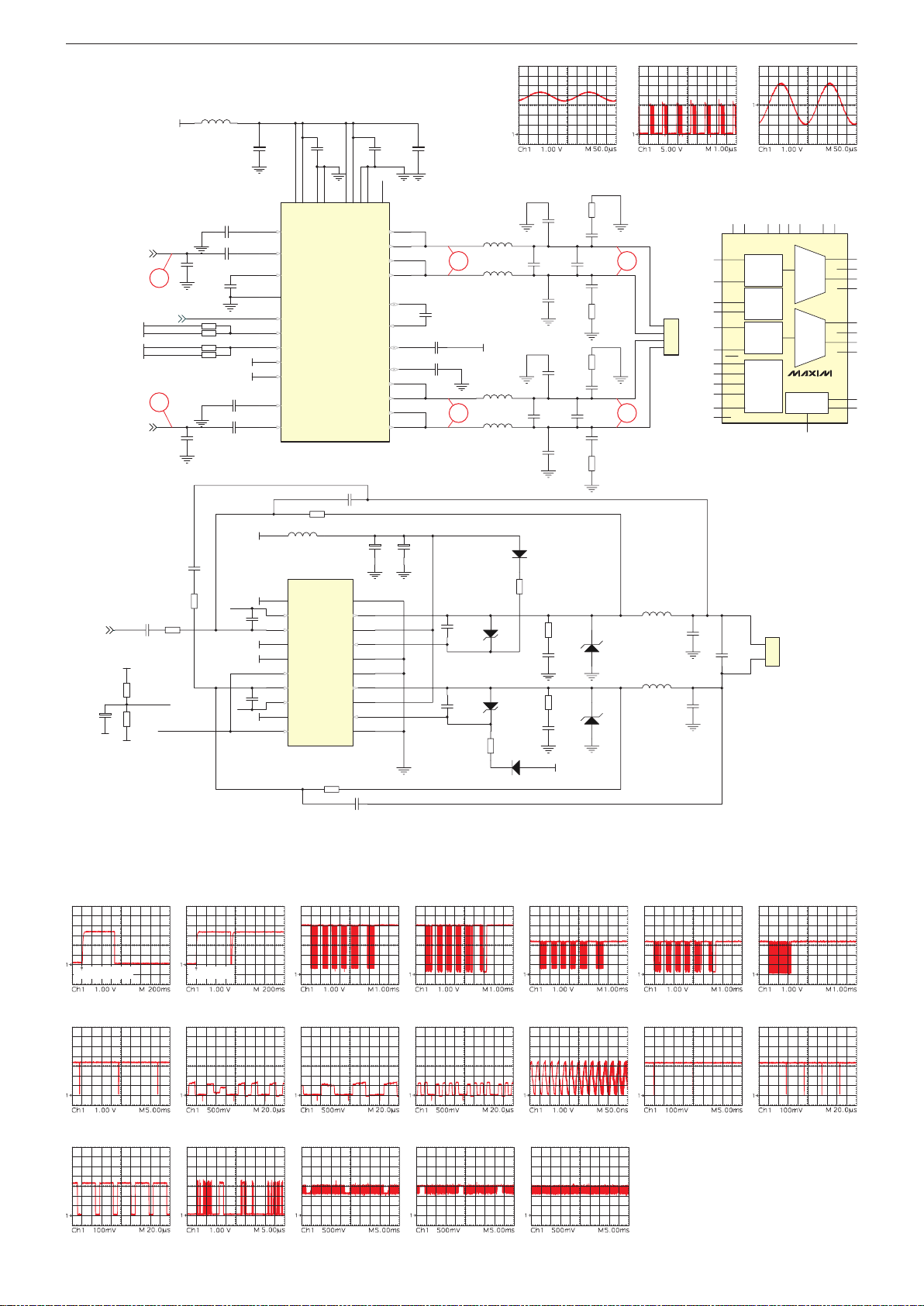

C503
100N

5V

C523
470N

C524

470N

C532

1UF25V

AUVDD

053516

L504

22UH

053516

L505

22UH

C518
22N

C516
22N

C520
22N

C504
100N

C517
22N

C519
22N

R504
100R

R503
100R

C513
22N

C511
22N

C515
22N

C502
100N

C512
22N

C514
22N

R502
100R

R501
100R

053516

L502

22UH

053516

L503

22UH

L500

BK1608HM601

12V

C500
100N

C501
100N

C507
100U50V

C508
100U50V

C521

470N

C522

470N

C525

470N

C526

470N

C530
100P

C531
100P

1
2
3
4

S500

MOLCON4

SPEAKERL

SPEAKERR

AMP_EN

AMP_EN

AUVDD

NC

1

PIN1

2

NIN1

3

AGND1

4

NC

5

EN1

6

NIN2

7

PIN2

8

AGND2

9

EN2

10

NC

11

BS2

12

VPP2

13

SW2

14

PGND2

15

NC

16

BS1

17

VPP1

18

SW1

19

PGND1

20

U500

MP7731

L501

BK1608HM601

AMP_POW

C535
1UF25V

C536
1UF25V

13

D502
BZX84C6V2

13

D503
BZX84C6V2

D501

IMBD4148

D500
IMBD4148

R507
20K

R508
20K

SUBVCC

C509
1000U25V

C510
1000U25V

R510
10R

SUBVCC

R511
10R

C539
390P

C540
390P

D504
MBRS130LTR

D505
MBRS130LTR

10uH

L506

10uH

L507

C527
470N

C529
470N

C537

15P

C538

15P

R505

150K

R506

150K

C528
470N

C534

1UF25V

C533
1UF25V

R509
180K

R500

10K

SUBWOOFER

AMP_EN

C506
2N2

C505
2N2

1

2

S501

MOLCON2

PGND1PGND

2

VDD3VDD

4

CIN

5

CIP

6

CHOLD

7

NC

8

INL-

9

INL+

10

SHDN

11

SS

12

AGND

13

REG

14

INR-

15

INR+

16

GAIN1

17

GAIN2

18

FS1

19

FS2

20

VDD21VDD

22

PGND23PGND

24

OUTR-

25

OUTR-

26

OUTR+

27

OUTR+

28

OUTL-

29

OUTL-

30

OUTL+

31

OUTL+

32

U501
MAX9704

5V

J500 0R
J501 0R

J502 0R
J503 0R

5V

5V

GND

GND

GND

GND

GND

GND

R513
100K %1

R512
100K %1

C541

CAP4.7U50V

GND

GND

AMP_POW

REF

REF

REF

26

27

27

28

28

26

• ≥ §

¡

)

6 4 3

5

*

%

£

only for LVDS interface

2

power on (trigger: +12V)

2

switch on with RC

∞

only for LVDS interface

™

£

only for RGB interface

^

&

≤

only for LVDS interface

(

7

MAX9704

INL+10

1 2 3 4 21 22 23 24

9

19

11

17

18

12

13 AGND

14

6
5

20

INL-

FS1

FS2

G1

G2

SS

REG

MODULATOR

OSCILLATOR

CHARGE PUMP

C1P

C1N

GAIN

CONTROL

SHUTDOWN

CONTROL

SHDN

H-BRIDGE

OUTL+

OUTL+

OUTL-

OUTL-

32

31

30

29

PGND VDDVDDPGND

CHOLD

7

INR+

15

16

INR-

MODULATOR

H-BRIDGE

OUTR+

OUTR+

OUTR-

OUTR-

28

27

26

25

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Verstärker / Main Board – Amplifier

QW1190-3

Hauptplatte / Main Board – Scaler

2 - 10

ROM_DATA3

1

ROM_DATA2

2

ROM_DATA1

3

ROM_DATA0

4

ROM_OEn

5

ROM_WEn

6

ROM_CSn

7

CRVSS

8

CVDD_1.8

9

VCO_LV/RESERVED

10

AVDD_LV_E_3.3

11

AVSS_LV_E

12

CH3P_LV_E/ER0

13

CH3N_LV_E/ER1

14

CLKP_LV_E/ER2

15

CLKN_LV_E/ER3

16

CH2P_LV_E/ER4

17

CH2N_LV_E/ER5

18

CH1P_LV_E/ER6

19

CH1N_LV_E/ER7

20

CH0P_LV_E/EG0

21

CH0N_LV_E/EG1

22

AVSS_LV_E

23

AVDD_LV_E_3.3

24

AVSS_LV

25

AVDD_lv_3.3

26

AVDD_LV_O_3.3

27

AVSS_LV_O

28

CH3P_LV_O/EG2

29

CH3N_LV_O/EG3

30

CLKP_LV_O/EG4

31

CLKN_LV_O/EG5

32

CH2P_LV_O/EG6

33

CH2N_LV_O/EG7

34

CH1P_LV_O/EB0

35

CH1N_LV_O/EB1

36

CH0P_LV_O/EB2

37

CH0N_LV_O/EB3

38

AVSS_LV_O

39

AVDD_LV_O_3.3

40

CVDD_1.8

41

CVSS

42

EB4

43

EB5

44

EB6

45

EB7

46

DEN

47

DHS

48

DVS

49

RVDD_3.3

50

CRVSS

51

N/C52N/C53N/C

54

DCLK

55

OR0/JTAG_RESET

56

OR1/RESERVED

57

OR2/RESERVED

58

OR3/RESERVED

59

OR4/RESERVED

60

OR5/RESERVED

61

OR6/RESERVED

62

OR7/RESERVED

63

OG0/JTAG_TDO

64

OG1/RESERVED

65

OG5/JTAG_TDI

66

PPWR

67

PBIAS

68

GPIO15

69

STI_TM2/RESERVED

70

HOST_SDA/UART_DO

72

RVDD_3.3

73

CRVSS

74

CVDD_1.8

75

CRVSS

76

HOST_SCL/UART_DI

71

DDC_SCL_VGA

77

DDC_SDA_VGA

78

DDC_SCL_DVI

79

DDC_SDA_DVI

80

GPIO0

81

GPIO1

82

GPIO2

83

GPIO3

84

GPIO4

85

GPIO5

88

GPIO6

89

GPIO7/IRQin

90

GPIO8/IRQout

91

GPIO9/SCL

92

GPIO10/SDA

93

CVDD_1.8

86

CRVSS

87

CRVSS

94

RVDD_3.3

95

CVDD_1.8

96

CRVSS

97

GPIO11/PWM0

98

GPIO12/PWM1

99

GPIO13/PWM2

100

GPIO14/PWM3

101

GPIO16/VDATA7

102

GPIO17/VDATA6

103

N/C

104

N/C

105

GPIO18/VDATA5

106

GPIO19/VDATA4

107

GPIO20/VDATA3

108

GPIO21/VDATA2

109

GPIO22/VDATA1

110

GPIO23/VDATA0

111

VCLK

112

AVDD_IMB_3.3

113

REXT

114

AGND_IMB

115

VDD_RX2_1.8

116

AGND_RX2

117

RX2+

118

RX2-

119

AVDD_RX2_3.3

120

VDD_RX1_1.8

121

AGND_RX1

122

RX1+

123

RX1-

124

AVDD_RX1_3.3

125

VDD_RX0_1.8

126

AGND_RX0

127

RX0+

128

RX0-

129

AVDD_RX0_3.3

130

AGND_RXC

131

RXC+

132

RXC-

133

AVDD_RXC_3.3

134

VBUFC_DVI/RESERVED

135

GND_RXPLL

136

VDD_RXPLL_1.8

137

CLKOUT/RESERVED

138

CVDD_1.8

139

CRVSS

140

AVDD_BLUE_3.3

141

BLUE+

142

BLUE-

143

AGND_BLUE

144

AVDD_GREEN_3.3

145

SOG_MCSS

146

GREEN+

147

GREEN-

148

AGND_GREEN

149

AVDD_RED_3.3

150

RED+

151

RED-

152

AGND_RED

153

AVDD_ADC_3.3

154

ADC_TEST/RESERVED

155

AGND_ADC

156

N/C

157

N/C

158

N/C

159

N/C

160

N/C

161

N/C

162

GND_ADC

163

VDD_ADC_1.8

164

GND_RPLL

165

VDD_RPLL_1.8

166

RESERVED/VBUFC_RPLL

167

AGND_RPLL

168

XTAL

169

TCLK

170

AVDD_RPLL_3.3

171

LBADC_VDD_3.3

172

LBADC_IN1

173

LBADC_IN2

174

LBADC_IN3

175

LBADC_RETURN

176

LBADC_GND

177

RESETn

178

CVDD_1.8

179

CRVSS

180

HSYNC/CSYNC

181

VSYNC

182

ROM_ADDR17

183

ROM_ADDR16

184

ROM_ADDR15

185

ROM_ADDR14

186

ROM_ADDR13

187

ROM_ADDR12

188

ROM_ADDR11

189

RVDD_3.3

190

CRVSS

191

ROM_ADDR10

192

ROM_ADDR9

193

ROM_ADDR8

194

ROM_ADDR7

195

ROM_ADDR6

196

ROM_ADDR5

197

ROM_ADDR4

198

ROM_ADDR3

199

ROM_ADDR2

200

ROM_ADDR1

201

ROM_ADDR0

202

ROM_DATA7

203

ROM_DATA6

204

RVDD_3.3

205

CRVSS

206

ROM_DATA5

207

ROM_DATA4

208

U200
GM5221_1

1 2

Y200

14.318MHz

C251

5PF

C252

5PF

J201

0R

J200

0R

J202

0R

J203

0R

J204

0R

J205

0R

J206

0R

J207

0R

J208

0R

J210

0R

J211

0R

J212

0R

J213

0R

J214

0R

J215

0R

J216

0R

J217

0R

J218

0R

J219

0R

J209

0R

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

S201

20 PIN LVDS

GND

GND

GND

GND

GND

GND
GND

ROM_ADDR0

ROM_ADDR1

ROM_ADDR2

ROM_ADDR3

ROM_ADDR4

ROM_ADDR5

ROM_ADDR6

ROM_ADDR7

ROM_ADDR8

ROM_ADDR9

ROM_ADDR10

ROM_ADDR11

ROM_ADDR12

ROM_ADDR13

ROM_ADDR14

ROM_ADDR15

ROM_ADDR16

ROM_ADDR17

R204

10K

R205

10K

R206

10K

R207

10K

R208

10K

R209

10K

R210

10K

R211

10K

R213

10K

R214

10K

R215

10K

R216

10K

R217

10K

R219

10K

R220

10K

R222

10K

R224

10K

ROM_ADDR0

ROM_ADDR1

ROM_ADDR2

ROM_ADDR3

ROM_ADDR4

ROM_ADDR5

ROM_ADDR6

ROM_ADDR7

ROM_ADDR8

ROM_ADDR9

ROM_ADDR10

ROM_ADDR11

ROM_ADDR12

ROM_ADDR13

ROM_ADDR14

ROM_ADDR15

ROM_ADDR16

R225

10K

ROM_ADDR17

3V3AVDD

3V3DVDD 1V8AVDD 1V8CVDD

3V3DVDD

CE

1

SO

2

WP

3

VSS

4

VCC

8

HOLD

7

SCK

6

SI

5

U203

25VF040

R231

10K

3V3DVDD

ROMCS

ROMWE

ROMWOE

ROM_ADDR15

ROMCS

3V3DVDD

R230

10K

C242
100N

GND

ROM_ADDR16

ROM_ADDR17

R227
10K

R228
10K

R229
10K

3V3DVDD

250R%1

R237

3V3AVDD

3V3AVDD

RG200

RG47R
RG201

RG47R
RG202

RG47R

RG203

RG47R

RG204

RG47R

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

S200

FH12-50S-0.5SH

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND
GND

ER0
ER1
ER2
ER3

ER4
ER5
ER6
ER7

EG0
EG1
EG2
EG3

EG4
EG5
EG6
EG7

EB0
EB1
EB2
EB3

EB4
EB5
EB6
EB7

EB0

EB1

EB2

EB3

EB4

EB5

EB6

EB7

EG0

EG1

EG2

EG3

EG4

EG5

EG6

EG7

ER0

ER1

ER2

ER3

ER4

ER5

ER6

ER7

R232

47R

CLK

VS

HS

DE

CLK

DE

VS

HS

J220

0R

RG205

RG47R

J221

0R

J222

0R

J223

0R

3V3_STBY

C247

22U50V

C212
100N

L200

10uH

3V3AVDD

C200
100N

C201
100N

C202
100N

C203
100N

C204
100N

C205
100N

C206
100N

C207
100N

C208
100N

C209
100N

C210
100N

C211
100N

C243
220P

3V3_STBY

C248

22U50V

C222
100N

L201

10uH

3V3DVDD

C213
100N

C214
100N

C215
100N

C216
100N

C217
100N

C218
100N

C219
100N

C220
100N

C221
100N

1V8_STBY

C249

22U50V

C232
100N

L202

10uH

1V8CVDD

C223
100N

C224
100N

C225
100N

C226
100N

C227
100N

C228
100N

C229
100N

C230
100N

C231
100N

C244
220P

1V8_STBY

C250

22U50V

C238
100N

L203

10uH

1V8AVDD

C233
100N

C234
100N

C235
100N

C236
100N

C237
100N

C245
220P

C246
220P

5V_STBY

GM2221

1

2

3

4

S202

MTA100_4

5V_STBY

R201
10K

R200
10K

1 2
3 4
5 6
7

8
9 10
11 12
13

14

15

16
17 18
19

20
21 22
23

24
25

26
27 28
29

30
31

32
33

34
35 36
37 38
39

40

JP200

HEADER2X20

PANELPWR

RWPLENAPR

WPLEN

AP

ER0

ER1

ER2ER3

ER4ER5

ER6

ER7

EG0

EG1

EG2EG3

EG4EG5

EG6EG7

EB0EB1

EB2

EB3

EB4

EB5

EB6EB7

DE

HS

VS

CLK

GND

SDA3V3

SCL3V3

3V3 3V3

5V

5V

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

R235

100R

R236

100R

VCC

8

WP

7

SCL

6

SDA

5

A0

1

A1

2

A2

3

GND

4

U201

24LC16

GND

3V3_STBY

C239

100N

BRT_ADJ

BKL_EN

BOOTSTRAP CONFIGURATION

SPI FLASH

NVRAM

LVDS I/F

C253
10N

GND

PNL_EN

PNL_EN

S1_MAIN_SW

S1_MAIN_SW

PC_SD_SW

PC_SD_SW

LED1

LED2

MEMCRD_RCA_S

MEMCRD_RCA_S

RCA_S2_S

RCA_S2_S

UART_TX
UART_RX
DDC_SCL_VGA
DDC_SDA_VGA

UART_TX

UART_RX
DDC_SCL_VGA
DDC_SDA_VGA

RESETQ

RESETQ

BLUE+
BLUE­SOG_MCSS
GREEN+
GREEN­RED+
RED­HS_PC
VS_PC

BLUE+

BLUE-

SOG_MCSS

GREEN+

GREEN-

RED+

RED­HS_PC
VS_PC

PANELPWR

PANELPWR

SCL3V3

SDA3V3

GND

Q206
2N7002

Q205
2N7002

CLKOUT

DATA

5V_STBY

5V_STBY

R242
10K

R244
10K

J231

0R

SC_UPDT_CTR

SC_UPDT_CTR

SC_UPDT_CTR

SCL5V

SDA5V

SCL5V

SDA5V

5V_STBY

R243
10K

5V_STBY

R245
10K

1

2

3

4

S204

MOLCON4

SCL3V3
SDA3V3

5V

GND

C256
220N

GND

Should be close to VCT-IF

R247

10K

R248

10K

R249

10K

R250

10K

R251

10K

R252

10K

GND

GND

GND GND GND

GND

R253
4K7

R254
4K7

3V3_STBY

2

1

SW201

1
2
3

4
5
6
7
8

JP202

MOLCON8

1

2

3

4

5

6

7

JP203

MOLCON7

5V_STBY

3V3_STBY

J234
0R

J233
0R

3V3_STBY

GND GND

LED1
IR

1K

R258

3V3_STBY

KEYBOARD

GND GND

LED2

KEYBOARD I/F

R257

100R

STBY

STBY

R256

10K

R255

100R

R246
10K

Q207
BC848B

GND

J227

0R

3V3_STBY

IR

IR_INV

IR_INV

KEYBOARD

Q302
BC848B

R398

27K

R334

10K

GND

AMP_EN

MUTE

AMP_EN5V

MUTE

SC1_PIN8
SC2_PIN8

SC1_PIN8
SC2_PIN8

RESETQ

Optional

J235

0R

J232

0R

Optional

R260

10K

3V3_STBY

R261

10K

3V3_STBY 3V3_STBY

3V3_STBY

3V3_STBY

R262

10K

R263

10K

R264

10K

R265

10K

BKL_EN

BRT_ADJ

GND

GND

1 2

3

D201

BAV99L

1 2

3

D200

BAV99L

R273

10K

GND

23 24 25

19

22

18

16

14

15

2

7

17

2

5

6

20

21

Hauptplatte / Main Board – Scaler QW1190-3

GPIO

LVDS
Panel I/F

Analog

RGB

Triple

ADC&PLL

X86

Micro-controller

External
ROM I/F

Image Capture /

Measurement

XTAL

Clock

Generation

On-chip

RAM

/ ROM

OSD

Controller

NVRAM

Display

Timing

Control

Test

Pattern

Generator

BT 656

2 X

LVDS

Tx

3 X General-

Purpose ADC

4 X

PWM

Back-light
Audio

Intelligent Image Processing™

Zoom / Shrink Filter

with edge enhancement

uv

Y

Digital Color Adjustments

Reset CCT

422 to 444

Conversion

High-light Window

Color Look-up-Table

ACC

Luma

Shaping

ACM-II

Chroma

Adjust

Histogram

Color Space Conversion

Schmitt

Tri

gger

DDC2Bi

Resetn

Serial

Master

GPIO

Parallel or Serial

EEPROM

Keyp

ad Sensing

Temp Sensor

RGB/YUV Color Space Conversion

GM2221

GRUNDIG Service Chassis L5C–14"…20"

2 - 11

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte / Main Board QW1190-8

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

C200 T 136 99
C201 T 137 95
C202 T 141 99
C203 T 143 99
C204 T 153 95

C205 T 161 99
C206 T 151 95
C207 T 131 91
C208 T 142 95
C209 T 159 89

C210 T 155 95
C211 T 161 101
C212 T 134 99
C213 T 121 127
C214 T 121 125

C215 T 161 139
C216 T 113 107
C217 T 120 117
C218 T 121 123
C219 T 153 138

C220 T 174 152
C221 T 120 119
C222 T 159 139
C223 T 105 129
C224 T 113 104

C225 T 117 116
C226 T 117 118
C227 T 168 99
C228 T 138 87
C229 T 119 130

C230 T 161 143
C231 T 107 129
C232 T 113 125
C233 T 134 91
C234 T 135 95

C235 T 164 101
C236 T 164 99
C237 T 139 95
C238 T 138 99
C239 T 120 116

C241 T 55 155
C242 T 163 143
C243 T 157 89
C244 T 113 123
C245 T 136 87

C246 T 136 91
C247 T 152 90
C248 T 167 151
C249 T 112 130
C250 T 143 90

C251 T 164 103
C252 T 161 103
C253 T 111 125
C254 T 62 157
C255 T 35 149

C256 T 109 125
C257 T 90 105
C257_A B 91 106
C258 T 91 108
C258_A B 91 109

C300 T 83 73
C301 T 103 73
C302 T 42 146
C303 T 83 107
C304 T 80 73

C305 T 88 51
C306 T 80 70
C307 T 73 106
C308 T 51 84
C309 T 53 75

C310 T 72 72
C311 T 33 98
C312 T 30 98
C313 T 77 107
C314 T 56 138

C315 T 49 142
C316 T 42 130
C317 T 35 74
C318 T 18 134
C319 T 18 139

C320 T 18 143
C321 T 23 143
C322 T 56 104
C323 T 15 84
C324 T 19 91

C325 T 25 109
C326 T 82 41
C327 T 119 50
C329 T 101 73
C330 T 31 72

T: Koordinaten für die Bauteile der Bestückungsseite (Ansicht von oben) / Coordinates of the Components on the component side (top view)
B: Koordinaten für die Bauteile der Lötseite (Ansicht von unten) / Coordinates of the Components on the solder side (bottom view)

C331 T 33 75
C332 T 86 13
C333 T 17 111
C334 T 28 123
C335 T 114 89

C336 T 114 67
C337 T 99 61
C338 T 109 107
C339 T 81 107
C340 T 86 107

C341 T 98 56
C342 T 107 57
C343 T 24 136
C344 T 96 119
C345 T 82 120

C346 T 85 60
C347 T 24 87
C348 T 79 113
C349 T 83 20
C350 T 75 54

C351 T 90 20
C352 T 84 47
C353 T 76 24
C354 T 74 120
C355 T 76 16

C356 T 57 69
C357 T 77 45
C358 T 86 113
C359 T 40 94
C360 T 61 136

C361 T 43 121
C362 T 36 121
C363 T 108 66
C364 T 23 116
C365 T 39 102

C366 T 24 97
C367 T 21 104
C368 T 37 133
C369 T 37 140
C370 T 61 142

C371 T 108 62
C372 T 30 129
C373 T 33 142
C376 T 15 131
C377 T 15 127

C378 T 18 124
C379 T 15 102
C380 T 15 119
C381 T 28 118
C382 T 15 75

C383 T 15 73
C384 T 49 97
C385 T 117 45
C386 T 19 100
C387 T 37 127

C388 T 18 67
C389 T 15 71
C390 T 69 74
C391 T 30 11
C392 T 67 74

C393 T 13 11
C394 T 44 132
C395 T 45 147
C396 T 52 132
C397 T 56 142

C398 T 18 130
C399 T 22 124
C400 T 19 79
C401 T 19 77
C402 T 88 13

C403 T 44 11
C404 T 58 11
C405 T 52 134
C406 T 47 134
C407 T 51 142

C408 T 53 138
C409 T 47 72
C410 T 38 70
C411 T 51 79
C412 T 68 113

C413 T 91 67
C414 T 91 71
C417 T 18 128
C418 T 22 126
C419 T 15 80

C420 T 19 75
C421 T 37 11
C422 T 51 11
C423 T 92 103
C441 T 24 71

C442 T 24 79
C443 T 30 93
C444 T 40 86
C446 T 153 9
C447 T 122 31

C448 T 136 34
C449 T 121 69
C450 T 125 71
C451 T 123 68
C452 T 122 34

C453 T 122 36
C454 T 136 25
C455 T 136 28
C456 T 127 89
C457 T 136 80

C458 T 136 78
C459 T 136 76
C460 T 136 74
C461 T 136 71
C462 T 136 69

C463 T 136 67
C464 T 119 23
C465 T 134 87
C466 T 134 84
C467 T 120 79

C468 T 120 76
C469 T 124 73
C470 T 15 154
C471 T 15 97
C500 T 87 145

C501 T 70 141
C502 T 68 160
C503 T 73 142
C504 T 85 161
C505 T 163 40

C506 T 167 36
C507 T 70 134
C508 T 82 133
C509 T 162 30
C510 T 181 30

C511 T 65 163
C512 T 69 164
C513 T 68 158
C514 T 71 160
C515 T 71 158

C516 T 82 159
C517 T 80 159
C518 T 85 159
C519 T 89 161
C520 T 89 159

C521 T 75 138
C522 T 77 133
C523 T 81 139
C524 T 78 137
C525 T 85 138

C526 T 88 138
C527 T 177 7
C528 T 165 3
C529 T 165 7
C530 T 75 130

C531 T 90 138
C532 T 72 140
C533 T 160 36
C534 T 156 40
C535 T 174 25

C536 T 169 25
C537 T 183 21
C538 T 159 21
C539 T 177 18
C540 T 170 18

C541 T 168 45
C600 T 180 80
C601 T 180 78
C602 T 167 78
C603 T 180 60

C604 T 185 40
C605 T 167 51
C606 T 164 51
C607 T 160 51
C608 T 156 51

C609 T 122 54
C610 T 137 64
C611 T 166 57
C612 T 163 57
C613 T 159 57

C614 T 155 57
C615 T 174 111
C616 T 167 90
C617 T 98 140
C618 T 95 128

C619 T 65 74
C620 T 53 73
C621 T 103 140
C622 T 103 129
C623 T 59 130

C624 T 71 106
C625 T 180 74
C626 T 166 71
C627 T 110 28
C628 T 175 54

C629 T 177 42
C630 T 133 44
C631 T 177 115
C632 T 172 92
C633 T 65 69

C634 T 68 125
C635 T 59 108
C636 T 180 76
C637 T 156 72
C638 T 170 80
C639 T 143 61

D200 T 10 115
D201 T 11 103
D300 T 155 47
D301 T 114 54
D302 T 45 104

D400 T 154 13
D401 T 125 19
D402 T 143 9
D403 T 129 19
D404 T 143 13

D405 T 133 19
D500 T 179 22
D501 T 164 22
D502 T 174 22
D503 T 169 22

D504 T 174 13
D505 T 168 13
D600 T 167 54
D601 T 163 54
D602 T 159 54

D603 T 155 54
D608 T 165 74

F600 T 100 29

J200 T 151 138
J201 T 150 142
J202 T 149 138
J203 T 148 142
J204 T 146 138

J205 T 145 142
J206 T 144 138
J207 T 143 142
J208 T 142 138
J209 T 141 142

J210 T 140 138
J211 T 138 142
J212 T 137 138
J213 T 136 142
J214 T 135 138

J215 T 134 142
J216 T 133 138
J217 T 132 142
J218 T 130 138
J219 T 129 142

J220 T 128 138
J221 T 127 142
J222 T 126 138
J223 T 125 142
J224 T 119 61

J225 T 129 61
J226 T 57 155
J227 T 98 107
J228 T 55 151
J231 T 122 99

J232 T 107 125
J233 T 89 132
J234 T 90 135
J235 T 117 123
J236 T 121 89

J237 T 88 105
J238 T 88 108
J300 T 39 107
J301 T 35 90
J302 T 74 35

J303 T 82 25
J304 T 30 68
J305 T 111 107
J306 T 15 145
J307 T 87 5

J308 T 43 5
J309 T 29 5
J310 T 15 5
J311 T 57 5
J312 T 71 5

J313 T 80 67
J314 T 107 107
J315 T 114 99
J316 T 45 87
J317 T 70 67

J318 T 70 65
J400 T 129 28
J401 T 131 28
J402 T 133 28
J403 T 127 28

J404 T 142 27
J405 T 142 25
J406 T 125 28
J407 T 142 23
J408 T 142 19

J409 T 142 21
J500 T 91 155
J501 T 93 155
J502 T 89 155
J503 T 87 155

J600 T 95 134
J601 T 95 132
J602 T 95 130

JP200 T 105 147
JP201 T 32 159
JP202 T 83 125
JP203 T 84 125
JP300 T 153 27

L200 T 163 92
L201 T 172 152
L202 T 153 82
L203 T 138 91
L205 T 43 154

L300 T 103 65
L301 T 103 51
L302 T 91 119
L303 T 87 119
L304 T 90 54

L305 T 73 112
L306 T 90 49
L307 T 81 52
L308 T 69 119
L309 T 116 92

L310 T 91 112
L311 T 56 134
L312 T 41 78
L313 T 80 63
L314 T 81 55

L315 T 90 60
L316 T 45 82
L317 T 15 101
L318 T 15 66
L319 T 34 127

L321 T 15 69
L323 T 15 124
L324 T 15 121
L400 T 120 29
L401 T 117 79

L402 T 118 76
L403 T 121 73
L500 T 66 139
L501 T 156 43
L502 T 70 146

L503 T 68 153
L504 T 75 155
L505 T 83 154
L506 T 180 13
L507 T 163 12

L600 T 153 63
L601 T 183 49
L602 T 148 46
L603 T 173 68
L605 T 27 144
L609 T 173 65

P400 T 125 11

Q200 T 122 64
Q201 T 126 64
Q202 T 58 151
Q203 T 52 155
Q204 T 52 150

Q205 T 11 107
Q206 T 11 111
Q207 T 97 111
Q208 T 121 86

2 - 12

Q300 T 87 28
Q301 T 36 114
Q302 T 101 111
Q303 T 19 155
Q304 T 15 92

Q305 T 31 82
Q306 T 31 88
Q307 T 23 153
Q308 T 19 87
Q309 T 19 146

Q310 T 114 59
Q311 T 117 85
Q312 T 114 72
Q313 T 107 72
Q314 T 48 91
Q600 T 105 135

R200 T 113 119
R201 T 104 125
R202 T 126 61
R203 T 130 64
R204 T 165 130

R205 T 160 129
R206 T 165 128
R207 T 160 127
R208 T 165 126
R209 T 160 125

R210 T 165 124
R211 T 160 123
R212 T 62 150
R213 T 165 122
R214 T 160 121

R215 T 165 121
R216 T 160 120
R217 T 165 119
R219 T 160 118
R220 T 165 117

R222 T 160 115
R223 T 49 155
R224 T 165 114
R225 T 160 113
R226 T 49 148

R227 T 166 139
R228 T 160 111
R229 T 160 131
R230 T 166 143
R231 T 164 139

R232 T 121 130
R233 T 123 61
R234 T 118 64
R235 T 120 111
R236 T 120 109

R237 T 133 95
R238 T 62 152
R239 T 58 147
R240 T 49 151
R241 T 55 147

R242 T 15 115
R243 T 15 117
R244 T 15 104
R245 T 15 106
R246 T 100 107

R247 T 123 96
R248 T 126 99
R249 T 127 95
R250 T 130 99
R251 T 129 95

R252 T 132 99
R253 T 120 114
R254 T 120 107
R255 T 102 107
R256 T 97 107

R257 T 113 116
R258 T 92 132
R260 T 124 92
R261 T 124 99
R262 T 125 95

R263 T 128 99
R264 T 129 91
R265 T 131 95
R273 T 121 92
R274 T 124 87

R276 T 120 89
R277 T 126 87
R300 T 23 149
R301 T 19 84
R302 T 49 138

R303 T 86 33
R304 T 51 138
R305 T 88 33
R306 T 88 37

R307 T 86 37
R308 T 75 31
R309 T 73 31
R310 T 82 27
R311 T 75 38

R312 T 73 38
R313 T 32 115
R314 T 32 113
R315 T 28 113
R316 T 28 115

R317 T 33 103
R318 T 33 100
R319 T 38 110
R320 T 30 103
R321 T 30 100

R322 T 23 146
R323 T 15 147
R324 T 18 136
R325 T 117 50
R326 T 115 89

R327 T 114 65
R328 T 107 68
R329 T 115 50
R330 T 117 89
R331 T 114 69

R332 T 101 70
R333 T 19 82
R334 T 103 107
R335 T 31 79
R336 T 31 85

R337 T 95 107
R338 T 93 107
R339 T 93 13
R340 T 74 33
R341 T 33 68

R342 T 31 68
R343 T 40 110
R344 T 35 98
R345 T 18 122
R346 T 18 119

R347 T 114 86
R348 T 114 62
R351 T 19 151
R352 T 15 88
R353 T 15 129

R354 T 18 126
R355 T 15 78
R356 T 19 72
R357 T 107 75
R358 T 79 107

R359 T 34 81
R360 T 35 85
R361 T 19 149
R362 T 15 86
R363 T 15 152

R364 T 15 95
R365 T 15 134
R366 T 15 157
R367 T 15 139
R368 T 15 143

R369 T 15 149
R370 T 15 99
R371 T 83 13
R372 T 90 13
R373 T 71 11

R374 T 20 158
R375 T 26 151
R376 T 19 93
R377 T 19 96
R378 T 44 135

R379 T 45 145
R380 T 49 134
R381 T 53 142
R382 T 87 25
R383 T 47 87

R384 T 39 115
R385 T 33 72
R386 T 15 136
R387 T 15 82
R388 T 52 67

R398 T 102 115
R399 T 21 68
R400 T 19 70
R401 T 27 11
R402 T 15 11

R403 T 143 5
R404 T 131 87
R405 T 132 84
R406 T 133 80
R407 T 133 78

R408 T 133 74
R409 T 133 71
R410 T 133 69
R411 T 133 67
R412 T 149 5

R413 T 147 5
R414 T 133 76
R415 T 122 19
R416 T 131 22
R417 T 136 20

R418 T 129 86
R419 T 131 83
R420 T 153 5
R421 T 156 5
R422 T 31 75

R423 T 40 11
R424 T 54 11
R425 T 114 80
R426 T 115 75
R427 T 118 73

R500 T 160 40
R501 T 67 164
R502 T 74 160
R503 T 77 160
R504 T 88 163

R505 T 182 21
R506 T 161 21
R507 T 173 18
R508 T 166 18
R509 T 163 36

R510 T 175 18
R511 T 168 18
R512 T 166 40
R513 T 170 40
R600 T 184 77

R601 T 180 70
R602 T 99 129
R603 T 108 135
R604 T 101 129
R605 T 163 71

R606 T 153 51
R607 T 101 125
R608 T 180 72

RG200 T 138 154
RG201 T 134 154
RG202 T 146 154
RG203 T 142 154
RG204 T 127 148
RG205 T 123 148

S200 T 138 162
S201 T 145 149
S202 T 105 119
S203 T 50 161
S204 T 118 100

S300 T 31 135
S301 T 8 139
S303 T 8 80
S304 T 66 106
S400 T 146 29

S500 T 77 164
S501 T 171 5
S600 T 101 19
S601 T 104 8

SAW300 T 75 67

SW201 T 170 122

TU300 T 43 38
TU301 T 43 41
TU351 T 42 36

U200 T 139 118
U201 T 115 112
U203 T 170 142
U300 T 45 140
U301 T 80 34

U302 T 31 108
U303 T 83 90
U400 T 149 11
U401 T 129 28
U402 T 126 79

U500 T 171 31
U501 T 79 145
U600 T 173 76
U601 T 130 54
U603 T 177 104

U604 T 101 135
U605 T 61 75
U606 T 60 123

Y200 T 162 107
Y300 T 86 70

Hauptplatte / Main Board QW1190-8

Ansicht von der Bestückungsseite
View of Component Side

2 - 13

GRUNDIG Service Chassis L5C–14"…20"

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte / Main Board

QW1190-8

Vergrößerte Ansicht von der Bestückungsseite
Enlarged view of Component Side

2 - 14

GRUNDIG Service Chassis L5C–14"…20"

2 - 15

1

2

S600
MOLCON2

12V

C627
470U25V

3.3uH

L600

S601

CONN-POWER

GND

GND

C602
100N

GND

F600

FUSE 5A

C638

22N

GND

C600

100N

C601

100N

GND

GND

GND

R600

10K

GND

C637
470U25V

GND

C626
10N

D608

MBRS130LTR

R605

100R

C628
1000U16V

C603
100N

3.3uH

L601

C629
1000U16V

C604
100N

C625

10N

C636

1N5

GND

5V_STBY

GND

GND GND GND GND

TUNER_SU

10uH

L603

BS

1

VIN

2

OUT

3

GND

4

FB

5

COMP

6

EN

7

SS

8

U600

MP1593

C611

220N

C605

220N

R603

10K

J600

0R
J601

0R
J602

0R

R602
10K

Q600
BC848B

C618
100N

GND

GND

5V_STBY

3V3_STBY

12V

C609
100N

C610
100N

C630
100U16V

C639
470U16V

IN

3

1

OUT

2

ADJ

U601 LM1117 3V3

5V_STBY 3V3_STBY

GND

GND GND

GND

GND

S1

1

G1

2

S2

3

G2

4

D1

8

D1

7

D2

6

D2

5

U604

SI9933ADY

C622
100N

GND

R604
10K

C617
100N

GND

GND

5V

C621
100N

C615
100N

C616
100N

C631
100U16V

IN

3

1

OUT

2

ADJ

U603 LM1117 1V8

5V_STBY 1V8_STBY

GND

GND

GNDGND GND

C632
100U16V

C619
100N

C633
100U16V

C620
100N

12V

8V

GND GND GND

GND

C623
100N

C624
100N

C634
100U16V

5V

3V3

GND

GND GNDGND

GND

C635
100U16V

1K

R607

GND

TUNER_SU

1K

R606

REGULATORS

12V INPUT

33V

33V

47,5V

PANELPWR

PANELPWR

PNL_EN

PNL_EN

STBY

STBY

5V_STBY

1 2

3

D600
BAV99L

1 2

3

D601
BAV99L

1 2

3

D602
BAV99L

1 2

3

D603
BAV99L

C606

220N

C607

220N

C608

220N

C612

220N

C613

220N

C614

220N

IN

3

2

OUT

1

GND

U605

MC78L08CP

12V INV_POW

4.7uH

L605

IN

3

1

OUT

2

ADJ

U606 LM1117 3V3

R601

18K

R608

56K

4.7uH

L602

12V

AMP_POW

L609

22uH - CDRH104R

1

AGC

1

TU

2

ADD

3

SCL

4

SDA

5

NC

6

VCC+5V

7

NC/ADC

8

VST

9

IF2/NC

10

IF1

11

TU300

ENV57K##08G3F

AGC

1

TU

2

AS

3

SCL

4

SDA

5

NC

6

VCC+5V

7

NC/ADC

8

VST

9

NC

10

IF1

11

TU301

DTQS441IH241C

L313 1uH

X6966D

1

2

3

4

5

SAW300

IF1

IF2

GND

C331
10N

C330

10N

R385

5K1

GND GND

33V

2,4V

R341

100R

R342

100R

J304

0R

GND

J313

0R

J318

0R

J317

0R

D300
BZX84C33

GND

33V

33V

C409

100U25V

IFIN-

IFIN+

AGC

SDA5V

SCL5V

GND

R388

56R

GND

5V

L312

coilrad10

C410
100U10V

C317
100N

GND

GND

AGC

1

TU

2

AS

3

SCL

4

SDA

5

UB

6

VCC+5V

7

NC

8

VT

9

IF2

10

IF1

11

TU351

CTF5540

8

4

3

1

3

4

8

MP1593

3A, 28V, 385KHz
STEP-DOWN CONVERTER

LOCKOUT

COMPARATOR

ERROR

AMPLIFIER

FREQUENCY

FOLDBACK

COMPARATOR

INTERNAL

REGULATORS

1.8V

SLOPE
COMP

CLK

CURRENT

COMPARATOR

CURRENT

SENSE

AMPLIFIER

SHUTDOWN

COMPARATOR

SS

8

COMP

6

IN

2

EN

7

GND

4

OSCILLATOR

40/385KHz

SRQ

SW

3

BS

M1

M2

1

5V

+

Q

0.7V

+

+

2.3V/

2.6V
+

1.22V0.7V

+

+

FB

5

--

--

--

--

--

--

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Netzteil / Main Board – Power Supply QW1190-8

Hauptplatte / Main Board – Tuner QW1190-8

2 - 16

GND

1

VSUP8.0AU

2

VREFAU

3

SPEAKERL

4

SPEAKERR

5

AOUT1L

6

AOUT1R

7

AIN3L/AOUT2L

8

AIN3R/AOUT2R

9

AIN2L

10

AIN2R

11

AIN1L

12

SIF/AIN1R

13

TAGC

14

VREFIF

15

IFIN-

16

IFIN+

17

RESETQ

18

VSUP5.0FE

19

VSUP5.0IF

20

VSUP3.3DIG

21

GND

22

GND

23

VSUP1.8DIG

24

XTAL1

25

XTAL2

26

P22

27

P23

28

VIN11

29

VIN10

30

VIN9

31

VIN8

32

VIN7

33

VIN6

34

VIN5

35

VIN4

36

VIN3

37

VIN2

38

VIN1

39

VOUT1

40

VOUT2

41

VOUT3

42

VSUP1.8FE

43

GND

44

GND

45

VSUP3.3VFE

46

P10

47

P11

48

P12

49

P13

50

P14

51

P15

52

P16

53

P17

54

P20

55

P21

56

SCL

57

SDA

58

VPROT

59

HOUT

60

HFLB

61

SAFETY

62

GNDDAC

63

VSUP3.3DAC

64

VSUP3.3IO

65

GND

66

GND

67

VSUP3.3BE

68

XREF

69

VRD

70

BOUT

71

GOUT

72

ROUT

73

SVMOUT

74

BIN

75

GIN

76

RIN

77

FBIN

78

GNDM

79

SENSE

80

RSW1

81

RSW2

82

EW

83

VERT-

84

VERT+

85

TEST/SUBW

86

VSUP5.0BE

87

GND

88

U303

VCT-IF PSSDIP88(2)

VDD1V8D1V8_STBY

1V8_STBY VDD1V8FE

3V3_STBY VDD3V3FE

3V3_STBY VDD3V3IO

3V3

3V3

VDD3V3D

VDD3V3BE

5V VDD5VFE

5V VDD5VIF

5V VDD5VBE

3V3 VDD3V3DAC

C308
100N

C411

3.3U50V

1K

R358

GND

GND

1 2

Y300

20.25MHz

C413
22P

C414
22P

GND

GND
GND

GND

GND

GND GND

GND

GND

L300

10uH

L301

10uH

L310

10uH

L302

10uH

L303

10uH

L304

10uH

L306

10uH

L305

10uH

L307

10uH

L308

10uH

C341
10U25V

C300
100N

C337
470P

GND

VDD1V8D

C342
10U25V

C301
100N

C371
1N

GND

VDD1V8FE

C344
10U25V

C338
470P

GND

VDD3V3FE

C345
10U25V

C303
100N

GND

VDD3V3IO

GND

GND

GND

GND

GND

C346
10U25V

C304
100N

VDD3V3D

C348
10U25V

C339
470P

VDD3V3BE

C305
100N

VDD5VFE

C350
10U25V

C306
100N

VDD5VIF

C354
10U25V

C307
100N

8V

C358
10U25V

C340
470P

GND

VDD3V3DAC

C310
100N

GND

VCT-IF

AO_R

1

AIN_R

2

AO_LM

3

AGND

4

B_GND

5

AIN_L

6

B

7

SWTCH

8

G_GND

9

CLKOUT

10

G

11

DATA

12

R_GND

13

D_GND

14

R

15

BLNK

16

V_GND

17

BL_GND

18

VOUT

19

VIN

20

SHIELD

21

S301

SCART1

AO_R

1

AIN_R

2

AO_LM

3

AGND

4

B_GND

5

AIN_L

6

B

7

SWTCH

8

G_GND

9

CLKOUT

10

G

11

DATA

12

R_GND

13

D_GND

14

R

15

BLNK

16

V_GND

17

BL_GND

18

VOUT

19

VIN

20

SHIELD

21

S303

SCART2

GND

SC1_OUT_R

SC1_IN_R

SC1_OUT_L

GND

GND

SC1_IN_L

SC1_BLUE

SC1_GREEN

SC1_RED

R324
3K3

GND

GND

GND

GND

GND

GND

SC1_CVBS_OUT

R366
75R

GND

SC1_CVBS_IN

R345

100R

R346

100R

C334

22U50V

C333

22U50V

C378
1N

C380
1N

C379
1N

C381
1N

GND

GNDGND

GND

SC1_OUT_L

SC1_OUT_R

AOUT1L

AOUT1R

AOUT1R

AOUT1L

C377
1N

R354

470R

C418
330P

C399

220N

C376
1N

R353

470R

C417
330P

C398

220N

GND

GND

GND

GND

SC1_IN_L

R2NI

AR_NI_1C

S

AIN2L

AIN2L
AIN2R

SPEAKERL
SPEAKERR

RIN

GIN

BIN

C332
100N

C402

100N

SVHS_C
SVHS_Y

1

2

J312

RCA VIDEO

GND

R373
75R

2341

4

3

2

1

J307

CONN-DIN4

GND

GND

R371
75R

R372
75R

GND

GND

SVHS_C

SVHS_Y

GND

C329

100N

RCA_CVBS

RCA_CVBS

GND

GND
GND

GND
GND

GND

GND
GND

R370
75R

GND

SC2_CVBS_IN
SC2_CVBS_OUT

SC2_IN_L

SC2_IN_R
SC2_OUT_R

SC2_OUT_L

R333
3K3

GND

SC1_PIN8

SC1_FBL

FBLIN

SC1_CVBS_IN
SC2_CVBS_IN

AIN1L
AIN1R

AOUT2L
AOUT2R

C383
1N

R356

470R

R423

1K

R424

1K

C420
330P

C401

220N

C382
1N

R355

470R

C419
330P

C400

220N

GND

GND

GND GND

SC2_IN_L

SC2_IN_R

1

2

J308

RCA L

1

2

J311

RCA R

GND

C421
1N

C422
1N

C403

220N

C404

220N

RCA_LEFT

RCA_RIGHT

VOUT1
VOUT2

SC2_I_L

SC2_I_R

C444

47U16V

C392
1N

C393
1N

R402

330R

1K

R360

Q306
BC858B

R336

3K3

C442

47U16V

R400

330R

C389
1N

1

2

J310

RCA VIDEO

GND

GND

GND

GND

8V

GND

AOUT2L

SC2_OUT_L

C443

47U16V

C390
1N

C391
1N

R401

330R

1K

R359

Q305
BC858B

R335

3K3

C441

47U16V

R399

330R

C388
1N

1

2

J309

RCA VIDEO

GND

GNDGND

GND

8V

GND

AOUT2R

SC2_OUT_R

GND

UART_RX

UART_RX

VS_VCT

HS_VCT

C313
100N

C412

4.7U50V

GND GND

VDD5VBE

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

5V

VDD5VAUD

L311

10uH

GND

C314
100N

C360
10U25V

R386
10K

SDA3V3
SCL3V3

SC2_PIN8

R387
10K

UART_TX

R337
3K3

R338
3K3

3V3_STBY

VIDEO I/O

CLKOUT

DATA

UART_TX

UART_RX

HS_VCT

VS_VCT

RESETQ

RESETQ

BLUE

GREEN

RED

BLUE_VCT GREEN_VCT RED_VCT

SUBWOOFER

SAFETY

DATA

CLKOUT

R422
6K8

VDD5VFE

175mA

225mA

48mA

11mA

95mA

25mA

65mA

18mA

26mA

150mA

SPEAKERL
SPEAKERR

C316

100N

C322

100N

C356

10U25V

C309
100N

GND GND

GND

Q311
BC858ALT1

Q310
BC848

8V

GND

C327
100N

R325

22R
R329

2K7

12

3

D301
BAV99L

R326
33R

C335
560P

BLUE

R330
150R

5V

5V

R347
270R

GND

Q312
BC858ALT1

R327
33R

C336
560P

GREEN

R331
150R

5V

R348
270R

GND

Q313
BC858ALT1

R328
33R

C363
560P

RED

R332
150R

5V

R357
270R

GND

SC1_PIN8

SC2_PIN8

J3140R
J3150R

J305

0R

GND

12V 12V-A

C359
10U25V

GND

C311
100N

C312
100N

L316

10uH

125mA

Q314

BC337-16

R383

220R

J316

0R

C384
47U16V

GND

D302
BZX84C12 SOT23

GND

This circuit is used for 15V panels.
Otherwise the jumper is mounted.

C385
47U16V

GND

IFIN+

IFIN-

AGC

R363

75R

R374

180R

R375
150R

R351
470R

R300
10K

R361
18K

Q303
BC858B

Q307
BC848

5V

GND

GND

C343

10U25V

VOUT1

SC1_CVBS_OUT

C323
100N

R364

75R

R376

180R

R377
150R

R352
470R

R301
10K

R362
18K

Q304
BC858B

Q308
BC848

5V

GND

GND

SC2_CVBS_OUT

C324
100N

C347

10U25V

VOUT2

L309

8.2uH

R365
75R

R367
75R

R368
75R

R369
75R

C318

100N

C319

100N

C320

100N

SC1_BLUE

SC1_RED

SC1_GREEN

BIN

GIN

RIN

GND

GND

GND

GND

SC1_FBL

R323

10K

R322

10K

Q309
BC848

VDD3V3D

GND

C321
100N

GND

FBLIN

J306

0R

FBLINSC1_FBL

Optional

L317

10uH

L319

10uH

C386
47P

C387
47P

GND

GND

L318

10uH

L321

10uH

A connector for the
Light Sensor option.

L314 Ferrite Bead

L315

Ferrite Bead

L323

10uH

L324

10uH

1

2

3

4

5

6

7

JP300

MOLCON7

Option for Side AV

SVHS_C

SVHS_Y

GND

CVBS_AV
RIGHT_AV

GND

LEFT_AV

1

2

S304

CVBS_AV

LEFT_AV

RIGHT_AV

C423
33P

VDD5VBE

Q201
2N7002

Q200

2N7002

R233
3K3

R234
3K3

R202
10K

R203
10K

J224

0R

0R

J225

3V3_STBY

5V_STBY

SCL3V3

SDA3V3

SDA5V

SCL5V

SCL3V3

SDA3V3

SDA5V

SCL5V

C470

470P

C471
470P

26

2

10

11

9

5

7

3

4

5

6

6

13

12

Hauptplatte / Main Board – IN/OUT, VCT-IF QW1190-8

2

power on (trigger: +12V)

2

switch on with RC

3 4 5

6

7

9

0

!

@

#

§

XTAL1

IF

Frontend

Slicer

Video

Backend

IF

Processor

Sound

Demod.

Audio

Processor

Display

Generator

Bus

Arbiter

20k BX

RAM

256kB

ProgROM

Clock

Generator

Reset &

TestLogic

I2C

24kB

CharROM

TEST

RESETQ

XTAL2

I2C

Pxy

CVBS in

IFIN-

IFIN+

T

A

G

C

S

IF

YCrCb in

CVBS out

RGB in

AO

U

T

S

PE

A

K

E

R

RGB out

SVM

RGB in
SENSE

RSW

VERT
EW

HOUT

PROT

HFLB

Panorama

Scaler

Display

&
Deflection
Processor

Timer

CRT/PWM

ADC/UART

Watchdog

RTC

I/O-Ports

Memory
Interface

ADB, DB, PSENQ,

PSWEQ, WRQ, RDQ

CPU
8051

A

IN

Video

Frontend

Color

Decoder

Component

Interface

Comb

Filter

2 - 17

GRUNDIG Service Chassis L5C–14"…20"

GND

1 2

3

D404
BAV99L

1 2

3

D402
BAV99L

GND

GND

GND

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

U400

HT24LC02

1N4148

D400

5V_STBY

5V

5V

C446
100N

GND

R420
47K

R421
47K

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1617

P400

DB15HF

R412

100R

R413

100R

GND

1 2

3

D405
BAV99L

1 2

3

D401
BAV99L

1 2

3

D403
BAV99L

J402

0R

J401

0R

J400

0R

J406

0R

J403

0R

R417
75R

R415
75R

R416

75R

R408

47R

R406

47R

R410

47R

C462

10N

GND GND

5V

RED_DSUB RED_SW

GND

5V

GND

GREEN_SWGREEN_DSUB

GND

5V

GND

BLUE_DSUB BLUE_SW

R414

470R

C460

10N

C459

10N

C457

10N

R403

10K

VS_DSUB

HS_DSUB

R418

75R

R419

75R

R404
10K

R405
10K

GND

GND

HS_SW

VS_SW

C465
22P

C466
22P

GND

GND

R407

47R

R409

47R

R411

47R

GND

C458

10N

C461

10N

C463

10N

VDD

1

YA

2

GND

3

VDD

4

YB

5

YC

6

GND

7

YD

8

VDD

9

GND

10

YE

11

SEL

12

E1

13

E0

14

D1

15

C1

16

D0

17

C0

18

VDD

19

GND

20

B1

21

B0

22

A1

23

A0

24

U401

PI3V512

VDD

1

YA

2

GND

3

VDD

4

YB

5

YC

6

GND

7

YD

8

VDD

9

GND

10

YE

11

SEL

12

E1

13

E0

14

D1

15

C1

16

D0

17

C0

18

VDD

19

GND

20

B1

21

B0

22

A1

23

A0

24

U402

PI3V512

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

S400

5V_STBY

GND

AUDIO_R_SD
AUDIO_L_SD

BLUE_SD
GREEN_SD
RED_SD

HS_SD

VS_SD

GND

3V3

L400

10uH

3V3_RGB

C448
100N

GND

C464

10U25V

GND

3V3_RGB

GND

GND

GND

RED_SD

RED_DSUB

GREEN_SD

GREEN_DSUB

BLUE_SD

BLUE_DSUB
HS_SD

HS_DSUB

VS_SD

VS_DSUB

C447
100N

GND

VS_SW

C449
100N

C450

100N

C451

100N

GND

GND

GND

3V3_RGB

3V3_RGB

3V3_RGB

HS_SW

BLUE_SW
GREEN_SW

RED_SW

C456
100N

GND

C452

100N

C453

100N

C454

100N

C455

100N

GND GND GND GND

RED_SW

GREEN_SW

BLUE_SW

HS_SW

VS_SW

GND

GND

GND

GND

3V3_RGB

3V3_RGB

3V3_RGB

3V3_RGB

VS_G

HS_G

BLUE_G
GREEN_G

RED_G

VS_VCT

HS_VCT
BLUE_VCT

GREEN_VCT

RED_VCT

VS_G

HS_G

BLUE_G

GREEN_G

RED_G

TO GENESIS

RGB SWITCHES

EDID

VGA

2nd RGB Switch

AUDIO_R_SD
AUDIO_L_SD

DDC_SCL_VGA

DDC_SDA_VGA

DDC_SDA_VGA

DDC_SCL_VGA

VS_VCT

HS_VCT

BLUE_VCT

S1_MAIN_SW

S1_MAIN_SW

PC_SD_SW

PC_SD_SW

HS_PC

HS_PC

VS_PC

VS_PC

RED-

RED+

GREEN-

GREEN+

SOG_MCSS

BLUE+

BLUE-

BLUE+

BLUE-

SOG_MCSS

GREEN+

GREEN-

RED+

RED-

UART_TX
UART_RX

GND

J407

0R

J404

0R

J409

0R

J408

0R

R425

75R

J405

0R

WS_SVDS_SV

WS_SHDS_SH

RED_SD RED_SW

GREEN_SD GREEN_SW

BLUE_SD BLUE_SW

2.2uH

L401

C467
150P

GND

GREEN_VCT

R426

75R

2.2uH

L402

C468
150P

GND

RED_VCT

R427

75R

2.2uH

L403

C469
150P

GND

18

17

16

15

14

Hauptplatte – VGA-Eingang und RGB-Umschalter / Main Board – VGA Input and RGB Switches QW1190-8

$ % ^ * &

PI3V512

SEL

2

5

6

8

11

12

OUT_A

OUT_B

OUT_C

OUT_D

OUT_E

24

23

22

21

18

17

16

15

14

13

A0

A1

B0

B1

C0

D0

C1

D1

E0

E1

GRUNDIG Service Chassis L5C–14"…20"

2 - 18

2Y1

1

2Y0

2

3Y1

3

3Z

4

3Y0

5

E6VEE7GND

8

S3

9

S2

10

S1

11

1Y0

12

1Y1

13

1Z

14

2Z

15

VCC

16

U301

CD4053

GNDGNDGND

12V-A

C349

10U25V

C352

10U25V

R305

10K

R303

10K

12V-A

GND

R307

10K

R306

10K

12V-A

GND

GND
GND

R309

10K

R308

10K

12V-A

GND

R312

10K

R311

10K

12V-A

GND

C355

10U25V

C357

10U25V

C353

10U25V

C351

10U25V

R339

100R

R340

100R

R310

10K

12V-A

Q300
BC848B

GND

MR_R

MR_L

J302

0R

J303

0R

MR_L

MR_R

RCA_LEFT

2Y1

1

2Y0

2

3Y1

3

3Z

4

3Y0

5

E6VEE7GND

8

S3

9

S2

10

S1

11

1Y0

12

1Y1

13

1Z

14

2Z

15

VCC

16

U302

CD4053

GNDGNDGND

12V-A

C361

10U25V

C364

10U25V

R314

10K

R313

10K

12V-A

GND

MR_R

R316

10K

R315

10K

12V-A

GND

GND
GND

R318

10K

R317

10K

12V-A

GND

R321

10K

R320

10K

12V-A

GND

C366

10U25V

C367

10U25V

MR_L

C365

10U25V

C362

10U25V

R343

100R

R344

100R

R319

10K

12V-A

Q301
BC848B

GND

AIN1L

AIN1R

SC2_I_L

Optional

R382

4K7

R384

4K7

MEMCRD_RCA_S

RCA_S2_S

RCA_S2_S

C325
100N

C326
100N

GND

GND

SC2_I_R

RCA_RIGHT

RCA_LEFT

AUDIO_L_SD

AUDIO_L_SD

AUDIO_R_SD

AUDIO_R_SD

Optional

MEMCRD_RCA_S

J300

0R
J301

0R

MR_R

MR_L

AIN1R

AIN1L

C406
2N2

GND

R381

4K7

C407
2N2

C408
2N2

C397

220N

GND GND

C368

100U16V

C369

100U16V

C372
1N

C373
1N

GND

GND

1

2

3

S300

GND

SPEAKERL

GND

OUTA

1

INA(NEG)

2

INA(POS)

3

VSS

4

INB(POS)

5

INB(NEG)

6

OUTB

7

VDD

8

U300

TDA1308

GND

C315
100N

VDD5VAUD

C302
100N

GND

VDD5VAUD

R302

10K

R304
10K

C370
100U16V

GND

GND

C394
1N5

R378
5K6

C395
1N5

R379
5K6

R380

4K7

C405
2N2

C396

220N

GND

SPEAKERR

SPEAKERL

SPEAKERR

1
2
3
4
5
6
7
8
9
10
11
12

S203

MOLCON12

1

2

3

4

5

6

7

JP201

MOLCON7

GND

4.7uH

L205

C255
1000U16V

C254
22U50V

C241
100N

R238

470R

R212
10K

1K

R239

Q202
BC848B

GND

5V

GND

GND

J226

0R

BRT_ADJ

R223
10K

R226
10K

1K

R241

1K

R240

J228

0R

Q203
BC848B

Q204
BC848B

GND

5V

5V

GND

BKL_EN

INV_POW

BKL_EN

BRT_ADJ

0V

4,8V

14,6V

2

1

3

4

8

7

6

5

INA(neg)

TDA1308(A)

OUTA

V

SS

V

DD

INA(pos)

INB(neg)

INB(pos)

OUTB

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Audio-Umschalter / Main Board – Audio Switches QW1190-8

Hauptplatte – Kopfhörer / Main Board – Headphone QW1190-8

Hauptplatte – Inverter-Steuerung / Main Board – Inverter-Control QW1190-8

2 - 19

C503
100N

5V

C523
470N

C524

470N

C532

1UF25V

AUVDD

053516

L504

22UH

053516

L505

22UH

C518
22N

C516
22N

C520
22N

C504
100N

C517
22N

C519
22N

R504
100R

R503
100R

C513
22N

C511
22N

C515
22N

C502
100N

C512
22N

C514
22N

R502
100R

R501
100R

053516

L502

22UH

053516

L503

22UH

L500

BK1608HM601

12V

C500
100N

C501
100N

C507
100U50V

C508
100U50V

C521

470N

C522

470N

C525

470N

C526

470N

C530
100P

C531
100P

1
2
3
4

S500

MOLCON4

SPEAKERL

SPEAKERR

AMP_EN

AMP_EN

AUVDD

NC

1

PIN1

2

NIN1

3

AGND1

4

NC

5

EN1

6

NIN2

7

PIN2

8

AGND2

9

EN2

10

NC

11

BS2

12

VPP2

13

SW2

14

PGND2

15

NC

16

BS1

17

VPP1

18

SW1

19

PGND1

20

U500

MP7731

L501

BK1608HM601

AMP_POW

C535
1UF25V

C536
1UF25V

13

D502
BZX84C6V2

13

D503
BZX84C6V2

D501

IMBD4148

D500
IMBD4148

R507
20K

R508
20K

SUBVCC

C509
1000U25V

C510
1000U25V

R510
10R

SUBVCC

R511
10R

C539
390P

C540
390P

D504
MBRS130LTR

D505
MBRS130LTR

10uH

L506

10uH

L507

C527
470N

C529
470N

C537

15P

C538

15P

R505

150K

R506

150K

C528
470N

C534

1UF25V

C533
1UF25V

R509
180K

R500

10K

SUBWOOFER

AMP_EN

C506
2N2

C505
2N2

1

2

S501

MOLCON2

PGND1PGND

2

VDD3VDD

4

CIN

5

CIP

6

CHOLD

7

NC

8

INL-

9

INL+

10

SHDN

11

SS

12

AGND

13

REG

14

INR-

15

INR+

16

GAIN1

17

GAIN2

18

FS1

19

FS2

20

VDD21VDD

22

PGND23PGND

24

OUTR-

25

OUTR-

26

OUTR+

27

OUTR+

28

OUTL-

29

OUTL-

30

OUTL+

31

OUTL+

32

U501
MAX9704

5V

J500 0R
J501 0R

J502 0R
J503 0R

5V

5V

GND

GND

GND

GND

GND

GND

R513
100K %1

R512
100K %1

C541

CAP4.7U50V

GND

GND

AMP_POW

REF

REF

REF

26

27

27

28

28

26

• ≥ §

¡

)

6 4 3

5

*

%

£

only for LVDS interface

2

power on (trigger: +12V)

2

switch on with RC

∞

only for LVDS interface

™

£

only for RGB interface

^

&

≤

only for LVDS interface

(

7

MAX9704

INL+10

1 2 3 4 21 22 23 24

9

19

11

17

18

12

13 AGND

14

6
5

20

INL-

FS1

FS2

G1

G2

SS

REG

MODULATOR

OSCILLATOR

CHARGE PUMP

C1P

C1N

GAIN

CONTROL

SHUTDOWN

CONTROL

SHDN

H-BRIDGE

OUTL+

OUTL+

OUTL-

OUTL-

32

31

30

29

PGND VDDVDDPGND

CHOLD

7

INR+

15

16

INR-

MODULATOR

H-BRIDGE

OUTR+

OUTR+

OUTR-

OUTR-

28

27

26

25

GRUNDIG Service Chassis L5C–14"…20"

Hauptplatte – Verstärker / Main Board – Amplifier

QW1190-8

Hauptplatte / Main Board – Scaler

2 - 20

ROM_DATA3

1

ROM_DATA2

2

ROM_DATA1

3

ROM_DATA0

4

ROM_OEn

5

ROM_WEn

6

ROM_CSn

7

CRVSS

8

CVDD_1.8

9

VCO_LV/RESERVED

10

AVDD_LV_E_3.3

11

AVSS_LV_E

12

CH3P_LV_E/ER0

13

CH3N_LV_E/ER1

14

CLKP_LV_E/ER2

15

CLKN_LV_E/ER3

16

CH2P_LV_E/ER4

17

CH2N_LV_E/ER5

18

CH1P_LV_E/ER6

19

CH1N_LV_E/ER7

20

CH0P_LV_E/EG0

21

CH0N_LV_E/EG1

22

AVSS_LV_E

23

AVDD_LV_E_3.3

24

AVSS_LV

25

AVDD_lv_3.3

26

AVDD_LV_O_3.3

27

AVSS_LV_O

28

CH3P_LV_O/EG2

29

CH3N_LV_O/EG3

30

CLKP_LV_O/EG4

31

CLKN_LV_O/EG5

32

CH2P_LV_O/EG6

33

CH2N_LV_O/EG7

34

CH1P_LV_O/EB0

35

CH1N_LV_O/EB1

36

CH0P_LV_O/EB2

37

CH0N_LV_O/EB3

38

AVSS_LV_O

39

AVDD_LV_O_3.3

40

CVDD_1.8

41

CVSS

42

EB4

43

EB5

44

EB6

45

EB7

46

DEN

47

DHS

48

DVS

49

RVDD_3.3

50

CRVSS

51

N/C52N/C53N/C

54

DCLK

55

OR0/JTAG_RESET

56

OR1/RESERVED

57

OR2/RESERVED

58

OR3/RESERVED

59

OR4/RESERVED

60

OR5/RESERVED

61

OR6/RESERVED

62

OR7/RESERVED

63

OG0/JTAG_TDO

64

OG1/RESERVED

65

OG5/JTAG_TDI

66

PPWR

67

PBIAS

68

GPIO15

69

STI_TM2/RESERVED

70

HOST_SDA/UART_DO

72

RVDD_3.3

73

CRVSS

74

CVDD_1.8

75

CRVSS

76

HOST_SCL/UART_DI

71

DDC_SCL_VGA

77

DDC_SDA_VGA

78

DDC_SCL_DVI

79

DDC_SDA_DVI

80

GPIO0

81

GPIO1

82

GPIO2

83

GPIO3

84

GPIO4

85

GPIO5

88

GPIO6

89

GPIO7/IRQin

90

GPIO8/IRQout

91

GPIO9/SCL

92

GPIO10/SDA

93

CVDD_1.8

86

CRVSS

87

CRVSS

94

RVDD_3.3

95

CVDD_1.8

96

CRVSS

97

GPIO11/PWM0

98

GPIO12/PWM1

99

GPIO13/PWM2

100

GPIO14/PWM3

101

GPIO16/VDATA7

102

GPIO17/VDATA6

103

N/C

104

N/C

105

GPIO18/VDATA5

106

GPIO19/VDATA4

107

GPIO20/VDATA3

108

GPIO21/VDATA2

109

GPIO22/VDATA1

110

GPIO23/VDATA0

111

VCLK

112

AVDD_IMB_3.3

113

REXT

114

AGND_IMB

115

VDD_RX2_1.8

116

AGND_RX2

117

RX2+

118

RX2-

119

AVDD_RX2_3.3

120

VDD_RX1_1.8

121

AGND_RX1

122

RX1+

123

RX1-

124

AVDD_RX1_3.3

125

VDD_RX0_1.8

126

AGND_RX0

127

RX0+

128

RX0-

129

AVDD_RX0_3.3

130

AGND_RXC

131

RXC+

132

RXC-

133

AVDD_RXC_3.3

134

VBUFC_DVI/RESERVED

135

GND_RXPLL

136

VDD_RXPLL_1.8

137

CLKOUT/RESERVED

138

CVDD_1.8

139

CRVSS

140

AVDD_BLUE_3.3

141

BLUE+

142

BLUE-

143

AGND_BLUE

144

AVDD_GREEN_3.3

145

SOG_MCSS

146

GREEN+

147

GREEN-

148

AGND_GREEN

149

AVDD_RED_3.3

150

RED+

151

RED-

152

AGND_RED

153

AVDD_ADC_3.3

154

ADC_TEST/RESERVED

155

AGND_ADC

156

N/C

157

N/C

158

N/C

159

N/C

160

N/C

161

N/C

162

GND_ADC

163

VDD_ADC_1.8

164

GND_RPLL

165

VDD_RPLL_1.8

166

RESERVED/VBUFC_RPLL

167

AGND_RPLL

168

XTAL

169

TCLK

170

AVDD_RPLL_3.3

171

LBADC_VDD_3.3

172

LBADC_IN1

173

LBADC_IN2

174

LBADC_IN3

175

LBADC_RETURN

176

LBADC_GND

177

RESETn

178

CVDD_1.8

179

CRVSS

180

HSYNC/CSYNC

181

VSYNC

182

ROM_ADDR17

183

ROM_ADDR16

184

ROM_ADDR15

185

ROM_ADDR14

186

ROM_ADDR13

187

ROM_ADDR12

188

ROM_ADDR11

189

RVDD_3.3

190

CRVSS

191

ROM_ADDR10

192

ROM_ADDR9

193

ROM_ADDR8

194

ROM_ADDR7

195

ROM_ADDR6

196

ROM_ADDR5

197

ROM_ADDR4

198

ROM_ADDR3

199

ROM_ADDR2

200

ROM_ADDR1

201

ROM_ADDR0

202

ROM_DATA7

203

ROM_DATA6

204

RVDD_3.3

205

CRVSS

206

ROM_DATA5

207

ROM_DATA4

208

U200
GM5221_1

1 2

Y200

14.318MHz

C251

5PF

C252

5PF

J201

0R

J200

0R

J202

0R

J203

0R

J204

0R

J205

0R

J206

0R

J207

0R

J208

0R

J210

0R

J211

0R

J212

0R

J213

0R

J214

0R

J215

0R

J216

0R

J217

0R

J218

0R

J219

0R

J209

0R

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

S201

20 PIN LVDS

GND

GND

GND

GND

GND

GND
GND

ROM_ADDR0

ROM_ADDR1

ROM_ADDR2

ROM_ADDR3

ROM_ADDR4

ROM_ADDR5

ROM_ADDR6

ROM_ADDR7

ROM_ADDR8

ROM_ADDR9

ROM_ADDR10

ROM_ADDR11

ROM_ADDR12

ROM_ADDR13

ROM_ADDR14

ROM_ADDR15

ROM_ADDR16

ROM_ADDR17

R204

10K

R205

10K

R206

10K

R207

10K

R208

10K

R209

10K

R210

10K

R211

10K

R213

10K

R214

10K

R215

10K

R216

10K

R217

10K

R219

10K

R220

10K

R222

10K

R224

10K

ROM_ADDR0

ROM_ADDR1

ROM_ADDR2

ROM_ADDR3

ROM_ADDR4

ROM_ADDR5

ROM_ADDR6

ROM_ADDR7

ROM_ADDR8

ROM_ADDR9

ROM_ADDR10

ROM_ADDR11

ROM_ADDR12

ROM_ADDR13

ROM_ADDR14

ROM_ADDR15

ROM_ADDR16

R225

10K

ROM_ADDR17

3V3AVDD

3V3DVDD 1V8AVDD 1V8CVDD

3V3DVDD

CE

1

SO

2

WP

3

VSS

4

VCC

8

HOLD

7

SCK

6

SI

5

U203

25VF040

R231

10K

3V3DVDD

ROMCS

ROMWE

ROMWOE

ROM_ADDR15

ROMCS

3V3DVDD

R230

10K

C242
100N

GND

ROM_ADDR16

ROM_ADDR17

R227
10K

R228
10K

R229
10K

3V3DVDD

250R%1

R237

3V3AVDD

3V3AVDD

RG200

RG47R
RG201

RG47R
RG202

RG47R

RG203

RG47R

RG204

RG47R

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

S200

FH12-50S-0.5SH

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND
GND

ER0
ER1
ER2
ER3

ER4
ER5
ER6
ER7

EG0
EG1
EG2
EG3

EG4
EG5
EG6
EG7

EB0
EB1
EB2
EB3

EB4
EB5
EB6
EB7

EB0

EB1

EB2

EB3

EB4

EB5

EB6

EB7

EG0

EG1

EG2

EG3

EG4

EG5

EG6

EG7

ER0

ER1

ER2

ER3

ER4

ER5

ER6

ER7

R232

47R

CLK

VS

HS

DE

CLK

DE

VS

HS

J220

0R

RG205

RG47R

J221

0R

J222

0R

J223

0R

3V3_STBY

C247

22U50V

C212
100N

L200

10uH

3V3AVDD

C200
100N

C201
100N

C202
100N

C203
100N

C204
100N

C205
100N

C206
100N

C207
100N

C208
100N

C209
100N

C210
100N

C211
100N

C243
220P

3V3_STBY

C248

22U50V

C222
100N

L201

10uH

3V3DVDD

C213
100N

C214
100N

C215
100N

C216
100N

C217
100N

C218
100N

C219
100N

C220
100N

C221
100N

1V8_STBY

C249

22U50V

C232
100N

L202

10uH

1V8CVDD

C223
100N

C224
100N

C225
100N

C226
100N

C227
100N

C228
100N

C229
100N

C230
100N

C231
100N

C244
220P

1V8_STBY

C250

22U50V

C238
100N

L203

10uH

1V8AVDD

C233
100N

C234
100N

C235
100N

C236
100N

C237
100N

C245
220P

C246
220P

5V_STBY

GM2221

1

2

3

4

S202

MTA100_4

5V_STBY

R201
10K

R200
10K

1 2
3 4
5 6
7

8
9 10
11 12
13

14

15

16
17 18
19

20
21 22
23

24
25

26
27 28
29

30
31

32
33

34
35 36
37 38
39

40

JP200

HEADER2X20

PANELPWR

RWPLENAPR

WPLEN

AP

ER0

ER1

ER2ER3

ER4ER5

ER6

ER7

EG0

EG1

EG2EG3

EG4EG5

EG6EG7

EB0EB1

EB2

EB3

EB4

EB5

EB6EB7

DE

HS

VS

CLK

GND

GND

GND

SDA3V3

SCL3V3

3V3 3V3

5V

5V

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

R235

100R

R236

100R

VCC

8

WP

7

SCL

6

SDA

5

A0

1

A1

2

A2

3

GND

4

U201

24LC16

GND

3V3_STBY

C239

100N

C258
22P

C258_A
22P

BRT_ADJ

BKL_EN

BOOTSTRAP CONFIGURATION

SPI FLASH

NVRAM

LVDS I/F

C253
10N

GND

PNL_EN

PNL_EN

S1_MAIN_SW

S1_MAIN_SW

PC_SD_SW

PC_SD_SW

PANELCTRL

PANELCTRL

LED1

LED2

MEMCRD_RCA_S

MEMCRD_RCA_S

RCA_S2_S

RCA_S2_S

UART_TX
UART_RX
DDC_SCL_VGA
DDC_SDA_VGA

UART_TX

UART_RX
DDC_SCL_VGA
DDC_SDA_VGA

RESETQ

RESETQ

BLUE+
BLUE­SOG_MCSS
GREEN+
GREEN­RED+
RED­HS_PC
VS_PC

BLUE+

BLUE-

SOG_MCSS

GREEN+

GREEN-

RED+

RED-

HS_PC

VS_PC

PANELPWR

PANELPWR

SCL3V3

SDA3V3

GND

Q206
2N7002

Q205
2N7002

CLKOUT

DATA

5V_STBY

5V_STBY

R242
10K

R244
10K

J231

0R

SC_UPDT_CTR

SC_UPDT_CTR

SC_UPDT_CTR

SCL5V

SDA5V

SCL5V

SDA5V

5V_STBY

R243
10K

5V_STBY

R245
10K

1

2

3

4

S204

MOLCON4

SCL3V3
SDA3V3

5V

GND

C256
220N

GND

Should be close to VCT-IF

R247

10K

R248

10K

R249

10K

R250

10K

R251

10K

GND

GND

GND GND GND

J237

0R

R252

10K

GND

R253
4K7

R254
4K7

J238
0R

3V3_STBY

2

1

SW201

1
2
3
4
5
6
7
8

JP202

MOLCON8

1

2

3

4

5

6

7

JP203

MOLCON7

5V_STBY

3V3_STBY

J234
0R

J233

100R

3V3_STBY

GND GND

LED1

IR

1K

R258

3V3_STBY

KEYBOARD

GND GND

LED2

KEYBOARD I/F

R257

100R

STBY

SAFETY

STBY2

STBY
STBY2

R256

10K

R255

100R

R246
10K

Q207
BC848B

GND

J227

0R

3V3_STBY

IR

IR_INV

IR_INV

KEYBOARD

Q302
BC848B

R398

27K

R334

10K

GND

AMP_EN

MUTE

AMP_EN5V

MUTE

SC1_PIN8
SC2_PIN8

SAFETY

SC2_PIN8

RESETQ

Optional

J235

0R

J232

0R

Optional

R260

10K

3V3_STBY

R261

10K

3V3_STBY 3V3_STBY

3V3_STBY

3V3_STBY

R262

10K

R263

10K

R264

10K

R265

10K

BKL_EN

BRT_ADJ

GND

GND

1 2

3

D201

BAV99L

1 2

3

D200

BAV99L

R273

10K

GND

R276

4K7

J236

0R

R277
4K7

Q208
BC848B

GND

STBY2

R274
4K7

3V3_STBY

C257_A
22P

GND

C257
22P

GND

23 24 25

19

22

18

16

14

15

2

7

17

2

5

6

20

21

Hauptplatte / Main Board – Scaler QW1190-8

GPIO

LVDS
Panel I/F

Analog

RGB

Triple

ADC&PLL

X86

Micro-controller

External
ROM I/F

Image Capture /

Measurement

XTAL

Clock

Generation

On-chip

RAM

/ ROM

OSD

Controller

NVRAM

Display

Timing

Control

Test

Pattern

Generator

BT 656

2 X

LVDS

Tx

3 X General-

Purpose ADC

4 X

PWM

Back-light
Audio

Intelligent Image Processing™

Zoom / Shrink Filter

with edge enhancement

uv

Y

Digital Color Adjustments

Reset CCT

422 to 444

Conversion

High-light Window

Color Look-up-Table

ACC

Luma

Shaping

ACM-II

Chroma

Adjust

Histogram

Color Space Conversion

Schmitt

Tri

gger

DDC2Bi

Resetn

Serial

Master

GPIO

Parallel or Serial

EEPROM

Keyp

ad Sensing

Temp Sensor

RGB/YUV Color Space Conversion

GM2221

GRUNDIG Service Chassis L5C–14"…20"

2 - 21

EB7 EB6
EB5 EB4

EB3 EB2
EB1 EB0

ER0ER1

ER2ER3

ER4ER5

ER6ER7

EG0EG1

EG2EG3

EG4EG5

EG6EG7

DE

HS

VS

CLK

1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40

S2

HEADER2X20

+3.3V

GND

PANEL_POWER

+5V

PANEL_POWER

+3.3V

+5V

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

S1

FH12-50S-0.5S-top contact

R1

47R

C2
22P

GND

GND

L1

FERRITE BEAD

PANEL_POWER

C1
220N

GND

GND

GND

GND

GNDRG1

47RRG2

47RRG3

47R

RG4

47RRG5

47RRG6

47R

GND

GND

GND

GND

GND

GND
GND

HS
VS

DE

CLK

ER0

ER1

ER2

ER3

ER4

ER5

ER6

ER7

EG0

EG1

EG2

EG3

EG4

EG5

EG6

EG7

EB0

EB1

EB2

EB3

EB4

EB5

EB6

EB7

6BE

7

BE

4BE5B

E

2B

E

3BE

0BE

1BE

ER0ER1

ER2

ER3

ER4ER5

ER6ER7

EG0EG1

EG2

EG3

EG4

EG5

EG6EG7

DE

HS

VS

CLK

1

2
3 4
5 6
7 8
9 10
11

12

13

14
15 16
17 18
19 20
21 22
23

24
25

26
27 28
29

30
31 32
33 34
35 36
37 38
39

40

S2

HEADER2X20

+3.3V

GND

PANEL_POWER

+5V

PANEL_POWER

+3.3V

+5V

R1

47R

C2
22P

GND

L1

FERRITE

C1

220N

GND

GND

GND

GND

GND

HS

VS

DE

CLK

ER0

ER1_S

ER2

ER3_S

ER4
ER5

ER6

ER7_S

EG0
EG1

EG2

EG3

EG4
EG5

EG6

EG7

EB0
EB1

EB2

EB3

EB4
EB5

EB6_S

EB7

TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
TP9

TP10

TP11

TP12
TP13
TP14
TP15
TP16

TP17

TP18

TP19

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27

TP28

TP29

TP30

C5
100N

C3
100N

GND

IN

3

1

OUT

2

ADJ

U1

LM1117 12V

V21+

R

EWOP_L

E

N

A

P

+12V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

S1

DF9-41P-1V

GND

GND

GND

GND

GND

RG1
47R

RG2
47R

RG3
47R

RG4
47R

RG5
47R

RG6 47R

ER1_S
ER3_S
ER7_S
EB6_S

ER1
ER3
ER7
EB6

C4
10U50V

IN

1

2

OUT

3

GND

U2

MC7812K

GND

J1 0R

GRUNDIG Service Chassis L5C–14"…20"

Zusatzplatte / Daughter Board Y48192

Zusatzplatte / Daughter Board Y48194

2 - 22

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

GND

OUT

Vs

GND

S2
P+

S5
P-

S1
MENU

S4
V+

S3
V-

R5

180R

R3

330R

R7

470R

R6

1K

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

C1
10uF/10V

R2
150R

R8

270R

R4
470R

GND

SW1

SW-SPST

1
2
3

4

P2

4 HEADER

1
2
3
4
5

CN2

MOLCON5

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

GND

OUT
GND
Vs

GND

S2P+S5P-S1

MENU

S4
V+

S3
V-

R5

220R

R3

330R

R7

470R

R6

1K

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

C1
CEL

R2
150R

1

Out

2

GND

3

Vs

IR1

IR

R8

270R

R4
470R

D1
LED

GND

GND

KEY DRL

GND

S2P+S5P-S1MNS4V+S3

V-

R5

180RR3330RR7470R

R6

1K

R9

3K9

S6
AV/TV

GND

1

2

3

P1

GRUNDIG Service Chassis L5C–14"…20"

Bedieneinheit / Keyboard ZG8191

Bedieneinheit / Keyboard ZG9191

Bedieneinheit / Keyboard ZN2191

2 - 23

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

GND

OUT
GND
Vs

GND

S2P+S5P-S1

MENUS4V+S3V-

R5

180RR3330RR7470RR61K

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

C1
10uF/10V

R2
150R

Out

1

GND

2

Vs

3

IR1

IR

R8

270R

R4
470R

D1
LED

GND

SW1

SW-SPST

1

2

3

4

P2

4 HEADER

S6
AV/TV

R9

3K9

1

2

CN4

GND

GND

KEY_DRL

GND

S2P+S5P-S1

MENU

S4
V+S3V-

R5

180R

R3

330RR7470R

R6

1K

S6
SOURCE

R9

3K9

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

GND

OUT
GND
Vs

GND

S2P+S5P-S1

MENUS4V+S3V-

R5

180R

R3

330R

R7

470RR61K

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

12

C1
10uF/10V

R2
150R

Out

1

GND

2

Vs

3

IR1

IR

R8

270R

R4
470R

D1
LED

GND

S6
SOURCE

R9

3K9

GRUNDIG Service Chassis L5C–14"…20"

Bedieneinheit / Keyboard ZN7191

Bedieneinheit / Keyboard ZP3191

Bedieneinheit / Keyboard ZR6191

2 - 24

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

OUT
GND

Vs

GND

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

C1
10uF/10V

R2
150R

R8

270R

R4
470R

D1
LED

GND

SW1

SW-SPST

1
2
3
4

P2

4 HEADER

Out

Out

GND

GND

Vs

Vs

IR1

D1
LED_RED/GREEN

R8

270R

R4
470R

1

2

3

P5

MOLCON3

gnd

gnd

GND

GND

KEY_DRL

KEY_PMU

IR

LED_RED

3.3V

GND

GND

OUT
GND
Vs

GND

S2P+S5P-S1

MENUS4V+S3V-

R5

180RR3330RR7470RR61K

1

2

3

4

5

6

7

CN1

7 HEADER

R1
150R

C1

10uF/10V

R2
150R

R8

270R

R4
470R

GND

SW1

SW-SPST

1

2

3

4

P2

4 HEADER

S6
AV/TV

R9

3K9

1
2
3
4
5

CN2

7 HEADER_1

1

2

3

4

5

CN3

CON5

2

1

3

IR1
IR

D1
LED

GRUNDIG Service Chassis L5C–14"…20"

Bedieneinheit / Keyboard ZR7191

IR/LED-Platte / Board ZG5192

IR/LED-Platte / Board ZP3193

IR/LED-Platte / Board ZP8191

2 - 25

1
2
3

IR1

IR

R1

150R

R2

150R

GND

GND

Out

Vs

3.3V

IR

C1
CEL

GND

SW1

SW-SPST

1
2
3
4

CN3

4 HEADER

GND

1

2

3

CN2

KON3

1

2

3

4

CN1

4 HEADER

1

2

3

4

P2

4 HEADER

S1

GND

1

2

3

4

5

6

7

P2

7 HEADER

S1

1

2

3

X940

R943

R942

R940

R941

R

GND

L

X941

C940

C941

39R

39R

47n/100V

47n/100V

330R

330R

HEADPHONE

HEADPHONE JACK

GRUNDIG Service Chassis L5C–14"…20"

Kopfhörer-Platte / Headphone Board 8R9198

Netzschalter-Platte / Power Switch Board ZG9193

Netzschalter-Platte / Power Switch Board ZP3195

Netzschalter-Platte / Power Switch Board ZR6192

2 - 26
