Quick Guide
About this guide
The guide includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
guide is subject to change, without notice, due to firmware updates
or other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Limitation of Liability / Legal Disclaimer
Abetechs GmbH (Grundig Security) undertakes all reasonable efforts
to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this
document and the subsequent results shall be entirely on the user’s
own responsibility. Abetechs GmbH (Grundig Security) reserves the
right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The product described herein, with its hardware, software and
documentation is provided “as is”, without any warranty, expressed
or implies, including without limitation, merchantability, satisfactory
quality, fitness for a particular purpose, and non-infringement of a
third party.
In no event will our company and its employees or agents be liable to
you for any special, consequential, incidental, or indirect damages,
including among others, damages for loss of business profits,
business interruption, or loss of data or documentation, in
QG-GD-CI-AC2627T-2018-10-08-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY
1
connection with the use of this product, even if our company has
been advised of the possibility of such damages.
Regarding to products with internet access, the use of the product
shall be wholly at your own risks. Our company shall not take any
responsibilities for abnormal operation, privacy leakage or other
damages resulting from cyber-attack, hacker attack, virus inspection,
or other internet security risks; however our company will provide
timely technical support if required. Surveillance laws vary by
jurisdiction before using this product in order to ensure that your use
conforms to the applicable law. Our company shall not be liable in
the event that this product is used with illegitimate purposes.
In the event of any conflicts between this manual and the applicable
law, the later prevails.
Trademark:
Each of trademarks herein is registered. The name of this product
and other trademarks mentioned in this manual are the registered
trademark of their respective company.
Copyright of this document is reserved. This document shall not be
reproduced, distributed or changed, partially or wholly, without
formal authorization.
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with Grundig products may
contain copyrighted software that is licensed under various open
source software licenses. For detailed information about the
contained open source software packages, the used package
versions, license information and complete license terms, please
2
refer to the product detail pages on our website. The complete open
source software license information is also included in firmware files
of affected products. Please also check your product’s CD-ROM and
manuals for additional information.
You may obtain the complete corresponding open source part of a
specific product from us for a period of three years after our last
shipment of this product by sending an email to: info@grundigsecurity.com
Safety Instruction
Make sure that you only use the power adapter that is specified in
the specifications sheet of the product. If you use any other adapter
or connect the power supply incorrectly, this may cause explosion,
fire, electric shocks or damage the product. Do not connect several
devices to one power adapter as this may cause an adapter overload
and can lead to over-heating and fire. Make sure that the plug of the
power adapter is firmly connected to the power socket.
Do not place containers with liquids on the product. Do not place
conducting items like tools, screws, coins or other metal items on the
product. These may fall from the product or can cause fire or electric
shocks or other physical injuries.
Do not push or insert any sharp items or any objects into the device
as this may cause damage to the product, fire, electric shocks and/or
physical injuries.
Do not block any ventilation openings, if there are any. Ensure that
the product is well ventilated to prevent any over-heating.
Do not subject the device to physical shock or drop the product.
3
If the product uses batteries, please use a battery type that is
recommended by the manufacturer. Improper use or replacement of
the battery may result in the hazard of explosion.
Do not use any accessories that are not recommended by GRUNDIG.
Do not modify the product in any way.
If the product starts to smell or smoke comes out of the device,
immediately stop using the product and disconnect it from the power
supply to prevent fire or electric shocks. Then contact your dealer or
the nearest service center.
If the product does not work correctly, contact your dealer or nearest
service center. Never open, disassemble or alter the product yourself.
GRUNDIG cannot accept any liability or responsibility for problems
caused by attempted and unauthorized repair and maintenance.
Special Installation Instructions for IP Cameras
Make sure that the latest firmware is installed on the IP Device. You
may get the latest firmware from www.grundig-security.com
website or from techsupport@grundig-security.com.
Do not touch the sensor module with your fingers.
Do not aim the camera or camera lens at a strong light such as the
sun or a bright lamp. Irreversible damage to the camera can be
caused by a strong light.
Do not expose the sensor of the product to laser beams as this may
damage the sensor.
4
If the product supports IR, you need to take some precautions to
prevent IR reflection. Do not install the product close to reflective
surfaces of objects as this may cause reflection. If the product has a
dome cover, please remove the protection film only after installation
to prevent dust or grease on the camera which can cause reflection.
The foam ring around the lens must be seated flush against the inner
surface of the bubble to isolate the lens from the IR LEDS. Fasten the
dome cover to the camera body so that the foam ring and the dome
cover are attached seamlessly.
For cleaning, use a clean cloth with a bit of ethanol and wipe it
carefully and gently. In any case, do not use alkaline detergents.
If a glove is provided in the package, please use it to open the product
cover. Never touch the product cover directly with fingers, because
the acidic sweat of the fingers may damage the surface coating of the
product cover.
5
Table of Contents
1 Appearance Description ............................................................... 7
1.1 Type I Camera ................................................................. 7
1.2 Type II Camera ................................................................ 8
2 Installation ................................................................................. 10
2.1 Memory Card Installation .............................................. 10
2.2 Camera Mounting ......................................................... 12
2.2.1 Direct Mounting ...................................................... 12
2.2.2 Mounting with a Junction Box ................................. 15
2.2.3 Mounting with a Gang Box ...................................... 17
2.3 Zoom and Focus Adjustment ......................................... 18
2.3.1 Type I ....................................................................... 18
2.3.2 Type II ................................................................ ...... 19
2.4 Installation of Network Cable Water-proof Jacket
(Optional) ................................................................................. 20
3 Setting the Network Camera over the LAN ................................. 23
3.1 Wiring ........................................................................... 23
3.2 Activating the Camera ................................................... 24
3.2.1 Activation via Web Browser ..................................... 24
3.2.2 Activation via IP-Finder Software ............................. 25
3.3 Modifying the IP Address .............................................. 27
4 Accessing via Web Browser ........................................................ 29
4.2 Initializing the Memory Card ......................................... 31
6
1 Appearance Description
1.1 Type I Camera
The overview of Type I camera is shown below.
1
2
4
3
Overview of Type I Camera
No. Description
1 Sun Shield
2 Front Cover
3 IR LED
4 Lens
8
5
6 7
Description
9
10
11
12
7
No. Description
5 Zoom and Focus Lever
6 Memory Card Slot
7 Reset Button
8 Camera Body
9 Bracket
10 Video Cable
11 Network Cable
12 Power Cord
Note:
Press RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password, IP
address, port No., etc.
1.2 Type II Camera
The overview of Type II camera is shown below.
8
1
2
4
3
7
8
9
5 6
10
Overview of Type II Camera
Description
No. Description
1 Sun Shield
2 Front Cover
3 IR LED
4 Lens
5 Memory Card Slot
6 Reset Button
7 Camera Body
8 Bracket
9
No. Description
9 Network Cable
10 Power Cord
Note:
Press RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password, IP
address, port No., etc.
2 Installation
2.1 Memory Card Installation
This series of cameras support memory card installation. Different
camera types share the similar installation steps, and we take type I
camera as the example.
Steps:
1. Rotate the lock screw counterclockwise to loosen it.
Lock Screw
Loosen the Lock Screw
10
2. Remove the sun shield.

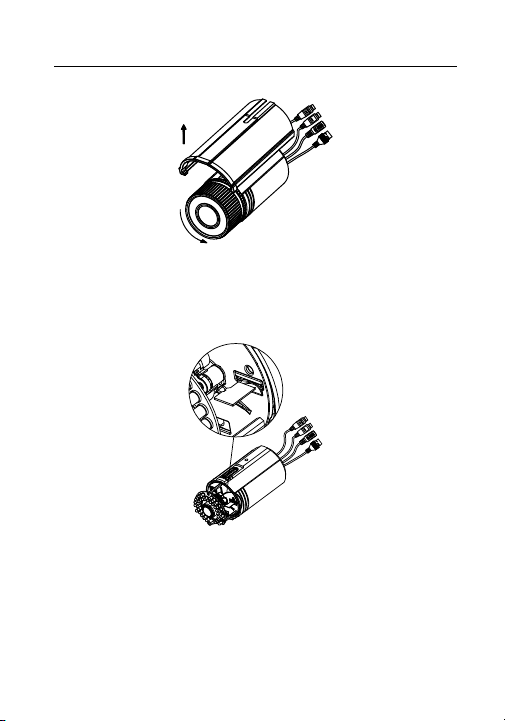

Figure 2-2 Remove the Sun Shield
3. Remove the front cover by rotating it counterclockwise.
4. Insert the memory card into the memory card slot.
Figure 2-3 Insert the Memory Card
5. Rotate the front cover clockwise back to the camera and install the
sun shield back.
6. Tighten the lock screw clockwise to tighten the sun shield.
11
Rotating Label
Tighten the Front Cover
Note:
For water-proof performance, align the rotating label on the front
cover with that on the camera when you rotate the front cover
clockwise.
2.2 Camera Mounting
Before you start:
Wall mounting bracket is not included in the package. You need to
purchase a bracket separately.
2.2.1 Direct Mounting
Steps:
1. Attach the drill template (supplied) to the wall or the ceiling where
the camera is to be mounted.
2. Drill screw holes in the wall or ceiling according to the hole 1 on
the drill template.
12
2
Ceiling Mounting
2
1
2:Screw Hole for
Mounting Base
1
1
2 2
1:Screw Hole for
Bracket
1

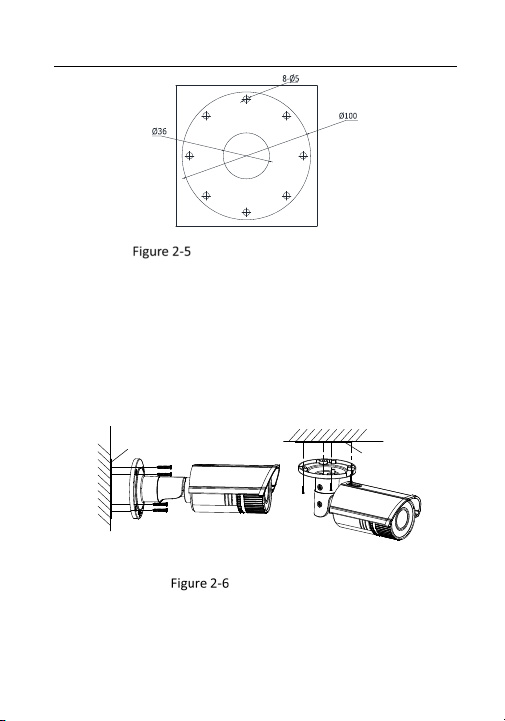

Drilling Holes in the Wall/Ceiling
3. If you need to route cables through the wall (or the ceiling), cut a
cable hole according to the drill template. Skip this step if you want
to route the cables on the surface of the wall (or the ceiling).
4. Route the cables of the camera.
5. Secure the camera to the wall (or the ceiling) with the expansion
screws.
6. Adjust the view angle.
Drill Template
Drill Template
Secure the Camera
13
3-axis (pan/tilt/rotation) adjusting allows adjustment for optimum
camera rotation and placement. Follow the steps below to adjust
the view angle.
Pan Adjustment
Steps:
1). Loosen the lock screw 1.
2). Adjust the panning position of the camera. The adjusting range
is from 0° to 360°.
3). Tighten the lock screw 1.
Tilt Adjustment
Steps:
1). Loosen the lock screw 2.
2). Adjust the tilting position of the camera. The adjusting range is
from 0° to 100°.
3). Tighten the lock screw 2.
Rotation Adjustment
Steps:
1). Loosen the lock screw 3.
2). Rotate the rotation position to adjust the azimuth angle of the
image. The adjusting range is from 0° to 360°.
3). Tighten the lock screw 3.
14
Panning
0° to 360°
1
Lock Screw 1
2
Lock Screw 2
3
Lock Screw 3
2
0° to 100°
Tilting
1
3
View Angle Adjustment
7. Adjust zoom and focus (refer to Section 2.3 Zoom and Focus
Adjustment).
8. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.4 Installation of Network Cable Water-proof
Jacket (Optional) for detailed installation procedures.
2.2.2 Mounting with a Junction Box
Before you start:
The junction box is not included in the package. You need to prepare
one for this mounting type.
Junction Box
Safety Rope
Figure 2-8 Mounting with a Junction Box
15
Rotation
0° to 360°
Steps:
1. Attach the drill template (supplied) to the wall where the camera is
to be mounted and drill holes in the wall according to hole 2 on the
drill template. See Figure 2-5.
2. If you need to route cables through the wall (or the ceiling), cut a
cable hole according to the drill template. Skip this step if you want
to route the cables on the surface of the wall (or the ceiling).
3. Secure the junction box to the wall (or the ceiling) with the
expansion screws.
4. Hook the camera to the junction box with the safety rope.
5. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.4 Installation of Network Cable Water-proof
Jacket (Optional) for detailed installation procedures.
6. Route the cables of the camera. Connect the cables and power on
the camera to see if you can get an image on your monitoring
screen.
Note:
If you can’t get the image, check the power and network
connection before performing the next step.
7. Secure the camera to the junction box with the screws.
8. Adjust the view angle. Refer to Step 6 in Section 2.2.1 Direct
Mounting.
9. Adjust zoom and focus (refer to Section 2.3 Zoom and Focus
Adjustment).
16
2.2.3 Mounting with a Gang Box
Before you start:
The gang box is not included in the package. You need to prepare one
for this mounting type.
Steps:
1. Secure the camera attachment to a gang box with the screws.
2. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.4 Installation of Network Cable Water-proof
Jacket (Optional) for detailed installation procedures.
3. Route the cables of the camera.
4. Connect the cables and power on the camera to see if you can get
an image on your monitoring screen.
Note:
If you can’t get the image, check the connection of the interfaces
before performing the next step.
5. Secure the camera to the camera attachment with the screws.
Figure 2-9 Mounting with a Gang Box
17
7. Adjust the view angle. Refer to Step 6 in Section 2.2.1 Direct
Mounting.
8. Adjust zoom and focus (refer to Section 2.3 Zoom and Focus
Adjustment).
2.3 Zoom and Focus Adjustment
2.3.1 Type I
Purpose:
You can use the zoom lever and focus lever to adjust the zoom and
focus level. Follow the steps below to adjust focus and zoom. We take
type II camera as the example to explain the adjusting steps.
Steps:
1. Remove the sun shield and front cover to expose the zoom lever
and the focus lever.
2. View the camera image on the monitoring screen.
3. Loosen the zoom lever and move the lever between T (Tele) and W
(Wide) to obtain the desired angle of view.
4. Tighten the zoom lever.
5. Loosen the focus lever and move the lever between F (Far) and N
(Near) to obtain the optimum focus.
6. Tighten the focus lever.
7. Install the sun shield and the front cover back to the camera.
18
Zoom/Focus Lever
Zoom and Focus Adjustment
Note:
If the camera is equipped with a fixed lens, you don’t need to adjust
the zoom and focus.
2.3.2 Type II
Camera of these types is equipped with a motorized vari-focal lens.
You can adjust the zoom and focus level on PTZ control panel by
visiting the camera via web browser or client software.
For detailed steps, refer to the User manual.
Zoom and Focus Adjustment via Web Browser
19
2.4 Installation of Network Cable Water-proof
Jacket (Optional)
Purpose:
If the camera is installed outdoor, you can adopt the water-proof
accessory for the network cable after the camera is secured on the
installation surface.
Figure 2-12 Water-proof Accessory Components
Table 2-1 Components
No. Components
1 Network Interface Socket
2 O-Type Gasket
3 Network Plug
4 Waterproof Endcap
5 Waterproof Rubber Gasket
6 Lock Nut
7
Network Cable from Router/Switch
20
Steps:
Feed the plugless network cable ⑦ through the lock nut ⑥,
waterproof rubber gasket ⑤ (the rubber gasket inset ridge
must face the waterproof endcap), and the waterproof endcap
④ in order.
Crimp an RJ-45 network plug ③onto the end of the cable,
taking care to insert the twisted pairs of wires in correct order.
Place the O-type gasket ② onto the end of the camera’s
network interface socket ①.
Insert the network plug ③ into the camera’s network interface
socket①.
Insert the waterproof rubber gasket ⑤ into the waterproof
endcap ④, and secure lock nut ⑥ with the waterproof endcap
④.
Align the snap on the waterproof endcap ④ with the notch on
the camera’s network interface socket ①, and then secure the
waterproof endcap ④ to the camera’s network interface socket
① to finish installation.
21
Figure 2-13 Water-proof Accessory Installation
22
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your own
protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.
3.1 Wiring
Connect the camera to network according to the following figures.
Connecting Directly
23
Connecting via a Switch or a Router
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via Grundig IP-Finder, and
Activation via Client Software are all supported. We will take
activation via Grundig IP-Finder software and Activation via Web
Browser as examples to introduce the camera activation.
Note:
Refer to the User manual for Activation via Client Software.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera. Connect the camera to your computer or
the switch/router which your computer connects to.
2. Input the IP address into the address bar of the web browser, and
press Enter to enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.100.
The computer and the camera should belong to the same
subnet.
For the camera enables the DHCP by default, you need to use
the Grundig IP-Finder software to search the IP address.
24
Activation Interface (Web)
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
3.2.2 Activation via IP-Finder Software
Grundig Finder software is used for detecting the online device and
activating the camera.
Get the Grundig Finder software from the supplied disk or the official
website and install the software according to the prompts. Follow the
25
steps to activate the camera, please refer to the User manual for
other two activation methods.
Steps:
1. Run the Finder software to search the online devices.
2. Check the device status from the device list and select the inactive
device.
Grundig IP-Finder Interface
Note:
The software supports activating the camera in batch. Refer to the
user manual of Grundig Finder software for details.
3. Create and input the new password in the password field, and
confirm the password.
26
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup
window. If activation failed, make sure that the password meets
the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC.
Use the Grundig IP-Finder software or client software to search and
change the IP address of the device. We take modifying the IP
Address via Grundig IP-Finder software as an example to introduce
the IP address modification.
For IP address modification via client software, refer to the user
manual of client software.
Steps:
27
1. Run the Grundig IP-Finder software.
2. Select an activate device.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Modify the IP Address
4. Input the admin password and click Modify to activate your IP
address modification.
The batch IP address modification is supported by the Grundig IPFinder. Please refer to the User Manual of Grundig IP-Finder for
details.
28
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.100. You are recommended
to change the IP address to the same subnet with your
computer.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
29
4. Click Login.
Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the plugin.
Note:
You may have to close the web browser to finish the installation of
the plug-in.
Download Plug-in
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Note:
For detailed instructions of further configuration, please refer to
the user manual.
30
4.2 Initializing the Memory Card
Steps:
Check the memory card status by tapping on the Storage Status in
the Device Settings interface.
If the memory card status displays as Uninitialized, tap to initialize
it. The status will then change to Normal. You can then start
recording any event triggered video in the camera such as motion
detection.
WWW.GRUNDIG-SECURITY.COM
QG-GD-CI-AC2627T-2018-10-08-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY
31
Loading...
