Grundig 19VLE2000, 22VLE2000 Schematic

TV Service Manual

Service Manual

Chassis T5

19 VLE 2000 T GBI0419 22 VLE 2000 C GBI0222, GBI0322 22 VLE 2000 T GBI0522 22-2010 T/C Black GBI0022

Hamburg

22-2940 T GBH8722 22-2942 T/C GBI8022

Leemaxx

19 HD BR GBH4922 19 HD WP GBI4819 19 HD/C BA GBH4932, GBI3219 19 HD/C BR GBH4031, GBI3419 19 HD/C WG GBH4035 19 HD/C WP GBH4039 19 HD/C WS GBH4029 19 HD/CR BA GBI3819 19 HD/CR BO GBI4119 19 HD/CR BR GBI4019 19 HD/CR WG GBI4219 19 HD/CR WP GBI4319 19 HD/CR WS GBI3919 19 T4 GBH4920, GBH4921, GBI5519

Zusätzlich erforderliche Unterlagen für den Komplettservice Additionally required Service Documents for the Complete Service

Sicherheit

Safety

Materialnr./Part No.

720108000001

Materialnummer / Part Number 720100546000 Änderungen vorbehalten / Subject to alteration

TCC 0710 MP • Prepared in Germany

http://www.grundig.com

Vision

22-2940 H GBH8322

Vision 2

16-2941 T/C GBH4026 19-2940 T GBH4019 19-2941 T/C GBH4036, GBH4056 22-2940 T GBH4022 22-2941 T/C GBH4046, GBH4066

GRUNDIG Service Chassis T5

Es gelten die Vorschriften und Sicherheitshinweise gemäß dem Service Manual "Sicherheit", Materialnummer 720108000001, sowie zusätzlich die eventuell abweichenden, landesspeziﬁschen Vorschriften!

Inhaltsverzeichnis

Seite

Allgemeiner Teil

Allgemeine Hinweise .....................................................................1-2

Ausbauhinweise Geräte- und Displayvarianten Technische Daten Bedienhinweise Service- und Sonderfunktionen

Platinenabbildungen und Schaltpläne

Chassisplatte YTS190R-5 .............................................................2-1

– Netzteil/LVDS .............................................................................2-8

– Tuner ..........................................................................................2-9

– COFDM Demodulator ................................................................2-9

– Interface DVD, AV, Hotel, USB .................................................2-10

– SCART, VGA ............................................................................2-10

– HDMI........................................................................................2-11

– Common Interface ...................................................................2-11

– Scaler.......................................................................................2-12

– Scaler-RAM .............................................................................2-14

– Verstärker .................................................................................2-14

Chassisplatte YTS190R-12

– Netzteil/LVDS ...........................................................................2-22

– Tuner ........................................................................................2-23

– COFDM Demodulator ..............................................................2-23

– Interface DVD, AV, Hotel, USB .................................................2-24

– SCART, VGA ............................................................................2-25

– HDMI........................................................................................2-26

– Common Interface ...................................................................2-26

– Scaler.......................................................................................2-27

– Scaler-RAM .............................................................................2-29

– Verstärker .................................................................................2-29

Netzteil-/Inverterplatte B6C194 Netzteil-/Inverterplatte YSY194 Netzteil-/Inverterplatte YTF194 Netzteil-/LED-Konverterplatte YXE194 Adapter VEX193, YMU195 IR-LED-Platte YMU193 Keyboards YAJ192, YMU192, YSU192, YSW192 USB-Platte YMU197 Uhr XLA198

.................................................................................2-45

.................................. 1-2…1-30

............................................................................1-3

........................................................1-4

..........................................................................1-5

...........................................................................1-11

...................................................1-29

.................................. 2-1…2-45

.........................................................2-15

...................................................2-30

...................................................2-32

....................................................2-36

........................................2-40

..........................................................2-44

................................................................2-44

........................2-44

....................................................................2-45

The regulations and safety instructions shall be valid as provided by the "Safety" Service Manual, part number 720108000001, as well as the respective national deviations.

Table of Contents

Page

General Section

General Notes ...............................................................................1-2

Disassembling Hints Product and Display Variants Technical Data Operating Hints Service and Special Functions

...............................................................................1-5

Layout of the PCBs and Circuit Diagrams

Chassis Board YTS190R-5 ............................................................2-1

– Power Supply/LVDS ...................................................................2-8

– Tuner ..........................................................................................2-9

– COFDM Demodulator ................................................................2-9

– Interface DVD, AV, Hotel, USB .................................................2-10

– SCART, VGA ............................................................................2-10

– HDMI........................................................................................2-11

– Common Interface ...................................................................2-11

– Scaler.......................................................................................2-12

– Scaler RAM..............................................................................2-14

– Ampliﬁer ...................................................................................2-14

Chassis Board YTS190R-12

– Power Supply/LVDS .................................................................2-22

– Tuner ........................................................................................2-23

– COFDM Demodulator ..............................................................2-23

– Interface DVD, AV, Hotel, USB .................................................2-24

– SCART, VGA ............................................................................2-25

– HDMI........................................................................................2-26

– Common Interface ...................................................................2-26

– Scaler.......................................................................................2-27

– Scaler RAM..............................................................................2-29

– Ampliﬁer ...................................................................................2-29

Power Supply/Inverter Board B6C194 Power Supply/Inverter Board YSY194 Power Supply/Inverter Board YTF194 Power Supply/LED Converter Board YXE194 Adapter VEX193, YMU195 IR LED Board YMU193 Keyboards YAJ192, YMU192, YSU192, YSW192 USB Board YMU197 Clock XLA198

..............................................................................2-45

.................................. 1-2…1-30

......................................................................1-3

.........................................................1-4

............................................................................1-20

....................................................1-29

......................... 2-1…2-45

........................................................2-15

.........................................2-30

.........................................2-32

.........................................2-36

.............................2-40

..........................................................2-44

................................................................2-44

........................2-44

....................................................................2-45

Ersatzteillisten .................................... 3-1…3-27

Allgemeiner Teil

Allgemeine Hinweise

Vor dem Öffnen des Gehäuses den Netzstecker ziehen!

Achtung: ESD-Vorschriften beachten

Leitungsverlegung

Bevor Sie die Leitungen und insbesondere die Masseleitungen lösen, muss die Leitungs ver legung zu den einzelnen Baugruppen beachtet werden. Nach erfolgter Reparatur ist es notwendig, die Leitungsführung wieder in den werkseitigen Zustand zu versetzen um evtl. spätere Ausfälle oder Störungen zu vermeiden.

Spare Parts Lists ................................ 3-1…3-27

General Section

General Notes

Before opening the cabinet disconnect the mains plug!

Attention: Observe the ESD safety regulations

Wiring

Before disconnecting any leads and especially the earth connecting leads observe the way they are routed to the individual assemblies. On completion of the repairs the leads must be laid out as originally ﬁtted at the factory to avoid later failures or disturbances.

1 - 2

GRUNDIG Service Chassis T5

Durchführen von Messungen

Bei Messungen mit dem Oszilloskop an Halb leitern sollten Sie nur Tast köpfe mit 10:1 - Tei ler verwen den. Außerdem ist zu beachten, dass nach vorheriger Messung mit AC-Kopp lung der Koppelkondensator des Oszillo skops auf geladen sein kann. Durch die Ent ladung über das Messobjekt können Bau teile beschä digt werden.

Messwerte und Oszillogramme

Bei den in den Schaltplänen und Oszillogrammen angegebenen Messwerten handelt es sich um Näherungswerte!

Kindersicherung

Mit der Master-Pin 2356 kann die Einstellung der persönlichen Pin geändert werden.

Hotel-Mode

Bei aktivierter Funktion ist die maximale Lautstärke begrenzt und das Menü "

INSTALLATION

Aufruf: M –> 8500 –> 9 " Maximale Lautstärke: M –> 8500 –> 9 "OPTION 1" –> OK –> 8 9 "Hotel Volume" –> / - Wert 0…100.

Hotel-Mode kurzzeitig ausschalten

Bei dieser Funktion ist der Hotel-Mode bis zum nächsten Ausschalten (Standby) des Gerätes deaktiviert. Aufruf: M –> 4658 –> / -

Cloning-Funktion für Programmtabelle

Mit dieser Funktion ist die Übertragung der Programmtabelle von einem Gerät auf ein weiteres gleicher Serie möglich.

Programmtabelle auf USB-Stick kopieren: Gegebenenfalls Hotel-Mode kurzzeitig ausschalten (s.o.) –> leeren USB-Stick anschließen –> / - "Nein" –> OK –> M –> / - "IN-"INSTALLATION" –> 9 "Programmtabelle" - –> 8500 –> / - "DTV", "ATV" oder "All" –> 9 "Save" –> OK.

Programmtabelle in anderes Gerät gleicher Serie übertragen:

Gegebenenfalls Hotel-Mode kurzzeitig ausschalten (s.o.) –> USBStick anschließen –> "Nein" –> OK –> M –> / - "INSTALLATION" –> 9 "Programmtabelle" - –> 8500 –> / - "DTV", "ATV" oder "All" –> 9 "Load" –> OK.

" ist nicht mehr anwählbar.

OPTION 1

" –> OK –> 89 "Hotel" –> / - "AVAIL".

Carrying out Measurements

When making measurements on semi-con duc tors with an oscillo scope, ensure that the test probe is set to 10:1 dividing factor. If the previous measurement was made on AC input, please note that the coupling capacitor in the oscilloscope will be charged. Discharge via the item being checked can damage the components.

Measured Values and Oscillograms

The measured values given in the circuit diagrams and oscillograms are approximates!

Parental Control

The personal pin can be changed with master pin 2356.

Hotel Mode

Maximum volume is limited and there is no access to Menu " SETUP

" at activated hotel mode.

Call up: M –> 8500 –> 9 " "AVAIL". Maximum volume: M –> 8500 –> 9 "OPTION 1" –> OK –> 8 9 "Hotel Volume" –> / - Value 0…100.

Switching off the Hotel Mode temporarily

At this function the activated hotel mode is deactivated until the set is switched off (standby). Call up: M –> 4658 –> / -

Cloning Function for Programme Table

It is possible to clone the programme table with this function from one TV set to further TV set of same series.

Copy programme table to USB stick: If necessary switch off Hotel Mode temporarily (see above) –> connect emty USB stick –> / - "No" –> OK –> M –> / - "CHANNEL SETUP" –> 9 "Programme Table" - –> 8500 –> / - "DTV", "ATV" or "All" –> 9 "Save" –> OK.

Copy programme table into further TV set of same type series:

If necessary switch off Hotel Mode temporarily (see above) –> connect emty USB stick –> / - "No" –> OK –> M –> / - "CHANNEL SETUP" –> 9 "Programme Table" - –> 8500 –> / - "DTV", "ATV" or "All" –> 9 "Load" –> OK.

OPTION 1

" –> OK –> 8 9 "Hotel" –> / -

CHANNEL

Ausbauhinweise

Rückwand abnehmen

– 2 Schrauben A im Gerätefuß (Fig. 1) herausschrauben und Fuß

abnehmen. – 4 Schrauben B / C (Fig. 2) herausschrauben. – Rückwand nach oben klappen und abnehmen (dabei lösen sich die

Rastnasen).

A

C

Disassembling Hints

Removing the Rear Cabinet

– Undo 2 screws A ﬁtted in the stand (Fig. 1) and remove the

stand. – Undo 4 screws B / C (Fig. 2). – Fold up and remove the rear panel (thereby disengage the lat-

ches).

B

C

Fig. 1 Fig. 2

1 - 3

GRUNDIG Service Chassis T5

Geräte- und Display-Varianten

Display- und Product Code

Je nach Verfügbarkeit werden Displays verschiedener Hersteller eingebaut. Dies führt zu unterschiedlichen Chassis-Bestückungen, sowie zu Änderungen in der Software. Bei Ersatzteilbestellungen und SoftwareUpdates achten Sie bitte auf das eingebaute Display, sowie auf den "Product Code". Angaben dazu ﬁnden Sie auf der Geräterückseite. Sollte in der Ersatzteilliste des Service Manuals Ihr "Product Code" oder Ihre Display-Variante nicht aufgeführt sein, können Sie eine aktualisierte Version auf dem GRUNDIG Service-Portal "http://service.grundig.de" ﬁnden.

Überprüfen Sie vor PlatinenTausch, ob die Aufkleber der Platinen identisch sind (z.B. PCB Code).

Product Code

Display Type

Display Code

Product and Display Variants

Serialnummer / Serial Number

Chassis

PCB Code

Display- und Product Code

Depending on availability displays of different manufacturer are built in. This results in different chassis mountings as well as a different software. On spare parts orders as well as software updates take care of the ﬁtted display as well as of the "Product Code". Therefore you can ﬁnd information on the labels on the rear side. If your "Product Code" or display variant is not mentioned in the spare parts list of the service manual, please look for a current version at the GRUNDIG service portal "http://service.grundig.de".

Before changing any board please check whether the labels on the boards are identical (eg. PCB Code).

1 - 4

Technische Daten / Technical Data

19 VLE 2000 T 22 VLE 2000 C 22 VLE 2000 T 22-2010 T/C Black Hamburg 22-2940 T Hamburg 22-2942 T/C

Order No.

Approbations IM-Languages Remote control

EAN

Color

DISPLAY Panel Backlight Wide-screen format Response time Brightness Contrast ratio (Panel) Dynamic contrast plus Viewing angle ca. ° Physical display resolution max. pixel PICTURE Motion Picture Improvement Motion Adaptive Deinterlacing Natural view HD Reference Full HD Line Flicker Reduction Digital Color Transition Improv. (DCTI) Digital Combfilter Digital Luminance Transition Improv. (DLTI) Picture Noise Reduction Preset picture modes Aspect ratios (Format switching) Blackline detection PIP Multifold Tuner scan (Mosaic Picture) PAT: Split screen (PICTURE + TEXT) PAP: Double Window (PICT. + PICT.) P²AT: Double Window + TXT POP: PICTURE on PICTURE Picture freezing Zoom with point function Auto 16:9 selection via Scart Sharpness control Blue Background CHASSIS TV-Chassis Progressive Tuner Scaler Keyboard ELECTRONIC Stand by indicator EPG (Electronic Programme Guide) Easy Dialog Megalogic Manual & autom. labeling of prog. Programmable off timer Programmable on timer Intelligent channel search (Zapping funct.) Programme Edit Intelligent Programme Switch Programme memory TV/AV (opt.) Teletext/Fasttext/Toptext Teletext options Childlock Menue languages OSD OSD-style Service mode Game mode Hotel mode Special feature TUNING Autom. Tuning System with country sel. Frequency Based Auto Search Automatic Micro-search Automatic Programming Manual fine tuning Direct channel selection Direct frequency selection PAL/SECAM/BG/DK/I/L'/L NTSC-Playback via Scart (3.58/4.43) Cable TV / Hyperband (S1-S41) AUDIO Mono/Stereo/Nicam AV Stereo Loudspeaker SRS Dolby digital Virtual Dolby Magic Fidelity Sound System Soundprojector Matched Sound Delay (Lip synchronous) Subwoofer Dynamic Bass DSP (Digital Sound Processor) Balance Adjustment AVL (Audio Volume Level) PIP listening via Headphone.jack Equalizer Space Sound Effect Audio mode Audio amplifier

GBI0419

CE

GBI0222 / GBI0322

CE

GBI0522

CE

GBI0022

CE

GBH8722

CE

GBI8022

CE

Fr: FR, ES, PT, DE, EN, NL, EE

SE, NO, HR, FI, DK, DE, EL

It: EN, HR, CZ, IT, DE, FR, EL

RC23 & Comfort Remote (Black)

Fr: FR, ES, PT, DE, EN, NL, EE

D,GB

It: EN, HR, CZ, IT, DE, FR, EL

RC 23

F,DK,N,S,HR

D,GB EE, LT RC 23

SE,NO,FI,DK

RC 23

40 13833-62241 3

40 13833-62238 3/ -62203 9

Glossy Black Glossy Black /White

18.5" / 47cm

21.6" / 56cm

LED



LED



40 13833-62242 0

40 13833-62158 4

Glossy Black glossy black

40 13833-61990 1

40 13833-62202 4

glossy black Glossy Black

21.6" / 56cm

21.6" / 55cm

LED



CCFL



21.6" / 55cm

CCFL



CCFL



ca. 5ms

ca. 250cd/m²

ca. 6ms

ca. 300cd/m²

ca. 1.000:1

ca. 12.500:1

ca. 1.000:1

ca. 15.000:1

85/85 75/85

WXGA 1366 x 768

85/85 75/85

WXGA 1366 x 768



ca. 6ms

ca. 300cd/m²

ca. 5ms

ca. 350cd/m²

ca. 1.000:1

ca. 15.000:1

ca. 1.000:1

ca. 3000:1

ca. 5ms

ca. 350cd/m²

ca. 5ms

ca. 300cd/m²

ca. 800:1

t.b.d.

ca. 1.000:1

ca. 3000:1

85/85 75/85

WXGA 1366 x 768

85/85 75/85

WXGA 1366 x 768



85/85 75/85

WXGA 1366 x 768

85/85 75/85

WXGA 1366 x 768



3D DeInterlacer



3D DeInterlacer

  



 

3D



3D

 



3D DeInterlacer



3D DeInterlacer

  





3D DeInterlacer



3D DeInterlacer

  





3D



3D

 



3D



3D

 



user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top

 



  



  



 



  



  



 



  



 



  



  



T5 T5

 



  



 



  



 

T5 T5

 



T5 T5



PLL frequency synthesizer tuning



Sapphire

4 Volume/Programm, ± keys, Stby.

Sapphire

blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C





Sapphire Sapphire



Sapphire Sapphire

blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C



blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C



 



  



  



 

99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV







  



 



  



 



99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV

 



 

99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV



/  /



1000 pages



/  /



1000 pages



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT, EE



OEM-style with Grundig lookOEM-style with Grundig look



presets (user changeable) for sound and picture in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment



/  /



1000 pages



/  /



1000 pages





/  /



1000 pages



/  /



1000 pages



OEM-style with Grundig lookOEM-style with Grundig lookOEM-style with Grundig lookOEM-style with Grundig look





full automatic sortingfull automatic sorting

  



  





full automatic sortingfull automatic sorting





full automatic sortingfull automatic sorting







  



 



  



 



  



 / 

/  / 

/



2 wide band at the front side2 wide band at the front side







  



 



  



 / 

/  / 

/



2 wide band at the front side2 wide band at the front side

 / 

/  / 

/



2 wide band at the front side2 wide band at the front side

 



  



  



  



 



  



 



  



 



  



 



  



 



  





5 Band



5 Band



cinema, music, sport, speech, user

2x 3W (RMS) 2x 3W (RMS)





 





 

 



  





5 Band



5 Band



2x 3W (RMS) 2x 3W (RMS)

5 Band



5 Band



2x 3W (RMS) 2x 3W (RMS)

Chassis T5GRUNDIG Service

1 - 5

19 VLE 2000 T 22 VLE 2000 C 22 VLE 2000 T 22-2010 T/C Black Hamburg 22-2940 T Hamburg 22-2942 T/C

USB part

Cabinet (WxHxD) Cabinet (WxHxD) with stand Weight



/ ATS type sorting & LCN type sorting

Same as analogue languages

177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



177 - 862 VHF & UHF /



QAM 16/32/64/128/256 demodulati-

on support (EN 300 429)

4.0…7.2 Msymbols/s

QAM 16/32/64/128/256 demodulati-

on support (EN 300 429)

4.0…7.2 Msymbols/s

QAM 16/32/64/128/256 demodulati-

on support (EN 300 429)

4.0…7.2 Msymbols/s

4:3, 16:9, pan scan, letter box

30W, standby <0.85W

in accordance to IEC 62087-2002

45.8x31.8x6.2cm

45.8x34.2x16.0cm ca. 3.3kg

37W, standby <0.85W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x38.0x16.5 ca. 4.5kg

37W, standby <0.85W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x38.0x16.5 ca. 4.5kg

45W, standby <1W

in accordance to IEC 62087-2002

52.3x35.6x6.9cm

52.3x38.0x16.0 ca. 4.3kg

45W, standby <1.2W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x38.0x16.5cm ca. 4.5kg

45W, standby <1W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x38.0x16.5cm ca. 4.5kg

Chassis T5GRUNDIG Service

1 - 6

Screen saver Recording File browser Video file resolution (max)

Supported files Supported subtitles

DVB reception Fully compliant to Automatic/manual channel search EPG (SI based) –7 Day Electronic Programme Guide –now/next



–scheduled



Exdended Event Info

– –Short Event Info TV/Radio programmes OSD languages Parental control Teletext VBI insertion VPS - VBI insertion Programme table Factory station list DVB-T Front end Tuner inputs (Hyperband) Input frequency (MHz) / Loop through Input level / Impedance Modulation FEC Hierarchical modulation Activ antenna support DVB-C Front end Input frequency (MHz) Imput level / Impedance

Demodulation / Symbol rate Ms/s

Embedded Conditional Access Common Interface Smart Card Reader Video Decoder

MPEG profiles Resolution

OSD colors Picture formats Audio Decoder Profiles AC 3 Decoding AC 3 Output Modes Software Service information processing DVB subtitling Over air download (OTA) Navigator API Last station memory Favourite mode Timer / Sleep timer Clock Volume Mute function Swap function POWER SUPPLY / CABINET Power voltage Range of regulation Power switch Integrated supply Plug-in AC adaptor

Power consumption

  

1920 x 1080

 

1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .3gp, .mov, .mpg, .mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, H264, .txt

EN 300 744 & revided NorDig II spec (regarding DVB-T front end performance)

  

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based

full automatic sortingfull automatic sorting



1

1/2, 2/3, 3/4, 5/6, 7/81/2, 2/3, 3/4, 5/6, 7/8

   

 

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based



1

  

47-862 VHF & UHF

47-70dbµV / 75

Ω



  

MP@ML

576i, 576p, 720p, 1080i

Fitting to TV-OSD

MPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & II



Dynamic PMT



DVB enhanced profile

via menu



from stand-by, as TVfrom stand-by, as TV

4x free

    

140V - 265V

  



MP@ML MP@ML, MP@HL,

MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

 

Dynamic PMT



DVB enhanced profile

via menu

4x free

    

140V - 265V

  

 



1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080

 

SRT, SSA, ASS, SMI, Video SUB

  

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based

full automatic sortingfull automatic sorting



1

-80.0 dBm to -20 dBm (at 16 QAM 2/3) / 75 COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/81/2, 2/3, 3/4, 5/6, 7/81/2, 2/3, 3/4, 5/6, 7/81/2, 2/3, 3/4, 5/6, 7/8

   

 

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based



1

Ω

 

47-862 VHF & UHF

47-70dbµV / 75

Ω



 

MP@ML

576i, 576p, 720p, 1080i

Fitting to TV-OSD



MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

MPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo

Dynamic PMT



DVB enhanced profile

via menu



from stand-by, as TVfrom stand-by, as TV

4x free

  



140V - 265V



 

Dynamic PMT



DVB enhanced profile

via menu

4x free

    

140V - 265V

  

 



 

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based

full automatic sortingfull automatic sorting



1

   

 

If broadcasted If broadcasted If broadcasted

400



or decoding PDC based



1

  

47-862 VHF & UHF

47-70dbµV / 75

Ω





576i, 576p, 720p, 1080i 576i, 576p, 720p, 1080i

Fitting to TV-OSD



Fitting to TV-OSD



Dynamic PMT



DVB enhanced profile

via menu



from stand-by, as TVfrom stand-by, as TV

4x free

  



140V - 265V



 

Dynamic PMT



DVB enhanced profile

via menu

4x free

    

140V - 265V

  

FRONT PANEL CONNECTIONS HDMI Headphones Cinch-AV socket S-Video REAR PANEL CONNECTIONS Euro-AV-Socket AV1 Euro-AV Socket AV2 Euro-AV Socket AV3 S-Video Camera-AV Wireless YUV input / progressive PC-input PC-Audio in DVI HDMI HD ready including HDCP Common Interface Headphones Digital Audio out coaxial (SPDIF) Video out Audio out USB Antenna for terrestrial reception

DC-connector Power supply plug

SUPPLIED ACCESSORIES Remote control (incl. battery) Power cord Cables Instruction manual Wall fixture Stand Cleaning tissue

   

Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA

 

2x

via HDMI

1 slot

3.5mm jack

  

USB 2.0

 

Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA

 

2x

via HDMI

1 slot

3.5mm jack

  

USB 2.0





RC 23 incl. 2x Battery AAA size & Comfort Remote (YF-1)

non grounded non grounded

 

 

 



   

Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA





2x

via HDMI

1 slot

3.5mm jack

  

USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

3x Cinch socket in





non grounded





Prepared for VESA standard adaptor 100 x 100mm

 

 

Full wired

 

via Scart



via VGA

WXGA

 

2x

via HDMI

1 slot

3.5mm jack

  

USB 2.0

non grounded

 

tilting function

   

Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA

 

1x

via HDMI

1 slot

3.5mm jack

  

USB 2.0





RC 23 incl. 2x Battery AAA size

non grounded non grounded





tilting function



 

Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA

 

2x

via HDMI

1 slot

3.5mm jack

  

USB 2.0

 

tilting function

Leemaxx 19 HD Leemaxx 19 HD/C Leemaxx 19 HD/CR Leemaxx 19 T4 Vision 22-2940 H

Order No.

Approbations IM-Languages Remote control

EAN

Color

DISPLAY Panel Backlight Wide-screen format Response time Brightness Contrast ratio (Panel) Dynamic contrast plus Viewing angle ca. ° Physical display resolution max. pixel PICTURE Motion Picture Improvement Motion Adaptive Deinterlacing Natural view HD Reference Full HD Line Flicker Reduction Digital Color Transition Improv. (DCTI) Digital Combfilter Digital Luminance Transition Improv. (DLTI) Picture Noise Reduction Preset picture modes Aspect ratios (Format switching) Blackline detection PIP Multifold Tuner scan (Mosaic Picture) PAT: Split screen (PICTURE + TEXT) PAP: Double Window (PICT. + PICT.) P²AT: Double Window + TXT POP: PICTURE on PICTURE Picture freezing Zoom with point function Auto 16:9 selection via Scart Sharpness control Blue Background CHASSIS TV-Chassis Progressive Tuner Scaler Keyboard ELECTRONIC Stand by indicator EPG (Electronic Programme Guide) Easy Dialog Megalogic Manual & autom. labeling of prog. Programmable off timer Programmable on timer Intelligent channel search (Zapping funct.) Programme Edit Intelligent Programme Switch Programme memory TV/AV (opt.) Teletext/Fasttext/Toptext Teletext options Childlock Menue languages OSD OSD-style Service mode Game mode Hotel mode Special feature TUNING Autom. Tuning System with country sel. Frequency Based Auto Search Automatic Micro-search Automatic Programming Manual fine tuning Direct channel selection Direct frequency selection PAL/SECAM/BG/DK/I/L'/L NTSC-Playback via Scart (3.58/4.43) Cable TV / Hyperband (S1-S41) AUDIO Mono/Stereo/Nicam AV Stereo Loudspeaker SRS Dolby digital Virtual Dolby Magic Fidelity Sound System Soundprojector Matched Sound Delay (Lip synchronous) Subwoofer Dynamic Bass DSP (Digital Sound Processor) Balance Adjustment AVL (Audio Volume Level) PIP listening via Headphone.jack Equalizer Space Sound Effect Audio mode Audio amplifier

BR: GBH4922 WP: GBI4819

CE

BA: GBH4932, GBI3219

GR: GBH4031, GBI3419

WG: GBH4035

WP: GBH4039 WS: GBH4029

CE

BA: GBI3819 BO: GBI4119

BR: GBI4019 WG: GBI4219 WP: GBI4319 WS: GBI3919

CE

GBI4419/GBI5519

CE

FR,ES,PT,D,GB,NL,EE

SE,NO,CRO,FI,DK,D,EL

RC23 & Comfort Remote RC23 & Comfort Remote

D,GB

SE,NO,CRO,FI,DK,D,EL for BG3 -

FR,ES,PT,D,GB,NL,EE for BG5

RC23 & Comfort Remote RC23 & Comfort Remote (Black)

GBH8322

CE

F,DK,N,S,HR

EE, LT

RC 23

BR: 40 13833-62062 4 WP: 40 13833-62191 1

BA: 40 13833-62068 6 BA: 40 13833-62175 1 GR: 40 13833-62088 4 GR: 40 13833-62177 5

WG: 40 13833-62090 7

WP: 40 13833-62091 4 WS: 40 13833-62087 7

BR: Black&Red

WP: White-Pink

BA: Black&Anthrazit

BR: Black&Red

WG: White&Green

WP: White&Pink

WS: White&Silver

BA: 40 13833-62181 2 BO: 40 13833-62184 3 BR: 40 13833-62183 6

WG: 40 13833-62185 0

WP: 40 13833-62186 7 WS: 40 13833-62182 9

40 13833-62187 4/ -62198 0

BA: Black&Anthrazit

BO: Black&Orange

BR: Black&Red

WG: White&Green

WP: White&Pink

WS: White&Silver

black-anthrazit / white-silver

18.5" / 47cm

CCFL



CCFL



18.5" / 47cm 18.5" / 47cm CCFL



CCFL



40 13833-62004 4

glossy black

21.6" / 55cm CCFL



ca. 5ms

ca. 300cd/m²

ca. 5ms

ca. 300cd/m² ca. 1.000:1 ca. 3000:1

ca. 1.000:1 ca. 3000:1

ca. 5ms

ca. 300cd/m²

ca. 5ms

ca. 300cd/m²

ca. 1.000:1

ca. 3000:1

ca. 1.000:1

ca. 3000:1

80/80 80/80

WXGA 1366 x 768

80/80 80/80

WXGA 1366 x 768



80/80 80/80

WXGA 1366 x 768

80/80 80/80

WXGA 1366 x 768



ca. 5ms

ca. 350cd/m²

ca. 800:1

t.b.d.

85/85 75/85

WXGA 1366 x 768



3D DeInterlacer



3D DeInterlacer

  





3D DeInterlacer



3D DeInterlacer

  





3D



3D

 



3D



3D

 



3D DeInterlacer

 

 

3D

 

user, vivid, natural, movie, sports

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top

user, vivid, natural, movie, sports

 

user, vivid, natural, movie, sports user, vivid, natural, movie, sports

 



 



  



 



  



user, vivid, natural, movie, sports

  

  

 



  



 



  



 

T5 T5

 



T5 T5



    

T5



PLL frequency synthesizer tuningPLL frequency synthesizer tuning

Sapphire

4 keys: +, M, -, Stby.

Sapphire

4 keys: +, M, -, Stby.



PLL frequency synthesizer tuningPLL frequency synthesizer tuning

Sapphire

4 keys: +, M, -, Stby.

Sapphire

4 keys: +, M, -, Stby.

blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C



blue LED blue LED

7 days via DVB-T and DVB-C



7 days via DVB-T



PLL frequency synthesizer tuning

Sapphire

4 Volume/Programm, ± keys, Stby.

blue LED

7 days via DVB-T

  



  



 



  



 



99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV

 



 

99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV



    



99 Analog / 400 Digital / AV



/  /



1000 pages



/  /



1000 pages



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT, EE



/  /



1000 pages



/  /



1000 pages



OEM-style with Grundig lookOEM-style with Grundig look



presets (user changeable) for sound and picture in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig lookOEM-style with Grundig look



/  /



1000 pages



OEM-style with Grundig look





full automatic sorting



full automatic sorting





full automatic sorting



full automatic sorting



 



  



 



  



Clock on the front cabinet

full automatic sorting

 





  



 

 



  



 / 

/  / 

/



2 wide band at the front side2 wide band at the front side

 / 

/  / 

/



2 wide band at the front side2 wide band at the front side



  

 / 

/



2 wide band at the front side

 



 

 



  



 



  



 



  





      

 



  





 



  





5 Band



5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

cinema, music, sport, speech, user

2x 3W (RMS)

5 Band



5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

cinema, music, sport, speech, user

2x 3W (RMS)



 



5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

Chassis T5GRUNDIG Service

1 - 7

Leemaxx 19 HD Leemaxx 19 HD/C Leemaxx 19 HD/CR Leemaxx 19 T4 Vision 22-2940 H

USB part Screen saver Recording File browser Video file resolution (max)

Supported files Supported subtitles

DVB reception Fully compliant to Automatic/manual channel search EPG (SI based) –7 Day Electronic Programme Guide –now/next



–scheduled –Exdended Event Info –Short Event Info TV/Radio programmes OSD languages Parental control Teletext VBI insertion VPS - VBI insertion Programme table Factory station list DVB-T Front end Tuner inputs (Hyperband) Input frequency (MHz) / Loop through Input level / Impedance Modulation FEC Hierarchical modulation Activ antenna support DVB-C Front end Input frequency (MHz) Imput level / Impedance

Demodulation / Symbol rate Ms/s

Embedded Conditional Access Common Interface Smart Card Reader Video Decoder

MPEG profiles Resolution

OSD colors Picture formats Audio Decoder Profiles AC 3 Decoding AC 3 Output Modes Software Service information processing DVB subtitling Over air download (OTA) Navigator API Last station memory Favourite mode Timer / Sleep timer Clock Volume Mute function Swap function POWER SUPPLY / CABINET Power voltage Range of regulation Power switch Integrated supply Plug-in AC adaptor

Power consumption

Cabinet (WxHxD) Cabinet (WxHxD) with stand Weight

FRONT PANEL CONNECTIONS HDMI Headphones Cinch-AV socket S-Video REAR PANEL CONNECTIONS Euro-AV-Socket AV1 Euro-AV Socket AV2 Euro-AV Socket AV3 S-Video Camera-AV Wireless YUV input / progressive PC-input PC-Audio in DVI HDMI HD ready including HDCP Common Interface Headphones Digital Audio out coaxial (SPDIF) Video out Audio out USB Antenna for terrestrial reception

DC-connector Power supply plug

SUPPLIED ACCESSORIES Remote control (incl. battery) Power cord Cables Instruction manual Wall fixture Stand Cleaning tissue

  

 

  





1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .3gp, .mov, .mpg, .mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, H264, .txt

1920 x 1080

SRT, SSA, ASS, SMI, Video SUB SRT, SSA, ASS, SMI, Video SUB

1920 x 1080 1920 x 1080

SRT, SSA, ASS, SMI, Video SUB SRT, SSA, ASS, SMI, Video SUB

 



1920 x 1080

SRT, SSA, ASS, SMI, Video SUB

EN 300 744 & revided NorDig II spec (regarding DVB-T front end performance)



/ ATS type sorting & LCN type sorting

  

 

If broadcasted If broadcasted

 



If broadcasted If broadcasted

  

If broadcasted If broadcasted

If broadcasted

400

If broadcasted

400

Same as analogue languagesSame as analogue languages



If broadcasted

400

If broadcasted

400

Same as analogue languagesSame as analogue languages



or decoding

PDC based

or decoding PDC based

full automatic sorting



full automatic sorting



or decoding PDC based

full automatic sorting



full automatic sorting



If broadcasted

400

Same as analogue languages



or decoding PDC based

full automatic sorting





1

177 - 862 VHF & UHF /



1

177 - 862 VHF & UHF /





1

177 - 862 VHF & UHF /



1

177 - 862 VHF & UHF /



-80.0dBm to -20dBm (at 16 QAM 2/3) / 75

Ω

COFDM 2/8 QPSK 16/64 QAM COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8



COFDM 2/8 QPSK 16/64 QAM COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8





1

177 - 862 VHF & UHF /



COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8

  



  

47-862 VHF&UHF

47-70dbµV / 75

Ω

 

 

47-862 VHF&UHF

47-70dbµV / 75

Ω

 



QAM 16/32/64/128/256 demodulation support (EN 300 429) /

4.0…7.2 Msymbols/s

 





   







MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i 576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

576i, 576p, 720p, 1080i 576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box



576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

MPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & II



Mono, Dual Mono, Stereo, Joint Stereo



MPEG4, MPEG 1 layer I & II

 

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu



from stand-by, as TV



from stand-by, as TV

4x free



4x free



from stand-by, as TV



from stand-by, as TV

4x free



4x free



Dynamic PMT



DVB enhanced profile

via menu



from stand-by, as TV

4x free



 



  



 



  



100 - 240V, 50/60Hz via external adaptor 12V- in accordance to IEC 65

100 - 240V



100 - 240V



100 - 240V



100 - 240V



 

 

230V, 50Hz; in accordance to IEC 65

140V - 265V

  

 

30W, standby <1W

in accordance to IEC 62087-2002

45.5 x 30.5 x 9.0cm

ca. 3.0kg

30W, standby <1W

in accordance to IEC 62087-2002

45.5 x 30.5 x 9.0cm

ca. 3.0kg

 

30W, standby <1W

in accordance to IEC 62087-2002

45.5 x 30.5 x 9.0cm

ca. 3.0kg

30W, standby <1W

in accordance to IEC 62087-2002

45.5 x 30.5 x 9.0cm

ca. 3.0kg

  

 

  

 





45W, standby <1.2W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x39.54x15.5cm ca. 4.5kg

  



Full wired



Full wired





Full wired



Full wired



via Scart



via Scart

3x Cinch socket in



3x Cinch socket in



via Scart



via Scart

3x Cinch socket in



3x Cinch socket in



Full wired

 

via Scart

3x Cinch socket in



via VGA

WXGA

via VGA

WXGA

 

via VGA

WXGA

via VGA

WXGA

 

1x

via HDMI

1x

via HDMI

1 slot



1 slot



1x

via HDMI

1x

via HDMI

1 slot



1 slot



via VGA

WXGA





2x

via HDMI

1 slot

3.5mm jack

 



USB 2.0



USB 2.0

 



USB 2.0



USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

12V DC (11 - 14.5V,

current consumption ca. 4A)

12V DC (11 - 14.5V,

current consumption ca. 4A)



12V DC (11 - 14.5V,

current consumption ca. 4A)

12V DC (11 - 14.5V,

current consumption ca. 4A)



  

USB 2.0





RC 23 incl. 2x Battery AAA size



/ AC/DC-Adaptor 12 V- / 4.16A, power cord (non grounded) length min. 1.5 m

RC 23 incl. 2x Battery AAA size

 

RC23 incl. 2x Battery AAA size & Comfort Remote

RC 23 incl. 2x Battery AAA size

 



RC 23 incl. 2x Battery AAA size

non grounded





Prepared for VESA standard adaptor 100x100mm

tilting function





Chassis T5GRUNDIG Service

1 - 8

Vision 2 16-2941 T/C Vision 2 19-2940 T Vision 2 19-2941 T/C Vision 2 22-2940 T Vision 2 22-2941 T/C

Order No.

Approbations IM-Languages Remote control

EAN

Color

DISPLAY Panel Backlight Wide-screen format Response time Brightness Contrast ratio (Panel) Dynamic contrast plus Viewing angle ca. ° Physical display resolution max. pixel PICTURE Motion Picture Improvement Motion Adaptive Deinterlacing Natural view HD Reference Full HD Line Flicker Reduction Digital Color Transition Improv. (DCTI) Digital Combfilter Digital Luminance Transition Improv. (DLTI) Picture Noise Reduction Preset picture modes Aspect ratios (Format switching) Blackline detection PIP Multifold Tuner scan (Mosaic Picture) PAT: Split screen (PICTURE + TEXT) PAP: Double Window (PICT. + PICT.) P²AT: Double Window + TXT POP: PICTURE on PICTURE Picture freezing Zoom with point function Auto 16:9 selection via Scart Sharpness control Blue Background CHASSIS TV-Chassis Progressive Tuner Scaler Keyboard ELECTRONIC Stand by indicator EPG (Electronic Programme Guide) Easy Dialog Megalogic Manual & autom. labeling of prog. Programmable off timer Programmable on timer Intelligent channel search (Zapping funct.) Programme Edit Intelligent Programme Switch Programme memory TV/AV (opt.) Teletext/Fasttext/Toptext Teletext options Childlock Menue languages OSD OSD-style Service mode Game mode Hotel mode Special feature TUNING Autom. Tuning System with country sel. Frequency Based Auto Search Automatic Micro-search Automatic Programming Manual fine tuning Direct channel selection Direct frequency selection PAL/SECAM/BG/DK/I/L'/L NTSC-Playback via Scart (3.58/4.43) Cable TV / Hyperband (S1-S41) AUDIO Mono/Stereo/Nicam AV Stereo Loudspeaker SRS Dolby digital Virtual Dolby Magic Fidelity Sound System Soundprojector Matched Sound Delay (Lip synchronous) Subwoofer Dynamic Bass DSP (Digital Sound Processor) Balance Adjustment AVL (Audio Volume Level) PIP listening via Headphone.jack Equalizer Space Sound Effect Audio mode Audio amplifier

GBH4026

CE

GBH4019

CE

GBH4036/GBH4056

CE

SE,NO,CRO,FI,DK,D,EL

RC 23

F,DK,N,S,HR

SE,NO,CRO,FI,DK,D,EL

EE, LT

RC 23 RC 23

40 13833-62067 9

glossy black

40 13833-61826 3

40 13833-62063 9/ -62071 6

glossy black Glossy Black/ White

16" / 40cm

CCFL



18.5" / 47cm

CCFL



CCFL



ca. 8ms

ca. 250cd/m²

ca. 500:1

ca. 3000:1

ca. 5ms

ca. 250cd/m²

ca. 5ms

ca. 300cd/m²

ca. 1.000:1

t.b.d.

ca. 1.000:1

ca. 3000:1

65 vertical / 90 horizontal

WXGA 1366 x 768



80/80 80/80

WXGA 1366 x 768

80/80 80/80

WXGA 1366 x 768



3D DeInterlacer

  

3D DeInterlacer



3D DeInterlacer

  





3D

 



3D



3D

 



user, natural, rich, soft

Auto (WSS), 4:3 / 14:9 / 16:9 / Panorama / Cinema Zoom / Sky Top

 

user, vivid, natural, movie, sports user, vivid, natural, movie, sports

 



   

 



  



   

 



  



 

T5

 



T5 T5



PLL frequency synthesizer tuning

Sapphire

4 Volume/Programm, ± keys, Stby.



PLL frequency synthesizer tuningPLL frequency synthesizer tuning

Sapphire Sapphire

blue LED

7 days via DVB-T and DVB-C



blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C



   

 



  



  

100 Analog / 400 Digital /AV

 



 

99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV



/  /



10 pages



24 languages, D, GB, F, I, E, P, NL, DK, S, FIN, N, TR, GR, PL, CZ, SK, SLO, H, RUS, RO, BG, HR, LT, EE



/  /



1000 pages



/  /



1000 pages



OEM-style



presets (user changeable) for sound and picture in HDMI-, Component- and PC-mode

Simple hotel mode possible via service adjustment

OEM-style with Grundig lookOEM-style with Grundig look





full automatic sorting





full automatic sorting



full automatic sorting



   

 



  



   

 



  



 / 

/



2 wide band at the front side

 / 

/  / 

/



2 wide band at the front side2 wide band at the front side

   

 



  



   

 



  



   

 



  





5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

5 Band



5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

cinema, music, sport, speech, user

2x 3W (RMS)

GBH4022

CE

GBH4046/GBH4066

CE

F,DK,N,S,HR

SE,NO,CRO,FI,DK,D,EL

EE, LT

RC 23 RC 23

40 13833-61825 6

40 13833-62070 9/ -62072 3

glossy black glossy black/ White

21.6" / 55cm

CCFL



CCFL



ca. 5ms

ca. 350cd/m²

ca. 5ms

ca. 300cd/m²

ca. 800:1

t.b.d.

ca. 1.000:1

ca. 3000:1

85/85 75/85

WXGA 1366 x 768

85/85 75/85

WXGA 1366 x 768



3D DeInterlacer



3D DeInterlacer

  





3D



3D

 

user, vivid, natural, movie, sports user, vivid, natural, movie, sports

 



  



  



  



  



  



T5 T5



PLL frequency synthesizer tuningPLL frequency synthesizer tuning

Sapphire Sapphire

blue LED blue LED

7 days via DVB-T



7 days via DVB-T and DVB-C

  



  



  



 

99 Analog / 400 Digital / AV99 Analog / 400 Digital / AV



/  /



1000 pages



/  /



1000 pages



OEM-style with Grundig lookOEM-style with Grundig look





full automatic sorting



full automatic sorting

  



  



  



  



 / 

/  / 

/



2 wide band at the front side2 wide band at the front side

 



  



  



  



  



  





5 Band



5 Band



cinema, music, sport, speech, user

2x 3W (RMS)

cinema, music, sport, speech, user

2x 3W (RMS)

Chassis T5GRUNDIG Service

1 - 9

Vision 2 16-2941 T/C Vision 2 19-2940 T Vision 2 19-2941 T/C Vision 2 22-2940 T Vision 2 22-2941 T/C

USB part Screen saver Recording File browser Video file resolution (max)

Supported files Supported subtitles

DVB reception Fully compliant to Automatic/manual channel search EPG (SI based) –7 Day Electronic Programme Guide –now/next



–scheduled –Exdended Event Info –Short Event Info TV/Radio programmes OSD languages Parental control Teletext VBI insertion VPS - VBI insertion Programme table Factory station list DVB-T Front end Tuner inputs (Hyperband) Input frequency (MHz) / Loop through Input level / Impedance Modulation FEC Hierarchical modulation Activ antenna support DVB-C Front end Input frequency (MHz) Imput level / Impedance

Demodulation / Symbol rate Ms/s

Embedded Conditional Access Common Interface Smart Card Reader Video Decoder

MPEG profiles Resolution

OSD colors Picture formats Audio Decoder Profiles AC 3 Decoding AC 3 Output Modes Software Service information processing DVB subtitling Over air download (OTA) Navigator API Last station memory Favourite mode Timer / Sleep timer Clock Volume Mute function Swap function POWER SUPPLY / CABINET Power voltage Range of regulation Power switch Integrated supply Plug-in AC adaptor

Power consumption

Cabinet (WxHxD) Cabinet (WxHxD) with stand Weight

FRONT PANEL CONNECTIONS HDMI Headphones Cinch-AV socket S-Video REAR PANEL CONNECTIONS Euro-AV-Socket AV1 Euro-AV Socket AV2 Euro-AV Socket AV3 S-Video Camera-AV Wireless YUV input / progressive PC-input PC-Audio in DVI HDMI HD ready including HDCP Common Interface Headphones Digital Audio out coaxial (SPDIF) Video out Audio out USB Antenna for terrestrial reception

DC-connector Power supply plug

SUPPLIED ACCESSORIES Remote control (incl. battery) Power cord Cables Instruction manual Wall fixture Stand Cleaning tissue

  

  

 

1920 x 1080

MP3, JPG, BMP, MOV, MPG,

MP4, AVI

t.b.d.

1920 x 1080

.mp3, .m4a, .aac, .jpg, .bmp, .png, .3gp, .mov, .mpg, .mpe, .vob, .dat, .trp, .ts, .avi, .mp4, .mkv, H264, .txt

1920 x 1080

SRT, SSA, ASS, SMI, Video SUB SRT, SSA, ASS, SMI, Video SUB

EN 300 744 & revided NorDig II spec (regarding DVB-T front end performance)



/ ATS type sorting & LCN type sorting

  

If broadcasted If broadcasted

 

If broadcasted If broadcasted

If broadcasted

400

Same as analogue languages



If broadcasted

400

If broadcasted

400

Same as analogue languagesSame as analogue languages



or decoding

PDC based

full automatic sorting



or decoding PDC based

full automatic sorting



full automatic sorting



1

177 - 862 VHF & UHF /





1

177 - 862 VHF & UHF /



1

177 - 862 VHF & UHF /



-80.0dBm to -20dBm (at 16 QAM 2/3) / 75

Ω

COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



COFDM 2/8 QPSK 16/64 QAM COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8

  

47-862 VHF & UHF

47-70dBµV / 75

Ω

 



 

47-862 VHF & UHF

47-70dBµV / 75

Ω

QAM 16/32/64/128/256 demodulation sup-

port (EN 300 429) / 4.0…7.2 Msymbols/s

 



QAM 16/32/64/128/256 demodulation sup-

port (EN 300 429) / 4.0…7.2 Msymbols/s







MP@ML, MP@HL, MPEG4 AVC H.264 HP@L4.0

576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

576i, 576p, 720p, 1080i 576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

MPEG 4 , MPEG 2 layer I & IIMPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & II

 

Mono, Dual Mono, Stereo, Joint Stereo



Dynamic PMT



DVB enhanced profile

via menu

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu



from stand-by, as TV

4x free



from stand-by, as TV



from stand-by, as TV

4x free



4x free

    

 



 



230V, 50Hz; in accordance to IEC 65

140V - 265V

Tact switch, side close to keyboard

140V - 265V



140V - 265V

  

18W, standby <1.2W

in accordance to IEC 62087-2002

38.7x27.9x6.5cm

38.7x31.1x13.5cm ca. 2.8kg

 

30W, standby <1.2W

in accordance to IEC 62087-2002

45.8x31.5x6.5cm

45.8x34.3x16.5cm ca. 3.5kg

30W, standby <1W

in accordance to IEC 62087-2002

45.8x31.8x6.2cm

45.8x34.2x16.0cm ca. 3.3kg

  

  

 



Full wired





Full wired



Full wired



via Scart

3x Cinch socket in



via Scart



via Scart

3x Cinch socket in



3x Cinch socket in



via VGA

WXGA

 

via VGA

WXGA

via VGA

WXGA

 

2x

via HDMI

1 slot

3.5mm jack

2x

via HDMI

2x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack

  

USB 2.0

 



USB 2.0



USB 2.0

1 x Coaxial-socket for TV-tuner-in, according to DIN 45325

12V DC (11 - 14.5V,

current consumption ca. 4A)



12V DC (11 - 14.5V,

current consumption ca. 4A)

12V DC (11 - 14.5V,

current consumption ca. 4A)



RC 23 incl. 2x Battery AAA size

non grounded

 

RC 23 incl. 2x Battery AAA size

non grounded

RC 23 incl. 2x Battery AAA size

non grounded

 

Prepared for VESA standard adaptor 100 x 100mm





  





1920 x 1080 1920 x 1080

SRT, SSA, ASS, SMI, Video SUB SRT, SSA, ASS, SMI, Video SUB

  

 

If broadcasted If broadcasted

If broadcasted

400

If broadcasted

400

Same as analogue languagesSame as analogue languages



or decoding PDC based

full automatic sorting



full automatic sorting





1

177 - 862 VHF & UHF / -

1

177 - 862 VHF & UHF /



COFDM 2/8 QPSK 16/64 QAM COFDM 2/8 QPSK 16/64 QAM

1/2, 2/3, 3/4, 5/6, 7/8



1/2, 2/3, 3/4, 5/6, 7/8

  



  

47-862 VHF & UHF

47-70dBµV / 75

Ω



QAM 16/32/64/128/256 demodulation sup-

port (EN 300 429) / 4.0…7.2 Msymbols/s

  

576i, 576p, 720p, 1080i 576i, 576p, 720p, 1080i

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

Fitting to TV-OSD

4:3, 16:9, pan scan, letter box

MPEG4, MPEG 1 layer I & IIMPEG4, MPEG 1 layer I & II

 

Dynamic PMT



Dynamic PMT



DVB enhanced profile

via menu

DVB enhanced profile

via menu



from stand-by, as TV



from stand-by, as TV

4x free



4x free

  



  

 

140V - 265V



140V - 265V

  





45W, standby <1.2W

in accordance to IEC 62087-2002

52.5x35.5x6.5cm

52.5x38.0x16.5cm ca. 4.5kg

45W, standby < 1W

in accordance to IEC 62087-2002

52.3x35.6x6.9cm

52.3x38.0x16.0cm ca. 4.3kg

  

 



Full wired



Full wired



via Scart



via Scart

3x Cinch socket in



3x Cinch socket in



via VGA

WXGA

via VGA

WXGA

 





2x

via HDMI

2x

via HDMI

1 slot

3.5mm jack

1 slot

3.5mm jack

 



USB 2.0



USB 2.0





RC 23 incl. 2x Battery AAA size

non grounded

RC 23 incl. 2x Battery AAA size

non grounded

 





tilting function



Chassis T5GRUNDIG Service

1 - 10

Bedienhinweise Dieses Kapitel enthält Auszüge aus der Bedienungsanleitung. Weitergehende Informationen entnehmen Sie bitte der gerätespezifischen Bedienungsanleitung, die Sie unter

www.grundig.de, Menüpunkt Downloads/Bedienungsanleitungen herunterladen können.

Chassis T5GRUNDIG Service

1 - 11

Chassis T5GRUNDIG Service

1 - 12

Chassis T5GRUNDIG Service

1 - 13

Chassis T5GRUNDIG Service

1 - 13

Chassis T5GRUNDIG Service

1 - 14

Chassis T5GRUNDIG Service

1 - 14

Chassis T5GRUNDIG Service

1 - 15

Chassis T5GRUNDIG Service

1 - 15

Chassis T5GRUNDIG Service

1 - 16

Chassis T5GRUNDIG Service

1 - 16

Chassis T5GRUNDIG Service

1 - 17

Chassis T5GRUNDIG Service

1 - 18

Hinweis – Kindersicherung:

Mit dem PIN-Code 2356 können Sie die Einstellungen ändern.

Chassis T5GRUNDIG Service

1 - 19

Operating Hints This chapter contains excerpts from the operating instructions.

For further particulars please refer to the appropriate user instructions which can be downloaded by www.grundig.com, submenu Downloads/Manuals.

Chassis T5GRUNDIG Service

1 - 20

Chassis T5GRUNDIG Service

1 - 21

Chassis T5GRUNDIG Service

1 - 21

Chassis T5GRUNDIG Service

1 - 22

Chassis T5GRUNDIG Service

1 - 22

Chassis T5GRUNDIG Service

1 - 23

Chassis T5GRUNDIG Service

1 - 23

Chassis T5GRUNDIG Service

1 - 24

Chassis T5GRUNDIG Service

1 - 24

Chassis T5GRUNDIG Service

1 - 25

Chassis T5GRUNDIG Service

1 - 26

Chassis T5GRUNDIG Service

1 - 27

Note – Parental control:

Instead of the PIN Code 2356, you can enter a new personal code.

Chassis T5GRUNDIG Service

1 - 28

Service- und Sonderfunktionen

Tastenfunktionen

M

Aufrufen/Beenden des Dialog Centers / Beenden des Service Mode

8888 9999Menü-Zeile (Menüpunkt) wählen

OK

Aufrufen der Menüs

////

----Wert ändern

@@

Untermenü: Zurück zum Hauptmenü Hauptmenü: Beenden des Service Mode

Service-Mode aktivieren

– Taste M (TV-Menü) drücken. – Zahlenfolge

8500

eingeben.

Service-Mode beenden

– Taste

M

drücken.

1. Grundeinstellwerte

Die Grundeinstellwerte im Service Mode sind in der Tabelle enthalten.

Service and Special Functions

Functions of the buttons

M

Call up/exit the Dialog Center / exit the Service Mode

8888

9999Call up the dialogue line (point of menu)

OK

Call up the Menus

////

---- Changing the settings

@@

Submenu: Back to main menu Main menu: Exit the Service Mode

Calling up the Service Mode

– Press button "

M

" (TV Menu).

– Enter the code number

8500

.

Exit the Service Mode

– Press button

M

.

1. Basic Settings

The table shows all basic specific settings in the service mode.

19 VLE

2000 T

22 VLE 2000 C

22 VLE

2000 T

22-2010

T/C

Black

Hamburg 22-2940 T

Hamburg

22-2942

T/C

Hinweis

Hint

OPTIONS 0

STANDBY

CUSTOMER FACTORY

TEXT

TEXT PAGE * TUNER

PLUG PLAY

FAST TOP/ FAST/TOP/NONE

10/250/1000

ON

OPTIONS 1

HDCP VERIFY * 0.1 WATT Blue Back Panorama * Remote

Keypad

OFF

Ein/Aus ON/OFF AVAIL/NAVAIL

3 BUTTON+1STD TOUCH BUTTON

Hotel

Hotel Volume

Hotel First Power

OPTIONS 2

7 Segment Disp. Eco TV * PVR-Dateisystem PC

JOYSTICK AVAIL/NAVAIL

0…100

Power ON/Standby AVAIL/NAVAIL ON/OFF ON/OFF

AVAIL/NAVAIL HDMI 1 HDMI 2

AV

S-Video

Scart YPBPR * USB DVD

AVAIL/NAVAIL

SOUND OPTIONS

L Headphone

* ATS

* SRS TruSurround XT

IF

SET-

TINGS

HIDEV MONO AGC VHF AGV UHF AGC LPRIME

AVAIL/NAVAIL

0…31

Menü Menu

8888 /

99

Menüpunkt

Point of Menu

OK

Einstellung Ad-

justment

//// /

--

XXXXXX

Netz-Ein / Power on –> Standby

Netz-Ein / Power on –> Programm 1

FAST

1000

Eingebauten Tuner wählen Select used tuner

ATS Reset: Netz ein –> Automatischer Sendersuchlauf Power on –> automatic programme search

FAST

1000

FAST

1000

FAST

1000

FAST

1000

FAST

1000

X

prüft HDCP im EEPROM / verifies HDCP in EEPROM

Aus

ON

XX

Aus

ON

Aus

ON

AVAIL

Fernbedienung wählen / Select used remote control

X

AVAIL AVAIL

XX

Aus

ON

Aus

ON

X

Aus

ON

AVAIL AVAIL

XX

AVAIL

X

NAVAIL

65

Standby

NAVAIL NAVAIL

65

Standby65Standby

NAVAIL

OFF OFF

AVAIL

NAVAIL

OFF

NAVAIL

OFF

AVAIL

OFF

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

AVAIL AVAIL AVAIL

NAVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

NAVAIL NAVAIL

65

Standby65Standby

NAVAIL

Hotel-Mode

65

Standby

Max. Lautstärke im Hotel-Mode Hotel mode – volume maximum

NAVAIL

OFF

AVAIL

OFF

ON

AVAIL

OFF

AVAIL

OFF

ON

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

Audio/Video-Eingang Audio/Video Input

S-Video-Eingang S-Video Input

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL AVAIL AVAIL

NAVAIL AVAIL AVAIL

AVAIL

AVAIL AVAIL

AVAIL

NAVAIL

6 0 8

NAVAIL6NAVAIL

6 0 8

0

8

AVAIL AVAIL

AVAIL

AVAIL AVAIL

Kopfhörer / Headphone

AVAIL

Autom. Programmsortierung nach Suchlauf Autom. programme sorting at autoprogram operation

NAVAIL6NAVAIL

6 0 8

0

8

NAVAIL

6 0 8

Chassis T5GRUNDIG Service

1 - 29

* Abhängig von der Software / dependend of software Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.

All other menus are programmed by the software of the set and must not be adjusted.

Leemaxx

19 HD

Leemaxx

19 HD/C

Leemaxx

19 HD/CR

Leemaxx

19 T4

Vision

22-2940 H

Vision 2 16-2941

T/C

Vision 2

19-2940 T

Vision 2 19-2941

T/C

Vision 2

22-2940 T

Vision 2 22-2941

T/C

OPTIONS 0

STANDBY

CUSTOMER FACTORY

TEXT

TEXT PAGE * TUNER

PLUG PLAY

FAST TOP/ FAST/TOP/NONE

10/250/1000

ON

OPTIONS 1

HDCP VERIFY * 0.1 WATT Blue Back Panorama * Remote

Keypad

OFF

Ein/Aus ON/OFF AVAIL/NAVAIL

3 BUTTON+1STD TOUCH BUTTON

Hotel

Hotel Volume

Hotel First Power

OPTIONS 2

7 Segment Disp. Eco TV * PVR-Dateisystem PC

JOYSTICK AVAIL/NAVAIL

0…100

Power ON/Standby AVAIL/NAVAIL ON/OFF ON/OFF

AVAIL/NAVAIL HDMI 1 HDMI 2

AV

S-Video

Scart YPBPR * USB DVD

AVAIL/NAVAIL

SOUND OPTIONS

L Headphone

* ATS

* SRS TruSurround XT

IF

SET-

TINGS

HIDEV MONO AGC VHF AGV UHF AGC LPRIME

AVAIL/NAVAIL

0…31

Menü Menu

8888 /

99

Menüpunkt

Point of Menu

OK

Einstellung Ad-

justment

//// /

--

XXXX

FAST

1000

FAST

1000

Eingebauten Tuner wählen Select used tuner

ATS Reset: Netz ein –> Automatischer Sendersuchlauf Power on –> automatic programme search

FAST

1000

FAST

1000

X

prüft HDCP im EEPROM / verifies HDCP in EEPROM

X

Aus ON

Aus

ON

XX

Aus

ON

Aus

ON

AVAIL

Fernbedienung wählen / Select used remote control

AVAIL

XX

AVAIL AVAIL

XX

NAVAIL NAVAIL

65

Standby65Standby

NAVAIL NAVAIL

65

Standby65Standby

NAVAIL

OFF

NAVAIL

OFF

AVAIL

OFF

AVAIL

NAVAIL

OFF

NAVAIL

OFF

ON

AVAIL

OFF

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

NAVAIL6NAVAIL

6 0 8

0

8

NAVAIL6NAVAIL

6 0 8

0

8

XXXX

FAST

1000

FAST

1000

FAST

1000

FAST

1000

XX

FAST

1000

FAST

1000

XX

Aus

ON

Aus

ON

XX

Aus

ON

Aus

ON

AVAIL

XX

AVAIL AVAIL

XX

Aus ON

AVAIL AVAIL

XX

NAVAIL NAVAIL

65

Standby65Standby

NAVAIL NAVAIL

65

Standby65Standby

AVAIL

OFF

NAVAIL

OFF

AVAIL

OFF

AVAIL

NAVAIL

OFF

NAVAIL

OFF

AVAIL

OFF

AVAIL

NAVAIL NAVAIL

65

Standby65Standby NAVAIL

OFF

NAVAIL

OFF

AVAIL

OFF

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL

AVAIL

AVAIL AVAIL

AVAIL

NAVAIL

AVAIL

NAVAIL AVAIL AVAIL

AVAIL AVAIL

AVAIL

AVAIL AVAIL

AVAIL

NAVAIL6NAVAIL

6 0 8

0

8

NAVAIL6NAVAIL

6 0 8

0

8

AVAIL AVAIL

AVAIL

NAVAIL6NAVAIL

6 0 8

0

8

2. Software-Versionsnummer

Die Software-Versionsnummer wird unten im Menü Sonderfunktionen und im Service Menü angezeigt, z.B.:

ST5GR.F8M.R128M.V00.T24

3. Programmsuchlauf

– Taste

M

(TV-Menü) drücken.

– "INSTALLATION" mit den Tasten

////

----

anwählen und mit der

Taste OK bestätigen.

– "Programmsuchlauf" mit den Tasten

88889999 anwählen und mit der

Taste

---- bestätigen.

– Gewünschtes Land mit den Tasten

////

---- auswählen.

– "Suchtyp" mit den Tasten

88889999

anwählen und mit den Tasten

////

--

einstellen.

– "Zeitzone" mit den Tasten

88889999

anwählen und mit den Tasten

////

--

einstellen.

– "Programmsuchlauf" mit der Taster

OK

starten. Das automatische Sendersuchsystem stoppt bei jedem empfangswürdigen Sender (AFC und Koinzidenz) und speichert automatisch die entsprechenden Senderdaten mit dem jeweiligen Standard. Danach wird der Suchlauf fortgesetzt.

Zum Abbrechen des Suchlaufes die Taste

M

drücken.

2. Software Version Number

The software version number is shown on the lower part of the options menu and the service menu, e.g.:

ST5GR.F8M.R128M.V00.T24

3. Channel Search

– Press button

M

(TV Menu).

– Select "CHANNEL SETUP" with the buttons

////

---- and confirm

with button OK.

– Select "Auto Tuning" with the buttons

88889999

and confirm with button

----.

– Select the required Country with the buttons

////

----.

– Select "Scan Type" with the buttons

88889999

and adjust with buttons

////

----.

– Select "Time Zone" with the buttons

88889999

and adjust with buttons

////

----.

– Start "Channel setup" with the button

OK

. The auto programme system stops at every station of acceptable reception quality (AFC and coincidence) and stores the station data and the respective standard automatically. The system then continues searching.

Pressing the

M

button stops the programme search.

Chassis T5GRUNDIG Service

1 - 30

* Abhängig von der Software / dependend of software Alle weiteren Menüs werden über die Gerätesoftware programmiert und dürfen nicht verstellt werden.

All other menus are programmed by the software of the set and must not be adjusted.

GRUNDIG Service Chassis T5

Platinenabbildungen und Schaltpläne / Layout of PCBs and Circuit Diagrams

Chassisplatte / Chassis Board YTS190R-5

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y C200 T 104 107

C201 T 102 107 C202 T 102 109 C203 T 104 108 C204 T 104 110

C205 T 87 94 C206 T 90 120 C207 T 88 120 C208 T 99 110 C209 T 97 112

C210 T 87 97 C211 T 90 96 C212 T 86 94 C214 T 99 105 C215 T 99 100

C216 T 99 101 C217 T 99 102 C218 T 99 103 C220 T 99 107 C221 T 84 97

C222 T 88 97 C223 T 99 109 C224 T 84 92 C225 T 83 97 C227 T 90 112

C228 T 95 112 C229 T 83 102 C237 T 83 112 C238 T 88 112 C239 T 88 95

C301 T 142 115 C302 T 120 112 C304 T 89 82 C306 T 124 107 C307 T 107 110

C308 T 84 89 C309 T 144 107 C310 T 147 108 C311 T 98 77 C327 T 139 108

C330 T 99 79 C331 T 98 72 C332 T 92 77 C333 T 92 76 C401 T 11 92

C405 T 42 29 C406 T 45 36 C408 T 27 47 C409 T 45 44 C410 T 45 34

C411 T 31 29 C414 T 47 29 C415 T 27 45 C416 T 64 37 C418 T 65 44

C419 T 65 39 C420 T 45 46 C421 T 65 43 C422 T 45 41 C423 T 27 33

C424 T 65 41 C425 T 27 37 C426 T 27 40 C427 T 27 42 C428 T 27 35

C429 T 45 39 C430 T 49 29 C431 T 36 66 C437 T 34 66 C438 T 29 62

C440 T 53 82 C445 T 51 81 C446 T 46 49 C451 T 45 53 C452 T 26 62

C454 T 26 60 C455 T 31 62 C456 T 56 30 C457 T 54 30 C458 T 33 30

C459 T 34 30 C460 T 66 74 C461 T 55 87 C463 T 64 48 C464 T 64 86

C465 T 64 82 C466 T 69 55 C467 T 69 53 C470 T 64 79 C475 T 63 51

C476 T 64 54 C477 T 62 54 C478 T 64 53 C480 T 52 90 C482 T 69 75

C485 T 69 77 C487 T 68 71 C489 T 68 69 C491 T 22 88 C492 T 61 83

C493 T 61 81 C501 T 36 117 C502 T 53 85 C503 T 16 118 C504 T 27 116

C505 T 14 115 C507 T 58 125 C508 T 36 116 C601 T 99 70 C602 T 84 64

C701 T 106 18 C702 T 62 82 C703 T 109 21 C704 T 111 18 C705 T 113 20

C706 T 120 20 C707 T 117 18 C708 T 89 18 C709 T 127 20 C710 T 86 20

C711 T 122 20 C712 T 122 18 C713 T 129 18 C714 T 131 18 C715 T 127 18

C716 T 101 18 C717 T 100 37 C718 T 100 36 C719 T 105 39 C720 T 103 32

C721 T 102 36 C722 T 102 37 C723 T 133 25 C724 T 126 26 C725 T 130 26

C726 T 135 25 C727 T 96 32 C728 T 133 20 C729 T 102 27 C730 T 102 29

C731 T 136 18 C732 T 61 93 C733 T 96 29 C734 T 135 21 C735 T 155 28

C736 T 91 32 C737 T 138 18 C738 T 67 100 C739 T 100 53 C740 T 17 24

C741 T 103 56 C742 T 14 18 C744 T 73 43 C746 T 104 20 C747 T 14 16

C749 T 75 44 C752 T 14 21 C754 T 100 50 C755 T 73 41 C756 T 103 49

C757 T 17 27 C758 T 103 52 C759 T 101 44 C760 T 14 24 C762 T 100 47

C763 T 16 27 C764 T 103 47 C765 T 14 27 C768 T 108 118 C770 T 115 121

C771 T 62 86 C772 T 67 102 C775 T 10 13 C799 T 93 33 C801 T 82 6

C802 T 70 25 C803 T 73 25 C804 T 77 10 C805 T 68 17 C806 T 79 6

C807 T 82 15 C808 T 65 8 C809 T 65 9 C810 T 76 6 C811 T 72 6

C813 T 82 20 C814 T 68 24 C817 T 71 25 C820 T 147 114 C824 T 60 93

C826 T 63 93 C827 T 128 112 C830 T 130 117 C831 T 128 120 C833 T 153 121

C834 T 135 112 C835 T 153 118 C836 T 70 99 C837 T 132 117 C838 T 132 120

C839 T 155 113 C840 T 154 107 C841 T 154 110 C842 T 68 99 C901 T 31 8

C902 T 24 5 C903 T 59 19 C906 T 54 10 C907 T 22 11 C908 T 20 15

C909 T 23 30 C910 T 24 39 C911 T 25 11 C912 T 29 15 C913 T 25 30

C914 T 27 29 C915 T 33 21 C916 T 33 18 C917 T 29 22 C918 T 20 34

C921 T 19 55 C922 T 22 55 C923 T 49 13 C925 T 41 20 C926 T 39 20

C927 T 45 16 C929 T 11 9 C930 T 7 40 C931 T 15 60 C932 T 15 13

C933 T 11 34 C934 T 59 8 C935 T 47 19 C936 T 31 5 C937 T 33 23

C938 T 45 20 C939 T 43 20 C940 T 57 16 C941 T 59 17 C950 T 25 9

D301 T 146 111 D302 T 90 85 D601 T 90 73 D602 T 86 50 D603 T 86 53

D604 T 85 59 D605 T 81 121 D606 T 78 121 D720 T 150 40 D732 T 105 119

D733 T 103 119 D901 T 20 6 D902 T 42 15

F301 T 92 89 F302 T 97 89

IC201 T 91 105 IC301 T 142 109 IC401 T 55 40 IC402 T 37 40 IC403 T 46 89

IC404 T 51 68 IC405 T 27 87 IC406 T 27 86 IC408 T 15 90 IC501 T 19 117

IC502 T 52 123 IC503 T 31 117 IC601 T 93 68 IC602 T 85 68 IC701 T 115 119

IC702 T 151 34 IC705 T 99 31 IC801 T 74 17 IC802 T 152 114 IC803 T 63 19

IC901 T 21 36 IC902 T 50 17 IC903 T 25 15

J401 T 144 22 L201 T 83 99

L202 T 83 100 L203 T 101 112 L204 T 99 98 L301 T 113 109

L303 T 107 112 L305 T 96 79 L306 T 94 73 L401 T 32 66 L402 T 29 64

L403 T 50 83 L404 T 39 30 L405 T 28 58 L406 T 66 49 L407 T 66 75

L408 T 56 87 L409 T 27 58 L410 T 64 76 L411 T 69 51 L412 T 66 77

L413 T 44 29 L502 T 27 117 L701 T 86 18 L703 T 11 13 L705 T 11 29

L801 T 79 9 L802 T 74 9 L803 T 128 118 L804 T 132 118 L805 T 82 9

L806 T 72 9 L807 T 58 4 L901 T 56 7 L902 T 56 4 L903 T 57 17

L904 T 38 15 L905 T 38 17 L906 T 32 25 L907 T 33 15 L908 T 20 51

L910 T 45 13 L911 T 40 23 L912 T 48 22 L914 T 57 13 L917 T 28 3 L918 T 24 41

R201 T 106 107 R203 T 106 108 R204 T 86 112 R205 T 87 92 R206 T 86 97

R207 T 86 92 R209 T 104 112 R211 T 84 94 R212 T 83 109 R213 T 83 94

R214 T 68 111 R215 T 83 110 R216 T 99 112 R218 T 88 117 R219 T 90 117

R221 T 68 108 R222 T 90 119 R223 T 88 119 R224 T 89 114 R225 T 88 114

R226 T 86 114 R227 T 90 114 R229 T 92 112 R231 T 101 110 R301 T 150 107

R302 T 88 85 R303 T 88 87 R304 T 149 108 R305 T 85 89 R306 T 88 84

R307 T 100 78 R308 T 146 107 R309 T 109 115 R310 T 94 76 R311 T 145 109

R312 T 86 89 R313 T 107 115 R314 T 110 117 R315 T 139 115 R316 T 109 112

R317 T 141 115 R318 T 115 112 R321 T 96 77 R322 T 110 114 R330 T 148 107

R331 T 92 79 R332 T 95 72 R333 T 97 72 R334 T 100 72 R335 T 99 76

R336 T 99 74 R337 T 98 79 R345 T 142 107 R401 T 11 90 R402 T 20 89

R403 T 20 86 R404 T 20 91 R405 T 20 92 R406 T 20 88 R407 T 65 46

R408 T 14 40 R409 T 28 49 R410 T 64 74 R414 T 60 50 R415 T 42 50

R416 T 61 39 R417 T 43 39 R418 T 61 50 R419 T 44 50 R421 T 52 52

R422 T 35 50 R423 T 54 50 R424 T 36 52 R425 T 52 50 R426 T 35 52

R427 T 31 82 R436 T 54 52 R438 T 37 50 R439 T 55 50 R440 T 38 52

R441 T 51 30 R442 T 37 30 R443 T 66 54 R444 T 53 30 R445 T 36 30

R446 T 64 84 R447 T 38 68 R448 T 44 82 R449 T 52 92 R450 T 38 91

R452 T 38 93 R456 T 22 86 R457 T 20 94 R458 T 22 89 R459 T 49 81

R460 T 22 91 R461 T 22 92 R480 T 51 52 R482 T 34 50 R484 T 31 87

R486 T 38 90 R487 T 31 84 R501 T 57 93 R502 T 48 117 R506 T 46 121

R507 T 36 119 R508 T 53 88 R509 T 46 119 R510 T 22 115 R513 T 16 115

R514 T 16 117 R515 T 20 121 R518 T 35 93 R519 T 46 120 R520 T 13 121

R521 T 152 110 R522 T 19 121 R523 T 19 124 R601 T 82 76 R602 T 96 62

R603 T 96 60 R604 T 99 62 R605 T 99 68 R606 T 93 64 R607 T 95 64

R608 T 93 62 R609 T 95 62 R610 T 99 66 R611 T 98 62 R612 T 82 64

R613 T 85 73 R614 T 83 73 R615 T 85 76 R616 T 84 81 R617 T 83 76

R618 T 80 64 R619 T 83 81 R620 T 82 73 R643 T 86 64 R645 T 85 62

R646 T 88 64 R647 T 85 64 R648 T 86 62 R649 T 88 62 R700 T 108 20

R701 T 106 20 R702 T 62 84 R703 T 111 20 R704 T 117 20 R705 T 115 20

R706 T 120 18 R707 T 115 18 R708 T 113 18 R709 T 108 18 R710 T 92 18

R711 T 92 20 R712 T 131 20 R713 T 124 18 R714 T 90 20 R715 T 99 20

R716 T 101 20 R717 T 129 20 R718 T 124 20 R719 T 99 18 R720 T 103 39

R721 T 104 18 R722 T 103 33 R724 T 102 34 R725 T 100 39 R726 T 128 26

R727 T 133 26 R728 T 135 26 R729 T 91 33 R730 T 61 85 R732 T 103 27

R733 T 140 25 R734 T 133 18 R735 T 137 25 R736 T 136 20 R737 T 61 91

R738 T 140 26 R739 T 137 26 R740 T 93 32 R741 T 94 30 R743 T 153 26

R744 T 149 26 R745 T 152 26 R746 T 150 26 R748 T 96 33 R749 T 150 28

R750 T 149 28 R751 T 150 23 R752 T 138 21 R753 T 153 28 R754 T 152 23

R755 T 138 20 R756 T 67 97 R757 T 152 28 R758 T 103 29 R759 T 94 28

R761 T 103 53 R762 T 16 24 R763 T 103 55 R764 T 13 18 R765 T 11 18

R766 T 71 43 R769 T 13 16 R770 T 11 16 R771 T 73 44 R774 T 13 21

R775 T 11 21 R776 T 71 41 R777 T 103 50 R779 T 100 49 R780 T 11 24

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

R782 T 13 24 R783 T 103 46 R785 T 100 46 R786 T 12 27 R788 T 13 27

R789 T 139 126 R790 T 139 127 R795 T 68 114 R801 T 68 20 R802 T 82 19

R803 T 130 116 R804 T 82 17 R805 T 75 24 R806 T 75 26 R807 T 68 22

R810 T 147 116 R811 T 60 91 R813 T 82 22 R814 T 151 118 R815 T 70 97

R816 T 63 91 R818 T 153 119 R819 T 68 26 R822 T 155 115 R823 T 155 118

R825 T 68 97 R826 T 154 108 R830 T 67 22 R832 T 67 16 R833 T 65 16

R834 T 63 16 R835 T 63 22 R836 T 65 22 R839 T 62 22 R844 T 62 16

R845 T 80 24 R846 T 77 24 R847 T 134 117 R900 T 23 25 R901 T 28 9

R902 T 31 4 R903 T 59 20 R904 T 59 14 R905 T 59 13 R906 T 31 10

R907 T 59 7 R908 T 59 11 R909 T 59 10 R910 T 25 23 R911 T 52 22

R912 T 22 32 R913 T 14 38 R914 T 12 37 R915 T 16 38 R916 T 12 84

R917 T 54 14 R918 T 20 31 R919 T 27 18 R920 T 17 55 R921 T 57 14

R922 T 48 24 R923 T 14 53 R924 T 12 53 R925 T 15 50 R926 T 21 25

R927 T 15 51 R928 T 51 24 R929 T 30 10 R930 T 7 37 R931 T 18 13

R932 T 11 31 R933 T 59 15 R934 T 11 32 R935 T 12 82 R937 T 13 30

R938 T 17 13 R939 T 52 14 R941 T 23 22 R947 T 12 81 R948 T 16 41 R950 T 28 11

RP201 T 83 107 RP202 T 83 104 RP401 T 50 50 RP402 T 32 52 RP403 T 48 52

RP404 T 31 50 RP405 T 56 52 RP406 T 39 50 RP407 T 58 50 RP408 T 41 52

RP416 T 37 70 RP417 T 33 72 RP418 T 37 74 RP419 T 33 76 RP420 T 37 78

RP421 T 33 80 RP422 T 47 82 RP501 T 55 91 RP502 T 58 91 RP503 T 50 117 RP504 T 46 126

S401 T 18 73 S402 T 8 64 S501 T 34 112 S601 T 92 50 S602 T 81 127

S701 T 108 33 S702 T 132 33 S703 T 116 9 S704 T 6 21 S705 T 104 123

S706 T 104 123 S707 T 104 123 S708 T 124 49 S709 T 143 126 S801 T 121 124

S802 T 149 48 S803 T 147 46 S804 T 147 53 S901 T 43 6 S902 T 5 5

S903 T 5 88 S904 T 35 128 S905 T 155 5 S906 T 155 128 S907 T 43 6

T301 T 89 89 T302 T 112 112 T303 T 113 115 T304 T 141 112 T330 T 96 75

T501 T 16 121 T601 T 84 79 T602 T 99 59 T603 T 91 63 T701 T 96 19

T801 T 66 18 T901 T 12 51 T902 T 14 55 T903 T 31 7 T904 T 14 9

T905 T 7 33 T906 T 56 10 T907 T 21 22 T908 T 12 39

TU301 T 128 86 TU302 T 128 86 TU303 T 128 86

X200 T 99 115 X400 T 68 85

2 - 1

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160

X

R920

C922

C921

T902

R763

1

C466

C715

C709

R726

C831

L803

S804

C405

R415

L910

L914

T906

C923

R905

25

32

BARCODE

2

S907

S901

L902

L807

L901 R907

C934

1

PWR

1

C906

R909

R908

1

C808

+

C809

L806

C811

L802

C810 C806 C801

L805

C804

L801

L701 C708

R714

R710

R711

C710

C736 R740

R759

R741

1

R719

T701

R715

C716

R716

C733

IC705

1

C727

C729 C730

C720

R729

S601

19

HDMI

C799 R748

D602 1

1

D603

C718

C717

R725

C759

R722

C721

R724

C722

R720

R785

C762

R779

C754

C739

R783

C764

C756

R777

C758

R721 C701 R709 C704 R708

C746 R700R701

R732

PC AUDIO

C705R703

C703

R707 C707 R706

R713C712

R704R705 C706

C711 R718

C724

R758

R761

C719

VIDEO

S701

S702

LEFT

C927

C935

1

C938

C939

R922

L413

C414

L912

C430

R441

R939

R917

R921

C940

R904

R933

R928

IC902

R911

R444

C457

C456

L903

C941

C903

R903

C410

C406

R417

C429

C409

C422

R419

C420

C446

C451

1

RP401

RP403

IC401

R416

R425

R423

R436

R480

R421

R439

RP407

R414

RP405

R844

R834

R833

R832

C805

IC803

R839

R836

R835

T801

R830

R807R801 C814

24

1

C807

R804

8

R802

C813

17

16

IC801

R805

R813

9

R846 R845

C416

C419

C424

C418

C421

R819

R407

R418

C475

C477

C476

C478

C463

L406

R443

C802

C817

C803

R806

R776

R766

L411

C467

C755

C744

C749

R771

15

C775

L703

C932

R938

R931

D902

IC903

S902

FID905

C929

D901

T904

Label101

10

L917

C907

C902

T903

1

R902

C936

C901

R901

C950

R929

R906

C911

R950

9

DVD

16

R770

R769

R765

R764

S704

R780

1

2

L705

R775

R782R774

R786

C742C747 C752

C908

R788

C760

C765

C763

R937

R762

C740

T907

C757

R926

R932

R934

T905

C933

R914

R930

C930

30

1

R924

T908

IC901

C918

R913

R918

R912

1

R408

T901

R925

R927

R923

R915

R948

L908

1

R941

C912

R919

R900

R910

C909

C913

C917

L906

C914

C411

C458

L907

L904

C916

L905

C915

C937

C459

R445

C926

C925

L911

R442

L404

C428

C425

C910

L918

C423

C426

C427

C415

C408

R409

1

RP404

IC402

R482

RP402

R426

R422

R424

R438

RP406

R440

RP408

FID907

S905

C713 C714 R734

R717

C728

R712

C723

C734

C731 C737

1

R736 R755

R752

SERVICE

C726

C725 R727

R735

R728AVR739

R733

R738

RIGHT

VGA

S803

1

J401

S703

R751

R754

R744 R750

R746 R749

R745 R757

SCART

R743 R753

C735

IC702

D720

1

S802

SPEAKER

YTS190R-5

V-0

C834

C327

IC301

R315

R3451C309

R311

T304

R317

C301

C837

C830

R847

L804

C838

1

R790

R789

R330

R308

C310

1

R301

D301

R304

1

C840

R521

R826

C841

C839

C820

R810

IC802

S709

HOTEL TV

R814

R822

C835

R818

C833

R823

FID904

S906

IC403

S501

S402

LVDS

S903

C931

2

LVDS

S400

1

R947

R935

S401

R916

IC408

1

40

R401

C401

39

R406

R402

R403

R456

C491

R458

R404

R405

R457

R460

R461

C454

C452

L409

L405

1

C438

C455

L402

L401

C431

C437

R447

RP417

RP419

RP416 RP418

1

R487 R484

IC405

IC406

R427

RP421

RP420

R486

R450

R452R518

1

PCMCIA

C505 R513

R514

1

C503

R522

FID906

R520

T501

R523

R510

C504

IC501

1

C501

C508

L502

R515

S904

IC503

R507

IC602

R815

C225

R756

R825

D604

R645 R615R647 R613 R305

R206

37

48

C210

C222

R204

12

R459

1

R448

RP422

L403

C445

C493

C440 C502

IC404

R410

C702

C492 R730

R702 C771

R508

C461

L408

C480 R449

RP501

R811

R816

RP502

C824

R501

R737

C826

C732

C489

C487

R618

C460

L407

L410

C482

C485

L412

C602

HDMI

CEC

R612

R620 R601

R614 R617

C470

C465 R446

X400

C464

T601

R619

R616

R213

C308

C224 R211 C221

R648

R649

R643

R646

1

D601

T603

C332

C333

R331

D302

1

R312

R207 C21 2

R205 C205

C304

R306

R30

2

R303

T301

C239

F301

C211

R603 R602

R611

R608 R606

R609 R607

R332

IC601

R333

T602

S708

C741

TU303

R604

R610

R605

C601

TU302

TU301

L306

T330

R310

F302

R321

L305

1

C331

R336

R335

R334

C311

R337

C330

R307

1

IC201

13

C238

36

C227

25

24

R229 C228 C209

C215

L204

C216

C217

C218

C214

C220

C223

C208

R216

C202

R231

L203

R226

R225

R218

R224

R227

R223

C207

19

S602

R219

R222

C206

X200

S705

SIDE HDMI

USB

C201

C200

C203

R201

R203

C204

R209

C307

R316

R313

L303

R309

L301

C302

1

C306

T302

R322

R318

T303

D733D732

R314

C768

S707

1

R803

C827

IC701

S706

C770

S801

H PHONE

R509

R502

R519

R506

C738 C772

RP503

RP504

C507

1

IC502

C842

C836

R221 R214

L201

L202

C229

RP202

R215

R212

RP201

R795

1

D606

C237

1

D605

1

7

3

4

8 5 6

14

13

27

28

9

12

10

Chassisplatte / Chassis Board

YTS190R-5

Ansicht von der Bestückungsseite View of Component Side

2 - 2

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160

X

R920

C922

C921

T902

R763

1

C466

C405

R415

L910

L914

T906

C923

R905

25

32

BARCODE

2

S907

S901

L902

L807

L901 R907

C934

1

PWR

1

C906

R909

R908

1

C808

+

C809

L806

C811

L802

C810 C806 C801

L805

C804

L801

L701 C708

R714

R710

R711

C710

C736 R740

R759

R741

1

R719

T701

R715

C716

R716

C733

IC705

1

C727

C729 C730

C720

R729

S601

19

HDMI

C799 R748

D602 1

1

D603

C718

C717

R725

C759

R722

C721

R724

C722

R720

R785

C762

R779

C754

C739

R783

C764

C756

R777

C758

R721 C701 R709 C704 R708

C746 R700R701

R732

R758

R761

C927

C935

1

C938

C939

R922

L413

C414

L912

C430

R441

R939

R917

R921

C940

R904

R933

R928

IC902

R911

R444

C457

C456

L903

C941

C903

R903

C410

C406

R417

C429

C409

C422

R419

C420

C446

C451

1

RP401

RP403

IC401

R416

R425

R423

R436

R480

R421

R439

RP407

R414

RP405

R844

R834

R833

R832

C805

IC803

R839

R836

R835

T801

R830

R807R801 C814

24

1

C807

R804

8

R802

C813

17

16

IC801

R805

R813

9

R846 R845

C416

C419

C424

C418

C421

R819

R407

R418

C475

C477

C476

C478

C463

L406

R

443

C802

C817

C803

R806

R776

R766

L411

C467

C755

C744

C749

R771

15

C775

L703

C932

R938

R931

D902

IC903

S902

FID905

C929

D901

T904

Label101

10

L917

C907

C902

T903

1

R902

C936

C901

R901

C950

R929

R906

C911

R950

9

DVD

16

R770

R769

R765

R764

S704

R780

1

2

L705

R775

R782R774

R786

C742C747 C752

C908

R788

C760

C765

C763

R937

R762

C740

T907

C757

R926

R932

R934

T905

C933

R914

R930

C930

30

1

R924

T908

IC901

C918

R913

R918

R912

1

R408

T901

R925

R927

R923

R915

R948

L908

1

R941

C912

R919

R900

R910

C909

C913

C917

L906

C914

C411

C458

L907

L904

C916

L905

C915

C937

C459

R445

C926

C925

L911

R442

L404

C428

C425

C910

L918

C423

C426

C427

C415

C408

R409

1

RP404

IC402

R482

RP402

R426

R422

R424

R438

RP406

R440

RP408

IC403

S501

S402

LVDS

S903

C931

2

LVDS

S400

1

R947

R935

S401

R916

IC408

1

40

R401

C401

39

R406

R402

R403

R456

C491

R458

R404

R405

R457

R460

R461

C454

C452

L409

L405

1

C438

C455

L402

L401

C431

C437

R447

RP417

RP419

RP416 RP418

1

R487 R484

IC405

IC406

R427

RP421

RP420

R486

R450

R452R518

1

PCMCIA

C505 R513

R514

1

C503

R522

FID906

R520

T501

R523

R510

C504

IC501

1

C501

C508

L502

R515

S904

IC503

R507

IC602

R815

C225

R756

R825

D604

R645 R615R647 R613 R305

R206

37

48

C210

C222

R204

12

R459

1

R448

RP422

L403

C445

C493

C440 C502

IC404

R410

C702

C492 R730

R702 C771

R508

C461

L408

C480 R 449

RP501

R811

R816

RP502

C824

R501

R737

C826

C732

C489

C487

R618

C460

L407

L410

C482

C485

L412

C602

HDMI

CEC

R612

R620 R601

R614 R617

C470

C465 R44 6

X400

C464

T601

R619

R616

R213

C308

C224 R211 C221

R648

R649

R643

R646

1

D601

T603

C332

C333

R331

D302

1

R312

R207 C212

R205 C205

C304

R306

R30

2

R303

T301

C239

F301

C211

R603 R 602

R611

R608 R606

R609 R607

R332

IC601

R333

T602

C741

R604

R610

R605

C601

TU302

L306

T330

R310

F302

R321

L305

1

C331

R336

R335

R334

C311

R337

C330

R307

1

IC201

13

C238

36

C227

25

24

R229 C228 C209

C215

L204

C216

C217

C218

C214

C220

C223

C208

R216

C202

R231

L203

R226

R225

R218

R224

R227

R223

C207

19

S602

R219

R222

C206

X200

S705

SIDE HDMI

USB

C201

C200

C203

C204

R209

D733D732

S707

R509

R502

R519

R506

C738 C772

RP503

RP504

C507

1

IC502

C842

C836

R221 R214

L201

L202

C229

RP202

R215

R212

RP201

R795

1

D606

C237

1

D605

1

7

3

4

14

13

27

9

12

10

Chassisplatte / Chassis Board YTS190R-5 Ansicht von der Bestückungsseite / View of Component Side

2 - 3

R763

1

C715

C709

R726

C831

L803

S804

R714

R710

R711

C736 R740

R759

R741

1

R719

T701

R715

C716

R716

C733

IC705

1

C727

C729 C730

C720

R729

S601

19

HDMI

C799 R748

D602 1

1

D603

C718

C717

R725

C759

R722

C721

R724

C722

R720

R785

C762

R779

C754

C739

R783

C764

C756

R777

C758

R721 C701 R709 C704 R708

C746 R700R701

R732

PC AUDIO

C705R703

C703

R707 C707 R706

R713C712

R704R705 C706

C711 R718

C724

R758

R761

C719

VIDEO

S701

S702

LEFT

FID907

S905

C713 C714 R734

R717

C728

R712

C723

C734

C731 C737

1

R736 R755

R752

SERVICE

C726

C725 R727

R735

R728AVR739

R733

R738

RIGHT

VGA

S803

1

J401

S703

R751

R754

R744 R750

R746 R749

R745 R757

SCART

R743 R753

C735

IC702

D720

1

S802

SPEAKER

YTS190R-5

V-0

C834

C327

IC301

R315

R3451C309

R311

T304

R317

C301

C837

C830

R847

L804

C838

1

R790

R789

R330

R308

C310

1

R301

D301

R304

1

C840

R521

R826

C841

C839

C820

R810

IC802

S709

HOTEL TV

R814

R822

C835

R818

C833

R823

FID904

S906

C210

C222

12

R648

R649

R643

R646

1

D601

T603

C332

C333

R331

D302

1

R312

R205 C205

C304

R306

R30

2

R303

T301

C239

F301

C211

R603 R 602

R611

R608 R606

R609 R607

R332

IC601

R333

T602

S708

C741

TU303

R604

R610

R605

C601

TU302

TU301

L306

T330

R310

F302

R321

L305

1

C331

R336

R335

R334

C311

R337

C330

R307

1

IC201

13

C238

36

C227

25

24

R229 C228 C209

C215

L204

C216

C217

C218

C214

C220

C223

C208

R216

C202

R231

L203

R226

R225

R218

R224

R227

R223

C207

19

S602

R219

R222

C206

X200

S705

SIDE HDMI

USB

C201

C200

C203

R201

R203

C204

R209

C307

R316

R313

L303

R309

L301

C302

1

C306

T302

R322

R318

T303

D733D732

R314

C768

S707

1

R803

C827

IC701

S706

C770

S801

H PHONE

7

8 5 6

28

GRUNDIG Service Chassis T5

Chassisplatte / Chassis Board YTS190R-5 Ansicht von der Bestückungsseite / View of Component Side

2 - 4

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0102030405060708090100110120130140150160

X

TP50

TP77

YTS190R-5

TP116

1

TP127

11

TP91

TP92

TP6

TP7

TP4

TP5

21

TP103

20

TP104

TP105

TP108

TP123

TP99

TP122

TP124

TP112

TP109

TP115

TP114

TP125

1

2

TP166

TP85

TP100

TP53

TP49

TP146

TP97

TP96

TP95

TP94

TP152

TP155

TP147

TP148TP15 4

TP157

TP153

TP158

TP84

TP101

TP87

TP86

TP90

TP88

TP47

TP174

tp11

2

1

TP171

TP120

TP130

TP119

TP121

TP133

5

15

6

TP135

TP136

TP98

TP126

TP172

TP142

TP141

TP139

TP132

5

TP137

1

TP145

TP143

1

TP144

4

TP170

V-0

TP17

1

TP16

TP177TP17 5TP176

TP60

TP58

TP71

TP62

TP64

TP59

TP63

TP68

TP70TP73

TP83

TP81

TP33

TP34

TP31

TP78T P75

TP82

TP76

TP32

TP61TP57

TP66

TP102

TP69

TP55

TP52

TP48

TP51

TP65

TP72

TP74

TP80

TP37

TP79

TP67

TP45

TP35

TP41

tp29

TP93

tp9

tp10

TP24

TP13

TP23

tp12

TP42

TP43

TP30

TP44

tp28

TP173

TP89

TP54

TP56

TP25

tp26

TP19

TP161

TP18

TP27

TP22

TP20

TP168

tp14

TP165

TP167

TP163

TP169

tp21

TP1

TP160

TP3

TP2

tp8

tp15

TP159

Chassisplatte / Chassis Board

YTS190R-5

Ansicht von der Lötseite View of Solder Side

2 - 5

GRUNDIG Service Chassis T5

TP50

YTS190R-5

TP116

1

TP127

11

TP6

TP7

TP4

TP5

21

TP103

20

TP104

TP105

TP108

TP123

TP99

TP122

TP124

TP112

TP109

TP115

TP114

TP125

1

2

TP166

TP85

TP100

TP53

TP49

2

1

TP171

TP120

TP130

TP119

TP121

TP133

5

15

6

TP135

TP136

TP98

TP126

TP172

TP142

TP141

TP139

TP132

5

TP137

1

TP145

TP143

1

TP144

4

TP170

V-0

TP17

1

TP16

TP177TP175 TP176

TP24

TP13

TP23

tp12

TP173

TP89

TP54

TP56

TP25

tp26

TP19

TP161

TP18

TP27

TP22

TP20

TP168

tp14

TP165

TP167

TP163

TP169

tp21

TP1

TP160

TP3

TP2

tp8

tp15

TP159

Chassisplatte / Chassis Board YTS190R-5 Ansicht von der Lötseite / View of Solder Side

POS. X Y POS. X Y TP1 B 125 120

TP2 B 125 129 TP3 B 125 124 TP4 B 79 2 TP5 B 81 3

TP6 B 72 4 TP7 B 74 6 tp8 B 57 126 tp9 B 22 114 tp10 B 15 116

tp11 B 30 33 tp12 B 97 98 TP13 B 84 99 tp14 B 100 113 tp15 B 84 102

TP16 B 148 107 TP17 B 140 108 TP18 B 94 65 TP19 B 93 60 TP20 B 97 68

tp21 B 124 102 TP22 B 95 62 TP23 B 85 67 TP24 B 85 70 TP25 B 83 76

tp26 B 78 85 TP27 B 86 77 tp28 B 46 93 tp29 B 41 92 TP30 B 44 89

TP31 B 18 93 TP32 B 22 91 TP33 B 17 88 TP34 B 20 93 TP35 B 26 89

TP37 B 25 86 TP41 B 41 90 TP42 B 46 84 TP43 B 50 87 TP44 B 50 89

TP45 B 33 83 TP47 B 38 32 TP48 B 31 68 TP49 B 65 78 TP50 B 64 56

TP51 B 36 68 TP52 B 33 62 TP53 B 62 50 TP54 B 65 74 TP55 B 30 61

TP56 B 53 81 TP57 B 23 64 TP58 B 21 62 TP59 B 21 64 TP60 B 19 62

TP61 B 23 66 TP62 B 18 65 TP63 B 21 66 TP64 B 18 67 TP65 B 33 71

TP66 B 23 69 TP67 B 31 72 TP68 B 21 69 TP69 B 23 71 TP70 B 21 71

TP71 B 11 74 TP72 B 23 73 TP73 B 21 73 TP74 B 23 75 TP75 B 21 75

TP76 B 23 77 TP77 B 7 56 TP78 B 21 77 TP79 B 27 80 TP80 B 25 80

TP81 B 21 80 TP82 B 21 82 TP83 B 15 84 TP84 B 26 22 TP85 B 58 20

TP86 B 27 31 TP87 B 37 20 TP88 B 15 52 TP89 B 79 67 TP90 B 18 50

TP91 B 45 4 TP92 B 43 7 TP93 B 14 104 TP94 B 40 7 TP95 B 40 4

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

TP96 B 34 10 TP97 B 33 2 TP98 B 146 19 TP99 B 89 34 TP100 B 61 30

TP101 B 21 27 TP102 B 26 69 TP103 B 96 9 TP104 B 104 17 TP105 B 102 17

TP108 B 108 17 TP109 B 113 17 TP112 B 115 17 TP114 B 118 17 TP115 B 120 17

TP116 B 127 17 TP119 B 134 17 TP120 B 132 17 TP121 B 137 17 TP122 B 93 33

TP123 B 106 29 TP124 B 106 37 TP125 B 109 33 TP126 B 150 21 TP127 B 128 28

TP130 B 133 28 TP132 B 140 28 TP133 B 135 28 TP135 B 138 28 TP136 B 143 28

TP137 B 144 41 TP139 B 139 31 TP141 B 151 27 TP142 B 149 27 TP143 B 154 33

TP144 B 154 35 TP145 B 152 33 TP146 B 6 13 TP147 B 9 16 TP148 B 6 18

TP152 B 6 21 TP153 B 14 26 TP154 B 6 23 TP155 B 3 23 TP157 B 4 26

TP158 B 8 29 TP159 B 63 121 TP160 B 108 122 TP161 B 109 57 TP163 B 99 123

TP165 B 105 118 TP166 B 124 47 TP167 B 103 118 TP168 B 124 57 TP169 B 112 118

TP170 B 139 57 TP171 B 146 24 TP172 B 147 22 TP173 B 57 84 TP174 B 27 54

TP175 B 146 123 TP176 B 146 125 TP177 B 146 128

2 - 6

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0102030405060708090100110120130140150160

X

TP50

TP77

TP91

TP92

TP6

TP7

TP4

TP5

TP85

TP100

TP53

TP49

TP146

TP97

TP96

TP95

TP94

TP152

TP155

TP147

TP148TP154

TP157

TP153

TP158

TP84

TP101

TP87

TP86

TP90

TP88

TP47

TP174

tp11

TP60

TP58

TP71

TP62

TP64

TP59

TP63

TP68

TP70 TP73

TP83

TP81

TP33

TP34

TP31

TP78 TP75

TP82

TP76

TP32

TP61TP57

TP66

TP102

TP69

TP55

TP52

TP48

TP51

TP65

TP72

TP74

TP80

TP37

TP79

TP67

TP45

TP35

TP41

tp29

TP93

tp9

tp10

TP24

TP13

TP23

TP42

TP43

TP30

TP44

tp28

TP173

TP89

TP54

TP56

TP25

tp26

TP27

tp8

tp15

TP159

Chassisplatte / Chassis Board YTS190R-5 Ansicht von der Lötseite / View of Solder Side

2 - 7

8/10 bit LVDS PANEL

R925

4.7K

C922

10uF/16V

R924 22K

R931

1K

C921

1u/16v

R923 10K

R920 22K

C932 1uF/25V

R927 22K

Panel_ON-P1

VCC5V

+5V_ST

PANEL-VCC

GND

+5V_ST

VCC3.3V-ST

Panel Power

Hi: Off Lo: On

L905

(120R/100M Hz)

C908 10uF/25V

GND

VCC3.3V-ST

GND

R910

39K %1

R919 12k %1

C907

10nF

GND

L907 1uH

C915

10uF

C916

10uF

R911

180k %1

TP84

GND

+12V

VCC1.2V

VCC3.3V-ST

1

3

2

T902 DMP2215L

1

3

2 T904 DMN3150L

GND

C903 470n

R907

4.7K

R905 47k

R904 4.7K

R903

1K

BRI_ADJ-PWM2

VBLCTRL-P2

GND

+5V_ST

VCC3.3V-ST

Power

L917

120R/100MHz

+5V_ST

GND

+12V

GND

L902

120R/100MHz

GND

R906

4.7K

R909 47k

R908

4.7K

GND

VCC3.3V-ST

Hi: Off Lo: On

L901

300R/100MHz

L903

SBY1005

VCC5V

AGND

1

N/C

2

PGND

3

SW

4

IN

5

N/C

6

BS

7

VCC

8

POK

9

IN

10

SW

11

PGND

12

EN/SYNC

13

FB

14

GND

15

IC903 MP2205

C917

10uF

L906

120R/100MHz

C911

1u/10V X5R

GND

C902

1u/16V

C901 1uF

L908 FB

C923 10uF

GND

R928

390k %1

GND

L912

1uH

C925

10uF

R922 390k 1%

TP87

GND

C926

10uF

L911

120R/100MHz

L910

120R/100MHz

R932 (10K)

C933 (100nF/50V)

VCC3.3VVCC3.3V-ST

GND

R934

(100K)

VCC3.3V

R929 100k

R930

FB

C930 1uF

GND

C929

1uF

GND

R6_RXO0+

R7_RXO0-

R4_RXO1+

R5_RXO1-

R2_RXO2+

R3_RXO2-

B3_RXE3B2_RXE3+

B5_RXECB4_RXEC+

B7_RXE2B6_RXE2+

R0_RXOC+

R1_RXOC-

G6_RXO3+

G7_RXO3-

G2_RXE0+

G3_RXE0-

G0_RXE1+

G1_RXE1-

PANEL-VCC

LVDS I/F

C931 1uF

GND

R916

NC

VCC3.3V

R935

NC

GND

TP71

TP78

TP76

TP75

TP74

TP73

TP72

TP70

TP69

TP68

TP66

TP65 TP67

TP83

TP63

TP58 TP60

TP61 TP62

TP59

TP57

TP64

MODE_SEL

41

42

112

2

334

4

556

6

7

8

9910

10

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

313132

32

333334

34

353536

36

373738

38

393940

40

S401 40PLVDS

B0_RXE4+

B1_RXE4-

G4_RXO4+

G5_RXO4-

C935 10nF

GND

C934

1nF

GND

MODE_SEL

L914

SBY1005

30P - 8bit LVDS 40p - 10bit LVDS or 8bit with DCR

POWER_SW

R917

(100R)

Hi: ON Lo: OFF

+5V2_ST

max 1A

R938 100k

max 1500mA

LED_R-GPIO1

FB

1

GND

2

SW

3

IN

4

BS

5

POK

6

IN

7

SW

8

GND

9

EN/SYNC

10

GND

11

IC902 MP2119

POWER_SW

TP98

R939

4.7K

+5V2_ST

5

4 3

T906A BC847BDW1T1_A

2

1 6

T906B BC847BDW1T1_A

IRIN SAR0

GND

+5V_ST

L904

120R/100MHz

GND

VCC3.3V-ST

R902

10k

5

4 3

T901A

BC847BDW1T1_A

2

1 6

T901B

5

4 3

T903A

BC847BDW1T1_A

2

1 6

T903B BC847BDW1T1_A

POWER_SW

+12V_SW

R937 47K

GND

Hi: ON Lo: OFF

System-RST

VCC3.3V-ST

+5V_ST

IRIN

SAR0

LED_R-GPIO1

VBLCTRL-P2

+12V_SW

R901

4.7K

R921 1K

R933 4.7K

VCC3.3V-ST

+5V2_ST

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7

7

P8

8

P9

9

P10

10

P11

11

P12

12

P13

13

P14

14

P15

15

P16

16

P17

17

P18

18

P19

19

P20

20

P21

21

P22

22

P23

23

P24

24

P25

25

P26

26

P27

27

P28

28

P29

29

P30

30

P31

31

P32

32

S402

MOLEX_2*15

GND

SEL_LVDS

B3_RXE3-

B2_RXE3+

B5_RXEC-

B4_RXEC+

B7_RXE2-

B6_RXE2+

G2_RXE0+ G3_RXE0-

G0_RXE1+ G1_RXE1-

R947

NC

MODE_SEL

DIODES

TP100

TP93

TP90

TP92

TP91

TP89

TP94

TP95

TP102

TP96

TP97

TP79 TP80 TP81 TP82

TP77

TP85

TP88

TP99

TP174

C912

10uF/25V

C950

(1u/10V X5R)

GND

C936 10nF

R950 10R

C933 min 25V olacak

PANEL-VCC

C937

10uF

C938

10uF

C939

10uF

C940 1nF

C941 1nF

C906 1u/25V

1

3

2

T905 DMP2215L

T908 BC847B

PWR_EN

R914 47k

ST-BY_SW

Hi: ON Lo: OFF

TP86

C914 10uF

C910 1uF

L918 60R/100MHz

VCC3.3V

R948

NC/10K

GND

R912 6k8 1%

R918 5K36 1%

C918

1n

GND

+5V2_ST

VCC1.8V

IN

1

IN

2

PG

3

VCC

4

EN5GND

6

SS

7

FB

8

OUT

9

OUT

10

PAD

IC901

AP7173

C927

1uF

R915

100R

VCC1.8V = 0,8 x (1 + R912/R918)

max 600mA

Pd=400mW

C909 10uF

C913 10uF

ST-BY_SW

+5V2_ST

D902

PMEG2020EH

D901

PMEG2020EH

+12V_SW

R926 47K

R941 680R

TP101

1

2

334

4

5

6

T907

PBLS4003D

VCC3.3V +12V

GND

R913 (100R)

POWER_SW ST-BY_SW

R900

1.2K

10

8

6

4

2

9

7

5

3

1

S901 CON2x5 RA SMD

10

8

6

4

2

9

7

5

3

1

S907 CON2x5 VRT SMD

1

10

13

14

12

1

#

$

Trigger @ (+5V_ST)

0

Mains switch on

AP7173

Gate

Driver

Current Limit and

Thermal Shutdown

0.8V

0.72V

OUT

SS

FB

GND

IN

VCC

PG

EN

+

-

+

-

MP2119

--

+

--

+

-+ +

--

+

LOGIC

SLOPE

COMPENSATION

AND PEAK

CURRENT LIMIT

PWM

CURRENT

COMPARATOR

EN

COMP

SLOPE

CLK

EN

EXCLK

OSC

EN/SYNC

LOGIC

SOFT-START

0.8V

0.72V

0.88V

0.5pF

1.2 MEG

17pF

IN

POK

IN

BS

SW

GND

FB

EN/SYNC

Chassisplatte – Netzteil/LVDS / Chassis Board – Power Supply/LVDS YTS190R-5

GRUNDIG Service Chassis T5

2 - 8

GRUNDIG Service Chassis T5

TU_SCL TU_SDA

SIF_CTL

A_IF

C308 10nF

D302 BA591

R305 100k

C302

470uF/16V

R306

2.2K

T301

BC847B

C304 10nF

R303

2.2K

R302

6.8K

AGND

VCC5V

APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1

11

GND12GND13GND14GND

15

TU302 ALPS

GND

T303

BC807-40

R313

10R

R309

10R

R316

1K

L303

SBY1005

C306

100nF

GND

ANTPOWER: L- OFF, H- ON

R314

3.3K

R322

39K

L301 22uH

C307

1uF

AGND

A_IF

AGND

R321

NC

L305 1uH

IFAGC

AGND

ANTPOWER

APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1

11

GND12GND13GND14GND

15

TU301 DTT75416

2

GND

VCC-Tuner

2

GND

IFAGC

D_IF-

D_IF+

TU_SCL TU_SDA

IFAGC

VCC-Tuner

R318

51K

2

61

5

43

T302 BC847BPDW1T1

AGND

D_IF+

D_IF-

R312 100k

AGND

SIF_CTL

SIF_IP

SIF_IM

SIF_IP

SIF_IM

VIFM

VIFP

VIFM

VIF

R311

0R

C309 NC

GND

R304

6.8K

R301

10K

C310 22nF

RF_AGC

GND

D301

NC

2

3

4

51

F302 HDVF389A1DC

R330 (100K)

REF4MHZ

2

3

4

51

F301

HDAF389A7

+5V_ST

R310

NC/33R

VCC-Tuner

TU_SCL

TU_SDA

A_IF

D_IF-

D_IF+

APW1RAG2CAS3SCL4SDA533V( 4MHz)65V7IFA8IAG9IF210IF1

11

GND12GND13GND14GND

15

TU303 SHARP

2

GND

IFAGC

VCC-Tuner

REF4MHZ

TU_SCL

TU_SDA

A_IF

D_IF-

D_IF+

APWR

VCC

GND

1 2

4

3

5

IC301

74LVC1G66GW

C327 100nF

RF_AGC_CTL

R345

(0R)

VCC5V

TP17

RF_AGC_CTL

SHOULDER

TP16

TP21

F300 F301

K9656M K3958M

-K2977M

System

Multysistem No Secam L

T330 NC/BF799

R332 NC/680R

C311

10nF

L306

NC/1uH

C331 NC/10nF

R333

NC/1K

C330 NC/10nF

R307 NC/56R

R334 NC/6.8K

R336 NC/20R

R335 NC/1K

GND

R331

NC/100R

C332

NC/10nF

C333 NC/100pF

VCC-Tuner

GND

SAW FLT. DRIVER

GND

R337

0R

A_IF

R308

NC/47K

RF_MON

T304

NC/BC847B

C301 NC/22pF

R315 NC/100k

R317 NC/220k

VCC-Tuner

GND

TUN_AGC_OUT

RF_MON

TUN_AGC_OUT

6

8

5

IFAGC

TUN_RESET

TS_MDI1 TS_MDI2 TS_MDI3 TS_MDI4 TS_MDI5 TS_MDI6 TS_MDI7

D_IF+

D_IF-

TU_SCL

TU_SDA

TS_MDI0

TS_MDI[7..1]

I2C-SCL I2C-SDA

IFind #IFind

TS_MIVALID TS_MISYNC TS_MICLK

C204 22nF

R226

10K

C228

1uF

C206

22pF

R227

10K

R224 100R

R204 33R

R222 100R

C227

1uF

C202

22pF

C222

1uF

R216

10k

R219 4.7K

R201 100R

R215 33R

R209 10K

R225 100R

R221 10K

C20833pF

(X201)

X200

24MHZ

R218 4.7K

R229 100R

GND

1

AVDD_33

2

SSIFO

3

CVBSOUT

4

GND

5

CLKO

6

AVDD_33

7

VR27

8

SIFIP

9

SIFIM

10

VIFIM

11

VIFIP

12

GND

13

AVDD_33

14

GND

15

VREFM

16

VREFP

17

AVDD_33

18

ZIF_QM

19

ZIF_QP

20

ZIF_IM

21

ZIF_IP

22

GND

23

XIN

24

XOUT25AVDD_3326IF_AGC27GND28EXTRSTN29I2CM_SCL30I2CM_SDA31VDDC32GND33I2CS__SCL34I2CS__SCL35TS_CLK

36

TS_SYNC

37

TS_VALID

38

TS_DATA7

39

TS_DATA6

40

TS_DATA5

41

TS_DATA4

42

TS_DATA3

43

TS_DATA2

44

TS_DATA1

45

TS_DATA0

46

VDDC

47

RF_AGC

48

IC201 MSB1210

C237

NC

7 5 3 1

8 6 4 2

RP201 4*33R

R214 10K

C20933pF

C207 22pF

R203 100R

R223 100R

C203100nF

C214

1uF

C200100nF

C201

22pF

R212 33R

C215

1uF

TUN_RESET

IFAGC

I2C-SDA

I2C-SCL

TS_MICLK

TS_MISYNC

TS_MIVALID

TS_MDI[7..1]

TS_MDI0

D_IF-

D_IF+

GND

DVDD

Vcore

AVDD

GND

VCC3.3V AVDD

GND

GNDGND

VCC3.3V

GND

PLLVDD Vc oreVCC3.3V

GND

VCC1.2V

DVDD

GND

DVDD

VCC3.3V

GND

C221

1uF

C229

1uF

7 5 3 1

8 6 4 2

RP202 4*33R

R231 1k

VCC3.3V

Vcore PLLVDD

C205 100nF

C210

(1nF)

C212 100nF

R207

47R

R205

47R

R206 330R

GND

SIFP

SIFM

SIFP

SIFM

R213 1k

GND

R211

47R

TV_CVBS+

C224

100nF

VIFM VIFP

VIFP

VIFM

VIF

SIF_IP SIF_IM

C211 2.2uF

CVBSOUT

SSIFO

CVBSOUT

VCC5V

RF_AGC

GND

XIN

XOUT

C220

100nF

C223

100nF

C217

100nF

C216 100nF

C218 100nF

GND

TS_MDI7TS_MDI6

C225

(100pF)

SIF_IP SIF_IM

TU_SCL

TU_SDA

L204

SBY1005

L201

SBY1005

L203

SBY1005

L202

SBY1005

C238 NC

GND

TP12 TP13

TP14

TP15

C239 1nF

EMC icin

9

6

8

5

65

9

5

6

8

9

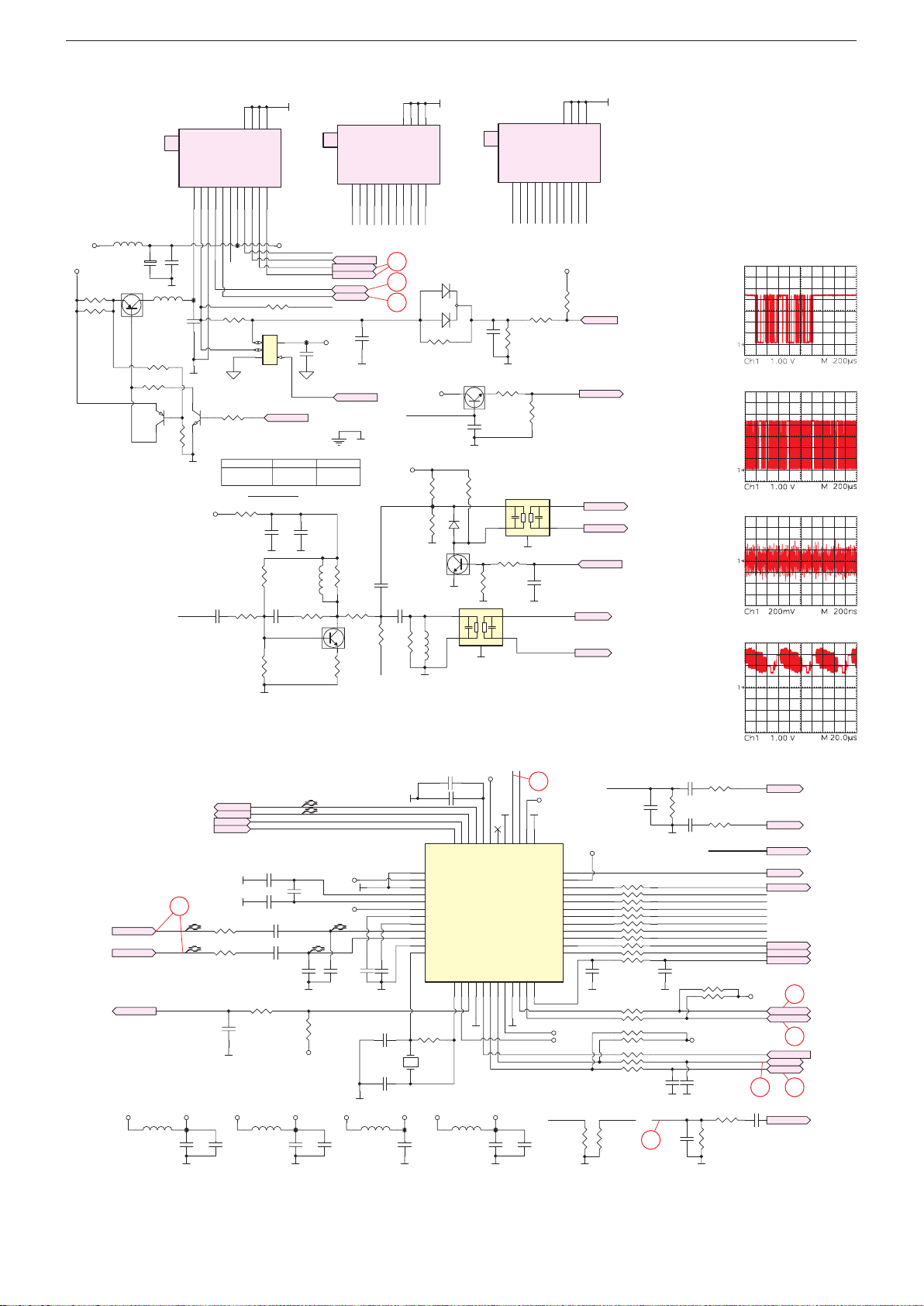

Chassisplatte / Chassis Board – Tuner YTS190R-5

2 - 9

Chassisplatte / Chassis Board – COFDM Demodulator YTS190R-5

GRUNDIG Service Chassis T5

USB0_DM USB0_DP

VBUS

C768 10uF

R795

100K

USB0_DM

USB0_DP

USB_OCD0_N

1A

GND

C770 100nF

GND

VCC5V

SIDE_L

SIDE_R

SIDE_V

GND

SIDE_L

SIDE_R

R777

10K

C759

2.2uF

C758 330pF

C762 560pF

R785 12K

R783

10K

R779 12K

C756 560pF

C754

2.2uF

C764 330pF

RCA_AU_IN_1R

RCA_AU_IN_1L

GND

TP168

TP170

SIDE_V RCA_CVBS_IN

C741 (10pF)

R761

47R

R763 75R %1

C739

47nF

RCA_CVBS_IN

GND

CVBS

RCA_AU_IN_1L

RCA_AU_IN_1R

D733

(AVLC18S02003)

D732

(AVLC18S02003)

GND GND

GND

Vin

5

EN

4

GND

2

Fault

3

Vout

1

IC701 AP2171

VCC3.3V-ST

USB Block

1 2 3 4

S707

NC/Side USB

GND

VBUS

VCC

D-

D+

GND

SHELL

5

SHELL

6

USB-A

S705

2

1

3

5

4

6

RS-302A1-18

S708 CON_CHINCH

CVBS

L

R

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

032953R

S704

CON16

GND

C775 1uF

GND

TX_DVD

TP146

TP157

TP158

TP159

TP147

TP148

TP153

L70560R/100Mhz

+12V_SW

DVD 15mA

DVD900mA

L703

60R/100Mhz

VCC5V

TX_DVD

HOTEL TV

RGB1_PR-

RGB1_PR+

RGB1_Y-

RGB1_Y+

SOY_YUV

RGB1_PB+

RGB1_PB-

Pb-IN

Pr-IN

Y-IN

R775 75R %1

R776

47R

C749

47nF

C742

47nF

C755

47nF

R765 75R %1

R769

47R

C752

47nF

C740

1nF

C747

47nF

R771

47R

C744

47nF

R764

47R

R762

470R

R770 75R %1

R774

47R

R766

47R

SOY_YUV

RGB1_Y+

RGB1_Y-

RGB1_PB+

RGB1_PB-

RGB1_PR+

RGB1_PR-

GND

Pr

Y

Pb

Y-IN

Pb-IN

Pr-IN

L

R

Yellow

White

Red

COMP_LIN

COMP_RIN

R780

10K

C763 1uF

C765 560pF

R788 12K

R786

10K

R782 12K

C760 560pF

C757 1uF

COMP_ARIN

COMP_ALIN

GND

TP154

TP155

COMP_ALIN

COMP_ARIN

COMP_LIN

COMP_RIN

L

R

TP161

TP152

TP160

TP165

TP167

TP169

TP163

TP166

DVD OPTION

1 2 3 4

S709

HTV 7SEG

R789 100R

R790 100R

I2C-SCL

I2C-SDA

I2C-SCL I2C-SDA

+5V2_ST

TP176 TP177

TP175

+5V2_ST

AP2151 0.5A, AP2171 1A

VBUS

VCC

D-

D+

GND

SHELL

5

SHELL

6

USB-A

S706

RX_DVD/DVD_MUTE

SCART1_BLUE

SCART1_RED

SCART1_GREEN

SC1-B+

SC1-G+

SCART1-Lin

SCART1-CVBS_IN

SC1-VSYNC

SCART1-Rin

SC1_CVBS-IN

SC1-HSYNC

SC1_CVBSO

Q7_B

Q6_C

SC1_CVBSO

SCART1-Rin

SCART1-Lin

SC1-Lin

SC1-Rin

SC1-R+

C707 47pF

R707 75R %1

R714 39K

R704 10K

C705

100nF

C715 330pF

R710 470R

C746

47nF

R712

10K

C716 47pF

R713

10K

R705

2.7K

R717 12K

C708 1uF

C701 (330pF)

R719 68R

C704

100nF

R718 12K

R701 75R %1

R715

220R

R721

47R

C709

1uF

L701

300R/100MHz

C706

100nF

C713

560pF

R708 75R %1

R711 127K

C712

560pF

R716

75R %1

C711

1uF

R709 150R %1

C714 330pF

R703

47R

R706 75R %1

C703

47nF

SC1-R+

SC1-G+

SC1-B+

SC1_CVBS-IN

SC1-VSYNC

SC1-HSYNC

SC1_CVBS_OUT

SC1-Rin

SC1-Lin

SC1-C

GND

GNDGND

GND

GND GND

GND

VCC5V

GND

Full SCART

SCART_FB_SUB

SCART_MODE

2

61

5

43

T701 BC847BPDW1T1

DDC_SCL_D

R

VGA5V

B

VGA-SCL

VGA5V

DDC_SDA_D

VGA-SDA

G

VGA_VSYNC1

VGA_HSYNC1

UART-RX

UART-TX

VGA_VSYNC

VGA_HSYNC

VGA_GIN+

VGA_RIN+

VGA_BIN+

VGA-TX

VGA-RX

VGA-TX

VGA-RX

C735 100nF

R735

510R

R738 (2.4K)

R753

4.7k

R728 75R %1

D720 BAT54C

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC702 24C02

R739 (10K)

R745 NC

R754 0R

C724

100nF

C725

100nF

R727 75R %1

R733

510R

R749 100R

R750 100R

R751

0R

R746

NC

C726

100nF

R744

4.7K

R743

4.7K

R726 75R %1

R757

NC

VGA_HSYNC1

VGA_VSYNC1

UART-RX

UART-TX

VGA_RIN+

VGA_GIN+

VGA_BIN+

VCC5V

GND

GND GND

VCC5V

R-

G-

B-

SC1_Lout

SC1_Rout

R756

1K

C732 1nF

R737

1K

C738

1nF

R732

18K

GND

+12V_A

R741 100k

C730

1uF

C727

220pF

GND

C729

220pF

C731

4.7nF

R729

0R

R734

470R

R736 33K

GND

C734

4.7uF/10V

R748

18K

GND

+12V_A

R759 100k

C736

1uF

C733

4.7uF/10V

GND

C737

4.7nF

R752

470R

R755 33K

GND

R740

8.2k

R758

8.2k

GND

+12V_A

C710

2.2uF

C728

4.7uF/10V

C718 1uF

C721

560pF

R724 12K

R722 10K

C719 330pF

PC_Audio-AUR2

PC_Audio-AUL2

GND

TP123PC_Audio-AUL2

PC_Audio-AUR2

C717 1uF R720 10K

TP125

C722 560pF

R725 12K

GND

C720

330pF

TP142

TP141

TP145

TP144

TP143

VGA_SOG

C723 100nF

AUCOM

VCOM1

R730

47R C772 100nF

C771 47nF

GND

VCOM1

AUCOM

SC1_DAC_ROUT

SC1_DAC_LOUT

VCOM0

R702

47R

C702 47nF

GND

VCOM0

8

1

4

3

2

1

IC705A TL082

84

7

5

6

2

IC705B TL082

+12V_A

+12V_SW

GND

C799 100nF

2

4

6

8

10

12

14

16

18

20

1

3

5

7

9

11

13

15

17

19

21

S703 SCART

RIGHT GND

LEFT

S701

CON_EARPHONE_JACK

1 6 2 7 3 8 4 9 5

11

12

13

14

15

10

17

16

S702 DSUB-15

SC1_Lout SC1_Rout

SC1_CVBSO

SC1_Lout

SC1_Rout

TP121

TP120

TP119

TP109

TP108

TP105

TP104

TP103

TP112

TP114 TP115 TP116

TP127

TP130

TP133

TP136 TP137 TP139

TP135

TP132

TP126

TP124

TP122

R700 150R %1

Thermal

Sense

Driver

FLG

OUT

GND

IN

EN

UVLO

Current

Limit

Current Sense

Deglitch

AP2141, AP2151 AP2161, AP2171

Chassisplatte / Chassis Board – Interface DVD, AV, Hotel, USB YTS190R-5

Chassisplatte / Chassis Board – SCART, VGA YTS190R-5

2 - 10

GRUNDIG Service Chassis T5

RX2+

1

GND2

2

RX2-

3

RX1+

4

GND1

5

RX1-

6

RX0+

7

GND0

8

RX0-

9

CLK+

10

GND_CLK

11

CLK-

12

CEC

13

N.C.

14

SCL

15

SDA

16

CEC_GND

17

5V

18

HP_DETECT

19

20

21 22

23

S602

HDMI Side Input Socket

GND

HDMIA_5V

R616 1k

R614

2.7K

NC1

1

NC2

2

NC3

3

GND4SDA

5

SCL

6

VCLK

7

VCC

8

IC602

24C02

C602 100nF

R612

4.7K

R618 NC

3

1

2

D604

BAT54C

R613

2.7K

GND

HDMIA_5V

VCC5V

TP24

TP27

TP25

TP23

GND

R615

100R

R617

100R

HPDA_DET

T601

BC847B

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

3

OUT2

9

OUT1

10

D605 (Rclamp0524P)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

3

OUT2

9

OUT1

10

D606 (Rclamp0524P)

GND GND

R620 10k

VCC3.3V-ST

R601

10k

HDMI Back Input Socket

GND

HDMIB_5V

R604 1k

R607

2.7K

NC1

1

NC2

2

NC3

3

GND

4

SDA

5

SCL

6

VCLK

7

VCC

8

IC601

24C02

C601 100nF

R605

4.7K

R610 NC

3

1

2

D601

BAT54C

R606

2.7K

GND

HDMIB_5V

VCC5V

TP20

TP22

TP19

TP18

GND

R608

100R

R609

100R

HPDB_DET

T602

BC847B

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

3

OUT2

9

OUT1

10

D602 (Rclamp0524P)

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

3

OUT2

9

OUT1

10

D603 (Rclamp0524P)

GND

R602 10k

VCC3.3V-ST

R603

10k

HDMI-CEC

R649(200R)

R646 (0R)

R643 (27K)

R647

(100R)

HDMI-CEC

VCC5V

VCC3.3V-ST

For CEC Leakage Protect

1

3 2

T603

(2N7002)

R645 0R

R648 0R

HDMIB-CEC

HDMIA-CEC

HPDA_CTRL

HDMIA-CLKN HDMIA-CLKP

HDMIA-RX0N HDMIA-RX0P

HDMIA-RX1P

HDMIA-RX1N

HDMIA-RX2N HDMIA-RX2P

HDMIA-SCL

HDMIA-SDA

HDMIA-RX1P

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIA-SCL

HDMIA-SDA

HDMIB_CTRL

HDMIB-CLKN HDMIB-CLKP

HDMIB-RX0N HDMIB-RX0P

HDMIB-RX1P

HDMIB-RX1N

HDMIB-RX2N HDMIB-RX2P

HDMIB-SCL

HDMIB-SDA

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

HDMIA-CLKN

HDMIA-SCL HDMIA-SDA

HDMIB-SCL HDMIB-SDA

R619 100k

R611 100k

HDMIA-CEC

HDMIB-CEC

TP26

RX2+

1

GND2

2

RX2-

3

RX1+

4

GND1

5

RX1-

6

RX0+

7

GND0

8

RX0-

9

CLK+

10

GND_CLK

11

CLK-

12

CEC

13

N.C.

14

SCL

15

SDA

16

CEC_GND

17

5V

18

HP_DETECT

19

202122

S601

HDMIB_5V

HDMIA_5V

7

3

4

3

4

7

PCM_WAIT_NPCM_WAIT_N1

PCM_D0 PCM_D1 PCM_D2

PCM-D0 PCM-D1 PCM-D2 PCM-D3 PCM-D4 PCM-D5 PCM-D6 PCM-D7

PCM_D3 PCM_D4 PCM_D5 PCM_D6 PCM_D7 PCM_IRQA_NPCM_IRQA_N1

R515

4.7K

A1

2

A2

3

A3

4

A4

5

A5

6

A6

7

A7

8

A8

9

A9

10

A10

11

OE

23

NC

1

B1

22

B2

21

B3

20

B4

19

B5

18

B6

17

B7

16

B8

15

B9

14

B10

13

VCC

24

GND

12

IC502

SN74CBTD3861

GND

PCMCIA_VCCIN

From PCMCIA TO MST IC

PCM_A10

PCM_A11 PCM_A9 PCM_A8 PCM_A13 PCM_A14

PCM_A12 PCM_A7 PCM_A6 PCM_A5 PCM_A4 PCM_A3 PCM_A2 PCM_A1 PCM_A0

PCM_CE_N

PCM_WE_N

PCM_REG_N

PCM_WAIT_N1

PCM_RESET

PCM_IORD_N PCM_IOWR_N

PCM_CD1_N

TS_MISYNC

TS_MICLK

TS_MDI0 TS_MDI1 TS_MDI2 TS_MDI3

TS_MDI4 TS_MDI5 TS_MDI6 TS_MDI7

TS_MIVALID

TS_MDO3 TS_MDO4 TS_MDO5 TS_MDO6

TS_MDO7

TS_MDO2 TS_MOVAL

TS_MOSTART TS_MDO0 TS_MDO1

PCM_A[14..0]

PCM_D[7..0]

TS_MIVALID

TS_MISYNC

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MDO[7..0]

PCM_IORD_N PCM_IOWR_N

PCM_WAIT_N

PCM_RESET

PCM_REG_N PCM_OE_N PCM_WE_N

PCM_CD_N

PCM_CE_N PCM_IRQA_N

TS_MDI0

PCM_CD2_N

PCM_CD1_N

PCM_CD_N

MOCLK

TS_MOCLK

PCM_OE_N

TS_MDI[1..7]

C505 NC

R507 100K

R506

33R

C504 100nF

C508 1uF

C502 10pF

R514 10k

R508

33R

R513 10k

VCC

GND

1 2

43

5

IC501

NC7SZ08

C503 10nF

C501 100nF

R509

33R

PCM_A[14..0]

PCM_D[7..0]

TS_MICLK TS_MISYNC TS_MIVALID

PCM_RESET PCM_WAIT_N PCM_REG_N PCM_OE_N PCM_WE_N PCM_IORD_N PCM_IOWR_N

PCM_CD_N

TS_MOCLK TS_MOSTART TS_MOVAL TS_MDO[7..0]

PCM_CE_N PCM_IRQA_N

TS_MDI0

PCM_PWR_CTL

TS_MDI[1..7]

GND

VCC-PCMCIA

GND

PCMCIA_VCCIN

GND

VCC-PCMCIA

Hi: Off Lo: On

R520 10K

VCC5V

R518 NC

R519 10k

GND

TS_MICLK

R501 33R

7 5 3 1

8 6 4 2

RP501 4*33R

R510 33R

7 5 3 1

8 6 4 2

RP502 4*33R

7 5 3 1

8 6 4 2

RP5044*33R

7 5 3 1

8 6 4 2

RP5034*33R

R502 33R

GND

VCC3.3V-ST

CI_PCM_WAIT_N

PCM_IRQA_N1

CI_PCM_IRQA_N

C507 NC

PCM_PWR_CTL

PCM-D0 PCM-D1 PCM-D2

PCM-D3 PCM-D4 PCM-D5 PCM-D6 PCM-D7

PCMCIA_VCCIN

GND

1

D3

2

D4

3

D5

4

D6

5

D7

6

CE1#

7

A10

8

OE#

9

A11

10

A9

11

A8

12

A13

13

A14

14

WE#

15

READY

16

VCC

17

VPP1

18

MIVAL

19

MICLK

20

A12

21

A7

22

A6

23

A5

24

A4

25

A3

26

A2

27

A1

28

A0

29

D0

30

D1

31

D2

32

WP

33

GND

34

GND

35

CD1#

36

MDO3

37

MDO4

38

MDO5

39

MDO6

40

MDO7

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

MISTRT

46

MDI0

47

MDI1

48

MDI2

49

MDI3

50

VCC

51

VPP2

52

MDI4

53

MDI5

54

MDI6

55

MDI7

56

MOCLK

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

MOVAL

62

MOSTART

63

MDO0

64

MDO1

65

MDO2

66

CD2#

67

GND

68

SHIELD

69

SHIELD

70

SHIELD71SHIELD

72

S501

PCMCIA CONN

GND

TS_MICLK

Vin

5

EN

4

GND

2

Fault

3

Vout

1

IC503 AP2151

GND

T501 BC847B

R522

22k

L502 300R/100MHz

+5V2_ST

TP8

TP9

TP10

R523 10K

VCC3.3V-ST

4

3

7

SN74CBTD3861

A1

B1

A10

B10

OE

2

11

23

22

13

Thermal

Sense

Driver

FLG

OUT

GND

IN

EN

UVLO

Current

Limit

Current Sense

Deglitch

AP2141, AP2151 AP2161, AP2171

Chassisplatte / Chassis Board – HDMI YTS190R-5

Chassisplatte / Chassis Board – Common Interface YTS190R-5

2 - 11

GRUNDIG Service Chassis T5

TUN_RESET

SC1_DAC_ROUT

SC1_DAC_LOUT

B3_RXE3B2_RXE3+

G0_RXE1+

G1_RXE1-

R3_RXO2R2_RXO2+

R1_RXOC-

B4_RXEC+

R6_RXO0+

R7_RXO0-

R0_RXOC+

G2_RXE0+

G3_RXE0-

R5_RXO1-

B7_RXE2B6_RXE2+

B5_RXEC-

R4_RXO1+

G4_RXO4+

B1_RXE4B0_RXE4+

G7_RXO3-

G5_RXO4-

G6_RXO3+

BRI_ADJ-PWM2

AU_DACO_R

AU_DACO_L

PC_Audio-AUL2

RCA_AU_IN_1R

RCA_AU_IN_1L

SC1-Rin

SC1-Lin

PC_Audio-AUR2

VCOM1

RCA_CVBS _IN SC1_CVBS-IN

SC1-HSYNC SC1-VSYNC

VBLCTRL-P2

Panel_ON-P1

MUTE_S

AMP_STB

I2C-SDA

HDMI-CEC

UART-RX

UART-TX

I2C-SCL

VGA_VSYNC1

RGB1_PB-

RGB1_PB+

RGB1_Y-

RGB1_Y+

VGA_HSYNC1

POWER_SW

RGB1_PR+ RGB1_PR-

SOY_YUV

SIF_CTL

PCM_IOWR_N

PCM_IORD_N

PCM_A[14..0]

PCM_CD_N

PCM_IRQA_N

PCM_CE_N

PCM_WE_N

PCM_OE_N

PCM_REG_N

PCM_RESET PCM_WAIT_N

PCM_D[7..0]

SC1-C SC1-G+ SC1-B+

SC1-R+

PCM_PWR_CTL

VGA_SOG

VGA_BIN+

VGA_GIN+

VGA_RIN+

USB0_DM

USB0_DP

TS_MDI0

TS_MICLK

TS_MDO[7..0]

TS_MIVALID

TS_MISYNC

B_DQM1

B_DQM0

A_CKE

A_MCLKZ

A_MCLK

A_WEZ

A_RASZ

A_ODT

A_BA0

A_CASZ

A_DQS0P

A_BA1

A_DQM1

A_DQM0

A_DQS0M

A_MDATA[15..0] A_MADR[12..0]

A_DQS1M

B_MADR[12..0]

B_MDATA[15..0]

B_MCLK

B_WEZ B_CASZ

B_CKE

B_MCLKZ

B_BA1

B_RASZ B_BA0

B_DQS0M B_DQS0P

B_ODT

B_DQS1P

B_DQS1M

A_DQS1P

UART-RX

UART-TX

SC1_CVBS_OUT

EAR_AU_OUT_L EAR_AU_OUT_R

USB_OCD0_N

123

4

SIP4

J401

2.0mm/Male_wafer

SC1-C

POWER_SW

VBLCTRL-P2

MUTE_S

B0_RXE4+

G6_RXO3+

G7_RXO3-

R3_RXO2-

R0_RXOC+

B1_RXE4-

R7_RXO0-

R4_RXO1+

R1_RXOC-

R2_RXO2+

R6_RXO0+

G2_RXE0+

G3_RXE0-

G0_RXE1+

R5_RXO1-

B2_RXE3+

G1_RXE1-

B7_RXE2-

B3_RXE3-

B4_RXEC+

B5_RXEC-

G4_RXO4+

G5_RXO4-

B6_RXE2+

BRI_ADJ-PWM2

RCA_AU_IN_1R

RCA_AU_IN_1L

PC_Audio-AUR2

PC_Audio-AUL2

SC1-Rin

SC1-Lin

VCOM1

RCA_CVBS_IN

AU_DACO_R

SC1_CVBS-IN

AU_DACO_L

SC1_DAC_ROUT

SC1_DAC_LOUT

SIFP

SIFM

SC1-HSYNC

I2C-SDA

I2C-SCL

UART-RX

UART-TX

RGB1_PB-

RGB1_PB+

RGB1_Y-

RGB1_Y+

VGA_VSYNC1

VGA_HSYNC1

SOY_YUV

RGB1_PR+

AMP_STB

RGB1_PR-

HDMI-CEC

SC1-VSYNC

Panel_ON-P1

SC1-G+

TUN_RESET

SC1-B+

PCM_WAIT_N

PCM_A[14..0]

PCM_RESET

PCM_IORD_N

PCM_WE_N

PCM_OE_N

PCM_REG_N

PCM_IRQA_N

PCM_CE_N

PCM_IOWR_N

PCM_PWR_CTL

PCM_CD_N

PCM_D[7..0]

VGA_GIN+

VGA_RIN+

VGA_SOG

VGA_BIN+

SIF_CTL

SC1-R+

USB0_DM

USB0_DP

TS_MISYNC

TS_MDI0

TS_MIVALID

TS_MICLK

B_DQS0P

B_DQS0M

B_DQM1

B_DQM0

B_DQS1P

B_DQS1M

A_RASZ

A_CKE

A_ODT

A_BA0 A_BA1

A_WEZ

A_MCLKZ

A_CASZ

A_MCLK

A_MADR[12..0]

A_DQS1M

A_DQS0P

A_DQS0M

A_MDATA[15..0] B_MDATA[15..0]

B_MADR[12..0]

A_DQM1

A_DQM0

A_DQS1P

B_BA1

B_WEZ

B_CASZ

B_MCLK

B_CKE

B_RASZ

B_MCLKZ

B_OD

T

B_BA0

SC1_CVBS_OUT

EAR_AU_OUT_R

EAR_AU_OUT_L

USB_OCD0_N

GND

VCC5V

GPIO

LVDS Block

PAL IF

Audio Block

HDMI Block

CVBS Block

RGB Block

I2C / UART

PCMCIA

USB Block

Transport Stream

DDR-SDRAM Block

Key Pad

Debug port

IRIN

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MOCLK TS_MOSTART TS_MOVAL TS_MDO[7..0]

COMP_ARIN

COMP_ALIN

COMP_ARIN

COMP_ALIN

ANTPOWER

SIFM SIFP

TV_CVBS+

AUCOM

SC-RGB in

VGA in

COMP in (DVD)

VGA Sync

VCOM0

LED_R-GPIO1

System-RST

LED_R-GPIO1

IRIN

SAR0

HPDA_CTRL

HDMIA-CLKN HDMIA-CLKP HDMIA-RX0N HDMIA-RX0P

HDMIA-RX1P

HDMIA-RX1N

HDMIA-RX2N HDMIA-RX2P

HDMIA-SCL

HDMIA-SDA

HDMIA-RX1P

HDMIA-CLKN

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIA-SCL

HDMIA-SDA

HDMIB_CTRL

HDMIB-CLKN HDMIB-CLKP HDMIB-RX0N HDMIB-RX0P

HDMIB-RX1P

HDMIB-RX1N

HDMIB-RX2N HDMIB-RX2P

HDMIB-SCL

HDMIB-SDA

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

TX_DVD

RF_AGC_CTL

TP172

TP171

XTALOXTALI

R446 1M

C464 12pF

X400

12MHz

C465 12pF

GND

CL=20pF ; C0max=5pF

System XTAL

ST-BY_SW

RF_MON

AVDD_LPLL

AVDD_VIF

B_MDDR_VREF

AVDDL_DVI

AVDD_33

AVDD_MPLL

VDDP

AVDD_DDR

A_MDDR_VREF

AVDD_MEMPLL

VDDC

PWM0 PWM1

I2C-SDA

I2C-SCL

L410 SBY1005

R456

0R

R458 10K

L406 60R/100MHz

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC405 24C512K

C446 10uF

R444 1K 1%

C459 1nF

C452

100nF

C440 10uF

C456 100nF

R461 100R

C455 10uF

R487 1K

L403 60R/100MHz

R460 100R

C463

2.2uF

C457 1nF

C445 1uF

C466 10uF

R457 10K

R442 1K 1%

L407 SBY1005

R445 1K 1%

VD33

N8

VD33

N12

VD33

P11

VD33

P12

AVDD_LPLL

K18

VSS

L20

VSS

L19

VSS

J9

VSS

B15

VDDC

H9

VDDC

H10

VDDC

J15

VDDC

K15

VDDC

L15

VDDC

M15

VDDC

N10

VDDC

N11

VDDC

P10

AVDD_DDR

G11

AVDD_DDR

G12

AVDD_DDR

G14

AVDD_33

H7

AVDD_33

J6

AVDD_33

J7

AVDD_33

K7

ACDDL_DVI

G10

AVDD_MPLL

N7

AVDD_MEMPLL

D14

VSS

J10

VSS

J11

VSS

J12

VSS

J13

VSS

K9

VSS

K10

VSS

K11

VSS

K12

VSS

K13

VSS

L9

VSS

L10

VSS

L11

VSS

L12

VSS

L13

VSS

M9

VSS

M10

VSS

M11

VSS

M12

VSS

M13

VSS

W6

AVDD_VIF

P7

AVDD_DDR

H14

VSS

D7

VSS

D8

VSS

D12

AVDD_DDR

G13

VSS

D13

AVDD_DM

P13

IC404B

MSD237HENG

C451 10uF

C438 1uF

L411 60R/100MHz

L402

60R/100MHz

C470 1uF

R484 1K

L404 60R/100MHz

L405

60R/100MHz

L408 SBY1005

L401

60R/100MHz

C461 1uF

C467 10uF

C491 100nF

R441 1K 1%

L409 60R/100MHz

C431 10uF

C460 1uF

C454 10uF

C437 10uF

C458 100nF

VCC3.3V-ST

GND

VDDP

GNDGND

AVDD_DDR

AVDD_33

AVDD_AU

AVDD_VIF

VCC1.8V

AVDD_DDR

GND

AVDD_LPLL

GNDGND

AVDD_DDR

AVDD_33

GND

AVDDL_DVI

VDDCVCC1.2V

GND

AVDD_LPLL

GND

VCC3.3V

AVDD_MEMPLL

GND

AVDD_OTG

GND

AVDD_MPLL

AVDD_AU

GND

AVDD_MEMPLL

VCC3.3V

AVDD_OTG

AVDD_MPLL

GND

VCC3.3V-ST

GND

VCC3.3V

EE_PWR

IC Configuration Selection

EEPROM (Channel data)

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

IC406 24C512K (SOIC)

SPI_CSN_1

SP_SDO

SPI_SCK

SPI_SDI

FLASH_WPN

CE#

1

SO

2

WP#

3

VSS4SI

5

SCK

6

HOLD#

7

VDD

8

EXPOSED

9

IC403 M25PX64-VME6TG

R450

4.7K

R452

NC

C480 100nF

GND

VCC3.3V-Flash

* No any VIA hole!

Boot Loader SPI Flash

VCC3.3V

R449

0R

VCC3.3V-Flash

R448

4.7K

MLP 8X6

I2C-SDA

I2C-SCL

R401

4.7K

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC408 24C32

R405 100R

R404 100R

C401

100nF

GND

R402

4.7k

R406 NC

GND

R403 100R EE_WP

TP35

TP32

TP34

TP45

EEPROM (Panel data)

EE_PWR

A_MDDR_VREF B_MDDR_VREF

GND

AVDD_VIF

TP31

WP

A_MDDR_VREF

B_MDDR_VREF

TP33

TP37

TP28

TP29

TP30

TP47

TP51

TP55

TP56

TP48

TP49

TP50

TP52

TP53

TP54

TP173

6

5

6

5

6

Chassisplatte / Chassis Board – Scaler YTS190R-5

2 - 12

HDMI-CEC

PWM0

VBLCTRL-P2

BRI_ADJ-PWM2

PWM1

B3_RXE3-

B7_RXE2-

B5_RXEC-

B_DQS0M

B2_RXE3+

B6_RXE2+

B4_RXEC+

G2_RXE0+

G3_RXE0-

B_DQS0P

B_DQM1

B_DQM0

R5_RXO1R4_RXO1+

R0_RXOC+

G6_RXO3+

G7_RXO3-

R2_RXO2+

R3_RXO2-

R7_RXO0-

R1_RXOC-

G5_RXO4-

R6_RXO0+

G4_RXO4+

B1_RXE4B0_RXE4+

G0_RXE1+

G1_RXE1-

VR27

VGA_GIN+

B_MDATA11

B_MDATA12

B_MDATA5

B_MDATA2

VGA_VSYNC1

VGA_HSYNC1

A_MADR12

A_CKE

A_WEZ

A_MADR11

A_BA0

A_MADR1

A_MADR10

A_MADR5

A_MADR9

A_MADR7

A_MADR3

A_BA1

HDMIA-SCL

A_MDATA15

A_MDATA8

A_DQS1M

A_DQS1P

AUVRP

AUVRM

AUVAG

TS_MDO0

TS_MDO2

TS_MDO3

TS_MDO4

TS_MDO1

TS_MDO5

TS_MDO6

TS_MDO7

B_MDATA13

B_MDATA10

VR12

B_MDATA4

B_MDATA3

VGA_SOG

I2C-SCL

I2C-SDA

System-RST

SP_SDO

SPI_CSN_1

SPI_SCK

SPI_SDI

USB0_DM

USB0_DP

SC1-B+

SC1-R+

PCM_PWR_CTL

B_MDATA14

B_MDATA9

A_MDATA4

A_MDATA3

A_MDATA10

A_MDATA13

B_MDATA1

B_MDATA6

B_MADR4

B_MADR2

B_CASZ

B_ODT

B_MCLK

B_MADR11

B_MADR8

B_WEZ

B_MADR6

B_MADR0

B_RASZ

B_MCLKZ

HDMI-REXT

SC1_DAC_LOUT

SC1_DAC_ROUT

AU_DACO_R

AU_DACO_L

AVDD_AU

PC_Audio-AUL2

SC1-Lin

SC1-Rin

SC1-VSYNC

SC1-HSYNC

RCA_AU_IN_1L

RCA_AU_IN_1R

AUCOM

PC_Audio-AUR2

PCM_WAIT_N

PCM_REG_N

PCM_IRQA_N

PCM_IOWR_N

PCM_RESET

PCM_D7

PCM_OE_N

PCM_CE_N

PCM_IORD_N

PCM_WE_N

PCM_D4

PCM_D3

PCM_D2

PCM_D1

PCM_CD_N

PCM_A13

PCM_A12

PCM_A11

PCM_D6

PCM_D5

PCM_A9

PCM_A8

PCM_A7

PCM_A6

PCM_D0

PCM_A14

PCM_A3

PCM_A2

PCM_A1

PCM_A0

PCM_A10

AUVRP

PCM_A5

PCM_A4

AUVRM

AUVAG

VCOM1

SC1_CVBS-IN

RCA_CVBS_IN

HDMIA-SDA

VGA_BIN+

RGB1_Y-

RGB1_PB+

RGB1_Y+

RGB1_PB-

VCLP

RGB1_PR+

RGB1_PR-

SOY_YUV

REFM

REFP

AMP_STB

SIF_CTL

A_ODT

AVDD_OTG

A_MDATA1

A_MDATA6

A_MDATA11

A_MDATA12

A_MDDR_VREF

A_MDATA0

A_MDATA7

B_DQS1P

B_DQS1M

REFM

VCLP

REFP

VGA_RIN+

B_BA0

B_CKE

B_MADR3

B_MADR1

B_MADR10

B_MADR5

B_BA1

B_MADR9

B_MADR12

B_MADR7

UART-RX

SAR0

FLASH_WPN

UART-TX

POWER_SW

IRIN

B_MDDR_VREF

SC1-G+

B_MDATA7

B_MDATA0

A_MADR2

A_MADR0

A_MADR6

A_RASZ

A_CASZ

A_MADR8

A_MADR4

A_DQM1

A_DQS0M

A_DQS0P

A_DQM0

A_MDATA14

A_MDATA9

A_MDATA5

A_MDATA2

A_MCLK

A_MCLKZ

B_MDATA15

B_MDATA8

EE_WP

SC1_CVBS_OUT

EAR_AU_OUT_R

EAR_AU_OUT_L

ANTPOWER

Panel_ON-P1

TS_MDI0

USB_OCD0_N

XTALI

VR27

SIFM

SIFP

TUN_RESET

MUTE_S

VR12

DDR2_32Bit

Transport Stream

10 Bit LVDS

PCMCIA/CI

AUDIO IN/OUT

VIDEO IN/OUT HDMI_0/1

HDMI_2

B_RX2P

F1

DDCDB_CK

E6

TCON_EXT0

F3

RXCN

G2

HSYNC1

G7

VSYNC1

G8

VCLP

G4

REFP

G5

REFM

G6

BIN1P

H3

SOGIN1

H4

GIN1P

H5

RIN1P

H6

BIN0M

N1

BIN0P

N2

GIN0M

M1

GIN0P

M2

SOGIN0

J5

RIN0M

L1

HSYNC0

L7

VSYNC0

M7

CVBS3P

M3

CVBS2P

P1

CVBS1P

M4

VCOM1

R1

CVBS0P

P2

VCOM0

R2

CVBS_OUT

T1

SIFP

Y2

SIFM

W2

LINE_IN_0LP5LINE_IN_0RP6LINE_IN_1LR3LINE_IN_1RR4LINE_IN_2LY3LINE_IN_2RY4LINE_IN_3LR5LINE_IN_3RR6VIM0

V2

AUVRMN5AUVRPN4AUVAG

U3

LINE_OUT_1L

V3

SPI_CZ1

W14

SAR0/FDSP_IMS/MCU_TMS

W12

SAR1/FDSP_ICLK/MCU_TCK

Y12

SAR2/FDSP_IDI/MCU_TDI

V14

SAR3/FDSP_IDO/MCU_TDO

U15

PWM0

R16

PWM1

P16

PWM2

T16

PWM3

U16

DDCR_DAT

Y15

DDCR_CLK

W15

RESET

U14

SPI_CK1

Y13

SPI_DI1

W13

SPI_DO1

Y14

TS1_SYNC/FDSP_IDI

P18

TS1_CLK/FDSP_IDO

N18

TS1_D0/FDSP_IMS

M17

TS1_VLD/FDSP_ICLK

L17

I2S_OUT_BCK

E12

I2S_OUT_SD

E11

SPDIF_OUT

E14

HOTPLUGB

E5

B_RX1N

E2

B_RX2N

F2

B_RX1P

E1

B_RX0P

D1

RIN0P

L2

LINE_OUT_2LY5LINE_OUT_2R

W3

UART_TX(DDCA_DAT)

P15

UART_RX(DDCA_CLK)

P14

PCM_WAIT_N/CI_WACK

R18

B_ODD0/LA4P

W16

B_ODD1/LA4N

Y16

G_ODD7/LB3N

T20

B_ODD4/LACKP

W18

B_ODD5/LACKN

Y18

B_ODD6/LA2P

W19

B_ODD7/LA2N

Y19

G_ODD0/LA1P

Y20

G_ODD1/LA1N

W20

G_ODD2/LA0P

V19

G_ODD3/LA0N

V20

G_ODD4/LB4P

U19

G_ODD5/LB4N

U20

G_ODD6/LB3P

T19

R_ODD0/LBCKP

R19

IRIN

V10

INT

V11

PCM_IORD_N/CI_RD

U18

PCM_IOWR_N/CI_WR

T18

PCM_OE_N

V18

PCM_WE_N

V17

PCM_REG_N/CI_CLK

U17

R_ODD1/LBCKN

R20

R_ODD2/LB2P

P19

R_ODD3/LB2N

P20

R_ODD4/LB1P

N19

R_ODD5/LB1N

N20

R_ODD6/LB0P

M19

R_ODD7/LB0N

M20

PCM_RESET

P17

I2S_IN_WS/GPIO23

H16

I2S_IN_BCK/GPIO24

G16

I2S_IN_SD

G15

SPDIF_IN

F15

I2S_OUT_MCK

E16

I2S_OUT_WS

F16

CEC/UART_RX1/CEC

E3

DDCDB_DA

E4

C0(CVBS7P)

K4

C1(CVBS6P)

J4

Y0(CVBS5P)

K3

Y1(CVBS4P)

J3

LINE_OUT_1R(DACO_S)U4LINE_OUT_0L(DACO_L)Y6LINE_OUT_0R(DACO_R)

W4

TS0_D[0]

V4

TS0_D[1]

U5

TS0_D[2]

U6

TS0_D[3]

R7

TS0_D[4]

R8

TS0_D[5]

T7

TS0_D[6]

T8

TS0_D[7]

V5

TS0_VLD

V6

TS0_SYNC

W5

TS0_CLK

Y7

PCM_CE_N/CI_CS

T17

PCM_IRQA_N/CI_INT

R17

B_ODD2/LA4N

W17

B_ODD3/LA3N

Y17

AVDD_OTG

F8

DM_P0

A2

DP_P0

A1

XTAL2O

U1

XTAL2I

V1

TESTPIN

F7

PCM_A0/CI_A0

V13

PCM_A1/CI_A1

U13

PCM_A2/CI_A2

T13

PCM_A3/CI_A3

R13

PCM_A4/CI_A4

V12

PCM_A5/CI_A5

U12

PCM_A6/CI_A6

T12

PCM_A7/CI_A7

R12

PCM_A8/CI_A8

U11

PCM_A9/CI_A9V9PCM_A10/CI_A10

T11

PCM_A11/CI_A11

T10

PCM_A12/CI_A12

U10

PCM_A13/CI_A13V8PCM_A14/CI_A14V7PCM_D0/CI_D0

R11

PCM_D1/CI_D1

R10

PCM_D2/CI_D2P9PCM_D3/CI_D3R9PCM_D4/CI_D4T9PCM_D5/CI_D5U9PCM_D6/CI_D6U8PCM_D7/CI_D7

U7

PCM_CD_N

N17

I2S_OUT_MUTE

E10

GPIO14/UART_TX1

E9

B_RX0N

D2

RXCP

G1

RX0N

H2

RX0P

H1

RX1N

J2

RX1P

J1

RX2N

K2

RX2P

K1

HOTPLUGA

F4

REXT

F5

DDCDA_DA

F6

DDCDA_CK

G3

CVBS_OUT2

K5

VSYNC2

K6

BIN2

L3

GIN2

L4

SOGIN2

L5

RIN2

L6

TAGC

M5

VR27

M6

VIFM

W1

VIFP

Y1

GPIO_A1

N6

GPIO_A2

P3

GPIO_A3

P4

UART_RX2

T2

UART_TX2

U2

LINE_IN_4LT3LINE_IN_4RT4LINE_IN_5LT5LINE_IN_5RT6AVDD_AUSDM

P8

C_RXCNW8C_RXCP

Y8

DDCDC_DA

T14

C_RX0NW9C_RX0PY9C_RX1N

W10

C_RX1P

Y10

C_RX2N

W11

C_RX2P

Y11

HOTPLUGC

N15

IRIN2

M18

INT2

L18

B_DQ[4]

H20

B_DQ[3]

H19

B_DQ[1]

H18

B_DQ[6]

G20

B_DQ[11]

G19

B_DQ[12]

G18

B_DQ[9]

F20

B_DQ[14]

F19

B_DQM[1]

F18

B_DQM[0]

E20

B_UDQS_P

E19

B_UDQS_M

E18

B_LDQS_P

D20

B_LDQS_M

D19

B_DQ[15]

D18

B_DQ[8]

C20

B_DQ[10]

C19

B_DQ[13]

C18

B_DQ[7]

B20

B_DQ[0]

B19

B_DQ[2]

B18

B_DQ[5]

A20

B_VREF

E15

B_CK

A19

B_CK_N

A18

B_ODT

C17

B_RAS_N

B17

B_CAS_N

A17

B_A[0]

C16

B_A[2]

D16

B_A[4]

B16

B_A[6]

D15

B_A[8]

A16

B_A[11]

C15

B_WE_N

D17

B_CKE

J18

B_BA[1]

E17

B_BA[0]

J19

B_A[1]

F17

B_A[10]

J20

B_A[5]

H17

B_A[9]

K19

B_A[12]

K20

B_A[7]

J17

B_A[3]

G17

A_MVREF

E13

A_ODT

C4

A_RAS_NB4A_CAS_N

A4

A_AD[0]C3A_AD[2]B3A_AD[4]A3A_AD[6]D6A_AD[8]

D5

A_AD[11]

D4

A_WE_N

D3

A_CKE

D11

A_BA[1]

D10

A_BA[0]

D9

A_AD[1]

A15

A_AD[10]

C14

A_AD[5]

B14

A_AD[9]

A14

A_AD[12]

C13

A_AD[7]

B13

A_AD[3]

A13

A_DQ[4]

C12

A_DQ[3]

B12

A_DQ[1]

A12

A_DQ[6]

C11

A_DQ[11]

B11

A_DQ[12]

A11

A_DQ[9]

C10

A_DQ[14]

B10

A_DQM[1]

A10

A_DQM[0]

C9

A_UDQS_P

B9

A_UDQS_M

A9

A_LDQS_P

C8

A_LDQS_M

B8

A_DQ[15]

A8

A_DQ[8]

C7

A_DQ[10]B7A_DQ[13]

A7

A_DQ[7]C6A_DQ[2]A6A_DQ[5]

C5

A_CK

B5

A_CK_N

A5

VBUS_P1

E8

DM_P1

B2

DP_P1

B1

CID_P1

E7

B_RXCN

C2

B_RXCP

C1

DDCDC_CK

R14

A_DQ[0]

B6

SAR4

V15

SAR5

V16

PWM4

T15

PWM5

R15

VR12

N3

IOUTX

N16

VREXT

M16

PMCEC

W7

A_BA[2]

F14

B_BA[2]

K17

IC404A

MSD237HENG

C476 100nF

C475 100nF

R443 390R 1%

R447 820R

R459 0R

C478 100nF

L412 60R/100MHz

C485

4.7uF

C487

22uF

C477 (100nF)

C489

22uF

C482 10uF

GND

VCC3.3V

GND

7 5 3 1

8 6 4 2

RP416 4*47R

7 5 3 1

8 6 4 2

RP4174*47R

7 5 3 1

8 6 4 2

RP4184*47R

7 5 3 1

8 6 4 2

RP419 4*47R

7 5 3 1

8 6 4 2

RP420 4*47R

7 5 3 1

8 6 4 2

RP421 4*47R

7 5 3 1

8 6 4 2

RP422 4*47R

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MICLK

TS_MIVALID

TS_MISYNC

COMP_ALIN

COMP_ARIN

R407 NC

TV_CVBS+

VCOM0

R427

100R

UART-TX

TP41 TP42 TP43 TP44

LED_R-GPIO1

R486 100R

HDMIA-RX1P

HDMIA-CLKN

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

TX_DVD

SC1-C

C493 1nF

C492 1nF

GND

RF_AGC_CTL

XTALO

ST-BY_SW

RF_MON R408 0R

R409

NC

RX_DVD/DVD_MUTE

R410

0R

RX_DVD/DVD_MUTE

Chassisplatte / Chassis Board – Scaler YTS190R-5

GRUNDIG Service Chassis T5

2 - 13

GRUNDIG Service Chassis T5

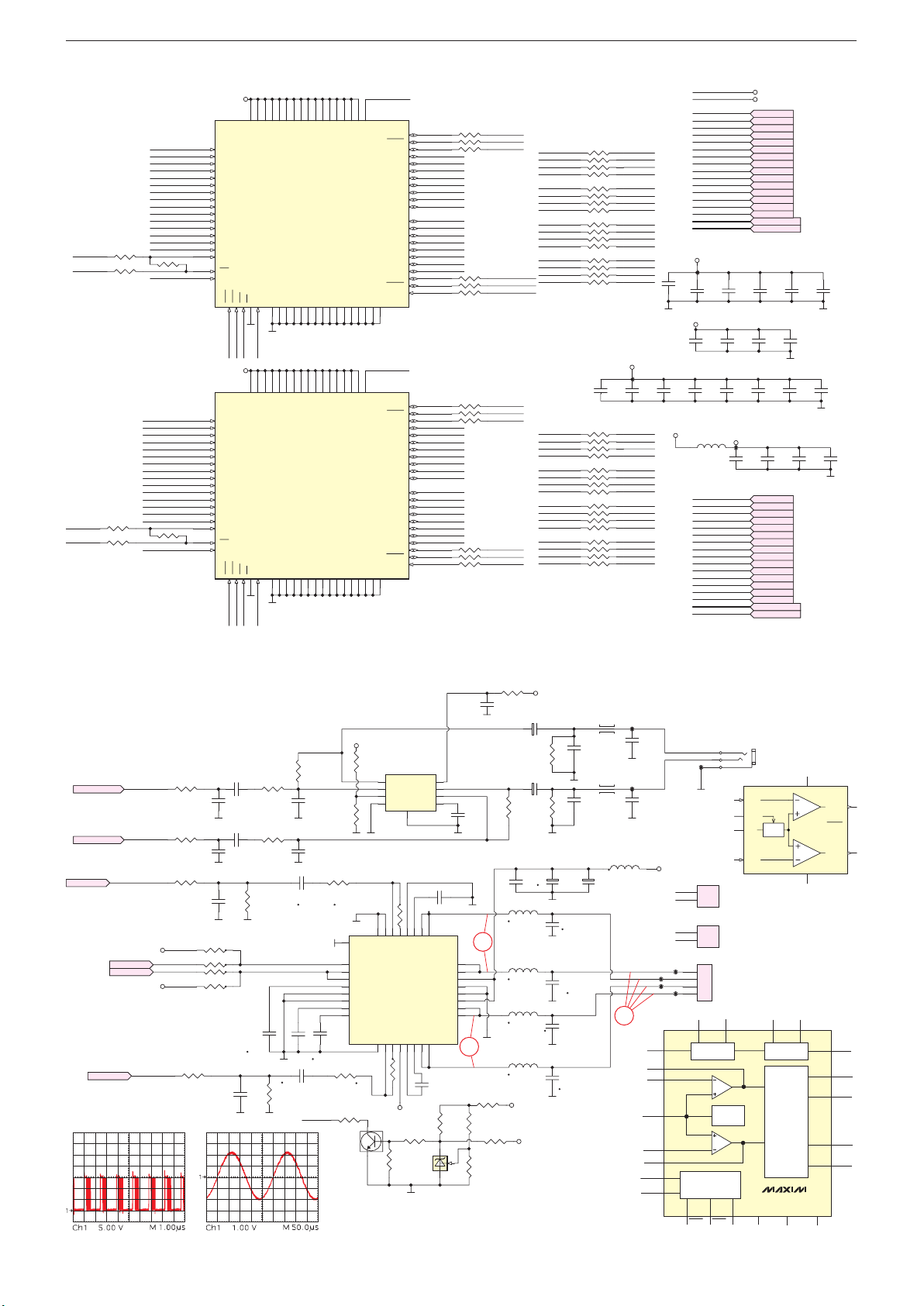

A_DQS1P

A_CASZ

B_MDDR_VREF

A_DQS1M

M1_CLK-

B_BA0 B_BA1

B_MCLKZ

M1_CLK+

B_CKE

B_MCLK

A_DQS0M

A_BA1

A_BA0

A_DQM1

A_WEZ

A_DQM0

B_MADR11

B_MADR8

A_MCLKZ

B_CASZ

B_WEZ

B_RASZ

B_ODT

M0_CLK+

M0_CLKA_CKE

A_MCLK

A_MDDR_VREF

A_ODT

A_DQS0P

A_RASZ

A_WEZ A_CASZ

A_CKE

A_MCLKZ

A_MCLK

A_DQS0P

A_BA1

A_RASZ

A_ODT

A_BA0

A_DQS1P

A_DQS1M

A_DQM1

A_DQM0

A_DQS0M

B_MDATA[15..0] B_MADR[12..0]

B_DQM1

B_DQM0

A_MDATA[15..0] A_MADR[12..0]

B_CASZ

B_CKE

B_MCLKZ

B_MCLK

B_WEZ

B_DQS0P

B_ODT

B_BA1

B_RASZ B_BA0

B_DQS1P

B_DQS1M

B_DQS0M

B_DQS1P B_DQS1M B_DQM1

B_DQS0M B_DQM0

B_DQS0P

C408 100nF

C416 100nF

C430 100nF

C428 100nF

C422 100nF

C409 100nF

C427 100nF

R415

22R

C411 100nF

C421 100nF

C429 100nF

C419 100nF

C406 100nF

R414

22R

R419

22R

C415 100nF

C410 100nF

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

RASK7CASL7WE

K3

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

UDQS

B7

UDQS

A8

UDM

B3

LDQS

F7

LDQS

E8

CS

L8

LDM

F3

VDD

A1

VSS

A3

VDDQ

A9

VSSQB8VSSQ

B2

VDDQC1VDDQC7VDDQ

C3

VSSQD2VSSQ

D8

VDD

E1

VSS

E3

VSSQE7VSSQF2VSSQ

F8

VDDQG1VDDQG3VDDQG7VDDQG9VDDQ

E9

VSSQH2VSSQ

H8

VDDL

J1

VREF

J2

VSS

J3

VSSDL

J7

VDD

J9

ODT

K9

VDD

M9

VSSN1VSS

P9

VDD

R1

VDDQ

C9

VSSQ

A7

IC401

HYB18TC512160B2F-2.5

C414 10uF

L413

0R

C426 100nF

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

RASK7CASL7WE

K3

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

UDQS

B7

UDQS

A8

UDM

B3

LDQS

F7

LDQS

E8

CS

L8

LDM

F3

VDD

A1

VSS

A3

VDDQ

A9

VSSQB8VSSQ

B2

VDDQC1VDDQC7VDDQ

C3

VSSQD2VSSQ

D8

VDD

E1

VSS

E3

VSSQE7VSSQF2VSSQ

F8

VDDQG1VDDQG3VDDQG7VDDQG9VDDQ

E9

VSSQH2VSSQ

H8

VDDL

J1

VREF

J2

VSS

J3

VSSDL

J7

VDD

J9

ODT

K9

VDD

M9

VSSN1VSS

P9

VDD

R1

VDDQ

C9

VSSQ

A7

IC402

HYB18TC512160B2F-2.5

C424 100nF

R417

(150R)

R418 22R

C423 100nF

R416

(150R)

C425 100nF

C420 100nF

C405 10uF

C418 100nF

A_MCLK

A_BA0

A_RASZ

A_CASZ

A_WEZ

A_CKE

A_MCLKZ

A_DQS1M

A_DQS0P

A_DQS0M

A_ODT

A_BA1

A_MADR[12..0]

A_MDATA[15..0]

A_DQM1

A_DQM0

A_DQS1P

B_RASZ

B_CASZ

B_WEZ

B_CKE

B_MCLKZ

B_MCLK

B_DQS0P

B_DQS0M

B_ODT

B_BA1

B_BA0

B_DQM1

B_DQM0

B_DQS1P

B_DQS1M

B_MADR[12..0]

B_MDATA[15..0]

GND

DDR18V

GND

DDR18V

VCC1.8V

DDR18V

GND

DDR18V

GND

DDR18V

GND

DDR18V

A_MDDR_VREF

A-MDATA6

A_MDATA3

A_MDATA4

A_MDATA6

A-MDATA4

A-MDATA1

A-MDATA3

A_MDATA1

A_MDATA5

A_MDATA2

A_MDATA7 A_MDATA0

A_MDATA8

A_MDATA15

A_MDATA13

A_MDATA10

A-MDATA8 A-MDATA10

A-MDATA5

A-MDATA7 A-MDATA0 A-MDATA2

A-MDATA13

A-MDATA15

A-MDATA11 A-MDATA12

A-MDATA14

A-MDATA9

A_MDATA12

A_MDATA14

A_MDATA11

A_MDATA9

7 5 3 1

8 6 4 2

RP4074*47R

7 5 3 1

8 6 4 2

RP4034*47R

7 5 3 1

8 6 4 2

RP4054*47R

7 5 3 1

8 6 4 2

RP4014*47R

B_MDATA3

B-MDATA6

B_MDATA1

B_MDATA4

B_MDATA6

B-MDATA4

B-MDATA1

B-MDATA3

B_MDATA0

B_MDATA13

B_MDATA10

B_MDATA5

B_MDATA2

B_MDATA7

B-MDATA8 B-MDATA10

B_MDATA8

B_MDATA15

B-MDATA13

B-MDATA15

B-MDATA5

B-MDATA7 B-MDATA0 B-MDATA2

B-MDATA12

B-MDATA14

B-MDATA9

B-MDATA11

B_MDATA12

B_MDATA14

B_MDATA11

B_MDATA9

7 5 3 1

8 6 4 2

RP4024*47R

7 5 3 1

8 6 4 2

RP4064*47R

7 5 3 1

8 6 4 2

RP4084*47R

7 5 3 1

8 6 4 2

RP4044*47R

A-MDATA6

A-MDATA4

A-MDATA1

A-MDATA3

A-MDATA8

A-MDATA10

A-MDATA5

A-MDATA7

A-MDATA0

A-MDATA2

A-MDATA13

A-MDATA15

A_MADR12

A_MADR9 A_MADR10

A_MADR1

A_MADR7

A_MADR3

A_MADR5

A-MDATA11 A-MDATA12

A-MDATA14

A-MDATA9

A_MADR4

A_MADR6

A_MADR2

A_MADR0

A_MADR8

A_MADR11

B-MDATA6

B-MDATA4

B-MDATA1

B-MDATA3

B-MDATA8

B-MDATA10

B-MDATA13

B-MDATA15

B-MDATA5

B-MDATA7

B-MDATA0

B-MDATA2

B-MDATA12

B-MDATA14

B-MDATA9

B-MDATA11

B_MADR5

B_MADR10

B_MADR9

B_MADR1

B_MADR12

B_MADR7

B_MADR2

B_MADR0

B_MADR4

B_MADR6

B_MADR3

R482 56R

R440 56R

R438 56R

R422 56R R424 56R R426 56R

R480 56R

R439 56R

R436 56R

R421 56R R423 56R R425 56R

A_MDDR_VREF

B_MDDR_VREF

TP11

EAR_AU_OUT_L

EAR_AU_OUT_R

AU_DACO_L

AU_DACO_R

AMP_STB

MUTE_S

AU_DACO_L

AU_DACO_R

R813 47K

R816

470R

C826

3.3nF

R819 47K

C824

3.3nF

R811

470R

GND

GND GND

R801

84.5K 1%

C811 470pF

R807 10K

GND

TO SPEAKER

R804

84.5K 1%

C817

1uF/10V

C814

220nF

C813 220nF

R802 10k

L801

120R\100MHz

L802

120R\100MHz

C807

1uF/50V

C806

470pF

C805

100nF

GND

C803

1uF/10V

GND

L807

120R/100MHz

+12V

C810

470pF

GND

1

2

3

4

S802

SPEAKER

GND

TP7

TP4

AU_OP_L

AU_OP_R

OUTL-1OUTL-

2

BOOT

3

MONO

4

PRE_L

5

IN_L

6

NC7NC

8

/MUTE

9

/SHDN

10

REGEN

11

COM

12

AGND

13

AGND

14

REG

15

VS

16

NC17IN_R18PRE_R19MOD20C1-21C1+22OUTR-23OUTR-

24

OUT_R+

25

OUT_R+

26

PVDD

27

PGND

28

PGND

29

PVDD

30

OUTL+

31

OUTL+

32

EXP

33

IC801 MAX9736B

MUTE_S

R805 4.7K

AMP_STB R806 10 0R

C801

470pF

GND

C802

1uF/10V

GND

L806

120R\100MHz

L805

120R\100MHz

GND

+5V_ST

VCC5V

C804

1uF/25V

GND

R836 2K 1%

2

3 1

IC803

ZTL431AFFTA

T801

BC847B

GND

R832

4.7k

R833

22K

R834 NC

R835

1.2k %1

R839

330R %1

+5V_ST

R844

10K

+12V

R830

100R

R845 100R

R846 4.7K

VCC5V

DE-POP

C835

2.2nF

R826

10k

C841

2.2nF

C842

3.3nF

C840

1uF

C827 100uF/16V

C834 100uF/16V

C830 1nF

C837

1nF

EAR_AU_OUT_L

C839 1uF

R822 33K

R823 10K

R814 22K

R521 22K

R818

10k

C836

3.3nF

C833

1uF

EAR_AU_OUT_R

C820 10uF

TP1

TP3

R815

470R

R825

470R

L803

300R/100MHz

L804

300R/100MHz

C831 220pF

C838 220pF

RIGHT

LEFT GND

Right

Left

GND

S801

Headphone

R810

0R

GND

GNDGND

GND

GNDGNDGND

R847 1K

GND

VCC5V

GND

HPL

HPR

GND

VCC

1

OUT1

2

VIN1

3

BP

4

GND

5

/SD

6

VIN2

7

OUT2

8

EXP

9

IC802 TS488IQT

GND

TP5 TP6

VCC3.3V-ST

TP2

C809

470uF/25V

C808 (470uF/25V)

L+ L-

R+ R-

P1

1

P2

2

S803

R_SPK

P1

1

P2

2

S804

L_SPK

L+ L-

R+

R-

R803 1K

28

27

≥

•

MAX9736

CHARGE

PUMP

POWER

STAGE

REGULATOR

BIAS

MOD

MONO

SHDN

MUTE REGEN

AGND

PGND

N.C.

20

FBR19

INR18

COM 12

INL6

FBL5

REG

VS

PVDD

C1N

C1P

15

16

1203 ,7222

3BOOT

31, 32 OUTL+

25, 26 OUTR+

23, 24 OUTR-

1, 2 OUTL-

4

10 911

13, 14

7, 8, 17

28, 29

CONTROL

VIN1

2

VIN2

6

GND

VOUT2

7

VOUT1

1

BIAS

BPS

3

Vcc

85/9

STDB

5

TS488 = STDB TS489 = STDB

Chassisplatte / Chassis Board – Scaler RAM YTS190R-5

Chassisplatte – Verstärker / Chassis Board – Ampliﬁer YTS190R-5

2 - 14

GRUNDIG Service Chassis T5

Chassisplatte / Chassis Board YTS190R-12

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y C200 T 104 107

C201 T 100 109 C202 T 100 111 C203 T 104 108 C204 T 90 118

C206 T 95 116 C207 T 95 118 C208 T 101 106 C209 T 99 106 C214 T 85 93

C215 T 93 116 C216 T 83 98 C217 T 83 105 C218 T 100 101 C219 T 92 116

C220 T 91 98 C221 T 91 121 C222 T 83 109 C223 T 94 98 C224 T 99 116

C225 T 89 116 C226 T 86 98 C227 T 100 108 C228 T 99 104 C229 T 106 114

C230 T 110 112 C237 T 83 101 C238 T 83 104 C256 T 93 118 C301 T 141 108

C302 T 124 112 C303 T 124 112 C304 T 99 81 C306 T 114 110 C307 T 148 107

C308 T 95 75 C309 T 139 113 C310 T 135 112 C313 T 95 81 C314 T 93 73

C315 T 91 72 C316 T 93 80 C317 T 93 78 C318 T 98 70 C319 T 93 81

C320 T 89 73 C321 T 86 73 C322 T 83 73 C323 T 84 81 C324 T 131 112

C325 T 84 78 C326 T 84 77 C327 T 144 113 C328 T 84 82 C350 T 95 72

C401 T 11 93 C405 T 42 30 C406 T 45 36 C408 T 27 47 C409 T 45 44

C410 T 45 34 C411 T 27 31 C414 T 47 30 C415 T 27 45 C416 T 64 37

C418 T 65 44 C419 T 65 39 C420 T 45 46 C421 T 65 43 C422 T 45 41

C423 T 27 33 C424 T 65 41 C425 T 27 37 C426 T 27 40 C427 T 27 42

C428 T 27 35 C429 T 45 39 C430 T 49 30 C431 T 36 66 C437 T 34 66

C438 T 29 62 C440 T 52 82 C445 T 53 82 C446 T 46 49 C451 T 45 53

C452 T 26 62 C454 T 26 60 C455 T 31 62 C456 T 56 30 C457 T 54 30

C458 T 33 30 C459 T 34 30 C460 T 70 76 C461 T 56 87 C463 T 64 48

C464 T 64 88 C465 T 64 86 C466 T 69 55 C467 T 69 53 C470 T 64 82

C475 T 63 51 C476 T 64 54 C477 T 62 54 C478 T 64 53 C480 T 39 92

C482 T 69 77 C485 T 65 77 C487 T 68 71 C489 T 68 69 C491 T 22 88

C492 T 60 84 C493 T 60 82 C495 T 11 121 C501 T 36 117 C502 T 52 86

C503 T 16 118 C504 T 27 116 C505 T 14 115 C507 T 58 125 C508 T 36 116

C601 T 139 62 C602 T 88 58 C701 T 108 19 C702 T 64 74 C703 T 108 22

C704 T 113 21 C705 T 115 21 C706 T 120 21 C707 T 117 18 C708 T 89 18

C709 T 129 20 C710 T 86 20 C711 T 122 20 C712 T 122 18 C713 T 130 19

C714 T 133 19 C715 T 127 19 C716 T 101 18 C717 T 99 38 C718 T 99 36

C719 T 102 38 C720 T 102 32 C721 T 102 34 C722 T 102 36 C723 T 131 25

C724 T 124 26 C725 T 128 26 C726 T 133 24 C727 T 95 31 C728 T 133 21

C729 T 102 27 C730 T 102 29 C731 T 136 19 C732 T 61 93 C733 T 95 28

C734 T 138 22 C735 T 155 28 C736 T 92 31 C737 T 140 18 C738 T 67 100

C739 T 99 52 C740 T 17 23 C741 T 101 55 C742 T 14 18 C744 T 73 49

C746 T 104 20 C747 T 14 16 C749 T 73 48 C752 T 14 21 C754 T 100 50

C755 T 73 51 C756 T 103 49 C757 T 17 26 C758 T 103 52 C759 T 100 44

C760 T 14 23 C762 T 100 47 C763 T 16 26 C764 T 103 46 C765 T 14 26

C768 T 110 118 C770 T 117 117 C771 T 65 75 C772 T 67 102 C775 T 10 13

C790 T 117 115 C799 T 94 32 C801 T 82 6 C802 T 70 25 C803 T 73 25

C805 T 68 17 C806 T 79 6 C807 T 82 15 C808 T 76 9 C809 T 73 9

C810 T 66 8 C811 T 63 12 C813 T 82 20 C814 T 68 24 C817 T 71 25

C820 T 148 125 C824 T 60 93 C826 T 63 93 C827 T 139 118 C830 T 132 119

C831 T 128 119 C833 T 152 116 C834 T 138 125 C835 T 153 120 C836 T 70 99

C837 T 134 121 C838 T 128 121 C839 T 147 116 C840 T 144 116 C841 T 144 120

C842 T 68 99 C902 T 30 11 C903 T 57 21 C906 T 60 6 C907 T 39 20

C908 T 52 19 C909 T 19 32 C910 T 21 34 C912 T 42 22 C913 T 17 32

C914 T 14 32 C915 T 44 25 C916 T 46 25 C917 T 39 23 C918 T 15 39

C921 T 19 56 C922 T 22 58 C923 T 28 16 C925 T 24 20 C926 T 22 13

C927 T 21 38 C929 T 26 5 C930 T 23 43 C931 T 15 60 C932 T 27 13

C933 T 14 45 C934 T 59 10 C937 T 48 25 C938 T 24 22 C939 T 24 18

C940 T 57 18 C941 T 59 18

D301 T 142 111 D302 T 98 79 D601 T 140 59 D602 T 82 51 D603 T 83 55

D604 T 85 59 D605 T 78 116 D606 T 74 116 D607 T 85 120 D608 T 89 43

D609 T 107 59 D610 T 83 120 D701 T 117 21 D702 T 103 19 D703 T 111 18

D704 T 115 18 D705 T 120 19 D706 T 136 18 D707 T 143 18 D708 T 109 19

D709 T 113 18 D710 T 127 18 D711 T 133 18 D712 T 103 38 D713 T 103 32

D714 T 133 27 D715 T 131 26 D716 T 127 26 D717 T 133 42 D718 T 142 26

D719 T 147 26 D720 T 150 39 D721 T 152 26 D722 T 146 26 D723 T 136 27

D724 T 138 27 D725 T 103 55 D726 T 103 53

D727 T 103 47 D732 T 104 117 D801 T 126 119 D802 T 126 121 D901 T 46 16

D902 T 46 13 D903 T 59 20 D904 T 57 19

F301 T 93 84 F302 T 89 87

IC200 T 95 106 IC301 T 145 110 IC302 T 88 78 IC401 T 56 39 IC402 T 35 39

IC403 T 46 89 IC404 T 46 80 IC405 T 27 87 IC406 T 27 86 IC407 T 11 117

IC408 T 15 90 IC501 T 19 117 IC502 T 52 123 IC503 T 31 117 IC601 T 132 60

IC602 T 96 62 IC701 T 114 118 IC702 T 151 33 IC705 T 98 31 IC801 T 75 18

IC802 T 148 119 IC803 T 63 19 IC901 T 17 36 IC902 T 30 20 IC903 T 46 20

L200 T 83 93 L201 T 93 121 L202 T 110 116 L203 T 110 114 L301 T 117 111

L303 T 150 107 L305 T 99 88 L306 T 98 67 L401 T 32 66 L402 T 29 64

L403 T 50 82 L404 T 39 30 L405 T 28 58 L406 T 66 49 L407 T 70 78

L408 T 55 87 L409 T 27 58 L410 T 64 79 L411 T 69 51 L412 T 67 77

L413 T 44 30 L502 T 27 117 L601 T 86 50 L602 T 86 53 L603 T 81 120

L604 T 77 120 L701 T 86 18 L703 T 11 13 L705 T 7 33 L801 T 79 9

L802 T 66 11 L803 T 130 119 L804 T 130 121 L805 T 82 9 L806 T 66 13

L807 T 70 9 L901 T 56 8 L902 T 56 6 L903 T 57 20 L904 T 51 13

L905 T 51 15 L906 T 40 26 L907 T 52 23 L908 T 22 54 L910 T 33 14

L911 T 21 17 L912 T 28 25 L914 T 57 14 L917 T 31 7 L918 T 23 34

R200 T 98 99 R201 T 106 107 R202 T 83 100 R203 T 106 108 R204 T 83 102

R208 T 92 118 R209 T 90 116 R210 T 88 120 R212 T 83 113 R215 T 87 115

R218 T 96 118 R219 T 96 116 R220 T 93 98 R221 T 89 98 R224 T 88 98

R225 T 87 98 R228 T 98 116 R229 T 92 98 R230 T 100 113 R231 T 88 118

R301 T 118 107 R302 T 99 77 R303 T 97 77 R304 T 135 110 R305 T 95 73

R306 T 100 76 R308 T 142 108 R309 T 154 113 R310 T 93 75 R311 T 138 113

R312 T 93 77 R313 T 152 113 R314 T 151 111 R315 T 139 107 R316 T 151 109

R317 T 137 107 R318 T 147 113 R320 T 85 73 R321 T 97 88 R322 T 151 113

R324 T 84 73 R326 T 84 75 R327 T 84 80 R328 T 84 76 R330 T 137 112

R345 T 144 107 R350 T 95 80 R351 T 95 76 R352 T 88 73 R353 T 135 107

R354 T 133 107 R355 T 93 76 R401 T 11 92 R402 T 20 89 R403 T 20 86

R404 T 20 91 R405 T 20 92 R406 T 20 88 R407 T 65 46 R408 T 15 48

R409 T 28 49 R410 T 63 83 R414 T 60 50 R415 T 42 50 R416 T 61 39

R417 T 43 39 R418 T 61 50 R419 T 44 50 R421 T 52 52 R422 T 35 50

R423 T 54 50 R424 T 36 52 R425 T 52 50 R426 T 35 52 R427 T 31 83

R436 T 54 52 R438 T 37 50 R439 T 55 50 R440 T 38 52 R441 T 51 30

R442 T 37 30 R443 T 66 54 R444 T 53 30 R445 T 36 30 R446 T 63 87

R447 T 38 68 R448 T 44 82 R449 T 37 92 R450 T 39 90 R452 T 37 90

R456 T 22 86 R457 T 20 94 R458 T 22 89 R459 T 48 82 R460 T 22 91

R461 T 22 92 R480 T 51 52 R482 T 34 50 R484 T 32 84 R486 T 12 121

R487 T 32 86 R490 T 64 33 R491 T 64 35 R501 T 57 93 R502 T 48 117

R506 T 46 121 R507 T 36 119 R508 T 52 88 R509 T 46 118 R510 T 22 115

R513 T 16 115 R514 T 16 117 R515 T 20 121 R519 T 46 120 R520 T 13 121

R521 T 144 121 R522 T 19 121 R523 T 19 124 R601 T 88 64 R602 T 114 60

R603 T 114 61 R604 T 119 59 R605 T 127 58 R606 T 127 60 R607 T 127 61

R608 T 125 60 R609 T 125 61 R610 T 125 58 R611 T 120 59 R612 T 91 60

R613 T 91 62 R614 T 91 63 R615 T 88 62 R616 T 82 64 R617 T 88 63

R618 T 88 60 R619 T 82 63 R620 T 91 64 R643 T 112 60 R645 T 107 60

R646 T 109 61 R647 T 112 61 R648 T 109 60 R649 T 107 61 R700 T 108 21

R701 T 106 19 R702 T 67 74 R703 T 111 21 R704 T 117 20 R705 T 117 22

R706 T 119 19 R707 T 115 20 R708 T 113 20 R709 T 111 20 R710 T 92 18

R711 T 90 20 R712 T 131 19 R713 T 124 18 R714 T 90 21 R715 T 99 20

R716 T 101 20 R717 T 128 19 R718 T 124 20 R719 T 99 18 R720 T 100 38

R721 T 104 18 R722 T 101 32 R723 T 136 22 R724 T 103 34 R725 T 103 36

R726 T 126 26 R727 T 129 26 R728 T 133 26 R729 T 91 32 R730 T 67 75

R731 T 131 21 R732 T 103 27 R733 T 138 24 R734 T 134 19 R735 T 136 24

R736 T 136 21 R737 T 61 91 R738 T 138 26 R739 T 136 26 R740 T 94 31

R741 T 93 29 R743 T 155 26 R744 T 149 26 R745 T 153 26 R746 T 150 26

R748 T 95 33 R749 T 150 28 R750 T 149 28 R751 T 145 26 R752 T 138 20

R753 T 153 28 R754 T 143 26 R755 T 138 18 R756 T 67 97 R757 T 152 28

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

R758 T 103 29 R759 T 93 28 R761 T 99 55 R762 T 16 23 R763 T 100 55

R764 T 13 18 R765 T 11 18 R766 T 71 49 R769 T 13 16 R770 T 11 16

R771 T 71 48 R774 T 13 21 R775 T 11 21 R776 T 71 51 R777 T 103 50

R779 T 100 49 R780 T 11 23 R782 T 13 23 R783 T 103 44 R785 T 100 46

R786 T 11 26 R788 T 13 26 R789 T 152 20 R790 T 152 19 R791 T 114 115

R792 T 116 115 R793 T 115 115 R795 T 114 113 R801 T 68 20 R802 T 82 19

R803 T 134 119 R804 T 82 17 R805 T 75 24 R806 T 75 26 R807 T 68 22

R810 T 146 125 R811 T 60 91 R813 T 82 22 R814 T 152 121 R815 T 70 97

R816 T 63 91 R818 T 152 118 R819 T 68 26 R822 T 149 116 R823 T 151 116

R825 T 68 97 R826 T 144 118 R830 T 67 22 R832 T 67 16 R833 T 65 16

R834 T 63 16 R835 T 63 22 R836 T 65 22 R839 T 62 22 R844 T 62 16

R845 T 80 24 R846 T 77 24 R847 T 132 121 R900 T 17 4 R901 T 61 13

R902 T 61 11 R903 T 57 23 R904 T 59 16 R905 T 59 14 R907 T 59 8

R908 T 59 13 R909 T 59 11 R910 T 40 18 R911 T 38 18 R912 T 13 35

R913 T 13 48 R914 T 12 48 R915 T 23 40 R916 T 13 83 R917 T 34 16

R918 T 13 39 R919 T 41 18 R920 T 18 57 R921 T 57 16 R922 T 27 28

R923 T 17 53 R924 T 13 50 R925 T 17 51 R926 T 24 4 R927 T 17 52

R928 T 32 24 R929 T 32 26 R930 T 19 41 R931 T 24 8 R932 T 16 42

R933 T 59 17 R934 T 16 45 R935 T 13 81 R937 T 24 6 R938 T 27 11

R939 T 32 16 R941 T 17 6 R943 T 31 16 R947 T 13 79 R948 T 23 37

RP200 T 96 99 RP201 T 83 107 RP202 T 83 111 RP401 T 50 50 RP402 T 32 52

RP403 T 48 52 RP404 T 31 50 RP405 T 56 52 RP406 T 39 50 RP407 T 58 50

RP408 T 41 52 RP416 T 37 70 RP417 T 33 72 RP418 T 37 74 RP419 T 33 76

RP420 T 37 78 RP421 T 33 80 RP422 T 46 82 RP501 T 55 91 RP502 T 58 91

RP503 T 50 117 RP504 T 46 126

S400 T 18 73 S401 T 18 71 S402 T 8 64 S501 T 34 112 S601 T 93 50

S602 T 81 127 S701 T 108 33 S702 T 132 33 S703 T 116 9 S704 T 6 21

S706 T 104 123 S707 T 104 123 S708 T 124 49 S709 T 145 21 S801 T 121 124

S802 T 149 48 S803 T 147 45 S804 T 147 54 S901 T 43 6 S902 T 5 5

S903 T 5 88 S904 T 35 128 S905 T 155 5 S906 T 155 128 S908 T 43 6

T301 T 98 75 T302 T 148 110 T303 T 153 109 T304 T 138 109 T501 T 16 121

T601 T 85 64 T602 T 117 61 T603 T 104 61 T701 T 96 19 T801 T 66 18

T901 T 14 53 T902 T 15 57 T904 T 27 8 T905 T 19 43 T906 T 56 11

T907 T 21 5 T908 T 11 45

TU301 T 128 86 TU302 T 128 86

X200 T 93 94 X300 T 88 68 X400 T 68 86

2 - 15

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160

X

V-0

YTS190R-12

D725

1

R761

C741

D603

C466

R763

D710

R717

C715

C725

R606

R605

138C 838C

S804

C303

R607

C405

R415

D902

D901

T906

L806

L904 R908

R901

25

32

BARCODE

10

PWR

S901

L902

C906

R907

L901

1

C934

R909

R902

C809

C810

C808

C806 C801

L801

L805

C811

L802

L807

L701 C708

C710

R714

R710

R711

R759

R741

C736

C799

R740

C733

1

R719

T701

IC705

1

C716

R715

R716

C727

C729 C730

R722

C720

R729

R748

HDMI

19

C718

C717

D608

1

L601 L602

S601

C739

R720

C759

R785

C721 C719C 722

R783

C764

C762

R779

C754

D726

D727

C756

R777

C758

R721

C701

D703D709

D702

R701

C746

R700

C703

R709

D708

R708

R703 C704

D704

C707

R706

C712 R713

R707 R704

C705

D705

C711 R718

D701

C706

D713

R758R732 R 725R724

D712

PC AUDIO

S702

C724R726

D716

S701

VIDEO LEFT

L905

C908

1

C915

C916

L413

C414

C937

L907

C430

IC903

R441

R444

L914

R921

1

R905

R904

R933

C940

D904

L903

C457

C456

C903

R903

C941

D903

C410

R417

C409

C406

C422

C429

R419

C420

C446

C451

1

RP403

RP401

IC401

R416

R425

R423

R436

R480

R421

R439

RP407

R414

RP405

R844

R834

R833

R832

C805

R839

IC803

R835

R836

T801

R830

R807R801 C814

24

1

R804

C807

R802

C813

17

16

C802

C817

IC801

C803

9

8

R813

R805 R846 R8 45

R490

R491

C416

C421

C419

C424

C418

R407

R418

C477

C475

C476

C478

C463

L406

R443

R819

R771

R806

C749

L411

R766

R776

C467

C744

1

D602

C755

1

15

C775

S907

L703

S902

FID905

R900

T907

R941

1

16

R926

R937

C929

6

L917

R931

R938

T904

C902

5

DVD

R770

R769

R765

R764

S704

1

2

R780R775

R782R774

R786

C742C747 C752

C926

L911

R788

C765C760

C914

C763R762

C740 C757

C913

C909

L705

IC901

R912 R918

30

R914

T901

1

C933

R913

R408

R924

C918

R930

1

C910 C927

R934R932

R925

R923

R927

T908

T905

L908

C932

C923

C939

C925

R943

R939

C938

R922

C411

1

L912

L910

R917

IC902

R911

C907

R910

R919

C912

R928

R929

R445

C458

C459

IC402

L404

C917

L906

R442

L918

C423

R948 R915

C428

C425

C426

C930

C427

C415

C408

1

R409

RP404

R482

R426

R422

R424

R438

RP402

R440

RP406

RP408

S703

SCART

FID907

S905

C713

D711

R712

R731

C709

C714

R734

C728

D706

C731

R755 C737

R752

R736

R723

C734

D707

C723

C726

R728

R735

D715

R727

AV

D714

D717

R733

R739

D723

R738

D724

D718

RIGHT

VGA

HOTEL TV

1

R751

R754

D719

D722

R744

R746

R750

R749

R790

R789

D721

R757

S709

R745

R743

R753

C735

1

D720

1

S802

IC702

S803

1

SPEAKER

IC601

C601

D601

TU302

TU301

R354 R353 R317

R304 C310

R330

R311

C301

R315

R308

R345

1

T304

C309

D301

C324

L803

R847

L804

C830

C837

R803

C827

IC301

C841

C834

C307

1

C327

T302

C840

R318 C839

R822

L303

R316R314

T303

R322 R823

R313

R309

C833

R826

IC802

R818

R521

R810

FID904

1

C820

R814

C835

S906

S501

LVDS

2

S402

S400

LVDS

1

R947

R935

T902

C931

R920

C921

S401

R916

S903

IC408

R401

C401

40

1

R403

R406

R402

39

R456

C491

R404

R405

R457

R458

R460

R461

C922

C454

C452

L409

L405

1

C438

1

L402

C455

L401

C431

C437

R447

RP417

RP419

RP416 RP418 RP420

1

R427

IC405

IC406

R484R487

RP421

R452R449

R450C480

1

PCMCIA

C505

IC407

R513

1

R514

C503

C495

R486

FID906

R520

T501

R510

C504

IC501

L502

1

C501

C508

IC503

R522 R523

R515

S904

R507

R328

R327

C328

C326

C325

R825

R815

R756

R320

R326

C323

1

T601

C214

RP200

IC200

C226

49

48

D607

R224

R225

C220

R221

R229

C223

R220

R448

R459

1

C493

RP422

L403

C440

C445

C502

C702

C771

IC404

C492

C485

R410

L408

C461

R508

RP501

IC403

R501

R811

R446

RP502

C824

R737

R816

C732

C826

C489

C487

R702

X300

R730

C460

C482

R619

R616

C322

R324

L410

L412

L407

C465C470 C464

X400

F302

L200

D604

C602

R618

R615

R617

R601

C321

R352

C320

R612

R613

R614

IC602

R620

C315 C350

F301

IC302

X200

R305C314

R310

R312

R355

C317

C308

R351

C316

C319

R350

C313

S708

D609

R645 R648

1

T603

R649 R646

R602R643

R610

R608

R647 R603

T602

R611

R604

R609

L306

T301

R303

1

R321

C318

R302

R306

D302

C304

L305

1

64

R215

R209

C225

C219

C215

C206

R200

16

17

C218 C228 C209

C227

C201

32

33

R219

R228

C202

R230

C224

R231

R208

1

R210

19

C204

L201

C221

SIDE HDMI

C256

C207

R218

USB

C208

C203

C200 R201

R203

C230

C229

L203

L301

R301

C306

R795 R791

R793

R792

C790

1

D732

C768

L202

1

S707

1

S706

C302

C770

H PHONE

IC701

S801

D801D802

R509

R502

R519

R506

C738

C842

RP503

C772

RP504

C507

1

IC502

C836

C237

R202

C238

R204

C216

C217

C222

R212

RP202RP201

D606

1

S602

D605

1

L604 L603

D610

1

7

3

4

8 5 6

14

13

27

28

9

12

10

Chassisplatte / Chassis Board

YTS190R-12

Ansicht von der Bestückungsseite View of Component Side

2 - 16

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160

X

D725

1

R761

C741

D603

C466

R763

C405

R415

D902

D901

T906

L806

L904 R908

R901

25

32

BARCODE

10

PWR

S901

L902

C906

R907

L901

1

C934

R909

R902

C809

C810

C808

C806 C801

L801

L805

C811

L802

L807

L701 C708

C710

R714

R710

R711

R759

R741

C736

C799

R740

C733

1

R719

T701

IC705

1

C716

R715

R716

C727

C729 C730

R722

C720

R729

R748

HDMI

19

C718

C717

D608

1

L601 L602

S601

C739

R720

C759

R785

C721 C719C722

R783

C764

C762

R779

C754

D726

D727

C756

R777

C758

R721

D702

C746

D713

R758R732 R725R724

D712

PC AUDIO

L905

C908

1

C915

C916

L413

C414

C937

L907

C430

IC903

R441

R444

L914

R921

1

R905

R904

R933

C940

D904

L903

C457

C456

C903

R903

C941

D903

C410

R417

C409

C406

C422

C429

R419

C420

C446

C451

1

RP403

RP401

IC401

R416

R425

R423

R436

R480

R421

R439

RP407

R414

RP405

R844

R834

R833

R832

C805

R839

IC803

R835

R836

T801

R830

R807R 801 C814

24

1

R804

C807

R802

C813

17

16

C802

C817

IC801

C803

9

8

R813

R805 R846 R845

R490

R491

C416

C421

C419

C424

C418

R407

R418

C477

C475

C476

C478

C463

L406

R443

R819

R771

R806

C749

L411

R766

R776

C467

C744

1

D602

C755

1

15

C775

S907

L703

S902

FID905

R900

T907

R941

1

16

R926

R937

C929

6

L917

R931

R938

T904

C902

5

DVD

R770

R769

R765

R764

S704

1

2

R780R775

R782R774

R786

C742C747 C752

C926

L911

R788

C765C760

C914

C763R762

C740 C757

C913

C909

L705

IC901

R912 R918

30

R914

T901

1

C933

R913

R408

R924

C918

R930

1

C910 C927

R934R93 2

R925

R923

R927

T908

T905

L908

C932

C923

C939

C925

R943

R939

C938

R922

C411

1

L912

L910

R917

IC902

R911

C907

R910

R919

C912

R928

R929

R445

C458

C459

IC402

L404

C917

L906

R442

L918

C423

R948 R915

C428

C425

C426

C930

C427

C415

C408

1

R409

RP404

R482

R426

R422

R424

R438

RP402

R440

RP406

RP408

S501

LVDS

2

S402

S400

LVDS

1

R947

R935

T902

C931

R920

C921

S401

R916

S903

IC408

R401

C401

40

1

R403

R406

R402

39

R456

C491

R404

R405

R457

R458

R460

R461

C922

C454

C452

L409

L405

1

C438

1

L402

C455

L401

C431

C437

R447

RP417

RP419

RP416 RP418 RP420

1

R427

IC405

IC406

R484 R487

RP421

R452 R449

R450 C480

1

PCMCIA

C505

IC407

R513

1

R514

C503

C495

R486

FID906

R520

T501

R510

C504

IC501

L502

1

C501

C508

IC503

R522 R 523

R515

S904

R507

R328

R327

C328

C326

C325

R825

R815

R756

R320

R326

C323

1

T601

C214

RP200

IC200

C226

49

48

D607

R224

R225

C220

R221

R229

C223

R220

R448

R459

1

C493

RP422

L403

C440

C445

C502

C702

C771

IC404

C492

C485

R410

L408

C461

R508

RP501

IC403

R501

R811

R446

RP502

C824

R737

R816

C732

C826

C489

C487

R702

X300

R730

C460

C482

R619

R616

C322

R324

L410

L412

L407

C465C470 C464

X400

F302

L200

D604

C602

R618

R615

R617

R601

C321

R352

C320

R612

R613

R614

IC602

R620

C315 C350

F301

IC302

X200

R305C314

R310

R312

R355

C317

C308

R351

C316

C319

R350

C313

1

T603

L306

T301

R303

1

R321

C318

R302

R306

D302

C304

L305

1

64

R215

R209

C225

C219

C215

C206

R200

16

17

C218 C228 C209

C227

C201

32

33

R219

R228

C202

R230

C224

R231

R208

1

R210

19

C204

L201

C221

SIDE HDMI

C256

C207

R218

USB

C208

C203

C200 R201

1

D732

S707

S706

R509

R502

R519

R506

C738

C842

RP503

C772

RP504

C507

1

IC502

C836

C237

R202

C238

R204

C216

C217

C222

R212

RP202RP201

D606

1

S602

D605

1

L604 L603

D610

1

7

3

4

14

13

27

9

12

10

Chassisplatte / Chassis Board YTS190R-12 Ansicht von der Bestückungsseite / View of Component Side

2 - 17

GRUNDIG Service Chassis T5

V-0

YTS190R-12

D725

1

R761

C741

R763

D710

R717

C715

C725

R606

R605

138C 838C

S804

C303

R607

R714

R710

R711

R759

R741

C736

C799

R740

C733

1

R719

T701

IC705

1

C716

R715

R716

C727

C729 C730

R722

C720

R729

R748

HDMI

19

C718

C717

D608

1

L601 L602

S601

C739

R720

C759

R785

C721 C719C722

R783

C764

C762

R779

C754

D726

D727

C756

R777

C758

R721

C701

D703D709

D702

R701

C746

R700

C703

R709

D708

R708

R703 C704

D704

C707

R706

C712 R713

R707 R704

C705

D705

C711 R718

D701

C706

D713

R758R732 R725R724

D712

PC AUDIO

S702

C724R726

D716

S701

VIDEO LEFT

S703

SCART

FID907

S905

C713

D711

R712

R731

C709

C714

R734

C728

D706

C731

R755 C737

R752

R736

R723

C734

D707

C723

C726

R728

R735

D715

R727

AV

D714

D717

R733

R739

D723

R738

D724

D718

RIGHT

VGA

HOTEL TV

1

R751

R754

D719

D722

R744

R746

R750

R749

R790

R789

D721

R757

S709

R745

R743

R753

C735

1

D720

1

S802

IC702

S803

1

SPEAKER

IC601

C601

D601

TU302

TU301

R354 R353 R317

R304 C310

R330

R311

C301

R315

R308

R345

1

T304

C309

D301

C324

L803

R847

L804

C830

C837

R803

C827

IC301

C841

C834

C307

1

C327

T302

C840

R318 C839

R822

L303

R316 R314

T303

R322 R823

R313

R309

C833

R826

IC802

R818

R521

R810

FID904

1

C820

R814

C835

S906

RP200

R224

R225

C220

R221

R229

C223

R220

C602

R618

R615

R617

R601

C321

R352

C320

R612

R613

R614

IC602

R620

C315 C350

IC302

X200

R305C314

R310

R312

R355

C317

C308

R351

C316

C319

R350

C313

S708

D609

R645 R648

1

T603

R649 R646

R602R643

R610

R608

R647 R60 3

T602

R611

R604

R609

L306

T301

R303

1

R321

C318

R302

R306

D302

C304

L305

1

R209

C225

C219

C215

C206

R200

16

17

C218 C228 C209

C227

C201

32

33

R219

R228

C202

R230

C224

R231

R208

R210

19

C204

L201

C221

SIDE HDMI

C256

C207

R218

USB

C208

C203

C200 R201

R203

C230

C229

L203

L301

R301

C306

R795 R791

R793

R792

C790

1

D732

C768

L202

1

S707

1

S706

C302

C770

H PHONE

IC701

S801

D801D802

7

3

4

8 5 6

28

9

Chassisplatte / Chassis Board YTS190R-12 Ansicht von der Bestückungsseite / View of Component Side

2 - 18

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0102030405060708090100110120130140150160

X

YTS190R-12

TP116

11

1

TP91

TP92

TP6

TP7

TP4

TP5

21

TP103

20

TP104

TP105

TP108

TP123

TP122

TP124

TP125

1

TP112

TP109

TP115

TP114

TP26

TP127

TP117

TP86

TP100

TP53

TP97

TP96

TP99

TP95

TP94

TP147TP152

TP146

TP150

TP148

TP151

TP149

TP93

TP46

TP77

TP101

TP138

TP153

TP88

TP47

TP90

tp11

2

1

TP120

TP130

TP119

TP121

TP133

5

TP135

TP139

15

6

TP36

TP38

TP39

1

TP126

TP17

TP132

TP136

5

TP137

1

TP142

TP141

TP145

4

TP144

TP143

TP20

TP107

V-0

TP18

TP98

TP16

TP32TP34

TP60

TP58

TP64

TP59

TP62

TP68

TP63 TP73

TP66

TP70

TP71

TP83

TP33

TP35

TP31

TP75

TP74

TP78

TP82

TP76

TP81

TP61TP57TP69

TP102

TP55

TP52

TP51

TP67

TP48

TP65

TP72

TP80

TP37

TP79

TP110

TP45

TP42

tp29

TP41

tp28

TP89

TP85

tp10

tp9

TP84

TP140

TP13

TP12

TP44

TP106

TP30

TP43

TP49

TP27

TP54

TP128

TP23

TP24

TP25

TP21

TP129

TP111

TP22

TP19

TP40

TP113

TP118

1

TP14

TP15

TP87

TP131

TP1

TP2

TP3

tp8

TP134

Chassisplatte / Chassis Board

Ansicht von der Bestückungsseite

YTS190R-12

View of Component Side

2 - 19

GRUNDIG Service Chassis T5

YTS190R-12

TP116

11

1

TP6

TP7

TP4

TP5

21

TP103

20

TP104

TP105

TP108

TP123

TP122

TP124

TP125

1

TP112

TP109

TP115

TP114

TP26

TP127

TP117

TP100

TP53

2

1

TP120

TP130

TP119

TP121

TP133

5

TP135

TP139

15

6

TP36

TP38

TP39

1

TP126

TP17

TP132

TP136

5

TP137

1

TP142

TP141

TP145

4

TP144

TP143

TP20

TP107

V-0

TP18

TP98

TP16

TP32TP34

TP13

TP12

TP106

TP49

TP27

TP54

TP128

TP23

TP24

TP25

TP21

TP129

TP111

TP22

TP19

TP40

TP113

TP118

1

TP14

TP15

TP87

TP131

TP1

TP2

TP3

TP134

Chassisplatte / Chassis Board YTS190R-12 Ansicht von der Lötseite / View of Solder Side

POS. X Y POS. X Y TP1 B 125 120

TP2 B 125 129 TP3 B 125 124 TP4 B 79 2 TP5 B 81 4

TP6 B 72 3 TP7 B 74 6 tp8 B 46 125 tp9 B 22 114 tp10 B 15 116

tp11 B 30 33 TP12 B 85 94 TP13 B 85 107 TP14 B 109 113 TP15 B 108 115

TP16 B 148 108 TP17 B 152 24 TP18 B 139 61 TP19 B 125 60 TP20 B 130 59

TP21 B 101 78 TP22 B 123 62 TP23 B 88 57 TP24 B 89 59 TP25 B 86 63

TP26 B 119 37 TP27 B 84 64 tp28 B 40 93 tp29 B 35 90 TP30 B 44 89

TP31 B 18 93 TP32 B 151 108 TP33 B 17 88 TP34 B 151 110 TP35 B 19 89

TP36 B 143 18 TP37 B 25 86 TP38 B 146 18 TP39 B 148 18 TP40 B 91 110

TP41 B 41 91 TP42 B 41 89 TP43 B 47 85 TP44 B 47 83 TP45 B 34 83

TP46 B 15 49 TP47 B 38 32 TP48 B 31 68 TP49 B 64 82 TP51 B 36 68

TP52 B 33 62 TP53 B 62 50 TP54 B 71 76 TP55 B 29 60 TP57 B 23 64

TP58 B 21 62 TP59 B 21 64 TP60 B 19 62 TP61 B 23 66 TP62 B 18 65

TP63 B 21 66 TP64 B 18 67 TP65 B 33 71 TP66 B 23 69 TP67 B 31 72

TP68 B 21 69 TP69 B 23 71 TP70 B 21 71

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

TP71 B 10 76 TP72 B 23 73

TP73 B 21 73 TP74 B 23 75 TP75 B 21 75 TP76 B 23 77 TP77 B 15 14

TP78 B 21 77 TP79 B 27 80 TP80 B 25 80 TP81 B 21 80 TP82 B 21 82

TP83 B 14 78 TP84 B 19 122 TP85 B 12 123 TP86 B 44 29 TP87 B 112 113

TP88 B 19 54 TP89 B 4 102 TP90 B 21 53 TP91 B 45 4 TP92 B 43 7

TP93 B 5 44 TP94 B 40 7 TP95 B 40 4 TP96 B 33 10 TP97 B 33 2

TP98 B 147 58 TP99 B 24 10 TP100 B 61 31 TP101 B 18 14 TP102 B 26 69

TP103 B 96 9 TP104 B 104 17 TP105 B 102 17 TP106 B 58 86 TP107 B 139 57

TP108 B 108 17 TP109 B 113 17 TP110 B 28 88 TP111 B 124 57 TP112 B 115 17

TP113 B 103 117 TP114 B 118 17 TP115 B 120 17 TP116 B 127 17 TP117 B 124 47

TP118 B 105 117 TP119 B 134 17 TP120 B 132 17 TP121 B 137 17 TP122 B 92 31

TP123 B 106 29 TP124 B 106 37 TP125 B 109 33 TP126 B 147 24 TP127 B 126 28

TP128 B 78 76 TP129 B 109 57 TP130 B 132 28 TP131 B 111 118 TP132 B 140 27

TP133 B 135 27 TP134 B 64 120 TP135 B 138 27 TP136 B 143 28 TP137 B 144 41

TP138 B 38 20 TP139 B 139 31 TP140 B 24 123 TP141 B 150 28 TP142 B 147 28

TP143 B 153 41 TP144 B 154 35 TP145 B 152 33 TP146 B 8 17 TP147 B 5 17

TP148 B 8 20 TP149 B 4 26 TP150 B 8 23 TP151 B 5 23 TP152 B 5 20 TP153 B 14 26

2 - 20

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

Y

0102030405060708090100110120130140150160

X

TP91

TP92

TP6

TP7

TP4

TP5

TP86

TP100

TP53

TP97

TP96

TP99

TP95

TP94

TP147TP152

TP146

TP150

TP148

TP151

TP149

TP93

TP46

TP77

TP101

TP138

TP153

TP88

TP47

TP90

tp11

TP60

TP58

TP64

TP59

TP62

TP68

TP63 TP73

TP66

TP70

TP71

TP83

TP33

TP35

TP31

TP75

TP74

TP78

TP82

TP76

TP81

TP61TP57TP69

TP102

TP55

TP52

TP51

TP67

TP48

TP65

TP72

TP80

TP37

TP79

TP110

TP45

TP42

tp29

TP41

tp28

TP89

TP85

tp10

tp9

TP84

TP140

TP13

TP12

TP44

TP106

TP30

TP43

TP49

TP27

TP54

TP128

TP23

TP24

TP25

tp8

TP134

Chassisplatte / Chassis Board YTS190R-12 Ansicht von der Lötseite / View of Solder Side

2 - 21

8/10 bit LVDS PANEL

R925

4.7K

C922 10uF/16V

R924 22K

R931

1K

C921

1u/16v

R923 10K

R920 22K

C932

1uF/25V

R927 22K

Panel_ON-P1

VCC5V

+5V_ST

PANEL-VCC

GND

+5V_ST

VCC3.3V-ST

Panel Power

Hi: Off

Lo: On

VCC3.3V-ST

C915

10uF

C916

10uF

TP84

TP86

C914

10uF

+5V2_ST

1

32

T902 DMP2215L

1

3 2

T904 DMN3150L

GND

C903 470n

R907

4.7K

R905 47k

R904 4.7K

R903

1K

BRI_ADJ-PWM2

VBLCTRL-P2

GND

+5V_ST

VCC3.3V-ST

Power

L917

120R/100MHz

+5V_ST

GND

+12V

GND

L902

120R/100MHz

GND

R909 47k/NC

R908

4.7K/*

VCC3.3V-ST

Hi: Off Lo: On

L901

300R/100MHz

L903

SBY1005

VCC5V

C917

10uF

C902

1u/16V

L908 FB

C923 10uF

R928 390k %1

C925

10uF

R922 390k 1%

TP87

C926

10uF

L911

120R/100MHz

L910

120R/100MHz

VCC3.3V

R926 47K

C929

1uF

GND

R6_RXO0+

R7_RXO0-

R4_RXO1+

R5_RXO1-

R2_RXO2+

R3_RXO2-

B3_RXE3B2_RXE3+

B5_RXECB4_RXEC+

B7_RXE2B6_RXE2+

R0_RXOC+

R1_RXOC-

G6_RXO3+

G7_RXO3-

G2_RXE0+

G3_RXE0-

G0_RXE1+

G1_RXE1-

PANEL-VCC

LVDS I/F

C931 1uF

GND

R916

NC

VCC3.3V

R935

NC

GND

TP71

TP78

TP76

TP75

TP74

TP73

TP72

TP70

TP69

TP68

TP66

TP65 TP67

TP83

TP63

TP58 TP60

TP61 TP62

TP59

TP57

TP64

MODE_SEL

41

42

112

2

334

4

556

6

778

8

9910

10

111112

12

131314

14

151516

16

171718

18

191920

20

212122

22

232324

24

252526

26

272728

28

292930

30

313132

32

333334

34

353536

36

373738

38

393940

40

S400 40PLVDS

B0_RXE4+

B1_RXE4-

G4_RXO4+

G5_RXO4-

C934

1nF

GND

MODE_SEL

L914

SBY1005

30P - 8bit LVDS 40p - 10bit LVDS or 8bit with DCR

POWER_SW

R917 100R

R938 100k

LED_R-GPIO1

POWER_SW

TP98

R939 47K

+5V2_ST

5

4

3

T906A

BC847BDW1T1_A/NC

2

1

6

T906B BC847BDW1T1_A

IRIN SAR0

GND

5

4

3

T901A

BC847BDW1T1_A

2

1 6

T901B

+12V_SW

R937 47K

R941

1.2K

GND

TP101

Hi: ON Lo: OFF

IRIN

SAR0

LED_R-GPIO1

VBLCTRL-P2

+12V_SW

R921 1K

R933 4.7K

VCC3.3V-ST

+5V2_ST

C910 1uF

L918 60R/100MHz

VCC3.3V

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7

7

P8

8

P9

9

P10

10

P11

11

P12

12

P13

13

P14

14

P15

15

P16

16

P17

17

P18

18

P19

19

P20

20

P21

21

P22

22

P23

23

P24

24

P25

25

P26

26

P27

27

P28

28

P29

29

P30

30

P31

31

P32

32

S402

MOLEX_2*15

GND

SEL_LVDS

R947

NC

MODE_SEL

DIODES

TP100

TP93

TP90

TP92

TP91

TP89

TP94

TP95

TP102

TP96

TP97

TP79 TP80 TP81 TP82

TP77

TP88

TP99

R948

NC/10K

PANEL-VCC

C937

10uF

C938

10uF

C939

10uF

C940 1nF

C941 1nF

C906

1u/25V

LVDS I/F

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P7

7

P8

8

P9

9

P10

10

P11

11

P12

12

P13

13

P14

14

P15

15

P16

16

P17

17

P18

18

P19

19

P20

20

P21

21

P22

22

P23

23

P24

24

P25

25

P26

26

P27

27

P28

28

P29

29

P30

30

P31

31

P32

32

S401

MOLEX_2*15

GND

PANEL-VCC

L905

120R/100MHz

C908 10u 16V

GND

C912 4u7 16V

GND

R910

15K %1

R919

5K36 %1

C907

4n7

GND

R911

2K7 %1

TP138

GND

VCC1.2V

VCC3.3V-ST

VIN_A

1

INH (EN)

2

VFB

3

AGND4SYNC

5

VIN_SW

6

SW

7

PGND

8

9

IC903

ST1S10

L906

120R/100MHz

GND

R929 56K

GND

L912

3u3

GND

Hi: ON Lo: OFF

+5V2_ST

VCC1.2V = 0,6 x (1 + (R922+R921)/R928)) for MP2112

max 1200mA

FB

1

GND

2

SW

3

VIN_B

4

VIN_A

5

EN

6

7

IC902 MP2112-C119

max 1500mA

R943

NC/220K

L907

3u3

GND

R912

1.5K 1%

R918

1.2K 1%

C918

1n

GND

+5V2_ST

VCC1.8V

IN

1

IN

2

PG

3

VCC

4

EN5GND

6

SS

7

FB

8

OUT

9

OUT

10

PAD

IC901

AP7173

C927

1uF

R915

100R

Hi: ON Lo: OFF

VCC1.8V = 0,8 x (1 + R912/R918)

max 600mA

Pd=400mW

C909 10uF

C913 10uF

1

2

334

4

5

6

T907

PBLS4003D (PBLS2023)

VCC3.3V +12V

D902

PMEG2020EH

D901

PMEG2020EH

+12V_SW

GND

L904

120R/100MHz

+12V

ST-BY_SW

B2_RXE3+

B3_RXE3-

B4_RXEC+

B5_RXEC-

B6_RXE2+

B7_RXE2-

G0_RXE1+

G1_RXE1-

G2_RXE0+ R2_RXO2+ G3_RXE0R3_RXO2-

R4_RXO1+ G6_RXO3+ R5_RXO1G7_RXO3R6_RXO0+ R0_RXOC+ R7_RXO0R1_RXOC-

B2_RXE3+ B3_RXE3-

B4_RXEC+ B5_RXEC-

B6_RXE2+ B7_RXE2-

G0_RXE1+ G1_RXE1-

G2_RXE0+

R2_RXO2+

G3_RXE0-

R3_RXO2-

R4_RXO1+G6_RXO3+

R5_RXO1-G7_RXO3-

R0_RXOC+

R7_RXO0-R1_RXOCR6_RXO0+

B2_RXE3+

B3_RXE3-

B4_RXEC+

B5_RXEC-

B6_RXE2+

B7_RXE2-

G0_RXE1+

G1_RXE1-

G2_RXE0+

G3_RXE0-

GND

ST-BY_SW

R932 (10K)

C933 (100nF/50V)

VCC3.3VVCC3.3V-ST

R934

(100K)

R930

FB

C930 1uF

GND

POWER_SW

Hi: ON Lo: OFF

DIODES

TP46

1

32 T905 DMP2215L

T908 BC847B

R914 47k

R913 (100R)

ST-BY_SWPOWER_SW

R900 1.2K

10

8

6

4

2

9

7

5

3

1

S901 CON2x5 RA SMD

VCC1.2V = 0,8 x (1 + (R922+R921)/R928)) for ST1S06

R902 NC/*

GND

R901

NC/0R

D903

PESD5V0S1BL

D904

PESD5V0S1BL

GND

10

8

6

4

2

9

7

5

3

1

S908

CON2x5 RA SMD

1

13

14

1

#

$

AP7173

Gate

Driver

Current Limit and

Thermal Shutdown

0.8V

0.72V

OUT

SS

FB

GND

IN

VCC

PG

EN

+

-

+

-

ST1S10

MOSEFET

Control

Logic

I_SEN

+

+–

–

+

–

OSC

Soft Start

Burst Control

Thermal

Shut Down

Driver

PMOS

NMOS

SW

SYNC

VFB INHAGNDPGND

REF

V

IN_A

V

IN_SW

Comp

R-sense

Sync Block

GRUNDIG Service Chassis T5

Chassisplatte – Netzteil/LVDS / Chassis Board – Power Supply/LVDS YTS190R-12

2 - 22

GRUNDIG Service Chassis T5

C308 10nF

D302 BA591

C302

470uF/16V

R306

2.2K

T301 BC847B

C304 10nF

R303

2.2K

R302

6.8K

VCC5V

APW1RAG

2

CAS3SCL

4

SDA533V( 4MHz)

6

5V

7

IFA8IAG

9

IF210IF1

11

GND

12

GND

13

GND

14

GND

15

TU302 ALPS

GND

T303

BC807-40

R313

10R

R309

10R

R316

1K

L303

SBY1005

C306

100nF

GND

ANTPOWER: L- OFF, H- ON

R314

3.3K

R322 39K

L301

22uH

C307

1uF

R321

NC

ANTPOWER

APW

1

RAG

2

CAS3SCL4SDA533V( 4MHz)

6

5V7IFA

8

IAG

9

IF210IF1

11

GND

12

GND13GND

14

GND

15

TU301 DTT75416

2

VCC-Tuner

2

GND

IFAGC

D_IF-

D_IF+

TU_SCL TU_SDA

IFAGC

VCC-Tuner

R318

51K

2

61

5

43

T302 BC847BPDW1T1

D_IF+

D_IF-

C309 NC

GND

R304

6.8K

C310 100nF

GND

2

3

4

51

F302 HDVF389A1DC

R330 (100K)

REF4MHZ

GND

2

3

4

51

F301 HDAF389A7

+5V_ST

VCC-Tuner

T_SCL

T_SDA

8

D_IF-

D_IF+

APWR

VCC

GND

1 2

43

5

IC301

74LVC1G66GW

C327 100nF

RF_AGC_CTL

R345

(0R)

VCC5V

TP17

RF_AGC_CTL

SHOULDER

TP16

TP21

GND

REF

A_IF

R328 100R

C323 10n

R326 100R

C316

220n

C326

470n

C328 390p

R310

1k

R355 1k

C314 470n

C325

10n

C319 100nF

C315

22p

C313

1n5

R327 5K6

R350 330R

GND

GND GND

GND

L306

4u7

C318

10u

GND

L305

1u

R312

47R

TV_CVBS+

C317

100n

OUT2Q1-01

F6-02

F6-01

R305

4.7K

GND

GND GND

GND

R351 100k

C321

100nF

C320

100nF

C322

100nF

R324

47R

R320

47R

R352

2.2K

GND

SC

SIFP

SIFM

SIFP

SIFM

TAGC

OP11FMPLL

2

DEEM

3

AFD4DGND5n.c

6

AUD7TOP

8

SDA

9

SCL

10

SIOMAD

11

n.c.

12

n.c.

13

n.c.

14

TAGC

15

REF

16

VAGC

17

CVBS

18

n.c.

19

AGND

20

VPLL

21VP22

AFC

23

OP2

24

n.c.

25

SIF1

26

SIF2

27

n.c.

28

n.c.

29

VIF1

30

VIF2

31

n.c.

32

gnd

33

IC302 TDA9886HN

VCC-Tuner

SHOULDER

TAGC

R311 12K

D301 BAT54C

C324 47u/16

TV_CVBS+

TU_SCL

TU_SDA

R353 100R

R354

100R

X300

4.0MHz

GND

C350

100pF

REF4MHZ

GNDGND

GND

RF_MON

T304

BC847B

C301 22pF

R315

100k

R317 220k

VCC-Tuner

GND

TUN_AGC_OUT

RF_MON

R308

47k

2

T_SCL

T_SDA

R301

0R*

C303

220uF/16V

8

VCC-Tuner

6

9

5

IFAGC

TUN_RESET

TS_MDI0

TS_MDI1 TS_MDI2 TS_MDI3 TS_MDI4 TS_MDI5

TS_MDI6 TS_MDI7

D_IF+

D_IF-

TS_MDI0

TS_MDI[7..1]

TS_MICLK

TS_MISYNC

TS_MIVALID

I2C-SCL

TUN_RST

I2C-SDA

IFind

#IFind

TS_MIVALID TS_MISYNC

GPP3

DATA_1 CLK_1

TS_MICLK

TS_MISYNC

TS_MIVALID

C204 22nF

C228

100nF

C206

22p

1

TP40

C218

100nF

R224 100R

R220 0R

C223

100nF

R204 33

C227

100nF

C202 22pF

C222

100nF

R230 0R

R228

0/NC

R219

4.7K

R201 100R

R215 33

L200

FB/60R/3A

C224

100nF

C226

100nF

R210 NC/1K

L203

FB/60R/3A

R209 10K

C220

100nF

R225 100R

R221 8.2K

C225

100nF

R202 0R

C20833pF

C216

100nF

R208

0R

X200

24.0MHz

R218

4.7K

L201

FB/60R/3A

C219

100nF

R229

NC/0R

VIN

30

VIN

31

AGC1

42

AGC2/GPP2

41

AVDD

28

AGND

29

AGND

32

VDD

33

RFLEV

34

PLLVDD

21

PLL1TEST

26

PLLGND

22

GPP3

43

CLK2/GPP0

35

DATA2/GPP1

36

XTO24XTI

23

OSCMODE27VSS

1

VSS

3

VSS8VSS

14

VSS

20

VSS

25

VSS

38

VSS40VSS46VSS55VSS

60

RESET

9

CLK1

4

DATA1

5

IRQ

6

SLEEP

10

STATUS

11

BKERR

62

MOSTRT

47

MOVAL

48

MDO7

58

MDO6

57

MDO5

56

MDO4

53

MDO3

52

MDO2

51

MDO1

50

MDO0

49

MOCLK

61

MICLK

63

SADD018SADD117SADD216SADD315SADD4

12

SMTEST

44

CVDD64CVDD59CVDD39CVDD37CVDD

19

CVDD

7

VDD54VDD45VDD13VDD

2

IC200

MSB1200/MSB1228

7531

8642

RP201 33X4

R200

10K/NC

C20933pF

C207

22p

7531

8642

RP200 RP10KX4

R203 100R

C203

100nF

C214

10uF

C200

100nF

C201 22pF

R212 33

L202

FB/60R/3A

C215

100nF

C217

100nF

TUN_RESET

IFAGC

I2C-SDA I2C-SCL

TS_MICLK

TS_MISYNC

TS_MIVALID

TS_MDI[7..1]

TS_MDI0

D_IF-

D_IF+

GND

PLLVDD

AVDD

VDD

VDD Vcore

VDD

GND

Vcore

GND

VCC3.3V

GND

PLLVDDAVDD

GND

VDD

GND

VDDVCC3.3V

GND

C221

10uF

C229

10uF

C230

10uF

7531

8642

RP202 33X4

C256 *

GND

MSB1228 - 24.0MHZ - L204 (VCC_DEM=1,2V)

TP15 TP14TP13TP12

R231 1K

VCC5V

TU_SCL TU_SDA

C237 NC

C238 NC

GND

VCC1.2V VCC1.2V VCC1.2V

5

6

8

9

DIGITAL VCO CONTROL AFC DETECTOR

RC VCO

VIF-PLL

VIF-AGCTUNER AGC

SUPPLY

SIF-AGC

AUDIO

PROCESSING

AND SWITCHES

NARROW-BAND

FM-PLL DEMODULATOR

SINGLE REFERENCE QSS MIXER

INTERCARRIER MIXER

AND AM DEMODULATOR

SOUND CARRIER

TRAPS

4.5 to 6.5 MHz

TAGC

C

AGC(neg)

C

BL

VAGC

(1)

TOP

14 (15)

VPLL

19 (21) )32( 12)61( 51)71( 61)8( 9

4 (2)10 (9)

11 (10)

12 (11)18 (20)20 (22)

2 (31)

1 (30)

(18) 17

(7) 8

(3) 5

(4) 6

REFAFC

AUD

CVBS

SIOMADSDADGNDSCL

MAD

V

P

C

AGC

(6, 12, 13, 14, 17, 19, 25, 28, 29, 32) 13

n.c.AGND

7 (5)

OUTPUT

PORTS

I C-BUS TRANSCEIVER

2

22 (24)3 (1)

LLPMF2PO1PO

DEEM

AFD

VIF2

VIF1

24 (27)

23 (26)

SIF2

SIF1

TDA9885 TDA9886

(1) Not connected for TDA9885.

Chassisplatte / Chassis Board – Tuner YTS190R-12

Chassisplatte / Chassis Board – COFDM Demodulator YTS190R-12

2 - 23

GRUNDIG Service Chassis T5

USB0_DM USB0_DP

VBUS

USB_OCD0_N

C768 10uF

R795

10K

USB0_DM

USB0_DP

USB_OCD0_N

1A

GND

C770 100nF

GND

VCC5V

SIDE_L

SIDE_R

SIDE_V

GND

SIDE_L

SIDE_R

R777

10K

C759

2.2uF

C758 330pF

C762 560pF

R785 12K

R783

10K

R779 12K

C756 560pF

C754

2.2uF

C764 330pF

RCA_AU_IN_1R

RCA_AU_IN_1L

GND GND

GND

TP111

TP107

SIDE_V RCA_CVBS_IN

C741 (10pF)

R761

47R

R763 75R %1

C739

47nF

RCA_CVBS_IN

GND

CVBS

RCA_AU_IN_1L

R

CA_AU_IN_1R

GND

Vin

5

EN

4

GND

2

Fault

3

Vout

1

IC701 AP2171

VCC3.3V-ST

USB Block

1 2 3 4

S707

NC/Side USB

GND

2

1

3

5

4

6

RS-302A1-18

S708 CON_CHINCH

CVBS

L

R

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

032953R

S704

CON16

GND

C775 1uF

GND

RX_DVD/DVD_MUTE TX_DVD

TP146

TP149

TP140

TP134

TP147

TP148

TP153

L70560R/100Mhz

+12V_SW

DVD 15mA

DVD900mA

L703

60R/100Mhz

VCC5V

TX_DVD

RX_DVD/DVD_MUTE

HOTEL TV

RGB1_PR-

RGB1_PR+

RGB1_Y-

RGB1_Y+

SOY_YUV

RGB1_PB+

RGB1_PB-

Pb-IN

Pr-IN

Y-IN

R775 75R %1

R776

47R

C749

47nF

C742

47nF

C755

47nF

R765 75R %1

R769

47R

C752

47nF

C740

1nF

C747

47nF

R771

47R

C744

47nF

R764

47R

R762

470R

R770 75R %1

R774

47R

R766

47R

SOY_YUV

RGB1_Y+

RGB1_Y-

RGB1_PB+

RGB1_PB-

RGB1_PR+

RGB1_PR-

GND

Pr

Y

Pb

Y-IN

Pb-IN

Pr-IN

L

R

Yellow

White

Red

COMP_LIN

COMP_RIN

R780

10K

C763 1uF

C765 560pF

R788 12K

R786

10K

R782 12K

C760 560pF

C757 1uF

COMP_ARIN

COMP_ALIN

GND

TP151

TP150

COMP_ALIN

COMP_ARIN

COMP_LIN

COMP_RIN

L

R

TP129

TP152

TP131

TP118

TP113

TP110

TP128

TP117

DVD OPTION

1 2 3 4

S709

HTV 7SEG

R789 100R

R790 100R

I2C-SCL I2C-SDA

+5V2_ST

TP38 TP36

TP39

+5V2_ST AP2151 0.5A, AP2171 1A

C790 100nF

R793

100K

GND

R791 100R

R792

(0R)

D725

PESD5V0S1BL

GND

SIDE_V SIDE_L SIDE_R

VBUS

VCC

D-

D+

GND

SHELL

5

SHELL

6

USB-A

S706

S705: SMD+TH S706:Full SMD

D726

PESD5V0S1BL

D727

PESD5V0S1BL

1

3

2

4

D732 PRTR5V0U2X

VBUS

Thermal

Sense

Driver

FLG

OUT

GND

IN

EN

UVLO

Current

Limit

Current Sense

Deglitch

AP2141, AP2151 AP2161, AP2171

Chassisplatte / Chassis Board – Interface DVD, AV, Hotel, USB YTS190R-12

2 - 24

SCART1_BLUE

SCART1_RED

SCART1_GREEN

SC1-B+

SC1-G+

SCART1-Lin

SCART1-CVBS_IN

SC1-VSYNC

SCART1-Rin

SC1_CVBS-IN

SC1-HSYNC

SC1_CVBSO

Q7_B

Q6_C

SC1_CVBS_OUT

SC1_CVBSO

SCART1-Rin

SCART1-Lin SC1-Lin

SC1-Rin

SC1-R+

C707 47pF

R707 75R %1

R714 39K

R704 10K

C705

100nF

C715

330pF

R710 470R

C746

47nF

R712

10K

C716 47pF

R713

10K

R705

2.7K

R717 12K

C708 1uF

C701 (330pF)

R719 68R

C704

100nF

R718 12K

R701

75R %1

R715

220R

R721

47R

C709

1uF

L701

300R/100MHz

C706

100nF

C713

560pF

R708 75R %1

R711 127K

C712

560pF

R716

75R %1

C711

1uF

R709

150R %1

C714 330pF

R703

47R

R706 75R %1

C703

47nF

SC1-R+

SC1-G+

SC1-B+

SC1_CVBS-IN

SC1-VSYNC

SC1-HSYNC

SC1_CVBS_OUT

SC1-Rin

SC1-Lin

SC1-C

GND

GNDGND

GND GND GND

GND

VCC5V

GND

GNDGNDGNDGND

Full SCART

SCART_FB_SUB

SCART_MODE

2

61

5

4

3

T701 BC847BPDW1T1

DDC_SCL_D

R

VGA5V

B

VGA-SCL

VGA5V

DDC_SDA_D

VGA-SDA

G

VGA_VSYNC1

VGA_HSYNC1

UART-RX

UART-TX

VGA_VSYNC

VGA_HSYNC

VGA_GIN+

VGA_RIN+

VGA_BIN+

VGA-TX

VGA-RX

VGA-TX

VGA-RX

C735 100nF

R735 510R

R738 (2.4K)

R753

4.7k

R728 75R %1

D720 BAT54C

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC702 24C02

R739 (10K)

R745 NC

R754 0R

C724

100nF

C725 100nF

R727 75R %1

R733 510R

R749 100R

R750 100R

R751

0R

R746

NC

C726

100nF

R744

4.7K

R743

4.7K

R726 75R %1

R757

NC

VGA_HSYNC1

VGA_VSYNC1

UART-RX

UART-TX

VGA_RIN+

VGA_GIN+

VGA_BIN+

VCC5V

GND

GND GND

VCC5V

RGB-

SC1_Lout

SC1_Rout

R756

1K

C732 1nF

R737

1K

C738 1nF

R732

18K

GND

+12V_A

R741 100k

C730

1uF

C727

220pF

GND

C729

220pF

C731

4.7nF

R729

0R

R734

470R

R736 33K

GND

C734

4.7uF/10V

R748

18K

GND

+12V_A

R759 100k

C736

1uF

C733

4.7uF/10V

GND

C737

4.7nF

R752

470R

R755 33K

GND

R740

8.2k

R758

8.2k

GND

+12V_A

C710

2.2uF

C728

4.7uF/10V

C718 1uF

C721

560pF

R724 12K

R722

10K

C719 330pF

PC_Audio-AUR2

PC_Audio-AUL2

GND

TP123

PC_Audio-AUL2

PC_Audio-AUR2

C717 1uF

R720

10K

TP125

C722 560pF

R725 12K

GND

C720

330pF

TP142

TP141

TP145

TP144

TP143

VGA_SOG

C723 100nF

AUCOM

VCOM1

R730

47R

C772 100nF

C771 47nF

GND

VCOM1

AUCOM

SC1_DAC_ROUT

SC1_DAC_LOUT

VCOM0

R702

47R

C702 47nF

GND

VCOM0

8

1

4

3

2

1

IC705A TL082

84

7

5

6

2

IC705B TL082

+12V_A +1 2V_SW

GND

C799 100nF

2

4

6

8

10

12

14

16

18

20

1

3

5

7

9

11

13

15

17

19

21

S703 SCART

RIGHT GND

LEFT

S701

CON_EARPHONE_JACK

1 6 2 7 3 8 4 9 5

11

12

13

14

15

10

17

16

S702 DSUB-15

SC1_Lout SC1_Rout

SC1_CVBSO

SC1_Lout

SC1_Rout

TP121

TP120

TP119

TP109

TP108

TP105

TP104

TP103

TP112

TP114 TP115 TP116

TP127

TP130

TP133

TP136 TP137 TP139

TP135

TP132

TP126

TP124

TP122

R700

150R %1

GND

D702

PESD5V0S1BL

D703

PESD5V0S1BL

D704

PESD5V0S1BL

D705

PESD5V0S1BL

D706

PESD5V0S1BL

D707

PESD5V0S1BL

D708

PESD5V0S1BL

D709

PESD5V0S1BL

D701

PESD5V0S1BL

D710

PESD5V0S1BL

D711

PESD5V0S1BL

D712

PESD5V0S1BL

D713

PESD5V0S1BL

D714

PESD5V0S1BL

D715

PESD5V0S1BL

D716

PESD5V0S1BL

D717

PESD5V0S1BL

D718

PESD5V0S1BL

D719

PESD5V0S1BL

D721

PESD5V0S1BL

D722

PESD5V0S1BL

D723

PESD5V0S1BL

D724

PESD5V0S1BL

R731

2.7K

R723

2.7K

GND

GRUNDIG Service Chassis T5

Chassisplatte / Chassis Board – SCART, VGA YTS190R-12

2 - 25

GRUNDIG Service Chassis T5

RX2+

1

GND2

2

RX2-

3

RX1+

4

GND1

5

RX1-

6

RX0+

7

GND0

8

RX0-

9

CLK+

10

GND_CLK

11

CLK-

12

CEC

13

N.C.

14

SCL

15

SDA

16

CEC_GND

17

5V

18

HP_DETECT

19

20

21 22

23

S602

HDMI Side Input Socket

GND

HDMIA_5V

R616 1k

R614

2.7K

NC1

1

NC2

2

NC3

3

GND4SDA

5

SCL

6

VCLK

7

VCC

8

IC602

24C02

C602 100nF

R612

4.7K

R618 NC

3

1

2

D604

BAT54C

R613

2.7K

GND

HDMIA_5V

VCC5V

TP24

TP27

TP25

TP23

GND

R615

100R

R617

100R

HPDA_DET

T601

BC847B

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D605 (Rclamp0524P)

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D606 (Rclamp0524P)

GND GND

R620 10k

VCC3.3V-ST

R601

10k

HDMI Back Input Socket

GND

HDMIB_5V

R604 1k

R607

2.7K

NC1

1

NC2

2

NC3

3

GND4SDA

5

SCL

6

VCLK

7

VCC

8

IC601

24C02

C601 100nF

R605

4.7K

R610 NC

3

1

2

D601

BAT54C

R606

2.7K

GND

HDMIB_5V

VCC5V

TP20

TP22

TP19

TP18

GND

R608

100R

R609

100R

HPDB_DET

T602

BC847B

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D602 (Rclamp0524P)

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D603 (Rclamp0524P)

GND GND

R602 10k

VCC3.3V-ST

R603

10k

HDMI-CECR649 (200R)

R646 (0R)

R643 (27K)

R647

(100R)

HDMI-CEC

VCC5V

VCC3.3V-ST

For CEC Leakage Protect

1

3 2

T603 (2N7002)

R645 0R

R648 0R

HDMIB-CEC

HDMIA-CEC

HPDA_CTRL

HDMIA-CLKN HDMIA-CLKP

HDMIA-RX0N HDMIA-RX0P

HDMIA-RX1P

HDMIA-RX1N

HDMIA-RX2N HDMIA-RX2P

HDMIA-SCL

HDMIA-SDA

HDMIA-RX1P

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIA-SCL

HDMIA-SDA

HDMIB_CTRL

HDMIB-CLKN HDMIB-CLKP

HDMIB-RX0N HDMIB-RX0P

HDMIB-RX1P

HDMIB-RX1N

HDMIB-RX2N HDMIB-RX2P

HDMIB-SCL

HDMIB-SDA

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

HDMIA-CLKN

HDMIA-SCL HDMIA-SDA

HDMIB-SCL HDMIB-SDA

R619 100k

R611 100k

HDMIA-CEC

HDMIB-CEC

TP26

RX2+

1

GND2

2

RX2-

3

RX1+

4

GND1

5

RX1-

6

RX0+

7

GND0

8

RX0-

9

CLK+

10

GND_CLK

11

CLK-

12

CEC

13

N.C.

14

SCL

15

SDA

16

CEC_GND

17

5V

18

HP_DETECT

19

20

21

22

S601

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D607 (Rclamp0524P)

IN1

1

IN2

2

GND

3

IN3

4

IN45OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

D608 (Rclamp0524P)

HDMIB_5V

HDMIA_5V

1 2

3 4

5 6

7 8

L603 Dual Common mode Choke

1 2

3 4

5 6

7 8

L604 Dual Common mode Choke

1 2

3 4

5 6

7 8

L601 Dual Common mode Choke

1 2

3 4

5 6

7 8

L602 Dual Common mode Choke

D610

PESD5V0S1BL

D609

PESD5V0S1BL

7

3

4

3

4

7

PCM_WAIT_NPCM_WAIT_N1

PCM_D0 PCM_D1 PCM_D2

PCM-D0 PCM-D1 PCM-D2 PCM-D3 PCM-D4 PCM-D5 PCM-D6 PCM-D7

PCM_D3 PCM_D4 PCM_D5 PCM_D6 PCM_D7

PCM_IRQA_NPCM_IRQA_N1

R515

4.7K

A1

2

A2

3

A3

4

A4

5

A5

6

A6

7

A7

8

A8

9

A9

10

A10

11

OE

23

NC

1

B1

22

B2

21

B3

20

B4

19

B5

18

B6

17

B7

16

B8

15

B9

14

B10

13

VCC

24

GND

12

IC502

SN74CBTD3861

GND

PCMCIA_VCCIN

To MST ICFrom PCMCIA

PCM_A10

PCM_A11 PCM_A9 PCM_A8 PCM_A13 PCM_A14

PCM_A12 PCM_A7 PCM_A6 PCM_A5 PCM_A4 PCM_A3 PCM_A2 PCM_A1 PCM_A0

PCM_CE_N

PCM_WE_N

PCM_REG_N

PCM_WAIT_N1

PCM_RESET

PCM_IORD_N PCM_IOWR_N

PCM_CD1_N

TS_MISYNC

TS_MICLK

TS_MDI0 TS_MDI1 TS_MDI2 TS_MDI3

TS_MDI4 TS_MDI5

TS_MDI6 TS_MDI7

TS_MIVALID

TS_MDO3 TS_MDO4 TS_MDO5 TS_MDO6 TS_MDO7

TS_MDO2 TS_MOVAL

TS_MOSTART TS_MDO0 TS_MDO1

PCM_A[14..0]

PCM_D[7..0]

TS_MIVALID

TS_MISYNC

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MDO[7..0]

PCM_IORD_N PCM_IOWR_N

PCM_WAIT_N

PCM_RESET

PCM_REG_N PCM_OE_N PCM_WE_N

PCM_CD_N

PCM_CE_N PCM_IRQA_N

TS_MDI0

PCM_CD2_N

PCM_CD1_N

PCM_CD_N

MOCLKTS_MOCLK

PCM_OE_N

TS_MDI[1..7]

C505 NC

R507 100K

R506

33R

C504 100nF

C508 1uF

C502 10pF

R514 10k

R508

33R

R513 10k

VCC

GND

1 2

43

5

IC501

NC7SZ08

C503 10nF

C501 100nF

R509

33R

PCM_A[14..0]

PCM_D[7..0]

TS_MICLK TS_MISYNC TS_MIVALID

PCM_RESET PCM_WAIT_N PCM_REG_N PCM_OE_N PCM_WE_N PCM_IORD_N PCM_IOWR_N

PCM_CD_N

TS_MOCLK TS_MOSTART TS_MOVAL TS_MDO[7..0]

PCM_CE_N PCM_IRQA_N

TS_MDI0

PCM_PWR_CTL

TS_MDI[1..7]

GND

VCC-PCMCIA

GND

PCMCIA_VCCIN

GND

VCC-PCMCIA

Hi: Off Lo: On

R520 10K

VCC5V

R519 10k

R501

33R

7 5 3 1

8 6 4 2

RP5014*33R

R510 33R

7 5 3 1

8 6 4 2

RP502 4*33R

7 5 3 1

8 6 4 2

RP5044*33R

7 5 3 1

8 6 4 2

RP5034*33R

R502 33R

GND

VCC3.3V-ST

CI_PCM_WAIT_N

PCM_IRQA_N1

CI_PCM_IRQA_N

C507 NC

PCM_PWR_CTL

PCM-D0 PCM-D1 PCM-D2

PCM-D3 PCM-D4 PCM-D5 PCM-D6 PCM-D7

PCMCIA_VCCIN

GND

1

D3

2

D4

3

D5

4

D6

5

D7

6

CE1#

7

A10

8

OE#

9

A11

10

A9

11

A8

12

A13

13

A14

14

WE#

15

READY

16

VCC

17

VPP1

18

MIVAL

19

MICLK

20

A12

21

A7

22

A6

23

A5

24

A4

25

A3

26

A2

27

A1

28

A0

29

D0

30

D1

31

D2

32

WP

33

GND

34

GND

35

CD1#

36

MDO3

37

MDO4

38

MDO5

39

MDO6

40

MDO7

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

MISTRT

46

MDI0

47

MDI1

48

MDI2

49

MDI3

50

VCC

51

VPP2

52

MDI4

53

MDI5

54

MDI6

55

MDI7

56

MOCLK

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

MOVAL

62

MOSTART

63

MDO0

64

MDO1

65

MDO2

66

CD2#

67

GND

68

SHIELD69SHIELD

70

SHIELD71SHIELD

72

TYCO _ SHORT VERSION PART NUMBER :1857468-1

S501

PCMCIA CONN

GND

TS_MICLK

Vin

5

EN

4

GND

2

Fault

3

Vout

1

IC503 AP2151

GND

T501 BC847B

R522

22k

L502

300R/100MHz

+5V2_ST

TP8

TP9

TP10

R523 10K

VCC3.3V-ST

AP2151 or STPS2151

NC7SZ08 or NC7SZ32

TS_MDI[1..7]

TS_MDO[7..0]

4

3

7

SN74CBTD3861

A1

B1

A10

B10

OE

2

11

23

22

13

Thermal

Sense

Driver

FLG

OUT

GND

IN

EN

UVLO

Current

Limit

Current Sense

Deglitch

AP2141, AP2151 AP2161, AP2171

Chassisplatte / Chassis Board – HDMI YTS190R-12

Chassisplatte / Chassis Board – Common Interface YTS190R-12

2 - 26

GRUNDIG Service Chassis T5

TUN_RESET

SC1_DAC_ROUT

SC1_DAC_LOUT

B3_RXE3B2_RXE3+

G0_RXE1+

G1_RXE1-

R3_RXO2R2_RXO2+

R1_RXOC-

B4_RXEC+

R6_RXO0+

R7_RXO0-

R0_RXOC+

G2_RXE0+

G3_RXE0-

R5_RXO1-

B7_RXE2B6_RXE2+

B5_RXEC-

R4_RXO1+

G4_RXO4+

B1_RXE4B0_RXE4+

G7_RXO3-

G5_RXO4-

G6_RXO3+

BRI_ADJ-PWM2

AU_DACO_R

AU_DACO_L

PC_Audio-AUL2

RCA_AU_IN_1R

RCA_AU_IN_1L

SC1-Rin

SC1-Lin

PC_Audio-AUR2

VCOM1

RCA_CVBS _IN SC1_CVBS-IN

SC1-HSYNC SC1-VSYNC

VBLCTRL-P2

Panel_ON-P1

MUTE_S

AMP_STB

I2C-SDA

HDMI-CEC

UART-RX

UART-TX

I2C-SCL

VGA_VSYNC1

RGB1_PB-

RGB1_PB+

RGB1_Y-

RGB1_Y+

VGA_HSYNC1

POWER_SW

RGB1_PR+ RGB1_PR-

SOY_YUV

PCM_IOWR_N

PCM_IORD_N

PCM_A[14..0]

PCM_CD_N

PCM_IRQA_N

PCM_CE_N

PCM_WE_N

PCM_OE_N

PCM_REG_N

PCM_RESET PCM_WAIT_N

PCM_D[7..0]

SC1-C SC1-G+ SC1-B+

SC1-R+

PCM_PWR_CTL

VGA_SOG

VGA_BIN+

VGA_GIN+

VGA_RIN+

USB0_DM

USB0_DP

TS_MDI0

TS_MICLK

TS_MDO[7..0]

TS_MIVALID

TS_MISYNC

B_DQM1

B_DQM0

A_CKE

A_MCLKZ

A_MCLK

A_WEZ

A_RASZ

A_ODT

A_BA0

A_CASZ

A_DQS0P

A_BA1

A_DQM1

A_DQM0

A_DQS0M

A_MDATA[15..0] A_MADR[12..0]

A_DQS1M

B_MADR[12..0]

B_MDATA[15..0]

B_MCLK

B_WEZ B_CASZ

B_CKE

B_MCLKZ

B_BA1

B_RASZ B_BA0

B_DQS0M B_DQS0P

B_ODT

B_DQS1P

B_DQS1M

A_DQS1P

SC1_CVBS_OUT

EAR_AU_OUT_L EAR_AU_OUT_R

USB_OCD0_N

SC1-C

POWER_SW

VBLCTRL-P2

MUTE_S

B0_RXE4+

G6_RXO3+

G7_RXO3-

R3_RXO2-

R0_RXOC+

B1_RXE4-

R7_RXO0-

R4_RXO1+

R1_RXOC-

R2_RXO2+

R6_RXO0+

G2_RXE0+

G3_RXE0-

G0_RXE1+

R5_RXO1-

B2_RXE3+

G1_RXE1-

B7_RXE2-

B3_RXE3-

B4_RXEC+

B5_RXEC-

G4_RXO4+

G5_RXO4-

B6_RXE2+

BRI_ADJ-PWM2

RCA_AU_IN_1R

RCA_AU_IN_1L

PC_Audio-AUR2

PC_Audio-AUL2

SC1-Rin

SC1-Lin

VCOM1

RCA_CVBS_IN

AU_DACO_R

SC1_CVBS-IN

AU_DACO_L

SC1_DAC_ROUT

SC1_DAC_LOUT

SIFP

SIFM

SC1-HSYNC

I2C-SDA

I2C-SCL

UART-RX

UART-TX

RGB1_PB-

RGB1_PB+

RGB1_Y-

RGB1_Y+

VGA_VSYNC1

VGA_HSYNC1

SOY_YUV

RGB1_PR+

AMP_STB

RGB1_PR-

HDMI-CEC

SC1-VSYNC

Panel_ON-P1

SC1-G+

TUN_RESET

SC1-B+

PCM_WAIT_N

PCM_A[14..0]

PCM_RESET

PCM_IORD_N

PCM_WE_N

PCM_OE_N

PCM_REG_N

PCM_IRQA_N

PCM_CE_N

PCM_IOWR_N

PCM_PWR_CTL

PCM_CD_N

PCM_D[7..0]

VGA_GIN+

VGA_RIN+

VGA_SOG

VGA_BIN+

SC1-R+

USB0_DM

USB0_DP

TS_MISYNC

TS_MDI0

TS_MIVALID

TS_MICLK

B_DQS0P

B_DQS0M

B_DQM1

B_DQM0

B_DQS1P

B_DQS1M

A_RASZ

A_CKE

A_ODT

A_BA0 A_BA1

A_WEZ

A_MCLKZ

A_CASZ

A_MCLK

A_MADR[12..0]

A_DQS1M

A_DQS0P

A_DQS0M

A_MDATA[15..0]B_MDATA[15..0]

B_MADR[12..0]

A_DQM1

A_DQM0

A_DQS1P

B_BA1

B_WEZ

B_CASZ

B_MCLK

B_CKE

B_RASZ

B_MCLKZ

B_ODT

B_BA0

SC1_CVBS_OUT

EAR_AU_OUT_R

EAR_AU_OUT_L

USB_OC

D0_N

GPIO

LVDS Block

PAL IF

Audio Bloc

k

HDMI Block

CVBS Block

RGB Block

I2C / UART

PCMCIA

USB Block

Transport Stream

DDR-SDRAM Block

Key Pad

IRIN

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MOCLK TS_MOSTART TS_MOVAL TS_MDO[7..0]

COMP_ARIN

COMP_ALIN

COMP_ARIN

COMP_ALIN

ANTPOWER

SIFM SIFP

AUCOM

SC-RGB in

VGA in

COMP in (DVD)

VGA Sync

VCOM0

LED_R-GPIO1

System-RST

LED_R-GPIO1

IRIN

SAR0

HPDA_CTRL

HDMIA-CLKN HDMIA-CLKP HDMIA-RX0N HDMIA-RX0P

HDMIA-RX1P

HDMIA-RX1N

HDMIA-RX2N HDMIA-RX2P

HDMIA-SCL

HDMIA-SDA

HDMIA-RX1P

HDMIA-CLKN

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIA-SCL

HDMIA-SDA

HDMIB_CTRL

HDMIB-CLKN HDMIB-CLKP HDMIB-RX0N HDMIB-RX0P

HDMIB-RX1P

HDMIB-RX1N

HDMIB-RX2N HDMIB-RX2P

HDMIB-SCL

HDMIB-SDA

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

RX_DVD

TX_DVD

RX_DVD/DVD_MUTE

RF_AGC_CTL

XTALOXTALI

R446 1M

C464 12pF

X400

12MHz

C465 12pF

GNDGND

CL=20pF ; C0max=5pF

System XTAL System Reset

VIFP

VIFM

VIFM VIFP

TV_CVBS+

System-RST

C495 100nF

GND

VCC3.3V-ST

GND

R486

100R

Vcc

3

GND_1

1

RESET

2

IC407

STM810SWX6F

TP85

ST-BY_SW

RF_MON

RX_DVD/DVD_MUTE

10

12

AVDD_LPLL

AVDD_VIF

B_MDDR_VREF

AVDDL_DVI

AVDD_33

AVDD_MPLL

VDDP

AVDD_DDR

A_MDDR_VREF

AVDD_MEMPLL

VDDC

PWM0 PWM1

I2C-SDA

I2C-SCL

L410 SBY1005

R456

0R

R458 10K

L406 60R/100MHz

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC405 24C512K

C446 10uF

R444 1K 1%

C459 1nF

C452

100nF

C440 10uF

C456 100nF

R461 100R

C455 10uF

R487 1K

L403 60R/100MHz

R460 100R

C463

2.2uF

C457 1nF

C445 1uF

C466 10uF

R457 10K

R442 1K 1%

L407 SBY1005

R445 1K 1%

VD33

N8

VD33

N12

VD33

P11

VD33

P12

AVDD_LPLL

K18

VSS

L20

VSS

L19

VSS

J9

VSS

B15

VDDC

H9

VDDC

H10

VDDC

J15

VDDC

K15

VDDC

L15

VDDC

M15

VDDC

N10

VDDC

N11

VDDC

P10

AVDD_DDR

G11

AVDD_DDR

G12

AVDD_DDR

G14

AVDD_33

H7

AVDD_33

J6

AVDD_33

J7

AVDD_33

K7

ACDDL_DVI

G10

AVDD_MPLL

N7

AVDD_MEMPLL

D14

VSS

J10

VSS

J11

VSS

J12

VSS

J13

VSS

K9

VSS

K10

VSS

K11

VSS

K12

VSS

K13

VSS

L9

VSS

L10

VSS

L11

VSS

L12

VSS

L13

VSS

M9

VSS

M10

VSS

M11

VSS

M12

VSS

M13

VSS

W6

AVDD_VIF

P7

AVDD_DDR

H14

VSS

D7

VSS

D8

VSS

D12

AVDD_DDR

G13

VSS

D13

AVDD_DM

P13

IC404B

MSD237HENG

C451 10uF

C438 1uF

L411 60R/100MHz

L402

60R/100MHz

C470 1uF

R484 1K

L404 60R/100MHz

L405 60R/100MHz

L408 SBY1005

L401

60R/100MHz

C461 1uF

C467 10uF

C491 100nF

R441 1K 1%

L409 60R/100MHz

C431 10uF

C460 1uF

C454 10uF

C437 10uF

C458 100nF

VCC3.3V-ST

GND

VDDP

GNDGND

AVDD_DDR

AVDD_33

AVDD_AU

AVDD_VIF

VCC1.8V

AVDD_DDR

GND

AVDD_LPLL

GNDGND

AVDD_DDR

AVDD_33

GND

AVDDL_DVI

VDDCVCC1.2V

GND

AVDD_LPLL

GND GND

VCC3.3V

AVDD_MEMPLL

GNDGND

AVDD_OTG

GND

AVDD_MPLL

AVDD_AU

GND

AVDD_MEMPLL

VCC3.3V

AVDD_OTG

AVDD_MPLL

GND VCC3.3V-ST

GND

VCC3.3V

EE_PWR

IC Configuration Selection

EEPROM (Channel data)

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC406 24C512K (SOIC)

SPI_CSN_1

SP_SDO

SPI_SCK

SPI_SDI

FLASH_WPN

CE#

1

SO

2

WP#

3

VSS4SI

5

SCK

6

HOLD#

7

VDD

8

EXPOSED

9

IC403

M25PX64-VME6TG

R450

4.7K R452

NC

C480 100nF

GND

VCC3.3V-FlashVCC3.3V-Flash

Boot Loader SPI Flash

VCC3.3V

R449

0R

VCC3.3V-Flash

R448

4.7K

MLP 8X6

I2C-SDA

I2C-SCL

R401

4.7K

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

IC408 24C32

R405 100R

R404 100R

C401

100nF

GND

R402

4.7k

R406 NC

GND

R403 100R

TP35

TP32

TP34

TP45

EEPROM (Panel data)

EE_PWR

A_MDDR_VREFB_MDDR_VREF

GND

AVDD_VIF

TP31

WP

A_MDDR_VREF

B_MDDR_VREF

TP33

TP37

TP28

TP29

TP30

TP47

TP51

TP55

TP48

TP49

TP52

TP53

TP54

TP106

HW_VER0

R490 NC/10k

R491 NC/0R

VCC3.3V-ST

GND

HW version selection

EE_WP

6

5

6

5

6

STM809/810/811/812

COMPARE

V

RST

V

CC

DEBOUNCE

t

rec

Generator

MR

(1)

RST

(2)

0

Mains switch on

Trigger

@

(VCC3.3V-ST)

Chassisplatte / Chassis Board – Scaler YTS190R-12

2 - 27

HDMI-CEC

PWM0

VBLCTRL-P2

BRI_ADJ-PWM2

PWM1

B3_RXE3-

B7_RXE2-

B5_RXEC-

B_DQS0M

B2_RXE3+

B6_RXE2+

B4_RXEC+

G2_RXE0+

G3_RXE0-

B_DQS0P

B_DQM1

B_DQM0

R5_RXO1R4_RXO1+

R0_RXOC+

G6_RXO3+

G7_RXO3-

R2_RXO2+

R3_RXO2-

R7_RXO0-

R1_RXOC-

G5_RXO4-

R6_RXO0+

G4_RXO4+

B1_RXE4B0_RXE4+

G0_RXE1+

G1_RXE1-

VR27

VGA_GIN+

B_MDATA11

B_MDATA12

B_MDATA5

B_MDATA2

VGA_VSYNC1

VGA_HSYNC1

A_MADR12

A_CKE

A_WEZ

A_MADR11

A_BA0

A_MADR1

A_MADR10

A_MADR5

A_MADR9

A_MADR7

A_MADR3

A_BA1

HDMIA-SCL

A_MDATA15

A_MDATA8

A_DQS1M

A_DQS1P

AUVRP

AUVRM

AUVAG

TS_MDO0

TS_MDO2

TS_MDO3

TS_MDO4

TS_MDO1

TS_MDO5

TS_MDO6

TS_MDO7

B_MDATA13

B_MDATA10

VR12

B_MDATA4

B_MDATA3

VGA_SOG

I2C-SCL

I2C-SDA

System-RST

SP_SDO

SPI_CSN_1

SPI_SCK

SPI_SDI

USB0_DM

USB0_DP

SC1-B+

SC1-R+

PCM_PWR_CTL

B_MDATA14

B_MDATA9

A_MDATA4

A_MDATA3

A_MDATA10

A_MDATA13

B_MDATA1

B_MDATA6

B_MADR4

B_MADR2

B_CASZ

B_ODT

B_MCLK

B_MADR11

B_MADR8

B_WEZ

B_MADR6

B_MADR0

B_RASZ

B_MCLKZ

HDMI-REXT

SC1_DAC_LOUT

SC1_DAC_ROUT

AU_DACO_R

AU_DACO_L

AVDD_AU

PC_Audio-AUL2

SC1-Lin

SC1-Rin

SC1-VSYNC

SC1-HSYNC

RCA_AU_IN_1L

RCA_AU_IN_1R

AUCOM

PC_Audio-AUR2

PCM_WAIT_N

PCM_REG_N

PCM_IRQA_N

PCM_IOWR_N

PCM_RESET

PCM_D7

PCM_OE_N

PCM_CE_N

PCM_IORD_N

PCM_WE_N

PCM_D4

PCM_D3

PCM_D2

PCM_D1

PCM_CD_N

PCM_A13

PCM_A12

PCM_A11

PCM_D6

PCM_D5

PCM_A9

PCM_A8

PCM_A7

PCM_A6

PCM_D0

PCM_A14

PCM_A3

PCM_A2

PCM_A1

PCM_A0

PCM_A10

AUVRP

PCM_A5

PCM_A4

AUVRM

AUVAG

VCOM1

SC1_CVBS-IN

RCA_CVBS_IN

HDMIA-SDA

VGA_BIN+

RGB1_Y-

RGB1_PB+

RGB1_Y+

RGB1_PB-

VCLP

RGB1_PR+

RGB1_PR-

SOY_YUV

REFM

REFP

AMP_STB

A_ODT

AVDD_OTG

A_MDATA1

A_MDATA6

A_MDATA11

A_MDATA12

A_MDDR_VREF

A_MDATA0

A_MDATA7

B_DQS1P

B_DQS1M

REFM

VCLP

REFP

VGA_RIN+

B_BA0

B_CKE

B_MADR3

B_MADR1

B_MADR10

B_MADR5

B_BA1

B_MADR9

B_MADR12

B_MADR7

UART-RX

SAR0

FLASH_WPN

UART-TX

POWER_SW

IRIN

B_MDDR_VREF

SC1-G+

B_MDATA7

B_MDATA0

A_MADR2

A_MADR0

A_MADR6

A_RASZ

A_CASZ

A_MADR8

A_MADR4

A_DQM1

A_DQS0M

A_DQS0P

A_DQM0

A_MDATA14

A_MDATA9

A_MDATA5

A_MDATA2

A_MCLK

A_MCLKZ

B_MDATA15

B_MDATA8

EE_WP

SC1_CVBS_OUT

EAR_AU_OUT_R

EAR_AU_OUT_L

ANTPOWER

Panel_ON-P1

TS_MDI0

USB_OCD0_N

XTALI

VR27

SIFM

SIFP

TUN_RESET

MUTE_S

VR12

DDR2_32Bit

Transport Stream

10 Bit LVDS

PCMCIA/CI

AUDIO IN/OUT

VIDEO IN/OUT

HDMI_0/1

HDMI_2

B_RX2P

F1

DDCDB_CK

E6

TCON_EXT0

F3

RXCN

G2

HSYNC1

G7

VSYNC1

G8

VCLP

G4

REFP

G5

REFM

G6

BIN1P

H3

SOGIN1

H4

GIN1P

H5

RIN1P

H6

BIN0M

N1

BIN0P

N2

GIN0M

M1

GIN0P

M2

SOGIN0

J5

RIN0M

L1

HSYNC0

L7

VSYNC0

M7

CVBS3P

M3

CVBS2P

P1

CVBS1P

M4

VCOM1

R1

CVBS0P

P2

VCOM0

R2

CVBS_OUT

T1

SIFP

Y2

SIFM

W2

LINE_IN_0LP5LINE_IN_0RP6LINE_IN_1LR3LINE_IN_1RR4LINE_IN_2LY3LINE_IN_2RY4LINE_IN_3LR5LINE_IN_3R

R6

VIM0

V2

AUVRMN5AUVRPN4AUVAGU3LINE_OUT_1L

V3

SPI_CZ1

W14

SAR0/FDSP_IMS/MCU_TMS

W12

SAR1/FDSP_ICLK/MCU_TCK

Y12

SAR2/FDSP_IDI/MCU_TDI

V14

SAR3/FDSP_IDO/MCU_TDO

U15

PWM0

R16

PWM1

P16

PWM2

T16

PWM3

U16

DDCR_DAT

Y15

DDCR_CLK

W15

RESET

U14

SPI_CK1

Y13

SPI_DI1

W13

SPI_DO1

Y14

TS1_SYNC/FDSP_IDI

P18

TS1_CLK/FDSP_IDO

N18

TS1_D0/FDSP_IMS

M17

TS1_VLD/FDSP_ICLK

L17

I2S_OUT_BCK

E12

I2S_OUT_SD

E11

SPDIF_OUT

E14

HOTPLUGB

E5

B_RX1N

E2

B_RX2N

F2

B_RX1P

E1

B_RX0P

D1

RIN0P

L2

LINE_OUT_2L

Y5

LINE_OUT_2R

W3

UART_TX(DDCA_DAT)

P15

UART_RX(DDCA_CLK)

P14

PCM_WAIT_N/CI_WACK

R18

B_ODD0/LA4P

W16

B_ODD1/LA4N

Y16

G_ODD7/LB3N

T20

B_ODD4/LACKP

W18

B_ODD5/LACKN

Y18

B_ODD6/LA2P

W19

B_ODD7/LA2N

Y19

G_ODD0/LA1P

Y20

G_ODD1/LA1N

W20

G_ODD2/LA0P

V19

G_ODD3/LA0N

V20

G_ODD4/LB4P

U19

G_ODD5/LB4N

U20

G_ODD6/LB3P

T19

R_ODD0/LBCKP

R19

IRIN

V10

INT

V11

PCM_IORD_N/CI_RD

U18

PCM_IOWR _N/CI_WR

T18

PCM_OE_N

V18

PCM_WE_N

V17

PCM_REG_N/CI_C LK

U17

R_ODD1/LBCKN

R20

R_ODD2/LB2P

P19

R_ODD3/LB2N

P20

R_ODD4/LB1P

N19

R_ODD5/LB1N

N20

R_ODD6/LB0P

M19

R_ODD7/LB0N

M20

PCM_RESET

P17

I2S_IN_WS/GPIO23

H16

I2S_IN_BCK/GPIO24

G16

I2S_IN_SD

G15

SPDIF_IN

F15

I2S_OUT_MCK

E16

I2S_OUT_WS

F16

CEC/UART_RX1/CEC

E3

DDCDB_DA

E4

C0(CVBS7P)

K4

C1(CVBS6P)

J4

Y0(CVBS5P)

K3

Y1(CVBS4P)

J3

LINE_OUT_1R(DACO_S)U4LINE_OUT_0L(DACO_L)

Y6

LINE_OUT_0R(DACO_R)

W4

TS0_D[0]

V4

TS0_D[1]

U5

TS0_D[2]

U6

TS0_D[3]

R7

TS0_D[4]

R8

TS0_D[5]

T7

TS0_D[6]

T8

TS0_D[7]

V5

TS0_VLD

V6

TS0_SYNC

W5

TS0_CLK

Y7

PCM_CE_N/CI_CS

T17

PCM_IRQA_N/CI_INT

R17

B_ODD2/LA4N

W17

B_ODD3/LA3N

Y17

AVDD_OTG

F8

DM_P0

A2

DP_P0

A1

XTAL2O

U1

XTAL2I

V1

TESTPIN

F7

PCM_A0/CI_A0

V13

PCM_A1/CI_A1

U13

PCM_A2/CI_A2

T13

PCM_A3/CI_A3

R13

PCM_A4/CI_A4

V12

PCM_A5/CI_A5

U12

PCM_A6/CI_A6

T12

PCM_A7/CI_A7

R12

PCM_A8/CI_A8

U11

PCM_A9/CI_A9V9PCM_A10/CI_A10

T11

PCM_A11/CI_A11

T10

PCM_A12/CI_A12

U10

PCM_A13/CI_A13

V8

PCM_A14/CI_A14

V7

PCM_D0/CI_D0

R11

PCM_D1/CI_D1

R10

PCM_D2/CI_D2P9PCM_D3/CI_D3R9PCM_D4/CI_D4T9PCM_D5/CI_D5U9PCM_D6/CI_D6U8PCM_D7/CI_D7

U7

PCM_CD_N

N17

I2S_OUT_MUTE

E10

GPIO14/UART_TX1

E9

B_RX0N

D2

RXCP

G1

RX0N

H2

RX0P

H1

RX1N

J2

RX1P

J1

RX2N

K2

RX2P

K1

HOTPLUGA

F4

REXT

F5

DDCDA_DA

F6

DDCDA_CK

G3

CVBS_OUT2

K5

VSYNC2

K6

BIN2

L3

GIN2

L4

SOGIN2

L5

RIN2

L6

TAGC

M5

VR27

M6

VIFM

W1

VIFP

Y1

GPIO_A1

N6

GPIO_A2

P3

GPIO_A3

P4

UART_RX2

T2

UART_TX2

U2

LINE_IN_4L

T3

LINE_IN_4RT4LINE_IN_5L

T5

LINE_IN_5RT6AVDD_AUSDM

P8

C_RXCNW8C_RXCP

Y8

DDCDC_DA

T14

C_RX0NW9C_RX0PY9C_RX1N

W10

C_RX1P

Y10

C_RX2N

W11

C_RX2P

Y11

HOTPLUGC

N15

IRIN2

M18

INT2

L18

B_DQ[4]

H20

B_DQ[3]

H19

B_DQ[1]

H18

B_DQ[6]

G20

B_DQ[11]

G19

B_DQ[12]

G18

B_DQ[9]

F20

B_DQ[14]

F19

B_DQM[1]

F18

B_DQM[0]

E20

B_UDQS_P

E19

B_UDQS_M

E18

B_LDQS_P

D20

B_LDQS_M

D19

B_DQ[15]

D18

B_DQ[8]

C20

B_DQ[10]

C19

B_DQ[13]

C18

B_DQ[7]

B20

B_DQ[0]

B19

B_DQ[2]

B18

B_DQ[5]

A20

B_VREF

E15

B_CK

A19

B_CK_N

A18

B_ODT

C17

B_RAS_N

B17

B_CAS_N

A17

B_A[0]

C16

B_A[2]

D16

B_A[4]

B16

B_A[6]

D15

B_A[8]

A16

B_A[11]

C15

B_WE_N

D17

B_CKE

J18

B_BA[1]

E17

B_BA[0]

J19

B_A[1]

F17

B_A[10]

J20

B_A[5]

H17

B_A[9]

K19

B_A[12]

K20

B_A[7]

J17

B_A[3]

G17

A_MVREF

E13

A_ODT

C4

A_RAS_NB4A_CAS_N

A4

A_AD[0]C3A_AD[2]B3A_AD[4]A3A_AD[6]

D6

A_AD[8]

D5

A_AD[11]

D4

A_WE_N

D3

A_CKE

D11

A_BA[1]

D10

A_BA[0]

D9

A_AD[1]

A15

A_AD[10]

C14

A_AD[5]

B14

A_AD[9]

A14

A_AD[12]

C13

A_AD[7]

B13

A_AD[3]

A13

A_DQ[4]

C12

A_DQ[3]

B12

A_DQ[1]

A12

A_DQ[6]

C11

A_DQ[11]

B11

A_DQ[12]

A11

A_DQ[9]

C10

A_DQ[14]

B10

A_DQM[1]

A10

A_DQM[0]

C9

A_UDQS_P

B9

A_UDQS_M

A9

A_LDQS_P

C8

A_LDQS_M

B8

A_DQ[15]

A8

A_DQ[8]

C7

A_DQ[10]B7A_DQ[13]

A7

A_DQ[7]

C6

A_DQ[2]

A6

A_DQ[5]

C5

A_CK

B5

A_CK_N

A5

VBUS_P1

E8

DM_P1

B2

DP_P1

B1

CID_P1

E7

B_RXCN

C2

B_RXCP

C1

DDCDC_CK

R14

A_DQ[0]

B6

SAR4

V15

SAR5

V16

PWM4

T15

PWM5

R15

VR12

N3

IOUTX

N16

VREXT

M16

PMCEC

W7

A_BA[2]

F14

B_BA[2]

K17

IC404A

MSD237HENG

C476 100nF

C475 100nF

R443 390R 1%

R447 82 0R

R459 0R

C478 100nF

L412 60R/100MHz

C485

4.7uF

C487

22uF

C477 (100nF)

C489

22uF

C482 10uF

GND

VCC3.3V

GND

GNDGND

GND

7 5 3 1

8 6 4 2

RP4164*47R

7 5 3 1

8 6 4 2

RP4174*47R

7 5 3 1

8 6 4 2

RP4184*47R

7 5 3 1

8 6 4 2

RP4194*47R

7 5 3 1

8 6 4 2

RP4204*47R

7 5 3 1

8 6 4 2

RP4214*47R

7 5 3 1

8 6 4 2

RP4224*47R

TS_MOCLK

TS_MOVAL

TS_MOSTART

TS_MICLK

TS_MIVALID

TS_MISYNC

COMP_ALIN

COMP_ARIN

R407 NC

TV_CVBS+

VCOM0

R427

100R

UART-TX

TP41 TP42 TP43 TP44

LED_R-GPIO1

HDMIA-RX1P

HDMIA-CLKN

HDMIA-RX2P

HDMIA-RX1N

HDMIA-RX2N

HDMIA-CLKP

HDMIA-RX0P

HDMIA-RX0N

HPDA_CTRL

HDMIB-RX1P

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX1N

HDMIB-RX2N

HDMIB-CLKP

HDMIB-RX0P

HDMIB-RX0N

HPDB_CTRL

HDMIB-SCL

HDMIB-SDA

TX_DVD

SC1-C

RF_AGC_CTL

XTALO

HW_VER0

C493 1nF

C492 1nF

GND

ST-BY_SW

RF_MON

R408

NC/0R

R409

NC

R410

0R

RX_DVD/DVD_MUTE

Chassisplatte / Chassis Board – Scaler YTS190R-12

GRUNDIG Service Chassis T5

2 - 28

GRUNDIG Service Chassis T5

A_DQS1P

A_CASZ

B_MDDR_VREF

A_DQS1M

M1_CLK-

B_BA0 B_BA1

B_MCLKZ

M1_CLK+

B_CKE

B_MCLK

A_DQS0M

A_BA1

A_BA0

A_DQM1

A_WEZ

A_DQM0

B_MADR11

B_MADR8

A_MCLKZ

B_CASZ

B_WEZ

B_RASZ

B_ODT

M0_CLK+

M0_CLKA_CKE

A_MCLK

A_MDDR_VREF

A_ODT

A_DQS0P

A_RASZ

A_WEZ A_CASZ

A_CKE

A_MCLKZ

A_MCLK

A_DQS0P

A_BA1

A_RASZ

A_ODT

A_BA0

A_DQS1P

A_DQS1M

A_DQM1

A_DQM0

A_DQS0M

B_MDATA[15..0] B_MADR[12..0]

B_DQM1

B_DQM0

A_MDATA[15..0] A_MADR[12..0]

B_CASZ

B_CKE

B_MCLKZ

B_MCLK

B_WEZ

B_DQS0P

B_ODT

B_BA1

B_RASZ B_BA0

B_DQS1P

B_DQS1M

B_DQS0M

B_DQS1P B_DQS1M B_DQM1

B_DQS0M B_DQM0

B_DQS0P

C408 100nF

C416 100nF

C430 100nF

C428

100nF

C422 100nF

C409 100nF

C427 100nF

R415

22R

C411 100nF

C421 100nF

C429 100nF

C419 100nF

C406 100nF

R414

22R

R419

22R

C415 100nF

C410 100nF

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

RAS

K7

CASL7WE

K3

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

UDQS

B7

UDQS

A8

UDM

B3

LDQS

F7

LDQS

E8

CS

L8

LDM

F3

VDD

A1

VSS

A3

VDDQ

A9

VSSQ

B8

VSSQ

B2

VDDQC1VDDQC7VDDQ

C3

VSSQD2VSSQ

D8

VDD

E1

VSS

E3

VSSQ

E7

VSSQ

F2

VSSQ

F8

VDDQG1VDDQG3VDDQ

G7

VDDQ

G9

VDDQ

E9

VSSQH2VSSQ

H8

VDDL

J1

VREF

J2

VSS

J3

VSSDL

J7

VDD

J9

ODT

K9

VDD

M9

VSSN1VSS

P9

VDD

R1

VDDQ

C9

VSSQ

A7

IC401

HYB18TC512160B2F-2.5

C414 10uF

L413 0R

C426 100nF

A0

M8

A1

M3

A2

M7

A3

N2

A4

N8

A5

N3

A6

N7

A7

P2

A8

P8

A9

P3

A10

M2

A11

P7

A12

R2

BA0

L2

BA1

L3

CK

J8

CK

K8

CKE

K2

RAS

K7

CAS

L7

WE

K3

DQ0

G8

DQ1

G2

DQ2

H7

DQ3

H3

DQ4

H1

DQ5

H9

DQ6

F1

DQ7

F9

DQ8

C8

DQ9

C2

DQ10

D7

DQ11

D3

DQ12

D1

DQ13

D9

DQ14

B1

DQ15

B9

UDQS

B7

UDQS

A8

UDM

B3

LDQS

F7

LDQS

E8

CS

L8

LDM

F3

VDD

A1

VSS

A3

VDDQ

A9

VSSQB8VSSQ

B2

VDDQC1VDDQ

C7

VDDQ

C3

VSSQ

D2

VSSQ

D8

VDD

E1

VSS

E3

VSSQ

E7

VSSQ

F2

VSSQ

F8

VDDQG1VDDQ

G3

VDDQG7VDDQG9VDDQ

E9

VSSQH2VSSQ

H8

VDDL

J1

VREF

J2

VSS

J3

VSSDL

J7

VDD

J9

ODT

K9

VDD

M9

VSS

N1

VSS

P9

VDD

R1

VDDQ

C9

VSSQ

A7

IC402

HYB18TC512160B2F-2.5

C424 100nF

R417

(150R)

R418 22R

C423 100nF

R416

(150R)

C425 100nF

C420 100nF

C405 10uF

C418 100nF

A_MCLK

A_BA0

A_RASZ

A_CASZ

A_WEZ

A_CKE

A_MCLKZ

A_DQS1M

A_DQS0P

A_DQS0M

A_ODT

A_BA1

A_MADR[12..0]

A_MDATA[15..0]

A_DQM1

A_DQM0

A_DQS1P

B_RASZ

B_CASZ

B_WEZ

B_CKE

B_MCLKZ

B_MCLK

B_DQS0P

B_DQS0M

B_ODT

B_BA1

B_BA0

B_DQM1

B_DQM0

B_DQS1P

B_DQS1M

B_MADR[12..0]

B_MDATA[15..0]

GND

DDR18V

GND

DDR18V

VCC1.8V

DDR18V

GND

DDR18V

GNDGND

GND

DDR18V

GND

DDR18V

A_MDDR_VREF

A-MDATA6

A_MDATA3

A_MDATA4

A_MDATA6

A-MDATA4

A-MDATA1

A-MDATA3

A_MDATA1

A_MDATA5

A_MDATA2

A_MDATA7 A_MDATA0

A_MDATA8

A_MDATA15

A_MDATA13

A_MDATA10

A-MDATA8 A-MDATA10

A-MDATA5

A-MDATA7 A-MDATA0 A-MDATA2

A-MDATA13

A-MDATA15

A-MDATA11 A-MDATA12

A-MDATA14

A-MDATA9

A_MDATA12

A_MDATA14

A_MDATA11

A_MDATA9

7531

8642

RP4074*47R

7531

8642

RP4034*47R

7531

8642

RP4054*47R

7531

8642

RP4014*47R

B_MDATA3

B-MDATA6

B_MDATA1

B_MDATA4

B_MDATA6

B-MDATA4

B-MDATA1

B-MDATA3

B_MDATA0

B_MDATA13

B_MDATA10

B_MDATA5

B_MDATA2

B_MDATA7

B-MDATA8 B-MDATA10

B_MDATA8

B_MDATA15

B-MDATA13

B-MDATA15

B-MDATA5

B-MDATA7 B-MDATA0 B-MDATA2

B-MDATA12

B-MDATA14

B-MDATA9

B-MDATA11

B_MDATA12

B_MDATA14

B_MDATA11

B_MDATA9

7531

8642

RP4024*47R

7531

8642

RP4064*47R

7531

8642

RP4084*47R

7531

8642

RP4044*47R

A-MDATA6

A-MDATA4

A-MDATA1

A-MDATA3

A-MDATA8

A-MDATA10

A-MDATA5

A-MDATA7

A-MDATA0

A-MDATA2

A-MDATA13

A-MDATA15

A_MADR12

A_MADR9 A_MADR10

A_MADR1

A_MADR7

A_MADR3

A_MADR5

A-MDATA11 A-MDATA12

A-MDATA14

A-MDATA9

A_MADR4

A_MADR6

A_MADR2

A_MADR0

A_MADR8

A_MADR11

B-MDATA6

B-MDATA4

B-MDATA1

B-MDATA3

B-MDATA8

B-MDATA10

B-MDATA13

B-MDATA15

B-MDATA5

B-MDATA7

B-MDATA0

B-MDATA2

B-MDATA12

B-MDATA14

B-MDATA9

B-MDATA11

B_MADR5

B_MADR10

B_MADR9

B_MADR1

B_MADR12

B_MADR7

B_MADR2

B_MADR0

B_MADR4

B_MADR6

B_MADR3

R482 56R

R440 56R

R438 56R

R422 56R R424 56R R426 56R

R480 56R

R439 56R

R436 56R

R421 56R R423 56R R425 56R

A_MDDR_VREF

B_MDDR_VREF

TP11

EAR_AU_OUT_L

EAR_AU_OUT_R

AU_DACO_L

AU_DACO_R

AMP_STB

MUTE_S

AU_DACO_L

AU_DACO_R

R813 47K

R816

470R

C826

3.3nF

R819 47K

C824

3.3nF

R811

470R

GND GND

R801

84.5K 1%

C811 470pF

R807 10K

GND

TO SPEAKER

R804

84.5K 1%

C817

1uF/10V

C814

220nF

C813 220nF

R802 10k

L801

120R\100MHz

L802

120R\100MHz

C807

1uF/50V

C806

470pF

C805

100nF

GND

C803

1uF/10V

GND

L807

120R/100MHz

+12V

C810 470pF

GND

1

2

3

4

S802

SPEAKER

GND

TP7

TP4

AU_OP_L

AU_OP_R

OUTL-1OUTL-

2

BOOT

3

MONO

4

PRE_L

5

IN_L

6

NC7NC

8

/MUTE

9

/SHDN

10

REGEN

11

COM

12

AGND

13

AGND

14

REG

15

VS

16

NC17IN_R18PRE_R19MOD20C1-21C1+22OUTR-23OUTR-

24

OUT_R+

25

OUT_R+

26

PVDD

27

PGND

28

PGND

29

PVDD

30

OUTL+

31

OUTL+

32

EXP

33

IC801 MAX9736B

MUTE_S

R805 4.7K

AMP_STB R806 100R

C801 470pF

GND

C802

1uF/10V

GND

L806

120R\100MHz

L805 120R\100MHz

GND

+5V_ST

VCC5V

GND

R836 2K 1%

2

3

1

IC803

ZTL431AFFTA

T801 BC847B

GND

R832

4.7k

R833

22K

R834 NC

R835

1.2k %1

R839

330R %1

+5V_ST

R844

10K

+12V

R830

100R

R845 100R

R846 4.7K

VCC5V

DE-POP

C835

2.2nF

R826

10k

C841

2.2nF

C842

3.3nF

C840

1uF

C827 100uF/6.3V

C834 100uF/6.3V

C830 1nF

C837

1nF

EAR_AU_OUT_L

C839 1uF

R822 33K

R823 10K

R814 22K

R521 22K

R818

10k

C836

3.3nF

C833

1uF

EAR_AU_OUT_R

C820 10uF

TP1

TP3

R815

470R

R825

470R

L803

300R/100MHz

L804

300R/100MHz

C831 220pF

C838 220pF

RIGHT

LEFT

GND

Right

Left

GND

S801

Headphone

R810

0R

GND

GNDGND

GND

GNDGND

R847 1K

GND

VCC5V

GND

HPL

HPR

GND

VCC

1

OUT1

2

VIN1

3

BP

4

GND

5

/SD

6

VIN2

7

OUT2

8

EXP

9

IC802 TS488IQT

GND

TP5 TP6

VCC3.3V-ST

TP2

L+ L-

R+ R-

P1

1

P2

2

S803

R_SPK

P1

1

P2

2

S804

L_SPK

L+ L-

R+

R-

OUTL-

OUTL+

OUTR+

OUTR-

D801

PESD5V0S1BL

D802

PESD5V0S1BL

R803 1K

C809

10u 16V

C808 10u 16V

28

27

≥

•

MAX9736

CHARGE

PUMP

POWER

STAGE

REGULATOR

BIAS

MOD

MONO

SHDN

MUTE REGEN

AGND

PGND

N.C.

20

FBR19

INR18

COM 12

INL6

FBL5

REG

VS

PVDD

C1N

C1P

15

16

1203 ,7222

3BOOT

31, 32 OUTL+

25, 26 OUTR+

23, 24 OUTR-

1, 2 OUTL-

4

10 911

13, 14

7, 8, 17

28, 29

CONTROL

VIN1

2

VIN2

6

GND

VOUT2

7

VOUT1

1

BIAS

BPS

3

Vcc

85/9

STDB

5

TS488 = STDB TS489 = STDB

Chassisplatte / Chassis Board – Scaler RAM YTS190R-12

Chassisplatte – Verstärker / Chassis Board – Ampliﬁer YTS190R-12

2 - 29

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

Y

0 10 20 30 40 50 60 70 80 90 100 110 120 130

X

FID2008

C2044

TR2002

CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE

S2007

7

9

S2006

HIGH

VOLTAGE

HIGH

VOLTAGE

FID2007

H2004

R2037

C2045

R2049

R2053

R2054

R2036

FID2005

T5

BARCODE

H2002

C901

L902

C904

T5AH/250V

F2003

LEHIM YONU

1

C900

L903

IC900

L900

C906

C907

C912

L901

C913

2 1

5

R2073

R2055

C2006

+

R2041

6

OK

HI-POT

T1 T2 T3 T4

+

C2013

C2003

L2001

+

12V JACK

D2010

S2005

FUSE

POWER

1

BOARD

MAIN

S2

S2000

C2018

S3

KEYBOARD

1

S1

H2003

1

R903

R902

C902

POWER

V-0

H2001

GRUNDIG ELK

B6C194R

+

FID2006

6

5

9

0

10

20

30

40

50

60

70

80

90

Y

0102030405060708090100110120130

X

FID2004

C903

C2018

D2014

C2045

R2003

D2015

D2013

C2051

R2051

R2045

7

R2046

9

VOLTAGE

R2043

C2050

HIGH

VOLTAGE

HIGH

S2007

S2006

FID2003

R2044

R2035

C

20

3

9

R2049

R2047

C2053

R2053

D2016

C2042

R2037

C2054

R2054

T2002

C2055

1

D2017

IC2006

C2046

C2012

C2038

GRUNDIG ELK

R2036

FID2001

B6C194R

R2013

R2063

C2044

C2006

L2012

R2042

C2062

C2065

T2001

R901

C905

R2007

C2056

IC2001

1

T2006

R2002

1

2

TR2002

5 6

C2016

C2041

1

T2004

R2009

R2005

C2004

R2041

R2048

C2048

R2040

C2052

C2043

R2050

R2064

C2036

C2047

R2073

R2055

C2049

LEHIM YONU

C2002

C2014

C2003

S2005

L2001

F2003

D2010

S2

1

S3

1

S1

C916

C908

C2096

C909

S2000

C911

FID2002

C910

R2008

C2013

7

Netzteil - Inverter / Power Supply - Inverter B6C194

Ansicht von der Bestückungsseite / View of Component Side

Ansicht von der Lötseite / View of Solder Side

C2036 B 93 44 C2038 B 120 60 C2039 B 120 55 C2041 B 89 36 C2042 B 114 46

C2043 B 110 46 C2044 T 60 16 C2045 T 111 16 C2046 B 110 67

C2047 B 101 55 C2048 B 102 46 C2049 B 101 64 C2050 B 70 15 C2051 B 106 24

C2052 B 107 46 C2053 B 109 42 C2054 B 116 42 C2055 B 119 47

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

C2002 B 40 59 C2003 T 39 67 C2004 B 89 44 C2006 T 83 56 C2012 B 112 67

C2013 T 18 66 C2014 B 21 65 C2016 B 85 36 C2018 T 19 56

C2056 B 40 54 C2062 B 101 59 C2065 B 98 59 C2096 B 16 57 C900 T 32 47

C901 T 23 50 C902 T 18 49 C903 B 24 36 C904 T 26 50

C905 B 33 36 C906 T 48 30 C907 T 36 47 C908 B 9 57 C909 B 13 57

C910 B 13 65 C911 B 9 65 C912 T 39 47 C913 T 43 47

2 - 30

C916 B 21 30

D2010 T 53 76 D2013 B 123 14 D2014 B 77 18 D2015 B 116 24 D2016 B 113 41 D2017 B 123 46

F2003 T 61 73

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

IC2001 B 36 54 IC2006 B 111 56 IC900 T 29 33

L2001 T 55 66 L2012 B 92 57 L900 T 46 30 L901 T 46 39 L902 T 29 50 L903 T 43 30

POS. X Y

R2002 B 44 54 R2003 B 112 46 R2005 B 71 51 R2007 B 32 49 R2008 B 16 65

R2009 B 67 51 R2013 B 29 54 R2035 B 123 55 R2036 T 111 65 R2037 T 117 41

R2040 B 104 39 R2041 T 101 36 R2042 B 98 55 R2043 B 67 15 R2044 B 118 12

R2045 B 107 67 R2046 B 73 15 R2047 B 109 24 R2048 B 99 46 R2049 T 108 33

R2050 B 98 51 R2051 B 106 42 R2053 T 113 32 R2054 T 119 24 R2055 T 70 64

R2063 B 32 54 R2064 B 101 51 R2073 T 67 64 R901 B 23 30 R902 T 20 49 R903 T 20 46

S1 T 11 29 S2 T 11 15 S2000 T 5 61 S2005 T 32 83 S2006 T 111 7

S2007 T 59 7 S3 T 6 11

T2001 B 26 51 T2002 B 123 39 T2004 B 73 42 T2006 B 59 42

TP1 B 79 53 TP10 B 21 68 TP11 B 71 84 TP12 B 80 20 TP13 B 78 63

TP14 B 107 14 TP15 B 56 14 TP16 B 120 63 TP17 B 107 75 TP18 B 114 49

TP19 B 70 53 TP2 B 39 86 TP20 B 87 32 TP21 B 67 18 TP22 B 120 12

TP23 B 6 52 TP24 B 72 72 TP25 B 66 38 TP26 B 65 15 TP27 B 104 42

TP28 B 101 39 TP29 B 80 16 TP3 B 57 69 TP30 B 57 48 TP31 B 9 52

TP32 B 106 64 TP33 B 104 49 TP34 B 124 20 TP35 B 103 51 TP36 B 103 61

TP37 B 61 50 TP38 B 108 35 TP39 B 125 38 TP4 B 26 57 TP40 B 120 43

TP41 B 116 39 TP42 B 125 44 TP43 B 111 38 TP44 B 92 60 TP45 B 3 11

TP46 B 4 31 TP47 B 6 36 TP48 B 6 23 TP49 B 5 28 TP5 B 20 57

TP50 B 9 2 TP51 B 8 20 TP52 B 8 6 TP53 B 8 17 TP54 B 44 49

TP55 B 20 33 TP56 B 28 24 TP57 B 33 32 TP58 B 109 64 TP59 B 110 49

TP6 B 40 51 TP60 B 44 35 TP61 B 19 48 TP7 B 30 51 TP8 B 117 20 TP9 B 78 59

TR2002 T 85 17

GND

D2010 STPS340

TP2

F2003

FUSE 5A/250V

+12V VDD12V

L2001

10uH

C2003

1000uF 16V

C2002

100nF

GND

TP1

TP3

C2013

1000uF

16V

VCC5V5

C2014

100nF

R2008

10K

GND

VCC5V

GND

R2007

2.2k

R2013

2.2K

C2018

470uF 16V

C2056

10uF 16V

GND

TP4

TP6

TP5

TP7

C2096

1uF

2

3 1

IC2001

ZTL431AFFTA

TP10TP8 TP9 TP11

R2063

2.2K

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P8

8

P7

7

S2000

CON8-2MM

12V

GND GND

VCC5V

DIM

BL ON/OFF

VCC5V5

R2002

1k

VDD12V

GND

VCC5V

VDD12V

BL ON/OFF DIM

1

PWR

2

GND

3

GND

S2005

12V_JACK

1

3 2

T2001 PMV56XN

L900

120R/100MHz

C905 10uF

GND

C903

4.7uF

GND

R903

27K%1

R901

5.36K %1

C902

4.7nF

GND

L901

4.7uH

R902

3.3K%1

TP54

GND

VDD12V

L902

120R/100MHz

GND

C912 10uF

C913 22uF

VCC5V5

C904

10uF

VIN_A

1

INH (EN)

2

VFB

3

AGND4SYNC

5

VIN_SW

6

SW

7

PGND

8

9

IC900

ST1S10

C906 1uF

C900 10uF

C901

10uF

C907 10uF

C911

10uF

C910

10uF

C908

10uF

C909

10uF

L903

120R/100MHz

C916

4.7nF

TP55

TP56

TP57

TP60

TP61

OLP

1

OLR

2

ENA

3

S_S

4

GND

5

REF

6

ADIM

7

BDIM

8

EA_IN

9

EA_OUT10BCT

11

RT

12

CT

13

OUTD

14

OUTC

15

PGND

16

VIN

17

OUTA

18

OUTB

19

RT1

20

IC2006

FAN7314

C2046

220pF

C2043

220nF

C2052

1uF

C2038

1nF

C2048

4.7nF

C2050

10nF

R2037

10K

C2042

10nF

R2041

27K

C2047

10nF

R2040

56K

R2042

16.9K

C2044

12pF

R2048

100K

R2050

9K1

R2049

10K

FB

C2039

1NF

OLR

R2035

100K

R2051

330K

C2055

1uF

3

1

2

D2017 BAW56

OLP

3

1

2

D2016

BAW56

R2054

10K

OLP2

C2054

2.2nF

R2053

10K

OLP1

C2053

2.2nF

1

2

3

4

5

6 7

8

9

10

11

12

TR2002

HVT-108

R2036

82K

RT

OUTB

OUTA

C2049

4.7nF

R2045

27K

RT

C2041

10uF

3

1

2

D2014

BAV70

3

2

1

D2015

BAV99

R2046

1K

C2051

10nF

C2045

12pF

R2047

1K

OLR

R2043

1K

FB

3

2

1

D2013 BAV99

R2044

1K

OLP2OLP1

BL ON/OFF

DIM

BL ON/OFF

DIM

REF

T2002

BC848B

WARNING

TP12

TP16

TP36TP35

TP28

TP31

TP23

TP38

TP40

TP39

TP42

TP41

TP20

TP15

TP14

TP21

TP34

TP22

TP26

TP29

R2064

9K1

C2062

1uF

1

2

S2006

1

2

S2007

C2016

10uF

C2036

10uF

TP18 1

2 3

T2004

FDD4141

1

2

3

T2006

FDD8778

R2005

2.7k

R2009

2.7k

C2004

10uF

TP13

TP19

TP30

TP25

TP37

TP27

TP32

R2055

0R

R2073

0R

VDD12V

C2006

470uF 16V

C2065

1uF

L2012 120R/100Mhz 3A

TP43

TP24

TP17

TP33

C2012

27pF

R2003

22K

TP44

TP58

TP59

7

9

6

5

Netzteil - Inverter / Power Supply - Inverter B6C194

ST1S10

MOSEFET

Control

Logic

I_SEN

+

+–

–

+

–

OSC

Soft Start

Burst Control

Thermal

Shut Down

Driver

PMOS

NMOS

SW

SYNC

VFB INHAGNDPGND

REF

V

IN_A

V

IN_SW

Comp

R-sense

Sync Block

FAN7314

BDIM

S_S

EA_OUT

OSCILLATOR

RT

Error Amp.

EA_IN

6µA

-

+

CT

max. 2V

min. 0.5V

ADIM

OUTB

OUTA

OUTC

OUTD

-

+

V

IN

2.5V

REF

ENA

UVLO 5V

UVLO

REF

BCT

+

-

max. 2V

min. 0.5V

OLR

-

+

2V

-

+

1.4V

S

olr

Q

SET

CLR

S

R

UVLO

OLP

-

+

PGND

S

burst

Voltage

Reference

&

Internal

Bias

V

IN

1.4µA

UVLO

Output

Driver

Output

Control

Logic

AGND

S

olr

105µA

S

burst

85µA

Output

Driver

+

-

2.4V

V

a

+α

V

OLP

V

OLP

+α

2.5V 1.5V

RT1

M

RT1

Striking

Logic

OLP

S_S

2.65V

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

P8

8

P7

7

S3

CON8-2.5MM

13579 10

864

2

S2

5x2header

KEY

IR

LED

5V

GND1

12V_VCC

GND1 GND1

5V5_VCC

5V5_VCC VCC5V_VCC

DIM_1 BL ON/OFF_1

PINOUT: 1-GND\2-GND\3-5V5\4-12V\5-VCC5V\6-IR\7-DIM\8-KEY\9-BL\10-LED

KEYPAD PSU

GND1

P1

1

P2

2

P3

3

P4

4

P5

5

P6

6

S1

CON6

TP45

TP46

TP47

TP48

TP49

TP50

TP51

TP52

TP53

5

679

2 - 31

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

160

Y

0 10 20 30 40 50 60 70 80 90 100 110 120

X

VOLTAGE

D2007

C

2

0

3

T5

D2026

C2081

S2006

GRUNDIG ELK

C2061

IN

R2006

T5AH/250V

C

2

0

3

5

J2001

D2010

FUSE

F2001

S2005

DC

T2AH/250V

FUSE

C

2

0

2

C2057

C2011

L2005

S2001

C2034

+

1

KYB

J2012

C2045

J2011

L2006

F2003

C2032

+

J2008

J2013

J2004

VOLTAGE

HIGH

YSY194-02

V-0

J2002

J2005

R2041

J2003

R2004

1

L2003

C2091

L2002

C2005

4 5

D2002

R2086

J2009

6

R2026

12

11

TR2001

R2001

YYY

01 9 78

D2027

YYY

D2001

J2006

TR2002

+

C2006

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH SAME TYPE AND RATING OF FUSE

CAUTION:

S2002

AC IN

LIVE PART

DANGER!

+

C2009

C2015

R2010

R2039

+

C2019

C2080

R2002

+

C2013

L2004

J2016

C2018

L2001

+

1

C2003

+

C2096

SASI

S2003

J2007

S2007

BARCODE

HIGH

C2044

J2015

OK

HI-POT

4T3T1T 2T

4

8

1

2

Netzteil - Inverter / Power Supply - Inverter YSY194

Ansicht von der Bestückungsseite / View of Component Side

C2061 T 2 117 C2062 B 13 88 C2063 B 15 88 C2080 T 110 96 C2081 T 92 105

C2082 B 12 21 C2091 T 68 53 C2096 T 115 115

D2001 T 81 121 D2002 T 75 68 D2003 B 61 114 D2004 B 68 49 D2006 B 17 8

D2007 T 55 126 D2010 T 42 15 D2013 B 23 47 D2014 B 31 88 D2015 B 14 133

D2016 B 13 54 D2017 B 27 57 D2026 T 91 81 D2027 T 81 115

F2001 T 73 13 F2003 T 48 20

FB2001 B 25 8 FB2002 B 40 40 FB2003 B 22 8 FB2004 B 37 40

H2001 T 120 5

H2002 T 7 5 H2003 T 120 155 H2004 T 24 155 HS2007 T 99 20

IC2001 B 99 138 IC2002 B 102 61 IC2003 B 88 90 IC2004 B 67 94 IC2005 B 25 27

IC2006 B 21 73 IC2007 B 27 18 IC2008 B 22 97 IC2009 B 14 97

J2001 T 78 12 J2002 T 19 80 J2003 T 32 62 J2004 T 45 88 J2005 T 22 89

J2006 T 14 91 J2007 T 92 151 J2008 T 36 91 J2009 T 85 68 J2011 T 35 8

J2012 T 30 24 J2013 T 38 103 J2015 T 66 147 J2016 T 105 126

L2001 T 119 95 L2002 T 75 62

POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y POS. X Y

C2001 B 50 110 C2002 B 116 108 C2003 T 116 105 C2004 B 33 40 C2005 T 66 67

C2006 T 30 97 C2007 B 59 125 C2008 B 36 25 C2009 T 92 70 C2010 B 55 98

C2011 T 67 28 C2012 B 62 125 C2013 T 105 105 C2014 B 112 114 C2015 T 80 53

C2016 B 24 130 C2017 B 15 28 C2018 T 109 115 C2019 T 102 79 C2020 B 84 107

C2021 B 32 29 C2022 T 60 14 C2023 B 95 85 C2024 B 105 73 C2025 B 73 94

C2026 B 4 30 C2027 B 9 21 C2028 B 32 25 C2029 B 32 13 C2030 B 37 13

C2031 B 34 13 C2032 T 40 35 C2033 T 83 34 C2034 T 18 18 C2035 T 62 7

C2036 B 28 130 C2037 B 20 19 C2038 B 15 82 C2039 B 31 75 C2040 B 26 84

C2041 B 20 130 C2042 B 25 63 C2043 B 23 63 C2044 T 16 142 C2045 T 15 41

C2046 B 12 74 C2047 B 21 59 C2048 B 11 67 C2049 B 17 82 C2050 B 20 137

C2051 B 29 47 C2052 B 18 63 C2053 B 24 52 C2054 B 22 52 C2055 B 31 71

C2056 B 103 138 C2057 T 67 22 C2058 B 34 29 C2059 B 15 19 C2060 B 10 74

2 - 32

L2003 T 60 60 L2004 T 99 118 L2005 T 67 41 L2006 T 34 17 L2010 B 92 79 L2012 B 28 86

Q2001 B 58 93 Q2002 B 54 93

R2001 T 49 121 R2002 T 98 101 R2003 B 118 108 R2004 T 61 69 R2005 B 62 120

R2006 T 43 44 R2007 B 98 131 R2008 B 107 105 R2009 B 52 98 R2010 T 103 72

R2011 B 70 34 R2012 B 67 34 R2013 B 96 133 R2014 B 87 107 R2015 B 67 28

R2016 B 36 29 R2017 B 79 94 R2018 B 119 92 R2019 B 71 94 R2020 B 62 93

R2021 B 77 94

R2022 B 6 30 R2023 B 9 30 R2024 B 12 30 R2025 B 64 93 R2026 T 50 100

R2027 B 70 28 R2028 B 67 22 R2029 B 59 98 R2030 B 64 22 R2031 B 33 36

R2032 B 11 17 R2033 B 34 25 R2034 B 13 15 R2035 B 30 83 R2036 B 13 82

R2037 B 36 65 R2038 B 17 88 R2039 T 91 77 R2040 B 15 63 R2041 T 28 55

R2042 B 23 59 R2043 B 17 133 R2044 B 19 38 R2045 B 20 82 R2046 B 22 137

R2047 B 27 47 R2048 B 13 63 R2049 B 10 63 R2050 B 15 59 R2051 B 20 63

T: Bestückungsseite / Component Side B: Lötseite / Solder Side

POS. X Y

TP106 B 75 95 TP107 B 11 83 TP11 B 31 78 TP110 B 97 14 TP114 B 23 66

TP116 B 102 70 TP117 B 62 96 TP12 B 10 79 TP13 B 9 45 TP14 B 34 21

TP15 B 33 124 TP16 B 25 43 TP17 B 118 126 TP18 B 9 145 TP19 B 18 94

TP2 B 50 93 TP20 B 23 80 TP21 B 8 60 TP22 B 22 43 TP23 B 25 138

TP24 B 10 76 TP25 B 17 55 TP26 B 36 57 TP27 B 32 32 TP28 B 13 68

TP29 B 13 77 TP3 B 49 42 TP30 B 27 44 TP31 B 9 55 TP32 B 13 58 TP33 B 30 50

TP34 B 24 55 TP35 B 10 53 TP36 B 29 55 TP37 B 16 52 TP38 B 47 121

TP39 B 27 6 TP4 B 57 97 TP40 B 58 106 TP41 B 118 103 TP42 B 56 76

TP43 B 36 60 TP44 B 64 70 TP45 B 110 59 TP46 B 72 118 TP47 B 40 98

TP48 B 112 117 TP49 B 82 17 TP5 B 43 74 TP50 B 63 44 TP51 B 89 111

TP52 B 103 80 TP53 B 89 106 TP54 B 98 123 TP55 B 90 81 TP56 B 98 134

TP57 B 107 70 TP58 B 84 81 TP59 B 65 30 TP6 B 110 108 TP60 B 72 44

TP61 B 18 18 TP62 B 79 41 TP63 B 70 24 TP64 B 20 66 TP65 B 92 86

TP66 B 121 91 TP67 B 30 21 TP68 B 9 66 TP69 B 6 26 TP7 B 2 30

TP70 B 119 131 TP71 B 84 95

R2052 B 11 13 R2053 B 10 59 R2054 B 20 50 R2055 B 29 66 R2058 B 29 25

R2060 B 98 85 R2061 B 64 97 R2063 B 96 138 R2064 B 18 59 R2074 B 103 73

R2076 B 15 15 R2077 B 13 10 R2078 B 18 28 R2086 T 75 73

S2001 T 6 20 S2002 T 95 11 S2003 T 121 117 S2005 T 50 7 S2006 T 7 41 S2007 T 7 142 T2001 B 102 131 T2002 B 28 52 T2003 B 29 35

TP1 B 87 11 TP10 B 21 30 TP100 B 50 113 TP101 B 80 60 TP102 B 60 119

TP104 B 60 122 TP105 B 108 80

TP72 B 9 27 TP73 B 121 134 TP74 B 88 74

TP75 B 119 129 TP76 B 75 93 TP77 B 12 27 TP78 B 26 100 TP79 B 30 12 TP8 B 77 103

TP80 B 38 33 TP81 B 29 30

TP82 B 46 14 TP83 B 31 18 TP84 B 23 18 TP85 B 36 4 TP86 B 26 32

TP87 B 38 46 TP88 B 6 12 TP89 B 15 11 TP9 B 58 55 TP90 B 84 77

TP91 B 60 32 TP92 B 19 9 TP93 B 12 70 TP94 B 87 29

TR2001 T 68 92 TR2002 T 21 117

ZD2001 B 8 13 ZD2002 B 106 78 ZD2003 B 99 79

GRUNDIG Service Chassis T5

0

10

20

30

40

50

60

70

80

90

100

110

120

130

140

150

160

Y

0102030405060708090100110120

X

D2015

R2043

IC2003

C2016

R2039

R2013

T2001

ZD2001

D2013

R2047

C2051

R2054

R2049

D2004

S2001

R2077

C2031

C2029

C2030

C

2

0

3

5

S2005

R2006

D2006

FB2003

FB

20

01

FID2001

F2003

C

2

0

2

R2030

R2015

~

R2012

L2005

R2028

R2027

F2001

R2011

~

C20

3

R2052

C2027

R2032

R2034

C2082

C2059

R2076

C2037

1

C2026

R2022

R2023

S2006

C2045

R2024

C

2

0

3

4

C2017

R2078

IC2005

R2044

IC2007

1

C2028

C2008

L2006

R2058

R2033

1

T2003

C2004

C2021

R2016

C2058

R2031

FB2004

FB2002

R2050

R2064

R2053

R2048

C2052

R2040

R2051

D2016

C2046

C2048

C2060

R2036

C2049

C2038

C2062

R2045

C2063

R2038

C2054

T2002

C2053

R2041

C2047

D2017

R2042

1

C2040

C2043

R2055

C2042

C2055

R2037

L

2

0

1

2

IC2006

R2035

C2039

D2014

L2003

C2005

+

1

R2004

Q2002

Q2001

R2020

R2025

-

L2002

C2009

R2086

D2002

D2026

TR2001

R2026

R2009

C2010

R2029

C2001

D2007

IC2004

R2019

C2025

R2021

R2017

1

R2061

D2003

R2005

C2007

C2012

C2020

R2014

D2027

D2001

IC2009

1

C2061

TR2002

C2041

1

IC2008

C2006

C2036

S2002

LIVE PART

FID2003

DANGER!

C2023

R2060

C2015

C2009

1

R2074

L2010

ZD2003

C2024

IC2002

GRUNDIG ELK

R2010

YSY194-02

C2019

ZD2002

R2018
