Grundfos S2, S3, S4, ST Installation And Operating Instructions Manual

S pumps, ranges 72-74-78

S2, S3, S4, ST
55-520 kW

Installation and operating instructions

GRUNDFOS INSTRUCTIONS

English (GB)

2

English (GB) Installation and operating instructions

Original installation and operating instructions.

CONTENTS

Page

1. Symbols used in this document

2. General description

This booklet includes instructions for installation, operation and
maintenance of Grundfos submersible sewage and wastewater
S-range pumps with motors of 55 to 520 kW.

Fig. 1 S pump, range 72

1. Symbols used in this document

2

2. General description

2

2.1 Applications

3

2.2 Potentially explosive environments

3

2.3 Operating conditions

4

2.4 Sound pressure level

4

3. Identification

5

3.1 Type key

5

3.2 Nameplates

6

3.3 Approval plates, range 72

6

3.4 Ex certification and classification

6

4. Safety

7

5. Transportation and storage

7

5.1 Lifting the pump

7

5.2 Raising pump to upright position

9

5.3 Storage

10

6. Installation

10

6.1 Installation types

10

6.2 Start and stop levels

12

6.3 Submerged installation on auto-coupling

12

6.4 Column pipe installation

12

6.5 Dry installation

13

7. Motor protection

14

7.1 IO 113

14

7.2 SM 113

14

7.3 Switches and sensors

14

8. Electrical connection

16

8.1 Cross-sections for power cables

16

8.2 Wiring diagram for sensors

17

8.3 Frequency converter operation

17

9. Startup

18

9.1 Checking the direction of rotation

18

10. Maintenance and service

19

10.1 Oil check and oil change

19

10.2 Inspection and adjustment of impeller clearance

20

10.3 Contaminated pumps

22

11. Fault finding chart

23

12. Disposal

23

Warning
Prior to installation, read these installation and

operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.

Warning
If these safety instructions are not observed,

it may result in personal injury.

Warning
These instructions must be observed for

explosion-proof pumps. We recommend that you
also follow these instructions for standard
pumps.

Warning
If these instructions are not observed, it may lead

to electric shock with consequent risk of serious
personal injury or death.

Warning
The surface of the product may be so hot that

it may cause burns or personal injury.

Warning
The sound pressure level is so high that hearing

protection must be used.

Caution

If these safety instructions are not observed,
it may result in malfunction or damage to the
equipment.

Note

Notes or instructions that make the job easier
and ensure safe operation.

TM03 1507 1110

Pos. Description

1 Inlet
2Outlet
3 Power supply cables
4 Control cable
5 Lifting bracket
6 Terminal box
7 Submersible motor
8Pump

17 Air vent valve

English (GB)

3

2.1 Applications

S pumps, range 72, 74 and 78, are designed for the pumping of
sewage and wastewater in a wide range of municipal and
industrial applications.

Depending on the installation type, the pumps can be used for
submerged or dry, horizontal or vertical, installation.

Maximum solids size: 90-145 mm, depending on impeller type.

2.2 Potentially explosive environments

In potentially explosive environments, use only Ex-approved
apparatus. All range-72 pumps are available as Ex versions.
Range 72 Ex pumps can be used in hazardous areas classified
as Zone 1 or Zone 2.

Warning
Special conditions for safe use of S pumps,

range 72 Ex, 74 and 78:

1. Make sure the moisture switches and thermal
switches are connected in two separate circuits
and have separate alarm outputs (motor stop) in
case of high humidity or high temperature in the
motor.

2. Bolts used for replacement must be class A4-80
or A2-80 according EN/ISO 3506-1.

3. The flame path gaps of the motor are specified by
the manufacturer and are narrower than
standard. Please see the manufacturer's
installation, operation and maintenance
document for guidance.

4. During operation, the cooling jacket, when fitted,
must be filled with pumped liquid.

5. The level of pumped liquid must be controlled by
level switches connected to the motor control
circuit. The minimum level depends on the
installation type and is specified in these
installation and operating instructions.

6. Dry-running is not allowed.

7. Make sure the permanently attached cables are
suitably mechanically protected and terminated in
a suitable terminal board.

8. The sewage pumps have an ambient temperature
range of 0-40 °C and a maximum process
temperature 40 °C.

9. The control unit must protect the WIO against the
short circuit current of the supply to which it is
connected. The maximum current from the
control unit must be limited to 350 mA.

10.The maximum submersion depth is 20 m.

Warning
Special conditions for safe use of WIO sensor

1. The control unit must protect the sensor against
the short-circuit current of the current supply to
which it is connected.

2. The sensor must be installed in such a way that
danger of mechanical impact is avoided.

3. The WIO sensor must not be used in oil with a
flash point below 250 °C.

4. The WIO sensor is approved according to
EN/IEC 60079-18:2004. In Ex and IEC Ex
applications, the maximum current supplied to the
sensor must be limited to 350 mA according to
EN/IEC 60079-18:2004.

Installation

type

Description Accessories

S

Sewage pump without
cooling jacket for
submerged installation on
auto coupling.

Auto coupling

C

Sewage pump with
cooling jacket for
submerged installation on
auto coupling.

Auto coupling

D

Sewage pump with
cooling jacket for dry
vertical installation.

Base plate for vertical
installation

H

Sewage pump with
cooling jacket for dry
horizontal installation.

Base plate for
horizontal installation

ST

Sewage pump without
cooling jacket for
installation in vertical
column pipe.

Seat ring

Note

Ranges 74 and 78 are not available with Ex
approval.

English (GB)

4

2.3 Operating conditions

pH value

All pumps can be used for pumping liquids with a pH value
between 4 and 10.

Liquid temperature

The allowed temperature is 0-40 °C.

Ambient temperature

The allowed temperature is 0-40 °C.

Density and viscosity of pumped liquid

Density: 1000 kg/m

3

.

Kinematic viscosity: 1 mm

2

/s (1 cSt).

2.3.1 Installation depth

The maximum submersion depth is 20 m.

2.3.2 Level of pumped liquid

To avoid air being sucked into the pump and to ensure adequate
cooling of the motor during operation, the following minimum
requirements must be met:

• Installation type S:
For S1 operation (continuous operation), the pump must
always be covered by the pumped liquid to the top of the
motor. See fig. 2. See also section 9.1 Checking the direction

of rotation.

• Installation type C:
The pump housing must always be covered by the pumped
liquid.

Fig. 2 Stop levels

• Installation types D and H:
See section 6.5 Dry installation.

• Installation type ST:
The liquid level must be at least 900-1100 mm above the pump
inlet. See fig. 21.

2.3.3 Pressure version

See section 4. Safety.

2.3.4 Operating mode

The pumps are designed for continuous operation with the
maximum number of starts per hour stated in the table below:

2.3.5 Enclosure class

IEC IP68.

2.4 Sound pressure level

Note

In special situations the temperature of the
pumped liquid may be higher, if the motor is not
fully loaded.

If necessary, contact the nearest Grundfos
company or service workshop.

Warning
Explosion-proof pumps must never pump liquids

with a temperature higher than 40 °C.

Note

In special situations the ambient temperature
may be higher, if the motor is not fully loaded.

If necessary, contact the nearest Grundfos
company or service workshop.

Warning
For explosion-proof pumps, the ambient

temperature on the installation site must be in
the range between 0 and 40 °C.

Note

When pumping liquids with a density and/or a
kinematic viscosity higher than the values stated
above, use motors with correspondingly higher
outputs.

Warning
An Ex motor must always be fully submerged

during operation.

Warning
Install an additional level switch to ensure that

the pump is stopped in case the stop level switch
is not operating.

Warning
Installation type S and C pumps must always be

fully submerged in the pumped liquid to be Ex
protected.

Note

For installation type C pumps, the air vent valve
must always be open, also during operation.
See fig. 1.

Installation types C and S

TM03 1626 0208

Warning
During operation, the cooling jacket must be

filled with pumped liquid to ensure sufficient
cooling. Before the first startup and after long
standstill periods, the air must be evacuated from
the cooling jacket through an air-vent valve.

S pump, range Starts per hour

72 15

74 and 78 10

Warning
Depending of the installation type the sound

pressure level of the pump can be higher than
70 dB (A). Use hearing protection when working
nearby such an installation in operation.

Ex pumps,
installation type S

Installation type C

English (GB)

5

3. Identification

3.1 Type key

All S pumps, ranges 72, 74 and 78, described in this booklet are identified by the type designation stated in the confirmation of order and
other documentation supplied with the pump.

Please note that the pump type described in this booklet is not necessarily available in all variants.

Code Example S 2 .90 .250 .2250 .4 .72 S .C .496 .G .N .D .5 13 .Z

S

ST

Pump type:

Grundfos sewage and wastewater pump
Multi-channel impeller pump installed in a column pipe

2
3
4

Impeller type:

Two-channel
Three-channel
Four-channel

Pump passage:

Maximum solids size [mm]

250

[ ]

Pump discharge, S-type:

Nominal diameter of pump discharge port [mm]

Pump discharge, ST-type:

Nominal diameter of column pipe [mm]

Output power, P2:

P2 = Code number from type designation / 10 [kW]

4
6

8
10
12
14

Number of poles:

4-pole motor
6-pole motor
8-pole motor
10-pole motor
12-pole motor
14-pole motor

72
74
78

Pump range:

Range 72
Range 74
Range 78

S

H
M

L

E

F

Pressure version:

Super high
High
Medium
Low
Extra low
Super low

S

C
D
H

Installation type:

Submerged installation without cooling jacket
Submerged installation with cooling jacket
Dry installation with cooling jacket
Dry horizontal installation with cooling jacket

Impeller diameter (mean):

[mm]

G
Q

Material code for impeller, pump housing and stator housing:

Cast iron impeller, pump housing and stator housing
Stainless steel impeller, DIN W.-Nr. 1.4408

N

Ex

Pump version:

Non-explosion-proof pump
Pump with explosion-proof motor

B

D

Sensor version:

S pump with built-in SM 113 module. PTC sensors are connected directly to IO 113 or other PTC relay.
S pump without built-in SM 113 module

5

6

Frequency:

50 Hz
60 Hz

11
13
18
1G
1B
1D

11
1G
1H

Voltage and connection:

50 Hz

3 x 400 / 690 V Y/D
3 x 415 / 719 V Y/D
3 x 380-400 / 660-690 V Y/D
3 x 380 / 660 V Y/D
3 x 400-415 / 690-719 V Y/D
3 x 380-415 / 660-719 V Y/D

60 Hz:

3 x 575 / (996) V Y/D
3 x 380 / 660 V Y/D
3 x 460 / (797) V Y/D

Z Custom-built products

English (GB)

6

3.2 Nameplates

Fig. 3 Pump nameplate

3.3 Approval plates, range 72

Fig. 4 Approval plates of explosion-proof S-pumps, range 72

The approval plate gives the following details:

3.4 Ex certification and classification

The range 72 Ex-pumps have an EC-type Examination Certificate
issued by Baseefa Ltd.

The certified pumps (Ex-pumps) are supplied with an approval
plate fixed in a visible place close to the nameplate.

Figure 4 shows the approval plates for range 72 pumps equipped
optionally with the motors classified to T3 or T4 temperature
class.

TM06 1781 2514 - TM06 0370 5313

Pos. Description

1 Type designation
2 Product number
3 Serial number
4 Maximum head [m]
5 Maximum installation depth [m]
6 Number of phases
7 Voltage, delta connection
8 Voltage, star connection

9 Rated power input [kW]
10 Power factor
11 Production code [YYWW]
12 Production number
13 Maximum liquid temperature [°C]
14 Maximum flow rate [l/s]
15 Enclosure class
16 Frequency [Hz]
17 Rated speed
18 Current, delta connection
19 Current, star connection
20 Rated power output P2
21 Insulation class
22 Weight
23 Place of production

1

2

3

4

5

6

7

8

9

10

11

12

23

13

14

15

16

17
18

19

20

21
22

12

22

23

TM06 0916 1214 - TM06 0917 1214

CE CE mark
Baseefa 1180 ATEX-notified body identification number

EU ex symbol
II Equipment group (II = non-mining)
2 Equipment category (high protection)
G Type of explosive atmosphere (G = Gas)

Ex

Explosion-proof motor according to European

standard
b Control of ignition sources
c Constructional safety
d Flameproof
IIB Gas group (Ethylene)

T3

Maximum surface temperature of the motor is

200 °C

T4

Maximum surface temperature of the motor is

135 °C
Baseefa Certificate number
Type 72X2254 (example)
No. Serial number
PC Production code (year/week)

72

Direct drive, 50 or 60 Hz CE 1180 II 2 G Ex bcd IIB T4
Frequency converter

drive

CE 1180 II 2 G Ex bcd IIB T3

English (GB)

7

4. Safety

For safety reasons, all work in pits must be supervised by a
person outside the pump pit.

Pits for submersible sewage and wastewater pumps contain
sewage and wastewater with toxic and/or disease-causing
substances. Therefore, all persons involved must wear
appropriate personal protective equipment and clothing, and all
work on and near the pump must be carried out under strict
observance of the hygiene regulations in force.

5. Transportation and storage

The pump is supplied from factory on a steel transportation stand
in horizontal position. Pump and stand is protected by a special
cover.

Fig. 5 Covered pump in transportation stand

The pump is equipped with a label indicating the centre of gravity
of the pump including installation/transportation accessories.
See fig. 5. The position of the label varies depending on pump
type and accessories.

Fig. 6 Symbol of centre of gravity

Fig. 7 Transportation stand with cable holders

5.1 Lifting the pump

S pumps, range 78 weigh up to 8100 kg without accessories.
It is therefore very important to use the right lifting equipment.

The pump weight is stated on the pump nameplate.
See section 3.2 Nameplates.

Warning
Pump installation in pits must be carried out by

specially trained persons.
Work in or near pits must be carried out

according to local regulations.
Warning

It must be possible to lock the main power switch
in position 0. Type and requirements as specified
in EN 60204-1, 5.3.2.

Warning
Persons must not enter the installation area

when the atmosphere is explosive.

Warning
Never work under a pump when it is hanging

from crane!

Warning
Before attempting to lift the pump, make sure the

rated capacity of the lifting equipment (lifting
chain etc.) is adequate for the lifting work.

The rated capacity of the lifting equipment is
stated on the equipment nameplate. The weight
of the pump is stated on the pump nameplate.

Warning
For some installation types, the surface

temperature may be up to 90 °C.

Warning
The surface temperature of the cables may

exceed 70 °C.

TM03 3069 4809

Note

We recommend that you keep the transportation
stand in storage for later use.

TM04 6728 0810TM03 3365 4809

Note

The weight is stated with 10 m cables.

Note

The weights of installation type S and C pumps
include the weight of the guide claw.

The weight of installation type H pumps includes
the weight of the horizontal base stand.

English (GB)

8

Pump type

Net weight [kg]

SCDH

Range 72

S2.90.250.2250.4.72S 1770 1950 1955 2250
S2.100.250.2250.4.72H 1760 1945 1955 2240
S2.100.250.1750.4.72H 1760 1945 1955 2240
S2.100.300.2250.4.72M 1840 2020 2010 2300
S2.100.300.1750.4.72M 1840 2020 2010 2300
S3.110.300.1800.6.72H 1965 2160 2150 2440
S3.110.300.1600.8.72H 1965 2165 2155 2445
S3.120.500.1800.6.72M 2335 2520 2360 2700
S3.120.500.1600.8.72M 2330 2530 2370 2700
S3.120.500.1250.8.72M 2330 2530 2370 2700
S3.135.500.1800.6.72L 2340 2525 2360 2700
S3.135.500.1600.8.72L 2335 2535 2375 2705
S3.135.500.1250.8.72L 2335 2535 2375 2705
S3.135.600.1600.8.72E 2710 2910 2690 3020
S3.135.600.1300.10.72E 2730 2930 2710 3040
S3.135.600.1100.10.72E 2720 2920 2700 3030
S3.135.600.900.10.72E 2710 2910 2690 3020

Range 74 CDH

S2.90.300.2500.4.74S 2800 2800 3000
S2.90.300.3150.4.74S 3500 3500 3700
S2.100.300.2500.4.74H 2800 2800 3000
S2.100.300.3150.4.74H 3500 3500 3700
S3.110.300.2000.6.74H 3000 3000 3200
S3.110.300.2500.6.74H 3100 3100 3400
S3.110.300.3150.6.74H 3900 3900 4100
S3.120.300.2000.6.74M 3300 3200 3400
S3.120.300.2500.6.74M 3500 3300 3500
S3.120.300.3150.6.74M 4300 4100 4300
S3.135.500.2000.6.74L 3300 3300 3500
S3.135.500.2500.6.74L 3500 3400 3700
S3.135.500.3150.6.74L 4200 4200 4400
S3.135.600.2000.8.74E 3900 3700 4000
S3.135.600.2500.8.74E 4600 4400 4700

Range 78 CDH

S3.115.500.3150.8.78H 5600 5500 6000
S3.115.500.3500.8.78H 6000 5800 6300
S3.115.500.4000.8.78H 6100 5900 6400
S3.115.500.4500.8.78H 6200 6000 6500
S3.115.500.5000.8.78H 6200 6100 6600
S3.115.500.5200.8.78H 6400 6200 6700
S3.130.500.2500.10.78M 5200 5100 5600
S3.130.500.3150.8.78M 5500 5400 5900
S3.130.500.3150.10.78M 5800 5600 6100
S3.130.500.3500.8.78M 5900 5800 6300
S3.130.500.3500.10.78M 6100 5900 6400
S3.130.500.4000.8.78M 6000 5900 6400
S3.130.500.4000.10.78M 6100 6000 6500
S3.130.500.4500.8.78M 6100 6000 6500
S3.130.500.5000.8.78M 6200 6100 6600
S3.130.500.5200.8.78M 6300 6200 6700
S3.145.500.1600.10.78L 5000 4900 5300
S3.145.500.2000.10.78L 5100 5000 5500
S3.145.500.2500.10.78L 5400 5300 5800
S3.145.500.3150.8.78L 5700 5600 6100

S3.145.500.3150.10.78L 5900 5800 6300
S3.145.500.3500.8.78L 6000 5900 6400
S3.145.500.3500.10.78L 6200 6100 6600
S3.145.500.4000.8.78L 6100 6000 6500
S3.145.500.5000.8.78L 6300 6200 6700
S3.145.500.5200.8.78L 6400 6300 6800
S4.135.600.1300.12.78E 5700 5700 6300
S4.135.600.1600.12.78E 5900 5900 6500
S4.135.600.2000.10.78E 5800 5800 6400
S4.135.600.2500.10.78E 6000 6000 6600
S4.135.600.3150.8.78E 6300 6300 6900
S4.135.600.3150.10.78E 6600 6600 7100
S4.135.600.3500.8.78E 6700 6700 7300
S4.135.600.4000.8.78E 6800 6800 7300
S4.135.600.4500.8.78E 6900 6900 7500
S4.135.600.5000.8.78E 7000 7000 7500
S4.135.600.5200.8.78E 7100 7100 7700
S4.155.800.2500.10.78F 6600 6500 7200
S4.155.800.3150.10.78F 7100 7000 7700
S4.155.800.3500.10.78F 7400 7300 8000
S4.155.800.4000.10.78F 7500 7400 8100
S4.155.800.1600.12.78F 6500 6400 7100
S4.155.800.2000.12.78F 7100 7000 7700
S4.155.800.2500.12.78F 7300 7200 8000
S4.155.800.1100.14.78F 6300 6200 6900
S4.155.800.1300.14.78F 6500 6400 7100
S4.155.800.1600.14.78F 7000 6900 7600

ST pumps Weight [kg]

Range 74

ST3.135.1200.2000.8.74E 2800
ST3.135.1200.2500.8.74E 3400

Range 78

ST4.135.1400.3150.8.78E 4700
ST4.135.1400.3500.8.78E 5000
ST4.135.1400.4000.8.78E 5100
ST4.135.1400.4500.8.78E 5200
ST4.135.1400.5000.8.78E 5300
ST4.135.1400.5200.8.78E 5400
ST4.135.1400.5200.8.78E 5400
ST4.135.1400.2000.10.78E 4200
ST4.135.1400.2500.10.78E 4400
ST4.135.1400.3150.10.78E 4900
ST4.135.1400.1300.12.78E 4100
ST4.135.1400.1600.12.78E 4300
ST4.155.1600.2500.10.78F 4700
ST4.155.1600.3150.10.78F 5200
ST4.155.1600.3500.10.78F 5500
ST4.155.1600.4000.10.78F 5500
ST4.155.1600.1600.12.78F 4600
ST4.155.1600.2000.12.78F 5200
ST4.155.1600.2500.12.78F 5400
ST4.155.1600.1100.14.78F 4400
ST4.155.1600.1300.14.78F 4600
ST4.155.1600.1600.14.78F 5100

Pump type

Net weight [kg]

SCDH

English (GB)

9

All lifting equipment must be rated for the purpose and checked
for damage before any attempt to lift the pump. The lifting
equipment rating must under no circumstances be exceeded.
The pump weight is stated on the pump nameplate.

Fig. 8 Lifting points on pump, range 72

Fig. 9 Lifting points on pump, range 74 and 78

5.2 Raising pump to upright position

Fig. 10 Raising the pump to upright position, step 1

Fig. 11 Raising the pump to upright position, step 2

Fig. 12 Raising the pump to upright position, step 3

Note

The weights are net weights including the
accessories mounted from factory.

Warning
Always lift the pump by the marked lifting points

or by means of a fork-lift truck.
To make the use of a fork-lift truck when moving

a pump safer, the approximate centre of gravity is
marked with a label attached to the
transportation stand. Make sure the centre of
gravity is between the fork-lift arms when lifting
the pump.

Never lift the pump by the power supply cables.
It may result in electric short-circuit and risk of
electric shock when the pump is connected to the
mains. The cables and cable entry may be
damaged, leading to loss of watertightness and
consequent severe damage to the motor.

TM03 4459 0208TM04 6068 4809

Warning
If during transportation, assembly or dismantling

the pump is tilted more than 10 ° in any direction
from its normal position (EN 809, 5.2.1.4), the
pump may lose its stability. Secure the pump by
means of chains or place it in horizontal position.

Warning
Make sure that the lifting brackets are tightened

before attempting to lift the pump. Tighten if
necessary. Carelessness during lifting or
transportation may cause injury to personnel or
damage to the pump.

TM03 3034 0208TM03 3035 0208TM03 3036 0208

English (GB)

10

5.3 Storage

For long periods of storage the pump must be protected against
moisture and heat.

Storage temperature: -20-55 °C. Maximum 70 °C for short
periods not exceeding 24 hours (EN 60204-1, 4.5).

After a long period of storage, inspect the pump before putting it
into operation. Make sure that the impeller can rotate freely.
Pay special attention to the condition of the shaft seals, O-rings
and the cable entry.

6. Installation

The extra nameplate supplied with the pump should be fixed at
the installation site.

All safety regulations must be observed at the installation site, for
instance the use of blowers for fresh-air supply to the pit.

Prior to installation, check the oil level in the oil chamber, see
section 10.1 Oil check and oil change.

6.1 Installation types

S pumps, ranges 72, 74 and 78 are designed for various
installation types.

Figures 13 to 20 show the possible installation types.

Installation types C and S

Submerged installation on auto-coupling.

Fig. 13 Permanent installation in pit

The pump can easily be pulled out and lowered into the pit by
means of the guide rails. The stop level is lower for type C than
for type S. See fig. 13.

Fig. 14 Upper guide rail bracket

Fig. 15 Intermediate guide rail bracket; required if guide rails

are more than 6 m long

Correct pedestal height for installation on auto-coupling is
important in order to obtain the best efficiency for the pump.

Fig. 16 Auto-coupling base installation on pedestal

Caution

Do not remove the protection hose from the free
end of the supply or sensor cables until the
electrical connection is to be made.
Whether insulated or not, the free cable end must
never be exposed to moisture or water.
Non-compliance with this may cause damage to
the motor.

Caution

If the pump is being stored for more than two
months, the impeller must be turned by hand at
least every two months to prevent the lower
mechanical seal faces from seizing up. If not, the
shaft seal may be damaged when the pump is
started. If the impeller cannot be turned by hand,
contact an authorized service workshop.

Caution

Make sure the cooling jacket is empty before
storing the pump.

Warning
During installation always support the pump by

means of lifting chains or place it in horizontal
position to secure stability.

Warning
Before beginning the installation, switch off the

power supply and lock the main power switch in
position 0.

Any external voltage connected to the pump
must be switched off before working on the
pump.

Warning
Do not put your hands or any tool into the pump

suction or discharge port after the pump has
been connected to the power supply, unless the
main power switch has been locked in the 0­position.
Make sure that the power supply cannot be
accidentally switched on.

Warning
We recommend that you always use Grundfos

accessories to avoid malfunctions due to
incorrect installation.

TM03 1626 0208TM03 3066 0206TM03 3068 0206TM03 2018 0208

Installation type S

Stop levels

Installation type C

English (GB)

11

The correct pedestal heights (A) for installation on auto-coupling
appear from the following table.

Fig. 17 Lowering of pump onto auto-coupling

Installation type D

Permanent vertical dry installation.

Fig. 18 Permanent vertical dry installation

The dry-installed pumps are bolted to the suction and discharge
pipes by means of flange connections. See dimensions in
product-specific drawings.

Installation type H

Permanent horizontal dry installation.

Fig. 19 Permanent horizontal dry installation

Installation type ST

Installation in vertical column pipe

Fig. 20 Submerged installation in vertical column pipe

Pump type

Required pedestal height (A)

[mm]

Range 72
S2.90.250.xxxx.x.x 375
S2.100.250.xxxx.x.x 375
S2.100.300.xxxx.x.x 400
S3.110.300.xxxx.x.x 400
S3.120.500.xxxx.x.x 425
S3.135.500.xxxx.x.x 425
S3.140.600.xxxx.x.x 425
Range 74
S2.90.xx.xxx.xxxx.x.x 400
S2.100.xxx.xxx.xxxx.x.x 400
S3.110.xxx.xxx.xxxx.x.x 400
S3.120.xxx.xxx.xxxx.x.x 425
S3.135.xxx.xxx.xxxx.x.x 425
Range 78
Pressure class E, L, M, H 425
Pressure class F 0

TM03 3067 0208

Required tilt
angle when
pump is lowered
on auto coupling:
5 ° ± 5 °

TM03 1629 0208TM03 1498 4809TM04 6899 1110

English (GB)

12

6.2 Start and stop levels

The start and stop levels are specified during the design stage.
Always check that the start/stop levels function and possibly alter
them when commissioning the pump in order to ensure good
operation.

The stop level should be as low as possible, so that the flow
velocity in the pit increases towards the end of the working cycle.
In pumping stations with several different stop levels, such as in
frequency-controlled installations, it is important to program the
control sequence to pump down to the lowest stop level at least
once per day to clean out the bottom. Limits for the stop level are
set by the motor submergence required to ensure cooling, by the
onset of pump cavitation or by the level where air is sucked into
the pump inlet. The lowest level cannot always be foreseen, but
must be confirmed through trials during pumping station
commissioning.

Further details regarding stop and start levels for submerged or
dry installation appear under sections 6.3 Submerged installation

on auto-coupling and 6.5 Dry installation.

6.3 Submerged installation on auto-coupling

Pumps for permanent installation can be installed on a stationary
auto-coupling and operated completely or partially submerged in
the pumped liquid.

Before installing the auto-coupling base unit ensure the quality
and strength of the concrete foundation. Table A below shows the
pull-out strength required for expansion bolts of the auto­coupling. To ensure adequate pull-out strength we recommend
that you weld the threaded bushings to the steel reinforcement in
the concrete.

1. Drill mounting holes for the guide rail bracket on the inside of
the pit and fasten the guide rail bracket provisionally with two
screws.

2. Place the auto-coupling base unit on the bottom of the pit.
Use a plumb line to establish the correct positioning.
Fasten the auto-coupling with expansion bolts. If the bottom of
the pit is uneven, the auto-coupling base unit must be
supported so that it is level when being fastened.

3. Assemble the discharge pipe in accordance with the generally
accepted procedures and without exposing the pipe to
distortion or tension. No loads from the pipework weight must
be carried by the auto-coupling.

4. Fit the guide rails. An intermediate guide rail bracket is
required if guide rails are more than 6 m long. Place the guide
rails on the auto coupling, then place the guide rail bracket on
the guide rails and fasten the guide rail bracket to the wall.
Tighten the expansion bolts.

5. Clean out debris from the pit before lowering the pump into
the pit.

6. Before lowering the pump into the wet pit, check the cables
visually for cuts or ruptures which may have been caused by
rough handling during transportation or installation.

7. Slide the guide claw of the pump between the guide rails and
lower the pump into the pit by means of a certified chain
secured to the lifting bracket of the pump. When the pump
reaches the auto-coupling base unit, the pump will
automatically connect tightly.

8. Hang up the end of the chain on a suitable hook at the top of
the pit and in such a way that the chain cannot come into
contact with the pump.

9. Adjust the length of the motor cables but remember to have
enough cable length to be able to make service on the pump.
Make sure that the cables are not sharply bent or pinched.
Fix the cables at the top of the pit in such a way that no extra
cable slides into the pit.

10. Connect the motor cables and the sensor cable.

Table A

Please note that the strengths given are without safety factor.
Required safety factor may depend on the materials and the
method used for anchoring.

6.4 Column pipe installation

Pumps for column pipe installation are installed permanently in a
column pipe. Grundfos does not normally supply the column pipe.
Dimensioning of the column pipes is suggested in the pump
specific dimensional drawings.

1. Fit the seat ring to the bottom of the column pipe.

2. Clean out debris from the pit.

3. Before lowering the pump into the column pipe, check the
cables visually for cuts or ruptures which may have been
caused by rough handling during transportation or installation.

4. Lower the pump into the column pipe by means of a certified
chain secured to the lifting bracket of the pump. The pump will
sit against the conical surface of the seat ring. Normally the
friction between the conical surfaces will prevent the pump
from rotating. As an extra precaution there are three guide
pins on the seat ring which will limit the possible rotation to
maximum 60 °.

5. Hang up the end of the chain above or at the top of the
column pipe in such a way that the chain cannot come into
contact with the pump.

6. Adjust the length of the cables but remember to have enough
cable length to be able to service the pump. Make sure that
the cables are not sharply bent or pinched. Fix the cables in
such a way that there is no extra slack in the column pipe.
With long columns it may be necessary to arrange cable
support for the cable inside the column pipe. If necessary,
please contact Grundfos.

7. Connect the motor cables and the sensor cable.

Fig. 21 Column pipe installation pump type ST

Note

For auto-coupling installations (types S and C),
the guide claw is mounted on the discharge
flange from factory.

Caution

Avoid pipe tension at flanges and bolts.

Caution

The free end of the cables must not be
submerged, as water may penetrate through the
cables into the motor.

Auto-coupling
base unit

Expansion bolts

Pull-out strength

[kN]

DN 250 4 x M24 25
DN 300 4 x M24 40
DN 500 6 x M30 40
DN 600 6 x M30 40
DN 800 6 x M30 25

TM04 6908 1110

72 and 74: 900 mm
78: 1100 mm

All: 400 mm

English (GB)

13

6.5 Dry installation

Pumps in dry installation are installed permanently in a pump
room.

The pump motor is enclosed and watertight and will not be
damaged if the installation site is flooded with water.

1. Mark and drill mounting holes in the concrete foundation.

2. Fit the base stand on the concrete with expansion bolts.

3. Check that the base stand is horizontal.

4. Fasten the pump to the base stand.
In order to facilitate service on the pump, we recommend that you

fit isolating valves on either side of the pump.

5. Fit the suction and discharge pipes and isolating valves, if
used, and ensure that the pump is not stressed by the
pipework.

6. Adjust the length of the motor cables but remember to have
enough cable length to be able to service the pump.
Make sure that the cables are not sharply bent or pinched.

7. Connect the motor cables and the sensor cables according
the wiring diagrams.

The suction and discharge pipes are bolted to the pump by
means of flange connections.

Stop levels

The stop level setting for dry-installed pumps depends on the
suction pipe inlet height, shape and flow velocity. Set the stop
level approx. one inlet pipe diameter above the suction pipe inlet.
The final stop level should be confirmed through test runs during
pumping station commission.

Start levels

In pumping stations with dry-installed pumps, set the starting
levels above the pump housing in order to ensure that the cooling
jacket is filled up before the pump starts pumping. For vertical
pumps, this height may be considerable and should be set with a
margin according to fig. 22.

Fig. 22 Vertical, dry installation (D)

Horizontal pumps do not normally require special considerations
for the start levels, if the suction pipe is designed to prevent air
pockets from forming, see fig. 23.

Fig. 23 Horizontal, dry installation (H)

Legend to figures 23 and 24:

S is the minimum stop level. The minimum distance S above the

suction pipe is required to avoid the formation of vortices at the
suction pipe and thus to avoid air getting sucked into the pump.
Air in the pumped liquid may cause vibrations, cavitation and loss
of pump performance.

G is the minimum start level of a dry-installed, vertical pump if no
other actions are taken to ensure that the pump housing is filled
with pumped liquid when the pump is started. Other actions could
be to use a vacuum pump to suck liquid into the pump housing
(requires isolating valve on the pressure side) or (after the first
startup) a non-return valve in the discharge pipe which prevents
the draining of the pump housing between running periods.

Note

For vertical, dry installations, type D, the pump
needs to be installed on a permanent concrete
foundation.

Note

For horizontal, dry installations, type H, the pump
is mounted on a base stand from factory.

Note

We recommend that you use a reducer between
the suction pipe and the pump in dry
installations. In horizontal installations the
reducer must be of the eccentric type and must
be installed so that the straight edge is pointing
upwards. In this way, the accumulation of air in
the suction pipe is avoided and the risk of
disturbance of operation is eliminated.
See fig. 23.

Note

Make sure that the pipework is installed without
the use of undue force. No loads from the
pipework weight must be carried by the pump.
We recommend that you use loose flanges to
ease the installation and to avoid pipe tension at
flanges and bolts.

Note

Do not use elastic elements or bellows in the
pipework; these elements should never be used
as a means to align the pipework.

TM05 8187 2013TM04 6901 1110

Minimum stop level S = D

1

Minimum distance between bottom of pit
and lowest part of suction pipe

F = 0.5 x D

1

Minimum start level G = D

p

G

S

D

F

D

p

1

Reduction
elbow

Eccentric reducer

English (GB)

14

7. Motor protection

Motor protection devices

The motors have three thermal protectors connected in series
and two moisture switches connected in series. Protectors and
switches are connected in two separate circuits. The thermal
protectors are of the reversible type, and the moisture switches
are of the irreversible type. The thermal protection circuit
(conductors 1 and 3) and the moisture protection circuit
(conductors 2 and 3) have separate outputs to enable separate
alarms if motor is overheated or affected by moisture.

All other sensor connections are either led out of the motor
(sensor version D) via conductors 4 to 9, see fig. 26, or
connected to the sensor board (sensor version B) and led out of
the motor via conductors 4 and 5.

7.1 IO 113

IO 113 forms interface between a Grundfos sewage and
wastewater pump with analog and digital sensors and the pump
controller. The most important sensor data are indicated on the
front panel.

One pump can be connected to an IO 113 module.
Together with the sensors, IO 113 forms a galvanic separation

between the motor voltage in the pump and the controller
connected.

IO 113 can do the following as standard:

• Protect the pump against overheating.

• Monitor the status of these items:

- motor winding temperature

- leakage (WIO)

- moisture in pump.

• Measure the stator insulations resistance.

See section 7.1.2 Measurement of insulation resistance.

• Stop the pump in case of alarm.

• Remotely monitor the pump via RS-485 communication

(Modbus or GENIbus).

• Control pump via a frequency converter.

When IO 113 is combined with SM 113, it is also possible to
monitor the bearing temperature and rotor speed when the motor
is switched off.

7.1.1 Galvanic separation

Double-insulated sensors for all measurements ensure the
electrical safety. Furthermore, there is a galvanic separation
inside IO 113.

7.1.2 Measurement of insulation resistance

IO 113 measures the insulation resistance between a stator
winding and earth:

• Resistance above 10 MΩ = ok.

• Resistance between 10 MΩ and 1 MΩ = warning.

• Resistance below 1 MΩ = alarm.

7.2 SM 113

SM 113 is designed and used for the collection and transfer of
additional sensor data. SM 113 works together with IO 113 (with
communication module, product number 98097390) as shown in
the figure below.

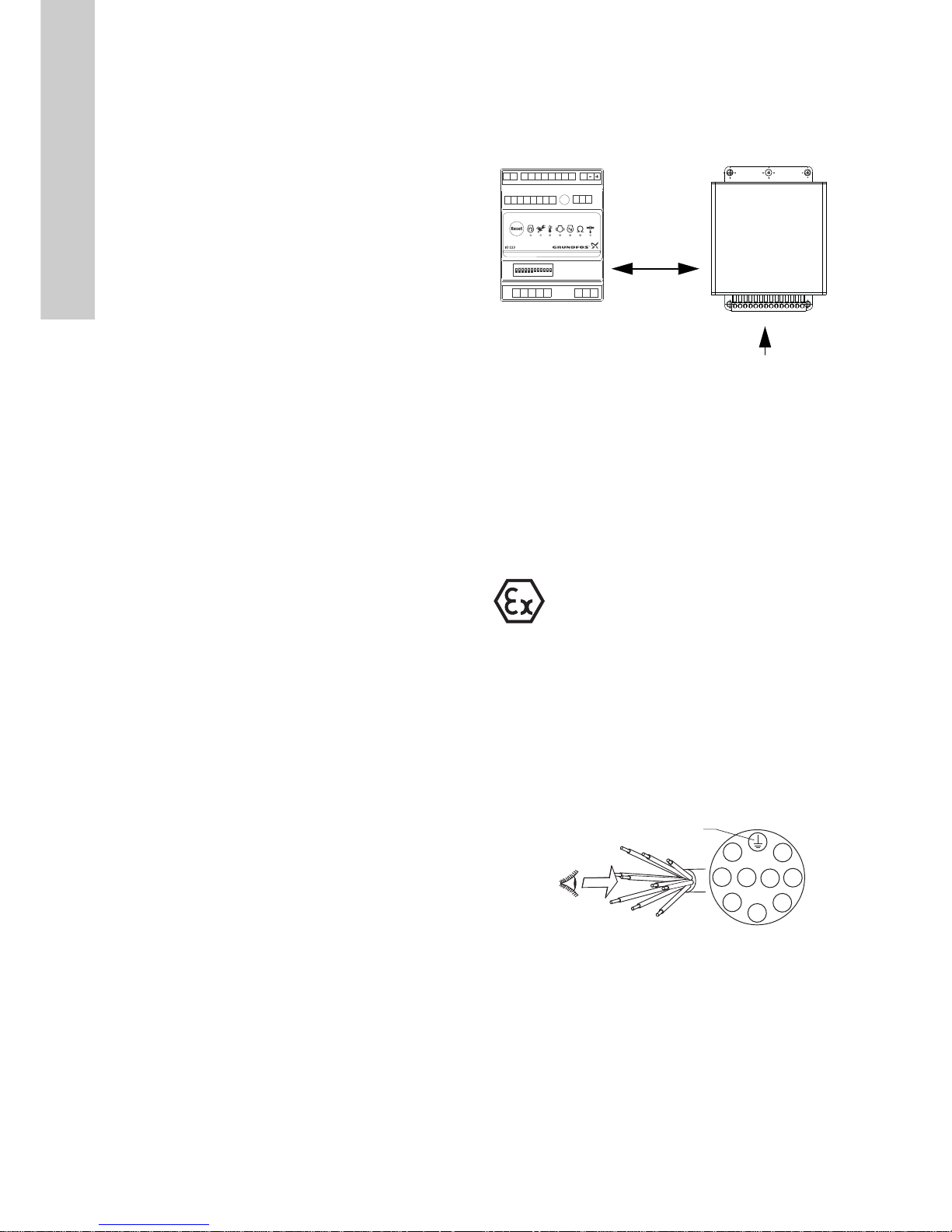

Fig. 24 IO 113 and SM 113

SM 113 can collect data from these devices:

• Current sensors, 4-20 mA*

• Pt100**/ Pt1000*** thermal sensors.
* Vibration sensor, water-in-oil or water-in-air sensor

(WIO or WIA)
** Maximum three Pt100 sensors
*** Maximum four Pt1000 sensors

7.3 Switches and sensors

A pump includes the following switches and sensors:

• three thermal switches in the stator windings

• thermal protectors

• a moisture switch in the top cover

• a moisture switch in the stator housing

• a Pt100 in the stator winding (analog)

• a Pt100 in the upper bearing (analog)

• a Pt100 in the lower bearing (analog)

• a WIO (water-in-oil) sensor in the oil chamber (analog).

Fig. 25 Sensor cable seen towards the pump

TM05 1966 4111 - TM03 4083 1606

Warning
Dry-running is not allowed!
Install an additional level switch to ensure that

the pump is stopped in case the primary stop
level switch is not operating.

TM03 2802 4805

PET1 T2

G1 A1 G2 A2 K1 K2 R1 R2

D1D2 D3 D4 D5D6 D7 D8

P1 P2 P3 P4 P5

AYB

I1 I2 I3

ON DIP

12345678910

1112

1234567891011121314

Power line
communication
using Grundfos

GENIbus protocol

IO 113

SM 113

Sensor inputs

1

2

3

4

5

6

7

8

9

Yellow/green

English (GB)

15

Fig. 26 Sensor connections, SM 113 outside motor

7.3.1 Thermal switches

The thermal protection against overheating is achieved with
bimetallic switches as standard or thermistors as optional.
The three thermal switches that are hardwired from the pump to
the IO 113 unit (or similar controller) will open if the stator
windings become too hot. The thermal switches are of the
reversible type and will close again when the motor has cooled
down.

This generates both a hardware and software alarm in the IO 113,
and the alarm relay will open.

7.3.2 Pt100

S pumps, ranges 72, 74 and 78 are equipped with Pt100 sensors
in the stator windings, in the upper bearing bracket and in the
lower bearing bracket.

Pt100 makes an analog measurement from 0-180 °C.
The value is measured by the SM 113 and transferred to the
IO 113 through serial communication.

7.3.3 WIO (water-in-oil) sensor

The oil chamber is filled with oil acting as lubricant and coolant for
both mechanical seals.

The WIO sensor measures the water content in the oil chamber:

• 0-20 % water in the oil = no reaction

• water content outside measuring range = warning

• oil level too low = alarm.

Technical data

The sensor is approved as CE 0344 II 2 GD Ex mb II T4,II 2 D
Ex mD 21 T135 °C IP68 according to EN 60079-0:2006,
EN 60079-18:2004, EN 61241-0:2006 and EN 61241-18:2004.

7.3.4 Moisture switch

The pump has two moisture switches, one in the top cover and
one in the stator housing. The moisture switches are of the
irreversible type and must be replaced if activated.

The moisture switches are hardwired from the pump to the IO 113
(or similar controller). They will open if moisture is detected and
thus break an electric circuit.

This will generate both a hardware and software alarm in the
IO 113, and the alarm relay will open.

TM04 6067 4809

Warning
The installer/user must install an automatic

circuit breaker, e.g. IO 113, which disconnects the
power supply in case the thermal switches or the
moisture switches are not operating.

IO 113 must not be installed in potentially
explosive environments.

IO 113

SM 113

S

Analog and digital

outputs

P

L3

L2

L1

Power

side

Signal
side

WIO sensor

"mb" approval

"d" enclosure

Symbol Description

T Thermal switch
M Moisture switch
S Sensor input

SM 113 Sensor board

IO 113

IO 113 with internal alarm
relay (250 VAC)

"d"

Flameproof enclosure
Note: Range 72 only

"mb"

Protection according to
EN/IEC 60079-18:2004

Pump range

Alarm temperatures

Winding

temperature

[°C]

Upper

bearing

[°C]

Lower

bearing

[°C]

72 150 120 100
74 150 120 120
78 150 120 120

Warning
In case of overheating caused by wear, lack of

lubricant etc., the Pt100 sensors will trip an alarm
and cut off the power supply at a preset
temperature.
Maximum acceptable alarm temperature can be
seen in the table above.

Warning
Lack of oil may cause overheating and damage of

the mechanical seals. The WIO sensor in the oil
chamber will trip the alarm if the oil quality is
poor or there is not enough oil in the oil chamber.

Input voltage: 12-24 VDC
Output current: 3.4 - 22 mA
Power input: 0.6 W
Ambient temperature: 0-70 °C

English (GB)

16

8. Electrical connection

The supply voltage and frequency are marked on the pump
nameplate. Make sure that the motor is suitable for the power
supply available at the installation site.

The pump must be connected to a motor-protective circuit
breaker.

In the case the pump does not have an SM 113, the Pt100
sensors must be hard-wired out of the pump, see fig. 26, and
connected to an external unit.

In the case the pump has an SM 113, the Pt100 sensors must be
connected to the SM 113. No external unit is required.

The motor is effectively earthed via the earth conductors of the
power cables and the pipework. The motor top cover for Ex
pumps is equipped with connections for external earthing or an
equipotential bonding conductor.

The most commonly used startup methods are direct-on-line
starting (DOL), star-delta starting (Y/D) and soft start. The pump
can even be started via a frequency converter according to the
frequency converter manufacturer's specifications. The selection
of suitable starting method depends on several considerations on
usage and mains supply conditions.

Fig. 27 Direct-on-line starting

Fig. 28 Star-delta starting

8.1 Cross-sections for power cables

There are three different types of power cable in use:

• one standard four-core power cable

• two different types of EMC power cable.
All cable types are shown in this booklet.

8.1.1 Standard power cable

Fig. 29 Standard power cable

Warning
Connect the pump to an external mains switch

ensuring all-pole disconnection with a contact
separation according to EN 60204-1, 5.3.2.

It must be possible to lock the mains switch in
position 0. Type and requirements as specified in
EN 60204-1, 5.3.2.

The electrical connection must be carried out in
accordance with local regulations.

Warning
The pumps must be connected to a control box

with a motor protection relay with an IEC trip
class 10 or 15.

Warning
Pumps installed in hazardous locations must be

connected to a control box with a motor
protection relay with an IEC trip class 10.

Component Voltage Tolerance

Motor See pump nameplate ± 10 %
Thermal switches Max. 240 V ± 10 %
Thermistors 2.5 - 7.5 V ­Moisture switches Max. 240 V ­Other sensors Max. 14 VDC ± 1 V
SM 113 Max. 14 VDC ± 1 V

Warning
For Ex models in dry installation (version D and

H), we recommend that you also connect an
external earthing.

Warning
Before installation and the first startup of the

pump, check the condition of the cables visually
to avoid short circuits.

Note

When using star-delta starting, it is important to
keep switching transient time to a minimum to
avoid high transient torques. We recommend that
you use a time relay with a switching time of
maximum 50 ms or according to the starter
manufacturer's specifications.

TM05 1638 3311TM05 1639 3311TM05 5943 4212

V1 W1U1 PE

V2U2W2

PEL1

M

L3L2

3

V1 W1U1 PE

V2U2W2

PEL1

M

L3L2

3

V1

U1W1

V2

U2W2

V1

U1

W1

V2

U2

W2

V1

U1

W1

V2

U2

W2

1

2

3

4

5

6

V1

U1

W1

V2

U2

W2

English (GB)

17

8.1.2 EMC power cables

Fig. 30 Screened EMC cable (ground)

Fig. 31 EMC cable with separate protective earth conductors

8.2 Wiring diagram for sensors

Fig. 32 Wiring diagram for sensors

8.3 Frequency converter operation

In principle, all three-phase motors can be connected to a
frequency converter.

However, frequency converter operation will often expose the
motor insulation system to a heavier load and cause the motor to
be more noisy than usual due to eddy currents caused by voltage
peaks.

In addition, large motors driven via a frequency converter will be
loaded by bearing currents.

For frequency converter operation, please observe the following
information:

• Requirements must be fulfilled.

• Recommendations ought to be fulfilled.

• Consequences should be considered.

TM05 5944 4212

V1

U1

W1

V2

U2

W2

V1

U1

W1

V2

U2

W2

1

2

3

4

5

6

V1

U1

W1

V2

U2

W2

V1

U1

W1

V2

U2

W2

TM05 5945 4212

V1

V1

U1

W1

V2

U2

W2

V1

U1

W1

V2

U2

W2

U1

U2

V1

V2

W1

W2

V1

U1

W1

V2

U2

W2

U1

W1

V2

U2

W2

TM05 5947 4212

Note

Wiring diagrams in the custom-built products may be different from the standard. In this case we recommend that
you contact the nearest Grundfos company or authorized workshop.

Terminal board connection

Oil indicator

4...20 mA

Pt100 in upper bearing

Pt100 in stator

Pt100 in lower bearing

Thermal switches

Thermistors

Moisture switches

Warning
When motor is driven via frequency converter,

the temperature class of range 72 explosion­proof pumps must be T3.

English (GB)

18

8.3.1 Requirements

• The thermal protection of the motor must be connected.

• Peak voltage and dU/dt must be in accordance with the table
below. The values stated are maximum values supplied to the
motor terminals. The cable influence has not been taken into
account. See the frequency converter data sheet regarding the
actual values and the cable influence on the peak voltage and
dU/dt.

• If the pump is an Ex-approved pump, check if the Ex certificate
of the specific pump allows the use of a frequency converter.

• Set the frequency converter U/f ratio according to the motor
data.

• Local regulations/standards must be fulfilled.

8.3.2 Recommendations

Before installing a frequency converter, calculate the lowest
allowable frequency in the installation in order to avoid zero flow.

• Do not reduce the motor speed to less than 60 % (30 Hz) of
rated speed.

• Keep the flow velocity above 1 m/sec.

• Let the pump run at rated speed at least once a day in order to
prevent sedimentation in the piping system.

• Do not exceed the frequency indicated on the nameplate.
In this case there is risk of motor overload.

• Keep the motor cable as short as possible. The peak voltage
will increase with the length of the motor cable. See data sheet
for the frequency converter used.

• Use input and output filters on the frequency converter.
See data sheet for the frequency converter used.

• Use screened motor cable if there is a risk that electrical noise
can disturb other electrical equipment. See data sheet for the
frequency converter used.

8.3.3 Consequences

When operating the pump via a frequency converter, please be
aware of these possible consequences:

• The locked-rotor torque will be lower. How much lower will
depend on the frequency converter type. See the installation
and operating instructions for the frequency converter used for
information on the locked-rotor torque available.

• The working condition of bearings and shaft seal may be
affected. The possible effect will depend on the application.
The actual effect cannot be predicted.

• The acoustic noise level may increase. See the installation
and operating instructions for the frequency converter used for
advice as to how to reduce the acoustic noise.

9. Startup

Proceed as follows:

1. Lock the mains switch in position 0.

2. Check the oil level in the oil chamber. See section 10.1 Oil

check and oil change.

3. Check whether the impeller can rotate freely.

4. Check whether the monitoring units, if used, are operating
satisfactorily.

5. Open the isolating valves, if fitted.

6. Pumps in installation types S and C: Ensure visually that
the pump is properly connected to the auto coupling.

7. Make sure that the pump is submerged in the liquid.
Pumps in installation types D and H: Make sure that there
is liquid in the pit and that the pump housing and cooling
jacket are filled with water. Open the air vent valve (pos. 17 in
fig. 1) before or during the startup until water comes out of the
valve. Then close the valve.
Pumps in installation type C: The air vent valve must always
be open, also during operation. Check the setting of the level
switches.

8. Start the pump, and check the pump operation for abnormal
noise or vibrations.

9. After startup, the actual pump duty point must be established
as accurately as possible so that it can be checked whether
the operating conditions are as desired.

The operation of the pump should always take place in
accordance with established routines with scheduled checks of
pump monitoring equipment and accessories (valves, etc.).
Make sure that the pump and equipment settings cannot be
changed by unauthorized persons.

9.1 Checking the direction of rotation

A label with an arrow on the pump housing indicates the correct
direction of rotation. Direction of rotation must be clockwise
when seen from the drive end.
For installation types S, C and ST pumps: Observe the movement
of the pump (jerk) when started. If the pump jerks counter­clockwise, the direction of rotation is correct.

For installation types D and H pumps: Check the duty point.

Maximum repetitive peak

voltage

[V]

Maximum dU/dt U

N

400 V

[V/μ sec.]

850 2000

Warning
Before manual starting or changeover to

automatic control, make sure that no persons are
working on or near the pump.

Warning
Before the first startup and after a long standstill

period, make sure that the pump has been filled
with pumped liquid.

In dry installations with cooling jacket the
cooling jacket must always be filled with pumped
liquid when operating. Ensure this by venting
before the first startup.

Caution

In case of abnormal noise or vibrations from the
pump or other pump or liquid supply failures,
stop the pump immediately. Do not attempt to
restart the pump until the cause of the fault has
been found and the fault corrected.

Caution

The pump may only be started for a few seconds
without being submerged for checking of
direction of rotation.

English (GB)

19

10. Maintenance and service

Before carrying out maintenance and service, make sure that the
pump has been thoroughly flushed with clean water. Rinse the
pump parts in water after dismantling.

Pumps running normal operation should be inspected once a
year.

The following points should be checked:

• Power consumption

• Oil level and oil condition

See section 10.1 Oil check and oil change.

• Cable entry
Make sure that the cable entry is waterproof, that the cables
are not sharply bent or pinched, and that the cable sheaths
have no visual defects.

• Impeller clearance
Check the impeller clearance. See section 10.2 Inspection and

adjustment of impeller clearance.

• Pump parts
Check the pump housing, etc. for possible wear.
Replace defective parts.

• Ball bearings
Check the shaft for noisy or heavy operation (turn the shaft by
hand). Replace defective bearings.
A general overhaul of the pump is usually required in case of
defective bearings or poor motor function. This work must be
carried out by an authorized service workshop.

10.1 Oil check and oil change

The oil chamber is filled with oil acting as lubricant and coolant for
both mechanical seals.

Low oil level may indicate that the upper mechanical shaft seal is
defective. Contact an authorized service workshop for further
overhaul of the pump and repair, if required.

The oil in the oil chamber can be changed with the pump in either
horizontal or upright position. We recommend that you carry out
the oil change with the pump in horizontal position, if possible,
because in that way it is much easier to drain all the used oil out
of the chamber.

Horizontal position

Proceed as follows:

1. Place the pump in such a position that inspection screw (A) is
pointing upwards.

Fig. 33 Pump with inspection screw (A) upwards

Warning
During maintenance and service, including

transportation to service workshop, always
support the pump by means of lifting chains or
place it in horizontal position to secure stability.

Warning
Before starting work on the pump, make sure that

the mains switch has been locked in position 0.
Make sure that the power supply cannot be

accidentally switched on.
All rotating parts must have stopped moving!

Warning
Maintenance and service must be carried out by

specially trained persons.

Warning
In case of repairs, always use original service

parts from the manufacturer as this ensures
correct dimensions of flame path gaps.

The bolts used in motor must be class A4-80 or
A2-80 according to EN/ISO 3506-1.

Warning
Defective bearings may reduce the Ex safety.

Warning
The maintenance and service work on explosion-

proof pumps must be carried out by Grundfos or
a service workshop authorized by Grundfos.

Note

Check the oil regularly to avoid damage and
breakdown of the pump.

Warning
Lack of oil may cause overheating and damage of

the mechanical seals. The WIO sensor in the oil
chamber will trip the alarm if the oil quality is
poor or there is not enough oil in the oil chamber.

Note

Use oil with viscosity grade SAE 10 W 30 or
SAE 10 W 40.

Range

Oil quantity

Installation type

S C and D ST

72 25 litres 18.5 litres 25 litres
74 - 20 litres 25 litres
78 - 80 litres 80 litres

TM03 1628 2705

Warning
When slackening the screw A of the oil chamber,

note that pressure may have built up in the
chamber. Do not remove the screw until the
pressure has been fully relieved!

English (GB)

20

2. Place a clean container under the pump to collect all the
drained-off oil. Remove screw B and observe the oil level.

3. Check the oil level and take an oil sample to inspect the
condition of the oil. The oil becomes greyish white like milk if it
contains water. In normal operation a small leakage through
the mechanical shaft seals is expected to happen, but if the
water content in the oil is high, this may be the result of a
defective shaft seal.
The oil should be changed if it contains water. Oil not
containing water can be reused.

4. If the oil needs to be changed, remove screw C and allow all
the oil to drain from the chamber into the container.
Emulsified oil must be changed and disposed of.

5. Replace the O-rings, refit screw C and tighten securely.
Fill the oil chamber with oil to the correct level. Refit screws A
and B and tighten securely.

Upright position

Proceed as follows:

1. Identify the screws A, B and C and their positions relative to
each other. See fig. 33.

Fig. 34 Correct oil level of upright pump

2. Proceed as above and use screw B again for indication of the
level of oil in the oil chamber. See fig. 34.

3. When the pump is upright, the oil has to be pumped out of the
oil chamber. Use a suction pump with a flexible suction hose
that can be inserted deep into the oil chamber.

4. Pump out the oil using all the screw holes in turns so as to
reach all sections of the interior of the oil chamber. Collect the
drained oil in a clean container.

5. Replace the O-rings, refit screw C and tighten securely.
Fill the oil chamber with oil to the correct level. Refit screws A
and B and tighten securely.

10.2 Inspection and adjustment of impeller clearance

The correct axial clearance is 1.3 mm ± 0.2. The clearance
should be reset if it is 2.0 mm or more. The method for resetting
the clearance is different for dry-installed pumps, installation
types D and H, and submersible pumps, installation types S, C
and ST. For dry-installed pumps there are two methods.
All methods are described here.

10.2.1 Submersible pumps, installation types S, C and ST

Submersible pumps have a separate, adjustable pump suction
cover which may be shaped as a suction bell. When the pump is
installed or withdrawn, locate the six fastening screws of the
suction cover and the three set screws.

Use a feeler gauge to check the clearance between the impeller
and the suction cover all around the perimeter of the suction
opening. See fig. 35.

If the clearance needs adjustment proceed as follows:

1. Slacken all fastening screws and set screws between suction
cover and pump housing.

2. Use a mallet to tap at the suction cover and close the
clearance.

3. Open the clearance to specified value by turning the three set
screws.

4. Check that the clearance is uniform around the perimeter of
the suction opening.

5. Tighten the fastening screws and check that the clearance is
still uniform.

6. Turn the impeller by hand and check at several points.

Fig. 35 Impeller clearance, installation types S, C and ST

10.2.2 Dry-installed pumps, installation types D and H

The impeller clearance can be inspected and set with the pump
installed on the pump stand and connected to the pipework.
In these pumps, the suction cover is located between pump
housing and outer connection flange at the suction side of the
pump.

Depending on the construction, there are two ways to set the
impeller clearance.

Note

Used oil must be disposed of in accordance with
local regulations.

TM04 6924 1210

B

Warning
Never work under a pump when it is hanging

from crane!

Note

Before adjusting the clearance, clean the gap
between impeller and suction cover.

TM03 3362 0506

English (GB)

21

Method 1

Fig. 36 Impeller clearance, installation types D and H,

method 1

These pump types have threaded holes for the fastening
screws (35) of the suction cover (12a) in the pump housing (50)
as shown in fig. 36. Set the impeller clearance as follows:

1. Slacken the three set screws (12c) and close the impeller
clearance "S" by tightening the six fastening screws (35)
diagonally to move the suction cover evenly.

2. Measure the distance "L" between suction cover and pump
housing at three points, next to the set screws, using feeler
gauges or callipers and make a note of the distance.

3. Slacken the fastening screws and draw back the suction cover
by 1.3 mm ± 0.2 using the three set screws (approx. one 150 °
turn with an M27 set screw) and the distance "L" as reference.

4. Tighten all fastening screws and check that the distance "L" at
the three reference points is stable at the new value.

Method 2

Fig. 37 Impeller clearance, installation type D and H, method 2

These pump types have threaded holes in the suction cover (12a)
for the fastening screws (35) as shown in fig. 37. Set the impeller
clearance as follows:

1. Slacken the six fastening screws (35) and close the impeller
clearance "S" by tightening the three set screws (12c).
Tighten the screws diagonally to move the suction cover
evenly.

2. Measure the distance "L" between suction cover and pump
housing at three points, next to the set screws, using feeler
gauges or callipers and make a note of the distance.

3. Slacken the set screws and draw back the suction cover by

1.3 mm ± 0.2 using the six fastening screws (approx. one
270 ° turn of an M12 fastening screw) and the distance "L" as
reference.

4. Tighten all set screws and check that the distance "L" at the
three reference points is stable at the new value.

Pump types

Ranges 72 and 74
S2.90.xxx.xxxx.x.xxx.
S2.100.xxx.xxxx.x.xxx.
S3.135.600.xxxx.x.xxx.
Range 78
S3.115.xxx.xxxx.x.xxx.
S3.130.xxx.xxxx.x.xxx.
S3.145.xxx.xxxx.x.xxx.
S4.135.xxx.xxxx.x.xxx.

TM03 3073 0206

Warning
Do not use too much force when tightening the

fastening screws as this may damage the
bearings. The movement is usual 1 to 3 mm.

View from direction A

Pump types

Ranges 72 and 74
S3.110.xxx.xxxx.x.xxx.
S3.120.xxx.xxxx.x.xxx.
S3.135.500.xxxx.x.xxx.

TM03 3074 0206

Warning
Do not use too much force when tightening the

fastening screws as this may damage the
bearings. The movement is usual 1 to 3 mm.

View from direction A

English (GB)

22

10.2.3 Pump cleaning and visual inspection

A simple maintenance measure is to clean the pumps at regular
intervals. Lift the pumps out of the wet pit and clean the pumps on
site in the pumping station. Hose down the pump externally using
a high-pressure jet cleaner (maximum pressure 100 bar).
Remove caked dirt from the motor to ensure good heat
conductivity. A mild detergent approved for disposal into the
sewage system may be used. The pumps may be scrubbed,
using a soft brush, if necessary.

Visual inspection of the pump should include the following:

• Search for cracks or other external damage.

• Check the lifting bracket and lifting chain for wear and
corrosion.

• Inspect the motor cables for cracks or lacerations in the
sheath, for kinks or for other damage.

• Inspect visible parts of the cable entry for cracks.

• Check that the cables are firmly connected to the motor top
cover.

• Check all visible screws for self-slackening and tighten, if
necessary.

The pumps are fitted with an air vent valve at the top of the
cooling jacket. The valve may be removed and cleaned, if
necessary. Clean the vent hole before refitting the valve after
cleaning.

10.2.4 Motor cables

Use only cables which are approved by the manufacturer and
suitable for the cable entry as to diameter, number of conductors,
conductor cross section and sheath material.

10.2.5 Cable entry

Secure the cable entry to the motor top cover by tightening the
screws evenly one by one until the cable entry is lying flat against
the top cover.

The minimum bending radius for cables can be found in the
following table:

10.2.6 Spare parts

Damaged motor parts should always be replaced by new and
approved parts. Motor parts must not be reconditioned by
machining, re-tapping, welding, etc.

10.3 Contaminated pumps

If Grundfos is requested to service the pump, Grundfos must be
contacted with details about the pumped liquid, etc. before the
pump is returned for service. Otherwise Grundfos can refuse to
accept to service the pump.

Possible costs of returning the pump are to be paid by the
customer.

However, any application for service (no matter to whom it may
be made) must include details about the pumped liquid if the
pump has been used for liquids which are injurious to health or
toxic.

Cable type Cable size

Min. bending

radius

Power cables

4 x 70 mm

2

270 mm

4 x 95 mm

2

310 mm

4 x 120 mm

2

340 mm

4 x 150 mm

2

380 mm

4 x 185 mm

2

420 mm

Power cables (EMC)

3 x 70 + 3 x 35/3 mm

2

210 mm

3 x 120 + 1 x 70 mm

2

610 mm

3 x 185 + 1 x 95 mm

2

750 mm

Control cables

10 x 1.5 mm

2

120 mm

18 x 1.5 mm

2

250 mm

Note

If a pump has been used for a liquid which is
injurious to health or toxic, the pump will be
classified as contaminated.

English (GB)

23

11. Fault finding chart

12. Disposal

This product or parts of it must be disposed of in an
environmentally sound way:

1. Use the public or private waste collection service.

2. If this is not possible, contact the nearest Grundfos company

or service workshop.

Subject to alterations.

Warning
Before attempting to diagnose any fault, make sure that the mains switch has been locked in position 0.

All rotating parts must have stopped moving.
The safety instructions in section 4. Safety must be read and observed.

Fault Cause Remedy

1. Pump does not start or stops
without visible cause.

a) No power supply. Re-establish power supply. Start the pump manually and

check contactor operation.

b) Moisture in the stator housing or in terminal box.

The moisture switch interrupts the supply voltage.

Contact an authorized service workshop.

c) Water-in-oil sensor not covered by oil. The sensor

interrupts the supply voltage.

Contact an authorized service workshop.

2. Pump does not start or stops.
The control panel of the
controller indicates that the
motor-protective circuit breaker
or protection equipment has
tripped out.

a) Missing phase. Re-establish all phases.
b) Pump momentarily overloaded. Find the cause and remedy the fault.
c) Impeller jammed by impurities. Clean impeller as required.
d) Motor-protective circuit breaker not set correctly. Set as required according to rated current.
e) Thermal switches tripped out. Insufficient motor

cooling.

Re-establish motor cooling.

f) Moisture switch in motor tripped out. Contact an authorized service workshop.
g) Motor cable defective. Contact an authorized service workshop.
h) Fluctuating voltage. Re-establish correct voltage supply. Permissible deviation is

± 10 %.

3. Pump runs, but does not
deliver the rated flow.

a) Wrong direction of rotation. Interchange two phases to the motor.
b) Impeller worn. Adjust the impeller clearance.

If the impeller must be replaced, contact an authorized

service workshop.
c) Impeller loose. Contact an authorized service workshop.
d) Pump or pipework clogged by impurities. Clean as required.
e) Pump head too high. Measure the differential pressure and compare the value

with the pump curve. Remove the blockage in the discharge

pipe.
f) Valves closed or blocked.

Non-return valve not operating.

Clean or replace valves as required.

g) Air in pump or suction pipe. Vent the pump and suction pipe. Raise the stop level in the

pit.
h) Pumped liquid too dense. Dilute the liquid.
i) Pump not properly connected to auto coupling. Pump down the liquid level in pit. Lift out the pump and

relocate the pump on the auto coupling.
j) Leakage in pipework. Repair the pipework.

4. Pump starts, but stops
immediately.

a) Clogged pump causes motor-protective circuit

breaker to trip out.

Clean the pump.

b) Overheated motor causes thermal switches to trip

out.

Allow pump to cool. Clean the pump.

c) Level switch out of adjustment or defective. Clean or set level switch or replace as required.

5. Pump vibrating or emitting
excessive noise.

a) Pump partly choked by impurities. Clean the pump.
b) Wrong direction of rotation. Interchange two phases to the motor.
c) Pump operates outside specified operating range. Re-establish proper operating conditions.
d) Pump defective. Repair the pump or contact an authorized workshop, if

necessary.

e) Pump not properly connected to auto coupling. Pump down the liquid level in pit. Lift out the pump and

relocate the pump on the auto coupling.
f) Pump cavitates. Clean the suction pipe.
g) Base stand, auto coupling, ring stand or guide rails

not installed correctly.

Install the components correctly.

6. Oil watery or emulsified. a) Lower mechanical seal leaking. Contact an authorized service workshop.

7. Low oil level. a) Upper mechanical seal leaking. Contact an authorized service workshop.

Declaration of conformity

24

Declaration of conformity 1

GB Declaration of Conformity

We, Grundfos, declare under our sole responsibility that the products
S pumps, range 72, 74 and 78, to which this declaration relates, are in
conformity with these Council directives on the approximation of the laws
of the EC member states:

BG Декларация за съответствие

Ние, фирма Grundfos, заявяваме с пълна отговорност, че продуктите
S pumps, range 72, 74 и 78, за които се отнася настоящата декларация,

отговарят на следните указания на Съвета за уеднаквяване на
правните разпоредби на държавите членки на ЕС:

CZ Prohlášení o shodě

My firma Grundfos prohlašujeme na svou plnou odpovědnost, že výrobky
S pumps, range 72, 74 a 78, na něž se toto prohlášení vztahuje, jsou
v souladu s ustanoveními směrnice Rady pro sblížení právních předpisů
členských států Evropského společenství v oblastech:

DK Overensstemmelseserklæring

Vi, Grundfos, erklærer under ansvar at produkterne S pumps, range 72, 74
og 78 som denne erklæring omhandler, er i overensstemmelse med disse
af Rådets direktiver om indbyrdes tilnærmelse til EF-medlemsstaternes
lovgivning:

DE Konformitätserklärung

Wir, Grundfos, erklären in alleiniger Verantwortung, dass die Produkte
S pumps, range 72, 74 und 78, auf die sich diese Erklärung bezieht, mit
den folgenden Richtlinien des Rates zur Angleichung der
Rechtsvorschriften der EU-Mitgliedsstaaten übereinstimmen:

EE Vastavusdeklaratsioon

Meie, Grundfos, deklareerime enda ainuvastutusel, et tooted S pumps,
range 72, 74 ja 78, mille kohta käesolev juhend käib, on vastavuses EÜ
Nõukogu direktiividega EMÜ liikmesriikide seaduste ühitamise kohta, mis
käsitlevad:

GR ∆ήλωση Συμμόρφωσης

Εμείς, η Grundfos, δηλώνουμε με αποκλειστικά δική μας ευθύνη ότι τα
προϊόντα S pumps, range 72, 74 και 78 στα οποία αναφέρεται η παρούσα
δήλωση, συμμορφώνονται με τις εξής Οδηγίες του Συμβουλίου περί
προσέγγισης των νομοθεσιών των κρατών μελών της ΕΕ:

ES Declaración de Conformidad

Nosotros, Grundfos, declaramos bajo nuestra entera responsabilidad que
los productos S pumps, range 72, 74 y 78, a los cuales se refiere esta
declaración, están conformes con las Directivas del Consejo en la
aproximación de las leyes de las Estados Miembros del EM:

FR Déclaration de Conformité

Nous, Grundfos, déclarons sous notre seule responsabilité, que les
produits S pumps, range 72, 74 et 78, auxquels se réfère cette déclaration,
sont conformes aux Directives du Conseil concernant le rapprochement
des législations des Etats membres CE relatives aux normes énoncées ci­dessous :

HR Izjava o usklađenosti

Mi, Grundfos, izjavljujemo pod vlastitom odgovornošću da je proizvod
S pumps, range 72, 74 i 78, na koji se ova izjava odnosi, u skladu s
direktivama ovog Vijeća o usklađivanju zakona država članica EU:

IT Dichiarazione di Conformità

Grundfos dichiara sotto la sua esclusiva responsabilità che i prodotti
S pumps, range 72, 74 e 78, ai quali si riferisce questa dichiarazione, sono
conformi alle seguenti direttive del Consiglio riguardanti il riavvicinamento
delle legislazioni degli Stati membri CE:

LV P a z i ņojums par atbilstību prasībām

Sabiedrība GRUNDFOS ar pilnu atbildību dara zināmu, ka produkti
S pumps, range 72, 74 un 78, uz kuriem attiecas šis paziņojums, atbilst
šādām Padomes direktīvām par tuvināšanos EK dalībvalstu likumdošanas
normām:

LT Atitikties deklaracija

Mes, Grundfos, su visa atsakomybe pareiškiame, kad gaminiai S pumps,
range 72, 74 ir 78, kuriems skirta ši deklaracija, atitinka šias Tarybos
Direktyvas dėl Europos Ekonominės Bendrijos šalių narių įstatymų
suderinimo:

HU Megfelelőségi nyilatkozat

Mi, a Grundfos, egyedüli felelősséggel kijelentjük, hogy a S pumps,
range 72, 74 és 78 termékek, amelyekre jelen nyilatkozik vonatkozik,
megfelelnek az Európai Unió tagállamainak jogi irányelveit összehangoló
tanács alábbi előírásainak:

NL Overeenkomstigheidsverklaring

Wij, Grundfos, verklaren geheel onder eigen verantwoordelijkheid dat de
producten S pumps, range 72, 74 en 78 waarop deze verklaring betrekking
heeft, in overeenstemming zijn met de Richtlijnen van de Raad in zake de
onderlinge aanpassing van de wetgeving van de EG Lidstaten betreffende:

UA Свідчення про відповідність вимогам

Компанія Grundfos заявляє про свою виключну відповідальність за те,
що продукти S pumps, range 72, 74 та 78, на які поширюється дана
декларація, відповідають таким рекомендаціям Ради з уніфікації
правових норм країн - членів ЕС:

PL Deklaracja zgodności

My, Grundfos, oświadczamy z pełną odpowiedzialnością, że nasze wyroby
S pumps, range 72, 74 oraz 78, których deklaracja niniejsza dotyczy, są
zgodne z następującymi wytycznymi Rady d/s ujednolicenia przepisów
prawnych krajów członkowskich WE:

PT Declaração de Conformidade

A Grundfos declara sob sua única responsabilidade que os produtos
S pumps, range 72, 74 e 78, aos quais diz respeito esta declaração,
estão em conformidade com as seguintes Directivas do Conselho sobre a
aproximação das legislações dos Estados Membros da CE:

RU Декларация о соответствии

Мы, компания Grundfos, со всей ответственностью заявляем, что
изделия S pumps, range 72, 74 и 78, к которым относится настоящая
декларация, соответствуют следующим Директивам Совета
Евросоюза об унификации законодательных предписаний стран­членов ЕС:

RO Declaraţie de Conformitate

Noi, Grundfos, declarăm pe propria răspundere că produsele S pumps,
range 72, 74 şi 78, la care se referă această declaraţie, sunt în
conformitate cu aceste Directive de Consiliu asupra armonizării legilor
Statelor Membre CE:

SK Prehlásenie o konformite

My firma Grundfos prehlasujeme na svoju plnú zodpovednost', že výrobky
S pumps, range 72, 74 a 78, na ktoré sa toto prehlásenie vzt'ahuje, sú
v súlade s ustanovením smernice Rady pre zblíženie právnych predpisov
členských štátov Európskeho spoločenstva v oblastiach:

SI Izjava o skladnosti

V Grundfosu s polno odgovornostjo izjavljamo, da so naši izdelki S pumps,
range 72, 74 in 78, na katere se ta izjava nanaša, v skladu z naslednjimi
direktivami Sveta o približevanju zakonodaje za izenačevanje pravnih
predpisov držav članic ES:

RS Deklaracija o konformitetu

Mi, Grundfos, izjavljujemo pod vlastitom odgovornošću da je proizvod
S pumps, range 72, 74 i 78, na koji se ova izjava odnosi, u skladu sa
direktivama Saveta za usklađivanje zakona država članica EU:

FI Vaatimustenmukaisuusvakuutus

Me, Grundfos, vakuutamme omalla vastuullamme, että tuotteet S pumps,
range 72, 74 ja 78, joita tämä vakuutus koskee, ovat EY:n jäsenvaltioiden
lainsäädännön yhdenmukaistamiseen tähtäävien Euroopan neuvoston
direktiivien vaatimusten mukaisia seuraavasti:

SE Försäkran om överensstämmelse

Vi, Grundfos, försäkrar under ansvar att produkterna S pumps, range 72,
74 och 78, som omfattas av denna försäkran, är i överensstämmelse med
rådets direktiv om inbördes närmande till EU-medlemsstaternas
lagstiftning, avseende:

TR Uygunluk Bildirgesi

Grundfos olarak bu beyannameye konu olan S pumps, range 72, 74 ve 78
ürünlerinin, AB Üyesi Ülkelerin kanunlarını birbirine yaklaştırma üzerine
Konsey Direktifleriyle uyumlu olduğunun yalnızca bizim sorumluluğumuz
altında olduğunu beyan ederiz:

Declaration of conformity

25

CN: EC 产品合格声明书

我们格兰富在我们的全权责任下声明，产品 S pumps, range 72, 74 和 78,
即该合格证所指之产品，符合欧共体使其成员国法律趋于一致的以下欧共理
事会指令：

— Machinery Directive (2006/42/EC).

Standards used: SFS-EN 809:1998 + A1/AC:2010.
— EMC Directive (2004/108/EC).
— ATEX Directive (94/9/EC).

Applies only to products intended for use in potentially explosive

environments, group II category 2G, Ex bcd IIB T3 Gb, and equipped

with the separate ATEX approval plate and EC-type examination

certificate. Further information, see below.

This EC declaration of conformity is only valid when published as part of
the Grundfos installation and operating instructions (publication number
98664739 1114).

Székesfehérvár, 8th April 2014

Jannek Uldal Christensen

D&E Central Europe, site manager

Holland fasor 15, Sóstó Ipari Park

8000 Székesfehérvár Hungary

Person authorised to compile technical file

and empowered to sign the EC declaration of conformity.

Notified body for EC-type examination: SGS Baseefa Ltc. No 1180. Buxton, UK.

Notified body for production: SGS Baseefa Ltc. No 1180. Buxton, UK.

Manufacturer: Grundfos GMH4 HU-8000 Székesfehérvár, Hungary

Range Certificate No Standards used

72 Baseefa 07ATEX0102X

EN 60079-0:2009, EN 60079-1:2007, EN 13463-1:2009,
EN 13463-5:2011, EN 13463-6:2005

Declaration of conformity RU

26

Declaration of conformity RU 2

Насосы типа S исполнения: S1, S2, S3, S4, SV, S1A, SVA, ST, SVX
сертифицированы на соответствие требованиям Технических
регламентов Таможенного союза: ТР ТС 004/2011 «О безопасности
низковольтного оборудования»; ТР ТС 010/2011 «О безопасности
машин и оборудования»; ТР ТС 020/2011 «Электромагнитная
совместимость технических средств».

Сертификат соответствия:
№ TC RU C-DK.АИ30.B.01227, срок действия до 21.12.2019г.

Истра, 1 февраля 2015 г.

Касаткина В. В.

Руководитель отдела качества,

экологии и охраны

труда

ООО Грундфос Истра, Россия

143581, Московская область,

Истринский район,

дер. Лешково, д.188

Grundfos companies

Argentina

Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500 Centro
Industrial Garin
1619 Garín Pcia. de B.A.
Phone: [phone]
Telefax: [phone]

Australia

GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Phone: [phone]
Telefax: [phone]

Austria

GRUNDFOS Pumpen Vertrieb Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Telefax: [phone]

Belgium

N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tél.: [phone]
Télécopie: [phone]

Belarus

Представительство ГРУНДФОС в
Минске
220125, Минск
ул. Шафарнянская, 11, оф. 56, БЦ
«Порт»
Тел.: [phone]
Факс: [phone]

E-mail: [e-mail]

Bosna and Herzegovina

GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A,
BH-71000 Sarajevo
Phone: [phone]
Telefax: [phone]
www.ba.grundfos.com
e-mail: [e-mail]

Brazil

BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo Branco,
630
CEP 09850 - 300
São Bernardo do Campo - SP
Phone: [phone]
Telefax: [phone]

Bulgaria

Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel. [phone]
Fax. [phone]
email: [e-mail]

Canada

GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: [phone]
Telefax: [phone]

China

GRUNDFOS Pumps (Shanghai) Co. Ltd.
50/F Maxdo Center No. 8 XingYi Rd.
Hongqiao development Zone
Shanghai 200336
PRC
Phone: [phone]
Telefax: [phone]

Croatia

GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Phone: [phone]
Telefax: [phone]
www.hr.grundfos.com

Czech Republic

GRUNDFOS s.r.o.
Čajkovského 21
779 00 Olomouc
Phone: [phone]
Telefax: [phone]

Denmark

GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tlf.: [phone]
Telefax: [phone]
E-mail: [e-mail]
www.grundfos.com/DK

Estonia

GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel: + 372 606 1690
Fax: + 372 606 1691

Finland

OY GRUNDFOS Pumput AB
Mestarintie 11
FIN-01730 Vantaa
Phone: [phone]
Telefax: [phone]

France

Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tél.: [phone]
Télécopie: [phone]

Germany

GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]
Service in Deutschland:
e-mail: [e-mail]

HILGE GmbH & Co. KG
Hilgestrasse 37-47
55292 Bodenheim/Rhein
Germany
Tel.: [phone]
Telefax: [phone]
e-mail: [e-mail]

Greece

GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Phone: [phone]
Telefax: +0030-210-66 46 273

Hong Kong

GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor
Siu Wai Industrial Centre
29-33 Wing Hong Street &
68 King Lam Street, Cheung Sha Wan
Kowloon
Phone: [phone]
Telefax: [phone]

Hungary

GRUNDFOS Hungária Kft.
Park u. 8
H-2045 Törökbálint,
Phone: [phone]
Telefax: [phone]

India

GRUNDFOS Pumps India Private Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 096
Phone: [phone]

Indonesia

PT GRUNDFOS Pompa
Jl. Rawa Sumur III, Blok III / CC-1
Kawasan Industri, Pulogadung
Jakarta 13930
Phone: [phone]
Telefax: [phone] / 460 6901

Ireland

GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Phone: [phone]
Telefax: [phone]

Italy

GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Telefax: [phone] / 95838461

Japan

GRUNDFOS Pumps K.K.
Gotanda Metalion Bldg., 5F,
5-21-15, Higashi-gotanda
Shiagawa-ku, Tokyo
141-0022 Japan
Phone: [phone]
Telefax: [phone]

Korea

GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Phone: [phone]
Telefax: [phone]

Latvia

SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā 60, LV-1035, Rīga,
Tālr.: + 371 714 9640, 7 149 641
Fakss: + 371 914 9646

Lithuania

GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel: + 370 52 395 430
Fax: + 370 52 395 431

Malaysia

GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie Industrial Park
40150 Shah Alam
Selangor
Phone: [phone]
Telefax: [phone]

Mexico

Bombas GRUNDFOS de México S.A. de
C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Phone: [phone]
Telefax: [phone]

Netherlands

GRUNDFOS Netherlands
Velu we zoom 3 5
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Telefax: [phone]
E-mail: [e-mail]

New Zealand

GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Phone: [phone]
Telefax: [phone]

Norway

GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tlf.: [phone]
Telefax: [phone]

Poland

GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel: [phone]
Fax: [phone]

Portugal

Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Telefax: [phone]

Romania

GRUNDFOS Pompe România SRL
Bd. Biruintei, nr 103
Pantelimon county Ilfov
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

Russia

ООО Грун дф ос Россия
109544, г. Москва, ул. Школьная, 39-41,

стр. 1
Тел. [phone] [phone]
Факс [phone]

E-mail [e-mail]

Serbia

Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Phone: [phone]
Telefax: [phone]
www.rs.grundfos.com

Singapore

GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Phone: [phone]
Telefax: [phone]

Slovakia

GRUNDFOS s.r.o.
Prievozská 4D
821 09 BRATISLAVA
Phona: [phone]
sk.grundfos.com

Slovenia

GRUNDFOS d.o.o.
Šlandrova 8b, SI-1231 Ljubljana-Črnuče
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]

South Africa

GRUNDFOS (PTY) LTD
Corner Mountjoy and George Allen Roads
Wilbart Ext. 2
Bedfordview 2008
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

Spain

Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Telefax: [phone]

Sweden

GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Telefax: [phone]

Switzerland

GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Telefax: [phone]

Taiwan

GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Phone: [phone]
Telefax: [phone]

Thailand

GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road,
Dokmai, Pravej, Bangkok 10250
Phone: [phone]
Telefax: [phone]

Turkey

GRUNDFOS POMPA San. ve Tic. Ltd. Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi,

2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Phone: +90 - 262-679 7979
Telefax: +90 - 262-679 7905
E-mail: [e-mail]

Ukraine

Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Телеф он: ([phone]
Факс.: [phone]

E-mail: [e-mail]

United Arab Emirates

GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone
Dubai
Phone: [phone]
Telefax: [phone]

United Kingdom

GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Phone: [phone]
Telefax: [phone]

U.S.A.

GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: [phone]
Telefax: [phone]

Uzbekistan

Grundfos Tashkent, Uzbekistan The
Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Телефон: [phone] / 71 150
3291
Факс: [phone]

Addresses Revised 21.05.2014

96604379 0315

ECM: 1135846

The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide. © Copyright Grundfos Holding A/S

www.grundfos.com
