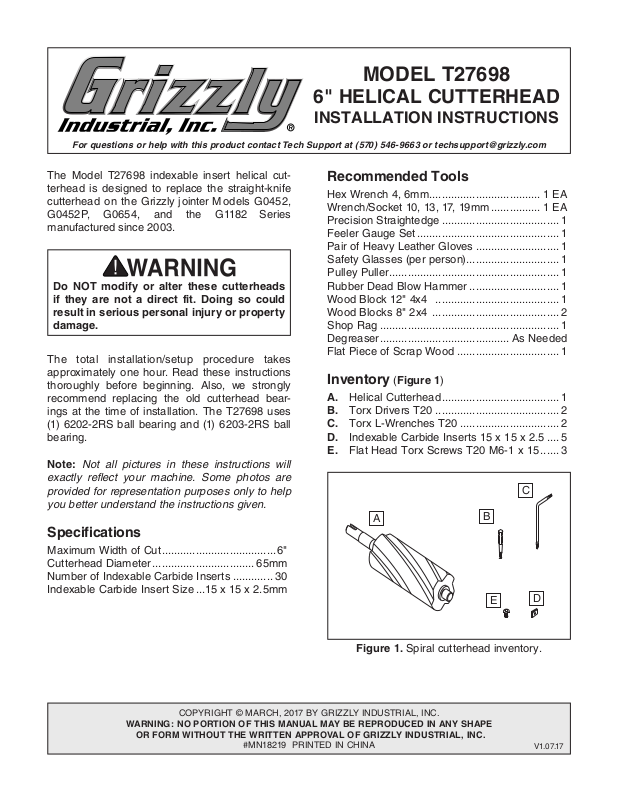

MODEL T27698
6" HELICAL CUTTERHEAD
INSTALLATION INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Do NOT modify or alter these cutterheads if they are not a direct fit. Doing so could result in serious personal injury or property damage.
The total installation/setup procedure takes approximately one hour. Read these instructions thoroughly before beginning. Also, we strongly recommend replacing the old cutterhead bear­ings at the time of installation. The T27698 uses (1) 6202-2RS ball bearing and (1) 6203-2RS ball bearing.
Note: Not all pictures in these instructions will exactly reflect your machine. Some photos are provided for representation purposes only to help you better understand the instructions given.
e insert helical cut-
Specifications
Maximum Width of Cut .....................................6"
Cutterhead Diameter Number of Indexable Carbide Inserts Indexable Carbide Insert Size
................................. 65mm
............. 30
...15 x 15 x 2.5mm
Recommended Tools
Hex Wrench 4, 6mm .................................... 1 EA
Wrench/Socket 10, 13, 17, 19mm Precision Straightedge Feeler Gauge Set Pair of Heavy Leather Gloves Safety Glasses (per person) Pulley Puller Rubber Dead Blow Hammer Wood Block 12" 4x4 Wood Blocks 8" 2x4 Shop Rag Degreaser Flat Piece of Scrap Wood
....................................................... 1
.......................................................... 1
.......................................... As Needed
...................................... 1
.............................................. 1
........................................ 1
......................................... 2
................................. 1
................ 1 EA
........................... 1
.............................. 1
............................. 1

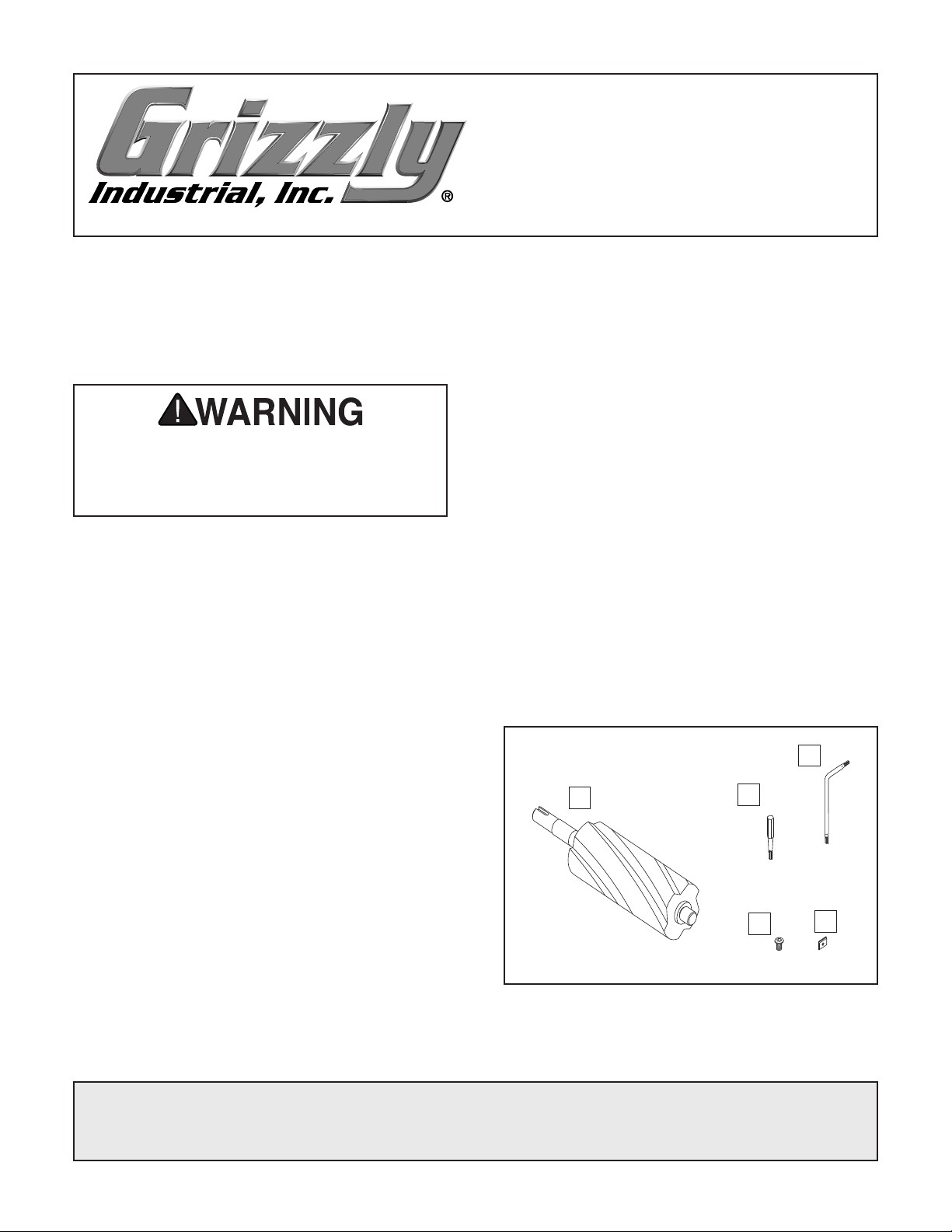

Inventory (Figure 1)
A.
Helical Cutterhead ...................................... 1
Torx Drivers T20 ........................................ 2
B.
Torx L-Wrenches T20 ................................ 2
C.
Indexable Carbide Inserts 15 x 15 x 2.5 .... 5
D.
Flat Head Torx Screws T20 M6-1 x 15 ...... 3
E.
C
A
B
E
D
Figure 1.
COPYRIGHT © MARCH, 2017 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#MN18219 PRINTED IN CHINA
Spiral cutterhead inventory.
V1.07.17
Installation
1. DISCONNECT JOINTER FROM POWER!
6. Wearing heavy leather gloves, carefully
remove the cutterhead from the casting (see
Figure 4).
2. Remove the jointer fence and cutterhead
guard.
3. Remove the V-belt from the pulleys.
4. Lower both beds to make enough room for
the cutterhead to come out, as shown in Figure 2.
Note: When lowering, make sure that the
fence support does not come in contact with the cutterhead pulley.
Note: Your cutterhead may have paper
shims stuck to the bearing block or the part of the casting where the bearing block rests. These were included at the factory when they calibrated your cutterhead even with the outfeed table. If you see these, carefully pull them off and set them aside for later use, or keep them with your cutterhead in the event that you reinstall it later. Also, mark the side of the cutterhead where they were used, so the future install will go smoothly. Your new cutterhead may or may not need these.
7. Remove bearing block studs (see Figure 4).
Bearing
Block

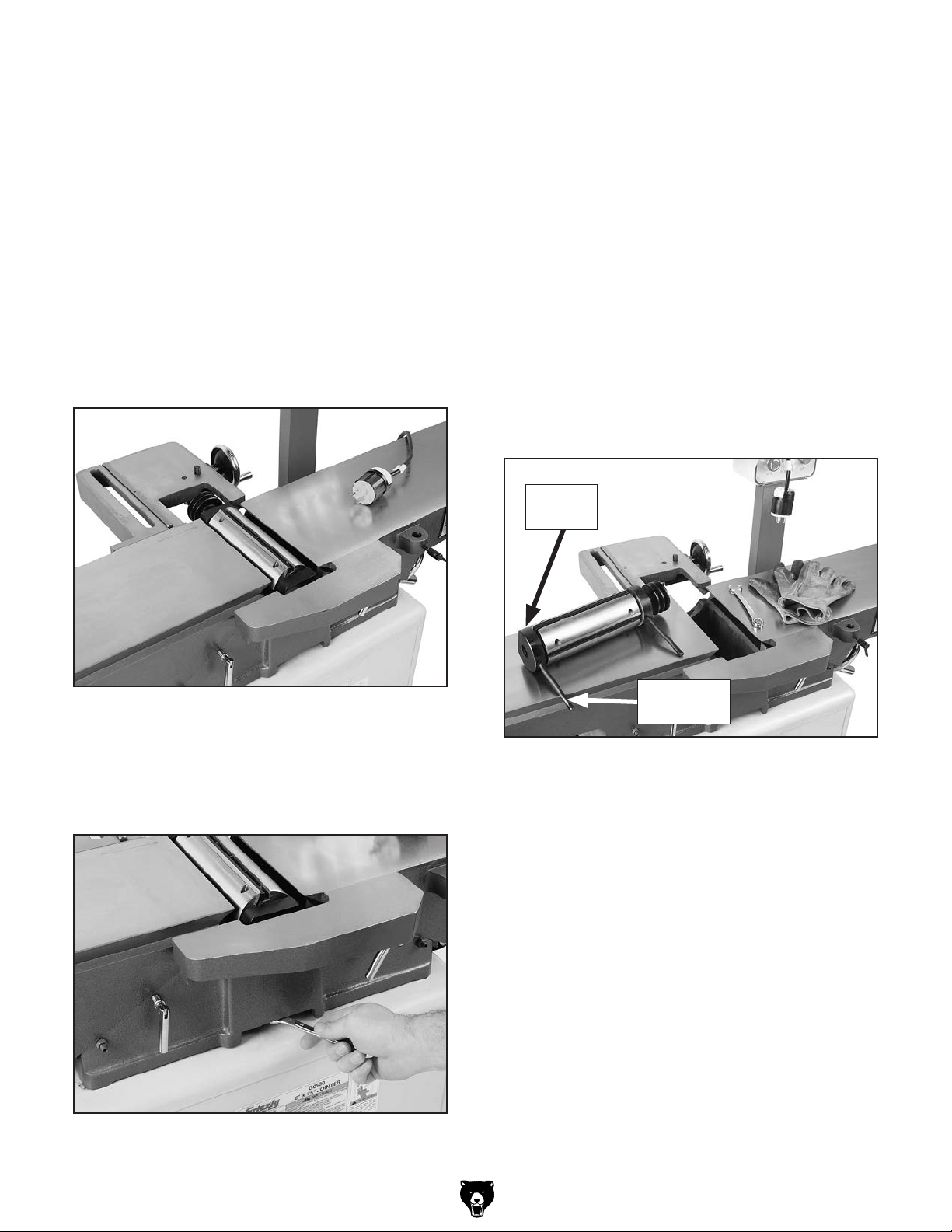

Figure 2. Example of jointer disassembly Steps
1– 4.
5. Remove the nut and lock washer on the bear-
ing block stud, as shown in Figure 3, and repeat on the other side.
Figure 3. Example of removing nut and lock
washer on bearing block stud.
Figure 4.
Bearing
Block Stud
Example of cutterhead removed.
-2-
T27698 6" Helical Cutterhead
8. Cut a 2x4 into two 8" pieces.
9. Place cutterhead assembly on workbench
or flat surface with pulley side of cutterhead shaft facing up, then place 2x4 blocks under rear bearing block, as shown in Figure 5.
Tip: Wrapping tape around blocks can help
hold them together during the next step.
Rear Bearing
Block
Front Bearing
Block

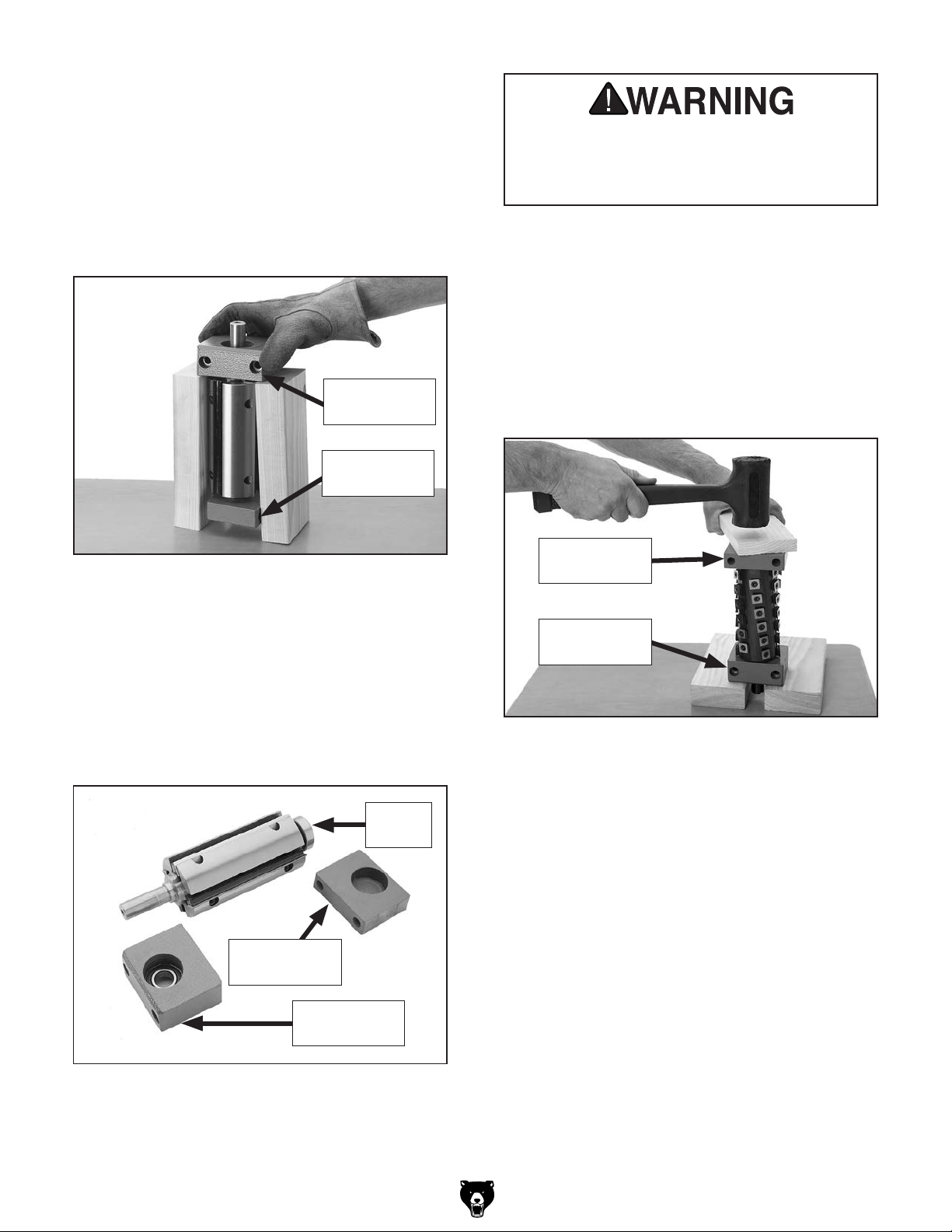

Figure 5. Removing rear bearing block.
Jointer carbide inserts are extremely sharp. Wear leather gloves to avoid the risk of serious personal injury during the following steps.
12. Install or replace bearing removed in Step 11
onto front end (shorter shaft) of your Model T27698 helical cutterhead, then press bear­ing into front bearing block.
13. Stand cutterhead upright between two 8" 2x4 blocks, then use a piece of scrap wood and a dead blow hammer to seat cutterhead into bearing blocks, as shown in Figure 7.
Front Bearing
Block
10. Tap top of cutterhead shaft with a rubber dead blow hammer and a 4x4 block. This should separate cutterhead from rear bearing block.
11. Remove front bearing block and bearing from cutterhead—if it has not already dropped off. Figure 6 shows disassembled components.
Front
Bearing
Front Bearing
Block
Rear Bearing
Block
Rear Bearing
Block
Figure 7. Seating rear bearing block onto helical
cutterhead.
14. Re-install the key onto the keyway, then press the pulley onto the new cutterhead shaft.
15. Reinstall the bearing block studs onto the bearing blocks.
Figure 6. Disassembled cutterhead assembly.
-3-
T27698 6" Helical Cutterhead
16. Install the cutterhead (see Figure 8) with the lock washers and hex nuts removed in
Step 5.
Figure 8. Example of spiral cutterhead installed.
—If the cutterhead is even or within 0.004"
with the outfeed table from one side to the other, skip to Step 20.
—If the cutterhead is over 0.004" from one
side to the other, go to Step 18.
20. Loosen the hex nuts securing both bearing block studs, lift the spiral cutterhead slightly, then place a shim beneath the bearing block that needs to be adjusted.
Note: Use the shims from your old cutterhead
if available. If not available, newspaper is approximately 0.003" thick and will work for shimming (we don't recommend shimming more than 0.004" on either side, as this may affect how the bearing block seats in the cast­ing).
17. Tighten the spiral cutterhead in place, and ensure both pulley set screws are tight.

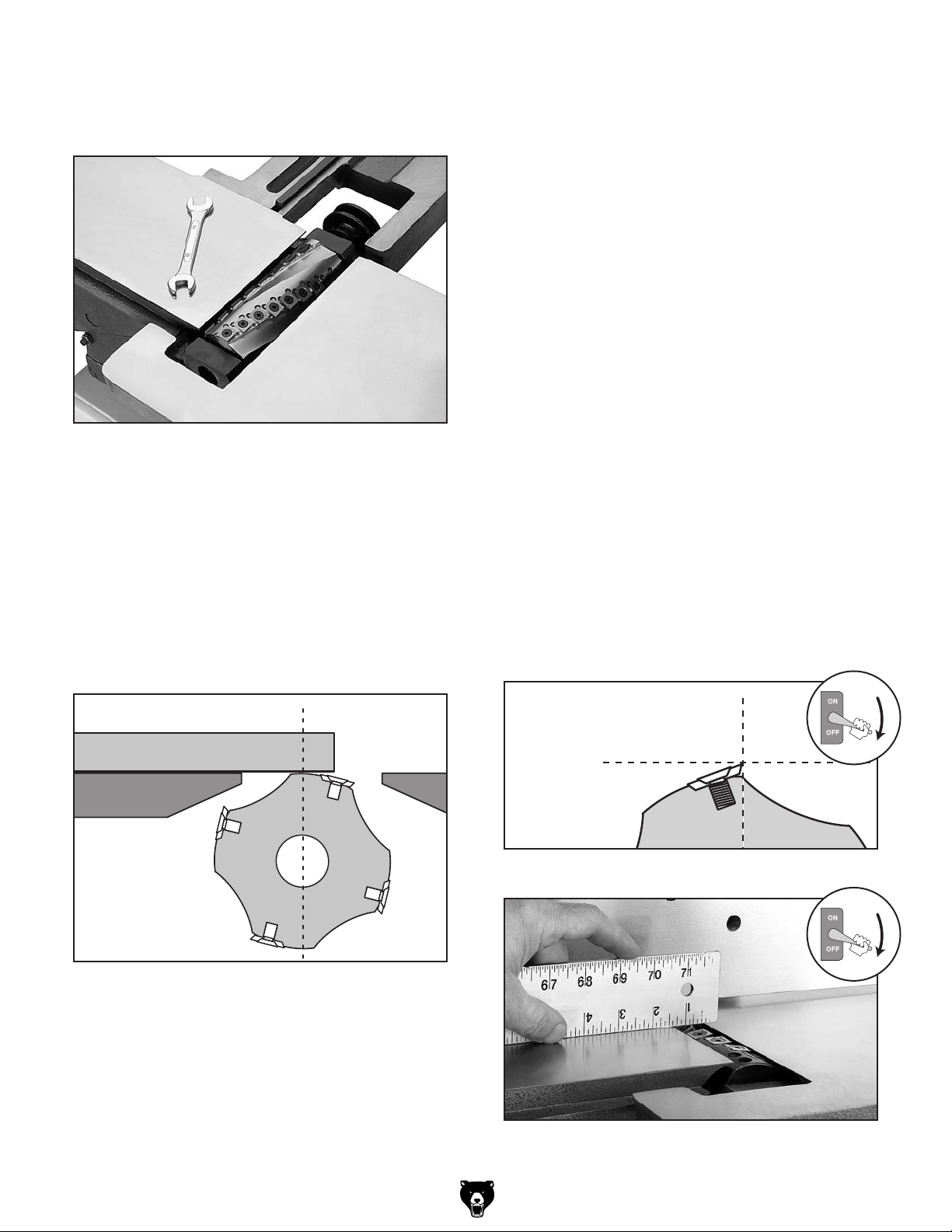

18. Using the straightedge and feeler gauge set, inspect the cutterhead parallelism with the outfeed table as shown in Figure 9. With the straightedge in position, raise or lower the outfeed table until the cutterhead body (not the carbide insert) just touches the straight­edge.
Straightedge
Outfeed Table
21. Repeat Steps 14–16 and adjust if necessary, then tighten the hex nuts on the bearing block studs.
22. Place a straightedge on the outfeed table so it extends over the cutterhead, and rotate the cutterhead pulley until one of the carbide inserts is at top-dead-center (TDC), as shown in Figures 10 & 11.
Top Dead
Center
Figure 10. Cutterhead insert at top-dead-center.
Figure 9. Checking cutterhead parallelism.
19. Move the straightedge to the other side to
determine if one end of the cutterhead body is higher/lower than the other. (Place the feeler gauge between the cutterhead body and the straightedge to determine the height difference.)
-4-
Figure 11. Setting outfeed table height.
T27698 6" Helical Cutterhead
When correctly set, the carbide insert will just touch the straightedge when the insert is at its highest point of rotation (see Figure 12).
Straightedge
Outfeed Table

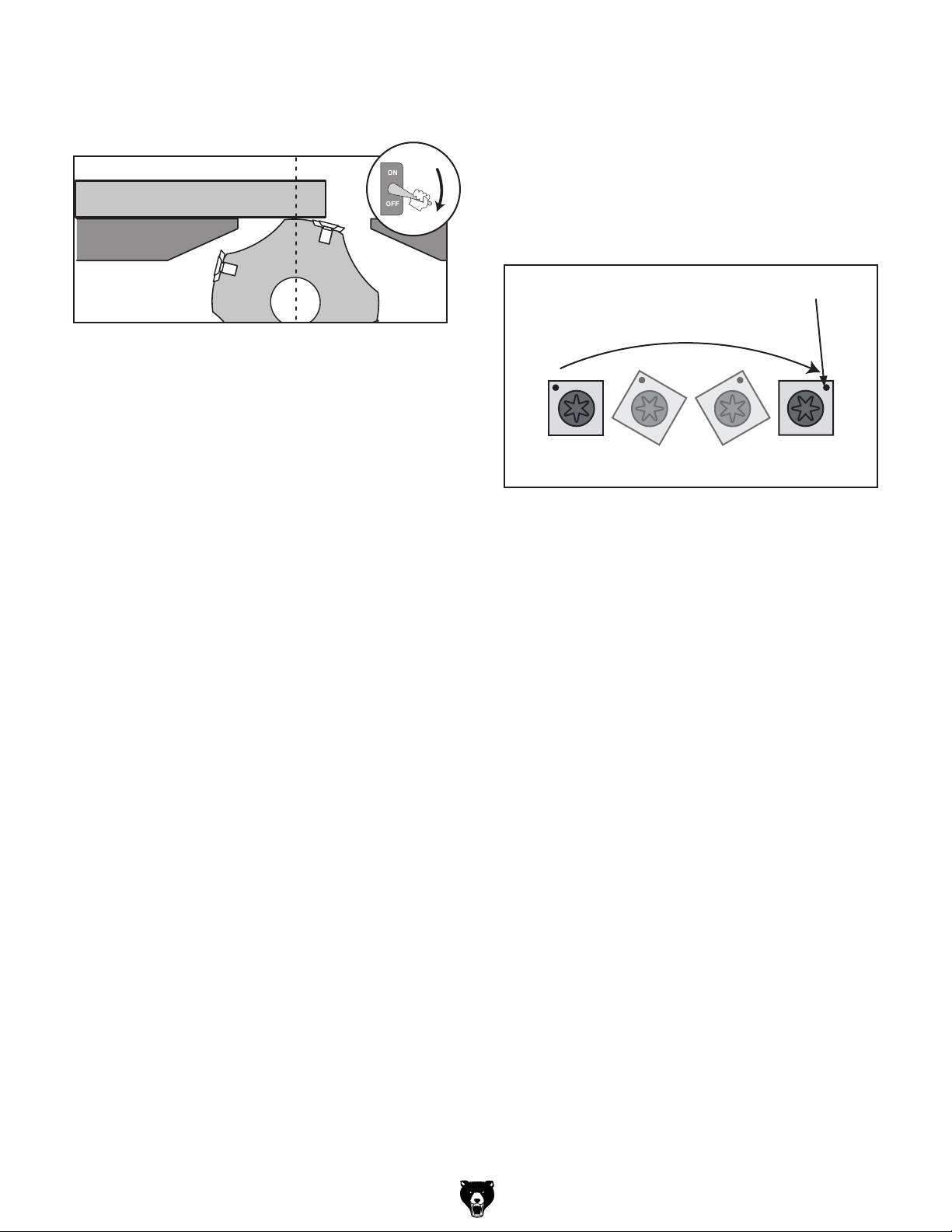

Figure 12. Using a straightedge to align outfeed
table height with insert at TDC.
—If your outfeed table is correctly set, no
adjustments are necessary.
—If the insert lifts the straightedge off the
table or the table is below the straight­edge, adjust the outfeed table height with the handwheel until the straightedge just touches an insert at its highest point of rotation.
23. Lock the outfeed table, then reinstall the fence.
24. Install the cutterhead guard back over the cutterhead, making sure that the spring ten­sion in the guard is properly set so the guard springs back over the cutterhead when it is pulled back and released.
51. Re-adjust the infeed table.
Rotating/Changing Carbide Inserts
Tools Needed:
L-Handle Torx Driver T20 .................................. 1
Each insert can be rotated to reveal any one of its four cutting edges. Therefore, if one cutting edge becomes dull or damaged, simply rotate it 90˚ to reveal a fresh cutting edge (see Figure 13).
Reference Dot
Figure 13. Rotating indexable carbide inserts.
In addition, each insert has a reference dot on one corner. As the insert is rotated, the refer­ence dot location can be used as an indicator of which edges are used and which are new. When reference dot revolves back around to its starting position, the insert should be replaced.
To rotate or change a carbide insert:
1. DISCONNECT MACHINE FROM POWER!
2. Remove any sawdust from head of carbide
insert Torx screw.
-5-
3. Remove Torx screw and carbide insert.
4. Clean all dust and dirt off insert and cutterhead
pocket from which insert was removed, and replace insert so a fresh, sharp edge is facing outward.
Note: Proper cleaning is critical to achieving
a smooth finish. Dirt or dust trapped between the insert and cutterhead will slightly raise the insert, and make a noticeable marks on your workpieces the next time you plane.
T27698 6" Helical Cutterhead

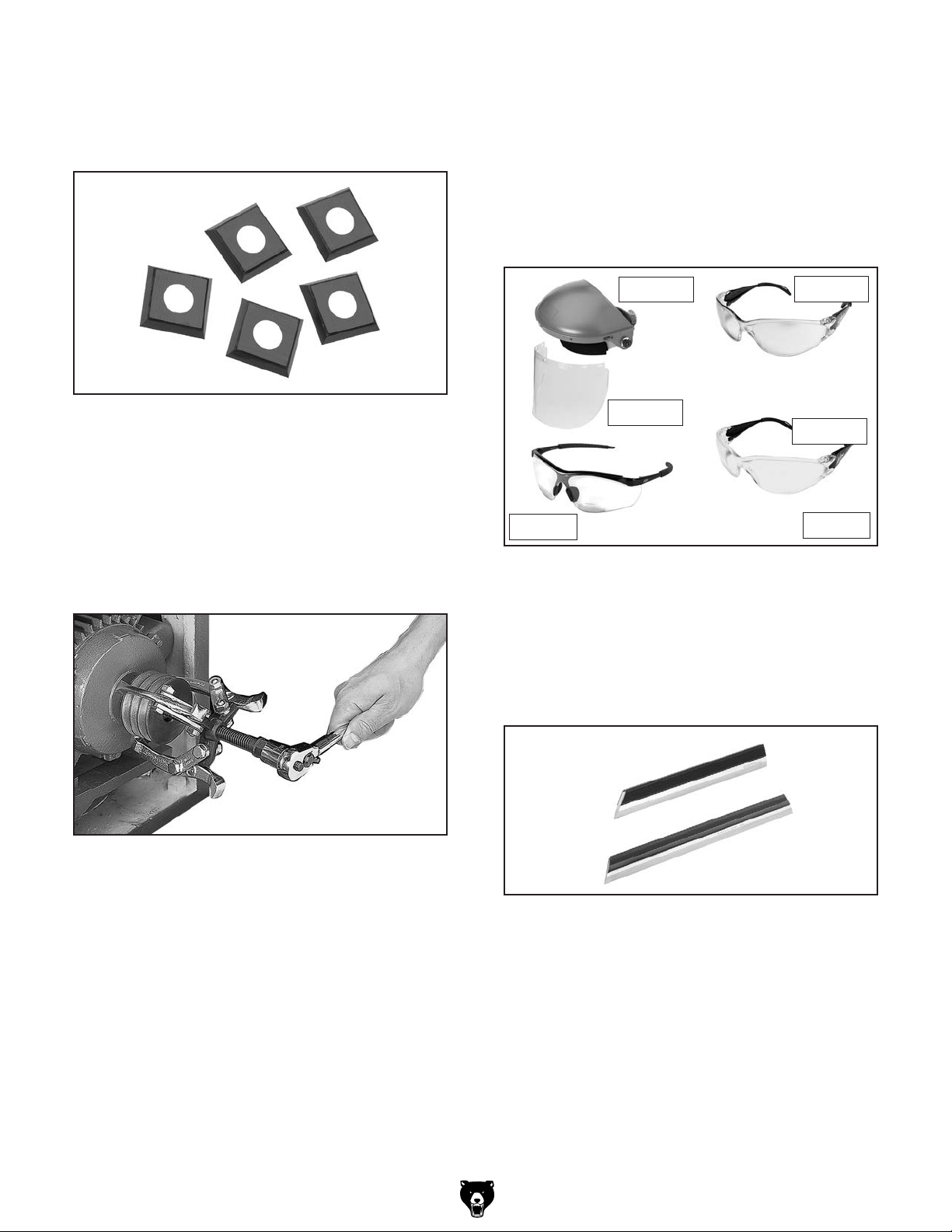

Accessories
order online at www.grizzly.com or call 1-800-523-4777
T27714 —10 Pack of Indexable Carbide Inserts
Replacement 15 x 15 x 2.5mm carbide inserts for T27697 and T27699 cutterheads.
T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20452—"Kirova" Anti-Reflective S. Glasses T20451—"Kirova" Clear Safety Glasses H0736—Shop Fox H7194—Bifocal Safety Glasses 1.5 H7195—Bifocal Safety Glasses 2.0 H7196—Bifocal Safety Glasses 2.5
®
Safety Glasses
Figure 14. T27714 Indexable Carbide Inserts.
G8995—4" Heavy Duty Pulley Puller
Indispensable for pulling gears or pulleys off of press-fit shafts. Can be used in either a 2 or 3 jaw configuration. The 4" jaw fingers are also revers­ible so they can grab an outside or inside diam­eter. The forcing screw has a live center and is made of tough hardened steel. Keep one of these handy in your tool box.
T20502
T20503
H7194
Figure 16. Eye protection assortment.
G9644—12" Precision Straightedge H2675—16" Precision Straightedge
Is your straightedge really straight? These grade 00 heavy-duty stainless steel straightedges are manufactured to DIN874 standards for profes­sional results in setup and inspection work.
T20452
T20451
H0736
Figure 15. G8995 4" Heavy Duty Pulley Puller.
Figure 17. Precision straightedges.
-6-
T27698 6" Helical Cutterhead

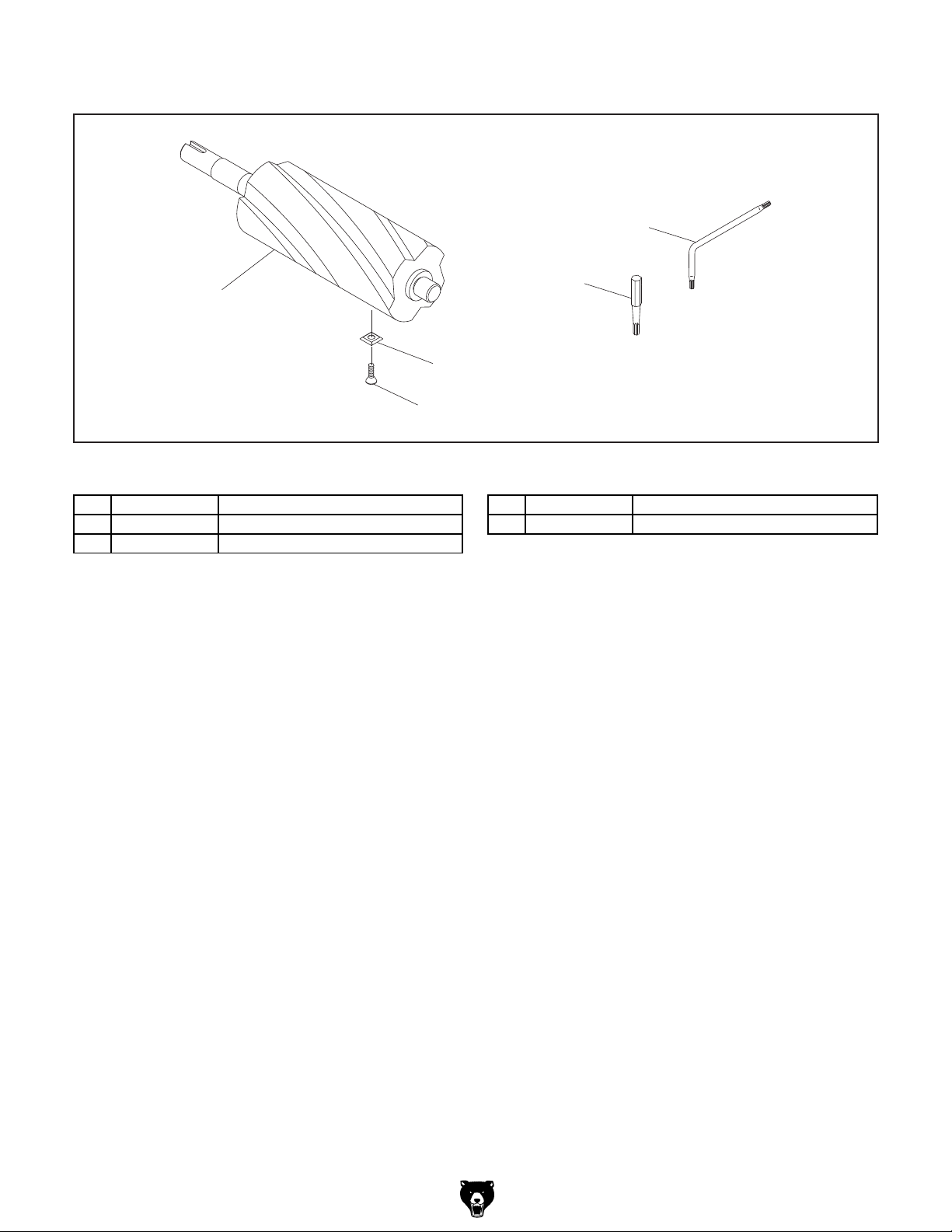

T27698 Parts Breakdown and List
4
1
2
3
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27698001 CUTTERHEAD 6" HELICAL 4 PT27698004 L-WRENCH TORX T20 2 PT27698002 INDEXABLE INSERT 15 X 15 X 2.5 5 PT27698005 DRIVER BIT TORX T20 3 PT27698003 FLAT HD TORX SCR T20 M6-1 X 15
5
-7-
T27698 6" Helical Cutterhead
