Grizzly T26470 User guide

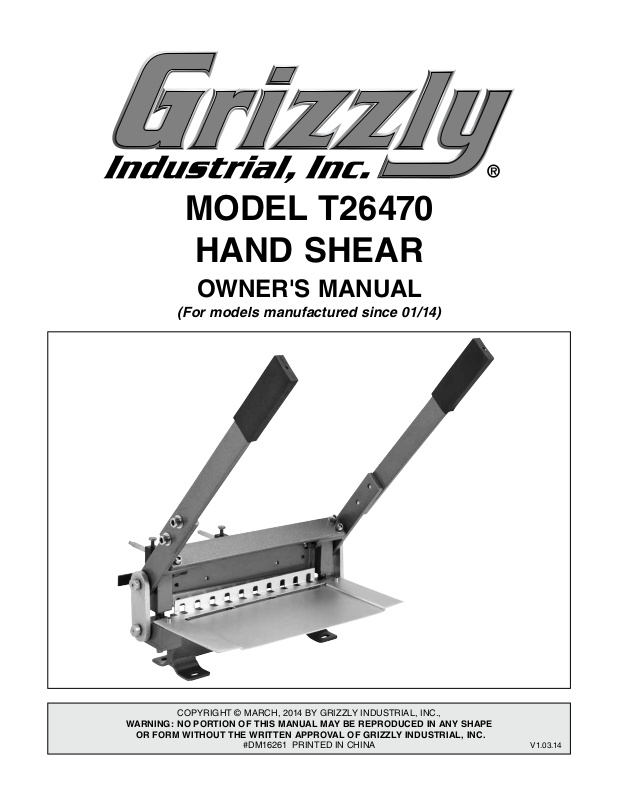

MODEL T26470

HAND SHEAR

OWNER'S MANUAL

(For models manufactured since 01/14)

COPYRIGHT © MARCH, 2014 BY GRIZZLY INDUSTRIAL, INC.,

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#DM16261 PRINTED IN CHINA

V1. 0 3.14

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Machine Description ................................................................................................................... 2

Contact Info ................................................................................................................................ 2

Manual Accuracy ........................................................................................................................ 2

Identification ............................................................................................................................... 3

Machine Data Sheet ................................................................................................................... 4

SECTION 1: SAFETY ....................................................................................................................... 5

Safety Instructions for Machinery ............................................................................................... 5

Additional Safety for Shear Machines ........................................................................................ 7

SECTION 2: SETUP ......................................................................................................................... 8

Unpacking .................................................................................................................................. 8

Needed for Setup ....................................................................................................................... 8

Inventory ..................................................................................................................................... 8

Cleanup ...................................................................................................................................... 9

Site Considerations .................................................................................................................... 9

Bench Mounting ....................................................................................................................... 10

Assembly .................................................................................................................................. 11

SECTION 3: OPERATIONS ........................................................................................................... 12

Cutting Sheet Metal .................................................................................................................. 12

Work Stop................................................................................................................................. 13

SECTION 4: ACCESSORIES ......................................................................................................... 14

SECTION 5: MAINTENANCE......................................................................................................... 17

Schedule .................................................................................................................................. 17

Cleaning ................................................................................................................................... 17

Lubrication ................................................................................................................................ 17

SECTION 6: SERVICE ................................................................................................................... 18

Troubleshooting ........................................................................................................................ 18

Adjusting Blade Bow ................................................................................................................ 19

Sharpening/Replacing Blades .................................................................................................. 20

SECTION 7: PARTS ....................................................................................................................... 21

Main .......................................................................................................................................... 21

Labels ....................................................................................................................................... 22

WARRANTY & RETURNS ............................................................................................................. 25

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes,
but

also

means that

you receive
will be slightly different than what is shown in
the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
for an updated version. W

manuals

and

www.grizzly.com

Alternatively, you can call our Technical Support
for help. Before calling, please write down the

Manufacture Date

stamped
into the machine ID label (see below). This infor­mation helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Machine Description

The Model T26470 is a benchtop Hand Shear
designed to cut light-gauge sheet metal. A station­ary blade is mounted to the machine base and a
moving blade is connected to the handles. When
the handles are pulled down, the upper blade
moves past the lower stationary blade, creating a
shearing action, similar to a pair of scissors.

The Model T26470 is equipped with a rear adjust­able work stop for making repetitive cuts of the
same length.

Contact Info

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: [email protected]

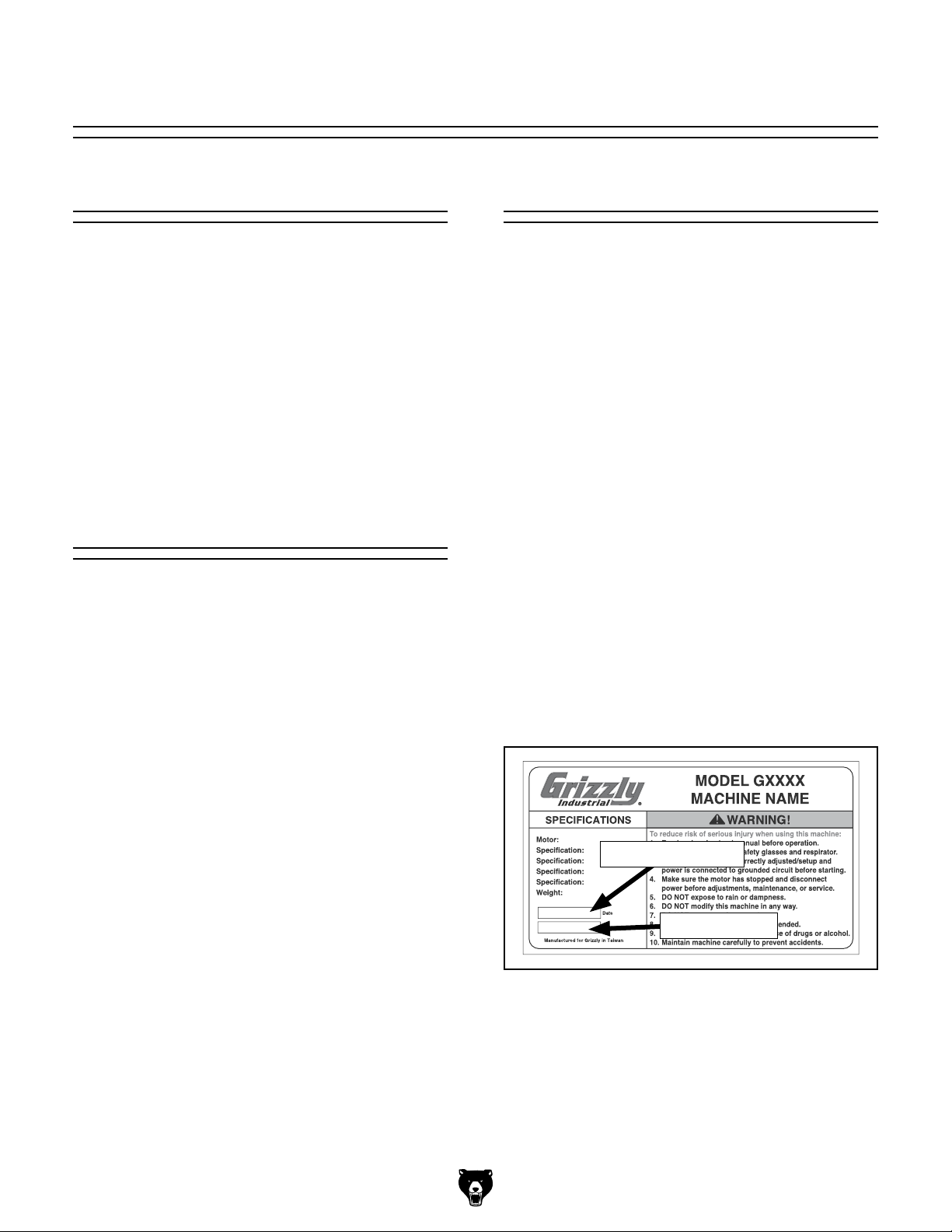

Manual Accuracy

made every effort to be exact with the

our policy of continuous improvement

sometimes the machine

.

, check our website

e post current

manual updates for free on our website at

.

and Serial Number

Manufacture Date

Serial Number

-2-

Model T26470 (Mfd. Since 1/14)

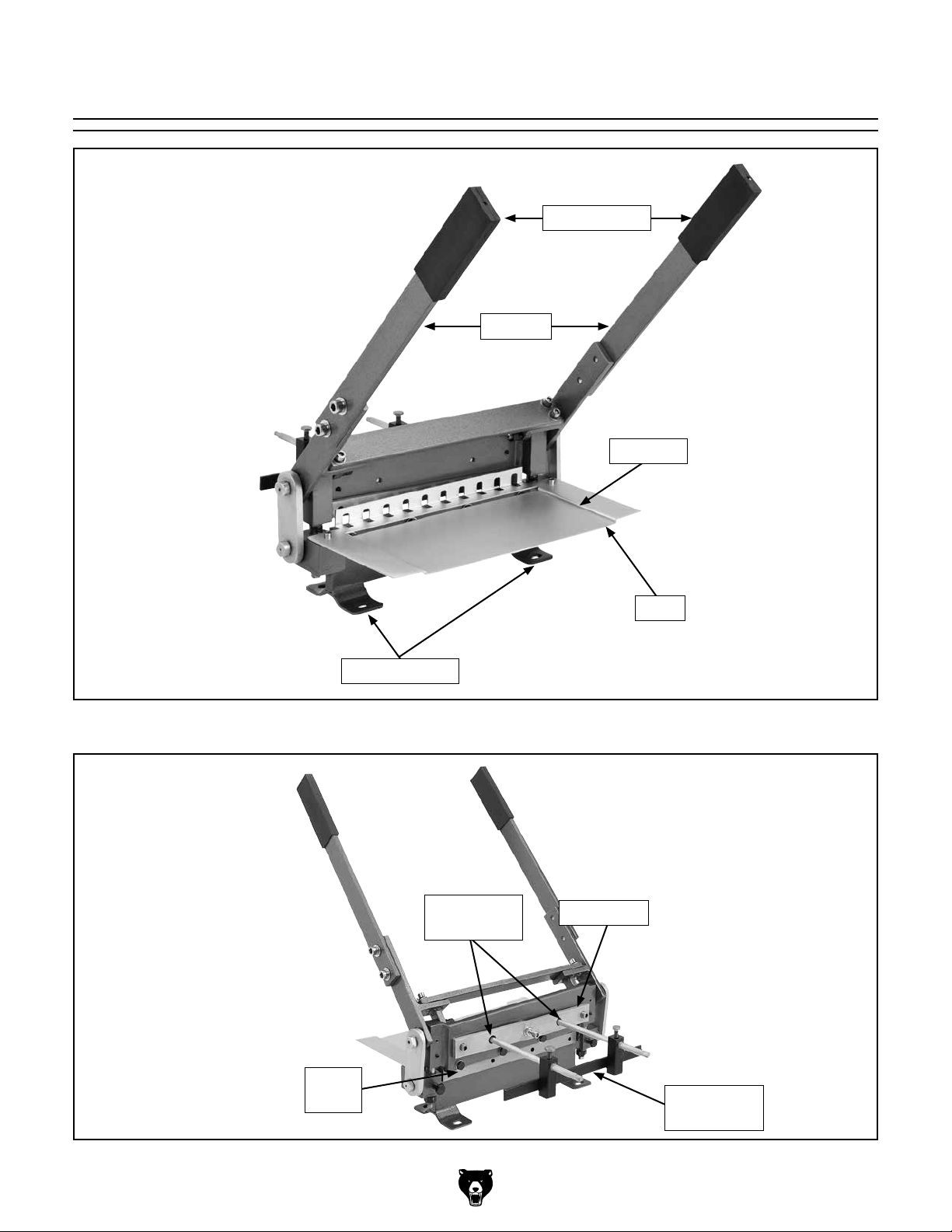

Identification

Handle Grips

Handles

Table Lip

Mounting Feet

Figure 1. Hand shear identification (front).

Work Stop

Rods

Blade Bow

Table

Model T26470 (Mfd. Since 1/14)

Lower

Blade

Figure 2. Hand shear identification (rear).

Work Stop

Assembly

-3-

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL T26470 HAND SHEAR MACHINE

Product Dimensions:

Weight................................................................................................................................................................ 38 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 17-1/2 x 17 x 28-1/2 in.

Footprint (Length x Width)....................................................................................................................... 13 x 4-1/2 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 40 lbs.

Length x Width x Height......................................................................................................................... 20 x 16 x 6 in.

Main Specifications:

Capacities

Maximum Width......................................................................................................................................... 12 in.

Maximum Thickness at Half Width Mild Steel..................................................................................... 17 Gauge

Maximum Thickness at Full Width Mild Steel..................................................................................... 20 Gauge

Front Stop Scale Range........................................................................................................................ 7-1/2 in.

Rear Stop Scale Range......................................................................................................................... 9-1/2 in.

Construction

Frame......................................................................................................................................................... Steel

Hold-Down Clamp...................................................................................................................................... Steel

Shear Table................................................................................................................................................ Steel

Shear Blades.............................................................................................................................................. Steel

Shear Blade Type............................................................................................................................... Plain End

Other Specifications:

Country Of Origin ............................................................................................................................................... China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

Features:

Adjustable rear stop
Easy control rubber grip handles
Mounting base

-4-

Model T26470 (Mfd. Since 1/14)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model T26470 (Mfd. Since 1/14)

-5-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of work­piece control.

HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.

-6-

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model T26470 (Mfd. Since 1/14)

Additional Safety for Shear Machines

AMPUTATION HAZARD. The shear blades can

easily pinch, crush, or amputate fingers or other
body parts. Always keep hands, fingers, and other
body parts away from the blades during operation.

RATED CAPACITY. Only use sheet metal that is
within the rated capacity of this shear (refer to the

Machine Data Sheet on Page 4).

SHARP METAL EDGES. Sharp edges on sheet

metal workpieces can easily cause deep cuts
while handling. Wear leather gloves when han­dling sheet metal, and always chamfer and debur
sharp workpiece edges.

PROPER WORKPIECE MATERIAL. Do not
attempt to cut round stock, glass, wood, dry­wall, backer board, or plywood. Cutting incorrect
materials can produce unexpected results, which
increases the risk of injury, and may result in dam­age to the machine.

SECURE SHEAR BEFORE USE. Before using,
fasten shear to a sturdy surface that can with­stand the dynamic forces involved in cutting sheet
metal. Otherwise, shear may unexpectedly move
or fall, causing serious injury or property damage.

STABLE FOOTING. This shear requires you to
apply moderate force while cutting. Without stable
footing, you could slip or fall, which could cause
personal injury. Always stand with both feet com­fortably on a non-slip surface during operation.

BODY POSITION. The forces and body motion
required to operate shear can result in operator
injury over time if proper technique is not used.
Always keep your body centered with the machine
and your back straight when applying pressure
against handles.

BLADE CONDITION. Blades that are sharp,
undamaged, and properly adjusted will reduce
risk of injury and improve cutting results. Always
keep blades properly maintained.

BLADE GUARD. The blade guard is designed
to reduce risk of amputation. Always keep guard
properly attached and in good condition during
operation.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model T26470 (Mfd. Since 1/14)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-7-

SECTION 2: SETUP

Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately

at [phone]

Save the containers and all packing materials for
possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condi­tion of your shipment, inventory the contents.

Keep children and pets away
from plastic bags or packing
materials shipped with this

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

for advice.

SUFFOCATION HAZARD!

Inventory

Inventory Qty

A. Machine Base ............................................. 1

B. Handles ...................................................... 2

C. Handle Grips .............................................. 2

D. Table ........................................................... 1

E. Work Stop Rods ......................................... 2

F. Work Stop ................................................... 1

G. Flat Head Cap Screws M6-1 x 16 .............. 2

H. Work Stop Blocks ....................................... 2

machine. Discard immediately.

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Safety Glasses ........................................... 1

• Cleaner/Degreaser (Page 9) ...... As Needed

• Disposable Shop Rags ............... As Needed

• Hex Wrenches 4, 5, 8mm ........................... 1

-8-

A

B

D

C

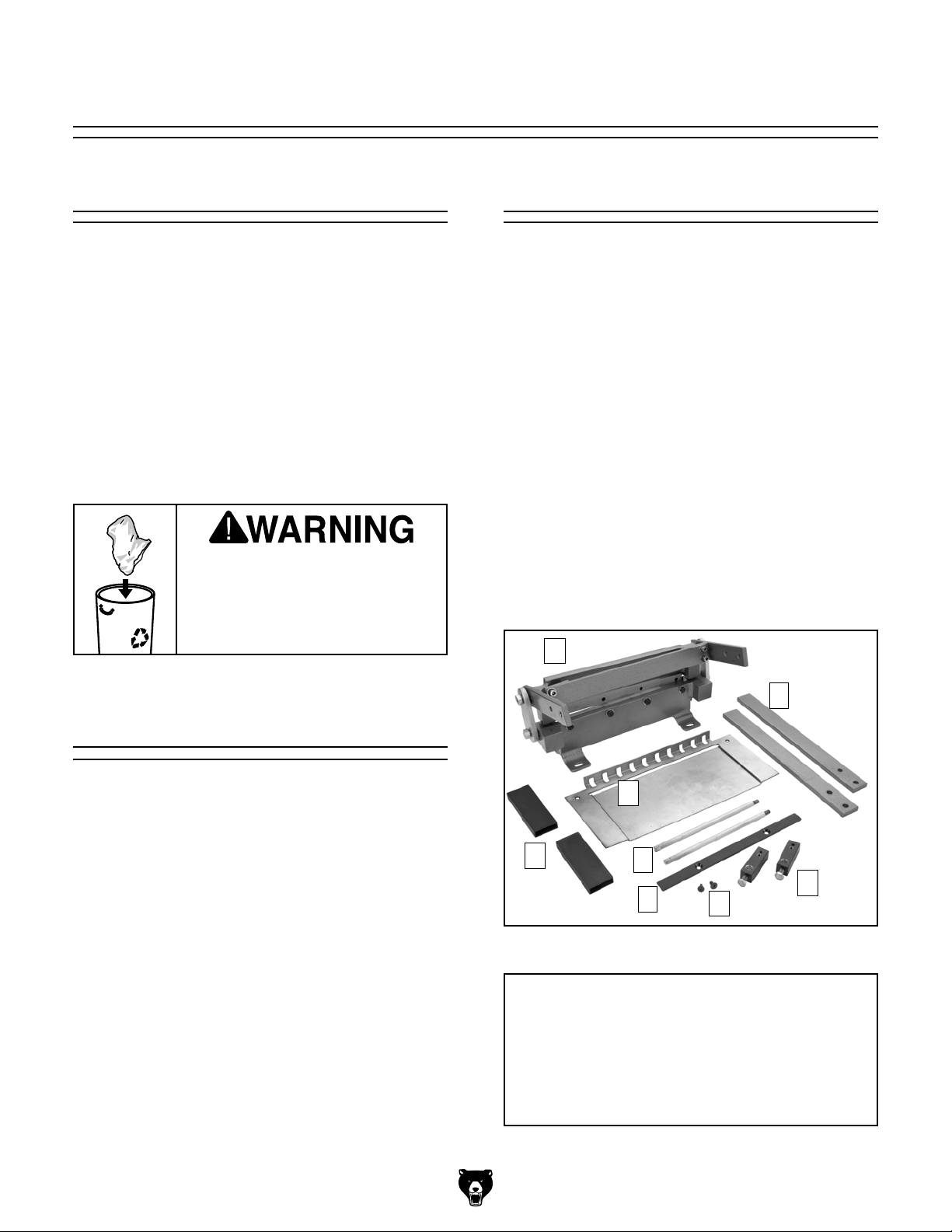

Figure 3. T26470 inventory.

E

H

F

G

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Model T26470 (Mfd. Since 1/14)

Cleanup Site Considerations

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Workbench Load

Placement Location

17

1

⁄2"

Basic steps for removing rust preventative:

1. Put on safety glasses.

2. Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

3. Wipe off the surfaces. If your cleaner/
degreaser is effective, the rust preventative
will wipe off easily. If you have a plastic paint
scraper, scrape off as much as you can first,
then wipe off the rest with the rag.

4. Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

NOTICE

Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.

30"

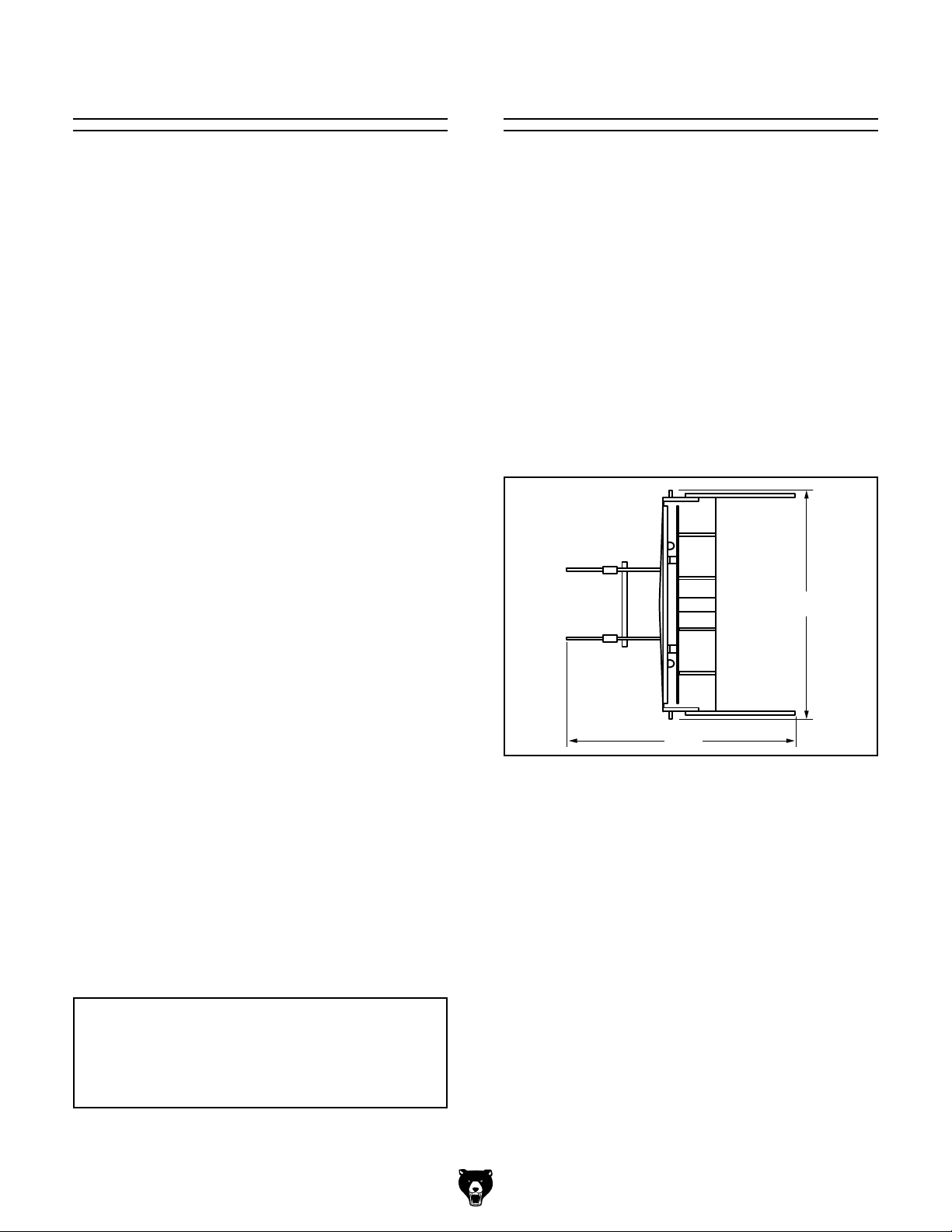

Figure 4. Minimum working clearances.

Model T26470 (Mfd. Since 1/14)

-9-

Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

Bench Mounting

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware .................

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

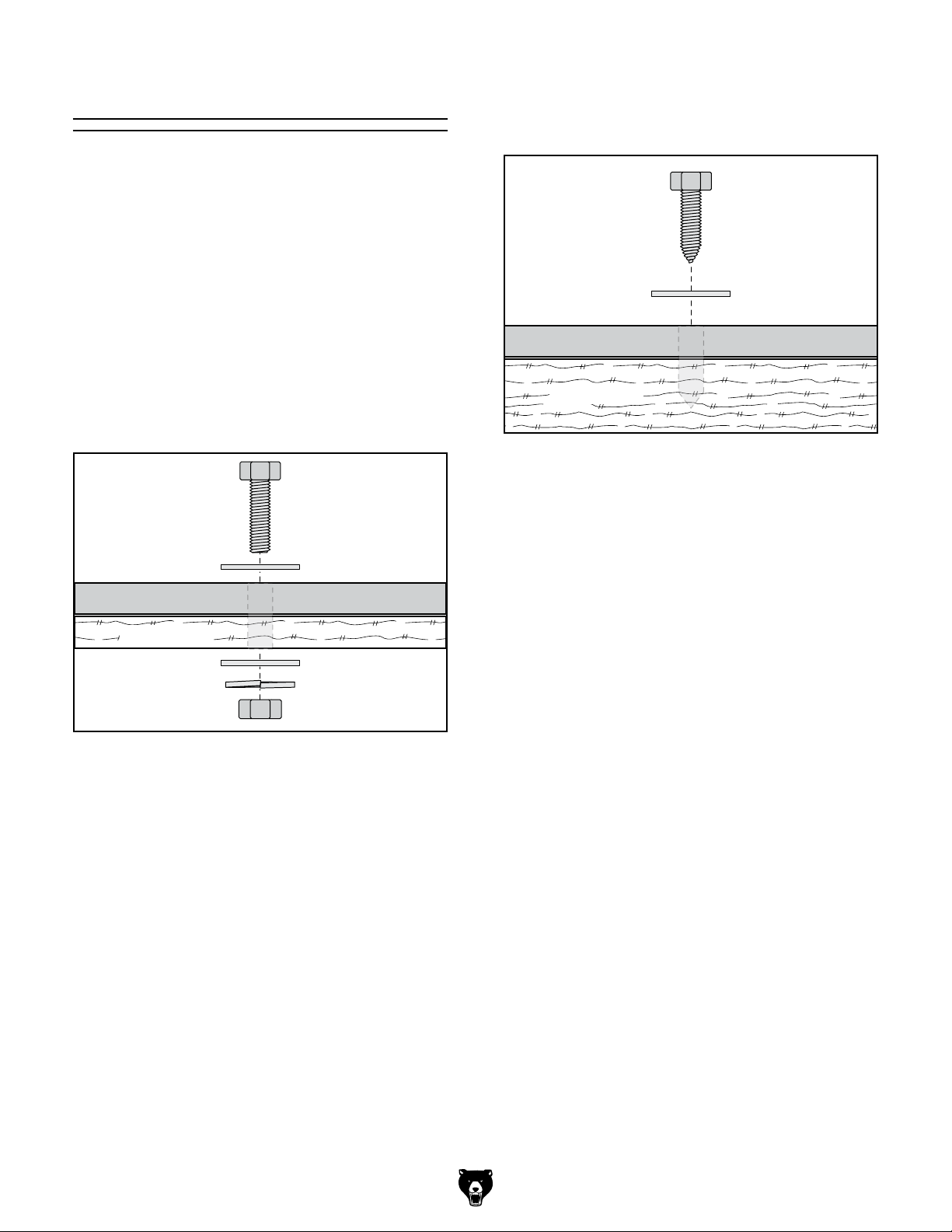

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

Hex
Bolt

Flat Washer

Machine Base

3

⁄8"

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 6. Example of a "Direct Mount" setup.

Workbench

Flat Washer

Lock Washer

Hex Nut

Figure 5. Example of a "Through Mount" setup.

-10 -

Model T26470 (Mfd. Since 1/14)

Assembly

This shear is mostly assembled at the factory.
The only assembly required is attaching the table,
work stop, and handle assemblies.

4. Attach work stop to bottom holes in work
stop blocks with (2) M6-1 x 16 flat head cap
screws (see Figure 9).

Bottom Holes

To assemble your machine:

1. Attach handles to levers with the (4) pre-

installed M10-1.5 x 25 cap screws and 10mm
flat washers as shown in Figure 7.

Handle Grip

Lever

x 4

Figure 7. Handles attached.

2. Slide handle grips over handles on end with-

out mounting holes as shown in Figure 7.

Stop

Block

Work Stop

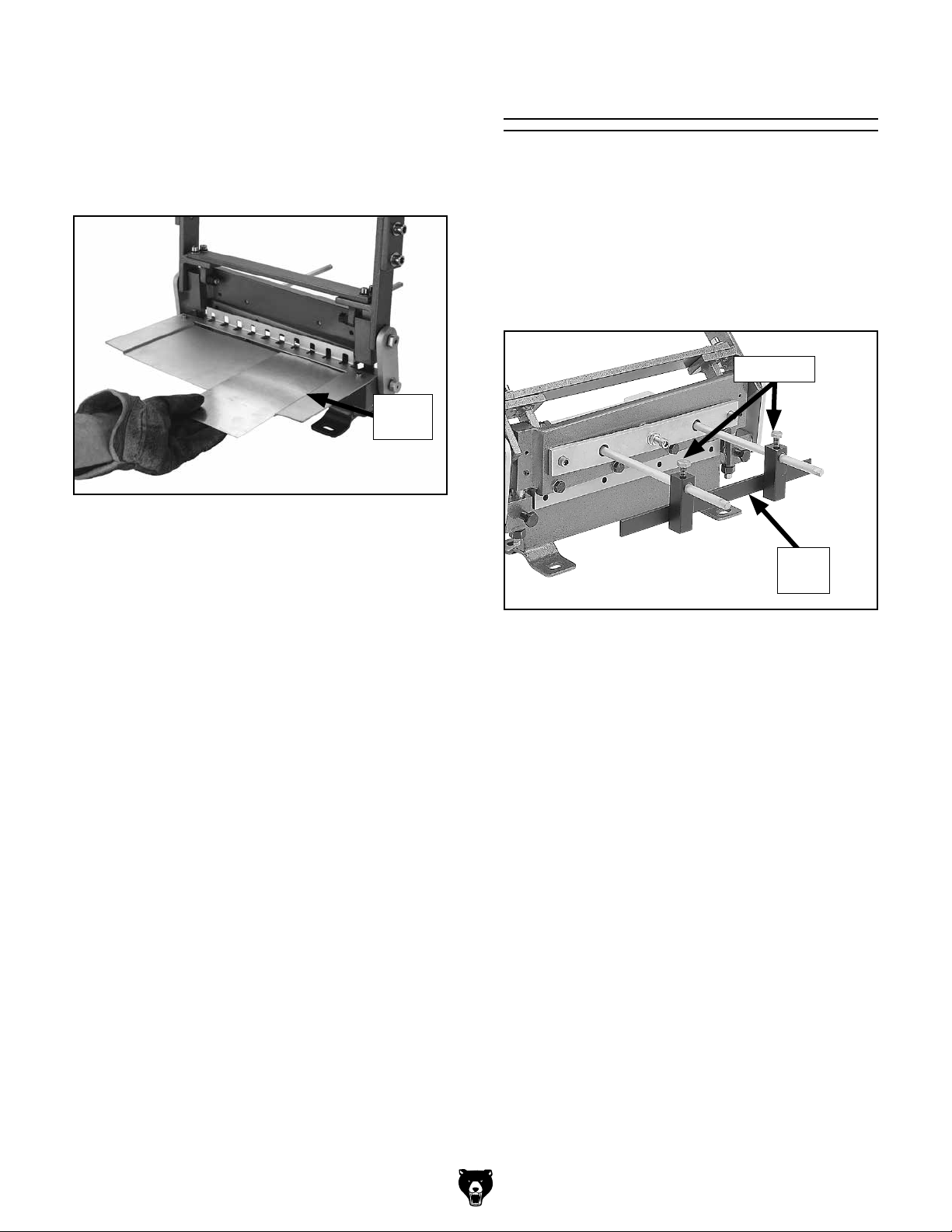

Figure 9. Attaching work stop to stop blocks.

5. Slide work stop assembly onto work stop

rods and tighten M8-1.25 x 20 hex bolts (see
Figure 10).

Hex Bolts

3. Thread work stop rods through blade bow
and into back of machine (see Figure 8).

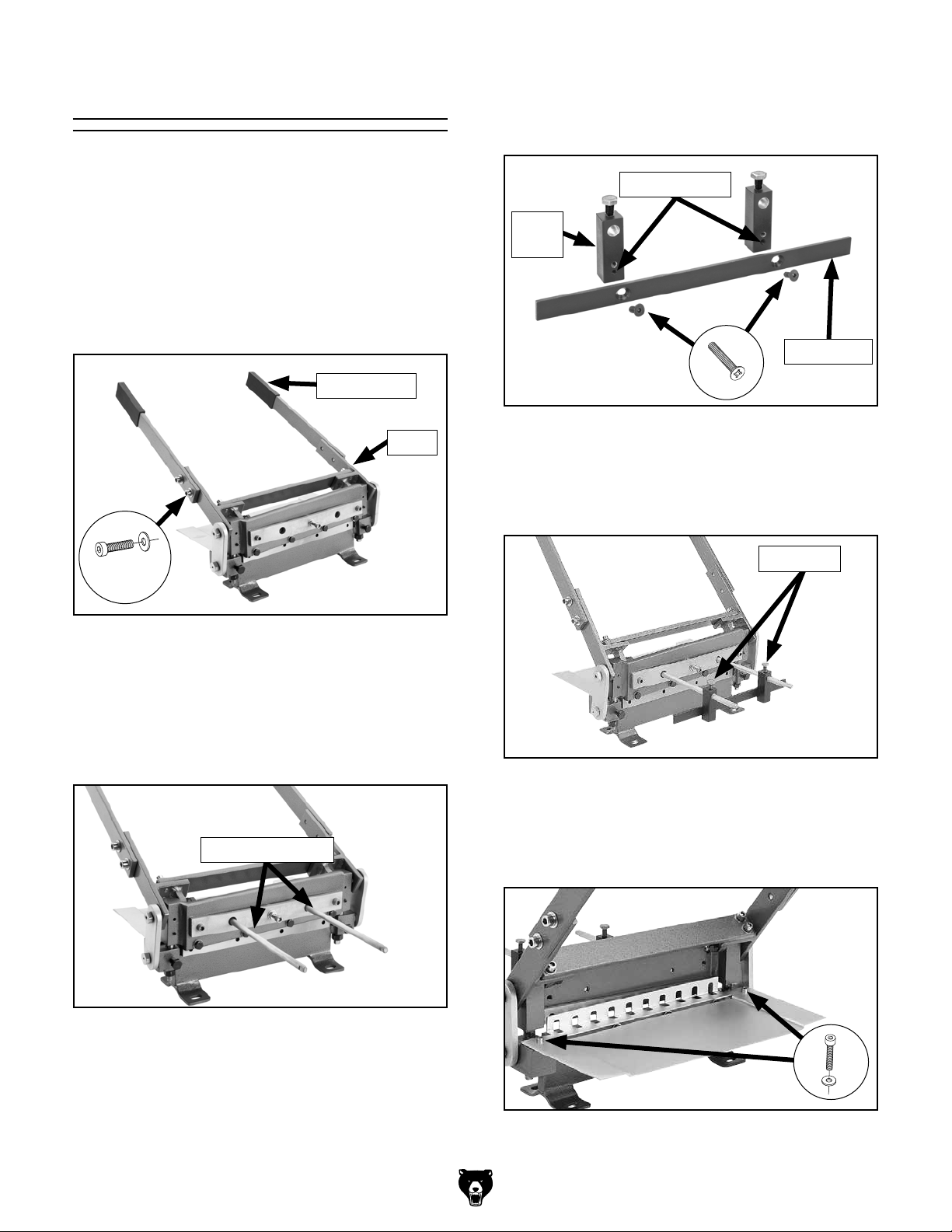

Work Stop Rods

Figure 8. Work stop rods installed.

Figure 10. Work stop attached.

6. Fasten table to machine base using the (2)

pre-installed M6-1 x 12 cap screws and (2)
6mm flat washers (see Figure 11).

Figure 11. Table attached to machine base.

Model T26470 (Mfd. Since 1/14)

-11-

SECTION 3: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

Eye injury hazard! Always
wear safety glasses when

Cutting Sheet Metal

This shear is designed to cut mild steel up to

using machine.

Damage to your eyes and
hands could result from
using this machine with­out proper protective gear.
Always wear leather gloves
and safety glasses, when
operating this machine.

20-gauge at full width and up to 17-gauge at half
width. Exceeding these capacities can result in
damage to shear blades.

To cut sheet metal:

1. Mark cut line across workpiece.

2. Make sure gap between shear blades is cor-
rect for workpiece material (refer to Adjusting
Blade Bow on Page 19 for detailed instruc-

tions).

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Shear blades can easily
pinch, crush, or amputate
fingers or other body
parts. Always keep hands,
fingers, and other body
parts away from blades
during operation.

-12-

Model T26470 (Mfd. Since 1/14)

3. Position workpiece against table lip on right
side of table as shown in Figure 12, then
align cut mark with upper shear blade.

Work Stop

Note: The shearing action begins on the right

side of the workpiece and moves to the left.

Table

Lip

Figure 12. Positioning workpiece for a cut.

Note: If you are using the work stop, adjust

the stop so that at least one square edge of
the workpiece is against it.

The work stop is used for making repetitive cuts of
the same length. The adjustable assembly allows
the work stop to create workpieces as short as

1

⁄4" or as long as 81⁄4".

1

To position the work stop:

1. Loosen both hex bolts shown in Figure 13.

Hex Bolts

Work

Stop

4. Clamp workpiece to table to prevent it from
moving while cutting.

5. Keeping all body parts away from blades,
pull down on both handles with an even and
steady pressure to complete cut.

Figure 13. Hex bolts used for setting work stop.

2. Adjust work stop parallel with blades and at

correct distance for cut.

3. Retighten both hex bolts.

Model T26470 (Mfd. Since 1/14)

-13-

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 4: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

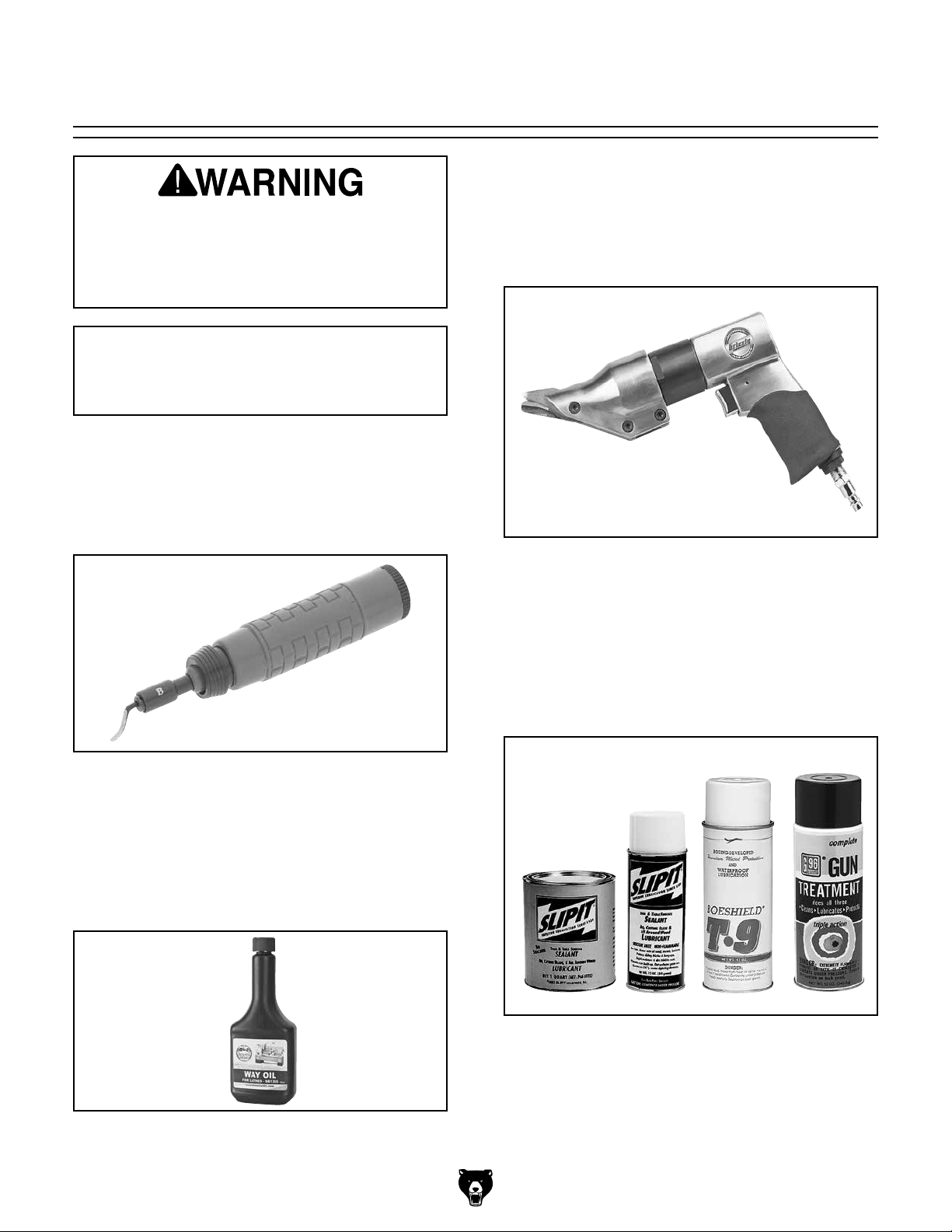

G5618—Deburring Tool with Two Blades

The quickest tool for smoothing freshly sheared
metal edges. Comes with two blades, one for
steel and aluminum, and one for brass and cast
iron.

T23094—Pneumatic Sheet Metal Shear

This heavy-duty Pneumatic Sheet Metal Shear
provides long life and reliable cutting with an
ergonomic grip for comfort and stability. Shears
most types of plastics and all types of aluminum,
tin, and steel.

Figure 16. T23094 Pneumatic Sheet Metal

Shear.

Figure 14. G5618 Deburring Tool.

SB1365—South Bend Way Oil-ISO 68

Engineered for the high pressure exerted on
horizontal or vertical ways and slides. Protects
against rust and corrosion. Ensures stick-free,
smooth motion which maximizes finishes and
extends the life of your machine.

G5562—SLIPIT
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

Figure 17. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

®

1 Qt. Gel

®

12 Oz. Spray

®

T-9 12 Oz. Spray

®

®

Gun Treatment 12 Oz. Spray

®

Gun Treatment 4.5 Oz. Spray

T-9 4 Oz. Spray

Figure 15. SB1365 Machine Oil-ISO 68.

-14-

Model T26470 (Mfd. Since 1/14)

order online at www.grizzly.com or call 1-800-523-4777

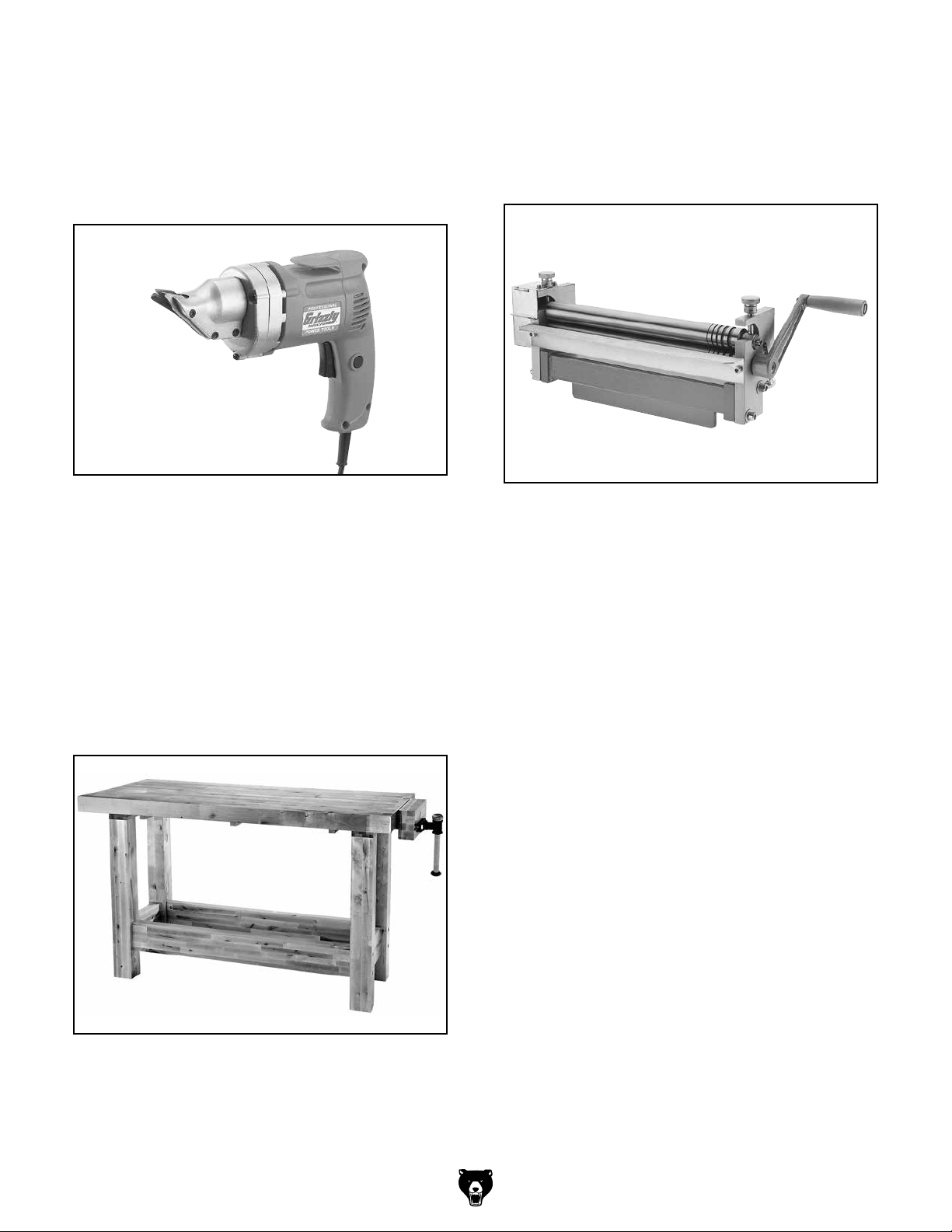

H5503—Electric Sheet Metal Shear

1

This Electric Sheet Metal Shear features a

⁄2 HP,
110V, 2500 RPM, 3.8 amp motor with a 360 de­gree adjustable swivel head and variable speed
range from 0 to 2500 SPM. Cuts up to 14 gauge
in mild steel and 18 gauge in stainless, at up to
150 inches per minute.

T10727—12" Slip Roll

Use your bench vise as a sturdy base with this
unique Slip Roll. This slip roll has 12" maximum
forming width and 20 gauge maximum mild steel

3

capacity with 1

⁄16" roll diameter and 13⁄4" minimum

forming diameter.

Figure 18. H5503 Electric Sheet Metal Shear.

Super Heavy-Duty Birch Workbench
H8361—60" x 30"
H8362—72" x 36"

Sized to fit the needs of any shop, these Super
Heavy-Duty Birch Workbenches have solid 3"
thick tops that stand 38" above the floor. The end

3

vise measures 14

⁄4" wide (H8361) or 17 3⁄4" wide
(H8362) and has a 7" maximum capacity. Stable
laminated birch provides strength and durability.
You'll be proud to have this workbench in your
shop!

Figure 20. T10727 Bench Vise Slip Roll.

Figure 19. Super heavy-duty birch workbench.

Model T26470 (Mfd. Since 1/14)

-15-

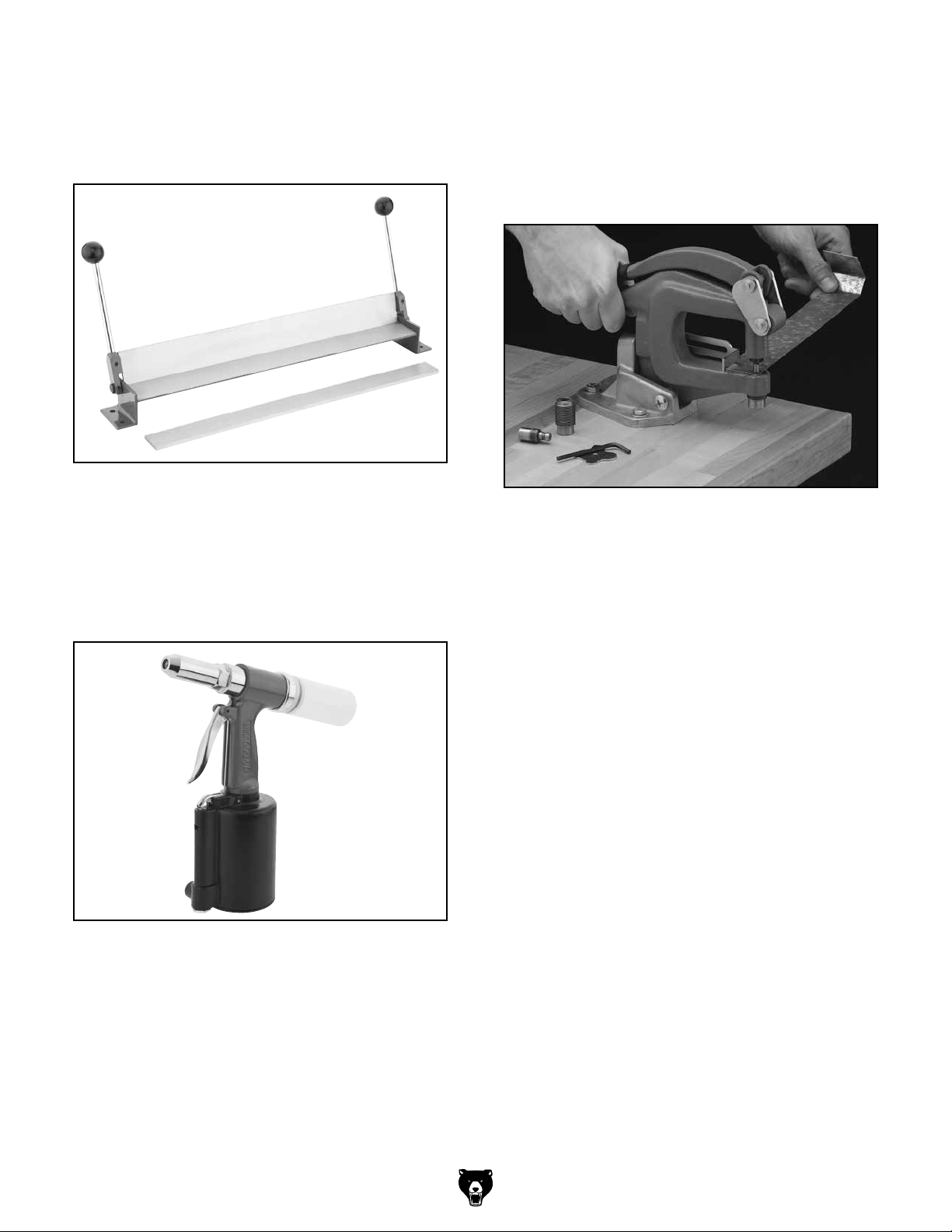

T23125—18" Mighty Bender

order online at www.grizzly.com or call 1-800-523-4777

These light-duty, 18" capacity benders are the
perfect tool to have in every workshop. They
quickly form sheet metal up to 22 gauge and are
amazingly affordable.

Figure 21. T23125 Mighty Bender.

H6136—Air Riveter

If you do a lot of riveting, you can't beat the speed
and convenience of a pneumatic riveter. Simply
connect to an air compressor and squeeze the
trigger for all day riveting. Includes five tips, quick
connect air fitting, and rivet mandrel container.

H7862—Heavy-Duty Hand Punch with Stand

This heavy-duty hand punch easily goes from
stand-mounted operation to hand-held operation
for ultimate flexibility. Comes with 7 different die

5

sizes including

17

⁄32" each having a center tip for easy hole align-

⁄32", 7⁄32", 9⁄32", 11⁄32", 13⁄32", 15⁄32" and

ment.

Figure 23. H7862 Heavy Duty Hand Punch.

Figure 22. H6136 Air Riveter.

-16 -

Model T26470 (Mfd. Since 1/14)

SECTION 5: MAINTENANCE

accidental startup, always
disconnect machine from

To reduce risk of shock or

power before adjustments,

maintenance, or service.

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily:

• Loose mounting bolts.

• Damaged blade guard.

• Damaged or worn blades.

• Any other unsafe condition.

Cleaning

Cleaning the Model T26470 is relatively easy. Use
a brush to clear away any metal debris from the
blades and the table.

Use a shop rag to carefully apply a thin coat of
quality metal protectant to all exposed surfaces of
the blades to prevent corrosion (see Page 14 for
offerings from Grizzly).

Lubrication

Alignment Shaft Bushing

Oil Ty p e ..... Model SB1365 or ISO 68 Equivalent

Oil Amount ..................................... 1 or 2 Squirts

Lubrication Frequency ..............................Weekly

Weekly:

• Lubricate alignment shaft and pivot pin bush-

ings.

Using an oil can, provide 1–2 squirts of oil into the
oil ports located on the back of the shear machine
(see Figure 24). Raise and lower the handles a
few times to distribute the oil.

Oil Port

1 of 2

Figure 24. Oil port location.

Model T26470 (Mfd. Since 1/14)

-17-

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at [phone].
Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Shear will not cut
workpiece.

Cuts are not square. 1. Work stop not parallel to blades.

Poor quality of cuts
(ripping or tearing).

1. Workpiece thickness exceeds shear
capacity.

2. Blade bow not correct.

3. Not enough pressure applied.

2. Blade bow not correct.

1. Blade bow not correct.

2. Blades worn or damaged.

1. Only use workpiece material within shear capacity
(Page 4).

2. Properly adjust blade bow (Page 19).

3. Safely increase pressure.

1. Properly adjust work stop parallel to blades
(Page 13).

2. Properly adjust blade bow (Page 19).

1. Properly adjust blade bow (Page 19).

2. Sharpen/replace blades (Page 20).

-18-

Model T26470 (Mfd. Since 1/14)

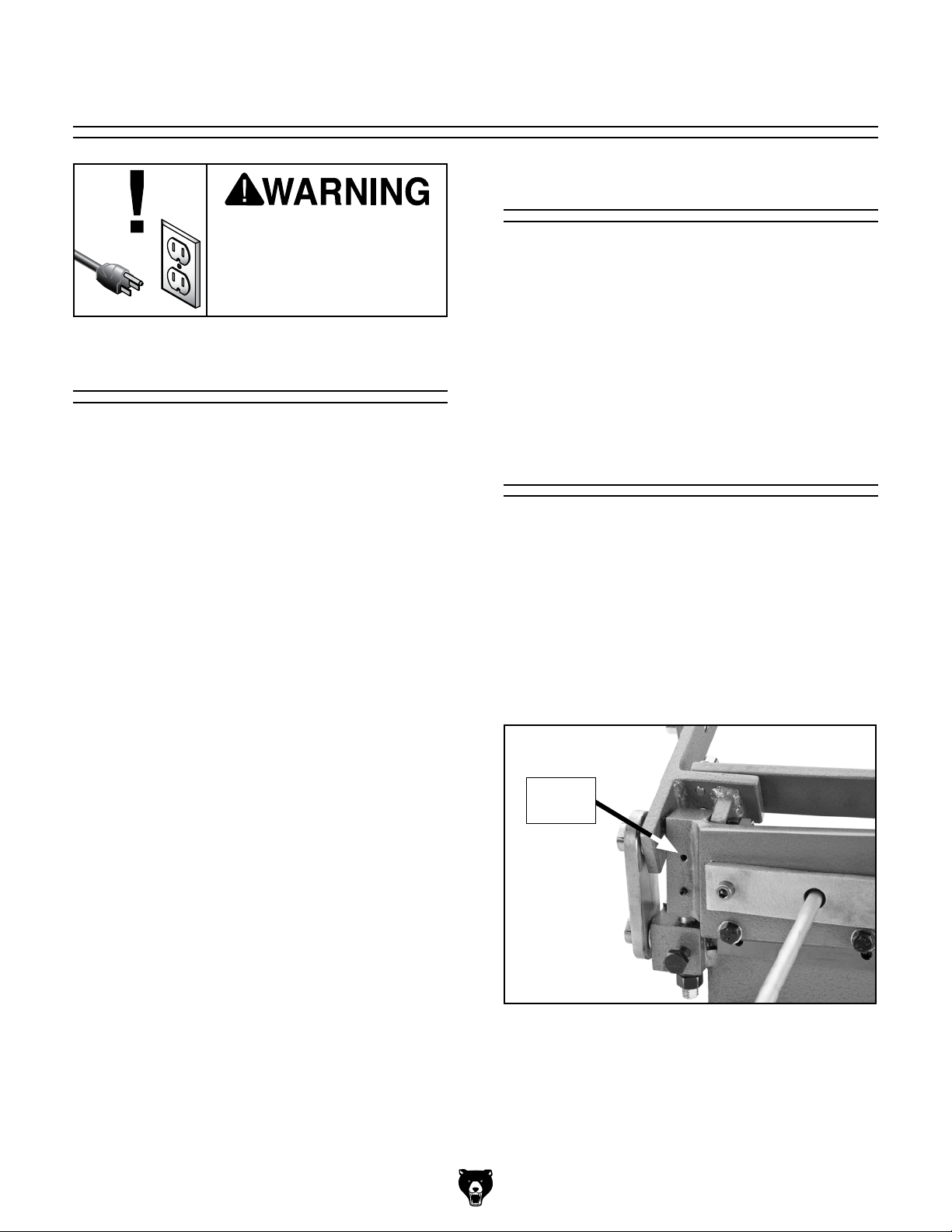

Adjusting Blade Bow

Tools Needed Qty

Wrench 14mm ................................................... 1

Hex Wrench 6mm .............................................. 1

The gap between the upper and lower blades (as
they pass each other) must remain even along the
length of blades to produce clean cuts. Initially,
this adjustment has been made at the factory.
However, over time and with normal wear, you
may need to re-adjust the blade bow.

The blade bow is adjusted by loosening the
hex nut and rotating the cap screw shown in
Figure 25 clockwise or counterclockwise.

Hex

Nut

Blade

Bow

Cap Screw

To adjust the blade bow:

1. Cut a piece of paper with shear.

2. If entire length of paper is cut cleanly, there is

no need for adjustment.

— If paper cuts cleanly at ends but not cen-

ter, rotate cap screw clockwise
a time until paper cuts cleanly along the
entire length of blades.

— If paper cuts cleanly at center but not ends,

rotate cap screw counterclockwise
at a time until paper cuts cleanly along
entire length of blades.

3. Retighten hex nut to secure cap screw in
place.

1

⁄8th turn at

1

⁄8th turn

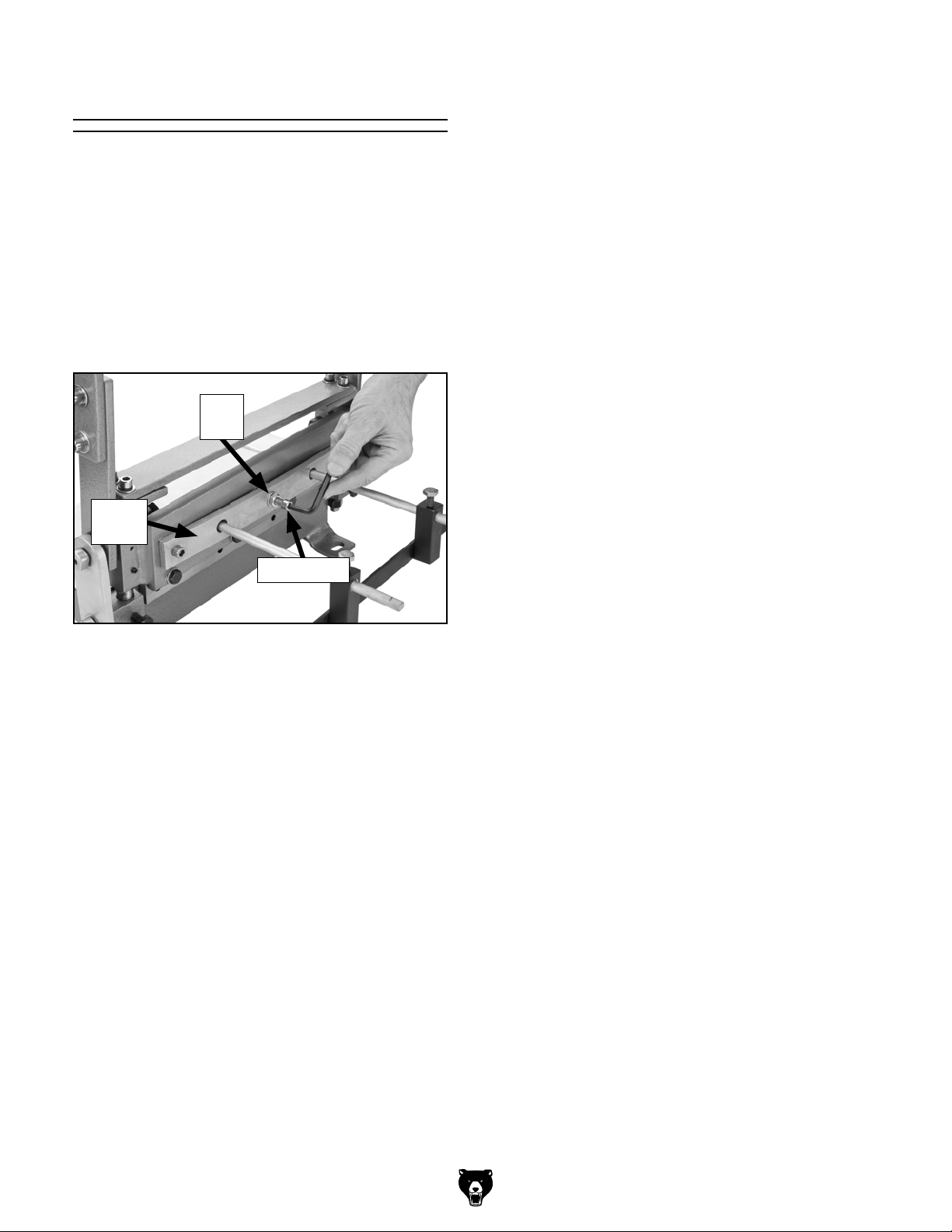

Figure 25. Adjusting blade bow with cap screw.

Model T26470 (Mfd. Since 1/14)

-19 -

Sharpening/

Tool Needed Qty

Wrench 13mm ................................................... 1

Replacing Blades

Both blades have two cutting edges so that if one
cutting edge becomes dull, you can reverse the
blade and use the fresh, sharp cutting edge.

After both cutting edges become dull, resharpen
the blades on a surface grinder and make sure
they remain flat along their entire length. The
blade must be replaced once it becomes too thin
and the hex bolts that secure it extend beyond the
opposite side of the cutting edge. If the blade is
nicked, regrind it if possible.

We recommend you keep an extra set of blades
on hand to avoid downtime. Order Part No.
PT26470002 by contacting Grizzly at (800) 523­4777 or online at grizzly.com to purchase.

To remove/re-install either blade:

1. Support blade so it does not fall and

remove the four hex bolts that secure it
(see Figures 26 & 27).

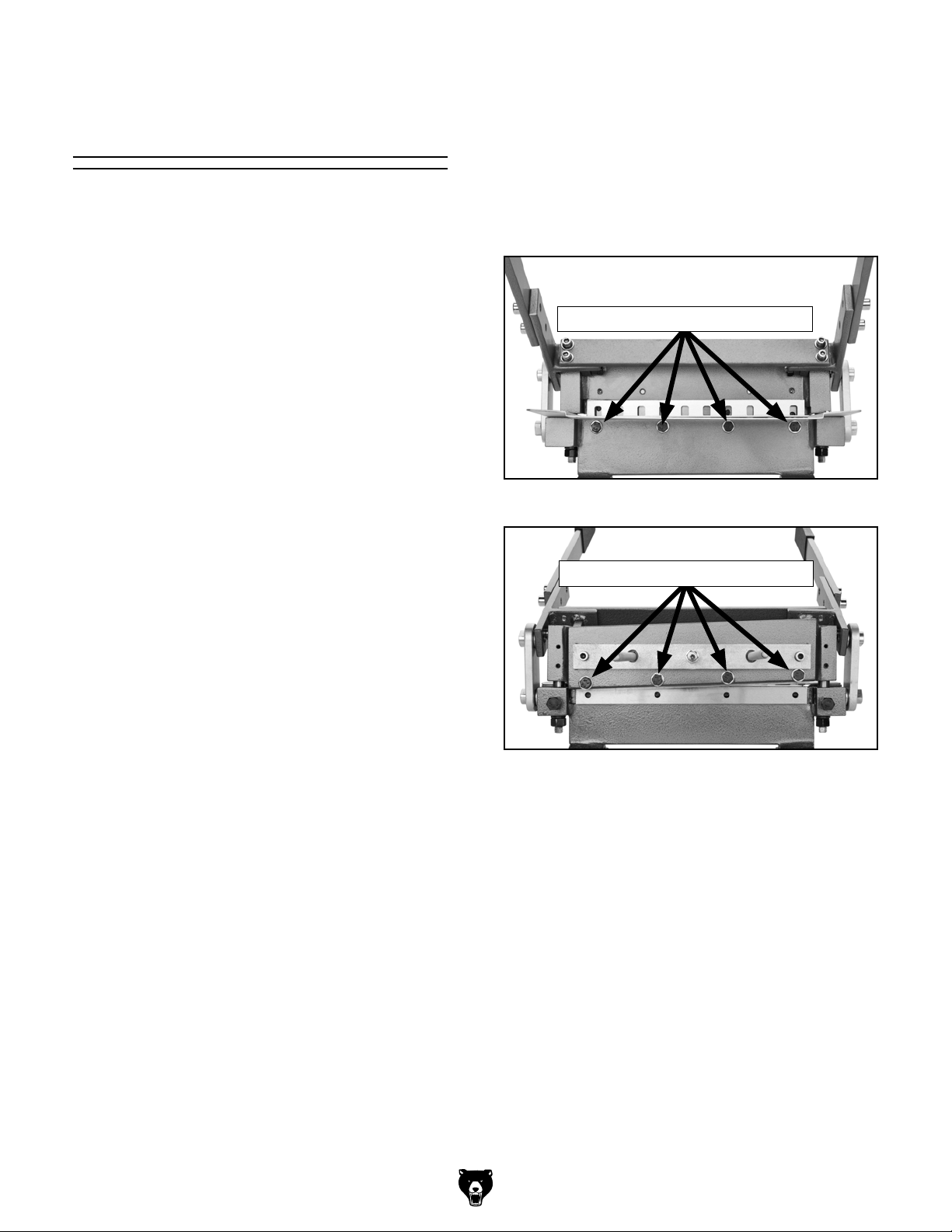

Hex Bolts Securing Lower Blade

Figure 26. Hex bolts securing lower blade.

Hex Bolts Securing Upper Blade

-20-

Figure 27. Hex bolts securing upper blade.

2. Before re-installing blade, clean it with min-

eral spirits, then apply a thin coat of quality
metal protectant.

3. Secure blade in place with four hex bolts
removed in Step 1.

Model T26470 (Mfd. Since 1/14)

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call (800) 523 -4777 or visit our online parts store at www.grizzly.com to check for availability.

32

21

12

15

19

20

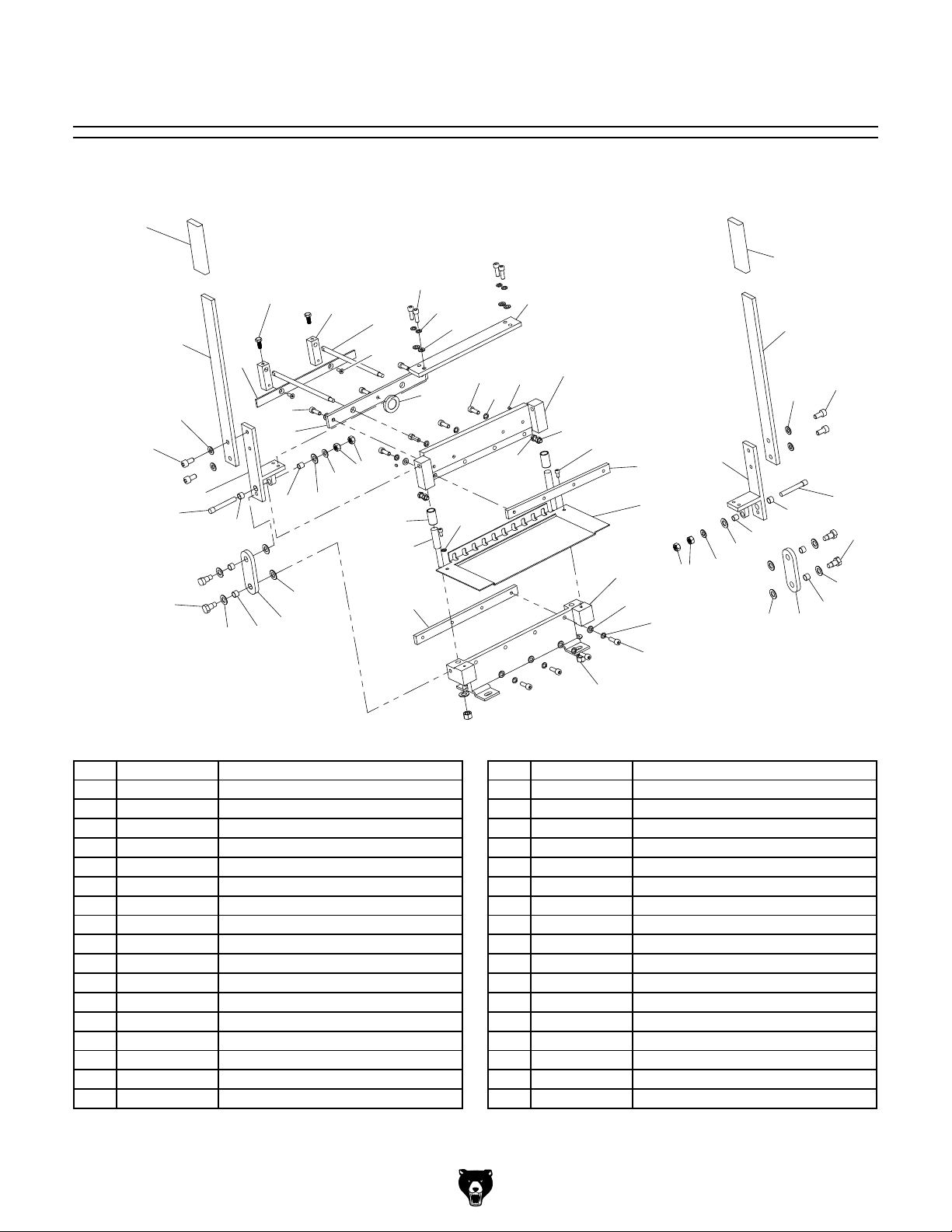

SECTION 7: PARTS

Main

32

17

24

4

5

3

4

35

8

7

2

27

16

19

6

30

5

31

34

28

2

26

1

3

5

4

25

9

10

20

36

13

20

11

14

21

12

15

13

11

29

23

4

33

9

11

13

11

10

14

13

20

22

36

25

18

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PT26470001 BASE 19 PT26470019 HANDLE
2 PT26470002 BLADE 20 PT26470020 FLAT WASHER 10MM
3 PT26470003 FLAT WASHER 8MM SS 21 PT26470021 CAP SCREW M10-1.5 X 25 SS
4 PT26470004 HEX BOLT M8-1.25 X 20 SS 22 PT26470022 REAR WORK STOP BLOCK
5 PT26470005 LOCK WASHER 8MM SS 23 PT26470023 REAR WORK STOP
6 PT26470006 BLADE BRACKET 24 PT26470024 FLAT HD CAP SCR M6-1 X 16
7 PT26470007 ALIGNMENT SHAFT 25 PT26470025 HEX NUT M10-1.5
8 PT26470008 BUSHING, COPPER 26 PT26470026 TABLE
9 PT26470009 HANDLE MOUNTING BRACKET 27 PT26470027 FLAT WASHER 6MM
10 PT26470010 BUSHING 14 X 12 28 PT26470028 CAP SCREW M6-1 X 12 SS
11 PT26470011 BUSHING 12 X 10 29 PT26470029 HEX BOLT M8-1.25 X 20 COPPER
12 PT26470012 PIVOT PIN 30 PT26470030 SET SCREW M5-.8 X 8
13 PT26470013 FLAT WASHER 12MM 31 PT26470031 HEX NUT M8-1.25
14 PT26470014 PIVOT ARM 32 PT26470032 HANDLE GRIP
15 PT26470015 STEP BOLT M12-1.75 X 20 33 PT26470033 BLADE BOW
16 PT26470016 CONNECTING PLATE 34 PT26470034 HEX BOLT M8-1.25 X 25
17 PT26470017 REAR WORK STOP ROD 35 PT26470035 SPACER
18 PT26470018 HEX NUT M12-1.75 36 PT26470036 LOCK WASHER 10MM

Model T26470 (Mfd. Since 1/14)

-21-

55

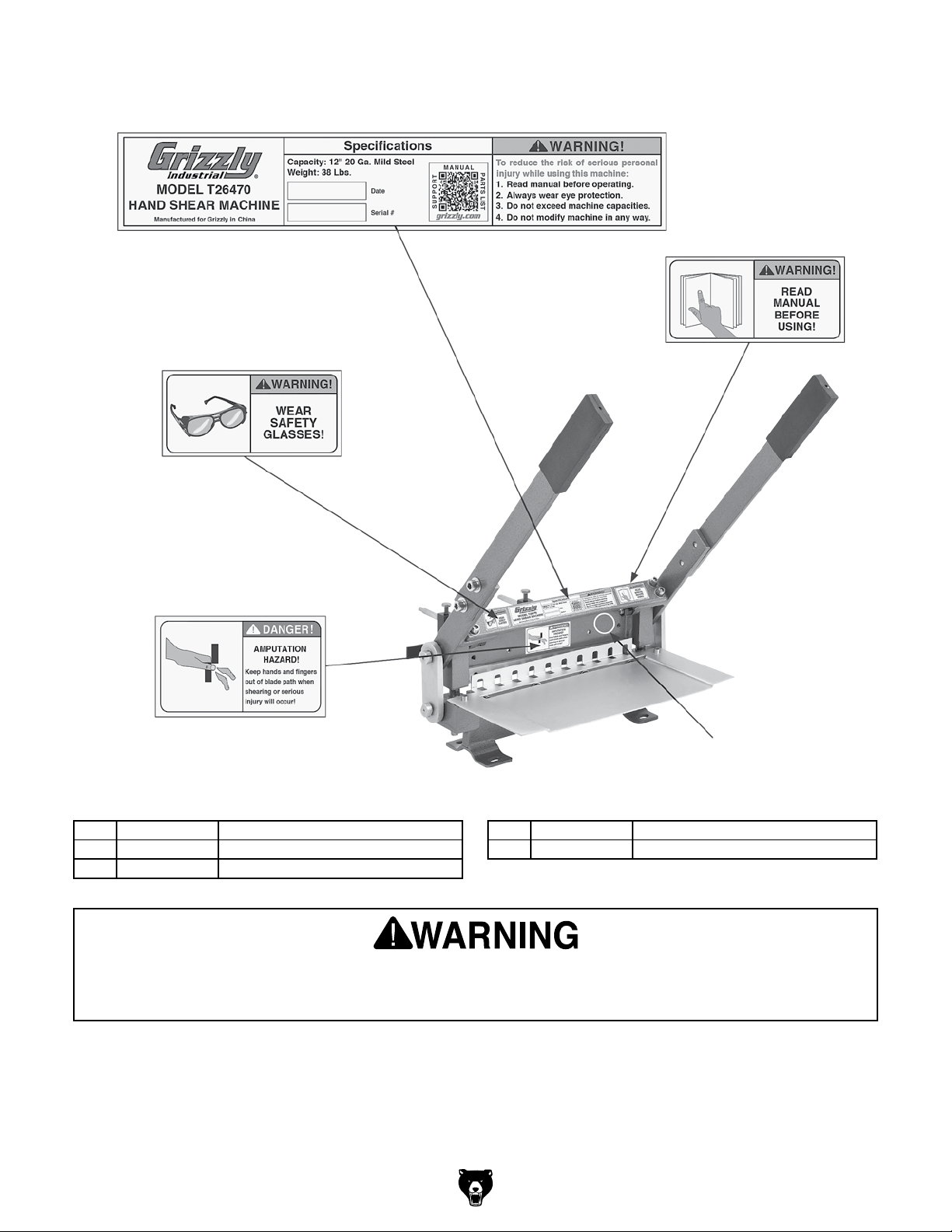

Labels

51

52

54

53

REF PART # DESCRIPTION REF PART # DESCRIPTION

51 PT26470051 MACHINE ID LABEL 54 PT26470054 AMPUTATION HAZARD LABEL
52 PT26470052 READ MANUAL LABEL 55 PT26470055 SAFETY GLASSES LABEL
53 PT26470053 GRIZZLY GREEN TOUCH-UP PAINT

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-22-

Model T26470 (Mfd. Since 1/14)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____ Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
