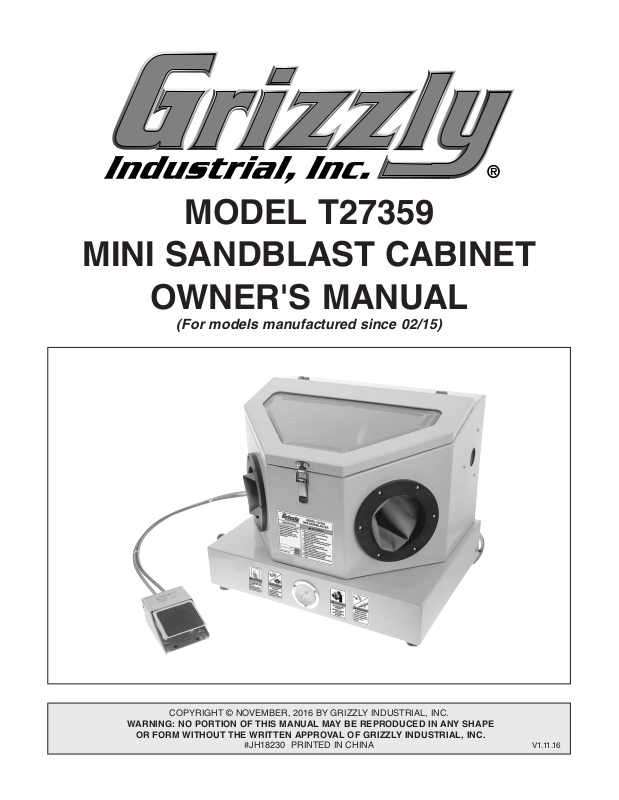

MODEL T27359
MINI SANDBLAST CABINET
OWNER'S MANUAL
(For models manufactured since 02/15)
COPYRIGHT © NOVEMBER, 2016 BY GRIZZLY INDUSTRIAL, INC.
WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JH18230 PRINTED IN CHINA
V1.11.16
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Manual Accuracy ........................................................................................................................ 2
Machine Data Sheet ................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Identification ............................................................................................................................... 3
Controls & Components ............................................................................................................. 4
SECTION 1: SAFETY ....................................................................................................................... 5
Safety Instructions for Machinery ............................................................................................... 5
Additional Safety for Sandblast Cabinets ................................................................................... 7
SECTION 2: SETUP ......................................................................................................................... 8
Unpacking .................................................................................................................................. 8
Needed for Setup ....................................................................................................................... 8

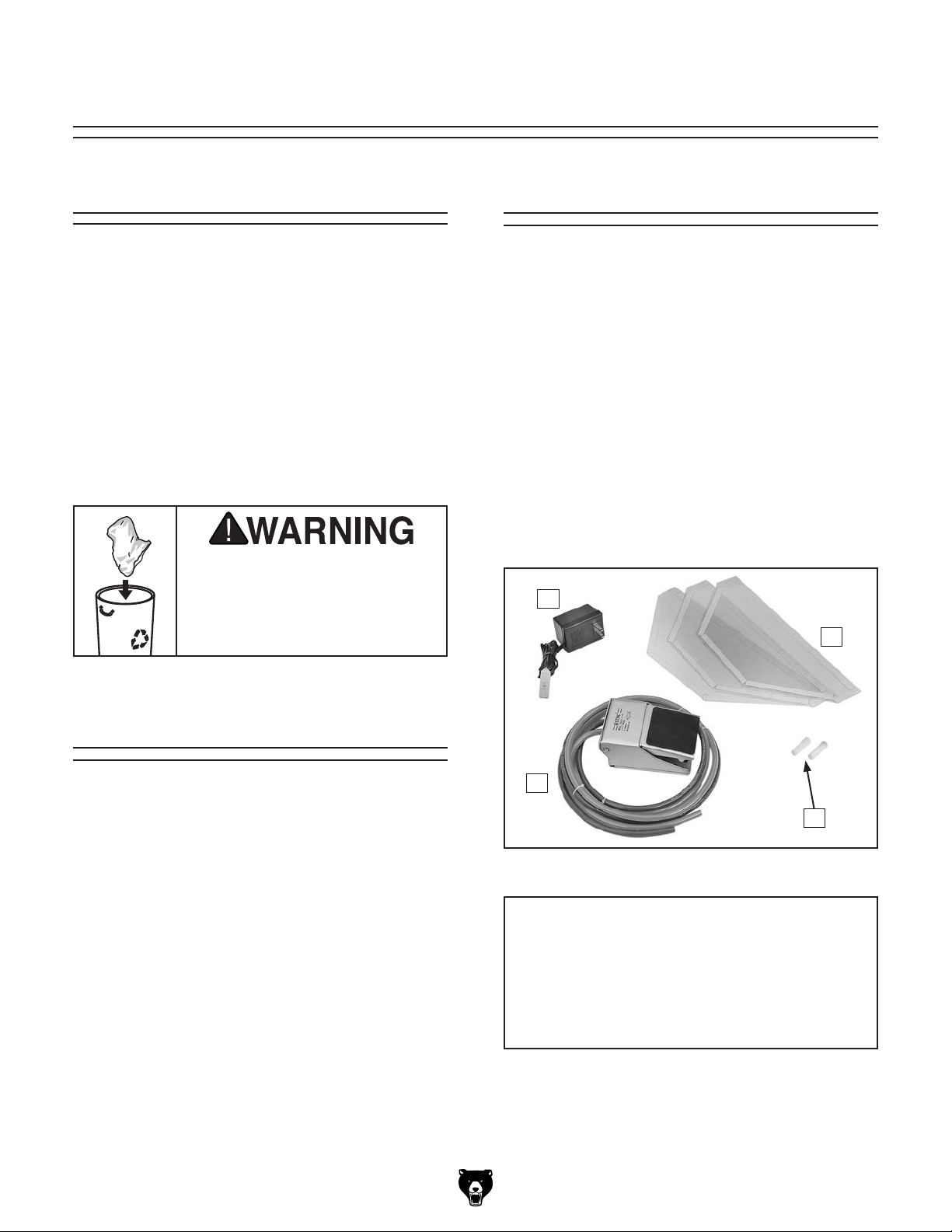

Inventory ..................................................................................................................................... 8

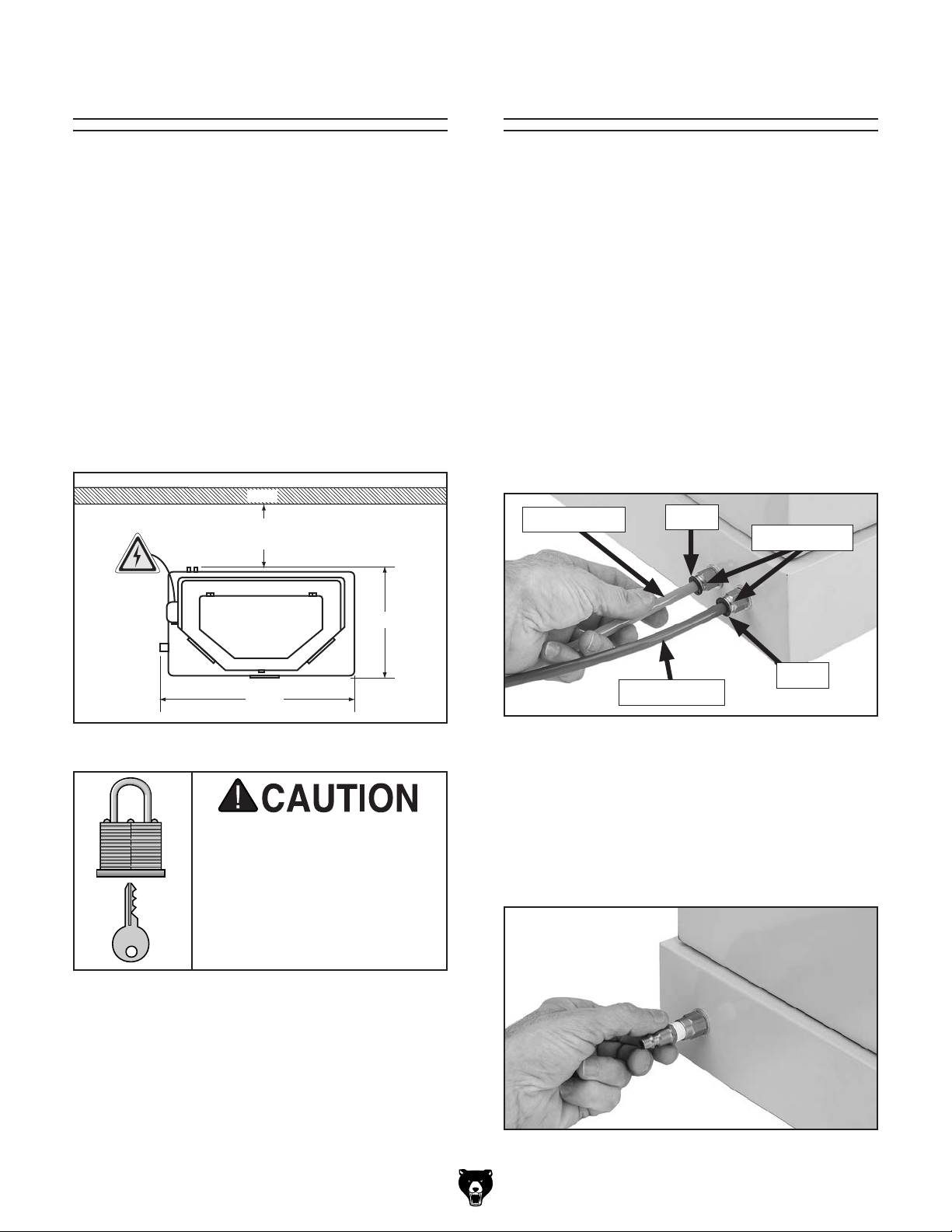

Site Considerations .................................................................................................................... 9
Assembly .................................................................................................................................... 9

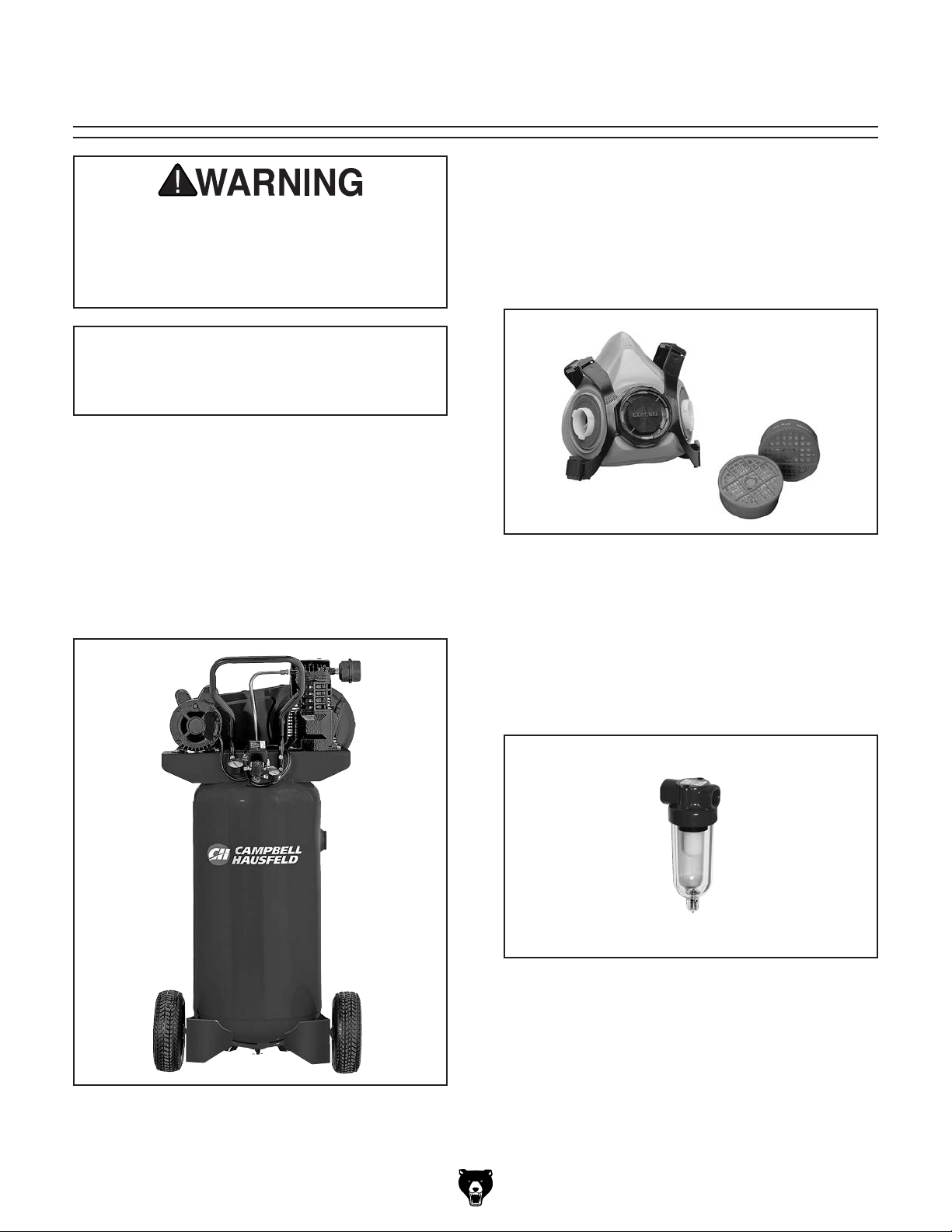

Air System Setup ..................................................................................................................... 10

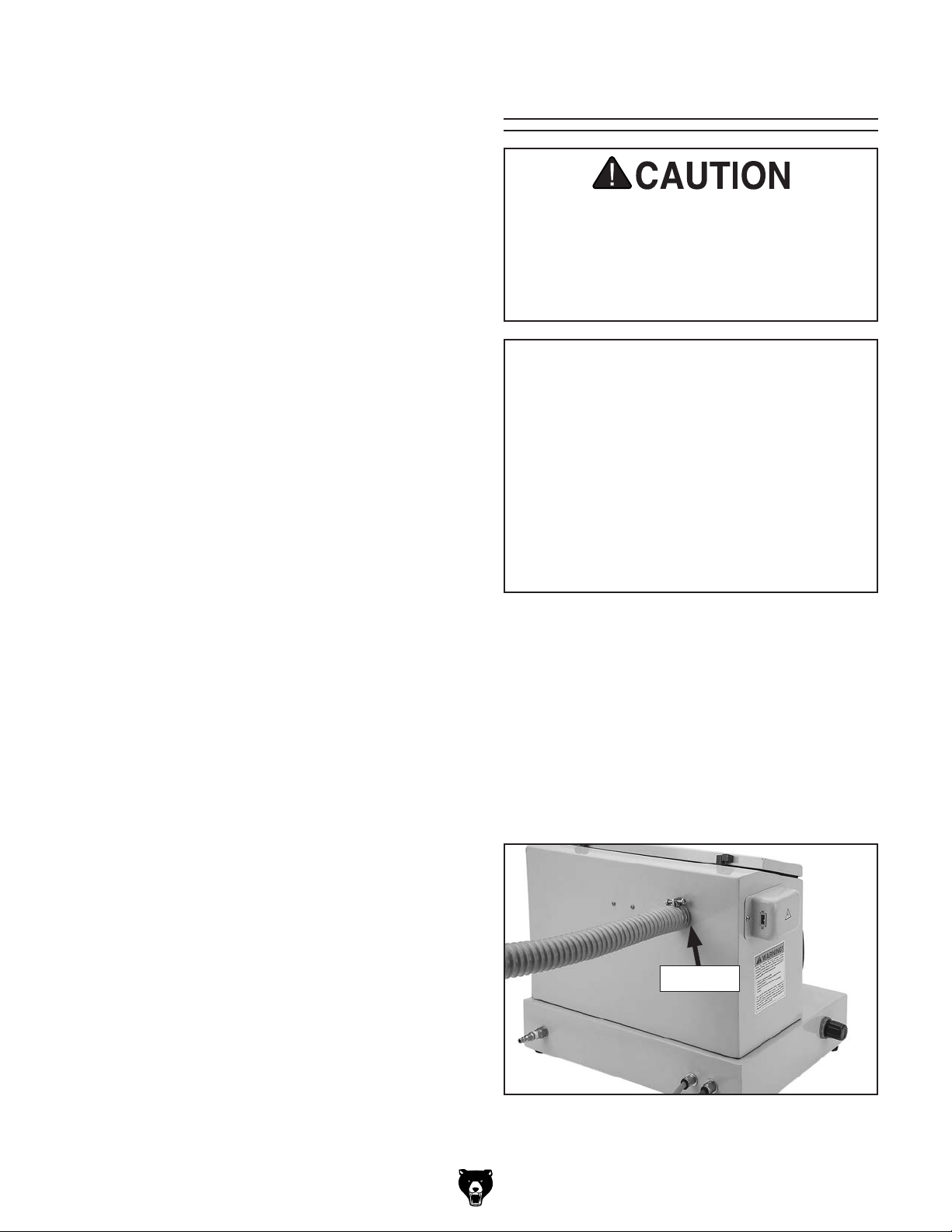

Dust Collection ......................................................................................................................... 11
Test Run ................................................................................................................................... 12
SECTION 3: OPERATIONS ........................................................................................................... 13
Operation Overview.................................................................................................................. 13
Basic Operation ........................................................................................................................ 14
Operation Tips .......................................................................................................................... 15
Abrasive Options ...................................................................................................................... 16
SECTION 4: ACCESSORIES ......................................................................................................... 17
SECTION 5: MAINTENANCE......................................................................................................... 18
Schedule .................................................................................................................................. 18
Cleaning & Protecting .............................................................................................................. 18
SECTION 6: SERVICE ................................................................................................................... 19

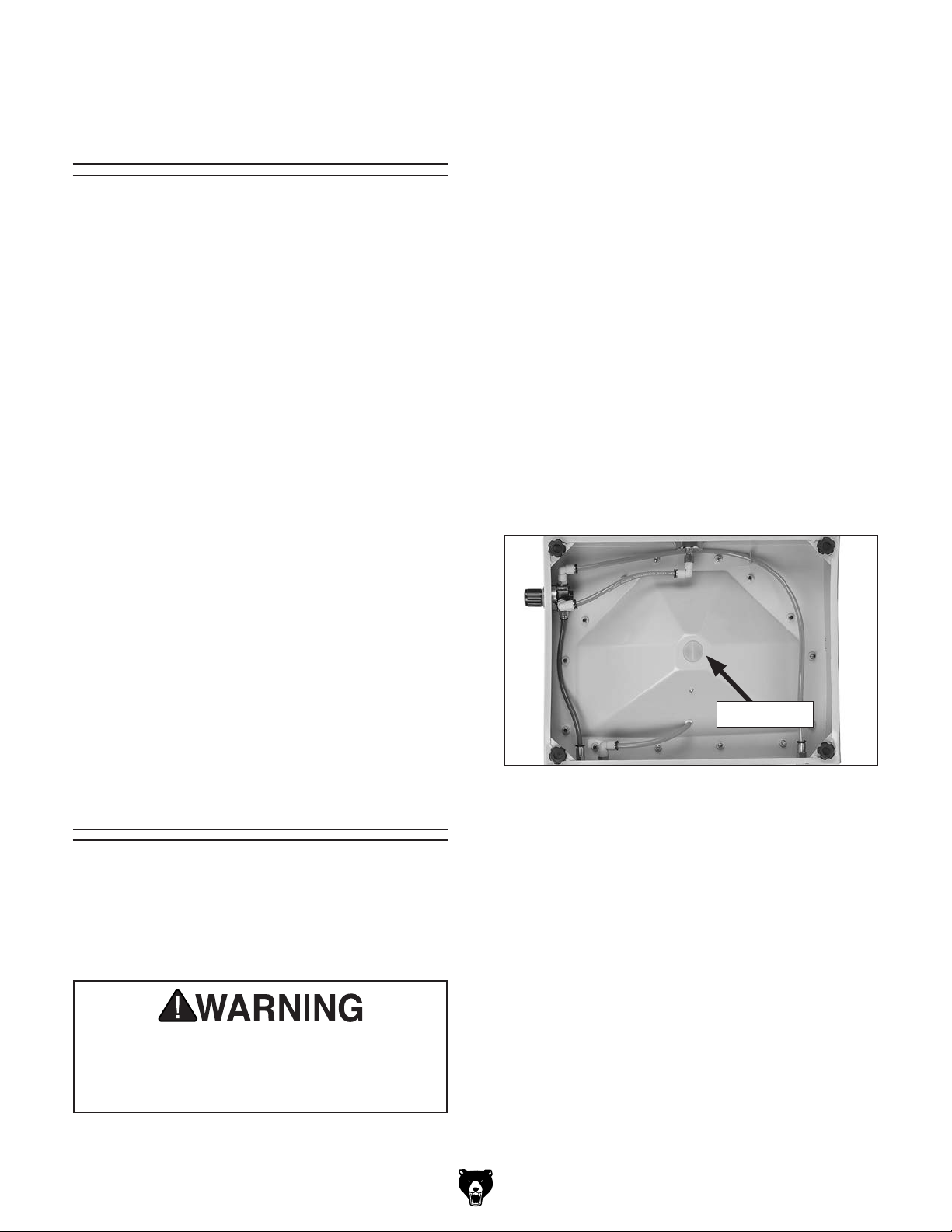

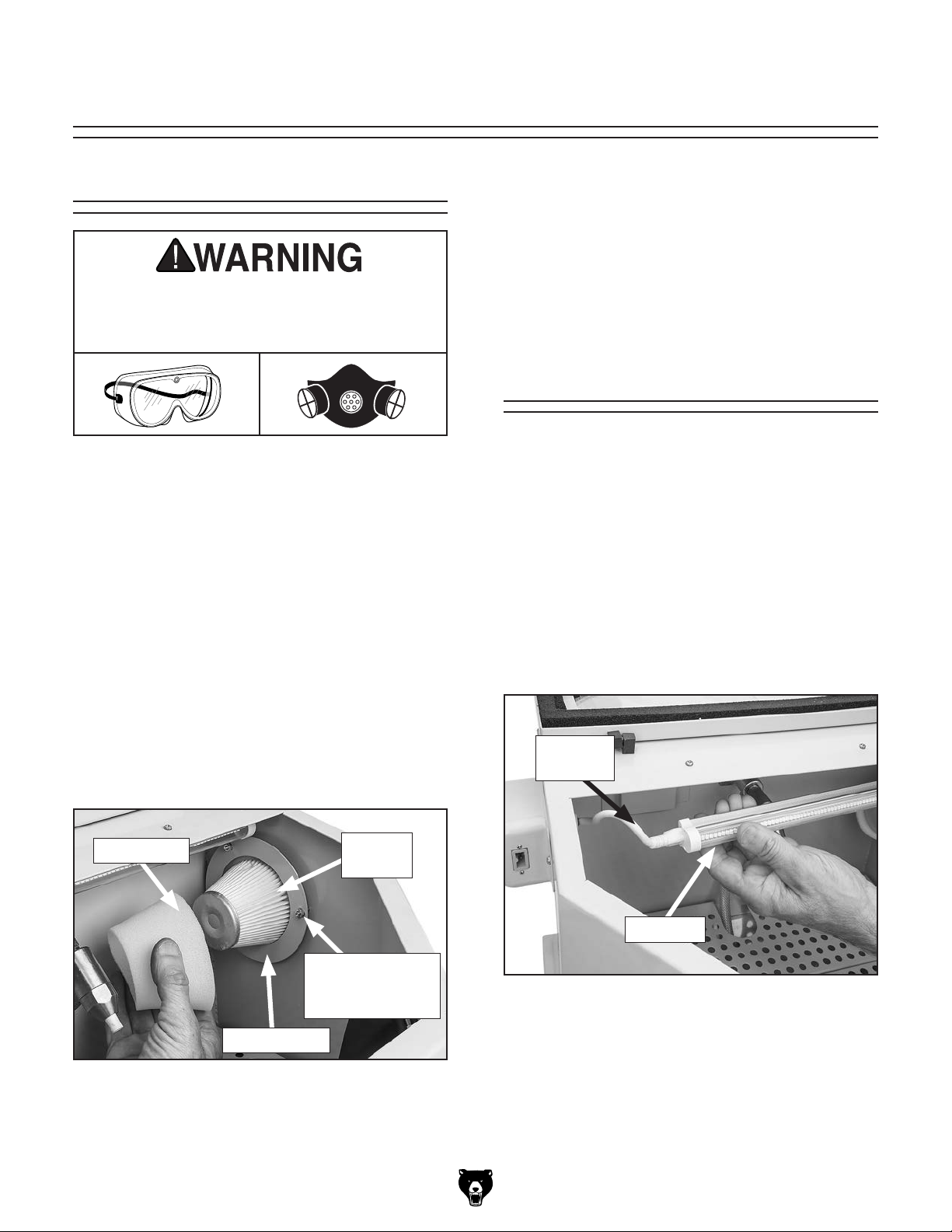

Replacing Filter ........................................................................................................................ 19
Replacing Bulb ......................................................................................................................... 19
Replacing ................................................................................................................................ 20
Protective Cover ....................................................................................................................... 20
Replacing ................................................................................................................................ 20
Abrasive Material...................................................................................................................... 20
SECTION 7: WIRING ...................................................................................................................... 21
Wiring Safety Instructions ........................................................................................................ 21

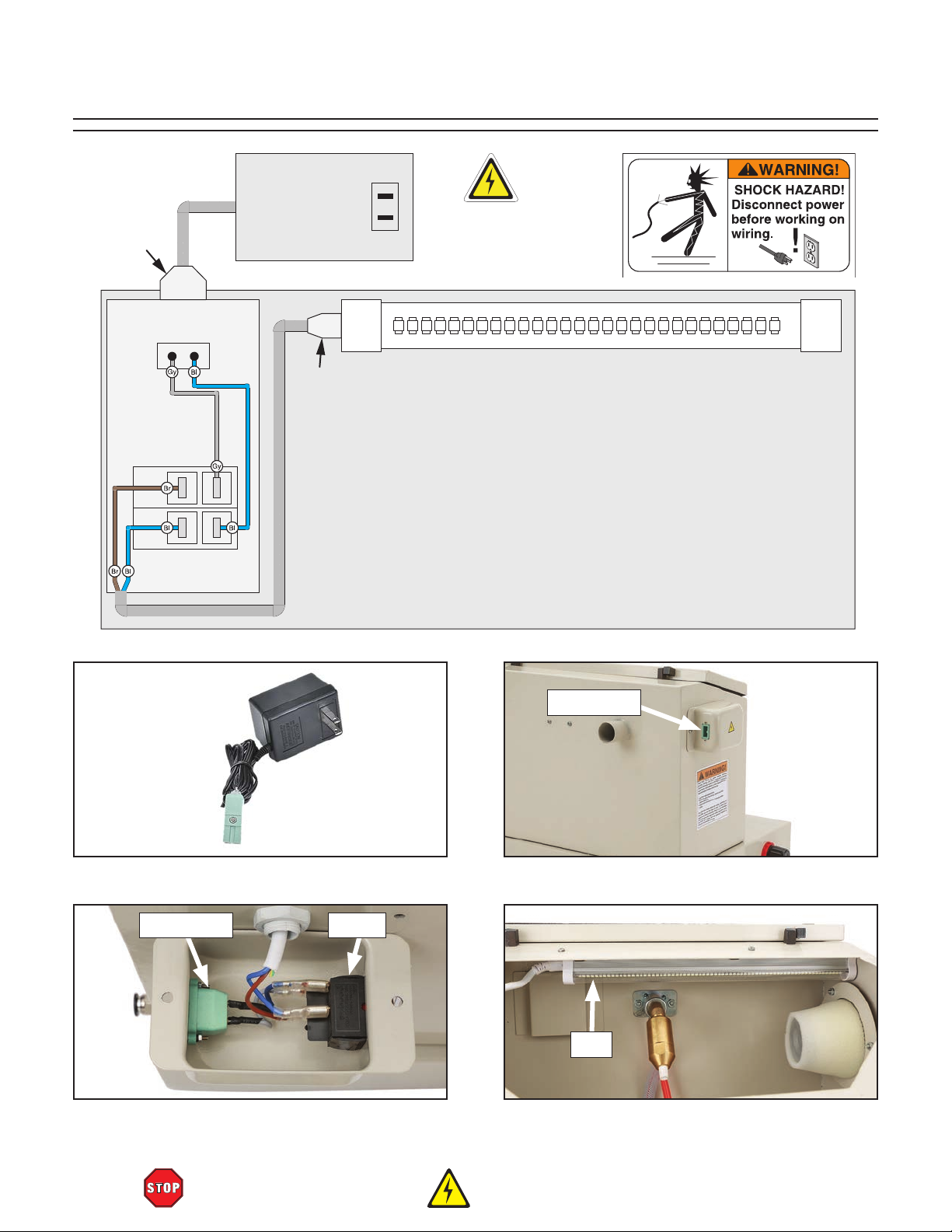

Wiring Diagram......................................................................................................................... 22

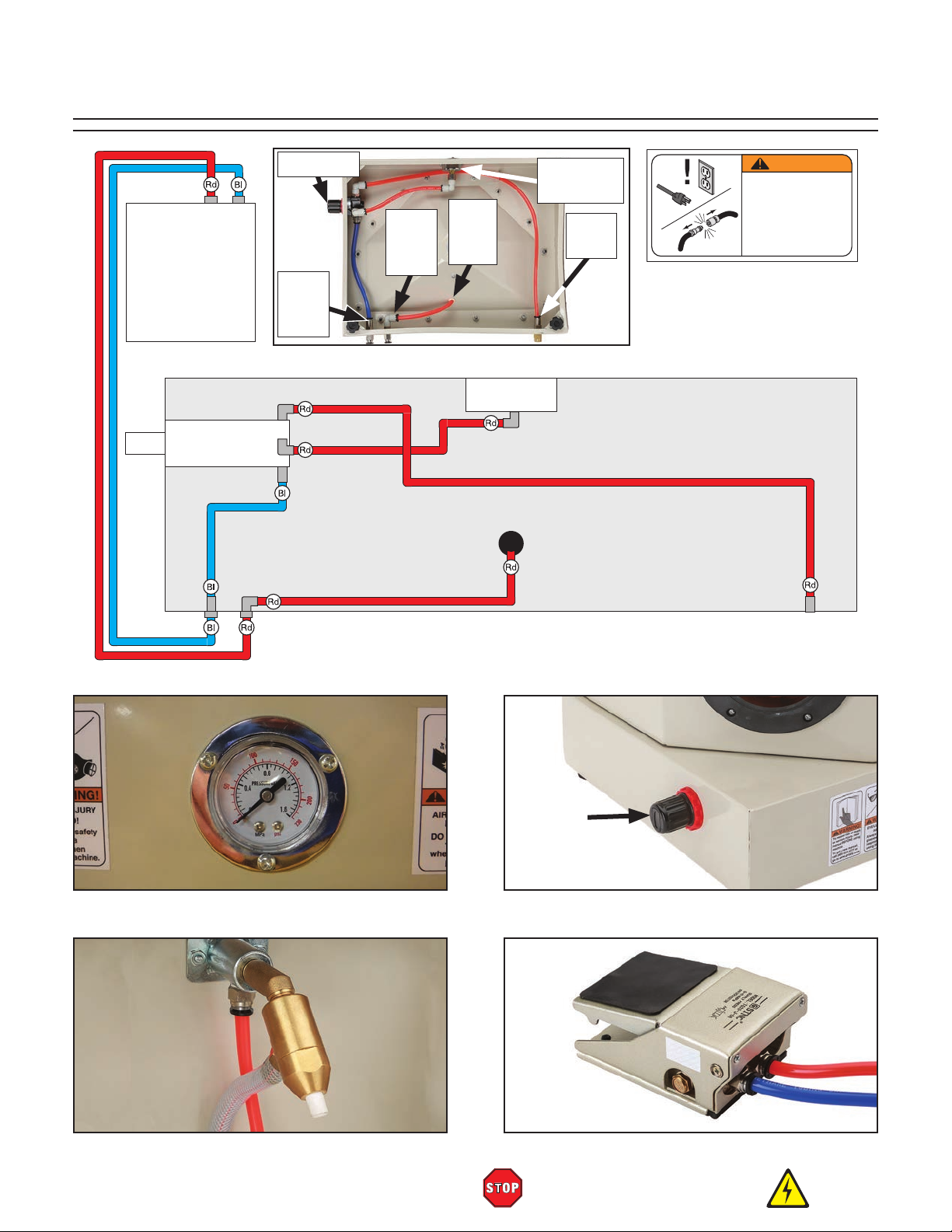

Air System Diagram ................................................................................................................. 23
SECTION 8: PARTS ....................................................................................................................... 24

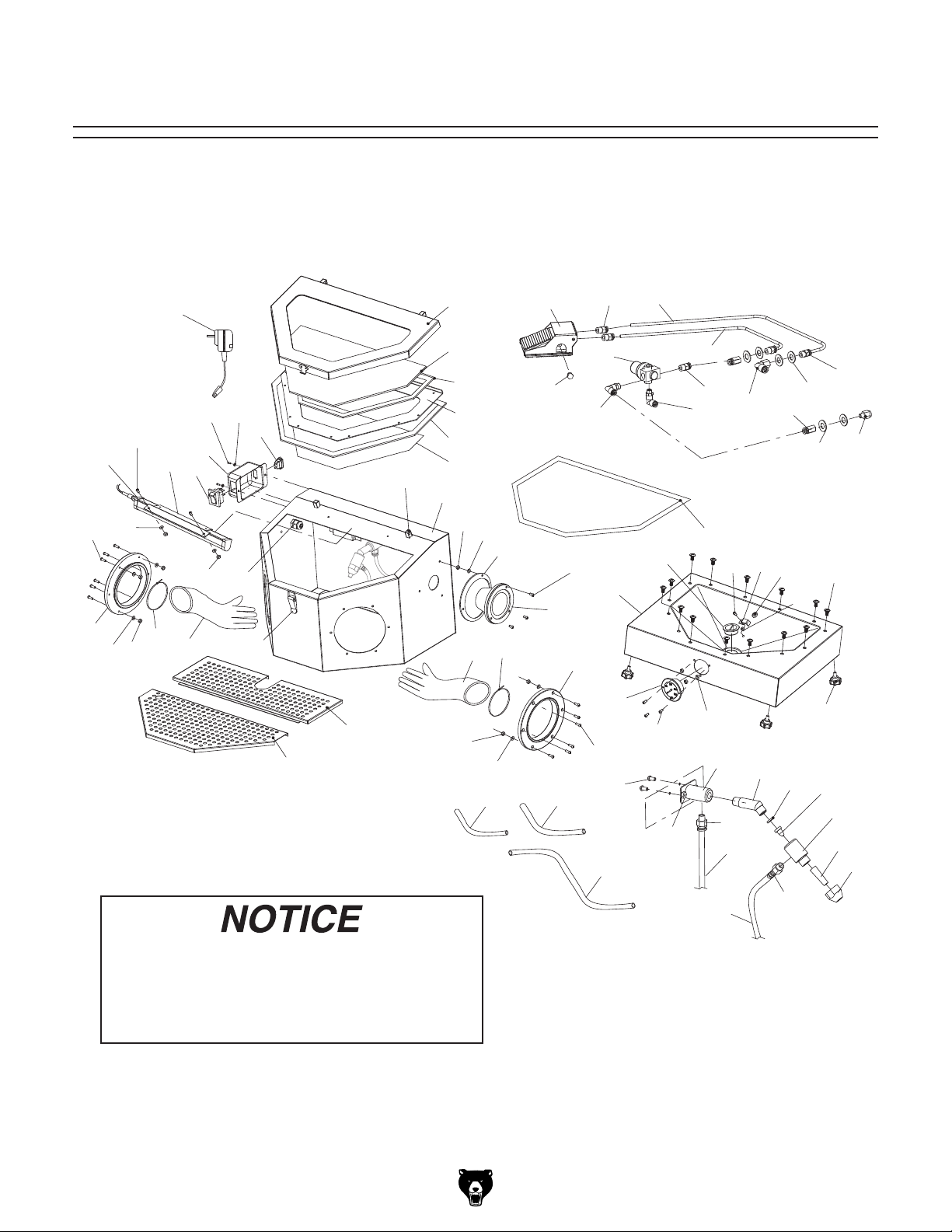

Main .......................................................................................................................................... 24
Main Parts List ......................................................................................................................... 25
Labels & Cosmetics ................................................................................................................. 26
WARRANTY & RETURNS ............................................................................................................. 29
INTRODUCTION
We are proud to offer this document with your
new machine! We've made every effort to be
exact with the instructions, specifications, drawings, and photographs of the machine we used
when writing this manual. However, sometimes
we still make an occasional mistake.
Also, owing to our policy of continuous improvement, your machine may not exactly match
the manual
the difference between the manual and machine
leaves you in doubt, immediately call our technical support for updates or clarification.
For your convenience, we post all available documentation on our website at
.
Any updates to this document will be reflected on
our website as soon as complete.
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Manual Accuracy
. If you find this to be the case, and
www.grizzly.com
Contact Info
and manufacture date
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
MODEL T27359 SANDBLAST CABINET
Design Type ..................................................................... Benchtop Model
General Specifications:
Width x Depth x Height ......................................... 18
Operating Air Pressure Range ........................................... 60-100 PSI
Recommended Air Supply .................................................... 5-14 CFM
Net Weight ..................................................................................50 lbs.
Abrasive Capacity .......................................................................12 lbs.
Abrasive Type ......................................................................... Dry Only
Lighting Type ...........................................................................LED Bar
Load & Unload Access ................................................................... Top
Power Supply ..................................... 110VAC w/12VDC Transformer
Included Plug Type ........................................................................ 1-15
Full-Load Current Rating ..................................................................5A
Minimum Circuit Size ......................................................................15A
Specifications, while deemed accurate, are not guaranteed.
MACHINE DATA
SHEET
3
⁄4" x 141⁄4" x 141⁄2"

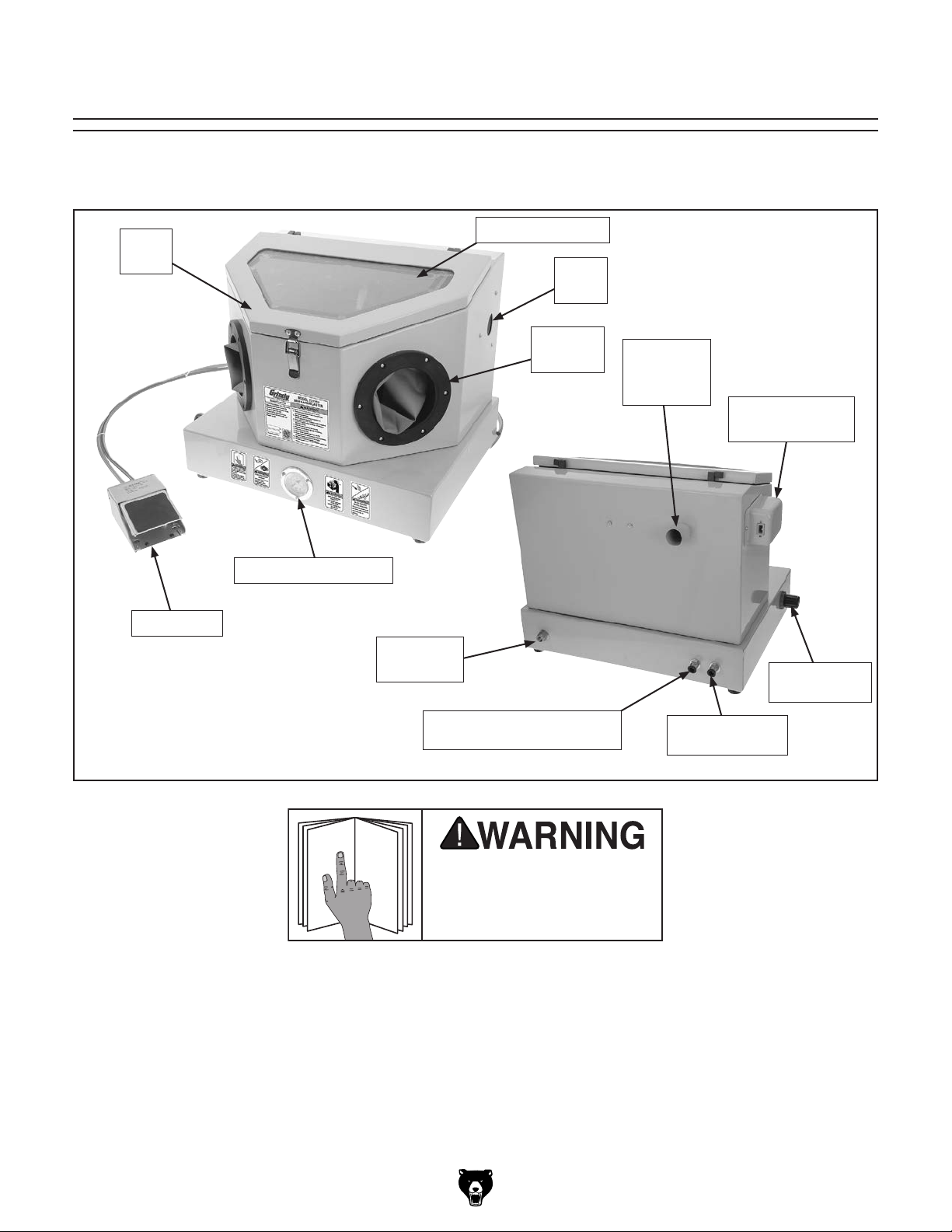

Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Top
Hatch
Foot Pedal
Air Pressure Gauge
Incoming
Connector
Viewing Window
Air
Outlet
Blasting
Gloves
Dust
Collection
Port
ON/OFF
Switch Housing
Air Regulator
Dial
Model T27359 (Mfd. Since 02/15)
Red Air Line
(foot pedal to blast gun)
using machine.
Blue Air Line
(to foot pedal)
-3-
Controls &
To reduce your risk of
serious injury, read this
entire manual BEFORE
Components
E
F
using machine.

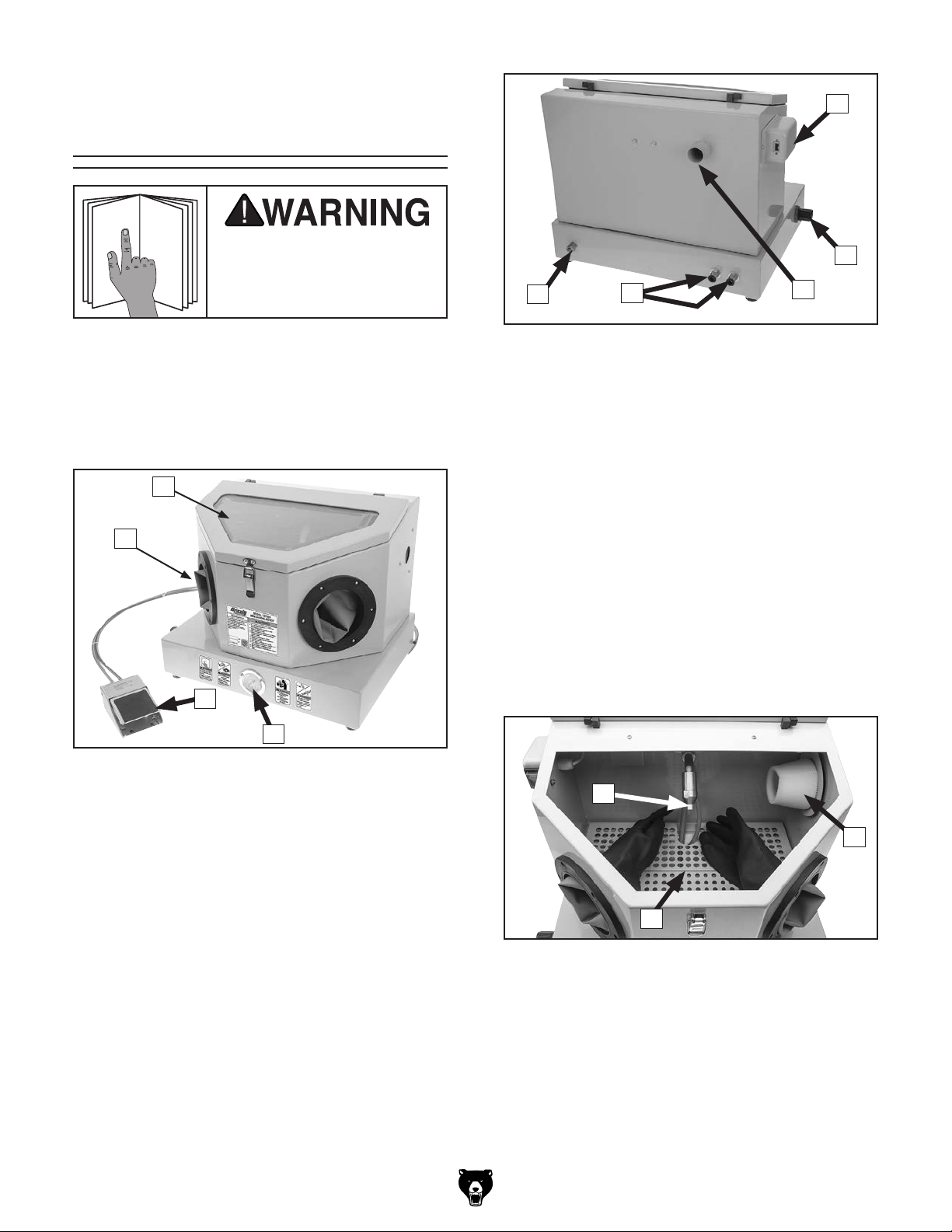

Refer to Figures 1–3 and the following descriptions to become familiar with the basic controls
and components of this machine. Understanding
these items and how they work will help you better
understand the rest of the manual.
B
A
D
C
I
Figure 2. Rear controls and components.
E. ON/OFF Switch Housing: Turns LED light
bar ON and OFF.
F. Air Regulator Dial: Adjusts incoming air
pressure.
G. Dust Collection Port: Connects cabinet to
dust collection system.
H. Air Line Connections: Left line (as viewed
from rear) connects incoming air from compressor to foot pedal. Right line connects foot
pedal to nozzle.
I. Air Supply Connection: Connects air line to
cabinet.
H
G
Figure 1. Front controls and components.
A. Blasting Gloves: Sealed to cabinet to pro-
tect user's hands from contact with abrasives.
B. Top Hatch w/Viewing Window: Opens for
access to workpiece. Built-in viewing window allows unobstructed view of workpiece
(includes three protective covers).
C. Air Pressure Gauge: Shows air pressure
coming from regulator.
D. Foot Pedal: Controls amount of air flow and
abrasive flowing through nozzle.
-4-
J
L
K
Figure 3. Cabinet controls and components.
J. Ceramic Tip: Replaceable ceramic tip deter-
mines abrasive spray pattern on workpiece.
K. Bottom Panels: Provide stable platform
for workpiece. Can be removed to add new
abrasive.
L. Air Filter: Removes particulate from outgo-
ing air.
Model T27359 (Mfd. Since 02/15)
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model T27359 (Mfd. Since 02/15)
-5-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-6-
Model T27359 (Mfd. Since 02/15)
Additional Safety for Sandblast Cabinets
Long-term respiratory, hearing, and vision injuries can occur from using sandblasting abrasives
without proper use of personal protective equipment and an adequate dust collection system.
Sparks from abrasive particles can ignite explosive or flammable materials. To minimize risk of
getting injured, anyone operating machine MUST completely heed hazards and warnings below.
LUNG, EAR, EYE PROTECTION. Media
blasting presents a real hazard of silicosis and
other lung contamination injuries! These injuries
are permanent and can get worse over time.
ALWAYS use proper blast cabinet hood, eye and
ear protection, and properly fitted and maintained
NIOSH-approved respirator to reduce risk of
eyes, ears, and lungs becoming permanently
damaged. Protect yourself correctly, and keep all
unprotected bystanders away. For latest types of
protective equipment and acceptable respirator
types, contact your local OSHA or NIOSH office.
REDUCING RISK OF FIRE & EXPLOSIONS.
Some abrasive particles can create sparks, which
can ignite explosive or flammable materials.
DO NOT use blast cabinet near explosive or
flammable materials; move these types of
materials a safe distance away.
SAFE ENVIRONMENT. To avoid media escaping
through cabinet air outlet, only use blast cabinet
if dust collector is ON and collector filter is
unclogged. After blasting, continue running dust
collector long enough to clear cabinet of dust
before opening hood/door(s). Close and latch
hood/door(s) shut before and after operation.
Properly dispose of collected dust to avoid
contaminating shop air. Use dust collection
system correctly sized for blast cabinet and
abrasive type/size.
MAINTAINING COMPONENTS. To prevent
accidental contamination or blast injury, replace
tips, hoses, lenses, and gloves when they
become worn, and clean dust collector and filters
often. Avoid spraying media at rubber gloves.
SAFE MEDIA BLASTING. Only use clean,
dry, regulated compressed air. Never exceed
maximum operating pressure or lines and seals
may burst and cause injury. Never use oxygen,
carbon dioxide, combustible gases, or any bottled
gas as an air source, as these can explode.
CHECKING FOR LEAKS. To prevent accidental
contamination of shop air, check blast cabinet for
leaks before and during use, verify connections
are tight, and immediately seal any leaks, if
found. If leaks are found during operation,
immediately stop using blast cabinet and repair
leaks immediately before resuming use.
AVOIDING TOXIC DUST EXPOSURE. Always
use low toxicity abrasives and avoid blasting
workpieces containing crystalline silica, lead,
asbestos, or radioactive substances.
LEAVING UNATTENDED. To prevent accidental
injury, explosion, or air contamination, disconnect
air supply when leaving blast cabinet.
AVOIDING ENTRAPMENT. To prevent
entrapment hazard for animals or children, always
close and latch blast cabinet hood/door(s) when
not in use.
SAFE MAINTENANCE. To prevent accidental
blasting injury or shock, disconnect air supply and
power before loading and unloading workpiece,
and before doing maintenance or changing blast
tips.
USING CORRECT LIGHTING. To prevent ballast
overload and possible fire or explosion, only
install bulb(s) designed for blast cabinet.
Model T27359 (Mfd. Since 02/15)
-7-
SECTION 2: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Keep children and pets away
from plastic bags or packing
materials shipped with this
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Unpacking
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
SUFFOCATION HAZARD!
machine. Discard immediately.
Inventory
Component Inventory (Figure 4) Qty
A. Sandblast Cabinet (not shown) .................. 1
B. Power Adapter ............................................ 1
C. Foot Pedal .................................................. 1
D. Window Protective Covers ......................... 3
E. Replacement Ceramic Tips ........................ 2
B
D
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of this machine.
Description Qty
• Male Air Fitting
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Adjustable Wrench ..................................... 1
• Thread Seal Tape ....................... As Needed
• Abrasive Media .................................12 lbs.
-8-
1
⁄4" NPT .............................. 1
C
E
Figure 4. T27359 inventory.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Model T27359 (Mfd. Since 02/15)
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
and gather
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).
Site Considerations
vised around this machine.
or disable start switch or
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional reinforcement to support the weight of the machine
and workpiece materials.
Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Workbench Load
Assembly
Needed for Setup
listed items. To ensure the assembly process
parts that are cov-
Placement Location
Wall
Min. 12" for
Air Line Clearance
3
/
4
18
"
Figure 5. Minimum working clearances.
14
To assemble machine:
1. Connect red and blue foot pedal air lines to
back of sandblast cabinet by pressing air line
end into connector, as shown in Figure 6.
Note: To detach air line, push in on connec-
tor collar and hold, and then pull air line out.
Red Air Line
Collar
Connectors
1
/
4
"
Collar
Blue Air Line
Figure 6. Attaching air lines to cabinet.
Children and visitors may be
seriously injured if unsuper-
Lock entrances to the shop
power connection to prevent
unsupervised use.
Model T27359 (Mfd. Since 02/15)
2. Wrap thread seal tape around threads of male
1
air fitting
⁄4" NPT (not included) for a tight
seal. Attach plug to back of sandblast cabinet
(see Figure 7) and tighten with a wrench to
ensure no air leakage when attached to compressor.
Figure 7. Attaching air fitting to back of cabinet.
-9-
3. Attach protective cover to inside of top hatch
viewing window (see Figure 8).

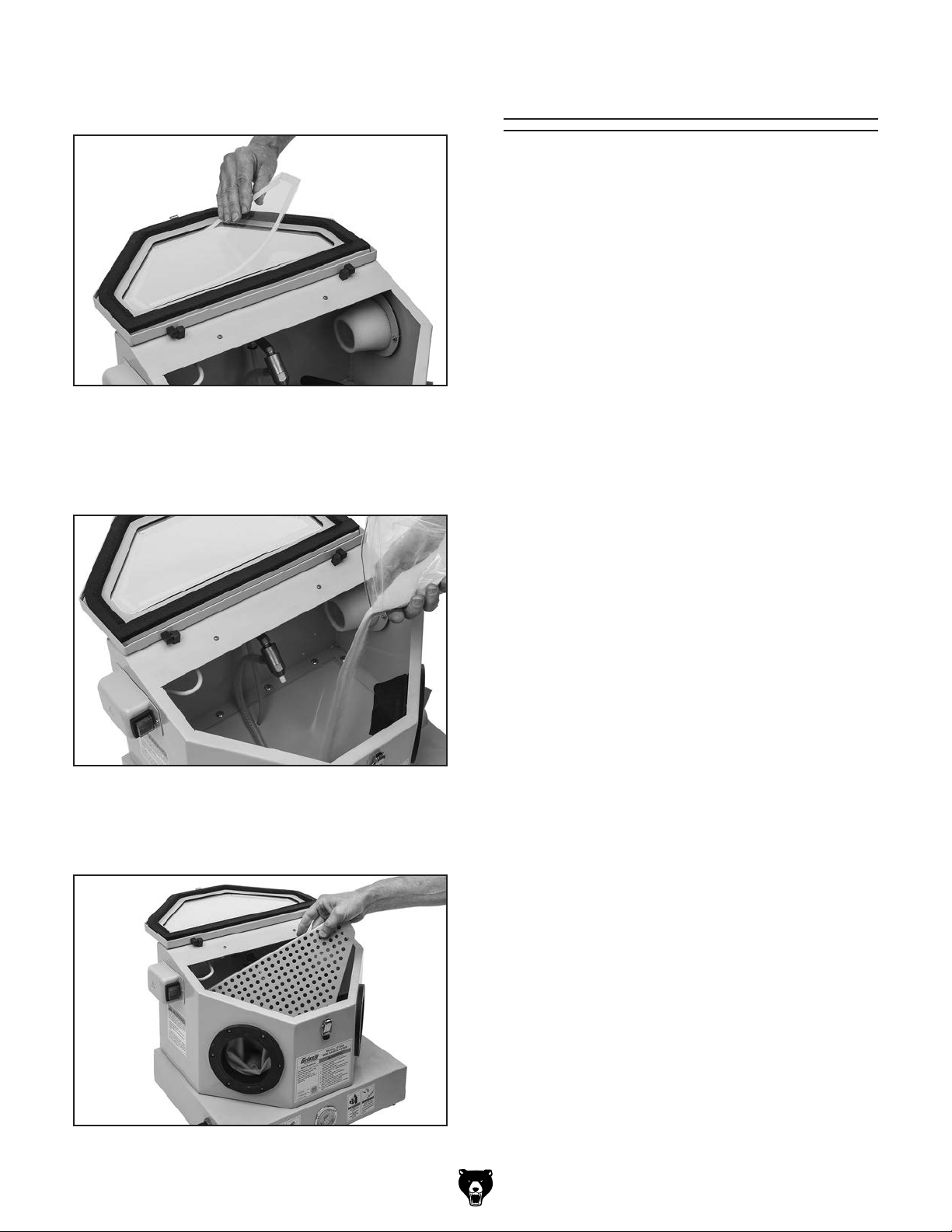

Figure 8. Attaching protective cover to inside of
top hatch.
4. Remove bottom panels and add abrasive
material to hopper (see Figure 9).
Air System Setup
Air Supply
The ability of this blast cabinet to accomplish its
task is directly related to how well the air supply
system is designed. For this blast cabinet to operate at its maximum potential, the air supply must
be able to deliver between 5–14 CFM at 60–100
PSI.
Refer to your compressor Owner’s Manual and
make sure that the compressor can handle the
air requirements for this blast cabinet. Smaller
compressors can be used, but the duration of the
work shift must be reduced to avoid exceeding
compressor duty cycle. Not allowing the compressor to cool will lead to compressor or motor
failure. The smaller the compressor, the longer
cool-down time that will be required between the
work cycles.
Figure 9. Adding abrasive material to hopper.
5. Re-install bottom panels (see Figure 10) and
close top hatch.
If using smaller compressors, make sure to service the compressor more frequently, and verify
that your compressor has the best cooling airflow
possible.
When filling or servicing the blast cabinet, there
is a risk of subjecting the compressor to airborne
media or dust. Be sure to locate the blast cabinet
away from the compressor operating environment. If even small amounts of media dust enter
the compressor through the intake or during general service, the piston rings, valves, and bearings
can be quickly destroyed.
If an air compressor is not available or the blast
cabinet is to be used in a remote location, NEVER
connect blast cabinet to pressurized bottled gasses, such as oxygen bottles used for welding
operations. Line ruptures or explosions can occur,
causing equipment damage, serious injury, or
death.
Figure 10. Re-installing panel inside cabinet.
-10 -
Model T27359 (Mfd. Since 02/15)
Air Plumbing
Install the air supply lines with a slight tilt back
toward the compressor tank or drain valve, so
the moisture that accumulates from condensation
will drain back into the compressor tank or drain
valve instead of puddling in the low areas of the
air lines.
Install an in-line water separator or an air dryer as
close to the blast cabinet as possible where the
air has had the most time to cool. Water separators typically work best on cool air rather than on
hot air that comes right out of the compressor
tank.
If using an existing air system, eliminate air supply
restrictions and pressure drops that may occur at
small quick-disconnect fittings, elbows, small supply piping, undersized water separators, kinked
lines, or rust-filled piping.
Remove any in-line oilers that are installed directly in the blast cabinet air supply line. Otherwise
the media and blast cabinet will become contaminated with oil, and blasting operations will quickly
come to a halt. Air supply lines for other machines
that have in-line oilers need not be removed, as
long as these lines only feed from the blast cabinet supply line.
Make sure to install an air supply quick-disconnect fitting or a shut-off valve that can be locked
out to prevent the air pressure from accidentally
being turned on. These items allow for the blast
cabinet to be serviced safely or allow it to sit idle
when not in use.
Dust Collection
This machine creates substantial amounts
of dust during operation. Breathing airborne dust on a regular basis can result in
permanent respiratory illness. Reduce your
risk by wearing a respirator and capturing
the dust with a dust collection system.
Minimum CFM at Dust Port: 100 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to calculate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
To connect dust collection system to machine:
1
1. Fit a 1
in Figure 11, and secure in place with a hose
clamp.
2. Tug hose to make sure it does not come off.
Note: A tight fit is necessary for proper
performance.
⁄8" dust hose over dust port, as shown
Model T27359 (Mfd. Since 02/15)
Dust Port
Figure 11. Dust hose attached to dust port.
-11-
Test Run
Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The
table in the
SERVICE section of this manual can help.
setup instructions have been performed.
Operating an improperly set up machine
Serious injury or death can result from
Troubleshooting
The test run consists of ensuring machine operates properly when pressurized, air regulator
functions correctly, and LED light works.
using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
5. Verify LED light operates correctly by push-
ing rocker switch ON.
—When operating correctly, LED light will
illuminate interior of cabinet.
— If LED light does not illuminate, inspect
bulb plug or replace bulb.
6. Put on safety glasses and connect cabinet to
air supply.
7. Pull air regulator dial out and adjust incoming
air to between 60–100 PSI. Push dial in to
lock setting.
8. Lower hatch and latch it shut.
NOTICE
Whenever closing hatch, make sure gloves
are out of the way of door seal before door
is latched shut. Otherwise, gloves and door
seal will be pinched and can be damaged.
DO NOT start machine until all preceding
may result in malfunction or unexpected results that can lead to serious injury,
death, or machine/property damage.
To test run machine:
1. Make sure you understand all safety instruc-
tions from the beginning of the manual, and
machine is set up properly.
2. Make sure all tools and objects used during
setup are cleared away from machine.
3. Make sure ON/OFF rocker switch is in OFF
position.
4. Connect machine to power.
9. Press foot pedal. Air should exit from ceramic
tip of nozzle.
Note: If, after this test, the regulator gauge
needle drops more than a few PSI when you
press the foot pedal, verify that the air supply
is not restricted.
10. Listen and watch for air leaks. Spray a solution of warm water and dish soap on air lines,
valves, and fittings. If a leak is found, soap
bubbles will form. Correct and reseal as
required.
11. Adjust air pressure down to 60 PSI, and
disconnect air supply and electrical power
supply.
The Test Run is now complete!
-12-
Model T27359 (Mfd. Since 02/15)
SECTION 3: OPERATIONS
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so
the
discussed later
in this manual
Due to the generic nature of this overview, it is
not
more about specific operations,
manual and
rienced
research outside of this manual by reading "howto" books, trade magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
To reduce risk of eye injury from flying
Sandblasting presents a real hazard of silicosis and other lung contamination injuries! These
injuries are permanent and can get worse over time. If you use media blasting equipment
without the proper eye protection and respirator, your eyes and lungs may become irreversibly
contaminated. Only use this blast cabinet if you are properly trained in how to use it, correctly
protect yourself, and keep all unprotected bystanders away. For the latest types of protective
equipment and acceptable respirator types, contact your local OSHA or NIOSH office.
Operation Overview
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.
machine controls/components
are easier to understand.
intended to be an instructional guide. To learn
read this entire
seek additional training from expe-
machine operators, and do additional
using machine.
If you have never used this type of machine
or equipment before, WE STRONGLY RECOMMEND that you read books, trade magazines, or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will
not be held liable for accidents caused by
lack of training.
Model T27359 (Mfd. Since 02/15)
-13-
Basic Operation
The Model T27359 sandblast cabinet is equipped
with a blast nozzle with a ceramic tip, a siphon
hose, a built-in light, large viewing window, and
sealed rubber gloves. The hopper beneath the
removable bottom panel recycles and stores the
abrasive media for re-use or easy removal. Safely
blast away paint and rust without making a mess
around your shop.
Note: Experiment with different pressures and
abrasives to gain practical experience.
Note: Keep the sandblasting abrasives moisture-
free, otherwise the nozzle tip will frequently clog.
4. Remove bottom panels. Carefully add
approximately 12 lbs. of abrasive into
sandblaster without causing a hazardous dust
cloud. DO NOT overfill, or sandblasting will
be sluggish and very cloudy inside of cabinet.
5. Insert workpiece, then close and lock top
hatch.
6. Adjust air supply regulator to 60–100 PSI at
5–14 CFM.
7. Clean filter cover, and ensure incoming
compressor line is free of moisture.
8. Turn ON dust collection/vacuum system and
air compressor, insert hands in gloves, and
begin sandblasting in a slow circular motion.
To use sandblast cabinet:
1. Wear safety glasses and respirator at all times
when running and maintaining sandblast
cabinet!
2. Plug in AC/DC transformer and turn light ON.
3. Unscrew and remove blast nozzle (see
Figure 12). Install ceramic tip.
Blast Nozzle
Nozzle
Body
Ceramic Tip
Note: A good starting point for tip distance is
two inches away from the workpiece. Start out
with a low air pressure setting to avoid excess
peening and abrasive wear.
NEVER sandblast with the doors open or
attempt to service any part of this machine
while it is plugged in or connected to air
pressure. ALWAYS disconnect the blast
cabinet from power and air pressure when
not in use, or during maintenance or adjustments. Ignoring this warning may lead to
severe injury.

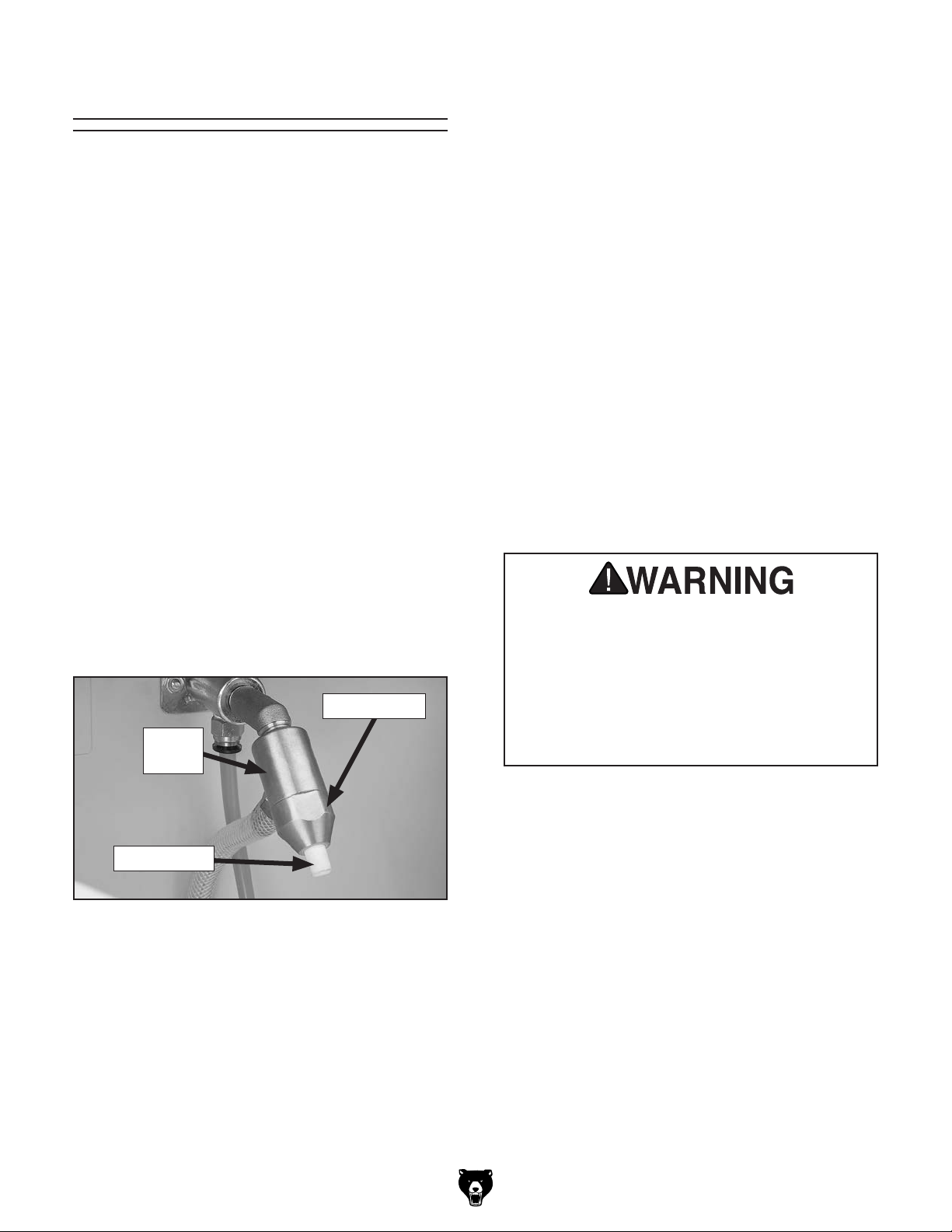

Figure 12. Ceramic tip installed in blast nozzle.
-14-
Model T27359 (Mfd. Since 02/15)
Operation Tips
Improving Productivity
Clean workpieces as much as possible by
removing grease, oils, paint, rust, scale and
other matter before beginning blasting operations.
(Pressure washers can work well for this.) Select
the correct media for the task, and do not use air
pressure settings that are too high for the media
as it will cause media breakdown and dulling.
Maintaining Visibility
Should poor visibility become a problem during
blasting operations, do not wipe the windows
clean with wet or dry rags. Doing so will scratch
the protective plastic sheet, further reducing
visibility. Instead, vacuum media away with a soft
brush attachment, or use a soft paint brush to
brush the dust off of the protective sheets.
Protecting Window Glass
Always make sure to inspect and replace the
protective sheets BEFORE the ricochetting
media wears through and permanently etches the
underlying glass. If using an aggressive media,
this is especially true, and you may have to double
the sheets to protect from wear-through before the
blasting project is finished.
Extending Protective Film Life
For most media blasting operations, maintain a
distance of six inches. Keep the spray at a 45°–60°
angle to the workpiece, so the media will ricochet
off it and not directly impact the bulb or viewing
window. Doing this will help maintain workpiece
visibility and make the protective window film and
media last longer.
Air Pressure Settings
Most operations are done with air pressure settings
between 60 –80 PSI. However, the optimum air
pressure is derived from a trial-and-error process
based on the factors discussed in the Abrasive
Options section (see Page 16). If required, refer
to that section for help.
Media Amounts
Loading only enough media for the job at hand
will help prevent over-using or having to screen
excess media. Use just enough media to cover
the suction tube opening at the bottom of the
hopper. Experiment with using the least amount of
media as possible. The result of using less media
is that there will be less material to sift or discard
and more fresh media for other projects. Store
media in a dry place.
Maintaining Workpiece Finish
Abrasive media will wear the ceramic tip causing
an inconsistent blast pattern. A poor blast pattern
will leave streaks or spots on the workpiece finish.
To avoid this, rotate the ceramic tip
10 to 12 hours of use, and replace any tip that
has worn larger than
size.
1
⁄16" in diameter from original
1
⁄4-turn every
Recycling Media
Sift used media with a series of wire mesh
screens to refine it to one consistent size.
Air Pressure Exceptions
When blasting thin materials made of aluminum,
copper, brass, wood, or other delicate parts,
select a fine or soft media and begin blasting
at a low pressure, such as 45 PSI. Next, slowly
increase the air pressure until you achieve the
finish required. When using glass bead media,
you may have to keep the operating pressure
between 50–80 PSI, or the media will shatter and
break down prematurely. However, if using media
like silicon carbide and aluminium oxide, you can
keep pressures between 100–125 PSI.
Preventing & Clearing Clogs
During blasting operations, the ceramic tip
may periodically clog or become restricted with
workpiece debris. If this occurs, cover the ceramic
tip hole tightly with a flat section of scrap material,
and press the foot valve. Air pressure will be
diverted back through the suction circuit in the
gun and piping, blowing out the clog. Blasting
operations can be resumed afterwards; however,
if clogging persists and the cause is other than
workpiece debris, refer to Troubleshooting for
further solutions.
Model T27359 (Mfd. Since 02/15)
-15-
Abrasive Options
Blasting Media from Grizzly.com
PART #
G6535: 15 lbs. Aluminum Oxide 220-Grit.
G6536: 15 lbs. Aluminum Oxide 120-Grit.
G6537: 15 lbs. Aluminum Oxide 60-Grit.
G6538: 15 lbs. Glass Bead 50-Micron Grit.
Below is a basic introduction to some of the most
common blasting abrasives. Refer to magazines,
trade articles, professionals, and the abrasive
manufacturer for the specific surfaces that can
be addressed with a type of abrasive. All abrasives have benefits and drawbacks like quality
of surface finish, abrasive life, toxicity, and what
precautions you must take to prevent environmental damage or personal injury to your respiratory
system.
Glass and Garnet Type Abrasives
Typically this abrasive works well for soft metals
and addressing surface issues with machine parts
where tolerances must not be affected. The life
of this abrasive is limited and not well suited for
repetitively recycling.
Sand Type Abrasives
This abrasive is easy to find, and gives an average
finish that is acceptable for most projects. Sand
has a good recycling life and is very economical.
Plastic Type Abrasives
Applied at low pressures of 30 to 50 PSI, plastic abrasives should be harder than the coating
being removed, but softer than the workpiece to
avoid damage. Plastic abrasive is excellent for
addressing surface issues on aluminum, magnesium, copper, brass, thin steel, titanium, compos-
ite surfaces, and fiberglass.
Steel Type Abrasives
This aggressive abrasive creates a rough finish that accepts paint well. The abrasive is very
durable and has a long life; however, it MUST be
kept very dry to prevent rusting.
Alumina Type Abrasives
This multi-purpose abrasive creates a smoother
finish than the steel abrasives, but has a shorter life span. Less of the workpiece surface is
removed with this more forgiving abrasive.
Other Types of Abrasives Available
Ground walnut or peanut shells.
Ground corn cob.
Sodium bicarbonate.
Wheat starch.
-16 -
Model T27359 (Mfd. Since 02/15)
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 4: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
T24156 —Campbell Hausfeld™ 30-Gallon Oil
Lube Cast-Iron Vertical Compressor
This 30-gallon air compressor provides the air
power you need to tackle a wide range of jobs,
from cutting and grinding to inflating and painting.
You can depend on this unit’s cast-iron pump for
long life operation in a home garage or automotive
shop. Its portable design makes it easy to move
around your garage or workshop.
H2499—Small Half-Mask Respirator
H3631—Medium Half-Mask Respirator
H3632—Large Half-Mask Respirator
H3635—Cartridge Filter Pair P100
If you work around dust everyday, a half-mask
respirator can be a lifesaver. Also compatible with
safety glasses!
Figure 14. Half-mask respirator with disposable
cartridge filters.
G6261—Campbell Hausfeld™ Water Filter
Remove damaging water vapor before it reaches
your blast cabinet. This highly effective, fivemicron filter features a see-through bowl and easy
in-line connections. 150 PSI maximum air pres-
1
sure.
⁄4" NPT.
Figure 15. G6261 Campbell Hausfeld™ water
filter.
Figure 13. T24156 30-Gallon Air Compressor.
Model T27359 (Mfd. Since 02/15)
-17-
SECTION 5: MAINTENANCE
Cleaning &
Always disconnect
power and air supply to
machine before performing maintenance. Failure
to do this may result in
serious personal injury.
Schedule
For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.
Daily Check
• Inspect fittings, hoses, and cabinet seals for
leaks, cracks, abrasions, and wear.
• Drain air line water separators.
• Verify the air pressure is set for the media.
• Inspect for worn or damaged power cord/
adapter.
• Look for any other unsafe condition.
• Rotate/replace ceramic tip to compensate for
wear.
Monthly Check
• Use soapy water on air fittings and hoses
while looking for bubbles that indicate leaks.
• Clean/vacuum dust buildup from inside
cabinet.
• Inspect work gloves for holes or wear.
• Empty cabinet, wipe down inside, and inspect
for leaks or damage.
• Cover windows and repaint bare metal portions of cabinet.
Protecting
Wear safety goggles and a respirator when
cleaning cabinet or filter. Failure to comply
can cause serious personal injury.
Wipe down the exterior of the cabinet with a light
solution of mild dish soap and water, then dry with
a clean towel. To avoid scratching windows, never
clean them with wet or dry rags. Instead, vacuum
media away with a brush attachment, or gently
brush the window with a soft paint brush.

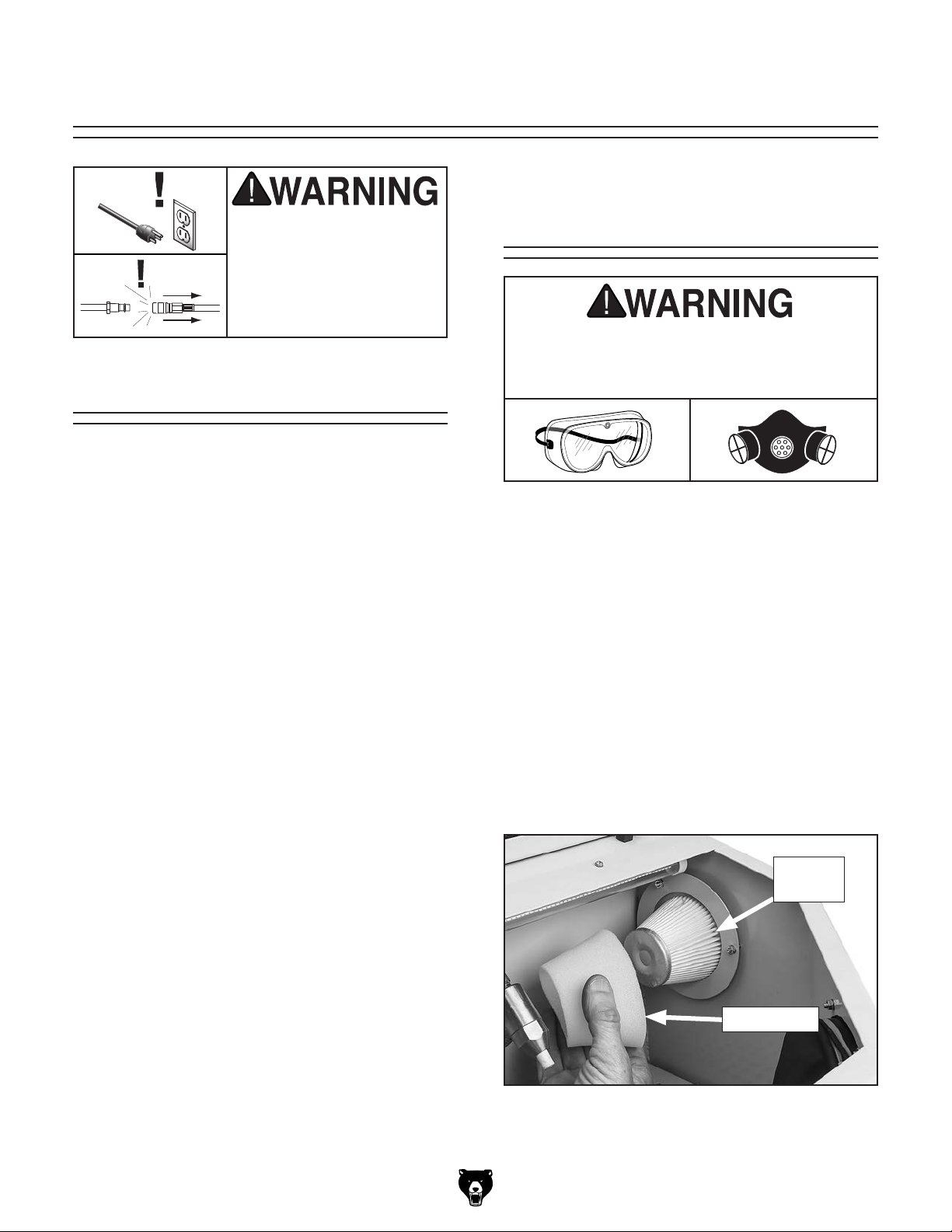

The blast cabinet is equipped with a pleated filter
with a foam cover that is designed to filter media
and contaminants from air before it re-enters the
shop. Every 20–30 minutes of blasting opera-
tions, remove the filter cover and shake built-up
abrasive into the garbage (see Figure 16). You
may also hand wash the foam cover. However, do
not operate the sandblaster until the cover is dry.
Pleated
Filter
-18-
Filter Cover
Figure 16. Removing foam filter cover for
cleaning.
Model T27359 (Mfd. Since 02/15)
SECTION 6: SERVICE
Replacing Filter
3. Remove (3) Phillips head screws, flat wash-
ers, and hex nuts securing filter and metal
flange to sandblast cabinet.
4. Remove and discard old filter. Replace pleated filter, and re-attach metal flange/filter.
Wear safety goggles and a respirator when
cleaning the cabinet or the filter. Failure to
comply can cause serious personal injury.
If general blasting visibility is poor after fully
cleaning the viewing window and filter cover, or if
the dust collector has lost a considerable amount
of CFM, the filter must be replaced.
Tools Needed Qty
Phillips Screwdriver #2 ..................................... 1
Wrench or Socket 7mm ..................................... 1
To replace filter:
1. DISCONNECT MACHINE FROM AIR
SOURCE!
5. Place foam cover over pleated filter.
Replacing Bulb
The LED bulb is accessed through the top hatch
of the sandblast cabinet. To replace the bulb,
disconnect the machine from power. Remove bulb
from two metal clips securing it to the top of the
cabinet, and disconnect incoming cord. Properly
dispose of the LED bulb, and replace it with a new
bulb. Properly re-seat bulb in both metal clips.
Note: Grizzly bulb part number: PT27359011.
Items Needed Qty
LED Bulb .......................................................... 1
2. Open top hatch and remove foam filter cover
from pleated filter (see Figure 17).
Filter Cover
Metal Flange
Figure 17. Removing foam filter cover.
Model T27359 (Mfd. Since 02/15)
Pleated
Filter
Screw Securing
Filter Flange to
Cabinet
Incoming
Cord
LED Bulb
Figure 18. Replacing LED light bulb.
-19 -
Replacing
Protective Cover
The clear protective cover on the inside of the
top hatch viewing window may become cloudy or
scratched due to excessive wear from airborne
abrasive material.
Items Needed Qty
Catch Container ............................................... 1
24" Long 4x4 ..................................................... 2
New Abrasive Material....................... As Needed
To replace abrasive material:
1. Unplug sandblast cabinet from air and power,
and remove bottom cover panels to access
hopper.
Additional protective covers are included with the
machine, and are available at Grizzly.com.
Items Needed Qty
Protective Cover ............................................... 1
Glass Cleaner ................................... As Needed
Clean Shop Rag ................................ As Needed
To replace protective cover:
1. Remove worn protective cover from viewing
window.
2. Use glass cleaner and a clean shop rag to
remove any adhesive residue or abrasive
dust which may have become trapped.
3. Remove adhesive tape protective layer from
new protective cover, and apply cover to
viewing window.
2. Place a catch container large enough to
hold all abrasive material beneath sandblast
cabinet.
Tip: Place sandblaster on two 24" long 4x4
blocks to allow catch pan to fit underneath
drain plug.
3. Remove plastic drain plug in bottom-center
of hopper (see Figure 19). Drain all abrasive
material from hopper, and insert drain plug.
Drain Plug
Replacing
Abrasive Material
Replace the abrasive material to match the
workpiece being sandblasted, or when the material
loses its original abrasive quality or becomes wet.
See Page 16 for an overview of abrasive types
and applications.
ALWAYS disconnect the blast cabinet from
power and air pressure during mainte-
nance or adjustments. Ignoring this warn-
ing may lead to severe injury.
-20-
Figure 19. Drain plug location (from below).
4. Close and lock hatch, and briefly connect
cabinet to air. This allows residual abrasive
in ceramic tip or feed hose to cycle through.
5. Disconnect air, remove drain plug, and empty
remaining abrasive into catch container.
6. Re-install drain plug, refill hopper with new
abrasive media, and re-install bottom panels.
Model T27359 (Mfd. Since 02/15)
These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one
number and manufacture date of your
machine before calling. This information can be found on the main machine label.
machine
SECTION 7: WIRING
stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at
(570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial
Wiring Safety Instructions
SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical components!
MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpredictable results, including serious injury or fire.
This includes the installation of unapproved aftermarket parts.
WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires disconnected or connected during any wiring task to
ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious personal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.
MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.
CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.
EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information
included in this section, contact our Technical
Support at (570) 546-9663.
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.
Model T27359 (Mfd. Since 02/15)
-21-
Transformer
Connector
Wiring Diagram
Transformer
Class 2
In: 120VAC
Out: 12VDC 700mA
Model: 41-12-700
EIA 3639828D
120 VAC
Class 2 Transformer
with 15A Plug
Transformer
Receptacle
(viewed from behind)
ON/OFF Switch
KCD4
(viewed from behind)
25A 250V
LED
Connector
8*287
Sandblast Cabinet
(viewed from above)
LED Light
12VDC
Receptacle
DC12V-01
17412
Figure 20. Transformer.
Receptacle Switch
Figure 21. ON/OFF switch and transformer
receptacle wiring.
-22-
READ ELECTRICAL SAFETY
ON PAGE 21!
Figure 22. Transformer receptacle.
LED
Figure 23. LED light.
Model T27359 (Mfd. Since 02/15)
Air System Diagram
INOUT
Foot Pedal Air Control
STNC
Model: TG23-J-08
Supply Press
0~0.8MPa
Regulator
AR-2000
Max Press: 9.9 Kgf/cm²
Air Range: 0.5–9.0 Kgf/cm²
Regulator
Pressure
Gauge
From
Foot
Pedal
To
Blast
Gun
Main
Air In
To
Foot
Pedal
Figure 24. Air system (viewed from below).
Pressure Gauge
(To Blast Gun)
Sandblast Cabinet
(viewed from below)
WARNING!
DISCONNECT
POWER AND AIR
SUPPLY BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.
Figure 25. Pressure gauge.
Air Supply
In
Figure 27. Regulator.
Figure 26. Air jet/ceramic tip.
Model T27359 (Mfd. Since 02/15)
Figure 28. Foot Pedal.
READ ELECTRICAL SAFETY
ON PAGE 21!
-23-
SECTION 8: PARTS
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
Main
44
6
1
42
51
32
59
11
55
55
56
57
19
10
63
9
56
57
8
54
12
13
2
4
15
4
5
56
3
56
55
18
55
61
7
14
22
23
41
16
19
43
53
58
30
17
32
26
59
58
60
62
27
57
56
45
52
51
21
56
37
57
38
40
49
24
36
50
28
35
56
48
48
47
46
25
29
34
33
20
31
39
38
We do our best to stock replacement parts
when possible, but we cannot guarantee that
all parts shown are available for purchase.
Call (800) 523-4777 or visit www.grizzly.com/
parts to check for availability.
-24-
Model T27359 (Mfd. Since 02/15)
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27359001 WINDOW FRAME 33 PT27359033 NOZZLE BODY
2 PT27359002 WINDOW GLASS 34 PT27359034 AIR JET (BRASS)
3 PT27359003 INNER HATCH PLATE 35 PT27359035 RUBBER GASKET
4 PT27359004 FOAM GASKET 36 PT27359036 NOZZLE EXTENSION (BRASS)
5 PT27359005 CLEAR PROTECTIVE FILM 2-PC 37 PT27359037 NOZZLE SEAT
6 PT27359006 POWER CORD 18G 2W 72" 1-15P 38 PT27359038 COMPRESSION FITTING 16MM (BRASS)
7 PT27359007 POWER CORD RECEIVER 39 PT27359039 ABRASIVE HOSE 16 OD X 300MM L
8 PT27359008 SWITCH BOX 40 PT27359040 FLEXIBLE HOSE 8 OD X 350MM L
9 PT27359009 ON/OFF TOGGLE SWITCH KCD4 15A 250V 41 PT27359041 THREADED MUFFLER 3/8-27 X 44
10 PT27359010 LED LIGHT BRACKET 42 PT27359042 FOOT PEDAL STNC TG23-J-08
11 PT27359011 LED LIGHT 12V DC 43 PT27359043 PRESSURE REGULATOR XXPC AR-2000
12 PT27359012 STRAIN RELIEF PG-9 TYPE-3 44 PT27359044 FLEXIBLE HOSE 8 OD X 1400MM L (RED)
13 PT27359013 LATCH 45 PT27359045 FLEXIBLE HOSE 8 OD X 1400MM L (BLUE)
14 PT27359014 TOP HATCH HINGE 46 PT27359046 AIR FITTING 1/8" NPT STRAIGHT
15 PT27359015 CABINET 47 PT27359047 AIR FITTING 1/8" NPT STRAIGHT
16 PT27359016 FILTER RING, METAL 48 PT27359048 FLAT WASHER 3/8
17 PT27359017 FILTER ELEMENT 49 PT27359049 AIR FITTING 1/8" NPT 90-DEG
18 PT27359018 GLOVE (RIGHT) 50 PT27359050 AIR FITTING 1/8" NPT STRAIGHT
19 PT27359019 PLASTIC ZIP TIE 51 PT27359051 AIR FITTING 1/4" NPT STRAIGHT
20 PT27359020 BLAST NOZZLE 3.5MM ID 52 PT27359052 AIR FITTING 1/8" NPT 90-DEG
21 PT27359021 TOP HATCH SEAL 53 PT27359053 AIR FITTING 1/4" NPT 90-DEG
22 PT27359022 BOTTOM SCREEN (REAR) 54 PT27359054 LOCK WASHER 4MM
23 PT27359023 BOTTOM SCREEN (FRONT) 55 PT27359055 FLAT WASHER 4MM
24 PT27359024 AIR HOSE CLIP, METAL 56 PT27359056 HEX NUT M4-.7
25 PT27359025 PHLP HD SCR M6-1 X 12 57 PT27359057 PHLP HD SCR M4-.7 X 8
26 PT27359026 AIR PRESSURE GAUGE 58 PT27359058 PHLP HD SCR M4-.7 X 16
27 PT27359027 HOPPER PLUG, 30 X 12MM PLASTIC 59 PT27359059 PHLP HD SCR M4-.7 X 12
28 PT27359028 AIR LINE INLET 60 PT27359060 FLEXIBLE HOSE 8 OD X 200MM L (BLUE)
29 PT27359029 FOOT PAD M6-1 X 12 61 PT27359061 FLEXIBLE HOSE 8 OD X 140MM L (RED)
30 PT27359030 HOPPER 62 PT27359062 FLEXIBLE HOSE 8 OD X 600MM L (RED)
31 PT27359031 BLAST NOZZLE M16-1.5 BRASS 63 PT27359063 GLOVE (LEFT)
32 PT27359032 GLOVE SEAT
Model T27359 (Mfd. Since 02/15)
-25-

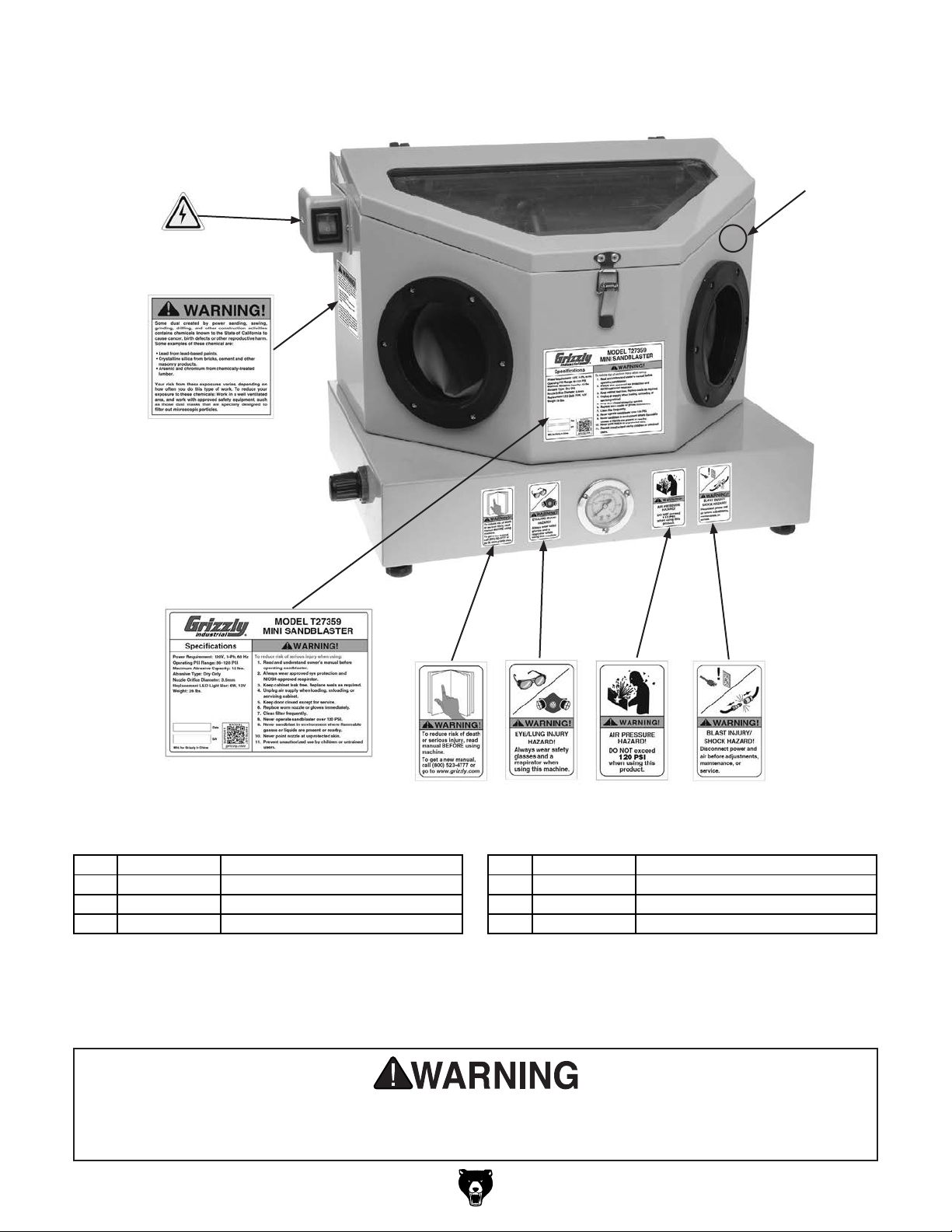

Labels & Cosmetics
108
107
101
102
104105106
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PT27359101 ELECTRICITY LABEL 105 PT27359105 GLASSES/RESPIRATOR LABEL
102 PT27359102 TOUCH-UP PAINT, GRIZZLY BEIGE 106 PT27359106 READ MANUAL LABEL
103 PT27359103 BLAST INJURY LABEL 107 PT27359107 MACHINE ID LABEL
104 PT27359104 PSI LABEL 120 MAX 108 PT27359108 SANDBLAST HAZARDS LABEL
103
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-26-
Model T27359 (Mfd. Since 02/15)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____30-39 ____ 40-49
____ 50-59 ____60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____ Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Loading...
