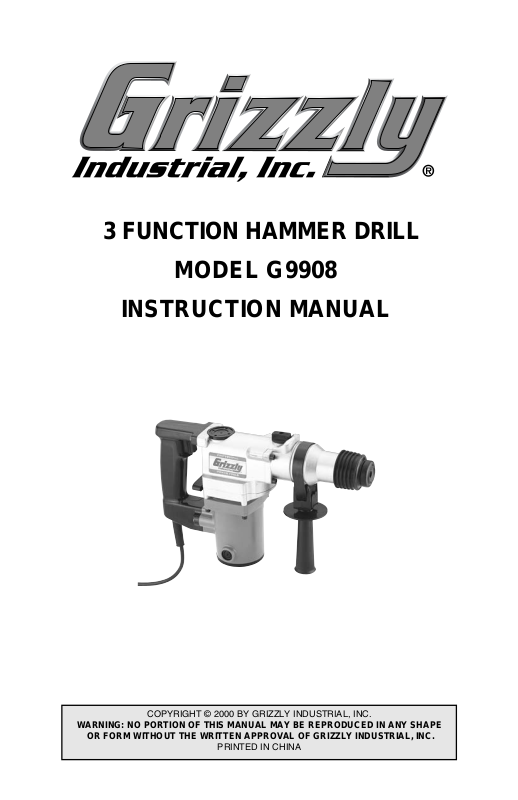

Grizzly G9908 User Manual

3 FUNCTION HAMMER DRILL

MODEL G9908

INSTRUCTION MANUAL

COPYRIGHT © 2000 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

PRINTED IN CHINA

G9908 3 Function Hammer Drill

-B-

G9908 3 Function Hammer Drill

-1-

SAFETY

For Your Own Safety Read Instruction Manual

Before Operating This Equipment

Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information
about proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous
conditions. This manual uses a series of symbols and signal words which are
intended to convey the level of importance of the safety messages. The progres­sion of symbols is described below. Remember that safety messages by them­selves do not eliminate danger and are not a substitute for proper accident pre­vention measures.

NOTICE

Safety Instructions For Power Tools

5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors

should be kept a safe distance from
work area.

6. MAKE WORK SHOP CHILD
PROOF with padlocks, master

switches, or by removing starter
keys.

7. DON’T FORCE TOOL. It will do the
job better and safer at the rate for
which it was designed.

8. USE RIGHT TOOL. Don’t force tool
or attachment to do a job for which it
was not designed.

1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.

2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-

ing to see that keys and adjusting
wrenches are removed from tool
before turning on.

3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.

4. DON’T USE IN DANGEROUS
ENVIRONMENT. Don’t use power

tools in damp or wet locations, or
where any flammable or noxious
fumes may exist. Keep work area
well lighted.

G9908 3 Function Hammer Drill

-2-

9. USE PROPER EXTENSION CORD

for the tool. Make sure your exten­sion cord is in good condition.
Conductor size should be in accor­dance with the chart below. The
amperage rating should be listed on
the motor or tool nameplate. An
undersized cord will cause a drop in
line voltage resulting in loss of power
and overheating. Your extension
cord must also contain a ground wire
and plug pin. Always repair or
replace extension cords if they
become damaged.

Minimum Gauge for Extension Cords

10. WEAR PROPER APPAREL. Do not

wear loose clothing, gloves, neck­ties, rings, bracelets, or other jewel­ry which may get caught in moving
parts. Non-slip footwear is recom­mended. Wear protective hair cover­ing to contain long hair.

11. ALWAYS USE SAFETY GLASSES.

Also use face or dust mask if cutting
operation is dusty. Everyday eye­glasses only have impact resistant
lenses, they are NOT safety glass­es.

12. SECURE WORK. Use clamps or a

vise to hold work when practical. It’s
safer than using your hand and frees
both hands to operate tool.

13. DON’T OVERREACH. Keep proper

footing and balance at all times.

Safety Instructions For Power Tools

14. MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for
best and safest performance.
Follow instructions for lubricating
and changing accessories.

15. DISCONNECT TOOLSbefore ser-

vicing and changing accessories,
such as blades, bits, cutters, and
the like.

16. REDUCE THE RISK OF UNIN­TENTIONAL STARTING. Make

sure switch is in off position before
plugging in.

17. USE RECOMMENDED ACCES­SORIES. Consult the owner’s

manual for recommended acces­sories. The use of improper acces­sories may cause risk of injury.

18. CHECK DAMAGED PARTS.

Before further use of the tool, a
guard or other part that is dam­aged should be carefully checked
to determine that it will operate
properly and perform its intended
function. Check for alignment of
moving parts, binding of moving
parts, breakage of parts, mount­ing, and any other conditions that
may affect its operation. A guard or
other part that is damaged should
be properly repaired or replaced.

No list of safety guidelines can be
complete. Every shop environment
is different. Always consider safety
first, as it applies to your individual
working conditions. Use this and
other machinery with caution and
respect. Failure to do so could result
in serious personal injury, damage
to equipment or poor work results.

AMP LENGTH

RATING 25ft 50ft 100ft

0-6 18 16 16
7-10 18 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No

G9908 3 Function Hammer Drill

-3-

INTRODUCTION

Commentary

We are proud to offer the Grizzly Model
G9908 3 Function Hammer Drill. The
Model G9908 is part of a growing Grizzly
family of fine power tools. When used
according to the guidelines set forth in this
manual, you can expect years of trouble­free, enjoyable operation and proof of
Grizzly’s commitment to customer satis­faction.

At eleven pounds, the Model G9908 3
Function Hammer Drill is a rugged yet ver­satile tool. Its 1⁄2 HP motor delivers 500
RPM drilling speed and 2750 BPM ham­mer action. The drill mode easily bores
through most types wood and light steel,
and the hammer drill mode is perfect for
augering through concrete, brick, cin­derblock or mortor. Set to the power chis­el mode, the G9908 acts like a small jack­hammer.

We are pleased to provide this manual
with the Model G9908. It was written to
encourage safety considerations and
guide you through general operating pro­cedures and maintenance. It represents
our effort to produce the best documenta­tion possible.

The specifications, details, and pho­tographs in this manual represent the
Model G9908 as supplied when the manu­al was prepared. However, owing to
Grizzly’s policy of continuous improve­ment, changes may be made at any time
with no obligation on the part of Grizzly. If
you have any comments regarding this
manual, please write to us at the address

below:

Grizzly Industrial, Inc.

C

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

To operate this, or any power tool,
safely and efficiently, it is essential to
become as familiar with its character­istics as possible. The time you invest
before you begin to use your Model
G9908 will be time well spent. DO NOT
operate this machine until you are
competely familiar with the contents of
this manual. Make sure you read and
understand all of the safety proce­dures. If you do not understand some­thing, DO NOT operate the machine.

Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.

Grizzly Industrial, Inc.

2406 Reach Road

Williamsport, PA 17701

Phone: [phone]

Fax: [phone]
E-Mail: [e-mail]
Web Site: http://www.grizzly.com

G9908 3 Function Hammer Drill

-4-

GETTING STARTED

Control Location

Refer to Figure 1 for the location of the key
components and controls of the machine.
These controls are called out later in the
manual for their specific use when operat­ing. Make sure you are familiar with the
controls before using the Hammer Drill.

Fig 1. Location of controls.

Locking Sleeve

Auxiliary
Handle

Back Switch

Lever

Front Switch

On/Off Trigger

Switch

Specifications

Model number: G9908
Drilling speed: 500 RPM
Hammer rate: 2750 BPM
Voltage: 110/120
Frequency: 60Hz
Power:

1

⁄2 H.P.
Weight: 11 lbs
Max drilling capacity:

7

⁄8" concrete

1

⁄2

" steel

1

3

⁄8" wood

Contents

Your Model G9908 3 Function Hammer
Drill should come with:

1. Rugged plastic carrying case

2. Slip-on dust guard

3. Auxiliary handle

4. Hammer chisel and spike

5. 22mm drill bit

6. 16mm drill bit

7. 10mm drill bit

8. Depth gauge rod

9. Container of lubrication

G9908 3 Function Hammer Drill

-5-

OPERATION INSTRUCTIONS

Disassembly and improper reassem­bly of this device can result in electri­cal shock danger. Always have this
device serviced by a qualified electri­cal repair technician. Serious injury
will result.

Inserting And Changing Bits

Clean and lightly oil the selected bit before
inserting. Pull back the locking sleeve and
slide bit into hammer drill. Twist bit with
slight inward pressure until it moves further
into the hammer drill. Release locking
sleeve and make sure that bit is secured in
place and will not come out by hand. For
removal, pull back locking sleeve and slide
bit straight out of hammer drill.

Operation

1. The hammer drill can be started and
stopped by simply pressing and releasing
the trigger switch.

2. For safety reasons, you should always
use the auxiliary handle during use. If the
hammer drill locks up, the auxiliary handle
will help you maintain control and
decrease your chances of injury. To adjust
the auxiliary handle, twist it counterclock­wise until it is loose enough to position
where you need it, then twist clockwise to
tighten.

3. Setting the depth gauge rod can be
done by loosening the auxiliary handle and
inserting the rod into the hole on the auxil­iary handle near the body of the hammer
drill. Tighten handle when your desired
length is achieved.

4. The dust protection cap can be fitted on
the bottom end of the bits before you insert
them into the hammer drill. This will help
prevent to a large extent the entry of
drilling dust. The hollow side of the dust­cap should face body of the hammer drill.

5. It is important that you don’t apply too
much pressure to the hammer drill during
operation. Excessive force puts unneces­sary stress on the motor and increases
likelyhood of getting hurt. If speed drops
suddenly during use, decrease pressure
immediately.

Mode Selector Switch

You can achieve the three functions of the
hammer drill by selecting the various com­binations of front and back switches. Refer
to Figure 2 for more details.

Drill Mode

Power Chisel Mode

Hammer Drill Mode

Fig 2. Functions of Hammer Drill

Maintenance

It is important that you always keep the
device and ventilation slots clean. Aside
from lubricating bits before insertion, all
other repairs or maintenance to the inter­nal parts of the tool should be done by a
qualified service technician.

G9908 3 Function Hammer Drill

-6-

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original
purchaser from the date of purchase. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of main­tenance. This is Grizzly’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are here­by limited to the duration of this written warranty. We do not warrant or represent that the
merchandise complies with the provisions of any law or acts unless the manufacturer so
warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price
paid for the product and any legal actions brought against Grizzly shall be tried in the State
of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, con­tingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details.
We will then issue you a “Return Number’’, which must be clearly posted on the outside as
well as the inside of the carton. We will not accept any item back without this number. Proof
of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they con­stantly strive to achieve better quality equipment. We make every effort to ensure that our
products meet high quality and durability standards and we hope you never need to use this
warranty.

Please feel free to write or call us if you have any questions about the machine or the man­ual.

Grizzly Industrial, Inc.

2406 Reach Road

Williamsport, PA 17701

Phone: [phone]

Fax: [phone]

E-Mail:

[e-mail]

Web Site: http://www.grizzly.com

Thank you again for your business and continued support. We hope to serve you again
soon.

WARRANTY AND RETURNS

Name__________________________________________________________
Street__________________________________________________________
City____________________State________Zip_________
Phone Number____________E-Mail___________________FAX____________

MODEL # G9908 3 Function Hammer Drill

Order #_______________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us devel­op better products and services. Of course, all information is strictly confidential.

WARRANTY CARD

9. How many of the machines checked above are
Grizzly? ____________

10. Which portable/hand held power tools do you own?
Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other_________________________________

11. What machines/supplies would you like Grizzly
Industrial to carry?
___12" Table Saw ___Radial Arm Saw
___12" Jointer ___Panel Saw
___Brass Hardware ___Lumber
___Paint & Finishing Supplies
___Contractor’s Supplies
___Combination Planer/Jointer
___Other_________________________________

12. What new accessories would you like Grizzly
Industrial to carry?
___Builders Hardware ___Hand Tools
___Fasteners
___Wood Components
___Other_________________________________

13. What other companies do you purchase your tools
and supplies from?
_________________________________________
_________________________________________
_________________________________________

14. Do you think your purchase represents good value?

___Yes ___No

15. Would you recommend Grizzly to a friend?

___Yes ___No

16. Would you allow us to use your name as a refer­ence for Grizzly customers in your area? Note: We
never use names more than three times.

___Yes ___No

17.Comments:________________________________
_________________________________________
_________________________________________
_________________________________________

1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________

2. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999
___$30,000-$39,999 ___$70,000-$79,999
___$40,000-$49,999 ___$80,000-$89,999
___$50,000-$59,999 ___$90,000 +

3. What is your age group?
___20-29 ___50-59
___30-39 ___60-69
___40-49 ___70 +

4. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years
___2 - 8 Years ___20+ Years

5. How would you rank your woodworking skills?
___Simple ___Advanced
___Intermediate ___Master Craftsman

6. What stationary woodworking tools do you own?
Check all that apply.
___Air Compressor ___Panel Saw
___Band Saw ___Planer
___Drill Press ___Power Feeder
___Drum Sander ___Radial Arm Saw
___Dust Collector ___Shaper
___Spindle Sander ___Jointer
___Table Saw ___Lathe
___Mortiser ___Wide Belt Sander
___Horiz.Boring Machine
___Vacuum Veneer Press
___Other______________________________

7. How many of your woodworking machines are
Grizzly? _____________

8. Which benchtop tools do you own? Check all
that apply.
___1"x42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___8" - 10" Bandsaw
___Scroll Saw ___Disc/Belt Sander
___Spindle/Belt Sander ___Mini Jointer
___10"-12"Thickness Planer
___Other______________________________

FOLD ALONG DOTTED LINE

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

Name________________________________

Street________________________________

City______________State______Zip_______

Send a Grizzly Catalog to a friend:
