WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

PRINTED IN TAIWAN.

ULTIMATE SERIES JOINTERS

MODELS G9859 / G9860 / G9860ZX / G9861

INSTRUCTION MANUAL

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other masonry products.

• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Ultimate Series Jointers -1-

Table Of Contents

PAGE

1. SAFETY

SAFETY INSTRUCTIONS FOR POWER TOOLS ..............................................2-3

ADDITIONAL SAFETY INSTRUCTIONS FOR JOINTERS ....................................4

2. CIRCUIT REQUIREMENTS

220V OPERATION ..................................................................................................5

CIRCUIT LOAD ........................................................................................................5

GROUNDING ..........................................................................................................6

EXTENSION CORDS ..............................................................................................6

3. INTRODUCTION

COMMENTARY........................................................................................................7

COMPARISON CHART AND TERMS ....................................................................8

UNPACKING ............................................................................................................9

PIECE INVENTORY ................................................................................................9

CLEAN UP ............................................................................................................10

SITE CONSIDERATIONS ......................................................................................10

4. ASSEMBLY

BEGINNING ASSEMBLY ......................................................................................11

FENCE ..............................................................................................................11-12

CUTTERHEAD ......................................................................................................12

PEDESTAL SWITCH..............................................................................................13

5. ADJUSTMENTS

GENERAL ..............................................................................................................14

KNIVES ............................................................................................................14-15

SPIRAL CUTTERHEAD ........................................................................................16

OUTFEED TABLE ..................................................................................................16

INFEED TABLE ......................................................................................................17

90˚ FENCE STOP ..................................................................................................17

45˚ FENCE STOP ..................................................................................................18

6. OPERATIONS

TEST RUN ............................................................................................................19

STOCK INSPECTION ..........................................................................................19

EDGE JOINTING ..................................................................................................20

BEVELING ............................................................................................................20

SURFACE PLANING ............................................................................................21

7. MAINTENANCE

GENERAL ............................................................................................................22

TABLES ................................................................................................................22

LUBRICATION ......................................................................................................22

V-BELT ..................................................................................................................22

8. CLOSURE ..................................................................................................................23

TROUBLESHOOTING GUIDE ..........................................................................................24

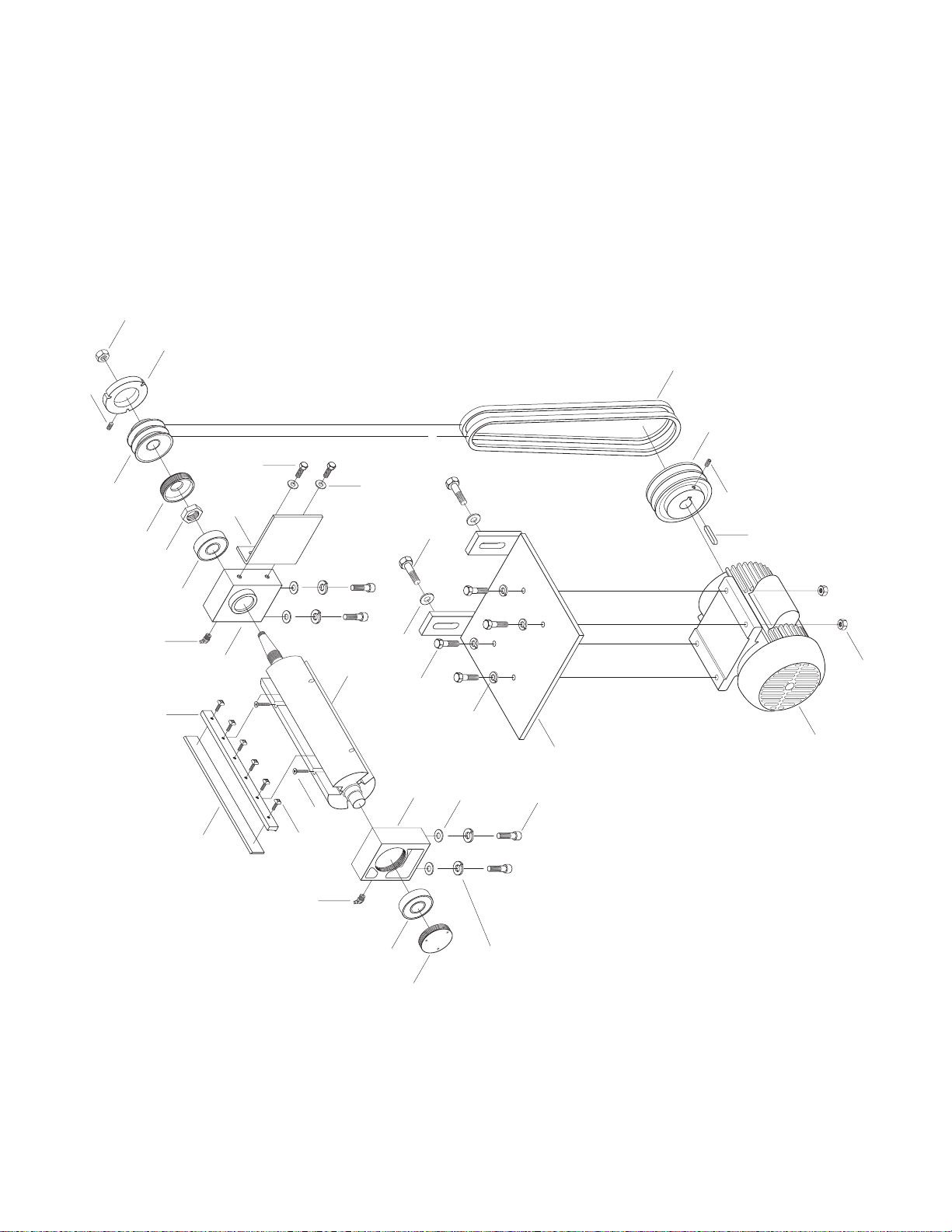

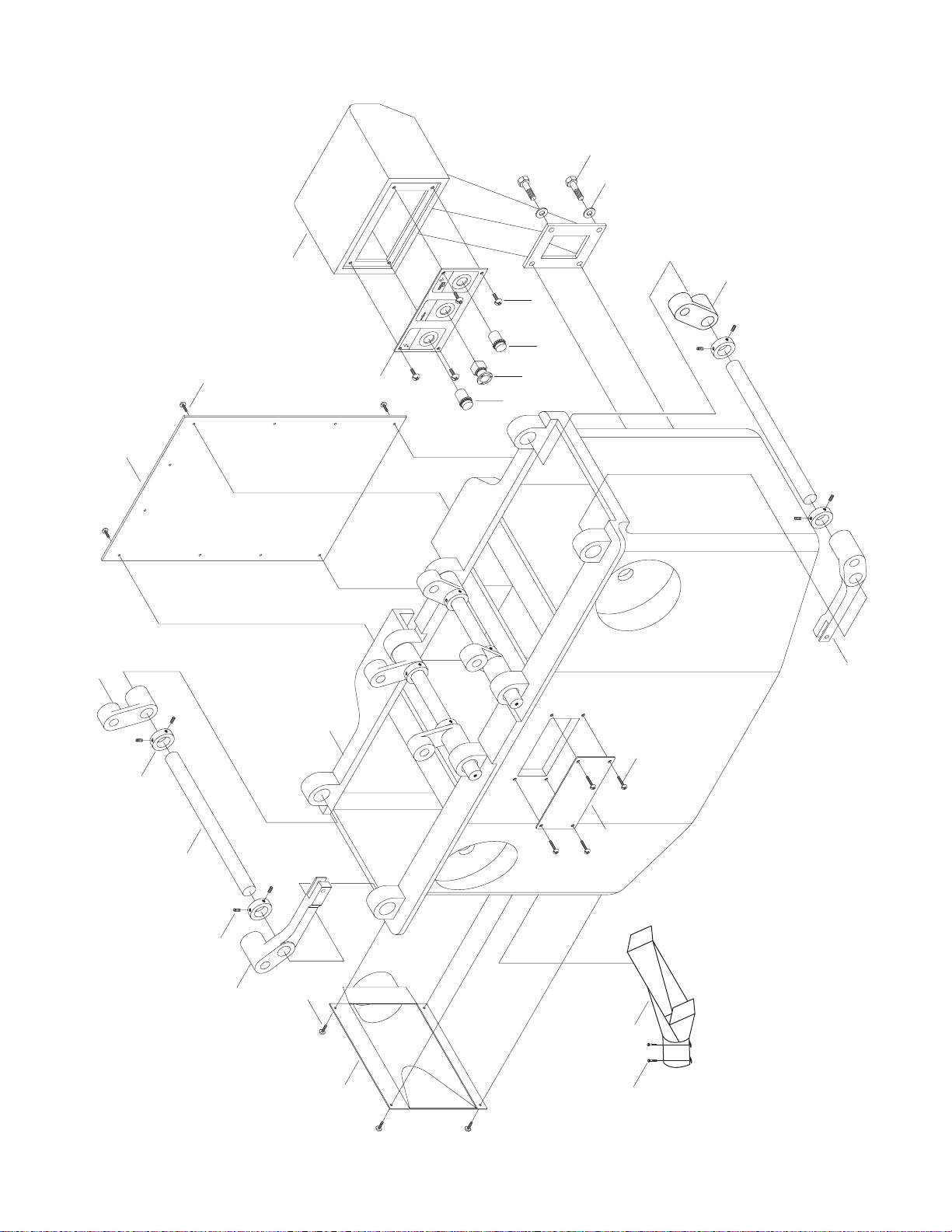

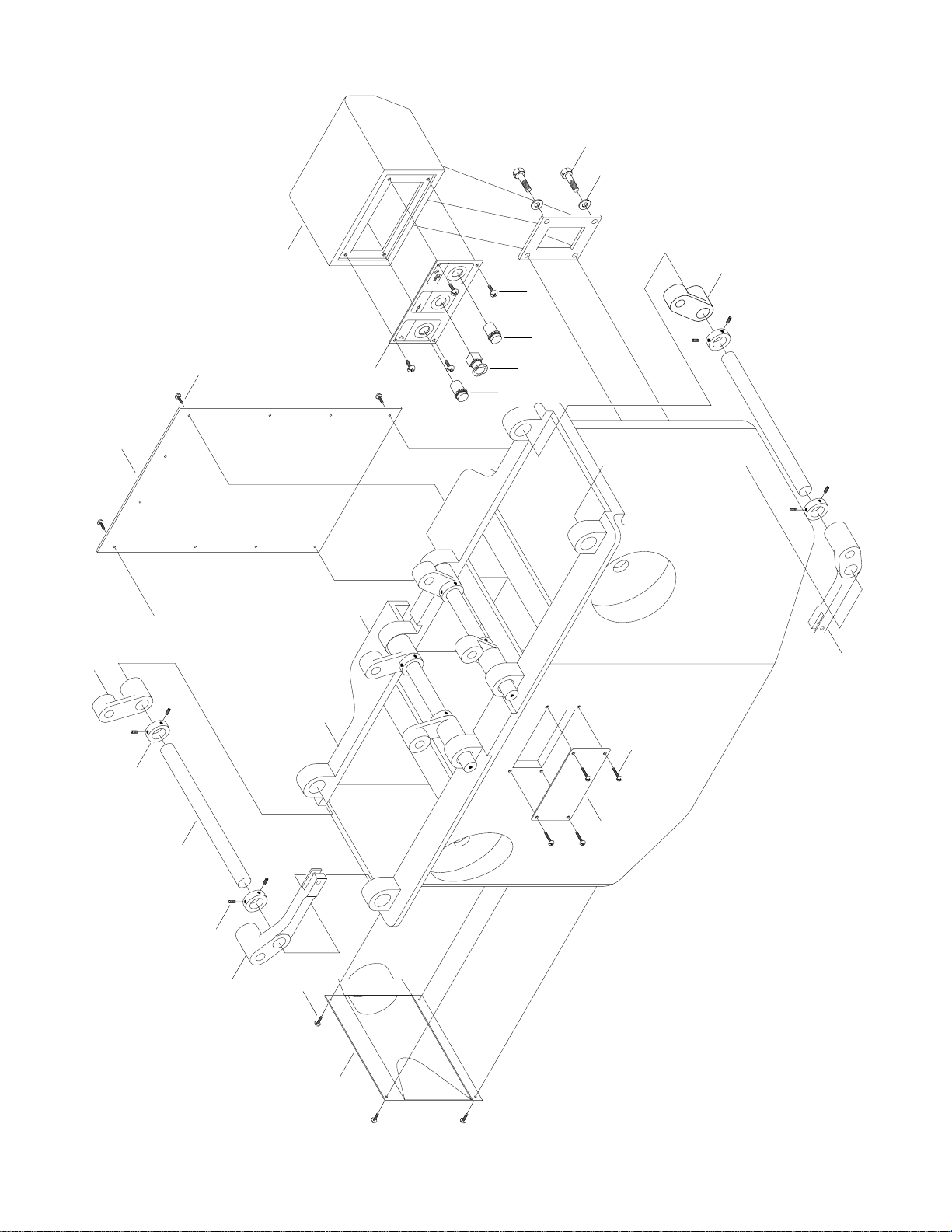

MACHINE DATA, PARTS BREAKDOWN AND PARTS LISTS ................................25-48

WARRANTY AND RETURNS ......................................................................................50-52

-2- Ultimate Series Jointers

Safety Instructions For Power Tools

SECTION 1: SAFETY

5. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be

kept a safe distance from work area.

6. MAKE WORKSHOP CHILD PROOF with

padlocks, master switches, or by removing starter keys.

7. DO NOT FORCE TOOL. It will do the job

better and safer at the rate for which it was designed.

8. USE RIGHT TOOL. Do not force tool or

attachment to do a job for which it was not designed.

1. KEEP GUARDS IN PLACE and in working

order.

2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to

see that keys and adjusting wrenches are removed from tool before turning on.

3. KEEP WORK AREA CLEAN. Cluttered

areas and benches invite accidents.

4. DO NOT USE IN DANGEROUS ENVIRONMENT. Do not use power tools in

damp or wet locations, or where any flammable or noxious fumes may exist. Keep work area well lighted.

For Your Own Safety Read Instruction

Manual Before Operating This Equipment

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.

NOTICE

Ultimate Series Jointers -3-

9. USE PROPER EXTENSION CORD. Make

sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage rating should be listed on the motor or tool nameplate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords if they become damaged.

Minimum Gauge for Extension Cords

10. WEAR PROPER APPAREL. Do not wear

loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair.

11. ALWAYS USE SAFETY GLASSES. Also

use face or dust mask if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.

12. SECURE WORK.Use clamps or a vise to hold

work when practical. It’s safer than using your hand and frees both hands to operate tool.

13. DO NOT OVERREACH. Keep proper foot-

ing and balance at all times.

14. MAINTAIN TOOLS WITH CARE. Keep

tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

15. USE RECOMMENDED ACCESSORIES.

Consult the owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury.

LENGTH

AMP RATING 25ft 50ft 100ft

0-6 18 16 16 7-10 18 16 14 11-12 16 16 14 13-16 14 12 12 17-20 12 12 10 21-30 10 10 No

Safety Instructions For Power Tools

16. REDUCE THE RISK OF UNINTENTIONAL STARTING. On machines with mag-

netic contact starting switches there is a risk of starting if the machine is bumped or jarred. Always disconnect from power source before adjusting or servicing. Make sure switch is in OFF position before reconnecting.

17. MANY WOODWORKING TOOLS CAN “KICKBACK” THE WORKPIECE toward

the operator if not handled properly. If you do not understand what kickback is, or how to

prevent it, Do Not operate this machine.

18. CHECK DAMAGED PARTS. Before fur-

ther use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

19. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Do not

leave tool until it comes to a complete stop.

20. NEVER OPERATE A MACHINE WHEN TIRED, OR UNDER THE INFLUENCE OF DRUGS OR ALCOHOL. Full mental alert-

ness is required at all times when running a machine.

21. NEVER ALLOW UNSUPERVISED OR INEXPERIENCED PERSONNEL TO OPERATE THE MACHINE. Make sure

any instructions you give in regards to machine operation are approved, correct, safe, and clearly understood.

22. IF AT ANY TIME YOU ARE EXPERIENCING DIFFICULTIES performing the intend-

ed operation, stop using the machine! Then contact our service department or ask a qualified expert how the operation should be performed.

-4- Ultimate Series Jointers

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results.

Additional Safety Instructions For Jointers

1. JOINTING SAFETY BEGINS with your

lumber. Inspect your stock carefully before you feed it over the cutterhead. If you have any doubts about the stability or structural

integrity of your stock, DO NOT JOINT IT!

2. MAINTAIN PROPER RELATIONSHIPS of

infeed and outfeed table surfaces and cutterhead knife path.

3. ALWAYS USE A PUSH BLOCK when

jointing. Never place your hands directly over the cutterhead.

4. SUPPORT THE WORKPIECE adequately

at all times during operation, and maintain control over the work at all times.

5. WHEN JOINTING, do not stand directly at

the end of either table. Position yourself just to the side of the infeed table to protect

yourself from possible kickbacks.

6. NEVER MAKE JOINTING CUTS deeper

than

⁄8".

7. NEVER JOINT A BOARD that has loose

knots. All defects should be cut out of the board before it is planed or jointed.

8. NEVER JOINT end grain.

9. JOINT WITH THE GRAIN. Jointing against

the grain is dangerous and could produce chatter or excessive chip out , which could lead to loss of control over the workpiece.

10. WITH THE EXCEPTION OF RABBETING,

all operations must be performed with the guard in place. After rabbeting, be sure to replace the guard.

11. NEVER BACK THE WORK toward the

infeed table. If a cut must be interrupted, lift the workpiece clear of the cutterhead.

12. HABITS – GOOD AND BAD – are hard to

break. Develop good habits in your shop and safety will become second-nature to you.

13. “KICKBACK” is when the workpiece is

thrown off the jointer table by the force of the cutterheads. Always use pushblocks and safety glasses to reduce the likelihood of injury from “kickback.” If you do not understand what kickback is, or how it

occurs, Do Not operate this machine.

14. BE AWARE THAT CERTAIN WOODS MAY CAUSE AN ALLERGIC REACTION

in people and animals, especially when exposed to fine dust. Make sure you know what type of wood dust you will be exposed to and always wear an approved respirator.

Ultimate Series Jointers -5-

SECTION 2: CIRCUIT REQUIREMENTS

220V Operation

The Ultimate Series Jointers have a 3 H.P., 3450 R.P.M. motor which requires a 220V single-phase circuit. The cord set enclosed does not have a plug as the style of plug you require will depend upon the type of service you currently have or plan to install. The motor will safely draw about 15 amps at 220V under load. If you operate the Ultimate Series Jointers on any circuit that is already close to its capacity, it might blow a fuse or trip a circuit breaker. However, if an unusual load does not exist, and power failure still occurs, have the circuit inspected by a qualified electrician.

Circuit Load

When operating at 220V, we recommend using a

NEMA-style 6-15 plug and outlet. See Figure 1.

You may also “hard-wire” the machine directly to your panel, provided you place a disconnect switch near the machine. Check the electrical codes in your area for specifics on wiring requirements.

Under normal use, the motor draws approximately 15 amps at 220V. We recommend a 15 amp circuit breaker for 220V operation. This should be satisfactory for normal use while providing enough protection against circuit damage caused by power surges. Always check to see if your current wires are capable of handling a 15 amp load. If you are unsure, consult the advice of a qualified electrician.

Figure 1. Typical 220V 3-prong plug and outlet.

-6- Ultimate Series Jointers

We do not recommend the use of extension cords with 220V equipment. It is much better to arrange the placement of your equipment and the installed wiring to eliminate the need for extension cords. Should it be necessary to use an extension make sure the cord is rated Hard Service (grade S) or

better. Refer to the chart in Section 1: Safety Instructions to determine the minimum gauge for

the extension cord. The extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords when they become worn or damaged.

We have covered some basic electrical requirements for the safe operation of your machine. These requirements are not necessarily comprehensive. You must be sure that your particular electrical configuration complies with local and state codes. Ensure compliance by checking with your local municipality or a licensed electrician.

Grounding Extension Cords

In the event of an electrical short, grounding provides electric current a path of least resistance to reduce the risk of electrical shock. This tool is equipped with an electric cord having an equipment-grounding conductor which must be properly connected to a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connections of the electrical-grounding conductor can result in risk of electric shock. The conductor with green or green and yellow striped insulation is the electrical-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment grounding conductor to a live terminal.

This equipment must be grounded. Verify that any existing electrical outlet and circuit you intend to plug into is actually grounded. Under no circumstances should the grounding pin from any three-pronged plug be removed. Serious injury may occur.

Ultimate Series Jointers -7-

SECTION 3: INTRODUCTION

We are proud to offer the Ultimate Series Jointers. These machines are part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.

The Ultimate Series Jointers all feature 3 H.P. TEFC motors. The cutterhead knives are laminated high speed steel, resharpenable, and are adjusted by means of jack screws, making blade setting quick and easy. Spiral cutterhead models feature indexed solid carbide cutters that can be rotated through 4 different cutting surfaces before needing to be changed. The infeed and outfeed tables are precision ground cast iron and adjustable by means of handwheels. The operator controls are conveniently mounted on a pedestal above the tables. The Ultimate Series Jointers incorporate cast iron stands and a dust chute for easy connection to a dust collection system.

We are also pleased to provide this universal manual covering all of the Ultimate Series Jointers. It was written to guide you through assembly, review safety considerations, and cover general operating procedures. It represents our effort to produce the best documentation possible. If you have any comments regarding this manual, please write to us at the address below:

Grizzly Industrial, Inc.

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

The specifications, drawings, and photographs illustrated in this manual represent the Ultimate Series Jointers as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. Whenever possible, though, we send manual updates to all owners of a particular tool or machine. Should you receive one, we urge you to insert the new information with the old and keep it for reference.

Commentary

Read the manual before assembly and operation. Become familiar with the machine and its operation before beginning any work. Serious personal injury may result if safety or operational information is not understood or followed.

Most importantly, we stand behind our machines. If you have any service questions or parts requests, please call or write us at the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com

-8- Ultimate Series Jointers

Ultimate Series Jointers

Terms and Definitions

G9859 G9860 G9861G9860ZX

Description

Table Size

Cutterhead Speed

Cutterhead

Motor

Fence Size

Weight

8 1⁄2" x 73 3⁄8"

5900 R.P.M.

4" Dia., 3 Knife

3 H.P./1 PH.

⁄4" x 39 1⁄4"

900 lbs.

⁄2" x 80"

5900 R.P.M.

4" Dia., 3 Knife

3 H.P./1 PH.

⁄4" x 39 1⁄4"

1080 lbs.

⁄2" x 80"

5900 R.P.M.

Spiral Cutterhead

3 H.P./1 PH.

⁄4" x 39 1⁄4"

1080 lbs.

⁄4" x 79 3⁄4"

5900 R.P.M.

4" Dia., 3 Knife

3 H.P./1 PH.

⁄4" x 39 3⁄8"

1210 lbs.

Infeed Table: The infeed table is the table where

the cutting operation begins. When facing the front of the jointer, it is on the right hand side. The wood travels right to left; from the infeed table, across the cutterhead, and onto the outfeed table.

Outfeed Table: The outfeed table is the table

where the cutting operation ends. When facing the front of the jointer, it is on the left hand side.

Cutterhead: The cutterhead is the cylindrical

assembly that holds each of the three jointer knives. It spins on a horizontal axis between the infeed and outfeed table, and is covered by the cutterhead guard when the jointer is not in use.

Fence: The jointer fence is the adjustable cast

iron surface that the wood stock runs along when jointing and surface planing. The fence is adjustable from 45° to 90° to the infeed and outfeed tables.

Adjustment Handwheels: Controls the height of

the infeed and outfeed tables.

Table Lock Handles: The threaded handles that

must be loosened before the height of the tables can be adjusted. They are then tightened after the height is properly set.

Rabbet Cut: A rabbet cut is a groove cut along

the long edge of the wood stock. This cut is typically used in carcass construction. The cutterhead guard must be removed for this operation so great care is needed for safe operation.

Surface Planing: Surface planing is running the

face of the wood stock over the jointer. This provides one flat side that is ready to be run through a dedicated planing machine.

Edge Jointing: Edge jointing is running the long

edge of the wood stock over the jointer. This provides one flat edge that is ready to be run against the table saw rip fence or ready to be edge glued.

Cutterhead Guard: The metal guard that covers

the cutterhead when wood stock is not passing over the jointer.

Ultimate Series Jointers -9-

Unpacking Piece Inventory

NOTICE

A full parts list and breakdown can be found toward the end of this manual. For easier assembly, or to identify specific parts, please refer to the detailed illustrations at the end of the manual.

Ultimate Series Jointers consist of:

• Jointer Assembly (Not Shown)

• Fence Assembly

• Cutterhead Guard

• Push Blocks (2)

• Fence Base Support

• Tool Bag

- 8, 6, 5, 4, 3mm Allen

Wrenches

- 11/13mm Open End Wrench

- Knife Setting Gauge

The Ultimate Series Jointers are shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged after you’ve signed for delivery, immediately call Customer Service for advice.

When you are completely satisfied with the condition of your shipment, you should inventory its parts.

Figure 2. Ultimate Series Jointer layout.

The Ultimate Series Jointers are heavy machines. DO NOT over-exert yourself while unpacking or moving your machine – you will need assistance and power equipment. Serious personal injury may occur if safe moving methods are not followed.

Make sure floor structure is capable of supporting the combined weight of the machine parts and people.

-10- Ultimate Series Jointers

Site Considerations

FLOOR LOAD

Your Ultimate Series Jointer represents a large weight load in a medium footprint. Most commercial or home shop floors should be sufficient to carry the weight. If you question the strength of your floor, you may wish to check with an architect or structural engineer in your area to make certain it can handle the load.

WORKING CLEARANCES

Working clearances can be thought of as the distances between machines and obstacles that allow safe operation of every machine without limitation. Consider existing and anticipated machine needs, size of material to be processed through each machine, and space for auxiliary stands and/or work tables. Also consider the relative position of each machine to one another for efficient material handling. Be sure to allow yourself sufficient room to safely run your machines in any foreseeable operation.

LIGHTING AND OUTLETS

Lighting should be bright enough to eliminate shadow and prevent eye strain. Electrical circuits should be dedicated or large enough to handle combined motor amp loads. Outlets should be located near each machine so power or extension cords are not obstructing high-traffic areas. Be sure to observe local electrical codes for proper installation of new lighting, outlets, or circuits.

Clean Up

The unpainted surfaces are coated with a waxy oil to protect it from corrosion during shipment. Remove this protective coating with a solvent cleaner or citrus-based degreaser such as Grizzly’s G7895 Degreaser. Avoid chlorine-based solvents as they may damage painted surfaces should they come in contact. Always follow the usage instructions on the product you choose for clean up.

Make your shop “child safe.” Ensure that your workplace is inaccessible to youngsters by closing and locking all entrances when you are away. Never allow visitors in your shop when assembling, adjusting or operating equipment.

Many of the solvents commonly used to clean machinery can be toxic when inhaled or ingested. Always work in wellventilated areas far from potential ignition sources when dealing with solvents. Use care when disposing of waste rags and towels to be sure they do not create fire or environmental hazards.

Do not smoke while using solvents. A risk of explosion or fire exists and may result in serious personal injury.

Do not use gasoline or other petroleum-based solvents. They have low flash points which make them extremely flammable. A risk of explosion and burning exists if these products are used. Serious personal injury may occur if this warning is ignored.

Ultimate Series Jointers -11-

SECTION 4: ASSEMBLY

Beginning Assembly

Most of your Ultimate Series Jointer has been assembled at the factory, but some parts must be assembled or installed after delivery. We have organized the assembly process into steps. Please follow along in the order presented here.

TOOLS REQUIRED: You will need a high quality

square, 45° angle gauge, a long straightedge, 11/13mm open end wrench, and a 8, 6, 5, 4 and 3mm Allen

wrench.

Disconnect power to the machine when performing any maintenance, assembly or adjustments. Failure to do this may result in serious personal injury.

Keep loose clothing rolled up and out of the way of machinery and keep hair pulled back.

Wear safety glasses during the entire assembly process. Failure to comply may result in serious personal injury.

Fence

DO NOT slide the fence across the outfeed table. Scratching will result.

NOTICE

To install the fence assembly:

1. Using (2) M12-1.75 x 35 cap screws, (2) M12

washers, and (2)

⁄

8" I.D. x 3mm thick x 38mm

O.D. special washers, attach the fence base support to the jointer assembly as shown in

Figure 3. Make sure the special washers are

between the fence base support and the jointer assembly. The 2 washers go between the cap screw head and the jointer assembly. Tighten securely.

2. Make sure the 10 x 8 x 260mm key is fitted

into the key way on the fence base support as

shown in Figure 4.

The fence assembly is a heavy part. Seek assistance when lifting it onto the fence base support.

Figure 3. Attach fence base support to jointer

assembly.

Some metal parts may have sharp edges on them after they are formed. Please examine the edges of all metal parts before handling them. Failure to do so could result in injury.

Fence Base Support

-12- Ultimate Series Jointers

Cutterhead Guard

The cutterhead guard spring tension comes preset from the factory. To install the cutterhead guard:

1. Loosen the black plastic knob shown in Figure 6.

2. Slide the cutterhead assembly post into the slot shown in Figure 6.

3. Tighten the black plastic knob that was loos- ened in Step 1.

4. When rotated, make sure the cutterhead

guard rotates back over the cutterhead assembly.

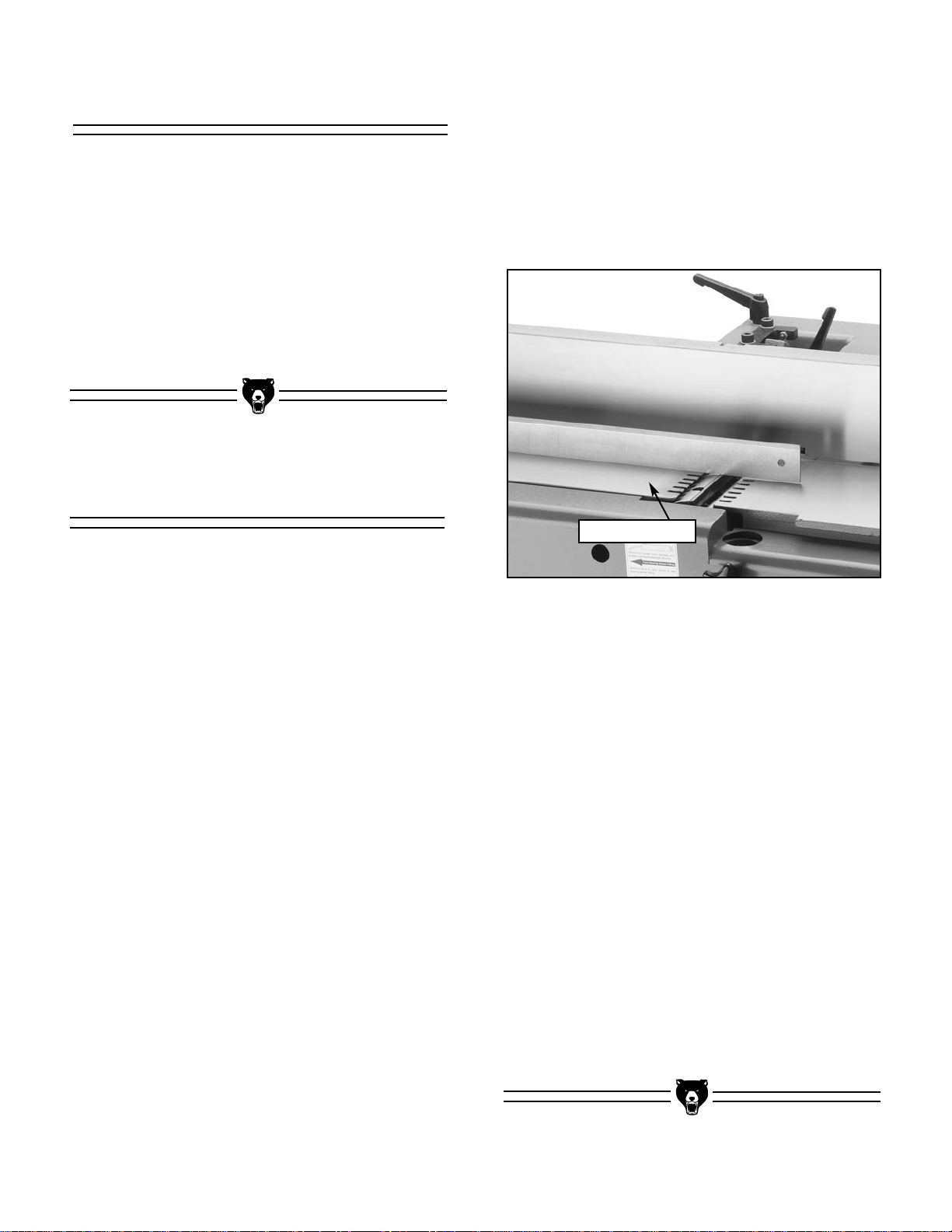

Figure 4. Properly installed key.

Figure 5. Fence base lock knob attachment.

Figure 6a. Attaching cutterhead guard.

3. Carefully lift the fence assembly onto the

fence base support. Make sure that the key is fully seated into the key way. Avoid letting the fence slide across the jointer tables.

4. Slide the lock handle shaft through the flat

washer and into the slot on the top of the fence assembly base. Thread the slide piece onto the end of the lock knob shaft as shown

in Figure 5.

5. Thread the fence adjustment handle into the

tapped hole on the top edge of the fence.

6. With the lock knob loose, the fence assembly

should slide smoothly across the key way. Avoid letting the fence drag across the tables.

Installed Key

Ultimate Series Jointers -13-

Pedestal Switch

Your jointer comes with a pedestal mounted magnetic switch for safety and convenience. Simply bolt the pedestal to the four mounting holes on the back side of the stand with (4) M10-1.5 x 25 cap screws and (4) M10 flat washers as shown in

Figure 7A & 7B.

Figure 7A. Mounting the pedestal switch.

Figure 7B. Mounted pedestal switch.

-14-

Ultimate Series Jointers

SECTION 5: ADJUSTMENTS

Note: The Model G9860ZX has a spiral cutter-

head in place of the knife cutterhead. Adjustment will be discussed in the next section.

The knives of your jointer must be periodically replaced or adjusted. Adjustments should be as precise as possible with tolerances within .002".003" to prolong the sharpness of the knife edges. Improperly adjusted knives can unbalance the cutterhead and shorten bearing life, as well as produce substandard jointing or planing results.

1. Unplug the jointer! Remove the cutterhead

guard to expose the top of the cutterhead.

2. Carefully turn the cutterhead (using the pul-

ley) until the first knife is at top dead center. Engage the brake rod to secure the cutterhead into a stationary position as shown in

Figure 8.

3. Using the knife setting gauge, check the knife

height. The jig should sit solidly with the feet resting on the outfeed table and the knife

edge as shown in Figure 9. If the knife is

adjusted properly, the knife setting gauge should rest flush across the outfeed table and onto the top edge of the knife. If the knife does not make contact, or if the knife causes the adjusters legs to not seat flush on the outfeed table, the knives need to be adjusted.

KnivesGeneral

Always lock the table with the table lock before using the jointer. If this step is not observed, the table could slide down while the jointer is operating. Serious personal injury may occur.

Jointer knives are extremely sharp. Never grab the cutterhead directly to rotate it. Always use the drive pulley. Always be sure the jointer is disconnected from its power source before you make any adjustments. Serious personal injury may occur.

Disconnect power to the machine when performing any maintenance, assembly or adjustments. Failure to do this may result in serious personal injury.

Keep loose clothing rolled up and out of the way of machinery and keep hair pulled back.

Wear safety glasses during the entire adjustment process. Failure to comply may result in serious personal injury.

The Model G9953 is supplied with a 4 knife cutterhead, while the Models G9859/60/61 have 3 knife cutterheads.

NOTICE

Table Lock

Ultimate Series Jointers -15-

Knife Setting

Gauge

Gib

Gib Bolt

Jack Screw

Knife

Outfeed Table

4. Adjust the screws below each end of the

knife until both feet of the gauge rest flush and evenly on the outfeed table and the knife edge is just touching the bottom of the gauge. Securely tighten each gib bolt. The gauge will set the knives at a uniform protrusion above the cutterhead. The knife height should vary no more than .002"-.003" across the length of the cutterhead. A dial indicator can be used to check variation in thousandths of an inch; however, the standard knife setting gauge is satisfactory for reasonably accurate knife setting tasks.

5. Repeat the same procedure on the remaining

knives.

The knives are locked into the cutterhead with wedge-type gibs and gib bolts. Jack screws under the knives allow fine tuning to help in the setting process. To re-align the knives:

1. Unplug the jointer!

2. Loosen the gib bolts until the knife is loose in

the slot. The gib bolts turn clockwise to loosen and counterclockwise to tighten

(when facing the head of the bolt). See

Figures 10 and 11.

3. Place the knife setting gauge across the knife

edge and the outfeed table as described previously.

Figure 9 shows the setting of the knives with the

knife setting gauge.

Figure 10. Parts of the cutterhead.

Figure 11. Tightening the gib bolts.

Figure 8. Engaging the brake rod.

Knife Edge At

Highest Point

of Rotation

Brake Rod

Tighten

Loosen

Knife

Gib Bolt

Gib

-16- Ultimate Series Jointers

Outfeed Table

Spiral Cutterhead

Facing the fence, the outfeed table is located to the left of the cutterhead. The outfeed table must be aligned to the highest point of the arc of the knife edges. If the outfeed table is set too high, the board will hit the front edge of the outfeed table and will be impossible to feed over the jointer. If the outfeed table is set too low, the trailing end of the board will fall into the cutterhead and snipe will occur.

1. Rotate the cutterhead by turning the motor pulley. DO NOT grab the cutterhead itself.

Bring a knife edge to the approximate apex of its arc. Engage the brake rod to securely position the cutterhead.

2. Loosen the outfeed table lock knob located on

the center of the outfeed table handwheel. Rotate the outfeed table handwheel until the outfeed table is nearly flush with the knife edge.

3. Position a steel straightedge on the outfeed

table. Extend the straightedge over the middle

of the cutterhead as shown in Figure 12.

The Model G9860ZX is equipped with a spiral cutterhead. The indexed square carbide cutters have four separate cutting surfaces that can be rotated as needed. If one of the cutters becomes damaged or dull, rotate the cutter to reveal the fresh cutting surface. Each edge of the indexed cutter is marked for easy identification. When an indexed cutter needs to be replaced, please order part #H2334 from the current Grizzly catalog.

2. Loosen the outfeed table lock knob located on

the center of the outfeed table handwheel. Rotate the outfeed table handwheel until the outfeed table is nearly flush with the knife edge.

3. Position a steel straightedge on the outfeed

table. Extend the straightedge over the middle

of the cutterhead as shown in Figure 12.

Figure 12. Setting outfeed table with straight-

edge.

4. Raise or lower the outfeed table with the out-

feed table handwheel until the straightedge barely touches the knife edge. Rock the cutterhead to ensure that the blade edge is at the highest point of its arc. Check the other two blades in the same manner. If they do not all touch the straightedge evenly, they are not at the same height. You must reset the knives. Be sure to test the height at both ends of the cutter knives. The knives must be parallel to the table surface.

5. Tighten the outfeed table lock knob.

6. Recheck the outfeed table alignment with

each of the cutterhead knives and re-adjust as necessary.

7. Once properly set, the outfeed table height will

only need to be changed when the knives are resharpened.

Outfeed Table

Ultimate Series Jointers -17-

To adjust the infeed table:

1. The infeed table can be adjusted the same

way as the outfeed table. Loosen the infeed table lock knob in the center of the handwheel.

2. Place a straightedge on the outfeed table so it

hangs over the infeed table. Turn the cutter-

head so that the knives are NOT touching the

straightedge.

3. Loosen the infeed table lock knob. Raise the

infeed table until it just touches the straightedge as shown in

Figure 13

. Tighten the table

lock knob.

4. Adjust the depth of cut scale to read “0”.

Infeed Table

Figure 13. Setting the depth of cut scale.

90° Fence Stop

1. Place a square on the outfeed table fairly

close to the cutterhead as shown in Figure

14.

Figure 14. Use of square to align fence.

2. While holding the fence adjusting handle,

loosen the angle setting lock knob and the checknut on the 90° stop screw as shown in

Figure 15.

Turn the stop screw against the sliding bracket until the fence contacts the edge of the square evenly.

3. Tighten the checknut on the stop screw and

tilt the fence back, then forward against the stop.

4. Recheck with the square. Tightening the

checknut will move the stop bolt slightly, so some trial-and-error may be necessary to perfect your settings.

Figure 15. Setting the 90° stop.

90° Stop

-18- Ultimate Series Jointers

1. Place a 45° gauge on the outfeed table fairly close to the cutterhead as shown in Figure

16.

45° Fence Stop

Figure 16. Using a 45° gauge to align fence.

2. While holding the fence adjusting handle,

loosen the angle setting lock knob and the checknut on the 45° stop screw as shown in

Figure 17

. Turn the stop screw against the sliding bracket until the fence contacts the edge of the 45° gauge evenly.

3. Tighten the checknut on the stop screw and

tilt the fence forward, then back against the stop.

4. Recheck with the 45° gauge. Tightening the

checknut will move the stop bolt slightly, so some trial-and-error may be necessary to perfect your settings.

Figure 17. Setting the 45° stop.

45° Stop

Ultimate Series Jointers -19-

SECTION 6: OPERATIONS

Once assembly is complete and adjustments are done to your satisfaction, you are ready to test run the machine.

Turn on the power supply at the main panel. Press the START button. Make sure that your finger is poised on the STOP button, just in case there’s a problem. The jointer should run smoothly, with little or no vibration or rubbing noises. Strange or unnatural noises should be investigated and corrected before operating the machine further.

If you cannot easily locate the source of an unusual noise or vibration, contact our service department for help.

Test Run

Stock Inspection

Figure 18. Correct and incorrect grain align-

ment to cutterhead.

If the stock has large or loose knots, consider finding another workpiece. Knots in a workpiece can be dangerous to the operator, as well as destructive to equipment.

When jointing, always cut with the grain rather than against it. Cutting against the grain (going against the pattern of the wood’s growth rings) chips the wood instead of cutting it, making the workpiece rough and irregular. Look at the side of your board. If the direction of the grain structure facing the cutterhead runs toward the cutterhead as it sits on the infeed table, your cut will be with

the grain as shown in Figure 18.

Occasionally, you will find woods that defy all rules. In those rare cases, it is best to feed the workpiece slowly and take several shallow cuts. A few extra passes will hurt much less than a ruined workpiece.

Disconnect power to the machine when performing any maintenance, assembly or adjustments. Failure to do this may result in serious personal injury.

Keep loose clothing rolled up and out of the way of machinery and keep hair pulled back.

Wear safety glasses during the entire operation process. Failure to comply may result in serious personal injury.

CORRECT

INCORRECT

FEED DIRECTION

ROTATION

OUTFEED TABLE

ROTATION

OUTFEED TABLE

INFEED TABLE

FEED DIRECTION

INFEED TABLE

-20- Ultimate Series Jointers

The purpose of edge jointing is to produce a finished, flat-edged surface that is suitable for joinery or finishing. Jointing is also a necessary step prior to ripping stock to width on a table saw or radial arm saw.

1. Make sure the fence is set to 90°. Double

check it with a square.

2. Inspect stock for soundness and grain direc-

tion.

3. If the board is bowed (curved), place the

concave edge down on the infeed table.

4. Holding the stock firmly against the fence

and table, feed the stock slowly and evenly

over the cutterhead as shown in Figure 19.

Figure 19. Operator position for edge jointing.

Edge Jointing

Beveling

Beveling an edge is essentially the same operation as edge jointing, except that the fence is tilted to a specified angle. Use extra care to ensure that the edge makes solid contact with the infeed and outfeed tables at all times.

1. Use a bevel gauge to determine the desired

angle. Then use the bevel to transfer this angle to the fence.

2. Tilt the fence by loosening the angle setting

lock knob and moving the fence to the desired angle. Lock the knob.

3. Inspect stock for soundness and grain direc-

tion.

4. Slowly and evenly feed stock through the

cutterhead. Make sure the face of the stock is completely flat against the fence and the edge is making solid contact on the infeed

and outfeed tables as shown in Figure 20.

5. Achieving the full bevel will probably take

several passes. Remember not to take more than

⁄

16" in one pass.

Figure 20. Fence position for bevel jointing.

Ultimate Series Jointers -21-

Surface Planing

The purpose of planing on a jointer is to produce one flat surface. The theory behind this is that once you have one flat surface on a board, the board can then more readily be milled to precise, flat dimensions on a thickness planer. It is nearly impossible to surface plane both sides of a board effectively because the two surfaced sides will retain any warps, cups, or twists.

1. Inspect your lumber for soundness and grain

direction.

2. If the stock is cupped (warped), place the

concave side down and slowly feed it over

the cutterhead as shown in Figure 21.

3. Inspect your results. Most likely, many pass-

es will be necessary before your lumber has a flat surface.

4. If the stock has large or loose knots, consid-

er finding another workpiece. Knots in a workpiece can be dangerous to the operator, as well as destructive to equipment.

Figure 21. Correct method for surface planing.

Always use push paddles when planing the surface of a board. Failure to comply may result in serious personal injury.

-22- Ultimate Series Jointers

SECTION 7: MAINTENANCE

Lubrication

V-Belt

General

Tables

Regular periodic maintenance on your Ultimate Series Jointer will ensure its optimum performance. Make a habit of inspecting your jointer each time you use it. Check for the following conditions and repair or replace when necessary.

1. Loose mounting bolts.

2. Worn switch.

3. Worn or damaged cords and plugs.

4. Damaged V-belt.

5. Any other condition that could hamper the

safe operation of this machine.

Inspect regularly for wear; replace when necessary with a size A-36 belt.

Since most of the bearings are sealed and permanently lubricated, simply leave them alone until they need to be replaced. The cutterhead bearings do need grease after every 80 hours of use. Unplug the machine and grease each of the two grease fittings located on each end of the cutterhead. The front grease fitting is located in a small hole and the other is just under the bottom edge of the fence.

Disconnect power to the machine when performing any maintenance, assembly or adjustments. Failure to do this may result in serious personal injury.

Wear safety glasses during the entire maintenance process. Failure to comply may result in serious personal injury.

Keep loose clothing rolled up and out of the way of machinery and keep hair pulled back.

Tables can be kept rust-free with regular applications of products like Boeshield

T-9. For long term storage you may want to consider products like Kleen Bore's Rust Guardit™.

Ultimate Series Jointers -23-

The following pages contain general machine data, parts diagrams/lists, a troubleshooting guide and Warranty/Return information for your Ultimate Series Jointer.

If you need parts or help in assembling your machine, or if you need operational information, we encourage you to call our Service Department. Our trained service technicians will be glad to help you.

If you have comments dealing specifically with this manual, please write to our Bellingham,

Washington location using the address in Section

3 Introduction.

We have included some important safety measures that are essential to this machine’s operation. While most safety measures are generally universal, Grizzly reminds you that each workshop is different and safety rules should be considered as they apply to your specific situation.

We recommend you keep a copy of our current catalog for complete information regarding Grizzly's warranty and return policy. If you need additional technical information relating to this machine, or if you need general assistance or replacement parts, please contact the Service

Department listed in Section 3 Introduction.

Additional information sources are necessary to realize the full potential of this machine. Trade journals, woodworking magazines, and your local library are good places to start.

SECTION 8: CLOSURE

The Ultimate Series Jointers were specifically designed for jointing operations. DO NOT MODIFY AND/OR USE THIS MACHINE FOR ANY OTHER PURPOSE. Modifications or improper use of this tool will void the warranty. If you are confused about any aspect of this machine, DO NOT use it until all your questions have been answered. Serious personal injury may occur.

Like all power tools, there is danger associated with the Ultimate Series Jointers. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this tool with respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Operating this equipment has the potential for flying debris to cause eye injury. Always wear safety glasses or goggles when operating equipment. Everyday glasses or reading glasses only have impact resistant lenses, they are not safety glasses. Be certain the safety glasses you wear meet the appropriate standards of the American National Standards Institute (ANSI).

-24- Ultimate Series Jointers

TROUBLESHOOTING

SYMPTOM

Motor will not start.

Motor will not start; fuses or circuit breakers blow.

Motor overheats.

Motor stalls (resulting in blown fuses or tripped circuit).

Machine slows when operating.

Loud, repetitious noise coming from machine

Machine is loud when cutting. Overheats or bogs down in the cut.

POSSIBLE CAUSE

1. Low voltage.

2. Open circuit in motor or loose connections.

1. Short circuit in line cord or plug.

2. Short circuit in motor or loose connections.

3. Incorrect fuses or circuit breakers in power line.

1. Motor overloaded.

2. Air circulation through the motor restricted.

1. Short circuit in motor or loose connections.

2. Low voltage.

3. Incorrect fuses or circuit breakers in power line.

4. Motor overloaded.

1. Feed rate too high.

2. Depth of cut too great.

1. Pulley set screws or keys are missing or loose.

2. Motor fan is hitting the cover.

3. V-belt is defective.

1. Excessive depth of cut.

2. Knives are dull.

CORRECTIVE ACTION

1. Check power line for proper voltage.

2. Inspect all lead connections on motor for loose or open connections.

1. Inspect cord or plug for damaged insulation and shorted wires.

2. Inspect all connections on motor for loose or shorted terminals or worn insulation.

3. Install correct fuses or circuit breakers.

1. Reduce load on motor.

2. Clean out motor to provide normal air circulation.

1. Inspect connections on motor for loose or shorted terminals or worn insulation.

2 Correct the low voltage conditions.

3. Install correct fuses or circuit breakers.

4. Reduce load on motor.

1. Feed workpiece slower.

2. Reduce depth of cut.

1. Inspect keys and set screws. Replace or tighten if necessary.

2. Tighten fan or shim cover.

3. Replace V-belt. See Maintenance.

1. Decrease depth of cut.

2. Sharpen knives.

DO NOT make adjustments while the jointer is running. Ensure that the switch is off, power is disconnected and moving parts have stopped before making adjustments. Failure to comply may result in serious personal injury.

Ultimate Series Jointers -25-

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

8" JOINTER MODEL G9859

MACHINE DATA

SHEET

Design Type ....................................................................................................Floor Model

Overall Dimensions:

Table Size ..................................................................................................73

⁄8'' x 81⁄2''

Height (from Floor to Table) ..................................................................................30

⁄4''

Overall Length ......................................................................................................73

⁄8''

Overall Width............................................................................................................31''

Fence ..........................................................................................................4

⁄

4'' x 39

⁄

4''

Shipping Weight................................................................................................900 lbs.

Capacities:

Maximum Depth of Cut ............................................................................................

⁄

16''

Maximum Width of Cut............................................................................................7

⁄8''

Cutterhead Speed ....................................................................................5900 R.P.M.

Cuts Per Minute..................................................................................................17,700

Bevel Jointing ..................................................................................................90° - 45°

Cutterhead Diameter ..................................................................................................4"

Knife Size ................................................................................................8" x 1

⁄

8'' x

⁄

8''

Dust Hood Size ..........................................................................................................4"

Construction:

Table ..................................................................................Precision Ground Cast Iron

Fence Assembly ................................................................Precision Ground Cast Iron

Body Assembly................................................................................................Cast Iron

Base ................................................................................................................Cast Iron

Cutterhead ......................3 Knife Slots w/ Shielded Ball Bearings and Grease Fittings

Guard ....................................................................................................Cast Aluminum

Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower ........................................................................................................3 H.P.

Phase ⁄ Voltage ⁄ Amps ..................................................................Single ⁄ 220V ⁄ 15A

Cycle ⁄ R.P.M. ..........................................................................60 Hertz ⁄ 3500 R.P.M.

Switch ..........................................................Magnetic W/ Thermal Overload Protector

Power Transfer............................................................................................Twin V-Belt

Bearings ..................................................................Sealed & Permanently Lubricated

Features:

Fence ................................................Center Mounted, Positive Stops at 45° and 90°

Table Movement ..............................Independently Adjustable, Handwheel Precision

Infeed & Outfeed Tables ..........................................................................Heat Treated

..............................................................................Pedestal Mounted ON/OFF Switch

............................................................................................Noise Dampening System

Specifications, while deemed accurate, are not guaranteed.

011

G9859 8" JOINTER

023

012

013

027

026

500

W O P

017

014

015

016

003

005

004

001

023

033

031

009

034

023

010

030

117

G9859 8" JOINTER

106

118

108

107

105

711

116

115

114

709

702

704

703

110

120

104

119

103

113

121

110

101

708

104

707

102

109

706

111

705

701

710

112

219

G9859 8" JOINTER

217

216

208

210

206

202

211

221

220

205

212

218

207

213

209

215

214

201

203

204

603

605

601

602

607

604

606

019

018

002

020

021

022

G9859 8" JOINTER

514

513

507

503

515

505

504

508

517

523

516

522

506

501

518

519

521

512

502

520

509

510

511

G9859 8" JOINTER

024

008

025

007

304

305

309

306

308

302

303

032

301

402

401

307

404

006

405

028

406

029

716

407

024

023

025

715

714

713

403

712

Ultimate Series Jointers -31-

001 P9859001 BASE

002 P9859002 FENCE SEAT

003 P9859003 TABLE SUPPORT

004 P9859004 TABLE LIFTING ARM

005 P9859005 TABLE SUPPORT

006 P9859006 FRONT HOUSING

007 P9859007 RIGHT REAR HOUSING

008 P9859008 LEFT REAR HOUSING

009 P9859009 TABLE HEIGHT SPINDLE

010 P9859010 TABLE LIFTING ARM

011 P9859011 BASE REAR COVER

012 P9859012 SWITCH BOX

013 P9859013 SWITCH PLATE

014 P9859014 SWITCH (GREEN)

015 P9859015 SWITCH (RED)

016 P9859016 PUSH BUTTON SWITCH (WHITE)

017 PS39M PHLP HD SCR M8-1.25 x 10

018 PK56M KEY 10 x 8 x 260

019 P9859019 SLIDER

020 PW14 FLAT WASHER

⁄

021 PW08M FLAT WASHER M16

022 PB72M HEX BOLT M16-1.75 x 30

023 PS24M PHLP HD SCR M6-1.0 x 10

024 PW07 FLAT WASHER

⁄16"

025 PB07M HEX BOLT M8-1.25 X 25

026 PW01 FLAT WASHER

⁄2

027 PB12M HEX BOLT M12-1.75 X 55

028 PW02 FLAT WASHER

⁄8"

029 P9859029 KNOB

030 P9859030 DUST HOOD

031 P9859031 PLATE COVER

032 P9859032 INDEX

033 P9859033 STOP COLLAR

034 PSS20M SET SCREW M8-1.25 X 8

101 P9859101 CUTTERHEAD

102 P9859102 HOUSING HEAD AXLE BOX (R.H.)

103 P9859103 HOUSING

104 P9859104 BEARING 6305-VV

105 P9859105 CIRCULAR NUT

106 P9859106 CUTTERHEAD BELT WHEEL

107 P9859107 CUTTERHEAD STOP PLATE

108 P9859108 CUTTERHEAD COVER (SMALL)

109 P9859109 CUTTERHEAD COVER (SMALL)

110 P9859110 OIL FEEDER

⁄16"

111 PLW06M LOCK WASHER M10

112 PB14M HEX BOLT M10-1.5 X 35

113 P9859113 SPECIAL SCREW

114 P9859114 CASE PLATE

115 PW04M FLAT WASHER M10

116 PB65 HEX BOLT

⁄8"-16 X 5⁄8"

117 PSS09M SET SCREW M8-1.25 X 20

118 P9859118 SPECIAL HEX NUT

119 P9859119 CUTTER

120 P9859121 GIB

121 P9859122 CUTTER KNOB

201 P9859201 FENCE SEAT

202 P9859202 ANGLE FENCE SEAT

203 P9859203 ANGLE SEAT FASTEN ROD

204 P9859204 KNOB

205 P9859205 FENCE ROD (LONG)

206 P9859206 FENCE ROD (SHORT)

207 P9859207 ANGLE PLATE

208 P9859208 FENCE

209 P9859209 FENCE ROD

210 P9859210 SPECIAL RETAINER RING

211 PSB13M CAP SCREW M8-1.25 X 30

212 PSB06M CAP SCREW M6-1.0 X 25

213 PSS04M SET SCREW M6-1.0 X 12

214 PSS29M SET SCREW M6-1.0 X 35

215 PN01M HEX NUT M6-1.0

216 PW01 FLAT WASHER

⁄

217 P9859217 KNOB

218 PW02 FLAT WASHER

⁄8"

219 PSB47M CAP SCREW M10-1.5 X 40

220 P9859220 FENCE ADJUSTMENT ROD

221 P9859221 KNOB

301 P9859301 BED

302 P9859302 PLATE

303 PSB26M CAP SCREW M6-1.0 X 12

304 P9859304 NOISE DAMPENER

305 PSB31M CAP SCREW M8-1.25 X 25

306 PSS16M SET SCREW M8-1.25 X 10

307 P9859307 BED PIVOT ROD

308 P9859308 BED PIVOT PIN

309 PSB70M CAP SCREW M12-1.75 X 30

401 P9859401 CUTTERHEAD GUARD

402 PSB06M CAP SCREW M6-1.0 X 25

403 P9859403 SPRING SHAFT HOUSING

404 P9859404 SPRING SHAFT

405 PW06M FLAT WASHER M12

406 PW01M FLAT WASHER

⁄2"

407 PSB36M CAP SCREW M12-1.75 X 25

501 P9859501 LIFT ROD COLLAR

502 P9859502 HANDWHEEL

503 P9859503 GEAR

504 P9859504 COLLAR

505 P9859505 LIFT ROD

506 P9859506 GEAR

507 P9859507 LIFT ROD

508 P9859508 SPECIAL RETAINER RING

Ref# Part# DescriptionRef# Part# Description

-32- Ultimate Series Jointers

509 P9859509 SPECIAL RETAINER RING

510 P9859510 SPECIAL WASHER

511 P9859511 LOCK KNOB

512 P9859512 HANDWHEEL KNOB

513 PSB47M CAP SCREW M10-1.5 X 40

514 PN03M HEX NUT M8-1.25

515 PSS04M SET SCREW M6-1.0 X 12

516 P9859516 LUBE FITTING

⁄16"

517 PK20M KEY 5 X 5 X 15

518 PLW01 LOCK WASHER

⁄16"

519 PB07M HEX BOLT M8-1.25 X 25

520 PB58 HEX BOLT

⁄

8"-16 X 2"

521 PN08 HEX NUT

⁄

8"-16

522 P9859522 SPECIAL NUT

523 PSS02M SET SCREW M6-1.0 X 6

601 P9859601 ROD

602 P9859602 COLLAR

603 P9859603 HANDLE

604 P9859604 BRAKE CASING

Ref# Part# Description

605 P9859605 PIN

606 PSS02M SET SCREW M6-1.0 X 6

607 P9859607 SPRING

701 P9859701 MOTOR 3 H.P.

702 P9859702 PULLEY

703 PK54M KEY 7 X 7 X 45

704 PSS08M SET SCREW

⁄16"-18 X 1⁄2"

705 PN02M HEX NUT M10-1.5

706 PLW04 LOCK WASHER

⁄8"

707 PB14M HEX BOLT M10-1.5 X 35

708 PW01 FLAT WASHER

⁄

709 PB25M HEX BOLT M12-1.75 X 25

710 P9859710 MOTOR MOUNT PLATE

711 PVA47 V-BELT (A-47")

712 P9859712 Z SERIES LABEL

713 P9859713 SAFETY GLASSES WARNING

714 P9859714 MACHINE ID WARNING

715 P9859715 PUSH BLOCK WARNING

716 P9859716 CAST LOGO

Ref# Part# Description

Ultimate Series Jointers -33-

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

12" JOINTER MODEL G9860/G9860ZX

MACHINE DATA

SHEET

Design Type ....................................................................................................Floor Model

Overall Dimensions:

Table Size ....................................................................................................80'' x 12

⁄2''

Height (from Floor to Table) ..................................................................................30

⁄4''

Overall Length ..........................................................................................................80''

Overall Width........................................................................................................34

⁄16

Fence ..........................................................................................................4

⁄4'' x 391⁄4''

Shipping Weight..............................................................................................1080 lbs.

Capacities:

Maximum Depth of Cut ............................................................................................

⁄16''

Maximum Width of Cut........................................................................................11

⁄16''

Cutterhead Speed ....................................................................................5900 R.P.M.

Cuts Per Minute..................................................................................................17,700

Bevel Jointing ..................................................................................................90° - 45°

Cutterhead Diameter ..................................................................................................4"

Knife Size ..............................................................................................12" x 1

⁄8'' x 1⁄8''

Dust Hood Size ..........................................................................................................4"

Construction:

Table ..................................................................................Precision Ground Cast Iron

Fence Assembly ................................................................Precision Ground Cast Iron

Body Assembly................................................................................................Cast Iron

Base ................................................................................................................Cast Iron

Cutterhead (G9860)........3 Knife Slots w/ Shielded Ball Bearings and Grease Fittings

Cutterhead (G9860ZX) ........................................................Indexed Spiral Cutterhead

Guard ....................................................................................................Cast Aluminum

Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower ........................................................................................................3 H.P.

Phase ⁄ Voltage ⁄ Amps ..................................................................Single ⁄ 220V ⁄ 15A

Cycle ⁄ R.P.M. ..........................................................................60 Hertz ⁄ 3500 R.P.M.

Switch ..........................................................Magnetic W/ Thermal Overload Protector

Power Transfer............................................................................................Twin V-Belt

Bearings ..................................................................Sealed & Permanently Lubricated

Features:

Fence ................................................Center Mounted, Positive Stops at 45° and 90°

Table Movement ..............................Independently Adjustable, Handwheel Precision

Infeed & Outfeed Tables ..........................................................................Heat Treated

..............................................................................Pedestal Mounted ON/OFF Switch

............................................................................................Noise Dampening System

Specifications, while deemed accurate, are not guaranteed.

011

G9860 12" JOINTER

023

012

013

027

026

N I

017

014

015

016

003

005

004

001

023

033

030

009

034

031

010

035

032

031

119

G9860 12" JOINTER

G9860ZX Spiral Cutterhead

106

120

108

107

105

104

711

118

117

116

709

702

704

703

110

114

113

103

121

115

110

101

708

104

109

707

102

706

122

705

701

710

112

111

802

801

803

219

G9860 12" JOINTER

217

216

208

210

206

202

211

221

220

205

212

218

207

213

209

215

214

201

203

204

603

605

601

602

607

604

606

019

018

002

020

021

022

G9860 12" JOINTER

514

513

507

503

515

505

504

508

517

523

516

522

506

501

518

519

521

512

502

520

509

510

511

G9860 12" JOINTER

024

309

308

008

025

007

304

305

311

303

310

306

307

301

402

401

302

505

404

006

028

029

716

024

025

715

714

713

403

712

Ultimate Series Jointers -39-

001 P9860001 BASE

002 P9860002 FENCE SEAT

003 P9859003 TABLE SUPPORT

004 P9859004 TABLE LIFTING ARM

005 P9859005 TABLE SUPPORT

006 P9859006 FRONT HOUSING

007 P9859007 RIGHT REAR HOUSING

008 P9859008 LEFT REAR HOUSING

009 P9860009 TABLE HEIGHT SPINDLE

010 P9859010 TABLE LIFTING ARM

011 P9859011 BASE REAR COVER

012 P9859012 SWITCH BOX

013 P9859013 SWITCH PLATE

014 P9859014 SWITCH (GREEN)

015 P9859015 SWITCH (RED)

016 P9859016 PUSH BUTTON SWITCH (WHITE)

017 PS39M PHLP HD SCR M8-1.25 X 10

018 PK55M KEY 10 X 8 X 300

019 P9859019 SLIDER

020 PW14 FLAT WASHER

⁄

021 PW08M FLAT WASHER M16

022 PB72M HEX BOLT M16-1.75 X 30

023 PS24M PHLP HEAD BOLT M6-1.0 X 10

024 PW07 FLAT WASHER

⁄16"

025 PB07M HEX BOLT M8-1.25 X 25

026 PW01 FLAT WASHER

⁄2

027 PB12M HEX BOLT M12-1.75 X 55

028 PW02 FLAT WASHER

⁄8"

029 P9859029 KNOB

030 P9859031 PLATE

031 PB02M HEX BOLT M6-1.0 X 12

032 P9860032 DUST COVER

033 P9859033 STOP COLLAR

034 PSS20M SET SCREW M8-1.25 X 8

035 P9860035 DUST CHUTE

101 P9860101 CUTTERHEAD

102 P9859102 HOUSING HEAD AXLE BOX (R.H.)

103 P9859103 HOUSING

104 P9859104 BEARING 6305-VV

105 P9859105 CIRCULAR NUT

106 P9859106 CUTTERHEAD BELT WHEEL

107 P9859107 CUTTERHEAD STOP PLATE

108 P9859108 CUTTERHEAD COVER (SMALL)

109 P9859109 CUTTERHEAD COVER (SMALL)

110 P9859110 OIL FEEDER

⁄16"

111 PLW06M LOCK WASHER M10

112 PB14M HEX BOLT M10-1.5 X 35

113 P9860113 CUTTER

114 P9860114 GIB

115 P9859121 CUTTER KNOB

116 P9859119 BRACKET

117 PW04M FLAT WASHER M10

118 PB65 HEX BOLT

⁄

8"-16 X

⁄

119 PSS09M SET SCREW M8-1.25 X 20

120 P9859118 SPECIAL HEX NUT

121 PS11M PHLP HD SCR M6-1.0 X 16

122 PWO4M FLAT WASHER M10

201 P9860201 FENCE SEAT

202 P9859202 ANGLE FENCE SEAT

203 P9860203 ANGLE SEAT FASTEN ROD

204 P9859204 LOCK HANDLE

205 P9859205 FENCE ROD (LONG)

206 P9859206 FENCE ROD (SHORT)

207 P9859207 ANGLE PLATE

208 P9859208 FENCE

209 P9859209 FENCE ROD

210 P9859210 SPECIAL RETAINER RING

211 PSB13M CAP SCREW M8-1.25 X 30

212 PSB06M CAP SCREW M6-1.0 X 25

213 PSS04M SET SCREW M6-1.0 X 12

214 PSS29M SET SCREW M6-1.0 X 35

215 PN01M HEX NUT M6-1.0

216 PW01 FLAT WASHER

⁄2

217 P9859217 LOCK HANDLE

218 PW02 FLAT WASHER

⁄8"

219 PSB47M CAP SCREW M10-1.5 X 40

220 P9859220 FENCE ADJUSTMENT ROD

221 P9859221 KNOB

301 P9860301 BED

302 P9860302 BED PIVOT ROD

303 PSS16M SET SCREW M8-1.25 X 10

304 P9860304 NOISE DAMPENER

305 PSB31M CAP SCREW M8-1.25 X 25

306 P9860306 PLATE

307 PSB26M CAP SCREW M6-1.0 X 12

308 P9860308 SPRING

309 P9860309 TURNBUCKLE

310 P9859308 BED PIVOT PIN (SHORT)

311 PSB70M CAP SCREW M12-1.75 X 30

401 P9860401 CUTTERHEAD GUARD

402 PSB06M CAP SCREW M6-1.0 X 25

403 P9859403 SPRING SHAFT HOUSING

404 P9859404 SPRING SHAFT

405 PSB70M CAP SCREW M12-1.75 X 30

501 P9859501 LIFT ROD COLLAR

502 P9859502 HANDWHEEL

503 P9859503 GEAR

504 P9859504 COLLAR

505 P9859505 LIFT ROD

506 P9859506 GEAR

Ref# Part# Description Ref# Part# Description

-40- Ultimate Series Jointers

507 P9859507 LIFT ROD

508 P9859508 SPECIAL RETAINER RING

509 P9859509 SPECIAL RETAINER RING

510 P9859510 SPECIAL WASHER

511 P9859511 LOCK KNOB

512 P9859512 HANDWHEEL KNOB

513 PSB47M CAP SCREW M10-1.5 X 40

514 PN03M HEX NUT M8-1.25

515 PSS04M SET SCREW M6-1.0 X 12

516 P9859516 LUBE FITTING

⁄16"

517 PK20M KEY 5 X 5 X 15

518 PLW01 LOCK WASHER

⁄

16"

519 PB07M HEX BOLT M8-1.25 X 25

520 PB58 HEX BOLT

⁄8"-16 X 2"

521 PN08 HEX NUT

⁄8"-16

522 P9859522 SPECIAL NUT

523 PSS02M SET SCREW M6-1.0 X 6

601 P9859601 ROD

Ref# Part# Description

602 P9859602 COLLAR

603 P9859603 HANDLE

604 P9859604 BRAKE CASING

605 P9859605 PIN

606 PSS02M SET SCREW M6-1.0 X 6

607 P9859607 SPRING

701 P9859701 MOTOR 3 H.P.

702 P9859702 PULLEY

703 PK54M KEY 7 X 7 X 45

704 PSS08M SET SCREW

⁄16

"-18 X

⁄2

705 PN02M HEX NUT M10-1.5

706 PLW04 LOCK WASHER

⁄8

707 PB14M HEX BOLT M10-1.5 X 35

708 PW01 FLAT WASHER

⁄2"

709 PB25M HEX BOLT M12-1.75 X 25

710 P9859710 MOTOR MOUNT PLATE

711 PVA47 V-BELT (A-47")

712 P9859712 Z SERIES LABEL

713 P9859713 SAFETY GLASSES WARNING

714 P9860714 MACHINE ID WARNING

715 P9859715 PUSH BLOCK WARNING

716 P9859716 CAST LOGO

801 P9860ZX801 COUNTERSUNK CAP SCREW

802 H2334 CARBIDE INDEXABLE CUTTER

803 P9860ZX803 SPIRAL CUTTERHEAD BODY

Ref# Part# Description

Ultimate Series Jointers -41-

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

14" JOINTER MODEL G9861

MACHINE DATA

SHEET

Design Type ....................................................................................................Floor Model

Overall Dimensions:

Table Size ................................................................................................79

⁄4'' x 141⁄4''

Height (from Floor to Table) ..................................................................................30

⁄4

Overall Length ..........................................................................................................80''

Overall Width............................................................................................................36''

Fence ..........................................................................................................4

⁄

4'' x 39

⁄

8''

Shipping Weight..............................................................................................1210 lbs.

Capacities:

Maximum Depth of Cut ............................................................................................

⁄

16''

Maximum Width of Cut ............................................................................................14''

Cutterhead Speed ....................................................................................5900 R.P.M.

Cuts Per Minute..................................................................................................17,700

Bevel Jointing ..................................................................................................90° - 45°

Cutterhead Diameter ..................................................................................................4"

Knife Size ..............................................................................................14" x 1

⁄8'' x 1⁄8''

Dust Hood Size ..........................................................................................................4"

Construction:

Table ..................................................................................Precision Ground Cast Iron

Fence Assembly ................................................................Precision Ground Cast Iron

Body Assembly................................................................................................Cast Iron

Base ................................................................................................................Cast Iron

Cutterhead ......................3 Knife Slots w/ Shielded Ball Bearings and Grease Fittings

Guard ....................................................................................................Cast Aluminum

Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower ........................................................................................................3 H.P.

Phase ⁄ Voltage ⁄ Amps ..................................................................Single ⁄ 220V ⁄ 15A

Cycle ⁄ R.P.M. ..........................................................................60 Hertz ⁄ 3500 R.P.M.

Switch ..........................................................Magnetic W/ Thermal Overload Protector

Power Transfer............................................................................................Twin V-Belt

Bearings ..................................................................Sealed & Permanently Lubricated

Features:

Fence ................................................Center Mounted, Positive Stops at 45° and 90°

Table Movement ..............................Independently Adjustable, Handwheel Precision

Infeed & Outfeed Tables ..........................................................................Heat Treated

..............................................................................Pedestal Mounted ON/OFF Switch

............................................................................................Noise Dampening System

Specifications, while deemed accurate, are not guaranteed.

005

G9861 14" JOINTER

012

010

011

017

016

N I

0 0 5

O T S

012

015

014

013

003

004

034

006

035

018

032

001

020

019

012

021

036

032

117

G9861 14" JOINTER

106

118

108

107

105

711

116

115

114

709

702

704

703

110

120

104

119

103

113

121

110

101

708

104

707

102

109

706

122

705

701

710

112

111

219

G9861 14" JOINTER

217

216

208

210

206

202

211

221

220

205

212

218

207

213

209

215

214

201

203

204

037

603

605

601

602

607

604

606

023

022

002

028

029

030

G9861 14" JOINTER

514

513

507

503

515

505

504

508

517

523

516

522

506

501

518

519

521

512

502

520

509

510

511

G9861 14" JOINTER

024

314

008

025

009

302

306

309

305

308

303

307

033

310

311

312

313

301

402

401

304

404

405

007

026

027

716

024

031

025

715

714

713

403

712

Ultimate Series Jointers -47-

001 P9861001 BASE

002 P9861002 FENCE SEAT

003 P9859003 TABLE SUPPORT

004 P9859005 TABLE SUPPORT

005 P9859011 BASE COVER

006 P9861006 TABLE SPINDLE

007 P9859006 FRONT HOUSING

008 P9859008 LEFT REAR HOUSING

009 P9859007 RIGHT REAR HOUSING

010 P9859012 SWITCH BOX

011 P9859013 SWITCH COVER PLATE

012 PS39M PHLP HD SCR M8-1.25 X 10

013 P9859016 SWITCH (WHITE)

014 P9859015 SWITCH (RED)

015 P9859014 SWITCH (GREEN)

016 PW01 FLAT WASHER

⁄2"

017 PB12M HEX BOLT M12-1.75 X 55

018 P9859010 TABLE LIFTING ARM

019 P9859004 TABLE LIFTING ARM

020 P9861020 DUST HOOD

021 P9859031 FRONT COVER PLATE

022 PK55M KEY 10 X 8 X 300

023 P9859019 SLIDE NUT

024 PW07 FLAT WASHER

⁄16"

025 PB07M HEX BOLT M8-1.25 X 25

026 PW02 FLAT WASHER

⁄8

027 P9859029 LOCK KNOB

028 PLW06 LOCK WASHER

⁄8"

029 PW08M FLAT WASHER M16

030 PB72M HEX BOLT M16-1.75 X 30

031 PS42M PHLP HD SCR M6-1.0 X 10

032 PB02M HEX BOLT M6-1.0 X 12

033 P9861033 INDEX

034 P9859033 STOP COLLAR

035 PSS20M SET SCREW M8-1.0 X 8

036 P9861036 DUST CHUTE

037 P9861037 PIN

101 P9861101 CUTTERHEAD

102 P9859102 HOUSING HEAD AXLE BOX (R.H.)

103 P9859103 HOUSING

104 P9859104 BEARING 6305-VV

105 P9859105 CIRCULAR NUT

106 P9859106 CUTTERHEAD BELT WHEEL

107 P9859107 CUTTERHEAD STOP PLATE

108 P9859108 CUTTERHEAD COVER (SMALL)

109 P9859109 CUTTERHEAD COVER (SMALL)

110 P9859110 OIL FEEDER

⁄16"

111 PLW06M LOCK WASHER M10

112 PB14M HEX BOLT M10-1.5 X 35

113 PS11M PHLP HD SCR M6-1.0 X 16

114 P9859119 CASE PLATE

115 PW04M FLAT WASHER M10

116 PB65 HEX BOLT

⁄

8"-16 X

⁄

117 PSS09M SET SCREW M8-1.25 X 20

118 P9859118 SPECIAL HEX NUT

119 P9861119 CUTTER

120 P9861120 GIB

121 P9859121 CUTTER KNOB

122 PW04M FLAT WASHER M10

201 P9860201 FENCE SEAT

202 P9859202 ANGLE FENCE SEAT

203 P9860203 ANGLE SEAT FASTEN ROD

204 P9859204 KNOB

205 P9859205 FENCE ROD (LONG)

206 P9859206 FENCE ROD (SHORT)

207 P9859207 ANGLE PLATE

208 P9859208 FENCE

209 P9859209 FENCE ROD

210 P9859210 SPECIAL RETAINER RING

211 PSB13M CAP SCREW M8-1.25 X 30

212 PSB06M CAP SCREW M6-1.0 X 25

213 PSS04M SET SCREW M6-1.0 X 12

214 PSS29M SET SCREW M6-1.0 X 35

215 PN01M HEX NUT M6-1.0

216 PW01 FLAT WASHER

⁄2"

217 P9859217 KNOB

218 PW02 FLAT WASHER

⁄

219 PSB47M CAP SCREW M10-1.5 X 40

220 P9859220 FENCE ADJUSTMENT ROD

221 P9859221 KNOB

301 P9861301 BED

302 P9861302 NOISE DAMPENER

303 P9861303 PLATE

304 P9861304 TABLE SPINDLE

305 PSS16M SET SCREW M8-1.25 X 10

306 PSB31M CAP SCREW M8-1.25 X 25

307 PSB26M CAP SCREW M6-1.0 X 12

308 P9859308 BED PIVOT PIN

309 PSB70M CAP SCREW M12-1.75 X 30

310 P9861310 HOOK ROD

311 P9861311 SPRING

312 PW01 FLAT WASHER

⁄2"

313 PW02 FLAT WASHER

⁄8"

314 PN08 HEX NUT

⁄8"-16

401 P9861401 CUTTERHEAD GUARD

402 PSB06M CAP SCREW M6-1.0 X 25

403 P9859403 SPRING SHAFT HOUSING

404 P9859404 SPRING SHAFT

501 P9861501 LIFT ROD COLLAR

502 P9859502 HANDWHEEL

Ref# Part# Description Ref# Part# Description

-48- Ultimate Series Jointers

503 P9859503 GEAR

504 P9859504 COLLAR

505 P9859505 LIFT ROD

506 P9859506 GEAR

507 P9859507 LIFT ROD

508 P9859508 SPECIAL RETAINER RING

509 P9859509 SPECIAL RETAINER RING

510 P9859510 SPECIAL WASHER

511 P9859511 LOCK KNOB

512 P9859512 HANDWHEEL KNOB

513 PB32M HEX BOLT M10-1.5 X 25

514 PN02M HEX NUT M10-1.5

515 PSS04M SET SCREW M6-1.0 X 12

516 P9859516 LUBE FITTING

⁄16"

517 PK20M KEY 5 X 5 X 15

518 PLW01 LOCK WASHER

⁄16"

519 PB07M HEX BOLT M8-1.25 X 25

520 PB58 HEX BOLT

⁄8"-16 X 2"

521 PN08 HEX NUT

⁄8"-16

522 P9859522 SPECIAL NUT

523 PSS02M SET SCREW M6-1.0 X 6

601 P9859601 ROD

Ref# Part# Description

602 P9859602 COLLAR

603 P9859603 HANDLE

604 P9859604 BRAKE CASING

605 P9859605 PIN

606 PSS02M SET SCREW M6-1.0 X 6

607 P9859607 SPRING

701 P9859701 MOTOR 3 H.P.

702 P9859702 PULLEY

703 PK54M KEY 7 X 7 X 45

704 PSS08 SET SCREW

⁄16"-18 X 1⁄2"

705 PN02M HEX NUT M10-1.5

706 PLW04 LOCK WASHER

⁄8"-16

707 PB14M HEX BOLT M10-1.5 X 35

708 PW01 FLAT WASHER

⁄

709 PB25M HEX BOLT M12-1.75 X 25

710 P9859710 MOTOR MOUNT PLATE

711 PVA47 V-BELT (A-47")

712 P9859712 Z SERIES LABEL

713 P9859713 SAFETY GLASSES WARNING

714 P9861714 MACHINE ID WARNING

715 P9859715 PUSH BLOCK WARNING

716 P9859716 CAST LOGO

Ref# Part# Description

Ultimate Series Jointers -49-

NOTES

-50- Ultimate Series Jointers

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from

the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,” which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

WARRANTY AND RETURNS

CUT ALONG DOTTED LINE

10. Which benchtop tools do you own? Check all that apply.

___1" x 42" Belt Sander ___6" - 8" Grinder ___5" - 8" Drill Press ___Mini Lathe ___8" Table Saw ___10" - 12" Thickness Planer ___8" - 10" Bandsaw ___Scroll Saw ___Disc/Belt Sander ___Spindle/Belt Sander ___Mini Jointer

___Other__________________________________________________

11. How many of the machines checked above are Grizzly? ____________

12. Which portable/hand held power tools do you own? Check all that apply.

___Belt Sander ___Orbital Sander ___Biscuit Joiner ___Palm Sander ___Circular Saw ___Portable Planer ___Detail Sander ___Saber Saw ___Drill/Driver ___Reciprocating Saw ___Miter Saw ___Router

___Other__________________________________________________

13. What machines/supplies would you like Grizzly Industrial to carry?

__________________________________________________________

14. What new accessories would you like Grizzly Industrial to carry?

__________________________________________________________

15. What other companies do you purchase your tools and supplies from?

__________________________________________________________

16. Do you think your purchase represents good value?

___Yes ___No

17. Would you recommend Grizzly Industrial to a friend?

___Yes ___No

18. Would you allow us to use your name as a reference for Grizzly customers

in your area? Note: We never use names more than three times.

___Yes ___No

19. Comments:_________________________________________________

__________________________________________________________

1. How did you learn about us?

___Advertisement ___Friend ___Catalog ___Card Deck ___World Wide Web

___Other__________________________________________________

2. Which of the following magazines do you subscribe to.

___American Woodworker ___Practical Homeowner ___Cabinetmaker ___Shop Notes ___Family Handyman ___Today’s Homeowner ___Fine Homebuilding ___WOOD ___Fine Woodworking ___Wooden Boat ___Home Handyman ___Woodshop News ___Journal of Light Construction ___Woodsmith ___Old House Journal ___Woodwork ___Popular Mechanics ___Woodworker ___Popular Science ___Woodworker’s Journal ___Popular Woodworking ___Workbench

___Other__________________________________________________

3. Which of the following woodworking/remodeling shows do you watch?

___Backyard America ___The New Yankee Workshop ___Home Time ___This Old House ___The American Woodworker ___Woodwright’s Shop

___Other__________________________________________________

4. What is your annual household income?

___$20,000-$29,999 ___$60,000-$69,999 ___$30,000-$39,999 ___$70,000-$79,999 ___$40,000-$49,999 ___$80,000-$89,999 ___$50,000-$59,999 ___$90,000 +

5. What is your age group?

___20-29 ___50-59 ___30-39 ___60-69 ___40-49 ___70 +

6. How long have you been a woodworker?

___0 - 2 Years ___8 - 20 Years ___2 - 8 Years ___20+ Years

7. How would you rank your woodworking skills?

___Simple ___Advanced ___Intermediate ___Master Craftsman

8. What stationary woodworking tools do you own? Check all that apply.

___Air Compressor ___Panel Saw ___Band Saw ___Planer ___Drill Press ___Power Feeder ___Drum Sander ___Radial Arm Saw ___Dust Collector ___Shaper ___Horizontal Boring Machine ___Spindle Sander ___Jointer ___Table Saw ___Lathe ___Vacuum Veneer Press ___Mortiser ___Wide Belt Sander

___Other__________________________________________________

9. How many of your woodworking machines are Grizzly? _____________

Name ____________________________________________________________________________________ Street ____________________________________________________________________________________ City ______________________________________________________________State________Zip_________ Phone Number_______________________E-Mail_______________________FAX________________________

MODEL #____________________________ Serial #______________________________________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

WARRANTY CARD

FOLD ALONG DOTTED LINE

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Place

Stamp

Here

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

Name_______________________________

Street_______________________________

City______________State______Zip______

Send a Grizzly Catalog to a friend:

Grizzly G9859, G9861, G9860ZX User Manual 3

Specifications and Main Features

Frequently Asked Questions

User Manual
