Grizzly G8691 User Manual

WOOD LATHE WITH STAND
MODEL G8691
INSTRUCTION MANUAL
COPYRIGHT © 2000 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
FEBRUARY, 2001. PRINTED IN CHINA.
-1-
Table Of Contents
PAGE
1. SAFETY
WARNINGS ............................................................................................................2
SAFETY RULES FOR ALL TOOLS ........................................................................3
ADDITIONAL SAFETY INSTRUCTIONS FOR G8691 ............................................4
2. CIRCUIT REQUIREMENTS
110V OPERATION ..................................................................................................5
GROUNDING ..........................................................................................................5
EXTENSION CORDS ..............................................................................................5
3. INTRODUCTION
COMMENTARY ......................................................................................................6
UNPACKING ............................................................................................................7
PIECE INVENTORY ................................................................................................7
CLEAN UP................................................................................................................8
SITE CONSIDERATIONS ........................................................................................8
4. ASSEMBLY
BEGINNING ASSEMBLY ........................................................................................9
STAND ....................................................................................................................9
TOOL REST ............................................................................................................9
TAILSTOCK............................................................................................................10
SPUR CENTER ....................................................................................................10
FACEPLATE ..........................................................................................................10
5. OPERATIONS
TEST RUN ............................................................................................................11
SPINDLE TURNING ..............................................................................................11
SPEED SELECTOR ..............................................................................................12
TOOL REST ..........................................................................................................12
6. MAINTENANCE
GENERAL ..............................................................................................................13
LUBRICATION ......................................................................................................13
V-BELT ..................................................................................................................13
7. CLOSURE ..................................................................................................................14
MACHINE DATA ..............................................................................................................15
PARTS BREAKDOWN AND PARTS LISTS ..............................................................16-17
WARRANTY AND RETURNS ..........................................................................................18
-2-
Safety Instructions For Power Tools
SECTION 1: SAFETY
5. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be
kept a safe distance from work area.
6. MAKE WORK SHOP CHILD PROOF with
padlocks, master switches, or by removing starter keys.
7. DON’T FORCE TOOL. It will do the job
better and safer at the rate for which it was designed.
8. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. DON’T USE IN DANGEROUS ENVIRON­MENT. Don’t use power tools in damp or
wet locations, or where any flammable or noxious fumes may exist. Keep work area well lighted.
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful information about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
NOTICE
-3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condi­tion. Conductor size should be in accor­dance with the chart below. The amperage rating should be listed on the motor or tool nameplate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace exten­sion cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair cov­ering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is dusty. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.
12. SECURE WORK. Use clamps or a vise to hold
work when practical. It’s safer than using your hand and frees both hands to operate tool.
13. DON’T OVERREACH. Keep proper foot-
ing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest performance. Follow instructions for lubri­cating and changing accessories.
15. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recom­mended accessories. The use of improper accessories may cause risk of injury.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 18 16 16 7-10 18 16 14 11-12 16 16 14 13-16 14 12 12 17-20 12 12 10 21-30 10 10 No
Safety Instructions For Power Tools
16. REDUCE THE RISK OF UNINTENTION­AL STARTING. On machines with mag-
netic contact starting switches there is a risk of starting if the machine is bumped or jarred. Always disconnect from power source before adjusting or servicing. Make sure switch is in OFF position before recon­necting.
17. MANY WOODWORKING TOOLS CAN “KICKBACK” THE WORKPIECE toward
the operator if not handled properly. Know what conditions can create “kickback” and know how to avoid them. Read the manual accompanying the machine thoroughly.
18. CHECK DAMAGED PARTS. Before fur-
ther use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, bind­ing of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.
19. NEVER LEAVE TOOL RUNNING UNAT­TENDED. TURN POWER OFF. Don’t
leave tool until it comes to a complete stop.
20. NEVER OPERATE A MACHINE WHEN TIRED, OR UNDER THE INFLUENCE OF DRUGS OR ALCOHOL. Full mental alert-
ness is required at all times when running a machine.
No list of safety guidelines can be com­plete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equip­ment or poor work results.
Additional Safety Instructions For The Lathe
1. MAKE SURE ALL GUARDS are in place
and that the lathe sits on a flat, stable sur­face.
2. ALWAYS WEAR EYE PROTECTION and a
face shield when operating the lathe. Use a respirator to avoid inhaling dust. All safety equipment should be ANSI approved.
3. BEFORE STARTING THE MACHINE be
certain the workpiece has been properly imbedded on the headstock and tailstock centers and that there is adequate clearance for the full rotation.
4. ADJUST TOOL REST to provide proper
support for the turning tool you will be using. Test tool rest clearance by rotating work­piece by hand before starting lathe.
5. SELECT THE TURNING SPEED which is
appropriate for the type of work. Allow the lathe to gain full speed before beginning.
6. ALWAYS OBSERVE THE CONDITION of
the materials you are turning. Pay particular attention to knots, splits and other potential­ly dangerous conditions.
7. KEEP LATHE TOOLS PROPERLY SHARPENED and hold firmly in the proper
position when turning.
8. IF AT ANY TIME YOU ARE EXPERIENC-
ING DIFFICULTIES performing the intended
operation, stop using the machine! Then con­tact our service department or ask a qualified expert how the operation should be per­formed.
9. NEVER OPERATE THE LATHE WITH DAMAGED OR WORN PARTS. Maintain
your lathe in proper working condition. Perform routine inspections and mainte­nance promptly when needed. Put away adjustment tools after use.
10. MAKE SURE YOUR WOOD LATHE IS TURNED OFF, disconnected from its power
source and all moving parts have come to a complete stop before starting any inspec­tion, adjustment, or maintenance procedure.
11. DO NOT LEAVE LATHE RUNNING UNAT­TENDED for any reason.
12. DO NOT STOP LATHE USING YOUR HAND against the workpiece.
13. KEEP LOOSE CLOTHING ARTICLES
such as sleeves, belts or jewelry items away from the lathe spindle.
14. WHEN FACE PLATE TURNING, use lathe
chisels on the downward spinning side of the workpiece only.
15. REMOVE THE TOOL REST when perform-
ing sanding or polishing operations on the rotating spindle.
16. ATTEMPTING TO REMOVE too much
material at once may cause work material to fly out of the lathe.
17. BE AWARE THAT CERTAIN WOODS MAY CAUSE AN ALLERGIC REACTION
in people and animals, especially when exposed to fine dust. Make sure you know what type of wood dust you will be exposed to, the possibility of a allergic reaction and always wear an approved respirator.
-4-
-5-
110V Operation
SECTION 2: CIRCUIT REQUIREMENTS
A 15-amp fuse or circuit breaker should be used when fusing this wood lathe. Circuit breakers rated any higher are not adequate to protect the circuit from power surges.
Grounding
This equipment must be grounded. Verify that any existing electrical outlet and circuit you intend to plug into is actually grounded. If it is not, it will be necessary to run a sepa­rate 12 A.W.G. copper grounding wire from the outlet to a known ground. Under no cir­cumstances should the grounding pin from any three-pronged plug be removed. Serious injury may occur.
In the event of an electrical short, grounding reduces the risk of electric shock by providing a path of least resistance to disperse electric cur­rent. This tool is equipped with a power cord hav-
ing an equipment-grounding conductor. See Figure 1. The outlet must be properly installed
and grounded in accordance with all local codes and ordinances.
The Model G8691 is wired for 110V operation only. The
1
2 H.P. motor will safely draw 3.1 amps at 110V. If you operate this lathe on any circuit that is already close to its capacity, it might blow a fuse or trip a circuit breaker. However, if an unusual load does not exist and a power failure still occurs, contact a qualified electrician or our service department.
Figure 1. Typical 110V 3-prong plug and outlet.
Figure 2 Do not remove grounding pin.
If you find it necessary to use an extension cord with the Model G8691, make sure the cord is rated Hard Service (grade S) or better. Refer to the chart in the standard safety instructions to determine the minimum gauge for the extension cord. The extension cord must also contain a ground wire and plug pin.
Extension Cords
-6-
SECTION 3: INTRODUCTION
We are proud to offer the Grizzly Model G8691 Wood Lathe w/ Stand. The Model G8691 is part of a growing Grizzly family of fine woodworking machinery. When used according to the guide­lines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satis­faction.
The Model G8691 is a
1
2 H.P. variable speed wood lathe capable of a variety of wood turning tasks. The lathe features 40" between the cen­ters, 14" swing over the bed, 12
1
4" swing over the tool rest, 0-3000 R.P.M. spindle speed, 0-5000 R.P.M. motor speed, adjustable tool rest, live cen­ter, spur center and 6" face plate. The lathe also includes a heavy-duty steel stand that puts the working height at 39
3
4".
A number of chisels, chucks, centers, and other accessories are available for the Model G8691 through the Grizzly catalog.
We are also pleased to provide this manual with the Model G8691. It was written to guide you through assembly, review safety considerations, and cover general operating procedures. It repre­sents our effort to produce the best documenta­tion possible. If you have any comments regard­ing this manual, please write to us at the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our machines. If you have any service questions or parts requests, please call or write us at the location listed below.
Grizzly Industrial, Inc.
2406 Reach Road
Williamsport, PA 17701
Phone: (570) 546-9663
Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com
The specifications, drawings, and photographs illustrated in this manual represent the Model G8691 as supplied when the manual was pre­pared. However, owing to Grizzly’s policy of con­tinuous improvement, changes may be made at any time with no obligation on the part of Grizzly. Whenever possible, though, we send manual updates to all owners of a particular tool or machine. Should you receive one, we urge you to insert the new information with the old and keep it for reference.
To operate this or any power tool safely and efficiently, it is essential to become as familiar with its characteristics as possible. The time you invest before you begin to use your Model G8691 will be time well spent. DO NOT operate this machine until you are completely familiar with the contents of this manual. Make sure you read and under­stand all of the safety procedures. If you do not understand something, DO NOT operate the machine.
Commentary
-7-
Unpacking
This wood lathe is shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged after you’ve signed for deliv­ery, and the truck and driver are gone, you will need to file a freight claim with the carrier. Save the containers and all packing materials for possi­ble inspection by the carrier or its agent. Without the packing materials, filing a freight claim can be difficult. If you need assistance determining whether you need to file a freight claim, or with the procedure to file one, please contact our Customer Service.
Piece Inventory
When you are completely satisfied with the condi­tion of your shipment, you should inventory its parts.
NOTICE
A full parts list and breakdown can be found toward the end of this manual. For easier assembly, or to identify missing parts, please refer to the detailed illustrations at the end of the manual.
After all the parts have been removed from the carton, you should have:
• Lathe Assembly
• Stand Assembly
• Tool Rest
• Tailstock
• #2 M.T. Live Center
• #2 M.T. Spur Center
• 6" Face Plate
• Hardware Accessories
In the event that any nonproprietary parts are missing (e.g. a nut or a washer), we would be glad to replace them, or, for the sake of expediency, replacements can be obtained at your local hard­ware store.
-8-
Clean Up
Grease left over from the manufacturing process may be on the various parts of the lathe. It is rec­ommended to clean this grease off with a solvent cleaner or citrus-based degreaser such as Grizzly’s G7895 Degreaser. Avoid chlorine-based solvents as they may damage painted surfaces should they come in contact. Always follow the usage instructions on the product you choose for clean up.
Many of the solvents commonly used to clean machinery can be highly flammable, and toxic when inhaled or ingested. Always work in well-ventilated areas far from potential ignition sources when dealing with solvents. Use care when disposing of waste rags and towels to be sure they do not create fire or environmental hazards. Keep children and animals safely away when cleaning and assembling this machine.
Do not use gasoline or other petroleum­based solvents to remove this protective coating. These products generally have low flash points which makes them extremely flammable. A risk of explosion and burning exists if these products are used. Serious personal injury may occur.
Site Considerations
WORKING CLEARANCES
Working clearances can be thought of as the dis­tances between machines and obstacles that allow safe operation of every machine without lim­itation. Consider existing and anticipated machine needs, size of material to be processed through each machine, and space for auxiliary stands and/or work tables. Also consider the relative position of each machine to one another for effi­cient material handling. Be sure to allow yourself sufficient room to safely run your machines in any foreseeable operation.
LIGHTING AND OUTLETS
Lighting should be bright enough to eliminate shadow and prevent eye strain. Electrical circuits should be dedicated or large enough to handle combined motor amp loads. Outlets should be located near each machine so power or extension cords are not obstructing high-traffic areas. Be sure to observe local electrical codes for proper installation of new lighting, outlets, or circuits.
Make your shop “child safe.” Ensure that your workplace is inaccessible to young­sters by closing and locking all entrances when you are away. Never allow visitors in your shop when assembling, adjusting or operating equipment.
All die-cut metal parts have a sharp edge (called “flashing”) on them after they are formed. This is generally removed at the factory. Sometimes a bit of flashing might escape inspection, and the sharp edge may cause cuts or lacerations when handled. Please examine the edges of all die-cut metal parts and file or sand the edge to remove the flashing before handling.
-9-
SECTION 4: ASSEMBLY
Beginning Assembly
Most of your Model G8691 Wood Lathe has been assembled at the factory, but some parts must be assembled or installed after delivery. We have organized the assembly process into steps. Please follow along in the order presented here.
TOOLS REQUIRED: A metric socket set, 6"
adjustable wrench, and Phillips
®
head screw dri-
ver.
The stand consists of 8 pieces; 4 legs and 4 sta­bilizer bars. With the included bolts, washers and nuts, assemble the 4 stabilizer bars to each of the 4 legs, being certain not to fully tighten the assem­bly at this time.
With the stand pieces together, use a bench or stand to place the lathe unit upside down as
shown in Figure 2. Attach each of the 4 legs to
the base of the lathe unit, making sure that the bolts are tight. Tighten the remaining bolts located at each of the stabilizer ends. Turn the lathe and stand right-side up and check to see if the lathe bed is parallel to the ground. Loosen and adjust the stand bolts accordingly until the lathe is level. Be careful not to loosen the bolts too much as the lathe may tip over. Make sure that all the bolts are securely tightened before continuing.
Stand
Figure 3.
All die-cut metal parts have a sharp edge (called “flashing”) on them after they are formed. This is removed at the factory. Sometimes, though, a bit of flashing might escape inspection. Please examine the edges of all die-cut metal parts before han­dling them. Serious injury may occur.
Tool Rest
The tool rest is equipped with a horizontal and a vertical adjustment lever. By loosening the levers, the tool rest can be precisely placed along the workpiece for safe and efficient removal of wood stock.

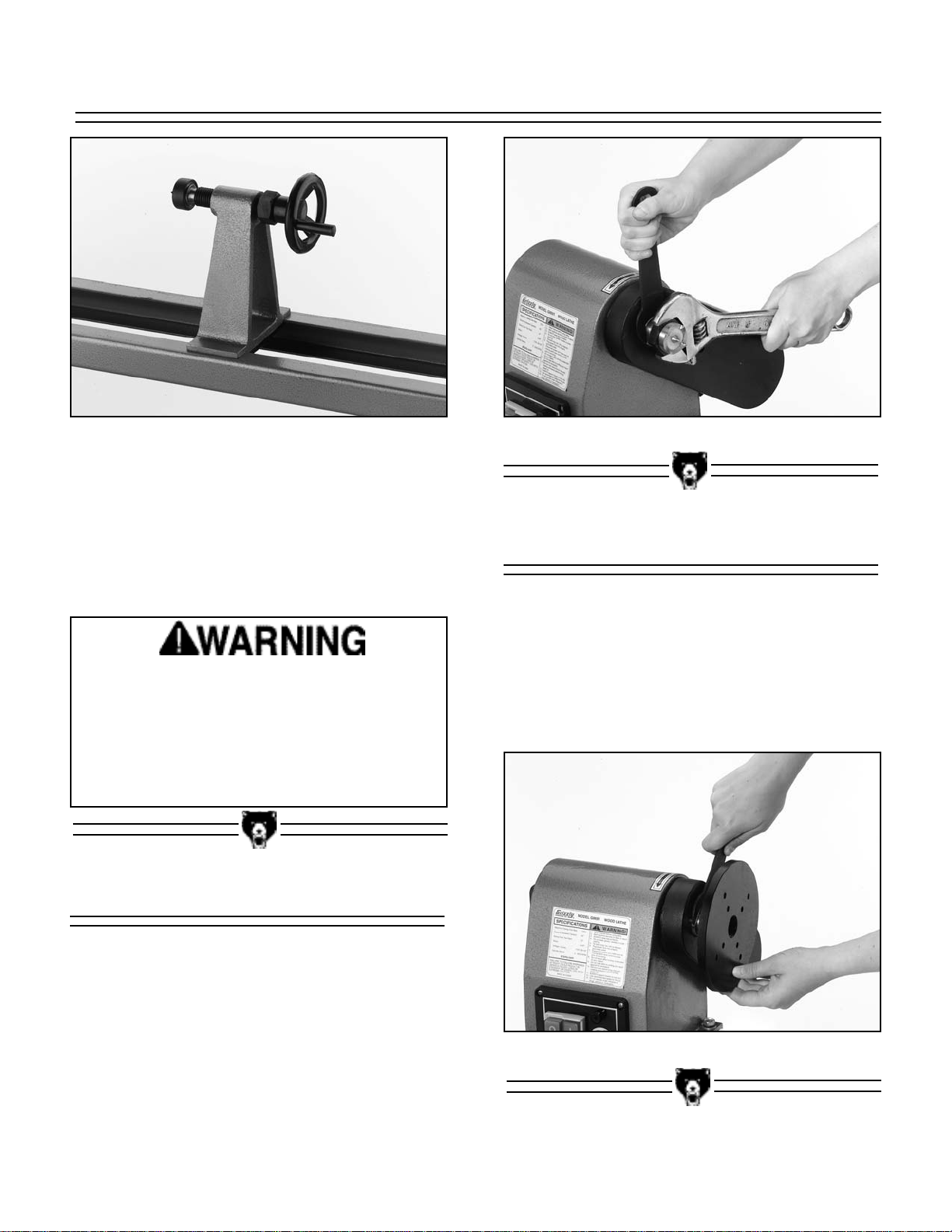

Tailstock
The Model G8691 is supplied with a #2 Morse Taper live center. The tailstock can be adjusted along the length of the lathe bed to accommodate various lengths of wood stock. There are two ways to adjust the tailstock. The bolt located under the lathe bed can be loosened, allowing the tailstock to slide up and down the length of the lathe bed. The hand wheel can also be loosened allowing the threaded spindle to move back and
forth in the tailstock. Figure 4.
-10-
ASSEMBLY, CONT.
Spur Center
The Model G8691 is supplied with a #2 Morse Taper spur center for use when spindle turning. The spur center is used in conjunction with the tailstock live center. Before installing the spur center, thread spindle nut onto shaft and lightly tighten nut. Then insert the spur center into the hole in the spindle end. To remove the spur cen­ter, use the supplied open end wrench and an adjustable wrench to thread the spindle nut off
along with the spur center. Figure 5.
Figure 4.
Figure 5.
Faceplate
The faceplate is used for turning plates and bowls. To install the faceplate, remove the spur center. Using the supplied open-end wrench to hold the spindle, thread the faceplate onto the spindle threads. Tighten securely with fingers and use the mounting holes on the faceplate to attach
wood stock. Figure 6.
Figure 6.
Make sure the live center in the tailstock lines up with the spur center in the head­stock before turning anything between the centers. Failure to observe this step could result in the workpiece being thrown from the lathe. Serious personal injury could occur if care is not taken.
It is important to make sure the spur center and live center are lined up with one another. The easiest way to accomplish this is to make sure the tailstock “footprint” is centered over the width of the lathe bed. Loosen the bolt holding the tail­stock secure to lathe bed and adjust the assem­bly until alignment is achieved, then tighten securely.
-11-
SECTION 5: OPERATIONS
Once assembly is complete and adjustments are made to your satisfaction, you are ready to test run the machine.
Turn on the power supply at the main panel. Press the START button. Make sure that your fin­ger is poised on the STOP button, just in case there’s a problem. The lathe should run smoothly, with little or no vibration or rubbing noises. Strange or unnatural noises should be investigat­ed and corrected before operating the machine further.
If you cannot easily locate the source of an unusual noise or vibration, contact our service department for help.
Test Run
DO NOT attempt to investigate or adjust the machine while it is running. Wait until the machine is turned off, unplugged and all the working parts have come to rest before you do anything! Serious personal injury may occur.
To mount a workpiece between centers:
1. Locate the center point on both ends of the
workpiece by carefully drawing diagonal lines from corner to corner. The point of intersec­tion should be at the center of the work.
2. When turning stock with a diameter greater
than 2", remove the corner length edges with a hand plane or use a similar operation.
3. Hold the spindle vertically and support it on a
solid surface. Line up the spur center with the center of the workpiece. Drive the spur cen­ter into the stock about
1
4" using a dead blow hammer. Be careful not to split the work­piece. Wood with splits along the grain may fly off during the operation. With dense wood, drill a hole at the centers and score lines with a saw blade for the spur.
4. Once the spur center is firmly attached to the
workpiece, insert the spur center (with the attached workpiece) into the headstock spin­dle. Make sure the spur center taper seats into the spindle.
5. While supporting the workpiece, slide the tail-
stock close to the end of the workpiece and lock into place.
6. Line up the live center with the workpiece
center. Turn the handwheel to press the point of the live center into the workpiece.
7. Lock the tailstock in place.
Spindle Turning
Do not press too firmly or the bearings will bind and overheat. On the other hand, do not adjust too loosely or the workpiece will spin off the lathe.Serious personal injury could result if care is not taken.
Operating this equipment has the potential to propel debris into the air which can cause eye injury. Always wear safety glass­es or goggles when operating equipment. Everyday glasses or reading glasses only have impact resistant lenses, they are not safety glasses. Be certain the safety glass­es you wear meet the appropriate stan­dards of the American National Standards Institute (ANSI).
-12-

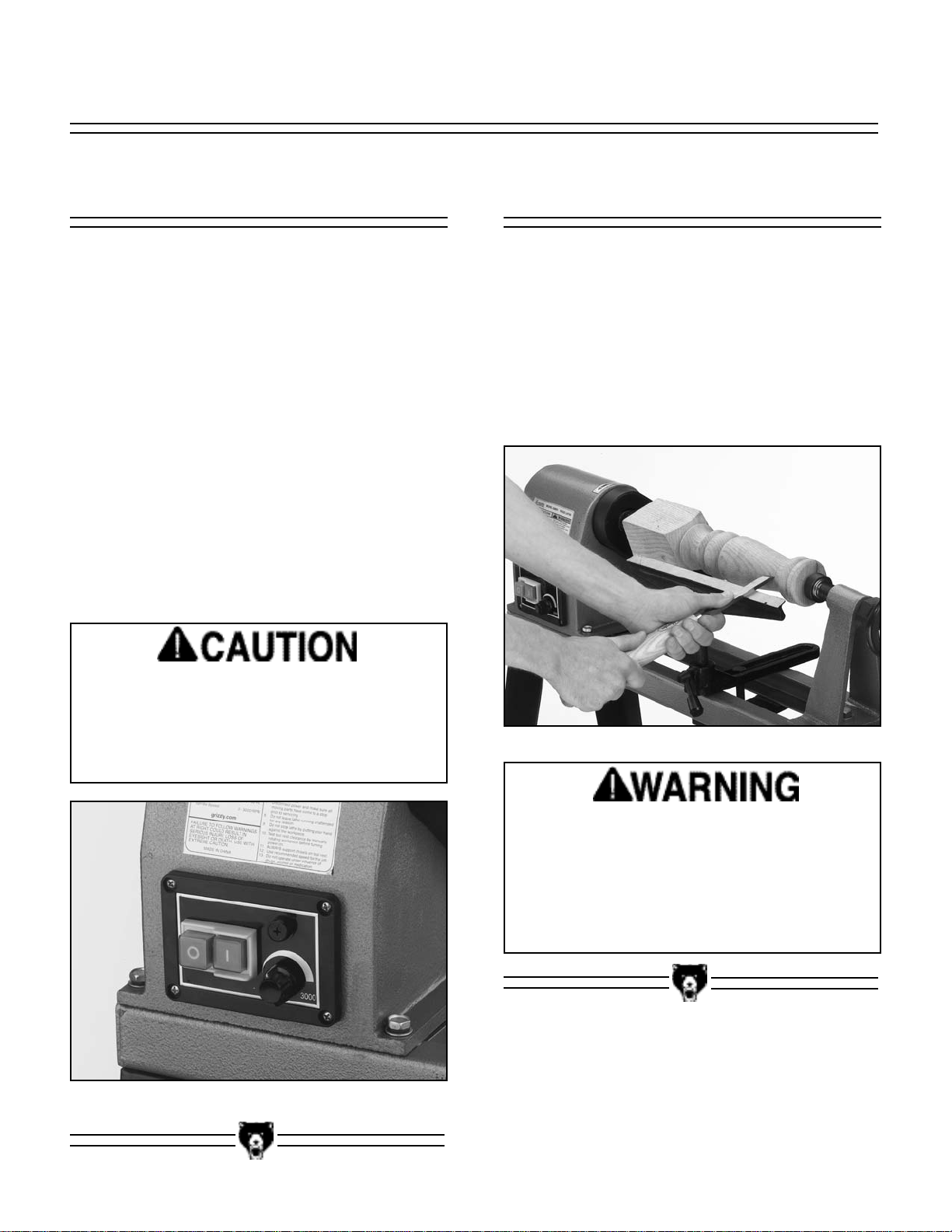

OPERATIONS, CONT.
Make sure the live center in the tailstock lines up with the spur center in the head­stock before turning anything between the centers. Failure to observe this step could result in the workpiece being thrown from the lathe. Serious personal injury could occur if care is not taken.
Adjust the tool rest as close to the workpiece as possible without actually coming into contact with the workpiece. Test by hand-turning the work­piece before starting the lathe. Ensure that the lathe chisel is fully supported by the tool rest. Support the lathe chisel on the tool rest with one hand, while the other hand controls the chisel.
Figure 8.
The variable speed selector allows the adjust­ment of the spindle R.P.M. Before turning the lathe on, make sure the speed selector knob is set at the lowest R.P.M. (turn counterclockwise).
Figure 7.
Once the lathe is turned on, slowly increase the R.P.M. of the lathe by turning the speed selector knob clockwise. Make sure that your finger is poised on the STOP button, just in case there’s a problem. The lathe should run smoothly, with little or no vibration or rubbing noises. Strange or unnatural noises should be investigated and cor­rected before operating the machine further.
If you cannot easily locate the source of an unusual noise or vibration, contact our service department for help.
Tool Rest
Speed Selector
Figure 8.
Figure 7.
Remember to choose the correct speed for your particular turning project. As a gener­al rule, the larger the workpiece diameter, the slower the speed should. Always start at the slowest speed.
-13-
SECTION 6: MAINTENANCE
Lubrication
V-Belt
Since all bearings are shielded and permanently lubricated, simply leave them alone until they need to be replaced. Do not lubricate them.
Inspect regularly for tension and wear. Check pul­leys to ensure that they are properly aligned. Proper tension is indicated by no more than
1
4" deflection of belt when pushed lightly at a point equally between the two pulleys.
Regular periodic maintenance on your Model G8691 Wood Lathe will ensure its optimum per­formance. Make a habit of inspecting your lathe each time you use it. Check for the following con­ditions and repair or replace when necessary:
1. Loose mounting bolts.
2. Worn switch.
3. Worn or damaged cords and plugs.
4. Damaged V-belt.
General
The non-painted surfaces on the Model G8691 should be protected against rust and pitting. Wiping the lathe clean after every use ensures that moisture from wood dust isn’t allowed to trap moisture against bare metal surfaces.
Before performing any type of inspection or maintenance work on this lathe, be sure that the power cord is unplugged and all moving parts have come to a complete stop. Serious personal injury could occur.
-14-
The following pages contain general machine data, parts diagrams/lists, troubleshooting guide and Warranty/Return information for your Model G8691 Wood Lathe.
If you need parts or help in assembling your machine, or if you need operational information, we encourage you to call our Service Department. Our trained service technicians will be glad to help you.
If you have comments dealing specifically with this manual, please write to our Bellingham, Washington location using the address in Section 3 Introduction.
We have included some important safety mea­sures that are essential to this machine’s opera­tion. While most safety measures are generally universal, Grizzly reminds you that each work­shop is different and safety rules should be con-
sidered as they apply to your specific situation.
We recommend you keep a copy of our current catalog for complete information regarding Grizzly's warranty and return policy. If you need additional technical information relating to this machine, or if you need general assistance or replacement parts, please contact the Service
Department listed in Section 3: Introduction.
Additional information sources are necessary to realize the full potential of this machine. Trade journals, woodworking magazines, and your local library are good places to start.
SECTION 7: CLOSURE
The Model G8691 was specifically designed for wood turning operations. DO NOT MOD­IFY AND/OR USE THIS MACHINE FOR ANY OTHER PURPOSE. Modifications or improper use of this tool will void the war­ranty. If you are confused about any aspect of this machine, DO NOT use it until all your questions have been answered. Serious personal injury may occur.
Like all power tools, there is danger asso­ciated with the Model G8691 Wood Lathe. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this tool with respect and caution to lessen the possibility of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
Operating this equipment has the potential for flying debris to cause eye injury. Always wear safety glasses or goggles when operating equipment. Everyday glasses or reading glasses only have impact resistant lenses, they are not safety glasses. Be certain the safety glasses you wear meet the appropriate standards of the American National Standards Institute (ANSI).
-15-
Design Type ......................................................................................................Floor Model
Overall Dimensions:
Including Stand ........................................................................42" H x 17" W x 54
1
4" L
Shipping Weight ..................................................................................................76 lbs.
Weight in Place ..................................................................................................63 lbs.
Box Size ..............................................................................55
1
2" L x 13" W x 103⁄4" H
Footprint ......................................................................................................17" x 54
1
4"
Construction:
Bed ................................................................................................Formed Sheet Steel
Headstock ......................................................................................................Cast Iron
Stand ..........................................................................................Formed Sheet Steel
Spindle ................................................................Shielded & Lubricated Ball Bearings
Specifications:
Swing Over Bed........................................................................................................14"
Swing Over Tool Rest............................................................................................12
1
4"
Floor to Center Height ..........................................................................................39
3
4"
Distance Between Centers ......................................................................................40"
Spindle Size ............................................................................................1" x 8 TPI RH
Tailstock Taper ⁄ Center ................................................................MT #2 ⁄ Live Center
Spindle Taper ⁄ Center ..................................................................MT #2 ⁄ Spur Center
Range of Speeds ................................................................Variable, 0 - 3,000 R.P.M.
Motor:
Type ............................................................................................Universal Brush Type
Horsepower ........................................................................................................
1
2 H.P.
Phase ⁄ Cycle ..............................................................................Single Phase ⁄ 60 Hz
Voltage ................................................................................................................110 V
Amps ........................................................................................................................3.1
R.P.M. ..................................................................................................................5,000
Bearings ..............................................................Shielded & Lubricated Ball Bearings
Switch ................................................................Push Button with Variable Speed Dial
Standard Features:
................................................................................................................6" Face Plate
........................................................................................Articulated Tool Rest Support
Specifications, while deemed accurate, are not guaranteed.
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
GRIZZLY MODEL G8691 WOOD LATHE WITH STAND
MACHINE DATA
SHEET
-16-
-17-
Ref# Part# Description
001 P8691001 Motor
002 P8691002 Shaft Pin
003 P8691003 Motor Pulley
004 P8691004 Phillips® Hd Scr M6 x 20
005 P8691005 Belt Cover
006 P8691006 Motor Mount Plate
007 P8691007 Hex Head Screw M8 x 16
008 PW 01M Washer M8
009 P8691009 Hex Hd Scr M8 x 16
010 P8691010 Hex Hd Scr M6 x 12
011 P8691011 Stud M8 x 40
012 P8691012 Adjustment Plate
013 P8691013 Circuit Base
014 P8691014 Self Tapping Scr M3 x 8
015 P8691015 Label
016 P8691016 Spindle
017 P8691017 Shaft Pin
018 P8691018 Shaft Nut
019 G2522 M.T. #2 Spur Center
020 P8691020 Face Plate
021 P8691021 Ball Bearing
022 P8691022 Ball Bearing
023 P8691023 Internal Retaining Ring
024 P8691024 Shaft Pulley
025 P8691025 V-Belt
026 P8691026 Tool Rest
027 P8691027 Hex Hd Scr M12 x 40
028 P8691028 Socket Setscrew M8 x 10
029 P8691029 Tool Rest Shaft
030 P8691030 Tool Rest Base
031 P8691031 Lever Shaft
032 P8691032 Lever Knob
033 P8691033 Tool Rest Tension Plate
034 P8691034 Lever Shaft
035 P8691035 Lever Knob
36A G1807 M.T. #2 Live Center
039 P8691039 Tailstock
040 P8691040 Guide Screw
041 P8691041 Hex Hd Scr M24 x 3
042 P8691042 Tailstock Hand Wheel
043 P8691043 Socket Setscrew M6 x 10
044 P8691044 Hex Hd Scr M12 x 40
045 PW06M Washer M12
046 P8691046 Tailstock Tension Plate
047 P8691047 Turning Knob
048 P8691048 Nut
049 P8691049 Speed Switch
050 G8992 Switch
051 P8691051 Fuse
Ref# Part# Description
052 P8691052 Phillips® Hd Scr M6 x 12
053 P8691053 Switch Label
054 P8691054 Switch Faceplate
055 P8691055 Bracket
056 P8691056 Press Plate
057 P8691057 Rubber Sheath
058 P8691058 Phillips® Hd Scr M4 x 10
059 PN03M Nut M8
060
PWRCRD110L Power Cord 110v, Long W/Plug
061 P8691061 Lathe Bed
062 P8691062 Electronic Circuit
063 P8691063 Phillips® Hd Scr M6 x 12
064 PW 01M Washer M8
065 P8691065 Hex Hd Scr M8 x 16
066 P8691066 Electric Label
067 P8691067 Directional Label
068 P8691068 Cover
069 P8691069 Wrench
070 PN03M Nut M8
-18-
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, spe­cial, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,” which must be clearly posted on the outside as well as the inside of the car­ton. We will not accept any item back without this number. Proof of purchase must accompany the mer­chandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
WARRANTY AND RETURNS
-19-
10. Which benchtop tools do you own? Check all that apply.
___1" x 42" Belt Sander ___6" - 8" Grinder ___5" - 8" Drill Press ___Mini Lathe ___8" Table Saw ___10" - 12" Thickness Planer ___8" - 10" Bandsaw ___Scroll Saw ___Disc/Belt Sander ___Spindle/Belt Sander ___Mini Jointer
___Other__________________________________________________
11. How many of the machines checked above are Grizzly? ____________
12. Which portable/hand held power tools do you own? Check all that apply.
___Belt Sander ___Orbital Sander ___Biscuit Joiner ___Palm Sander ___Circular Saw ___Portable Planer ___Detail Sander ___Saber Saw ___Drill/Driver ___Reciprocating Saw ___Miter Saw ___Router
___Other__________________________________________________
13. What machines/supplies would you like Grizzly Industrial to carry?
___12" Table Saw ___Radial Arm Saw ___12" Jointer ___Panel Saw ___Combination Planer/Jointer ___Brass Hardware ___Paint & Finishing Supplies ___Lumber ___Contractor’s Supplies
___Other__________________________________________________
14. What new accessories would you like Grizzly Industrial to carry?
___Builders Hardware ___Hand Tools ___Fasteners ___Wood Components
___Other__________________________________________________
15. What other companies do you purchase your tools and supplies from?
__________________________________________________________
__________________________________________________________
16. Do you think your purchase represents good value?
___Yes ___No
17. Would you recommend Grizzly Industrial to a friend?
___Yes ___No
18. Would you allow us to use your name as a reference for Grizzly customers
in your area? Note: We never use names more than three times.
___Yes ___No
19. Comments:_________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
1. How did you learn about us?
___Advertisement ___Friend ___Catalog ___Card Deck ___World Wide Web
___Other__________________________________________________
2. Which of the following magazines do you subscribe to.
___American Woodworker ___Practical Homeowner ___Cabinetmaker ___Shop Notes ___Family Handyman ___Today’s Homeowner ___Fine Homebuilding ___WOOD ___Fine Woodworking ___Wooden Boat ___Home Handyman ___Woodshop News ___Journal of Light Construction ___Woodsmith ___Old House Journal ___Woodwork ___Popular Mechanics ___Woodworker ___Popular Science ___Woodworker’s Journal ___Popular Woodworking ___Workbench
___Other__________________________________________________
3. Which of the following woodworking/remodeling shows do you watch?
___Backyard America ___The New Yankee Workshop ___Home Time ___This Old House ___The American Woodworker ___Woodwright’s Shop
___Other__________________________________________________
4. What is your annual household income?
___$20,000-$29,999 ___$60,000-$69,999 ___$30,000-$39,999 ___$70,000-$79,999 ___$40,000-$49,999 ___$80,000-$89,999 ___$50,000-$59,999 ___$90,000 +
5. What is your age group?
___20-29 ___50-59 ___30-39 ___60-69 ___40-49 ___70 +
6. How long have you been a woodworker?
___0 - 2 Years ___8 - 20 Years ___2 - 8 Years ___20+ Years
7. How would you rank your woodworking skills?
___Simple ___Advanced ___Intermediate ___Master Craftsman
8. What stationary woodworking tools do you own? Check all that apply.
___Air Compressor ___Panel Saw ___Band Saw ___Planer ___Drill Press ___Power Feeder ___Drum Sander ___Radial Arm Saw ___Dust Collector ___Shaper ___Horizontal Boring Machine ___Spindle Sander ___Jointer ___Table Saw ___Lathe ___Vacuum Veneer Press ___Mortiser ___Wide Belt Sander
___Other__________________________________________________
9. How many of your woodworking machines are Grizzly? _____________
Name ____________________________________________________________________________________ Street ____________________________________________________________________________________ City ______________________________________________________________State________Zip_________ Phone Number_______________________E-Mail_______________________FAX________________________
MODEL # G8691 Wood Lathe w/ Stand Order #______________________________________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.
WARRANTY CARD
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069
Place
Stamp
Here
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Name_______________________________
Street_______________________________
City______________State______Zip______
Send a Grizzly Catalog to a friend:
Loading...
