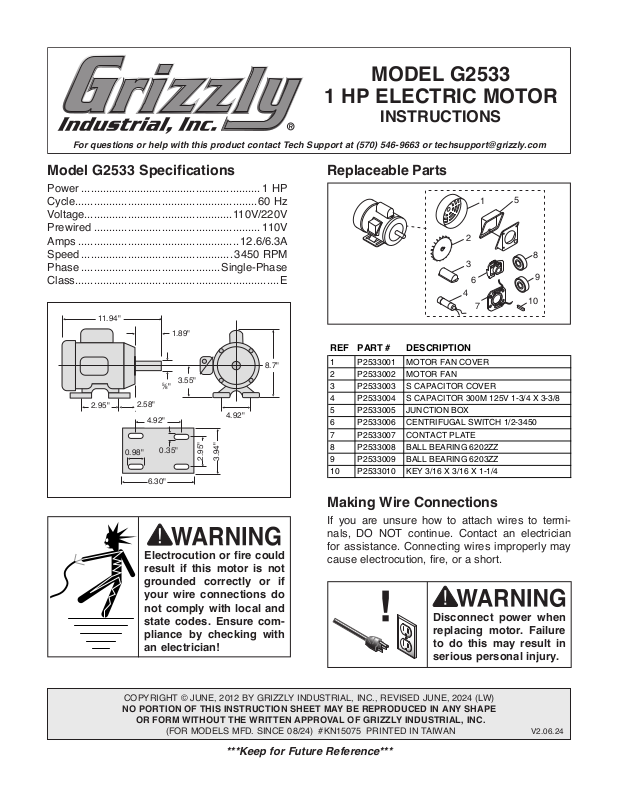

MODEL G2533
1 HP ELECTRIC MOTOR
INSTRUCTIONS
For questions or help with this product contact Tech Support at (570) 546-9663 or [email protected]
Model G2533 Specifications
Power .......................................................... 1 HP
Cycle...........................................................60 Hz
Voltage................................................110V/220V
Prewired
Amps
Speed
Phase
Class..................................................................E
...................................................... 110V
.................................................... 12.6/6.3A
................................................. 3450 RPM
.............................................Single-Phase
11.94"
1.89"
8.7"
3.55"
5
⁄8"
0.98"
2.58"
4.92"
6.30"
0.35"
4.92"
2.95"
3.94"
2.95"
Replaceable Parts
1
2
3
6
4
7
REF PART # DES CRIP TION
1 P2533001 MOTOR FAN COVER
2 P2533002 MOTOR FAN
3 P2533003 S CAPACITOR COVER
4 P2533004 S CAPACITOR 300M 125V 1-3/4 X 3-3/8
5 P2533005 JUNCTION BOX
6 P2533006 CENTRIFUGAL SWITCH 1/2-3450
7 P2533007 CONTACT PLATE
8 P2533008 BALL BEARING 6202ZZ
9 P2533009 BALL BEARING 6203ZZ
10 P2533010 KEY 3/16 X 3/16 X 1-1/4
5
8
9
10
Making Wire Connections
If you are unsure how to attach wires to terminals, DO NOT continue. Contact an electrician
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure compliance by checking with
an electrician!
COPYRIGHT © JUNE, 2012 BY GRIZZLY INDUSTRIAL, INC., REVISED JUNE, 2024 (LW)
NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 08/24) #KN15075 PRINTED IN TAI WA N
***Keep for Future Reference***
for assistance. Connecting wires improperly may
cause electrocution, fire, or a short.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
V2.06.24
Page 2
G2533 Wiring Diagram
The motor wiring shown here is
Start
Capacitor
300 MFD
125 VAC
6
110V
(PREWIRED)
110V MOTOR DIRECTION
To reverse motor direction,
switch wires #5 & #6.
COLOR KEY
BLACK
WHITE
GREEN
RED
YELLOW
BLUE
Bl
Ground
5
5
1 2 3 4
Start
Capacitor
300 MFD
125 VAC
6
5
6
current at the time of printing, but it
may not match your motor. Always
use the wiring diagram inside the
motor junction box.
220V
CLOCKWISE
220V
COUNTERCLOCKWISE
-2-
Ground
5
1 2 3 4
6
5
6
6
5
1 2 3 4
Ground
Model G2533 (Mfd. Since 08/24)
