Grizzly G0973 User guide

MODEL G0973
40" HEAVY-DUTY
ENGLISH WHEEL

OWNER'S MANUAL

(For models manufactured since 09/23)

COPYRIGHT © FEBRUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KS22966 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 2.24

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

.................................................................................................................................2

.........................................................................................................................2

................................................................................................................................3

..............................................................................................................4

....................................................................................................................5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for English Wheels

SECTION 2: SETUP

Needed for Setup
Unpacking
Inventory
Cleanup
Site Considerations
Lifting & Placing
Anchoring to Floor
Assembly

SECTION 3: OPERATIONS

Operation Overview
Selecting Lower Wheels
Installing/Removing Lower Wheel
Adjusting Quick-Release Hub
Tracking Tips
Tracking Patterns

SECTION 4: ACCESSORIES

SECTION 5: MAINTENANCE

Schedule
Cleaning & Protecting
Lubrication

...................................................................................................................................9

....................................................................................................................................10

.....................................................................................................................................11

...................................................................................................................................14

...................................................................................................................................27

.................................................................................................................................28

....................................................................................................................... 6

......................................................................................................................... 9

........................................................................................................................9

...................................................................................................................12

........................................................................................................................13

.....................................................................................................................14

............................................................................................................ 16

..................................................................................................................16

............................................................................................................17

.............................................................................................................................20

......................................................................................................................21

......................................................................................................... 25

........................................................................................................ 27

...............................................................................................................27

................................................................................................6

..........................................................................................8

.............................................................................................18

...................................................................................................19

SECTION 6: SERVICE

Troubleshooting

SECTION 7: PARTS

...........................................................................................................................................30

Main
Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 29

.........................................................................................................................29

....................................................................................................................... 30

..................................................................................................................32

.............................................................................................................. 33

INTRODUCTION

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number

from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0973 (Mfd. Since 09/23)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Upper Wheel

Bracket

Frame

Upper Wheel

Lower Wheel

Storage Bracket

Lower Wheel

Lower Wheel

Bracket

Axle

Upper Wheel

Lower Wheel

Axle

Support Leg

(1 of 2)

Quick-Release

Hub

Kick Wheel

using machine.

Model G0973 (Mfd. Since 09/23)

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

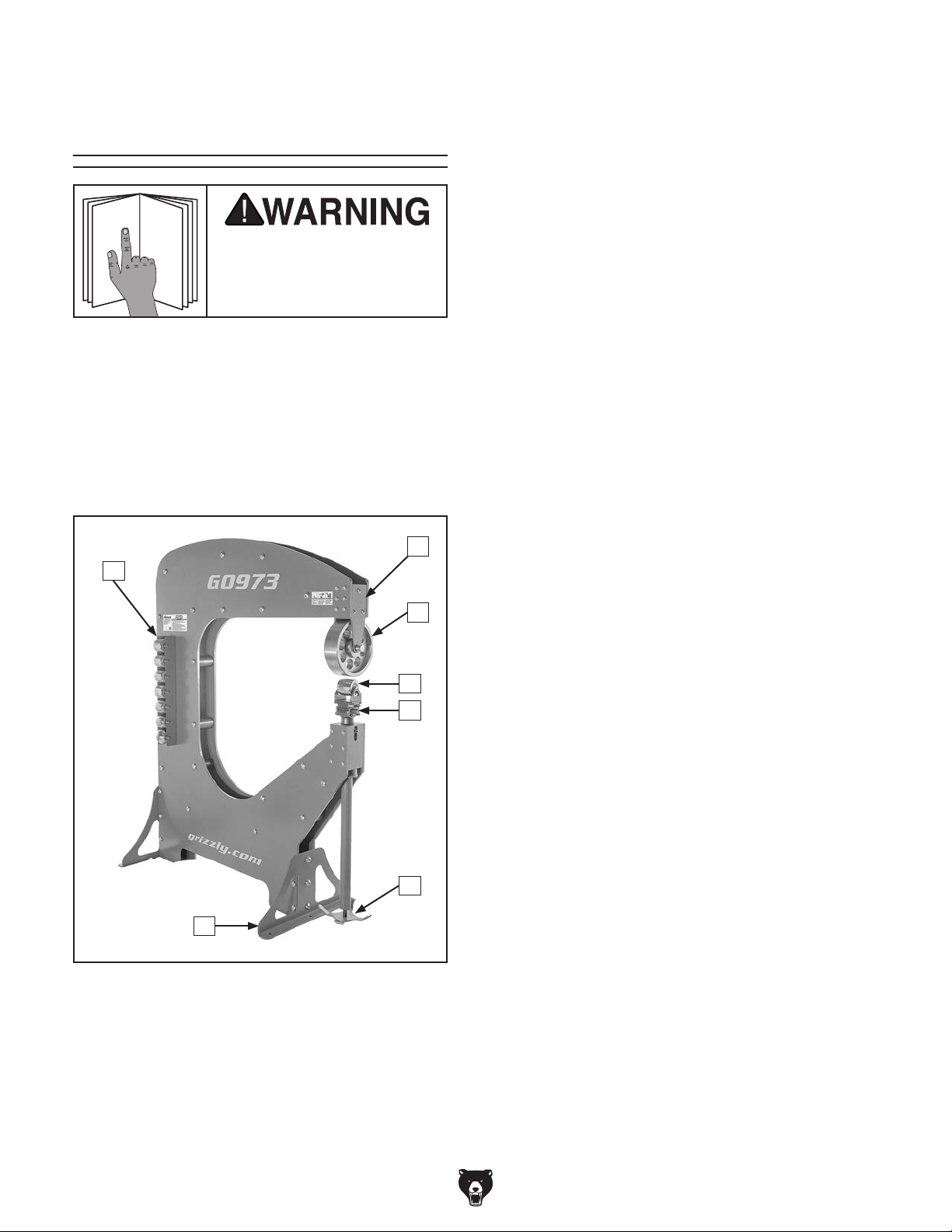

A. Lower Wheel Storage Bracket: Stores lower

wheels when not in use.

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

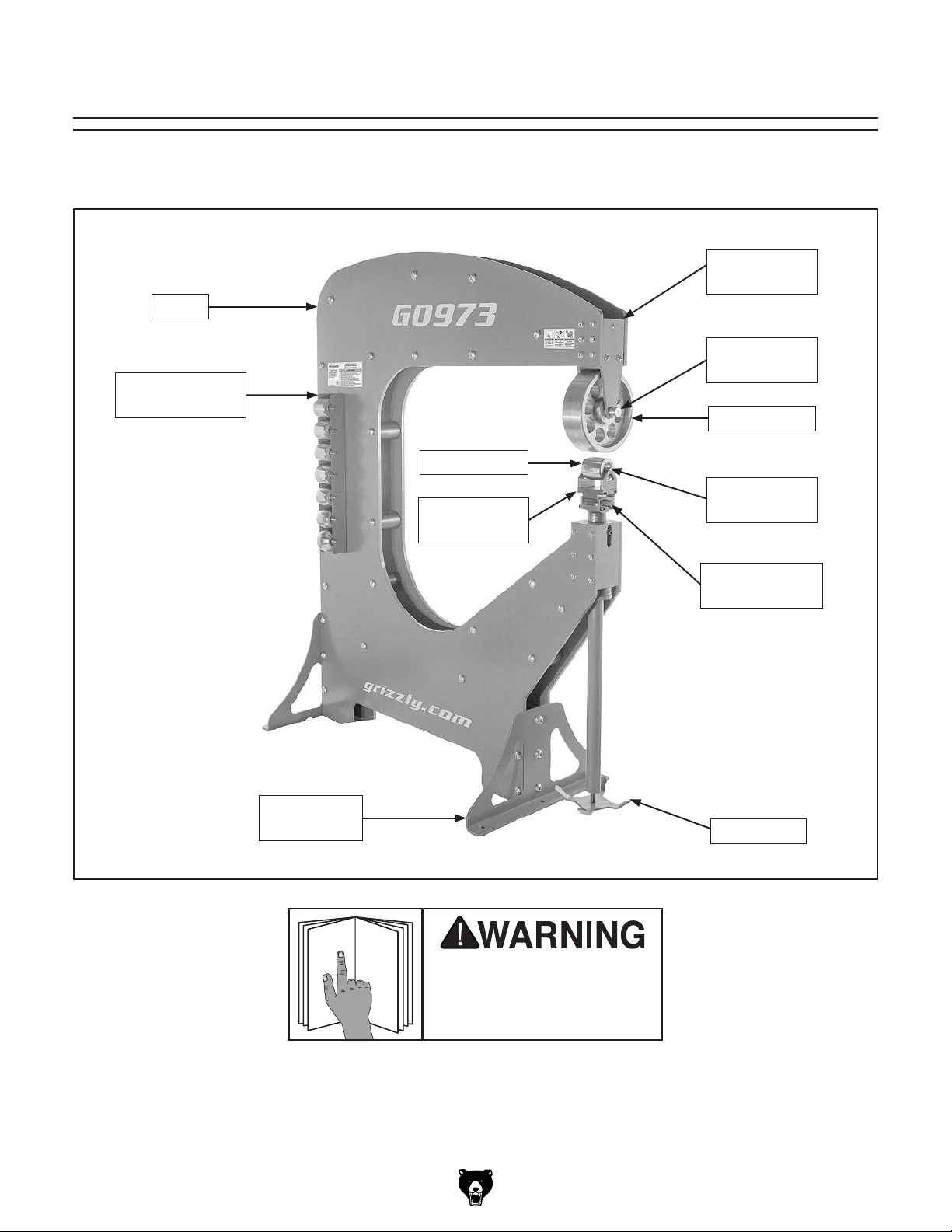

Main Components

B

A

C

B. Upper Wheel Bracket: Secures upper wheel

with included upper wheel axle.

C. Upper Wheel: 10" flat wheel braces

workpiece against lower wheel during form­ing operations.

D. Lower Wheel (1 of 8): Produces workpiece

curvature and contour shape. Different wheel
sizes create different shaping results (see

Selecting Lower Wheels on Page 17).

E. Quick-Release Hub: When rotated with

combo tool, raises or lowers lower wheel
bracket. Raise to pinch workpiece between
upper and lower wheels.

F. Kick Wheel: Rotate clockwise to raise lower

wheel, and counterclockwise to lower the
lower wheel.

G. Support Leg (1 of 2): Stabilizes frame

and provides mounting holes for securing
machine to floor.

G

Figure 1. Main components.

D

E

F

-4-

Model G0973 (Mfd. Since 09/23)

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0973 40" HEAVY-DUTY ENGLISH WHEEL

MODEL G0973 HEAVY-DUTY ENGLISH WHEEL

Product Dimensions:

Weight ......................................................................................................................................................................... 1081 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ...........................................................................35-1/2 x 61 x 73-1/2 in.

Footprint (Length x Width) ...................................................................................................................................31-1/2 x 49 in.

Shipping Dimensions:

Type .........................................................................................................................................................................Wood Crate

Weight .......................................................................................................................................................................... 1213 lbs.

Length x Width x Height.....................................................................................................................................81 x 65 x 15 in.

Must Ship Upright .................................................................................................................................................................Ye s

Main Specifications:

Operation Information

Number of Upper Wheels ................................................................................................................................................1

Upper Wheel Diameter .............................................................................................................................................10 in.

Number of Lower Wheels ................................................................................................................................................8

Lower Wheel Diameters ...................................................................................................................(7) 3 in., (1) 3-1/2 in.

Maximum Workpiece Capacity (Mild Steel) ......................................................................................................16 Gauge

Maximum Workpiece Capacity (Aluminum, Copper) ........................................................................................14 Gauge

Throat Depth ............................................................................................................................................................40 in.

Construction

Frame ........................................................................................................................................................................Steel

Kick Wheel ................................................................................................................................................................Steel

Wheels ......................................................................................................................................................Hardened Steel

Paint Type/Finish ......................................................................................................................................Powder Coated

Other Specifications:

Country of Origin ............................................................................................................................................................... China

Warranty ............................................................................................................................................................................1 Year

Approximate Assembly & Setup Time.......................................................................................................................10 Minutes

Serial Number Location ................................................................................................................................................ ID Label

ISO 9001 Factory ..................................................................................................................................................................Ye s

Features:

Quick-Release Lower Anvil
Locking Ram
Auxiliary Wheel Storage Rack Mounted to Frame
Assorted Lower Wheel Shaping Radii (2'', 4'', 6'', 8'', 12'', 24'', 36'', and Flat)

Accessories:

(1) 10 in. Upper Wheel: Flat
(7) 3 in. Lower Wheels: Flat, Dome (4", 6", 8", 12", 24", 36" Radius)
(1) 3-1/2 in. Lower Wheel: Dome (2" Radius)
Combo Tool
Hex Wrenches 3, 5, 6, 8mm

Model G0973 (Mfd. Since 09/23)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’smanualBEFOREusingmachine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model G0973 (Mfd. Since 09/23)

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry that
can become entangled in moving parts. Always tie
back or cover long hair. Wear non-slip footwear to
reduce risk of slipping and losing control or acci­dentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise with­out hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

thisowner’smanualorthemanufacturerforrec-

ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G0973 (Mfd. Since 09/23)

-7-

Additional Safety for English Wheels

Fingers can be broken or severely pinched if caught between wheels during operation. Severe
cuts can occur from sliding along or pushing against sharp workpiece edges. To minimize risk
of injury, anyone operating this machine MUST completely heed the hazards and warnings
below.

PINCHING/CRUSHING HAZARD. The roll-

ing momentum of wheels can pull your fingers
between them, resulting in pinching or crushing
injuries. Always keep your hands away from wheel
path when moving workpiece through wheels.

METAL EDGES. The sharp edges of sheet metal
can quickly cut your fingers or hands. Always
wear heavy leather gloves when handling sheet
metal. Always chamfer and deburr sharp metal
edges before inserting them into english wheel.

TOOL USAGE. This english wheel was designed
only to form curves in sheet metal material such
as steel, aluminum, and copper. Do not attempt to
process any other material (e.g., glass, ceramic,
plastic, etc.) that could result in material or tool
breakage. Do not modify this tool in any way and
do not exceed the capacity listed in the Machine

Data Sheet.

CRUSHING HAZARD. If wheels or frame should

unexpectedly fall, crushing injuries could result.
Always make sure frame is correctly mounted to
bench or floor, as appropriate. Make sure wheels
are properly installed on support brackets or stor­age racks. Wear steel-toed boots.

BODY POSITION. Losing your balance while
tracking could result in impact injuries or cuts from
sheet metal. Make sure your body and footing are
balanced and in a good position to support your
movement and momentum while tracking.

TOOL INSPECTION. Using english wheel with
excessively worn or damaged parts could cause
tool to fail and present injury hazards, as well as
yield poor results. Always inspect each part of
English Wheel before beginning operations.

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious
personal injury may occur.

-8-

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per­sonal injury, damage to equipment, or poor
work results.

Model G0973 (Mfd. Since 09/23)

SECTION 2: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT: Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Forklift or Hoist (rated for 1520 lbs.) ........... 1

• Lifting Strap (rated for 1520 lbs.) ................ 1

• Additional Person ....................................... 1

• Safety Glasses (for each person) ............... 1

• Rubber Mallet ............................................. 1

• Hex Wrench 10mm ..................................... 1

• Cleaner/Degreaser (Page 11) ..... As Needed

• Disposable Shop Rags ............... As Needed

• Disposable Gloves ..................... As Needed

• Mounting Hardware (Page 14) ... As Needed

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

Unpacking

If items are damaged

call us immediately at [phone].

Model G0973 (Mfd. Since 09/23)

-9-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

A

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

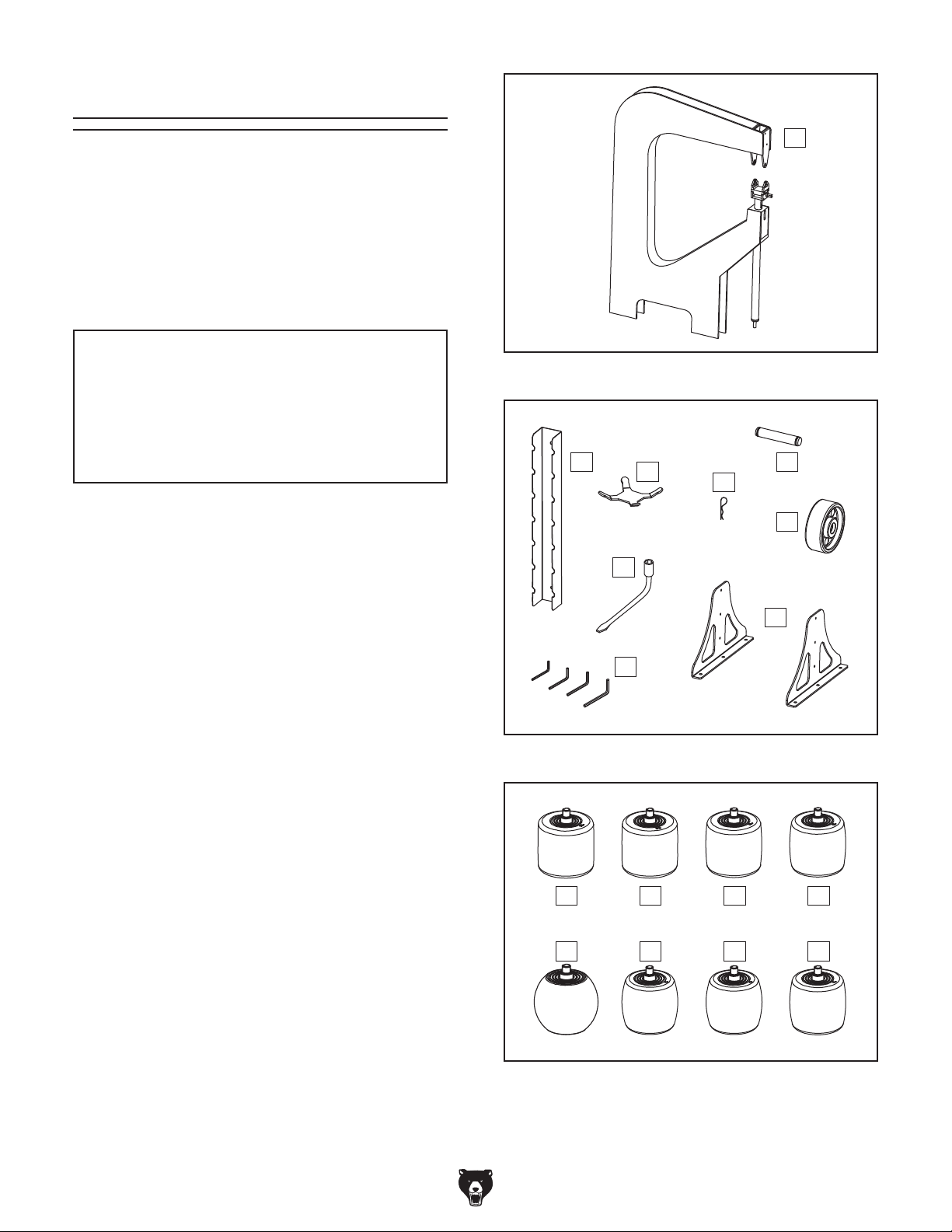

Wood Crate Inventory (Figure 2) Qty

A. English Wheel Frame ................................. 1

Loose Inventory (Figure 3

B. Lower Wheel Storage Bracket .................... 1

C. Kick Wheel ................................................. 1

. Hairpin ........................................................ 1

D

. Upper Wheel Axle ...................................... 1

E

F. Upper Wheel, Flat, 10" Diameter ............... 1

. Support Legs .............................................. 2

G

H. Hex Wrenches 3, 5, 6, 8mm .................1 Ea.

I. Combo Tool ................................................ 1

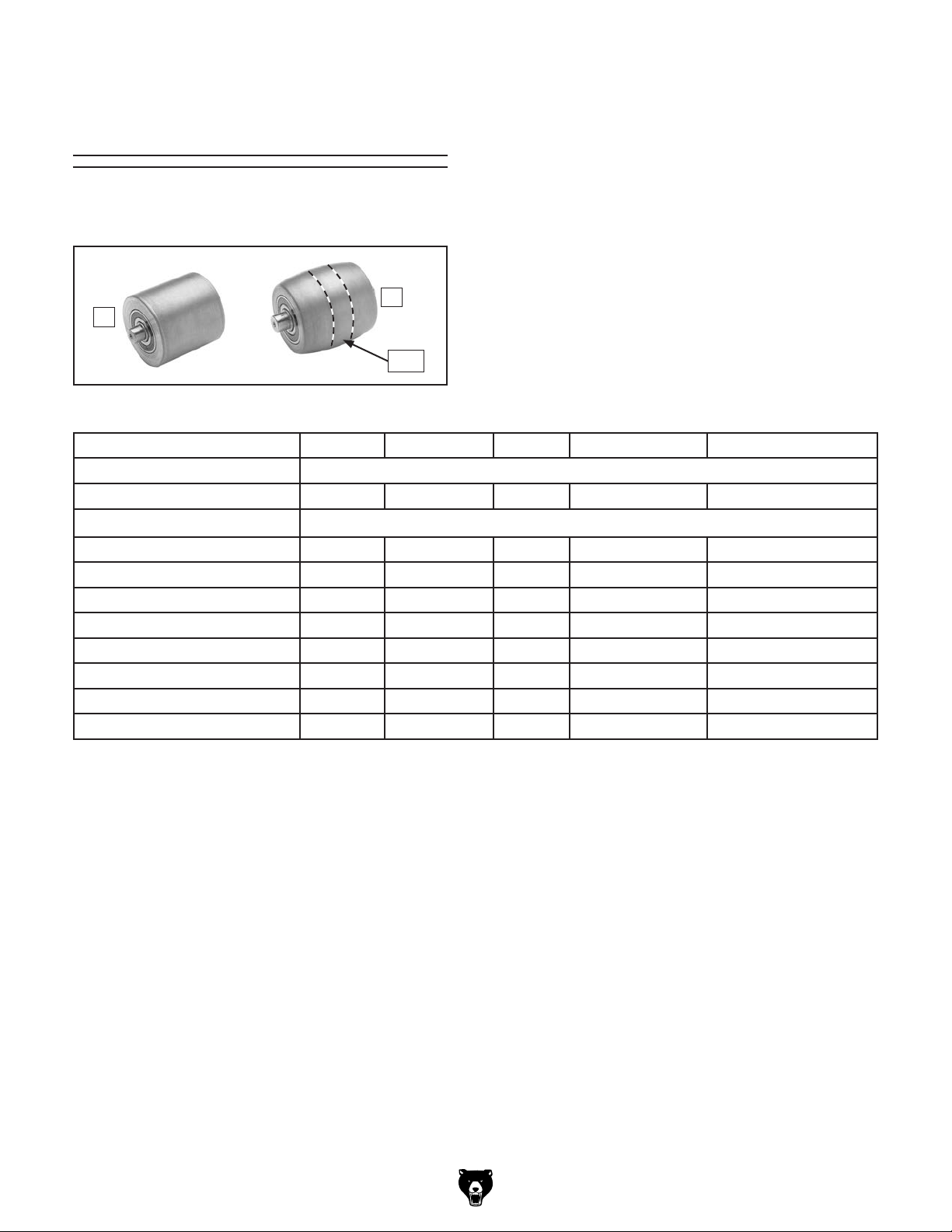

Lower Wheel Inventory (Figure 4)

Lower Wheel, Flat, 3" Diameter ................. 1

J.

Lower Wheel, 36" Radius, 3" Diameter ...... 1

K.

Lower Wheel, 24" Radius, 3" Diameter ...... 1

L.

Lower Wheel, 12" Radius, 3" Diameter ...... 1

M.

Lower Wheel, 8" Radius, 3" Diameter ........ 1

N.

Lower Wheel, 6" Radius, 3" Diameter ........ 1

O.

Lower Wheel, 4" Radius, 3" Diameter ........ 1

P.

Lower Wheel, 2" Radius, 31⁄2 " Diameter ..... 1

Q.

) Qty

Figure 2. Wood crate inventory.

B

Figure 3. Loose inventory.

J

Q

C

I

H

K

P

D

G

L

O

E

F

M

N

-10-

Figure 4. Lower wheel inventory.

Model G0973 (Mfd. Since 09/23)

parts of the

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-

turer’sinstructions with anycleaning productyou

use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Av oid
using these products
to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy ship­ping grease from the non-painted
machine during clean up.

Order online at

www.grizzly.com

OR

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

Model G0973 (Mfd. Since 09/23)

Figure 5. T23692 Orange Power Degreaser.

-11-

Site Considerations

Weight Load

for the weight
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading

Physical Environment

The physical environment where the machine is
operated is important for safe operation and lon­gevity of components. For best results, operate
this machine in a dry environment that is free from
excessive moisture, hazardous chemicals, air­borne abrasives, or extreme conditions. Extreme
conditions for this type of machinery are gener­ally those where the ambient temperature range
is outside 41°–104°F; the relative humidity range
is outside 20–95% (non-condensing); or the envi­ronment is subject to vibration, shocks, or bumps.

Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

that may occur when operating the machine.

Lighting

or impede the operator must be eliminated.

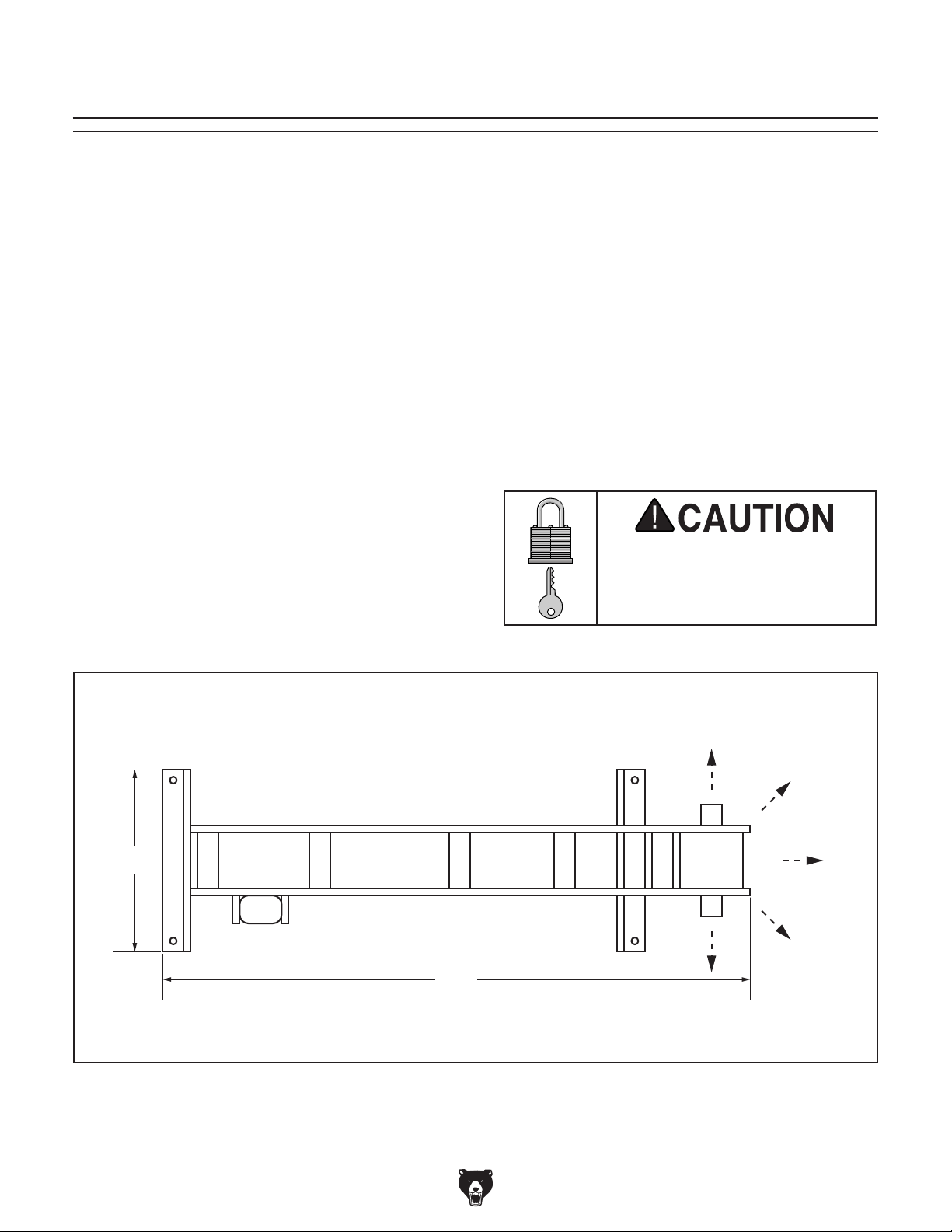

35½"

-12-

Figure 6. Working clearances.

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

61"

Model G0973 (Mfd. Since 09/23)

Keep Area

Unobstructed

Lifting & Placing

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

The Model G0973 requires the use of lifting equip­ment such as a forklift, engine hoist, or boom
crane. DO NOT attempt to lift or move machine
without necessary assistance from other people.
Each piece of lifting equipment must be rated for
at least 1520 lbs. to support dynamic loads that
may be applied while lifting.

4.

With help from another person, use lifting

equipment to raise machine frame upright
and lift it just enough to clear shipping pallet,
then remove pallet.

Fully lower machine onto floor, but continue

5.

supporting machine upright with lifting straps.

Install and secure (2) support legs on machine

6.

using (7) button head cap screws, lock wash­ers, and flat washers pre-installed on frame
(see Figure 8).

x 4

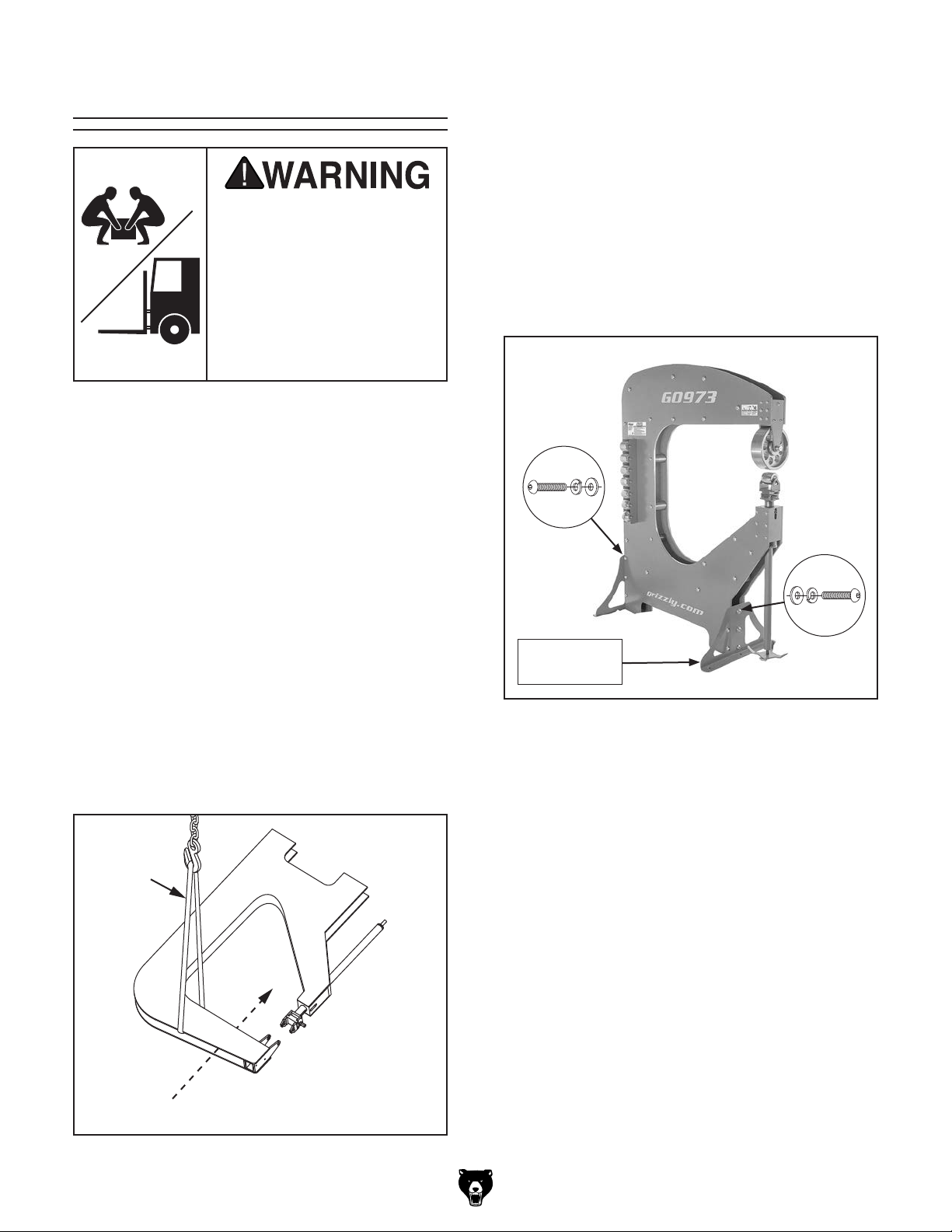

To lift and place machine:

Move crate to desired location.

1.

2. Remove crate top and sides, any blocks

around machine, then remove straps secur­ing machine to shipping pallet.

Route lifting straps through top machine

3.

frame to prevent straps from separating dur­ing lifting (see Figure 7).

Lifting

Strap

x 3

Support Leg

(1 of 2)

Figure 8. Support legs installed.

Remove lifting straps.

7.

8. Mount machine to floor as recommended in
Anchoring to Floor on Page 14.

Route Lifting Straps

Through Frame

Figure 7. Routing lifting straps.

Model G0973 (Mfd. Since 09/23)

-13-

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect­ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.

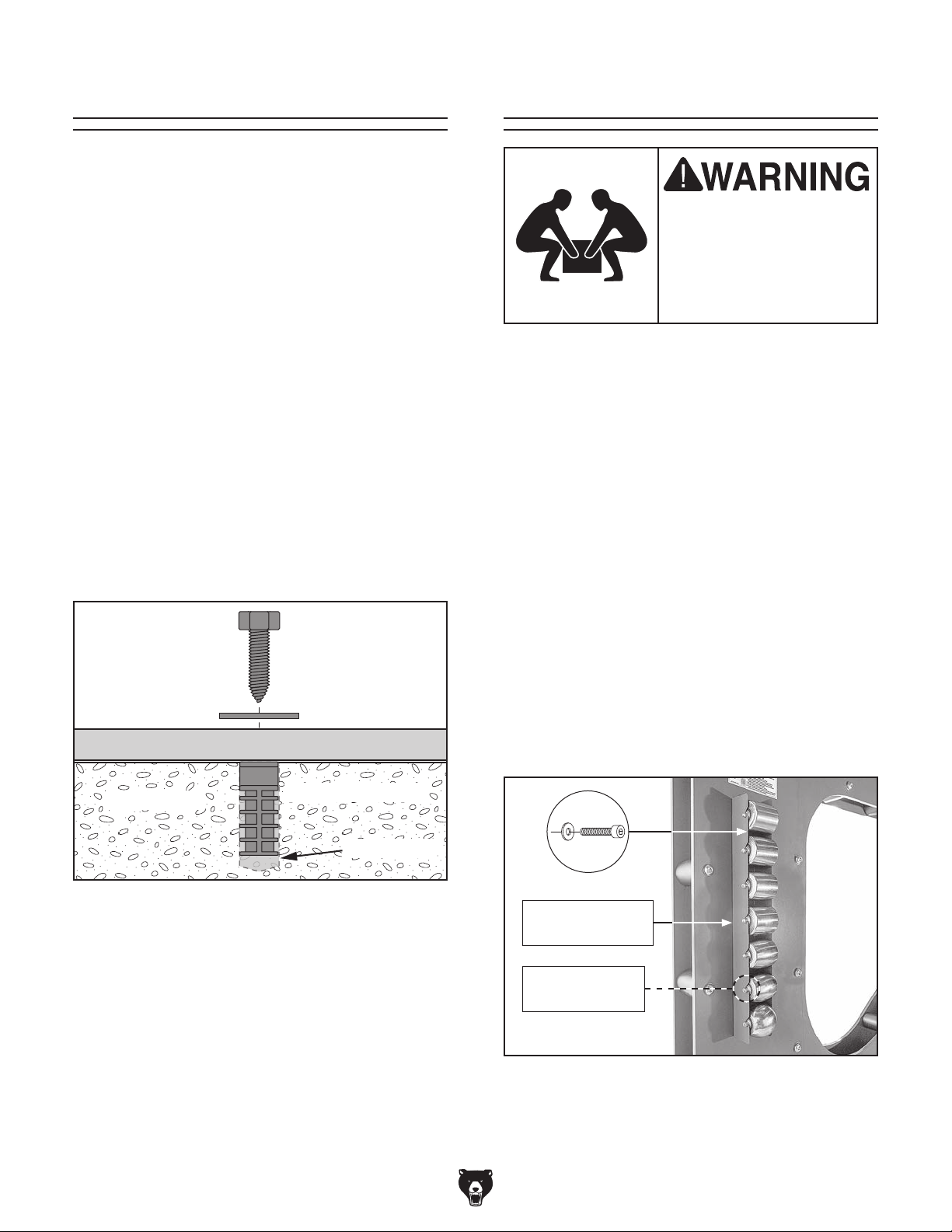

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Number of Mounting Holes ............................ 6

This machine and its
components are very

Diameter of Mounting Hardware

.................1⁄2"

Anchoring to Concrete Floors

AssemblyAnchoring to Floor

heavy. Get lifting help or
use power lifting equip­ment such as a forklift to
move heavy items.

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to Needed for Setup and gather
all listed items. To ensure the assembly process
goes smoothly, first clean any parts that are cov­ered or coated in heavy-duty rust preventative (if
applicable).

To assemble machine:

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 9. Popular method for anchoring

machinery to a concrete floor.

Lag Shield Anchor

Drilled Hole

1. Attach lower wheel storage bracket to left
side of frame using (2) cap screws and
flat washers pre-installed on machine (see
Figure 10).

Note: Verify axle channels on storage brack-

et are facing up before installation.

2. Place lower wheels in storage bracket as
desired (see Figure 10).

x 2

Lower Wheel

Storage Bracket

Axle Channels

Facing Up

-14-

Figure 10. Example of lower wheel storage

bracket installed.

Model G0973 (Mfd. Since 09/23)

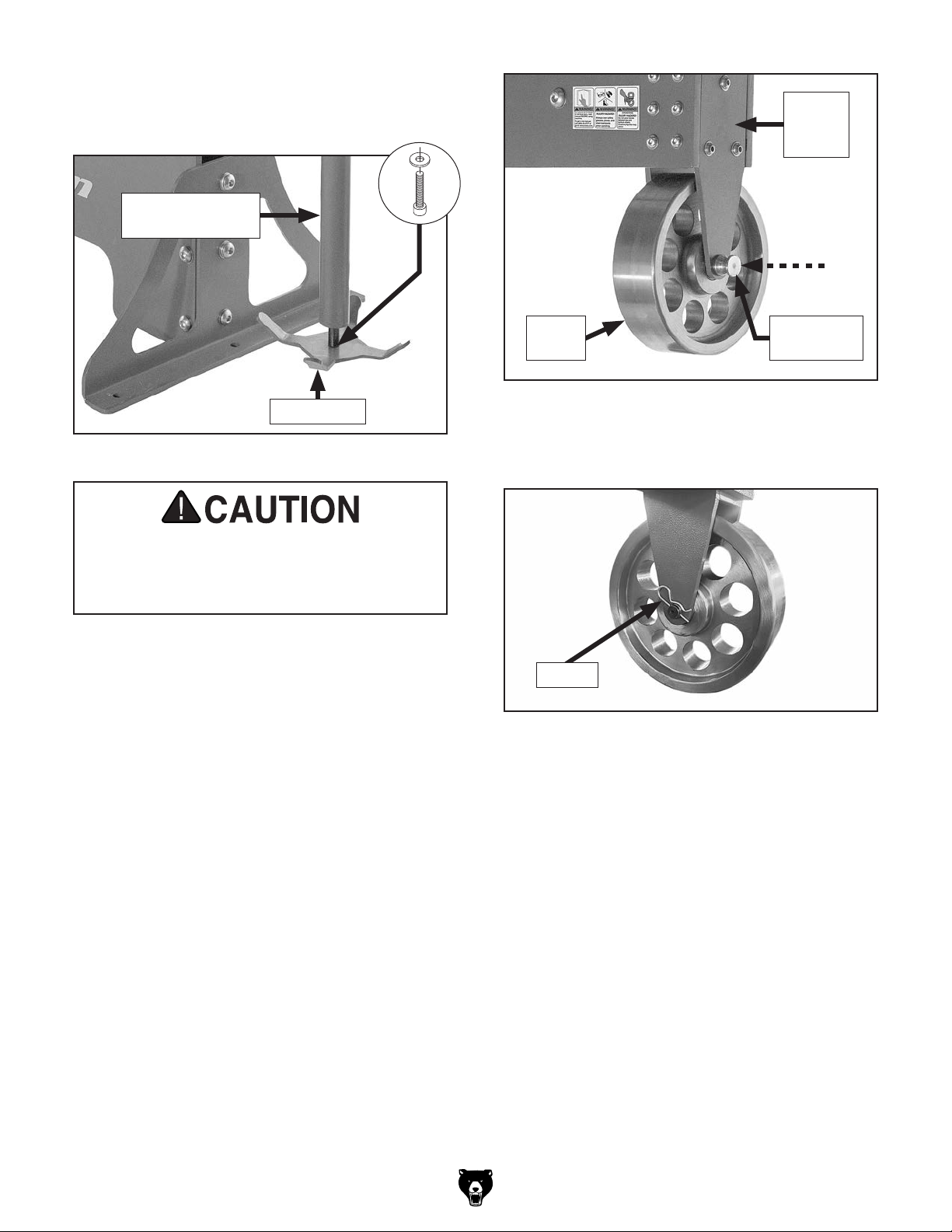

3. Install kick wheel on lower wheel adjustment

shaft using (1) cap screw and flat washer pre­installed on shaft (see Figure 11).

Lower Wheel

Adjustment Shaft

Upper
Wheel

Bracket

Kick Wheel

Figure 11. Kick wheel installed.

CRUSHING HAZARD! Hold upper wheel
securely when installing or it may fall on
your foot! Always wear steel-toed footwear
when operating this machine.

4. Have an assistant hold upper wheel in upper

wheel bracket, then install upper wheel axle
(see Figure 12).

IMPORTANT: Use a rubber mallet to help

seat axle in upper wheel. DO NOT force
upper wheel axle through wheel bearings or
damage to bearings may occur.

Upper
Wheel

Figure 12. Upper wheel installed.

5. Install hairpin in upper wheel axle to secure

upper wheel (see Figure 13).

Hairpin

Figure 13. Hairpin securing upper wheel.

Upper

Wheel Axle

Model G0973 (Mfd. Since 09/23)

-15-

SECTION 3: OPERATIONS

The purpose of this overview is to provide the
novice machine operator with a basic understand­ing of how the machine is used during operation,
so the

discussed

later in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators, and do additional research
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional

To complete a typical operation, the operator
does the following:

Puts on safety glasses, leather gloves, and

1.

steel-toed footwear.

Deburrs sharp edges (see Accessories on

2.
Page 25 for optional deburring tool).

Cleans workpiece and wheels thoroughly and

3.

removes all abrasive particles.

Installs lower wheel with greatest radius

4.

(least amount of curve).

Rotates kick wheel until distance between

5.

bottom of upper wheel and top of lower wheel
are about a

6. Marks approximate 1" frame around
workpiece (see Page 20), then inserts
workpiece between wheels.

1

⁄2" apart.

using machine.

Bodily injury could result from using this
machine. Always wear safety glasses, leather
gloves, and steel-toed footwear when oper­ating machine or handling sheet metal.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-16-

Rotates quick-release hub to operating posi-

7.

tion until there is just enough pressure to
prevent workpiece from skipping or slipping.

Moves workpiece back and forth between

8.
wheels using a tracking pattern (see Tracking
Patterns on Page 21), rolling it up to an

edge, rotating it slightly, then pulling it back.

When workpiece no longer stretches, rotates

9.

kick wheel clockwise just enough to slightly
increase pressure.

When workpiece no longer moves through

10.

wheels, operator rotates quick-release hub
and changes lower wheel to next lowest
radius.

Repeat Steps 3–10 until curve is attained.

11.

Model G0973 (Mfd. Since 09/23)

Selecting

Lower Wheels

Choose a lower wheel that will produce the con­tour you desire (see Figure 14).

B

A

Flat

Figure 14. Lower wheels.

WHEEL DESIGNATION FLAT DIAMETER WIDTH EDGE RADIUS CROWN RADIUS
Upper Wheel

Flat 10" 3" 10" 3" 0.12 5" —

Lower Wheels

Flat lower wheels (see Figure 14, A) are good for
adding gentle curves to large metal panels; these
wheels have large flat surfaces and square ends.

Domed lower wheels (see Figure 14, B) create
tighter curves; flat areas at the center range from

1

⁄8" to 11⁄4" wide. The wider the flat area, the wider

the track produced on the workpiece.

See Figure 15 for more detailed specifications of
each wheel included with the Model G0973.

Flat 3" 3" 3" 3" 0.12 5" —

Domed 2" Radius 0.125" 3.5" 3" — 2"

Domed 4" Radius 0.25" 3" 3" 0.065" 4"

Domed 6" Radius 0.375" 3" 3" 0.065" 6"

Domed 8" Radius 0.5" 3" 3" 0.065" 8"

Domed 12" Radius 0.75" 3" 3" 0.065" 12"

Domed 24" Radius 1" 3" 3" 0.065" 24"

Domed 36" Radius 1.25" 3" 3" 0.065" 36"

Figure 15. Upper and lower wheel specifications.

Model G0973 (Mfd. Since 09/23)

-17-

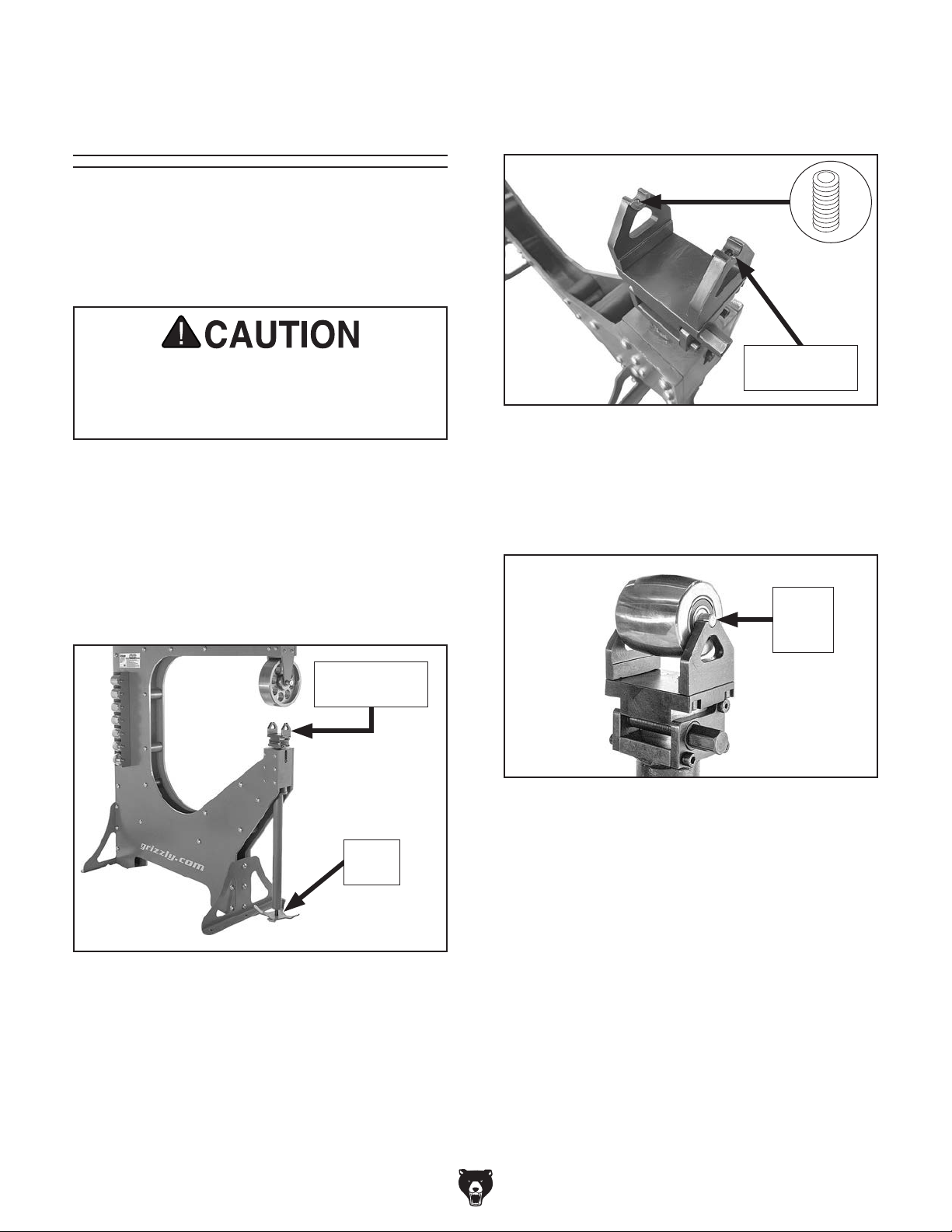

Installing/Removing

Lower Wheel

Verify set screws in lower wheel bracket

2.

are positioned below wheel axle yokes (see
Figure 17).

Any one of the lower wheels can be installed and
removed quickly to accommodate different opera­tions. See Selecting Lower Wheels on Page
17 to select a lower wheel that best forms the
intended contour.

CRUSHING HAZARD! Hold lower wheel
securely when installing/removing or it may
fall on your foot! Always wear steel-toed
footwear when operating this machine.

Tools Needed Qty

Combo Tool ....................................................... 1

Hex Wrench 3mm

.............................................. 1

Installing Lower Wheel

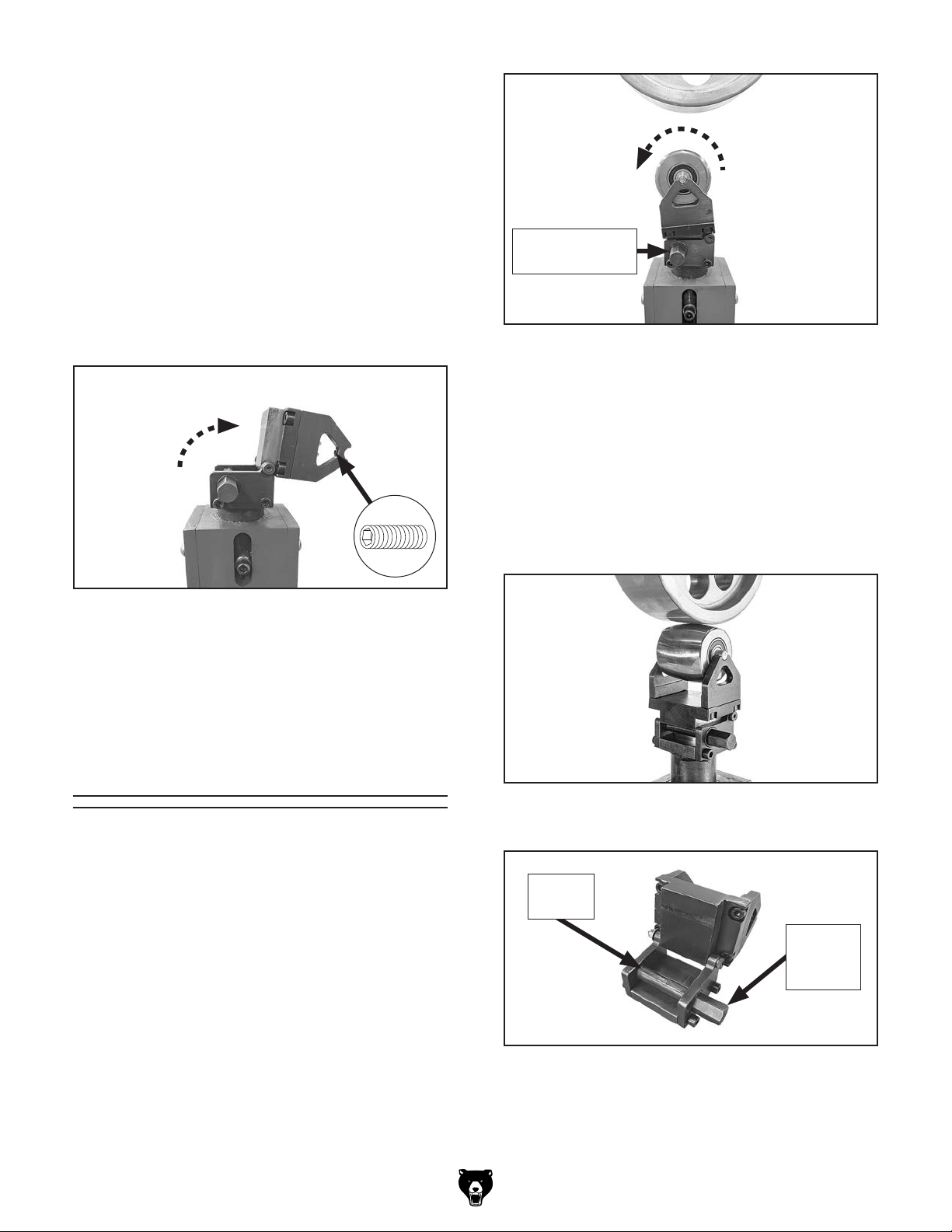

1. Rotate kick wheel a few turns to lower the

lower wheel bracket (see Figure 16).

x 2

Wheel Axle

Yokes (1 of 2)

Figure 17. Set screws positioned below wheel

axle yokes.

Install lower wheel in lower wheel bracket

3.

and make sure lower wheel axles are fully
seated in wheel axle yokes (see Figure 18).

Lower
Wheel

Axle

Lower Wheel

Bracket

Kick

Wheel

Figure 16. Lower wheel components location.

Figure 18. Lower wheel axle fully seated in

wheel axle yokes.

-18-

Model G0973 (Mfd. Since 09/23)

Removing Lower Wheel

1. With a firm grasp on workpiece, use kick

wheel to lower the lower wheel bracket until
workpiece can be removed.

With a firm grasp on lower wheel, lift up to

2.

remove it, or lift up on left side of lower wheel
bracket to tilt lower wheel off of wheel axle
yokes (see Figure 19).

Note: If lower wheel is too difficult to remove,

tighten (2) set screws on wheel axle yokes to
assist with removal (see Figure 19).

x 2

Quick-Release

Hub

Figure 20. Lower wheel bracket tilted down.

2. Use kick wheel to raise lower wheel until

there is just enough pressure to prevent
workpiece from skipping or slipping, then
rotate quick-release hub until lower wheel is
level on quick-release hub (see Figure 21).

Note: Quick-release hub has a flat surface

which will face up when properly positioned
(see Figure 22).

Figure 19. Lower wheel bracket tilted.

Return lower wheel bracket to its upright

3.

position for lower wheel installation.

Adjusting Quick-

Release Hub

The quick-release hub can be engaged or disen­gaged to help release a workpiece, or increase
pressure during operations. Rotating the hub
raises/lowers the lower wheel approximately

Tools Needed Qty

Combo Tool ....................................................... 1

To adjust quick-release hub:

Turn quick-release hub clockwise or coun-

1.

terclockwise to tilt lower wheel bracket (see
Figure 20).

3

⁄16 ".

Figure 21. Lower wheel in operating position

(workpiece removed for clarity).

Flat

Surface

Quick-

Release

Hub

Figure 22. Quick-release hub components.

Model G0973 (Mfd. Since 09/23)

-19-

Tracking Tips

• Stretching metal into a curve should be
a gradual process. Always start with just
enough wheel pressure to prevent the
workpiece from skipping or slipping through
the wheels. After the initial curve has formed,
increase the pressure slightly and continue
stretching the metal. Repeat this process
until the desired curve is attained. Using too
much pressure will damage the workpiece
surface and produce poor results.

Frame

• Start with the lower wheel that has the great­est radius (least amount of curve), then
decrease the wheel radius a step at a time
until the desired curve is reached.

• Mark the workpiece with a non-permanent
marker to make it easier to follow tracking
patterns or contour the metal.

• Practice with a scrap piece that is the same
material and thickness as the final workpiece.

• Leave a frame around the workpiece of
approximately 1" that does not go through
the wheels (see Figure 23). As the center of
the workpiece stretches and the frame does
not, the metal is forced to bend into a curve.
Some workpieces may need a larger frame
to accommodate expansion of the metal and
removal of excess material, if needed.

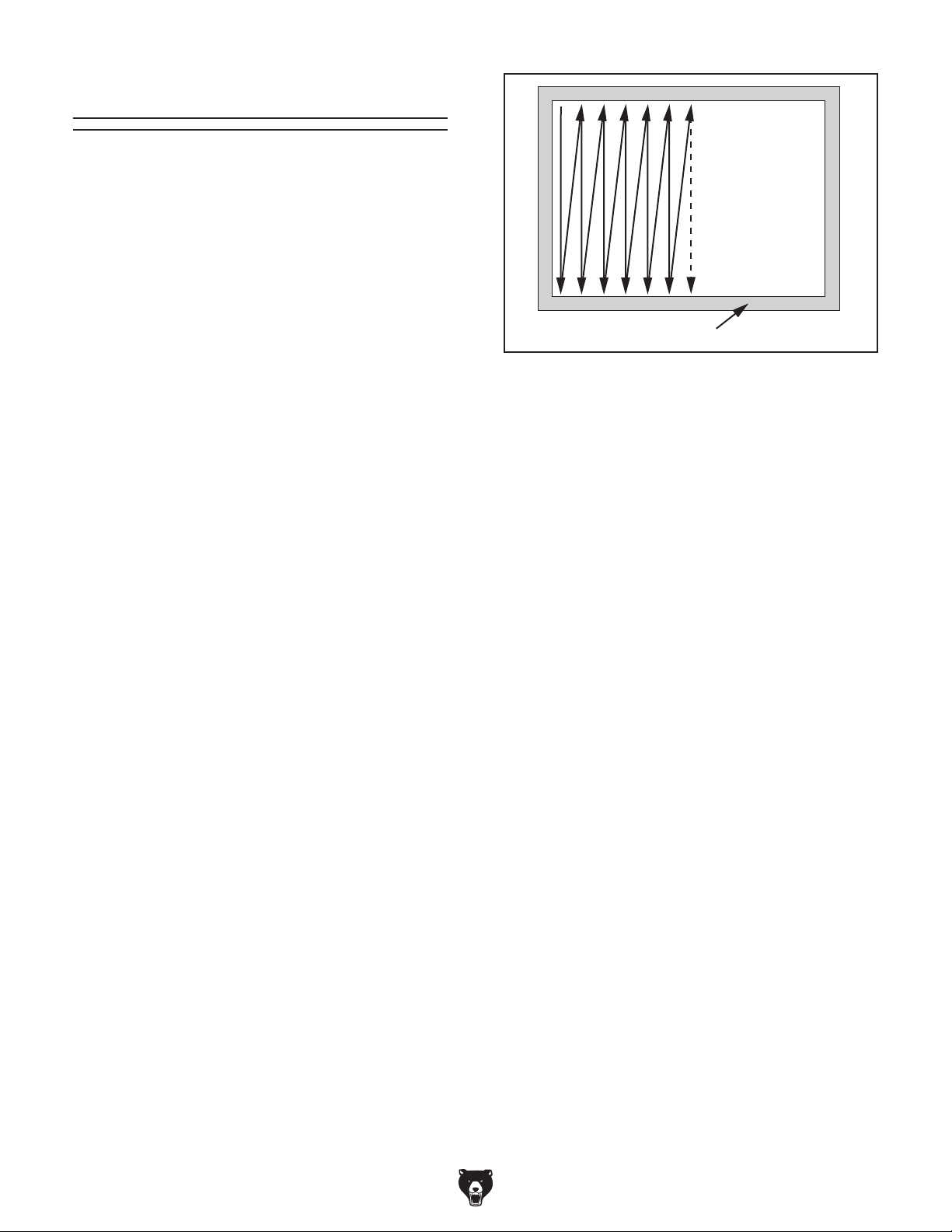

Figure 23. Example of frame around workpiece

and basic back-and-forth tracking pattern.

• Overlap each pass with the previous one in
a smooth, back-and-forth movement through
the wheels, as shown in Figure 23. There
are many patterns of tracking that will pro­duce different results. Refer to Page 21
for additional tracking patterns. Choosing the
correct pattern for your operation is a matter
of research and experience.

• Try using the lightest wheel pressure possible
to shape the workpiece. Too much pressure
may crease or damage the metal. Light pres­sure is best for smoothing; higher pressure is
best for rough shaping.

• Take your time. Start rolling slowly and
increase your speed. Many passes through
the wheels with gradual increases in pres­sure and lower wheel radii will produce good
results and reduce the risk of damaging the
workpiece surface.

-20-

Model G0973 (Mfd. Since 09/23)

A

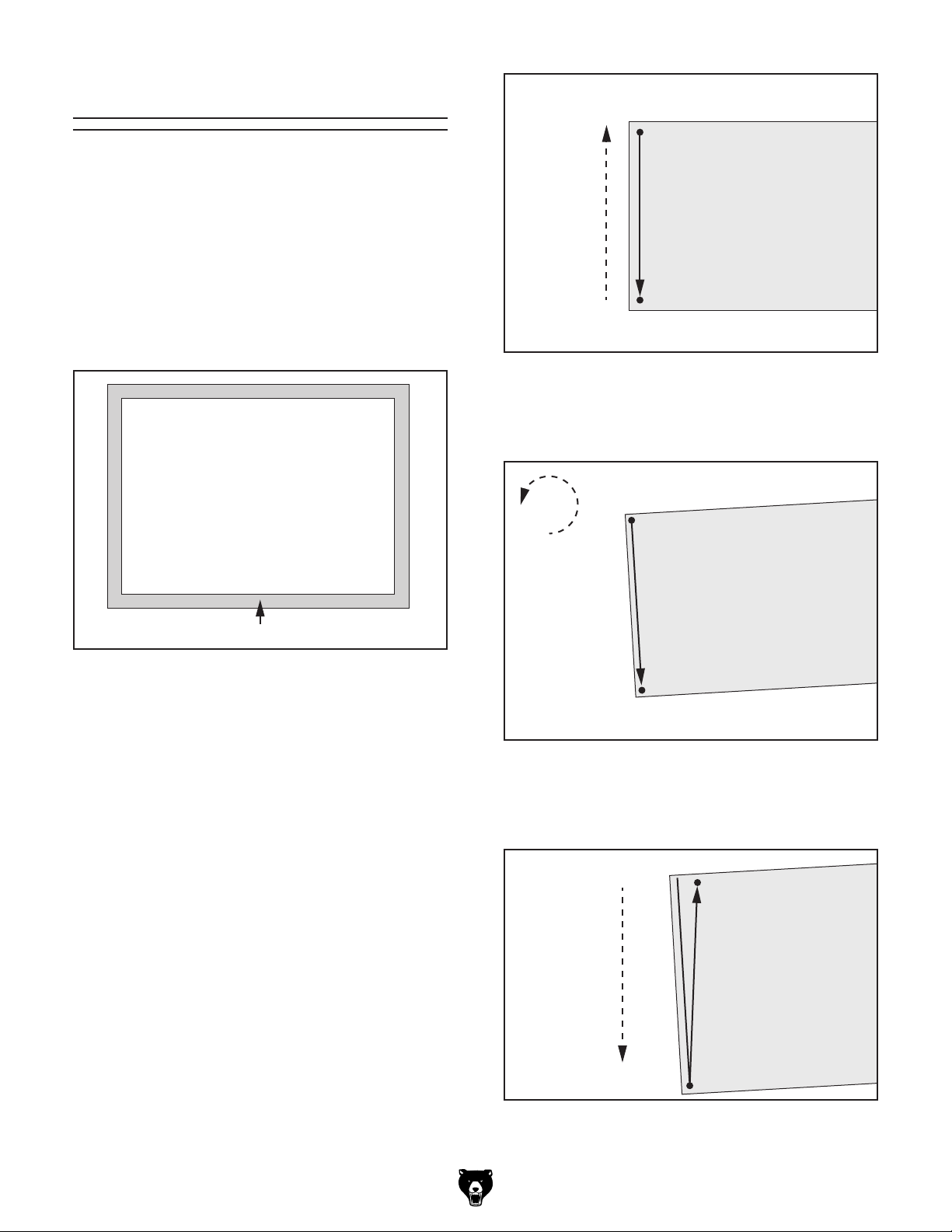

Tracking Patterns

As metal passes between the upper and lower
wheels, a "track" or shiny line is pressed into the
metal. Various tracking patterns can be used to
shape workpieces depending upon their shape
or size.

Note: Most of the figures in this section are shown
without a frame for clarity, but we recommend
leaving about a 1" border around the workpiece
(see Figure 24) so the metal bends correctly.

Start

A

Panel

Movement

(Stop)

Figure 25. Starting zigzag pattern.

Turn workpiece counterclockwise slightly

3.
(see Figure 26).

Workpiece

Frame

Figure 24. Example of frame around workpiece.

Zigzag Pattern

This patterns resembles the closely-spaced tracks
of a lawn mower cutting a lawn. It can be used for
a variety of workpiece shapes.

To use zigzag tracking pattern:

Insert workpiece between wheels at point A,

1.

and start rolling it along left edge, as shown
in Figure 25.

Start

A

(Stop)

Figure 26. Workpiece turned counterclockwise.

4. Pull workpiece back until it reaches next point
near far edge, as shown in Figure 27.

CAUTION: Move your hands out of wheel

pathway so you do not pinch them!

Push workpiece forward to stop point (see

2.
Figure 25).

Model G0973 (Mfd. Since 09/23)

Panel

Movement

Figure 27. Wheels moved to next point.

-21-

Turn workpiece clockwise (see Figure 28).

5.

A

7. When wheels reach point B, reverse feed
direction (see Figure 30) and return to
point A.

Figure 28. Workpiece turned clockwise.

Continue feeding workpiece to other side

6.

in same manner, following pattern shown in
Figure 29.

Feed Direction

A

Move
Panel
Along

Zigzags

A

Finish

Figure 30. Zigzagging while feeding workpiece

Feed Direction

B

to right.

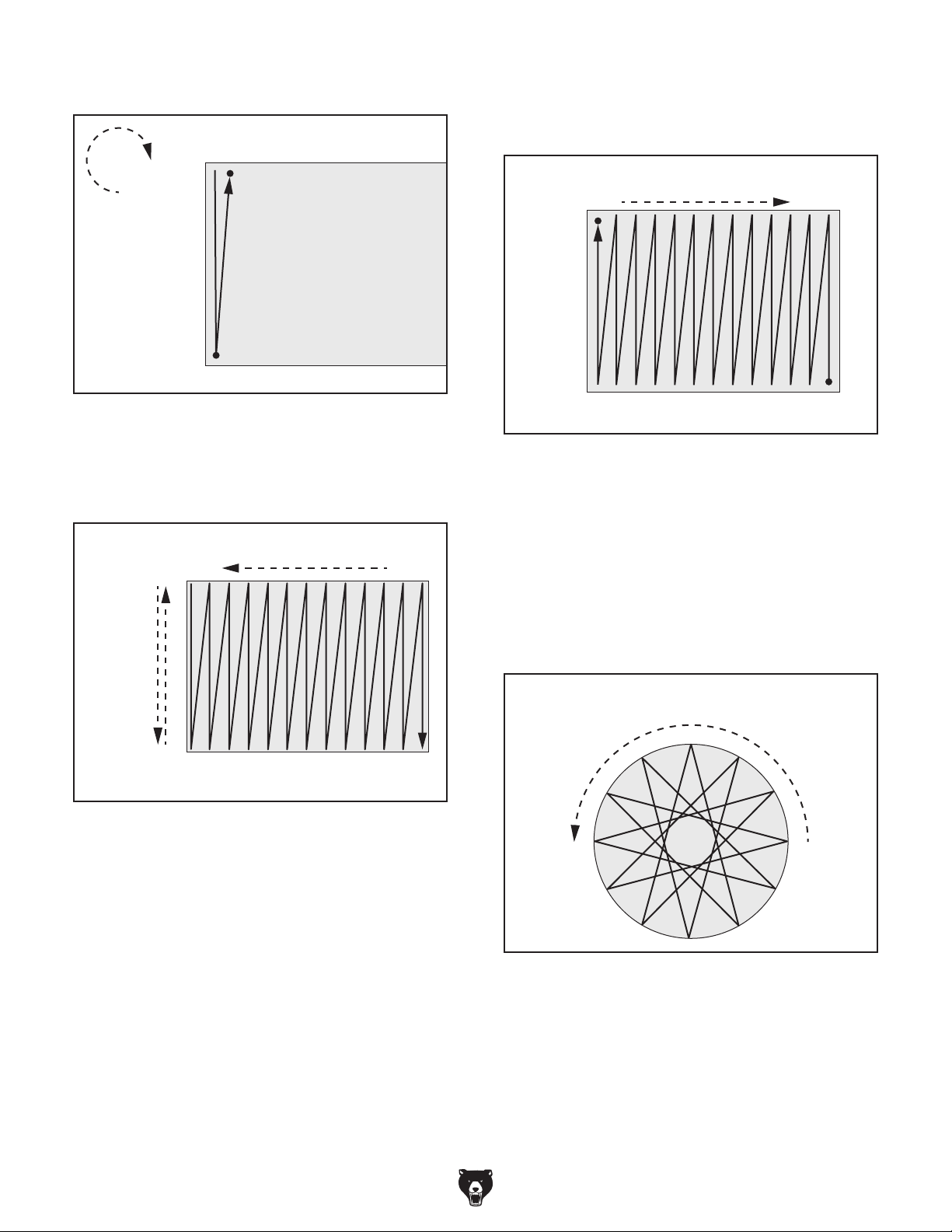

Star Pattern

The star pattern (see Figure 31) is useful for
shaping round workpieces.

Note: Avoid rolling directly over center of
workpiece. Making excessive passes could over­stretch metal.

Direction to Turn Workpiece

B

Figure 29. Zigzagging while feeding workpiece

to other side.

Note: Try keeping tracks close to each other.
Use a non-permanent marker to mark lines in a
consistent pattern.

-22-

Figure 31. Star pattern.

Model G0973 (Mfd. Since 09/23)

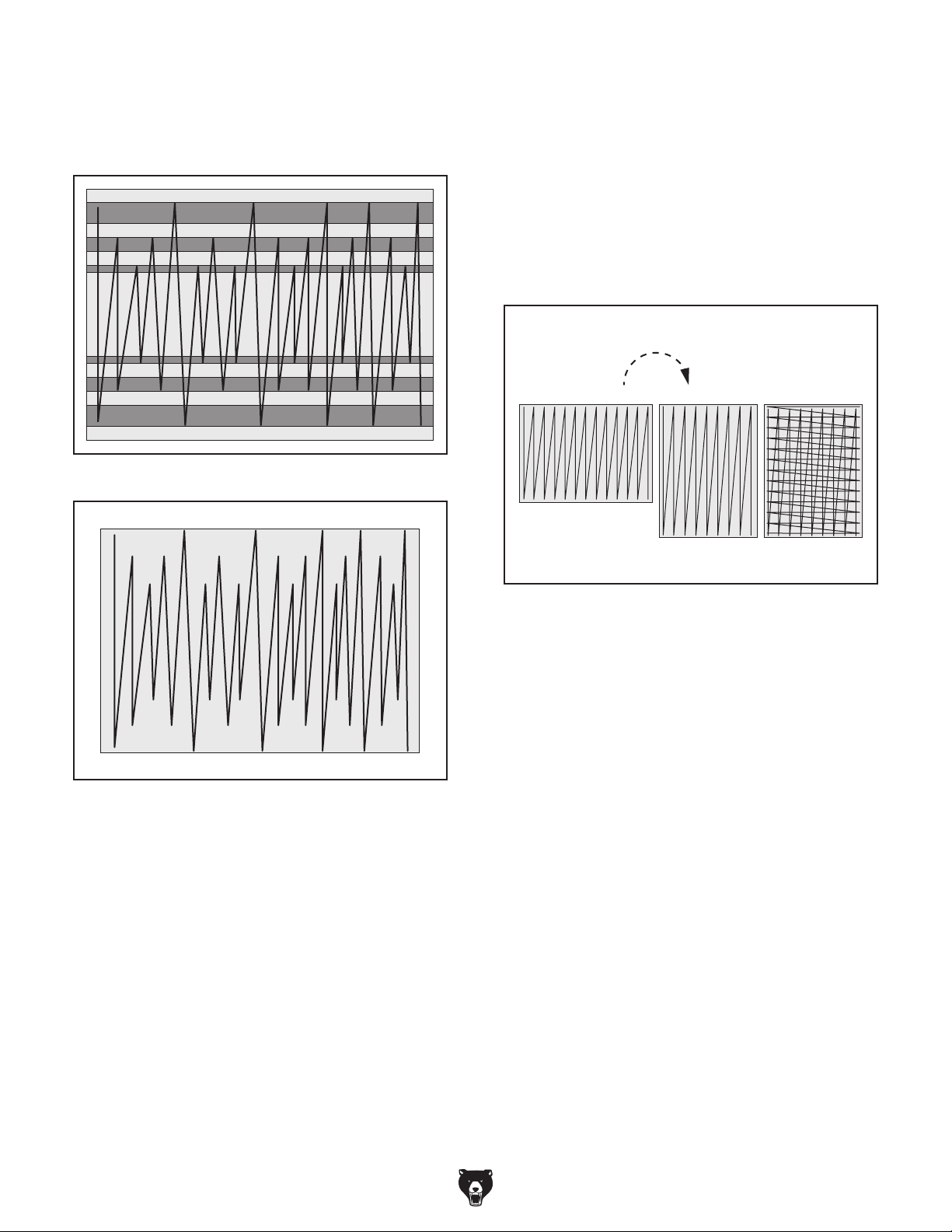

Staggered Stop Pattern

With this pattern, the track alternates between
three different sets of lines, helping reduce ridges
that may form at the stopping point of tracks. This
technique is useful on larger workpieces.

Note: It may help to draw lines on the workpiece
with a non-permanent marker so you can see the
outside, middle, and inside lines more clearly.
Clean the wheels and workpiece when finished.

To use staggered stop pattern:

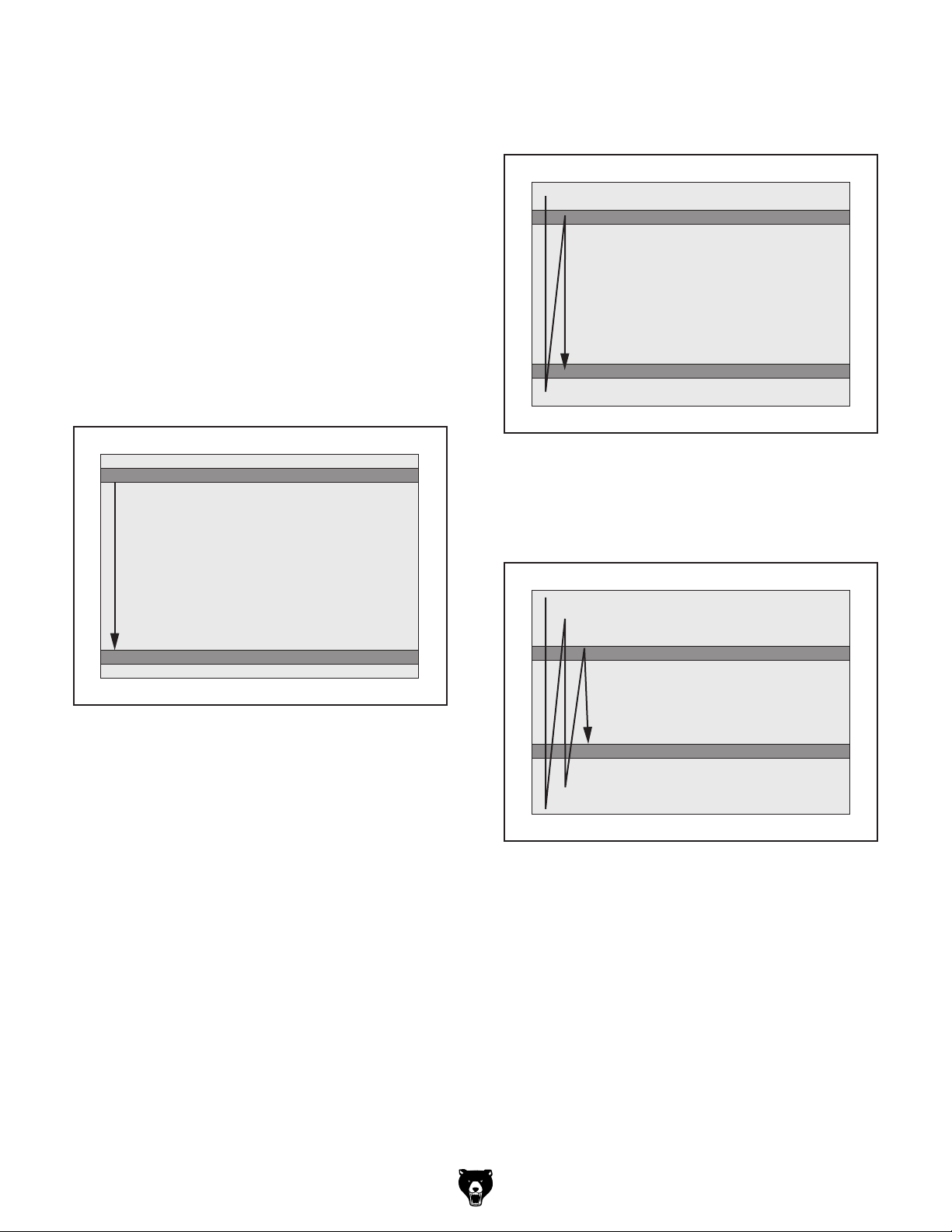

From starting point, roll workpiece from out-

1.

side line on one side to outside line on
opposite side (see Figure 32).

Roll workpiece from middle line on one side

2.

to middle line on opposite side, as shown in

Figure 33.

Figure 33. Example of rolling middle to middle

line.

3. Roll workpiece from inside line on one side to
inside line on opposite side (see Figure 34).

Figure 32. Example of rolling outside to outside

line.

Figure 34. Example of rolling inside to inside

line.

Model G0973 (Mfd. Since 09/23)

-23-

Repeat Steps 1–3, as you move across

4.

workpiece, randomly alternating between
outside, middle, and inside lines, as shown in

Figures below.

Crisscrossing Tracks

Crisscrossing tracks can help produce smoother
curves in your workpiece when using the zigzag
or staggered stop pattern.

After running tracks along one length of the
workpiece (see Figure 37, A), turn the metal sheet
90° and run tracks along the opposite length (see
Figure 37, B) so the workpiece is equally covered
by both sets of tracks (see Figure 37, C).

Figure 35. Staggered pattern, showing line sets.

Figure 36. Staggered pattern shown without line

sets.

A

Figure 37. Crisscrossing tracks.

90°

B C

-24-

Model G0973 (Mfd. Since 09/23)

SECTION 4: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

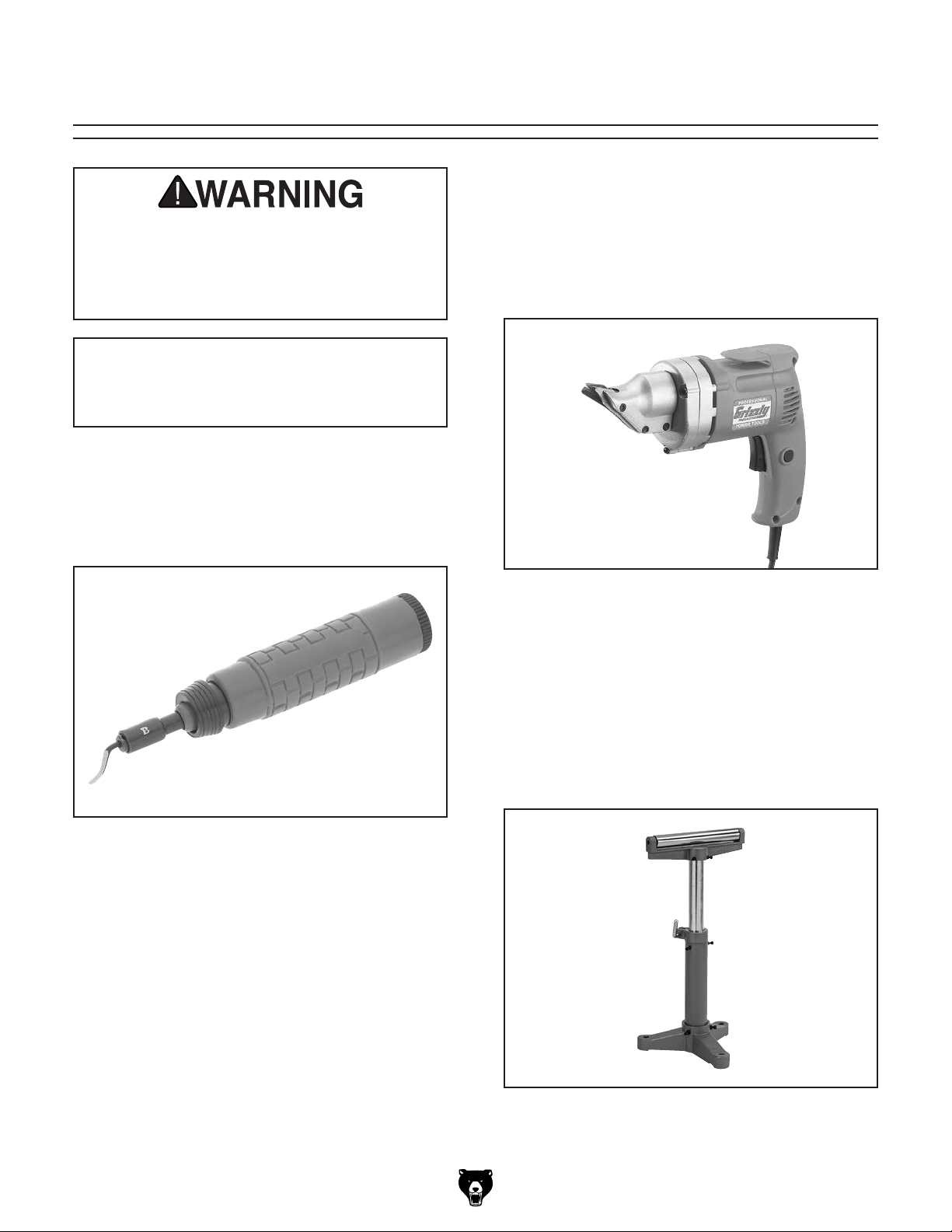

G5618—Deburring Tool w/Two Blades

The quickest tool for smoothing freshly sheared
metal edges. Comes with two blades, one for
steel and aluminum, and one for brass and cast
iron.

H5503—Electric Sheet Metal Shear

This electric sheet metal shear features a
110V, 2500 RPM, 3.8 amp motor with a 360 de­gree adjustable swivel head and variable speed
range from 0 to 2500 SPM. Cuts up to 14 gauge
in mild steel and 18 gauge in stainless, at up to
150 inches per minute.

Figure 39. H5503 Electric Sheet Metal Shear.

T30673—Heavy-Duty Roller Stand

This stand comes with 2" steel ball bearing rollers
that assist with infeed and outfeed support. With
the heavy-duty cast-iron base, this stout roller
stand helps support lumber, piping, and more up
to 2000 pounds! With three holes on the base,
it can even be bolted to the floor for increased
stability. Height can be easily adjusted from 24" to
38", and the stand measures 14" wide.

1

⁄2 HP,

Figure 38. G5618 Deburring Tool.

Figure 40. T30673 Heavy-Duty Roller Stand.

Model G0973 (Mfd. Since 09/23)

-25-

order online at www.grizzly.com or call 1-800-523-4777

G5748—Steel Stamping Set - 1⁄8" A-Z

These hardened steel stamping letters span the
entire alphabet (A–Z).

T10718—50" Deluxe Pan and Box Brake

This deluxe pan and box brake is used to make
straight bends, boxes, pans, and trays in sheet
metal that is 16-gauge or thinner.

Figure 41. G5748 Steel Stamping Set.

D4132—4-Head Suction Cup

Handle plate glass, glass mirrors, and sheet
metal with safety and security. Simple lever action
provides tremendous gripping power on any flat,
smooth material. Weight Capacity: 260 lbs.

Figure 43. T10718 50" Deluxe Pan and Box

Brake.

G0878—40A Plasma Cutter

The G0878 40 Amp Plasma Cutter is a compact
25-pound unit with the cutting power to quickly

1

cut through steel up to

⁄2 " thick. Just attach the

unit to your air compressor with the easy-to-attach

1

⁄4" NPT fitting, plug the cutter into your standard

120V household power, and you're ready to go.

Figure 42. D4132 4-Head Suction Cup.

Figure 44. G0878 40A Plasma Cutter.

-26-

Model G0973 (Mfd. Since 09/23)

SECTION 5: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from

Cleaning &

Protecting

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, stop using the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Damaged or dirty wheels.

• Damaged or cracked frame.

• Hardware/fasteners for security.

• Any other unsafe condition.

Daily Maintenance

• Clean and protect wheels.

Cleaning the Model G0973 is relatively easy.
Periodically wipe down the machine to remove
dust and debris—this ensures rust-promoting
material does not remain on bare metal surfaces.

Since all bearings on the Model G0973 are sealed
and permanently lubricated, simply leave them
alone until they need to be replaced. DO NOT
lubricate them.

Protect the unpainted metal surfaces with regular
applications of products like SLIPIT®, as shown in

Figure 45 below.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT

®

11 Oz. Spray

Monthly Maintenance

• Clean and lubricate lower wheel bracket.

• Clean and lubricate lower wheel adjustment
shaft bushing and leadscrew.

Model G0973 (Mfd. Since 09/23)

Figure 45. Recommended products for

protecting unpainted cast iron/steel parts on

machinery.

-27-

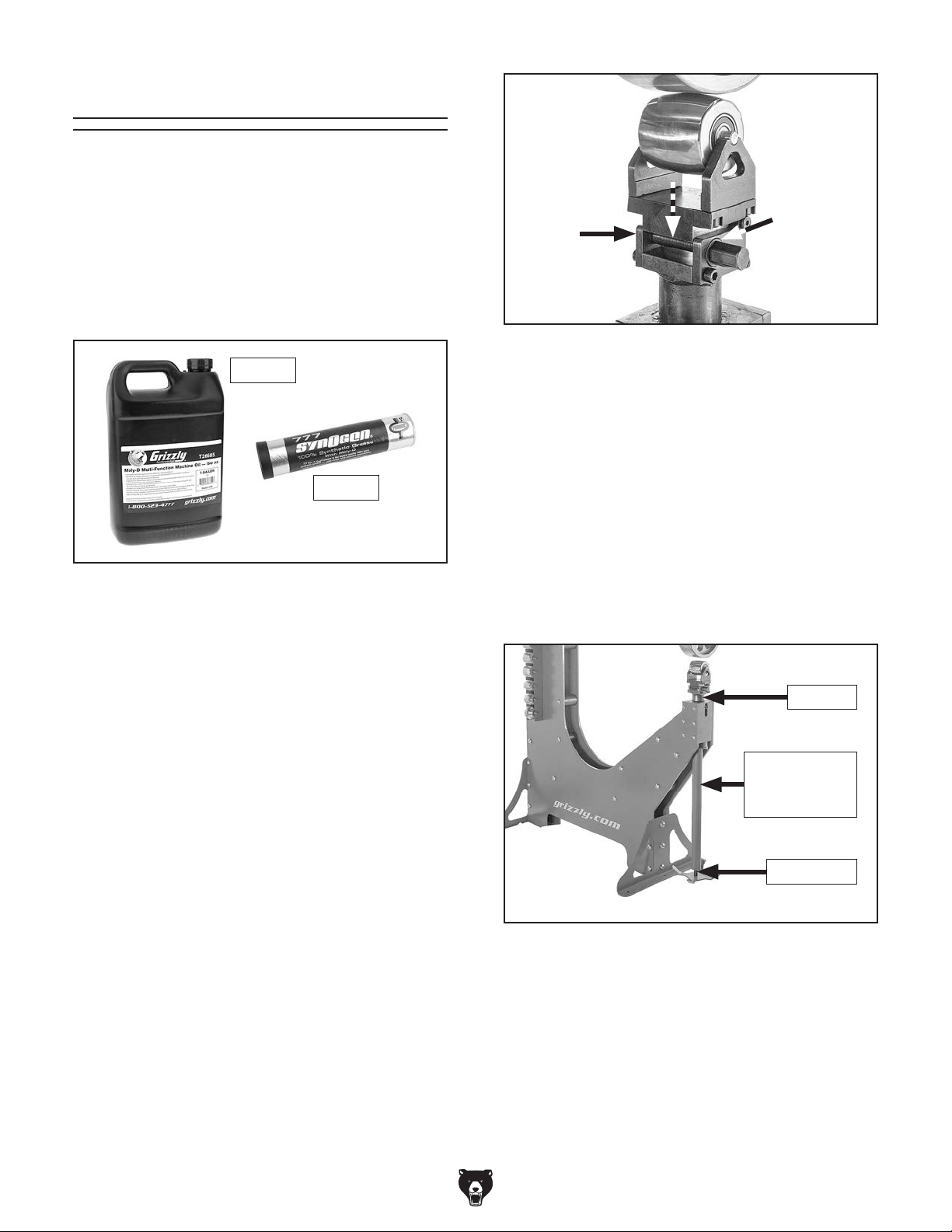

Lubrication

When lubricating this machine, first clean the
components before lubricating them. This step is
critical because grime and dust build up on lubri­cated components, which makes them hard to
move. Simply adding more lubricant will not result
in smooth moving parts.

T26685—Moly-D ISO 32 Multi-Function Oil
T26419—Syn-O-Gen Synthetic Grease

Figure 47. Quick-release hub lubrication points.

T26685

T26419

Figure 46. Recommended lubrication products.

Wheels

Lubrication Type ....T26685 or ISO 32 Equivalent

Lubrication Amount
Lubrication Frequency

To protect against rust, apply a thin coat of oil to
the upper and lower wheels when they are not
being used or before storing them. Remove any
excess oil before using the wheels.

..............................Thin Coat

................................. Daily

Lower Wheel Adjustment Shaft

Lubrication Type ... T26419 or NLGI#2 Equivalent
Lubrication Amount
Lubrication Frequency

Use mineral spirits to clean any debris and built­up grease from the adjustment shaft bushing and
leadscrew, then wipe them dry (see Figure 48).
Brush a thin coat of grease on the adjustment
shaft bushing and the threads of the leadscrew,
then raise and lower the adjustment shaft through
its full range of motion to distribute the grease.

..............................Thin Coat

.............................Monthly

Bushing

Lower Wheel

Adjustment

Shaft

Quick-Release Hub

Lubrication Type ... T26419 or NLGI#2 Equivalent
Lubrication Amount
Lubrication Frequency

Apply a thin coat of grease to the quick-release
hub where it contacts the bottom of the lower
wheel bracket, as shown in Figure 47.

-28-

..............................Thin Coat

.............................Monthly

Leadscrew

Figure 48. Lower wheel adjustment shaft

lubrication points.

Model G0973 (Mfd. Since 09/23)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

Troubleshooting

Operations

Symptom Possible Cause Possible Solution

Workpiece
surface is
marred or
scratched.

Workpiece has
wrinkles.

Excessive
force required
to move
workpiece
through wheels.

Workpiece
curve is too
high.

Workpiece
curve is not
high enough.

Workpiece
curve will not
form.

Wheel does
not shape
workpiece.

Quick-release
hub will not
engage, or
has trouble
engaging.

1. Too much wheel pressure.

2. Wheels are dirty.

3. Wheel is damaged.

1. Tracking pattern at fault.

2. Too much wheel pressure.

1. Too much wheel pressure.
2 Wheel bearings at fault.

1. Lower wheel radius is too small. 1. Use a lower wheel with a larger radius (less crown).

1. Lower wheel radius is too large. 1. Start with lower wheel of largest radius (least curve)

1. Not enough wheel pressure.

2. Lowerwheelhasatsurface.

1. Workpiece is too thick.

2. Crown is too low; incorrect wheel selection.

3. Incorrect pressure.

1. Lower wheel bracket binds.

2. Quick-release hub binds.

1. Reduce wheel pressure.

2. Clean and protect all wheel surfaces (Page 28).

3. Replace wheel (Page 18).

1. Use a consistent and smooth tracking pattern that

overlaps with each back-and-forth pass (Page 21).

2. Start with least amount of pressure, then gradually
increase pressure when curve stops forming
(Page 20).

1. Reduce wheel pressure.

2. Replace wheel bearings.

and work up to correct radius for operation.

1. Start with least amount of pressure, then gradually
increase pressure when curve stops forming
(Page 20).

2. Use lower wheel(s) with a radius (crown).

1. Use sheet metal of appropriate thickness (Page 5).

2. Use a lower wheel with a higher crown.

3. Increase pressure on workpiece.

1. Lubricate quick-release hub components (Page 28).

2. Lubricate quick-release hub components (Page 28).

Note: Please gather

Model G0973 (Mfd. Since 09/23)

-29-

7

22

38

4

4

3

5

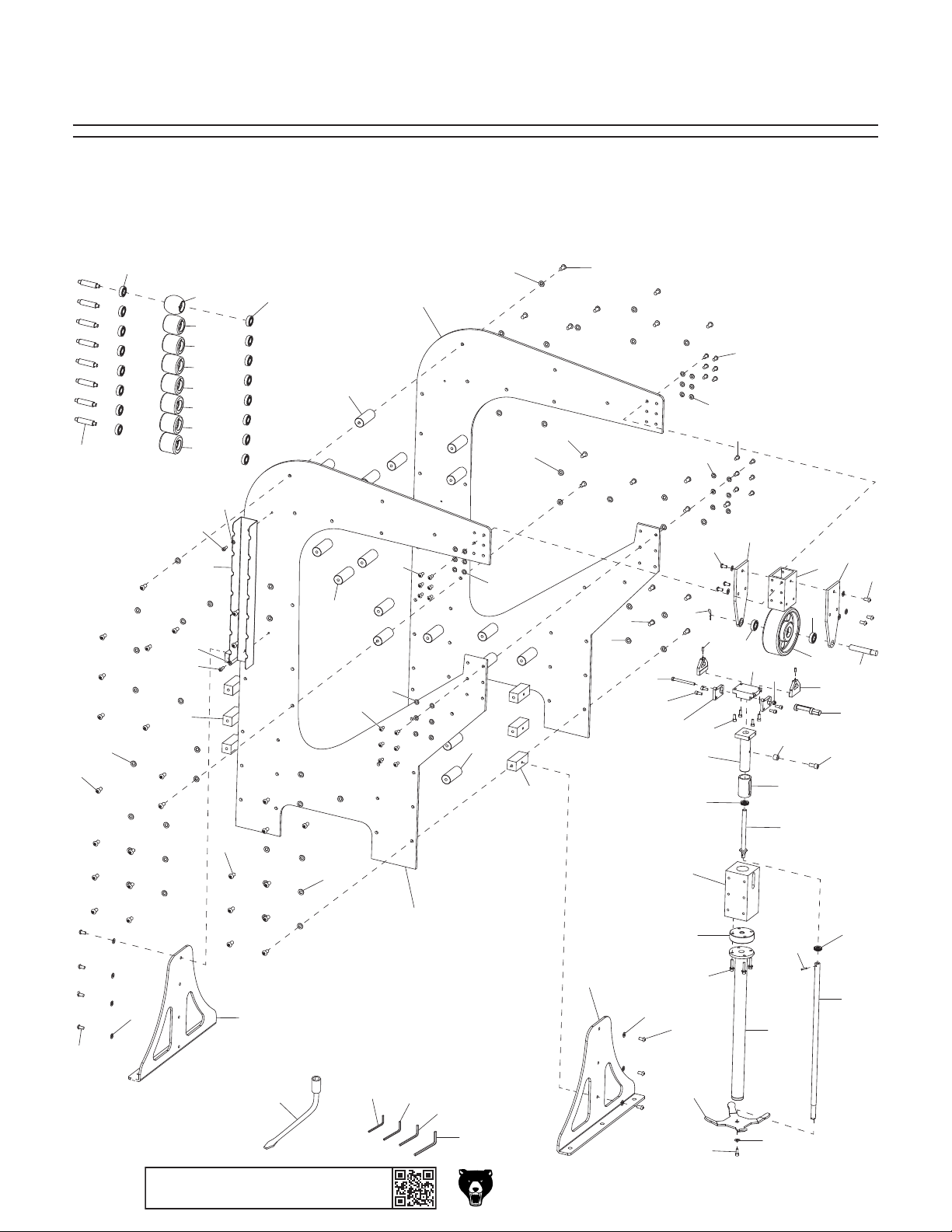

SECTION 7: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

20

49

3

50
51
52

53
54
55

19

18

13

19
18

34

5

11

11

7

40

48

40

4

3

4

3

12

24

18

32

14

40

18

40

7

21

7

7

10

10

9

5

5

31

25

28

17

29

27

33

41

7

11

34

3

4

-30-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

4

3

1

30

47

42

46

43

44

45

Model G0973 (Mfd. Since 09/23)

36

6

2

35

3

4

15

26

8

37

16

39

36

23

REF PART # DESCRIPTION REF PART # DESCRIPTION

28 P0973028 SPACER

Main Parts List

1 P0973001 LEFT FRAME 29 P0973029 UPPER WHEEL AXLE
2 P0973002 ADJUSTMENT SHAFT PLATE 30 P0973030 FRONT SUPPORT LEG
3 P0973003 FLAT WASHER 16MM 31 P0973031 LOWER WHEEL BRACKET
4 P0973004 BUTTON HD CAP SCR M16-2 X 30 32 P0973032 LOWER SIDE PLATE
5 P0973005 BALL BEARING 6004ZZ 33 P0973033 CAMBER ADJUSTMENT BOLT
6 P0973006 SLIDE BLOCK 34 P0973034 MOUNTING BLOCK
7 P0973007 BUTTON HD CAP SCR M10-1.5 X 25 35 P0973035 CAP SCREW M8-1.25 X 50
8 P0973008 LEADSCREW 36 P0973036 THRUST BEARING 51103
9 P0973009 UPPER WHEEL BRACKET 37 P0973037 DOWEL PIN 6 X 20
10 P0973010 UPPER WHEEL PLATE 38 P0973038 CAP SCREW M6-1 X 10
11 P0973011 FRAME SPACER 39 P0973039 FLAT WASHER 6MM
12 P0973012 COTTER PIN M3 X 64 HAIRPIN 40 P0973040 FLAT WASHER 10MM
13 P0973013 LOWER W HEEL STORAGE BRACKET 41 P0973041 CAP SCREW M10-1.5 X 20
14 P0973014 GUIDE SHAFT 42 P0973042 HEX WRENCH 3MM
15 P0973015 FOOT WHEEL 43 P0973043 HEX WRENCH 5MM
16 P0973016 TUBE 44 P0973044 HEX WRENCH 6MM
17 P0973017 UPPER WHEEL, 10" FLAT 45 P0973045 HEX WRENCH 8MM
18 P0973018 CAP SCREW M8-1.25 X 20 46 P0973046 LUG NUT WRENCH, SLOTTED W/SOCKET
19 P0973019 FLAT WASHER 8MM 47 P0973047 REAR SUPPORT LEG
20 P0973020 LOWER WHEEL, DOMED 2" RADIUS 48 P0973048 RIGHT FRAME
21 P0973021 SET SCREW M6-1 X 20 49 P0973049 LOWER WHEEL, DOMED 4" RADIUS
22 P0973022 LOWER W HEEL AXLE 50 P0973050 LOWER WHEEL, DOMED 6" RADIUS
23 P0973023 ADJUSTMENT SHAFT 51 P0973051 LOWER WHEEL, DOMED 8" RADIUS
24 P0973024 SHOULDER SCREW M6-1 X 10, 8 X 80 52 P0973052 LOWER WHEEL, DOMED 12" RADIUS
25 P0973025 LOCK NUT M6-1 53 P0973053 LOWER WHEEL, DOMED 24" RADIUS
26 P0973026 BUSHING, COPPER 54 P0973054 LOWER WHEEL, DOMED 36" RADIUS
27 P0973027 WHEEL AXLE YOKE 55 P0973055 LOWER WHEEL, 3" FLAT

Model G0973 (Mfd. Since 09/23)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-31-

REF PART # DESCRIPTION REF PART # DESCRIPTION

103 P0973103 MODEL NUMBER LABEL 106 P0973106 TOUCH-UP PAINT, GRIZZLY GREEN

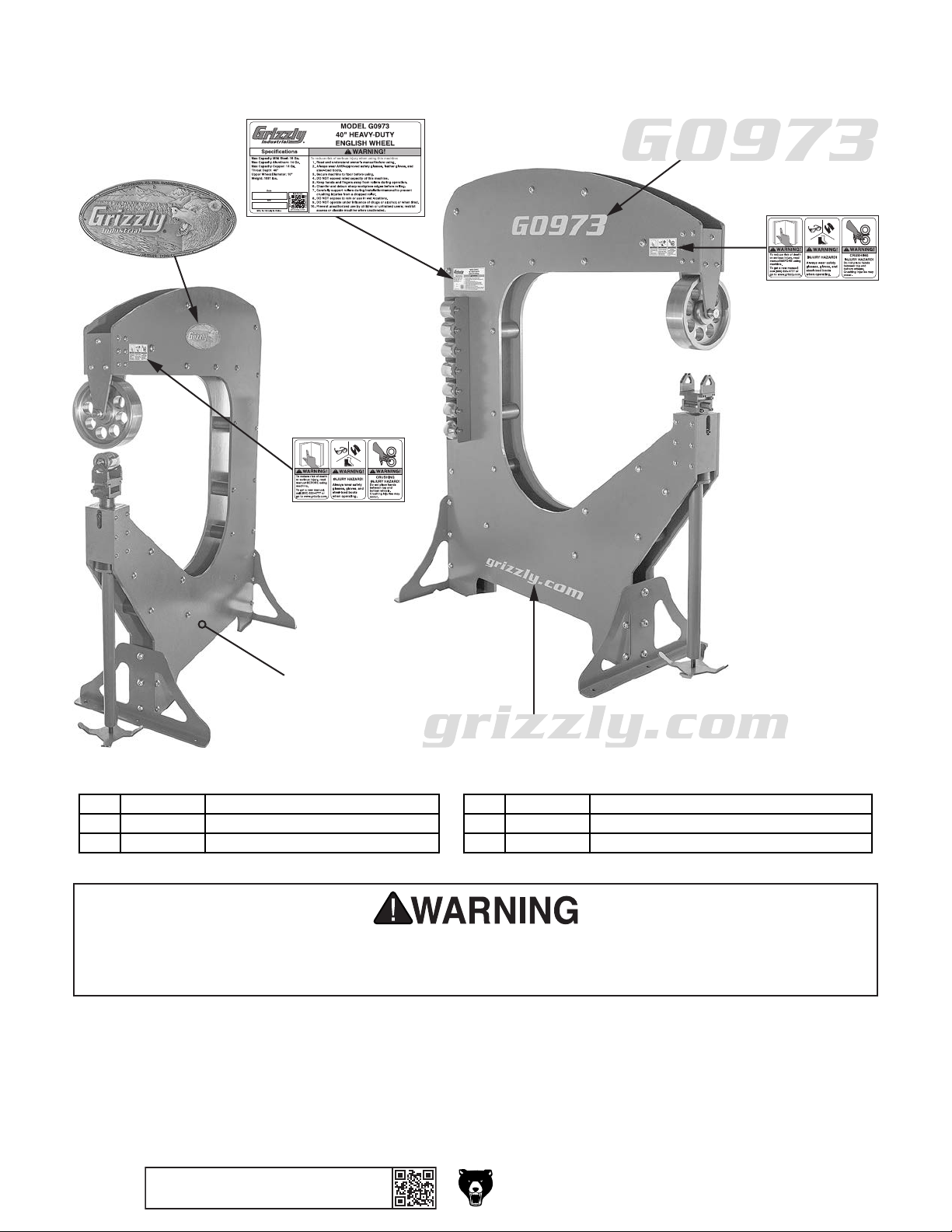

Labels & Cosmetics

103

101

104

102

104

106

105

101 P0973101 GRIZZLY NAMEPLATE - LARGE 104 P0973104 COMBO WARNING LABEL
102 P0973102 MACHINE ID LABEL 105 P0973105 GRIZZLY.COM LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-32-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0973 (Mfd. Since 09/23)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence,accidents,repairsoralterationsorlackofmaintenance.ThisisGrizzly’ssolewrittenwarranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

InnoeventshallGrizzly’sliabilityunderthiswarrantyexceedthepurchasepricepaidfortheproductand

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

thenissue you a“ReturnNumber,’’ whichmustbe clearlypostedon the outsideaswell as theinside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY
