Grizzly G0966 User guide

Download

Page 1

MODEL G0966

1-1/2 HP EXTREME-SERIES

METAL DUST COLLECTOR

OWNER'S MANUAL

(For models manufactured since 04/23)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JPCSLW22641 PRINTED IN TAIWA N

***Keep for Future Reference***

V1.0 6 .23

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info .................................................................................................................................2

Manual Accuracy .........................................................................................................................2

Identification ................................................................................................................................3

Controls & Components ..............................................................................................................4

Machine Data Sheet ....................................................................................................................5

SECTION 1: SAFETY ....................................................................................................................... 7

Safety Instructions for Machinery ................................................................................................7

Additional Safety for Metal Dust Collectors ................................................................................9

SECTION 2: POWER SUPPLY ...................................................................................................... 10

Converting Voltage to 240V ......................................................................................................12

SECTION 3: SETUP ....................................................................................................................... 14

Needed for Setup ......................................................................................................................14

Unpacking .................................................................................................................................14

Inventory ....................................................................................................................................14

Site Considerations ...................................................................................................................15

Assembly ...................................................................................................................................16

Lifting & Placing ........................................................................................................................16

Air Supply ..................................................................................................................................17

Ducting System .........................................................................................................................17

System Grounding ....................................................................................................................19

Test Run ....................................................................................................................................20

SECTION 4: OPERATIONS ............................................................................................................ 21

Operation ...................................................................................................................................21

SECTION 5: ACCESSORIES ......................................................................................................... 22

SECTION 6: MAINTENANCE ........................................................................................................ 25

Schedule ...................................................................................................................................25

Cleaning Exterior .......................................................................................................................25

Cleaning Canister Filter .............................................................................................................26

Emptying Dust Tray ...................................................................................................................27

Replacing Canister Filter ...........................................................................................................27

Replacing HEPA Filter ...............................................................................................................28

Cleaning Ducts ..........................................................................................................................29

Cleaning Impeller ......................................................................................................................30

SECTION 7: SERVICE ................................................................................................................... 31

Troubleshooting .........................................................................................................................31

SECTION 8: PNEUMATIC SYSTEM .............................................................................................. 34

Pneumatic System Diagram .....................................................................................................34

SECTION 9: WIRING ...................................................................................................................... 35

Wiring Safety Instructions .........................................................................................................35

Wiring Diagram 120V ................................................................................................................36

Wiring Diagram 240V ................................................................................................................37

SECTION 10: PARTS ..................................................................................................................... 38

Main ...........................................................................................................................................38

Labels & Cosmetics ..................................................................................................................40

WARRANTY & RETURNS .............................................................................................................. 41

Page 4

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and serial number

Manufacture Date

Serial Number

-2-

Model G0966 (Mfd. Since 04/23)

Page 5

To reduce your risk of serious injury, read this entire manual BEFORE

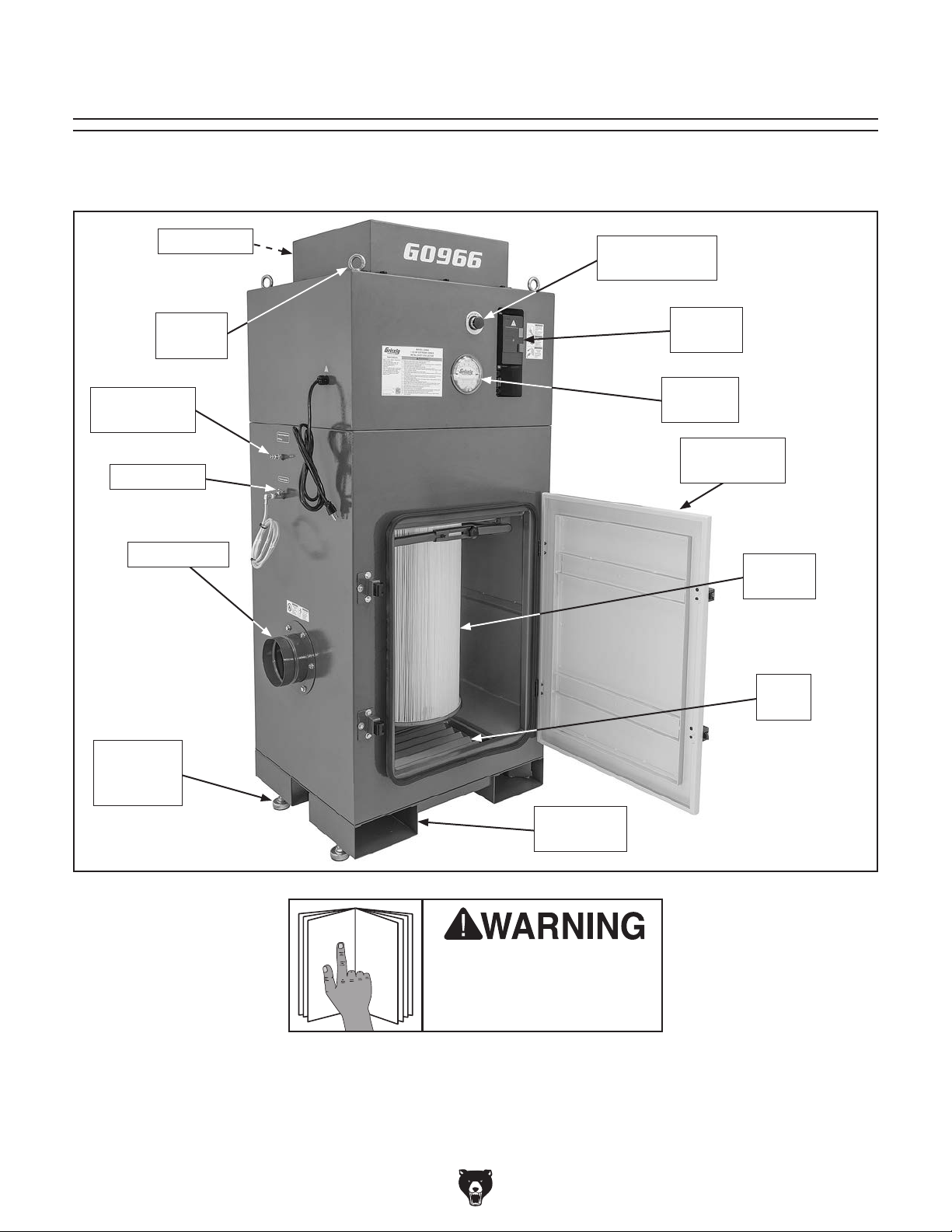

Identification

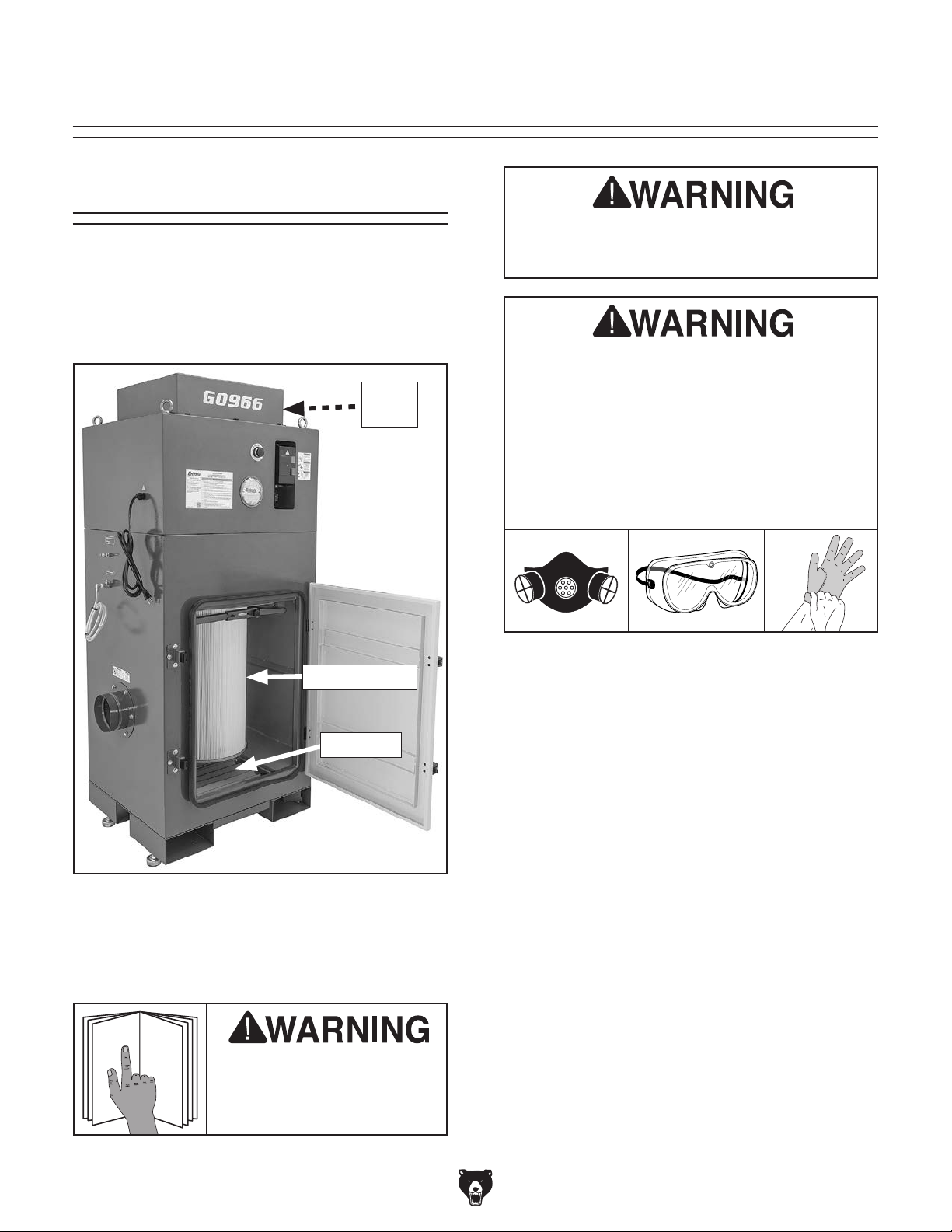

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

HEPA Filter

Eye Bolt

(1 of 4)

Compressed

Air Port

Drain Valve

6" Dust Port

AIR PULSE

CLEAN Button

ON/OFF

Buttons

Pressure

Gauge

Maintenance

Door

Canister

Filter

Dust Tray

Adjustable

Foot

(1 of 4)

Model G0966 (Mfd. Since 04/23)

Forklift Slot

(1 of 2)

using machine.

-3-

Page 6

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

precautions are overlooked or ignored,

Controls

Components

using machine.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety

serious personal injury may occur.

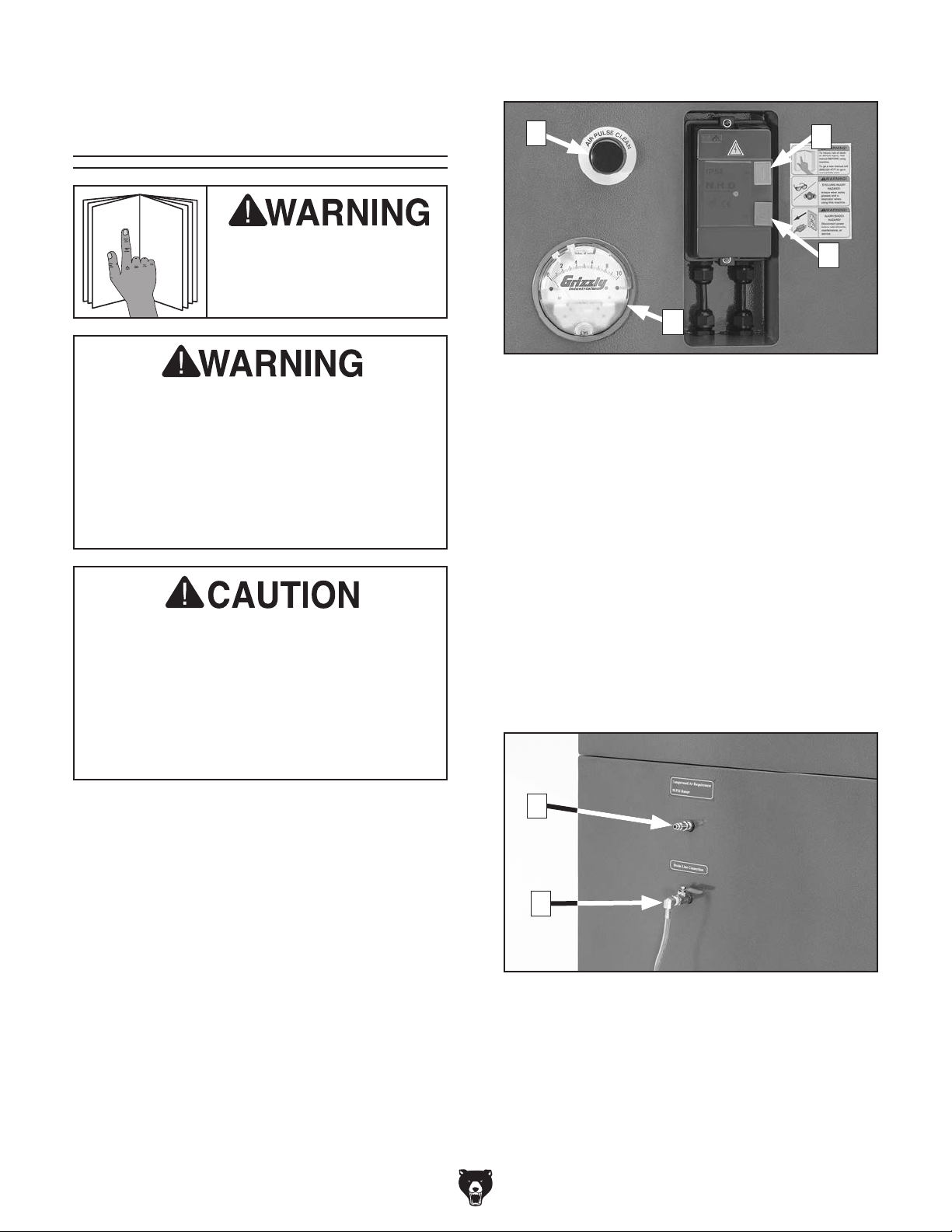

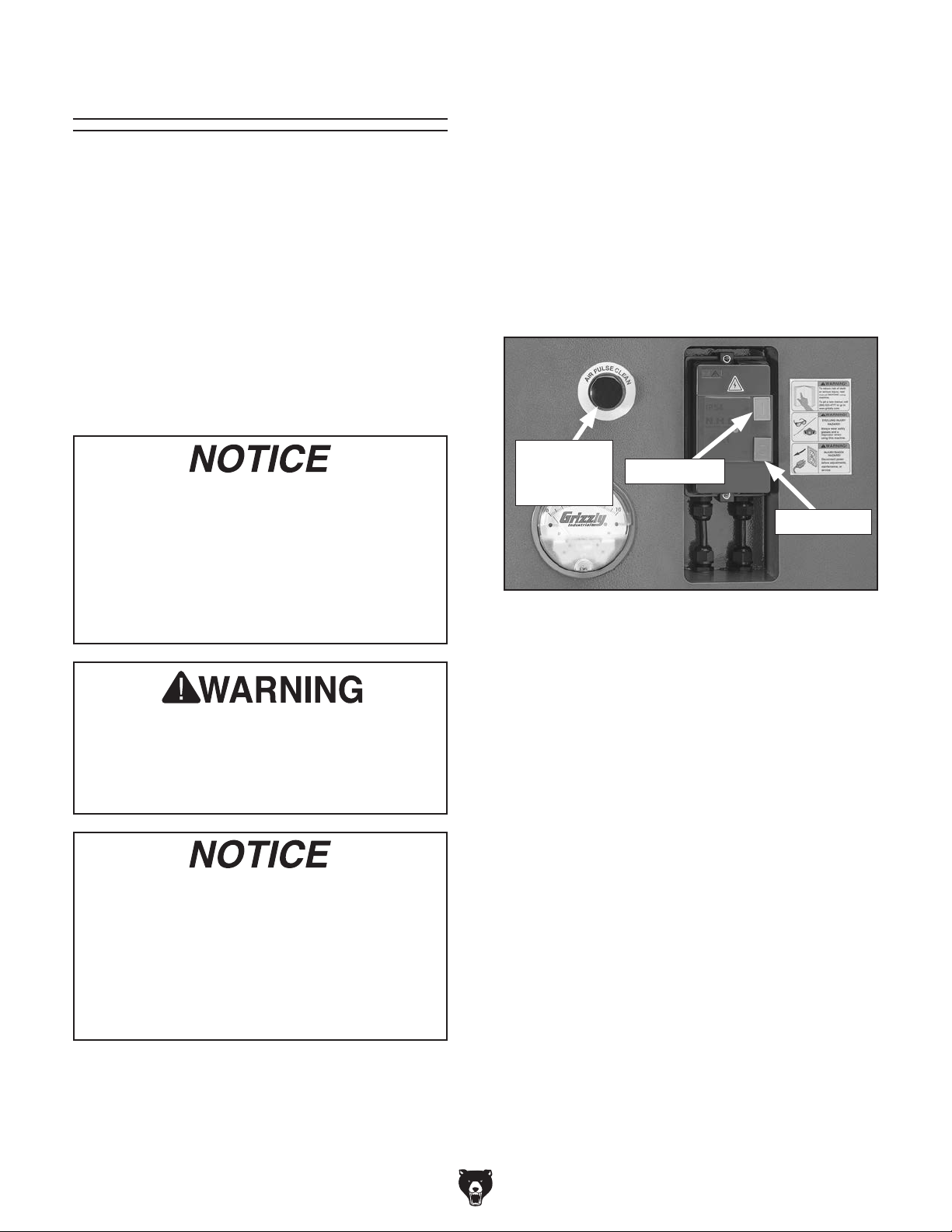

Figure 1. Controls.

A. AIR PULSE CLEAN Button: Pulses com-

pressed air to clean canister.

B. ON Button: Turns machine ON when

pressed.

C. OFF Button: Turns machine OFF when

pressed.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

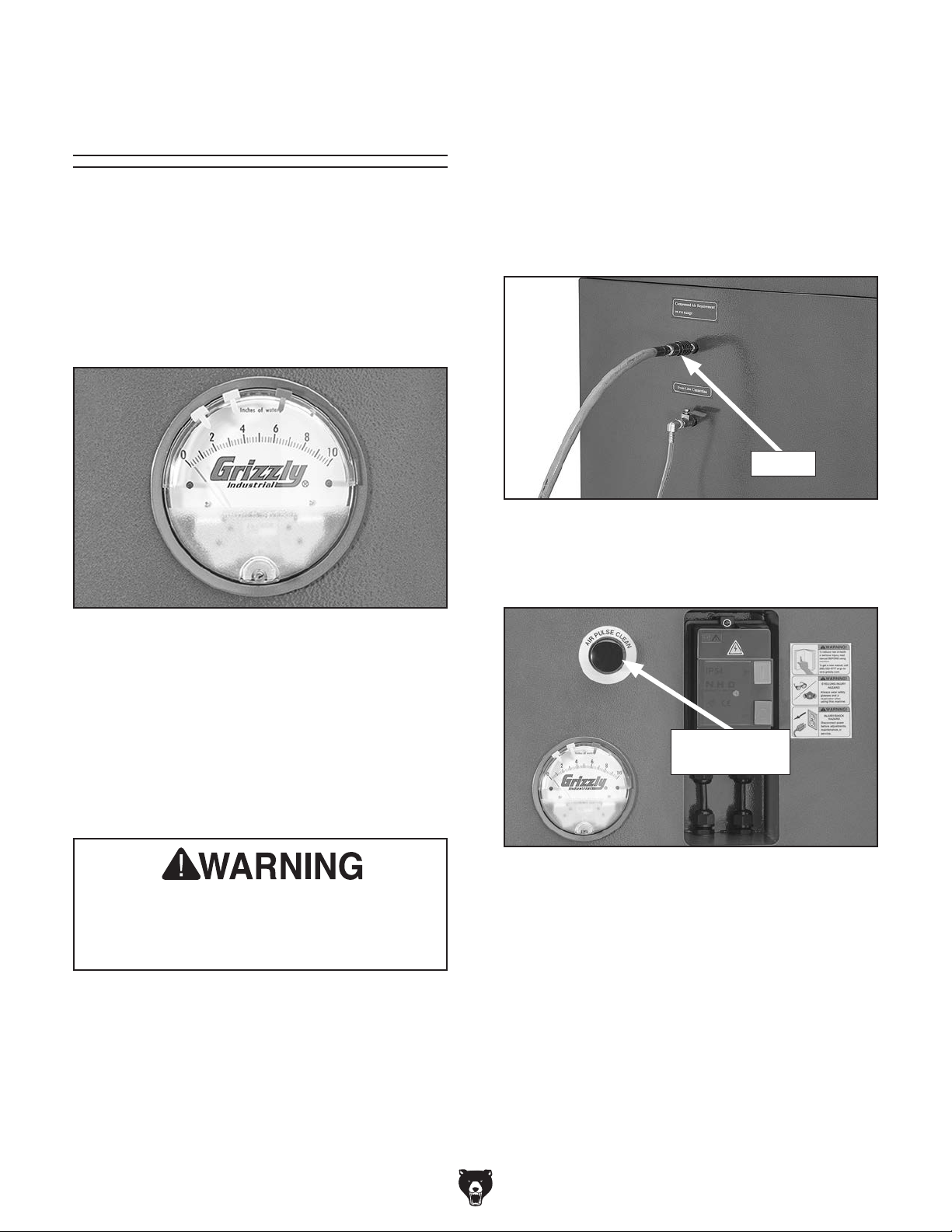

D. Pressure Gauge: Displays vacuum pres-

sure, indicating filter efficiency. Remove and clean canister filter when operating pressure exceeds 6" of water. Replace filter when cleaning does not improve performance.

Air Components

Figure 2. Air components.

E. Air Inlet: Accepts 1⁄4" NPT industrial quick-

connect coupler attached to proper air supply equipment. Incoming air pressure should not exceed 90 PSI.

-4-

F. Drain Valve: Drains built-up moisture from

air pressure tank when ball valve is opened.

Model G0966 (Mfd. Since 04/23)

Page 7

Machine Data Sheet

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0966

1-1/2 HP EXTREME-SERIES METAL DUST COLLECTOR

Product Dimensions:

Weight ..............................................................................................................................................................513 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .............................................................33-1/2 x 29 x 74-1/2 in.

Footprint (Length x Width) .......................................................................................................................... 30 x 26 in.

Shipping Dimensions:

Type ..........................................................................................................................................................Wood Crate

Content ............................................................................................................................................................ Machine

Weight ..............................................................................................................................................................661 lbs.

Length x Width x Height ...................................................................................................................... 36 x 33 x 83 in.

Must Ship Upright .................................................................................................................................................. Yes

Electrical:

Power Requirement ............................................................................................ 120V or 240V, Single-Phase, 60 Hz

Prewired Voltage .................................................................................................................................................. 120V

Full-Load Current Rating ...................................................................................................... 18A at 120V, 9A at 240V

Minimum Circuit Size ......................................................................................................... 20A at 120V, 15A at 240V

Connection Type .......................................................................................................................................Cord & Plug

Power Cord Included ............................................................................................................................................. Yes

Power Cord Length ........................................................................................................................................... 118 in.

Power Cord Gauge .........................................................................................................................................14 AWG

Plug Included ......................................................................................................................................................... Yes

Included Plug Type ................................................................................................................................ 5-20 for 120V

Recommended Plug Type ..................................................................................................................... 6-15 for 240V

Switch Type ....................................................................................................Magnetic Switch w/Overload Protection

Motors:

Main

Horsepower .......................................................................................................................................... 1-1/2 HP

Phase ............................................................................................................................................Single-Phase

Amps .......................................................................................................................................................18A/9A

Speed ................................................................................................................................................ 3450 RPM

Type .................................................................................................................TEFC Capacitor-Start Induction

Power Transfer .......................................................................................................................................... Direct

Bearings .....................................................................................................Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type .......................................................................................................... Internal

Model G0966 (Mfd. Since 04/23)

-5-

Page 8

Main Specifications:

Operation Information

Dust Collector Type ....................................................................................................................................Metal

Airflow Performance ....................................................................................................... 884 CFM at 2.2 in. SP

Max. Static Pressure (at 0 CFM) ............................................................................................................. 8.3 in.

Main Inlet Size ............................................................................................................................................. 6 in.

Machine Collection Capacity At One Time ...................................................................................................... 1

Max. Material Collection Capacity ..................................................................................................... 0.55 cu. ft.

Air Input Connection Type ....................................................................... Industrial Quick-Coupler Plug (Male)

Air Input Connection Size ....................................................................................1/4" NPT Threads, 1/4" Body

Tank Size ..............................................................................................................................................1 Gallon

Maximum Tank Pressure ........................................................................................................................ 90 PSI

Drain Valve Type ................................................................................................................................ Ball Valve

Filter Information

Number of Filters .............................................................................................................................................. 2

Number of First-Stage Filters ........................................................................................................................... 1

First-Stage Filter Type ..................................................................................................................Canister Filter

First-Stage Filter Rating ................................................................................................ 0.2 - 2 Microns @ 95%

First-Stage Filter Size ................................................................................................................... 380 x 660mm

First-Stage Filter Surface Area ....................................................................................................... 161.4 sq. ft.

Number of Second-Stage Filters ...................................................................................................................... 1

Second-Stage Filter Type ............................................................................................................... HEPA Filter

Second-Stage Filter Rating ............................................................................................0.3 Microns @ 99.99%

Second-Stage Filter Size ................................................................................................... 457 x 508 x 150mm

Second-Stage Filter Surface Area ..................................................................................................... 134 sq. ft.

Impeller Information

Impeller Type ..................................................................................................................................... Radial Fin

Impeller Size .......................................................................................................................................... 12.1 in.

Impeller Blade Thickness ....................................................................................................................... 0.16 in.

Construction

Body ........................................................................................................................................................... Steel

Upper Chamber .......................................................................................................................................... Steel

Collection Drawer ....................................................................................................................................... Steel

Impeller ............................................................................................................................................... Aluminum

Paint Type/Finish ...................................................................................................................... Powder Coated

Other Specifications:

Country of Origin ...............................................................................................................................................Taiwan

Warranty .............................................................................................................................................................1 Year

Approximate Assembly & Setup Time ........................................................................................................10 Minutes

Serial Number Location ...................................................................................................................................ID Label

ISO 9001 Factory ................................................................................................................................................... Yes

Features:

Filters Provide a Combined Surface Area of 295.4 Sq. Ft. Flame-Resistant Canister Filter Collects 95% of Particles at 0.2 - 2 Microns MERV-17 HEPA Filter Vacuum Pressure Gauge Indicates When to Clean/Replace Filters Industrial Quick-Coupler Plug Connection and Air Pulse Button for Pneumatically Cleaning Canister Filter Easy-to-Clean Removable Dust Tray

-6-

Collects

99.99% of Particles at 0.3 Microns

Model G0966 (Mfd. Since 04/23)

Page 9

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0966 (Mfd. Since 04/23)

-7-

Page 10

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-8-

Model G0966 (Mfd. Since 04/23)

Page 11

Additional Safety for Metal Dust Collectors

Long-term respiratory damage, metal toxicity, cancer, or birth defects can occur from improperly using, setting up, or servicing machine, and using this machine without wearing a respirator. Explosions or fire can result if machine is used to capture incorrect materials or if dust/waste material is exposed to an ignition source. To reduce these risks, operator and bystanders MUST completely heed the warnings below.

USE FOR INTENDED PURPOSE. This metal

dust collector is only designed to capture noncombustible or non-explosible metal particles. Collect only one type of metal/material at one time. DO NOT use to capture materials made from wood or wood products. DO NOT use it to collect aluminum, lead, magnesium, niobium, tantalum, titanium, zirconium, hafnium, asbestos, crystalline silica, gypsum, or any other non-metal products. DO NOT use to capture welding fumes, gasses, vapors, liquids, smoke, or ordinary combustible materials. DO NOT connect this dust collector to any machine using a coolant system.

WEAR PROPER PPE. Dust created from cutting, grinding, sanding, etc. may cause cancer, birth defects, or long-term respiratory damage. Be aware of the dust hazards, exposure limits, and toxicity associated with each type of workpiece material being collected. Very fine dust/particles may not be captured by filters and may become airborne in the work area. Anyone working in this same work area MUST wear a NIOSH-approved respirator and eye protection rated for the workpiece material.

TOXIC METALS. Exposure (or over-exposure) to certain types of metal dusts or fumes can result in serious, potentially deadly health effects. To reduce this risk, research toxicity of metal types you work with and always seek to minimize/eliminate exposure to yourself and others.

CLEANING DRAWERS. Wear safety goggles and a NIOSH-approved respirator (rated for the metal type) when emptying and cleaning collection drawer and dust tray. Empty only into an approved, closed-top metal container, taking care to minimize amount of dust allowed to become airborne. Prevent spread of dust onto hands or clothing. Dispose of waste properly and according to local regulations for material type.

HIGH-HAZARD MATERIAL. This machine does NOT protect against highly hazardous materials, such as lead dust, asbestos fibers, or radioactive particles. These materials MUST be collected with special filtration equipment because of their high health/contamination hazard and difficulty of filtration. DO NOT attempt to collect such materials with this machine.

RISK OF FIRE/EXPLOSIONS. To minimize static electrical charge, only connect with smoothwalled, sheet-metal ducting—do not use PVC. Entire collection system (collector + ductwork) must be bonded and grounded. Fine metal dust particles can ignite, depending on material type and circumstances. Know about and be prepared to safely fight a combustible metal fire by conducting a combustible screening test under Chapter 4 of NFPA 484. Keep machine away from pilot lights, open flames, or other ignition sources. NEVER use near chemical fumes or within an enclosed spray booth.

Model G0966 (Mfd. Since 04/23)

SAFE OPERATING LOCATION. DO NOT place metal dust collector where it can be exposed to rain or moisture. Exposure to water creates a shock hazard and will reduce life of machine.

PROPERLY MAINTAIN MACHINE. Keep machine in proper working condition to help ensure all guards and components function as intended. Perform routine inspections and all necessary maintenance indicated in owner’s manual. Never operate machine with damaged or worn parts. Duct must be disconnected before service. Never operate machine with filters or covers removed.

-9-

Page 12

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 120V ..... 18 Amps

Full-Load Current Rating at 240V ....... 9 Amps

-10-

Circuit Requirements for 120V

Nominal Voltage .................... 110V, 115V, 120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit .........................20 Amps

Plug/Receptacle ............................. NEMA 5-20

Circuit Requirements for 240V

Nominal Voltage .........208V, 22 0V, 230V, 240V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

Model G0966 (Mfd. Since 04/23)

Page 13

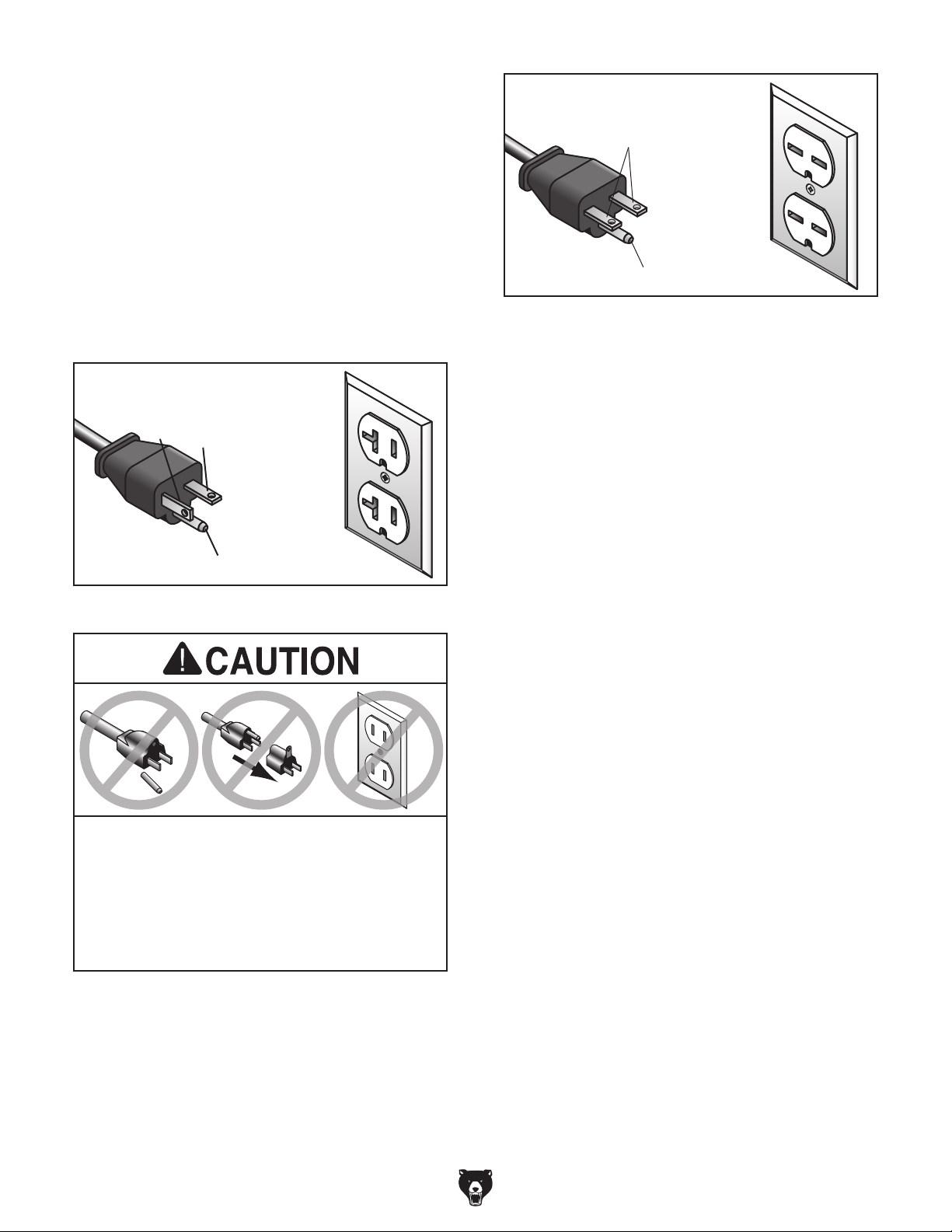

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

For 120V operation: This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

For 240V operation: The plug specified under “Circuit Requirements for 240V” on the previous page has va grounding prong that must be attached to the equipment-grounding wire on the included power cord. The plug must only be inserted into a matching receptacle (see following figure) that is properly installed and grounded in accordance with all local codes and ordinances.

Two-prong outlets do not meet the grounding requirements for this machine.

GROUNDED

5-20 RECEPTACLE

Hot

Neutral

5-20 PLUG

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Grounding Pin

Figure 4. Typical 6-15 plug and receptacle.

Grounding Pin

Figure 3. Typical 5-20 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground.

Model G0966 (Mfd. Since 04/23)

Extension Cords

Minimum Gauge Size ........................... 12 AWG

Maximum Length (Shorter is Better) .......50 ft.

-11-

Page 14

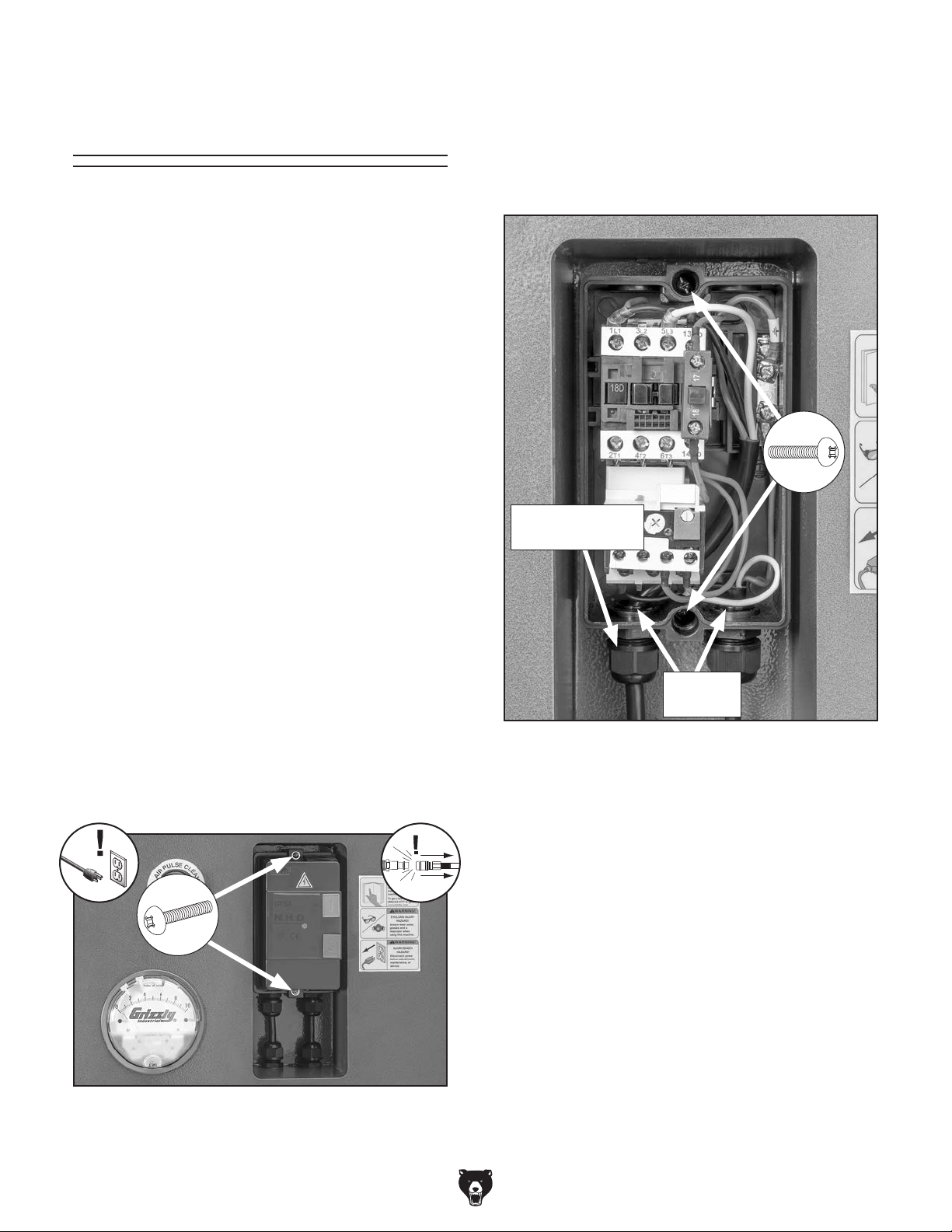

Converting Voltage

to 240V

The voltage conversion MUST be performed by an electrician or qualified service personnel.

The voltage conversion procedure consists of replacing the magnetic switch, rewiring the motor, and installing the correct plug.

IMPORTANT: If the wiring diagram included inside the motor junction box conflicts with the wiring diagram on Page 37, the motor may have changed since this manual was printed. Use the diagram included with the motor instead.

Items Needed Qty

Wire Cutter/Stripper ........................................... 1

Open-End Wrench 24mm .................................. 1

Electrical Tape ................................... As Needed

Wire Nut (14AWG) ............................................. 1

Phillips Head Screwdriver #2 ............................ 1

Magnetic Switch Assy 240V (P0966016X) ........ 1

NEMA 6-15 Plug ................................................ 1

4. Loosen (2) strain relief nuts (see Figure 6).

5. Disconnect incoming power, motor, and

ground wires, then remove (2) Phillips head screws to separate switch housing from machine (see Figure 6).

Strain Relief Nut

(1 of 2)

To convert voltage to 240V:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

2. Cut off existing 5-20 plug.

3. Loosen (2) Phillips head screws and remove

magnetic switch cover (see Figure 5).

x 2

Incoming

Wires

Figure 6. 120V magnetic switch assembly.

6. Remove 120V magnetic switch assembly

from machine cabinet and replace with 240V magnetic switch. To connect motor and power cord wires to contactor, overload relay, and ground terminals, refer to Wiring Diagram

240V on Page 37.

7. Install magnetic switch cover.

Figure 5. Location of switch cover screws.

-12-

Model G0966 (Mfd. Since 04/23)

Page 15

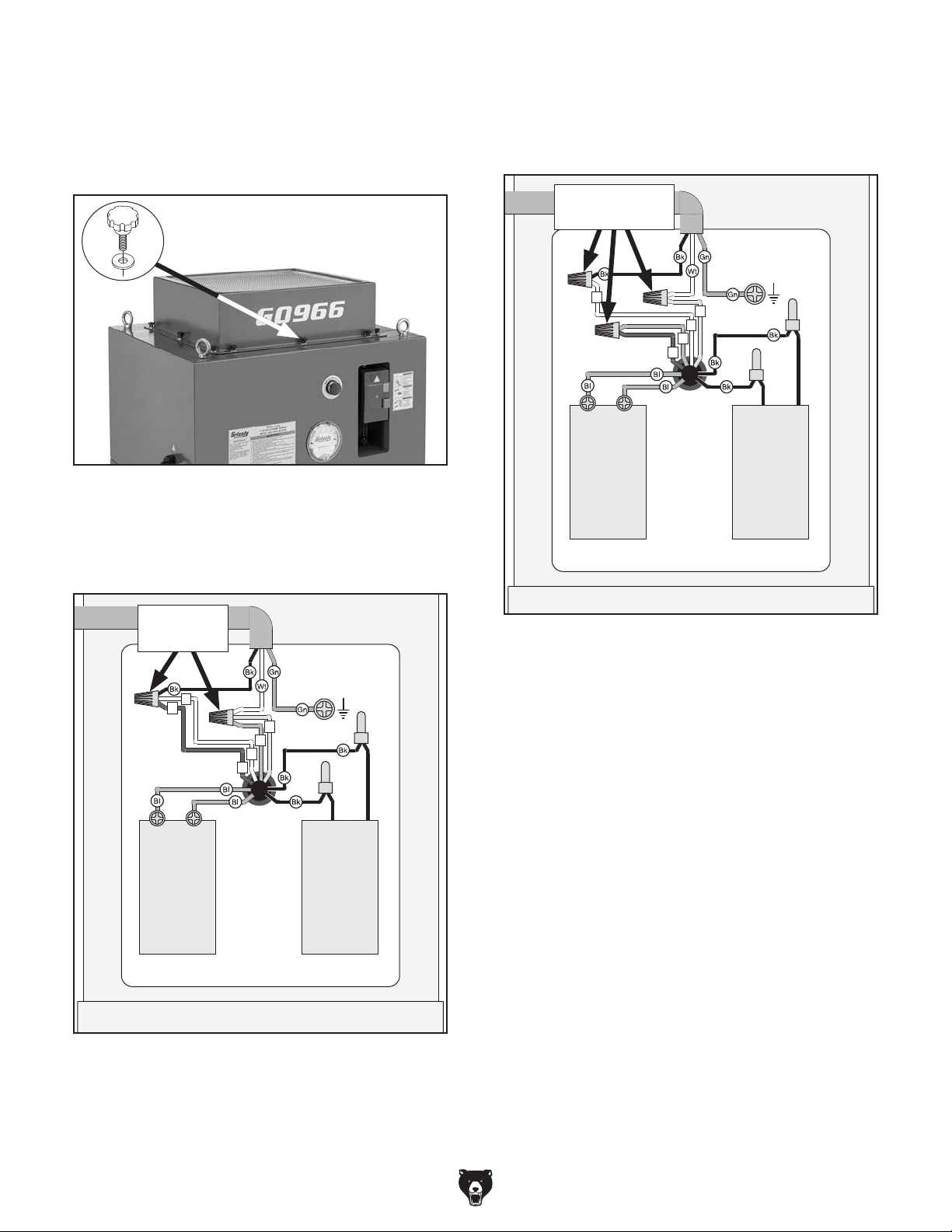

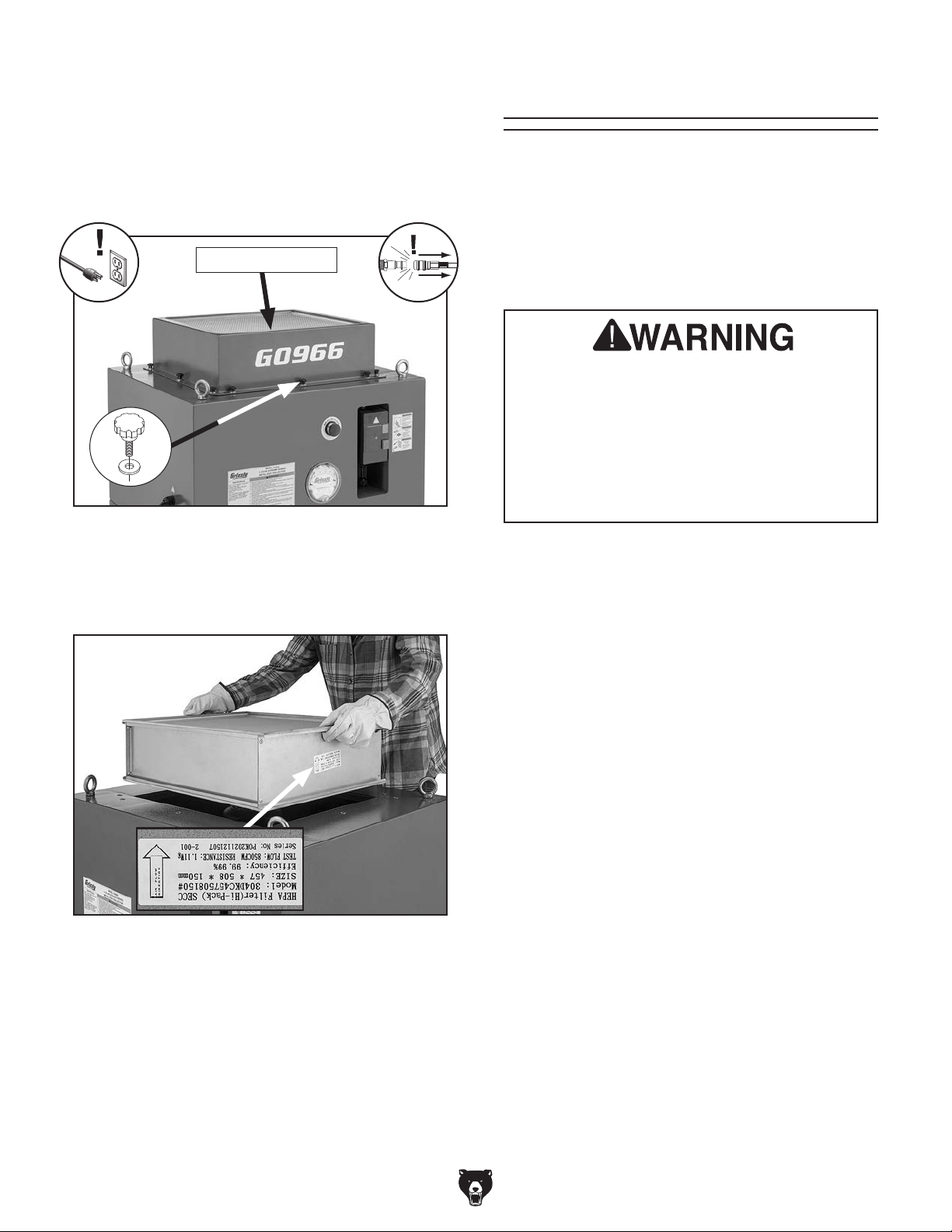

8. Remove (12) knob bolts from HEPA filter

MOTOR 120V/240V

cage (see Figure 7), then remove HEPA filter to access motor junction box. Refer to Replacing HEPA Filter on Page 28 for detailed instructions.

x 12

10. Use wire nuts to connect wires as indicated in Figure 9. Twist wire nuts onto their respec- tive wires and wrap them with electrical tape so they will not come loose during operation.

Connect Wires

w/Nuts Here

Ground

Figure 7. Location of HEPA filter cage knob

bolts.

9. Open motor junction box and remove (2) wire nuts (see Figure 8).

Wire Nuts

to Remove

Start

Capacitor

300MFD

125VAC

Ground

Run

Capacitor

40uF

250VAC

Start

Capacitor

300MFD

125VAC

Run

Capacitor

40uF

250VAC

Rewired 240V

Figure 9. Motor rewired for 240V.

11. Close and secure motor junction box.

12. Install 6-15 plug on end of power cord,

according to plug manufacturer's instructions.

— If plug manufacturer did not include

instructions, wiring of generic NEMA 6-15 plug is illustrated on Page 37.

Prewired 120V

Figure 8. Motor wiring diagram (prewired 120V).

Model G0966 (Mfd. Since 04/23)

-13-

Page 16

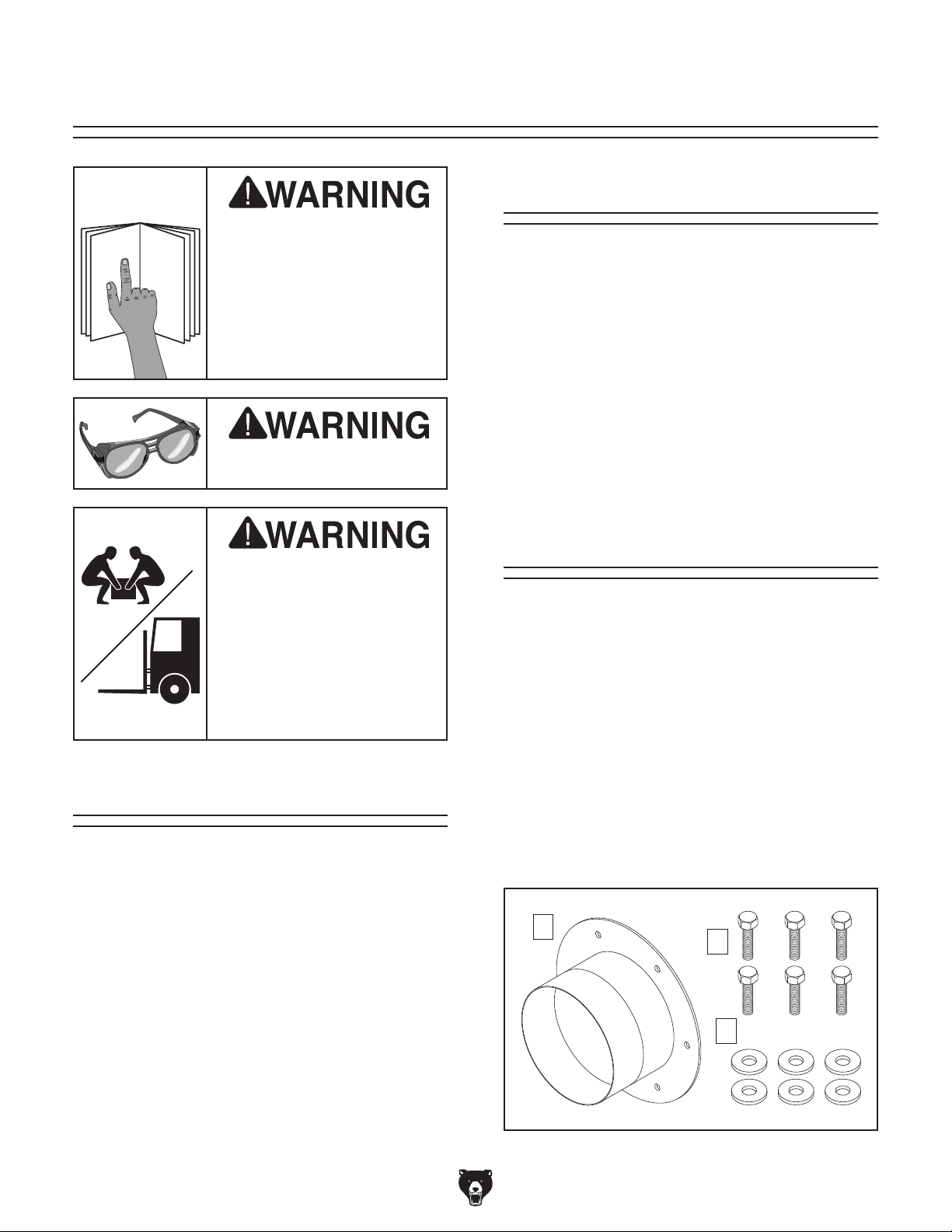

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

call us immediately at (570) 546-9663.

Unpacking

If items are damaged

Inventory

Needed for Setup

Description Qty

• Additional People ....................... As Needed

• Safety Glasses (for each person) ............... 1

• Wrench Open-Ends 17mm ......................... 1

• Wrench or Socket 12mm ............................ 1

• Lifting Straps (Rated for at least 830 lbs.) .. 4

• Lifting Equipment

(Rated for at least 830 lbs.) ........................ 1

• Air Compressor (90 PSI) ............................ 1

• Air Hose with

-14-

⁄4" Industrial Quick-Connect Coupler ... 1

Box 1 (Figure 10) Qty A. G0966 Metal Dust Collector (Not Shown) .. 1

B. Dust Port 6" ................................................ 1

C. Hex Bolts D. Flat Washers

⁄16 "-18 x 3⁄4" ................................ 6

⁄16 "........................................ 6

Figure 10. Inventory

Model G0966 (Mfd. Since 04/23)

Page 17

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

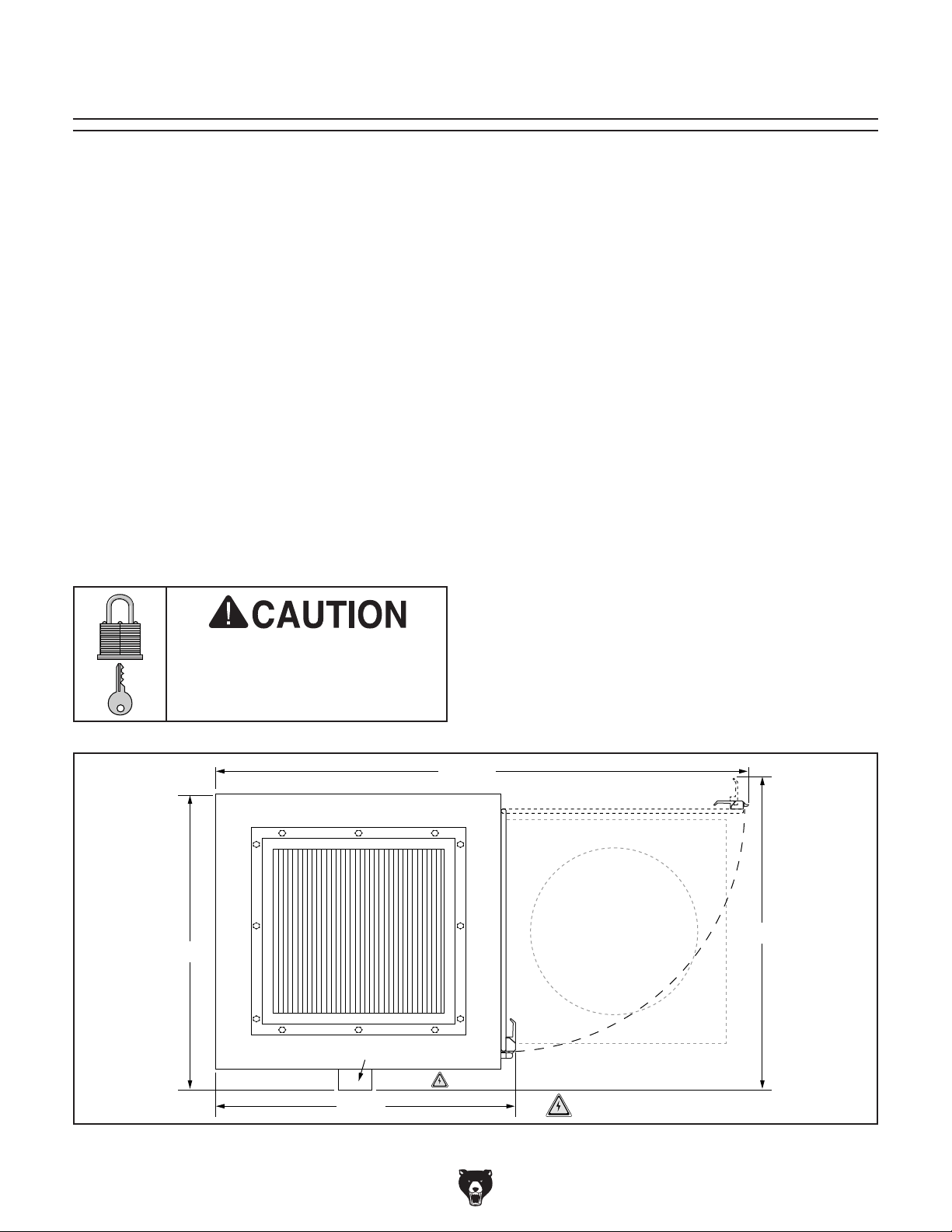

See below for required space allocation.

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks,

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave enough space around machine to disconnect power supply or

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

or bumps.

Electrical Installation

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

331/2"

Dust Inlet

apply a lockout/tagout device, if required.

Lighting

511/2"

371/2"

Model G0966 (Mfd. Since 04/23)

29"

Figure 11. Minimum working clearances.

= Electrical Connection

-15-

Page 18

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process goes smoothly, first clean any ered or coated in heavy-duty rust preventative (if applicable).

Lifting & Placing

Needed for Setup

listed items.

To assemble machine:

1. Attach dust port with (6)

Dust Port

⁄16" flat washers (see Figure 12).

and

parts that are cov-

⁄16"-18 x 3⁄4" hex bolts

x 6

Use a forklift and an assistant to lift the dust collector into place and adjust the leveling feet.

To lift and place machine:

1. Lift machine by using forklift slots or eye bolts (see Figure 13), and set in desired location.

2. With assistant's help, raise or lower adjust-

able feet as needed to stabilize machine (see

Figure 13).

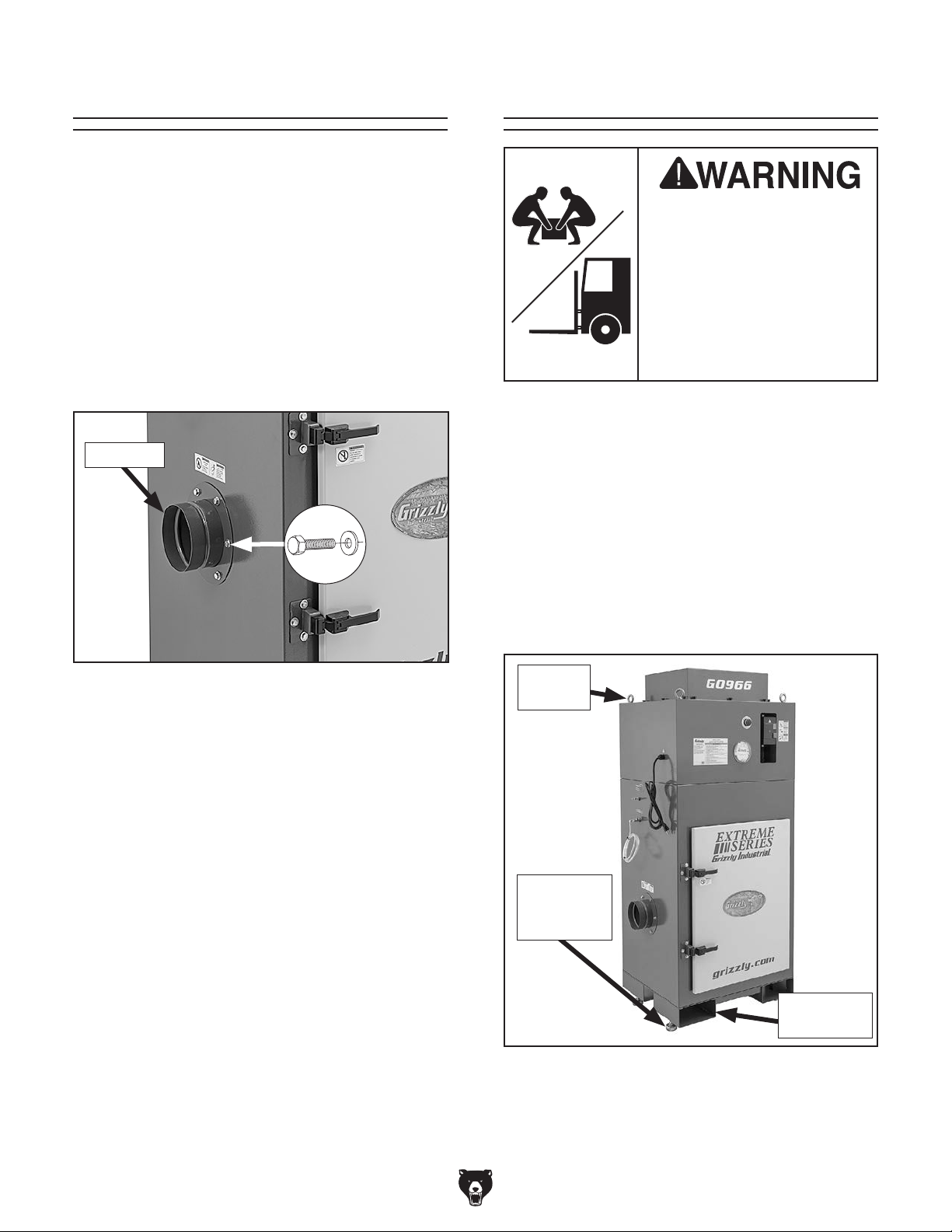

Figure 12. Dust port installed.

-16-

Eye Bolt

(1 of 4)

Adjustable

Foot

(1 of 4)

Forklift Slot

(1 of 2)

Figure 13. Lifting points and adjustable feet.

Model G0966 (Mfd. Since 04/23)

Page 19

Air Supply

Ducting System

The Model G0966 uses compressed air to clean the canister filter. Use only clean, dry air. For best results, use an air line regulator and filter setup similar to the illustration shown in Figure 14. Compressed air supply to this machine should not exceed 90 PSI.

Quick

Connector

Machine

Air Hose

Quick

Coupler

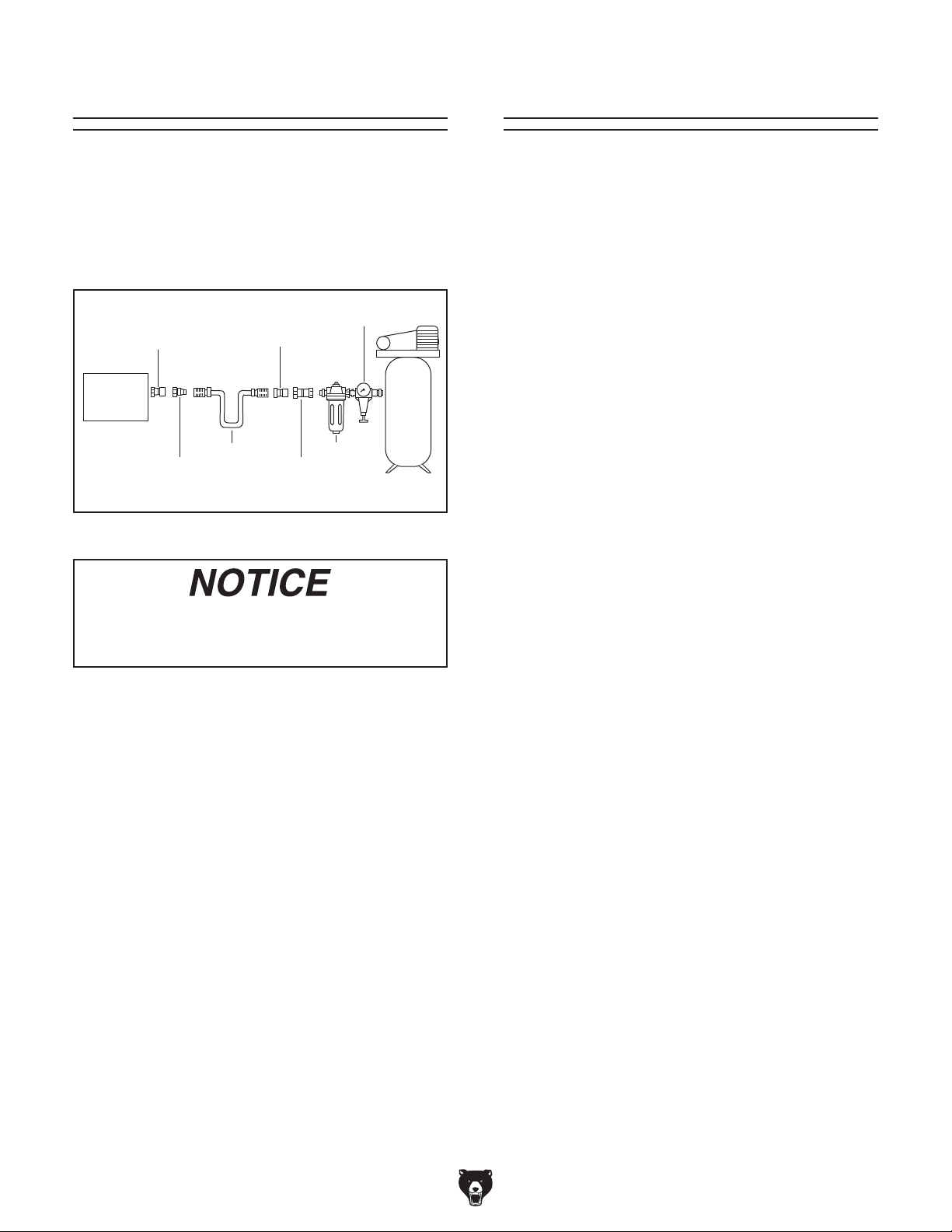

Figure 14. Example of air supply setup.

To reduce moisture buildup inside dust collector air tank, open drain valve to drain air and moisture at the end of each day.

Quick

Connector

Quick

Coupler

Regulator

Filter

Air

Compressor

Overview

This dust collector is designed exclusively to collect dry metal, chips, and swarf. DO NOT use this dust collector to collect wood dust or metal chips containing cutting fluid or coolant. Due to fire or explosion risk, DO NOT use this machine to collect combustible or explosive metals, aluminum, magnesium, niobium, tantalum, titanium, zirconium, hafnium, combustible liquids or fuels, gasoline, or oil- or solvent-based paints.

For best performance, place this dust collector as close to dust-generating machines as possible and install blast gates at the beginning of ducting lines. Only open one line at a time to focus maximum suction at the machine where dust is being collected.

Whatever system design you choose, always make sure to position ducting and collector away from any open flames (including pilot lights); otherwise you risk an explosion if material is dispersed into the air.

Duct Material

For best results, use only smooth-wall, sheetmetal ducting or flexible metal ducting to connect each machine.

Model G0966 (Mfd. Since 04/23)

The National Fire Protection Agency (NFPA) warns of explosion or fire hazard because of static electrical buildup if plastic or non-conductive duct material is used for metal dust collection and is not completely grounded and bonded. We DO NOT recommend using any plastic duct material with this machine.

-17-

Page 20

Metal Ducting

Advantages of metal ducting is its conductivity and that it does not contribute to static electrical charge build-up. However, static charges are still produced when particles strike other dust particles as they move through the duct. Since metal duct is a conductor, it can be grounded quite easily to dissipate any static electrical charges. Replace any plastic dust ports with sheet-metal equivalents, or bond sheet metal ducting to metal frame of machine with grounding wire.

Always guard against static electrical build up by grounding all collection lines.

There are a number of options when it comes to metal duct, but duct that is specially manufactured for metal dust collection is the best choice. When selecting your metal duct, choose high-quality metal duct with smooth-welded internal seams that will minimize airflow resistance. This type of duct usually connects to other ducts or elbows with a simple, self-sealing clamp, is very quick and easy to assemble, and can be readily dismantled and re-installed. This is especially important if you ever need to change things around in your shop or add more tools.

Avoid inferior metal duct that requires you to cut it to length and snap it together. This type of duct is time-consuming to install because it requires you to seal all the seams with silicone and screw the components on the ends with sheet-metal screws. Another disadvantage is the rough internal seams and crimped ends that unavoidably increase static pressure loss.

Flexible Duct

Flexible hose is generally used for short runs and at rigid duct-to-machine connections. The superior choice here is metal flex hose that is designed to be flexible, yet be as smooth as possible inside to reduce static pressure loss. DO NOT use dryer vent hose because it tends to collapse.

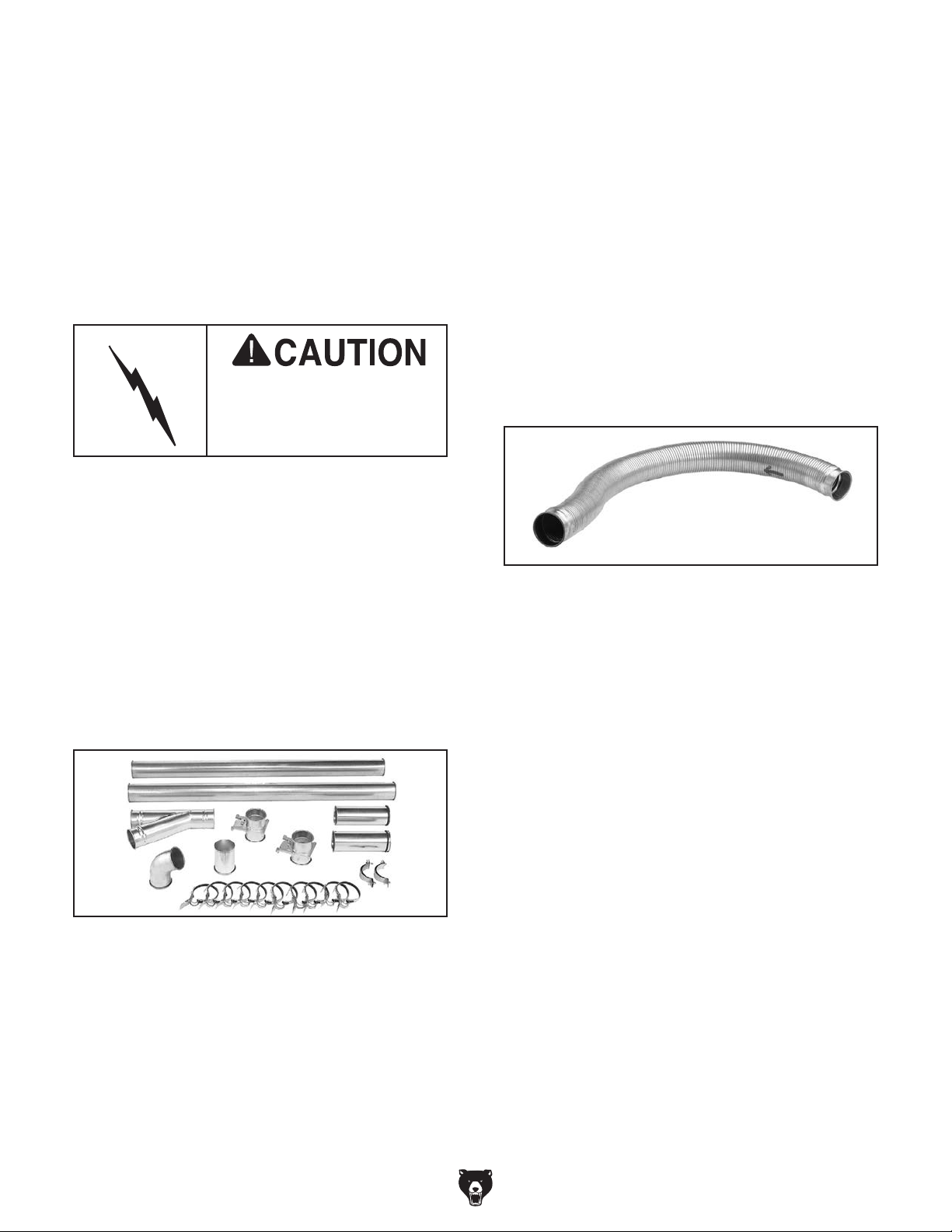

Figure 16. Example of flexible metal duct.

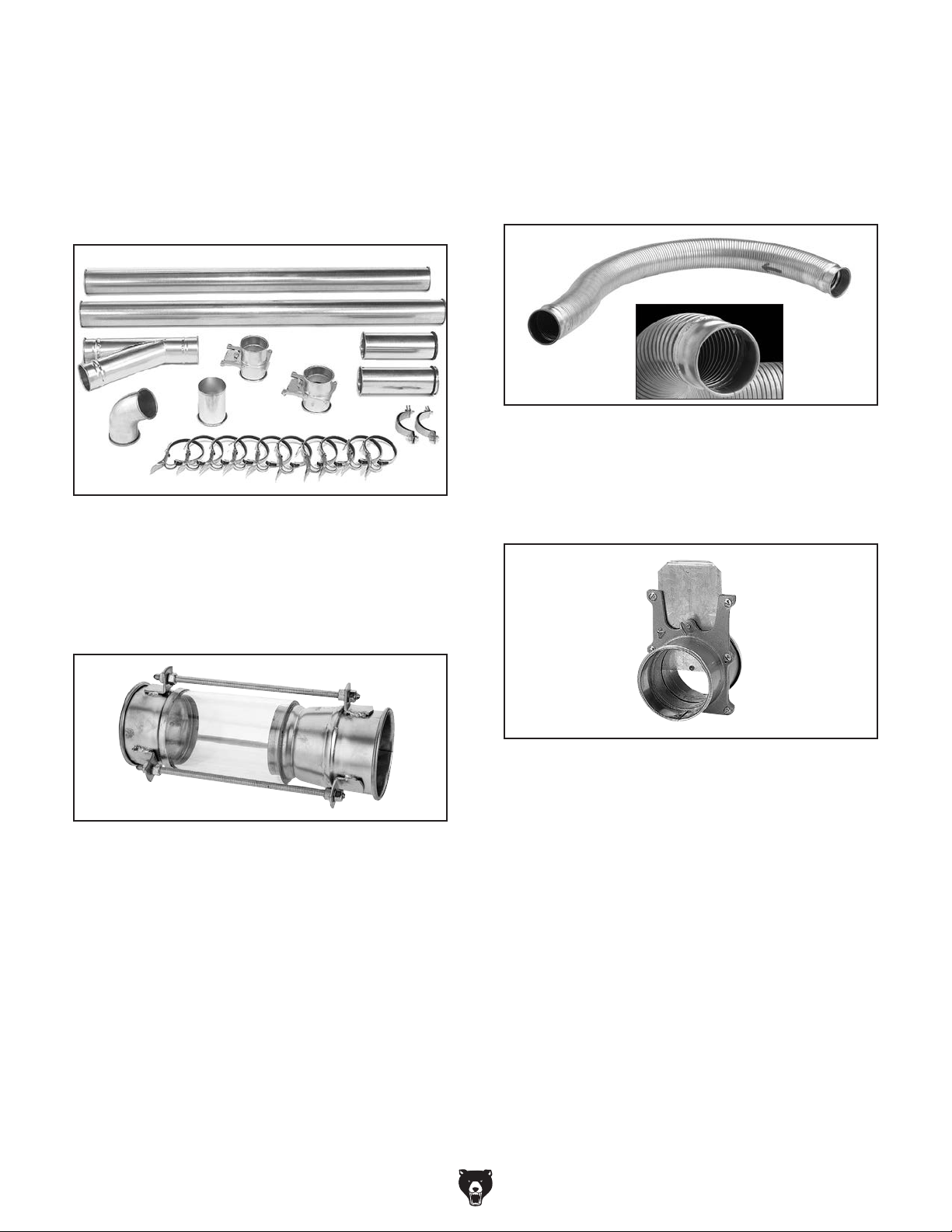

Figure 15. Examples of metal duct and

components.

-18-

Model G0966 (Mfd. Since 04/23)

Page 21

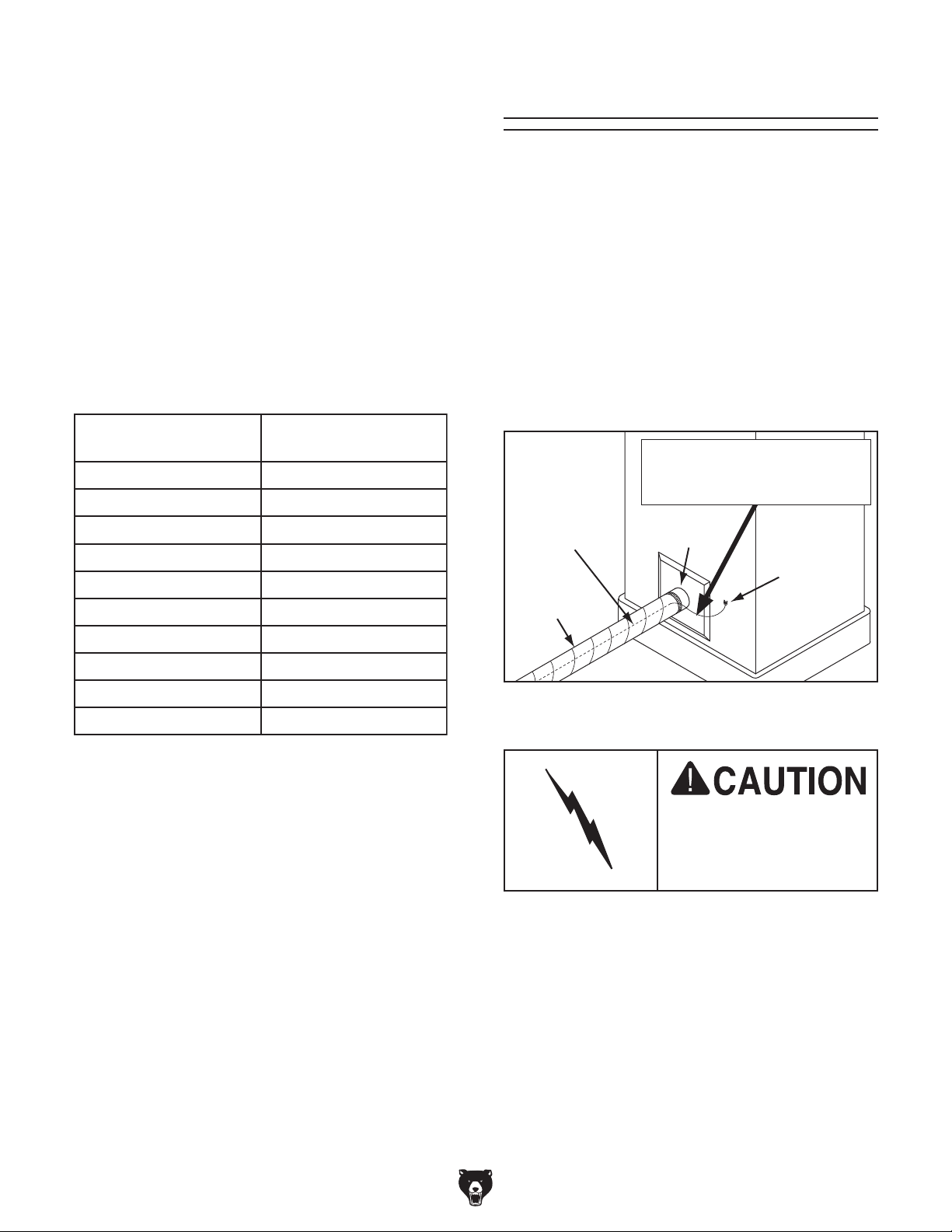

Ensure Required CFM at Machine

Always guard against

Since each machine produces a different amount of dust, the requirements for the minimum amount of CFM to move that dust is unique to the machine. Knowing this required CFM is important to gauging what size duct to use.

For best results when using a Y-inlet, we recommend installing blast gates to control airflow for each line near the Y-inlet.

Refer to Figure 17 for a close estimation of the airflow each dust-producing machine requires. Machines that generate the most dust should be placed as close as possible to the dust collector.

System Grounding

To guard against static electrical buildup, we strongly recommend replacing any plastic dust ports on dust-producing machines with metal equivalents.

If you absolutely must use any plastic duct or components, they must be completely grounded and bonded to the metal frame of a grounded machine by wrapping the flex hose with an external ground wire connected to both machines as shown in Figure 18. Ensure that each machine is continuously grounded to the grounding terminal in your electric service panel.

Machine

Dust Port Size

2" 100

2.5" 150

3" 250

4" 400

5" 600

6" 850

7" 1200

8" 1600

9" 2000

10" 2500

Figure 17. Approximate required airflow for

machines based on dust port size.

Approximate

Required CFM

Grounding wire bypasses

plastic components to bond

ducting to grounded machine

External

Ground Wire

Flex-Hose

Figure 18. Example showing how to ground and

bond ducting with a grounding wire.

Plastic

Dust Port

Ground

Screw

static electrical build up by grounding all dust collection lines.

Model G0966 (Mfd. Since 04/23)

-19-

Page 22

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

Serious injury or death can result from

To test run machine:

1. Connect dust collector to a half-opened blast

gate, 2 clear all setup tools away from machine.

2. Connect machine to power supply.

3. Connect machine to air supply.

⁄2" reducer, or intended machine, then

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the AIR PULSE CLEAN system works properly.

Before starting dust collector, you must first connect it to ducting system with either a blast gate half-opened, a 2 or intended machine connected to other end. This provides resistance necessary for proper machine function. Without this resistance, machine will draw too many amps from circuit and cause breaker to trip.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

⁄2" reducer,

4. Turn machine ON, verify motor operation, and then turn machine OFF (see Figure 19).

AIR PULSE

CLEAN

Button

Figure 19. Location of controls.

Motor should run smoothly and without

unusual problems or noises.

5. Press AIR PULSE CLEAN button, then release.

Pulse of air should be released into canister

filter accompanied by a quick bang.

ON Button

OFF Button

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-20-

— If you suspect any problems, immediately

turn machine OFF and disconnect it from power source and air supply. Refer to Troubleshooting on Page 31 to identify and fix any problems. If you cannot solve the problem with the Troubleshooting guide, contact our Tech Support at (570) 546-9663 for assistance.

Model G0966 (Mfd. Since 04/23)

Page 23

SECTION 4: OPERATIONS

To reduce your risk of serious injury, read this entire manual BEFORE

this machine. Wear personal protective

Operation

This metal dust collector draws metal dust into a dust collection tray (see Figure 20) and discharges air through a HEPA filter. The dust tray is located inside the main compartment beneath the canister filter.

HEPA

Filter

Never operate machine with damaged or worn parts. Never operate machine with filters, guards, or covers removed.

Eye and face injuries and respiratory problems can occur while operating or cleaning

equipment to reduce your risk from these hazards. Wear NIOSH-approved respirator, ANSI-approved safety goggles, and leather gloves whenever checking or emptying collection tray and air filter. Keep metal dust off clothes and skin.

Canister Filter

Dust Tray

Figure 20. Location of filters and dust tray.

When the machine is not in use, unplug it from the power source and disconnect the air supply to avoid accidental startup.

using machine.

To complete a typical operation, operator does the following:

1. Connects dust collector to dust-producing

machine.

2. Connects dust collector to power supply, then to compressed air supply.

3. Turns metal dust collector ON, then turns dust-producing machine ON and performs operation.

4. Turns dust-producing machine OFF when operation is complete.

5. Turns metal dust collector OFF when finished with operation or to clean canister filter (see

Page 26).

6. Disconnects machine from air and power

supply, then opens drain valve to drain air and moisture from air tank.

Model G0966 (Mfd. Since 04/23)

7. Cleans dust tray (see Page 27).

-21-

Page 24

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Basic Eye Protection

T32323—Woodturners Face Shield T32401—EDGE Brazeau Safety Glasses, Clear T32402—EDGE Khor G2 Safety Glasses, Tint T32404—EDGE Mazeno Safety Glasses, Clear

H5293—4" Metal Duct Starter Kit H5295—5" Metal Duct Starter Kit H5297—6" Metal Duct Starter Kit

Save over 25% with this great starter kit. Includes: (2) machine adapters, (10) pipe clamps, (3) 5' straight pipes, (1) branch, (3) pipe hangers, (1)

end cap, (3) adjustable nipples, (1) 90˚ elbow, and (1) 60˚ elbow.

T32323 T32401

T32402

Figure 21. Assortment of basic eye protection.

T32404

Figure 22. Metal duct starter kit.

T33837—Replacement HEPA Filter T33838—Replacement Canister Filter

T33838

T33837

Figure 23. T33837 & T33838 replacement filters.

-22-

Model G0966 (Mfd. Since 04/23)

Page 25

H5294—4" Metal Duct Machine Addition Kit

order online at www.grizzly.com or call 1-800-523-4777

H5296—5" Metal Duct Machine Addition Kit H5298—6" Metal Duct Machine Addition Kit

Save over 20% with this great machine addition kit. Includes: (2) blast gates, (1) machine adapter, (10) pipe clamps, (2) pipe hangers, (2) 5' straight pipes, (2) adjustable nipples, (1) branch, and (1)

60˚ elbow.

Figure 24. Metal duct machine addition kits.

H7215—4" x 5' Rigid Metal Flex Hose H7216—5" x 5' Rigid Metal Flex Hose H7217—6" x 5' Rigid Metal Flex Hose

This flex hose provides just enough flexibility to make difficult connections while still keeping the inside wall as smooth as possible to minimize static pressure loss.

Figure 26. Rigid metal flex hose.

G6177—4" Metal Blast Gate G7340—5" Metal Blast Gate G7358—6" Metal Blast Gate

Control airflow and resistance between machines.

T27419—Viewing Spool 5" T27420—Viewing Spool 6"

This viewing spool is a section of acrylic glass with QF ends so you can inspect material flow.

Ends are 22-gauge. Total length 12

⁄2 ".

Figure 25. Viewing spools.

Figure 27. Metal blast gates.

Model G0966 (Mfd. Since 04/23)

-23-

Page 26

Reducers & Adapters

order online at www.grizzly.com or call 1-800-523-4777

We carry a multitude of smooth-wall metal reducers, adapters, and fittings.

G8009

G6167 4", 45°

Figure 28. Metal reducers & adapters.

G6163—4" Dust Collection Pipe Clamp G7343—5" Dust Collection Pipe Clamp G7361—6" Dust Collection Pipe Clamp

These clamps feature lever latches and foam seals that secure around the rolled ends of fittings and pipe.

G7337 4" x 5"

W1050—Dust Collection Basics Book

This incisive book skillfully guides the woodworker through all the steps necessary in the design and construction of an efficient central dust collection system and tells you what you need to know for easy installation. The text offers practical hints and techniques and takes the mystery, misery and hype away from a subject that should be as clear as the air you breathe. 64 pages of concise, carefully illustrated text. A Must!

Figure 31. W1050 Dust Collection Basics Book.

Figure 29. Dust collection pipe clamps.

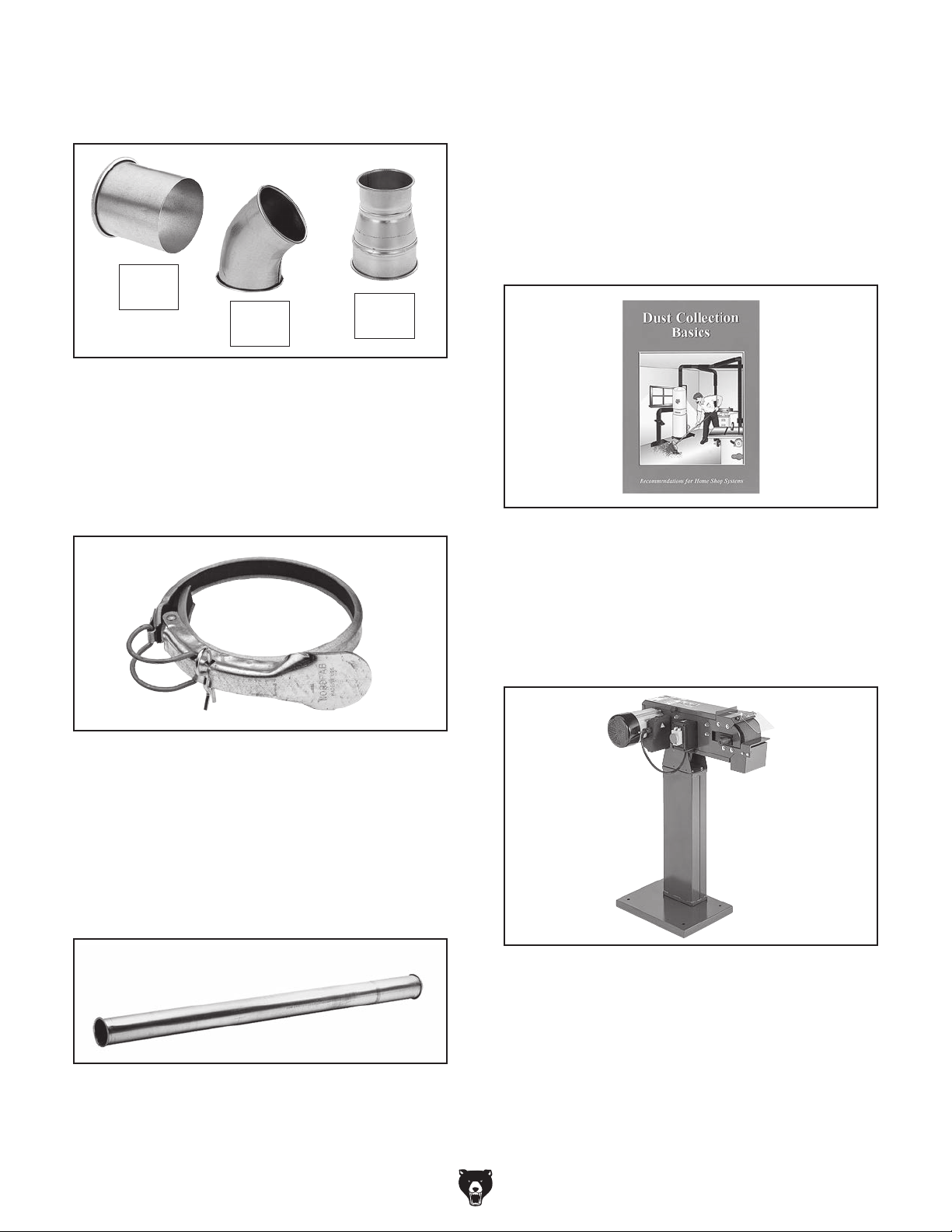

Metal Ducting

G6162—4" x 5' Straight Metal Pipe G7346—5" x 5' Straight Metal Pipe G7364—6" x 5' Straight Metal Pipe

These laser welded straight pipes ensure a super smooth internal seam. Ends easily clamp together for a sealed fit without screws or silicone.

G0897—4"x 48" Metal Belt Grinder/Sander

Featuring the popular 4" wide belt, the G0897 is great for knife making and many more uses. The powerful 2 HP motor moves the belt at 4500 FPM, allowing you to easily remove material from even the toughest steel.

Figure 32. G0897 Metal belt grinder/sander.

Figure 30. Straight metal pipe.

-24-

Model G0966 (Mfd. Since 04/23)

Page 27

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Cleaning Exterior

To clean the exterior of the Model G0966, use a soft bristle brush and shop vacuum with a HEPA filter, then wipe off remaining dust with a soft, dry cloth.

Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protective gloves when removing, cleaning, and replacing filters or dust tray. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or clothing. Properly dispose of all waste according to local regulations for material type.

• Fire hazards/smoldering metal dust.

• Loose mounting bolts.

• Damaged or worn filters.

• Damaged or worn door gasket/seal.

• Worn or damaged wires.

• Any other unsafe condition.

Daily Maintenance

• Empty dust tray.

• Drain air tank.

• Clean canister filter using AIR PULSE CLEAN button.

• Check pressure gauge for proper operating pressure. If operating pressure exceeds 6" of water, refer to Replacing Canister Filter on

Page 27.

Monthly Maintenance

• Clean dust buildup from inside cabinet and off motor.

• Inspect/clean inside ducts and fittings.

Model G0966 (Mfd. Since 04/23)

-25-

Page 28

Cleaning Canister

Filter

The Model G0966 uses air pulse technology to remove metal chip particles from the canister filter pleats. A new filter will produce 2" of water or less of vacuum pressure. As the dust collector is used and the filter traps more particles, the vacuum pressure will gradually increase. The filter is considered effective when operating up to 6" of water (see Figure 33).

To clean canister filter:

1. Turn dust collector OFF.

2. Connect compressed air hose to air port (see Figure 34).

IMPORTANT: To avoid damage to machine,

do not exceed 90 PSI of air pressure.

Air Port

Figure 34. Air hose attached.

Figure 33. Pressure gauge.

Clean the canister filter using AIR PULSE CLEAN button daily, or when vacuum pressure increases.

When the vacuum pressure nears 6" of water and will no longer decrease after being cleaned with the AIR PULSE CLEAN button, the filter must be replaced. For detailed instructions, refer to

Replacing Canister Filter on Page 27.

To reduce the risk of dust exposure, DO NOT clean canister filter with AIR PULSE CLEAN button unless maintenance door is closed and latched.

3. Press AIR PULSE CLEAN button one or two

times (see Figure 35).

AIR PULSE

CLEAN Button

Figure 35. Location of AIR PULSE CLEAN

button.

4. Repeat Step 3 1–2 more times.

5. Allow dust to settle for at least 30 seconds, then empty dust tray (refer to Emptying Dust Tray on Page 27).

-26-

6. Turn dust collector ON to ensure vacuum pressure is within normal operating range.

Model G0966 (Mfd. Since 04/23)

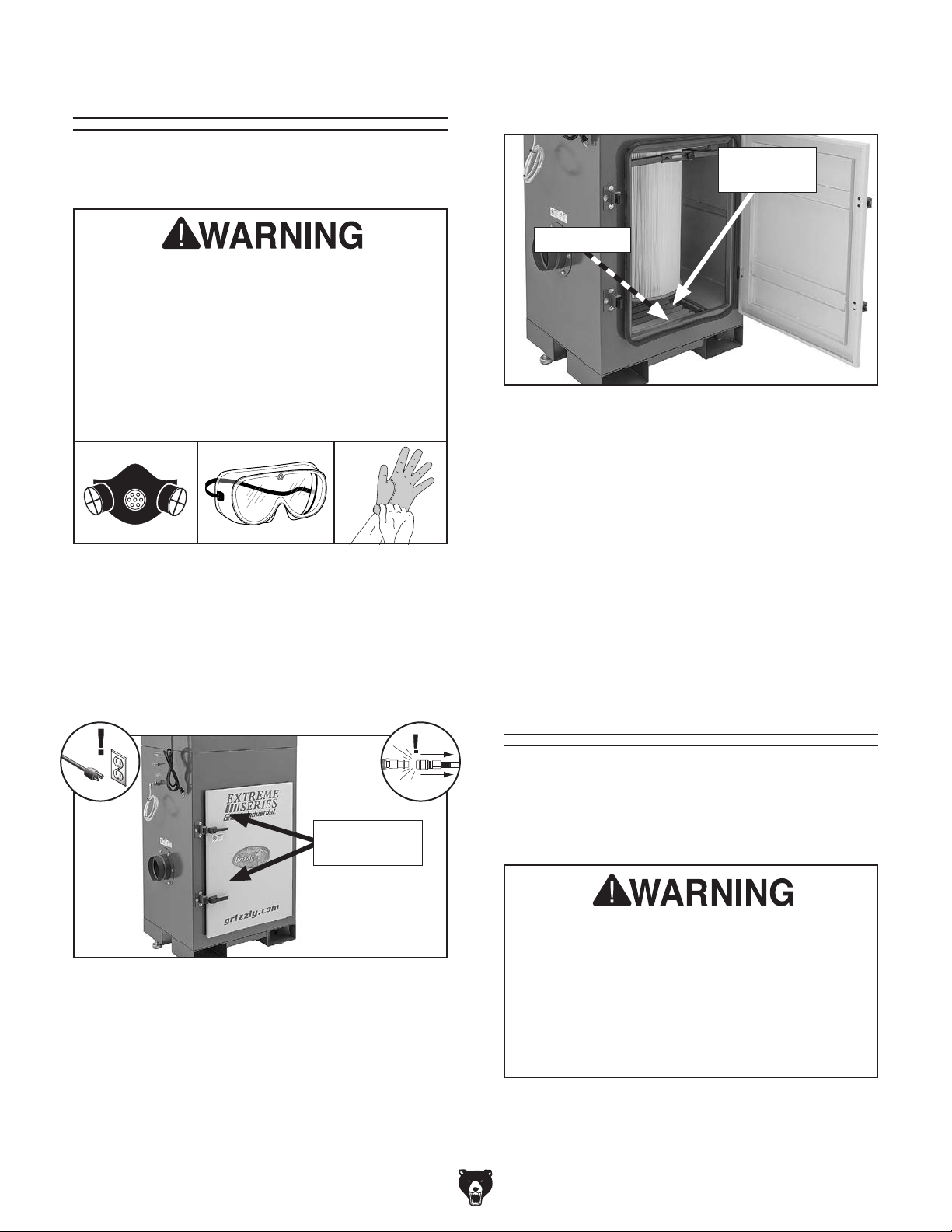

Page 29

Emptying Dust Tray

3. Using handle slot, lift dust tray up and out of

cabinet (see Figure 37).

Frequently monitor and empty dust tray as necessary during operations.

Eye and face injuries and respiratory problems can occur while operating or cleaning this machine. Wear personal protective equipment to reduce your risk from these hazards. Wear NIOSH-approved respirator, ANSI-approved safety goggles, and leather gloves whenever checking or emptying dust tray and canister filter. Keep metal dust off clothes and skin.

To empty dust tray:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

Tray Insert

(1 of 2)

Handle Slot

Figure 37. Dust tray components.

4. Remove tray inserts, then empty tray into

approved, closed-top metal disposal container. Gently use soft bristled brush to remove fine particles from bottom of tray.

5. After cleaning, place inserts into dust tray, then place tray into cabinet.

6. Close and latch maintenance door.

2. Pull to release (2) compression latches and

open maintenance door (see Figure 36).

Compression

Latches

Figure 36. Location of compression latches.

Replacing Canister

Filter

The canister filter should be replaced when the vacuum pressure reaches 6" of water and the AIR PULSE CLEAN function does not improve performance.

Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protective gloves when removing, cleaning, and replacing filters. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or clothing. Properly dispose of all waste according to local regulations for material type.

Item Needed Qty

Canister Filter (T33838) .................................... 1

Model G0966 (Mfd. Since 04/23)

-27-

Page 30

To replace canister filter:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

2. Pull to release (2) compression latches and

open maintenance door.

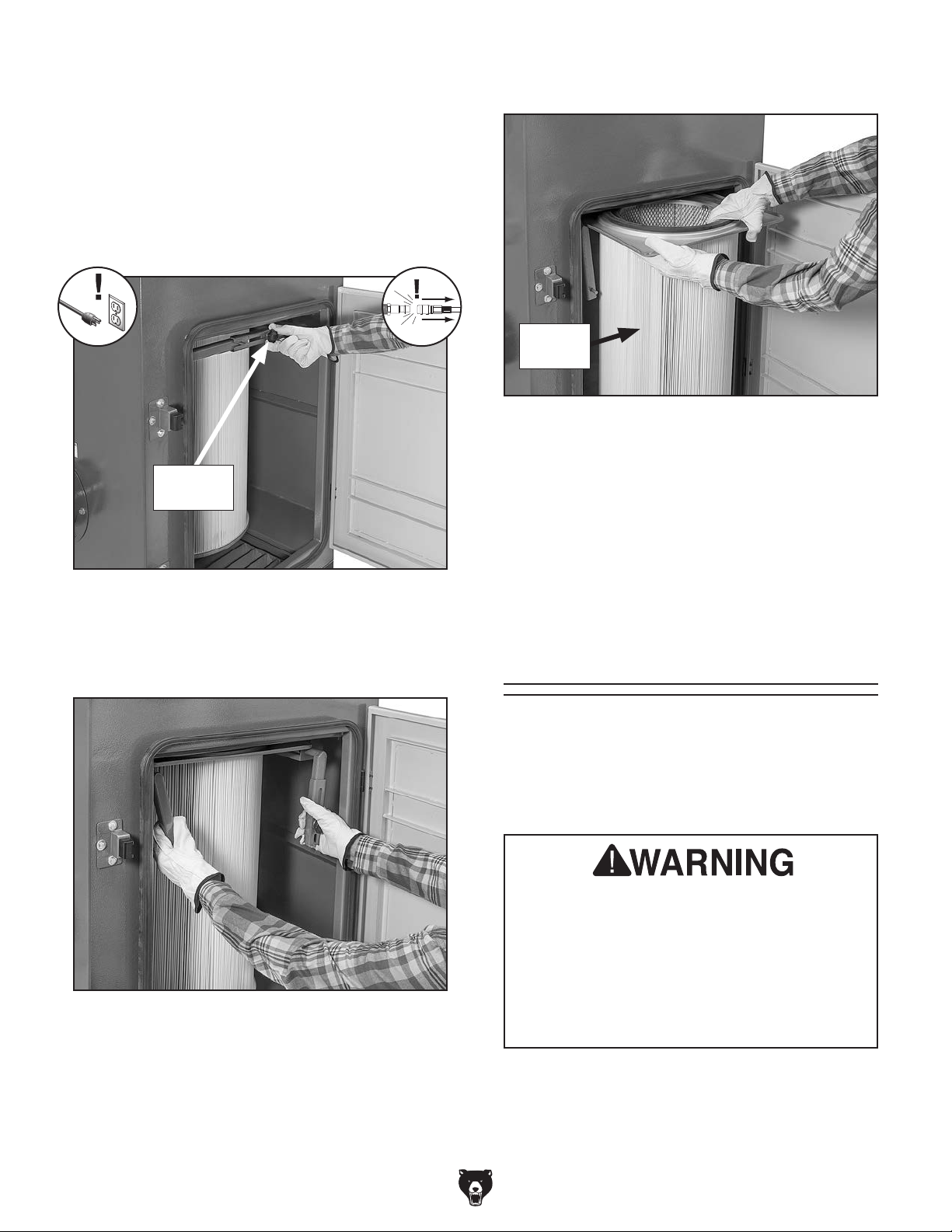

3. Loosen filter retaining knob (see Figure 38).

5. Slide canister filter out (see Figure 40).

Canister

Filter

Figure 40. Removing canister filter.

6. Reverse Steps 3–5 to install canister filter.

Retaining

Knob

Figure 38. Loosening retaining knob.

4. Slide fixing plate to right, then rotate both

handles down (see Figure 39) to release canister filter.

Fixing

Plate

Retention

Handle

(1 of 2)

Figure 39. Rotating handles.

7. Close and latch maintenance door.

8. Dispose of used canister filter and any waste

according to local regulations.

Replacing HEPA

Filter

Replacing the HEPA filter should rarely be necessary. However, if your machine shows poor dust collection performance, and cleaning/replacing the canister filter does not remedy this situation, you may need to replace the HEPA filter.

-28-

Item Needed Qty

HEPA Filter (T33837) ........................................ 1

Model G0966 (Mfd. Since 04/23)

Page 31

To replace HEPA filter:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

2. Remove (12) knob bolts and flat washers from HEPA filter cage (see Figure 41).

HEPA Filter Cage

x 12

Figure 41. Location of HEPA filter cage knob

bolts.

3. Lift filter cage off machine, then remove HEPA filter (see Figure 42).

Cleaning Ducts

Keeping the ducting clear is important for maintaining the efficient performance of this metal dust collector. Metal particles that do not reach the dust collector can build up and block the ducts, leading to reduced efficiency and a potential fire hazard. Inspect all ducts and fittings monthly and clean as necessary.

Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protective gloves when removing and cleaning ducting. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or clothing. Properly dispose of all waste according to local regulations for material type.

Items Needed Qty

Duct Cleaning Brush ......................................... 1

Shop Vacuum with HEPA Filter

and Non-Conductive Hose ................................ 1

Figure 42. Removing HEPA filter.

4. Install new HEPA filter and filter cage, then

secure with knob bolts and washers.

Note: Ensure HEPA filter air flow directional

arrow points away from machine, as shown in Figure 42.

To clean ducts:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

2. Undo clamps to disconnect ducts and fittings.

3. Use duct cleaning brush and vacuum to

remove accumulated metal dust.

4. Connect ducts and secure clamps.

5. Dispose of waste according to local regula-

tions.

5. Dispose of used HEPA filter and any waste according to local regulations.

Model G0966 (Mfd. Since 04/23)

-29-

Page 32

Cleaning Impeller

The impeller normally requires no maintenance, but the blades can accumulate metal dust that can adversely affect impeller balance. Removing the motor/impeller assembly allows cleaning and inspection of the impeller blades.

Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protective gloves when removing HEPA filter and cleaning impeller. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or clothing. Properly dispose of all waste according to local regulations for material type.

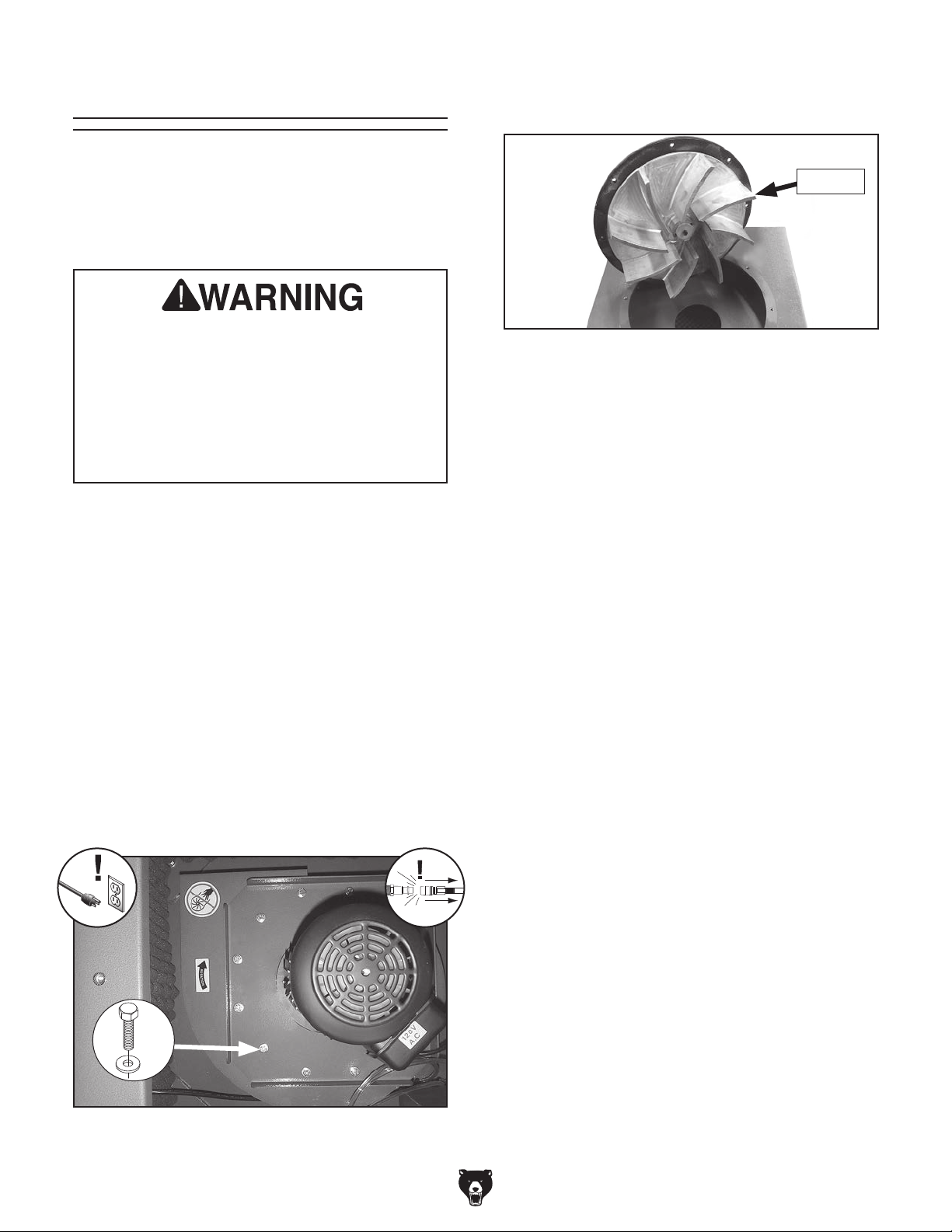

4. Remove motor/impeller assembly and care-

fully set on machine housing (see Figure 44).

Impeller

Figure 44. Example of motor/impeller assembly

removed for cleaning and inspection.

5. Use a soft bristle brush and vacuum to

remove dust from impeller blades and impeller housing. Inspect impeller for damage and replace if necessary.

Items Needed Qty

Open-End Wrench or Socket

Soft Bristle Brush .............................................. 1

Shop Vacuum with HEPA Filter

and Non-Conductive Hose ................................ 1

To clean impeller:

1. DISCONNECT MACHINE FROM POWER

AND AIR!

2. Remove HEPA filter (refer to Replacing HEPA Filter on Page 28).

3. Remove (12) hex bolts and flat washers that

secure motor (see Figure 43).

⁄2 " ....................... 1

Note: Use only NFPA 484-compliant shop

vacuum with HEPA filter and non-conductive hose to vacuum debris inside housing. DO NOT use compressed air. Dust particles can become airborne and cause injury.

6. Replace motor/impeller and secure with hex

bolts and flat washers.

7. Install HEPA filter and filter cage.

x 12

Figure 43. Location of motor mount bolts.

-30-

Model G0966 (Mfd. Since 04/23)

Page 33

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Incorrect power supply voltage or circuit size.

2. Plug/receptacle at fault/wired incorrectly.

3. Attempting to start machine without lter(s)

installed.

4. Power supply circuit breaker tripped or fuse blown.

5. Motor wires connected incorrectly.

6. Thermal overload relay has tripped/at fault.

7. Start capacitor at fault.

8. Centrifugal switch adjustment/contact points at fault.

9. Contactor not energized/at fault.

10. Wiring broken, disconnected, or corroded.

11. ON button loose/misadjusted/at fault.

12. Auxiliary contactor at fault.

13. Motor or motor bearings at fault.

1. Filters are dirty/clogged or at end of life.

2. Dust tray is full.

3. Ducting blocked/restricted.

4. Motor wires connected incorrectly.

5. Dust collector is undersized.

6. Plug/receptacle at fault/wired incorrectly.

7. Motor overheated.

8. Run capacitor at fault.

9. Extension cord too long.

10. Contactor not energized/at fault.

11. Centrifugal switch adjustment/contact points at fault.

12. Motor or motor bearing at fault.

1. Ensure correct power supply voltage and circuit size.

2. Test for good contacts, correct wiring (Page 35).

3. Filters must be installed before machine is turned

ON. Starting machine without lters can cause circuit

overload or machine electrical damage.

4. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

5. Correct motor wiring connections (Page 35).

6. Reset. Adjust or replace if at fault.

7. Test/replace if at fault.

8. Adjust centrifugal switch/clean contact points. Replace either if at fault.

9. Test all legs for power; replace if necessary.

10. Fix broken wires or disconnected/corroded connections (Page 35).

11. Tighten/adjust/replace button.

12. Replace auxiliary contactor.

13. Replace motor.

1. Clean lters; replace with new lters if performance

does not improve (Page 26).

2. Empty dust tray (Page 27).

3. Remove ducting from dust collector inlet and unblock the restriction (Page 29).

4. Correct motor wiring connections (Page 35).

5. Move closer to machine/redesign ducting layout/use larger, more powerful dust collector.

6. Test for good contacts, correct wiring (Page 35).

7. Clean motor, let cool, and reduce workload.

8. Test/replace.

9. Move machine closer to power supply, use shorter extension cord (Page 11).

10. Test all legs for power; repair/replace if at fault.

11. Adjust centrifugal switch/clean contact points. Replace either if at fault.

12. Replace motor.

Model G0966 (Mfd. Since 04/23)

-31-

Page 34

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

1. Machine feet not adjusted correctly.

2. Debris caught in impeller.

3. Motor or component loose.

4. Motor fan rubbing on cover.

5. Centrifugal switch adjustment/contact points at fault.

6. Motor bearings at fault.

7. Impeller damaged or unbalanced.

8. Impeller loose on motor shaft.

1. Adjust machine feet (Page 16).

2. Inspect impeller for debris (Page 30).

3. Replace damaged or missing bolts/nuts or tighten if loose.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Adjust centrifugal switch/clean contact points. Replace either if at fault.

6. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

7. Disconnect dust collector from power. Inspect impeller

for chips, cracks, or broken ns. Replace impeller if

damaged.

8. Secure impeller; replace motor and impeller as a set if motor shaft and impeller hub are damaged.

Operation

Symptom Possible Cause Possible Solution

Dust collector does not adequately collect dust; poor performance.

Air pulse clean will not function or is underpowered.

1. Maintenance door not fully closed.

2. Dust tray is full.

3. Filters are dirty/clogged or at end of life.

4. Ducting and ports are incorrectly sized.

5. Ducting blocked/restricted.

6. Leak in ducting/connections.

7. The dust collector is too far away from the point of suction, or there are too many sharp bends in the ducting.

8. Dust collector is undersized.

1. No compressed air supply is attached.

2. Air supply delivery is set below 90 PSI; regulator at fault.

3. Drain valve is open.

4. Air supply hose or delivery system is too long.

5. Safety valve at fault.

6. Air supply or in-line lter is damaged or

clogged.

7. Air supply in-line water separator is full (if used).

8. Air supply compressor undersized.

9. Leaks in air supply hose/delivery line.

10. Control or jet pulse valve at fault.

1. Securely latch maintenance door.

2. Empty dust tray (Page 27).

3. Clean canister lter; replace lters if performance does

not improve (Page 26).

4. Install correctly sized ducts and ttings (Page 19).

5. Remove ducting from dust collector inlet and unblock

the restriction (Page 29).

6. Seal leaks.

7. Relocate the dust collector closer to the point of suction; remove sharp bends in ducting.

8. Install a larger dust collector.

1. Attach air supply (Page 17).

2. Adjust air supply regulator to higher airow delivery

(DO NOT exceed 90 PSI); replace regulator if at fault.

3. Close drain valve (Page 4).

4. Use shorter supply hose/delivery system.

5. Inspect/replace safety valve.

6. Replace air supply lter or in-line lter assembly.

7. Empty air supply water separator.

8. Use air compressor capable of higher airow delivery.

9. Inspect supply air hose/delivery line and all connections for leaks.

10. Test/replace.

-32-

Model G0966 (Mfd. Since 04/23)

Page 35

Operation (Cont.)

Symptom Possible Cause Possible Solution

Attached air supply from compressor is dirty or excessively moist.

Pneumatically cleaning canister filter does not improve dust collection performance.

Cleaning/ replacing

canister lter

does not improve dust collection performance.

Dust collector blows dust into the air.

1. Dust collector tank needs to be drained.

2. In-line water separator is full (if used).

3. In-line lter or water separator is needed in

air supply line.

4. Delivery pipes are dirty (if used).

1. Air supply delivery is set below 90 PSI.

2. Canister lter clogged or at end of life.

1. HEPA lter clogged and at end of life. 1. Replace HEPA lter (Page 28).

1. Duct clamps not properly clamped and secured; ducting loose/damaged.

1. Open drain valve to drain condensation, then close

(Page 4).

2. Drain water separator.

3 Install in-line lter/water separator in air supply line.

4. Remove delivery pipes; clean out and reinstall/replace.

1. Adjust air supply regulator to higher airow delivery

(DO NOT exceed 90 PSI).

2. Remove and clean (Page 26)/replace (Page 27)

canister lter.

1. Secure ducts, making sure duct clamps are tight; tighten/replace ducting.

Model G0966 (Mfd. Since 04/23)

-33-

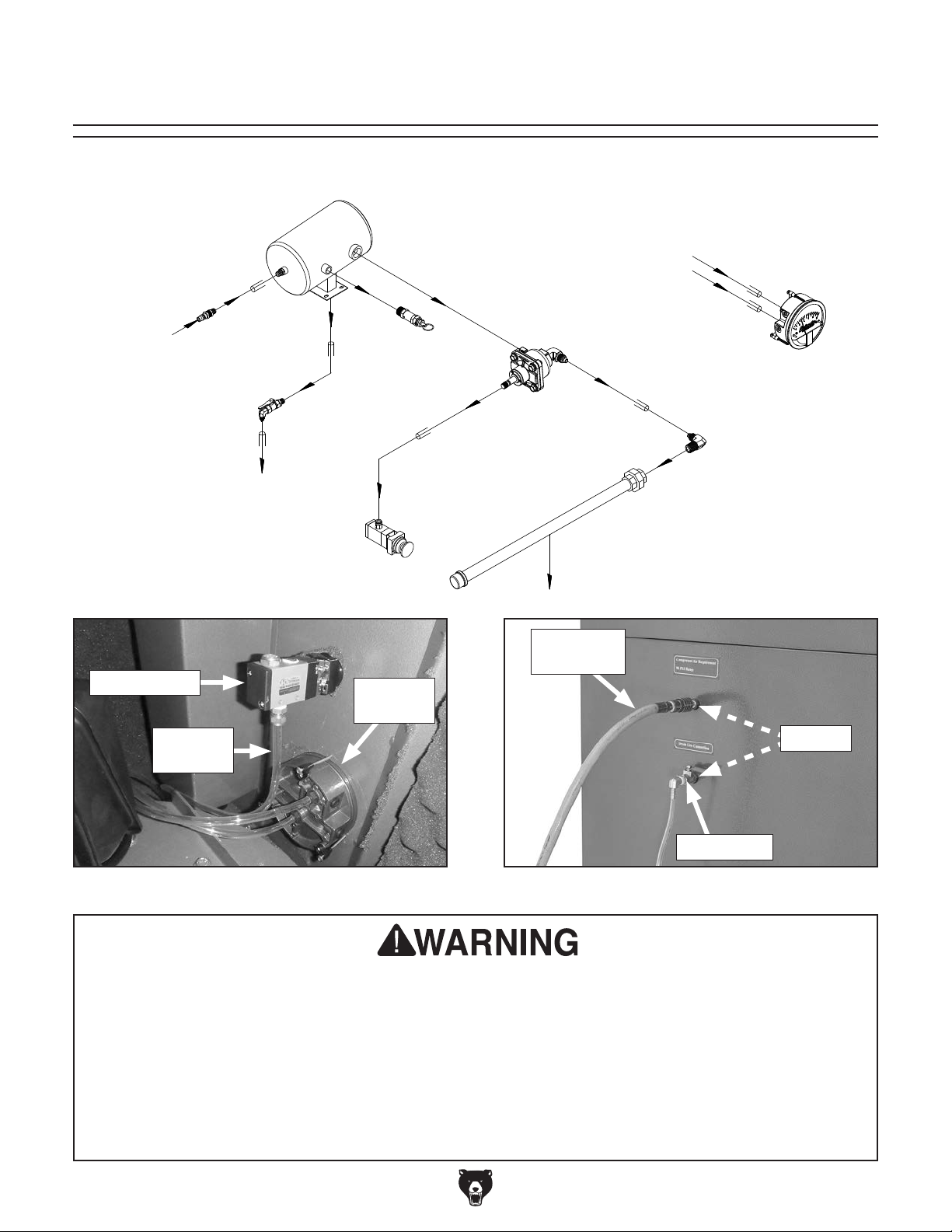

Page 36

SECTION 8: PNEUMATIC SYSTEM

Pneumatic System Diagram

Tank

High-Flow

Pulse Jet

Air Supply

90 PSI

Safety Relief

Valve

Drain Valve

Control Valve

Valve

Pressure Gauge

Blow Tube

Air Supply

Connection

Control Valve

To Pulse Jet Valve

Figure 45. Example of control valve.

To prevent impact and soft tissue injuries from air streams or bursting components, heed the following warnings before servicing the pneumatic system on your machine.

a) Bleed air from system and disconnect supply line before servicing machine or air components. b) Only supply clean, dry, regulated compressed air. Never exceed maximum operating pressure. c) Never use oxygen, carbon dioxide, combustible gases, or any bottled gas as air source, as

these can explode.

d) Inspect air tank, hoses, and fittings for rust, damage, or looseness, and repair/replace damaged

components before operating.

Pressure

Gauge

To Tank

Drain Valve

Figure 46. Air supply and drain valve.

-34-

Model G0966 (Mfd. Since 04/23)

Page 37

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 9: WIRING

stated in this manual, and study this section carefully.

wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0966 (Mfd. Since 04/23)

-35-

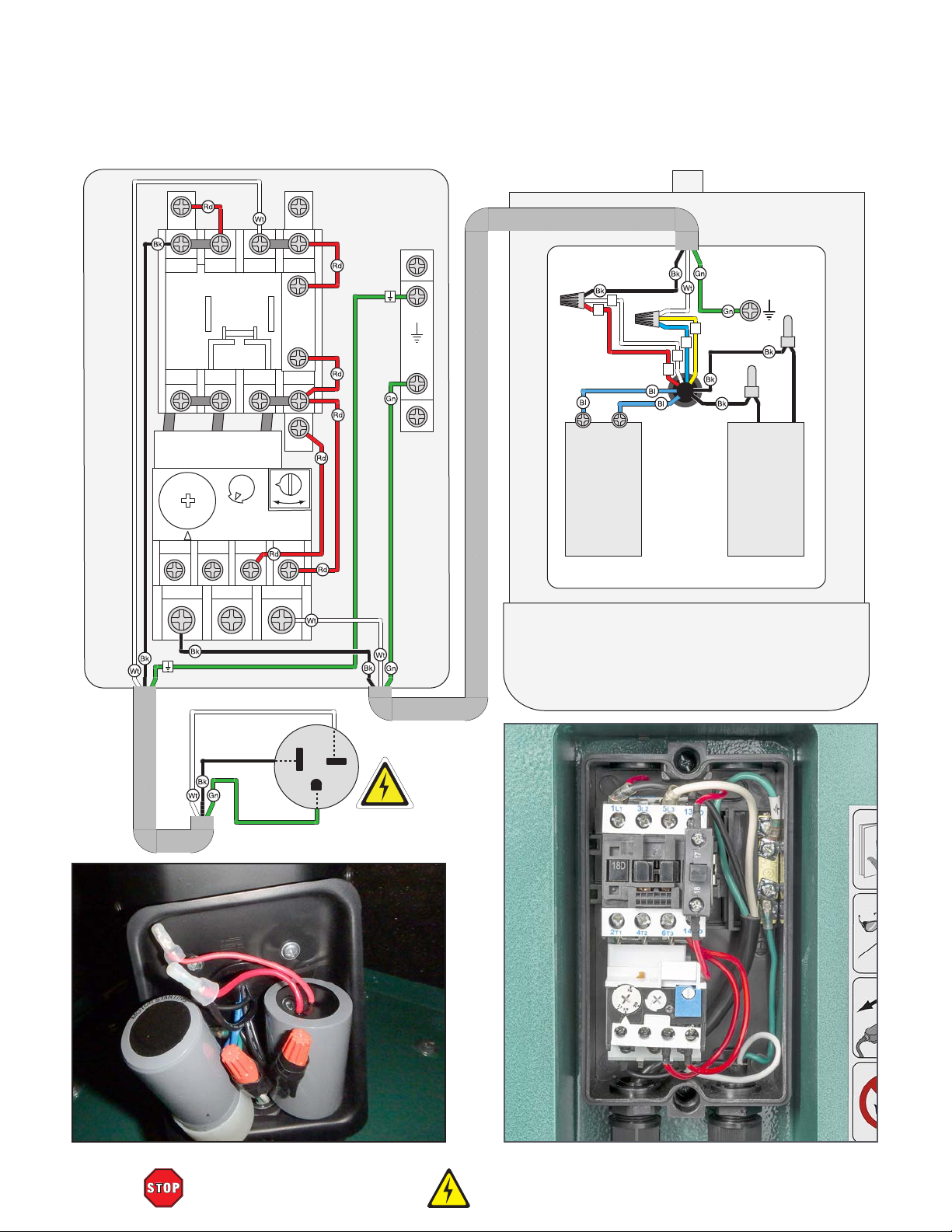

Page 38

MAG SWITCH 120V

Wiring Diagram 120V

NHD MS1-18D2E7N212PBVO

1L1 5L3 13NO3L2

Contactor

NHD

C18D10E7

120V

2T1

98 97 96 95

OL Relay

NHD NTH-21 2PE

2T1 4T2 6T3

6T3

NHD

1PS

14NO4T2

O R

GND

MOTOR 120V/240V

Start

Capacitor

300MFD

125VAC

Prewired 120V

Ground

Run

Capacitor

40uF

250VAC

Neutral

Hot

Ground

120 VAC

5-20 Plug

Figure 47. Motor junction box wiring (120V). Figure 48. Magnetic switch wiring (120V).

-36-

READ ELECTRICAL SAFETY

ON PAGE 35!

Model G0966 (Mfd. Since 04/23)

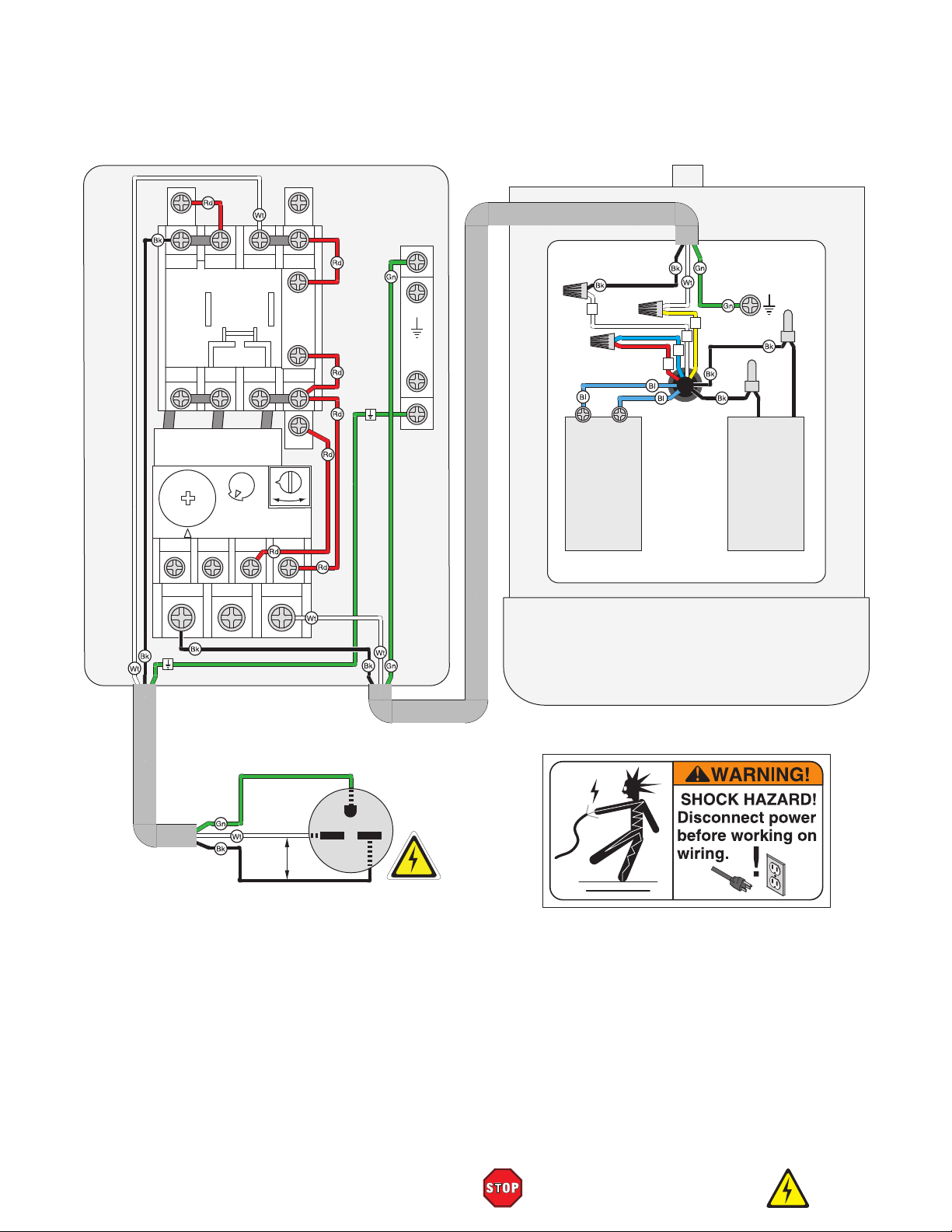

Page 39

MAG SWITCH 240V

Wiring Diagram 240V

NHD MS1-09D2I7N112PBVO

1L1 5L3 13NO3L2

Contactor

NHD

C09D10I7

240V

2T1

6T3

OL Relay

NHD NTH-11 2PE

98 97 96 95

2T1 4T2 6T3

O R

NHD

1PS

14NO4T2

GND

MOTOR 120V/240V

Start

Capacitor

300MFD

125VAC

Rewired 240V

Ground

Run

Capacitor

40uF

250VAC

Ground

Hot

240

VAC

Hot

(As Recommended)

Model G0966 (Mfd. Since 04/23)

6-15 Plug

READ ELECTRICAL SAFETY

ON PAGE 35!

-37-

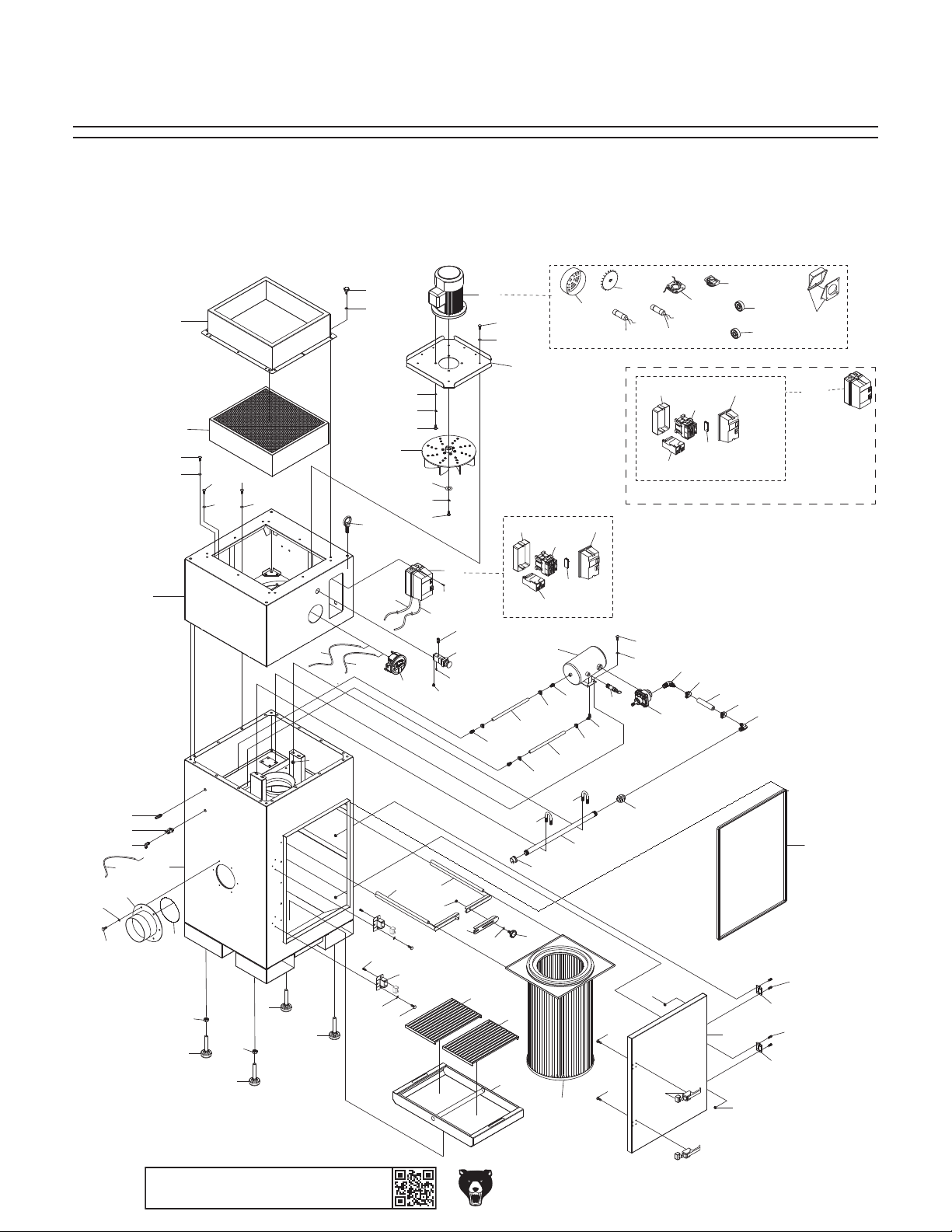

Page 40

SECTION 10: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

16X-3

16X-4

10-4

10-7

10-8

10-9

16X

16-3

10-5

10-2

16X-1

10-3

10-6

16X-2

16X-5

(For 240V Conversion)

14 12 15

4 5

787

40 42 41

25 62

20 21

8 7

16-1

16-2

16-5

10-1

16-4

-38-

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Par ts Stor e.

Model G0966 (Mfd. Since 04/23)

Page 41

Main Parts List

24 P0966024 PRESSURE GAUGE 0-10"

REF P ART # DE SCRIP TI ON REF PART # DES CRIP TI ON

1 P0966001 MACHI NE BODY 25 P0966025 PICKUP HOSE 3/16" X 5/16" X 59" 2 P0966002 ADJUSTABLE FOOT M16-2 X 100 26 P0966026 AI R TANK 3 P0966003 MOTOR CHAMBER 27 P0966027 SAFETY RELIEF VALVE 1/4 NPT 100PSI 4 P0966004 HEX BOLT 3/8-16 X 1-1/2 28 P0966028 HIGH FLOW JET VALVE MG MGV-25 5 P0966005 FLAT WASHER 3/8 29 P0966029 HOSE FITTING 90 DEG BARBED 1PT 6 P0966006 HEX BOLT 5/16-18 X 1-1/2 30 P0966030 HOSE CLAMP 1-1/4 7 P0966007 FLAT WASHER 5/16 31 P0966031 AIR HOSE 1" X 4" 8 P0966008 HEX BOLT 5/16-18 X 3/4 32 P0966032 UNIO N 1PT 9 P0966009 EYE BOLT 30, M12-1.75 X 25 33 P0966033 PIPE 11-1/2 X 15. 4 X 1 10 P0966010 MOTOR 1.5HP 120/240V 1-PH 34 P0966034 CAP 11-1/2 10-1 P0966010-1 MOTOR FA N COVE R 35 P0966035 U-CLAMP 3/8-16 X 1-1/4, 1-3/8 10-2 P0966010-2 MOTOR FA N 36 P0966036 FLANGE NUT 3/8-16 10-3 P0966010-3 CONTACT PLATE 19 X 70 INT 37 P0966037 HOSE FITTING 1/4 PT BARBED STRAIGHT 10-4 P0966010-4 CENTRIFUGAL SWITCH 9/16 3450 38 P0966038 HOSE CLAMP 1/2 10-5 P0966010-5 S CAPACITOR 300M 125V 1-3/8 X 2-3/4 39 P0966039 HOSE 1/4" X 39" 10-6 P0966010-6 R CAPACITOR 40M 250V 1-9/16 X 2-7/16 40 P0966040 HOST FI TTING 1/4 NPT (MAL E) 10-7 P0966010-7 BALL BEARING 6205ZZ (FRONT) 41 P0966041 HOSE FITTING 1/4 PT 90 DEG BARBED 10-8 P0966010-8 BALL BEARING 6202ZZ (REAR) 42 P0966042 DRAIN VALVE 1/4 PT BALL 10-9 P0966010-9 J UNCTI ON BO X 43 P0966043 BUTTON HD CA P SCR M5 -.8 X 12 11 P0966011 IMPELLER COVER 44 P0966044 LATCH BRACKET 12 P0966012 LOCK WASHER 5/16 45 P0966045 FLAT WASHER 1/4 13 P0966013 IMPELLER 12-1/2" 46 P0966046 HEX BOLT 1/4-20 X 3/4 14 P0966014 FENDER WAS HER 5/ 16 47 P0966047 DUST TRAY 15 P0966015 HEX BOLT 5/16-18 X 1 48 P0966048 SLOTTED TRAY INSERT 16 P0966016 MAGNETIC SWITCH NHD MS1-18D2E7N212PBVO 49 P0966049 FILTER SUPPORT (LEFT) 16-1 P0966016-1 MAGNE TI C S WI TCH B OX 50 P0966050 FILTER SUPPORT (RIGHT) 16-2 P0966016-2 CONTACTOR NHD C18D10E7 120V 51 P0966051 FILTER SUPPORT FIXING PLATE 16-3 P0966016-3 MAGNE TI C S WI TCH CO VER 52 P0966052 KNOB BOLT 5/16-18 X 1 16-4 P0966016-4 AUX CONTACTOR NHD 1PS 1A 600V 53 P0966053 CANISTER FILTER 380 X 660 0.2-2 MICRONS 16-5 P0966016-5 OL RELAY NHD NTH-21 2PE 17-21A 54 P0966054 MAI NTENANCE DOOR 16X P0966016X MAGNETIC SWITCH NHD MS1-09D2I7N112PBVO 55 P0966055 HING E 16X-1 P0966016X-1 MAGNETI C SWI TCH BOX 56 P0966056 FLANGE NUT M5 -. 8 16X-2 P0966016X-2 CONTACTOR NHD C- 09D1 0I 7 24 0V 57 P0966057 COMPRESSION LATCH ASSEMBLY 16X-3 P0966016X-3 MAGNETI C SWI TCH COVE R 58 P0966058 FLA T HD SCR M5- . 8 X 14 16X-4 P0966016X-4 AUX CONTACTOR NHD 1PS 1A 600V 59 P0966059 FILTER HEPA 457 X 508 X 150 0.3 MICRONS 16X-5 P0966016X-5 OL RELAY NHD NTH-11 2PE 8-11A 60 P0966060 HEPA FILTER CAGE 17 P0966017 PHLP HD SCR #10 X 5/8 61 P0966061 KNOB BOLT 1/4-20 X 3/4 18 P0966018 POWER CORD 3W 14G 118" 5-20P 62 P0966062 DUST PORT 6 " 19 P0966019 MOTOR CORD 3W 14G 59" 63 P0966063 DUST PORT GASKET 20 P0966020 COMPRESSION FITTING 1/4 NPT BRASS 64 P0966064 MAINTENANCE DOOR GASKET 21 P0966021 CONTROL VALVE SHAKO MSV9832-02NPBB 65 P0966065 HEX NUT M1 6-2 22 P0966022 SET SCREW 1/4-20 X 5/16 66 P0966066 ACORN NUT 5/ 16- 18 23 P0966023 SILENCER BREATHER VENT EP-02N 67 P0966067 FLAT WASHER 5/16

Model G0966 (Mfd. Since 04/23)

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Par ts Stor e.

-39-

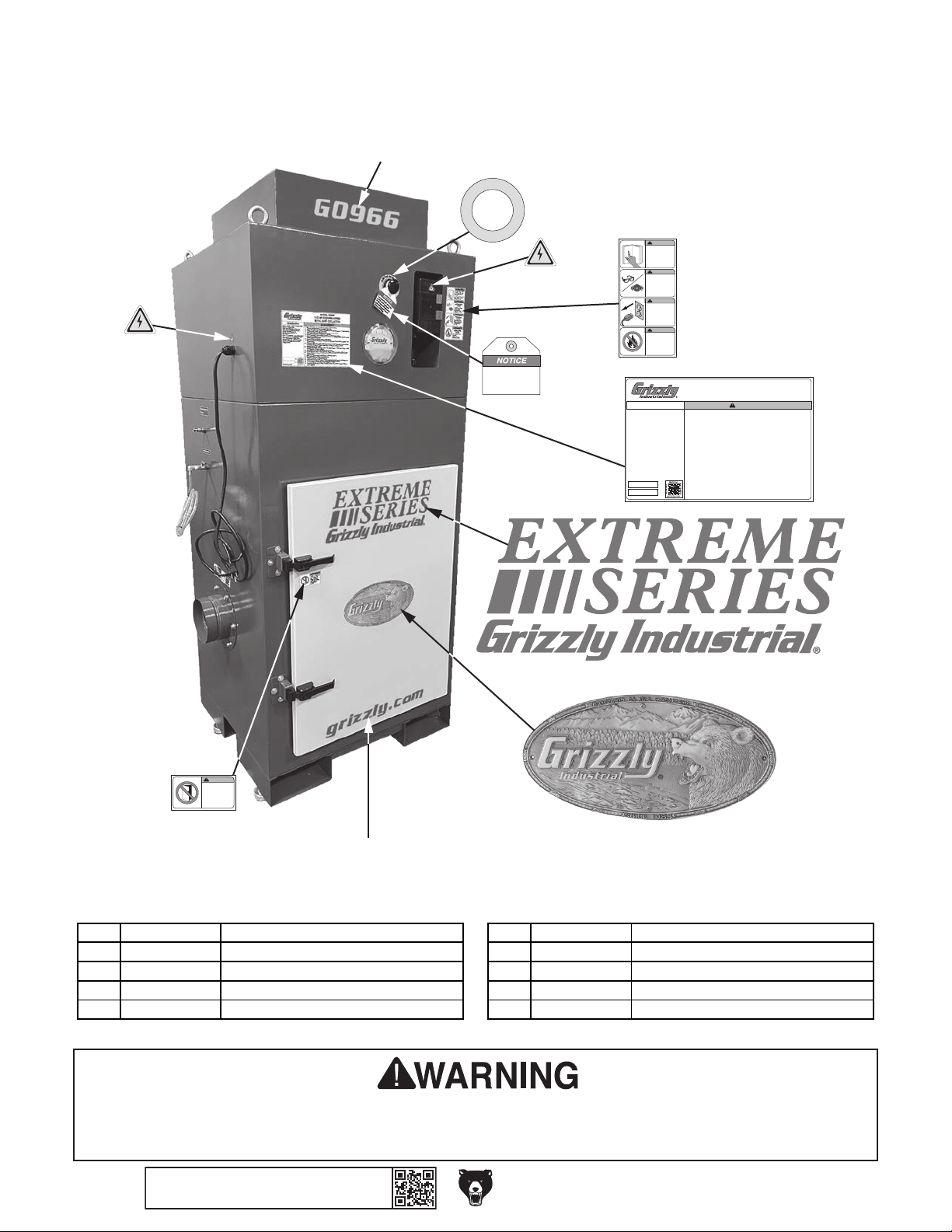

Page 42

Labels & Cosmetics

G0966

REF PART # DES CRIPTIO N REF PART # DES CRIPTIO N

101

103

To reduce risk of circuit overload or machine electrical damage, only operate machine with filters installed.

102

104

WARNING!

103

105

To reduce risk of death or serious injury, read manual BEFORE using machine.

To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

EYE/LUNG INJURY

HAZARD!

Always wear safety glasses and a respirator when using this machine.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

WARNING!

FIRE/EXPLOSION

HAZARD!

Do not use machine to collect combustible or explosive metals.

Specifications

Motor: 1-1/2 HP, 120V/240V, 1-Phase, 60 Hz Prewired Voltage: 120V Full-Load Current Rating at 120V: 18A Full-Load Current Rating at 240V: 9A Airflow: 884 CFM at 2.2" SP Maximum Static Pressure: 8.3" Inlet Size: 6" Filter 1: 0.2–2 Microns @ 95%, Canister Filter Filter 2: 0.3 Microns @ 99.99%, HEPA Filter Filter Replacements: T33837, T33838 Air Input Connection: 1/4" NPT Industrial Maximum Air Supply Pressure: 90 PSI Weight: 513 lbs.

Date

S/N

Mfd. for Grizzly in Taiwan

106

MODEL G0966 1-1/2 HP EXTREME-SERIES METAL DUST COLLECTOR

To reduce risk of serious personal injury or fire when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator while operating, cleaning, or replacing filters.

3. Only plug power cord into a grounded outlet.

4. Only connect with smooth-walled sheet metal ducting—do not use PVC.

5. Only collect a single type of metal/material at one time.

6. Do not use machine to collect niobium, tantalum, titanium, zirconium, or hafnium.

7. Never use machine to collect combustible or explosive metal dust (such as aluminum or

8. Do not connect to any machine using a coolant system.

9. Entire collection system (collector & ductwork) must be bonded and grounded to minimize static

10. Always disconnect power, isolate ductwork, and bleed air from air components before servicing

11. Do not exceed air supply rating.

12. Monitor pressure gauge, and replace filters when gauge exceeds 6". Handle used filters carefully,

13. Keep hands, long hair, and loose clothing away from inlet.

14. DO NOT adjust or remove air safety relief valve, modify machine, or use without filters in place.

15. Always use a brush or vacuum to clear metal chips or dust; DO NOT use your hands, rags, or

16. Know about and be prepared to safely fight a combustible metal fire.

17. Never leave machine unattended during operation.

18. DO NOT expose to rain or use in wet locations.

19. Do not use if cord, plug, or any other electrical equipment becomes damaged—promptly repair!

20. Remove collected dust/chips and drain moisture from air tank after each use.

21. DO NOT operate under influence of drugs or alcohol, or if tired.

22. Prevent unauthorized use by children or untrained users; restrict access or disable machine

WARNING!

magnesium), wood chips, sawdust, or other ordinary combustible materials!

electrical charge.

or cleaning, and make sure impeller stops before opening door or removing covers.

and follow EPA guidelines for disposal.

compressed air.

when unattended.

107

WARNING!

INJURY HAZARD!

Do not open door

110

while machine is connected to power or impeller is in motion.

grizzly.com

109

101 P0966101 MODEL NUMBER LABEL 106 P0966106 MACHINE ID LABEL 102 P0966102 AIR PULSE CLEAN LABEL 107 P0966107 EXTREME SERIES LABEL 103 P0966103 ELECTRICITY LABEL 108 P0966108 GRIZZLY NAMEPLATE - LARGE 104 P0966104 COMBO WARNING LABEL 109 P0966109 GRIZZLY.COM LABEL 105 P0966105 HANG NOTICE LABEL 110 P0966110 KEEP DOOR CLOSED LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-40-

BUY PARTS ON LINE AT GRI ZZLY.COM!

Scan QR c ode to vi sit ou r Par ts Stor e.

Model G0966 (Mfd. Since 04/23)

108

Page 43

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Page 44
