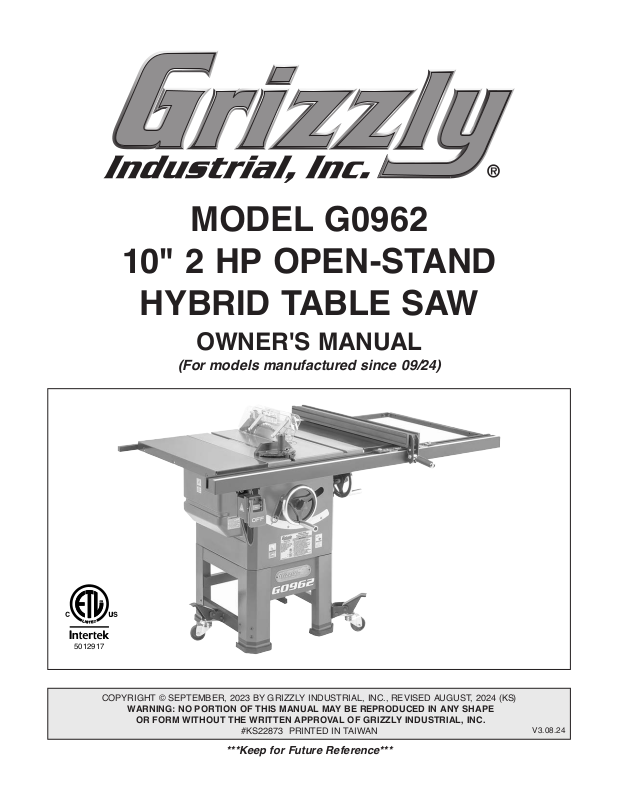

MODEL G0962

10" 2 HP OPEN-STAND

HYBRID TABLE SAW

OWNER'S MANUAL

(For models manufactured since 09/24)

5012917

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KS22873 PRINTED IN TAIWA N

***Keep for Future Reference***

V3.08.24

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................... 2

Contact Info Manual Accuracy Identification Controls & Components Glossary of Terms Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Table Saws Preventing Kickback Protecting Yourself From Kickback

SECTION 2: POWER SUPPLY

Converting Voltage to 240V

SECTION 3: SETUP

Needed for Setup Unpacking Inventory Hardware Recognition Chart Cleanup Site Considerations Assembly Dust Collection Test Run Recommended Adjustments

SECTION 4: OPERATIONS

Operation Overview Disabling & Locking Switch Workpiece Inspection Non-Through & Through Cuts Blade Size Requirements Blade Selection Blade Installation Blade Guard Assembly Riving Knife Ripping Crosscutting Miter Cuts Blade Tilt/Bevel Cuts Dado Cutting Rabbet Cutting Resawing

................................................... 2

........................................... 2

................................................... 3

................................. 4

.......................................... 5

...................................... 6

....................................... 8

.................. 8

................. 10

.....................................11

...............11

...................... 12

......................... 14

....................................... 15

......................................... 15

.................................................... 15

...................................................... 16

....................... 17

........................................................ 18

...................................... 19

..................................................... 20

............................................. 26

....................................................... 27

........................ 27

............................ 28

..................................... 28

......................... 29

................................... 29

..................... 30

............................ 30

............................................ 31

......................................... 33

................................ 34

.................................................. 37

......................................................... 38

................................................. 39

.................................................... 39

.................................... 40

................................................ 40

............................................. 42

..................................................... 44

SECTION 5: SHOP MADE SAFETY ACCESSORIES

Featherboards Push Sticks Push Blocks Narrow-Rip Auxiliary Fence & Push Block Outfeed & Support Tables Crosscut Sled

SECTION 6: ACCESSORIES

SECTION 7: MAINTENANCE

Schedule Cleaning & Protecting Lubrication

SECTION 8: SERVICE

Troubleshooting Blade Tilt Calibration Miter Slot to Blade Parallelism Spreader or Riving Knife Alignment Adjusting Fence Calibrating Fence to Blade Fence Scale Calibration Table/Dado Insert Adjustment Calibrating Miter Gauge Belt Tension & Replacement

SECTION 9: WIRING

Wiring Safety Instructions Wiring Diagram Electrical Components

SECTION 10: PARTS

............................................................. 80

Main Cabinet Stand Fence & Rails Blade Guard Miter Gauge Labels & Cosmetics

WARRANTY & RETURNS

......................................................... 82

............................................................ 83

.............................................. 49

.................................................. 52

................................................. 53

.. 54

............................ 56

.............................................. 56

......................... 57

......................... 59

...................................................... 59

.................................. 59

................................................... 60

................................... 61

........................................... 61

.................................... 65

..................... 67

............. 69

........................................... 71

.......................... 73

............................... 74

...................... 74

............................... 75

........................ 76

...................................... 77

............................ 77

............................................ 78

................................. 79

..................................... 80

.............................................. 84

................................................. 86

................................................. 87

..................................... 88

.............................. 89

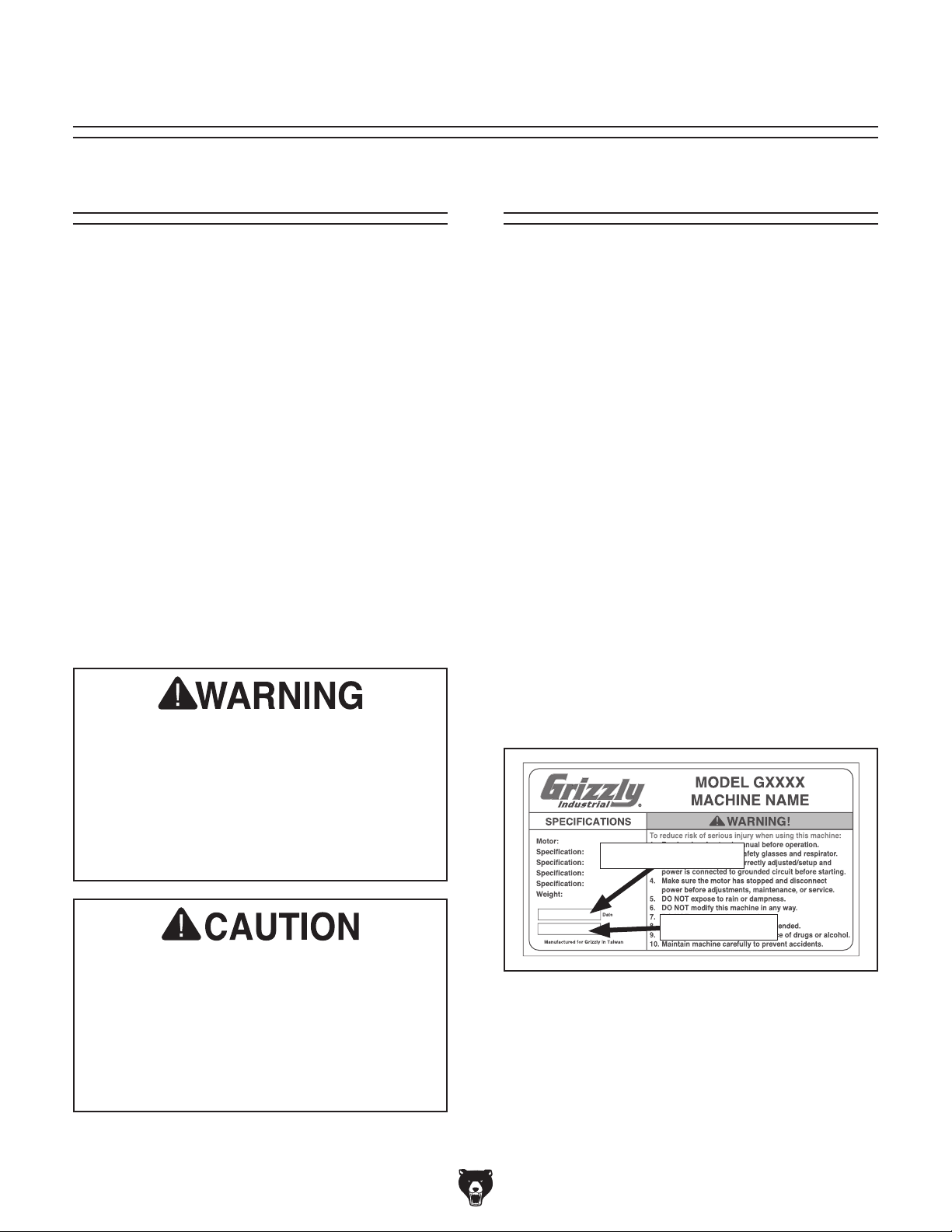

Page 4

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0962 (Mfd. Since 09/24)

Page 5

Identification

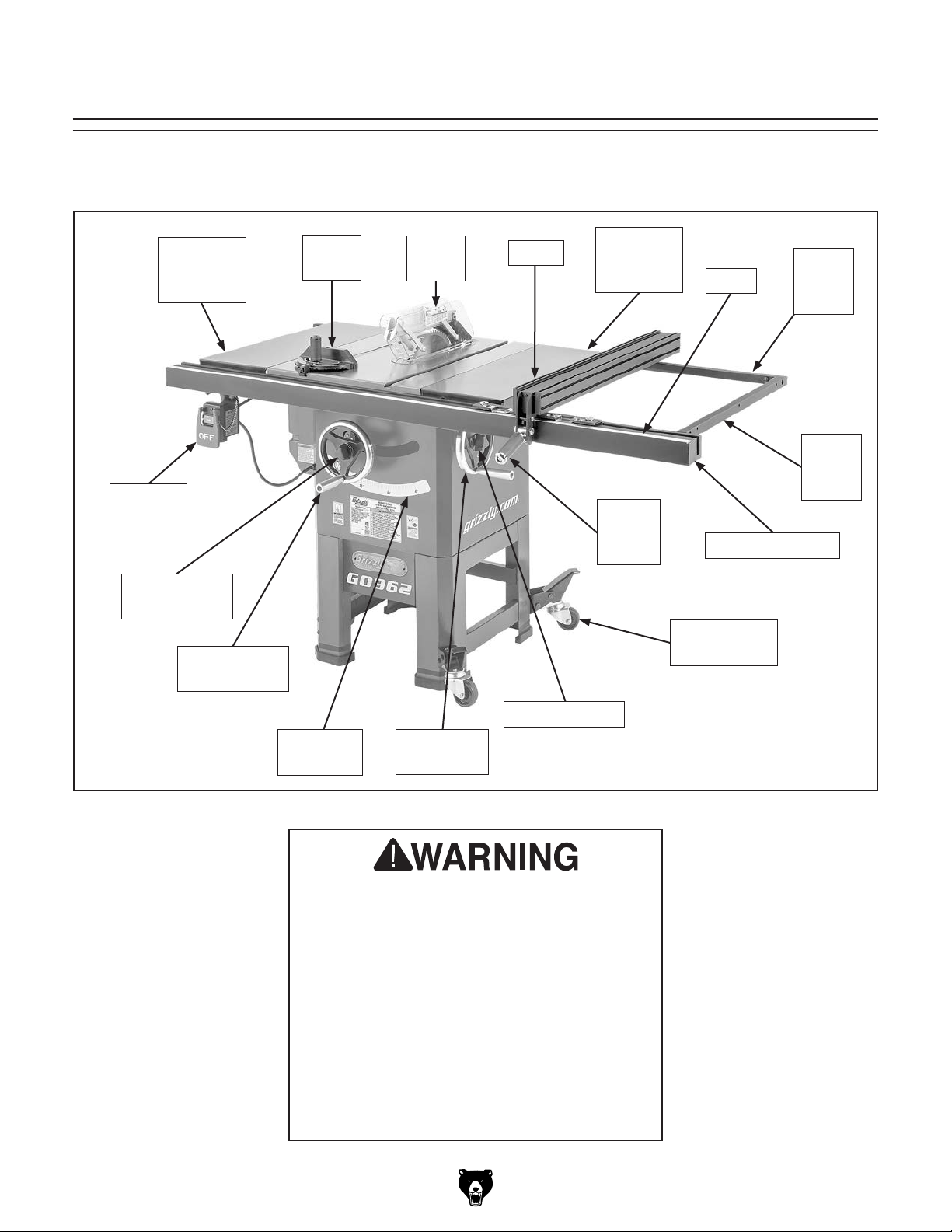

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Left

Extension

Wing

ON/OFF

Switch

Blade Height

Lock

Blade Height

Handwheel

Miter

Gauge

Blade

Guard

Fence

Right

Extension

Wing

Fence

Lock

Handle

Scale

Front Fence Rail

Mobile Base

Caster

Rear

Fence

Rail

Fence

Rail

Brace

Blade Tilt Lock

Blade Tilt

Scale

Blade Tilt

Handwheel

For Your Own Safety Read Instruction

Manual Before Operating Saw

a) Wear eye protection. b) Use saw-blade guard and spreader for

every operation for which it can be used,

including all through sawing. c) Keep hands out of the line of saw blade. d) Use a push-stick when required. e) Pay particular attention to instructions

on reducing risk of kickback. f) Do not perform any operation freehand. g) Never reach around or over saw blade.

Model G0962 (Mfd. Since 09/24)

-3-

Page 6

To reduce your risk of serious injury, read this entire manual BEFORE

Controls &

Components

using machine.

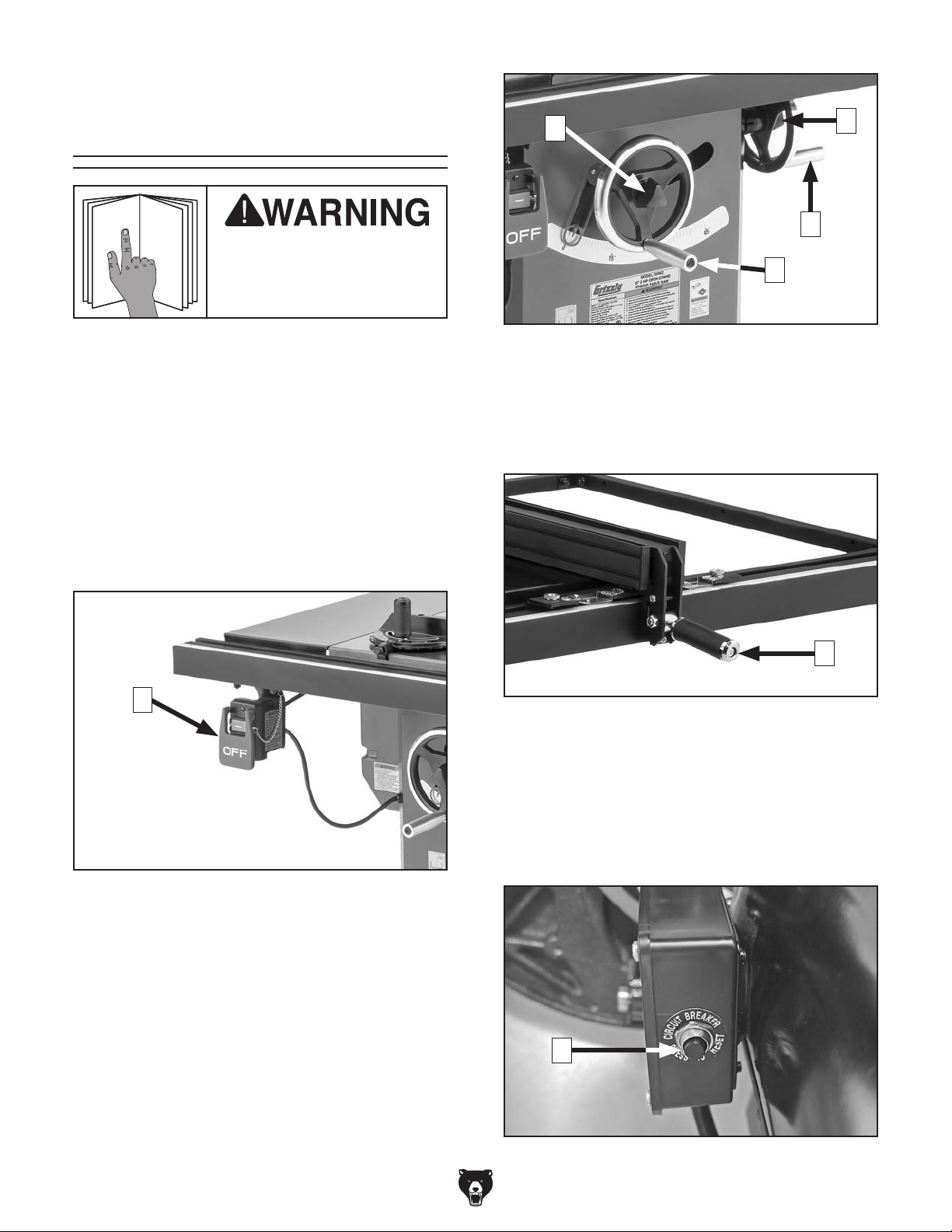

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

A. ON/OFF Switch: Turns motor ON or OFF.

Switch can be disabled for safety by inserting disabling pin or a padlock (not included) through ON button.

Figure 2. Blade adjustment handwheels and

locks.

E. Fence Lock Handle: Locks fence when

pushed down, and unlocks fence when pulled up.

Figure 1. ON/OFF switch location.

Handwheel Locks: Lock blade height

and angle when tightened (one on each handwheel).

Blade Tilt Handwheel: Adjusts angle of

blade tilt from 0°–45°.

D. Blade Height Handwheel: Adjusts blade

height from 0"–3

⁄4".

Figure 3. Fence lock handle.

F. Motor Reset Button: Allows machine to be

restarted after thermal overload protection has tripped. To reset, wait a few minutes for motor to cool, then press reset button. If button does not stay depressed, allow motor to cool longer, then try again.

-4-

Figure 4. Motor reset button.

Model G0962 (Mfd. Since 09/24)

Page 7

Glossary of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this table saw and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Arbor: A metal shaft extending from the drive

mechanism that is the mounting location for the saw blade.

Bevel Edge Cut: A cut made with the blade tilted

to an angle between 0˚ and 45˚ to cut a beveled

edge onto a workpiece. Refer to Page 40 for more details.

Blade Guard Assembly: Metal or plastic safety

device that mounts over the saw blade. Its function is to prevent the operator from coming into contact with the saw blade. Refer to Page 34 for more details.

Crosscut: Cutting operation in which the crosscut

fence is used to cut across the shortest width of the workpiece. Refer to Page 39 for more details.

Dado Blade: Blade or set of blades that are used

to cut grooves and rabbets. Refer to Page 40 for more details. The saw and arbor are not intended to safely use a larger dado blade.

Dado Cut: Cutting operation that uses a dado

blade to cut a flat bottomed groove into the face of the workpiece. Refer to Page 40 for more details.

Featherboard: Safety device used to keep the

workpiece against the rip fence and against the table surface. Refer to Page 49 for more details.

Kerf: The resulting cut or gap in the workpiece

after the saw blade passes through during a cutting operation.

Non-Through Cut: A cut in which the blade does

not cut through the top of the workpiece. Refer to Page 30 for more details.

Parallel: Being an equal distance apart at every

point along two given lines or planes (i.e. the rip fence face is parallel to the face of the saw blade).

Perpendicular: Lines or planes that intersect and

form right angles (i.e. the blade is perpendicular to the table surface).

Push Stick: Safety device used to push the

workpiece through a cutting operation. Used most often when rip cutting thin workpieces. Refer to Page 52 for more details.

Rabbet: Cutting operation that creates an L-shaped

channel along the edge of the workpiece. Refer to Page 42 for more details.

Rip Cut: Cutting operation in which the rip fence

is used to cut across the widest width of the workpiece. Refer to Page 38 for more details.

Riving Knife: Metal plate located behind the

blade. It maintains the kerf opening in the wood when performing a cutting operation. Refer to

Page 37 for more details.

Straightedge: A tool used to check the flatness,

parallelism, or consistency of a surface(s).

Thin Kerf Blade: A blade with a kerf or thickness

that is thinner than a standard blade cannot be used on this saw without using a thin-kerf riving knife.

Kickback: An event in which the workpiece is

propelled back towards the operator at a high rate of speed.

Model G0962 (Mfd. Since 09/24)

Through Cut: A cut in which the blade cuts

completely through the workpiece. Refer to

30 for more details.

Page

-5-

Page 8

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0962 10" 2 HP OPEN-STAND HYBRID TABLE SAW

Product Dimensions:

Weight.............................................................................................................................................................. 243 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 64 x 40-1/2 x 36 in.

Footprint (Length x Width)..................................................................................................................... 21 x 19-1/2 in.

Space Required for Full Range of Movement (Width x Depth).............................................................. 64 x 37-1/2 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight.................................................................................................................................................... 259 lbs.

Length x Width x Height............................................................................................................. 40 x 30 x 29 in.

Carton #2

Type........................................................................................................................................... Cardboard Box

Content.................................................................................................................. Fence, Rails, and Hardware

Weight...................................................................................................................................................... 38 lbs.

Length x Width x Height............................................................................................................... 66 x 16 x 6 in.

Electrical:

Power Requirement............................................................................................. 120V or 240V, Single-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 120V

Full-Load Current Rating.................................................................................................... 15A at 120V, 7.5A at 240V

Minimum Circuit Size.......................................................................................................... 20A at 120V, 15A at 240V

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type...................................................................................................................... NEMA 5-15 for 120V

Recommended Plug Type........................................................................................................... NEMA 6-15 for 240V

Switch Type................................................................................................ START/STOP Push Button w/Lockout Pin

-6-

Motors:

Main

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................ 15A at 120V, 7.5A at 240V

Speed................................................................................................................................................ 3450 RPM

Type............................................................................................................................ Capacitor-Start Induction

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Model G0962 (Mfd. Since 09/24)

Page 9

Main Specifications:

Main Information

Table Saw Type....................................................................................................................................... Hybrid

Maximum Standard Blade Diameter......................................................................................................... 10 in.

Maximum Dado Blade Diameter................................................................................................................. 8 in.

Arbor Size................................................................................................................................................. 5/8 in.

Arbor Speed...................................................................................................................................... 3450 RPM

Maximum Width of Dado...................................................................................................................... 13/16 in.

Blade Tilt Direction....................................................................................................................................... Left

Max Blade Tilt......................................................................................................................................... 45 deg.

Maximum Depth of Cut At 90 Degrees.................................................................................................. 3-1/4 in.

Maximum Depth of Cut At 45 Degrees.................................................................................................. 2-1/4 in.

Max Rip Right of Blade w/Included Fence & Rails.................................................................................... 30 in.

Max Rip Left of Blade w/Included Fence & Rails....................................................................................... 15 in.

Additional Blade Information

Included Blade Information.................................................................................................................. 10" x 40T

Riving Knife/Spreader Thickness.......................................................................................................... 0.090 in.

Required Blade Body Thickness.............................................................................................. 0.060 - 0.086 in.

Required Blade Kerf Thickness................................................................................................ 0.094 - 0.126 in.

Rim Speed at Max Blade Diameter................................................................................................... 9,025 FPM

Table Information

Floor to Table Height........................................................................................................................... 35-3/4 in.

Table Size with Extension Wings Width.............................................................................................. 40-1/4 in.

Table Size with Extension Wings Depth.................................................................................................... 27 in.

Distance Front of Table to Center of Blade......................................................................................... 15-1/2 in.

Distance Front of Table to Blade At Maximum Cut............................................................................. 11-1/2 in.

Main Table Size Thickness.................................................................................................................... 1-5/8 in.

Fence Information

Fence Type.............................................................................................. Camlock T-Shape w/Aluminum Face

Fence Size Length............................................................................................................................... 35-3/4 in.

Fence Size Width.................................................................................................................................. 3-1/8 in.

Fence Size Height............................................................................................................................... 2-7/16 in.

Fence Rail Type.................................................................................................................. Extruded Aluminum

Fence Rail Length...................................................................................................................................... 64 in.

Fence Rail Width................................................................................................................................... 3-1/8 in.

Fence Rail Height.................................................................................................................................. 2-1/4 in.

Miter Gauge Information

Miter Gauge Slot Type.............................................................................................................................. T-Slot

Miter Gauge Slot Size Width..................................................................................................................... 3/4 in.

Miter Gauge Slot Size Height................................................................................................................... 3/8 in.

Construction

Table.................................................................................................................................................... Cast Iron

Wings.......................................................................................................................................... Stamped Steel

Cabinet................................................................................................................................... Pre-Formed Steel

Trunnions............................................................................................................................................. Cast Iron

Fence Assembly................................................................................................................................. Aluminum

Rails.................................................................................................................................................... Aluminum

Miter Gauge Construction................................................................................................................... Aluminum

Guard................................................................................................................................... Aluminum & Plastic

Body/Cabinet Paint Type/Finish................................................................................................ Powder Coated

Arbor Bearings........................................................................................... Shielded & Permanently Lubricated

Other Related Information

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size.............................................................................................................................................. 4 in.

Compatible Mobile Base........................................................................................................................ T28000

Model G0962 (Mfd. Since 09/24)

-7-

Page 10

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0962 (Mfd. Since 09/24)

Page 11

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0962 (Mfd. Since 09/24)

-9-

Page 12

Additional Safety for Table Saws

Serious cuts, amputation, or death can occur from contact with rotating saw blade during operation. Workpieces, broken blades, or flying particles thrown by blade can blind or strike operators or bystanders with deadly force. To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings below.

HAND & BODY POSITIONING. Keep hands

away from saw blade and out of blade path during operation, so they cannot accidentally slip into blade. Only operate at front of machine and always stand to side of blade path. Never reach behind or over blade, or under blade guard when blade is spinning.

BLADE GUARD. The blade guard protects operator from rotating saw blade. Make sure blade guard is installed, adjusted correctly, and used for all possible "through cuts." Promptly repair or replace if damaged. Re-install immediately after operations that require its removal.

RIVING KNIFE. Use riving knife for all "nonthrough cuts", except for dadoes. Make sure it is aligned and positioned correctly. Promptly repair or replace it if damaged.

KICKBACK. Kickback occurs when saw blade ejects workpiece back toward operator. Know how to reduce risk of kickback, and learn how to protect yourself if it does occur.

FEEDING WORKPIECE. Feeding workpiece incorrectly increases risk of kickback. Always allow blade to reach full speed before cutting, feed workpiece from front of saw, making sure workpiece is flat against table and a fence, miter gauge, or other guide is used to feed workpiece in a straight line. Feed cuts through to completion. Never start saw with workpiece touching blade or pull workpiece from behind blade. Never back workpiece out of cut, move it sideways, or perform a “freehand” operation. Never plunge cut.

PUSH STICKS/PUSH BLOCKS. To reduce risk of accidental blade contact, use push sticks/ push blocks whenever possible. In event of an accident, these will often take damage that would have occurred to hands/fingers.

FENCE. To reduce risk of kickback, make sure fence remains properly adjusted and parallel with blade. Always lock fence before using. Do not use fence while using miter gauge. Make sure fence is not touching the blade when the saw is started.

CUT-OFF PIECES. To avoid risk of injury due to blade contact, turn saw OFF and allow blade to completely stop before removing cut-off pieces near blade or trapped between blade and table insert. Never use your hands to move cut-off pieces away from blade while saw is running.

BLADE ADJUSTMENTS. Adjusting blade height or tilt during operation increases risk of crashing blade and sending metal fragments flying with deadly force at operator or bystanders. Only adjust blade height and tilt when blade is completely stopped and saw is OFF. Make sure blade is not touching the guard, riving knife, or workpiece before the saw is started.

CHANGING BLADES. Accidental startup while changing saw blade can result in serious injury. To reduce risk of accidental blade contact, always disconnect power before changing blades.

DAMAGED SAW BLADES. Damaged saw blade teeth can become deadly projectiles. Never use blades that have been dropped or damaged.

DADO AND RABBET OPERATIONS. Dado and rabbeting operations require special attention since they must be performed with blade guard removed, which increases risk of blade contact. DO NOT attempt dado or rabbeting operations without first reading these sections in this manual.

-10-

CUTTING CORRECT MATERIAL. Cutting metal, glass, stone, tile, etc., increases risk of operator injury due to kickback or flying particles. Only cut natural and man-made wood products, laminatecovered wood products, and some plastics. Never cut materials not intended for this saw.

Model G0962 (Mfd. Since 09/24)

Page 13

Preventing Kickback

Below are ways to avoid the most common causes of kickback:

• Only cut workpieces with at least one smooth and straight edge. DO NOT cut warped, cupped or twisted wood.

• Keep the blade guard installed and working correctly for all through cuts.

• Never attempt freehand cuts. If the workpiece is not fed parallel with the blade, kickback will likely occur. Always use the rip fence or miter gauge to guide the workpiece.

• Never move the workpiece backwards or try to back it out of a cut while the blade is moving. If you cannot complete a cut for some reason, stop the saw motor and allow the blade to completely stop before backing the workpiece out. Promptly fix the condition that prevented you from completing the cut before starting the saw again.

Protecting Yourself

From Kickback

Even if you know how to prevent kickback, it may still happen. Here are some ways to protect yourself if kickback DOES occur:

• Make sure the spreader or riving knife is aligned with the blade and secured tightly. A misaligned spreader or riving knife can cause the workpiece to catch or bind, increasing the chance of kickback.

• Take the time to check and adjust the rip fence parallel with the blade; otherwise, the chances of kickback are extreme.

• The spreader or riving knife maintains the kerf in the workpiece, reducing the chance of kickback. Always use the riving knife for all non-through operations, unless a dado blade is installed. Always use the spreader with the blade guard for all through cuts.

• Feed cuts through to completion. Anytime you stop feeding a workpiece in the middle of a cut, the chance of kickback is greatly increased.

• Keep the blade guard installed and in good working order. Only remove it when performing non-through cuts and immediately re-install the blade guard when finished. Remember, always use the riving knife for all non-through operations, unless a dado blade is installed.

• Make multiple, shallow passes when performing a non-through cut. Making a deep non-through cut will greatly increase the chance of kickback.

• Stand to the side of the blade during every cut. If kickback does occur, the thrown workpiece usually travels directly in front of the blade.

• Wear safety glasses or a face shield. In the event of kickback, your eyes and face are the most vulnerable part of your body.

• Never, for any reason, place your hand behind the blade or under blade guard. Should kickback occur, your hand could be pulled into the blade, which could cause amputation.

• Use a push stick to keep your hands farther away from the moving blade. If kickback occurs, the push stick will most likely take the damage your hand would have received.

• Use featherboards or anti-kickback devices to assist with feeding and prevent or slow down kickback.

Statistics show that most common accidents among table saw users can be linked to kickback. Kickback is typically defined as the high-speed expulsion of stock from the table saw toward its operator. In addition to the danger of the operator or others in the area being struck by the flying stock, it is often the case that

the operator’s hands are pulled into the

blade during kickback.

Model G0962 (Mfd. Since 09/24)

-11-

Page 14

or equipment damage may occur if machine is not properly grounded and connected to power

For your own safety and protection of

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

Note: Circuit requirements in this manual apply to a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

SECTION 2: POWER SUPPLY

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 120V ...... 15 Amps

Full-Load Current Rating at 240V

-12-

......7.5 Amps

Circuit Requirements for 120V

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 20 Amps

............................. NEMA 5-15

Circuit Requirements for 240V

Nominal Voltage .........208V, 22 0V, 23 0V, 24 0V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 6-15

Model G0962 (Mfd. Since 09/24)

Page 15

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

For 120V operation: This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

For 240V operation: The plug specified under "

on the previous page has a grounding prong that must be attached to the equipment-grounding wire on the included power cord. The plug must only be inserted into a matching receptacle (see following figure) that is properly installed and grounded in accordance with all local codes and ordinances.

Two-prong outlets do not meet the grounding requirements for this machine.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with

We do not recommend using an extension cord with this machine. If you must use an extension cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

GROUNDED

5-15 RECEPTACLE

Grounding Pin

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Grounding Pin

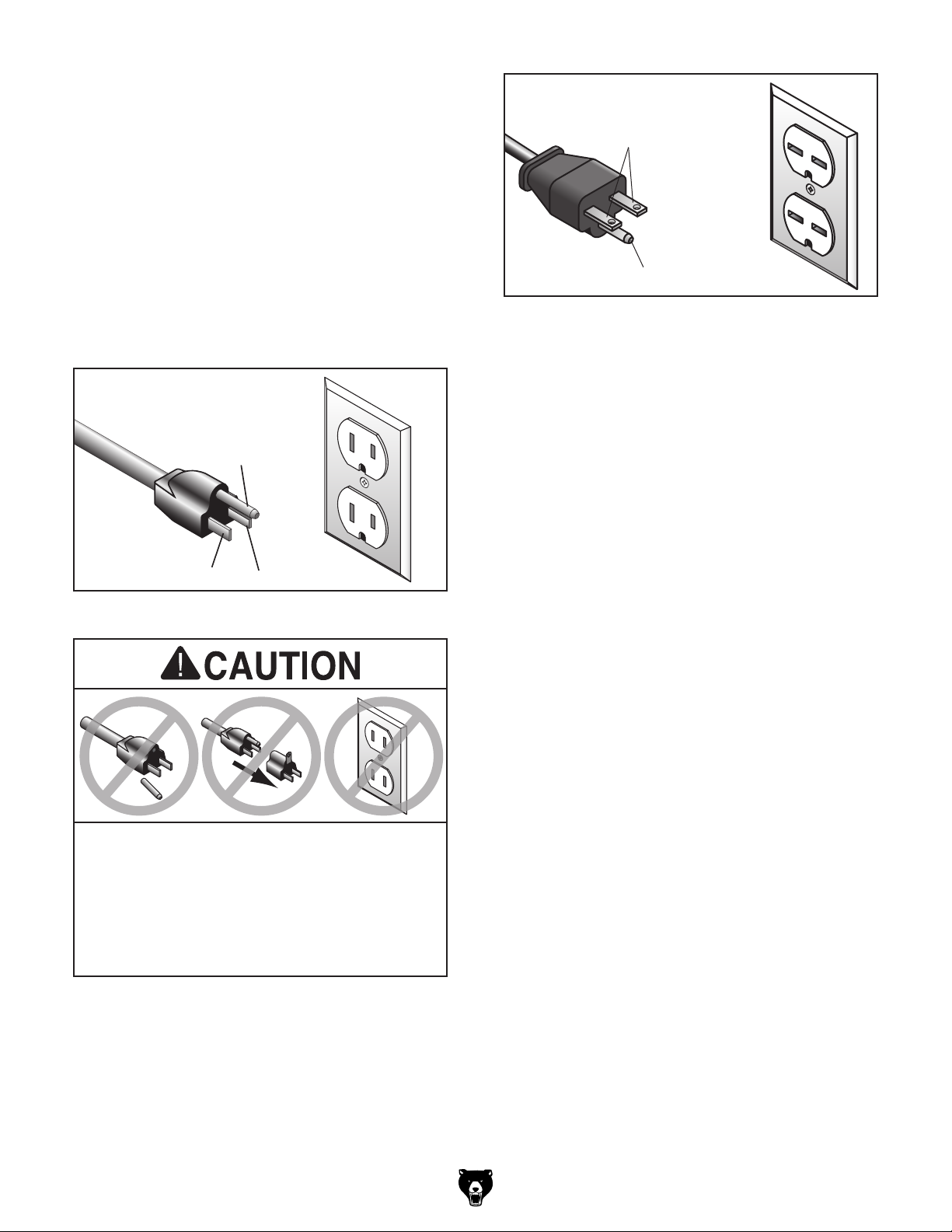

Figure 6. Typical 6-15 plug and receptacle.

5-15 PLUG

Neutral Hot

Figure 5. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground.

Circuit Requirements for 240V"

Model G0962 (Mfd. Since 09/24)

Extension Cords

Minimum Gauge Size ............................ 12 AWG

Maximum Length (Shorter is Better)

........ 50 ft.

-13-

Page 16

may occur if

incorrectly connected to

an electrician or qualified service personnel should connect this machine to power. Damage from an improper connection or power supply will NOT be

Ground

241

Ground

241

Ground

LINE

LOAD

Converting Voltage

to 240V

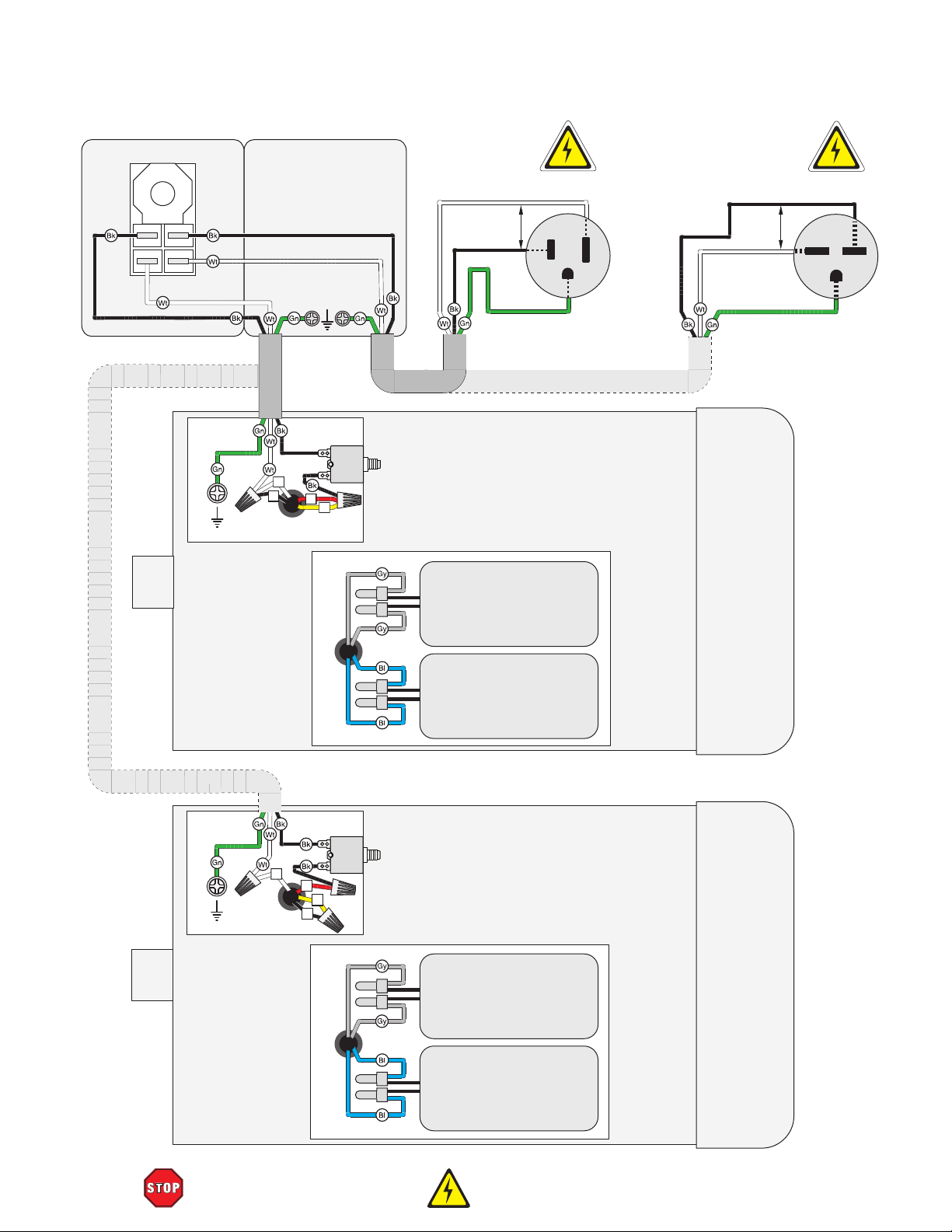

3. Open motor junction box, then remove (2)

wire nuts and circuit breaker indicated in

Figure 7.

Electrocution, shock, fire, or damage machine is ungrounded,

power, or NOT connected to a proper power supply. Only

covered under warranty!

The voltage conversion MUST be performed by an electrician or qualified service personnel.

The voltage conversion procedure consists of rewiring the motor and installing the correct plug. A wiring diagram is provided on Page 78 for your reference.

IMPORTANT: If the diagram included on the motor conflicts with the one on Page 78, the motor may have changed since the manual was printed. Use the diagram included on the motor instead.

To Switch

Figure 7. Inside motor junction box.

Install new circuit breaker, then connect wires

as shown in Figure 8. Twist wire nuts onto their respective wires and wrap them with electrical tape so they will not come loose.

Remove

LINE

LOAD

Remove

LINE

LOAD

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Open-End Wrench 11mm Wire Nut (14 AWG x 3) Electrical Tape Wire Cutters/Stripper Circuit Breaker 20A (P0962029-11X) NEMA Plug 6-15

To convert machine to 240V:

1. DISCONNECT MACHINE FROM POWER!

Cut off existing 5-15 plug.

-14-

................................... As Needed

................................................ 1

.................................. 1

...................................... 1

......................................... 1

................. 1

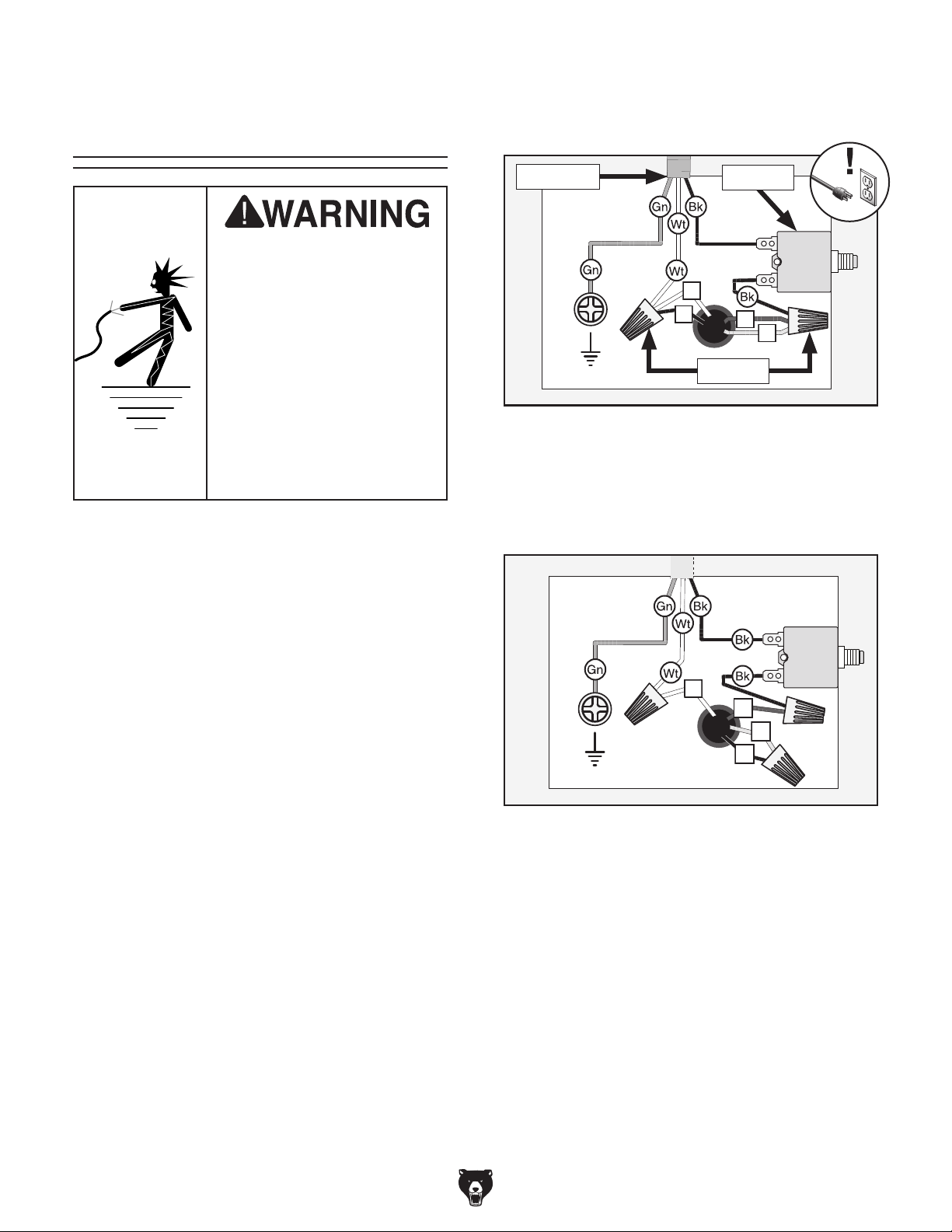

Figure 8. Motor rewired to 240V.

Close and secure motor junction box.

6. Install a NEMA 6-15 plug on power cord,

according to plug manufacturer's instructions. If plug manufacturer's instructions are not available, NEMA standard plug wiring is provided on Page 78.

Model G0962 (Mfd. Since 09/24)

Page 17

The following items are needed, but not included, for the setup/assembly of this machine.

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Needed for Setup

Description Qty

• Additional Person ....................................... 1

• Safety Glasses (for each person) ............... 1

• Cleaner/Degreaser ..................... As Needed

• Disposable Rags ........................ As Needed

• Disposable Gloves ..................... As Needed

• Heavy Leather Gloves .........................1 Pair

• Wire Brush/File ........................................... 1

• Straightedge 4' ........................................... 1

• Masking Tape ............................. As Needed

• Razor Blade ................................................ 1

• Measuring Tape .......................................... 1

• Wrench or Socket 13mm ............................ 1

• Phillips Head Screwdriver #2 ..................... 1

• Flat Head Screwdriver 1⁄4"........................... 1

• Dust Collection System .............................. 1

• Dust Hose 4" .............................................. 1

• Hose Clamps 4" ......................................... 2

Unpacking

Model G0962 (Mfd. Since 09/24)

If items are damaged

call us immediately at (570) 546-9663.

-15-

Page 18

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Inventory

Hex Bolts M8-1.25 x 16 (Switch)........................ 2

Lock Washers 8mm (Switch) Hex Nuts M8-1.25 (Switch/Rails/Table) Hex Nuts M8-1.25 (Fence Rail Brace) Hex Bolts M8-1.25 x 30 (Front Fence/Table) Cap Screws M8-1.25 x 25 (Rear Fence/Table) Cap Screw M8-1.25 x 16 (Fence Rail Brace) Button Hd Cap Screws

– M5-.8 x 10 (Motor Cover) ........................ 6

Button Hd Cap Screws

– M5-.8 x 16 (Rear Cover) .......................... 6

Flat Washer 6 x 20mm (Miter Handle)

............................. 2

............14

............... 2

..... 8

. 8

.... 1

.............. 1

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Box 1 Contents (Figure 9) Qty

A. Extension Wings ........................................ 2

Spreader/Riving Knife ................................ 1

Dado Insert (For 8" Blades Only) ............... 1

Tabl e I ns er t ................................................. 1

Push Stick .................................................. 1

Saw Blade 10" x 40T .................................. 1

Miter Gauge ................................................ 1

Blade Guard Assembly .............................. 1

Miter Handle ............................................... 1

Star Knobs.................................................. 2

Combo Wrenches 13/22, 16/23mm ...... 1 Ea.

. Hex Wrenches 2.5, 3, 4, 5, 6, 8mm .....1 Ea.

Handwheels ................................................ 2

Caster Assemblies ..................................... 2

Leg Brace w/Caster .................................... 3

Motor Cover ................................................ 1

Rear Access Panel ..................................... 1

Circuit Breaker WUYUE 98 Series 20A ..... 1

A B

C D E

Box 2 Contents (Figure 9) Qty

S. Fence Rail Brace ........................................ 1

Front Fence Rail ......................................... 1

. Rear Fence Rail ......................................... 1

Fence Assembly ......................................... 1

Hardware (Page 17)

Hex Bolts M8-1.25 x 65 (Casters) Lock Nuts M8-1.25 (Casters) Cap Screws M10-1.5 x 25 (Ext. Wing/Table) Flat Washers 10mm (Ext. Wing/Table) Lock Washers 10mm (Ext. Wing/Table)

-16-

Qty

..................... 3

............................. 3

.............. 6

............ 6

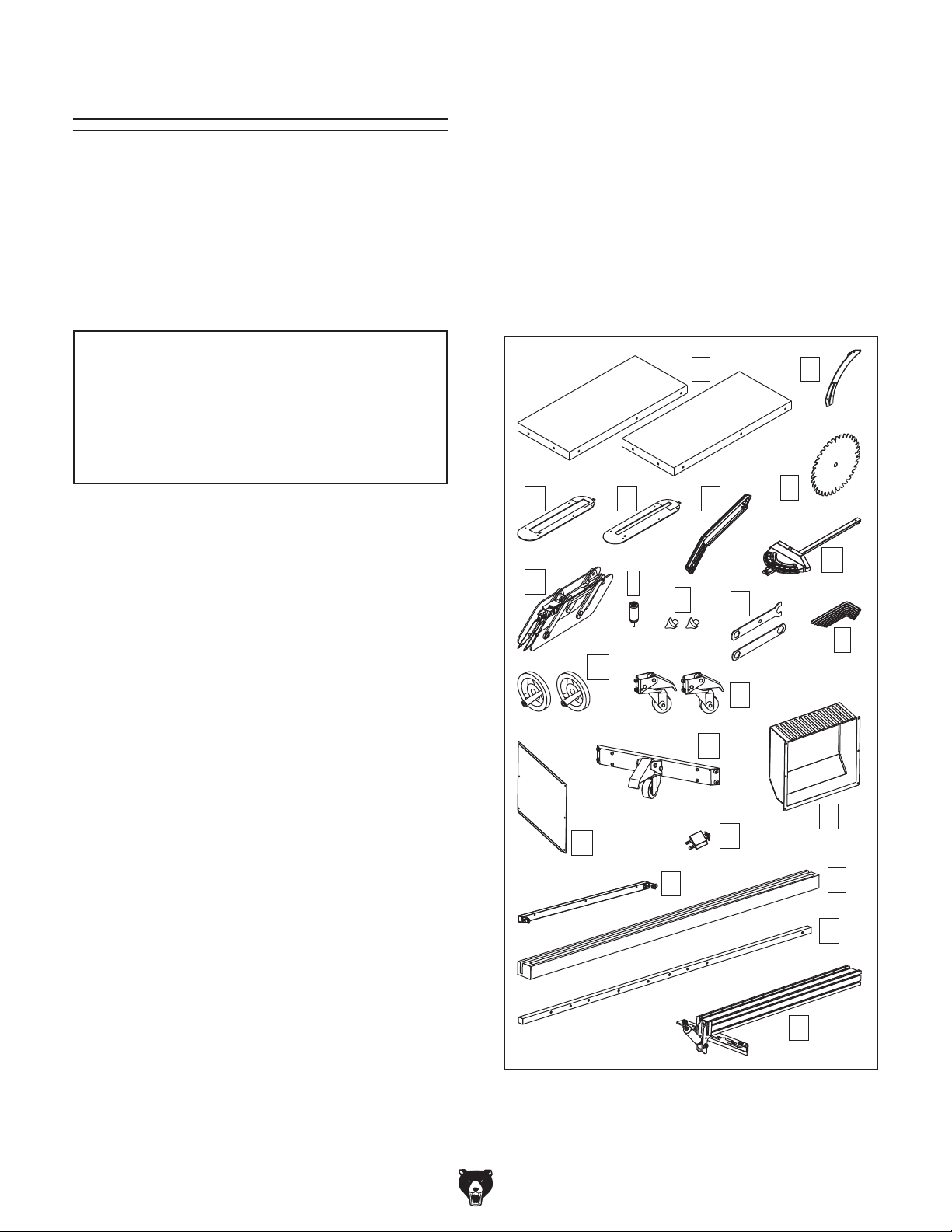

Figure 9. Model G0962 inventory.

..... 6

Model G0962 (Mfd. Since 09/24)

Page 19

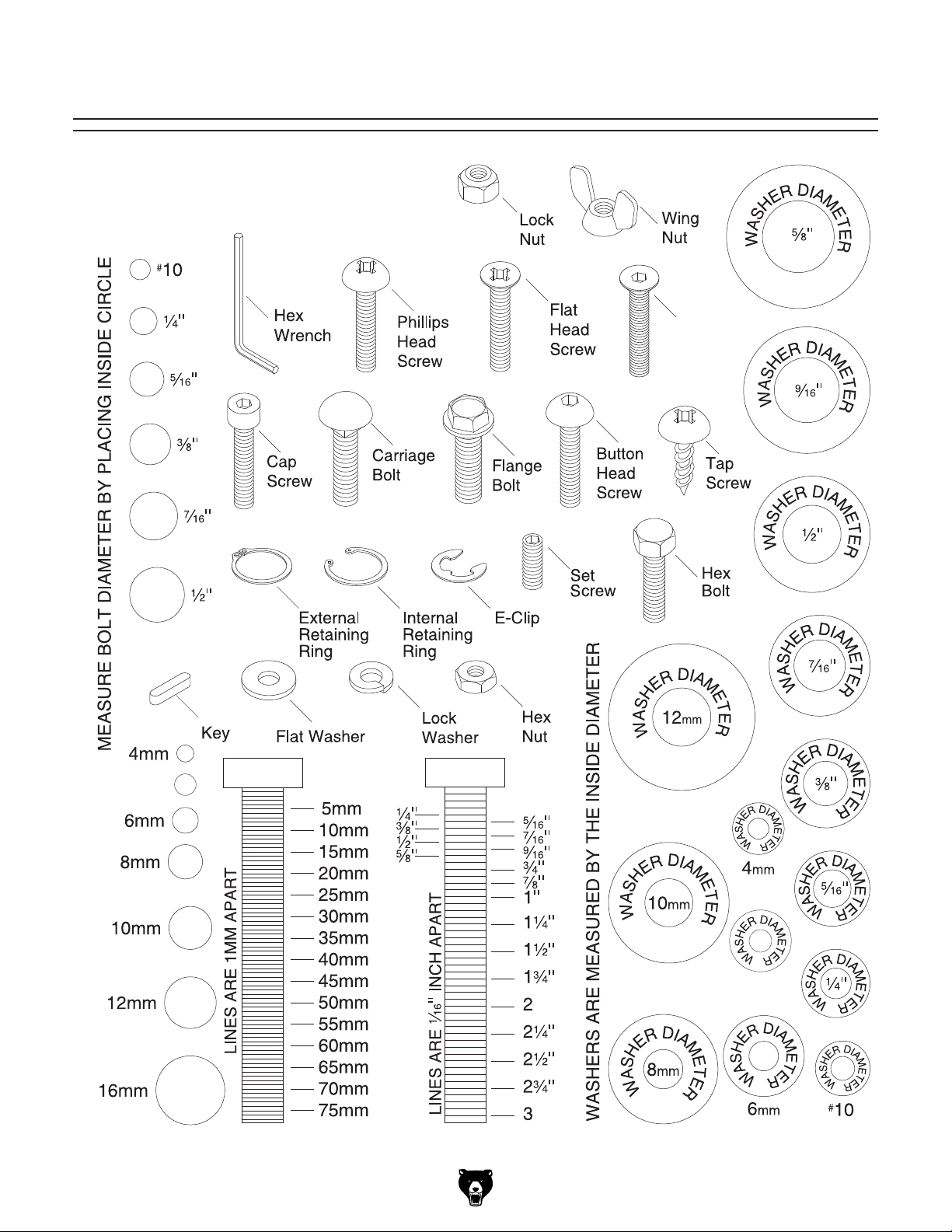

USE THIS CHART TO MATCH UP

Hardware Recognition Chart

HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.

Flat Head Cap Screw

5mm

Model G0962 (Mfd. Since 09/24)

5mm

-17-

Page 20

parts of the

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufac-

turer’s instructions with any cleaning product you

use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo i d using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted machine during clean up.

Order online at

www.grizzly.com

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

-18-

Figure 10. T23692 Orange Power Degreaser.

Model G0962 (Mfd. Since 09/24)

Page 21

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks,

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave enough space around machine to disconnect power supply or

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Site Considerations

Machine Data Sheet for the weight

or bumps.

Electrical Installation

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

Wall

Min. 30"

apply a lockout/tagout device, if required.

Lighting

64"

40½"

= Power Connection

Model G0962 (Mfd. Since 09/24)

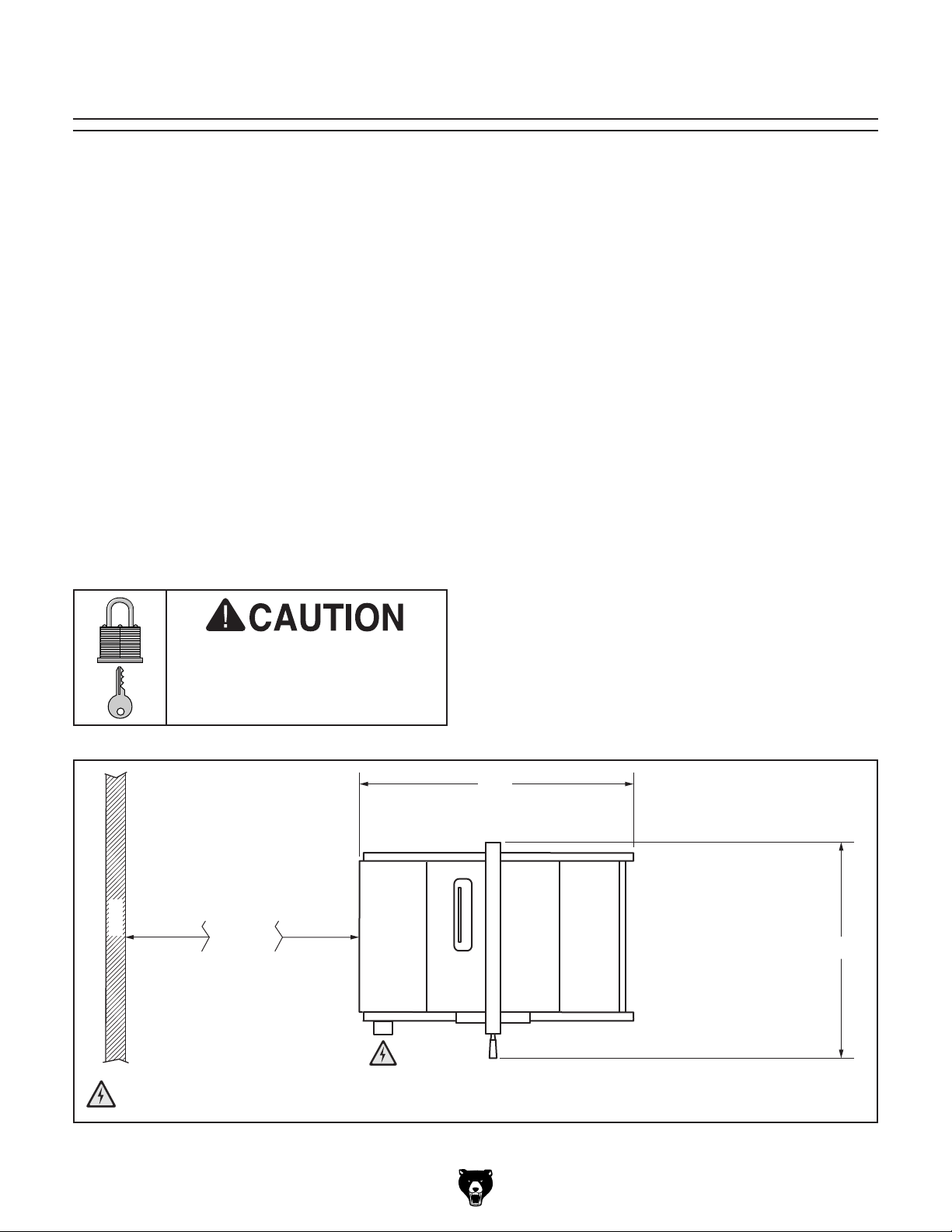

Figure 11. Minimum working clearances.

-19-

Page 22

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Needed for Setup

listed items.

parts that are

To assemble machine:

1. Install (2) caster assemblies on right front and

rear stand legs with pre-installed (2) M8-1.25 x 16 button head cap screws, 8mm flat washers, 8mm lock washers, and M8-1.25 hex nuts (see Figure 12).

Install leg brace w/caster using pre-installed

(4) M8-1.25 x 16 button head cap screws and (4) M6-1 x 12 button head cap screws (see Figure 13).

x 4

x 2

Caster Assembly

(1 of 2)

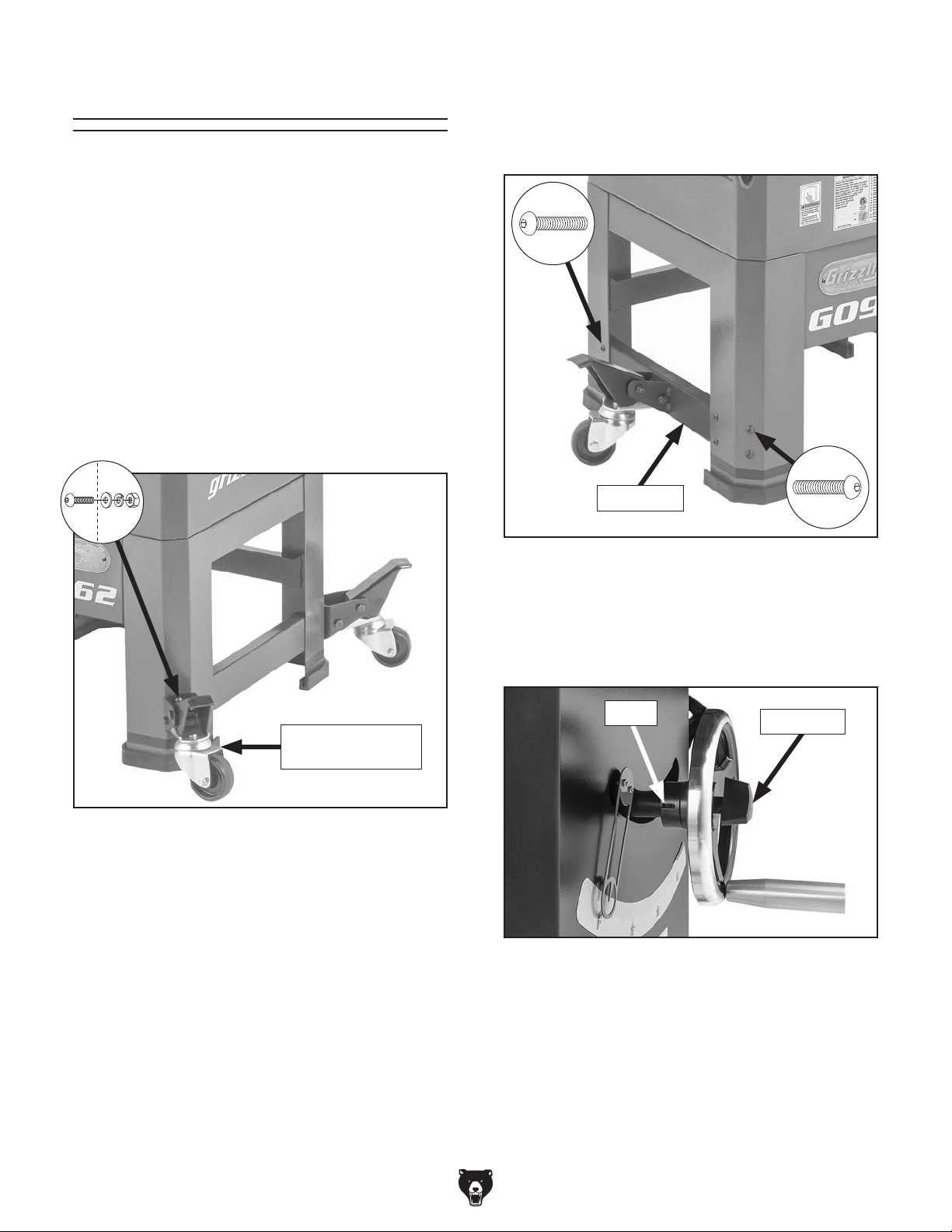

Figure 12. Caster assemblies installed.

Leg Brace

Figure 13. Leg brace w/caster installed.

Install handwheels on shafts, making sure

notch in each handwheel fits over pin on each shaft, as shown in Figure 14, and then secure with star knobs.

Notch

Star Knob

x 4

-20-

Figure 14. Example of handwheel properly

installed.

Model G0962 (Mfd. Since 09/24)

Page 23

4. Turn blade tilt handwheel until blade tilt indi-

cator points to 15° on blade angle scale (see Figure 15).

Blade Tilt Indicator

Blade Tilt

Handwheel

Cap Screw

M10-1.5 x 25

Lock Washer

10mm

Flat Washer

10mm

Blade Elevation

Blade Angle Scale

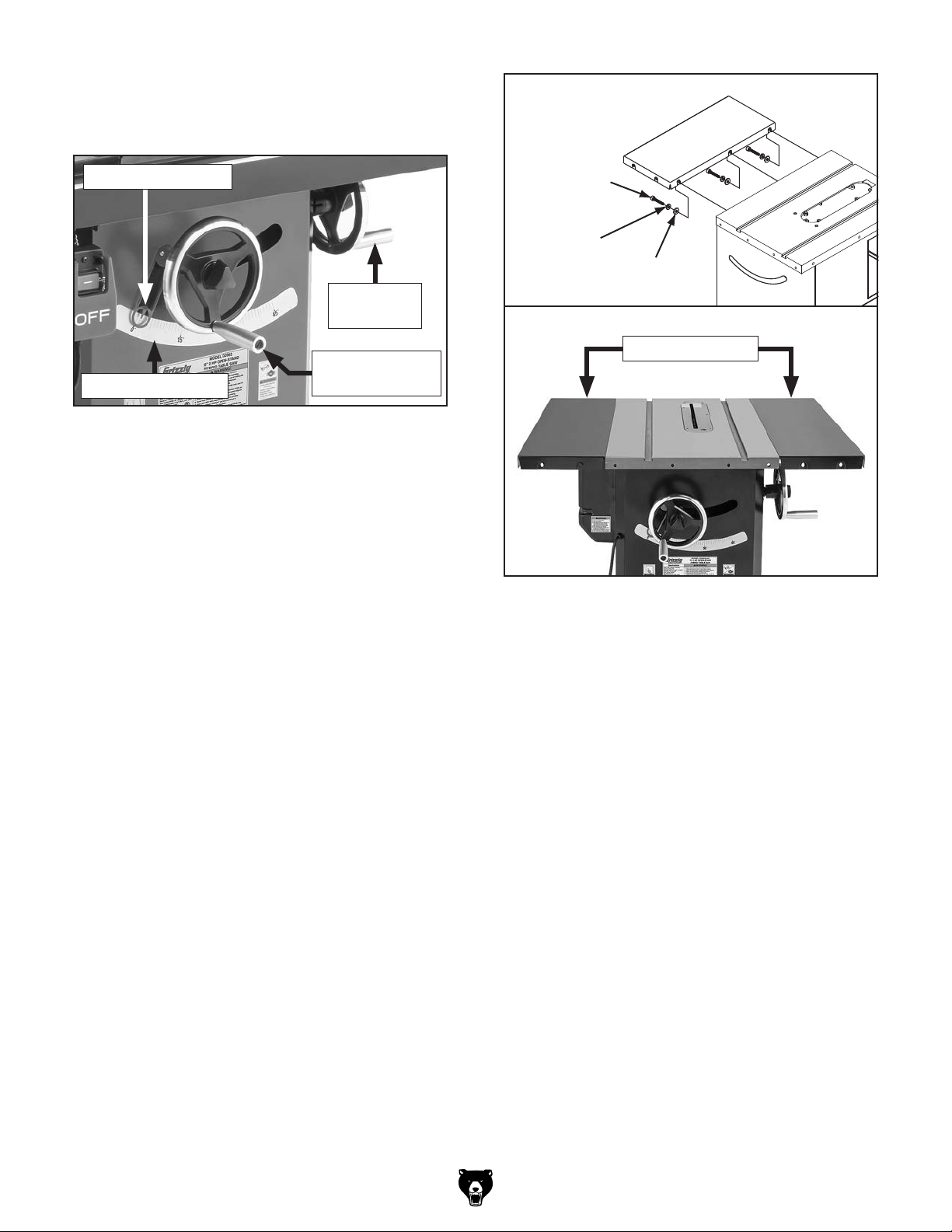

Figure 15. Blade tilt indicator and angle scale.

5. Inspect mating surfaces of cast iron table

for burrs or foreign material that may inhibit installation of extension wings.

IMPORTANT: Mating edges of table and

wings must be clean, smooth, and flat. If necessary, use a wire brush or file to remove any flashing, dings, or high spots. This step will ensure that wings will mount properly to main table.

. With another person to hold wings in place,

attach each extension wing to main table using (3) M10-1.5 x 25 cap screws, 10mm lock washers, and 10mm flat washers (see Figure 16).

Handwheel

Extension Wings

Figure 16. Example of extension wings installed.

Model G0962 (Mfd. Since 09/24)

-21-

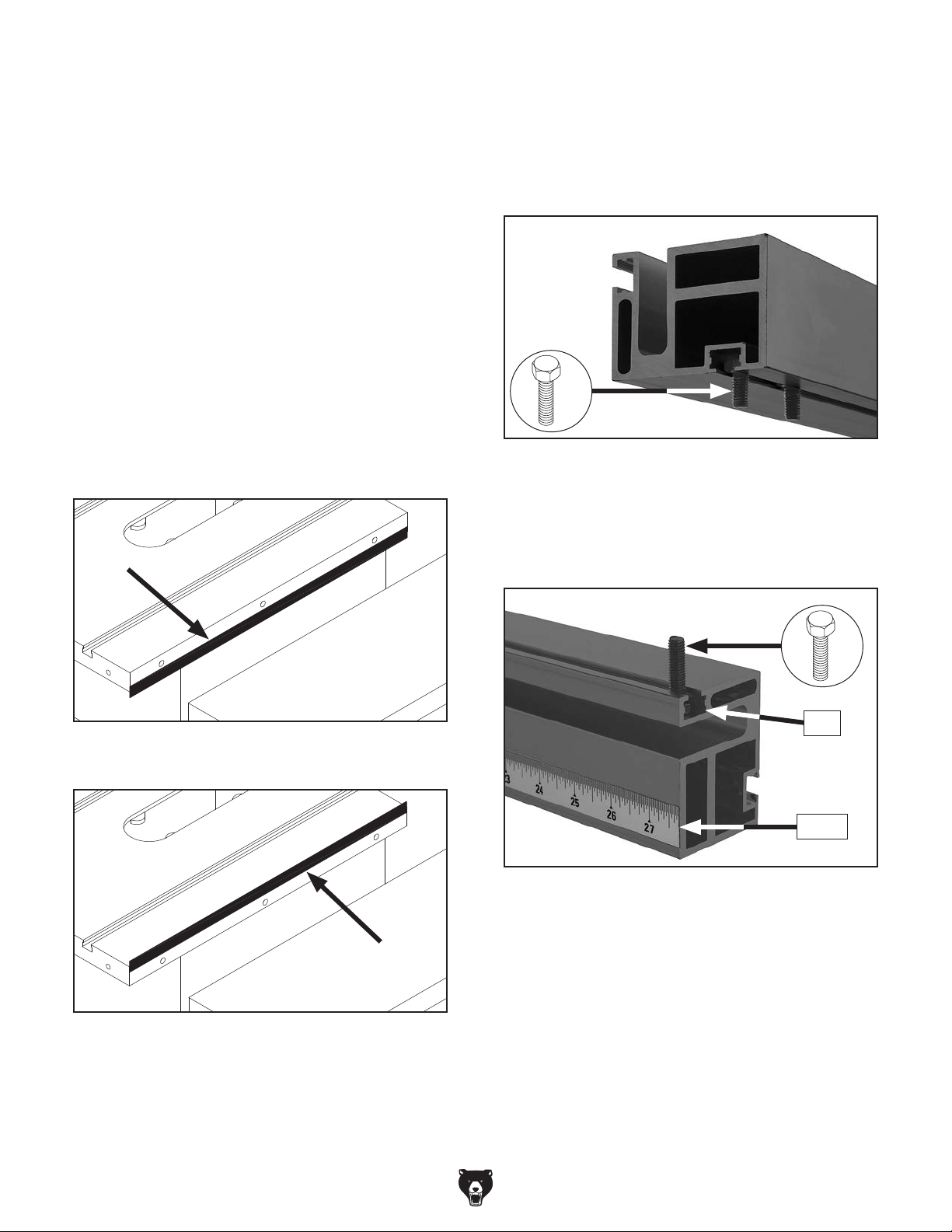

Page 24

7. Place straightedge across extension wings

and main table to ensure combined table surface is flat.

— If combined table surface is flat, skip to

next step.

— If outside end of extension wing tilts down,

remove wing and place a strip of masking tape along bottom edge of main table to shim end of wing up (see Figure 17).

— If outside end of extension wing tilts up,

remove wing and place a strip of masking tape along top edge of main table to shim end of extension wing down (see

Figure 18).

8. Remove (2) M8-1.25 x 16 hex bolts from

switch, then remove tap screw and end cap from left end of front fence rail. Insert hex bolts into bottom slot on left end of fence rail (see Figure 19). These bolts will be used later for mounting the switch.

x 2

Note: After re-installing wings, remove all

excess masking tape with a razor blade.

Figure 17. Masking tape location for tilting

extension wing up.

Figure 19. Location of hex bolts for mounting

switch.

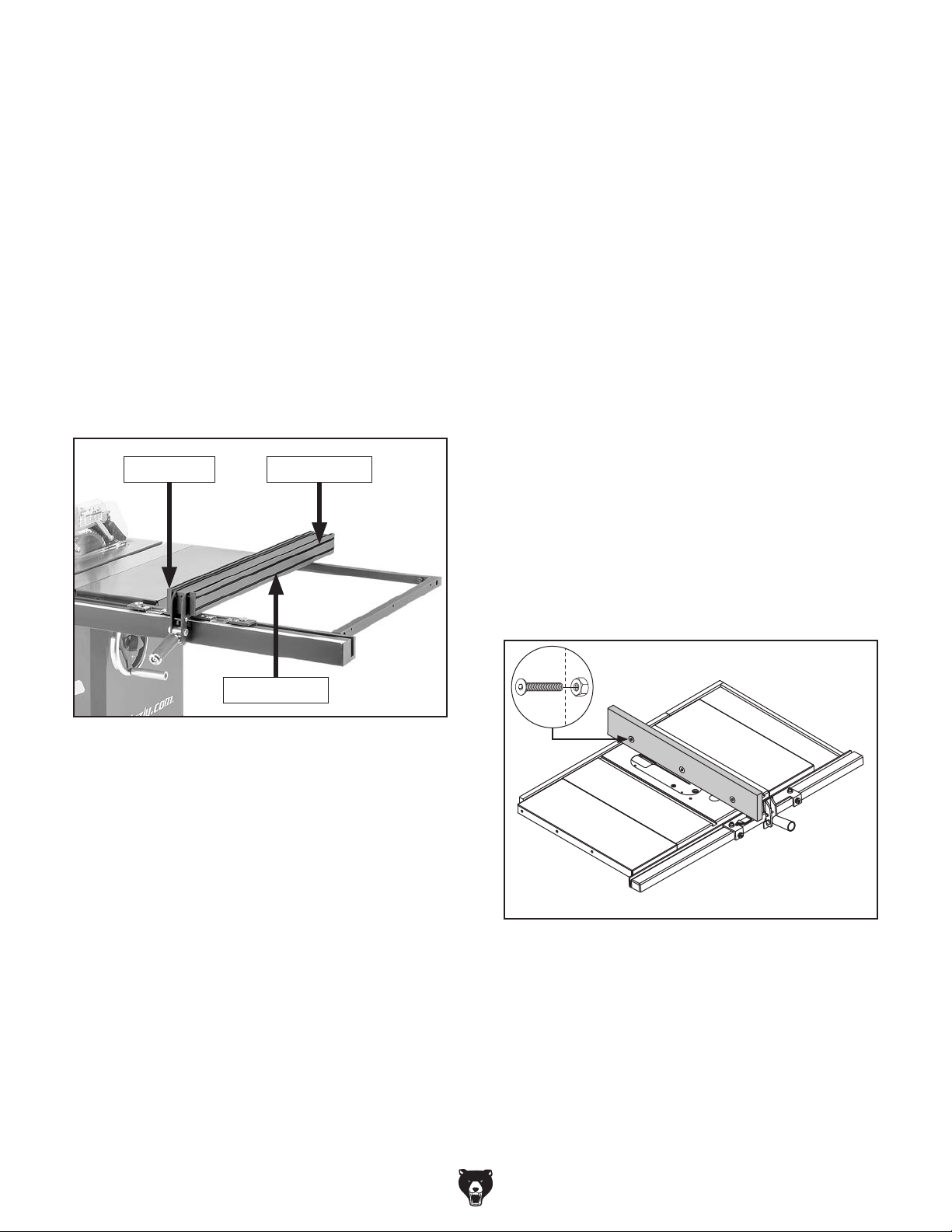

Orient fence rail so scale faces you. Slide (8)

M8-1.25 x 30 hex bolts into open slot (see Figure 20).

x 8

Slot

Scale

Figure 20. Hex bolt positioned in front fence rail

slot.

Figure 18. Masking tape location for tilting

extension wing down.

-22-

Model G0962 (Mfd. Since 09/24)

Page 25

10. Re-install end cap and tap screw on fence rail (see Figure 21).

x 1

Figure 21. Left end cap re-installed on front

fence rail.

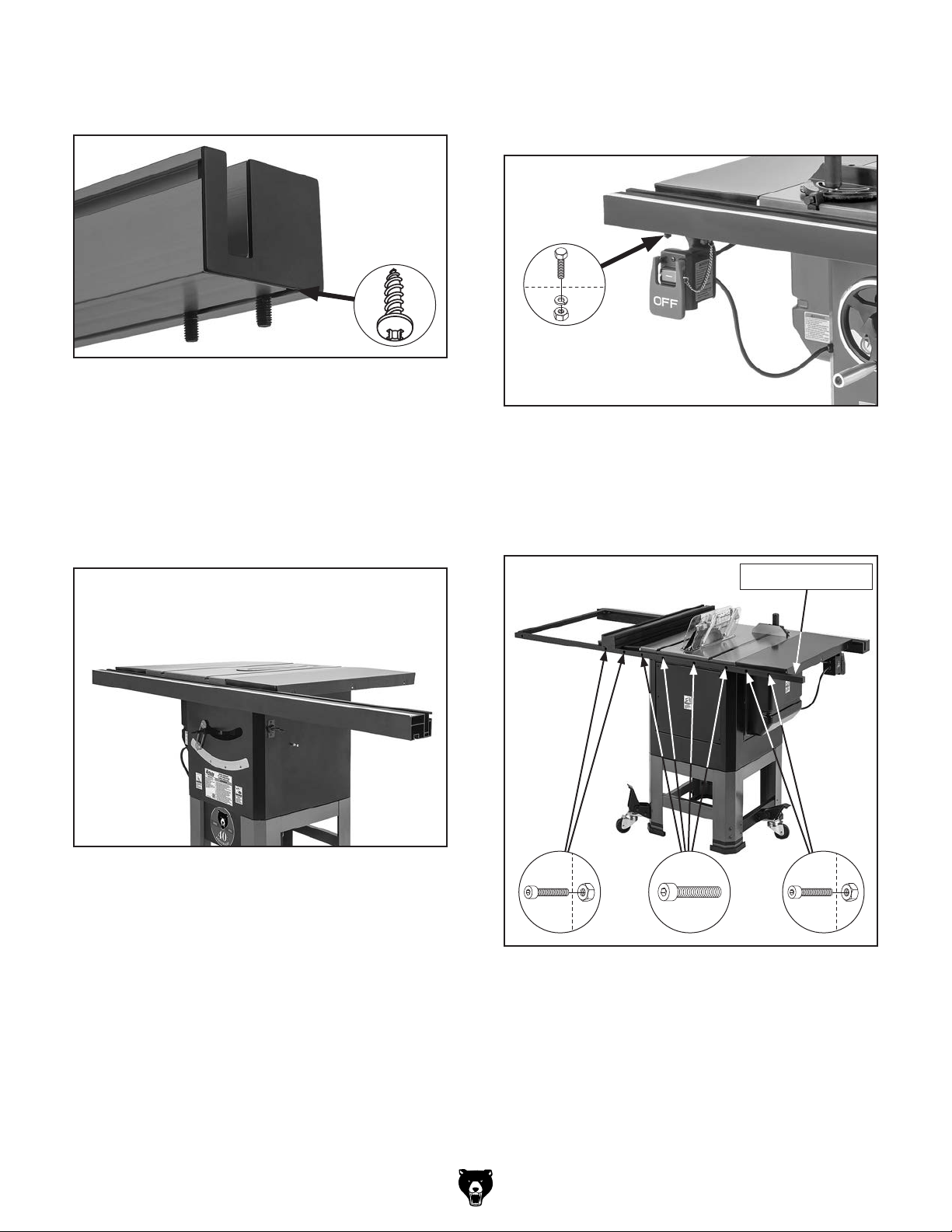

Install ON/OFF switch on hex bolts from Step

12. 8 using (2) M8-1.25 hex nuts and (2) 8mm

lock washers (see Figure 23).

x 2

Align (8) hex bolts in fence rail with holes

11.

in table, then insert bolts into table. Be sure scale on fence rail is facing up. Hand tighten (8) M8-1.25 hex nuts onto hex bolts (see Figure 22). Do not fully tighten fasteners at this time.

Figure 22. Example of front fence rail mounted.

Figure 23. ON/OFF switch installed.

Install rear fence rail on rear of table using

13.

(8) M8-1.25 x 25 cap screws, as shown in Figure 24. Secure outer four cap screws with M8-1.25 hex nuts.

Rear Fence Rail

Model G0962 (Mfd. Since 09/24)

x 2

Figure 24. Example of mounting rear fence rail.

x 4 x 2

-23-

Page 26

14. Install saw blade as instructed in Blade Installation on Page 33.

Install table insert in table opening (see

15. Figure 25). Check to make sure it is flush and adjust if necessary (see Table/Dado Insert Adjustment on Page 74).

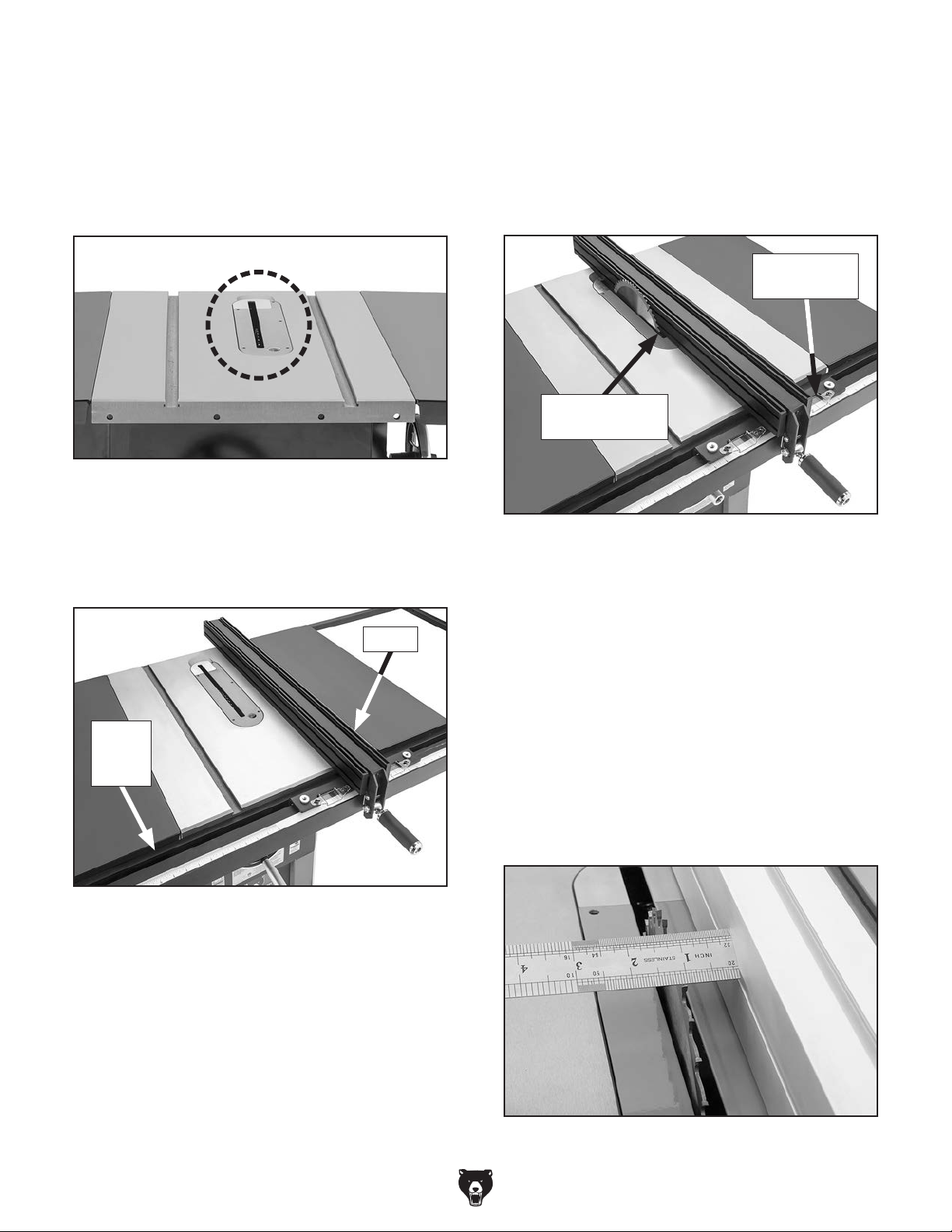

Figure 25. Example of Standard table insert

installed.

19. Lift fence handle and slide fence so it lightly touches right side of blade (see Figure 27). Do not lock fence at this time.

Nudge fence rail so zero mark of scale (on

20.

right) lines up with cross-hair in fence scale window (see Figure 27).

Fence Scale

Window

Fence Lightly

Touching Blade

16. Place fence on front fence rail, as shown in Figure 26. Press handle down to lock fence

in position.

Fence

Front

Fence

Rail

Figure 26. Example of fence installed on front

rail.

Using blade height handwheel, raise blade

17.

1–2 inches.

Figure 27. Example of fence scale calibration.

Fully tighten hex nuts from Step 11 to secure

21.

front fence rail.

Check fence scale calibration by moving

22.

fence to 1" mark on scale and measuring distance between blade tooth (see Figure 28) and fence.

— If crosshair does align exactly with 1"

mark, no adjustments needed.

— If crosshair does not align with 1" mark,

loosen fence scale window screws, move crosshair to 1" mark, then tighten screws.

Turn blade tilt handwheel until blade tilt

18.

indicator on front of machine points to 0° on blade angle scale.

-24-

Figure 28. Example of checking fence scale

calibration.

Model G0962 (Mfd. Since 09/24)

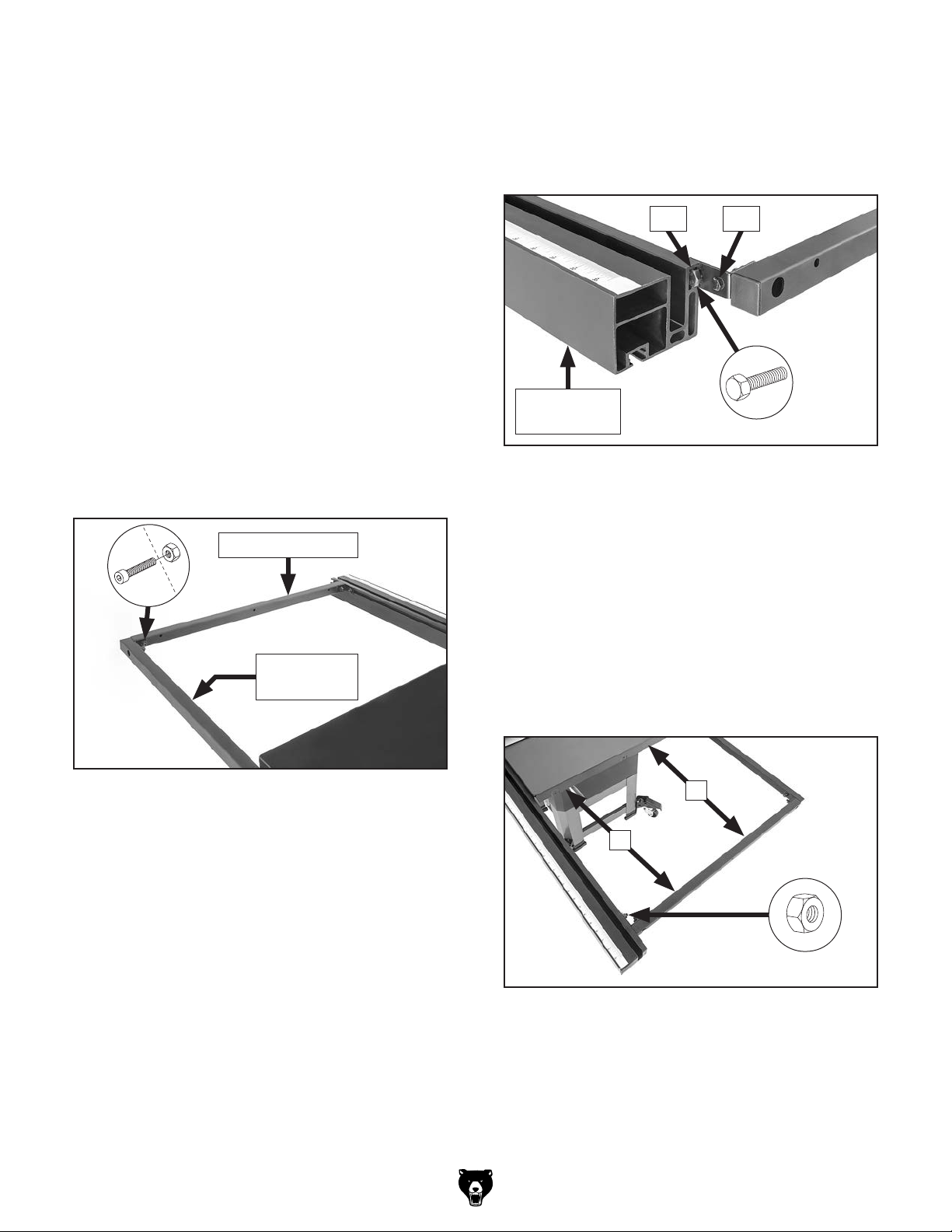

Page 27

23. Lift fence off of table and re-install to left of blade, then slide fence so it lightly touches left side of blade.

Check left fence scale window.

24.

— If crosshair does align with zero mark on

left fence scale, no adjustments needed.

— If crosshair does not align with zero mark

on scale, loosen fence scale window screws, move crosshair over zero mark, and then tighten screws.

Install blade guard and spreader/riving knife

25.

as instructed on Page 34.

Using a helper, mount fence rail brace to rear

26.

fence rail with M8-1.25 x 16 cap screw and M8-1.25 hex nut (see Figure 29). Do not fully tighten cap screw at this time.

Fence Rail Brace

Insert M8-1.25 x 16 hex bolt into front end

28.

of fence rail brace, then slide hex head and tab of brace into slot in front fence rail (see Figure 30). Tighten cap screw and hex nut on rear end of fence rail brace.

TabSlot

Front Fence

Rail

Figure 30. Attaching front end of fence rail

brace.

Re-install end cap and tap screw on right end

29.

of fence rail.

Rear Fence

Rail

Figure 29. Attaching rear end of fence rail brace.

Remove tap screw and end cap from right

27.

end of fence rail.

Measure distance (A) from table edge to rear

30.

end of fence rail brace, then adjust front end of fence rail brace so it is the same distance (B) from table edge (see Figure 31).

Secure front rail brace hex bolt from Step 28

31.

with M8-1.25 hex nut (see Figure 31).

Figure 31. Fence rail brace installed.

Model G0962 (Mfd. Since 09/24)

-25-

Page 28

32. Secure rear cover with (6) M5-.8 x 16 button head cap screws (see Figure 32).

Secure motor cover with (6) M5-.8 x 10 but-

33. ton head cap screws (see Figure 32).

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

x 6

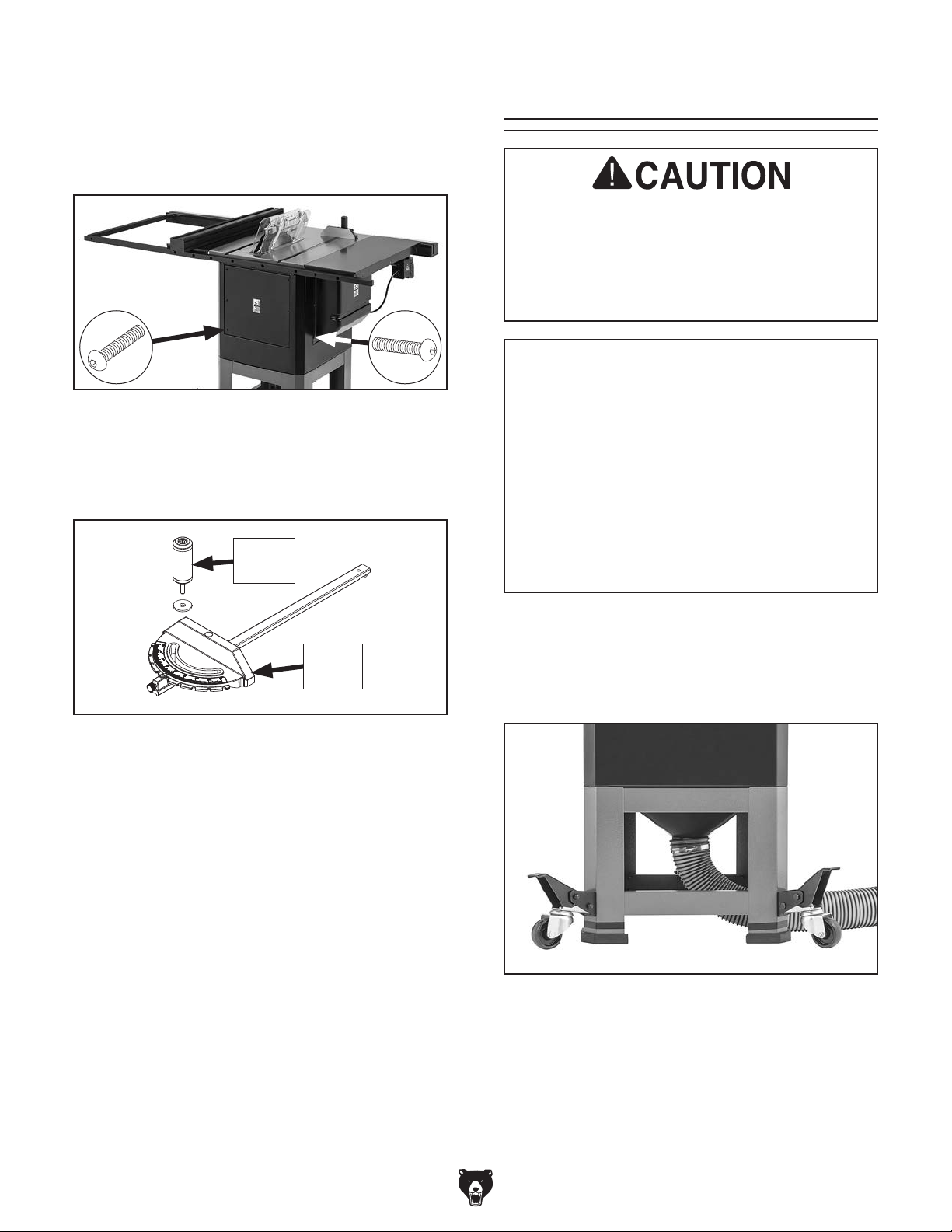

Figure 32. Example of rear access panel and

motor cover installed.

34.

Install miter handle and 6 x 20mm flat washer

into miter gauge (see Figure 33).

Miter

Handle

Miter

Gauge

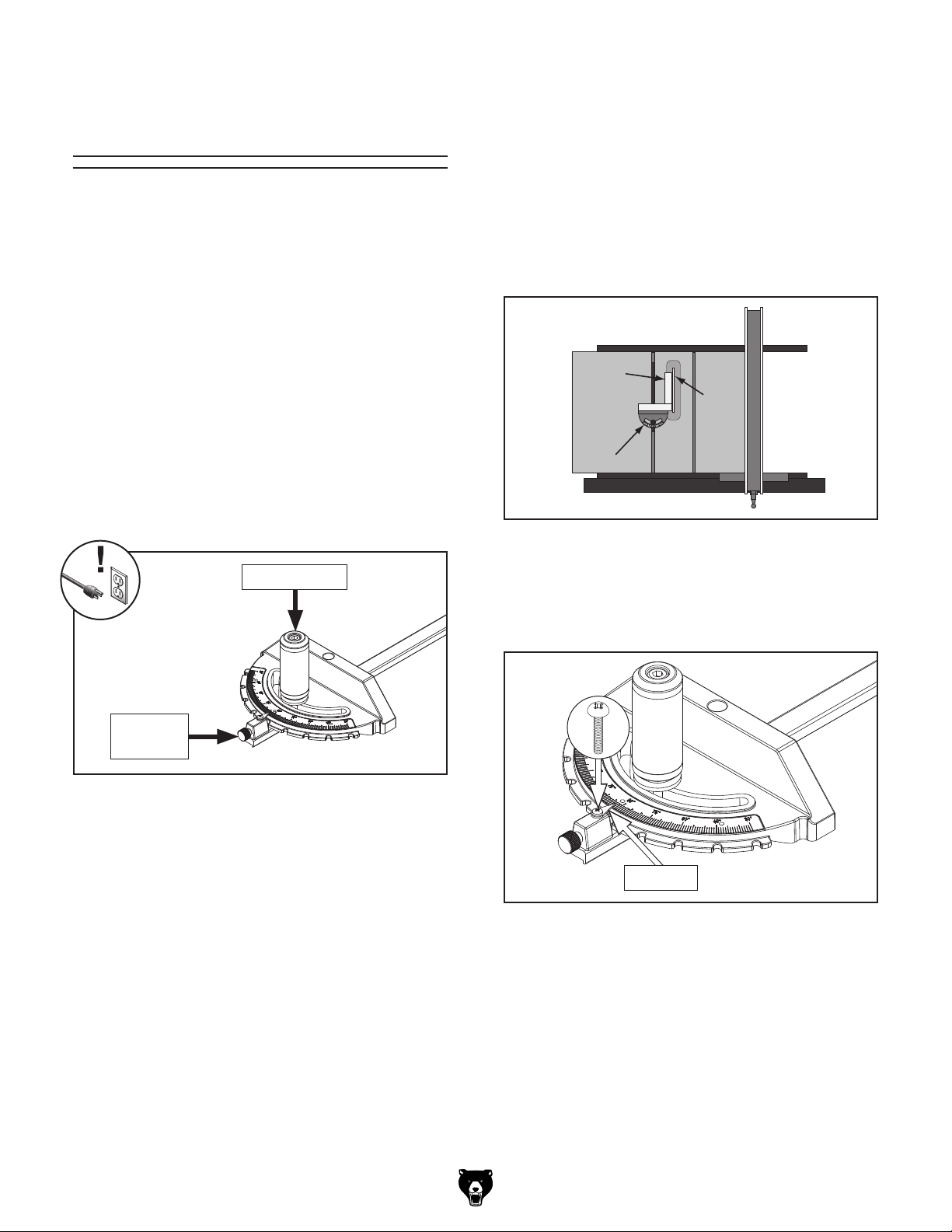

Figure 33. Installing miter handle.

x 6

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

To connect a dust collection system:

Fit 4" dust hose over dust port and secure in

place with hose clamp (see Figure 34).

-26-

Figure 34. Dust hose attached to dust port.

Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper

performance.

Model G0962 (Mfd. Since 09/24)

Page 29

setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

Test Run

ON / START

Button

OFF / STOP

Paddle

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the switch disabling pin disables the switch

properly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

Lower blade all the way down, and make sure

all tools and objects used during setup are cleared away from machine.

Connect machine to power supply.

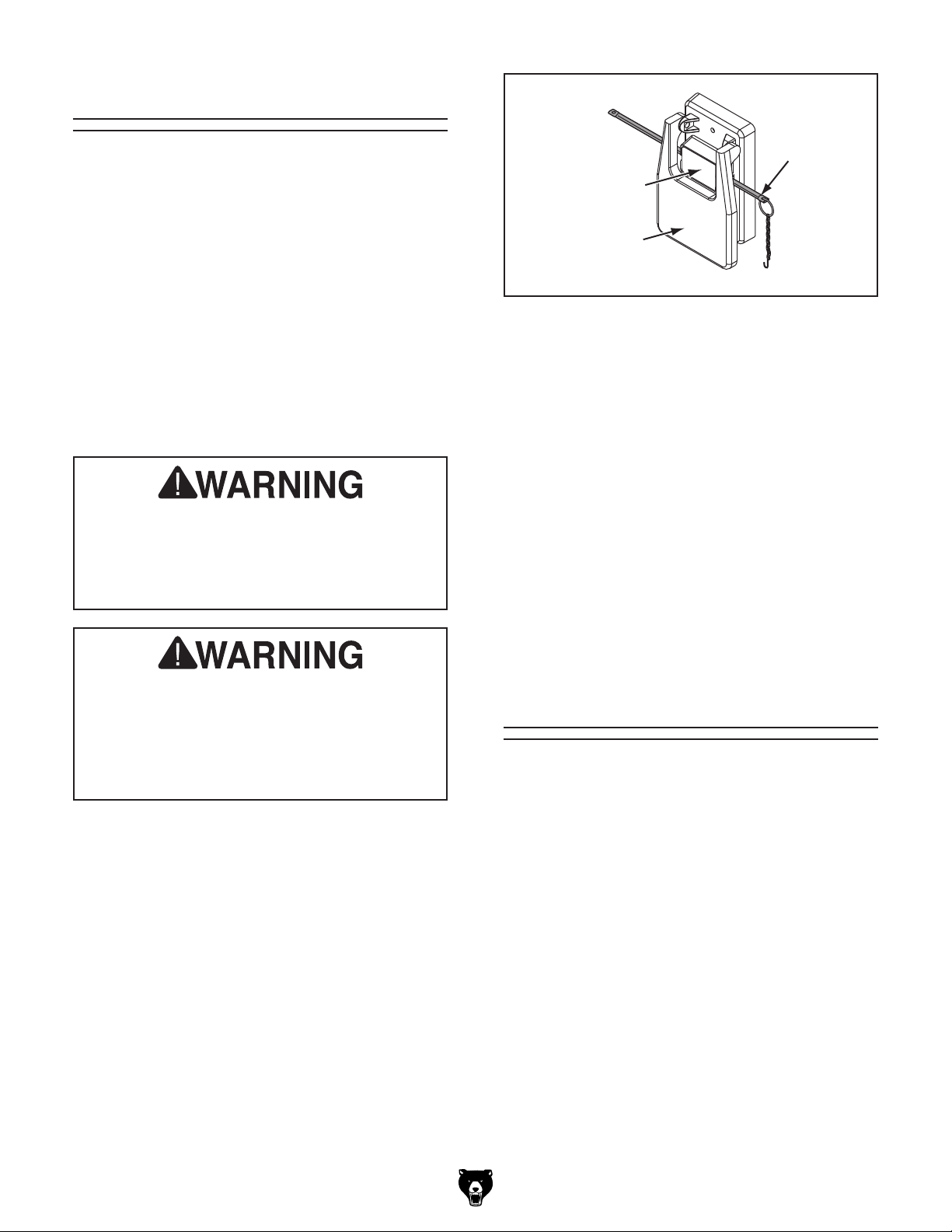

Figure 35. Disabling pin through switch button.

5. Press green ON/START button to test dis-

abling feature on switch. Machine should not start.

— If machine does not start, switch disabling

feature is working as designed.

— If machine does start, immediately stop

machine. Switch disabling feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for assistance.

Recommended

Adjustments

For your convenience, the adjustments listed below have been performed at the factory and no further setup is required to operate this machine. However, because of the many variables involved with shipping, we recommend that you verify the following adjustments to ensure that this saw cuts safely and accurately.

Step-by-step instructions for these adjustments can be found in SECTION 8: SERVICE.

3. Turn machine ON, verify motor operation, then turn machine OFF.

The motor should run smoothly and without

unusual noises.

Insert switch disabling pin through green ON/

4. START button (see Figure 35).

Model G0962 (Mfd. Since 09/24)

Recommended adjustments:

Blade Tilt Calibration (Page 65).

Miter Slot to Blade Parallelism (Page 67).

Table/Dado Insert Adjustment (Page 74).

-27-

Page 30

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

Operation Overview

machine controls/components

are easier to understand.

seek additional

To complete a typical operation, the operator does the following:

. Examines workpiece to make sure it is suit-

able for cutting.

. Adjusts blade tilt, if necessary, to correct

angle of desired cut.

. Adjusts blade height approximately 1⁄4" higher

than thickness of workpiece.

. Adjusts fence to desired width of cut, then

locks it in place.

. Checks outfeed side of machine for proper

support and to make sure workpiece can safely pass all the way through blade without interference.

. Puts on safety glasses and respirator, then

locates push sticks if needed.

using machine.

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-28-

. Starts dust collector, then starts saw.

8. Feeds workpiece all the way through blade

while maintaining firm pressure on workpiece against table and fence, and keeping hands and fingers out of blade path and away from blade.

. Stops machine after cut is complete.

Model G0962 (Mfd. Since 09/24)

Page 31

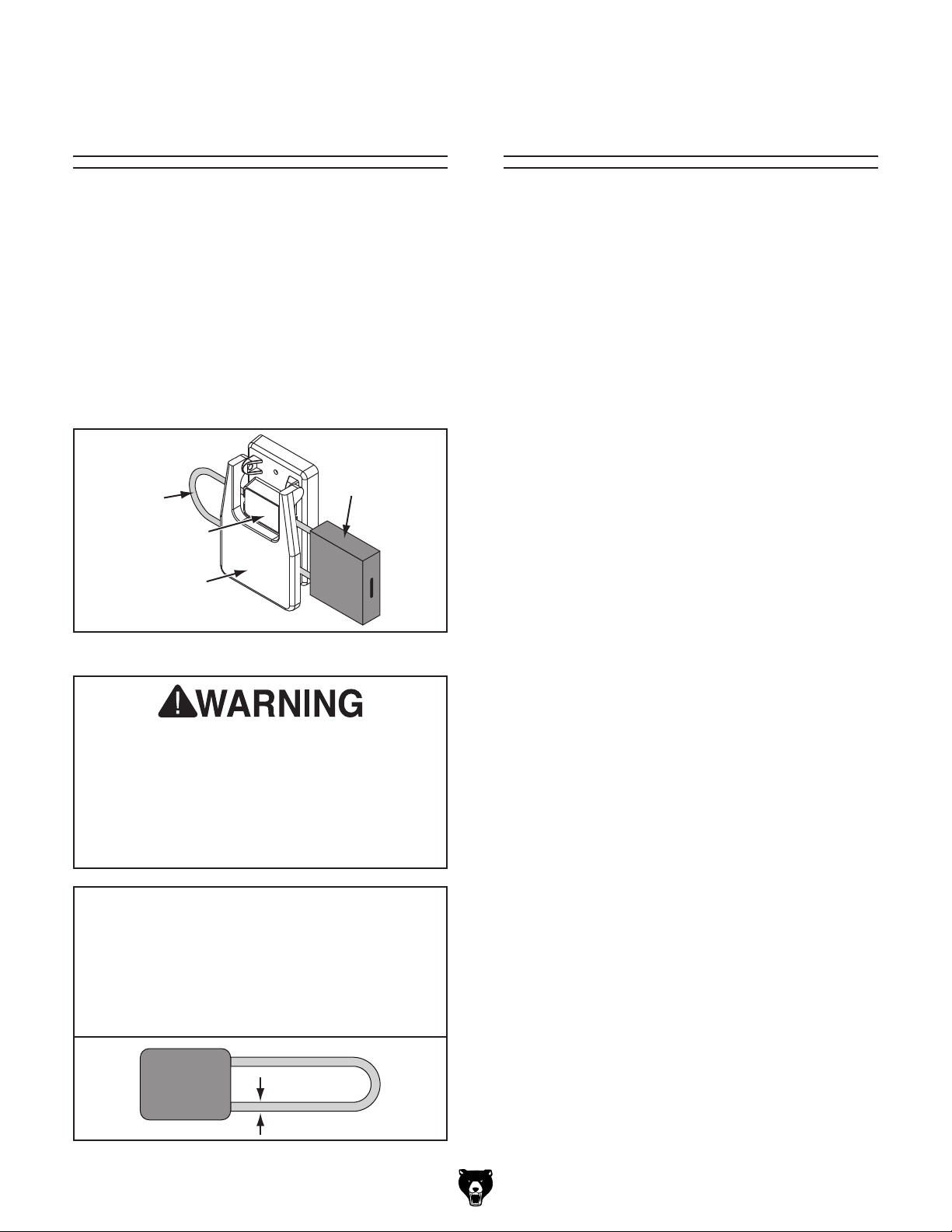

The switch can be disabled and locked by inserting a padlock through the ON/START button, as shown. Locking the switch in this manner can prevent unauthorized operation of the machine, which is especially important if the machine is not stored inside an access-restricted building.

IMPORTANT: Locking the switch with a padlock only restricts its function. It is not a substitute for disconnecting power from the machine when adjusting or servicing.

Children or untrained people can be

. This

To help prevent unsupervised operation, disable and lock the switch before leaving

Disabling & Locking

Workpiece

Switch

Shaft

ON / START

Button

OFF / STOP

Paddle

Figure 36. Switch disabled by a padlock.

Padlock

Inspection

Some workpieces are not safe to cut or may require modification before they are safe to cut.

Before cutting, inspect all workpieces for the following:

• Material Type: This machine is intended for

cutting natural and man-made wood products, laminate covered wood products, and some plastics. Cutting drywall or cementitious backer board creates extremely fine dust and may reduce the life of the bearings. This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with a table saw may lead to injury.

• Foreign Objects: Nails, staples, dirt, rocks

and other foreign objects are often embedded in wood. While cutting, these objects can become dislodged and hit the operator, cause kickback, or break the blade, which might then fly apart. Always visually inspect your workpiece for these items. If they can't be removed, DO NOT cut the workpiece.

seriously injured by this machine risk increases with unsupervised operation.

machine unattended! Place key in a wellhidden or secure location.

NOTICE

The padlock shaft diameter is important to the disabling function of the switch. With any padlock used to lock the switch, test the switch after installation to ensure that it is properly disabled.

Figure 37. Minimum lock shaft requirements.

• Large/Loose Knots: Loose knots can

become dislodged during the cutting operation. Large knots can cause kickback and machine damage. Choose workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

• Wet or "Green" Stock: Cutting wood with a

moisture content over 20% causes unnecessary wear on the blades, increases the risk of kickback, and yields poor results.

• Excessive Warping: Workpieces with exces-

sive cupping, bowing, or twisting are dangerous to cut because they are unstable and often unpredictable when being cut. DO NOT use workpieces with these characteristics!

• Minor Warping: Workpieces with slight cup-

ping can be safely supported if the cupped side is facing the table or the fence. On the contrary, a workpiece supported on the bowed side will rock during a cut and could cause kickback or severe injury.

Model G0962 (Mfd. Since 09/24)

-29-

Page 32

Examples of non-through cuts include dadoes and rabbets. Non-through cuts have a higher risk of injury from kickback because the blade guard must be removed. However, when making these cuts with a standard blade, the riving knife MUST be installed because it still provides some protection.

IMPORTANT: When making non-through cuts with a dado blade, the riving knife MUST be removed. Do not attempt to cut the full depth in one pass. Instead, take multiple light passes to reduce the load on the blade.

A through cut is a sawing operation in which the workpiece is completely sawn through, as shown in the

. Examples of through cuts are rip cuts, cross cuts, miter cuts, and beveled cuts. The blade guard assembly MUST be used when performing through cuts.

A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in the

Non-Through &

Through Cuts

Non-Through Cuts

Figure below

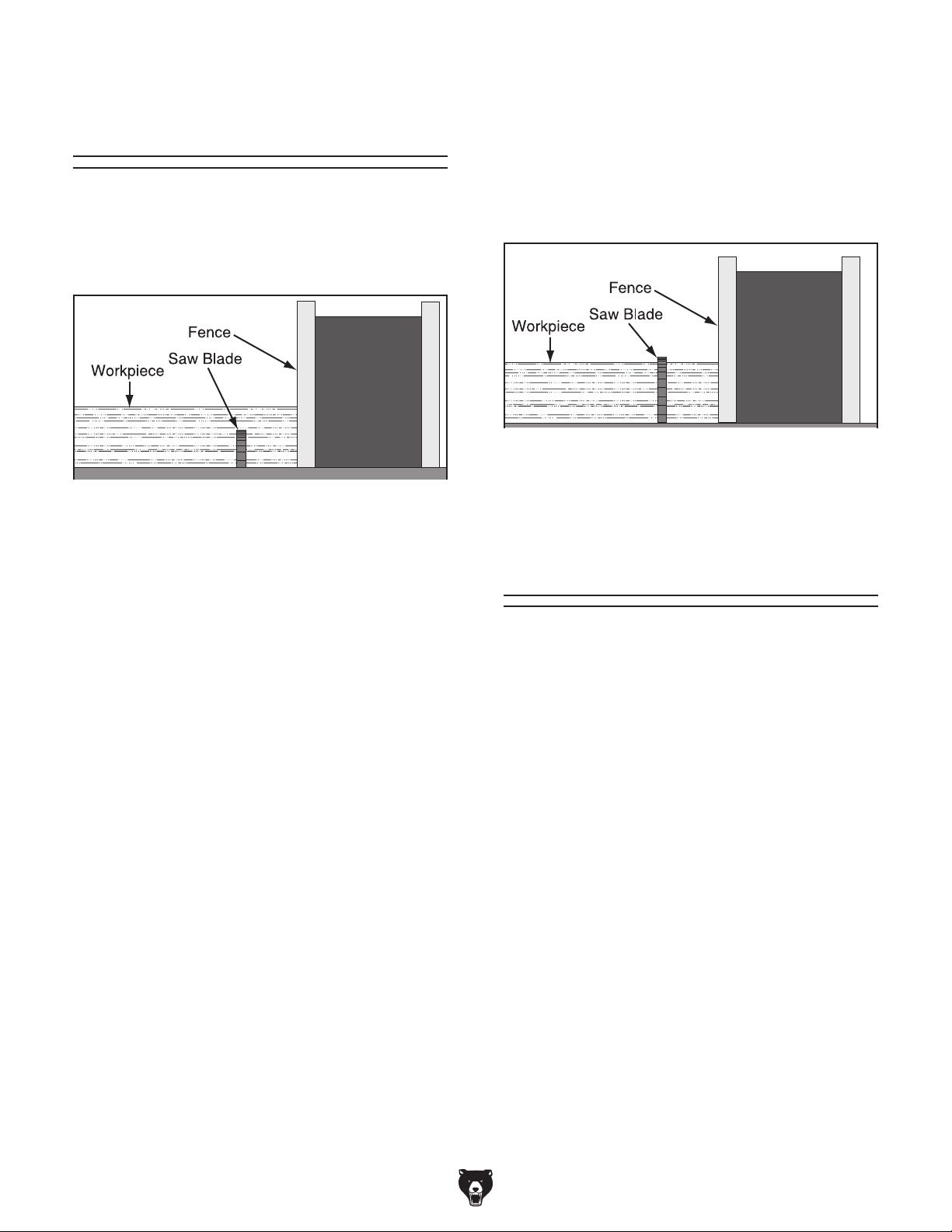

Figure 38. Example of a non-through cut.

Through Cuts

Figure below

Figure 39. Example of a through cut (blade

guard not shown for illustrative purposes).

Blade Size

Requirements

When choosing a main blade, make sure the blade size meets the requirements listed below. The thickness of the blade body and teeth can be measured with calipers or any precision measuring device.

Blade Size Requirements:

• Body Thickness: 0.060"–0.086" (1.5–2.2mm)

• Kerf (Tooth) Thickness: 0.094"–0.126" (2.4–3.2mm)

Riving Knife Thickness: 0.090" (2.3mm)

• Blade Size Required for Riving Knife: 10"

•

-30-

Model G0962 (Mfd. Since 09/24)

Page 33

This section on blade selection is by no means comprehensive. Always follow the saw blade manufacturer's recommendations to ensure safe and efficient operation of your table saw.

Ripping Blade Features:

• Best for cutting with the grain

• 20-40 teeth

• Flat-top ground tooth profile

• Large gullets for large chip removal

Crosscut Blade Features:

• Best for cutting across the grain

• 60-80 teeth

• Alternate top bevel tooth profile

• Small hook angle and a shallow gullet

Combination Blade Features:

• Designed to cut both with and across grain

• 40-50 teeth

• Alternate top bevel and flat, or alternate top

• Teeth are arranged in groups

• Gullets are small and shallow (similar to a cross-cut blade), then large and deep (similar

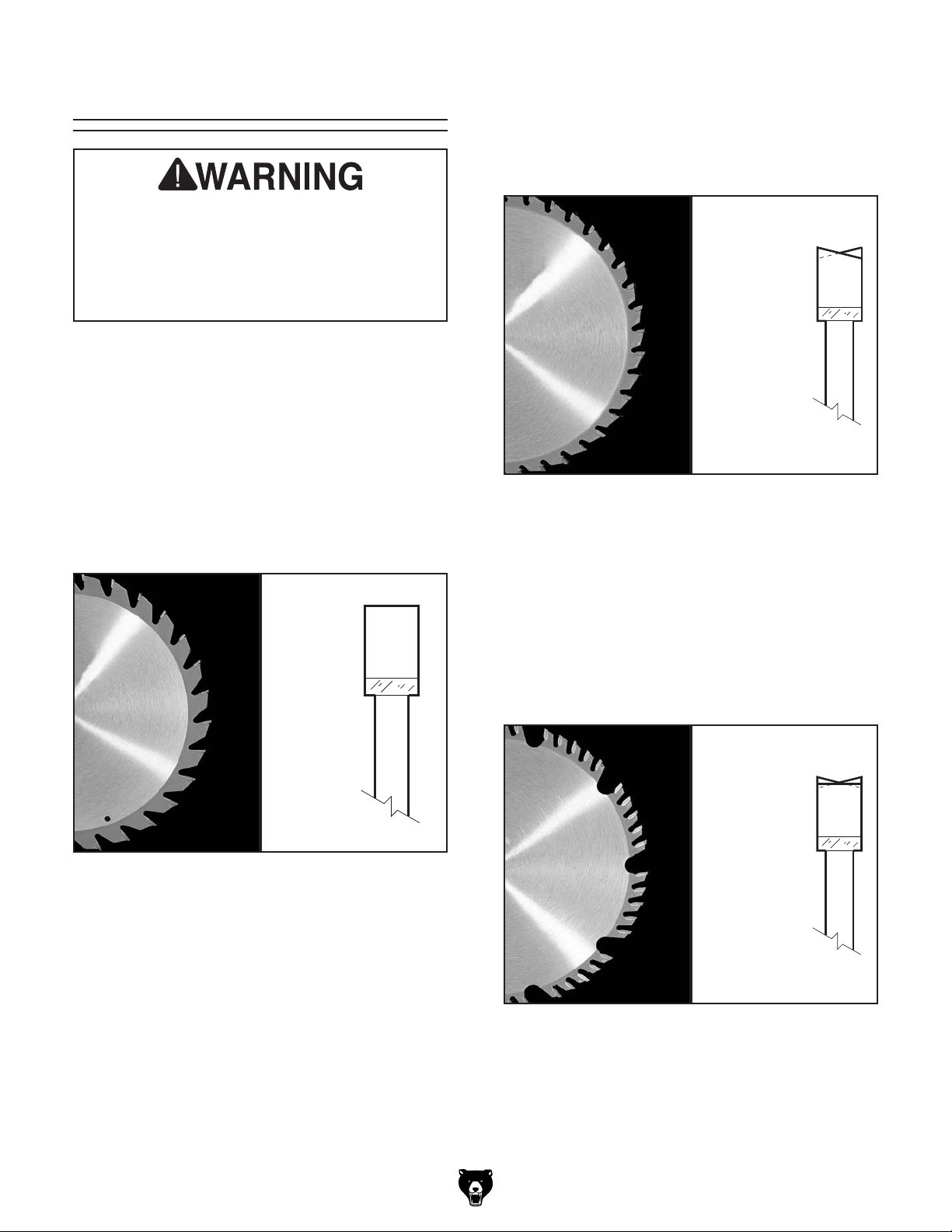

Blade Selection

Using a blade that does not meet the specified blade size requirements presents a hazardous condition that could cause kickback, operator injuries, or property damage. ALWAYS use a blade that meets the given blade size requirements.

Alternate

Top

Bevel

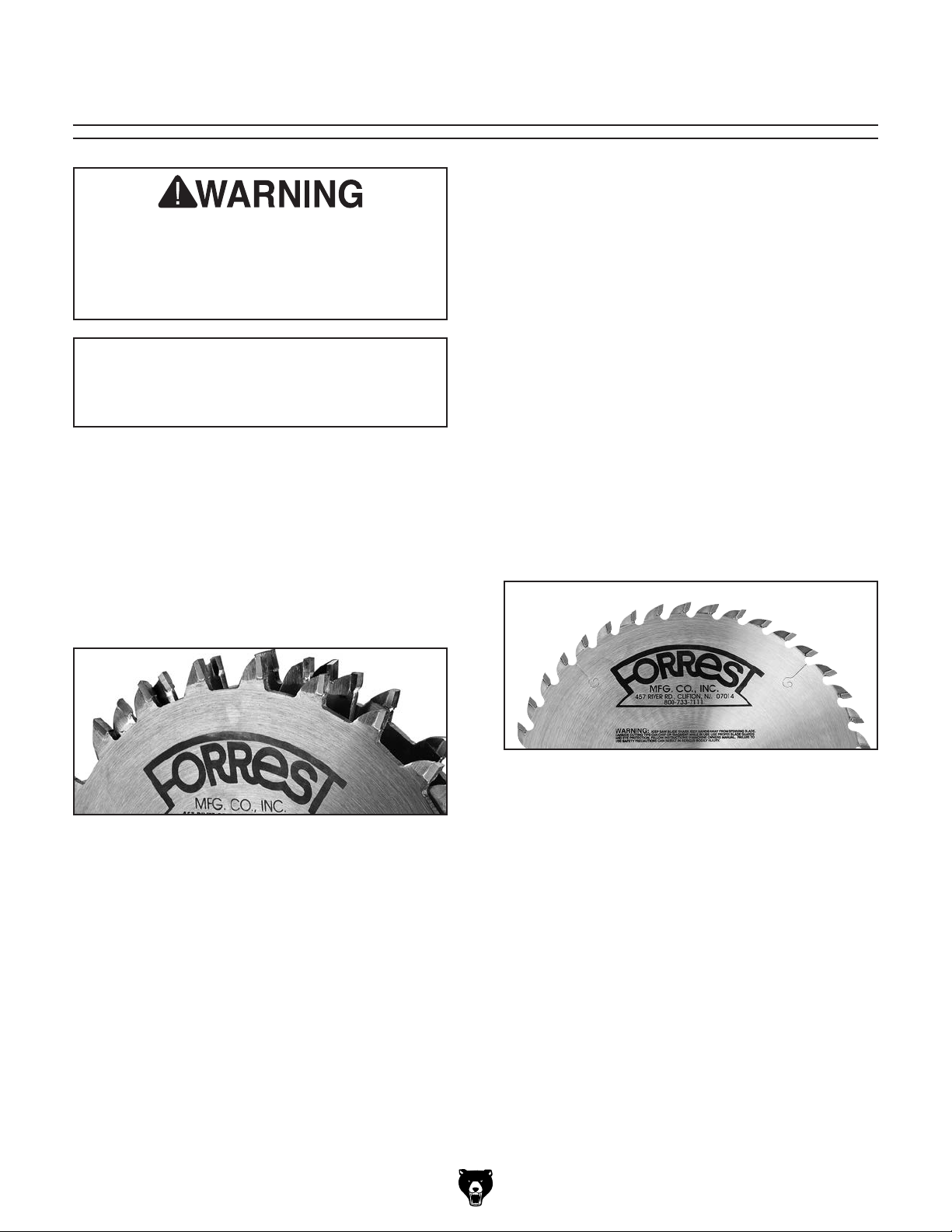

Figure 41. Crosscutting blade.

Flat Top

Figure 40. Ripping blade.

Blade

bevel and raker tooth profile

to a ripping blade

Alternate

Top

Bevel

and Flat

Figure 42. Combination blade.

Model G0962 (Mfd. Since 09/24)

-31-

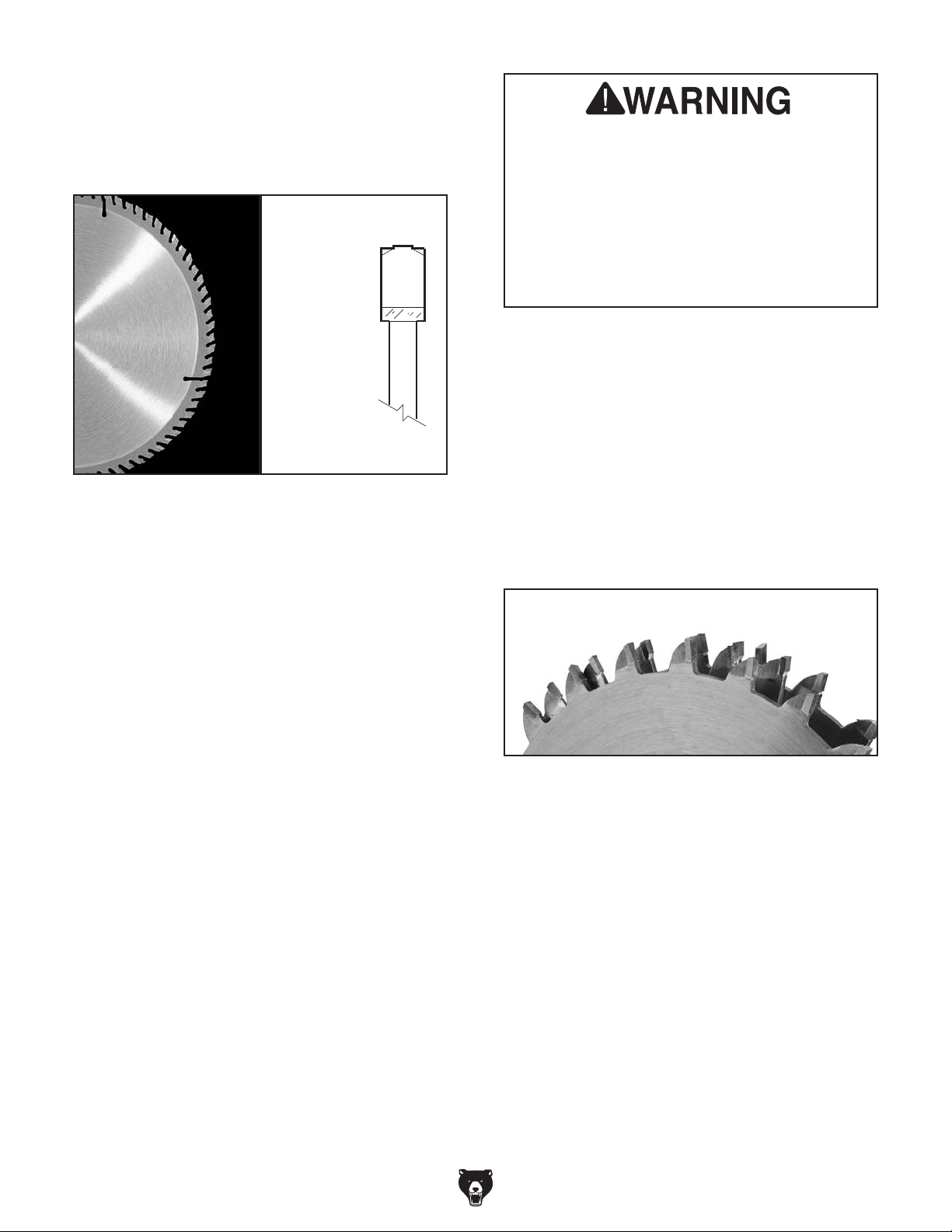

Page 34

Dado Blades

Wobble Dado Blade:

mounted at a slight angle on an arbor hub. The blade angle is adjustable on the hub, and the width of the dado cut is controlled by the angle setting of the blade.

Stacked Dado Blade

Multiple blades are stacked together to control the cutting width.

are more expensive than wobble blades, but typically produce higher quality results.

Laminate Blade Features:

• Best for cutting plywood or veneer

• 40-80 teeth

• Triple chvip tooth profile

• Very shallow gullet

Triple

Thin Kerf Blade: A blade with thinner kerf than a standard blade. Since the spreader/riving knife included with this table saw is sized for standard blades, thin kerf blades cannot be used on this saw unless they meet the Blade Requirements specified in this manual, or unless a thin-kerf riving knife is installed in place of a standard riving knife; otherwise, they will increase the risk of kickback.

Chip

Blade

Dado blades have a higher risk of kickback than normal blades because their larger size applies stronger forces to the workpiece. This risk increases relative to the depth and width of the cut. To minimize your risk of serious personal injury, ensure that stock is flat and straight, and make multiple light cuts (rather than one deep cut) to achieve the desired cutting depth.

A single blade

Figure 43. Laminate blade.

(see below):

Stacked dado blades

Figure 44. Stacked dado blade.

-32-

Model G0962 (Mfd. Since 09/24)

Page 35

gloves to protect your hands while handling

To reduce risk of shock or accidental startup, always disconnect machine from

Blade Installation

power before adjustments, maintenance, or service.

Properly installing the blade is critical to safe cutting operations that produce good results. Review this section, even if your blade came pre-installed.

To install blade:

DISCONNECT MACHINE FROM POWER!

Raise blade arbor all the way up, remove

blade guard, table insert (leave Phillips head screws mounted in table throat), and spreader/riving knife.

4. Install new blade, flange, and arbor nut on arbor (as shown in Figure 46) with teeth facing front of saw.

Note: Table insert is held in place with a mag-

net.

Before proceeding with the next step, wear

and installing the blade.

Use included arbor wrenches to loosen and

remove arbor nut, flange, and blade (see Figure 45). Arbor nut has right-hand threads; turn counterclockwise to loosen.

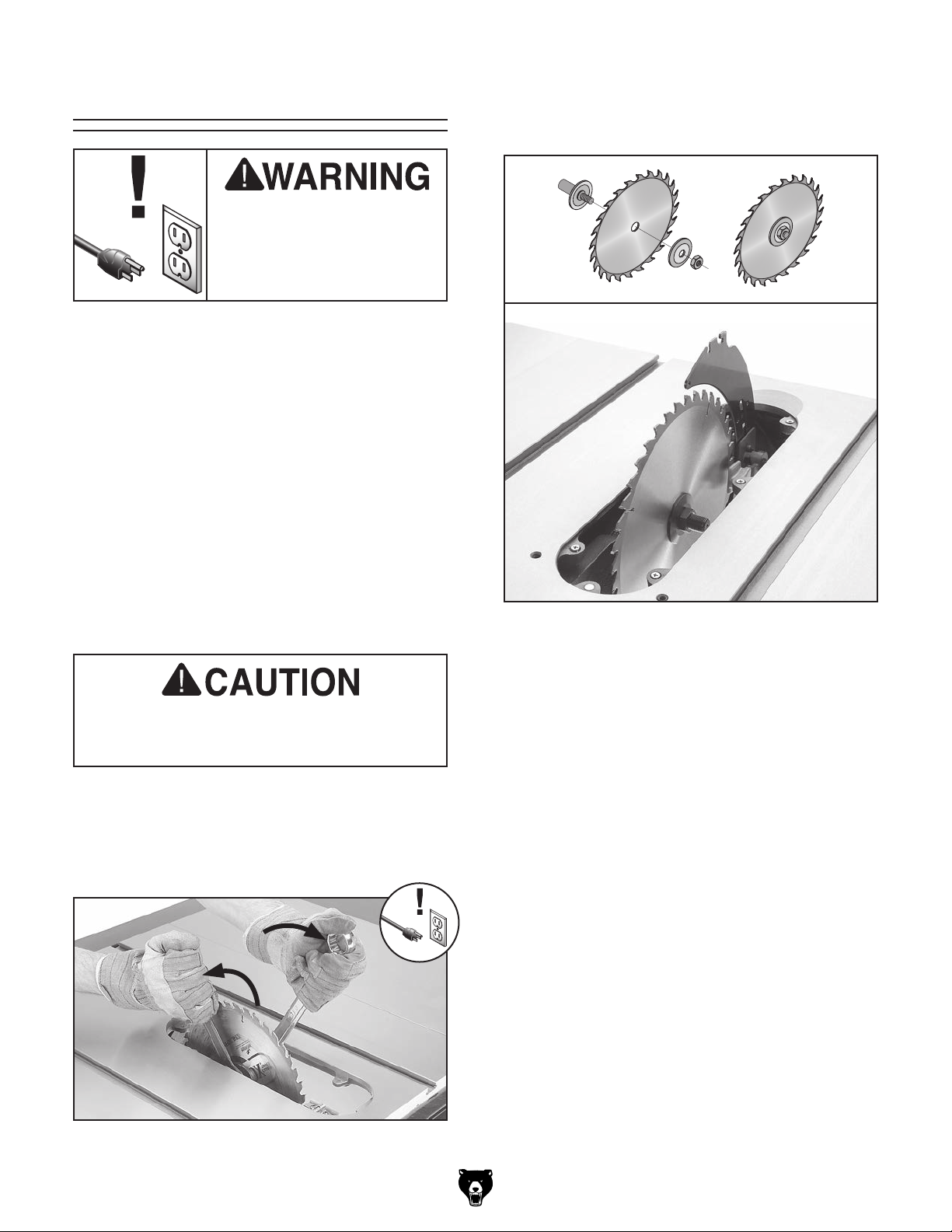

Figure 46. Correct order of installation with teeth

facing correct direction.

Re-install spreader/riving knife, table insert

5. (see Page 74), and blade guard.

Figure 45. Example of removing table saw

Model G0962 (Mfd. Since 09/24)

blade.

-33-

Page 36

Blade Guard

Assembly

The term "blade guard" refers to the assembly that consists of the clear polycarbonate shield and dust enclosure, the spreader, and the antikickback pawls on each side of the spreader (see Figure 47). Each of these components have important safety functions during the operation of the saw.

Spreader/Riving Knife

The spreader/riving knife is a metal plate that prevents the newly cut kerf of the workpiece from pinching the back side of the blade, causing kickback.

The spreader/riving knife also acts as a barrier behind the blade, which can help prevent hands from being pulled into the blade in certain situations if a kickback occurs.

Clear Shield

Spreader

Anti-Kickback

Pawl

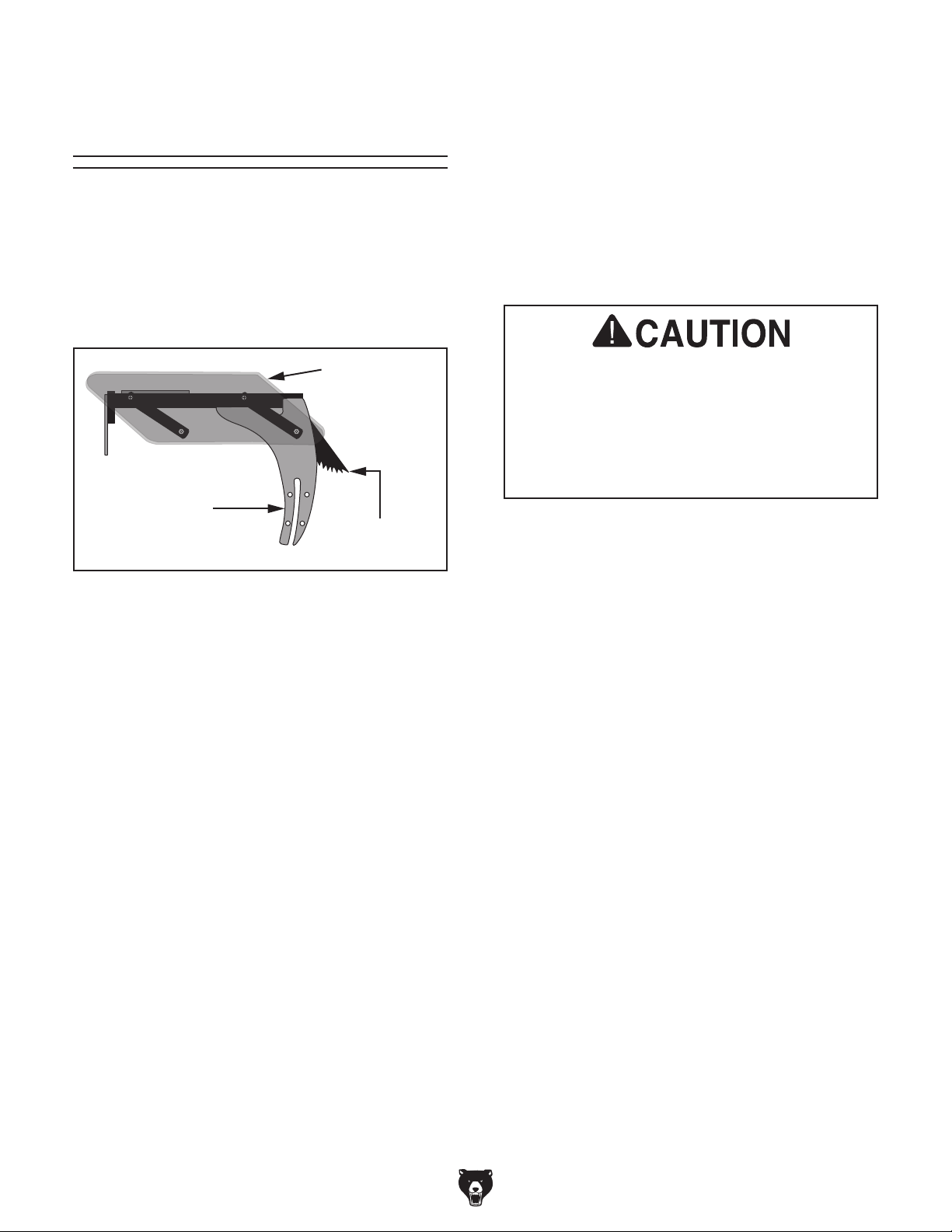

Figure 47. Blade guard assembly components.

Blade Guard

The clear polycarbonate guard allows the operator to see the blade cut the workpiece during operation. This guard is designed to lift as the workpiece is pushed into the blade and remain in contact with the workpiece throughout the entire cut.

The guard reduces injury risk by providing a barrier around the blade that prevents accidental contact and contains flying wood chips.

In order to work properly, the spreader cannot be bent or misaligned with the blade. If the spreader accidentally gets bent, take the time to straighten it or just replace it. Using a bent or misaligned spreader will increase the risk of kickback! See Page 69 to check or adjust alignment if necessary.

Installing Blade Guard & Spreader/ Riving Knife

1. DISCONNECT MACHINE FROM POWER!

Remove table insert, but leave Phillips head

screws mounted in table throat.

Raise blade all the way up.

To ensure that the guard does its job effectively, the guard must always be in the downward position against the table during idle operation, and the hinge mechanism must be maintained in good working condition so the guard can freely pivot up and down to accommodate the height of the workpiece and return to the table surface.

-34-

Model G0962 (Mfd. Since 09/24)

Page 37

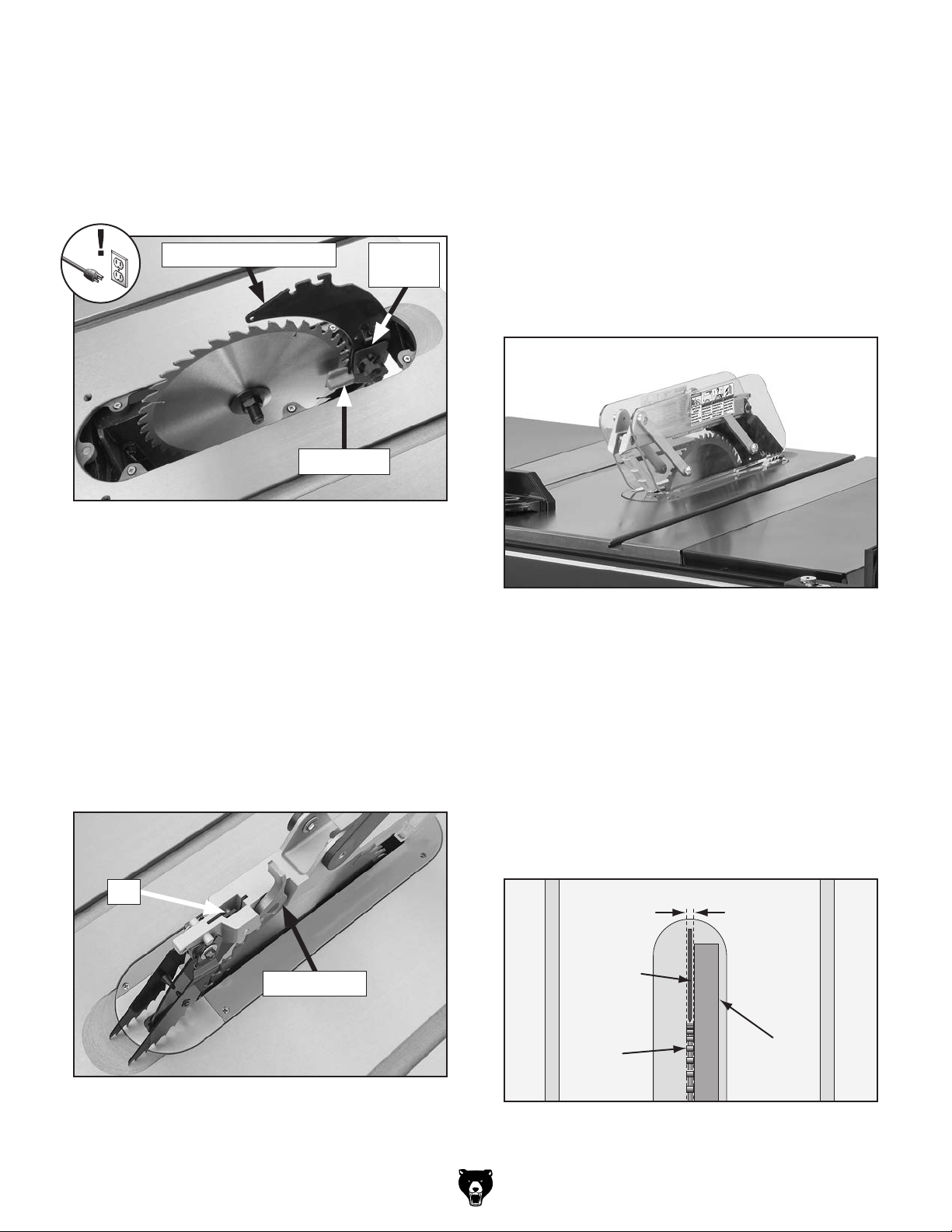

Insert lower set of holes on spreader/riving

knife into bracket slot, and tighten lock lever to secure spreader (see Figure 48).

Note: DO NOT insert upper set of holes on

spreader into bracket slot. Doing so will result in improper installation of blade guard.

Spreader/Riving Knife

Bracket

Slot

Lock Lever

Figure 48. Lock lever used to secure spreader/

riving knife.

9. Push guard lever toward rear of saw, locking blade guard.

Tug upward on blade guard assembly to

10.

verify that it is locked into spreader.

— When properly installed, blade guard

should be set up similarly to Figure 50. It should pivot freely up and down and return to table in resting position. It should also swing up high enough to accommodate workpiece.

5. Re-install table insert (see Table/Dado Insert Adjustment on Page 74).

6. Tug spreader upward to verify it is locked.

Push guard lever toward front of saw.

8. Insert rear pin on blade guard into rear slot of

spreader (see Figure 49), then push down on blade guard assembly so forward pin slides into forward slot of spreader.

Guard Lever

Figure 50. Blade guard installed.

Swing right side of blade guard up and out of

11.

the way.

While lifting up on right spreader pawl, place

12.

a straightedge against blade and spreader, making sure straightedge does not touch a blade tooth.

When properly aligned, spreader/riving

knife will be in "Alignment Zone," shown in

Figure

51, and will be parallel with blade.

Alignment

Zone

Spreader or Riving Knife

Figure 49. Example of blade guard installation.

Model G0962 (Mfd. Since 09/24)

Blade

Straightedge

Figure 51. Spreader in "Alignment Zone".

-35-

Page 38

Anti-Kickback Pawls

The anti-kickback pawls allow the workpiece to travel in only one direction. If the workpiece moves backwards, such as during a kickback, the pawls will dig into the workpiece to slow or stop it.

To work properly, the pawls must return to their resting position after pivoting (see Figure 52).

Disabling Pawls

You might disable the pawls if you are concerned about them scratching a delicate workpiece, or if you believe that they will obstruct a narrow workpiece and cause feeding difficulty or loss of control. Use your best judgment before retracting the pawls, as they are provided for your safety.

To disable pawls:

DISCONNECT MACHINE FROM POWER!

Pawl

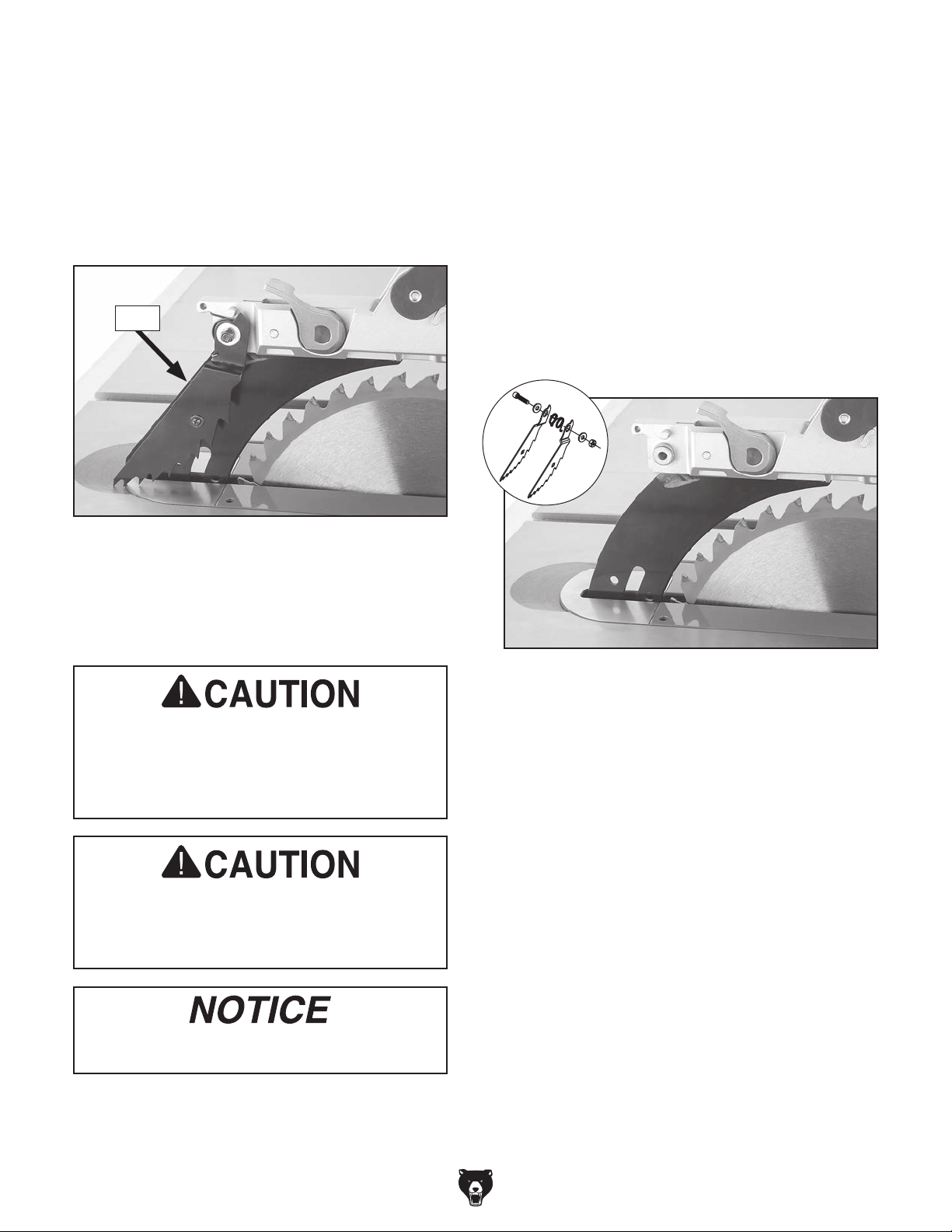

Figure 52. Example of pawls in resting position.

If the pawls fail to return to the resting position, the pivot area may need to be cleaned or the spring may have been dislodged or broken and will need to be fixed/replaced.

We do not recommend disabling pawls during normal operations unless absolutely necessary. In most situations, disabling pawls will increase your risk of serious personal injury in the event of a kickback.

Pawls are sharp and can cut fingers or hands. Use caution, and wear leather gloves when handling pawls to reduce risk of injury.

Whenever blade guard cannot be used, spreader/riving knife must be installed.

2. Remove cap screw, locking hex nut, wash-

ers, pawls, and retaining spring from blade guard assembly (see Figure 53).

Figure 53. Example of pawls removed.

Enabling Pawls

To enable the pawls, re-install retaining spring, pawls, washers, cap screw, and locking hex nut onto blade guard assembly. Do not overtighten.

When to Use Blade Guard

The blade guard assembly MUST always be installed on the saw for all normal through cuts (those where the blade cuts all the way through the thickness of the workpiece). If the blade guard is removed for specific operations, always immediately replace it after those operations are complete.

When Not to Use Blade Guard

The blade guard cannot be used on any nonthrough cuts (those in which the blade does not cut all the way through the thickness of the workpiece). Sometimes the blade guard or its components can get in the way when cutting very narrow workpieces or other specialized cuts. Because the blade guard is provided to decrease your risk of injury, it should not be used if it gets in the way of making a safe cut. Use good judgment!

-36-

Model G0962 (Mfd. Since 09/24)

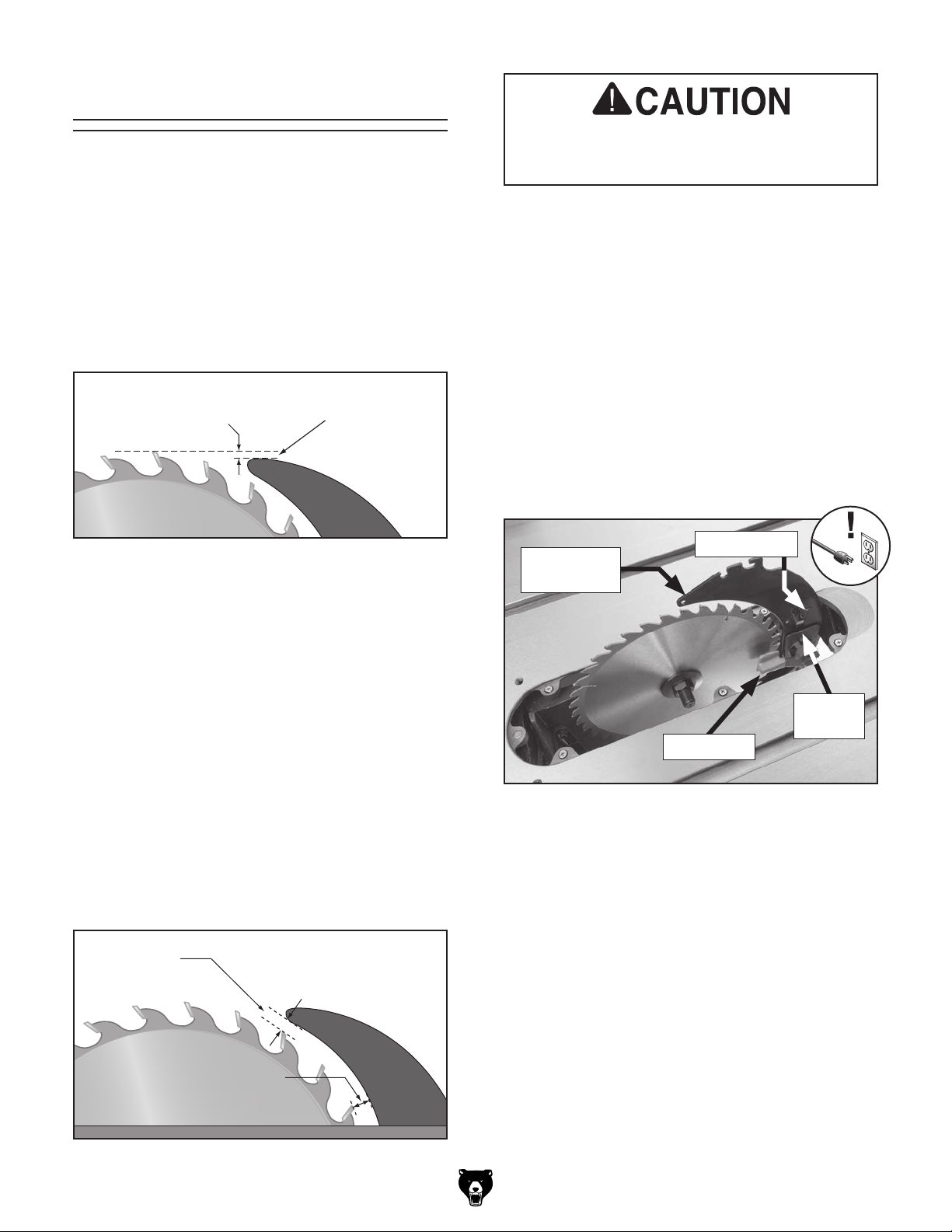

Page 39

Riving Knife

The spreader also functions as a riving knife, which works in the same manner as the spreader, but is used for non-through cuts. It is a metal plate that prevents newly cut workpieces from pinching the backside of the blade and causing kickback.

The key difference between a spreader and a riving knife is that a riving knife mounts below the blade's highest point of rotation, as shown in

Figure

54.

To ensure riving knife works safely, it MUST be aligned with and correctly adjusted to blade. See Page 69 for riving knife alignment.

To install riving knife:

1. DISCONNECT MACHINE FROM POWER!

Remove table insert, but leave Phillips head

screws mounted in table throat.

Note: Table insert is held in place by magnet.

Minimum 1mm

Maximum 5mm

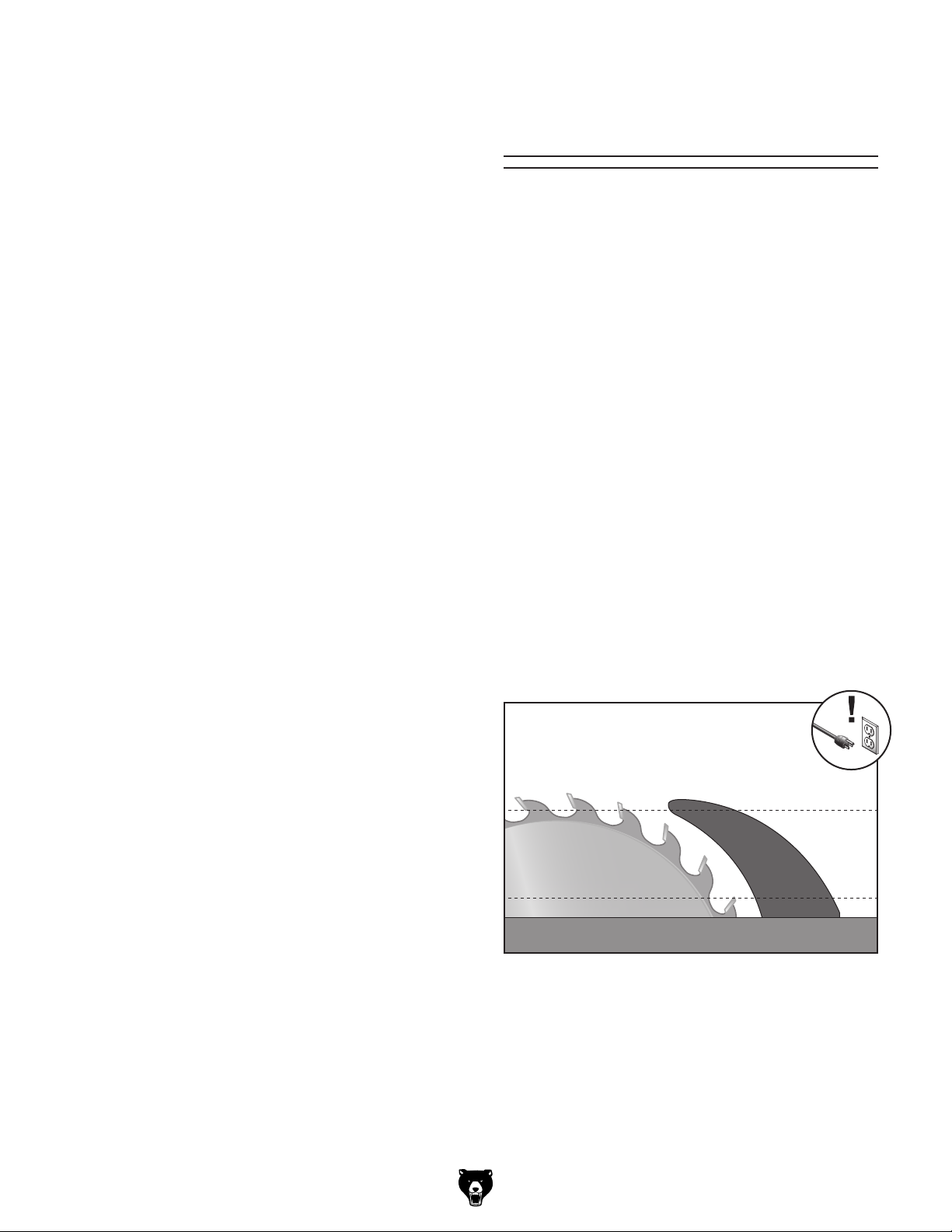

Figure 54. Example of height difference between

riving knife and blade.

The height difference between a riving knife and a blade allows the workpiece to pass over the blade during non-through cuts (those in which the blade does not cut all the way through the thickness of the workpiece).

Similar to the spreader, the riving knife acts as a barrier behind the blade to reduce the risk of hands being pulled into the blade if kickback occurs.

When used as a riving knife, the spreader/riving knife must be kept within the range shown in Figure 55. For that reason, a 10" blade is required for operations that use a riving knife.

Height Difference

Raise blade all the way up.

4. Insert upper set of holes on spreader/riving

knife into bracket slot and tighten lock lever to secure spreader/riving knife (see Figure 56).

Upper Holes

Spreader/

Riving Knife

Bracket

Slot

Lock Lever

Figure 56. Lock lever used to secure spreader.

5. Re-install table insert (see Page 74).

Tug upward on top of spreader/riving knife to

verify it is locked.

Top Distance

Minimum 3mm Maximum 8mm

Bottom Distance

Minimum 3mm Maximum 8mm

Figure 55. Allowable riving knife clearance.

Model G0962 (Mfd. Since 09/24)

When to Use Riving Knife

Use the riving knife for all non-through cuts made with a standard table saw blade (i.e., dadoes or rabbet cuts, and when using a tenoning jig).

Also, use the riving knife for those special operations where the blade guard or its components get in the way of safe operation, such as with very narrow cuts.

-37-

Page 40

When Not to Use Riving Knife

Do not use the riving knife with a dado blade. In addition, although it is possible to use the riving knife for through cutting operations, the blade guard assembly offers far more injury protection and risk reduction than the riving knife. Therefore, we strongly recommend that you use the blade guard assembly for through cuts.

Ripping

Ripping means cutting with the grain of a natural wood workpiece. In man-made materials such as MDF or plywood, ripping simply means cutting lengthwise.

Turn saw OFF and allow blade to come to a complete stop before removing cutoff piece. Failure to follow this warning could result in severe lacerations or amputation.

Serious injury can be caused by kickback. Kickback is a high-speed ejection of stock from table saw toward an operator. The operator or bystanders may be struck by

flying stock, or operator’s hands can be

pulled into blade during kickback.

To make a rip cut:

Review Preventing Kickback on Page 11

and take necessary precautions to reduce likelihood of kickback.

If using natural wood, joint one long edge of

workpiece on a jointer.

DISCONNECT MACHINE FROM POWER!

Ensure that blade guard/spreader is installed.

Set fence to desired width of cut on scale.

6. Adjust blade height so highest saw tooth pro-

trudes no more than

⁄4" above workpiece.

Keep blade guard installed and in down position. Failure to do this could result in serious personal injury or death.

Set up safety devices such as featherboards

or other anti-kickback devices, making sure no safety devices are contacting blade.

Plug saw into power source, turn it ON, and

allow it to reach full speed.

Note: Jointed edge of workpiece must slide

against fence during cutting operation.

Use push stick to feed workpiece through

saw blade, as shown in Figure 57, until workpiece is completely beyond saw blade.

-38-

Featherboard

Figure 57. Typical ripping operation.

Model G0962 (Mfd. Since 09/24)

Page 41

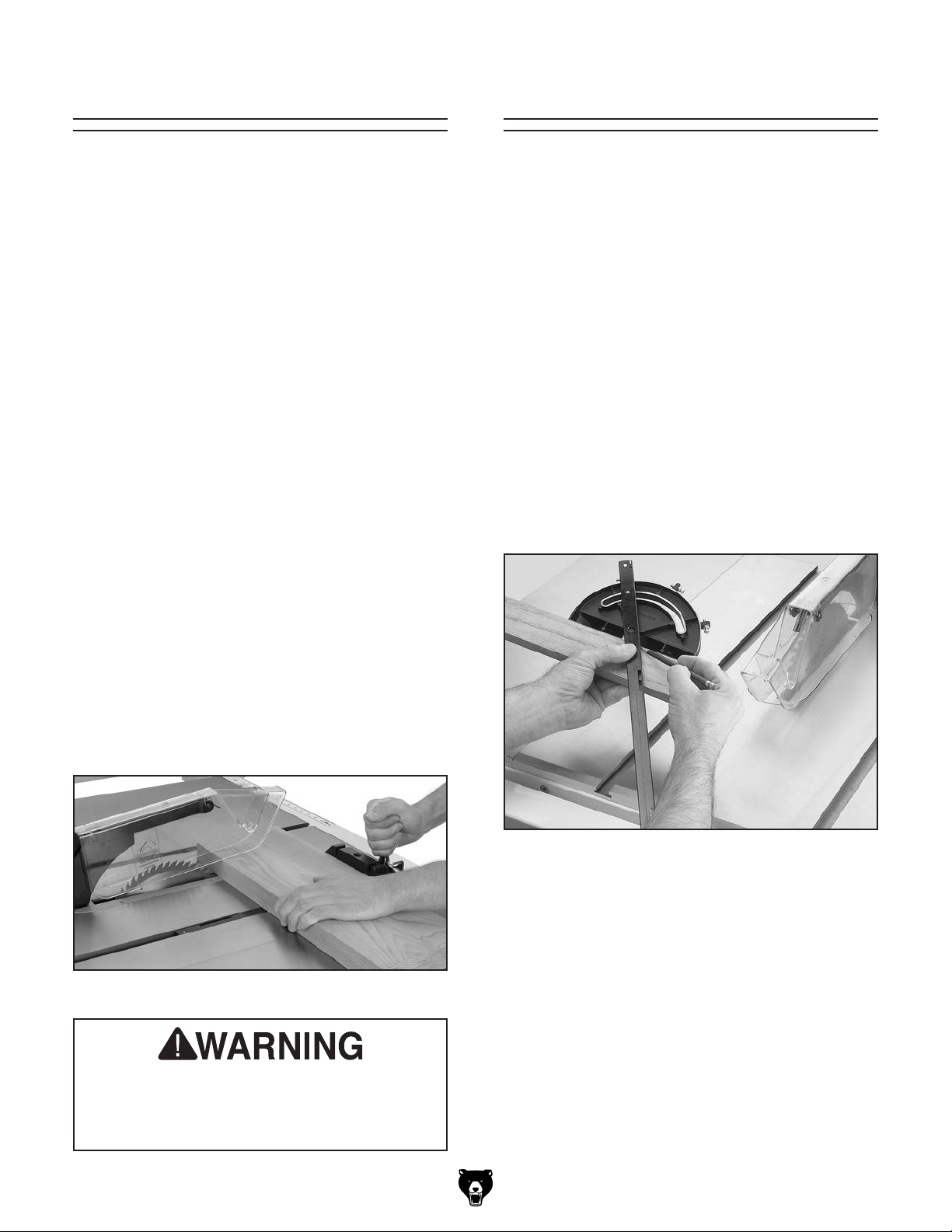

Crosscutting Miter Cuts

"Crosscutting" means cutting across the grain of a natural wood workpiece, usually with a miter saw. In other man-made materials, such as MDF or plywood, crosscutting means cutting across the width of the workpiece.

To make a crosscut using miter gauge:

DISCONNECT MACHINE FROM POWER!

Ensure that blade guard/spreader is installed.

To avoid kickback, move rip fence aside and

position miter gauge, adjusted to 90°, in a miter slot.

Adjust blade height so teeth protrude no

more than 1⁄4" above workpiece.

Slide miter gauge near blade and adjust

workpiece so blade will cut on waste side of line.

A miter is an angled crosscut. Miters are usually cut in the same manner as crosscuts, using the miter gauge and a predetermined mark on the workpiece.

To perform a miter cut:

DISCONNECT MACHINE FROM POWER!

2. Ensure that blade guard/spreader is installed.

Determine angle of cut. If angle needs to be

very precise, use a protractor to set miter gauge to blade.

Place face of miter gauge against edge

of workpiece and place bar across face of workpiece. Use bar as a guide to mark your cut, as shown in Figure 59.

Plug in table saw, turn it ON, and allow it to

reach full speed.

Hold workpiece firmly against face of miter

gauge (as shown in Figure 58), and ease it through blade until workpiece is completely past saw blade.

Figure 58. Typical crosscutting operation.

Figure 59. Example of marking miter line.

Place miter gauge back into slot and hold

workpiece firmly against miter gauge body. Slide miter gauge near blade and adjust workpiece so blade will cut on waste side of line.

Proceed to make cut in same manner as

described in Crosscutting instructions on this page.

Turn saw OFF and allow blade to come to a complete stop before removing cutoff piece. Failure to follow this warning could result in severe lacerations or amputation.

Model G0962 (Mfd. Since 09/24)

-39-

Page 42

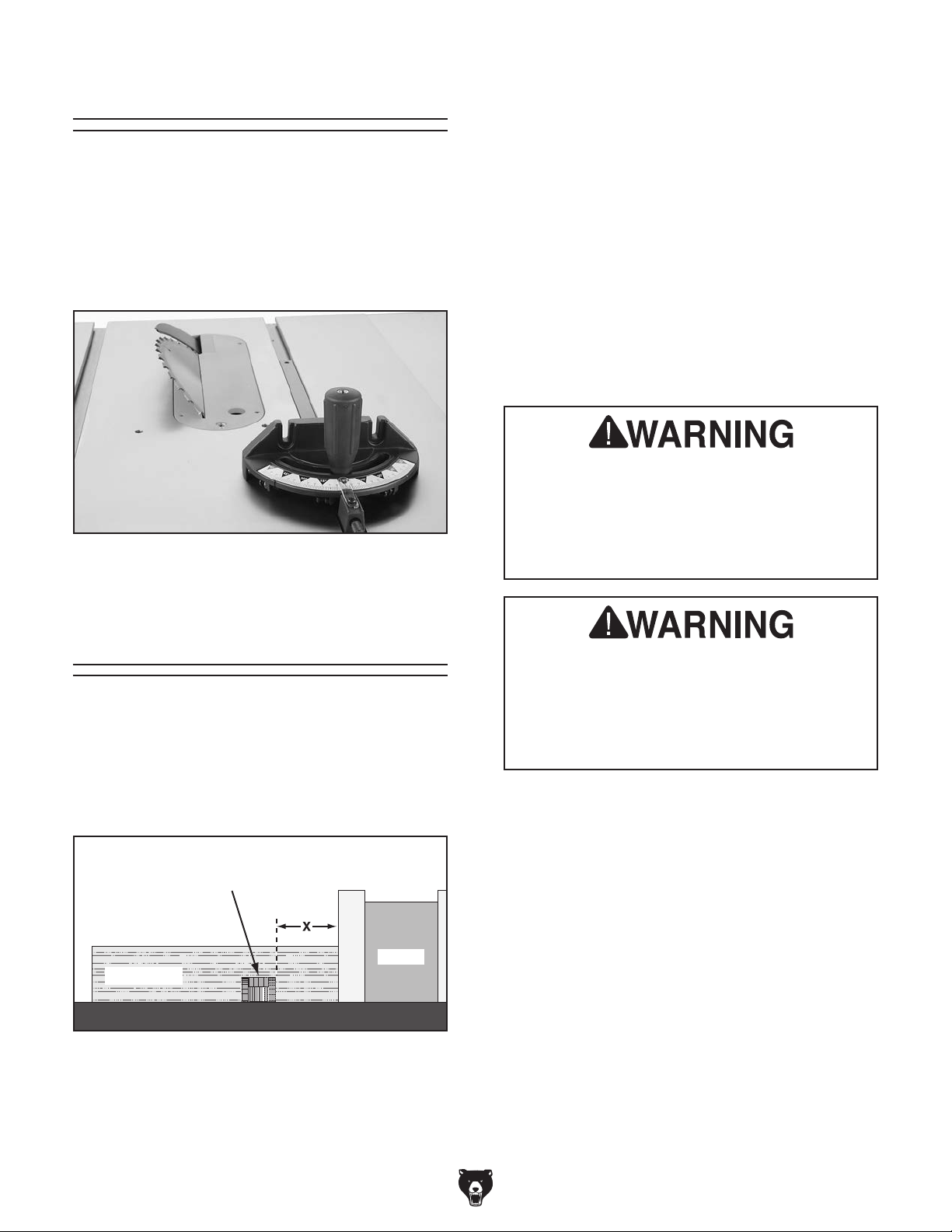

Commonly used in furniture joinery, a dado is a straight channel cut in the face of the workpiece. Dadoes are "non-through" cuts that can be made with a dado blade or a standard saw blade. The

Figure

shows a cutaway view of a dado cut

being made with a dado blade.

Blade Tilt/Bevel Cuts

The Model G0962 accommodates 8" diameter dado blades. When using a dado blade, DO NOT install the riving knife.

When the blade tilt adjustment bolts are properly adjusted (as described starting on Page 65), the blade tilt handwheel allows the operator to tilt the blade to the left, between 0° and 45°. This is used most often when cutting bevels, compound miters, or chamfers. Figure 60 shows an example of the blade when tilted to 45°.

Figure 60. Example of blade tilted to 45° for

bevel cutting (blade guard removed for clarity).

Installing Dado Blade

1. DISCONNECT MACHINE FROM POWER!

Remove table insert, blade guard assembly,

spreader/riving knife, and saw blade.

Attach and adjust 8" dado blade system

according to dado blade manufacturer’s instructions.

Install included dado table insert.

DO NOT make through cuts with a dado blade. The extra width of a dado blade will increase the risk of kickback during a through cut. Dado blades are only intended for non-through cuts. Failure to heed this warning could result in serious injury.

Dado Cutting

below

Dado Blade

Workpiece

Figure 61. Example of a dado being cut with a

dado blade.

Never try to cut a warped board by holding it down against the table. If kickback occurs, your hand could be pulled into the blade, resulting in accidental contact with the rotating blade, causing severe lacerations or amputation.

Fence

-40-

Model G0962 (Mfd. Since 09/24)

Page 43

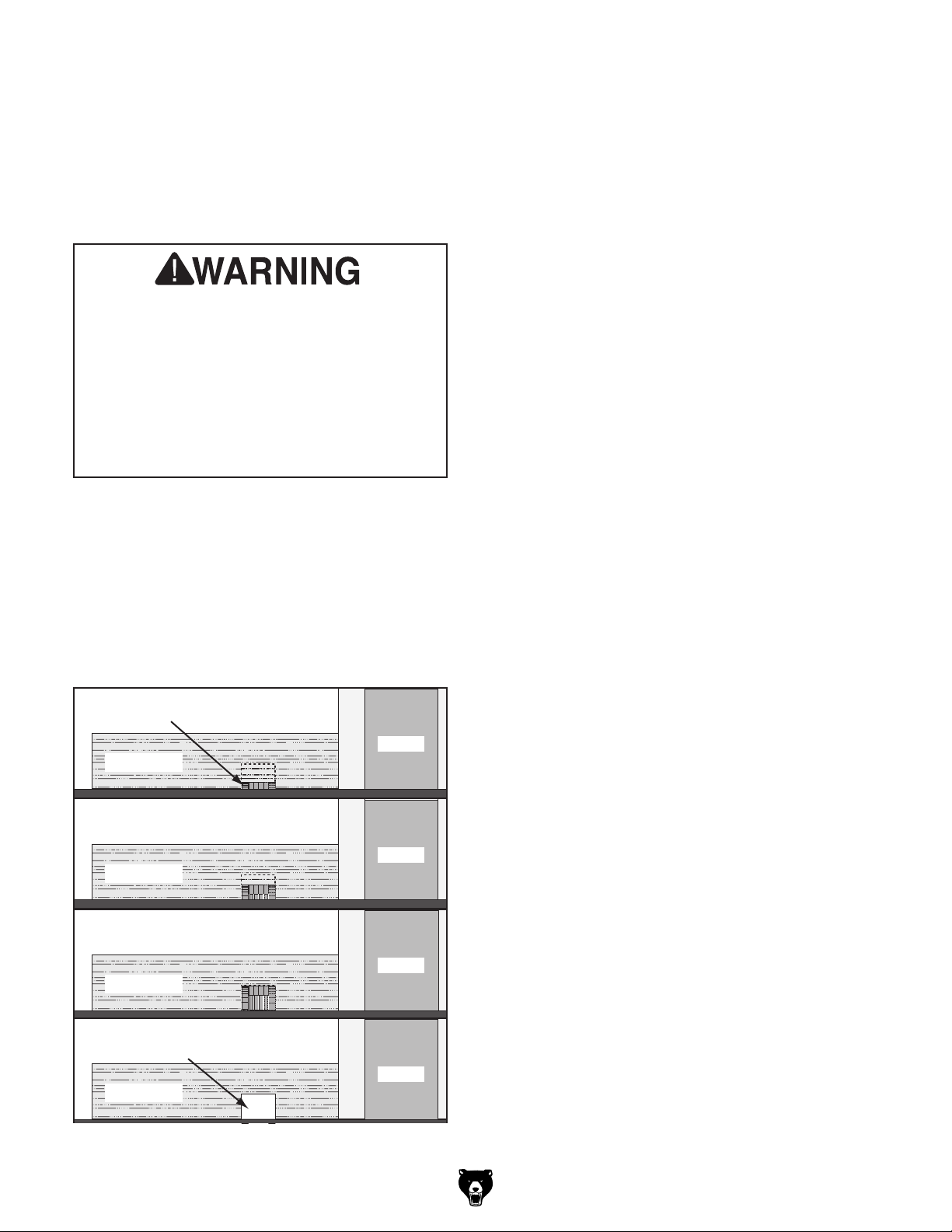

The Figure below demonstrates the sequential process of making multiple, light cuts that get progressively deeper. The actual number of cuts used should be determined by workpiece hardness, total dado depth, and feed rate. In general, if you hear the motor slow down during the cut, you are cutting too deep or feeding too fast. Slow down!

Finished

Because dado blades are much wider than standard blades, they place a greater amount of force against the workpiece when cutting. This additional force increases the risk of kickback, requiring the operator to take additional steps when cutting to keep their injury risk at an acceptable level.

Cutting Dadoes with a Dado Blade

To cut a dado with a dado blade:

DISCONNECT MACHINE FROM POWER!

Perform Steps 2–4 of Installing Dado Blade

2. on Page 40.

Adjust dado blade to desired depth of cut.

Adjust distance between fence and inside

edge of blade (see Figure 61 on Page 40), to dado length of a workpiece.

If dadoing across workpiece, use miter

—

gauge and carefully line up desired cut with dado blade. DO NOT use fence in combination with miter gauge.

Connect saw to power source.

Turn saw ON. Blade should run smoothly,

with no vibrations.

Dado Blade

Workpiece

Cut 1

Cut 2

Workpiece

Cut 3

Workpiece

Dado Cut

Workpiece

Fence

When blade has reached full speed, perform

test cut with scrap piece of wood.

If cut is satisfactory, repeat cut with actual

workpiece.

Cutting Dadoes with Standard Blade

A ripping blade (see Page 31) is typically the best blade to use when cutting dadoes with a standard blade because it efficiently removes sawdust.

To cut a dado with a standard blade:

DISCONNECT MACHINE FROM POWER!

Install 10" standard blade, riving knife, and

table insert.

Mark width of dado cut on workpiece. Include

marks on edge of workpiece so cut path can be aligned when workpiece is lying on table.

Raise blade up to desired depth of cut (depth

of dado channel desired).

Figure 62. Example of dado being cut with multiple light cuts, instead of one deep cut.

Model G0962 (Mfd. Since 09/24)

-41-

Page 44

5. Set saw up for type of cut you need to make, depending on whether it is a rip cut (Page 38) or crosscut (Page 39).

Rabbet Cutting

Align blade to cut one side of dado, as shown

6. in Figure 63.

Cut 1

Workpiece

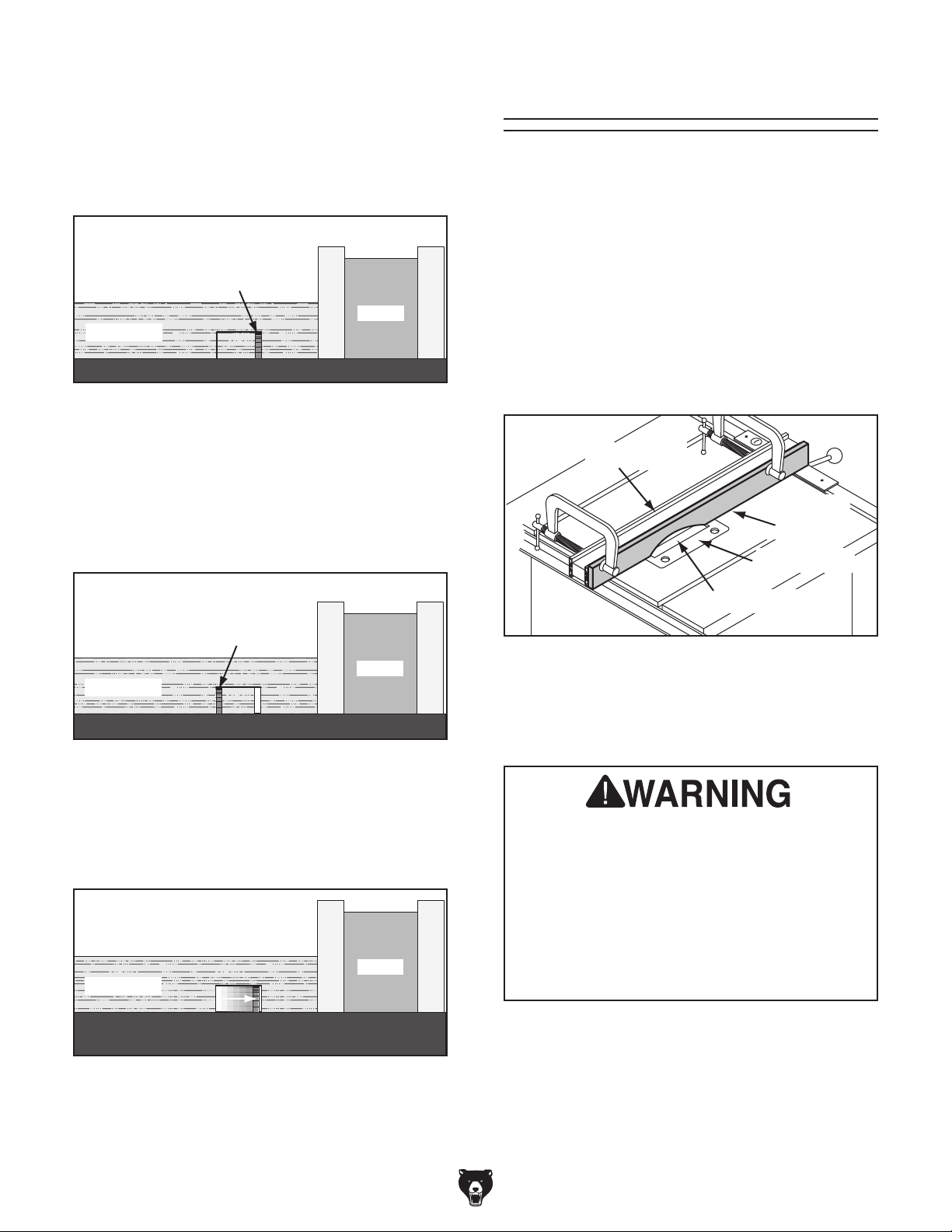

Figure 63. First cut for a single-blade dado.

Connect saw to power source and turn saw

ON. Allow blade to reach full speed, then perform cutting operation.

Repeat cutting operation on other side of

8. dado, as shown in Figure 64.

Blade

Fence

Commonly used in furniture joinery, a rabbet is an L-shaped groove cut in the edge of the workpiece. Rabbets can be cut with either a dado blade or a standard saw blade.

Rabbet cutting on the edge of the workpiece with a dado blade requires a sacrificial fence (see Figure 66). Make the sacrificial fence the same length as the fence and to the fence with screws or clamps, making sure they are all secure and tight. Raise the blade into the sacrificial fence to the height needed.

Rip Fence

⁄4" thick. Attach it

Sacrificial

Fence

Dado Insert

Blade Cut-Out

Cut 2

Workpiece

Figure 64. Second cut for a single-blade dado.

Make additional cuts (see Figure 65) in cen-

ter of dado to clear out necessary material. Dado is complete when channel is completely cleared out.

Blade

Fence

Cuts 3+

Fence

Workpiece

Figure 65. Additional single-blade dado cuts.

Figure 66. Example of sacrificial fence.

When using a dado blade, the included dado table insert must be installed and used during rabbeting operations.

-42-

Model G0962 (Mfd. Since 09/24)

Page 45

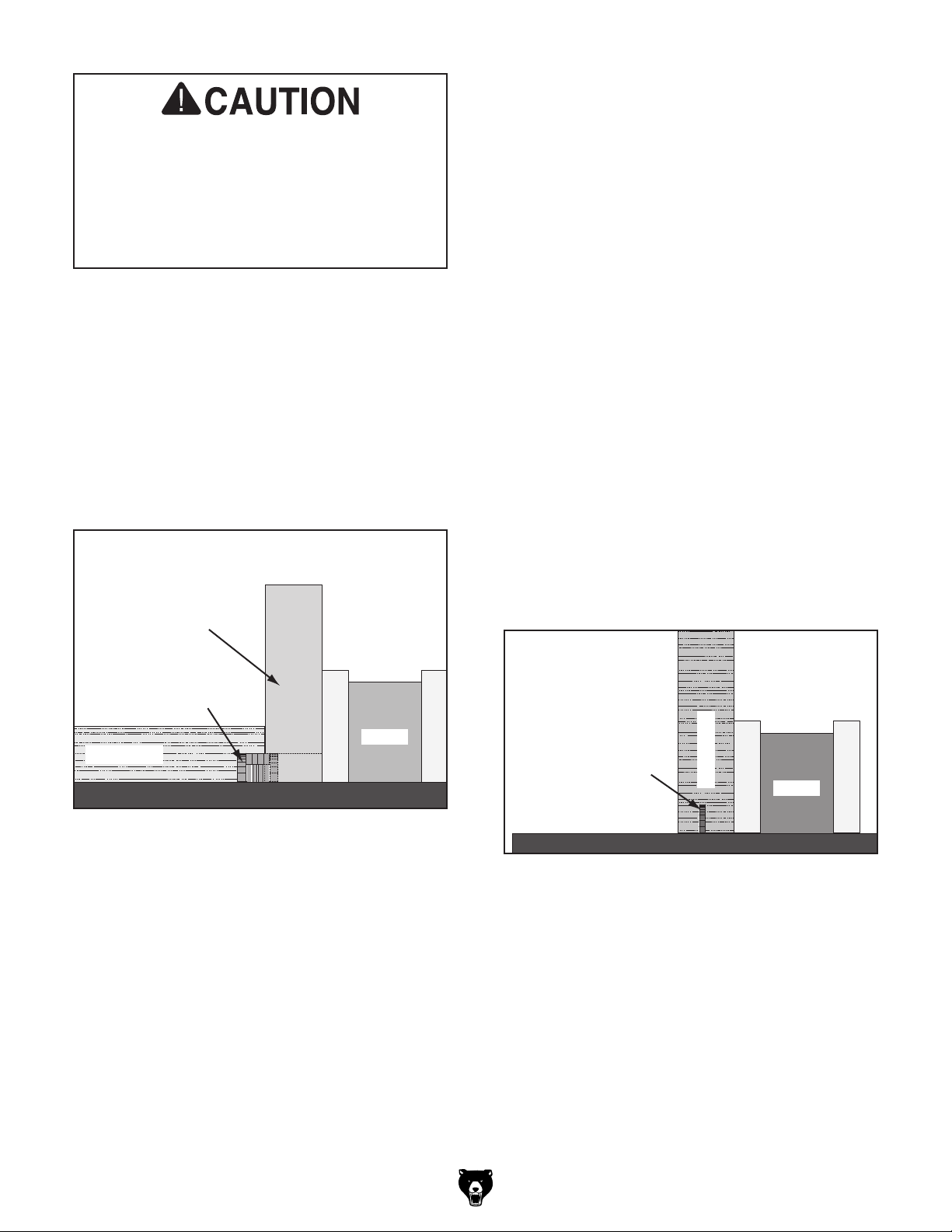

Always use push sticks, featherboards, push paddles and other safety accessories whenever possible to increase safety and control during operations which require that blade guard be removed from saw. ALWAYS replace blade guard after dadoing is complete.

Cutting Rabbets with a Standard Blade

A ripping blade is typically the best blade to use for cutting rabbets when using a standard blade because it removes sawdust very efficiently (see Page 31 for blade details.) Also, a sacrificial fence is not required when cutting rabbets with a standard blade.

To cut rabbets with a standard blade:

Cutting Rabbets with a Dado Blade

1. DISCONNECT MACHINE FROM POWER!

Adjust dado blade to height needed for rab-

beting operation. When cutting deep rabbets, take more than one pass to reduce risk of kickback.

Adjust fence and align workpiece to perform

3. cutting operation, as shown in Figure 67.

Sacrificial Fence

Dado Blade

Fence

Workpiece

DISCONNECT MACHINE FROM POWER!

Ensure that riving knife and standard table

insert are installed.

Mark width of rabbet cut on edge of workpiece,

so you can clearly identify intended cut while it is laying flat on saw table.

Raise blade up to desired depth of cut (depth

of rabbet channel desired).

Stand workpiece on edge, as shown in

5. Figure 68, then adjust fence so blade is

aligned with inside of your rabbet channel.

Blade

Workpiece

Fence

Figure 67. Rabbet cutting.

4. Connect saw to power source and turn saw

ON. When blade has reached full speed, perform a test cut with a scrap piece of wood.

If cut is satisfactory, repeat cut with

—

workpiece.

Model G0962 (Mfd. Since 09/24)

Figure 68. Example of rabbet cutting with a

standard blade.

— If workpiece is very tall, or is unstable

when placed against fence, lay it flat on table and use a dado blade to perform rabbet cut.

-43-

Page 46

Resawing

Resawing operations require proper procedures to avoid serious injury. Extra care must be taken to prevent kickback when resawing. Any tilting or movement of the workpiece away from the fence will cause kickback. Be certain that stock is flat and straight. Failure to follow these warnings could result in serious personal injury.

DO NOT place a tall board on edge to perform a rabbet cut with a standard blade. Workpieces that are too tall to properly support with fence can easily shift during operation and cause kickback. Instead, place stock flat on saw and perform rabbet cut with a dado blade, as instructed on Page 43.

6. Connect saw to power source, then perform

cut.

Lay workpiece flat on table, as shown in

7. Figure 69, adjust saw blade height to inter-

sect with first cut, then perform second cut to complete rabbet.

Blade

Fence

Workpiece

Resawing is the process of cutting a thick piece of stock into one or more thinner pieces. Although resawing can be done with a table saw, we strongly recommend that you use a bandsaw instead.

A bandsaw is the ideal machine for resawing, and resawing with one is fairly easy and safe. A table saw is not intended for resawing, and resawing with one is difficult and dangerous due to the increased risk of kickback from binding and deep cuts, and the increased risk of injury from having to remove the guard.

If you insist on resawing with a table saw, DO NOT do so without using a resaw barrier and wearing a full face shield. The following instructions describe how to build a resaw barrier and add an auxiliary fence to your standard fence, to reduce the risk of injury from resawing on a table saw.

Note: To determine the maximum resawing height for this table saw, find the maximum blade height,

then double it and subtract

⁄8".

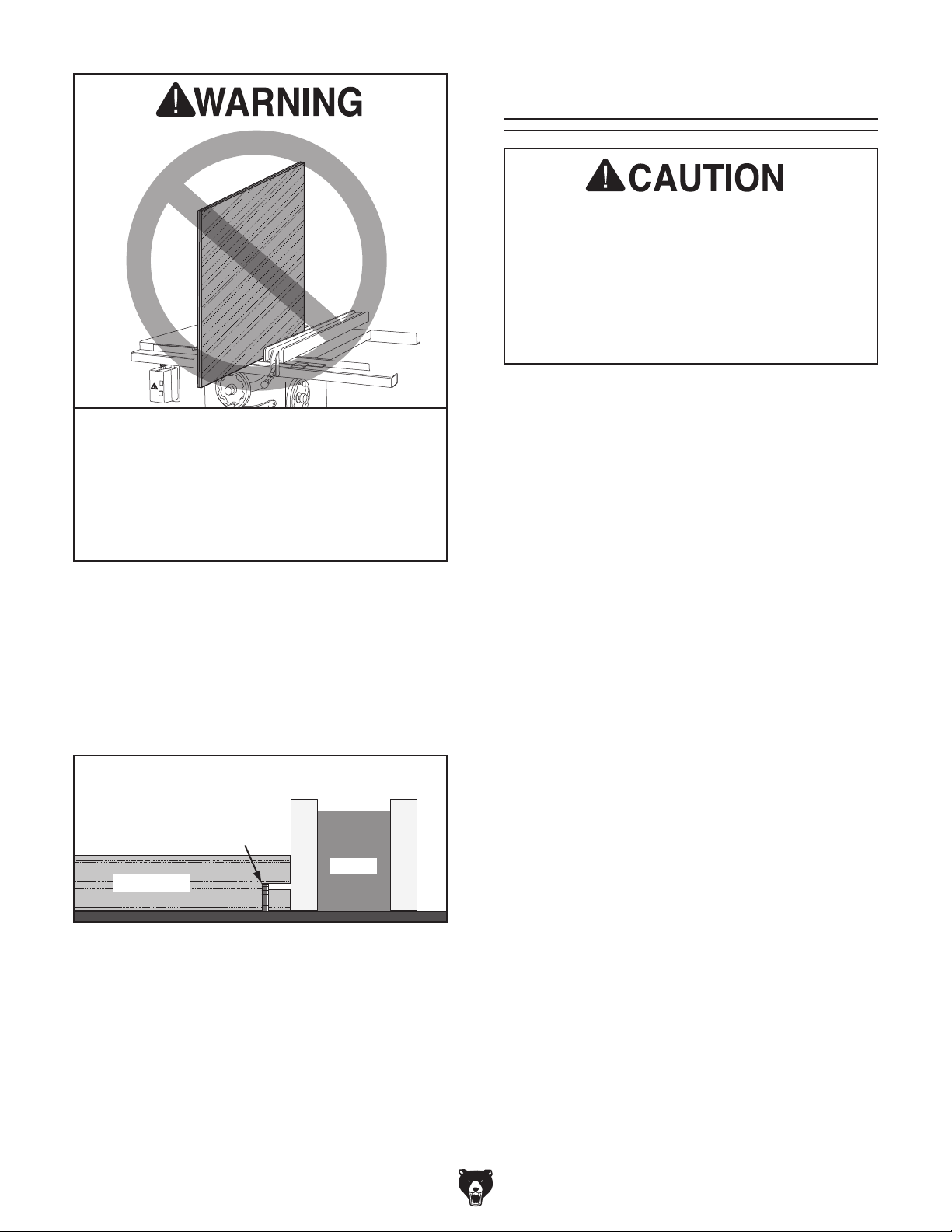

Figure 69. Example of second cut to create a

rabbet.

-44-

Model G0962 (Mfd. Since 09/24)

Page 47

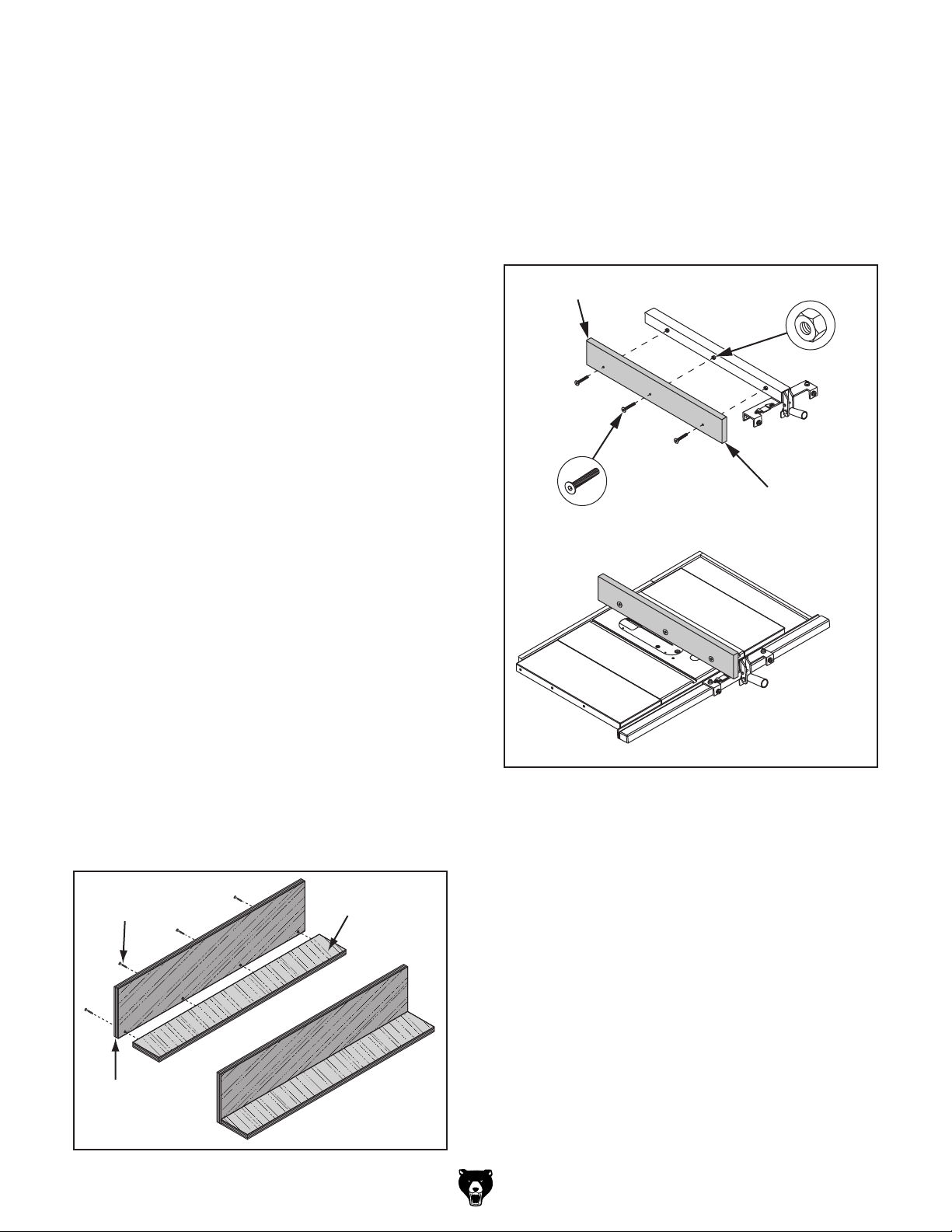

Making Resaw Barrier

When resawing, the resaw barrier acts in tandem with the rip fence to provide tall support for the workpiece. This minimizes the probability of it binding against the blade and causing kickback.

Making Auxiliary Fence

An auxiliary fence is necessary if you are resawing a workpiece that is taller than it is wide. The fence should be no less than to be resawn.

⁄2" shorter than the board

Tools Needed Qty

Tab le Saw .......................................................... 1

Jointer and Planer Clamps Power Drill Drill Bits

............................................ 2 (Minimum)

......................................................... 1

⁄8", 9⁄64" .......................................... 1 Ea.

Countersink Bit

.......................Recommended

.................................................. 1

Components Needed for Resaw Barrier

Wood* Wood* Wood Screws #8 x 2"

⁄4" x 51⁄2 " x Length of Fence .................. 1

⁄4" x 3" x Length of Fence ..................... 1

........................................ 4

Wood Glue......................................... As Needed

*Only use furniture-grade plywood, kiln-dried

hardwood, or HDPE plastic to prevent warping.

To make a resaw barrier:

Cut your wood pieces to size specified above.

If you are using hardwood, cut pieces oversize, then joint and plane them to correct size to make sure they are square and flat.

The fence should be similar to the one in Figure when installed.

Auxiliary Fence

M6-1 Hex Nut

Fence

M6-1 Flat

Head Cap Screw

2. Pre-drill and countersink four holes approxi-

mately

⁄8" from bottom of 51⁄2" tall wood

piece.

Glue end of 3" board, clamp boards at a 90°

angle with larger board in vertical position, as shown in Figure 70, then fasten together with wood screws.

#8 x 2"

Wood Screw

⁄4"

Assembled

Resaw Barrier

Assembled Auxiliary Fence

Figure 71. Example of auxiliary fence location.

Tools Needed Qty

Clamps ...............................................................2

Power Drill

Drill Bit

Countersink Drill Bit

Hex Wrench 5mm

Ruler

..........................................................1

⁄4" ..........................................................1

............................................ 1

............................................... 1

...................................................................1

Figure 70. Resaw barrier.

Model G0962 (Mfd. Since 09/24)

-45-

Page 48

Components Needed

Flat Hd Cap Screws M6-1 x (Length Varies) Hex Nuts M6-1

Wood*

⁄4" x 4" x Length of Fence ...................... 1

...............................................3–6

... 3–6

*Only use furniture-grade plywood, kiln-dried

hardwood, or HDPE plastic to prevent warping.

To build an auxiliary fence:

Cut auxiliary fence board to size. If you are

using hardwood, cut board oversize, then joint and plane board to correct size to make sure board is square and flat.

2. Remove fence cap from fence face on which you will mount auxiliary fence (see

Figure 72).

Fence Cap Upper T-Slot

Place auxiliary fence board against fence

face. Place a thin metal shim (such as a ruler) between table and bottom of auxiliary fence board to ensure adequate clearance between fence board and table. Clamp in position.

Measure depth of board plus depth of T-slot,

to determine maximum length of M6-1 flat head cap screws needed to mount auxiliary fence board to fence face.

. Measure centerline of fence T-slot and trans-

fer to auxiliary fence board to determine where to drill holes in board for flat head cap screws.

7. Set auxiliary fence board aside, and using

⁄4" drill bit, drill mounting holes in auxiliary

fence board. Countersink holes

⁄16" deep so

head of cap screw sits slightly beneath face of auxiliary fence board.

Insert cap screws through holes in auxiliary

fence board (see Figure 73).

Lower T-Slot

Figure 72. Auxiliary fence mounts on upper or

lower T-slots of fence face.

3. Slide (3) M6-1 hex nuts into either the upper or lower T-slot.

Note: For additional mounting strength,

attach auxiliary board with (6) hex nuts and flat head cap screws using upper and lower T-slots.

Align cap screw threads with hex nuts and

tighten (see Figure 73).

x 3

Figure 73. Example auxiliary fence attached to

included fence.

10.

Re-install fence cap.

-46-

Model G0962 (Mfd. Since 09/24)

Page 49

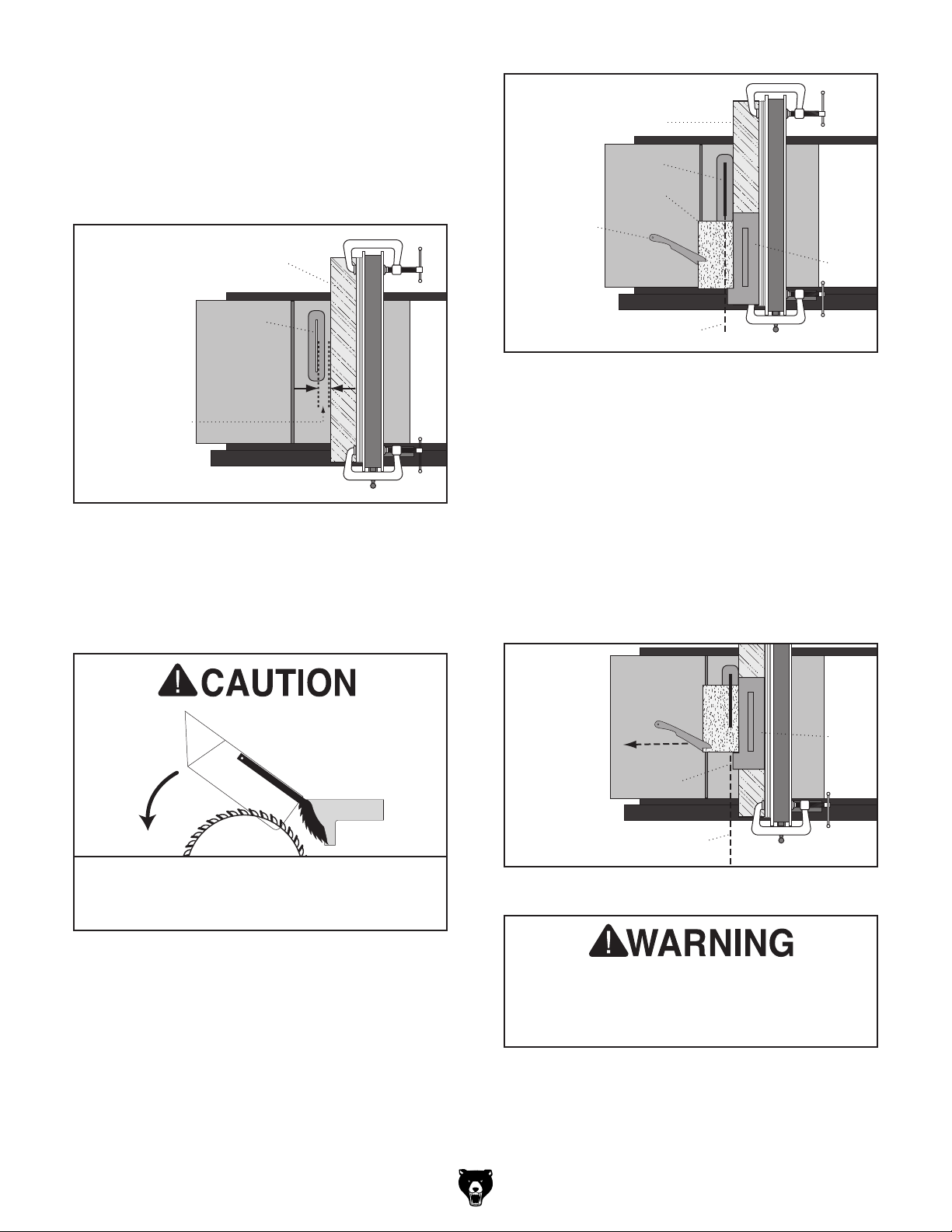

Resawing Operations

The table saw motor is pushed to its limits when resawing. If the motor starts to bog down, slow down your feed rate. Motor overloading and blade wear can be reduced by using a ripping blade. Ripping blades are designed to clear the sawdust quickly.

Components Needed for Resawing:

Zero-Clearance Insert Ripping Blade 10" Clamps Shop-Made Auxiliary Fence Shop-Made Resaw Barrier

...............................................................2

........................................1

............................................... 1

...............................1

................................. 1

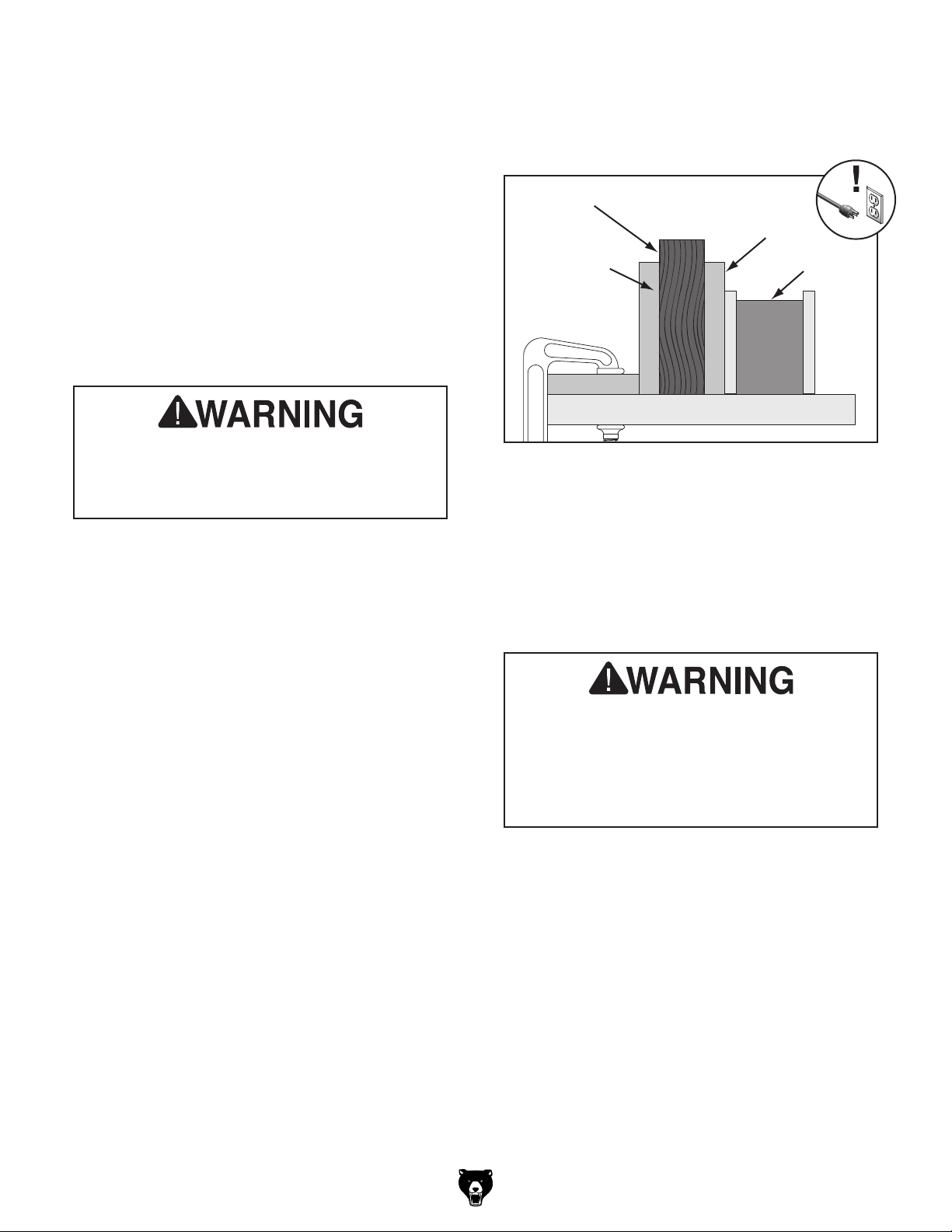

. Place workpiece against auxiliary fence and

slide resaw barrier against workpiece, as shown in Figure 74. Now clamp resaw barrier to top of table saw at both ends.

Workpiece

Resaw Barrier

(Front View)

Auxiliary

Fence

You may experience kickback during this procedure. Stand to the side of the blade and wear safety glasses and a full face shield to prevent injury when resawing.

To perform resawing operations:

. DISCONNECT MACHINE FROM POWER!

2. Remove standard table insert and blade guard assembly.

Install a ripping blade, install riving knife,

lower blade below table surface, then install zero-clearance table insert.

Attach auxiliary fence and set it to desired

width.

Note: When determining correct width,

don't forget to account for blade kerf and inaccuracy of fence scale while auxiliary fence is installed.

Figure 74. Ideal resaw workpiece setup.

Lower blade completely below table-top, and

slide workpiece over blade to make sure it moves smoothly and fits between resaw barrier and fence.

Raise blade approximately 1", or close to half

the height of workpiece, whichever is less.

Always use push sticks or push paddles to increase safety and control during operations which require that the blade guard and spreader must be removed from the saw. ALWAYS replace blade guard after resawing is complete.

Model G0962 (Mfd. Since 09/24)

-47-

Page 50

Plug in table saw, turn it ON, and use a push

stick or push block to feed workpiece through blade, using a slow and steady feed rate.

Note: We recommend making a series of

light cuts that get progressively deeper, to reduce the chance of stalling the motor.

10. Repeat Steps 7–9 until blade is close to half

the height of board to be resawn. The ideal

completed resaw cut will leave a

⁄8" connec-

tion when resawing is complete, as shown in Figure

75. Leaving a 1⁄8" connection will

reduce risk of kickback.

The danger of kickback increases relative to the depth of a cut. Reduce the risk of kickback by making multiple passes to achieve the desired depth of cut. Failure to follow these warnings could result in serious personal injury.

Flip workpiece end-over-end, keeping same

side against fence, and run workpiece through blade.

Workpiece

Auxiliary

Fence Resaw Barrier

/8" Connection

Fence

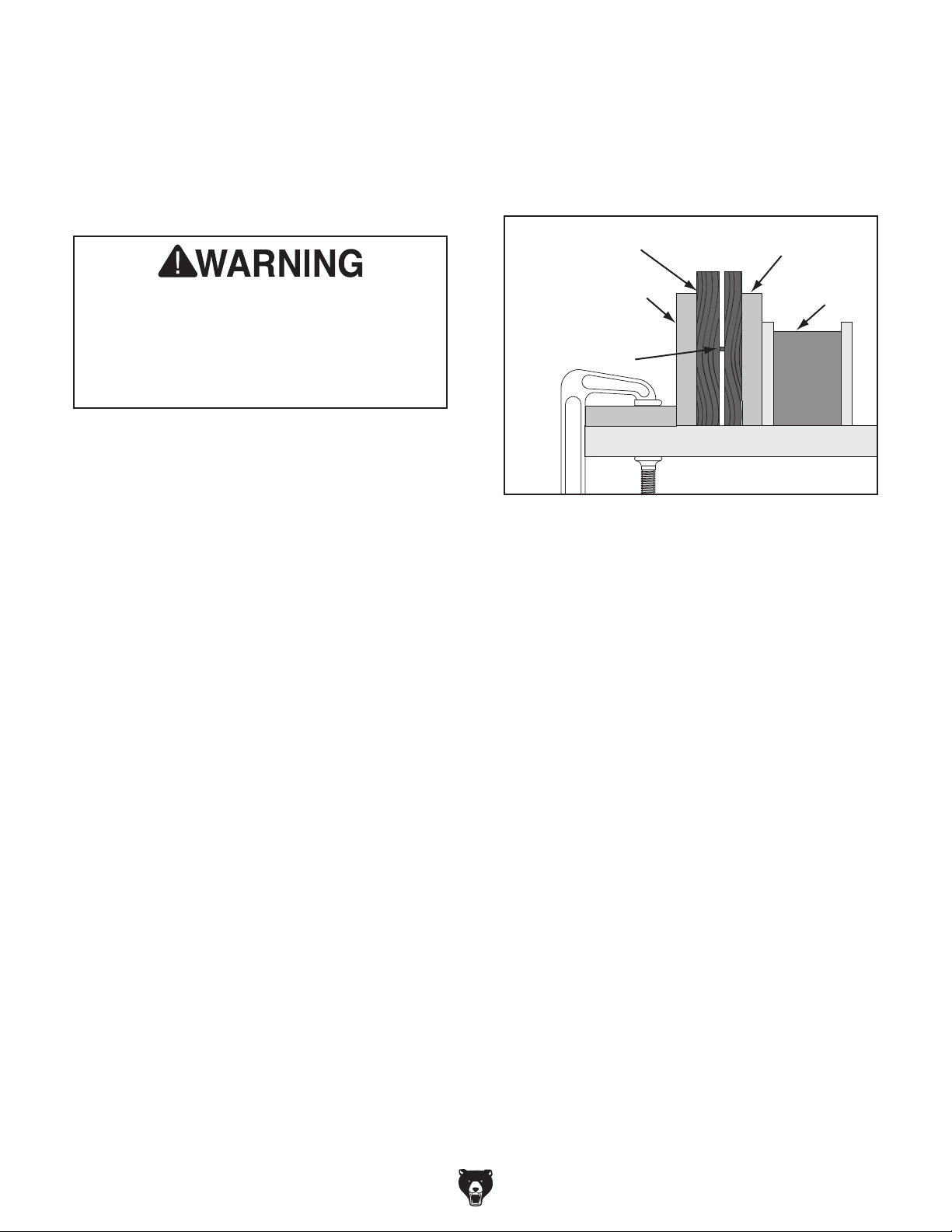

Figure 75. Ideal completed resaw cut.

Turn OFF table saw, then separate parts of

11.

workpiece and hand plane remaining ridge to remove it.

. When finished resawing, remove resaw bar-

rier and auxiliary fence, then re-install blade guard/spreader or riving knife and standard table insert.

-48-

Model G0962 (Mfd. Since 09/24)

Page 51

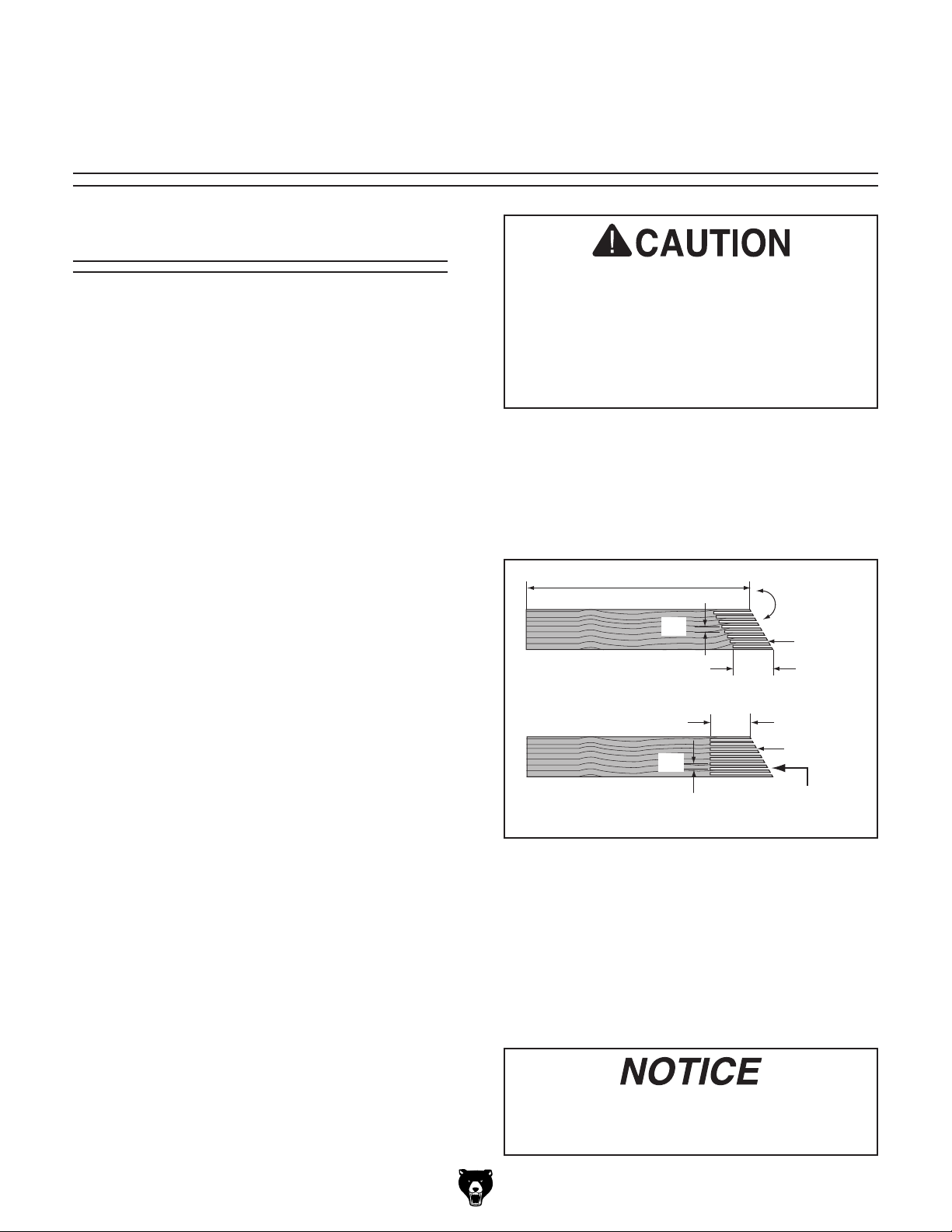

SECTION 5: SHOP MADE SAFETY

ACCESSORIES

Featherboards

We recommend using a bandsaw for mak-

Easily made from scrap stock, featherboards provide an added degree of protection against kickback, especially when used together with push sticks. They also maintain pressure on the workpiece to keep it against the fence or table while cutting, which makes the operation easier and safer because the cut can be completed with-

out the operator’s hands getting near the blade.

The angled ends and flexibility of the fingers allow the workpiece to move in only one direction.

Making a Featherboard

This sub-section covers the two basic types of featherboards: 1) Those secured by clamps, or 2) those secured with the miter slot.

Material Needed for Featherboard

Hardwood Hardwood

⁄4" x 3" x 10" (Minimum)

⁄4" x 6" x 28" (Maximum) ..................1

ing fingers in the next step because it tends to be safer. A table saw can be used, but it will over-cut the underside of the ends, produce a thicker kerf, and require you to stop the blade half-way through the cut, which can be dangerous.

Make a series of end cuts with grain 3⁄8"–

⁄4" apart and 2"–3" long, as shown in

Figure 76

deep, then make them progressively deeper, as shown in Figure 76 (B).

(A). Alternatively, start cuts at 2"-3"

10" (Minimum)

30°

⁄8"

Kerf

⁄16"-1⁄8"

2"-3"

Additional Material Needed for Mounting Featherboard in Miter Slot

Hardwood Wing Nut Flat Head Screw Flat Washer

To make a featherboard:

Cut a hardwood board approximately 3⁄4" thick

to size. The length and width of the board can vary according to your design. Most featherboards are 10"–28" long and 3"–6" wide. Make sure the wood grain runs parallel with the length of the featherboard, so the fingers you will create in Step 3 will bend without breaking.

Cut a 30º angle at one end of the board.

⁄8" x (Miter Slot Width) x 5"L ............1

/4"-20 .................................................. 1

⁄4"-20 x 2" ............................... 1

⁄4"-20 .............................................. 1

Initial Cut

2"-3"

⁄8"

Kerf

⁄16"-1⁄8"

Progressively Longer Cuts

Figure 76. Patterns for featherboards (top view).

IMPORTANT: Cuts made across the grain result

in weak fingers that easily break when flexed. When made correctly, the fingers should withstand flexing from moderate pressure. To test the finger flexibility, push firmly on the ends with your thumb. If the fingers do not flex, they are likely too thick (the cuts are too far apart).

Only Steps 1–3 are required to make a clamp-mounted featherboard. See Page 51 for instructions on clamping.

Model G0962 (Mfd. Since 09/24)

-49-

Page 52

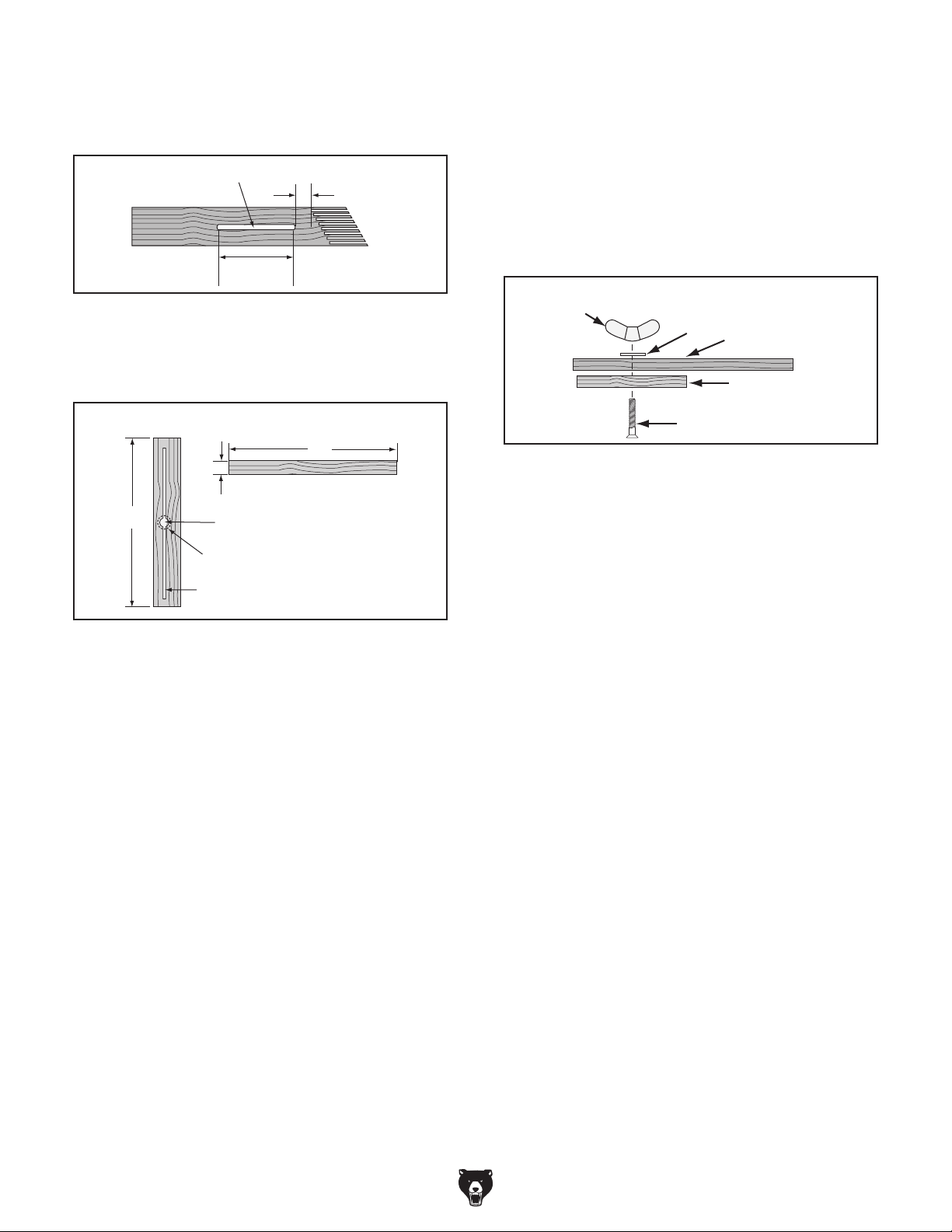

Rout a 1⁄4"–3⁄8" wide slot 4"–5" long in

workpiece and 1"–2" from short end of featherboard (see Figure 77).

/4"-3/8" Slot

1"-2"

4"-5"

Figure 77. Slot routed in featherboard.

5. Cut a miter bar approximately 5" long that will

fit in table miter slot, as shown in Figure 78.

Mark a 4" line through center of countersunk

hole in center, then use a jig saw with a narrow blade to cut it out.

Assemble miter bar and featherboard with

a 1⁄4"-20 x flat head screw, flat washer, and a wing nut or a star knob (see Figure

79).

Congratulations! Your featherboard is complete.

Wing Nut

(Side View)

Flat Washer

Featherboard

Miter Bar

(Top View)

/8"

/4" Hole

Countersink on Bottom

4" Slot

(Side View)

Figure 78. Miter bar pattern.

Tip: Consider making miter bar longer for

larger featherboards—approximately half the length of total featherboard—to support force applied to the featherboard during use.

Drill a 1⁄4" hole in center of bar, then counter-

sink bottom to fit a

⁄4"-20 flat head screw.

Flat Head Screw

Figure 79. Assembling miter slot featherboard

components.

Note: The routed slot, countersink hole, and

flat head screw are essential for miter bar to clamp into miter slot. When wing nut is tightened, it will draw flat head screw upward into countersunk hole. This will spread sides of miter bar and force them into walls of miter slot, locking featherboard in place.

Tip: The length of the flat head screw depends

on thickness of featherboard—though 1

⁄2" to

2" lengths usually work.

Proceed to Mounting Featherboard in Miter

Slot on Page 51.

-50-

Model G0962 (Mfd. Since 09/24)

Page 53

Mounting Featherboards w/Clamps

1. Lower saw blade, then adjust fence to desired

width and secure it.

Mounting Featherboard in Miter Slot

1. Lower saw blade, then adjust fence to desired

width and secure it.

Place workpiece against fence, making sure

it is 1" in front of the blade.

Place a featherboard on table away from

blade so all fingers point forward and contact workpiece (see Figure 80).

Fence Featherboard

Clamp

Table

Featherboard

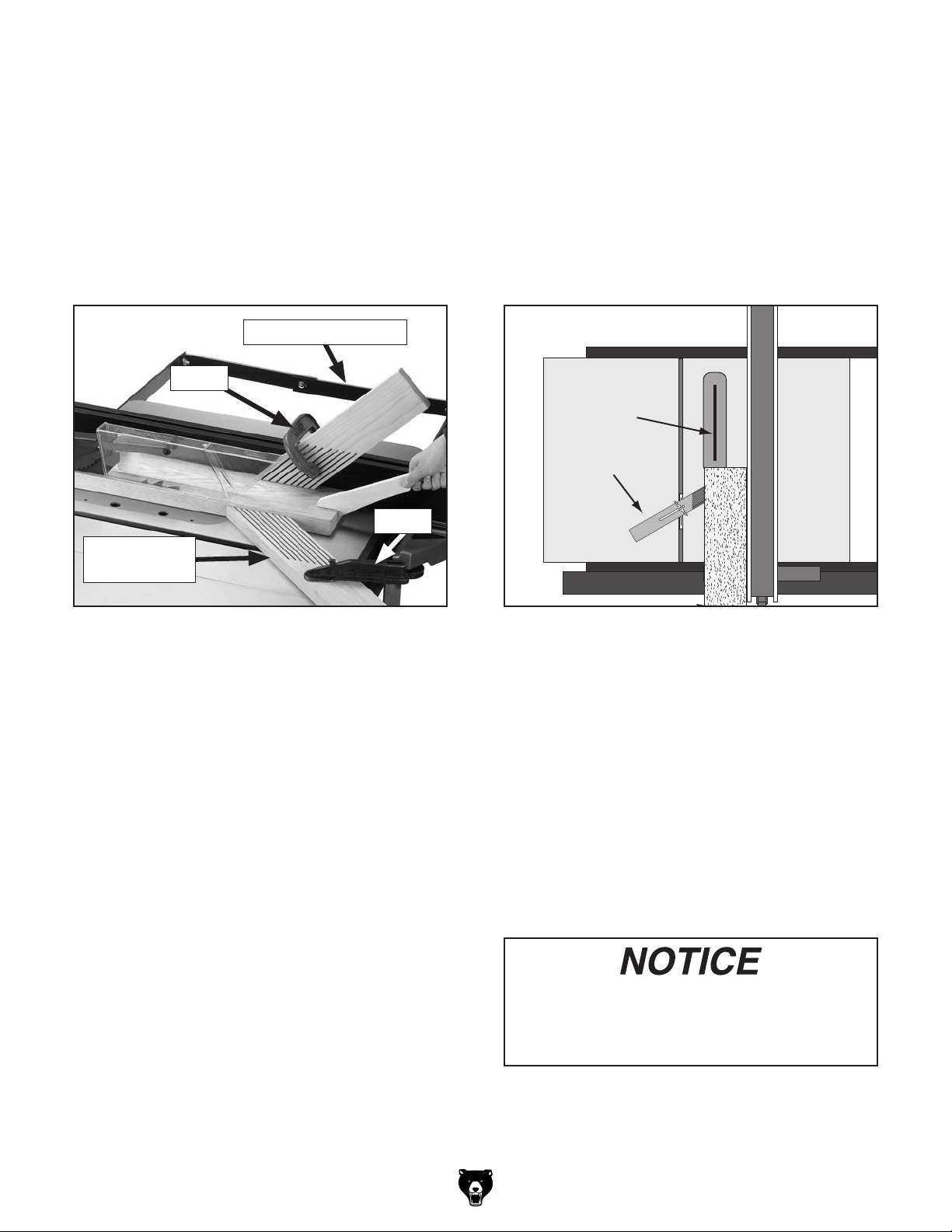

Figure 80. Example of featherboards secured

with clamps.

Place workpiece evenly against fence, mak-

ing sure it is 1" in front of blade.

Slide featherboard miter bar into miter slot,

making sure fingers slant toward blade, as shown in Figure 81.

Blade

Featherboard

Figure 81. Featherboard installed in miter slot

and supporting workpiece for ripping cut.

Secure featherboard to table with a clamp.

5. Check featherboard by pushing it with your

thumb to ensure it is secure.

If featherboard moves, tighten clamp

—

more.

Optional: If cutting long workpieces, it may

be beneficial to use a second featherboard attached to fence to keep board firmly against table while feeding.

4. Position fingered edge of featherboard

against edge of workpiece, so that all fingers contact workpiece. Slide featherboard toward blade until first finger is nearly even with end of workpiece, which should be 1" away from blade.

Double-check workpiece and featherboard

to ensure they are properly positioned, as described in Step 4. Then secure featherboard to table. Check featherboard by hand to make sure it is tight.

The featherboard should be placed firmly enough against the workpiece to keep it against the fence but not so tight that it is difficult to feed the workpiece.

Model G0962 (Mfd. Since 09/24)

-51-

Page 54

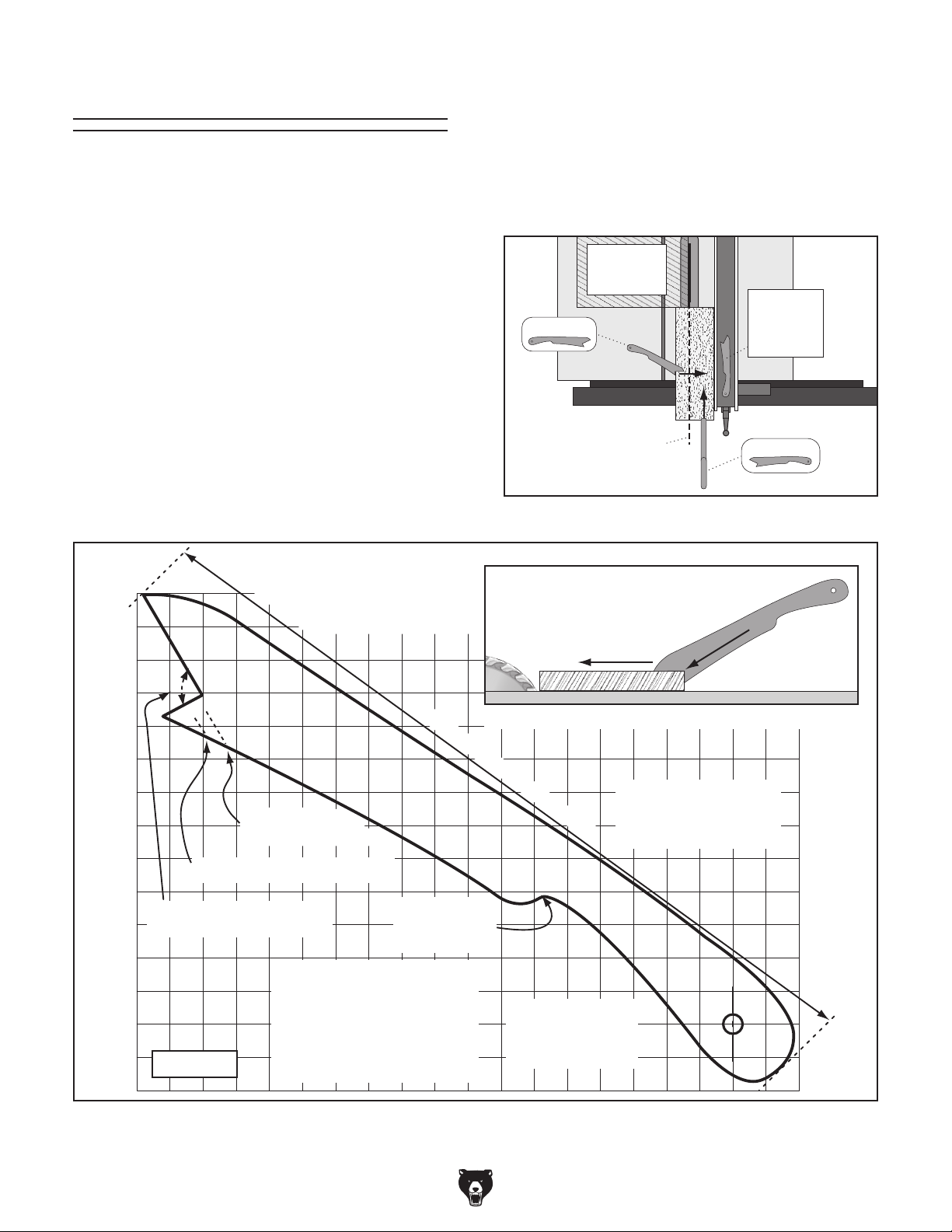

Push Sticks

When used correctly, push sticks reduce the risk of injury by keeping hands away from the blade while cutting. In the event of an accident, a push stick can also absorb damage that would have otherwise happened to hands or fingers.

Using a Push Stick

Use push sticks whenever your hands will get within 12" of the blade. To maintain control when cutting large workpieces, start the cut by feeding with your hands then use push sticks to finish the cut, so your hands are not on the end of the workpiece as it passes through the blade.

Feeding: Place the notched end of the push stick against the end of the workpiece (see Figure and move the workpiece into the blade with steady downward and forward pressure.

83),

Supporting: A second push stick can be used to

keep the workpiece firmly against the fence while cutting. When using a push stick in this manner, only apply pressure before the blade; otherwise, pushing the workpiece against or behind the blade will increase the risk of kickback (see Push Stick Prohibition Zone in Figure 82).

Push Stick Prohibition

Zone

Push Stick

Store Push

Stick Here

for Easy

Access

Supporting

Blade

Path

Push Stick

Feeding

Figure 82. Using push sticks to rip narrow stock.

Making a Push Stick

Use this template to make

90º

Cut here to

⁄4" stock

push

Cut here to push 1⁄2" stock

Notch for placing on corners of workpieces

MATERIAL: Only use hardwood, sturdy plywood, or high-density plastic. Do not use softwood that may break under pressure or

⁄2" Grid

metal that can break teeth from the blade!

your own push stick.

Notch to help prevent hand from slipping

Figure 83. Side view of a push stick in-use.

" Minimum Length

SANDING: Sand edges to remove rough edges and increase comfort.

SIZING: Push stick must be at least 15

long. Use

⁄2"–3⁄4" thick

material.

⁄4"

-52-

Figure 84. Template for a basic shop-made push stick (not shown at actual size).

Model G0962 (Mfd. Since 09/24)

Page 55

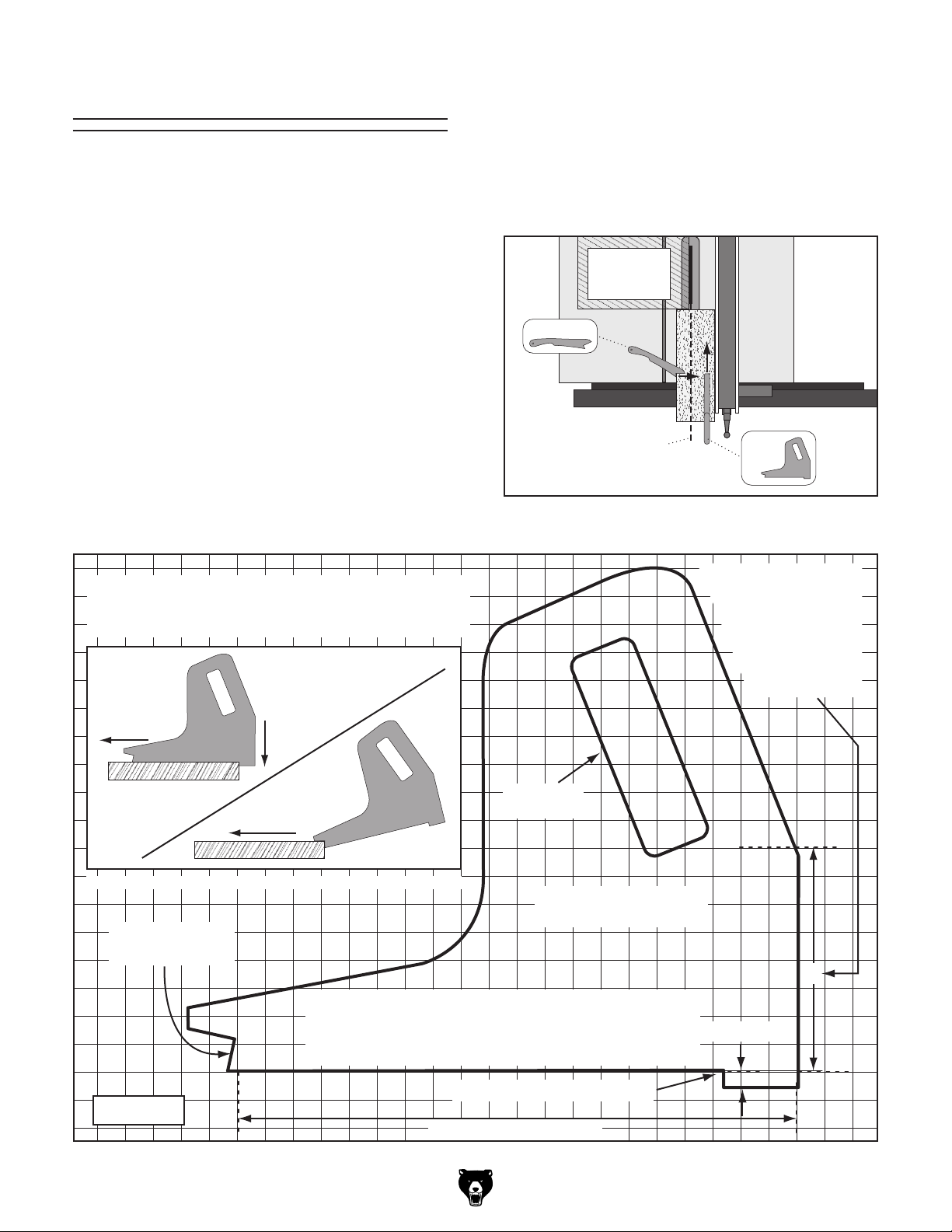

Push Blocks

When used correctly, a push block reduces the risk of injury by keeping hands away from the blade while cutting. In the event of an accident, a push block often takes the damage that would have otherwise happened to hands or fingers.

Using a Push Block

A push block can be used in place of or in addition to a push stick for feeding workpieces into the blade. Due to their design, push blocks allow the operator to apply firm downward pressure on the workpiece that could not otherwise be achieved with a push stick.

The notched end of the push block is then used to push the workpiece the rest of the way through the cut, keeping the operator's hands at a safe distance from the blade. A push stick is often used at the same time in the other hand to support the workpiece during the cut (see Using a Push Stick on previous page).

Push Stick

Prohibition

Zone

Push Stick

Supporting

The push block design on this page can be used in two different ways (see Figure 85 below). Typically, the bottom of the push block is used until the end of the workpiece reaches the blade.

Making a Push Block

Use this template to make your own push block.

Figure 85. Side view of a push block in use.

Notch for use

as a push stick

Blade

Path

Push Block

Feeding

Figure 86. Using a push block and push stick to

make a rip cut.

CAUTION: Bottom

of handle must be

at least 4

" above

bottom of push

block to keep

hand away

from blade.

Handle for firm grip

Make push block with

⁄2"–3⁄4" thick material

⁄2" Grid

Figure 87. Template for a shop-made push block (shown at 50% of full size).

Model G0962 (Mfd. Since 09/24)

CAUTION: Only use hardwood, sturdy plywood, or high-density plastic. Do not use softwood that may break under pressure or metal that can break teeth from the blade!

Lip for pushing workpiece

9"−10" Minimum Length

/4"–1/2"

-53-

Page 56

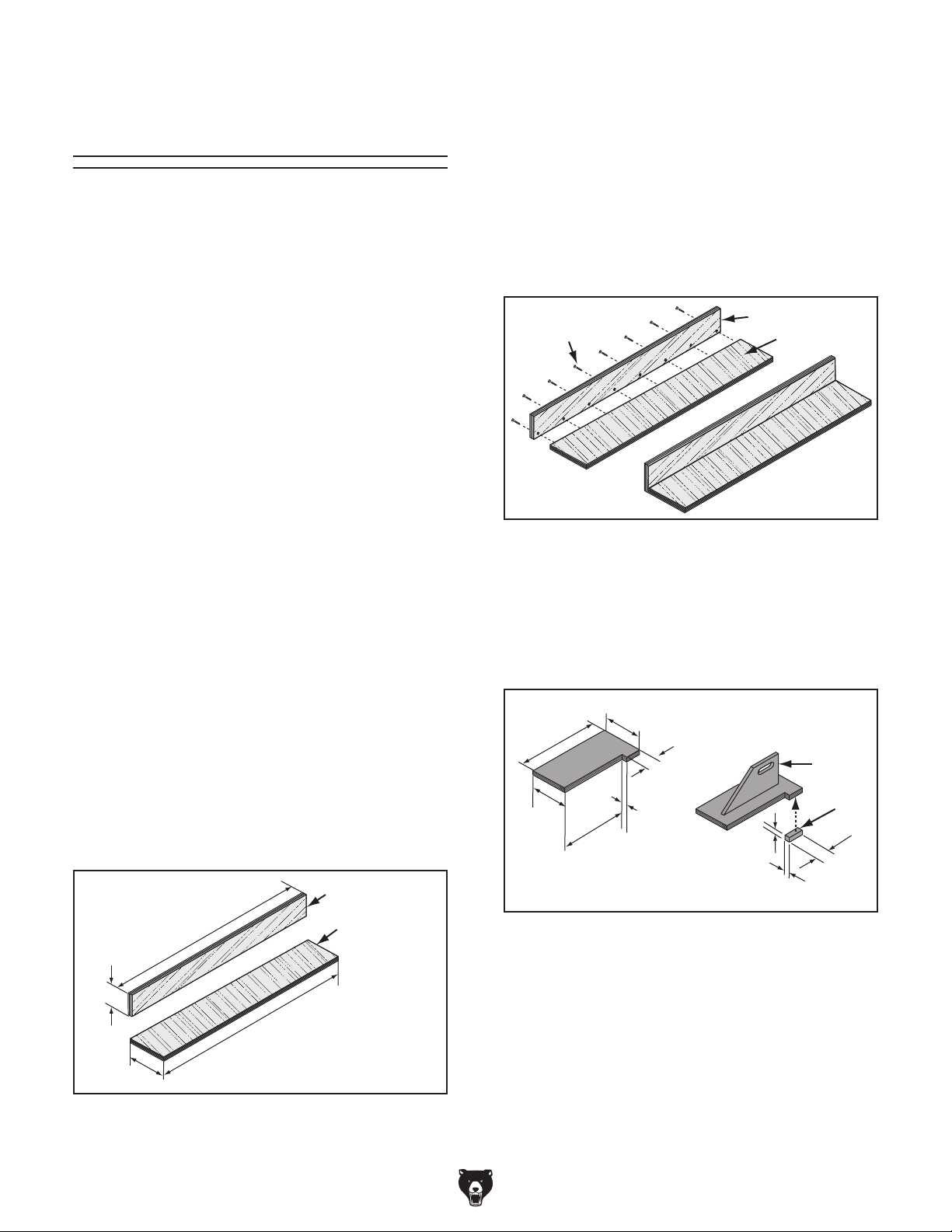

Narrow-Rip Auxiliary

Fence & Push Block

Note: We recommend cutting hardwood

board oversize, then jointing and planing it to correct size to make sure board is square and flat. Only use furniture-grade plywood or kiln-dried hardwood to prevent warping.

There are designs for hundreds of specialty jigs that can be found in books, trade magazines, and on the internet. These types of jigs can greatly improve the safety and consistency of cuts. They are particularly useful during production runs when dozens or hundreds of the same type of cut need to be made.

The narrow-rip auxiliary fence and push block system shown in this section is an example of a specialty jig that can be made to increase the safety of very narrow rip cuts.

Material Needed for Narrow Rip Auxiliary Fence & Push Block

Hardwood Plywood Wood Screws #8 x 1

⁄4" x 3" x Length of Fence ................1

⁄4" x 51⁄4" x Length of Fence ................1

⁄2" ......................................8

Material Needed for Push Block

Hardwood or Plywood Hardwood or Plywood Cyanoacrylate Wood Glue Wood Screws #8 x 1

⁄4" x 15" x 55⁄8" ...............1

⁄4" x 10" x 5"–9" ............ 1

.........................Varies

⁄2" ......................As Needed

Pre-drill and countersink (8) pilot holes 3⁄8"

from bottom of 3" wide board, then secure

boards together with (8) #8 x 1

⁄2" wood

screws, as shown in Figure 89.

#8 x 1

⁄2"

Wood Screw

⁄4" Hardwood

⁄4" Plywood

Completed Fence

Figure 89. Location of pilot holes.

Using

⁄4" material you used in previous steps,

cut out pieces for push block per dimensions shown in Figure 90; for handle, cut a piece 10" long by 5"–9" high and shape it as desired to fit your hand.

Making a Narrow-Rip Push Block for an Auxiliary Fence

1. Cut a piece of 3⁄4" thick plywood 5 1⁄4" wide

and as long as your table saw fence; cut a piece of long as your table saw fence, as shown in Figure 88.

Length of Table Saw Rip Fence

51⁄4"

Figure 88. Auxiliary fence dimensions.

⁄4" thick hardwood 3" wide and as

⁄4" Hardwood

⁄4" Plywood

Length of Table Saw Rip Fence

⁄8"

15"

⁄2"

⁄4"

⁄8"

⁄2"

⁄8"

Handle

Lip

⁄2"

⁄8"

Figure 90. Push block dimensions and

construction.

Attach handle to base with #8 x 11⁄2" wood

screws, and attach lip to base with cyanoacrylate-type wood glue.

-54-

Model G0962 (Mfd. Since 09/24)

Page 57

Using Auxiliary Fence & Push Block

1. Place auxiliary fence on table and clamp

it to fence at both ends, then adjust distance between auxiliary fence and blade— this determines how wide workpiece will be ripped (see Figure 91).

Auxilliary Fence

Push Stick

for Side

Support

Blade

Workpiece

Push Block

Blade

Workpiece Cutting Width

Figure 91. Adjusting ripping distance between

blade and auxiliary fence.

Install blade guard, then disable pawls, as

explained on Page 36, so they do not interfere with push block lip.

Blade Path

Figure 92. Push block in position to push

workpiece through blade.

4. Turn saw ON, then begin ripping workpiece

using a push stick for side support.

As workpiece nears end of cut, place push

block on auxiliary fence with lip directly behind workpiece, then release push stick just before blade.

Guide workpiece rest of way through cut with

6. push block, as shown in Figure 93.

Release

Push Stick

Before Blade

Lip

Push Block

Keep the blade guard installed and in the down position. Failure to do this could result in serious personal injury or death.

Place workpiece 1" behind blade and even-

ly against table and auxiliary fence (see Figure 92).

Model G0962 (Mfd. Since 09/24)

Blade Path

Figure 93. Ripping with push block.

Turn OFF the saw and allow blade to come to a complete stop before removing cut-off piece. Failure to follow this warning could result in serious personal injury.

-55-

Page 58

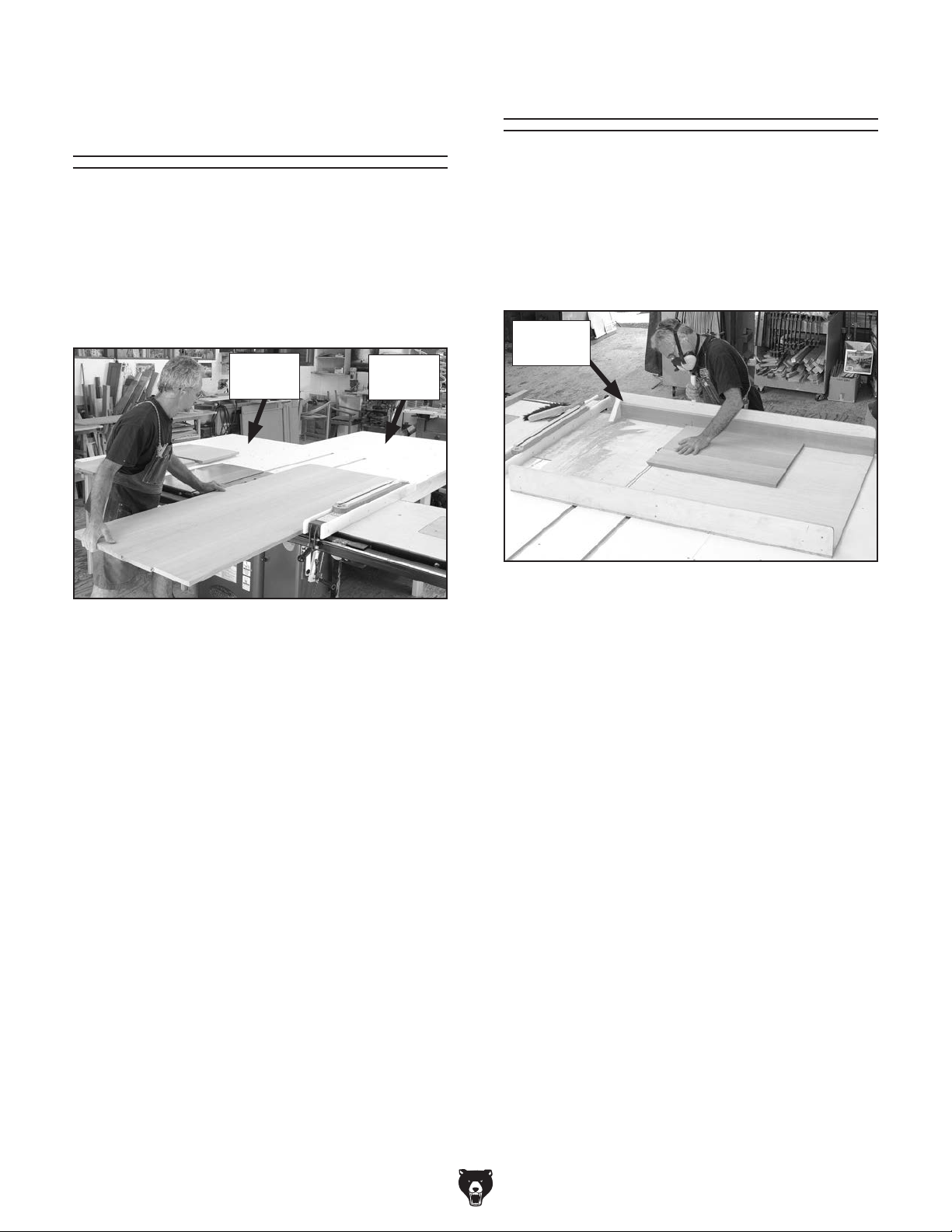

Outfeed & Support

Tables

One of the best accessories for improving the safety and ease of using a table saw is simply placing a large table (outfeed table) behind the saw to catch the workpiece (see Figure 94). Additionally, another table to the left of the saw (support table) can also help support large workpieces so they can be cut safely and accurately.

Support

Table

Outfeed

Table

Crosscut Sled

A crosscut sled (see Figure 95) is a fantastic way to improve the safety and accuracy of crosscutting on the table saw. Most expert table saw operators use a crosscut sled when they have to crosscut a large volume of work, because the sled offers substantial protection against kickback when crosscutting.

Crosscut

Sled

Figure 94. Example of outfeed & support tables.

Figure 95. Example of crosscut sled.

-56-

Model G0962 (Mfd. Since 09/24)

Page 59

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 6: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

Forrest WoodWorker II 10" Blades t20778—10", 20 teeth t20779—10", 40 teeth t23527—10" 48 teeth

Hailed as the Cadillac of all blades, Forrest saw blades have become legendary for their ability to leave highly polished, finish ready surfaces on nearly everything they cut. Made in USA.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Forrest Dado Blade Sets H4756— 8" x 5⁄8", 24 Teeth, 1⁄4"–29⁄32" Groove T23267—8" x

The world's finest dado head clean cuts all your grooves! No splintering when cross-cutting oak, ply veneers and melamine. Perfect for flatbottomed grooves. No staggered steps or round bottoms like a wobble-dado leaves! Cuts in all directions - rip, cross-cut, miter, any depth.

⁄8", 24 Teeth, 3⁄16"–1⁄4" Groove

With these all purpose blades for table saws you can rip and crosscut 1" – 2" rockhards and softwoods resulting in a smooth as sanded surface. With 20° face hook, ply veneers will crosscut with no bottom splinter at moderate feed rates. Double hard and 40% stronger C4 carbide will give up to 300% longer life between sharpenings. Ends blade changing (one blade does rip, combo and crosscut), second-step finishing and cutting oversize to allow for resurfacing. Buy and sharpen one blade instead of three!

Figure 97. T20779 Forrest Woodworker II Blade.

/8" arbor, 1/8" kerf.

⁄16 "

Figure 96. Forrest Dado Blades.

Model G0962 (Mfd. Since 09/24)

-57-

Page 60

order online at www.grizzly.com or call 1-800-523-4777

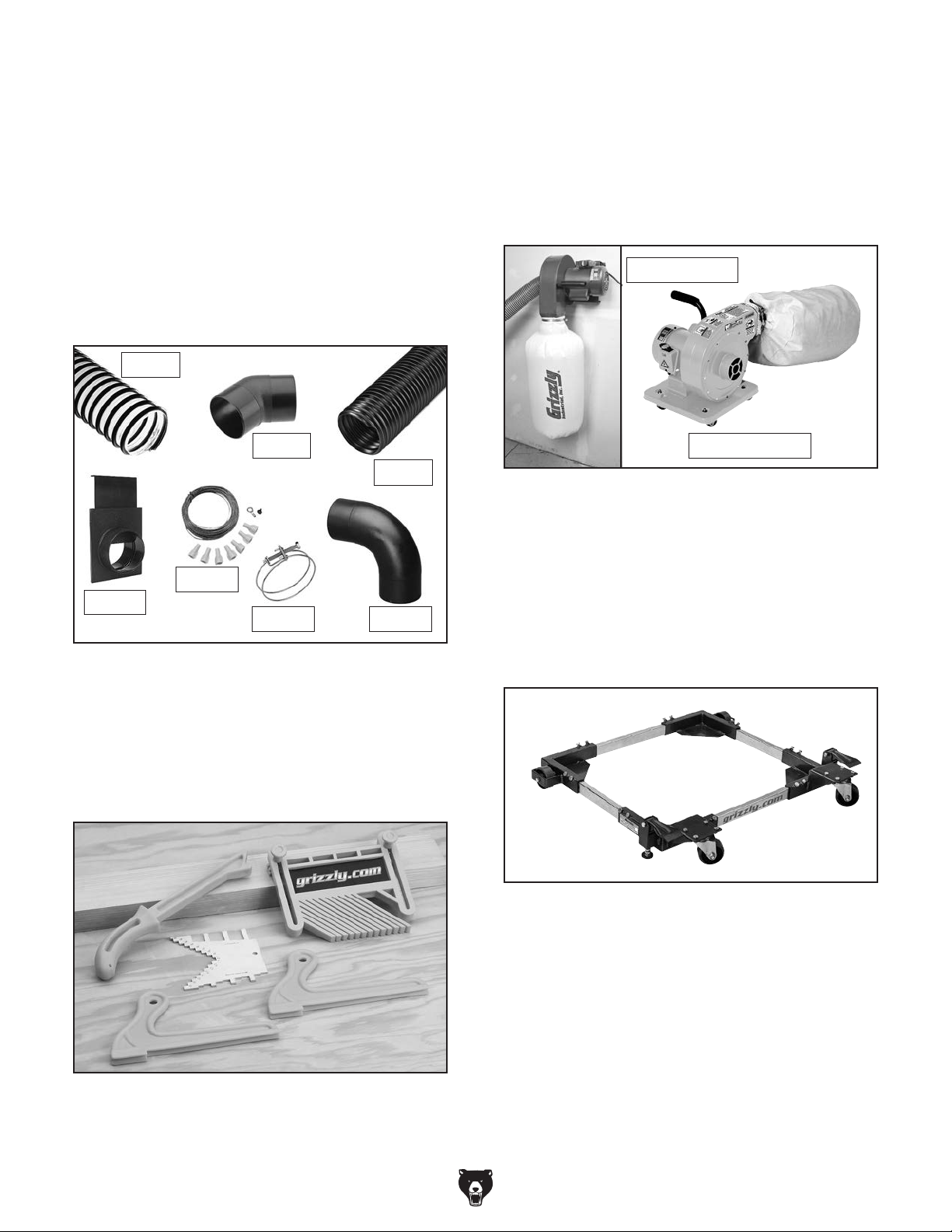

D4206—Clear Flexible Hose 4" x 10' D4256—45° Elbow 4" D4199—Black Flexible Hose 4" x 50' W1034—Heavy-Duty Clear Flex Hose 4" x 10'

D2107—Hose Hanger 4

⁄4"

W1015—Y-Fitting 4" x 4" x 4" W1017—90° Elbow 4" W1019—Hose Coupler (Splice) 4" W1317—Wire Hose Clamp 4" W1007—Plastic Blast Gate 4" W1053—Anti-Static Grounding Kit

Hand-picked selection of commonly used dust collection components for 4" dust ports.

D4206

G1163P—1HP Floor Model Dust Collector G0710—1HP Wall-Mount Dust Collector T33948—2.5 Micron Upgrade Bag

Excellent point-of-use dust collectors that can be used next to the machine with only a small amount of ducting. Specifications: 537 CFM, 7.2" static pressure, 1.5 cubic foot bag, and 30 micron filter. Motor is 1HP, 120V/240V, 7A/3.5A.

Model G0710

D4256

D4199

W1053

W1007

W1317 W1017

Figure 98. Dust collection accessories.

H8029—5-Pc. Safety Kit

This kit has four essential jigs and a gauge. Includes two push blocks, push stick, featherboard, and combination saw and router gauge.

Featherboard fits

⁄8" x 3⁄4" miter slots. Made of

high visibility yellow plastic.

Model G1163P

Figure 100. Point-of-use dust collectors.

T28000—”Bear Crawl” Mobile Base

We took years of input and months of testing and design to come out with the Grizzly "Bear Crawl" Mobile Base. Its 1200 lb. capacity, steel and rubber heavy-duty ball bearing wheels, and toe flipstops are only a few of the features that will make this mobile base a staple under your machines.

Adjusts from 19" x 21" to 29

⁄2 " x 291⁄2 ".

Figure 101. T28000 Bear Crawl Mobile Base.

Figure 99. H8029 5-Pc. Safety Kit.

-58-

Model G0962 (Mfd. Since 09/24)

Page 61

To reduce risk of shock or accidental startup, always disconnect machine from

SECTION 7: MAINTENANCE

Cleaning &

Protecting

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts/arbor nut.

• Damaged saw blade. Worn or damaged wires.

• Any other unsafe condition.

•

Weekly Maintenance:

• Clean table surface and miter slot grooves.

• Clean and protect cast-iron table.

• Clean rip fence.

• Clean pitch/resin from saw blade.

Cleaning the Model G0962 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast-iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on the bare metal surface. Keep the table rust-free with regular applications of products like SLIPIT

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT

11 Oz. Spray

Monthly Maintenance:

• Clean/vacuum dust buildup from inside cabi-

net and off motors.

• Check/replace belt for proper tension, dam-

age or wear (Page 76).

Every 6–12 Months:

• Lubricate trunnion slides, worm gear, bull

gear, and leadscrew (Page 60).

Model G0962 (Mfd. Since 09/24)

Figure 102. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

-59-

Page 62

Lubrication

It is essential to clean components before lubricating them because dust and chips build up on lubricated components and make them hard to move. Simply adding more grease to them will not yield smooth moving components.

Clean the components in this section with an oil/ grease solvent cleaner and shop rags.

If you thoroughly clean the components in this section before lubricating them, the result will be silky smooth movement when turning the handwheels, which will result in much higher enjoyment on your part!

Items Needed Qty

NLGI#2 Grease or Equivalent ........... As Needed

Mineral Spirits Clean Shop Rags Wire Brush

.................................... As Needed

.............................. As Needed

......................................................... 1

Worm Gear, Bull Gear & Leadscrew

Lubrication Type ... T26 419 or NLGI#2 Equivalent Amount Lubrication Frequency

Clean away any built up grime and debris from worm gear, bull gear, and leadscrew (see Figures 104 –105) with a wire brush, rags, and mineral spirits. Allow components to dry, then apply a thin coat of grease to them.

.............................................. As Needed

.....................6–12 Months

Bull Gear

Worm Gear

Trunnion Slides

Lubrication Type ... T26 419 or NLGI#2 Equivalent Amount Lubrication Frequency

Clean out front and rear trunnion slides with mineral spirits and a rag, then apply grease into each groove. Move blade tilt back-and-forth to spread grease (see Figure 103).

.............................................. As Needed

.....................6–12 Months

Front

Trunnion

Slide

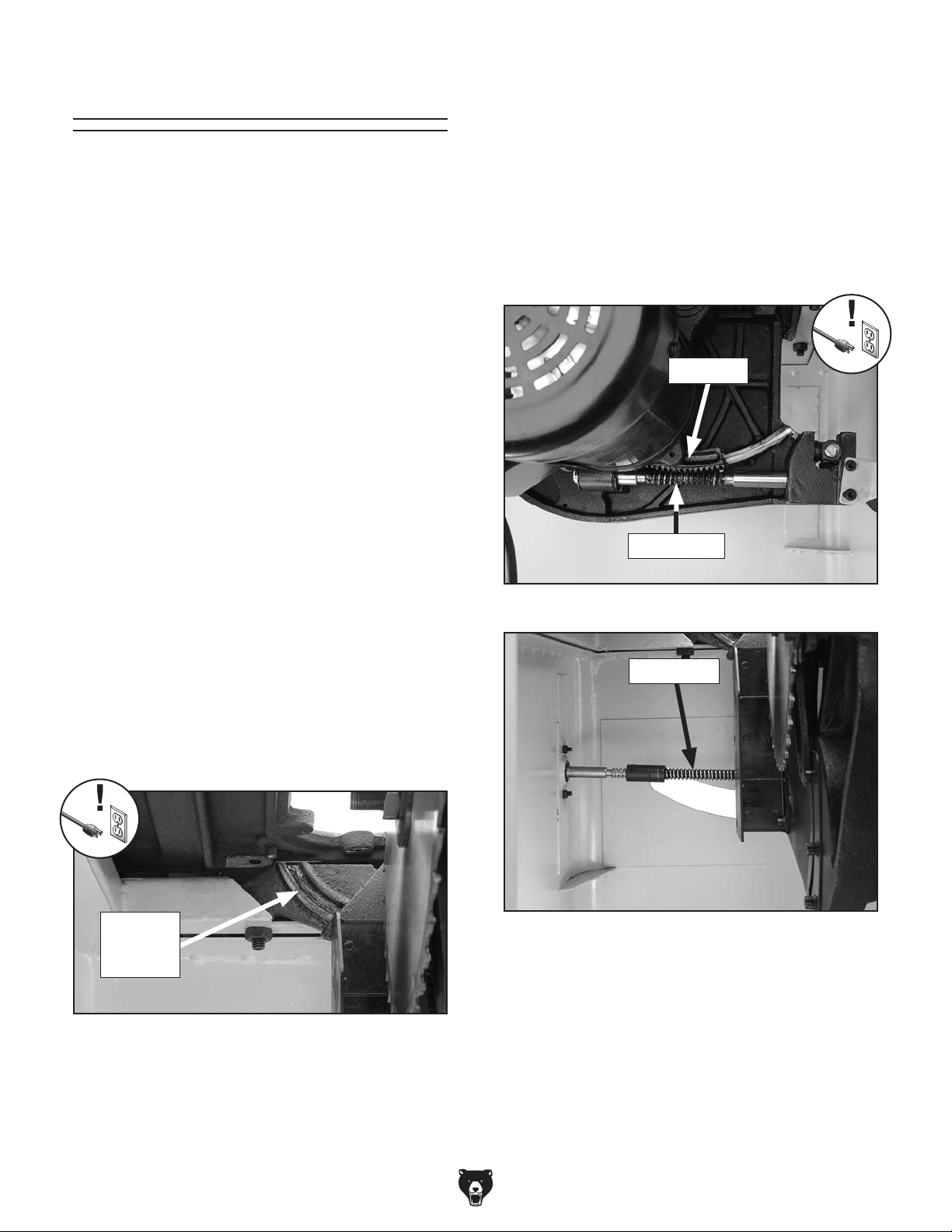

Figure 103. Trunnion slide locations.

Figure 104. Bull and worm gears location.

Leadscrew

Figure 105. Leadscrew location.

-60-

Model G0962 (Mfd. Since 09/24)

Page 63

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 8: SERVICE

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Switch disabling pin installed.

2. Incorrect power supply voltage or circuit size.

3. Plug/receptacle at fault/wired incorrectly.

4. Power supply circuit breaker tripped or fuse blown.

5. Motor wires connected incorrectly.

6. Start capacitor at fault.

7. Centrifugal switch adjustment/contact points at fault.

8. Wiring broken, disconnected, or corroded.

9. ON/OFF switch at fault.

10. Circuit breaker switch at fault.

11. Motor or motor bearings at fault.

1. Machine undersized for task.

2. Workpiece material unsuitable for machine.

3. Feed rate/cutting speed too fast.

4. Workpiece crooked; fence not parallel with blade.

5. Blade dull or wrong blade for task.

6. Belt slipping/pulleys misaligned.

7. Motor wires connected incorrectly.

8. Plug/receptacle at fault/wired incorrectly.

9. Pulley/sprocket slipping on shaft.

10. Motor overheated.

11. Run capacitor at fault.

12. Extension cord too long.

13. Centrifugal switch/contact points at fault.

14. Motor or motor bearings at fault.

1. Remove switch disabling pin.

2. Ensure correct power supply voltage/circuit size.

3. Test for good contacts; correct wiring (Page 78).

4. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

5. Correct motor wiring connections (Page 78).

6. Test/replace if at fault.

7. Adjust centrifugal switch/clean contact points. Replace either if at fault.

8. Fix broken wires or disconnected/corroded connections.

9. Replace switch.

10. Replace circuit breaker switch.

11. Replace motor.

1. Use correct blade (Page 31); reduce feed rate or depth of cut.

2. Only cut wood/ensure moisture is below 20%.

3. Reduce feed pressure and speed.

4. Use jointer to straighten edge of workpiece that slides up against fence; adjust fence parallel with blade.

5. Use correct blade for type of cut. Use sharp blade (Page 33).

6. Clean/tension/replace belt (Page 76); ensure pulleys are aligned.

7. Correct motor wiring connections (Page 78).

8. Test for good contacts/correct wiring (Page 78).

9. Tighten/replace loose pulley/shaft.

10. Clean motor, let cool, and reduce workload.

11. Test/repair/replace.

12. Move machine closer to power supply; use shorter extension cord.

13. Adjust centrifugal switch/clean contact points. Replace either if at fault.

14. Replace motor.

Note: Please gather

Model G0962 (Mfd. Since 09/24)

-61-

Page 64

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

1. Motor or component loose.

2. Mobile base lock knobs loose or stand feet not adjusted properly.

3. Blade at fault.

4. Belt worn, loose, pulleys misaligned, or belt slapping cover.

5. Motor mount loose/broken.

6. Arbor pulley loose.

7. Motor fan rubbing on fan cover.

8. Arbor bearings at fault.

9. Centrifugal switch needs adjustment/at fault.

10. Motor bearings at fault.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Tighten mobile base lock knobs or adjust stand feet to stabilize machine.

3. Replace warped/bent blade (Page 33); resharpen dull blade.

4. Inspect/replace belt (Page 76). Realign pulleys if necessary.

5. Tighten/replace.

6. Retighten/replace arbor pulley with shaft and thread locking liquid.

7. Fix/replace fan cover; replace loose/damaged fan.

8. Replace arbor housing bearings; replace arbor.

9. Adjust/replace if at fault.

10. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Machine Operation

Symptom Possible Cause Possible Solution

Fence does not move smoothly.

Material moves away from fence when ripping.

Blade not parallel with miter slot.

Blade tilt does not stop at 45°/90°.

Blade hits table insert when tilting to 45°, or blade too close to insert.

Board binds or burns when feeding through saw.

1. Fence not mounted/adjusted correctly.

2. Rails dirty or sticky.

3. Clamp screw is out of adjustment.

1. Improper feeding technique.

2. Fence not parallel with blade.

3. Workpiece crooked or bowed.

1. Blade is damaged or warped.

2. Table misadjusted.

1. 45°/90° stop out of adjustment.

2. Sawdust or debris stuck in trunnion slides or on stop nuts.

1. Sawdust/debris stuck in trunnion slides.

2. Miter slot not parallel with blade.

3. Blade incorrectly installed.

4. Table/trunnion assembly mount position not correct.

5. Blade position on arbor is incorrect.

1. Board warped.

2. Feed rate too slow or inconsistent.

3. Blade is warped/damaged/dull.

4. Too many teeth on blade for cutting type.

5. Fence not parallel with blade.

6. Miter slot not parallel with blade.

7. Spreader/riving knife not aligned with blade.

1. Remount fence and adjust correctly.

2. Clean and lubricate/wax rails.

3. Adjust clamp screw (Page 72).

1. Learn/use proper feeding technique.

2. Adjust fence parallel with blade (Page 73).

3. Use jointer to straighten edge of workpiece that slides against fence.

1. Replace blade (Page 33).

2. Adjust miter slot parallel with blade (Page 67).

1. Adjust 45°/90° stop nuts (Page 65).

2. Clean sawdust or debris out of trunnion slides or off stop nuts; lubricate as necessary.

1. Clean sawdust or debris out of trunnion slides.

2. Adjust miter slot parallel with blade (Page 67).

3. Correctly install blade (Page 33).

4. Adjust table or trunnion mounting position (Page 67).

5. Verify that blade arbor washers are correct and in the required position.

1. Always cut bowed workpiece with cupped side against table; use different board or use jointer to joint edge of workpiece that slides against fence.

2. Reduce feed rate and apply consistent pressure through entire cut.

3. Replace blade (Page 33).

4. Change blade to one with fewer teeth.

5. Adjust fence parallel with blade (Page 73).

6. Adjust miter slot parallel with blade (Page 67).

7. Align spreader/riving knife with blade (Page 69).

-62-

Model G0962 (Mfd. Since 09/24)

Page 65

Machine Operation (Cont.)

Symptom Possible Cause Possible Solution

Handwheel binds or blade will not move up/down or tilt freely.

Handwheel binds

or is difcult to

move.

Too much sawdust blown back toward operator.

Tooth marks on cut edge.

Finished board narrower than expected.

Kickback occurs.

Miter gauge does not move smoothly.

1. Lock knob is engaged.

2. Sawdust/debris stuck in trunnion slides.

3. Handwheel shaft pins are wedged.

1. Handwheel shaft pins are wedged.

2. Handwheel inserted too far.

3. Too much engagement between worm gear and trunnion.

1. Dust collector not turned on or connected.

2. Blade guard removed.

3. Dust collection system clogged or lacks required CFM at machine.

4. Too many air leaks in cabinet for proper dust collection.

1. Blade is warped/damaged/dull.

2. Fence not parallel with blade.

3. Miter slot not parallel with blade.

1. Fence scale pointer not adjusted correctly or fence scale label misapplied.

1. Fence not parallel with blade.

2. Feeding boards freehand without fence or miter gauge.

3. Spreader/riving knife not correctly aligned with blade.

4. Blade guard not installed/not working correctly.

5. Letting go of board before it is past blade.

6. Board not held rmly against table and fence.

7. Using miter gauge and fence at the same time.

8. Board is warped or edge that slides against fence is bowed/curved.

9. Taking too deep of a cut.

1. Bent miter gauge bar; burrs on bar/slot; dirty slot.

1. Loosen lock knob.

2. Clean sawdust/debris out of trunnion slides.

3. Remove handwheel and adjust shaft pins.

1. Remove handwheel and adjust shaft pins.

2. Remove handwheel, adjust key, re-install handwheel.

3. Adjust worm gear engagement.

1. Connect and turn on dust collector.

2. Re-install blade guard for maximum safety and dust control.

3. Remove clog; revise ducting layout for improved suction; use a stronger dust collector.

4. Seal leaks in cabinet or around dust chute.

1. Replace blade (Page 33).

2. Adjust fence parallel with blade (Page 73).

3. Adjust miter slot parallel with blade (Page 67).

1. Adjust fence scale pointer or re-apply fence scale label in correct position.

1. Adjust fence parallel with blade (Page 73).

2. Always use fence or miter gauge as a guide when feeding workpiece.

3. Adjust spreader/riving knife into alignment with blade (Page 69).

4. Install blade guard. Replace blade guard before using saw if damaged.

5. Move board completely past blade before releasing.

6. Hold board rmly against table and fence; use push stick(s) whenever possible to keep ngers away

from blade.

7. Never use miter gauge and fence together. Always use one or the other.

8. Always cut bowed workpiece with cupped side against table; use a jointer to joint edge of board that slides against fence.

9. Always take multiple shallow passes for nonthrough cuts.

1. Straighten/replace bar; deburr bar or slot; clean debris from slot.

Will not make accurate cuts.

1. Pointer calibrated incorrectly to scale.

2. Miter slot not parallel with blade.

3. Fence not parallel with blade.

4. Stop bolts/nuts out of adjustment.

Model G0962 (Mfd. Since 09/24)

1. Adjust blade 90° to table using a square, then calibrate pointer to scale (Page 65).

2. Adjust miter slot parallel with blade (Page 67).

3. Adjust fence parallel with blade (Page 73).

4. Adjust stop bolts/nuts (Page 65).

-63-

Page 66

Machine Operation (Cont.)

Symptom Possible Cause Possible Solution

Will not make accurate square cuts.

Blade tilt does not stop at 45°/90°.

1. 90° stop out of adjustment. 1. Adjust 90° stop (Page 65).

1. 45°/90° stop out of adjustment. Sawdust built up in/on trunnions.

1. Adjust 45°/90° stop (Page 65). Remove sawdust

from trunnions. Clean and re-lubricate as necessary.

Blade will not go beneath table surface.

Blade will not move up or down.

Fence contacts wings as it slides over.

Tilt scale shows inaccurate reading.

Workpiece catches on table insert or table opening during cutting operation.

Rip fence does not move smoothly.

1. Roll pin/set screw in worm gear contacting geared trunnion.

2. Debris lodged between trunnion castings.

1. Set screw on worm gear is loose or missing. 1. Tighten or replace set screw.

1. Wing not ush with table. 1. Make wing ush with table.

1. Pointer not calibrated correctly to scale. 1. Adjust blade 90° to table using a square, then

1. Table insert not adjusted properly. 1. Adjust table insert so it is perfectly ush with table

1. Rip fence mounted/adjusted incorrectly.

2. Rails dirty or sticky.

1. Tighten roll pins and set screws in the worm gear.

2. Remove debris.

calibrate pointer to scale (Page 65).

surface (Page 74).

1. Remount rip fence. Adjust fence to ensure

adjustment screws are not too tight (Page 72).

2. Clean and wax rails.

-64-

Model G0962 (Mfd. Since 09/24)

Page 67

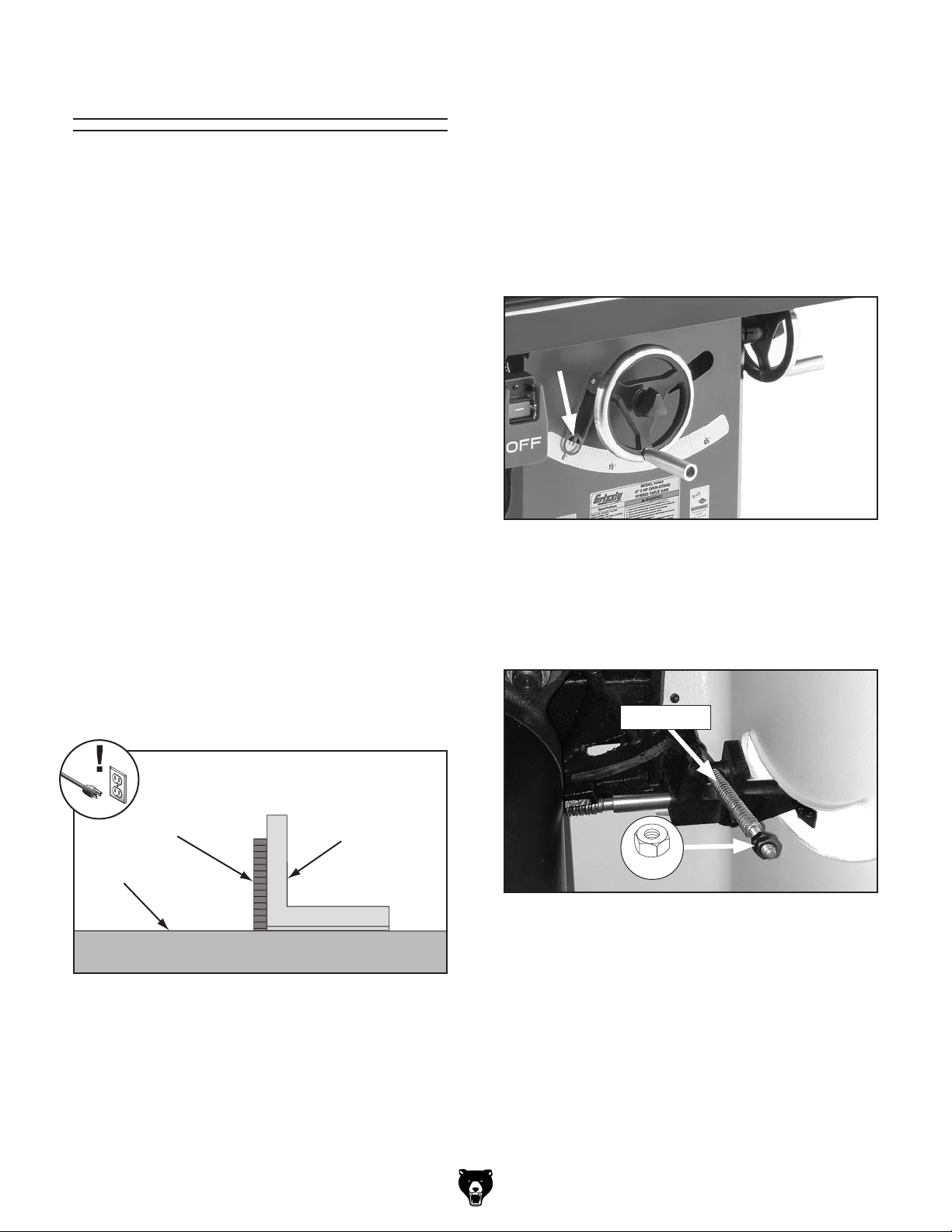

Blade Tilt Calibration

The blade tilt settings for this saw have been set at the factory and should not require adjustment during assembly. However, after prolonged use, or if the saw does not cut accurate bevels, the settings should be checked and adjusted accordingly.

Note: The tilt scale reads "0" when the blade is 90° to the table.

Tools Needed Qty

90° Square ........................................................ 1

45° Square......................................................... 1

Hex Wrenches 3, 4mm Open-End Wrench 13mm Phillips Head Screwdriver #2

Setting 90° Stop

1. DISCONNECT MACHINE FROM POWER!

Raise blade as high as it will go, then tilt it

toward 90° until it stops and cannot be tilted any more.

Place a 90° square against table and blade

so it contacts blade evenly from bottom to top, as shown in Figure 106. Make sure a blade tooth does not obstruct placement of square.

................................ 1 Ea.

.................................. 1

............................ 1

— If blade is 90° to table, then no adjust-

ments are necessary. Make sure tilt indicator arrow shown in Figure 107 points to 0° mark on scale. Adjust position by loosening Phillips head screws, moving indicator with your fingers, then tightening screws.

— If blade is not 90° to table, you will need to

adjust 90° stop nuts. Proceed to Step 4.

Figure 107. Tilt indicator arrow location.

Remove motor cover.

5. Loosen (2) M8-1.25 hex nuts on leadscrew

(see Figure 108).

Leadscrew

Blade

Table

Figure 106. Checking blade at 90°.

Model G0962 (Mfd. Since 09/24)

90° Square

x 2

Figure 108. Location of 90° stop nuts.

-65-

Page 68

6. Tilt blade to about 5° so there is room for stop

nuts to move.

Loosen stop nuts and adjust according to

how far off blade was from 90°. Recheck blade and repeat adjustment as necessary until blade stops at 90°, then tighten stop nuts against each other and replace motor cover.

Note: Turning stop nuts clockwise adjusts

blade further to right; turning them counterclockwise adjusts blade to left.

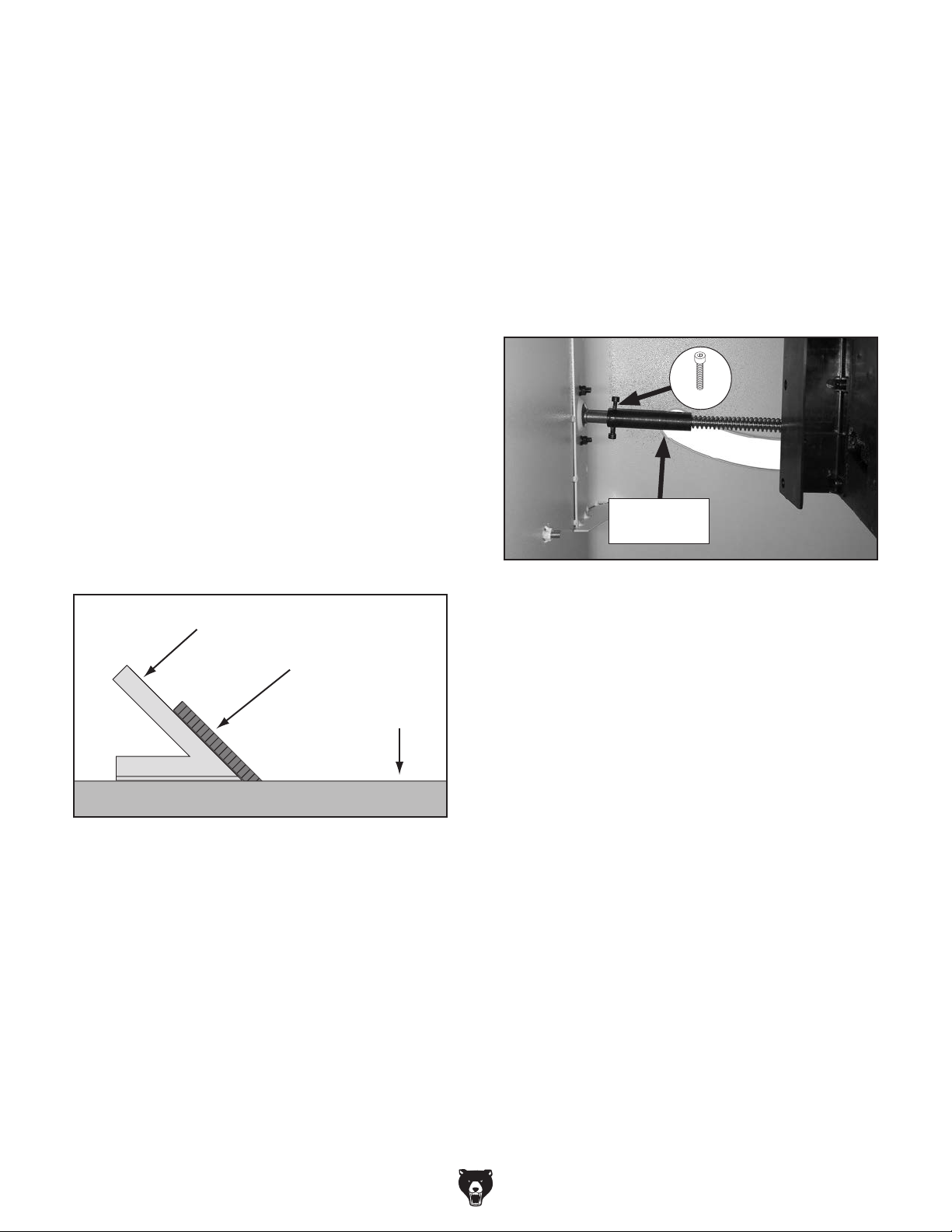

Setting 45° Stop

1. DISCONNECT MACHINE FROM POWER!

2. Raise blade as high as it will go, then tilt it

towards 45° until it stops and cannot be tilted any more.

Place a 45° square against table and blade

so it contacts blade evenly from bottom to top (see Figure 109). Make sure blade teeth do not obstruct placement of square.

— If blade is 45° to table, then no adjust-

ments need to be made. Proceed to Step 8.

— If blade is not 45° to table, you will need

to adjust 45° limiting block. Proceed to

Step 4.

Remove rear access panel.

Loosen (2) M5-.8 x 10 cap screws in 45° limit-

ing block (see Figure 110).

x 2

45° Limiting

Block

Figure 110. Location of 45° limiting block.

45° Square

Blade

Table

Figure 109. Checking blade at 45°.

Tilt blade away from 45° by about 5°, so there

is room for limiting block to move.

Adjust 45° limiting block according to how far

off blade was from 45°, then recheck blade and repeat adjustment as necessary until blade stops at 45°, then tighten cap screws and replace rear access panel.

Make sure tilt indicator arrow points to 45°

mark on scale. If it does not, adjust indicator arrow as described on Page 65.

-66-

Model G0962 (Mfd. Since 09/24)

Page 69

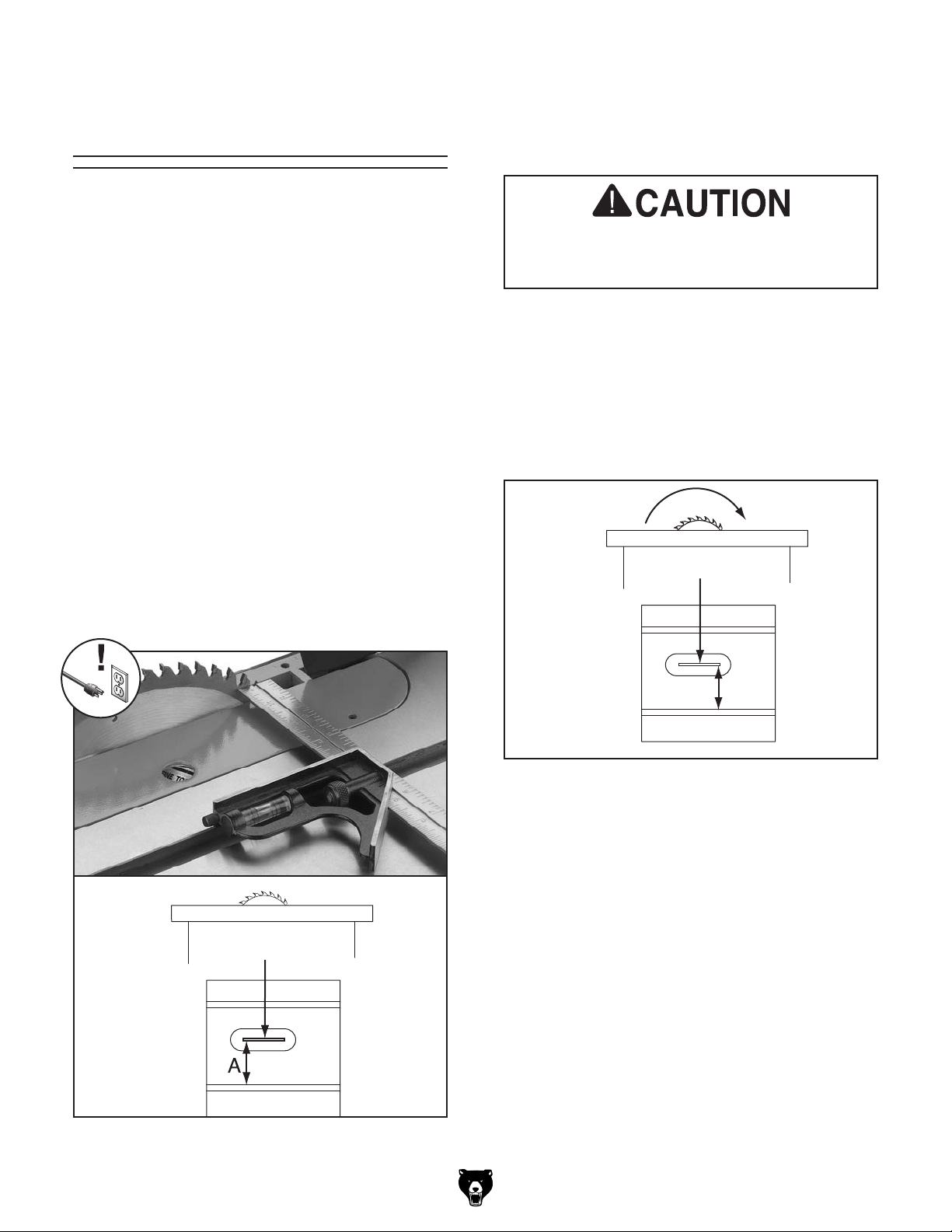

Miter Slot to Blade

Parallelism

Your table saw will give the best results if the miter slot and the rip fence are adjusted parallel to the blade. If either of these are not exactly parallel, your cuts and your finished work will be lower in quality, but more importantly, the risk of kickback will be increased.

3. With end of adjustable square just touching

tip, lock square in place. Now, mark carbide tip with a marker where you made this measurement.

The saw blade is sharp. Use extra care or wear gloves when handling the blade or working near it.

Tools Needed Qty

Adjustable Square ............................................. 1

Measuring Tape/Ruler Metal Shim Stock Open-End Wrench 12mm

To adjust blade parallel to miter slot:

DISCONNECT SAW FROM POWER!

Tilt blade to 0°, then use an adjustable square

to measure distance from miter slot to a carbide tip on blade, as shown in Figure 111. Make sure that face of adjustable square is even along miter slot.

....................................... 1

.............................. As Needed

.................................. 1

4. Rotate marked blade tip to other end of table

insert.

Slide adjustable square down to other end

of table insert and compare distance from marked blade tip to end of adjustable square, as shown in Figure 112.

STEP B

Blade tilted to 0º

Front

Figure 112. Measuring distance from miter slot

to carbide tip on opposite side of table insert.

STEP A

Blade tilted to 0º

Front

Figure 111. Example of adjusting blade to miter

slot.

Model G0962 (Mfd. Since 09/24)

If blade tip measurement is same on both

—

sides, go to Step 8.

If blade tip does not touch end of adjust-

—

able square similar to first measurement, table will need to be adjusted. Proceed to Step 6.

-67-

Page 70

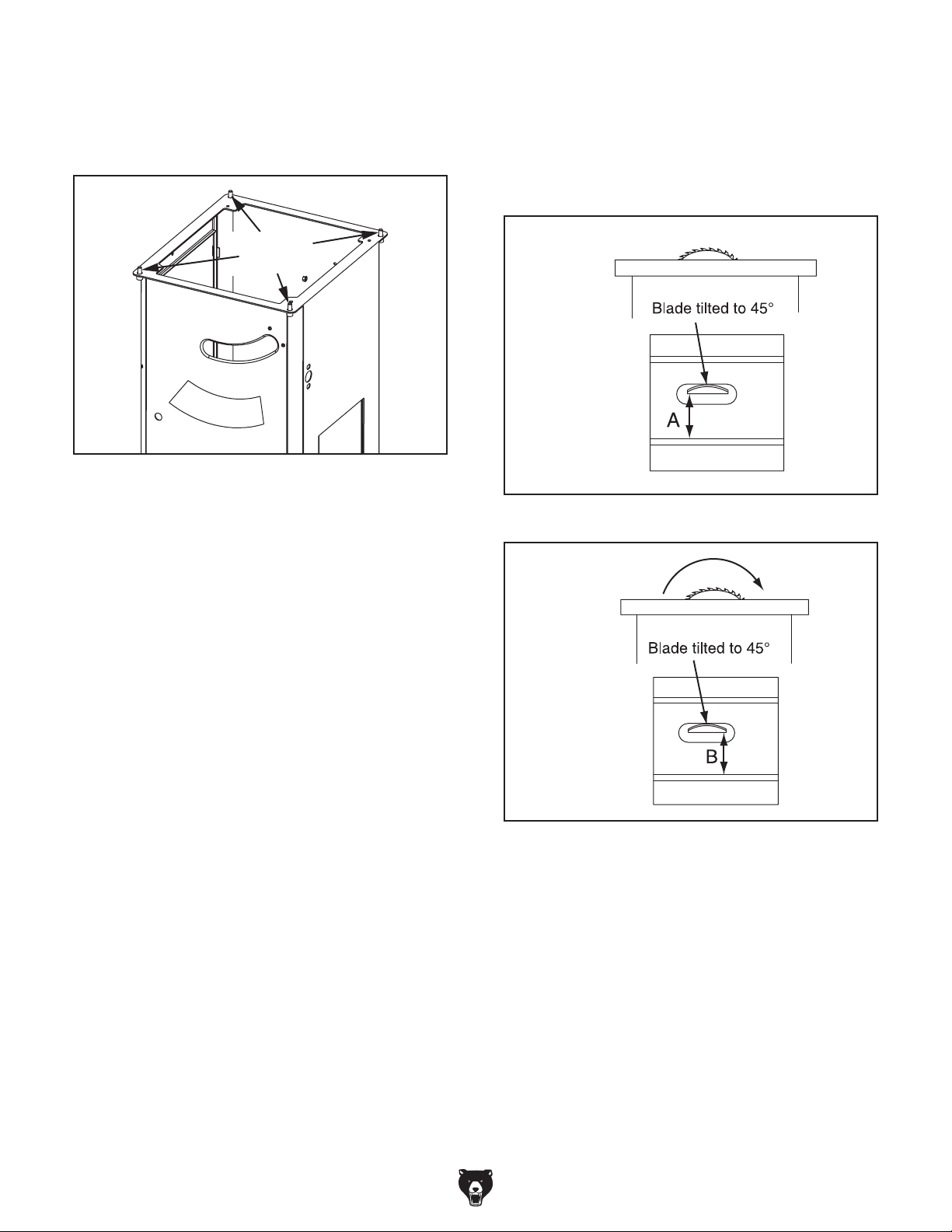

6. Loosen (4) table mounting bolts securing table top to base (see Figure 113), and lightly tap table in direction needed to square table to blade.

10. Refer to Figures 114–115 for shim place-

ment. If distance A is shorter than B, shim(s) will need to be placed under corners #1 and #2. If distance of B is shorter than A, shim(s) will need to be placed under corner #3. Very thin shim stock works well.

Mounting

Bolts

Figure 113. Location of table mounting bolts

(table omitted for clarity).

7. Repeat Steps 2–6 until blade and miter slot are parallel, then retighten table mounting bolts.

8. Tilt blade to 45° and recheck miter slot-toblade parallelism.

— If blade is still parallel with miter slot, no

additional adjustments need to be made.

STEP A

Front

Figure 114. Shim procedure diagram A.

STEP B

— If blade is parallel with miter slot at 0° but

not at 45°, one end of table will need to be shimmed higher with metal shim stock. Continue to Step 9.

9. Loosen (4) table mounting bolts from Step 6.

Front

Figure 115. Shim procedure diagram B.

-68-

Model G0962 (Mfd. Since 09/24)

Page 71

11. Tighten one table mounting bolt a small

amount and then repeat with the others, tightening each down the same amount. Continue this process with all the bolts, tightening them a little each time until they are all secure.

12. Now recheck blade to miter slot at 0° and 45°

by repeating Steps 2–5.

— If distance of A and B are equal, continue

to Step 13.

— If distances are not equal, repeat

Steps 9–12.

13. Once miter slot is adjusted to blade, recheck

all measurements and be sure table mounting bolts are secure.

Note: If you remove the table in the future,

note the shim placement and reassemble them exactly how they came apart.

Spreader or Riving

Knife Alignment

Checking Alignment

The blade guard spreader and riving knife must be aligned with the blade when installed. If the spreader/riving knife is not aligned with the blade, then the workpiece will before forced sideways during the cut, which will increase the risk of kickback.

Tool Needed Qty

Straightedge (minimum 12") .............................. 1

To check spreader/riving knife alignment:

DISCONNECT MACHINE FROM POWER!

2. Raise saw blade to maximum height so you

have easy working access.

Place straightedge against side of blade and

spreader/riving knife at top and bottom, as shown in Figure 116. Spreader/riving knife should be parallel with blade along its length at both positions, and in "Alignment Zone," as shown in Figure 117.

Top Alignment

Bottom Alignment

Figure 116. Checking top and bottom riving knife

parallelism with blade.

Model G0962 (Mfd. Since 09/24)

-69-

Page 72

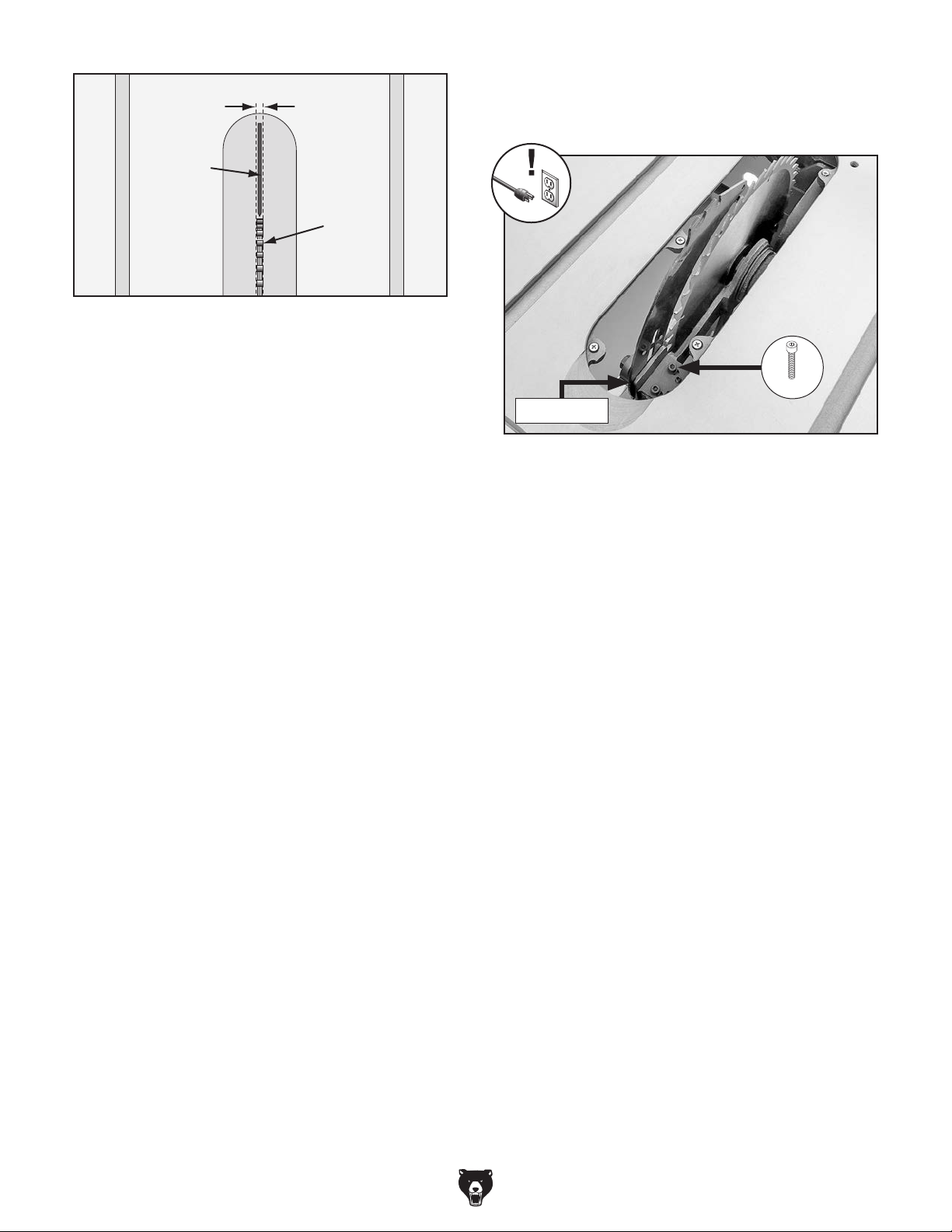

Alignment

Zone

Spreader or

Riving Knife

Blade

Figure 117. Spreader/riving knife alignment

zone.

Loosen (2) cap screws on "L" bracket (see

3. Figure 118), then slide spreader/riving knife

as needed to align with blade.

— If spreader/riving knife is parallel with blade

and inside alignment zone, no adjustment is required.

— If spreader/riving knife is not parallel

with blade and inside alignment zone, then it needs to be adjusted. Proceed to Adjusting Alignment instructions.

— If spreader/riving knife is not parallel with

the blade at either the top or bottom, it may be bent.

Remove spreader/riving knife and place it on

flat surface and check to see if spreader/riving knife lays evenly along its length.

— If spreader/riving knife does not lay evenly,

proceed to Adjusting Bent Spreader/

Riving Knife on this page.

Adjusting Alignment

The spreader/riving knife mounting position can be adjusted into alignment with the blade using the cap screws on the spreader/riving knife "L" bracket.

Tool Needed Qty

Hex Wrench 4mm .............................................. 1

To adjust spreader/riving knife alignment:

x 2

"L" Bracket

Figure 118. Cap screws for adjusting spreader/

riving knife position.

4. Follow Checking Alignment, Steps 1–3 on Page 69.

— If spreader/riving knife is in alignment

zone, no additional steps are necessary.

— If spreader/riving knife is still not in align-

ment zone, continue adjusting position of "L" bracket as necessary to correctly align spreader/riving knife.

Tighten (2) cap screws on mounting block to

secure spreader/riving knife adjustment.

Replace table insert (refer to Page 74).

Adjusting Bent Spreader/Riving Knife

1. DISCONNECT MACHINE FROM POWER!

Bend spreader/riving knife by hand while

2. installed, then follow Steps 1–3 in Checking Alignment to determine if it is parallel with

blade and inside "Alignment Zone" (refer to

Checking Alignment on Page 69).

1. DISCONNECT MACHINE FROM POWER!

2. Remove table insert, but leave Phillips head

screws mounted in table throat.

Note: Table insert is held in place by a

magnet.

-70 -

— If this does not work, remove spreader/

riving knife to straighten.

— If you cannot straighten spreader/riving

knife properly, replace it.

Model G0962 (Mfd. Since 09/24)

Page 73

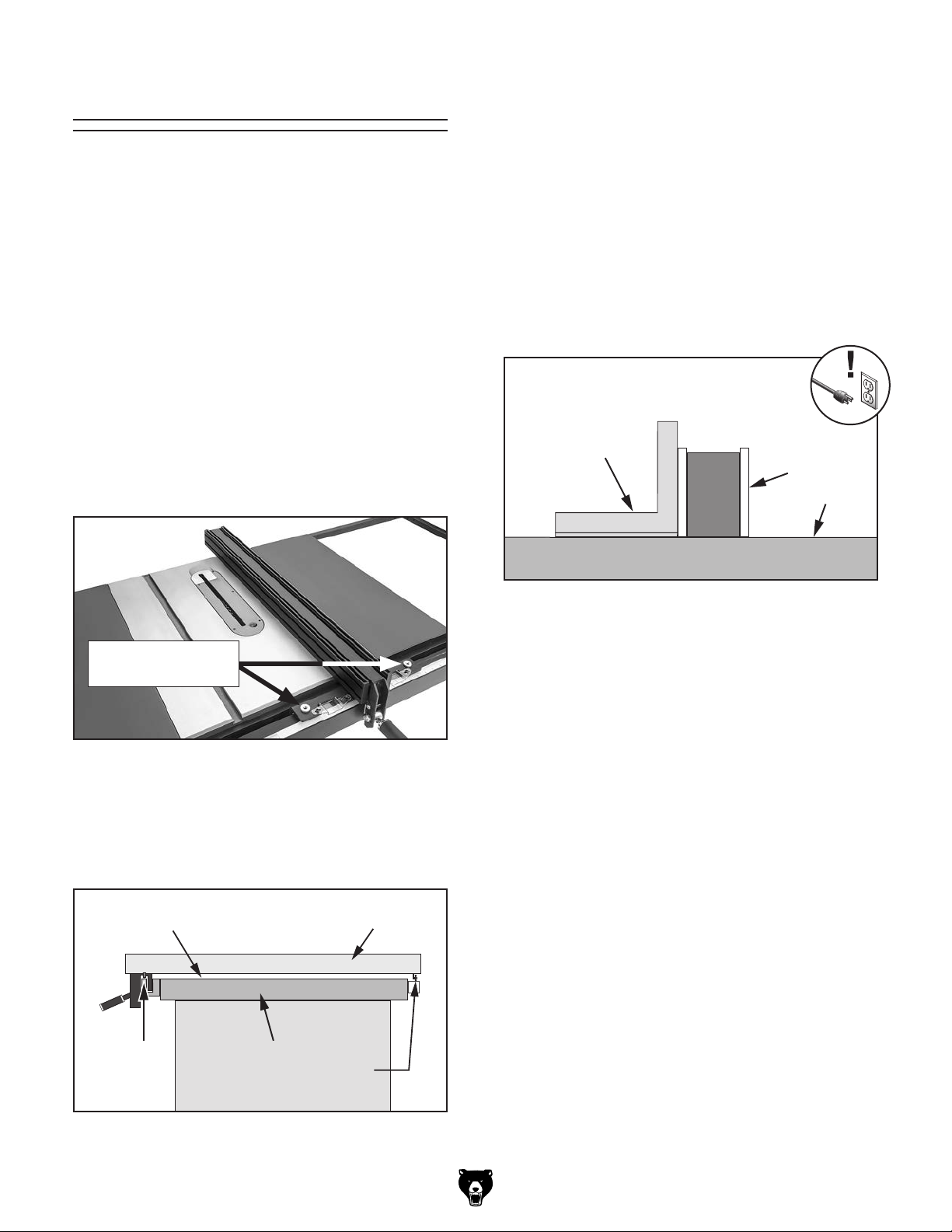

Adjusting Fence

There are three main adjustments for the fence: (1) square, (2) height, and (3) clamping pressure. Keep in mind that these adjustments are interconnected and some trial-and-error may be needed to achieve satisfactory results.

Tools Needed Qty

Open-End Wrenches 10mm .............................. 2

Hex Wrench 5mm Machinist's Square Ruler/Calipers

Fence Squareness and Height

The fence face must be square to the table in order to produce accurate cuts. The fence is adjustable with two set screws where the fence slot sits in the front rail (see Figure 119).

.............................................. 1

............................................ 1

.................................................... 1

To check/adjust fence squareness and height to table:

DISCONNECT MACHINE FROM POWER!

Place square on table against face of fence

(see Figure to table.

— If fence is not square to table, proceed to

Step 3.

— If fence is square to table, skip to Step 4.

90° Square

121) to check if fence is square

Fence

Table

Knurled Lock Nuts

and Set Screws

Figure 119. Location of lock nuts and set screws

for adjusting fence squareness and height.

Also, the fence should be adjusted evenly above the table to ensure it does not drag across the surface, as shown in Figure 120.

/16" Gap

(Side View)

Fence

Figure 121. Example of checking fence

squareness to table.

Loosen knurled lock nuts and adjust set

screws (see Figure 119) on top of fence bracket to ensure fence face is 90° to table. Tighten lock nuts when fence is square to table.

Front Set

Screws (1 of 2)

Figure 120. Fence height is adjusted by two

front set screws and rear bearing shaft.

Model G0962 (Mfd. Since 09/24)

Table

Rear

Bearing

Shaft

-71-

Page 74

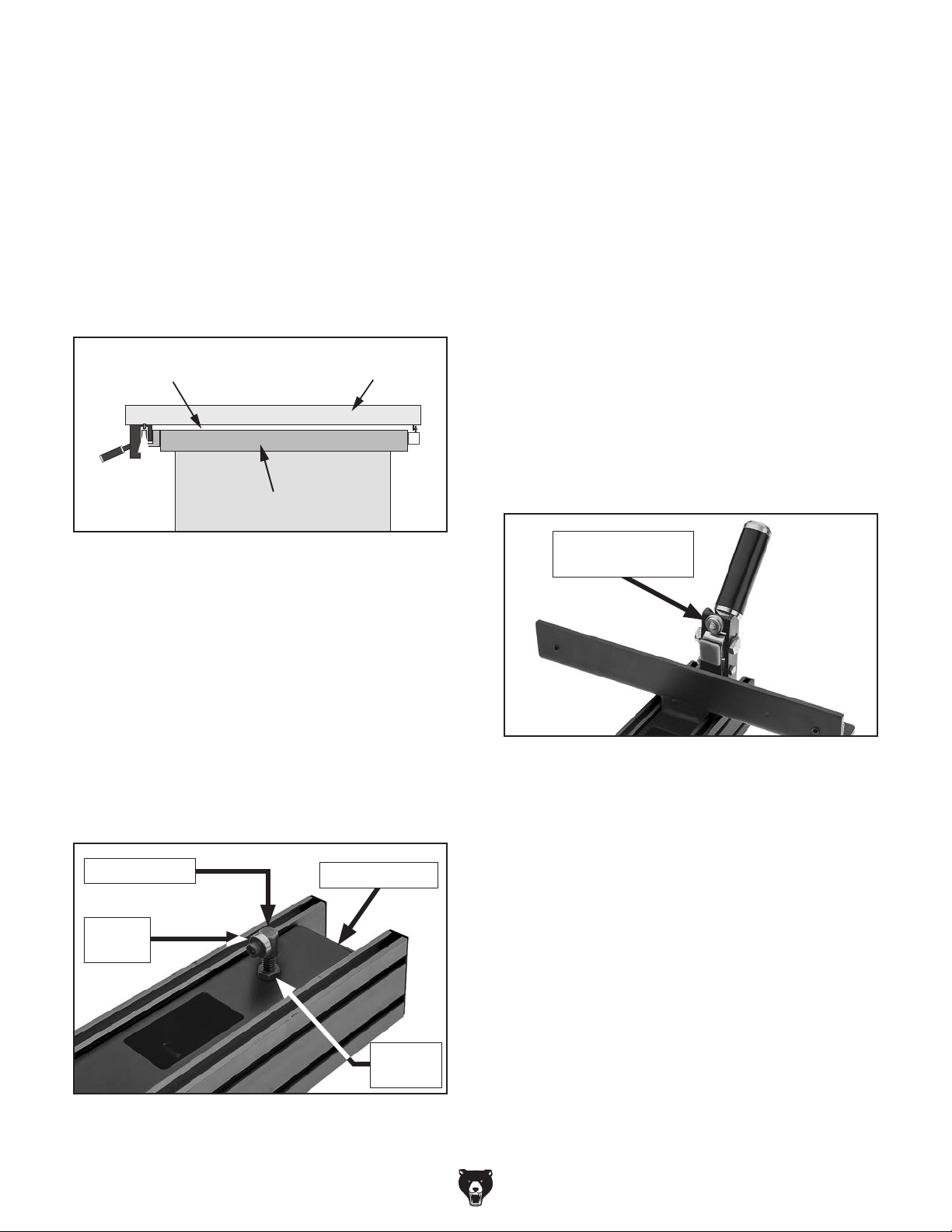

4. Measure gap between fence and table top at

front and rear of fence.

— If gap is approximately 1⁄16" and even from

front of table to back (see

Figure 122),

then no additional adjustments are necessary. Proceed to Fence Handle Clamping Pressure on this page.

If gap is uneven, or if fence height is not

—

approximately

⁄16" above table, then con-

tinue with Step 5.

/16" Gap

(Side View)

Fence

Table

Re-install fence assembly.

8. Reach inside fence and adjust height of bear-

ing shaft. Turn shaft clockwise to decrease shaft height; turn shaft counterclockwise to raise shaft height.

9. When satisfied with position of bearing shaft, remove fence and tighten inner and outer jam nuts. Keep roller bearing parallel with rear fence rail.

Re-install fence. Repeat Steps 4–9 until gap

10.

between table and fence is approximately

⁄16"

and even from front to back of table.

Fence Handle Clamping Pressure

1. Remove fence and lay it upside down.

2. Loosen knurled lock nut (see Figure 124).

Figure 122. Example of even gap between fence

and table approximately

Remove fence assembly and lay it upside

⁄16" front to back.

down.

Remove fence assembly cap shown in

6. Figure 123, then loosen inner and outer jam

nuts that secure bearing shaft.

Note: Wrench clearance for inner jam nut

is tight inside fence assembly. If necessary, hold inner jam nut with wrench and twist bearing shaft to loosen.

Bearing Shaft

Assembly Cap

Roller

Bearing

Knurled Lock Nut

and Set Screw

Figure 124. Set screw for adjusting fence handle

clamping pressure.

Adjust set screw clockwise to increase clamp-

ing pressure of lock handle or counterclockwise to decrease clamping pressure.

Tighten knurled lock nut.

5. Re-install fence and check clamping pres-

sure of lock handle.

Repeat Steps 1–5 as necessary until desired

results are achieved.

Outer

Jam Nut

Figure 123. Rear adjustment area for leveling

fence.

-72-

Model G0962 (Mfd. Since 09/24)

Page 75

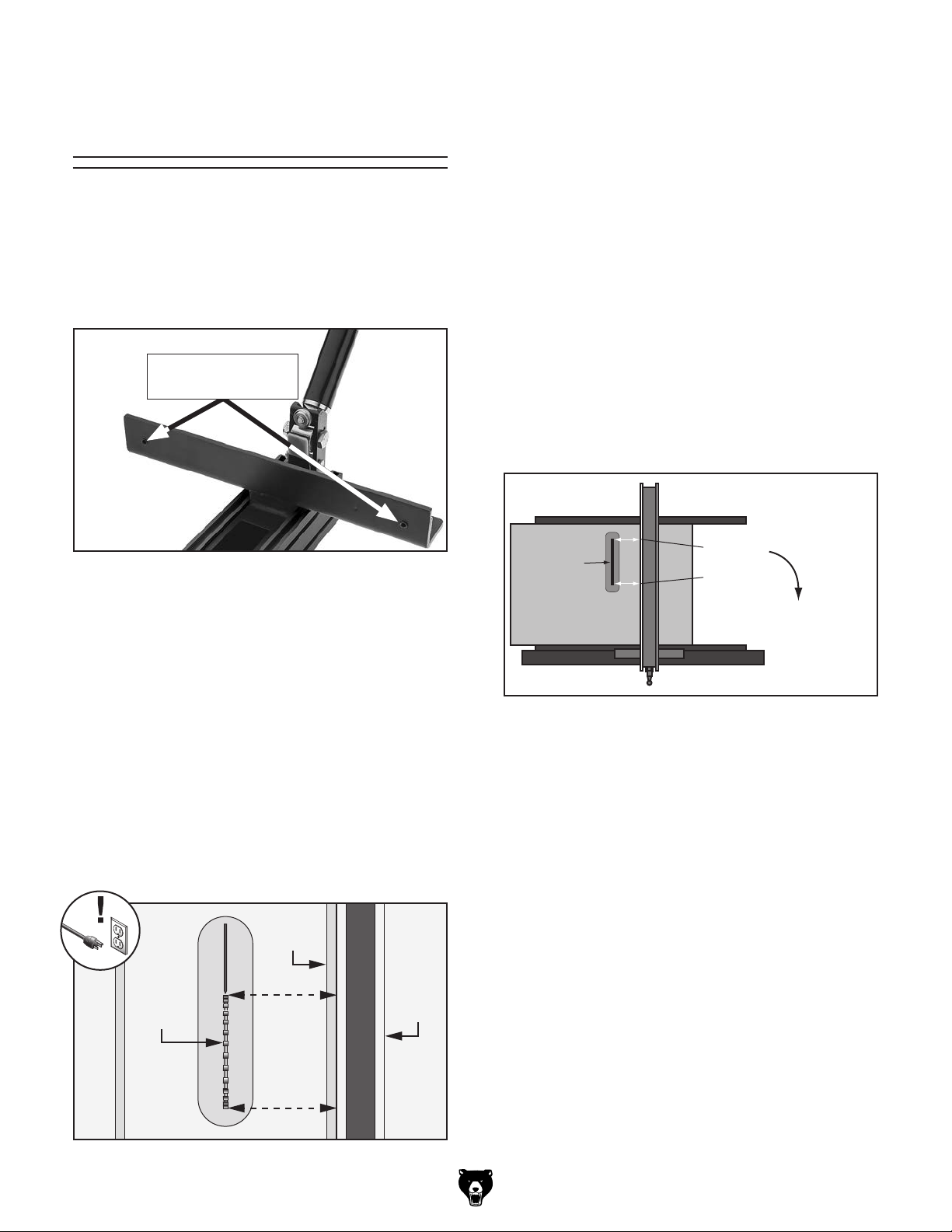

Calibrating Fence to

Blade

— If fence is parallel with blade, no further

adjustments need to be made.

— If fence is not parallel with blade, proceed

to Step 3.

Two set screws at the front of the fence position it parallel with the blade (see Figure 125). Follow the procedures below to check the fence/blade parallelism and adjust the fence if necessary. Perform this step only after Adjusting Fence on Page 71.

Fence Adjustment

Set Screws

Figure 125. Location of set screws to adjust

fence parallelism (shown upside down).

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

Framing Square 24"

.................................................................. 1

Ruler

........................................... 1

To check and adjust fence parallelism:

Remove fence assembly from front rail.

4. Adjust two set screws on front of fence, as

shown in Figure 125. Each set screw adjustment affects opposite side of fence.

Re-install fence assembly and measure par-

5. allelism with blade. Repeat Step 4 as needed.

Offsetting Fence

Some woodworkers prefer to offset the rear of the

fence

/64" from the blade (see Figure 127).

X = Your Measurement

/64"

Blade

X" +

Extra Space

to Prevent Binding

(Optional)

Figure 127. Example of adjusting fence with a

⁄64" offset.

DISCONNECT MACHINE FROM POWER!

Slide fence against right edge of miter slot,

lock it in place, then raise blade fully. Using a ruler, examine how fence lines up with miter slot and blade (see Figure 126).

Miter

Slot

Blade

Fence is Parallel to Miter Slot,

which is

Parallel to

Blade

Fence

Figure 126. Checking fence parallelism w/blade.

Model G0962 (Mfd. Since 09/24)

The reason for this wider gap at the back side of the blade is to help prevent the chance of kickback and the blade burning the workpiece because a workpiece may be inconsistent. However, the trade-off is less accurate cuts, and if the fence is placed on the other side of the blade for other table saw operations, the potential of workpiece burning and kickback can be increased. Whenever using a fence, make sure that if an offset has been adjusted in the fence alignment, you use the fence on the side of the blade where the offset creates the wide gap.

-73 -

Page 76

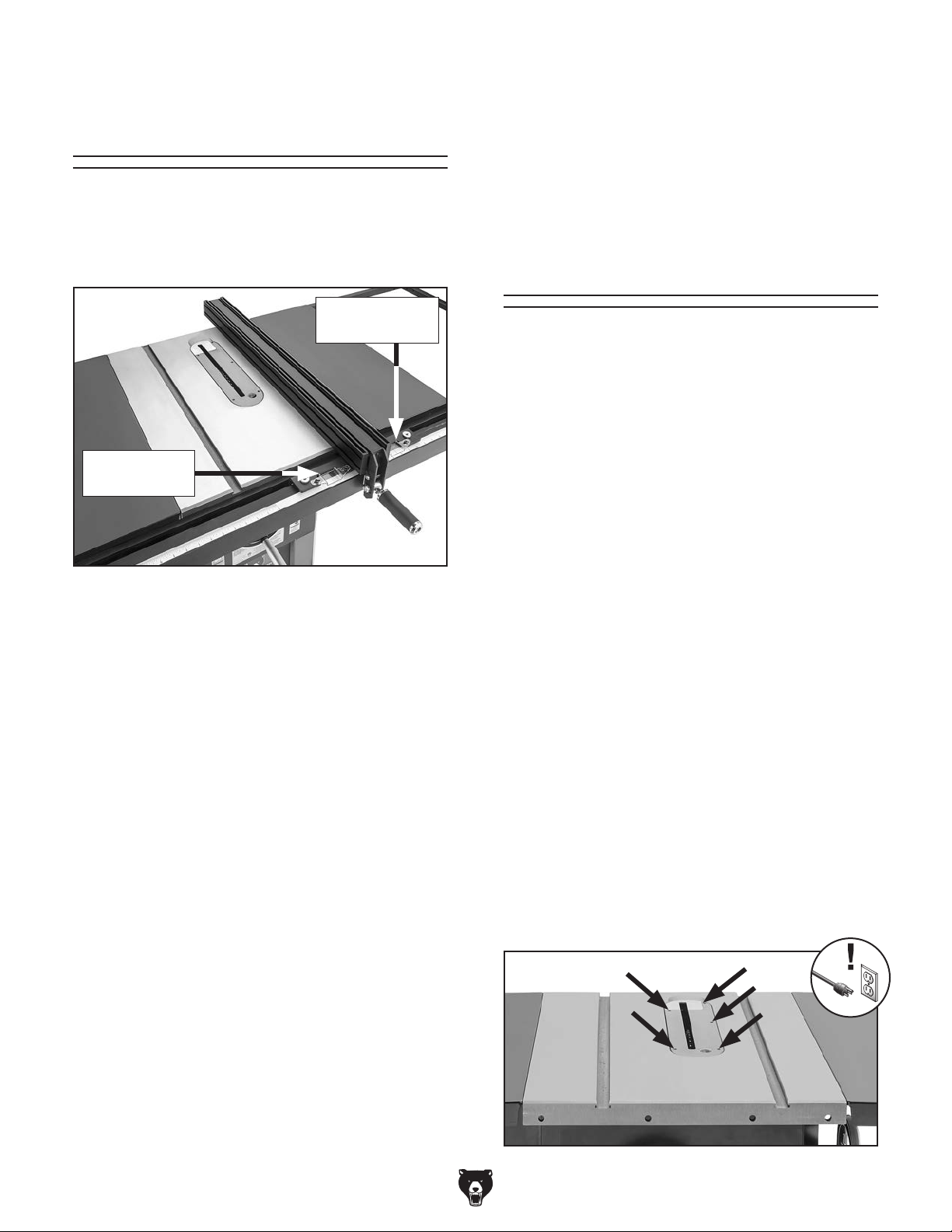

Fence Scale

Calibration

The fence scale windows, shown in Figure 128, can be calibrated with the fence scale by loosening the mounting screws and sliding them in the desired direction.

Right Indicator

Window

Left Indicator

Window

Measure width of freshly cut workpiece at

both ends with a tape measure. Workpiece width should be exactly 12" at front and back. If it is not, then adjust indicator window to match width of workpiece.

Table/Dado Insert

Adjustment

The table/dado insert must sit perfectly flush with the table to provide a smooth, continuous surface for the workpiece to slide over. The insert is held in place by a magnet and sits on top of five adjustment screws (see Figure 129). The insert should be checked and adjusted any time it is removed, after prolonged use, or when the workpiece does not slide smoothly across the insert.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Straightedge

...................................................... 1

Figure 128. Fence indicator windows.

The indicator window on the right side is used when the fence is positioned to the right side of the blade. The indicator window on the left is used when the fence is positioned on the left side of the blade.

IMPORTANT: Do not use the fence on the left side of the blade if it has been purposely offset, and is not adjusted parallel with the blade.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Scrap Piece of Wood......................................... 1

Tape Measure

To calibrate fence scale indicator windows:

Lock fence at 13" and cut your scrap piece of

wood.

Reposition and lock fence at 12", as indicated

by the scale.

.................................................... 1

To check and adjust insert:

DISCONNECT MACHINE FROM POWER!

2. Place straightedge across insert and verify

insert is flush with table.

— If insert is flush with table, no adjustments

are necessary.

— If insert is not flush with table, proceed to

Step 3.

Insert screwdriver through holes shown in

3. Figure 129 and either loosen screws to raise

insert, or tighten screws to lower it. Repeat Steps 2–3 until insert is flush with table.

Flip over your scrap piece of wood, placing

side that was cut in Step 1 against fence, then make your cut.

-74 -

Figure 129. Adjustment screws location.

Model G0962 (Mfd. Since 09/24)

Page 77

Calibrating Miter

Place square evenly against miter body and

blade, as shown in Figure 131.

Gauge

The miter gauge adjusts between 60° left and 60° right. The angle indicator should indicate the angle of the miter body in relation to the blade, but it can be calibrated if these values do not match.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

90° Square

To calibrate miter gauge:

DISCONNECT MACHINE FROM POWER!

2. Slide miter gauge into T-slot on table.

3. Loosen miter handle and pull stop pin knob

(see Figure 130).

........................................................ 1

Miter Handle

— If angle indicator does point to 90° when

miter body is square to blade, no adjustment is necessary.

— If angle indicator does not point to 90°

when miter body is square to blade, proceed to Step 5.

Square

Blade

Miter Gauge

Figure 131. Miter body square to blade.

Loosen Phillips head screw shown in

Figure

90°, then tighten screw to secure.

132, adjust indicator so it points to

Stop Pin

Knob

Figure 130. Miter gauge adjustment

components.

Indicator

Figure 132. Location of angle indicator and

Phillips head screw.

Model G0962 (Mfd. Since 09/24)

-75 -

Page 78

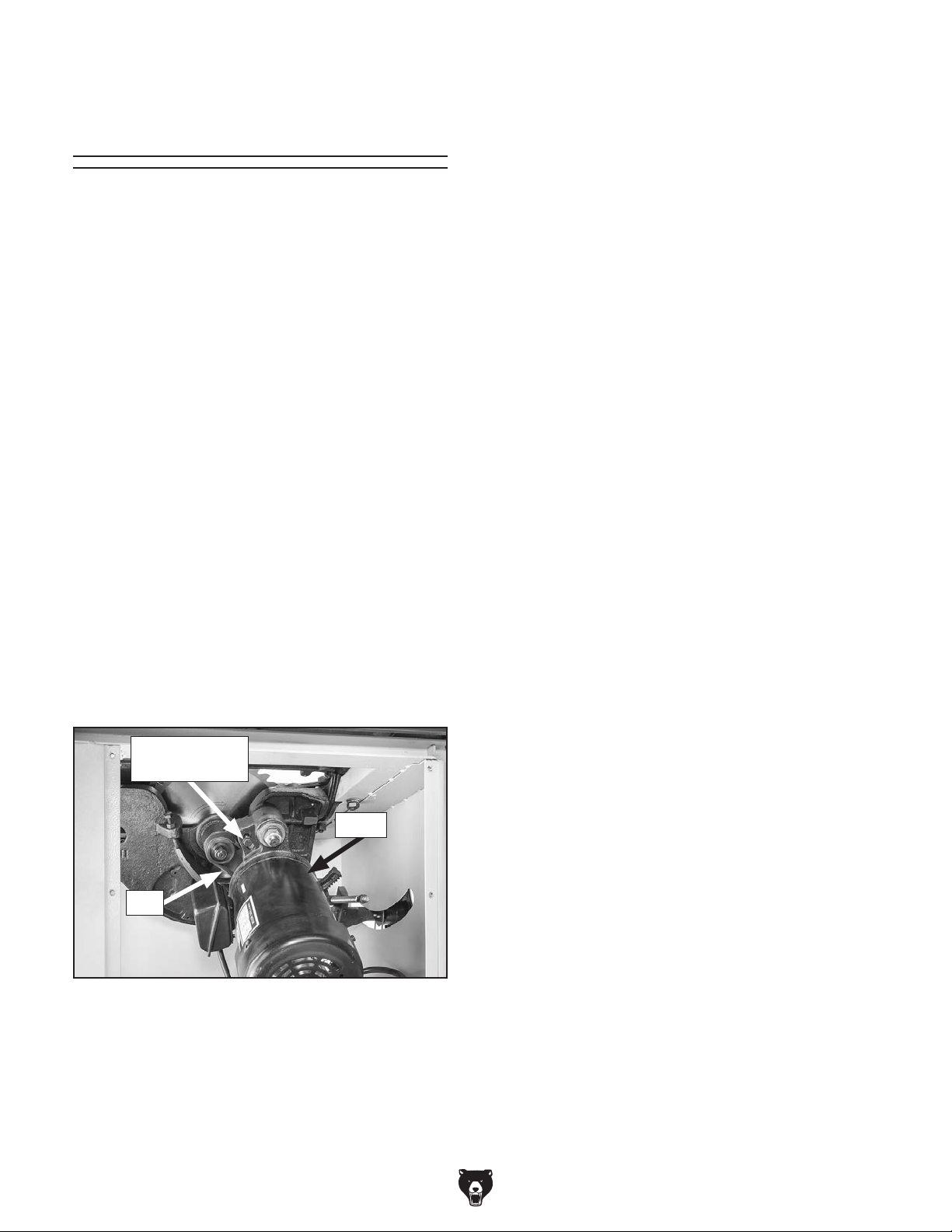

Belt Tension &

Replacement

The drive belt stretches slightly as the saw is used. Most stretching will happen during the first 16 hours of use, but it may slightly continue with further use. If you notice that the saw is losing power in the middle of a cut, the belt may be slipping and will need to be tensioned. If, upon inspection, you find that the belt is cracked, frayed, or shows other signs of excessive wear or other damage, replace it immediately to ensure proper power transmission from the motor to the blade.

Tools Needed Qty

Open-End Wrench or Socket 13mm ................. 1

Hex Wrench 3mm

Tensioning Belt

1. DISCONNECT SAW FROM POWER!

2. Remove motor cover from side of machine.

.............................................. 1

Use blade height handwheel to lower motor.

When motor starts to pull blade down with it, belt is tensioned.

Retighten blade tension hex bolt, then

re-install motor cover.

Replacing Belt

1. DISCONNECT MACHINE FROM POWER!

Remove motor cover from side of machine.

3. Set blade to 0° on tilt scale, then raise or

lower blade to approximately 2" above table.

Loosen blade tension hex bolt shown in

4. Figure 133.

Use blade height handwheel to raise motor

and loosen belt, then remove belt.

Install new belt onto pulleys. Lower motor

until it begins to pull blade down with it, then retighten blade tension hex bolt.

3. Set blade to 0° on tilt scale, then raise or

lower blade to approximately 2" above table.

Loosen blade tension hex bolt shown in

4. Figure 133.

Blade Tension

Hex Bolt

Motor

Belt

Figure 133. Components used to tension or

remove belt.

7. Re-install motor cover.

-76 -

Model G0962 (Mfd. Since 09/24)

Page 79

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available.

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 9: WIRING

Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0962 (Mfd. Since 09/24)

-77-

Page 80

(As Recommended)

Magnetic ON/OFF Switch

Ground

Wiring Diagram

LOAD

LINE

Re-wired for 240V

KEDU KJD17B

Ground

LINE

LOAD

Circuit

Breaker

30A

Neutral

120 VAC

120

VAC

Hot

Ground

5-15 Plug

(Pre-wired)

Re-wired for 240V

Motor

(Pre-wired for 120V)

Run Capacitor

CBB60

30uF 350VAC

Hot

240

VAC

Hot

Ground

6-15 Plug

240 VAC

LINE

LOAD

Start Capacitor

CD60

200uF 250VAC

Circuit

Breaker

20A

Motor

(Re-wired for 240V)

Run Capacitor

CBB60

30uF 350VAC

Start Capacitor

CD60

200uF 250VAC

-78 -

READ ELECTRICAL SAFETY

ON PAGE 77!

Model G0962 (Mfd. Since 09/24)

Page 81

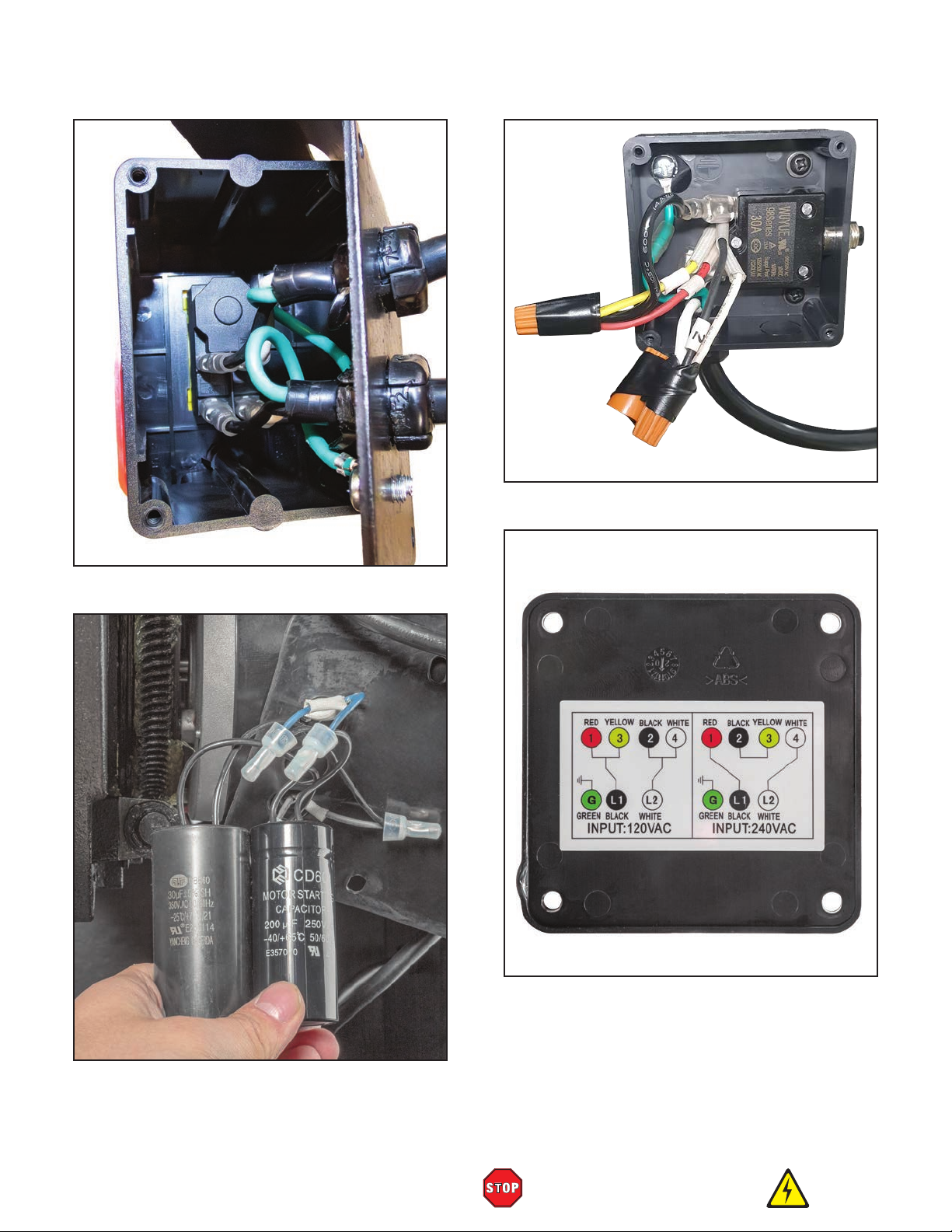

Electrical Components

Figure 136. Junction box motor wiring at 120V.

Figure 134. ON/OFF switch wiring.

Figure 137. Motor wiring label inside junction

box.

Figure 135. Run and start capacitors.

Model G0962 (Mfd. Since 09/24)

READ ELECTRICAL SAFETY

ON PAGE 77!

-79 -

Page 82

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

103

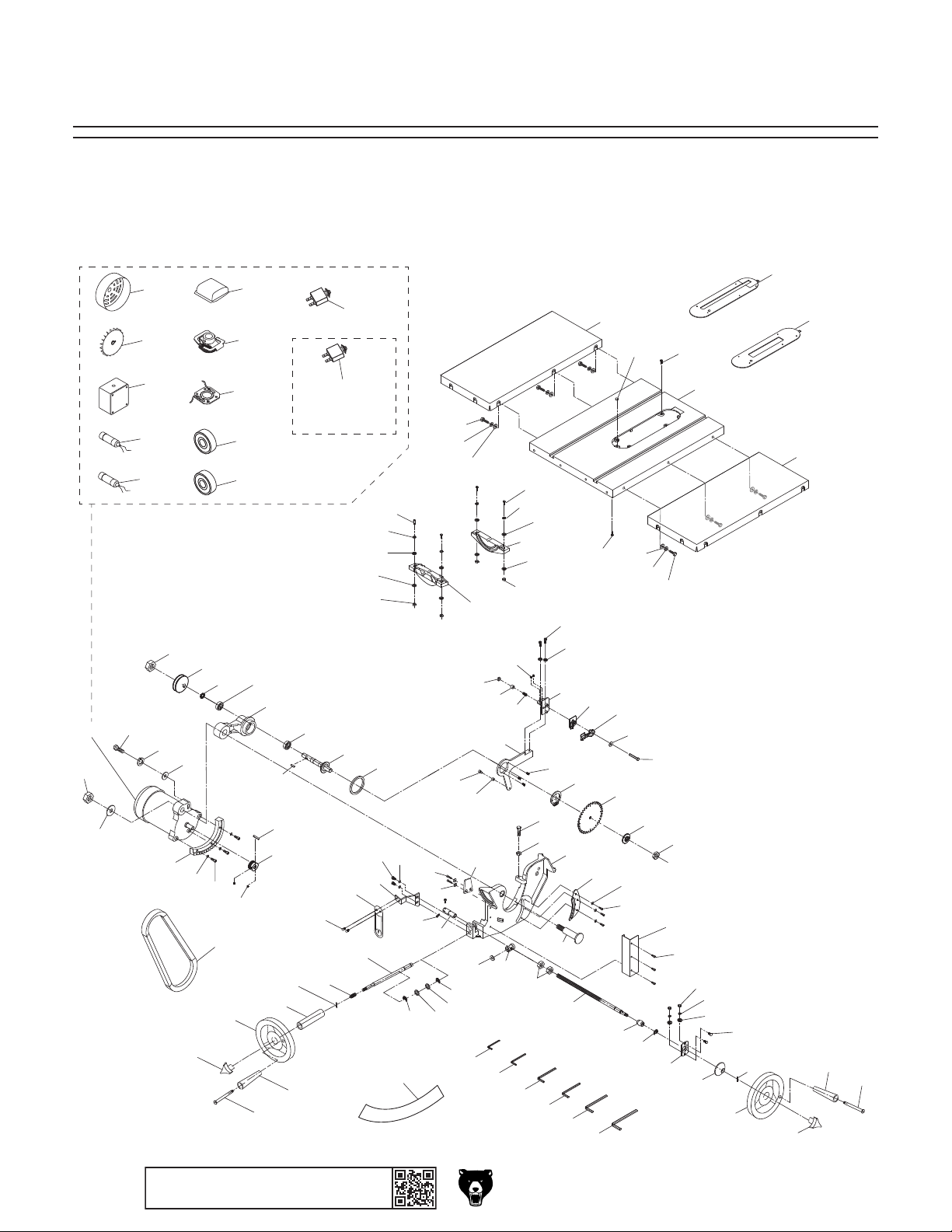

SECTION 10: PARTS

Main

29-1

29-2

29-3

29-4

29-5

29-6

29-7

29-8

29-9

29-10

29-11

29-11X

(240V

Conversion)

121

113

123

111

105

125

127

100

114

115

100

121

116

72 71

117

106

118

104

86V2

109

123

105

102

101

94 93

124

-80-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0962 (Mfd. Since 09/24)

Page 83

REF PART # DES CRIPTI ON REF PART # DE S CRIPTI ON

66 P0962066 CAP SCREW M5-. 8 X 10

Main Parts List

24 P0962024 HEX BOLT M8-1.25 X 30 67 P0962067 BLADE GUARD 25 P0962025 LOCK WASHER 8MM 68 P0962068 TI L T SHAFT 26 P0962026 FLAT WAS HER 8MM 69 P0962069 RI V I NG GUI DE 27 P0962027 LOCK NUT M16-2 70 P0962070 MAI N TRUNNI O N 28 P0962028 FLAT WAS HER 16 MM 71 P0962071 HEX NUT M8 -1. 25 29 P0962029 MOTOR 2HP 120V/240V 1-PH 72 P0962072 HEX BOLT M8-1.25 X 40 29-1 P0962029-1 MO TOR FAN CO VER 73 P0962073 ARBOR NUT 5/8-18 29-2 P0962029-2 MO TOR FAN 74 P0962074 BLADE FLANGE 29-3 P0962029-3 MO TOR J UNCTI O N BOX 75 P0962075 BLADE 10" X 5/8" X 40T 29-4 P0962029-4 R CAPACI TOR 30M 350V 1-5/8 X 3-1/8 76 P0962076 ARBOR 29-5 P0962029-5 S CAPACITOR 200M 250V 1-3/8 X 2-11/16 77 P0962077 KEY 5 X 5 X 12 RE 29-6 P0962029-6 CAPACITOR COVER 78 P0962078 BALL BEARING 6203ZZ 29-7 P0962029-7 CENTRIFUGAL SWITCH L19-15 4S 79 P0962079 BALL BEARING 6202ZZ 29-8 P0962029-8 CO NTACT PL ATE 80 P0962080 EX T RETAI NI NG RI NG 52 MM 29-9 P0962029-9 BALL BEARING 6203-2RS (FRONT) 81 P0962081 SET SCREW M5-.8 X 6 29-10 P0962029-10 BALL BEARING 6202ZZ (REAR) 82 P0962082 MOUNTI NG PL ATE 29-11 P0962029-11 CIRCUIT BREAKER WUYUE 98 SERIES 30A 83 P0962083 BUSHI NG 29-11X P0962029-11X CIRCUIT BREAKER WUYUE 98 SERIES 20A 84 P0962084 SHAFT P I N 30 P0962030 BULL GEAR 85 P0962085 CLAMP LOCK BOLT M8-1.25 X 53 31 P0962031 CAP SCREW M6-1 X 25 86V2 P0962086V2 RIVING KNIFE LOCK LEVER V2.06. 24 32 P0962032 FLAT WAS HER 6MM 87 P0962087 RIVING KNI FE CLAMP PLATE 34 P0962034 SET SCREW M5-. 8 X 8 88 P0962088 RI V I NG KNI FE MOUNTI NG B LOCK 35 P0962035 MOTOR PULLEY J6 X 5/8" BORE 89 P0962089 COMPRESSION SPRING 8 X 18MM 36 P0962036 KEY 5 X 5 X 30 RE 90 P0962090 BUSHING 8 X 10 X 12MM 37 P0962037 V-BELT 355J6 POLYFLEX 91 P0962091 LOCK NUT M8-1.25 38 P0962038 BLADE BRACKET 92 P0962092 SET SCREW M5-.8 X 10 39 P0962039 ARBOR B USHI NG 93 P0962093 FLAT WASHER 5 MM 40 P0962040 ARBOR PULLEY J6 94 P0962094 LOCK WASHER 5MM 41 P0962041 LOCK NUT M12-1. 5 95 P0962095 CAP SCREW M5-.8 X 16 42 P0962042 THRUST WASHER 52MM BL K 96 P0962096 EXTE NSI ON WI NG 43 P0962043 PHLP HD SCR M4-.7 X 6 97 P0962097 CAP SCREW M10-1. 5 X 40 44 P0962044 BEVEL INDICATOR 98 P0962098 LOCK WASHER 10MM 45 P0962045 CAP SCREW M5-. 8 X 8 99 P0962099 FLAT WA SHER 1 0MM 46 P0962046 POINTER SEAT 100 P0962100 TRUNNI O N 47 P0962047 BEVEL NUT 101 P0962101 MAIN TABLE 48 P0962048 FLAT WAS HER 4MM 102 P0962102 FLAT HD SCR 8-32 X 1/2 49 P0962049 MAI N TRUNNION SHAFT 103 P0962103 TABLE INSERT 50 P0962050 SHOULDER SCREW M8-1. 25 X 14, 9 X 100 104 P0962104 TABLE INSERT MAGNET 4 X 8MM 51 P0962051 HANDWHEEL HANDLE 106MM SS 105 P0962105 CAP SCREW M10-1.5 X 25 52 P0962052 CAP SCREW M5-. 8 X 16 106 P0962106 FLANGE BOLT M8-1.25 X 16 53 P0962053 LOCK HANDLE KNOB M8-1.25 3-LOBE 109 P0962109 FLAT WASHER 8MM 54 P0962054 HANDWHEEL TYPE-1 180D, 11B-K, M8-1.25 111 P0962111 90 DEG LIMITING BLOCK 55 P0962055 COMPRESSION SPRING 113 P0962113 BEVEL LABEL 56 P0962056 ELEVATION BUSHING 114 P0962114 HEX WRENCH 3MM 57 P0962057 ROLL PIN 3 X 20 115 P0962115 HEX WRENCH 4MM 58 P0962058 ELEVATION SHAFT 116 P0962116 HEX WRENCH 5MM 59 P0962059 E-CLIP 14MM 117 P0962117 HEX WRENCH 6MM 60 P0962060 SPACER 118 P0962118 HEX WRENCH 8MM 61 P0962061 BEVEL PLATE 121 P0962121 HEX NUT M10-1. 5 62 P0962062 E-CLIP 9MM 123 P0962123 CAP SCREW M5-.8 X 10 63 P0962063 SPHERICAL PLAIN BEARING GEG12C 124 P0962124 DADO TABLE INSERT 64 P0962064 BEARING SEAT 125 P0962125 HEX WRENCH 2.5MM 65 P0962065 HEX NUT M5- . 8 127 P0962127 TRUNNI O N BRACK ET

Model G0962 (Mfd. Since 09/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-81-

Page 84

209

209V2

REF PART # DES CRIPTI ON REF PART # DE S CRIP TI ON

210 P0962210 CAP SCREW M5-.8 X 25

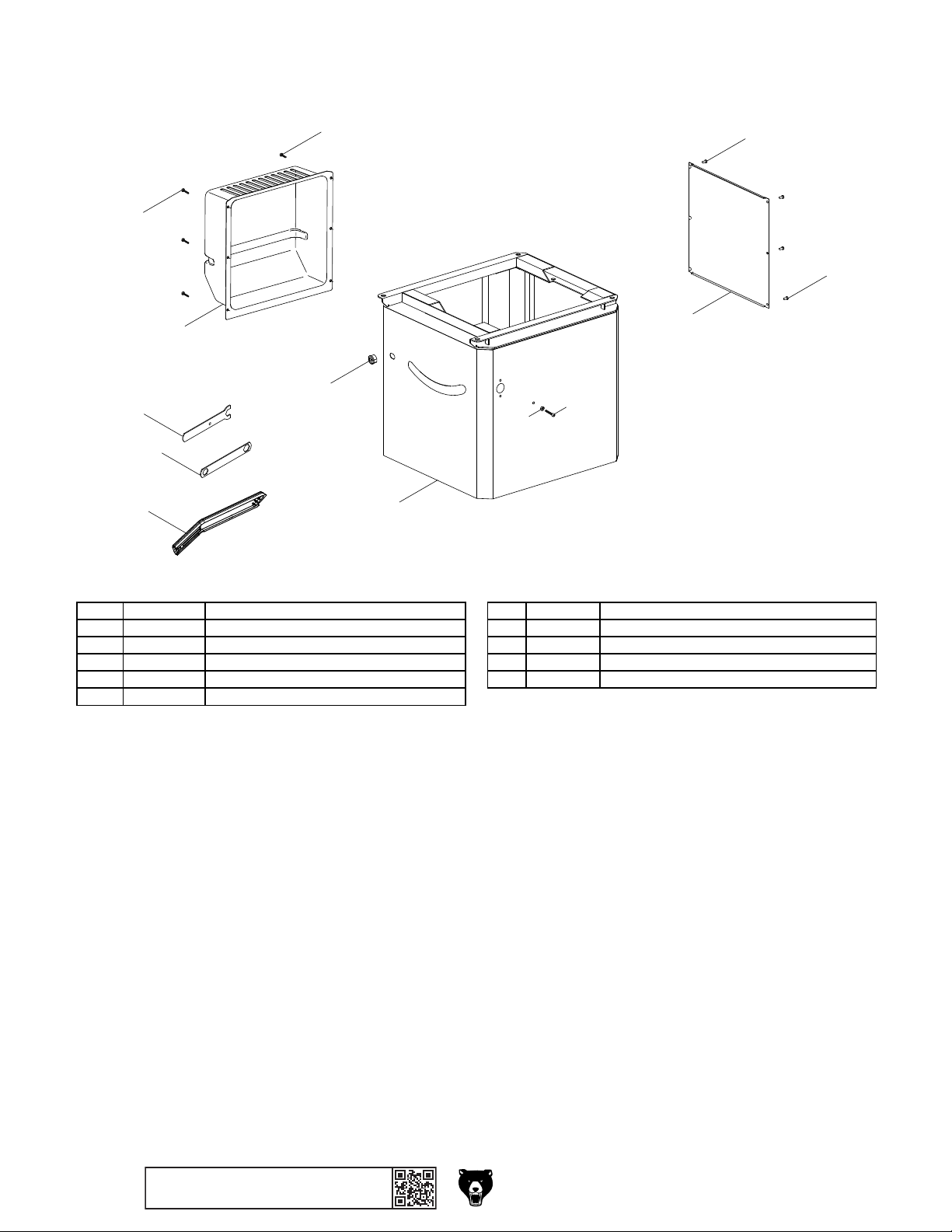

Cabinet

209V2

207

206V2

212

213

210

211

214

215

202V2 P0962202V2 CABINET V2. 02.24 211 P0962211 HEX NUT M5-. 8 206V2 P0962206V2 COVER (REAR) V2.02.24 212 P0962212 STRAIN RELIEF 1/2"-3/8" SNAP-IN ST 207 P0962207 MOTOR COVER 213 P0962213 ARBOR WRENCH 16 X 23MM OPEN-END 209 P0962209 B UTTON HD CAP SCR M5-. 8 X 1 0 214 P0962214 ARBOR WRENCH 13 X 22MM CLOSED-ENDS 209V2 P0962209V2 BUTTON HD CAP SCR M5-. 8 X 16 V2.02.24 215 P0962215 PUS H STI CK

202V2

-82-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0962 (Mfd. Since 09/24)

Page 85

323

311

309

REF PART # DES CRIPTI ON REF PART # DE SCRIP TI ON

317 P0962317 BUTTON HD CAP S CR M6-1 X 10

323

319

310

320

312

324

325

321

322

324

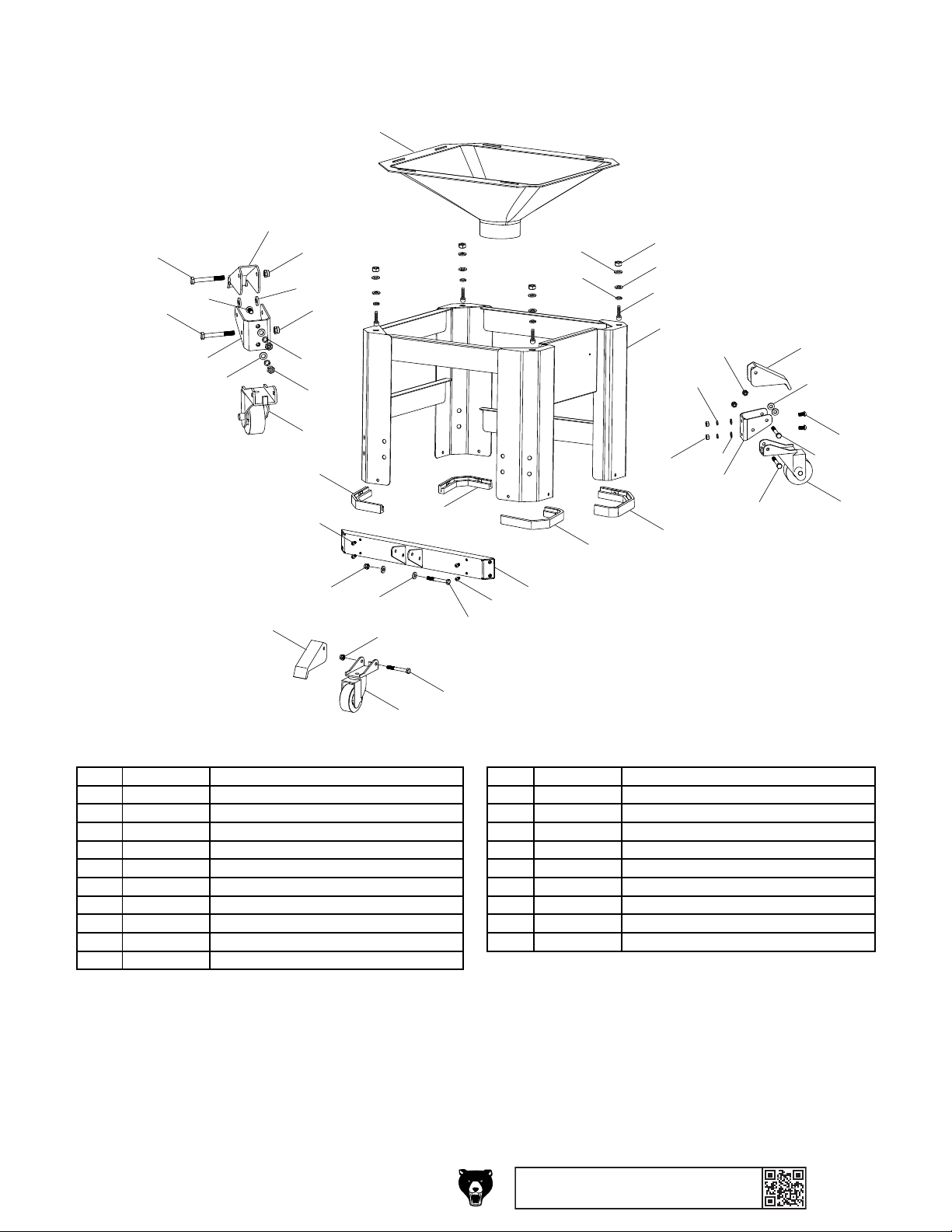

Stand

320V2

321V2

328

320V2

316V2

301V2

321

324

312

325

311

313

322

320

323

310

317

313

323

315

314

308

317

312

324

325

324

323

301V2 P0962301V2 STAND V2.02. 24 319 P0962319 BUTTON HD CAP SCR M8-1.25 X 16 308 P0962308 LEG BRACE W/CASTER MOUNT 320 P0962320 FLAT WA SHER 8 MM 309 P0962309 DUST CHUTE 320V2 P0962320V2 FLAT WASHER 10MM V2.02.24 310 P0962310 CASTER SUPPORT BRACKET 321 P0962321 LOCK WASHER 8MM 311 P0962311 CASTER 321V2 P0962321V2 LOCK WASHER 10MM V2. 02.24 312 P0962312 FOOT LEVER 322 P0962322 HEX NUT M8-1. 25 313 P0962313 RUBBER FOO T (BA CK LE FT/ RI GHT) 323 P0962323 HEX BOLT M8-1.25 X 65

314 P0962314 RUBBER FOO T (FRONT L EFT) 324 P0962324 LOCK NUT M8-1. 25 315 P0962315 RUBBER FOO T (FRONT RI GHT) 325 P0962325 FLAT WASHER 8.3 X 17.5 X 3MM 316V2 P0962316V2 CAP SCREW M10-1. 5 X 30 V2.02.24 328 P0962328 HEX NUT M10 -1. 5

319

311

Model G0962 (Mfd. Since 09/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-83-

Page 86

400

439

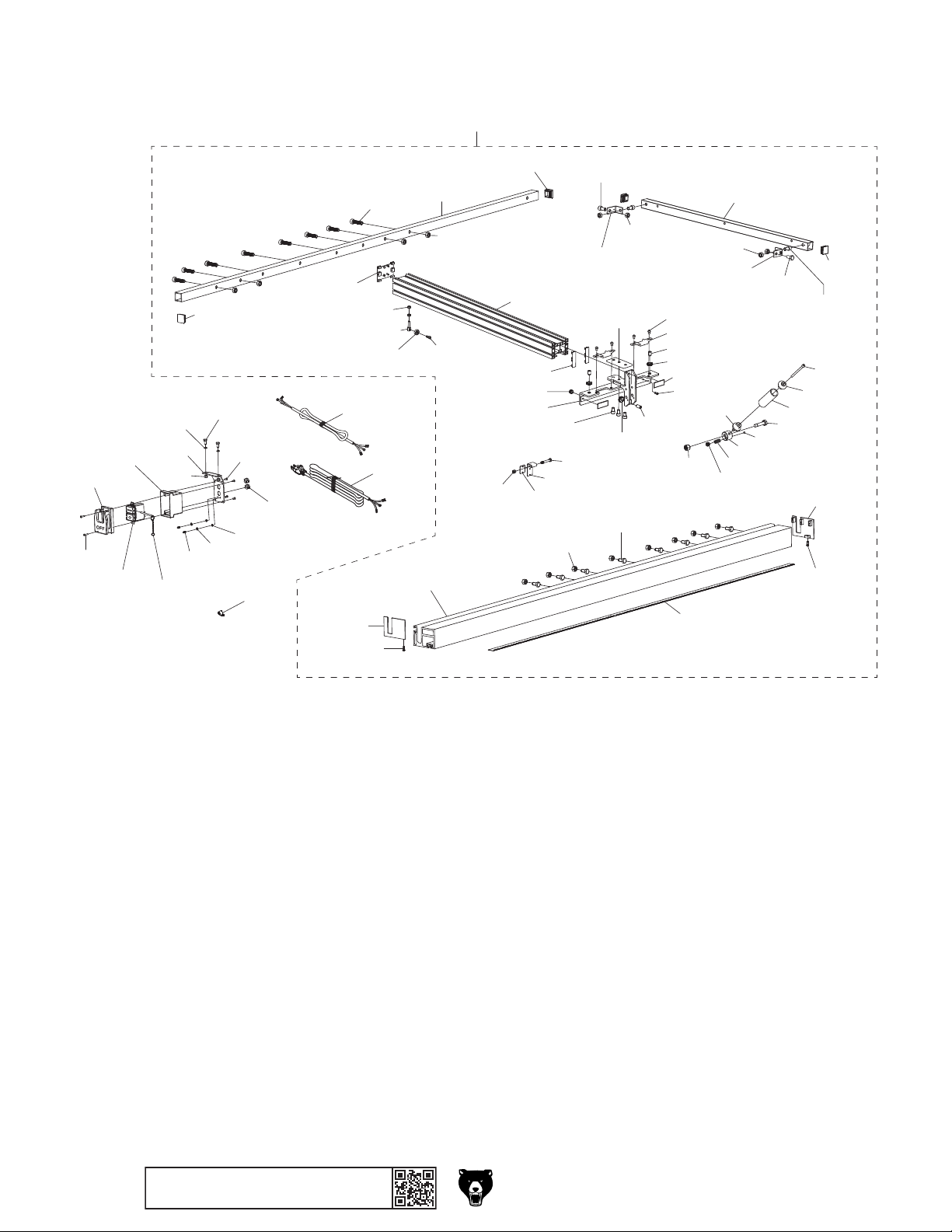

Fence & Rails

411

408V2

412V2

405

407

406

459

407-1

400-2

404

460

410

461

464

456

400-8

400-9

400-10

400-11

457V2

400-29

400-25

400-3

458V2

400-1

400-4

400-12

400-28

400-37

400-2

400-13

400-15 400-21 400-47

400-48

400-36

400-43

400-44

400-34

400-35

400-4

400-50

400-39

400-26

400-31 400-30 400-40

400-39

400-38

400-49

400-40

400-33

400-4

400-45

400-19

400-21

400-24

400-46

400-2

400-42

400-43

400-16

400-17

400-18

400-32

400-23

400-20

400-22

400-27

400-25

-84-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0962 (Mfd. Since 09/24)

Page 87

REF PART # DES CRIP TI ON REF PART # DES CRIP TI ON

400-35 P0962400-35 SPRING PLATE

Fence & Rails Parts List

400 P0962400 FENCE & RAIL ASSEMBLY 400-36 P0962400-36 SLIDE PLATE 30 X 24 X 2 400-1 P0962400-1 RE AR RAI L 400-37 P0962400-37 LOCK NUT M6-1 400-2 P0962400-2 REAR RAIL CAP 400-38 P0962400-38 SLIDE PLATE 50 X 20 X 2 400-3 P0962400-3 CAP SCREW M8-1.25 X 25 400-39 P0962400-39 K NURLED NUT M10- 1. 5 400-4 P0962400-4 HE X NUT M8- 1.25 400-40 P0962400-40 SET SCREW M10-1.5 X 15, PLASTIC TIP 400-8 P0962400-8 FENCE ASSEMBLY CAP 400-42 P0962400-42 HEX BOLT M8-1.25 X 16 400-9 P0962400-9 HE X NUT M6- 1 400-43 P0962400-43 CAP SCREW M8-1.25 X 16 400-10 P0962400-10 L I MI T S HAFT M6- 1 400-44 P0962400-44 CONNE CTI ON PL ATE ( LEFT) 400-11 P0962400-11 BALL BEARING 696-2RS 400-45 P0962400-45 CO NNECTION P LATE (RI GHT) 400-12 P0962400-12 CAP SCREW M5-.8 X 12 400-46 P0962400-46 RAIL BRACE 400-13 P0962400-13 RI P FENCE 400-47 P0962400-47 FENCE FIXED SEAT 400-15 P0962400-15 FENCE FACE CAP 400-48 P0962400-48 CAP SCREW M8-1.25 X 16 400-16 P0962400-16 CAP SCREW M8-1.25 X 85 400-49 P0962400-49 TAP SCREW M4.2 X 13 400-17 P0962400-17 FE NCE HANDL E E ND COVE R 400-50 P0962400-50 FENCE PLATE 400-18 P0962400-18 FENCE HANDLE 90L X 32OD X 19ID 404 P0962404 HEX BOLT M8-1.25 X 16 400-19 P0962400-19 HANDLE BASE SCR M8-1.25 X 8, 11 X 11 405 P0962405 LOCK WASHER 8MM 400-20 P0962400-20 FE NCE HANDL E CA M 406 P0962406 HEX NUT M8- 1. 25 400-21 P0962400-21 SET SCREW M8-1.25 X 8 407 P0962407 S WI TCH B RACK ET

400-22 P0962400-22 COMPRESSI ON SPRING 0.8 X 5 X 15MM 407-1 P0962407-1 LO CKOUT P I N A ND CHAIN 400-23 P0962400-23 STEEL BALL 6MM 408V2 P0962408V2 SWITCH BOX V2.09.24 400-24 P0962400-24 SCALE LABEL 1620 X 20MM 410 P0962410 TAP SCREW M4 X 14 400-25 P0962400-25 TAP SCREW M3.5 X 9.5 411 P0962411 S WI TCH P ADDL E 400-26 P0962400-26 HEX BOLT M8-1. 25 X 25 412V2 P0962412V2 SWITCH KEDU KJ D17B V2.09.24 400-27 P0962400-27 FRO NT RAI L CA P (RI GHT) 439 P0962439 TAP SCREW M4 X 25 400-28 P0962400-28 FRO NT RAI L 456 P0962456 STRAIN RELIEF 1/2"-3/8" SNAP-IN ST 400-29 P0962400-29 FRONT RAIL CAP (LEFT) 457V2 P0962457V2 POWER CORD 14G 3W 78" 5-15P V2.09.24 400-30 P0962400-30 I NDICATO R 458V2 P0962458V2 MOTOR CORD 14G 3W 47" V2.09.24 400-31 P0962400-31 PHLP HD SCR M6-1 X 8 459 P0962459 PHLP HD SCR M5-.8 X 8 400-32 P0962400-32 HEX BOLT M10-1. 5 X 45 460 P0962460 LOCK WASHER 5MM 400-33 P0962400-33 LOCK NUT M10-1. 5 461 P0962461 EXT TO OTH WAS HER 5MM 400-34 P0962400-34 HEX BOLT M6-1 X 40 464 P0962464 ADJUSTABLE CABLE CLAMP

Model G0962 (Mfd. Since 09/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-85-

Page 88

500

REF PART # DESCRIPTION REF P ART # DESCRIPTION

512 P0962512 PHLP HD SCR M5-.8 X 25 527 P0962527 FENDER WASHER 5 X 18 X 2

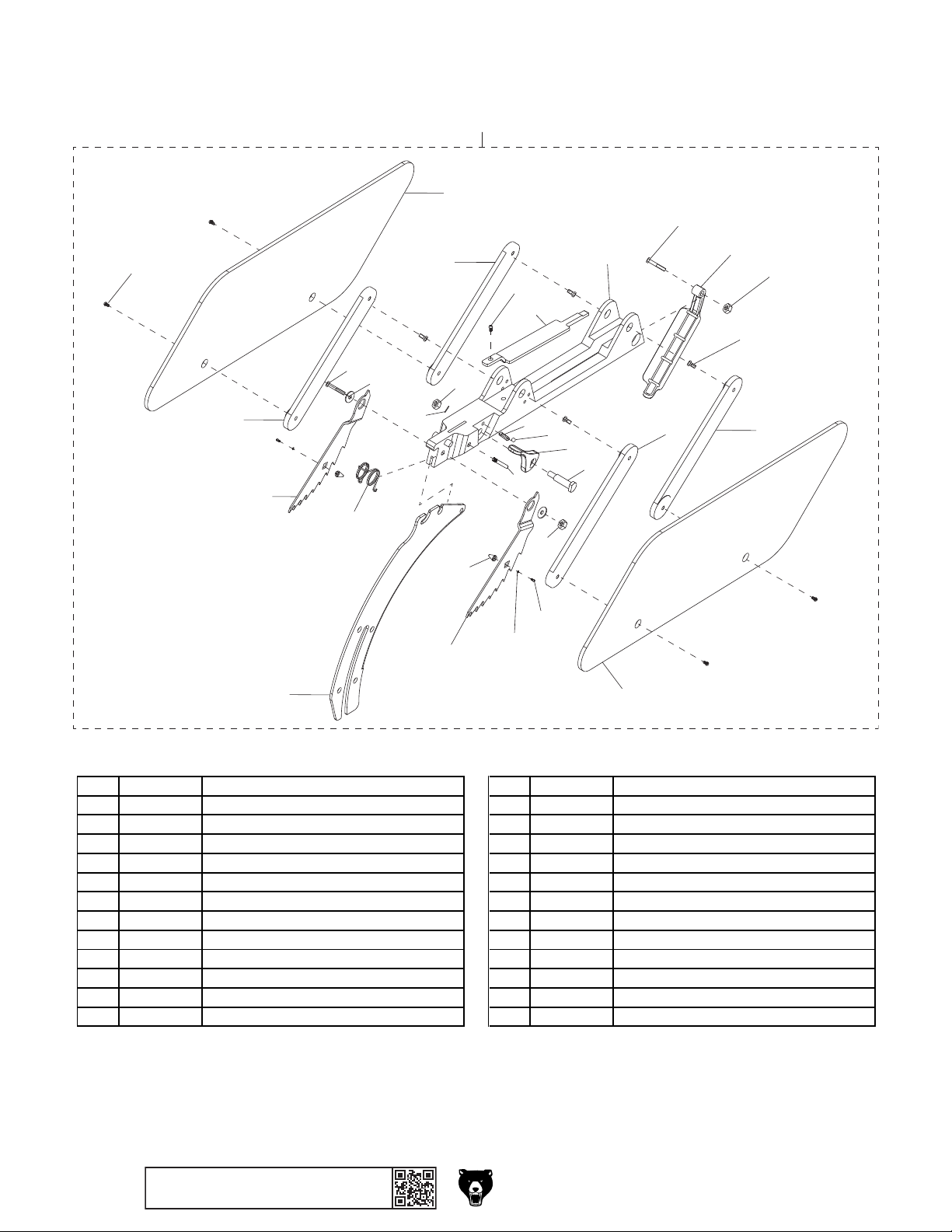

Blade Guard

506

512

509

507

516

518

524

503

527

513

507

517

501

504

510

502

522

526

520

501

523

521

514

505

515

506

507

511

501

508

507

500 P0962500 BLADE GUARD ASSEMBLY 513 P0962513 FLAT WASHER 5MM 501 P0962501 LOCK NUT M5-.8 514 P0962514 BLADE GUARD LOCK LEVER 502 P0962502 SET PIN 515 P0962515 BLADE GUARD LOCK LEVER SCREW 503 P0962503 TORSION SPRING 516 P0962516 ANTI-KICKBACK PAW L (LEFT) 504 P0962504 SCREW CAP 517 P0962517 ANTI-KICKBACK PAWL (RIGHT) 505 P0962505 BLADE GUARD BODY 518 P0962518 SPREADER/RIVING KNIFE 506 P0962506 BARRIER 520 P0962520 COMPRESSION SPRING 507 P0962507 BARRIER CONNECTING BAR 521 P0962521 STEEL BALL 4MM 508 P0962508 SHOULDER SCR M5-.8 X 10, 7 X 5 522 P0962522 FENDER WASHER 3.2 X 9 X 0.8 509 P0962509 SHOULDER SCR M6-1 X 10, 8 X 4 523 P0962523 TAP SCREW M3 X 6 510 P0962510 PHLP HD SCR M5-.8 X 10 524 P0962524 CAP SCREW M5-.8 X 30 511 P0962511 GUARD RAIL 526 P0962526 BLADE GUARD W INDOW COVER

-86-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0962 (Mfd. Since 09/24)

Page 89

604

616

REF PART # DESCRI P TION REF PART # DE SCRIP TI ON

610 P0962610 MI TER B AR

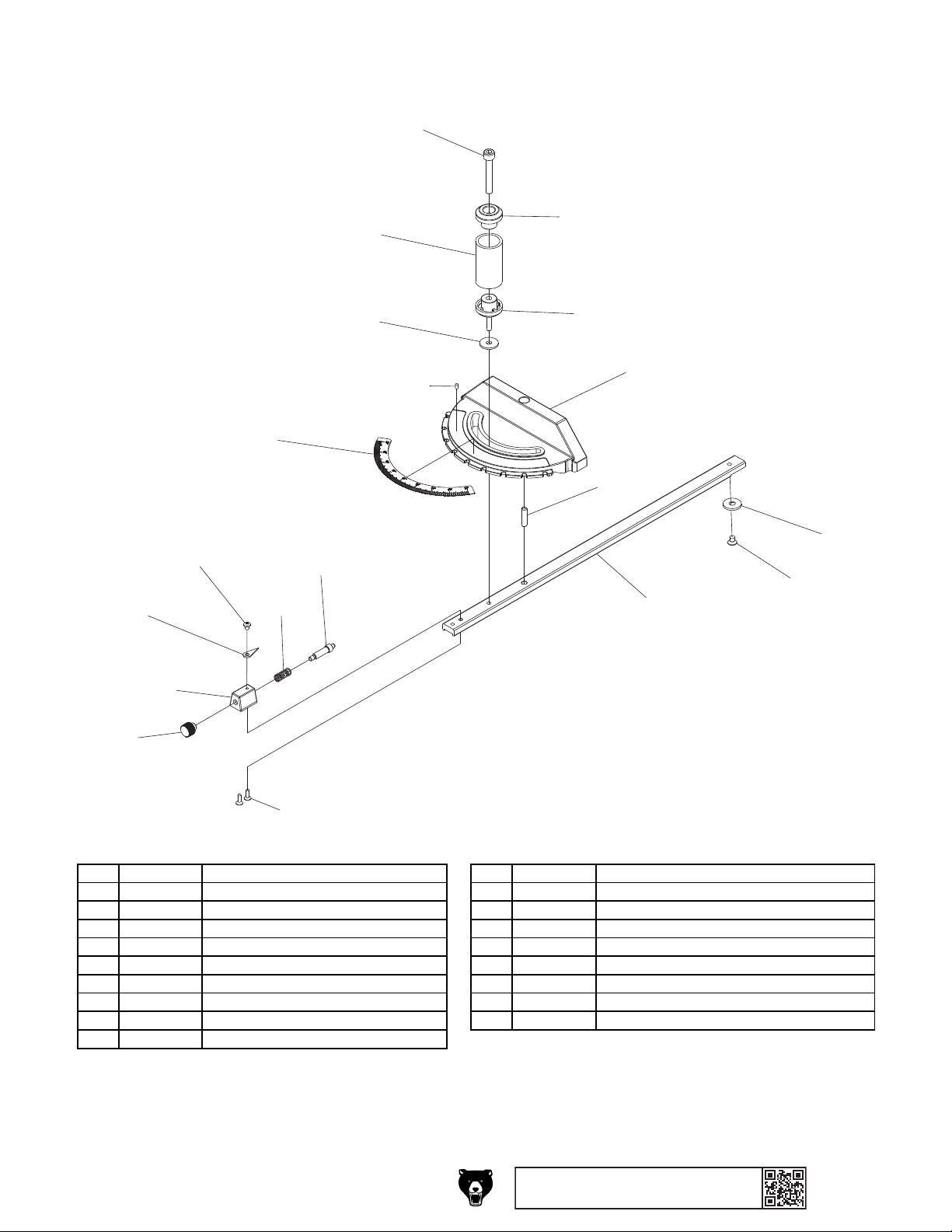

Miter Gauge

606

602

601

613

611

617

619

614

612

605

603

609

618

607

608

615

610

601 P0962601 ANGLE INDICATOR 611 P0962611 ANGLE INDI CATOR SEAT 602 P0962602 UPPER HANDLE CAP 612 P0962612 STOP PIN 603 P0962603 L OWER HA NDLE CA P 613 P0962613 STOP PIN KNOB 604 P0962604 CAP SCREW M8-1.25 X 55 614 P0962614 COMPRESSI ON SPRING 0.5 X 9.5 X 24 605 P0962605 HANDLE WASHER 6 X 20 615 P0962615 FL AT HD SCR M6 -1 X 8 606 P0962606 MI TER HA NDLE 616 P0962616 FLA T HD S CR M4- . 7 X 10 607 P0962607 MI TER P I N 617 P0962617 PHLP HD SCR M4-. 7 X 6 608 P0962608 FE NDER WAS HER 6MM 618 P0962618 RIVET 2 X 5MM 609 P0962609 MITER GAUGE BODY 619 P0962619 MI TER SCA LE

Model G0962 (Mfd. Since 09/24)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-87-

Page 90

REF PART # DE S CRIP TI ON RE F P ART # DESCRI PTIO N

708 P0962708 GRIZZLY BLACK TAPE 715 P0962715 MODEL NUMBER LABEL

712

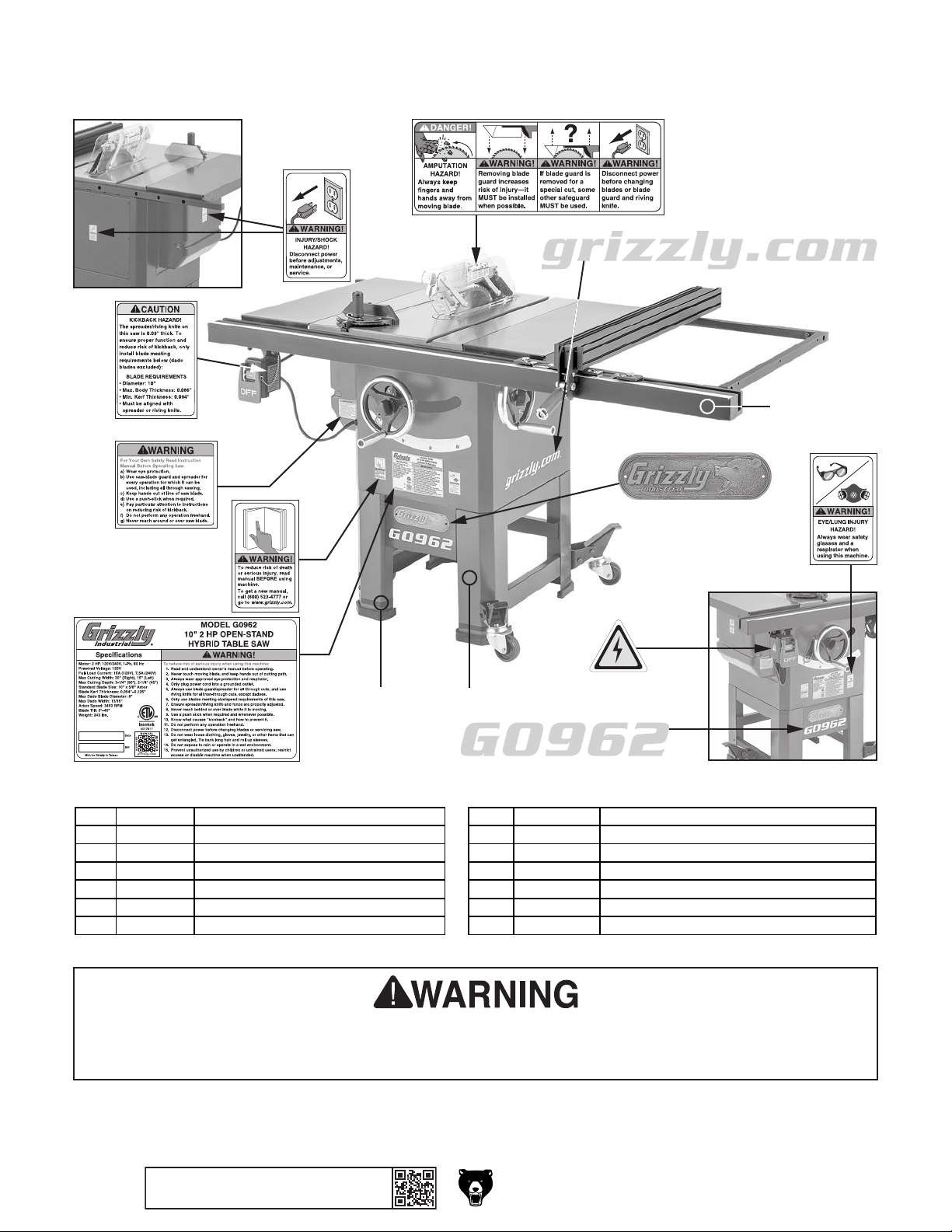

Labels & Cosmetics

702

701

703

713

711

714

710

704

705

709V2

708

5012917

701 P0962701 DISCONNECT 110V LABEL 709V2 P0962709V2 MACHINE ID LABEL V2.02. 24 702 P0962702 BLADE GUARD LABEL 710 P0962710 READ MANUAL LABEL 703 P0962703 GRIZZLY.COM LABEL 711 P0962711 TABLE SAW WARNI NG LABEL 704 P0962704 EYE/ LUNG HAZARD LABEL 712 P0962712 KI CKBACK HAZARD LABEL 705 P0962705 ELECTRI CITY LABEL 713 P0962713 TOUCH-UP PAINT, GLOSSY BLACK 707 P0962707 TOUCH-UP PAINT, GRIZZLY GREEN 714 P0962714 GRIZZLY OBLONG NAMEPLATE - SMALL

707

715

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes

off or becomes unreadable, the owner of this machine MUST replace it in the original location

before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-88-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0962 (Mfd. Since 09/24)

Page 91

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,

negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty

and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.

In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and

any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will

then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of

the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

For further information about the

scan the QR

code below

WARRANTY & RETURNS

to be automatically directed to our warranty page.

warranty, visit https://www.grizzly.com/forms/warranty or

WARRANTY

Page 92
