Page 1

MODEL G0953

HEPA FUME EXTRACTOR

FOR LASERS

OWNER'S MANUAL

(For models manufactured since 8/22)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN22112 PRINTED IN TAI WAN

***Keep for Future Reference***

V2.08.22

Page 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info Manual Accuracy Identification Controls & Components Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 6

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Fume Extractors

SECTION 2: POWER SUPPLY

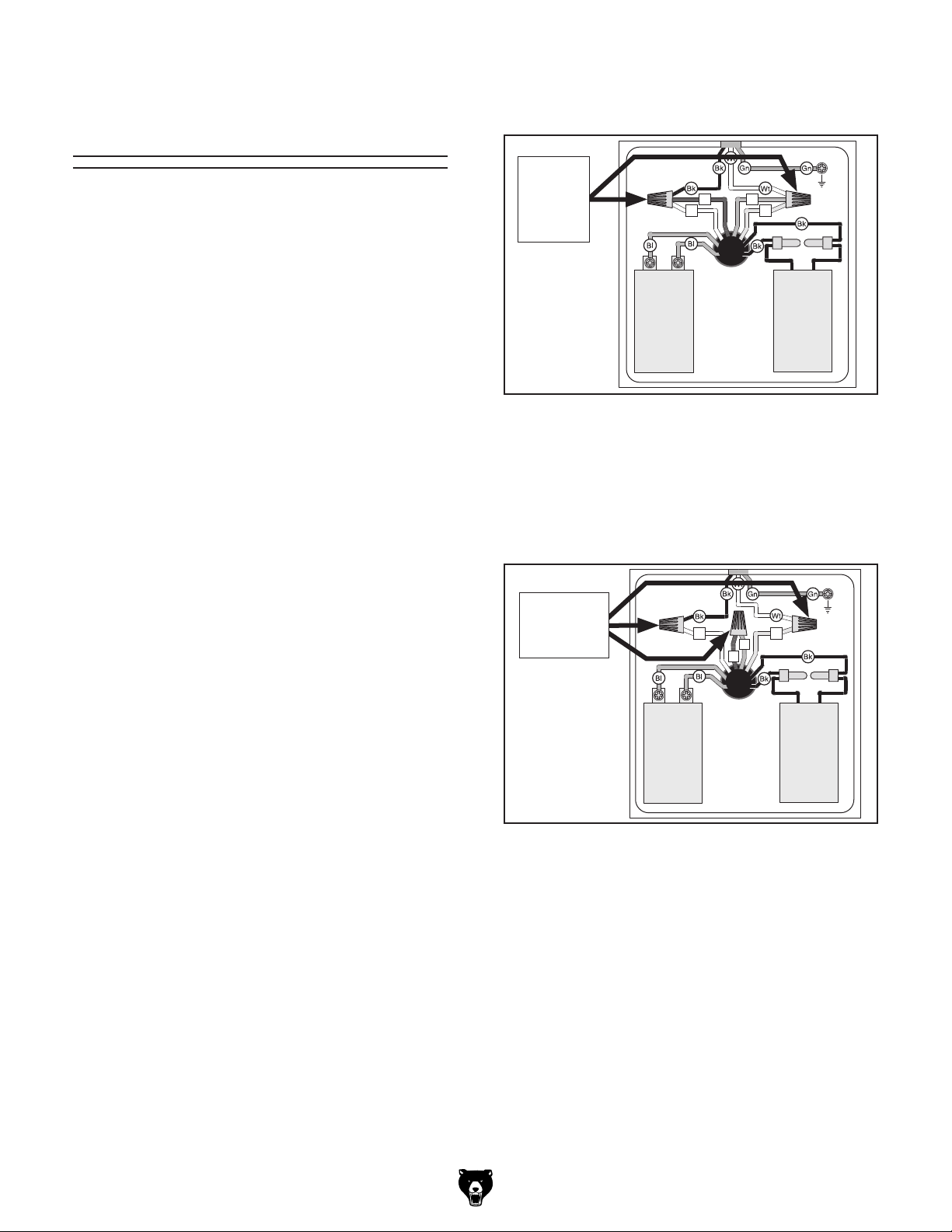

Converting Voltage to 220V

SECTION 3: SETUP

Needed for Setup Unpacking Inventory Hardware Recognition Chart Site Considerations Assembly Ducting System

System Grounding.................................................................................................................... 23

Test Run

SECTION 4: OPERATIONS

Operation

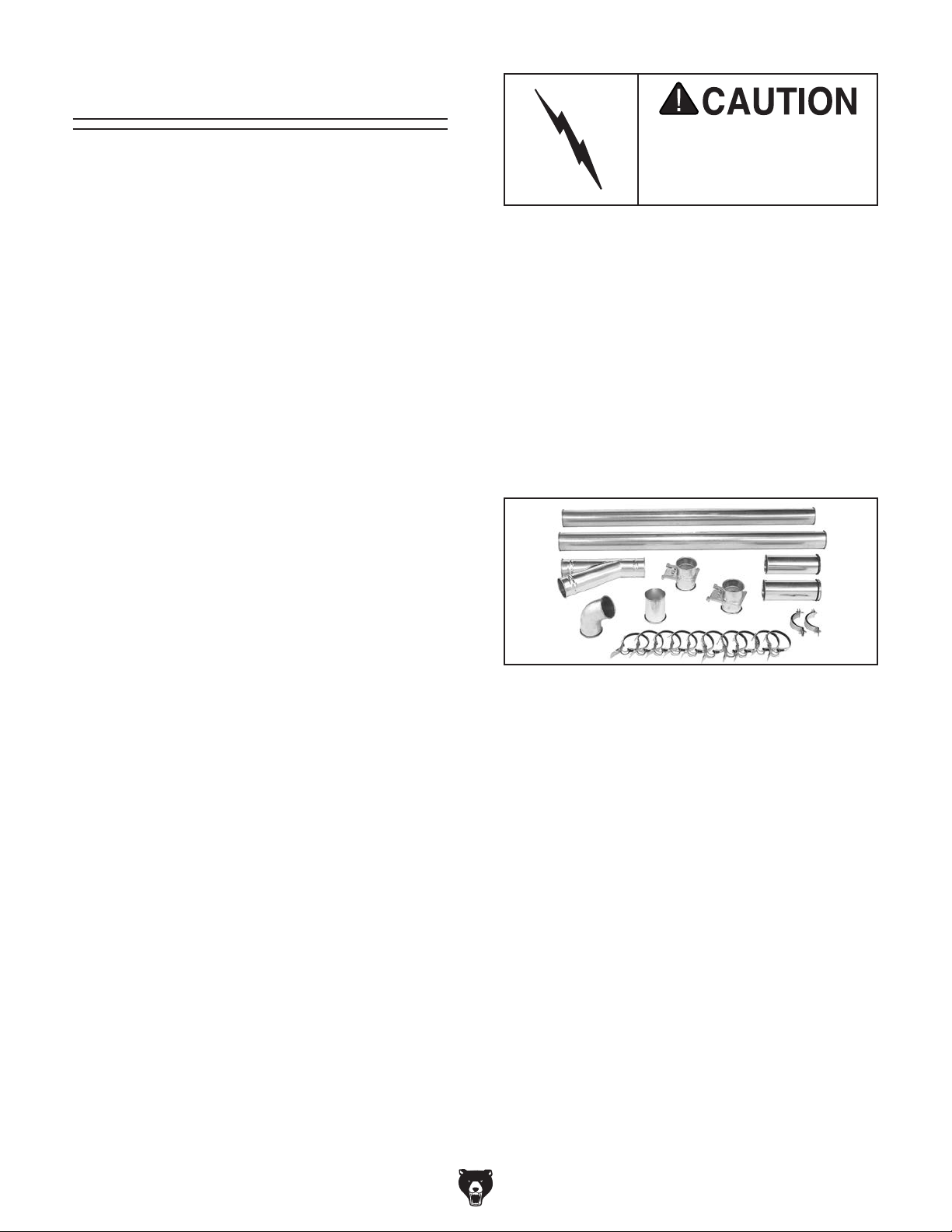

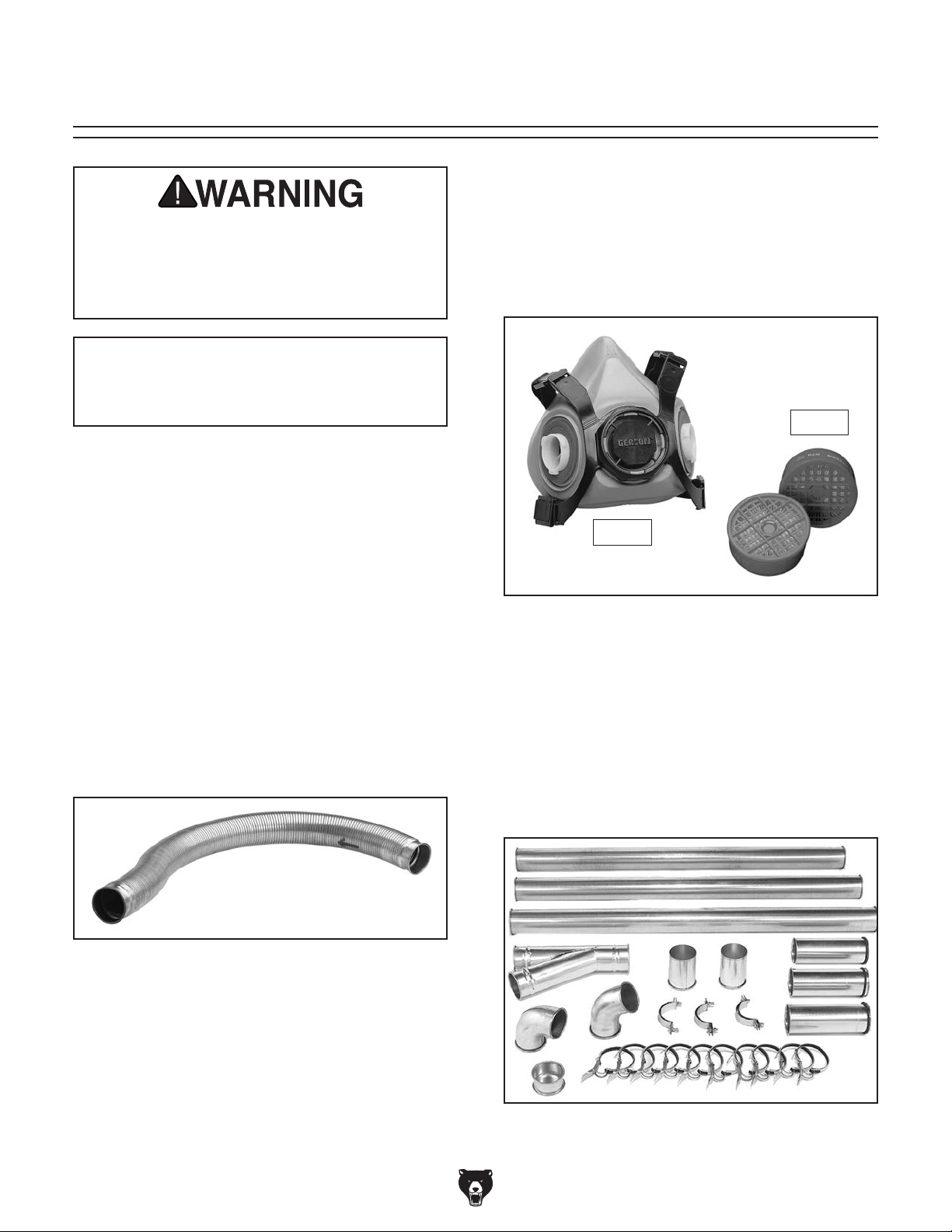

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 28

Schedule Cleaning/Replacing Filters Pairing Remote Control

Replacing Remote Control Battery........................................................................................... 30

................................................................................................................................ 15

................................................................................................................................... 16

.................................................................................................................................. 19

................................................................................................................................... 24

.................................................................................................................................. 25

.................................................................................................................................. 28

....................................................................................................................... 8

............................................................................................... 8

..................................................................................... 10

...................................................................................................... 11

..................................................................................................... 13

....................................................................................................................... 15

..................................................................................................................... 15

.................................................................................................... 17

.................................................................................................................. 18

........................................................................................................................ 22

........................................................................................................... 25

......................................................................................................... 26

....................................................................................................... 28

............................................................................................................ 30

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

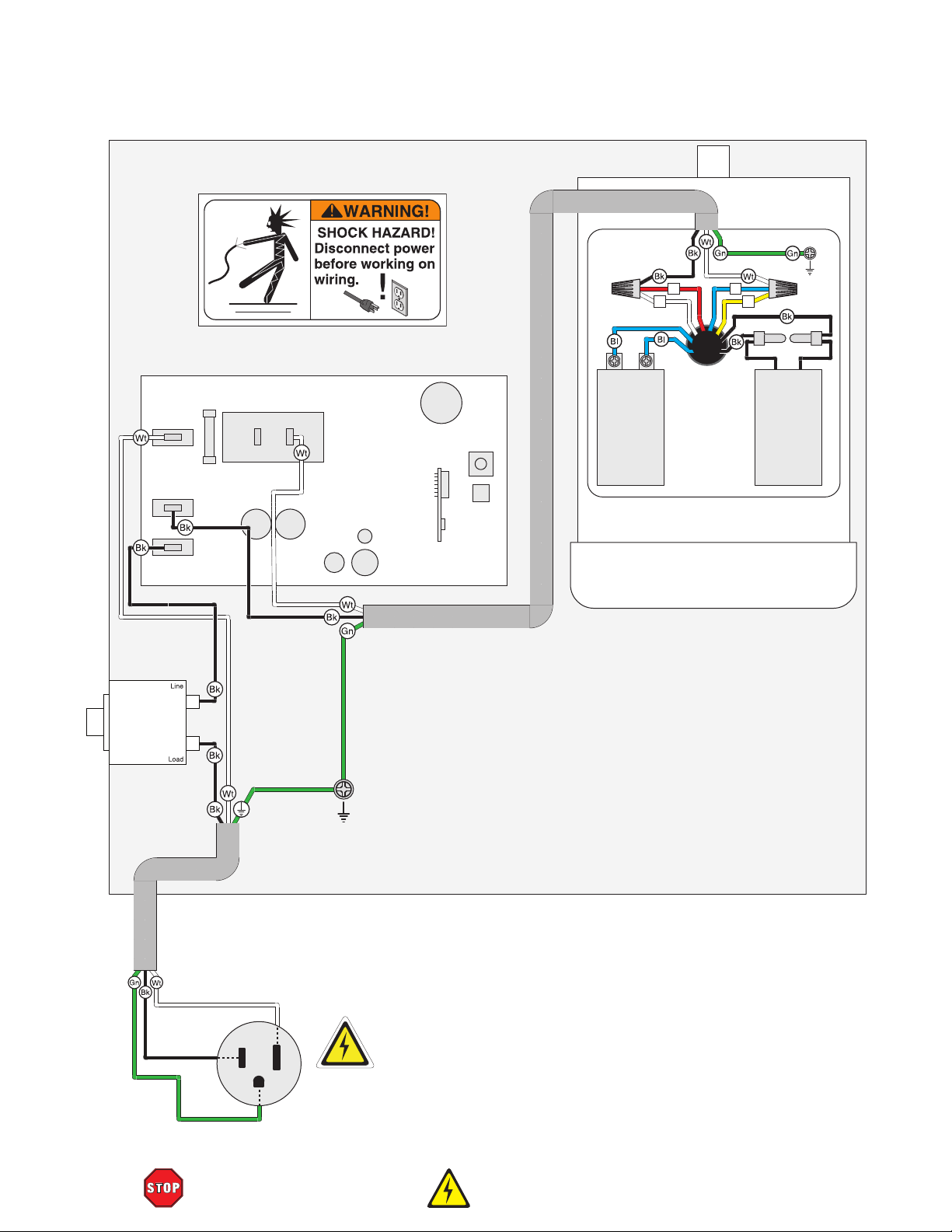

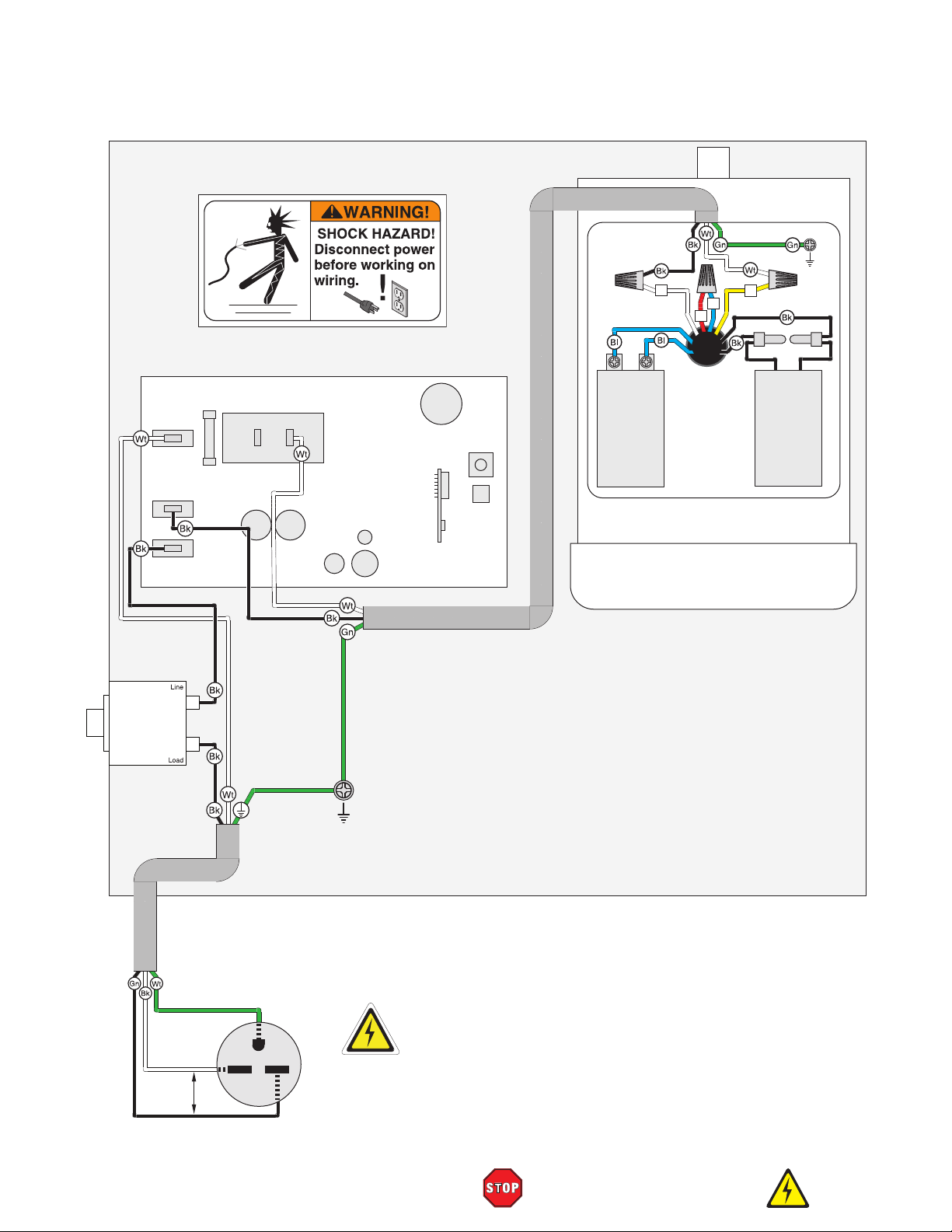

Wiring Safety Instructions Wiring Diagram (110V) Wiring Diagram (220V) Electrical Components

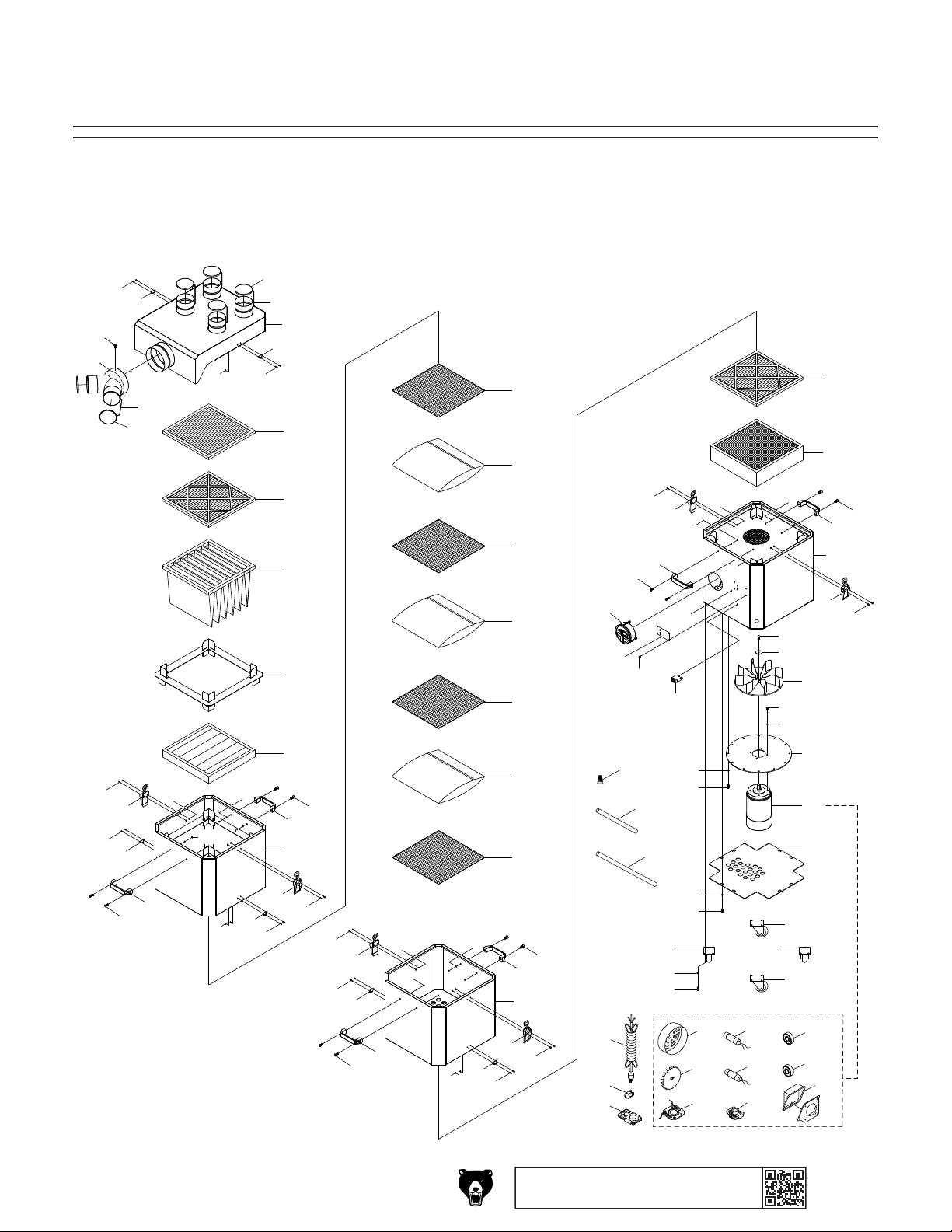

SECTION 9: PARTS

.......................................................................................................................................... 37

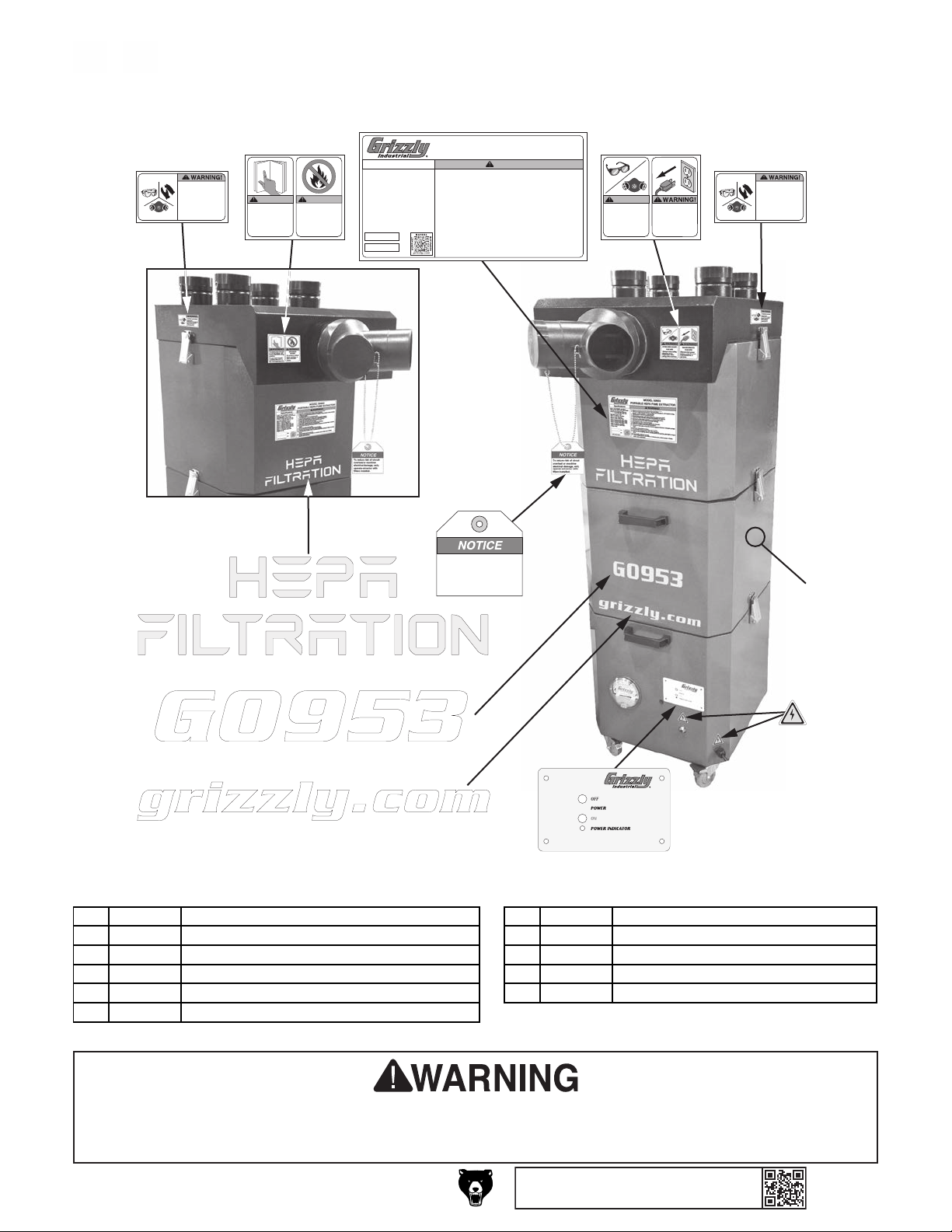

Main Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 31

........................................................................................................................ 31

...................................................................................................................... 33

....................................................................................................................... 37

................................................................................................................. 39

........................................................................................................ 33

............................................................................................................ 34

............................................................................................................ 35

............................................................................................................. 36

............................................................................................................. 41

Page 4

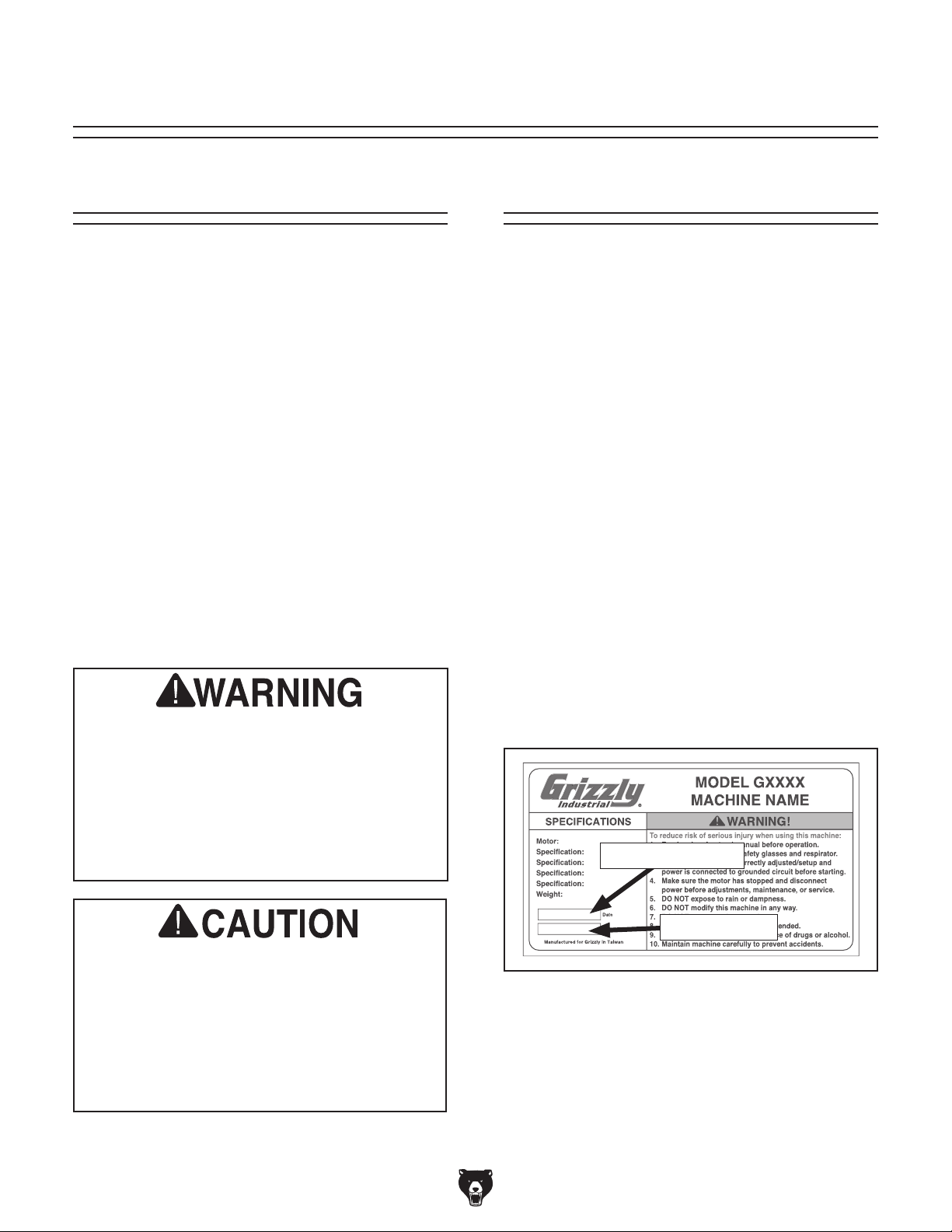

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0953 (Mfd. Since 8/22)

Page 5

To reduce your risk of serious injury, read this entire manual BEFORE

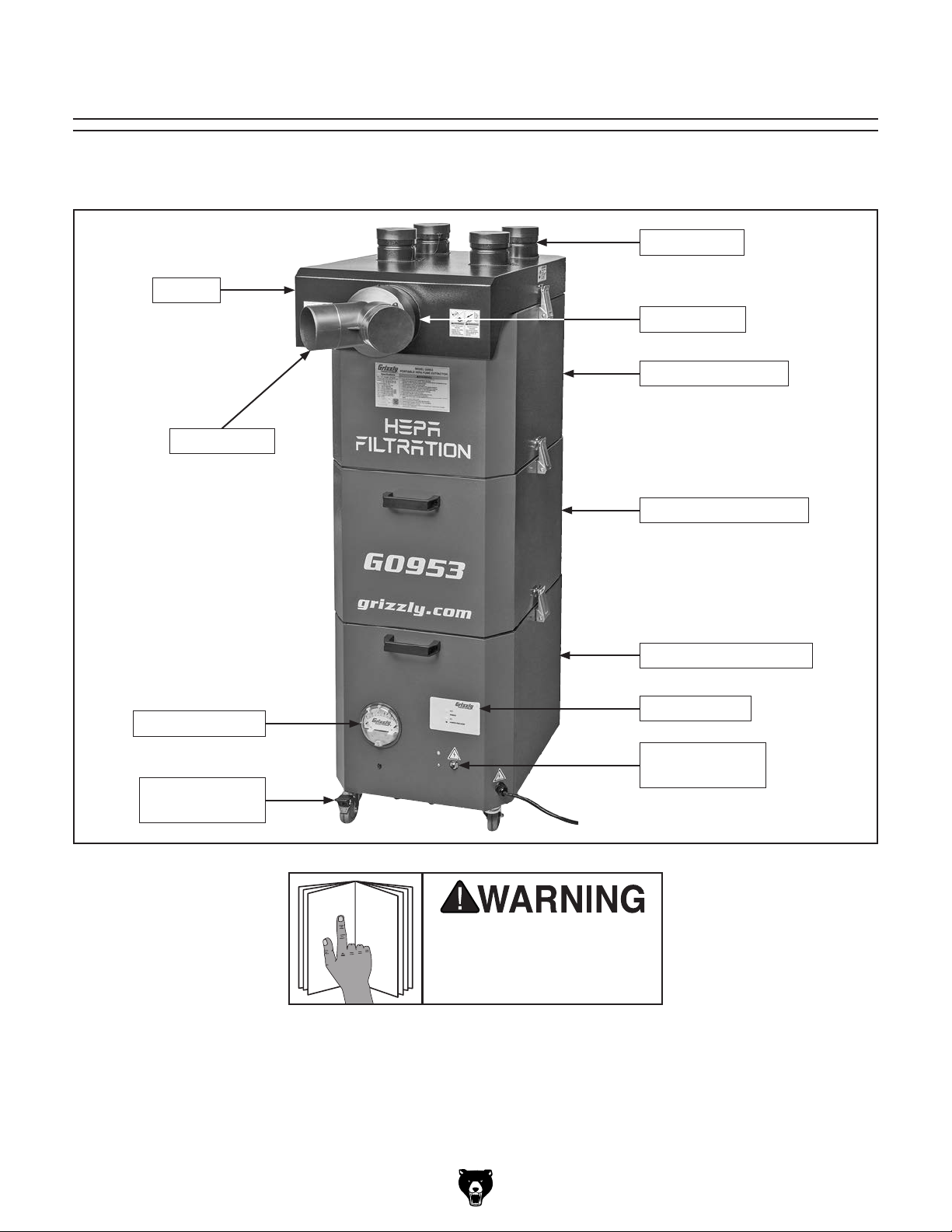

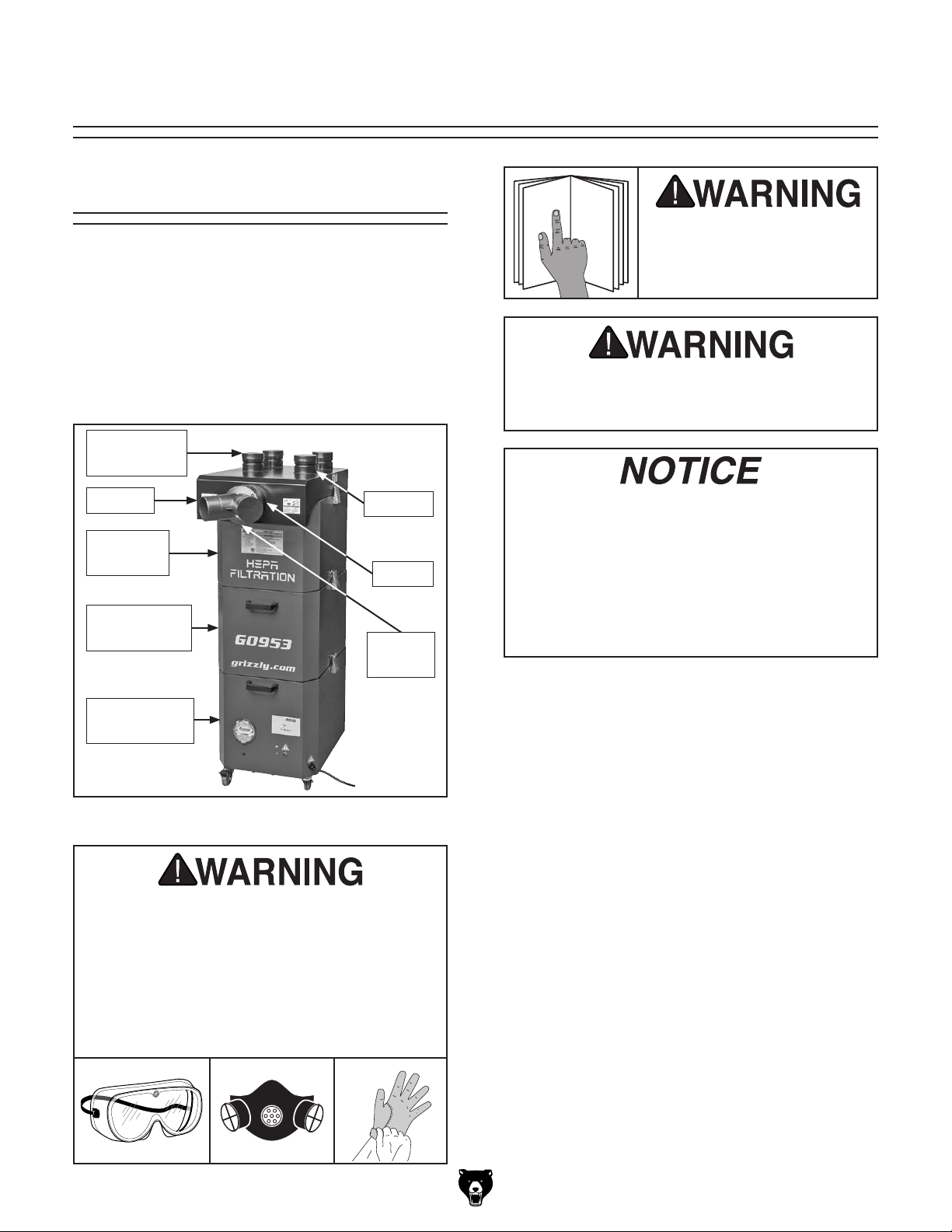

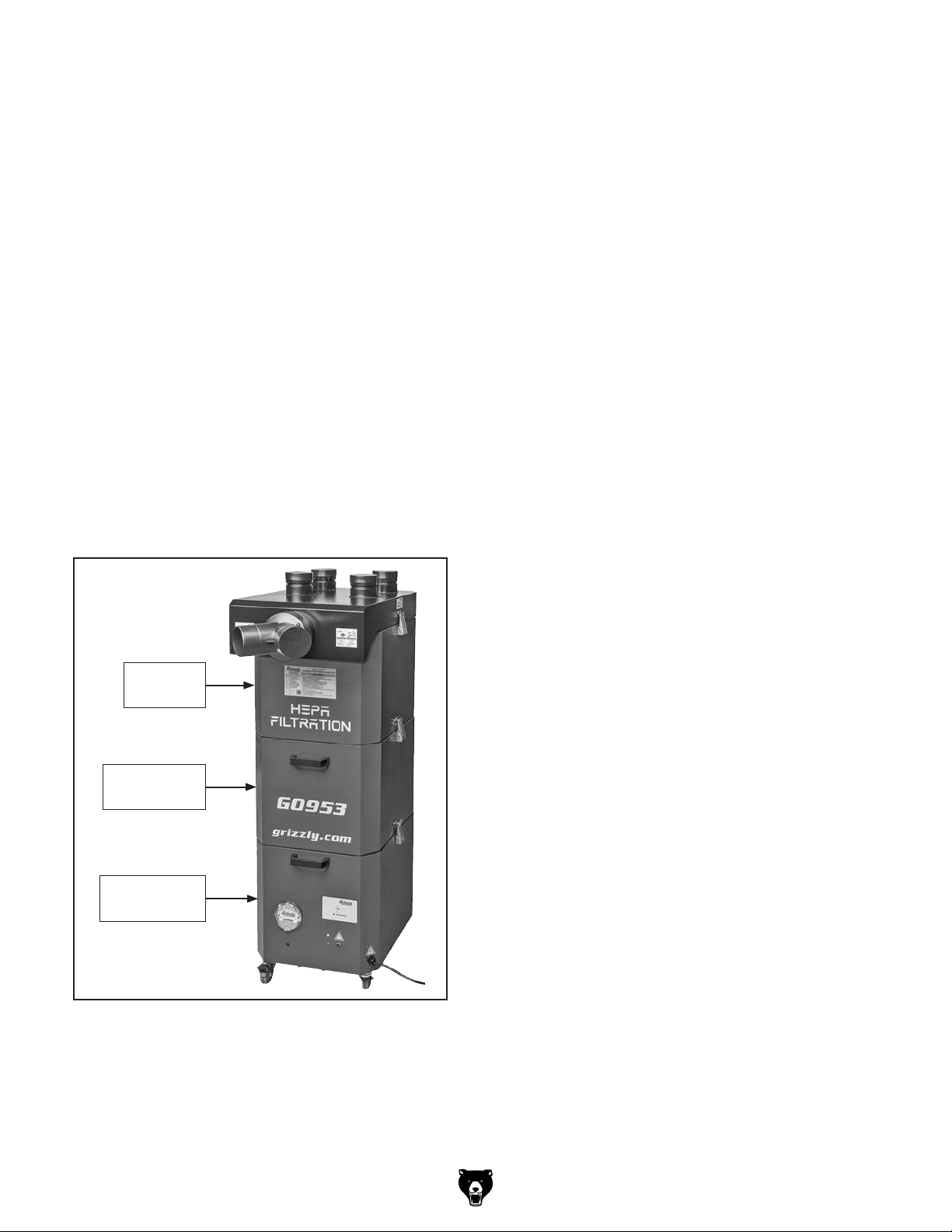

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Top 4" Inlets

Inlet Lid

Front 6" Inlet

Top Filter Housing

Inlet Adapter

Middle Filter Housing

Pressure Gauge

Locking Caster

(1 of 4)

Bottom Filter Housing

Control Panel

Circuit Breaker

Reset Button

using machine.

Model G0953 (Mfd. Since 8/22)

-3-

Page 6

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Pressure Gauge

Components

using machine.

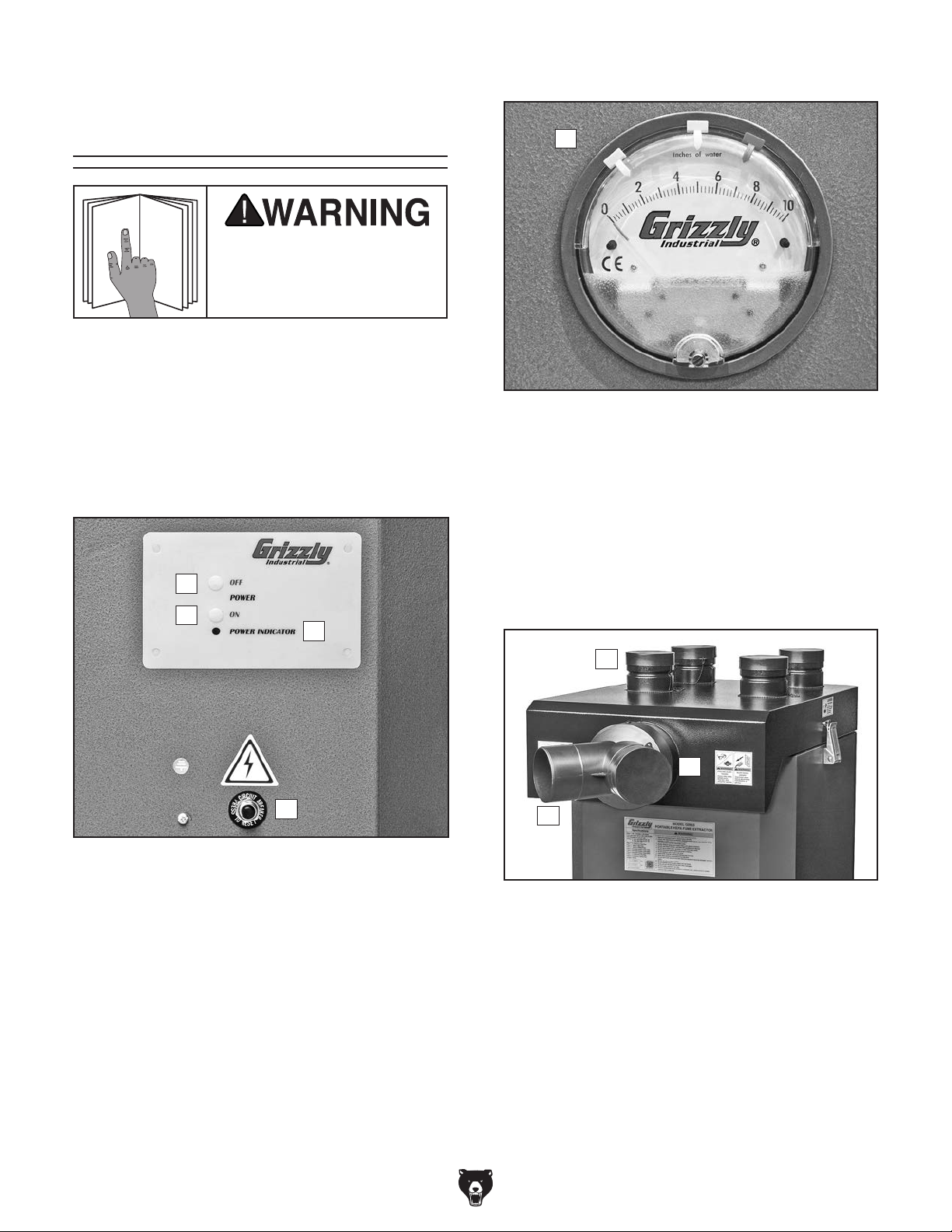

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Electronic Controls

Figure 2. Pressure gauge.

E. Pressure Gauge: Displays vacuum pres-

sure, indicating when filters need to be cleaned or replaced. Clean filters when operating pressure exceeds 4 inches of water (inAq). Replace filters when operating pressure exceeds 7 inches of water (inAq) and cleaning does not improve performance.

Figure 1. Control panel and reset button.

A. OFF Button: Turns power to motor OFF.

B. ON Button: Turns power to motor ON.

C. Power Indicator Light: Illuminates when

machine is turned ON.

D. Circuit Breaker Reset Button: Allows

machine to be restarted after thermal overload protection has tripped. To reset, turn machine OFF, wait a few minutes for motor to cool, then press reset button. If button does not stay depressed, allow motor to cool longer, then try again.

-4-

Inlet Lid

Figure 3. Inlet lid components.

F. Top 4" Inlets: Use when operating machine

as area air filter.

G. Front 6" Inlet: Use when connecting machine

to laser cutter.

H. Inlet Adapter: Connects two 4" ducts to 6"

inlet.

Model G0953 (Mfd. Since 8/22)

Page 7

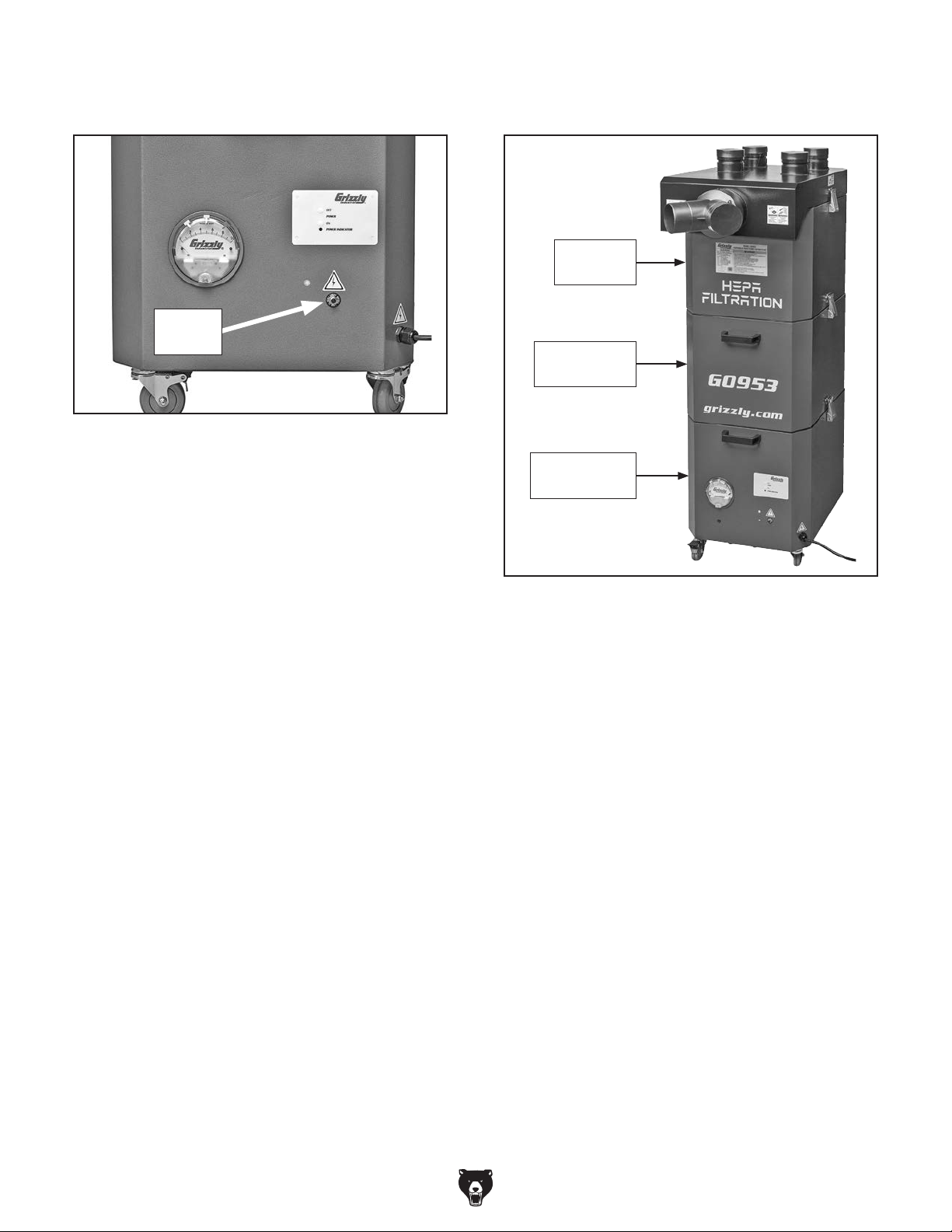

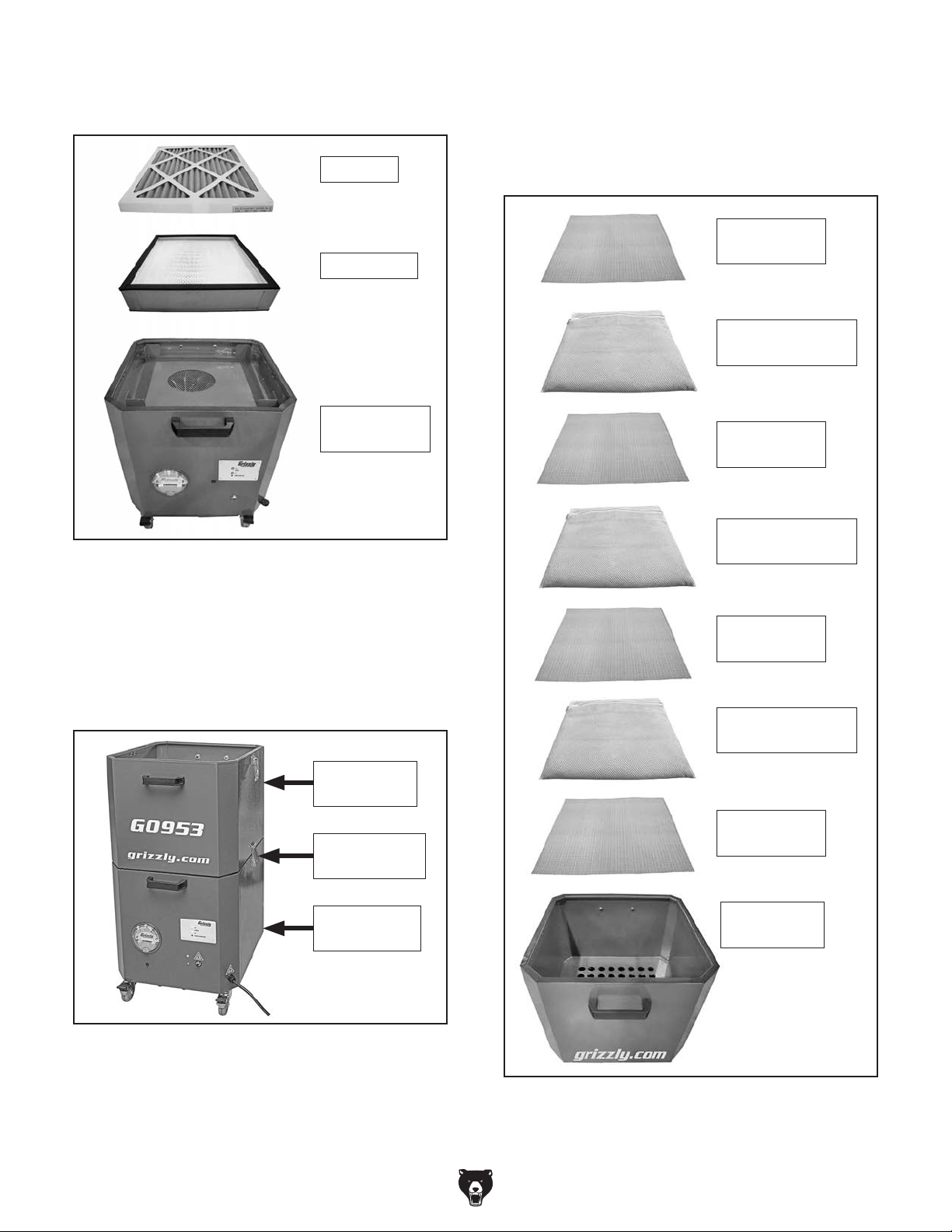

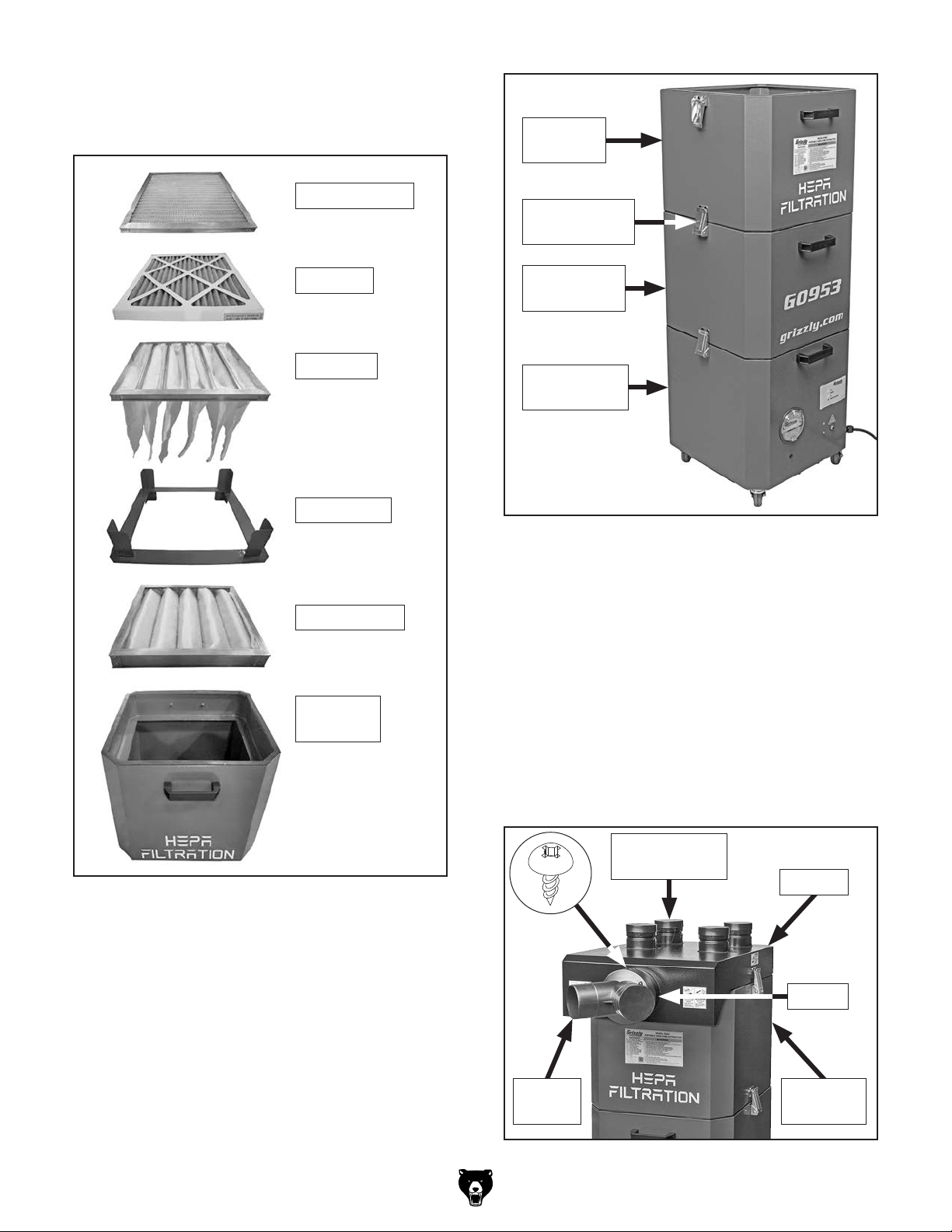

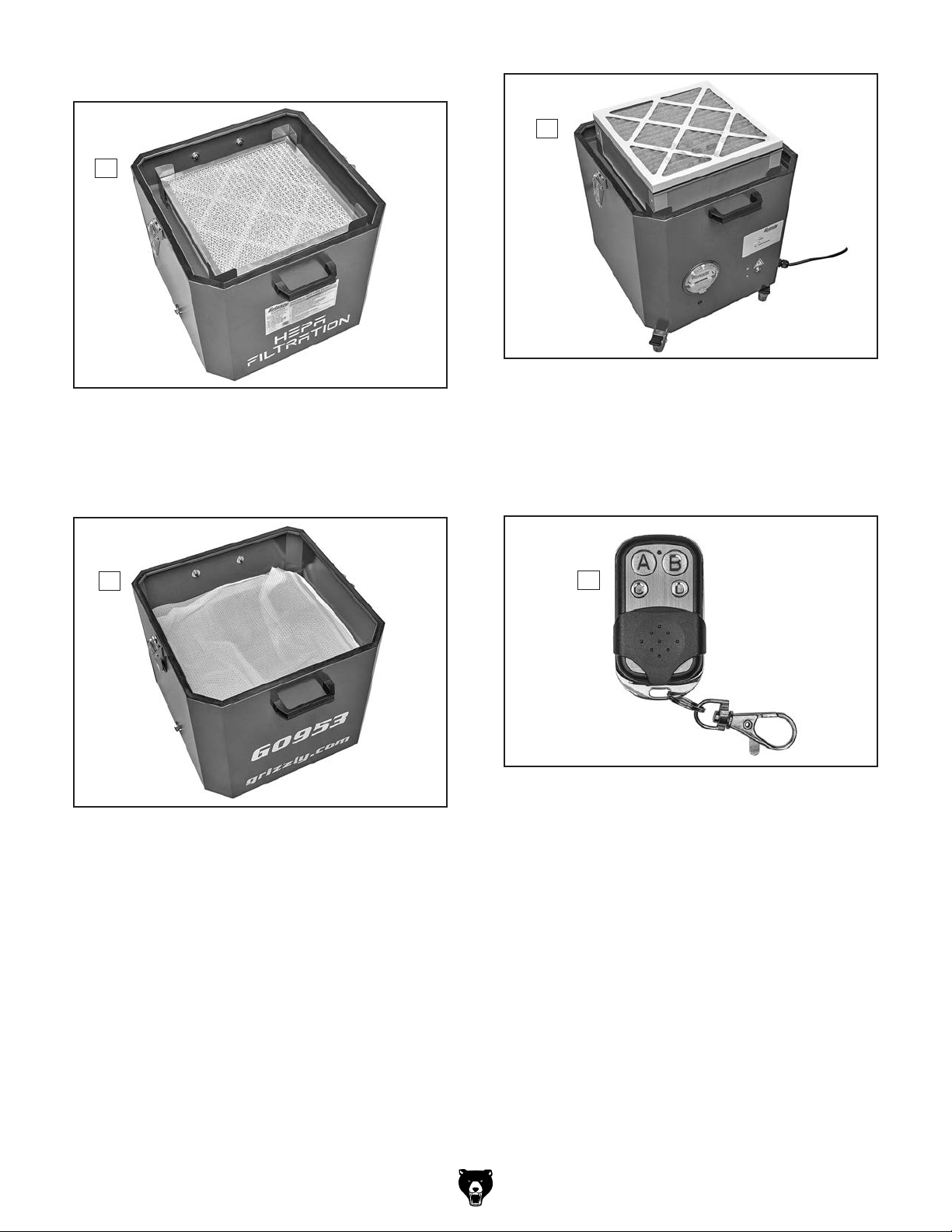

Filter Housings

Figure 6. Bottom filter housing.

Figure 4. Top filter housing.

I. Top Filter Housing: Houses spark arrestor,

2–10 micron pleated pre-filter, 1-micron bag filter, and 1-micron pleated polyester filter.

Figure 5. Middle filter housing.

J. Middle Filter Housing: Houses type-1000,

-3,000, and -9000 activated carbon bags, each separated by woven mesh screens.

K. Bottom Filter Housing: Houses 2–10 micron

pleated pre-filter, 0.3-micron HEPA filter, and motor.

Remote Control

Figure 7. Remote control.

L. Remote Control: Button A turns motor ON.

Button B turns motor OFF. Button D pairs remote control with RF receiver. Requires a 12V, type A27 battery.

Model G0953 (Mfd. Since 8/22)

Note: Button C is not functional for this

machine.

-5-

Page 8

Machine Data Sheet

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0953

HEPA FUME EXTRACTOR FOR LASERS

Product Dimensions:

Weight ........................................................................................................................................................................... 220 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .......................................................................... 21-1/2 x 29 x 61-1/2 in.

Footprint (Length/Width) ............................................................................................................................................18 x 18 in.

Shipping Dimensions:

Type ..........................................................................................................................................Cardboard Box on Wood Pallet

Content .......................................................................................................................................................................... Machine

Weight ............................................................................................................................................................................ 252 lbs.

Length x Width x Height .....................................................................................................................................61 x 22 x 29 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement .......................................................................................................... 110V or 220V, Single-Phase, 60 Hz

Prewired Voltage ................................................................................................................................................................ 110V

Full-Load Current Rating ....................................................................................................................9A at 110V, 4.5A at 220V

Minimum Circuit Size ........................................................................................................................15A at 110V, 15A at 220V

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length .......................................................................................................................................................... 118 in.

Power Cord Gauge .......................................................................................................................................................14 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ...............................................................................................................................................5-15 for 110V

Recommended Plug Type ....................................................................................................................................6-15 for 220V

Switch Type ................................................................................... Circuit Board with ON/OFF Buttons and Remote Receiver

Motor:

-6-

Main

Horsepower ...............................................................................................................................................................1 HP

Phase .......................................................................................................................................................... Single-Phase

Amps ....................................................................................................................................................................9A/4.5A

Speed ...............................................................................................................................................................3450 RPM

Type ................................................................................................................................ TEFC Capacitor-Start Induction

Power Transfer ........................................................................................................................................................ Direct

Bearings .....................................................................................................................Shielded and Permanently Sealed

Centrifugal Switch/Contacts Type .........................................................................................................................Internal

Model G0953 (Mfd. Since 8/22)

Page 9

Main Specifications:

Operation Information

Filter Information

Airflow Performance, 6-in. Inlet .................................................................................................. 423 CFM @ 0.38 in. SP

Airflow Performance, 4-in. Inlet .................................................................................................. 335 CFM @ 0.91 in. SP

Max. Static Pressure (at 0 CFM) ........................................................................................................................... 7.84 in.

Front Inlet Size ...........................................................................................................................................................6 in.

Top Inlet Size .............................................................................................................................................................4 in.

Inlet Adapter Included .................................................................................................................................................Yes

Inlet Adapter Type .................................................................................................................................................. Y-Inlet

Number of Adapter Inlets ................................................................................................................................................2

Adapter Inlet Size ....................................................................................................................................................... 4 in.

Machine Collection Capacity at One Time ......................................................................................................................2

Number of Filters .............................................................................................................................................................8

Total Filter Surface Area ..................................................................................................................................88.5 sq. ft.

First-Stage Filter Type ...........................................................................................................................Pleated Pre-Filter

First-Stage Filter Rating .............................................................................................................................2 - 10 Microns

First-Stage Filter Size ..............................................................................................................................15 x 15 x 7/8 in.

Second-Stage Filter Type .................................................................................................................................. Bag Filter

Second-Stage Filter Rating .................................................................................................................................1 Micron

Second-Stage Filter Size ......................................................................................................................15 x 15 x 9-7/8 in.

Third-Stage Filter Type ................................................................................................................ Pleated Polyester Filter

Third-Stage Filter Rating .....................................................................................................................................1 Micron

Third-Stage Filter Size ..........................................................................................................................15 x 15 x 1-3/4 in.

Fourth-Stage Filter Type ............................................................................................ Activated Carbon Bag, Type 1000

Fifth-Stage Filter Type ................................................................................................ Activated Carbon Bag, Type 3000

Sixth-Stage Filter Type ............................................................................................... Activated Carbon Bag, Type 9000

Seventh-Stage Filter Type .....................................................................................................................Pleated Pre-Filter

Seventh-Stage Filter Rating .......................................................................................................................2 - 10 Microns

Seventh-Stage Filter Size ........................................................................................................................15 x 15 x 7/8 in.

Eighth-Stage Filter Type .................................................................................................................................HEPA Filter

Eighth-Stage Filter Rating ..............................................................................................................................0.3 Microns

Eighth-Stage Filter Size ..............................................................................................................................15 x 15 x 4 in.

Impeller Information

Impeller Type .....................................................................................................................................................Aluminum

Impeller Size .............................................................................................................................................................12 in.

Impeller Blade Thickness ..........................................................................................................................................4mm

Construction

Base ..........................................................................................................................................................................Steel

Frame ........................................................................................................................................................................Steel

Side Walls .................................................................................................................................................................Steel

Impeller ..............................................................................................................................................................Aluminum

Paint Type/Finish ......................................................................................................................................Powder Coated

Other Specifications:

Country of Origin ............................................................................................................................................................. Taiwan

Warranty ...........................................................................................................................................................................1 Year

Approximate Assembly & Setup Time ......................................................................................................................30 Minutes

Serial Number Location ..................................................................................................................................Machine ID Label

ISO 9001 Factory ..................................................................................................................................................................Yes

Model G0953 (Mfd. Since 8/22)

-7-

Page 10

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0953 (Mfd. Since 8/22)

Page 11

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0953 (Mfd. Since 8/22)

-9-

Page 12

Additional Safety for Fume Extractors

Long-term respiratory damage, toxicity, cancer, or birth defects can occur from inhaling fumes, vapors, and particulates generated while cutting substrates without adequate ventilation, exhaust, and fume extraction. All users must be properly trained on the potential hazards, control measures, manufacturer’s operating procedures, use of personal protective equipment (PPE), emergency procedures, and safety precautions for CNC laser operations. To reduce these risks, operator and bystanders MUST completely heed the warnings below.

TOXIC MATERIALS. Exposure to certain types

of fumes can result in serious, potentially deadly health effects. To reduce this risk, research toxicity of material types you work with, and always seek to minimize/eliminate exposure to yourself and others. Obtain the Safety Data Sheet (SDS) from material manufacturer BEFORE operations, and never knowingly engrave or cut a workpiece that has been treated with or contains material that releases toxic byproducts when heated.

TOXIC FUMES. Cutting or engraving metals and plastics give off highly toxic fumes, vapors, and air particulates containing zinc, lead, beryllium, cadmium, mercury, fluorine, hexavalent chromium, chlorine gas, and many others. These fumes and air contaminants can damage the machine and harm your health. If the fume extractor or extraction fan is malfunctioning, immediately stop operations and correct the issue.

ADEQUATE VENTILATION. Only use CNC lasers in spaces with adequate ventilation. Some materials can produce vapors and fumes that may irritate the nose, throat, and respiratory tract, or cause suffocation. Only operate CNC lasers with a fully functioning extraction fan and fume extractor. Use additional personnel to monitor operator from outside the operating area in the event of equipment failure.

EXTRACTION FAN. To effectively extract fumes and particulates from the machine during operations, use an extraction fan rated for a minimum of 200 CFM (Cubic Feet per Minute) at 6" static pressure.

FUME EXTRACTION. CNC lasers must be equipped with a fume extractor that uses MERV 15+ or HEPA filters. NEVER modify fume extractor or bypass safety features. Only operate fume extractor with all filters and covers in place during operation. If any filter is missing or has been replaced with a non-specification filter, the fume extractor will not properly filter contaminated air and will be unsafe to use.

INSPECTIONS/MAINTENANCE. Always inspect exhaust ducting and fume extractor for leaks prior to operations. Repair or replace defective components before starting.

FILTER CLEANING/DISPOSAL. Filters must be changed regularly according to the frequency of use, or as specified by the manufacturer. When servicing filters, make sure operator and any bystanders are wearing Personal Protective Equipment (PPE). When vacuuming filters and cabinet, only use a shop vacuum that is equipped with a MERV 15+ or HEPA filter, or dangerous particulates may be spread throughout the area contaminating the air. Wrap all waste filters in air-tight plastic bags, then mark and dispose of according to current laws and regulations.

EXPERIENCING DIFFICULTIES. Keep in mind that CNC laser hazards are intensified in a confined space. If you are experiencing difficulties performing the intended operation, stop using the equipment, and contact the Occupational Safety and Health Administration (OSHA) at (800) 3216742, or online at www.osha.gov to find out how to design and maintain the best overall CNC laser toxic fume extraction system for your needs.

-10 -

Model G0953 (Mfd. Since 8/22)

Page 13

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 110V ........ 9 Amps

Full-Load Current Rating at 220V

Model G0953 (Mfd. Since 8/22)

.... 4.5 Amps

Circuit Requirements for 110V

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 5-15

Circuit Requirements for 220V

Nominal Voltage .........20 8V, 2 2 0V, 2 3 0V, 24 0V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 6-15

-11-

Page 14

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

For 110V operation: This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

For 220V operation: The plug specified under “ page has a grounding prong that must be attached to the equipment-grounding wire on the included power cord. The plug must only be inserted into a matching receptacle (see following figure) that is properly installed and grounded in accordance with all local codes and ordinances.

it will not fit the outlet, have a qualified electrician install the proper outlet with a

GROUNDED

5-15 RECEPTACLE

Grounding Pin

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Grounding Pin

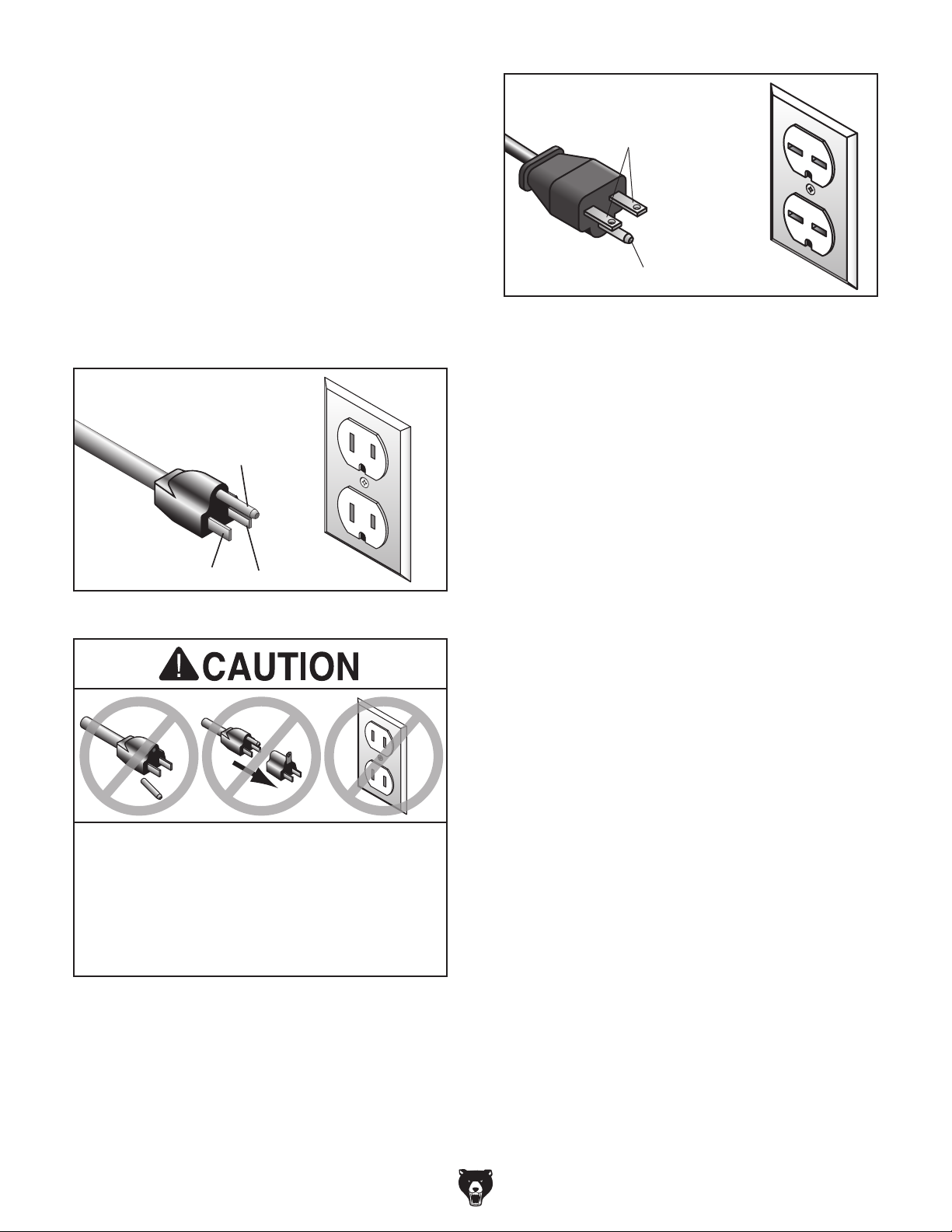

Figure 9. Typical 6-15 plug and receptacle.

5-15 PLUG

Neutral Hot

Figure 8. Typical 5-15 plug and receptacle.

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

verified ground.

Circuit Requirements for 220V” on the previous

-12-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0953 (Mfd. Since 8/22)

Page 15

Converting Voltage

to 220V

The voltage conversion MUST be performed by an electrician or qualified service personnel.

The voltage conversion procedure consists of rewiring the motor, replacing the circuit breaker, and installing the correct plug.

A wiring diagram is provided on Page 34 for your reference.

5. Open motor junction box, then loosen two wire nuts indicated in Figure 10.

Ground

Remove

These

Wire

Nuts

Start

Capacitor

300MFD

125V

Run

Capacitor

40uF 250V

Items Needed Qty

• Phillips Head Screwdriver #2 ..................... 1

• Open-End Wrenches or Sockets 12, 14mm ... 1

• Electrical Tap e ............................ As Needed

• Wire Cutters/Stripper .................................. 1

• NEMA 6-15 Plug ......................................... 1

• Circuit Breaker 7A (P0953029X) ................ 1

• Wire Nut 14-22 AWG .................................. 1

To convert Model G0953 to 220V:

1. DISCONNECT MACHINE FROM POWER!

Unlatch and remove inlet lid.

3. Unlatch and remove top and middle filter

housings, then gently lay bottom filter housing on its side.

Remove base plate.

Figure 10. Motor prewired for 110V.

6. Use three wire nuts to connect wires as indi-

cated in Figure 11. Twist wire nuts onto their respective wires and wrap them with electrical tape so they will not come loose during operation.

Ground

Connect Wires with Nuts Here

Start

Capacitor

300MFD

125V

Run

Capacitor

40uF

250V

Figure 11. Motor rewired for 220V.

Model G0953 (Mfd. Since 8/22)

Close and secure motor junction box.

-13-

Page 16

8. Replace pre-installed 12A circuit breaker (see Figure 12) with 7A circuit breaker.

Circuit

Breaker

Figure 12. Location of circuit breaker.

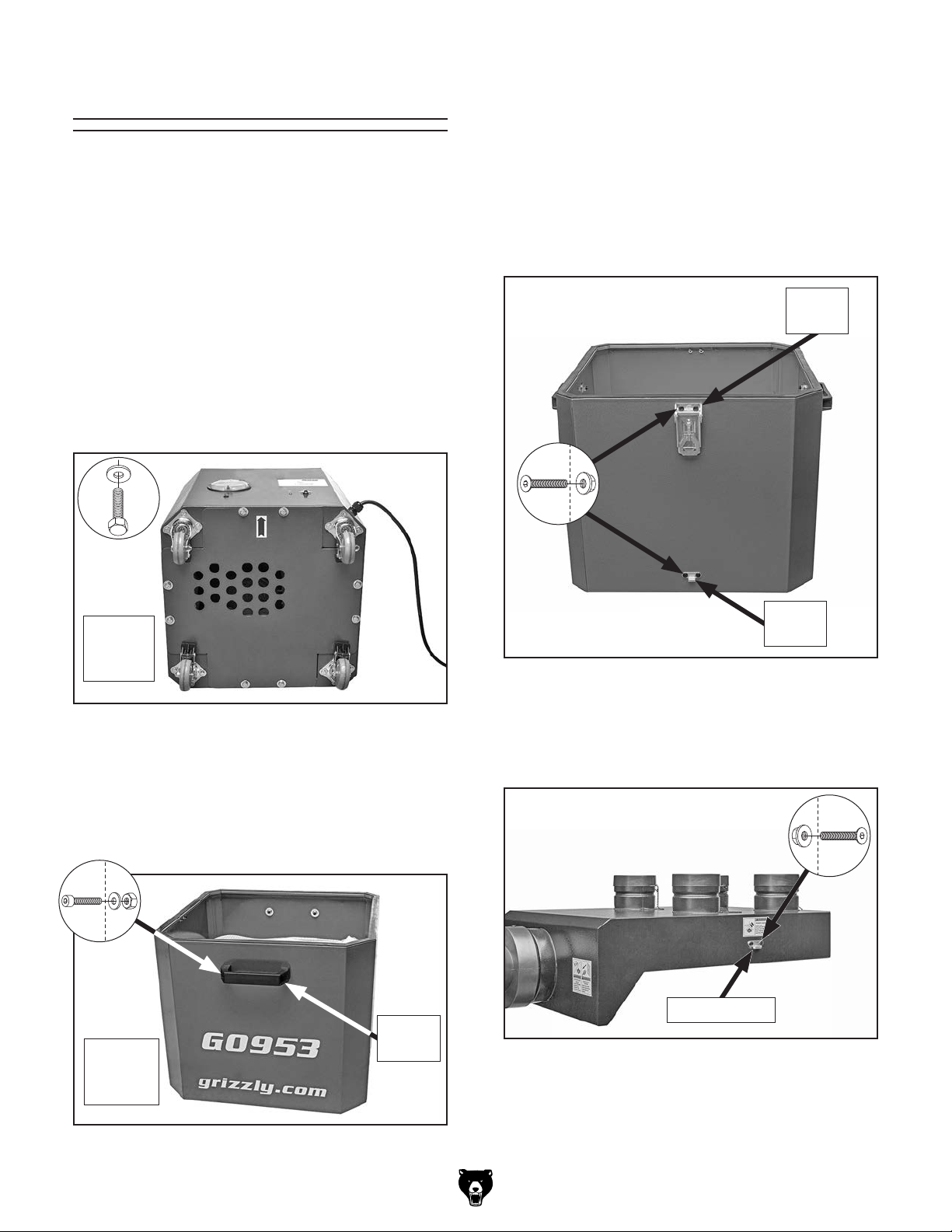

12. Re-stack filter housings and inlet lid, and

secure with latches, as shown in Figure 13.

Top Filter

Housing

Middle Filter

Housing

Re-install base plate, and set bottom filter

housing right side up.

Cut off existing 5-15 plug.

10.

11. Install a 6-15 plug on power cord, according

to plug manufacturer's instructions.

— If plug manufacturer's instructions are not

available, NEMA standard 6-15 plug wiring is provided on Page 34.

Bottom Filter

Housing

Figure 13. Filter housings and inlet lid stacked

and secured correctly.

-14-

Model G0953 (Mfd. Since 8/22)

Page 17

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Description Qty

• Safety Glasses (for each person) ............... 1

• Another Person .......................................... 1

• Lifting Equipment

(Rated for at least 450 lbs.) ........................ 1

• Phillips Head Screwdriver #2 ..................... 1

• Hex Wrench 3, 6mm ............................1 Ea.

• Open-End Wrench or Socket 5⁄16", 1⁄2" ....1 Ea.

• Open-End Wrench or Socket 10mm ............ 1

call us immediately at (570) 546-9663.

Unpacking

If items are damaged

Save all packaging materials until

Model G0953 (Mfd. Since 8/22)

-15-

Page 18

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Box 1 (Figure 14) Qty

A. Inlet Lid ....................................................... 1

B. Top Filter Housing ...................................... 1

—Spark Arrestor ......................................... 1

—Pleated Pre-Filter .................................... 1

—Bag Filter ................................................ 1

—Filter Stand ............................................. 1

—Pleated Polyester Filter ........................... 1

C. Middle Filter Housing.................................. 1

—Activated Carbon Bag, Type-1000 .......... 1

—Activated Carbon Bag, Type-3000 .......... 1

—Activated Carbon Bag, Type-9000.......... 1

—Woven Mesh Screens ............................. 4

D. Bottom Filter Housing ................................. 1

—Pleated Pre-Filter .................................... 1

—HEPA Filter ............................................. 1

Box 2 (Figure 15) Qty

E. Tog gle Latches ........................................... 6

F. Cleats ......................................................... 6

G. Handles ...................................................... 6

H. Locking Caster Wheels 3" .......................... 4

I. Inlet Covers 4" ............................................ 5

J. Inlet Adapter 6" x 4" x 2 .............................. 1

K. Remote Control .......................................... 1

L. Fasteners (Not Shown)

—Flat Head Cap Screws M5-.8 x 14 ........ 24

—Flange Nuts M5-.8 ................................ 24

—Tap Screw #10 x 5⁄8" ................................ 1

—Cap Screws 5⁄16"-18 x 3⁄4"....................... 12

—Flat Washers 5⁄16" .................................. 12

—Hex Nuts 5⁄16"-18 ................................... 12

—Hex Bolts 1⁄4"-20 x 3⁄4" ........................... 16

—Flat Washers 1⁄4" ................................... 16

E F G H

I J K

A B

C D

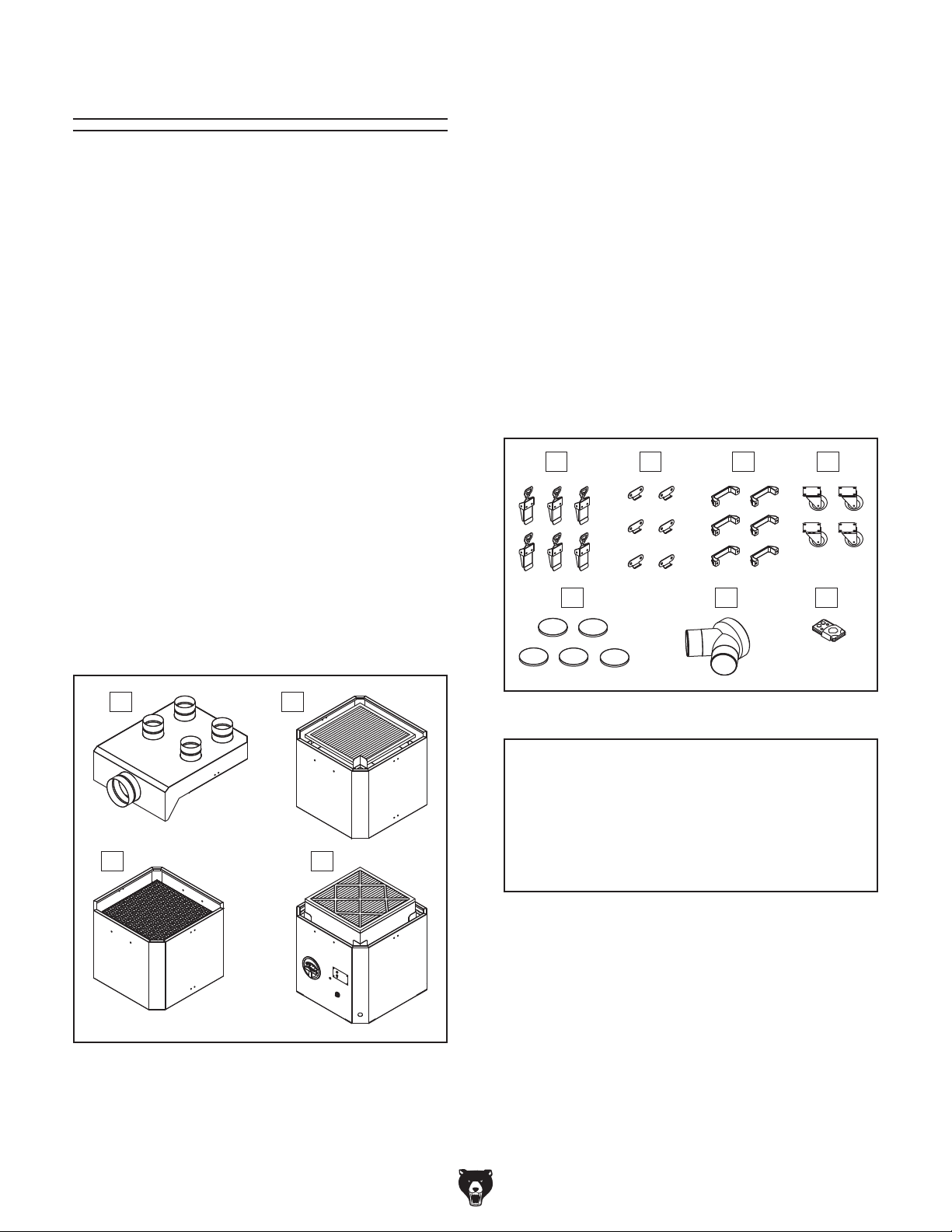

Figure 14. Box 1 inventory.

Figure 15. Box 2 inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-16 -

Model G0953 (Mfd. Since 8/22)

Page 19

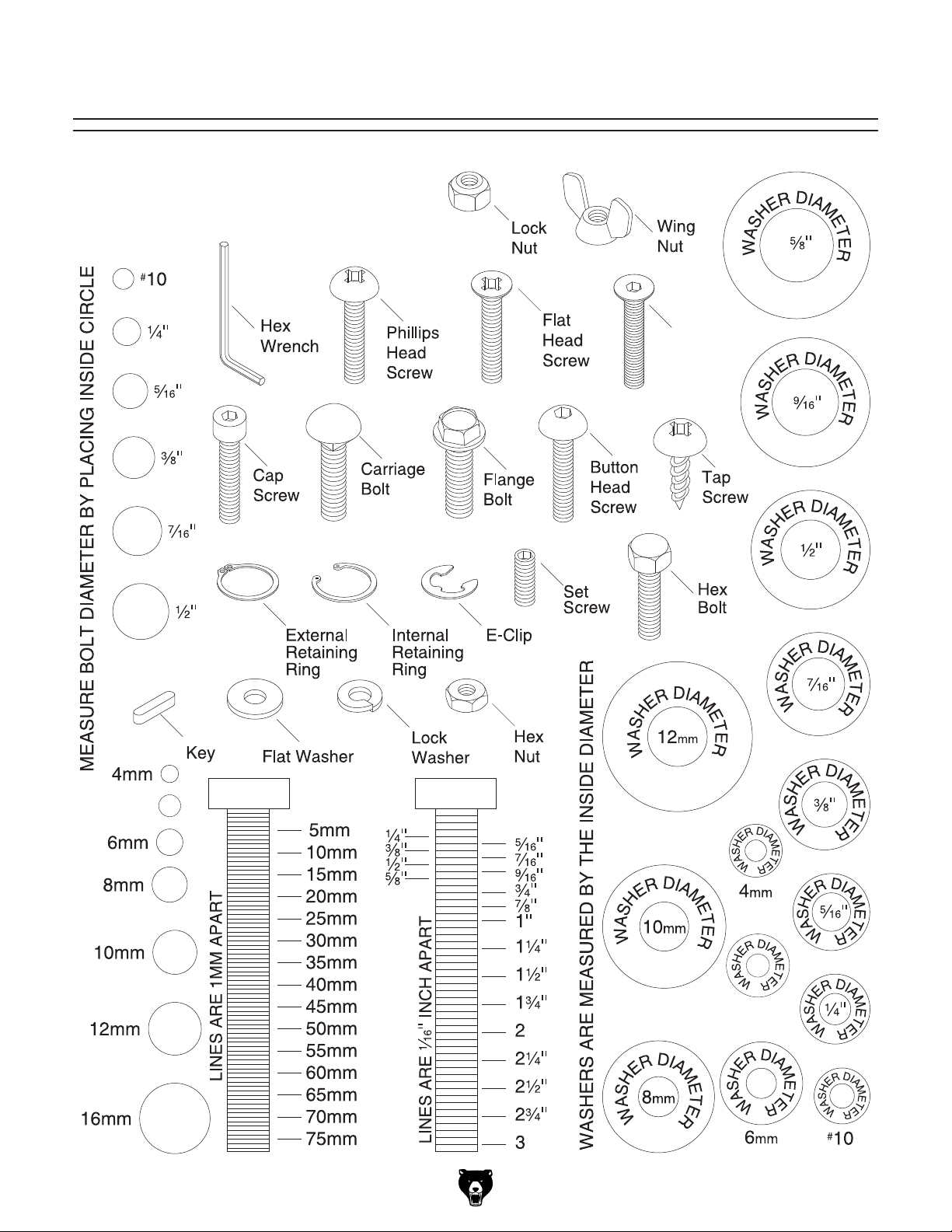

Hardware Recognition Chart

USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.

Flat Head Cap Screw

5mm

Model G0953 (Mfd. Since 8/22)

5mm

-17-

Page 20

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

= Electrical Connection

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

-18-

211/2"

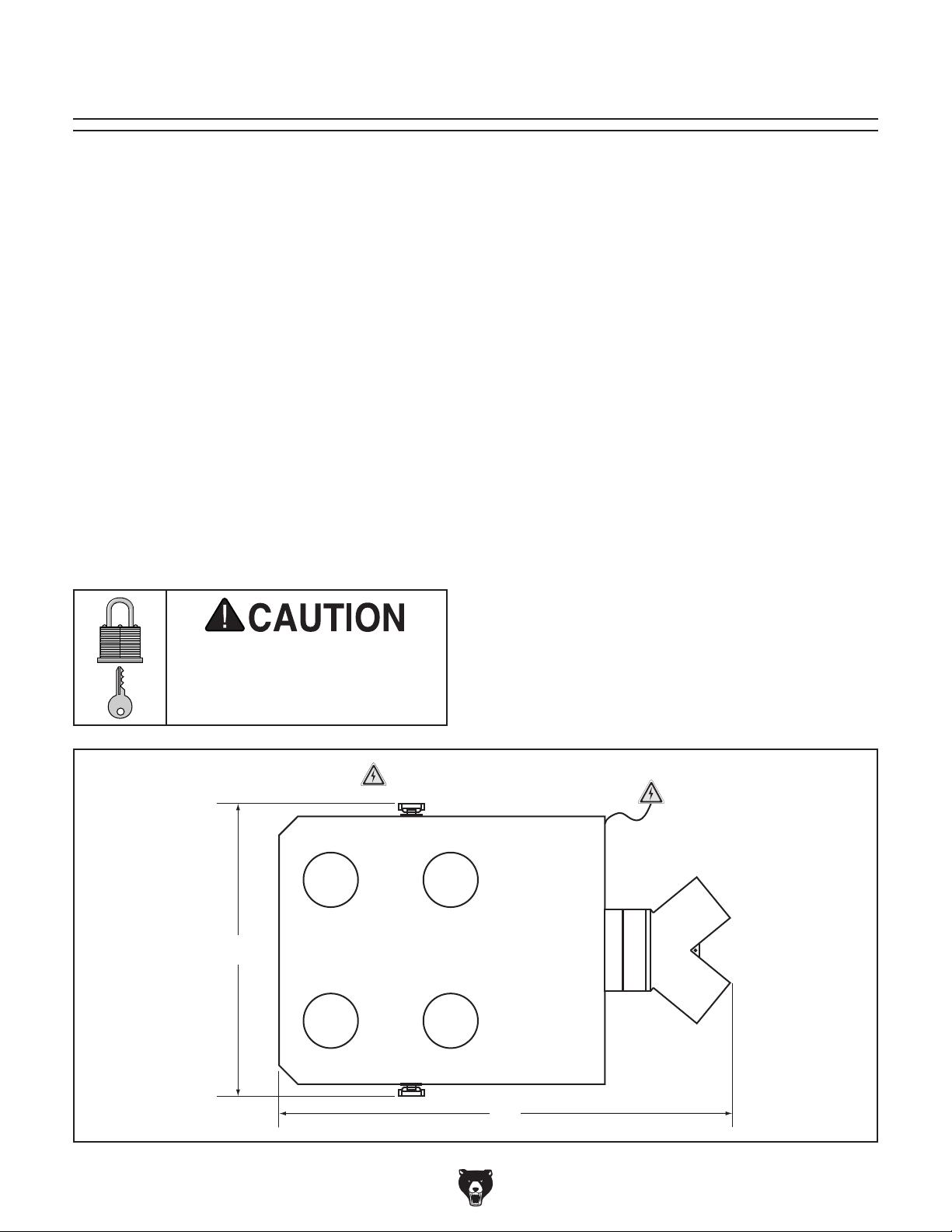

Figure 16. Minimum working clearances.

29"

Model G0953 (Mfd. Since 8/22)

Page 21

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to all goes smoothly, first clean any ered or coated in heavy-duty rust preventative (if applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

To assemble machine:

Lay bottom filter housing on its side (see

1. Figure 17), install (4) caster wheels with (4)

⁄4" -20 x 3⁄4" hex bolts and 1⁄4" flat washers, set

housing right-side up, and lock casters.

Install (1) toggle latch (see Figure 19 ) on top

left and top right side of each filter housing with (2) M5-.8 x 14 flat head cap screws and M5-.8 flange nuts.

Install (1) cleat (see Figure 19) on bottom left

and bottom right side of top and middle filter housings with (2) M5-.8 x 14 flat head cap screws and M5-.8 flange nuts.

Latch

(1 of 6)

x16

Bottom

Filter

Housing

Figure 17. Caster wheels installed on bottom

filter housing.

2. Install (1) handle (see Figure 18) on front and

back of each filter housing with (2)

⁄4" cap screws, 5⁄16" flat washers, and 5⁄16" -18

⁄16" -18 x

hex nuts.

x12

x20

Cleat

(1 of 4)

Figure 19. Toggle latches and cleats installed.

Install (1) cleat (see Figure 20) on left and

right side of inlet lid with (2) M5-.8 x 14 flat head cap screws and M5-.8 flange nuts.

Filter

Housing

(1 of 3)

Figure 18. Handles installed (middle filter

housing shown).

Model G0953 (Mfd. Since 8/22)

Handle (1 of 6)

Cleat (1 of 2)

Figure 20. Latch cleat installed on lid.

-19 -

Page 22

6. In bottom filter housing, verify HEPA filter and pre-filter are installed as shown in Figure 21.

Pre-Filter

HEPA Filter

Remove activated carbon bags and mesh

screens from middle filter housing, extract carbon bags from plastic wrapping, then reinstall carbon bags and mesh screens as shown in Figure 23.

Woven

Mesh Screen

Activated Carbon

Bag, Type-1000

Bottom Filter

Housing

Figure 21. Order of filter installation in bottom

filter housing.

7. Position middle filter housing on top of bottom filter housing (see Figure 22). Ensure labels are oriented in same direction as control panel, and corners of housings are aligned, then secure with toggle latches.

Middle Filter

Housing

Toggle Latch

(1 of 2)

Woven

Mesh Screen

Activated Carbon

Bag, Type-3000

Woven

Mesh Screen

Activated Carbon

Bag, Type-9000

Woven

Mesh Screen

Bottom Filter

Housing

Figure 22. Middle filter housing installed.

-20-

Middle Filter

Housing

Figure 23. Order of filter installation in middle

filter housing.

Model G0953 (Mfd. Since 8/22)

Page 23

9. In top filter housing, verify pleated filter, filter stand, bag filter, pre-filter, and spark arrestor are installed as shown in Figure 24.

Spark Arrestor

Top Filter

Housing

Toggle Latch

(1 of 2)

Pre-Filter

Bag Filter

Filter Stand

Pleated Filter

Top Filter

Housing

Middle Filter

Housing

Bottom Filter

Housing

Figure 25. Top filter housing installed.

Position inlet lid on top filter housing (see

11. Figure 26). Ensure 6" inlet is facing same

direction as control panel, and corners of housing and inlet lid are aligned, then secure with toggle latches.

Install (4) 4" inlet covers (see Figure 26) by

12.

passing chain over each inlet and then pressing cap onto inlet.

Figure 24. Order of filter installation in top filter

housing.

Position top filter housing on top of middle

10.

filter housing (see Figure 25). Ensure labels are oriented in same direction as control panel, and corners of housings are aligned, then secure with toggle latches.

Model G0953 (Mfd. Since 8/22)

Install inlet adapter on 6" inlet with (1) #10 x

13.

⁄8" tap screw (see Figure 26).

4" Inlet Cover

(1 of 4)

Inlet Lid

6" Inlet

Inlet

Adapter

Top Filter

Housing

Figure 26. Inlet lid installed on top filter housing.

-21-

Page 24

Ducting System

Overview

This fume extractor is designed exclusively to extract and filter fumes and particulate generated during laser cutting processes. DO NOT use this fume extractor to collect wood dust. Due to potential fire risk, DO NOT use this fume extractor to collect metal chips.

For best performance, place this fume extractor as close to the laser system as possible and install blast gates at the beginning of ducting lines. Only open one line at a time to focus maximum suction at the machine where fumes are being extracted.

Grizzly offers a complete line of ducting and accessories for setting up your fume extraction ductwork (see Page 26)

Whatever system design you choose, always make sure to position ducting and extractor away from any open flames (including pilot lights); otherwise you risk an explosion if material is dispersed into the air.

Always guard against static electrical build up by grounding all collection lines.

There are a number of options when it comes to metal duct, but duct that is specially manufactured for extraction of laser fumes and particulate is the best choice. When selecting your metal duct, choose high-quality metal duct with smoothwelded internal seams that will minimize airflow resistance. This type of duct usually connects to other ducts or elbows with a simple, self-sealing clamp, is very quick and easy to assemble, and can be readily dismantled and re-installed. This is especially important if you ever need to change things around in your shop or add more machines.

Duct Material

For best results, use only smooth-wall, sheetmetal ducting or flexible metal ducting to connect each machine.

For further guidance on duct material, consult

NFPA 91: Standard for Exhaust Systems for Air Conveying of Vapors, Gases, and Particulate Solids from The National Fire Protection Agency.

Metal Ducting

Advantages of metal ducting is its conductivity and that it does not contribute to static electrical charge build-up. However, static charges are still produced when particles strike other dust particles as they move through the duct. Since metal duct is a conductor, it can be grounded quite easily to dissipate any static electrical charges. Replace any plastic exhaust ports with sheet-metal equivalents, or bond sheet metal ducting to metal frame of machine with grounding wire.

Figure 27. Examples of metal duct and

components.

Avoid inferior metal duct that requires you to cut it to length and snap it together. This type of duct is time-consuming to install because it requires you to seal all the seams with silicone and screw the components on the ends with sheet-metal screws. Another disadvantage is the rough internal seams and crimped ends that unavoidably increase static pressure loss.

-22-

Model G0953 (Mfd. Since 8/22)

Page 25

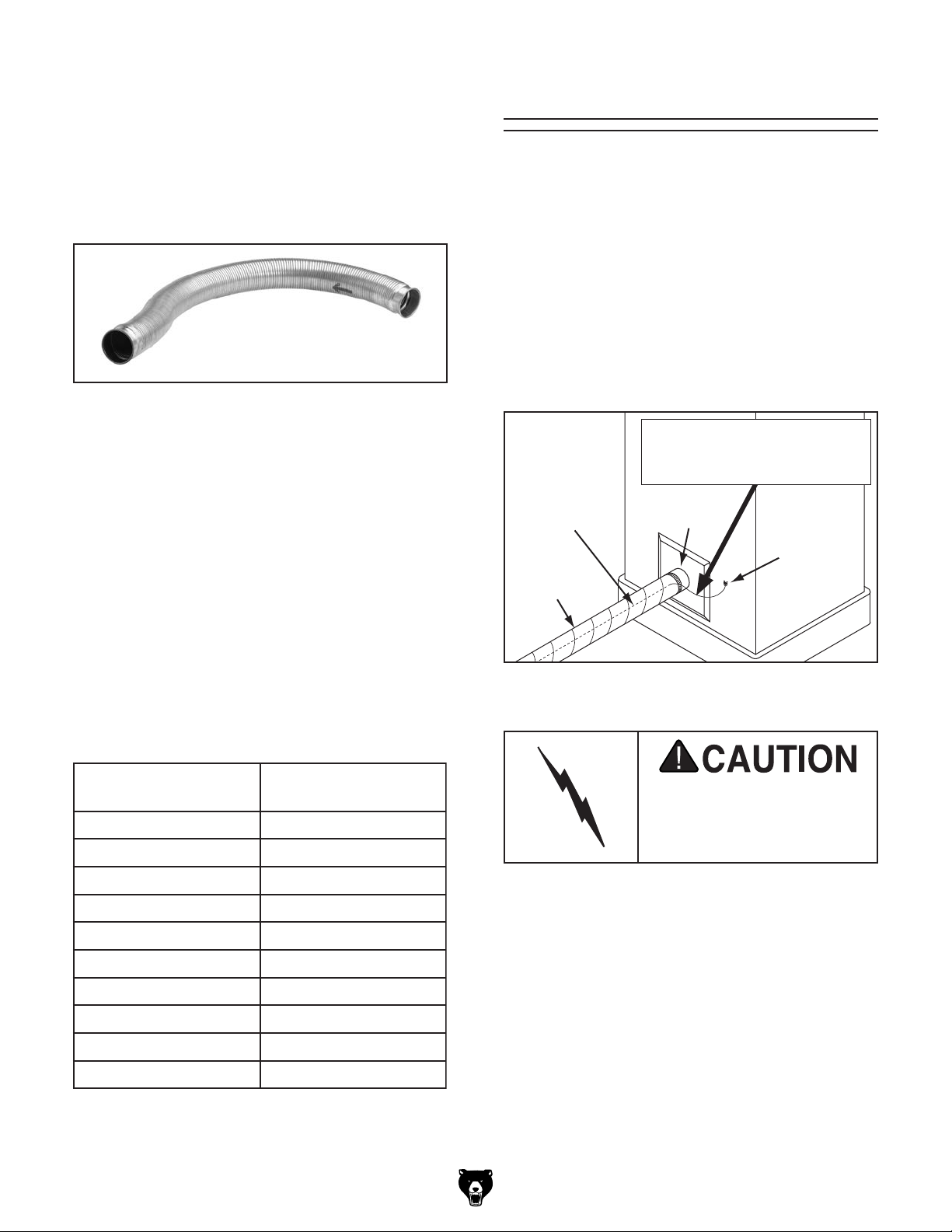

Flexible Duct

Flexible hose is generally used for short runs and at rigid duct-to-machine connections. The superior choice here is metal flex hose that is designed to be flexible, yet be as smooth as possible inside to reduce static pressure loss. DO NOT use dryer vent hose because it tends to collapse.

Figure 28. Example of flexible metal duct.

System Grounding

To guard against static electrical buildup, we strongly recommend replacing any plastic exhaust ports on laser machines with metal equivalents.

If you absolutely must use any plastic duct or components, they must be completely grounded and bonded to the metal frame of a grounded machine by wrapping the flex hose with an external ground wire connected to both machines as shown in Figure 30. Ensure that each machine is continuously grounded to the grounding terminal in your electric service panel.

Ensure Required CFM at Machine

Since each machine produces a different amount of fumes, the requirements for the minimum amount of CFM to move the fumes is unique to the machine. Knowing this required CFM is important to gauging what size duct to use.

For best results when using the inlet adapter, we recommend installing blast gates to control airflow for each line near the inlet.

Refer to Figure 29 for a close estimation of the airflow each laser cutting machine requires. Machines that generate the most fumes should be placed as close as possible to the fume extractor.

Machine

Exhaust Port Size

2" 100

2.5" 150

3" 250

Approximate

Required CFM

Grounding wire bypasses

plastic components to bond

ducting to grounded machine

External

Ground Wire

Flex-Hose

Figure 30. Example showing how to ground and

bond ducting with a grounding wire.

Plastic

Dust Port

Ground

Screw

Always guard against static electrical buildup by grounding all collection lines.

4" 400

5" 600

6" 850

7" 1200

8" 1600

9" 2000

10" 2500

Figure 29. Approximate required airflow for

machines based on dust port size.

Model G0953 (Mfd. Since 8/22)

-23-

Page 26

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and 2) the remote control works correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

To test run machine:

1. Clear all setup tools away from machine.

2. Lock swivel casters on base.

3. Connect machine to power supply.

4. On control panel, press ON button to turn

machine ON. POWER INDICATOR light will illuminate.

Verify motor starts up and runs smoothly

without any problems or unusual noises.

On control panel, press OFF button to turn

machine OFF. POWER INDICATOR light will dim.

To test remote control, press remote button A

to turn motor ON, then press button B to turn motor OFF.

— If machine does NOT start or stop, press

OFF button on control panel to turn machine OFF. Refer to Pairing Remote Control on Page 30 and ensure remote control is paired.

DO NOT start machine until all preceding

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

-24-

Model G0953 (Mfd. Since 8/22)

Page 27

SECTION 4: OPERATIONS

To reduce your risk of serious injury, read this entire manual BEFORE

Operation

This laser fume extractor draws in fumes and particulate matter through the inlet lid, and discharges air through an 8-stage air-filter system contained in three filter housings.

The machine can be used solely as a laser fume extractor by connecting it directly to a laser cutting system, or it can be used as an area air filter.

Inlet Covers

(1 of 4)

using machine.

Never operate machine with damaged or worn parts. Never operate machine with filters, housings, or inlet lid removed.

Inlet Lid

Top Filter

Housing

Middle Filter

Housing

Bottom Filter

Housing

Figure 31. Fume extractor components.

Eye and face injuries and respiratory problems can occur while operating or cleaning this machine. Wear personal protective equipment to reduce your risk from these hazards. Wear NIOSH-approved respirator, ANSI-approved safety goggles, and protective gloves whenever cleaning or replacing filters.

4" Inlets

6" Inlet

Inlet

Adapter

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Using Machine as Fume Extractor

1. Install inlet covers on 4" inlets (see Figure 31).

Turn fume extractor ON.

Turn laser cutting machine ON and perform

operation.

Turn laser cutting machine OFF, then turn

fume extractor OFF.

Using Machine as Area Air Filter

Remove inlet covers from 4" inlets (see

1. Figure 31).

Install inlet adapter on 6" inlet, and cover 4"

inlets on adapter with inlet covers.

Model G0953 (Mfd. Since 8/22)

Turn fume extractor ON.

When air filtering operation is complete, turn

fume extractor OFF.

-25-

Page 28

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

G0953 Replacement Filters

T33152—Aluminum Mesh Spark Arrestor T33153—2–10 Micron Pleated Pre-Filter T33154—Bag Filter T33155—1-Micron Polyester Filter T33156—Woven Nylon Mesh T33157—Activated Carbon Bag, Type-1000 T33158—Activated Carbon Bag, Type-3000 T33159—Activated Carbon Bag, Type-9000 T33160—0.3-Micron HEPA Filter

H7215—4" x 5' Rigid Flex Hose H7217—6" x 5' Rigid Flex Hose

These rigid flex hoses with rolled collars provide just enough flexibility to make difficult connections while still keeping the inside wall smooth.

H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100

Breathing dust has been linked to nasal cancer and severe respiratory illnesses. Compatible with safety glasses!

H3635

H3631

Figure 33. Half-mask respirator and disposable

cartridge filters.

H5293—4" Industrial Dust Collection Kit H5298—6" Industrial Dust Collection Kit

These Industrial Dust Collection Fittings Starter Kits include everything you will need for a simple, single-machine setup. The big advantage of these metal fittings lies in their design flexibility, as they can be unclamped and reconfigured for new shop layouts.

Figure 32. Rigid flex hose.

Figure 34. Industrial dust collection kits.

-26-

Model G0953 (Mfd. Since 8/22)

Page 29

order online at www.grizzly.com or call 1-800-523-4777

Basic Eye Protection

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20456—DAKURA Safety Glasses, Black/Clear T28175—S3960HS Stealth Safety Glasses

T20502

T28175

G0872—60W Benchtop 17" x 23" Laser Cutter/ Engraver

The machine can produce amazingly detailed, high resolution designs with stepper controlled movements on linear bearing rails and refined optics.

The 60W C0

2 laser can cut through various plas-

tics, wood types, fabrics, vinyl, and even leather. With engraving speeds up to 1,900 in./min. and accuracy better than 0.002", this machine produces amazing results in a flash.

T20503

T20451

T20456

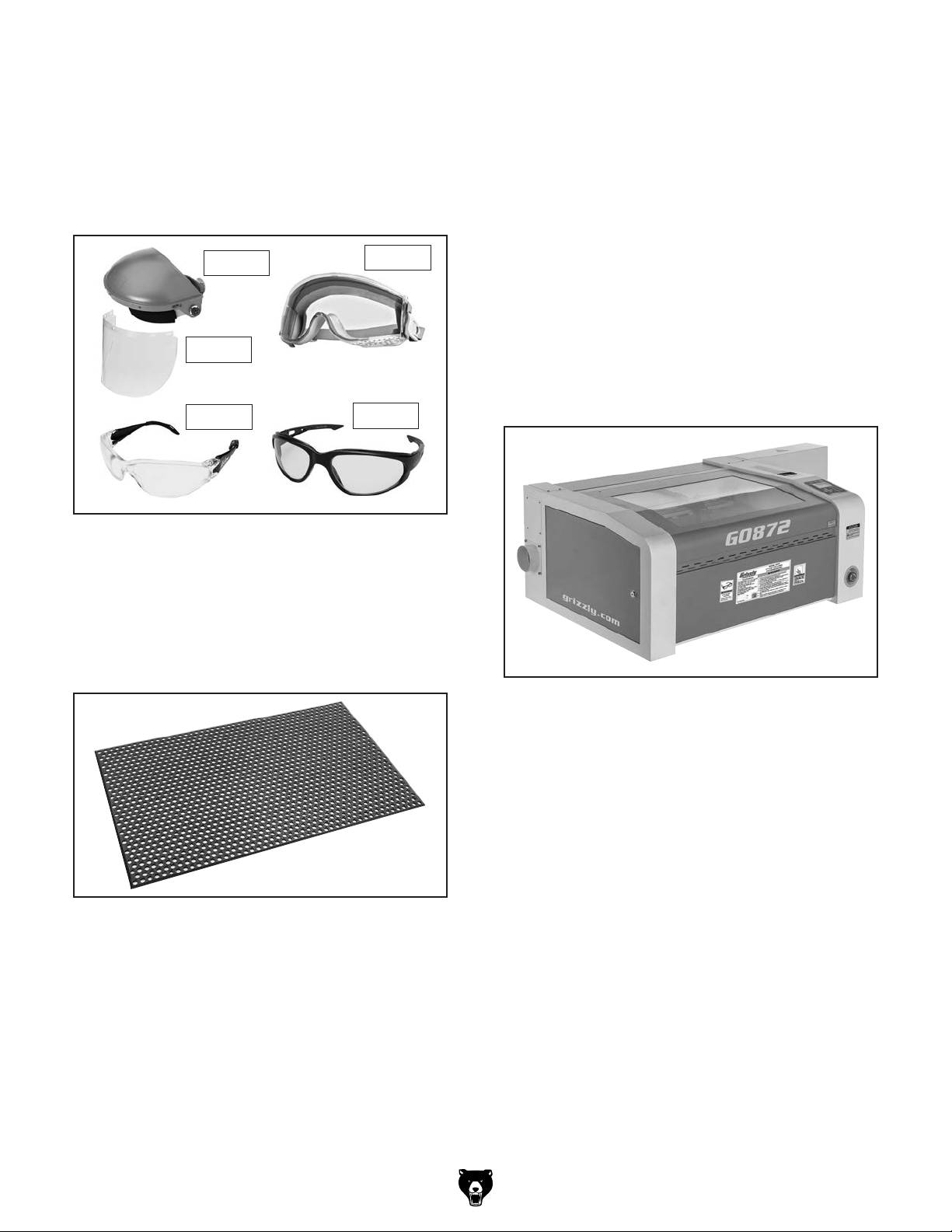

Figure 35. Assortment of basic eye protection.

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features beveled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions.

Measures 3' wide x 5' long x

⁄8" thick.

The G0872 is only compatible with the included RDCam V8 design software. It includes a water chiller system, exhaust fan, and air pump. Meets FDA safety standards.

Figure 37. G0872 60W 17" x 23" CNC Laser

Cutter/Engraver.

Figure 36. T10456 Anti-Fatigue Mat.

Model G0953 (Mfd. Since 8/22)

-27-

Page 30

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments,

Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protective gloves when removing, cleaning, and replacing filters. Carefully minimize amount

maintenance, or service.

Schedule

of dust allowed to become airborne, and prevent spread of dust onto hands or clothing. Dispose of all waste properly according to local regulations for material type.

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged filters. Worn or damaged wires.

• Suction leaks.

• Any other unsafe condition.

•

Monthly Check

• Clean/vacuum dust buildup off machine body.

Cleaning/Replacing

Filters

Cleaning Filters

Always clean filters outdoors when possible! However, take special care to avoid contaminating the environment. When cleaning filters, always inspect for damage and replace filters if ANY damage or tears are found.

Initially clean all filters by carefully tapping cakedon dust into an enclosed container to minimize release of dust into the air, then follow the applicable instructions provided below for each filter type.

IMPORTANT: DO NOT use compressed air to clean filters—especially if indoors—as it will likely cause a large amount of fine dust to become airborne and could damage the filters.

Re-install the filters in the same sequence in which they were removed (refer to Pages 20–21). Examine each filter to determine if it is marked with a label indicating the direction of airflow. If so, the filter should be installed with the arrow pointing down (toward the floor).

Clean the filters when the operating pressure on the pressure gauge exceeds 4 inches of water (inAq). Replace the filters when the operating pressure exceeds 7 inches of water (inAq) and cleaning does not improve performance.

Items Needed

Soft Bristle Brush .............................................. 1

Vacuum Cleaner w/HEPA Filter Safety Goggles Respirator

Protective Gloves..........................................1 Pr.

-28-

Qty

......................... 1

.............................................1 Pr.

.......................................................... 1

Top Filter Housing

Spark Arrestor

Flush with water or other liquid into an enclosed container and air dry. Carefully collect flushed waste and dispose of properly.

Stage -1 2–10 Micron Pleated Pre-Filter
