Grizzly G0952 User guide

MODEL G0952

3" X 79" METAL BELT

GRINDER/SANDER

OWNER'S MANUAL

(For models manufactured since 09/21)

COPYRIGHT © OCTOBER, 2021 BY GRIZZLY INDUSTRIAL, INC., REVISED SEPTEMBER, 2022 (CS)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CS21945 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 9.2 2

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 5

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Metal Belt Grinders

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Inventory
Site Considerations
Anchoring to Floor
Dust Collection
Power Connection
Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 17

Workpiece Inspection
Grinding Tips

Choosing Grinding Belts .......................................................................................................... 19

Installing/Changing Belt............................................................................................................ 19

Checking/Adjusting Belt Tracking
Grinding

................................................................................................................................ 12

................................................................................................................................... 13

................................................................................................................................... 16

.................................................................................................................................... 22

....................................................................................................................... 7

............................................................................................... 7

................................................................................... 9

...................................................................................................... 10

....................................................................................................................... 12

..................................................................................................................... 12

.................................................................................................................. 13

.................................................................................................................... 14

......................................................................................................................... 14

.................................................................................................................... 15

........................................................................................................... 17

............................................................................................................... 18

............................................................................................................................ 18

............................................................................................ 20

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 25

Schedule
Cleaning
Lubrication
Emptying Spark Tray

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram......................................................................................................................... 29

SECTION 9: PARTS

Main
Labels & Cosmetics

WARRANTY & RETURNS

.................................................................................................................................. 25

................................................................................................................................... 25

................................................................................................................................ 25

................................................................................................................... 26

........................................................................................................................ 26

...................................................................................................................... 28

....................................................................................................................... 30

.......................................................................................................................................... 30

......................................................................................................... 23

................................................................................................................ 25

........................................................................................................ 28

................................................................................................................. 32

............................................................................................................. 33

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0952 (Mfd. Since 09/21)

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Contact

Wheel

Work Rest

Belt Tracking

Adjustment Knob

Work Rest
Lock Knob

Belt Access

Door Lock

ON/OFF

Buttons

w/E-Stop

Cover

Belt Access

Door

Motor

Eye

Shield

Belt Tension

Lock Knob

Belt Tension

Lever

Grinding

Belt

Spark

Tray

For Your Own Safety Read Instruction Manual Before Operating Sander

a) Wear eye protection.
b) Support workpiece with work rest.
c) Maintain 1⁄16 in. maximum clearance between work rest and sanding belt.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

Model G0952 (Mfd. Since 09/21)

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

-3-

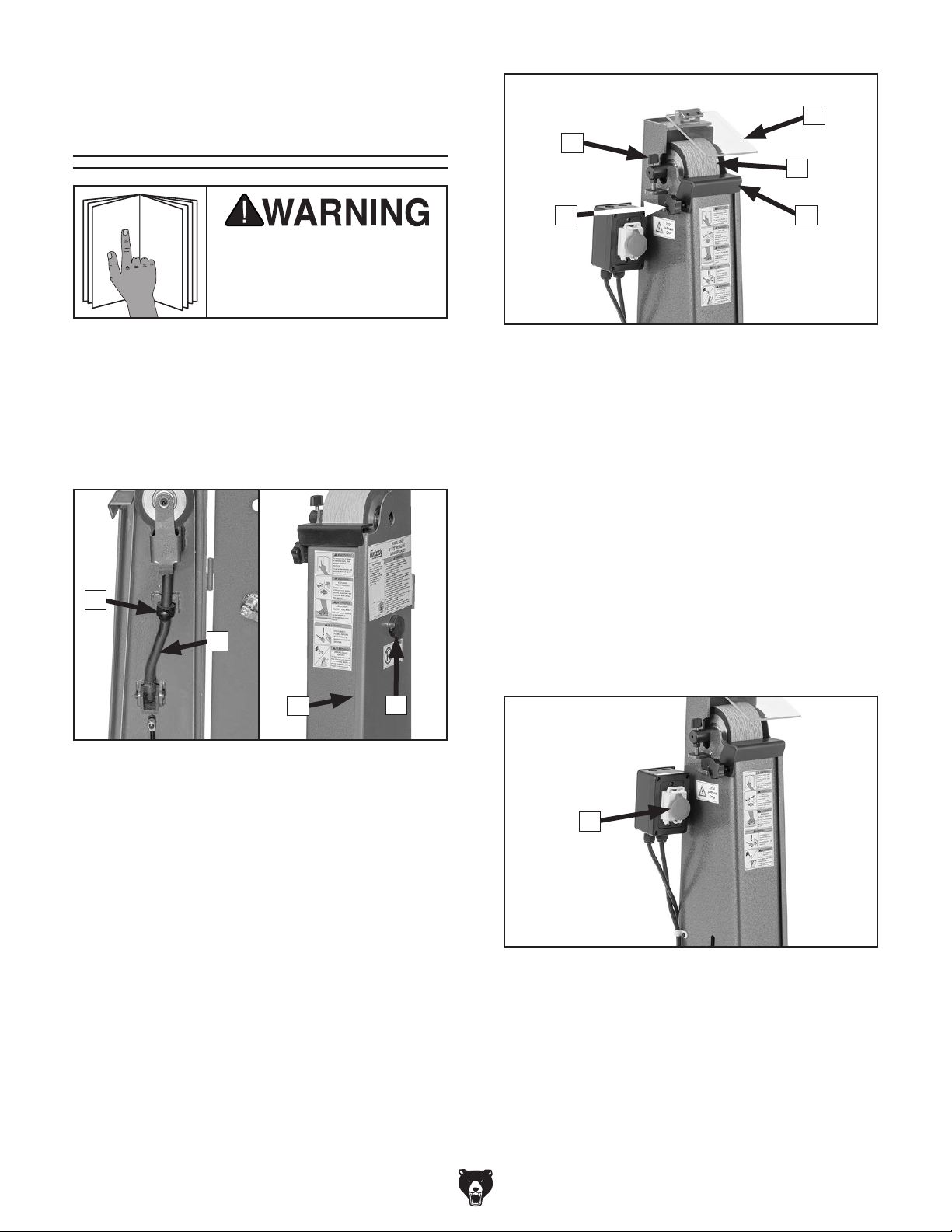

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

F

E

G

HI

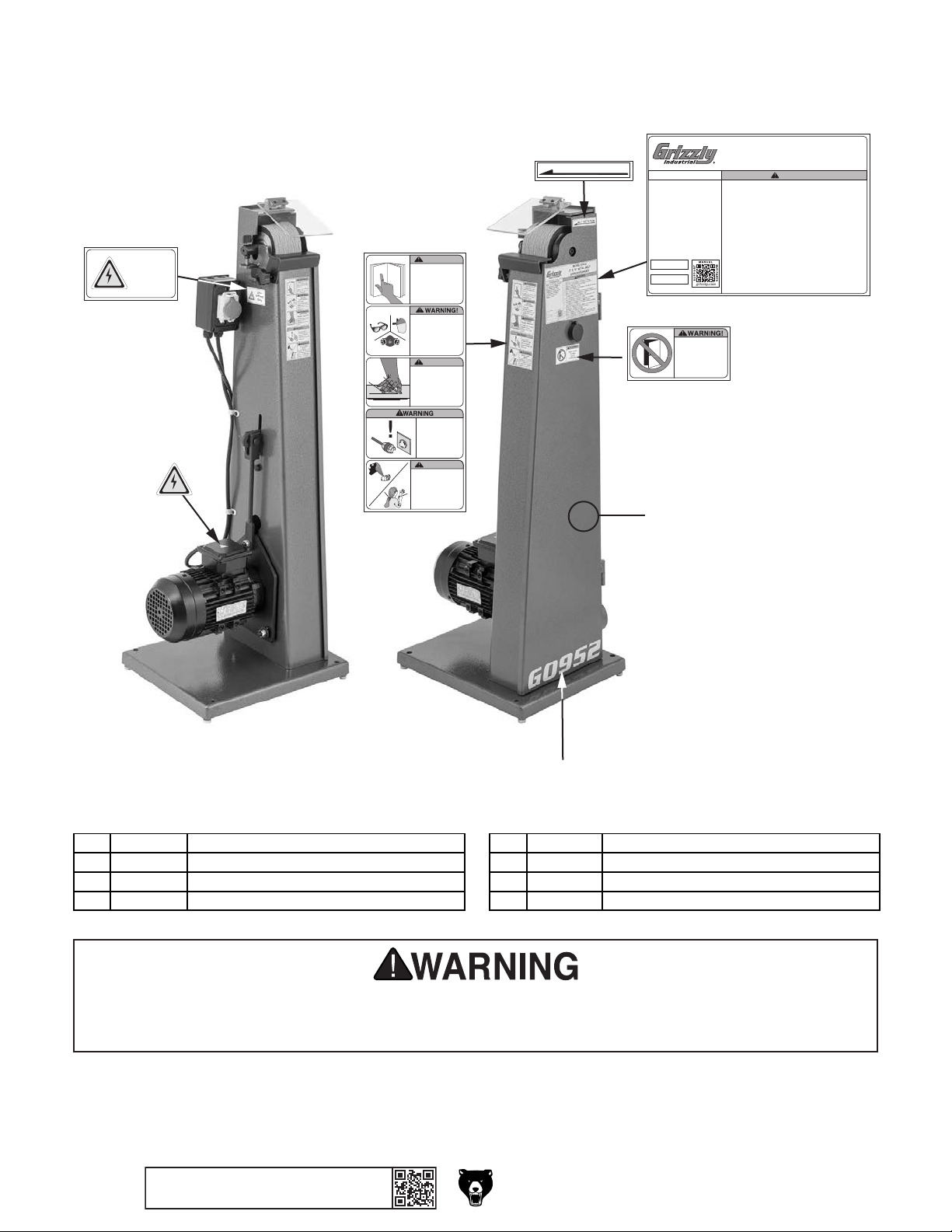

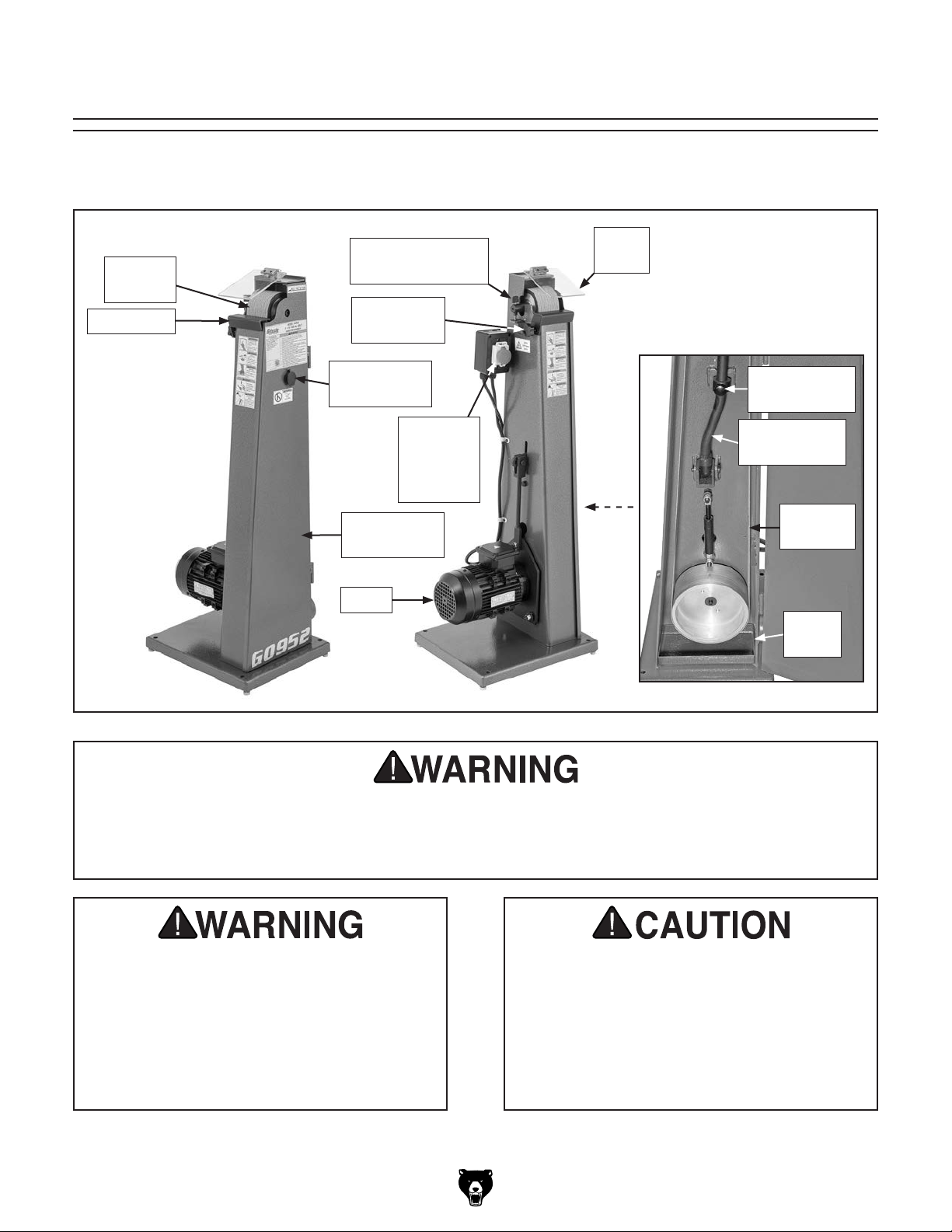

Figure 2. Operational controls and components.

E. Belt Tracking Adjustment Knob: Fine-

tunes tracking along wheels.

F. Eye Shield: Protects against sparks during

operations. This shield is not a substitute for
personal protective equipment.

G. Contact Wheel: Provides belt support for

curved grinding surface.

A

B

C

Figure 1. Grinding belt tension components.

A. Belt Tension Lock Knob: Tighten to secure

belt tension lever and loosen to release belt
tension lever.

B. Belt Tension Lever: Releases and engages

belt tension for belt removal or adjustment.

C. Belt Access Door: Opens and closes to

allow for belt replacement and maintenance.

D. Belt Access Door Lock: Locks and releases

belt access door using key.

D

H. Work Rest: Supports workpiece during oper-

ations.

I. Work Rest Lock Knob: Loosen to adjust

work rest position and tighten to secure.

J

Figure 3. Power controls.

J. ON/OFF Buttons w/E-Stop Cover: ON but-

ton turns motor ON. Depressing E-Stop cover
turns motor OFF and prevents accidental
startup.

-4-

Model G0952 (Mfd. Since 09/21)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0952 3" X 79" METAL BELT GRINDER/SANDER

Product Dimensions:

Weight.............................................................................................................................................................. 117 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 25-1/2 x 13 x 42 in.

Footprint (Length x Width)............................................................................................................................ 16 x 13 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 172 lbs.

Length x Width x Height....................................................................................................................... 19 x 16 x 48 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement................................................................................................................... 220V, 3-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 3.9A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 98 in.

Power Cord Gauge......................................................................................................................................... 15 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type................................................................................................................................... 15-15

Switch Type............................................................................................... Push Button w/Magnetic Switch Protection

Motors:

Main

Horsepower.......................................................................................................................................... 1-1/2 HP

Phase.................................................................................................................................................... 3-Phase

Amps........................................................................................................................................................... 3.9A

Speed................................................................................................................................................ 3440 RPM

Type............................................................................................................................................... AC Induction

Power Transfer ......................................................................................................................................... Direct

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Belt Sander Info

Sanding Belt Width...................................................................................................................................... 3 in.

Sanding Belt Length.................................................................................................................................. 79 in.

Sanding Belt Speed........................................................................................................................... 5018 FPM

Contact Wheel Diameter.............................................................................................................................. 4 in.

Contact Wheel Width................................................................................................................................... 3 in.

Drive Wheel Diameter.................................................................................................................................. 7 in.

Drive Wheel Width....................................................................................................................................... 3 in.

Belt Tension Release Type......................................................................................................... Quick-Release

Construction Materials

Base........................................................................................................................................................... Steel

Frame......................................................................................................................................................... Steel

Paint Type/Finish....................................................................................................................... Powder Coated

Model G0952 (Mfd. Since 09/21)

-5-

Other Related Info

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size.............................................................................................................................................. 3 in.

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

38-1/4" Tool Rest Working Height
5018 FPM Sanding Belt Speed
3" x 79" 80-Grit Belt Included
Single-Knob Tracking Adjustment
Rubber-Coated Contact Wheel
Quick-Release Belt Tension
Removable Spark Tray

-6-

Model G0952 (Mfd. Since 09/21)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0952 (Mfd. Since 09/21)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0952 (Mfd. Since 09/21)

Additional Safety for Metal Belt Grinders

Serious injury or death can occur from fingers, clothing, jewelry, or hair getting pinched/
entangled in rotating belt or other moving components. Abrasion injuries can occur from touching
moving grinding belt with bare skin. Workpieces or ground-off particles thrown by grinding belt
can strike operator or bystanders, causing impact injuries or blindness. Long-term respiratory
damage can occur from using grinder without wearing a respirator. To reduce the risk of these
hazards, operator or bystanders MUST completely heed the hazards and warnings below.

IN-RUNNING NIP POINTS. The gap between

moving grinding belt and table/support creates a
pinch point for fingers or workpieces; the larger
this gap is, the greater the risk of fingers or
workpieces getting caught in it. Minimize the risk of
pinch and crush injuries by adjusting table/support
to no more than

GRINDING DUST. Grinding creates large amounts
of airborne dust particles that can cause eye injury
or respiratory illness. Reduce your risk by always
wearing approved eye and respiratory protection
when using grinder.

ABRASIVE CONDITION. Worn or damaged grind­ing belts can fly apart and throw debris, or aggres­sively grab workpiece, causing injury from opera­tor loss of workpiece control. Always inspect belt
before operation and replace if worn or damaged.

HOT WORKPIECES. Grinding friction will cause
workpiece to quickly get hot, causing burns to the
skin. Wear apron if grinding for an extended time.
Do not touch freshly ground surfaces or nearby
areas without first cooling them or allowing them
to cool.

1

⁄16" away from belt.

MINIMUM STOCK DIMENSION. Small
workpieces can be aggressively pulled from your
hands, causing contact with belt surface. Always
use a jig or other holding device when grinding
small workpieces, and keep hands and fingers at
least 2" away from abrasive surface.

FLAMMABLE MATERIALS. Grinding metal will
cause sparks. Make sure there are no flammable
or combustible materials near machine.

ABRASIVE DIRECTION. Feeding workpiece
incorrectly can cause it to be thrown from machine,
striking operator or bystanders, or causing hands
to slip into moving belt. To reduce these risks, only
grind against direction of sandpaper travel, ensure
workpiece is properly supported, and avoid intro­ducing sharp edges into moving belt on the lead­ing side of the workpiece.

PROTECTING HANDS. Rotating belt can remove
skin quickly. Always keep hands away from mov­ing belt during operation. Do not wear gloves while
grinding. Stop machine before cleaning dust from
work area and protect hands because pieces can
be sharp.

WORKPIECE INTEGRITY & SUPPORT. Grinding
fragile workpieces can result in loss of control,
resulting in abrasion injuries, pinch/impact inju­ries, or damage to abrasive belt. Only grind solid
workpieces that can withstand power grinding
forces. Properly support workpiece; avoid grinding
workpieces without flat bottom surfaces unless
some type of jig is used to maintain support and
control when grinding force is applied. Always
grind with workpiece firmly against table or anoth­er support device.

Model G0952 (Mfd. Since 09/21)

FEEDING WORKPIECE. Forcefully jamming
workpiece into abrasive surface could cause it
to be grabbed aggressively, pulling hands into
abrasive surface. Firmly grasp workpiece in both
hands and ease it into belt using light pressure.

AVOIDING ENTANGLEMENT. Becoming
entangled in moving parts can cause severe injury
or death. Keep all guards in place and closed; DO
NOT wear loose clothing, gloves, or jewelry; and
tie back long hair.

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .........20 8V, 220V, 23 0V, 240V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle
Cord

.................................................... 3-Phase

......................... 15 Amps

............................NEMA 15-15

........“S ”-Type , 4-Wire, 15 AWG, 300 VAC

Full-Load Current Rating at 220V .... 3.9 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model G0952 (Mfd. Since 09/21)

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

Serious injury could occur if you connect

process. DO NOT connect to power until

Grounding Instructions

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

The power cord and plug specified under “Circuit
Requirements for 220V”
has an equipment-grounding wire and a ground­ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all

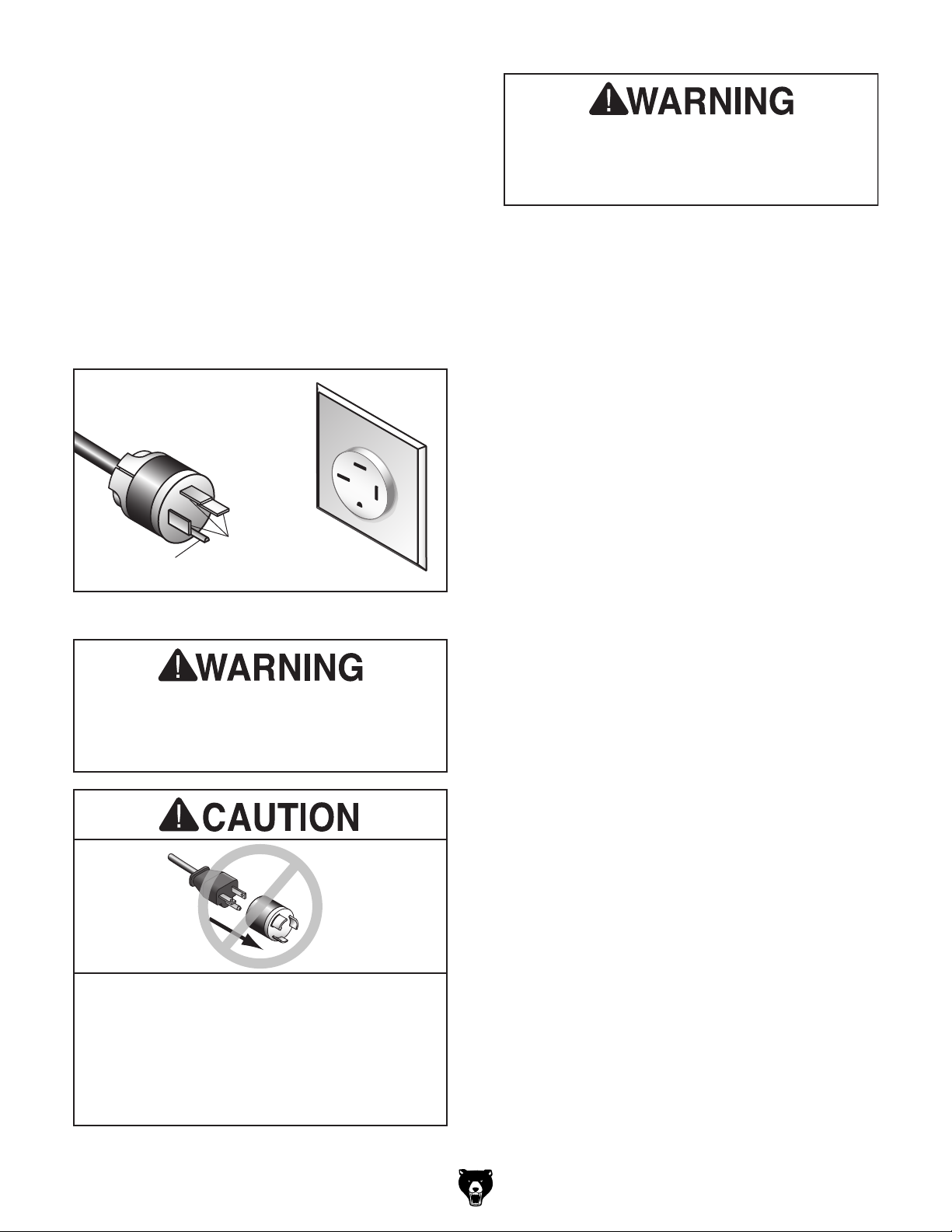

local codes and ordinances (see figure below).

No adapter should be used with plug. If
plug does not fit available receptacle, or if

process. DO NOT connect to power until

on the previous page

GROUNDED

15-15 RECEPTACLE

15-15 PLUG

Current

Carrying

Grounding Pin

Prongs

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Extension Cords

Figure 4. Typical 15-15 plug and receptacle.

machine to power before completing setup

instructed later in this manual.

machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

Model G0952 (Mfd. Since 09/21)

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

The following items are needed, but not included,
for the setup/assembly of this machine.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

Description Qty

• Disposable Rags ........................ As Needed

• Cleaner/Degreaser ..................... As Needed

• Safety Glasses (for each person) ........1 Pair

• Disposable Gloves ..................... As Needed

• Assistant for Lifting ..................................... 1

• Mounting Hardware .................... As Needed

• Metal Dust Collection System .................... 1

• Metal Ducting 3" ......................................... 1

• Pipe Clamp 3" ............................................ 1

• Phillips Head Screwdriver #2 ..................... 1

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

-12-

Model G0952 (Mfd. Since 09/21)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Site Considerations

Workbench Load

Placement Location

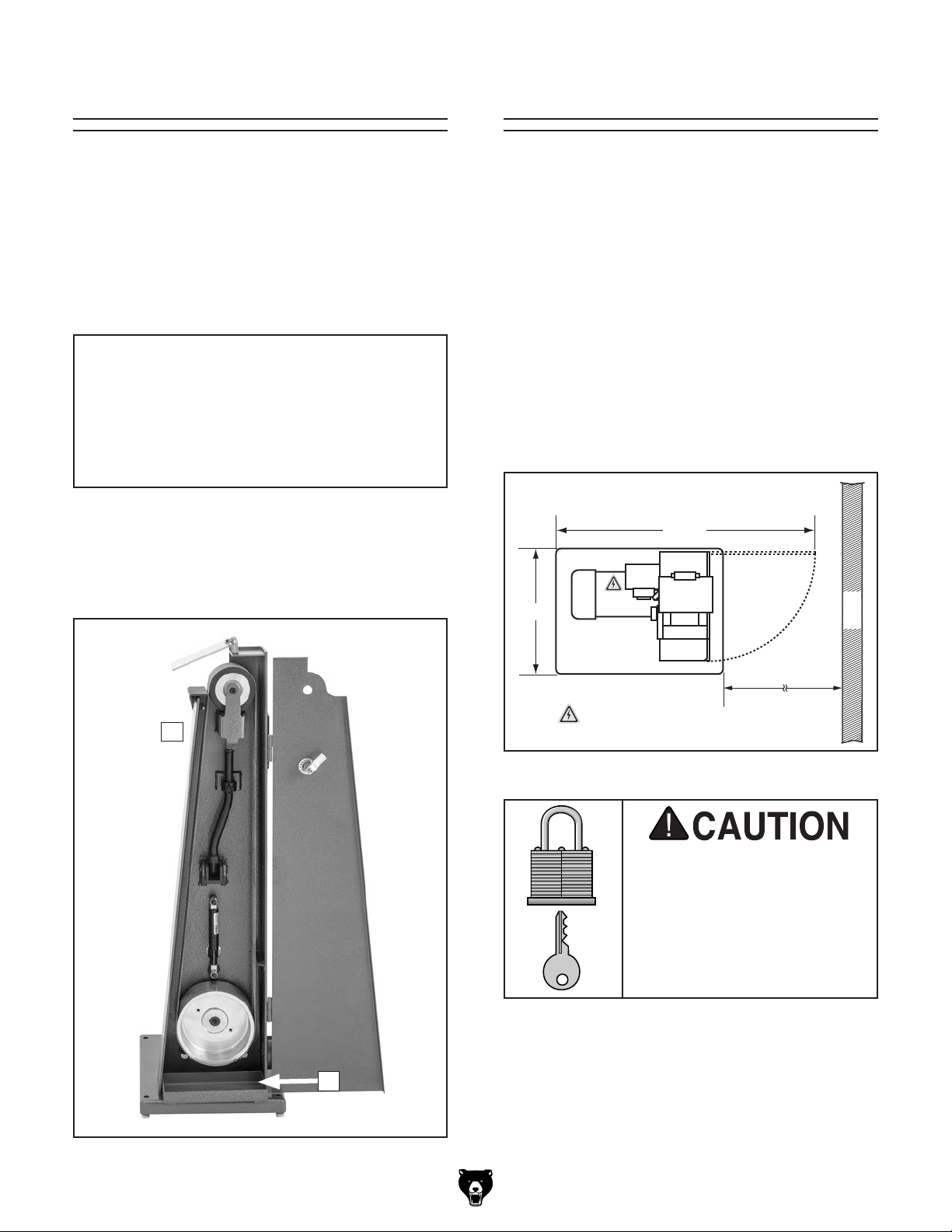

Box 1 (Figure 5) Qty

A. Metal Belt Grinder ...................................... 1

B. Belt Access Door Key (Not Shown) ............ 1

C. Spark Tray (Inside Machine) ....................... 1

A

25½"

13"

Electrical

=

Connection

Figure 6. Minimum working clearances.

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

Min. 30" for

Maintenance

Wall

Model G0952 (Mfd. Since 09/21)

Figure 5. Inventory.

C

-13-

Anchoring to Floor

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect­ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.

If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we rec­ommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware

Anchoring to Concrete Floors

................7⁄16"

Dust Collection

This machine creates a lot of sparks/metal
dust during operation. Use a metal dust
collector to help reduce airborne dust levels
and reduce the risk of dust inhalation.
Metal dust collectors also help contain
sparks so they do not contact flammable
or combustible materials and create a dust
related fire/explosion.

Minimum CFM at Dust Port: 250 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine
the CFM at the dust port, you must consider
these variables: (1) CFM rating of the dust col­lector, (2) ducting type and length between the
dust collector and the machine, (3) number
of branches or wyes, and (4) amount of other
open lines throughout the system. Explaining
how to calculate these variables is beyond the
scope of this manual. Consult an expert or
purchase a good dust collection "how-to" book.

Machine Base

Concrete

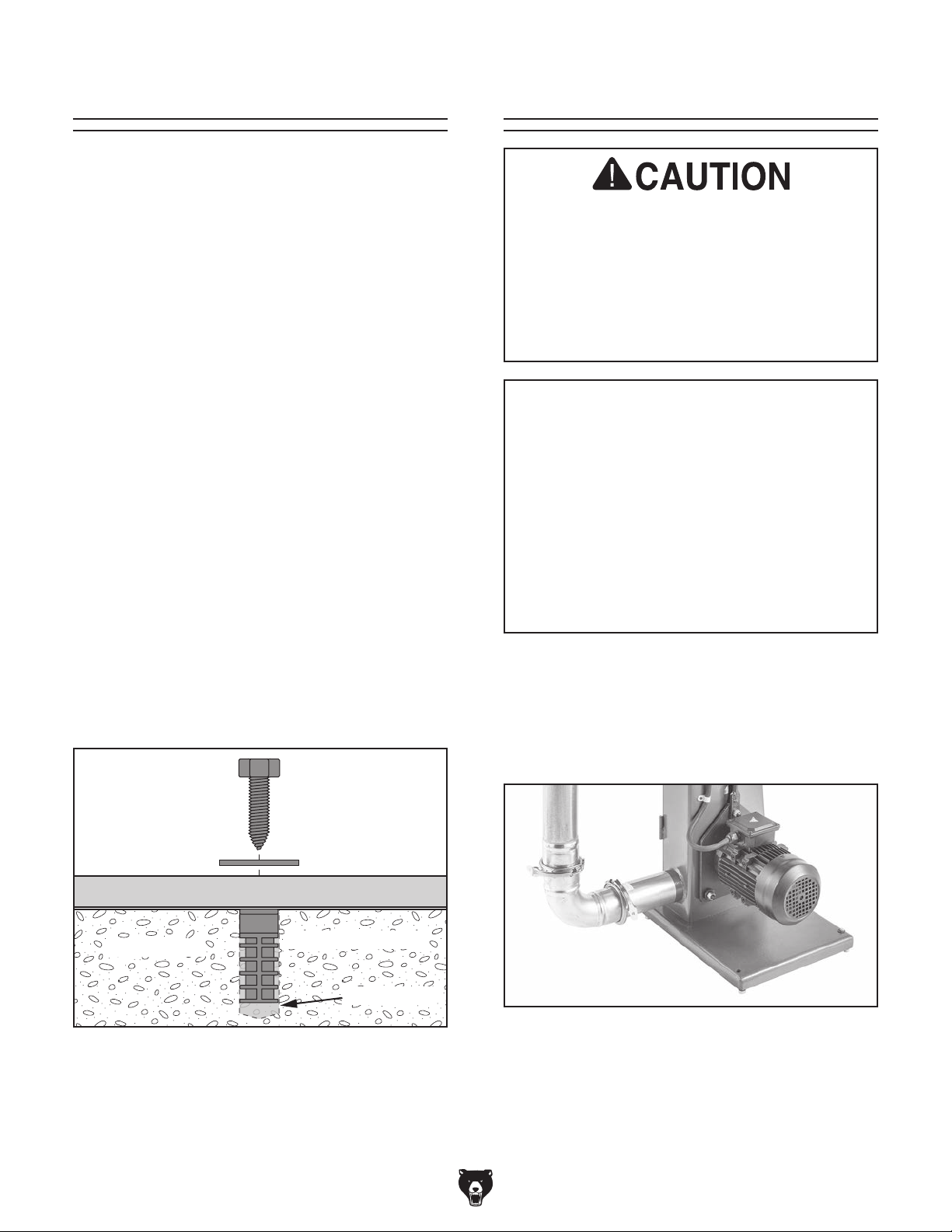

Figure 7. Popular method for anchoring

machinery to a concrete floor.

Lag Screw

Flat Washer

Lag Shield Anchor

Drilled Hole

To connect metal dust collection system to
machine:

Fit 3" ducting over dust port, as shown in

1.
Figure 8, and secure in place with clamp.

Figure 8. Ducting attached to dust port.

2. Tug ducting to make sure it does not come

off.

-14-

Note: Tight fit is necessary for proper

performance.

Model G0952 (Mfd. Since 09/21)

Before the machine can be connected to the
power source, an electrical circuit and connec­tion device must be prepared per the POWER
SUPPLY section in this manual, and all previ­ous setup instructions in this manual must be
complete to ensure that the machine has been
assembled and installed properly.

Power Connection

or equipment damage
may occur if machine is
not properly grounded
and connected to power

Electrocution, fire, shock,

supply.

2. Remove (4) Phillips head screws shown in
Figure 9 to open ON/OFF switch.

x 4

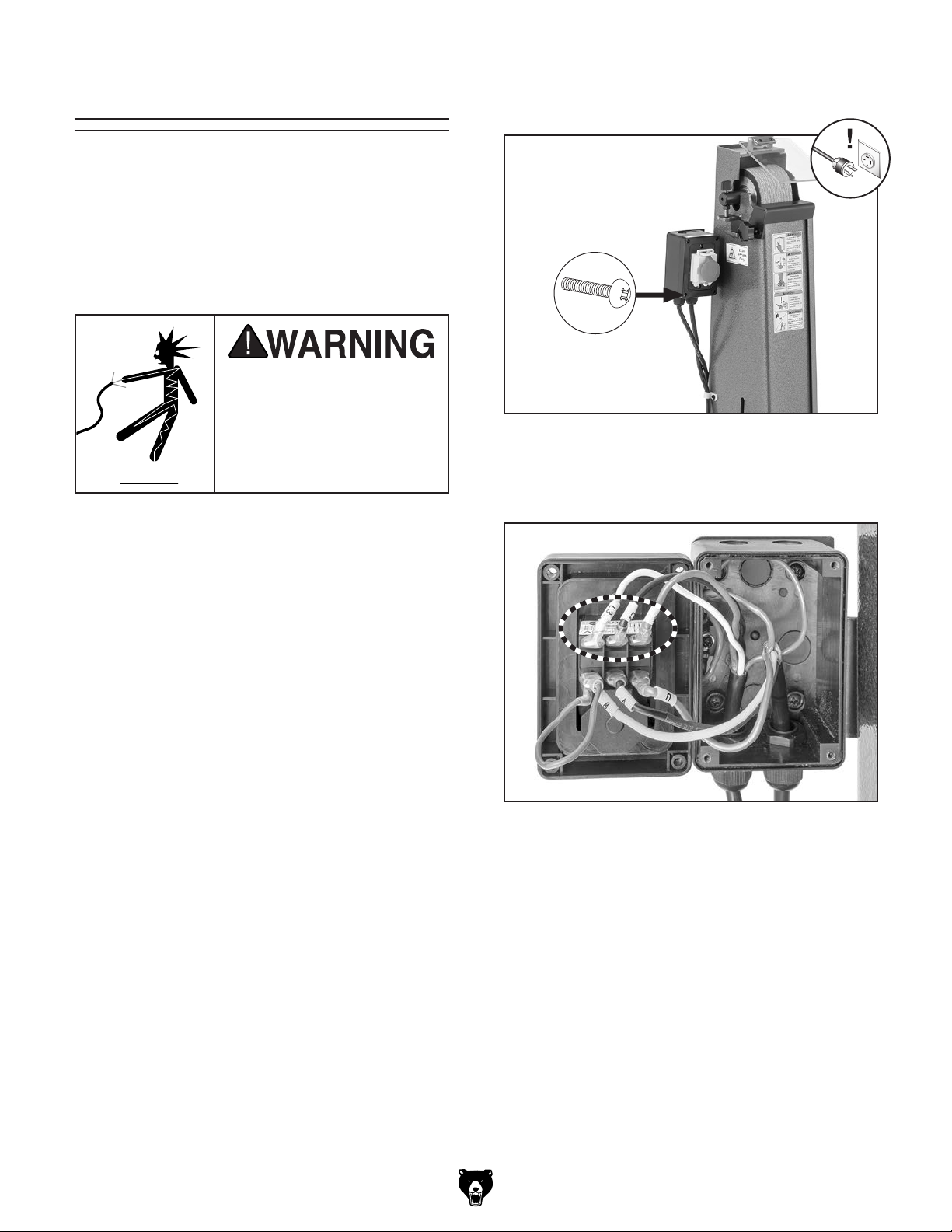

Figure 9. Location of ON/OFF switch screws.

Swap any two of the three incoming power

3.
wires (L1, L2, & L3) (see Figure 10).

Connecting Plug to Power Cord

To connect plug to power cord, install 15-15 plug
on end of power cord per plug manufacturer's
instructions. If no instructions were included, use

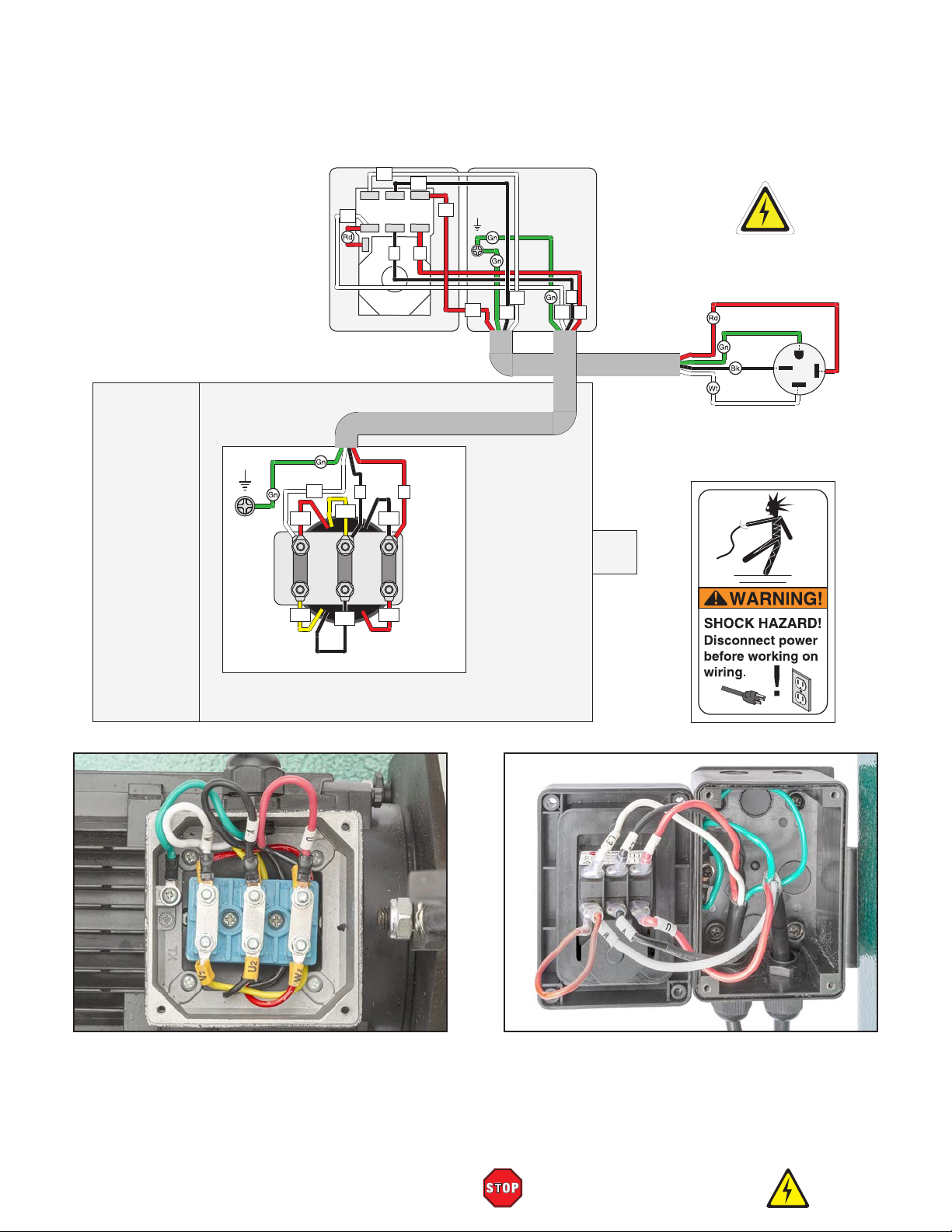

wiring diagram on Page 29.

Note About Extension Cords: Using an incor­rectly-sized extension cord may decrease the life
of electrical components on your machine. If you
must use an extension cord, refer to Extension

Cords on Page 11 for more information.

Correcting Phase Polarity

This sub-section is provided for troubleshooting
3-phase power connections. If you discover dur­ing the test run that the machine will not operate,
or that the motor runs backwards, the plug may be
wired "out of phase," meaning that the polarity is
incorrectly wired. This is a common situation with
3-phase power and it is easy to correct.

To correct phase polarity:

Figure 10. Location of L1, L2, and L3 wires.

4.

Close ON/OFF switch and install Phillips

head screws removed in Step 2 to secure.

Reconnect machine to power.

5.

6. Follow Test Run to ensure that machine

functions properly.

DISCONNECT MACHINE FROM POWER!

1.

Model G0952 (Mfd. Since 09/21)

-15-

setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

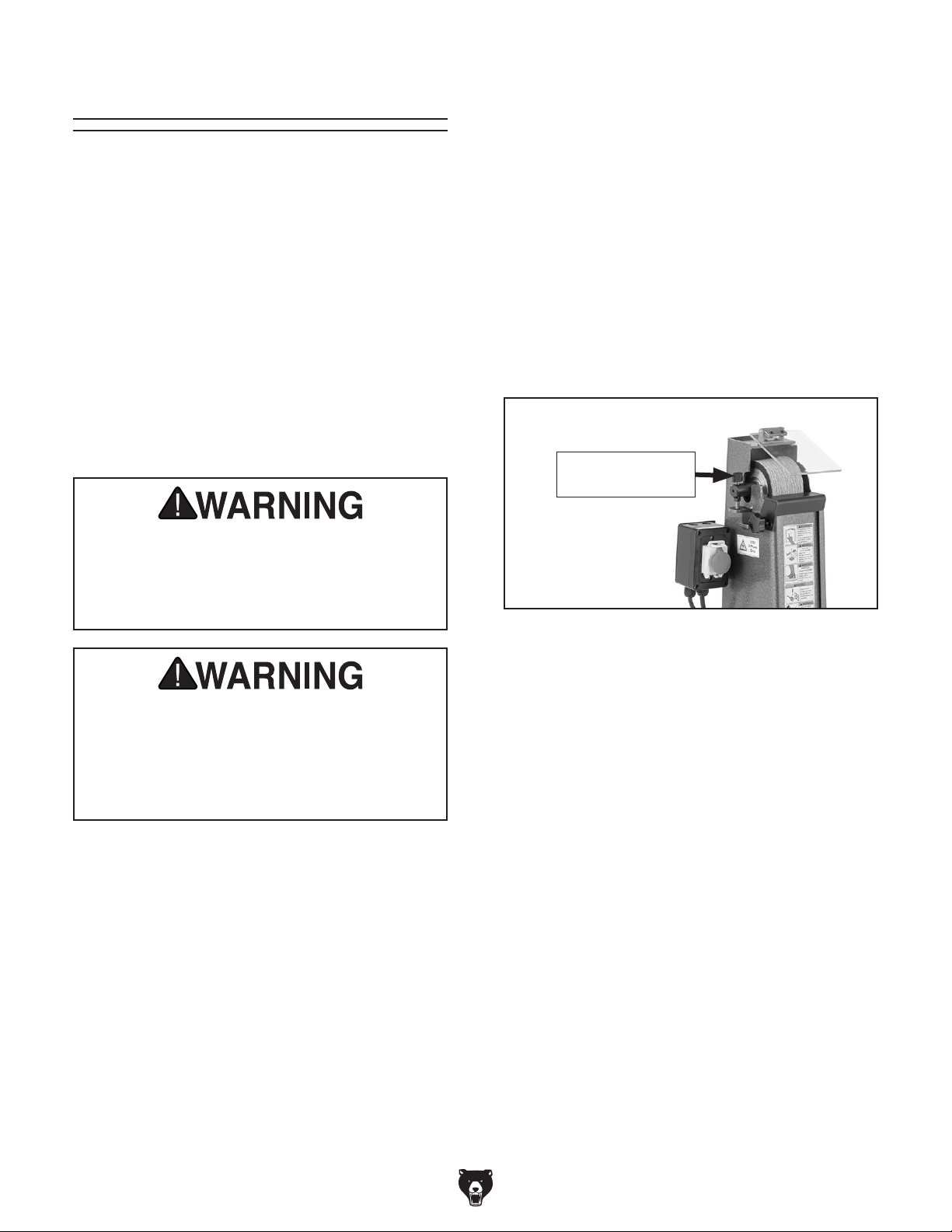

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

— If belt tracks too far left or right, belt edge

will be destroyed. To prevent this, you
must adjust belt tracking before proceed­ing to next step. Refer to Checking/
Adjusting Belt Tracking on Page 20.

Start machine and allow it to run while ensur-

5.

ing belt tracks properly. Fine-tune tracking
with knob shown in Figure 11 as necessary
before proceeding to next step.

Troubleshooting

The Test Run consists of verifying the following: 1)
The belt tracks properly and will not come off the
wheels during initial startup, 2) the motor powers
up and runs correctly, and 3) the E-Stop cover
disables the switch properly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

DO NOT start machine until all preceding

Motor should run smoothly and without

unusual problems or noises and belt MUST
rotate in same direction as arrow of belt rota­tion on machine.

Belt Tracking

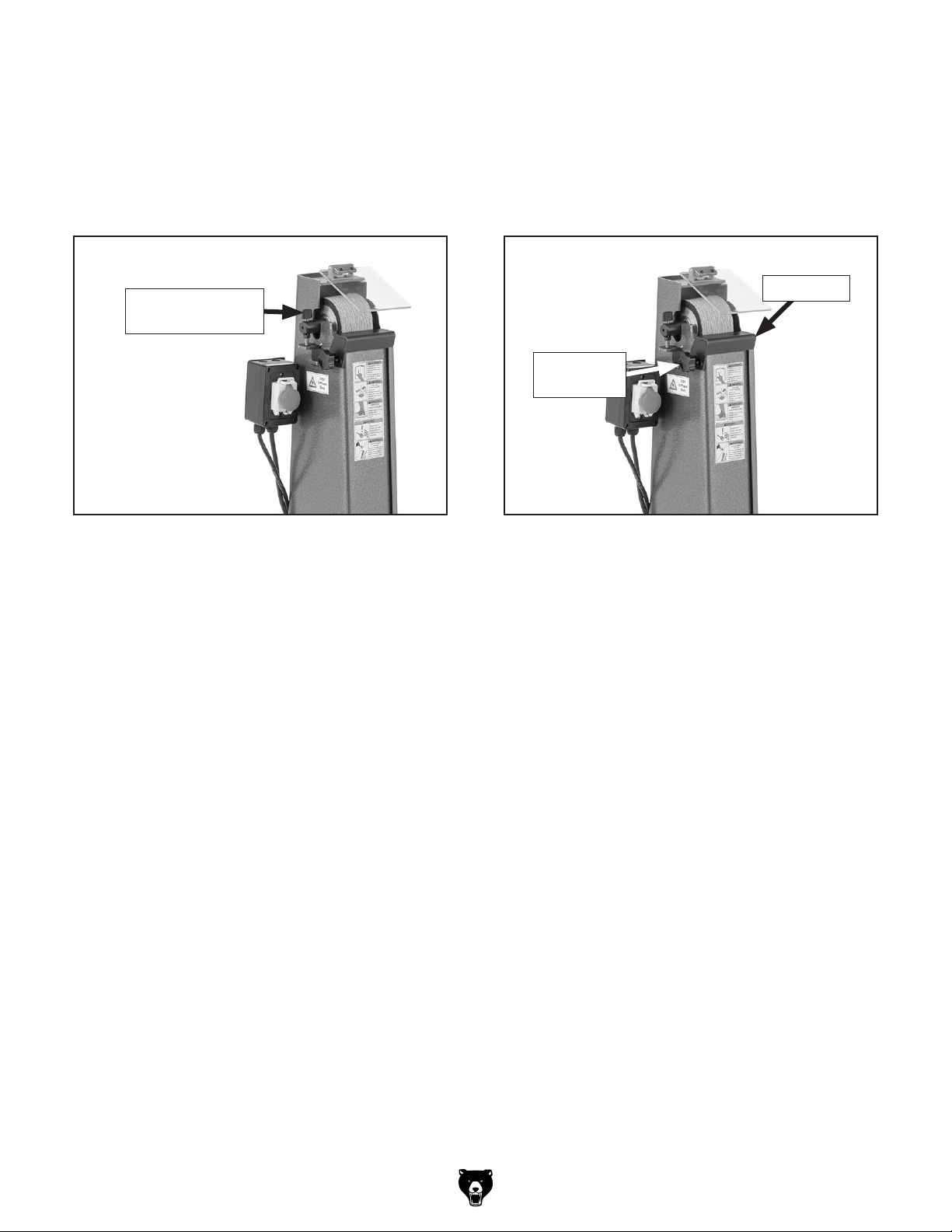

Adjustment Knob

Figure 11. Location of belt tracking adjustment

knob.

—

If motor does not run smoothly, turn

machine OFF and disconnect power.
Contact Technical Support.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Tie back loose clothing and long hair to pro-

tect yourself from getting caught in the mov­ing belt when you start machine.

Connect machine to power supply.

3.

4. Use ON and OFF buttons to start and imme-

diately stop machine, while watching how
belt tracks on contact wheel. Belt "tracking"
refers to belt positioning on wheels when belt
rotates. When tracking properly, belt remains
centered on wheels as it rotates.

-16 -

If belt does not rotate in correct direction,

—

then power phase polarity is not correct.
Turn machine OFF and disconnect power.
Refer to Correcting Phase Polarity on
Page 15 before proceeding with Test Run.

Use E-Stop cover on ON/OFF buttons to turn

6.

machine OFF.

If cover snaps closed and machine powers

—

down, safety feature of the E-Stop cover
is working correctly. Congratulations! Test
run is complete.

If cover does not snap closed or machine

—

does not power down, immediately turn
machine OFF and disconnect power.
Safety feature of E-Stop cover is NOT
working properly and must be replaced.
Contact Technical Support.

Model G0952 (Mfd. Since 09/21)

To reduce your risk of
serious injury, read this
entire manual BEFORE

SECTION 4: OPERATIONS

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

Operation Overview

using machine.

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for grinding (i.e. without an edge sharp
enough to cut belt, strong enough to be
ground, etc.).

Inspects and installs grinding belt with appro-

2.

priate grit for operation.

Adjusts work rest to allow maximum 1⁄16"

3.

clearance between rest and belt.

Eye and face injuries and respiratory prob­lems can occur while operating this tool.
Wear personal protective equipment to
reduce your risk from these hazards.

jewelry away from mov-

severe crushing injuries!

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Ties back loose hair and clothing, and puts

4.

on safety glasses, respirator, and face shield.
Takes all other required safety precautions.

Starts dust collector and grinder.

5.

6. Holds workpiece firmly with both hands, sup-

ports it against work rest, pushes workpiece
into belt, and moves it to different locations to
wear sandpaper evenly and to prevent it from
overheating.

Stops machine and turns off dust collector

7.

when operation is complete.

Model G0952 (Mfd. Since 09/21)

-17-

Inspection

Some workpieces are not suitable for grind­ing on a grinder. Before grinding, inspect all

workpieces for the following:

• Flammable Workpiece: Workpieces with
unstable chemical elements (like magne­sium) may catch fire or create explosion
hazards when introduced to the heat and
friction of grinding. Be aware of the material
composition of workpieces you intend to use
and avoid grinding different metals and alloys
on the same belt in case two different materi­als create a dangerous chemical reaction.

• Soft Workpiece: Workpieces that are made
of aluminum, brass, lead, and other nonfer­rous metals will load up in the belt. Grinding
plastics, rubber, fiberglass, or other soft
materials can also cause the same problem.
Always use the recommended belt for the
material.

• Flexible/Unstable Workpiece: Grinding on
the side or the ends of cable, chain, or round
workpieces creates the hazard of workpiece
twist or grab, leading to contact with the belt.
This hazard must be avoided.

• Wood Workpiece: Never grind wood on
this machine. Wood dust and shavings are
extremely flammable and hot metal sparks
will ignite them. A belt that has been used to
sand wood or a dust collection system that
has been used to collect wood dust create
a flame and explosion hazard when the hot
sparks of metal grinding are introduced.

Grinding TipsWorkpiece

• Extend the life of the grinding belt by regularly
using an abrasive surface cleaner. Change a
belt when cleaning is no longer effective.

• As a rule-of-thumb, grind with progressively
higher grit numbers. A higher grit will achieve
a finer finish.

• Hold workpiece securely with both hands and
do not wear gloves. Use work rest whenever
possible to support workpiece. Do not force
workpiece against belt.

• Never grind magnesium. Once shaved
or powdered, it is highly flammable, and
magnesium fire is difficult to put out.

• Remember that grinding metal often produc­es sparks. DO NOT grind metal near flam­mable materials and be aware of the area
around the machine the sparks will reach.

• Use full width of the grinding belt by moving
the workpiece back-and-forth across the belt.

• Make sure belt guards are closed and secured
during operation.

• The workpiece will get hot as you continue
to grind. Cool the workpiece frequently by
quenching in water or another approved
solution.

• Wear the proper protective clothing. Prepare
for particles to be expelled from the grinder
at high speeds. Wear safety glasses, face
shield, dust mask, earplugs, leather apron,
and heavy leather boots.

-18-

Moving belt can cause serious personal
injury if it comes in contact with fingers,
hands, or other body parts. Always support
workpiece against work rest when grinding.
Use extreme care to provide a safe distance
between belt and any body part.

Model G0952 (Mfd. Since 09/21)

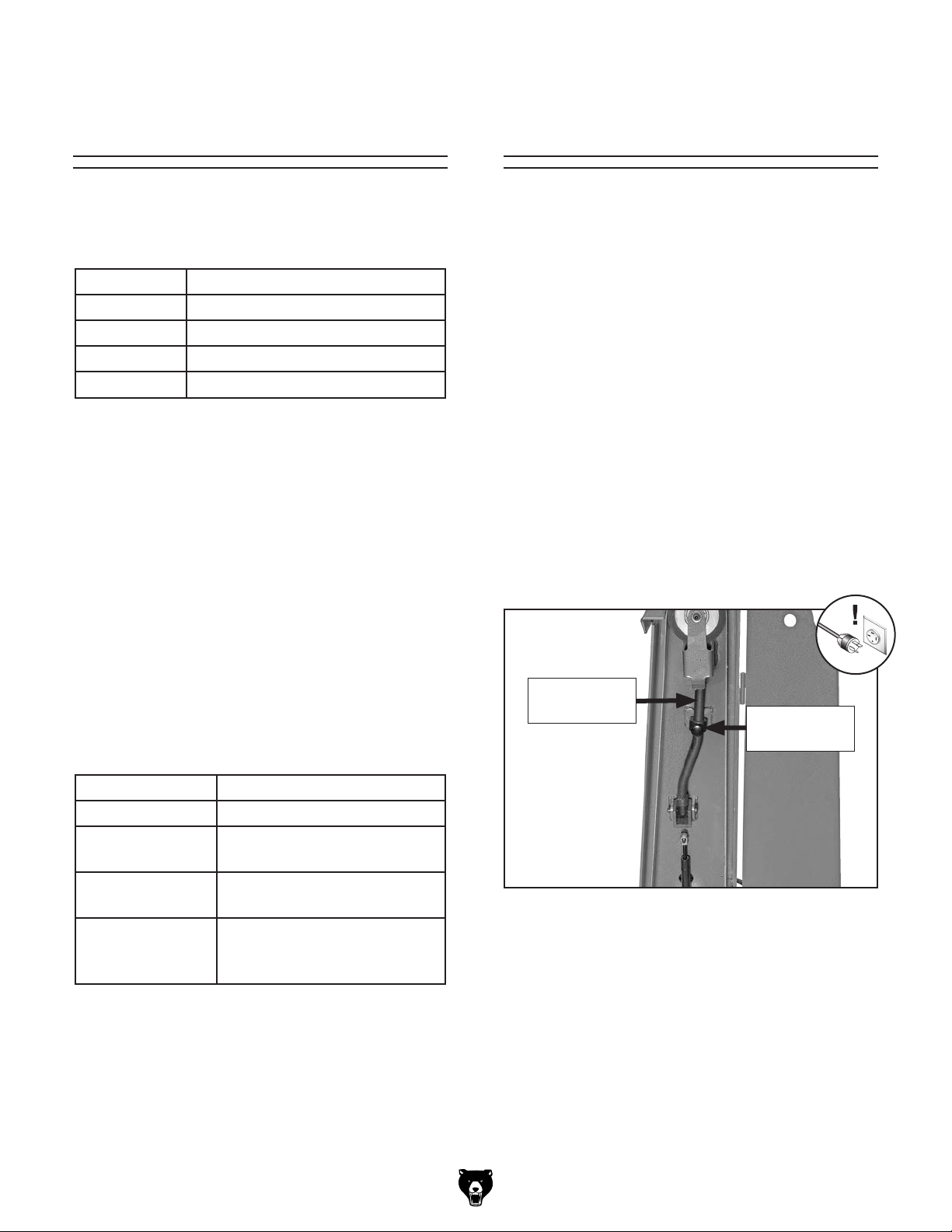

Choosing

Installing/Changing

Grinding Belts

This machine uses a 3" x 79" belt. Below is a
chart that groups abrasives into different classes,
and shows which grits fall into each class.

Grit Class

36 Extra Coarse

60 Coarse

80–100 Medium

120 –180 Fine

The general rule of thumb is to grind a workpiece
with progressively higher grit numbers. Avoid
skipping grits; the larger the grit increase, the
harder it will be to remove the scratches from the
previous grit.

Ultimately, the type of metal you use and your
stage of finish will determine the best grit types to
install on your grinder.

Belt

The grinding belt should be changed whenever
there is a noticeable change in grinding quality/
performance. You may also need to change grit
sizes for quick material removal or finer finishes.

Required Belt Size

Items Needed Qty

Belt Access Door Key........................................ 1

Replacement Belt

To install/change belt:

DISCONNECT MACHINE FROM POWER!

1.

2. Use key to unlock and open belt access door.

3. Turn belt tension lock knob counterclockwise

to loosen lock collar and release belt tension
lever (see Figure 12).

................................3" x 79"

.............................................. 1

Belts are also made with different materials, and
your workpiece and intended operation will deter­mine which belt material will produce the best
results for you. The chart below illustrates some
common belt materials and the situations that
they are most effective.

Belt Material Operation

Aluminum Oxide Finishing. Ferrous metals.

Zirconia Alumina Finishing; wet or dry grinding.

Ferrous metals, some steels.

Ceramic Aggressive grinding; deburr-

ing. Heat-sensitive metals.

Silicon Carbide Cutting; stock removal; wet

or dry grinding. Cast iron,
steel, non-ferrous metals.

Belt Tension

Lever

Figure 12. Location of belt tension lock knob

and belt tension lever.

Belt Tension

Lock Knob

Model G0952 (Mfd. Since 09/21)

-19 -

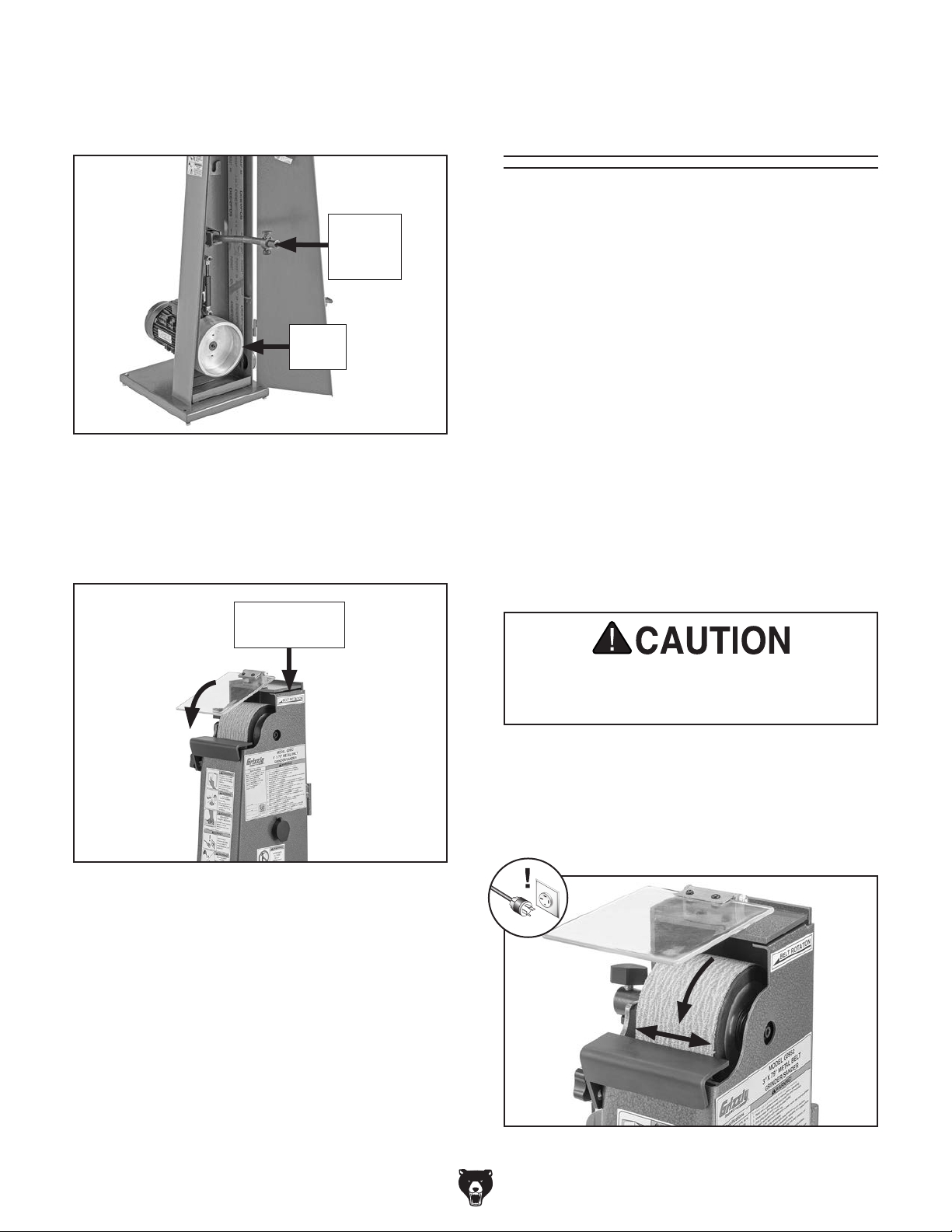

4. Move belt tension lever down and toward
drive wheel to lift motor and release belt ten­sion (see Figure 13).

Belt

Tension

Lever

Drive

Wheel

Figure 13. Belt tension released.

Checking/Adjusting

Belt Tracking

The purpose of belt tracking is to make sure the
belt stays centered on the wheels during grinding
operations. Although belt tracking is set at the fac­tory, it needs to be checked any time you change
or replace the belt.

You must perform the following procedure after
installing a grinding belt to ensure that the belt
does not come off or get jammed against the
machine frame.

Items Needed Qty

Belt Access Door Key........................................ 1

Protective Gloves........................................1 Pair

5. Remove old abrasive belt from wheels (if
installed) and replace with new one, being
sure arrows on belt match arrow of belt rota­tion of machine (see Figure 14).

Belt Rotation

Arrow

Figure 14. Belt rotation arrow.

6.

Move belt tension lever up and away from

drive wheel to raise motor and tension belt
(see Figure 13).

To check/adjust belt tracking:

DISCONNECT MACHINE FROM POWER!

1.

2. Use key to unlock and open belt access door.

Fingers or hands can be quickly injured if
they touch moving abrasive surfaces. To
reduce this risk, wear gloves in next step.

3. Standing at front of machine, rotate either

wheel by hand so belt moves in direction of
operation (counterclockwise on wheels and
toward work rest), and watch how belt tracks
on contact wheel (see Figure 15).

. Check and adjust belt tracking (refer to Steps

7

3–7 of Checking/Adjusting Belt Tracking).

-20-

Figure 15. Belt tracking.

Model G0952 (Mfd. Since 09/21)

If belt moves left on wheels (toward motor)

—

rotate belt tracking adjustment knob coun-

1

terclockwise

If belt moves right on wheels (away from

—

/4 turn (see Figure 16).

motor) rotate belt tracking adjustment

1

knob clockwise

/4 turn (see Figure 16).

6. When belt tracking is correct, turn machine
OFF.

. Loosen work rest lock knob, adjust work rest

7

so there is no more than

1

⁄16" between rest

and belt, then tighten lock knob to secure
(see Figure 17).

Belt Tracking

Adjustment Knob

Figure 16. Location of belt tracking adjustment

knob.

4. Repeat Step 3 until belt tracks in center of
wheels, then close and lock belt access door.

. Connect machine to power and turn it ON.

5

Verify belt is tracking correctly in center of
contact wheel, and fine-tune tracking as nec­essary while machine is running.

Work Rest

Work Rest
Lock Knob

Figure 17. Location of work rest and lock knob.

Model G0952 (Mfd. Since 09/21)

-21-

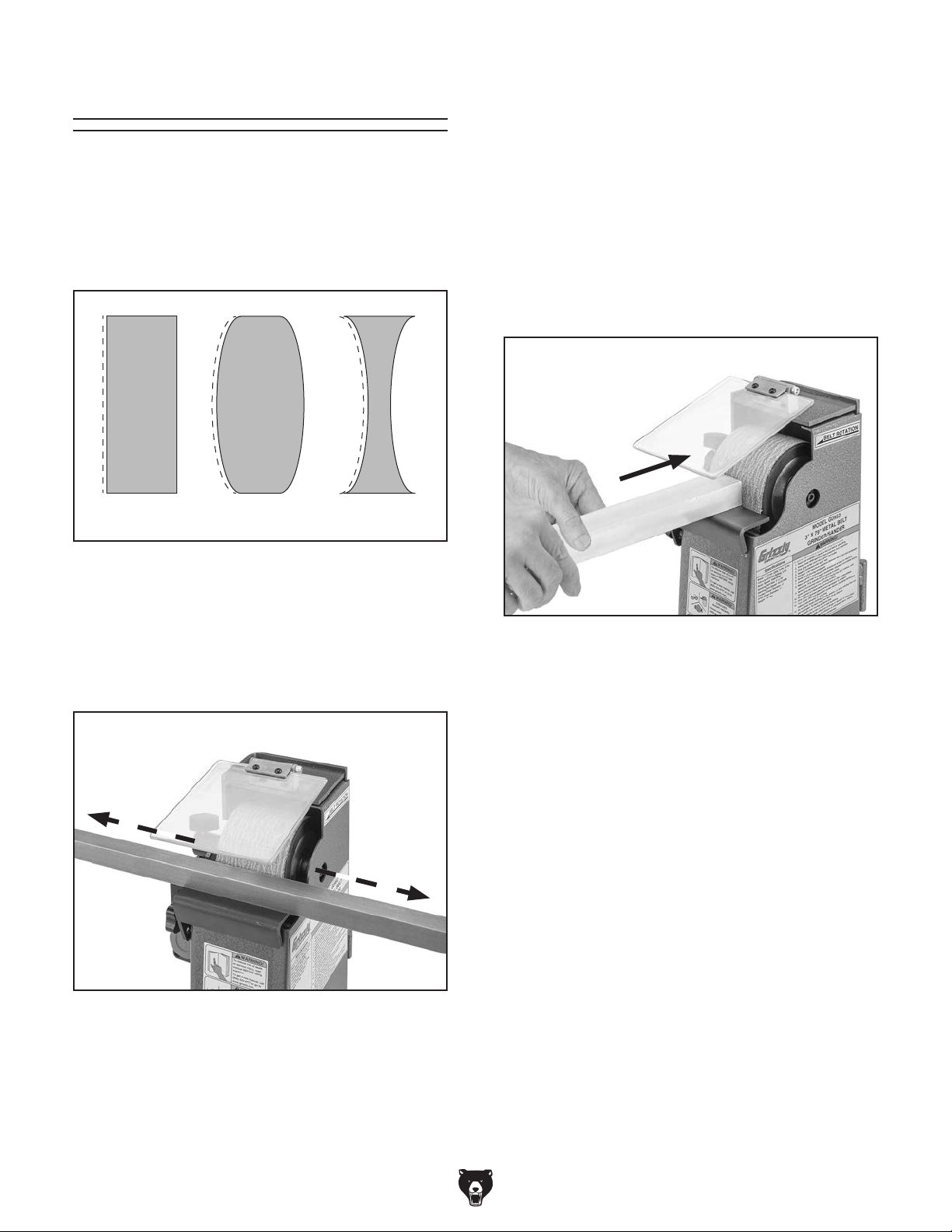

Grinding

While some grinders have a platen to press
a workpiece against, the Model G0952 has a
contact wheel. While a platen can only be used
for flat or convex workpieces, the contact wheel
also allows for workpieces that are concave (see

Figure 18).

To grind:

Connect machine to power, turn it ON, and

1.

allow it to reach full speed.

2. Position workpiece on work rest.

Use both hands to maintain control of

3.

workpiece, as shown in Figure 20, and slow­ly feed it into contact wheel with light, even
pressure. DO NOT force workpiece against
belt.

Flat

Figure 18. Workpiece surface types.

Always use two hands and the work rest to sup­port the workpiece and against the contact wheel.
There is workpiece clearance on either side of the
contact wheel to grind the side of workpieces as
well as the end (see Figure 19).

Convex Concave

Figure 20. Feeding workpiece correctly.

Figure 19. Contact wheel clearance for

workpiece length.

-22-

Model G0952 (Mfd. Since 09/21)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

Basic Eye Protection

T32323—Woodturners Face Shield
T32401—EDGE Brazeau Safety Glasses, Clear
T32402—EDGE Khor G2 Safety Glasses, Tint
T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T30024—Powered Respirator Kit

Breathing metal dust could cause severe respira­tory illnesses. This kit is a lightweight, comfort­able, and easy-to-carry device for protecting the
airway from small particulates.

Figure 21. T30024 Powered Respirator Kit.

T32402

Figure 22. Assortment of basic eye protection.

Grizzly Grinding Belts

These tough, zirconia alumina grinding belts
come in a variety of grits.

T27568—Grinding Belt 3" x 79" 50-Grit, 10 - Pk.
T27569—Grinding Belt 3" x 79" 60-Grit, 10-Pk.
T27570—Grinding Belt 3" x 79" 80-Grit, 10-Pk.

T32404

Figure 23. Grizzly grinding belts.

Model G0952 (Mfd. Since 09/21)

-23-

order online at www.grizzly.com or call 1-800-523-4777

T32720—10" Variable-Speed Wet Sharpener

This wet sharpener is so versatile and simple to
use, you'll wonder why you ever put up with sharp-

1

ening by hand before. The 2

⁄2 " wide, 220-grit
aluminum oxide grinding wheel is specially made
for wet sharpening and runs through a water bath
to prevent residue buildup on the grinding wheel
and keep tools cool while sharpening. The leather
stropping wheel helps remove burrs and hones to
a final razor edge.

Figure 24. Model T32720 10" Variable-Speed

Wet Sharpener.

T26685—ISO 32 Moly-D Machine Oil, 1 Gal.

Moly-D oils are some of the best we've found for
maintaining the critical components of machinery
because they tend to resist run-off and maintain
their lubricity under a variety of conditions.

Figure 26. T26685 ISO 32 Moly-D Machine Oil.

T28798—11⁄2 HP Metal Dust Collector

This dust collector features a multi-stage filtration

1

system with three 15

⁄4" x 191⁄4" filters with 30, 5,
and 1-micron ratings. Operate up to two machines
at a time thanks to the 650 CFM of airflow capac­ity with 10.8" of static pressure through the dual
4" dust ports.

T28553—3" Pipe Clamp
G6176 —4" x 3" Reducer

We've hand picked a selection of metal dust col­lection components perfect for connecting your
new machine to a metal dust collector.

G6176

T58553

Figure 25. Dust collection accessories.

Figure 27. Model T28798 11⁄2 HP Metal Dust

Collector.

-24-

Model G0952 (Mfd. Since 09/21)

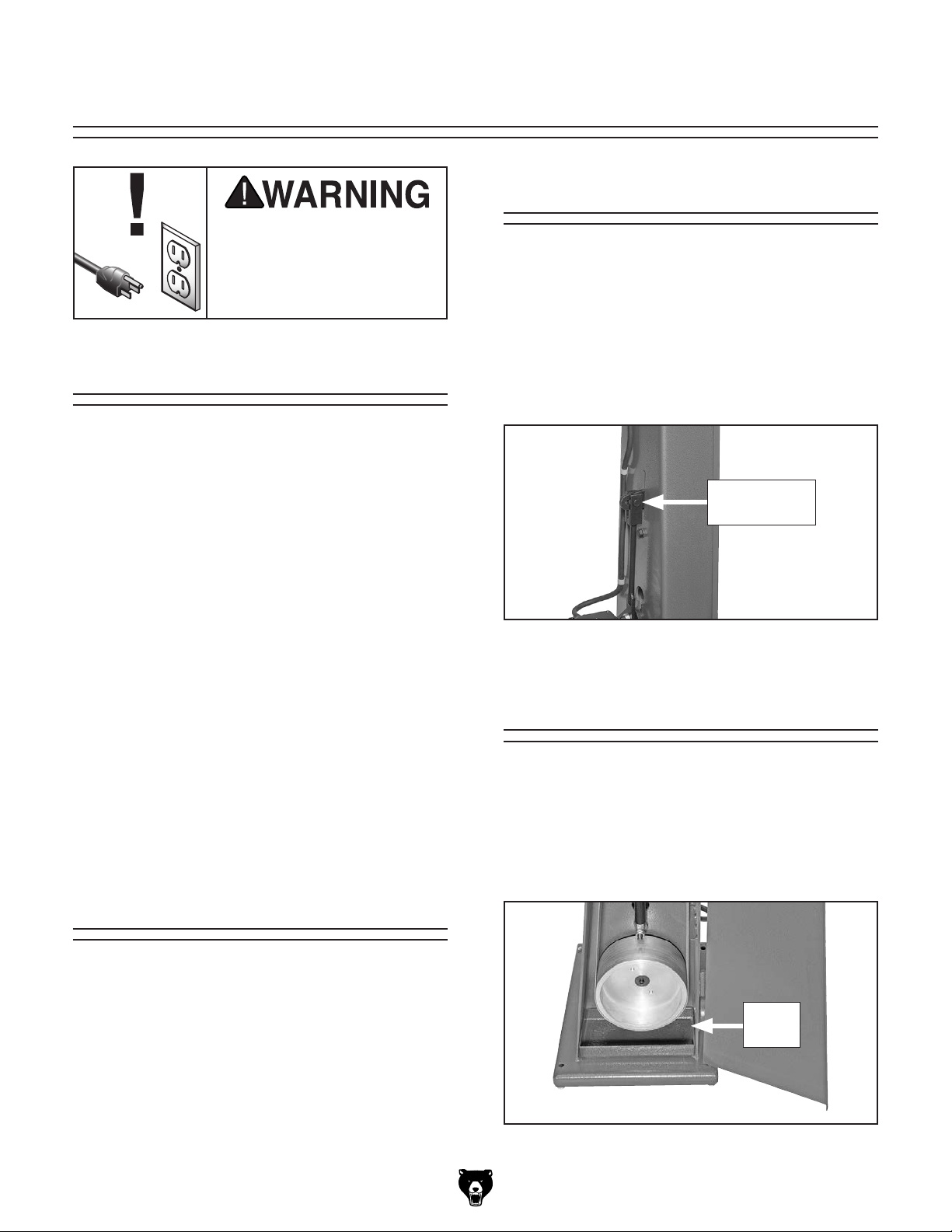

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

Lubrication

The bearings are sealed and permanently lubri­cated; they require no lubrication.

maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Worn or damaged belt.
Worn or damaged wires.

•
Any other unsafe condition.

•

Weekly Maintenance

• Sweep surrounding dust and shavings.

• Sweep or vacuum dust and shavings from

inside belt compartment and off motor.

Monthly Maintenance

• Lubricate belt tension pivot pin.

The only part that requires lubrication is the belt
tension pivot pin. Apply 2 drops of an ISO 32
oil like the one shown in Figure 26 on Page 24
monthly to the pivot pin (see Figure 28). Release
and apply belt tension to spread oil.

Belt Tension

Pivot Pin

Figure 28. Location of belt tension pivot pin.

Emptying Spark Tray

Open the belt access door and remove the tray
shown in Figure 29. Remove any accumulated
dust, then replace the tray and close the door. Do
not store the dust near heat or anything likely to
produce sparks, as some types of metal dust can
be flammable.

Cleaning

Cleaning the Model G0952 is relatively easy.
Vacuum excess shavings, and wipe off any
remaining dust with a dry cloth. Never use com­pressed air to blow away dust as airborne par­ticles may be combustible.

Model G0952 (Mfd. Since 09/21)

Spark

Tray

Figure 29. Location of spark tray.

-25-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start, or
power supply
breaker
immediately
trips after
startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. E-Stop cover depressed/at fault.

2. Incorrect power supply voltage or circuit size.

3. Plug/receptacle at fault/wired incorrectly.

4. Power supply circuit breaker tripped or fuse
blown.

5. Motor wires connected incorrectly.

6. Wiring broken, disconnected or corroded.

7. ON/OFF switch at fault.

8. Motor or motor bearings at fault.

1. Excessive feed pressure applied.

2. Wrong workpiece material (metal).

3. Motor wires connected incorrectly.

4. Plug/receptacle at fault/wired incorrectly.

5. Machine undersized for task.

6. Motor overheated.

7. Extension cord too long.

8. Motor or motor bearings at fault.

1. Belt not tracking correctly.

2. Motor or component loose.

3. Motor mount loose/broken.

4. Motor fan rubbing on fan cover.

5. Motor bearings at fault.

1. Remove E-Stop cover to reset. Replace if at fault.

2. Ensure correct power supply voltage and circuit size
(Page 10).

3. Test for good contacts/correct the wiring (Page 29).

4. Ensure circuit is free of shorts. Reset circuit breaker or
replace fuse.

5. Correct motor wiring connections (Page 29).

6. Fix broken wires or disconnected/corroded
connections (Page 29).

7. Replace switch.

8. Replace motor.

1. Clean grinding belt, and then reduce workpiece
pressure.

2. Use correct size/type of metal.

3. Correct motor wiring connections (Page 29).

4. Test for good contacts/correct the wiring (Page 29).

5. Clean/replace grinding belt; reduce feed rate/grinding
depth.

6. Clean motor, let cool, and reduce workload.

7. Move machine closer to power supply; use shorter
extension cord.

8. Replace motor.

1. Ensure belt is tracking correctly (Page 20).

2. Replace damaged or missing bolts/nuts or tighten if
loose.

3. Tighten/replace.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

-26-

Model G0952 (Mfd. Since 09/21)

Operation

Symptom Possible Cause Possible Solution

Machine vibrates
excessively (non­motor related).

Grinding belt
slaps or vibrates
excessively.

Grains easily rub off
belt.

Grinding belt slips
during use.

Grinding belt will not
track properly.

Belt tracks to one
side under load.

Deep grinding
grooves or
scratches in
workpiece.

Snake-shaped
marks on
workpiece.

Belt clogs quickly.

Excessive grinding
belt replacement.

Workpiece
frequently gets
pulled out of hand
when grinding.

1. Incorrect grinding belt tension.

2. Broken/defective grinding belt.

3. Drive wheel cap screw missing or loose.

1. Incorrect grinding belt tension.

2. Grinding belt tracking not set correctly.

3. Broken/defective grinding belt.

4. Contact or drive wheel is loose.

1. Grinding belt has been stored in damp
environment.

2. Grinding belt has been smashed or folded.

3. Grinding belt is too old.

1. Incorrect grinding belt tension.

2. Excessive feed pressure while grinding.

1. Incorrect grinding belt tension.

2. Grinding belt is stretched unevenly.

3. Contact wheel is worn.

1. Grinding belt tracking not set correctly. 1. Ensure grinding belt tracking is set correctly

1. Excessive feed pressure while grinding.

2. Workpiece held still for too long against
belt.

3. Grinding belt too coarse.

4. Contact wheel damaged.

1. Grinding belt loaded up.

2. Grinding belt damaged.

1. Excessive feed pressure while grinding.

2. Grinding belt worn or damaged.

3. Workpiece material is prone to belt­clogging, such as soft aluminum.

1. Not using full width of grinding surface.

2. Excessive feed pressure while grinding.

1. Workpiece not supported sufficiently against
work rest.

2. Leading edge or sharp edges grabbing into
grinding belt.

1. Make sure tension lever is locked in tensioning
position (Page 19).

2. Replace grinding belt (Page 19).

3. Replace or tighten cap screw.

1. Make sure tension lever is locked in tensioning
position (Page 19).

2. Ensure grinding belt tracking is set correctly
(Page 20).

3. Replace grinding belt (Page 19).

4. Tighten contact or drive wheel.

1. Replace damaged grinding belt (Page 19). Store
belt in a cool, dry area.

2. Replace damaged grinding belt (Page 19). Do not
bend or fold belt.

3. Use new grinding belt.

1. Make sure tension lever is locked in tensioning
position (Page 19).

2. Clean grinding belt, and then reduce workpiece
pressure.

1. Make sure tension lever is locked in tensioning
position (Page 19).

2. Replace grinding belt (Page 19).

3. Replace contact wheel.

(Page 20).

1. Clean grinding belt, and then reduce workpiece
pressure.

2. Keep workpiece moving while grinding.

3. Use finer grit belt (Page 19).

4. Replace contact wheel.

1. Clean grinding belt.

2. Replace grinding belt (Page 19).

1. Clean grinding belt, and then reduce workpiece
pressure.

2. Replace grinding belt (Page 19).

3. Reduce feed pressure. Use coarser-grit belt
(Page 19).

1. Move workpiece back and forth across grinding
surface.

2. Clean grinding belt, and then reduce workpiece
pressure.

1. Use work rest to support workpiece.

2. Change angle or orientation of workpiece so
workpiece is not digging into incoming direction of
belt.

Model G0952 (Mfd. Since 09/21)

-27-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-28-

Model G0952 (Mfd. Since 09/21)

MAG ON/OFF SWITCH

Wiring Diagram

KEDU KJD18

L3

L2

3

A1

1

L1

2

4

UV

L1

L3

L2

V

W

U

5

W

6

220 VAC

3-Phase

Hot

Ground

W

W1

W1

V2

V2

V1

U2

V1

U2

V

U

U1

U1

W2

W2

220V MOTOR

Hot

Hot

G

Z

X

W

15-15 Plug

(as recommended

)

Figure 30. Motor junction box. Figure 31. Push button magnetic switch.

Model G0952 (Mfd. Since 09/21)

READ ELECTRICAL SAFETY

ON PAGE 28!

-29-

34

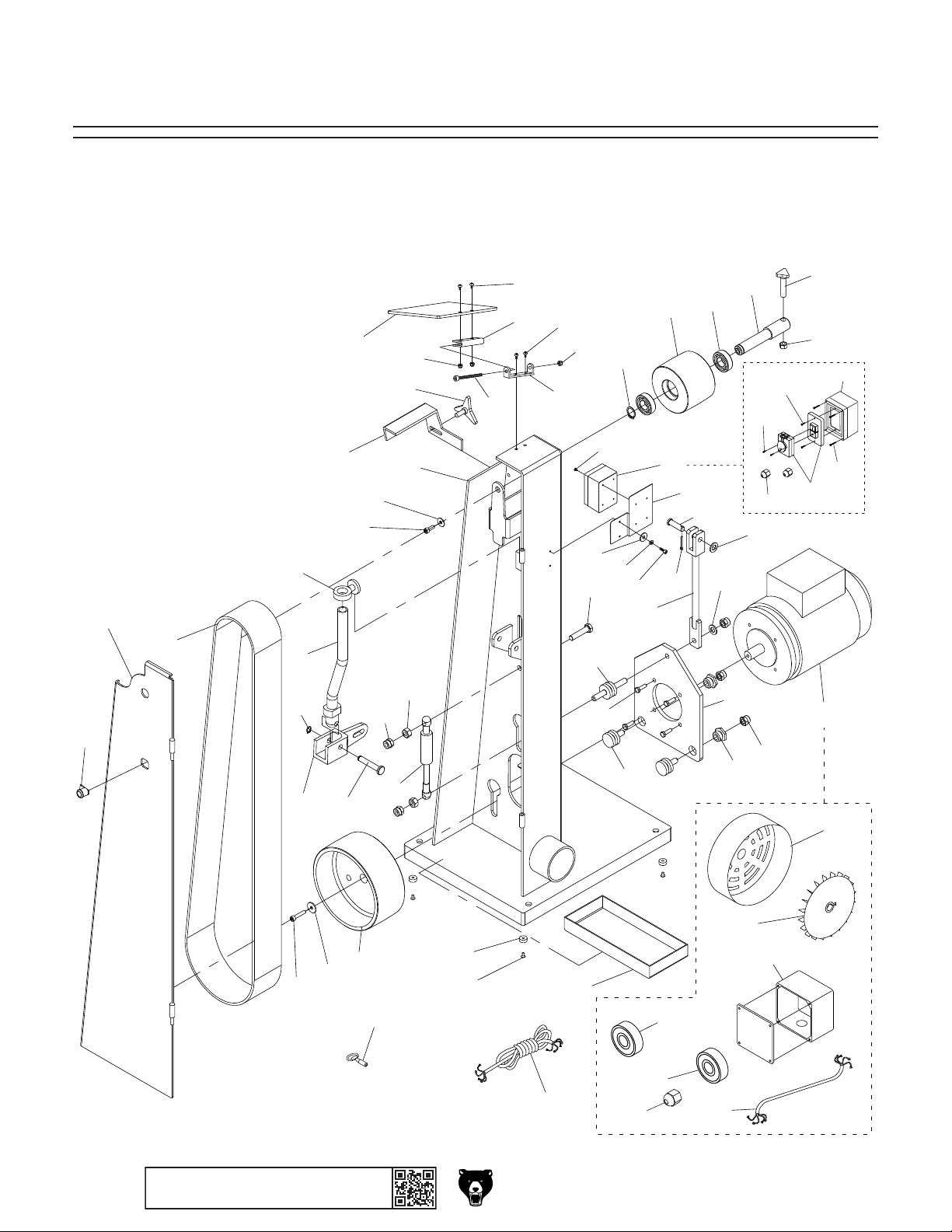

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

36

29

53

18

30

42

51

27

24

46

50

35

38

41

4

2

3

1

5

6

7

8

49

37

48

39

40

10

9

11

47

45

50

54

52

28

23

22

31

26

25

21

19

32

42-1

42-6

25

33

42-3

42-2

42-4

42-5

20

9

20-1

20-2

14

13

12

44

-30-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

15

16

43

17

20-4

20-5

20-6

20-7

Model G0952 (Mfd. Since 09/21)

20-3

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

Main Parts List

1 P0952001 DOOR LOCK 28 P0952028 HEX BOLT M10-1.5 X 55
2 P0952002 DOOR 29 P0952029 EX T RETAI NING RI NG 20 MM
3 P0952003 BELT 3" X 79" 80-GRIT 30 P0952030 IDLER WHEEL
4 P0952004 TENSION LOCK COLLAR 31 P0952031 BALL BEARING 6004ZZ
5 P0952005 BELT TENSION LEVER 32 P0952032 IDLER WHEEL AXLE
6 P0952006 EXT RETAI NI NG RI NG 10MM 33 P0952033 HEX NUT M8-1 . 2 5
7 P0952007 TENSION BRACKET 34 P0952034 KNOB BOLT M8-1.25 X 50, D32, WING
8 P0952008 SWIVEL PIN 35 P0952035 EYE SHIELD
9 P0952009 LOCK NUT M10-1.5 36 P0952036 PHLP HD SCR M4-.7 X 12
10 P0952010 HEX NUT M10- 1. 5 37 P0952037 KNOB BOLT M8-1.25 X 25, 3-LOBE, D36
11 P0952011 GAS SPRING W/EYELET FITTING 38 P0952038 WORK REST
12 P0952012 CAP SCREW M6-1 X 30 39 P0952039 BODY
13 P0952013 FLAT WASHER 8.5 X 30 X 1.7MM 40 P0952040 FENDE R WASHE R 6MM
14 P0952014 DRI VE WHE EL 41 P0952041 CAP SCREW M6-1 X 16
15 P0952015 FOOT 42 P0952042 MAGNETIC SWITCH ASSEMBLY
16 P0952016 FLA T HD SCR M4- . 7 X 8 42-1 P0952043-1 TAP SCREW M2.2 X 6.5
17 P0952017 SPARK TRAY 42-2 P0952043-2 TAP SCREW M4.2 X 9.5
18 P0952018 GUIDE BOLT M10-1.5 X 27 42-3 P0952043-3 SWI TCH B OX
19 P0952019 STANDOFF-HEX MF M20-1.5 X 5, M10-1.5 42-4 P0952043-4 TAP SCREW M4.2 X 19
20 P0952020 MOTOR 1-1/2HP 220V 3-PH 42-5 P0952043-5 MAG SWITCH W/E-STOP COVER KEDU KJD18
20-1 P0952020-1 MOTOR FAN CO VER 42-6 P0952043-6 STRAIN RELIEF TYPE-3 M18-1.5
20-2 P0952020-2 MOTOR FAN 43 P0952043 POWER CORD 15G 4W 98"
20-3 P0952020-3 MOTOR J UNCTI O N BOX 44 P0952044 BELT ACCESS DOOR KEY
20-4 P0952020-4 BALL BEARING 204ZZ (FRONT) 45 P0952045 EYE SHIELD MOUNTING BRACKET
20-5 P0952020-5 BALL BEARING 204ZZ (REAR) 46 P0952046 EYE SHIELD HINGE BRACKET
20-6 P0952020-6 STRAIN RELIEF TYPE-3 M18-1.5 47 P0952047 LO CK NUT M5- . 8
20-7 P0952020-7 MOTOR CORD 15G 4W 47" 48 P0952048 CAP SCREW M5-.8 X 60
21 P0952021 MOTO R MOUNTI NG PL ATE 49 P0952049 HEX NUT M4-. 7
22 P0952022 HEX BOLT M6-1 X 20 50 P0952050 PHLP HD SCR M5-.8 X 8
23 P0952023 GUIDE BOLT MM M10-1.5 X 30, M10-1.5 X 39 51 P0952051 MAG SWI TCH MOUNTI NG BRA CKET
24 P0952024 PULL ROD 52 P0952052 LOCK WASHER 5MM
25 P0952025 FLAT WASHER 10MM 53 P0952053 CAP SCREW M5-.8 X 12
26 P0952026 PIVOT PIN 10 X 35 54 P0952054 FLAT WASHER 5MM

Model G0952 (Mfd. Since 09/21)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-31-

G0952

108

101

REF PART # DESCRI PTION REF PART # DES CRIPTION

220V

3-Phase

Only

107

Labels & Cosmetics

102

BELT ROTATION

106

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

EYE/LUNG

INJURY HAZARD!

Always wear
ANSI-approved safety
glasses, face shield, and
respirator when using
this machine.

WARNING!

ABRASION

INJURY HAZARD!

DO NOT touch moving
abrasive belt or
personal injury may
occur!

DISCONNECT
POWER BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.

WARNING!

ENTANGLEMENT

HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

Specifications

Motor: 1-1/2 HP, 220V, 3-Ph, 60 Hz
Full-Load Current Rating: 3.9A
Motor Speed: 3440 RPM
Sanding Belt Size: 3" x 79"
Sanding Belt Speed: 5018 FPM
Contact Wheel Diameter: 4"
Drive Wheel Diameter: 7"
Weight: 117 lbs.

Date

S/N

Mfd. for Grizzly in China

103

KEEP DOOR

CLOSED

WHILE

OPERATING!

104

MODEL G0952

3" X 79" METAL BELT

GRINDER/SANDER

To reduce risk of serious injury while using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear ANSI-approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Support workpiece with work rest.

5. Maintain 1/16" maximum clearance between work rest and sandpaper.

6. Never touch moving sandpaper.

7. Always grind in accordance with directional arrows on machine.

8. Make sure grinder is properly assembled, adjusted, and stable before

operating. Only operate with all guards in place.

9. Never grind pointed stock with point facing into belt rotation, and
never force workpiece into grinding surface.

10. Do not grind in a flammable environment or near combustibles.

11. Only remove jammed pieces when sandpaper is stopped.

12. Turn motor OFF and disconnect power before changing sandpaper,

making adjustments, or servicing.

13. Do not wear loose clothing, gloves, jewelry, or other articles that can
get entangled. Tie back long hair and roll up sleeves.

14. Never reach over moving abrasive belt.

15. DO NOT expose to rain or use in wet locations.

16. DO NOT operate under influence of drugs or alcohol or when tired.

17. Prevent unauthorized use by children or untrained users; restrict
access or disable machine when unattended.

WARNING!

105

101 P0952101 MACHINE ID LABEL 105 P0952105 MODEL NUMBER LABEL
102 P0952102 BELT ROTATION LABEL 106 P0952106 COMBO WARNING LABEL
103 P0952103 DOOR CLOSED LABEL 107 P0952107 ELECTRICITY LABEL
104 P0952104 TOUCH-UP P AI NT, GRIZZLY GREEN 108 P0952108 220V 3-PH POWER LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-32-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0952 (Mfd. Since 09/21)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
