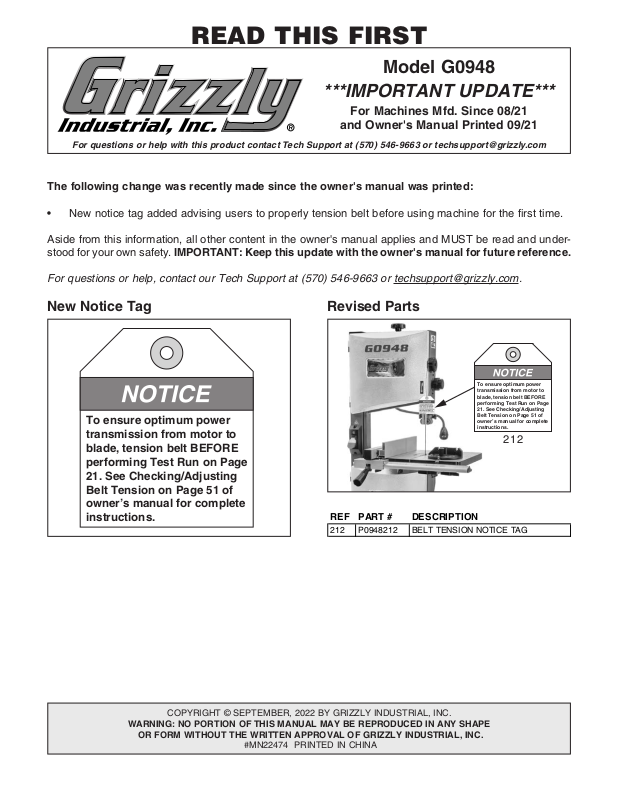

READ THIS FIRST

Model G0948

***IMPORTANT UPDATE***

For Machines Mfd. Since 08/21

and Owner's Manual Printed 09/21

For questions or help with this product contact Tech Support at (570) 546-9663 or [email protected]

The following change was recently made since the owner's manual was printed:

• New notice tag added advising users to properly tension belt before using machine for the first time.

Aside from this information, all other content in the owner's manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or [email protected].

New Notice Tag

To ensure optimum power transmission from motor to blade, tension belt BEFORE performing Test Run on Page

21. See Checking/Adjusting Belt Tension on Page 51 of owner’s manual for complete instructions.

Revised Parts

To ensure optimum power transmission from motor to blade, tension belt BEFORE performing Test Run on Page

21. See Checking/Adjusting Belt Tension on Page 51 of owner’s manual for complete instructions.

212

REF PART # DES CRIPTI ON

212 P0948212 BELT TENSION NOTICE TAG

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN22474 PRINTED IN CHINA

Page 2

MODEL G0948

10" 1/2 HP BANDSAW

OWNER'S MANUAL

(For models manufactured since 08/21)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN22059 PRINTED IN CHINA

V1.09.21

Page 3

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 4

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Bandsaws

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

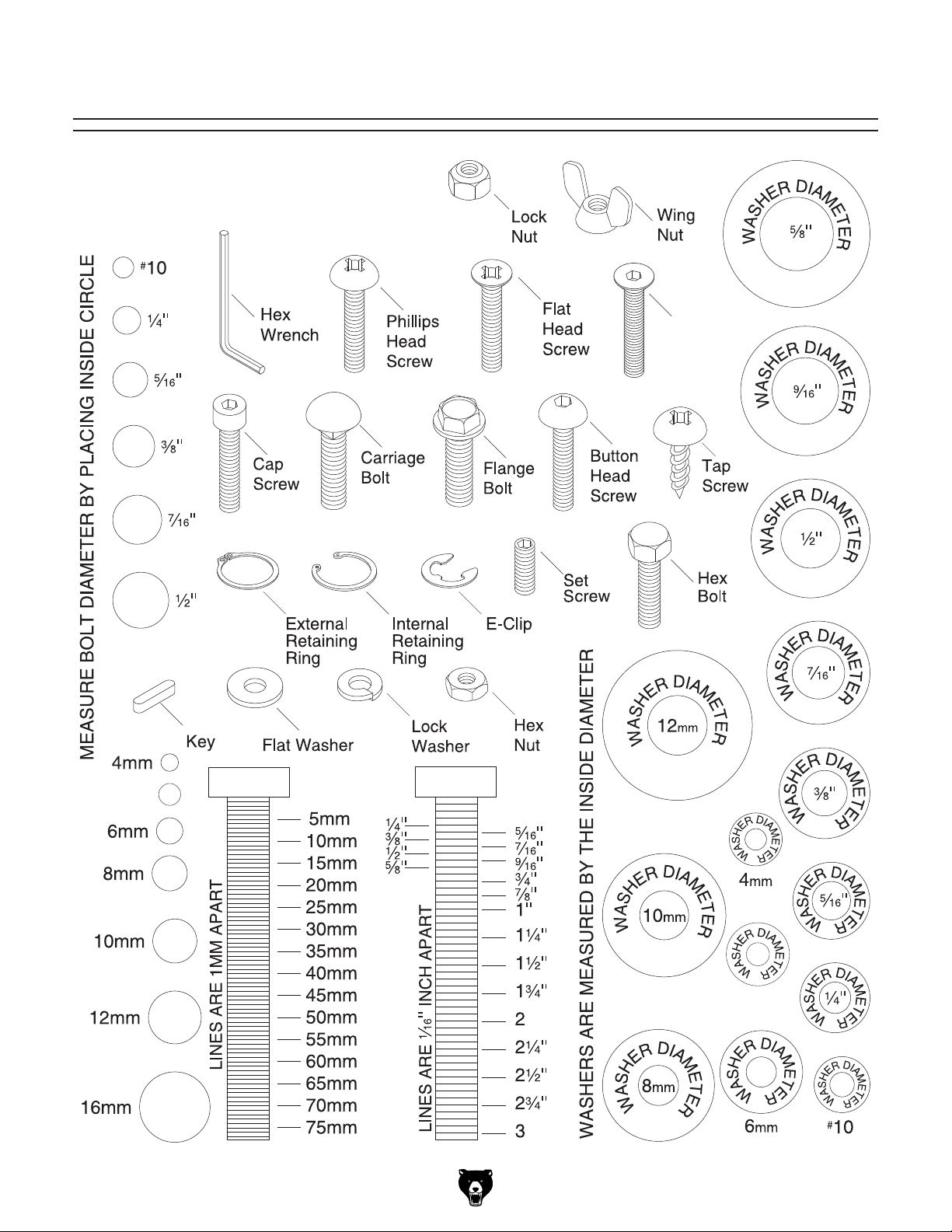

Unpacking Needed for Setup Inventory Hardware Recognition Chart Site Considerations Assembly Dust Collection Adjustment Overview Initial Blade Tracking Test Run Tensioning Blade Adjusting Blade Support Bearings Adjusting Blade Guide Bearings Aligning Table Aligning Fence Calibrating Miter Gauge

.................................................... 13

...................................................... 14

..................................................... 16

...................................................... 21

........................................... 2

................................................... 3

................................. 4

...................................... 6

....................................... 8

.................. 8

................... 10

...................... 11

....................................... 13

......................................... 13

....................... 15

...................................... 16

............................................. 19

................................... 19

................................... 20

......................................... 22

............... 24

.................. 25

.............................................. 27

............................................. 28

............................... 29

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning & Lubricating

SECTION 7: SERVICE

Troubleshooting Checking/Adjusting Belt Tension Replacing Belt Aligning Wheels Blade Lead Adjusting Wheel Brush

SECTION 8: WIRING

Wiring Safety Instructions Wiring Diagram Electrical Components

SECTION 9: PARTS

Main Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 47

................................. 47

................................... 48

........................................... 48

.............................................. 52

........................................... 53

................................................... 56

................................ 57

...................................... 58

............................ 58

............................................ 59

................................. 60

....................................... 61

............................................................. 61

..................................... 64

............................. 65

......................... 44

......................... 47

................. 51

SECTION 4: OPERATIONS

Operation Overview Basic Functions of a Bandsaw

Workpiece Inspection................................... 31

Setting Upper Blade Guide Height Tilting Table Choosing Blades Blade Selection Chart Blade Care & Break-In Blade Breakage Removing/Installing Blade Changing Blade Speed Ripping Crosscutting Resawing Cutting Curves

Stacked Cuts................................................ 43

................................................. 32

.......................................... 34

........................................... 38

......................................................... 41

................................................. 41

..................................................... 42

............................................. 42

........................... 30

..................................... 30

.................... 31

.............. 32

.................................. 37

................................. 38

........................... 39

................................ 40

Page 5

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0948 (Mfd. Since 08/21)

Page 6

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Upper Wheel CoverBlade Tension

Knob

LED Work Light ON/OFF Switch

Fence

Guide Post

Adjustment Knob

Blade Guides

Work Light

Guide Post

Lock Knob

Guide Post

Tracking

Knob

Tracking Knob

Lock Lever

ON/OFF

Paddle Switch

Fence Lock

Handle

Lower Wheel

Cover

Fence

Rail

Miter

Gauge

Table

Table Tilt

Lock Handle

Lower Wheel

Adjustment Hub

Motor

Dust Port

Stand

For Your Own Safety, Read Instruction Manual Before Operating Saw.

a) Wear eye protection. b) Do not remove jammed cutoff pieces until blade has stopped. c) Maintain proper adjustment of blade tension, blade guides, and thrust bearings. d) Adjust upper blade guide to just clear workpiece. e) Hold workpiece firmly against table.

Model G0948 (Mfd. Since 08/21)

-3-

Page 7

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

Fence & Miter Gauge

using machine.

Refer to Figures 1–6 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

Power Controls

Figure 2. Fence and miter gauge controls.

Horizontal Position

Allows Upper Blade Guide to Be Adjusted Closer to

Thin Workpieces

Figure 1. Power controls.

A. ON/OFF Paddle Switch w/Removable Key:

Turns machine ON and OFF. Remove key to disable machine.

LED Work Light ON/OFF Switch: Turns

light ON and OFF. Illuminates cutting area for better visibility.

Figure 3. Fence mounted in horizontal position.

C. Fence: Used for ripping or resawing. Distance

from blade determines width of cut. Can be used in vertical position (as shown in Figure

2) for normal workpieces, or in horizontal position (as shown in Figure 3) for thin workpieces.

D. Miter Gauge: Typically used for cross cuts.

Can be adjusted from 0°–60° left or right.

E. Miter Gauge Lock Knob: Secures angle

position of miter gauge.

F. Fence Lock Handle: Secures fence position.

-4-

Model G0948 (Mfd. Since 08/21)

Page 8

Guide Post

Blade Tension & Tracking

Figure 4. Guide post controls.

G. Guide Post Lock Knob: Secures height of

blade guides.

H. Guide Post Adjustment Knob: Rotate

to adjust height of blade guides above workpiece.

I. Upper Blade Guide: Supports blade above

workpiece during operations.

Table Tilt

Figure 6. Blade tension and tracking controls.

M. Blade Tension Adjustment Knob: Rotate

to adjust blade tension (refer to more information).

Blade Tracking Knob: Rotate to adjust

blade tracking (refer to Page 20 for more information).

O. Blade Tracking Knob Lock Lever: Secures

position of tracking knob.

Page 22 for

Figure 5. Table tilt controls.

J. Trunnion w/Table Tilt Scale: Functions as

a tilting base for table. Graduated in degrees from 0°–45° for setting bevel angle.

Table Tilt Lock Lever: Secures table tilt

angle setting.

L. Table Tilt Indicator: Shows angle of table

tilt.

Model G0948 (Mfd. Since 08/21)

-5-

Page 9

MACHINE DATA

Has Quick-Release........................................................................................................................................ No

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0948 10" 1/2 HP BANDSAW

Product Dimensions:

Weight................................................................................................................................................................ 69 lbs.

Width (side-to-side) x Depth (front-to-back) x Height............................................................... 28 x 21-1/2 x 58-1/2 in.

Footprint (Length x Width)............................................................................................................... 24-1/2 x 20-1/2 in.

Shipping Dimensions:

Type............................................................................................................................................................. Cardboard

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 75 lbs.

Length x Width x Height....................................................................................................................... 38 x 19 x 16 in.

Must Ship Upright.................................................................................................................................................... No

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 3.5A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 1/2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 3.5A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Main Specifications

Bandsaw Size............................................................................................................................................ 10 in.

Max Cutting Width (Left of Blade).......................................................................................................... 9-3/4 in.

Max Cutting Width (Left of Blade) w/Fence........................................................................................... 6-1/8 in.

Max Cutting Height (Resaw Height)...................................................................................................... 6-1/8 in.

Blade Speeds........................................................................................................................... 1520, 2620 FPM

Blade Information

Standard Blade Length.............................................................................................................................. 72 in.

Blade Length Range.............................................................................................................. 71-1/2 - 72-1/2 in.

Blade Width Range........................................................................................................................... 1/8 - 1/2 in.

Type of Blade Guides...................................................................................................................... Ball Bearing

Guide Post Adjustment Type....................................................................................................... Rack & Pinion

-6-

Model G0948 (Mfd. Since 08/21)

Page 10

Table Information

Table Length...................................................................................................................................... 14-3/16 in.

Table Width......................................................................................................................................... 12-5/8 in.

Table Thickness........................................................................................................................................... 1 in.

Table Tilt............................................................................................................................................ 0 - 45 deg.

Table Tilt Adjustment Type..................................................................................................................... Manual

Floor-to-Table Height........................................................................................................................... 38-5/8 in.

Fence Locking Position.............................................................................................................................. Front

Fence is Adjustable for Blade Lead.............................................................................................................. Yes

Resaw Fence Attachment Included.............................................................................................................. Yes

Miter Gauge Included................................................................................................................................... Yes

Construction Materials

Table.......................................................................................................................................... Cast Aluminum

Trunnion..................................................................................................................................................... Steel

Fence.................................................................................................................................................. Aluminum

Base/Stand................................................................................................................................................. Steel

Frame/Body................................................................................................................................................ Steel

Wheels....................................................................................................................................... Cast Aluminum

Tire.......................................................................................................................................................... Rubber

Wheel Cover .............................................................................................................................................. Steel

Paint Type/Finish................................................................................................................................. Urethane

Other Related Information

Wheel Diameter......................................................................................................................................... 10 in.

Wheel Width............................................................................................................................................. 1/2 in.

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size...................................................................................................................................... 2, 3, 4 in.

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes

Serial Number Location ................................................................................................................... Machine ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Steel Stand w/Vibration-Resistant Rubber Feet Ball-Bearing Blade Guides LED Work Light Extruded Aluminum Rip Fence Combination 2", 3" & 4" Dust Port 45-Degree Table Tilt 6-1/8" Cutting Height (Resaw Capacity) Blade Speeds: 1520, 2620 FPM

Accessories Included:

Push Stick Miter Gauge Open-Ends Wrench 10/13mm Hex Wrenches 3, 4, 5, 6mm

Model G0948 (Mfd. Since 08/21)

-7-

Page 11

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0948 (Mfd. Since 08/21)

Page 12

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0948 (Mfd. Since 08/21)

-9-

Page 13

Additional Safety for Bandsaws

Serious cuts, amputation, or death can occur from contact with the moving saw blade during operation or if blade breakage occurs. Serious injury or death can also occur from getting fingers, hair, or clothing entangled in moving parts if the machine is operated while the doors are open. To reduce this risk, anyone operating this machine MUST completely heed the hazards and warnings below.

HAND PLACEMENT. Placing hands or fingers

in line with blade during operation may result in serious injury if hands slip or workpiece moves unexpectedly. Do not position fingers or hands in line with blade, and never reach under table while blade is moving.

SMALL/NARROW WORKPIECES. If hands slip during a cut while holding small workpieces with fingers, serious personal injury could occur. Always support/feed small or narrow workpieces with push sticks, push blocks, jig, vise, clamping fixture.

BLADE SPEED. Cutting workpiece before blade is at full speed could cause blade to grab workpiece and pull hands into blade. Allow blade to reach full speed before starting cut. DO NOT start machine with workpiece contacting blade.

FEED RATE. To avoid risk of workpiece slipping and causing operator injury, always feed stock evenly and smoothly.

BLADE CONDITION. Dull blades require more effort to perform cut, increasing risk of accidents. Do not operate with dirt y, dull, cracked or badly worn blades. Inspect blades for cracks and missing teeth before each use. Always maintain proper blade tension and tracking while operating.

CLEARING JAMS AND CUTOFFS. Always stop bandsaw and disconnect power before clearing scrap pieces that get stuck between blade and table insert. Use brush or push stick, not hands, to clean chips/cutoff scraps from table.

BLADE CONTROL. To avoid risk of injury due to blade contact, always allow blade to stop on its own. DO NOT try to stop or slow blade with your hand or the workpiece.

GUARDS /COVERS. Blade guards and covers protect operator from moving bandsaw blade. The wheel covers protect operator from getting entangled with rotating wheels or other moving parts. ON LY operate bandsaw with blade guard in proper position and wheel covers completely closed.

BLADE REPLACEMENT. To avoid mishaps that could result in operator injury, make sure blade teeth face down toward table and blade is properly tensioned and tracked before operating.

UPPER BLADE GUIDE SUPPORT. To reduce exposure of operator to blade and provide maximum blade support while cutting, keep upper blade guides adjusted to just clear workpiece.

CUTTING TECHNIQUES. To avoid blade getting pulled off wheels or accidentally breaking and striking operator, always turn bandsaw OFF and wait for blade to come to a complete stop before backing workpiece out of blade. DO NOT back workpiece away from blade while bandsaw is running. DO NOT force or twist blade while cutting, especially when sawing small curves. This could result in blade damage or breakage.

WORKPIECE SUPPORT. To maintain maximum control and reduce risk of blade contact/breakage, always ensure adequate support of long/ large workpieces. Always keep workpiece flat and firm against table/fence when cutting to avoid loss of control. If necessary, use a jig or other workholding device.

WORKPIECE MATERIAL. This machine is intended for cutting natural and man-made wood products, and laminate covered wood products. This machine is NOT designed to cut metal, glass, stone, tile, etc.

-10 -

Model G0948 (Mfd. Since 08/21)

Page 14

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage

not properly grounded

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

may occur if machine is

and connected to power supply.

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115 V, 12 0V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

Full-Load Current Rating

Full-Load Current Rating at 120V .... 3.5 Amps

Model G0948 (Mfd. Since 08/21)

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

-11-

Page 15

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified electrician install the proper outlet with a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 7. Typical 5-15 plug and receptacle.

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

verified ground.

-12-

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0948 (Mfd. Since 08/21)

Page 16

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

call us immediately at (570) 546-9663.

Unpacking

If items are damaged

Save all packaging materials until

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Needed for Setup

The following items are needed, but not included, for the setup/assembly of this machine.

Description Qty

• Additional Person ....................................... 1

• Safety Glasses (for each person) ............... 1

• Heavy Leather Gloves ........................... 1 Pr.

• Phillip's Head Screwdriver #2 ..................... 1

• Feeler Gauge 0.016" .................................. 1

• Straightedge ............................................... 1

• Ruler ........................................................... 1

• Shims ......................................... As Needed

• Machinist's Square ..................................... 1

• Level 18" ..................................................... 1

• Dust-Collection System .............................. 1

• Dust Hose 2", 3", or 4" ................................ 1

• Hose Clamps 2", 3", or 4" ........................... 2

Model G0948 (Mfd. Since 08/21)

-13-

Page 17

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Figure 9. Hardware.

Hardware (Figure 9) Qty

N. Carriage Bolts M8-1.25 x 16 ..................... 16

Flat Washers 8mm ................................... 16

Hex Nuts M8-1.25 ..................................... 16

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Figure 8. Inventory.

Inventory (Figure 8) Qty

A. Bandsaw ..................................................... 1

Rip Fence Assembly .................................. 1

Miter Gauge ................................................ 1

Table w/Insert ............................................. 1

Fence Rail .................................................. 1

F. Wing Bolts M8-1.25 x 18 ............................ 4

Push Stick .................................................. 1

Open-End Wrench 10 x 13mm ................... 1

Hex Wrenches 3, 4, 5, 6mm .................1 Ea.

Rubber Feet ............................................... 4

Stand Braces (Long) .................................. 2

Stand Braces (Short) .................................. 2

Stand Legs ................................................. 4

-14-

Model G0948 (Mfd. Since 08/21)

Page 18

Hardware Recognition Chart

USE THIS CHART TO MATCH UP

HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.

Flat Head Cap Screw

5mm

Model G0948 (Mfd. Since 08/21)

5mm

-15-

Page 19

Site Considerations

Refer to the Machine Data Sheet for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support the weight of the machine and workpiece materials.

vised around this machine.

or disable start switch or

Consider anticipated workpiece sizes and additional space needed for auxiliary stands, work tables, or other machinery when establishing a location for this machine in the shop. Below is the minimum amount of space needed for the

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather all goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Workbench Load

Placement Location

Assembly

Needed for Setup

listed items. To ensure the assembly process

parts that are

LACERATION HAZARD! Bandsaw blades and some sheet metal parts are sharp. Wear heavy leather gloves while handling to reduce risk of being cut.

To assemble machine:

211/2"

28"

Figure 10. Minimum working clearances.

Children and visitors may be seriously injured if unsuper-

Locate (4) stand legs (see Figure 11) and

attach (1) rubber foot to bottom of each leg.

Stand Leg

(1 of 4)

Foot

(1 of 4)

Figure 11. Rubber feet attached to stand legs.

Lock entrances to the shop

power connection to prevent

-16 -

unsupervised use.

Model G0948 (Mfd. Since 08/21)

Page 20

2. Attach (1) short brace to (2) stand legs with

(2) M8-1.25 x 16 carriage bolts, 8mm flat washers, and M8-1.25 hex nuts, as shown in Figure 12. Only finger tighten for now.

Stand Legs

Have an assistant position machine base

over top of stand (see Figure 14), and secure with (8) M8-1.25 x 16 carriage bolts, 8mm flat washers, and M8-1.25 hex nuts.

x 2

Short

Brace

Figure 12. Stand legs attached to short braces.

Repeat Step 2 with remaining (1) short brace

and (2) stand legs.

Attach (2) leg assemblies together with (2)

long braces using (4) M8-1.25 x 16 carriage bolts, 8mm flat washers, and M8-1.25 hex nuts, as shown in Figure 13. Only finger tighten for now.

x 4

x 8

Figure 14. Machine attached to stand.

Ensure machine is level, side to side and front

to back, then tighten all fasteners installed in Steps 2–5.

Remove (4) pre-installed M6-1 x 10 hex bolts

and 6mm flat washers from base of table, and loosen (2) shoulder screws (see Figure 15) securing trunnions to trunnion bracket.

Note: For operations requiring a high degree

of accuracy, tighten shoulder screws securing trunnions to trunnion bracket to increase table rigidity.

Page reference 16

Long Brace

(1 of 2)

Figure 13. Leg assemblies attached with long

braces.

Model G0948 (Mfd. Since 08/21)

Slide table past saw blade through table slot,

and secure table to trunnions with fasteners removed in Step 7 (see Figure 15).

Shoulder Screw

(1 of 2)

x 4

Figure 15. Table attached to trunnions.

Scale

Indicator

-17-

Page 21

9. Completely raise upper blade guide assem-

bly, then place machinist's square flat on table, against side of blade (see Figure 16).

Loosen table lock lever, and tilt table until

10.

square is flat against side of blade, as illustrated in Figure 16. When complete, tighten lock lever.

Square

Table

13. Install fence on fence rail, as shown in Figure 18.

Note: Fence lock lever (see Figure 18)

needs to be in up position when fitting fence onto fence rail. Once fence snaps onto fence rail, push lock lever down to secure fence in position.

Fence

Lock

Lever

Fence Rail

Figure 16. Using a square to adjust table

perpendicular to the side of blade.

11.

Loosen screw on scale indicator (see Figure

15 on Page 17), set indicator to "0", and

tighten screw.

Attach fence rail to front of table with (4)

12.

M8-1.25 x 18 wing bolts (see Figure 17).

Fence Rail

Wing Bolts

Figure 18. Fence installed on fence rail.

Figure 17. Fence rail attached to front of table.

-18-

Model G0948 (Mfd. Since 08/21)

Page 22

Dust Collection

Adjustment

Overview

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

2" Dust Port.......................................... 10 0 CF M

3" Dust Port.......................................... 250 CFM

4" Dust Port.......................................... 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

The bandsaw is one of the most versatile woodworking machines. However, it has multiple components that must be properly adjusted for the best cutting results.

For practical and safety reasons, some adjustments and test operations must be performed before performing other necessary adjustments. Below is an overview of all the adjustments and the order in which they should be performed:

Initial Blade Tracking

Test Run

Tensioning Blade

Adjusting Blade Support Bearings

Adjusting Blade Guide Bearings

Aligning Table

Aligning Fence

To connect a dust collection hose:

1. Fit 2", 3" or 4" dust hose over dust port, as

shown in Figure 19, and secure it in place with a hose clamp.

Hose

Clamp

Dust

Hose

Figure 19. Example of 2" dust hose attached to

dust port.

2. Gently pull hose to make sure it does not

come off. A tight fit is necessary for proper performance.

Model G0948 (Mfd. Since 08/21)

-19 -

Page 23

Initial Blade Tracking

"Tracking" refers to how the blade rides on the bandsaw wheels. Proper tracking is important for maintaining bandsaw adjustments, achieving correct blade tension, and cutting accurately. Improper tracking reduces cutting accuracy, causes excess vibrations, and places stress on the blade and other bandsaw components. The shape of the wheels and the orientation of the wheels in relation to each other determine how the blade tracks.

Bandsaw wheels are either flat or crowned and both shapes track differently. The G0948 has crowned wheels. As the wheels spin, a properly tracking blade naturally tracks at the center of the wheel (see

Figure 20).

PROPER TRACKING

Parallel And Coplanar

Parallel But Not Coplanar

Blade Centered

on Wheel

Blade Centered on Wheel

Figure 20. Blade centered on crown of wheel.

The bandsaw wheels must be aligned for optimal machine performance. Properly aligned wheels are parallel and coplanar (see

Improper blade tension and cutting practices can negatively affect blade tracking. Familiarizing yourself with the ideas and conditions described

Figure 21 will help you recognize when your

in wheel alignment may need to be adjusted (refer to Aligning Wheels on Page 53 for detailed instructions on adjusting the tracking).

Wheel

Figure 21).

Coplanar But Not Parallel

Figure 21. Wheel alignment and misalignment

examples.

The wheels on the G0948 were aligned at the factory, so center tracking is the only adjustment that needs to be performed when the saw is new. This adjustment is necessary before turning the saw on or performing other adjustments.

Not Coplanar or Parallel

-20-

Model G0948 (Mfd. Since 08/21)

Page 24

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

Serious injury or death can result from

Tool(s) Needed Qty

Protective Gloves..........................................1 Pr.

Hex Wrenches 4, 5mm

To adjust blade tracking:

DISCONNECT MACHINE FROM POWER!

Adjust upper and lower blade guides away

from blade, and raise upper guides all the way up (refer to Adjusting Blade Guide Bearings on Page

Note: When adjusting the blade tracking for

the test run in this procedure, the blade must have approximately the same amount of tension as when under operating conditions. After the test run is successfully completed, you will be instructed on how to more accurately tension the blade for optimum results.

Rotate tension adjustment knob clockwise to

3. apply tension to blade (see Figure

25 for detailed instructions).

................................1 Ea.

22).

Rotate upper wheel by hand several times

and watch how blade rides on wheel (see

Figure

this concept).

— If the blade rides in the center of the upper

— If the blade does not ride in the center of

Spin upper wheel with one hand and slowly

adjust tracking knob (see Figure 22) with other hand until blade consistently tracks in center of wheel.

Turn tracking knob lock lever clockwise to

secure setting.

Close and secure upper wheel cover before

operating bandsaw.

20 on Page 20 for an illustration of

wheel, it is properly tracking and you are done with this procedure.

the upper wheel, it is not properly tracking; continue with the next step to adjust it.

Tension

Adjustment

Knob

Tracking

Knob

Tracking Knob

Lock Lever

Figure 22. Blade tension and tracking controls.

4. Open upper wheel cover.

Push blade toward fence with moderate

pressure to check if there is approximately

⁄4" deflection. If not, rotate tension adjustment knob as needed until blade is properly tensioned.

Test Run

Troubleshooting

The test run consists of verifying the following:

1) The motor powers up and runs correctly, and 2) the removable key on the switch works correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Model G0948 (Mfd. Since 08/21)

-21-

Page 25

DO NOT start machine until all preceding

setup instructions have been performed. Operating an improperly set up machine

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

Tensioning Blade

A properly tensioned blade is essential for making accurate cuts, maximizing the blade life, and making other bandsaw adjustments. However, a properly tensioned blade will not compensate for cutting problems caused by excessive feed rate, hardness variations between workpieces, and improper blade selection.

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Turn machine ON, verify motor operation,

then turn machine OFF.

The motor should run smoothly and without

problems or unusual noises.

Remove key, as shown in Figure 23.

Optimal cutting results for any type of workpiece are achieved through a combination of correct blade selection, proper blade tension, properly adjusted blade guides and other bandsaw components, and using an appropriate feed rate.

Improper blade tension is unsafe, produces inaccurate and inconsistent results, and introduces unnecessary wear on bandsaw components. Over-tensioning the blade increases the chance of the blade breaking or wheel misalignment. Under-tensioned blades wander excessively while cutting and will not track properly during operation.

The method used to tension the blade is often a matter of preference. This manual describes two methods: the flutter method and the deflection method. Either method will help you properly tension the blade. Experience and personal preference will help you decide which method you prefer.

Figure 23. Removing key from ON/OFF paddle

switch.

5. Try to start machine with ON/OFF paddle

switch. The machine should not start.

— If the machine does not start, the switch is

working as designed.

— If the machine does start, immediately

stop the machine. The switch is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

-22-

Note: Tensioning the blade before the Test Run was an approximate tension. The following procedures fine-tune the blade tension.

Model G0948 (Mfd. Since 08/21)

Page 26

The Flutter Method

Using the flutter method, you intentionally loosen the blade until it just passes the point of being too loose (when it begins to flutter). Then you gradually tighten the blade until proper tension is reached.

To tension bandsaw blade using flutter method.

1. DISCONNECT MACHINE FROM POWER!

Make sure blade is properly tracking as

2. instructed in Initial Blade Tracking on Page 20.

Raise guide post all the way, and move upper

and lower guide bearings away from blade.

Rotate blade tension adjustment knob clock-

wise to apply tension to blade.

Connect bandsaw to power, then turn it ON.

Using blade tension adjustment knob, slowly

decrease blade tension until you see the blade start to flutter.

. Slowly increase tension until blade stops flut-

tering, then tighten blade tension adjustment knob an additional

8. DISCONNECT MACHINE FROM POWER!

⁄8 to 1⁄4 of a turn.

The Deflection Method

The deflection method is much more subjective than the flutter method. Each blade will deflect differently and every user will determine what "moderate pressure" means. The following are general guidelines for tensioning the blade with this method.

To tension bandsaw blade using deflection method:

1. DISCONNECT MACHINE FROM POWER!

Make sure blade is properly tracking as

2. instructed in Initial Blade Tracking on Page 20.

Raise guide post all the way and move upper

and lower guide bearings away from blade.

Rotate blade tension adjustment knob clock-

wise to apply tension to blade.

5. Using moderate pressure, push center of the blade sideways with one finger.

— If the blade deflects approximately 1⁄4", it is

properly tensioned. Proceed to

— If the blade deflects less than 1⁄4", it is over-

tensioned. Turn the blade tension adjustment knob counterclockwise two full turns and repeat

Step 5.

Step 6.

9. Adjust blade guides as described in Adjusting Blade Support Bearings and Adjusting Blade Guide Bearings on Pages 24–25.

Model G0948 (Mfd. Since 08/21)

— If the blade deflects 1⁄4" or more, the blade

is not properly tensioned. Apply tension to the blade incrementally and repeat until properly tensioned.

6. Adjust blade guides as described in Adjusting Blade Support Bearings and Adjusting Blade Guide Bearings on

Pages 24–25.

Step 5

-23-

Page 27

Adjusting Blade

Support Bearings

The support bearings are positioned behind the blade near the blade guides and prevent the blade from pushing backward during cutting operations. Proper adjustment of the support bearings helps you make accurate cuts and prevents the blade teeth from coming in contact with the blade guides while cutting. If this happens the blade "tooth set" can be ruined, which will greatly reduce the blade's ability to make good cuts.

0.016''

Figure 25. Bearing positioned 0.016" away from

back of blade.

IMPORTANT: To ensure best results while cutting, make sure blade is tracking (see Initial

Blade Tracking on Page 20) and tensioned (see Blade Tensioning on Page 22) correctly before

performing this procedure.

Adjusting Upper Support Bearing

Tool(s) Needed Qty

Feeler Gauge 0.016" .......................................... 1

To adjust upper support bearing:

. DISCONNECT MACHINE FROM POWER!

Loosen support bearing adjustment knob

(see Figure 24).

Support Bearing

Tighten adjustment knob to lock support

bearing in place.

Adjusting Lower Support Bearing

Tool(s) Needed Qty

Wrench or Socket 10mm ................................... 1

Hex Wrench 4mm Feeler Gauge 0.016"

To adjust lower support bearing:

1. DISCONNECT MACHINE FROM POWER!

Loosen button head cap screw (see

2. Figure 26).

.............................................. 1

.......................................... 1

Support

Bearing

Support Bearing

Adjustment Knob

Figure 24. Upper support bearing components.

Position support bearing approximately 0.016"

away from back of blade (see Figure 25).

Note: The main purpose of this adjustment

is to prevent the blade from being pushed backward far enough that the blade guides will contact (and ruin) the "tooth set" of the blade during cutting operations.

-24-

Figure 26. Location of lower support bearing

(table removed for clarity).

3. Position support bearing approximately 0.016" away from the back of the blade, as illustrated

Figure 25. This can be measured with a

in feeler gauge.

Tighten button head cap screw loosened in

4. Step 2.

Model G0948 (Mfd. Since 08/21)

Page 28

Adjusting Blade

Guide Bearings

The blade guide bearings can be adjusted leftto-right, as well as front-to-back, relative to the blade. Properly adjusted blade guide bearings provide side-to-side support, from just behind the gullets to the back of the blade, to help keep the blade straight while cutting.

IMPORTANT: Make sure the blade is tracking (refer to Initial Blade Tracking on Page 20) and tensioned (see Tensioning Blade on Page correctly before performing this procedure.

Adjusting Upper Blade Guide Bearings

Tool(s) Needed Qty

Hex Wrench 4mm .............................................. 1

Feeler Gauge 0.016"

To adjust upper blade guide bearings:

.......................................... 1

22)

Approximately

0.016" Blade

Guide

Bearing

(1 of 2)

Blade

Gullets

Figure 28. Blade guide bearing positioned just

behind blade gullets.

Note: With wider blades, it may not be possi-

ble to bring the guide bearings just behind the blade gullets. Position them as far forward as possible without allowing the guide bearing housing to touch the back of the blade.

DISCONNECT MACHINE FROM POWER!

Loosen guide block adjustment knob shown

in Figur bearings just behind blade gullets, as illustrated in Figur secure setting.

Note: The guide bearings should be posi-

tioned behind the gullets a distance equal to that of the support bearing behind the blade (see

Guide Block

Adjustment Knob

e 27, then laterally position guide

e 28, then tighten knob to

Page 24 for reference).

Guide Bearing

Cap Screw

(1 of 2)

Blade teeth are angled out slightly, protruding wider than the blade thickness; this is known as blade "tooth set" (see Figure 29). If teeth contact guide bearings during operation, damage may occur. Therefore, the support bearing must be set to prevent teeth from contacting guide bearings during operation (refer to Page 24 for details).

BladeThickness

“Tooth Set”

Wider Than

Blade Thickness

Figure 29. Illustration of blade "tooth set".

Figure 27. Upper guide bearing components.

Model G0948 (Mfd. Since 08/21)

-25-

Page 29

3. Loosen both guide bearing cap screws (see Figure 27 on Page 25), then position guide

bearings so they evenly and lightly touch sides of blade (see illustration in without deflecting it one way or the other.

Figure 30)

Adjusting Lower Blade Guide Bearings

Tool(s) Needed Qty

Hex Wrenches 4, 5mm ................................1 Ea.

Feeler Gauge 0.016"

.......................................... 1

Note: When the blade guide bearings are

properly adjusted against the blade, they should lightly rotate as the blade moves.

Figure 30. Blade guide bearings evenly and

lightly touching the sides of the blade.

Tighten cap screws to secure settings.

Re-check setting after tightening.

To adjust lower blade guide bearings:

DISCONNECT MACHINE FROM POWER!

Loosen guide block cap screw (see Figure

31), then laterally position guide bearings

just behind blade gullets, as illustrated in

e 28 on Page 25, then tighten cap

Figur

screw to secure setting.

Note: The guide bearings should be posi-

tioned behind the gullets a distance equal to that of the support bearing behind the blade

Page 24 for reference).

(see

Loosen both guide bearing screws (see

3. Figure 31), then position guide bearings so

they evenly and lightly touch sides of blade (see illustration in ing it one way or the other.

Note: When the blade guide bearings are

properly adjusted against the blade, they should lightly rotate as the blade moves.

Figure 30) without deflect-

Whenever changing blade or adjusting blade tension or tracking, the support and guide bearings must be re-adjusted before resuming operation to ensure proper blade support.

Guide Block

Cap Screw

Figure 31. Lower blade guide components (table

removed for clarity).

4. Tighten screws to secure settings. Re-check setting after tightening.

Guide Bearing Screw (1 of 2)

-26-

Model G0948 (Mfd. Since 08/21)

Page 30

Aligning Table

To ensure cutting accuracy, the table should be aligned so that the miter slot is parallel to the bandsaw blade.

Item(s) Needed Qty

Precision Straightedge ...................................... 1

Precision Ruler Square Hex Wrench 6mm Wrench or Socket 10mm Shims

............................................................... 1

................................................. As Needed

Adjusting Miter Slot Parallelism

1. Make sure blade is tracking properly and cor-

rectly tensioned (refer to Pages 20 and 22).

DISCONNECT MACHINE FROM POWER!

Place straightedge along blade so it barely

touches both front and back of blade without going across a tooth (see Figure

.................................................. 1

.............................................. 1

................................... 1

Adusting Miter Slot Parallelism

32).

5. Loosen trunnion hex bolts that secure table

(see Figure

x 4

Figure 33. Location of trunnion hex bolts.

Adjust table until distance between straight-

edge and miter slot is same at front and back of table.

Taking care not to move table, tighten trun-

nion hex bolts, then repeat Step adjustment.

33).

4 to verify

Measure distance between straightedge and

miter slot (see Figure be same at front and back of table.

— If distance is same at front and back of

table, no adjustment is necessary.

— If distance is not same at front and back

of table, it must be adjusted; proceed to Step 5.

Blade

32). Distance should

Miter

Slot

Adjusting Table Perpendicular to Blade

1. DISCONNECT MACHINE FROM POWER!

Place a square on table and against back

of blade, as illustrated in Figure 34. Table should be perpendicular to back of blade.

— If the table is perpendicular to the back

of the blade, no adjustment is necessary; proceed to Aligning Fence on Page 28.

— If the table is not perpendicular to the back

of the blade, you must shim the table; proceed to Step 3.

Blade

Square

Figure 32. Example of placing a straightedge

along blade and measuring to miter slot.

Model G0948 (Mfd. Since 08/21)

Table

Figure 34. Squaring back of blade and table.

-27-

Page 31

3. Determine which trunnion is on low side

of table, then remove two hex bolts (see

Figure

Insert a shim, such as a thin washer, between

table and low trunnion at each mounting location.

Re-install and tighten trunnion hex bolts, then

5. repeat Step 2 to verify adjustment.

33 on Page 26) from low trunnion.

Aligning Fence

Install fence on right side of blade, aligned

with edge of miter slot, then lock it in place.

— If fence is parallel with miter slot, no

adjustment is necessary.

— If fence is not parallel with miter slot, pro-

ceed to Step 4.

. Loosen (2) fence adjustment cap screws

Figure 35), adjust fence parallel with

(see miter slot, then tighten cap screws to secure setting.

To ensure cutting accuracy, the fence should be aligned parallel with the blade. This is achieved by aligning the fence with the miter slot.

Occasionally, even after aligning the fence,

Note:

a symptom known as "blade lead" will develop, requiring the fence to be skewed slightly to compensate for the blade lead problem. Refer to Blade Lead, beginning on information on blade lead and skewing the fence.

Item(s) Needed Qty

Hex Wrench 4mm .............................................. 1

To align fence:

DISCONNECT MACHINE FROM POWER!

2. Make sure table is aligned with blade (see Adjusting Miter Slot Parallelism on Page 27

for instructions).

Page 56 for more

x 2

Figure 35. Location of fence adjustment cap

screws.

-28-

Model G0948 (Mfd. Since 08/21)

Page 32

Calibrating

Miter Gauge

The miter gauge needs to be calibrated to the blade when it is first mounted in the miter slot.

Tool(s) Needed Qty

Phillips Screwdriver #2 ...................................... 1

Square

To calibrate miter gauge:

............................................................... 1

1. DISCONNECT MACHINE FROM POWER!

2. Place one edge of square against face of

miter gauge and other edge of square against side of blade, as shown in Figure 36.

Note: Make sure square does not go across

a blade tooth when performing this step.

— If square rests flush and evenly against

both miter gauge face and side of blade, then no adjustments are necessary.

— If square does not rest flush and evenly

against both miter gauge face and side of blade, the miter gauge must be calibrated. Proceed to Step 3.

Figure 36. Example of squaring miter gauge to

blade.

Loosen lock knob on miter gauge and adjust

face flush with edge of square.

Tighten lock knob, and verify square rests

flush and evenly against both miter gauge face and side of blade.

Note: Sometimes the tightening procedure

can affect the adjustment.

Loosen screw that secures angle pointer,

adjust pointer to 0° mark on scale, then tighten screw to secure setting.

Model G0948 (Mfd. Since 08/21)

-29-

Page 33

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for cutting.

Adjusts table tilt, if necessary, to correct

angle of desired cut.

If using fence, adjusts it for width of cut and

then locks it in place. If using miter gauge, adjusts angle and locks it in place.

seek additional

, and do additional research

using machine.

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

Loosens guide post lock knob, adjusts

the upper blade guide height to just clear workpiece (no more than ens guide post lock knob.

Checks to make sure workpiece can safely

pass all the way through blade without interference from other objects.

Puts on safety glasses and a respirator.

7. Starts dust collector, then bandsaw.

8. Holds workpiece firmly and flatly against both

table and fence (or miter gauge), and then pushes workpiece into blade at a steady and controlled rate until cut is complete.

The operator is very careful to keep fingers

away from blade and uses a push stick to feed narrow workpieces.

Stops bandsaw, then dust collector.

⁄4"), then re-tight-

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-30-

Model G0948 (Mfd. Since 08/21)

Page 34

Basic Functions

Workpiece

of a Bandsaw

A properly adjusted bandsaw can be safer to operate than most other saws and performs many types of cuts with ease and accuracy. It is capable of performing the following types of cuts:

Straight Cuts

• Miters

• Angles

• Compound Angles

• Resawing

• Ripping

• Crosscutting

Irregular Cuts

• Simple and Complex Curves

• Duplicate Parts

• Circles

• Beveled Curves

Basic Cutting Tips

Here are some basic tips to follow when operating the bandsaw:

Inspection

Some workpieces are not safe to cut or may require modification before they are safe to cut.

Before cutting, inspect all workpieces for the following:

• Material Type: This machine is intended for cutting natural and man-made wood products, laminate covered wood products, and some plastics. Cutting drywall or cementious backer board creates extremely fine dust and may reduce the life of the bearings. This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with a table saw may lead to injury.

• Foreign Objects: Nails, staples, dirt, rocks and other foreign objects are often embedded in wood. While cutting, these objects can become dislodged and hit the operator, cause kickback, or break the blade, which might then fly apart. Always visually inspect your workpiece for these items. If they can't be removed, DO NOT cut the workpiece.

• Replace, sharpen, and clean blades often for best performance. Check guides, tension, and alignment settings periodically and adjust when necessary to keep the saw running in top condition.

• Use light and even pressure while cutting. Light feeding pressure makes it easier to cut straight and prevents undue friction or strain on the bandsaw components and the blade.

• Avoid twisting the blade when cutting around tight corners. Allow the blade to saw its way around the corners. Always use relief cuts when possible.

• Misusing the saw or using incorrect techniques (e.g. twisting the blade with the workpiece, incorrect feed rate, etc.) is unsafe and results in poor cuts.

• Large/Loose Knots: Loose knots can

become dislodged during the cutting operation. Large knots can cause kickback and machine damage. Choose workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

• Wet or "Green" Stock: Cutting wood with a

moisture content over 20% causes unnecessary wear on the blades, increases the risk of kickback, and yields poor results.

• Excessive Warping: Workpieces with excessive cupping, bowing, or twisting are dangerous to cut because they are unstable and often unpredictable when being cut. DO NOT use workpieces with these characteristics!

• Minor Warping: Workpieces with slight cupping can be safely supported if the cupped side is facing the table or the fence. On the contrary, a workpiece supported on the bowed side will rock during a cut and could cause kickback or severe injury.

Model G0948 (Mfd. Since 08/21)

-31-

Page 35

Setting Upper Blade

Guide Height

When cutting, the blade guides must always be positioned so they just clear (no more than workpiece. The guide post, shown in allows the upper blade guide assembly to be quickly adjusted for height.

Guide Post

Lock Knob

Guide

Guide Post

Adjustment Knob

Post

⁄4") the

Figure 37,

Tilting Table

The table can be tilted from 0°–45° right to make beveled cuts. A table tilt scale with indicator is provided on the trunnion, and a positive stop is provided for quickly returning the table back to 0° from a right-tilt setting (see

Note: The tilt scale on the trunnion serves as a guide only. For more accurate results, use a bevel gauge or protractor to set the desired table tilt relative to the blade.

Table Tilt

Scale

Trunnion

Figure 38).

Indicator

Positive

Stop

Figure 37. Guide post controls.

To adjust height of upper blade guides:

DISCONNECT MACHINE FROM POWER!

Loosen guide post lock knob.

3. Using guide post adjustment knob, position

guide post so that blade guide assembly just clears (no more than

Tighten guide post lock knob to secure

setting.

⁄4") workpiece.

Table Tilt

Lock Lever

Figure 38. Table tilt controls.

Tilting Table

DISCONNECT MACHINE FROM POWER!

Loosen table tilt lock lever (see Figure 38).

Tilt table to desired angle, then tighten lock

lever.

-32-

Model G0948 (Mfd. Since 08/21)

Page 36

Using Positive Stop

Tool(s) Needed Qty

Open-End Wrenches 10, 14mm ..................1 Ea.

The positive stop (see Figure 39) allows you to quickly return the table to 0° from a right-tilt setting. The positive stop is adjustable, allowing for calibration, or if desired, minor deviations from 0°.

To use positive stop:

DISCONNECT MACHINE FROM POWER!

Loosen table tilt lock lever (see Figure 38 on

2. Page 32).

Tilt table to desired angle, then secure posi-

tion by tightening table tilt lock lever (see Figure 38 on Page 32).

Loosen jam nut on stop bolt (see Figure 39),

and turn bolt until it just touches bottom of table.

calibrating positive stop

Checking/Calibrating Positive Stop

Tool(s) Needed Qty

Open-End Wrenches 10, 14mm ..................1 Ea.

Machinist's Square

To check/calibrate positive stop:

DISCONNECT MACHINE FROM POWER!

Loosen table tilt lock lever, and tilt table to

approximately 10° right.

3. Loosen positive stop jam nut, and lower posi-

tive stop bolt so it will not interfere with the following steps.

Place a machinist's square flat on table against

side of blade, as illustrated in Figure 40.

............................................ 1

Positive

Stop Bolt

Jam Nut

Figure 39. Location of positive stop bolt and jam

nut.

Tighten jam nut to secure stop bolt setting.

Note: It is always a good idea to check table

tilt scale and make sure positive stop bolt is correctly calibrated.

Figure 40. Squaring table to blade.

Tilt table until it is square with blade.

Adjust positive stop bolt so it just touches

bottom of table, and tighten jam nut to secure position.

Check table to ensure it is square with blade.

If necessary, repeat Step 5.

Note: If you wish to set the positive stop to an

angle other than 0°, follow Steps 1–5 for the desired angle.

Loosen screw on table tilt scale indicator,

align pointer with zero on scale, then tighten screw.

Model G0948 (Mfd. Since 08/21)

-33-

Page 37

Choosing Blades

Selecting the right blade requires a knowledge of the various blade characteristics to match the blade with the particular cutting operation.

Blade Terminology

Figure 41. Bandsaw blade components.

A. Kerf: The amount of material removed by the

blade during cutting.

B. Tooth Set: The amount each tooth is bent

left or right along the blade.

C. Gauge: The thickness of the blade.

D. Blade Width: The widest point of the blade

measured from the tip of the tooth to the back edge of the blade.

E. Tooth Rake: The angle of the tooth face from

a line perpendicular to the length of the blade.

Blade Dimensions

Length Range ..................................... 711⁄2 –721⁄2 "

Width Range

Selecting the right blade requires a knowledge of the various blade characteristics to match the blade with the particular cutting operation.

.............................................1⁄8"–1⁄2 "

Blade Length

Measured by the circumference, blade lengths are usually unique to the brand of your bandsaw and the distance between wheels. Blades will vary slightly even in the same length because of how they are welded. Refer to the Accessories section later in this manual for blade replacements from Grizzly.

Blade Width

Measured from the back of the blade to the tip of the blade tooth (the widest point), blade width is often the first consideration given to blade selection. Blade width dictates the largest and smallest curve that can be cut, as well as how accurately it can cut a straight line.

Always pick the size of blade that best suits your application.

• Curve Cutting: Use the chart in Figure 42 to

determine the correct blade for curve cutting. Determine the smallest radius curve that will be cut on your workpiece and use the corresponding blade width.

F. Gullet Depth: The distance from the tooth tip

to the bottom of the curved area (gullet).

G. Tooth Pitch: The distance between tooth

tips.

H. Blade Back: The distance between the bot-

tom of the gullet and the back edge of the blade.

I. TPI: The number of teeth per inch measured

from gullet to gullet.

-34-

Blade Width

Cutting Radius

Figure 42. Recommended cutting radius per

blade width.

• Straight Cutting: Use the largest width

blade that you own. Large blades excel at cutting straight lines and are less prone to wander.

Model G0948 (Mfd. Since 08/21)

Page 38

Tooth Style

Figure 43 illustrates the three main blade tooth

styles:

Raker Skip Hook

Figure 43. Main blade tooth styles.

• Raker: Considered to be the standard because the tooth size and shape are the same as the tooth gullet. The teeth on raker blades usually are very numerous, have no angle, and produce cuts by scraping the material. As a result, smooth cuts can be achieved without cutting fast or generating more heat than other tooth types.

Tooth Pitch

Measured as TPI (teeth per inch), tooth pitch determines the number of teeth. More teeth per inch (fine pitch) will cut slower, but smoother; while fewer teeth per inch (coarse pitch) will cut rougher, but faster. As a general rule, choose blades that will have at least three teeth in the material at all times. Use fine-pitched blades on harder woods and coarse-pitched blades on softer woods.

Tooth Set

Two common tooth sets for wood bandsaw blades are alternate and raker. Each different type of tooth set removes material in a different manner, leaving cuts with different characteristics (see Figure 44).

Alternate Raker

• Skip: Similar to a raker blade that is missing every other tooth. Because of the design, skip toothed blades have a much larger gullet than raker blades, and therefore, cut faster and generate less heat. However, these blades also leave a rougher cut than raker blades.

• Hook: The teeth have a positive angle (downward) which makes them dig into the material, and the gullets are usually rounded for easier waste removal. These blades are excellent for the tough demands of resawing and ripping thick material.

Figure 44. Common woodcutting bandsaw blade

tooth sets.

• Alternate: An all-purpose arrangement

where the teeth are bent evenly left and right of the blade.

• Raker: Three teeth in a recurring group—one

bent left, one bent right, and then one that is not bent. The raker set is ideal for most contour cuts.

Model G0948 (Mfd. Since 08/21)

-35-

Page 39

Blade Material

Bandsaw blades must meet two requirements: flexibility and hardness. The flexibility of a blade allows it to travel on the wheel as a band, while hardness allows the teeth to cut and hold an edge. Modern materials technology has allowed bandsaw blades to meet these requirements in various ways.

Carbon Steel: These blades are differentially heat treated to provide hard teeth that will hold an edge, and yet be flexible in the back.

Bi-metal Blade: A strip of high-speed tool steel is precision welded to a flexible carbon blade, then teeth are ground into the blade to provide good edge-holding qualities for blades taking a lot of abuse (see Figure 46).

Carbon Steel Blade

Carbide Tooth: Extremely hard carbide is either welded onto or impregnated into the carbon steel blades, providing superior edge-holding characteristics (see Figure 45).

Carbon Steel

Carbide Impregnated Steel

Figure 45. Carbide-tooth blade composition.

Weld

High-Speed Steel

Figure 46. Bi-metal blade composition.

-36-

Model G0948 (Mfd. Since 08/21)

Page 40

Blade Selection Chart

Use the blade selection chart below as a general guide when selecting a blade for your operation.

Cutting Operation

Resawing

Ripping Thin Stock

Ripping Thick Stock

Ripping Round Stock

Crosscutting Thin Stock

Crosscutting Thick Stock

Crosscutting Round Stock

Narrow (

Blade Width

⁄8" –1⁄4") Medium (3⁄16"– 1⁄2") Wide (1⁄2"– 3⁄4")

Miter Cut

Tenons

Sharp Curves

Gradual Curves

Tooth Typ e Tooth Pitch (Teeth Per Inch or TPI)

Hook Raker Skip

Key

F M C

Fine

(14-32 TPI)

Medium

(4-12 TPI)

Coarse

(2-4 TPI)

Model G0948 (Mfd. Since 08/21)

-37-

Page 41

Blade Care

& Break-In

Blade Care

A bandsaw blade is a thin piece of steel that is subjected to tremendous strain. You can obtain longer use from a bandsaw blade if you give it fair treatment and always use the appropriate feed rate for your operation.

Be sure to select blades with the proper width, set, type, and pitch for each application. Using the wrong blade will produce unnecessary heat and shorten the life of the blade.

Blade Breakage

Many conditions may cause a bandsaw blade to break. Blade breakage is unavoidable in some cases, since it is the natural result of the peculiar stresses that bandsaw blades are subjected to.

Blade breakage is also due to avoidable circumstances. Avoidable blade breakage is most often the result of poor care or judgement on the part of the operator when mounting or adjusting the blade or support guides.

The most common causes of blade breakage are:

A clean blade will perform much better than a dirty blade. Dirty or gummed up blades pass through the cutting material with much more resistance than clean blades. This extra resistance also causes unnecessary heat.

Blade Break-In

The tooth tips and edges of a new blade are extremely sharp, and cutting at too fast of a feed rate fractures the beveled edges of the teeth and causes premature blade wear.

To properly break in a new blade:

Choose correct speed for blade and material

of operation.

Reduce feed pressure by half for first

50–100 in2 of material cut.

To avoid twisting blade when cutting, adjust

feed pressure when total width of blade is in cut.

• Faulty alignment or adjustment of the blade guides.

• Forcing or twisting a wide blade around a short radius.

• Feeding the workpiece too fast.

• Dull or damaged teeth.

• Over-tensioned blade.

• Upper blade guide assembly set too high above the workpiece. Adjust the top blade guide assembly so that there is approximate-

⁄8"– 1⁄4" between the bottom of the assem-

ly bly and the workpiece.

• Using a blade with a lumpy or improperly finished braze or weld.

• Leaving the blade tensioned when not in use.

• Using the wrong pitch (TPI) for the workpiece thickness. The general rule of thumb is to have no less than two teeth in contact with the workpiece at all times during cutting.

-38-

Model G0948 (Mfd. Since 08/21)

Page 42

Removing/Installing

power BEFORE changing blade. Serious personal injury could occur if

LACERATION HAZARD!

and difficult to handle.

while handling to reduce

Blade

Disconnect bandsaw from

machine is started during this procedure.

Slip blade off both wheels, slide it through

table slot (see machine.

Figure 47. Example of removing blade.

Figure 47), and remove it from

Bandsaw blades are sharp

Wear heavy leather gloves

the risk of being cut.

Items Needed Qty

Heavy Leather Gloves ..................................1 Pr.

Hex Wrench 4mm

.............................................. 1

Removing Blade

1. DISCONNECT MACHINE FROM POWER!

Release blade tension by rotating blade ten-

sion knob counterclockwise.

Adjust upper blade guide assembly all the

way up, move blade guides completely away from blade, and remove table insert.

Remove fence rail.

Open upper and lower wheel covers.

6. Put on heavy leather gloves.

Installing Blade

1. DISCONNECT MACHINE FROM POWER!

Slide blade through table slot, ensuring that

teeth are pointing down toward table.

Note: If the teeth will not point downward

in any orientation, the blade is inside out. Remove the blade and twist it right-side out.

Slip blade over wheels while making sure it

is properly positioned between blade guards and guides.

Tension blade (refer to Tensioning Blade on

4. Page 22 for details).

Adjust blade tracking (see Initial Blade

5. Tracking on Page 20).

Adjust upper/lower support bearings and

6. blade guides (refer to Adjusting Blade Support Bearings and Adjusting Blade Guide Bearings on Pages 24–25).

Close wheel covers, and install table insert

and fence rail.

Model G0948 (Mfd. Since 08/21)

Make sure fence is parallel to miter slot and,

if necessary, adjust alignment (see Page 28).

-39-

Page 43

Changing

Blade Speed

The Model G0948 offers blade speeds of 1520 and 2620 FPM. Speed changes are made by repositioning the V-belt in different pulley grooves.

Keep in mind, cutting results are not just related to blade speed. Other factors include the type of workpiece, the blade being used for the operation, and the feed rate.

Use the chart below as a general guide for which blade speeds to use for various operations:

Type of Cutting Operation

General Woodworking 2620

Super Dense Hardwood 1520

Fast/Average Feed Rate 2620

Requires Slow Feed Rate 1520

Rough Edges Acceptable 2620

Requires Smooth Edges 1520

Quick, Production Cuts 2620

Detailed, Intricate Cuts 1520

Blade Speed

(FPM)

Open lower wheel cover to reveal motor pul-

ley, wheel pulley, and V-belt (see Figure 49).

Wheel Pulley

Belt

Motor

Pulley

Figure 49. Location of belt and pulleys.

Position belt in pulley grooves for desired

speed (see Figure 50).

Wheel Pulley

Motor Pulley

Tool(s) Needed Qty

Hex Wrench 6mm .............................................. 1

DISCONNECT MACHINE FROM POWER!

Loosen (2) motor mount cap screws (see

2. Figure 48), and pivot motor counterclockwise

to release belt tension.

Motor Mount

Cap Screws

Figure 48. Location of motor mount cap screws.

1520 FPM

Figure 50. Belt positions on pulleys.

Pivot motor clockwise. Apply pressure on

motor so there is approximately deflection (see Figure 51), then tighten motor mount cap screws.

Wheel Pulley

Approximately

/8" Deflection

Motor Pulley

Figure 51. Correct belt deflection.

6. Close lower wheel cover.

2620 FPM

⁄8" belt

-40-

Model G0948 (Mfd. Since 08/21)

Page 44

Ripping

Crosscutting

"Ripping" means cutting with the grain of the wood stock. For plywood and other processed wood, ripping simply means cutting down the length of the workpiece. Beveled rip cuts may be performed by tilting the table.

To make a rip cut:

Adjust fence to match width of cut on your

workpiece, then lock fence in place.

Adjust blade guide assembly to proper height

above workpiece.

After all safety precautions have been met,

turn bandsaw ON and wait for it to come to full speed. Slowly feed workpiece into blade until blade is completely through workpiece. Figure 52 shows an example of a ripping operation.

Crosscutting is the process of cutting across the grain of wood. For plywood and other processed wood, crosscutting simply means cutting across the width of the material. Crosscuts can be 90° or angled using the miter gauge. Compound crosscuts are those where the miter is angled and the table tilted.

To make a crosscut:

Mark workpiece on edge where you want to

begin cut.

Adjust the blade guide assembly to the cor-

rect height.

Adjust the miter gauge to the correct angle

needed for cut.

Move fence out of the way. Place workpiece

evenly against miter gauge, then line up mark with blade.

Figure 52. Example of a ripping operation.

ALWAYS use a push stick when ripping narrow pieces. Failure to follow these warnings may result in amputation or laceration injuries!

NEVER place fingers or hands in the line of cut. If you slip, your hands or fingers may go into the blade and may be cut.

After all safety precautions have been met,

turn bandsaw ON and wait for it to come to full speed. Slowly feed workpiece into the blade until blade is all the way through workpiece. Figure 53 shows an example of a crosscutting operation.

Figure 53. Example of a crosscutting operation

with the miter gauge.

Model G0948 (Mfd. Since 08/21)

-41-

Page 45

Resawing

Cutting Curves

"Resawing" means cutting the thickness of a board into two or more thinner boards (see Figure 54 for an example). The maximum height of a board that can be resawn is limited by the maximum cutting height of the bandsaw.

Figure 54. Example of a resawing operation.

One of the most important considerations for resawing is blade selection—a wide blade cuts straighter and is less prone to blade lead (see the Blade Lead subsection later in this manual for more information).

For most applications, use a blade with a hook or a skip tooth style. Choose blades with fewer teethper-inch (from 3 to 6 TPI), because they offer larger gullet capacities for clearing sawdust, which reduces heat buildup and strain on the motor.

When cutting curves, simultaneously feed and turn the stock carefully so the blade follows the layout line without twisting. If curves are sharp or tight, use a narrower blade with more TPI (teeth per inch) and make relief cuts to avoid having to back the workpiece away from the blade.

Always make short cuts first, then proceed to the longer cuts. Relief cuts reduce the chance of the blade being pinched or twisted. Relief cuts are cuts made through the waste portion of the workpiece and are stopped at the layout line, so when you're cutting along the layout line, waste wood is released from the workpiece, alleviating any pressure on the back of the blade. Relief cuts also make it easier to back the workpiece out once the saw blade has come to a stop, if needed.

The list below displays blade widths and the corresponding minimum radii for those blade widths.

Width Min. Radius

1⁄8" .........................................1⁄8"

3⁄16" .........................................3⁄8"

1⁄4'' .........................................5⁄8''

3⁄8'' ......................................... 11⁄4''

When resawing thin pieces, a wandering blade (blade lead) can tear through the side of the workpiece, exposing your hands to the blade teeth. Always use push blocks when resawing and keep your hands clear of the blade.

-42-

Model G0948 (Mfd. Since 08/21)

Page 46

Stacked Cuts

One of the benefits of a bandsaw is its ability to cut multiple copies of a particular shape by stacking a number of workpieces together. However, before making stacked cuts, ensure that the table is perpendicular (90°) to the blade—otherwise, any error in this setting will be compounded in the workpieces.

To complete a stacked cut:

Align workpieces from top to bottom.

2. Secure all pieces together in a manner that

will not interfere with cutting. Hot glue on the edges works well, as do brad nails through the waste portion. (Be careful not to cut into the brads or you may break the blade!)

Lay out the shape you intend to cut on face of

top piece.

Make relief cuts perpendicular to outline of

your intended shape in areas where changes in blade direction could strain woodgrain or cause blade to bind.

Cut stack of pieces as though you were cut-

ting a single piece. Follow your layout line with blade kerf on the waste side of your line (see Figure 55 for an example of a stacked cut setup).

Figure 55. Example of a stacked cut setup.

Model G0948 (Mfd. Since 08/21)

-43-

Page 47

SECTION 5: ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Grizzly 72" Bandsaw Blades

Model Width TPI Type Gauge

T33130

T33131

T33132

T33133

T33134

T33135

T33136

T33137

T33138

T33139

T3 3140

T33141

⁄8" 14 Raker 0.025

⁄16" 4 Skip 0.025

⁄16" 14 Raker 0.025

⁄4" 4 Hook 0.025

⁄4" 6 Hook 0.025

⁄4" 10 Raker 0.025

⁄8" 4 Hook 0.025

⁄8" 6 Hook 0.025

⁄8" 10 Raker 0.025

⁄8" 14 Raker 0.025

⁄2 " 3 Hook 0.025

⁄2 " 4 Hook 0.025

Basic Eye Protection

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20452—“Kirova” Anti-Reflective S. Glasses T20456—DAKURA Safety Glasses

T20502

T20503

T20456

Figure 56. Assortment of basic eye protection.

H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100

If you work around dust everyday, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!

H3631

T20452

T20451

Figure 57. Half-mask respirator with disposable

cartridge filters.

-44-

Model G0948 (Mfd. Since 08/21)

H3635

Page 48

order online at www.grizzly.com or call 1-800-523-4777

W1025—Hose Clamp 2 " W1317—Wire Hose Clamp 4" D4226—Dust Collection Reducer 2 " x 4" OD D4206—4" x 10' Clear Hose D4202—2" x 10' Clear Hose W1007—Plastic Blast Gate 4" W1053—Anti-Static Grounding Kit

We've hand picked a selection of dust collection components commonly needed to connect your new machine to basic dust collection.

G0944—1 1⁄2 HP Wall-Mount Dust Collector

With an airflow capacity of 1250 CFM and a canister filter with a 1-micron filtration rating, this is the beast you need for all your small shop dustcapturing needs. The easy-to-hang French cleatstyle mount makes hanging this unit quick, and clears up your floor space allowing for more room in a small shop.

W1025

W1317

D4206

D4202

W1053

W1007

D4226

Figure 58. Dust collection accessories.

T26403—The Missing Shop Manual: Bandsaw

Dedicated to providing integral information about woodworking tools and techniques that other manuals overlook, the books in this series contain safety facts, explanations about basic project set up, and tips for maximizing tool performance. In Bandsaw, you will learn how to best utilize this essential workshop tool. Filled with clear diagrams and instructions, this pocket sized durable manual is ideal for quick reference in the workshop. 112 pages, soft cover.

Figure 60. G0944 1 1⁄2 HP Wall-Mount Dust

Collector with Canister Filter.

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features beveled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions.

Measures 3' wide x 5' long x

⁄8" thick.

Figure 59. The Missing Shop Manual: Bandsaw.

Figure 61. T10456 Anti-Fatigue Mat.

Model G0948 (Mfd. Since 08/21)

-45-

Page 49

order online at www.grizzly.com or call 1-800-523-4777

T21580—36" Bevel Edge Straight Edge

These 36" Bevel Edge Straight Edges are made from hardened steel with satin chrome finish and are precision ground and lapped for straightness and parallelism.

Figure 62. T21580 Bevel Edge Straight Edge.

H7978—6" Fractional Digital Caliper

Large LCD readout converts to decimal inch, fractional inch, and millimeters with the push of a button. Measure internal, external dimensions, depth, steps, and differential measurements. Features thumb roll and stainless steel construction. Range: 0-6", 0-150mm. Resolution: 0.0005",

0.01mm,

⁄128".

T32407—Grip Snap-Ring Pliers Set, 10 -Pc.

This plier set allows you to operate both internal and external rings. Includes 4 bent and 4 straight pliers made of heat-treated steel in sizes 5

1⁄2 " to

9". The 5" and 6" pliers have a 1.2mm (.047") tip;

7 1⁄2" and 8" pliers have a 1.8mm (.07") tip;

the and the

8 1⁄2 " and 9" pliers have a 2.3mm (0.9") tip. The set includes one 5" hook, one 5" pick, and an impact-resistant carrying case.

Figure 64. T32407 Grip Snap-Ring Plier Set.

Figure 63. H7978 6" Fractional Digital Caliper.

-46-

Model G0948 (Mfd. Since 08/21)

Page 50

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

Cleaning &

Lubricating

Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If resin has built up, use a resin dissolving cleaner to remove it.

Once a month, remove the blade and thoroughly clean all built-up sawdust from the rubber tires on the wheels.

If the table becomes difficult to tilt, lubricate the surfaces between the trunnions and the trunnion bracket with a dry lubricant (see Figure 65).

• Loose mounting bolts.

• Damaged saw blade. Worn or damaged wires.

• Any other unsafe condition.

•

Monthly

• Check belt for tension, damage, or wear.

• Remove blade and thoroughly clean all built-

up sawdust from the rubber tires on the wheels.

• Clean/vacuum dust buildup from inside cabi-

net and off motor.

Figure 65. Model G4682 Dry Coating Lube.

Model G0948 (Mfd. Since 08/21)

-47-

Page 51

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Switch disabling key removed.

2. Incorrect power supply voltage or circuit size.

3. Power supply circuit breaker tripped or fuse blown.

4. Start capacitor at fault.

5. Centrifugal switch adjustment/contact point at fault.

6. Wiring broken, disconnected, or corroded.

7. ON/OFF switch at fault.

8. Motor or motor bearings at fault.

1. Dull blade.

2. Workpiece material unsuitable for machine.

3. Feed rate/cutting speed too fast.

4. Workpiece crooked; fence loose or misadjusted.

5. Dust collection ducting problem.

6. Machine undersized for task.

7. Blade slipping on wheels or not properly tensioned.

8. Belt(s) slipping/pulleys misaligned.

9. Motor wired incorrectly.

10. Pulley slipping on shaft.

11. Motor overheated.

12. Extension cord too long.

13. Centrifugal switch/contact points at fault.

14 Motor or motor bearings at fault.

1. Install switch disabling key.

2. Ensure correct power supply voltage and circuit size

(Page 11).

3. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.

4. Test/replace if at fault.

5. Adjust centrifugal switch/clean contact points. Replace either if at fault.

6. Fix broken wires or disconnected/corroded connections.

7. Replace switch.

8. Replace motor.

1. Sharpen/replace blade (Page 39).

2. Only cut wood/ensure moisture is below 20%.

3. Decrease feed rate/cutting speed.

4. Straighten or replace workpiece/adjust fence.

5. Clear blockages, seal leaks, use smooth wall duct, elminate bends, close other branches.

6. Use correct blade/reduce feed rate or depth of cut.

7. Adjust blade tracking and tension (Pages 20–22).

8. Clean/tension/replace belt(s) (Page 52); ensure pulleys are aligned (Page 53).

9. Wire motor correctly (Page 59).

10. Tighten/replace loose pulley/shaft.

11. Clean motor, let cool, and reduce workload.

12. Move machine closer to power supply; use shorter extension cord (Page 12).

13. Adjust centrifugal switch/clean contact points. Replace either if at fault.

14. Replace motor.

-48-

Model G0948 (Mfd. Since 08/21)

Page 52

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Blade or teeth break/crack.

1. Motor or component loose.

2. Blade weld at fault/teeth broken.

3. Blade at fault.

4. V-belt worn, loose, pulleys misaligned or belt slapping cover.

5. Pulley loose.

6. Motor mount loose/broken.

7. Motor fan rubbing on fan cover.

8. Centrifugal switch.

9. Motor bearings at fault.

1. Blade tension incorrect.

2. Blade incorrect for application.

3. Excessive feed rate/pressure.

4. Cutting corners too sharply.

5. Blade dull/weld at fault.

6. Blade is tracking incorrectly.

7. Blade guides/support bearings not adjusted properly, allowing guides to hit blade teeth.

8. Wheel tires worn or incorrectly installed.

9. Fence or miter slot out of alignment with blade.

10. Bad bearings on wheels or guide bearings.

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Replace blade (Page 39).

3. Replace warped/bent blade (Page 39); resharpen dull blade.

4. Inspect/replace belt with a new matched set (Page

52). Re-align pulleys if necessary (Page 53).

5. Secure pulley on shaft.

6. Tighten/replace.

7. Fix/replace fan cover; replace loose/damaged fan.

8. Replace switch.

9. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

1. Adjust blade tension (Page 22).

2. Use correct blade for application (Page 37).

3. Reduce feed rate/pressure.

4. Use a wider arc on outside cuts, or use relief cuts to make tight inside cuts.

5. Replace blade (Page 39).

6. Adjust blade tracking (Page 20).

7. Adjust blade guide bearings properly so guides cannot contact teeth during operation (Pages 24–25).

8. Replace or re-install tire.

9. Align table miter slot and fence with blade (Pages 27–28).

10. Replace wheels and/or guide bearings.

Blade slows, smokes, shows overheating or wears on one side.

Finished workpieces are rough or show scoring.

Gullets loaded with chips.

1. Blade contacting table insert.

2. Blade guides worn or misadjusted.

3. Blade installed backwards.

4. Too much side pressure when feeding workpiece.

5. Wheels are out of alignment.

6. Dull, bell-mouted, or incorrect blade.

7. Fence not parallel with blade.

8. Table top surface is not parallel or square to blade.

9. V-belt loose or slipping.

1. Blade is overloaded and twists.

2. Blade TPI too coarse.

3. Blade is loose and ﬂuttering.

4. Blade tracking is incorrect.

5. Blade has missing/bent teeth or faulty weld.

1. Excessive feed rate/pressure.

2. Blade TPI is too ﬁne.

1. Adjust blade guide bearings to eliminate excess

side pressure (Pages 24–25); properly align table (Page 27).

2. Adjust blade guide bracket.

3. Check blade rotation. Re-install blade if necessary

(Page 39).

4. Feed workpiece straight into blade.

5. Adjust wheels to be coplanar (Page 53).

6. Replace blade (Page 39).

7. Adjust fence parallel with blade (Page 28).

8. Adjust/shim table/trunnion position until blade and

table are parallel and square (Page 27)

9. Tighten V-belt. Replace if worn or oily (Page 51).

1. Decrease feed rate; ensure proper TPI (Page 34).

2. Use correct blade for material and speed of cut

(Page 37).

3. Adjust blade tension as required (Page 22).

4. Adjust blade tracking (Page 20).

5. Replace blade (Page 39).

1. Reduce feed rate/pressure.

2. Install correct blade (Page 34).

Model G0948 (Mfd. Since 08/21)

-49-

Page 53

Symptom Possible Cause Possible Solution

Table is hard to tilt. 1. Table tilt lock lever is engaged.

2. Sawdust or pitch trapped between trunnion and base.

3. Metal burrs on trunnion.

Table does not tilt to 45 or 0 degrees.

Miter bar binds in miter slot.

Blade tracks incorrectly or comes off wheels.

Cut is crooked or blade wanders (blade lead).

Blade dulls prematurely.

Backside of blade deformed/cracked.

Sawdust buildup inside cabinet.

1. Table tilt scale indicator not calibrated.

2. Positive stop not set correctly.

1. Miter slot dirty or gummed up.

2. Miter bar bent.

1. Tracking is not adjusted properly.

2. Wheels are not coplanar.

3. Blade tension too loose.

4. Blade guides/support bearings improperly adjusted.

5. Feeding workpiece too fast.

6. Incorrect blade for operation.

7. Blade is bell-mouthed, worn, or dull.

8. Wheel is damaged or worn.

1. Excessive feed rate/pressure.

2. Blade tension too loose.

3. Blade is too narrow or tooth type/TPI is incorrect for the cut.

4. Inadequate blade support.

5. Blade dull or has damaged tooth set from improper blade guide/support bearing adjustment.

6. Blade tracking is incorrect.

7. Table is loose.

8. Fence or miter slot out of alignment with blade.

9. Blade guides/support bearings improperly adjusted.

10. Tooth set is uneven or teeth are sharper on one side than the other.

1. Excessive feed rate/pressure.

2. Wrong blade tooth type or TPI.

3. Blade is twisted.

4. Blade is slipping on wheel.

5. Blade guides hitting teeth, ruining tooth set.

1. Excessive feed rate/pressure.

2. Blade tension too high.

3. Blade support bearings improperly adjusted.

1. Blade brush worn or misadjusted.

2. Clogged dust port.

3. Low CFM (airﬂow) from dust collection system.

1. Disengage table tilt lock lever (Page 32).

2. Remove table and clean trunnion sliding surfaces free of sawdust or pitch.

3. Remove burrs.

1. Calibrate table tilt scale indicator (Page 33).

2. Adjust positive stop (Page 33).

1. Carefully clean miter slot.

2. Replace.

1. Adjust tracking (Page 20).

2. Adjust wheels to be coplanar (Page 53).

3. Increase blade tension (Page 22).

4. Properly adjust blade guides/support bearings (Pages 24–25).

5. Feed workpiece slower.

6. Install correct blade (Page 37).

7. Install new blade (Page 39), and remove tension from blade when not in use.

8. Replace wheel.

1. Reduce feed rate/pressure.

2. Increase blade tension (Page 22).

3. Use wider blade. Ensure tooth type and TPI are correct (Page 34).

4. Position upper blade guides to just clear workpiece. Properly adjust blade guides/support bearings (Pages 24–25).

5. Replace blade (Page 39).

6. Adjust blade tracking (Page 20).

7. Tighten table trunnion mounting bolts or tilt lock lever.

8. Align miter slot and fence with blade (Pages 27–28).

9. Properly adjust blade guides/support bearings (Pages 24–25).

10. Replace blade (Page 39).

1. Reduce feed rate/pressure.

2. Use blade with correct tooth type and TPI (Page 34).

3. Re-install blade; replace (Page 39).

4. Adjust blade tension (Page 34).

5. Properly adjust guide bearings (Pages 24–25).

1. Reduce feed rate/pressure.

2. Adjust blade tension (Page 34).

3. Properly adjust blade support bearings (Page 24).

1. Properly adjust brush; replace if necessary (Page 57).

2. Clean dust port.

3. Inspect ducting for leaks/clogs and repair as necessary; move dust collector closer to machine; install a stronger dust collector (Page 19).

-50-

Model G0948 (Mfd. Since 08/21)

Page 54

Checking/Adjusting

Belt Tension

To ensure optimum power transmission from the motor to the blade, the belt must be in good condition and operate under proper tension.

Belt tension should be checked at least every month—more often if the bandsaw is used daily. If the belt shows signs of cracks, fraying, and excessive wear, replace it as instructed in Replacing

Belt on Page 52.

Item(s) Needed Qty

Hex Wrench 6mm .............................................. 1

Adjusting Belt Tension

DISCONNECT MACHINE FROM POWER!

Loosen motor mount cap screws shown in

2. Figure

Motor Mount

Cap Screws

67.

Checking Belt Tension

1. DISCONNECT MACHINE FROM POWER!

Open lower wheel cover.

3. Check belt condition and deflection. The belt

is properly tensioned if there is approximately

⁄8" deflection. Deflection is checked by push-

ing belt with moderate pressure, as shown in Figure 66, and noting how much it moves.

— If belt is not properly tensioned, per-

form Adjusting Belt Tension procedure.

Wheel Pulley

Approximately

/8" Deflection

Figure 67. Location of motor mount cap screws

used for adjusting belt tension.

3. Push motor to the right (as viewed from back of machine) until you feel moderate tension, then tighten both cap screws.

Check belt tension. If necessary, repeat

4. Steps 2–3 until there is approximately 3⁄8"

deflection in belt.

Close wheel cover.

Motor Pulley

Figure 66. Checking belt tension.

Model G0948 (Mfd. Since 08/21)

-51-

Page 55

Replacing Belt

To ensure optimum power transmission from the motor to the blade, the belt must be in good condition and be properly tensioned.

Remove external retaining ring from lower

wheel shaft (see lower wheel.

Figure 68) and remove

Replace the belt if it shows signs of cracking, fraying, or excessive wear.

Item(s) Needed Qty

Hex Wrench 6mm .............................................. 1

Retaining Ring Pliers Heavy Leather Gloves Replacement Belt (Part # P0948105)

To replace belt:

DISCONNECT MACHINE FROM POWER!

Put on heavy leather gloves and remove

2. blade from machine (refer to Removing/ Installing Blade on

Loosen motor mount cap screws (see

3. Figure

Pivot motor to the right (as viewed from back

of bandsaw) to release belt tension.

Open lower wheel cover and remove belt

from motor pulley.

67 on Page 51).

......................................... 1

..................................1 Pr.

................ 1

Page 39).

Belt

External

Retaining Ring

Figure 68. Belt change components inside lower

wheel compartment.

Install new belt on both pulleys, and then re-

install wheel and retaining ring.

Properly tension belt, as instructed in

8. Adjusting Belt Tension on Page

Install blade, properly track and tension blade

(see Pages 20 & 22), and adjust support bearings and guide bearings (see Pages

24–25).

51.

-52-

Model G0948 (Mfd. Since 08/21)

Page 56

aligning wheels

Aligning Wheels

Wheel alignment is important for optimal performance from your bandsaw. Wheels are properly aligned when they are parallel with each other and in the same plane or “coplanar” (see the illustration in the figure to the right).

When wheels are coplanar, the bandsaw is more likely to cut straight without wandering; and vibration, heat, and blade wear are considerably decreased because the blade is automatically balanced on the wheel.

Bringing the wheels into alignment may require a combination of shimming a wheel and adjusting the position of the lower wheel shaft.

Checking Wheel Alignment

Tool(s) Needed Qty

Precision Straightedge 3'. .................................. 1

Check wheel alignment, and adjust tracking

knob to bring both wheels into alignment as much as possible. If wheels cannot be adjusted coplanar, use Figure 70 to determine how to proceed with alignment adjustments.

To check wheel alignment:

DISCONNECT MACHINE FROM POWER!

Remove table.

3. With blade on and properly tensioned, hold a

straightedge close to center of both wheels. Make sure straightedge fully extends across rims of both wheels, as shown in Figure 69.

Wheels parallel and

aligned: No adjust-

ment needed.

Wheels parallel, but

upper or lower wheel

is not coplanar with the

other wheel: Move the

upper wheel in or out.

Figure 69. Example of checking if wheels are

coplanar.

Model G0948 (Mfd. Since 08/21)

Upper wheel is not

vertically aligned with

lower wheel: Use

blade tracking knob

to tilt upper wheel.

Figure 70. Wheel alignment illustration.

Lower wheel is not

laterally aligned with

upper wheel: Adjust

rear adjustment set

bolts to tilt lower wheel

left/right.

-53-

Page 57

Shimming a Wheel

A wheel that is parallel with the other wheel, but is not coplanar, must be shimmed by the distance that it is not in the same plane with the other wheel.

Tip: Standard washers work well for shimming the wheel because they can easily be stacked to get the desired height.

Item(s) Needed Qty

Precision Straightedge 3'. .................................. 1

Fine Ruler Retaining Ring Pliers Heavy Leather Gloves Shims

.......................................................... 1

......................................... 1

..................................1 Pr.

................................................. As Needed

6. Re-install wheel and secure it in place.

7. Re-install blade and properly tension it.

Perform previous Checking Wheel

8. Alignment procedure. If necessary to make

the wheels parallel, repeat this procedure.

The first time you get the wheels coplanar,

place a mark on each wheel where you held the straightedge, then use this position again in the future if you need to repeat the procedure. This assures repeated accuracy every time you adjust the wheels.

Close wheel covers.

10.

To shim a wheel:

DISCONNECT MACHINE FROM POWER!

Adjust upper wheel tracking so that it is paral-

lel with lower wheel.

With straightedge touching both rims of wheel

that does not need to be adjusted, measure the distance away from the other wheel with a fine ruler, as shown in Figure 71. The distance measured with the ruler is the distance this wheel must be shimmed.

Adjusting Lower Wheel Shaft Position

If the lower wheel is tilted laterally (side to side), perform the following procedure to make it coplanar with the upper wheel.

There are four adjustment bolts with hex nuts in the lower wheel bracket, shown in Figure 72, that adjust the wheel tilt from side-to-side and up-anddown.

Note: If you make a mistake during the follow- ing procedure, it can be very difficult to correct. Therefore, it is important to double check wheel alignment (see Page 53), and troubleshoot all other possible solutions (see Troubleshooting on Page 48) prior to adjusting the lower wheel shaft position.

Figure 71. Example of measuring the distance to

shim the wheel to be coplanar.

Remove blade.

Remove wheel to be shimmed. Place as

many shims as necessary to correct gap measured in Step 3 onto wheel shaft.

-54-

Rear Adjustment

Bolts w/Hex Nuts

Figure 72. Location of rear lateral adjustment

components.

Model G0948 (Mfd. Since 08/21)

Page 58

Item(s) Needed Qty

Straightedge

Precision Straightedge 3'. .................................. 1

Open-End Wrench or Socket 10mm Pencil or Marker

................................................ 1

................. 1

To adjust lower wheel laterally:

DISCONNECT MACHINE FROM POWER!

Remove fence and table from machine.

Loosen hex nuts on rear left and right adjust-

ment bolts (see Figure 72 on Page 54).

Rotate left and right adjustment bolts until

lower wheel is coplanar with upper wheel, see Figure 74.

Viewed From Above

Check wheels at A and B locations (see

3. Figure 73). The wheels should align.

— If wheels align, no adjustment is required.

— If wheels do not align, they require lateral

adjustment (see Figure 74). Proceed to Step 4.

Mark upper and lower wheels with a pencil or

marker to indicate measuring locations (see Figure 73).

Note: Marking the wheels ensures more

accurate results in case there are irregularities in the wheels.

Upper Wheel

Straightedge

Requires lateral

adjustment

After lateral adjustment

Straightedge

Figure 74. Before and after lateral wheel

alignment (viewed from above).

7. Tighten hex nuts loosened in Step 5.

A1 B1

B2 A2

Lower Wheel

Figure 73. Example of using a straightedge to

check lateral wheel alignment.

Model G0948 (Mfd. Since 08/21)

-55-

Page 59

Blade Lead

Bandsaw blades may wander off the cut line when sawing, as shown in Figure 75. This is called blade lead.

Figure 75. Example of blade lead.

Skewing Fence

Item(s) Needed Qty

Hex Wrench 4mm. ............................................. 1

Scrap Wood Clamp 4"

1. Cut a piece of scrap wood approximately 3⁄4"

thick x 3" wide x 17" long. On wide face of board, draw a straight line parallel to long edge.

Slide bandsaw fence out of way and cut

along the line halfway through the board. Turn bandsaw OFF and wait for blade to stop. Do not move board.

Clamp board to bandsaw table, then slide

fence over to board so it barely touches one end of board.

4. Loosen fence adjustment cap screws, skew

fence so it is parallel with scrap piece, then tighten cap screws.

⁄4" x 3" x 17" ................................. 1

............................................................ 1

Blade lead is usually caused by too fast of a feed rate, a dull or abused blade, or improper blade tension. If your blade is sharp/undamaged, properly tensioned, and you still have blade lead, perform the following procedures.

Correcting Blade Lead

Make sure blade is properly tensioned, and

blade guides are adjusted correctly.

Use less pressure when feeding workpiece

through cut.

Make sure miter slot and fence are parallel to

3. blade line (see Aligning Table and Aligning Fence procedures for detailed information).

Perform test cut with bandsaw.

— If there is still blade lead present, com-

pensate for this condition by skewing the fence, as instructed in the following procedures.

Make a few cuts using fence.

— If blade lead is still present, repeat

Steps 1–4 until blade and fence are parallel with each other.

-56-

Model G0948 (Mfd. Since 08/21)

Page 60

Adjusting

Tool(s) Needed: Qty

Wrench or Socket 13mm ................................... 1

Wheel Brush

The lower wheel has a brush (see Figure 76) that is designed to sweep sawdust off the tire and blade during operation. In order to work properly, the brush must make firm contact with the tire.

Acorn

Nut

Wheel

Brush

Figure 76. Location of wheel brush.

To adjust wheel brush:

1. DISCONNECT MACHINE FROM POWER!

Open lower wheel cover.

3. On rear of machine, loosen acorn nut

that secures wheel brush in position (see Figure 76).

Adjust wheel brush so it makes firm, even

contact with wheel without bending the bristles, then tighten acorn nut to secure wheel brush in place.

Model G0948 (Mfd. Since 08/21)

-57-

Page 61

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-58-

Model G0948 (Mfd. Since 08/21)

Page 62

wiring diagram

Wiring Diagram

Bandsaw Body

–

LED Driver

LED-5V700

Hopestar

120V ~ 5.5W

E337681

Light Switch

DKLD AN-18

250V 6A

ON/OFF Switch

DKLD AN17

125V 20A

Ground Ground

LED Light

Nanjing 12V 1W

Neutral

Hot

Ground

120VAC

5-15 Plug

Model G0948 (Mfd. Since 08/21)

120V Motor

Start Capacitor

CBB60 35uF

350VAC

Ground

READ ELECTRICAL SAFETY

ON PAGE 58!

-59-

Page 63

LED Driver

Electrical Components

Start

Capacitor

Power

ON/OFF Switch

LED Light

ON/OFF Switch

Figure 77. ON/OFF switch wiring.

Figure 78. Start capacitor wiring.

Figure 79. Work light wiring.

-60-

READ ELECTRICAL SAFETY

ON PAGE 58!

Model G0948 (Mfd. Since 0 8/21)

Page 64

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

118

119

165

166

5 6

164

50 51

105

112

104

102

103

114

113

101

115

81 82

106

167

140

110

138

139

108

107

111-4

137

142

141

78 79

85 86 87

100

111

109

111-2111-1 111-3

111-5 111-6

116

146

168

145

148

147

149

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

170

152

125

124

178

151

130 131

117

176

136

177

125

135

138

132 133

150

123

128

124

129

122

126

127

121

134

125

160 161

162

158

157

159

143

144

156

155

154

153

163

Model G0948 (Mfd. Since 08/21)

169

120

171

172

173

179

174

175

-61-

Page 65

Main Parts List

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

1 P0948001 KNOB BOLT M8-1.25 X 102, 6-LOBE, D60 53 P0948053 KNOB BOLT M8-1.25 X 42, 8-LOBE, D60 2 P0948002 BUS HI NG 54 P0948054 KNOB M8-1.25, D72, WING 3 P0948003 EX T RETAI NI NG RI NG 1 5MM 55 P0948055 GUIDE BLOCK M4-.7 4 P0948004 FRAME CAP 56 P0948056 PHLP HD SCR M4-.7 X 8 5 P0948005 COMPRESSION SPRI NG 4 X 19 X 30 57 P0948057 LO CK NUT M6-1 6 P0948006 TENS I ON NUT M8- 1. 25 58 P0948058 KNOB 6MM, 10-LOBE, D55 7 P0948007 EX T RETAI NI NG RI NG 8 MM 59 P0948059 CAP SCREW M6-1 X 16 8 P0948008 SHA FT 60 P0948060 THREADED SHAFT M8-1.25 X 12, 38L 9 P0948009 GUIDE PLATE 61 P0948061 GEAR 15T 10 P0948010 PULLING PLATE 62 P0948062 BUSHI NG 11 P0948011 HEX BOLT M8-1.25 X 16 63 P0948063 KNOB 8MM, 10-LOBE, D50 12 P0948012 FLAT WAS HER 8MM 64 P0948064 COMPRESSION SPRING 1.6 X 22 X 25 13 P0948013 HEX NUT M8- 1.25 65 P0948065 KNOB COVER 14 P0948014 TENSION BLOCK 66 P0948066 LOWER BLADE GUARD 15 P0948015 SHAFT 67 P0948067 CAP SCREW M6-1 X 10 16 P0948016 BALL BEARING 6000ZZ 68 P0948068 LOWER WHEEL SPINDLE

17 P0948017 INT RETA I NI NG RI NG 26MM 69 P0948069 HEX NUT M6- 1 18 P0948018 WHEEL 10" 70 P0948070 HEX BOLT M6-1 X 20 19 P0948019 EXT RETA I NI NG RI NG 10MM 71 P0948071 TAP SCREW 4.8 X 13 20 P0948020 TIRE 72 P0948072 PLATE 21 P0948021 SAW BLADE 72" X 3/8" 6-TPI HOOK 73 P0948073 UPPER BLADE GUIDE ASSEMBLY 22 P0948022 UPPER WHEEL COVER 74 P0948074 RACK 23 P0948023 LOWER WHEEL COVER 75 P0948075 SLIDING COVER 24 P0948024 LOCK NUT M6 -1 76 P0948076 CAP SCREW M5-.8 X 6 25 P0948025 SPACER 77 P0948077 CONNECTI NG SHAFT 26 P0948026 CAP SCREW M6-1 X 16 78 P0948078 SUPPORT BLOCK 27 P0948027 FRAME 79 P0948079 SET SCREW M6-1 X 8 28 P0948028 HEX NUT M4- . 7 80 P0948080 TAP SCREW M8 X 13 29 P0948029 FLAT WAS HER 4MM 81 P0948081 KNOB BOLT M5-.8 X 22, 4-LOBE, D22 30 P0948030 LED DRIVER HOPESTAR LED-5V700 120V 5.5W 82 P0948082 FLAT WAS HER 5MM 31 P0948031 CAP SCREW M4-.7 X 12 83 P0948083 BEARING SUPPORT 32 P0948032 INT TOO TH WASHE R 5MM 84 P0948084 T-SLO T NUT M5-. 8 33 P0948033 PHLP HD SCR M5-.8 X 12 85 P0948085 BALL BEARING 607ZZ 34 P0948034 SWI TCH B OX 86 P0948086 KNOB BOLT M5-.8 X 8, 4-LOBE, D22 35 P0948035 WIRE NUT 1 8G 87 P0948087 CAP SCREW M5-.8 X 16 36 P0948036 SWITCH BOX COVER 88 P0948088 FL AT WASHER 5 MM 37 P0948037 ON/OFF SWITCH DKLD AN-18 250V 6A 89 P0948089 T-SLO T NUT M5-. 8 38 P0948038 ON/OFF SWITCH DKLD AN17 125V 20A 90 P0948090 BALL BEARING 607ZZ 39 P0948039 PHLP HD SCR M5-.8 X 10 91 P0948091 HEX NUT M6- 1 40 P0948040 HEX NUT M8- 1.25 92 P0948092 BALL BEARING 626ZZ 41 P0948041 FLAT WAS HER 8MM 93 P0948093 CAP SCREW M6-1 X 16 42 P0948042 BUSHI NG 94 P0948094 S QUARE NUT M6- 1 43 P0948043 FLAT WAS HER 8MM 95 P0948095 GUIDE PLATE 44 P0948044 BRUSH 96 P0948096 BUSHI NG 45 P0948045 CARRIAGE BOLT M8-1.25 X 70 97 P0948097 BALL BEARING 626ZZ 46 P0948046 HEX NUT M14 -2 98 P0948098 CAP SCREW M6-1 X 20 47 P0948047 WHEEL PULLEY 99 P0948099 CAP SCREW M6-1 X 10 48 P0948048 CAP SCREW M5-.8 X 10 100 P0948100 FLA T WASHER 6MM 49 P0948049 STRAIN RELIEF TYPE-3 M16-1.5 101 P0948101 HEX NUT M6-1 50 P0948050 STOP BOLT M8-1.25 X 22 102 P0948102 HEX BOLT M6-1 X 20 51 P0948051 HEX NUT M8- 1.25 103 P0948103 SET SCREW M6-1 X 8 52 P0948052 KNOB COVER 104 P0948104 MOTOR PULLEY

-62-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0948 (Mfd. Since 08/21)

Page 66

Main Parts List (Cont.)

REF P ART # DESCRI PTIO N REF P ART # DES CRIPTI ON

105 P0948105 POLY V-BELT PT400 140 P0948140 CAP SCREW M5-.8 X 12

106 P0948106 HEX BOLT M6-1 X 16 141 P0948141 HEX NUT M10-1 . 5

107 P0948107 MOTOR MO UNTI NG PL ATE 142 P0948142 LED LIGHT NANJI NG 12V 1W

108 P0948108 FLAT WA SHER 8MM 143 P0948143 KNOB M6-1, D32, WING

109 P0948109 CAP SCREW M8-1.25 X 20 144 P0948144 FLAT WAS HER 6MM

110 P0948110 KEY 5 X 5 X 25 RE 145 P0948145 FENCE CA P

111 P0948111 MOTOR 1/ 2HP 120V 1-PH 146 P0948146 FENCE SUPPORT

111-1 P0948111-1 MOTOR FAN COVE R 147 P0948147 GUIDE PLATE

111-2 P0948111-2 MOTOR FAN 148 P0948148 CARRI AGE BOLT M6-1 X 55

111-3 P0948111-3 CAPACITOR COVER 149 P0948149 FENCE

111-4 P0948111-4 S CAPACITOR 35M 350V 1-5/8 X 2-1/2 150 P0948150 FENCE RAI L CAP ( RI GHT)

111-5 P0948111-5 BALL BEARING 6202ZZ (FRONT) 151 P0948151 FENCE RA I L

111-6 P0948111-6 BALL BEARING 6201ZZ (REAR) 152 P0948152 FENCE RAI L CAP (LEFT)

112 P0948112 TAP SCREW M4.2 X 13 153 P0948153 TAP SCREW M2.9 X 9. 5

113 P0948113 DUST PO RT 154 P0948154 POINTER

114 P0948114 DUST PO RT COVER 155 P0948155 FENCE BASE

115 P0948115 ROLL PIN 3 X 22 156 P0948156 SQUA RE NUT M5-. 8

116 P0948116 POWER CORD 18G 3W 72" 5-15P 157 P0948157 SPACER

117 P0948117 KNOB BOLT M8-1. 25 X 18, D72, WING 158 P0948158 CAP SCREW M5-.8 X 10

118 P0948118 TABLE INSERT 159 P0948159 SPRING PLATE

119 P0948119 TABLE 160 P0948160 PHLP HD SCR M5-.8 X 8

120 P0948120 MITE R GAUGE 161 P0948161 FENCE HANDLE LOCKING CAM

121 P0948121 PHLP HD SCR M4-.7 X 12 162 P0948162 KNOB BOLT M6-1 X 10, D35, TAPERED

122 P0948122 FLAT WA SHER 4MM 163 P0948163 SHAFT

123 P0948123 POINTER 164 P0948164 HEX NUT M8 -1. 25

124 P0948124 SHOULDER SCREW M8-1. 25 X 12, 8 X 8 165 P0948165 FLAT WA SHER 8MM

125 P0948125 FLAT WA SHER 8MM 166 P0948166 CARRIAGE BOLT M8-1.25 X 16

126 P0948126 TRUNNIO N (REAR) 167 P0948167 LEG

127 P0948127 BUSHI NG 168 P0948168 LONG BRACE

128 P0948128 TRUNNIO N BRACKET 169 P0948169 SHORT BRACE

129 P0948129 CARRI AGE BOLT M8-1.25 X 70 170 P0948170 FOOT

130 P0948130 FLAT WA SHER 6MM 171 P0948171 WRENCH 10 X 13MM OPEN-ENDS

131 P0948131 HEX BOLT M6-1 X 10 172 P0948172 HEX WRENCH 6MM

132 P0948132 FLAT WA SHER 6MM 173 P0948173 HEX WRENCH 5MM

133 P0948133 HEX BOLT M6-1 X 12 174 P0948174 HEX WRENCH 4MM

134 P0948134 ADJ HANDLE M8-1.25 , 72L 175 P0948175 HEX WRE NCH 3MM

135 P0948135 CAP SCREW M5-.8 X 12 176 P0948176 LOCK NUT M8-1.25

136 P0948136 HEX NUT M5 -.8 177 P0948177 LOCK WASHER 5MM

137 P0948137 HEX NUT M5 -.8 178 P0948178 TRUNNIO N (FRONT)

138 P0948138 FLAT WA SHER 5MM 179 P0948179 PUSH STI CK

139 P0948139 CORD CLAMP 3/8"

Model G0948 (Mfd. Since 08/21)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-63-

Page 67

Labels & Cosmetics

REF PART # DE SCRIPTION REF P ART # DESCRIP TION

grizzly.com

G0948

201

202

203

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

211

205

210

WARNING!

EYE/LUNG INJURY

HAZARD! Always wear safety glasses and a respirator when using this machine.

209

207

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

208

Specifications

Motor: 1/2 HP, 120V, 1-Ph, 60Hz Full Load Amp Draw: 3.5A Blade Speed: 1520, 2620 FPM Standard Blade Length: 72" Blade Length Range: 71-1/2"–72-1/2" Blade Width Range: 1/8"–1/2" Max. Cutting Width Left of Blade: 9-3/4" Max. Cutting Height: 6-1/8" Table Size: 14-3/16" x 12-5/8" Table Tilt: 0˚L ⁄ 45˚R Weight: 69 lbs.

Date

S/N

Mfd. for Grizzly in China

206

INJURY HAZARD!

Do not open door while machine is connected to power or blade is in motion.

MODEL G0948

10" 1/2 HP BANDSAW

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade. Keep hands out of blade path.

3. Always wear approved eye protection and respirator.

4. Only plug power cord into a grounded outlet.

5. Only remove jammed cutoff pieces when blade is stopped.

6. Use push stick or holding jig to cut small or narrow pieces.

7. Disconnect power before changing blades or adjusting saw.

8. Maintain adjustment of blade tension, tracking, and guides.

9. Keep upper guide adjusted to just clear the workpiece.

10. Hold workpiece firmly against table to maintain control.

11. Only run saw with wheel covers closed and all guards in place.

12. Never reach under table while blade is in motion.

13. Remove/secure loose clothing and long hair.

14. DO NOT expose to rain or use in wet locations.

15. Prevent unauthorized use by children or untrained users;

WARNING!

restrict access or disable machine when unattended.

204

205

201 P0948201 MODEL NUMBER LABEL 207 P0948207 READ MANUAL LABEL 202 P0948202 GRIZZLY INDUSTRIAL LOGO LABEL 208 P0948208 MACHINE ID LABEL 203 P0948203 DISCONNECT POWER LABEL 209 P0948209 GRIZZLY.COM LABEL 204 P0948204 TOUCH-UP P AI NT, GRI ZZLY G REEN 210 P0948210 EYE/LUNG INJURY LABEL 205 P0948205 ELECTRICITY LABEL 211 P0948211 TOUCH-UP P AI NT, GRI ZZLY B EIGE 206 P0948206 DO NOT OPEN DOOR LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-64-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0948 (Mfd. Since 08/21)

Page 68

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Page 69
