Grizzly G0944 User guide

READ THIS FIRST

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

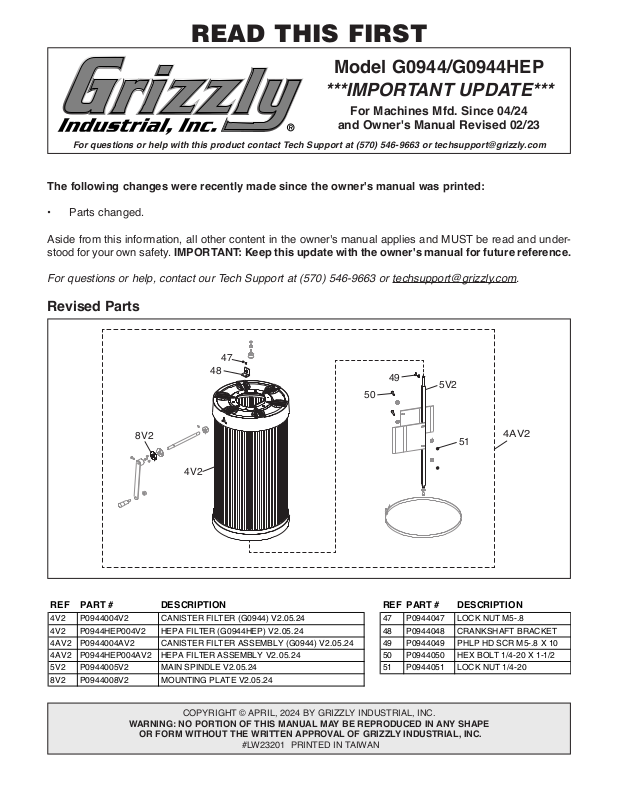

4V2 P0944004V2 CANISTER FILTER (G0944) V2.05.24 47 P0944047 LOCK NUT M5-.8
4V2 P0944HEP004V2 HEPA FILTER (G0944HEP) V2.05.24 48 P0944048 CRANKSHAFT BRACKET
4AV2 P0944004AV2 CANISTER FILTER ASSEMBLY (G0944) V2.05.24 49 P0944049 PHLP HD SCR M5-.8 X 10
4AV2 P0944HEP004AV2 HEPA FILTER ASSEMBLY V2.05.24 50 P0944050 HEX BOLT 1/4-20 X 1-1/2
5V2 P0944005V2 MAIN SPINDLE V2.05.24 51 P0944051 LOCK NUT 1/4-20
8V2 P0944008V2 MOUNTING PLATE V2.05.24

Model G0944/G0944HEP

***IMPORTANT UPDATE***

For Machines Mfd. Since 04/24

and Owner's Manual Revised 02/23

For questions or help with this product contact Tech Support at [phone] or [email protected]

The following changes were recently made since the owner's manual was printed:

• Parts changed.

Aside from this information, all other content in the owner's manual applies and MUST be read and under­stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at [phone] or [email protected].

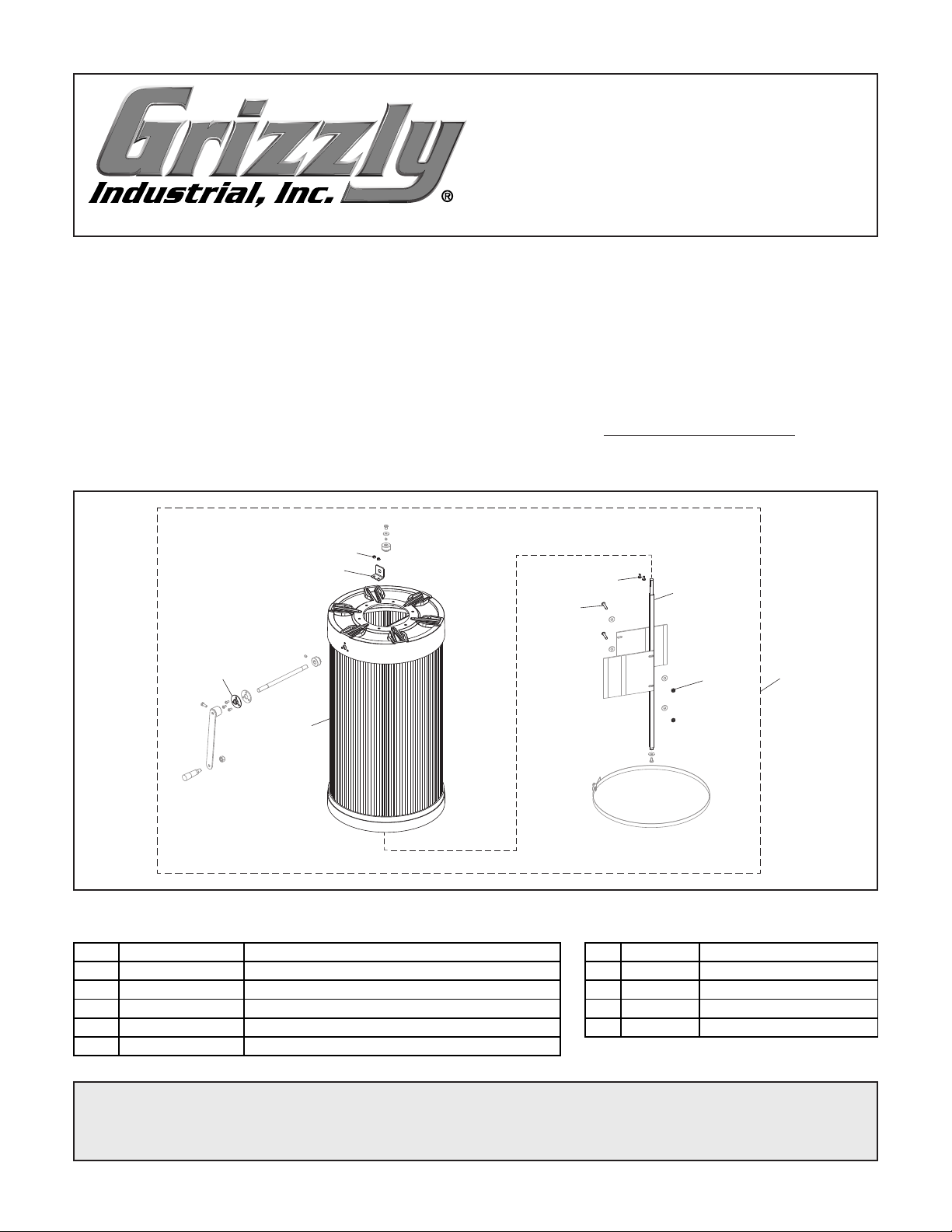

Revised Parts

8V2

4V2

48

47

50

49

5V2

51

4AV2

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

COPYRIGHT © APRIL, 2024 BY GRIZZLY INDUSTRIAL, INC.

#LW23201 PRINTED IN TAIWAN

MODEL G0944/G0944HEP

1-1/2 HP WALL MOUNT

DUST COLLECTORS

OWNER'S MANUAL

(For models manufactured since 03/21)

COPYRIGHT © JULY, 2021 BY GRIZZLY INDUSTRIAL, INC., REVISED FEBRUARY, 2023 (KS)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#AI21876 PRINTED IN TAIWAN

***Keep for Future Reference***

V1.0 2.23

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info

Machine Differences................................................................................................................... 2

Manual Accuracy
Identification
Controls & Components
G0944 Data Sheet
G0944HEP Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

..................................................................................................................... 5

.............................................................................................................. 7

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Dust Collectors

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup

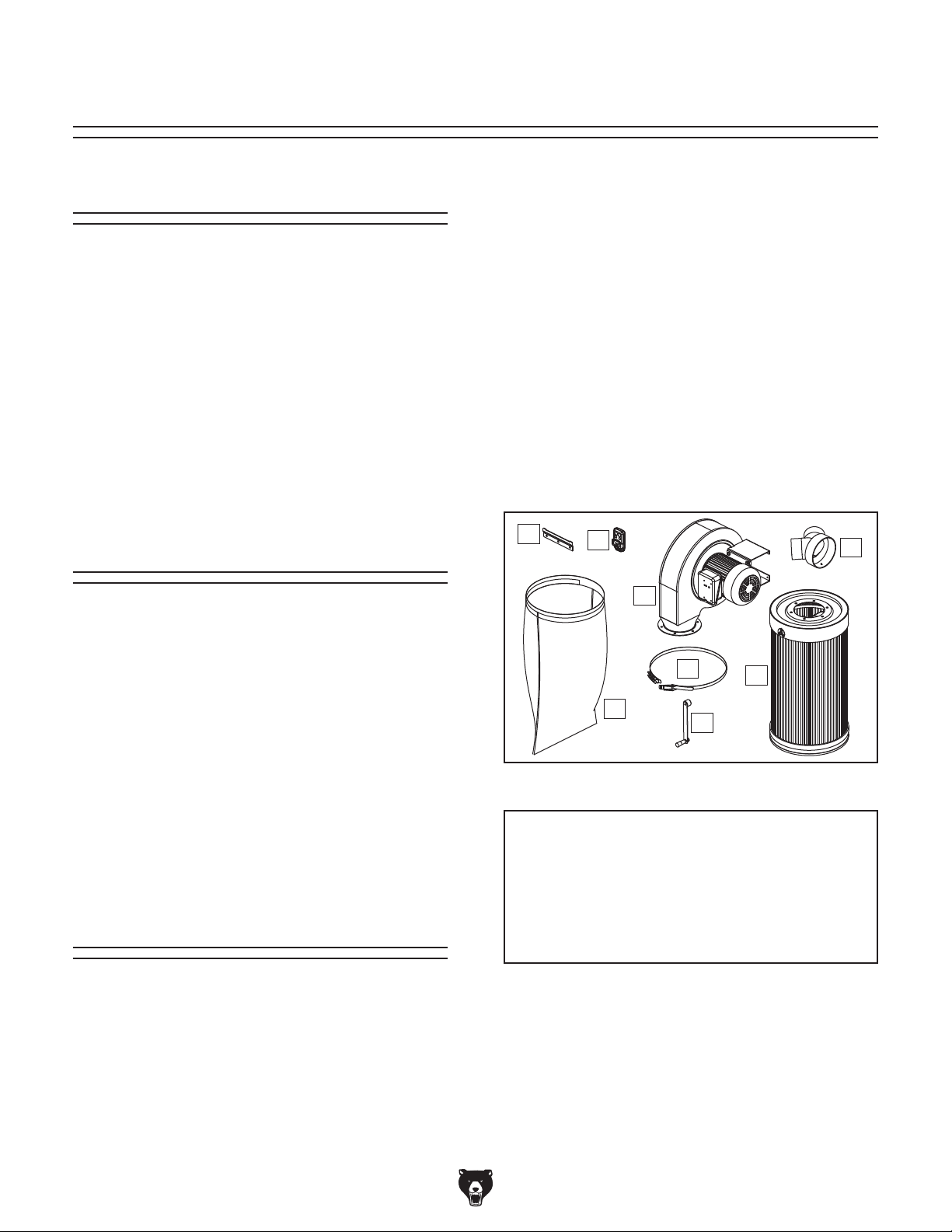

Inventory
Site Considerations

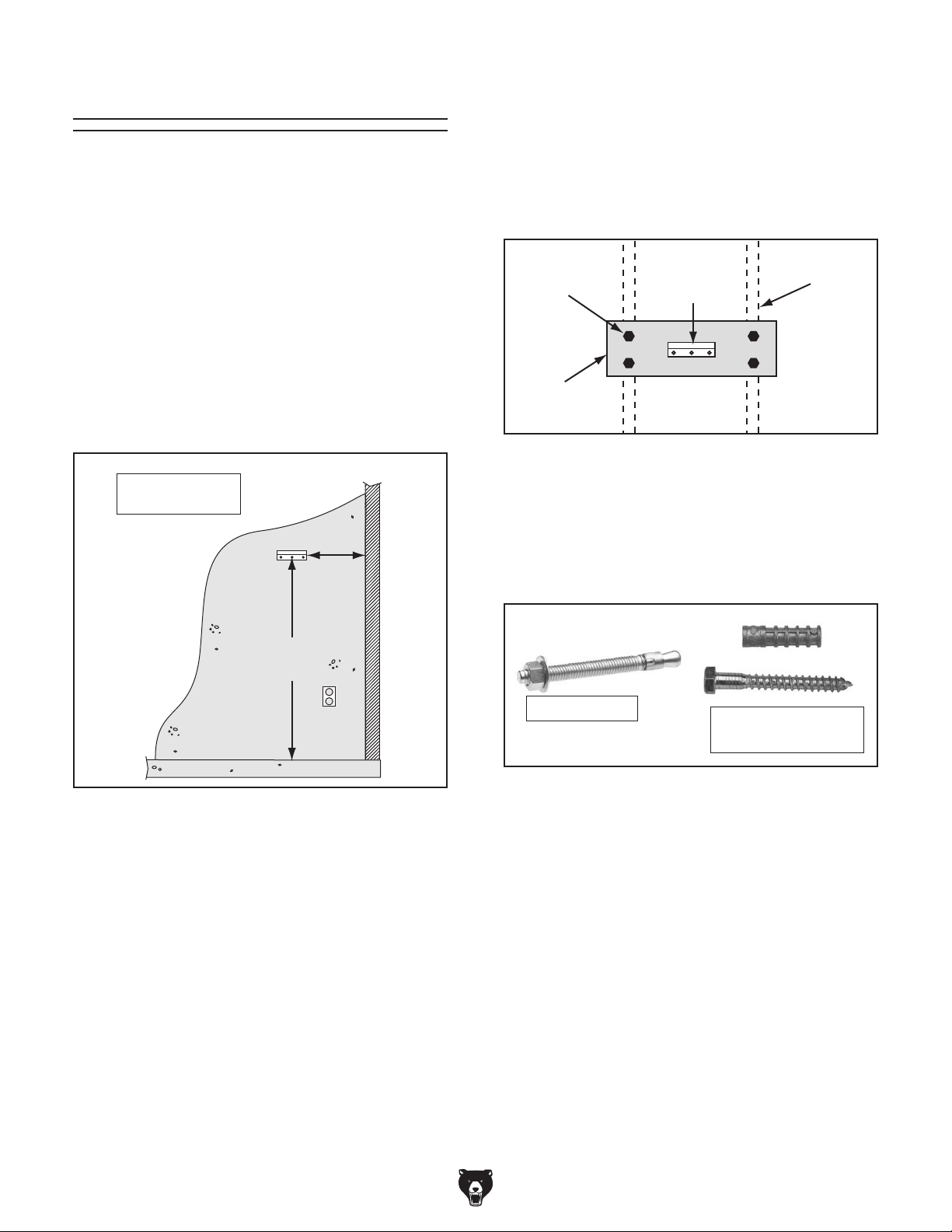

Assembly
Test Run

SECTION 4: DESIGNING A SYSTEM

General

System Grounding.................................................................................................................... 20

SECTION 5: OPERATIONS

Operation Overview.................................................................................................................. 21

SECTION 6: ACCESSORIES

SECTION 7: MAINTENANCE......................................................................................................... 24

Schedule
Cleaning Canister Filter
Replacing Collection Bag
Pairing Remote Control

Replacing Remote Control Battery........................................................................................... 25

................................................................................................................................ 14

................................................................................................................................... 14

.................................................................................................................................. 16

................................................................................................................................... 18

..................................................................................................................................... 19

.................................................................................................................................. 24

....................................................................................................................... 9

............................................................................................... 9

....................................................................................... 11

...................................................................................................... 12

....................................................................................................................... 14

..................................................................................................................... 14

.................................................................................................................. 15

........................................................................................... 19

........................................................................................................... 21

......................................................................................................... 22

............................................................................................................ 24

......................................................................................................... 24

............................................................................................................ 25

SECTION 8: SERVICE

Troubleshooting

SECTION 9: WIRING

Wiring Safety Instructions
G0944/G0944HEP Wiring Diagram

SECTION 10: PARTS

.......................................................................................................................................... 30

Main
Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 26

........................................................................................................................ 26

...................................................................................................................... 28

..................................................................................................................... 30

................................................................................................................. 32

............................................................................................................. 33

........................................................................................................ 28

......................................................................................... 29

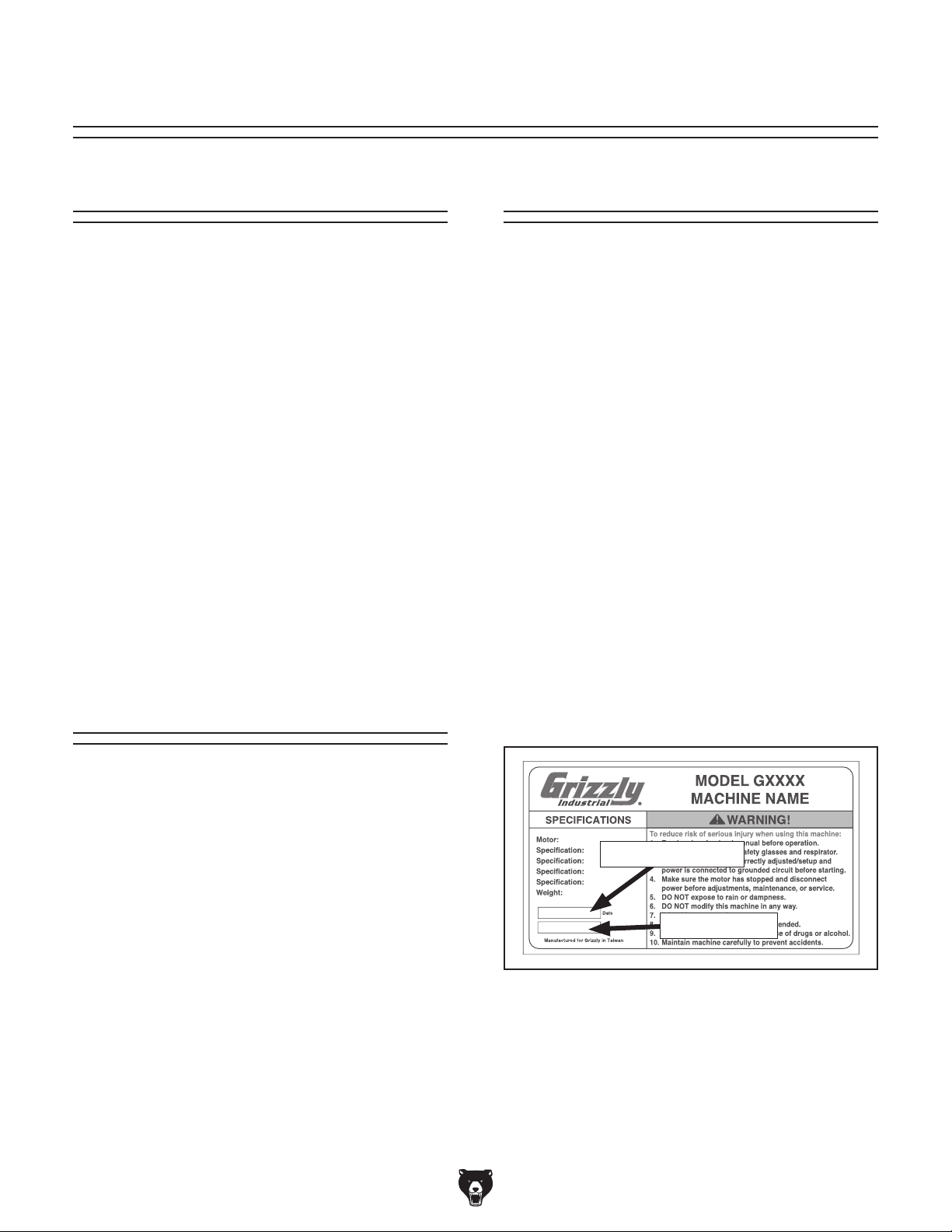

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [email protected]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [email protected]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Machine Differences

Models G0944 and G0944HEP are identical
machines, with one exception.

Model G0944HEP is equipped with a MERV-17
HEPA filter. The G0944 is not.

Manufacture Date

Serial Number

-2-

Model G0944/G0944HEP (Mfd. Since 03/21)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

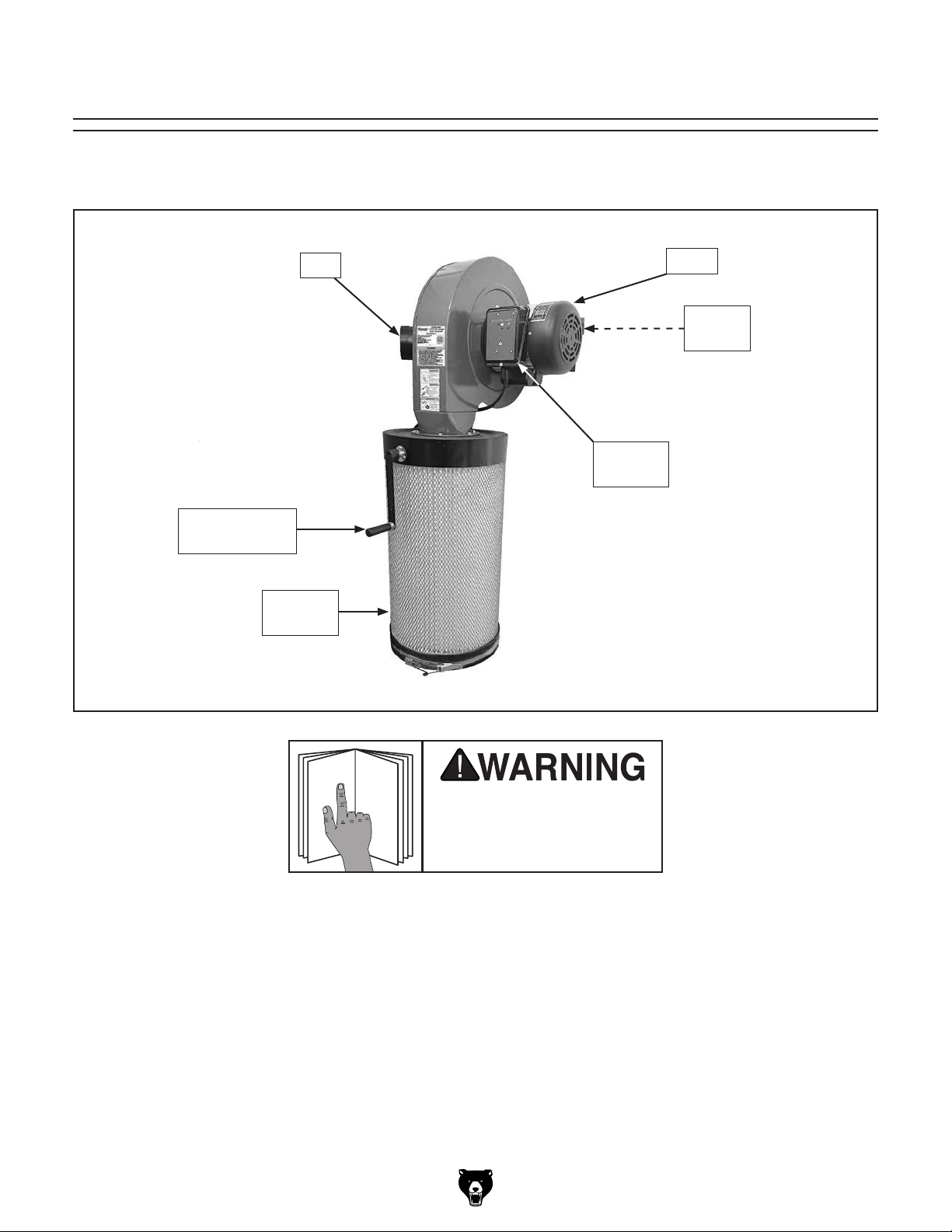

Filter Cleaning

(G0944 Shown)

Handle

Inlet

Canister

Filter

Motor

Wall

Bracket

Junction

Box

Model G0944/G0944HEP (Mfd. Since 03/21)

using machine.

-3-

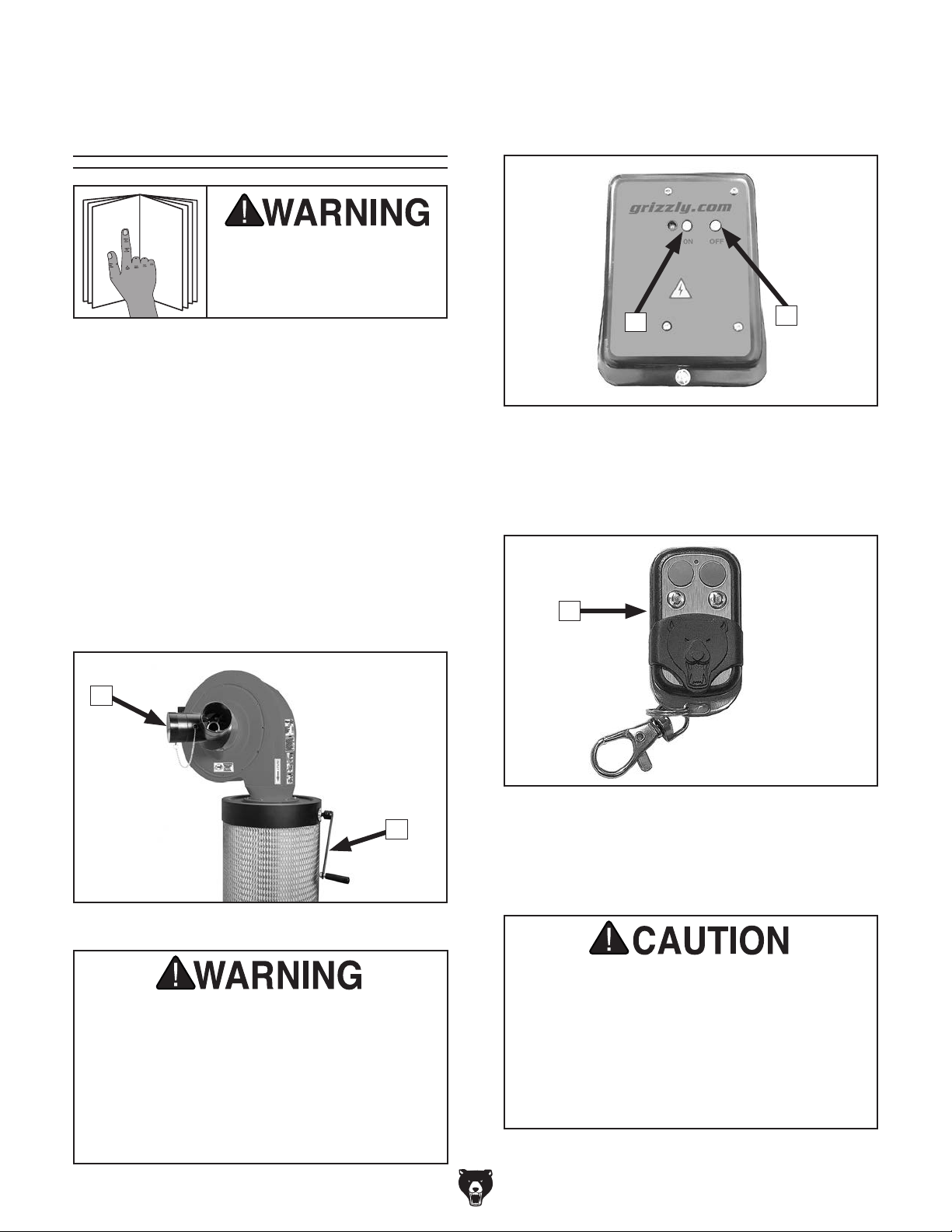

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

C. ON Button: Turns machine ON.

D. OFF Button: Turns machine OFF.

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

A. Inlet Adapter: Allows connection of two 4"

ducts to main inlet port.

B. Filter Cleaning Handle: Turn handle to

knock dust cake off filter pleats, clean filter,
and maintain air flow. Clean filter after each
use and when performance drops.

A

C

Figure 2. Junction box.

E. Remote Control: Green button turns

machine ON. Red button turns machine OFF.
Requires a 12V, type A27 battery.

E

D

B

Figure 1. Inlet adapter and filter cleaning handle.

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious
personal injury may occur.

-4-

Figure 3. Remote control.

Note: The remote control operates on radio fre-

quency and has a range up to 75'. It does not
need to be aimed at the junction box to operate.

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per­sonal injury, damage to equipment, or poor
work results.

Model G0944/G0944HEP (Mfd. Since 03/21)

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0944 1‐1/2 HP WALL‐MOUNT DUST COLLECTOR

WITH CANISTER FILTER

Product Dimensions:

Weight................................................................................................................................................................ 71 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 22-1/2 x 23-1/2 x 77-1/2 in.

Footprint (Length x Width)......................................................................................................................... 6-1/2 x 7 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight...................................................................................................................................................... 58 lbs.

Length x Width x Height............................................................................................................. 24 x 23 x 22 in.

Carton #2

Type........................................................................................................................................... Cardboard Box

Content......................................................................................................................................... Canister Filter

Weight...................................................................................................................................................... 19 lbs.

Length x Width x Height............................................................................................................. 18 x 18 x 31 in.

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 15A

Minimum Circuit Size.............................................................................................................................................. 20A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type...................................................................... Circuit Board with ON/OFF Buttons and Remote Receiver

Motors:

Main

Horsepower............................................................................................................................................. 1.5 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 15A

Speed................................................................................................................................................ 3450 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ......................................................................................................................................... Direct

Bearings........................................................................................................ Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Model G0944/G0944HEP (Mfd. Since 03/21)

-5-

Main Specifications:

Operation

Dust Collector Type....................................................................................................................... Single-Stage

Approved Dust Types................................................................................................................................ Wood

Filter Type................................................................................................................................ Pleated Canister

Airflow Performance.......................................................................................................................... 1250 CFM

Max Static Pressure (at 0 CFM)............................................................................................................. 10.4 in.

Main Inlet Size............................................................................................................................................. 6 in.

Inlet Adapter Included.................................................................................................................................. Yes

Number of Adapter Inlets.................................................................................................................................. 2

Adapter Inlet Size........................................................................................................................................ 4 in.

Machine Collection Capacity At One Time....................................................................................................... 2

Maximum Material Collection Capacity............................................................................................. 15 Gallons

Filter Information

Filtration Rating..................................................................................................................................... 1 Micron

Filter Surface Area......................................................................................................................... 38.75 Sq. Ft.

Bag Information

Number of Lower Bags..................................................................................................................................... 1

Lower Bag Diameter............................................................................................................................ 14-1/2 in.

Lower Bag Length...................................................................................................................................... 24 in.

Canister Information

Number of Canister Filters................................................................................................................................ 1

Canister Filter Diameter....................................................................................................................... 14-1/2 in.

Canister Filter Length................................................................................................................................ 28 in.

Impeller Information

Impeller Type...................................................................................................................................... Radial Fin

Impeller Size........................................................................................................................................ 12-3/4 in.

Impeller Blade Thickness.......................................................................................................................... 1/4 in.

Construction

Lower Bag...................................................................................................................................... Clear Plastic

Canister............................................................................................................................ Spun Bond Polyester

Impeller............................................................................................................................................... Aluminum

Paint Type/Finish........................................................................................................................... Powder Coat

Blower Housing.......................................................................................................................................... Steel

Body........................................................................................................................................................... Steel

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes

Serial Number Location .................................................................................................................................. ID Label

Sound Rating .............................................................................................................................................. 75 - 77 dB

Features:

Spun Bond Polyester Canister with 1-Micron Filtration
12-3/4" Cast-Aluminum Impeller
Steel Base Plate Mounts Easily to Most Walls
Built-In Canister Cleaner Maintains Canister Life and Performance

-6-

Model G0944/G0944HEP (Mfd. Since 03/21)

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0944HEP 1‐1/2 HP WALL MOUNT DUST

COLLECTOR WITH HEPA FILTER

Product Dimensions:

Weight................................................................................................................................................................ 71 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 22-1/2 x 23-1/2 x 77-1/2 in.

Footprint (Length x Width)......................................................................................................................... 6-1/2 x 7 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight...................................................................................................................................................... 58 lbs.

Length x Width x Height............................................................................................................. 24 x 23 x 22 in.

Carton #2

Type........................................................................................................................................... Cardboard Box

Content......................................................................................................................................... Canister Filter

Weight...................................................................................................................................................... 19 lbs.

Length x Width x Height............................................................................................................. 18 x 18 x 31 in.

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 15A

Minimum Circuit Size.............................................................................................................................................. 20A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.............................................................................................................................................. 72 in.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type...................................................................... Circuit Board with ON/OFF Buttons and Remote Receiver

Motors:

Main

Horsepower............................................................................................................................................. 1.5 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 15A

Speed................................................................................................................................................ 3450 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ......................................................................................................................................... Direct

Bearings........................................................................................................ Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Model G0944/G0944HEP (Mfd. Since 03/21)

-7-

Main Specifications:

Operation

Dust Collector Type....................................................................................................................... Single-Stage

Approved Dust Types................................................................................................................................ Wood

Filter Type.................................................................................................................................. HEPA Canister

Airflow Performance.......................................................................................................................... 1280 CFM

Max Static Pressure (at 0 CFM)............................................................................................................. 10.4 in.

Main Inlet Size............................................................................................................................................. 6 in.

Inlet Adapter Included.................................................................................................................................. Yes

Number of Adapter Inlets.................................................................................................................................. 2

Adapter Inlet Size........................................................................................................................................ 4 in.

Machine Collection Capacity At One Time....................................................................................................... 2

Maximum Material Collection Capacity............................................................................................. 15 Gallons

Filter Information

Filtration Rating................................................................................................................ 99.97% of 0.3 Micron

Filter Surface Area......................................................................................................................... 38.75 Sq. Ft.

Bag Information

Number of Lower Bags..................................................................................................................................... 1

Lower Bag Diameter............................................................................................................................ 14-1/2 in.

Lower Bag Length...................................................................................................................................... 24 in.

Canister Information

Number of Canister Filters................................................................................................................................ 1

Canister Filter Diameter....................................................................................................................... 14-1/2 in.

Canister Filter Length................................................................................................................................ 28 in.

Impeller Information

Impeller Type...................................................................................................................................... Radial Fin

Impeller Size........................................................................................................................................ 12-3/4 in.

Impeller Blade Thickness.......................................................................................................................... 1/4 in.

Construction

Lower Bag...................................................................................................................................... Clear Plastic

Canister............................................................................................................................ Spun-Bond Polyester

Impeller............................................................................................................................................... Aluminum

Paint Type/Finish........................................................................................................................... Powder Coat

Blower Housing.......................................................................................................................................... Steel

Body........................................................................................................................................................... Steel

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes

Serial Number Location .................................................................................................................................. ID Label

Sound Rating .............................................................................................................................................. 75 - 77 dB

Features:

HEPA Canister Filter with Collection Capacity of 99.97% of 0.3-Micron Particles
12-3/4" Cast-Aluminum Impeller
Steel Base Plate Mounts Easily to Most Walls
Built-In Canister Cleaner Maintains Canister Life and Performance

-8-

Model G0944/G0944HEP (Mfd. Since 03/21)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0944/G0944HEP (Mfd. Since 03/21)

-9-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-10 -

Model G0944/G0944HEP (Mfd. Since 03/21)

Additional Safety for Dust Collectors

of death or injury caused by explosions or fires, DO

Long-term respiratory damage can occur from using dust collectors without proper use of a
respirator. Fire or explosions can result in smoke inhalation, serious burns, or death—if machine
is used to collect incorrect materials, is operated near potential explosion sources, or ducting is
improperly grounded. Entanglement, amputation, or death can occur if hair, clothing, or fingers
are pulled into the inlet. To reduce the risk of these hazards, operator and bystanders MUST
completely heed the hazards and warnings below.

INTENDED USE. Collecting the wrong materi-

als can result in serious inhalation hazards, fire,
explosions, or machine damage. This machine
is ONLY designed to collect wood dust and chips
from woodworking machines. DO NOT use it to
collect silica, polyurethane, toxic fumes, metal dust
or shavings, lead paint, drywall, asbestos, biohaz­ards, explosive dusts, flammable or combustible
liquids or fumes, nor burning or smoking material.

WEAR A RESPIRATOR. Fine dust that is too
small to be caught in filter will be blown into ambi­ent air. Always wear a NIOSH-approved respira­tor during operation and for a short time after to
reduce your risk of permanent respiratory damage.
Never collect dust from any hazardous material.

IMPELLER HAZARDS. To reduce risk of entan­glement or contact with impeller, DO NOT place
hands, hair, clothing, or tools in or near open dust
collection inlet during operation, and keep small
animals and children away. The powerful suction
could easily pull them into impeller.

HAZARDOUS DUST. Dust exposure created while
using machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator.

EMPTYING DUST. When emptying bag or drum,
wear respirator and safety glasses. Empty dust
away from ignition sources and into approved
container.

OPERATI NG LOCATION . To reduce respiratory
exposure to fine dust, locate permanently installed
dust collectors away from working area or in anoth­er room. DO NOT place dust collector where it can
be exposed to rain or moisture, which creates a
shock hazard and will reduce life of machine.

POWER DISCONNECT. Turn machine OFF, dis-
connect from power supply, and allow impeller
to completely stop before leaving machine unat­tended, or doing any maintenance or service.

REGULAR CLEANING. To reduce risk of start­ing a fire, regularly check/empty collection bags
or drum to avoid buildup of fine dust, which can
increase risk of fire. Regularly clean surrounding
area where machine is operated—excessive dust
buildup on overhead lights, heaters, electrical pan­els, or other heat sources will increase risk of fire.

SUSPENDED DUST PARTICLES. To reduce risk

NOT operate in areas where these risks are high,
including spaces near pilot lights, open flames, or
other ignition sources.

AVOIDING SPARKS. To reduce risk of fire, avoid
collecting any metal objects or stones. These can
possibly produce sparks when they strike impeller,
which can smolder in wood dust for a long time
before a fire is detected. If you accidentally cut
into wood containing metal, immediately turn OFF
dust collector, disconnect from power, and wait
for impeller to stop. Then empty bag or drum into
approved airtight metal container.

FIRE SUPPRESSION. Only operate dust collector
in locations that contain fire suppression system or
have fire extinguisher nearby.

STATIC ELECTRICITY. To reduce risk of fire or
explosions caused by sparks from static electricity,
ground all ducting using grounding wire.

DUST ALLERGIES. Dust from certain woods will
cause an allergic reaction. Make sure you know
what type of wood dust you will be exposed to in
case of an allergic reaction.

Model G0944/G0944HEP (Mfd. Since 03/21)

-11-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 20 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V ...... 15 Amps

-12-

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model G0944/G0944HEP (Mfd. Since 03/21)

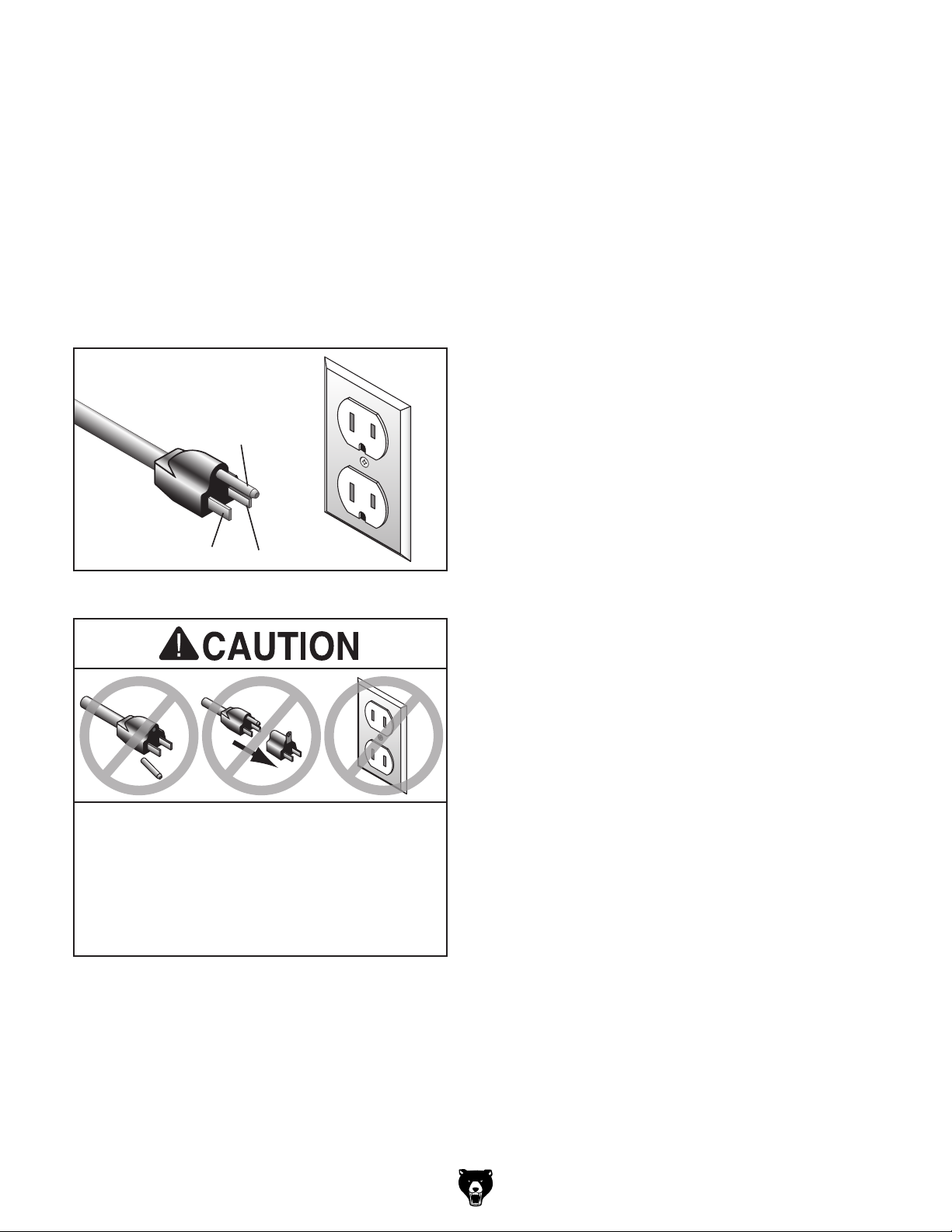

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model G0944/G0944HEP (Mfd. Since 03/21)

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

-13-

SECTION 3: SETUP

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Unpacking

If items are damaged

call us immediately

Save all packaging materials until

Box 1 (Figure 5) Qty
A. Hardware (Not Shown)

— Flange Bolts 1⁄4"-20 x 3⁄4" ......................... 6

— T-Bolts 1⁄4"-20 x 3⁄4" .................................. 2

— Hex Huts 1⁄4"-20 ....................................... 2

— Flange Screw 10-24 x 3⁄8" ....................... 1

B. Wall Bracket ............................................... 1

C. Remote Control .......................................... 1

Motor/Impeller Assembly ............................ 1

D.

Inlet Adapter 6" x 4" x 4" ............................ 1

E.

Collection Bag ............................................ 1

F.

G. Bag Clamp 15"............................................ 1

H. Filter Cleaning Handle ................................ 1

Box 2 (Figure 5) Qty

I. Canister Filter ............................................. 1

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• An Assistant ............................................... 1

• Safety Glasses and Respirator .................. 1

• Mounting Hardware .................... As Needed

• Tape Measure............................................. 1

• Drill and Bits ............................... As Needed

• Marker/Pencil .............................................. 1

• Support Board ............................ As Needed

• Wrench or Socket 3⁄8" ................................. 1

• Wrench or Socket 10mm ............................ 1

Inventory

B

C

D

G

F

H

Figure 5. Inventory.

E

I

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-14-

Model G0944/G0944HEP (Mfd. Since 03/21)

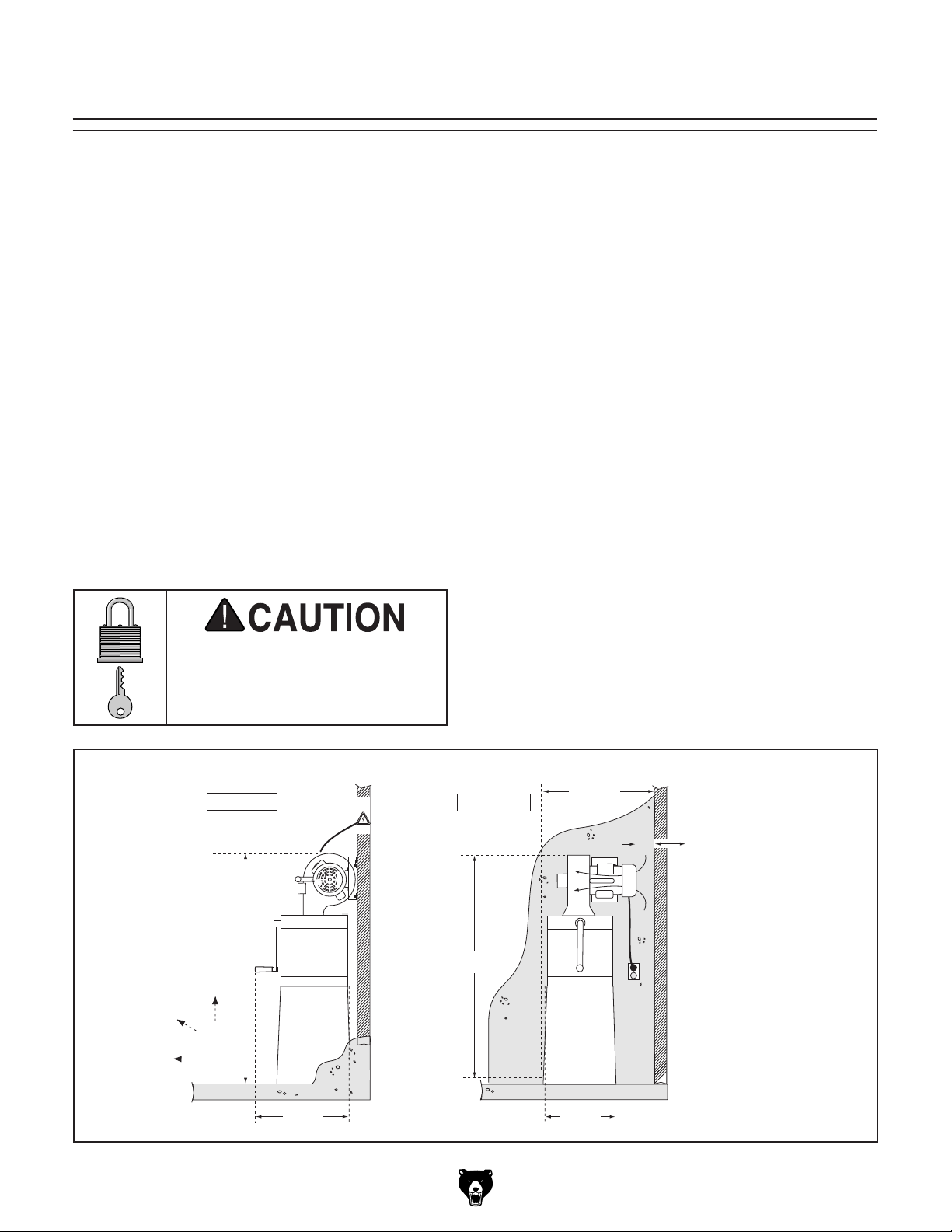

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

Wall

Side View

881⁄2"

Minimum

Keep

Area

Clear

Floor

231⁄2"

Power

Wall

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

or impede the operator must be eliminated.

3"

Wall

Minimum
Motor

Front View

251⁄2"

Minimum

Cooling
Air Gap

881⁄2"

Wall

Floor

221⁄2"

Figure 6. Minimum working clearances.

Model G0944/G0944HEP (Mfd. Since 03/21)

-15-

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

— If mounting to a wood-framed wall (with or

without drywall), bracket must be mount­ed directly to support board wide enough
to span and mount between two wall
studs. Mount support to wall studs with
lag screws, then mount bracket to support
with appropriate fasteners (see Figure 8).

To assemble and mount dust collector:

Using wall bracket as template, mark mount-

1.

ing hole locations a minimum of 85
floor and at least 7" away from adjacent wall
(see Figure 7).

Note: Drawing
Not to Scale.

Minimum

7"

Wall

851/2"

Minimum

Wall

1

⁄2 " from

Lag Screws

Support
Board

Figure 8. Wall bracket secured to support board

— If mounting to a concrete or masonry wall,

attach bracket using lag shield anchors
with lag screws or anchor studs (see
Figure 9).

Anchor Stud

Wall

Bracket

on wall studs.

Lag Shield Anchor

and Lag Screw

Wall Stud

Floor

Figure 7. Wall bracket position.

-16 -

Figure 9. Typical fasteners for mounting dust

collector bracket to masonry or concrete.

Model G0944/G0944HEP (Mfd. Since 03/21)

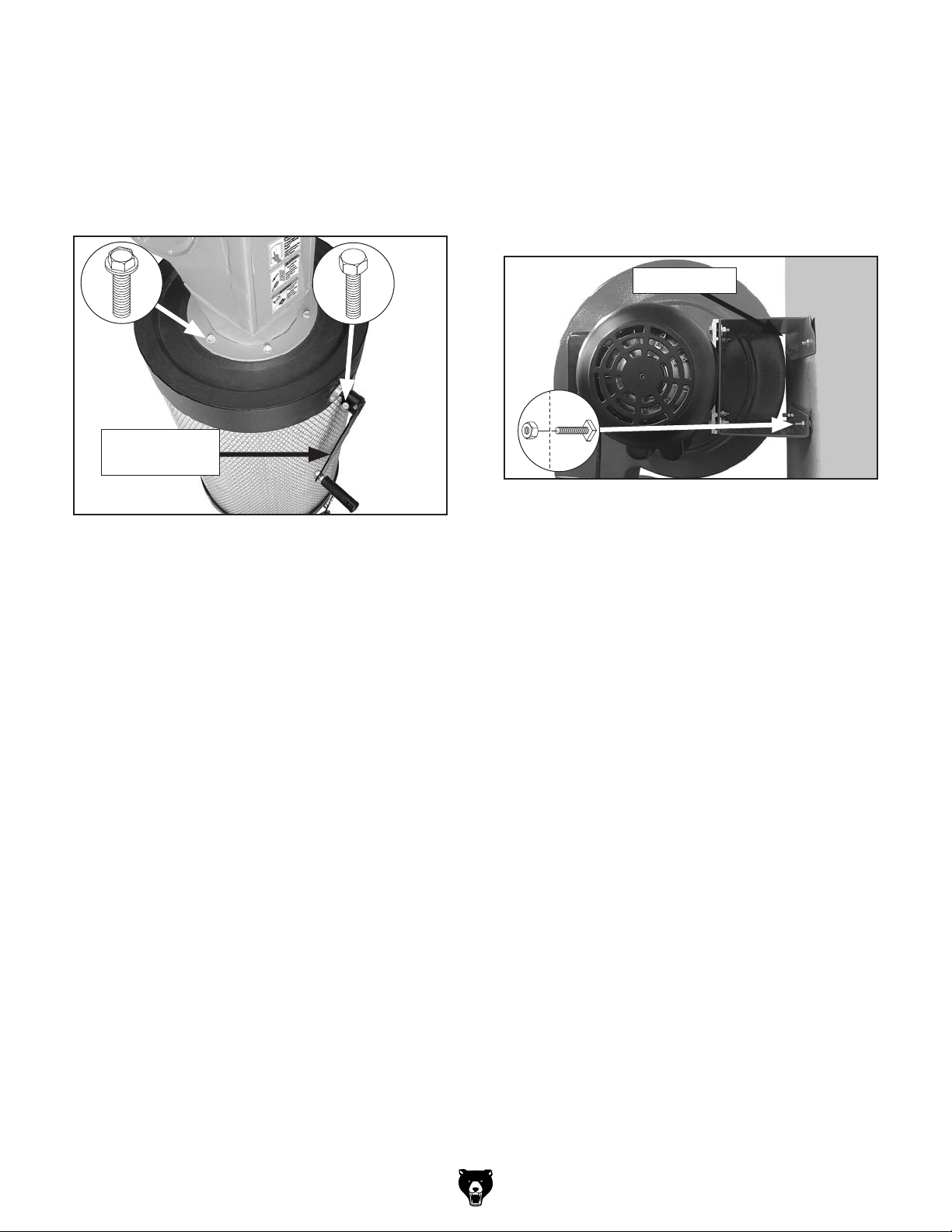

2. Attach canister filter to motor/impeller assem-

1

bly with (6)

⁄4"-20 x 3⁄4" flange bolts (see

Figure 10).

Attach (2) 1⁄4"-20 x 3⁄4" T-bolts and 1⁄4"-20 hex

4.

nuts to bottom arm of dust collector mount
(see Figure 11).

Attach filter cleaning handle to canister filter

3.

with (1) hex bolt included with handle (see
Figure 10).

x 6

Filter Cleaning

Handle

Figure 10. Canister attached to dust collector

and filter cleaning handle attached to canister.

With help from an assistant, hang dust col-

5.

lector on wall bracket (see Figure 11). Ensure
T-bolts support dust collector so that machine
is perpendicular to wall.

Wall Bracket

x 6

Figure 11. Dust collector hung on wall bracket.

Attach inlet adapter to dust collector inlet port

6.

and secure adapter with 10-24 x 3⁄8" flange
screw.

Model G0944/G0944HEP (Mfd. Since 03/21)

-17-

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to dust-collection system,

and place covers over inlet adapter ports.

Connect machine to power.

3.

IMPORTANT: DO NOT operate the dust collec-

tor without first covering an inlet adapter port.
Otherwise, the lack of airflow resistance will cause
the motor to operate at full amperage load, which
could trip your circuit breaker or blow a fuse.

Turn machine ON, verify motor operation,

4.

then turn machine OFF (see Figure 12).

The motor should run smoothly and without

unusual problems or noises.

DO NOT start machine until all preceding

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

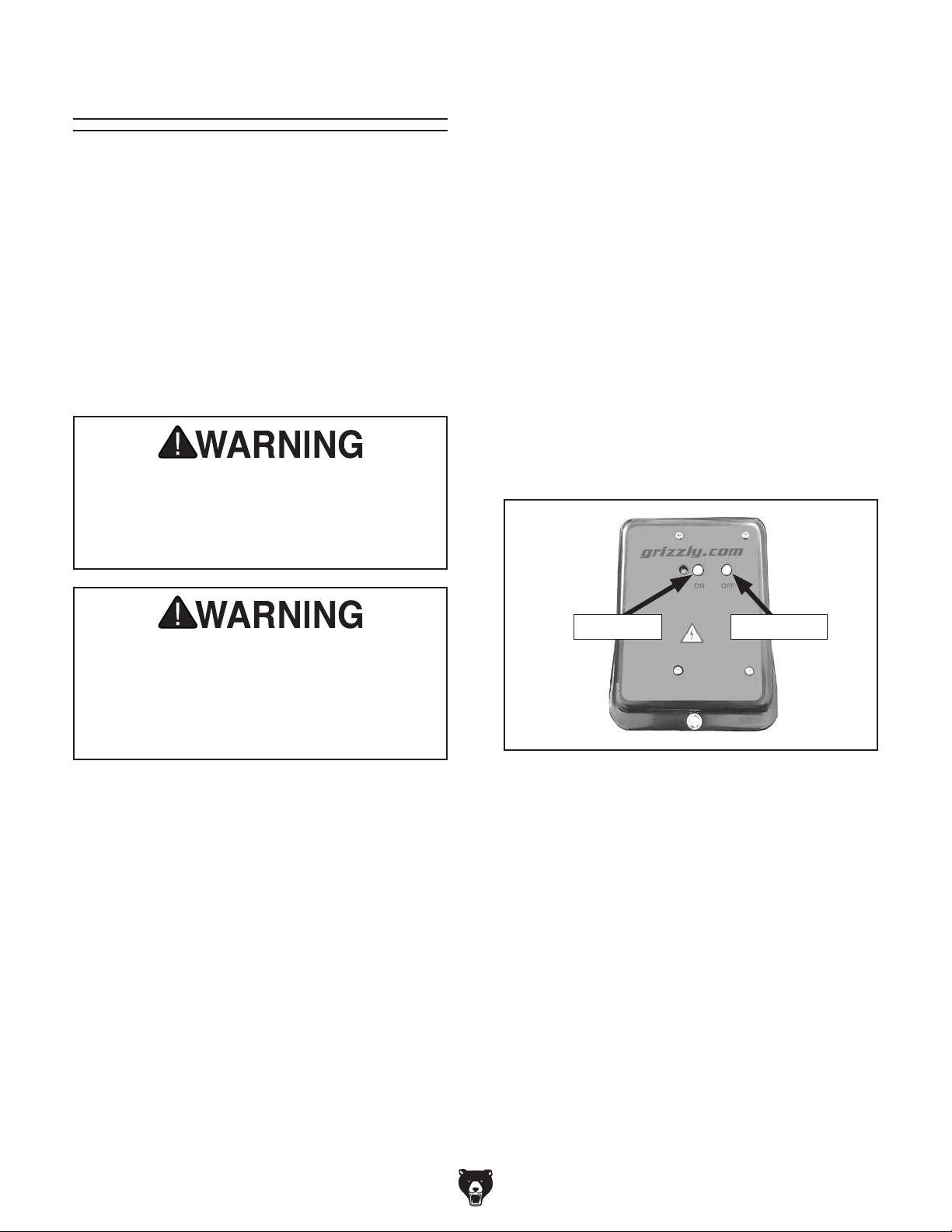

OFF ButtonON Button

Figure 12. ON/OFF buttons on junction box.

5.

To test remote control operation, press green

remote button to turn motor ON, then press
red remote button to turn motor OFF.

— If the machine does not start or stop, verify

batteries are correctly installed in remote.

-18-

Model G0944/G0944HEP (Mfd. Since 03/21)

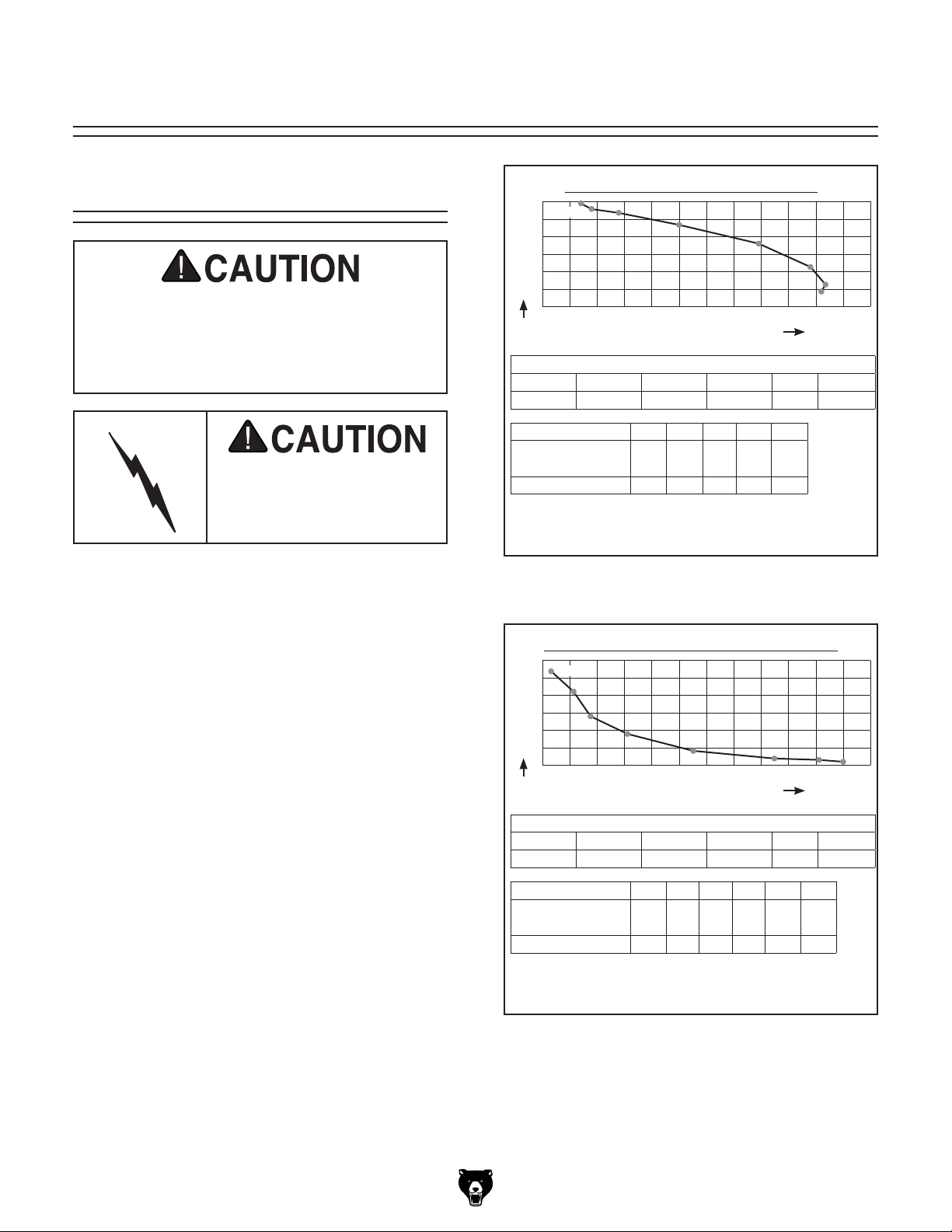

SECTION 4: DESIGNING A SYSTEM

General

Always make sure there are no open flames
or pilot lights in the same room as the dust
collector. There is a risk of explosion if too
much fine dust is dispersed into the air with
an open flame present.

Always guard against stat­ic electrical build up by
grounding all dust collec­tion lines.

The Model G0944/G0944HEP works quite well as
a point-of-use dust collector, or for collecting dust
from up to two machines simultaneously.

Tips for Optimum Performance

• Avoid using more than 10' of flexible hose on
any ducting line. The ridges inside flexible
hose greatly increase static pressure loss,
which reduces suction performance.

• Keep ducts between the dust collector and

machines as short as possible.

• Keep ducting directional changes to a mini-

mum. The more curved fittings you use, the
greater the loss of suction at the dust-produc­ing machine.

Gradual directional changes are more effi-

•

cient than sudden directional changes (i.e.
use 45° elbows in place of 90° elbows when­ever possible).

The simpler the system, the more efficient

•

and less costly it will be.

G0944 Performance Curve

1200

1250

1000

800

600

400

200

0

CFM

1.5 HP DUST COLLECTOR PERFORMANCE RESULTS
Max CFM Max SP HP Volts Inlet Impeller

1250 10.4 11⁄2 HP 110V 6" 123⁄4"

Restrictor Plate Dia.
Static Pressure

(Inch/H2O)

CFM 1096 1001 782 475 224

from the air inlet. Test pipe length is a minimum of 10x duct
diameter.

1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0

STATIC PRESSURE (Inch/H2O)

6" 5" 4" 3" 2"

3.5 4.7 7.4 9.6 9.9

The air flow test probe is located 1.5x duct diameter upstream

Figure 13. G0944 performance curve table and

data.

G0944HEP Performance Curve

1500

1250

1000

CFM

1.5 HP DUST COLLECTOR PERFORMANCE RESULTS
Max CFM Max SP HP Volts Inlet Impeller

1280 10.4 11⁄2 HP 110V 6" 123⁄4"

Restrictor Plate Dia.
Static Pressure

(Inch/H2O)

CFM 972 675 409 214 95 34

The air flow test probe is located 1.5x duct diameter upstream
from the air inlet. Test pipe length is a minimum of 10x duct
diameter.

Figure 14. G0944HEP performance curve table

1280

750

500

250

0

1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0

STATIC PRESSURE (Inch/H2O)

7" 6" 5" 4" 3" 2"

1.2 1.8 3.1 5.6 8.7 10.2

and data.

Model G0944/G0944HEP (Mfd. Since 03/21)

-19 -

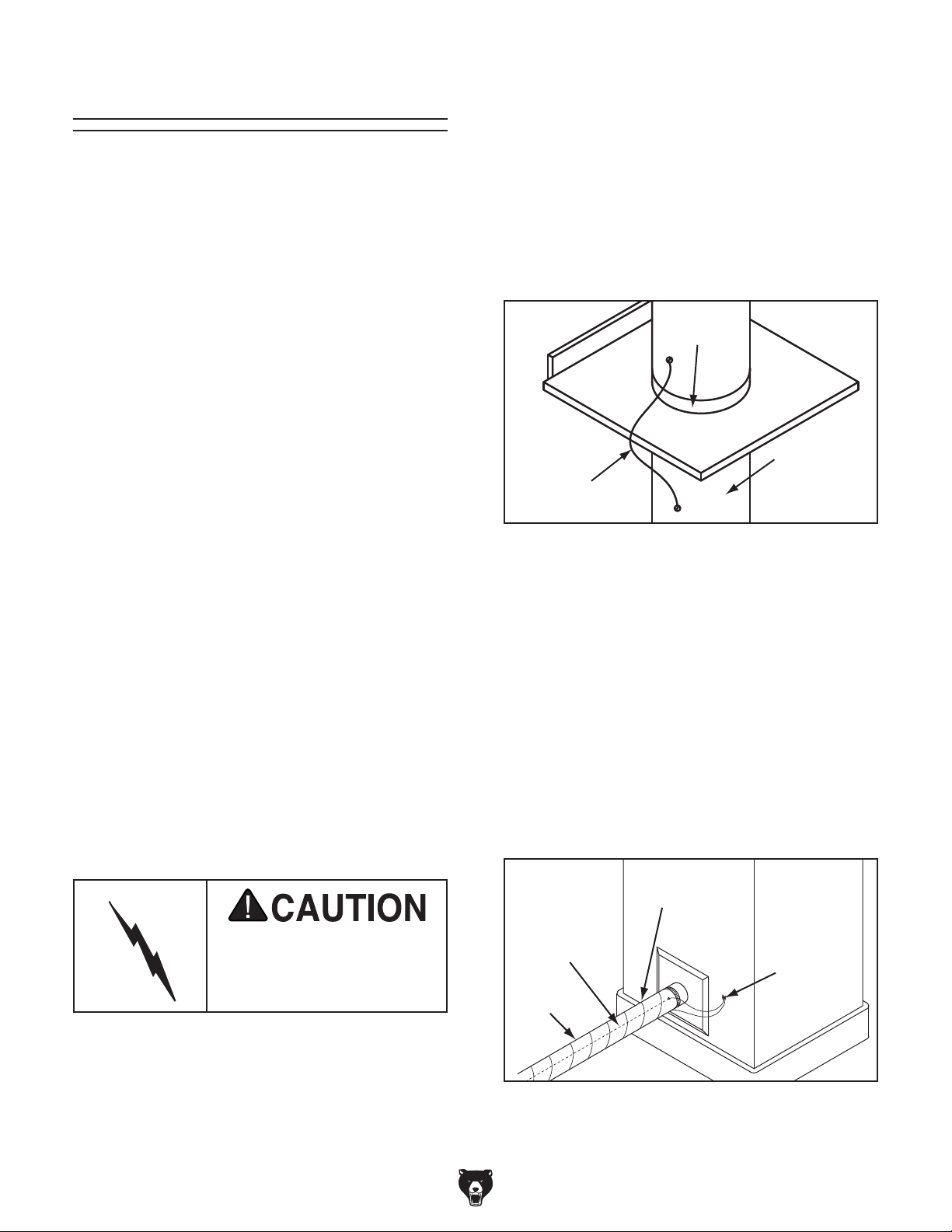

System Grounding

Since plastic hose is abundant, relatively inexpen­sive, easily assembled and air tight, it is a very
popular material for conveying dust from wood­working machines to the dust collector.

We recommend only using short lengths of flex­ible hose (flex-hose) to connect the woodworking
machine to the dust collector. However, plastic
flex-hose and plastic duct are an insulator, and
dust particles moving against the walls of the
plastic duct create a static electrical buildup. This
charge will build until it discharges to a ground.

If a grounding medium is not available to prevent
static electrical buildup, the electrical charge will
arc to the nearest grounded source. This electri­cal discharge may cause an explosion and subse­quent fire inside the system.

To protect against static electrical buildup inside
a non-conducting duct, a bare copper wire should
be placed inside the duct along its length and
grounded to the dust collector. You must also
confirm that the dust collector is continuously
grounded through the electrical circuit to the elec­tric service panel.

If you connect the dust collector to more than one
machine by way of a non-conducting branching
duct system and blast gates, the system must still
be grounded as mentioned above. We recom­mend inserting a continuous bare copper ground
wire inside the entire duct system and attaching
the wire to each grounded woodworking machine
and dust collector.

Be sure that you extend the bare copper wire down
all branches of the system. Do not forget to con­nect the wires to each other with wire nuts when
two branches meet at a “Y” or “T” connection.

Ensure that the entire system is grounded. If using
plastic blast gates to direct air flow, the ground­ing wire must be jumped (see the figure below)
around the blast gate without interruption to the
grounding system.

We also recommend wrapping the outside of all

in your electric service panel.

Plastic Blast

Gate

Metal Duct

Copper

Ground Wire

-20-

Always guard against stat­ic electrical build up by
grounding all dust collec­tion lines.

Figure 15. Ground jumper wire when using plas-

tic blast gates and metal duct.

plastic ducts with bare copper wire to ground
the outside of the system against static electrical
buildup. Wire connections at Y’s and T’s should
be made with wire nuts.

Attach the bare ground wire to each stationary
woodworking machine and attach to the dust
collector frame with a ground screw as shown
in the figure below. Ensure that each machine is
continuously grounded to the grounding terminal

External

Ground Wire

Internal

Ground Wire

Flex-Hose

Figure 16. Flex-hose grounded to machine.

Model G0944/G0944HEP (Mfd. Since 03/21)

Ground

Screw

SECTION 5: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

This wall-mounted dust collector pulls wood dust
past the impeller, through the canister filter, and
into the plastic collection bag below.

The spunbond polyester filter in the G0944 catch­es 99.9% of 1-micron particles, and is pleated to
provide maximum surface area for efficient air
flow. The G0944HEP features a MERV-17 rated
HEPA filter that catches 99.97% of 0.3-micron
particles.

To maintain CFM during heavy use, the filter
cleaning handle knocks caked-on dust into the
collection bag.

To complete a typical operation, the operator
does the following:

Positions machine near dust collector and

1.

uses appropriate ducting to connect machine
to dust collector.

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model G0944/G0944HEP (Mfd. Since 03/21)

Connects ducting ground.

2.

3. Turns woodworking machine ON.

Turns dust collector ON.

4.

Performs woodworking operation.

5.

6. Turns woodworking machine OFF.

Turns dust collector OFF.

7.

-21-

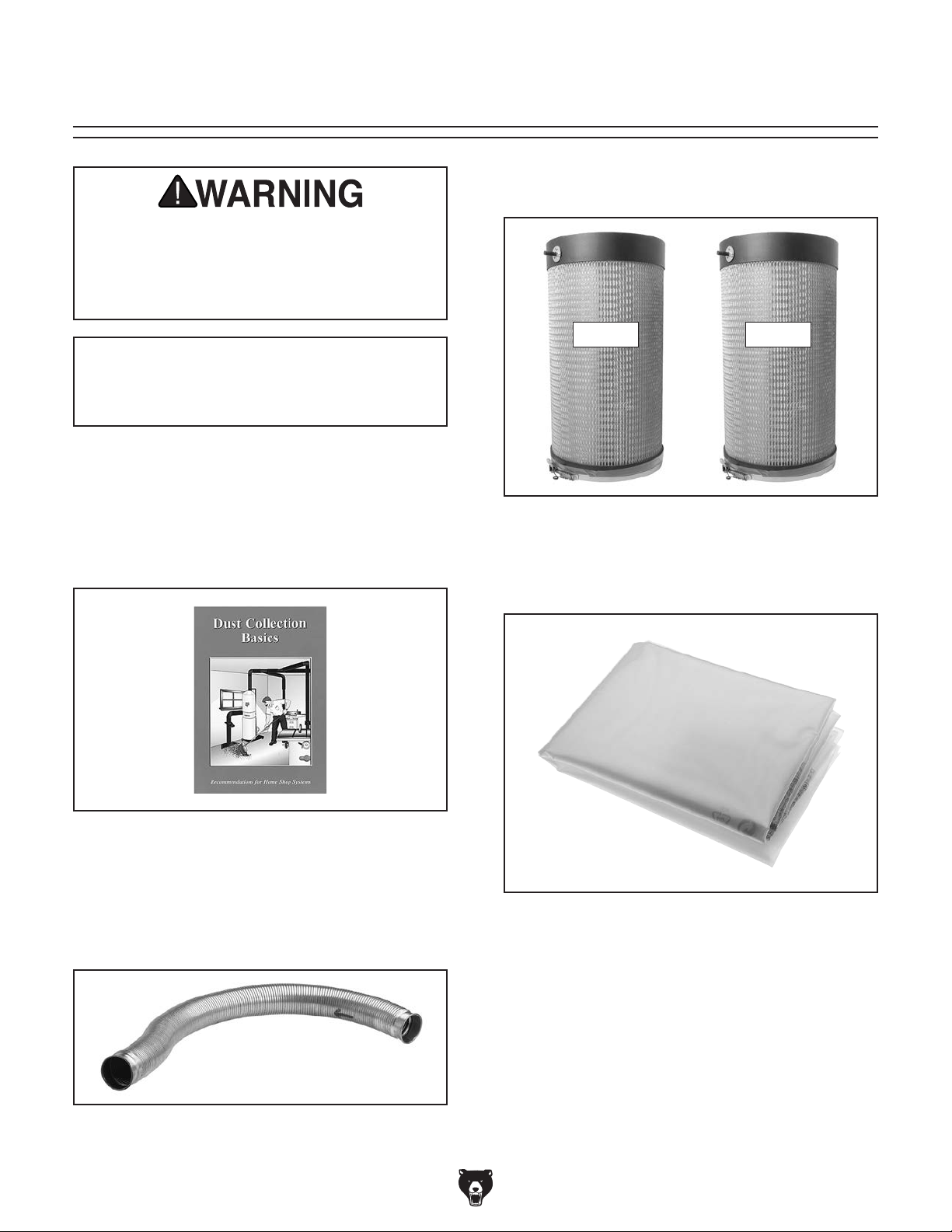

SECTION 6: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

W1050—Dust Collection Basics Book

This incisive book skillfully guides the woodworker
through all the steps necessary in the design and
construction of an efficient central dust-collection
system and tells you what you need to know for
easy installation. 64 pages.

T32555—Replacement 1-Micron Filter
T32168—Replacement HEPA Filter

T32168T32555

1

⁄2" dia. x 28" length replacement

Figure 19.

T24268—Collection Bag, Single
T21820—Collection Bag, 3-Pack

14

canister filters.

Figure 17. W1050 Dust Collection Basics Book.

H7215—4" x 5' Rigid Flex Hose
H7217—6" x 5' Rigid Flex Hose

These Rigid Flex Hoses with rolled collars provide
just enough flexibility to make difficult connections
while still keeping the inside wall smooth.

Figure 18. Rigid flex hose.

-22-

Figure 20. 14 1⁄2" dia. replacement collection bag.

Model G0944/G0944HEP (Mfd. Since 03/21)

order online at www.grizzly.com or call 1-800-523-4777

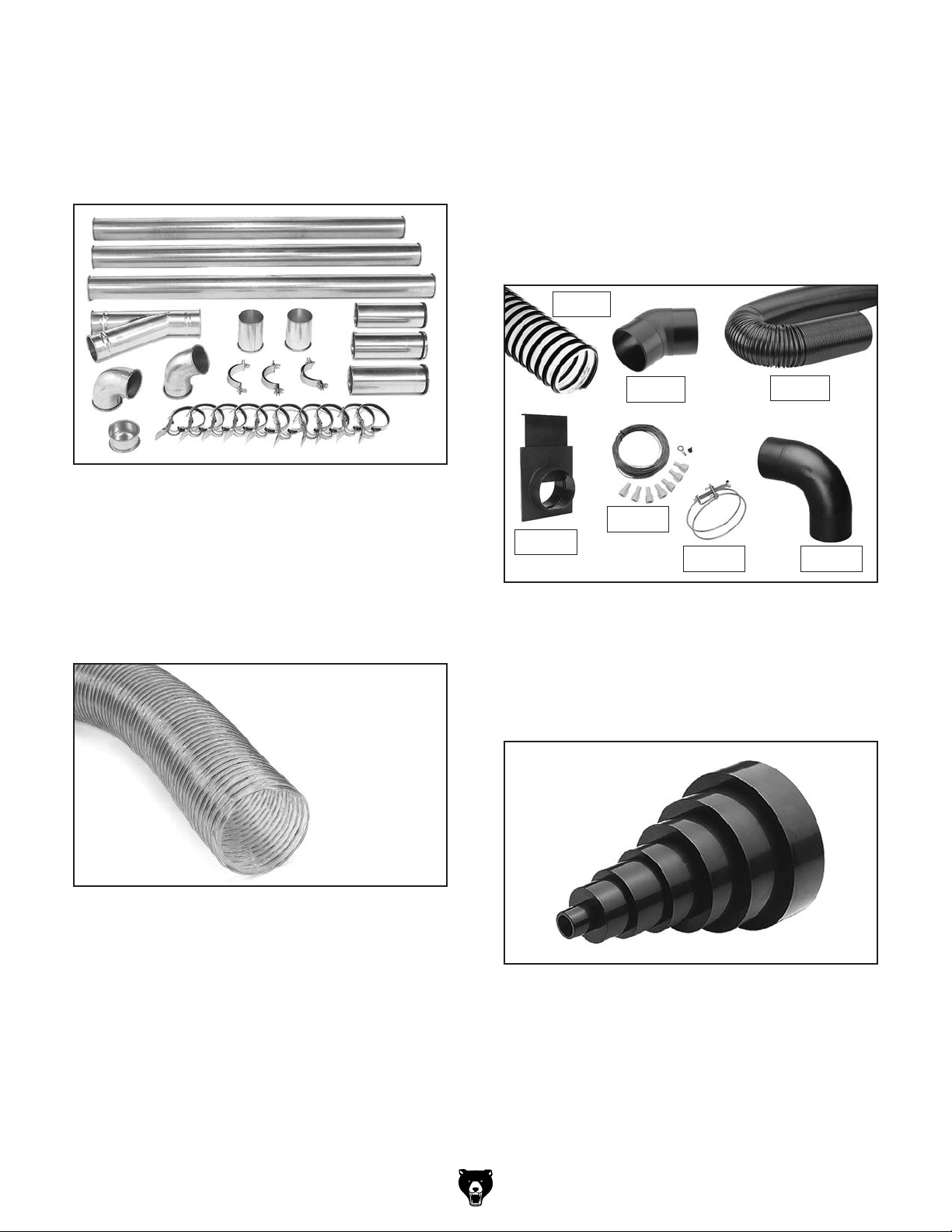

H5293—4" Industrial Dust Collection Fittings
Starter Kit

This starter kit includes everything you will need
for a simple, single-machine setup. The branch
and end cap make your dust collection system
expansion ready for future growth.

D4206—Clear Flexible Hose 4" x 10'
D4256—45° Elbow 4"
D4216 —Black Flexible Hose 4" x 10'
D2107—Hose Hanger 4 1⁄4"
W1015—Y-Fitting 4" x 4" x 4"
W1017—90° Elbow 4"
W1019—Hose Coupler (Splice) 4"
W1317—Wire Hose Clamp 4"
W1007—Plastic Blast Gate 4"
W1053—Anti-Static Grounding Kit

D4206

Figure 21. H5293 4" Industrial Dust Collection

Fittings Starter Kit.

W1034—4" x 10' Dust Hose
W1036—6" x 10' Dust Hose

Spiral-wire-reinforced clear hose allows easy
inspection for locating potential clogs in your duct
system. Uses RH fittings. Available in additional
diameters and lengths.

D4256

D4216

W1053

W1007

W1317

W1017

Figure 23. 4" dust-collection accessories.

W1039 —Universal Adapter

This adapter provides a multitude of reducing
options. Simply cut off unneeded steps. Outside
diameter sizes include 1", 2", 2.5", 3", 4", 5", and

1

6". Wall thickness is

⁄8".

Figure 22. Flexible clear dust hose.

Figure 24. W1039 Universal Adapter.

Model G0944/G0944HEP (Mfd. Since 03/21)

-23-

SECTION 7: MAINTENANCE

accidental startup, always
disconnect machine from

Cleaning

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged filter canister, cleaning paddle
components, or collection bag.

Worn or damaged wires.

•

Suction leaks or dust blowing out of collector.

•

Any other unsafe condition.

•

Monthly Check

• Clean/vacuum dust buildup off machine body
and motor.

Canister Filter

This dust collector uses a filter cleaning handle
to remove dust buildup and debris from the filter
pleats and extend the life of the filter. Clean the
filter with the filter cleaning handle after each use,
or whenever dust collection performance drops.
Eventually, dust will become fully embedded in
the filter pleats, and the filter assembly will have to
be replaced. If you reach the point where cleaning
the filter does not improve performance, then it is
time to replace the filter.

IMPORTANT: DO NOT use water or high pres­sure to clean canister filter. Doing so will damage
the filter and reduce filtration.

Replacing

Collection Bag

Remove and replace the collection bag when it is
approximately

Item Needed Qty

Collection Bag (T24268 or T21820) .................. 1

1

⁄2 full.

-24-

Dust exposure created
while using machinery
may cause cancer, birth
defects, or long-term respi­ratory damage. Always
wear goggles and a NIOSH­approved respirator when
working with the dust col­lection bags or canisters.

To remove and replace collection bag:

1. DISCONNECT MACHINE FROM POWER!

. Release bag clamp around bottom of canister

2

filter, then remove collection bag.

IMPORTANT: To contain wood dust and

minimize risk of exposure, tie bag closed
before disposal.

. Attach new collection bag around bottom of

3

canister filter and secure with bag clamp.

Model G0944/G0944HEP (Mfd. Since 03/21)

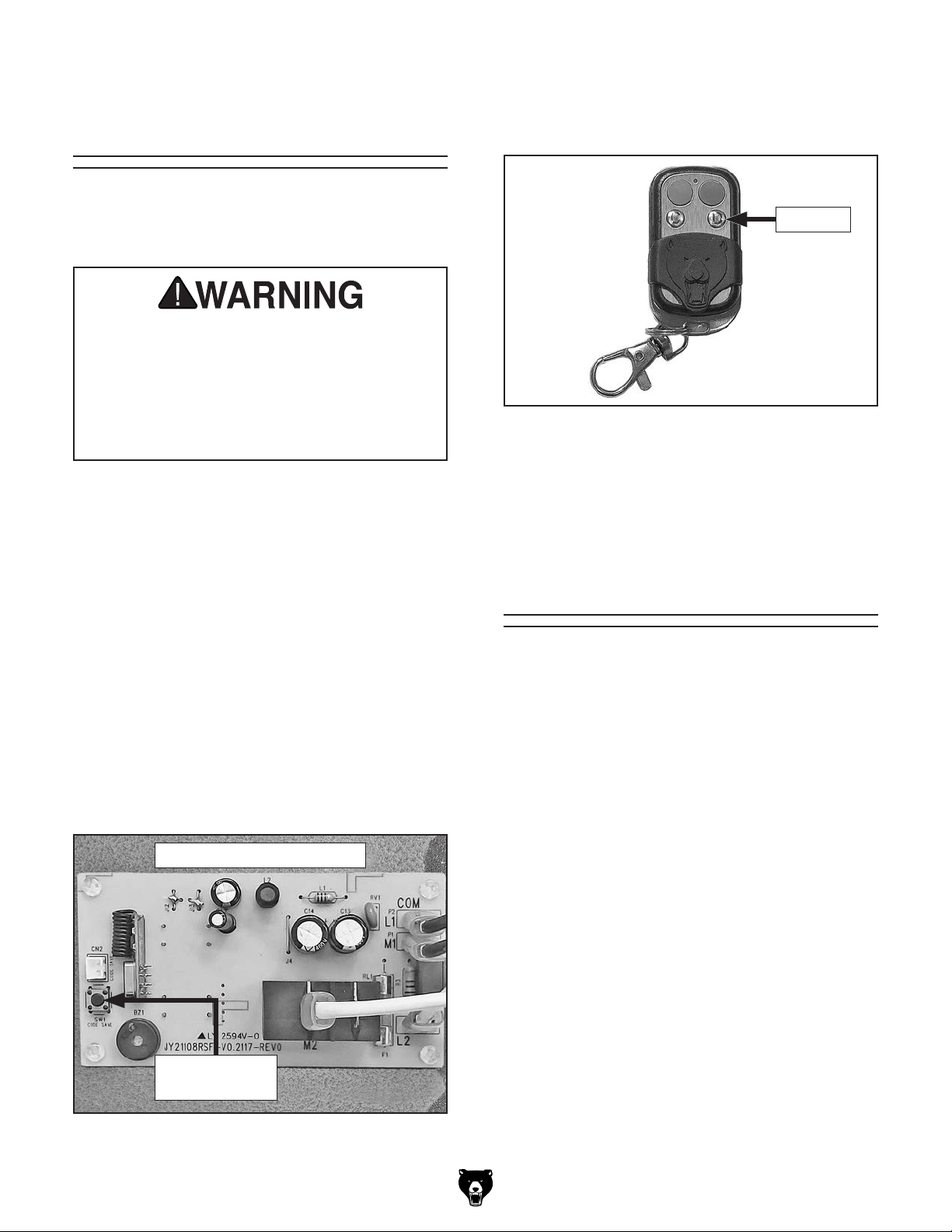

Pairing Remote

Control

The Model G0944/G0944HEP is equipped with
a remote control receiver that operates on an RF
frequency from up to 75' away.

Avoid touching electrified parts inside
machine while performing procedure below!
Touching electrified parts will result in per­sonal injury including but not limited to
severe burns, electrocution, or death. Use
a wood dowel or other non-conducting item
to push button on circuit board.

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Wood Dowel

To pair remote control:

...................................................... 1

Press and hold D button (see Figure 26) on

4.

remote control until it beeps twice. Pairing is
complete.

D Button

Figure 26. Location of D button on remote

control.

Re-install junction box cover and secure.

5.

Replacing Remote

Control Battery

Connect machine to power and verify motor

1.

is turned OFF.

Remove junction box cover and locate cir-

2.

cuit board attached to rear of cover (see
Figure 25).

Press and hold "CODE SAVE" button (see

3.
Figure 25) on circuit board with wood dowel

until it beeps once.

Junction Box Circuit Board

"CODE SAVE"

Button

The remote control is powered by a 12V type
A27 battery. If the receiver stops responding to
the remote control, replace the battery as the first
course of action.

Items Needed Qty

Phillips Head Screwdriver #00 .......................... 1

A27 12V Battery

To replace remote control battery:

1.

Turn remote control face down, remove (3)

Phillips head screws, then remove battery
cover.

Replace battery, then re-assemble remote

2.

control.

................................................ 1

Figure 25. Location of "CODE SAVE" button on

junction box circuit board.

Model G0944/G0944HEP (Mfd. Since 03/21)

-25-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 8: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start, or
power supply
breaker
immediately
trips after
startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. Machine circuit breaker tripped or at fault.

2. Blown fuse on circuit board.

3. Incorrect power supply voltage or circuit size.

4. Remote control not working.

5. Remote receiver at fault.

6. Power supply circuit breaker tripped or fuse
blown.

7. Motor wires connected incorrectly.

8. Start capacitor at fault.

9. Centrifugal switch adjustment/contact points
at fault.

10. Wiring broken, disconnected, or corroded.

11. Circuit breaker at fault.

12. Circuit board at fault.

13. Motor or motor bearings at fault.

1. Dust collection ducting problem.

2. Collection bag full.

3. Canister filter clogged.

4. Dust collector undersized.

5. Motor overheated, tripping machine circuit
breaker.

6. Run capacitor at fault.

7. Extension cord too long.

8. Centrifugal switch/contact points at fault.

9. Motor or motor bearings at fault.

1. Motor or component loose.

2. Motor fan rubbing on fan cover.

3. Centrifugal switch at fault.

4. Motor bearings at fault.

1. Reset machine circuit breaker.

2. Replace fuse/ensure no shorts.

3. Ensure correct power supply voltage and circuit size.

4. Replace batteries; stay in signal range.

5. Inspect/replace circuit board if at fault.

6. Ensure circuit is free of shorts. Reset circuit breaker or
replace fuse.

7. Correct motor wiring connections.

8. Test/replace if at fault.

9. Adjust centrifugal switch/clean contact points. Replace
either if at fault.

10. Fix broken wires or disconnected/corroded
connections.

11. Replace circuit breaker.

12. Replace circuit board.

13. Replace motor.

1. Clear blockages, seal leaks, use smooth wall duct,
eliminate bends, close other branches.

2. Empty and replace collection bag (Page 24).

3. Clean canister filter or replace if at end of life (Page 24).

4. Move closer to machine/redesign ducting layout/
upgrade dust collector.

5. Clean motor, let cool, and reduce workload. Reset
breaker.

6. Test/repair/replace.

7. Move machine closer to power supply; use shorter
extension cord.

8. Adjust centrifugal switch/clean contact points. Replace
either if at fault.

9. Replace motor.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Fix/replace fan cover; replace loose/damaged fan.

3. Replace.

4. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

-26-

Model G0944/G0944HEP (Mfd. Since 03/21)

Dust Collector Operation

Symptom Possible Cause Possible Solution

Loud, repetitious
noise, or
excessive
vibration coming
from dust
collector (non­motor related).

Dust collector
does not
adequately
collect dust
or chips; poor
performance.

Musty odor
detected during
operation.

Cleaning
canister filter
does not improve
dust collection
performance.

Dust collector
blows sawdust
into the air.

Remote control
does not operate
dust collector.

1. Machine incorrectly mounted to wall/
mounted unevenly.

2. Impeller damaged and unbalanced.

3. Impeller loose on motor shaft.

1. Dust collection bag full.

2. Canister filter clogged.

3. Ducting blocked/restricted.

4. Dust collector too far away from point of
suction; duct clamps not properly secured;
too many sharp bends in ducting.

5. Wood wet/green and dust not flowing
smoothly through ducting.

6. Ducting has one or more leaks, or too many
open ports.

7. Ducting and ports are incorrectly sized.

8. Dust collector undersized.

9. Unused inlet adapter port(s) uncovered.

1. Canister filter caked with dust containing
excessive moisture, causing mold growth on
filter.

1. Canister filter clogged and at end of life. 1. Replace filter (Page 24).

1. Duct clamp(s) or dust collection bag(s) not
properly clamped and secured; ducting
loose/damaged.

2. Inlet cover seal loose/damaged.

1. Machine is disconnected from power.

2. Remote control battery is weak or dead.

3. A wall or barrier disrupts the radio
frequency, or controller is too far away.

4. Remote control not paired with receiver.

1. Tighten/replace mounting hardware.

2. Disconnect dust collector from power; inspect impeller
for cracks or damage; replace impeller if damaged.

3. Secure impeller; replace motor and impeller as a set if
motor shaft and impeller hub are damaged.

1. Replace collection bag.

2. Clean canister filter or replace if at end of life (Page 24).

3. Remove ducting from dust collector inlet and unblock
restriction. A plumbing snake may be necessary.

4. Relocate dust collector closer to point of suction; re­secure ducts; remove sharp bends.

5. Only collect dust from wood with less than 20%
moisture content.

6. Seal/eliminate all ducting leaks; close dust ports for
lines not being used.

7. Install correctly sized ducts and fittings.

8. Install larger dust collector.

9. Cover unused inlet adapter port(s).

1. Clean canister filter or replace if at end of life (Page 24).

1. Secure ducts and dust collection bag, making sure
duct/bag clamp(s) are tight; tighten/replace ducting.

2. Tighten all mounting and sealing points; use silicon to
seal.

1. Verify machine is connected to power source.

2. Replace battery (Page 25).

3. Move machine away from barrier; use remote with 50'
of machine.

4. Program receiver to accept remote control (Page 25).

Model G0944/G0944HEP (Mfd. Since 03/21)

-27-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 9: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-28-

Model G0944/G0944HEP (Mfd. Since 03/21)

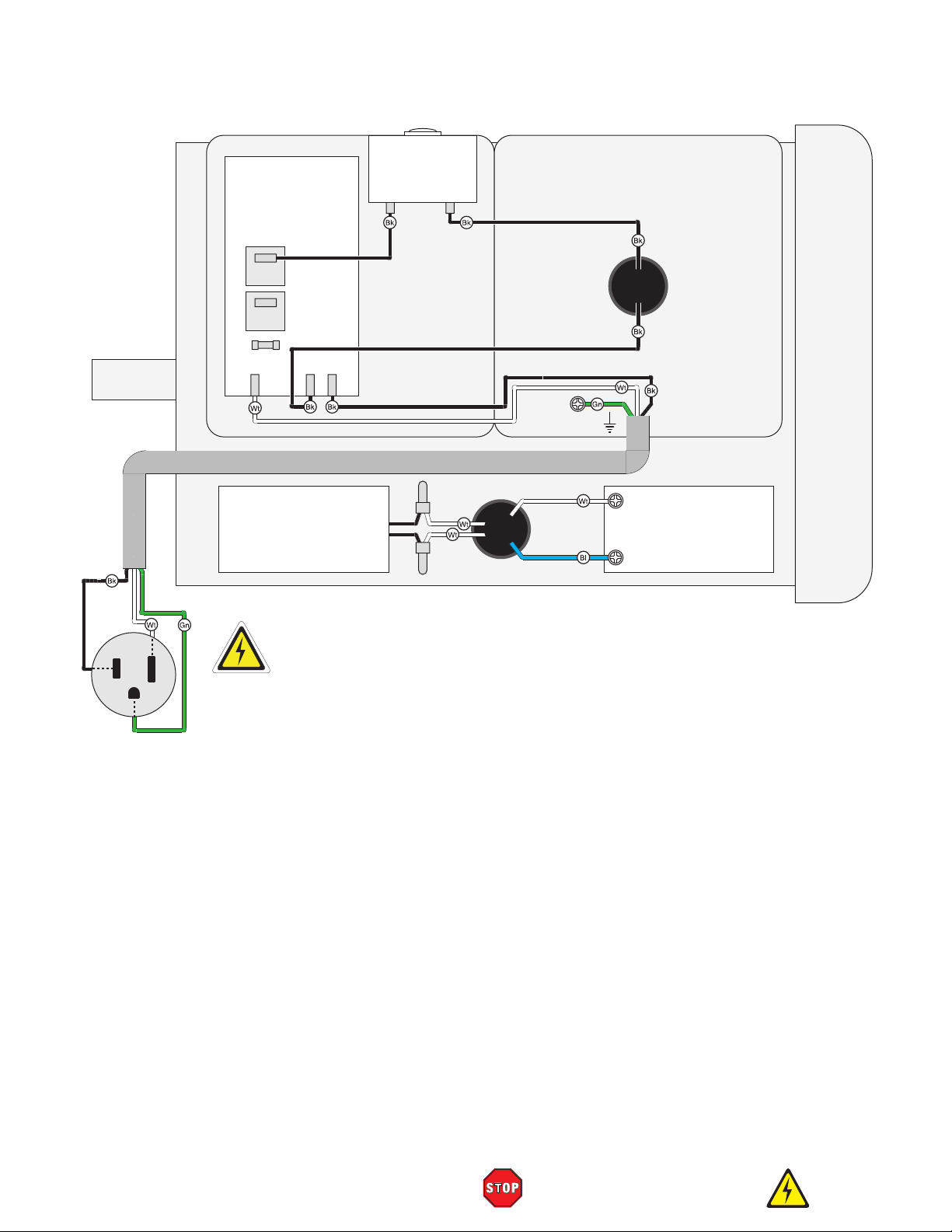

G0944/G0944HEP Wiring Diagram

Circuit Breaker

Circuit Board

M2

KUOYUH

20A

Junction Box

Hot

Neutral

Ground

L2 L1M1

Capacitor

250 VAC

110 VAC

5-15 Plug

Run

45 µF

Motor

110V

Ground

Start

Capacitor

300 MFD
125 VAC

Model G0944/G0944HEP (Mfd. Since 03/21)

READ ELECTRICAL SAFETY

ON PAGE 28!

-29-

25

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

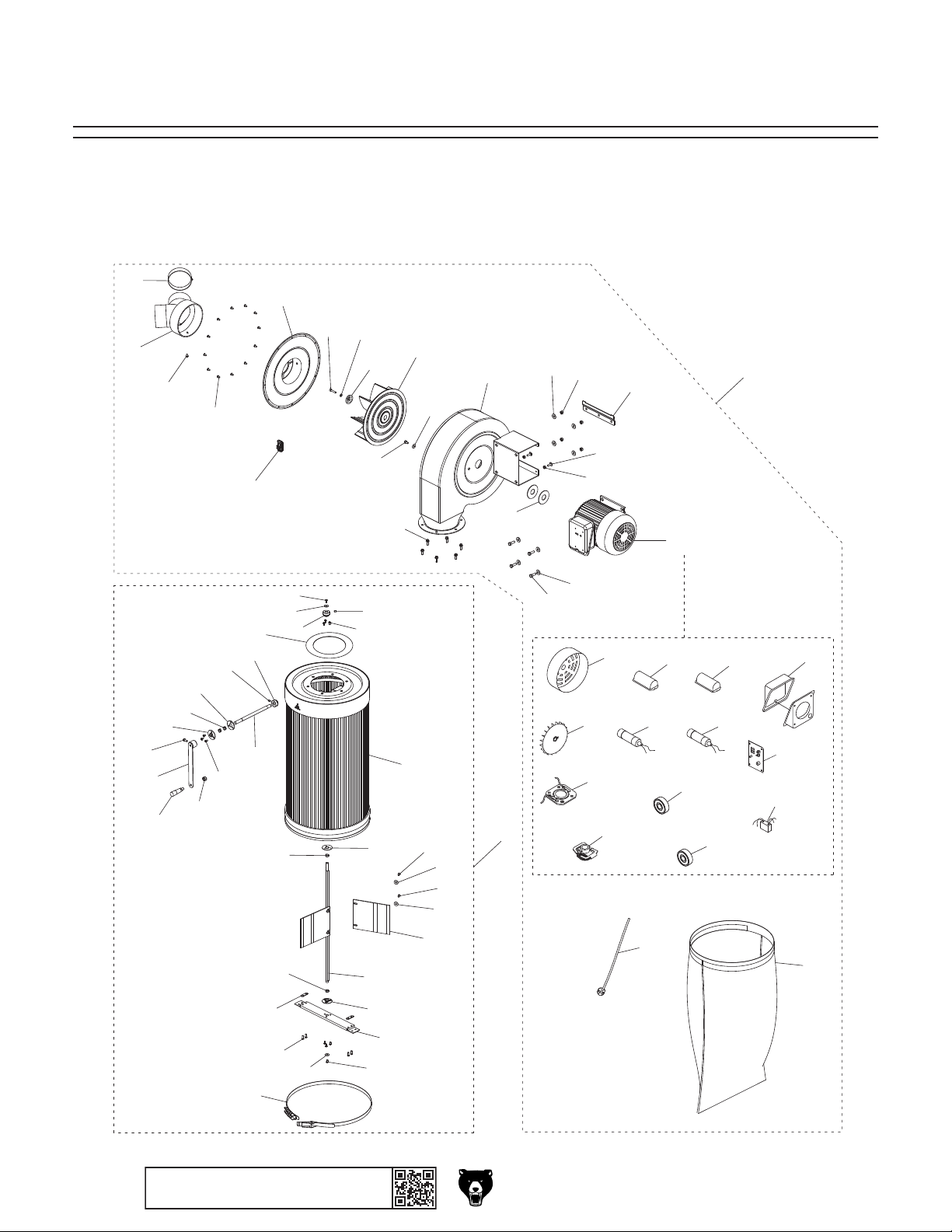

SECTION 10: PARTS

Main

2

28

29

3

40

10

27

26

14

34

1

35

38

1A

20

24

44

32

34

36-5

36-9

36-10

31

36-1

36-6 36-7

36-2

36-11

36

36-12

36-3

36-4

36-8V2

36-13

37

43

39

13

14

7

46
7

11

23

9

8

6

17

45

9

17

11

16

4

13

14

13

14

41

33

4A

12

9

18

19

14

22

-30-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

5

16

15

13

Model G0944/G0944HEP (Mfd. Since 03/21)

30

21

REF PART # DES CRIPTI ON REF PART # DES CRIPTI ON

Main Parts List

1 P0944001 IMPELLER HOUSING 28 P0944028 CAP SCREW M6-1 X 30
1A P0944001A IMPELLER HOUSING ASSEMBLY 29 P0944029 LOCK WASHER 1/4
2 P0944002 INLET COVER 30 P0944030 POWER CORD 14G 3W 72" 5-15P
3 P0944003 INLET ADAPTER 6" X 4" X 2 31 P0944031 T-BOLT 1/4-20 X 3/4
4 P0944004 CANISTER FILTER (G0944) 32 P0944032 HEX NUT 1/ 4
4 P0944HEP004 HEPA FI LTER (G0944HEP) 33 P0944033 HEX BOLT 5/16-18 X 1
4A P0944004A CANISTER FI LTER ASSEMBLY (G0944) 34 P0944034 FLAT WASHER 5/16
4A P0944HEP004A HEPA FILTER ASSEMBLY (G0944HEP) 35 P0944035 HEX NUT 5/16-18
5 P0944005 MAIN SPI NDLE 36 P0944036 MOTOR 1-1/2 HP 110V 1-PH
6 P0944006 CRANK SPINDLE 36-1 P0944036-1 MOTOR FAN COVER
7 P0944007 BEVEL GEAR 36-2 P0944036-2 R CAPACITOR COVER
8 P0944008 BEARING PLATE 36-3 P0944036-3 S CAPACITOR COVER
9 P0944009 SLEEVE BEARING 12 X 14 X 6MM 36-4 P0944036-4 J UNCTI O N BOX
10 P0944010 PHLP HD SCR 10-24 X 3/8 36-5 P0944036-5 MOTOR FAN
11 P0944011 SET SCREW 1/4-20 X 5/16 36-6 P0944036-6 R CAPCI TOR 45M 250V
12 P0944012 FLAPPER 36-7 P0944036-7 S CAPACI TOR 300M 125V

13 P0944013 PHLP HD SCR M6-1 X 10 36-8V2 P0944036-8V2 CIRCUIT BOARD REV0 V2.10.21
14 P0944014 FLAT WASHER 1/4 36-9 P0944036-9 CONTA CT PLA TE
15 P0944015 SPINDLE BRACKET 36-10 P0944036-10 CENTRI FUGAL S WI TCH
16 P0944016 BEARING PLATE 36-11 P0944036-11 FRONT MOTOR BEARI NG 6203-2RS
17 P0944017 PHLP HD SCR M5-.8 X 8 36-12 P0944036-12 REAR MOTOR BEARING 6205-2RS
18 P0944018 MOUNTI NG PLATE 36-13 P0944036-13 CI RCUIT BRE AKE R KUOY UH 20A
19 P0944019 PHLP HD SCR M5-.8 X 15 37 P0944037 HEX BOLT 1/4-20 X 1/2
20 P0944020 HEX BOLT M6-1 X 16 38 P0944038 WALL BRACKET
21 P0944021 COLLECTION BAG 39 P0944039 FLANGE BOLT 1/4-20 X 3/4
22 P0944022 BAG CLAMP 15" 40 P0944040 FLANGE SCREW 10-24 X 3/8
23 P0944023 RUBBER BUSHI NG 41 P0944041 MOTOR GASKET
24 P0944024 CRANK HANDLE 43 P0944043 REMO TE
25 P0944025 END CAP 4" 44 P0944044 CRANK HANDLE M10-1.5 X 14
26 P0944026 ALUMINUM IMPELLER 12-3/ 4" 45 P0944045 LOCK NUT M10-1.5
27 P0944027 IMPELLER WASHER 1/4 46 P0944046 FLANGE GASKET (FOAM)

Model G0944/G0944HEP (Mfd. Since 03/21)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

-31-

101

103

REF PART # DES CRIPTION REF PART # DES CRIPTION

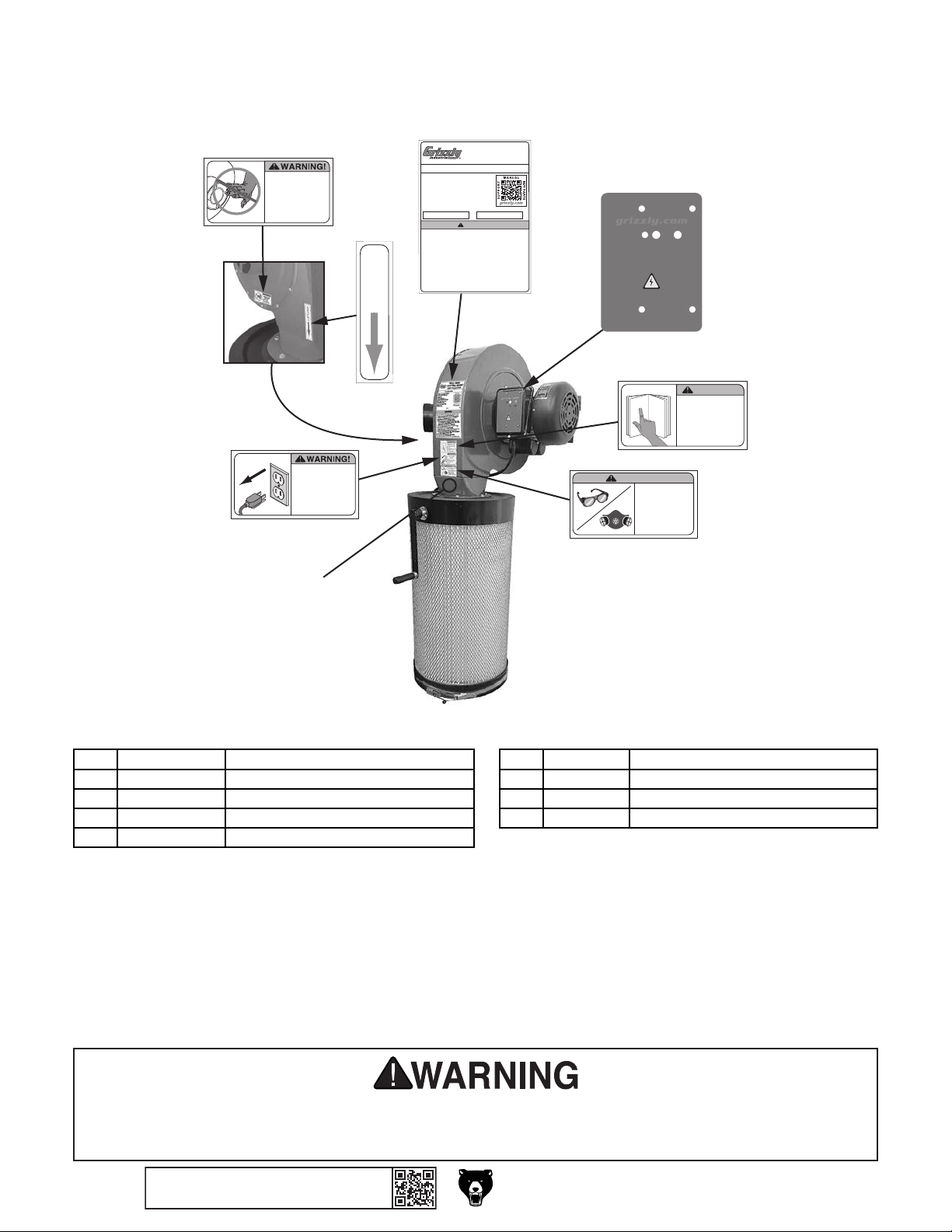

Labels & Cosmetics

MODEL G0944

1-1/2 HP WALL MOUNT

DUST COLLECTOR

Specifications

Motor: 1-1/2 HP, 110V, 1-PH, 60 Hz

AMPUTATION

HAZARD!

DO NOT place

hands near inlet

during operation!

102

OUTLET

Full-Load Current Rating: 15A
Inlet Size: 6"
Adapter Inlet Size: 4"
Airflow Performance: 1250 CFM
Max. Static Pressure: 10.4"
FIlter Rating: 1 Micron
Replacement Filter: T32555
Weight: 71 lbs.

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica, animal
parts, biohazards, burning material/ashes, etc.

5. Always disconnect power before servicing or cleaning.

6. Do not expose to rain or use in wet areas.

7. Keep hands, long hair, and loose clothing away from inlet.

8. Never leave machine unattended during operation.

9. Do not use if cord, plug, or any other electrical equipment
becomes damaged—promptly repair!

10. Do not use without dust bag or filter in place.

11. Prevent unauthorized use by children or untrained users.

Date

WARNING!

Mfd. for Grizzly in Taiwan

S/N

104

ON OFF

105

108

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

WARNING!

EYE/LUNG INJURY

Always wear safety
glasses and a
respirator when
using this machine.

HAZARD!

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

106

107

101 P0944101 INLET WARNI NG LABEL 105 P0944105 READ MANUAL LABEL
102 P0944102 OUTLET DIRECTION LABEL 106 P0944106 EYE/LUNG WARNING LABEL
103 P0944103 G0944 ID LABEL 107 P0944107 TOUCH-UP PAI NT, GRI ZZLY GREEN
103 P0944HEP103 G0944HEP ID LABEL 108 P0944108 DISCONNECT POWER LABEL
104 P0944104 JUNCTION BOX LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-32-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

Model G0944/G0944HEP (Mfd. Since 03/21)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
