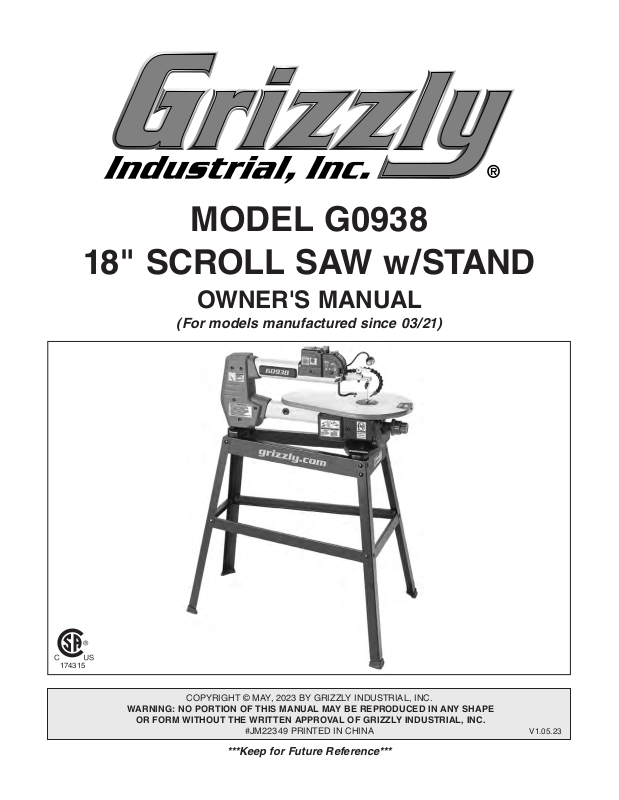

Grizzly G0938 User guide

MODEL G0938

174315

18" SCROLL SAW w/STAND

OWNER'S MANUAL

(For models manufactured since 03/21)

COPYRIGHT © MAY, 2023 BY GRIZZLY INDUSTRIAL, INC.

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JM22349 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 5.23

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Scroll Saws

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Inventory
Hardware Recognition Chart
Site Considerations
Assembly
Dust Collection
Test Run

SECTION 4: OPERATIONS

Operation Overview
Basic Cutting Tips

Workpiece Inspection................................... 20

Adjusting Hold-Down Shoe
Adjusting Blade Tension
Tilting Table
Blade Selection
Removing/Installing Plain-End Blade
Removing/Installing Pin-End Blade
Adjusting Blade Speed
Making Standard Scroll Cuts
Making Inside Cuts
Making Bevel Cuts

.................................................... 12

...................................................... 13

..................................................... 16

...................................................... 18

........................................... 2

................................................... 3

................................. 4

...................................... 5

....................................... 7

.................. 7

................... 9

...................... 10

....................................... 12

......................................... 12

....................... 14

...................................... 15

............................................. 18

........................... 19

..................................... 19

........................................ 20

.......................... 21

.............................. 21

................................................. 22

............................................ 24

........... 24

............. 26

................................ 27

....................... 27

...................................... 28

....................................... 28

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule
Cleaning & Protecting
Lubrication

SECTION 7: SERVICE

Troubleshooting
Checking/Replacing Motor Brushes
Calibrating Table Tilt
Aligning Blade Holders

Replacing LED Work Light........................... 34

SECTION 8: WIRING

Wiring Safety Instructions
Wiring Diagram
Electrical Components

SECTION 9: PARTS

Main
Stand
Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 30

................................................... 30

................................... 31

........................................... 31

.................................... 32

...................................... 36

............................................ 37

....................................... 39

............................................................. 39

............................................................ 42

..................................... 43

......................... 29

......................... 30

.................................. 30

............ 32

................................ 33

............................ 36

................................. 38

............................. 45

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

manufacture date and

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Manufacture Date

Serial Number

-2-

Model G0938 (Mfd. Since 03/21)

To reduce your risk of
serious injury, read this
entire manual BEFORE

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

I

G

F

E

D

B

C

A

R

Q

H

J

K

L

A. Table Tilt Scale
B. Table Insert
C. Hold-Down Shoe
D. Air Nozzle
E. Blade Holder Lock Knob (1 of 2)
F. Blade Holder
G. Blade Tension Lever
H. LED Work Light
I. ON/OFF Switch

Model G0938 (Mfd. Since 03/21)

O

P

J. Variable-Speed Knob
K. LED Work Light ON/OFF Switch
L. Stand
M. Positive Stop
N. Motor
O. Blade Storage Tray
P. Dust Port
Q. Table Lock Knob
R. Table Tilt Knob

using machine.

M

N

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

B. LED Work Light ON/OFF Switch: Turns

LED work light ON and OFF.

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

Main Controls & Components

B

A

C

D

E

F

G

C. Variable-Speed Knob: Adjusts blade speed

from 450 to 1500 SPM.

ON/OFF Switch: Starts and stops motor.

D.

E. LED Work Light: Used to illuminate

workpiece.

F. Blade Holder: Holds blade in place.

G. Blade Holder Lock Knob: Locks blade in

place, or unlocks blade for removal.

H. Air Nozzle: Adjustable nozzle blows debris

away from line of cut during operations.

I. Hold-Down Shoe: Holds down workpiece as

blade moves during operation. Adjust hold­down shoe to thickness of workpiece.

J. Table: Supports workpiece.

K. Table Tilt Scale: Displays degree of table

angle from 0° to 45° when the table is tilted
for bevel cutting.

H

I

J

M

K

R

Q

P

Figure 1. Main controls & components.

A. Hold-Down Shoe Lock Knob: Locks hold-

down shoe in position.

-4-

N

L

O

H

L. Blade Storage Tray: Provides convenient

access to extra blades or wrenches.

M. Table Insert: Removable plate when

changing blades.

N. Blade Tension Lever: Increases/decreases

blade tension. Turn clockwise to increase
blade tension, and counterclockwise to
decrease blade tension.

O. Positive Stop: Quickly return table to 0° from

a left-tilt setting. Positive stop is adjustable,
allowing for calibration, or if desired, minor
deviations from 0°.

P. Dust Port: Connects vacuum hose or dust

collection system.

Q. Table Lock Knob: Locks table at desired

angle.

R. Table Tilt Knob: Adjusts table to desired

angle for bevel cutting.

Model G0938 (Mfd. Since 03/21)

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

Product Dimensions:

Shipping Dimensions:

Cardboard Box

Machine

Yes

Electrical:

1.6A
15A

Cord & Plug

Yes

72 in.

18 AWG

Yes

5-15

Motor:

1/9 HP

Single-Phase

1.6A

1500

Direct

Main Specifications:

18 in.
2-1/4 in.
1-1/8 in.
2-1/4 in.

18 in.

MODEL G0938

18" SCROLL SAW WITH STAND

Weight ............................................................................................................................................................................. 46 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .......................................................................................35 x 24 x 45 in.

Footprint (Length x Width) .........................................................................................................................................35 x 24 in.

Type ...................................................................................................................................................................

Content ..........................................................................................................................................................................

Weight .............................................................................................................................................................................. 53 lbs.

Length x Width x Height .....................................................................................................................................33 x 18 x 18 in.

Must Ship Upright .................................................................................................................................................................

Power Requirement ........................................................................................................................ 120V, Single-Phase, 60 Hz

Full-Load Current Rating .....................................................................................................................................................

Minimum Circuit Size ...........................................................................................................................................................

Connection Type .....................................................................................................................................................

Power Cord Included ............................................................................................................................................................

Power Cord Length ............................................................................................................................................................

Power Cord Gauge .......................................................................................................................................................

Plug Included ........................................................................................................................................................................

Included Plug Type ..............................................................................................................................................................

Switch Type ............................................................................................................... Toggle ON/OFF w/Variable-Speed Knob

Main

Capacities

Horsepower ............................................................................................................................................................

Phase ..........................................................................................................................................................

Amps .........................................................................................................................................................................

Speed ........................................................................................................................................................................

Type ........................................................................................................................................................... Universal (DC)

Power Transfer ........................................................................................................................................................

Bearings ...................................................................................................................Shielded & Permanently Lubricated

Depth of Throat ........................................................................................................................................................

Maximum Cutting Height ......................................................................................................................................

Maximum Cutting Height at 45 Degrees ..............................................................................................................

Maximum Cutting Height at 15 Degrees ..............................................................................................................

Maximum Cutting Depth ...........................................................................................................................................

Model G0938 (Mfd. Since 03/21)

-5-

Blade & Movement

Pin-End or Plain-End

5 in.

3/32 in.

3/4 in.

450 - 1500 SPM

20 in.

12-5/8 in.

5/32 in.

Left 45, Right 15 deg.

Manual

Die-Cast Aluminum
Die-Cast Aluminum

Steel

LED

Powder Coated

1

1-1/2 in (OD).

Other Specifications:

China

1 Year

30 Minutes

ID Label

Yes
Yes

Features:

Accessories:

Blade Type ......................................................................................................................................

Blade Length ..............................................................................................................................................................

Blade Width Range ...............................................................................................................................................

Blade Stroke ............................................................................................................................................................

Blade Strokes Per Minute (SPM) ...........................................................................................................

Table Information

Table Length ............................................................................................................................................................

Table Width ........................................................................................................................................................

Table Thickness ....................................................................................................................................................

Table Tilt .........................................................................................................................................

Table Tilt Adjustment Type ...................................................................................................................................

Construction

Table ...................................................................................................................................................

Body ...................................................................................................................................................

Stand .........................................................................................................................................................................

Lamp ...........................................................................................................................................................................

Paint Type/Finish. .....................................................................................................................................

Other Information

Number of Dust Ports ......................................................................................................................................................

Dust Port Size .............................................................................................................................................

Country of Origin ...............................................................................................................................................................

Warranty ...........................................................................................................................................................................

Approximate Assembly & Setup Time ......................................................................................................................

Serial Number Location ................................................................................................................................................

ISO 9001 Factory ..................................................................................................................................................................

Certified by a Nationally Recognized Testing Laboratory (NRTL) ........................................................................................

Tool-Less Blade Holder Accepts Pin-End & Plain-End Blades
Variable Blade Speed
Machine Stand
Flexible Sawdust Blower & LED Worklight
Hold-Down Fork
Dust Port 1-1/2" (OD)

Pin-End Blade 5"
Plain-End Blade 5"
Hex Wrench 3mm

-6-

Model G0938 (Mfd. Since 03/21)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

Model G0938 (Mfd. Since 03/21)

-7-

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0938 (Mfd. Since 03/21)

Additional Safety for Scroll Saws

Serious cuts or amputation can occur from contact with the moving saw blade during operation
or if blade breakage occurs. To reduce this risk, anyone operating this machine MUST com­pletely heed the hazards and warnings below.

HAND PLACEMENT. Never position fingers or

hands in line with the blade. If the workpiece or
your hands slip, serious personal injury could
occur.

INTENDED USE. This machine is intended for
cutting natural and man-made wood products, an d
laminate covered wood products. This machine is
NOT designed to cut metal, glass, stone, tile, etc.

SMALL WORKPIECE HANDLING. If your hands
slip while holding small workpieces with your fin­gers during a cut, amputation or laceration injuries
could occur. Always support/feed the workpiece
with push sticks, jig, vise, or some type of clamp­ing fixture.

BLADE CONDITION. Do not operate with dull,
cracked, or badly worn blade. Dull blades require
more effort to perform the cut and increase the
risk of kickback. Inspect blades for cracks and
missing teeth before each use.

BLADE TENSION. To avoid mishaps that could
result in operator injury, make sure the blade teeth
face down toward the table and the blade is prop­erly tensioned before operating.

BLADE SPEED. Always allow the blade to come
to full speed before starting the cut. Moving the
workpiece against a blade that is not at full speed
could cause the blade to break or grab the work­piece and draw the operator’s hands into the
blade.

BLADE CONTROL. To avoid serious personal
injury, DO NOT attempt to stop or slow the blade
with your hand or the workpiece. Allow the blade
to stop on its own.

FEED RATE. To avoid the risk of the workpiece
slipping and causing operator injury, always feed
stock evenly and smoothly. DO NOT force or twist
the blade while cutting, especially when sawing
small curves.

CUTTING TECHNIQUES. Plan your operation so
the blade always cuts to the outside of the work­piece. DO NOT back the workpiece away from
the blade while the saw is running, which could
cause kickback and personal injuries. If you need
to back the workpiece out, turn the scroll saw
OFF and wait for the blade to come to a complete
stop. DO NOT twist or put excessive stress on the
blade that could damage it. Instead, use relief cuts
for curve cuts that may twist the blade.

LEAVING WORK AREA. Never leave a machine
running unattended. Allow the scroll saw to come
to a complete stop before you leave it unattended.

CUT-OFF PIECES. Never use your hands to
move cut-offs away from the blade while the saw
is running. If a cut-off becomes trapped between
the blade and table insert, turn the saw OFF and
allow the blade to completely stop before remov­ing it.

Model G0938 (Mfd. Since 03/21)

-9-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

120V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 5-15

supply.

Full-Load Current Rating

Full-Load Current Rating at 120V .... 1.6 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model G0938 (Mfd. Since 03/21)

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 2. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

Model G0938 (Mfd. Since 03/21)

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

This machine and its com­ponents are very heavy.
Get lifting help if needed.

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Additional Person (for lifting) ...................... 1

• Safety Glasses (for each person) ........1 Pair

• Level ........................................................... 1

• Dust Collection System .............................. 1

• Dust Hose 11⁄2 " ........................................... 1

• Hose Clamps 11⁄2 " ...................................... 2

• Disposable Shop Rags ............... As Needed

• Phillips Head Screwdriver #2 ..................... 1

• Flat Head Screwdriver 1⁄4" ........................... 1

• Open-End Wrench 13mm ........................... 1

• Rubber Mallet ............................................. 1

• Shop Vacuum (Optional) ............................ 1

Unpacking

-12-

If items are damaged

call us immediately at [phone].

Save all packaging materials until

Model G0938 (Mfd. Since 03/21)

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

G0938 18" Scroll Saw (Figure 3) Qty

A. G0938 18" Scroll Saw .................................1

Stand Components (Figure 5) Qty

D. Front Stand Legs ........................................ 2

Rear Stand Legs ........................................ 2

E.

Upper Side Brackets .................................. 2

F.

Upper Rear Bracket .................................... 1

G.

Upper Front Bracket ................................... 1

H.

Lower Side Brackets .................................. 2

I.

Lower Front Bracket ................................... 1

J.

Lower Rear Bracket .................................... 1

K.

Foot Pads ................................................... 4

L.

Flat Washers 8mm ..................................... 4

M.

Carriage Bolts M8-1.25 x 12 ..................... 20

N.

Flange Nuts M8-1.25 ................................ 24

O.

Spacers 9 x 14 x 20mm ............................. 2

P.

Hex Bolts M8-1.25 x 45 .............................. 4

Q.

D

E

A

Figure 3. G0938 18" Scroll Saw.

Loose Components (Figure 4) Qty

B. Pin-End Blade 5" .........................................1

. Hex Wrench 3mm ........................................1

C

B

C

F

G

I

J

L

M

Figure 5. Stand components.

N

P Q

H

K

O

Figure 4. Loose components.

Model G0938 (Mfd. Since 03/21)

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP

HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

-14-

5mm

5mm

Model G0938 (Mfd. Since 03/21)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

Wall

Leave Room for Maintenance

15"

35"

= Electrical Connection

Figure 6. Minimum working clearances.

Model G0938 (Mfd. Since 03/21)

Keep

24"

Workpiece
Loading Area
Unobstructed

-15-

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

To assemble machine:

Attach upper front bracket to (2) front stand

1.

legs using (3) carriage bolts and (3) flange
nuts (see Figure 7).

Note: Front legs are marked with an "F". Do

not fully tighten nuts until directed to do so in
Step 8.

Attach lower front bracket to front stand legs

2.

using (2) carriage bolts and (2) flange nuts
(see Figure 7).

Upper

Rear

Bracket

Rear

Stand

Leg

(1 of 2)

Figure 8. Rear brackets and stand legs

assembled.

Attach (2) upper side brackets to front and

5.

rear leg assemblies using (6) carriage bolts
and (6) flange nuts (see Figure 9).

Lower Rear

x 5

Bracket

x 6

Upper

Front

Bracket

Front

Stand

Leg

(1 of 2)

Lower Front

Bracket

Figure 7. Front brackets and stand legs

assembled.

3. Attach upper rear bracket to (2) rear stand
legs using (3) carriage bolts and (3) flange
nuts (see Figure 8).

Note: Rear legs are marked with an "R".

Attach lower rear bracket to (2) rear stand

4.

legs using (2) carriage bolts and (2) flange
nuts (see Figure 8).

-16 -

x 5

Upper

Side

Bracket

(1 of 2)

Figure 9. Upper side brackets and leg

assemblies assembled.

Model G0938 (Mfd. Since 03/21)

6. Attach (2) lower side brackets to front and
rear leg assemblies using (4) carriage bolts
and (4) flange nuts (see Figure 10).

x 4

Lower

Side

Bracket

(1 of 2)

Figure 10. Lower side brackets and stand legs

assembled.

7.

Position stand upside down and place (2) foot

pads marked with an "F" on front legs, and (2)
foot pads marked with an "R" on rear legs.
If needed, use a rubber mallet to securely
attach pads (see Figure 11).

8.

Place stand right-side up on a flat, even sur-

face, and adjust so it is straight and level,
then tighten all flange nuts.

With help from another person, position scroll

9.

saw on stand so that all four mounting holes
align with holes in stand, and alignment pin at
rear of stand aligns with recess in saw base.

Secure scroll saw to front of stand using

10.

(2) M8-1.25 x 45 hex bolts, (2) 8mm flat
washers, (2) spacers, and (2) M8-1.25 flange
nuts (see Figure 12).

Secure scroll saw to rear of stand using (2)

11.

M8-1.25 x 45 hex bolts, (2) 8mm flat washers,
and (2) M8-1.25 flange nuts (see Figure 12).

x 2

x 2

Foot Pads

Figure 11. Installing foot pads.

Alignment

Pin

Figure 12. Mounting scroll saw on stand.

12. Verify pre-installed plain-end blade is secured

in upper and lower blade holders. (Refer to

Removing/Installing Plain-End Blades on
Page 24).

Pinch blade and move it side to side with light

13.

pressure to verify it is tensioned enough that
it will not come off during operation. Refer to
Adjusting Blade Tension on Page 21.

Model G0938 (Mfd. Since 03/21)

-17-

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

Serious injury or death can result from

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Dust Collection

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Test Run

Troubleshooting

Minimum CFM at Dust Port: 100 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

To connect dust collection system:

1

Fit 1

1.

Tug hose to make sure it does not come off.

2.

Note: A tight fit is necessary for proper per-

⁄2" dust hose over dust port and secure

in place with hose clamp (see Figure 13).

formance.

The Test Run consists of verifying the following: 1)
The motor powers up and runs correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

Dust Port w/Dust

Hose Attached

Figure 13. Dust port and dust hose attached to

dust port.

-18-

1. Clear all setup tools away from machine.

2. Rotate variable speed knob all the way coun-

terclockwise.

Connect machine to power source.

3.

4. Turn machine ON, verify motor operation,

and then turn machine OFF.

Motor should run smoothly and without

unusual problems or noises.

Congratulations! The Test Run is complete.

Model G0938 (Mfd. Since 03/21)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for cutting.

Rotates variable speed knob all the way

2.

counterclockwise.

Adjusts table tilt, if necessary, to angle of

3.

desired cut.

Adjusts hold-down shoe to just clear

4.

workpiece.

Checks to make sure workpiece can safely

5.

pass all the way through blade without inter­ference from other objects.

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model G0938 (Mfd. Since 03/21)

Puts on safety glasses and respirator.

6.

7. Starts dust collector and turns machine ON.

Rotates variable-speed knob to appropriate

8.

speed needed for workpiece.

Holds workpiece firmly and flat against table

9.

and then pushes workpiece into blade at
a steady and controlled rate until cut is
complete.

Rotates variable-speed knob all the way

10.

counterclockwise.

Turns machine OFF, then turns dust collector

11.

OFF.

-19 -

Basic Cutting Tips

A properly adjusted scroll saw performs many
types of cuts with ease and accuracy. It is capable
of performing these types of cuts:

Straight Cuts

• Miters, angles and compound angles, rip­ping, and crosscutting.

Irregular Cuts

• Simple and complex curves, duplicate parts,
circles, and beveled curves.

Basic Cutting Tips

Basic tips to follow when operating a scroll saw:

Workpiece Inspection

Some workpieces are not safe to cut or may
require modification before they are safe to cut.

Before cutting, inspect all workpieces for the
following:

• Material Type: This machine is intended for
cutting natural and man-made wood prod­ucts, laminate covered wood products, and
some plastics. Cutting drywall or cementi­tious backer board creates extremely fine
dust and may reduce life of bearings. This
machine is NOT designed to cut metal, glass,
stone, tile, etc.; cutting these materials with a
table saw may lead to injury.

• Typically, a scroll saw blade stays sharp from

1

⁄2 hour to 2 hours of use, depending on how

blade is used and type of material being cut.

• Best cutting results will be achieved when
cutting workpieces less than 1" thick. When
cutting workpieces thicker than 1", move
workpiece through blade very slowly.

• Blades dull much faster when cutting ply­wood, hardwoods, and laminates.

• Exerting excessive side pressure on blade
greatly increases chance of blade breakage.

• Plan cut before starting curves. Make relief
cuts in waste areas near tight inside curves,
or leave tight inside curves for a second pass
to minimize backing out. Cut sharp outside
curves by cutting past curve and looping
around to cut from different angle.

When approaching a tight radius, slow down

•
feed rate, but don’t stop. Give teeth time to
make cut. Forcing workpiece through curve
will cause blade to twist or break.

• Foreign Objects: Nails, staples, dirt, rocks
and other foreign objects are often embed­ded in wood. While cutting, these objects can
become dislodged and hit operator, cause
kickback, or break blade, which might then fly
apart. Always visually inspect your workpiece
for these items. If they can't be removed, DO
NOT cut workpiece.

• Large/Loose Knots: Loose knots can
become dislodged during cutting operation.
Large knots can cause kickback and machine
damage. Choose workpieces that do not
have large/loose knots or plan ahead to avoid
cutting through them.

• Wet or "Green" Stock: Cutting wood with a
moisture content over 20% causes unneces­sary wear on blades, increases risk of kick­back, and yields poor results.

• Excessive Warping: Workpieces with exces­sive cupping, bowing, or twisting are danger­ous to cut because they are unstable and
often unpredictable when being cut. DO NOT
use workpieces with these characteristics!

If cut produces waste in interior of curve, turn

•
power OFF and wait until all motion stops
before removing waste.

Scroll saw blades can drift. This is compen-

•
sated for by adjusting feed direction.

-20-

• Minor Warping: Workpieces with slight cup­ping can be safely supported if cupped
side is facing table or fence. On contrary, a
workpiece supported on bowed side will rock
during a cut and could cause kickback or
severe injury.

Model G0938 (Mfd. Since 03/21)

Adjusting

Adjusting

Hold-Down Shoe

The hold-down shoe keeps the workpiece from
raising up from the force of the moving blade.

To adjust hold-down shoe:

DISCONNECT MACHINE FROM POWER!

1.

2. Loosen hold-down shoe lock knob and shoe

cap screw shown in Figure 14.

Hold-

Down

Shoe

Lock Knob

Blade Tension

Blade tension is adjusted using the blade tension
lever shown in Figure 15. Turn the lever clock­wise to increase tension and counterclockwise to
decrease tension.

Blade

Tension

Lever

Figure 15. Blade tension lever adjustment.

Cap Screw

Figure 14. Hold-down shoe adjustment.

3.

Adjust shoe so it is parallel with table and

lightly touching workpiece.

Note: When tilting table for cutting operation,

adjust shoe so it remains parallel with table.

Tighten hold-down lock knob and shoe cap

4.

screw, then verify workpiece moves smoothly
under shoe.

If blade tension is too loose, the blade will drift
while cutting, making it difficult to follow your cut­ting lines. If blade tension is too tight, the blade
can break and damage the saw or the workpiece.

To adjust blade tension:

DISCONNECT MACHINE FROM POWER!

1.

2. Pinch blade and try moving it side to side with

light pressure to check tension. When prop­erly tensioned, blade will deflect only slightly
when moved, and ends will remain firmly in
position.

Tighten/loosen blade tension lever as neces-

3.

sary. Perform a test cut on a scrap piece of
wood and repeat this entire procedure if fur­ther adjustments are necessary.

IMPORTANT: Blade tension lever must be

in down position to make tension adjust­ments. Release blade tension lever only
during blade changing operations. If blade
is too tight, lever will be difficult to lower and
could result in damage to blade holder or arm
assembly.

Model G0938 (Mfd. Since 03/21)

-21-

Tilting Table

To use positive stop (left tilt):

DISCONNECT MACHINE FROM POWER!

1.

Using the table tilt knob (see Figure 16), you can
adjust table tilt from 0°–45° left and 0°–15° right to
make beveled cuts. A tilt scale is embedded in the
table surface for quick angle adjustments, and a
table lock knob is provided to quickly secure the
desired angle.

Note: Table tilt scale serves as a guide only. For
more accurate results, use a bevel gauge or pro­tractor to set desired table tilt relative to blade.

Table Tilt Scale

Table Lock

Knob

Table Tilt

Knob

Figure 16. Table tilt controls.

Loosen table lock knob (see Figure 16).

2.

Use table tilt knob to tilt table to desired

3.

angle, then secure position by tightening
table lock knob (see Figure 16).

Loosen jam nut on stop bolt (see Figure 17),

4.

and turn bolt until it just touches top of posi­tive stop rest.

Jam Nut

Positive

Stop Bolt

Positive

Stop
Rest

Figure 17. Location of positive stop components.

Positive

Stop

Bolt

Tilting Table

1. DISCONNECT MACHINE FROM POWER!

Loosen table lock knob (see Figure 16).

2.

Use table tilt knob to tilt table to desired

3.

angle, then tighten table lock knob.

Note: When tilting table for cutting operation,

adjust shoe so it remains parallel with table.
Refer to Adjusting Hold-Down Shoe on

Page 21.

Using Positive Stop (Left Tilt)

Tool Needed Qty

Open-End Wrench 10mm .................................. 1

The positive stop (see Figure 17) allows you to
quickly return the table to 0° from a left-tilt set­ting. The positive stop is adjustable, allowing for
calibration, or if desired, minor deviations from 0°.

5. Tighten jam nut to secure stop bolt setting.

Note: Check table tilt scale and make sure

positive stop bolt is correctly calibrated (see

Checking/Calibrating Positive Stop on
Page 23).

Using Positive Stop (Right Tilt)

Tool Needed Qty

Open-End Wrench 10mm .................................. 1

For right-hand tilt operations, the positive stop

Figure 17) can be adjusted from 0°–15° by

(see
making incremental changes to the stop bolt posi­tion or by rotating the stop rest out of the table tilt
path.

-22-

Model G0938 (Mfd. Since 03/21)

Incremental Right Tilt

DISCONNECT MACHINE FROM POWER!

1.

Ensure positive stop rest is in down position

2.
(see Figure 18).

Loosen jam nut (see Figure 18).

3.

Thread positive stop bolt (see Figure 18)

4.

clockwise to increase right-hand tilt and coun­terclockwise to decrease right-hand tilt.

Tighten jam nut to secure stop bolt setting.

5.

Jam Nut

Positive

Stop Bolt

Checking/Calibrating Positive Stop

Tools Needed Qty

Open-End Wrench 10mm .................................. 1

Machinist's Square

To check/calibrate positive stop:

1.

DISCONNECT MACHINE FROM POWER!

Loosen table lock knob and use table tilt knob

2.

to tilt table to approximately 10° left.

3. Loosen positive stop jam nut, and position
positive stop bolt so it will not interfere.

Place a machinist's square flat on table against

4.

side of blade, as illustrated in Figure 20.

............................................ 1

Positive

Stop
Rest

Figure 18. Location of positive stop components.

Full Right Tilt

DISCONNECT MACHINE FROM POWER!

1.

Loosen Phillips head screw shown in

2.
Figure 19, rotate positive stop rest up.

Use table tilt knob to tilt table full right, then

3.
secure position by tightening table lock knob.

Positive

Stop

Bolt

Positive

Stop
Rest

Figure 20. Squaring table to blade.

5. Tilt table until it is square with blade.

Adjust positive stop bolt so it just touches top

6.

of positive stop rest, and tighten jam nut to
secure position.

Check table to ensure it is square with blade.

7.

If necessary, repeat Steps 4–5.

Tip: To set positive stop to an angle other

than 0°, follow Steps 1–5 for desired angle.

Note: Table tilt scale should now read 0°. If

scale does not read 0°, refer to Calibrating
Table Tilt on Page 32.

Figure 19. Stop rest positioned for full right tilt.

Model G0938 (Mfd. Since 03/21)

-23-

Blade Selection

Scroll saw blades are classified as either "pin-end" (mounting pins in the ends of the blade) or "plain end"
(no pins), as shown in Figure 21. The Model G0938 comes with one pin-end blade and one plain-end blade,
but the scroll saw is designed to accept any 5" (124mm) blade for cutting a wide variety of materials.

The typical format for blade identification is:

Teeth Per Inch Width Thickness SPM Workpiece Material

10 TPI 0.110 " 0.020" 1200–1500 General purpose cutting. Hard and soft woods

between
and bone.

15 TPI 0 .110 " 0.020" 700–1200 Thin wood and plastic between

3

⁄16"–2". Also good for plastics, paper, felt,

3

⁄32" –1⁄2 ".

18 TPI 0.095" 0.010" 500–700 Tight radius cutting in thin hard and soft woods

between
ivory, plastics and veneer.

Note: There may be other numbers or letters that have meaning for a particular type of blade. Always refer
to the manufacturer's technical data for a complete explanation when choosing a scroll saw blade.

3

⁄32"– 1⁄8". Also good for thin pieces of bone,

Removing Plain-End Blade

Pin-End

Blade

Figure 21. Pin-end and plain-end blade

comparison.

Plain-End

Blade

1. DISCONNECT MACHINE FROM POWER!

2. Remove table insert by pushing it up from

under table (see Figure 22).

Table
Insert

Removing/Installing

Plain-End Blade

For fine, accurate, or intricate work on
or thinner workpieces, plain-end blades are sug­gested. Thinner kerfs are also possible with finer
blades.

Tool Needed Qty

Hex Wrench 4mm .............................................. 1

-24-

3

⁄4" (19mm)

Figure 22. Location of table insert.

Model G0938 (Mfd. Since 03/21)

3. Move blade tension lever all the way up to
relieve blade tension (see Figure 23).

Blade

Tension

Lever

Installing Plain-End Blade

1. DISCONNECT MACHINE FROM POWER!

2. Remove table insert by pushing it up from

under table (see Figure 22 on Page 24).

Tilt work table to 45° left (see Figure 25) to

3.

reveal lower blade holder.

Insert new blade into lower blade holder slot

4.

with teeth pointing down (see Figure 25).
Tighten lower blade holder lock knob.

Figure 23. Blade tension lever adjustment.

4.

Loosen upper blade holder lock knob and apply

slight upward pressure against upper arm to
remove blade from holder (see Figure 24).

Upper

Blade

Holder

Lock

Knob

Upper Blade

Holder Slot

Figure 24. Upper blade holder slot and upper

lock knob.

5. Tilt table to 45° to reveal lower blade holder,
and loosen lower blade holder lock knob
(see Figure 25) to release blade.

Lower Blade

Holder Slot

Figure 25. Lower blade holder slot and lock

knob location.

5. Return table tilt to 0° and tighten table lock
knob to secure table in place.

Insert top of blade into upper blade holder

6.

slot, and tighten upper blade holder lock knob
(see Figure 24).

Note: When installing blade into upper blade

holder, apply slight downward pressure on
upper arm.

Adjust blade tension (refer to Adjusting

7.
Blade Tension on Page 21).

Blade

Blade Holder

Lock Knob

Model G0938 (Mfd. Since 03/21)

Install table insert.

8.

-25-

Removing/Installing

5.

Slide saw blade down through table hole to

clear machine.

Pin-End Blade

For faster cutting on workpieces more than
(19mm) thick, or when less precision is required
for an operation, pin-end blades are suggested.
This blade type is usually thicker than plain-end
blades and offers greater stability.

When using pin-end blades, the button head cap
screws on the upper and lower blade holders
should not be too tight or too loose. Proper blade
tension will keep the blade securely in place.

Tool Needed Qty

Hex Wrench 4mm .............................................. 1

Removing Pin-End Blade

DISCONNECT MACHINE FROM POWER!

1.

2. Perform Steps 2–6 of Removing Plain-End
Blade on Page 24.

. Remove blade from lower slot in lower blade

3

holder (see Figure 26).

Note: Wiggling blade end back and forth with

slight pressure may help to make sure pin is
removed.

. Remove blade from upper slot in upper blade

4

holder (see Figure 26).

3

⁄4"

Return table tilt to 0° and install table insert.

6.

Installing Pin-End Blade

DISCONNECT MACHINE FROM POWER!

1.

2. Remove table insert (see Figure 22 on Page 24).

. Set work table to 45° left (see Figure 25 on

3

Page 25).

. Insert blade into upper slot in upper blade

4

holder. Make sure pin is properly located in
slot (see Figure 26).

Note: Wiggle blade end back and forth with

slight pressure to make sure pin is seated in
indents of mounting arm.

Slide saw blade down through table hole so

5.

that teeth face down and forward.

. Insert blade into lower slot in lower blade

6

holder. Make sure pin is properly located in
slot (see Figure 26).

Note: Wiggle blade end back and forth with

slight pressure to make sure pin is seated in
indents of mounting arm.

Tighten upper and lower blade holder lock

7.

knobs (see Figures 24–25 on Page 25).

Pin Ends

Seat Pins in Indents

of Mounting Arm

Figure 26. Pin-end blade installation.

-26-

Note: Do not over-tighten blade holder lock

knobs when using pin-end blades.

Adjust blade tension (refer to Adjusting

8.
Blade Tension on Page 21).

If tension needs further adjustment rotate

9.

blade tension lever clockwise to tighten,
and counterclockwise to loosen blade
(see Figure 23 on Page 25).

Return table tilt to 0° and install table insert.

10.

Model G0938 (Mfd. Since 03/21)

Adjusting

Making Standard

Blade Speed

Use the variable-speed knob shown in Figure 27
to adjust blade speed between 450–1500 SPM
(strokes per minute).

To reduce the risk of injury from unexpected fast
speed at startup, always rotate the variable-speed
knob all the way counterclockwise when starting/
stopping the scroll saw.

Variable-

Speed Knob

Scroll Cuts

For standard scroll cutting, follow the pattern
line on the workpiece by pushing and turning the
workpiece at the same time, which allows the kerf
of the cut to make way for the turn.

DO NOT turn the workpiece without pushing it
through the blade at same time; otherwise, the
blade could twist and break.

See Figures 28–31 for examples of standard
scroll cutting.

Figure 27. Location of variable-speed knob.

Figure 28. Making a straight cut.

Figure 29. Making a curved cut.

Model G0938 (Mfd. Since 03/21)

-27-

Making Inside Cuts Making Bevel Cuts

Inside cuts can easily be made with the scroll saw
by threading the blade through a hole drilled in the
workpiece.

Making an inside cut:

DISCONNECT MACHINE FROM POWER!

1.

2. Drill a 1⁄8" hole in workpiece inside waste area

of internal cut.

Remove blade from saw.

3.

4. Insert blade through previously drilled hole in

workpiece (see Figure 30).

Bevel cuts can be used for miters, cope joints,
and making relief or recessed projects.

Making a bevel cut:

DISCONNECT MACHINE FROM POWER!

1.

2. Loosen table lock knob, then adjust table to

desired angle. Tighten knob to secure.

. Connect saw to power.

3

4. Using principles in Making Standard Scroll

Cuts on Page 27, feed workpiece slowly and

evenly into blade, remembering not to force
workpiece through cut (see Figure 31).

Figure 30. Installing blade for an inside cut.

5.

Re-install blade.

6. Adjust hold-down shoe, connect saw to
power, then perform cut.

7. When finished, disconnect saw from power,
remove blade and workpiece, then re-install
blade on saw.

-28-

Figure 31. Making a bevel cut.

5. Turn saw OFF and wait until all motion has

stopped before removing waste near blade.

Model G0938 (Mfd. Since 03/21)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

H9836–5" Plain-End Spiral Scroll Saw
Blade Assortment, 72-Pk.

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

H9022–5" Plain-End Scroll Saw Blade
Assortment, 12-Pk.

Model Size Width Thickness TPI QTY

H9 016 #1 0.032" 0.015" 24 12

H9017 #2 0.032" 0.016" 22 12

H9 018 #3 0.040" 0.018" 20 12

H9 019 #4 0.048" 0.020" 20 12

H9020 #5 0.056" 0.023" 16 12

H9021 #6 0.062" 0.025" 14 12

T32387—Big Book of Scroll Saw Woodworking

More than 60 projects and techniques for fretwork,
intarsia, and other scroll saw crafts. Includes
detailed patterns, expert step-by-step instructions
and crisp photographs, guaranteed to spur your
creativity.

Model Size Width TPI QTY

H9024 #1 0.042" 48 12

H9025 #2 0.046" 44 12

H9026 #3 0.052" 41 12

H9027 #4 0.060" 37 12

H9028 #5 0.066" 35 12

H9029 #6 0.075" 30 12

H9032–5" Pin-End Scroll Saw Blade
Assortment, 6-Pk.

Model Size Width TPI QTY

T28361 #1 0.066" 25 2

T28362 #2 0.066" 20 1

T28363 #3 0.118 " 18 1

T28364 #4 0.118" 15 1

T28365 #5 0.118 " 10 1

Basic Eye Protection

T32323—Woodturners Face Shield
T32401—EDGE Brazeau Safety Glasses, Clear
T32402—EDGE Khor G2 Safety Glasses, Tint
T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32402

Figure 32. T32387 Big Book of Scroll Saw

Woodworking.

Model G0938 (Mfd. Since 03/21)

Figure 33. Assortment of basic eye protection.

T32404

-29-

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

Cleaning &

Protecting

Cleaning the Model G0938 is relatively easy.
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin dissolving cleaner
to remove it.

Protect the unpainted aluminum table by wiping
it clean after every use—this ensures moisture
from wood dust does not remain on bare metal
surfaces.

Lubrication

• Loose mounting bolts.

• Damaged saw blade.

Worn or damaged wires.

•

Any other unsafe condition.

•

Weekly Maintenance

• Clean/vacuum dust buildup from table, motor
and stand.

Monthly Check

• Table tilt and lock knob for damage or wear.

• Clean/vacuum dust buildup from body and off
motor.

Ball bearings in the scroll saw are packed with
grease at the factory and require no further lubri­cation

-30-

Model G0938 (Mfd. Since 03/21)

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you
need replacement parts or additional help with a procedure, call our Technical Support at [phone].
Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not
start, or power
supply breaker
immediately trips
after startup.

Machine stalls or is
underpowered.

1. Incorrect power supply voltage/circuit size.

2. Motor speed potentiometer at fault.

3. Power supply circuit breaker tripped or fuse
blown.

4. Wiring broken, disconnected, or corroded.

5. Motor brushes worn out.

6. ON/OFF switch at fault.

7. Circuit board at fault.

8. Motor or motor bearings at fault.

1. Dull blade.

2 Workpiece material unsuitable for machine.

3. Machine undersized for task.

4. Motor circuit board at fault.

5. Motor speed potentiometer at fault.

6. Motor brushes worn out.

7. Motor overheated.

8. Extension cord too long.

9. Motor or motor bearings at fault.

1. Ensure correct power supply voltage/circuit size.

2. Test/replace if at fault.

3. Ensure circuit is free of shorts. Reset circuit breaker
or replace fuse.

4. Fix broken wires or disconnected/corroded
connections.

5. Remove/replace brushes (Page 32).

6. Replace switch.

7. Inspect/replace if at fault.

8. Replace motor.

1. Sharpen/replace blade.

2. Only cut wood/ensure moisture if below 20%
(Page 20).

3. Use correct blade/reduce feed rate or depth of cut.

4. Inspect and replace if at fault.

5. Test and replace if at fault.

6. Replace motor brushes.

7. Clean motor, let cool, reduce workload.

8. Move machine closer to power supply; use shorter
extension cord.

9. Replace motor.

Machine has
vibration or noisy
operation.

Blade will not stay
on layout line.

Excessive blade
breakage.

Model G0938 (Mfd. Since 03/21)

1. Motor or component loose.

2. Blade at fault.

3. Motor mount loose/broken.

4. Motor bearings at fault.

1. Blade not tensioned correctly.

2. Too much pressure applied to workpiece.

3. Blade holders not aligned correctly.

1. Blade not tensioned correctly.

2. Not using relief cuts when cutting tight
curves; twisting blade.

3. Wrong blade for operation.

4. Too much pressure on blade.

1. Replace damaged or missing bolts/nuts or tighten if
loose.

2. Replace warped/bent blade; resharpen dull blade.

3. Tighten/replace.

4. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

1. Properly tension blade (Page 21).

2. Reduce feed rate and pressure on workpiece.

3. Adjust blade holders so they are perpendicular
(Page 33).

1. Properly tension blade (Page 21).

2. Use relief cuts for tight turns; reduce feed rate; do
not twist blade.

3. Refer to Blade Selection Chart, and use correct
blade for operation (Page 24).

4. Reduce pressure on workpiece as it passes through
blade.

-31-

Checking/Replacing

Motor Brushes

The motor on the Model G0938 is equipped with
two long-life carbon brushes—one on each side
of the motor. The brush life is affected by motor
loads and usage. Worn brushes will result in inter­mittent operation and difficulty starting the motor.
If either brush is worn down to
replace both brushes as a set.

1

⁄4" (6mm) or less,

Calibrating Table Tilt

The table tilt knob and tilt scale are used to posi­tion the table for performing bevel cuts. Over the
life of the machine, the components may loosen
or stretch, at which point it will be necessary to
recalibrate the system to ensure accuracy.

Note: The table tilt scale is only an approximate
scale and should not be used when precise angle
measurements are required for the operation.

Items Needed Qty

Flat Head Screwdriver 1⁄2" .................................. 1

Motor Brushes (P0938100-2)

To check/replace motor brushes:

1. DISCONNECT MACHINE FROM POWER!

Unscrew plastic brush covers, and remove

2.

motor brush assemblies (see Figure 34).

Note: As you remove brush assembly, make

note of carbon tip orientation. If acceptable,
re-install in same way.

............................ 2

Motor
Brush

(1 of 2)

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Adjustable Wrench
Machinist's Square
Locking Pliers

To calibrate table tilt:

DISCONNECT MACHINE FROM POWER!

1.

Remove machine housing panel to access

2.

table tilt adjustment cable (see Figure 35).

Loosen hold-down lock knob and remove

3.

hold-down shoe (see Figure 35).

Remove table insert (see Figure 35).

4.

Loosen table lock knob and set table to a flat

5.

position (see Figure 35).

............................................ 1

............................................ 1

.................................................... 1

Hold-Down

Lock Knob

Table
Insert

Figure 34. Motor brush location.

3. Measure length of carbon tip. If carbon tip is

worn down to
brush assemblies with new ones.

Insert brush assemblies back into motor, and

4.

re-install plastic caps.

-32-

1

⁄4" (6mm) or less, replace both

Hold-Down

Shoe

Figure 35. Table tilt components.

Model G0938 (Mfd. Since 03/21)

Table

Lock

Knob

Machine

Housing

Panel

6. Place locking pliers on table tilt adjust­ment cable directly behind cable lock
(see Figure 36).

Note: Locking pliers will prevent cable run-

out and keep tensioning spring located in
table scale from losing tension.

Loosen lock screw holding cable lock in place

7.

(see Figure 36).

Loosen cable adjustment nut (see Figure 36).

8.

Cable Lock

Table Tilt

Adjustment

Cable

Figure 36. Scale adjustment components.

Cable Adjustment Nut

Lock Screw

Aligning Blade

Holders

The blade holders may become misaligned with
use, which results in the blade no longer being
aligned with the motion of the arm and being out
of square with the table. The most common symp­tom of this condition is persistent blade run-out.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Machinist's Square

To align blade holders:

Perform all steps in Calibrating Table Tilt on

1.
Page 32.

DISCONNECT MACHINE FROM POWER!

2.

Ensure table tilt is set at 0°.

3.

Remove hold-down shoe.

4.

............................................ 1

9. Lightly pull adjustment cable out until table tilt
scale reads 0°.

Tighten lock screw on cable lock to hold

10.

cable securely.

Tighten cable adjustment nut.

11.

Align blade (refer to Aligning Blade Holders).

12.

Install insert, hold down shoe, and machine

13.

housing panel.

Place machinist's square flat on table with one

5.
edge against side of blade (see Figure 37).

Blade

Square

Table

Figure 37. Squaring blade to table.

— If blade is square to table no further adjust-

ments need to be made.

— If blade is not square to table proceed to

Step 6.

Model G0938 (Mfd. Since 03/21)

-33-

Loosen button head cap screws on upper

6.
and lower blade holders (see Figure 38).

Figure 38. Location of blade holders.

Replacing

LED Work Light

The LED work light can be replaced if it no longer
functions. Replace when it stops operating cor­rectly, fails to provide light, or flashes.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Open-End Wrench 6mm.................................... 1

Replacement LED Light (P0938101)

To replace LED work light:

DISCONNECT MACHINE FROM POWER!

1.

Remove control panel and unplug LED work

2.

light from circuit board (see Figure 39).

................. 1

7. Adjust blade holders until blade is flat against
edge of square along its entire length.

Tighten button head cap screws loosened in

8.
Step 5.

Control

Panel

LED Work

Light

Connector

LED Work

Light Wire

Figure 39. Control panel access and

connections.

Circuit

Board

-34-

Model G0938 (Mfd. Since 03/21)

3. Remove side cover (see Figure 40).

Side Cover

Side

Cover

Nut

LED Work Light

Figure 41. LED work light removal.

Figure 40. Location of side cover.

4. Remove LED work light from side cover

(see Figure 41).

Loosen and remove nut to remove wire har-

5.

ness from side cover (see Figure 41).

To install new LED work light, thread wire

6.

harness into side panel and tighten inside nut
(see Figure 41).

7. Route wire harness/connector though hole
in control panel and connect to circuit board
(see Figure 39 on Page 34).

Before installing control panel, connect

8.

machine to power and press light switch to
test light.

— If light functions, install control panel.

If light does not function, check connec-

—

tions and retry lighting. Contact Grizzly
Tech if problem persists.

Model G0938 (Mfd. Since 03/21)

-35-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-36-

Model G0938 (Mfd. Since 03/21)

Neutral

Hot

Ground

Wiring Diagram

120 VAC

5-15 Plug

120V MOTOR

Gn

ON/OFF
SWITCH

KEDU

HY17 8A

ROCKER
SWITCH

TTC TR01 10A

Gn

POTENTIOMETER

B10K

CIRCUIT

BOARD

XK94V-0

PAD2

D1

ZD1

22uF/16

PAD2

PAD4

PAD3

Model G0938 (Mfd. Since 03/21)

READ ELECTRICAL SAFETY

ON PAGE 36!

120V

LED LIGHT

-37-

Electrical Components

Motor
Brush

(1 of 2)

On/Off
Switch

Air Nozzle

Diaphragm

Figure 42. Scroll saw motor.

Power

Cord

120V

Motor

Potentiometer

LED Light

LED Light

Cord

Figure 43. LED light.

LED Light

Switch

-38-

To Motor

READ ELECTRICAL SAFETY

ON PAGE 36!

Circuit

Board

Terminal

Figure 44. Control panel.

Model G0938 (Mfd. Since 03/21)

47

89

94

22

106

74

5

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Main

73

40

96

18

104

105

115

10

46

29

11

111

16

93

26

37

35

C

14

D

57
36

7
6

48

85

42

21

41

20

34

E

8

K

15

86

67

75

B

28

103

99

101

95

I

38

77

I

56
31

114

59

62

81

100-2

100-3

100-4

58

100-1

100

60

78

79

34

55

82

52
51

91

113

F

27

F

5

3

30

43

88

109

107

17

54

53

107

71

108

4

40

80

90

25

2

45

112
102

E

76

33

116

32

44

A

D

9

27

B
97

65

87

38

15

12

24

68

1

K

92

J

39

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

61

12

69

11

23

98

66

29

84

19

110

83

64

A

13

70

49

D

50

44

12

64

72

Model G0938 (Mfd. Since 03/21)

63

J

K

I

-39-

REF P ART # DESCRIPTION REF P ART # DESCRIPTION

Main Parts List

1 P0938001 COMPRESSION SPRING 1.2 X 13.8 X 40 54 P0938054 SQ UARE NUT M6 -1
2 P0938002 FLAT WASHER 10MM 55 P0938055 ROLL PI N 6 X 14
3 P0938003 BLADE 5" PLAIN-END 18TPI 56 P0938056 TURNTABLE
4 P0938004 BLADE 5" PIN-END 15TPI 57 P0938057 ROCKER SWITCH TTC TR01 10A
5 P0938005 FOOT PAD 58 P0938058 FLAT HD TAP SCREW M5 X 16
6 P0938006 BELLOWS 59 P0938059 TURNTABLE COVER
7 P0938007 PLUG HOUSING 60 P0938060 PLATE COVER
8 P0938008 PVC TUBE 61 P0938061 GUI DE HOLDER
9 P0938009 KNOB BOLT M6-1 X 13, D25, WING 62 P0938062 BEVEL ANGLE COVER
10 P0938010 HEX WRENCH 3MM 63 P0938063 WIRE ROPE ASSEMBLY
11 P0938011 FLAT WASHER 6MM 64 P0938064 PHLP HD SCR M5-.8 X 10
12 P0938012 FENDER WASHER 6MM 65 P0938065 FLANGE SCREW M6-1 X 12
13 P0938013 FLAT WASHER 4MM 66 P0938066 PHLP HD SCR M5-.8 X 12
14 P0938014 EXT TOOTH WASHER 5MM 67 P0938067 ROCKER SWITCH KEDU HY17 8A
15 P0938015 WAVY WASHER 6MM 68 P0938068 TENSI ON HANDLE
16 P0938016 WAVY WASHER 8MM 69 P0938069 PLUNGER HANDLE
17 P0938017 ROLL PI N 3 X 16 70 P0938070 FOLLOWER PLATE
18 P0938018 ROLL PI N 5 X 20 71 P0938071 BASE, REAR
19 P0938019 ROLL PI N 3 X 15 72 P0938072 BASE, FRONT
20 P0938020 O-RI NG 4.8 X 1.9 P5 73 P0938073 ROCKER ARM, LOWER
21 P0938021 HEX BOLT M6-1 X 30 74 P0938074 ROCKER ARM, UPPER
22 P0938022 CAP SCREW M5-.8 X 20 75 P0938075 SWI TCH BOX COVER
23 P0938023 CAP SCREW M6-1 X 20 76 P0938076 SWITCH BO X HOUS I NG
24 P0938024 CAP SCREW M6-1 X 35 77 P0938077 TABLE
25 P0938025 SET SCREW M8-1.25 X 8 78 P0938078 BLADE STORAGE TRAY
26 P0938026 SET SCREW M4-.7 X 6 79 P0938079 BLADE STORAGE BRACKET
27 P0938027 FLANGE BOLT M8-1. 25 X 20 80 P0938080 BODY ASSEMBLY
28 P0938028 CAP SCREW M6-1 X 16 81 P0938081 MOTOR COVER
29 P0938029 CAP SCREW M5-.8 X 20 82 P0938082 TENSI ON ROD
30 P0938030 FLAT HD SCR M5-. 8 X 12 83 P0938083 SIDE COVER
31 P0938031 PHLP HD SCR M4-.7 X 6 84 P0938084 DUST PORT
32 P0938032 PHLP HD SCR M5-.8 X 8 85 P0938085 SWI TCH BOX SIDE COVER
33 P0938033 PHLP HD SCR M5-.8 X 12 86 P0938086 ON/OFF BUTTON COVER
34 P0938034 FLANGE SCREW M5-.8 X 8 87 P0938087 BEVEL ANGLE SCALE
35 P0938035 FLANGE SCREW M6-1 X 10 88 P0938088 UPPER SIDE COVER
36 P0938036 TAP SCREW M4 X 20 89 P0938089 TENSI ON HANDLE
37 P0938037 TAP SCREW M5 X 12 90 P0938090 ANCHOR BOLT
38 P0938038 PHLP HD SCR M5-.8 X 12 91 P0938091 LOCKI NG ROD
39 P0938039 PHLP HD SCR M5-.8 X 16 92 P0938092 GUI DE BLOCK
40 P0938040 PHLP HD SCR M6-1 X 16 93 P0938093 PIVOT SHAFT
41 P0938041 PHLP HD SCR M5-.8 X 6 94 P0938094 SPEED DIAL KNOB
42 P0938042 HEX NUT M6-1 95 P0938095 RETAINING BRACKET
43 P0938043 LOCK NUT M5-. 8 96 P0938096 LINKAGE BAR
44 P0938044 HEX NUT M6-1 97 P0938097 ECCENTRI C COUNTERWEI GHT
45 P0938045 TERMINAL BLOCK PA9 98 P0938098 TRUNNION BRACKET
46 P0938046 LOCKI NG CABLE TIE 99 P0938099 RIGID AI R HOSE W/ NO ZZLE
47 P0938047 TAP SCREW M3 X 15 100 P0938100 MOTOR 1/9 HP 120V 1-PH
48 P0938048 TAP SCREW M5 X 15 101-1 P0938100-1 POWER CORD 18G 3W 72" 5-15P

49 P0938049 CAP SCREW M4-.7 X 12 101-2 P0938100-2
50 P0938050 PHLP HD SCR M5-.8 X 25 101-3 P0938100-3
51 P0938051 TENSION SPACER 6 X 18 X 1 101-4 P0938100-4
52 P0938052 BRACKET STOP PLATE 101 P0938101 LED LAMP 120V 10W
53 P0938053 ACORN NUT M6-1 102 P0938102 CIRCUIT BOARD XK94V-0

CARB ON BRUS H
BRUS H HOLDE R
BRUSH COVER

-40-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model G0938 (Mfd. Since 03/21)

Main Parts List (Cont.)

REF P ART # DESCRIP TION REF P ART # DESCRIP TION

103 P0938103 TABLE INSERT 110 P0938110 SUPPORT ROD
104 P0938104 WIRE ROPE 120MM (BLACK) 111 P0938111 ANCHOR PLATE
105 P0938105 WIRE ROPE 120MM (WHI TE) 112 P0938112 TAP SCREW M3 X 8
106 P0938106 POTENTI OMETER 113 P0938113 PA HOSE 12 X 15 X 200
107 P0938107 BLADE HOLDER ASSEMBLY 114 P0938114 TORSION SPRING 1.4 X 33 X 28
108 P0938108 BEARING SEAT ASSEMBLY 115 P0938115 COVER, LEFT
109 P0938109 ROLL PIN 6 X 23 116 P0938116 COVER, RIGHT

Model G0938 (Mfd. Since 03/21)

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

-41-

Stand

REF PART # DESCRI P TI O N REF PART # DESCRI P TI O N

126 P0938126 SUPPO RT BRACK ET, LOWE R (FRONT)

120

119

131

132

129

127

121

125

123

121

133

122

126

128

130

124

119 P0938119 FLAT WASHER 8MM 127 P0938127 SUPPORT BRACKET, LOWER (REAR)
120 P0938120 HEX BOLT M8-1.25 X 45 128 P0938128 SUPPORT BRACKET, LOWER (SIDE)
121 P0938121 FLANGE NUT M8-1.25 129 P0938129 SUPPORT BRACKET, UPPER (REAR)
122 P0938122 CARRIAGE BOLT M8-1.25 X 12 130 P0938130 LEG, FRONT
123 P0938123 SPACER 9 X 14 X 20 131 P0938131 LEG, REAR
124 P0938124 FOOT, FRONT 132 P0938132 FOOT, REAR
125 P0938125 SUPPORT BRACKET, UPPER (SIDE) 133 P0938133 SUPPO RT BRACK ET, UPPE R (FRONT)

-42-

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

Model G0938 (Mfd. Since 03/21)

202

REF PART # DE S CRI P TI O N REF PART # DE S CRI P TI O N

206 P0938206 TABLE LOCK LABEL 214 P0938214 CSA LABEL

Labels & Cosmetics

214

203

204

201

200

209

205

206

207

211

212

208

210

200 P0938200 MACHI NE WARNI NG LAB EL 208 P0938208 BLADE WARNING LABEL
201 P0938201 READ MANUAL LABEL 209 P0938209 COMBO WARNI NG LABEL
202 P0938202 MODEL NUMBER LABEL 210 P0938210 GRIZZLY.COM LABEL
203 P0938203 QR CODE LABEL 211 P0938211 MACHINE ID LABEL
204 P0938204 BLADE TENSION LABEL 212 P0938212 ELECTRICITY LABEL
205 P0938205 BEVEL ANGLE LABEL 213 P0938213 TOUCH-UP PAINT, GRIZZLY GREEN

Model G0938 (Mfd. Since 03/21)

BUY PARTS ONLINE AT GRIZZLY.C OM !

Scan QR code to visit our Parts Store.

213

-43-

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To
you can
applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY
