Grizzly G0931 User guide

Download

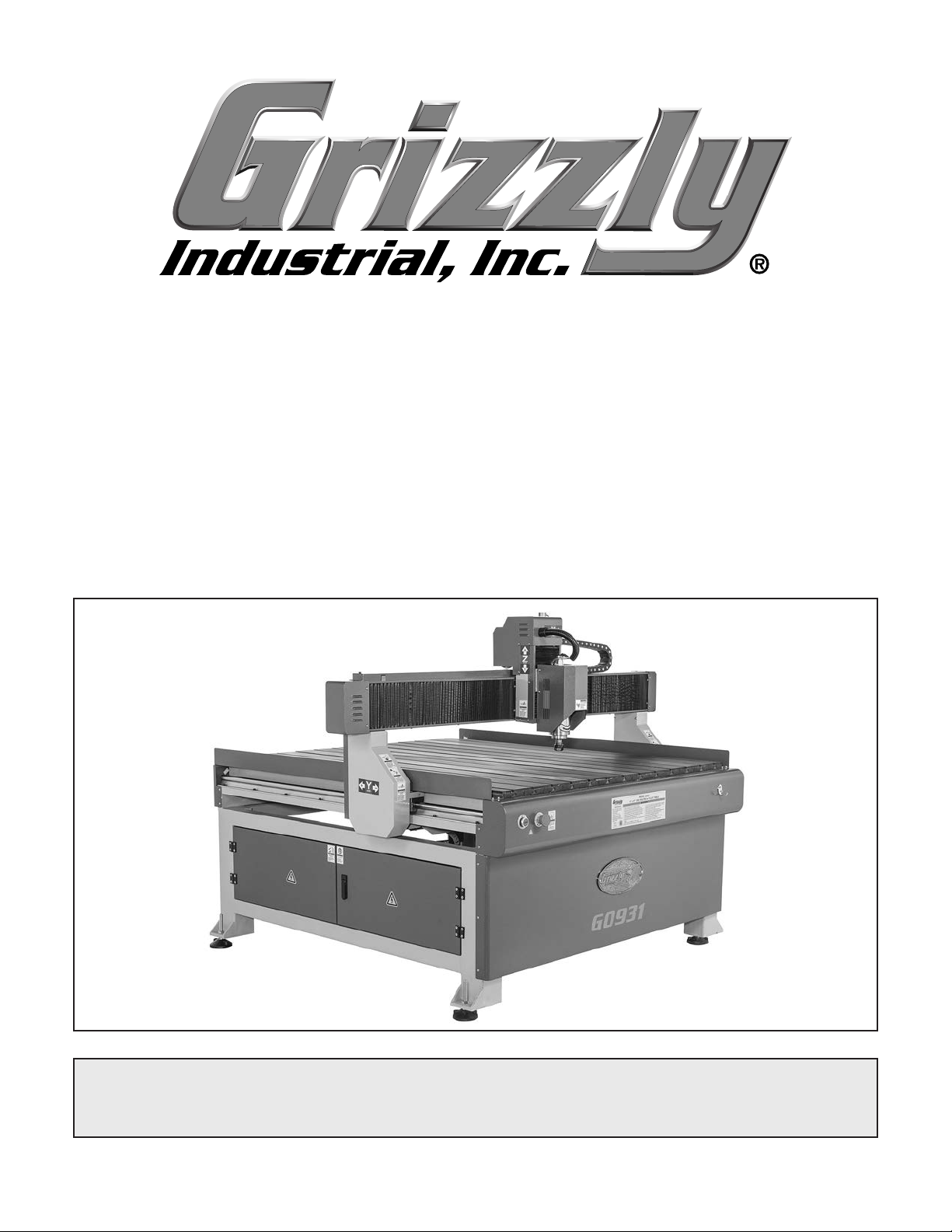

MODEL G0931

47" X 47" CNC ROUTER

w / T-SLOT TABLE

OWNER'S MANUAL

(For models manufactured since 02/21)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#KS22105 PRINTED IN CHINA

***Keep for Future Reference***

V1.0 4. 22

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Controller Functions Glossary Of Terms Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for CNC Routers

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup Unpacking Inventory Site Considerations Lifting & Placing Leveling Connecting Cooling Pump Connecting Controller Dust Collection Test Run Verifying Parameters

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection................................... 26

Choosing Cutter Changing Cutter Clamping Workpiece Using a Spoilboard Adjusting Axis Positions Manually

Homing Axes................................................ 30

Setting Origin Creating G-Code File Uploading & Running G-Code Changing Advanced Settings Using Advanced Controls Manually Setting Spindle Speed

.................................................... 15

...................................................... 16

........................................................ 18

...................................................... 22

........................................... 2

................................................... 3

................................. 4

....................................... 5

......................................... 6

...................................... 8

..................................... 10

................ 10

.............. 12

...................... 13

....................................... 15

......................................... 15

...................................... 17

........................................... 18

........................... 19

.................................. 20

............................................. 21

................................... 23

........................... 25

..................................... 25

........................................... 26

........................................... 27

.................................... 28

...................................... 28

............... 29

............................................... 30

................................... 31

..................... 32

...................... 33

............................ 34

.................. 34

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning & Protecting Lubrication Coolant

SECTION 7: SERVICE

Troubleshooting Testing Limit Switches Updating RichAuto Controller Software Setting Stepper Driver DIP Switches

SECTION 8: WIRING

Wiring Safety Instructions Spindle Wiring Diagram Axis Motor Wiring Diagram Contactor Wiring Diagram Interface Board Wiring Diagram Electrical Components

SECTION 9: PARTS

Main Gantry & Spindle Electrical Cabinet Components Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 38

................................................... 38

......................................................... 41

................................... 42

........................................... 42

...................................... 48

....................................... 54

............................................................. 54

.......................................... 56

..................................... 59

......................... 35

......................... 38

.................................. 38

................................. 45

............................ 48

............................... 49

.......................... 50

........................... 51

.................. 52

................................. 53

................... 58

............................. 61

....... 46

........... 47

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info Manual Accuracy

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0931 (Mfd. Since 02/21)

To reduce your risk of serious injury, read this entire manual BEFORE

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Z-Axis Stepper Motor

(Behind Cover)

Z-Axis Tool Setter

X-Axis Limit

Switch

Electrical

Cabinet

Y-Axis Limit Switch

(on Gantry Beam)

Controller

ON Button

Gantry

Spindle

Coolant

Hoses

EMERGENCY

STOP Button

Cable

Carrier

Spindle

Motor

Y-Axis Stepper

Motor (Behind Cover)

Z-Axis Limit Switch

(Behind Cover)

X-Axis Stepper Motor

(Behind Cover)

Table

Z-Axis

X-Axis

Y-Axis

Cooling Fan

Model G0931 (Mfd. Since 02/21)

Power Connection

using machine.

-3-

To reduce your risk of serious injury, read this entire manual BEFORE

Controls &

Components

Power Controls

using machine.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Spindle Assembly

Figure 2. Power buttons.

E. ON Button: Turns machine ON when

pressed.

F. EMERGENCY STOP Button: Disables

power to machine. To reset, twist button clockwise until it pops out.

Additional Components

Figure 1. Spindle components.

A. Spindle Motor: 3 HP motor capable of rotat-

ing cutting tool at 0–24,000 RPM.

B. Spindle: Motor shaft that holds the cutting

tool, spindle nut, and collet.

C. ER20 Collet: Holds cutting tool.

D. Spindle Nut: Secures collet and cutting tool

on spindle.

Figure 3. Cooling pump.

G. Cooling Pump: Cools spindle motor by con-

tinuously pumping water while plugged in.

Figure 4. Hand-held controller.

-4-

H. Controller: Controls machine functions.

Model G0931 (Mfd. Since 02/21)

Figure 5. Z-axis tool setter.

Z-Axis Tool Setter: Establishes Z-axis origin

based on surface tool setter is placed on.

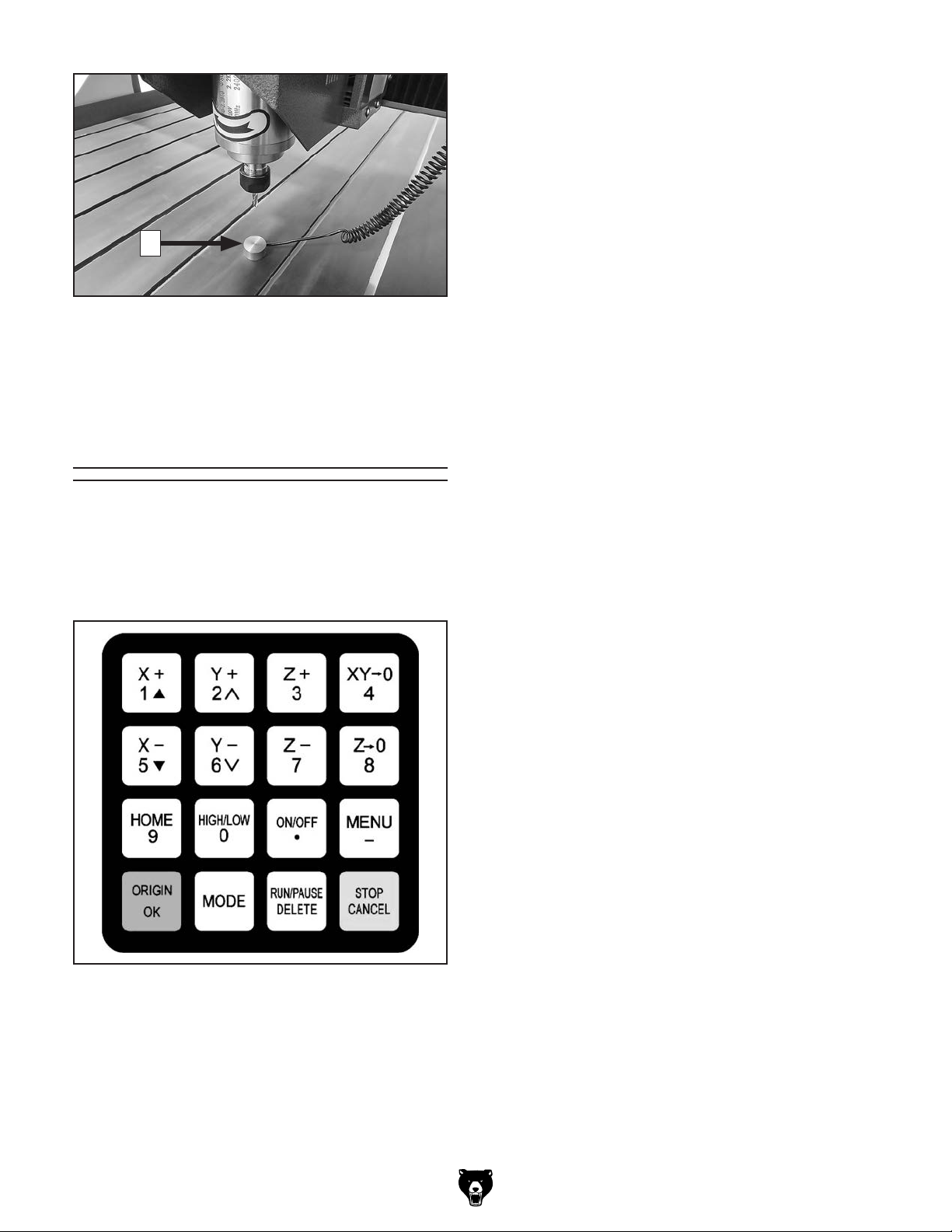

Z+ or 3: Moves spindle motor along Z-axis in positive direction. Increases spindle speed during process. Input for "3".

XY-> 0 or 4: Sets work origin of X- and Y-axes (see Page 30). Input for "4".

X- or 5: Moves spindle motor along X-axis in negative direction. Scrolls menu down. Input for "5".

Y- or 6: Moves spindle motor along Y-axis in negative direction. Decreases feed rate. Scrolls sub-menu down. Input for "6".

Z- or 7: Moves spindle motor along Z-axis in negative direction. Decreases spindle speed during process. Input for "7".

Controller Functions

The following commands are used for the basic navigation of the machine and controller. Additional functions can be accessed with multi-button commands (see Using Advanced Controls on

Page 34) for more information.

Z-> 0 or 8: Sets work origin of Z-axis (see Page 30). Input for "8".

HOME or 9: Returns all axes to home position (see Page 30). Input for "9".

HIGH/LOW or 0: In manual mode, selects high or

low speed for axis movement. Input for "0".

ON/OFF or (.): Turns spindle ON or OFF. Input for decimal point.

MENU or (-): Enters setup menus. Input for the negative symbol.

ORIGIN or OK: Returns all axes to work origin (see Page 30). Confirms motions, inputs, or operations.

MODE: Toggles between the three jogging modes: Continuous, Step, or Distance.

RU N /PAUSE or DELETE: Runs or pauses processing. Use to load a program from either the USB drive or internal memory.

Figure 6. Controller buttons.

X+ or 1: Moves spindle motor along X-axis in positive direction. Scrolls menu up. Input for "1".

Y+ or 2: Moves spindle motor along Y-axis in positive direction. Increases feed rate. Scrolls sub-menu up. Input for "2".

Model G0931 (Mfd. Since 02/21)

STOP or CANCEL: Stops a running program. Cancels commands.

-5-

Glossary Of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this CNC router and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Axis: Direction of movement. On a three-axis mill-

ing machine, axes are typically X (left-right), Y (front-back) & Z (up-down). Axis directions are described as positive or negative. On this machine, negative movement is defined as movement towards the front (Y), left (X), and bottom (Z) of the working envelope.

Ball End (Ball Nose): A cutting tool that has a

rounded cutting arc, where the arc diameter is equal to the cutting diameter.

Ball Screw: Drive system component. The ball

screw is rotated by the stepper motor and provides the means for moving the gantry and spindle along the axes.

Bed: The bed of the CNC consists of a welded

steel frame, an extruded aluminum table top, and a tongue-and-groove table top with integrated T-slots.

CAD: Computer aided design. CAD software is

used to create a digital model of a project.

Compression Bit: A cutting tool with a combi-

nation of up and down shear cutting edges. Typically used for cutting laminate material to prevent tear-out on both sides of the sheet.

Conventional Cut: Cut that occurs when the

rotation of the cutter moves in opposite direction as the workpiece.

Down-Cut Bit: A cutting tool with edges that

carve downward on the face of the toolpath. Reduces the potential for tear-out, but requires a slower feed rate.

Dust Shoe: An accessory that channels dust and

debris directly from the cutting tool through an attached dust collection system.

End Mill: A cutting tool with a straight end, typi-

cally with spiral flute(s). It creates a channel with a flat bottom perpendicular to the sides.

Feed Rate: The speed at which the cutting tool

moves along a workpiece.

CAM: Computer aided manufacturing. CAM soft-

ware converts CAD models into a toolpath defined by G-code that CNC machines can interpret.

Chip Load: Chip load is the measure of the

thickness of chips a tool will cut. Chip load is equal to: Feed Rate ÷ (Spindle Speed X Number of Flutes).

Climb Cut: Cut that occurs when the rotation of

the cutter moves in same direction as the workpiece.

CNC: Computer numerical control. Manufacturing

controlled by a computer via coded instructions.

Collet: Metal collar that holds the cutting tool in

place within a spindle nut.

-6-

Finish Cut: A 3D toolpath that reduces or elimi-

nates the irregular contours left by a rough cut.

Flute Length: The length of the cutting portion on

a router bit or cutting tool.

Flutes: The cutting edges or inserts of a router bit

or cutting tool.

Form Bit: A bit that carves a standard profile such

as a roundover, ogee, or similar contour.

Gantry: The structure that straddles the bed and

carries the spindle. It moves the full length of the bed along the Y-axis.

G-Code: A machine language that uses axis

points and commands, which the machine uses to move and perform functions.

Model G0931 (Mfd. Since 02/21)

Hold-Down: A clamp used to firmly hold a

workpiece or fixture to the table.

Spindle Speed: Rotational speed of cutting tool

(RPM).

Home Position: A fixed point on the machine set

with proximity switches. It is the machine zero point on all axes.

Letter Address: The first letter of a G-code

command. Commands with similar functions are usually grouped within the same letter address. For example, the "G" letter address deals with preparatory functions that define the machine's operation, while the "M" letter address handles miscellaneous machine functions such as turning on spindles, pumps, and other auxiliary tasks.

Origin: User designated zero point for a workpiece

from which the router will reference the positioning of all cutting.

Plunge: The distance on the Z-axis that the

spindle and cutting tool moves toward, into, or along the workpiece.

Pocket Toolpath: A toolpath that creates a cavity

in the horizontal surface of a workpiece.

Post Processor: A software function that formats

G-code into a dialect understood by a specific machine.

Profile Toolpath: A toolpath that cuts along the

profile of a set of vectors. Typically used to cut out the shape of a design.

Spoilboard: Sacrificial material placed under the

workpiece that allows the cutting tool to go past the workpiece to ensure a full, clean cut without damaging the work table. Usually made of MDF.

Stepper Motor: DC motor that moves in precise

steps when pulses are received. Has very accurate positioning and speed control.

Surfacing: The process of leveling the surface of

a workpiece or spoilboard so it is perpendicular to the spindle.

Tool Deflection: Tool deflection occurs when the

spindle speed and feed rate exert sufficient force to deflect the cutting tool. Deflection leads to excessive wear and chatter, which can shorten tool life and leave unwanted tooling marks on the material.

Tool Setter: A device used to set the zero point

(origin) for the Z-axis.

Toolpath: User defined route that the cutter fol-

lows to machine a workpiece.

Up-Cut Bit: A cutting tool with edges that carve

upward on the face of the toolpath. This removes chips from the material, but can pull the material off the bed and splinter the top edge.

Proximity Switch: A magnetic limit switch that is

used to find home position.

Rapid:

Rough Cut: A 3D toolpath where the initial cut is

Soft Limits: Axis limits imposed by the work space

Model G0931 (Mfd. Since 02/21)

The maximum speed of each axis. Higher

rapid rates decrease machining times.

designed to remove unwanted material, leaving a rough contour.

boundaries and based on controller settings and the location of home. An “out of soft limits error” implies that there is not enough room to move in a designated direction based on the positioning of the workpiece.

VFD: Variable frequency drive that controls the

speed (RPM) of the spindle. Enables the fine tuning of the spindle during the operation of a toolpath.

Working Envelope: The three-dimensional area

that the spindle can travel within while cutting or milling.

-7-

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

20A 20A

MODEL G0931

47" X 47" CNC ROUTER W/T-SLOT TABLE

Product Dimensions:

Weight ........................................................................................................................................................................... 838 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .......................................................................... 70 x 62-1/2 x 53-1/2 in.

Footprint (Length/Width) ............................................................................................................................................58 x 60 in.

Shipping Dimensions:

Type .................................................................................................................................................................... Plywood Crate

Content ...................................................................................................................................... Machine and Electrical Cabinet

Weight ............................................................................................................................................................................ 948 lbs.

Length x Width x Height ..................................................................................................................................... 75 x 69 x 68 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement ........................................................................................................................ 220V, Single-Phase, 60 Hz

Full-Load Current Rating ......................................................................................................................................................

Minimum Circuit Size ...........................................................................................................................................................

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ............................................................................................................................................................70 in.

Power Cord Gauge .......................................................................................................................................................14 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................6-15

Switch Type .............................................................................................................. ON/OFF Push Button w/Emergency Stop

Inverter (VFD) Type ......................................................................................................................... Fulin DZB280B002.2L2DK

Inverter (VFD) Size .............................................................................................................................................................3 HP

Motors:

-8-

Spindle Motor

Type

.......................................................................................................................................................................Spindle

Horsepower ...............................................................................................................................................................3 HP

Phase .................................................................................................................................................................. 3-Phase

Amps ............................................................................................................................................................................ 8A

Speed ...................................................................................................................................................... 0 - 24,000 RPM

Number Of Speeds ...............................................................................................................................................Variable

Power Transfer ........................................................................................................................................................ Direct

X-Axis Motor

Frame Size

Amps ............................................................................................................................................................................ 4A

Speed ......................................................................................................................................................... 0 - 2000 RPM

Type .................................................................................................................. Stepper (Brushless, Permanent Magnet)

Power Transfer ........................................................................................................................................................ Direct

Step Resolution .................................................................................................................................... 1.8 deg. Per Step

........................................................................................................................................................ NEMA 34

Model G0931 (Mfd. Since 02/21)

Y-Axis Motor

Frame Size ........................................................................................................................................................ NEMA 34

Amps ............................................................................................................................................................................ 4A

Speed ......................................................................................................................................................... 0 - 2000 RPM

Type .................................................................................................................. Stepper (Brushless, Permanent Magnet)

Power Transfer ........................................................................................................................................................ Direct

Step Resolution .................................................................................................................................... 1.8 deg. Per Step

Z-Axis Motor

Frame Size

Amps ............................................................................................................................................................................ 4A

Speed ......................................................................................................................................................... 0 - 2000 RPM

Type .................................................................................................................. Stepper (Brushless, Permanent Magnet)

Power Transfer ........................................................................................................................................................ Direct

Step Resolution .................................................................................................................................... 1.8 deg. Per Step

Main Specifications:

Axis Information

X Axis Travel

Y Axis Travel ......................................................................................................................................................47-1/4 in.

Z Axis Travel ........................................................................................................................................................7-7/8 in.

XY Rapid Speed .................................................................................................................................................. 709 IPM

Z Rapid Speed .................................................................................................................................................... 394 IPM

........................................................................................................................................................ NEMA 34

......................................................................................................................................................47-1/4 in.

Construction

Table .................................................................................................................................. Aluminum w/Closed Cell PVC

Body Construction .............................................................................................................................................. Cast Iron

Paint. .....................................................................................................................................................................Enamel

Cutting Information

Work Envelope ........................................................................................................................ 47-1/4 x 47-1/4 x 7-7/8 in.

Max Distance Spindle to Table ............................................................................................................................7-7/8 in.

Cutting Accuracy .............................................................................................................................................+/-0.002 in.

Table Information

Table Length ......................................................................................................................................................51-1/4 in.

Table Width ........................................................................................................................................................51-1/4 in.

Other Related Information

Number of Dust Ports ......................................................................................................................................................1

Dust Port Size ............................................................................................................................................................4 in.

Number of Leveling Feet .................................................................................................................................................4

Collet Type ...............................................................................................................................................................ER20

Controller ............................................................................................................................................ RichAuto DSP A11

Other Specifications:

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .............................................................................................................................1 Hour

Serial Number Location ................................................................................................................................................ ID Label

Features:

RichAuto DSP A11 Handheld Controller with USB Port and Keypad Water Cooled Spindle with Included Water Pump Aluminum Table with T-Track and PVC Padding Tool Touch-Off Pad for Quickly Setting Z-Axis Height

Model G0931 (Mfd. Since 02/21)

-9-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-10 -

Model G0931 (Mfd. Since 02/21)

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0931 (Mfd. Since 02/21)

-11-

Additional Safety for CNC Routers

You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with rotating cutter/spindle. You can be severely cut or have fingers amputated from contact with rotating cutters. You can be blinded or struck by broken cutting tools, wood chips, improperly secured workpieces, or adjustment tools thrown from rotating spindle with great force. To reduce risk of serious injury when operating this machine, heed and understand the following:

UNDERSTAND ALL CONTROLS. Make sure

you understand the function and proper use of all controls before starting. This will help you avoid making mistakes that result in serious injury.

AVOIDING ENTANGLEMENT. DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place, secure, and properly operating. Always allow spindle to stop on its own. DO NOT stop spindle using your hand or any other object.

WEAR EYE PROTECTION. Always wear safety glasses. This provides protection for your eyes from wood chips or broken cutting tools.

USE CORRECT SPINDLE SPEED. Use proper speeds and feeds for each size and type of cutting tool as recommended by tool manufacturer. This helps avoid injury risk from tool breakage during operation and ensures best cutting results.

FIRE HAZARD. To reduce risk of fire, always use proper feeds and speeds for cutting tool and workpiece type. Avoid operations that dwell in one place. Be aware of signs of fire and keep fire extinguisher nearby. Chips and dust collection can disguise embers and smoke. Prepare a fire safety plan and ensure it is practiced by all operators. Never operate machine unattended unless workspace has a lights-out fire prevention system.

PROPERLY SECURE CUTTER. Firmly secure cutting tool so it does not fly out of spindle during operation.

PROPERLY COLLECT DUST. Only use dust collector to clear chips while spindle is turning. DO NOT clear chips by hand when cleaning. Only use a brush or shop vacuum when spindle/axes are NOT turning or moving.

SECURE WORKPIECE TO TABLE. Secure workpiece to table so workpiece cannot unexpectedly move or spin during operation. NEVER hold workpiece by hand during operation.

PROPERLY MAINTAIN MACHINE. Keep machine in proper working condition to help ensure that it functions safely and all guards and other components work as intended. Perform routine inspections and all required maintenance. Never operate machine with damaged or worn parts that can break or result in unexpected movement during operation.

DISCONNECT POWER FIRST. To reduce risk of electrocution or injury from unexpected startup, make sure CNC router is turned OFF, disconnected from power, and all moving parts are completely stopped before changing cutting tools or performing any inspection, adjustment, or maintenance procedure.

INSPECT CUTTING TOOL. Inspect cutting tools for sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately. Do not use damaged tools as they are likely to break apart and could hit user with great speed and force.

-12-

REMOVE SPINDLE TOOLS. Always remove wrenches and other tools used on the spindle immediately after use. This will prevent them from being thrown by the spindle upon startup.

Model G0931 (Mfd. Since 02/21)

or equipment damage may occur if machine is not properly grounded and connected to power

For your own safety and protection of

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Note: Circuit requirements in this manual apply to a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V ...... 20 Amps

Model G0931 (Mfd. Since 02/21)

Circuit Requirements

Nominal Voltage .......... 20 8V, 220V, 2 3 0V, 240V

........................................................... 60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

.............................................Single-Phase

.......................... 20 Amps

...............................NEMA 6-15

-13-

No adapter should be used with plug. If plug does not fit available receptacle, or if

process. DO NOT connect to power until

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

Grounding Pin

Figure 7. Typical 6-15 plug and receptacle.

machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

-14-

Extension Cords

If you must use an extension

Minimum Gauge Size ............................ 12 AWG

Maximum Length (Shorter is Better)

Model G0931 (Mfd. Since 02/21)

........50 ft.

To reduce your risk of serious injury, read this entire manual BEFORE

Eye injury hazard! Always wear safety glasses when

SECTION 3: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

using machine.

Description Qty

• Forklift or Hoist (rated for 1200 lbs.) ........... 1

• Additional Person ....................................... 1

• Safety Glasses (for each person) ............... 1

• Level ........................................................... 1

using this machine.

HEAV Y LIFT! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

• Open-End Wrenches 8, 24mm .............1 Ea.

• Adjustable Wrench ..................................... 1

• Power Drill .................................................. 1

• Drill Bits 3⁄8", 1" .....................................1 Ea.

• Dust Collection System .............................. 1

• Dust Hose 4" .............................................. 1

• Hose Clamps 4" ......................................... 2

Distilled Water .....................................4 Gal.

•

5-Gallon Bucket w/Lid ................................ 1

•

High mineral content or dirty coolant can cause buildup and damage spindle motor. Do not use tap water if water quality is low.

Model G0931 (Mfd. Since 02/21)

Unpacking

If items are damaged

call us immediately at (570) 546-9663.

Save all packaging materials until

-15-

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Inventory

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Wooden Crate (Not Shown) Qty

A. CNC Router ................................................ 1

Box 1 (Figure 8

B. Collet ER20 1⁄8" ........................................... 1

Collet ER20 1⁄2 " ........................................... 1

Collet ER20 4mm ....................................... 1

Collet ER20 6mm ....................................... 1

Spoilboard Cutter 6 x 22mm ...................... 1

Engraving Bits 1⁄8" (10-Pc.) ......................... 1

Power Cord ................................................. 1

Open-End Wrench 27/30mm ...................... 1

Open-End Wrench 18/21mm ...................... 1

Hex Wrenches 3, 4, 5, 6mm .................1 Ea.

Hold-Down Clamps .................................... 4

Leveling Feet .............................................. 4

Dust Shoe ................................................... 1

Hex Nut M5-.8 ............................................ 1

Cap Screw M5-.8 x 45 ............................... 1

USB-B Cable .............................................. 1

50-Pin Cable .............................................. 1

RichAuto A11 Controller ............................. 1

Cooling Pump ............................................. 1

Quick-Disconnect Tube Couplings ............. 4

Fuses 10A (Spares) .................................... 2

Limit Switch (Spare) ................................... 1

) Qty

-16 -

Figure 8. Box 1 inventory.

Model G0931 (Mfd. Since 02/21)

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Site Considerations

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

Minimum 30"

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

Wall

= Power Connection

Model G0931 (Mfd. Since 02/21)

70"

Figure 9. Minimum working clearances.

Dust Port

86¾"

62½"

-17-

its parts. To reduce this

Lifting & Placing Leveling

HEAV Y LIFT! Straining or crushing injury may occur from improperly lifting machine or some of

risk, use a forklift (or other lifting equipment) rated for weight of this machine.

DO NOT attempt to lift or move this machine without using the proper lifting equipment (such as forklift or crane) or the necessary assistance from other people. Each piece of lifting equipment must be rated for at least 1200 lbs. to support dynamic loads that may be applied while lifting. Refer to Needed for Setup on Page 15 for complete list of needed equipment for setup and installation.

Tools Needed Qty

Forklift or Hoist (rated for 1200 lbs.) .................. 1

To lift and place machine:

Move crate to machine work site.

2. Remove crate top and sides, small items

inside crate, and blocks on machine base.

Lift machine with forklift or hoist just enough

to clear pallet, then move pallet out of the way.

For accurate cutting results and to prevent warping, the table and frame MUST be leveled from side to side and from front to back on both ends. Re-check the table and frame 24 hours after installation, two weeks after that, and then annually to make sure they remain level.

Leveling machinery helps precision components remain straight and flat during the lifespan of the machine. Components on a machine that are not level may slowly twist due to the dynamic loads placed on the machine during operation.

To level machine:

Place level on table and align to either X- or

Y-axis.

Loosen top leveling foot hex nut and adjust

bottom fixed nut on threaded bolt (see Figure 10). Tighten hex nut against mounting leg to secure.

Note: Tighten fixed nut to raise machine, and

loosen fixed nut to lower machine.

Use level to check X- and Y-axes. Repeat as

needed.

Note: Lift machine by the underside of

machine body between the mounting legs.

Have an additional person tighten hex nuts

on leveling feet halfway on threaded bolt, then thread leveling feet into machine mounting legs (see

Lower machine on leveling feet and proceed

to Leveling on this page.

-18-

Figure 10).

Mounting

Leg

Threaded

Bolt

Leveling

Foot

Figure 10. Leveling foot components.

Model G0931 (Mfd. Since 02/21)

Hex Nut

Fixed Nut

Connecting Cooling

Pump

4. Connect either coolant tube from back

of machine to cooling pump outlet (see Figure 12).

The Model G0931 includes an external pump that cools the spindle motor. Coolant tubes come preinstalled on the motor and run through the cable carrier. The tube must be connected to the pump and submerged within a coolant reservoir.

A minimum of 4 gallons of water is required for normal operations. Hot conditions may require more coolant. If environmental temperatures are below freezing, 50/50 anti-freeze must be added.

Operating the router without the cooling pump may damage the internal components of the spindle motor.

To connect cooling pump:

Drill two 3⁄8" holes and one 1" hole in lid of

5-gallon bucket.

Locate both coolant tubes under bed at

rear of machine, then insert each coolant tube through Figure 11).

⁄8" holes in bucket lid (see

Outlet

Inlet

Figure 12. Cooling pump inlet and outlet.

Place pump and return tube in 5-gallon buck-

et (see

High mineral content or dirty coolant can cause buildup and damage spindle motor. Do not use tap water if water quality is poor.

Fill bucket with 4 gallons of distilled water.

Make sure pump is completely submerged.

Figure 11).

Insert cooling pump plug and cooling pump

power cord through 1" hole in lid (see Figure 11).

Power Cable

Pump

5-Gallon

Bucket

Figure 11. Connected cooling system.

Model G0931 (Mfd. Since 02/21)

Return Tube

Coolant Tube

Router

Secure bucket lid.

-19 -

Connecting

Controller

2. Connect 50-pin cable to interface board in

electrical cabinet, then route cable through hole in cabinet floor (see Figure 14).

The Model G0931 includes a RichAuto A11 handheld motion controller that controls all machine functions using G-code. The RichAuto control system uses an interface board located in the electrical cabinet (see Figure 13), a 50-pin data transmission cable, and a USB-B communication cable for digital connections.

To connect controller:

Open electrical cabinet on machine (see

1. Figure 13).

50-Pin Cable

Connector

Interface Board

Figure 14. 50-pin cable connected to interface

board.

Connect opposite end of 50-pin cable to

controller (see Figure 15).

Figure 13. Electrical cabinet location.

-20-

Figure 15. Controller connected to cable.

Model G0931 (Mfd. Since 02/21)

Dust Collection

To connect dust collection system to machine:

Attach dust shoe bracket end to spindle

motor and secure with (1) M5-.8 x 45 cap screw and (1) M5-.8 hex nut (see Figure 16).

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

Spindle Motor

x 1

Dust Shoe

Bracket End

Figure 16. Attaching dust shoe bracket.

2. Fit 4" dust hose over dust port and secure in

place with hose clamp (see Figure 17).

Dust Port

Model G0931 (Mfd. Since 02/21)

Figure 17. Tightening dust hose clamp.

Tug hose with light/medium force to make

sure it does not easily come off.

Note: A tight fit is necessary for proper

performance.

-21-

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

Twist EMERGENCY STOP button clockwise

until it springs out (see Figure 18). This resets the switch so the machine can start.

Troubleshooting

The test run consists of verifying the following: 1) the spindle motor powers up and runs correctly,

2) the axes motors run correctly and the machine

properly homes, and 3) the EMERGENCY STOP button safety feature functions properly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

EMERGENCY STOP

Button

Figure 18. Resetting EMERGENCY STOP button.

6. Press ON button on machine to turn machine

ON.

Verify machine parameters as shown on

7. Page 23.

Press ON button on controller to start spindle

motor. Verify spindle starts and runs smoothly without any unusual problems or noises. Press ON to stop spindle motor.

9. Press HOME button on controller. Verify that each axis motor operates smoothly and that all axes move to machine zero.

Press EMERGENCY STOP button on

10.

machine to turn machine OFF.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run machine:

Clear all setup tools away from machine.

2. Ensure controller and cooling pump are con-

nected to machine.

Press EMERGENCY STOP button.

4. Connect machine to power by inserting

power cord socket into machine (see "Power Connection," Identification on Page 3), then inserting power cord plug into a matching receptacle.

-22-

WITHOUT resetting EMERGENCY STOP

11.

button, try to start machine by pressing the ON button. The machine should not start.

— If the machine does not start, the safety

feature of the EMERGENCY STOP button is working correctly. Congratulations! The Test Run is complete.

— If the machine does start, immediately turn

it OFF and disconnect power. The safety feature of the EMERGENCY STOP button is NOT working properly and must be replaced before further using the machine.

Model G0931 (Mfd. Since 02/21)

Verifying Parameters

Machine parameters are essential to any operation. If the parameters are wrong, the machine will not produce accurate results, and damage to the machine and workpiece may occur.

Verify machine parameters before running any operation whenever machine is powered ON. Parameters can be changed or lost when power cycling occurs, and operating with incorrect parameters may result in damage to machine or workpiece.

Verifying Default Parameters

The machine parameters have been set at the factory, but they can be changed or lost due to hardware, software, or power issues. Consult this section to verify and reset parameters.

Pulse Equivalent:

X Equival ................................................ 200.000

Y Equival Z Equival

Table Size:

X Size Y Size

Z Size ..................................................... 20

Home Setup

Home Speed (Unit MM/Sec.)

X Spd Y Spd Z Spd

Home Direction

X Dir Y Dir Z Dir

Max Speed Limit

................................................ 200.000

................................................. 400.000

................................................... 1300.000

....................................................1190.000

0.000

.................................................... 3000.000

.................................................... 1800.000

..............................................................Neg

............................................................... Pos

To verify default parameters:

Press MENU on the controller, then scroll to

Machine Setup and press OK.

Scroll to each parameter shown on this page

and press OK to verify.

— To change a parameter, press RUN/

PAUSE, then enter the new parameter. Press OK to save.

Unit MM/Min.

X-MaxSpd X+MaxSpd Y-MaxSpd Y+MaxSpd Z-MaxSpd Z+MaxSpd

Toolset Setup

C.A.D. Thickness

FlrHght

C.A.D. Pickup

PckupHgh

............................................... 6000.00

.............................................. 6000.00

............................................... 6000.00

.............................................. 6000.00

............................................... 6000.00

.............................................. 6000.00

...................................................... 15.000

................................................. 10.000

Model G0931 (Mfd. Since 02/21)

-23-

Verifying Voltage Parameters

The Voltage Setup screen enables opening or closing of input and output signals to machine components. The upper row of arrows represents the input side, and the lower row represents the output side (see Figure 19).

Voltage Parameters

1 2 3 4 5 6 7 8

Verifying Input Parameters

The input configuration screen shows electrical inputs sent by various machine components during operation (see Figure 20).

Input Parameters

X1:

X2:

X3:

Enable X-Axis Limit Switch

Enable Y-Axis Limit Switch

Enable Z-Axis Limit Switch

1 2 3 4 5 6 7 8

Figure 19. Voltage parameter settings.

To verify voltage parameters:

1. Press MENU on the controller, then scroll to

Machine Setup and press OK.

2. Scroll to Voltage Setup and press OK to enter voltage parameter screen.

3. Verify arrows in voltage parameters match the table in Figure 19.

— Arrow down indicates normally open circuit.

Arrow up indicates normally closed circuit. Numbers 1–8 correspond to X1–X8 inputs shown in Verifying Input Parameters on this page.

4. Press X+ or X- buttons to scroll left or right, and Y+ or Y- to scroll up or down, and highlight desired parameter.

5. Press RUN/PAUSE to cycle arrow direction up (normally closed) or down (normally open).

X4:

X5:

X6:

X7:

X8:

Failure to properly configure machine input parameters may cause system errors.

To verify input parameters:

1. Press MENU on the controller, then scroll to

Machine Setup and press OK.

2. Scroll to Input Confi and press OK to enter input configuration screen.

3. Verify parameters in Input Confi match the table in Figure 20.

4. Press X+ or X- buttons to scroll up or down, and highlight desired parameter.

5. Press RUN/PAUSE to change setting.

Enable Tool Setter

Disable Driver Alarm

Disable Hard Limit

Enable Emergency Stop

Disable Pedal Switch

Figure 20. Input parameter settings.

6. Press OK to save changes and return to

menu screen.

-24-

6. Press OK to save changes and return to menu screen.

Model G0931 (Mfd. Since 02/21)

To reduce your risk of serious injury, read this entire manual BEFORE

ing loss can occur while operating this

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

Operation Overview

To complete a typical operation, the operator does the following:

Designs/writes G-code that defines toolpath.

2. Uploads G-code to USB drive.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to reduce your risk from these hazards.

3. Examines workpiece to make sure it is suit-

able for cutting.

Installs appropriate cutter for type of material

and operation.

If necessary, cuts workpiece to fit within

working envelope of machine.

Clamps workpiece securely to table.

7. Turns machine ON.

Homes all axes and verifies parameters (see

8. Page 23).

Connects USB drive to hand-held controller.

10. Sets work origin. Uses Z-axis tool setter to

set Z-axis relative to workpiece or table, depending on toolpath requirements.

Connects dust shoe and dust collection sys-

11.

tem to spindle.

Puts on safety glasses, respirator, and hear-

12.

ing protection.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0931 (Mfd. Since 02/21)

Plugs in cooling pump and turns dust collec-

13.

tion system ON.

Runs G-code. Spindle will automatically start

14.

and follow toolpath.

When toolpath is complete, spindle will stop

15.

and return to position defined by G-code.

-25-

Workpiece Inspection

Some workpieces are not safe to cut or may require modification before they are safe to cut.

Before following:

cutting, inspect all workpieces for the

Choosing Cutter

There are many cutters available. Be sure to choose the right one for your application and material. Read all manufacturer instructions before installing and using a cutter.

When choosing a cutter, consider:

• Material Type: This machine is intended for cutting natural and man-made wood products, laminate covered wood products, and some plastics. Cutting drywall or cementitious backer board creates extremely fine dust and may reduce the life of the bearings. This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with this machine may lead to injury.

• Foreign Objects: Nails, staples, dirt, rocks and other foreign objects are often embedded in wood. While cutting, these objects can become dislodged and hit the operator, or break the cutter, which might then fly apart. Always visually inspect your workpiece for these items. If they can't be removed, DO NOT cut the workpiece.

• Large/Loose Knots: Loose knots can become dislodged during the cutting operation. Large knots can cause machine damage. Choose workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

• Wet or "Green" Stock: Cutting wood with a moisture content over 20% causes unnecessary wear on the cutter and yields poor results.

• Excessive Warping: Workpieces with excessive cupping, bowing, or twisting are dangerous to cut because they are unstable and often unpredictable when being cut. DO NOT use workpieces with these characteristics!

Material Type: Most cutters are designed for

specific material. Choose a unique bit for plywood, engineered wood products, hardwood, and composite to improve overall results. If a general-purpose bit is needed, a two-flute, upcut, spiral bit is a good choice.

Application: Many design features are best

cut using specific tools. For example:

— Use a V-bit for cutting signs and lettering.

— Use a spoilboard cutter or fly cutter for sur-

facing a spoilboard or finishing a smooth, flat workpiece, such as a counter top.

— Use a form bit to cut a profile with a uni-

form contour, such as an ogee or round over.

— Use a chipbreaker or rougher for rough

cuts and quickly removing a large amount of material when the finish does not matter.

Feed and Speed Rates: Feed rate, spindle

speed, and number of flutes on the cutter determine chip load. The chip load affects the best diameter bit to use to get the highest quality finish while minimizing wear. Most manufacturers will list the recommended chip load for their cutters.

• Minor Warping: Workpieces with slight cupping can be safely supported if cupped side is facing table. On the contrary, a workpiece supported on the bowed side will rock during a cut and could cause severe injury.

-26-

Model G0931 (Mfd. Since 02/21)

4. Depth and Width of Cut: The cutter must be long enough to reach the maximum plunge depth of the operation and small enough to cut the details of the piece. However, shorter, wider bits will deflect less, leading to more accurate cuts, and they are less prone to wear and breakage.

Finish: If a high-quality finish is a priority, use

a cutter with more flutes. Four-flute cutters will be readily available in most cases. Don't forget that number of flutes is a component of calculating chip load.

Chip Displacement: Up-cut bits keep the

workpiece clear of chips, but on composite materials the upward force of the operation will chip and fray the top surface of the workpiece. Down-cut bits leave a smooth finish on the top of the workpiece, but pressing chips down creates more heat during the cut and frays the bottom of the workpiece on through cuts. Compression bits are fluted to cut up on the bottom, and down on the top, compressing the workpiece during a cutting operation. Compression bits are ideal for cutting materials like plywood and other composites.

Changing Cutter

Cutters are sharp! To reduce the risk of being cut, wear leather gloves when handling, installing, and removing cutters from spindle.

Items Needed Qty

Open-End Wrench 21mm .................................. 1

Open-End Wrench 30mm Scrap Material or Shop Rag

To change cutter:

Home all axes (see Homing Axes on

1. Page 30), then turn machine OFF.

DISCONNECT MACHINE FROM POWER!

3. Secure spindle with 21mm open-end wrench

(see Figure 21).

................................. 1

.............. As Needed

Model G0931 (Mfd. Since 02/21)

Spindle

Nut

Figure 21. Changing cutter.

Place scrap material or shop rag under

spindle to catch cutter.

5. Remove spindle nut with 30mm open-end wrench (see Figure 21), then remove collet and cutter.

Place new cutter in collet, then tighten spin-

dle nut to secure cutter.

-27-

Clamping Workpiece

5. Position clamps so workpiece is stable and

does not rock. Take into consideration axis positions when G-code runs.

Always secure the workpiece to the table with clamps to avoid injury and damage to the machine and cutter. Always use at least four clamps.

Items Needed Qty

Hold-Down Clamps ..............................4 or more

To clamp workpiece to table:

1. Clear dust, wood chips, and tools from table

surface and T-slots.

Thread hex bolt into clamp plate, then insert

T-bolt through clamp plate and thread flat washer and wing nut (see Figure 22).

Clamp Plate

Wing Nut

Flat

Washer

Tighten wing nuts until workpiece is secure

and flat against table on all four sides/ corners.

Using a Spoilboard

A spoilboard should be used on top of the table with any operation the cutter cuts completely through the workpiece. Typically, a spoilboard is made of MDF that has been surfaced perfectly flat. Even a new piece of material should be surfaced before use.

Moisture will swell/warp MDF. Using a damp spoilboard may result in damaged or inaccurately cut workpieces, and damage to the machine. If liquid is spilled on spoilboard, it must be dried and resurfaced, or replaced.

T-Bolt

Hex Bolt

Figure 22. Hold-down clamp components.

3. Place workpiece on table. Joint or shim if

necessary to ensure a flat work surface.

Slide T-bolts into T-slots, then adjust

wing nuts and hex bolts so clamp plates are higher than workpiece (see Figure 23).

Adjusting

Wing Nuts

T-Bolts Slid Into T-Slots

Figure 23. Clamping workpiece to table.

Clamping Spoilboard

Needed Qty

Items

MDF (sized for table or workpiece) ................... 1

Clamps, Tape, or Wood Screws

To clamp spoilboard:

Clamp surfaced spoilboard to machine

bed using included hold-down clamps (see Figure 24).

Workpiece

Spoilboard

Figure 24. Example of spoilboard clamped to

CNC router bed.

........ As Needed

Clamp

Bed

-28-

Model G0931 (Mfd. Since 02/21)

2. Secure workpiece to spoilboard.

Note: Depending on the needs of the

workpiece and G-code, it could be appropriate to use additional hold-down clamps, double-sided tape, or mount the workpiece directly to the spoilboard with screws.

Surfacing Spoilboard

The G0931 can be used to surface a spoilboard or workpiece using the mill plane feature and an appropriate cutter (see Choosing Cutter on

Page 26).

Needed Qty

Items

Spoilboard Cutter or Fly Cutter ........................ 1

To surface using mill plane operation:

Hold down RUN/PAUSE on controller, then

press HIGH/LOW and release buttons together to open advanced processing menu.

2. Scroll to "Mill plane" and press OK.

— Depth defines the total depth of material

removed. Z Step defines how much material is removed per pass. For example, a Depth of 1 and Z Step of 0.25 would remove 1mm of material over four passes.

Press OK after all parameters have been

saved to start mill plane operation.

Adjusting Axis

Positions Manually

Knowing how to manually control axis movement is an essential part of operating the G0931. Axes must be positioned manually whenever a work origin is set.

Use axis movement buttons on controller (X+, X-, Y+, Y-, Z+, and Z-) to move axes. See Controller Functions on Page 5 for detailed button descriptions.

3. Choose "Scan mill" or "Encircle mill" and press OK. Operation parameters will appear.

Note: A "Scan mill" operation runs back and

forth from one end of the defined workpiece to the other. An "Encircle mill" operation runs from the outside to the inside of the defined workpiece.

Define operation parameters. Press RUN/

PAUSE to change a parameter and OK to save. Distances are measured in millimeters.

— Scan Type changes direction of operation.

For scan milling, "X Scan" runs back and forth across X-axis, and "Y Scan" runs back and forth across Y-axis. For encircle milling, "AC" runs counterclockwise around workpiece and "C" runs clockwise around workpiece.

— Height and Width defines size of area to

be surfaced.

Manual axis movement can be performed at two speeds and in three motion modes: Continuous, Step, and Distance.

Manual axis movement can move beyond soft limit proximity switches, which can damage the machine. Be aware of axis locations during manual movement, and be prepared to stop machine if axes move unexpectedly.

— Diameter defines diameter of surfacing

tool used.

Model G0931 (Mfd. Since 02/21)

-29-

Changing Axis Movement Speed

Press HIGH/LOW to toggle between fast and

slow speeds.

Changing Axis Movement Mode

1. Press MODE to toggle between Continuous,

Step, and Distance modes.

Setting Origin

Work origin is the workpiece-specific zero point, the starting point for the toolpath. All three axes need to be zeroed at the work origin before running code.

— In Continuous mode, press and hold axis

movement buttons to move axes. Release button to stop movement.

— In Step mode, press button to move axis

one step. Step size is determined by speed mode.

— In Distance mode, press button to move

axis a user-defined distance. Set distance by toggling to Distance mode, then input distance and press OK. Controller will display current setting.

Homing Axes

Homing the machine returns all three axes to "home" position or the machine-specific zero point. Home is determined by magnetic limit switches and will not change. Since all machine movement is calculated from home, always home axes and verify machine parameters before each operation.

To home axes:

The Z-axis can be set in relation to either the table surface or the workpiece surface, but it must correspond to what is established in the G-code. If this is not done properly, the cutter may crash into the material or the table, causing damage to the workpiece or the machine.

Set work origin before each unique operation. The work origin of all axes must match the origin of the toolpath established in the G-code. Failure to set the work origin may cause the cutter to crash and damage the workpiece, machine, or cutter.

Setting Work Origin

1. Clamp workpiece to table, insert cutter, and

load G-code onto controller.

Manually move X- and Y-axes to toolpath

origin established in G-code.

Manually move Z-axis down to 1⁄8" above

workpiece or table surface (as determined by G-code).

Press HOME. Verify all axes move to their

farthest positions.

2. Verify all machine parameters listed in Verifying Parameters on Page 23.

-30-

Place piece of paper between cutter tip and

surface. Slowly step Z-axis down while sliding paper until paper cannot move.

Press XY->0 to set X- and Y-axis origin.

Press Z->0 to set Z-axis origin.

Model G0931 (Mfd. Since 02/21)

Setting Z-Axis Origin With Tool Setter

1. Verify tool setter parameters are correct

according to Verifying Default Parameters on Page 23.

Clamp workpiece to table, insert cutter, and

load G-code to controller.

Place tool setter on top of table or workpiece.

Creating G-Code File

Before operations can be run on the Model G0931, a toolpath must be designed and converted to G-code. CAM software converts a CAD model into G-code, which defines a toolpath for the project, and then formats the G-code into a machine specific dialect via a post-processor.

4. Manually move X- and Y-axes so cutter is directly above tool setter (see Figure 25).

Cutter

Tool

Setter

Figure 25. Cutter over tool setter.

Hold down MENU button, press ON/OFF

button, then release both buttons together. Spindle will lower until cutter reaches tool setter, then raise slightly.

Note: Tool setter uses a magnet to determine

cutter position. Z-axis origin is set at base of tool setter.

This machine does not read advanced formatting by default; it only runs letter addresses for simple axis movement. Review Changing Advanced Settings on Page 33 for information about turning on additional G-code functions.

An operator could also write G-code manually. Often, this is more efficient than designing and processing through CAD/CAM. In addition, knowledge of G-code is integral to refining toolpaths produced by CAM software.

Needed Qty

Items

CAD/CAM Software or Text Editor .................... 1

USB Drive 16GB or Less

To create G-code:

Load CAD file into CAM software. Take into

consideration what type of material will be cut and what type of cutter will be used. Make note of where you will place clamps.

Run post-processing application to export

G-code.

................................... 1

Model G0931 (Mfd. Since 02/21)

Note: Use post-processing options specific

to the Model G0931 or the RichAuto A11 controller when available. If a post-processor for this machine isn't available, use a postprocessor with minimal formatting.

Do a practice run within software to identify

any areas of concern (double-check feed/ speed rates, depth of cut, and direction cutter will be traveling).

Review G-code and simplify code if needed.

Export G-code to USB drive in .NC, .PLT,

.TAP, or .TXT format.

-31-

Uploading &

Running G-Code

IMPORTANT: DO NOT use a USB drive larger

than 16GB. The controller is designed to read USB drives formatted below 16GB.

Running G-Code From USB Drive

1. Turn machine ON.

7. Press OK again to begin operation.

— Press RUN/PAUSE to pause axis move-

ment. Spindle will continue to spin. Axes can be manually moved while paused. Press RUN/PAUSE again to resume, then OK to resume from new axis position, or STOP to return to original position.

— Press Y+ and Y- during operation to

manually change spindle speed ratio from

0.1 (stopped) to 1.0 (full speed).

Insert USB drive loaded with G-code into

controller (see Figure 26).

Controller

USB

Drive

Figure 26. USB drive connected to controller.

Press RUN/PAUSE and scroll to "UDisk File",

then press OK.

Scroll to desired G-code file and press OK.

Screen will display "SetWorkParam" and the

following parameters:

— Press STOP to completely stop operation.

Choose between "Save break" to save breakpoint to return to later, or "Discard break" to stop operation without saving. Resume saved processing through the advanced processing menu (see Using

Advanced Controls on Page 34).

Uploading G-Code to Controller Internal Memory

1. Perform Steps 1–2 of Running G-Code From USB Drive on this page.

Press MENU, then scroll to "Operate File" on

the controller and press OK.

Scroll to "Copy File" and press OK.

Scroll to "UDisk File" and press OK, then

navigate to G-code file and press OK.

Once upload is complete, remove USB drive

5. and proceed to Running G-Code From Controller Internal Memory on Page 33.

— WorkSpd (feed rate in mm/sec.). — FastSpd (movement speed between cuts

in mm/sec.). — SpdScale (spindle speed ratio). — FallDown (Z-axis speed ratio).

6. Scroll to desired parameter and press RUN/ PAUSE to change value, then press OK.

-32-

Model G0931 (Mfd. Since 02/21)

Running G-Code From Controller Internal Memory

1. Press RUN/PAUSE.

Scroll to "Internal File" and press OK, then

scroll to G-code file and press OK.

Screen will display "SetWorkParam" and the

following parameters:

— WorkSpd (feed rate in mm/sec.). — FastSpd (movement speed between cuts

in mm/sec.). — SpdScale (spindle speed ratio). — FallDown (Z-axis speed ratio).

Changing Advanced

Settings

Changing advanced settings will change the default functions of your machine and how it processes files. Changing advanced settings is only recommended for experienced operators. After changing settings, monitor machine operation carefully to prevent damage to the machine, workpiece, or cutter.

4. Scroll to desired parameter and press RUN/

PAUSE to change value, then press OK.

5. Press OK again to begin operation.

— Press RUN/PAUSE to pause axis move-

ment. Spindle will continue to spin. Axes

can be manually moved while paused.

Press RUN/PAUSE again to resume, then

OK to resume from new axis position, or

STOP to return to original position.

— Press Y+ and Y- during operation to

manually change spindle speed ratio from

0.1 (stopped) to 1.0 (full speed).

— Press STOP to completely stop operation.

Choose between "Save break" to save

breakpoint to return to later, or "Discard

break" to stop operation without saving.

Resume saved processing through the

advanced processing menu (see Using

Advanced Controls on Page 34).

Many advanced functions of the G0931 are turned off by default. Notably, S and F letter addresses are ignored until turned on in the controller.

Most advanced settings are accessible through the "AUTO PRO SETUP" menu.

F-Code Processing

1. Press MENU, then scroll to "AUTO PRO

SETUP" and press OK.

Scroll to "G Code Setup" and press OK.

3. Scroll to "F Read" and press RUN/PAUSE.

"Ign F" will change to "Read F". Press OK to save.

S-Code Processing

1. Press MENU, then scroll to "AUTO PRO

SETUP" and press OK.

Scroll to "G Code Setup" and press OK.

Model G0931 (Mfd. Since 02/21)

3. Scroll to "S Read" and press RUN/PAUSE. "Ign S" will change to "Read S". Press OK to save.

-33-

Using Advanced

Manually Setting

Controls

All the basic controls of the G0931 are performed through single-button commands on the controller, but some advanced features require multibutton commands to access.

Advanced Processing Menu

Advanced tool functions are accessed through the advanced processing menu. Functions include array work, resuming stopped jobs, surfacing a workpiece, calculating bounds of a file, and calculating processing time of a file.

To access advanced processing menu:

1. Hold down RUN/PAUSE, then press HIGH/

LOW and release buttons together.

Switching Coordinate Systems

Up to nine work coordinate systems can be saved at a time. When work origin is set, it is set for the active coordinate system. If the absolute coordinate system is active, work origin cannot be set.

To access advanced processing menu:

Spindle Speed

Pressing ON/OFF and Z+ or Z- buttons together while the spindle is running will increase or decrease the spindle speed through a range of eight user-defined speed settings.

This action can be performed any time the spindle is running.

To manually set spindle speeds:

1. Verify S-code processing is turned on (see S-Code Processing on Page 33).

Press MENU, then scroll to "MACHINE

SETUP" and press OK.

Scroll to "Spindle Setup" and press OK.

Scroll to "Spindle State" and press OK.

Press STOP button twice to access "Spindle

Speed" menu.

Scroll through each spindle speed and set as

desired using RUN/PAUSE button and numbered keys.

1. Hold down MENU, then press one 0-9 number button and release buttons together.

— Press MENU + 0 to activate absolute coor-

dinate system (mechanical coordinates).

— Press MENU + 1-9 to activate work coor-

dinate systems.

Note: Set RPM values in ascending order

from 1–8. Speed 1 should be set to the lowest RPM value, and Speed 8 should be set to the highest RPM value.

Press OK to save changes.

-34-

Model G0931 (Mfd. Since 02/21)

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

V-Carve CNC Router Software T28100—V-Carve Desktop Software T28101—V-Carve Pro Software

V-Carve provides a powerful but intuitive software solution for cutting parts on a CNC Router. It combines CAD and CAM so you can design your work and create your toolpath in one interface. V-Carve includes the functionality demanded for complex work while remaining incredibly easy to use and affordably priced.

Cutters C1921—Router Bit Set for Sign Making

These router bits have a long reach, making them excellent for use with sign-making templates. The sheer design allows for smoother cuts and less work on your part making a stellar looking sign.

⁄4" shank and 23⁄8" overall length, this set comes

⁄4", 3⁄8", and 1⁄2" sizes.

with

Figure 28. C1921 Router Bit Set.

T30941—CNC Router Bit Starter Set

T30905— T30906— T30907— T30908— T30909— T30910— T30911— T30912— T30913—

⁄4" Solid Carbide Upcut Spiral

⁄4" Solid Carbide Downcut Spiral

⁄2" Solid Carbide Upcut Spiral

⁄2" Solid Carbide Downcut Spiral

⁄2" Solid Carbide 2+2 Compression

⁄4" CNC V-Groove Bit

⁄8" Solid Carbide Bull Nose Upcut

⁄8" Solid Carbide Round Nose Upcut

⁄4" CNC Liner Bit

Figure 27. T28100 V-Carve Desktop Software.

Figure 29. T30941 CNC Router Bit Starter Set.

Model G0931 (Mfd. Since 02/21)

-35-

order online at www.grizzly.com or call 1-800-523-4777

G0860—1

⁄2 HP Portable Cyclone Dust

Collector

This compact unit features an impressive 868 CFM and up to 9.7" of static pressure - perfect for handling up to two large machines at once. The 20-gallon collection drum with quick release handle catches large particulate for quick and clean bag changes, and the pleated 1-micron filter captures remaining dust.

D4206—Clear Flexible Hose 4" x 10' D4256—45° Elbow 4" D4216—Black Flexible Hose 4" x 10' W1034—Heavy-Duty Clear Flex Hose 4" x 10' D2107—Hose Hanger 4 1⁄4" W1015—Y-Fitting 4" x 4" x 4" W1017—90° Elbow 4" W1019—Hose Coupler (Splice) 4" W1317—Wire Hose Clamp 4" W1007—Plastic Blast Gate 4" W1053—Anti-Static Grounding Kit

Hand-picked selection of commonly used dust collection components for 4" dust ports.

D4206

Figure 30. G0860 Cyclone Dust Collector.

W1050 —Dust Collection Basics Book

This incisive book skillfully guides the woodworker through all the steps necessary in the design and construction of an efficient central dust collection system and tells you what you need to know for easy installation. The text offers practical hints and techniques and takes the mystery, misery and hype away from a subject that should be as clear as the air you breathe. 64 pages of concise, carefully illustrated text. A Must!

D4256

D4216

W1053

W1007

W1317

W1017

Figure 32. Dust collection accessories.

H4978—Deluxe Earmuffs - 27dB H4979—Twin Cup Hearing Protector - 29dB

Protect yourself comfortably with a pair of cushioned earmuffs. Especially important if you or employees operate for hours at a time.

H4978H4979

Figure 31. W1050 Dust Collection Basics Book.

Figure 33. Hearing protection.

-36-

Model G0931 (Mfd. Since 02/21)

order online at www.grizzly.com or call 1-800-523-4777

Basic Eye Protection

T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20456—DAKURA Safety Glasses, Black/Clear T28175—R3 SAFETY Stealth Safety Glasses

T27914—Moly-D Machine and Way Oil, 1 Gal.

This ISO 68 machine and way oil is one of the best we’ve found for maintaining bed ways, sliding ways, gearboxes, and leadscrews. Why? It is extremely tacky and includes the superior frictionreducing compound Moly-D to maximize component life and minimize wear.

T20502

T28175

T20503

T20451 T20456

Figure 34. Eye protection assortment.

H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100

Wood dust has been linked to nasal cancer and severe respiratory illnesses. If you work around dust everyday, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!

Figure 36. T27914 Moly-D Machine and Way

Oil.

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT G2870—Boeshield G2871—Boeshield H3788—G96

12 Oz. Spray

T-9 4 Oz. Spray

Gun Treatment 12 Oz. Spray

T-9 12 Oz. Spray

Figure 37. Recommended products for protect-

ing unpainted cast iron/steel parts on machinery.

Figure 35. Half-mask respirator with disposable

cartridge filters.

Model G0931 (Mfd. Since 02/21)

-37-

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments,

SECTION 6: MAINTENANCE

maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Cleaning &

Protecting

Cleaning the Model G0931 is relatively easy. Use a brush and shop vacuum to remove debris from the table, rails, and machine surfaces. Never blow off the Model G0931 with compressed air, as this could force debris deep into the mechanisms and airborne material fragments may cause injury to yourself or bystanders.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged or dull cutter.

• Clogged or dirty collet, spindle nut, or spindle collet hole.

Blocked dust collection.

•

• Worn or damaged wires.

• Low or dirty water in coolant bucket.

• Any other unsafe condition.

Daily Maintenance

• Check tubing and connections for coolant system, and fill water reservoir as needed.

Weekly Maintenance

Clean cutter.

•

• Clean/vacuum dust buildup in T-slots.

• Clean/lubricate ball screw and guide rail metal surfaces.

• Inspect spoilboard for defects and flatness.

Lubrication

By design, the ball screws, rails, and other metal parts on this machine have hardened surfaces that are highly resistant to corrosion and wear. However, periodically wipe metal parts with light machine oil (see ACCESSORIES on Page 37) to extend their life.

Note: Lubrication can cause sludge build-up that will bind moving parts, and corrosion can still occur if catalysts are trapped beneath lubricant. Always clean surfaces before applying any form of lubrication.

Items Needed Qty

Protective Gloves........................................1 Pair

Hex Wrench 3mm Stiff Brushes Clean Shop Rags Mineral Spirits T27914 or ISO 68 Equivalent

.............................................. 1

...................................................... 2

.............................. As Needed

.................................... As Needed

........... As Needed

Monthly Check

• Verify fasteners on moving parts are secure.

• Inspect wiring connections for loose wires.

-38-

Model G0931 (Mfd. Since 02/21)

Y-Axis Ball Screw & Guide Rails

Lube Type .............. T27914 or ISO 68 Equivalent

Lube Amount Lubrication Frequency

..................................... As Needed

..............................Weekly

Clean Y-axis guide rail with a clean rag

dipped in mineral spirits to remove grime and old lubrication (see

Figure 39).

To clean and lubricate Y-axis ball screw and guide rails:

DISCONNECT MACHINE FROM POWER!

Clean Y-axis ball screw with brush and min-

eral spirits to remove grime and old lubrication (see

Figure 38. Y-axis ball screw lubrication area.

Figure 38).

Y-Axis Guide Rail

(1 of 2)

Figure 39. Example of Y-axis guide rail

components.

Use a clean shop rag to wipe entire length

of guide rails with Grizzly T27914 or ISO 68 equivalent.

Turn machine ON and move gantry several

times over full range of Y-axis travel to spread lubricant and ensure smooth movement.

Use clean brush to wipe entire length of ball

screw threads with Grizzly T27914 or ISO 68 equivalent.

Model G0931 (Mfd. Since 02/21)

-39-

X-Axis Ball Screw & Guide Rails

Lube Type .............. T27914 or ISO 68 Equivalent

Lube Amount Lubrication Frequency

To clean and lubricate X-axis ball screw and guide rails:

DISCONNECT MACHINE FROM POWER!

..................................... As Needed

..............................Weekly

Pull back gantry dust covers and clean X-axis

ball screw with a brush and mineral spirits to remove grime and old lubrication (see Figure 41).

Clean X-axis guide rails with a clean rag

dipped in mineral spirits to remove grime and old lubrication (see

Figure 41).

Access X-axis ball screw and guide rails by

removing (2) flat head cap screws and flat washers on each outer end of gantry dust covers (see

x 2

Figure 40. Gantry dust covers location.

Figure 40).

Gantry Dust

Covers

x 2

X-Axis Ball Screw

Figure 41. Example of X-axis ball screw and

guide rail components.

Use clean brush to wipe entire length of ball

screw threads with Grizzly T27914 or ISO 68 equivalent.

Use clean shop rag to wipe entire length of

guide rails with Grizzly T27914 or ISO 68 equivalent.

Close gantry dust covers and secure with

(4) flat head cap screws and flat washers removed in Step 2.

X-Axis

Guide Rails

-40-

Turn machine ON and move spindle several

times over full range of X-axis travel to spread lubricant and ensure smooth movement.

Model G0931 (Mfd. Since 02/21)

Z-Axis Ball Screw & Guide Rails

Lube Type .............. T27914 or ISO 68 Equivalent

Lube Amount Lubrication Frequency

To clean and lubricate Z-axis ball screw and guide rails:

Remove any installed cutters and lower

spindle as far as it will go.

DISCONNECT MACHINE FROM POWER!

Access Z-axis ball screw and guide rails by

removing (2) flat head cap screws and flat washers on upper end of spindle dust cover (see

Spindle

Dust

Cover

..................................... As Needed

..............................Weekly

Figure 42).

Use clean brush to wipe entire length of ball

screw threads with Grizzly T27914 or ISO 68 equivalent.

Use clean shop rag to wipe entire length

of guide rails with Grizzly T27914 ISO 68 equivalent.

Close spindle dust cover and secure with

(2) flat head cap screws and flat washers removed in Step 3.

Turn machine ON and move spindle several

times over full range of Z-axis travel to spread lubricant and ensure smooth movement.

Coolant

The Model G0931 spindle motor requires a constant flow of coolant to prevent overheating. It is recommended that distilled water be used to prevent mineral buildup inside the system. Monitor water level and cleanliness regularly. Replace water if discolored or if debris is visible.

Figure 42. Spindle dust cover location.

Pull down spindle dust cover and clean Z-axis

ball screw with brush and mineral spirits to remove contamination (see

Clean Z-axis guide rails with clean rag dipped

in mineral spirits to remove grime and old lubrication (see

Z-Axis

Ball

Screw

Figure 43).

Z-Axis

Guide Rail

(1 of 2)

Coolant Type Coolant Amount

IMPORTANT: If machine is operated or stored in

freezing temperatures, 50/50 anti-freeze should be added to coolant.

............................... Distilled Water

.................................4 Gallons

Figure 43. Example of Z-axis ball screw and

guide rail components.

Model G0931 (Mfd. Since 02/21)

-41-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

1. EMERGENCY STOP button depressed/at fault.

2. Blown fuse.

3. Incorrect power supply voltage/circuit size.

4. Electrical cabinet limit switch engaged/at fault.

5. Power supply circuit breaker tripped or fuse blown.

6. Controller/interface board at fault.

7. Control/ground wiring broken, damaged, or disconnected.

8. ON switch at fault.

9. Inverter/contactor at fault.

10. Motor at fault.

1. Incorrect power supply voltage or circuit size.

2. Dull cutter or incorrect cutter type for task.

3. Machine undersized for task.

4. Spindle jammed.

5. Spindle motor overheated.

6. Stepper motor at fault.

7. Contactor not energized/at fault.

8. One or more axes ball screw(s)/bearing(s) are damaged or binding.

1. Incorrect feed rate, spindle speed, or cutter type.

2. Cutter or spindle at fault.

3. Workpiece loose.

4. Bit chattering.

5. Collet at fault.

6. Machine not level.

1. Rotate EMERGENCY STOP button head to reset. Replace if at fault.

2. Replace fuse/ensure no shorts.

3. Ensure correct power supply voltage/circuit size.

4. Close and secure electrical cabinet/replace switch.

5. Ensure power supply circuit is not overloaded and is free of shorts. Reset circuit breaker or replace fuse.

6. Inspect/replace if at fault.

7. Fix broken/damaged control/ground wires or disconnected/corroded connections.

8. Replace switch.

9. Inspect inverter/contactor; replace if at fault.

10. Test/repair/replace.

1. Ensure correct power supply voltage and circuit size.

2. Replace/sharpen cutter. Use proper cutter for cutting task.

3. Use correct cutter/reduce feed rate or depth of cut.

4. DISCONNECT POWER! Turn spindle by hand to identify/fix cause of jam.

5. Check coolant, fill reservoir (Page 41).

6. Test wire continuity between stepper motor and stepper driver; repair/replace if at fault. Test/repair/ replace stepper motor.

7. Test all legs for power; repair/replace if at fault.

8. Inspect ball screw(s)/bearing(s) on each axis for damage, corrosion, and debris.

1. Use correct feed rate and spindle speed; use different cutter.

2. Replace or sharpen cutter; tighten loose spindle; replace defective spindle, collet, or spindle nut (Page 27).

3. Secure workpiece with clamps (Page 28).

4. Replace/sharpen cutter; index cutter to workpiece; use correct feed rate and spindle speed.

5. Replace collet.

6. Level machine (Page 18).

-42-

Model G0931 (Mfd. Since 02/21)

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

7. Spindle bearings at fault.

8. One or more stepper driver(s) have incorrect DIP switch configuration.

9. One or more stepper driver(s) at fault.

10. One or more axes ball screw(s)/bearing(s) are damaged or binding.

7. Test by rotating spindle; rotational grinding/loose shaft requires bearing replacement.

8. Adjust stepper driver DIP switch configuration (Page 47).

9. Test wire continuity between stepper driver and stepper motor; repair/replace if at fault. Test/repair/ replace stepper driver.

10. Inspect ball screw(s)/bearing(s) on each axis for damage, corrosion, and debris.

Machine Operations

Symptom Possible Cause Possible Solution

Axis will not move after controller receives commands.

Axis movement and location not repeatable.

1. One axis not moving.

2. All axes not moving.

1. Ball screws worn.

2. Ball screw/motor coupler worn.

1. Check connection to motor. Check 50-pin connection to interface board. Adjust stepper driver DIP switch configuration (Page 47).

2. Inspect 50-pin cable and interface board connection. Inspect power supply to stepper motors. Inspect mechanical components. Adjust stepper driver DIP switch configuration (Page 47).

1. Inspect/repair.

2. Inspect/repair.

One or more axes only move in one direction.

One or more axes will not move.

Inconsistent cutting depth.

Machine fails to home, or moves beyond soft limits when homing.

1. Interface board/motor connection loose.

2. Incorrect machine parameters.

3. Interface board at fault.

4. Stepper motor at fault.

5. Stepper driver at fault.

1. Direction wire and pulse wire in wrong place on interface board.

2. Stepper motor disconnected.

3. Stepper motor at fault.

4. No pulse signal from interface board.

1. Loose cutter.

2. Spoilboard not flat.

3. Z-axis ball screw has too much movement.

4. Workpiece loose.

5. Z-axis tool setter at fault.

6. Z-axis limit switch at fault.

7. CAM/G-code at fault.

1. Incorrect machine parameters.

2. Faulty connection.

3. Limit switch not aligned.

4. Loose limit switch wire.

5. Limit switch at fault.

6. Interface board at fault.

7. 50-pin data cable at fault.

1. Inspect connections and ensure all are tight.

2. Verify machine parameters (Page 23).

3. Inspect/replace plugs and sockets.

4. Inspect/replace plugs and sockets.

5. Adjust stepper driver DIP switch configuration (Page 47).

1. Rewire direction/pulse wiring.

2. Reconnect stepper motor.

3. Inspect/repair/replace.

4. Replace interface board.

1. Tighten spindle collet (Page 27).

2. Clean/resurface spoilboard (Page 28).

3. Inspect/tighten/replace if needed.

4. Secure workpiece with clamps (Page 28).

5. Test/replace.

6. Test (Page 45)/replace.

7. Review G-code and correct errors.

1. Verify machine parameters (Page 23).

2. Find/secure connection.

3. Inspect/adjust limit switch.

4. Secure connection.

5. Test (Page 45)/repair/replace limit switch.

6. Inspect/replace if needed.

7. Replace cable.

Model G0931 (Mfd. Since 02/21)

-43-

Machine Operations (Cont.)

Symptom Possible Cause Possible Solution

Finished workpiece incorrect size.

Spindle moves in opposite direction when homing.

1. Pulse equivalent incorrect.

2. Incorrect cutter.

3. CAD/CAM dimensional or tooling errors.

1. Faulty connection between limit switch and interface board.

2. Homing direction set incorrectly in controller.

3. Limit switch at fault.

4. Electrical interference triggering limit switch.

5. Interface board at fault.

6. 50-pin data cable at fault.

1. Verify controller parameters and update pulse equivalent (Page 23).

2. Use correct cutter for job.

3. Correct CAD/CAM errors as needed.

1. Test wiring to locate bad connection.

2. Input correct homing parameters (Page 23).

3. Test (Page 45)/replace limit switch.

4. Test wiring and isolate strong interference signals from electrical currents and ground.

5. Replace interface board.

6. Replace 50-pin data cable.

Controller Operations

Symptom Possible Cause Possible Solution

Controller display shows "out of soft limits error".

Controller not processing correctly.

Controller screen is dim.

Controller display is blank, flickers, or restarts.

Controller screen says spindle is ON when spindle is OFF and spindle is OFF when spindle is ON.

1. Toolpath outside of working envelope.

2. Toolpath too large for working envelope.

3. Work origin incorrect in G-code.

4. Incorrect machine parameters.

5. Incorrect coordinate system in CAM software.

1. Incompatible G-code file.

2. Electrical interference.

3. Incorrect machine parameters.

4. Incompatible post-processor.

1. Power supply disconnected or damaged.

2. Power supply voltage too high for controller.

3. 50-pin cable at fault.

4. Display at fault.

1. Faulty controller connection.

2. Incorrect power supply voltage or circuit size.

3. Controller at fault.

4. Display at fault.

1. Wrong connections at interface board. 1. Rewire interface board.

1. Reset work origin and secure workpiece so toolpath falls within working envelope.

2. Revise toolpath/break up toolpath into multiple sections.

3. Revise toolpath.

4. Verify machine parameters (Page 23).

5. Set correct coordinates in CAM software.

1. Reformat G-code and re-upload to controller.

2. Test wiring and isolate strong interference signals from electrical currents and ground.

3. Verify machine parameters (Page 23).

4. Use compatible post-processor. In V-Carve, select "RichAuto A11 DSP" from the drop-down menu.

1. Inspect/replace power supply.

2. Use correct power supply. High voltage may damage controller; replace if needed.

3. Inspect/clean plugs and sockets and retry. Replace if bad.

4. Replace controller.

1. Inspect/clean plugs and sockets and retry. Replace if faulty.

2. Ensure correct power supply voltage and circuit size.

3. Update controller software (Page 46).

4. Replace controller.

-44-

Model G0931 (Mfd. Since 02/21)

Testing Limit

Switches

If the Model G0931 is no longer homing properly, or one or more axes is unresponsive, test each limit switch for proper operation.

Item Needed Qty

Scrap Iron or Steel ............................................ 1

Multimeter

To test limit switch:

1. Turn machine ON and press OK at

.......................................................... 1

"HomeTypeAtStart" to home all axes.

3. Touch each limit switch target with a scrap piece of iron or steel (see

Touch Here

Figure 45. Limit switch target.

Figure 45).

— If machine does home properly, all limit

switches are working correctly.

— If machine does not home properly, pro-

ceed to Step 2.

2. Press STOP, then press MENU twice to access voltage parameter screen shown in

Figure 44.

Voltage Parameters

1 2 3 4 5 6 7 8

Figure 44. Voltage parameter screen.

Verify direction of arrow below each of the

top row axes 1–3 (1=X-axis, 2=Y-axis, and 3=Z-axis) in up when corresponding limit switch target is touched.

— If arrow does point up, and test light on limit

switch does illuminate, limit switch is working properly. Proceed to Troubleshooting on Page 42 and test additional control systems.

— If arrow does not point up, and test light on

limit switch does not illuminate, proceed to Step 5.

Note: Limit switches have a red light that will

illuminate when the limit switch is activated.

. DISCONNECT MACHINE FROM POWER!

Figure 44, ensuring each points

Model G0931 (Mfd. Since 02/21)

-45-

6. Use a multimeter to check continuity between limit switches and interface board terminals (see Figure 46).

— If continuity is confirmed between limit

switches and interface board, proceed to Step 7.

— If continuity is not confirmed between limit

switches and interface board, repair wiring, then repeat Steps 1–6.

Limit Switch

Input Wires

Figure 46. Interface board limit switch input

wires.

. Swap faulty axis limit switch input wire on

interface board (see Figure 47) with any one of the known good axes input wires (X1=X-axis, X2=Y-axis, X3=Z-axis).

X-AxisY-AxisZ-Axis

Updating RichAuto

Controller Software

If the RichAuto controller displays a blank screen, the installed A11E software may need to be reinstalled to display correctly.

Contact Technical Support to have a software update file sent directly to you. DO NOT install unsupported software or the controller may function erratically.

Needed Qty

Items

RichAuto A11E Software File (.PKG Format) .... 1

USB Drive 16GB or Less

IMPORTANT: DO NOT use a USB drive larger than 16GB. The controller is designed to read USB drives formatted below 16GB.

To update controller using USB drive:

1. Copy software file (.PKG format) to USB

drive, then connect USB drive to controller.

2. Press and hold OK button, then turn controller ON.

Note: Update can be performed at the CNC

router, or by using the included USB-B cable connected to a computer.

................................... 1

Figure 47. Interface board limit switch axes.

. Perform Steps 1–3 on Page 45 and verify

test results.

— If arrow does point up on axis swapped in

Step 7, replace faulty limit switch.

— If arrow does not point up on axis swapped

in Step 7, replace interface board.

-46-

3. When controller displays "Emergency State" screen, scroll to "Update System" and press OK button.

4. At "SelectUpdateFile" screen, scroll to "UDisk File" and press OK.

5. Select .PKG update file and press OK.

6. Once update is complete, restart controller.

. Verify machine parameters on controller

match those shown on Page 23.

Model G0931 (Mfd. Since 02/21)

Setting Stepper

3. Compare each stepper driver DIP switch con- figuration to diagram in Figure 49.

Driver DIP Switches

The DIP (Dual In-line Package) switches on the stepper drivers control the step size, current, and speed of the stepper motors. If the DIP switches are not configured properly, erroneous signals will cause the stepper motors to function incorrectly.

To set stepper driver DIP switches:

1. DISCONNECT MACHINE FROM POWER!

2. Open electrical cabinet and locate (3) stepper

driver DIP switches (see Figure 48).

— If DIP switch does match diagram, DIP

switch is set correctly.

— If DIP switch does not match diagram, flip

individual rocker switches until DIP switch matches diagram.

Rocker

Switch

DIP

Switch

Figure 49. DIP switch configuration.

Figure 48. Stepper driver DIP switch locations.

. Close electrical cabinet and proceed to

Test Run on Page 22 to verify machine

functions properly.

Model G0931 (Mfd. Since 02/21)

-47-

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-48-

Model G0931 (Mfd. Since 02/21)

1 2 3 4 5 6 7 8

L11

2 21

L N

POWER

SUPPLY

BUTTON

Spindle Wiring Diagram

KM1

CONTACTOR

1 3 5

3:E

L12

L13

SPINDLE

MOTOR

U1 V1 W1

S1 S2 S3 S4

Y1 Y2 Y3 Y4

CJX2

1810

VFD

DCM

GND

FU1

FUSE

10A

EMI

FILTER

1:A

L13

L14

L15

1 3

40V

6:F

L14

LB0

20A

5:F

KEY

−

GND

2:E

ACAC

0V 24V

Diagram Number Frame Location

Reference

CONVERTER

+−

7:E

L11 N1

2:E

Figure 50. EMERGENCY STOP and ON

Figure 51. VFD.

buttons.

Model G0931 (Mfd. Since 02/21)

READ ELECTRICAL SAFETY

ON PAGE 48!

-49-

1 2 3 4 5 6 7 8

Axis Motor Wiring Diagram

5:F

8:A

3:B

40V

GND

A+

PUL+

B+

A− B−

PUL−

DIR+

DIR−

STEPPER

DRIVER

X-AXIS

MOTOR

DIR

3:B

PULSE

3:B

GND

A+ B+

A−

PUL+

PUL−

B−

Z-AXIS

MOTOR

DIR−

DIR+

STEPPER

DRIVER

40V

1:A

8:A

40V

1:F

2:E

DIR

PUL+

B+

A− B−

2:F

PULSE

PUL−

Y-AXIS

MOTOR

DIR−

DIR+

STEPPER

DRIVER

GND

A+

40V

1:A

-50-

READ ELECTRICAL SAFETY

ON PAGE 48!

Model G0931 (Mfd. Since 02/21)

1 2 3 4 5 6 7 8

Contactor Wiring Diagram

7:A

SB1

EMERGENCY

STOP

SB2

LIMIT SWITCH

KM1

CONTACTOR

8:A

1 3 5

3:E

KM1

CONTACTOR

HL1

LIGHT

3:A

4:C

M11

FAN

2 2

M12 FAN

2:A

L12L12

N1N1

Figure 52. Contactor, fuse holders, and EMI

Figure 53. Electrical cooling fan locations.

filter.

Model G0931 (Mfd. Since 02/21)

READ ELECTRICAL SAFETY

ON PAGE 48!

-51-

1 2 3 4 5 6 7 8

STEPPER DRIVERS

2:C

2:B

2:D

Interface Board Wiring Diagram

Y1 (S0) Y2 (S1) Y3 (S2) Y4 (S3)

Y5 Y6 Y7 Y8

OUTPUT SIGNALINPUT SIGNAL

X1 (XH)

X2 (YH)

X3 (ZH)

X4 (S3)

X5 X6 X7 X8

24V

GND

SHIELD

24V

GND

DC24V

LIMIT

SWITCHES

TOOL SETTER

POWER SUPPLY

2:B

DIR−

2:A

DIR−

2:C

DIR−

PUL+ DIR+ PUL−

RICHAUTO

A1X/B1X

5V PULSE DIR

SHIELD

5V PULSE DIR SHIELD

X-AXIS Y-AXIS Z-AXIS C-AXIS

S0 S1 S2 S3

DCMGND

− 1

24V 0V

24V DC

VFD

7:F

X HOME

Y HOME

Z HOME

Figure 54. Stepper drivers.

Figure 55. RichAuto interface board.

-52-

READ ELECTRICAL SAFETY

ON PAGE 48!

Figure 56. 40VAC/24VDC power supplies.

Figure 57. Z-axis motor and limit switch.

Model G0931 (Mfd. Since 02/21)

Electrical Components

Figure 58. Spindle motor and Z-axis tool setter.

Figure 59. X-axis limit switch.

Model G0931 (Mfd. Since 02/21)

Figure 60. Y-axis limit switch.

READ ELECTRICAL SAFETY

ON PAGE 48!

-53-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

-54-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0931 (Mfd. Since 02/21)

REF PART # DESCRIPTION REF PART # DESCRIPTION

Main Parts List

1 P0931001 MACHI NE BO DY 34 P0931034 ON BUTTON YJ139-LA38 30MM GRN 2 P0931002 BED FRAME 35 P0931035 LEVELING FOOT 3 P0931003 LINEAR GUIDEWAY PMI MSA20-1470 36 P0931036 NARROW TABLE SLAT 4 P0931004 GUIDEWAY CARRIAGE MSA20A 37 P0931037 WIDE TABLE SLAT 5 P0931005 GANTRY SUPPORT CO LUMN L EFT 38 P0931038 ELECTRICAL FAN COVER 6 P0931006 GANTRY SUPPORT CO LUMN RI G HT 39 P0931039 SWING-HANDLE DOOR LOCK 7 P0931007 GANTRY SUPPORT BRACKET 40 P0931040 SPRING-LOADED SLIDE-BOLT LATCH 8 P0931008 STEPPER MOTOR 86HB76-14 41 P0931041 DOO R HI NGE 9 P0931009 FLEXIBLE SHAFT COUPLER 14 X 15MM 42 P0931042 POWER RECEPTACLE 250V IEC C14 10 P0931010 BALL SCREW TBI SFU2510-1420 43 P0931043 CONTROLLER HOOK 11 P0931011 BALL SCREW NUT 44 P0931044 PRO XIMITY SWITCH BRACKET 12 P0931012 BALL SCREW BEARING NUT 45 P0931045 SHOULDER SCREW M6-1 X 24, 6 X 24 13 P0931013 I NT RETAI NI NG RING 22MM 46 P0931046 CAP SCREW M8-1.25 X 28 14 P0931014 BALL BEARING 6202ZZ 47 P0931047 CAP SCREW M6-1 X 20 15 P0931015 HEX NUT M16-2 48 P0931048 CAP SCREW M4-.7 X 25 16 P0931016 FLAT WASHER 16MM SS 49 P0931049 BUTTO N HD CAP SCR M5-.8 X 10 17 P0931017 PRO XIMITY SWITCH OMRON TL-Q5MCI -Z 50 P0931050 FLAT HD CAP SCR M5-.8 X 12 18 P0931018 LI MIT BUSHING 51 P0931051 CAP SCREW M6-1 X 30 19 P0931019 ROUTE R BED 52 P0931052 FLA T WASHER 6MM 20 P0931020 FRONT CO VER 53 P0931053 LOCK WASHER 6MM 21 P0931021 REAR COVER 54 P0931054 CAP SCREW M8-1.25 X 34 22 P0931022 DUST CO VER 55 P0931055 FLA T WASHER 8MM 23 P0931023 COL UMN GUARD 56 P0931056 LOCK WASHER 8MM 24 P0931024 CABLE COVER 57 P0931057 CAP SCREW M5-.8 X 10 25 P0931025 CAB LE CARRIER TRACK 58 P0931058 CAP SCREW M5-.8 X 20 26 P0931026 CAB LE CARRIER MOUNT 59 P0931059 FLA T HD SCR M5-.8 X 10 27 P0931027 ELECTRICAL CABINET 60 P0931060 PHLP HD SCR M4-.7 X 10 28 P0931028 ELECTRICAL CABINET DOOR LEFT 61 P0931061 CAP SCREW M4-.7 X 10 29 P0931029 EL ECTRICAL CABINET DOOR RI GHT 62 P0931062 BUTTO N HD CAP SCR M5-.8 X 8 30 P0931030 FRONT G UARD COVER 63 P0931063 HEX NUT M5 -. 8 31 P0931031 SIDE GUARD COVER 64 P0931064 CAP SCREW M8-1.25 X 35 32 P0931032 CABLE CARRIER 65 P0931065 Y-AXIS MOVEMENT LABEL 33 P0931033 E-STOP BUTTON YJ139-XB2 30MM

Model G0931 (Mfd. Since 02/21)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-55-

113

117

134

142

157-2

166

167

171

173

182

178

Gantry & Spindle

115

174

171

144

171

173

176

172

104

145

180

176

146

105

171

106

103

102

139

179

101

173

107

140

170

169

168

119

171

176

180

175

111

109

112

166

116

110

172

108

118

116

133

132

177

174

173

176

143

124

171

131

172

137

176

175

122

127

174

123

172

184

138

183

121

130

129

128

125

126

167

135

171

184

137

171

181

171

136

157

141

147

149

153

155

157-3

157-4

150

165

171

148

151

154

156

157-1

157-5

152

175

114

158

164

163

159

171

174

160

161

162

165

-56-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0931 (Mfd. Since 02/21)

REF PART # DES CRIP TIO N REF P ART # DES CRIP TIO N

Gantry & Spindle Parts List

101 P0931101 GANTRY BODY 146 P0931146 STRAIN RELIEF TYPE-3 PG31 102 P0931102 LINEAR GUIDEWAY PMI MSA20-1520 147 P0931147 WRENCH 18 X 21MM OPEN-ENDS 103 P0931103 GUIDEWAY CARRIAGE MSA20S 148 P0931148 WRENCH 27 X 30MM OPEN-ENDS 104 P0931104 SPI NDLE HEAD MOUNT 149 P0931149 HEX WRENCH 3MM 105 P0931105 STEPPER MOTOR 86HB76-14 150 P0931150 HEX WRENCH 4MM 106 P0931106 FLEXIBLE SHAFT COUPLER 14 X 15MM 151 P0931151 HEX WRENCH 5MM 107 P0931107 BALL SCREW TBI SFU2519-1620 152 P0931152 HEX WRENCH 6MM 108 P0931108 BALL SCREW BEARING NUT 153 P0931153 COLLET ER20 1/8 109 P0931109 I NT RETAI NI NG RING 2 2MM 154 P0931154 COLLET ER20 1/2 110 P0931110 BALL BEARING 6202ZZ 155 P0931155 COLLET ER20 4MM 111 P0931111 HEX NUT M16-2 156 P0931156 COLLET ER20 6MM 112 P0931112 FLAT WASHER 16MM SS 157 P0931157 HOLD-DOWN CLAMP 113 P0931113 GANTRY DUST COVER LEFT 157-1 P0931157-1 CLAMP PLATE 114 P0931114 GANTRY DUST COVER RIGHT 157-2 P0931157-2 HEX BOLT M8-1.25 X 50 115 P0931115 PROXIMITY SWITCH OMRON TL- Q5 MCI -Z 157-3 P0931157-3 WI NG NUT M8- 1. 2 5 116 P0931116 DUST COVER BAFFLE 157-4 P0931157-4 FL AT WA SHE R 8MM 117 P0931117 STEPPER MOTOR COVER LEFT 157-5 P0931157-5 T-BOLT M8-1.25 X 80 118 P0931118 STEPPER MOTOR COVER RIGHT 158 P0931158 SPOILBOARD CUTTER 6 X 22MM 119 P0931119 CABLE GUARD 159 P0931159 Q UI CK- DI SCONNECT TUBE COUPLI NG 8MM 121 P0931121 SPINDLE HEAD BODY 160 P0931160 Z-AXIS TOOL SETTER 122 P0931122 LINEAR GUIDEWAY PMI MSA20-260 161 P0931161 ENGRAVING BITS 1/8" (10 PC) 123 P0931123 GUIDEWAY CARRIAGE MSA20S 162 P0931162 COOLANT PUMP WY-4500 95W 124 P0931124 SPI NDLE MOTOR MOUNT 163 P0931163 DUST SHOE 125 P0931125 STEPPER MOTOR 86HB76-14 164 P0931164 CAP SCREW M5-.8 X 45 126 P0931126 RIGID SHAFT COUPLING 10 X 14MM 165 P0931165 HEX NUT M5- . 8 127 P0931127 BALL SCREW TBI SFU1605-262 166 P0931166 CAP SCREW M6-1 X 35 128 P0931128 BALL SCREW BEARING NUT 167 P0931167 CAP SCREW M4-.7 X 25 129 P0931129 I NT RETAI NI NG RING 2 2MM 168 P0931168 CAP SCREW M6-1 X 30 130 P0931130 BALL BEARING 608ZZ 169 P0931169 LOCK WASHER 6MM 131 P0931131 SPINDLE HOLDER 80MM 170 P0931170 FLAT WASHER 6MM 132 P0931132 SPINDLE MOTOR 3HP 220V 3-PH 171 P0931171 BUTTON HD CAP SCR M5-.8 X 10 133 P0931133 SPINDLE DUST COVER UPPER 172 P0931172 CAP SCREW M5-.8 X 20 134 P0931134 SPINDLE DUST COVER LOWER 173 P0931173 FLAT HD CAP SCR M5-. 8 X 6 135 P0931135 PROXIMITY SWITCH OMRON TL- Q5 MCI -Z 174 P0931174 FLAT WASHER 5MM 136 P0931136 PROXIMITY SWITCH BRACKET 175 P0931175 LOCK WASHER 5MM 137 P0931137 SPINDLE DUST COVER BAFFLE 176 P0931176 CAP SCREW M5-.8 X 25 138 P0931138 PROTECTIVE COVER LOWER 177 P0931177 CAP SCREW M8-1.25 X 20 139 P0931139 PROTECTIVE COVER UPPER 178 P0931178 SHOULDER SCREW M6-1 X 24, 6 X 14 140 P0931140 ELECTRICAL COOLING FAN DP200A 179 P0931179 ELECTRICAL FAN COVER 141 P0931141 CABLE CARRIER 180 P0931180 CAP SCREW M8-1.25 X 35 142 P0931142 SPINDLE COVER 181 P0931181 CAP SCREW M5-.8 X 10 143 P0931143 SPI NDLE NUT 182 P0931182 SPINDLE DIRECTION LABEL 144 P0931144 CABLE CONDUIT 183 P0931183 X-AXIS MOVEMENT LABEL 145 P0931145 COOLANT TUBE 6MM ID X 8MM OD 184 P0931184 Z-AXIS MOVEMENT LABEL

Model G0931 (Mfd. Since 02/21)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-57-

201

REF P ART # DES CRIP TIO N REF P ART # DES CRIP TIO N

Electrical Cabinet Components

208

212

202

202 202

209

213

218

210

203

214

204

220

205

219

206 207

211

215

217

201 P0931201 VFD FULING DZB280B002.2L2DK 211 P0931211 I NTERFACE BOARD RICHAUTO A1X/B1X 202 P0931202 STEPPER DRIVER LEADSHINE DM542-05 212 P0931212 POWER CORD 14G 3W 72" 6-15P 203 P0931203 24V DC POWER SUPPLY MEANWELL LRS-75-24 213 P0931213 50 PI N CABLE 26G 50W 72" 204 P0931204 40V AC POWER SUPPLY GY400W-40-A 214 P0931214 USB-B CABLE 28G 4W 36" 205 P0931205 CO NTACTO R CHINT NXC-18 220V 215 P0931215 FUSE 10A 500V 10MM TIME-DELAY, CERAMIC 206 P0931206 FUSE HOLDER YHDA RT18-32X 216 P0931216 LI MIT SWITCH PANASONIC AZ-7311 207 P0931207 E MI FILTER TORUN 3N-20A- U 217 P0931217 CAP SCREW M4-.7 X 30 208 P0931208 ELECTRICAL COOLING FAN DP200A 218 P0931218 WIRE LOOM 50 X 1220MM 209 P0931209 DSP CONTROLLER RICHAUTO A11E 219 P0931219 WIRE LOOM 50 X 220MM 210 P0931210 TERMINAL BAR 8P M4-.7 X 12 220 P0931220 WIRE LOOM 50 X 160MM

216

-58-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0931 (Mfd. Since 02/21)

303

304

grizzly.com

G0931

308

309

REF PART # DES CRIP TIO N REF P ART # DESCRIPTI ON

305

AMPUTATION/PINCH

HAZARD!

Keep hands and fingers clear of gantry and gantry columns. Always disconnect machine from power before servicing.

Labels & Cosmetics

306

307

302

301

306

AMPUTATION/PINCH

HAZARD!

Keep hands and fingers clear of gantry and gantry columns. Always disconnect machine from power before servicing.

304

314

305

AMPUTATION/PINCH

Keep hands and fingers clear of gantry and gantry columns. Always disconnect machine from power before servicing.

313

312

311

301 P0931301 ELECTRICITY HAZARD LABEL 308 P0931308 TOUCH-UP PAINT, GRI ZZL Y B EI GE 302 P0931302 DO NOT OPEN DOOR CNC LABEL 309 P0931309 TOUCH-UP PAI NT, G RI ZZLY GREEN 303 P0931303 DISCONNECT 220V LABEL 310 P0931310 GRIZZLY.COM LABEL 304 P0931304 ENTANGLEMENT HAZARD LABEL 311 P0931311 MODEL NUMBER LABEL 305 P0931305 EYE EAR LUNG HAZARD LABEL 312 P0931312 GRIZZLY NAMEPLATE, LARGE 306 P0931306 AMP UTATI O N HAZARD CNC LABEL 313 P0931313 MACHINE ID LABEL 307 P0931307 CUTTI NG HA ZARD CNC L ABEL 314 P0931314 READ MANUAL LABEL

310

HAZARD!

306

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

Model G0931 (Mfd. Since 02/21)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-59-

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

WARRANTY & RETURNS

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Grizzly G0931 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info Manual Accuracy

Identification

Controller Functions

Glossary Of Terms

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for CNC Routers

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup

Unpacking

Inventory

Site Considerations

Lifting & Placing Leveling

Leveling

Dust Collection

Test Run

Verifying Parameters

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection

Choosing Cutter

Changing Cutter

Clamping Workpiece

Using a Spoilboard

Setting Origin

Homing Axes

Creating G-Code File

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Lubrication

Coolant

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

Spindle Wiring Diagram

Axis Motor Wiring Diagram

Contactor Wiring Diagram

Interface Board Wiring Diagram

Electrical Components

SECTION 9: PARTS

Main

Gantry & Spindle

Electrical Cabinet Components

Labels & Cosmetics

WARRANTY & RETURNS
