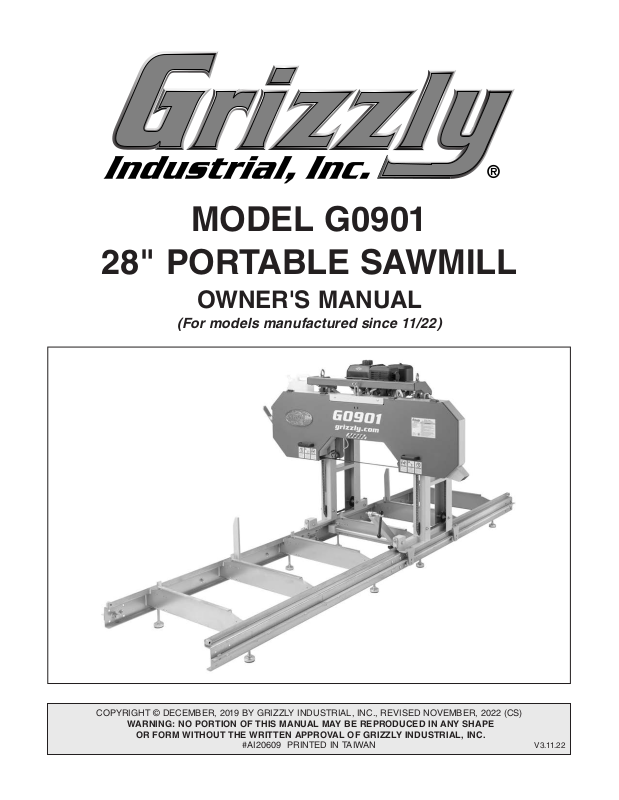

MODEL G0901

28" PORTABLE SAWMILL

OWNER'S MANUAL

(For models manufactured since 11/22)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#AI20609 PRINTED IN TAIWA N

V3 .11. 2 2

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Glossary Of Terms Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Sawmills

SECTION 2: SETUP

Needed for Setup Unpacking Inventory Hardware Recognition Chart Site Considerations Assembly Test Run

SECTION 3: OPERATIONS

Operation Overview

Workpiece Inspection................................... 22

Changing Blade Tensioning Blade Adjusting Guide Rollers Types of Lumber Drying Lumber

Cant Sawing................................................. 29

Live Sawing.................................................. 30

Edging Quarter Sawing

.................................................... 12

...................................................... 13

..................................................... 16

...................................................... 19

.......................................................... 31

........................................... 2

................................................... 3

................................. 4

......................................... 6

...................................... 7

....................................... 9

.................. 9

..................... 11

....................................... 12

......................................... 12

....................... 14

...................................... 15

........................... 21

..................................... 21

........................................... 22

......................................... 23

............................... 24

.......................................... 28

............................................. 29

............................................ 32

SECTION 4: ACCESSORIES

SECTION 5: MAINTENANCE

Schedule Cleaning Lubrication Engine

SECTION 6: SERVICE

Troubleshooting Tensioning/Replacing V-Belts Adjusting Blade Tracking

SECTION 7: WIRING

Wiring Safety Instructions Wiring Diagram Wiring Photos

SECTION 8: PARTS

Track Carriage Engine & Wheel Mounts Blade & Wheels Guide Rollers Blade Cover Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 37

....................................................... 37

................................................... 37

.......................................................... 37

................................... 38

........................................... 38

............................. 42

...................................... 45

............................ 45

............................................ 46

.............................................. 46

....................................... 47

............................................................ 47

....................................................... 49

.............................. 51

........................................... 53

............................................... 54

................................................. 55

..................................... 56

............................. 57

......................... 34

......................... 37

...................... 40

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0901 (Mfd. Since 11/22)

Identification

To reduce your risk of serious injury, read this entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Blade Height

Handwheel

Carriage

Track

Log

Bunk

Engine

Blade Lubrication

Reservoir

Blade Cover

Blade Tension

Handle

Throttle/

Push

Handle

Carriage

Brake

Log

Clamp

Log

Support

Adjustable

Foot

Model G0901 (Mfd. Since 11/22)

using machine.

Scan this code to see a video summary of the G0901, including features, controls, and operations!

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

Operator Station & Carriage

using machine.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Engine

Figure 2. Operator controls.

D. Emergency Stop Button: Shuts off engine

when pressed. Twist stop button to reset before restarting engine.

E. Push Handle: Moves carriage along track.

F. Throttle Handle: Increases engine speed

when squeezed. Fully engage throttle when starting motor and to start blade.

Figure 1. Engine controls.

A. Engine Speed Lever: Regulates amount of

air entering engine, controlling engine speed. Move halfway between SLOW (turtle) and FAST (rabbit) when starting engine. Adjust lever as needed for operation.

B. Engine Choke Lever: Controls choke valve

and air-to-fuel ratio in engine. Move lever to CLOSED ( cold. Move lever to OPEN ( ) position after engine starts. Use OPEN ( ) position if starting engine warm.

C. Starter Rope: Pull several times to start

engine. Slowly retract starter once engine starts.

-4-

) position when starting engine

G. Blade Height Handwheel: Raises/lowers

saw blade. One full revolution moves blade approximately 1", with stops at

Figure 3. Behind blade cover.

H. Blade Lubricant Shutoff Valve: Starts/stops

flow of lubricant onto blade.

I. Blade Tension Handle: Increases/decreas-

es blade tension (refer to Page 23 for more information).

Model G0901 (Mfd. Since 11/22)

⁄16" increments.

Track Components

Figure 4. Saw carriage.

Figure 5. Track components.

N. Rail: Supports carriage.

O. Log Clamp: Secures log against log support.

P. Log Support: Secures and levels log to

ensure flat cuts.

J. Blade Lubricant Reservoir: Holds water or

water/soap solution to keep blade cool and keep sap/resin from clogging blade during operation.

K. Blade Cover Latch: Secures blade cover in

open position for blade changes and belt tension.

L. Blade Cover: Protects blade and wheels

from elements, and guards operator from entanglement and injury. Features a built-in limit switch that keeps saw from operating when cover is open.

M. Carriage Brake: Secures carriage during

service and maintenance.

IMPORTANT: Log support and log clamp

must be angled to stay below saw blade height during operation.

Q. Log Bunk: Supports log during operation.

R. Adjustable Foot: Keeps track level and

stable.

Model G0901 (Mfd. Since 11/22)

-5-

Glossary Of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this sawmill and milling in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Board Foot: Unit of measurement for volume

of lumber cut from a log. Used to measure productivity and cost. A board foot is typically measured as a piece of wood 1' x 1' x 1", or 144 cubic inches.

Burl: A tough outgrowth on a log with deformed

grains that make elaborate patterns. Burls are difficult to cut, but often have unique patterns desirable to woodworkers.

Cant: Partially cut log with one to four flat sides.

A cant might be cut on a sawmill and moved to another machine, finished on the sawmill, or sold as-is.

Carriage: Structure that supports the engine and

saw blade and moves along the track.

Flatsawn: Lumber sawn nearly parallel to the

wood grain. Most efficient lumber to mill, but most susceptible to warping and cupping. Also called plainsawn lumber.

Flitch: Piece of wood with two flat surfaces and

one or two natural edges. Flitches can be edged to produce finished lumber.

Grade Sawing: Process of rotating log or cant

multiple times throughout milling in order to produce lumber of the highest possible grade.

Parallel: Being an equal distance apart at every

point along two given lines or planes; i.e., the rip fence face is parallel to the face of the saw blade.

Perpendicular: Lines or planes that intersect and

form right angles; i.e., the blade is perpendicular to the table surface.

Pith: The central rings in a log or tree. The pith

is the oldest wood, created when the tree was young. It is prone to cracking as wood dries and shrinks.

Plainsawn: See "Flatsawn".

Quartersawn: Lumber sawn so the grain is

perfectly perpendicular to the flat surface of the board. Quartersawn lumber is resistent to warping and cupping, but is time consuming and produces the most waste wood.

Riftsawn: Lumber sawn so that the grain is close

to perpendicular to the flat surface of the board. Riftsawn lumber is resistant to warping and cupping, but is time consuming to mill.

Slab: Piece of wood with one flat surface and the

rest is natural wood. As a by product of milling lumber, slabs are often sectioned and used as firewood.

Kerf: The resulting cut or gap in the workpiece

after the saw blade passes through during a cutting operation.

Live Sawing: Process of cutting parallel through

log or cant from top to bottom. Most efficient method of milling that produces flatsawn, quartersawn, and riftsawn lumber.

-6-

Sticker: Pieces of narrow wood (approximately

1"x1") used to separate lumber that is stacked for air drying. Usually made of light wood that will not stain the drying lumber.

Stickering: Process of stacking wood using stickers.

Waney: Edge of a board that is tapered or unfinished.

Model G0901 (Mfd. Since 11/22)

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

Roller

MODEL G0901

28" PORTABLE SAWMILL

Product Dimensions:

Weight ........................................................................................................................................................................... 838 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .....................................................................................75 x 144 x 56 in.

Footprint (Length x Width) .......................................................................................................................................144 x 35 in.

Shipping Dimensions:

Type ................................................................................................................................................................. Wood Slat Crate

Content ..................................................................................................................................................... Machine and Toolbox

Weight ............................................................................................................................................................................ 993 lbs.

Length x Width x Height .....................................................................................................................................87 x 45 x 50 in.

Must Ship Upright .................................................................................................................................................................Yes

Engine:

Main

Manufacturer ......................................................................................................................................... Briggs & Stratton

Horsepower ..........................................................................................................................................................13.5 HP

Displacement ..........................................................................................................................................................420 cc

Oil Capacity .............................................................................................................................................................39 oz.

Starter ....................................................................................................................................................................Manual

Main Specifications:

Cutting Capacity

Max. Log Length (with included track sections) ..................................................................................................9 ft. 3 in.

Min. Log Length ........................................................................................................................................................30 in.

Max. Log Diameter ...................................................................................................................................................28 in.

Max. Width of Cut .....................................................................................................................................................22 in.

Max. Depth of Cut ......................................................................................................................................................7 in.

Min. Height Above Bed ......................................................................................................................................1-3/16 in.

Track Length .......................................................................................................................... 12 ft. (6 ft. Track Sections)

Track Width ..............................................................................................................................................................35 in.

Blade Information

Blade Speeds ...................................................................................................................................................4825 FPM

Blade Length ................................................................................................................................................ 144 - 145 in.

Blade Width ................................................................................................................................................................1 in.

Blade Thickness ..................................................................................................................................................0.035 in.

Blade Guides ...........................................................................................................................................................

Operation

Feed System .........................................................................................................................................................Manual

Lift System .............................................................................................................................................................Manual

Clutch .............................................................................................................................................................. Centrifugal

Log Supports ............................................................................................................................. 2 Supports & Log Clamp

Model G0901 (Mfd. Since 11/22)

-7-

Construction

Track ................................................................................................................................................... Electroplated Steel

Frame ........................................................................................................................................................................Steel

Body ..........................................................................................................................................................................Steel

Wheels ................................................................................................................................................................ Cast Iron

Paint. ......................................................................................................................................... Powder Coated & Epoxy

Additional Information

Wheel Size .........................................................................................................................................................18-3/4 in.

Blade Lubrication (type) .............................................................................................................. Water or Water w/Soap

Lubrication Reservoir (capacity) .........................................................................................................................1-1/4 gal.

Track Extensions ..........................................................................................................................................6 ft. Sections

Track Leveling ................................................................................................................... 4 Adjustable Feet per Section

Other Specifications:

Country of Origin ............................................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................................... 1 Year

Sound Rating .............................................................................................................................................................90 - 92 dB

Approximate Assembly & Setup Time ................................................................................................................................1 Hr.

Serial Number Location ................................................................................................................................................ ID Label

Features:

13.5 HP Briggs & Stratton Engine Included 145" x 1" x 0.035" 2 TPI Blade Manual Lift System Raises 1" per Revolution with 1/16 in. Stop Increments Easy-Set Blade Tensioning Low-to-the-Ground Bed Adjustable Log Supports and Log Clamp Blade Lubrication System Easy Shipping and Assembly

-8-

Model G0901 (Mfd. Since 11/22)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0901 (Mfd. Since 11/22)

-9-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-10 -

Model G0901 (Mfd. Since 11/22)

Additional Safety for Sawmills

Serious cuts, amputation, or death can occur from contact with the moving saw blade during operation or if blade breakage occurs. Death or sickness can occur from carbon monoxide poisoning if operating in an enclosed space. To reduce these risks, anyone operating this machine MUST completely heed the hazards and warnings below.

OPERATING POSITION. Keep hands and feet

away from all moving parts and do not reach over or across sawmill during operation. Never support lumber by hand during operation. Use non-skid safety shoes and hardhat as needed.

AMPUTATION/ENTANGLEMENT. Do not operate this sawmill without blade cover in place and properly functioning limit switch. Loose clothing, jewelry, long hair and work gloves can be drawn into working parts.

ADEQUATE VENTILATION. The sawmill engine produces carbon monoxide, which is a poisonous gas. Make sure work area is adequately ventilated. Never operate this machine in an enclosed area such as a shed, garage, or basement. Do not operate machine near windows or doors where carbon monoxide can be drawn into an occupied space.

HOT ENGINE. Engine and other parts of machine get hot during operation. Contact with hot components can cause severe burns. Allow engine to cool before placing hands near engine, adding fuel, or performing any service or maintenance.

MAINTENANCE/SERVICE. Always shut down engine and wait for parts to come to a stop before making adjustments, changing blade, or servicing machine. Consult engine manual for proper shut down procedure to prevent injury from accidental startup.

BLADE CONDITION. Do not operate with dull, cracked, or badly worn blade. Inspect blades for cracks and missing teeth before each use. When replacing blades, always shut off engine, wear gloves to protect hands and safety glasses to protect eyes, and ensure blade is installed with teeth oriented in correct direction.

CORRECT USE. Do not mill lumber that exceeds machine capacity or attempt to saw any material other than lumber. Distribute load evenly using approved supports and clamps to prevent machine from tipping or lumber from rolling off track. Excess or improper material increases the risk of injury.

OPERATING AREA. Only operate sawmill on a reasonably flat and level surface with space to work around the machine. Be aware of potential hazards in the work area such as other machinery, lumber, and power lines above or below the ground. Operating in a confined space increases risk of injury.

FIRE HAZARD. Clean sawdust buildup around engine and exhaust areas after each use. Do not operate near flammable liquids, gasses, or dust. Sparks can ignite dust or fumes. Do not operate machine near open flame and never smoke during operation.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Model G0901 (Mfd. Since 11/22)

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-11-

SECTION 2: SETUP

The following items are needed, but not included, for the setup/assembly of this machine.

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Description Qty

• An Assistant ............................................... 1

• Safety Glasses (for each person) ........1 Pair

• Gloves (for each person) .....................1 Pair

• Level ........................................................... 1

• Lifting Straps

(rated for at least 1000 lbs.) ........................ 2

• A hoist or forklift

(rated for at least 1000 lbs.) ........................ 1

• Open-Ended Wrenches 17, 24mm .......1 Ea.

• Wrench or Socket 10mm ............................ 1

• Boards or Plywood

(length of track) .......................... As Needed

• Engine Fuel/Oil ........................... As Needed

Unpacking

-12-

If items are damaged

call us immediately at (570) 546-9663.

Save all packaging materials until

Model G0901 (Mfd. Since 11/22)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Crate Inventory Qty

A. Lift Bar ........................................................ 1

B. Carriage ...................................................... 1

C. Guide Rails ................................................. 2

D. Track Section, Rear .................................... 1

E. Track Section, Front ................................... 1

F. Caster Bracket w/Brake .............................. 1

G. Caster Brackets .......................................... 3

H. Wool Pads .................................................. 4

I. Track Brackets ............................................ 2

J. Adjustable Feet .......................................... 8

K. Blade 145" x 1" x 0.035" 2 TPI (Not Shown) . . 1

Toolbox (Not Shown) .................................. 1

—T-Handle Socket Wrench 17mm —Open-End Wrenches 19/17,

13/11, 10/8mm ...................................1 Ea.

—Flat Head Screwdriver —Phillips Head Screwdriver #2 —Hex Wrench 7-Pc. Set (2.5-10mm)

⁄4" ....................... 1

............. 1

.................. 1

......... 1

O. Guide Rail Hardware

—Carriage Bolts M10-1.5 x 20

—Flat Washers 10mm .............................. 12

—Lock Nuts M10-1.5 ................................ 12

. Caster Bracket Hardware

—Hex Bolts M8-1.25 x 16........................... 8

—Flat Washers 8mm ................................. 8

—Lock Washers 8mm ................................ 8

. Wool Pad Hardware

—Hex Bolts M6-1 x 16

—Flat Washers 6 x 23 x 1.65mm ............... 4

—Lock Nuts M6-1 ...................................... 4

—Lock Washers 6mm ................................ 4

Figure 6. Carriage parts.

............................... 4

................. 12

Loose Hardware (Not Shown) Qty M. Foot Hardware

—Hex Nuts M16-2

N. Track Hardware

—Hex Bolts M10-1.5 x 180 —Flat Washers 10mm —Lock Washers 10mm —Hex Nuts M10-1.5

—Carriage Bolts M10-1.5 x 25 ................. 16

—Flat Washers 10mm —Lock Nuts M10 -1.5

Model G0901 (Mfd. Since 11/22)

...................................... 8

......................... 2

................................ 8

.............................. 4

................................... 6

.............................. 16

................................ 16

Figure 7. Track parts.

Figure 8. Small parts.

-13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.

Flat Head Cap Screw

-14-

5mm

Model G0901 (Mfd. Since 11/22)

Site Considerations

Weight Load

for the weight

of your machine. Make sure that the surface upon

of the machine, additional equipment that may be

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range is outside 41°–104°F; the relative humidity range is outside 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Shadows, glare, or strobe effects that may distract

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Refer to the Machine Data Sheet

which the machine is placed will bear the weight

installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

75"

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

144"

Dust Exhaust

Model G0901 (Mfd. Since 11/22)

Figure 9. Working clearances.

-15-

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

listed items.

Needed for Setup

parts that are

Lift Bar

x 6

To assemble sawmill:

Remove top and sides from crate.

2. Unbolt carriage from crate pallet.

3. Remove (6) M10-1.5 x 20 hex bolts, (6) 10mm

lock washers, (6) 10mm flat washers, (8) M8-1.25 x 16 hex bolts, (8) 8mm flat washers, and (8) lock washers from carriage, then attach lift bar to carriage with removed hardware (see Figures 10 –11).

Figure 11. Lift bar installed on carriage (rear).

4. Use forklift or hoist to lift carriage from pal-

let and move it out of the way during track assembly.

5. If workspace is uneven or on soft ground, place boards down to support adjustable feet and distribute weight of machine.

With the help of an assistant, remove both

track sections and place them in assembly location, oriented as shown in Figure 12.

Front

Track

Rails

Lift Bar

x 8

Figure 10. Lift bar installed on carriage (front).

-16 -

Figure 12. Track section orientation.

Model G0901 (Mfd. Since 11/22)

7. Attach (4) adjustable feet to each track sec- tion. Level track sections by eye and loosely attach M16-2 hex nut to each foot (see Figure 13).

Adjustable

Foot

Figure 13. Adjustable foot.

Note: Tops of adjustable feet must be below

the surface of the track. Feet that rise above track will interfere with carriage movement.

10.

Verify top edge of track sections are flush

with each other.

— If track sections are not flush with each

other, level track sections by adjusting height of adjustable feet.

Tighten exter nal M10 -1.5 hex nut to pull track

11.

sections together (see Figure 15).

Tighten (2) internal M10-1.5 hex nuts to

12.

secure hex bolt (see Figure 15).

Internal

External

Loosely attach track bracket on each side

of track with (8) M10-1.5 x 25 carriage bolts, 10mm flat washers, and M10 -1.5 lock nuts, as shown in Figure 14.

Insert M10-1.5 x 180 hex bolt between track

sections on each side of track with (4) 10mm flat washers, (2) 10mm lock washers, and (3) M10 -1. 5 hex nuts, as shown in Figure 14.

Note: Pay attention to the order hardware is

added to the hex bolt as it is inserted through track sections.

Figure 15. Track section securing hex bolt.

13. Tighten all track bracket carriage bolts and

lock nuts.

Check that track is level front-to-back and

14.

side-to-side and adjust feet if needed.

15. Attach guide rail to each side of track with (6) M10-1.25 x 20 carriage bolts, 10mm flat washers, and M10-1. 5 lock nuts (see Figures 16–17).

Guide Rail

x 8

Track Bracket

Figure 14. Properly assembled track bracket.

Model G0901 (Mfd. Since 11/22)

Figure 16. Attaching guide rail.

-17-

Guide Rail

x 6

Figure 17. Guide rail installed.

16.

Use forklift or hoist to lift carriage and place it

on track.

Note: Carriage must face forward for log sup-

ports and log clamp to function. Log clamp is attached to front rail section.

Attach caster bracket with brake to left-rear

17.

corner of carriage with (2) M8-1.25 x 16 hex bolts, 8mm lock washers, and 8mm flat washers (see Figure 18).

19.

Attach (1) wool pad to each corner of carriage

with (1) M6-1 x 16 hex bolt, 6 x 23 x 1.65mm flat washer, M6-1 lock nut, and 6mm lock washer (see Figure 19).

Note: Pads will wipe sawdust from track to

prevent particles from interfering with rollers.

x 4

Wool Pad

(1 of 4)

Figure 19. Pad installed at carriage corner.

20. Move carriage to end of track and secure in

place with carriage brake.

Attach each remaining caster bracket to

18.

remaining corners of carriage with (2) M8-1.25 x 16 hex bolts, 8mm lock washers, and 8mm flat washers (see Figure 18).

x 8

Caster

Caster Bracket

with Brake

Figure 18. Caster brackets installed on carriage.

Bracket

At opposite end of track from carriage, use

21.

level and adjust feet so track is level front-toback and side-to-side.

22. Move carriage to other end of track and secure in place with carriage brake.

23. At opposite end of track from carriage, use level and adjust front feet so track is level front-to-back and side-to-side.

Repeat Steps 20–23 until track remains level

24.

when carriage is moved from one end to the other.

Tighten M16-2 hex nut on each adjustable

25.

foot.

Install blade (see Installing Blade on

26. Page 23).

-18-

Model G0901 (Mfd. Since 11/22)

Test Run

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Once assembly is complete, test run machine to ensure engine and safety components are functioning correctly.

Fill engine to required fuel and oil levels.

IMPORTANT: Engine is not filled prior to

shipping. Running engine without proper oil and fuel can result in irreparable damage.

Ensure blade cover is completely closed.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The Troubleshooting table in the SERVICE section of this manual can help.

The Test Run consists of verifying the following:

1) The engine starts and runs correctly, and 2) the Emergency Stop button and limit switch function properly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

5. Twist Emergency Stop button clockwise until

it springs out (see Figures 20–21). This resets switch so machine can start.

Emergency Stop

Button

Figure 20. Location of Emergency Stop button.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run sawmill:

Clear all setup tools away from machine.

2. Read and understand Briggs & Stratton

engine manual that accompanied this sawmill and follow all safety precautions. Read and understand entire Grizzly manual and follow all safety precautions.

Model G0901 (Mfd. Since 11/22)

Emergency Stop Button

Figure 21. Resetting switch.

-19 -

6. Close choke ( ) (see Figure 22).

Choke

Lever

Figure 22. Location of choke lever.

Pulling starter cord without resistance in following step can cause it to jerk and injure pulling arm or hand.

7. Squeeze throttle handle, pull starter rope

slowly until you feel resistance, then pull starter rope rapidly to start engine (see Figure 23). Verify engine starts and runs smoothly without any unusual problems, leaks, or noises.

Press Emergency Stop button to turn machine

OFF.

WITHOUT resetting Emergency Stop but-

ton, try to start machine by pulling starter. Machine should not start.

— If machine does not start, safety feature

of Emergency Stop button is working correctly.

— If machine does start with Emergency stop

button pushed in, immediately turn it OFF. Safety feature of Emergency Stop button is NOT working properly and must be replaced before further using machine.

Reset Emergency Stop button, then open

10.

blade cover and secure it with blade cover latch. Try to start machine by pulling starter. Machine should not start.

— If machine does not start, safety fea-

ture of limit switch is working correctly. Congratulations! Test Run is complete.

— If machine does start with blade cover

open, immediately turn it OFF. Limit switch is NOT working properly and must be replaced before further using machine.

-20-

Starter

Rope

Throttle

Handle

Figure 23. Engine starting controls.

Model G0901 (Mfd. Since 11/22)

SECTION 3: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

ing loss can occur while operating this

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

Raw lumber can be heavy, slippery, sharp, or contain sharp objects. Wear gloves when handling to reduce risk of injury.

To complete a typical operation, the operator does the following:

Examines the workpiece to make sure it is

suitable for cutting.

Secures log to track with log supports and log

clamp and ensures supports and clamp are positioned to be clear of the cut.

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to reduce your risk from these hazards.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0901 (Mfd. Since 11/22)

Fills blade lubricant reservoir with water.

4. Checks workspace around machine to ensure

sufficient operating room.

5. Checks blade tension and sets roller guide width.

Adjust blade height to desired thickness.

7. Puts on safety glasses, hearing protection,

and respirator.

Starts engine.

9. Holds down throttle handle and allows blade

to reach maximum speed, then pushes carriage slowly until blade passes through entire length of log.

Releases throttle handle and allows blade to

10.

slow to a stop.

11. Removes sawn lumber from log and moves lumber out of sawmill work area.

12. Raises blade enough to pull carriage back to start position without hitting workpiece.

13. Lowers blade for next cut or shuts down engine.

-21-

Workpiece Inspection

Some workpieces are not safe to cut or may require modification before they are safe to cut.

Before cutting, inspect all workpieces for the following:

Changing Blade

Blade changes entail removing the existing blade, installing the new blade, then properly adjusting the blade tension, tracking, and guides.

• Material Type: This machine is intended for cutting natural wood logs only. The maximum diameter of log that can be sawn is 28". This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with a sawmill may lead to injury and machine/blade damage.

• Debarking: Bark can trap and hide foreign objects, such as tramp metal or hidden nails, and can cause excessive blade wear. Consider debarking your logs for increased safety and longer blade life.

• Branches and Uneven Logs: Use a chainsaw or other saw to remove any branches that prevent the log from lying evenly against the track and log supports. Similarly, uneven burls protruding from the log may need to be removed before the log can be sawn.

Disconnect spark plug wire before performing adjustments or maintenance to reduce risk of accidental start-up injury.

Saw blades are sharp and may cause lacerations. To reduce the risk of injury, wear leather gloves when handling saw blades.

Removing Blade

1. DISCONNECT SPARK PLUG WIRE!

2. Release blade tension by turning blade tension

handle counterclockwise until handle slackens, then push handle toward machine.

-22-

Open blade cover and support it on blade

cover latch (see Figure 24).

Blade Cover

Latch

Figure 24. Blade cover supported by blade

cover latch.

Slide blade off top of wheels, then remove

blade from bottom of wheels.

Model G0901 (Mfd. Since 11/22)

Installing Blade

1. DISCONNECT SPARK PLUG WIRE!

Tensioning Blade

2. Open blade cover and support it on blade

cover latch (see Figure 25).

Blade Cover

Latch

Figure 25. Blade cover supported by blade

cover latch.

3. Hold blade from each side and position it in front of wheels so blade teeth are facing front of machine and pointing toward dust port.

Slide blade through slots in bottom of blade

4. housing and under guide rollers (see Figure

26), then slide blade over each wheel.

A properly tensioned blade is essential for making accurate cuts, maximizing blade life, and making other bandsaw adjustments. However, a properly tensioned blade will not compensate for cutting problems caused by excessive feed rate, hardness variations between workpieces, and improper blade selection.

An over-tensioned blade increases the chance of the blade breaking or wheel misalignment. Undertensioned blades wander excessively while cutting and will not track properly during operation.

Use a blade tensioning gauge to determine how much to tighten the blade tension handle (see

Page 34).

IMPORTANT: Always release blade tension when

storing machine. Storing the blade with high blade tension for extended time period can deform blade and weaken tensioning spring, reducing the durability and accuracy of the machine.

Items Needed Qty

Blade Tensioning Gauge ................................... 1

To tension blade:

Guide Roller

Figure 26. Proper blade routing.

5. Close blade cover.

6. Adjust blade tension, then adjust guide roll- ers (see Tensioning Blade on this page and Adjusting Guide Rollers on Page 24).

1. DISCONNECT SPARK PLUG WIRE!

2. Open blade cover and support it on blade

cover latch (see Figure 27).

Blade Cover

Latch

Figure 27. Location of blade cover latch.

Model G0901 (Mfd. Since 11/22)

-23-

3. Push blade tension handle away from machine, then watch blade as you turn handle clockwise until desired tension is achieved. If blade shifts or does not sit squarely on blade wheels during step, release tension, reposition blade, then re-tension.

Note: Refer to blade manufacturer for recom-

mended tension. 15,000–20,000 PSI is common for most types of steel blades.

Tip: Once you tension blade, loosen screws

shown in Figure 28, move indicator bracket even with spring head, then tighten screws. You can use this indicator as a quick tensioning guide until you change blades.

Spring Head

Adjusting Guide

Rollers

Guide rollers firmly support blade position along the cutting section of the blade (see Figure 29). After changing the blade, or if milling operations produce inconsistent cuts, adjust the guide rollers to the back of the blade, then adjust the tilt and height.

Indicator

Bracket

Figure 28. Blade tension indicator.

4. Close blade cover.

x 2

Figure 29. Guide roller supporting blade.

The left guide roller can be adjusted to change the cutting width, or the distance between the rollers, from 12"–24". During operations, keep the cutting portion of the blade between the rollers as narrow as possible.

Adjusting Cutting Width

Before making any adjustments to the guide rollers, adjust the cutting width for your intended operation so adjustments will be accurate.

Adjustable

Guide Roller

Cutting

Section of

Blade

-24-

Figure 30. Adjustable guide roller and cutting

section of blade.

Model G0901 (Mfd. Since 11/22)

To adjust cutting width:

1. DISCONNECT SPARK PLUG WIRE!

2. Push lock lever inward to loosen it (see Figure 31).

Push guide roller in or out until the cutting

section of the blade is the correct width, then push lock lever out to secure roller guide (see Figure 31).

Lock

Lever

Roller

Flange

Back of Blade

Figure 32. Distance from back of blade to roller

flange.

— If distance is between 1⁄32"–1⁄16" , no adjust-

ment is necessary. Proceed to Step 5.

— If distance is not between

⁄32"–1⁄16", pro-

ceed to Step 3.

Figure 31. Left guide roller lock lever.

Adjusting Guide Rollers to Back of Blade

When properly adjusted, there is about 1⁄32"–1⁄16" between the flange of the roller guides and the back of the blade.

Items Needed Qty

Caliper ............................................................... 1

Wrench or Socket 13mm

To adjust guide rollers to back of blade:

1. DISCONNECT SPARK PLUG WIRE!

2. Measure distance between back of blade and

flange of roller (see Figure 32).

................................... 1

3. Loosen lower hex bolt on guide roller enough so guide roller rod can be moved toward or away from blade (see Figure 33).

Guide Roller

Rod

Figure 33. Guide roller adjustment components.

4. Adjust guide roller rod until there is about

⁄32"–1⁄16" between roller flange and back of

blade, then tighten hex bolt.

Model G0901 (Mfd. Since 11/22)

5. Repeat measurement and any required adjustments for second guide roller.

. Proceed to Adjusting Guide Roller Tilt.

-25-

Adjusting Guide Roller Tilt

Check the tilt of the roller guides to ensure the blade stays straight while cutting.

6. Measure and record distance between front of small straightedge and top of large straightedge (see Figure 35).

Items Needed Qty

Straightedge 24+" .............................................. 1

Straightedge 12+" Measuring Tape Open-End Wrenches 13mm

To adjust guide roller tilt:

DISCONNECT SPARK PLUG WIRE!

2. Adjust blade height so it is about 10" above

log bunks.

Move carriage along track until blade is

between (2) log bunks.

4. Under right guide roller, place large straightedge across log bunks, parallel with track (see Figure 34).

5. Place small straightedge across blade near right guide roller, perpendicular to log bunks (see Figure 34).

Note: Straightedge should rest on flat of

blade, not kerf or weld. Straightedge will be used to measure tilt of blade.

.............................................. 1

................................................. 1

.............................. 2

Small Straightedge

Large Straightedge

Figure 35. Distance between front of small

straightedge and large straightedge.

7. Measure and record distance between rear of small straightedge and top of large straightedge.

— If distances from Step 6 and Step 7

are equal, no adjustment is necessary. Proceed to Step 10.

— If distances from Step 6 and Step 7 are

not equal, proceed to Step 8.

Small

Straightedge

Large

Straightedge

Figure 34. Straightedges positioned for

measuring guide roller tilt.

8. Loosen (2) hex bolts and jam nuts shown in Figure 36 enough so guide roller rod can be

adjusted.

x 2

Guide Roller

Rod

Figure 36. Guide roller adjustment components.

-26-

Model G0901 (Mfd. Since 11/22)

9. Adjust hex bolts until distances are equal, then tighten jam nuts against guide mount, without moving hex bolts, to secure tilt setting.

10. Repeat Steps 4–9 for left guide roller.

Adjusting Guide Roller Height

The guide rollers should press the blade about

⁄16" down from where it sits on the blade wheels

when correctly tensioned.

4. Turn guide roller rod until roller does not touch blade.

5. Repeat Steps 2–3 on second guide roller.

Note: This will release any guide roller ten-

sion on blade so you can add correct amount.

6. Measure distance from blade just inside right guide roller to top of log bunk (see Figure 38).

Items Needed Qty

Wrench or Socket 13mm ................................... 1

Measuring Tape or Ruler

................................... 1

To adjust guide roller height:

DISCONNECT SPARK PLUG WIRE!

2. Move carriage until blade is directly above log

bunk.

3. Loosen lower hex bolt on guide roller just enough so guide roller rod can be turned (see Figure 37).

Right

Guide

Blade

Roller

Log Bunk

Figure 38. Distance between blade and log bunk

just inside right blade guide.

7. Turn right guide roller rod until roller moves

blade down about blade and log bunk should decrease by

⁄16" (distance between

⁄16").

8. Repeat Steps 6–7 for blade just inside left guide roller.

Guide Roller

Rod

Figure 37. Guide roller adjustment components.

Model G0901 (Mfd. Since 11/22)

9. Tighten lower hex bolts on guide rollers to secure settings.

-27-

Types of Lumber

The orientation of the woodgrain on a piece of wood has a large impact on the attributes of the lumber. Whether it is for structural, aesthetic, or economic reasons, it is important for a sawyer to know the output of their labors.

Flatsawn

Quartersawn

Riftsawn

Figure 39. Types of lumber taken from a log.

Quartersawn lumber is less likely to cup or twist when dried. However, producing perfectly quarter sawn lumber is typically time consuming and wastes a large volume of wood.

Some types of wood, such as white oak, show ray flecks on the surface of the board when quartersawn, which is highly sought after by woodworkers. Taking the time to produce more quarter sawn lumber can pay off, but it is important to know what you are sawing and how the lumber will be used before putting in the extra work.

Riftsawn Lumber

Sometimes classified as a type of quartersawn lumber, riftsawn lumber is characterized by woodgrain between 45°–70° to the face of the lumber. It will never have perfectly perpendicular woodgrain or show ray flecks.

Riftsawn lumber is often the by-product of quarter sawing methods. Many sawyers consider riftsawn lumber to be a happy medium between structural integrity and milling time.

Flatsawn Lumber (Plainsawn)

Flatsawn lumber is characterized by woodgrain that is less than 45° to the face of the lumber, called "tangential grain."

This often results in unique cathedral patterns on the face of the lumber. However, the tangential grain contributes to more cupping and twisting during drying. Because flatsawn lumber is fastest and most plentiful to produce, it is the most affordable lumber on the market. The majority of construction quality lumber is flatsawn.

Quartersawn Lumber

Quartersawn lumber is characterized by woodgrain nearly perpendicular to the board. By some definitions, quartersawn lumber has grain more than 45° to the face of the lumber. In this manual, quartersawn refers to lumber with grain between 75°–90° to the face.

Cants

Cants are sawn logs with at least one finished side. Cants with four finished sides are often used in construction or resawn into smaller pieces of dimensional lumber.

Figure 40. Example of live sawing a cant into

dimensional lumber.

-28-

Model G0901 (Mfd. Since 11/22)

Drying Lumber

Slab

Cant Sawing

Before cutting your first log, have a plan for drying your lumber. Depending on the species of wood, a green log might have anywhere from 60%–180% moisture content, and needs to be dried to approximately 6%–11% before it can be finished and used.

With the moisture loss, lumber will shrink and warp. Depending on the drying conditions and species of wood, air-drying can take anywhere from several weeks to many months.

The most common method is air-drying, in which freshly cut lumber is stacked outdoors with stickers and weights and the ends are sealed with latex paint. Weighing down the stack and sealing the board ends help to minimize warping as the wood shrinks. When the lumber reaches approximately 20% moisture content, the stack is moved indoors until drying is complete.

Sawing a log into a square cant is a fundamental sawing operation for any sawyer. When sawing a cant, slabs are removed from four sides of the log, leaving a square beam.

To saw a cant:

1. Inspect log and determine size of cant to be

produced. Mark planned cuts on end of log.

Load log on track bed and secure with log

supports and log clamp.

Cut slab from top of log and remove it (see

3. Figure 42).

First Cut

Log Clamp

Log Support

Drying

Wood

Sticker

Figure 41. Side view of an air-drying stack.

Tracking moisture content can be done by regularly weighing and recording several of the drying boards. When the rate of weight loss slow or stops, the wood has stopped drying. Moisture meters (see Page 36) provide a fast and accurate alternative to weight tracking.

Due to the many variables involved in drying lumber, it is important to research and plan for your specific needs. Understand the drying environment and type of wood in order to ensure the end product meets your needs.

Plywood

Cinderblock

4x4

Figure 42. First cut to saw a cant.

Rotate cant 90° and secure using log sup-

ports to ensure cant is square to track (see Figure 43).

Slab

Second Cut

Figure 43. Cant rotated for second cut.

Model G0901 (Mfd. Since 11/22)

-29-

Note: It is essential that cut face of cant is

secured perpendicular to track on first rotation. When first (2) cuts are perpendicular, remaining sides will be easy to square to log supports.

5. Repeat Steps 3—4 for each side of cant.

6. If square cant was goal of operation, con-

gratulations, you are finished! To cut cant into dimensional labor, proceed to Live Sawing.

Live Sawing

Live sawing is a method of sawing logs that is fast and produces very little wasted wood. In a live sawing procedure, the log is cut from top to bottom and is rarely rotated more than once.

Lumber produced when live sawing will range from flatsawn (cuts made near the top and bottom) to quartersawn (cuts made near the middle of the log). Because no specific type of lumber is prioritized, live sawing maximizes the amount of board feet produced per log.

Slab

First Cut

Second Cut

Log Clamp

Figure 44. First cuts to live saw a log.

Rotate log 180° and secure with log supports

and log clamp (see Figure 45).

Cut Entire Log Top to Bottom

Flitch

Log Support

To live-saw a log:

1. Inspect log and outline a sawing plan.

Consider orientation of log on track and where to start cutting to produce the best lumber. Mark planned cuts on end of log.

Load log on track bed and secure with log

supports and log clamp.

Make first cut, then remove slab from log (see

3. Figure 44).

Lower blade the desired thickness of lumber

4. and cut first flitch (see Figure 44).

Figure 45. Log rotated 180° for live sawing.

Note: Logs can be live sawn from top to bot-

tom without being rotated, but rotating once provides stable base to saw rest of log.

Continue to cut flitches from top to bottom

until log is fully used. Adjust log supports and log clamp throughout process to keep log secured and supports below blade.

7. Edge flitches as needed.

— If available, an edger can be used to

quickly and easily edge lumber.

— Without an edger, sawmill can be used.

Refer to Edging on Page 31.

Note: Live-sawing square cant will produce lum- ber that does not need to be edged. However, it typically produces more waste than live-sawing log and edging it..

-30-

Model G0901 (Mfd. Since 11/22)

Edging

Repeat Steps 2–3 until all flitches have been

edged once (see Figure 47).

Edging a flitch involves removing the natural or waney edges, turning it into lumber with four finished sides. Using an edger is the quickest and simplest way of edging, but edging can also be done with a sawmill. For many sawyers running singe-mill operations, using a mill for edging is the default.

To edge flitches using a sawmill:

Clamp multiple flitches to track bed, using log

supports to ensure flitches are perpendicular to track (see Figure 46). Take care that log clamp holds flitches tight against supports.

Cut to remove bark from the tallest flitches.

Cut as many flitches as possible without wasting excessive lumber (see Figure 46).

First Cut

Second

Cut

Figure 47. Tallest flitches to be removed after

each cut.

Clamp single-edged flitches to track bed,

using flat edges and log supports to ensure flitches are perpendicular to track (see Figure 48).

Third

Cut

Log Log Clamp

Figure 46. Flitches secured to track bed for

edging.

Remove edged flitches, then secure the rest

(see Figure 47).

Support

Figure 48. Flitches secured to track in

preparation for second edging.

Repeat Steps 2–3 until all flitches have been

edged on both sides.

Model G0901 (Mfd. Since 11/22)

-31-

Quarter Sawing

Quarter sawing is any method of milling a log that produces primarily quartersawn lumber. In general, this produces a mixture of quartersawn and riftsawn lumber. Producing only quartersawn lumber can be time-consuming and leaves a lot of scrap.

The method below is relatively simple and produces quartersawn and riftsawn lumber. Many other methods exist—all with unique benefits and downsides. A sawyer should choose a method based on the log used, lumber needed, and personal preference.

To quarter-saw a log:

1. Inspect log and outline a sawing plan.

Consider orientation of log on track and where to start cutting to produce the best lumber. Mark planned cuts on end of log.

Rotate cant 90° and clamp to track bed, using

log supports to ensure cant is perpendicular to track (see Figure 50). Take care that log clamp holds cant tight against supports.

Cut a thin slab and remove it from cant (see

6. Figure 50). Discard slab.

Thin Slab

Cant

Figure 50. Thin slab to be removed from cant.

Load log to track bed and secure with log

supports and log clamp.

Cut a thick slab and remove it from log (see

3. Figure 49). Set slab aside for now.

Rotate log 180° and secure it. Cut a slab about

4. the same size as the first one (see Figure

49). To reduce waste, make sure the distance

between cuts—the height of the resulting cant—is divisible by the thickness of lumber to be produced. Set slab aside for now.

Thick

Slab Cant Log

Clamp

Log Support

Rotate cant 180° and secure it.

8. Cut a thin slab and remove it from cant (see Figure 51). Discard slab.

Cut above pith, then remove top cant from

the cant secured to the track (see Figure 51). Set top cant aside for now.

10. Cut below pith. To reduce waste, cut a board that is a usable thickness when cutting below pith. Remove board with pith from cant (see Figure 51). Set board aside for now.

Thin Slab

Cant

Pith

Thick Slab

Figure 49. Thick slabs to be removed from log.

-32-

Figure 51. Two rectangular cants and pith to be

removed.

Model G0901 (Mfd. Since 11/22)

11. Rotate cant 90° and secure it.

Cut from top to bottom until cant is fully used

12.

(see Figure 52). Adjust log supports and log clamp throughout process to keep cant secured and supports below blade.

Inspect end of slab and determine which

19.

portion is suitable for quartersawn lumber. Evaluate the width of the resulting lumber, as well as the angle of the grain. Cut slab where quartersawn quality wood begins (see Figure 54).

Quartersawn Lumber

Figure 52. Quartersawn lumber to be cut from

cant.

Load second cant to track bed, and secure

13.

with log supports and log clamp.

Repeat Step 12 with second cant.

14.

Clamp board with pith to track bed, using log

15.

supports to ensure board is perpendicular to track (see Figure 53).

Cut just above pith, then remove resulting

16.

quartersawn board from board secured to track (see Figure 53).

Scrap

Figure 54. Scrap wood to be cut from slab.

Rotate slab 180° and secure it.

20.

Cut slab where quartersawn quality wood

21.

begins, then continue to cut flitches from top to bottom until slab is fully used (see Figure 55).

Scrap

Quartersawn Flitches

17. Cut just below pith. Remove and discard pith (see Figure 53).

Quartersawn Lumber

Figure 53. Pith to be removed from board.

18.

Load slab from Step 3 or 4 to track bed, using

log supports to ensure slab is perpendicular to track (see Figure 54). Take care that log clamp is holding slab tight against supports.

Model G0901 (Mfd. Since 11/22)

Pith

Figure 55. Quartersawn flitches to be cut from

slabs.

22. Repeat Steps 18–21 on remaining slab.

23. Edge all flitches and waney boards.

— If available, an edger can be used to

quickly and easily edge lumber.

— Without an edger, the sawmill can be

used. See Edging on Page 31.

-33-

SECTION 4: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

T33345—145" x 1" x .035" x 1.3 TPI Hook Blade

Figure 57. Replacement blade for the G0901.

H5408—Blade Tensioning Gauge

The Blade Tensioning Gauge ensures long blade life, reduced blade breakage, and straight cutting by indicating correct tension. A precision dial indicator provides you with a direct readout in PSI.

The Blade Tensioning Gauge is made of lightweight, cast aluminum for optimum accuracy. Bright color coding makes it easy to use and easy to read. The Blade Tensioning Gauge comes in a handy metal box with instructions on the lid.

T31677—6' Bed Extension Rails

These modular track extensions can be quickly connected to your existing track to increase your sawing capacity in 6' increments, allowing for practically any length lumber that you need to mill. Constructed from heavy 6-gauge, electroplated steel for long-lasting durability in the field.

Figure 58. T31677 6' Bed Extension Rails.

Figure 56. H5408 Blade Tensioning Gauge.

-34-

Model G0901 (Mfd. Since 11/22)

order online at www.grizzly.com or call 1-800-523-4777

Accessories 2

Basic Eye Protection

T32323—Woodturners Face Shield T32401—EDGE Brazeau Safety Glasses, Clear T32402—EDGE Khor G2 Safety Glasses, Tint T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T29242—Compact Cordless 12" Chainsaw

Gas-free operation on this 20V max DeWalt chainsaw eliminates the cold starts, fumes, carburetor issues, and maintenance involved with gas-powered chainsaws. This battery-powered chainsaw is built to work hard. Use it for tough construction and outdoor jobs like cutting beams, demolition work, and managing tree limbs. The lightweight design maximizes user control. Brushless motor technology delivers extreme runtime and long motor life. Battery and charger not included.

T32402

Figure 59. Assortment of basic eye protection.

T27630 —Lumber Rack 6-Shelf System T31725 —Lumber Rack 3-Shelf System

Keep materials organized and accessible with these lumber shelf systems. Easy to install into a sturdy wall and each shelf can hold up to 100 lbs.

T32404

Figure 61. T29242 20V Max Compact Cordless

12" Chainsaw.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and water resistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

Figure 60. Lumber Rack Shelf Systems.

Model G0901 (Mfd. Since 11/22)

Figure 62. T26419 Syn-O-Gen Synthetic

Grease.

-35-

order online at www.grizzly.com or call 1-800-523-4777

T30855 —AccuMASTER XT Moisture Meter T30904—AccuMASTER Duo Pro Moisture Meter

These easy-to-use moisture meters are ideal for measuring moisture content in logs and lumber. The XT and Duo Pro also work with brick, concrete, drywall, plaster, and carpet so you can find moisture before it becomes a costly problem.

Figure 63. T30904 AccuMASTER Duo Pro

Pin & Pinless Moisture Meter.

T32595—30" Cant Hook T32592—48" Cant Hook T32593—60" Cant Hook T32594—48" Peavey T32596—Two Man Log Carrier T32597—36" Hookaroon

These log handling tools have blue aluminum handles that are easy to spot around the shop.

T32592

T32594

T32598—International Log Scale w/Handle

This log scale from Logrite has an anodized blue finish that highlights the laser etched numbers on the scale. The finish also allows pitch to be easily removed with solvents without damaging the printing.

Figure 64. T32598 International Log Scale with

Handle.

T32596

T32597

Figure 65. Log handling accessories.

-36-

Model G0901 (Mfd. Since 11/22)

SECTION 5: MAINTENANCE

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Dull or damaged saw blade.

Wood chip and sawdust buildup.

•

Low fuel and lubrication levels.

•

Damaged or worn guides rollers.

•

Monthly Check

• V-belt tension, damage, or wear.

Cleaning

Grease Fittings

Wipe clean and lubricate all grease fittings with two pumps of high-temp bearing grease (see Figure 62 on Page 35). Grease fittings should be lubricated after approximately 160 hours of use.

Grease

Fitting

Figure 66. Wheel axle grease fittings.

Rear Grease

Fitting

(1 of 4)

Grease

Fitting

Cleaning the Model G0901 is relatively easy and should be done whenever the machine operation is finished for the day. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.

Lubrication

Most bearings on this machine, except for those with grease fittings, are sealed and permanently lubricated. Leave these bearings alone until they need to be replaced. Do not lubricate them.

Apply light machine oil to the lift chain every 40 hours of use, prior to storage, or as needed. Clean machine thoroughly before applying oil. The goal is to achieve adequate lubrication. Too much lubrication will attract dirt and sawdust.

Front

Grease

Fitting

(1 of 4)

Figure 67. Carriage grease fittings.

Engine

Follow Briggs & Stratton engine manual for engine maintenance schedule. Refer to Operations in the engine manual for fuel and oil requirements. Do not overfill fuel or oil.

Model G0901 (Mfd. Since 11/22)

-37-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 6: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Note: Refer to the Briggs & Stratton engine manual for engine-related troubleshooting.

Troubleshooting

Operating Machine

Symptom Possible Cause Possible Solution

Finished workpieces are wavy, crooked or uneven.

Finished workpieces have rough surface.

Blade dulls prematurely.

Blade tracks incorrectly or comes off wheels.

1. Blade is not properly tensioned.

2. Track is not level.

3. Log not parallel to track or cant not square to log supports.

4. Blade cutting section too wide.

5. Blade tracking is incorrect.

6. Dull or damaged blade, or blade installed backwards.

7. Excessive feed rate/pressure.

1. Excessive feed rate/pressure.

2. Wrong blade type or TPI for cut type.

1. Lubrication system at fault.

2. Excessive feed rate/pressure.

3. Wrong blade type or TPI for cut type.

4. Hard spots in material.

5. Blade installed inside-out.

6. Blade is twisted or damaged.

7. Blade is not properly tensioned.

8. Foreign objects or tramp metal in log.

1. Blade tracking is incorrect.

2. Blade is not properly tensioned.

3. Belts are worn.

4. Dull or damaged blade.

5. Wrong blade type or TPI.

6. Excessive feed rate/pressure.

7. Blade wheels are not coplanar.

1. Adjust blade tension (Page 23).

2. Tighten track brackets; adjust track feet until track is level (Page 18).

3. Secure log against supports; remove branches or lumps that prevent even positioning.

4. Adjust blade cutting section width (Page 24).

5. Adjust blade tracking (Page 42).

6. Replace blade (Page 23).

7. Reduce feed rate/pressure.

1. Reduce feed rate/pressure.

2. Use correct blade for cutting type.

1. Check lubricant level. Check for leaks.

2. Reduce feed rate/pressure.

3. Use correct blade for cutting type.

4. Reduce speed, increase feed pressure.

5. Re-install blade (Page 23).

6. Replace blade (Page 23).

7. Adjust blade tension (Page 23).

8. Check log for foreign objects or tramp metal. Use different log if necessary.

1. Adjust blade tracking (Page 42).

2. Adjust blade tension (Page 23).

3. Replace belts (Page 41).

4. Replace blade (Page 23).

5. Use correct blade.

6. Reduce feed rate/pressure.

7. Adjust wheels to be coplanar (Page 43).

-38-

Model G0901 (Mfd. Since 11/22)

Operating Machine (Cont.)

Symptom Possible Cause Possible Solution

Blade or teeth break during operation.

Blade slows when cutting.

Blade does not cut.

Machine has excessive vibration or noisy operation.

Blade is twisting during cut.

Throttle is sluggish or engine does not slow to an idle when throttle handle is released.

1. Foreign objects or tramp metal in log.

2. Blade is not properly tensioned.

3. Blade tracking is incorrect.

4. Dull or damaged blade.

5. Excessive feed rate/pressure.

6. Log is loose.

7. Wrong blade type or TPI.

8. Lubrication system at fault.

9. Blade teeth clogged.

1. Blade is not properly tensioned.

2. Lubrication system at fault.

3. Drive belt is loose or slipping.

4. Belts are worn.

5. Dull or damaged blade.

6. Excessive feed rate/pressure.

1. Dull or damaged blade.

2. Blade installed backwards.

1. Excessive sawdust buildup inside blade compartment.

2. Engine is loose.

3. Log is loose.

4. Belts are worn.

5. Wheel bearings at fault.

1. Excessive feed pressure.

2. Blade is not properly tensioned.

3. Blade cutting section too wide.

4. Dull or damaged blade.

1. Throttle lever too tight.

2. Throttle cable damaged, corroded, or has excessive buildup inside housing.

1. Check log for foreign objects or tramp metal. Use different log if necessary.

2. Adjust blade tension (Page 23).

3. Adjust blade tracking (Page 42).

4. Replace blade (Page 23).

5. Reduce feed rate/pressure.

6. Secure log against supports; remove branches or lumps that prevent even positioning.

7. Use correct blade.

8. Check lubricant level. Check for leaks.

9. Clean blade.

1. Adjust blade tension (Page 23).

2. Check lubricant level. Check for leaks.

3. Tension drive belt (Page 40).

4. Replace belts (Page 41).

5. Replace blade (Page 23).

6. Reduce feed rate/pressure.

1. Replace blade (Page 23).

2. Re-install blade (Page 23).

1. Vacuum excess chips and sawdust.

2. Tighten fasteners; replace damaged fasteners.

3. Secure log against supports; remove branches or lumps that prevent even positioning.

4. Replace belts (Page 41).

5. Replace wheel bearings.

1. Reduce feed pressure.

2. Adjust blade tension (Page 23).

3. Adjust blade cutting section width (Page 24).

4. Replace blade (Page 23).

1. Adjust throttle lever nut on engine until throttle lever returns freely to stopped position.

2. Remove cable from housing. Clean/replace cable.

Note: Refer to the Briggs & Stratton engine manual for engine-related troubleshooting.

Model G0901 (Mfd. Since 11/22)

-39-

Tensioning/

Replacing V-Belts

2. Open blade cover and secure to blade cover

latch (see Figure 69).

The G0901 uses V-belts as tires on the blade wheels. The drive belt transfers power from the engine to the wheels. The blade and drive belt must be tensioned properly to ensure proper operation. It is essential that both drive belt and follower belt are free of cracks, fraying, and wear. V-belt condition and tension should be checked at least every 3 months —more often if the sawmill is used daily.

To replace the V-belts, you must remove the blade. After installation, you must re-tension the drive belt.

Drive Belt

Blade Cover

Latch

Figure 69. Blade cover supported by blade

cover latch.

Inspect drive belt; if it is cracked, frayed, or

glazed, replace it (refer to Page 41).

Check drive belt tension by applying moderate

pressure between pulleys (see Figure 70).

— If deflection is approximately 1⁄4", belt is

correctly tensioned and no adjustment is necessary.

Follower

Belt

Figure 68. G0901 V-belts.

Checking/Adjusting Drive Belt Tension

To ensure optimum power transmission from the engine to the blade, the drive belt must be properly tensioned.

Tool Needed Qty

Open-End Wrench 19mm .................................. 1

To check/adjust drive belt tension:

1. DISCONNECT SPARK PLUG WIRE!

— If deflection is not approximately 1⁄4", belt is

not correctly tensioned. Proceed to Step 5.

Bandsaw

Wheel

Deflection

Motor

Wheel

Figure 70. V-belt deflection.

-40-

Model G0901 (Mfd. Since 11/22)

5. Loosen (2) tensioner arm cap screws and locking hex nut shown in Figure 71.

2. Open blade cover and secure to blade cover latch (see Figure 73).

Locking

Hex Nut

Tensioner Arm

Cap Screws

Figure 71. Tension securing fasteners.

6. Tighten/loosen belt tension hex nut to adjust

tension pulley until drive belt is correctly tensioned (see Figure 72).

Tension

Pulley

Blade Cover

Latch

Follower

Belt

Figure 73. Blade cover supported by blade

cover latch and location of follower belt.

3. Remove blade. Refer to Changing Blade on Page 23.

Lift follower belt off left wheel (see Figure

73), and install new belt in its place.

Re-install blade and close blade cover.

Replacing Drive Belt

Items Needed Qty

Protective Gloves........................................1 Pair

Open-End Wrench 19mm Replacement Belt (#P0901329V3)

.................................. 1

.................... 1

Belt Tension

Hex Nut

Figure 72. Drive belt tension controls.

7. Tighten cap screws and hex nut from Step 5

to secure.

Replacing Follower Belt

A follower belt of the correct size hangs loosely on the left blade wheel.

Items Needed Qty

Protective Gloves........................................1 Pair

Replacement Belt (#P0901408V2)..................... 1

To replace follower belt:

1. DISCONNECT SPARK PLUG WIRE!

Model G0901 (Mfd. Since 11/22)

To replace drive belt:

1. DISCONNECT SPARK PLUG WIRE!

Open blade cover and secure to blade cover

latch (see Figure 73).

Remove blade. Refer to Changing Blade on

3. Page 23.

De-tension drive belt. Refer to Checking/

4. Adjusting Drive Belt Tension on Page 40.

Slip old drive belt off pulleys and wheel, then

install new belt in its place.

Tension drive belt. Refer to Checking/

6. Adjusting Drive Belt Tension on Page 40.

Re-install blade and close blade cover.

-41-

Adjusting Blade

Tracking

Rear of blade should also track about 1⁄32"–

⁄16" in front of roller flanges on blade guides

(see Figure 75).

Checking Blade Tracking

"Trac k ing " refers to how the blade rides on the sawmill wheels. Proper tracking is important for achieving correct blade tension and cutting accurately. Improper tracking reduces cutting accuracy, causes excess vibration, and places stress on the blade and other components. The orientation of the wheels in relation to each other determines how the blade tracks.

To check blade tracking:

1. DISCONNECT SPARK PLUG WIRE!

2. Open blade cover and secure to blade cover latch (see Figure 74).

. Rotate wheels by hand and observe blade

position. Blade should track on wheels so rear of blade is aligned with rear edge of V-belts (see Figure 74)

Roller

Flange

Back of Blade

Figure 75. Proper blade tracking.

— If blade does remain aligned with V-belts,

and back of blade is flanges, no adjustment is necessary.

— If blade does not remain aligned with

V-belts, or back of blade is not from roller flanges, proceed to Adjusting Wheel Shaft Position.

⁄32"–1⁄16" from roller

⁄32"–1⁄16"

Blade Cover

Latch

V-Belts

Figure 74. Blade cover supported by blade

cover latch and location of V-belts.

Adjusting Wheel Shaft Position

If blade tracking is out of alignment, the wheel shafts can be adjusted to change the angle of the wheels. Properly adjusted wheels should be parallel when the blade is tensioned.

If blade tracking appears to be out of alignment, we recommend first replacing the blade before adjusting blade shaft position. A worn belt can become "bell mouthed" and throw off wheel coplanarity just enough to cause problems. Guide rollers out of adjustment can make the blade wobble or wander. Before adjusting wheel shaft position, check all of these. The blade wheels were carefully factory set to be coplanar and parallel before your saw was shipped so adjusting wheel shaft position should be done as a last resort.

-42-

Model G0901 (Mfd. Since 11/22)

There are two adjustment bolts that adjust the vertical wheel tilt and a through bolt with lock nut that adjusts the horizontal wheel tilt (see Figure 76).

Top Vertical

Tilt Hex Bolt

Horizontal Tilt

Hex Bolt

Bottom Vertical

Tilt Hex Bolt

Lock Nut

Figure 76. Wheel adjustment hub.

Tools Needed Qty

Open-End Wrenches 17mm .............................. 2

To adjust wheel shaft position:

4. Loosen hex nuts on wheel adjustment hub (see Figure 78).

Figure 78. Location of hex nuts.

Small adjustments of tilt bolts make large changes at edge of wheels. Adjust bolts

incrementally,

⁄4 turn or less at a time.

1. DISCONNECT SPARK PLUG WIRE!

Check blade tracking (see Page 42) and

determine which wheel needs to be adjusted, and in which direction (see Figure 77).

Wheels parallel and

coplanar.

Wheel is not

laterally aligned.

Wheel is not

vertically aligned.

Figure 77. Examples of wheel alignment.

5. Adjust vertical tilt hex bolts (see Figure 79)

so that wheel is perpendicular to ground. When making adjustments, loosen one bolt then tighten opposite bolt equally. Make adjustments in small increments.

— To tilt top of wheel forward, loosen top hex

bolt and tighten bottom hex bolt.

— To tilt top of wheel backward, loosen bot-

tom hex bolt and tighten top hex bolt.

Top Vertical

Tilt Hex Bolt

Bottom Vertical

Tilt Hex Bolt

3. Release blade tension by turning blade tension handle counterclockwise.

Model G0901 (Mfd. Since 11/22)

Figure 79. Location of vertical tilt hex bolts.

-43-

6. Adjust horizontal tilt hex bolt (see Figure 80) so that blade tracks evenly.

— To tilt outside of wheel forward, turn hex

bolt clockwise.

— To tilt outside of wheel backward, turn hex

bolt counterclockwise.

Horizontal Tilt

Hex Bolt

Figure 80. Location of horizontal tilt hex bolt.

Items Needed Qty

Protective Gloves........................................1 Pair

Hex Wrench 5mm Cleaner/Degreaser Disposable Rags Shims

To adjust wheel coplanarity:

2. Remove blade (see Page 22).

................................................. As Needed

DISCONNECT SPARK PLUG WIRE!

Remove one or both blade wheels from blade

cover.

— To remove blade wheel, loosen cap screw

shown in Figure 82, then remove lock ring, flat washer, and blade wheel.

.............................................. 1

............................ As Needed

............................... As Needed

7. Tension blade (see Page 23) and inspect blade tracking (see Page 42).

— If tracking is still out of alignment, release

blade tension and repeat Steps 5–7.

— If blade tracks evenly, proceed to Step 8.

8. Tighten hex nuts on wheel adjustment hub.

Adjusting Coplanarity

Coplanarity of the blade wheels is determined by the width of the shims behind the wheels. Over the life of your machine it is unlikely that the coplanarity of the wheels will ever need to be adjusted.

Wheels parallel and

coplanar.

Lock Ring

Figure 82. Location of blade wheel lock ring cap

screw.

Clean wheel shaft and replace shims so

shims are equal thickness on each wheel shaft, then install wheels.

Install blade (see Page 23), check blade

tracking (see Page 42), then adjust wheel shaft position (see Page 43) as needed.

-44-

Wheels are not

coplanar.

Figure 81. Examples of coplanarity.

Model G0901 (Mfd. Since 11/22)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 7: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0901 (Mfd. Since 11/22)

-45-

ENGINE

Wiring Diagram

LIMIT SWITCH

240V

STOP

BUTTON

KEYON

KB2-BE101

43 21

Wiring Photos

Figure 83. E-stop switch box. Figure 84. Blade cover limit switch.

-46-

READ ELECTRICAL SAFETY

ON PAGE 45!

Model G0901 (Mfd. Since 11/22)

SECTION 8: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Track

131

125

110

130

125

123

121

123

110

124

115

122

116

120

101

121

113 105

123

108

119

123

117

145

122

116

107

124

104

125

126

106

142

124

127128

123

105

145

142

111

126

112

127128

114

103

124

102

122

116

101

123

129

122

121

109

118

123

121

116

134

140

133

Model G0901 (Mfd. Since 11/22)

139

132

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

136

144

141

-47-

Track Parts List

PART # DE SCRIP TION REF PART # DE SCRIP TION

101 P0901101 TRACK SECTI ON 122 P0901122 HEX NUT M16-2 102 P0901102 LOG SUPPORT BRACKET 123 P0901123 FLAT WASHER 10MM 103 P0901103 LOG SUPPORT ARM 124 P0901124 CARRIAGE BOLT M10-1.5 X 25 104 P0901104 TRACK BRACKET 125 P0901125 CARRIAGE BOLT M10-1.5 X 20 105 P0901105 LOG CLAMP BRACKET 126 P0901126 LOCK WASHER 6MM 106 P0901106 LOG CLAMP ROD 127 P0901127 FLAT WASHER 6MM 107 P0901107 LOG CLAMP ARM 128 P0901128 HEX BOLT M6-1 X 12 108 P0901108 LOG CLAMP BOLT 129 P0901129 HEX BOLT M8-1.25 X 30 109 P0901109 GUI DE RAI L (FR, LH) 130 P0901130 GUI DE RAIL (RR, RH) 110 P0901110 GUI DE RAI L (CENTE R) 131 P0901131 GUI DE RAI L (RR, LH) 111 P0901111 GUI DE RAI L (FR, RH) 132 P0901132 TOOL BOX (EMPTY) 112 P0901112 LOG SUPPORT SHAFT 133 P0901133 T-HANDLE SOCKE T WRENCH 17 MM 113 P0901113 LOG CLAMP HANDLE SHAFT 134 P0901134 WRENCH 17 X 19MM OPEN-ENDS 114 P0901114 ADJUSTABLE HANDLE M12-1.75 X 24, 95L 136 P0901136 WRENCH 11 X 13MM OPEN-ENDS 115 P0901115 KNOB M10-1.5, D25, BALL 139 P0901139 FLAT SCREWDRI VER 116 P0901116 ADJUSTABLE FOOT M16-2 X 150 140 P0901140 PHILLIPS SCREWDRIVER 117 P0901117 KNOB BOLT M10-1.5, 6-LOBE, D45 141 P0901141 HEX WRENCH SET 2. 5-10MM 7-PC 118 P0901118 CARRIAGE STOP 142 P0901142 HE X NUT M10-1. 5 119 P0901119 HEX BOLT M10-1.5 X 180 144 P0901144 WRENCH 8 X 10MM OPE N-ENDS 120 P0901120 SET SCREW M8-1.25 X 30 145 P0901145 LOCK WASHER 10MM 121 P0901121 LOCK NUT M10-1.5

-48-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0901 (Mfd. Since 11/22)

252

263

247

262

221

252

256

245

235

220

262

217

212

250

266

256

259

213

247

258

257

238

270

236

248

261

249

246

252

246

265

222

249

246

237

223

Carriage

250

254

245

247

256

248

250

263

255

207V2

209V2

274

218

219

241

247

244

248

231

272

201V2

211V2

276V2

230

244

253

275

206V2

240

251V2

258

208

216V2

229V2

205

269

215V2

234

227

202

239

204

268

234

272

271

249

263

247

250

231

261

246

260

214

246

224V2

203

232

Model G0901 (Mfd. Since 11/22)

277

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-49-

Carriage Parts List

REF P ART # DES CRIPTION REF P ART # DES CRIPTION

201V2 P0901201V2 CARRIAGE RAIL (RIGHT) V2.10.21 240 P0901240 KEY 6 X 6 X 35 202 P0901202 TRACK ROLLER (UPPER) 241 P0901241 KEY 6 X 6 X 60 203 P0901203 TRACK ROLLER (LOWER) 244 P0901244 SET SCREW M6-1 X 6 204 P0901204 GUI DE ROD 245 P0901245 FLAT WASHER 6MM 205 P0901205 CHAI N GUI DE 246 P0901246 FLAT WASHE R 8MM 206V2 P0901206V2 LI FT BAR V2.10.21 247 P0901247 FLAT WASHER 10MM 207V2 P0901207V2 DRIVE ROD V2.10.21 248 P0901248 LOCK WASHER 6MM 208 P0901208 DRIVE SPROCKET 249 P0901249 LOCK WASHER 8MM 209V2 P0901209V2 CROSS BEAM V2.10.21 250 P0901250 LOCK WASHER 10MM 211V2 P0901211V2 CARRIAGE RAIL (LEFT) V2.10.21 251V2 P0901251V2 LOCK NUT M12-1.75 V2. 10.21 212 P0901212 LIFT CRANK LEVER 252 P0901252 HEX NUT M10-1. 5 213 P0901213 LI FT DIAL 253 P0901253 HEX NUT M12-1.75 214 P0901214 HEX HEAD PIN 12 X 30MM 254 P0901254 EYE BOLT 35MM, M16-2 X 30 215V2 P0901215V2 HEX BOLT M12-1.75 X 60 V2.10.21 255 P0901255 HEX BOLT M4-.7 X 10 216V2 P0901216V2 SPACER 12 X 17 X 39.5 V2.10. 21 256 P0901256 HEX BOLT M6-1 X 10 217 P0901217 HANDLE LOCK PIN 257 P0901257 HEX BOLT M6-1 X 12 218 P0901218 SWI TCH BOX 258 P0901258 HEX BOLT M6-1 X 16 219 P0901219 STOP SWI TCH MOUNTI NG PLATE 259 P0901259 HEX BOLT M6-1 X 20 220 P0901220 PUSH HANDLE 260 P0901260 HEX BOLT M8-1.25 X 30 221 P0901221 CLUTCH HANDLE 261 P0901261 HEX BOLT M8-1.25 X 16 222 P0901222 GEARBOX BASE 262 P0901262 HEX BOLT M10-1.5 X 20 223 P0901223 CASTER BRACKET (LARGE) 263 P0901263 HEX BOLT M10-1.5 X 30 224V2 P0901224V2 CASTER BRACKET (SMALL) V2.10.21 265 P0901265 CAP SCREW M8-1 X 16 227 P0901227 EXT RETAI NING RI NG 12 MM 266 P0901266 STEEL CABLE 1800MM 229V2 P0901229V2 LI FT CHAIN RS40 V2.10.21 268 P0901268 HEX BOLT M12-1.75 X 120 230 P0901230 PILLOW BEARING UCF204 269 P0901269 CHAI N GUI DE (LOWER) 231 P0901231 PILLOW BEARING UCFL204 270 P0901270 HANDLE GRIP 232 P0901232 BALL BEARING 6001-2RS 271 P0901271 SPRI NG CHAI N L I NK 234 P0901234 BALL BEARING 6203-2RS 272 P0901272 EXTENSION SPRING 4 X 23 X 92 235 P0901235 HOLLOW HANDLE 26 X 85, 16 274 P0901274 HEX BOLT M8-1.25 X 16 236 P0901236 COMPRESSION SPRING 1.4 X 16 X 28 275 P0901275 LO CK NUT M6- 1 237 P0901237 GEAR BOX NRV 040-15 276V2 P0901276V2 WOOL PAD V2.10.21 238 P0901238 CARRIAGE BRAKE 277 P0901277 FLAT WASHER 6 X 23 X 1.65MM 239 P0901239 KEY 6 X 6 X 30 RE

-50-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0901 (Mfd. Since 11/22)

333

347V2

332

336V2

358

307

313

324

341

320

311V2

361

326

313

325

351

Engine & Wheel Mounts

329V3

319

317

328

321

335V2

304V2

322

310V2

341V2

337

349V2

344

342

348

346

318V2

340

305V2

302V2

340

360

348

301V2

315

316

344

335V2

348

341V2

338

352

344

339

314V2

332

303V2

354

308V2

345

348

342

356

361

342

346

363

364

309V2

348

344

337

346

342

362

337

312V2

348

359

330V2

355

331V2

344

306V2

359

Model G0901 (Mfd. Since 11/22)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-51-

Engine & Wheel Mounts Parts List

REF PART # DES CRIPTI ON REF PART # DE S CRIPTI ON

301V2 P0901301V2 SAW WHEEL MOUNT (REAR) V2.10.21 332 P0901332 HEX BOLT M10-1.5 X 25 302V2 P0901302V2 SAW WHEEL MOUNT (FRONT) V2.10.21 333 P0901333 HEX BOLT M10-1.5 X 40 303V2 P0901303V2 SUPPORT BEAM V2.10.21 335V2 P0901335V2 HEX BOLT M10-1.5 X 25 V2.10.21 304V2 P0901304V2 WHEEL TENSIONER V2.10.21 336V2 P0901336V2 HEX BOLT M10-1.5 X 80 V2. 10.21 305V2 P0901305V2 MOUNT BRACKET V2. 10.21 337 P0901337 HEX BOLT M6-1 X 16 306V2 P0901306V2 SHLD BOLT M10-1.5 X 10, 25 X 25 V2.10.21 338 P0901338 HEX BOLT M6-.8 X 12 307 P0901307 MOUNTI NG PLA TE 339 P0901339 HEX BOLT 7/16-20 X 1-3/8 308V2 P0901308V2 TENSIONER ARM V2.10.21 340 P0901340 HEX NUT M6- 1 309V2 P0901309V2 TENSIONER MOUNT V2. 10.21 341 P0901341 HEX NUT M8-1.25 V1 310V2 P0901310V2 BLADE TENSION GUIDE BRACKET V2.10.21 341V2 P0901341V2 HEX NUT M10-1. 5 V2.10.21 311V2 P0901311V2 ENGINE MOUNT V2.10.21 342 P0901342 LOCK WASHER 6MM 312V2 P0901312V2 TENSIONER WHEEL V2.10.21 344 P0901344 LOCK WASHER 10MM 313 P0901313 SPACER 20 X 52 X 8 345 P0901345 FLAT WA SHER 6MM 314V2 P0901314V2 CARRIAGE BOLT M10-1.5 X 30 V2.10.21 346 P0901346 FLAT WAS HER 6MM 315 P0901315 STANDOFF-HEX FF M10-1.5 X 32 347V2 P0901347V2 FLAT WASHER 10MM V2.10.21 316 P0901316 CHAIN TENSI ON SCREW M10-1. 5 X 25 LH 348 P0901348 FLAT WASHER 10MM 317 P0901317 SPACER 25.5 X 38 X 22.2 349V2 P0901349V2 HEX BOLT M6-1 X 16 V2.10. 21 318V2 P0901318V2 CLUTCH COVER V2. 10.21 351 P0901351 CARRIAGE BOLT M10-1.5 X 30 319 P0901319 SPACER 26 X 38 X 5MM 352 P0901352 CAP SCREW M12-1.75 X 16 320 P0901320 BLADE TENSION HANDLE 354 P0901354 HEX NUT M10-1. 5 321 P0901321 FENDER WAS HER 13 MM 355 P0901355 EXT RETAI NI NG RI NG 25MM 322 P0901322 BLADE TENSION ROD 356 P0901356 CHAIN TENSION SCREW M10-1.5 X 20 324 P0901324 THRUST BEARING 51104 358 P0901358 LOCK NUT M12-1.75 325 P0901325 ENGINE B&S XR PROFESSI ONAL 13.5HP 359 P0901359 CAP SCREW M10-1.5 X 30 326 P0901326 COMPRESSION SPRI NG TH50-075 360 P0901360 SET SCREW M6-1 X 10 328 P0901328 CENTRI FUG AL CL UTCH 120 MM 361 P0901361 LOCK NUT M10-1.5 329V3 P0901329V3 V-BELT B89 V3.10. 21 362 P0901362 HEX NUT M12-1.75 330V2 P0901330V2 BALL BEARING 6305-2RS V2.10.21 363 P0901363 LOCK WASHER 12MM 331V2 P0901331V2 I NT RETAINING RI NG 62MM V2.10.21 364 P0901364 FLAT WASHER 12MM

-52-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0901 (Mfd. Since 11/22)

Blade & Wheels

402

REF PART # DE S CRIPTI ON RE F PART # DESCRI PTIO N

403

401V2

403

406V2

401V2

403

407

401V2 P0901401V2 WHEEL SHAFT V2.10.21 406V2 P0901406V2 BLADE 145 X 1 X .035" X 1.3 TPI V2.10. 21 402 P0901402 LOCK RI NG 407 P0901407 NEEDLE BEARI NG HJ-2028200+IR162020

403 P0901403 FENDER WA SHER 2 4MM 408V2 P0901408V2 V-BELT B59LP ARESTBUSH V2.10.21 404V2 P0901404V2 FLAT WASHER 25.4 X 73 X 3MM V2.10.21 409 P0901409 CAP SCREW M6-1 X 20 405V2 P0901405V2 SAW WHEEL 18-3/ 4" CAST-IRON V2.10.21

408V2

404V2

405V2

407

409

404V2

409

402

Model G0901 (Mfd. Since 11/22)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-53-

Guide Rollers

510

511

REF PART # DESCRI PTION REF PART # DESCRI PTION

514V2

504V2

515

505

513

507

502

508

506

509

501V2

514V2

515

506

512

503

502

515 514V2

511

507

506

512

503

501V2 P0901501V2 GUIDE MOUNT ( RI G HT) V2. 10. 21 509 P0901509 DRIP TUBE 6 X 8 X 1000MM 502 P0901502 ECCENTRIC ROD M16-2 X 19, 122L 510 P0901510 T-SLOT BOLT 9/16", M12-1.75 X 44 503 P0901503 ROLLER GUIDE 511 P0901511 LOCK NUT M16-2 504V2 P0901504V2 GUIDE MOUNT (LEFT) V2.10.21 512 P0901512 FLAT WASHER 16MM 505 P0901505 ADJ USTABLE HANDLE M12-1.75, 105L 513 P0901513 HEX BOLT M6-1 X 16 506 P0901506 GASKET 514V2 P0901514V2 HEX BOLT M8-1.25 X 30 V2.10.21 507 P0901507 BALL BEARI NG 6203-2RS 515 P0901515 HEX NUT M8- 1. 25 508 P0901508 DRIP TUBE FI TTI NG

-54-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0901 (Mfd. Since 11/22)

Blade Cover

611

616

621

601

620

630

615

614

622

606

628

609

626

607

604

618

623

627

608

617

624

619

625

613

612

602V2

627

605

622

603

611

610

629

REF P ART # DES CRIPTIO N REF PART # DES CRIPTION

601 P0901601 WA TER TANK HOLDE R 616 P0901616 WATER TA NK 5L 602V2 P0901602V2 SAW WHEEL HOUSING V2.10.21 617 P0901617 HEX NUT M6-1 603 P0901603 SAW WHEEL COVER 618 P0901618 HEX NUT M8-1 . 2 5 604 P0901604 BLADE COVER LATCH 619 P0901619 FL AT WAS HER 6MM 605 P0901605 COVER 620 P0901620 FLAT WASHER 16MM 606 P0901606 BLADE HEIGHT INDICATOR BRACKET 621 P0901621 HEX BOLT M6-1 X 12 607 P0901607 TO RSI ON SP RI NG (RI GHT) 622 P0901622 HEX BOLT M6-1 X 16 608 P0901608 TORSION SPRING (LEFT) 623 P0901623 HEX BOLT M8-1.25 X 20 609 P0901609 B LADE HEI GHT I NDI CATOR 624 P0901624 CAP SCREW M6-1 X 20 610 P0901610 L I MI T SWI TCH TRI GGE R PLATE 625 P0901625 CAP SCREW M6-1 X 10 611 P0901611 COVER HANDLE M8-1.25 626 P0901626 CAP SCREW M8-1.25 X 40 612 P0901612 HI NGE MOUNTI NG BRA CKET 627 P0901627 CAP SCREW M8-1.25 X 20 613 P0901613 HI NGE 628 P0901628 BUTTON HD CAP SCR M5-. 8 X 8 614 P0901614 BLADE HEIGHT SCALE 24" 629 P0901629 BUTTON HD CA P SCR M4 -. 7 X 16 615 P0901615 L I MI T SWI TCH 24 0V 630 P0901630 BALL VALVE

Model G0901 (Mfd. Since 11/22)

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

-55-

Labels & Cosmetics

701

REF P ART # DE SCRIP TI ON REF P ART # DES CRIPTION

703

712

711

grizzly.com

710

707

WARNING!

INJURY HAZARD

Keep door closed while blade is in motion. Disconnect power before opening door.

708

WARNING!

ENTANGLEMENT

HAZARD! Tie back long hair, roll up long sleeves, and remove loose clothing, jewelry, or gloves to prevent getting caught in moving parts.

715

709

WARNING!

DO NOT place

hands near

moving blade!

713

WARNING!

INJURY HAZARD!

To reduce risk of shortand long-term injury, wear safety glasses, hearing protection, and a respirator when using this machine.

CHECK

FUEL/ENGINE

OIL LEVEL

BEFORE USING!

REFER TO

OWNER’S MANUAL

FOR FUEL/OIL TYPE

AND AMOUNT.

702

To reduce risk of death or serious injury, read manual BEFORE using machine.

To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

704

G0901

705V2

Specifications

Engine: Briggs & Stratton, 13.5 HP, 420cc Maximum Log Length: 9' 3" Maximum Log Diameter: 28" Maximum Width of Cut: 22" Maximum Depth of Cut: 7" Minimum Clearance Above Bed: 1-3/16" Blade: 145" x 1" x 0.035" Lubrication Reservoir: 1-1/4 gal. Weight: 838 lbs.

Mfd. for Grizzly in Taiwan

706

MODEL G0901

28" PORTABLE SAWMILL

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual and engine manual before operating.

2. Never touch moving blade and always keep hands out of blade path.

3. Always wear approved eye/hearing protection and a respirator.

4. DO NOT run engine if spilled or leaking fuel is present.

5. Never operate sawmill in enclosed or non-ventilated areas. Carbon monoxide from engine exhaust is poisonous and odorless, and can kill without warning.

6. Keep all combustibles away from engine exhaust port.

7. Only remove lumber and scrap from track bed when blade is stopped.

8. Never leave engine running while unattended.

9. Always stop engine before changing blades, refueling, or making all adjustments.

10. Maintain proper adjustment of blade tension, tracking, and guides.

11. Secure workpiece firmly to track bed with log clamp while cutting.

12. Only run machine with wheel cover closed and all guards in place.

13. DO NOT wear loose clothing, gloves, jewelry, or other articles that can

Date

get entangled. Tie back long hair and roll up sleeves.

14. DO NOT operate under influence of drugs or alcohol, or if tired.

15. DO NOT expose to rain or use in wet locations.

S/N

16. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

WARNING!

714

WARNING!

DO NOT place

hands near

moving blade!

709

ENTANGLEMENT

Tie back long hair, roll up long sleeves, and remove loose clothing, jewelry, or gloves to prevent getting caught in moving parts.

708

701 P0901701 OIL FILL HANGING TAG 709 P0901709 BANDSAW BLADE LABEL 702 P0901702 READ MANUAL LABEL 710 P0901710 GRIZZLY NAMEPLATE—LARGE 703 P0901703 ELECTRICITY LABEL 711 P0901711 GRIZZLY.COM LABEL 704 P0901704 MODEL NUMBER LABEL 712 P0901712 TOUCH-UP PAI NT, GRI ZZLY B EI GE 705V2 P0901705V2 MACHINE ID LABEL V2.10. 21 713 P0901713 EYE/EAR/LUNG LABEL 706 P0901706 TOUCH-UP PAI NT, GRI ZZLY GREEN 714 P0901714 DANGER LABEL 707 P0901707 DO NOT OPEN LABEL 715 P0901715 HANDWHEEL LABEL 708 P0901708 ENTANGLEMENT LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

WARNING!

HAZARD!

707

WARNING!

INJURY HAZARD

Keep door closed while blade is in motion. Disconnect power before opening door.

-56-

BUY PARTS ONLINE AT GRIZZLY.COM!

Scan QR code to visit our Parts Store.

Model G0901 (Mfd. Since 11/22)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Grizzly G0901 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Glossary Of Terms

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Sawmills

SECTION 2: SETUP

Needed for Setup

Unpacking

Inventory

Hardware Recognition Chart

Site Considerations

Assembly

Test Run

SECTION 3: OPERATIONS

Operation Overview

Workpiece Inspection

Changing Blade

Tensioning Blade

Types of Lumber

Drying Lumber

Cant Sawing

Live Sawing

Edging

Quarter Sawing

SECTION 4: ACCESSORIES

SECTION 5: MAINTENANCE

Schedule

Cleaning

Lubrication

Engine

SECTION 6: SERVICE

Troubleshooting

SECTION 7: WIRING

Wiring Safety Instructions

Wiring Diagram

Wiring Photos

SECTION 8: PARTS

Track

Carriage

Engine & Wheel Mounts

Blade & Wheels

Guide Rollers

Blade Cover

Labels & Cosmetics

WARRANTY & RETURNS
