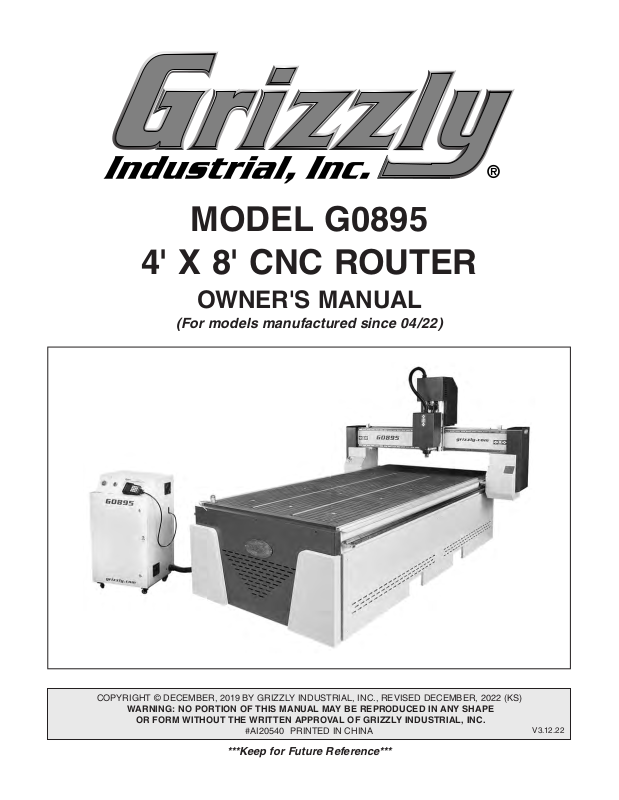

MODEL G0895

4' X 8' CNC ROUTER

OWNER'S MANUAL

(For models manufactured since 04/22)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#AI20540 PRINTED IN CHINA

***Keep for Future Reference***

V3.12.22

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Controller Functions Glossary Of Terms Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for CNC Routers

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup Unpacking Inventory Site Considerations Lifting & Placing CNC Router Leveling Connecting Controller Lifting & Mounting Vacuum Pump Anchoring Vacuum Pump to Floor Installing Vacuum Pump Dust Collection

Power Connection........................................ 26

Test Run Verifying Parameters

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection................................... 33

Choosing Cutter

.................................................... 17

...................................................... 18

........................................................ 22

...................................................... 28

........................................... 2

................................................... 3

................................. 4

....................................... 6

......................................... 7

...................................... 9

..................................... 11

................ 11

.............. 13

...................... 14

....................................... 17

......................................... 17

...................................... 20

...................... 21

.................................. 22

............... 23

.............................. 24

............................................. 25

................................... 30

........................... 32

..................................... 32

........................................... 33

Changing Cutter Securing Workpieces Using a Spoilboard Adjusting Axis Positions Manually

Homing Axes................................................ 39

Setting Work Origin Creating G-Code File

Uploading and Running G-Code.................. 42

Manually Setting Spindle Speed Changing Advanced Settings Using Advanced Controls

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule Cleaning & Protecting Lubrication

SECTION 7: SERVICE

Troubleshooting Testing Proximity Switches Updating RichAuto Controller Software

SECTION 8: WIRING

Wiring Safety Instructions Wiring Diagram Electrical Components

SECTION 9: PARTS

Frame & Bed Gantry & Spindle Electrical Cabinet Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 48

........................................... 34

................................... 35

...................................... 37

............... 39

...................................... 40

................................... 41

.................. 43

...................... 44

............................ 44

......................... 45

......................... 48

.................................. 48

................................................... 48

................................... 51

........................................... 51

.......................... 55

....... 56

...................................... 57

............................ 57

............................................ 58

................................. 59

....................................... 61

................................................ 61

.......................................... 63

......................................... 65

..................................... 66

............................. 69

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0895 (Mfd. Since 04/22)

Identification

To reduce your risk of serious injury, read this entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Controller

Z-Axis

Y-Axis

X-Axis

Spindle Motor

(Behind Cover)

Vacuum

Table

Oiler System

(Behind Gantry)

Y-Axis Servo Motor

(Behind Cover)

X-Axis Servo Motor

(Behind Cover)

Z-Axis Servo Motor

(Behind Cover)

Y-Axis Servo Motor

(Behind Cover)

Vacuum Valves

Gantry

Gantry Support

ON/OFF Button

EMERGENCY

STOP Button

Electrical

Cabinet

Cooling Fan

(1 of 2)

Model G0895 (Mfd. Since 04/22)

Z-Axis Tool

Setter

Cable Carrier

using machine.

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

Spindle Assembly

using machine.

Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and minimize your risk of injury when operating this machine.

Power Controls

B C

Figure 2. Spindle components.

D. Spindle Motor: A 6 HP motor capable of

turning the cutting tool at 0–18,000 RPM.

E. Spindle: Motor shaft that holds the cutting

tool, spindle nut, and collet.

F. ER32 Collet: Holds cutting tool.

G. Spindle Nut: Secures collet and cutting tool

on spindle.

Vacuum Table Components

Figure 1. Power controls on electrical cabinet.

A. EMERGENCY STOP Button: Disables

power to machine when in depressed position. To reset, twist button clockwise until it pops out.

B. ON/OFF Button: Enables/disables power to

machine.

RichAuto A11 Controller: Controls machine

functions.

-4-

Figure 3. Vacuum pump.

H. Vacuum Pump Motor: Creates suction to

hold workpiece to table.

Vacuum Pump Filter: Cleans air as it is

pulled through vacuum pump motor.

Model G0895 (Mfd. Since 04/22)

Figure 4. Vacuum valves at rear of machine.

Additional Components

Vacuum Valve (1 of 6): Each valve enables/

disables vacuum to one vacuum zone. Drawings above each valve indicate zone controlled by corresponding valve.

Figure 5. Vacuum port and plug.

K. Vacuum Plug: Keeps debris out of unused

ports. Remove plug when using port in that vacuum zone.

Figure 6. Oiler components.

M. Oiler System Control Panel: Controls vol-

ume of lubricating oil on linear guide rails and ball screws.

N. Oil Reservoir: Holds one quart ISO 68

machine oil.

Figure 7. Z-axis tool setter.

Vacuum Port: Holds workpiece to table

to prevent workpiece movement during operation.

Model G0895 (Mfd. Since 04/22)

O. Z-Axis Tool Setter: Establishes Z-axis origin

based on surface tool setter is placed on.

-5-

Controller Functions

The following commands are used for the basic navigation of the machine and controller. Additional functions can be accessed with multi-button commands. See Using Advanced Controls on

Page 44 for more information.

X- or 5: Moves spindle along X-axis in negative

direction. Scrolls menu down. Input for "5".

Y- or 6: Moves gantry along Y-axis in negative direction. Decreases feed rate during process. Scrolls sub-menu down. Input for "6".

Z- or 7: Moves spindle along Z-axis in negative direction. Decreases spindle speed during process. Input for "7".

Z-> 0 or 8: Sets work origin of Z-axis (see Page

40). Input for "8".

HOME or 9: Returns all axes to home position (see Page 39). Input for "9".

HIGH/LOW or 0: In manual mode, selects high or

low speed for axis movement. Input for "0".

ON/OFF or (.): Turns spindle ON or OFF. Input for decimal point.

Figure 8. Controller buttons.

X+ or 1: Moves spindle along X-axis in positive

direction. Scrolls menu up. Input for "1".

Y+ or 2: Moves gantry along Y-axis in positive direction. Increases feed rate during process. Scrolls sub-menu up. Input for "2".

Z+ or 3: Moves spindle along Z-axis in positive direction. Increases spindle speed during process. Input for "3".

XY->0 or 4: Sets work origin of X- and Y-axes (see Page 40). Input for "4".

MENU or (-): Enters setup menus. Input for the negative symbol.

ORIGIN or OK: Returns all axes to work origin (see Page 40). Confirms motions, inputs, or operations.

MODE: Toggles between three jogging modes: Continuous, Step, or Distance.

RU N / PAUSE or DELETE: Runs or pauses processing. Used to load a program from either the USB drive or internal memory.

STOP or CANCEL: Stops a running program. Cancels commands.

-6-

Model G0895 (Mfd. Since 04/22)

Glossary Of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this CNC router and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Axis: Direction of movement. On a three-axis mill-

ing machine, axes are typically X (left-right), Y (front-back) & Z (up-down). Axis directions are described as positive or negative. On this machine, positive movement is defined as movement towards the rear (Y), right (X), and top (Z) of the working envelope.

Ball End (Ball Nose): A cutting tool that has a

rounded cutting arc, where the arc diameter is equal to the cutting diameter.

Ball Screw: Drive system component. The ball

screw is rotated by the servo motor and provides the means for moving the gantry and spindle along the axes.

Bed: The bed of the CNC consists of a welded

steel frame, an extruded aluminum table top, and a tongue-and-groove table top with integrated T-slots.

CAD: Computer aided design. CAD software is

used to create a digital model of a project.

CAM: Computer aided manufacturing. CAM soft-

ware converts CAD models into a toolpath defined by G-code that CNC machines can interpret.

Chip Load: Chip load is the measure of the thick-

ness of chips a tool will cut. Chip load is equal to: Feed Rate ÷ (Spindle Speed X Number of Flutes).

Conventional Cut: Cut that occurs when the

rotation of the cutter moves in opposite direction as the workpiece.

Compression Bit: A cutting tool with a combi-

nation of up and down shear cutting edges. Typically used for cutting laminate material to prevent tear-out on both sides of the sheet.

Down-Cut Bit: A cutting tool with edges that

carve downward on the face of the toolpath. Reduces the potential for tear-out, but requires a slower feed rate.

Dust Shoe: An accessory that channels dust and

debris directly from the cutting tool through an attached dust collection system.

Dwell: Part of an operation in which axis move-

ment stops while the spindle is running and the cutter is within the workpiece. Dwells should be avoided as they can lead to tool and workpiece damage.

End Mill: A cutting tool with a straight end, typi-

cally with spiral flute(s). It creates a channel with a flat bottom perpendicular to the sides.

Feed Rate: The speed at which the cutting tool

moves along a workpiece.

Finish Cut: A 3D toolpath that reduces or elimi-

nates the irregular contours left by a rough cut.

Climb Cut: Cut that occurs when the rotation of

the cutter moves in same direction as the workpiece.

CNC: Computer numerical control. Manufacturing

controlled by a computer via coded instructions.

Collet: Metal collar that holds the cutting tool in

place within a spindle nut.

Model G0895 (Mfd. Since 04/22)

Flutes: The cutting edges or inserts of a router bit

or cutting tool.

Flute Length: The length of the cutting portion on

a router bit or cutting tool.

Form Bit: A bit that carves a standard profile such

as a roundover, ogee, or similar contour.

-7-

Gantry: The structure that straddles the bed and

carries the spindle. It moves the full length of the bed along the Y-axis.

G-Code: A machine language that uses axis

points and commands, which the machine uses to move and perform functions.

Hold-Down: A clamp used to firmly hold a

workpiece or fixture to the table.

Home Position: A fixed point on the machine set

with proximity switches. It is the machine zero point on all axes.

Iron Pipe Size (IPS): Pipe sizing system based

on the inside diameter (ID) of pipe.

Letter Address: The first letter of a G-code

command. Commands with similar functions are usually grouped within the same letter address. For example, the "G" letter address deals with preparatory functions that define the machine's operation, while the "M" letter address handles miscellaneous machine functions such as turning on spindles, pumps, and other auxiliary tasks.

Origin: User designated zero point for a workpiece

from which the router will reference the positioning of all cutting.

Plunge: Distance on the Z-axis that the spindle

and cutting tool moves toward, into, or along the workpiece.

Pocket Toolpath: A toolpath that creates a cavity

in the horizontal surface of a workpiece.

Post Processor: Software function that formats

G-code into machine-specific information.

Soft Limits: Axis limits imposed by the work space

boundaries and based on controller settings and the location of home. An "out of soft limits error" implies that there is not enough room to move in a designated direction based on the positioning of the workpiece.

Spindle Speed: Rotational speed of cutting tool

(RPM).

Spoilboard: Sacrificial material placed under the

workpiece that allows the cutting tool to go past the workpiece to ensure a full, clean cut without damaging the work table. Usually made of MDF.

Servo Motor: DC motor that allows for precise

control of angular or linear position, velocity and acceleration.

Surfacing: The process of leveling the surface of

a workpiece or spoilboard so it is perpendicular to the spindle.

Toolpath: User defined route that the cutter fol-

lows to machine a workpiece.

Tool Deflection: Tool deflection occurs when the

spindle speed and feed rate exert sufficient force to deflect the cutting tool. Deflection leads to excessive wear and chatter, which can shorten tool life and leave unwanted tooling marks on the material.

Tool Setter: A device used to set the zero point

(origin) for the Z-axis.

Up-Cut Bit: Cutting tool with edges that carve

upward on the face of the toolpath. Removes chips from the material, but can pull the material off the bed and splinter the top edge.

Profile Toolpath: A toolpath that cuts along the

profile of a set of vectors. Typically used to cut out the shape of a design.

Proximity Switch: A magnetic limit switch that is

used to find home position.

Rapid:

Rough Cut: Toolpath where initial cut removes

-8-

The maximum speed of each axis. Higher

rapid rates decrease machining times.

unwanted material, leaving a rough contour.

VFD: Variable frequency drive that controls the

speed (RPM) of the spindle. Enables the fine tuning of the spindle during the operation of a toolpath.

Working Envelope: The three-dimensional area

that the spindle can travel within while cutting or milling.

Model G0895 (Mfd. Since 04/22)

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

20A 30A

MODEL G0895

4' X 8' CNC ROUTER

Product Dimensions:

Weight ......................................................................................................................................................................... 2315 lbs.

Width (side-to-side) x Depth (front-to-back) x Height .....................................................................................85 x 124 x 72 in.

Footprint (Length/Width) ............................................................................................................................. 122-1/2 x 56-1/2 in.

Shipping Dimensions:

Type .................................................................................................................................................................... Plywood Crate

Content ........................................................................................................................Machine, Controller, and Vacuum Pump

Weight .......................................................................................................................................................................... 2535 lbs.

Length x Width x Height ...................................................................................................................................132 x 91 x 78 in.

Must Ship Upright .................................................................................................................................................................Yes

Electrical:

Power Requirement ........................................................................................................................ 220V, Single-Phase, 60 Hz

Full-Load Current Rating ......................................................................................................................................................

Minimum Circuit Size ...........................................................................................................................................................

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................. No

Recommended Power Cord ............................................................................................"S"-Type, 3 Wires,12 AWG, 300 VAC

Plug Included .........................................................................................................................................................................No

Recommended Plug Type .................................................................................................................................................L6-30

Switch Type .............................................................................................................................. ON/OFF Push Button w/E-stop

Inverter (VFD) Type .................................................................................................................................... Delta VFD055E23A

Inverter (VFD) Size ...........................................................................................................................................................7.5HP

Recommended Phase Converter (Vacuum Pump) .........................................................................................................G7979

Motor:

Spindle Motor

Type

.......................................................................................................................................................................Spindle

Horsepower ...............................................................................................................................................................6 HP

Voltage ..................................................................................................................................................................... 220V

Phase .................................................................................................................................................................. 3-Phase

Amps .......................................................................................................................................................................... 16A

Speed ...................................................................................................................................................... 0 - 18,000 RPM

Number Of Speeds ...............................................................................................................................................Variable

Power Transfer ........................................................................................................................................................ Direct

X-Axis Motor

Type

................................................................................................................................................................... AC Servo

Amps ......................................................................................................................................................................... 7.1A

Y-Axis Motor 1

Type

................................................................................................................................................................... AC Servo

Amps ......................................................................................................................................................................... 7.1A

Model G0895 (Mfd. Since 04/22)

-9-

Y-Axis Motor 2

Type ................................................................................................................................................................... AC Servo

Amps ......................................................................................................................................................................... 7.1A

Z-Axis Motor

Type

................................................................................................................................................................... AC Servo

Amps ......................................................................................................................................................................... 7.1A

Main Specifications:

Axis Information

X Axis Travel

Y Axis Travel .........................................................................................................................................................98.5 in.

Z Axis Travel ............................................................................................................................................................11 in.

XY Rapid Speed ................................................................................................................................................ 1500 IPM

Z Rapid Speed .................................................................................................................................................... 400 IPM

Construction

Table .................................................................................................................................................................... Phenolic

Body Construction .....................................................................................................................................................Steel

Paint. .....................................................................................................................................................................Enamel

Cutting Information

Cutting Area ...............................................................................................................................................51 x 98-1/2 in.

Max Distance Spindle to Table ..................................................................................................................................7 in.

Cutting Accuracy .............................................................................................................................................+/-0.005 in.

............................................................................................................................................................51 in.

Table Information

Table Length ....................................................................................................................................................120-1/4 in.

Table Width ........................................................................................................................................................53-3/4 in.

Number of Vacuum Zones ..............................................................................................................................................6

Other Related Information

Number of Dust Ports ......................................................................................................................................................1

Dust Port Size ............................................................................................................................................................4 in.

Number of Leveling Feet .................................................................................................................................................8

Collet Type ...............................................................................................................................................................ER32

Other Specifications:

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................................... 3 Hours

Serial Number Location ................................................................................................................................................ ID Label

Features:

Table with 6 Vacuum Zones and 4 T-Track Digital Display w/USB Port and Keypad Air Cooled Spindle Tool Setter

Accessories:

10 HP Vacuum Pump with Separate, Independent 3-Phase Power Supply Collets: 1/4" and 1/2" Wrenches: Open-End 30/32 and ER32 Collet Wrench T-Track Hold-Down Clamps (6) Vacuum Table Plugs

-10 -

Model G0895 (Mfd. Since 04/22)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0895 (Mfd. Since 04/22)

-11-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-12-

Model G0895 (Mfd. Since 04/22)

Additional Safety for CNC Routers

You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with rotating cutter/spindle. You can be severely cut or have fingers amputated from contact with rotating cutters. You can be blinded or struck by broken cutting tools, wood chips, improperly secured workpieces, or adjustment tools thrown from rotating spindle with great force. To reduce risk of serious injury when operating this machine, heed and understand the following:

UNDERSTAND ALL CONTROLS. Make sure

you understand the function and proper use of all controls before starting. This will help you avoid making mistakes that result in serious injury.

AVOIDING ENTANGLEMENT. DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Keep all guards in place, secure, and properly operating. Always allow spindle to stop on its own. DO NOT stop spindle using your hand or any other object.

WEAR EYE PROTECTION. Always wear safety glasses. This provides protection for your eyes from wood chips or broken cutting tools.

USE CORRECT SPINDLE SPEED. Use proper speeds and feeds for each size and type of cutting tool as recommended by tool manufacturer. This helps avoid injury risk from tool breakage during operation and ensures best cutting results.

FIRE HAZARD. To reduce risk of fire, always use proper feeds and speeds for cutting tool and workpiece type. Avoid operations that dwell in one place. Be aware of signs of fire and keep fire extinguisher nearby. Chips and dust collection can disguise embers and smoke. Prepare a fire safety plan and ensure it is practiced by all operators. Never operate machine unattended unless workspace has a lights-out fire prevention system.

PROPERLY SECURE CUTTER. Firmly secure cutting tool so it does not fly out of spindle during operation.

PROPERLY COLLECT DUST. Only use dust collector to clear chips while spindle is turning. DO NOT clear chips by hand when cleaning. Only use a brush or shop vacuum when spindle/axes are NOT turning or moving.

SECURE WORKPIECE TO TABLE. Secure workpiece to table so workpiece cannot unexpectedly move or spin during operation. NEVER hold workpiece by hand during operation.

PROPERLY MAINTAIN MACHINE. Keep machine in proper working condition to help ensure that it functions safely and all guards and other components work as intended. Perform routine inspections and all required maintenance. Never operate machine with damaged or worn parts that can break or result in unexpected movement during operation.

DISCONNECT POWER FIRST. To reduce risk of electrocution or injury from unexpected startup, make sure CNC router is turned OFF, disconnected from power, and all moving parts are completely stopped before changing cutting tools or performing any inspection, adjustment, or maintenance procedure.

INSPECT CUTTING TOOL. Inspect cutting tools for sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately. Do not use damaged tools as they are likely to break apart and could hit user with great speed and force.

Model G0895 (Mfd. Since 04/22)

REMOVE SPINDLE TOOLS. Always remove wrenches and other tools used on the spindle immediately after use. This will prevent them from being thrown by the spindle upon startup.

-13-

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

Note: Circuit requirements in this manual apply to a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

For your own safety and protection of

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

SECTION 2: POWER SUPPLY

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Model G0895 at 220V, 1-Ph ............... 20 Amps

Vacuum Pump at 220V, 3-Ph

-14-

............. 21 Amps

Grounding Instructions

Model G0895 (Mfd. Since 04/22)

Model G0895 Circuit Requirements Vacuum Pump Circuit Requirements

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

No adapter should be used with plug. If plug does not fit available receptacle, or if

A permanently connected (hardwired) power supply is typically installed with wires running through mounted and secured conduit. A disconnecting means, such as a locking switch (see following figure), must be provided to allow the machine to be disconnected (isolated) from the power supply when required. This installation must be performed by an electrician in accordance with all applicable electrical codes and ordinances.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. A permanently connected machine must be connected to a grounded metal permanent wiring system; or to a system having an equipmentgrounding conductor. All grounds must be verified and rated for the electrical requirements of the machine. Improper grounding can increase the risk of electric shock!

Nominal Voltage ................... 220V, 230V, 240V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle Cord

........................................... Single-Phase

......................... 30 Amps

...........................NEMA L6-30

........“S”-Typ e, 3-Wire, 12 AWG, 300 VAC

This power cord and plug used on this machine must have an equipment-grounding wire and grounding prong. The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances (see figure below).

L6-30 GROUNDED

LOCKING

RECEPTACLE

Grounding Prong

is Hooked

L6-30

LOCKING

PLUG

Nominal Voltage

..........................................................60 Hz

Cycle Phase

.................................................... 3-Phase

Power Supply Circuit Connection

................... 220V, 230V, 240V

......................... 30 Amps

...... Hardwire with Locking Switch

Locking

Disconnect Switch

Power

Source

Machine

Current Carrying Prongs

Figure 9. Typical L6-30 plug and receptacle.

machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

Model G0895 (Mfd. Since 04/22)

ConduitConduit

Ground

Figure 10. Typical setup of a permanently

connected machine.

-15-

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

Serious injury could occur if you connect

machine to power before completing setup

process. DO NOT connect to power until

instructed later in this manual.

Phase Converters

DO NOT use a static phase converter to create 3-phase power—it can quickly decrease the life of electrical components on this machine. If you must use a phase converter, only use a rotary or digital phase converter.

Extension Cords

If you must use an extension

Model G0895 .................. 12 AWG, 50ft. or less

Vacuum Pump

........................ N/A (Hardwired)

You can purchase the Model G7979, a compatible rotary phase converter, from our website at

www.grizzly.com.

G7979—20 HP Rotary Phase Converter

This rotary phase converter allows you to operate 3-phase machinery from a single-phase power source at 100% power and 95% efficiency.

Figure 11. Model G7979 20 HP Rotary Phase

Converter.

-16 -

Model G0895 (Mfd. Since 04/22)

SECTION 3: SETUP

its parts. To reduce this

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

The following items are needed, but not included, for the setup/assembly of this machine.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAV Y LI FT! Straining or crushing injury may occur from improperly lifting machine or some of

Description Qty

• Forklift or Hoist w/Lifting Straps

(rated for at least 3200 lbs.)........................ 1

• Additional People ....................................... 2

• Safety Glasses (for each person) ............... 1

• Crowbar ...................................................... 1

• Level ........................................................... 1

• Open-End Wrenches 8mm ......................... 2

• Dust Collection System .............................. 1

• Dust Hose 4" .............................................. 1

• Hose Clamps 4" ......................................... 2

• Scissors ...................................................... 1

• PTFE Thread Sealant Tape ........ As Needed

Unpacking

risk, use a forklift (or other lifting equipment) rated for weight of this machine.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

If items are damaged

call us immediately at (570) 546-9663.

Save all packaging materials until

Model G0895 (Mfd. Since 04/22)

-17-

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Crate (Not Shown) Qty

A. CNC Router ................................................ 1

B. Vacuum Hose 2" ......................................... 1

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Box 1 (Figure 12) Qty

C. RichAuto A11 Controller ............................. 1

D. Hose Clamps 2" ......................................... 2

E. 50-Pin Cable .............................................. 1

F. ER32 Collet 1⁄4" ........................................... 1

G. ER32 Collet 1⁄2 " ........................................... 1

H. Spindle Nut ................................................. 1

I. Dust Shoe ................................................... 1

J. Cap Screw M5-.8 x 30 ............................... 1

K. Dust Shoe Bracket ..................................... 1

L. Hex Nut M5-.8 ............................................ 1

M. Gasket Tube ......................................... 68 ft.

N. Open-End Wrench 30/32mm ..................... 1

O. ER32 Collet Wrench ................................... 1

P. USB-B Cable .............................................. 1

T-Slot Bolts M8-1.25 x 80 ........................... 6

Clamp Plates .............................................. 6

Flat Washers 8mm ..................................... 6

Wing Nuts M8-1.25 ..................................... 6

Hex Bolts M8-1.25 x 40 ............................. 6

Figure 12. Model G0895 inventory.

-18-

Model G0895 (Mfd. Since 04/22)

Box 2 (Figure 13) Qty

V. Hex Nuts M20-2.5 ...................................... 6

W. Flat Washers 20mm ................................... 6

X. Leveling Feet .............................................. 6

Y. Threaded Rods M20-2.5 x 100 .................. 6

Box 3 (Figure 14) Qty

Z. Vacuum Pump ............................................ 1

AA. Vacuum Filter ............................................. 1

AB. Threaded Pipe 21⁄2 IPS ............................... 1

AC. 90° Elbow Fitting ........................................ 1

Figure 13. Foot components.

Figure 14. Vacuum pump components.

Model G0895 (Mfd. Since 04/22)

-19 -

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Min. 30"

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

Wall

-20-

85"

Figure 15. Minimum working clearances.

Dust Port

124"

Model G0895 (Mfd. Since 04/22)

Lifting & Placing

CNC Router

HEAV Y LI FT! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Do not attempt to lift or move this machine without using the proper lifting equipment (such as forklift or hoist) or the necessary assistance from other people. Each piece of lifting equipment must be rated for at least 3200 lbs. to support dynamic loads that may be applied while lifting. Refer to Needed for Setup on of needed equipment for setup and installation.

Tools Needed Qty

Forklift or Hoist (rated for 3200 lbs.) .................. 1

Lifting Straps

To lift and place router:

Move crate to machine work site.

..................................... As Needed

Page 17 for complete list

Lift Beam

(1 of 2)

Figure 16. Lift beams under machine body.

Have an additional person assemble leveling

feet and tighten hex nuts halfway on threaded bolts, then install threaded bolts in mounting holes on bottom of machine (see

Threaded

Bolt

Leveling

Foot

Figure 17. Leveling foot components.

Have an additional person connect 2" vacu-

um hose to vacuum valve inlet with 2" hose clamp. Then route hose out from under rear of machine (see

Figure 18).

Figure 17).

Flat Washer

Hex Nut

2. Remove crate top and sides, small items inside crate, and blocks on machine base.

With help from additional people, lift vacuum

pump box and set aside.

Lift machine by lift beams on underside of

machine body (see Figure 16) with forklift or hoist. Only lift machine enough to clear pallet, then move pallet out of the way.

Model G0895 (Mfd. Since 04/22)

2" Hose Clamp

Vacuum

2" Vacuum Hose

Figure 18. Hose connection at rear of machine

shown from underneath table.

Lower machine on leveling feet and proceed

7. to Leveling on Page 22.

Valve Inlet

-21-

Leveling

Connecting

Controller

For accurate cutting results and to prevent gradual warping of the table and frame, machine MUST be leveled from side to side and from front to back on both ends. Check the table and frame 24 hours after installation, two weeks after that, and then annually to make sure they remain level.

Leveling machinery helps precision components remain straight and ﬂat during the lifespan of the machine. Components on a machine that are not level may slowly twist due to the dynamic loads placed on the machine during operation.

To level router:

Place level on table and align to either X- or

Y-axis.

Rotate each leveling foot to level machine

(see Figure 19). Tighten hex nut against mounting hole to secure.

Note: Rotate leveling foot clockwise to raise

machine, and rotate counterclockwise to lower machine.

The controller connects to the interface board in the electrical cabinet via a 50-pin cable.

To connect controller:

Connect 50-pin cable to interface board in

electrical cabinet, then route cable through back of cabinet (see

50-Pin

Cable

Interface Board

Figure 20. Interface board connections.

2. Connect opposite end of 50-pin cable to con- troller (see Figure 21).

Figure 20).

Threaded

Bolt

Leveling

Foot

Figure 19. Leveling foot components.

-22-

Flat Washer

Hex Nut

Controller

50-Pin

Cable

Figure 21. Controller connected to cable.

Model G0895 (Mfd. Since 04/22)

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

This machine and its components are very heavy. Get lifting help or

ment such as a forklift to

Lifting & Mounting

Anchoring Vacuum

Vacuum Pump

use power lifting equip-

move heavy items.

The vacuum pump can be mounted horizontally or vertically as long as the mounting surface can support the full weight of the pump. Grizzly Industrial recommends concrete floors for horizontal mounting, and steel I-beams for vertical mounting.

Pump to Floor

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware

.................1⁄2"

DO NOT attempt to lift or move the vacuum pump without assistance from other people.

To lift and mount vacuum pump:

Move vacuum pump box to work site mount-

ing location.

2. Remove box cover, small items inside box, and any hardware securing vacuum pump to pallet base.

3. With help from an assistant, lift vacuum pump off pallet base, move pallet out of the way, then place vacuum pump on concrete floor.

4. Secure vacuum pump to concrete floor as instructed in Anchoring Vacuum Pump to Floor on this page.

Model G0895 (Mfd. Since 04/22)

Anchoring to Concrete Floors

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 22. Popular method for anchoring

machinery to a concrete floor.

Lag Shield Anchor

Drilled Hole

-23-

Installing Vacuum

Pump

Threaded pipe is provided to connect the vacuum pump to the vacuum pump air filter, and the air filter to the vacuum hose that runs to the vacuum table. Wrap pipe threads with PTFE tape (plumber's tape) to seal all pipe connections.

To install vacuum pump:

Connect 90º elbow fitting to 21⁄2 IPS threaded

pipe (see Figure 23).

Connect 21⁄2 IPS threaded pipe to vacuum

pump inlet (see Figure 23).

Connect vacuum filter to 90º elbow fitting

(see Figure 23).

4. Connect 2" vacuum hose from machine to

vacuum filter inlet port and secure with 2" hose clamp (see Figure 24).

IMPORTANT: Verify 2" hose clamp and end

of vacuum hose are over smooth portion of vacuum filter inlet port before securing to prevent air leaks during operation.

Vacuum Filter

Inlet Port

Vacuum

Pump Inlet

Figure 23. Pump to filter connection.

21⁄2 IPS

Threaded

Pipe

90° Elbow Fitting

Vacuum

Filter

2" Vacuum Hose

Figure 24. Vacuum filter inlet port location.

DO NOT connect vacuum pump to power without verifying junction box terminal configuration (see Page 27). Operating vacuum pump in incorrect configuration can cause severe machine damage.

-24-

Model G0895 (Mfd. Since 04/22)

Dust Collection

2. Fit 4" dust hose over dust shoe and secure in place with hose clamp (see Figure 26).

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

Note: Ensure dust hose is long enough for full range of spindle movement prior to installation.

Dust Shoe

Figure 26. Tightening dust hose clamp.

Tug the hose with light/medium force to make

sure it does not easily come off.

Note: A tight fit is necessary for proper per-

formance.

Slide dust shoe onto bracket and secure in

4. place with latches (see Figure 27).

To connect dust collection system to router:

Attach dust shoe bracket to spindle motor

with included M5-.8 hex nut and M5-.8 x 30 cap screw (see Figure 25).

Dust Shoe

Bracket

Spindle

Motor

Figure 25. Attaching dust shoe bracket.

Latch

(1 of 2)

Figure 27. Dust shoe attached.

Model G0895 (Mfd. Since 04/22)

-25-

Move the disconnect switch handle to the ON position, as illustrated below. The machine is now connected to the power source.

Move the disconnect switch handle to the OFF position, as illustrated below. The machine is now disconnected from the power source.

Note:

Lock the switch in the OFF position to

restrict others from starting the machine.

Power Connection

Electrocution or fire can occur if machine is ungrounded, incorrectly connected to power, or connected to an undersized circuit. Use an electrician or a qualified service personnel to ensure a safe power connection.

Before the machine can be connected to the power source, an electrical circuit must be made available that meets the minimum specifications given in Circuit Requirements on Page 15. If a power circuit has not been prepared for the machine, do that now. To ensure a safe and codecompliant setup, we strongly recommend that all electrical work be done by an electrician or qualified service personnel.

Vacuum Pump Power Connection

DO NOT connect vacuum pump to power without verifying junction box terminal configuration (see Page 27). Operating vacuum pump in incorrect configuration can cause severe machine damage.

Model G0895 Power Connection

Insert plug into a matching NEMA receptacle (see Figure 28). The machine is now connected to the power source.

L6-30 GROUNDED

LOCKING

RECEPTACLE

Grounding Prong

is Hooked

L6-30

LOCKING

PLUG

Current Carrying Prongs

Figure 28. Typical L6-30 plug and receptacle.

Figure 29. Connecting power to machine.

Figure 30. Disconnecting power from machine.

-26-

Model G0895 (Mfd. Since 04/22)

To connect incoming power wires:

Open vacuum pump junction box (see

1. Figure 31).

Loosen strain relief on junction box, then

insert incoming power wires into junction box.

Junction Box

Figure 31. Vacuum pump junction box.

Verify terminal jumpers are arranged in cor-

rect configuration (see Figure 32).

IMPORTANT: Machines running on 220V

power MUST be in delta configuration. Machines running on 380V power MUST be in wye configuration.

United States customers should ONLY use a 220V delta configuration for their vacuum pumps due to voltage availability in North America. Connecting a vacuum pump with a wye configuration to 220V power will damage the vacuum pump!

During next step, make sure incoming ground wire is connected to correct terminal to ensure machine will be properly grounded (see "GND" in Figure 33). An ungrounded or improperly grounded machine can cause electrocution if live electrical wires make contact with frame or other parts touched by operator.

4. Connect incoming power wires to terminals as shown in Figure 33.

For 220V

Terminals

Incoming Power

V1 W1U1

Junction Box

Figure 33. Vacuum pump junction box

connection in delta configuration for 220V.

GND

Delta

Configuration

(Required for 220V)

V1 W1U1

Configuration

(Required for 380V)

CORRECT INCORRECT

Figure 32. Vacuum pump junction box

configurations.

Model G0895 (Mfd. Since 04/22)

Wye

Tighten strain relief on junction box against

conduit, then close cover. Leave some slack in wires inside box.

V1 W1U1

-27-

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

EMERGENCY

STOP

Button

Troubleshooting

The test run consists of verifying the following:

1) the vacuum pump is wired correctly, 2) the spindle motor powers up and runs correctly, 3) the servo motors for each axis (X, Y, and Z) run correctly and the machine properly homes, 4) the EMERGENCY STOP button safety feature functions properly, 5) the electrical cabinet safety switch features work correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Figure 34. Location of EMERGENCY STOP

button.

Connect machine and vacuum pump to power

as shown in Power Connection on Page 26.

IMPORTANT: Vacuum pump junction box

must be in correct configuration before connecting vacuum pump to power.

Verify vacuum pump is pulling air through fil-

ter in correct direction (air should be blowing from outlet port near base of vacuum pump).

— If air is moving in wrong direction, stop

machine and DISCONNECT FROM POWER! Phase of incoming power supply is reversed. Remove vacuum pump junction box cover and swap incoming power wires at U1 and V1 terminals (see Figure 33 on Page 27), then re-install junction box cover and reconnect vacuum pump to power.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run machine:

Clear all setup tools away from machine.

2. Ensure controller and vacuum pump are con-

nected to machine.

Press EMERGENCY STOP button (see

3. Figure 34).

-28-

Twist EMERGENCY STOP button (pressed

6. in Step 3) clockwise until it springs out (see Figure 35). This resets the switch so the

machine can start.

EMERGENCY STOP

Button

Figure 35. Resetting the EMERGENCY STOP

button.

Model G0895 (Mfd. Since 04/22)

Press ON/OFF button on electrical cabinet

7. (see Figure 1 on Page 4) to turn machine

ON.

Controller will display "HomeTypeAtStart."

Press CANCEL button on controller to skip homing axes.

13. Press HOME button on controller, then select "Home all" and press OK. Verify that each axis motor operates smoothly and all axes move to machine zero.

Press EMERGENCY STOP button on electri-

14.

cal cabinet to turn machine OFF.

Verify machine parameters on controller

match those shown on Page 30.

Press ON/OFF button on controller to start

10.

spindle motor. Verify spindle starts and runs smoothly without any unusual problems or noises. Press ON/OFF to stop spindle motor.

DO NOT drive gantry or spindle at high rate of speed to limit of axis travel! High-impact physical contact (crashing) with limit stops can trigger a servo alarm. If alarm occurs, press Emergency Stop button in and then reconnect machine to power to clear alarm.

11. Press X+ and X− buttons on controller to

test full range of X-axis movement. Verify axis motor operates smoothly through its full range of motion.

— If axis movement does not bind or crash

through full range of motion, axis movement is working correctly.

— If axis movement does bind or crash, or

an alarm has stopped machine operation, axis movement is NOT working correctly. Contact Grizzly Tech Support before further using machine.

12. Repeat Step 11 for Y- and Z-axes using axis movement buttons on controller (Y+, Y-, Z+, and Z-).

WITHOUT resetting EMERGENCY STOP

15.

button, try to start machine by pressing the ON/OFF button. The machine should not start.

— If the machine does not start, the safety

feature of the EMERGENCY STOP button is working correctly. Congratulations! The Test Run is complete.

— If the machine does start, immediately turn

it OFF and disconnect power. The safety feature of the EMERGENCY STOP button is NOT working properly and must be replaced before further using the machine.

Fully open rear electrical cabinet door and

16.

twist EMERGENCY STOP button clockwise until it springs out. Try to start machine by pressing the ON/OFF button. The machine should not start.

— If machine does not start, rear safety

switch feature is working correctly. Close rear electrical cabinet door.

— If machine does start, immediately turn it

OFF and disconnect power. Safety switch is NOT working properly and must be replaced before further using the machine.

Fully open front electrical cabinet door. Try to

17.

start machine by pressing the ON/OFF button. The machine should not start.

— If machine does not start, front safety switch

feature is working correctly. Close front electrical cabinet door. Congratulations! Test Run is complete.

Model G0895 (Mfd. Since 04/22)

— If machine does start, immediately turn it

OFF and disconnect power. Safety switch is NOT working properly and must be replaced before further using machine.

-29-

Verifying Parameters

Machine parameters are essential to any operation. If the parameters are wrong, the machine will not produce accurate results, and damage to the machine and workpiece may occur.

The machine parameters were initially set at the factory, but they can be changed or lost due to hardware, software, or power issues. Consult this section and Controller Functions on Page 6 to verify and reset parameters.

Verify machine parameters before running any operation whenever machine is powered ON. Parameters can be changed or lost when power cycling occurs, and operating with incorrect parameters may result in damage to machine or workpiece.

To verify machine parameters:

Pulse Equivalent:

X Equival ................................................ 200.000

Y Equival Z Equival

Table Size:

X Equival Y Equival Z Equival

Home Setup: Home Speed

X Equival Y Equival Z Equival

Set Home Direction

X Equival Y Equival Z Equival

Max Speed Limit: X Speed Limit

-Dir ........................................................ 4000.00

+ D i r ........................................................ 4000.00

................................................ 200.000

................................................. 200.000

.............................................. 1300.000

.............................................. 2500.000

................................................. 250.000

..............................................6000.000

............................................... 6000.000

.......................................................Neg

........................................................ Pos

Press MENU on controller, then scroll to

Machine Setup using the X+ and X- buttons, and press OK.

Scroll to each parameter shown on this page

and press OK to verify.

— To change a parameter, press RUN/

PAUSE, enter the new parameter, then press OK to save.

Y Speed Limit

-Dir ........................................................ 4000.00

+ D i r ........................................................ 4000.00

Z Speed Limit

-Dir ........................................................ 3000.00

+ D i r ........................................................ 1800.00

-30-

Model G0895 (Mfd. Since 04/22)

Verifying Voltage Parameters

The Voltage Setup screen enables the opening or closing of input and output signals to machine components. The upper row of arrows represents the input side, and the lower row represents the output side (see Figure 36).

Voltage Parameters

1 2 3 4 5 6 7 8

Verifying Input Parameters

The input configuration screen shows electrical inputs sent by various machine components during operation (see Figure 37).

Input Parameters

X1:

X2:

X3:

Enable X-Axis Proximity Switch

Enable Y-Axis Proximity Switch

Enable Z-Axis Proximity Switch

1 2 3 4 5 6 7 8

Figure 36. Voltage parameter settings.

To verify voltage parameters:

Press MENU on the controller, then scroll to

Machine Setup and press OK.

Scroll to Voltage Setup and press OK to enter

voltage parameter screen.

Verify arrows in voltage parameters match

the table in Figure 36.

— Arrow down indicates normally open circuit.

Arrow up indicates normally closed circuit. Numbers 1–8 correspond to X1–X8 inputs shown in Verifying Input Parameters on this page.

Press X+ or X- buttons to scroll left or right,

and Y+ or Y- to scroll up or down, and highlight desired parameter.

Press RUN/PAUSE to cycle arrow direction

up (normally closed) or down (normally open).

X4:

X5:

X6:

X7:

X8:

Failure to properly configure machine input parameters may cause system errors.

To verify input parameters:

Press MENU on the controller, then scroll to

Machine Setup and press OK.

Scroll to Input Confi and press OK to enter

input configuration screen.

Verify parameters in Input Confi match the

table in Figure 37.

Press X+ or X- buttons to scroll up or down,

and highlight desired parameter.

Press RUN/PAUSE to change setting.

Enable Tool Setter

Enable Driver Alarm

Disable Hard Limit

Enable Emergency Stop

Disable Pedal Switch

Figure 37. Input parameter settings.

Press OK to save changes and return to

menu screen.

Model G0895 (Mfd. Since 04/22)

6. Press OK to save changes and return to menu screen.

-31-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

ing loss can occur while operating this

Operation Overview

To complete a typical operation, the operator does the following:

Designs/writes G-code that defines toolpath.

2. Uploads G-code to USB drive.

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to reduce your risk from these hazards.

3. Examines workpiece to make sure it is suit-

able for cutting.

Installs appropriate cutter for type of material

and operation.

If necessary, cuts workpiece with table saw

or other machine to fit within working envelope of this machine.

Secures workpiece to table. If using vacuum

table, turns vacuum pump ON.

Turns machine ON.

Homes all axes and verifies parameters (see

8. Page 30).

Connects USB drive to controller.

10. Sets work origin. Uses Z-axis tool setter to

set Z-axis relative to workpiece or table, depending on toolpath requirements.

Connects dust shoe and dust collection sys-

11.

tem to spindle.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-32-

Puts on safety glasses, respirator, and hear-

12.

ing protection.

Turns dust collection system ON.

13.

Runs G-code. Spindle will automatically start

14.

and follow toolpath.

When toolpath is complete, spindle will stop

15.

and return to position defined by G-code.

Model G0895 (Mfd. Since 04/22)

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

• Wet or "Green" Stock: Cutting wood with a moisture content over 20% causes unnecessary wear on the cutter and yields poor results.

• Excessive Warping: Workpieces with excessive cupping, bowing, or twisting are dangerous to cut because they are unstable and can come loose or move unexpectedly when being cut. DO NOT cut workpieces with excessive warping!

Workpiece Inspection

Some workpieces are not safe to cut or may first require modification. workpieces for the following:

• Material Type: This machine is only intended for cutting natural and man-made wood products, laminate covered wood products, and some plastics. Cutting drywall or cementitious backer board creates extremely fine dust and may reduce the life of the bearings. This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with this machine may lead to injury or damage.

• Foreign Objects: Nails, staples, dirt, rocks, tramp metal, and other foreign objects are often embedded in wood. While cutting, these objects can become dislodged, break the cutter, or cause workpiece kickback—all of which could fly out and strike the operator or bystanders. Always visually inspect workpiece carefully before cutting it. If foreign objects can not be removed, DO NOT cut the workpiece.

• Large/Loose Knots: Loose knots can become dislodged during cutting operation. Large knots can cause cutter or machine damage. Only use workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

Before cutting, inspect all

• Minor Warping: Workpieces with slight cupping can be safely supported if cupped side is facing table and workpiece is firmly clamped to table. On the contrary, a workpiece with bowed side facing table will rock during a cut and could cause severe injury.

Choosing Cutter

There are many types of cutters available. Be sure to choose the right one for your application and material. Read all manufacturer instructions before installing and using a cutter.

When choosing a cutter, consider:

Material Type: Most cutters are designed for

specific material. Choose a unique bit for plywood, engineered wood products, hardwood, and composite woods to improve overall results. If a general-purpose bit is needed, a two-flute, upcut, spiral bit is a good choice.

Application: Many design features are best

cut using specific tools. For example:

— Use a V-bit for cutting signs and lettering.

— Use a spoilboard cutter or fly cutter for sur-

facing a spoilboard or finishing a smooth, flat workpiece, such as a counter top.

— Use a form bit to cut a profile with a uni-

form contour, such as an ogee or round over.

Model G0895 (Mfd. Since 04/22)

— Use a chipbreaker or rougher for rough

cuts and quickly removing a large amount of material when the finish does not matter.

-33-

3. Feed and Speed Rates: Feed rate, spindle speed, and number of flutes on the cutter determine chip load. The chip load affects the best diameter bit to use to get the highest quality finish while minimizing wear. Most manufacturers will list the recommended chip load for their cutters.

Depth and Width of Cut: The cutter must be

long enough to reach the maximum plunge depth of the operation and small enough to cut the details of the piece. However, shorter, wider bits will deflect less, leading to more accurate cuts, and they are less prone to wear and breakage.

Finish: If a high-quality finish is a priority,

use a cutter with more flutes. Four-flute cutters work well for this in most cases. Do not forget that number of flutes is a component of calculating chip load.

Chip Displacement: Up-cut bits keep the

workpiece clear of chips, but on composite materials the upward force of the operation will chip and fray the top surface of the workpiece. Down-cut bits leave a smooth finish on the top of the workpiece, but pressing chips down creates more heat during the cut and frays the bottom of the workpiece on through cuts. Compression bits are fluted to cut up on the bottom, and down on the top, compressing the workpiece during a cutting operation. Compression bits are ideal for cutting materials like plywood and other composites.

Changing Cutter

Cutters are sharp! To reduce the risk of being cut, wear leather gloves when handling, installing, and removing cutters from spindle.

Items Needed Qty

Open-End Wrench 30mm ................................. 1

ER32 Collet Wrench

To change cutter:

Home all axes (see Homing Axes on

1. Page 39), then turn machine OFF.

DISCONNECT MACHINE FROM POWER!

3. Place scrap material or shop rag under

spindle to catch cutter.

4. Hold spindle with 30mm open-end wrench, remove spindle nut with ER32 collet wrench (see Figure 38), then remove collet and cutter.

Spindle

.......................................... 1

-34-

Spindle

Nut

Figure 38. Changing cutter.

5. Insert new cutter in collet, then tighten spin-

dle nut to secure cutter.

Model G0895 (Mfd. Since 04/22)

Securing Workpieces

The Model G0895 comes with a vacuum table that has 6 vacuum zones separated by T-slots. Workpieces with a wide range of shapes and sizes can be secured using clamps, the vacuum table, or both. Always secure the workpiece to the table to avoid injury and damage to the machine an d cutter.

Clamps are the most consistent method to secure a workpiece, but the vacuum table is an excellent option when cutting a workpiece edge where clamps would normally get in the way. However, a flat surface on the bottom of the workpiece is required to create a strong vacuum seal. For workpieces with rough or uneven bottoms, clamps are required. There is no harm in using both clamps and the vacuum table at the same time.

Using Clamps

Always use at least four clamps when clamping a workpiece to the table.

Items Needed Qty

Clamps .................................................4 or more

To clamp workpiece to table:

1. Clear dust, wood chips, and tools from table

surface and T-slots.

4. Slide T-bolts into T-slots, then adjust wing nuts and hex bolts so clamp plates are higher than workpiece (see Figure 40).

Adjusting

Wing Nuts

T-Bolts Slid Into T-Slots

Figure 40. Clamping workpiece to table.

5. Position clamps so workpiece is stable and

does not rock. Take into consideration axis positions when G-code runs.

Tighten wing nuts until workpiece is secure

and flat against table on all four sides/ corners.

Using Vacuum Table

The vacuum table is an alternate way to hold material to the work surface for cutting. It is especially useful when clamps are in the way or the workpiece is irregular in shape. However, if workpiece does not have a tight enough seal with vacuum table, an alternative method must be used to secure it.

2. Thread hex bolt into clamp plate, then insert T-bolt through clamp plate and thread on flat washer and wing nut (see Figure 39).

Clamp Plate

Hex Bolt

Figure 39. T-slot clamp components.

Place workpiece on table. Joint or shim if

necessary to ensure a flat work surface.

Model G0895 (Mfd. Since 04/22)

Wing Nut

Flat

Washer

T-Bolt

Items Needed Qty

Flat Scrap Material ............................ As Needed

Gasket Tube Vacuum Port Plugs

A tight seal is required between vacuum table and workpiece for vacuum table to function properly. Always follow setup procedure to ensure seal is achieved and avoid machine damage. Always keep table clean and unused vacuum ports plugged to prevent dust from entering vacuum system and damaging vacuum pump.

...................................... As Needed

............................ As Needed

-35-

To secure workpiece using vacuum table:

Inspect workpiece and ensure bottom of

material is flat. Joint or plane bottom of workpiece if needed.

Note: Porous material and workpieces with

knot holes may not create a tight enough seal for vacuum table to function.

Clear dust, wood chips, and tools from table

surface and T-slots with wet/dry vac or dust collector.

3. Position workpiece on table so that it covers

as few vacuum zones as possible.

4. Only open vacuum valves (see Figure 42) for each zone covered by workpiece. Close all other vacuum valves, and plug all unused vacuum ports.

— If workpiece does not fully cover vacuum

zones it is over, use included gasket tube to seal the outside of the workpiece. Arrange tube on table so it fits just underneath outer edge of workpiece, then cut tube to size (see Figure 41).

Figure 41. Gasket tube cut to size to seal

workpiece to vacuum zone.

Figure 42. Vacuum zone control valves.

Note: Using as few zones as possible and

turning off unused zones will improve vacuum strength and better secure the workpiece to the table.

5. Turn vacuum pump ON.

6. Push edge of workpiece with moderate pres-

sure to verify workpiece is properly secured by vacuum system with enough strength to withstand cutting forces.

— If workpiece is not well secured, repeat

Steps 1–6. If workpiece is still not secure, use hold down clamps to augment vacuum.

— If workpiece does not cover all vacuum

ports in zones it is in, place flat scrap material over uncovered ports.

-36-

Model G0895 (Mfd. Since 04/22)

Using a Spoilboard

A spoilboard should be used with any operation in which the cutter cuts completely through the workpiece. Typically, a spoilboard is made of MDF that has been surfaced perfectly flat. Even a new piece of material should be surfaced before use.

Clamping Spoilboard

Clamps can be used in combination with the vacuum table if spoilboard does not create a strong seal with the vacuum table.

Items Needed Qty

MDF (sized for table or workpiece) .................. 1

Clamp Set, Double-Sided Tape, or Wood Screws

................................ As Needed

The vacuum table can be used with an MDF spoilboard that is properly prepared. The vacuum pulls air through the porous spoilboard, causing workpieces to be secured to the top of the spoilboard.

Moisture will swell and warp MDF spoilboards. Using a warped spoilboard will result in damaged or inaccurately cut workpieces and could result in damage to the machine. If liquid is spilled on spoilboard, it must be dried and resurfaced, or replaced.

Preparing a Vacuum Spoilboard

Items Needed Qty

MDF Sealant (epoxy or rubberized paint)

To create a vacuum spoilboard:

1. Surface both sides of MDF to remove at

Note: Spoilboards can be resurfaced and

⁄4" (sized for table or workpiece) ............. 1

................ As Needed

least 0.5mm of sealant. See Surfacing on Page 38 for instructions on how to use your Model G0895 to surface the spoilboard.

Seal all four edges of spoilboard using epoxy

or rubberized paint.

reused until thickness is reduced to approximately

⁄4" or less.

To clamp a spoilboard:

Clamp surfaced spoilboard to machine

bed using included hold-down clamps (see Figure 43). If vacuum table is used, secure spoilboard as described in Using Vacuum Table on Page 35.

Workpiece

Spoilboard

Vacuum Table

Figure 43. Spoilboard clamped to router bed.

2. Secure workpiece to spoilboard.

Note: Depending on the needs of the

workpiece and G-code, it could be appropriate to use additional hold-down clamps, double-sided tape, or mount the workpiece directly to the spoilboard with screws. If vacuum table is used, the suction through the spoilboard may be sufficient to secure workpiece. Always verify workpiece is secure before beginning work operations.

Clamp

Model G0895 (Mfd. Since 04/22)

-37-

Surfacing

The Model G0895 can be used to surface a spoilboard or workpiece, using the mill plane feature and an appropriate cutter (see Choosing Cutter on Page 33).

Items Needed Qty

Spoilboard Cutter or Fly Cutter ........................ 1

To surface using the mill plane operation:

Hold down RUN/PAUSE, press HIGH/LOW,

then release both buttons at the same time to open advanced processing menu.

4. Define operation parameters. Press RUN/ PAUSE to change a parameter and OK to save. Distances are measured in millimeters.

— Scan Type changes the direction of the

operation. For scan milling, "X Scan" runs back and forth across the X-axis, and "Y Scan" runs back and forth across the Y-axis. For encircle milling, "AC" runs counterclockwise around the workpiece and "C" runs clockwise around the workpiece.

— Height and Width defines the size of the

area to be surfaced.

2. Scroll to "Mill plane" and press OK.

3. Choose "Scan mill" or "Encircle mill" and

press OK. A list of operation parameters will appear.

Note: A "Scan mill" operation runs back and

forth from one end of the defined workpiece to the other. An "Encircle mill" operation runs from the outside to the inside of the defined workpiece.

— Diameter defines the diameter of the sur-

facing tool used.

— Depth defines the total depth of material

removed.

— Z Step defines how much material is

removed per pass. For example, a Depth of 1 and Z Step of 0.25 would remove 1mm of material over four passes.

— TRatio defines the stepover, which is the

amount of overlap the cutting tool makes per pass.

Press OK after all parameters have been

saved to start the mill plane operation.

-38-

Model G0895 (Mfd. Since 04/22)

Adjusting Axis

Positions Manually

Knowing how to manually control axis movement is an essential part of operating the Model G0895. Axes must be positioned manually whenever a work origin is set.

Use axis movement buttons on controller (X+, X-, Y+, Y-, Z+, and Z-) to move axes. See Controller Functions on Page 6 for detailed button descriptions.

Manual axis movement can be performed at two speeds and in three motion modes: Continuous, Step, and Distance.

Manual axis movement allows movement beyond soft limit proximity switches, which can damage the machine. Always be aware of axis locations during manual movement, and be prepared to stop machine if axes move unexpectedly.

Changing Axis Movement Speed

1. Press HIGH/LOW to toggle between fast and

slow speeds.

Changing Axis Movement Mode

1. Press MODE to toggle between Continuous,

Step, and Distance modes.

— In Continuous mode, press and hold axis

movement buttons to move axes. Release button to stop movement.

— In Step mode, press button to move axis

one step. Step size is determined by speed mode.

— In Distance mode, press button to move

axis a user-defined distance. Set distance by toggling to Distance mode, then input distance and press OK. Controller will display current setting.

Homing Axes

Homing the machine returns all three axes to "home" position or the machine-specific zero point. Home is determined by magnetic proximity switches and will not change.

Since all machine movement is calculated from home, always home axes and verify machine parameters before each operation.

To home axes:

Model G0895 (Mfd. Since 04/22)

Press HOME. Verify all axes move to their

farthest positions.

2. Verify all machine parameters listed in Verifying Parameters on Page 30.

-39-

Setting Work Origin

Work origin is the workpiece-specific zero point— the starting point for your toolpath. All three axes need to be zeroed at the work origin before running code for any particular operation.

The Z-axis can be set in relation to either the table surface or the workpiece surface, but it must correspond to what is established in the G-code. If this is not done properly, the cutter may crash into the material or the table, causing damage to the workpiece or the table.

Always set work origin before each unique operation. The work origin of all axes must match the origin of the toolpath established in the G-code. Failure to set the work origin may cause the cutter to crash and damage the workpiece, table, or cutter.

To set work origin:

Clamp workpiece to table, insert cutter, and

load G-code to controller.

To set Z-axis origin using tool setter:

Clamp workpiece to table, insert cutter, and

load G-code to controller.

Place tool setter on top of table or workpiece.

3. Manually move X- and Y-axes so cutter is directly above tool setter (see Figure 44).

Figure 44. Spindle over tool setter.

4. Hold down MENU, then press ON/OFF and

release buttons together. Spindle will lower until it presses button on tool setter, then raise slightly. Z-axis origin is set at base of tool setter.

Manually move X- and Y-axes to toolpath

origin established in G-code.

Manually move Z-axis down to 1⁄8" above

workpiece or table surface (as determined by G-code).

Place piece of paper between cutter tip and

workpiece/table surface. Slowly step Z-axis down while sliding paper until paper cannot move.

Press XY->0 to set X- and Y-axis origin.

6. Press Z->0 to set Z-axis origin.

-40-

Model G0895 (Mfd. Since 04/22)

Creating G-Code File

Before operations can be run on the Model G0895, a toolpath must be designed and converted to G-code.

CAM software converts a CAD model into G-code, which defines a toolpath for the project, and then formats the G-code into a machine specific dialect via a post-processor.

This machine does not read advanced formatting. By default, it only runs letter addresses for simple axis movement. Review Changing Advanced Settings on Page 44 for information about turning on additional G-code functions.

An operator could also write G-code manually. Often, this is more efficient than designing and processing through CAD/CAM. In addition, knowledge of G-code is integral to refining toolpaths produced by CAM software.

Items Needed Qty

CAD/CAM Software or text editor ...................... 1

USB Drive 16GB or less

IMPORTANT: DO NOT use a USB drive larger than 16GB. The controller is designed to read USB drives below 16GB capacity.

.................................... 1

To create G-Code:

Load CAD file into CAM software. Take into

consideration what type of material will be cut and what type of cutter will be used. Make note of where you will place clamps.

Run post-processing application to export

G-code.

Note: Use post-processing options specific

to the Model G0895 or the RichAuto A11 controller when available. If a post-processor for this machine is not available, use a postprocessor with minimal formatting.

Do a practice run within software to identify

any areas of concern (double-check feed/ speed rates, depth of cut, and the direction the cutter will be traveling).

Review G-code and simplify it if needed.

Note: Simplifying G-code can significantly

reduce processing time. Different CAM software and different post-processors will write code differently and some operations require a human eye to find the most efficient method. Learning where code can be improved is a matter of practice and experience.

Export G-code to USB drive in .NC, .PLT,

.TAP, or .TXT format.

Model G0895 (Mfd. Since 04/22)

-41-

Uploading and

Running G-Code

Once G-code is created, it is transferred to the controller via USB drive. The code is then processed from the controller.

Running G-Code From Controller Internal Memory

1. Press RUN/PAUSE.

Scroll to "Internal File" and press OK, then

scroll to G-code file and press OK.

Screen will display "SetWorkParam" and the

following parameters:

Uploading G-Code to Controller Internal Memory

1. Turn machine ON.

Insert USB drive loaded with G-code into

controller (see Figure 45).

Controller

USB

Drive

— WorkSpd (feed rate in mm/sec.). — FastSpd (movement speed between cuts

in mm/sec.). — SpdScale (spindle speed ratio). — FallDown (Z-axis speed ratio).

4. Scroll to desired parameter and press RUN/ PAUSE to change value, then press OK.

5. Press OK again to begin operation.

— Press RUN/PAUSE to pause axis move-

ment. Spindle will continue to spin. Axes can be manually moved while paused. Press RUN/PAUSE again to resume, then OK to resume from new axis position, or STOP to return to original position.

— Press Y+ and Y- during operation to

manually change spindle speed ratio from

0.1 (stopped) to 1.0 (full speed).

Figure 45. USB drive connected to controller.

3. Press MENU, scroll to "Operate File" on the

controller, and press OK.

Scroll to "Copy File" and press OK.

Scroll to "Udisk File" and press OK, then

navigate to G-code file and press OK.

-42-

— Press STOP to completely stop operation.

Choose between "Save break" to save breakpoint to return to later, or "Discard break" to stop operation without saving. Resume saved processing through the advanced processing menu (see Using Advanced Controls on Page 44).

Model G0895 (Mfd. Since 04/22)

Running G-Code From USB Drive

1. Press RUN/PAUSE.

2. Scroll to "Internal File" and press OK, then

scroll to G-code file and press OK. The screen will display "Set Work Param".

— To change a work parameter, scroll to the

parameter and press "RUN/PAUSE", then input the new value and press OK to save.

3. Press OK to begin operation.

Manually Setting

Spindle Speed

Pressing ON/OFF and Z+ or Z- buttons together while the spindle is running will increase or decrease the spindle speed through a range of eight user-defined speed settings.

This action can be performed any time the spindle is running.

— Press RUN/PAUSE to pause axis move-

ment. Spindle will continue to spin. Axes can be manually moved while paused. Press RUN/PAUSE again to resume, then OK to resume from new axis position, or STOP to return to original position.

— Press Y+ and Y- during operation to

manually change spindle ratio. Spindle ratio ranges from 0.1 (stopped) to 1.0 (full speed).

— Press STOP to completely stop operation.

Choose between "Save break" to save breakpoint to return to later, or "Discard break" to stop operation without saving. Resume saved processing through the advanced processing menu (see Using

Advanced Controls on Page 44).

To manually set spindle speed:

1. Verify S-code processing is turned on (see S-Code Processing on Page 44).

Press MENU, then scroll to "MACHINE

SETUP" and press OK.

Scroll to "Spindle Setup" and press OK.

Scroll to "Spindle State" and press OK.

Press STOP button twice to access "Spindle

Speed" menu.

Scroll through each spindle speed and set as

desired using RUN/PAUSE button and numbered keys.

Note: Set RPM values in ascending order

from 1–8. Speed 1 should be set to the lowest RPM value, and Speed 8 should be set to the highest RPM value.

Model G0895 (Mfd. Since 04/22)

Press OK to save changes.

-43-

Changing Advanced

Using Advanced

Settings

Changing advanced settings will change the default functions of your machine and how it processes files. Changing advanced settings is only recommended for experienced operators. After changing settings, monitor machine operation carefully to prevent damage to the machine, workpiece, or cutter.

Many advanced functions of the Model G0895 are turned off by default. Notably, S and F letter addresses are ignored unless intentionally turned on in the controller.

Advanced settings are accessible through the "AUTO PRO SETUP" menu.

F-Code Processing

1. Press MENU, then scroll to "AUTO PRO

SETUP" and press OK.

Controls

All basic controls of the Model G0895 are performed through single-button commands on the controller, but some advanced features require multi-button commands to access.

Advanced Processing Menu

Advanced tool functions are accessed through the advanced processing menu. Functions include array work, resuming stopped jobs, surfacing a workpiece, calculating bounds of a file, and calculating processing time of a file.

To access advanced processing menu:

1. Hold down RUN/PAUSE, press HIGH/LOW,

then release both buttons at the same time.

Switching Coordinate Systems

Up to nine work coordinate systems can be saved at a time. When work origin is set, it is set for the active coordinate system. If the absolute coordinate system is active, work origin cannot be set.

Scroll to "G Code Setup" and press OK.

3. Scroll to "F Read" and press RUN/PAUSE.

"Ign F" will change to "Read F". Press OK to save.

S-Code Processing

Press MENU, then scroll to "AUTO PRO

SETUP" and press OK.

Scroll to "G Code Setup" and press OK.

3. Scroll to "S Read" and press RUN/PAUSE.

"Ign S" will change to "Read S". Press OK to save.

To switch coordinate systems:

1. Hold down MENU, press a single 0-9 number

button, then release both buttons at the same time.

— Press MENU + 0 to activate absolute coor-

dinate system (mechanical coordinates).

— Press MENU + 1-9 to activate work coor-

dinate systems.

Repeat Last Process

The last process run can be quickly selected to operate again.

To repeat last process:

1. Hold down RUN/PAUSE, press 9, then

release both buttons at the same time.

-44-

Model G0895 (Mfd. Since 04/22)

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

V-Carve CNC Router Software

T28100—V-Carve Desktop Software T28101—V-Carve Pro Software

V-Carve provides a powerful but intuitive software solution for cutting parts on a CNC Router. It combines CAD and CAM so you can design your work and create your toolpath in one interface. V-Carve includes the functionality demanded for complex work while remaining incredibly easy to use and affordably priced.

Cutters

C1921—Router Bit Set for Sign Making T30941—CNC Router Bit Starter Set #1 T32931— DC1808— DC1809—

Figure 47. C1921 Router Bit Set for Sign

⁄4" X-CARVE CNC Router Bit Set

⁄16" Solid Carbide Upcut Spiral

⁄4" Solid Carbide Upcut Spiral

Making.

Basic Eye Protection

T32323—Woodturners Face Shield T32401—EDGE Brazeau Safety Glasses, Clear T32402—EDGE Khor G2 Safety Glasses, Tint T32404—EDGE Mazeno Safety Glasses, Clear

T32323 T32401

T32402

Figure 46. T28100 V-Carve Desktop Software.

Figure 48. Assortment of basic eye protection.

Model G0895 (Mfd. Since 04/22)

T32404

-45-

order online at www.grizzly.com or call 1-800-523-4777

G0860—1

⁄2 HP Portable Cyclone Dust

Collector

This compact unit features an impressive 868 CFM and up to 9.7" of static pressure—perfect for handling up to two large machines at once. The 20-gallon collection drum with quick-release handle catches large particulate for quick and clean bag changes, and the pleated 1-micron filter captures remaining dust.

D4206—Clear Flexible Hose 4" x 10' D4256—45° Elbow 4" D4216—Black Flexible Hose 4" x 10' W1034—Heavy-Duty Clear Flex Hose 4" x 10' D2107—Hose Hanger 4 1⁄4" W1015—Y-Fitting 4" x 4" x 4" W1017—90° Elbow 4" W1019—Hose Coupler (Splice) 4" W1317—Wire Hose Clamp 4" W1007—Plastic Blast Gate 4" W1053—Anti-Static Grounding Kit

Hand-picked selection of commonly used dust collection components for 4" dust ports.

D4206

Figure 49. G0860 Cyclone Dust Collector.

D4256

D4216

W1053

W1007

W1317

Figure 50. Dust collection accessories.

W1017

-46-

Model G0895 (Mfd. Since 04/22)

order online at www.grizzly.com or call 1-800-523-4777

T27914—Moly-D Machine and Way Oil, 1 Gal.

This ISO-68 machine and way oil is one of the best we’ve found for maintaining bed ways, sliding ways, gearboxes, and leadscrews. Why? It is extremely tacky and includes the superior frictionreducing compound Moly-D to maximize component life and minimize wear.

Figure 51. T27914 ISO-68 Moly-D Machine and

Way Oil.

T26419—NLGI#2 Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and water resistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

G7979—20 HP Rotary Phase Converter

This rotary phase converters allow you to operate 3-phase machinery from a single-phase power source at 100% power and 95% efficiency. This model operates up to twice its nameplate rating in mixed-motor load. For heavily-loaded or hardstart machinery, such as CNC routers or dust collectors, choose a nameplate rating 3 times the HP of the most heavily loaded motor.

Figure 53. G7979 20 HP Rotary Phase

Converter.

H7617—High Pressure Oil Can w/Flex Nozzle

This high-pressure oil can is perfect for lubricating the ball oilers found on your machine. Each can holds 5 ounces of oil.

Figure 52. T26419 Syn-O-Gen Synthetic

Grease.

Model G0895 (Mfd. Since 04/22)

Figure 54. H7617 High-Pressure Oil Can.

-47-

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

Cleaning &

To reduce risk of shock or

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged or dull cutter.

• Clogged or dirty collet, spindle nut, or spindle collet hole.

Blocked dust collection.

•

• Worn or damaged wires.

Dirty vacuum pump filter.

•

• Dust and debris on vacuum table.

• Any other unsafe condition.

Daily Maintenance

• Check/adjust lubrication level in oiler.

• Clean/lubricate linear guide rails.

Weekly Maintenance

Clean/lubricate rack and pinion gear and

•

metal surfaces.

• Clean/vacuum dust buildup in T-slots.

• Inspect spoilboard for defects and flatness.

Protecting

Cleaning the Model G0895 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth.

Lubrication

By design, the linear guide rails, helical rack and pinion gears, and other metal parts on this machine have hardened surfaces that are highly resistant to corrosion and wear. However, periodically wipe metal parts with light machine oil and synthetic grease (see ACCESSORIES on

Page 47) to extend their life.

Note: Lubrication can cause sludge build-up that

will bind moving parts, and corrosion can still occur if catalysts are trapped beneath lubricant. Always clean surfaces before applying any form of lubrication.

Items Needed Qty

Protective Gloves........................................1 Pair

Hex Wrench 6mm Stiff Brushes High-Pressure Oil Can Clean Shop Rags Mineral Spirits T27914 or ISO 68 Equivalent T26419 or NLGI#2 Equivalent

.............................................. 1

...................................................... 4

...................................... 1

.............................. As Needed

.................................... As Needed

........... As Needed

Monthly Check

• Inspect wiring connections for loose wires.

• Verify fasteners on moving parts are secure.

Annual Maintenance

• Check/level frame and table.

-48-

Model G0895 (Mfd. Since 04/22)

Oiler System Operation

The Model G0895 linear guide rails require regular lubrication to perform properly. The oiler system (see pumps oil to these components.

Figure 55) on the rear of the gantry

Verify upper and middle lights illuminate and

oil dispense time (in seconds) is displayed on digital readout (see values using control panel.

Figure 56). Set desired

and buttons on oiler system

Lube Type Lube Amount Lubrication Frequency Oil Reservoir Max Capacity

To operate oiler system:

Fill oiler reservoir with 1 quart of T27914

Press and hold SET button on oiler until an

Power On

.............. T27914 or ISO 68 Equivalent

..................................... As Needed

................................. Daily

........................ 1 Qt.

machine oil or ISO 68 equivalent and turn router ON (see

audible beep is heard (see

Light

Figure 55).

SET

Button

Fill

Plug

— To dispense a small amount of oil, set the

number of seconds to a lower value.

— To dispense a large amount of oil, set the

number of seconds to a higher value.

Dispense

Time in

Seconds

Dispense

Lights

Figure 56. Setting oiler dispense time.

4. Press and hold SET button on oiler until an

audible beep is heard.

Reservoir

Figure 55. Oiler system control components.

Model G0895 (Mfd. Since 04/22)

-49-

5. Verify upper and lower lights illuminate and

oil dispense duration (in minutes) is displayed on digital readout (see Set desired values using oiler controls.

Figure 57).

and buttons on

X-Axis Rack & Pinion

Lube Type ............. T26419 or NLGI#2 Equivalent

Lube Amount Lubrication Frequency

..................................... As Needed

..............................Weekly

— To dispense oil over a short amount of

time, set the number of minutes to a lower value.

— To dispense oil over a long amount of

time, set the number of minutes to a higher value.

Dispense

Cycle in

Minutes

Dispense

Cycle

Lights

Figure 57. Setting oiler dispense cycle.

6. Press and hold SET button to confirm set-

tings and start oiler system lubrication cycle.

To clean and lubricate X-axis rack and pinion:

DISCONNECT MACHINE FROM POWER!

Clean X-axis helical and linear gear with a

brush and mineral spirits to remove grime and old lubrication (see Figure 58).

Use a clean brush to wipe entire length of

helical and linear gear with Grizzly T 26419 or NLGI#2 Equivalent (see Figure 58).

Helical Gear

Linear Gear

Figure 58. Example of rack and pinion lubrica-

tion area.

Turn machine ON and move spindle several

times over full range of X-axis travel to spread lubricant and ensure smooth movement.

-50-

Model G0895 (Mfd. Since 04/22)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

1. EMERGENCY STOP button depressed/at fault.

2. Machine circuit breaker tripped or at fault.

3. Blown fuse.

4. Incorrect power supply voltage/circuit size.

5. Electrical cabinet limit switch engaged/at fault.

6. Power supply circuit breaker tripped or fuse blown.

7. Controller/interface board at fault.

8. Contactor not energized/at fault.

9. Control/ground wiring broken, damaged, or disconnected.

10. ON/OFF button at fault.

11. Inverter at fault.

12. Spindle motor/motor bearings at fault.

1. Workpiece material unsuitable for machine.

2. Workpiece loose.

3. Dull cutter or incorrect cutter type for task.

4. Machine undersized for task.

5. Spindle jammed.

6. Spindle motor overheated.

7. Extension cord too long.

8. Servo motor/motor bearings at fault.

9. Contactor not energized/at fault.

10. One or more axes linear guide rail(s)/ carriage(s) are damaged or binding.

1. Workpiece loose.

2. Motor or component loose.

3. Incorrect feed rate, spindle speed, or cutter type.

1. Rotate EMERGENCY STOP button head to reset. Replace if at fault.

2. Reset circuit breaker on switch.

3. Replace fuse/ensure no shorts.

4. Ensure correct power supply voltage/circuit size.

5. Close and secure electrical cabinet/replace switch.

6. Ensure power supply circuit is not overloaded and is free of shorts. Reset circuit breaker or replace fuse.

7. Inspect/replace if at fault.

8. Test all legs for power; replace if necessary.

9. Fix broken/damaged control/ground wires or disconnected/corroded connections.

10. Replace ON/OFF button.

11. Inspect inverter; replace if at fault.

12. Test/repair/replace.

1. Only process material rated for machine (Page 34).

2. Secure with clamps and vacuum table (Page 35).

3. Replace/sharpen cutter. Use proper cutter for cutting task (Page 34).

4. Reduce feed rate or depth of cut.

5. DISCONNECT POWER! Turn spindle by hand to

identify/x cause of jam.

6. Turn machine OFF and allow spindle motor to cool.

7. Move machine closer to power supply; use shorter extension cord.

8. Test wire continuity between servo motor and servo driver; repair/replace if at fault. Test/repair/replace servo motor.

9. Test all legs for power; repair/replace if at fault.

10. Inspect linear guide rail(s)/carriage(s) on each axis for damage, corrosion, and debris.

1. Secure with clamps and vacuum table (Page 35).

2. Replace damaged or missing bolt/nuts or tighten if loose.

3. Incorrect feed rate, spindle speed, or cutter type.

Model G0895 (Mfd. Since 04/22)

-51-

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

4. Cutter or spindle at fault.

5. Bit chattering.

6. Collet at fault.

7. Machine not level.

8. Spindle bearings at fault.

9. One or more servo driver(s) at fault.

10. One or more axes ball screw(s)/bearing(s) are damaged or binding.

4. Replace or sharpen cutter; tighten loose spindle; replace defective spindle, collet, or spindle nut (Page 34).

5. Replace/sharpen cutter; index cutter to workpiece; use correct feed rate and spindle speed.

6. Replace collet.

7. Level machine (Page 22).

8. Test by rotating spindle; rotational grinding/loose shaft requires bearing replacement.

9. Test wire continuity between servo driver and servo motor; repair/replace if at fault. Test/repair/replace servo driver.

10. Inspect ball screw(s)/bearing(s) on each axis for damage, corrosion, and debris.

Machine Operations

Symptom Possible Cause Possible Solution

Axis will not move after controller receives commands.

Axis movement and location not repeatable.

1. One axis not moving.

2. All axes not moving.

1. Linear guide rail(s) worn.

2. Motor coupler(s) worn.

1. Check connection to motor. Check 50-pin connection to interface board.

2. Inspect 50-pin cable and interface board connection. Inspect power supply to servo motors. Inspect mechanical components.

1. Inspect/repair.

2. Inspect/repair.

One or more axes only move in one direction.

One or more axes will not move.

Inconsistent cutting depth.

1. Interface board/motor connection loose.

2. Incorrect machine parameters.

3. Interface board at fault.

4. Servo motor at fault.

5. Servo driver at fault.

1. Direction wire and pulse wire in wrong place on interface board.

2. Servo motor disconnected.

3. Servo motor at fault.

4. No pulse signal from interface board.

1. Loose cutter.

2. Spoilboard not at.

3. Z-axis linear guide rail(s) has too much movement.

4. Workpiece loose.

5. Z-axis tool setter at fault.

6. Z-axis proximity switch at fault.

7. CAM/G-code at fault.

1. Inspect connections and ensure all are tight.

2. Verify machine parameters (Page 30).

3. Inspect/replace plugs and sockets.

4. Inspect/replace plugs and sockets.

5. Inspect/replace servo driver.

1. Rewire direction/pulse wiring.

2. Reconnect servo motor.

3. Inspect/repair/replace.

4. Replace interface board.

1. Tighten spindle collet (Page 34).

2. Clean/resurface spoilboard (Page 38).

3. Inspect/tighten/replace if needed.

4. Secure with clamps and vacuum table (Page 35).

5. Test/replace.

6. Test (Page 55)/replace.

7. Review G-code and correct errors.

-52-

Model G0895 (Mfd. Since 04/22)

Machine Operations (Cont.)

Symptom Possible Cause Possible Solution

Machine fails to home, or moves beyond soft limits when homing.

Finished workpiece incorrect size.

Spindle moves in opposite direction when homing.

#5 servo alarm prevents axes movement.

1. Incorrect machine parameters.

2. Faulty connection.

3. Proximity switch not aligned.

4. Loose proximity switch wire.

5. Proximity switch at fault.

6. Interface board at fault.

7. 50-pin data cable at fault.

1. Pulse equivalent incorrect.

2. Incorrect cutter.

3. CAD/CAM dimensional or tooling errors.

1. Faulty connection between proximity switch and interface board.

2. Homing direction set incorrectly in controller.

3. Proximity switch at fault.

4. Electrical interference triggering proximity switch.

5. Interface board at fault.

6. 50-pin data cable at fault.

7. Servo driver programmed incorrectly.

1. One or more axes has crashed into limit stop, or system error has occurred.

2. Incorrect machine parameters.

3. Incorrect voltage parameters.

4. Servo driver screen displays "C.90" communication fault.

5. Servo driver screen displays "(A).910" or "(A).710" overload faults.

1. Verify machine parameters (Page 30).

2. Find/secure connection.

3. Inspect/adjust proximity switch.

4. Secure connection.

5. Test (Page 55)/repair/replace proximity switch.

6. Inspect/replace if needed.

7. Replace cable.

1. Verify controller parameters and update pulse

equivalence (Page 30).

2. Use correct cutter for job.

3. Correct CAD/CAM errors as needed.

1. Test wiring to locate bad connection.

2. Input correct homing parameters (Page 30).

3. Test (Page 55)/replace proximity switch.

4. Test wiring and isolate strong interference signals from electrical currents and ground.

5. Replace interface board.

6. Replace 50-pin data cable.

7. Contact Grizzly Technical Support for assistance.

1. Use EMERGENCY STOP button to reset power and clear alarm.

2. Verify machine parameters (Page 30).

3. Verify voltage parameters (Page 31).

4. Verify servo controller cable (green) is properly connected. Test/repair/replace cable. Test/repair/ replace servo driver.

5. Visually inspect axes for obstructions. Test/repair/ replace corresponding servo driver power cable and servo motor.

Vacuum Pump Motor & Electrical

Symptom Possible Cause Possible Solution

Vacuum pump does not start, or power supply breaker immediately trips after startup.

Model G0895 (Mfd. Since 04/22)

1. Incorrect power supply voltage or circuit size.

2. Disconnect switch at fault/wired incorrectly.

3. Power supply circuit breaker tripped or fuse blown.

4. Vacuum pump junction box wiring incorrect.

5. Control/ground wiring broken, damaged, or disconnected.

6. Motor or motor bearings at fault.

1. Ensure correct power supply voltage and circuit size

(Page 14).

2. Test for good contacts; correct the wiring.

3. Ensure power supply circuit is not overloaded and is free of shorts. Reset circuit breaker or replace fuse.

4. Verify/rewire vacuum pump junction box wiring (Page 27).

5. Fix broken/damaged control/ground wires or disconnected/corroded connections.

6. Test/repair/replace.

-53-

Vacuum Pump Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Vacuum pump stalls or has weak suction.

Vacuum pump pushes air in wrong direction.

1. Disconnect switch at fault/wired incorrectly.

2. Vacuum pump junction box wiring incorrect.

3. Workpiece or spoilboard is dirty or uneven.

4. Gasket tube not installed or installed incorrectly.

5. Filter is dirty or clogged.

6. Leak in hose, ttings, or valves.

7. Clog in vacuum hose.

8. Motor overheated.

9. Motor or motor bearings at fault.

1. Incoming power wires are wired out of phase.

1. Test for good contacts; correct the wiring.

2. Verify/rewire vacuum pump junction box wiring

(Page 27).

3. Clean/resurface workpiece or spoilboard (Page 38).

4. Verify gasket tube is installed and seals workpiece

correctly (Page 35).

5. Clean or replace vacuum lter.

6. Inspect/repair/replace.

7. Remove hose and clear clog.

8. Clean motor, let cool, and reduce workload.

9. Test/repair/replace.

1. Reverse two incoming power wires in vacuum pump

junction box (Page 27).

Controller Operations

Symptom Possible Cause Possible Solution

Controller display shows "out of soft limits error".

Controller not processing correctly.

Controller screen is dim.

Controller display

is blank, ickers, or

restarts.

Controller screen says spindle is ON when spindle is OFF and spindle is OFF when spindle is ON.

1. Toolpath outside of working envelope.

2. Toolpath too large for working envelope.

3. Work origin incorrect in G-code.

4. Incorrect machine parameters.

5. Incorrect coordinate system in CAM software.

1. Incompatible G-code le.

2. Electrical interference.

3. Incorrect machine parameters.

4. Incompatible post-processor.

1. Power supply disconnected or damaged.

2. Power supply voltage too high for controller.

3. 50-pin data cable at fault.

4. Display at fault.

1. Faulty controller connection.

2. Incorrect power supply voltage or circuit size.

3. Controller software at fault.

4. Display at fault.

1. Wrong connections at interface board. 1. Rewire interface board.

1. Reset work origin and secure workpiece so toolpath falls within working envelope.

2. Revise toolpath/break up toolpath into multiple sections.

3. Revise toolpath.

4. Verify machine parameters (Page 30).

5. Set correct coordinates in CAM software.

1. Reformat G-code and re-upload to controller.

2. Test wiring and isolate strong interference signals from electrical currents and ground.

3. Verify machine parameters (Page 30).

4. Use compatible post-processor. In V-Carve, select "RichAuto A11 DSP" post processor from the dropdown menu.

1. Inspect/replace power supply.

2. Use correct power supply. High voltage may damage controller; replace if needed.

3. Inspect/clean plugs and sockets and retry. Replace if bad.

4. Replace controller.

1. Inspect/clean plugs and sockets and retry. Replace if faulty.

2. Ensure correct power supply voltage and circuit size.

3. Update controller software (Page 56).

4. Replace controller.

-54-

Model G0895 (Mfd. Since 04/22)

Testing Proximity

Switches

3. Touch each proximity switch target with a

scrap piece of iron or steel (see

Figure 60).

If the Model G0895 is no longer homing properly, or one or more axes is unresponsive, test each proximity switch for proper operation.

Needed Qty

Items

Scrap Iron or Steel ............................................ 1

Multimeter

To test proximity switches:

1. Turn machine ON and press OK at

2. Press STOP, then press MENU twice to

.......................................................... 1

"HomeTypeAtStart" to home all axes.

— If machine does home properly, all proxim-

ity switches are working correctly.

— If machine does not home properly, pro-

ceed to Step 2.

access voltage parameter screen shown in

Figure

59.

X-Axis

Indicator

Z-Axis

(Behind Cover

Y-Axis

Proximity

Switch Target

Voltage Parameters

1 2 3 4 5 6 7 8

Figure 59. Voltage parameter screen.

Figure 60. Proximity switch locations.

Verify top row axes 1–3 (1=X-axis, 2=Y-axis,

and 3=Z-axis) in the corresponding proximity switch target is activated.

— If arrow does point up, the proxim-

ity switch is working properly. Proceed to Troubleshooting on Page 51 and test additional control systems.

— If arrow does not point up, and test light

on proximity switch is not illuminated, proceed to Step 5.

Note: Proximity switches have a red light that

will illuminate when the proximity switch is activated.

. DISCONNECT MACHINE FROM POWER!

Figure 59 point up when

Model G0895 (Mfd. Since 04/22)

-55-

6. Use a multimeter to check continuity between proximity switches and interface board terminals (see Figure 61).

— If continuity is confirmed between proxim-

ity switches and interface board, proceed to Step 7.

— If continuity is not confirmed between

proximity switches and interface board, repair wiring, then repeat Steps 1–6.

Updating RichAuto

Controller Software

If the RichAuto controller displays a blank screen, the installed A11E software may need to be reinstalled to display correctly.

Contact Technical Support to have a software update file sent directly to you. DO NOT install unsupported software or the controller may function erratically.

Needed Qty

Items

RichAuto A11E Software File (.PKG Format) .... 1

USB Drive 16GB or Less

................................... 1

Proximity Switch

Signal Wires

Figure 61. Interface board proximity switch

signal wires.

. Swap faulty axis proximity switch signal wire

on interface board (see Figure 62) with any one of the known good axes signal wires (X1=X-axis, X2=Y-axis, X3=Z-axis).

Y-Axis

X-Axis

Z-Axis

IMPORTANT: DO NOT use a USB drive larger than 16GB. The controller is designed to read USB drives formatted below 16GB.

To update controller software:

1. Copy software file (.PKG format) to USB

drive, then connect USB drive to controller.

2. Press and hold OK button, then turn controller ON.

Note: Update can be performed at the CNC

router, or by using the included USB-B cable connected to a computer.

3. When controller displays "Emergency State" screen, scroll to "Update System" and press OK button.

4. At "SelectUpdateFile" screen, scroll to "UDisk File" and press OK.

Figure 62. Interface board proximity switch axes.

. Perform Steps 1–3 on Page 55 and verify

test results.

— If arrow does point up on axis swapped in

Step 7, replace faulty proximity switch.

— If arrow does not point up on axis swapped

in Step 7, replace interface board.

-56-

5. Select .PKG update file and press OK.

6. Once update is complete, restart controller.

. Verify machine parameters on controller

match those shown on Page 30.

Model G0895 (Mfd. Since 04/22)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0895 (Mfd. Since 04/22)

-57-

220V

Limit

Switch

L1L1L2

Emergency

Stop Button

Insurance

24V

Power

Supply

Wiring Diagram

Terminal Terminal

L1L1

L2 L2

Delta

MS300 Spindle Inverter

MI4MI

GND

Yaskawa

Servo Motor

0.85kw

M M M M

Spindle

6.1hp

DSP A11

Controller

Yaskawa

CHARGE

Servo Drive

L1 L2 L3 L1C L2C B1/+ B2 B3

-1

-2

U V W

GND

24VC

CN3

CN7

CN1

CN8

1 2

CN2

5 6

D- P- 5V D- P- 5V D- P- 5V

Z Y X

24VC

2X1X3

Yaskawa

Servo Motor

0.85kw

Spindle

GND

4Y3

L1L1NL2 L2

Yaskawa

Servo Drive

CHARGE

CN3 L1 L2

CN7 L3

L1C

L2C B1/+ B2

CN1

-1

-2

CN8

CN2

GND

2Y1

Yaskawa

Servo Motor

0.85kw

Yaskawa

Servo

Drive

CHARGE

CN3 L1 L2

CN7 L3

L1C

L2C B1/+ B2

CN1

-1

-2

CN8

CN2

GND

Yaskawa

Servo Motor

0.85kw

Yaskawa

Servo

CHARGE

Drive

L1 L2 L3 L1C L2C B1/+ B2

-1

-2

U V W

GND

CN3

CN7

CN1

CN8

1 2

CN2

5 6

-58-

READ ELECTRICAL SAFETY

ON PAGE 57!

Model G0895 (Mfd. Since 04/22)

Electrical Components

Figure 63. Front view of electrical cabinet.

Figure 64. Servo drivers.

Figure 65. Rear view of electrical cabinet.

Model G0895 (Mfd. Since 04/22)

READ ELECTRICAL SAFETY

ON PAGE 57!

-59-

Electrical Components (Cont.)

Figure 66. VFD and power supply.

Figure 68. VFD (cover removed).

Figure 67. Circuit breakers, contactor, and

fuses.

Figure 69. RichAuto interface board.

-60-

READ ELECTRICAL SAFETY

ON PAGE 57!

Model G0895 (Mfd. Since 04/22)

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

SECTION 9: PARTS

Frame & Bed

19-1

19-2

5 8

15V2

25-3

25-4

25-1

25-2

Model G0895 (Mfd. Since 04/22)

25-5

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

15V2-11

15V2-6

15V2-1

15V2-7

15-2

15-3

-61-

REF PART # DES CRIPTION REF PART # DE SCRIPTIO N

Frame & Bed Parts List

1 P0895001 CORNE R COVER (L EFT) 18 P0895018 CABLE CARRIER 2 P0895002 PA NEL (FRONT) 19 P0895019 LEVELING FOOT 3 P0895003 BODY 19-1 P0895019-1 HEX NUT M20- 2. 5 4 P0895004 LINEAR GUIDE 25MM 19-2 P0895019-2 FLAT WASHER 20MM 5 P0895005 RACK 19-3 P0895019-3 STUD-FT M20-2.5 X 100 6 P0895006 SIDE PANEL (LEFT, FRONT) 19-4 P0895019-4 LEVELER 7 P0895007 SIDE PANEL (LEFT, REAR) 19-5 P0895019-5 FOOT 8 P0895008 CAP SCREW M6-1 X 30 20 P0895020 DUST COVER 9 P0895009 CAP SCREW M5-.8 X 25 21 P0895021 VACUUM HOSE 2" 10 P0895010 Z-AXIS SENSOR 22 P0895022 CORNER COVE R (RI GHT) 11 P0895011 LIMIT BLOCK 23 P0895023 SI DE P ANEL (RI GHT, FRONT) 12 P0895012 AI R DI STRI BUTI ON PI PE 24 P0895024 SIDE PANEL (RIGHT, REAR) 13 P0895013 AIR VALVE 25 P0895025 T-SLOT CLAMP 14 P0895014 PANEL (REAR) 25-1 P0895025-1 T-SLOT CLAMP PLATE 15V2 P0895015V2 VACUUM PUMP ASSEMBLY V2.04.22 25-2 P0895025-2 HEX BOLT M8-1.25 X 50 15V2-1 P0895015V2-1 VACUUM PUMP FILTER BASE V2.04.22 25-3 P0895025-3 WING NUT M8- 1. 25

15-2 P0895015-2 PLEXIGLASS COVER W/RUBBER SEAL 25-4 P0895025-4 FLA T WASHER 8MM 15-3 P0895015-3 VACUUM PUMP FI LTER 25-5 P0895025-5 T-BOLT M8-1.25 X 80 15V2-6 P0895015V2-6 THREADED PIPE 2-1/2 IPS X 7-1/4 V2. 04.22 26 P0895026 HOSE CLAMP 2" 15V2-7 P0895015V2-7 ELBOW REDUCER 2 X 2-1/2 IPS V2.04.22 27 P0895027 GASKET TUBE 15V2-11 P0895015V2-11 VACUUM PUMP V2.04. 22 28 P0895028 INNER T-SLOT TRACK 90-1/2" 16 P0895016 VACUUM TABL E 29 P0895029 OUTER T-SLOT TRACK 120" 17 P0895017 CABLE SUPPORT 30 P0895030 FLAT HD CAP SCR M5-.8 X 50

-62-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0895 (Mfd. Since 04/22)

148

153

Gantry & Spindle

140

150

142-4

152

142-3

131

154

132

139

130

155

146

135

129

134

133

148

149

128

126

125

145

144

124

114

123

101

142

102

141

103

138

104

105

156

106

107

157

137

108

143

110

109

112

158

159

111

113

136

115

160

139

116V2

117

147

118

139

122

120

119

Model G0895 (Mfd. Since 04/22)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-63-

REF PART # DE SCRIPTION REF PART # DE SCRI PTI ON

Gantry & Spindle Parts List

101 P0895101 SPINDLE MOTOR 6HP 3-PH 220V 132 P0895132 LINEAR GUIDE 25MM 102 P0895102 MOTOR MOUNT 133 P0895133 GANTRY 103 P0895103 CAP SCREW M5-.8 X 20 134 P0895134 RACK 104 P0895104 Z-AXI S MOUNT 135 P0895135 CAP SCREW M6-1 X 25 105 P0895105 SLIDE BRACKET 25MM 136 P0895136 CAP SCREW M8-1.25 X 35 106 P0895106 CAP SCREW M5-.8 X 25 137 P0895137 CAP SCREW M6-1 X 45 107 P0895107 LINEAR GUIDE 25MM 138 P0895138 CAP SCREW M6-1 X 30 108 P0895108 BALL SCREW 25MM 139 P0895139 LI MI T SWI TCH TL-Q5MC1-Z 109 P0895109 BEARING SEAT 140 P0895140 LUBRI CATI ON P UMP 110 P0895110 BALL SCREW SEAT 141 P0895141 CONDUIT 111 P0895111 Z-AXI S MOTOR MOUNT 142 P0895142 DUST HOOD ASSEMBLY 112 P0895112 Z-AXIS SERVO MOTOR SGM7G-09AFC6C 143 P0895143 COUPLER 113 P0895113 SPINDLE COVER (LOWER) 144 P0895144 CABLE CARRIER 114 P0895114 SPINDLE COVER (UPPER) 145 P0895145 CABLE SUPPORT 115 P0895115 CAP SCREW M5-.8 X 20 146 P0895146 CAP SCREW M5-.8 X 20 116V2 P0895116V2 X-AXI S MOUNT V2.10.21 147 P0895147 CAP SCREW M8-1.25 X 30 117 P0895117 SLIDE BRACKET 25MM 148 P0895148 LIMIT BLOCK 118 P0895118 DRIVE BOARD BRACKET 149 P0895149 CAP SCREW M12-1.75 X 60 119 P0895119 GEAR 150 P0895150 Y-AXIS COVERS 2-PC SET 120 P0895120 X-AXIS SERVO MOTOR MOUNTING BOARD 151 P0895151 Y-AXIS COVER (LOWER, LEFT) 122 P0895122 X-AXIS SERVO MOTOR SGM7G-09AFC61 152 P0895152 GANTRY SUPPORT (LEFT) 123 P0895123 Y-AXIS COVER (UPPER, RIGHT) 153 P0895153 SPI NDLE NUT ER32 124 P0895124 Y-AXIS COVER (LOWER, RIGHT) 154 P0895154 COLLET 6MM ER32 125 P0895125 Y-AXIS SERVO MOTOR SGM7G-09AFC61 155 P0895155 COLLET 1/2" ER32 126 P0895126 TIMING BELT 5M 550 156 P0895156 COLLET WRE NCH ER32 127 P0895127 PULLEY 157 P0895157 WRENCH 30 X 32 OPEN ENDS 128 P0895128 GEAR BOX & PULLEY 158 P0895158 Z-AXIS SHAFT COLLAR 129 P0895129 GANTRY SUPPORT (RI GHT) 159 P0895159 CAP SCREW M4-.7 X 12 130 P0895130 SLIDE BRACKET 25MM 160 P0895160 SPINDLE OIL DRIP PAN 131 P0895131 CAP SCREW M5-.8 X 20

-64-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0895 (Mfd. Since 04/22)

Electrical Cabinet

Cabinet Front

207

216

REF PART # DESCRI PTI ON REF P ART # DESCRI PTIO N

219

221

220

222

223

225

217

236

224

226

235

231

210V2 211V2

204

Cabinet Rear

204

208

230

209

233

212V2

212V2218 218

201

213V2

214 215

227

202 202 202 202

233

203 203 203 203

229

233

232

234

205 206

228

233

232

234

201 P0895201 DSP CONTROLLER RICHAUTO A11E 219 P0895219 X SERVO POWER CORD 15G 4W 315" 202 P0895202 SERVO DRIVER YASKAWA SGD7S-7R6A00A 220 P0895220 Y1 SERVO POWER CORD 15G 4W 236" 203 P0895203 BRAKE RESISTANCE 200W 221 P0895221 Y2 SERVO POWER CORD 15G 4W 315" 204 P0895204 FAN SUNON 2122HSL 222 P0895222 Z SERVO POWER CORD 15G 4W 315" 205 P0895205 ON SWITCH YIJIA YJ136-LA38 223 P0895223 X SERVO CONTROLLER CORD 27G 4W 315" 206 P0895206 E-STOP SWITCH YIJIA YJ136-LA38 224 P0895224 Y1 SERVO CONTROLLER CORD 27G 4W 315" 207 P0895207 DS P CONTROLLER RI CHAUTO 225 P0895225 Y2 SERVO CONTROLLER CORD 27G 4W 315" 208 P0895208 VFD DELTA MS300 VFD25AMS23ANSAA 226 P0895226 Z SERVO CONTROLLER CORD 27G 4W 315" 209 P0895209 POWER CONVERTER LRS01-150-24D 227 P0895227 LIMIT S WITCH DA TA CORD 24G 5W 23 6" 210V2 P0895210V2 CIRCUIT BREAKER 32A IC65N V2.01.20 228 P0895228 TOOL SETTER DATA CORD 24G 4W 236" 211V2 P0895211V2 CONTACTOR LC1R2510 V2.01.20 229 P0895229 LUBRICATION PUMP POWER CORD 18G 2W 276" 212V2 P0895212V2 TERMINAL BAR 4P V2.01.20 230 P0895230 Z AXIS BREAKER CORD 18G 2W 315" 213V2 P0895213V2 TERMINAL BAR 6P V2.01.20 231 P0895231 SPINDLE MOTOR CORD 10G 4W 394" 214 P0895214 RELAY OMRON MY2N-GS 24VDC 232 P0895232 LIMIT SWITCH PANASONIC AZ7311 10A 250V 215 P0895215 POWER TERMINAL 6P 233 P0895233 CAP SCREW M4-.7 X 12 216 P0895216 CONTROLLER CABLE 50-PIN 234 P0895234 LIMIT S WITCH B RACKET 217 P0895217 CONTROLLER CABLE USB 235 P0895235 TRIANGLE-DRIVE DOOR LOCK 218 P0895218 FUSE 32A 690V RT18-32X 236 P0895236 TRIANGLE-DRIVE DOOR KEY

Model G0895 (Mfd. Since 04/22)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-65-

Oil Reservoir on

G0895

301V2

303

304

Labels & Cosmetics

305

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

Specifications

Motor: 6 HP, 220V, 1-Ph, 60 Hz, 16A

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual

Full-Load Current Rating: 20A

before operating.

Collet Type: ER32

2. Only properly trained personnel should

Cutting Area: 51" x 98-1/2" x 7"

operate CNC machine.

Table Size: 53-3/4" x 120-1/4"

3. Always wear approved eye and hearing

Cutting Accuracy: +/-0.005"

protection, and a respirator.

Spindle Speed: 0–18,000 RPM

4. Avoid entanglement with moving

X and Y Travel Speeds: 1500 IPM

parts—tie back long hair, roll up long

Z Travel Speeds: 400 IPM

sleeves, and do not wear loose

Weight: 2315 lbs.

clothing, gloves, or jewelry.

5. Always use proper feeds and speeds for operation and workpiece.

6. Verify software-generated code to avoid crashing spindle.

7. Properly ground machine—connect to permanently grounded metal wiring system or an equipment-grounding conductor.

8. Disconnect power before changing

Date

cutters, and/or adjusting/servicing spindle.

S/N

9. Before starting, ensure spindle nut is tight on collet.

Mfd. for Grizzly in China

10. Always remove wrenches and adjustment tools before starting.

306 307

Disconnect power before adjustments, maintenance, or service.

MODEL G0895

4' x 8' CNC ROUTER

INJURY/SHOCK

HAZARD!

WARNING!

11. Only use clamps or vacuum pump to secure workpiece for operations.

12. Use proper dust collection to accomodate full range of movement.

13. NEVER reach over or across machine when in operation.

14. Stand out of path of all moving parts.

15. Keep all guards and covers in place during operations.

16. Avoid damage to machine and material by taking multiple light cuts.

17. Never attempt to slow or stop spindle with hands or tools.

18. In an emergency use EMERGENCY STOP button.

19. Never leave machine running unattended.

20. Never operate machine while intoxicated, distracted, or tired.

21. Do not expose to rain/dampness.

22. Prevent unauthorized use by children or untrained users.

WARNING!

INJURY HAZARD!

To reduce risk of shortand long-term injury, wear safety glasses, hearing protection, and a respirator when using this machine.

320

G0895

310

INJURY HAZARD!

Do not open door while machine is connected to power or spindle is in motion.

WARNING!

ENTANGLEMENT

HAZARD! Tie back long hair, roll up long sleeves, and remove loose clothing, jewelry, or gloves to prevent getting caught in moving parts.

grizzly.com

309

312

• Lubricant: Use Grizzly T27914 Way Oil or ISO 68 equivalent.

• Lubricate system every 8 hours of operation, or weekly.

• Oil reservoir max capacity is 1 quart.

• To operate pump, press up & down arrows.

• Clean/replace suction filter annually or sooner, if needed.

321

WARNING!

CUTTING HAZARD!

Keep fingers and other body parts away from cutting path.

Back of Gantry

G8589

11.03” x 5.32”

311

302

Vacuum Valves on

Back of Frame

314

grizzly.com

315 316 317 318

308

319

313

HOT SURFACE!

323

CAUTION!

DO NOT TOUCH!

Vacuum Pump

322

SHOCK HAZARD!

Diconnect power before opening junction box or working on wiring.

-66-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0895 (Mfd. Since 04/22)

REF P ART # DES CRIPTION REF PART # DES CRIPTION

Labels & Cosmetics Parts List

301V2 P0895301V2 MACHINE ID LABEL V2.01.20 313 P0895313 HOT SURFACE LABEL 302 P0895302 MODEL NUMBER LABEL (SMALL) 314 P0895314 VACUUM ZONE LABEL (TOP, LEFT) 303 P0895303 EYE/EAR/LUNG LABEL 315 P0895315 VACUUM ZONE LABEL (TOP, CENTER) 304 P0895304 ENTANGLEMENT LABEL 316 P0895316 VACUUM ZONE LABEL (TOP, RIGHT) 305 P0895305 READ MANUAL LABEL 317 P0895317 VACUUM ZONE LABEL (BOTTOM, LEFT) 306 P0895306 ELECTRICITY LABEL 318 P0895318 VACUUM ZONE LABEL (BOTTOM, CENTER) 307 P0895307 DISCONNECT POWER LABEL 319 P0895319 VACUUM ZONE LABEL (BOTTOM, RIGHT) 308 P0895308 GRIZZLY.COM LABEL (SMALL) 320 P0895320 MODEL NUMBER LABEL (LARGE) 309 P0895309 CUTTI NG HA ZARD LABE L 321 P0895321 GRIZZLY.COM LABEL (LARGE) 310 P0895310 DO NOT OPEN LABEL 322 P0895322 DO NOT OPEN JUNCTION BOX LABEL 311 P0895311 GRIZZLY NAMEPLATE (LARGE) 323 P0895323 VACUUM PUMP STOP TAG 312 P0895312 OIL RESERVOIR LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

Model G0895 (Mfd. Since 04/22)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-67-

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To you can applicable information for

take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or

scan the QR code below to be automatically directed to our warranty registration page. Enter all

the product.

WARRANTY

Grizzly G0895 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Controller Functions

Glossary Of Terms

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for CNC Routers

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup

Unpacking

Inventory

Site Considerations

Leveling

Dust Collection

Power Connection

Test Run

Verifying Parameters

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection

Choosing Cutter

Changing Cutter

Securing Workpieces

Using a Spoilboard

Homing Axes

Setting Work Origin

Creating G-Code File

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Lubrication

SECTION 7: SERVICE

Troubleshooting

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram

Electrical Components

SECTION 9: PARTS

Frame & Bed

Gantry & Spindle

Electrical Cabinet

Labels & Cosmetics

WARRANTY & RETURNS
