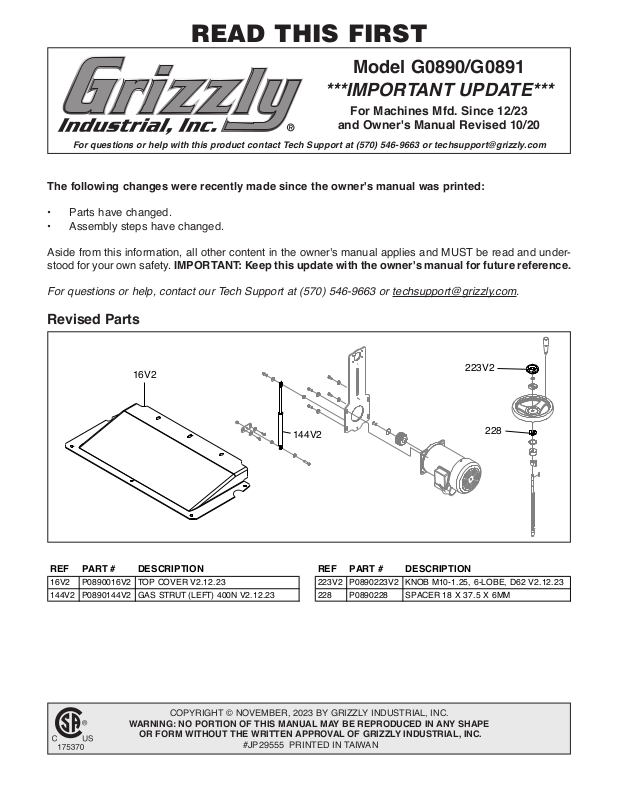

READ THIS FIRST

144V2 P0890144V2 GAS STRUT (LEFT) 400N V2.12.23 228 P0890228 SPACER 18 X 37.5 X 6MM

Model G0890/G0891

***IMPORTANT UPDATE***

For Machines Mfd. Since 12/23

and Owner's Manual Revised 10/20

For questions or help with this product contact Tech Support at [phone] or [e-mail]

The following changes were recently made since the owner's manual was printed:

• Parts have changed.

• Assembly steps have changed.

Aside from this information, all other content in the owner's manual applies and MUST be read and under­stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at [phone] or [e-mail].

Revised Parts

16V2

144V2

REF PART # DES CRIPTION REF PART # DES CRIPTION

16V2 P0890016V2 TOP COVER V2.12.23 223V2 P0890223V2 KNOB M10-1. 25, 6-LOBE, D62 V2.12. 23

223V2

228

COPYRIGHT © NOVEMBER, 2023 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JP29555 PRINTED IN TAIWAN

Revised Controls & Components

F

Figure 1. Revised handwheel controls.

F. Handwheel Lock Knob: Tightens to lock

headstock height handwheel; loosens to
allow headstock height adjustment.

Revised Assembly

Complete Steps 1—3 on Page 19 in Manual.

4. Install 18mm spacer (see Figure 3), then

insert key into keyway on handwheel shaft on
top of planer.

5. Line up notch in handwheel bore with key,

then slide handwheel onto shaft.

6. Slide LOW/HIGH direction label onto

handwheel shaft and secure handwheel with
10mm flat washer and handwheel lock knob
(see Figure 3).

7. Thread handwheel handle into handwheel
(see Figure 3) and tighten with wrench.

Revised Inventory

J

T

Figure 2. Revised handwheel components.

J. Handwheel Lock Knob ............................... 1

T. Spacer 18 x 37.5 x 6mm ............................. 1

Lock Knob

Flat Washer

LOW/HIGH

Direction Label

Spacer

Handwheel

Handle

Handwheel

Key

Figure 3. Handwheel installation sequence.

Continue with Step 8 on Page 19 in Manual.

-2-

G0890/G0891 Update (Mfd. Since 12/23)

MODEL G0890/G0891

15" FIXED-TABLE PLANERS

OWNER'S MANUAL

(For models manufactured since 10/20)

COPYRIGHT © JULY, 2019 BY GRIZZLY INDUSTRIAL, INC., REVISED OCTOBER, 2020 (MN)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN20544 PRINTED IN TA IWAN

V2 .10. 2 0

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Machine Description
Manual Accuracy
Identification
Controls & Components

Internal Components...................................... 5

G0890 Machine Data Sheet
G0891 Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Planers

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Inventory
Cleanup
Site Considerations
Assembly
Dust Collection
Checking Gearbox Oil Level
Test Run
Recommended Adjustments

SECTION 4: OPERATIONS

Operation Overview

Workpiece Inspection................................... 24

Wood Types
Planing Tips
Cutting Problems
Depth of Cut
Setting Feed Rate
Adjusting/Replacing Knives (G0890)
Rotating/Replacing Cutterhead Inserts
(G0891)

................................................... 3

.................................................... 15

...................................................... 16

........................................................ 17

..................................................... 19

...................................................... 21

................................................. 24

................................................. 25

................................................. 26

........................................................ 29

...................................... 2

........................................... 2

................................. 4

.......................... 6

.......................... 8

..................................... 10

................ 10

....................... 12

...................... 13

....................................... 15

......................................... 15

...................................... 18

............................................. 20

........................ 20

........................ 22

........................... 23

..................................... 23

......................................... 25

........................................ 27

........... 27

SECTION 5: ACCESSORIES ......................... 31

SECTION 6: MAINTENANCE

Schedule
Cleaning & Protecting
Lubrication

SECTION 7: SERVICE

Troubleshooting

Tensioning/Replacing V-Belt........................ 38

Adjusting Feed Roller Heights
Adjusting Roller Spring Tension
Positioning Chip Deflector
Calibrating Headstock Elevation Scale
Checking Anti-Kickback Fingers
Tensioning Headstock Height Chain
Adjusting Cutterhead Parallelism
Tensioning Drive Chain

SECTION 8: WIRING

Wiring Safety Instructions
G0890/G0891 Wiring Diagram
G0890/G0891 Electrical Components

SECTION 9: PARTS

Headstock
Stand & Motor
Table
Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 32

................................................... 32

................................... 35

........................................... 35

...................................... 47

....................................... 50

.................................................... 50

.............................................. 52

............................................................ 54

..................................... 56

......................... 32

.................................. 32

..................... 39

.................. 42

........................... 42

......... 43

.................. 43

............. 44

................. 44

................................. 46

............................ 47

.................... 48

......... 49

............................. 57

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Machine Description

Models G0890 and G0891 are CSA-certified, 3
HP, 15" planers with the following differences:

• Model G0890 has a 3-knife cutterhead.

• Model G0891 has a helical cutterhead.

Manufacture Date

Serial Number

-2-

G0890/G0891 (Mfd. Since 10/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Headstock Height

Handwheel

Headstock

Height Scale

Cast-Iron

Extension Tables

Gearbox

Feed Rate

Control Knob

Magnetic

ON/OFF Switch

G0890/G0891 (Mfd. Since 10/20)

using machine.

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to Figure 1 and the following descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and stay safe when operat­ing this machine.

E

A

A. Headstock Height Handwheel: Raises and

lowers headstock to accommodate different
workpiece thicknesses. One complete revolu­tion moves the headstock approximately
(4mm).

Feed Rate Control Knob: Selects 28 FPM

B.

feed rate when pushed in and 16 FPM feed
rate when pulled out.

Magnetic ON/OFF Switch:

C.

— Green start button turns motor ON when

pressed.

— Red Stop button turns motor OFF when

pressed; for safety purposes, this button
will remain depressed and prevent restart­ing until reset. Reset by rotating clockwise
until it pops out.

D. Depth Limiter: Limits depth of cut to a maxi-

mum of

E. Dust Port: Connects to a dust collection

system to extract shavings and dust during
operation. Dust port size 4".

1

⁄8" at full width.

5

⁄32"

D

Figure 1. Main controls and components.

B

C

-4-

G0890/G0891 (Mfd. Since 10/20)

Internal Components

Front Rear

C

D

E

A

Figure 2. Workpiece path and major planing components (side cutaway view).

Anti-Kickback Fingers: Provide additional

A.

safety for the operator.

Serrated Infeed Roller: Pulls the workpiece

B.

toward the cutterhead.

C. Chip Breaker: Breaks off chips created by

the cutterhead to prevent tear out and diverts
the chips to the dust port.

D. Cutterhead: Holds the knives/inserts that

remove material from the workpiece.

B

Workpiece

F

G

. Chip Deflector: Directs chips into the dust

E

port.

. Rubber Outfeed Roller: Pulls the workpiece

F

through the planer.

. Planer Table: Provides a smooth and level

G

path for the workpiece as it moves through
the planer.

Like all machinery there is potential danger when operating this machine. Accidents are fre­quently caused by lack of familiarity or failure to pay attention. Use this machine with respect
and caution to decrease the risk of operator injury. If normal safety precautions are overlooked
or ignored, serious personal injury may occur.

G0890/G0891 (Mfd. Since 10/20)

-5-

G0890 Machine Data Sheet

Max. Cut Depth Planing 6-Inch Wide Board........................................................................................... 3/16 in.

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0890 15" 3 HP FIXED‐TABLE PLANER

Product Dimensions:

Weight.............................................................................................................................................................. 300 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 25 x 49 x 47-1/2 in.

Footprint (Length x Width)..................................................................................................................... 21 x 18-1/2 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 374 lbs.

Length x Width x Height....................................................................................................................... 30 x 24 x 49 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 230V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 12A

Minimum Circuit Size.............................................................................................................................................. 20A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................... 10 ft.

Power Cord Gauge......................................................................................................................................... 12 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 6-20

Switch Type..................................................................................... Magnetic Switch w/Thermal Overload Protection

Motors:

Main

Horsepower................................................................................................................................................ 3 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 12A

Speed................................................................................................................................................ 3450 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Main Specifications:

Main Specifications

Planer Size................................................................................................................................................ 15 in.

Max. Cut Width.......................................................................................................................................... 15 in.

Min. Stock Length........................................................................................................................................ 6 in.

Min. Stock Thickness.............................................................................................................................. 3/16 in.

Max. Stock Thickness.................................................................................................................................. 6 in.

Number of Cuts Per Inch.......................................................................................................................... 81, 46

Number of Cuts Per Minute..................................................................................................................... 15,600

Cutterhead Speed............................................................................................................................. 5200 RPM

Planing Feed Rate........................................................................................................................... 16, 28 FPM

Max. Cut Depth Planing Full Width........................................................................................................... 1/8 in.

-6-

G0890/G0891 (Mfd. Since 10/20)

Cutterhead Info

Cutterhead Type........................................................................................................................... Straight Knife

Cutterhead Diameter ............................................................................................................................ 2-5/8 in.

Number of Knives............................................................................................................................................. 3

Knife Type................................................................................................................... HSS, Single-Sided, Solid

Knife Size Length....................................................................................................................................... 15 in.

Knife Size Width.......................................................................................................................................... 1 in.

Knife Size Thickness................................................................................................................................ 1/8 in.

Knife Adjustment............................................................................................................................ Jack Screws

Table Info

Table/Headstock Movement........................................................................................................................ 6 in.

Table Bed Size Length.............................................................................................................................. 21 in.

Table Bed Size Width................................................................................................................................ 15 in.

Floor-to-Table Height........................................................................................................................... 30-3/4 in.

Table Wings Size Length........................................................................................................................... 14 in.

Table Wings Size Width...................................................................................................................... 15-1/2 in.

Construction

Table....................................................................................................................... Precision-Ground Cast Iron

Body..................................................................................................................................................... Cast Iron

Stand.......................................................................................................................................................... Steel

Cutterhead Assembly................................................................................................................................. Steel

Infeed Roller........................................................................................................................ Serrated Aluminum

Outfeed Roller......................................................................................................................................... Rubber

Paint Type/Finish....................................................................................................................... Powder Coated

Other

Measurement Scale....................................................................................................................... Inch & Metric

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size.............................................................................................................................................. 4 in.

Mobile Base............................................................................................................................................ T28000

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ............................................................................................................. 30 Min.

Serial Number Location ................................................................................................................... Machine ID Label

Sound Rating ................................................................................................................................................ 82-84 dB

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................... Yes

Features:

Large Top-Mounted Handwheel
Cabinet-Style Stand
Internally Mounted 3HP Motor
Poly-V Belt Drive
Magnetic Switch
Four Heavy-Duty Support Columns
Anti-Kickback Fingers
Drive Gears Run in Oil Bath
Cast-Iron Extension Table Wings
Includes Knife-Setting Jig
Elevation Scale with Both Inch and Metric
Powder-Coated Finish

G0890/G0891 (Mfd. Since 10/20)

-7-

G0891 Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0891 15" 3 HP FIXED‐TABLE PLANER W/HELICAL

CUTTERHEAD

Product Dimensions:

Weight.............................................................................................................................................................. 302 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 25 x 49 x 47-1/2 in.

Footprint (Length x Width)..................................................................................................................... 21 x 18-1/2 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 377 lbs.

Length x Width x Height....................................................................................................................... 30 x 24 x 49 in.

Electrical:

Power Requirement........................................................................................................... 230V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 12A

Minimum Circuit Size.............................................................................................................................................. 20A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length............................................................................................................................................... 10 ft.

Power Cord Gauge......................................................................................................................................... 12 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 6-20

Switch Type..................................................................................... Magnetic Switch w/Thermal Overload Protection

Motors:

Main

Horsepower................................................................................................................................................ 3 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 12A

Speed................................................................................................................................................ 3450 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................................ Belt

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Main Specifications:

Main Specifications

Planer Size................................................................................................................................................ 15 in.

Max. Cut Width.......................................................................................................................................... 15 in.

Min. Stock Length........................................................................................................................................ 6 in.

Min. Stock Thickness.............................................................................................................................. 3/16 in.

Max. Stock Thickness.................................................................................................................................. 6 in.

Number of Cuts Per Inch........................................................................................................................ 108, 62

Number of Cuts Per Minute..................................................................................................................... 20,800

Cutterhead Speed............................................................................................................................. 5200 RPM

Planing Feed Rate........................................................................................................................... 16, 28 FPM

Max. Cut Depth Planing Full Width........................................................................................................... 1/8 in.

Max. Cut Depth Planing 6-Inch Wide Board........................................................................................... 3/16 in.

-8-

G0890/G0891 (Mfd. Since 10/20)

Cutterhead Info

Cutterhead Type...................................................................................................................................... Helical

Cutterhead Diameter ............................................................................................................................ 2-5/8 in.

Number of Cutter Rows.................................................................................................................................... 4

Number of Indexable Cutters.......................................................................................................................... 48

Cutter Insert Type..................................................................................................... 30 deg. Indexable Carbide

Cutter Insert Size Length......................................................................................................................... 15 mm

Cutter Insert Size Width........................................................................................................................... 15 mm

Cutter Insert Size Thickness................................................................................................................... 2.5 mm

Table Info

Table/Headstock Movement........................................................................................................................ 6 in.

Table Bed Size Length.............................................................................................................................. 21 in.

Table Bed Size Width................................................................................................................................ 15 in.

Floor-to-Table Height........................................................................................................................... 30-3/4 in.

Table Wings Size Length........................................................................................................................... 14 in.

Table Wings Size Width...................................................................................................................... 15-1/2 in.

Construction

Table....................................................................................................................... Precision-Ground Cast Iron

Body..................................................................................................................................................... Cast Iron

Stand.......................................................................................................................................................... Steel

Cutterhead Assembly................................................................................................................................. Steel

Infeed Roller........................................................................................................................ Serrated Aluminum

Outfeed Roller......................................................................................................................................... Rubber

Paint Type/Finish....................................................................................................................... Powder Coated

Other

Measurement Scale....................................................................................................................... Inch & Metric

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size.............................................................................................................................................. 4 in.

Mobile Base............................................................................................................................................ T28000

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ............................................................................................................. 30 Min.

Serial Number Location ................................................................................................................... Machine ID Label

Sound Rating ................................................................................................................................................ 75-77 dB

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................... Yes

Features:

Large Top-Mounted Handwheel
Cabinet-Style Stand
Internally Mounted 3HP Motor
Poly-V Belt Drive
Magnetic Switch
Four Heavy-Duty Support Columns
Anti-Kickback Fingers
Drive Gears Run in Oil Bath
Cast-Iron Extension Table Wings
Elevation Scale with Both Inch and Metric
Powder-Coated Finish

G0890/G0891 (Mfd. Since 10/20)

-9-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-10 -

G0890/G0891 (Mfd. Since 10/20)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

G0890/G0891 (Mfd. Since 10/20)

-11-

Additional Safety for Planers

Amputation, serious cuts, entanglement, or death can occur from contact with rotating
cutterhead or other moving parts! Flying chips can cause eye injuries or blindness. Workpieces
or knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To
reduce the risk of these hazards, operator and bystanders MUST completely heed hazards and
warnings below.

KICKBACK. Know how to reduce the risk of kick-

back and kickback-related injuries. “Kickback”
occurs during the operation when the workpiece is
ejected from the machine at a high rate of speed.
Kickback is commonly caused by poor workpiece
selection, unsafe feeding techniques, or improper
machine setup/maintenance. Kickback injuries
typically occur as follows: (1) operator/bystanders
are struck by the workpiece, resulting in impact
injuries (i.e., blindness, broken bones, bruises,
death); (2) operator’s hands are pulled into blade,
resulting in amputation or severe lacerations.

AVOID CONTACT WITH MOVING PARTS. Never
remove guards/covers or reach inside the planer
during operation or while connected to power.
You could be seriously injured if you accidentally
touch the spinning cutterhead or get entangled in
moving parts. If a workpiece becomes stuck or
sawdust removal is necessary, turn planer OFF
and disconnect power before clearing.

DULL/DAMAGED KNIVES/INSERTS. Only use
sharp, undamaged knives/inserts. Dull or dam­aged knives/inserts increase the risk of kickback.

INSPECTING STOCK. To reduce the risk of
kickback injuries or machine damage, thoroughly
inspect and prepare the workpiece before cutting.
Verify workpiece is free of nails, staples, loose
knots or foreign material. Workpieces with minor
warping should be jointed first or planed with the
cupped side facing the table.

PLANING CORRECT MATERIAL. Only plane
natural wood stock with this planer. DO NOT
plane MDF, OSB, plywood, laminates or other
synthetic materials that can break up inside the
planer and be ejected towards the operator.

LOOKING INSIDE PLANER. Wood chips fly
around inside the planer at a high rate of speed
during operation. To avoid injury from flying mate­rial, DO NOT look inside planer during operation.

CUTTING LIMITATIONS. To reduce the risk of
kickback hazards or damage to the machine, do
not exceed the maximum depth of cut or minimum
board length and thickness found in the Data

Sheet. Only feed one board at a time.

INFEED ROLLER CLEARANCE. The infeed

roller is designed to pull material into the spinning
cutterhead. To reduce the risk of entanglement,
keep hands, clothing, jewelry, and long hair away
from the infeed roller during operation.

FEED WORKPIECE PROPERLY. To reduce the
risk of kickback, never start planer with workpiece
touching cutterhead. Allow cutterhead to reach
full speed before feeding, and do not change feed
speed during cutting operation.

WORKPIECE SUPPORT. To reduce the risk of
kickback, always make sure workpiece can move
completely across table without rocking or tipping.
Use auxiliary support stands for long stock.

BODY PLACEMENT. Stand to one side of planer
during the entire operation to avoid getting hit if
kickback occurs.

GRAIN DIRECTION. Planing across the grain
is hard on the planer and may cause kickback.
Plane in the same direction or at a slight angle
with the wood grain.

-12-

SECURE KNIVES/INSERTS. Loose knives or
improperly set inserts can become dangerous
projectiles or cause machine damage. Always
verify knives/inserts are secure and properly
adjusted before operation.

G0890/G0891 (Mfd. Since 10/20)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 230V

Nominal Voltage .........20 8V, 220V, 23 0V, 240V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle
Cord

........................................... Single-Phase

......................... 20 Amps

............................. NEMA 6-20

........“S ”-Type , 3-Wire, 12 AWG, 300 VAC

Full-Load Current Rating ................... 12 Amps

G0890/G0891 (Mfd. Since 10/20)

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

-13-

Grounding Instructions

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

The power cord and plug specified under “Circuit
Requirements for 230V”
has an equipment-grounding wire and a ground­ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all local
codes and ordinances (see following figure).

Serious injury could occur if you connect

process. DO NOT connect to power until

No adapter should be used with plug. If
plug does not fit available receptacle, or if

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

process. DO NOT connect to power until

on the previous page

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Pin

Figure 3. Typical 6-20 plug and receptacle.

machine to power before completing setup

instructed later in this manual.

machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

-14-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

G0890/G0891 (Mfd. Since 10/20)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

The following items are needed, but not included,
for the setup/assembly of this machine.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

Description Qty

• Additional People ....................................... 1

• Safety Glasses ........................ 1 Per Person

• Cleaner/Degreaser (Page 17) .... As Needed

• Disposable Shop Rags ............... As Needed

• Wrench or Socket 12mm, 17mm ..........1 Ea.

• Hex Wrench 4mm ....................................... 1

• Straightedge 4' ........................................... 1

• Dust-Collection System .............................. 1

• 4" Dust Hose (length as needed) ............... 1

• 4" Hose Clamps ......................................... 2

• Gearbox Oil ................................ As Needed

This machine and its
components are very
heavy. Get lifting help or
use power lifting equip­ment such as a forklift to
move heavy items.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

G0890/G0891 (Mfd. Since 10/20)

-15-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

B

C

D

Figure 4. Box inventory.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

Box 1 (Figure 4) Qty

A. Planer Unit (Not Shown) ............................. 1

Cast-Iron Extension Tables ........................ 2

B.

C. Dust Port .................................................... 1

Headstock Elevation Handwheel ................ 1

D.

Tools and Hardware (Figure 5)

Hex Bolts M8-1.25 x 25 (Ext. Tables) ........ 6

E.

Button Head Cap Screws M6-1 x 12 .......... 6

F.

Set Screws M8-1.25 x 20 (Ext. Tables) ..... 6

G.

Hex Wrench 4mm ...................................... 1

H.

LOW/HIGH Direction Label (Handwheel) ... 1

I.

Hex Nut M10-1.25 (Handwheel) ................. 1

J.

Flat Washer 10mm (Handwheel) ............... 1

K.

Key 4 x 4 x 10 (Handwheel) ....................... 1

L.

Handwheel Handle (Handwheel) ............... 1

M.

Wrenches 10/13, 12/14, 17/19mm .......1 Ea.

N.

O. T-Handle Torx Drivers T-25 ....................... 2

P. T-Handle Torx Driver T-30 ......................... 1

G0890 Only (Figure 6)

Q. Knife-Setting Jig ......................................... 1

— E-clips 9mm ........................................... 4

— Jig Feet .................................................. 2

— Jig Shaft ................................................. 1

Q

F

LOW HIGH

I

J K L

M

P

E

G

N

O

Figure 5. Tools and hardware.

Figure 6. Tools and hardware (G0890 only).

R S

H

G0891 Only (Figure 7)

R. Flat Head Torx Screws #10-32 x 1⁄2" ........ 10

S. Indexable Carbide Inserts 15 x 15 x 2.5 .... 5

-16 -

Figure 7. Tools and hardware (G0891 only).

G0890/G0891 (Mfd. Since 10/20)

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Put on safety glasses.

1.

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo id
using these products
to clean machinery.

Many cleaning solvents
are toxic if inhaled. Only
work in a well-ventilated
area.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy ship­ping grease from the non-painted parts of the
machine during clean up.

2. Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

Wipe off the surfaces. If your cleaner/

3.

degreaser is effective, the rust preventative
will wipe off easily. If you have a plastic paint
scraper, scrape off as much as you can first,
then wipe off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

4.

then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

Figure 8. T23692 Orange Power Degreaser.

G0890/G0891 (Mfd. Since 10/20)

-17-

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

25"

Dust

Port

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Wall

49"

Lighting around the machine must be adequate
enough that operations can be performed safely.

Min. 30"

for Maintenance

Feed Direction

-18-

= Electrical Connection

Figure 9. Minimum working clearances for Models G0890 and G0891.

G0890/G0891 (Mfd. Since 10/20)

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

Insert key into keyway on handwheel shaft on

4.

top of planer.

Line up notch in handwheel bore with key,

5.

then slide handwheel onto shaft.

Needed for Setup

listed items.

parts that are

To assemble planer:

Attach each cast-iron extension table (see

1.
Figure 10) to planer table with (3) M8-1.25 x

25 hex bolts. Do not fully tighten hex bolts at
this time.

Thread (3) M8-1.25 x 20 set screws into

2.

each extension table at locations shown in
Figure 10.

x 3

. Slide LOW/HIGH direction label onto

6

handwheel shaft, and secure handwheel with
10mm flat washer and M10-1.25 hex nut (see
Figure 11).

Thread handwheel handle into handwheel

7.

(see Figure 11) and tighten with wrench.

Handle

x 1

LOW/HIGH

Direction Label

Figure 11. Headstock elevation handwheel

installed.

x 3

Figure 10. Extension table mounting locations.

Using a straightedge as a guide, rotate set

3.

screws until extension tables are in plane
with main table, then fully tighten hex bolts
installed during Step 1.

G0890/G0891 (Mfd. Since 10/20)

8. Attach dust port to planer with (6) M6-1 x 12
button head cap screws (see Figure 12).

x 6

Figure 12. Dust port installed.

-19 -

Dust Collection

Checking Gearbox

Oil Level

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust-collection system.

Minimum CFM at Dust Port: 400 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust-collection "how-to" book.

To connect the machine to a dust-collection sys­tem, fit a 4" dust hose over the dust port, and
secure in place with a hose clamp (see Figure 13).
Tug the hose to make sure it does not come off.

Before starting your machine for the first time,
check the gearbox oil level. The proper oil level
is just even with the bottom of the fill plug hole.
The gearbox uses ISO 320, SAE 140 gear oil, or
SAE 85W–140 multi-weight gear oil. DO NOT mix
oil types.

Note: For easier access to the fill plug, remove
the gearbox cover (see Figure 14).

To check gearbox oil level:

Remove gearbox fill plug (see Figure 14).

1.

Gearbox Cover

Fill Plug

Note: A tight fit is necessary for proper
performance.

Figure 13. Example of dust hose connected to

dust port.

Figure 14. Location of gearbox fill plug.

2. Dip short end of a clean 6mm hex wrench

inside fill hole, and then remove it.

— If the end of the hex wrench is coated

with oil, then the gearbox oil level is okay.
Replace the fill plug and continue setup.

— If the end of the hex wrench is not coated

with oil, then you need to add more oil.
Refer to Gearbox Oil on Page 34 for
instructions on how to do this.

Note: We recommend that you replace the gear-
box oil after the first 20 hours of operation. This is
a normal break-in procedure and will help maxi­mize the service life of the machine by flushing
away any particles from the break-in and manu­facturing process.

-20-

G0890/G0891 (Mfd. Since 10/20)

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the STOP/reset button safety feature functions
properly.

To test run machine:

Clear all setup tools and loose objects away

1.

from machine.

Push STOP button in.

2.

Connect machine to power supply.

3.

4. Twist STOP button clockwise until it springs

out (see Figure 15). This resets the switch so
the machine can start.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

Figure 15. Resetting the switch.

5. Press green START button to turn machine

ON. Verify motor starts up and runs smoothly
without any unusual problems or noises.

Press STOP button to turn machine OFF.

6.

WITHOUT resetting STOP button, try to start

7.

machine by pressing the START button. The
machine should not start.

— If the machine does not start, the STOP

button safety feature is working correctly.
Congratulations! Test Run is complete.

— If the machine does start with the STOP

button pushed in, immediately disconnect
power to the machine. The STOP button
safety feature is not working correctly and
must be replaced before further using the
machine. Call Tech Support for help.

G0890/G0891 (Mfd. Since 10/20)

-21-

Recommended

Adjustments

The adjustments listed below have been per­formed at the factory. However, because of the
many variables involved with shipping, we recom­mend that you verify the adjustments to ensure
the best possible results from your new machine.

Step-by-step instructions for these adjustments
can be found in the SERVICE section starting on

Page 35.

Factory adjustments that should be verified:

• Tensioning/replacing V-belt (Page 38).

• Calibrating headstock elevation scale (Page 43).

After approximately 16 hours of opera­tion, V-belt will stretch and seat into pulley
grooves and need to be properly tensioned
to avoid severely reducing life of V-belt.
Refer to Tensioning/Replacing V-Belt on
Page 38 for detailed instructions.

-22-

G0890/G0891 (Mfd. Since 10/20)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

ing loss can occur while operating this

Operation Overview

machine controls/components

are easier to understand.

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for planing.

Puts on safety glasses or face shield, a respi-

2.

rator, and hearing protection.

Places workpiece on table with flat side down

3.

and correctly adjusts headstock height for
workpiece thickness and depth of cut.

seek additional

, and do additional research

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to
reduce your risk from these hazards.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

G0890/G0891 (Mfd. Since 10/20)

— If workpiece is bowed, operator surface

planes workpiece on a jointer until one
side is flat. Doing so ensures that it sits
solidly on planer table during operation.

When all safety precautions have been taken,

4.

turns planer ON.

Stands to one side of planer path to reduce

5.

risk of kickback injuries, then feeds workpiece
into planer until infeed roller grabs it.

Note: Infeed and outfeed rollers control

feed rate of workpiece as it passes through
planer. Operator should not push or pull on
workpiece.

— If cut is too deep and bogs down planer,

operator immediately reduces depth of
cut.

Once workpiece is clear of outfeed roller and

6.

stops moving, operator removes workpiece
from outfeed table and measures workpiece
thickness. If further planing is required, oper­ator lowers headstock slightly (approximately

1

⁄4 to 1⁄2 turn of headstock height handwheel),
then feeds workpiece into front of planer
again.

Operator continues process until desired

7.

thickness is achieved, then turns machine
OFF.

-23-

Workpiece

Some workpieces are not safe to use or may
require modification before they are. Before cut-

ting,

•
ed for workpieces of natural wood fiber

tion could lead to serious personal injury and

•

mbedded

use it.

Remember, wood stacked on a concrete floor

• Large/Loose Knots: Loose knots can

knots can cause kickback and machine dam-

workpieces that do not have

• Wet or "Green" Stock:

wood

than 20% moisture content or wood exposed
to excessive moisture (such as rain or snow),

and/or

•

Workpieces with exces-

often unpredictable when being cut. DO NOT

•

severe injury from kickback.

The species of wood, as well as its condition,
greatly affects the depth of cut the planer can
effectively take with each pass.

The chart in
Hardness Rating for a number of commonly
used species. The larger the number, the harder
the workpiece, and the less material should be
removed in any one pass for good results.

Note: The Janka Hardness Rating is expressed in
pounds of force required to embed a 0.444" steel
ball into the surface of the wood to a depth equal
to half the ball's diameter.

Inspection

Wood Types

inspect all workpieces for the following:

Material Type: This machine is only intend-

Attempting to use workpieces of any other
material that may break apart during opera-

property damage.

Foreign Objects: Inspect lumber for defects
and foreign objects (nails, staples, e
gravel, etc,). If you have any question about
the quality of your lumber, DO NOT

can have small pieces of stone or concrete
pressed into the surface.

become dislodged during operation. Large

age. Always use
large/loose knots.

with a high water content. Wood with more

will cut poorly and cause excessive wear to
the machine. Excess moisture can also has­ten rust and corrosion of the machine
individual components.

Excessive Warping:

sive cupping, bowing, or twisting are danger­ous to cut because they are unstable and

use workpieces with these characteristics!

Minor Cupping: Workpieces with slight cup­ping can be safely supported if the cupped
side is facing the table. On the contrary,
a workpiece supported on the bowed side
will rock during operation and could cause

Avoid using

the figure below shows the Janka

Janka

Species

Ebony 3220

Red Mahogany 2697

Rosewood 178 0

Red Pine 1630

Sugar Maple 1450

White Oak 1360

White Ash 1320

American Beech 1300

Red Oak 129 0

Black Walnut 1010

Teak 1000

Black Cherry 950

Cedar 900

Sycamore 770

Douglas Fir 660

Chestnut 540

Hemlock 500

White Pine 420

Basswood 410

Eastern White Pine 380

Balsa 100

Figure 16. Janka Hardness Rating for some

common wood species.

Hardness

-24-

G0890/G0891 (Mfd. Since 10/20)

Planing Tips Cutting Problems

• Inspect your lumber for twisting or cupping,

and surface one face on a jointer if necessary

•

•

•

amount of material on each pass. Only

•

•

• Carefully inspect all stock to make sure it is
free of large knots or foreign objects that may
damage your knives/inserts, cause kickback,

• When possible, plane equal amounts on

•

•

• Plane ONLY natural wood fiber. Do not plane

wood composites or other materials that

•

jointer before planing.

Below is a list of wood characteristics you may
encounter when planing. The following descrip­tions of defects will give you some possible
answers to problems you may encounter while
planing different materials. Possible solutions fol­low the descriptions.

Chipped Grain

Problem:

grain, planing lumber with knots or excessive
amount of cross grain, or using dull knives/inserts.

Note: Some amount of chipping is normal with
highly figured wood.

Solution: Decrease the depth of cut. Reduce the
feed rate. Inspect your lumber and determine if its
grain pattern is causing the problem. If the lumber
does not show substantial crossgrain, inspect

your knives/inserts.

Fuzzy Grain

Problem:

with too high of a moisture content. Sometimes
fuzzy grain is an unavoidable characteristic of
some woods, such as basswood. Fuzzy grain can
also be caused by dull knives/inserts.

Solution:

meter. If moisture is greater than 20%, sticker the
lumber and allow it to dry. Otherwise, inspect the
knife/insert condition.

Snipe

Problem

material removed than the rest of the board.
Usually caused when the workpiece is not prop­erly supported as it goes through the machine. In
many cases, however, a small amount of snipe is
inevitable.

Solution:

the outfeed end of the planer. The best way to
deal with snipe is by planing lumber longer than
your intended work length and then cutting off the
excess after planing is completed.

before planing workpiece.

Scrape off all glue when planing glued-up

panels. Dried glue can quickly dull knives/
inserts.

DO NOT plane more than one piece at a time.

Never plane multiple pieces side by side.

Never remove more than the recommended

remove a small amount of material on each
pass when planing wide or dense stock.

Support the workpiece on both ends. Get

assistance from another person if you are
planing long lumber, or use roller stands to
support the workpiece.

Measure the workpiece thickness with cali-

pers to get exact results.

Usually a result of cutting against the

Usually caused by surfacing lumber

or be ejected from the planer.

each side of the board to reduce the chance
of twisting or cupping.

Use the entire width of the planer to wear

knives/inserts evenly. With narrow workpiec­es, alternate between far left, far right, and
the middle of the table. Your knives/inserts
will remain sharp much longer.

To avoid "chip marks," always plane WITH

the grain direction of the wood. Never plane
cross-grain or end-grain.

could break up in the planer and cause oper­ator injury or damage to planer.

Always true cupped or warped stock on a

G0890/G0891 (Mfd. Since 10/20)

Check the lumber with a moisture

: Occurs when board ends have more

Hold workpiece up slightly as it leaves

-25-

Pitch & Glue Build-up

Problem:

Glue and resin buildup on the rollers

and cutterhead will cause overheating by decreas­ing cutting sharpness while increasing drag in the
feed mechanism. The result can include scorched
lumber, uneven knife/insert marks, and chatter.

Solution:

Chip Marks or Indentations

Problem: Chip indentation or chip bruising is the

result of wood chips not being thrown away from
the cutterhead and out of the machine. Instead
they are carried around the cutterhead, deposited
on the planed surface and crushed by the outfeed
roller. Some of the causes of chip indentation are:

• Wood chips/sawdust not being properly

•

•

•

•

Solution:

•

•

•

•

Clean the rollers and cutterhead.

expelled from the cutterhead.

Depth of Cut

Headstock Movement per Handwheel Revolution

One Full Revolution

Material Thickness Range

Minimum–Maximum Stock Thickness

The depth of cut on a planer means the amount
of material that is removed from the top of the
workpiece as it passes underneath the cutterhead.

The depth of cut is set by adjusting the distance
of the table below the cutterhead. This distance
is the thickness of the workpiece minus the depth
of cut. The planing depth of cut is controlled by
using the headstock elevation handwheel on the
right side of the machine. Rotating the handwheel
clockwise raises the headstock.

............................5⁄32" (4mm)

....3⁄16"–6"

The type of lumber being planed. Certain

species have a tendency to chip bruise.

A high moisture content (over 20%) or surface

moisture (refer to Workpiece Inspection).

Dull knives/inserts.

Excessive depth of cut.

Use a proper dust-collection system; adjust

chip deflector in or out as necessary.

Lumber must be completely dry, preferably

kiln-dried (KD). Air-dried (AD) lumber must
be seasoned properly and have no surface
moisture. DO NOT surface partially-air-dried
(PAD) lumber.

Make sure planer knives/inserts are sharp.

Reduce depth of cut.

Although the correct depth of cut varies accord­ing to wood hardness and workpiece width, we
recommend the maximum depth of cut (per pass)
be no more than
give better end results and put less stress on the
planer than trying to take off too much material in
a single pass.

The depth of cut can be referenced directly from
the inch/millimeter scale on the front of the planer,
as shown.

Note: The scale functions as a general guide only,
and is not intended for low-tolerance, precision
results.

1

⁄16". A series of light cuts will

Headstock

Elevation

Handwheel

Depth-of-Cut

Indicator &

Scale

Figure 17. Location of depth-of-cut control.

-26-

G0890/G0891 (Mfd. Since 10/20)

Setting Feed Rate Adjusting/Replacing

The infeed and outfeed rollers move the work­piece through the planer while keeping it flat and
providing a consistent rate of movement. The
speed that these rollers move the workpiece
through the planer is the feed rate.

Generally, low feed rates are used for finishing
passes, while higher feed rates are used for
dimensioning passes.

The figure below illustrates the three different
positions of the feed rate control knob:

• Push knob in to use high feed rate.

• Pull the knob out to use the low feed rate.

• Move knob to center position to place gear­box in neutral.

Cutterhead knives are extremely sharp.

dull knives or have them professionally

Setting the height of the knives correctly is cru­cial to the proper operation of your planer and
is very important in keeping the knives sharp. If
one knife protrudes higher than the others, it will
do the majority of the work, dull much faster, and
produce poor cutting results.

accidental startup, always
disconnect machine from

Cutterhead knives are extremely sharp.
Accidental contact with knives can result in
severe cuts. Take great caution whenever
working with or around cutterhead knives.
Wear heavy leather gloves to reduce risk of
severe cuts.

To maintain accurate and consistent plan-
ing results, we do not recommend sharp-
ening knives yourself. Instead, just replace
dull knives or have them professionally
sharpened.

Setting the height of the knives correctly is cru-
cial to the proper operation of your planer and
is very important in keeping the knives sharp. If
one knife protrudes higher than the others, it will
do the majority of the work, dull much faster, and
produce poor cutting results.

The knife-setting jig included with this planer is
designed to set the knives higher than the cutter-
head surface (refer to distance above).

Note: If you need to replace or sharpen a
knife, you can remove the knife from the cutter­head during

of the following procedure.
Thoroughly clean out any debris from the knife
slots before replacing the knives.

Replacement knives are available through Grizzly
(refer to Accessories for options).

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
maintenance, or service.

High Feed Rate .......................................28 FPM

Low Feed Rate

........................................16 FPM

High

Low

Knives (G0890)

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Accidental contact with knives can result in
severe cuts. Take great caution whenever
working with or around cutterhead knives.
Wear heavy leather gloves to reduce risk of
severe cuts.

To maintain accurate and consistent plan­ing results, we do not recommend sharp­ening knives yourself. Instead, just replace

sharpened.

Figure 18. Feed rate control knob positions.

NOTICE

Only change the feed rate when the planer
is running, but DO NOT attempt to change
the feed rate during any cutting operations
or damage to the gearbox will result.

G0890/G0891 (Mfd. Since 10/20)

Neutral

The knife-setting jig included with this planer is
designed to set the knives at a uniform distance
of 0.060" above the cutterhead surface.

Step 4

-27-

To adjust height of knives:

1.

2.

3.

4.

pulley to provide access to one of the knives.

5. Loosen cutterhead gib bolts until knife is

completely loose.

— If you are replacing the knives, remove the

old knife and install the new one, making
sure the beveled edge of the new knife is
facing the correct direction.

6. Position knife-setting jig over knife so that

shown below.

5. Loosen cutterhead gib bolts until knife is

— If you are replacing the knives, remove the

Items Needed Qty

Hex Wrench 4mm .............................................. 1

Wrench or Socket 12mm
Knife-Setting Jig

................................................ 1

Heavy Leather Gloves

................................... 1

................................ 1 Pair

DISCONNECT MACHINE FROM POWER!

Remove dust hood and top cover to expose

cutterhead.

Put on heavy leather gloves.

Remove belt cover, then rotate cutterhead

Loosen

Tighten

Knife

Gib Bolt

Gib

Jack
Screw

knife edge is directly under center pad, as

Knife-Setting Jig

Center Pad

Gib BoltKnife

Figure 20. Knife-setting jig correctly positioned

over knife.

7. Insert hex wrench into access holes in
cutterhead (see Figure 21) and rotate jack
screws to raise or lower knife until it barely
touches center pad of knife-setting jig with all
legs of jig still firmly on cutterhead. Then snug
gib bolts enough to hold knife in place without
fully tightening gib bolts (see Figure 22).

Figure 19. G0890 cutterhead components.

completely loose.

old knife and install the new one, making
sure the beveled edge of the new knife is
facing the correct direction.

-28-

Jack Screw

Access Holes

Figure 21. Example of jack screw access holes

in cutterhead.

G0890/G0891 (Mfd. Since 10/20)

Knife-Setting

8. Incrementally snug gib bolts in an even

as illustrated.

9. Repeat Step 8, snugging gib bolts a little

10.

11. Repeat Steps 4–8 for remaining knives.

Jig

Tightening

Gib Bolt

Figure 22. Example of using knife-setting jig to

set knife height on Model G0890.

manner, starting at middle and working your
way to ends by alternating left and right,

Rotating/Replacing

Cutterhead Inserts

(G0891)

The helical cutterhead is equipped with indexable
carbide inserts that can be rotated to reveal any
one of their four cutting edges. If one edge of the
insert becomes dull or damaged, simply rotate it
90° to reveal a fresh cutting edge, as shown in

Figure 24.

Figure 24. Insert rotating sequence.

5

Figure 23. Gib bolt tightening sequence.

more.

Repeat Step 8, this time fully tightening all

gib bolts.

3

1

2

4

Items Needed Qty

Hex Wrench 4mm .............................................. 1

Torque Wrench
T-20 Torx Bit
Heavy Leather Gloves

Light Machine Oil............................... As Needed

To rotate or replace a helical cutterhead insert:

DISCONNECT MACHINE FROM POWER!

1.

2. Remove top cover and belt cover.

3. Put on heavy leather gloves to protect your

fingers and hands.

The carbide inserts are very sharp and
can quickly cut your hands. ALWAYS use
caution and heavy leather gloves when
handling these parts to reduce the risk of
personal injury.

.................................................. 1

...................................................... 1

................................ 1 Pair

G0890/G0891 (Mfd. Since 10/20)

-29-

4.

Remove any sawdust or debris from head of

insert, Torx screw, and surrounding area (see
Figure 25).

Torx Screw

Cutterhead

Insert

Figure 25. G0891 cutterhead inserts and Torx

screws.

5. Remove Torx screw and insert, then clean all
dust and debris from both parts and pocket
they were removed from.

6.

Rotate insert 90° and install so that a fresh

cutting edge faces outward (see Figure 24).

— When all four insert cutting edges have

been used, replace insert with a new one.
Always position insert reference dot in
same position when installing a new insert
to aid in rotational sequencing.

Lubricate Torx screw threads with a very

7.

small amount of light machine oil, wipe
excess off, and torque screw to 50–55 inch/
pounds.

Note: If too much oil is applied to the threads,

excess oil will attempt to squeeze out of the
threaded hole and raise insert during installa­tion, bringing it out of height alignment.

Note: Proper cleaning of insert, Torx screw,

and cutterhead pocket is critical to achieving
a smooth finish. Dirt or dust trapped between
insert and cutterhead will raise insert, and
make marks on your workpiece when planing.

Tip: Use low-pressure compressed air or

a vacuum nozzle to clean out cutterhead
pocket.

-30-

G0890/G0891 (Mfd. Since 10/20)

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

For G0890 :
G6701—HSS Replacement Knives, Set of 3

These HSS planer knives are hardened and tempered
to 62–64 Rockwell and balanced to within 1 gram.

T28000—”Bear Crawl” Mobile Base

We took years of input and months of testing and
design to come out with the Grizzly “Bear Crawl”
Mobile Base. Its 1200 lb. capacity, steel and rub­ber heavy-duty ball bearing wheels, and toe flip­stops are only a few of the features that will make
this mobile base a staple under your machines for
years to come. Adjusts from 19" x 21" to 29-1/2"
x 29-1/2"!

Figure 26. Grizzly planer blades.

For G0891:
H9893—Indexable Carbide Inserts, 10 Pack

These inserts are designed for use in spiral
cutterhead systems and made to last up to 10
times longer than a set of HSS steel inserts.

Figure 28. T28000 Bear Crawl Mobile Base.

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 12 Oz. Spray
G2871—Boeshield® T-9 12 Oz. Spray
G2870—Boeshield® T-9 4 Oz. Spray
H3788—G96® Gun Treatment 12 Oz. Spray
H3789—G96® Gun Treatment 4.5 Oz. Spray

Figure 29. Recommended products for

protecting unpainted cast iron/steel parts on

machinery.

Figure 27. H9893 Indexable Carbide Inserts.

G0890/G0891 (Mfd. Since 10/20)

-31-

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Note: This maintenance schedule is based on
average daily usage. Adjust the maintenance
schedule to match your usage, to keep your planer
running smoothly, and to protect your investment.

Cleaning &

Protecting

Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin-dissolving cleaner
to remove it.

Protect the unpainted cast-iron table by wiping
it clean after every use—this ensures moisture
from wood dust does not remain on bare metal
surfaces. Keep the table rust-free with regular
applications of products like G96
SLIPIT
details).

®

, or Boeshield® T-9 (see Page 31 for more

®

Gun Treatment,

Lubrication

Every 8 Hours of Operation:

• Clean machine and protect unpainted cast­iron surfaces.

• Lubricate feed roller bushings (Page 33).

• Tighten loose mounting bolts.

• Check/sharpen/replace damaged or worn
knives/inserts (Page 27).

Check/repair/replace worn or damaged wires.

•

Resolve any other unsafe condition.

•

Every 40 Hours of Operation:

• Clean cutterhead and, for G0890, check knife

gib bolt tightness (Page 27).

• Lubricate table columns and leadscrews
(Page 33).

Every 160 Hours of Operation:

• Check/tension/replace V-belt (Page 38).

• Clean/vacuum dust buildup from inside cabi­net and off motor.

• Lubricate headstock height chain and
sprockets (Page 33).

• Lubricate drive chain and sprockets (Page 34).

NOTICE

Failure to follow reasonable lubrication
practices as instructed in this manual for
your machine could lead to premature fail­ure of components and void the warranty.

This planer features bearings that are lubricated
and sealed at the factory. These bearing do not
require any further attention unless they need
to be replaced. If a bearing fails, your planer will
probably develop a noticeable rumble or vibration,
which will increase when the machine is under a
load. The bearings are standard sizes and can be
replaced through Grizzly.

Follow the maintenance schedule on this page
and the procedures beginning on Page 33 to
properly lubricate the other planer components,
which are essential for long life and trouble-free
operation of your planer.

Yearly:

• Change gearbox oil (Page 34).

-32-

G0890/G0891 (Mfd. Since 10/20)

Feed Roller Bushings

Oil Type ................SB1365 or ISO-68 Equivalent

Oil Amount
Frequency

The infeed and outfeed rollers rotate inside bush­ing blocks on both ends of the rollers. Add 2–3
drops of ISO 68 machine oil to the center hole of
the four feed roller tension adjustment bolts on top
of the headstock, as shown in Figure 30.

Figure 30. Example of lubrication locations for

...........................................2–3 Drops

................ Every 8 Hours of Operation

Lubricate

Here

feed roller bushings.

Headstock Height Chain & Sprockets

Grease Type ..........................NLGI#2 Equivalent

Frequency

The headstock leadscrews are synchronized by
the headstock height chain and sprockets located
underneath the planer base (see Figure 32). Use
shop rags and mineral spirits to clean away debris
and grime, then brush a light coat of multi-purpose
grease onto the chain and sprockets.

............ Every 160 Hours of Operation

Columns & Leadscrews

Oil Type ................SB1365 or ISO-68 Equivalent

Oil Amount
Grease Type
Frequency

The headstock rides on the columns and is moved
by the rotation of the leadscrews inside the col­umns. Loosen the dust sleeve (see Figure 31) to
access the columns and leadscrews. Apply a thin
coat of ISO 68 machine oil to the outside surface
of the columns and brush on a light application of
multi-purpose grease to the leadscrew threads.
Move the headstock up and down to distribute the
lubricant.

Column

............................................Thin Coat

..........................NLGI#2 Equivalent

.............. Every 40 Hours of Operation

Figure 32. Example of headstock height chain

and sprockets (viewed from underneath the base).

Leadscrew

Figure 31. Location of column and leadscrew.

G0890/G0891 (Mfd. Since 10/20)

-33-

Drive Chain & Sprockets

Grease Type ............... T26419 Synthetic Grease

Frequency

The infeed and outfeed rollers receive the trans­ferred power from the cutterhead through the drive
chain system on the right side of the machine, as
shown in Figure 33. Remove the gearbox cover
to access these parts.

Use shop rags and mineral spirits to clean away
any debris and grime, then brush a light coat of
multi-purpose grease on the chain and sprockets.

............ Every 160 Hours of Operation

Gearbox Oil

Oil Type .............. T28042 or ISO-320 Equivalent

Oil Amount
Frequency

Note: We recommend that you replace the gear-
box oil after the first 20 hours of operation. This is
a normal break-in procedure and will help maxi­mize the service life of the machine by flushing
away any particles from the break-in and manu­facturing process.

Although it is not necessary to remove the gear­box cover to access the fill and drain plugs, it is
more convenient to do so (see Figures 34–35).
Replace the gearbox oil with ISO 320 or equiva­lent oil until it just reaches the fill plug.

.................................................20 Oz.

....... After First 20 Hours, Then Yearly

Figure 33. Drive chains and sprockets for infeed

and outfeed rollers.

Drain Plug

Figure 34. Location of gearbox drain plug.

-34-

Fill Plug

Figure 35. Example of gearbox fill plug.

G0890/G0891 (Mfd. Since 10/20)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start, or power­supply fuse/breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

1. Stop button depressed/at fault.

2. Incorrect power supply voltage or circuit
size.

3. Thermal overload relay has tripped.

4. Power supply circuit breaker tripped or fuse
blown.

5. Motor wires connected incorrectly.

6. Wiring open/has high resistance.

7. Start button switch at fault.

8. Centrifugal switch/contact points at fault.

9. Start capacitor at fault.

10. Thermal overload relay has tripped.

11. Contactor not energized; has poor
contacts.

12. Motor at fault.

1. Machine undersized for task.

2. Workpiece not suitable for machine.

3. Motor overheated, causing thermal
overload to trip.

4. Belt slipping; oil/grease on belt(s).

5. Dull knives/inserts.

6. Dust-collection problem causing internal
components to clog up with shavings.

7. Motor wired incorrectly.

8. Centrifugal switch/contact points at fault.

9. Run capacitor at fault.

10. Pulley slipping on shaft.

11. Contactor not energized/has poor contacts.

12. Motor bearings at fault.

1. Rotate button head to reset; replace if at fault.

2. Ensure correct power supply voltage and circuit
size.

3. Reset; adjust trip load dial if necessary; replace.

4. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

5. Correct motor wiring connections.

6. Check/fix broken, disconnected, or corroded wires.

7. Replace switch.

8. Adjust/replace centrifugal switch/contact points if
available.

9. Test/replace if at fault.

10. Reset; adjust trip load dial if necessary; replace.

11. Test all legs for power/replace.

12. Test/repair/replace.

1. Reduce feed rate/depth of cut.

2. Only cut wood/ensure moisture is below 20%.

3. Allow motor to cool, reset overload if necessary,
and reduce depth of cut.

4. Clean/tension/replace belt (Page 38).

5. Sharpen/replace knives (Page 27), or replace
inserts (Page 29).

6. Clear blockages in dust chute/ducting, ensure dust
collector is operating efficiently.

7. Wire motor correctly.

8. Adjust/replace centrifugal switch/contact points if
available.

9. Test/repair/replace.

10. Tighten loose pulley; replace pulley/shaft if
damaged.

11. Test all legs for power/replace.

12. Test/repair/replace.

G0890/G0891 (Mfd. Since 10/20)

-35-

Motor & Electrical (Cont.)

Symptom Possible Cause Possible Solution

Machine has
vibration or noisy
operation.

1. Motor or component loose.

2. V-belt worn,loose, or slapping cover.

3. Pulley loose.

4. Plastic chip deflector hitting knives.

5. Motor fan rubbing on fan cover.

6. Knives/gibs at fault.

7. Cutterhead bearings at fault.

8. Motor bearings at fault.

1. Inspect/tighten loose bolts/nuts; replace damaged
components.

2. Tension/replace belt (Page 38).

3. Re-align/replace shaft, pulley set screw, and key.

4. Adjust chip deflector (Page 42); replace if
necessary.

5. Fix/replace fan cover; replace loose/damaged fan.

6. Sharpen/replace knives; set knife alignment/height
correctly (Page 27).

7. Replace bearing(s).

8. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.

Machine Operation

Symptom Possible Cause Possible Solution

Excessive snipe
(gouge in end of
board that is uneven
with rest of cut).

Note: A small
amount of snipe is
inevitable with all
types of planers. The
key is minimizing it
as much as possible.

Workpiece stops/
slows in middle of
cut.

1. Outfeed extension slopes down or is not
level with main table.

2. Workpiece is not supported as it leaves
planer.

3. Some snipe is inevitable.

1. Taking too heavy of a cut.

2. Feed rollers set too low or too high.

3. Pitch and glue buildup on planer
components.

1. Shim outfeed extension wing level with main table.

2. Hold workpiece up slightly as it leaves outfeed end
of planer.

3. Plane lumber longer than your intended workpiece
length, then cut off excess after planing complete.

1. Take a lighter cut.

2. Adjust feed rollers (Page 39).

3. Clean internal cutterhead components with a pitch/
resin-dissolving solvent.

Chipping (consistent
pattern).

Chipping/indentation
in workpiece surface
(inconsistent
pattern).

-36-

1. Knots or conflicting grain direction in wood.

2. Taking too deep of a cut.

3. Feeding workpiece too fast.

4. Nicked or chipped knife/insert.

1. Chips aren't being properly expelled from
cutterhead.

1. Inspect workpiece for knots and grain direction;
only use clean stock, and cut WITH the grain.

2. Take a smaller depth of cut. (Reduce cutting depth
when planing hard woods.)

3. Slow down feed rate.

4. Replace affected knife (Page 27) or have it
sharpened; rotate/replace insert (Page 29).

1. Use a proper dust-collection system.

G0890/G0891 (Mfd. Since 10/20)

Machine Operation (Cont.)

Symptom Possible Cause Possible Solution

Fuzzy grain. 1. Wood may have high moisture content or

surface wetness.

2. Dull knives/inserts.

Long lines or ridges
that run along length
of board.

Uneven cutting`
marks, wavy surface,
or chatter marks
across face of board.

Glossy surface. 1. Knives/inserts are dull.

If workpiece twists in
machine.

1. Nicked or chipped knife/inserts. 1. Replace knives (Page 27) or have them

1. Feeding workpiece too fast.

2. Knives not installed evenly/inserts not
properly installed.

3. Worn cutterhead bearings.

2. Feeding workpiece too slow.

3. Cutting depth too shallow.

1. Feed rollers not parallel with table. 1. Adjust feed rollers (Page 39).

1. Check moisture content is below 20% and allow to
dry if moisture is too high.

2. Replace knives (Page 27) or have them
professionally sharpened; rotate/replace inserts
(Page 29).

professionally sharpened; rotate/replace inserts
(Page 29).

1. Slow down feed rate.

2. Adjust knives with knife gauge (Page 27); remove
inserts, properly clean mounting pocket and re­install (Page 29).

3. Replace cutterhead bearings.

1. Replace knives (Page 27) or have them
professionally sharpened; rotate/replace inserts
(Page 29).

2. Increase feed rate.

3. Increase depth of cut.

G0890/G0891 (Mfd. Since 10/20)

-37-

Tensioning/

Replacing V-Belt

After approximately 16 hours of opera­tion, V-belt will stretch and seat into pulley
grooves and need to be properly tensioned
to avoid severely reducing life of V-belt.

Cutterhead

Pulley

Motor

Pulley

V-Belt

A V-belt transfers power from the motor to the
cutterhead, and then to the infeed and outfeed
rollers with the use of the drive chain system.
To ensure efficient transfer of power to these
systems, make sure the V-belt is always properly
tensioned and in good condition. If the V-belt is
worn, cracked, or damaged, replace it.

V-belt and pulleys will be hot after opera­tion. Allow them to cool before handling.

Items Needed Qty

Hex Wrench 4mm .............................................. 1

Hex Wrench 6mm

To tension/replace V-belt:

DISCONNECT MACHINE FROM POWER!

1.

2. Remove side panel and belt cover from left

side of machine to expose belt and pulleys,
as shown in Figure 36.

.............................................. 1

Figure 36. Belt cover and side panel removed to

expose V-belt and pulleys.

If V-belt needs to be replaced, raise motor to

3.

release belt tension (see next step for instruc­tions), roll belt off pulleys, then install new belt.

To adjust V-belt tension, loosen (4) motor

4.

mount cap screws (see Figure 37), then
raise or lower motor.

Note: A collection of black belt dust at the

bottom of the belt cover is normal during the
life of the belt.

-38-

Figure 37. Location of motor mount cap screws.

G0890/G0891 (Mfd. Since 10/20)

Note: V-belt is correctly tensioned when

there is approximately
moderate pressure is applied to them midway
between pulleys, as illustrated in Figure 38.

½"

Deflection

1

⁄2" deflection when

Pulley

feed rollers height

Adjusting Feed

Roller Heights

It is essential that the feed rollers are set at the
correct distance below the cutterhead knives
at BDC (bottom dead center) to ensure that the
workpiece moves through the planer evenly and
the correct distance from the cutterhead knives.

To ensure accurate results and make the adjust­ment process quicker and easier, we recommend
using a Rotacator for these adjustments (refer to
Accessories).

Pulley

Figure 38. Belt deflection when V-belt is

correctly tensioned.

5.

After V-belt is correctly tensioned, tighten

motor mount cap screws, then re-install side
panel and belt cover.

If a Rotacator is not available, a 6' 2x4 cut into two
even sized pieces and a feeler gauge set can be
used, but care must be taken when jointing the
wood to achieve accurate results.

Note: The chip breaker is spring mounted, which
allows it to adjust automatically to the workpiece.
No adjustment is necessary.

Dist. Below Knife/Insert at BDC (Figure 39)

Infeed Roller ....................................... 0.040"

A.

B. Outfeed Roller .................................... 0.020"

Chip

Breaker

(Bottom Dead Center)

BDC

G0890/G0891 (Mfd. Since 10/20)

A & B

Infeed

Roller

Figure 39. Planer component recommended

clearances (illustration is not to scale).

Outfeed

Roller

C

-39-

Using a Rotacator

6. Move feed speed knob to neutral position to

7.

under right-hand side of infeed roller and find

roller back and forth.

9. Repeat Steps 7–8 on left side of infeed roller.

10.

infeed roller height from side-to-side is 0.040"

retighten

11.

feed roller, but adjust it until it is 0.020" below
BDC of cutterhead knife.

8. Loosen jam nuts and use set screws on each

dial shows 0.040", which is the recommended
distance for infeed roller below cutterhead.

Items Needed Qty

Hex Wrenches 3mm, 4mm ..........................1 Ea.

Wrench or Socket 10mm
Rotacator

To use a Rotacator:

DISCONNECT MACHINE FROM POWER!

1.

2. Make sure knives are set to correct height

Raise headstock at least 4" above table.

3.

4. Remove top cover, belt cover, and gearbox

........................................................... 1

(refer to Adjusting/Replacing Knives on
Page 27 for detailed instructions). If machine
is helical cutterhead, make sure all inserts
are properly installed (refer to Rotating/
Replacing Cutterhead Inserts on Page 29
for detailed instructions).

cover.

.............................1 Ea.

side of feed roller as shown to adjust height
of infeed roller bushing block until Rotacator

Roller

Bushing

Block

Jam Nut

& Set Screw

Figure 41. Example of infeed roller bushing

block and height adjustment controls.

Using your Rotacator, find bottom dead cen-

5.

ter (BDC) of any knife/insert edge by slowly
rocking cutterhead pulley back and forth,
then set Rotacator dial to "0" (see Figure 40).

Figure 40. Example of using a Rotacator to find

BDC.

allow infeed roller to freely rotate.

Re-check both sides of infeed roller and, if

necessary, make further adjustments until

below BDC of cutterhead knife, then
both jam nuts.

Keeping same "0" reference on Rotacator

dial from Step 5, repeat Steps 7–10 for out-

12. Re-install belt cover, top cover, and gearbox
cover.

Keeping Rotacator dial at "0", position it

BDC of a serrated edge by rocking infeed

-40-

G0890/G0891 (Mfd. Since 10/20)

Using Wood Blocks

Items Needed Qty

Hex Wrench 3mm, 4mm .................................... 1

Wrench or Socket 10mm
2x4 6' Long
Feeler Gauge Set

To use wood blocks:

Build wood blocks by cutting a straight 6-foot-

1.

long 2x4 in half.

Note: Having the wood blocks at an even

height is critical to the accuracy of your
overall adjustments. For best results, make
the 2x4 square with a jointer and table saw
before cutting it in half.

........................................................ 1

.............................................. 1

................................... 1

5. Remove top cover, belt cover, and gearbox
cover.

Lower headstock until wood blocks get close

6.

to cutterhead.

Use belt to rotate cutterhead and continue

7.

lowering headstock until blocks just barely
touch cutterhead knife/insert at its lowest
point of rotation (BDC).

Upward pressure of wood blocks will be hold-

8.

ing infeed and outfeed rollers at same level
as knife/insert at BDC.

Loosen jam nuts and set screws on each side

9.

of infeed roller (see Figure 43).

G0890 Only: Make sure knives are set to

2.
correct height (refer to Adjusting/Replacing
Knives on Page 27 for detailed instructions).

DISCONNECT MACHINE FROM POWER!

3.

4. Place wood blocks along sides of table, as
illustrated in Figure 42.

36"

Figure 42. Wood blocks properly positioned on

the planer table.

10. Using a feeler gauge, adjust set screw so
it is 0.040" from roller bushing block (see
Figure 43), then tighten jam nut. Repeat on
other side of infeed roller.

Roller

Bushing

Block

Figure 43. Example of feeler gauge location for

adjusting infeed roller height when using wood

blocks (one of two locations shown).

Repeat Steps 10–11 with outfeed roller, only

11.

adjust the gaps to 0.020".

12. Re-install belt cover, top cover, and gearbox
cover.

Insert Feeler

Gauge Here

Jam Nut

& Set Screw

G0890/G0891 (Mfd. Since 10/20)

-41-

Adjusting Roller

The infeed and outfeed rollers keep the workpiece
moving through the planer. Springs exert down­ward pressure on the feed rollers while allowing
them to raise with an uneven workpiece surface.
Proper spring tension is crucial to keep the work­piece moving through the planer during operation.

The ideal feed-roller spring tension varies depend­ing upon the type of wood you plane. When
adjusting spring tension, keep the following in
mind:

• If you are planing milled lumber with a con-

• If you are planing rough lumber with incon-

• If the workpiece consistently stops feeding
during operation, the spring tension may

To adjust feed-roller spring tension:

1.

2. Rotate tension screws (shown below)

When properly distanced from the cutterhead, the
chip deflector directs the chips into the dust hood,
and keeps them from falling onto the outfeed roller
and being pressed into the workpiece.

To adjust chip deflector gap:

1.

2.

3.

, then

chip deflector.

Positioning Chip

Spring Tension

sistent surface, use less spring tension to
reduce the risk of marring the workpiece.

sistent surfaces, use greater spring tension
to keep the stock moving through the planer.

Deflector

Chip Deflector Gap Setting ..................1⁄16''–1⁄8 ''

Items Needed: Qty

Wrench or Socket 10mm ................................... 1

DISCONNECT MACHINE FROM POWER!

Remove dust hood, top cover, and belt cover.

Use cutterhead pulley to rotate cutterhead

until a knife/insert reaches closest distance
to chip deflector (see Figure below)
measure distance between knife/insert and

Items Needed Qty

Hex Wrench 6mm .............................................. 1

DISCONNECT MACHINE FROM POWER!

clockwise to increase tension or counter-

Tension

Screws

Chip Deflector

Flange Bolts

(1 of 3)

Figure 45. Example of chip deflector and

mounting hardware.

4. If distance measured in Step 3 is not equal to
correct chip deflector gap setting, then loosen
flange bolts (see Figure 45) that secure chip
deflector and adjust gap to correct setting.

Re-tighten flange bolts, then replace belt

5.

cover, top cover, and dust port.

Figure 44. Example of roller spring tension

adjustment screws.

-42-

G0890/G0891 (Mfd. Since 10/20)

Calibrating Headstock

The anti-kickback fingers are an important safety
feature of your planer. The fingers hang from a rod
suspended across the head casting and in front of
the infeed roller, as shown. This design allows the
workpiece to easily enter the planer but reduces
the risk of kickback by digging into the workpiece
if it moves backward.

Check the anti-kickback fingers regularly to ensure
they swing freely and easily. If the fingers do not
swing freely and easily, first clean them with a
wood-resin solvent, then inspect them for dam­age. If any of the fingers are damaged, the device
must be replaced before using the machine.

Do not apply oil or other lubricants to the anti-kick­back fingers that will attract dust and restrict free

Proper operation of anti-kickback fingers

DO NOT operate planer if anti-kickback

Checking Anti-

Elevation Scale

Although correctly set at the factory, the head­stock elevation scale can be adjusted for accu­racy if necessary.

Items Needed Qty

Phillips Screwdriver #2 ...................................... 1

Scrap Piece of Stock
Calipers

To calibrate headstock elevation scale:

Plane a scrap piece of stock until it is flat and

1.

Note: Turn board over between each pass.

Use calipers to measure board thickness.

2.

3. If there is a discrepancy between board thick-

............................................................. 1

of even thickness along its length.

ness and reading on headstock elevation
scale, loosen the screw shown in Figure 46,
adjust scale as necessary, then re-tighten screw.

......................................... 1

Kickback Fingers

Anti-Kickback Fingers

Figure 47. Anti-kickback fingers.

Screw

Figure 46. Location of adjustment screw for

table elevation scale.

G0890/G0891 (Mfd. Since 10/20)

is critical for safe operation of this planer.

fingers are not operating correctly. Failure
to heed this warning could result in serious
personal injury.

-43-

Tensioning Headstock

Adjusting Cutterhead

Height Chain

The headstock height chain transfers movement
from the elevation handwheel to the columns that
control headstock height. The chain drive can be
adjusted to remove slack if the chain stretches
over time or is loosened during headstock leveling
procedures.

Items Needed Qty

Hex Wrench 5mm .............................................. 1

Wrench or Socket 12mm

To adjust headstock height chain tension:

DISCONNECT MACHINE FROM POWER!

1.

2. Remove motor access panel to access head-

stock height chain (see Figure 48).

Loosen the two chain tension lock bolts, then

3.

push idler sprocket against chain with mod­erate pressure to eliminate slack in chain.
While maintaining pressure on idler sprocket,
re-tighten lock bolts (see Figure 48).

................................... 1

Parallelism

Maximum Allowable Tolerances:

Cutterhead/Table Side-to-Side
Head Casting/Table Front/Back

Cutterhead parallelism is critical to the operation
of the machine. As such, it is essential that the
Cutterhead is parallel with the table (within 0.002")
from side-to-side, as illustrated in Figure 49.

SIDE-TO-SIDE

(Front View)

Cutterhead

Parallel Parallel

Table

Cutterhead

NOT Parallel NOT Parallel

Table

Figure 49. Side-to-side parallelism of table and

cutterhead.

.................. 0.002"

................ 0.020"

Idler

Sprocket

Lock Bolts

Figure 48. Headstock height chain adjustment.

4. Clean and lubricate chain and sprockets (refer
to Headstock Height Chain & Sprockets on
Page 33 for detailed instructions), then re-

install motor access panel.

NOTICE

DO NOT let chain fall off sprockets. It can
be very difficult to return chain to its proper
location on sprockets without changing
table adjustments.

How the table sits in relation to the head casting
from front-to-back is also important (see Figure

50). Because the feed rollers and chip breaker will
be adjusted off the table position, the tolerances
on the front-to-back positioning are not as critical
as the cutterhead/table side-to-side positioning.
Therefore, the maximum allowable tolerance for
the front-to-back parallelism is not more than

0.020".

FRONT-TO-BACK

(Side View)

Head

Parallel Parallel

Table

Head

NOT Parallel NOT Parallel

Table

Figure 50. Front-to-back parallelism of table and

cutterhead.

-44-

G0890/G0891 (Mfd. Since 10/20)

Cutterhead Parallelism Inspection

Use your Rotacator to inspect the cutterhead par­allelism. If you do not have a Rotacator, a wood
block and feeler gauges may be used, but extra
care must be taken to ensure accuracy. If the
cutterhead is not within the maximum allowable
tolerances, it must be adjusted.

Headstock Parallelism Adjustments

The headstock is adjusted by turning the chain
sprockets underneath the table for movements
over 0.008" or by adjusting how the headstock is
mounted on the columns for movements under

0.008".

NOTICE

When making adjustments, tighten fasten­ers after each step to ensure the accuracy
of your tests. When adjusting the chain
sprockets, keep in mind that if the chain
becomes too loose, it will fall off of all the
sprockets, and returning it to its proper
location can be extremely difficult.

6. Carefully rotate sprocket (clockwise to raise

headstock; counterclockwise to lower head­stock) just enough to position next tooth
at marked location, then fit chain around
sprocket again.

Repeat Steps 4–6 with each sprocket that

7.

needs to be adjusted until table-to-cutterhead
clearance is within 0.008" from one side to
the other.

8. Make sure chain is properly fitted on sprock­ets, then re-tighten idler sprocket and lock
bolts.

If necessary, micro-adjust headstock position

9.

by loosening cap screws shown in Figure 51
and raising or lowering headstock until it is
properly aligned with table.

Note: This process may require adjusting the

columns on both the left and right hand sides
until you find the correct combination.

To adjust headstock parallelism:

1. DISCONNECT MACHINE FROM POWER!

Remove cabinet panel and locate chain on

2.

underside of table.

Loosen idler sprocket (see Chain Tension

3.

instructions on Page 33).

Move chain away from sprocket you want to

4.

adjust so only that sprocket can be rotated
independent of chain.

Note: If the left side of the table is too high,

the left two sprockets will need to be adjust­ed. Each tooth on the sprocket represents
.008" of vertical movement as the cogs are
turned. Make sure, as you turn the sprockets,
to keep an accurate tooth count to ensure
that the headstock is adjusted equally.

Mark location of one tooth of sprocket that

5.

you are adjusting.

Adjustment

Screws

Figure 51. Location of headstock micro-

adjustment screws (one side shown only).

G0890/G0891 (Mfd. Since 10/20)

-45-

Tensioning

2. Remove gearbox cover to access drive chain
components (see Figure 52).

Drive Chain

The drive chain system transfers power from the
cutterhead to the infeed and outfeed rollers. The
chain drive can be adjusted to remove slack if the
chain stretches over time.

Items Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Wrench or Socket 10mm

To tension drive chain:

DISCONNECT MACHINE FROM POWER!

1.

................................... 1

Loosen hex bolt (see Figure 52) that secures

3.

idler bracket to gearbox, then push idler
wheel against chain with moderate pressure
to eliminate slack in chain. While maintaining
pressure on idler wheel, tighten hex bolt. (see
Figure 52).

Hex Bolt

Idler

Bracket

Idler

Wheel

Figure 52. Drive chain adjustment.

4. Clean and lubricate chain and sprockets
(refer to Drive Chain & Sprockets on Page

33), then install gearbox cover.

-46-

G0890/G0891 (Mfd. Since 10/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

G0890/G0891 (Mfd. Since 10/20)

-47-

The motor wiring shown here is

may not match your machine.
Always use the wiring diagram

A

L1/1 L3/5

L2/3

T2/4

T1/2 T3/6

1/2

3/4

G0890/G0891 Wiring Diagram

NO13

SDE

MA-18

240V

5/6

NC21

SDE

NC22

NO14

96

B

RA-20

AMP

18

15

12

ARC

98

RESET

Ground

current at the time of printing, but it

inside the motor junction box.

MAGNETIC SWITCH

ASSEMBLY SDE MP-18

MOTOR (230V)

GND

95

Hot

230

VAC

6-20 Plug

Hot

G

Ground

Start Capacitor

400MFD
125VAC

Run Capacitor

70uF

250VAC

-48-

READ ELECTRICAL SAFETY

ON PAGE 47!

G0890/G0891 (Mfd. Since 10/20)

G0890/G0891 Electrical Components

Figure 54. G0890/G0891 motor junction box.

Figure 53. G0890/G0891 magnetic switch with

cover removed.

G0890/G0891 (Mfd. Since 10/20)

READ ELECTRICAL SAFETY

ON PAGE 47!

-49-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Headstock

23V2

48

B

41

42
43

44

41

7

42

33

18

19

23

47

27V2

F

A

24

23V2

20

29

13

28

2

3

27

26

7

11

33

43

44

45

46

4

3

6

29

44

4

42

44

42

33

43

24

B

47

G

1V2

25

3

61

57

41

7

8

41

7

43

44

27V2

64

5

8

10

F

23V2

62

60

(G0891)

57-2

57-3

57-1

91

10

9

9

58

68

86

61

65

17

16

12

30

G

86

57-1

(G0890)

57-3

84

67

69

23

57-4

57-2
57-5

9

77

32

58

79

57

69

147

59

78

80

193

76

69

71

87

81

70

75

72

82

73

58

69

74

88

69

89

90

66

C

85

85

167

C

83

9

167-1

167-2

39

31

10

38

27

35

34

37

168

113

40

167-4

167-3

-50-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

G0890/G0891 (Mfd. Since 10/20)

Headstock Parts List

REF P ART # DESCRIPTION REF PART # DESCRI PTIO N

1V2 P0890001V2 HEADSTOCK V2.10. 20 57-5 P0890057-5 A DJ US TMENT SCRE W M5-. 8 X 12
2 P0890002 SHA FT 57 P0891057 CUTTERHEAD ASSEMBLY (G0891)
3 P0890003 ANTI -KICKBACK FINGER 57-1 P0891057-1 HELI CAL CUTTE RHEA D 1 5"
4 P0890004 COLLAR 57-2 P0891057-2 FLATHEAD TORX 10-32 X 1/2
5 P0890005 POLY V-BELT 360J-9 57-3 P0891057-3 CARBIDE INSERT 15 X 15 X 2.5MM 10-PK
6 P0890006 INFEED ROLLER 58 P0890058 BALL BEARING 6204-2NSE
7 P0890007 ROLLER SEAT 59 P0890059 GEAR
8 P0890008 SPROCKET 60 P0890060 PULLEY (G0890)
9 P0890009 FLA T WASHER 6MM 60 P0890060 PULLEY (G0891)
10 P0890010 HEX BOLT M6-1 X 16 61 P0890061 KEY 6 X 6 X 20 (G0890)
11 P0890011 OUTFEED ROLLER 61 P0891061 KEY 6 X 6 X 30 (G0891)
12 P0890012 COLLECTOR HOOD 62 P0890062 FLAT WA SHER 8 MM
13 P0890013 CHIP BREAKER 64 P0890064 BUTTON HD CAP SCR M8-1.25 X 20
16 P0890016 TOP COVER 65 P0890065 GEAR BOX
17 P0890017 CLAMP 66 P0890066 GEAR BOX COVER
18 P0890018 HEX BOLT M6-1 X 12 67 P0890067 GASKET
19 P0890019 DEFLECTOR PLATE 68 P0890068 OIL SEAL 28 X 40 X 8
20 P0890020 SPRI NG 69 P0890069 BALL BEARING 6201-2NSE
23V2 P0890023V2 CAP SCREW M6-1 X 12 V2.10.20 70 P0890070 SHAFT
24 P0890024 BUTTON HD CA P SCR M6 -1 X 20 71 P0890071 GEAR 52T
25 P0890025 SET SCREW M6-1 X 16 72 P0890072 KEY 5 X 5 X 12
26 P0890026 BUTTON HD CA P SCR M6 -1 X 25 73 P0890073 SHAFT
27 P0890027 FLAT WA SHER 6 MM 74 P0890074 GEAR
27V2 P0890027V2 BUSHING V2.10.20 75 P0890075 KEY 5 X 5 X 10
28 P0890028 SET SCREW M6-1 X 30 76 P0890076 SHAFT
29 P0890029 HEX NUT M6 -1 ( NYLO N) 77 P0890077 GEAR ASSEMBLY
30 P0890030 BUTTON HD CAP SCR M8-1.25 X 25 78 P0890078 KEY 6 X 6 X 40
31 P0890031 DRIV E CHAI N COVER 79 P0890079 SPRI NG
32 P0890032 BUTTON HD CA P SCR M6 -1 X 12 80 P0890080 STEEL BALL 6MM
33 P0890033 BUTTON HD CA P SCR M6 -1 X 16 81 P0890081 OIL SEAL 25 X 47 X 6
34 P0890034 BRACKET 82 P0890082 OIL SEAL P12
35 P0890035 PHLP HD SCR M6-1 X 12 83 P0890083 SPROCKET
37 P0890037 BUTTON HD CA P SCR M5 -. 8 X 12 84 P0890084 PIN
38 P0890038 SPRI NG 85 P0890085 BUTTON HD CAP SCR M6- 1 X 2 5
39 P0890039 HEX NUT M5 -. 8 86 P0890086 OIL PLUG 1/4
40 P0890040 SHOULDER BOLT M8-1.25 X 14, 4 X 12 87 P0890087 CLUTCH FORK
41 P0890041 SPRI NG 88 P0890088 HANDLE
42 P0890042 PLATE 89 P0890089 KNOB 3/8-16, D1-1/4, BALL
43 P0890043 SET SCREW M6-1 X 20 90 P0890090 CHAIN 06B X 41P
44 P0890044 HEX NUT M6 -1 91 P0890091 CHAI N 06B X 50P
45 P0890045 POINTER 113 P0890113 WAVY WASHER 8MM
46 P0890046 RI VET 2.5MM X 8MM 147 P0890147 HEX BOLT M6-1 X 12
47 P0890047 TENSION BOLT 167 P0890167 I DLER ASSEMBLY
48 P0890048 EXT RE TAI NI NG RI NG 47MM 167-1 P0890167-1 IDLER BRACKET
57 P0890057 CUTTERHEAD ASSEMBLY (G0890) 167-2 P0890167-2 IDLER WHEEL
57-1 P0890057-1 CUTTERHEAD 15" 3-KNI FE 167-3 P0890167-3 CAP SCREW M8-1.25 X 20
57-2 P0890057-2 PLANER BLADE 15" X 1" X 1-1/8" 167-4 P0890167-4 LOCK NUT M8-1.25
57-3 P0890057-3 GIB 168 P0890168 HEX BOLT M6-1 X 30
57-4 P0890057-4 GIB SCREW 193 P0890193 FLAT WA SHER 6 MM

G0890/G0891 (Mfd. Since 10/20)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

-51-

Stand & Motor

131

155

115

153

154

123

148

157

158

159

192

(G0890)

130

163

135

149

114

155

195

162

122

120

136

127

126

151

135

194

161

129

124

150

153

156

128

154

196

139

132

129

143

155

135

133-1

135

160

105

133-2

104

103

125-2

133-3

101

102

125-3

125-1

125-4

125

146

133-4

152

155

132

143

-52-

121

196

139

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

154

154

156

144

153

152

195

121

A

122

D

110

108

109

111

107

133-5

133-8

133

133-6

133-9

133-7

133-10

106

133-11

G0890/G0891 (Mfd. Since 10/20)

Stand & Motor Parts List

REF P ART # DESCRI PTIO N REF PART # DESCRIP TION

101 P0890101 SWITCH CORD 1 2G 3 W 34" 133-5 P0890133-5 MO TOR FAN
102 P0890102 POWER CORD 12G 3W 150" 6-20P 133-6 P0890133-6 R CAPACI TOR 70M 250V 1-9/16 X 3-1/2
103 P0890103 STRAIN RELIEF TYPE-3 PG13. 5 133-7 P0890133-7 S CAPACI TOR 400M 125V 1-9/16 X 3-1/2
104 P0890104 STRAIN RELIEF TYPE-1 1/ 2 133-8 P0890133-8 CE NTRI FUG AL SWI TCH
105 P0890105 MOUNTING P LATE 133-9 P0890133-9 CO NTACT PL ATE
106 P0890106 MOTOR CORD 12G 3W 24" 133-10 P0890133-10 BALL BEARING 6205ZZ (FRONT)
107 P0890107 KEY 6 X 6 X 18 133-11 P0890133-11 BALL BEARING 6203ZZ (REAR)
108 P0890108 FLAT WASHE R 8MM 135 P0890135 PHLP HD SCR M6-1 X 12
109 P0890109 MOTOR PULLEY 136 P0890136 PHLP HD SCR M3-.5 X 10
110 P0890110 BUTTON HD CAP SCR M8-1. 25 X 20 139 P0890139 CAP SCREW M6-1 X 16
111 P0890111 STRAIN RELIEF TYPE-1 1/ 2 143 P0890143 FLAT WASHE R 6MM
114 P0890114 COVER MOUNT 144 P0890144 GAS STRUT
115 P0890115 STRUT MOUNT 146 P0890146 PHLP HD SCR M5-.8 X 10
120 P0890120 SET SCREW M8-1.25 X 35 147 P0890147 HEX BOLT M6-1 X 12
121 P0890121 FLAT WASHE R 8MM 148 P0890148 HEX WRENCH 4 MM
122 P0890122 FLAT WASHER 10MM PLASTIC 149 P0890149 BELT COVER
123 P0890123 GAS STRUT 150 P0890150 MOTOR PLATE
124 P0890124 STA ND 151 P0890151 BUTTON HD CA P SCR M6 -1 X 20
125 P0890125 MAGNETIC SWITCH ASSY MP-18 152 P0890152 BUTTON HD CAP SCR M8-1.25 X 20
125-1 P0890125-1 MAGNE TI C S WI TCH CO VER ( FRONT) 153 P0890153 BUTTON HD CAP SCR M8-1.25 X 25
125-2 P0890125-2 MAGNE TI C S WI TCH CO VER ( REAR) 154 P0890154 SLEEVE
125-3 P0890125-3 CONTACTOR SDE MA-18 220V-240V 155 P0890155 HEX NUT M8-1.25 NYLON
125-4 P0890125-4 OL RELAY SDE RA-20 12-18A 156 P0890156 FLAT WASHER 8MM
126 P0890126 FOOT M8-1.25 X 60 157 P0890157 O PEN- END WRENCH 1 0/ 13MM
127 P0890127 HEX NUT M8-1 . 2 5 158 P0890158 OPEN-END WRENCH 12/ 1 4MM
128 P0890128 CABLE PROTECTOR 159 P0890159 OPEN-END WRENCH 17/ 1 9MM
129 P0890129 ACCESS PANEL 160 P0890160 BRACKET
130 P0890130 T-HA NDLE TO RX DRI VER T- 25 161 P0890161 FLAT WASHER 6MM
131 P0890131 PLATE 162 P0890162 FL AT WAS HER 8MM
132 P0890132 ADJUSTABLE BRACKET 163 P0890163 T-HANDLE TORX DRI VER T- 30
133 P0890133 MOTOR 3HP 230V 1PH 192 P0890192 KNIFE SETTING JIG (G0890)
133-1 P0890133-1 MOTOR FA N COVE R 193 P0890193 FLAT WASHER 6MM
133-2 P0890133-2 RUN CAPA CI TO R COVE R 194 P0890194 LOCK WASHER 6MM
133-3 P0890133-3 START CAPACITOR COVER 195 P0890195 LOCK WASHER 8MM
133-4 P0890133-4 MOTOR J UNCTION BOX 196 P0890196 SPRING WASHER 6MM

G0890/G0891 (Mfd. Since 10/20)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

-53-

211

246

210

Table

206

211

246

223

224

225

245

297

296

211

246

210

212

E

227

209

298

299

201

202

203

226

208

293

246
207

209

200

298

299

295

201

202

203

212

294

221

208

210

209

204

205

298

299

201

202

203

D

294

221

E

-54-

214

215

222

216

217

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

221

218

298

299

201

202

203

219

216

221

294

G0890/G0891 (Mfd. Since 10/20)

Table Parts List

REF PART # DES CRIP TI ON RE F P ART # DES CRIP TION

200 P0890200 LEADSCREW 217 P0890217 EXT RE TAINI NG RI NG 15MM
201 P0890201 SPROCKET 218 P0890218 HEX BOLT M8-1.25 X 25
202 P0890202 FLAT WASHER 10MM 219 P0890219 SLEEVE
203 P0890203 HEX NUT M10-1.25 221 P0890221 FLAT WAS HER 8MM
204 P0890204 DE PTH-OF-CUT S CALE 222 P0890222 CHAIN 410 X 148P
205 P0890205 PHLP HD SCR M3-.5 X 4 223 P0890223 HEX NUT M10-1. 25
206 P0890206 HANDWHEEL TYPE-3 216D X 10B-K X M10-1.5 224 P0890224 FLAT WASHER 10MM
207 P0890207 KEY 4 X 4 X 20 225 P0890225 DIRECTION LABEL
208 P0890208 SET SCREW M10-1.5 X 12 226 P0890226 HEX BOLT M8-1.25 X 25
209 P0890209 CO LUMN 227 P0890227 SET SCREW M8-1.25 X 20
210 P0890210 LEADSCREW 245 P0890245 REVOLVING HANDLE 24 X 92, M10-1.5 X 12
211 P0890211 CA P 246 P0890246 LE ADSCRE W MOUNT
212 P0890212 CAST IRON EXTENSION TABLE 293 P0890293 MAIN TABLE
212-1 P0890212-1 HEX BOLT M8-1.25 X 25 294 P0890294 HEX BOLT M8-1. 25 X 45
212-2 P0890212-2 SET SCREW M8-1.25 X 20 295 P0890295 COLUMN
212-3 P0890212-3 CAST IRON EXTENSION TABLE 296 P0890296 BUSHI NG
214 P0890214 BRACKET 297 P0890297 I NT RETAI NING RI NG 38 MM
215 P0890215 S HAFT 298 P0890298 BALL BEARING 6202Z
216 P0890216 SPROCKET 299 P0890299 I NT RETAI NING RI NG 35MM

G0890/G0891 (Mfd. Since 10/20)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

-55-

grizzly.com

313

312

G0890

G0891

311

Labels & Cosmetics

MODEL G0891

15" 3 HP FIXED-TABLE PLANER

w/HELICAL CUTTERHEAD

301

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

Specifications

Motor: 3 HP, 230V, 1-Ph, 60 Hz, 12A
Cutterhead: 4 Spirals, 48 Inserts
Insert Size: 15 x 15 x 2.5mm
Replacement Inserts: H9893

Cutterhead Speed: 5200 RPM
Feed Rates: 16, 28 FPM
Max. Depth of Cut: 1/8"
Min. Stock Thickness: 3/16"
Min. Stock Length: 6"
Max. Cutting Width: 15"
Max. Cutting Height: 6"
Weight: 302 lbs.

Mfd. for Grizzly in Taiwan

Specifications

Motor: 3 HP, 230V, 1-Ph, 60 Hz, 12A
Cutterhead: 3 Knife, 2-5/8" Dia.
Knife Size: 15" x 1" x 1/8"
Replacement Knives: G6701
Cutterhead Speed: 5200 RPM
Feed Rates: 16, 28 FPM
Max. Depth of Cut: 1/8"
Min. Stock Thickness: 3/16"
Min. Stock Length: 6"
Max. Cutting Width: 15"
Max. Cutting Height: 6"
Weight: 300 lbs.

Mfd. for Grizzly in Taiwan

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses and respirator.

3. Disconnect power before changing inserts, removing
parts, or doing maintenance, service, or adjustments.

4. Only plug power cord into a grounded outlet.

5. Do not wear loose clothing, gloves, jewelry, or other items
that can get entangled. Tie back long hair and roll up sleeves.

6. Ensure machine is correctly set up before starting.

7. Do not plane two boards of varying thickness at same time.

8. Never plane material smaller than 6" long or

9. Keep fingers clear of pinch point between stock and table.

175370

10. Stand clear of board ends during cutting operation.

Date

11. Inserts are sharp! Use extreme caution when servicing.

12. Never reach into cutting area while machine is running.

S/N

13. Do not expose to rain or use in damp or wet locations.

14. Prevent unauthorized use by children or untrained users.

302

15" 3 HP FIXED-TABLE PLANER

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses and respirator.

3. Disconnect power before changing blades, removing
parts, or doing maintenance, service, or adjustments.

4. Only plug power cord into a grounded outlet.

5. Do not wear loose clothing, gloves, jewelry, or other items
that can get entangled. Tie back long hair and roll up sleeves.

6. Ensure machine is correctly set up before starting.

7. Do not plane two boards of varying thickness at same time.

8. Never plane material smaller than 6" long or

9. Keep fingers clear of pinch point between stock and table.

175370

Date

12. Never reach into cutting area while machine is running.

S/N

14. Prevent unauthorized use by children or untrained users.

WARNING!

MODEL G0890

WARNING!

3

/16" thick.

303

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to

3

/16" thick.

www.grizzly.com.

.noitarepo gnittuc gnirud sdne draob fo raelc dnatS .01

.gnicivres nehw noituac emertxe esU !prahs era sevinK .11

.snoitacol tew ro pmad ni esu ro niar ot esopxe ton oD .31

304

305

CHECK OIL

LEVEL BEFORE USING!

REFER TO
OWNER’S MANUAL
FOR OIL TYPE AND

AMOUNT.

NOTICE

Add SAE 30 oil every 24 hours of operation.

306

307

310

308

INJURY HAZARD!

To reduce the risk of serious personal
injury, do not remove this cover while the
machine is running or connected to power.
Always disconnect power before servicing.

309

WARNING!

WARNING!

INJURY HAZARD!

EYE/EAR/LUNG

To reduce risk of short

INJURY HAZARD!

and long-term injury,

Always wear safety

wear safety glasses,

glasses, ear protection,

hearing protection, and

and respirator when

a respirator when using

using this machine.

this machine.

REF P ART # DES CRIPTION REF PART # DE SCRIP TION

301 P0890301 DISCONNECT POWER LABEL 308 P0890308 INJ URY HAZARD LABEL
302 P0890302 MACHINE ID LABEL (G0890) 309 P0890309 EYE/EAR/LUNG LABEL
302 P0891302 MACHINE ID LABEL (G0891) 310 P0890310 GRIZZLY.COM LABEL
303 P0890303 READ MANUAL LABEL 311 P0890311 GRIZZLY NAMEPLATE–LARGE
304 P0890304 ADD OIL LABEL 312 P0890312 MODEL NUMBER LABEL (G0890)
305 P0890305 STOP OIL FILL TAG 312 P0891312 MODEL NUMBER LABEL (G0891)
306 P0890306 ELECTRICITY LABEL 313 P0890313 TO UCH-UP P AI NT, G RI ZZL Y BE I G E
307 P0890307 TOUCH-UP PAI NT, GRI ZZLY G REEN

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-56-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Par ts Store.

G0890/G0891 (Mfd. Since 10/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
