Grizzly G0888 User guide

MODEL G0888
DELUXE BENCH GRINDING STATION
OWNER'S MANUAL
(For models manufactured since 01/19)
265752
COPYRIGHT © MAY, 2019 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#MN20328 PRINTED IN TAIWA N
This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead-based paints.
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter out microscopic particles.
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Machine Data Sheet ................................................................................................................... 4
SECTION 1: SAFETY ....................................................................................................................... 6
Safety Instructions for Machinery ............................................................................................... 6
Additional Safety for Metal Dust Collectors ................................................................................ 8
SECTION 2: POWER SUPPLY ........................................................................................................ 9
SECTION 3: SETUP ....................................................................................................................... 11
Needed for Setup ..................................................................................................................... 11
Unpacking ................................................................................................................................ 11
Inventory ................................................................................................................................... 12

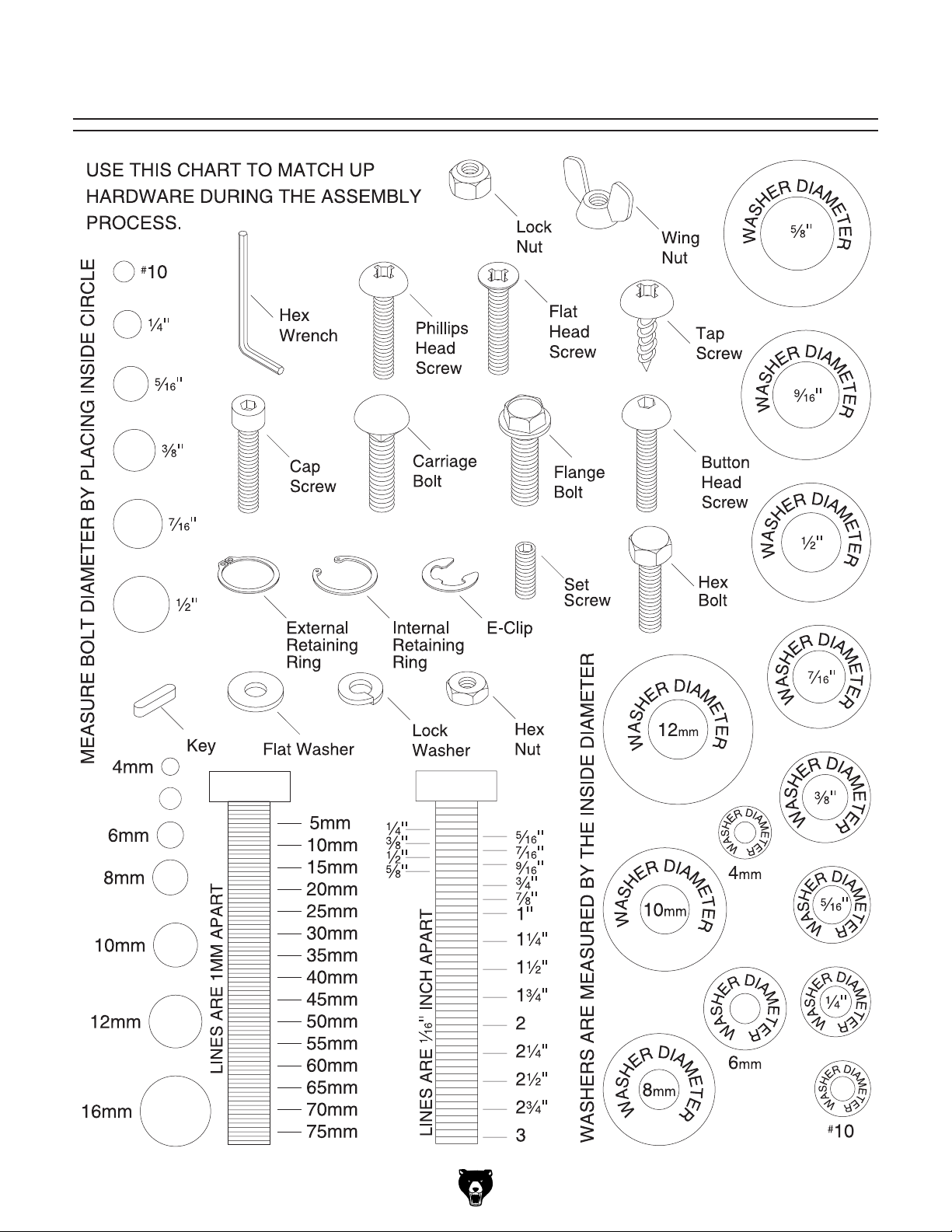

Hardware Recognition Chart .................................................................................................... 13
Site Considerations .................................................................................................................. 14
Assembly .................................................................................................................................. 15
Installing Grinder ...................................................................................................................... 17
Test Run ................................................................................................................................... 18
Disabling & Locking Switch ...................................................................................................... 18
SECTION 4: OPERATIONS ........................................................................................................... 19
Operation .................................................................................................................................. 19
SECTION 5: ACCESSORIES ......................................................................................................... 20
SECTION 6: MAINTENANCE......................................................................................................... 22
Schedule .................................................................................................................................. 22
Cleaning Exterior ...................................................................................................................... 22
Cleaning Dust Collection Drawer ............................................................................................. 22
Cleaning/Replacing Filter ......................................................................................................... 23
Cleaning Impeller ..................................................................................................................... 24
Cleaning Dust Inlet ................................................................................................................... 25
Replacing LED Bulb ................................................................................................................. 25
SECTION 7: SERVICE ................................................................................................................... 26
Troubleshooting ........................................................................................................................ 26
SECTION 8: WIRING ...................................................................................................................... 27
Wiring Safety Instructions ........................................................................................................ 27
Wiring Components .................................................................................................................. 28
Wiring Diagram......................................................................................................................... 29
SECTION 9: PARTS ....................................................................................................................... 30
Main .......................................................................................................................................... 30
Labels & Cosmetics ................................................................................................................. 32
WARRANTY & RETURNS ............................................................................................................. 33
We stand behind our machines! If you have ques­tions or need help, contact us with the information below. Before contacting, make sure you get the
serial number
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s manual with your new machine!
We
instruc­tions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the
from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the
Grizzly Technical Support
1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
Manufacture Date and Serial Number
Manufacture Date
Serial Number
-2-
Model G0888 (Mfd. Since 01/19)

Identification

To reduce your risk of serious injury, read this entire manual BEFORE

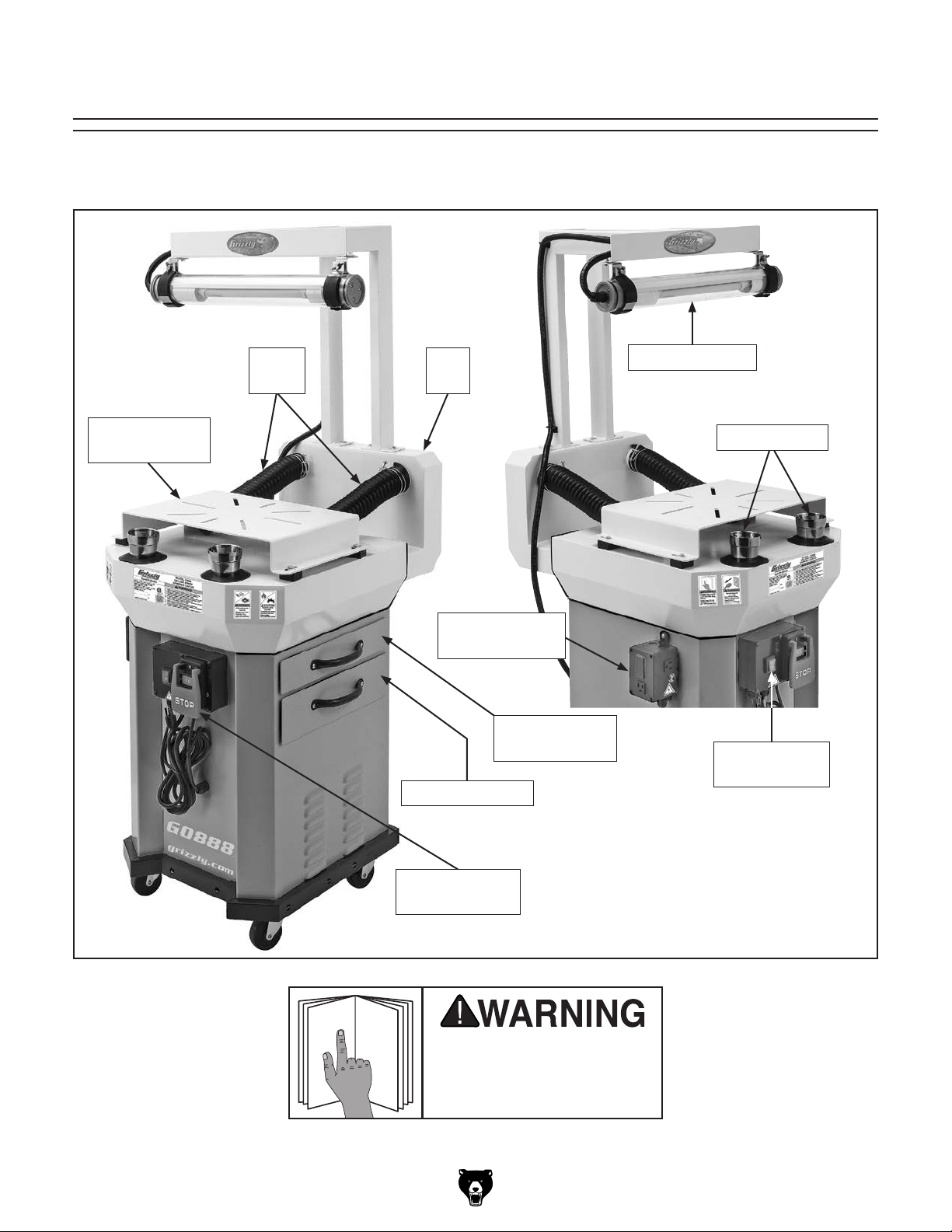

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.
Grinder
Mounting Plate
Dust
Hoses
Dust
Inlet
Auxiliary
Electrical Outlet
Dust Collection
Air Filter Drawer
Drawer
LED Work Light
Coolant Cups
LED ON/OFF
Switch
Model G0888 (Mfd. Since 01/19)
Motor ON/OFF
Switch
using machine.
-3-

Machine Data Sheet

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0888 DELUXE BENCH GRINDING STATION
Product Dimensions:
Weight ........................................................................................................................................................................... 218 lbs.
Width (side-to-side) x Depth (front-to-back) x Height .................................................................... 24-1/2 x 30-1/2 x 63-1/2 in.
Footprint (Width x Depth) .....................................................................................................................................17-1/4 x 17 in.
Shipping Dimensions:
Type ................................................................................................................................................................................... Crate
Contents ........................................................................................................................................................................ Machine
Weight ............................................................................................................................................................................ 235 lbs.
Length x Width x Height .....................................................................................................................................24 x 25 x 45 in.
Must Ship Upright .................................................................................................................................................................Yes
Electrical:
Power Requirement ........................................................................................................................ 115V, Single-Phase, 60 Hz
Full-Load Current Rating ........................................................................................................................................................ 9A
Minimum Circuit Size ........................................................................................................................................................... 15A
Connection Type ..................................................................................................................................................... Cord & Plug
Power Cord Included ............................................................................................................................................................Yes
Power Cord Length .............................................................................................................................................................10 ft.
Power Cord Gauge ....................................................................................................................................................... 14 AWG
Plug Included .......................................................................................................................................................... NEMA 5-15
Switch Type ........................................................................... ON/STOP Push Button Switch w/Large Shut-Off Safety Paddle
Motor:
Main
Horsepower ...............................................................................................................................................................1 HP
Phase .......................................................................................................................................................... Single-Phase
Amps ............................................................................................................................................................................ 9A
Speed ...............................................................................................................................................................3450 RPM
Type ................................................................................................................................ TEFC Capacitor-Start Induction
Power Transfer ...............................................................................................................................................Direct Drive
Bearings ...................................................................................................................Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type .........................................................................................................................Internal
Main Specifications:
Operation Information
Dust Collector Type ...................................................................................................................................... Single Stage
Airflow Performance ........................................................................................................................................... 280 CFM
Main Inlet Size ......................................................................................................................................................2-1/2 in.
-4-
Model G0888 (Mfd. Since 01/19)
Filter Information
Number of Filters .............................................................................................................................................................1
Total Filter Surface Area .....................................................................................................................................19 sq. ft.
Filter Type .....................................................................................................................Aluminum-Framed Pleated Filter
Filter Rating ........................................................................................................................99% of 10 Microns (MERV 9)
Filter Size (Length x Width x Thickness) ................................................................................. 14-3/4 x 14-3/4 x 2-1/2 in.
Table Information
Table Width ..............................................................................................................................................................18 in.
Table Depth ........................................................................................................................................................12-5/8 in.
Table Thickness ....................................................................................................................................................3/16 in.
Slot Width ................................................................................................................................................................ 3/8 in.
Impeller Information
Impeller Type .................................................................................................................................................... Radial Fin
Impeller Size .............................................................................................................................................................11 in.
Impeller Blade Thickness ........................................................................................................................................1/8 in.
Construction
Frame ........................................................................................................................................................................Steel
Side Walls .................................................................................................................................................................Steel
Table ..........................................................................................................................................................................Steel
Collection Drawer ......................................................................................................................................................Steel
Casters ......................................................................................................................................................................Steel
Impeller ......................................................................................................................................................................Steel
Paint Type/Finish ......................................................................................................................................Powder Coated
Other Specifications:
Country of Origin ............................................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ...................................................................................................................... 30 Minutes
Serial Number Location ..................................................................................................................................Machine ID Label
ISO 9001 Factory ................................................................................................................................................................... No
Certified by a Nationally Recognized Testing Laboratory (NRTL) ........................................................................................Yes
Features:
Two Onboard 115V Power Receptacles for Connection to Bench Grinders Built-In Mobile Base for Easy Movement Removable Clean-Out Drawer 12" LED Work Light Two Stainless-Steel Coolant Cups Work Table Mounted on Rubber Feet for Reduced Vibration
Model G0888 (Mfd. Since 01/19)
-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.
DISCONNECT POWER FIRST. nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.
EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.
Always discon-
-6-
Model G0888 (Mfd. Since 01/19)
WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to reduce your risk.
HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifica­tions—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.
FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.
NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.
MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intend­ed operation, stop using the machine! Contact our Technical Support at (570) 546-9663.
Model G0888 (Mfd. Since 01/19)
-7-

Additional Safety for Metal Dust Collectors

Long-term respiratory damage, metal toxicity, cancer, or birth defects can occur from improperly using, setting up, servicing, or using bench grinders without wearing a respirator. Explosions or fire can result if machine is used to capture incorrect materials or if dust/waste material is exposed to an ignition source. To reduce these risks, operator and bystanders MUST completely heed the warnings below.
USE FOR INTENDED PURPOSE. This metal
dust collector is only designed to capture non­combustible or non-explosible metal particles. Collect only one type of metal/material at one time. DO NOT use to capture materials made from wood or wood products. DO NOT use it to collect lead, magnesium, niobium, tantalum, tita­nium, zirconium, hafnium, asbestos, crystalline silica, gypsum, or any other non-metal products. DO NOT use to capture welding fumes, gasses, vapors, liquids, smoke, or ordinary combustible materials. DO NOT connect this dust collector to any machine using a coolant system.
WEAR PROPER PPE. Dust created from cutting, grinding, sanding, etc. may cause cancer, birth defects, or long-term respiratory damage. Be aware of the dust hazards, exposure limits, and toxicity associated with each type of workpiece material being collected. Very fine dust/particles may not be captured by filters and may become airborne in the work area. Anyone working in this same work area MUST wear a NIOSH-approved respirator and eye protection rated for the work­piece material.
TOXIC METALS. Exposure (or over-exposure) to certain types of metal dusts or fumes can result in serious, potentially deadly health effects. To reduce this risk, research toxicity of metal types you work with and always seek to minimize/elimi­nate exposure to yourself and others.
CLEANING DRAWERS. Wear safety goggles and a NIOSH-approved respirator (rated for the metal type) when emptying and cleaning col­lection drawer and dust tray. Empty only into an approved, closed-top metal container, taking care to minimize amount of dust allowed to become airborne. Prevent spread of dust onto hands or clothing. Dispose of waste properly and according to local regulations for material type.
HIGH-HAZARD MATERIAL. This machine does NOT protect against highly hazardous materials, such as lead dust, asbestos fibers, or radioactive particles. These materials MUST be collected with special filtration equipment because of their high health/contamination hazard and difficulty of filtration. DO NOT attempt to collect such materi­als with this machine.
RISK OF FIRE/EXPLOSIONS. To minimize static electrical charge, only connect with smooth­walled, sheet-metal ducting—do not use PVC. Entire collection system (collector + ductwork) must be bonded and grounded. Fine metal dust particles can ignite, depending on material type and circumstances. Know about and be prepared to safely fight a combustible metal fire by conduct­ing a combustible screening test under Chapter 4 of NFPA 484. Keep machine away from pilot lights, open flames, or other ignition sources. NEVER use near chemical fumes or within an enclosed spray booth.
-8-
SAFE OPERATING LOCATION. DO NOT place metal dust collector where it can be exposed to rain or moisture. Exposure to water creates a shock hazard and will reduce life of machine.
PROPERLY MAINTAIN MACHINE. K e e p machine in proper working condition to help ensure all guards and components function as intended. Perform routine inspections and all necessary maintenance indicated in owner’s manual. Never operate machine with damaged or worn parts. Duct must be disconnected before service. Never operate machine with filters or covers removed.
Model G0888 (Mfd. Since 01/19)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.
or equipment damage may occur if machine is not properly grounded and connected to power
The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.
The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.
If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid over­loading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.
For your own safety and protection of
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, con­sult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.
A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power sup­ply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)
This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:
process. DO NOT connect to power until
Availability
Electrocution, fire, shock,
Serious injury could occur if you connect machine to power before completing setup
instructed later in this manual.
115V Circuit Requirements
Nominal Voltage .................... 110V, 115V, 120V
Cycle .......................................................... 60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 15 Amps
supply.
Full-Load Current Rating
Full-Load Current Rating at 115V........ 9 Amps
Model G0888 (Mfd. Since 01/19)
property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.
-9-
Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding wire to a live (current carrying) terminal.
Check with a qualified electrician or service per­sonnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with a new one.
We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.
Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:
Grounding & Plug Requirements
it will not fit the outlet, have a qualified electrician install the proper outlet with a
This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.
This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Grounding Pin
5-15 PLUG
Extension Cords
If you must use an extension
Neutral Hot
Figure 1. Typical 5-15 plug and receptacle.
SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if
verified ground.
-10 -
Minimum Gauge Size ...........................12 AWG
Maximum Length (Shorter is Better).......50 ft.
Model G0888 (Mfd. Since 01/19)

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely helpful if you need to return your machine later.
get help from other people
The following items are needed, but not included, for the setup/assembly of this machine.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manu­al to become familiar with the controls and opera­tions before starting the machine!
Description Qty
Assistant ............................................................ 1
Open-End Wrench or Socket 10mm ................. 1
Safety Glasses (for each person) ............... 1 Pair
Leather Gloves (for each person) ...............1 Pair
Wear safety glasses during the entire setup process!
HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk,
and use a forklift (or other lifting equipment) rated for weight of this machine.

Unpacking

If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
Model G0888 (Mfd. Since 01/19)
-11-

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.
If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.
Stand Assembly (Figure 2) Qty
A. Stand Assembly ......................................... 1
Collection Drawer ................................... 1
—Collection Tray ........................................ 1
—Air Filter Drawer ...................................... 1
—Aluminum-Framed Air Filter .................... 1
Loose Components (Figure 3) Qty
B. LED Work Light w/Mounting Clamps ......... 1
C. Work Light Support .................................... 1
D. Dust Inlet .................................................... 1
E. Rubber Gasket ........................................... 1
F. Flexible Hoses 2
G. Grinder Mounting Plate .............................. 1
H. Hose Clamps 2
I. Swivel Casters ............................................ 2
J. Locking Swivel Casters .............................. 2
K. Coolant Cups .............................................. 2
B C
1
2 " x 11" ........................... 2
1
2 " ...................................... 4
D E
A
Figure 2. Stand assembly.
NOTICE
If you cannot find an item on this list, care­fully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpack­ing or they are pre-installed at the factory.
F
G
Figure 3. Loose component inventory.
Fasteners (Figure 4) Qty L. Hex Bolts M. Flat Washers
N. Cable Ties 6" .............................................. 3
1
4"-20 x 3⁄4" ............................... 20
1
4" ....................................... 20
L
Figure 4. Fastener inventory.
H I J K
M
N
-12-
Model G0888 (Mfd. Since 01/19)

Hardware Recognition Chart

5mm
Model G0888 (Mfd. Since 01/19)
-13-
Weight Load
Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the main­tenance and service described in this manual.
See below for required space allocation.
Physical Environment
Extreme conditions for this type of machinery are
Place this machine near an existing power source.
other hazards. Make sure to leave enough space
Shadows, glare, or strobe effects that may distract

Site Considerations

Machine Data Sheet for the weight
Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.
The physical environment where the machine is operated is important for safe operation and lon­gevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.
Electrical Installation
Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or
around machine to disconnect power supply or apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate enough that operations can be performed safely.
or impede the operator must be eliminated.
= Electrical Connection
-14-
30½"
Figure 5. Minimum working clearances.
Min. 30"
for Maintenance
24½"
42"
Model G0888 (Mfd. Since 01/19)
Wall

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to
and gather
all
To ensure the assembly process
goes smoothly, first clean any
cov­ered or coated in heavy-duty rust preventative (if applicable).
4. With help of an assistant, tilt stand upright and lock casters.
Needed for Setup
listed items.
parts that are
To assemble grinding station:
1. Carefully lay stand on its back.
2. Attach (2) locking swivel casters to front of
1
stand using (8)
1
4" flat washers, as shown in Figure 6.
4"-20 x 3⁄4" hex bolts and (8)
x 8
5. Install rubber gasket between dust inlet and stand, then secure dust inlet with (12)
3
4" hex bolts and (12) 1⁄4" flat washers (see
x
1
4"-20
Figure 8).
Dust Inlet
x 12
Gasket
Stand
Figure 8. Dust inlet attached to stand.
6. Mount work light support to top of dust inlet
1
using (4)
4"-20 x 3⁄4" hex bolts and (4) 1⁄4" flat
washers, as shown in Figure 9.
Figure 6. Locking swivel casters attached to
front of stand.
3. Attach (2) swivel casters to rear of stand
1
using (8)
4"-20 x 3⁄4" hex bolts and (8) 1⁄4" flat
washers (see Figure 7).
x 8
x 4
Work Light
Support
Dust InletHex Bolts
Figure 9. Work light support mounted to dust
inlet.
Figure 7. Swivel casters attached to rear of
Model G0888 (Mfd. Since 01/19)
stand.
-15-
7. Attach work light to support, as shown in
1
Figure 10, using (4)
1
4" flat washers.
(4)
4"-20 x 3⁄4" hex bolts and
9. Attach (2) dust hoses to dust inlets and secure
1
with (2) 2
2" hose clamps (see Figure 11).
Note: Position of work light can be adjusted
by loosening thumb screws on each mount­ing clamp, moving work light side to side or rotating it front to back, and then retightening thumb screws.
8. Use (3) included 6" cable ties to secure work light power cord (see Figure 10) to work light support.
x 4
Thumb
Screws
Work Light
(1 of 2)
Hose
Clamp
Dust
Hose
Figure 11. Dust hoses attached to dust inlets.
10. Remove (4) pre-installed hex bolts and flat washers from (4) rubber feet (see Figure 12).
11. Position grinder mounting plate (see Figure
12) on top of rubber feet, and secure with hex bolts and washers removed in Step 10.
12. Place coolant cups in rubber holders in front
of mounting plate (see Figure 12).
Power
Support
Cord
Figure 10. Work light mounted to support.
Grinder
Mounting Plate
Hex Bolts
w/Washers
(1 of 4)
Rubber
Feet
(2 of 4)
Figure 12. Grinder mounting plate installed.
-16 -
Model G0888 (Mfd. Since 01/19)

Installing Grinder

3. Place grinder on mounting plate, and align
grinder mounting holes with slots in mounting plate (see Figure 14).
The grinder mounting plate is 18" wide x 12 1⁄2 " deep and includes eight slots that will accept bolts
3
up to
To install grinder:
1. DISCONNECT MACHINE FROM POWER!
2. If grinder has rubber feet, remove them so
8" in diameter.
Do not operate grinder unless it is fastened securely to grinding station mounting plate. An improperly mounted grinder may "walk" off of station during operations, causing seri­ous machine damage and personal injury.
grinder can be securely fastened to mounting plate (see Figure 13).
Dust
Hose
(1 of 2)
4. Fasten grinder securely to mounting plate with hex bolts, flat washers, lock washers, and hex nuts, as shown in Figure 14. Ideally, front of grinder should be square with front of mounting plate.
Figure 14. Example of fasteners (not included)
used to secure grinder to mounting plate.
5. Attach dust hoses to grinder and secure with hose clamps (see Figure 13).
Fasteners
Mounting
Plate
Figure 13. Example of grinder fastened to
mounting plate.
Model G0888 (Mfd. Since 01/19)
-17-
DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine
ed results that can lead to serious injury,

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.
If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The
table in the
SERVICE section of this manual can help.
Serious injury or death can result from
The switch can be disabled and locked by insert­ing a padlock through the ON/START button, as shown. Locking the switch in this manner can prevent unauthorized operation of the machine, which is especially important if the machine is not stored inside an access-restricted building.
IMPORTANT:
only restricts its function. It is not a substitute for disconnecting power from the machine when adjusting or servicing.
Children or untrained people can be
. This
To help prevent unsupervised operation,
Troubleshooting
The Test Run consists of verifying the following: 1) The motor powers up and runs correctly.
Disabling & Locking
Switch
Locking the switch with a padlock
using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.
may result in malfunction or unexpect-
death, or machine/property damage.
To test run machine:
1. Clear all setup tools away from machine.
2. Connect machine to power supply.
3. Turn machine ON, verify motor operation,
and then turn machine OFF.
The motor should run smoothly and without
unusual problems or noises.
Shaft
ON / START
Button
OFF / STOP
Paddle
Figure 15. Switch disabled by a padlock.
seriously injured by this machine risk increases with unsupervised operation.
disable and lock the switch before leaving machine unattended! Place key in a well­hidden or secure location.
Padlock
NOTICE
The padlock shaft diameter is important to the disabling function of the switch. With any padlock used to lock the switch, test the switch after installation to ensure that it is properly disabled.
-18-
Figure 16. Lock shaft requirements.
Model G0888 (Mfd. Since 01/19)

SECTION 4: OPERATIONS

To reduce your risk of serious injury, read this entire manual BEFORE
Wear personal protective equipment to

Operation

This deluxe bench grinding station draws sparks and metal dus t into a collection drawer (see Figure
17) and discharges air through a 10-micron air fil­ter housed in a separate drawer.
The motor ON/STOP switch and LED light switch are housed in the electrical box at the front of the machine. The auxiliary electrical box on the left­hand side of the machine is equipped with two 115V outlets and a power cord to make plugging in a grinder a simple process.
using machine.
Never operate machine with damaged or worn parts. Never operate machine with drawers or filter removed.
Auxiliary
Electrical Box
Light
Switch
ON/STOP
Switch
Figure 17. Operations components.
IMPORTANT: Wear NIOSH-approved respirator,
ANSI-approved safety goggles and leather gloves whenever checking or emptying collection drawer or air filter drawer. Keep metal dust off clothing and skin.
Collection
Drawer
Air Filter
Drawer
Eye and face injuries and respiratory prob­lems can occur while operating this tool.
reduce your risk from these hazards.
To use bench grinding station:
1. Attach grinder (not provided) to mounting
plate.
2. Connect dust hose(s) to grinder and secure with hose clamps.
3. Connect auxiliary electrical outlet to power.
4. Plug grinder into auxiliary electrical outlet.
If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable for accidents caused by lack of training.
Model G0888 (Mfd. Since 01/19)
5. Connect grinding station to power.
6. Turn grinding station ON.
7. Turn grinder ON and perform operation.
8. When operation is complete, turn grinder
OFF, then turn grinding station OFF.
-19 -

SECTION 5: ACCESSORIES

Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for additional recommended accessories.
Basic Eye Protection
T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20451—“Kirova” Clear Safety Glasses T20452—“Kirova” Anti-Reflective S. Glasses T28175—Stealth Safety Goggles
T20502
H2499—Small Half-Mask Respirator H3631—Medium Half-Mask Respirator H3632—Large Half-Mask Respirator H3635—Cartridge Filter Pair P100
Metal dust has been linked to nasal cancer and severe respiratory illnesses. If you work around dust every day, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!
H3635
H3631
T20452
T20503
T28175
Figure 19. Assortment of basic eye protection.
T21273—Golden Cowhide Gloves, Medium T21274 —Golden Cowhide Gloves, Large T21275 —Golden Cowhide Gloves, Extra Large
These full suede cowhide gloves feature a rein­forced patch on the palm, easy-on cuffs with elas­tic wrist, a pieced fabric hem, an out-seam index finger, a leather welt at the base of the middle and ring fingers, an ergonomic keystone thumb design, and pile thermal insulation.
T20451
Figure 18. Half-mask respirator and disposable
cartridge filters.
T31561—Replacement Air Filter
This pleated air filter is aluminum-framed and fits directly on the G0888 Deluxe Bench Grinding Station.
Figure 20. Cowhide leather gloves.
-20-
Model G0888 (Mfd. Since 01/19)
order online at www.grizzly.com or call 1-800-523-4777
H5891, H5892 Diamond Dressers
Industrial diamond for dressing grinding wheels. 8¼" long round body with knurled grip for maxi­mum control. Includes protective rubber end cap.
Model H5891 ¼ Carat. Model H5892 ¾ Carat.
T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'
This Heavy-Duty Anti-Fatigue Mat features bev­eled edges and no-slip tread for safety and comfort. Open-hole design allows liquid to drain through, so it's perfect for wet or oily conditions.
3
Measures 3' wide x 5' long x
⁄8" thick.
Figure 21. H5891 & H5892 Diamond Dressers.
H5944—#0 Wheel Dresser H5945—#1 Wheel Dresser H5946—#2 Wheel Dresser
Exposes new grains for aggressive cutting on all types of grinding wheels. Star wheels and discs are hardened steel. Cast iron handle provides stabilizing mass for better control.
Figure 22. Rotary-type dressing tools.
Figure 23. T10456 Anti-Fatigue Mat.
H4978—Deluxe Earmuffs - 27dB H4979—Twin Cup Hearing Protector - 29dB T20446—Classic Earplugs, 200-pair - 31dB
Protect yourself comfortably with a pair of cush­ioned earmuffs. Especially important if you or employees operate for hours at a time.
H4978
T20446
H4979
Figure 24. Hearing protection.
Model G0888 (Mfd. Since 01/19)
-21-

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed. See Page 23 for air filter cleaning instructions.
Ongoing
To maintain a low risk of injury and proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations:
Loose mounting bolts.
Check/empty dust collection drawer.
Check/replace filter.
Worn or damaged wires.
Any other unsafe condition.
power before adjustments, maintenance, or service.

Cleaning Exterior

To clean the exterior of Model G0888, wipe off dust with a dry cloth.
Cleaning Dust
Monthly Check
Empty dust collection drawer and clean grinder mounting plate. Inspect and clean inside dust inlet.
Every 35–40 Hours
Clean pleated air filter.
Every 300 Hours
Replace pleated air filter every 300 hours or sooner if cleaning filter no longer improves airflow.
Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and leath­er gloves when removing, cleaning, and replacing filter. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or cloth­ing. Dispose of all waste properly according to local regulations for material type.
Collection Drawer
Frequently monitor and empty collection drawer during operations (see Figure 25). Wear NIOSH­approved respirator, ANSI-approved safety gog­gles, and leather gloves when inspecting or emp­tying drawer.
Dust
Collection
Drawer
Air Filter
Drawer
Figure 25. Location of dust collection drawer.
-22-
Model G0888 (Mfd. Since 01/19)
Cleaning/Replacing
Replacing Filter
1. DISCONNECT MACHINE FROM POWER!
Filter
The pleated air filter needs regular cleaning. Replace every 300 hours or when airflow per­formance becomes noticeably reduced despite cleaning.
Wear ANSI-approved safety goggles, a NIOSH-approved respirator, and protec­tive gloves when removing, cleaning, and replacing filter. Carefully minimize amount of dust allowed to become airborne, and prevent spread of dust onto hands or cloth­ing. Dispose of all waste properly according to local regulations for material type.
Cleaning Filter
Always clean filter outdoors when possible! However, take special care to avoid contaminat­ing the environment. When cleaning filter, always inspect for damage and replace filter if ANY dam­age or tears are found.
2. Wear NIOSH-approved respirator, ANSI­approved goggles, and protective gloves while handling filter.
3. Completely remove filter drawer (see Figure
26).
Figure 26. Air filter and components.
4. Pull filter straight up out of drawer, and take
note of airflow direction.
Initially clean filter by carefully tapping caked­on dust into an enclosed container to minimize release of dust into the air, then follow the instruc­tions provided below.
IMPORTANT: DO NOT use compressed air to clean filter—especially if indoors—as it will likely cause a large amount of fine dust to become air­borne.
Clean with a soft bristle brush and vacuum with a shop vacuum equipped with a HEPA filter.
5. Replace filter, then insert drawer into machine stand.
Model G0888 (Mfd. Since 01/19)
-23-

Cleaning Impeller

The impeller normally requires no maintenance, but the blades can accumulate metal dust that can adversely affect impeller balance. Removing the motor/impeller assembly allows cleaning and inspection of the impeller blades.
Tools Needed Qty
Open-End Wrench or Socket 10mm ................. 1
Soft Bristle Brush .............................................. 1
Shop Vacuum with HEPA Filter
and Non-Conductive Hose ................................ 1
NIOSH-Approved Respirator ............................. 1
ANSI-Approved Safety Goggles ........................ 1
Leather Gloves ...........................................1 Pair
To clean impeller and inspect motor shaft:
1. DISCONNECT MACHINE FROM POWER!
5. Remove motor/impeller assembly from stand.
6. Use a soft bristle brush and dry rag to remove
dust from impeller blades and impeller hous­ing. Inspect impeller for damage and replace if necessary.
— Use only NFPA 484-compliant shop vac-
uum with HEPA filter and non-conductive hose to vacuum debris inside housing. DO NOT use compressed air. Dust particles can become airborne and cause injury.
7. Replace motor/impeller and secure with fas­teners removed in Step 4.
2. Put on NIOSH-approved respirator, ANSI­approved safety goggles, and leather gloves.
3. Lay out clean cardboard sheet, then gently lay machine on its back.
4. Remove (12) hex bolts and washers from motor mounting plate (see Figure 27).
Motor
Mounting
Plate
Figure 27. Hex bolts and washers secure motor/
impeller assembly to stand.
-24-
Model G0888 (Mfd. Since 01/19)

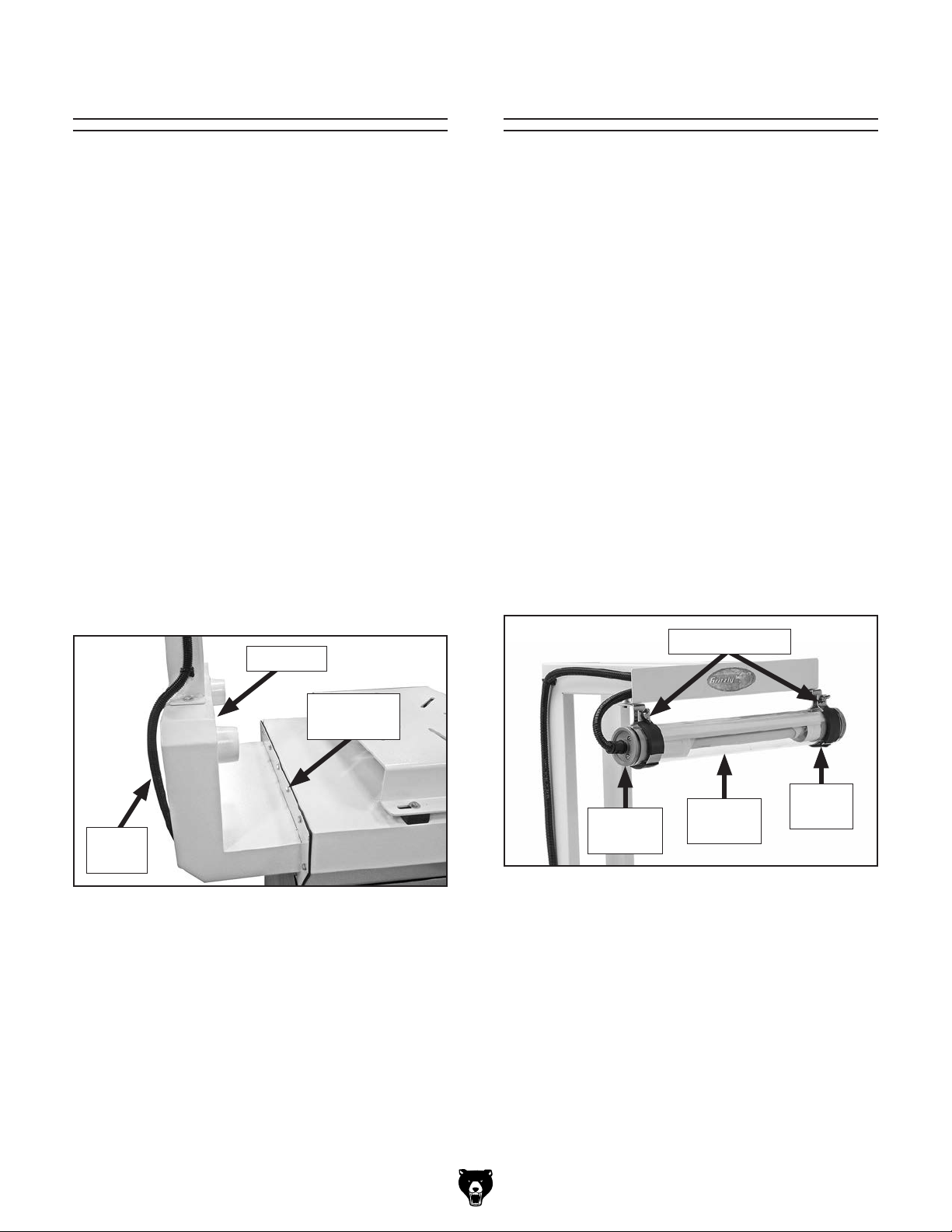

Replacing LED BulbCleaning Dust Inlet

Inspect the dust inlet monthly and clean as necessary.
Items Needed Qty
Open-End Wrench or Socket 10mm ................. 1
Soft Bristle Brush .............................................. 1
To clean dust inlet:
1. DISCONNECT MACHINE FROM POWER!
2. Wear NIOSH-approved respirator, ANSI-
approved goggles, and leather gloves.
3. Detach dust hoses from dust inlet.
1
4. Remove (12) flat washers securing dust inlet to stand (see Figure 28).
Note: Be careful not to damage work light
power cord. It may be necessary to remove cable ties securing power cord to support.
4"-20 x 3⁄4" hex bolts and 1⁄4"
Depending on frequency of usage, the LED bulb will have to be replaced from time to time.
Items Needed Qty
Phillips Head Screwdriver #2 ............................ 1
Replacement Bulb PN P0888024-1 .................. 1
To replace LED bulb:
1. DISCONNECT MACHINE FROM POWER!
2. Remove (3) screws (see Figure 29) securing
end cap to acrylic cylinder where power cord enters.
3. Loosen thumb screws (see Figure 29) on both clamps and remove work light from clamps.
Note: It will be helpful to have an assistant
hold the work light at this point while you replace the bulb.
Dust Inlet
Hex Bolts
w/Washers
Power
Cord
Figure 28. Dust inlet and components.
5. Use soft bristle brush and dry/damp rag to
remove accumulated metal dust inside inlet and stand.
6. Re-install dust inlet on stand with fasteners removed in Step 4, and secure work light power cord to support using new cable ties.
7. Re-attach dust hoses to inlet and secure with hose clamps.
Thumb Screws
End Cap
(1 of 2)
Figure 29. LED work light assembly.
4. Hold work light at end with power cord, and
gently slide acrylic cylinder off of assembly.
5. Remove old bulb and slide new bulb into place.
6. Slide acrylic cylinder back onto work light assembly, press end cap into place, and re­install (3) screws removed in Step 2.
7. Position work light in clamps and tighten thumb screws to secure.
Acrylic
Cylinder
Clamp
(1 of 2)
Model G0888 (Mfd. Since 01/19)
-25-
Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
the
serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Symptom Possible Cause Possible Solution
Machine does not start or a breaker trips immediately after startup.
Machine has vibration or noisy operation.
Machine does not adequately collect dust or chips; poor performance.
1. Power supply circuit breaker tripped or fuse blown.
2. Motor wires connected incorrectly.
3. Plug/receptacle at fault/wired incorrectly.
4. Wiring open/has high resistance.
5. ON/OFF switch at fault.
6. Start capacitor at fault.
7. Centrifugal switch/contact points at fault.
8. Motor at fault.
1. Debris caught in impeller.
2. Motor or component loose.
3. Motor fan rubbing on cover.
4. Motor mount loose/broken.
5. Motor bearings at fault.
6. Motor shaft bent.
7. Machine not on a flat surface, wobbles.
8. Impeller damaged or unbalanced.
9. Impeller loose on motor shaft.
1. Collection drawer is full.
2. Filter is dirty/clogged.
3. Dust inlet is dirty/clogged.
4. Leak in dust hose connection.
1. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.
2. Correct motor wiring connections (Page 27).
3. Test for good contacts; correct the wiring.
4. Check/fix broken, disconnected, or corroded wires.
5. Replace switch.
6. Test/replace.
7. Adjust/replace centrifugal switch/contact points.
8. Test/repair/replace.
1. Inspect impeller for debris or damage (Page 24).
2. Inspect/replace damaged bolts/nuts, and retighten with thread-locking fluid.
3. Fix/replace fan cover; replace loose/damaged fan.
4. Tighten/replace.
5. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.
6. Test with dial indicator. Replace motor if damaged.
7. Stabilize machine.

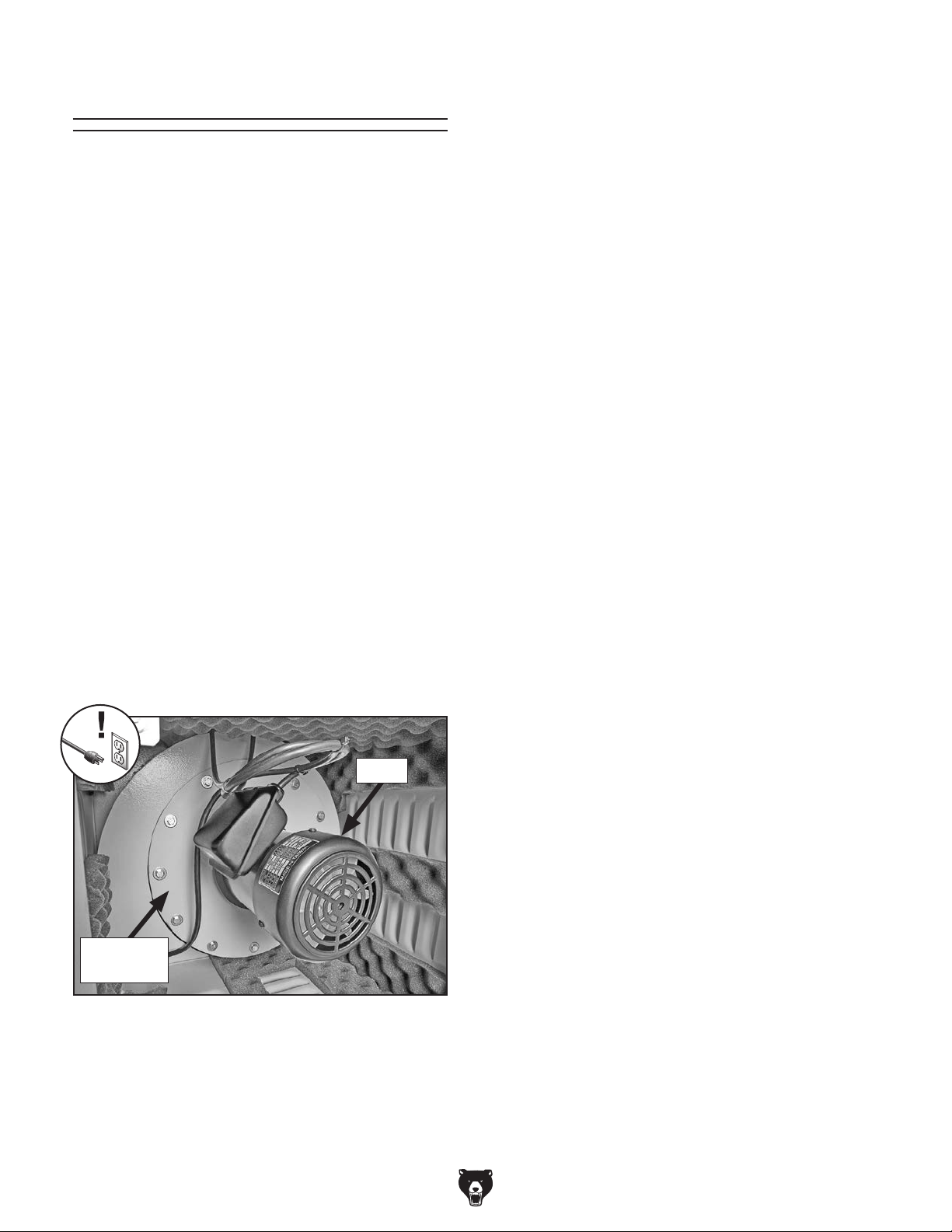

8. Disconnect machine from power. Inspect impeller for dents, bends, or loose fins. Replace impeller if damaged.
9. Secure impeller; replace motor and impeller as a set if motor shaft and impeller hub are damaged.
1. Empty collection drawer (Page 22).
2. Clean filter; replace with new filter if performance does not improve (Page 23).
3. Clean dust inlet (Page 25).
4. Seal leak.
-26-
Model G0888 (Mfd. Since 01/19)
These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one
number and manufacture date of your
machine before calling. This information can be found on the main machine label.

SECTION 8: WIRING

stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical com­ponents!
MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire. This includes the installation of unapproved after­market parts.
WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires dis­connected or connected during any wiring task to ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.
MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.
CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.
EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.
The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.
Model G0888 (Mfd. Since 01/19)
-27-

Wiring Components

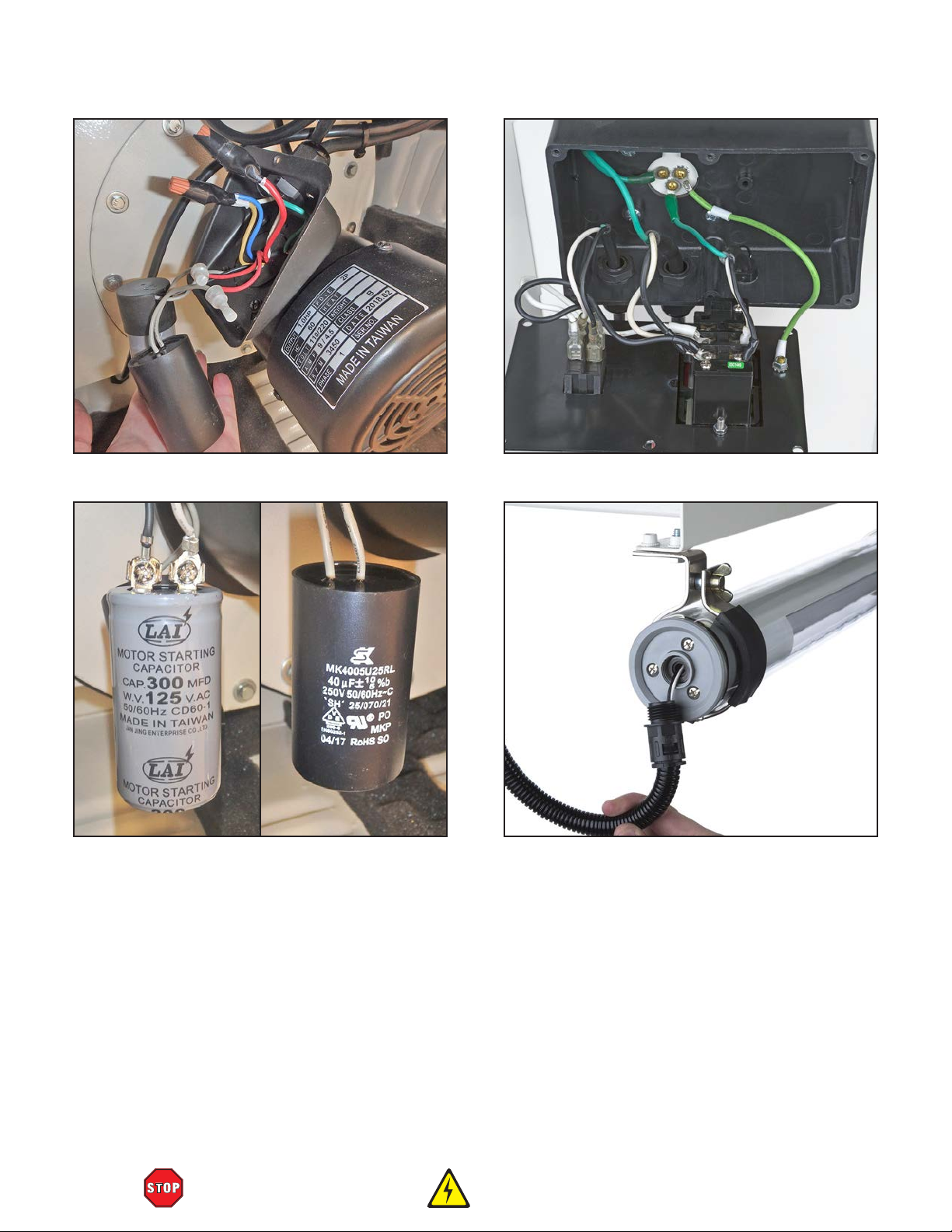

Figure 32. Switch box wiring.Figure 30. Motor junction box wiring.
-28-
READ ELECTRICAL SAFETY
ON PAGE 27
Figure 33. LED light wiring.Figure 31. Start and run capacitors.
Model G0888 (Mfd. Since 01/19)
The motor wiring shown here is
use the wiring diagram inside the
Ground

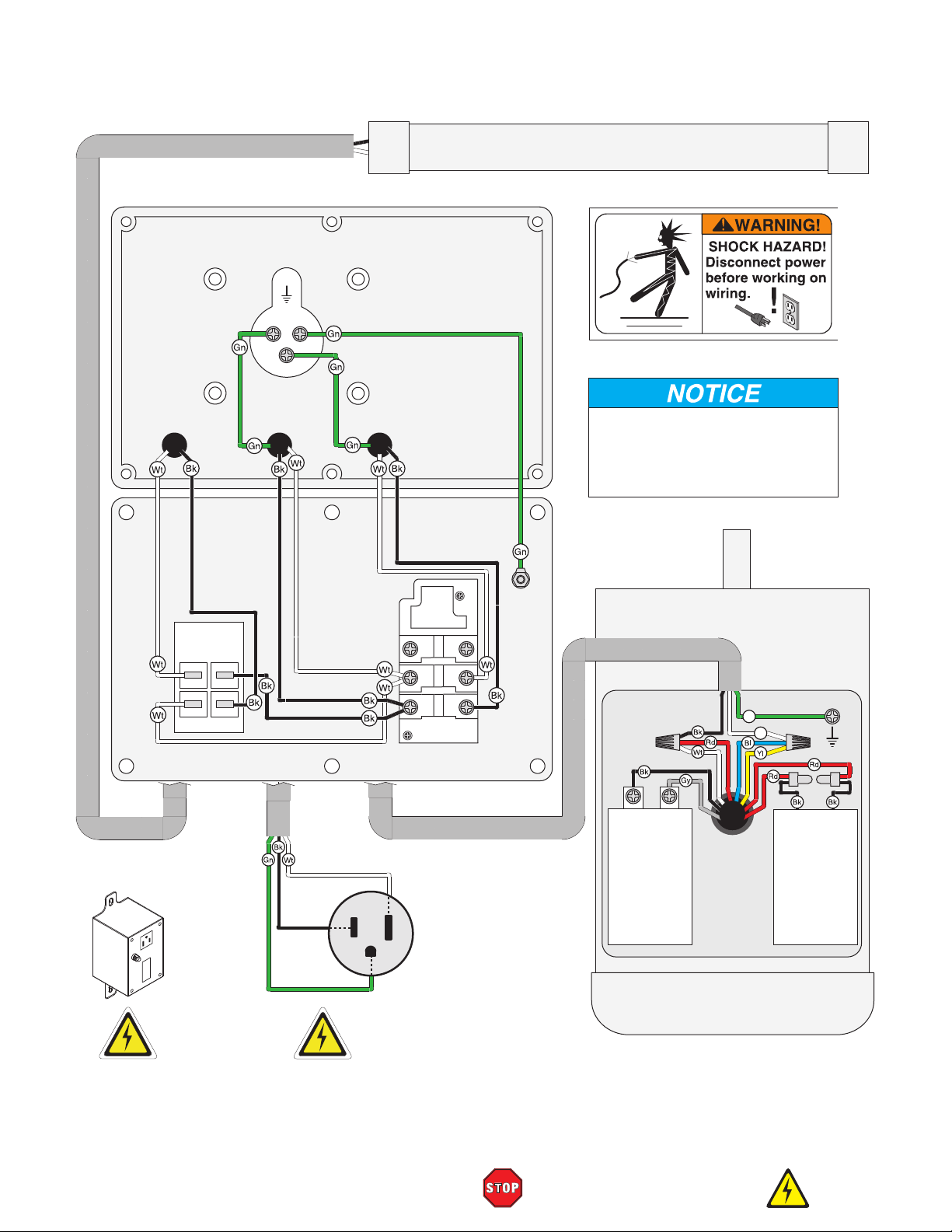

Wiring Diagram

LED Light
110V 5W
Auxiliary
Electrical Box
LED WORK LIGHT
ON/OFF SWITCH
TRANSMIT TR26 16A
2A21A
2
To Power CordTo LED Light
To Motor
current at the time of printing, but it may not match your machine. Always
motor junction box.
LOAD
Start
Capacitor
300MFD 125VAC
MOTOR 115V
Ground
Gn
Wt
Run
Capacitor
40 uF
250VAC
Hot
Neutral
LINE
KEDU HY56
MOTOR ON/OFF
SWITCH
115 VAC
5-15 Plug
(Included)
Model G0888 (Mfd. Since 01/19)
Ground
115 VAC
5-15 Plug
READ ELECTRICAL SAFETY
ON PAGE 27
-29-
7

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.

Main

82
85
86
37
36
35
31
45
39 38
58-3
58-5
58-7
32
58-1
87
58-2
58-4
58-6
58-8
58-9
44
87
88
48
67 66 65
64
63 62
61
60
59
34
23
33
24
47
43 42 41
40
24-1
19
57 56
18
46
70-1
76 71
73
58
68 69
20
53
53-1
70
25 26 27
72
84
74
84
2
3
4
1
75
51
54
83
53-1
5 6
50
84
52
28 30
29
22 21
49
8 9 10
81
11
12 13
55
80
17
79
15
16
14
77
78
77
78
-30-
BUY PARTS ONLINE AT GRIZZLY. COM !
Scan QR code to visit our Parts Store.
Model G0888 (Mfd. Since 01/19)
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0888001 STAND 50 P0888050 DUST HOSE 2-1/2" X 11" (RUBBER) 2 P0888002 CASTER 3" SWIVEL (LOCKING) 51 P0888051 HOSE CLAMP 2-1/2" 3 P0888003 FLAT WASHER 1/4 52 P0888052 LOCK NUT 1/4-20 4 P0888004 HEX BOLT 1/4-20 X 3/4 53 P0888053 AUXILIARY ELECTRICAL BOX 5 P0888005 CASTER 3" SWIVEL (LOCKING) 53-1 P0888053-1 CIRCUIT BREAKER ZING EAR ZE-700S-7 7A 6 P0888006 FLAT WASHER 1/4 54 P0888054 PHLP HD SCR 1/4-20 X 3/4 7 P0888007 HEX BOLT 1/4-20 X 3/4 55 P0888055 LOCK NUT 1/4-20 8 P0888008 CASTER 3" SWIVEL 56 P0888056 FLAT WASHER 1/4 9 P0888009 FLAT WASHER 1/4 57 P0888057 HEX BOLT 1/4-20 X 3/4 10 P0888010 HEX BOLT 1/4-20 X 3/4 58 P0888058 MOTOR 1HP 115V 1-PH 11 P0888011 CASTER 3" SWIVEL 58-1 P0888058-1 MOTOR FAN COVER 12 P0888012 FLAT WASHER 1/4 58-2 P0888058-2 MOTOR FAN 13 P0888013 HEX BOLT 1/4-20 X 3/4 58-3 P0888058-3 R CAPACITOR 40M 250V 2-1/2 X 1-1/2 14 P0888014 COLLECTION TRAY 58-4 P0888058-4 S CAPACITOR 200M 125V 2-3/8 X 1-3/8 15 P0888015 COLLECTION DRAWER 58-5 P0888058-5 CENTRIFUGAL SWITCH 16 P0888016 PLEATED AIR FILTER, ALUMINUM-FRAMED 58-6 P0888058-6 CONTACT PLATE 17 P0888017 AIR FILTER DRAWER 58-7 P0888058-7 BALL BEARING 6205ZZ (FRONT) 18 P0888018 TABLE 58-8 P0888058-8 BALL BEARING 6202ZZ (REAR) 19 P0888019 GASKET (RUBBER) 58-9 P0888058-9 MOTOR JUNCTION BOX 20 P0888020 DUST INLET 59 P0888059 MOTOR MOUNT GASKET 21 P0888021 FLAT WASHER 1/4 60 P0888060 MOTOR MOUNTING PLATE 22 P0888022 HEX BOLT 1/4-20 X 3/4 61 P0888061 LOCK WASHER 1/4 23 P0888023 WORK LIGHT MOUNT 62 P0888062 FLAT WASHER 1/4 24 P0888024 WORK LIGHT ASSEMBLY 63 P0888063 HEX BOLT 1/4-20 X 3/4 24-1 P0888024-1 WORK LIGHT (LED) PHENIX LEDT81 110V 5A 64 P0888064 IMPELLER 11" 25 P0888025 WORK LIGHT MOUNT 65 P0888065 BUSHING 26 P0888026 FLAT WASHER 1/4 66 P0888066 FLAT WASHER 5/16 27 P0888027 HEX BOLT 1/4-20 X 3/4 67 P0888067 HEX BOLT 5/16-18 X 3/4 LH 28 P0888028 WORK LIGHT SUPPORT 68 P0888068 FLAT WASHER 1/4 29 P0888029 FLAT WASHER 1/4 69 P0888069 HEX BOLT 1/4-20 X 3/4 30 P0888030 HEX BOLT 1/4-20 X 3/4 70 P0888070 SWITCH BOX 31 P0888031 BUSHING (RUBBER) 70-1 P0888070-1 SWITCH BOX COVER 32 P0888032 BUSHING (RUBBER) 71 P0888071 LED ON/OFF SWITCH TRANSMIT TR26 125V 16A 33 P0888033 BUSHING (RUBBER) 72 P0888072 MOTOR ON/OFF SWITCH KEDU HY56 120V 35A 34 P0888034 BUSHING (RUBBER) 73 P0888073 PHLP HD SCR M4-.7 X 25 35 P0888035 GRINDER MOUNTING PLATE 74 P0888074 LOCK WASHER 4MM 36 P0888036 FLAT WASHER 1/4 75 P0888075 HEX NUT M4-.7 37 P0888037 HEX BOLT 1/4-20 X 1-1/2 76 P0888076 TAP SCREW M5 X 12 38 P0888038 FLAT WASHER 1/4 77 P0888077 DRAWER HANDLE 39 P0888039 HEX BOLT 1/4-20 X 1-1/2 78 P0888078 PHLP HD SCR M4-.7 X 12 40 P0888040 FLAT WASHER 1/4 79 P0888079 POWER CORD 14G 3W 10' 5-15P 41 P0888041 HEX BOLT 1/4-20 X 1-1/2 80 P0888080 AUX POWER CORD 14G 3W 8' 5-15P 42 P0888042 FLAT WASHER 1/4 81 P0888081 MOTOR CORD 18G 3W 30" 43 P0888043 HEX BOLT 1/4-20 X 1-1/2 82 P0888082 LED LIGHT CORD 18G 3W 8' 44 P0888044 COOLANT CUP (SS) 83 P0888083 STRAIN RELIEF TYPE-1 5/8 45 P0888045 COOLANT CUP (SS) 84 P0888084 STRAIN RELIEF TYPE-3 PG11 46 P0888046 HOSE CLAMP 2-1/2" 85 P0888085 STRAIN RELIEF TYPE-5 PG15.8 47 P0888047 DUST HOSE 2-1/2" X 11" (RUBBER) 86 P0888086 CORRUGATED SLEEVE 5' 48 P0888048 HOSE CLAMP 2-1/2" 87 P0888087 CUP HOLDER (RUBBER) 49 P0888049 HOSE CLAMP 2-1/2" 88 P0888088 CABLE TIE 6"
Model G0888 (Mfd. Since 01/19)
BUY PARTS ONLINE AT GRIZZLY. COM !
Scan QR code to visit our Parts Store.
-31-
G0888

Labels & Cosmetics

REF PART # DESCRIPTION REF PART # DESCRIPTION
111
109
WARNING!
To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.
110
INJURY/SHOCK
HAZARD! Disconnect power before adjustments, maintenance, service, or opening.
101
Specifications
Motor: 1 HP, 115V, 1-Ph, 60 Hz, 9A Filter Size: 14-3/4" x 14-3/4" x 2-1/2" Filter: 99% of 10 Microns (MERV 9) Airflow Performance: 280 CFM Main Inlet Size: 2-1/2" Impeller: 11" x 1/8" Weight: 218 lbs.
Mfd. for Grizzly in Taiwan
104
105
Date
Serial #
MODEL G0888
DELUXE BENCH
GRINDING STATION
To reduce risk of serious personal injury when using:
265752
10. Prevent unauthorized use by children or untrained users.
WARNING!
1. Read and understand owner’s manual before operating.
2. Always wear approved eye protection and respirator.
3. Only plug power cord into a grounded outlet.
4. Disconnect power before servicing or changing filter.
5. Remove dust/chips at the end of each day.
6. Do not expose to rain or use in damp areas.
7. Do not make unapproved modifications to bench grinding station, or use without filter in place.
8. Never leave machine unattended during operation.
9. Do not use if cord, plug, or any other electrical equipment becomes damaged—promptly repair!
102
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety glasses and a respirator when using this machine.
103
CAUTION!
FIRE/EXPLOSION
HAZARD!
To minimize risk, ensure machine is properly set up, cleaned, and only used to collect non-combustible metals.
106
108
107
grizzly.com
101 P0888101 MACHINE ID LABEL 107 P0888107 GRIZZLY.COM LABEL 102 P0888102 GLASSES/RESPIRATOR LABEL 108 P0888108 MODEL NUMBER LABEL 103 P0888103 EXPLOSION HAZARD LABEL 109 P0888109 READ MANUAL LABEL 104 P0888104 TOUCH-UP PAINT, GRIZZLY PUTTY 110 P0888110 DISCONNECT POWER LABEL 105 P0888105 TOUCH-UP PAINT, GRIZZLY GREEN 111 P0888111 GRIZZLY NAMEPLATE (MINI) 106 P0888106 ELECTRICITY LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
106
-32-
BUY PARTS ONLINE AT GRIZZLY. COM !
Scan QR code to visit our Parts Store.
Model G0888 (Mfd. Since 01/19)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To
warranty-card
registration page
take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/
, or you can scan the QR code below to be automatically directed to our warranty
. Enter all applicable information for the product.
WARRANTY
Loading...
