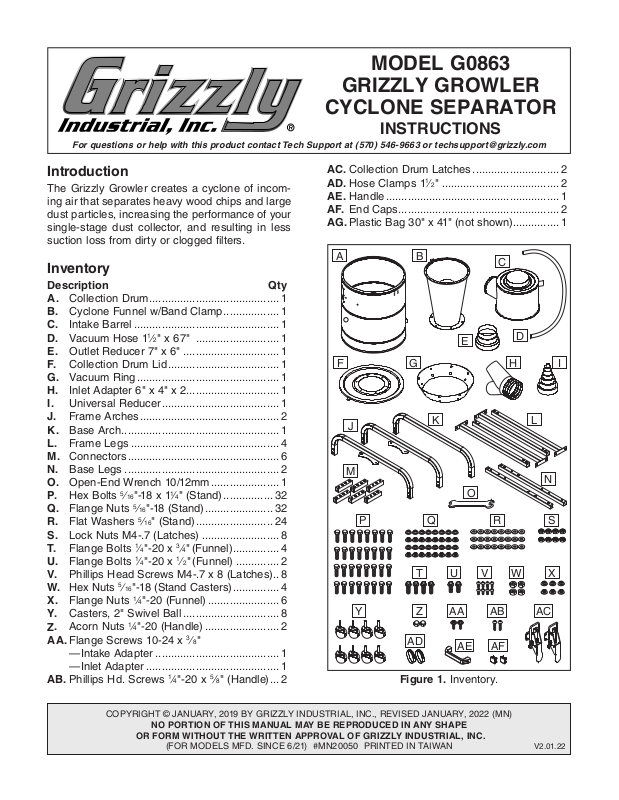

Grizzly G0863 User guide

MODEL G0863

GRIZZLY GROWLER

CYCLONE SEPARATOR

INSTRUCTIONS

For questions or help with this product contact Tech Support at [phone] or [e-mail]

. Collection Drum Latches ............................ 2

Introduction

The Grizzly Growler creates a cyclone of incom­ing air that separates heavy wood chips and large
dust particles, increasing the performance of your
single-stage dust collector, and resulting in less
suction loss from dirty or clogged filters.

Inventory

Description Qty

A. Collection Drum .......................................... 1

Cyclone Funnel w/Band Clamp .................. 1

B.

Intake Barrel ............................................... 1

C.

Vacuum Hose 1

D.

Outlet Reducer 7" x 6" ............................... 1

E.

Collection Drum Lid .................................... 1

F.

Vacuum Ring .............................................. 1

G.

Inlet Adapter 6" x 4" x 2 .............................. 1

H.

Universal Reducer ...................................... 1

I.

Frame Arches ............................................. 2

J.

K. Base Arch ................................................... 1

L. Frame Legs ................................................ 4

M. Connectors ................................................. 6

N. Base Legs .................................................. 2

Open-End Wrench 10/12mm ...................... 1

O.

Hex Bolts 5⁄16"-18 x 11⁄4" (Stand) ................ 32

P.

Flange Nuts 5⁄16"-18 (S t and) ...................... 32

Q.

Flat Washers 5⁄16" (Stand) ......................... 24

R.

Lock Nuts M4-.7 (Latches) ......................... 8

S.

Flange Bolts 1⁄4" -20 x 3⁄4" (Funnel) ............... 4

T.

Flange Bolts 1⁄4" -20 x 1⁄2 " (Funnel) .............. 2

U.

. Phillips Head Screws M4-.7 x 8 (Latches) . . 8

V

. Hex Nuts 5⁄16" - 1 8 (Stand Casters) ............... 4

W

Flange Nuts 1⁄4" - 2 0 (Funnel) ....................... 6

X.

. Casters, 2" Swivel Ball ............................... 8

Y

. Acorn Nuts 1⁄4" -20 (Handle) ........................ 2

Z

. Flange Screws 10-24 x 3⁄8"

AA

—Intake Adapter ........................................ 1

—Inlet Adapter ........................................... 1

. Phillips Hd. Screws 1⁄4" -20 x 5⁄8" (Handle) ... 2

AB

1

⁄2 " x 67" ........................... 1

AC

. Hose Clamps 11⁄2 " ...................................... 2

AD

. Handle ........................................................ 1

AE

. End Caps .................................................... 2

AF

. Plastic Bag 30" x 41" (not shown) ............... 1

AG

A B

E

F G H I

J

M

P Q R S

Y Z

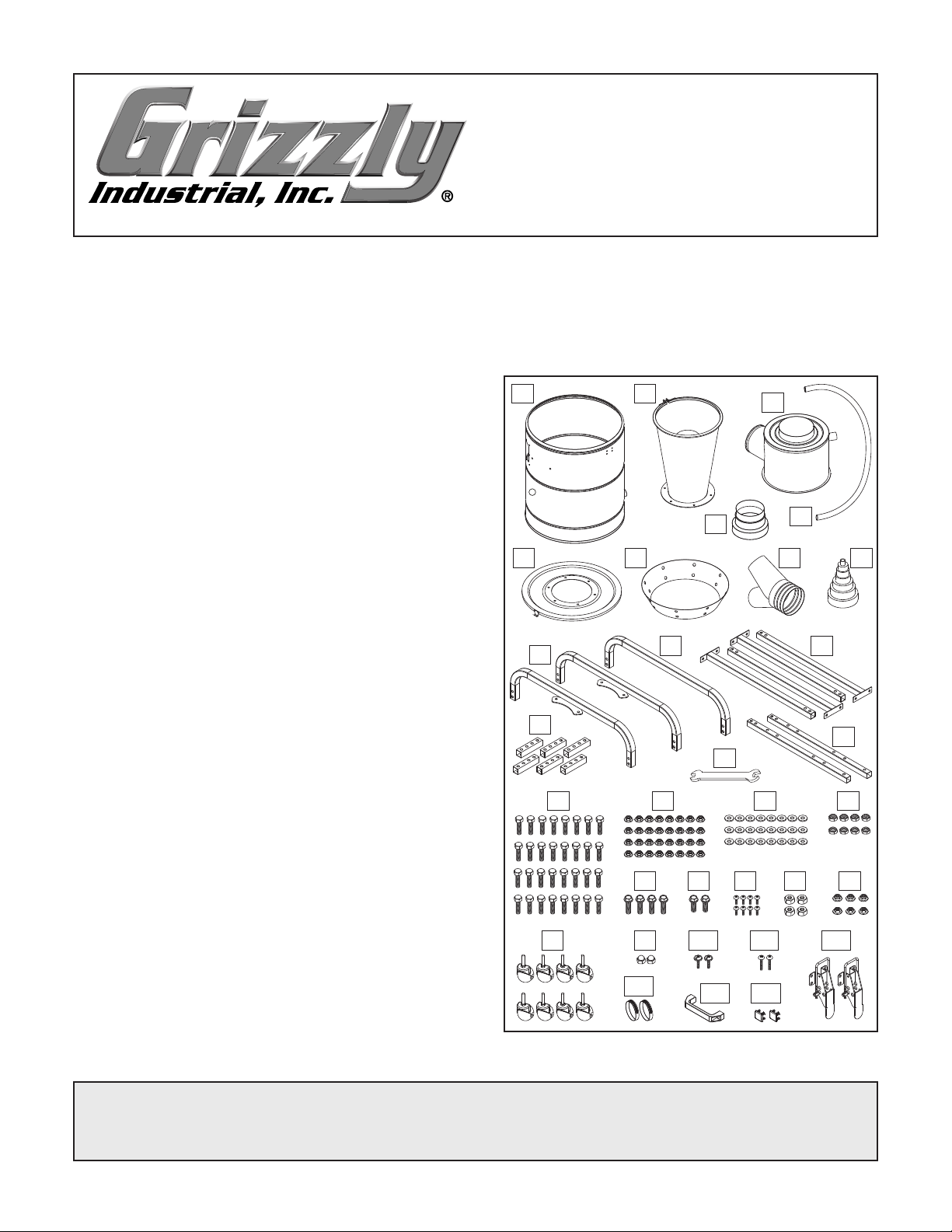

Figure 1. Inventory.

K L

O

T U V W X

AA

AD

AE

C

D

N

AB AC

AF

COPYRIGHT © JANUARY, 2019 BY GRIZZLY INDUSTRIAL, INC., REVISED JANUARY, 2022 (MN)

NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MFD. SINCE 6/21) #MN20050 PRINTED IN TAIWAN

V2.01.22

Specifications

Recommended Horsepower Range ..... 1.5– 3 HP

Airflow Range
Outlet Size
Inlet Size
Max. Material Collection Capacity

............................. 750–2300 CFM

.................................................... 7 in.

....................................................... 6 in.

............20 Gal.

Align two holes in each connector with two

2.

holes in base arch (see Figure 3) and secure

5

with (4)
washers, and

⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16" flat

5

⁄16"-18 flange nuts. Only hand-

tighten for now.

Needed for Setup

The following items are needed, but not included,
for the setup/assembly of this machine.

Description Qty

• Safety Glasses ........................................... 1

• Open-End Wrenches 7⁄16" ........................... 2

• Open-End Wrenches 7, 10mm ................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Level 36" ..................................................... 1

Wear safety glasses during
the entire setup process!

Assembly

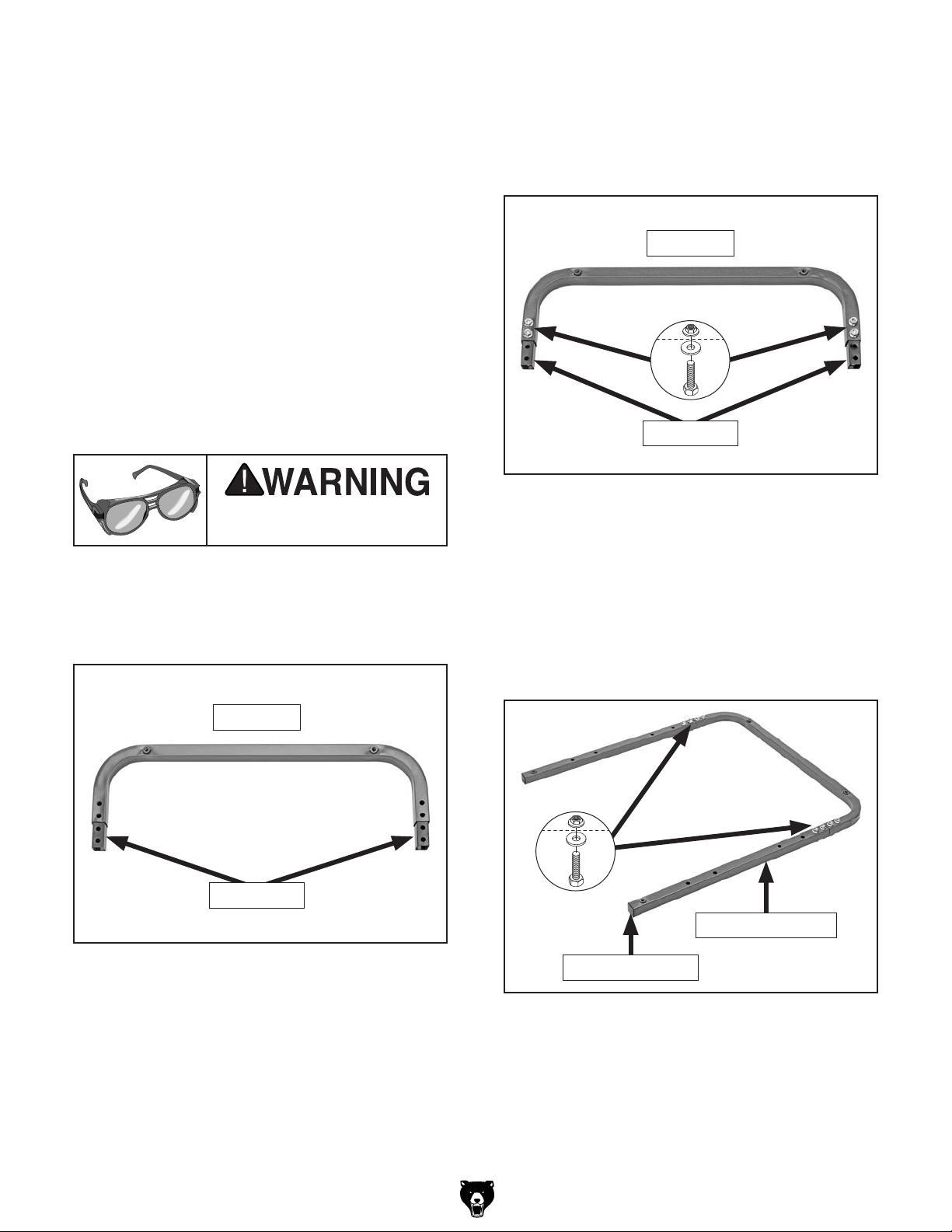

Locate base arch (see Figure 2) and install

1.

(2) connectors.

Base Arch

x 4

Connectors

Figure 3. Connectors in base arch fastened in

place.

3.

Attach (2) base legs to base arch (see Figure

4) with (4)

washers, and

5

⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16" flat

5

⁄16"-18 flange nuts. Only hand-

tighten for now.

Install (1) end cap in the end of each base leg

4.

(see Figure 4).

Base Arch

Connectors

Figure 2. Connectors installed in base arch.

x 4

Base Leg (1 of 2)

End Cap (1 of 2)

Figure 4. Base legs attached to base arch and

end caps installed in legs.

-2-

G0863 Grizzly Growler (Mfd. Since 6/21)

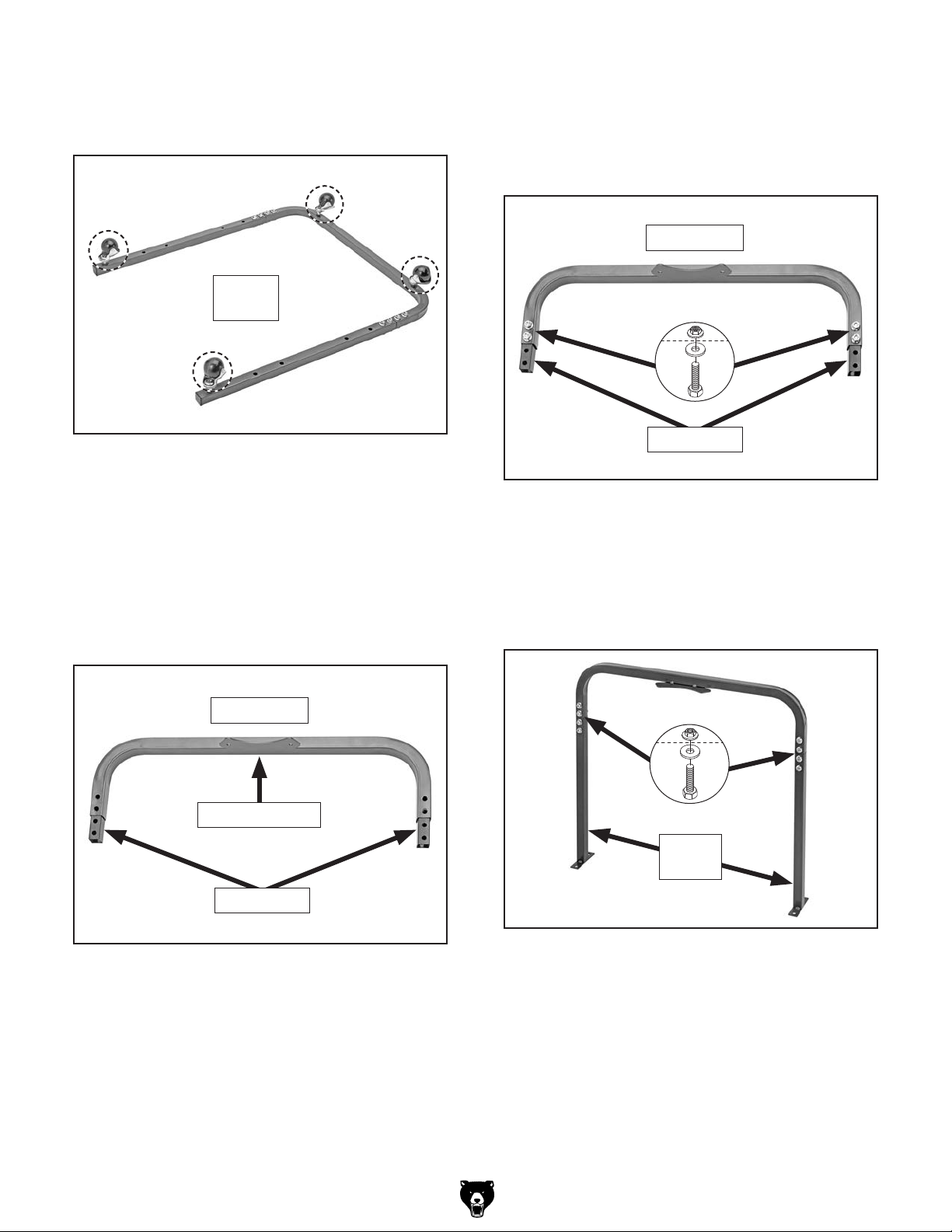

5. Install (1) 5⁄16"-18 hex nut on each of (4)
caster wheels, then install wheels on base,
as shown in Figure 5.

Caster

Wheels

8. Align two holes in each connector with two
holes in frame arch (see Figure 7) and

5

secure with (4)
flat washers, and

⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16"

5

⁄16"-18 flange nuts. Only

hand-tighten for now.

Frame Arch

x 4

Figure 5. Caster wheels installed on base.

6. Position base rightside up, and adjust wheels

until base sits level and does not rock. When
satisfied, tighten hex nuts against base to
secure position.

7.

Locate (1) frame arch (see Figure 6) and

install (2) connectors. Funnel bracket should
be facing up, as shown below.

Frame Arch

Funnel Bracket

Connectors

Figure 7. Connectors in frame arch fastened in

place.

Attach (2) frame legs to frame arch (see

9.
Figure 8) with (4) 5⁄16"-18 x 1 1⁄4" hex bolts, 5⁄16"

5

flat washers, and

⁄16"-18 flange nuts. Only

hand-tighten for now.

x 4

Frame

Legs

Connectors

Figure 6. Connectors installed in frame arch.

G0863 Grizzly Growler (Mfd. Since 6/21)

Figure 8. Frame legs attached to frame arch.

-3-

Repeat Steps 7–9 with remaining (1) frame

10.

arch, (2) frame legs, and (2) connectors.

11.

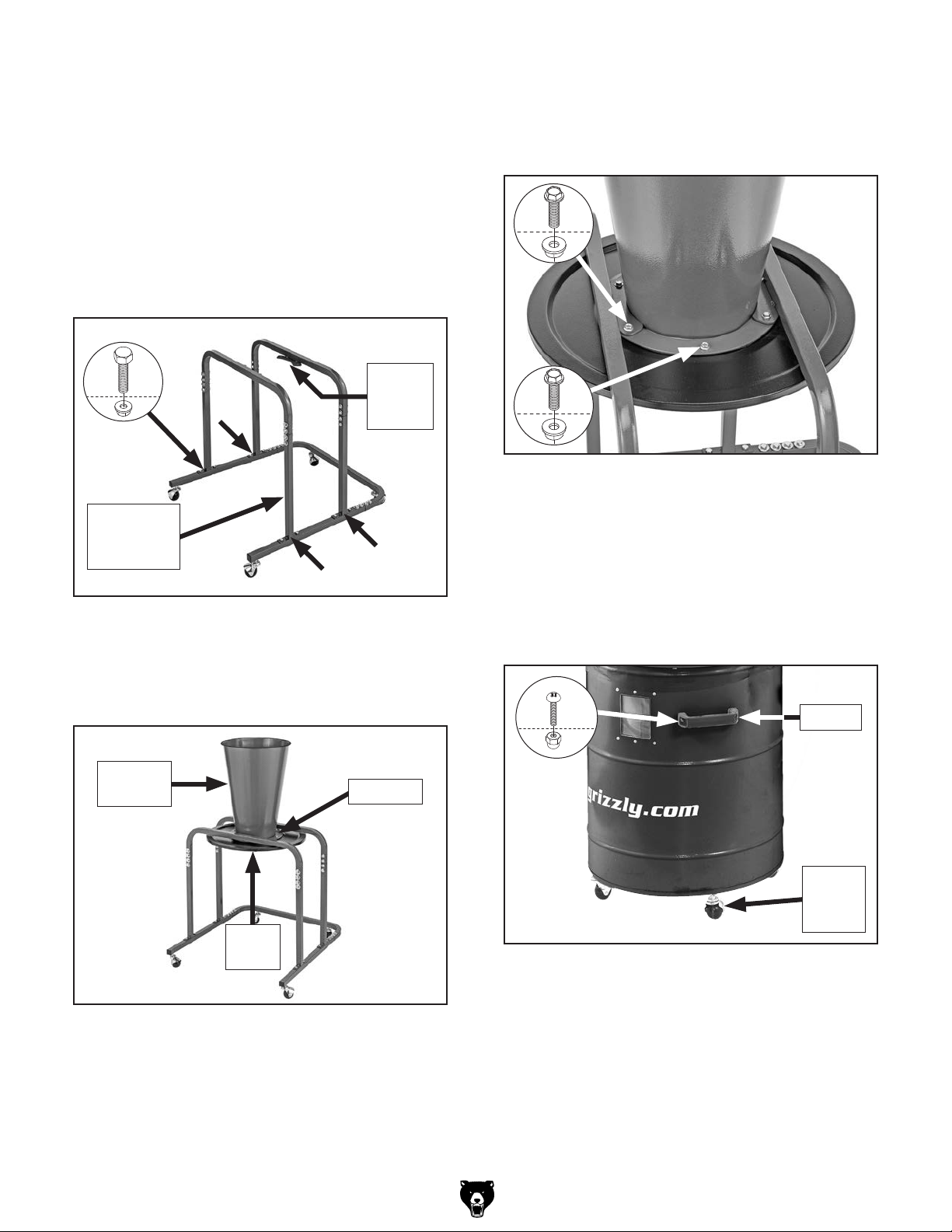

Install (2) assembled frames on base (see

Figure 9) with (8) 5⁄16"-18 x 1 1⁄4" hex bolts

5

⁄16"-18 flange nuts. Only hand-tighten for

and
now.

Note: Assembled frames must be installed

with funnel brackets facing each other, as
shown in Figure 9.

13.

Attach cyclone funnel and drum lid to funnel

brackets (see Figure 11) with (4) 1⁄4"-20 x 3⁄4"

1

flange bolts, (2)

1

⁄4"-20 flange nuts.

(6)

⁄4"-20 x 1⁄2" flange bolts, and

x 4

x 8

Funnel

Bracket

(1 of 2)

Assembled

Frame

(1 of 2)

Figure 9. Assembled frames installed on base.

12. Align holes in cyclone funnel with holes in

collection drum lid and position under funnel
brackets (see Figure 10)

Cyclone

Funnel

Brackets

x 2

Figure 11. Funnel and drum lid attached to

funnel brackets.

14. Tighten all fasteners installed in Steps 2–13.

Install (4) caster wheels on bottom of collec-

15.

tion drum. Then attach handle to drum with

1

⁄4" -20 x 5⁄8" Phillips head screws and (2)

(2)

1

⁄4" -20 acorn nuts (see Figure 12).

x 2

Handle

Drum

Lid

Figure 10. Cyclone funnel and collection drum

lid positioned on stand.

-4-

Caster
Wheel

(1 of 4)

Figure 12. Handle and caster wheels installed

on collection drum.

G0863 Grizzly Growler (Mfd. Since 6/21)

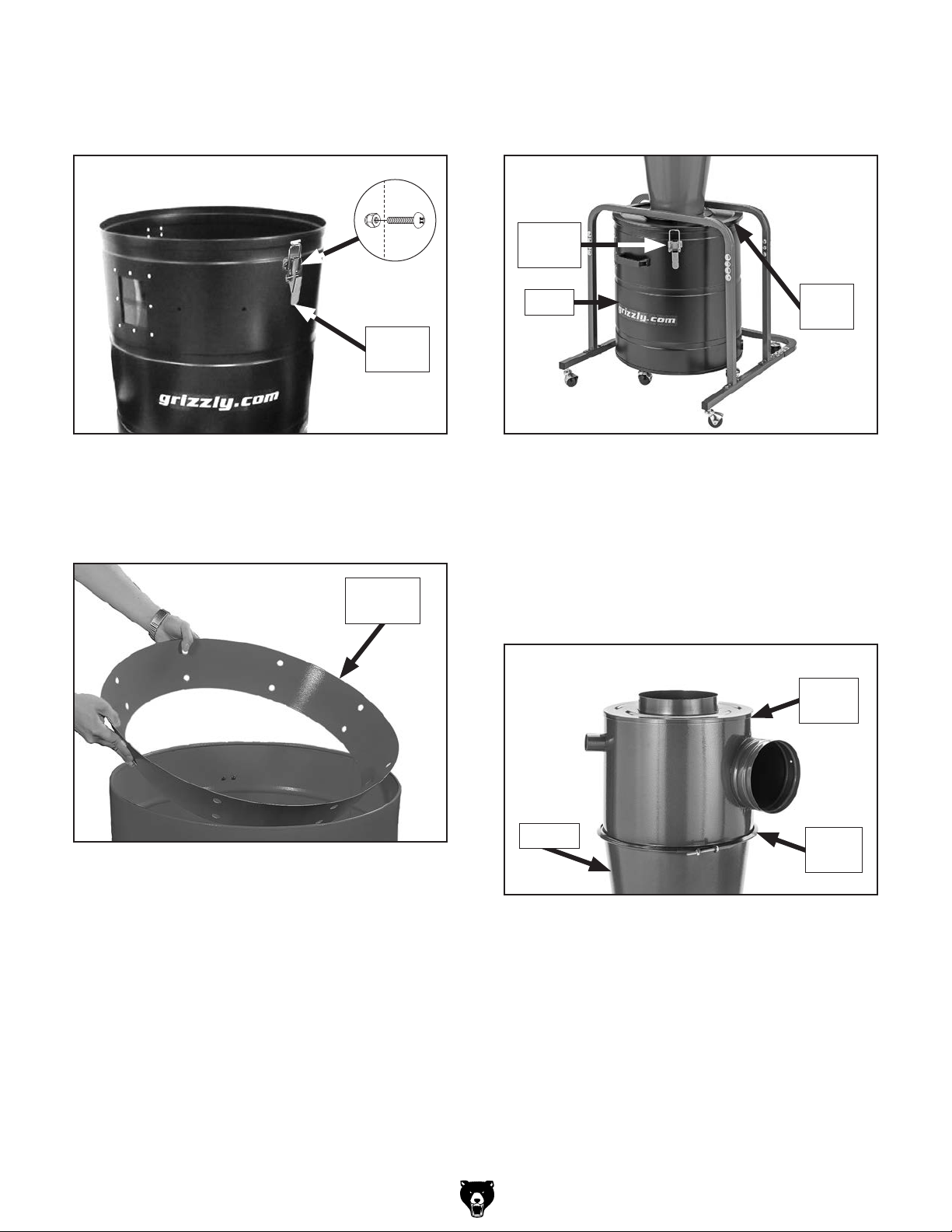

Install (2) collection drum latches with (8)

16.

M4-.7 x 8 Phillips head screws and (8) M4-.7
lock nuts (see Figure 13).

19.

Position collection drum under drum lid, hook

drum latches on lid tabs, and press latches
down to secure (see Figure 15).

x 4

Latch

(1 of 2)

Figure 13. Latches installed on collection drum.

17. Place vacuum ring inside collection drum with

smaller side of ring facing down, as shown in
Figure 14.

Vacuum

Ring

Latch

(1 of 2)

Drum

Figure 15. Collection drum secured against lid.

20. Loosen band clamp (see Figure 16) at top of

cyclone funnel to reveal metal lip.

Place intake barrel on top of funnel (see

21.
Figure 16), then position clamp so band cap-

tures lip at top of funnel and lip at bottom of
barrel. Tighten clamp to secure.

Drum

Lid

Figure 14. Placing vacuum ring inside collection

drum.

18. Insert plastic dust bag inside collection drum,
and fold excess length of bag over top of drum.

Intake
Barrel

Funnel

Figure 16. Intake barrel attached to funnel.

Band

Clamp

G0863 Grizzly Growler (Mfd. Since 6/21)

-5-

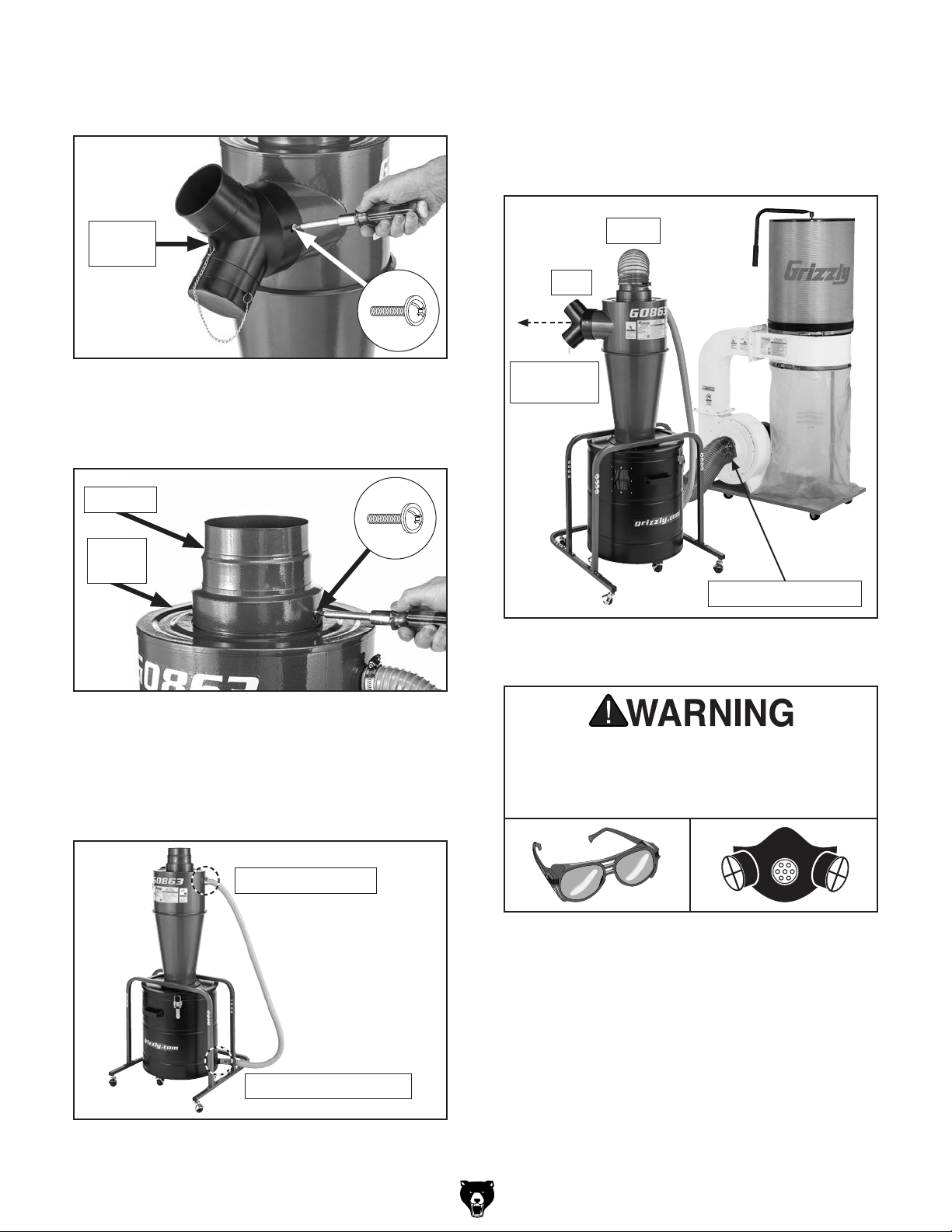

Install inlet adapter on dust port and secure

To reduce risk of eye injury from flying

22.

with 10-24 x

3

⁄8" flange screw (see Figure 17).

Route a dust hose from dust collector inlet (see

25.
Figure 20) to outlet on Grizzly Growler intake

barrel. Then route a dust hose from Growler inlet
to machine dust port. Secure both hoses with
clamps.

Inlet

Adapter

x 1

Figure 17. Installing inlet adapter on dust port.

23. Install outlet reducer (see Figure 18) on

3

intake barrel with 10-24 x

⁄8" flange screw.

Reducer

Intake

x 1

Barrel

Outlet

Inlet

To Machine

Dust Port

Dust Collector Inlet

Figure 20. Example of Grizzly Growler properly

connected to a dust collector.

Figure 18. Installing reducer on intake barrel.

24. Place hose clamps over ends of vacuum hose,

then attach one end of vacuum hose to intake
barrel (see Figure 19) and other end to collec­tion drum. Tighten clamps to secure hose.

Intake Barrel Port

Collection Drum Port

Figure 19. Vacuum hose attached to collection

drum and intake barrel.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

Maintenance

Dispose of the collection drum bag when 3⁄4 full,
as seen in the drum window.

IMPORTANT: To contain wood dust and minimize
risk of exposure, firmly tie bag closed.

If bag gets overfilled, dust will be sucked into the
intake barrel and passed through to the dust col­lector filter. Check the drum window regularly to
prevent excessive dust buildup in collection drum.

-6-

G0863 Grizzly Growler (Mfd. Since 6/21)

2

5

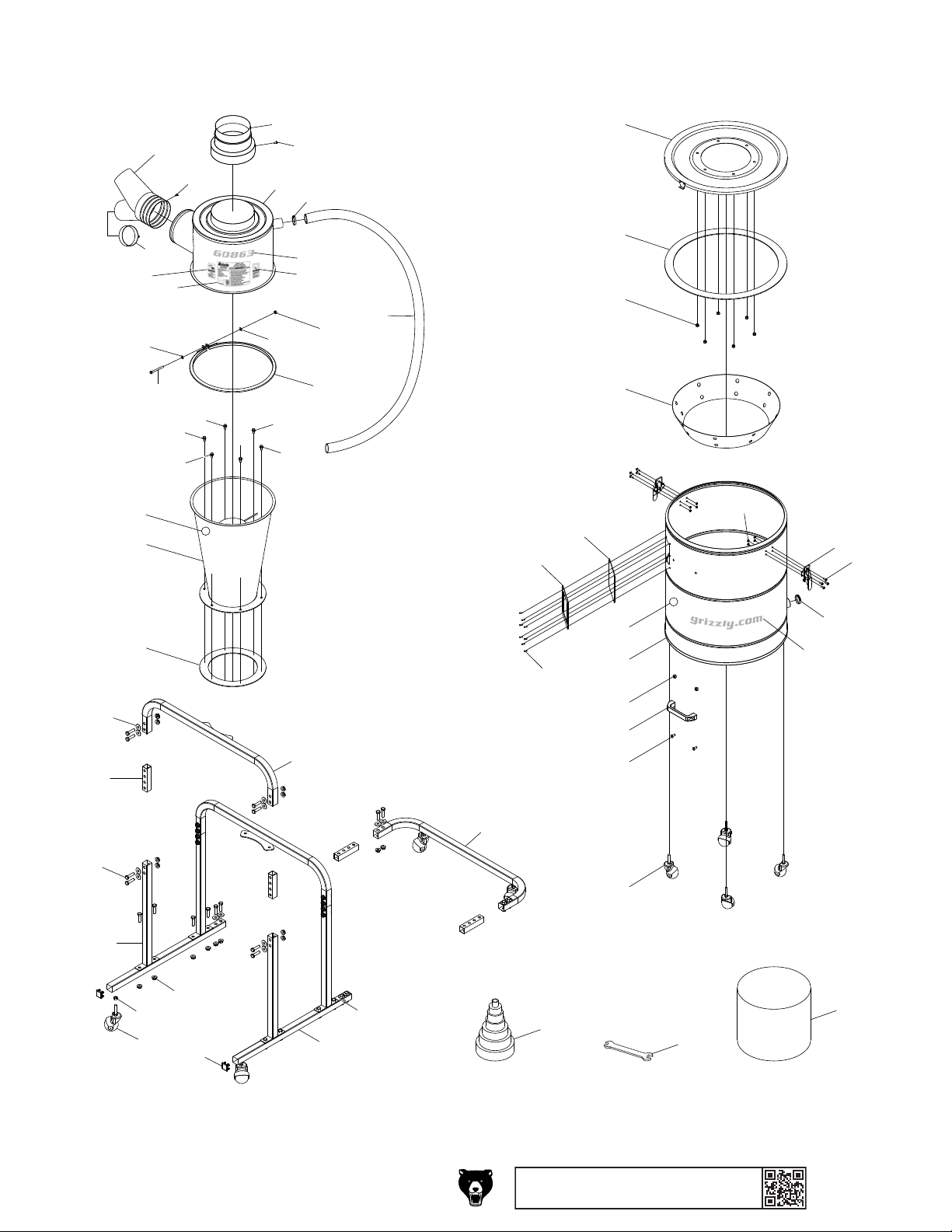

G0863 Parts Breakdown

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

23

42

39

3

24

28

16

37

55

55

30

30

4

6

22

23

55

55

40
38

13

29

20

17

31

35

14

18

32

15

7

7

50

54

48

45

21

53

52

49

51

46

44

42

47

19

33

43

10

11

6

1

8

9

34

41

36

G0863 Grizzly Growler (Mfd. Since 6/21)

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

-7-

REF P ART # DES CRIP TION REF P ART # DES CRIP TION

G0863 Parts List

1 P0863001 COLLECTI ON DRUM 31 P0863031 FLANGE NUT 1/4-20
2 P0863002 COLLECTI ON DRUM LI D 32 P0863032 DRUM LID LATCH
3 P0863003 CYCLONE FUNNEL 33 P0863033 UNIVERSAL REDUCE R
4 P0863004 INTAKE BARREL 34 P0863034 WRENCH 10 X 12MM OPEN-ENDS
5 P0863005 OUTLET REDUCER 7" X 6" 35 P0863035 VACUUM RI NG
6 P0863006 HOSE CLAMP 1-1/2" 36 P0863036 PLASTIC BAG 30" X 41"
7 P0863007 FLANGE BOLT 1/4-20 X 1/2 37 P0863037 MACHINE ID LABEL
8 P0863008 HANDLE 38 P0863038 READ MANUAL LABEL
9 P0863009 PHLP HD SCR 1/4-20 X 5/8 39 P0863039 EYE/LUNG INJURY LABEL
10 P0863010 ACORN NUT 1/4-20 40 P0863040 MODEL NUMBER LABEL
11 P0863011 CASTER 2" SWIVEL BALL 41 P0863041 GRIZZLY.COM LABEL
13 P0863013 BAND CLAMP 45" 42 P0863042 TOUCH-UP PAINT, GRIZZLY GREEN
14 P0863014 LOCK NUT M4-.7 43 P0863043 TOUCH-UP PAINT, GLOSSY BLACK
15 P0863015 PHLP HD SCR M4-.7 X 8 44 P0863044 BASE LEG
16 P0863016 HEX BOLT 1/4-20 X 2-1/2 45 P0863045 FRAME LEG
17 P0863017 FOAM WINDOW GASKET 46 P0863046 FRAME ARCH
18 P0863018 COLLECTI ON DRUM WI NDOW (POLYCARBO NATE) 47 P0863047 BASE ARCH
19 P0863019 RIVET 4 X 8MM AL UMI NUM 48 P0863048 CONNECTOR
20 P0863020 VACUUM HOSE 1-1/2" X 67" 49 P0863049 FLANGE NUT 5/16-18
21 P0863021 FOAM GASKET 850 X 35 X 3MM 50 P0863050 HEX BOLT 5/16-18 X 1-1/4
22 P0863022 FOAM GASKET 1560 X 35 X 3MM 51 P0863051 SQUARE PLUG 1"
23 P0863023 FLAT WASHER 1/4 52 P0863052 CASTER 2" SWIVEL BALL
24 P0863024 INLET ADAPTER 6" X 4" X 2 53 P0863053 HEX NUT 5/ 16-18
28 P0863028 INLET CAP 4" 54 P0863054 FLAT WASHER 5/16
29 P0863029 FLANGE NUT 1/4-20 55 P0863055 FLANGE BOLT 1/4-20 X 3/4
30 P0863030 FLANGE SCREW 10-24 X 3/8

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-8-

BUY PARTS ONLINE AT GRIZZLY.CO M!

Scan QR code to visit our Parts Store.

G0863 Grizzly Growler (Mfd. Since 6/21)
