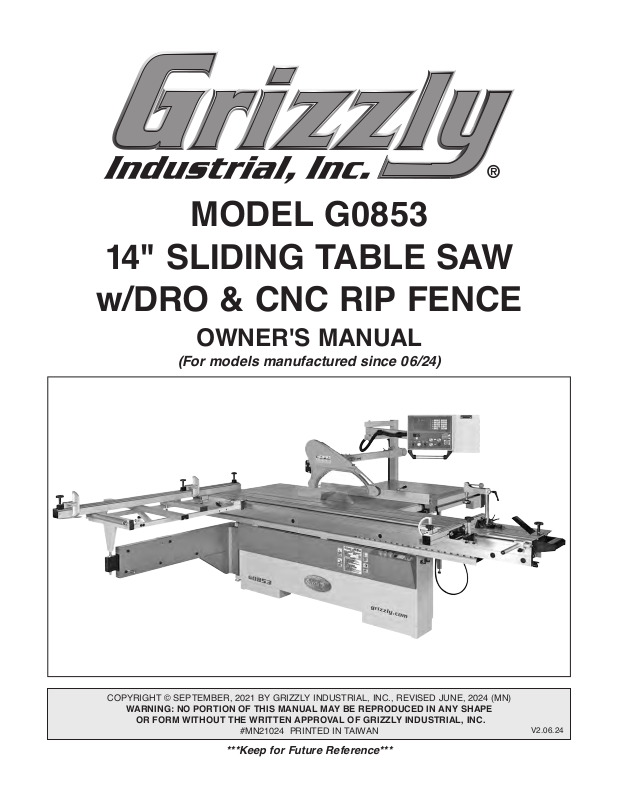

MODEL G0853

14" SLIDING TABLE SAW

w/DRO & CNC RIP FENCE

OWNER'S MANUAL

(For models manufactured since 06/24)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN21024 PRINTED IN TAIWA N

***Keep for Future Reference***

V2.06.24

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 3

Contact Info Manual Accuracy Identification Controls & Components Glossary Of Terms Sliding Table Saw Capacities Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Sliding Table Saws Preventing Kickback Protecting Yourself From Kickback

SECTION 2: POWER SUPPLY

440V Conversion

SECTION 3: SETUP

Needed for Setup Unpacking Hardware Recognition Chart Inventory Cleanup Site Considerations Lifting & Placing Saw Assembly Dust Collection Power Connection Test Run Recommended Adjustments

................................................... 3

........................................... 3

................................................... 4

................................. 5

......................................... 9

....................... 10

.....................................11

..................................... 14

................ 14

..... 16

.................................... 17

.............. 17

...................... 18

......................................... 19

....................................... 21

......................................... 21

.................................................... 21

....................... 22

...................................................... 23

........................................................ 25

...................................... 26

................................... 27

..................................................... 28

............................................. 41

....................................... 42

....................................................... 43

........................ 45

SECTION 4: OPERATIONS

Operation Overview Workpiece Inspection Through & Non-Through Cuts Blade Guard Riving Knife Blade Requirements Blade Selection Adding/Deleting Blade Dimensions Changing Main Blade Height Changing Blade Angle Changing Blade Speed Changing Main Blade Replacing & Aligning Scoring Blade Setting Up Crosscut Fence Using CNC Rip Fence Saving Rip Fence Positions Rip Cutting Crosscutting Miter Cutting Dado Cutting Rabbet Cutting Resawing

SECTION 5: SHOP MADE SAFETY ACCESSORIES

Featherboards Push Sticks Push Blocks

SECTION 6: AFTERMARKET ACCESSORIES FROM GRIZZLY

................................................. 48

.................................................. 49

............................................ 51

................................................... 67

................................................. 69

................................................ 72

................................................ 74

............................................. 75

..................................................... 76

.............................................. 78

.................................................. 81

................................................. 82

............................ 46

..................................... 46

................................... 47

..................... 47

.................................... 50

....................... 53

................................. 53

................................ 54

.................................. 55

.......................... 59

................................. 62

......................... 66

................... 83

............. 52

............ 56

SECTION 7: MAINTENANCE ......................... 85

Schedule Cleaning & Protecting Lubrication

SECTION 8: SERVICE

Troubleshooting Belt Service Calibrating Blade Tilt Riving Knife Mounting Block Sliding Table Parallel Adjustment Squaring Crosscut Fence to Blade Calibrating Rip Fence

SECTION 9: WIRING

Wiring Safety Instructions Scoring Motor Wiring Main Motor Wiring Motor Wiring Diagram System Wiring Diagram Electrical Panel Circuit Board Wiring Diagram Electrical Components

...................................................... 85

.................................. 85

................................................... 86

................................... 88

........................................... 88

.................................................. 90

.................................... 92

........................ 93

................. 94

.............. 95

.................................. 96

.................................... 100

.......................... 100

................................. 101

.................................... 101

................................ 102

............................ 103

..................................................... 103

............................... 104

SECTION 10: PARTS

........................................................... 108

Body Main Tables Control Panel Blade Enclosure Main Motor Main Blade Arbor Scoring Blade Arbor Scoring Blade Adjustment Scoring Blade Motor Crosscut Swing-Arm Crosscut Table Crosscut Fence Rip Fence & Electrical Box Sliding Table Overhead Control Panel Blade Guard Accessories Labels & Cosmetics (Front) Labels & Cosmetics (Back) Labels & Cosmetics (Side)

WARRANTY & RETURNS

.................................................110

..............................................111

..................................................113

............................................... 126

............................................... 130

................................................ 132

................................... 108

..........................................112

........................................114

....................................115

...................................117

...................................118

............................................119

.......................................... 121

...........................116

........................ 123

............................ 128

....................... 134

....................... 135

........................ 136

............................ 137

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

b) Use saw-blade guard and spreader for

e) Pay particular attention to instructions

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

For Your Own Safety Read Instruction

Manual Before Operating Saw

a) Wear eye protection.

every operation for which it can be used,

including all through sawing. c) Keep hands out of the line of saw blade. d) Use a push-stick when required.

on reducing risk of kickback. f) Do not perform any operation freehand. g) Never reach around or over saw blade.

Manufacture Date

Serial Number

Model G0853 (Mfd. Since 06/24)

-3-

Identification

Become familiar with the names and locations of controls and features shown below to better understand the instructions in this manual.

Main Blade Not Included

A. Crosscut Table. Provides a wide, stable

platform for supporting full-size panels during crosscutting operations.

B. Flip Stops. Used for quick, precise measure-

ments for repeatable cuts with crosscut fence.

C. Crosscut Fence. Used during crosscutting

operations to keep panels at desired angle to blade.

D. Sliding Table. Ball-bearing rollers make it

quicker and easier to guide large, heavy panels through the cut.

E. Blade Guard. Enclosed, adjustable blade

guard maintains maximum protection around saw blade with a 4" dust port that effectively extracts dust from cutting operation.

F. Overhead Control Panel (Upper): Keypad

and DRO for operating motorized rip fence.

H. Rip Fence. Programmable, CNC-controlled

for precision cuts.

I. Hold-Down. Quickly clamps one end of

workpiece to sliding table.

J. Edge Shoe. Used with hold-down, keeps

other end of workpiece secured to sliding table.

K. Sliding Table Lock Lever. Locks sliding

table in stationary position. Move up to lock; move down to release.

L. Push Handle. Used to move sliding table

during operation.

M. Miter Fence. Allows precise miter cuts from

30° left to 30° right.

N. Blade Control Panel. Features push-button

controls for starting/stopping main blade and scoring blade; includes E-stop button.

L K

G. Overhead Control Panel (Lower): Controls

for adjusting blade height and tilt; includes blade tilt DRO.

-4-

Model G0853 (Mfd. Since 06/24)

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

Rear Controls

using machine.

Refer to Figures 1–7 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this saw.

Front Controls

Figure 1. Front controls.

C D

Figure 2. Rear controls.

E. Master Power Switch. Enables power flow

to machine.

F. Scoring Blade Elevation Knob. Raises and

lowers scoring blade to change kerf thickness. The knurled wheel behind the knob secures setting to prevent blade from moving during operation.

G. Scoring Blade Alignment Knob. Adjusts

alignment of scoring blade to main blade. The knurled wheel behind the knob secures the setting to prevent blade from moving during operation.

H. Emergency Stop Button. Turns both motors

OFF. Twist clockwise until it pops out to reset.

A. Main Blade ON Button. Starts main blade.

B. Main Blade OFF Button. Turns both motors

OFF.

C. Scoring Blade ON Button. Starts scoring

blade.

D. Emergency Stop Button. Turns both motors

OFF and disables control panel. Twist clockwise until it pops out to reset.

Model G0853 (Mfd. Since 06/24)

-5-

Rip Fence

N. Lock Knob. Secures position of miter fence

on sliding table.

Hold-Down. Quickly clamps workpiece to

sliding table.

Figure 3. Rip fence controls.

I. Rip Fence Face. Can be positioned for stan-

dard cutting operations or in lower position for blade guard clearance during narrow ripping operations.

J. Slide Lock Handle. Secures aluminum fence

face on its forward/backward slide track to support workpiece.

K. Rip Fence Release Button. Releases fence

base from leadscrew so fence can be repositioned manually.

Miter Fence

P. Miter Gauge. Helps measure angle of cut

during miter operations.

Saw Blades

Figure 5. Saw blades.

Q. Riving Knife. Maintains kerf opening during

cutting operations. This function is crucial to preventing kickback caused by the kerf closing behind the blade.

R. Main Blade. Performs cutting operation.

Figure 4. Miter fence controls.

L. Flip Stop. Used for quick, precise measure-

ments for repeatable cuts when using miter fence.

M. Miter Fence Scale. Helps measure length of

cut during miter operations.

S. Scoring Blade. Rotates in opposite direction

of main blade and pre-cuts the surface of the workpiece before actual cutting operation is performed to reduce tearout or chipping. Scoring blade is adjustable for kerf thickness and alignment with main blade.

-6-

Model G0853 (Mfd. Since 06/24)

Overhead Control Panel (Upper)

Figure 6. Overhead control panel functions (upper).

T. Digital Display Screen. Displays information

about rip fence positions and operations.

U. F1 Key. Press to return to main screen.

V. Tool-Box Key. Press to record width and

diameter of main blade in database.

W. CAL Key. Press to calibrate distance between

rip fence and main blade.

Math Function Keys. Use to perform math-

ematical functions on measurement currently shown in digital display.

Numeric Keypad. Use to enter measure-

ments in digital display.

CE Key. Clears typed entries in digital display.

M– Key. Decreases distance between blade

AA.

and rip fence in increments of 0.01" (0.1mm).

U YXV

AC.

STOP Key. Stops rip fence operation in

progress.

START Key. Press to begin rip fence opera-

AD.

tion. Key will remain illuminated until operation is complete.

PROG Key. Press to record rip fence settings.

AE.

AF. F2–F5 Keys. Perform a variety of second-

ary functions when used in combination with other function keys.

Dimension Repeat Key. Press to access

AG.

and repeat last two positions of the rip fence.

AH. Incremental Dimension Key. Press to enter

measurements for making repeat cuts.

Grooves/Concealed Cuts Function Key.

AI.

Press to enter rip fence measurements for performing non-through cuts.

AD AB AA

ACAE

M+ Key. Increases distance between blade

AB.

and rip fence in increments of 0.01" (0.1mm).

Model G0853 (Mfd. Since 06/24)

AJ. mm/inch Selection Key. Press once to

toggle between inch and metric units.

-7-

Overhead Control Panel (Lower)

ANAM

Figure 7. Overhead control panel functions (lower).

AK. Blade Tilt Readout. Displays current angle

of saw blades.

AL. Digital Readout Reset Key. Press and hold

for three seconds to reset readout to zero.

Main Blade ON Button. Enables power to

AM.

main blade.

Main Blade OFF Button. Stops main blade

AN.

and scoring blade.

APAQARAS

A P. Scoring Blade ON Button. Enables power

to scoring blade.

Note: Main blade must be ON for scoring

blade to start.

AQ. Blade Up & Down Switch. Increases or

decreases height of main blade.

AR. Blade Tilt Micro-Adjust Button. Increases

angle of saw blades in increments of 0.1°.

Emergency Stop Button. Stops both motors

AO.

and disables control panel. To reset, twist clockwise until button pops out.

-8-

AS. Blade Tilt Switch. Increases or decreases

angle of saw blades anywhere between 0°–45°.

Model G0853 (Mfd. Since 06/24)

Glossary Of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this sliding table saw and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Arbor: Metal shaft extending from the drive

mechanism, to which saw blade is mounted.

Bevel Edge Cut: Tilting the arbor and saw blade

to an angle between 0° and 45° to cut a beveled edge onto a workpiece.

Blade Guard: Metal or plastic safety device that

mounts over the saw blade. Its function is to prevent the operator from coming into contact with the saw blade.

Crosscut: Cutting operation in which the crosscut

fence is used to cut across the grain, or across the shortest width of the workpiece.

Dado Blade: Blade or set of blades that are used

to cut grooves and rabbets.

Dado Cut: Cutting operation that cuts a flat bot-

tomed groove into the face of the workpiece.

Featherboard: Safety device used to keep the

workpiece against the rip fence and against the table surface.

Non-Through Cut: A sawing operation in which

the workpiece is not completely sawn through. Dado and rabbet cuts are considered NonThrough Cuts because the blade does not protrude above the top face of the wood stock.

Parallel: When two objects are spaced an equal

distance apart at every point along two given lines or planes (i.e., the rip fence face is parallel to the face of the saw blade).

Perpendicular: Lines or planes that intersect and

form right angles. I.e. the blade is perpendicular to the table surface.

Push Stick: Safety device used to push the

workpiece through a cutting operation. Used most often when rip cutting thin workpieces.

Rabbet: Cutting operation that creates an L- shaped

channel along the edge of the workpiece.

Rip Cut: Cutting operation in which the rip fence

is used to cut with the grain, or cut across the widest width of the workpiece.

Kerf: The resulting cut or gap in the workpiece

from the saw blade passing through it while cutting.

Kickback: A dangerous event that happens if

the blade catches on the workpieces while cutting. The force of the blade then throws the workpiece back toward the operator with what sounds like a horrible explosion. The danger comes from flying stock striking the operator or bystanders. The operator’s hands may also be pulled into the blade during the kickback. Refer to Preventing Kickback on Page 17 for additional information.

Model G0853 (Mfd. Since 06/24)

Riving Knife: Metal plate located behind the

blade maintains the kerf opening in the wood when cutting, and helps reduce the risk of injury from a kickback that otherwise would result in amputation.

Straightedge: A tool with a perfectly straight

edge used to check the flatness, parallelism, or consistency of a surface(s).

Through Cut: A sawing operation in which the

workpiece is completely sawn through.

-9-

SLIDING TABLE

SAW CAPACITIES

Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901

MODEL G0853 14" SLIDING TABLE SAW

134"

126"

Ripping Width

45"

Miter Cut 90º (push cut)

Miter Cut 45º

134"

76"

134"

51"

111"

Crosscut

134"

Miter Cut 45º (push cut)

Crosscut (fence not extended)

62"

121"

713/4"

Miter Cut 45º (push cut, fence not extended)

-10-

713/4"

62"

1063/4"

Miter Cut 45º (fence not extended)

Model G0853 (Mfd. Since 06/24)

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0853 14" 10 HP 3-PHASE SLIDING TABLE SAW

Product Dimensions:

Shipping Dimensions:

Electrical:

MODEL GO853 14" SLIDING TABLE SAW

WITH DRO AND CNC FENCE

W/DRO & CNC RIP FENCE

Weight............................................................................................................................................................ 1890 lbs.

Width (side-to-side) x Depth (front-to-back) x Height....................................................................... 133 x 147 x 66 in.

Footprint (Length x Width)............................................................................................................................ 75 x 37 in.

Space Required for Full Range of Movement (Width x Depth)................................................................ 271 x 205 in.

Carton #1

Type................................................................................................................................................ Wood Crate

Content................................................................................................................................................. Machine

Weight.................................................................................................................................................. 1672 lbs.

Length x Width x Height............................................................................................................. 83 x 46 x 45 in.

Must Ship Upright......................................................................................................................................... Yes

Carton #2

Type................................................................................................................................................ Wood Crate

Content.......................................................................................................................................... Sliding Table

Weight.................................................................................................................................................... 382 lbs.

Length x Width x Height........................................................................................................... 137 x 20 x 15 in.

Must Ship Upright......................................................................................................................................... Yes

Carton #3

Type................................................................................................................................................ Wood Crate

Content............................................................................................................................................... Rip Fence

Weight.................................................................................................................................................... 122 lbs.

Length x Width x Height............................................................................................................. 73 x 13 x 15 in.

Must Ship Upright......................................................................................................................................... Yes

Power Requirement..................................................................................................... 220V or 440V, 3-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 220V

Full-Load Current Rating............................................................................................... 29.2A at 220V, 14.6A at 440V

Minimum Circuit Size.......................................................................................................... 40A at 220V, 20A at 440V

Connection Type........................................................................................... Permanent (Hardwire to Shutoff Switch)

Switch Type............................................................................................ Control Panel w/Magnetic Switch Protection

Motors:

Main Blade

Horsepower.............................................................................................................................................. 10 HP

Phase.................................................................................................................................................... 3-Phase

Amps..................................................................................................................................................... 26A/13A

Speed................................................................................................................................................ 3450 RPM

Type........................................................................................................................................... TEFC Induction

Power Transfer ............................................................................................................................................ Belt

Bearings........................................................................................................ Sealed & Permanently Lubricated

Model G0853 (Mfd. Since 06/24)

-11-

Scoring Blade

Horsepower................................................................................................................................................ 1 HP

Phase.................................................................................................................................................... 3-Phase

Amps................................................................................................................................................... 3.2A/1.6A

Speed................................................................................................................................................ 3450 RPM

Type........................................................................................................................................... TEFC Induction

Power Transfer ............................................................................................................................................ Belt

Bearings........................................................................................................ Sealed & Permanently Lubricated

Main Specifications:

Operation Information

Main Blade Size......................................................................................................................................... 14 in.

Riving Knife/Spreader Thickness.......................................................................................................... 0.098 in.

Required Blade Body Thickness........................................................................................................... 0.108 in.

Required Blade Kerf Thickness............................................................................................................ 0.118 in.

Main Blade Arbor Size................................................................................................................................. 1 in.

Scoring Blade Size................................................................................................................ 120 mm (4-3/4 in.)

Scoring Blade Arbor Size........................................................................................................................ 20 mm

Main Blade Tilt.................................................................................................................................. 0 – 45 deg.

Main Blade Speed......................................................................................................... 3000, 4000, 5000 RPM

Scoring Blade Tilt............................................................................................................................. 0 – 45 deg.

Scoring Blade Speed......................................................................................................................... 8000 RPM

Cutting Capacities

Max Depth of Cut At 90 Deg........................................................................................................................ 4 in.

Max Depth of Cut At 45 Deg.................................................................................................................. 2-3/4 in.

Max Dist From Blade To Column............................................................................................................... 60 in.

Rip Fence Max Cut Width.......................................................................................................................... 51 in.

Sliding Table w/Crosscut Fence Max Cut Width...................................................................................... 134 in.

Sliding Table w/Crosscut Fence Max Cut Length.................................................................................... 121 in.

Miter Fence Max Cut Width at 45 Deg..................................................................................................... 111 in.

Table Information

Floor To Table Height.......................................................................................................................... 34-3/4 in.

Table Size Length................................................................................................................................ 35-1/4 in.

Table Size Width................................................................................................................................. 21-1/2 in.

Table Size Thickness............................................................................................................................ 2-3/8 in.

Table Size With Ext Wings Length............................................................................................................ 68 in.

Table Size With Ext Wings Width.............................................................................................................. 59 in.

Table Size With Ext Wings Thickness................................................................................................... 2-3/8 in.

Sliding Table Length................................................................................................................................ 126 in.

Sliding Table Width.............................................................................................................................. 15-5/8 in.

Sliding Table Thickness......................................................................................................................... 8-3/8 in.

Sliding Table T-Slot Top Width................................................................................................................. 5/8 in.

Sliding Table T-Slot Height..................................................................................................................... 9/16 in.

Sliding Table T-Slot Bottom Width....................................................................................................... 1-3/16 in.

-12-

Model G0853 (Mfd. Since 06/24)

Fence Information

Crosscut Fence Type........................................................................... Extruded Aluminum w/Telescoping End

Crosscut Fence Size Length............................................................................................................... 75-7/8 in.

Crosscut Fence Size Max Extended Length............................................................................................ 126 in.

Crosscut Fence Size Width................................................................................................................. 3-3/16 in.

Crosscut Fence Size Height.................................................................................................................. 2-7/8 in.

Crosscut Fence Number of Stops.................................................................................................................... 2

Rip Fence Type........................................................................................... 2-Position w/Electronic Adjustment

Rip Fence Size Length........................................................................................................................ 47-1/4 in.

Rip Fence Size Width.................................................................................................................................. 2 in.

Rip Fence Size Height........................................................................................................................... 3-5/8 in.

Miter Fence Type............................................................................................. T-Slot Mounted Aluminum Tube

Miter Fence Size Length.................................................................................................................... 35-7/16 in.

Miter Fence Size Width......................................................................................................................... 2-3/8 in.

Miter Fence Size Height........................................................................................................................ 2-3/8 in.

Miter Fence Number of Stops........................................................................................................................... 1

Construction Materials

Table.................................................................................................................................................... Cast Iron

Sliding Table....................................................................................................................................... Aluminum

Extension Table.......................................................................................................................................... Steel

Cabinet....................................................................................................................................................... Steel

Rip Fence........................................................................................................................................... Aluminum

Miter Fence......................................................................................................................................... Aluminum

Rip Fence Rails.......................................................................................................................... Chromed Steel

Guard....................................................................................................................................................... Plastic

Spindle Bearing Type.................................................................................... Sealed & Permanently Lubricated

Cabinet Paint Type/Finish.......................................................................................................... Powder Coated

Other Related Information

No of Dust Ports............................................................................................................................................... 2

Dust Port Size....................................................................................................................................... 4 & 5 in.

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ............................................................................................................. 5 Hours

Serial Number Location ................................................................................................. ID Label on Front of Machine

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Digital Controls for Blade Height and Tilt, and Rip Fence Adjustment Cross-Slide Table with Eccentric Locking Clamp and Hard Chrome-Plated Slideway Easily Adjustable Blade Guard with Built-In Dust Hood Miter Fence Adjustable 30 Degrees Left and 30 Degrees Right Scoring Blade Virtually Eliminates Tear-Out Sliding Table on Vertical Guide System with Precision Bearing Rollers Accepts 12" and 14" Blades

Model G0853 (Mfd. Since 06/24)

-13-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-14-

Model G0853 (Mfd. Since 06/24)

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0853 (Mfd. Since 06/24)

-15-

Additional Safety for Sliding Table Saws

Serious injury or death can occur from getting cut or having body parts, such as fingers, amputated by rotating saw blade. Workpieces thrown by kickback can strike operators or bystanders with deadly force. Flying particles from cutting operations or broken blades can cause eye injuries or blindness. To minimize risk of getting hurt or killed, anyone operating machine MUST completely heed hazards and warnings below.

HAND & BODY POSITIONING. Keep hands

away from saw blade and out of blade path during operation, so they cannot slip accidentally into blade. Stand to side of blade path. Never reach around, behind, or over blade. Only operate at front of machine.

BLADE GUARD. Use blade guard for all cuts that allow it to be used safely. Make sure blade guard is installed and adjusted correctly. Promptly repair or replace if damaged. Re-install blade guard immediately after operations that require its removal.

RIVING KNIFE. Use riving knife for all cuts. Make sure riving knife is aligned and positioned correctly. Promptly repair or replace it if damaged.

KICKBACK. Kickback occurs when saw blade ejects workpiece back toward operator. Know how to reduce risk of kickback. Learn how to protect yourself if it does occur.

FENCE ADJUSTMENTS. Make sure rip fence remains properly adjusted and parallel with blade. Never move fence while blade is rotating. Adjusting fence during operation increases risk of crashing fence and sending metal fragments flying with deadly force at operator or bystanders. Only adjust fence when blade is completely stopped and saw is OFF. Always lock fence before using.

PUSH STICKS/BLOCKS. Use push sticks or push blocks whenever possible to keep your hands farther away from blade while cutting. In event of an accident these devices will often take damage that would have happened to hands/ fingers.

BLADE ADJUSTMENTS. Adjusting blade height or tilt during operation increases risk of crashing blade and sending metal fragments flying with deadly force at operator or bystanders. Only adjust blade height and tilt when blade is completely stopped and saw is OFF.

WORKPIECE CONTROL. Feeding workpiece incorrectly increases risk of kickback. Make sure workpiece is in stable position on tables and supported by rip fence or crosscut fence during cutting operation. Never start saw with workpiece touching blade. Allow blade to reach full speed before cutting. Only feed workpiece against direction of main blade rotation. Always use some type of guide to feed workpiece in a straight line. Never back workpiece out of cut or move it backwards or sideways after starting a cut. Feed cuts all the way through to completion. Never perform any operation “freehand”. Turn OFF saw and wait until blade is completely stopped before removing workpiece.

-16-

CHANGING BLADES. Always disconnect power before changing blades. Changing blades while saw is connected to power greatly increases injury risk if saw is accidentally powered up.

DAMAGED SAW BLADES. Never use blades that have been dropped or otherwise damaged.

CUTTING CORRECT MATERIAL. Never cut materials not intended for this saw. Only cut natural and man-made wood products, laminate covered wood products, and some plastics. Cutting metal, glass, stone, tile, etc. increases risk of operator injury due to kickback or flying particles.

Model G0853 (Mfd. Since 06/24)

Preventing Kickback

Do the following to prevent kickback:

• When rip cutting, only cut workpieces that have at least one smooth and straight edge. DO NOT cut excessively warped, cupped or twisted wood. If workpiece warpage is questionable, always choose another workpiece.

• Never attempt freehand cuts. If the workpiece is not fed parallel with the blade, kickback will likely occur. Always use the rip fence or crosscut fence to support the workpiece.

• Make sure the riving knife is properly aligned with the blade. A misaligned riving knife can cause the workpiece to catch or bind, increasing the chance of kickback. If you think that your riving knife is not aligned with the blade, stop operations, and check it immediately!

Statistics show that the most common accidents among table saw users can be linked to kickback. Kickback is typically defined as the high-speed expulsion of stock from the table saw toward the operator. In addition to the danger of the operator or others in the area being struck by the flying stock, it is

often the case that the operator’s hands are

pulled into the blade during the kickback.

Protecting Yourself

From Kickback

Even if you know how to prevent kickback, it may still happen. Here are some precautions to help protect yourself if kickback DOES occur:

• Ensure sliding table slides parallel with the blade; otherwise, the chances of kickback are extreme. Take the time to check and adjust

the sliding table before cutting.

• Always use the riving knife whenever possible. It reduces risk of kickback and reduces your risk of injury if it does occur.

• Always keep blade guard installed and in good working order.

• Feed cuts through to completion. Any time you stop feeding a workpiece in the middle of a cut, the chance of kickback is greatly increased.

• Ensure rip fence is adjusted parallel with the blade; otherwise, the chances of kickback are extreme. Take the time to check and adjust the rip fence before cutting.

• Stand to the side of the blade path when cutting. If a kickback does occur, the thrown workpiece usually travels directly towards the front of the blade.

• Wear safety glasses or a face shield. In the event of a kickback, your eyes and face are the most vulnerable parts of your body.

• Never, for any reason, place your hand behind the blade path. Should kickback occur, your hand will be pulled into the blade.

• Use a push stick or push block to keep your hands farther away from the moving blade. If a kickback occurs, these safety devices will most likely take the damage that your hand would have received.

• Use featherboards or anti-kickback devices to prevent or slow down kickback.

Model G0853 (Mfd. Since 06/24)

-17-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage

not properly grounded

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

This machine can be converted to operate on a power supply circuit that has a verified ground and meets the requirements listed below. (Refer to Voltage Conversion instructions for details.)

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

may occur if machine is

and connected to power supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V .. 29.2 Amps Full-Load Current Rating at 440V

-18-

.. 14.6 Amps

Circuit Requirements for 220V

Nominal Voltage ................... 220V, 230V, 240V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

.................................................... 3-Phase

......................... 40 Amps

Circuit Requirements for 440V

Nominal Voltage ............................. 440V, 480V

..........................................................60 Hz

Cycle Phase Power Supply Circuit

.................................................... 3-Phase

......................... 20 Amps

Model G0853 (Mfd. Since 06/24)

Connection Type

A permanently connected (hardwired) power supply is typically installed with wires running through mounted and secured conduit. A disconnecting means, such as a locking switch (see following figure), must be provided to allow the machine to be disconnected (isolated) from the power supply when required. This installation must be performed by an electrician in accordance with all applicable electrical codes and ordinances.

Since this machine must be permanently connected to the power supply, an extension cord cannot be used.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. A permanently connected machine must be connected to a grounded metal permanent wiring system; or to a system having an equipmentgrounding conductor. All grounds must be verified and rated for the electrical requirements of the machine. Improper grounding can increase the risk of electric shock!

Locking

Disconnect Switch

Power

Source

Machine

Extension Cords

Phase Converters

Avoid using a static phase converter to supply 3-phase power for this machine, as it could damage or decrease the life of sensitive electrical components. If you must use a phase converter, only use a rotary phase converter that is sized at least 50% larger than the largest HP rating of this machine. If using a phase converter to supply power, only connect the manufactured leg or "wild wire" to the "S" terminal. The S terminal can handle power fluctuations because it is wired directly to the motor.

ConduitConduit

Ground

Figure 8. Typical setup of a permanently

connected machine.

Ground

Grounding Instructions

Serious injury could occur if you connect machine to power before completing setup process. DO NOT connect to power until instructed later in this manual.

440V Conversion

The Model G0853 can be converted for 440V operation. This conversion consists of: 1) Disconnecting the saw from power, 2) moving the transformer T1 wire from the 220V to 440V terminal, 3) replacing the overload relays, 4) replacing the power supply, and 5) rewiring the main and scoring blade motors for 440V operation. See the wiring diagrams inside the motor junction boxes for detailed 440V wiring diagrams.

All wiring changes must be inspected by a qualified electrician or service personnel before the saw is connected to the power source. If, at any time during this procedure you need help, call Grizzly Tech Support at (570) 546-9663.

Contact the Grizzly Order Desk at (800) 523-4777 to purchase the 440V Conversion Kit, Part No. P08531490.

Model G0853 (Mfd. Since 06/24)

-19-

To convert G0853 for 440V operation:

DISCONNECT MACHINE FROM POWER!

2. Remove electrical panel cover (see Figure 9).

Electrical Panel

Cover

Remove scoring motor overload relay (see

6. Figure 11), and replace with Shihlin TH-12S

overload relay. Set amperage dial to 1.6A.

Figure 9. Electrical panel cover location.

Remove DR-120-24/NDR-120-24 power sup-

ply for 220V (see Figure 10), and replace with 440V power supply WDR-120-24.

220V Power

Supply

Main

Motor Relay

Figure 11. Locations of 220V overload relays.

Move transformer T1 wire (see Figure 12)

from 220V terminal to 440V terminal.

T1 Wire

440V Terminal

Figure 12. Location of T1 wire and 220V/440V

terminals on transformer.

Scoring

Motor Relay

Figure 10. Location of 220V power supply.

4. At top of 440V power supply, connect 24

and 24V wires to V+ terminal, and connect GD and GRD wires to V- terminal. At bottom of 440V power supply, connect R wire to L1 terminal, connect S wire to L2 terminal, and connect E wire to Ground terminal.

Remove main motor overload relay (see

5. Figure 11), and replace with Shihlin

TH-20SPP overload relay. Set amperage dial to 13A.

-20-

8. Open motor cabinet door.

9. Rewire main blade and scoring blade motors

for 440V (refer to motor wiring diagrams on Page 101).

Close motor cabinet door and replace electri-

10.

cal panel cover.

After assembly procedures are completed,

11.

connect machine to power, as instructed on Page 42.

Model G0853 (Mfd. Since 06/24)

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

Wear safety glasses during the entire setup process!

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

The following are not included, but needed to properly complete the setup process.

Description Qty

• Additional People ....................................... 4

• Safety Glasses ........................ 1 Per Person

• Cleaner/Degreaser (Page 25) .... As Needed

• Disposable Shop Rags ............... As Needed

• Disposable Gloves .................................1 Pr

• Forklift (Rated for at least 2000 lbs.) .......... 1

• Lifting Slings (Rated for at least 400 lbs.) .. 2

• Straightedge 4' ........................................... 1

• Level ........................................................... 1

• Screwdriver Phillips #2 ............................... 1

• Hex Wrenches 2.5, 4, 5, 6, 8, 10mm .... 1 Ea.

• Wrench/Socket 10mm ................................ 1

• Open-End Wrench 17mm ........................... 1

• Saw Blade 12" or 14" (Page 83) ................ 1

• Dust Collection System w/5" branch line ... 1

• Dust Hose and Hose Clamp 5" .............1 Ea

• Dust Hose and Hose Clamp 4" .............1 Ea

• Y-Fitting 4" x 5" x 5" ................................... 1

Unpacking

Model G0853 (Mfd. Since 06/24)

If items are damaged

call us immediately at (570) 546-9663.

-21-

Hardware Recognition Chart

-22-

5mm

Model G0853 (Mfd. Since 06/24)

Inventory

These are the “loose” components shipped with the machine. Before setup, lay them out to make sure you have everything listed below.

If any non-proprietary parts are missing (e.g. a nut, bolt, or washer), we will gladly ship them upon verification of order. For the sake of expediency, you can also get replacement parts at your local hardware store.

Inventory (Figure 13) Qty

A. Small Extension Table ................................ 1

Large Extension Table ............................... 1

Crosscut Table ........................................... 1

D. Crosscut Fence .......................................... 1

E. Crosscut Table Support Bar ....................... 1

F. Rip Fence ................................................... 1

Cabinet Door .............................................. 1

Sliding Table .............................................. 1

Miter Fence ............................................... 1

Extension Table Leg w/Foot ...................... 1

Inventory (Figure 14) Qty

K. Rip Fence Base .......................................... 1

Overhead Control Panel ............................. 1

Blade Guard Cover Assembly .................... 1

Blade Guard (Bubble) ................................. 1

O. Rip Fence Leadscrew Housing .................. 1

Middle Guard Arm Post .............................. 1

Middle Guard Arm ...................................... 1

Upper Guard Arm ....................................... 1

Cord Clamps .............................................. 7

T. Lower Guard Arm ....................................... 1

Scoring Blade Arbor Wrench 30mm .......... 1

Open-Ends Wrench 19/24mm .................... 1

Closed-Ends Wrench 19/22mm.................. 1

Combo Wrench 30mm ............................... 1

Main Blade Arbor Wrench 36mm ............... 1

Figure 13. G0853 Inventory 1.

U V

W YX

Figure 14. G0853 Inventory 2.

Model G0853 (Mfd. Since 06/24)

-23-

Inventory (Figure 15) Qty

Z. Arbor Locking Pin ....................................... 1

Miter Fence Clamp ..................................... 1

AA.

Crosscut Fence Flip Stops ......................... 2

AB.

Toolb ox ....................................................... 1

AC.

Crosscut Fence Ext. Clamp Assembly ...... 1

AD.

Rip Fence Slide Lock Handle ..................... 1

AE.

Crosscut Fence Pivot Lock Knob ............... 1

AF.

Crosscut Fence Angle Scale Lock Knob ... 1

AG.

Push Handle ............................................... 1

AH.

Edge Shoe Assembly ................................. 1

AI.

Push Stick .................................................. 1

AJ.

Dust Hose 3" x 16 1⁄2 " ................................. 1

AK.

Hold-Down Assembly ................................. 1

AL.

Miter Fence Bracket ................................... 1

AM.

Dust Port 4" ................................................ 1

AN.

Knob Bolt M8-1.25 x 50 ............................. 1

AO.

Dust Port 3" ................................................ 1

AP.

Miter Gauge ................................................ 1

AQ.

Riving Knife ................................................ 1

AR.

Hose Clamps 3 1⁄4" ...................................... 2

AS.

T-Bolt M8-1.25 x 35 .................................... 1

AT.

T-Slot Plate M8-1.25 ................................... 1

AU.

L-Bracket .................................................... 1

AV. AW. Miter Fence Flip Stop

................................ 1

Component Hardware (not shown) Qty

Hex Bolts M12-1.75 x 50 (Sliding Table) ............ 5

Lock Washers 12mm (Sliding Table) Spacers 12mm (Sliding Table) Set Screws M10-1.5 x 20 (Ext. Tables) Hex Nuts M10-1.5 (Ext. Tables) Cap Screws M12-1.75 x 30 (Rip Fence) Lock Washers 12mm (Rip Fence) Plastic Caps 22mm (Rip Fence) Plastic Cap 16mm (Rip Fence) Fender Washers 8mm (Crosscut Table Brace) T-Nut M8-1.25 (Crosscut Table Brace) Hex Bolt M12-1.75 x 75 (Lower Guard Arm) Hex Nut M12-1.75 (Lower Guard Arm) Cap Screws M8-1.25 x 25 (Guard Arm Post) Flat Washers 8mm (Guard Arm Post) Lock Washers 8mm (Guard Arm Post) Cap Screws M6-1 x 20 (Blade Guard Cover) Flat Washers 6mm (Blade Guard Cover) Lock Washers 6mm (Blade Guard Cover) Steel Tab (Control Panel Arm) BH Cap Screws M6-1 x 12 (3" Dust Port) Lock Washers 6mm (3" Dust Port) Cap Screws M5-.8 x 16 (Control Panel) Flat Washers 5mm (Control Panel) Lock Washers 5mm (Control Panel) Cap Screws M6-1 x 20 (Large Ext. Table)

Flat Washers 6mm (Large Ext. Table)............... 3

Lock Washers 6mm (Large Ext. Table) Hex Nut M6-1 (Large Ext. Table) Spacer (Hold-Down & Miter Gauge)

................. 5

........................... 5

.............. 6

......................... 6

............ 2

..................... 2

........................ 2

.......................... 1

... 2

.............. 1

...... 1

............... 1

.... 4

............... 4

............. 4

.... 3

.......... 3

........ 3

........................... 1

......... 2

.................... 2

............ 4

................... 4

................. 4

........ 2

............. 2

....................... 1

.................. 1

AD AE

-24-

AF AG

AJ AK AL

AM AO

Figure 15. G0853 Inventory 3.

AN AP AQ

AT AU AV

AH AI

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Model G0853 (Mfd. Since 06/24)

parts of the

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufac-

turer’s instructions with any cleaning product you

use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avoi d using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted machine during clean up.

Order online at

www.grizzly.com

Call 1-800-523-4777

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Model G0853 (Mfd. Since 06/24)

Figure 16. T23692 Orange Power Degreaser.

-25-

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks,

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave enough space around machine to disconnect power supply or

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

or bumps.

Electrical Installation

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

133"

147"

apply a lockout/tagout device, if required.

Lighting

205"

-26-

271"

Figure 17. Minimum working clearances.

Model G0853 (Mfd. Since 06/24)

Lifting &

Placing Saw

To lift and place saw:

Position crate as close to installation location

as possible.

Remove small items packed around saw and

unbolt saw from pallet.

DO NOT lift saw any higher than necessary to clear pallet. Serious personal injury and machine damage may occur if safe moving methods are not followed.

4. With an assistant holding each end to help

stabilize load, lift saw with forklift just high enough to clear pallet, and move it to your predetermined location.

Lower saw onto ground and back forklift

away.

Remove top of crate. Position forklift forks as

wide as they can be while still fitting under center opening (see Figure 18).

Figure 18. Example of how to insert forks for

lifting table saw off pallet.

Model G0853 (Mfd. Since 06/24)

-27-

Assembly

This machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to Needed for Setup and gather all listed items.

2. Raise sliding table over machine frame (see Figure 20A), position mounting plates over

mounting holes (see Figure 20B), and lower sliding table onto frame.

The sliding table weighs nearly 400 pounds. It must be lifted and carefully positioned onto the machine frame during assembly. If you are using a forklift to lift and place it, you'll need to use lifting slings around the table to prevent scratching the aluminum surface.

If you are not able to use the described forklift method, the sliding table can be lifted into place by four strong people—with one lifting from each corner.

The only other part of the assembly that requires additional help is installation of the extension tables and blade guard arm. It takes approximately two hours to assemble the saw and make the required adjustments to prepare the saw for the test run.

To assemble sliding table saw:

Turn sliding table upside down and identify

(3) mounting plates, as shown in Figure 19.

Sliding

Table

Mounting Plate

(1 of 3)

Mounting Holes

(1 of 3)

Figure 20. Sliding table mounting plates

positioned over mounting holes in machine frame.

3. Press sliding table against parallelism adjustment bolts at each end of machine frame (see Figure 21).

Figure 19. Location of mounting plates for

securing sliding table to machine frame.

-28-

Note: These bolts are set at the factory and

do not need to be adjusted.

Adjustment Bolt

(1 of 2)

Figure 21. Sliding table parallelism adjustment

bolt (1 of 2).

Model G0853 (Mfd. Since 06/24)

Sliding Table

4. Remove access covers to reach mounting holes for sliding table (see Figures 22–23). Reach through cabinet access hole to reach middle mounting hole (see Figure 24).

. Use (5) M12-1.75 x 50 hex bolts, 12mm lock

washers, and 12mm spacers to secure sliding table to machine frame (see Figures

22–24).

6. Slide push handle onto mounting rod at front

end of sliding table, as shown in Figure 25, and secure with knob.

Push Handle

Knob

Figure 25. Push handle attached to sliding table.

x 2

Figure 22. Mounting hole access on rear side at

front of saw.

x 2

Figure 23. Mounting hole access on rear side at

back of saw.

Attach cabinet door by sliding hinge sleeves

7. over pins on pre-installed hinges (see Figure

26).

Hinge Sleeves

& Pins

Figure 26. Cabinet door attached to hinges.

Figure 24. Middle mounting hole access through

cabinet access hole.

Model G0853 (Mfd. Since 06/24)

-29-

8. Install (3) M10-1.5 x 20 set screws and (3)

M10-1.5 hex nuts on large extension table (see Figure 27). Only hand-tighten screws for now.

9. Attach large extension table to cast-iron table

using (3) pre-installed M10-1.5 x 25 cap screws, 10mm lock washers, and 10mm flat washers (see Figure 27). Only hand-tighten cap screws for now. They will be fully tightened in a later step.

Attach leg (see Figure 28) to large extension

12.

table using (2) pre-installed cap screws, lock washers, and flat washers.

Loosen hex nut on foot (see Figure 28),

13.

adjust height of foot to maintain parallelism of extension table and cast-iron table, then tighten hex nut against bottom of leg to secure.

x 2

x 3

Hex Nut Set Screw

x 3

Figure 27. Location of fasteners used to install

and level large extension table.

. Place a straightedge across cast-iron table

and large extension table to see if tables are parallel.

— If entire length of straight edge is parallel

with both tables, proceed to Step 11.

— If both tables are not parallel with straight

edge, loosen hex nuts on set screws shown in Figure 27. Adjust set screws to align top of extension table with top of cast iron table, then retighten hex nuts to secure setting.

Leg

Foot

Figure 28. Leg attached to large extension table.

Install (3) M10-1.5 x 20 set screws and (3)

14.

M10-1.5 hex nuts on small extension table (see Figure 29). Only hand-tighten screws for now.

. Attach small extension table to cast-iron

table using (3) pre-installed M10-1.5 x 25 cap screws, 10mm lock washers, and 10mm flat washers (see Figure 29). Only hand-tighten cap screws for now. They will be fully tightened in a later step.

x 3

. Fully tighten cap screws from Step 9.

-30-

Hex Nut Set Screw

x 3

Figure 29. Location of fasteners used to install

and level small extension table.

Model G0853 (Mfd. Since 06/24)

16. Place a straightedge across cast-iron table

and small extension table to see if tables are parallel.

— If entire length of straight edge is parallel

with both tables move on to Step 17.

— If both tables are not parallel with straight

edge, loosen pre-installed hex nuts on set screws shown in Figure 29 on Page 30. Adjust set screws to align top of extension table with top of cast-iron table, then retighten hex nuts to secure setting.

Fully tighten cap screws from Step 15.

17.

18.

Remove (2) hex nuts, lock washers, and flat

washers (see Figure 30) from back of rip fence leadscrew housing.

19. Install rip fence leadscrew housing in two holes at front of cast-iron table (see Figure

31) and secure with fasteners removed in Step 18. Before final tightening, ensure top of

rip fence leadscrew housing is flush with sliding table, cast-iron table, and large extension table.

Mounting

Holes

Rip Fence

Figure 31. Mounting rip fence leadscrew housing

on cast-iron table.

Figure 30. Location of mounting fasteners on

back of rip fence leadscrew housing.

20. Use pre-installed cap screw, flat washer, and hex nut (see Figure 32) to attach L-bracket on rip fence leadscrew housing to large extension table.

Rip Fence

Leadscrew Housing

L-Bracket

Figure 32. L-bracket on rip fence attached to

large extension table.

Extension

Table

Model G0853 (Mfd. Since 06/24)

-31-

21. On front of leadscrew housing assembly,

locate center pin on rip fence base mounting bracket (see Figure 33).

Center Pin

Figure 33. Location of rip fence mounting

bracket.

22. Position rip fence base over center pin on mounting bracket (see Figure 34) and lower rip fence base into place. Secure with (2) M12-1.75 x 30 cap screws and 12mm lock washers, and install slide lock handle.

Mounting

Bracket

24.

Connect rip fence sensor housing wire (see

Figure 35) to matching wire emerging from rip fence base.

Note: Rip fence sensor housing comes from

the factory pre-wired to the electrical box.

Rip Fence Base Wire

Sensor

Housing Wire

Figure 35. Rip fence sensor wires attached.

25. Attach rip fence sensor housing (see Figure

36) to rip fence base using (2) pre-installed

M5-.8 x 45 Phillips head screws.

x 2

Slide Lock

Handle

Rip Fence

Base

Figure 34. Rip fence base mounted on bracket.

Install (1) 16mm plastic cap in center pin hole

23.

and (2) 22mm plastic caps over cap screw holes.

Release Housing

x 2

Figure 36. Rip fence sensor housing attached to

rip fence base.

-32-

Model G0853 (Mfd. Since 06/24)

Slide rip fence onto clamping plate, as shown

26.

in Figure 37, and secure with slide lock handle.

Slide Lock

Handle

Rip

Fence

28. With assistance from other people, place

crosscut table on swing arm pivot pin and place crosscut table mounting plate on sliding table mounting rod, as shown in Figure 39. Tighten handle to lock crosscut table against sliding table.

Crosscut Table

Figure 37. Rip fence attached to rip fence base.

Attach rip fence wiring harness connector

27.

(see Figure 38) to electrical box connector and lock both latches to secure.

Electrical Box

Connector

Wiring Harness

Connector

Figure 38. Rip fence wiring harness connector

attached to electrical box connector.

Swing Arm

Pivot Pin

Mounting Plate

Mounting

Rod

Figure 39. Attaching crosscut table to machine

frame.

Slide (1) M8-1.25 T-nut into crosscut table

29.

support bar T-slot, and align with hole in crosscut table (see Figure 40).

Secure support bar by threading (1) M8-1.25

30.

x 50 knob bolt and 8mm fender washer into T-nut (see Figure 40).

Locking

Handle

Model G0853 (Mfd. Since 06/24)

Crosscut Table Support Bar

Figure 40. Attaching support bar to crosscut table.

-33-

31. Place crosscut fence on crosscut table and turn fence onto its side.

On crosscut fence end nearest blades:

32.

Insert (1) M8-1.25 x 35 T-bolt into T-slot,

(see Figure 41).

T-Slot Plate

Angle Scale

Lock Knob

Washer

T-Bolt

Pivot Lock

Knob

T-Bolt

Pivot

Hole

Figure 41. Crosscut fence hardware near to

blade.

Position crosscut fence so it is close to

but not touching blades.

Align T-bolt with pivot hole (see Figure 41).

Note: Pivot lock knob will help secure

crosscut fence in later step.

Angle

Scale Bar

Figure 42. Crosscut fence hardware in middle.

On end of crosscut fence farthest from blade,

34.

ensure latch on 0° stop block is rotated

parallel with crosscut fence, as shown in Figure 43.

Latch

Stop Bolt

0° Stop

Block

33. In middle of crosscut fence:

a. Locate pre-installed M8-1.25 x 35 T-bolt

(see Figure 42).

Align T-slot bolt with slot in pre-installed

angle scale bar (see Figure 42).

Note: Angle scale lock knob, T-slot plate,

and 8mm fender washer will help secure crosscut fence in later step.

-34-

Figure 43. Latch on 0° stop block positioned

parallel with crosscut fence.

Model G0853 (Mfd. Since 06/24)

35.

Slowly roll crosscut fence face up, and guide

T-bolts aligned in Steps 32c & 33b into their respective hole/slot.

. From underneath left side of crosscut fence,

thread pivot lock knob into T-bolt in pivot hole, as shown in Figure 44.

37. From underneath middle of crosscut fence, position M8-1.25 T-slot plate in angle scale bar slot, then thread angle scale bar lock knob and 8mm fender washer onto T-slot bolt, as shown in Figure 44.

On right side of crosscut fence, ensure 0°

38. stop block is up against stop bolt (see Figure

44), then rotate latch into catch and secure by

tightening knurled thumb knob.

. Slide out crosscut fence extension approxi-

mately 6", as shown in Figure 45.

Insert (2) flip stops into T-slot on fence and

40.

tighten knob bolts to secure (see Figure 45).

Knob Bolt

Fence

Extension

Flip Stop

(1 of 2)

Note: The stop bolt is set at the factory and

does not need to be adjusted.

Pivot Lock

Knob

Angle Scale

Lock Knob

Figure 44. Crosscut fence secured to table.

Thumb Knob

Figure 45. Flip stops installed on crosscut fence.

41. Locate T-bolt at end of crosscut fence exten-

sion and install fence clamp assembly, as shown in Figure 46.

T-bolt

Crosscut

Fence

Figure 46. Installing clamp assembly on crosscut

fence extension.

Fence

Extension

Model G0853 (Mfd. Since 06/24)

-35-

42. Install (1) M12-1.75 x 75 hex bolt and (1) M12-1.75 hex nut on welded tab, as shown in Figure 47.

Welded

Tab

Hex Nut

Hex Bolt

Figure 47. Fasteners installed on welded tab.

43. Remove (3) pre-installed hex nuts and wash-

ers from M20-2.5 x 130 studs (see Figure 48) on back side of machine.

45.

Use a level to ensure lower guard arm is par-

allel with the floor.

Secure position of lower guard arm by adjust-

46.

ing hex bolt installed in Step 42 until head of bolt rests against top of guard arm, then tighten hex nut against tab.

Tighten hex nuts installed in Step 44 (see

47. Figure 49).

Lower

Guard Arm

Install lower guard arm on studs (see

44. Figure 48), and secure with hex nuts and washers removed in Step

43. Only hand-tighten for now.

Studs

Lower

Guard Arm

Figure 48. Lower guard arm installed on studs.

x 3

Figure 49. Tightening hex nuts to secure lower

guard arm.

Use (4) M8-1.25 x 25 cap screws, 8mm lock

48.

washers, and 8mm flat washers to attach middle guard arm post to lower guard arm (see Figure 50).

x 4

Middle Guard

Arm Post

-36-

Figure 50. Middle guard arm post attached to

lower guard arm.

Model G0853 (Mfd. Since 06/24)

49. Loosen pre-installed hex bolt shown in Figure 51, and slide middle guard arm into middle

guard arm post. Hand-tighten hex bolt for now.

Use (3) M6-1 x 20 cap screws, 6mm lock

51.

washers, and 6mm flat washers to attach blade guard cover to middle guard arm (see Figure 53).

Middle Guard Arm

Hex Bolt

Upper Guard

Arm Post

Figure 51. Installing middle guard arm in middle

guard arm post.

50. Remove (2) pre-installed button head cap screws, lock washers, and flat washers from 4" dust port, and install dust port in end of middle guard arm (see Figure 52).

Blade Guard

Cover

x 3

Figure 53. Blade guard cover attached to middle

guard arm.

Use (2) M6-1 x 12 button head cap screws

52.

and 6mm lock washers to attach 3" dust port to middle guard arm (see Figure 54).

x 2

4" Dust Port

Figure 52. Installing 4" dust port in middle guard

arm.

Model G0853 (Mfd. Since 06/24)

3" Dust Port

Figure 54. Installing 3" dust port on middle

guard arm.

-37-

53. Slide 3" dust hose over 3" dust port on middle guard arm and dust port on blade guard,

and secure with (2) 3

⁄4" hose clamps (see

Figure 55).

55. Remove (2) pre-installed M5-.8 x 10 cap

screws and 5mm flat washers from bottom of upper guard arm and install steel tab (see Figure 57).

Blade Guard

Hose Clamp

(1 of 2)

Middle

Guard Arm

Dust

Hose

Figure 55. 3" dust hose installed on middle

guard arm and blade guard.

54. Remove (4) pre-installed M8-1.25 x 25 cap screws, 8mm lock washers, and 8mm flat washers from top of middle guard arm post, and use these to attach upper guard arm (see Figure 56).

x 2

Steel Tab

Figure 57. Steel tab installed on upper guard

arm.

Use (4) M5-.8 x 16 cap screws, 5mm lock

56.

washers, and 5mm flat washers to attach overhead control panel to upper guard arm (see Figure 58).

x 4

Upper

Guard Arm

Figure 56. Upper guard arm installed on middle

guard arm post.

Control Panel

Figure 58. Control panel attached to upper

guard arm.

-38-

Model G0853 (Mfd. Since 06/24)

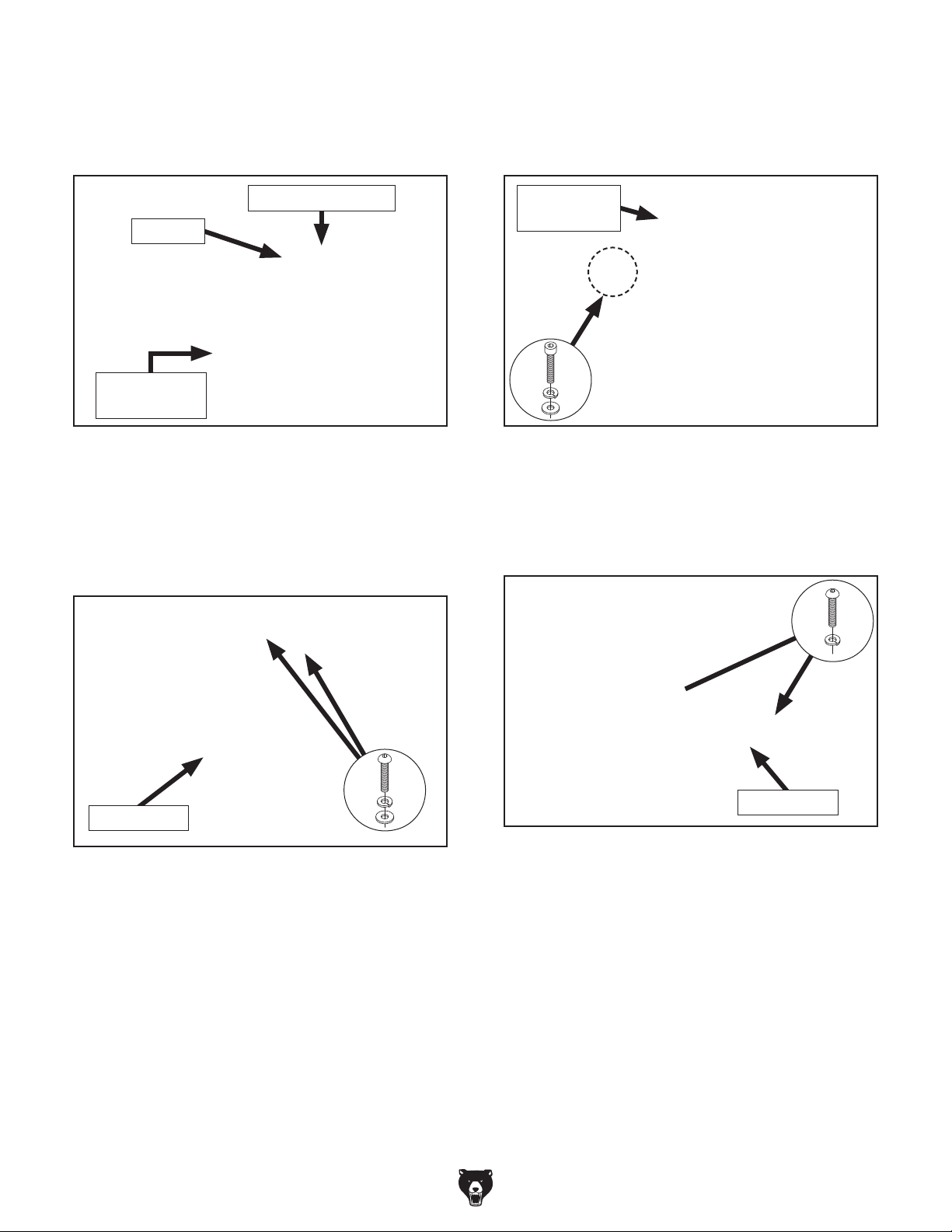

57. Use (7) pre-installed M6-1 x 10 button head cap screws to attach cord clamps to upper and lower guard arms and control posts, as shown in Figure 59, then route control panel cord through clamps.

Note: There should be no strain on cord as it

enters control panel.

x 7

Cord Clamps (2 of 7)

59. Move sliding table all the way backward to

expose blade cover. Pull blade cover toward front of machine to disengage magnetic catches (see Figure 61).

The Model G0853 does not ship with a main blade. Refer to Blade Requirements and Blade Selection beginning on Page 50 when purchasing the main blade.

Magnetic Catch

(1 of 2)

Figure 59. Cord clamps and control panel cord

attached to upper and lower guard arms and

control posts.

58. Use (2) M6-1 x 20 cap screws, (2) 6mm lock washers, (3) 6mm flat washers, and (1) M6-1 hex nut to attach L-bracket to large extension table and middle guard arm post (see Figure

60).

Note: Before final tightening, place a straight-

edge across cast-iron table and large extension table to ensure they are level.

x 1

Blade Cover

Figure 61. Location of magnetic catches that

secure blade cover.

x 1

Figure 60. L-bracket installed on large extension

table and middle guard arm post.

Model G0853 (Mfd. Since 06/24)

-39-

60. Insert arbor locking pin into access hole shown in Figure 62.

Note: Main blade is shown here only for illus-

trative purposes.

61. Push down on locking pin with one hand (see Figure 62) as you rotate arbor nut clockwise

with wrench. This will force blade locking pin into arbor indent and prevent arbor from rotating in next steps.

Arbor

Locking Pin

Arbor Nut

63. Slide main blade (not included) over arbor

with teeth facing to the right, then install flange (see Figure 64).

Upper Teeth Facing Right

Flange

Arbor

Nut

Figure 64. Main blade component assembly.

64.

Thread arbor nut on counterclockwise and

fully tighten it to secure the blade (see Figure 65).

Arbor

Figure 62. Loosening main blade arbor bolt.

62. Continue unthreading arbor nut clockwise (it

has left-hand threads) until you can remove flange (see Figure 63).

Arbor Nut Wrench

Flange

Figure 63. Main blade arbor parts and tools for

Arbor Locking Pin

changing blade.

Figure 65. Main blade installed on arbor.

65. Install and align riving knife (refer to Riving Knife Alignment beginning on Page 49 for

detailed information).

. Close blade cover. Center sliding table and

lock in place.

Before proceeding with the next steps, wear gloves to protect your hands when handling and installing the blade.

-40-

Model G0853 (Mfd. Since 06/24)

Dust Collection

This machine creates a lot of wood chips/ dust during operation. Breathing airborne dust on a regular basis can result in permanent respiratory illness. Reduce your risk by wearing a respirator and capturing the dust with a dust-collection system.

Minimum CFM at 5" Dust Port: 600 CFM Minimum CFM at 4" Dust Port: 400 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must consider these variables: (1) CFM rating of the dust collector, (2) hose type and length between the dust collector and the machine, (3) number of branches or wyes, and (4) amount of other open lines throughout the system. Explaining how to calculate these variables is beyond the scope of this manual. Consult an expert or purchase a good dust collection "how-to" book.

2. Fit 4" dust hose over dust port on middle guard arm, as shown in Figure 67, and secure with hose clamp.

Hose

Clamp

Figure 67. 4" dust hose attached to middle

guard arm.

3. Tug on dust hoses to make sure they do not come off. A tight fit is necessary for proper performance.

To connect dust collection hoses:

Fit 5" dust hose over dust port on rear side of

cabinet, as shown in Figure 66, and secure with hose clamp.

Figure 66. 5" dust hose attached to dust port.

Model G0853 (Mfd. Since 06/24)

-41-

Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared per the POWER SU P PLY section in this manual; and all previous setup instructions in this manual must be complete to ensure that the machine has been assembled and installed properly. The disconnect switch installed by the electrician (as recommended) is the primary means for disconnecting or connecting the machine to the power source.

Move the disconnect switch handle to the ON position, as illustrated below. The machine is now connected to the power source.

Move the disconnect switch handle to the OFF position, as illustrated below. The machine is now disconnected from the power source.

Note:

Lock the switch in the OFF position to

restrict others from starting the machine.

or equipment damage

not properly grounded

Power Connection

Electrocution, fire, shock,

may occur if machine is

and connected to power supply.

Note About Phase Converters: Due to the start-

up load from this machine, we do not recommend using a static phase converter to create 3-phase power—as it can quickly decrease the life of electrical components on this machine. If you must use a phase converter, only use a rotary phase converter. Only connect the manufactured leg or "wild wire" to the S terminal (see location on Page

106). The S terminal can handle power fluctuation

because it is wired directly to the motor.

To connect saw to power:

Figure 68. Connecting power to machine.

1. Remove power supply junction box cover

(see Figure 70).

Power Supply

Junction Box

Strain Relief

Figure 70. Location of power supply junction

box.

2. Insert incoming power wires through strain relief at bottom of junction box.

Figure 69. Disconnecting power from machine.

-42-

Model G0853 (Mfd. Since 06/24)

3. Connect ground wire to ground terminal, then

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

Serious injury or death can result from

connect incoming power wires to bottom terminals shown in Figure 71.

Incoming Power

Terminals

Figure 71. Terminal locations to connect

incoming power wires and ground wire.

Make sure incoming ground wire is connected to right-most terminal post in the power junction box so machine is properly grounded. An ungrounded or improperly grounded machine may have an electrified frame which could cause electrocution when touched.

4. Make sure wires have enough slack so they

are not pulled tight or stretched.

5. Re-install junction box cover, and perform Test Run in following section to check phase

polarity.

Ground

Terminal

The test run consists of verifying the following:

1) The motors power up and run correctly, 2) the main blade turns forward (clockwise when viewed from front of saw) and the scoring blade turns opposite the main blade, and 3) the safety features of the Emergency Stop buttons, blade cover switch, and cabinet door work correctly.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run machine:

Clear all setup tools away from machine.

2. Make sure saw blades are installed tightly

and blade cover is closed.

Press Emergency Stop buttons in at these

locations: 1) On front console, 2) on side of cabinet, 3) on digital control panel.

Connect saw to power, and rotate master

power switch to ON position.

Test Run

Model G0853 (Mfd. Since 06/24)

Troubleshooting

Twist each Emergency Stop button clockwise

so it pops out (see Figure 72). This resets the buttons so machine can start.

Figure 72. Resetting Emergency Stop button.

-43-

6. Verify motors are operating correctly by pressing main blade and scoring blade ON buttons (refer to Figure 1 on Page 5) on front console.

— When operating correctly, machine runs

smoothly with little or no vibration or rubbing noises.

— Investigate and correct strange or unusu-

al noises or vibrations before operating machine further. Always stop machine and disconnect it from power before investigating or correcting potential problems.

Verify main blade is rotating clockwise (as

standing in front of machine) and scoring blade is rotating counterclockwise (opposite direction of main blade).

Note: You may need to stop blade rotation

and watch blades come to a stop to determine which direction they are rotating.

— If blades are rotating in wrong direction,

stop machine and DISCONNECT FROM POWER! Polarity of incoming power supply is reversed. Swap “R” and “T” wire positions inside power supply junction box (see Figure 73), and reconnect machine to power.

Do not swap "R" or "T" wires with ground wire inside power supply junction box. Doing so will electrify machine frame, which could cause electrocution. Make sure incoming ground wire is only connected to right-most terminal post in the power supply junction box so machine is properly grounded.

Press Emergency Stop button on front con-

sole to turn machine OFF.

WITHOUT resetting Emergency Stop button,

press main blade and scoring blade ON buttons on front console. Machine should not start.

— If machine does not start, safety feature

of Emergency Stop button is working correctly.

— If machine does start, immediately turn

machine OFF and disconnect from power. The safety feature of the Emergency Stop button is NOT working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Reset Emergency Stop button on front

10.

console.

Power Supply

Junction Box

R and T

Connections

Figure 73. Power supply inside junction box.

-44-

Ground

Repeat Steps 6–9 with Emergency Stop but-

11. ton on side of cabinet (refer to Figure 2 on Page 5).

Repeat Steps 6–9 with main blade and scor-

12.

ing blade ON buttons and Emergency Stop button (refer to Figure 7 on Page 8) on overhead control panel.

Press Emergency Stop buttons.

13.

Model G0853 (Mfd. Since 06/24)

14. Move sliding table all the way back, and open blade cover, as shown in Figure 74. This activates blade cover safety switch to prevent saw from starting while cover is open.

Cabinet

Door

Figure 75. Cabinet door location.

Blade Cover

Figure 74. Blade cover in open position.

15. While staying safely away from blade, reset

Emergency Stop buttons, then try to start main blade and scoring blade using ON buttons on front console.

— If blades do not start, blade cover safety

switch safety feature is working correctly.

— If blades do start, immediately turn

machine OFF and disconnect power. The blade cover safety switch safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Repeat Step 15 using main blade and scor-

16.

ing blade ON buttons on overhead control panel.

Close blade cover, and move sliding table

17.

back to center of machine.

19. While staying safely away from blade, try to

start main blade and scoring blade using ON buttons on front console.

— If blades do not start, cabinet door safety

switch safety feature is working correctly.

— If blades do start (with cabinet door open),

immediately turn machine OFF and disconnect power. The cabinet door safety switch safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

20. Repeat Step 19 using main blade and scoring

blade ON buttons on overhead control panel.

Close cabinet door, then push Emergency

21.

Stop buttons.

Congratulations. Test Run is complete!

Recommended

Adjustments

Open cabinet door shown in Figure 75. This

18.

activates cabinet door safety switch to prevent saw from starting while door is open.

Model G0853 (Mfd. Since 06/24)

The adjustments listed below have been performed at the factory. However, because of the many variables involved with shipping, we recommend that you verify the adjustments to ensure the best possible results from your new machine.

• Riving Knife Alignment ....................Page 49

• Aligning Scoring Blade ................... Page 58

• Blade Tilt Calibration .......................Page 92

• Sliding Table Parallel Adjustment ... Page 94

• Squaring Crosscut Fence to Blade .. Page 95

• Calibrating Rip Fence ..................... Page 96

-45-

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed

later in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators, and do additional research outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

ing loss can occur while operating this

Operation Overview

machine controls/components

are easier to understand.

seek additional

To complete a typical operation, the operator does the following:

Examines workpiece to make sure it is suit-

able for cutting.

Adjusts blade tilt, if necessary, to correct

angle of desired cut.

Adjusts blade height approximately 1⁄4" higher

than thickness of workpiece.

Adjusts fence to desired width of cut then

locks it in place.

5. Adjusts blade guard for workpiece height.

Checks outfeed side of machine for proper

support and to make sure workpiece can safely pass all the way through the blade without interference.

using machine.

Eye injuries, respiratory problems, or hear-

tool. Wear personal protective equipment to reduce your risk from these hazards.

The Model G0853 does not ship with a main blade. Refer to Blade Requirements and Blade Selection beginning on Page 50 when purchasing the main blade.

-46-

Puts on safety glasses, a respirator, and

hearing protection. Locates push sticks, if needed.

Turns dust collection system ON.

Turns saw ON.

Feeds workpiece all the way through blade

10.

while maintaining firm pressure on workpiece against table and fence.

Turns machine OFF immediately after cut is

11.

complete and waits for blades to completely stop before removing workpieces.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0853 (Mfd. Since 06/24)

Workpiece

• Material Type: This machine is intended for

cutting natural and man-made wood products, laminate-covered wood products, and some plastics. Cutting drywall or cementitious backer board creates extremely fine dust and may reduce the life of the motor bearings. This machine is NOT designed to cut metal, glass, stone, tile, etc.; cutting these materials with a table saw greatly increases the risk of injury and damage to the saw or

•

Nails, staples, dirt, rocks

ded in wood. While cutting, these objects can become dislodged and hit the operator, cause kickback, or break the blade, which might then fly apart. Always visually inspect

•

Loose knots can

tion. Large knots can cause kickback and machine damage. Choose workpieces that do not have large/loose knots or plan ahead

•

Cutting wood with a

sary wear on the blades, increases the risk of

•

Workpieces with exces-

ous to cut because they are unstable and

•

Slightly cupped workpieces can be safely supported with cupped side facing the table or fence; however, workpieces supported on the bowed side will rock during the cut, which could cause kickback.

A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in the Figure below.

A through cut is a sawing operation in which the workpiece is completely sawn through, as shown in the

. Examples of through cuts are rip cuts, cross cuts, miter cuts, and beveled cuts. The blade guard assembly MUST be used when performing through cuts.

Through &

Inspection

Some workpieces are not safe to cut on this machine or may need to be modified before they can be safely cut. Before cutting, inspect all

workpieces for the following:

blade.

Foreign Objects:

and other foreign objects are often embed-

Non-Through Cuts

Through Cuts

Figure below

Figure 76. Example of a through cut (blade

guard not shown for illustrative clarity).

your workpiece for these items. If they can’ be removed, DO NOT cut the workpiece.

Large/Loose Knots:

become dislodged during the cutting opera-

to avoid cutting through them.

Wet or "Green" Stock:

moisture content over 20% causes unneces-

kickback, and yields poor results.

Excessive Warping:

sive cupping, bowing, or twisting are danger-

may move unpredictably when being cut.

Minor Warping:

Non-Through Cuts

A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in the Figure below. The blade guard assembly MUST be used when performing all non-through cuts, except when the guard will not safely accommodate the workpiece.

Figure 77. Example of a non-through cut.

Model G0853 (Mfd. Since 06/24)

-47-

Blade Guard

The term "blade guard" refers to the assembly shown in Figure 78.

Lock Handle

Lock Knob

Hex Bolt

Guard

Covers

Figure 78. Blade guard assembly.

Understanding & Using Blade Guard

The blade guard MUST be installed on the saw for all cuts. The guard encloses the top of the blade to reduce the risk of accidental blade contact and to contain flying chips or dust. When installed and properly maintained, it is an excellent tool for reducing the risk of injury when operating the table saw.

Sometimes the guard or its components can get in the way when cutting very narrow workpieces or performing other specialized cuts. Use the lock handle shown in Figure 78 to move the guard out of the way. The blade guard MUST remain installed on the saw. If the blade guard is removed for specific operations, always replace it immediately after those operations are complete.

As the workpiece is pushed into the blade, the guard lifts and remains in contact with the workpiece during the cut, then returns to a resting position against the table once the workpiece is pushed completely past the guard.

Adjusting Blade Guard

Loosen the hex bolt securing the guard arm (see Figure 78), and adjust the guard so the distance between the blade and both guard covers is equal.

For stock up to 1" thick, loosen the (3) lock nuts securing the guard to the guard arm (see Figure

⁄4-turn each so the blade guard moves

79) smoothly up and down with the workpiece. For stock thicker than 1", set the guard to rest on the workpiece, then tighten the (3) lock nuts.

x 3

Figure 79. Location of blade guard lock nuts.

IMPORTANT: Every time the blade guard is re-

installed, you must verify that it functions correctly before making a cut.

To test blade guard operation, lift the front end all the way up, then release it. The blade guard should freely drop down and both wheels should contact the table surface.

If the blade guard remains in the same position where you released it, loosen the lock nuts securing the blade guard to the guard arm, and re-test operation until the guard freely drops all the way down.

To ensure that the guard does its job effectively, it MUST be centered over blade and properly adjusted so it moves up and down to accommodate workpieces and maintain coverage over the blade after the workpiece exits.

-48-

Model G0853 (Mfd. Since 06/24)

Guard Covers

The G0853 features two dust hood assemblies for either straight cuts or angled cuts. Use the flat blade cover when performing straight (90°) cuts or the wide (bubble) cover for angled cuts. To change between covers, loosen the lock knob (see Figure 80), pull the guard assembly straight out, install the other cover, and re-tighten the lock knob.

Dust Hood

Lock Knob

Guard Cover

Riving Knife Installation & Removal

Tools Needed Qty

Straightedge ...................................................... 1

Wrench 19mm Hex Wrench 2.5mm

The riving knife must be correctly installed, adjusted, and aligned in order to provide the maximum safety benefit.

The riving knife attaches to the mounting block as shown in Figure 82. Always firmly tighten the hex nut when securing the riving knife in place.

................................................... 1

........................................... 1

Figure 80. Installing blade guard cover.

Riving Knife

The riving knife (see Figure 81) is a metal plate that prevents the freshly cut pieces of the workpiece from pinching the backside of the blade and causing kickback. It also acts as a barrier behind the blade to shield hands from being pulled into the blade if kickback occurs and the operator is reaching behind the blade. (Reaching behind the blade is a major safety risk and should never be done.) Use the riving knife for all operations.

Figure 82. Installing riving knife on mounting

block.

For riving knife to work safely, it MUST be aligned with and correctly adjusted to blade.

Secure the riving knife so the top is 1–5mm below the top level of the blade, as shown in Figure 83.

Minimum 1mm

Maximum 5mm

Height Difference

Riving Knife

Figure 81. Riving knife location.

Model G0853 (Mfd. Since 06/24)

Figure 83. Height difference between riving knife

and blade.

The height difference between the riving knife and the blade allows the workpiece to pass over the blade during non-through cuts (those in which the blade does not cut all the way through the thickness of the workpiece).

-49-

The riving knife also prevents the freshly cut sides of the workpiece from pinching the blade and causing kickback. For maximum effectiveness of this safety design, the riving knife must be positioned within 3–8mm of the blade, as shown in Figure 84.

Alignment

Zone

Spreader

Top Distance

Minimum 3mm Maximum 8mm

Bottom Distance

Minimum 3mm Maximum 8mm

Figure 84. Allowable top and bottom distances

between riving knife and blade.

Once the riving knife is properly positioned at the correct distance from the blade, verify that it is aligned with the blade by checking the alignment with a straightedge in the top and bottom locations shown in Figure 85.

Top Alignment

Bottom Alignment

Blade

Figure 86. Verifying that riving knife is in the

alignment zone behind the blade.

If the riving knife is not aligned or parallel with the blade, refer to Riving Knife Mounting Block on Page 93.

Straightedge

When to Use Riving Knife

Use the riving knife for all non-through cuts (defined on Page 47) or for those special operations where the blade guard or its components get in the way of safe operation, such as with very narrow cuts.

When Not to Use Riving Knife

Although it is possible to use the riving knife for through-cutting operations, the blade guard assembly offers far more injury protection and risk reduction than the riving knife. Therefore, we strongly recommend that you use the blade guard assembly and riving knife instead of just the riving knife alone for through-cuts.

Figure 85. Checking top and bottom riving knife

alignment with blade.

The riving knife should be parallel with the blade along its length at both positions and should be in the "Alignment Zone" shown in Figure 86.

-50-

Blade Requirements

The riving knife included with this machine is

0.098" thick and is only designed for 12 " and 14" diameter blades.

When choosing a main blade, make sure the blade size meets the requirements listed below. The thickness of the blade body and teeth can be measured with calipers or any precision measuring device.

Blade Size Requirements:

• Body Thickness: 0.108"

• Kerf (Tooth) Thickness: 0.118"

Model G0853 (Mfd. Since 06/24)

Blade Selection

This section on blade selection is by no means comprehensive. Always follow the saw blade manufacturer's recommendations to ensure safe and efficient operation of your table saw.

Ripping Blade Features:

• Best for cutting with the grain

• 30-40 teeth

• Flat-top ground tooth profile

• Large gullets for large chip removal

Flat

Top

Blade

Combination blade features:

• Designed to cut both with and across grain

• 50–80 teeth

• Alternate top bevel and flat, or alternate top bevel and raker tooth profile

• Teeth are arranged in groups

• Gullets are small and shallow (similar to a cross-cut blade), then large and deep (similar to a ripping blade

Alternate

Top

Bevel

and Flat

Figure 87. Ripping blade.

Crosscut blade features:

• Best for cutting across the grain

• 80–100 teeth

• Alternate top bevel tooth profile

• Small hook angle and a shallow gullet

Alternate

Top

Bevel

Figure 89. Combination blade.

Laminate blade features:

• Best for cutting plywood or veneer

• 100–120 teeth

• Triple chip tooth profile

• Very shallow gullet

Triple

Chip

Blade

Figure 90. Laminate blade.

Figure 88. Crosscutting blade.

Model G0853 (Mfd. Since 06/24)

Thin Kerf Blade: A blade with thinner kerf than a standard blade. Since the spreader/riving knife included with this table saw is sized for standard blades, thin kerf blades cannot be used on this saw.

-51-

Blade Dimensions

PROG.

CAL.

START

inch

STOP

1 2

M+CEM-

8 9

PROG.

CAL.

START

inch

STOP

1 2

M+CEM-

8 9

Adding/Deleting

Blade Dimensions

The overhead control panel is capable of storing the dimensions of up to ten different blades. This information is critical when setting up the rip fence to make precision cuts.

Adding Blade Dimensions

1. Press Tool-Box key on overhead control panel (see Figure 91).

1 2

8 9

inch

CAL.

Press F4 key to go to Tool-Box Edit screen

3. (see Figure 93).

Tool-Box Edit No: 01

300

2 . 5

. 0

Figure 93. Tool-Box Edit screen.

Press F2 key, enter blade diameter, and

press F2 again to save.

Press F3 key, enter blade thickness, and

press F3 again to save.

PROG.

START

STOP

M+CEM-

Figure 91. Location of Tool-Box key.

Use F2 and F3 keys to scroll up or down to

2. an open line (see Figure 92).

Tool-Box

01 02 03 04

06 07 08 09 10

20.0mm

22.0

26.0mm

28.0mm

3.2mm

3.6

3.5mm

3.8mm

Figure 92. Tool-Box blade dimension screen.

Note: On machines manufactured before

June, 2021, blade dimensions can only be entered in metric values. To upgrade to new metric/standard computer chip, order PN P08531655-1.

Press F5 key to save new dimensions to

database.

Press F1 key to return to main screen.

Deleting Blade Dimensions

1. Press Tool-Box key on overhead control

panel (see Figure 91).

Use F2 and F3 keys to scroll through list, and

stop on line to be deleted.

Press and hold F5 key for three seconds to

delete line.

Press F1 to return to main screen.

-52-

Model G0853 (Mfd. Since 06/24)

Changing Main

Changing

Blade Height

The main blade is raised and lowered by rotating the blade height switch shown in Figure 94. Rotate the switch clockwise to raise the blade; rotate it counterclockwise to lower the blade. Rotate and hold the switch for continuous movement.

Main Blade

Height Switch

Blade Angle

The angle of the saw blades can be changed using the blade tilt switch or the blade tilt microadjust button on the overhead control panel. Both methods change the blade angle in 0.1° increments, anywhere from 0°–45°. Use the switch for making large, quick adjustments to blade tilt, and use the button for making small, more refined changes.

Changing Blade Angle w/Tilt Switch

1. Rotate blade tilt switch (see Figure 95) clock-

wise to increase blade angle, and counterclockwise to decrease blade angle.

Tip: Rotate and hold switch for continuous

movement.

Monitor changes to blade angle in blade tilt

readout (see Figure 95), and release switch when desired angle is reached.

Figure 94. Location of main blade height switch.

Blade Tilt

Readout

Micro-Adjust ButtonBlade Tilt Switch

Figure 95. Controls for adjusting blade tilt.

Changing Blade Angle w/MicroAdjust Button

1. Press blade tilt micro-adjust button once to

increase blade angle 0.1°.

Tip: Press and hold button down for continu-

ous movement.

Model G0853 (Mfd. Since 06/24)

Monitor changes to blade angle in blade tilt

readout (see Figure 95), and release button when desired angle is reached.

-53-

Changing

Rotate motor adjustment lever clockwise to

release belt tension.

Blade Speed

The Model G0853 has three main blade speeds—3000, 4000, and 5000 RPM. These speeds are selected by repositioning the main motor belt on the pulleys.

Tools Needed Qty

Wrench 22mm ................................................... 1

To change main blade speed:

DISCONNECT MACHINE FROM POWER!

2. Open motor cabinet door and locate motor

adjustment lever shown in Figure 96.

Inspect the belt. If there is any evidence of

damage or excessive wear, replace it (refer to Belt Service on Page 90).

Position belt on correct arbor and motor pul-

ley set for desired speed (refer to Figure 97 for pulley identification).

Arbor

Pulley

4000 RPM

5000 RPM

3000 RPM

Motor

Pulley

Adjustment Lever

Figure 96. Location of main motor adjustment

lever.

Figure 97. Belt positions for each blade speed.

Rotate motor adjustment lever counterclock-

wise to retension belt (refer to Belt Service on Page 90).

Note: Proper tension of the main motor belt

is automatically maintained by a cam lock attached to the motor mounting plate and arbor support bracket.

Close motor cabinet door before reconnect-

ing machine to power.

-54-

Model G0853 (Mfd. Since 06/24)

Changing

Main Blade

The Model G0853 performs best when using sharp, high-quality blades. Whenever the main blade starts to get dull, resharpen it or replace it with a new blade.

The Model G0853 does not ship with a main blade. Refer to Blade Requirements and Blade Selection beginning on Page 50 when purchasing the main blade.

Tools Needed Qty

Arbor Wrench 36mm ......................................... 1

Arbor Locking Pin Protective Gloves

To change main blade:

.............................................. 1

......................................... 1 Pr

Always wear leather gloves when working around the blades to protect your hands.

6. Insert arbor locking pin into table hole shown

in Figure 99.

Arbor

Locking Pin

Arbor

Nut

Figure 99. Loosening the main blade arbor nut.

DISCONNECT MACHINE FROM POWER!

2. Adjust main blade tilt to 0° and raise blade all

the way up.

Raise blade guard up.

4. Move sliding table all the way backward to

expose blade cover.

Pull blade cover away from blade to disen-

gage magnetic catches (see Figure 98).

Blade Cover

Push down on locking pin with one hand as

you rotate blade clockwise with wrench on arbor nut. This will force blade locking pin into arbor indent and prevent blade from rotating.

Continue unthreading arbor nut clockwise

(left-hand threads) until you can remove the nut, flange, and blade (see Figure 100).

Arbor Nut Arbor

Wrench

Flange

Figure 100. Main saw blade and arbor parts.

Arbor locking pin

Figure 98. Example of blade cover in closed

position.

Model G0853 (Mfd. Since 06/24)

-55-

Install new blade, flange, and arbor nut in

reverse order of removal, making sure upper blade teeth face RIGHT (see Figure 101), then tighten arbor nut.

Replacing & Aligning

Scoring Blade

Upper Teeth Facing Right

Flange

Arbor

Nut

Figure 101. Order of assembly for main blade.

10. Close blade cover, move sliding table back to

center of machine, and lower blade guard.

Check scoring blade alignment with main

11. blade, and adjust if necessary (see Aligning Scoring Blade on Page 58).

Arbor

The scoring blade rotates in the opposite direction of the main blade and makes a shallow cut in the workpiece surface. This prevents workpiece tearout.

The scoring blade included with the Model G0853 has wedge-shaped teeth that narrow at the top, as shown in Figure 102. With this style of scoring blade, the kerf thickness is adjusted by changing the height of the scoring blade. Raising the scoring blade higher increases the kerf thickness.

Scoring Blade

Tooth

Figure 102. Scoring blade tooth that narrows at

the top.

Replacing Scoring Blade

Tools Needed Qty

Arbor Wrench 19mm ......................................... 1

Wrench or Socket 19mm

To replace scoring blade:

DISCONNECT MACHINE FROM POWER!

2. Adjust blade tilt to 0° and raise blade all the

way up.

Raise blade guard up and move it away from

blade.

Move sliding table all the way forward to

expose blade cover.

Pull blade cover toward front of machine to

disengage magnetic catch.

................................... 1

-56-

Model G0853 (Mfd. Since 06/24)

6. Slide arbor wrench behind scoring blade (see Figure 103) to prevent blade from spinning.

Slide replacement scoring blade over arbor

with teeth facing to the LEFT, then replace flange.

Arbor

Wrench

Hex Bolt

Figure 103. Arbor wrench inserted behind

scoring blade to prevent blade from spinning.

7. Use 19mm wrench to unthread arbor hex bolt counterclockwise (left-hand threads), and remove hex bolt, flange, and blade (see Figure 104).

Arbor

Wrench

Scoring Blade

Thread arbor hex bolt on clockwise and fully

9. tighten it to secure the assembly (see Figure 105 for order of assembly).

Upper Teeth Facing Left

Flange

Hex Bolt

Arbor

Figure 105. Scoring blade order of assembly.

10. Align scoring blade to main blade, as instruct-

ed in the next subsection.

Hex Bolt

Flange19mm Wrench

Figure 104. Scoring blade, flange, arbor hex

bolt, 19mm wrench, and arbor wrench.

Model G0853 (Mfd. Since 06/24)

-57-

Aligning Scoring Blade

1. DISCONNECT MACHINE FROM POWER!

Rotating alignment adjustment knob to

align bodies of blades.

2. Adjust main blade tilt to 0° and raise blade all

the way up.

Raise blade guard up and move it away from

blade.

Align scoring blade body horizontally to main

blade body by:

a. Rotating knurled lock collar shown in

Figure 106 counterclockwise to loosen it.

Lock

Collar

Alignment

Adjustment Knob

Figure 106. Scoring blade adjustment controls.

Positioning straightedge against flat of

main blade body (not teeth) and extending it over scoring blade body (see Figure 107).

Elevation

Adjustment Knob

Note: Rotating knob clockwise moves

scoring blade to the left and counterclockwise moves it to the right.

Tightening lock collar clockwise to secure

setting.

5. Align scoring blade kerf to main blade kerf by:

Positioning straightedge on one side of

main blade flat on table and against main blade and scoring blade teeth.

Rotating knurled lock collar behind eleva-

tion adjustment knob (see Figure 106) counterclockwise to loosen it.

Using elevation adjustment knob to adjust

scoring blade so that the edge of scoring blade teeth are aligned with main blade teeth.

Note: Rotating knob clockwise lowers

scoring blade and counterclockwise raises it.

Tightening lock collar clockwise to secure

setting.

Repeat Step 5 for other side of blades to

verify kerf thickness matches and scoring blade is aligned with main blade.

Figure 107. Example of straightedge placed flat

against main and scoring blades.

-58-

Close blade cover, properly reposition blade

guard, and slide table back to center of machine.

Perform a test cut and check for chip-out.

— If there is chip-out, repeat this procedure

until corrected.

Model G0853 (Mfd. Since 06/24)

Setting Up

Crosscut Fence

Before using the crosscut fence to perform cutting operations, it must be set up properly. This includes positioning the crosscut fence on the crosscut table, adjusting the support bar, adjusting the crosscut fence distance from the blade, and positioning the crosscut table along the sliding table.

Positioning Crosscut Fence

The crosscut fence can be mounted in the front or rear position (see Figure 108) depending upon the size of the workpiece and which position will provide the safest operation. The support bar is adjusted accordingly for maximum workpiece support.

Front

Position

The support bar can also be installed in either the inside or outside positions (see Figure 109).

Crosscut

Fence

Crosscut

Table

Inside

Position

Crosscut

Fence

Crosscut

Table

Outside

Position

Crosscut

Table

Crosscut

Table

Rear

Position

Figure 108. Crosscut fence front and rear table

mounting positions.

Whenever the crosscut fence is moved between the front and rear positions, you must verify the fence is square to the blade, and the 0° stop bolts are properly adjusted before using the fence. Refer to Squaring Crosscut Fence to Blade on Page 95 for further details.

Support

Bar

Support

Bar

Figure 109. Inside and outside support bar

positions.

To position crosscut fence:

DISCONNECT MACHINE FROM POWER!

2. Remove pivot knob and angle scale knob

shown in Figure 110, and release latch securing 0° stop block.

Pivot Knob

Latch

Angle

Scale Knob

Figure 110. Locations of knobs and latch

securing crosscut fence to table.

Model G0853 (Mfd. Since 06/24)

-59-

Lift fence off table and roll it gently onto

its side so T-bolts (see Figures 111–112) remain in same position.

Rear Pivot Hole

Latch 0° Stop Block

T-Bolt

Front Pivot Hole

Figure 111. Location of front and rear pivot holes

and pivot knob T-bolt.

T-Bolt

Angle

Scale Bar

Figure 112. Location of angle scale bar and

T-bolt.

Move fence to front or rear position, and

insert T-bolt into front hole or rear pivot hole, and insert angle scale bar T-bolt into angle scale bar slot.

Stop BoltCatch

Figure 113. Stop block against 0° stop bolt.

6. Loosen support bar knob bolt shown in Figure 114, slide support bar into position

required for operation, then tighten knob bolt.

Knob Bolt

Support Bar

Figure 114. Location of knob bolt for adjusting

support bar position.

Positioning Crosscut Table Along Sliding Table

The crosscut table can be positioned as necessary along the sliding table (see Figure 115).

5. Rotate fence so 0° stop block is up against stop bolt (see Figure 113), then rotate latch into catch and secure by tightening knurled thumb knob.

-60-

Figure 115. Crosscut table positions along

sliding table.

Model G0853 (Mfd. Since 06/24)

To position crosscut table along sliding table:

DISCONNECT MACHINE FROM POWER!

2. Use sliding table lock lever (see Figure 116)

to secure table in position.

Sliding Table

Lock Lever

Figure 116. Location of sliding table lock lever.

Loosen crosscut table lock lever shown in

3. Figure 117.

Calibrating Crosscut Fence

To accurately use the crosscut fence scale and ensure the fence does not contact the blade, the distance between the end of the crosscut fence and the blade must be properly adjusted.

To calibrate crosscut fence:

DISCONNECT MACHINE FROM POWER!

2. Perform steps in Positioning Crosscut Fence on Page 59.

Move crosscut table (refer to Positioning

3. Crosscut Table Along Sliding Table on Page 60 for instructions) so end of fence is

aligned with center of blade (see Figure 118).

Lock Lever

Figure 117. Location of crosscut table lock lever.

Move crosscut table along sliding table to

desired position, then retighten lock lever to secure table.

3" Mark

Figure 118. Example of aligning fence with

center of blade.

4. Loosen pivot knob.

5. Place precision ruler against a blade tooth,

as shown in Figure 118, then adjust fence so that 3" mark on fence scale is exactly 3" from blade tooth.

Tighten pivot knob,

7. Repeat measurement in Step 5.

— If measurement is not exactly 3", repeat

Steps 2–7 until it is.

End Block

Model G0853 (Mfd. Since 06/24)

-61-

Using CNC

Rip Fence

The rip fence can be programmed to position itself anywhere from Rip fence positions can be saved in the database to make repeat cuts a simple procedure.

⁄16 " to 51" from the main blade.

To cut with rip fence:

1. Enter desired width of cut using numeric

keypad on control panel (see Figure 119). Measurement will appear in digital display, and START key will illuminate.

8 9

As a safety precaution against the rip fence potentially crashing into the blade, travel toward the blade that occurs within 12" (285mm) of the blade requires two steps to complete. Press the START key once to initiate rip fence movement. The fence will only move part of the distance entered. Then press and hold the START key to complete the movement. When fence movement is complete, the START key will no longer be illuminated.

Maintain awareness of rip fence position at all times. Do NOT stand between rip fence and sliding table when rip fence is moving or serious crushing injury may occur.

Cutting with Rip Fence

The simplest use of the CNC rip fence consists of using the control panel to enter the width of the cut you wish to make, pressing the START key to move the fence to that position, and then making the cut.

Figure 119. Numeric keypad on control panel.

Press START key to initiate rip fence

movement. When movement is complete, START key light will go out.

3. Adjust blade height and angle.

IMPORTANT: Machine does NOT automati-

cally set blade height or tilt. This must be done manually using blade controls on control panel before cut is made.

Load workpiece onto table.

5. Take all safety precautions, turn blades ON,

and make the cut.

inch

CAL.

PROG.

START

STOP

1 2

M+CEM-

-62-

Turn motors OFF, allow blades to come to a

complete stop, and remove workpiece from table.

Model G0853 (Mfd. Since 06/24)

PROG.

CAL.

START

mm inch

STOP

1 2

M+CEM-

8 9

Making Grooves/Concealed Cuts

Based on blade width and workpiece dimensions, the saw can be programmed to make a series of cuts to create a groove. Refer to Non-Through Cuts on Page 47 for specific details on this type of cut.

To make grooves/concealed cuts:

Press F2 key and enter desired rip fence

starting position (see Figure 122). This is where the grooving cut will begin. Press F2 key again to save entry.

Press F3 key and enter width of groove to be

cut (see Figure 122). Press F3 key again to save entry.

Press Tool-Box key (see Figure 120), and

use F2 or F3 keys to scroll to dimensions for blade to be used in operation. If blade dimensions have not been entered, enter them now (refer to Adding/Deleting Blade Dimensions on Page 52).

Figure 120. Location of Tool-Box key.

2. Press F1 to save selection and return to main

screen.

Ensure rip fence is calibrated for blade width

and fence face (narrow or wide) to be used in operation (refer to Calibrating Rip Fence on Page 98).

inch

CAL.

PROG.

START

STOP

8 9

1 2

M+CEM-

Note: Positive numbers move fence away

from blade; negative numbers move fence toward blade.

Press F4 key and enter depth of groove to be

cut (see Figure 122). Press F4 key again to save entry.

Grooving/

Concealed Cuts

600

10 . 0 10 . 0

3 . 2

Figure 122. Grooving/Concealed Cuts screen.

IMPORTANT: Machine does NOT automati-

cally set blade height or tilt. This must be done manually using blade controls on control panel. The purpose of entering groove depth in this step is to ensure user has considered all variables before making a cut.

. 0

mm mm mm mm

L L

Press Grooving/Concealed Cuts key (see

4. Figure 121).

Figure 121. Location of Grooving/Concealed

Model G0853 (Mfd. Since 06/24)

inch

CAL.

PROG.

START

STOP

Cuts key.

8 9

1 2

M+CEM-

Confirm blade width shown on line F5 (see

8. Figure 122) matches dimension chosen in Step 1

cuts necessary to complete operation based on this measurement.

Note: At this point, START key should be

illuminated, and number of cuts needed to complete operation should be shown in lower left-hand corner of screen.

Press START key. Rip fence will move to

starting position.

Load workpiece onto table.

10.

. System will determine number of

-63-

PROG.

CAL.

START

mm inch

STOP

1 2

M+CEM-

8 9

11. Take all safety precautions, turn blades ON,

and make first cut.

Turn motors OFF, allow blades to come to a

12.

complete stop, and remove workpiece from table.

Press START key. Rip fence will automatical-

13.

ly move to next position to continue grooving operation, and number of cuts shown in lower left-hand corner will be reduced by one.

Repeat Steps 10–13 until operation is com-

14.

plete. START key will no longer be illuminated.

Press F2 key, enter desired rip fence starting

position, then press START key (see Figure

124). Rip fence will move to this position.

Press F3 key, enter desired width of each

subsequent cut, then press START key (see Figure 124).

Note: Positive numbers move fence away

from blade; negative numbers move fence toward blade.

Incremental

Dimension

Making Incremental Cuts

The rip fence can be programmed to move a specific distance from the blade to make repeat cuts fast and simple.

To make incremental cuts:

Press Tool-Box key, and use F2 or F3 keys

to scroll to dimensions for blade to be used in operation. If blade dimensions have not been entered, enter them now (refer to Adding/ Deleting Blade Dimensions on Page 52).

Press F1 to save selection and return to main

screen.

Ensure rip fence is calibrated for blade width

and fence face (narrow or wide) to be used in operation (refer to Calibrating Rip Fence on Page 98).

Press Incremental Dimension key (see

4. Figure 123). START key will illuminate.

600

50 . 0

Figure 124. Incremental Dimension screen.

IMPORTANT: Machine does NOT automati-

cally set blade height or tilt. This must be done manually using blade controls on control panel before cut is made.

Load workpiece onto table.

8. Take all safety precautions, turn blades ON,

and make first cut.

Turn motors OFF, allow blades to come to a

complete stop, and remove workpiece from table.

. 0

mm mm

Figure 123. Location of Incremental Dimension

-64-

mm inch

CAL.

PROG.

START

STOP

key.

8 9

1 2

M+CEM-

Press START key. Rip fence will automati-

10.

cally move by amount entered in Step 6.

Repeat Steps 7–10 until operation is com-

11.

plete. F1 key may be pressed at any time to end operation and return to main screen.

Model G0853 (Mfd. Since 06/24)

Making Repeat Cuts

The database automatically saves the last two rip fence positions to have been used so they can be easily accessed for making repeat cuts. Similarly, the user can simply enter two rip fence positions for the express purpose of making repeat cuts.

Double click Dimension Repeat key (see

4. Figure 125) or press Dimension Repeat key

and then press START key to move fence to first saved position.

Load workpiece onto table.

Making repeat cuts using last two positions

Double click Dimension Repeat key (see

1. Figure 125) or press Dimension Repeat key

and then press START key. Rip fence will move to first most recent position.

mm inch

CAL.

PROG.

START

STOP

8 9

1 2

M+CEM-

Figure 125. Location of Dimension Repeat key.

Load workpiece onto table.

3. Take all safety precautions, turn blades ON,

and make the cut.

Turn motors OFF, allow blades to come to a

complete stop, and remove workpiece from table.

6. Take all safety precautions, turn blades ON,

and make the cut.

Turn motors OFF, allow blades to come to a

complete stop, and remove workpiece from table.

Repeat Step 4 to move rip fence to second

saved position. This step can be repeated indefinitely to move back and forth between the two fence positions.

Rip Fence Lockdown Mode

This saw has built-in travel limits to prevent the rip fence from either crashing into the blade or running off the end of the extension table—the range of movement is exceed these limits, the rip fence will stop moving and go into lockdown mode. The digital display will flash, and the control panel will become unresponsive.

If this occurs, press and hold the fence release button on the right-hand side of the rip fence base (see Figure 126), and manually push the fence toward the center of the table (a couple of inches is enough). Then follow the steps provided on Page 96 to calibrate the rip fence.

⁄16 " to 51 1⁄4" from the blade. If you

5. Repeat Step 1 to move rip fence to second most recent position. This step can be repeated indefinitely to move back and forth between the two fence positions.

Making repeat cuts using two new positions

On main screen, enter first desired width of

cut using keypad on control panel.

Press START key to move rip fence to new

position.

Repeat Steps 1–2, but enter second desired

width of cut.

Model G0853 (Mfd. Since 06/24)

Alternatively, press and hold the M+ button on the control panel keypad to move the rip fence away from the blade. The screen will stop flashing, and the control panel keys will resume working normally.

Fence Release

Button

Figure 126. Location of rip fence release button.

-65-

Saving Rip Fence

PROG.

CAL.

START

mm inch

STOP

1 2

M+CEM-

8 9

PROG.

CAL.

START

mm inch

STOP

1 2

M+CEM-

8 9

Positions

Using the overhead control panel, users can save up to 40 rip fence positions in the database.

Saving Rip Fence Position

Press PROG key (see Figure 127).

inch

8 9

Press F4 key to go to Edit Programs screen

(see Figure 129), then enter new rip fence position.

Tip: If a value is already entered here, you

may enter a new value over the top of it.

Edit Programs Prog. NO. :01

in4.250

min

Figure 127. Location of PROG key.

2. Use F2 and F3 keys to scroll to desired pro-

gram number (see Figure 128). In the example below, the selected program number is

01.

Run Programs Prog. NO. :01

CAL.

PROG.

START

STOP

min

P P

–

1 2

M+CEM-

Figure 129. Example of Edit Programs screen

selected using F4 key.

Press F5 key to save entry.

Press F1 key to return to main screen.

Selecting Saved Rip Fence Position

1. Press PROG key (see Figure 127).

Use F2 and F3 keys to scroll to desired pro-

gram number (see Figure 128).

Press START key to move rip fence to select-

ed position.

Figure 128. Example of Run Programs screen

selected using F2 and F3 keys.

Note: The other icons shown on this screen are not functional on the Model G0853.

-66-

Model G0853 (Mfd. Since 06/24)

Rip Cutting

• To use the sliding table, refer to Rip Cutting with Sliding Table.

The Model G0853 has the capability of rip cutting large panels (see Figure 130). The sliding table removes the burden of sliding a large and heavy panel over a stationary table surface.

The edge shoe (see Figure 130) is used to stabilize the front end of a workpiece when otherwise unsecured.

Edge Shoe

Workpiece

Crosscut

Fence

• To use the machine as a traditional table saw, refer to Rip Cutting with Rip Fence on Page

68.

Rip Cutting with Sliding Table

1. DISCONNECT MACHINE FROM POWER!

Position crosscut fence on crosscut table,

and rotate it until fence touches 90° stop bolt (see Figure 132).

90° Stop Bolt

& Block

Figure 130. Rip cut with sliding table and

crosscut fence.

This saw also has the capability of rip cutting smaller boards, using the machine as a traditional table saw (see Figure 131). Smaller, lighter boards are easier to slide across the stationary cast-iron table surface to the right of the saw blade.

Rip

Fence

Workpiece

Figure 132. Stop block against 90° stop bolt.

3. Check to make sure fence is 90° to blade

and, if necessary, adjust it as described in

Squaring Crosscut Fence to Blade on Page 95.

Calibrate crosscut fence (refer to Page 61 for

further details).

5. Set flip stop to desired width of cut (see Figure 133) by loosening flip stop knob bolt,

sliding flip stop until it aligns with desired mark on scale, and retightening knob bolt.

Flip Stop

Knob Bolt

Figure 131. Traditional rip cut with rip fence.

Determine which cutting operation will be best suited for the workpiece to be ripped.

Model G0853 (Mfd. Since 06/24)

Figure 133. Flip stop components.

-67-

Position blade guard according to height

6. of workpiece. (Refer to Understanding & Using Blade Guard on Page 48.)

Load workpiece onto table saw. The setup

7. should look similar to Figure 130 on Page 67.

Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

Rip Cutting with Rip Fence

1. DISCONNECT MACHINE FROM POWER!

Loosen rip fence lock lever, as shown in

4. Figure 136.

Rip Fence

Lock Lever

2. Move crosscut table and fence to front of slid-

ing table, and lock them in place with crosscut table lock lever (see Figure 134).

Crosscut Table

Lock Lever

Figure 134. Location of crosscut table lock lever.

Lock sliding table in place with table lock

3. lever (see Figure 135).

Figure 136. Location of rip fence lock lever.

Place fence in vertical position (see Figure

137) for thicker workpieces, or in horizontal

position for thinner workpieces and for angled cuts where blade is tilted over the fence.

Vertical

Horizontal

Sliding Table

Lock Lever

Figure 135. Location of sliding table lock lever.

-68-

Figure 137. Rip fence positions.

Model G0853 (Mfd. Since 06/24)

6. Position leading edge of rip fence so it extends across small extension table, as shown in Figure 138, then retighten lock lever.

Rip Fence

Lock Lever

Figure 138. Proper position of rip fence.

Crosscutting

The Model G0853 can crosscut full-size panels with the fence in the front or rear position, although it is easier to load full-size panels with the crosscut fence mounted in the front position (see Figure 139).

Set rip fence to desired width of cut.

Load workpiece onto table saw. The setup

should look similar to Figure 131 on Page 67.

Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

Workpiece

Figure 139. Crosscut with fence mounted in

front position.

Mounting the crosscut fence in the rear position (see Figure 140) gives greater stability for cross- cutting smaller panels.

Edge Shoe

Workpiece

Model G0853 (Mfd. Since 06/24)

Crosscut Fence

Figure 140. Crosscut with fence mounted in rear

position.

The edge shoe (see Figure 14 0) is used to stabilize the front end of the workpiece when otherwise unsecured.

-69-

When set up properly, the crosscut fence can support workpieces while using the rip fence as a cut-off gauge, as shown in Figure 141.

Support

Bar

Edge

Shoe

Workpiece

Rip

Fence

Crosscut Fence

Figure 141. Crosscutting using the rip fence as

a cut-off gauge.

Crosscutting Full-Size Panels

1. DISCONNECT MACHINE FROM POWER!

2. Install crosscut fence in front mounting posi-

tion shown in Figure 142 and secure in place.

Rear Mounting

Location

Front Mounting

Location

Figure 142. Crosscut fence mounting locations.

Determine which cutting operation will be best suited for the workpiece to be crosscut.

— If you will be crosscutting full-size panels,

refer to Crosscutting Full-Size Panels.

— If you will be crosscutting smaller panels,

refer to Crosscutting Smaller Panels.

— If you will be crosscutting workpieces

using the rip fence as a cut-off gauge, refer to Crosscutting Using Rip Fence as Cut-Off Gauge.

To understand how to move the crosscut table, refer to Positioning Crosscut Table Along

Sliding Table on Page 60.

3. Check to make sure fence is at 90°, and if necessary, adjust it as described in Squaring Crosscut Fence to Blade on Page 95.

Adjust distance between crosscut fence and

blade (refer to Page 61 for further details).

Set either flip stop to the desired width of cut.

Note: Extend the crosscut fence slide if the

workpiece is more than 75

Load workpiece onto table saw in forward

⁄8".

mounting location shown in Figure 139 on Page 69.

7. Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

-70 -

Model G0853 (Mfd. Since 06/24)

Crosscutting Smaller Panels

1. DISCONNECT MACHINE FROM POWER!

Install crosscut fence in rear mounting loca-

2. tion shown in Figure 140 and secure in place.

3. Perform Steps 3–4 in Crosscutting FullSize Panels.

Set either flip stop to the desired width of cut.

Note: Extend the crosscut fence slide if the

workpiece is more than 75

5. Load workpiece onto table saw in rear mounting position, shown in Figure 140 on Page

70. If necessary, use edge shoe to secure workpiece to sliding table.

6. Take all necessary safety precautions, connect saw to power, then perform cutting operation.

⁄8".

Crosscutting Using Rip Fence as Cut-Off Gauge

1. DISCONNECT MACHINE FROM POWER!

2. Install crosscut fence in rear position of crosscut table, as illustrated in Figure 141 on Page 70, and secure in place.

3. Perform Steps 3–4 in Crosscutting FullSize Panels.

5. Slide leading end of rip fence behind front

edge of blade (see Figure 143 for an example).

IMPORTANT: This step is critical to reducing

the risk of blade binding and kickback.

Rip Fence

Front Edge

of Blade

Figure 143. Example photo of correct rip fence

position when using it as a cut-off gauge

(blade guard removed for clarity).

Load workpiece onto table saw and against

rip fence. The setup should look similar to Figure 141 on Page 70.

Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

Leading Edge

of Rip Fence

Set rip fence to desired width of cut.

Model G0853 (Mfd. Since 06/24)

-71-

Miter Cutting

The G0853 can perform miter cuts using either the crosscut fence or the miter fence. The crosscut fence can be positioned for miter cuts from 0° to 45°, and the angle scale on the crosscut table is graduated in 1° increments. The miter fence can be positioned for cuts between 30° left and 30° right, and the fence is graduated in 1° increments.

Miter Cutting with Crosscut Fence

1. DISCONNECT MACHINE FROM POWER!

Position fence for desired angle of cut (see

Figures 145–146).

Workpiece

2. Position crosscut table to provide the greatest amount of workpiece support, then lock it in place.

Install fence pivot knob into front or rear hole

shown in Figure 144.

Rear Hole

Angle Scale

Front Hole

Figure 144. Crosscut fence positioned for miter

cut.

Rear Hole

Figure 145. Crosscut fence mounted in rear hole

for miter cuts from 0° to 45°.

Front Hole

Workpiece

Figure 146. Crosscut fence mounted in front

hole for miter cuts from 0° to 45°.

-72-

Model G0853 (Mfd. Since 06/24)

5. Install knob bolts shown in Figure 147.

Miter Cutting with Miter Fence

1. DISCONNECT MACHINE FROM POWER!

2. Install miter fence on sliding table, as shown

in Figure 148.

Pivot Knob

Angle

Scale Knob

Figure 147. Locations of knob bolts.

Pivot crosscut fence to desired angle, making

sure end of fence is clear of blade so it will not be cut during operation.

Tighten both knob bolts to secure setting.

If the crosscut fence moves during cutting, kickback could occur and cause serious personal injury. Always make sure crosscut fence is properly secured before using it.

Hold-Down

Flip Stop

Miter

Fence

Figure 148. Miter fence installed on sliding table.

Position miter fence at desired angle for cut

and lock in place.

Position flip stop at length of workpiece to be

cut off to left of blade.

Load workpiece onto sliding table.

Fence

Bracket

Fence Clamp

Miter

Gauge

8. Set flip stop according to length of workpiece you want to cut off to left of blade.

Load workpiece onto crosscut table. The setup

9. should look similar to Figures 145–146 on Page 72.

Take all necessary safety precautions, con-

10.

nect saw to power, then perform cutting operation.

6. Take all necessary safety precautions, con-

nect saw to power, then perform cutting operation.

Model G0853 (Mfd. Since 06/24)

-73 -

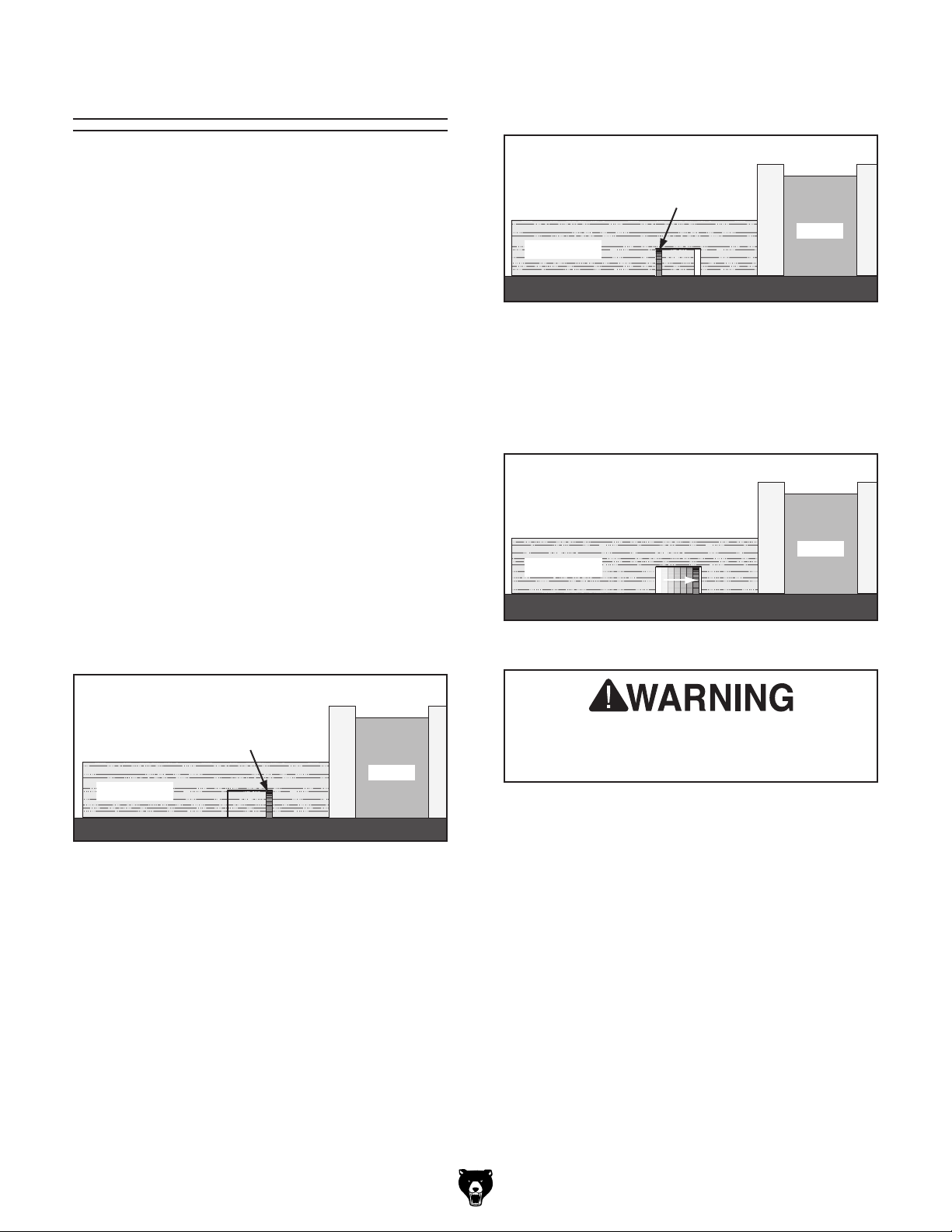

Dado Cutting

Commonly used in furniture joinery, a dado is a straight channel cut in the face of the workpiece.

Typically, dadoes can be cut using either a dedicated dado blade or a standard saw blade. However, since the Model G0853 cannot accept dado blades, a standard blade must be used.

Repeat cutting operation on other side of

dado channel, as shown in Figure 150.

Cut 2

Workpiece

Blade

Fence

See Making Grooves/Concealed Cuts on Page 63 for instructions on how to use the CNC rip

fence when performing this type of cut.

To use standard saw blade to cut a dado:

DISCONNECT MACHINE FROM POWER!

2. Mark width of dado cut on workpiece. Include

marks on edge of workpiece so cut path can be aligned when workpiece is lying on table.

Raise blade to desired depth of dado channel.

Align workpiece with blade to cut one of dado

sides, as shown in Figure 149, then align rip fence with workpiece.

Cut 1

Workpiece

Blade

Fence

Figure 150. Second cut for a single-blade dado.

Make additional cuts (see Figure 151) in

center of dado to clear out necessary material. Dado is complete when channel is completely cleared out.

Cuts 3+

Fence

Workpiece

Figure 151. Additional single-blade dado cuts.

Adjust rip fence to properly support workpiece for each of the dado cuts. This will reduce likelihood of kickback and injury.

Figure 149. First cut for a single-blade dado.

Reconnect saw to power and turn saw ON.

Allow blade to reach full speed, then perform

cutting operation.

-74 -

Model G0853 (Mfd. Since 06/24)

Rabbet Cutting

Commonly used in furniture joinery, a rabbet is an L-shaped groove cut in the edge of the workpiece.

Typically, rabbets can be cut with either a dado blade or a standard saw blade. However, because the Model G0853 cannot accept dado blades, rabbets must be cut with a standard saw blade only.

A ripping blade is typically the best blade to use for cutting rabbets when using a standard blade because it removes sawdust very efficiently (see Page 51 for blade details). Also, a sacrificial fence is not required when cutting rabbets with a standard blade.

Always use push sticks, featherboards, push paddles, and other safety accessories whenever possible to increase safety and control during operations which require removal of blade guard. ALWAYS replace blade guard after operation is complete.

3. Raise blade to desired depth of rabbet chan-

nel desired.

Stand workpiece on edge, as shown in

4. Figure 152, then adjust rip fence so blade is

aligned with inside of rabbet channel.

DO NOT place a tall board on edge when cutting a rabbet. Overly tall workpieces cannot be properly supported with the fence and can easily shift during operation, causing kickback or loss of control. Instead, use another tool to cut these types of rabbets.

To cut rabbets with standard blade:

1. DISCONNECT MACHINE FROM POWER!

2. Mark width of rabbet cut on workpiece.

Include marks on edge of workpiece so cut path can be aligned when workpiece is lying on table.

Blade

Workpiece

Fence

Figure 152. First rabbet cut.

Reconnect saw to power source, then per-

form cut.

Lay workpiece flat on table, as shown in

Figure 153, adjust saw blade height to inter-

sect with first cut, then perform second cut to complete rabbet.

Blade

Fence

Workpiece

Figure 153. Second cut to create a rabbet.

Model G0853 (Mfd. Since 06/24)

-75 -

Resawing

Making a Resaw Barrier

The resaw barrier acts in tandem with the rip fence when resawing to provide tall support for the workpiece to minimize the probability of it binding against the blade and causing kickback.

Resawing operations require proper procedures to avoid serious injury. Extra care must be taken to prevent kickback when resawing. Any tilting or movement of the workpiece away from the fence will cause kickback. Be certain that stock is flat and straight. Failure to follow these warnings could result in serious personal injury.

Resawing is the process of cutting a thick piece of stock into one or more thinner pieces. Although resawing can be done with a table saw, we strongly recommend that you use a bandsaw instead.

A bandsaw is the ideal machine for resawing, and resawing with one is fairly easy and safe. A table saw is not intended for resawing, and resawing with one is difficult and dangerous due to the increased risk of kickback from binding and deep cuts, and the increased risk of injury from having to remove the blade guard.

If you insist on resawing with a table saw, DO NOT do so without using a resaw barrier and wearing safety glasses and a full face shield.

The following instructions describe how to build a resaw barrier that can be used with the rip fence when resawing to reduce the risk of injury.

Tools Needed: Qty

Table Saw ........................................................... 1

Jointer and Planer Clamps

............................................... 2 Minimum

Drill and Drill Bits

....................... Recommended

................................................ 1

Components Needed for Resaw Barrier:

Wood* Wood* Wood Screws #8 x 2" Wood Glue

⁄4" x 51⁄2" x Length of Fence ...................1

⁄4" x 3" x Length of Fence ...................... 1

........................................ 8

.........................................As Needed

*Only use furniture-grade plywood or kiln-dried

hardwood to prevent warping.

To build resaw barrier:

Cut wood pieces to sizes specified above. If

using hardwood, cut pieces oversize, then joint and plane them to correct size to make sure they are square and flat.

2. Pre-drill and countersink four holes approxi-

mately

⁄8" from bottom of 51⁄2" tall wood

piece.

Glue end of 3" board, then clamp boards

at a 90° angle with larger board in vertical position, as shown in Figure 154, and fasten together with wood screws.

IMPORTANT: This table saw can only resaw wood that is less than 8" tall, and the rip fence must be used (rather than the sliding table).

-76 -

#8 x 2"

Wood Screw

⁄4"

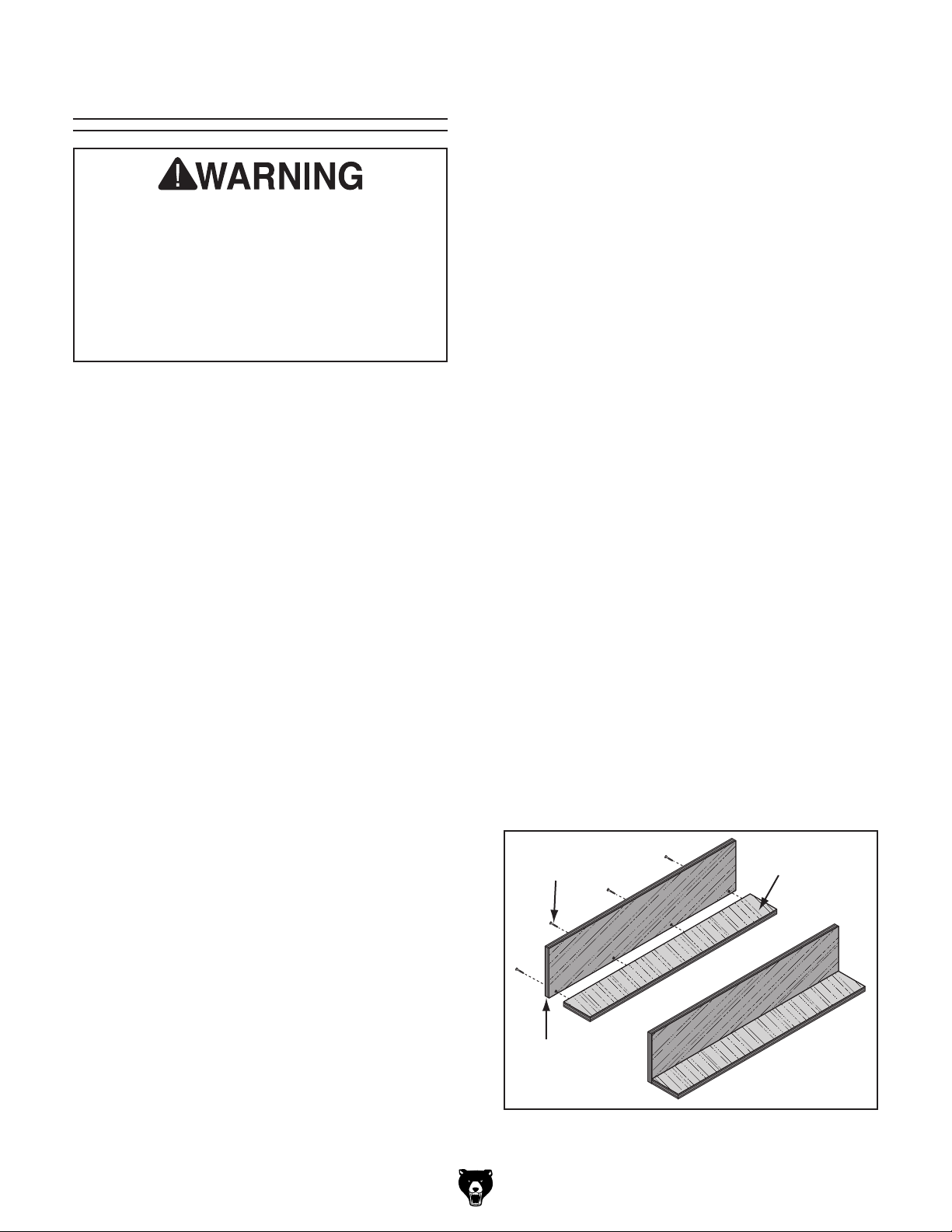

Figure 154. Resaw barrier.

⁄4"

Assembled

Resaw Barrier

Model G0853 (Mfd. Since 06/24)

Resawing Operations

The table saw motor is pushed to its limits when resawing. If the motor starts to bog down, slow down your feed rate. Motor overloading and blade wear can be reduced by using a ripping blade. Ripping blades are designed to clear the sawdust quickly.

Components Needed for Resawing:

Ripping Blade 14" Clamps

...............................................................2

Shop-Made Resaw Barrier

You may experience kickback during this procedure. Stand to the side of the blade path and wear safety glasses and a full face shield to reduce risk of injury.

............................................... 1

................................. 1

5. Clamp resaw barrier to table top.

Connect saw to power, lower blade com-

pletely below table, and slide workpiece over blade to make sure it moves smoothly and fits between resaw barrier and rip fence.

Raise blade approximately 1", or close to

half the height of the workpiece, whichever is less.

Turn machine ON, and use push stick to feed

workpiece through blade using a slow, steady feed rate.

Flip workpiece end for end, keeping same

side against rip fence, and run workpiece through blade.

Repeat Steps 7–9 until blade is close to half

10.

the height of workpiece to be resawn.

To perform resawing operations:

DISCONNECT MACHINE FROM POWER!

Raise blade guard up and out of the way.

Install rip fence in vertical position.

Place workpiece against rip fence and

slide resaw barrier against workpiece (see Figure 155).

Workpiece

Resaw

Barrier

/8" Connection

Rip

Fence

IMPORTANT: The ideal completed resaw cut

will leave approximately

⁄8" connection when

the resawing is complete, as shown in Figure

155. Leaving a

⁄8" connection will reduce risk

of kickback.

Turn saw OFF, then separate parts of

11.

workpiece and hand plane remaining ridge.

. When finished resawing, remove resaw bar-

rier and reposition blade guard over blade.

Figure 155. Ideal completed resaw cut.

Model G0853 (Mfd. Since 06/24)

-77-

SECTION 5: SHOP MADE SAFETY

ACCESSORIES

Featherboards

We recommend using a bandsaw for mak-

Easily made from scrap stock, featherboards provide an added degree of protection against kickback, especially when used together with push sticks. They also maintain pressure on the workpiece to keep it against the fence or table while cutting, which makes the operation easier and safer because the cut can be completed with-

out the operator’s hands getting near the blade.

The angled ends and flexibility of the fingers allow the workpiece to move in only one direction.

Making a Featherboard

This sub-section covers the two basic types of featherboards: 1) Those secured by clamps, and

2) those secured with the miter slot.

Material Needed for Featherboard

Hardwood Hardwood

Additional Material Needed for Mounting Featherboard in Miter Slot

Hardwood Wing Nut Flat Head Screw Flat Washer

To make a featherboard:

⁄4" x 3" x 10" (Minimum)

⁄4" x 6" x 28" (Maximum) ..................1

⁄8" x (Miter Slot Width) x 5"L ............1

/4"-20 .................................................. 1

⁄4"-20 x 2" ............................... 1

⁄4"-20 .............................................. 1

ing fingers in the next step because it tends to be safer. A table saw can be used, but it will over-cut the underside of the ends, produce a thicker kerf, and require you to stop the blade half-way through the cut, which can be dangerous.

Make a series of end cuts with grain 3⁄8"–1⁄4"

apart and 2"–3" long, as shown in Figure 156 (A). Alternatively, start cuts at 2"-3" deep, then make them progressively deeper, as shown in Figure 156 (B).

10" (Minimum)

30°

Figure 156. Patterns for featherboards

(top view shown).

⁄8"

2"-3"

⁄8"

Initial Cut

⁄16"-1⁄8"

2"-3"

Kerf

⁄16"-1⁄8"

Progressively Longer Cuts

Kerf

Cut hardwood board approximately 3⁄4" thick to

size. The length and width of board can vary according to your design. Most featherboards are 10"–28" long and 3"–6" wide. Make sure wood grain runs parallel with length of featherboard, so fingers you will create in Step 3 will bend without breaking.

Cut a 30º angle at one end of board.

-78 -

IMPORTANT: Cuts made across grain result in weak fingers that easily break when flexed. When made correctly, fingers should withstand flexing from moderate pressure. To test the finger flexibility, push firmly on the ends with your thumb. If the fingers do not flex, they are likely too thick (the cuts are too far apart).

NOTICE

Only Steps 1–3 are required to make a clamp-mounted featherboard. Refer to Page 80 for instructions on clamping.

Model G0853 (Mfd. Since 06/24)

Rout 1⁄4"–3⁄8" wide slot 4"–5" long in workpiece

and 1"–2" from short end of featherboard (see Figure 157).

/4"-3/8" Slot

1"-2"

4"-5"

Figure 157. Slot routed in featherboard.

Cut miter bar that will fit in table miter

slot approximately 5" long, as shown in Figure 158.

Mark 4" line through center of countersunk

hole in center, then use jig saw with narrow blade to cut it out.

Assemble miter bar and featherboard with

⁄4"-20 x flat head screw, flat washer, and

a wing nut or a star knob (see Figure

159). Congratulations! Your featherboard is

complete.

Wing Nut

(Side View)

Flat Washer

Featherboard

Miter Bar

Tip: Consider making the miter bar longer for

larger featherboards—approximately half the length of the total featherboard—to support the force applied to the featherboard during use.

(Top View)

/8"

/4" Hole

Countersink on Bottom

4" Slot

(Side View)

Figure 158. Miter bar pattern.

Drill 1⁄4" hole in center of bar, then countersink

bottom to fit

⁄4"-20 flat head screw.

Flat Head Screw

Figure 159. Assembling miter slot featherboard

components.

Note: The routed slot, countersink hole, and

the flat head screw are essential for the miter bar to clamp into the miter slot. When the wing nut is tightened, it will draw the flat head screw upward into the countersunk hole. This will spread the sides of the miter bar and force them into the walls of the miter slot, locking the featherboard in place.

Tip: The length of the flat head screw depends

on the thickness of the featherboard—though

⁄2" to 2" lengths usually work.

Now, proceed to Mounting Featherboard in

Miter Slot on Page 80.

Model G0853 (Mfd. Since 06/24)

-79 -

Mounting Featherboards w/Clamps

Lower saw blade, then adjust fence to desired

width and secure it.

Mounting Featherboard in Miter Slot

1. Lower saw blade, then adjust fence to desired

width and secure it.

Place workpiece against fence, making sure

it is 1" in front of blade.

Place featherboard on table away from blade

so all fingers point forward and contact workpiece (see Figure 160).

Fence Featherboard

Clamp

Table

Featherboard

Figure 160. Example of featherboards secured

with clamps.

Place workpiece evenly against fence, mak-

ing sure it is 1" in front of blade.

Slide featherboard miter bar into miter slot,

making sure fingers slant toward blade, as shown in Figure 161.

Blade

Featherboard

Workpiece

Figure 161. Featherboard installed in miter slot

and supporting workpiece for ripping cut.

4. Secure featherboard to table with clamp.

5. Check featherboard by pushing it with your

thumb to ensure it is secure.

— If featherboard moves, tighten clamp

more.

Mount second featherboard to fence with

6. another clamp (see Figure 160), then repeat Step 5 to ensure it is secure.

Position fingered edge of featherboard

against edge of workpiece, so that all of fingers contact workpiece. Slide featherboard toward blade until first finger is nearly even with end of workpiece, which should be 1" away from blade.

Double-check workpiece and featherboard

to ensure they are properly positioned as described in Step 4. Then secure featherboard to table. Check featherboard by hand to make sure it is tight.

Note: The featherboard should be placed

firmly enough against the workpiece to keep it against the fence but not so tight that it is difficult to feed the workpiece.

-80-

Model G0853 (Mfd. Since 06/24)

Push Sticks

When used correctly, push sticks reduce the risk of injury by keeping hands away from the blade while cutting. In the event of an accident, a push stick can also absorb damage that would have otherwise happened to hands or fingers.

Using a Push Stick

Use push sticks whenever your hands will get within 12" of the blade. To maintain control when cutting large workpieces, start the cut by feeding with your hands then use push sticks to finish the cut, so your hands are not on the end of the workpiece as it passes through the blade.

Feeding: Place the notched end of the push stick against the end of the workpiece (see inset Figure below), and move the workpiece into the blade with steady downward and forward pressure.

Supporting: A second push stick can be used to keep the workpiece firmly against the fence while cutting. When using a push stick in this manner, only apply pressure before the blade; otherwise, pushing the workpiece against or behind the blade will increase the risk of kickback (see "Push Stick Prohibition Zone" in the Figure below).

Push Stick

Prohibition

Zone

Push Stick

Store Push

Stick Here

for Easy

Access

Supporting

Blade

Path

Push Stick

Feeding

Figure 162. Using push sticks to rip narrow

stock.

Making a Push Stick

Use this template to make

90º

Cut here to

⁄4" stock

push

Cut here to push 1⁄2" stock

Notch for placing on corners of workpieces

MATERIAL: Only use hardwood, sturdy plywood, or high-density plastic. Do not use softwood that may break under pressure or

⁄2" Grid

metal that can break teeth from the blade!

your own push stick.

Notch to help prevent hand from slipping

Figure 163. Side view of a push stick in use.

" Minimum Length

SIZING: Push stick must be at least 15

long. Use

⁄2"–3⁄4" thick

material.

SANDING: Sand edges to remove rough edges and increase comfort.

⁄4"

Figure 164. Template for a basic shop-made push stick (not shown at actual size).

Model G0853 (Mfd. Since 06/24)

-81-

Push Blocks

When used correctly, a push block reduces the risk of injury by keeping hands away from the blade while cutting. In the event of an accident, a push block often takes the damage that would have otherwise happened to hands or fingers.

Using a Push Block

A push block can be used in place of or in addition to a push stick for feeding workpieces into the blade. Due to their design, push blocks allow the operator to apply firm downward pressure on the workpiece that could not otherwise be achieved with a push stick.

The push block design on this page can be used in two different ways (see inset Figure below). Typically, the bottom of the push block is used until the end of the workpiece reaches the blade.

The notched end of the push block is then used to push the workpiece the rest of the way through the cut, keeping the operator's hands at a safe distance from the blade. A push stick is often used at the same time in the other hand to support the workpiece during the cut (see "Using a Push Stick" on previous page).

Push Stick

Prohibition

Zone

Push Stick

Supporting

Blade

Path

Push Block

Feeding

Figure 166. Using a push block and push stick

to make a rip cut.

Making a Push Block

Use this template to make your own push block.

Figure 165. Side view of a push block in use.

Notch for use

as a push stick

CAUTION: Only use hardwood, sturdy plywood, or high-density plastic. Do not use softwood that may break under pressure or metal that can break teeth from the blade!

Handle for firm grip

Make push block with

⁄2"–3⁄4" thick material

CAUTION: Bottom

of handle must be

at least 4

" above

bottom of push

block to keep

hand away

from blade.

/4"–1/2"

⁄2" Grid

-82-

Lip for pushing workpiece

9"−10" Minimum Length

Figure 167. Template for a shop-made push block (shown at 50% of full size).

Model G0853 (Mfd. Since 06/24)

ACCESSORIES

order online at www.grizzly.com or call 1-800-523-4777

Installing unapproved accessories may

SECTION 6: AFTERMARKET

ACCESSORIES FROM GRIZZLY

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

T26700—12" Carbide-Tipped Ripping Blade, 40T

ATB grind on micro-grain carbide tips ensure consistent performance over a long cutting life. Arbor bore size is 1" and kerf is 0.125". This 40-tooth blade is designed for ripping and cross cutting.

T32567 Blade, 70T

This combination blade combines one flat tooth for ripping, followed by four alternate top bevel teeth for crosscutting, and a large gullet for effective chip clearance. This blade also features laser cut anti-vibration slots, practically eliminating the vibration that resonates in standard blades.

T23037—Scoring Blade Replacement

—14" Carbide-Tipped Combination

Figure 169. T32567 14" Combination Blade.

Figure 168. T26700 12" 40T Carbide-tipped saw

blade.

Model G0853 (Mfd. Since 06/24)

Figure 170. T23037 Scoring Blade.

-83-

order online at www.grizzly.com or call 1-800-523-4777

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocarbon basestocks that are compounded with special thickeners and additives to make Syn-O-Gen non-melt, tacky, and water resistant. Extremely low pour point, extremely high temperature oxidation, and thermal stability produce a grease that is unmatched in performance.

D4218—Black Flexible Hose 5" x 10' W1318—Wire Hose Clamp 5" W1008—Plastic Blast Gate 5"

We've hand picked a selection of commonly used dust collection components for the Model G0853.

W1008

D4218

W1318

Figure 171. T26419 Syn-O-Gen Synthetic

Grease.

G0862—3 HP Portable Cyclone Dust Collector

The capstone of our new line of affordable, highquality cyclones, the G0862 features a 3 HP motor, a whopping 1941 CFM of airflow capacity, and a 45-gallon collection capacity. It's packed with features like a quick-release collection drum, latching system, high-efficiency, two-stage separation driven by a 16" aluminum impeller, durable powder coated finish, and a heavy-duty steel frame and housing.

Figure 173. Recommended dust collection

accessories.

T34007—Lumber/Plywood Cart

This cart measures 60-1/2" wide, 45-1/2" deep, and 60" tall, and has a maximum load capacity of 1100 lbs. The cart has four load levels on one side for boards, strips, and other narrow stock, while the other side can be loaded with sheet stock. Includes four swivel casters.

Figure 174. T34007 Lumber/Plywood Cart.

Figure 172. G0862 3 HP Portable Cyclone Dust

Collector.

-84-

Model G0853 (Mfd. Since 06/24)

SECTION 7: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Cleaning &

Protecting

power before adjustments, maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any of the items below, and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged saw blade.

Worn or damaged wires.

•

Any other unsafe condition.

•

Weekly Maintenance

• Clean sliding table surface and grooves.

• Clean and protect cast iron table.

• Clean rip fence and slide ways.

Cleaning the saw is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast iron table by wiping it clean after every use—this ensures moisture from wood dust does not remain on the bare metal surface. Keep the table rust-free with regular applications of products like SLIPIT

(see Figure 175).

Recommended Metal Protectants

G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT

11 Oz. Spray

Monthly Check

• Clean/vacuum dust buildup from inside cabinet and off motor.

• Check/replace belts for proper tension, damage or wear (Page 90).

Every 6–12 Months:

• Lubricate slide shafts (Page 86).

• Lubricate blade tilt gear (Page 86).

• Lubricate trunnions (Page 87).

• Lubricate rip fence leadscrew (Page 87).

Model G0853 (Mfd. Since 06/24)

Figure 175. Recommended products for protect-

ing unpainted cast iron/steel part on machinery.

-85-

Lubrication

To reduce risk of shock or accidental startup, always disconnect machine from

An essential part of lubrication is cleaning the components before lubricating them. This step is critical because dust and chips build up on lubricated components, which makes them hard to move. Simply adding more lubrication to builtup grime will not result in smooth-moving parts. Clean the components in this section with an oil/ grease solvent cleaner or mineral spirits before applying lubrication.

All bearings are sealed and permanently lubricated. Leave them alone until they need to be replaced.

power before adjustments, maintenance, or service.

Items Needed Qty

NLGI#2 Grease or Equivalent ........... As Needed

Grease Gun Mineral Spirits Clean Shop Rags Stiff Brush

....................................................... 1

.................................... As Needed

.............................. As Needed

.......................................................... 1

Slide Shafts

Lubrication Type ... T26419 or NLGI#2 Equivalent Amount Lubrication Frequency

The blades and motors move up and down on slide shafts that require adding lubricant to the grease fittings shown in Figure 176.

.............................................. 1–2 Pumps

.....................6–12 Months

Sliding

Shafts

Grease Fittings

Figure 176. Sliding shafts and grease fittings.

Blade Tilt Gear

Lubrication Type ... T26419 or NLGI#2 Equivalent Amount Lubrication Frequency

Clean the teeth of the tilt gear (see Figure 177) with a stiff brush and mineral spirits. When dry, apply a thin coat of lubricant into the teeth with a brush and tilt the blade back and forth a few times to distribute the grease.

Lube Blade Tilt Gear

.................................................Thin Coat

.....................6–12 Months

-86-

Tilt Gear

Figure 177. Tilt gear.

Model G0853 (Mfd. Since 06/24)

Lube Trunnions Lube Rip Fence Leadscrew

Trunnions

Lubrication Type ... T26419 or NLGI#2 Equivalent Amount Lubrication Frequency

..................................................1-2 Dabs

.....................6–12 Months

Rip Fence Leadscrew

Lubrication Type ... T26419 or NLGI#2 Equivalent Amount Lubrication Frequency

..........................................................Dab

.....................6–12 Months

To grease the blade-tilt trunnions (see Figure 178), move the sliding table out of the way, open the blade guard, then tilt the blade to 0°. From the front of the saw, smear a dab of grease in the front of the trunnion grooves on both sides. Now, tilt the blade to 45° and reach inside the cabinet and smear a dab of grease into the back of the trunnion grooves on both sides. Tilt the blade through its full range of movement to spread the grease.

Trunnions

Clean the threads of the rip fence leadscrew (see Figure 17 9) with a stiff brush and mineral spirits. When dry, add lubricant to the grease fitting, and move the rip fence back and forth a few times to distribute the grease.

Grease

Fitting

Leadscrew

Figure 179. Grease fitting for rip fence

leadscrew.

Figure 178. Trunnion lubrication locations (table

removed for clarity).

Model G0853 (Mfd. Since 06/24)

-87-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

SECTION 8: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or is underpowered.

1. Master power switch in OFF position.

2. E-Stop button depressed/at fault.

3. Blown fuse.

4. Machine wired out of phase.

5. Incorrect power supply voltage or circuit size.

6. Blade cover limit switch engaged/at fault.

7. Cabinet door limit switch engaged/at fault.

8. Power supply circuit breaker tripped or fuse blown.

9. Thermal overload relay has tripped/at fault.

10. Contactor not energized/at fault.

11. Wiring broken, disconnected, or corroded.

12. Motor ON button is at fault.

13. Circuit board at fault.

14. Start delay module at fault.

15. Motor or motor bearings at fault.

1. Workpiece material unsuitable for machine.

2. Feed rate/cutting speed too fast.

3. Workpiece crooked; fence loose or misadjusted.

4. Dust collection ducting problem.

5. Machine undersized for task.

6. Feed rate too aggressive for motor blade.

7. Blade dull or wrong blade for task.

8. Belt(s) slipping/pulleys misaligned.

9. Motor wired incorrectly.

10. Pulley slipping on shaft.

11. Contactor not energized/at fault.

12. Motor or motor bearings at fault.

13. Start delay module at fault.

1. Turn master power switch to ON position.

2. Rotate E-Stop button head to reset. Replace if at fault.

3. Blown fuse/ensure no shorts.

4. Reverse R & T incoming power connections in junction

box (Page 44).

5. Ensure correct power supply voltage and circuit size.

6. Move blade cover to working position; replace faulty limit switch.

7. Close door/replace faulty safety switch.

8. Ensure circuit is free of shorts. Reset circuit breaker or replace fuse.

9. Reset. Adjust or replace if at fault.

10. Test all legs for power; replace if necessary.

11. Fix broken wires or disconnected/corroded connections.

12. Replace faulty ON button.

13. Replace circuit board.

14. Adjust to correct delay/replace.

15. Replace motor.

1. Only cut wood/ensure moisture is below 20%.

2. Decrease feed rate/cutting speed.

3. Straighten or replace workpiece/adjust fence.

4. Clear blockages, seal leaks, use smooth-wall duct, eliminate bends, close other branches.

5. Use correct blade/reduce feed rate or depth of cut.

6. Reduce feed pressure and speed.

7. Use correct blade for type of cut. Use sharp blade.

8. Clean/tension/replace belt(s); ensure pulleys are aligned.

9. Wire motor correctly.

10. Tighten/replace loose pulley/shaft.

11. Test all legs for power; repair/replace if at fault.

12. Replace motor.

13. Adjust to correct delay; replace module.

Note: Please gather

-88-

Model G0853 (Mfd. Since 06/24)

Symptom Possible Cause Possible Solution

Machine has vibration or noisy operation.

Blades rotate in the opposite direction as they should.

Workpiece has burned edges, binds, or kicks back.

Workpiece has chip out on the bottom edge.

Sliding table saw does not cut square.

Rip fence hits table top when sliding across table.

Blade does not

reach 90˚, or

blade does not

reach 45˚.

Rip fence not accurate.

Overhead control panel

ashing/

unresponsive.

1. Motor or component loose.

2. Blade at fault.

3. Belt(s) worn, loose, pulleys misaligned.

4. Pulley loose.

5. Motor mount loose/broken.

6. Machine incorrectly mounted or sits unevenly

on oor.

7. Arbor pulley loose.

8. Motor fan is rubbing on fan cover.

9. Arbor bearings at fault.

10. Motor bearings at fault.

1. Two of the power wires are reversed. 1. Reverse R & T incoming power connections in junction

1. Sliding table or rip fence not parallel with blade.

2. Riving knife not aligned with blade.

3. Blade is warped/damaged/dull.

1. Scoring blade height incorrect.

2. Scoring blade not aligned with main blade.

3. Scoring blade kerf does not match main blade.

1. Sliding table is not parallel with blade.

2. Crosscut fence is not perpendicular to blade.

1. Rip fence leadscrew housing not ush with

table.

2. Rip fence roller too low.

1. Blade tilt out of adjustment. 1. Calibrate blade tilt (Page 92).

1. Rip fence not calibrated with blade. 1. Calibrate rip fence (Page 96).

1. Rip fence travel limits exceeded. 1. Press M+ button on control panel to move rip fence

1. Replace damaged or missing bolts/nuts or tighten if loose.

2. Replace warped/bent blade; resharpen dull blade.

3. Inspect/replace belt(s); realign pulleys, if necessary.

4. Secure pulley on shaft.

5. Tighten/replace.

6. Tighten/replace anchor studs in oor; relocate/shim

machine.

7. Retighten/replace arbor pulley with shaft and use thread locking liquid.

8. Fix/replace fan cover; replace loose/damaged fan.

9. Replace arbor housing bearings; replace arbor.

10. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

box (Page 44).

1. Make sliding table/rip fence parallel with blade (Page

94).

2. Align riving knife with main blade (Page 49).

3. Replace blade (Page 55).

1. Adjust height of scoring blade (Page 58).

2. Align scoring blade with main blade (Page 58).

3. Adjust scoring blade kerf (Page 58).

1. Make sliding table parallel with blade (Page 94).

2. Adjust crosscut fence perpendicular to blade (Page

95).

1. Adjust rip fence leadscrew housing so it is ush with

table (Page 96).

2. Adjust rip fence roller (Page 97).

back within travel limits; or press release button on side of rip fence base, manually push fence back within travel limits, and calibrate rip fence (Page 96).

Model G0853 (Mfd. Since 06/24)

-89-

Belt Service

The belts will stretch slightly as the saw is used. Most of the stretching will occur during the first 16 hours of use, but it may continue through continued use. To maintain efficient power transfer to the blades, make sure the belts are properly tensioned and in good condition. If belts show any glazing, fraying, or cracking, replace them.

Scoring Motor

Spring

Figure 181. Location of scoring motor spring.

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments, maintenance, or service.

Tensioning Scoring Motor Belt

Proper tension of the scoring motor flat belt is automatically maintained by a spring on the motor pivot rod (see Figures 180 –181).

Scoring Motor

Flat Belt

Replacing Scoring Motor Belt

To replace the scoring motor belt, tilt the blade to 45°, have an assistant lift the scoring motor up to relieve the belt tension, then replace the belt with a new one. When the motor is lowered, proper belt tension will be applied by the spring.

Tensioning Main Motor Belt

Proper tension of the main motor belt is automatically maintained by a cam lock attached to the motor mounting plate and arbor support bracket (see Figure 182).

Cam Lock

Main Motor

Belt

Figure 180. Location of scoring motor flat belt.

-90-

Figure 182. Location of main motor belt and

cam lock (table removed for clarity).

Model G0853 (Mfd. Since 06/24)

Replacing Main Motor Belt

The belt transfers power from the main motor to the main blade.

Tool Needed Qty

Wrench 22mm ................................................... 1

To replace main motor belt:

Tilt blade to 45°.

DISCONNECT MACHINE FROM POWER!

3. Open cabinet door and locate motor adjust-

ment lever shown in Figure 183.

Rotate adjustment lever clockwise to raise

4. motor and release belt tension (see Figure

184). The cam will lock the motor in place.

Adjustment

Lever

Cam Lock

Pulley

Belt

Adjustment

Lever

Figure 183. Main motor belt tension controls

(table removed for clarity).

Figure 184. Rotating motor position using motor

adjustment lever.

Carefully position belt onto desired pulleys

(see Changing Speed on Page 54 for additional information).

Rotate adjustment lever counterclockwise to

lower motor and retension belt.

Note: The cam lock will automatically posi-

tion motor for correct belt tension.

Close cabinet door before reconnecting

machine to power.

Model G0853 (Mfd. Since 06/24)

-91-

Calibrating Blade Tilt

The blade tilt is calibrated at the factory, but it can be recalibrated if it changes during the life of the machine.

Tools Needed Qty

Machinist's Square, 90° ..................................... 1

If main blade is not square to table, use blade

tilt switch and blade tilt micro-adjust button (see Figure 186) to adjust blade tilt angle so it is square to table.

4. Press and hold reset button (see Figure 186) for three seconds to save new setting.

Blade Tilt Readout

To calibrate blade tilt:

1. Move blade tilt to 0° and raise main blade as

high as it will go.

Use machinist's square to check if main

2. blade is square to table (see Figure 185).

Blade

Table

Figure 185. Machinist's square against blade

and table.

90° Square

Reset Key

Micro-Adjust ButtonBlade Tilt Switch

Figure 186. Controls for calibrating blade tilt.

-92-

Model G0853 (Mfd. Since 06/24)

Riving Knife

Mounting Block

Tools Needed Qty

Straightedge ...................................................... 1

Wrench 19mm Hex Wrench 2.5mm

................................................... 1

........................................... 1

The riving knife must be aligned with the blade when installed. If the riving knife is not aligned with the blade, then the workpiece will be forced sideways during the cut, which will increase the risk of kickback.

The riving knife mounts to a block that can be repositioned to correctly align the riving knife with the blade. The mounting block adjusts by turning the set screws in each corner of the block. Figure 187 shows the set screws associated with controlling the mounting block position. Have patience when adjusting the mounting block, because it requires trial-and-error to perform with accuracy.

Mounting Block

Face View

Top Control

Side

Control

Side

Control

To adjust riving knife mount block:

1. Raise blade guard and move it away from

blade, then adjust blade tilt to 0° and raise blade all the way up.

2. DISCONNECT MACHINE FROM POWER!

Move sliding table all the way backward to

expose blade cover, then lock it in place.

Use blade locks to open cover (see Figure

4. 98 on Page 55) and gain access to riving

knife mounting block.

Loosen hex nut that secures riving knife to

mounting block, and remove riving knife.

Adjust each pair of set screws that controls

the direction required to move mounting block so riving knife can be aligned with blade. Make sure to move both set screws in even increments.

Bottom Control

Figure 187. Riving knife mounting block

adjustment controls.

All adjustment and alignment positions for the riving knife are covered on Page 49 in the subsection Riving Knife Installation & Removal; the mounting block should not be adjusted unless you have been unable to mount the riving knife as instructed by these procedures.

Re-install riving knife and check alignment

with blade. Repeat Step 6 as necessary until riving knife is properly aligned with blade.

Note: If you discover that riving knife is bent

and cannot be properly aligned with the blade, it is possible to bend it into alignment, but make sure that the final result is precisely aligned so the risk of kickback is not increased. If the riving knife is bent, and you cannot easily bend it back into alignment, we recommend replacing it with a new one.

Properly re-install riving knife as described on

8. Page 49, close blade cover, properly reposi-

tion blade guard, and move sliding table back to center position.

Model G0853 (Mfd. Since 06/24)

-93-

Sliding Table Parallel

Adjustment

The sliding table is adjusted parallel with the main blade at the factory, but it can re-adjusted if necessary.

Tools Needed Qty

Felt Tip Pen ....................................................... 1

90° Square Precise Measuring Tool Phillips Screwdriver #2 Wrench or Socket 17mm

........................................................ 1

..................................... 1

...................................... 1

................................... 1

5. Rotate blade 180°, move sliding table all the way back, then measure distance “B” shown in Figure 188.

— If “A” and “B” measurements are same

or difference is 0.004" or less, no adjustments to table parallelism need be made.

— If difference is greater than 0.004", then

sliding table parallelism must be adjusted. Proceed to Step 6.

Loosen (5) hex bolts under sliding table to

allow sliding table to move in next step (refer to Figures 20–24 on Pages 28–29 for hex bolt locations).

To adjust sliding table parallel with main blade:

1. Raise main blade as high as it will go and

adjust tilt angle to 0° (verify with square).

DISCONNECT MACHINE FROM POWER!

3. Mark one blade tooth with felt tip pen. This

will be your reference point when taking measurements in following steps.

Move sliding table all the way forward, and

measure distance “A” shown in Figure 188, which is between marked blade tooth and edge of sliding table miter slot.

Marked Tooth

Blade

Miter Slot

Adjust adjustment bolts underneath each end

of sliding table (see Figure 189) to make sliding table parallel with main blade.

Adjustment Bolt

(1 of 2)

Figure 189. Sliding table parallelism adjustment

bolt (1 of 2).

Once sliding table parallelism is within 0.004"

from one end to the other, retighten hex bolts and re-install access panels.

Marked Tooth

Figure 188. Measuring distance between miter

slot and blade at each end of sliding table.

-94-

Model G0853 (Mfd. Since 06/24)

Squaring Crosscut

Test

Piece

Fence to Blade

3. Move crosscut fence stop block against 0°

stop bolt (see Figure 191), then retighten pivot lock knob to secure fence in place.

Squaring the crosscut fence to the blade ensures that cuts made with the crosscut fence will be square. This procedure can be done by using a 32" x 32" piece of scrap plywood as a test piece and making five test cuts, then adjusting the fence as necessary.

Note: Getting accurate results with this procedure is a matter of trial-and-error and patience.

To square crosscut fence with blade:

Make sure sliding table is parallel with

1. main blade (refer to Sliding Table Parallel Adjustment on Page 94 for detailed

instructions).

Release latch on 0° stop block and loosen

2. crosscut fence pivot lock knob (see Figure

190) to allow fence to pivot.

0° Stop Block

Stop Bolt

Latch

Figure 191. Stop bolt latch in secured position.

Prepare scrap test piece by cutting it to 32"

x 32" square, then number all four sides 1–4 (see Figure 192).

Pivot

Lock Knob

Figure 190. Stop block against 0° stop bolt.

Model G0853 (Mfd. Since 06/24)

0° Stop Bolt

& Block

Figure 192. Fence adjustment test piece.

Use crosscut fence to cut 1⁄2" off of each side

of test piece, then cut side 1 again (make five cuts total).

-95-

Test

Piece

Measure test piece diagonally from corner-to-

corner, as shown in Figure 193.

Calibrating

— If both measurements are within 1⁄16", then

you are finished with this procedure.

— If both measurements are not within 1⁄16",

then crosscut fence needs to be adjusted. Proceed to Step 7.

Figure 193. Diagonals to measure on test piece.

Loosen crosscut fence pivot lock knob to

allow fence to pivot.

Rip Fence

There are three adjustments that affect the accuracy and operation of the rip fence: 1) Height above the table, 2) parallelism with the blade, and 3) distance to the blade. If your cuts are not square when using the rip fence, or if the width of your cuts are inaccurate, check these adjustments. Parallelism is an important safety adjustment and the rip fence MUST be parallel with the blade to minimize the risk of kickback.

Height Above Table

The rip fence and base should ride as close to the table surface as possible without touching it and with an even gap along the length. This is accomplished by adjusting the rip fence leadscrew housing and the roller at the end of the fence base.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Open-End Wrench 19mm

To adjust rip fence height above table:

.................................. 1

Loosen hex nut on the 0° stop bolt shown

in Figure 190 on the previous page, rotate 90° stop bolt to square crosscut fence, then retighten hex nut.

Move crosscut fence stop block against 0°

stop bolt, then retighten pivot lock knob to secure fence in place.

Repeat Steps 5–6 until both measurements

10.

are with

⁄16".

Make sure sliding table (refer to Page 94)

and crosscut fence (refer to Page 95) are parallel with main blade.

-96-

Model G0853 (Mfd. Since 06/24)

2. Observe gap between fence base and table along entire length.

— If fence base is too low at leadscrew hous-

ing end, loosen hex nuts (see Figure 194) securing leadscrew housing to cast-iron table, and loosen cap screw on L-bracket (see Figure 195) securing leadscrew housing to large extension table.

— If far end of fence base is too low, slide

fence off of base, and rotate base up off of table until roller is visible.

Loosen cap screw shown in Figure 196,

adjust wheel position, retighten cap screw, lower fence base back onto table, and reinstall fence on fence base.

Roller

Rip Fence

Base

Figure 194. Location of hex nuts securing rip

fence leadscrew housing to cast-iron table.

L-bracket

Figure 195. Location of L-bracket securing rip

fence leadscrew housing to large extension

table.

Raise leadscrew housing until fence base

gap is even, then retighten hex nuts and cap screw.

Figure 196. Rip fence base roller components.

Parallelism With Blade

Parallelism is an important safety adjustment. Rip fence MUST be parallel with blade to minimize risk of kickback.

Tool(s) Needed Qty

Wrench 19mm ................................................... 1

Fine Ruler or Dial Indicator

To adjust rip fence parallel with main blade:

Raise main blade all the way up and tilt to 0°.

2. Move rip fence as close as possible to main

blade.

............................... 1

Model G0853 (Mfd. Since 06/24)

-97-

Use a dial indicator or fine ruler to measure

gap between fence and blade.

— If gap between rip fence and main blade

is even at both ends, then fence is parallel with main blade. No further adjustment is necessary.

— If gap between rip fence and main blade is

not even at both ends, loosen cap screws securing fence base to mounting bracket (see Figure 197), and adjust set screws on face of bracket until fence is parallel with blade, then retighten cap screws.

Distance To Blade

The distance between the rip fence and the blade must be calibrated accurately to produce precise cuts. If the width of your cuts does not match the measurements entered in the control panel, perform the steps below. Likewise, each time the main blade is changed, or the fence face is changed between vertical and horizontal positions, this procedure should be followed.

Items Needed Qty

Measuring Tape ................................................. 1

Scrap Test Piece 20" x 20"

............................... 1

Note: Loosen right-hand set screw and

tighten left-hand set screw evenly to rotate fence base clockwise. Loosen lefthand set screw and tighten right-hand set screw evenly to rotate fence base counterclockwise.

x 2

Figure 197. Location of rip fence components

used to adjust parallelism.

Mounting

Bracket

To calibrate rip fence distance to blade:

Enter 10" on overhead control panel and

press START key.

Once rip fence has moved into position, load

test piece onto table saw.

Prepare test piece by cutting it to 10" wide.

4. Measure width of test piece.

— If test piece measures 10" wide, then you

are finished with this procedure.

— If test piece does not measure 10" wide,

then rip fence needs to be calibrated. Proceed to Step 5.

-98-

Model G0853 (Mfd. Since 06/24)

Grizzly G0853 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Glossary Of Terms

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for Sliding Table Saws

Preventing Kickback

SECTION 2: POWER SUPPLY

440V Conversion

SECTION 3: SETUP

Needed for Setup

Unpacking

Hardware Recognition Chart

Inventory

Cleanup

Site Considerations

Assembly

Dust Collection

Power Connection

Test Run

SECTION 4: OPERATIONS

Operation Overview

Blade Guard

Riving Knife

Blade Requirements

Blade Selection

Rip Cutting

Crosscutting

Miter Cutting

Dado Cutting

Rabbet Cutting

Resawing

Featherboards

Push Sticks

Push Blocks

SECTION 7: MAINTENANCE

Schedule

Lubrication

SECTION 8: SERVICE

Troubleshooting

Belt Service

Calibrating Blade Tilt

Figure 187. Riving knife mounting block
