MODEL G0842 WOOD LATHE
w/COPY ATTACHMENT
OWNER'S MANUAL
(For models manufactured since 2/21)
COPYRIGHT © SEPTEMBER, 2018 BY GRIZZLY INDUSTRIAL, INC., REVISED FEBRUARY, 2021 (MN)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#WKBLJH19739 PRINTED IN CHINA
This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead-based paints.
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter out microscopic particles.
Table of Contents
INTRODUCTION ............................................... 2
Contact Info.................................................... 2
Manual Accuracy Identification Controls & Components Machine Data Sheet
SECTION 1: SAFETY
Safety Instructions for Machinery Additional Safety for Wood Lathes
SECTION 2: POWER SUPPLY
SECTION 3: SETUP

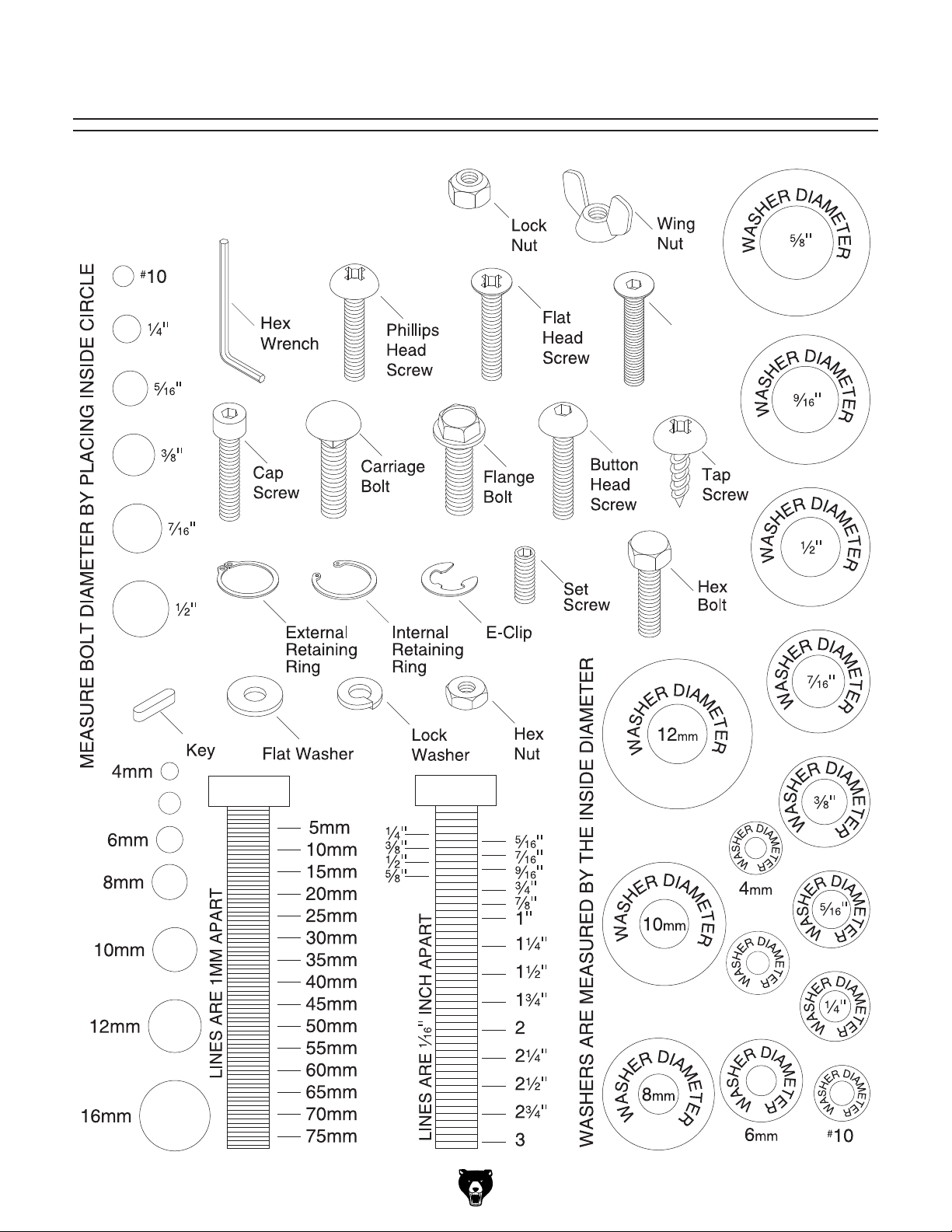

Needed for Setup Unpacking Inventory Hardware Recognition Chart Cleanup Site Considerations Assembly Test Run
SECTION 4: OPERATIONS
Operation Overview

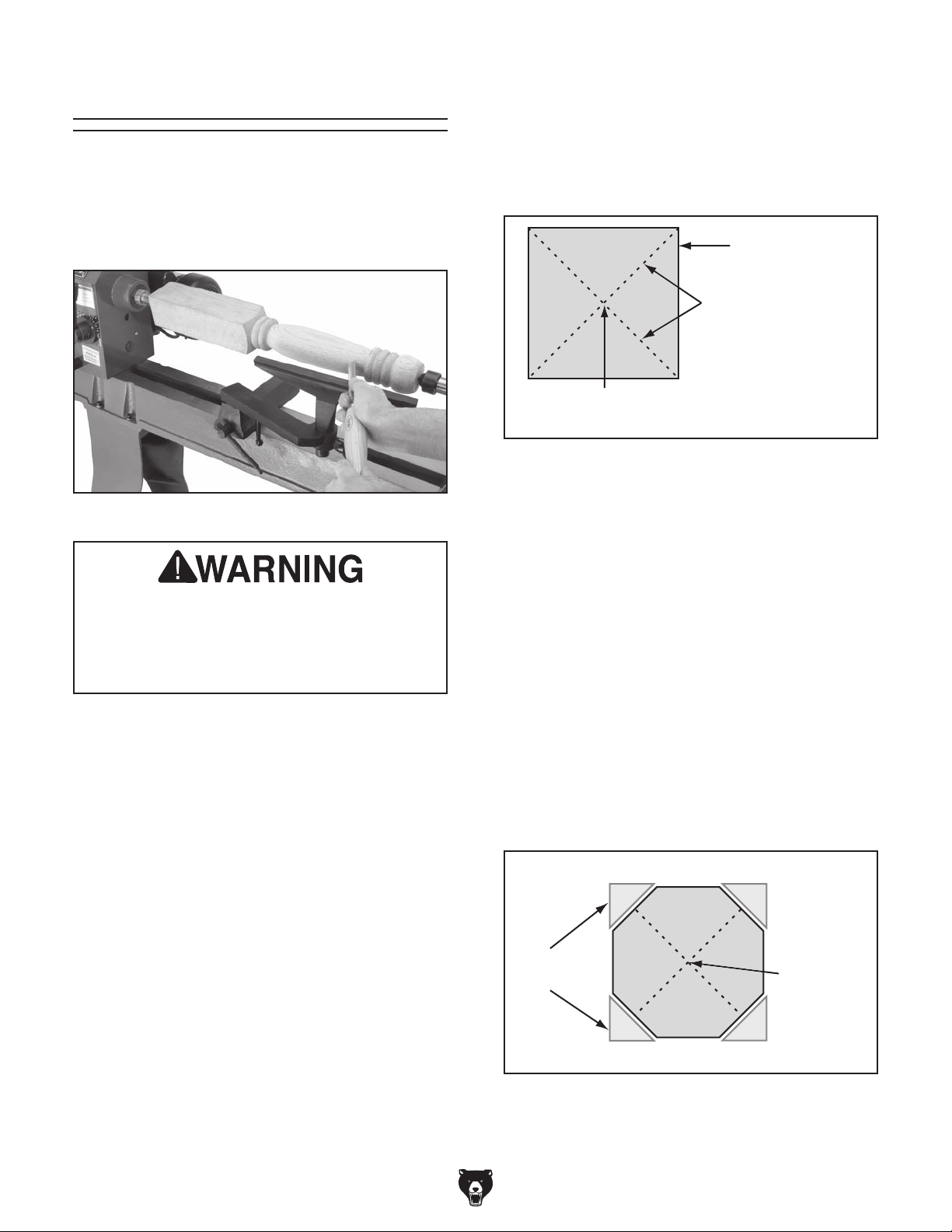

Workpiece Inspection................................... 22
Installing/Removing Copy Attachment Copy Attachment Operation Adjusting Tailstock Adjusting Tool Rest Installing/Removing Headstock Center Installing/Removing Tailstock Center Installing/Removing Faceplate or Chuck Adjusting Spindle Speed Spindle Turning Faceplate Turning Sanding/Finishing Selecting Turning Tools
.................................................... 13
...................................................... 14
........................................................ 16
..................................................... 18
...................................................... 19
........................................... 2
................................................... 3
................................. 4
...................................... 6
....................................... 8
.................. 8
.............. 10
...................... 11
....................................... 13
......................................... 13
....................... 15
...................................... 17
........................... 21
..................................... 21
......... 23
........................ 24
....................................... 27
...................................... 28
........ 29
.......... 30
..... 31
.............................. 33
............................................ 34
........................................ 36
........................................ 37
............................... 38
SECTION 5: ACCESSORIES
SECTION 6: MAINTENANCE
Schedule Cleaning & Protecting Lubrication
SECTION 7: SERVICE
Troubleshooting

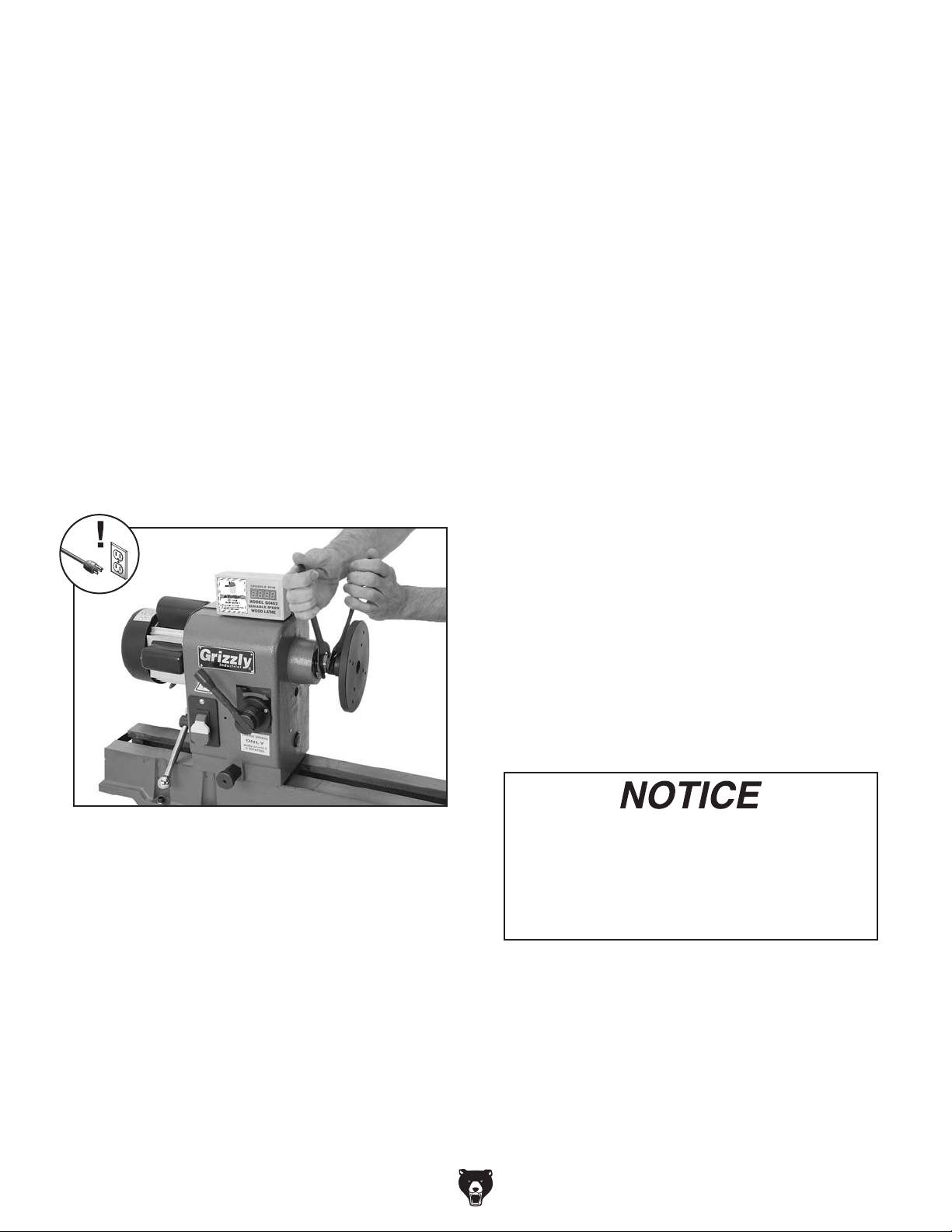

Tensioning & Replacing Belt........................ 44

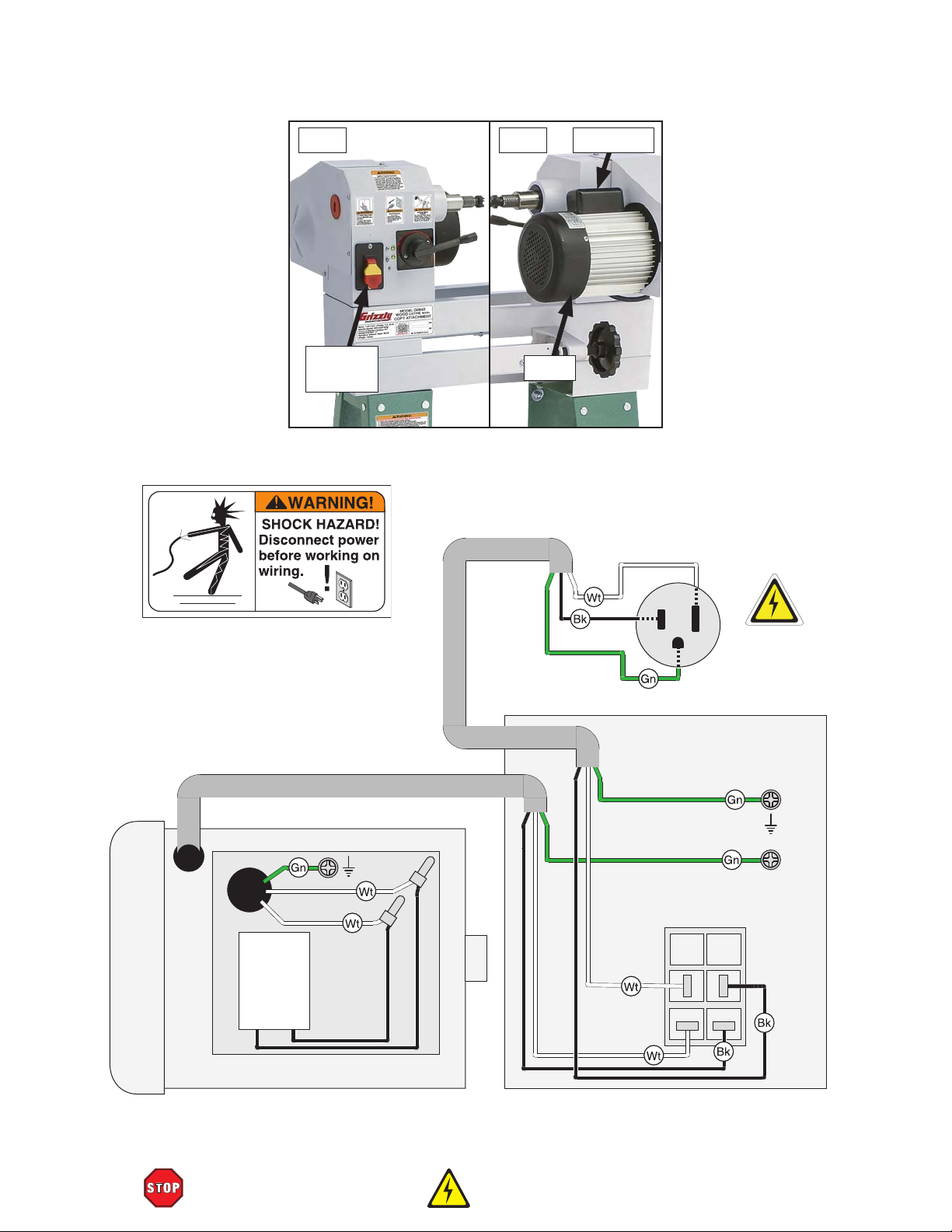

SECTION 8: WIRING
Wiring Safety Instructions Wiring Diagram

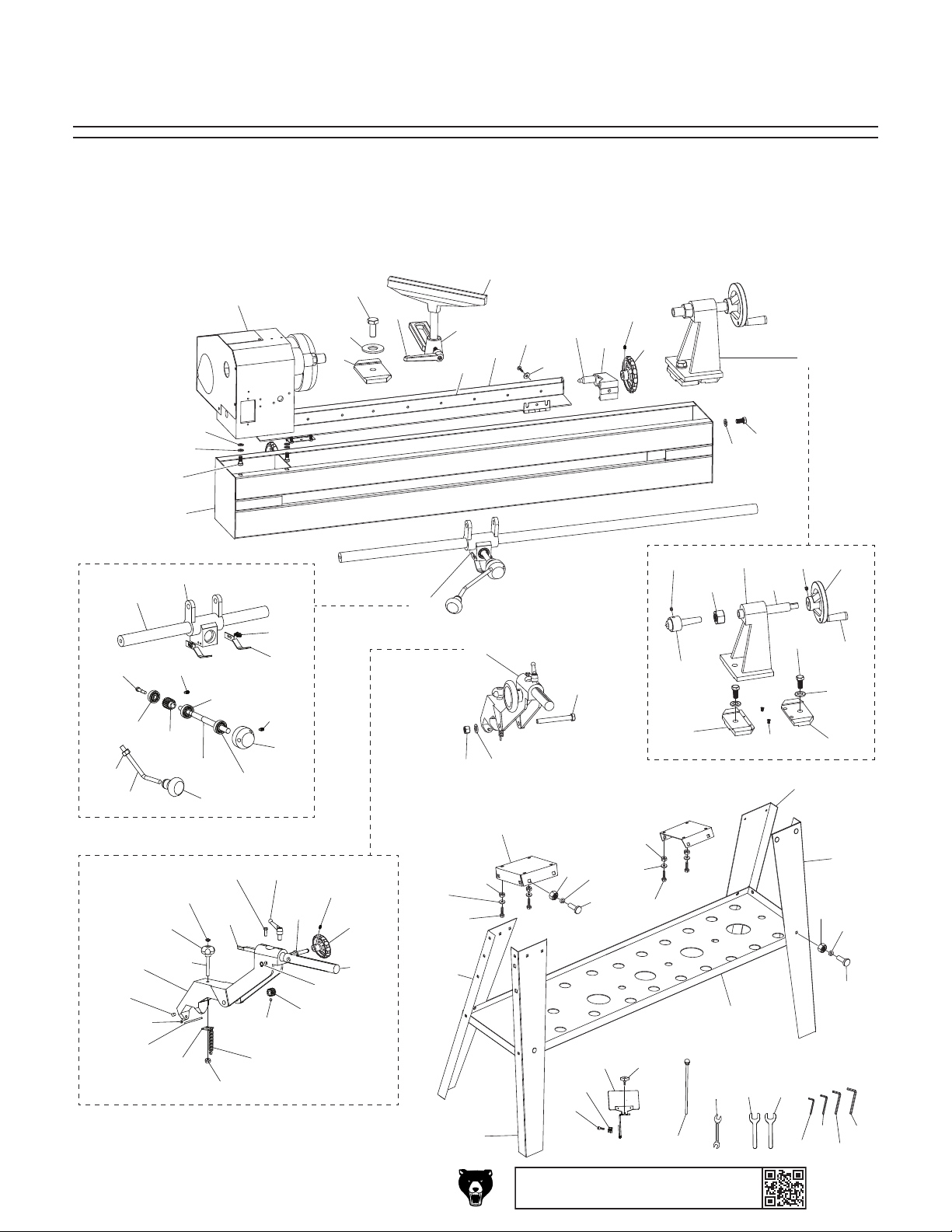

SECTION 9: PARTS

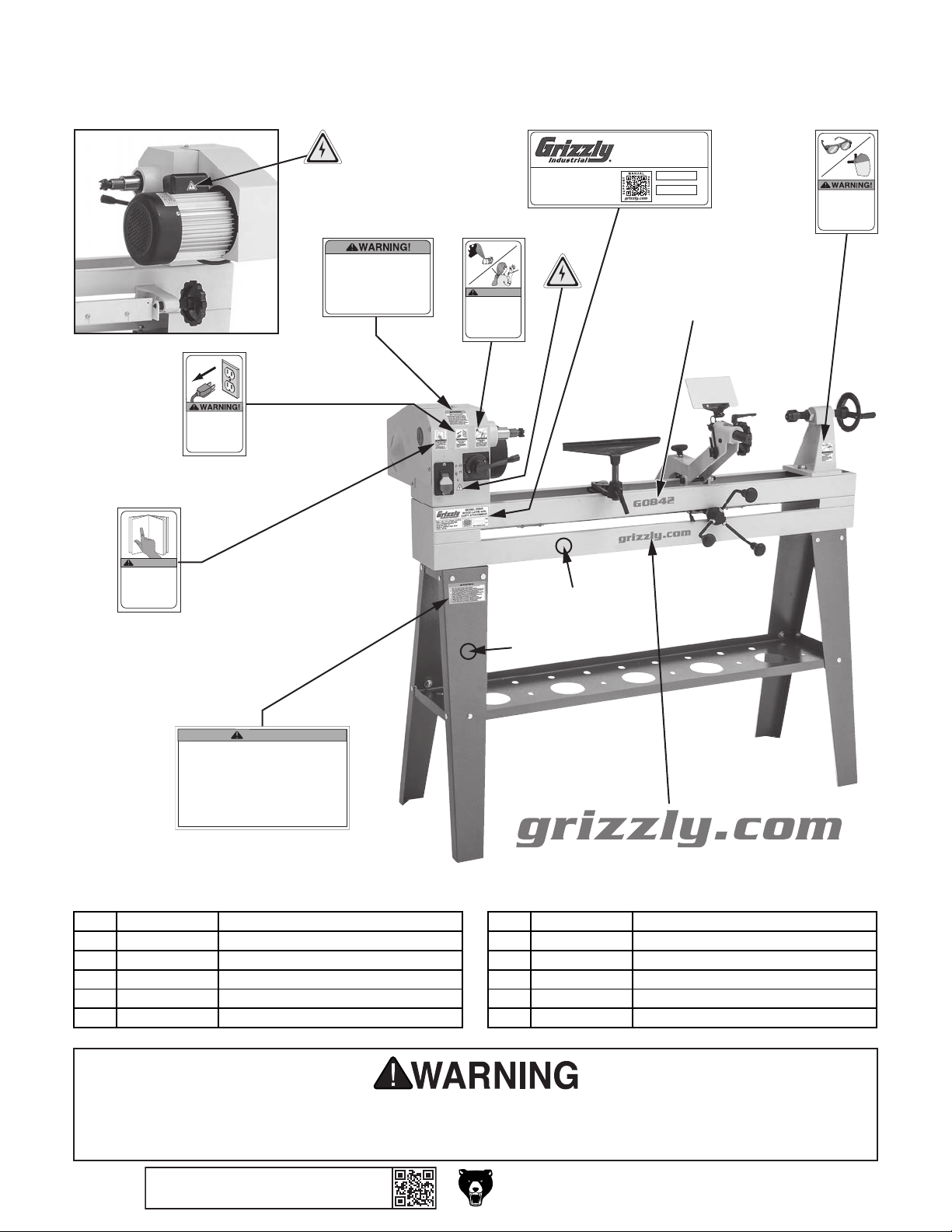

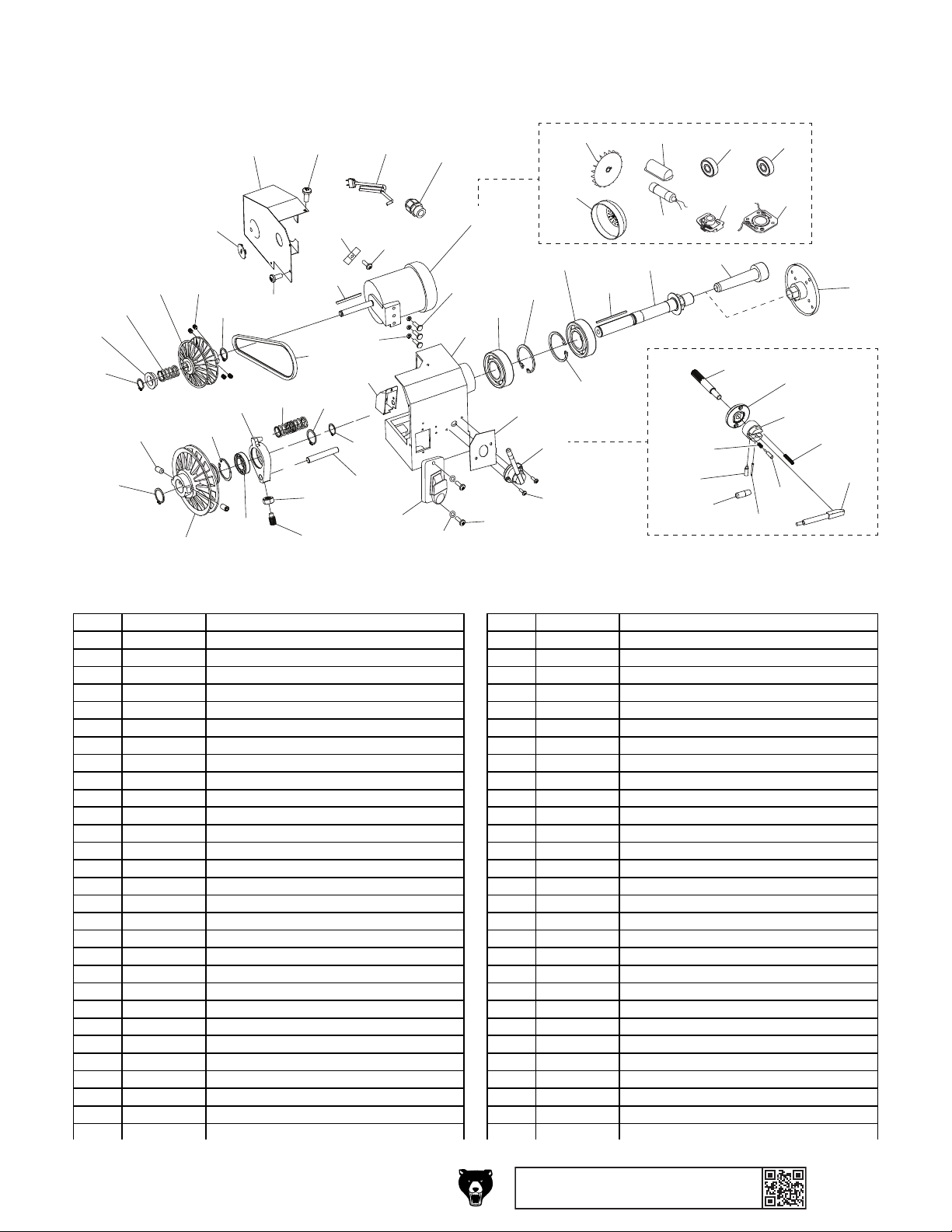

Main Headstock Labels & Cosmetics
WARRANTY & RETURNS
...................................................... 40
................................................... 41
................................... 42
........................................... 42
...................................... 45
............................................ 46
....................................... 47
............................................................. 47
.................................................... 49
..................................... 50
......................... 39
......................... 40
.................................. 40
............................ 45
............................. 53
We stand behind our machines! If you have ques­tions or need help, contact us with the information below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s manual with your new machine!
We
instruc­tions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the
from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info Manual Accuracy

and manufacture date
Grizzly Technical Support
1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
Manufacture Date and Serial Number
Manufacture Date
Serial Number
-2-
Model G0842 (Mfd. Since 2/21)

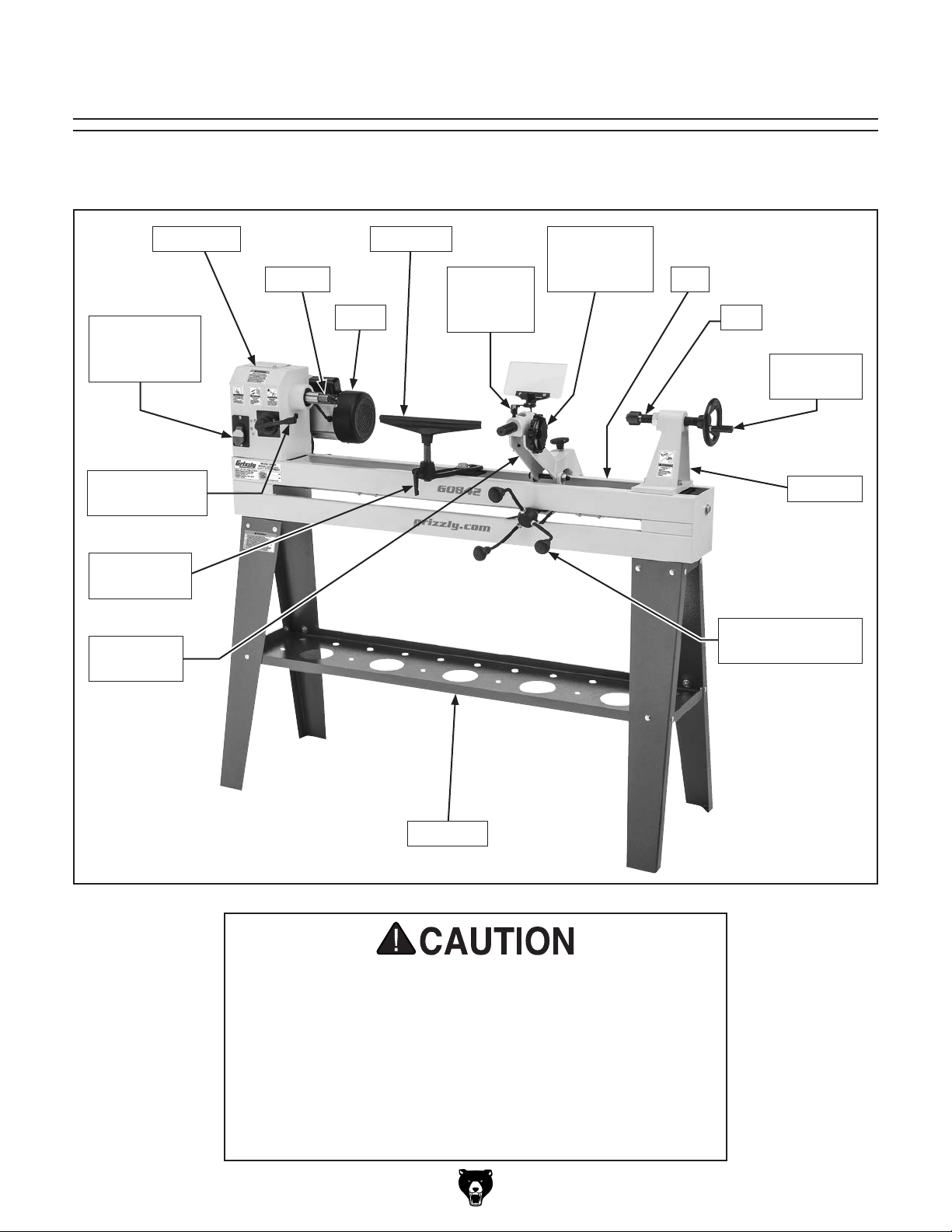

Identification

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.
Headstock
ON/OFF
Switch w/
Disabling Key
Spindle Speed
Lever
Tool Rest
Lock Handle
Copy
Attachment
Spindle
Motor
Tool Rest
Cutting
Tool Lock
Handle
Cutting Tool
Adjustment Handwheel
Bed
Quill
Tailstock
Handwheel
Tailstock
Copy Attachment
Handwheels
For Your Own Safety Read Instruction Manual Before Operating Lathe
a) Wear eye protection. b) Do not wear gloves, necktie, or loose clothing. c) Tighten all locks before operating. d) Rotate workpiece by hand before applying power. e) Rough out workpiece before installing on faceplate.
) Do not mount split workpiece or one containing knot.
f
) Use lowest speed when starting new workpiece.
g
Model G0842 (Mfd. Since 2/21)
Tool Tray
-3-
Controls &
To reduce your risk of serious injury, read this entire manual BEFORE
Tailstock
Components
using machine.

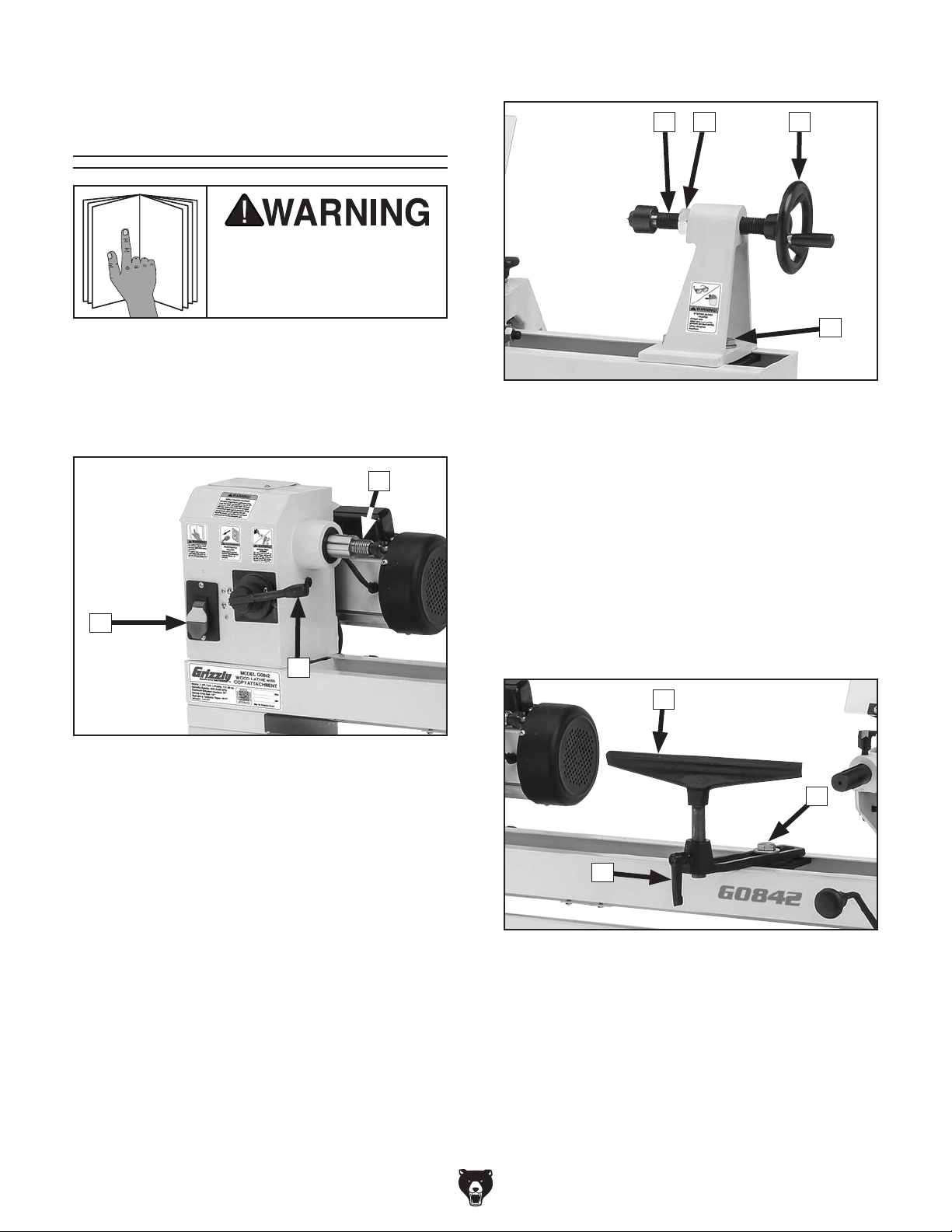

Refer to Figures 1–5 and the following descrip­tions to become familiar with the basic controls of this machine.
Headstock
C
FD E
G
Figure 2. Tailstock controls.
D. Quill: Holds MT#2 centers or tooling. Moves
toward and away from spindle.
E. Quill Locking Nut: Secures quill in position.
F. Tailstock Handwheel: Rotates to move quill
toward and away from spindle.
A
B
Figure 1. Headstock controls.

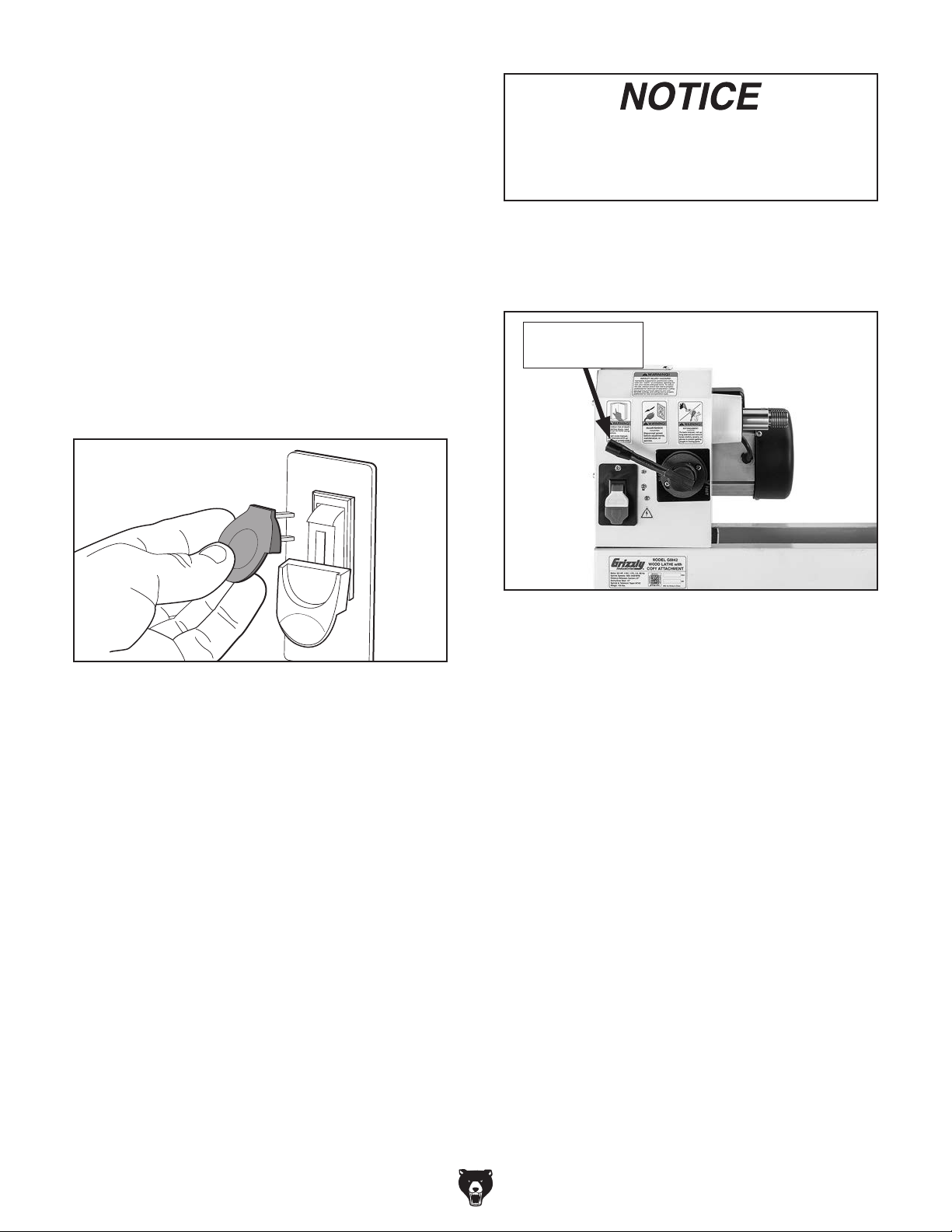

ON/OFF Switch w/Disabling Key: Turns
A.
motor ON when flipped up; turns motor OFF when pressed down. Remove yellow key to disable switch so motor cannot start.
Spindle Speed Lever: Adjusts spindle speed
B.
from low to high within range governed by pulley belt position (see Page 33 for more information).
Spindle: Accepts MT#2 centers or 1" x 8
C.
TPI (RH) tooling for mounting workpieces. Rotates counterclockwise (down, toward front of machine).
G. Tailstock Clamp Bolts (2): Secure position
of tailstock along bed.
Tool Rest
H
J
I
Figure 3. Tool rest controls.
H. Tool Rest: Provides stable platform for cut-
ting tools.
I. Tool Rest Lock Handle: Secures tool rest in
position.
-4-
J. Tool Rest Base Locking Bolt: Secures tool
rest base in position along bed.
Model G0842 (Mfd. Since 2/21)

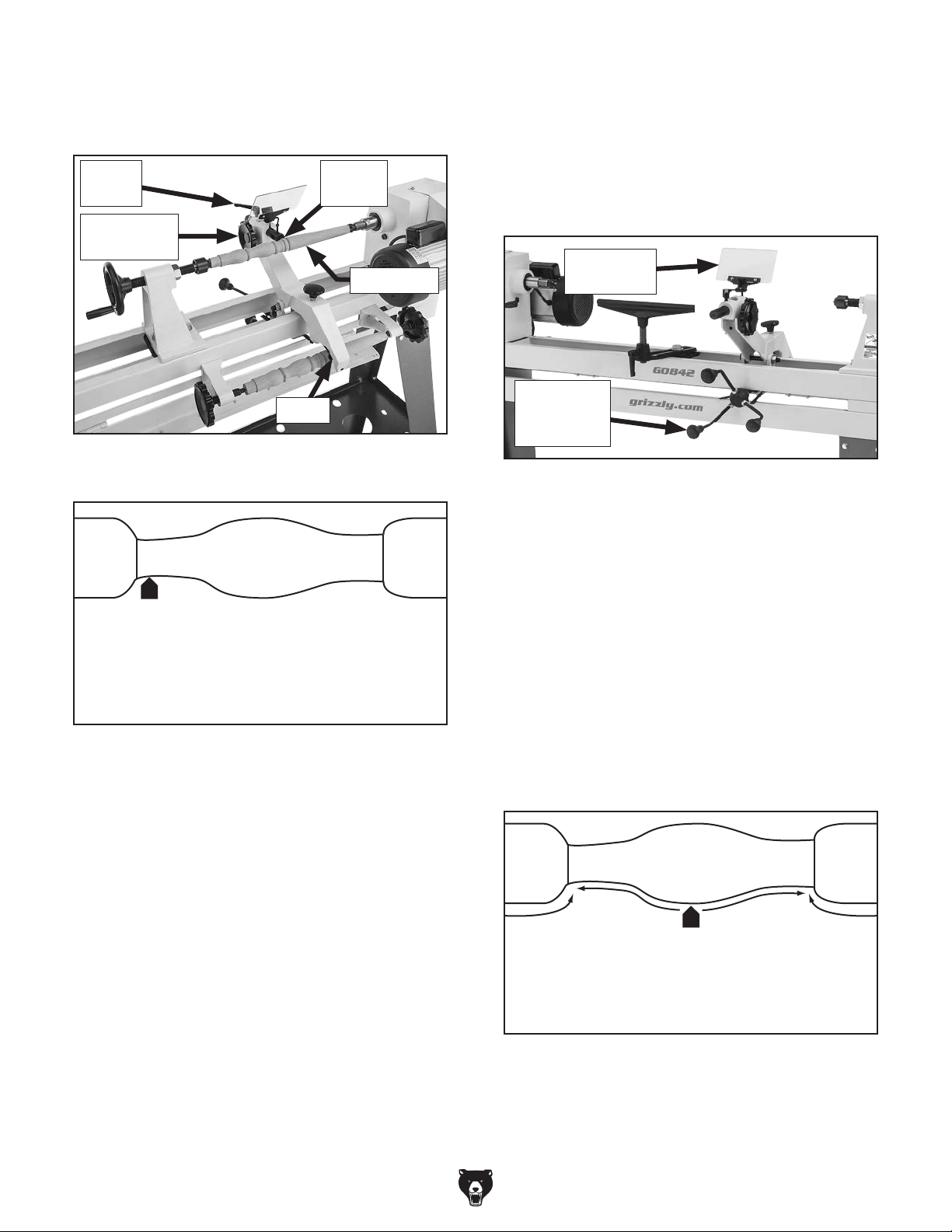

Copy Attachment
L
K
M
R
Q
P
N
O

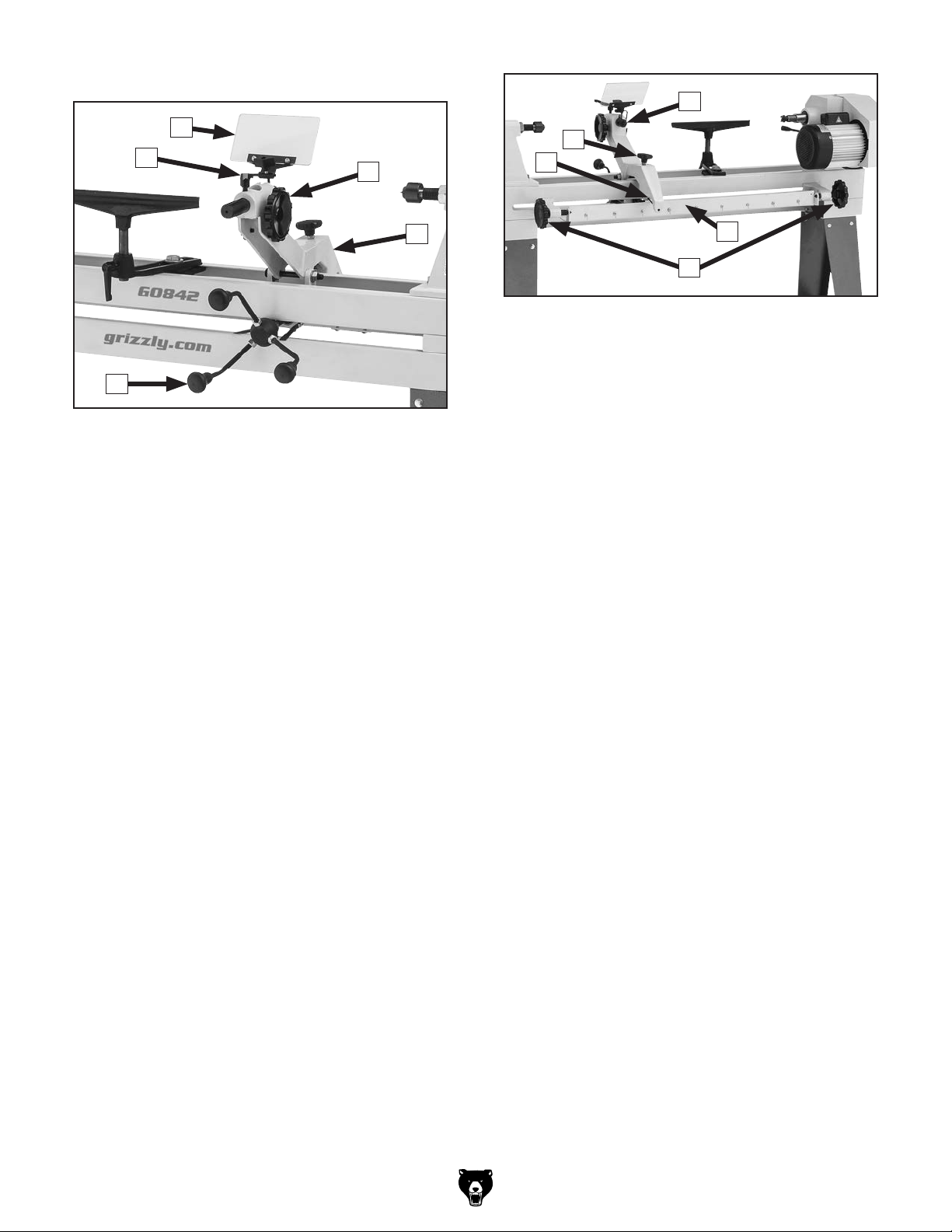

Figure 4. Front copy attachment controls.
K. Cutting Tool Lock Handle: Secures copy
attachment cutting tool in position.
Copy Attachment Safety Shield: Tilts up
L.
or down as needed to shield user from flying chips while using copy attachment.
M. Cutting Tool Adjustment Handwheel:
Moves cutting tool toward or away from workpiece.
N. Copy Attachment: Mounts to lathe bed and
"traces" premade template or master spindle during turning operations to allow user to make identical finished workpieces.
S
T
Figure 5. Rear copy attachment controls.
P. Stylus: Controls depth of cut by "tracing"
contour of template or master spindle.
Q. Stylus Tension Adjustment Knob:
Increases or decreases pressure applied by stylus on template or master spindle.
R. Copy Attachment Cutting Tool: Performs
cutting action on workpiece when using copy attachment.
Hinged Template Support: Mounts a
S.
flat template with the desired profile when secured in UP position.
T. Template Support/Master Spindle Centers:
Secure template support or master spindle.
Copy Attachment Handwheel: Rotates
O.
clockwise to move copy attachment left. Rotates counterclockwise to move copy attachment right.
Model G0842 (Mfd. Since 2/21)
-5-

Machine Data Sheet

MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0842 14" X 37" WOOD LATHE WITH COPY
ATTACHMENT
Product Dimensions:
Weight.............................................................................................................................................................. 155 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 62 x 24 x 48 in.
Footprint (Length x Width)..................................................................................................................... 54 x 18-1/2 in.
Shipping Dimensions:
Type............................................................................................................................................................. Cardboard
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 164 lbs.
Length x Width x Height....................................................................................................................... 60 x 17 x 19 in.
Must Ship Upright................................................................................................................................................... Yes
Electrical:
Power Requirement............................................................................................................ 110V, Single-Phase, 60Hz
Full-Load Current Rating........................................................................................................................................ 11A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length................................................................................................................................................. 8 ft.
Power Cord Gauge......................................................................................................................................... 14 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type.................................................................................................................................... NEMA 5-15
Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key
Motors:
Main
Horsepower............................................................................................................................................. 3/4 HP
Phase............................................................................................................................................ Single-Phase
Amps............................................................................................................................................................ 11A
Speed................................................................................................................................................ 1700 RPM
Type................................................................................................................. TEFC Capacitor-Start Induction
Power Transfer .................................................................................................................................. Belt Drive
Bearings........................................................................................................ Sealed & Permanently Lubricated
Main Specifications:
Operation Information
Swing Over Bed......................................................................................................................................... 14 in.
Swing Over Tool Rest Base....................................................................................................................... 12 in.
Distance Between Centers........................................................................................................................ 37 in.
Max. Distance Tool Rest to Spindle Center........................................................................................... 4-1/2 in.
No of Spindle Speeds..................................................................................................................................... 10
Spindle Speed Range................................................................................................................ 600–2400 RPM
Floor to Center Height......................................................................................................................... 44-5/8 in.
-6-
Model G0842 (Mfd. Since 2/21)
Spindle Information
Spindle Thread Size........................................................................................................................ 1 in. x 8 TPI
Spindle Thread Direction.................................................................................................................. Right Hand
Type of Included Spindle Center............................................................................................................... MT#2
Tool Rest Information
Tool Rest Width......................................................................................................................................... 12 in.
Tool Rest Post Diameter.............................................................................................................................. 1 in.
Tool Rest Post Length................................................................................................................................. 4 in.
Tool Rest Base Height................................................................................................................................. 1 in.
Tailstock Information
Tailstock Taper.......................................................................................................................................... MT#2
Type of Included Tailstock Center............................................................................................................. MT#2
Construction
Bed............................................................................................................................................................. Steel
Stand.......................................................................................................................................................... Steel
Headstock............................................................................................................................................ Cast Iron
Tailstock............................................................................................................................................... Cast Iron
Paint Type/Finish....................................................................................................................... Powder Coated
Other Related Information
Bed Width.............................................................................................................................................. 6-1/2 in.
Faceplate Size............................................................................................................................................. 6 in.
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .............................................................................................................. 1 Hour
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Features:
37" Distance Between Centers 14" Swing Over Bed 9" Swing Over Tool Rest Copy Device for Workpieces Up to 8" Diameter and 32" Long 12" Tool Rest Includes 6" Faceplate, MT#2 Live Center, and MT#2 Spur Center Faceplate Spanner Wrenches and Tooling Removal Pin Included
Model G0842 (Mfd. Since 2/21)
-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.
DISCONNECT POWER FIRST. nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.
EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.
Always discon-
-8-
Model G0842 (Mfd. Since 2/21)
WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to reduce your risk.
HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifica­tions—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.
FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.
NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.
MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intend­ed operation, stop using the machine! Contact our Technical Support at (570) 546-9663.
Model G0842 (Mfd. Since 2/21)
-9-

Additional Safety for Wood Lathes

Serious injury or death can occur from getting entangled in, crushed between, or struck by rotating parts on a lathe! Rotating workpieces can come loose and strike operator or bystanders with deadly force if they are improperly secured, rotated too fast, or are not strong enough for the rotational forces required for turning. Improper tool setup or usage can cause tool kickback or grabbing, resulting in impact injury or entanglement. To reduce the risk of operator (or bystander) injury or death, anyone operating this machine MUST completely heed the hazards and warnings below.
VERIFY WORKPIECE INTEGRITY. Verify each
workpiece is free of knots, splits, nails, or foreign material to ensure it can safely rotate on spindle without breaking apart or causing tool kickback.
PROPERLY PREPARE WORKPIECE. Before mounting, cut off waste portions to balance workpiece for safe rotation and removal of large edges that can catch on tooling.
SECURE LOCKS. Verify tool rest, headstock, and tailstock are secure before turning lathe ON.
SECURE WORKPIECE. Use proven setup tech­niques and always verify workpiece (and centers/ tooling holding workpiece) are well-secured before starting lathe. Only use high-quality fasteners with non-tapered heads for faceplate attachment.
ADJUST TOOL SUPPORT. An improperly sup­ported tool may be grabbed or ejected. Adjust tool rest approximately
1
8" above workpiece center line to provide proper support for turning tool. Firmly hold turning tool with both hands against tool rest.
1
4" away from workpiece and
WEAR PROPER PPE. Always wear a face shield and safety glasses when operating lathe. Do not wear gloves, necktie or loose clothing. Keep long hair away from rotating spindle.
USE CORRECT SPEEDS. Select correct spindle speed for workpiece size, type, shape, and condition. Use low speeds when roughing or when turning large, long, or non-concentric workpieces. Allow spindle to reach full speed before turning.
AVOID TOOL KICKBACK. This occurs when turning tool is grabbed or ejected from workpiece with great force. Commonly caused by poor workpiece selection/preparation, improper tool usage, or improper machine setup or tool rest adjustment.
SAFELY PERFORM ROUGHING. Use correct tool. Take light cuts, use low speeds, and firmly support tool with both hands.
USE SHARP TOOLS. Sharp tools cut with less resistance than dull tools. Using dull tools increases the risk of tool kickback or grabbing.
REMOVE ADJUSTMENT TOOLS. Remove all chuck keys, wrenches, and adjustment tools before turning lathe ON. These items can become deadly projectiles when spindle is started.
CHECK CLEARANCES. Before starting spindle, verify workpiece has adequate clearance by hand-rotating it through its entire range of motion.
TEST NEW SETUPS. Test each new setup by starting spindle rotation at lowest speed and standing to side of lathe until workpiece reaches full speed and you can verify safe rotation.
-10 -
SAFELY STOPPING ROTATION. Always allow rotating workpiece to stop on its own. Never put hands or another object on workpiece to stop it.
SAFELY MEASURE WORKPIECE. Only mea­sure mounted workpiece after it has completely stopped. Trying to measure a spinning workpiece increases entanglement risk.
SANDING/POLISHING. To reduce entanglement risk, remove tool rest before sanding. Never completely wrap sandpaper around workpiece.
Model G0842 (Mfd. Since 2/21)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.
or equipment damage may occur if machine is not properly grounded and connected to power
The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.
The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.
If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid over­loading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.
For your own safety and protection of
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, con­sult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.
A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power sup­ply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)
This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:
process. DO NOT connect to power until
Availability
Electrocution, fire, shock,
Serious injury could occur if you connect machine to power before completing setup
instructed later in this manual.
110V Circuit Requirements
Nominal Voltage .................... 110V, 115V, 120V
..........................................................60 Hz
Cycle Phase Power Supply Circuit
........................................... Single-Phase
......................... 15 Amps
supply.
Full-Load Current Rating
Full-Load Current Rating at 110V ...... 11 Amps
Model G0842 (Mfd. Since 2/21)
property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.
-11-
Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding wire to a live (current carrying) terminal.
Check with a qualified electrician or service per­sonnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with a new one.
We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.
Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:
Grounding & Plug Requirements
it will not fit the outlet, have a qualified electrician install the proper outlet with a
This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.
This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug. Only insert plug into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances. DO NOT modify the provided plug!
GROUNDED
5-15 RECEPTACLE
Grounding Pin
5-15 PLUG
Extension Cords
If you must use an extension
Neutral Hot

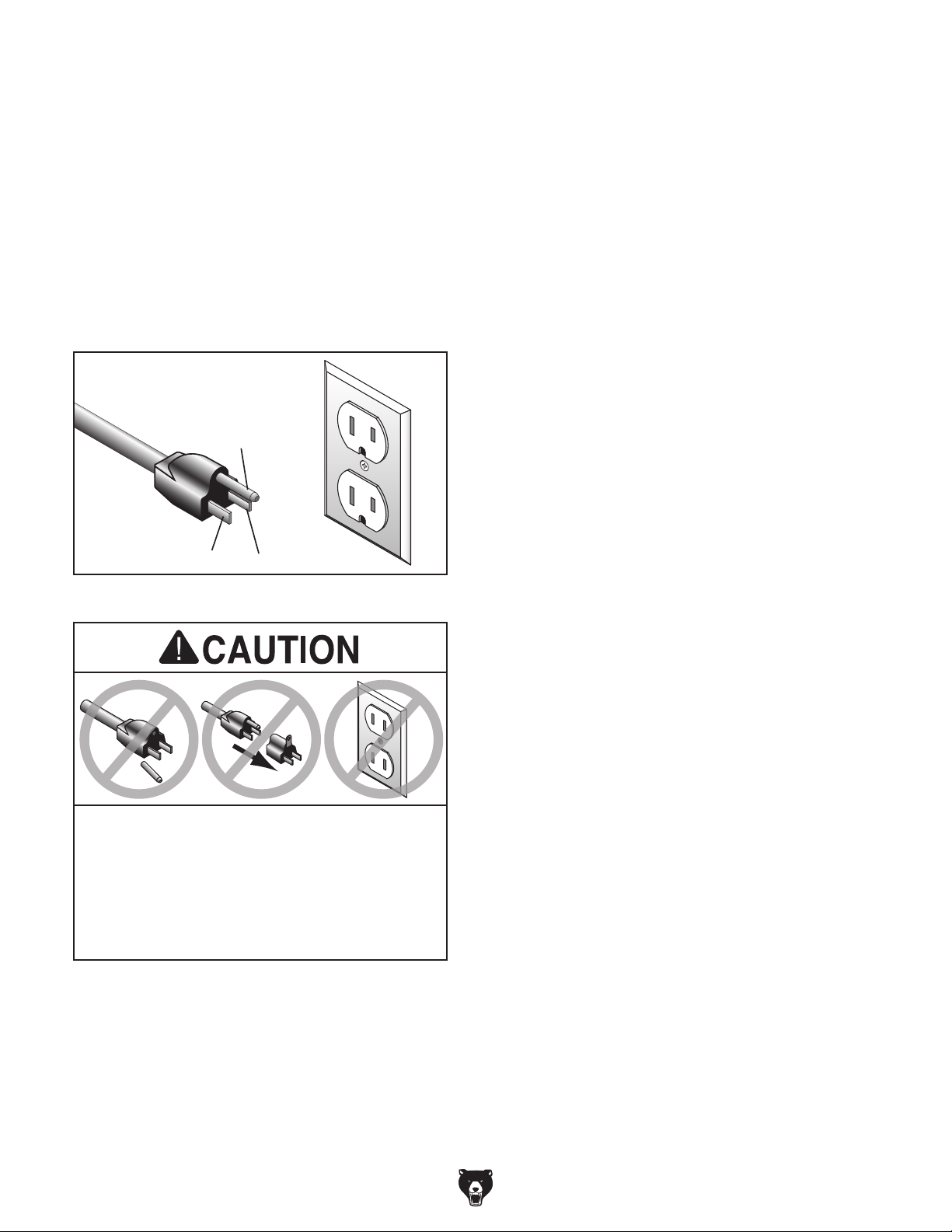

Figure 6. Typical 5-15 plug and receptacle.
SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if
verified ground.
-12-
Minimum Gauge Size ...........................14 AWG
Maximum Length (Shorter is Better).......50 ft.
Model G0842 (Mfd. Since 2/21)

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Needed for Setup

This machine presents serious injury hazards to untrained users. Read through this entire manu­al to become familiar with the controls and opera­tions before starting the machine!
Wear safety glasses during the entire setup process!
The following items are needed, but not included, for the setup/assembly of this machine.
Description Qty
Additional People ....................... As Needed
Safety Glasses (for each person) ............... 1
Level ........................................................... 1
Cleaner/Degreaser (Page 16) .... As Needed
Disposable Shop Rags ............... As Needed

Unpacking

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
Model G0842 (Mfd. Since 2/21)
-13-

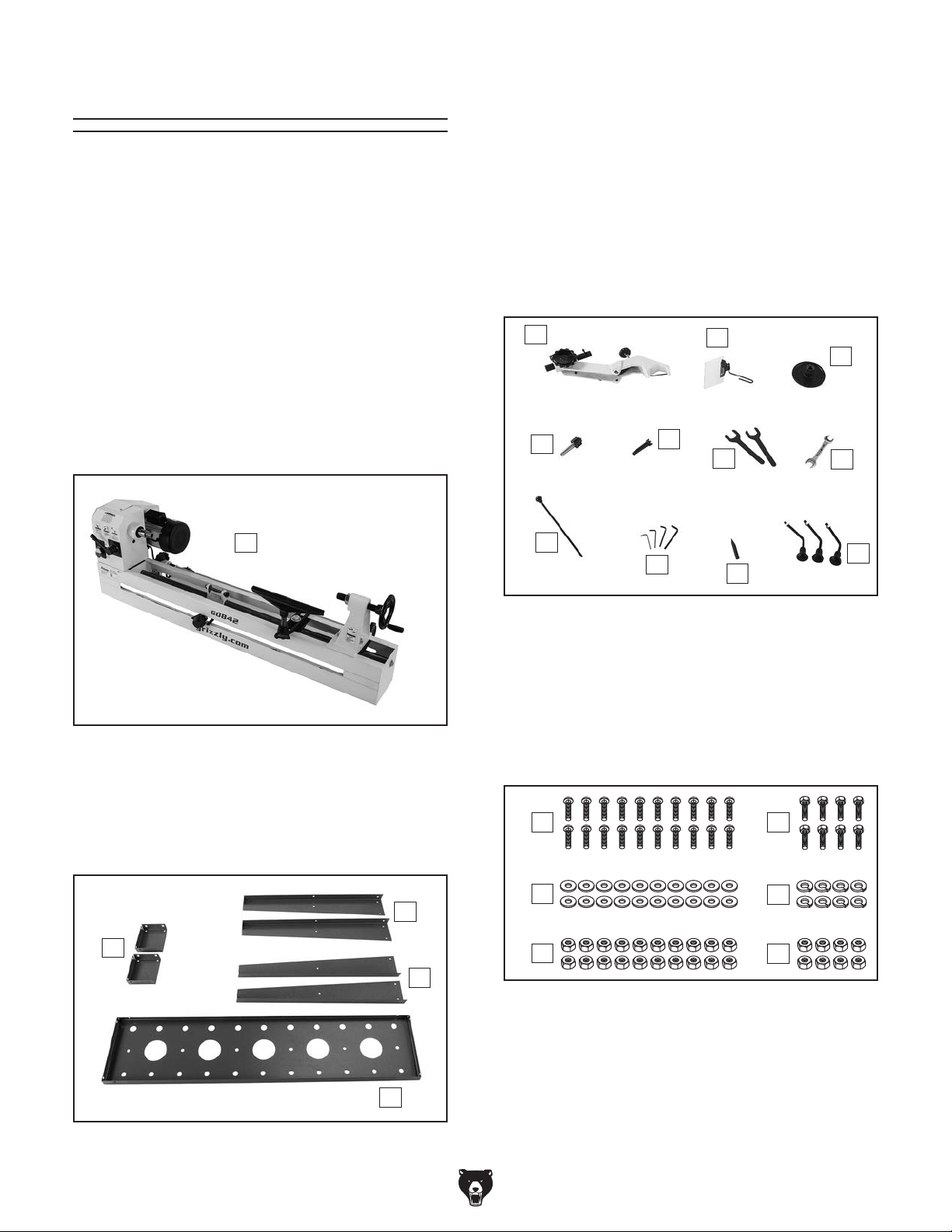

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.
If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.
F. Copy Attachment ........................................ 1
Copy Attachment Safety Shield ................. 1
G.
Faceplate 6" ............................................... 1
H.
. Live Center MT#2 ....................................... 1
I
. Spur Center MT#2 ...................................... 1
J
. Flat Wrenches 32mm ................................. 2
K
Combo Wrench 22mm/24mm .................... 1
L.
Knockout Tool ............................................. 1
M.
Hex Wrenches 3, 4, 5, 6mm ..................1 Ea
N.
Cutting Tool ................................................ 1
O.
P. Copy Attachment Handles w/Jam Nuts ...... 3
Inventory (Figures 7–10) Qty A. Lathe Assembly
—Headstock (mounted) ............................. 1
—Tool Rest Base (mounted) —Tool Rest (mounted) —Tailstock (mounted)
Figure 7. Lathe assembly.
B. End Supports ............................................. 2
Stand Legs (Front Right/Rear Left) ............ 2
C.
Stand Legs (Front Left/Rear Right) ............ 2
D.
To ol Tray ..................................................... 1
E.
................................. 1
A
...................... 1
................................ 1
F
I
M
N
Figure 9. Loose inventory components.
Q.
Carriage Bolts M8-1.25 x 16 (Stand) ........ 20
Flat Washers 8mm (Stand) ...................... 20
R.
Hex Nuts M8-1.25 (Stand) ........................ 20
S.
Hex Bolts M8-1.25 x 16 (Lathe/Stand) ....... 8
T.
Lock Washers 8mm (Lathe/Stand) ............. 8
U.
Hex Nuts M8-1.25 (Lathe/Stand) ................ 8
V.
Q
G
J
K
O
T
H
L
P
B
-14-
Figure 8. Stand components.
R
C
S
D
Figure 10. Inventory fasteners.
E
Model G0842 (Mfd. Since 2/21)
U
V

Hardware Recognition Chart

USE THIS CHART TO MATCH UP HARDWARE DURING THE INVENTORY AND ASSEMBLY PROCESS.
Flat Head Cap Screw
5mm
Model G0842 (Mfd. Since 2/21)
5mm
-15-

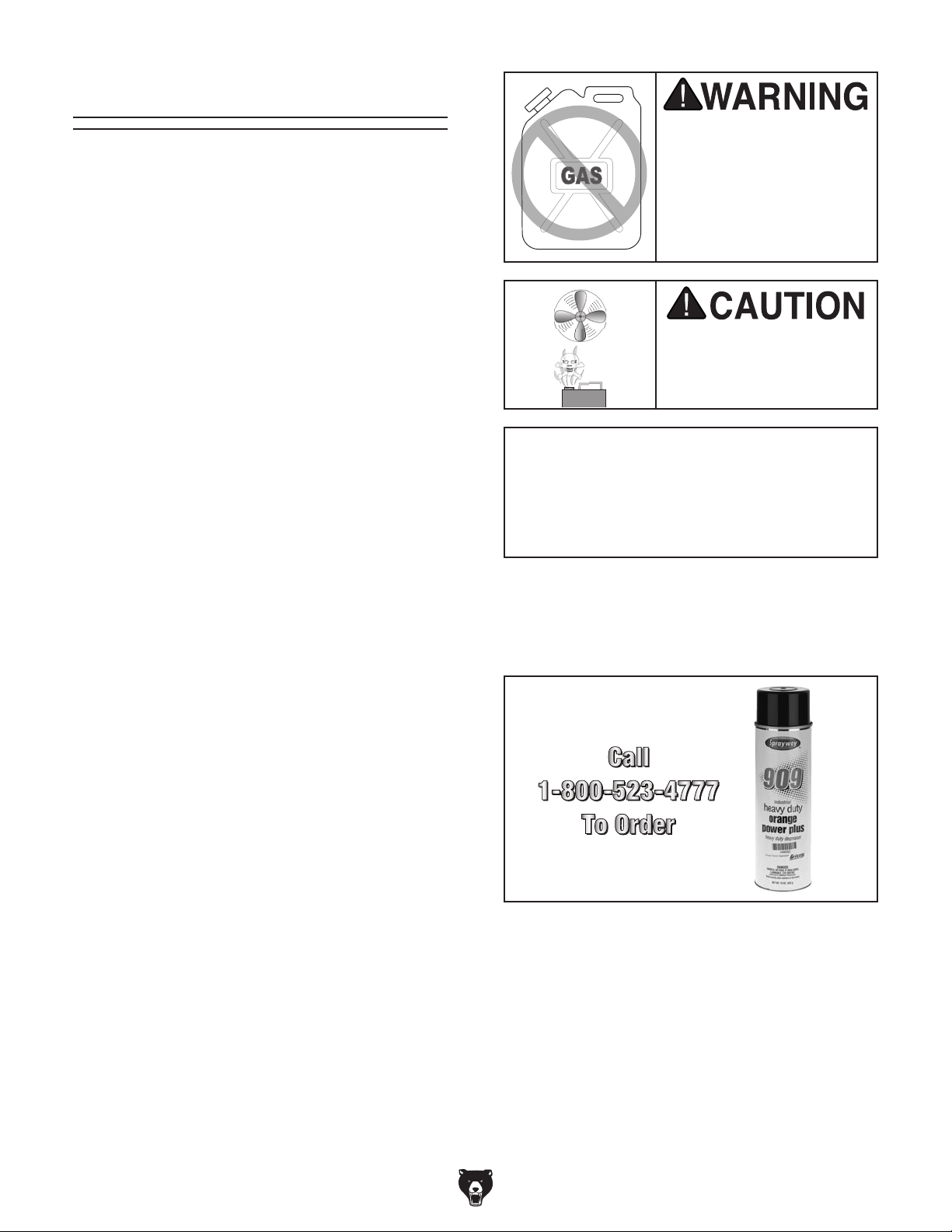

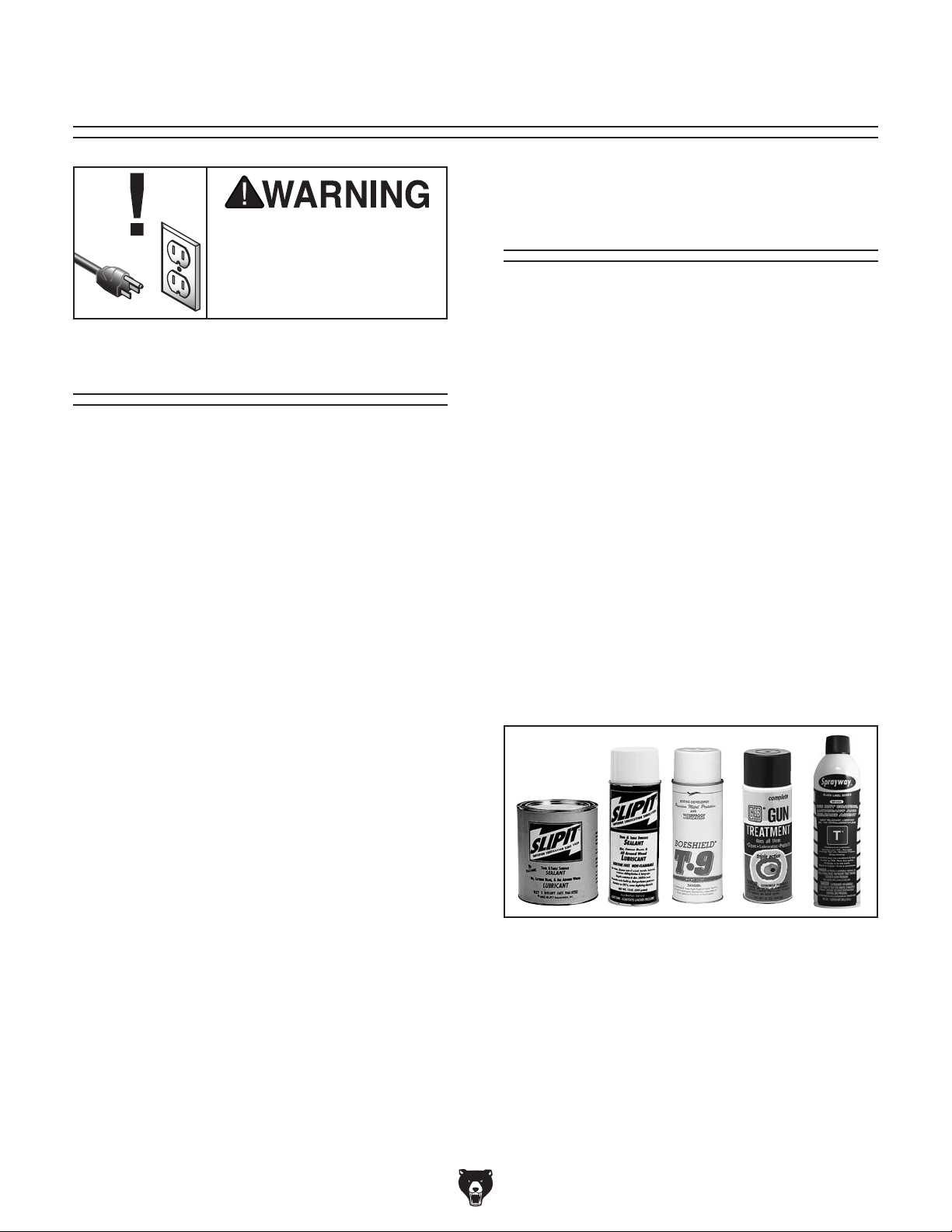

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.
Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.
There are many ways to remove this rust preven­tative, but the following steps work well in a wide variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
Disposable rags
Cleaner/degreaser (WD•40 works well)
Safety glasses & disposable gloves
Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
Many cleaning solvents
work in a well-ventilated

Cleanup

Cleanup
Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Av oi d using these products to clean machinery.
Put on safety glasses.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak for 5–10 minutes.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.
are toxic if inhaled. Only
area.
NOTICE
Avoid harsh solvents like acetone or brake parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.
T23692—Orange Power Degreaser
A great product for removing the waxy ship­ping grease from the non-painted parts of the machine during clean up.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality metal protectant to prevent rust.
-16 -
Figure 11. T23692 Orange Power Degreaser.
Model G0842 (Mfd. Since 2/21)

Site Considerations

Weight Load
Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the main­tenance and service described in this manual.
See below for required space allocation.
Physical Environment
Extreme conditions for this type of machinery are
Place this machine near an existing power source.
other hazards. Make sure to leave enough space
Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.
Machine Data Sheet for the weight
Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.
The physical environment where the machine is operated is important for safe operation and lon­gevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.
Electrical Installation
Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or
around machine to disconnect power supply or apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate enough that operations can be performed safely.
Wall
Min. 30"
for Maintenance
Model G0842 (Mfd. Since 2/21)
24"
= Electrical Connection

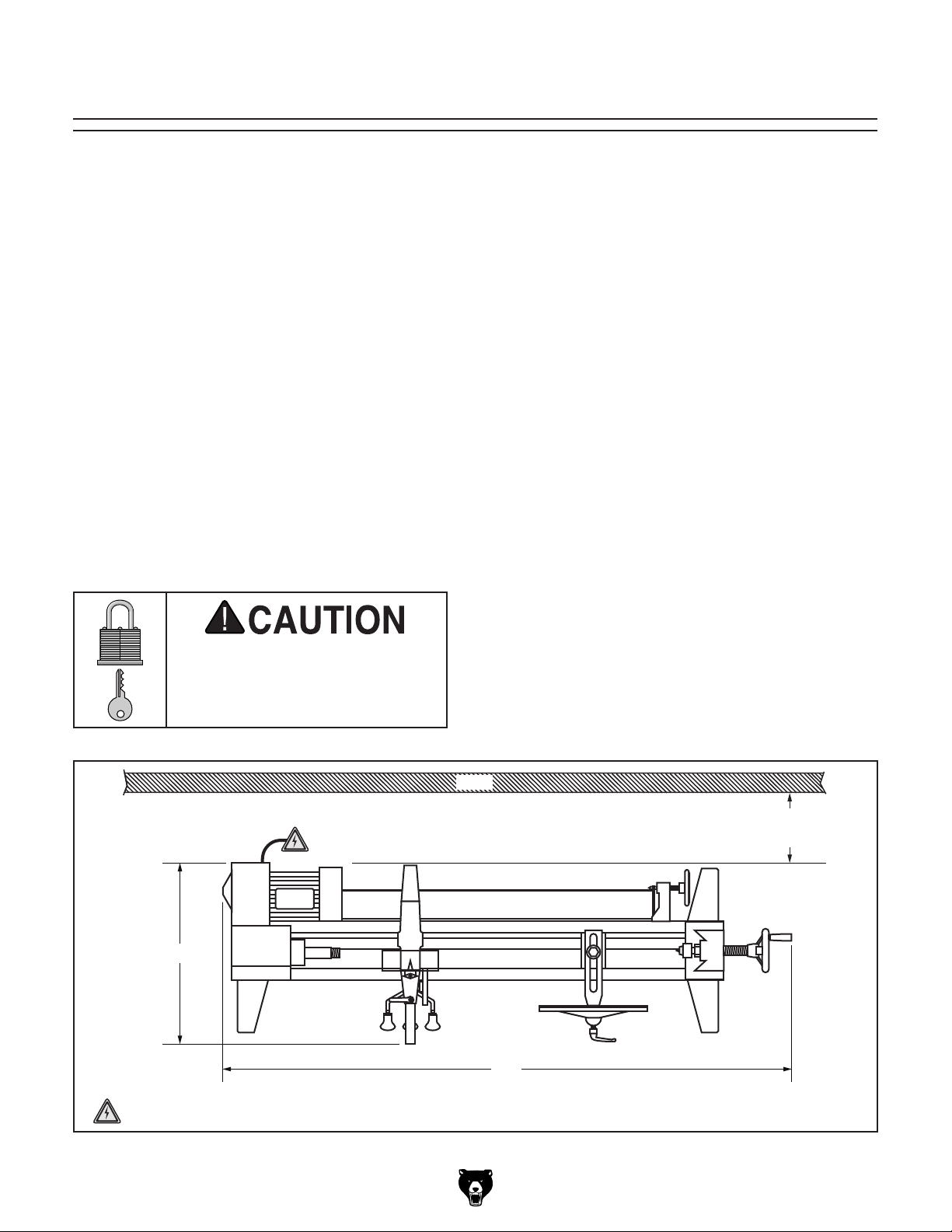

Figure 12. Minimum working clearances.
62"
-17-

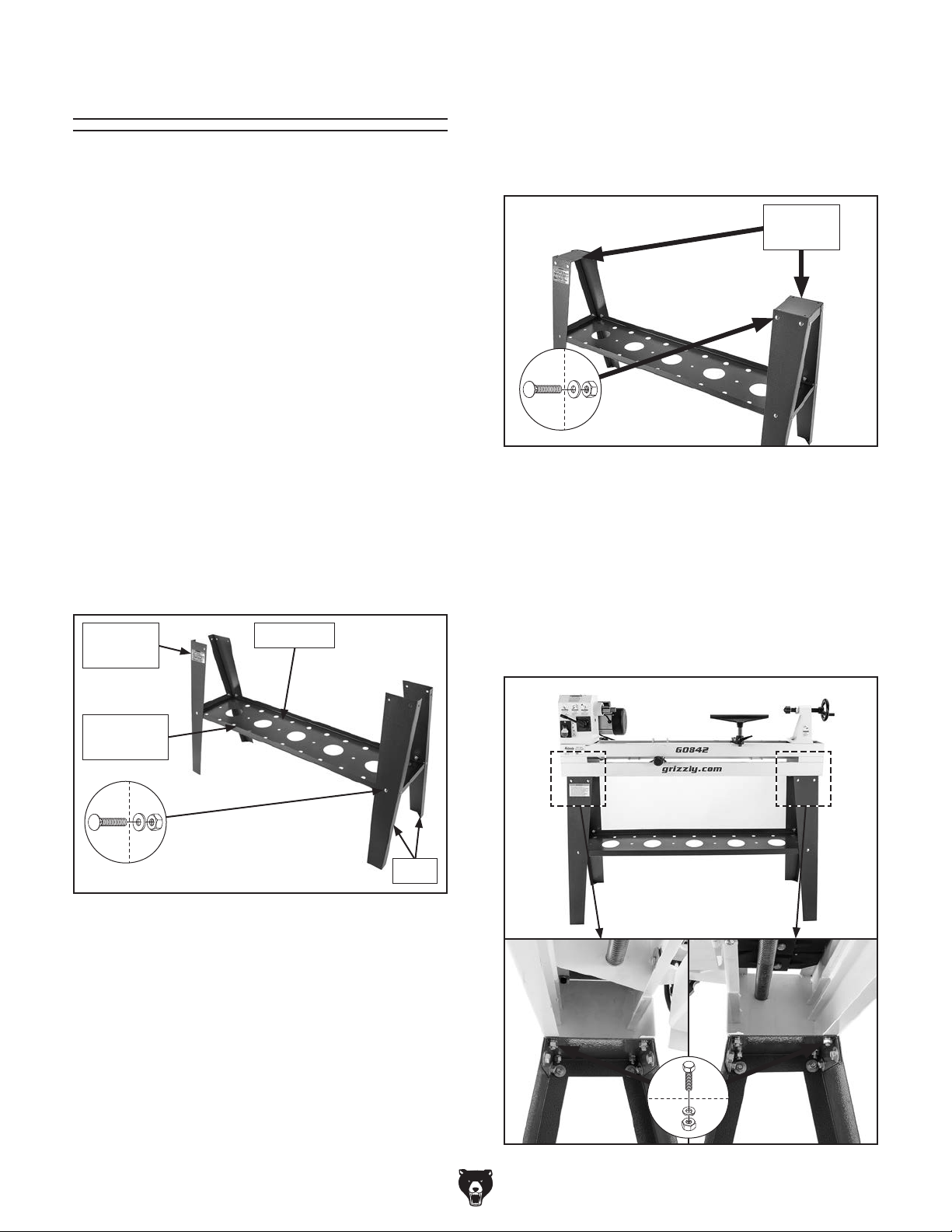

Assembly

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to all goes smoothly, first clean any ered or coated in heavy-duty rust preventative (if applicable).
Needed for Setup and gather
listed items. To ensure the assembly process
parts that are cov-
To assemble lathe:
Attach (4) legs to tool tray with (8) M8-1.25 x
1.
16 carriage bolts, (8) 8mm flat washers, and (8) M8-1.25 hex nuts (see Figure 13). Finger- tighten hex nuts for now.
Position end supports between tops of legs
2.
and attach each support with (6) M8-1.25 x 16 carriage bolts, (6) 8mm flat washers, and (6) M8-1.25 hex nuts (see Figure 14). Finger- tighten hex nuts for now.
End
Supports
x 12
Note: Leg with warning label attaches to front
left corner of tool tray; flanged side of tray faces up.
Tip: Fasten legs to tool tray over a clean
piece of cardboard on floor to avoid scratch­ing paint.
Warning
Label
Flange
Facing Up
x 8
Figure 13. Legs attached to tool tray.
Tool Tray
Legs
Figure 14. End supports installed onto legs.
3. With help of an assistant, lift lathe and align
mounting holes in bottom of lathe with holes in tops of end supports (see Figure 15).
Attach lathe to end supports with (8) M8-1.25
4.
x 16 hex bolts, (8) 8mm lock washers, and (8) M8-1.25 hex nuts (see Figure 15). Tighten all fasteners installed in Steps 1–4.
-18-
(Headstock End) (Tailstock End)
x 8
Figure 15. Lathe attached to end supports.
Model G0842 (Mfd. Since 2/21)
Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.
If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The
table in the
SERVICE section of this manual can help.
DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine
Serious injury or death can result from
Attach each of (3) copy attachment handwheel
5.
handles to the hub, then tighten pre-installed jam nuts against hub (see Figure 16).
Hub
Jam Nut
Handle

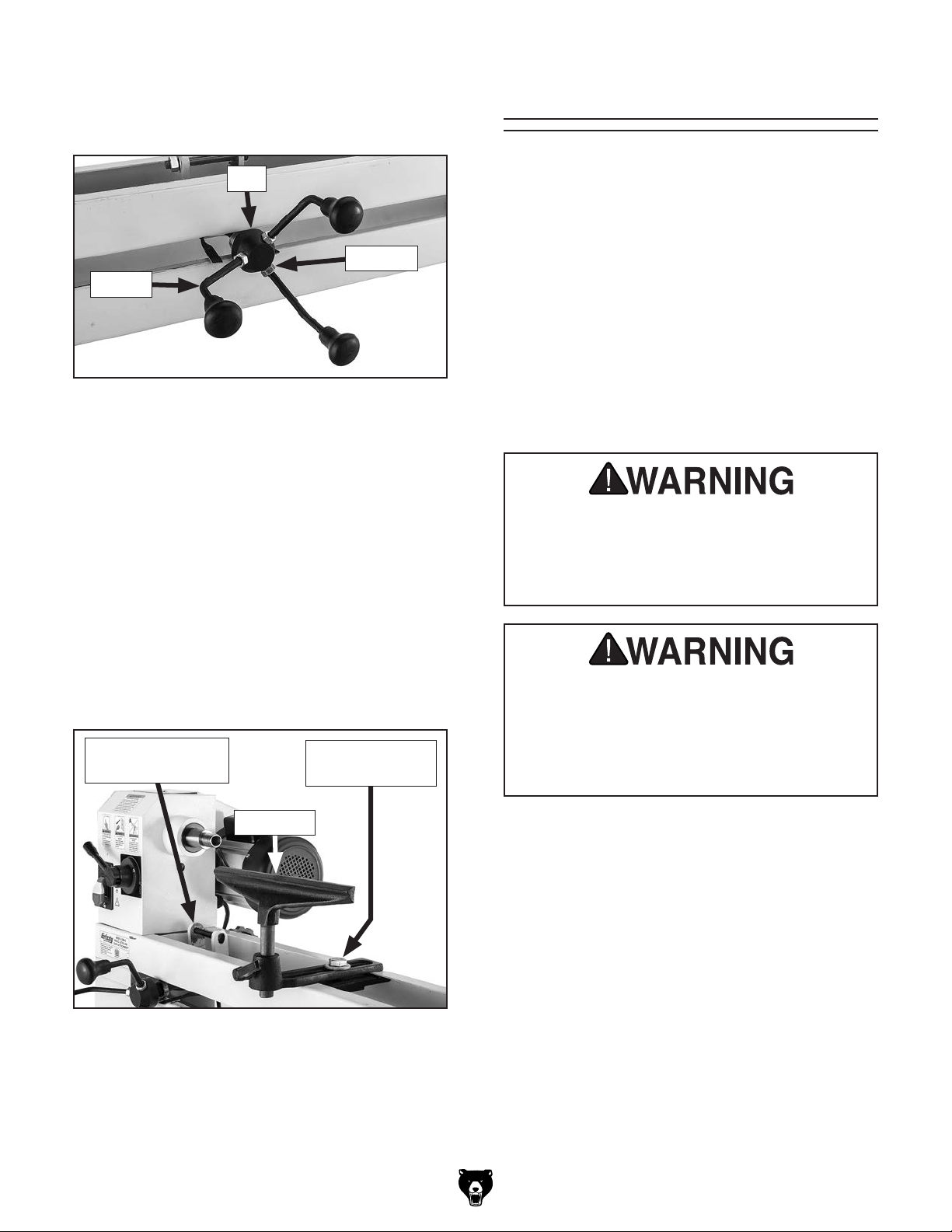

Figure 16. Copy attachment handwheel handles
attached to hub.
If you plan to use the lathe for spindle or
faceplate turning operations, loosen tool rest base locking bolt, rotate tool rest so it faces front of lathe, then retighten bolt (see Figure 17). Move copy attach­ment bracket and handles all the way left against headstock so they are out of the way. Now, proceed to Test Run.
Important: The tool rest is installed back-
wards for shipping purposes and must be properly repositioned (refer to Page 28) before starting turning operations.

Test Run

Troubleshooting
The test run consists of verifying the following:
1) The motor powers up and runs correctly, and
2) the safety disabling mechanism on the switch works correctly.
using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.
Copy Attachment
Bracket
Tool Rest
Figure 17. Tool rest positioned for operations
and copy attachment bracket moved out of way.
If you plan to use lathe to make spindle
copies, proceed to Test Run and com- plete all steps, then proceed to Copy Attachment Operation on Page 24.
Model G0842 (Mfd. Since 2/21)
Tool Rest Base
Locking Bolt
may result in malfunction or unexpect­ed results that can lead to serious injury, death, or machine/property damage.
To test run machine:
Clear all setup tools away from machine.
1.
2. Connect machine to power supply.
-19 -
3. Verify machine is operating correctly by turn­ing machine ON.
When operating correctly, machine runs
smoothly with little or no vibration or rub­bing noises.
The spindle speed lever adjusts pulley width to change spindle speed. To prevent damage to this mechanism, lathe MUST be running before using variable speed lever.
— Investigate and correct strange or unusu-
al noises or vibrations before operat­ing machine further. Always disconnect machine from power when investigating or correcting potential problems.
4. Turn machine OFF.
Remove switch disabling key, as shown in
5. Figure 18.
Figure 18. Example of removing switch key from
paddle switch.
9. Test spindle speed by pulling shift lever out (see Figure 19) and slowly adjusting it left and right.
Spindle Speed
Shift Lever
Figure 19. Location of spindle speed lever.
— The machine should speed up and slow
down as you move the lever. If this is the case, then Test Run is over and your machine is ready for normal operations.
6.
Try to start machine with paddle switch. The
machine should not start.
— If the machine does not start, the switch
disabling feature is working correctly.
— If the machine does start, immediately stop
the machine. The switch disabling feature is not working correctly. This safety fea­ture must work properly before proceeding with regular operations. Call Tech Support for help.
. Re-insert switch disabling key.
7
Turn machine ON.
8.
-20-
— If machine has problems changing speeds,
turn machine OFF, disconnect it from power, and refer to Troubleshooting chart on Page 42, or call Tech Support for help.
Congratulations! The Test Run is complete!
Model G0842 (Mfd. Since 2/21)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding of how the machine is used during operation, so the
discussed later
in this manual
Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,
training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.
To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

machine controls/components
are easier to understand.
seek additional
, and do additional research
using machine.
Typical Turning (Non-Copy) Operations
1. Operator examines workpiece to make sure
it is suitable for turning. No extreme bows, knots, or cracks should exist.
Prepares and trims workpiece with a bandsaw
2.
or table saw to make it roughly concentric.
Installs workpiece between centers, or attach-
3.
es it to faceplate or chuck.
Adjusts tool rest according to type of
4.
operation, and sets minimum clearance between workpiece and lip of tool rest to gap.
5. Rotates workpiece by hand to verify spindle and workpiece rotate freely throughout full range of motion.
Ties back long hair and clothing and puts on
6.
safety glasses, face shield, and respirator.
1
4"
Eye injuries or respiratory problems can occur while operating this machine. Wear personal protective equipment to reduce your risk from these hazards.
If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable for accidents caused by lack of training.
Model G0842 (Mfd. Since 2/21)
Starts lathe, pulls variable speed lever out,
7.
and adjusts lathe speed for type of wood and size of workpiece installed and care­fully begins turning operation, keeping chisel against tool rest entire time it is cutting.
Turns lathe OFF when cutting operation is
8.
complete.
-21-
Typical Copy Operations
Operator examines workpiece to make sure
1.
it is suitable for cutting. No extreme bows,
knots, or cracks should exist.
Prepares and trims workpiece with a bandsaw
2.
or table saw to make it roughly concentric.
Installs workpiece between centers, and
3.
installs template or master spindle.
Adjusts cutting tool and stylus to just touch
4.
workpiece and template or master spindle.
Ties back long hair and clothing and puts on
5.
safety glasses, face shield, and respirator.

Workpiece Inspection

Some workpieces are not safe to turn or may require modification before they are safe to turn.
Before turning, inspect all workpieces for the following:
Workpiece Type:
This machine is intended for turning natural
wood products. Never attempt to turn any composite wood materials, plastics, metal, stone, or rubber workpieces; turning these materials can lead to machine damage or severe injury.
6. Starts lathe and advances cutting tool into workpiece approximately ing from right to left using the copy attach­ment handwheel and using "downhill" cutting technique. Repeats this process over mul­tiple passes until workpiece is complete.
Turns lathe OFF immediately after turning
7.
is complete and waits for workpiece to com­pletely stop before removing it.
Repeats Steps 1–6 to complete all copies.
8.
Removes copy attachment and re-installs
9.
tool rest.
Uses lathe chisels to sharpen details and
10.
smooth turned surfaces on each copy, then sands smooth.
1
16" per pass, mov-
Foreign Objects: Nails, staples, dirt, rocks and other foreign
objects are often embedded in wood. While cutting, these objects can become dislodged and hit the operator, cause tool grab, or break the turning tool, which might then fly apart. Always visually inspect your workpiece for these items. If they can't be removed, DO NOT turn the workpiece.
Large/Loose Knots: Loose knots can become dislodged during
the turning operation. Large knots can cause a workpiece to completely break in half during turning and cause machine damage and injury. Choose workpieces that do not have large/loose knots.
Excessive Warping: Workpieces with excessive bowing or twist-
ing are unstable and unbalanced. Never turn these workpieces at high speed, or instability will be magnified and the workpiece can be ejected from the lathe causing injury. Only turn concentric workpieces!
-22-
Model G0842 (Mfd. Since 2/21)
Installing/Removing
Copy Attachment
The copy attachment needs to be installed for copy operations, but once these are complete you should remove the copy attachment since it can interfere with typical turning operations.
Follow the instructions in this section to install the copy attachment onto the copy attachment bracket (see Figure 20). To remove the copy attachment, repeat Steps 1–4 of this section in reverse, then move the bracket against the headstock so it does not interfere with positioning of the tool rest.
Alternatively, the copy attachment can also be positioned at the right end of the bed so it does not interfere with the tool rest or tailstock during turning operations. However, this will reduce the maximum workpiece size due to the shorter distance between centers.
Items Needed Qty
Wrench or Socket 18mm ................................... 2
Hex Wrench 6mm Hex Wrench 5mm
To install copy attachment:
.............................................. 1
.............................................. 1
3. Loosen template support centers and allow template support to drop down (see Figure 21).
Remove pre-installed mounting screw and
4.
use it to attach extension spring to shaft, as shown in Figure 21.
— If you plan to use a template during copy
operations, re-install template support in up position.
— If you plan to use a master spindle during
copy operations, leave template support in down position.
Extension
Spring
Shaft
Mounting
Screw
Figure 21. Extension spring attached to shaft
with mounting screw.
Support Center
(1 of 2)
Template
Support
1. Remove tool rest (refer to Removing/ Installing Tool Rest on Page 29).

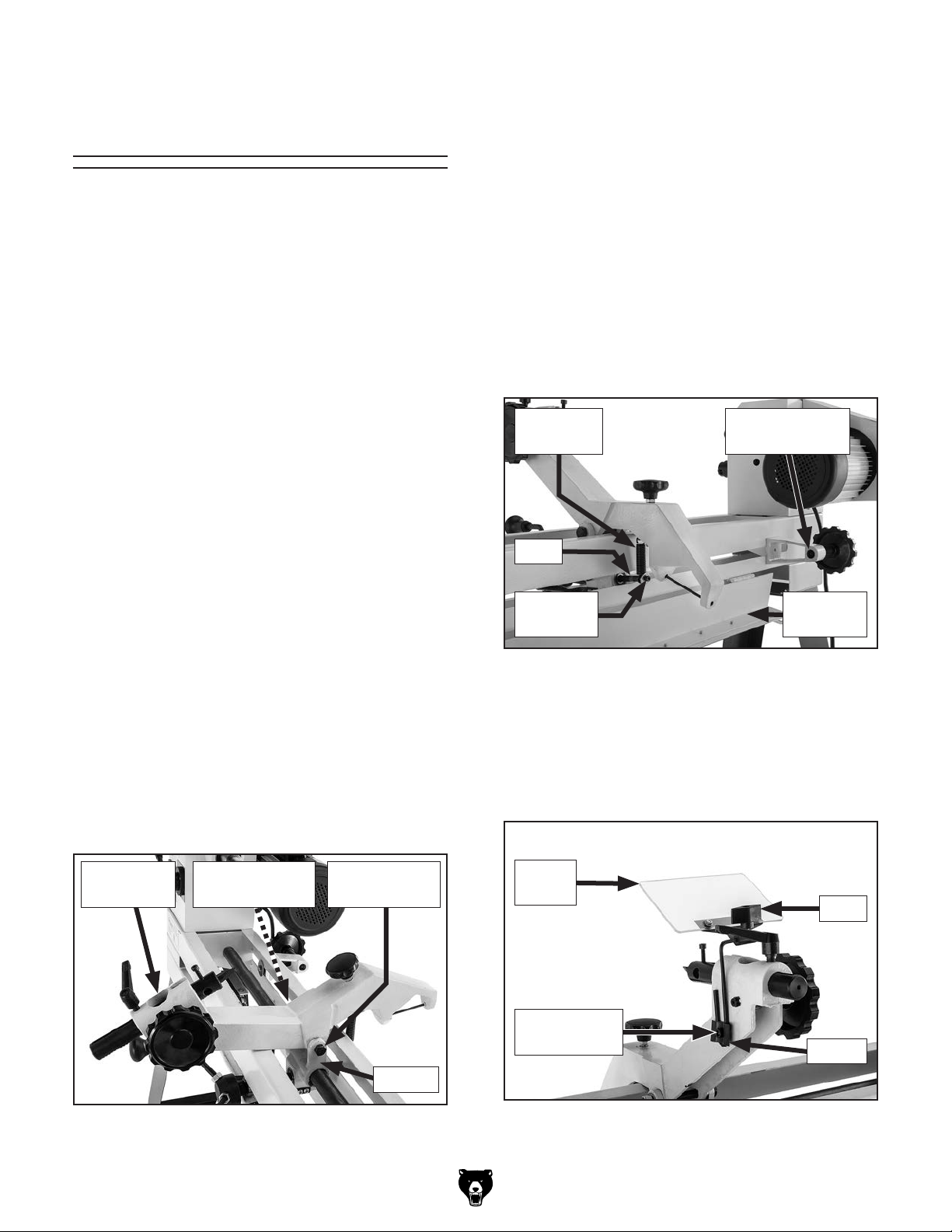

Secure copy attachment to bracket shown in
2. Figure 20 with pre-installed shoulder bolt, flat
washer, and hex nut.
Copy
Attachment
Figure 20. Copy attachment secured to bracket.
Flat Washer &
Hex Bolt
Pre-Installed
Shoulder Bolt
Bracket
. Secure safety shield with pre-installed cap
5
screw and flange. Loosen safety shield knob (see Figure 22), adjust shield as needed, then retighten knob.
Safety Shield
Knob
Pre-Installed
Cap Screw
Figure 22. Safety shield assembly installed onto
copy attachment.
Flange
Model G0842 (Mfd. Since 2/21)
-23-

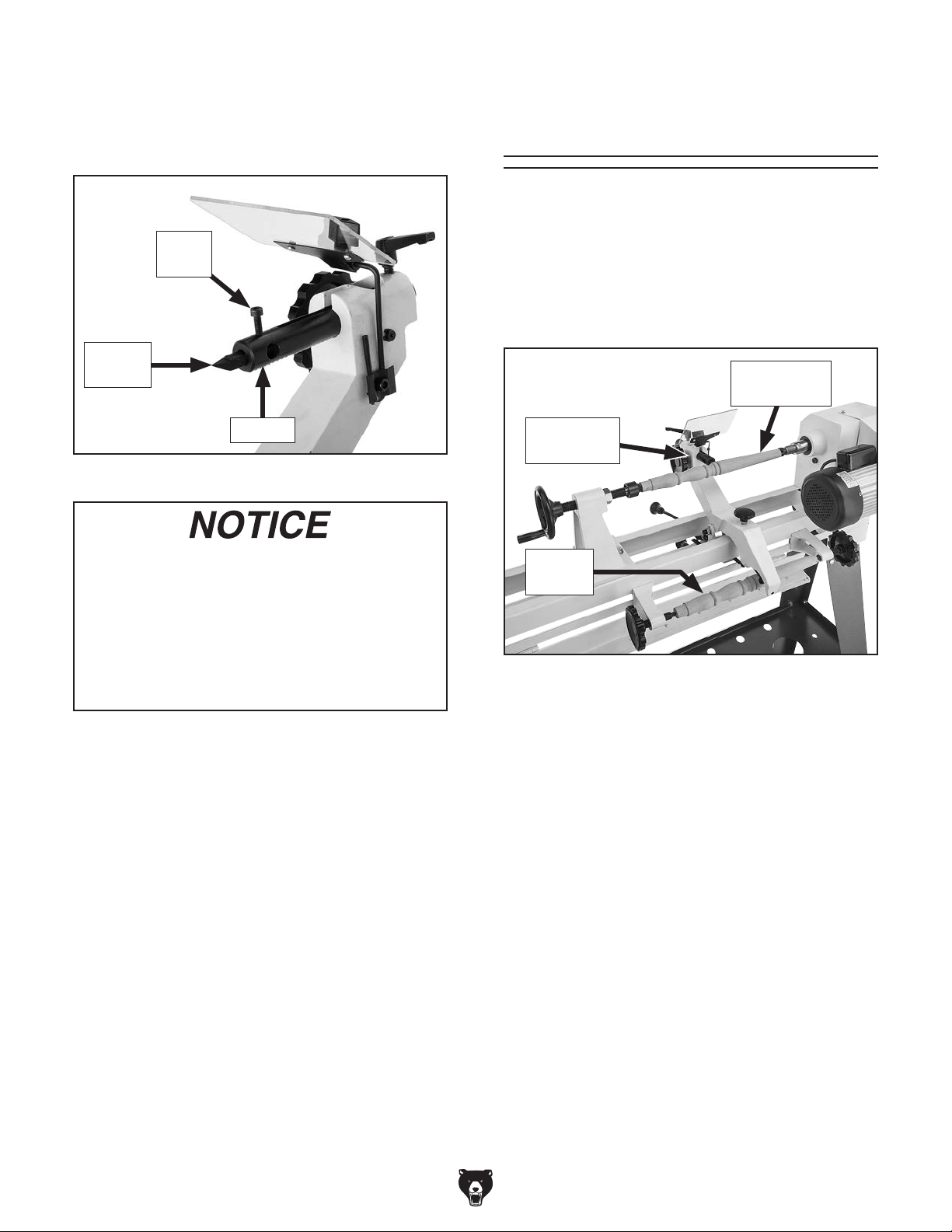

6. Loosen cap screw shown in Figure 23, insert cutting tool into tool spindle with point facing out and flat side facing up, then tighten cap screw to secure cutting tool.
Copy Attachment
Operation
Max. Workpiece Dimensions ............... 32" x 8"
Minimum Workpiece Width:
..........................1"
Cap
Screw
Cutting
Tool
Spindle
Figure 23. Cutting tool inserted into tool spindle.
Copy attachment can interfere with regular (non-copy) turning operations, causing damage to workpiece or machine. Always remove copy attachment or position it at end of bed, to the right of tailstock before performing regular turning operations to prevent interference and reduce risk of damage to workpiece and/or machine.
The Model G0842 copy attachment enables you to easily reproduce stair spindles or chair/table legs using a template or master spindle, as shown in Figure 24.
Spindle
(Workpiece)
Copy
Attachment
Master
Spindle
Figure 24. Typical copy operation setup.
Before using the copy attachment, create a 2-dimensional template or roughed-out, 3-dimensional master spindle. Then remove the tool rest, mount the workpiece between centers, and mount the master spindle or template (refer to Step 4 on Page 25 for detailed instructions).
-24-
The pressure and back-and-forth motion of the stylus will erode the features on any template eventually. However, a hardwood template will last longer than one made from softwood.
Start simple and practice with scrap pieces when first using the copy attachment, and always move stylus in a "downhill" direction (refer to Step 10 on Page 26).
As with any other surfacing operation, always take multiple passes, rather than trying to remove too much wood at one time. This is much safer and will improve cutting results. It will take some trial-and-error to properly set up and learn to use the copy attachment and achieve the best results.
Model G0842 (Mfd. Since 2/21)
Tip: Save time during duplication by removing the corners from all of the spindles you plan on creating (see Figure 45 on Page 34) before operating the copy attachment. You will need to make the cuts with a lathe chisel on your tool rest, prior to installing the copy attachment.
Items Needed Qty Phillips Head Screwdriver #2 Wrench or Socket 13mm
............................ 1
................................... 1
— If you are using a master spindle, loosen
hex bolt on each template center, let template support drop down out of the way, then mount master spindle between template support centers (see Figure 26). Position centers with master spindle as needed so master profile lines up with desired location on workpiece, then tight­en support centers.
To operate copy attachment:
1. DISCONNECT MACHINE FROM POWER!
2. Install copy attachment (refer to Installing/ Removing Copy Attachment on Page 23).
3. Mount workpiece between centers (see Spindle Turning on Page 34).
Mount template or master spindle onto
4.
machine.
— If you are using a template, secure the
hinged template support between the sup­port centers (see Figure 25). Loosen the screws on the template support enough to insert the template between the halves and align the template profile with the desired location on the workpiece, then tighten the screws.
Template Center
(1 of 2)
Workpiece
Master Spindle

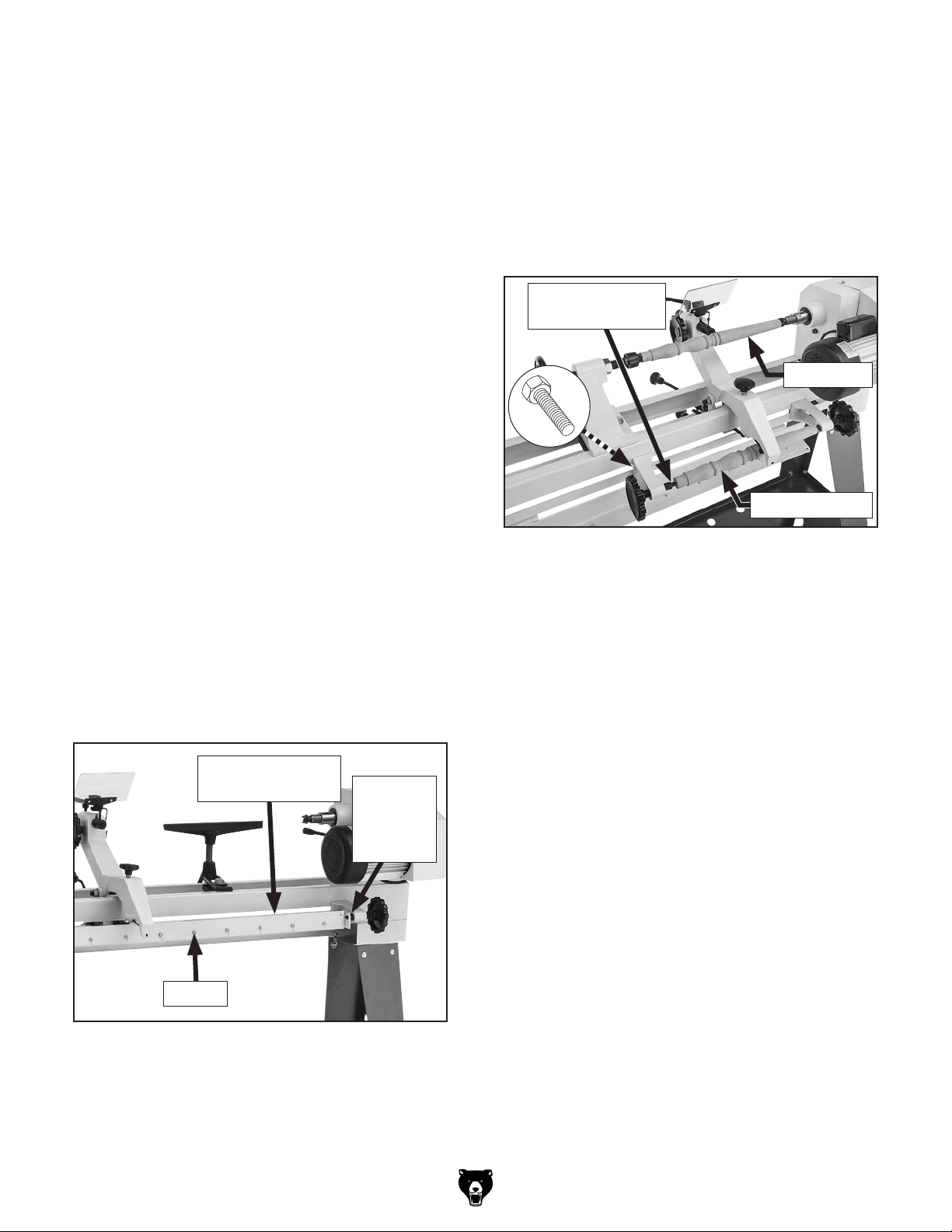

Figure 26. Master spindle installed between
template centers.
Hinged Template
Support
Screws
Figure 25. Location of hinged template support
and related components.
Model G0842 (Mfd. Since 2/21)
Template
Support
Center (1 of 2)
-25-
5. Position stylus (see Figure 27) on small­est diameter of master spindle or template (see Figure 28).
Lock
Handle
Adjustment Handwheel
Stylus
Figure 27. Copy attachment controls and main
components.
Master Spindle or Template
Stylus
Cutting
Tool
Workpiece
Use copy attachment handwheel to move cut-
7.
ting tool clear of workpiece (see Figure 29).
Adjust copy attachment chip guard (see
8. Figure 29) as necessary so it does not make
contact with workpiece or interfere with turn­ing operation.
Copy Chip
Guard
Copy
Attachment
Handwheel
Figure 29. Location of copy attachment handles.
Turn lathe ON at its slowest speed (see
9. Adjusting Spindle Speed on Page 33).
10.
Slowly advance cutting tool and perform first
cutting pass, moving stylus along template or master spindle from high points to areas with greater depth of cut (see Figure 30).
Position stylus on smallest diameter of
master spindle or template when setting up
copy attachment.
Figure 28. Location of stylus on master spindle
or template for initial setup of copy attachment.
Loosen cutting tool lock handle (see Figure
6.
27) and use adjustment handwheel to move
cutting tool so it just contacts workpiece.
Note: It is essential for accurate copying that
cutting tool tip and stylus always remain at same positions in relation to workpiece and template.
Note: Always move stylus so it follows the
master spindle or template “downhill”. Trying to move “uphill” along either one will cause the stylus and cutting tool to dig into the mas­ter spindle or template and the workpiece
(see Figure 30).
Master Spindle or Template
Stylus
Move from high points towards low points,
or areas with greater depth of cut when
operating copy attachment.
Figure 30. Example of recommended "downhill"
direction of stylus travel.
-26-
Model G0842 (Mfd. Since 2/21)
11. After each pass, extend cutting tool another
1
16" (maximum), and repeat with another
pass.

Adjusting Tailstock

— If cutting tool tends to bite or gouge
workpiece, back off cutting tool slightly and try again. Be conservative when removing stock.
Turn lathe OFF and inspect results.
12.
If you are satisfied, continue to remove
13.
material from workpiece, using “downhill” cutting method illustrated in Figure 30 until workpiece is complete.
14. DISCONNECT MACHINE FROM POWER!
After completing initial copy, continue fol-
15.
lowing Steps 3–14 until all spindles are completed.
When all spindles are complete, remove
16.
master spindle or template.
— If using master spindle, remove mas-
ter spindle from support centers and re­install template support between support centers.
— If using template, remove template from
template support halves and tighten screws to secure.
17. Remove copy attachment (refer to Installing/ Removing Copy Attachment on Page 23) and re-install tool rest (refer to Adjusting Tool Rest on Page 28).
Use appropriate lathe chisels to sharpen
18.
details and smooth turned surfaces of each copy, then sand smooth.

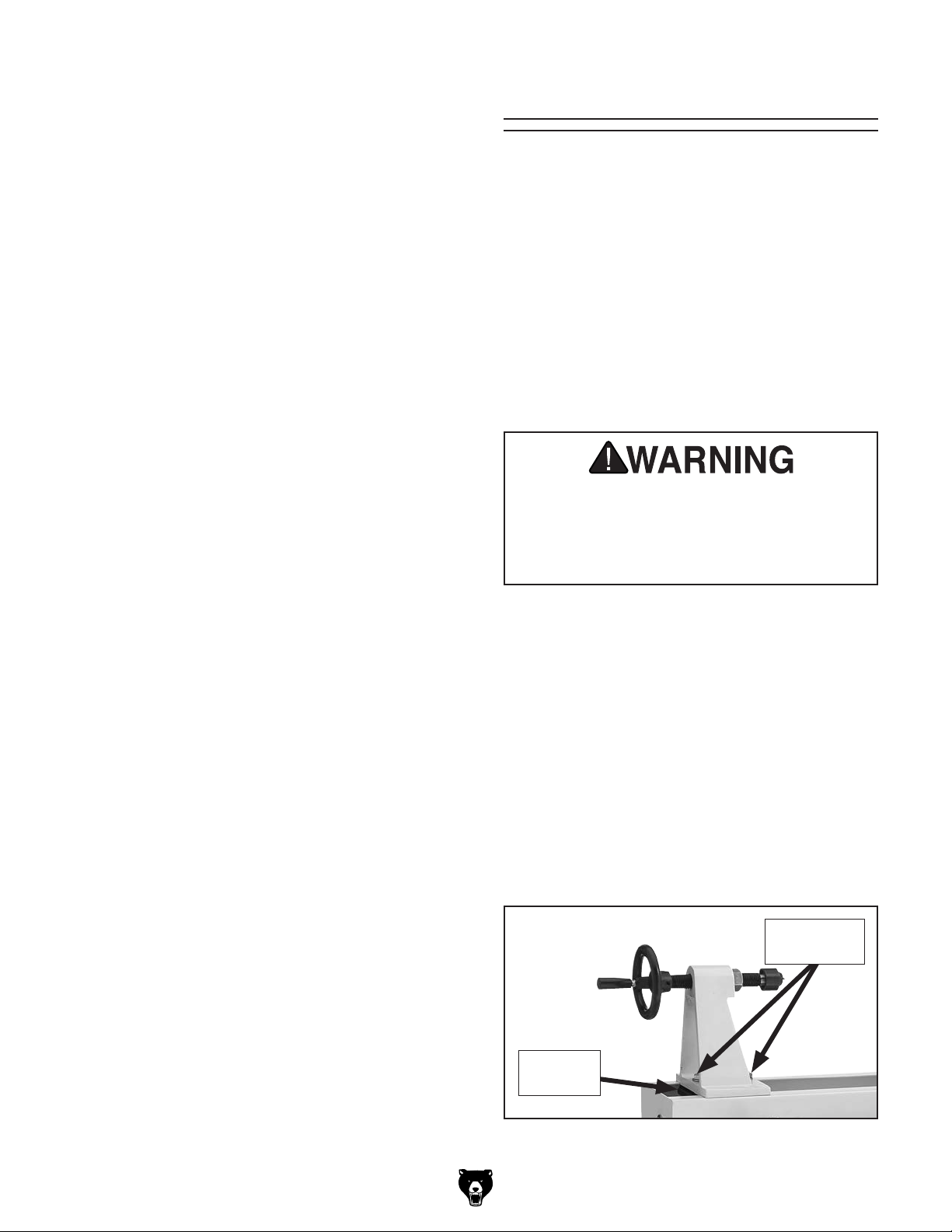

The tailstock on this lathe is equipped with a two-piece clamping plate. When the two tailstock clamp bolts (see Figure 31) above the plate are tightened, the plate lifts up underneath the bed and secures the tailstock in place. The tailstock can be positioned anywhere along the lathe bed to accommodate typical turning operations.
The tailstock can be removed and repositioned left of the copy attachment for turning opera­tions. However, doing this will reduce the maxi­mum workpiece size due to the shorter distance between centers.
Always operate lathe with tailstock firmly locked to bed. Otherwise, serious personal injury may occur by tailstock moving during operation and workpiece being ejected at high speed.
Items Needed Qty
Wrench or Socket 24mm ................................... 1
Phillips Head Screwdriver #2
............................ 1
Positioning Tailstock Along Bed
To position the tailstock along the bed, loosen the tailstock clamp bolts shown in Figure 31, move the tailstock to the desired position along bed, then retighten the clamp bolts.
Note: Be careful when loosening clamp bolts, as over-loosening them can cause clamping plate to fall, damaging clamping plate or floor.
Tailstock
Clamp Bolts
Model G0842 (Mfd. Since 2/21)
Clamping
Plate
Figure 31. Location of tailstock clamp bolts and
clamping plate.
-27-

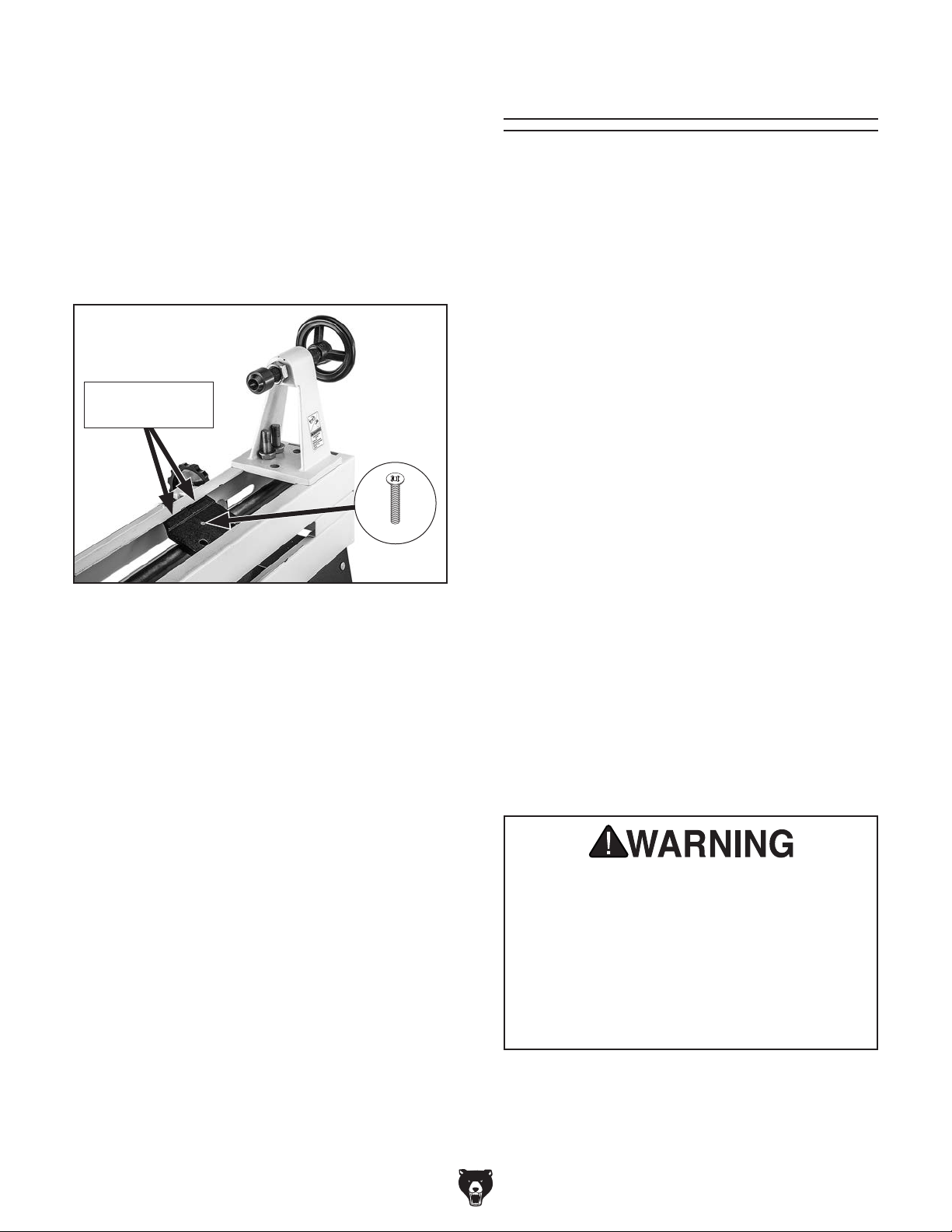

Removing Tailstock
1. Loosen tailstock clamp bolts shown in Figure 31 on Page 27, remove clamping
plate, clamp bolts, and flat washers from tailstock, then move tailstock out of the way.
Remove (2) flat head screws that secure
2. clamping plate halves together (see Figure
32), then remove plate halves and tailstock
from bed.
Clamping Plate
Halves

Adjusting Tool Rest

The tool rest assembly consists of two compo­nents: the tool rest base (or banjo) and the tool rest. The tool rest base moves forward/backward and left/right along the length of the lathe bed. The tool rest rotates and moves up and down in the tool rest base. Locks for both components allow you to secure the tool rest in position after making these adjustments.
When adjusting the tool rest, position it as close as possible to the workpiece without actually touching it. This maximizes support where the cutting occurs and minimizes leverage, reducing the risk of injury if a "catch" occurs.
x 2
Figure 32. Clamping plate halves.
Re-installing Tailstock
1. Place clamping plate halves (Figure 32)
under bedway in location where tailstock is needed for desired operation, then secure halves with (2) flat head screws.
Re-install tailstock on clamping plate using
2. clamp bolts and flat washers from Step 1 of Removing Tailstock. Check to make sure
tailstock slides smoothly along bedway.
Many woodturners typically set the height of the tool rest workpiece, depending on their height, the type of tool they're using, and the type of operation they're performing.
As a rule of thumb: For most (spindle) turning operations, the cutting tool should contact the workpiece slightly above centerline. For most inside (bowl) turning operations, the cutting tool should contact the workpiece slightly below centerline.
Keeping all these factors in mind, your main goal when adjusting the tool rest should be to provide maximum support for the type of tool being used, in a position that is safe and comfortable for you.
Improperly supported or positioned cutting tools can "catch" on workpiece, ejecting tool from your hands with great force. To reduce this risk, always ensure tool rest is properly positioned for each type of opera­tion, cutting tool is firmly supported against tool rest BEFORE cutting, and cutting tool is properly positioned to cut at the correct angle for tool and operation type.
1
8" above or below the centerline of the
-28-
Model G0842 (Mfd. Since 2/21)

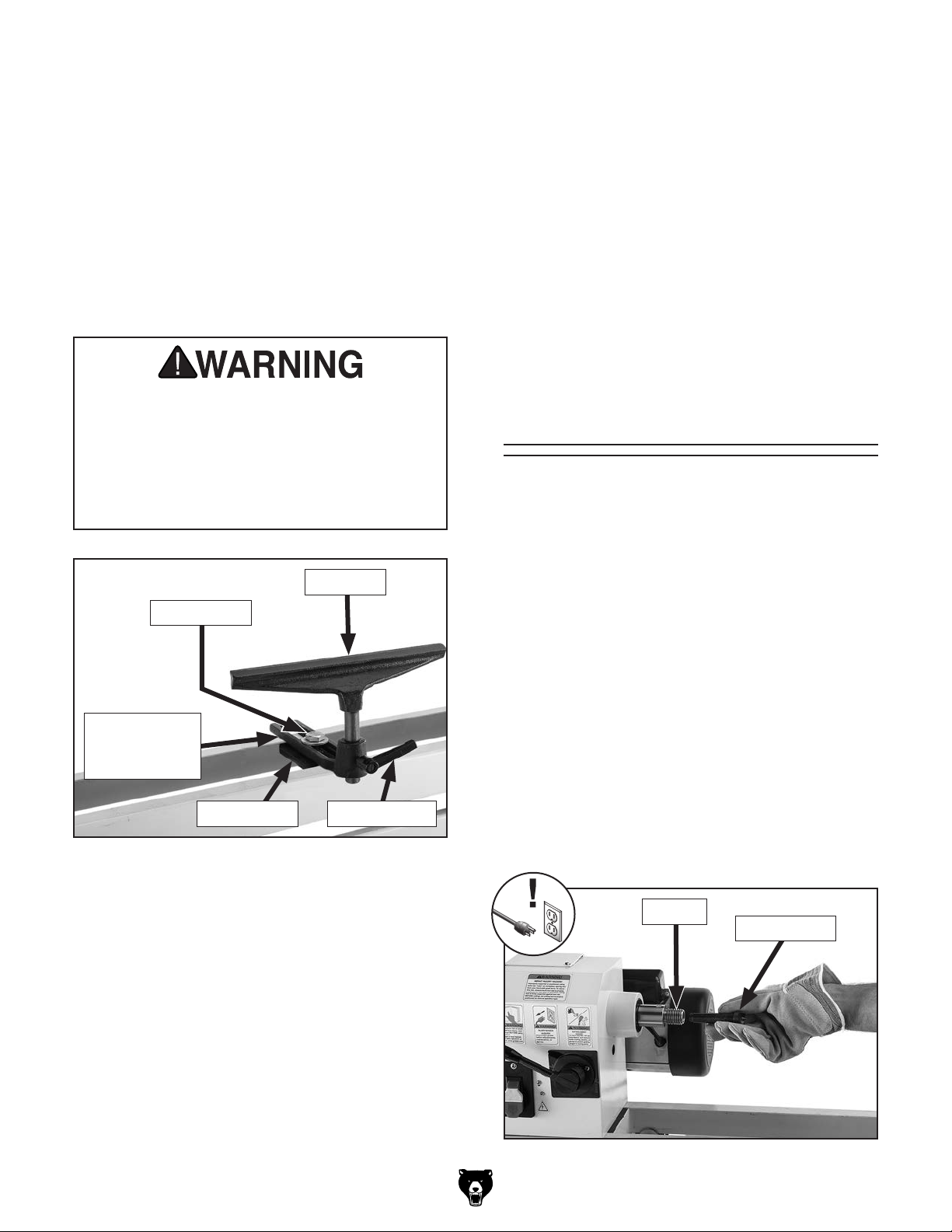

To adjust tool rest:
1. Loosen tool rest base locking bolt shown in Figure 33 and move tool rest assembly to
desired position on lathe bed.
Tighten tool rest base locking bolt (see Figure
2.
33) to secure tool rest assembly in position.
Ensure tool rest base is tightly secured and makes full contact with both bedways to help prevent tool rest assembly from coming loose during operation.
Removing/Installing Tool Rest
To remove the tool rest assembly, loosen the tool rest base locking bolt shown in Figure 33 on Page 28, rotate the clamp plate clockwise so it is perpendicular to the tool rest base, then remove the tool rest assembly and store it for later use.
To re-install the tool rest assembly, place the assembly on the lathe bedway, rotate the clamp­ing plate counterclockwise so it is parallel to the tool rest base, then tighten tool rest base locking bolt to secure clamping plate.
Serious personal injury may occur if tool rest base comes loose during operation. When tightening tool rest base, always ensure base has full contact with BOTH bedways, clamping plate is properly squared (not at an angle), and locking bolt is firmly tightened.
Tool Rest
Locking Bolt
Base Secured
Across Both
Bedways
Clamp Plate Lock Handle
Figure 33. Tool rest controls.
Installing/Removing
Headstock Center
The included spur center installs in the headstock spindle with an MT#2 tapered fit.
Items Needed Qty
Leather Gloves ........................................... 1 Pair
Clean Rag Knockout Tool
Installing Headstock Center
1. DISCONNECT MACHINE FROM POWER!
Make sure mating surfaces of center and
2.
spindle are free of debris and oily substances before inserting center to ensure a good fit and reduce runout.
3. Insert tapered end of center into spindle, and push it in with a quick, firm motion, as shown in Figure 34.
......................................................... 1
.................................................... 1
3. Loosen tool rest lock handle (see Figure 33).
Position tool rest in desired loca-
4.
tion, then retighten lock handle to secure tool rest in position.
Model G0842 (Mfd. Since 2/21)
Spindle
Spur Center
Figure 34. Installing center in headstock spindle.
-29-
4. Make sure center is securely installed by attempting to pull it out by hand—a properly installed center will not pull out easily.

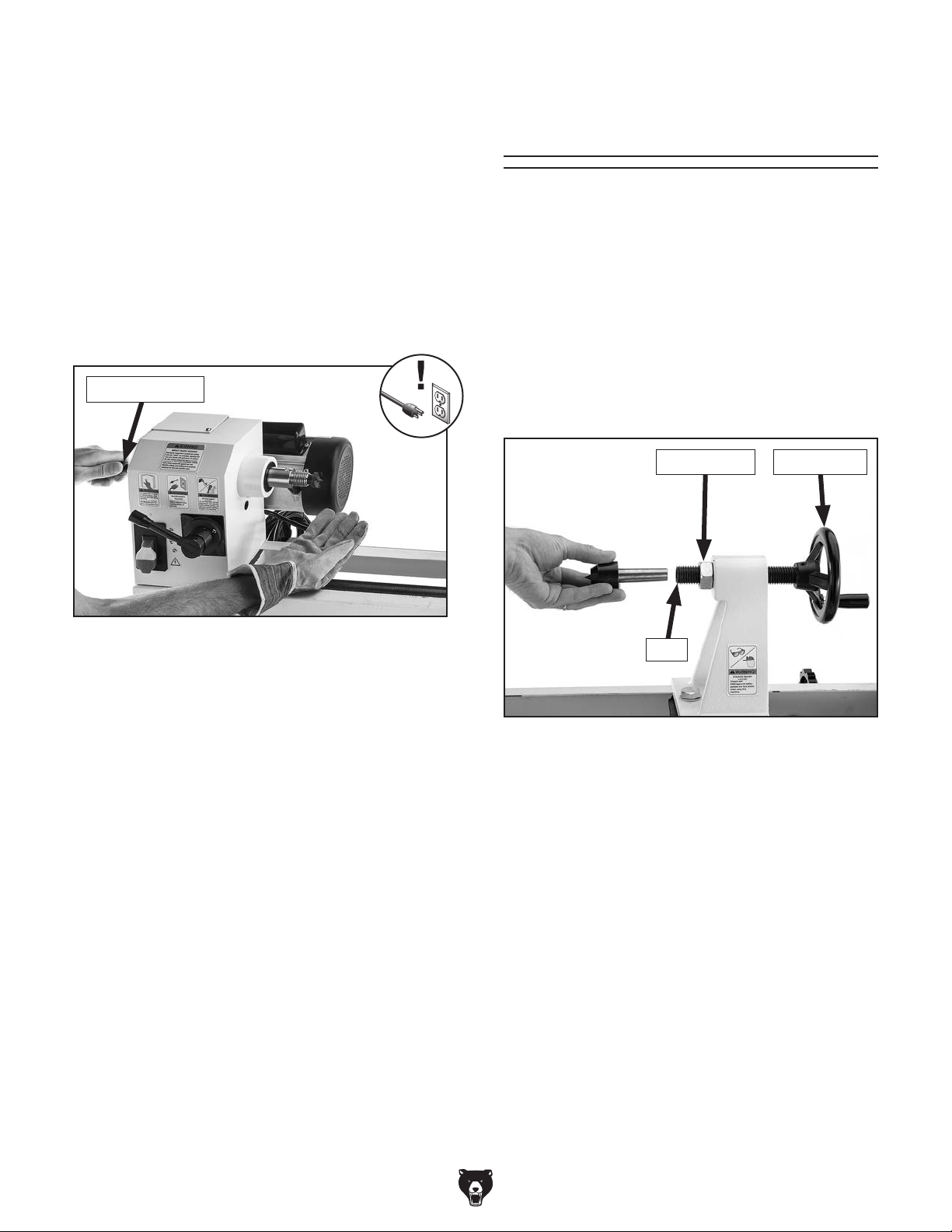

Removing Headstock Center
1. DISCONNECT MACHINE FROM POWER!
Hold a clean rag under spindle or wear leath-
2.
er glove to catch center when you remove it.
Insert knockout tool through outbound end of
3.
spindle and firmly tap back of center, catch­ing it as it falls, as shown in Figure 35.
Knockout Tool
Installing/Removing
Tailstock Center
The included live center installs into the tailstock quill with an MT#2 tapered fit.
Items Needed Qty
Leather Glove/Clean Rag .................................. 1
Adjustable Wrench
Installing Tailstock Center
1. Loosen quill locking nut and rotate handwheel
until quill extends about 1", as shown in Figure 36.
............................................ 1
Figure 35. Removing headstock center with
knockout tool.
Locking Nut
Quill
Figure 36. Installing center into tailstock quill.
2. Make sure mating surfaces of center and
quill are free of debris and oily substances before inserting center to ensure a good fit and reduce runout.
Firmly insert tapered end of center into
3.
tailstock quill, as shown in Figure 36.
Handwheel
-30-
Make sure center is securely installed by
4.
attempting to pull it out by hand—a properly installed center will not pull out easily.
Secure quill by tightening quill locking nut
5.
against tailstock.
Model G0842 (Mfd. Since 2/21)

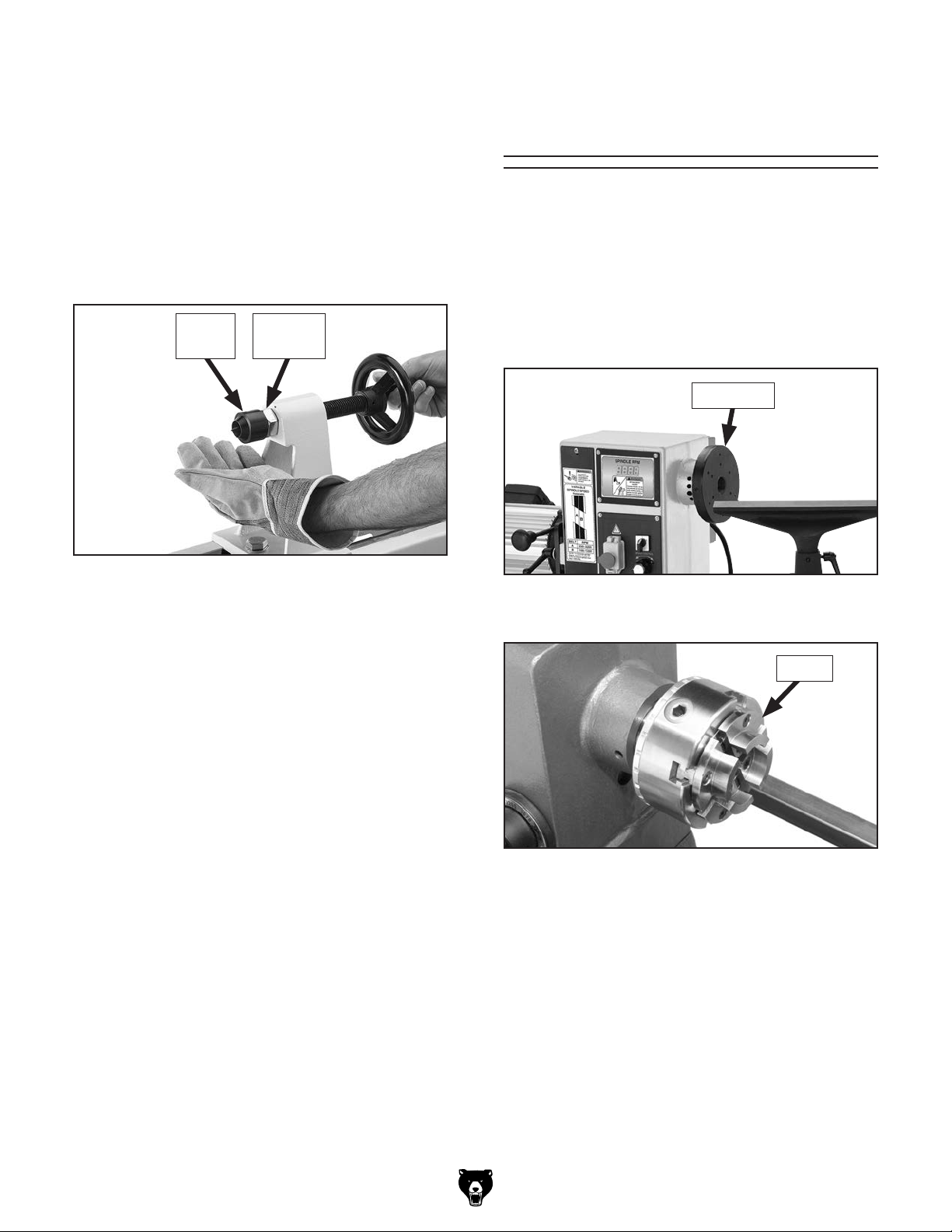

Removing Tailstock Center
1. Loosen quill locking nut and rotate it up to just
touch back of live center (see Figure 37).
Hold a clean rag under spindle or wear a
2.
glove to catch center when you remove it (see Figure 37).
Rotate quill handwheel counterclockwise to
3.
force center out of quill.
Live
Center
Locking
Nut
Installing/Removing
Faceplate or Chuck
Use the faceplate or a chuck (see Figures 38–39) when you need to remove material from the face of the workpiece, such as during hollowing operations.
Note: A chuck is not included with this machine. Refer to Accessories on Page 39 for available chucks compatible with this machine.
Faceplate
Figure 37. Removing center from tailstock.
Figure 38. Example of faceplate installed on
spindle.
Chuck
Figure 39. Example of chuck installed on
spindle.
The included faceplate or a chuck can be installed only if the spur center is removed from the spindle.
These instructions cover installing and removing the faceplate or chuck. To mount a workpiece to your faceplate, refer to Faceplate Turning on Page 36. To mount a workpiece to your chuck, refer to the instructions that came with your chuck.
Model G0842 (Mfd. Since 2/21)
-31-
Installing/Removing Faceplate Installing/Removing Chuck (Not
Items Needed Qty
Open-End Wrenches 32mm (Included) ............. 2
Lightly Oiled Rag
To install faceplate:
1. DISCONNECT MACHINE FROM POWER!
If spur center is installed, remove it (refer to
2. Page 29 for detailed instructions).
Make sure internal threads of faceplate and
3.
threads of spindle are free of debris, then wipe threads with a lightly oiled rag to aid in installation and removal.
4. Thread faceplate onto spindle clockwise.
Use two included 32mm flat wrenches to
5.
tighten faceplate, as shown in Figure 40.
............................................... 1
Included)
The following instructions refer to typical chuck installation, such as with Grizzly Model T25646 4" Easy Chuck (see Page 39). Before installing a chuck on your machine, consult the instruc­tions that came with your chuck to ensure proper installation.
Items Needed Qty
Open-End Wrench 32mm (Included)................. 1
Lightly Oiled Rag Lathe Chuck Key (Not Included)
To install chuck:
1. DISCONNECT MACHINE FROM POWER!
If spur center is installed, remove it (refer to
2. Page 30 for detailed instructions).
Make sure internal threads of chuck and
3.
threads of spindle are free of debris, then wipe threads with a lightly oiled rag to aid in installation and removal.
............................................... 1
....................... 1
Figure 40. Example of tightening faceplate onto
spindle.
To remove faceplate:
1.
DISCONNECT MACHINE FROM POWER!
2. Perform Steps 4–5 on this page, in reverse.
4. Thread chuck onto spindle and hand-tighten
until it seats evenly against spindle shoulder.
With one hand, use included 32mm flat
5.
wrench to prevent spindle from turning. With other hand, loosen chuck slightly, then quick­ly tighten it to firmly seat chuck onto spindle.
An improperly installed chuck can cause damage to machine and workpiece, and pro­vide poor turning results. For best results and to reduce risk of damage, always ensure chuck firmly seats evenly against spindle shoulder with no wobble or free play.
To remove chuck:
DISCONNECT MACHINE FROM POWER!
1.
2. With one hand, use included 32mm flat
wrench to prevent spindle from turning. With other hand, use lathe chuck key to break chuck loose by rotating it counterclockwise, then remove it the rest of the way by hand.
-32-
Model G0842 (Mfd. Since 2/21)

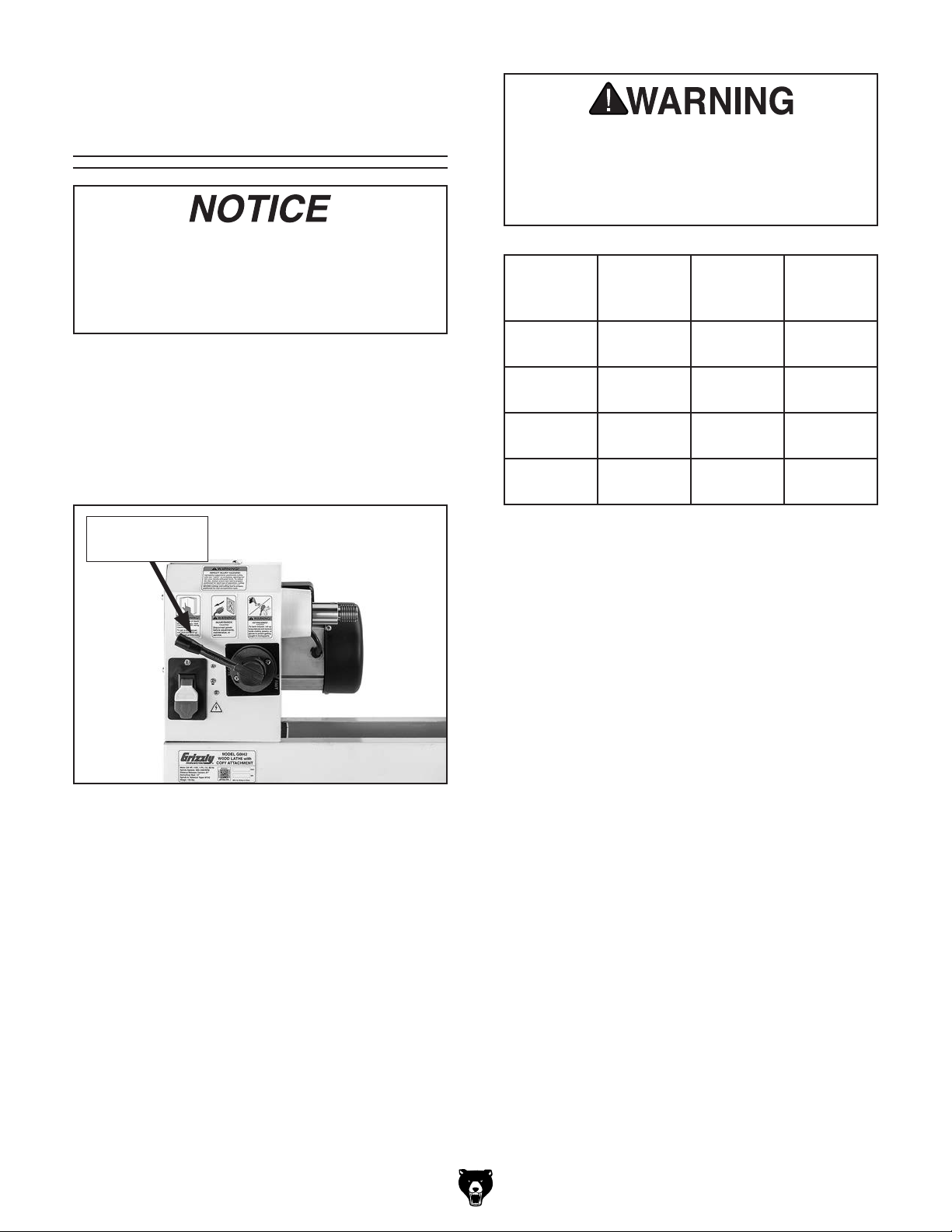

Adjusting Spindle
Speed
Spindle speed must be adjusted while lathe is running. Adjusting spindle speed while machine is not in operation could result in permanent damage to the machine, which is not covered under warranty.
Spindle Speed Range: 600–2400 RPM
Users can select one of 10 speeds within this range by pulling out the spindle speed lever and moving it right to increase RPM or left to decrease the RPM (see Figure 41).
Spindle Speed
Lever
Always use correct spindle speed for your operation. Using wrong speed may lead to workpiece breaking loose or being thrown from lathe at a high rate of speed, causing fatal or severe impact injuries.
Turning
Diameter
Under 2" 1520 2400
2–4" 760 1600
4–6"
6–8"
Roughing
RPM
Slowest
available
Slowest
available
Figure 42. Typical spindle speed
recommendations.
General
Cutting
RPM
1080 1650
810 1240
Finishing
Fastest
available
Fastest
available
RPM
Figure 41. Spindle speed shift lever shown at
low setting.
— When a lot of material must be removed
and a rough finish does not matter, use low range (lever positioned left of center).
— When making light cuts or when a clean
finish is required, use high range (lever positioned right of center).
— For general turning operations, or as a
compromise between the two ranges, use mid range (lever in center position).
Refer to the chart in Figure 42 to choose the appropriate RPM for your operation.
Model G0842 (Mfd. Since 2/21)
-33-

Spindle Turning

Spindle turning is the operation performed when a workpiece is mounted between centers in the headstock and tailstock, as shown in Figure 43. Bowls, table legs, tool handles, and candlesticks are typical projects where this operation is used.
To set up a spindle turning operation:
Find center point of both ends of your
1.
workpiece by drawing diagonal lines from corner to corner across end of workpiece, as shown in Figure 44.
Workpiece
Pencil Lines
Marked Diagonally
Across Corners
Workpiece
Center
Figure 44. Workpiece marked diagonally from
corner to corner to determine the center.
Figure 43. Typical spindle turning operation.
Damage to your eyes and lungs could result from using this machine without proper pro­tective gear. Always wear safety glasses, a face shield, and a respirator when operating this machine.
Items Needed Qty
Precision Ruler .................................................. 1
Wood Mallet....................................................... 1
Drill Bit Tablesaw/Bandsaw
1
4" .......................................................... 1
............................................ 1
2. Make a center mark by using a wood mallet and tapping point of spur center into center of workpiece on both ends.
Using a 1⁄4" drill bit, drill a 1⁄4" deep hole at
3.
center mark on end of the workpiece to be mounted on headstock spur center.
To help embed spur center into workpiece,
4.
cut 1⁄8" deep saw kerfs in headstock end of workpiece along diagonal lines marked in Step 1.
If your workpiece is over 2" x 2", cut corners
5.
off workpiece lengthwise to make turning safer and easier (see Figure 45).
-34-
Corners
Removed
Figure 45. Corners of workpiece removed.
Model G0842 (Mfd. Since 2/21)
Workpiece
Center

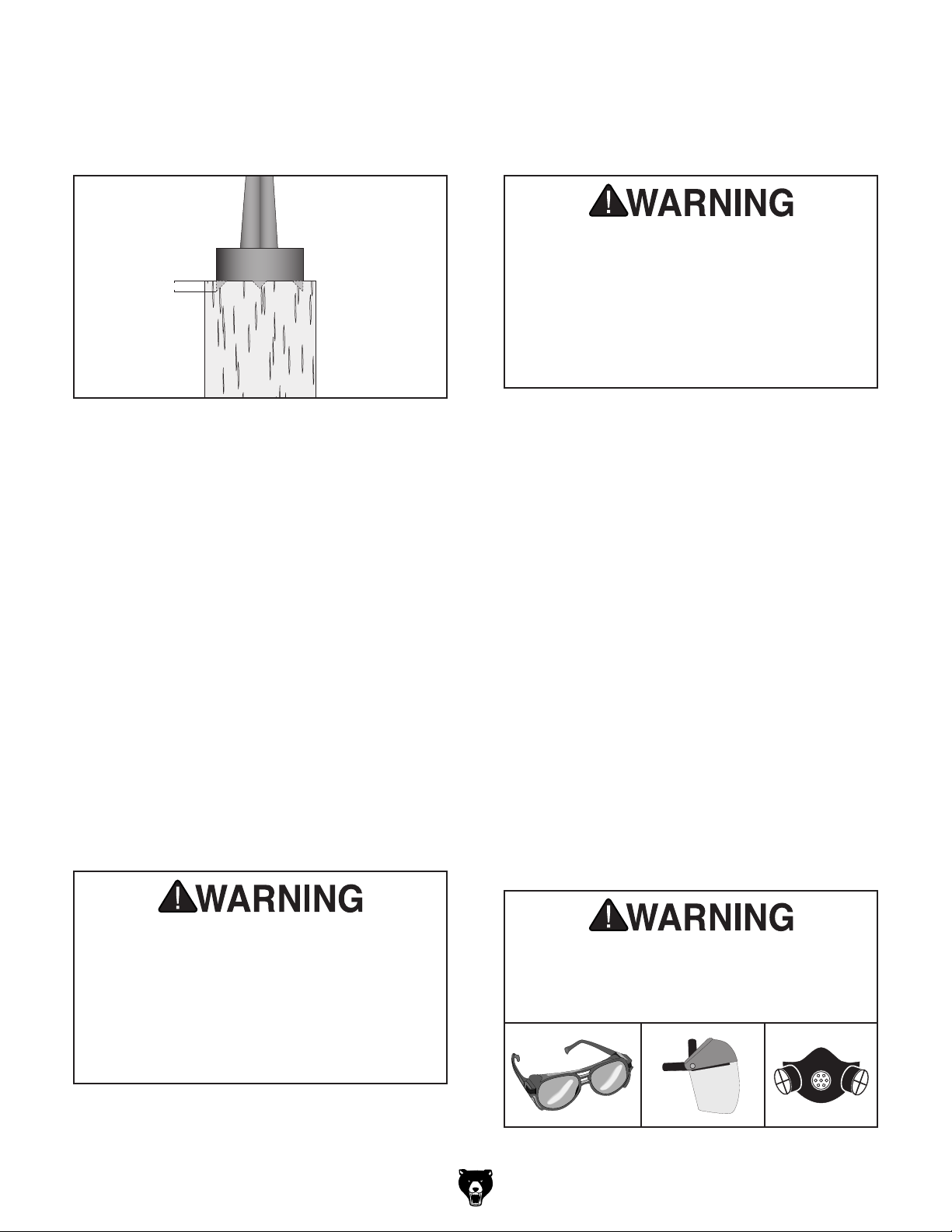

6. Drive spur center into end center mark of workpiece with wood mallet to embed cen-
1
ter at least
4" into workpiece, as shown in
Figure 46.
¼"
Figure 46. Spur center properly embedded.
With workpiece still attached, insert spur cen-
7. ter into headstock spindle (refer to Installing/ Removing Headstock Center on Page 29
for additional instructions).
12.
Rotate workpiece by hand to ensure there is
safe clearance on all sides. If necessary, re­adjust tool rest until there is proper clearance on all sides of workpiece.
Keep lathe tool resting on tool rest the ENTIRE time it is in contact with workpiece or when preparing to make contact between lathe tool and workpiece. Otherwise, spin­ning workpiece could force lathe tool out of your hands or entangle your hands with workpiece. Failure to heed this warning could result in serious personal injury.
Spindle Turning Tips:
When turning the lathe ON, stand away from the path of the spinning workpiece until the spindle reaches full speed and you can verify that the workpiece will not come loose.
Note: Use tool rest to support opposite end of
workpiece so that workpiece and spur center do not separate during installation.
Install live center into tailstock quill and tight-
8.
en quill lock nut to lock quill in position (refer to Page 30 for additional instructions).
Slide tailstock toward workpiece until point of
9.
live center touches workpiece center mark, then lock tailstock in this position.
Loosen quill lock nut and rotate tailstock
10.
handwheel to push live center into workpiece
1
at least
4", then tighten quill lock nut.
Do not press the workpiece too firmly with the tailstock or the bearings will bind and overheat. Do not adjust the tailstock too loosely or the workpiece will spin off the lathe. Use good judgment and care, other­wise, serious personal injury could result from the workpiece being ejected at high speeds.
Use the slowest speed when starting or stop­ping the lathe.
Select the right speed for the size of workpiece that you are turning (refer to Page 33).
Keep the turning tool on the tool rest the ENTIRE time that it is in contact with the workpiece.
Learn the correct techniques for each tool you will use. If you are unsure about how to use the lathe tools, read books or magazines about lathe techniques, and seek training from experienced and knowledgeable lathe users.
Eye injuries or respiratory problems can occur while operating this machine. Wear personal protective equipment to reduce your risk from these hazards.
Properly adjust tool rest to workpiece (see
11. Adjusting Tool Rest on Page 28).
Model G0842 (Mfd. Since 2/21)
-35-

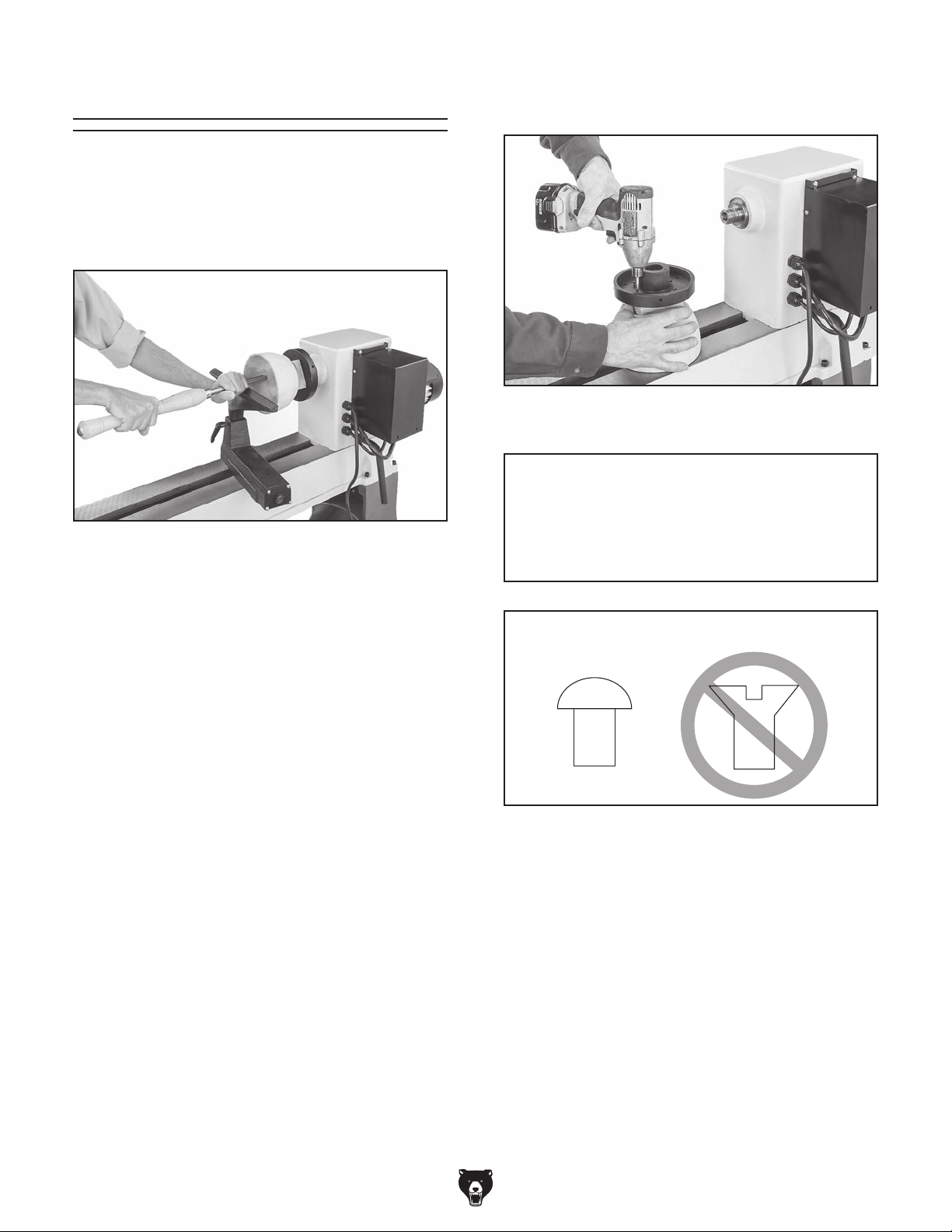

Faceplate Turning

Faceplate turning is when a workpiece is mounted to the faceplate, which is then mounted to the headstock spindle, as shown in Figure 47. This type of turning is usually done with open-faced workpieces like bowls or plates.
Figure 47. Typical faceplate turning operation.
Mounting Workpiece on Faceplate
Items Needed Qty
Precision Ruler .................................................. 1
Wood Screws
Drill ................................................................... 1
Tablesaw/Bandsaw
.................................................... 1
............................................ 1
2. Center faceplate on workpiece and attach it (see Figure 48) with wood screws.
Figure 48. Typical attachment of faceplate to
workpiece.
NOTICE
Only use screws with non-tapered heads (see Figure 49) to attach faceplate to the workpiece. Screws with tapered heads can split faceplate or snap off during operation.
Correct Incorrect
To mount workpiece on faceplate:
1. Mark workpiece center in same manner as
described in Spindle Turning (see Page 34).
Note: Cut off corners of workpiece to make it
as close to "round" as possible, as described in Spindle Turning, Step 5 (see Page 34).
Figure 49. Correct and incorrect screw types.
3.
Thread and secure faceplate onto headstock
spindle (refer to Installing Faceplate on Page 31).
— If wood screws cannot be placed in
workpiece, faceplate can be mounted to a backing block attached to workpiece (see Mounting Workpiece on Backing Block).
-36-
Model G0842 (Mfd. Since 2/21)

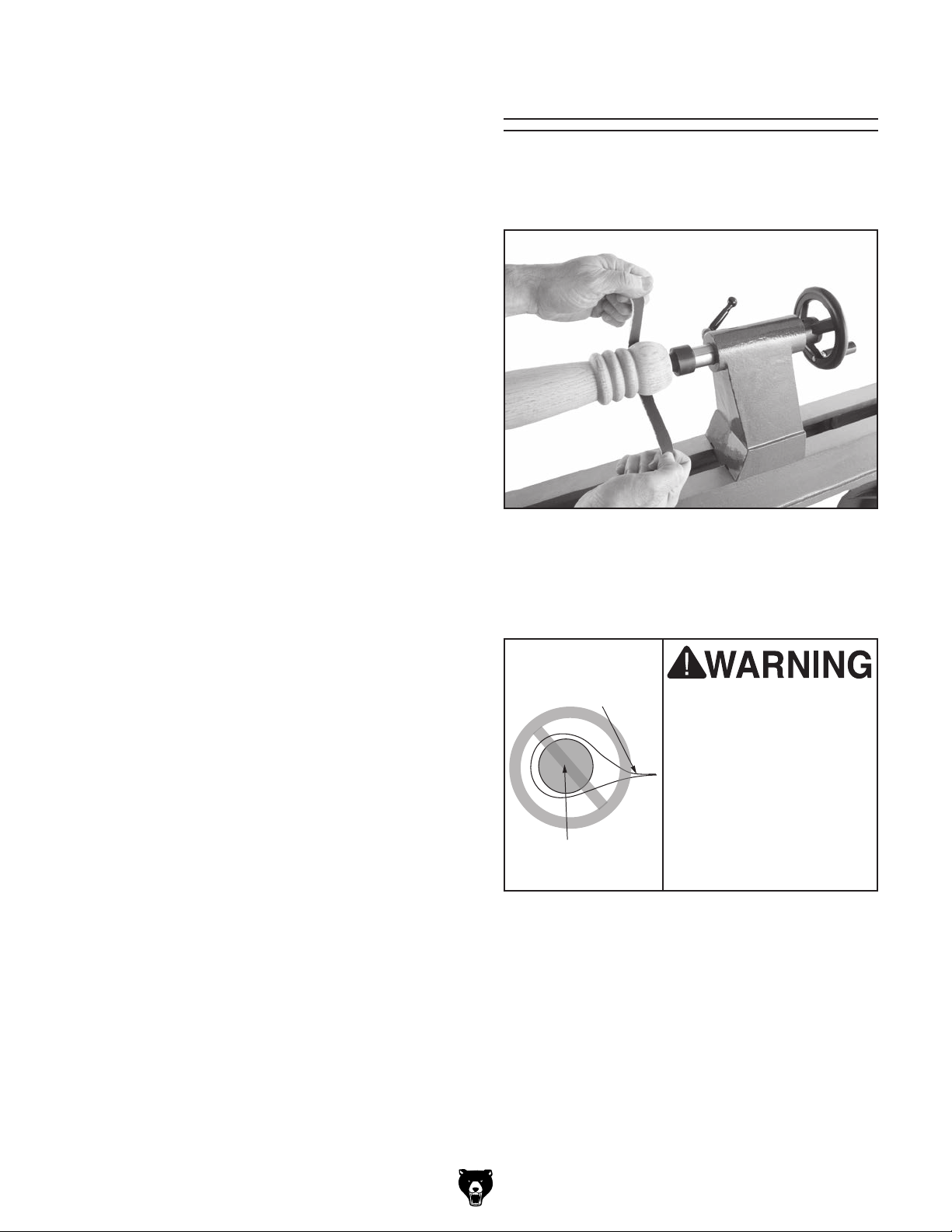

Mounting Workpiece on Backing Block
Items Needed Qty
Piece of Scrap Wood......................................... 1
Precision Ruler Drill Bit Glue Clamp
To mount workpiece on backing block:
1.
Important: Faces of backing block must be
1
4" .......................................................... 1
................................................... As Needed
................................................................ 1
Make backing block from a suitable size
piece of scrap wood.
flat and parallel to each other, or uneven surfaces will cause workpiece to spin eccen­trically, causing unnecessary vibration and runout. It is best to mount backing block to faceplate and turn other surface flat prior to mounting.
.................................................. 1

Sanding/Finishing

After the turning operations are complete, the workpiece can be sanded and finished before removing it from the lathe, as shown in Figure 50.
Locate and mark center of workpiece and
2.
backing block.
Drill a 1⁄4" hole through center of backing block.
3.
4. Look through hole in backing block to line up
center with workpiece and glue and clamp backing block to workpiece.
Note: Allow glue to cure according to manu-
facturer's instructions.
5. Follow Steps 1–3 under Mounting Workpiece on Faceplate (see Page 36) to
attach backing block to faceplate.
Figure 50. Typical sanding operation.
Note: Whenever sanding or finishing, move the
tool rest holder out of the way to increase per­sonal safety and gain adequate working room.
Sandpaper
Workpiece
Wrapping sandpa­per completely around workpiece could pull your hands into mov­ing workpiece and may cause serious injury. Never wrap sandpa­per or finishing materi­als completely around workpiece.
Model G0842 (Mfd. Since 2/21)
-37-
Selecting Turning
Tools
Lathe tools come in a variety of shapes and sizes, and usually fall into five major categories.
Gouges—Mainly used for rough cutting, detail cutting, and cove profiles. The rough gouge is a hollow, double-ground tool with a round nose, and the detail gouge is a hol­low, double-ground tool with either a round or pointed nose.
Scrapers—Typically used where access for other tools is limited, such as hollowing oper­ations. This is a flat, double-ground tool that comes in a variety of profiles (round nose, spear point, square nose, etc.) to match many different contours.
Figure 53. Example of a round nose scraper.
Parting Tools—Used for sizing and cut­ting off work. This is a flat tool with a sharp pointed nose that may be single- or double­ground.
Figure 51. Example of a gouge.
Skew Chisel—A very versatile tool that can be used for planing, squaring, V-cutting, beading, and parting off. The skew chisel is flat, double-ground with one side higher than the other (usually at an angle of 20°–40°).
Figure 52. Example of a skew chisel.
Figure 54. Example of a parting tool.
Specialty Tools—These are the unique, special function tools to aid in hollowing, bowl making, cutting profiles, etc.
-38-
Model G0842 (Mfd. Since 2/21)

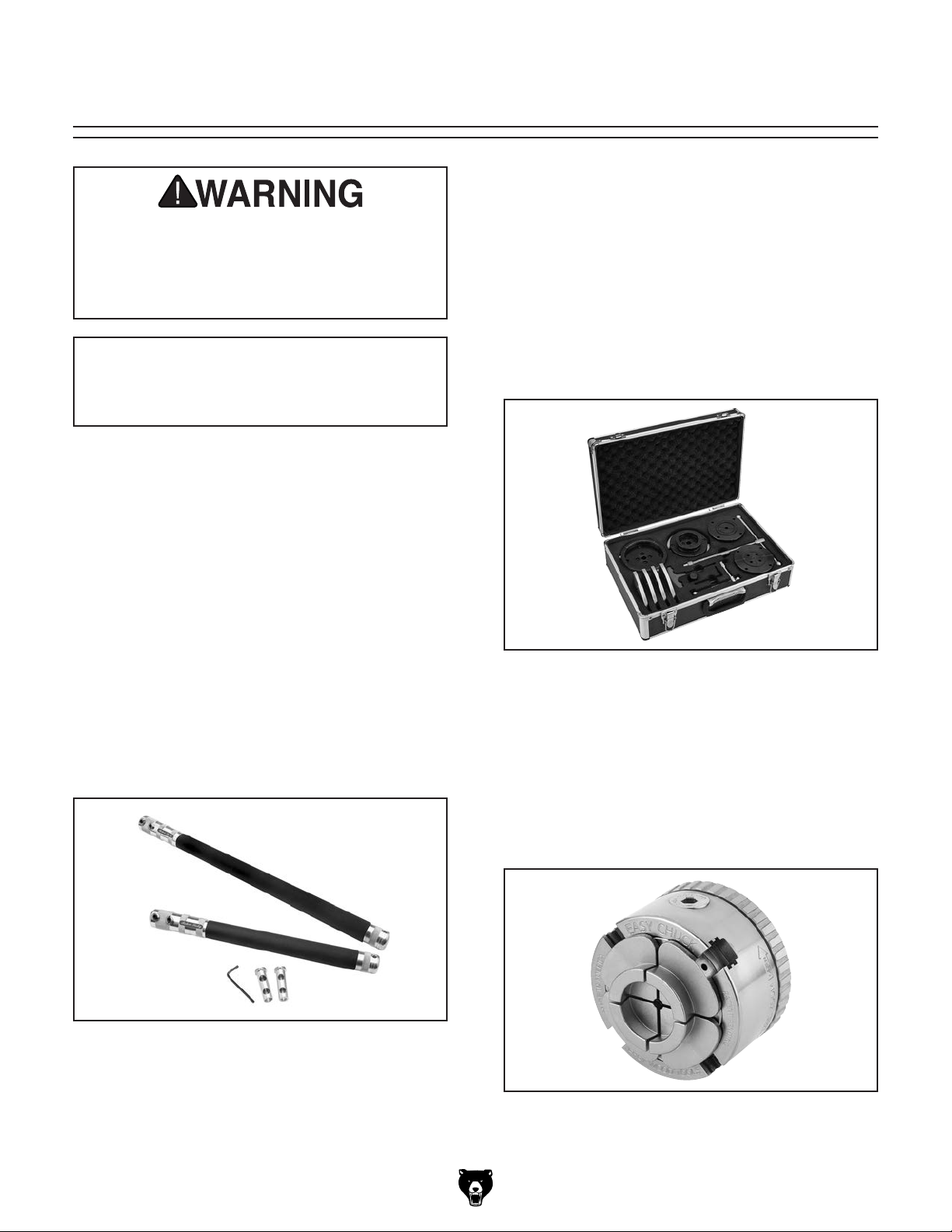

SECTION 5: ACCESSORIES

Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for additional recommended accessories.
Sovereign Turning System
Sovereign is a new handle and tool system allowing turners to customize the tools they need for the type of turning they do. Sold with or without
3
8" and 1⁄2 " collet options, plus the gamut of tool tips will make you wonder how you managed with­out a Sovereign. All tools are high-speed-steel construction for long life and dependable use. Below are just some of the options available with this system.
T21644—16" Sovereign System w/Collets T21647—22" Sovereign Handle T21648—Sovereign
1
T21655— T21656— T21660—
4" Fingernail Bowl Gouge
3
8" Bowl Gouge
3
4" Bowl Gouge
3
8" Collet Adapter
T10808—2 T10809—3
3
4" Wood Lathe Chuck Set
3
4" Wood Lathe Chuck Set
These wood lathe chuck sets each include a 4-jaw self-centering chuck and interchangeable dovetail, step, internal/external grip, and flat jaws for bowls, spindles, and hard-to-hold projects.
3
T10808 Chuck diameter is 2
4" and includes
an indexed backplate with 24 positions.
3
T10809 Chuck diameter is 3
4" and includes
an indexed backplate with 24 and 36 positions.
Figure 56. Model T10809 33⁄4" Wood Lathe
Chuck Set.
T25646—4" Easy Chuck 1"-8 TPI
The Easy Jaw™ System allows you to change from one set of jaws to the next in about 30 sec­onds. Simply use the supplied jaw key to depress a keeper latch in the jaw and slide each jaw right out. You then slide in the next jaw type until you hear the “snap.”`
Figure 55. Sovereign 16" and 22" handles.
Figure 57. Model T25646 4" Easy Chuck.
Model G0842 (Mfd. Since 2/21)
-39-

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this maintenance schedule must be strictly followed.
Ongoing
To minimize your risk of injury and maintain proper machine operation, shut down the machine imme­diately if you ever observe any of the items below, and fix the problem before continuing operations:
Loose faceplate or mounting bolts.
Damaged center or tooling.
Worn or damaged wires.
Loose machine components.
Any other unsafe condition.
Cleaning &
Protecting
Cleaning this lathe is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.
Protect the unpainted cast-iron surfaces by wip­ing them clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces. Keep the surfaces rust-free with regular applications of products like G96 Treatment, SLIPIT for more details).
G5562—SLIPIT® 1 Qt. Gel G5563—SLIPIT G2871—Boeshield G2870—Boeshield H3788—G96 H3789—G96 G4682—Dry Coating Lube
®
, or Boeshield® T-9 (see below
®
12 Oz. Spray
®
T-9 12 Oz. Spray
®
®
Gun Treatment 12 Oz. Spray
®
Gun Treatment 4.5 Oz. Spray
T-9 4 Oz. Spray
®
Gun
Weekly Maintenance
Clean/vacuum dust buildup off of motor and
lathe bed, and lubricate spindle and quill.
Monthly Check
Belt tension, damage, or wear.
-40-
Figure 58. Recommended products for protect-
ing unpainted cast iron/steel partS on machinery.
Model G0842 (Mfd. Since 2/21)

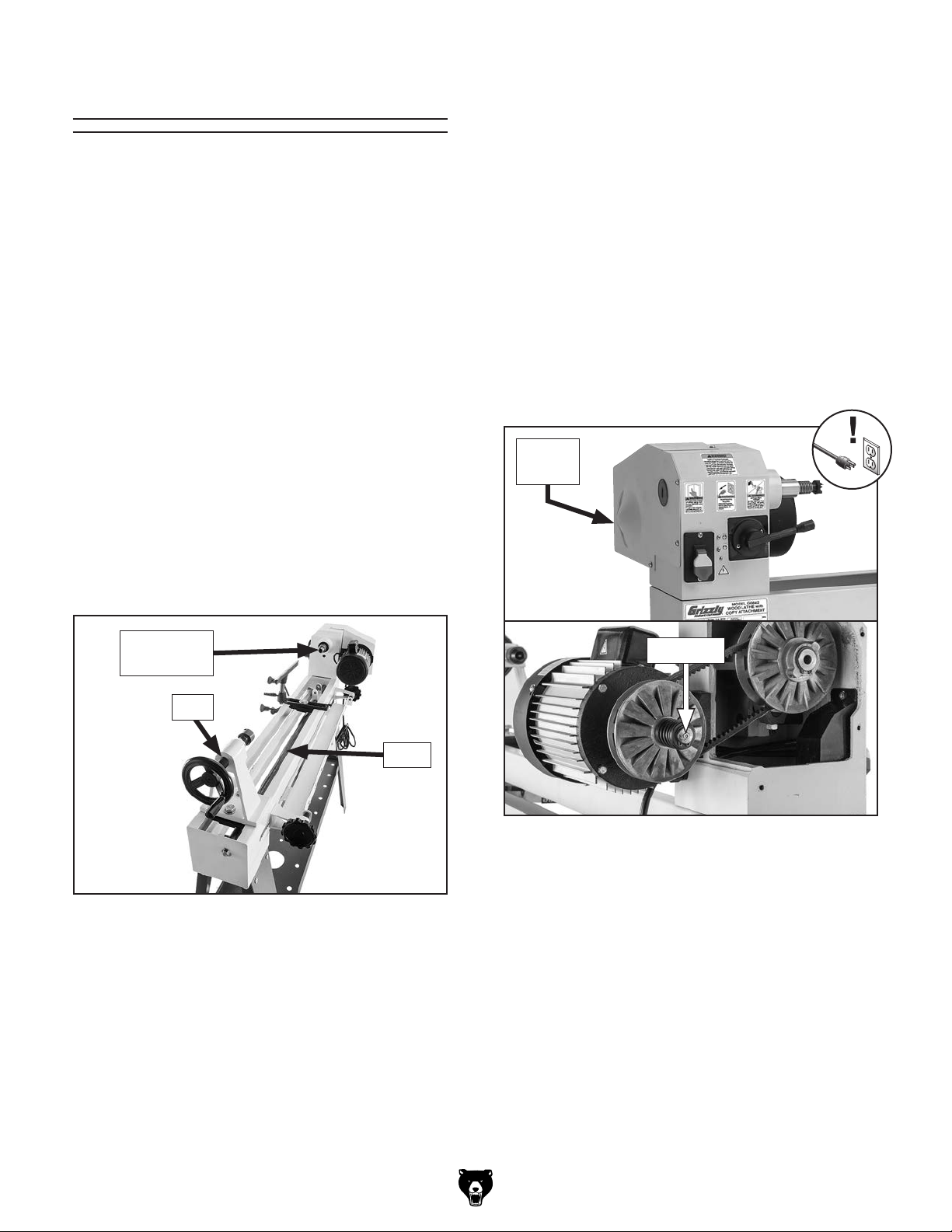

Lubrication

All bearings on this lathe are lubricated and per­manently sealed at the factory, and do not need additional lubrication.
Wipe a lightly oiled shop rag on the outside of the headstock spindle (see Figure 59). DO NOT allow any oil to get on the inside mating surfaces of the spindle.
Use the tailstock handwheel to extend the quill out to the furthest position and apply a thin coat of dry lube, such as Grizzly Model G4682 (refer to Cleaning and Protecting on Page 40) to the outside of the quill (see Figure 59). DO NOT allow any oil or grease to get on the inside mating sur­faces of the quill.
Use mineral spirts and a shop rag to clean the central shaft (see Figure 59) that runs the length of the lathe. When dry, use apply a thin coat of dry lube to the shaft and rack teeth on bottom of the shaft.
Motor Shaft Lubrication
The motor shaft must be properly lubricated to ensure the variable-speed pulley assembly can open and close smoothly when adjusted. Any common machine oil is acceptable for this purpose, but we recommend using a "dry" type lubricant, such as Grizzly model G2545 or G4682, to avoid attracting dust and prevent a build-up of grime.
To lubricate motor shaft:
DISCONNECT MACHINE FROM POWER!
1.
2. Remove belt cover shown in Figure 60 to
access motor shaft ball oiler.
Belt
Cover
Headstock
Spindle
Quill
Figure 59. Lubrication locations.
Shaft
Ball Oiler
Figure 60. Location to access ball oiler.
Push tip of oil can nozzle against ball oiler,
3.
then pump can once or twice. Alternatively, if using a spray-type lubricant, place the end of the straw against the ball oiler and give it a quick squirt. Do not over-lubricate.
Turn machine ON and while remaining a safe
4.
distance from the V-belt, run for approxi­mately one minute. Pull spindle speed shift lever out and move and rotate left to right to distribute oil.
Model G0842 (Mfd. Since 2/21)
Turn machine OFF and re-install belt cover.
5.
-41-
Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
the
serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical
Symptom Possible Cause Possible Solution
Machine does not
start, or power-
supply fuse/breaker
trips immediately
after startup.
Machine stalls or is
underpowered.
Machine has
vibration or noisy
operation.
1. Switch disabling key removed.
2. Incorrect power supply voltage or circuit size.
3. Power supply circuit breaker tripped or fuse blown.
4. Motor/power cord wires disconnected, damaged, or connected incorrectly.
5. Wiring open/has high resistance.
6. ON/OFF switch at fault.
7. Start capacitor at fault.
8. Centrifugal switch at fault.
9. Motor at fault.
1. Machine undersized for task.
2. Workpiece material not suitable for machine.
3. Motor overheated.
4. Belt slipping; oil/grease on belt.
5. Using excessive force with cutting tool.
6. Motor wired incorrectly.
7. Plug/receptacle at fault.
8. Pulley slipping on shaft.
9. Centrifugal switch at fault.
10. Motor bearings at fault.
1. Motor or component loose.
2. Machine incorrectly mounted or sits unevenly on floor.
3. V-belt worn, loose, or slapping cover.
4. Pulley(s) loose.
5. Motor fan rubbing on fan cover.
6. Motor mount loose/broken.
7. Motor bearings at fault.
8. Workpiece, faceplate, or chuck at fault.
9. Centrifugal switch at fault.
1. Install switch disabling key.
2. Ensure correct power supply voltage and circuit size.
3. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.
4. Fix or replace damaged, disconnected, or misconnected wires.
5. Check/fix broken, disonnected, or corroded wires.
6. Replace switch.
7. Test/replace.
8. Adjust/replace centrifugal switch if available.
9. Test/repair/replace.
1. Use sharp cutting tools; reduce force of cutting tool/ depth of cut.
2. Only cut wood/ensure moisture content is below 20%.
3. Allow motor to cool and reduce depth of cut.
4. Inspect and clean/tension/replace belt (Page 44).
5. Decrease force of cutting tool.
6. Wire motor correctly.
7. Test for good contacts/correct wiring.
8. Tighten/replace loose pulley/key/shaft.
9. Adjust/replace centrifugal switch if available.
10. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.
1. Inspect/replace damaged bolts/nuts, and retighten with thread locking fluid.
2. Tighten mounting bolts; relocate/shim machine.
3. Inspect and tension/replace belt (Page 44).
4. Tighten pulley set screws; re-align/replace shaft, pulley set screws, and keys.
5. Fix/replace fan cover; replace loose/damaged fan.
6. Tighten/replace.
7. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.
8. Center workpiece in faceplate/chuck; reduce RPM; re-install/replace defective faceplate/chuck.
9. Replace.
-42-
Model G0842 (Mfd. Since 2/21)
Wood Lathe Operation
Symptom Possible Cause Possible Solution
Bad surface finish. 1. Dull tooling or wrong tool used for task.
2. Tool height not 1⁄8" above spindle centerline.
3. Spindle speed wrong.
4. Excessive vibration.
Excessive vibration upon startup (when workpiece is installed).
Chisel grabs or digs into workpiece.
Tailstock moves under load.
Spindle lacks turning power or starts up slowly.
Quill does not move when handwhell is turned.
1. Workpiece mounted incorrectly.
2. Workpiece warped, out of round, or flawed.
3. Spindle speed too fast for workpiece.
4. Workpiece hitting stationary object.
5. Tailstock or tool rest not securely clamped to lathe bed.
6. Quill locking nut not tightened against tailstock.
7. Lathe resting on an uneven surface.
8. Motor mount bolts are loose.
9. Belt worn or damaged.
10. Spindle bearings worn or damaged.
1. Wrong chisel/tool being used.
2. Chisel/tool too dull.
3. Tool rest height not set correctly.
4. Tool rest set too far from workpiece.
1. Tailstock lock bolt(s) loose.
2. Bed or clamping surface excessively oily or greasy.
1. Belt slipping.
2. Pulleys loose.
3. Workpiece too heavy for spindle.
1. Quill locking nut tightened against tailstock. 1. Loosen quill locking nut (Page 27).
1. Sharpen tooling, select correct tool for operation.
2. Adjust tool rest so tool is 1⁄8" above spindle centerline.
3. Adjust for appropriate spindle speed (Page 33).
4. Troubleshoot possible causes/solutions in this table.
1. Remount workpiece, making sure that centers are embedded in true center of workpiece.
2. Cut workpiece to correct, or use a different workpiece.
3. Reduce spindle speed (Page 33).
4. Stop lathe and fix interference problem.
5. Check clamp bolts and tighten if necessary (Pages 27–29).
6. Tighten quill locking nut against tailstock (Page 27).
7. Adjust feet to eliminate wobbles.
8. Tighten motor mount bolts.
9. Replace belt (Page 44).
10. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.
1. Use correct chisel/tool.
2. Sharpen or replace chisel/tool.
3. Correct tool rest height (Page 28).
4. Move tool rest closer to workpiece.
1. Tighten tailstock lock bolt(s).
2. Clean bed or clamping surface to remove excess oil/grease.
1. Tighten/adjust belt (Page 44).
2. Tighten pulley set screw; re-align/replace shaft, pulley set screw, and key.
3. Remove excess material before remounting; use lighter workpiece.
Model G0842 (Mfd. Since 2/21)
-43-

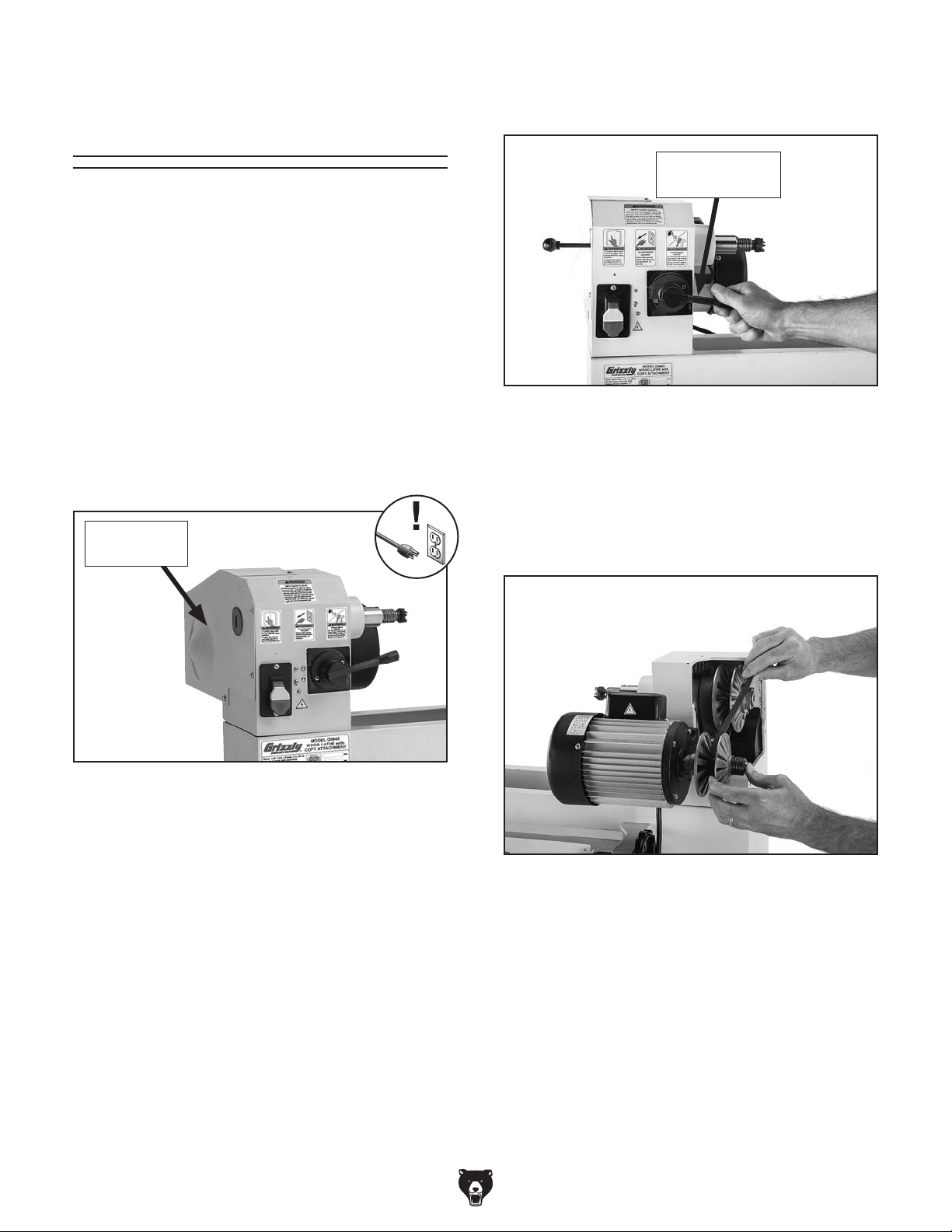

Tensioning &
Replacing Belt
The pulley system that allows the Model G0842 to operate at multiple speeds also keeps the V-belt properly tensioned. However, if the V-belt shows signs of cracking, splitting, or any other damage, we recommend you replace it to ensure optimum power transmission.
Tool Needed
Phillips Head Screwdriver #2
............................ 1
3. Move spindle speed lever all the way right to loosen spindle pulley plates (see Figure 62).
Spindle Speed
Lever
To tension and replace V-belt:
1.
DISCONNECT MACHINE FROM POWER!
2. Remove belt access cover (see Figure 61).
Belt Access
Cover
Figure 61. Location of belt access cover.
Figure 62. Spindle lever turned right.
4.
Pull outer motor pulley plate away from motor
so V-belt slips down to motor arbor, as shown in Figure 63.
While keeping tension off V-belt, roll it off
5.
spindle pulley and remove it (see Figure 63).
-44-
Figure 63. Removing V-belt from spindle pulley.
6. Install new V-belt by reversing Steps 4–5.
7. Re-install belt access cover before recon-
necting machine to power.
Model G0842 (Mfd. Since 2/21)
These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one
number and manufacture date of your
machine before calling. This information can be found on the main machine label.
machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical com­ponents!
MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire. This includes the installation of unapproved after­market parts.
WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires dis­connected or connected during any wiring task to ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.
MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.
CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.
EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.
The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.
Model G0842 (Mfd. Since 2/21)
-45-

Wiring Diagram

Front Back
ON/OFF
Switch
Motor
Capacitor
Figure 64. Electrical component locations.
Neutral
Motor
Start
Capacitor
200uF
125V
Ground
Ground
Hot
ON/OFF Switch
KEDU HY56 10A 125V
3
2
1
110 VAC
5-15 Plug
(Machine Body)
Ground
6
5
4
-46-
READ ELECTRICAL SAFETY
ON PAGE 45!
Model G0842 (Mfd. Since 2/21)

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
37
39

Main

8V2
1
5
10
53
16
15
6
7
9V2
12
14
13V2
57
56
11
23-15
23-14
23-7
23-1
23-8
4V2
23-12
23-13
20-3
54
2
3
23-2
23-11
20-18
23-10
23-9
20-5
20-4
23-6
23-10
20-6
23-3
23-4
23-5
20-7
20-8
20-9
23
51
50
22
20
52
21
43V2
45
19
46
47
52
51
11-13
11-11
11-6
50
11-1
17
11-2
18
11-3
11-7
11-4
11-9
48V2
11-5
11-12
11-10
11-8
44V2
45
46
20-2
20-1
20-17
20-16
20-15
20-12
20-13
20-19
20-11
20-14
Model G0842 (Mfd. Since 2/21)
20-20
20-10
44V2
48V2
49
32
55
31
41
36
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
33
34
34
38
47
40
-47-
Main Parts List
REF PART # DES CRIP TI ON REF PART # DES CRIP TI ON
1 P0842001 HEADSTOCK ASSEMBLY 20-16 P0842020-16 B USHI NG 2 P0842002 LOCK WASHER 8MM 20-17 P0842020-17 SET SCREW M8-1.25 X 8 3 P0842003 CAP SCREW M8-1.25 X 20 20-18 P0842020-18 HE X NUT M8 -1. 2 5 4V2 P0842004V2 BED V2.02. 21 20-19 P0842020-19 LOCK NUT M8-1.25 5 P0842005 HEX BOLT M16-2 X 40 20-20 P0842020-20 E XT RE TAI NI NG RI NG 10MM 6 P0842006 FENDER WASHER 16 MM 21 P0842021 FLAT WASHER 12MM 7 P0842007 TOOL REST CLAMP PLATE 22 P0842022 HEX NUT M12-1.75 8V2 P0842008V2 TOOL REST 12" (1" POST) V2.11.20 23 P0842023 COPY ATTACHMENT DRIVE ASSEMBLY 9V2 P0842009V2 TOOL REST BASE (1" HOLE) V2.11.20 23-1 P0842023-1 RACK 10 P0842010 ADJUSTABLE HANDLE 65L, M10-1.5 X 18 23-2 P0842023-2 PI NION HOUSI NG 11 P0842011 TAILSTOCK ASSEMBLY 23-3 P0842023-3 PHLP HD SCR M5-.8 X 8 11-1 P0842011-1 HEX NUT 1-8 23-4 P0842023-4 WAY WIPER 11-2 P0842011-2 TAILSTOCK CASTING 23-5 P0842023-5 HANDWHE EL HUB 11-3 P0842011-3 TAILSTOCK QUILL 23-6 P0842023-6 SET SCREW M6-1 X 12 DOG-PT 11-4 P0842011-4 SET SCREW M8-1.25 X 10 CONE-PT 23-7 P0842023-7 HEX NUT M10- 1. 5 11-5 P0842011-5 HANDWHEEL TYPE-19 122D X 15B-S X M8-1.25 23-8 P0842023-8 ANGLE STUD 60-DEG DE M10-1.5 X 140, 18 11-6 P0842011-6 TAILSTOCK CLAMP PLATE A 23-9 P0842023-9 KNOB M10-1.5, D50 11-7 P0842011-7 FLA T HD SCR M5- . 8 X 1 0 23-10 P0842023-10 BALL BEARING 6201-2RS 11-8 P0842011-8 TAILSTOCK CLAMP PLATE B 23-11 P0842023-11 PI NI ON SHA FT 11-9 P0842011-9 HEX BOLT M16-2 X 40 23-12 P0842023-12 SET SCREW M6-1 X 8 DOG-PT 11-10 P0842011-10 FLAT WASHER 16MM 23-13 P0842023-13 PI NION GEAR 15T 11-11 P0842011-11 L I VE CE NTER MT2 23-14 P0842023-14 BALL BEARING 6200-2RS 11-12 P0842011-12 REVOLVING HANDLE 20 X 55 M8-1.25 X 13 23-15 P0842023-15 SHOULDER SCREW M5-.8 X 7, 6. 5 X 15 11-13 P0842011-13 SET SCREW M6-1 X 10 31 P0842031 SAFETY SHIELD MOUNTING BRACKET 12 P0842012 HINGED TEMPLATE SUPPORT BRACKET 32 P0842032 SAFETY SHIELD 13V2 P0842013V2 TEMPLATE SUPPORT PLATE V2.02.21 33 P0842033 WRENCH 22 X 24MM OPEN-ENDS 14 P0842014 PHLP HD SCR M6-1 X 10 34 P0842034 FLAT WRENCH 3 2MM 15 P0842015 COPY A TTACHMENT DEAD CE NTER BRACKE T 36 P0842036 KNOCKO UT ROD 16 P0842016 COPY A TTACHMENT DEAD CE NTER 37 P0842037 HEX WRENCH 3 MM 17 P0842017 FENDER WAS HER 10MM 38 P0842038 HEX WRENCH 4MM 18 P0842018 HEX BOLT M10-1.5 X 20 39 P0842039 HEX WRENCH 5 MM 19 P0842019 SHOULDER BOLT M12-1.75 X 20, 12 X 90 40 P0842040 HEX WRENCH 6MM 20 P0842020 COPY ATTACHMENT ASSEMBLY 41 P0842041 CAP SCREW M8-1.25 X 16 20-1 P0842020-1 COP Y ATTA CHMENT CA STI NG 43V2 P0842043V2 END SUPPORT V2.02.21 20-2 P0842020-2 HEX BOLT M8-1.25 X 75 44V2 P0842044V2 STAND LEG A V2.02.21 20-3 P0842020-3 KNOB 9-LOBE D54 WITH REMOVABLE CAP 45 P0842045 HEX NUT M8- 1. 25 20-4 P0842020-4 CUTTI NG TOO L 46 P0842046 FLAT WAS HER 8MM 20-5 P0842020-5 CAP SCREW M6-1 X 25 47 P0842047 CARRIAGE BOLT M8-1.25 X 16 20-6 P0842020-6 ADJUST. HANDLE 65L, M10-1.5 X 20 DOG-PT 48V2 P0842048V2 STAND LEG B V2.02.21 20-7 P0842020-7 GEAR SHAFT 49 P0842049 TOOL TRAY 20-8 P0842020-8 SET SCREW M6-1 X 10 50 P0842050 HEX BOLT M8-1.25 X 16 20-9 P0842020-9 HANDWHEEL 100D X 12B-S X M6-1 51 P0842051 FLA T WAS HER 8MM 20-10 P0842020-10 CUTTI NG TOOL SHA FT 52 P0842052 HEX NUT M8-1 . 25 20-11 P0842020-11 GEAR 13T 53 P0842053 FLAT WAS HER 6MM 20-12 P0842020-12 SET SCREW M6-1 X 8 54 P0842054 FLAT WAS HER 8MM 20-13 P0842020-13 SPRING RETAINER NUT M8-1.25 X 30 X 23 X 2.5 55 P0842055 KNOB BOLT M6-1 X 10, D39, DIAMOND 20-14 P0842020-14 EXTENSION SPRING 2.5 X 14. 5 X 72 56 P0842056 HANDWHEEL 100D X 12B-S X M6-1 20-15 P0842020-15 STEEL PIN 4 X 87 57 P0842057 SET SCREW M6-1 X 10
-48-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model G0842 (Mfd. Since 2/21)

Headstock

REF PART # DES CRIP TI ON REF PART # DES CRIP TI ON
120
121
119
127
126
117
128
144
126
111
121
109
130
116
115
108
115
129
110
124
125
131
114
145
136
122
123
133
132
137
139
134
113
135
101
106
138
107
142
113-2
106
141
140
113-1
107
105
113-4
113-3
104
141-9
113-7
141-10
141-8
113-5
103
141-1
113-6
113-8
102
141-2
141-3
141-4
141-5
141-6
141-7
101 P0842101 HE ADSTO CK CAS TI NG 125 P0842125 SET SCREW M8-1.25 X 25 DOG-PT 102 P0842102 FACEPLATE 6" 126 P0842126 SET SCREW M6-1 X 10 103 P0842103 S PUR CENTE R MT#2 127 P0842127 EX T RETAI NING RI NG 24MM 104 P0842104 SPI NDLE MT#2 128 P0842128 SPINDLE PULLEY (2PC) 105 P0842105 KEY 4 X 4 X 80 129 P0842129 V-BELT M24.5 3L245, COGGED 106 P0842106 BALL BEARING 6205ZZ 130 P0842130 BALL BEARING 6007ZZ 107 P0842107 I NT RETAI NI NG RI NG 52 MM 131 P0842131 CORD CLAMP 108 P0842108 COMPRESSION SPRING 2.5 X 22.5 X 107 132 P0842132 PHLP HD SCR M4-.7 X 22 109 P0842109 SPI NDLE SPEED SHIFT BRACKET 133 P0842133 POWER CORD 14G 3W 96" 5-15P 110 P0842110 E XT RETA I NI NG RI NG 35 MM 134 P0842134 STRAIN RELIEF TYPE-3 M20-1.5 111 P0842111 I NT RETAI NI NG RI NG 62 MM 135 P0842135 HEX BOLT M8-1.25 X 30 113 P0842113 MOTOR 3/4HP 110V 1-PH 136 P0842136 S WI TCH B OX 113-1 P0842113-1 MOTOR FAN 137 P0842137 SAFETY PADDLE SWITCH HY-18 113-2 P0842113-2 MOTOR FAN CO VER 138 P0842138 PHLP HD SCR M4-.7 X 8 113-3 P0842113-3 S CAPACITOR 200M 125V 1-5/16 X 3-1/8 139 P0842139 FL AT WAS HER 4MM 113-4 P0842113-4 CAPACITOR COVER 140 P0842140 PHLP HD SCR M5-.8 X 12 113-5 P0842113-5 BALL BEARING 6202ZZ (FRONT) 141 P0842141 SPI NDLE SPEED SHIFT LEVER ASSEMBLY 113-6 P0842113-6 BALL BEARING 6203ZZ (REAR) 141-1 P0842141-1 GEAR SHAFT 14T 113-7 P0842113-7 CENTRI FUG AL SWI TCH 141-2 P0842141-2 SHIFT LEVER SEAT 113-8 P0842113-8 CONTACT PL ATE 141-3 P0842141-3 SHI FT L EVER HUB 114 P0842114 KEY 4 X 4 X 80 141-4 P0842141-4 COMPRESSION SPRING 0.9 X 5.9 X 25 115 P0842115 PHLP HD SCR M5-.8 X 8 141-5 P0842141-5 SHIFT LEVER SHAFT M10-1.5 X 15, 110L 116 P0842116 MOTOR PULLEY COVER 141-6 P0842141-6 LOCATING PIN 117 P0842117 MOTOR PULLEY (2PC) 141-7 P0842141-7 ROLL PIN 3 X 32 119 P0842119 COMPRESSION SPRING 2.5 X 28 X 65 141-8 P0842141-8 KNOB M10-1.5 D19, 38L 120 P0842120 SLEEVE 141-9 P0842141-9 SET SCREW M8-1.25 X 20 DOG-PT 121 P0842121 E XT RETA I NI NG RI NG 16 MM 141-10 P0842141-10 COMPRESSION SPRING 0.9 X 5.9 X 16 122 P0842122 E XT RETA I NI NG RI NG 25 MM 142 P0842142 SPINDLE SPEED SHIFT LEVER PLATE 123 P0842123 SPI NDLE SPEED SHIFTING RACK 144 P0842144 RED PLASTIC COVER 124 P0842124 HE X NUT M8- 1. 25 145 P0842145 LOCK WASHER 8MM
Model G0842 (Mfd. Since 2/21)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
-49-
WARNING!
To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.
211
INJURY/SHOCK
HAZARD! Disconnect power before adjustments, maintenance, or service.
212

Labels & Cosmetics

MODEL G0842
WOOD LATHE with
COPY ATTACHMENT
G0842
212
201
IMPACT INJURY HAZARD!
Improperly supported or positioned cutting tools can “catch” on workpiece, ejecting tool from your hands with great force. To reduce this risk, always ensure tool rest is properly positioned for each type of operation, cutting tool is firmly supported against tool rest BEFORE cutting, and cutting tool is properly positioned for tool and operation type.
202
WARNING!
ENTANGLEMENT
HAZARD! Tie back long hair, roll up long sleeves, and remove loose clothing, jewelry, or gloves to prevent getting caught in moving parts.
203
Motor: 3/4 HP, 110V, 1-Ph, 11A, 60 Hz Spindle Speeds: 600–2400 RPM Distance Between Centers: 37" Swing Over Bed: 14" Spindle & Tailstock Taper: MT#2 Weight: 155 lbs.
201
208
209
Mfd. for Grizzly in China
204
Date
S/N
EYE/FACE INJURY
HAZARD! Always wear ANSI-approved safety glasses and face shield when using this machine.
206
205
To reduce risk of serious personal injury while using this machine:
1. Read and understand manual before starting.
2. Always wear safety glasses, face shield, and respirator.
3. Avoid getting entangled in rotating workpiece—tie back long hair, roll up long sleeves, and DO NOT wear loose clothing, gloves, or jewelry.
4. Properly set up lathe and tighten all locks before operating.
5. Rotate workpiece by hand to ensure clearance before applying power.
6. DO NOT turn split workpieces or those containing knots.
7. Rough out workpiece to remove excess material before mounting.
8. Use the lowest speed when starting a new workpiece.
9. Always support cutting tool on properly adjusted tool rest.
10. Disconnect power before setting up, adjusting, or servicing lathe.
11. DO NOT operate when tired or under influence of drugs/alcohol.
12. DO NOT expose to rain or operate in a wet environment.
13. Prevent unauthorized use by children or untrained users.
WARNIN G!
210
207
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0842201 ELECTRICITY LABEL 207 P0842207 GRIZZLY.COM LABEL 202 P0842202 IMPACT INJURY HAZARD LABEL 208 P0842208 TOUCH-UP PAINT, GRIZZLY BEIGE 203 P0842203 ENTANGLEMENT WARNING LABEL 209 P0842209 TOUCH-UP PAINT, GRIZZLY GREEN 204 P0842204 MACHINE ID LABEL 210 P0842210 WOOD LATHE WARNING LABEL 205 P0842205 MODEL NUMBER LABEL 211 P0842211 READ MANUAL WARNING LABEL 206 P0842206 EYE/FACE INJURY WARNING LABEL 212 P0842212 DISCONNECT POWER LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-50-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
Model G0842 (Mfd. Since 2/21)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.
In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
To you can applicable information for
take advantage of this warranty, you must register it at https://www.grizzly.com/forms/warranty, or
scan the QR code below to be automatically directed to our warranty registration page. Enter all
the product.
WARRANTY
Loading...
