MODEL G0828/G0829
BENCHTOP METAL SHEAR
OWNER'S MANUAL
(For models manufactured since 02/17)
COPYRIGHT © MAY, 2017 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#KB18583 PRINTED IN CHINA
V1. 0 5.17
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Machine Description ................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Controls & Components ............................................................................................................. 4
Machine Data Sheet ................................................................................................................... 5
SECTION 1: SAFETY ....................................................................................................................... 7
Safety Instructions for Machinery ............................................................................................... 7
Additional Safety for Metal Shears ............................................................................................. 9
SECTION 2: SETUP ....................................................................................................................... 10
Unpacking ................................................................................................................................ 10
Needed for Setup ..................................................................................................................... 10
Inventory ................................................................................................................................... 10
Cleanup .................................................................................................................................... 11
Site Considerations .................................................................................................................. 12
Lifting & Placing ....................................................................................................................... 13
Bench Mounting ....................................................................................................................... 13
Leveling .................................................................................................................................... 14
Assembly .................................................................................................................................. 14
SECTION 3: OPERATIONS ........................................................................................................... 15
Operation Overview.................................................................................................................. 15
Cutting Tips .............................................................................................................................. 16
Adjusting Hold-Down Bar ......................................................................................................... 16
Adjusting Rear Work Stop ........................................................................................................ 17
Adjusting 90° Guide ................................................................................................................. 18
Using Angle Cutting Guide ....................................................................................................... 18
SECTION 4: ACCESSORIES ......................................................................................................... 19
SECTION 5: MAINTENANCE......................................................................................................... 22
Schedule .................................................................................................................................. 22
Cleaning & Protecting .............................................................................................................. 22
Lubrication ................................................................................................................................ 22
SECTION 6: SERVICE ................................................................................................................... 23
Troubleshooting ........................................................................................................................ 23
Adjusting Blade Gap ................................................................................................................ 24
Replacing Blades ..................................................................................................................... 25
Adjusting Gibs .......................................................................................................................... 27
SECTION 7: PARTS ....................................................................................................................... 28
G0828 Parts ............................................................................................................................. 28
G0829 Parts ............................................................................................................................. 29
Labels & Cosmetics ................................................................................................................. 30
WARRANTY & RETURNS ............................................................................................................. 33
INTRODUCTION
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documentation is available for your machine.
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Machine Description
The main difference between the G0828 and
G0829 is the size of the bed and cutting capacity. The G0828 can cut an 18-gauge sheet at a
maximum width of 25
20-gauge sheet at a maximum width of 41
7
⁄8". The G0829 can cut a
Contact Info
Email: techsupport@grizzly.com
and manufacture date from the
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
1
Manual Accuracy
made every effort to be exact with the
⁄2 ".
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.
Manufacture Date and Serial Number
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: manuals@grizzly.com
Manufacture Date
Serial Number
-2-
Model G0828/G0829 (Mfd. Since 02/17)
To reduce your risk of
serious injury, read this
entire manual BEFORE
Blade
Guard
Adjustable
Angle Guide
Blade (Upper)
Hold-Down Bar
Identification
Cutting
Lever
Bed
Work Stop
Adjustment
Assembly
Rear
Work
Stop
Work Stop
Support Rod
Upper
Blade
Base
Blade (Lower)
90°
Guide
Rear View
(G0828
Shown)
Cam
Shaft
Lever
Model G0828/G0829 (Mfd. Since 02/17)
using machine.
-3-
Controls &
Components

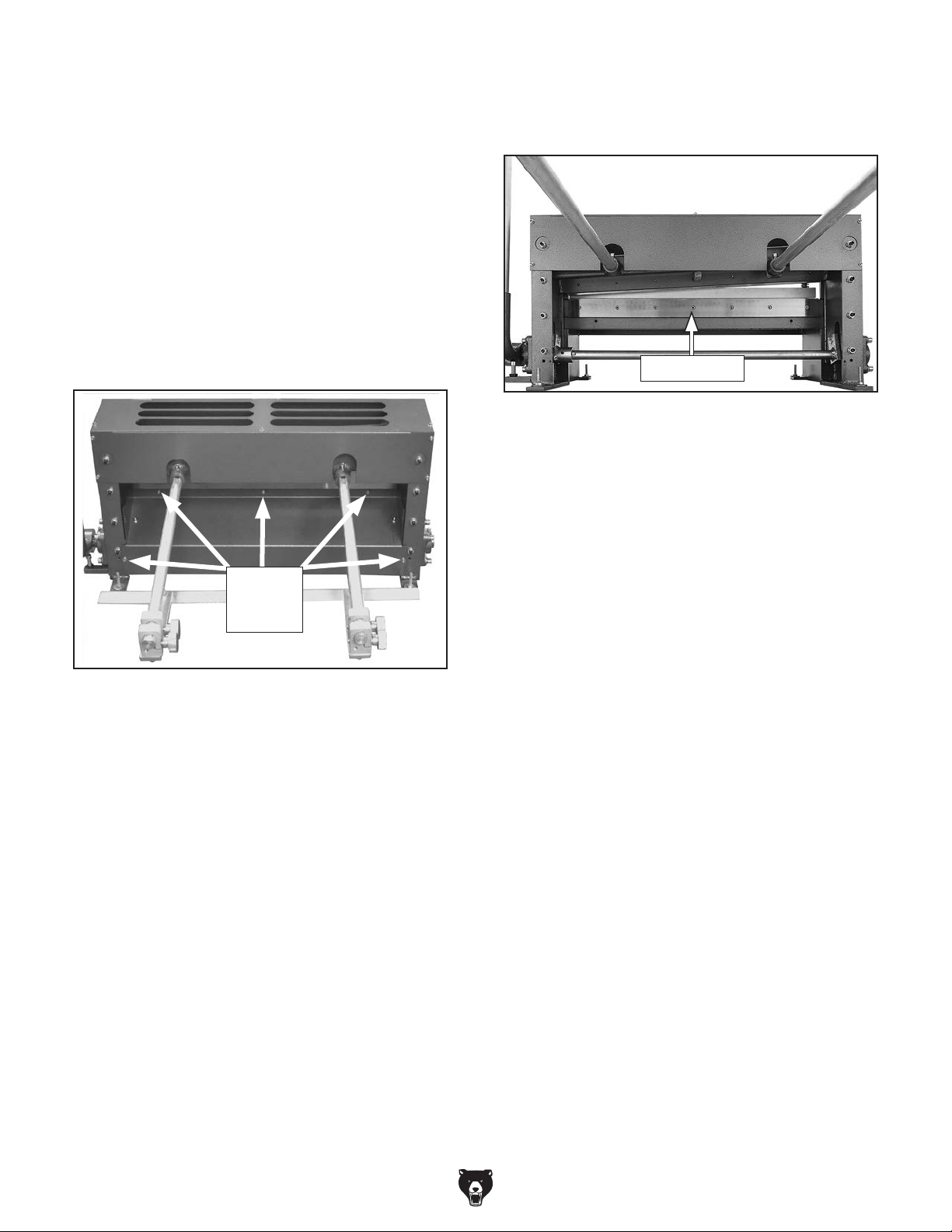

Use Figures 1-2 and the descriptions below to
become familiar with the basic controls of the
G0828 and G0829 metal shears. The controls on
both models function identically.
Work Stop
Adjustment
Assembly
Rear
Work Stop
Lower Blade
Adjustable
Angle
Guide
Hold-Down Bar
Figure 1. Basic controls (front).
Adjustable Angle Guide: Adjusts from 0° to 180°
for making angled cuts.
Upper Blade: Moves with the cutting lever to
shear the workpiece against the lower blade for
cutting operations. The upper and lower blades
are interchangeable and reversible.
Upper
Blade
Cutting
Lever
90°
Guide
Support Rods
Figure 2. Basic controls (rear).
Work Stop Adjustment Assembly: Moves the
rear work stop in or out at a specific distance from
the lower blade. Allows the operator to set up the
shear for multiple cuts of the same length.
Lower Blade: Fixed on frame. The upper and
lower blades are interchangeable and reversible.
Rear Work Stop: Used for making repetitive cuts.
Support Rods: Provide a measurement refer-
ence from the blade to the work stops. Support
the adjustable work stop assemblies and rear
work stop.
Cutting Lever: Controls movement of the upper
blade for cutting.
Hold-Down Bar: Spring-loaded bar holds the
workpiece in position during cutting operation as
cutting lever is pulled down.
90° Guide: Helps the operator square the
workpiece with the blades.
-4-
Model G0828/G0829 (Mfd. Since 02/17)
Machine Data Sheet
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0828 25" BENCHTOP METAL SHEAR
Product Dimensions:
Weight.............................................................................................................................................................. 287 lbs.
Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 35-1/2 x 39 x 37 in.
Footprint (Length x Width)............................................................................................................................ 31 x 19 in.
Space Required for Full Range of Movement (Width x Depth).............................................................. 35-1/2 x 59 in.
Shipping Dimensions:
Type.......................................................................................................................................................... Wood Crate
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 342 lbs.
Length x Width x Height....................................................................................................................... 38 x 23 x 23 in.
Must Ship Upright................................................................................................................................................... Yes
Main Specifications:
Capacities
Maximum Width................................................................................................................................... 25-7/8 in.
Maximum Thickness at Half Width Mild Steel..................................................................................... 16 Gauge
Maximum Thickness at Full Width Mild Steel..................................................................................... 18 Gauge
Front Stop Scale Range.................................................................................................................. 0 – 9-1/2 in.
Rear Stop Scale Range....................................................................................................................... 0 – 21 in.
Construction
Frame......................................................................................................................................................... Steel
Hold-Down Clamp...................................................................................................................................... Steel
Shear Table................................................................................................................................................ Steel
Shear Blades.......................................................................................................................... High-Speed Steel
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No
Features:
18 Ga. Maximum Cutting Thickness
Steel Body Construction
Two-Sided Upper and Lower Blades
Adjustable Gibs for Upper Blade Assembly
Adjustable Protractor Stop
Heavy-Duty Ball-Bearing Hinge Points
Model G0828/G0829 (Mfd. Since 02/17)
-5-
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0829 41" BENCHTOP METAL SHEAR
Product Dimensions:
Weight.............................................................................................................................................................. 397 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 51 x 39 x 37 in.
Footprint (Length x Width)..................................................................................................................... 46-1/2 x 19 in.
Space Required for Full Range of Movement (Width x Depth).................................................................... 51 x 59 in.
Shipping Dimensions:
Type.......................................................................................................................................................... Wood Crate
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 463 lbs.
Length x Width x Height....................................................................................................................... 54 x 23 x 23 in.
Must Ship Upright................................................................................................................................................... Yes
Main Specifications:
Capacities
Maximum Width................................................................................................................................... 41-1/2 in.
Maximum Thickness at Half Width Mild Steel..................................................................................... 18 Gauge
Maximum Thickness at Full Width Mild Steel..................................................................................... 20 Gauge
Front Stop Scale Range.................................................................................................................. 0 – 9-1/2 in.
Rear Stop Scale Range....................................................................................................................... 0 – 21 in.
Construction
Frame......................................................................................................................................................... Steel
Hold-Down Clamp...................................................................................................................................... Steel
Shear Table................................................................................................................................................ Steel
Shear Blades.......................................................................................................................... High-Speed Steel
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 30 Minutes
Serial Number Location ................................................................................................................... Machine ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No
Features:
20 Ga. Maximum Cutting Thickness
Steel Body Construction
Two-Sided Upper and Lower Blades
Adjustable Gibs for Upper Blade Assembly
Adjustable Protractor Stop
Heavy-Duty Ball Bearing Hinge Points
-6-
Model G0828/G0829 (Mfd. Since 02/17)
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model G0828/G0829 (Mfd. Since 02/17)
-7-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-8-
Model G0828/G0829 (Mfd. Since 02/17)
Additional Safety for Metal Shears
AMPUTATION HAZARD. The shear blades can
easily pinch, crush, or amputate fingers or other
body parts. Always keep hands, fingers, and other
body parts away from the blades during operation.
SHARP METAL EDGES. Sharp edges on newly
cut sheet metal workpieces can easily cause deep
cuts while handling. Wear leather gloves to help
protect your hands when handling workpieces, and
always chamfer and debur sharp workpiece edges.
PROPER WORKPIECE MATERIAL. This shear is
only intended for cutting ferrous and non-ferrous
sheet metal or flat stock. Do not attempt to cut
round metal stock, glass, wood, drywall, backer
board, plywood, or other material not intended for
this machine. Cutting incorrect materials can produce unexpected results, which increases the risk
of injury, and may result in damage to the machine.
SECURE SHEAR BEFORE USE. Before using,
fasten shear to a sturdy surface that can withstand
the dynamic forces involved in shearing sheet
metal. Otherwise, shear may unexpectedly move
or fall, causing serious injury or property damage.
STABLE FOOTING. This shear requires you to
apply a moderate/high level force while cutting.
Without stable footing, you could slip or fall, which
could cause personal injury. Always stand with
both feet comfortably on a non-slip surface during
operation.
BODY POSITION. The forces and body motion
required to operate this shear can result in operator injury over time if proper technique is not used.
Always keep your body centered with the machine
and your back straight when applying pressure
against handles.
BLADE CONDITION. Blades that are sharp,
undamaged, and properly adjusted will reduce risk
of injury and improve cutting results. Always keep
blades properly maintained.
BLADE GUARD. The blade guard is designed
to reduce risk of amputation. Always keep guard
properly attached and in good condition during
operation.
RATED CAPACITY. Only use sheet metal that is
within the rated capacity of this shear (refer to the
Machine Data Sheets on Page 5 and 6).
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.
Model G0828/G0829 (Mfd. Since 02/17)
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equipment, or poor work results.
-9-
SECTION 2: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Keep children and pets away
from plastic bags or packing
materials shipped with this
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Unpacking
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
SUFFOCATION HAZARD!
machine. Discard immediately.
Inventory
G0828/G0829 Inventory (Figure 3) Qty
A. Machine Base (Not Shown) ........................ 1
B. Work Stop Adjustment Assembly ............... 1
C. Cap Screws M8-1.25 x 15 .......................... 3
D. Work Stop Support Rods ........................... 2
E. Cutting Lever .............................................. 1
B
Needed for Setup
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Additional People ....................... As Needed
• Safety Glasses ................ 1 for Each Person
• Cleaner/Degreaser (Page 11) ..... As Needed
• Disposable Shop Rags ............... As Needed
• Hex Wrench 4mm, 5mm, 6mm .........1 Each
• Open-End Wrench 14mm ........................... 2
• Mounting Hardware (Page 13) ... As Needed
• Forklift ......................................................... 1
• Lifting Straps (rated for 500 lbs.) ................ 2
-10 -
C
D
E
Figure 3. G0828/G0829 inventory.
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Model G0828/G0829 (Mfd. Since 02/17)
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preventative, but the following steps work well in a wide
variety of situations. Always follow the manufacturer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
metal protectant to prevent rust.
Many cleaning solvents
work in a well-ventilated
Avoid chlorine-based solvents, such as
Cleanup
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avo id
using these products
to clean machinery.
are toxic if inhaled. Only
Put on safety glasses.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
area.
NOTICE
acetone or brake parts cleaner, that may
damage painted surfaces.
T23692—Orange Power Degreaser
A great product for removing the waxy shipping
grease from your machine during clean up.
Figure 4. T23692 Orange Power Degreaser.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
Model G0828/G0829 (Mfd. Since 02/17)
-11-
Site Considerations
Weight Load
for the weight
of your machine. Make sure that the surface upon
of the machine, additional equipment that may be
Physical Environment
The physical environment where the machine
is operated is important for safe operation and
longevity of components. For best results, operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range is outside 41°–104°F; the relative humidity
range is outside 20–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Shadows, glare, or strobe effects that may distract
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
See below for required space allocation.
Refer to the Machine Data Sheet
which the machine is placed will bear the weight
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
or impede the operator must be eliminated.
351⁄2"
G0828 G0829
51"
-12-
Figure 5. Working clearances.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
51"
39"39"
Model G0828/G0829 (Mfd. Since 02/17)
51"
Lifting & Placing
get help from other people
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Machine Base
Workbench
Hex
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut
Machine Base
Workbench
Lag Screw
Flat Washer
Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
7. Fasten shear to workbench as recommended
in Bench Mounting.
Bench Mounting
To lift and place shear on workbench:
1. Move shear to installation location while it is
still on shipping pallet.
2. To avoid damage from lifting straps, remove
M6-1 x 12 cap screws and 6mm flat washers
(14 on G0828, 16 on G0829) securing lower
cover, blade guard, and upper cover, (see
Figure 6).
Blade Guard
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Figure 7. Workbench through mount.
Lower
Cover
Figure 6. Remove guard and covers before
connecting lifting straps (G0828 shown).
3. Remove fasteners securing shear to pallet.
Save hardware for mounting in Step 7.
4. Position straps under shear and attach to
forklift. Or, with help from others, lift shear
onto workbench and proceed to Step 6.
5. Use forklift to raise shear. Remove pallet,
then lower shear onto workbench.
6. Re-install guard and covers removed in
Step 2.
Model G0828/G0829 (Mfd. Since 02/17)
Upper
Cover
Figure 8. Workbench direct mount.
-13-
Leveling
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
and gather
all
To ensure the assembly process
goes smoothly, first clean any
covered or coated in heavy-duty rust preventative (if
applicable).
Leveling the shear helps the blades and other
cast-iron components remain straight and flat
during the life of the machine. Components on
an unleveled machine may slowly twist over time
due to the dynamic loads placed on the machine
during operation. Twisted components will impair
the ability of the machine to cut straight or square.
2. Remove blade guard and upper cover.
3. Secure each support rod with (1) M8-1.25 x
15 cap screw (see Figure 10).
If needed, use metal shims between the base and
the workbench to level the machine. Measure with
a precision level that is at least 12" long and sensitive enough to show a distance movement when a
0.003" shim is placed under one end of the level.
Assembly
Needed for Setup
listed items.
parts that are
Assembly of the Model G0828/G0829 consists of
attaching the work stop support rods, work stop
adjustment assembly, and cutting lever.
Support
Rod
Figure 10. Support rod secured with cap screw.
3. Slide work stop adjustment assembly onto
support rods, as shown in Figure 11, with flat
side of L-bracket closest to shear. Tighten (4)
knurled thumbscrews.
Cutting Lever
Work Stop
L-Bracket
Rear Work
Stop Assembly
Support
Rod
To assemble shear:
1. Slide support rod into each bracket with mea-
surement scale facing up (see Figure 9).
Upper Cover
Scale
Figure 9. Connecting support rod to bracket.
-14-
Support Rod
Thumbscrews
Figure 11. Work stop adjustment assembly
installed.
4. Attach cutting lever and secure with preinstalled M8-1.25 x 10 set screw.
Bracket
Model G0828/G0829 (Mfd. Since 02/17)
SECTION 3: OPERATIONS
The purpose of this overview is to provide the novice machine operator with a basic understanding
of how the machine is used during operation, so
the
discussed later
in this manual
Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,
training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.
To reduce your risk of
serious injury, read this
entire manual BEFORE
Operation Overview
To complete a typical operation, the operator
does the following:
1. Examines workpiece to make sure it is suit-
able for cutting.
machine controls/components
are easier to understand.
seek additional
, and do additional research
using machine.
Bodily injury could result from using this
machine. Always wear safety glasses,
leather work boots, and heavy duty leather
work gloves when operating this machine
or whenever handling sheet metal.
2. Adjusts rear work stop for length of cut.
3. Puts on safety glasses, leather boots, and
leather gloves.
4. Places workpiece on bed and up against side
work stop.
5. Slides workpiece under blades and against
rear work stop.
6. Using good body position, firmly pulls down
on cutting lever to make cut.
7. Lifts cutting lever and removes workpiece or
repeats Steps 5–6 to make additional cuts.
The shear blades or holddown can easily pinch,
crush, or amputate fingers
or other body parts. Always
keep hands, fingers, and
other body parts away from
the blades and hold-down
during operation.
Model G0828/G0829 (Mfd. Since 02/17)
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
-15-
Cutting Tips
• Keep the upper blade properly adjusted to
the lower blade (refer to Adjusting Blade
Gap on Page 24 for detailed instructions).
This will help ensure good cutting results and
avoid blade damage.
• Before each operation, clear cut-offs or debris
away from the shear.
• Make sure the 90° guide is square with the
blades (see Page 18). This will help ensure
the cut is square.
• Use the cutting lever to engage the holddown bar with the workpiece, then check the
workpiece position. If it is correct, continue
lowering the cutting lever to complete the cut.
• The shearing action of the blades works similarly to a pair of scissors (see the illustration
in Figure 12). Use even pressure on the cutting lever to produce good results.
Adjusting
Hold-Down Bar
The hold-down bar secures the workpiece to the
bed before the blades shear the workpiece.
The hold-down bar is adjustable for height. The
G0828 uses two adjustment hex bolts and hex
nuts (see Figure 13). The G0829 uses three
adjustment hex bolts and hex nuts.
Adjustment Hex Bolt
Hex
Nut
Bed
Figure 13. Hold-down bar adjustment
(G0828 shown).
Hold-Down Bar
Shearing Action
Upper Blade
Lower Blade
Figure 12. Blade shearing action.
Tools Needed Qty
Open-End Wrenches 18mm .............................. 2
Hex Wrench 4mm .............................................. 1
Ruler or Depth Gauge ....................................... 1
-16 -
Model G0828/G0829 (Mfd. Since 02/17)
To adjust height of hold-down bar:
1. Remove blade guard.
2. With blade raised, loosen hex nut, then
rotate hold-down tension hex bolt (see
Figure 14) to raise/lower hold-down bar to
adjust clearance.
Adjusting
Rear Work Stop
The rear work stop is used for making repetitive
cuts. The adjustable assemblies allow for precise
positioning of the work stop.
Hold-Down
Tension
Hex Bolt
Hold-Down Bar
Figure 14. Loosening hex nut to adjust
hold-down bar clearance.
3. Measure clearance between hold-down bar
and bed to ensure it is even side to side.
Adjust as necessary.
4. When clearance is even, tighten hex nut and
re-install blade guard.
Hex
Nut
To position rear work stop:
1. Slide work stop adjustment assembly evenly
along support rods so rear work stop leading
edge is at approximate desired distance from
cutting edges of blades (see Figure 15).
Note: Move work stop assembly evenly on
both sides to keep it parallel with blades. Use
scales on top of support rods for approximate
positioning. Use fine ruler or tape measure
for precise positioning.
2. To keep rear work stop assemblies secured
in desired position, tighten knurled thumbscrews (see Figure 15).
Work Stop
Adjustment
Assembly
Support Rods
Rear
Work Stop
Model G0828/G0829 (Mfd. Since 02/17)
Knurled
Thumbscrews
Figure 15. Rear work stop controls.
To adjust rear work stop assembly position:
1. Measure distance between cutting edge of
bed and leading edge of work stop. Compare
to scale measurement on each support rod.
2. If measurement does not match scale, loosen
cap screws securing support rods and adjust
each one until measurements match.
3. Re-tighten cap screws to secure support
rods.
-17-
Adjusting 90° Guide
The 90° guide (see Figure 16) helps the operator
square the workpiece with the blades. To work
properly, it must be square with the blades.
Hold-Down Bar 90° Guide
Figure 16. 90° guide (blade cover removed for
clarity).
Using Angle Cutting
Guide
Use the angle cutting guide as a side work stop to
cut a workpiece at an angle other than 90°.
To use angle cutting guide:
1. Calculate angle of cut and mark on workpiece.
2. Loosen adjustable lever on angle cutting
guide, use scale to set angle to match desired
cut, then tighten lever (see Figure 17).
Adjustable
Lever
Angle
Cutting
Guide
Angle
Indicator
Tools Needed Qty
Square ............................................................... 1
Hex Wrench 5mm .............................................. 1
To square 90° guide with upper blade:
1. Loosen (2) cap screws securing 90° guide.
2. Use cutting lever to fully lower blade.
3. Place square against hold-down bar and 90°
guide.
4. Keeping square even against hold-down bar,
adjust 90° guide so it is even against square,
then re-tighten cap screws on 90° guide to
secure setting.
5. Lift cutting lever to return blade to up position.
Scale
Figure 17. G0828/G0829 angle cutting guide
(blade cover removed for clarity).
3. Align workpiece with angle cutting guide and
position cut mark beneath blade to verify cut
angle.
4. Pull cutting lever to cut workpiece.
-18-
Model G0828/G0829 (Mfd. Since 02/17)
SECTION 4: ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
T25208—23-Pc. Deburring Set
Includes: 380-0060 double burr; 2-piece 3800088 handle; 380-0097, 380-0098, and 380-0091
holders; D25 and D40 scrapers; C20 countersink;
ES100 and ES200 blades (5 each); V13, and A13
blades; wrench and hex wrenches; and case.
H5614—Sheet Metal Gauge US Standard
Calibrated for sheet metal sized from 0- to
30-gauge. The front is marked with gauge
sizes, the back is marked with actual inch
measurements.
Figure 19. H5614 Sheet Metal Gauge.
Recommended Metal Protectants
G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96
®
12 oz Spray
®
T-9 12 oz Spray
®
®
Gun Treatment 12 oz Spray
®
Gun Treatment 4.5 oz Spray
T-9 4 oz Spray
Figure 18. Model T25208 Deburring Set.
Model G0828/G0829 (Mfd. Since 02/17)
Figure 20. Recommended products for protect-
ing unpainted cast-iron/steel parts on machinery.
-19 -
order online at www.grizzly.com or call 1-800-523-4777
Basic Eye Protection
T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5
T20502
T20452
T20503
H7194
Figure 21. Assortment of basic eye protection.
T21318—36" Slip Roll, 22 Gauge
Slip roll up to 36" wide and 22-gauge mild steel
with this benchtop sheet metal roller. Cast-iron
construction and 2" diameter ground and polished
rolls make this slip roll ideal for many fabricating uses. Features heavy bearings and gearing,
precision-ground cast-iron rollers, and the ability
to slip roll 3/16"-5/16" diameter rod/wire stock.
T20451
T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'
This heavy-duty anti-fatigue mat features beveled
edges and no-slip tread for safety and comfort.
Open-hole design allows liquid to drain through,
so it's perfect for wet or oily conditions. Measures
3' wide x 5' long x 3/8" thick.
Figure 23. Model T10456 Anti-Fatigue Mat.
G8782—10" Aviation Tin Snips - 3 pc. Set
Precision, hardened-steel cutting jaws ensure
that you’ll enjoy quality results each time you cut
sheet metal. Color-coded to provide quick identification, these snips feature thick grips for cutting
comfort and a positive lock to prevent accidents.
An efficient, economical alternative to high-priced,
name-brand aviation snips.
Figure 24. Model G8782 10" Tin Snips.
Figure 22. Model T21318 36" Slip Roll.
-20-
Model G0828/G0829 (Mfd. Since 02/17)
order online at www.grizzly.com or call 1-800-523-4777
G0830—5" x 6" VS Metal-Cutting Bandsaw Set
Compact and powerful, the G0830 Metal-Cutting
Bandsaw provides variable-speed blade control
from 82–230 FPM, allowing you to conveniently
"dial-in" the optimum cutting speed for nearly any
type of metal workpiece size without having to first
stop and change belt positions. Cut through round
stock up to 5" in diameter and rectangular cuts up
to 4 -1/2" x 6" thick with ease.
G8780—Portable Hand Punch
Producing 1 ton of force, this hand punch has
a 16-gauge capacity in mild steel, brass and
aluminum. Much quicker and safer than drilling
thin stock and leaves no ragged edges. Includes
3/32", 1/8", 5/32", 3/16", 7/32", 1/4" and 9/32" dies
and wrenches.
Figure 25. Model G0830 5" x 6" Variable-Speed
Metal-Cutting Bandsaw.
H2867—Electric Sheet-Metal Shear
This electric sheet-metal shear is double insulated and features a 110V, 2.4A motor with 4500
strokes per minute. Width of cut: 5/32". Cuts 1/16"
mild steel and 3/64" stainless steel. Weighs 4 lbs.
Made in an ISO 9001 factory.
Figure 26. Model H2867 Electric Sheet Metal
Shear.
Figure 27. Model G8780 Portable Hand Punch.
T23085 —Pneumatic Nibbler
This pneumatic nibbler features a lightweight
aluminum housing and cuts up to 16-gauge
steel without leaving burrs or deformed edges.
Adjustable die can be turned to suit various cutting positions. Cuts at 3800 strokes per minute.
Features 1/4" NPT air inlet and working pressure
of 90 PSI.
Figure 28. Model T23085 Pneumatic Nibbler.
Model G0828/G0829 (Mfd. Since 02/17)
-21-
SECTION 5: MAINTENANCE
Schedule
For optimum performance from your shear, follow
this maintenance schedule and refer to any specific instructions given in this section.
Daily:
• Loose mounting bolts.
• Loose or damaged blade guard.
• Damaged or worn blades.
• Loose or bent support rods.
• Any other unsafe condition.
Weekly:
• Lubricate copper gibs.
Annually:
• Lubricate pivot cartridge bearings.
Clean the grease fittings (see Figure 29) to
prevent any contamination. Fit the nozzle of the
grease gun over the fitting and add one pump of
grease.
Fitting
Figure 29. Pillow bearing grease fittings.
Fitting
Copper Gibs
Oi l Ty p e ..............................ISO 68 or Equivalent
Lubrication Frequency ..............................Weekly
Cleaning &
Protecting
Use a brush to clear away any metal debris from
the blades, hold-down bar, and the bed area in
front of the blades. Use a shop rag to carefully
apply a thin coat of quality metal protectant (see
Page 19 for offerings from Grizzly) to all exposed
surfaces of the blades to prevent corrosion.
Lubrication
Pillow Bearings
Gre as e Typ e ......... Mobil 1 or NLGI#2 Equivalent
Grease Amount ..................................One Pump
Lubrication Frequency ........................... Annually
Each end of the upper blade frame slides between
two copper gibs (see Figure 30). Lubricate the
sliding surfaces of the copper gibs with a light film
of ISO 68 oil or equivalent.
Copper
Gibs
Upper
Blade
Frame
Figure 30. Lubricate the copper gibs with the
upper blade frame fully lowered.
Tool Needed Qty
Hex Wrench 4mm .............................................. 1
To lubricate copper gibs:
-22-
Fully lower blade. With hex wrench, remove blade
cover. Lubricate exposed areas of copper gibs.
Raise and lower cutting lever several times to
spread lubricant. Replace blade cover.
Model G0828/G0829 (Mfd. Since 02/17)
Review the troubleshooting and procedures in this section if a problem develops with your machine. If
you need replacement parts or additional help with a procedure, call our Technical Support.
gather the serial number and manufacture date of your machine before calling.
SECTION 6: SERVICE
Troubleshooting
Symptom Possible Cause Possible Solution
Shear will not cut
workpiece.
Cuts are not square. 1. 90° guide not square with blades.
Poor quality of cuts
(ripping or tearing).
Arm difficult to use. 1. Blade gap not correct.
1. Workpiece thickness exceeds shear
capacity.
2. Blades worn or damaged.
3. Blade gap not correct.
4. Not enough pressure applied to cutting
lever.
2. Rear work stop not parallel to blades.
3. Hold-down bar not properly securing
workpiece during cut.
4. Blade gap not correct.
1. Blade gap not correct.
2. Blades worn or damaged.
3. Gibs too loose.
2. Cutting lever movement difficult.
3. Gibs too tight.
1. Only use workpiece material that is within shear
capacity (Pages 5–6).
2. Sharpen/replace blades (Page 25).
3. Properly adjust blade gap (Page 24).
3. Safely increase pressure on cutting lever.
1. Adjust 90° guide square with blades (Page 18).
2. Properly adjust rear work stop parallel to blades
(Page 17).
3. Adjust hold-down bar for even pressure on
workpiece (Page 16).
4. Properly adjust blade gap (Page 24).
1. Properly adjust blade gap (Page 24).
2. Sharpen/replace blades (Page 25).
3. Properly adjust gibs (Page 27).
1. Properly adjust blade gap (Page 24).
2. Lubricate pillow bearings (Page 22) and copper gibs
(Page 22).
3. Properly adjust gibs (Page 27).
Note: Please
Model G0828/G0829 (Mfd. Since 02/17)
-23-
Adjusting Blade Gap
The gap between the upper and lower blades (as
they pass each other) must remain even along
the length of the blades to produce clean cuts.
Initially, this adjustment has been made at the
factory. However, over time and with normal wear,
you may need to re-adjust the blade gap.
If the paper does not cut cleanly after proper
adjustment of the upper blade, the blades may
need to be sharpened or replaced (refer to
Replacing Blades on Page 25).
Tools Needed Qty
Open-End Wrench 14mm .................................. 1
Hex Wrench 4mm .............................................. 1
Feeler Gauge 0.002" ......................................... 1
If the blade gap is too wide, the workpiece will
not cut correctly and show signs of bending, ripping, or tearing. If the blade gap is too narrow, the
upper blade will have difficulty lowering past the
lower blade and the cutting edges may become
damaged.
Checking Blade Gap
Use the shear to cut a piece of paper along the
full length of the blades. All cuts should be sharp
without bending or tearing the paper.
—If the blades do not cut the paper cleanly on
one end of the shear, the upper blade needs to
be adjusted on that end.
—If the blades do not cut the paper cleanly
along the entire length of the blades,
both ends of the upper blade need to be
adjusted.
To adjust upper blade:
1. Remove blade guard.
2. Loosen hex nuts on set screws identified for
adjustment in Checking Blade Gap (see
Figure 32).
Set Screw
Upper Blade
Figure 32. Adjusting set screws to align upper
blade with lower blade.
Hex Nut
Adjusting Upper Blade
The blade gap is controlled by four set screws and
hex nuts on the front and rear of each side of the
upper blade base (see Figure 31).
Blade
Adjustment
Set Screws
(left rear)
Figure 31. Upper blade adjustment set screws
(4 of 16 shown) on the G0828 and G0829.
-24-
3. Use feeler gauge to adjust blade gap to
0.002":
— To move blade toward front, rotate rear
set screws clockwise and front set screws
counterclockwise.
— To move blade toward back, rotate rear
set screws counterclockwise and front set
screws clockwise.
4. Repeat previous Checking Blade Gap procedure to test adjustments.
— If blade gap is correct, hold each set screw
in position and tighten its hex nut.
— If blade gap is not correct, repeat Steps
2–4 until cut is even.
5. Re-install blade guard when complete.
Model G0828/G0829 (Mfd. Since 02/17)
Replacing Blades
Both upper and lower blades are identical and
have two cutting edges, so that if one cutting edge
becomes dull, you can reverse the blade and use
the fresh, sharp cutting edge. Both blades can be
resharpened as an alternative to replacing.
If both cutting edges are dull, re-sharpen the
blades on a surface grinder and make sure they
stay flat along their entire length. If the blade
becomes too thin and the cap screws that secure
it extend beyond the opposite side of the cutting
edge, you will need to replace it. If the blade is
nicked or damaged, replace it. Contact Grizzly
at (800) 523-4777 or online at grizzly.com to purchase Part No. P08280010 (Model G0828), or
P08290010 (Model G0829). Keep an extra set of
blades on hand to avoid downtime.
Items Needed Qty
Another Person .................................................. 1
Wood Block 2x4 ................................................ 1
Heavy Leather Work Gloves.............................. 1
Hex Wrench 4mm, 5mm .................................... 1
Open-End Wrench 18mm .................................. 1
The shear blades or holddown bar can easily pinch,
crush, or amputate fingers
or other body parts. Always
keep hands, fingers, and
other body parts away from
the blades and hold-down
bar when removing blades.
3. Unscrew hex bolt from hold-down bar, then
remove spring, flat washer, and hold-down
bar (see Figure 34).
Hex Bolt
Washer
Spring
Hold-Down
Bar
To remove/re-install upper blade:
1. Remove blade guard.
2. Loosen hex nut, then loosen hex bolt to
release spring tension on hold-down bar (see
Figure 33).
Hex Nut
Upper Blade Base
Figure 33. Loosening hex nut to release spring
tension on hold-down bar.
Hex
Bolt
Hold-
Down
Bar
Figure 34. Removing hold-down bar.
4. With blade fully raised, place wood block
under open side of upper blade to prevent it
from dropping in Step 5 (see Figure 35).
Figure 35. Use a wood block to keep blade from
dropping during the removal process.
5. Remove cap screws (7 on G0828; 11 on
G0829) and blade. Have another person
wearing heavy leather work gloves hold
blade during removal.
Model G0828/G0829 (Mfd. Since 02/17)
-25-
6. Clean blade with mineral spirits, then apply
thin coat of quality metal protectant before
re-installing blade.
7. Reverse Steps 1–5 to re-install blade.
To remove/re-install lower blade:
1. Loosen cap screws securing support rods to
rear work stop assembly. Remove assembly.
2. Remove (2) outer cap screws from lower
cover, and cap screws (3 on G0828; 5 on
G0829) from upper cover (see Figure 36).
Remove
Cap
Screws
3. Loosen cap screws securing lower blade to
frame (see Figure 37). G0828 uses 7 cap
screws; G0829 uses 11 cap screws.
Lower Blade
Figure 37. Lower blade removal (viewed from
bottom).
4. Have another person wearing heavy leather
work gloves support blade and remove it.
5. Clean blade with mineral spirits, then apply
thin coat of quality metal protectant before
re-installing blade.
6. Reverse Steps 1–3 to re-install blade.
Figure 36. Remove rear lower cover cap screws
to access lower blade (G0828 shown).
7. Check and adjust blade gap, following procedures on Page 24.
-26-
Model G0828/G0829 (Mfd. Since 02/17)
Adjusting Gibs
2. On each side of shear, loosen hex nuts on gib
set screws (see Figure 39).
There are two copper gibs on each end of the
upper blade base (see Figure 38). They are made
of copper so the plates wear instead of the upper
blade base. Each copper gib screws into a steel
plate and is adjusted with four set screws and hex
nuts. The set screws maintain pressure between
the copper gibs and upper blade base to keep the
movement tight and precise.
Copper
Gibs
Steel
Plates
Upper Blade
Frame
(Lowered)
Note: On front, two gib set screws are above
bed and two gib set screws are beneath bed.
Gib Set
Screws,
Hex Nuts
(rear)
Figure 39. Gib set screws and hex nuts.
3. Using wrench to keep hex nut slack, use hex
wrench to tighten all gib set screws in even
increments until gibs are snug against upper
blade base (see Figure 40). Back off each
set screw
ening hex nut.
1
⁄8 turn and hold in place while tight-
x 4
Figure 38. Gib operation.
If the gibs are too loose, the quality of the cuts will
suffer because the movement will be sloppy when
the cutting lever is pulled down. If the gibs are too
tight, it will be difficult to lower the upper blade,
and the cutting edges of the blades may become
damaged.
The goal of adjusting the gibs is to keep the frontto-back movement of the sliding shafts snug without interfering with the sliding action.
Tools Needed Qty
Open-End Wrench 14mm .................................. 1
Hex Wrench 4mm .............................................. 1
To adjust gibs:
1. Remove blade guard.
Figure 40. Tightening gib set screw.
4. Make a test cut to check sliding action of
knives. If necessary, rotate set screws clockwise to tighten gib or counterclockwise to
loosen, then repeat test cut and adjust until
you are satisfied with gib adjustment and
shearing action.
5. Hold set screws with hex wrench and retighten hex nuts (see Figure 40).
Model G0828/G0829 (Mfd. Since 02/17)
6. Check and adjust blade gap (see Page 24).
7. Re-install blade guard.
-27-
SECTION 7: PARTS
REF PART # DESCRIPTION REF PART # DESCRIPTION
G0828 Parts
25
50
49
48
13
13
41
18
54
41
46
43
3
4
51
41
42
24
30
28
4
3
39
8
47
22
28
20
26
19
21
28
44
31
53
41
39
27
2
10
14
52
26
10
27
15
16
28
44
29
17
28
1 P0828001 FRAME 28 P0828028 FLAT WASHER 6MM
2 P0828002 UPPER BLADE FRAME 29 P0828029 CAP SCREW M6-1 X 12 SS
3 P0828003 PLATE 8 X 20 X 350 STEEL 30 P0828030 ADJUSTABLE HANDLE 49L, M6-1 X 25
4 P0828004 GIB 4 X 20 X 350 COPPER 31 P0828031 FLAT WASHER 10MM
5 P0828005 CAM COUPLER 32 P0828032 CAP SCREW M10-1.5 X 25
6 P0828006 CAM 33 P0828033 KEY 8 X 8 X 40
7 P0828007 CAM SHAFT 34 P0828034 KEY 8 X 8 X 50
8 P0828008 CAM RING 35 P0828035 SET SCREW M6-1 X 10
9 P0828009 CAM SHAFT LEVER 36 P0828036 SET SCREW M8-1.25 X 10
10 P0828010 BLADE 11 X 50 X 680MM 37 P0828037 HEX BOLT M10-1.5 X 45
11 P0828011 CUTTING LEVER 30 X 800MM 38 P0828038 HEX NUT M10-1.5
12 P0828012 ANGLE CUTTING GUIDE 39 P0828039 ROLL PIN 6 X 20
13 P0828013 REAR SUPPORT ROD 40 P0828040 90° GUIDE
14 P0828014 BLADE GUARD 41 P0828041 FLAT WASHER 8MM
15 P0828015 LOWER COVER 42 P0828042 KNURLED THUMB SCREW M8-1.25 X 45
16 P0828016 PILLOW BEARING UCF205 43 P0828-43 HEX NUT M8-1.25
17 P0828017 UPPER COVER 44 P0828044 HEX NUT M6-1
18 P0828018 REAR STOP SLIDER BRACKET (ALUM) 45 P0828045 SET SCREW M8-1.25 X 25
19 P0828019 REAR STOP PLATE 46 P0828046 SET SCREW M8-1.25 X 30
20 P0828020 REAR STOP SLIDER PLATE 47 P0828047 SHAFT SPACER 16MM
21 P0828021 LOWER COVER PANEL (L) 48 P0828048 COMPRESSION SPRING 3 X 22 X 94
22 P0828022 LOWER COVER PANEL (R) 49 P0828049 FLAT WASHER 12MM
23 P0828023 ANGLE CUTTING SCALE 50 P0828050 HEX NUT M12-1.75
24 P0828024 HOLD-DOWN BAR 51 P0828051 SET SCREW M8-1.25 X 30
25 P0828025 HEX BOLT M12-1.75 X 145 52 P0828052 RETAINING BLOCK
26 P0828026 CAP SCREW M6-1 X 16 SS 53 P0828053 LOCK NUT M8-1.25
27 P0828027 FLAT HD SCR M5-.8 X 10 54 P0828054 CAP SCREW M8-1.25 X 25
28
29
31
32
26
27
37
38
12
31
23
35
34
5
40
1
41 41
43
45
36
6
33
7
11
9
32
31
16
43
45
-28-
Model G0828/G0829 (Mfd. Since 02/17)
15
16
24
REF PART # DESCRIPTION REF PART # DESCRIPTION
13
17
54
42
28
18
27
29
19
42
28
53
43
42
41
38
25
G0829 Parts
45
29
28
20
21
40
8
5
10
37
39
42
3
4
7
51
52
10
50
49
7
46
33
34
11
16
31
32
27
29
28
14
9
4
26
3
48
23
47
35
36
31
39
6
2
8
42
43
38
30
12
44
22
1
1 P0829001 FRAME 28 P0829028 FLAT WASHER 6MM
2 P0829002 UPPER BLADE FRAME 29 P0829029 CAP SCREW M6-1 X 12 SS
3 P0829003 PLATE 8 X 20 X 350 STEEL 30 P0829030 ADJUSTABLE HANDLE 49L, M6-1 X 25
4 P0829004 GIB 4 X 20 X 350 COPPER 31 P0829031 FLAT WASHER 10MM
5 P0829005 CAM COUPLER 32 P0829032 CAP SCREW M10-1.5 X 25
6 P0829006 CAM 33 P0829033 SET SCREW M8-1.25 X 10
7 P0829007 CAM SHAFT 34 P0829034 KEY 8 X 8 X 40
8 P0829008 CAM RING 35 P0829035 KEY 8 X 8 X 50
9 P0829009 CAM SHAFT LEVER 36 P0829036 SET SCREW M6-1 X 10
10 P0829010 BLADE 11 X 50 X 1075MM 37 P0829037 FLAT HD SCR M5-.8 X 10
11 P0829011 CUTTING LEVER 30 X 800MM 38 P0829038 ROLL PIN 6 X 20
12 P0829012 ANGLE CUTTING GUIDE 39 P0829039 SHAFT SPACER 16MM
13 P0829013 REAR SUPPORT ROD 40 P0829040 HEX NUT M6-1
14 P0829014 BLADE GUARD 41 P0829041 SET SCREW M8-1.25 X 30
15 P0829015 LOWER COVER 42 P0829042 FLAT WASHER 8MM
16 P0829016 PILLOW BEARING UCF205 43 P0829043 HEX NUT M8-1.25
17 P0829017 UPPER COVER 44 P0829044 SET SCREW M8-1.25 X 25
18 P0829018 REAR STOP PLATE 45 P0829045 CAP SCREW M8-1.25 X 25
19 P0829019 REAR STOP SLIDER PLATE 46 P0829046 HEX BOLT M10-1.5 X 45
20 P0829020 LOWER COVER PANEL (L) 47 P0829047 HEX NUT M10-1.5
21 P0829021 LOWER COVER PANEL (R) 48 P0829048 COMPRESSION SPRING 3 X 22 X 94
22 P0829022 ANGLE CUTTING SCALE 49 P0829049 FLAT WASHER 12MM
23 P0829023 HOLD-DOWN BAR 50 P0829050 HEX NUT M12-1.75
24 P0829024 HEX BOLT M12-1.75 X 145 51 P0829051 SET SCREW M8-1.25 X 30
25 P0829025 REAR STOP SLIDER BRACKET (ALUM) 52 P0829052 RETAINING BLOCK
26 P0829026 90° GUIDE 53 P0829053 LOCK NUT M8-1.25
27 P0829027 CAP SCREW M6-1 X 16 SS 54 P0829054 KNURLED THUMB SCREW M8-1.25 X 45
Model G0828/G0829 (Mfd. Since 02/17)
-29-
Labels & Cosmetics
REF PART # DESCRIPTION REF PART # DESCRIPTION
G0828
82
G0829
83
84
85
81
86
82
83
84
81
85
86
Note: Labels on both machines
are identical except for machine
identification and model number.
81 P0828081 SAFETY GLASSES LABEL 85 P0828085 MODEL NUMBER LABEL (G0828)
82 P0828082 MACHINE ID LABEL (G0828) 85 P0829085 MODEL NUMBER LABEL (G0829)
82 P0829082 MACHINE ID LABEL (G0829) 86 P0828086 GRIZZLY.COM LABEL
83 P0828083 READ MANUAL LABEL 87 P0828087 TOUCH-UP PAINT, GRIZZLY GREEN
84 P0828084 AMPUTATION DANGER LABEL
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-30-
Model G0828/G0829 (Mfd. Since 02/17)
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____ Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Loading...
