Grizzly G0826 User guide

MODEL G0826

"EASY FEEDER"

POWER FEEDER

OWNER'S MANUAL

(For models manufactured since 06/20)

COPYRIGHT © AUGUST, 2017 BY GRIZZLY INDUSTRIAL, INC. REVISED MAY, 2020 (CS)

WARNING : NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL18915 PRINTED IN TAIWAN

V2.05.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info
Manual Accuracy
Identification
Controls & Components
Machine Data Sheet

................................................................................................................................ 2

........................................................................................................................ 2

............................................................................................................................... 3

............................................................................................................. 4

................................................................................................................... 6

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Power Feeders

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking
Needed for Setup
Inventory
Cleanup
Site Considerations
Assembly
Base Mounting
Test Run

SECTION 4: OPERATIONS

Operation Overview.................................................................................................................. 20

Basic Use & Care
Changing Speeds
Vertical/Incline Feeding

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE......................................................................................................... 25

Schedule
Cleaning & Protecting
Lubrication

................................................................................................................................ 13

................................................................................................................................... 13

.................................................................................................................................... 14

.................................................................................................................................. 15

................................................................................................................................... 18

.................................................................................................................................. 25

................................................................................................................................ 25

....................................................................................................................... 8

............................................................................................... 8

....................................................................................... 10

...................................................................................................... 11

....................................................................................................................... 13

..................................................................................................................... 13

.................................................................................................................. 14

......................................................................................................................... 17

........................................................................................................... 20

..................................................................................................................... 21

..................................................................................................................... 22

............................................................................................................ 22

......................................................................................................... 24

.............................................................................................................. 25

SECTION 7: SERVICE

Troubleshooting
Roller Replacement

SECTION 8: WIRING

Wiring Safety Instructions

Wiring Diagram......................................................................................................................... 31

SECTION 9: PARTS

Column & Stand
Labels & Cosmetics

WARRANTY & RETURNS

................................................................................................................... 28

........................................................................................................................ 28

.................................................................................................................. 29

...................................................................................................................... 30

........................................................................................................ 30

....................................................................................................................... 32

....................................................................................................................... 34

................................................................................................................. 36

............................................................................................................. 37

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model G0826 (Mfd. Since 06/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

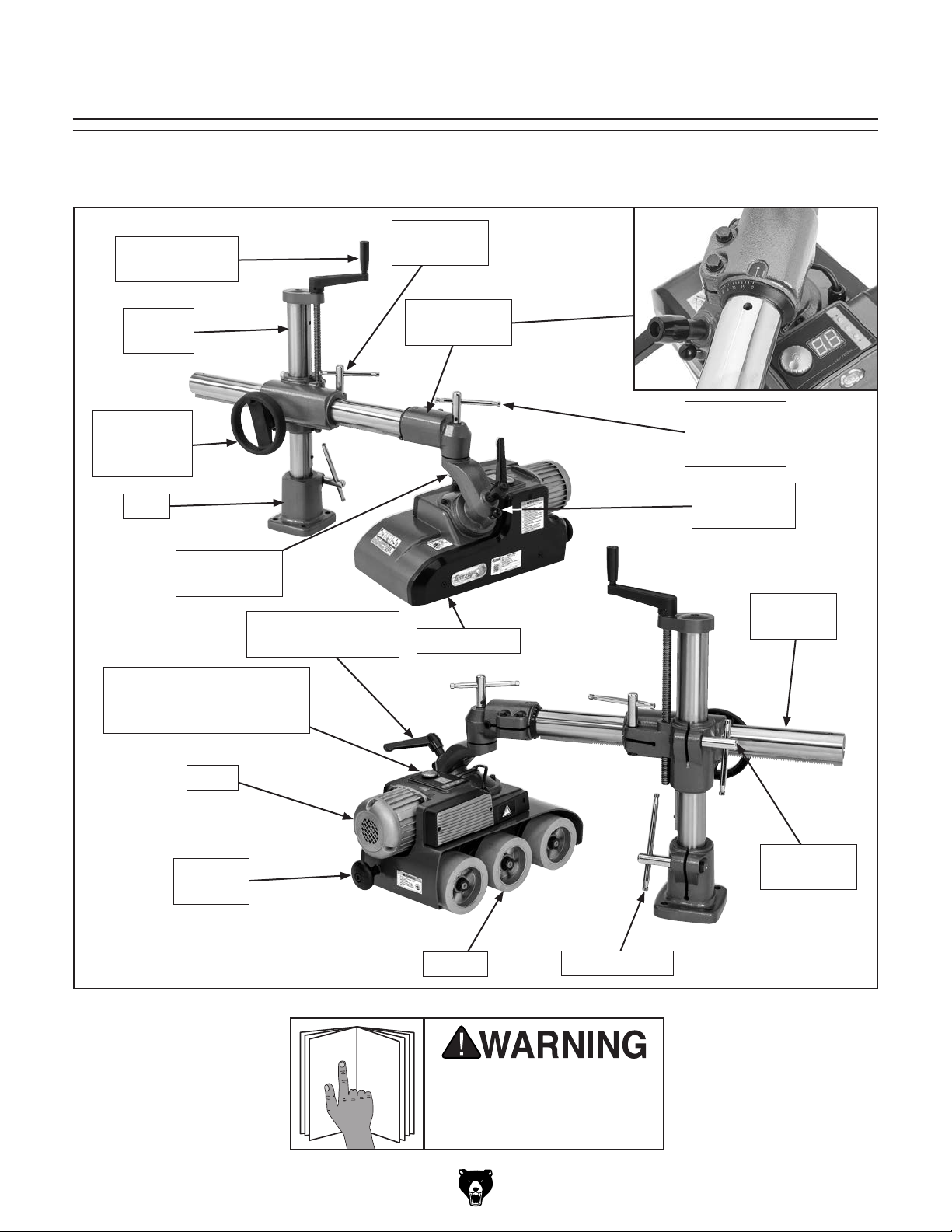

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

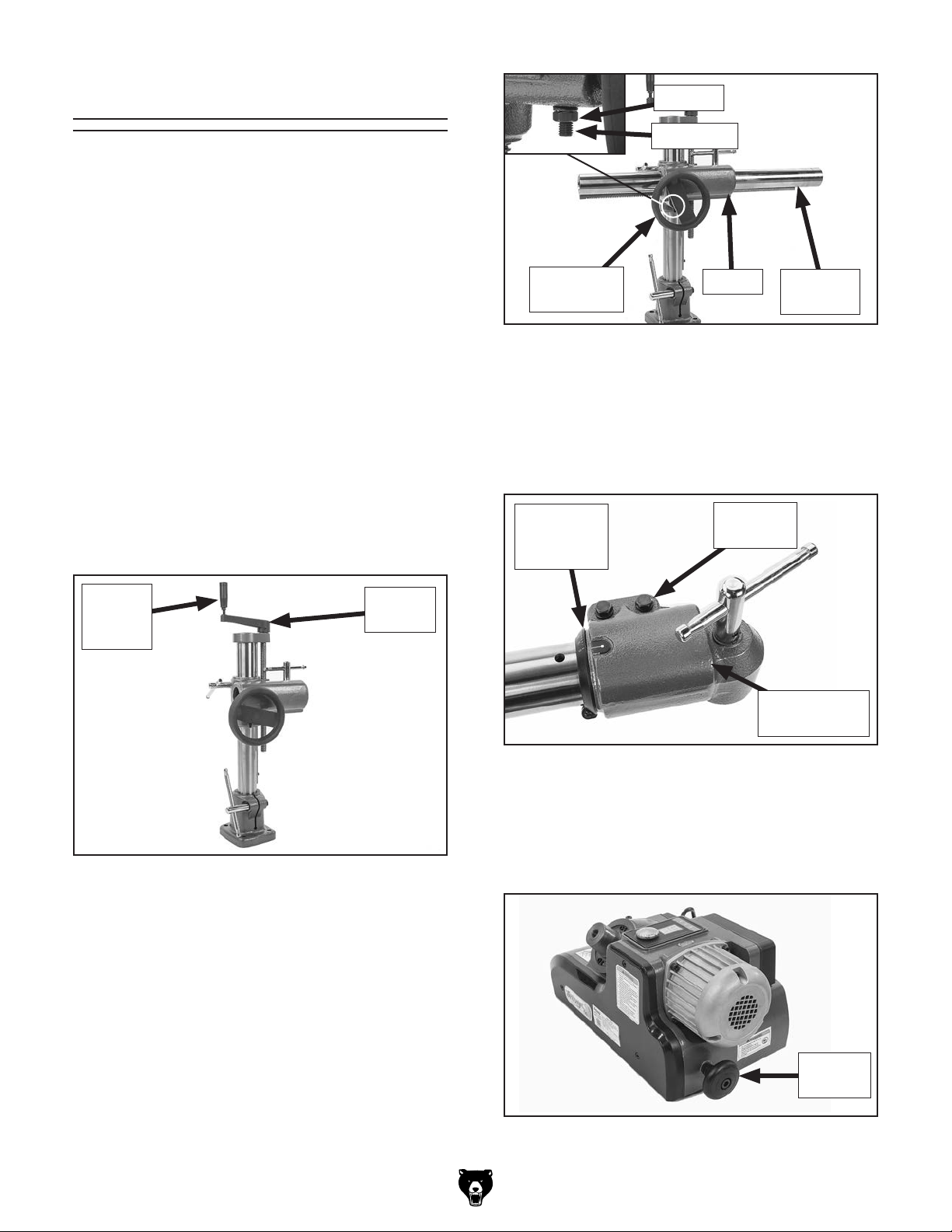

Horizontal

Vertical Travel

Handle

Travel Lock

Vertical
Column

Horizontal

Travel

Handwheel

Base

Lower

Elbow-Joint

Lower Elbow-Joint

Variable-Speed Control

Panel (refer to Page 4 for

more details)

Lock

Upper

Elbow-Joint

Upper

Elbow-Joint

Lock

Swivel Lock

Pin

Overarm

Shaft

Chain Cover

Motor

Rotation

Handle

Model G0826 (Mfd. Since 06/20)

Rollers

using machine.

Vertical

Travel Lock

Rotation Lock

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to the following figures and descriptions to
become familiar with the basic controls and com­ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.

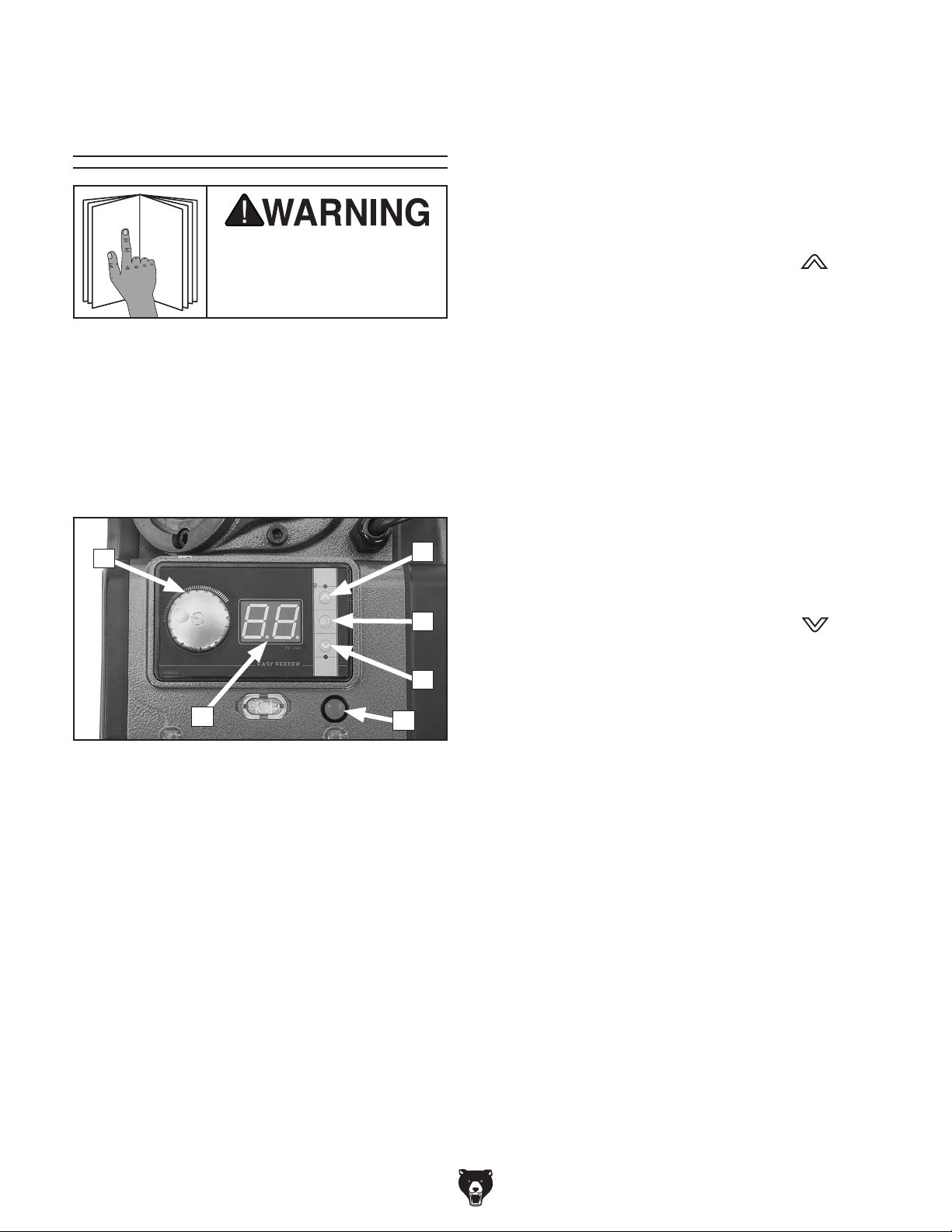

Variable-Speed Control Panel

A

B

Motor Start/Speed Dial: Starts and stops

A.

motor and controls feed rate from 7–72 FPM.
To start motor, press dial until it beeps and
control panel glows red. To stop motor, press
dial again. To adjust feed rate, press SET
button, then rotate dial clockwise to increase
feed rate or counterclockwise to decrease
feed rate.

B. Forward Feed Direction Button ( ):
Selects forward feed direction. When pressed,

green light above button illuminates, indicat­ing button is selected. To change feed direc­tion, press feed direction button opposite of
currently selected feed direction twice (2X).
New feed direction will be set at lowest speed
(7 FPM). Press motor start/speed dial twice
to restore original feed rate.

SET Button: Enables changes to feed rate.

C.

When pressed, selected feed rate flashes on
control panel for 10 seconds, during which
time feed rate can be selected with motor
start/speed dial. When panel stops flash­ing, feed rate is locked—until SET button is
pressed again.

C

D

F

Figure 1. Variable-speed control panel features.

E

Reverse Feed Direction Button ( ):

D.
Selects reverse feed direction. Green light

below button illuminates, indicating button is
selected.

E. ON/OFF Switch: When pressed, enables or

disables power.

Variable-Speed Readout: Displays feed rate

F.

in FPM.

-4-

Model G0826 (Mfd. Since 06/20)

Power Feeder & Column Controls

L

I

G

Figure 2. Location of column controls.

G. Angle Adjustment Scale: Indicates angle

that power feeder assembly is rotated relative
to overarm shaft. Loosen hex bolts on upper
elbow-joint to allow rotation; tighten hex bolts
to secure power feeder angle.

H. Horizontal Travel Lock: Locks horizontal

position of power feeder.

I. Vertical Travel Handle: Adjusts vertical posi-

tion of overarm shaft and power feeder (when
vertical travel lock is loosened).

J. Vertical Travel Lock: Locks power feeder

height setting.

H

J

M

O

K

Figure 3. Location of power feeder and column

controls.

K. Horizontal Travel Handwheel: Moves over-

arm shaft horizontally and adjusts lateral
position of power feeder (when horizontal
travel lock (G) is loosened).

Upper Elbow-Joint Lock: Allows lower

L.

elbow and power feeder to rotate around
upper elbow. Tighten to secure lower elbow.

Lower Elbow-Joint Lock: Allows power

M.

feeder to rotate on its axis when swivel lock
pin is disengaged. Tighten to secure power
feeder swivel position.

N. Swivel Lock Pin: Allows power feeder to

rotate when disengaged. Locks power feeder
in horizontal position when engaged in either
of two detents.

N

Model G0826 (Mfd. Since 06/20)

O. Rotation Lock: Allows vertical column to

rotate when loosened. Prevents vertical col­umn from rotating when tightened.

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0826 EASY FEEDER POWER FEEDER

Product Dimensions:

Weight.............................................................................................................................................................. 117 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 37-1/2 x 20-1/2 x 29-1/2 in.

Footprint (Length x Width)......................................................................................................................... 5-1/2 x 6 in.

Shipping Dimensions:

Carton #1

Type........................................................................................................................................... Cardboard Box

Content................................................................................................................................................. Machine

Weight...................................................................................................................................................... 54 lbs.

Length x Width x Height............................................................................................................. 23 x 13 x 12 in.

Must Ship Upright.......................................................................................................................................... No

Carton #2

Type........................................................................................................................................... Cardboard Box

Content...................................................................................................................................................... Stand

Weight...................................................................................................................................................... 71 lbs.

Length x Width x Height............................................................................................................. 31 x 13 x 13 in.

Must Ship Upright.......................................................................................................................................... No

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 2.3A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 9 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 6-15

Switch Type................................................................................................................................ Push-Button ON/OFF

Motors:

Main

Main Specifications:

-6-

Horsepower........................................................................................................................... 500 Watt (2/3 HP)

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 2.3A

Speed...................................................................................................................................... 350 – 4800 RPM

Type.......................................................................................................................................................... BLDC

Power Transfer ................................................................................................................................. Gear Drive

Bearings........................................................................................................ Sealed & Permanently Lubricated

Model G0826 (Mfd. Since 06/20)

Operation Info

Number of Feed Speeds....................................................................................................................... Variable

Feed Speeds.................................................................................................................................... 7 – 72 FPM

Swing.................................................................................................................................................... 360 deg.

Vertical Movement............................................................................................................................. 6-11/16 in.

Horizontal Movement................................................................................................................................. 17 in.

Rotation................................................................................................................................... Forward/Reverse

Roller Info

Number of Rollers............................................................................................................................................. 3

Roller Width......................................................................................................................................... 2-5/16 in.

Roller Diameter...................................................................................................................................... 4-3/4 in.

Roller Suspension..................................................................................................................................... 3/4 in.

Maximum Height Rollers Parallel Table Surface................................................................................... 7-1/2 in.

Construction Info

Roller...................................................................................................................................................... Rubber

Housing...................................................................................................................................... Cast Aluminum

Supports............................................................................................................................................... Cast Iron

Column................................................................................................................................................. Cast Iron

Paint Type/Finish.................................................................................................................................... Enamel

Other

Column Diameter................................................................................................................................... 2-1/4 in.

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Variable-Speed Feed Adjustment Dial
Large Feed Speed Digital Readout
Push-Button ON/OFF Switch and Feed Direction
Crank Handle Vertical Adjustment
7" Max. Workpiece Clearance
Rack-and-Pinion Horizontal Movement

Model G0826 (Mfd. Since 06/20)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0826 (Mfd. Since 06/20)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G0826 (Mfd. Since 06/20)

-9-

Additional Safety for Power Feeders

Serious injury or death can occur from getting hands, clothing, or jewelry entangled in moving
parts of power feeder or being pulled into cutting tool on attached machinery. Workpieces
ejected by attached machine can strike operator or bystanders with significant force, causing
impact injuries. To minimize risk of injury, anyone operating this machine MUST completely
heed hazards and warnings below.

HAND SAFETY. To reduce risk of accidental

entanglement/pinch injuries between power feed­er rollers and workpiece, or contact with blade/cut­ter of associated machine, keep hands away from
rotating parts of power feeder. Turn power feeder
and associated machine OFF before removing
chips, sawdust, or cutoffs—DO NOT use your
hands.

INSTALLING GUARDS. To reduce risk of kick­back and accidental contact with blade/cutter
of associated machine, always install guards,
fences, and hold-downs before starting attached
machine and power feeder. Repair or replace
guards promptly if they become damaged.

KICKBACK. Occurs when workpiece is ejected
from machine at a high rate of speed. To reduce
risk of kickback-related injuries (blindness, broken
bones, bruises, amputation, severe lacerations,
and death), use quality workpieces and proper
setup or maintenance of power feeder or associ­ated machine. Never stand in path of workpiece.

VERIFY EACH SETUP. An improperly adjusted
power feeder can increase risk of kickback,
because it will continue feeding even if stock is
not properly positioned for cut. Ensure that power
feeder is set up correctly and firmly secured
before feeding workpiece.

FEATHERBOARD. When cutting long or large
stock that is difficult to feed properly, use a feath­erboard with power feeder (on the infeed side) to
maintain even pressure and control of workpiece
against fence, and to help reduce risk of kickback.

FEED WORKPIECE PROPERLY. To reduce risk
of kickback, verify blade or cutter of associated
machine is at full speed before feeding stock
with power feeder. Avoid feeding workpiece too
quickly. Always verify power feeder wheels are
slightly lower than workpiece to ensure it will not
slip during cutting operation. Stop power feeder
BEFORE stopping cutting tool.

WORKPIECE SUPPORT. Loss of workpiece con­trol while feeding can increase risk of kickback.
Support workpiece continuously during opera­tion as required. Use auxiliary stands or support
tables for long or wide stock.

ADJUSTMENTS/MAINTENANCE. Make sure
power feeder and associated machine are turned
OFF, disconnected from power, and all moving
parts are completely stopped before doing adjust­ments or maintenance.

ATTACHED MACHINERY. Follow all warnings
and safety information for attached machine doing
cutting work.

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious
personal injury may occur.

-10 -

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per­sonal injury, damage to equipment, or poor
work results.

Model G0826 (Mfd. Since 06/20)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Full-Load Current Rating at 220V .... 2.3 Amps

Model G0826 (Mfd. Since 06/20)

Circuit Requirements

Nominal Voltage .........20 8V, 2 20V, 230V, 24 0V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit
Plug/Receptacle

........................................... Single-Phase

......................... 15 Amps

............................. NEMA 6-15

-11-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

No adapter should be used with plug. If
plug does not fit available receptacle, or if

process. DO NOT connect to power until

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Pin

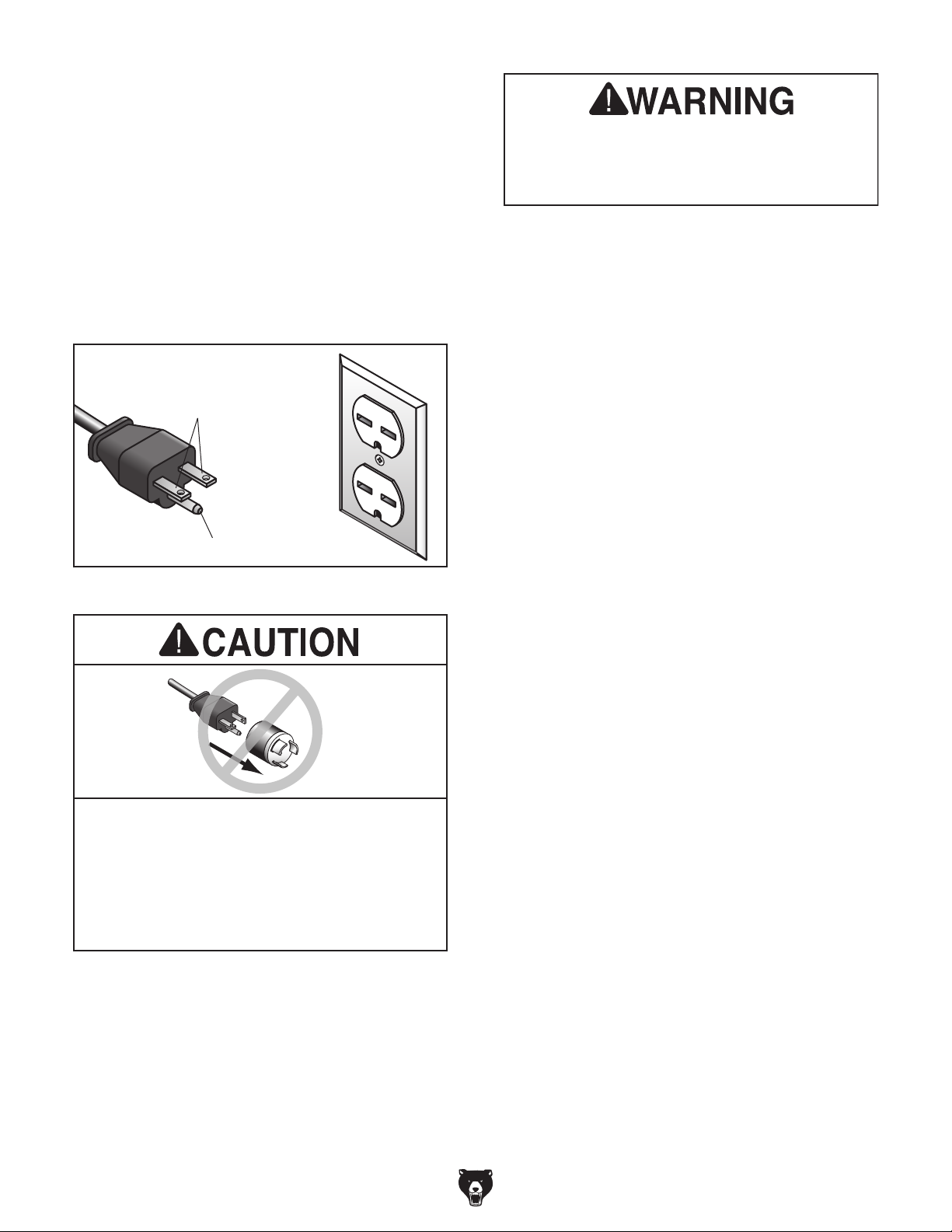

Figure 4. Typical 6-15 plug and receptacle.

machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

-12-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................16 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0826 (Mfd. Since 06/20)

The following items are needed, but not included,
for the setup/assembly of this machine.

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

at [phone].

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Unpacking

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

If items are damaged

call us immediately

Save all packaging materials until

Needed for Setup

Description Qty

• Precision Level ........................................... 1

• Safety Glasses (for each person) ............... 1

• Cleaner/Degreaser .................... As Needed

• Shop Rags .................................. As Needed

• Disposable Gloves ..................... As Needed

• Hex Wrench 4, 5, 8mm ........................1 Ea.

• Phillips Head Screwdriver #2 ..................... 1

• C-Clamps ................................................... 2

• 12" 2x4 Wood Block ................................... 1

• Open-End Wrench 13, 17, 19mm .........1 Ea.

• Power Drill .................................................. 1

• Drill Bit & Tap ............................................. 1

• Optional Mounting Hardware ...... As Needed

• Med.-Grade Thread Locking Liquid ............ 1

• Gear Oil (80-90W) ...................... As Needed

Inventory

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

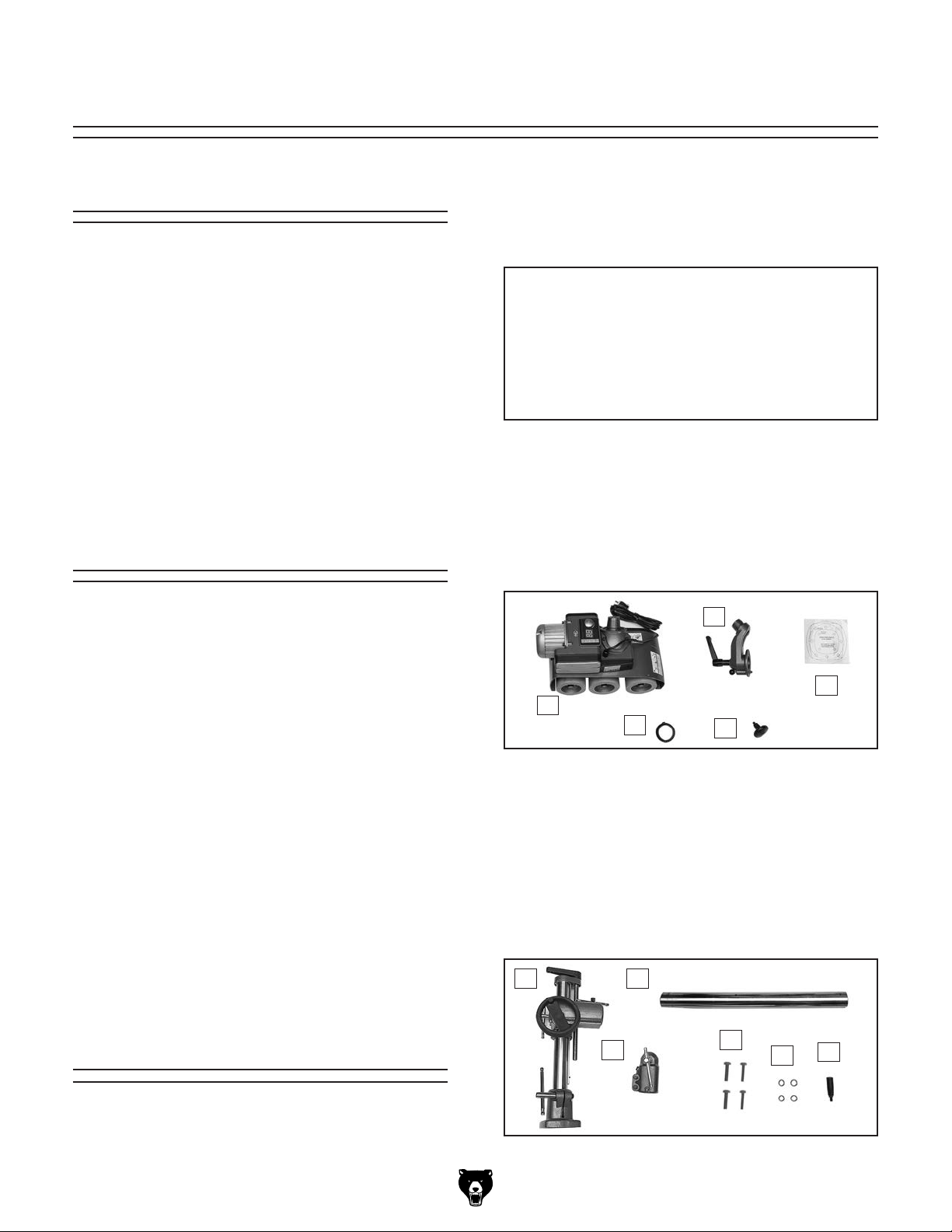

Box 1 (Figure 5) Qty

A. Power Feeder Assembly ............................ 1

B. Lower Elbow-Joint ...................................... 1

C. Angle Adjustment Ring/Indicator Sticker .... 1

D. Rotation Handle M10-1.5 ............................ 1

E. Base Bolt Pattern Template ........................ 1

B

E

A

C

Figure 5. Box 1 inventory.

Box 2 (Figure 6) Qty

F. Base and Vertical Column Assembly ......... 1

G. Upper Elbow-Joint ...................................... 1

H. Overarm Shaft ............................................ 1

I. Hex Bolts M12-1.75 x 50 (Mounting) ........... 4

J. Lock Washers 12mm (Mounting) ................ 4

K. Vertical Travel Handle M10-1.5 x 25 ........... 1

F

H

G

D

I

K

J

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

Model G0826 (Mfd. Since 06/20)

Figure 6. Box 2 inventory.

-13-

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the

Cleanup

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2. Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Put on safety glasses.

Site Considerations

Workbench Load

Placement Location

37½"

20½"

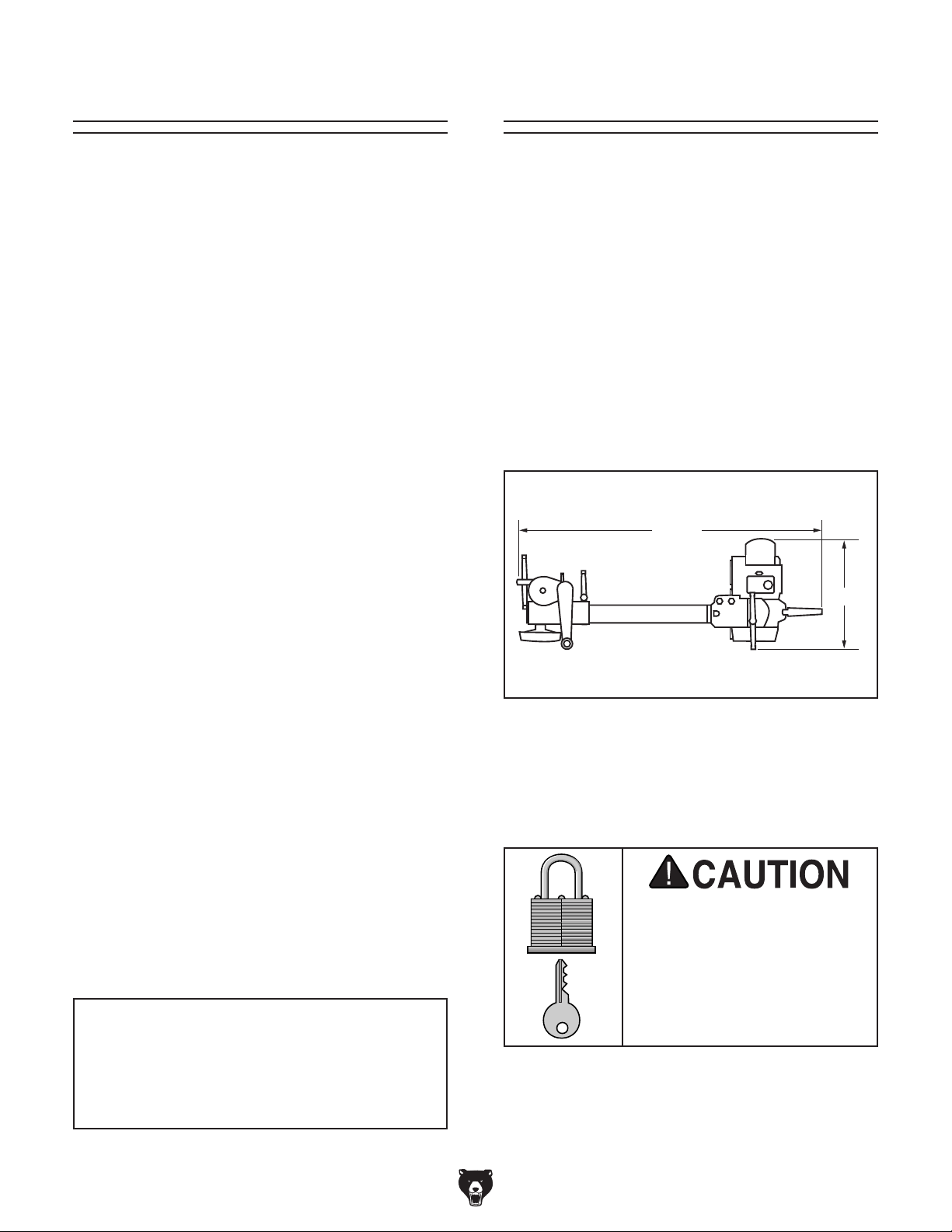

Figure 7. Minimum working clearances.

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur­faces. Always test on a small, inconspicu­ous location first.

-14-

Note: Power feeder can rotate 360° around the
vertical column, so be sure to situate machine so
it can freely rotate. The machine is shown here
with the overarm shaft fully extended.

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

Model G0826 (Mfd. Since 06/20)

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Needed for Setup and gather

listed items. To ensure the assembly process

parts that are cov-

Hex Nut

Set Screw

Tip: We recommend using a set of C-clamps to
temporarily secure the base while assembling the
power feeder to prevent it from tipping. You will
mount the power feeder to the machine table after
completing the assembly process. Refer to Base
Mounting on Page 17 for specific details.

To assemble machine:

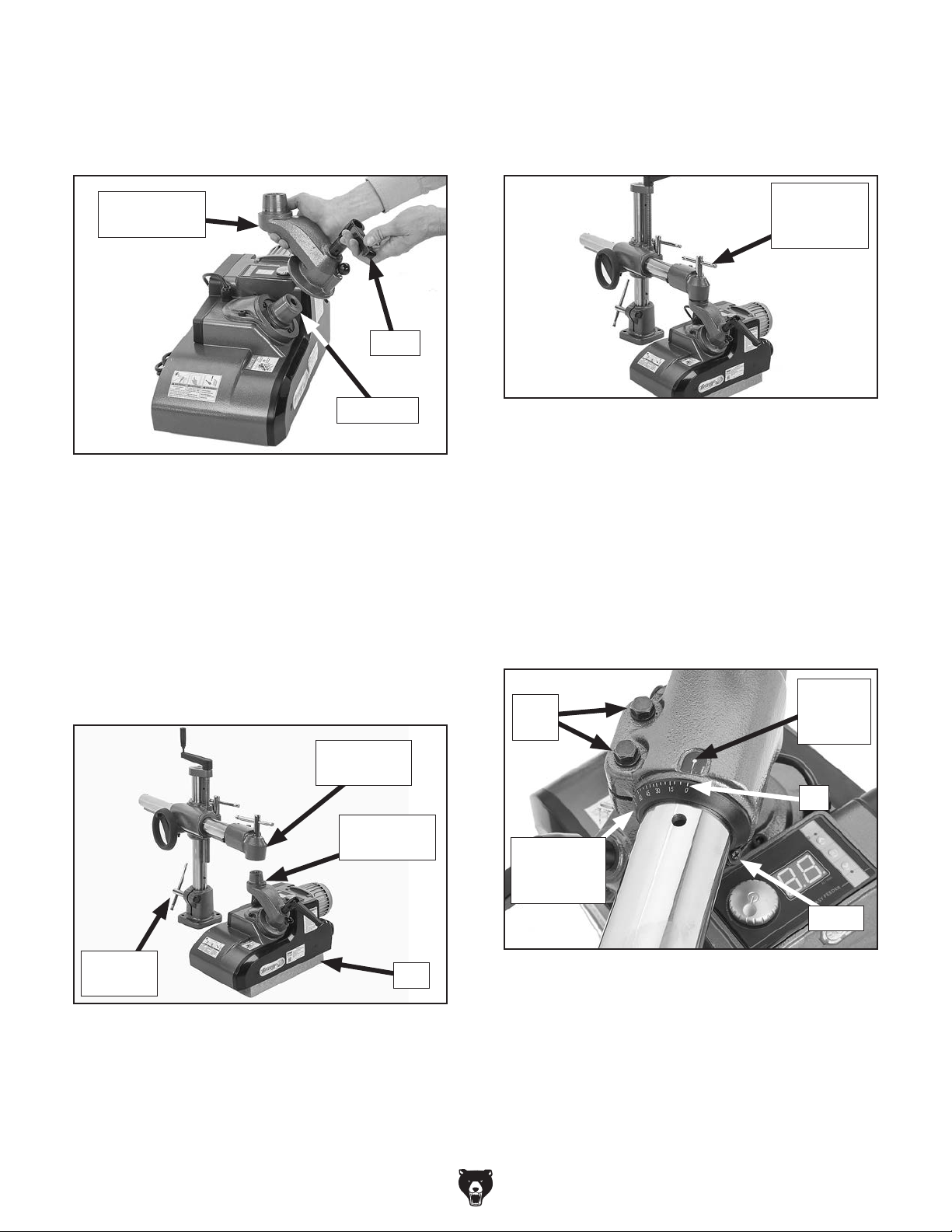

1. Place vertical column assembly onto machine

table top, then attach vertical travel handle to
vertical crank shown in Figure 8.

Vertical

Travel

Handle

Vertical

Crank

Horizontal

Handwheel

Figure 9. Overarm shaft installed onto vertical

4. Slide angle adjustment ring onto overarm

shaft, slide upper elbow-joint onto overarm
shaft, then tighten for now with one of the hex
bolts shown in Figure 10.

Angle

Adjustment

Ring

Sleeve

column.

Overarm

Shaft

Hex Bolt

(1 of 2)

Upper Elbow-

Joint

Figure 8. Vertical travel handle installed.

2. Loosen hex nut and set screw under hori-

zontal handwheel shown in Figure 9, then
remove horizontal handwheel.

Feed overarm shaft into sleeve of vertical

3.

column (see Figure 9). Re-install handwheel
and engage gears with overarm shaft teeth.
Re-tighten set screw and hex nut just enough
to secure handwheel.

Note: Do not overtighten set screw or hand

wheel will not rotate.

Model G0826 (Mfd. Since 06/20)

Figure 10. Angle adjustment ring installed onto

upper elbow-joint.

5. Attach rotation handle to power feeder (see
Figure 11) using pre-installed cap screw,

flange nut, and (2) flat washers.

Rotation

Handle

Figure 11. Rotation handle installed.

-15-

6. Attach lower elbow-joint to power feeder

assembly by threading lower elbow-joint lever
all the way into threads of axial hub of power
feeder (see Figure 12).

8. Position upper elbow-joint so internal
threads contact those inside lower elbow­joint, then fully tighten upper elbow-joint lock
(see Figure 14).

Lower

Elbow-Joint

Lever

Axial Hub

Figure 12. Attaching lower elbow-joint.

7. Loosen vertical and horizontal travel locks and

rotation lock, and use horizontal handwheel
and vertical travel handle to position upper
elbow-joint directly over hub of lower elbow­joint (see Figure 13).

Tip: Place a short (approx. 12" long) 2x4

under power feeder to make it level with table
top and make it easier to connect upper and
lower elbow-joints during next step.

Upper

Elbow-Joint

Upper

Elbow-Joint

Lock

Figure 14. Upper elbow-joint lock fully tightened.

Adjust rollers parallel to table top, then tight-

9.

en hex bolts shown in Figure 15.

Place indicator line sticker included with

10.

angle adjustment ring to upper elbow-joint, as
shown in Figure 15.

Position angle adjustment ring so it just con-

11.

tacts upper elbow-joint, align "0" on ring with
indicator, then tighten screw (see Figure 15).

Indicator

Hex

Bolts

Line

Sticker

"0"

Lower

Elbow-Joint

Rotation

Lock

Figure 13. Upper and lower elbow-joints aligned.

-16 -

2x4

Angle

Adjustment

Ring

Screw

Figure 15. Location of "0" on adjustment ring.

Model G0826 (Mfd. Since 06/20)

Base Mounting

Position the power feeder on the table top to
determine where to drill the base mounting holes
in order to maximize power feeder swing and
adjustment options.

Use the included base-bolt pattern template to
align the mounting holes. Consider the available
mounting choices for your needs: Through-Bolt

Mounting and Direct Mounting (discussed on
Page 18).

With either mounting choice, leave room to oper­ate the hand cranks and lock levers to position the
rubber rollers parallel with the table surface and
approximately
workpiece.

1

⁄8" lower than the thickness of the

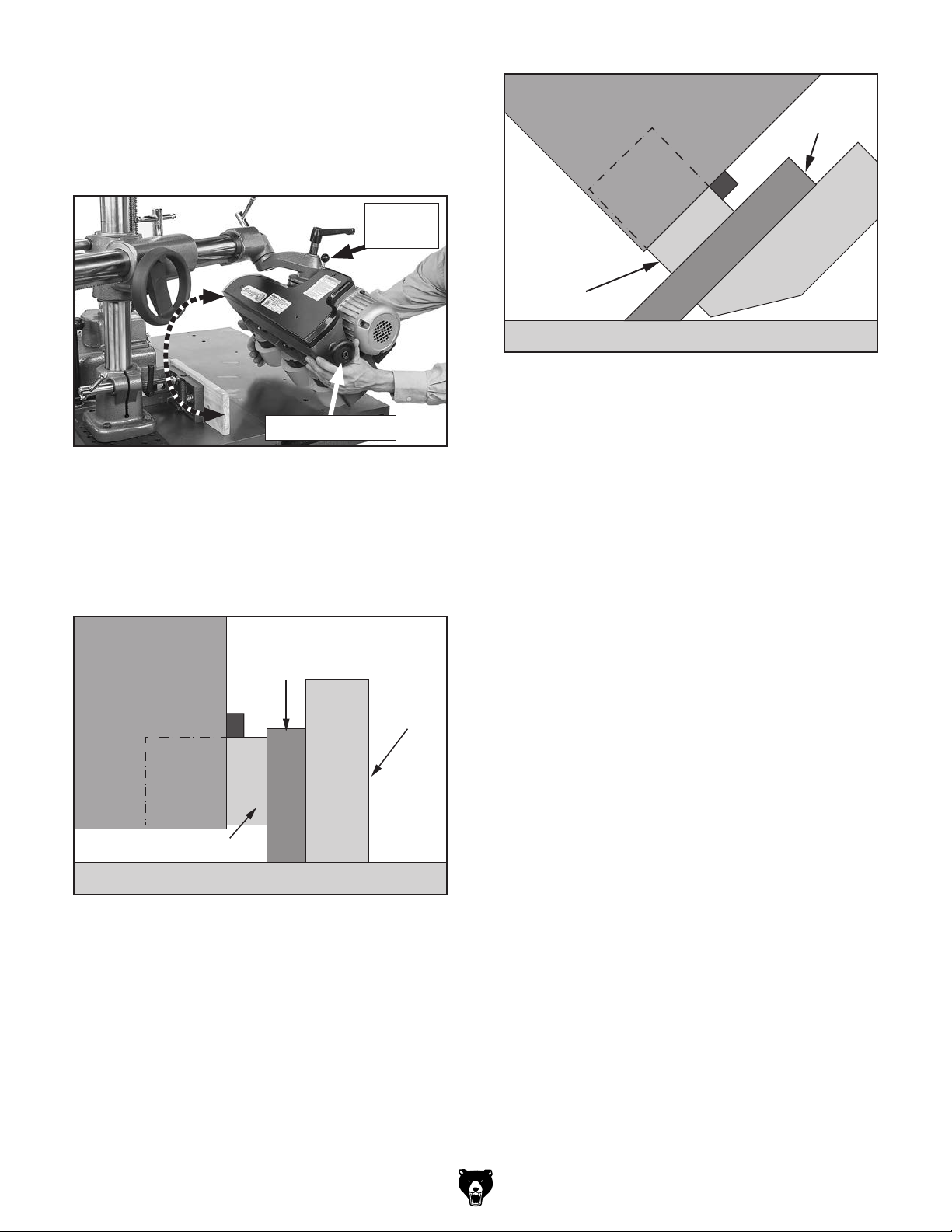

Also, aim the front of the power feeder slightly
towards the machine fence (see Figure 16)
with approximately 1° to 1.5° toe-in toward the
machine fence, so the rubber rollers lightly push
the workpiece against the fence during cutting
operations.

If cutting long or large stock that is difficult to feed
properly, use a featherboard before the power
feeder (on the infeed side) to maintain even pres­sure and control of the workpiece against the
fence.

4th-Roller

Models

Jointer

Fence Fence

Blade

Cutter

Feed

Cutterhead

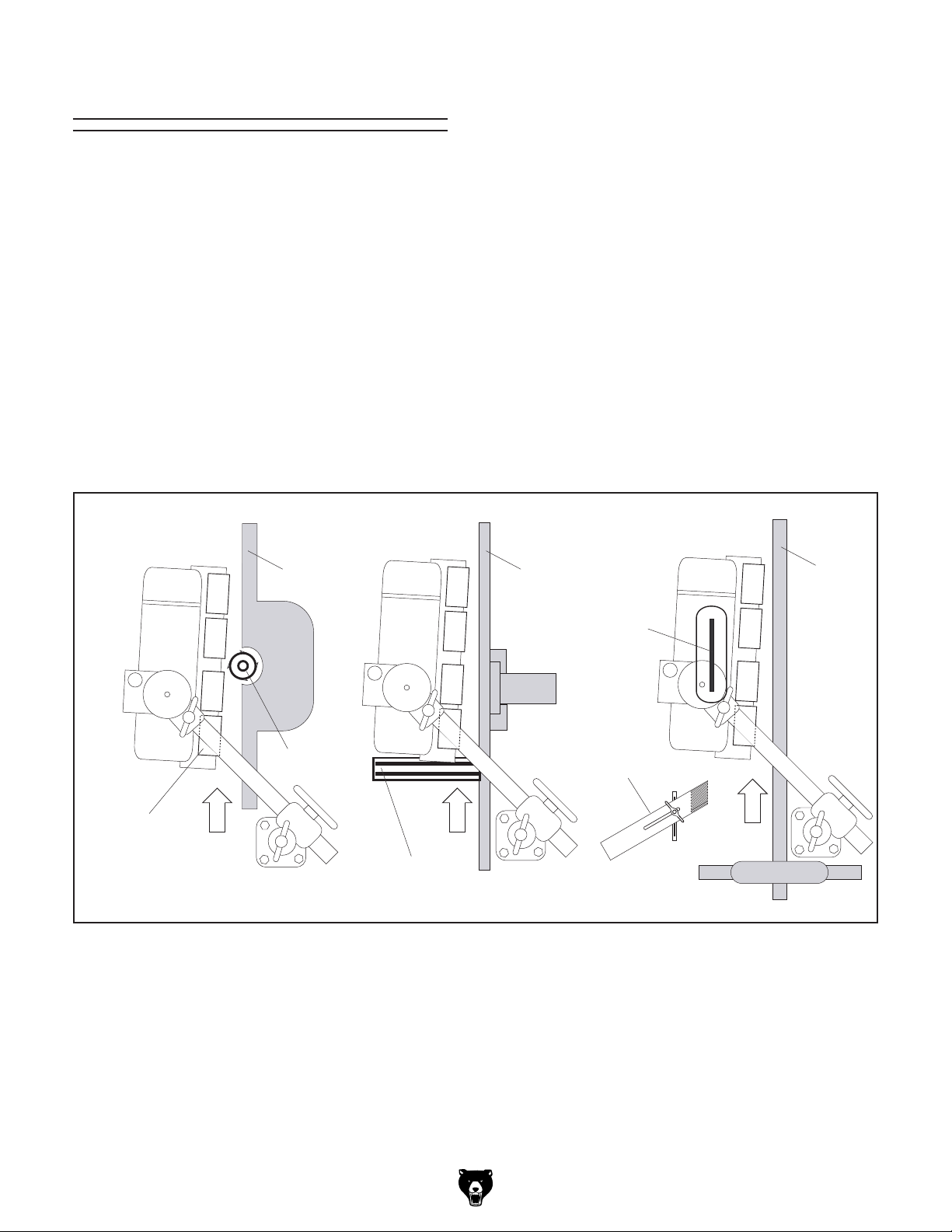

Figure 16. Typical power feed mounting on a shaper, jointer, and table saw.

Feed

Optional

Featherboard

Table SawShaper

Feed

Fence

Model G0826 (Mfd. Since 06/20)

-17-

Through-Bolt Mounting

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

We recommend mounting the power feeder to the
machine table with through bolts, nuts, and wash­ers (see Figure 17). This provides the most rigid­ity and clamping strength to prevent the feeder
base from twisting out of alignment during use.
However, if under-table support webs interfere
with washer or nut locations, drill and thread holes
directly into the table (Direct Mounting).

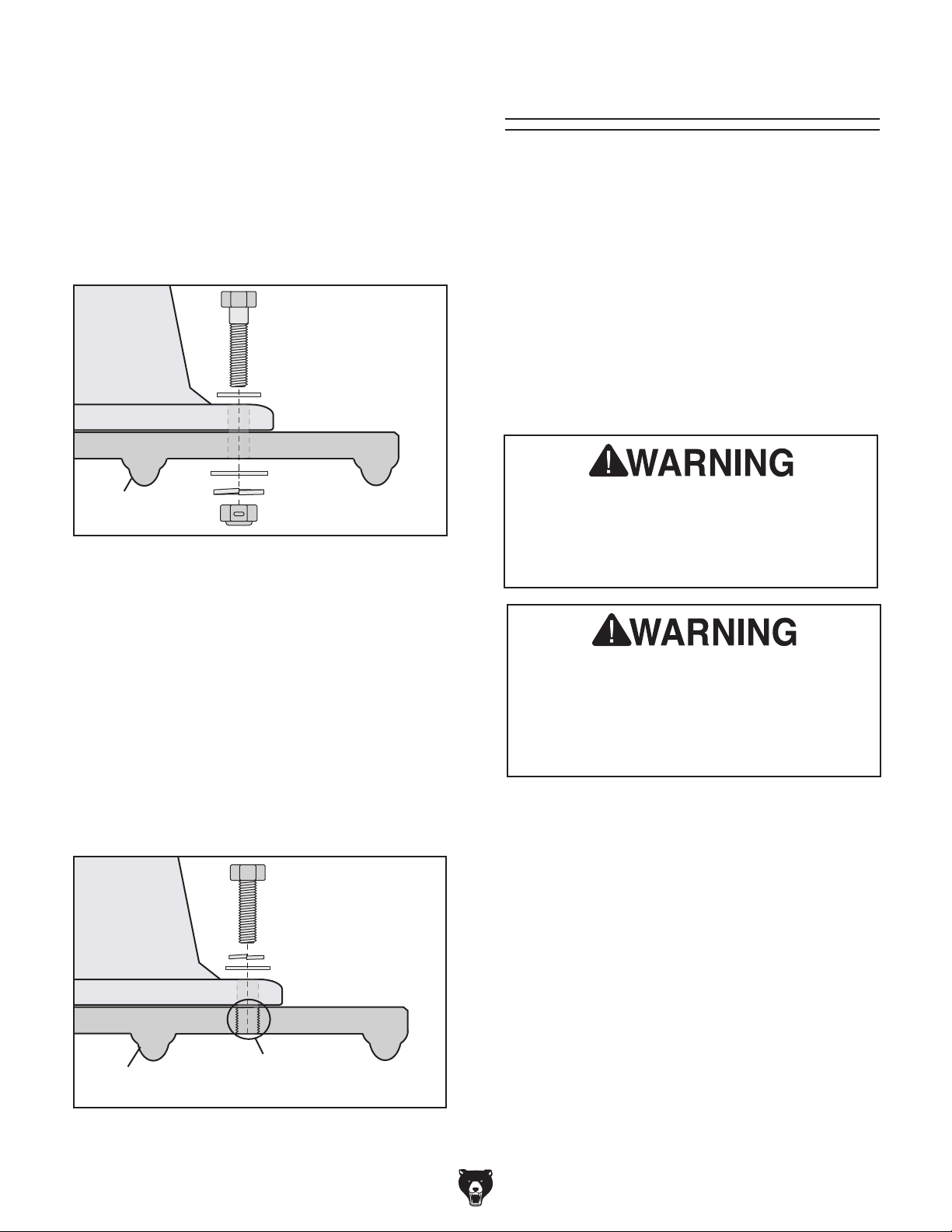

Feeder
Base

Machine Table

Table Support
Webbing

Bolt

Flat Washer

Flat Washer

Lock Washer

Locking Hex Nut

Figure 17. Through-bolt mounting.

Direct Mounting

Use the included mounting template to drill and
tap the table so the power feeder base can be
directly mounted to the table surface (see Figure

18). Use medium-grade liquid thread-locking com­pound on all threads. If the table is less than
thick where the holes will be drilled and tapped,
or if support webbing interferes, the threads may
strip or loosen during power feeder use. Thread­locking compound is not a permanent solution.
Revert to the Through-Bolt Mounting or clamp­ing kit options.

3

⁄8"

Test Run

Troubleshooting

section of this manual can help.

The Test Run consists of verifying the following:

1) The motor powers up and runs correctly, and 2)

the control panel works correctly.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

Feeder
Base

Machine Table

Table Support
Webbing

Figure 18. Direct mounting.

-18-

Bolt

Lock Washer

Flat Washer

Apply Medium Grade
Thread- Locking Compound

1. Clear all setup tools away from machine.

2. Make sure gearbox oil level is full. Refer to
Lubrication on Page 26 for details.

3. Adjust and lock power feeder so rollers are

held approximately 1" above machine table
and nothing will interfere with roller rotation.

Model G0826 (Mfd. Since 06/20)

4. Connect power feeder to power supply.

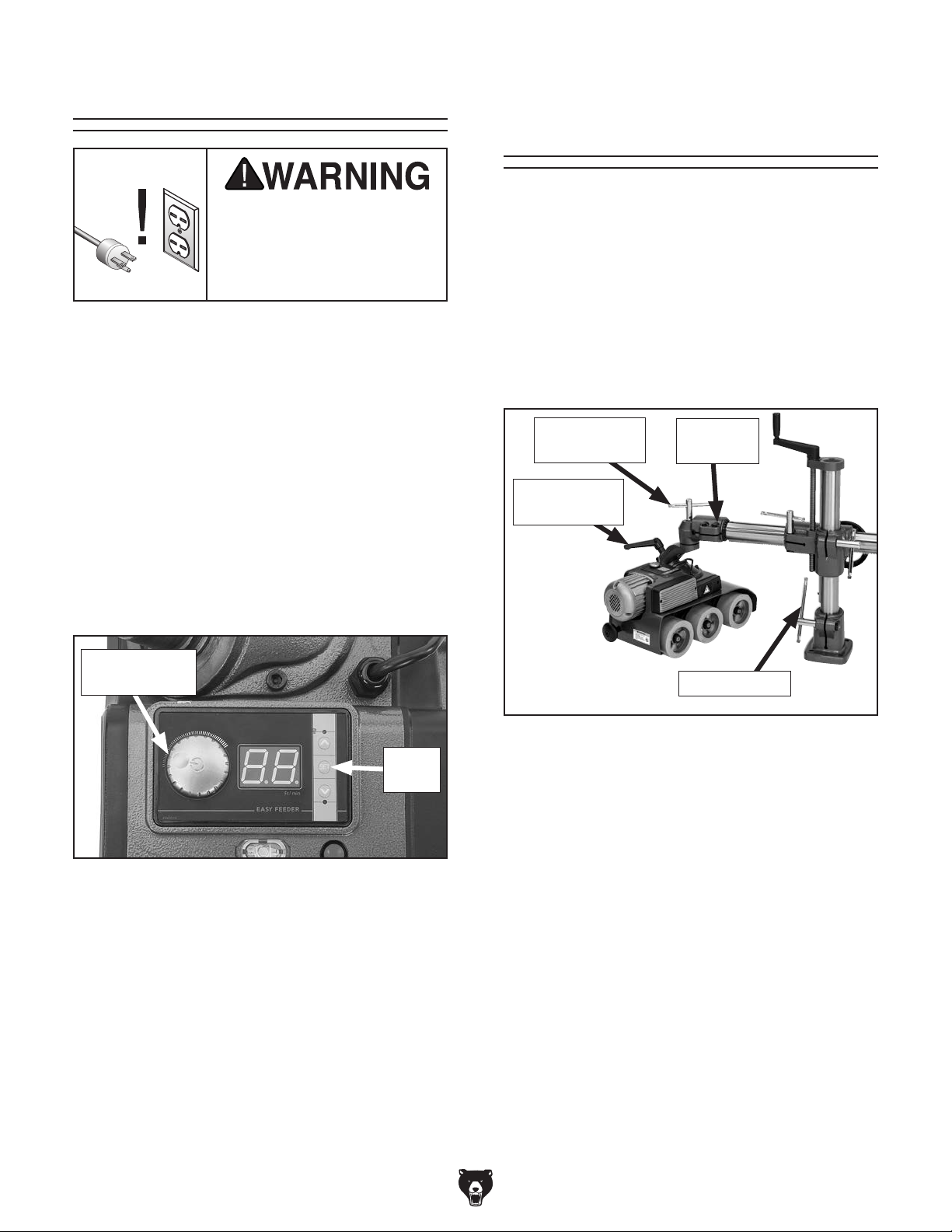

Variable-speed readout (see Figure 19) will
illuminate.

Variable-Speed Readout

Figure 19. Variable-speed readout illuminated,

indicating power is connected.

5. Press ON/OFF button, press SET button (see
Figure 20), and use motor start/speed dial to

select 10 FPM on readout. Number will flash
for 10 seconds, then glow steadily.

Press motor start/speed dial

7.

(see Figure 21). Rollers should stop rotating.

Press reverse feed direction button

8.

shown in Figure 21, then press and hold
motor start/speed dial until you hear a beep
and control panel glows red. Rollers should
rotate in clockwise direction (when viewed
from the top).

Motor Start/

Speed Dial

Reverse Feed

Direction Button

Figure 21. Location of reverse feed direction

button.

Press forward feed direction button

6.

(see Figure 20), and press and hold motor
start/speed dial until you hear a beeping
sound and outside edge of panel glows red.

Motor should run smoothly and without

unusual problems or noises. The rollers
should rotate in a counterclockwise direction
(when viewed from the top).

Motor Start/

Speed Dial

Forward Feed Direction

Button

SET

Button

ON/

OFF

Button

Press motor start/speed dial. Rollers should

9.

stop rotating.

10. Test run is complete.

Figure 20. Location of buttons on control panel.

— If motor or rollers do not function cor-

rectly, disconnect from power and refer
to Troubleshooting on Page 28 before
completing Test Run.

Model G0826 (Mfd. Since 06/20)

-19 -

SECTION 4: OPERATIONS

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

Examines workpiece to make sure it is suit-

1.

able for cutting operation.

Adjusts machine cutter/blade and fence for

2.

desired operation.

Checks outfeed side of machine for proper

3.

support and to make sure workpiece can
safely pass all the way through cutter/blade
without interference.

Loosens upper elbow-joint lock and points

4.

power feeder 1° to 1.5° toward machine
fence, so rubber rollers will lightly push
workpiece against fence during cutting oper­ations, then tightens elbow lock.

using machine.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

-20-

Loosens vertical travel lock and lower elbow-

5.

joint lock, then adjusts position of power
feeder so rubber rollers are parallel with
table surface and
workpiece, then tightens all locks.

Checks to make sure rollers are clear of cut-

6.

ter or blade.

7. (Optional) positions featherboard on infeed

side for cutting long or large stock that is dif­ficult to feed properly.

8. Sets feed speed and direction using control

panel.

Puts on safety glasses and a respirator.

9.

10. Starts machine and power feeder. Feeds

stock into power feeder, maintaining firm
pressure on workpiece against table and
fence.

Stops power feeder, then stops machine.

11.

Model G0826 (Mfd. Since 06/20)

1

⁄8" lower than thickness of

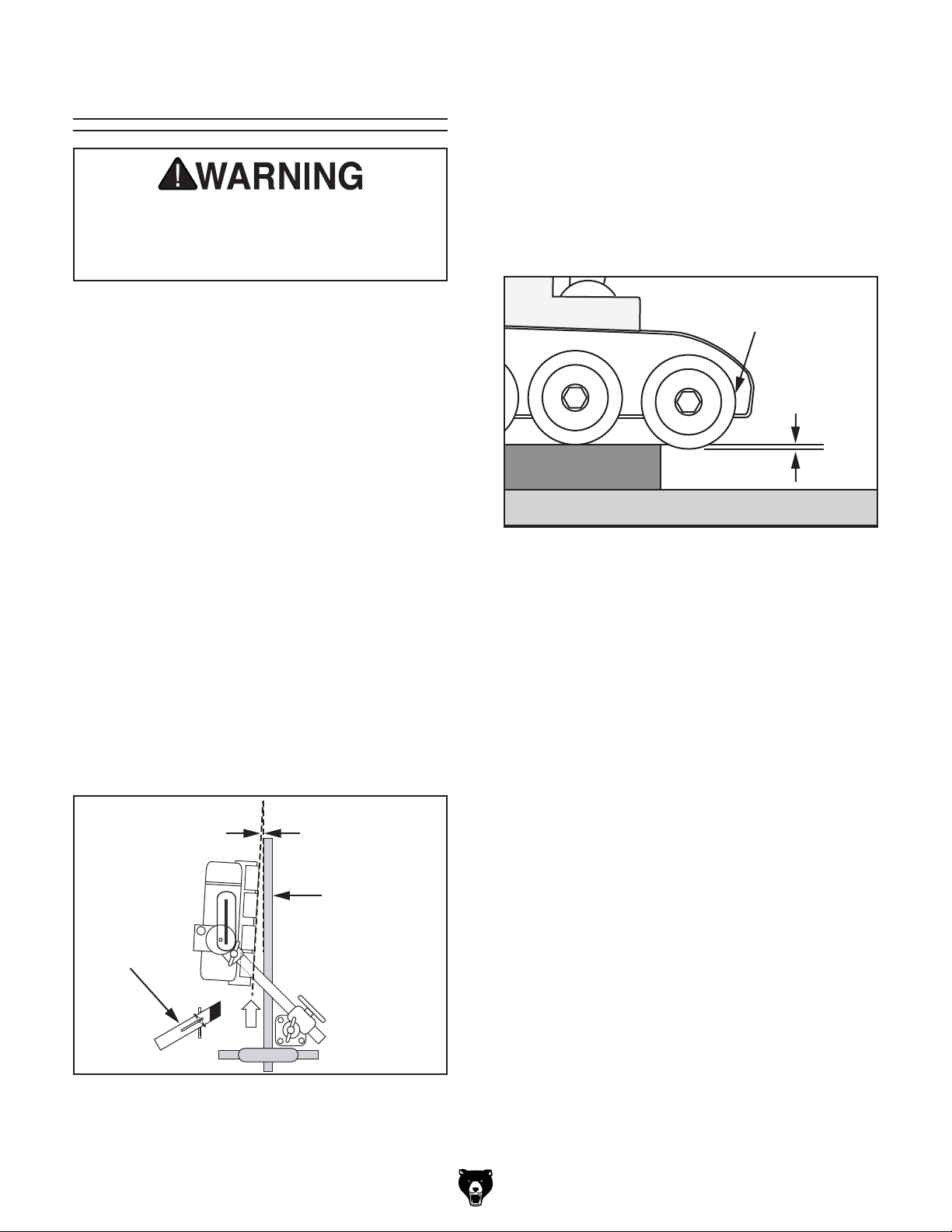

Basic Use & Care

You MUST assemble all guards, fences, and
hold-downs before starting your machine or
power feeder. Failure to heed this warning
could result in amputation or death!

Next, adjust power feeder so the rubber rollers are
parallel with the table surface and approximately

1

⁄8" lower than the thickness of the workpiece,

as shown in Figure 23. This ensures that the
workpiece will not slip or hang during a cut.
Always double check that the power feeder roll­ers are always slightly lower than the workpiece
before you begin feeding operations. Otherwise,
the workpiece may slip and kick back.

Power feeders reduce kickback hazards and
improve cutting results by feeding in a consistent
and stable manner. Remember, DO NOT stand in
the path of potential kickback. When not in use,
support the power feeder with a wooden block so
the rubber rollers are raised above the table and
do not compress from the weight of the power
feeder.

The lock levers and hand cranks allow you to
adjust the power feeder tracking and height to
accommodate many workpiece sizes. Before
loosening any lock lever, always support the
power feeder with a block of wood so the power
feeder does not drop and cause damage.

Adjust the power feeder so it is toed-in approxi­mately 1° to 1.5° towards the machine fence, as
shown in Figure 22. This adjustment will ensure
that the power feeder rollers slightly push the
workpiece against the fence during cutting opera­tions. Use a featherboard on the infeed side to
assist with feeding long or large stock.

Wheel

Approx. 1/8"

Workpiece

Machine Table

Figure 23. Rollers adjusted approximately 1⁄8"

below workpiece.

1° to 1.5° Angle

Table Saw

Fence

Optional

Featherboard

Feed

Figure 22. Example of power feeder toe-in on a

table saw (4-roller model shown).

Model G0826 (Mfd. Since 06/20)

-21-

Changing Speeds

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

Variable Feed Speeds ....................... 7–72 FPM

Users can change the feed rate by adjusting the
motor start/speed dial on the variable-speed con­trol panel.

To change power feeder feed rate:

Vertical/Incline

Feeding

The Model G0826 can be positioned to feed
workpieces so the rollers are angled relative to
the machine fence at 45°, 90°, or another angle
in between. For example, it can be positioned
at 90° to feed stock against a fence, or it can be
positioned at 45° or another angle such as when
making bevel cuts on a jointer.

Use the controls shown in Figure 25 to position
the power feeder for incline feeding.

Upper Elbow-

Joint Lock

Hex Bolt

(1 of 2)

Press SET button on control panel, as shown

1.

in Figure 24.

Note: The current feed rate will flash for up to

10 seconds, after which SET button must be
pressed again to adjust feed rate.

Motor Start/

Speed Dial

SET

Button

Figure 24. Location of SET button and motor

start/speed dial on control panel.

2. Rotate motor start/speed dial to desired feed

rate.

Lower Elbow-

Joint Lock

Rotation Lock

Figure 25. Location of controls for re-positioning

power feeder for incline feeding.

Tools Needed Qty

Open-End Wrench or Socket 17mm .................. 1

To position power feeder for vertical/incline
feeding:

Loosen rotation lock and swing power feeder

1.

off of machine table (see Figure 25).

Loosen (2) hex bolts on upper elbow-joint,

2.

rotate upper elbow to desired angle, then
tighten hex bolts (see Figure 25) to secure
setting.

-22-

Loosen upper elbow-joint lock and lower

3.
elbow-joint lock (see Figure 25).

Model G0826 (Mfd. Since 06/20)

4. While holding onto rotation handle with one

hand, disengage swivel lock pin, rotate power
feeder clockwise (flip it upside down) so it is
oriented as shown in Figure 26, then move it
back over table and up against fence.

Swivel

Lock Pin

Rotation Handle

Figure 26. Rotating power feeder for vertical or

incline feeding.

Lower power feeder and adjust it as needed

5.

so rollers are parallel to workpiece and
workpiece is firmly against fence, as shown
in Figures 27–28.

(Side View)

Power
Feeder

Power
Feeder

Wheel

Table

Figure 28. Example of power feeder set up for

45° feeding operation on jointer.

6.

Tighten all locks on power feeder and vertical

column.

Repeat Steps 1–6 in reverse order to repo-

7.

sition power feeder for non-angle feeding
operations.

Workpiece

Jointer
Fence
at 45º

(Side View)

Power

Feeder

Power Feeder Roller

Figure 27. Example of power feeder set up for

90° feeding operation on shaper against a fence.

Workpiece

Fence

Table

Model G0826 (Mfd. Since 06/20)

-23-

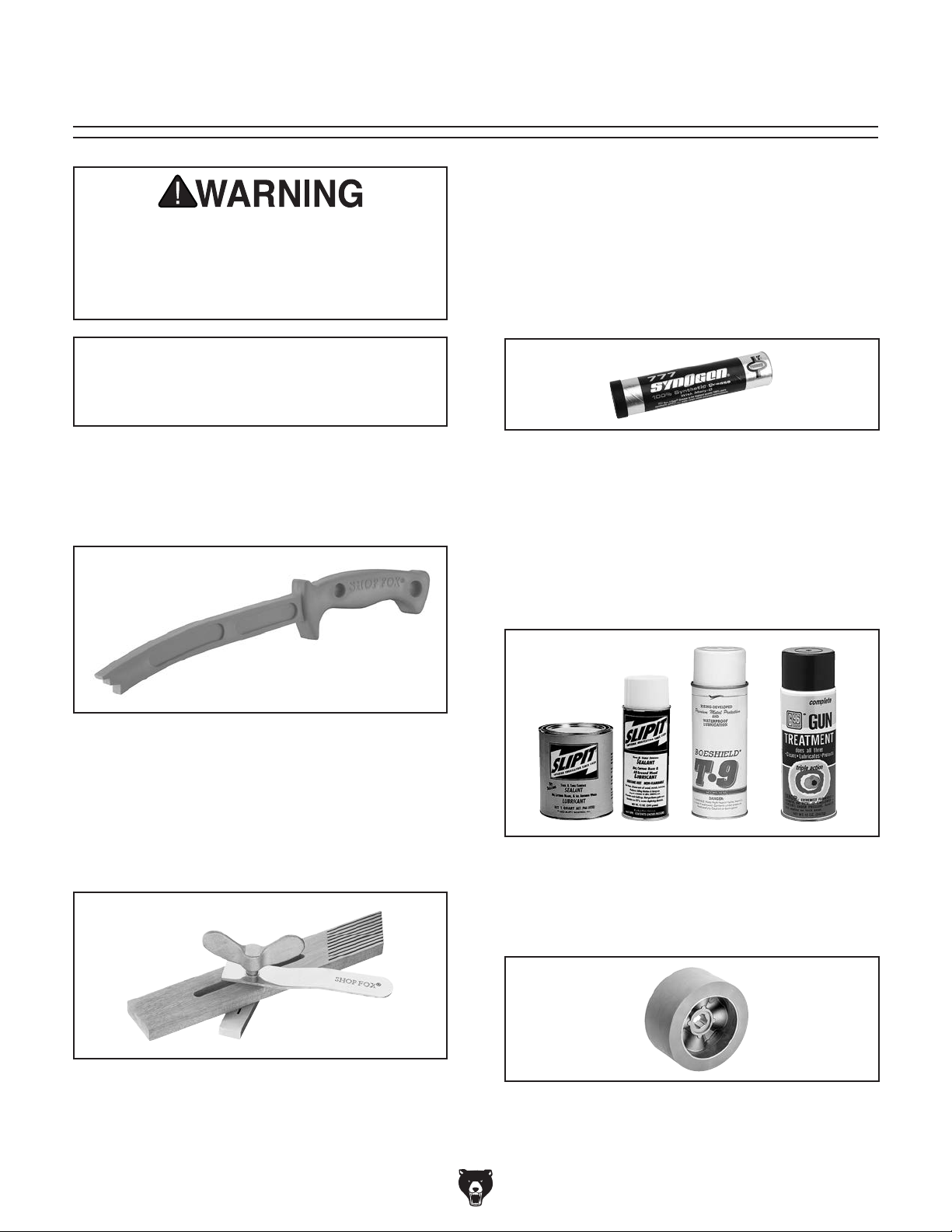

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T26419—Syn-O-Gen Synthetic Grease

Formulated with 100% pure synthesized hydrocar­bon basestocks that are compounded with special
thickeners and additives to make Syn-O-Gen
non-melt, tacky, and water resistant. Extremely
low pour point, extremely high temperature oxida­tion, and thermal stability produce a grease that is
unmatched in performance.

D3122—Shop Fox
Measuring 13

®

1

Push Stick

⁄2" overall, this push stick allows the
operator to keep his hands a safe distance away
from the blade or cutter.

®

Figure 29. D3122 Shop Fox

®

D3096—Shop Fox

Featherboard

Designed to lock into a standard

Push Stick.

3

⁄8" x 3⁄4" miter
slot, this featherboard is fully adjustable to accom­modate a wide range of workpieces. Reduce
the likelihood of kickback with this convenient
accessory.

Figure 31. Recommended product for machine

lubrication.

G5562—SLIPIT® 1 Qt. Gel

®

G5563—SLIPIT
G2871—Boeshield
G2870—Boeshield
H3788—G96
H3789—G96

12 Oz. Spray

®

T-9 12 Oz. Spray

®

®

Gun Treatment 12 Oz. Spray

®

Gun Treatment 4.5 Oz. Spray

T-9 4 Oz. Spray

Figure 32. Recommended products for protect-

ing unpainted cast iron/steel part on machinery.

T28095—120mm X 60mm Replacement Roller
T28096—120mm X 25mm Half Roller

Figure 30. D3096 Shop Fox® Featherboard.

Figure 33. T28095 Replacement Roller.

-24-

Model G0826 (Mfd. Since 06/20)

SECTION 6: MAINTENANCE

accidental startup, always
disconnect machine from

Cleaning &

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose mounting bolts.

• Damaged rollers.

• Worn or damaged switch, cord, and plug.

• Any other unsafe condition.

Daily Maintenance

• Lubricate chains and sprockets (Page 27).

• Lubricate vertical travel leadscrew

(Page 27).

• Lubricate lock levers (Page 27).

• Lubricate overarm rack (Page 27).

Protecting

Cleaning the Model G0826 is relatively easy.
Frequently blow off sawdust with compressed air.
This is especially important for internal working
parts and the motor. Dust build-up around the
motor will decrease its lifespan. If rollers become
loaded up with pitch, oil, or other residues, wipe
with a clean rag and soap and water. Keep min­eral spirits away from plastic parts or painted sur­faces to avoid damage.

Lubrication

Other than the lubrication points covered in this
section, all other bearings are internally lubricated
and sealed at the factory. Simply leave them
alone unless they need to be replaced.

Before performing any lubrication task,
DISCONNECT MACHINE FROM POWER!

IMPORTANT: Before adding lubricant, clean any
debris and grime from fill hole/grease fitting and
immediate area to prevent contamination of new
lubricant.

Monthly Maintenance

• Lubricate roller and chain grease fittings

(Page 26).

• Lubricate gearbox—initial month (Page 26).

Every 6 Months

• Lubricate gearbox (Page 26).

Model G0826 (Mfd. Since 06/20)

Use the schedule below and the following instruc­tions to properly lubricate the other components
that require lubrication.

Frequency

Lubrication Task

Roller & Chain Grease
Fittings

Gearbox 1000 Hrs.

Chain & Sprockets 8 Hrs.

Vertical Travel Leadscrew 8 Hrs.

Lock Levers 8 Hrs.

Overarm Rack 8 Hrs.

(Hours of

Operation)

200 Hrs.

Page

Ref.

26

26

27

27

27

27

-25-

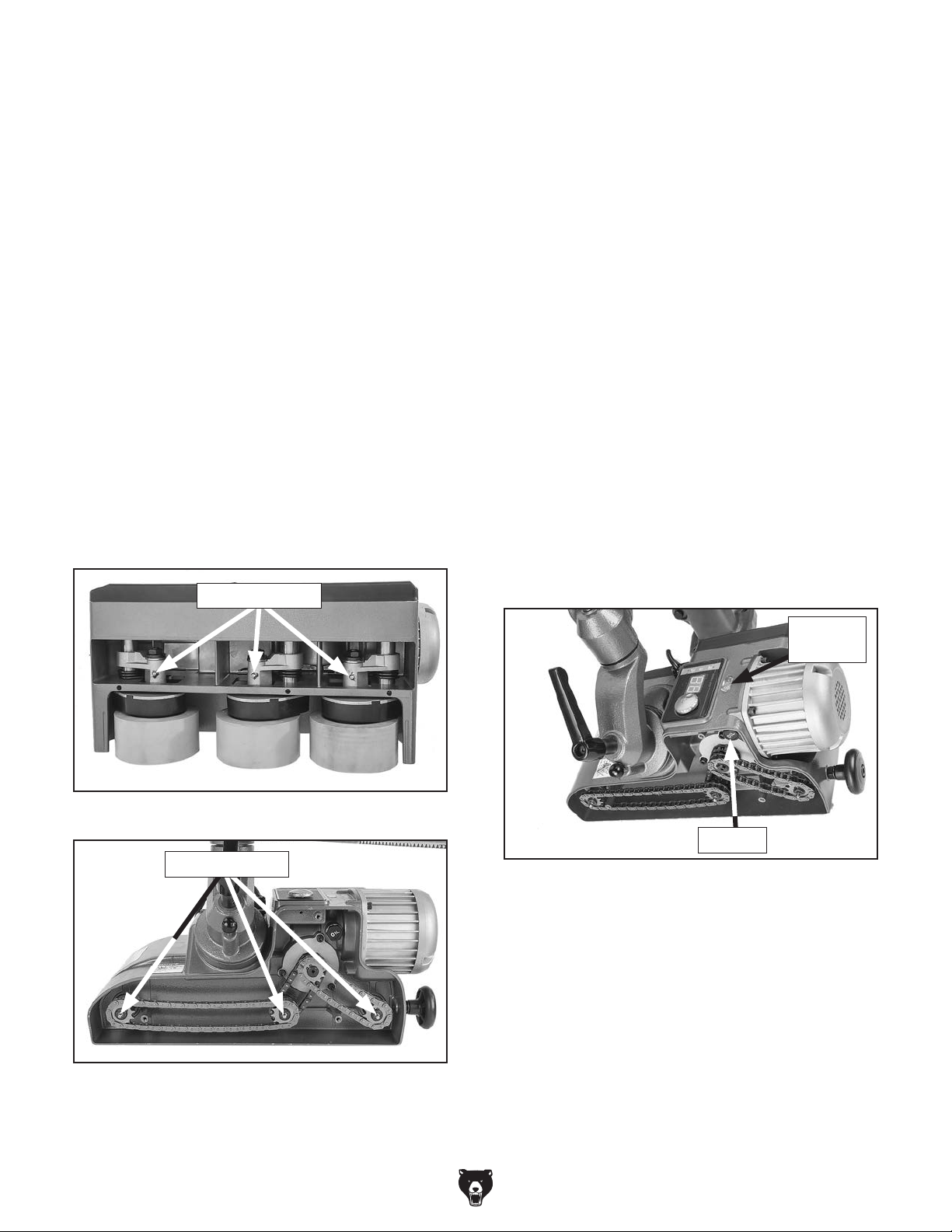

Items Needed Qty

NLGI#2 Grease or Equivalent ........... As Needed

ISO 32 Oil or Equivalent
80-90W Gear Oil
Clean Shop Rags
Mineral Spirits
Brushes
1-Gallon Catch Pan
Grease Gun
Open-End Wrench 14, 22mm
Hex Wrench 5mm

............................................. As Needed

............................... As Needed

.............................. As Needed

.................................... As Needed

....................................................... 1

.............................................. 1

.................... As Needed

........................................... 1

......................1 Ea.

Gearbox

Lube Type ................................. 80-90W Gear Oil

Amount
Lubrication Frequency:

• 200 Hrs./First Month of Operation

• 1000 Hrs./6 Months of Operation

The gearbox should be drained and refilled after
the first month or 200 hours of use. For the
remaining life of the power feeder, change oil
every six months or 1000 hours of use.

...................................................4.05 Oz.

Roller & Chain Grease Fittings

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount
Lubrication Frequency
Grease Gun

Wipe the roller and chain grease fittings clean and
lubricate with one pump from a grease gun filled
with NLGI#2 grease (see Figures 34–35). It will
be necessary to remove the chain cover to access
the chain grease fittings.

.............................................1–2 Pumps.

.......200 Hrs. of Operation

....................................................... 1

Grease Fittings

To change gearbox oil:

DISCONNECT MACHINE FROM POWER!

1.

Rotate power feeder off of machine table,

2.

remove chain cover, and tighten rotation lock.

3. Rotate power feeder upside down so chains
face down (see Figure 36).

Place drain pan under fill plug labeled "OIL,"

4.

then remove fill plug (see Figure 36) and
drain oil.

Oil Sight

Glass

Figure 34. Location of roller grease fittings.

Grease Fittings

Figure 35. Location of chain grease fittings

(chain cover removed).

-26-

Fill Plug

Figure 36. Location of gearbox fill plug/oil drain

and sight glass.

5. Rotate power feeder 180 degrees so chains
are face up, then fill gearbox with oil until oil
level is at halfway point in sight glass, then
replace fill plug.

Re-install chain cover and rotate power feed-

6.

er back into place for operation.

Model G0826 (Mfd. Since 06/20)

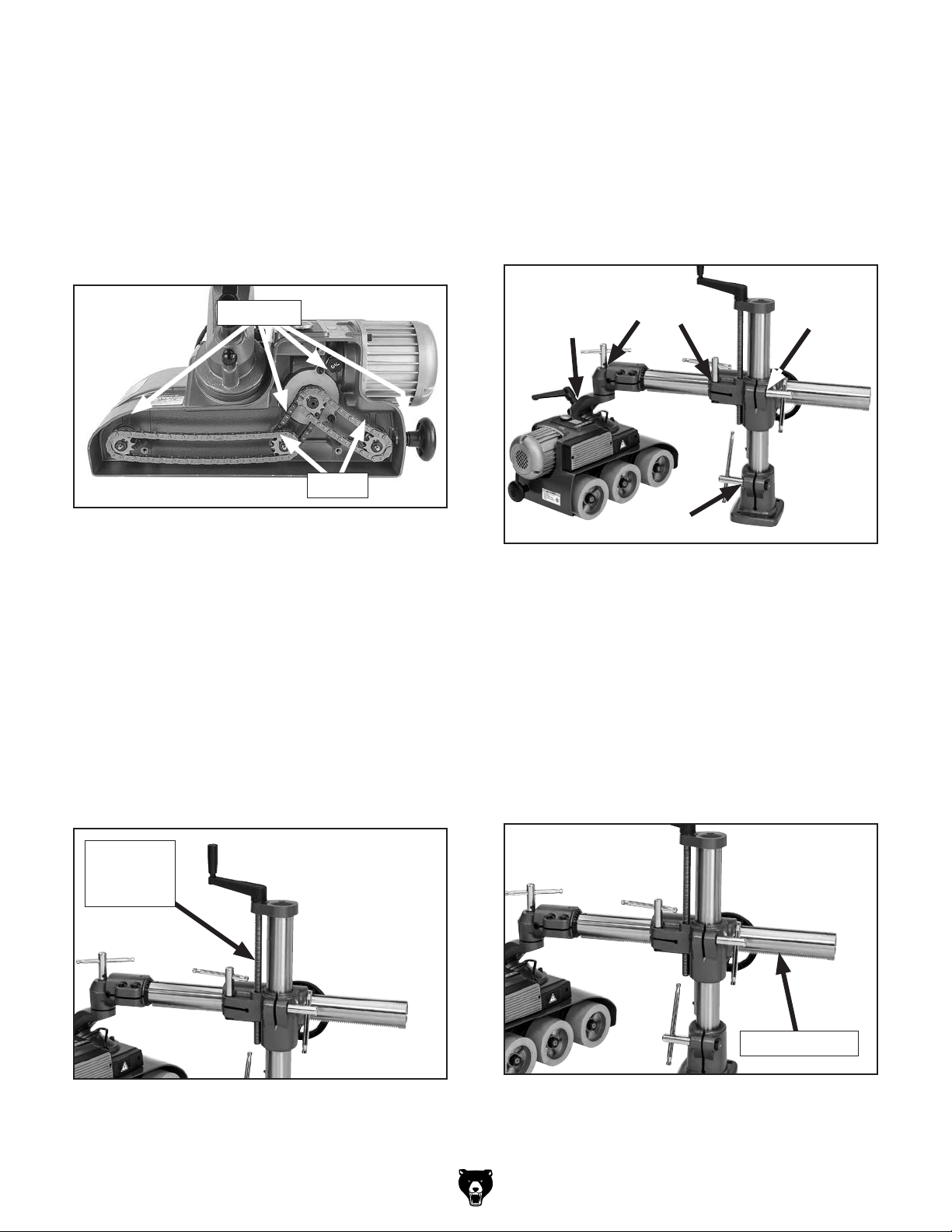

Chain & Sprockets

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount
Lubrication Frequency

.................................................Thin Coat

...........8 Hrs. of Operation

Lock Levers

Lube Type ........................... ISO 32 or Equivalent

Amount
Lubrication Frequency

.................................................Thin Coat

...........8 Hrs. of Operation

To prevent rust and binding, brush the sprockets
and chains (see Figure 37) with a light film of
NLGI#2 grease. It will be necessary to remove the
chain cover to access the chain and sprockets.

Sprockets

Chains

Figure 37. Location of chain and sprockets

(chain cover removed).

Vertical Travel Leadscrew

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount
Lubrication Frequency

Use mineral spirits to clean any debris and built­up grime from the vertical travel leadscrew shown
in Figure 38, then wipe it dry. Brush a thin coat
of lubricant on the threads of the leadscrew, then
rotate leadscrew through its full path to distribute
the grease.

.................................................Thin Coat

...........8 Hrs. of Operation

To prevent rust and binding, periodically clean
and oil all lock-lever and leadscrew threads
(see Figure 39) with light machine oil.

Figure 39. Location of levers to lubricate.

Overarm Rack

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount
Lubrication Frequency

Clean the overarm rack teeth (see Figure 40) with
mineral spirits, shop rags, and a brush. When dry,
use a brush to apply a thin coat of grease to the
teeth, then move overarm back and forth several
times to distribute the grease.

.................................................Thin Coat

...........8 Hrs. of Operation

Vertical

Travel

Leadscrew

Figure 38. Vertical travel leadscrew.

Model G0826 (Mfd. Since 06/20)

Overarm Rack

Figure 40. Overarm rack.

-27-

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does
not start or
power supply
breaker (or
fuse) trips
immediately
upon startup.

Machine
stalls or is
underpowered.

Machine has
vibration or
noisy operation.

1. Incorrect power supply voltage or circuit size.

2. Power supply circuit breaker tripped or fuse
blown.

3. Wires disconnected, damaged, or connected
incorrectly.

4. Circuit board at fault.

5. Motor at fault.

1. Motor overheated.

2. Motor wired incorrectly.

3. Circuit board at fault.

4. Pulley/sprocket slipping on shaft.

5. Motor bearings at fault.

1. Motor or component loose.

2. Motor fan rubbing on fan cover.

3. Motor bearings at fault.

1. Ensure correct power supply voltage and circuit size.

2. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

3. Fix or replace damaged, disconnected, or
misconnected wires.

4. Inspect/replace.

5. Test/repair/replace.

1. Reduce feed rate. Allow motor to cool.

2. Wire motor correctly (Page 31).

3. Inspect/replace.

4. Replace loose pulley/key/shaft.

5. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

1. Inspect/replace damaged bolts/nuts, and retighten with
thread-locking fluid.

2. Fix/replace fan cover; replace loose/damaged fan.

3. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Feeding Operations

Symptom Possible Cause Possible Solution

Workpiece
jams when
feeding under
rollers.

Workpiece slips
while passing
beneath rollers.

Workpiece cut
is burnt.

Rough finish or
chipped grain
on workpiece.

-28-

1. Rollers positioned too low.

2. Feeder at wrong angle.

1. Rollers positioned too high.

2. Workpiece too dusty.

3. Rollers dirty or oily.

4. Feed speed too fast.

5. Worn roller(s).

6. Rollers loose.

1. Feed speed too slow.

2. Dull cutter or blade.

1. Feed speed too fast.

2. Dull cutter or blade.

3. Power feeder angle not toed-in to keep
workpiece against fence.

1. Raise feeder.

2. Adjust angle (Page 22).

1. Lower power feeder roller 1⁄8" lower than height of

workpiece (Page 21).

2. Wipe dust off workpiece.

3. Clean roller surface with soap and warm water.

4. Reduce feed speed.

5. Replace roller(s) (Page 22).

6. Tighten rollers.

1. Increase feed speed.

2. Replace with sharp cutter or blade.

1. Reduce feed speed.

2. Replace with sharp cutter or blade.

3. Adjust power feeder so it is toed in 1° to 1.5° toward

fence (Page 21).

Model G0826 (Mfd. Since 06/20)

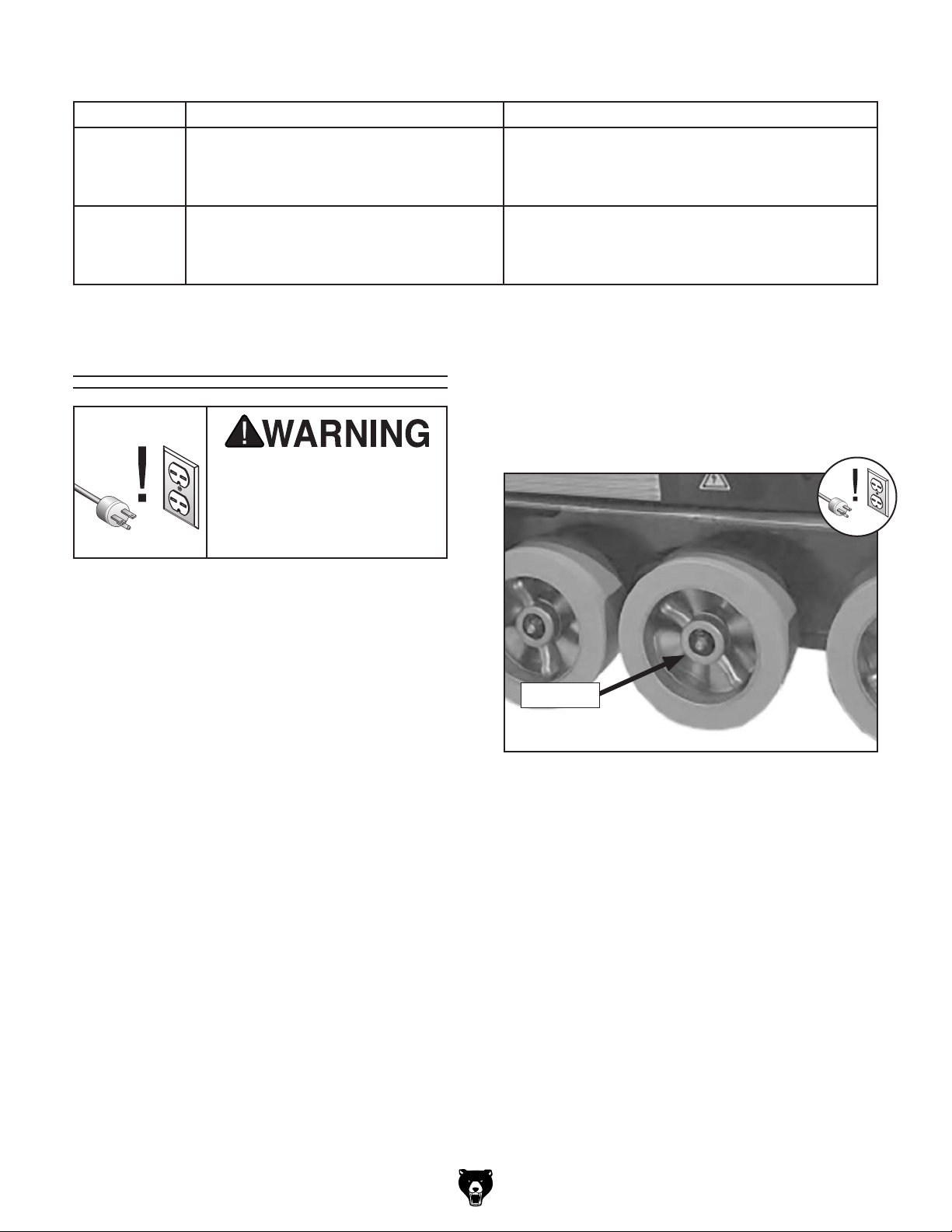

Feeding Operations Cont.

accidental startup, always
disconnect machine from

Symptom Possible Cause Possible Solution

Workpiece
hangs up and
does not enter
the machine.

Error
message on
control panel
(E1, E2, E3).

1. Rollers positioned too high.

1. (E1) Motor failed to start; workpiece jammed.

2. (E2) Circuit board temperature too high.

3. (E3) Motor temperature too high.

1. Lower power feeder roller 1⁄8" lower than height of

workpiece (Page 21).

1. Remove jammed workpiece.

2. Allow circuit board to cool.

3. Allow motor to cool.

To replace worn or damaged roller:

Roller Replacement

1. DISCONNECT MACHINE FROM POWER!

2. Remove wing nut that secures roller
(see Figure 41).

To reduce risk of shock or

power before adjustments,
maintenance, or service.

Worn or damaged rollers are easily replaceable.

Contact Grizzly Customer Service at (570) 546-
9663 or visit www.grizzly.com/parts to order a
replacement roller (Part #P0826081).

Wing Nut

Figure 41. Roller wing nuts location.

3. Remove and replace roller.

4. Re-install wing nut and tighten.

Model G0826 (Mfd. Since 06/20)

-29-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-30-

Model G0826 (Mfd. Since 06/20)

220V

Part: PLABEL-62
Description: DISCONNECT 110V 2W X 3.3H

Part: PLABEL-62A
Description: DISCONNECT 110V 1.5 X 2.5H

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

INJURY/SHOCK

HAZARD!

Disconnect power
before adjustments,
maintenance, or
service.

Part: PLABEL-62C
Description: DISCONNECT 110V 2.8W X 1.5H

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

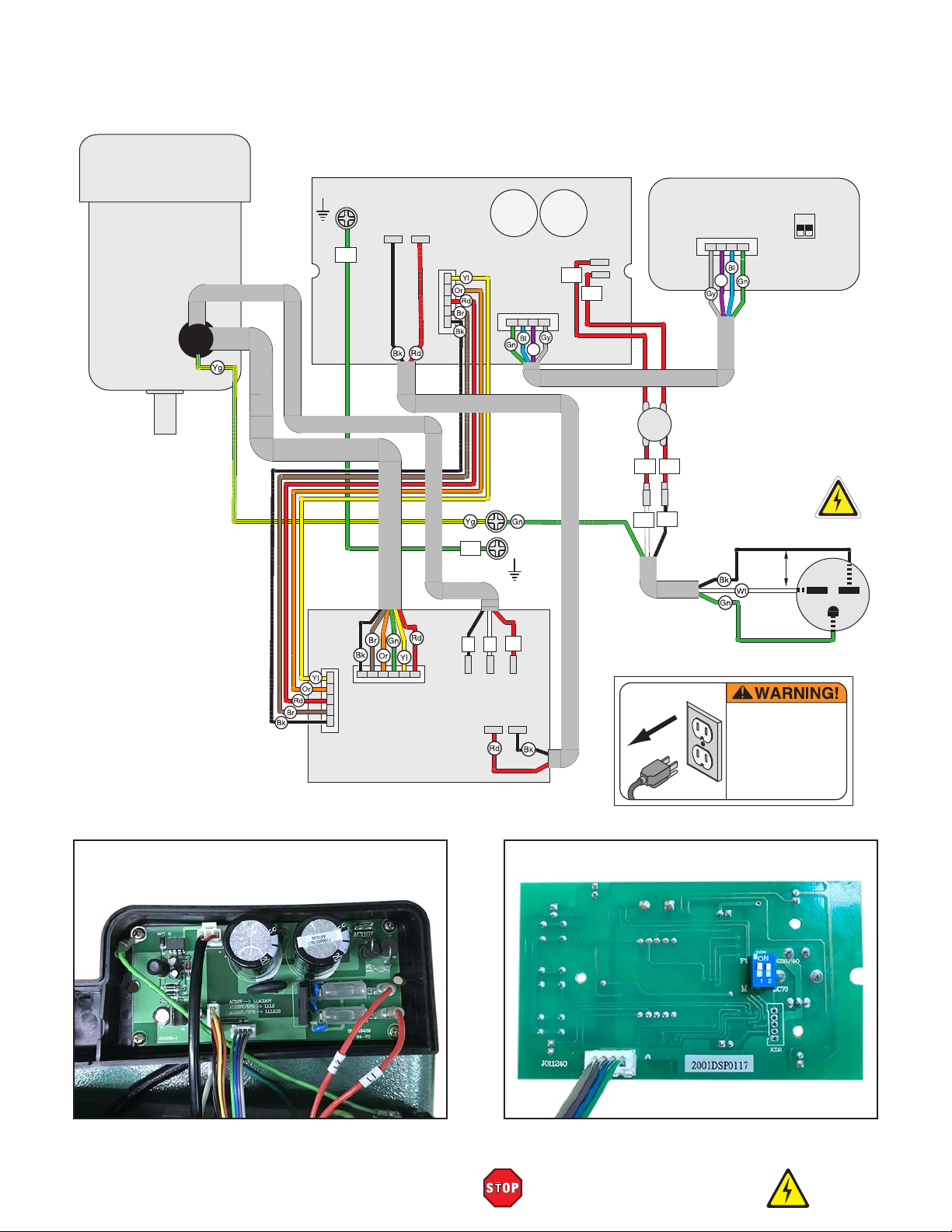

BLDC Motor

Wiring Diagram

Circuit Board

GND

PE

SUT-19429 94-V0

+-

CN2

PE

Ground

U

V

L2

L1

RS485

Pu

W

L2
L1

L2 L1

L1

L2

Digital Readout

(viewed from behind)

Pu

ON/OFF

Button

Hot

220

VAC

Hot

Ground

ON

1

2

J011240

6-15 Plug

G

Figure 42. Motor circuit board wiring. Figure 43. Digital readout circuit board.

Model G0826 (Mfd. Since 06/20)

CN1

CN2

Circuit Board

BT-220-V2

U V W

+

-

READ ELECTRICAL SAFETY

ON PAGE 30!

INJURY/SHOCK

HAZARD!

Disconnect power
before adjustments,
maintenance, or
service.

-31-

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Power Feeder Assembly

9

87A

51V2

84

39

43

53

54

82

45

52

47

46

42

18

41

87

83

16

19

88

44

38

40

18

56

26

50

37

55

49

36

19

91

27

89

4

44

18

92

7

35

45

90

21

85

11

1

70

65

57

13

14

75

7

12

72

65

64

97

23

10

5

9

2

6

15

7

69V2

71

59

30

75

34

17

20

5

2

31

74

33

58

66

10

9

73

67

8

23

24

25

98

3

4

68

33

32

86

93

15

60

28

1

3

61

16

16

29

72

48

62

25

22

81

63

96

13

8

11

24

17

69V2-1

69V2-4

14

22

12

69V2-2

69V2-5

21

81

20

69V2-3

95

-32-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

79

77

78

80

76

Model G0826 (Mfd. Since 06/20)

Power Feeder Assembly Parts List

REF PART # DES CRIPTI ON REF P ART # DES CRIPTI ON

1 P0826001 SPROCKET CASE 53 P0826053 DRO COVER
2 P0826002 SPROCKET SHAFT 54 P0826054 TAP SCREW M4 X 12
3 P0826003 LOCK WASHER 12MM 55 P0826055 DRO COVER PLATE
4 P0826004 HEX BOLT M12-1.75 X 75 56 P0826056 SPEE D ADJ USTMENT DI AL
5 P0826005 GREASE FITTING M6-1 STRAIGHT 57 P0826057 CIRCUIT BOARD COVER
6 P0826006 CASE COVER 58 P0826058 CAP SCREW M5-.8 X 25
7 P0826007 TORSI ON SPRI NG 59 P0826059 WIRE CLAMP (PLASTIC)
8 P0826008 ROLLER SUPPORTER 60 P0826060 PHLP HD SCR M4-.7 X 8
9 P0826009 BUSHI NG 61 P0826061 STRAIN RELIEF TYPE-3 PG11
10 P0826010 SPACER 62 P0826062 CONTROLL ER CI RCUI T B OARD
11 P0826011 SPACER 63 P0826063 CAP SCREW M5-.8 X 40
12 P0826012 KEYED WASHER 12 X 16 X 1 64 P0826064 FUSE 5A GLASS
13 P0826013 FLAT WASHER 12 X 16 X 1 65 P0826065 PHLP HD SCR M4-.7 X 8
14 P0826014 RECESSED HEX NUT M10-1.5 66 P0826066 SPACER
15 P0826015 S PROCK ET SHA FT TUBE 67 P0826067 O-RING 59.4 X 3.1 G60
16 P0826016 E XT RETA I NI NG RI NG 26MM 68 P0826068 MOTOR OIL SEAL
17 P0826017 SPROCKET SHAFT 69V2 P0826069V2 MOTOR 500W 220V 1-PH V2.06.20
18 P0826018 E XT RETA I NI NG RI NG 15MM 69V2-1 P0826069V2-1 MOTOR FAN CO VER
19 P0826019 GREASE FITTING M6-1 STRAIGHT 69V2-2 P0826069V2-2 BUTTO N HD CAP S CR M5-. 8 X 12
20 P0826020 CHA I N 2 6S 69V2-3 P0826069V2-3 MOTOR FAN
21 P0826021 WI NG NUT M16-2 69V2-4 P0826069V2-4 BALL BEARING 6005-2RS (FRONT)
22 P0826022 WAVY WASHER 16MM 69V2-5 P0826069V2-5 BALL BEARING 6201-2RS (REAR)
23 P0826023 SPROCKET 22T X 3/8" 70 P0826070 LOCK WASHER 6MM
24 P0826024 LOCK WASHER 6MM 71 P0826071 CAP SCREW M6-1 X 20
25 P0826025 CAP SCREW M6-1 X 20 72 P0826072 GROUND WI RE 18 G
26 P0826026 POWER FEEDER BODY 73 P0826073 CAP SCREW M5-.8 X 12
27 P0826027 B USHI NG 74 P0826074 FLAT WA SHER 5 MM
28 P0826028 OI L SIGHT GLASS 75 P0826075 EXT TOO TH WASHE R 5MM
29 P0826029 OI L SIGHT GLASS PANEL 76 P0826076 CHAI N COVER
30 P0826030 SET SCREW M6-1 X 10 77 P0826077 SPECIFICATION LABEL PANEL
31 P0826031 KNOB 65D X 38L X 10B 78 P0826078 RIVET 3 X 10
32 P0826032 CAP SCREW M10-1.5 X 50 79 P0826079 CAP SCREW M6-1 X 20
33 P0826033 FLAT WASHER 10MM 80 P0826080 CAP SCREW M6-1 X 30
34 P0826034 FLANGE NUT M10-1.5 81 P0826081 120MM X 60MM ROLLER
35 P0826035 O RING 71.4 X 3. 1 G72 82 P0826082 LOWER ELBOW PIVOT JOINT
36 P0826036 WORM GEAR 30T 83 P0826083 CAP SCREW M8-1.25 X 25
37 P0826037 WO RM GEA R SHAFT 84 P0826084 LOCK PIN
38 P0826038 KEY 6 X 6 X 18 85 P0826085 LOWER ELBOW JOI NT
39 P0826039 E XT RETA I NI NG RI NG 15MM 86 P0826086 STANDOFF HEX M16-1.5 X 82
40 P0826040 BEARING 35MM X 17MM 6003ZZ 87A P0826087A LOWER ELBOW JOINT LOCK ASSEMBLY
41 P0826041 OI L SEAL 17 X 32 X 7MM 87 P0826087 ADJUSTABLE HANDLE 108L
42 P0826042 WORM GEAR COVER 88 P0826088 SHOULDER CAP SCR M6-1 X 6, 7 X 22
43 P0826043 CAP SCREW M6-1 X 16 89 P0826089 COMPRESSION SPRING 1 X 15 X 16
44 P0826044 SPROCKET 3/8" 12T 90 P0826090 ROLL PIN 6 X 22
45 P0826045 DOUBLE-SPROCKET 12T X 3/8" 91 P0826091 PIVOT LOCK KNOB M6-1, 22D
46 P0826046 CHA I N 2 8S 92 P0826092 COMPRESSION SPRING 0.8 X 8 X 23
47 P0826047 CHA I N 6 2S 93 P0826093 LOCK PIN
48 P0826048 CHA I N 3 6S 95 P0826095 POWER CORD 3W 16G 72" 6-15P
49 P0826049 O RING 11.8 X 2. 4 P12 96 P0826096 CI RCUI T BOARD HE AT SI NK
50 P0826050 OI L FILL PLUG 97 P0826097 MOTOR CI RCUI T B OARD
51V2 P0826051V2 DRO CI RCUIT BO ARD V2. 06.20 98 P0826098 ON/ OFF SWITCH
52 P0826052 TAP SCREW M3 X 8

Model G0826 (Mfd. Since 06/20)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-33-

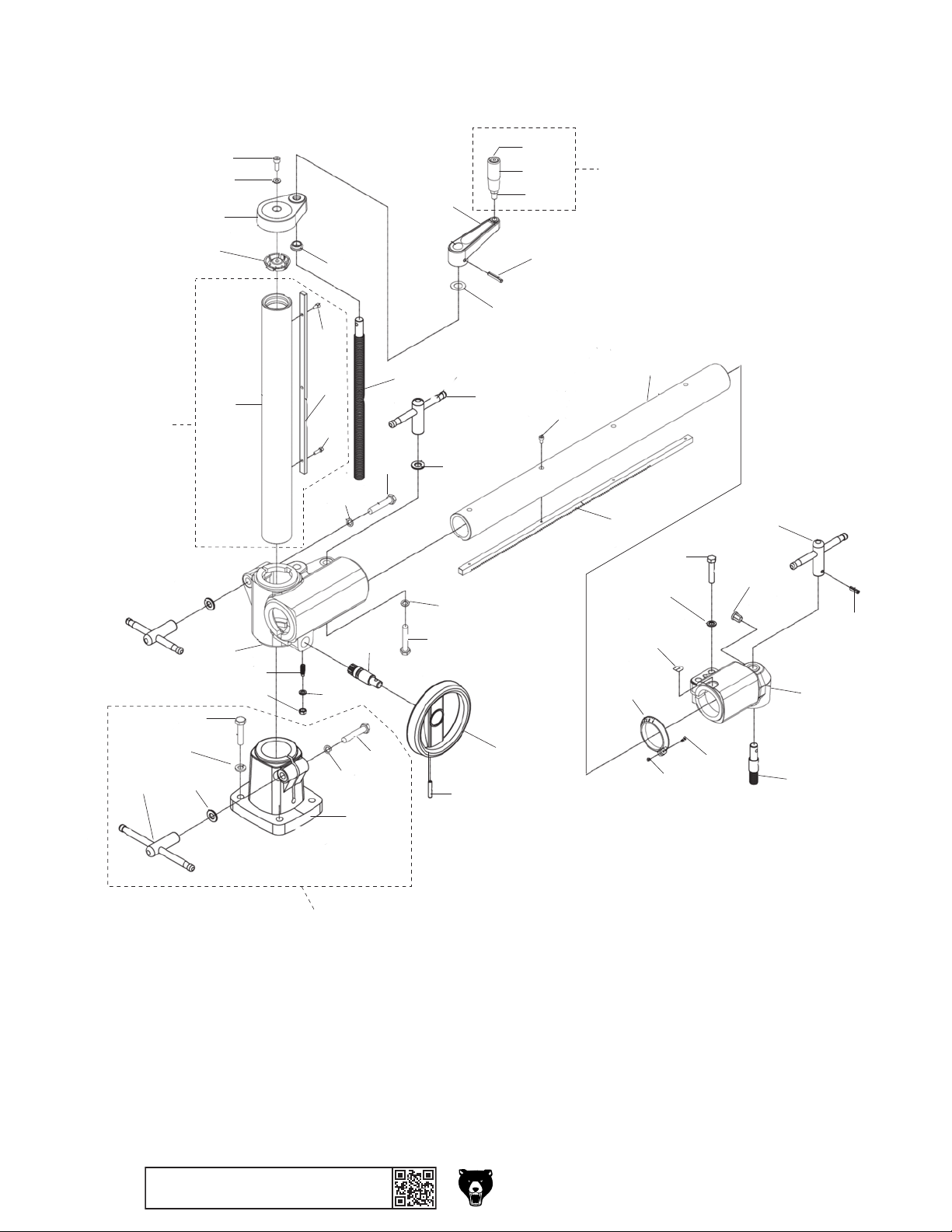

Column & Stand

108A

106

121

118

120
119

108

112

132

134

110

109

111

114

133

122

131

113

117

124

113

115

114

116

123

127

126

128

125

137

126A

136

145

138

135

147

144

142

143

148

141

-34-

107

105

104

101A

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

103

101

102

129

130

139

140

146

Model G0826 (Mfd. Since 06/20)

Column & Stand Parts List

REF PART # DESCRIP TION REF PART # DESCRIP TION

101A P0826101A VERTICAL COLUMN BASE ASSY 125 P0826125 ROLL PIN 6 X 36
101 P0826101 VERTICAL COLUMN BASE 126A P0826126A ELEVATION HANDLE ASSEMBLY
102 P0826102 HEX BOLT M12-1.75 X 75 126 P0826126 ELEVATION HANDLE 10, 25 X 69
103 P0826103 LOCK WASHER 12MM 127 P0826127 CAP SCREW M10-1.5 X 85
104 P0826104 FLAT WASHER 12MM 128 P0826128 HEX NUT M10-1. 5
105 P0826105 SLIDING T-HANDLE 200MM 129 P0826129 ROLL PIN 6 X 36
106 P0826106 HEX BOLT M12-1.75 X 50 130 P0826130 HANDWHEEL TYPE-17 160D
107 P0826107 LOCK WASHER 12MM 131 P0826131 PINION
108A P0826108A VERTICAL COLUMN ASSEMBLY 132 P0826132 SET SCREW M8-1.25 X 25 DOG-PT
108 P0826108 VE RTI CA L COL UMN 133 P0826133 LOCK WASHER 8MM
109 P0826109 VE RTI CA L COL UMN RACK 134 P0826134 HE X NUT M8-1. 2 5
110 P0826110 CAP SCREW M5-.8 X 10 135 P0826135 OVER-ARM SHAFT 720MM
111 P0826111 CAP SCREW M5-.8 X 16 136 P0826136 OVERARM SHAFT RACK 650MM
112 P0826112 ELEVATING BRACKET 137 P0826137 CAP SCREW M5-.8 X 10
113 P0826113 HEX BOLT M12-1.75 X 75 138 P0826138 ANGLE DIAL SCALE
114 P0826114 LOCK WASHER 12MM 139 P0826139 PHLP HD SCR M4-.7 X 15
115 P0826115 FLAT WASHER 12MM 140 P0826140 HEX NUT M4-. 7
116 P0826116 SLIDING T-HANDLE 150MM 141 P0826141 UPPER ELBOW JOINT
117 P0826117 ELEVATION LEADSCREW 142 P0826142 CO RD RETAI NER PLUG
118 P0826118 FI NNED ANCHO R M8-1 . 25 143 P0826143 LOCK WASHER 10MM
119 P0826119 FLA T WASHE R 8MM 144 P0826144 HEX BOLT M10-1.5 X 50
120 P0826120 CAP SCREW M8-1.25 X 25 145 P0826145 POINTER PANEL
121 P0826121 COL UMN CAP 146 P0826146 S TANDOFF S TUD M16- 2
122 P0826122 LE ADSCRE W BUSHI NG 147 P0826147 T-HANDLE, 150MM W/HOLE FOR PIN
123 P0826123 FLAT WASHER 17 X 30 X 0.5 148 P0826148 ROLL PIN 6 X 22

124 P0826124 ELEVATION HANDLE ARM 130L

Model G0826 (Mfd. Since 06/20)

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

-35-

208

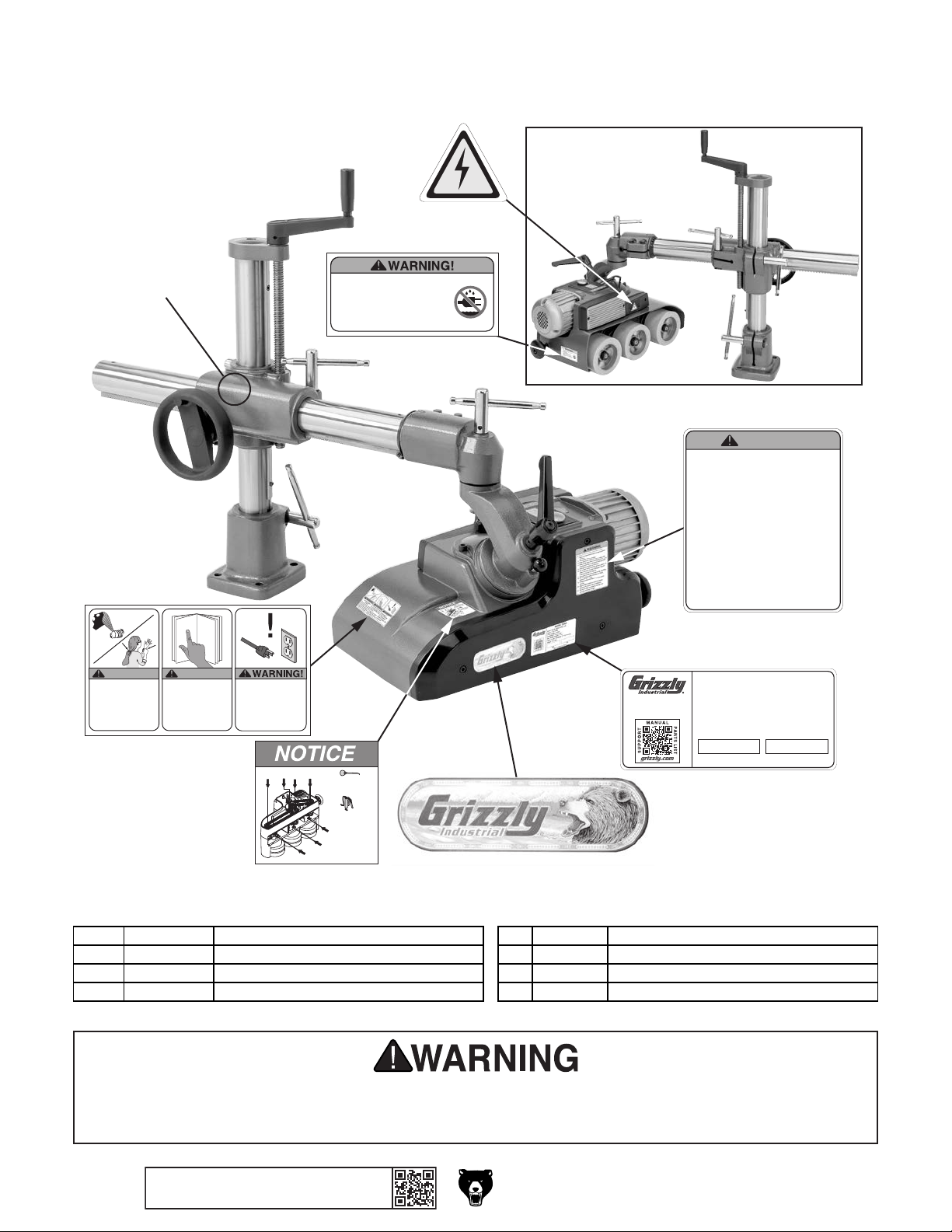

Labels & Cosmetics

201

• Do not expose to rain or use in
damp locations.

• AVERTISSEMENT!: Ne pas
exposer à la pluie et ne pas
utiliser dans les emplacements
humides.

202

WARNING!

ENTANGLEMENT

HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call [phone] or
go to www.grizzly.com.

207

DISCONNECT
POWER BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.

2

1

2

1

2

206

1

Every 1000 Hours
80-90W Gear Oil

2

Every 200 Hours
NLGI 2 Grease

2

2

205

MODEL G0826

EASY FEEDER

To reduce risk of serious injury when using:

1. Read and understand owner’s manual before

2. Always wear eye protection.

3. Only plug power cord into a grounded outlet.

4. Keep hands away from rotating wheels or other

5. Keep guards in place at all times.

6. Do not wear loose clothing, gloves, jewelry, or

7. Disconnect power before servicing, adjusting.

8. Do not operate under influence of drugs,

9. Properly install and adjust machine before

10. Adjust wheel height for each workpiece

11. Do not use with workpieces shorter than

WARNING

operating.

moving parts that could cause entanglement.

other items that can get entangled. Tie back
long hair and roll up sleeves.

alcohol, or when tired.

starting.

thickness to reduce risk of kickback.

specified minimum length.

203

Specifications

Power Requirement: 220V, 1-Ph, 15A, 60 Hz
Motor: 500 Watt (2/3 HP), 220V, 1-Ph, 60 Hz, 2.3A
Feed Speed: 7–72 FPM (Variable)
Roller Width: 2-5/16''
Roller Suspension: 3/4''
Movement: 6-11/16'' (Vertical), 17'' (Horizontal)
Weight: 117 lbs.

Date

Mfd. for Grizzly in Taiwan

S/N

204V2

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0826201 ELECTRICITY LABEL 205 P0826205 GRIZZLY OVAL LOGO LABEL
202 P0826202 WATER EXPOSURE WARNING LABEL 206 P0826206 LUBRICATION NOTICE
203 P0826203 OPERATION WARNING LABEL 207 P0826207 ENTANGLEMENT/READ/UNPLUG LABEL
204V2 P0826204V2 MACHINE ID LABEL V2.05.20 208 P0826208 TOUCH-UP PAINT, GRIZZLY GREEN

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-36-

BUY PARTS ONLINE AT GRIZZLY.COM !

Scan QR code to visit our Parts Store.

Model G0826 (Mfd. Since 06/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
