Grizzly G0821 Owner's Manual

MODEL G0821

6" BENCHTOP JOINTER

w/SPIRAL CUTTERHEAD

OWNER'S MANUAL

(For models manufactured since 03/18)

3092372

COPYRIGHT © FEBRUARY, 2017 BY GRIZZLY INDUSTRIAL, INC., REVISED FEBRUARY, 2018 (HE)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#JH18517 PRINTED IN CHINA

V2.02.18

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Machine Data Sheet ...................................... 6

SECTION 1: SAFETY ....................................... 8

Safety Instructions for Machinery .................. 8

Additional Safety for Jointers ....................... 10

SECTION 2: POWER SUPPLY ...................... 11

SECTION 3: SETUP ....................................... 13

Needed for Setup ......................................... 13

Unpacking .................................................... 13

Inventory ...................................................... 14

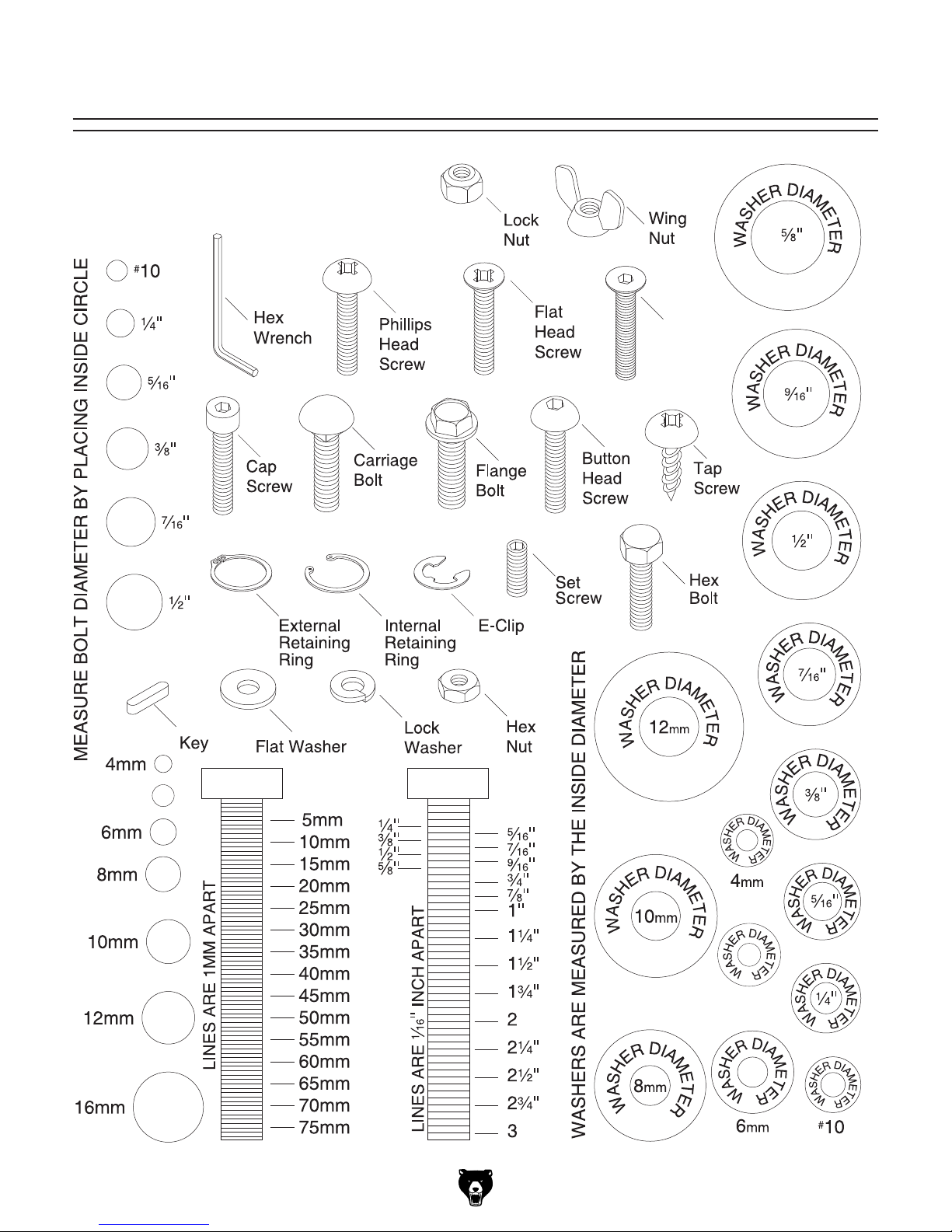

Hardware Recognition Chart ....................... 15

Cleanup ........................................................ 16

Site Considerations ...................................... 16

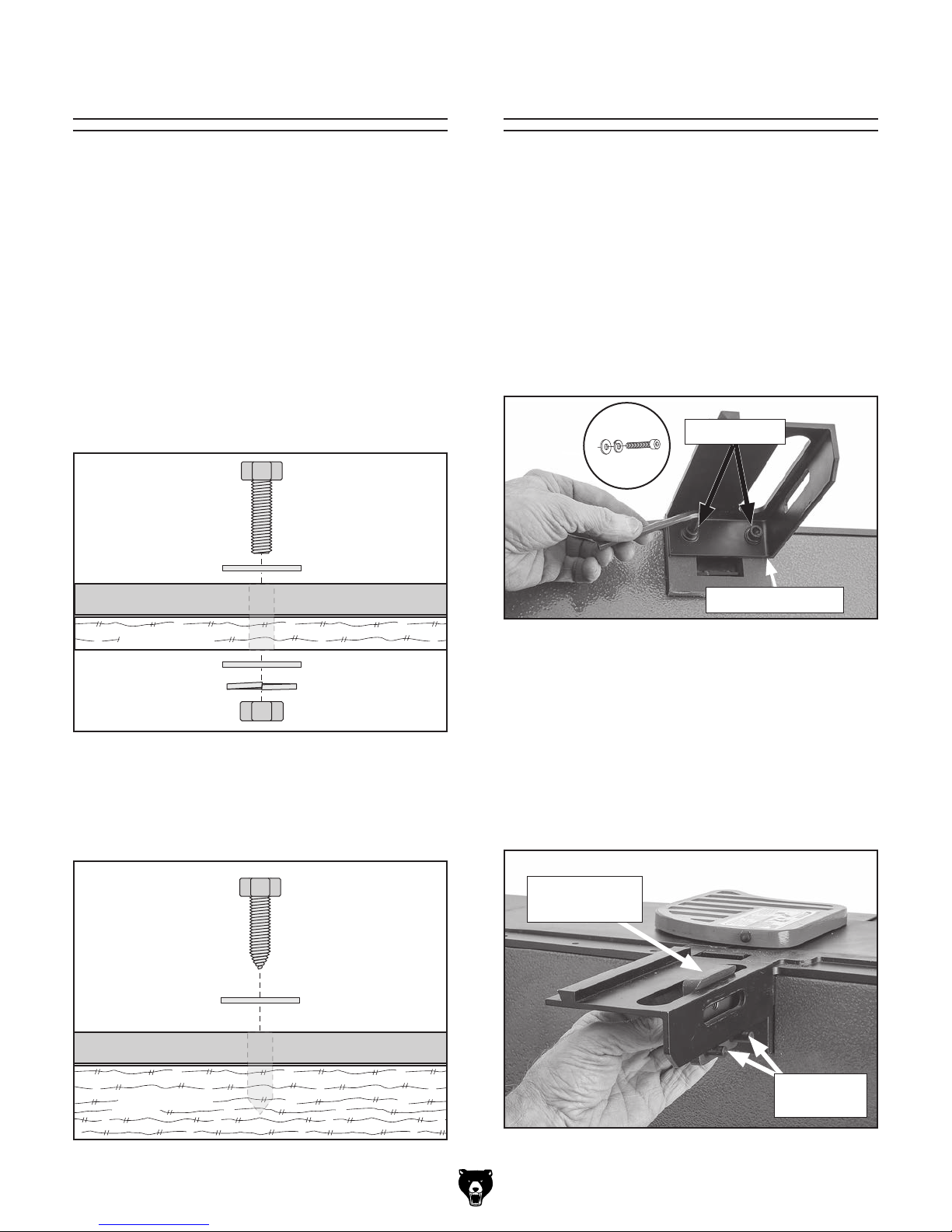

Bench Mounting ........................................... 17

Assembly ..................................................... 17

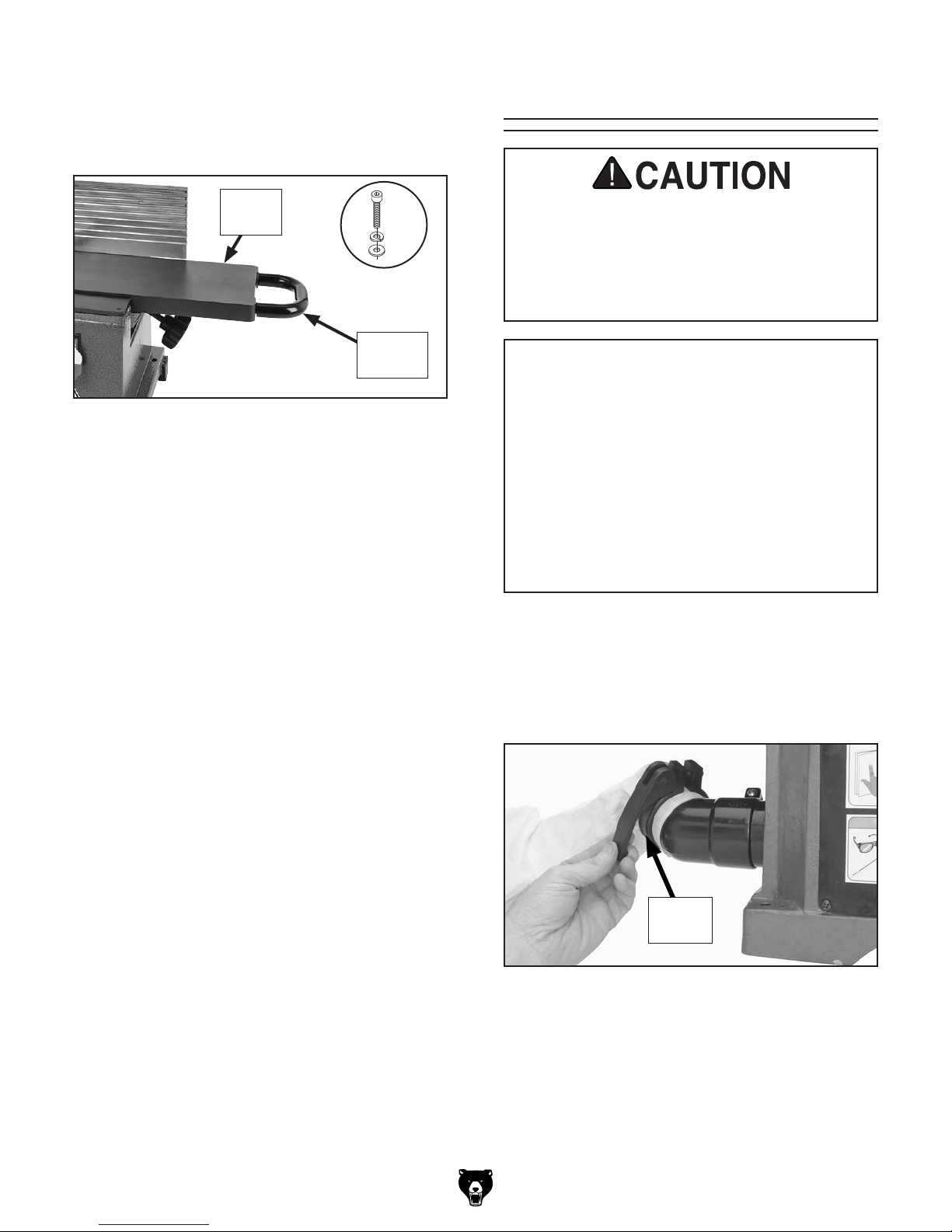

Dust Collection ............................................. 19

Test Run ...................................................... 20

Tightening Drive Belt ................................... 20

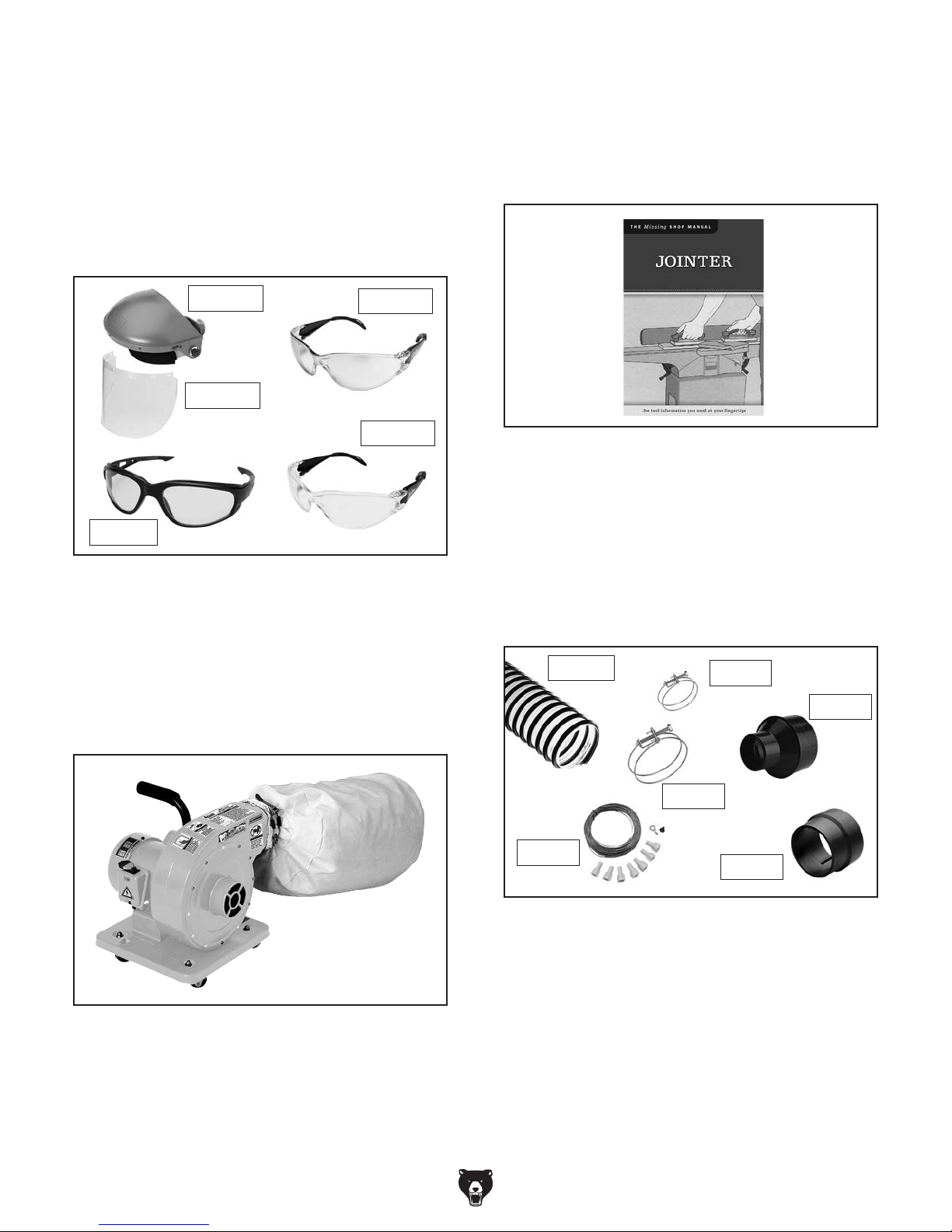

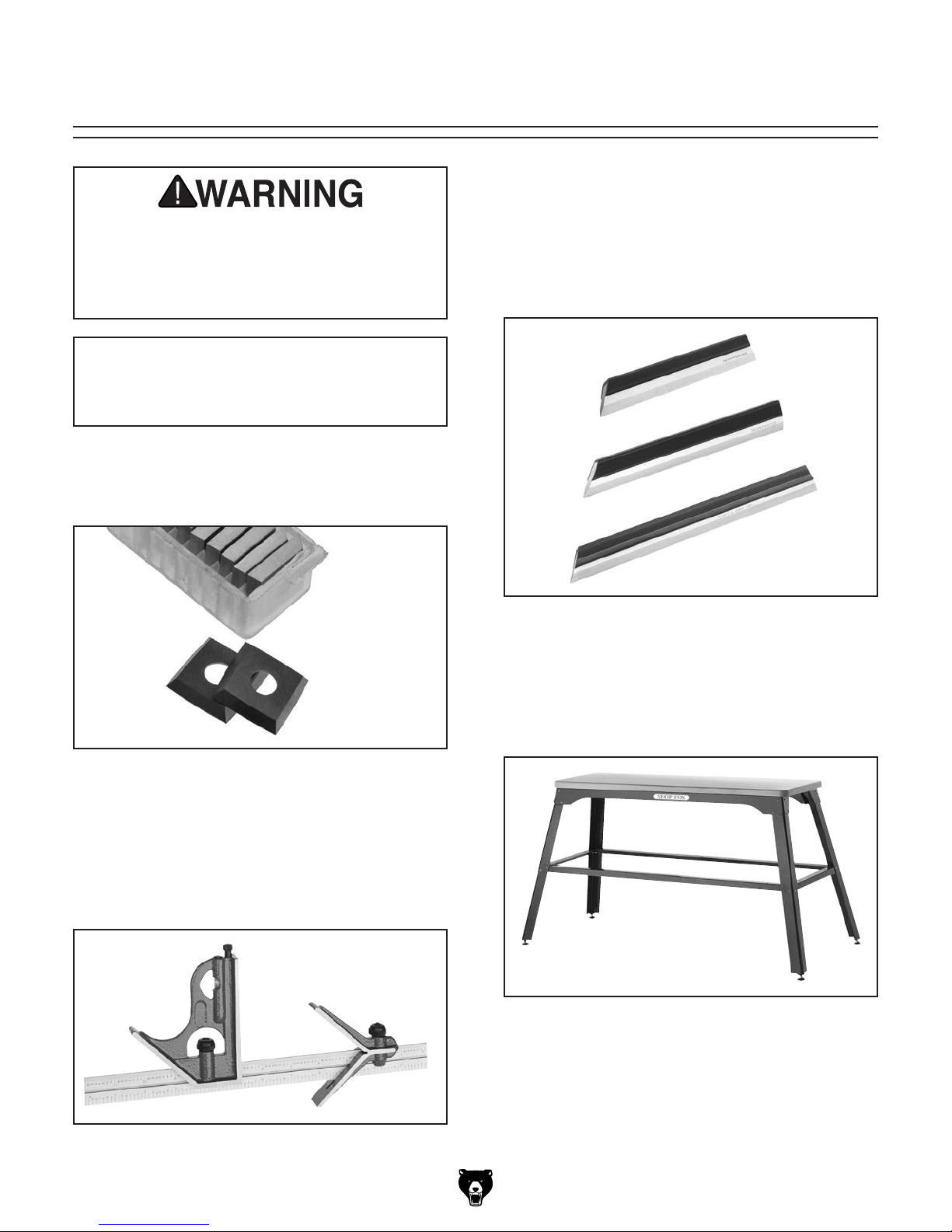

SECTION 5: ACCESSORIES ......................... 31

SECTION 6: MAINTENANCE ......................... 34

Schedule ...................................................... 34

Cleaning & Protecting .................................. 34

Lubrication ................................................... 35

SECTION 7: SERVICE ................................... 36

Troubleshooting ........................................... 36

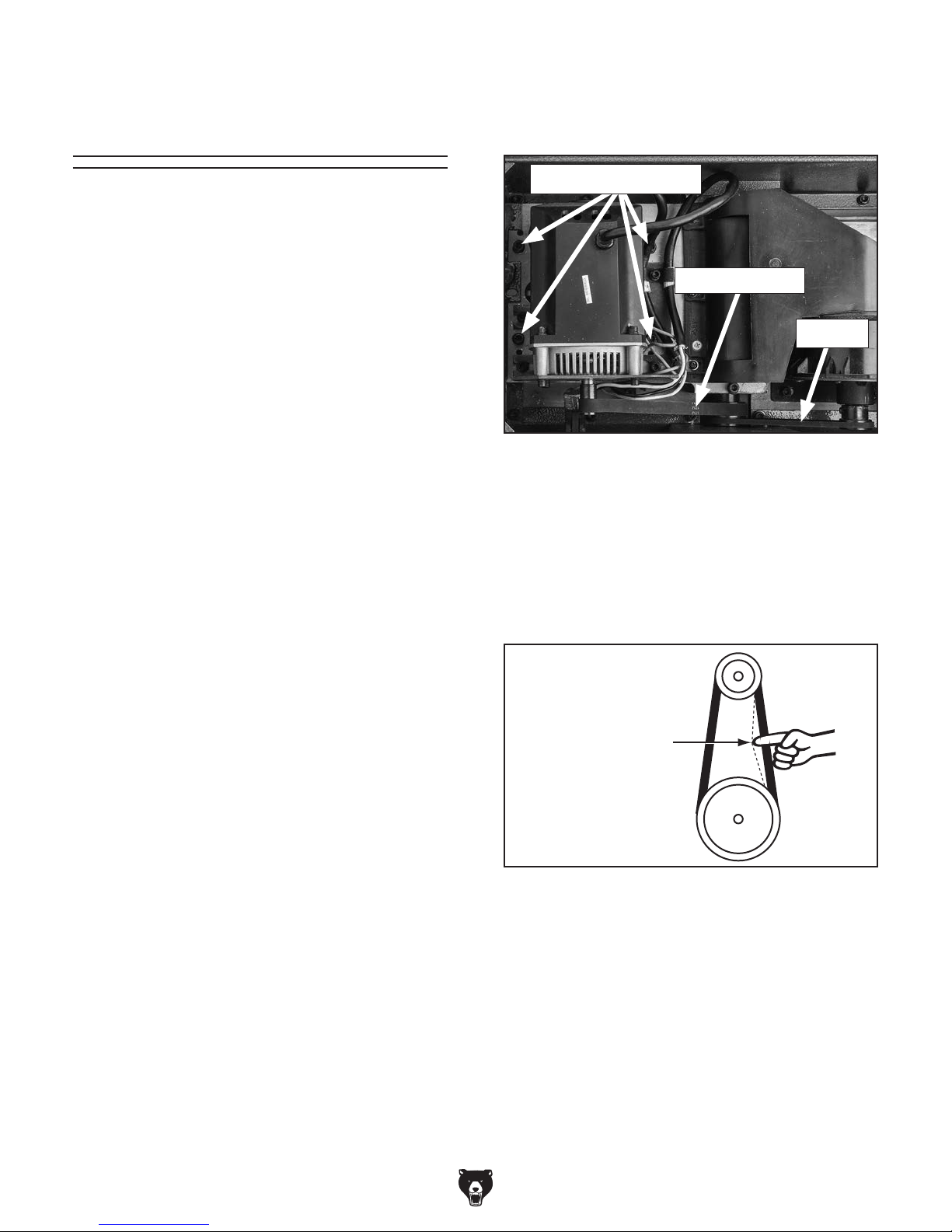

Tensioning/Replacing Belts ......................... 38

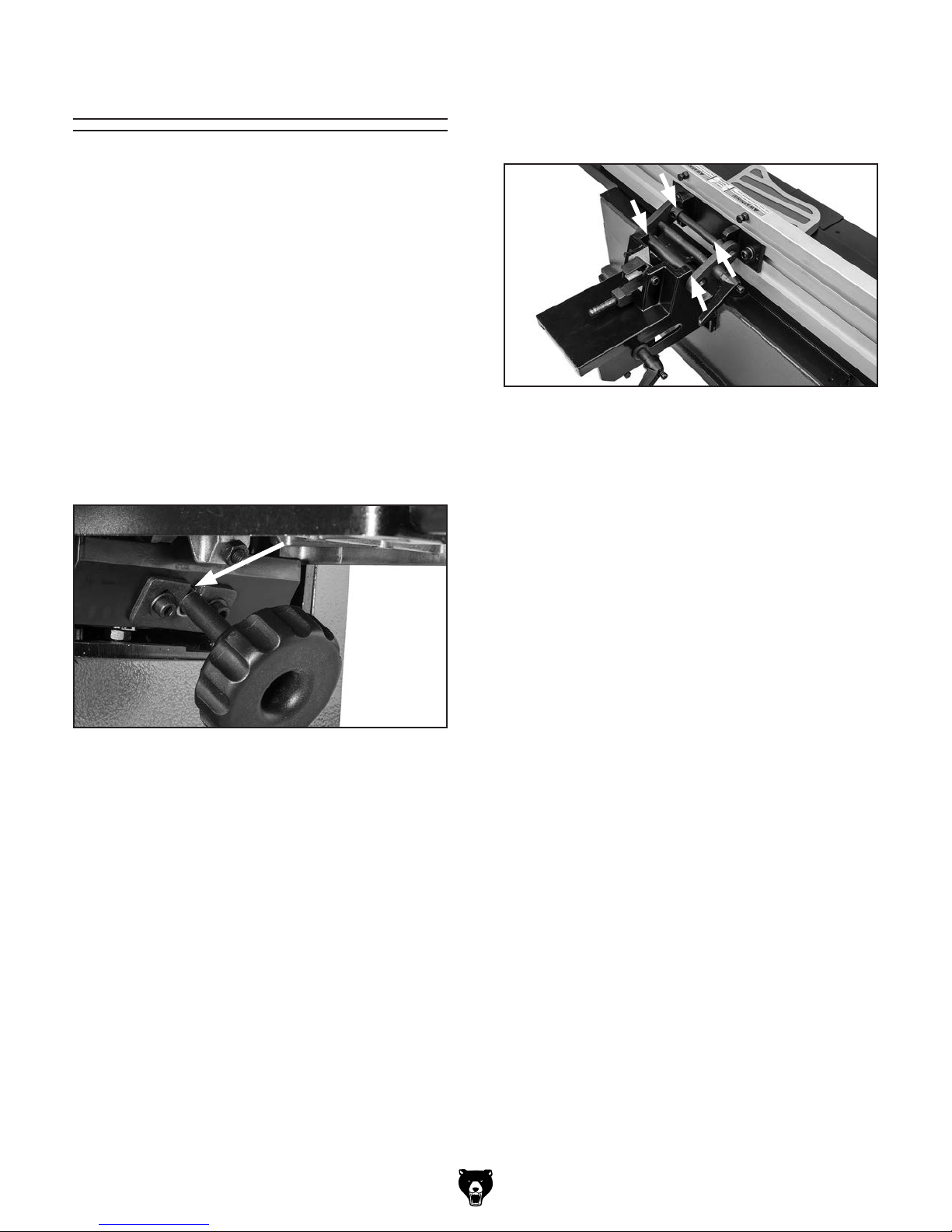

Adjusting Infeed Table Parallelism .............. 39

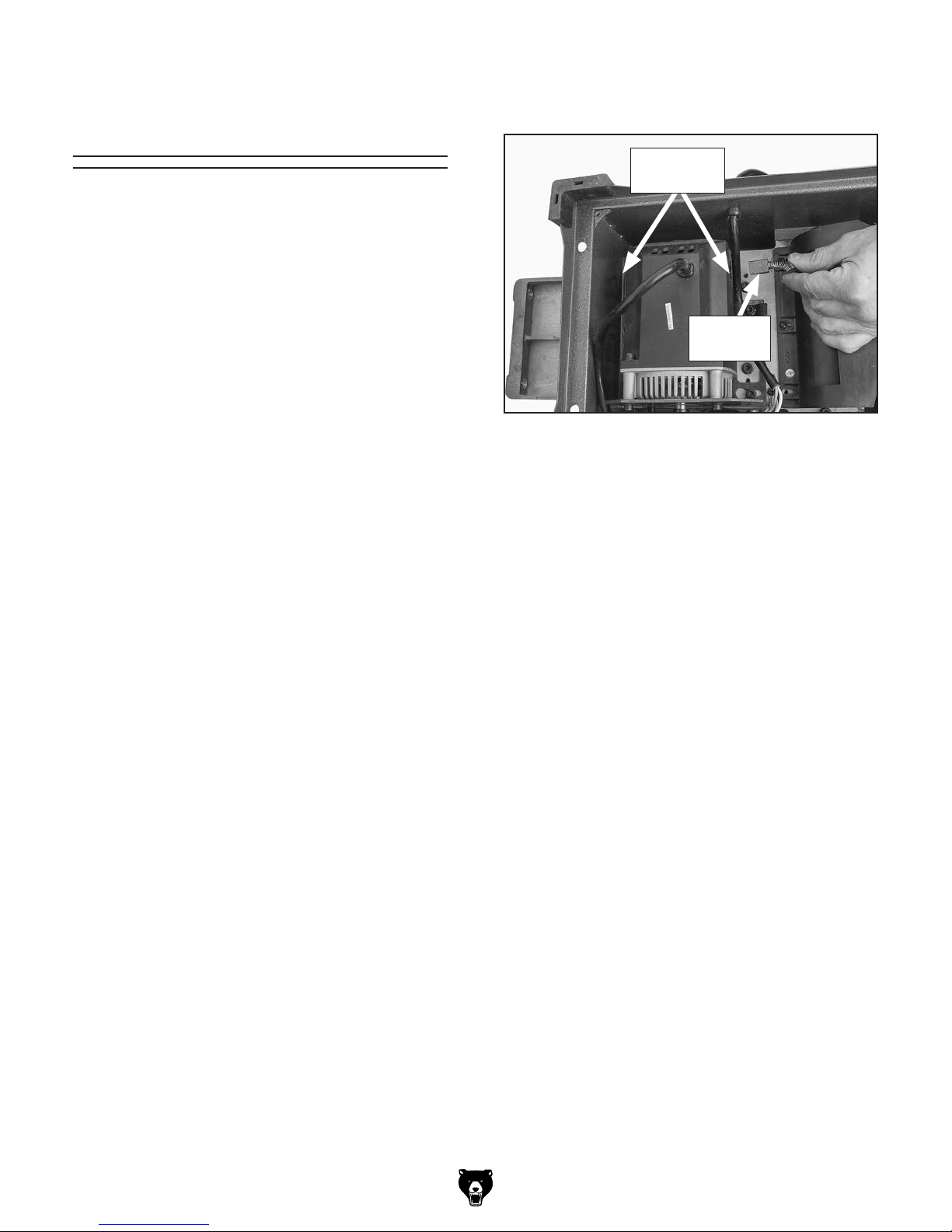

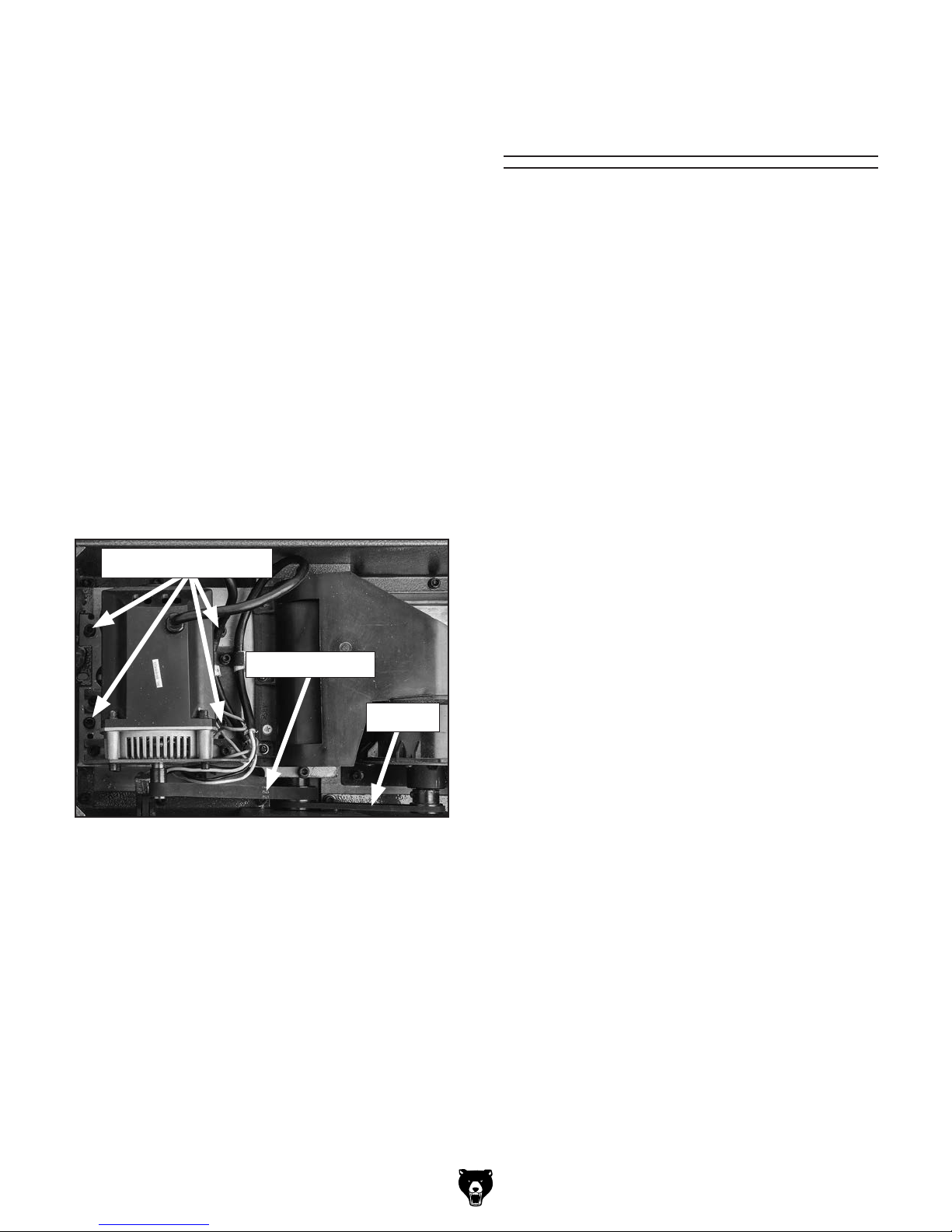

Replacing Motor Brushes ............................ 41

SECTION 8: WIRING ...................................... 42

Wiring Safety Instructions ............................ 42

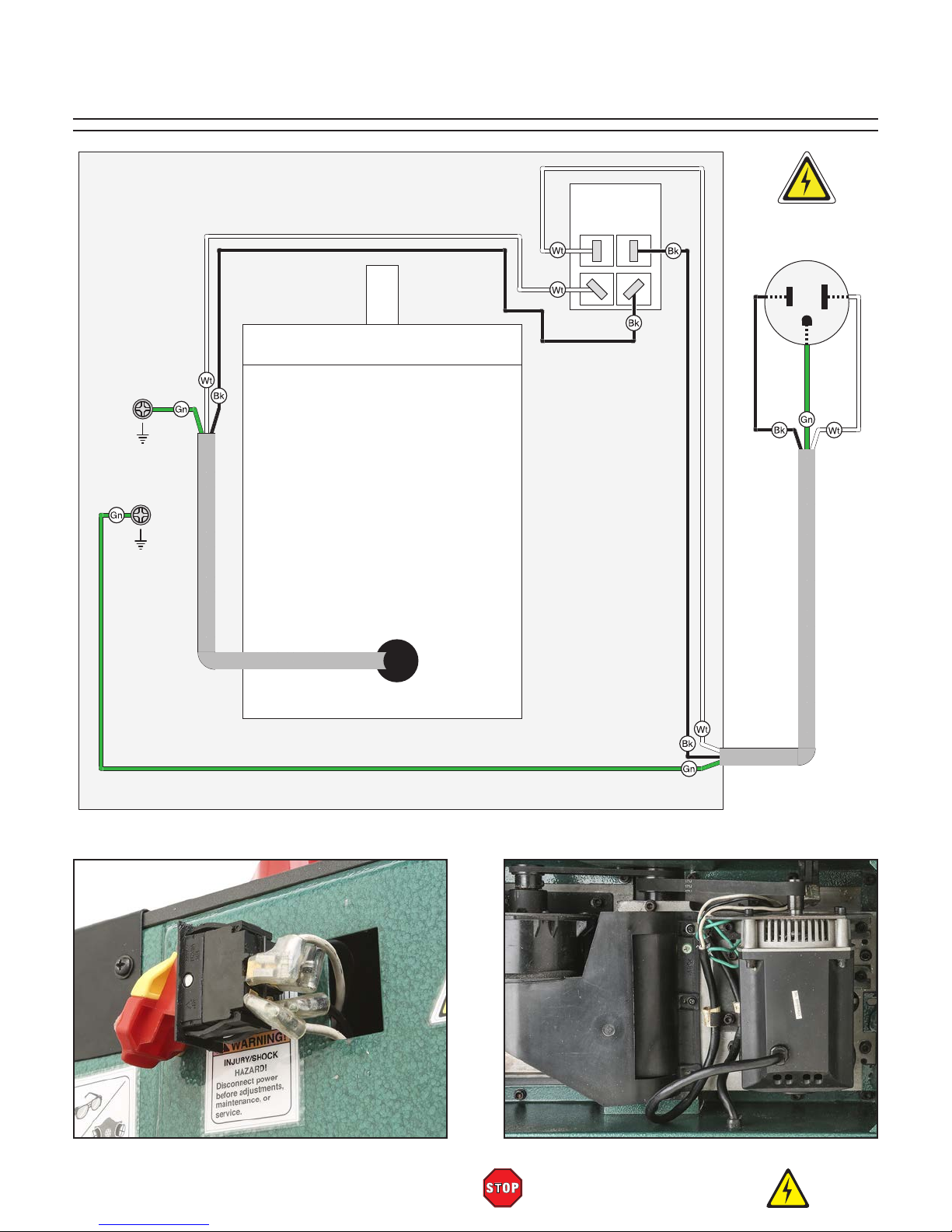

Wiring Diagram ............................................ 43

SECTION 9: PARTS ....................................... 44

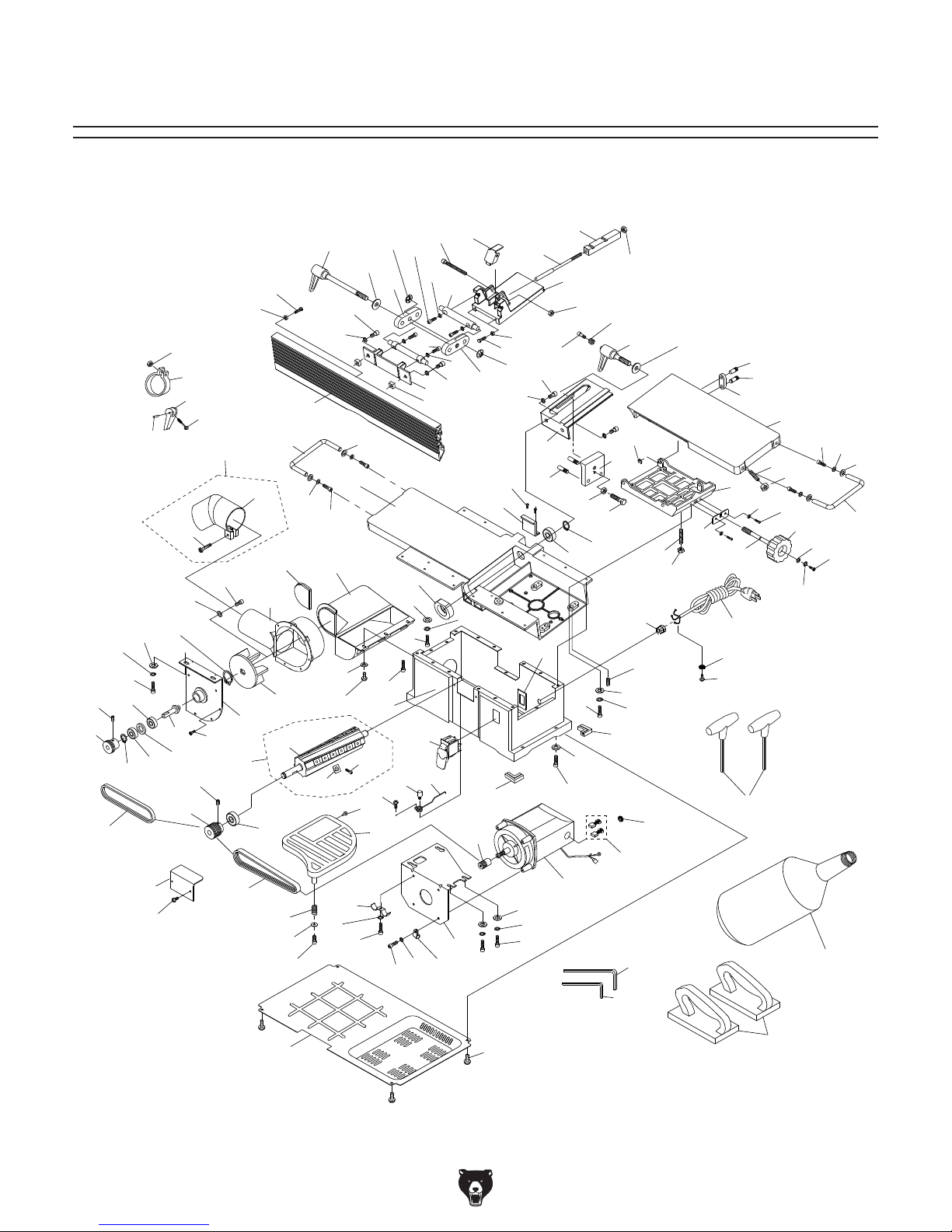

Main ............................................................. 44

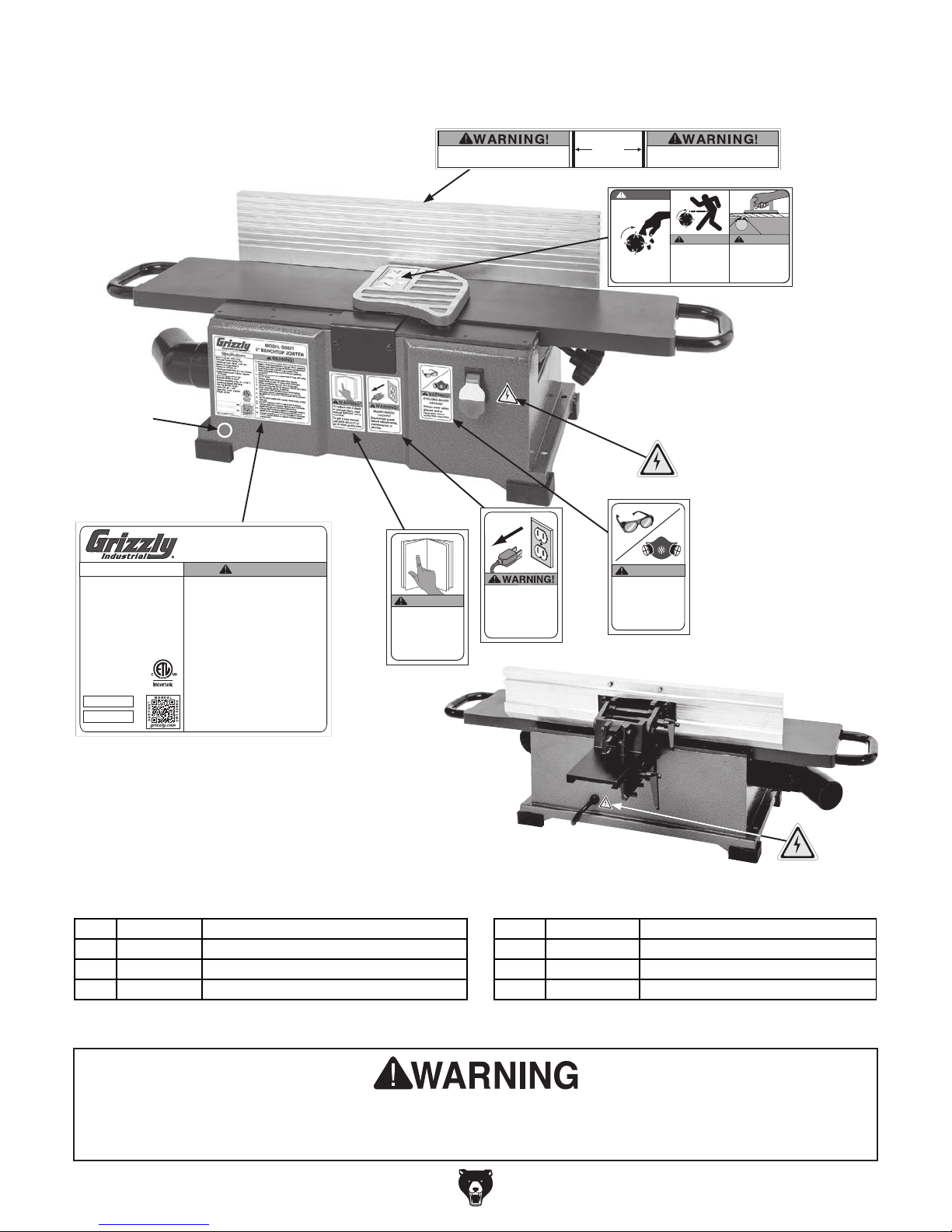

Labels & Cosmetics ..................................... 46

WARRANTY & RETURNS ............................. 49

SECTION 4: OPERATIONS ........................... 21

Operation Overview ..................................... 21

Stock Inspection & Requirements................ 22

Setting Depth of Cut .................................... 23

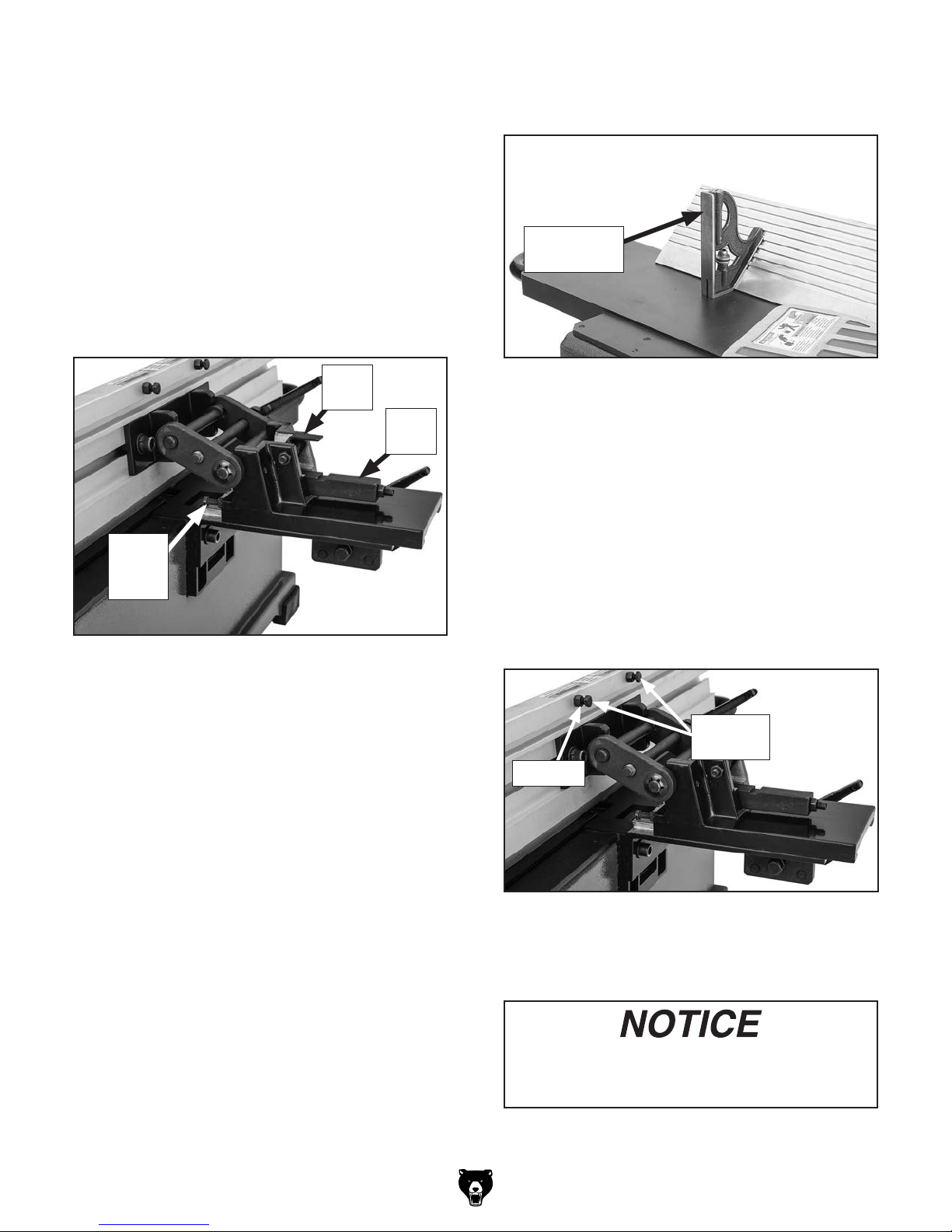

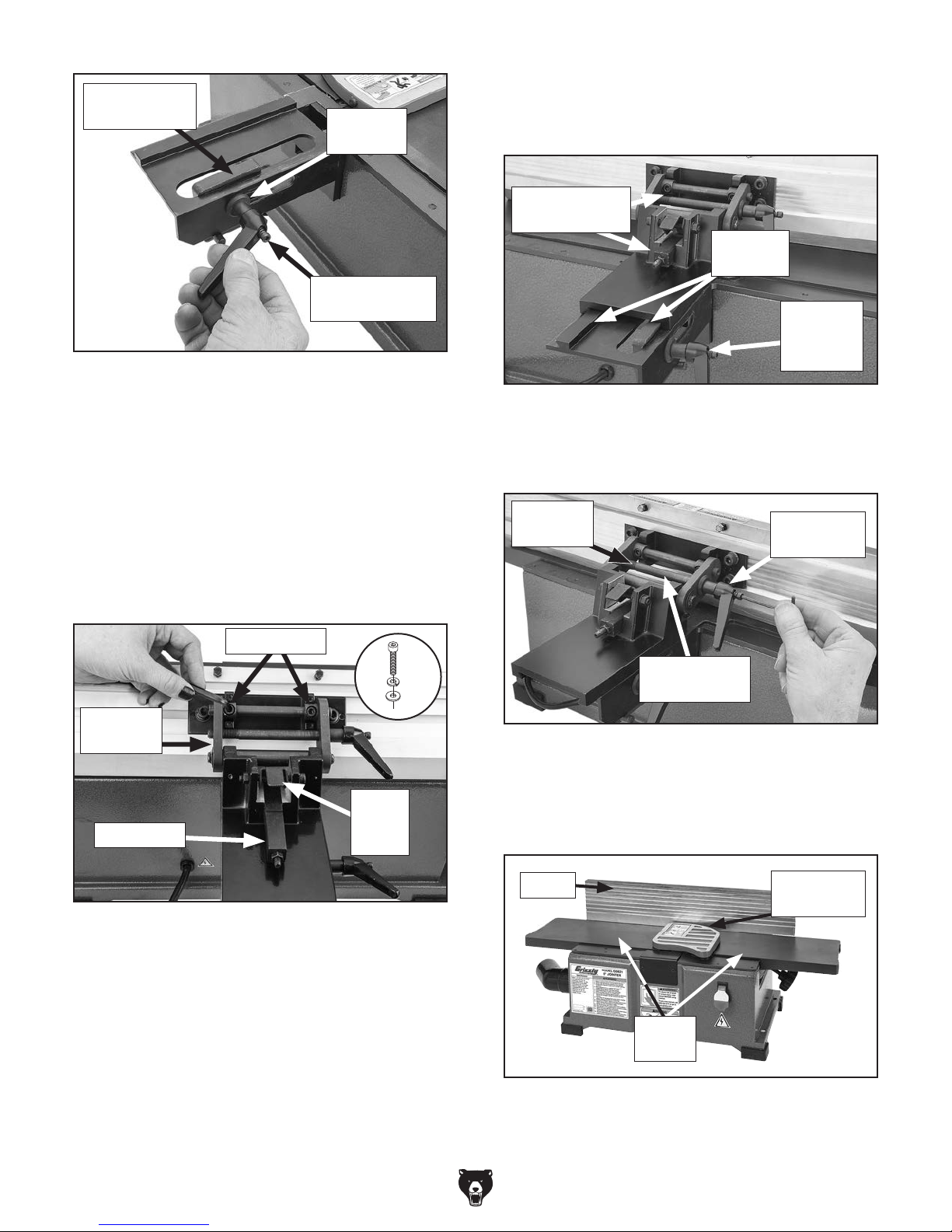

Setting Fence Stops .................................... 24

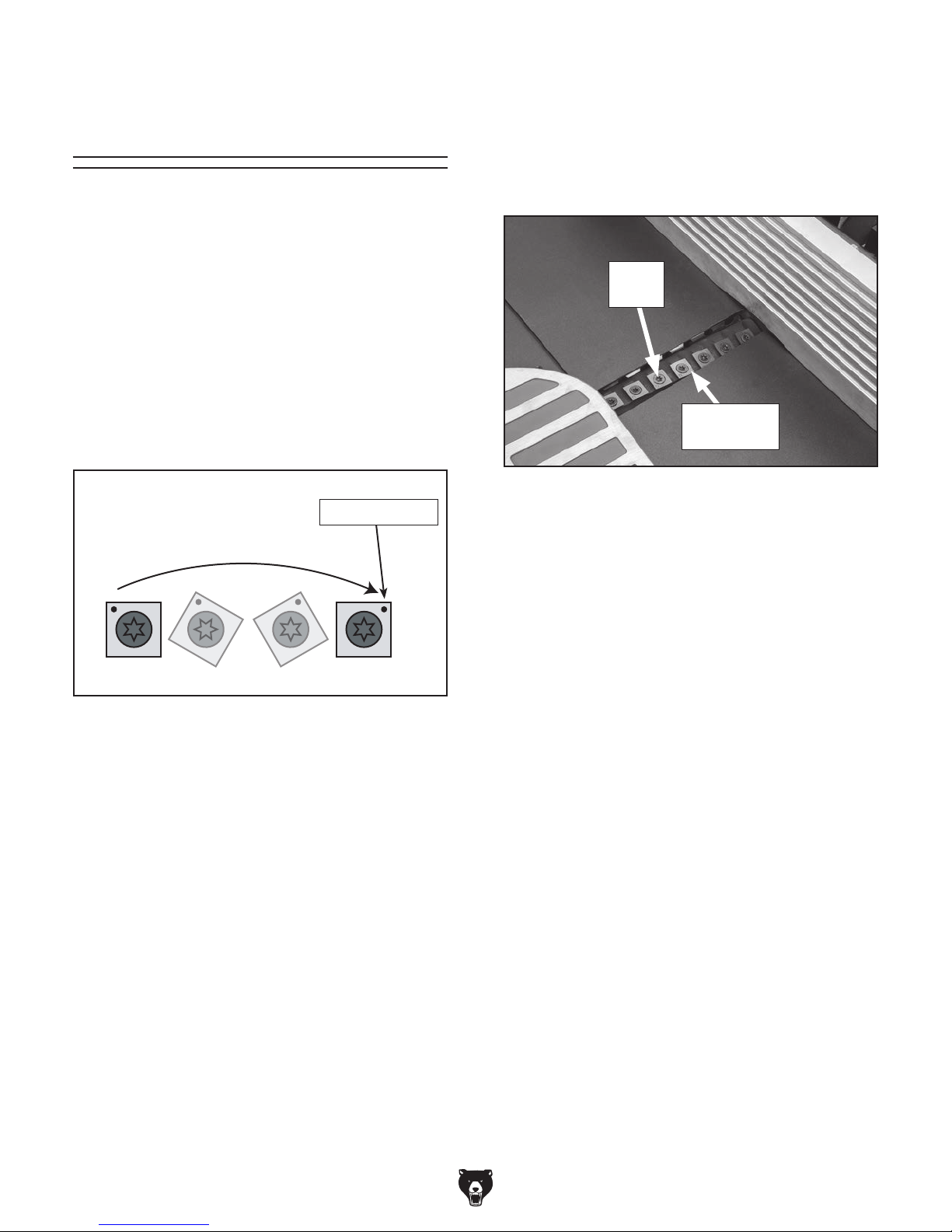

Rotating/Changing ....................................... 26

Cutterhead Inserts ....................................... 26

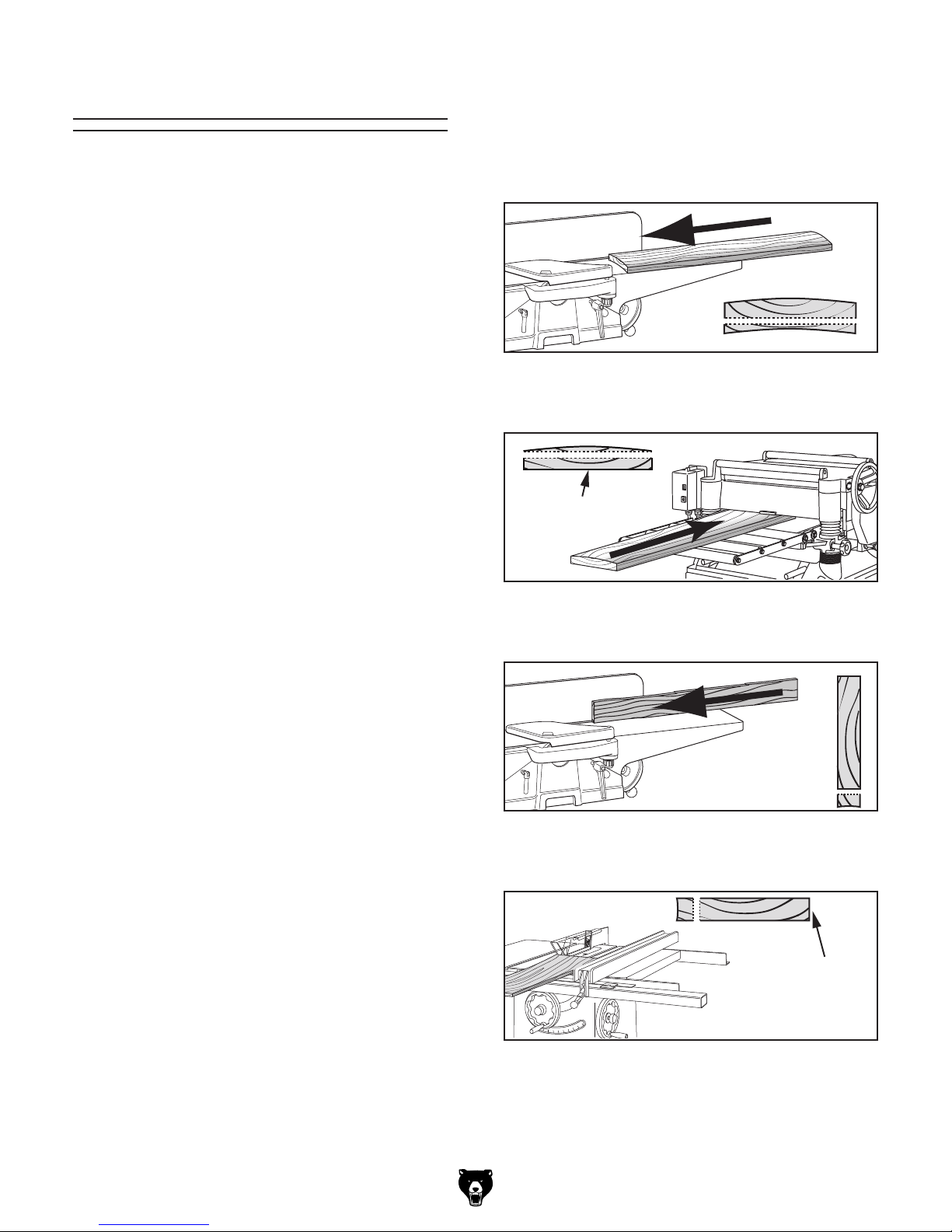

Squaring Stock............................................. 27

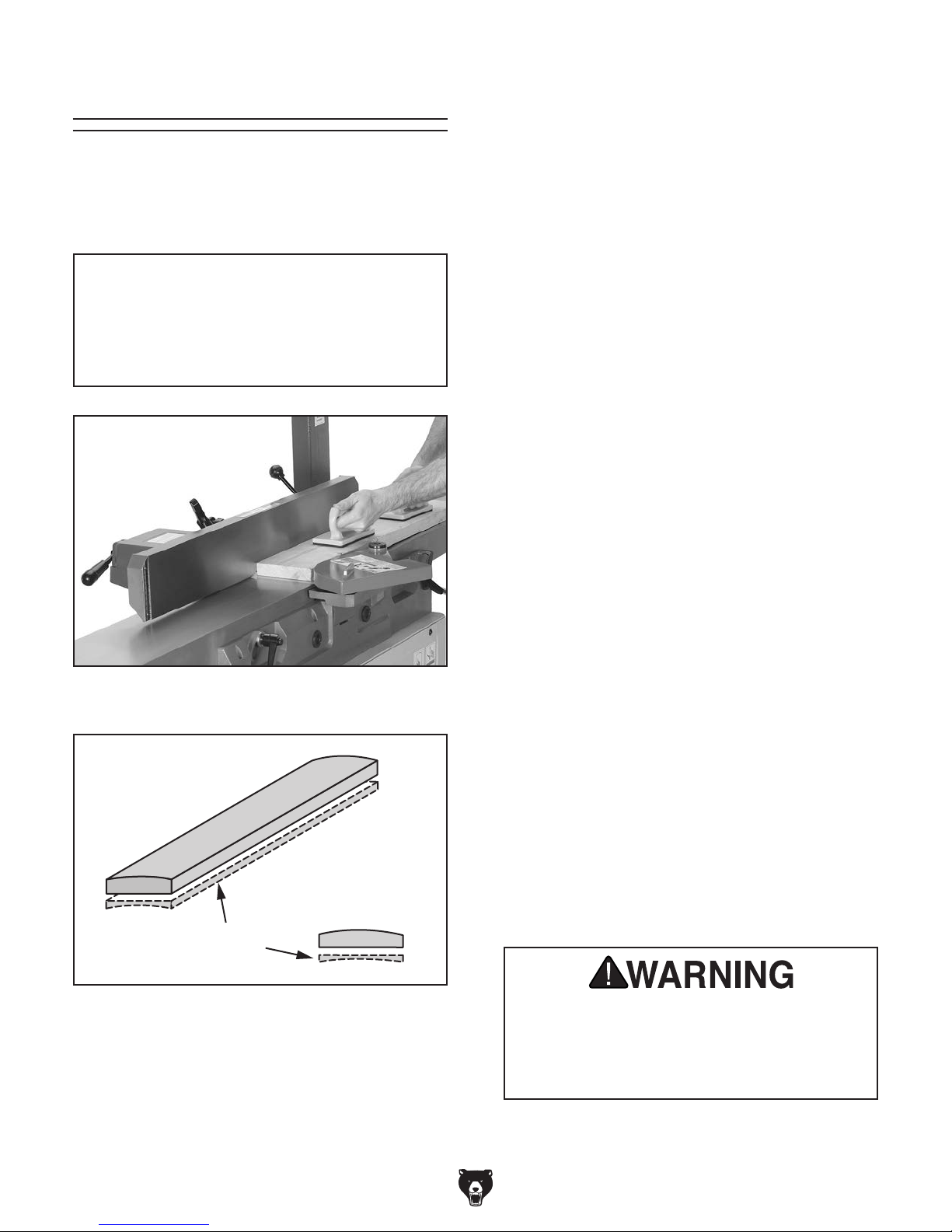

Surface Planing............................................ 28

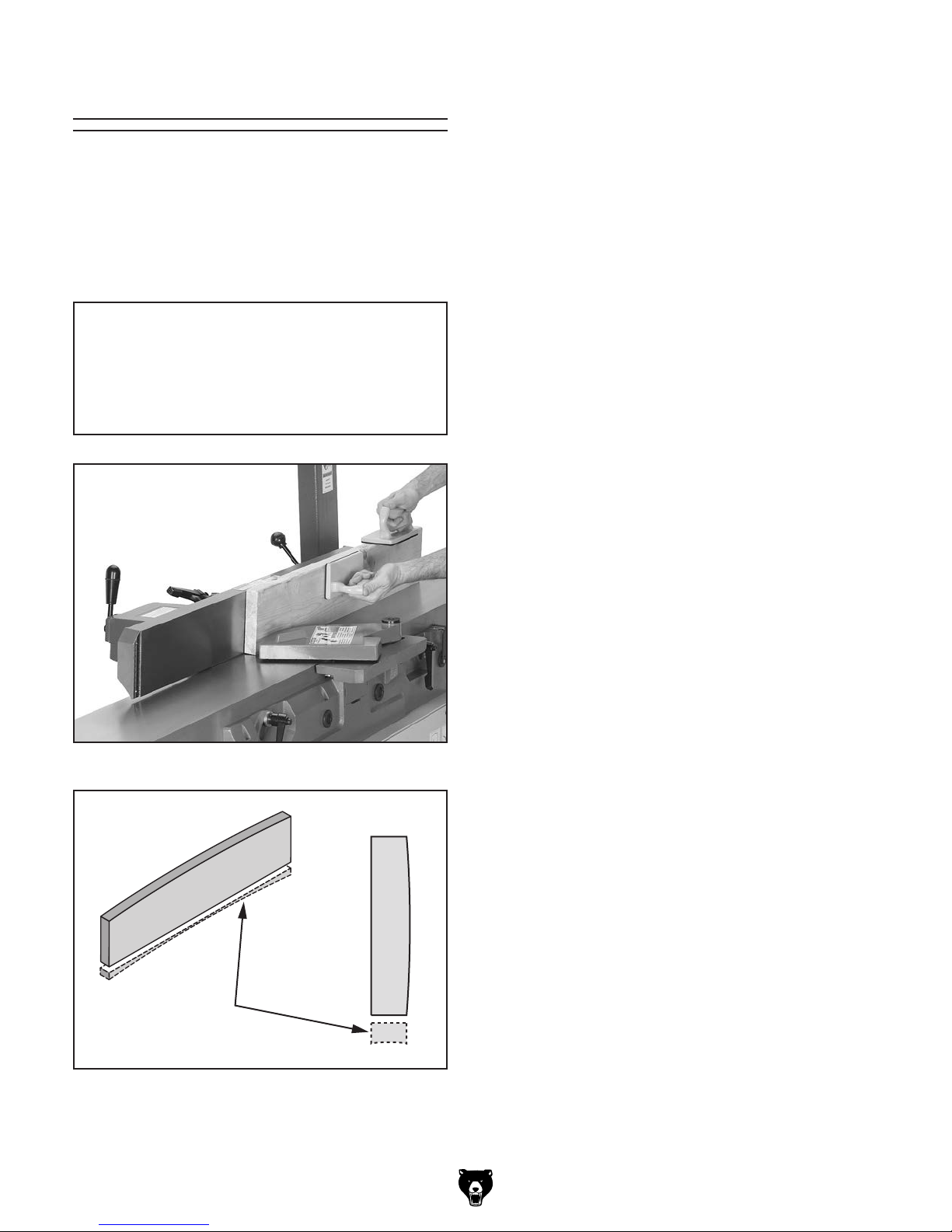

Edge Jointing ............................................... 29

Bevel Cutting................................................ 30

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model G0821 (Mfd. Since 03/18)

Identification

Outfeed

Table

2.5" Dust Port

Fence

ON/OFF Switch
w/Disabling Key

Cutterhead

Guard

Infeed

Table

Handle
(1 of 2)

Infeed Table

Adjustment

Knob

Mounting

Hole (1 of 4)

Fence Tilt Lock Lever

Fence Carriage

Lock Lever

For Your Own Safety Read Instruction Manual Before Operating Jointer

a) Wear eye and hearing protection.
b) Always keep cutterhead and drive guards in place and in proper operating condition.
c) Always use hold-down or push blocks when jointing material narrower than 3" or surface

planing material thinner than 3".

d) Never perform jointing or planing on pieces shorter than 8" in length.

Model G0821 (Mfd. Since 03/18)

-3-

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

A. Fence: Supports workpiece laterally as it

moves across cutterhead; determines angle
of cut when edge or bevel joining.

B. Cutterhead Guard: Covers cutterhead until

pushed aside by workpiece during operation.
When workpiece leaves cutterhead, guard
springs back to its starting position. DO NOT
operate jointer if guard is not functioning
properly.

using machine.

Refer to Figures 1–3 and the following descrip­tions to become familiar with the basic controls
and components of this machine. Understanding
these items and how they work will help you
understand the rest of the manual and stay safe
when operating this machine.

Component Descriptions

A

F

E

B

C

D

C. Infeed Table: Supports workpiece before it

reaches cutterhead. Height of infeed table
determines depth of cut.

D. Infeed Table Adjustment Knob: Adjusts

height of infeed table, which determines
depth of cut.

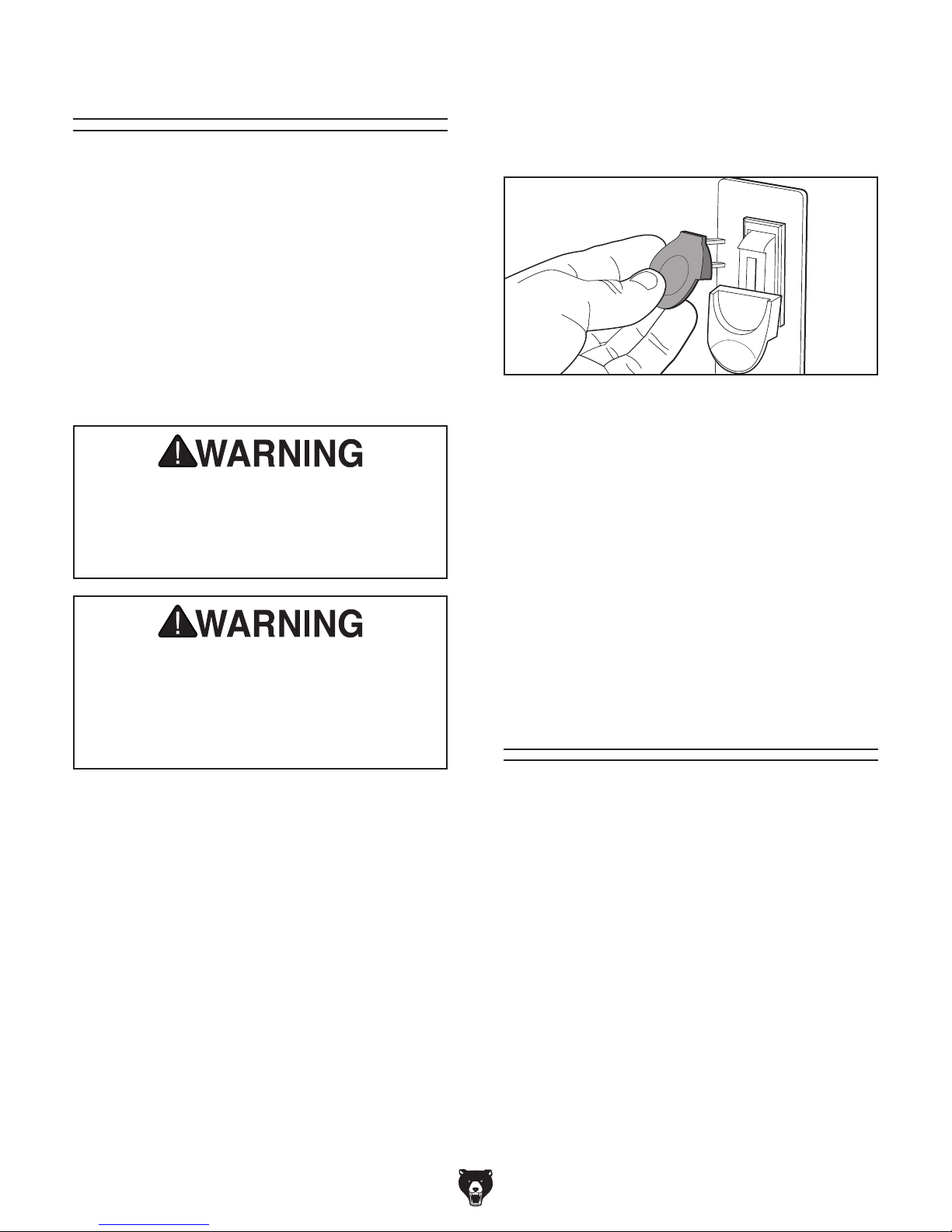

E. ON/OFF Switch w/Disabling Key: Turns

motor ON when flipped up; turns motor OFF
when pressed down. Removal of yellow key
disables switch so motor cannot start.

F. Outfeed Table: Supports workpiece after it

passes over cutterhead. For optimum cutting
results and safe operation, outfeed table must
be properly adjusted even with highest point
or TDC (Top Dead Center) of cutterhead
inserts.

Figure 1. Main table controls.

-4-

Model G0821 (Mfd. Since 03/18)

G

H

K

L

I

J

Figure 2. Fence controls.

G. 45° Outward (135°) Fence Stop: Stops

fence at 45° outward (135°) position for bevel
cuts.

Note: Even when fence is resting against

stops, tilt locks must be tightened before
starting machine.

H. Fence Tilt Lock Lever: Secures fence tilt

angle. Fence can be quickly set to 90° (per­pendicular to both tables), 45° inward, and
45° outward (135°) by setting and using fence
stops on bracket assembly.

I. Fence Carriage Lock Lever: Tightens to

secure fence position; loosens to allow lat­eral adjustment. ALWAYS firmly tighten lock
before beginning operations.

M

Figure 3. Fence carriage components.

K. 45° Inward Fence Stop: Stops fence at 45°

inward position for bevel cuts.

Note: Even when fence is resting against

stop, tilt locks must be tightened before start­ing machine.

L. Limit Block: Features indents to quickly

adjusts angle of fence carriage to 90°.

M. Limit Plate: Locks into limit block indents at

preset fence angles to set a starting angle
prior to precision adjustments.

J. Dust Port: Mounts to included collection

bag, or connects directly to a dust collector
or shop vacuum.

Model G0821 (Mfd. Since 03/18)

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0821 6" BENCHTOP JOINTER WITH SPIRAL

CUTTERHEAD

Product Dimensions:

Weight................................................................................................................................................................ 50 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 36 x 19 x 12-1/2 in.

Footprint (Length x Width)..................................................................................................................... 19-1/2 x 11 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 56 lbs.

Length x Width x Height....................................................................................................................... 38 x 16 x 13 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 12A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 16 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main

Horsepower............................................................................................................................................. 1.5 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 12A

Speed............................................................................................................................................. 20,000 RPM

Type..................................................................................................................................................... Universal

Power Transfer .................................................................................................................................. Belt Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Main Specifications

Jointer Size.................................................................................................................................................. 6 in.

Bevel Jointing............................................................................................................................. 0 – 45 deg. L/R

Maximum Width of Cut................................................................................................................................ 6 in.

Maximum Depth of Cut............................................................................................................................. 1/8 in.

Minimum Workpiece Length........................................................................................................................ 8 in.

Minimum Workpiece Thickness................................................................................................................ 1/2 in.

Number of Cuts Per Minute..................................................................................................................... 24,000

-6-

Model G0821 (Mfd. Since 03/18)

Fence Information

Fence Length....................................................................................................................................... 22-1/2 in.

Fence Width.......................................................................................................................................... 13/16 in.

Fence Height....................................................................................................................................... 4-5/16 in.

Fence Stops............................................................................................................................. 45, 90, 135 deg.

Cutterhead Information

Cutterhead Type........................................................................................................................................ Spiral

Cutterhead Diameter............................................................................................................................. 1-7/8 in.

Number of Cutter Spirals.................................................................................................................................. 3

Number of Indexable Cutters.......................................................................................................................... 18

Cutterhead Speed............................................................................................................................. 8000 RPM

Cutter Insert Information

Cutter Insert Type.................................................................................................................. Indexable Carbide

Cutter Insert Length................................................................................................................................. 15 mm

Cutter Insert Width................................................................................................................................... 15 mm

Cutter Insert Thickness........................................................................................................................... 2.5 mm

Table Information

Table Length........................................................................................................................................ 30-3/8 in.

Table Width........................................................................................................................................... 6-1/4 in.

Table Thickness........................................................................................................................................... 1 in.

Floor to Table Height............................................................................................................................. 8-1/4 in.

Table Adjustment Type.............................................................................................................................. Knob

Table Movement Type.............................................................................................................................. Swing

Construction

Body Assembly...................................................................................................................... Pre-Formed Steel

Fence Assembly.................................................................................................................. Extruded Aluminum

Guard.................................................................................................................................................. Aluminum

Table................................................................................................................................................... Aluminum

Paint Type/Finish....................................................................................................................... Powder Coated

Other Information

Number of Dust Ports....................................................................................................................................... 1

Dust Port Size........................................................................................................................................ 2-1/2 in.

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 10 Minutes

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

45, 90, 135-Degree Stops
2-1/2 in. Dust Port
Included Push Blocks
Spiral Cutterhead
Grab Handles for Portability
Aluminum Top with Non-Stick Coating
Built-in Dust Collection System Works Stand-Alone or with Dust Collector/Shop Vacuum

Model G0821 (Mfd. Since 03/18)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0821 (Mfd. Since 03/18)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G0821 (Mfd. Since 03/18)

-9-

Additional Safety for Jointers

Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead
or other moving components! Flying chips from cutting operations can cause blindness or eye
injuries. Workpieces or inserts/knives thrown by cutterhead (kickback) can strike nearby operator
or bystanders with deadly force. To reduce the risk of serious personal injury from these hazards,
operator and bystanders MUST completely heed the hazards and warnings below.

KICKBACK. Occurs when workpiece is ejected

from machine at a high rate of speed. Kickback
injuries occur from getting struck by workpiece or
hands being pulled into cutterhead. To reduce the
risk of kickback, only use proper workpieces, safe
feeding techniques, and proper machine setup or
maintenance.

GUARD REMOVAL. Operating jointer without
guards unnecessarily exposes operator to knives/
inserts and other hazardous moving parts. Except
when rabbeting, never operate jointer or allow it to
be connected to power if any guards are removed.
Turn jointer OFF and disconnect power before
clearing any shavings or sawdust from around cut­terhead. After rabbeting or maintenance is com­plete, immediately replace all guards and ensure
they are properly installed/adjusted before resum­ing regular operations.

DULL OR DAMAGED KNIVES/ INSERTS. Dull or
damaged knives/inserts increase risk of kickback
and cause poor workpiece finish. Only use sharp,
undamaged knives/inserts.

OUTFEED TABLE ALIGNMENT. Setting outfeed
table too high can cause workpiece to hit table or
get stuck while feeding. Setting outfeed table too
low may cause workpiece to rock or shift while
feeding. Both of these results will increase risk
of kickback. Always keep outfeed table even with
knives/inserts at highest point during rotation.

INSPECTING STOCK. Impact injuries or kick­back may result from using improper workpieces.
Thoroughly inspect and prepare workpiece before
cutting. Verify workpiece is free of nails, staples,
loose knots or other foreign material. Warped
workpieces must be surface planed first with
cupped side facing down.

MAXIMUM CUTTING DEPTH. To reduce risk of

1

kickback, never cut deeper than

⁄8" per pass.

GRAIN DIRECTION. Jointing against the grain
or end grain can increase risk of kickback. It also
requires more cutting force, which produces chat­ter or excessive chip out. Always joint or surface
plane WITH the grain.

CUTTING LIMITATIONS. Cutting workpieces that
do not meet minimum dimension requirements can
result in kickback or accidental contact with cutter­head. Never perform jointing, planing, or rabbeting

3

cuts on pieces smaller than 8" long,

1

⁄4" thick.

⁄4" wide, or

PUSH BLOCKS. Push blocks reduce risk of acci­dental cutterhead contact with hands. Always use
push blocks when planing materials less than 3"
high or wide. Never pass your hands directly over
cutterhead without a push block.

WORKPIECE SUPPORT. Poor workpiece sup­port or loss of workpiece control while feeding will
increase risk of kickback or accidental contact
with cutterhead. Support workpiece with fence
continuously during operation. Support long stock
with auxiliary tables if necessary.

FEED WORKPIECE PROPERLY. Kickback or
accidental cutterhead contact may result if work­piece is fed into cutterhead the wrong way. Allow
cutterhead to reach full speed before feeding.
Never start jointer with workpiece touching cutter­head. Always feed workpiece from infeed side to
outfeed side without stopping until cut is complete.
Never move workpiece backwards while feeding.

SECURE KNIVES/INSERTS. Loose knives or
improperly set inserts can be thrown from cutter­head with dangerous force. Always verify knives/
inserts are secure and properly adjusted before
operation. Straight knives should never project

1

more than

⁄8" (0.125") from cutterhead body.

-10 -

Model G0821 (Mfd. Since 03/18)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

process. DO NOT connect to power until

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115 V, 12 0V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V ...... 12 Amps

Model G0821 (Mfd. Since 03/18)

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

-11-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

process. DO NOT connect to power until

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

Grounding Requirements

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Prong

5-15 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Neutral Hot

Figure 4. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

verified ground.

-12-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0821 (Mfd. Since 03/18)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Safety Glasses ........................................... 1

• Cleaner/Degreaser ..................... As Needed

• Disposable Shop Rags ............... As Needed

• Additional People ....................................... 1

• Straightedge 2' ........................................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Hex Wrench 3mm ....................................... 1

• Hex Wrench 4mm ....................................... 1

• Hex Wrench 6mm ....................................... 1

This machine and its com­ponents are very heavy.
Get lifting help if needed.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

Model G0821 (Mfd. Since 03/18)

-13-

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Inventory

A

B

Jointer Inventory (Figures

A. Jointer Bed Assembly................................. 1

B. Fence.......................................................... 1

C. Dust Collection Bag Clamp ........................ 1

D. Dust Chute ................................................. 1

E. Dust Collection Bag .................................... 1

F. Push Blocks ................................................ 2

G. Handles ...................................................... 2

H. Fence Carriage Lock Lever ........................ 1

I. Fence Tilt Lock Lever ................................. 1

J. Replacement Inserts (5-Pack) .................... 1

K. Carriage Mounting Bracket ......................... 1

L. Carriage Assembly ..................................... 1

M. Fence Pivot Assembly ................................ 1

N. Limit Block .................................................. 1

O. Locking Pin Plate ........................................ 1

P. Hex Wrenches 5, 6mm .........................1 Ea.

Q. T-Handle Torx Wrench T25 ........................ 2

R. Beveled Washers 10 x 3.5mm ................... 2

Fasteners (See Hardware Recognition Chart)

• Cap Screws M6-1 x 20 ............................... 6

• Cap Screws M8-1.25 x 30 .......................... 4

• Flat Head Torx Screws M5-.8 x 10 ........... 10

• Flat Washers 6mm ..................................... 4

• Flat Washers 8mm ..................................... 2

• Lock Washers 6mm.................................... 6

• Lock Washers 8mm.................................... 2

Qty

5–6)

Figure 5. Large components.

C

E

D

G

J

P

H

I

K

M

Q R

F

L

N

O

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-14-

Figure 6. Small components.

Model G0821 (Mfd. Since 03/18)

Hardware Recognition Chart

USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

5mm

Model G0821 (Mfd. Since 03/18)

5mm

-15-

Cleanup Site Considerations

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

amount of cleaner/degreaser, then let it soak

3.

scrape off as much as you can first, then wipe

4.

then coat all unpainted surfaces with a quality

Avoid chlorine-based solvents, such as

or disable start switch or

Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein­forcement to support the weight of the machine
and workpiece materials.

Consider anticipated workpiece sizes and addi­tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.

Workbench Load

Placement Location

19"

Put on safety glasses.

Coat the rust preventative with a liberal

for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

metal protectant to prevent rust.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

36"

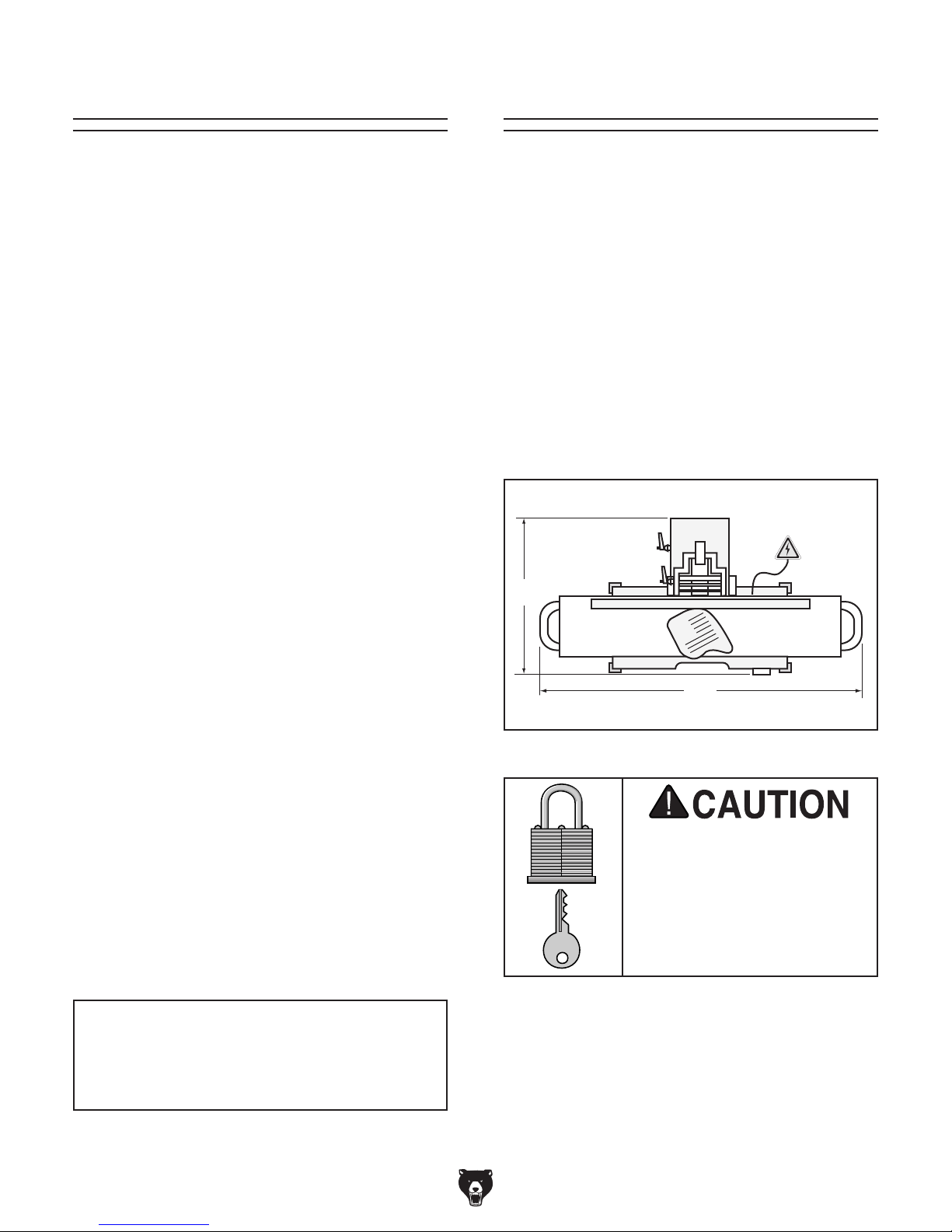

Figure 7. Minimum working clearances.

Children and visitors may be
seriously injured if unsuper­vised around this machine.
Lock entrances to the shop

power connection to prevent
unsupervised use.

-16 -

Model G0821 (Mfd. Since 03/18)

Bench Mounting

Another option is a "direct mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.

The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.

The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).

Assembly

Number of Mounting Holes ............................ 4

Dia. of Mounting Hardware Needed ..........

Hex
Bolt

Flat Washer

Machine Base

5

⁄16"

Needed for Setup

listed items. To ensure the assembly process

parts that are cov-

1. Use (2) M8-1.25 x 30 cap screws, (2) 8mm flat
washers, and (2) 8mm lock washers to attach
carriage support to jointer (see Figure 10).

Cap Screws

x 2

Carriage Support

Workbench

Flat Washer

Lock Washer

Figure 8. Typical "Through Mount" setup.

Machine Base

Hex Nut

Lag Screw

Flat Washer

Figure 10. Attaching carriage support to bed

assembly.

2. Insert locking plate assembly into carriage
support, so locking plate pins are against
bottom edge of carriage support (see Figure

11). Then attach fence carriage lock lever
and 10 x 3.5mm beveled washer to locking
plate assembly, as shown in Figure 12 on
Page 18).

Locking Plate

Assembly

Workbench

Figure 9. Typical "Direct Mount" setup.

Model G0821 (Mfd. Since 03/18)

Locking

Plate Pins

Figure 11. Inserting locking plate assembly.

-17-

Locking Plate

Assembly

Beveled

Washer

Fence Carriage

Lock Lever

Figure 12. Securing locking plate assembly with

fence carriage lock lever and beveled washer.

6. Slide fence bracket assembly onto support
dovetails and locking plate assembly, as
shown in Figure 14.

Fence Bracket

Assembly

Support

Dovetails

Locking

Plate

Assembly

Figure 14. Fence assembly on support dovetails.

Note: Do not fully tighten yet.

4. Press down on limit plate tab on carriage

assembly, and insert limit block with notched
side facing upward (see Figure 13).

5. Use (2) M6-1 x 20 cap screws and (2) 6mm
lock washers to attach fence to fence bracket
assembly (see Figure 13).

Cap Screws

x 2

Bracket

Assembly

Limit

Plate

Limit Block

Tab

7. Install fence tilt lock by threading handle shaft
into bracket assembly (see Figure 15).

Bracket

Assembly

Fence Tilt

Lock Lever

Fence Tilting
Handle Shaft

Figure 15. Installing fence tilt lock.

8. Slide fence forward until it contacts cutterhead

guard. Cutterhead guard should completely
cover cutterhead, as shown in Figure 16.

Figure 13. Attaching fence to fence bracket

assembly.

-18-

Fence

Cutterhead

Guard

Jointer
Tables

Figure 16. Fence positioned over jointer tables.

9. Tighten fence carriage lock lever to lock

fence in place.

Model G0821 (Mfd. Since 03/18)

10. Use (2) M6-1 x 20 cap screws, (2) 6mm lock
washers and (2) 6mm flat washers to attach
each handle to each end of the jointer tables
(see Figure 17).

Dust Collection

Jointer

Table

Figure 17. Handle attached to end of table.

x 2

Table

Handle

This machine creates a lot of wood chips/
dust during operation. Breathing airborne
dust on a regular basis can result in perma­nent respiratory illness. Reduce your risk
by wearing a respirator and capturing the
dust with a dust collection system.

Recommended CFM at Dust Port: 250 CFM

Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col­lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal­culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.

To connect dust collection bag:

1. Fit dust collection bag over dust port, as

shown in Figure 18, and secure with bag
clamp.

Bag

Clamp

Figure 18. Securing dust collection bag with bag

clamp.

2. Tug bag to make sure it does not come off. A
tight fit is necessary for proper performance.

Note: Dust collection bag may be substituted

with an appropriately-sized dust collector with

1

⁄2" dust collection hose (see above).

2

Model G0821 (Mfd. Since 03/18)

-19 -

The switch can be disabled by removing the key,
as shown below. Disabling the switch in this man-
ner can prevent unauthorized operation of the
machine, which is important if it is not kept inside
an access-restricted building or in a location
where children may be present.

IMPORTANT: Disabling the switch only restricts
its function. It is not a substitute for disconnecting
machine from power when adjusting or servicing.

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

setup instructions have been performed.
Operating an improperly set up machine

Serious injury or death can result from

Troubleshooting

The Test Run verifies safety features stop machine
when needed, and that machine operates prop­erly prior to regular operation.

4. Turn machine OFF.

5. Remove switch-disabling key, as shown in
Figure 19.

Figure 19. Removing key from paddle switch.

6. Try to start machine with ON/OFF paddle

switch.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

DO NOT start machine until all preceding

may result in malfunction or unexpect­ed results that can lead to serious injury,
death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Verify that the machine is operating correctly

by turning the machine ON.

— When operating correctly, machine runs

smoothly with little or no vibration or rub­bing noises.

— Investigate and correct strange or unusu-

al noises or vibrations before operat­ing machine further. Always disconnect
machine from power when investigating or
correcting potential problems.

-20-

— If machine does not start, switch disabling

feature is working as designed.

— If machine does start, immediately stop

machine and disconnect from power.
Switch disabling feature is not working
correctly. This safety feature must work
properly before proceeding with regular
operations. Call Tech Support for help.

Tightening Drive Belt

The final step in the setup process must be done
after approximately 16 hours of operation. During
this first 16 hours, the belt will stretch and seat
into the pulley grooves. After this time, you must
re-tension the belt to avoid slippage and burn-out.
Refer to Page 38 when you are ready to perform
this important adjustment.

It's normal for the pulleys and belt to get hot. Allow
them to cool before making adjustments.

Note: A small amount of black belt dust at the bot­tom of the belt housing is normal during the life of
the machine and does not indicate a problem with
the machine or belt.

Model G0821 (Mfd. Since 03/18)

SECTION 4: OPERATIONS

To complete a typical operation with the
jointer

1.

2.

3.

4.

5.

6.

7.

8.

9. Stops jointer.

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is
not intended to be an instructional guide. To learn
more about specific operations, read this entire
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

seek additional

, and do additional research

using machine.

, the operator does the following:

Examines workpiece to verify it is safe and

suitable for cutting.

Adjusts fence for width of workpiece and

locks it in place.

Adjusts fence tilt, if necessary.

Adjusts infeed table height to set depth of cut

per pass.

Puts on safety glasses, respirator, and any

other required protective equipment.

Starts jointer.

Using push blocks as needed, holds work-

piece firmly against infeed table and fence,
and feeds workpiece into cutterhead at a
steady and controlled rate until entire length
of workpiece has been cut and it clears the
cutterhead on the outfeed table side.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Model G0821 (Mfd. Since 03/18)

Repeats cutting process described above

until desired results are achieved.

-21-

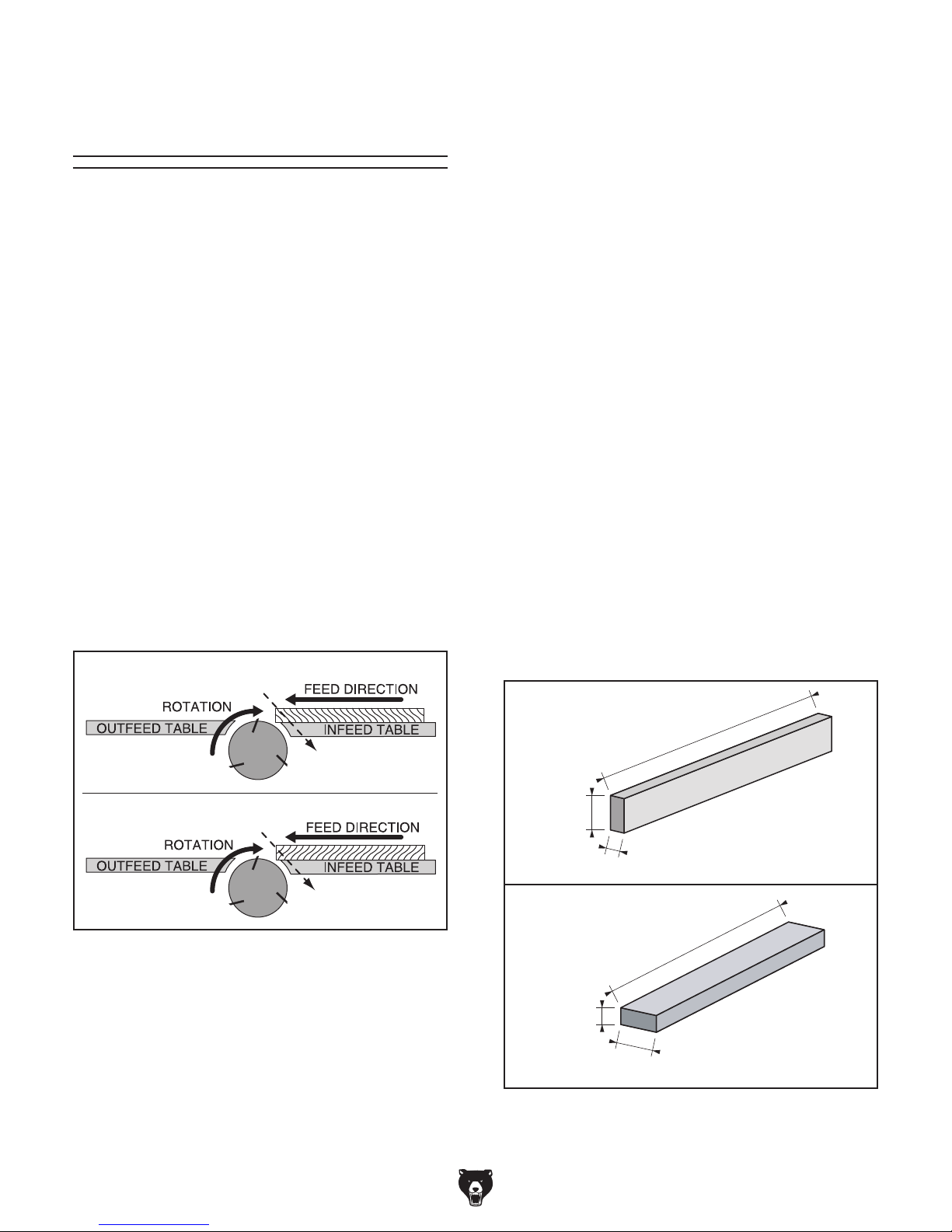

Stock Inspection &

10" Min.

1

/4" Min.

3

/4" Min.

Requirements

• Scrape all glue off the workpiece before
jointing. Glue deposits on the workpiece,

hard or soft, will gum up the cutterhead and
produce poor results.

Follow these rules when choosing and joint­ing stock:

• DO NOT joint or surface plane stock that

contains large or loose knots. Injury to the

operator or damage to the workpiece can
occur if a knot becomes dislodged during the
cutting operation.

• Jointing and surface planing with the

grain is safer for the operator and pro­duces a better finish. Cutting against the

grain increases the likelihood of kickback
and workpiece tear-out. DO NOT cut against
the grain! Cutting with the grain is feeding
the stock across the cutterhead so the grain
points down and back, as viewed from the
front edge of the stock (see Figure 20).

Note: If the grain changes direction along the

edge of the workpiece, decrease the depth of
cut and make additional passes.

CORRECT

• Remove foreign objects from the
workpiece. Make sure that any stock you

process with the jointer is clean and free
of dirt, nails, staples, tiny rocks or any
other foreign objects that could damage the
cutterhead. These particles could also cause
a spark as they strike the cutterhead and cre­ate a fire hazard.

Note: Wood stacked on a concrete or dirt

surface can have small pieces of concrete or
stone pressed into the surface.

• Make sure all stock is sufficiently dried

before jointing. Wood with a moisture con­tent over 20% will cause unnecessary wear
on the cutters and poor cutting results. Excess
moisture can also hasten rust and corrosion.

• Make sure your workpiece exceeds the

minimum dimension requirements, as
shown in Figure 21, before processing it
through the jointer, or the workpiece may
break or kickback during the operation.

With Grain

INCORRECT

Against Grain

Figure 20. Proper grain alignment with the

cutterhead.

• Only process natural wood fiber through
your jointer. Your jointer is designed to cut
only natural wood stock. This machine is
NOT designed to cut metal, glass, stone, tile,
products with lead-based paint, or products
that contain asbestos—cutting these materi­als with a jointer may lead to injury.

10" Min.

3

/4" Min.

1

/4" Min.

10" Min.

1

/2" Min.

1" Min.

Figure 21. Minimum stock dimensions for jointer.

-22-

Model G0821 (Mfd. Since 03/18)

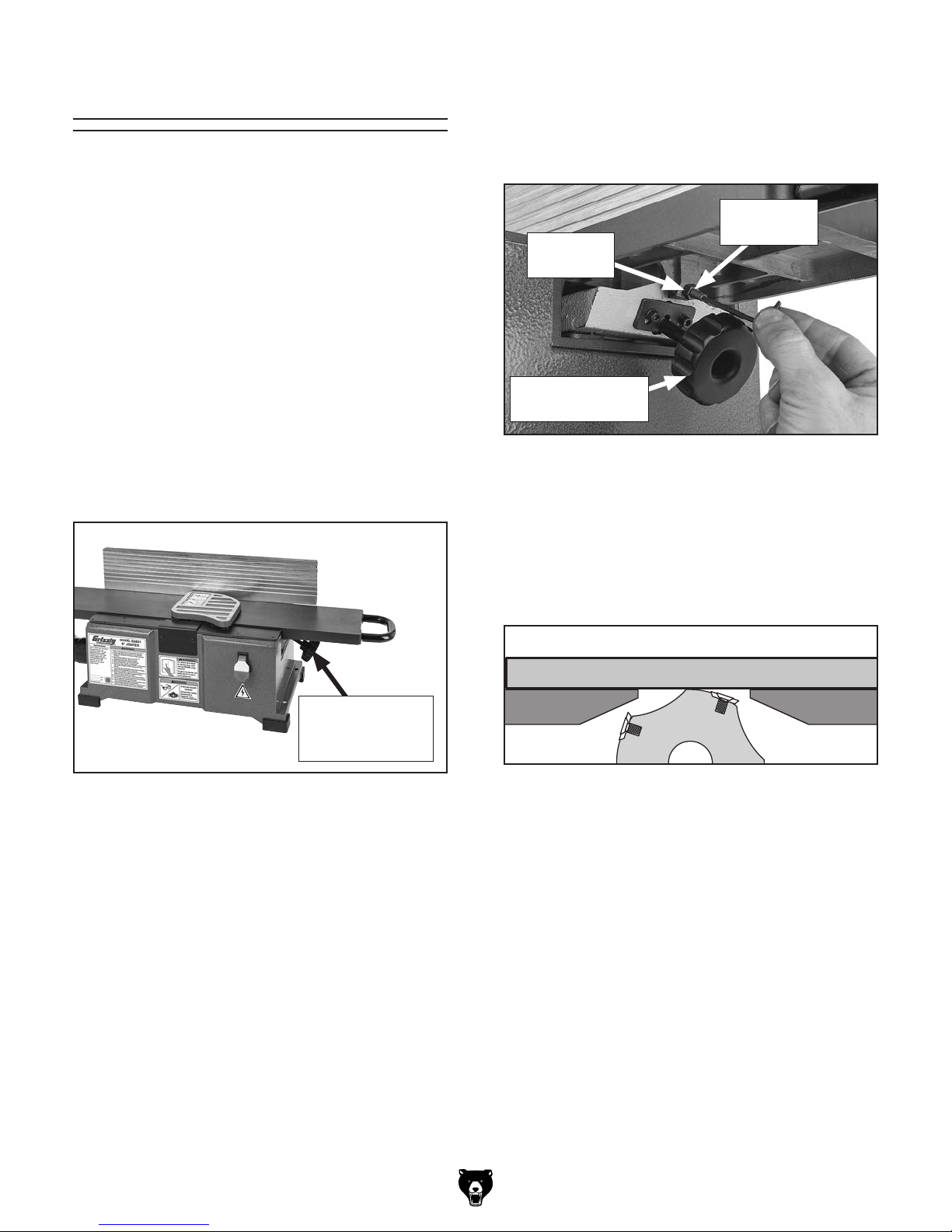

Setting Depth of Cut

The depth of cut on a jointer affects the amount
of material removed from the bottom of the
workpiece as it passes over the cutterhead.

The depth of cut is set by adjusting the height of
the infeed table relative to the cutterhead inserts
at TDC (top dead center) and the outfeed table.

Tools Needed Qty

Precision Straightedge 24" ................................ 1

Hex Wrench 3mm .............................................. 1

Open-End Wrench 10mm .................................. 1

Adjusting Infeed Table Height

To adjust infeed table height, rotate the infeed
table adjustment knob to raise or lower the table
(see Figure 22).

Adjusting Zero Stop

The zero stop (see Figure 23) allows the operator
to consistently bring the infeed table even with the
outfeed table height.

Zero Stop
Set Screw

Tension

Hex Nut

Infeed Table

Adjustment Knob

Figure 23. Zero stop components.

To set zero stop:

1. Place a straightedge on top of outfeed table

and use infeed table adjustment knob to raise
or lower table until table contact is even along
straightedge.

Infeed Table

Adjustment

Knob

Figure 22. Location of infeed table adjustment

knob.

Straightedge

Outfeed Table

Figure 24. Checking table parallelism.

2. Loosen tension hex nut, and adjust zero stop

set screw until it contacts table base (see

Figure 23).

3. Tighten tension hex nut to secure height

setting.

Infeed Table

Model G0821 (Mfd. Since 03/18)

-23-

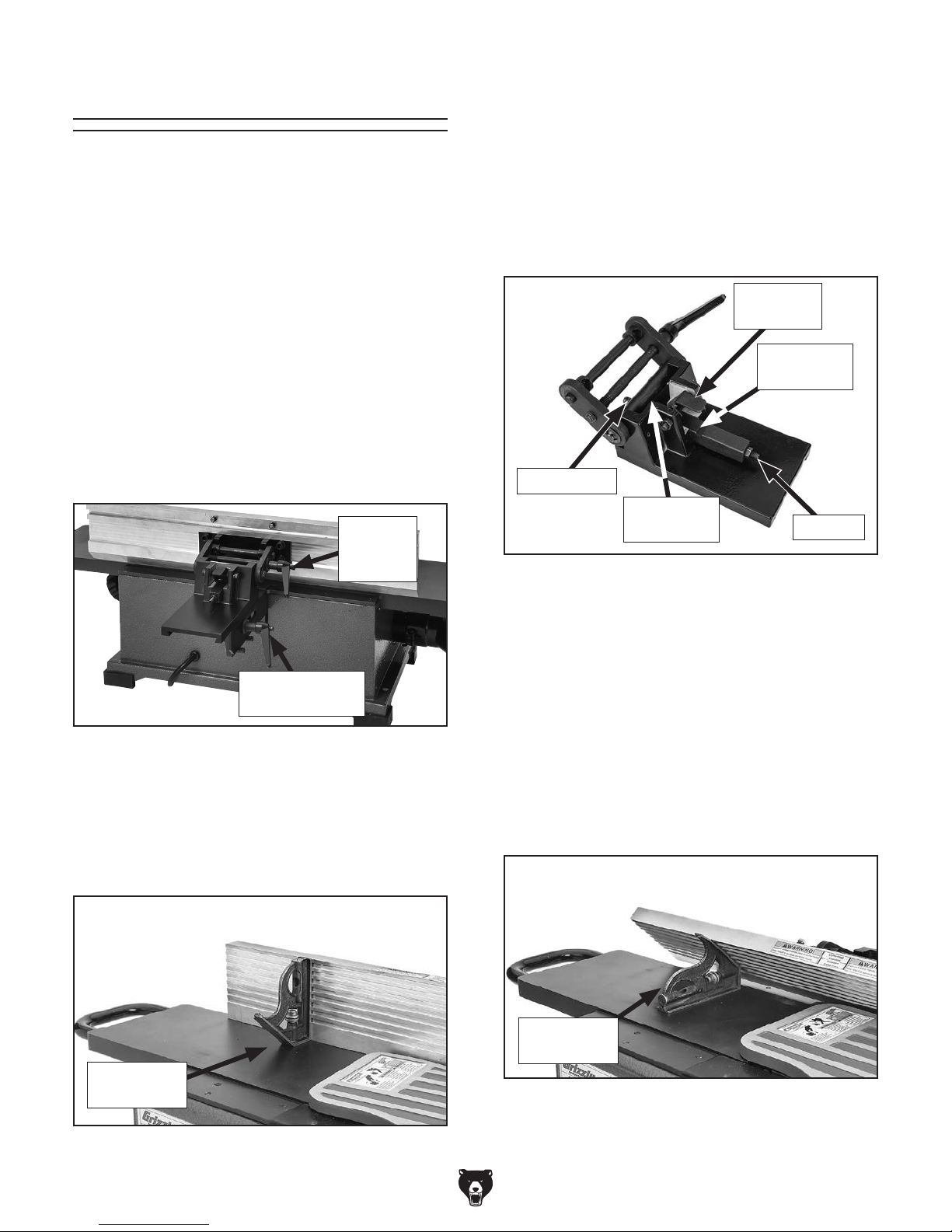

Setting Fence Stops

— If fence does not stop at 90° when it

contacts limit block shaft, 90° stop is not
adjusted correctly. Proceed to Steps 6–9.

The fence stops simplify the task of adjusting the
fence to 45° inward, 90°, and 45° outward (135°).

Tools Needed Qty

45° Square ........................................................ 1

90° Square ........................................................ 1

Sliding Bevel ...................................................... 1

Open-End Wrench 10mm .................................. 1

Hex Wrench 6mm .............................................. 1

Setting 90° Fence Stop

1. DISCONNECT MACHINE FROM POWER!

2. Loosen fence tilt lock (see Figure 25), and

press limit plate tab forward into limit block
rear slot.

Fence

Tilt Lock

Lever

4. Bring fence to 90°, then loosen jam nut locat­ed on rear of limit block shaft (see Figure 27)

Note: Keep limit plate in limit block rear slot

while making adjustments (see Figure 27).

Limit Plate

Tab

Limit Block

Rear Slot

Inward Stop

Limit Block

Shaft

Figure 27. Fence stop parts identification.

Jam Nut

Fence Carriage

Lock Lever

Figure 25. Fence carriage overview.

3. Use a 90° square to adjust fence to 90° (see
Figure 26), then tighten fence tilt lock.

Note: Fence should stop at 90º when it con-

tacts limit block shaft.

Machinist's

Square

5. Turn limit block shaft by hand until it contacts
fence.

6. Re-tighten jam nut. The 90° stop is now set
precisely.

Setting 45° Fence Stop

1. DISCONNECT MACHINE FROM POWER!

2. Use a 45° square to adjust fence to 45° posi-

tion, as shown in Figure 28.

Machinist's

Square

Figure 28. Checking 45º fence stop.

Figure 26. Checking the 90º stop.

-24-

Model G0821 (Mfd. Since 03/18)

3. Loosen fence tilt lock, and release fence from
90° limit block stop.

4. Tip fence towards table as far as it will go,
ensuring limit plate stays in limit block rear
slot, then tighten fence tilt lock.

Note: When fence tilts towards table, it

will stop when it contacts inward stop (see

Figure 27).

5. Remove limit block from fence bracket
assembly and set it aside (see Figure 29).

4. Use a machinist's combination square to

check fence angle, as shown in Figure 30.

Machinist's

Square

Limit

Plate

Limit

Block

Inward

Stop

Bolt

Figure 29. Adjusting the inward stop.

6. Adjust inward stop bolt (see Figure 29)

until it contacts fence face at precisely 45º
inward, then tighten jam nut (where bolt
meets bracket assembly) while holding stop
bolt in place. Replace limit block and set limit
plate.

Figure 30. Checking 45º outward (135º) stop.

— If fence tilts away from table at 135º, out-

ward stop is set correctly. Put limit block
back, bring fence to 90° and tighten fence
tilt lock.

— If fence is not tilting away from table at

135º, do Steps 5–6 to set outward stop
correctly.

5. With outward stop bolt resting against fence
bracket, adjust length of stop bolt until fence
is at 45º, then tighten jam nut (see Figure 31).

135º

Stop Bolt

Jam Nut

Setting 135° Fence Stop

1. DISCONNECT MACHINE FROM POWER!

2. Loosen fence tilt lock, remove limit block and

set it aside.

Note: You may need to move fence carriage

toward front of machine slightly to avoid bot­tom of fence catching on edge of table.

3. Tip fence back (away from table) until it
stops.

Note: Fence will stop when outward stop bolt

contacts fence bracket.

Model G0821 (Mfd. Since 03/18)

Figure 31. 135º fence stop detail.

6. Put limit block back, position fence at 90º,

and tighten fence tilt lock.

Check accuracy of each setting frequently
with a machinist's combination square and
re-adjust as necessary.

-25-

Rotating/Changing

The spiral cutterhead is equipped with 4-sided
indexable carbide inserts. Each insert can be
rotated and re-installed to use any one of its four
cutting edges. Therefore, if one cutting edge
becomes dull or damaged, simply rotate it 90˚ (as
shown below) to use a sharp cutting edge.

The inserts have a reference dot on one corner.
The position of the reference dot on installed
inserts can be used to track which edges are
sharp/unused and which edges are dull or dam­aged. Replace inserts once the reference dot
would be rotated back to its original position.

7. Remove Torx screw and insert, then carefully

This step is critical for achieving a
smooth finish with cutting operations. Dirt or
dust trapped under insert during installation
will slightly raise insert in cutterhead, which

Use low-pressure compressed air or

8.

used, replace insert with a new one. Always

9.

If too much oil is applied to the threads,
excess will attempt to squeeze out of thread­ed hole as you install insert and force it to
raise slightly, making it out of alignment.

5. Put on heavy leather gloves to protect fingers
and hands.

Cutterhead Inserts

Reference Dot

6. Remove any sawdust or debris from head of
insert, Torx screw, and surrounding area (see
Figure 33).

Torx

Screw

Cutterhead

Insert

Figure 33. Location of cutterhead inserts and

Torx screws.

clean away all dust and debris from insert
and insert pocket in cutterhead.

Figure 32. Insert rotating sequence.

Tools Needed Qty

Phillips Screwdriver #2 ...................................... 1

Torque Wrench .................................................. 1

Torx Bit T-25 ...................................................... 1

Precision Straightedge ...................................... 1

To rotate or replace spiral cutterhead insert:

1. DISCONNECT MACHINE FROM POWER!

2. Remove cutterhead guard from table, and

lower infeed table as far as it will go to pro­vide access to cutterhead.

3. Remove cabinet bottom access panel to
expose cutterhead pulley.

4. Rotate cutterhead pulley to provide access to
insert(s) to be rotated/replaced.

Note:

will leave marks on workpiece after jointing.

Tip:

vacuum nozzle to clean cutterhead pocket.

Re-install insert with a sharp cutting edge

facing outward. Make sure insert is properly
seated in cutterhead pocket before securing.

— If all four insert cutting edges have been

position reference dot in same position
when installing a new insert to aid in rota­tional sequencing.

Lubricate Torx screw threads with a small

amount of light machine oil, wipe excess off,
and torque screw to 48–50 inch/pounds.

Note:

-26-

Model G0821 (Mfd. Since 03/18)

Squaring Stock

Squaring stock involves four steps performed
in the order below:

1. Surface Plane on the Jointer

face of the workpiece is surface planed flat with
the jointer.

Previously Surface

Planed Face

2.

opposite face of the workpiece is surface planed
flat with a thickness planer.

3. Edge Joint on the Jointer

edge of the workpiece is jointed flat with the
jointer.

4. Rip Cut on a Table Saw

of the workpiece is placed against a table saw
fence and the opposite edge cut off.

Squaring stock means making it flat and paral­lel along both length and width, and making the
length and width perpendicular to one another.

The purpose of squaring stock is to prepare it for
accurate cuts and construction later on.

A properly "squared up" workpiece is essential
for tasks such as accurate tablesaw cuts, glue­ups/laminations, cutting accurate bevels on a
bandsaw, and many other applications where
one surface of a workpiece is used to reference
another.

Tools Needed Qty

Jointer ................................................................ 1

Planer ................................................................ 1

Tablesaw ........................................................... 1

—The concave

Surface Plane on a Thickness Planer—The

—The concave

Model G0821 (Mfd. Since 03/18)

—The jointed edge

Previously

Jointed

45

30

15

Edge

-27-

To surface plane on jointer:

1.
Stock Inspection &

2.

" per pass

3.

4.

5.

To ensure workpiece remains

stable during cut, concave sides of workpiece

6.

from cutterhead during the entire cut. Instead

safely reposition it on the outfeed side to con­tinue supporting workpiece. Use push blocks

7.

When squaring up stock, cut opposite
side of workpiece with a planer instead of the
jointer to ensure boths sides are parallel.

Surface Planing

The purpose of surface planing (see example

Figures

face on a piece of stock to prepare it for thickness
planing on a planer.

below) on the jointer is to make one flat

Inspect stock to ensure it is safe and suitable

for the operation (see
Requirements section).

Set infeed table height to desired cutting
depth for each pass.

NOTICE

If you are not experienced with a jointer,
set depth of cut to 0", and practice feeding
workpiece across tables as described. This
will help you prepare for actual operations.

Figure 34. Example of surface planing

operations.

IMPORTANT: To minimize risk of kickback,
do not exceed a cutting depth of
when surface planing.

Set fence to 90˚.

Start jointer.

Place workpiece firmly against fence and

infeed table.

IMPORTANT:

must face toward table and fence.

Feed workpiece completely across cutter-

head while keeping it firmly against fence
and tables during the entire cut.

IMPORTANT: Keep hands at least 4" away

of allowing a hand to pass directly over cut­terhead, lift it up and over cutterhead, and

1

⁄16

Figure 35. Illustration of surface planing results.

-28-

Removed

Surface

whenever practical to further reduce risk of
accidental hand contact with cutterhead.

Repeat Step 6 until entire surface is flat.

Tip:

Failure to use push blocks when surface
planing could result in your hands contact­ing rotating cutterhead, which will cause
serious personal injury. ALWAYS use push
blocks when surface planing on jointer!

Model G0821 (Mfd. Since 03/18)

Edge Jointing

To edge joint on jointer:

1.
Stock Inspection &

2.

" per pass.

3.

4.

5.

To ensure workpiece remains

stable during cut, concave sides of workpiece

6.

from cutterhead during the entire cut. Instead

safely reposition it on the outfeed side to con­tinue supporting workpiece. Use push blocks

7.

When squaring up stock, cut opposite

edge of workpiece with a table saw instead

both edges of work-

piece will not be parallel with each other.

E
duces a flat and true surface along the side of
a workpiece by removing uneven areas.

an

essential step for

or rough
stock and when preparing a workpiece for joinery
or finishing.

dge jointing (see example Figures below) pro-

Inspect stock to ensure it is safe and suitable

for the operation (see

Requirements section).

If you are not experienced with a jointer,
set depth of cut to 0", and practice feeding
workpiece across tables as described. This
will help you prepare for actual operations.

squaring up warped

NOTICE

It is

Set infeed table height to desired cutting
depth for each pass.

IMPORTANT: To minimize risk of kickback,
do not exceed a cutting depth of

Set fence to 90˚.

Start jointer.

Place workpiece firmly against fence and

infeed table.

IMPORTANT:

must face toward table and fence.

Feed workpiece completely across cutter-

head while keeping it firmly against fence
and tables during the entire cut.

IMPORTANT: Keep hands at least 4" away

1

⁄8

Figure 36. Example of edge jointing operation.

Figure 37. Illustration of edge jointing results.

Removed

Surface

of allowing a hand to pass directly over cut­terhead, lift it up and over cutterhead, and

whenever practical to further reduce risk of
accidental hand contact with cutterhead.

Repeat Step 6 until the entire edge is flat.

Tip:

of the jointer—otherwise,

Model G0821 (Mfd. Since 03/18)

-29-

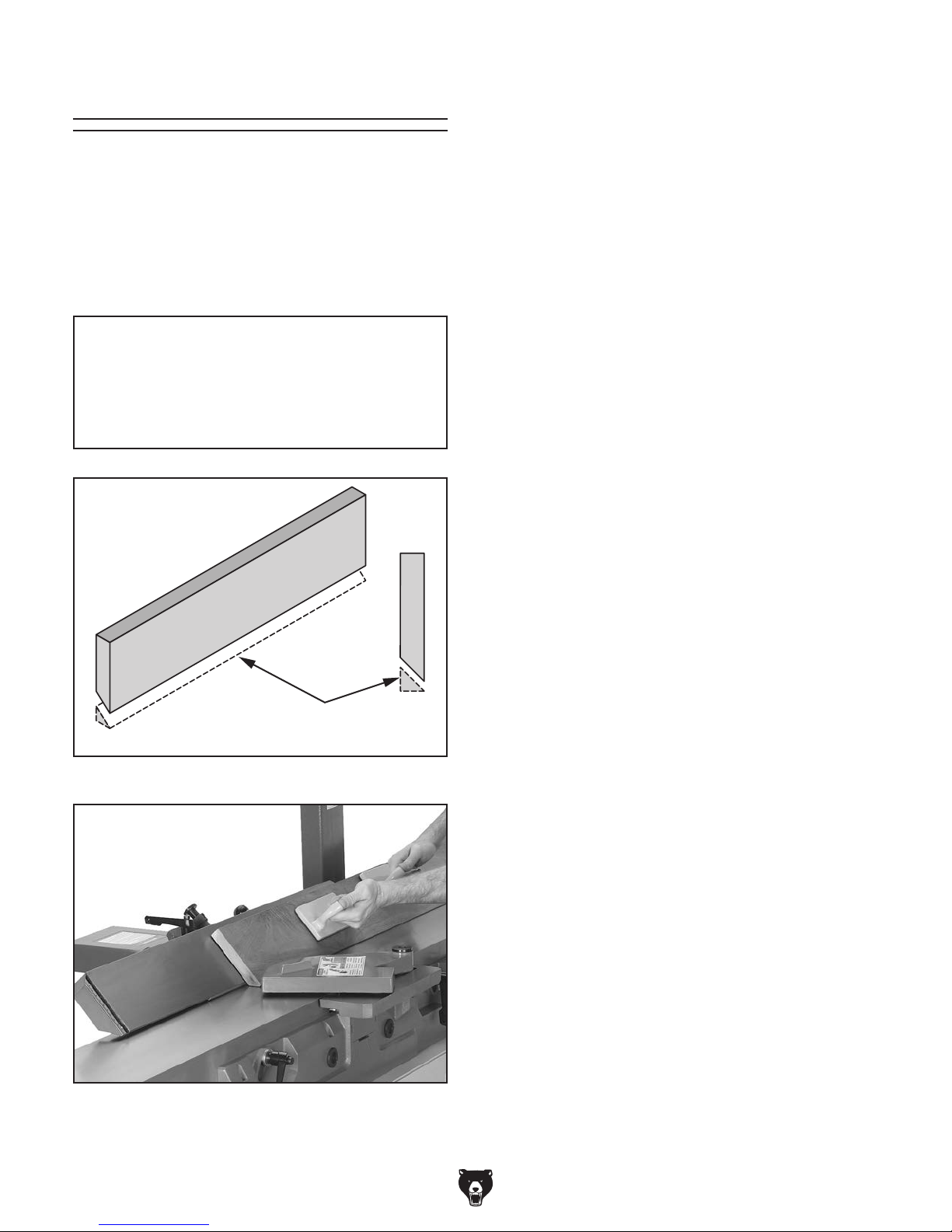

Bevel Cutting

To bevel cut on jointer:

1.

Stock Inspection &

2.

Cutting depth for bevel cuts is

, depending on

3.

4.

5.

6.

When your leading hand gets within
4" of the cutterhead, lift it up and over cutter­head, and place push block on portion of the
workpiece once it is 4" past cutterhead. Now,
focus your pressure on outfeed end of the
workpiece while feeding, and repeat same
action with your trailing hand when it gets
within 4" of cutterhead. To help keep your
hands safe, DO NOT let them get closer than
4" from moving cutterhead at any time during

7.

you are satisfied with the results.

Bevel cuts (see example Figures below) can be
made by setting the fence at the desired angle
and feeding the workpiece firmly along the fence
face, with the bottom inside corner firmly against
the table. The cutting process typically requires
multiple passes or cuts to bevel the entire edge
of a workpiece.

Inspect stock to ensure it is safe and suitable

for the operation (see
Requirements section).

Set infeed table height to cutting depth

desired for each pass.

IMPORTANT:

typically between 1⁄16" and 1⁄8"
hardness and width of stock.

If you are not experienced with a jointer,
set depth of cut to 0", and practice feeding
workpiece across tables as described. This
will help you prepare for actual operations.

Figure 38. Illustration of bevel cutting results.

NOTICE

Removed

Surface

Set fence tilt to desired angle of cut.

Place workpiece against fence and infeed

table with concave side face down.

Start jointer.

With a push block in your leading hand, press

workpiece against table and fence with firm
pressure, and feed workpiece over cutter­head with a push block in your trailing hand.

Note:

operation!

Figure 39. Example of fence setup for a bevel

cut of 45°.

-30-

Repeat cutting process, as necessary, until

Model G0821 (Mfd. Since 03/18)

ACCESSORIES

Installing unapproved accessories may

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T24736—Carbide Replacement Inserts

Solid Carbide Indexable Inserts for G0821.
Size: 15 x 15 x 2.5mm (10 pack).

G9643—8" Precision Straightedge
G9644—12" Precision Straightedge
H2675—16" Precision Straightedge

These Grade 00 heavy-duty stainless steel
straightedges are manufactured to DIN874 stan­dards for professional results in set-up and inspec­tion work.

Figure 40. Replacement inserts for G0821.

G5725—3-Pc. Combination Bevel/Square

This cast-iron Combination Bevel/Square features
center heads, and a 12" blade with graduations
down to
hardened scriber. Comes with a protective plastic
case.

1

⁄64". Square head features spirit level and

Figure 42. Precision straightedges.

H7828—Shop Fox Tool Table Plus

The To ol Table Plus was designed to answer
customer requests for a slightly wider and taller
table than our G7313 to accommodate a variety
of benchtop machines.

Figure 43. H7828 Shop Fox Tool Table Plus.

Figure 41. G5725 Combination Bevel/Square.

Model G0821 (Mfd. Since 03/18)

-31-

Basic Eye Protection

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5

T23246—The Missing Shop Manual: Jointer

Dedicated to providing integral information about
woodworking tools and techniques that other
manuals overlook, the books in this series con­tain safety facts, explanations about basic project
set-up, and tips for maximizing tool performance.

T20502

T20452

T20503

T20451

H7194

Figure 44. Assortment of basic eye protection.

G1163P—1 HP Light-Duty Dust Collector

Effective dust collection not only keeps your shop
cleaner and more pleasant to work in, but it can
also protect your health by reducing your overall
exposure to dust. Its small size and low profile
make this a perfect point-of-use, dedicated dust
collector.

Figure 46. Instructional reference book.

W1314—Wire Hose Clamp 2

1

⁄2"

W1317—Wire Hose Clamp 4"

1

W1044—Dust Collection Adapter 2

⁄2" x 4"

W1053—Anti-Static Grounding Kit

1

W2046—Shop Vacuum Adapter 2

⁄2" x 2 1⁄2"

We've hand picked a selection of dust collection
components commonly needed to connect the
Model G0821 to basic machinery.

T23412

W1314

W1044

Figure 45. G1163P 1 HP Dust Collector.

-32-

W1317

W1053

W2046

Figure 47. Dust collection accessories.

Model G0821 (Mfd. Since 03/18)

G0832—13" Benchtop Planer w/Built-In Dust
Collection

This 13" Benchtop Series Planer comes equipped
with a cut depth indicator that instantly measures
the depth of cut for each pass up to 1/8", an
adjustable cutterhead depth stop for repeat plan­ning operations, and a built-in, see-through chip
blower. Add to that the convenient grab handles
on the sides of the machine and you've got the
ultimate in both precision and portability for your
home shop or jobsite.

T24354—6" Digital Caliper with 6" Digital
Micrometer Set

This high-precision electronic Outside Micrometer
features a crisp, clear, easy-to-read LCD display,
and is accurate to 0.001”. Hardened and ground
spindle with carbide anvil ensures durability and
accuracy.

Figure 50. Model T24354 6" Digital Caliper with

1" Digital Mircometer Set.

Figure 48. G0832 13” Benchtop Planer.

T10456—Heavy-Duty Anti-Fatigue Mat 3' x 5'

This Heavy-Duty Anti-Fatigue Mat features bev­eled edges and no-slip tread for safety and
comfort. Open-hole design allows liquid to drain
through, so it's perfect for wet or oily conditions.
Measures 3' wide x 5' long x 3/8" thick.

Figure 49. Model T10456 Anti-Fatigue Mat.

G8983—Tilting Roller Stand

Adjusts from 26" to 44", 0º-45º. 150 lb. capacity.

G8984—Single Roller Stand

5

Adjusts from 26

⁄8" to 45". 250 lb. capacity.

G8985—5 Roller Stand

5

Adjusts from 26" to 44

⁄8". 250 lb. capacity.
These super heavy-duty roller stands feature
convenient hand knobs for fast height adjustment.

G8983

G8985

G8984

®

Figure 51. Shop Fox

Roller Stands.

Model G0821 (Mfd. Since 03/18)

-33-

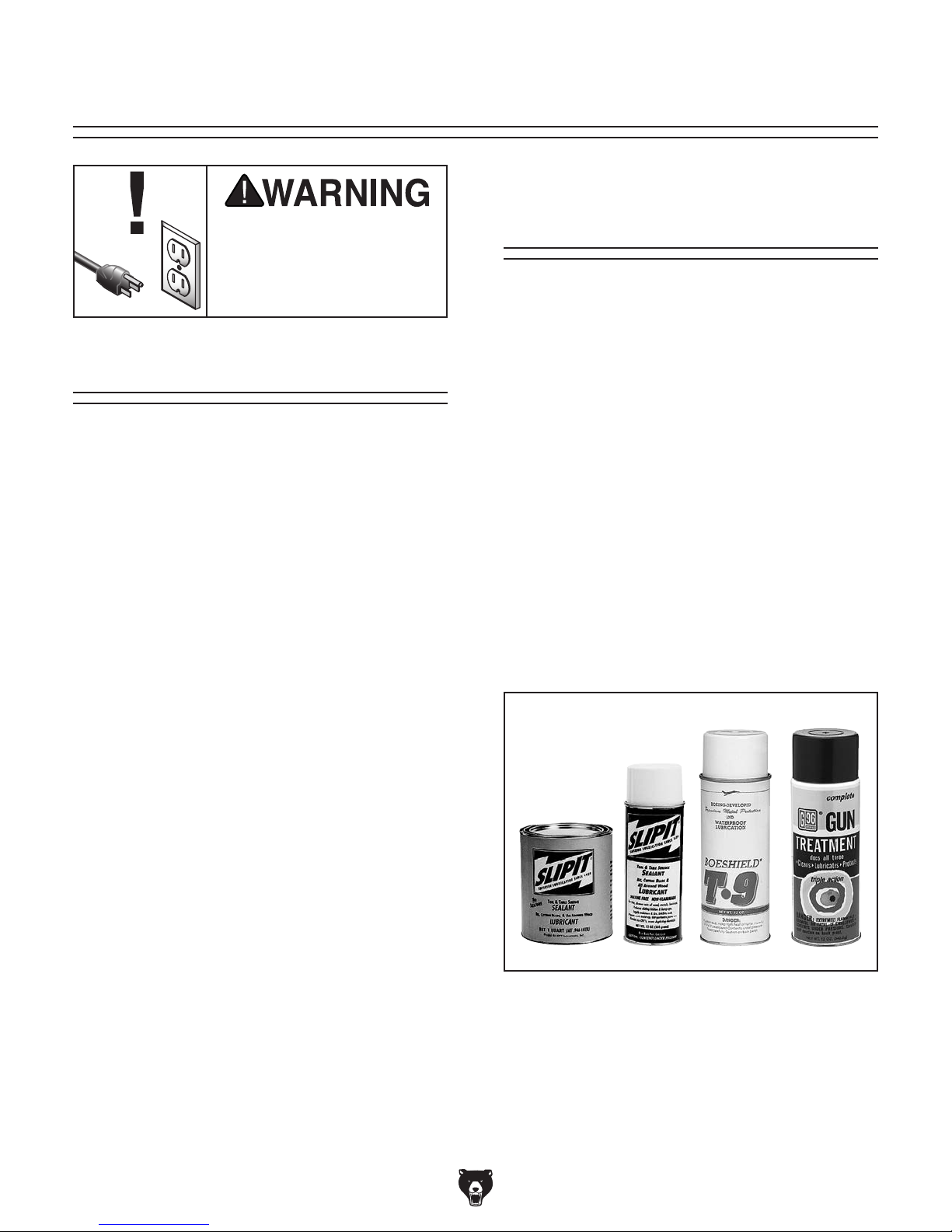

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from

Cleaning &

Protecting

power before adjustments,
maintenance, or service.

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily

• Vacuum all dust on and around the machine.

• Empty debris from the dust collection bag.
DO NOT use the jointer if debris obstructs the
flow of material into the bag. Using the jointer
when the chute is obstructed can lead to
jointer malfunction and, possibly, fire. Failure
to heed this warning can result in serious
personal injury.

• Wipe down the tables and all other unpainted
cast iron with a metal protectant.

• Check/repair for worn or damaged wires
(Page 42).

• Check/replace damaged cutterhead or inserts
(Page 35).

• Check/retighten loose mounting bolts.

• Check/resolve any other unsafe condition.

Cleaning the Model G0821 is relatively easy.
Vacuum excess wood chips and sawdust, and
wipe off the remaining dust with a dry cloth. If any
resin has built up, use a resin dissolving cleaner
to remove it.

Protect the unpainted cast-iron table by wiping
it clean after every use—this ensures moisture
from wood dust does not remain on bare metal
surfaces. Keep the table rust-free with regular
applications of products like G96
SLIPIT
details).

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 12 Oz. Spray
G2871—Boeshield® T-9 12 Oz. Spray
G2870—Boeshield® T-9 4 Oz. Spray
H3788—G96® Gun Treatment 12 Oz. Spray
H3789—G96® Gun Treatment 4.5 Oz. Spray

®

, or Boeshield® T-9 (see below for more

®

Gun Treatment,

Monthly

• Check belt for proper tension, damage, or
wear (Page 38).

• Clean/vacuum dust buildup from inside stand
and off of motor.

-34-

Figure 52. Recommended products for

protecting unpainted cast iron/steel.

Model G0821 (Mfd. Since 03/18)

Lubrication

Since all bearings are sealed and permanently
lubricated, simply leave them alone until they
need to be replaced. DO NOT lubricate them.

It is essential to clean components before lubri­cating them because dust and chips build up on
lubricated components and make them hard to
move.

Clean the components below with mineral spirits
and shop rags.

Fence

Place one or two drops of light machine oil on
fence pivot points (see Figure 54) as needed.

Leadscrew

Lubricate with light machine oil as needed (see
Figure 53). Wipe off excess oil and sawdust with
a cloth.

Figure 53. Leadscrew lubrication location.

Figure 54. Fence lubrication locations.

Model G0821 (Mfd. Since 03/18)

-35-

Review the troubleshooting and procedures in this section if a problem develops with your machine. If

Please

gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

you need replacement parts or additional help with a procedure, call our Technical Support. Note:

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start or a breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Switch disabling key removed from ON/
OFF switch.

2. Power supply circuit breaker tripped/fuse
blown.

3. Loose, broken, or disconnected wires.

4. Motor brushes worn or at fault.

5. Motor ON/OFF switch at fault.

6. Motor at fault.

1. Improper workpiece material.

2. Excessive feed rate.

3. Excessive depth of cut.

4. Dull inserts.

5. Dust collection problem.

6. Motor brushes are at fault.

7. Belt slipping; oil/grease on belt.

8. Pulley loose or not properly aligned.

9. Motor overheated.

10. Motor is at fault.

1. Motor or component is loose.

2. Belts worn or loose.

3. Pulley loose or not properly aligned.

4. Motor fan is rubbing on fan cover.

5. Loose mounting bolts.

6. Cutterhead bearings at fault.

1. Replace switch disabling key.

2. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

3. Check/fix broken, disconnected, or corroded wires.

4. Remove/replace brushes.

5. Replace ON/OFF switch.

6. Test/repair/replace.

1. Ensure workpiece is okay for jointing (Page 22).

2. Reduce feed rate.

3. Reduce depth of cut.

4. Rotate/replace inserts (Page 35).

5. Clear blockages; move machine closer to dust
collector; upgrade dust collector.

6. Remove/replace brushes (Page 40).

7. Tension/replace belt (Page 38); clean belt.

8. Re-align pulleys; replace shaft key; tighten pulley
set screw.

9. Clean motor, let cool, and reduce workload.

10. Test/repair/replace.

1. Inspect/replace stripped or damaged bolts/nuts, and
re-tighten with thread-locking fluid.

2. Inspect/replace belts with new ones

3. Re-align pulleys; replace shaft key; tighten pulley
set screw.

4. Replace dented fan cover; replace loose/damaged
fan.

5. Tighten/replace as required.

6. Replace bearing(s)/re-align cutterhead.

.

-36-

Model G0821 (Mfd. Since 03/18)

Operations

Symptom Possible Cause Possible Solution

Infeed table is hard
to adjust.

Excessive snipe
(gouge in end of
board that is uneven
with rest of cut).

Workpiece stops in
middle of cut.

Workpiece chipping,
tear-out, indenta­tions, or overall
rough cuts.

Fuzzy grain left in
workpiece.

Long lines or ridges
that run along the
length of the board.

Uneven cutter
marks, wavy
surface, or chatter
marks across face
of workpiece.

Glossy surface;
scorching or burn
marks on workpiece.

1. Sawdust, wood chips, or pitch/resin built up
on table leadscrew or moving parts.

1. Outfeed table is out of alignment with
cutterhead.

2. Operator is pushing down on trailing edge
of the workpiece.

1. Outfeed table is set lower than cutterhead. 1. Align cutterhead inserts with outfeed table at top

1. Not feeding workpiece to cut "with" the
grain.

2. Dull inserts.

3. Workpiece not okay for jointing.

4. Nicked or chipped inserts.

5. Feeding workpiece too fast.

6. Excessive depth of cut.

7. Lack of proper dust collection or clogged
dust port.

1. Wood has high moisture content.

2. Dull inserts.

1. Nicked or chipped inserts.

2. Loose or incorrectly installed insert(s).

3. Dirt or debris under carbide inserts.

1. Feeding workpiece too fast.

2. Inserts not adjusted at even heights in the
cutterhead.

3. Dirt or debris under carbide inserts.

1. Dull inserts.

2. Feed rate too slow.

1. Clean and lubricate infeed table leadscrew (Page

32).

1. Align cutterhead with outfeed table.

2. Reduce/eliminate downward pressure on that end of
the workpiece.

dead center.

1. Rotate workpiece 180° before feeding again.

2. Rotate/replace insert(s) (Page 35).

3. Ensure workpiece is okay for jointing (Page 22).

4. Rotate/replace insert(s) (Page 35).

5. Reduce feed rate.

6. Reduce depth of cut.

7. Clear blockages, ensure dust collection is operating
efficiently; upgrade dust collector.

1. Ensure wood moisture content is less than 20%.
Allow to dry if necessary.

2. Replace/rotate inserts (Page 35).

1. Replace/rotate inserts (Page 35).

2. Remove/replace insert(s) and install properly (Page

35).

3. Remove inserts, properly clean mounting pockets
and re-install.

1. Reduce feed rate.

2. Remove, clean, and re-install any inserts that are
"raised" in the cutterhead (Page 35).

3. Remove inserts, properly clean mounting pockets,
and re-install.

1. Rotate/replace insert(s) (Page 35).

2. Increase feed rate.

Workpiece is
concave or convex
along its length after
jointing.

Overall, cut quality
is poor; inconsistent
snipe problems; or
consistent difficulty
feeding workpiece.

1. Board not held with even pressure on
infeed and outfeed table during cut.

2. Board started too uneven.

3. Board has excessive bow or twist along its
length.

4. Insufficient number of passes.

1. Debris under inserts.

2. Outfeed table height is not even with
cutterhead.

3. Fence stops are set incorrectly.

4. Fence bracket parts are loose or parts are
misaligned.

Model G0821 (Mfd. Since 03/18)

1. Hold board with even pressure as it moves over the
cutterhead.

2. Take partial cuts to remove extreme high spots
before doing a full pass.

3. Surface plane one face so there is a good surface to
position against the fence.

4. It may take extra passes to achieve a correct edge,
depending on starting condition of board and depth
of cut.

1. Remove inserts, properly clean mounting pockets,
and re-install.

2. Reset inserts to correct height and alignment with
cutterhead assembly.

3. Recalibrate fence stops (Page 36).

4. Check/tighten fence bracket fasteners.

-37-

Tensioning/

Replacing Belts

6. To release belt tension, loosen the four motor

mounting cap screws (see Figure 55), but do
not remove them.

The G0821 uses belts to drive the cutterhead and
the dust collection fan. When these belts are mis­aligned, damaged, or not tensioned correctly, the
jointer will not function properly.

This sub-section describes how to service these
belts. You can order replacement belts from
Grizzly. The part number for the drive belt is

P0821072; the part number for the fan belt is
P0821091.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Hex Wrench 6mm .............................................. 1

To re -align or replace cutterhead belt:

1. DISCONNECT MACHINE FROM POWER!

2. While facing front of jointer, tip machine body

away from you until fence stop bolts gently
rest on fence carriage assembly.

Motor Mount Screws

Cutterhead Belt

Fan Belt

Figure 55. Motor mounting screws and belt

locations (cover removed).

7. Replace a damaged belt with a new one.

8. Re-align and re-tension belt (see Figure 56)

by tightening four motor mounting cap screws
(see Figure 55). Adjust belt tension to allow
approximately

1

⁄4" deflection between pulleys.

3. Remove Phillips head screws securing motor
cover to jointer base. Lift cover off and set it
aside.

4. Remove all dust and debris from inside motor
and belt areas.

5. Inspect cutterhead belt for proper tension,
alignment, and condition.

Note: Belt is properly tensioned if it deflects

no more than
middle of belt with moderate pressure from
your thumb or forefinger.

1

⁄4" when you press down on

Cutterhead Pulley

Approximately

1

/4" Deflection

Motor Pulley

Figure 56. Correct belt deflection when properly

tensioned.

9. Replace motor cover and set jointer upright.

10. Test run jointer. Repeat belt installation pro-

cedure if necessary.

-38-

Model G0821 (Mfd. Since 03/18)

To replace fan belt:

1. DISCONNECT MACHINE FROM POWER!

2. Remove motor cover and check belt for

damage.

— If belt shows no wear or damage, proceed

to Step 4.

3. Loosen (2) cap screws from fan mount. DO
NOT remove screws!

Adjusting Infeed

Table Parallelism

The infeed and outfeed tables must be parallel
with each other in order to produce a straight
jointed edge. When the tables are not parallel with
each other, the jointer will produce workpieces
that are cupped (concave) or bowed (convex)
along their length.

4. Shift fan assembly to remove fan belt. Put
one end of new belt on fan pulley, then fit
other end onto the drive pulley.

Note: If belt is misaligned, the jointer needs

to be serviced by a qualified technician. Call
our Tech Support.

5. Re-install motor cover.

Motor Mount Screws

Cutterhead Belt

Fan Belt

Table parallelism is factory-set and should not
need to be adjusted when the machine is new.
However, after prolonged use, or if the machine
has been jarred during lifting or transportation,
it may become necessary to adjust the table
parallelism.

The G0821 uses set screws to adjust infeed table
height. The outfeed table and cutterhead assem­bly have been properly aligned at the factory and
do not require adjustment.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Precision Straightedge 36" ................................ 1

Hex Wrench 3mm .............................................. 1

Hex Wrench 5mm .............................................. 1

Hex Wrench 6mm .............................................. 1

To adjust infeed table parallelism:

1. DISCONNECT MACHINE FROM POWER!

Figure 57. Motor fan belt location (cover

removed).

Model G0821 (Mfd. Since 03/18)

2. Remove cutterhead guard and fence
assembly.

-39-

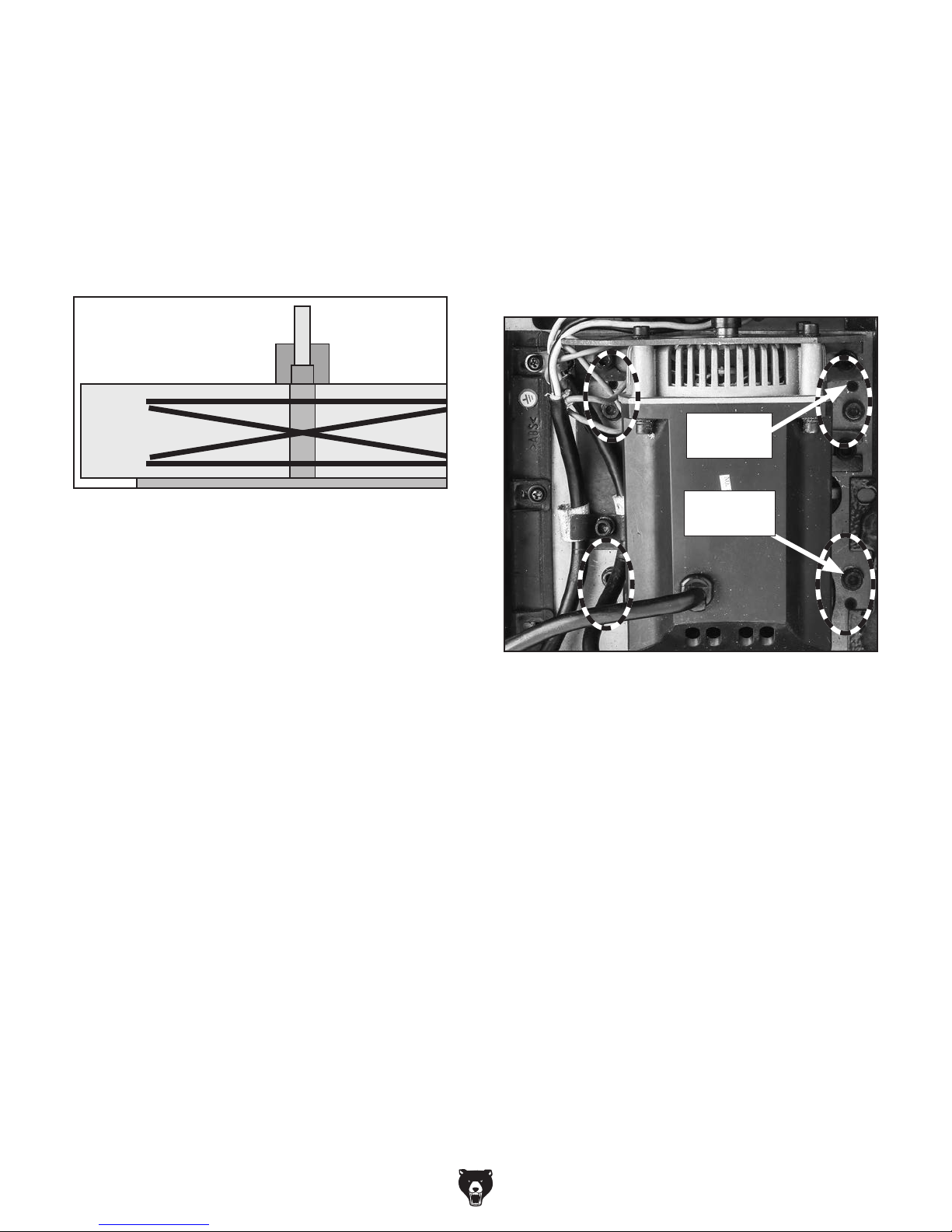

3. Place straightedge lengthwise on outfeed
table, and rotate infeed table adjustment
knob until front of infeed table just touches
straightedge.

4. Place straightedge in (4) positions shown
in Figure 58. Use your hand to keep the
straightedge flat on the outfeed table. This
will show any areas on the infeed table that
are too high or too low.

Black Lines Represent
Straightedge Positions
from Overhead View

7. Loosen (4) cap screws (see Figure 59) secur-
ing corners of infeed table. Do not remove.

8. Locate set screw (see Figure 59) beneath
each corner of table that is not parallel (con­sult notes from Step 5). Rotate set screw
clockwise to raise infeed table; rotate coun­terclockwise to lower table.

Note: Only rotate set screw in small

increments.

Set Screw

(1 of 4)

Figure 58. Straightedge positions for checking

infeed/outfeed table parallelism.

— If straightedge sits flat against both

infeed and outfeed tables in all positions
above, then tables are parallel. Replace
cutterhead guard and fence assembly.

— If straightedge does not sit flat against

both infeed and outfeed tables in any of
the positions above, continue with adjust­ment steps.

5. Identify the highest or lowest corner of infeed
table and remove straightedge.

6. Turn machine upside-down to access motor
cover, and remove (4) Phillips head screws
securing motor cover to jointer base. Lift
cover off and set it aside.

Cap Screw

(1 of 4)

Figure 59. Infeed table adjustment set screw

and cap screw locations.

9. Retighten cap screws to secure settings
before turning jointer over to check table
parallelism.

10. Repeat Steps 4–8 until infeed table is parallel
side-to-side and corner-to-corner.

11. Replace motor cover, and re-install cutterhead
guard and fence assembly.

-40-

Model G0821 (Mfd. Since 03/18)

Replacing Motor

Brushes

The G0821 has a universal motor that uses car­bon brushes that normally wear out over time. If
you are having trouble with the performance of
the motor, refer to Troubleshooting (Page 33) to
determine if the motor brushes must be replaced.

5. Use a dime to unscrew motor brush caps
(see Figure 60).

Brush Cap

Locations

You can order a new brush kit (two brush assem­blies) from Grizzly. The part number for the brush
kit is P0821108.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Dime .................................................................. 1

Precision Ruler .................................................. 1

To replace motor brushes:

1. DISCONNECT MACHINE FROM POWER.

2. Tip jointer body until it gently rests on fence

assembly.

3. Remove (4) Phillips head screws securing
motor cover to jointer base. Remove cover
and set it aside.

4. Take this opportunity to clear dust and debris
from inside jointer.

Brush

Assembly

Figure 60. Removing a motor brush.

Note: When brush caps are being removed,

a spring will pop out of the motor socket;
a spring is firmly attached to each carbon
brush. Do not separate brush from spring.

6. Use a ruler to measure wear of each carbon
brush. If either brush is worn to less than
in length, replace both brushes.

7. Insert new brush assemblies, positioning
them to slide into slots in motor sockets.
Individually, press each brush cap against
its spring, pushing it into motor socket and
turning each brush cap to lock it into motor
housing.

3

/32"

Model G0821 (Mfd. Since 03/18)

8. Re-install motor cover.

9. Test run jointer.

— If jointer runs properly, you are done.

— If motor does not start, either new brushes

are not correctly aligned in each socket,
or there is another problem with motor or
wiring. Double-check all wire connections
first, then refer to Troubleshooting on
Page 33 for assistance.

-41-

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You

can view these pages in
color at www.grizzly.com.

-42-

Model G0821 (Mfd. Since 03/18)

Wiring Diagram

Ground

Ground

PADDLE SWITCH

KEDU HY18

(viewed from behind)
3

2

6

120 VAC

5-15 Plug

5

120V UNIVERSAL MOTOR

1

4

Hot

Ground

Neutral

Figure 62. G0821 switch wiring. Figure 63. G0821 motor wiring.

Model G0821 (Mfd. Since 03/18)

Figure 61. G0821 wiring diagram.

READ ELECTRICAL SAFETY

ON PAGE 41!

-43-

1

2

3

4

5V2

6V2

7V2

8

106

11

11

12

13

14

15

115

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36-3

36-1

40

41

42

43

44

46

47

48

49

50

51

52

53

92-2

56

57

58

108

60

60

62

92-1

57

65

66

67

68

69

70

72

73

74

75

76

77

78

79

81

82

83

84

85

86

87

88

89

91

92

93

94

71

102

103

104

105

112

107

10

50

45

59

81

78

56

57

58

58

54

57

58

63

59

86

70

59

60

81

70

80

57

66

64

70

113

114

85

58

110

116

67

68

39

57

58

90

57

66

57

66

109

36

36-2

92

95

99

97

96

70

79

57

9

98

111

10

60

87

75

58

66

57

38

SECTION 9: PARTS

Main

-44-

Model G0821 (Mfd. Since 03/18)

Main Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0821001 OUTFEED TABLE 58 P0821058 FLAT WASHER 6MM
2 P0821002 FENCE 59 P0821059 PHLP HD SCR M5-.8 X 10
3 P0821003 FENCE MOUNTING BRACKET 60 P0821060 FLAT WASHER 5MM
4 P0821004 RIGHT PIVOT BAR 62 P0821062 CAP SCREW M5-.8 X 12
5V2 P0821005V2 LEFT PIVOT BAR (TAPERED) V2.03.18 63 P0821063 TAP SCREW M5 X 10
6V2 P0821006V2 PIVOT SHAFT (TAPERED) V2.03.18 64 P0821064 LOCK WASHER 8MM
7V2 P0821007V2 CARRIAGE SHAFT (TAPERED) V2.03.18 65 P0821065 CAP SCREW M8-1.25 X 30
8 P0821008 LIMIT PLATE 66 P0821066 CAP SCREW M6-1 X 20
9 P0821009 CAP SCREW M6-1 X 55 67 P0821067 HEX BOLT M5-.8 X 25
10 P0821010 COMPRESSION SPRING 18 X 12.5 X 1 68 P0821068 HEX NUT M5-.8
11 P0821011 CARRY HANDLE 69 P0821069 BUTTON HD CAP SCR M5-.8 X 6
12 P0821012 LIMIT BLOCK 70 P0821070 HEX NUT M6-1
13 P0821013 LIMIT BLOCK ADJ SHAFT 71 P0821071 CAP SCREW M6-1 X 16
14 P0821014 CARRIAGE 72 P0821072 V-BELT 171J5 RIBBED
15 P0821015 ADJ HANDLE M10-1.5 X 25, 130L 73 P0821073 HEX NUT M8-1.25
16 P0821016 CARRIAGE SUPPORT BRACKET 74 P0821074 HEX BOLT M8-1.25 X 25
17 P0821017 CARRIAGE LOCKING PLATE 75 P0821075 PUSH NUT 10MM
18 P0821018 ALIGNMENT PIN (THREADED) 76 P0821076 E-CLIP 6MM
19 P0821019 TABLE PIN 77 P0821077 SET SCREW M6-1 X 30
20 P0821020 FRAME PIN 78 P0821078 CAP SCREW M5-.8 X 10
21 P0821021 PIN BRACKET 79 P0821079 SET SCREW M6-1 X 35
22 P0821022 INFEED TABLE 80 P0821080 SET SCREW M6-1 X 16
23 P0821023 TABLE SUB FRAME 81 P0821081 CAP SCREW M5-.8 X 12
24 P0821024 DIAL SUPPORT PLATE 82 P0821082 TAP SCREW M5 X 8
25 P0821025 KNOB 12-LOBE 60MM 83 P0821083 TAP SCREW M4 X 10
26 P0821026 KNOB STUD M10-1.5 X 25 84 P0821084 EXT TOOTH WASHER 6MM
27 P0821027 MOTOR 1-1/2 HP 110V 1-PH 85 P0821085 LOCK WASHER 5MM
28 P0821028 MOTOR PULLEY 86 P0821086 INT RETAINING RING 12MM
29 P0821029 MOTOR MOUNTING PLATE 87 P0821087 BALL BEARING 6201-2Z
30 P0821030 CORD CLAMP 88 P0821088 STRAIN RELIEF M12 TYPE-1
31 P0821031 CUTTERHEAD GUARD 89 P0821089 POWER CORD 16G 3W 72" 5-15P
32 P0821032 RUBBER STOP 90 P0821090 BELT PULLEY COVER
33 P0821033 TORSION SPRING 91 P0821091 V-BELT 139J2 RIBBED
34 P0821034 ROLL PIN 9 X 23MM 92 P0821092 DUST PORT ASSEMBLY
35 P0821035 CAP SCREW M8-1.25 X 20 92-1 P0821092-1 PHLP HD SCR M6-1 X 20
36 P0821036 HELICAL CUTTERHEAD ASSY 6" 92-2 P0821092-2 DUST PORT 2-1/2"
36-1 P0821036-1 CARBIDE INSERT 15 X 15 X 2.5 93 P0821093 FLAT WASHER 5MM
36-2 P0821036-2 FLAT HD TORX T-25 M5-.8 X 12 94 P0821094 DUST BAG
36-3 P0821036-3 HELICAL CUTTERHEAD 6" 95 P0821095 DUST BAG CLAMP
38 P0821038 T-HANDLE TORX DRIVER T-25 96 P0821096 BAG CLAMP HANDLE
39 P0821039 CAP SCREW M6-1 X 20 97 P0821097 ROLL PIN 6 X 20
40 P0821040 CUTTERHEAD PULLEY 98 P0821098 HEX WRENCH 6MM
41 P0821041 HEX NUT M8-1.25 99 P0821099 CLAMP BOLT
42 P0821042 CABLE CLAMP, PLASTIC 102 P0821102 BASE
43 P0821043 BLOWER PORT 103 P0821103 SWITCH MOUNTING PLATE
44 P0821044 BLOWER IMPELLER 104 P0821104 RUBBER FOOT (RIGHT)
45 P0821045 EXT RETAINING RING 26MM 105 P0821105 RUBBER FOOT (LEFT)
46 P0821046 BLOWER MOUNTING PLATE 106 P0821106 GUARD PLATE
47 P0821047 IMPELLER SHAFT 107 P0821107 CAP SCREW M6-1 X 16
48 P0821048 BLOWER PULLEY 108 P0821108 PHLP HD SCR M4-.7 X 10
49 P0821049 SPACER 109 P0821109 HEX WRENCH 5MM
50 P0821050 BALL BEARING 6000-2Z 110 P0821110 CAP SCREW M5-.8 X 20
51 P0821051 CHIP CHUTE 111 P0821111 FLAT WASHER 8MM
52 P0821052 BASE COVER 112 P0821112 FOAM SEAL 10 X 8 X 320
53 P0821053 PUSH BLOCKS 113 P0821113 MOTOR BRUSH (2-PC)
54 P0821054 PADDLE SWITCH KEDU HY18 114 P0821114 MOTOR BRUSH CAP
56 P0821056 CAP SCREW M6-1 X 12 115 P0821115 ADJ HANDLE M8-1.25 X 30, 65L
57 P0821057 LOCK WASHER 6MM 116 P0821116 FLAT WASHER 10MM

Model G0821 (Mfd. Since 03/18)

-45-

Labels & Cosmetics

Always wear safety
glasses and a
respirator when
using this machine.

Disconnect power
before adjustments,
maintenance, or
service.

DANGER

WARNING

CAUTION

GRIZZLY LOGO RED

COLOR CODES

• Scale= 1:1
(unless otherwise noted)

• Labels MUST be made of
chemical-resistant material

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

MODEL G0821

6" BENCHTOP JOINTER

WARNING!

To reduce risk of serious injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Keep all guards in place and in proper operating
condition.

5. Never cut workpieces smaller than 8" long, 3/4" wide,
or 1/2" thick.

6. Always use push blocks when face planing.

7. Keep hands at least 12" away from cutterhead.

8. Never cut deeper than 1/8" on a single pass.

9. Tie back long hair, roll up sleeves, and DO NOT wear
loose clothing, gloves, or jewelry.

erofeb rewop tcennocsid dna FFO rotom nruT .01

changing inserts, adjusting fence, or servicing.

tneverp ot woh dna sdrazah "kcabkcik" fo erawa eB .11

them.

yna ro ,stonk esool ,skcarc htiw sdraob tnioj ton oD .21

defects.

.snoitacol tew ni esu ro niar ot esopxe TON OD .31

.elbat dna ecnef tsniaga eceipkrow troppus syawlA .41

Never attempt any operation free-handed.

.noitator daehrettuc tsniaga eceipkrow deef syawlA .51

Never move workpiece backward while feeding.

deniartnu ro nerdlihc yb esu dezirohtuanu tneverP .61
users; restrict access or disable machine when
unattended.

these lines

tneverp ot woh dna sdrazah "kcabkcik" fo erawa eB .11

yna ro ,stonk esool ,skcarc htiw sdraob tnioj ton oD .21

.elbat dna ecnef tsniaga eceipkrow troppus syawlA .41

.noitator daehrettuc tsniaga eceipkrow deef syawlA .51

deniartnu ro nerdlihc yb esu dezirohtuanu tneverP .61

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Cutterhead

exposed

between

these lines

tneverp ot woh dna sdrazah "kcabkcik" fo erawa eB .11

yna ro ,stonk esool ,skcarc htiw sdraob tnioj ton oD .21

.elbat dna ecnef tsniaga eceipkrow troppus syawlA .41

.noitator daehrettuc tsniaga eceipkrow deef syawlA .51

deniartnu ro nerdlihc yb esu dezirohtuanu tneverP .61

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Cutterhead

exposed

between

these lines

G0821 Machine Labels

(11.25.16)

• Scale= 1:1
(unless otherwise noted)

• Labels MUST be made of
chemical-resistant material

WARNING!

EYE/LUNG INJURY

HAZARD!

Always wear safety
glasses and a
respirator when
using this machine.

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.

MODEL G0821

6" BENCHTOP JOINTER

Motor: 1-1/2 HP, 120V, 60 Hz
Full-Load Current Rating: 12A
Cutterhead Type: Spiral, 1-7/8" dia.
Number of Cutter Rows: 3
Number of Cutters: 18
Cutterhead Insert Size: 15 x 15 x 2.5mm
Grizzly Replacement Cutters: T24736

(10-Pack)
Maximum Depth of Cut: 1/8"
Maximum Width of Cut: 6"
Minimum Workpiece Size: 8"L x 1/2" T
Cutterhead Speed: 8000 RPM
Cuts Per Minute: 24,000
Fence Tilt: 45º – 135º
Table Size: 6-1/4" x 30-3/8"
Weight: 50 lbs.

Specifications

WARNING!

Date

Mfd. for Grizzly in China

S/N

To reduce risk of serious injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Keep all guards in place and in proper operating
condition.

5. Never cut workpieces smaller than 8" long, 3/4" wide,
or 1/2" thick.

6. Always use push blocks when face planing.

7. Keep hands at least 12" away from cutterhead.

8. Never cut deeper than 1/8" on a single pass.

9. Tie back long hair, roll up sleeves, and DO NOT wear
loose clothing, gloves, or jewelry.

erofeb rewop tcennocsid dna FFO rotom nruT .01

changing inserts, adjusting fence, or servicing.

tneverp ot woh dna sdrazah "kcabkcik" fo erawa eB .11

them.

yna ro ,stonk esool ,skcarc htiw sdraob tnioj ton oD .21

defects.

.snoitacol tew ni esu ro niar ot esopxe TON OD .31

.elbat dna ecnef tsniaga eceipkrow troppus syawlA .41

Never attempt any operation free-handed.

.noitator daehrettuc tsniaga eceipkrow deef syawlA .51

Never move workpiece backward while feeding.

deniartnu ro nerdlihc yb esu dezirohtuanu tneverP .61
users; restrict access or disable machine when
unattended.

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Cutterhead

exposed

between

these lines

• Scale= 1:1
(unless otherwise noted)

• Labels MUST be made of
chemical-resistant material

MODEL G0821

WARNING!

erofeb rewop tcennocsid dna FFO rotom nruT .01

tneverp ot woh dna sdrazah "kcabkcik" fo erawa eB .11

yna ro ,stonk esool ,skcarc htiw sdraob tnioj ton oD .21

.snoitacol tew ni esu ro niar ot esopxe TON OD .31

.elbat dna ecnef tsniaga eceipkrow troppus syawlA .41

.noitator daehrettuc tsniaga eceipkrow deef syawlA .51

deniartnu ro nerdlihc yb esu dezirohtuanu tneverP .61

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Failure to keep hands clear of cutterhead

may result in serious personal injury.

Cutterhead

exposed

between

these lines

204

MODEL G0821

6" BENCHTOP JOINTER

Specifications

Motor: 1-1/2 HP, 120V, 60 Hz
Full-Load Current Rating: 12A
Cutterhead Type: Spiral, 1-7/8" dia.
Number of Cutter Rows: 3
Number of Cutters: 18
Cutterhead Insert Size: 15 x 15 x 2.5mm
Grizzly Replacement Cutters: T24736

(10-Pack)
Maximum Depth of Cut: 1/8"
Maximum Width of Cut: 6"
Minimum Workpiece Size: 8"L x 1/2" T
Cutterhead Speed: 8000 RPM
Cuts Per Minute: 24,000
Fence Tilt: 45º – 135º
Table Size: 6-1/4" x 30-3/8"
Weight: 50 lbs.

Date

Mfd. for Grizzly in China

S/N

To reduce risk of serious injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Keep all guards in place and in proper operating

5. Never cut workpieces smaller than 8" long, 3/4" wide,

6. Always use push blocks when face planing.

7. Keep hands at least 12" away from cutterhead.

8. Never cut deeper than 1/8" on a single pass.

9. Tie back long hair, roll up sleeves, and DO NOT wear

10. Turn motor OFF and disconnect power before

11. Be aware of "kickback" hazards and how to prevent

12. Do not joint boards with cracks, loose knots, or any

13. DO NOT expose to rain or use in wet locations.

3092372

14. Always support workpiece against fence and table.

15. Always feed workpiece against cutterhead rotation.

16. Prevent unauthorized use by children or untrained

WARNING!

condition.

or 1/2" thick.

loose clothing, gloves, or jewelry.

changing inserts, adjusting fence, or servicing.

them.

defects.

Never attempt any operation free-handed.

Never move workpiece backward while feeding.

users; restrict access or disable machine when
unattended.

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call [phone] or
go to www.grizzly.com.

207

208V2

201

Failure to keep hands clear of cutterhead
may result in serious personal injury.

WARNING!

Disconnect power
before adjustments,
maintenance, or
service.

INJURY/SHOCK

HAZARD!

206

Cutterhead

exposed
between

these lines

CUTTERHEAD BELOW!

Use this guard for all
operations possible, and
immediately reinstall it
following operations that
require its removal.

EYE/LUNG INJURY

Always wear safety
glasses and a
respirator when
using this machine.

Failure to keep hands clear of cutterhead
may result in serious personal injury.

DANGER!

ROTATING

WARNING! WARNING!

KICKBACK HAZARD!

1. Ensure outfeed table is
even with knives.

2. Never exceed the
maximum depth of cut.

3. Do not stand directly
behind workpiece.

203

205

WARNING!

HAZARD!

ALWAYS USE

PUSH BLOCKS!

Push blocks minimize the
possibility of operator’s
hands contacting the
cutterhead while cutting.

202

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0821201 FENCE WARNING LABEL 205 P0821205 GLASSES/RESPIRATOR LABEL
202 P0821202 CUTTERHEAD GUARD LABEL 206 P0821206 DISCONNECT 110V LABEL
203 P0821203 ELECTRICITY LABEL 207 P0821207 READ MANUAL LABEL
204 P0821204 TOUCH-UP PAINT, GRIZZLY GREEN 208V2 P0821208V2 MACHINE ID LABEL ETL V2.03.17

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-46-

Rear of G0821

Model G0821 (Mfd. Since 03/18)

203

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
