MODEL G0812

13" X 18" METAL-CUTTING BANDSAW

OWNER'S MANUAL

(For models manufactured since 2/16)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BL18559 PRINTED IN TA I WAN

V1.01.17

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy Identification Controls & Components Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for .................................... 11

Horizontal Metal Bandsaws

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking Needed for Setup Inventory Cleanup Site Considerations Lifting & Placing Anchoring to Floor Assembly Test Run Recommended Adjustments

SECTION 4: OPERATIONS

Operation Overview Blade Selection Changing Blade Tensioning & Tracking Blade Blade Breakage Blade Care & Break-In Blade Speed Blade Speed Chart Chip Inspection Chart Feed Rate Work Stop

.............................................................. 34

Vise Angle Cuts Blade Guides Coolant

Coolant System............................................ 38

Operation Tips

Workpiece Inspection................................... 40

.................................................... 14

...................................................... 14

........................................................ 15

..................................................... 18

...................................................... 20

....................................................... 29

.................................................... 32

................................................... 36

......................................................... 38

........................................... 2

................................................... 3

................................. 4

...................................... 6

....................................... 9

.................. 9

......................... 11

...................... 12

....................................... 14

......................................... 14

...................................... 16

........................................... 17

....................................... 18

........................ 22

........................... 23

..................................... 23

............................................ 24

........................................... 26

....................... 27

........................................... 28

.............................................. 29

................................................ 29

...................................... 30

.................................. 31

............................................... 37

............................................. 39

SECTION 6: MAINTENANCE

Schedule Cleaning & Protecting Lubrication Hydraulic System Tensioning/Replacing Belt Coolant System Service Machine Storage

SECTION 7: SERVICE

Troubleshooting Blade Brush Downfeed Stop Bolt Blade Guide Bearings Squaring Blade with Table Limit Switches

Angle Stops.................................................. 58

SECTION 8: WIRING

Wiring Safety Instructions Electrical Overview Component Locations Electrical Panel Photo Electrical Panel Wiring Diagram Control Panel Wiring Main Motor Wiring Hydraulic Pump Wiring Coolant Pump Wiring Limit Switch Wiring Hydraulic System Diagram

SECTION 9: PARTS

Frame

Drive Wheel & Motor.................................... 72

Base & Vise Electrical Labels & Cosmetics

WARRANTY & RETURNS

...................................................... 42

................................................... 42

......................................... 45

.......................................... 50

................................... 51

........................................... 51

................................................. 54

..................................... 54

.............................................. 57

...................................... 61

...................................... 62

.................................... 65

........................................ 66

................................... 67

...................................... 68

....................................... 70

........................................................... 70

................................................. 74

...................................................... 77

..................................... 78

......................... 42

.................................. 42

........................... 47

.............................. 48

.................................. 55

........................... 56

............................ 61

.................................. 62

.................................. 63

.................. 64

................................ 66

.......................... 69

............................. 81

SECTION 5: ACCESSORIES

......................... 41

We stand behind our machines! If you have questions or need help, contact us with the information below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

serial number

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield Springfield, MO 65807 Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

manufacture date and

Manufacture Date

Serial Number

-2-

Model G0812 (Mfd. Since 2/16)

Identification

To reduce your risk of serious injury, read this entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual.

Front View

Blade

Guide Arm

Blade Guide

Knob

Control

Panel

Hydraulic Tank

Rear View

Blade Guide Scale

Work Stop

Splash Guard

Headstock

Belt Cover

Wheel Cover

Chip Collection

Drawer

Blade Speed

Adjustment

Knob

Auto Stop

Adjustment Lever

Vise Locks

Model G0812 (Mfd. Since 2/16)

Fixed Vise

Jaw

using machine.

Blade Tension

Handwheel

Vise Handwheel

Coolant

Control Valve

Movable

Vise Jaw

-3-

Controls &

I J

To reduce your risk of serious injury, read this entire manual BEFORE

A. Power Lamp: Indicates main power to

machine is turned ON.

Components

using machine.

Refer to Figures 1–5 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

Control Panel

B. Feed Rate Dial: Controls rate at which blade

feeds into workpiece.

C. Emergency Stop Button: Stops all machine

functions. Twist clockwise to reset.

Coolant Pump Switch (

setting ( through fluid nozzles. High-pressure setting

(

E. Raise Headstock Button (K): Hydraulically

F. Lower Headstock Button (K):

G. Hydraulic Motor Button (

) supplies coolant to spray gun, and (

turns coolant pump motor OFF.

raises headstock. Continues raising blade until lower limit switch activates or button is released.

Hydraulically lowers headstock. Lowers at rate determined by feed rate dial (B).

lic motor ON.

) supplies cutting fluid to blade

): Low-pressure

): Turns hydrau-

)

Stop Button: Stops all machine functions

Figure 1. Model G0812 control panel.

Figure 2. Control panel pedestal lock location.

-4-

IHG K

when pressed. Press again to reset.

Blade Start Button(

turns saw blade motor ON and starts saw blade. IMPORTANT: For blade start button

to work, hydraulic motor button (G) and vise close button (J) must be pressed first, and headstock must be raised.

J. Vise Close Button (

es vise to secure workpiece during cut. IMPORTANT: As a safety precaution, vise

close button must be pressed in order for blade start button (I) to function.

Vise Open Button (

vise to release workpieces between cuts.

L. Pedestal Lock: Loosen to move control

panel to desired location for operation and tighten to secure. IMPORTANT: To avoid

headstock hitting control panel during operation, swivel control panel out of way to ensure it is not in path of headstock.

Model G0812 (Mfd. Since 2/16)

): When pressed,

): Hydraulically clos-

): Hydraulically opens

Headstock

Vise Table

Figure 3. Headstock controls and components.

Figure 4. Additional headstock controls.

M. Blade Guide Arm: Holds blade guide that

supports bandsaw blade. Arm is placed as close to workpiece as possible during cutting to prevent blade from twisting.

Figure 5. Vise table controls.

S. Movable Vise Jaw: Features quick release

that allows jaw width to be adjusted when changing from one workpiece size to another.

Vise Handwheel: Rotate to manually position

movable vise jaw close to workpiece.

U. Vise Locks: Loosen to move vise base or

tighten to secure its position.

N. Blade Guide Scale: Displays position of

blade guide arm relative to workpiece.

O. Blade Speed Adjustment Knob: Controls

bandsaw blade speed. Rotate knob clockwise to decrease blade speed or counterclockwise to increase blade speed. IMPORTANT: To

avoid damaging machine, ONLY change blade speeds while the motor is running.

P. Work Stop: Can be positioned on either

side of vise base to support repetitive cutting operations. The stop is placed on same side of machine where cut is made.

Q. Auto-Stop Adjustment Lever: Sets maxi-

mum headstock height. Adjust by changing position of lower limit switch. This feature is useful for speeding up repetitive cuts by eliminating unnecessary headstock travel.

Blade Tension Handwheel: Increases or

decreases blade tension.

Model G0812 (Mfd. Since 2/16)

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0812 13" X 18" 2 HP INDUSTRIAL METAL‐

CUTTING BANDSAW

Product Dimensions:

Weight............................................................................................................................................................ 1345 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................................... 90 x 52 x 56 in.

Footprint (Length x Width)..................................................................................................................... 57 x 27-1/2 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight............................................................................................................................................................ 1446 lbs.

Length x Width x Height....................................................................................................................... 84 x 37 x 60 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 220V

Full-Load Current Rating........................................................................................................................................ 20A

Minimum Circuit Size.............................................................................................................................................. 30A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type................................................................................................................................... L6-30

Switch Type........................................................................................................................................ Magnetic Switch

Motors:

Coolant Pump

Main

Horsepower................................................................................................................................................ 53 W

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 0.3A

Speed................................................................................................................................................ 3440 RPM

Type..................................................................................................................................................... Universal

Power Transfer ............................................................................................................................... Direct Drive

Centrifugal Switch/Contacts Type................................................................................................................ N/A

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 15A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer .................................................................................................................................. Belt Drive

Bearings........................................................................................................ Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

-6-

Model G0812 (Mfd. Since 2/16)

Hydraulic Pump

Horsepower............................................................................................................................................. 1/2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 4.7A

Speed................................................................................................................................................ 1720 RPM

Type................................................................................................................................. TEFC Capacitor-Start

Power Transfer ............................................................................................................................... Direct Drive

Bearings........................................................................................................ Sealed & Permanently Lubricated

Centrifugal Switch/Contacts Type......................................................................................................... External

Main Specifications:

Operation Info

Blade Speeds............................................................................................................................... 95 – 380 FPM

Std. Blade Length.................................................................................................................................... 150 in.

Blade Length Range.......................................................................................................... 149-3/4 – 150-1/4 in.

Cutting Capacities

Cutting Height............................................................................................................................................ 13 in.

Angle Cuts................................................................................................................................. 60R – 45L deg.

Vise Jaw Depth.......................................................................................................................................... 18 in.

Vise Jaw Height..................................................................................................................................... 6-3/4 in.

Max. Capacity Rectangular Height at 90 Deg............................................................................................ 12 in.

Max. Capacity Rectangular Width at 90 Deg............................................................................................. 18 in.

Max. Capacity Round at 90 Deg................................................................................................................ 13 in.

Max. Capacity Rectangular Height at 30 Deg............................................................................................ 11 in.

Max. Capacity Rectangular Width at 30 Deg............................................................................................. 19 in.

Max. Capacity Round at 30 Deg................................................................................................................ 19 in.

Max. Capacity Rectangular Height at 45 Deg............................................................................................ 11 in.

Max. Capacity Rectangular Width at 45 Deg............................................................................................. 12 in.

Max. Capacity Round at 45 Deg................................................................................................................ 12 in.

Max. Capacity Rectangular Height at 60 Deg.............................................................................................. 7 in.

Max. Capacity Rectangular Width at 60 Deg............................................................................................... 8 in.

Max. Capacity Round at 60 Deg.................................................................................................................. 8 in.

Max. Capacity Rectangular Height at -45 Deg.......................................................................................... 11 in.

Max. Capacity Rectangular Width at -45 Deg............................................................................................ 12 in.

Max. Capacity Round at -45 Deg............................................................................................................... 12 in.

Construction

Table....................................................................................................................... Precision-Ground Cast Iron

Trunnions............................................................................................................................................. Cast Iron

Upper Wheel........................................................................................................................................ Cast Iron

Lower Wheel........................................................................................................................................ Cast Iron

Body........................................................................................................................................................... Steel

Stand.......................................................................................................................................................... Steel

Wheel Cover............................................................................................................................................... Steel

Paint Type/Finish...................................................................................................................................... Epoxy

Other

Wheel Size................................................................................................................................................. 16 in.

Blade Guides Upper..................................................................................................................... Carbide Steel

Blade Guides Lower..................................................................................................................... Carbide Steel

Coolant Capacity.................................................................................................................................... 7.5 gal.

Table Info

Table Size Length................................................................................................................................ 26-1/8 in.

Table Size Width................................................................................................................................... 7-3/4 in.

Table Size Thickness............................................................................................................................ 4-7/8 in.

Floor To Cutting Area Height............................................................................................................... 32-1/4 in.

Model G0812 (Mfd. Since 2/16)

-7-

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .............................................................................................................. 1 Hour

Serial Number Location .................................................................................................................................. ID Label

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Coolant System with 7.5-Gallon Coolant Capacity Heavy-Duty, Precision-Ground Cast-Iron Table Variable-Speed Blade Control with Speeds from 95 – 380 FPM Quick-Release Vise Variable-Speed Hydraulic Feed Control Pivoting Control Panel Arm for Convenient Access to Controls Coolant Splash Guard Built-in Spray Hose for Quick and Easy Cleanup Miter Base Swivels 45-degrees left and 60-degrees right

-8-

Model G0812 (Mfd. Since 2/16)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

Model G0812 (Mfd. Since 2/16)

-9-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-10 -

Model G0812 (Mfd. Since 2/16)

Additional Safety for

Horizontal Metal Bandsaws

Serious injury or death can occur from getting fingers, hair, or clothing entangled in rotating or moving parts or making direct contact with the moving blade. To minimize risk of injury, anyone operating this machine MUST completely heed hazards and warnings below.

BLADE CONDITION. Do not operate with dull,

cracked, or badly worn blade. Inspect blades for cracks and missing teeth before each use.

HAND PLACEMENT. Never position hands or fingers in line with the cut or under bandsaw headstock while lowering or operating. Hands could be cut or crushed.

BLADE GUARD POSITION. Adjust blade guard as close to workpiece as possible before cutting to minimize operator exposure to unused portion of blade.

ENTANGLEMENT HAZARDS. Do not operate this saw without blade guard in place. Loose clothing, jewelry, long hair and work gloves can be drawn into working parts.

BLADE REPLACEMENT. When replacing blades, disconnect the machine from power, wear gloves to protect hands and safety glasses to protect eyes.

HOT SURFACES. Contact with hot surfaces from machine components, ejections of hot chips, swarf, and the workpiece itself can cause burns.

WORKPIECE HANDLING. Always properly support workpiece with table, vise, or some type of support fixture. Always secure workpiece in vise before cutting. Never hold the workpiece with your hands during a cut.

UNSTABLE WORKPIECES. Avoid cutting workpieces that cannot be properly supported or clamped in a vise or jig, because they can unexpectedly move while cutting and draw the operator’s hands into the blade causing serious personal injury. Examples are chains, cables, round or oblong-shaped workpieces, and those with internal or built-in moving or rotating parts, etc.

FIRE HAZARD. Use EXTREME CAUTION if cutting magnesium. Using the wrong cutting fluid could lead to chip fire and possible explosion.

CUTTING FLUID SAFETY. Cutting fluids are poisonous. Always follow manufacturer’s cuttingfluid safety instructions. Pay particular attention to contact, contamination, inhalation, storage and disposal warnings. Spilled cutting fluid invites slipping hazards.

Model G0812 (Mfd. Since 2/16)

-11-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

or equipment damage may occur if machine is not properly grounded and connected to power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will be running on the circuit at a time. If machine will be connected to a shared circuit where multiple machines may be running at the same time, consult an electrician or qualified service personnel to ensure circuit is properly sized for safe operation.

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .........20 8V, 2 20V, 230V, 24 0V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle Cord

.................................................... 1-Phase

......................... 30 Amps

...........................NEMA L6-30

........“ S”-Type , 3-Wire, 14 AWG, 300 VAC

Full-Load Current Rating at 220V ..... 20 Amps

-12-

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Model G0812 (Mfd. Since 2/16)

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which can damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must be in good condition and contain a ground wire and matching plug/receptacle. Additionally, it must meet the following size requirements:

No adapter should be used with plug. If

process. DO NOT connect to power until

Grounding Instructions

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

The power cord and plug specified under “Circuit Requirements for 220V” has an equipment-grounding wire and a grounding prong. The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances (see figure below).

on the previous page

L6-30 GROUNDED

LOCKING

RECEPTACLE

Grounding Prong

is Hooked

L6-30

LOCKING

PLUG

Serious injury could occur if you connect machine to power before completing setup

instructed later in this manual.

Current Carrying Prongs

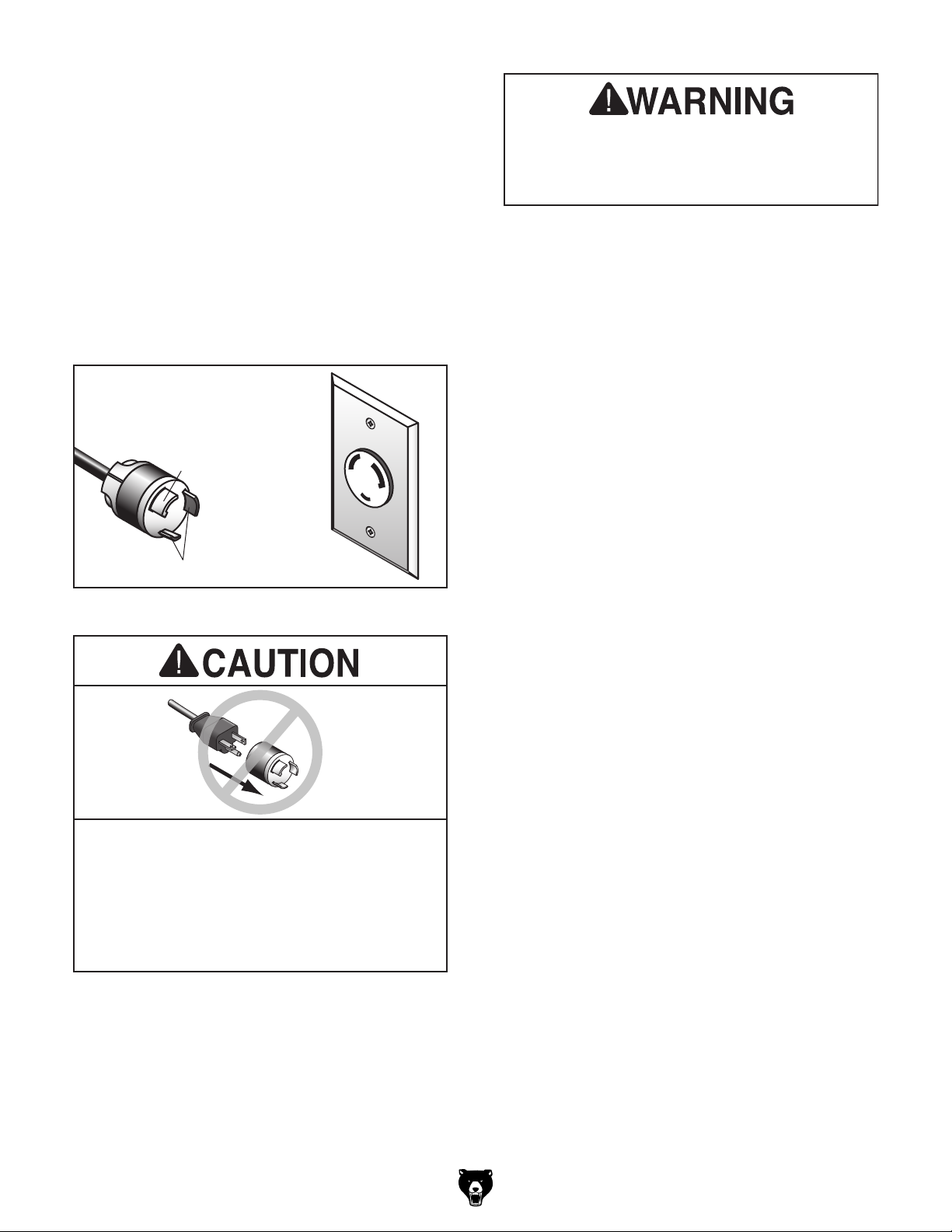

Figure 6. Typical L6-30 plug and receptacle.

plug does not fit available receptacle, or if machine must be reconnected for use on a different type of circuit, reconnection must be performed by an electrician or qualified service personnel, and it must comply with all local codes and ordinances.

Model G0812 (Mfd. Since 2/16)

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

-13-

SECTION 3: SETUP

This machine was carefully packaged for safe transport. When unpacking, separate all enclosed items from packaging materials and inspect them for shipping damage.

please

at (570) 546-9663.

IMPORTANT:

you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

Keep children and pets away from plastic bags or packing materials shipped with this

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

The following items are needed, but not included, for the setup/assembly of this machine.

Unpacking Inventory

If items are damaged

call us immediately

Save all packaging materials until

Box Inventory (Figure 7) Qty

A. Work Stop Arm ........................................... 1

B. Work Stop ................................................... 1

C. Work Stop Rod ........................................... 1

D. Splash Guard ............................................. 1

E. Hex Bolts M16-2 x 75 ................................. 4

Hex Nuts M16-2 .......................................... 4

SUFFOCATION HAZARD!

machine.

Needed for Setup

Description Qty

• Safety Glasses (for each person) ............... 1

• Cleaner/Degreaser (refer to Page 15) ........ 1

• Disposable Shop Rags ............................... 1

• Lifting Equipment

(Rated for at least 1700 lbs.) ...................... 1

• Precision Level ........................................... 1

• Open-End Wrench 10, 12, 24mm ..........1 Ea

• Hex Wrench 4, 5, 6mm .........................1 Ea

• Additional Person ....................................... 1

• Hammer ...................................................... 1

• Pry Bar ....................................................... 1

-14-

Figure 7. Box inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Model G0812 (Mfd. Since 2/16)

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Av oi d using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Model G0812 (Mfd. Since 2/16)

-15-

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

Keep Area

Unobstructed

= Electrical Connection

-16 -

88"

Figure 9. Minimum working clearances.

Min. 30"

Keep Area

Unobstructed

100"

for Maintenance

Model G0812 (Mfd. Since 2/16)

Wall

Lifting & Placing

HEAVY LIF T! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

To lift and place machine:

Position crate as close as possible to instal-

lation location, then remove top and sides of crate.

5. Install each of (4) M16-2 x 75 leveling hex

bolts with (1) M16-2 hex nut into each of the (4) mounting holes in frame, as shown in Figure 11.

— If you choose not to install included level-

ing bolts, refer to Anchoring to Floor for additional options.

Hex Nut

(1 of 4)

Leveling Hex

Bolt

(1 of 4)

Remove small items packed around machine

and unbolt machine from pallet.

Remove shipping material underneath cen-

ter opening, then place forklift forks through opening (see Figure 10) so forks are as wide as possible for stability.

Figure 11. Leveling bolt threaded into frame.

6. Carefully lower machine onto floor, and then

back forklift away.

Adjust each leveling hex bolt as needed to

stabilize machine.

Tighten hex nuts against frame to secure

leveling bolts.

Figure 10. Inserting forklift forks for lifting

machine.

4. With an assistant helping to stabilize the load,

lift machine just high enough to clear pallet and any floor obstacles, then place machine in final position on shop floor.

Model G0812 (Mfd. Since 2/16)

-17-

Anchoring to Floor

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

The machine must be fully assembled before it can be operated. Before beginning the assembly process, refer to

and gather all goes smoothly, first clean any

covered or coated in heavy-duty rust preventative (if applicable).

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware

Anchoring to Concrete Floors

.................1⁄2"

Assembly

Needed for Setup

listed items. To ensure the assembly process

parts that are

With the exception of the work stop rod, work stop, and splash guard, the Model G0812 comes fully assembled from the factory.

To assemble machine:

1. Remove upper hex bolt and two lower cap

screws that secure shipping bracket shown in Figure 13.

Note: The bracket was installed to keep

the saw in alignment during shipping. Store bracket for safe keeping, in the event you move your saw to a different location.

Machine Base

Concrete

Figure 12. Popular method for anchoring

machinery to a concrete floor.

-18-

Lag Screw

Flat Washer

Lag Shield Anchor

Drilled Hole

x 1

Shipping

Bracket

x 2

Figure 13. Shipping bracket.

Model G0812 (Mfd. Since 2/16)

2. Slide work stop rod into hole in vise base so

scale faces up and rod is flush with back of vise bed casting (see Figures 14–15), then tighten front and rear set screws.

Note: The stop rod can be installed on either

side of the vise base depending upon the cutting operation. It should be placed on the same side where the workpiece is being cut. Refer to Work Stop on Page 32 for additional details.

Slide work stop arm onto stop rod, posi-

tion it as necessary, then tighten cap screw (see Figure 16).

Insert work stop into arm and secure with

knob (see Figure 16).

Work Stop

Knob

Work Stop

Arm

Scale

Stop Rod

Figure 14. Work stop arm attached to stop rod.

Work Stop

Rod

Work Stop

Arm

Cap Screw

Figure 16. Work stop attached to work stop arm.

Fit splash guard over lip of base, as shown in

5. Figure 17.

Lip

Splash

Guard

Figure 15. Stop rod flush with vise base casting.

Model G0812 (Mfd. Since 2/16)

Figure 17. Splash guard installed over lip of

base.

-19 -

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

I J

To test run machine:

1. Clear all setup tools away from machine.

Troubleshooting

The test run consists of verifying the following:

1) The hydraulic controls work correctly, 2) the motor powers up and runs correctly, and 3) the Emergency Stop button and lower limit switch work correctly.

Refer to Figure 18 during test run. Each control has an alphabetical callout for identification.

2. Verify cutting fluid switch (

Fill coolant reservoir with coolant (refer to

3. Page 48), if you have not already done so.

DO NOT run pump without coolant or you will damage it.

. Connect machine to power source. Power

lamp (

Push Emergency Stop button (K, C) in, then

twist it clockwise so it pops out. When STOP button pops out, switch is reset, and machine is ready for operation (see Figure 19).

, A) will illuminate.

, D) is OFF.

Figure 18. G0812 Control panel.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

-20-

E F

Figure 19. Resetting the switch.

Press hydraulic motor button (

should hear hydraulic motor (located in machine base) turn ON.

Check function of saw headstock hydraulics

by pressing raise headstock button (K, E) setting feed dial (B) at a number over "0", then pressing lower headstock button (

Check function of vise hydraulics by pressing

vise open button ( button (

9. Open coolant valves (see Figure 20).

Coolant

Valve

Figure 20. Coolant valve (1 of 2) opened.

, J).

Model G0812 (Mfd. Since 2/16)

, K) and vise close

, G). You

, F).

10. Check function of cutting fluid pump

I J

by turning cutting fluid pump switch

, D) all the way to the right.

(

11. Verify that cutting fluid flows through nozzles

into blade guides, then turn switch OFF.

Press raise headstock button (K, E) and

12.

raise headstock several inches, then press vise close (

, J) button.

Note: As a safety precaution, saw motor will

not start unless vise close button is pressed first.

Start blade movement by pressing blade start

13.

button (

, I) while keeping your finger near Emergency Stop button (C, C). The machine should run smoothly and without unusual problems or noises.

Press Emergency Stop button (C, C) in com-

14.

pletely to stop machine.

WITHOUT resetting Emergency Stop button,

15.

press hydraulic motor button ( close button (

(

, I). The machine should not start.

, J), then blade start button

, G), vise

Figure 21. Wheel cover locked in "up" position.

19.

While staying safely away from blade, press

Stop button again, press hydraulic motor button, vise close button, then start button.

If blade does not start, blade cover safety

—

switch feature is working correctly.

— If blade does start (with blade cover open),

immediately turn machine OFF and disconnect power. Blade cover safety switch safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Press Emergency Stop button (C, C) in com-

20.

pletely, then close wheel cover and secure.

— If machine does not start, Emergency Stop

button safety feature is working correctly. Congratulations! Test Run is complete.

— If machine does start (with Emergency

Stop button pushed in), immediately disconnect power. Emergency Stop button is NOT working properly and must be replaced before further using machine.

Reset Emergency Stop button, repeat Steps

16. 12–13, then press Stop button (

, H) to stop

machine.

WITHOUT pressing Stop button again, press

17.

hydraulic motor button ( button (

(

Open blade cover and lock in position (see

18.

, J), then blade start button

, I). The machine should not start.

, G), vise close

Figure 21). This activates blade cover safety switch to prevent saw starting.

Reset Emergency Stop button.

21.

22. Raise headstock up all the way, then start

blade. When headstock reaches bottom of travel, the blade should shut off and the headstock should move back to the top of its travel.

— If blade does shut off and headstock

moves back to top of its travel, upper limit switch is working correctly.

— If blade does not stop or headstock does

not move back to top of its travel, upper limit switch is not working correctly. This safety feature must work properly before proceeding with regular operations. Refer to Page 57 to adjust this limit switch.

Press Emergency Stop button. Test Run is

23.

complete.

Model G0812 (Mfd. Since 2/16)

-21-

Recommended

Adjustments

The adjustments listed below have been performed at the factory. However, because of the many variables involved with shipping, we recommend that you at least verify the following adjustments to ensure accurate cutting results.

Step-by-step instructions on verifying these adjustments can be found in SECTION 7: SERVICE

ADJUSTMENTS.

Factory adjustments that should be verified:

Downfeed Stop (Page 54).

Blade Tracking (Page 28).

Blade Guide Bearings (Page 55).

Squaring Blade to Table (Page 56).

-22-

Model G0812 (Mfd. Since 2/16)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual,

training from experienced machine operators outside of this manual by reading "how-to" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

To reduce risk of eye injury from flying

Operation Overview

machine controls/components

are easier to understand.

To complete a typical cutting operation, the operator does the following:

1. Examines workpiece to make sure it is suit-

able for cutting.

Adjusts headstock angle and vise position,

then securely clamps workpiece in vise using manual and hydraulic controls.

Sets up splash guard and work stop if need-

ed for operation.

seek additional

, and do additional research

using machine.

chips or lung damage from breathing dust, always wear safety glasses and a respirator when operating this machine.

Adjusts blade guide arm as close to workpiece

as possible, and verifies blade is properly tensioned.

Makes sure workpiece and machine are

stable and that there are no obstructions in the way of cut.

Sets blade speed.

7. Ensures machine has adequate amount of

coolant.

Puts on safety glasses and respirator.

9. Raises headstock using hydraulic controls.

10. Starts machine and waits for blade to reach

full speed, then turns on coolant pump.

Turns feed rate dial clockwise, lowers blade

11.

into workpiece, and allows machine to complete cut.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0812 (Mfd. Since 2/16)

Once machine has stopped, removes

12.

workpiece.

When finished, turns machine OFF.

13.

-23-

Blade Selection

Selecting the right blade for the cut requires a knowledge of various blade characteristics.

Blade Terminology

Blade Length

Measured by the blade circumference, blade lengths are usually unique to the brand of bandsaw and the distance between the wheels.

Model Blade Length Range

G0 812 ............................................ 1493⁄4"–1501⁄4"

Figure 22. Bandsaw blade terminology.

Kerf: The amount of material removed by the

blade during cutting.

B. Tooth Set: The amount each tooth is bent

left or right from the blade.

C. Gauge: The thickness of the blade.

Blade Width

Measured from the back of the blade to the tip of the blade tooth (the widest point).

Model Blade Width

G0 812 ............................................................... 1"

Tooth Type

The most common tooth types are described as follows, and illustrated in Figure 23.

Standard (or Raker)

Variable Pitch (VP)

D. Blade Width: The widest point of the blade

measured from the tip of the tooth to the back edge of the blade.

E. Tooth Rake: The angle of the tooth face from

a line perpendicular to the length of the blade.

Gullet Depth: The distance from the tooth tip

to the bottom of the curved area (gullet).

G. Tooth Pitch: The distance between tooth

tips.

H. Blade Back: The distance between the bot-

tom of the gullet and the back edge of the blade.

I. Blade Pitch or TPI: The number of teeth per

inch measured from gullet to gullet.

Figure 23. Bandsaw blade tooth types.

Standard or Raker: Equally spaced teeth set at

a "0" rake angle. Recommended for all purpose use.

Variable Pitch (VP): Varying gullet depth and tooth spacing, a "0" rake angle, excellent chip removing capacity, and smooth cutting.

-24-

Model G0812 (Mfd. Since 2/16)

Blade Pitch (TPI)

The chart below is a basic starting point for choosing teeth per inch (TPI) for variable pitch blades and standard raker set bi-metal blades/ HSS blades. However, for exact specifications of bandsaw blades that are correct for your operation, contact the blade manufacturer.

Refer to "Material Shapes" row and find

shape of material to be cut.

In applicable row, read across to right and

find box where row and column intersect. Listed in the box is minimum TPI recommended for variable tooth pitch blades.

To select correct blade pitch:

Measure material thickness. This measure-

ment is distance from where each tooth enters workpiece to where it exits workpiece.

Refer to "Material Width/Diameter" row of

blade selection chart in Figure 24, and read across to find workpiece thickness you need to cut.

Material Width/Diameter

Material Shapes

TOOTH SELECTION

inch

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 192½ 3½

75 100 150 200 250 300 350 400

5/8

4/6

3/4

4/6

3/4

2/3 1.4/2.5

The TPI range is represented by a "/" between

numbers. For example, 3/4 TPI is the same as 3–4 TPI.

The "Cutting Speed Rate Recommendation"

chart, which is located on the machine just below the Blade Pitch Chart, offers guidelines for various metals, given in feet per minute (FPM). Refer to Blade Speed Chart section on Page 30 for further details.

Teeth Per Inch (TPI) for Bandsaw Blades

2/3

3/4

1.4/2.5

2/3

1.5/.8

450

1.5/.8

Figure 24. General guidelines for blade selection and speed chart.

Model G0812 (Mfd. Since 2/16)

-25-

Changing Blade

Loosen knob on left blade-guide arm and

move arm until it contacts stop pin on scale, as shown in Figure 26. Clean cover and clean out all chips and shavings.

All saw blades are dangerous and may cause personal injury. To reduce the risk of being injured, wear leather gloves when handling and uncoiling saw blades.

Items Needed Qty

Leather Gloves .................................................. 1

Assistant Phillips Head Screwdriver #2

Blades should be changed when they become dull, damaged, or when you are using materials that require a blade of a certain type or tooth count.

To change blade on bandsaw:

Raise headstock about six inches.

DISCONNECT MACHINE FROM POWER!

............................................................ 1

............................ 1

Knob

Stop

Blade

Guide Arm

Figure 26. Left guide arm positioned as far right

as possible.

Remove guards on both blade guides,

and remove wire wheel on right guard (see Figure 27).

Loosen blade tension handwheel (see Figure

27), and slip blade off of wheels.

With help of an assistant, install new blade

through both blade guide bearings shown in Figure 27, then around wheels.

3. Open wheel access cover and secure in "up"

position so struts lock into end of grooves on brackets shown in Figure 25.

Struts

Bracket

Figure 25. Wheel cover secured in "up" position.

Top Wheel

Tension

Handwheel

Figure 27. Installing new blade.

Bottom Wheel

Blade Guide

Bearings

Wire

Wheel

-26-

Model G0812 (Mfd. Since 2/16)

Note: It is sometimes possible to flip the

blade inside out, in which case the blade will be installed in the wrong direction. After installing, check to make sure the blade teeth face the same direction as blade travel (see Figure 28). Some blades will have a directional arrow as a guide.

Blade Travel

Figure 28. Example of blade cutting direction.

Tensioning &

Tracking Blade

Proper blade tension is essential to long blade life, straight cuts, and efficient cutting. The Model G0812 features a blade tension indicator to assist you with blade tensioning.

The three major signs of incorrect blade tension are: 1) The blade stalls in the cut and slips on the wheels, 2) the bandsaw does not make straight cuts, and 3) the blade frequently breaks.

Loosen blade tension at the end of each day to prolong blade life.

8. Use one hand to hold blade in place, then

work your way around the blade, making adjustments so back of blade lightly touches shoulder of wheels, as shown in Figure 29.

Blade

Wheel

Shoulder

Figure 29. Blade installed on wheels.

9. Complete blade change by using Tensioning & Tracking Blade procedure that follows this

section.

Tensioning Blade

Rotate blade tension handwheel (see Figure 30) clockwise to tension blade and move tip of indicator to correct PSI setting on graduated scale that corresponds with blade type being used.

F o r bi-metal blades, like the one supplied with your machine, set blade tension between 30,000 and 35,000 PSI (start low and adjust up from there only as necessary for accurate cutting results).

For carbon blades, set blade tension at 20,000 PSI.

10. Re-install wheel brush and blade guards, then close and secure wheel cover. Ensure guards do not touch blade.

Reposition left blade guide (refer to Blade

11. Guides on Page 37 for details).

12. Adjust blade tension to 25,000 to 30,000 PSI

(refer to next section for details).

Model G0812 (Mfd. Since 2/16)

Blade Tension

Scale

Figure 30. Location of blade tension handwheel

and blade tension indicator.

Tension

Handwheel

-27-

Tracking Blade

The blade tracking has been properly set at the factory. The tracking will rarely need to be adjusted if the bandsaw is used and maintained properly. The blade is tracking properly when the back of the blade lightly touches the shoulder of both wheels during operation (see Figure 31).

Tip: One way to gauge whether the blade is tracking properly is to DISCONNECT MACHINE FROM POWER and slide the end of a fingernail between the end of the blade and the shoulder, with the machine. If there is just enough space to do that, the blade tracking is properly set.

Wheel

Shoulder

Blade

Blade Breakage

Many conditions may cause a bandsaw blade to break. Some of these conditions are unavoidable and are the natural result of the stresses placed on the bandsaw; other causes of blade breakage are avoidable.

The most common causes of avoidable blade breakage are:

Faulty alignment or adjustment of the blade

•

guides.

Feeding blade through the workpiece too

•

fast.

Dull or damaged teeth.

•

• Improperly-tensioned blade.

Left blade guide assembly set too high above

•

the workpiece. Adjust left blade guide assembly as close to workpiece as possible.

Figure 31. Location of wheel shoulder.

To adjust blade tracking, rotate tracking cap screw in Figure 32 until the blade is tracking properly.

Tracking Cap

Screw

Figure 32. Location of blade tracking cap screw.

Using a blade with a lumpy or improperly fin-

•

ished braze or weld.

Continuously running the bandsaw when not

•

in use.

Leaving the blade tensioned when not in use.

•

• Using the wrong blade pitch (TPI) for the

workpiece thickness. The general rule of thumb is to have no fewer than three teeth in contact with the workpiece when starting a cut and at all times during cutting.

-28-

Model G0812 (Mfd. Since 2/16)

Blade Care &

Break-In

Blade Speed

Blade Care

To prolong blade life, always use a blade with the proper width, set, type, and pitch for each application. Maintain the appropriate feed rate, feed pressure, and blade speed, and pay attention to the chip characteristics (Refer to Blade Speed Chart on Page 30 and Chip Inspection Chart on Page 31). Keep your blades clean, since dirty or gummed up blades pass through the cutting material with much more resistance than clean blades, causing unnecessary heat.

Blade Break-In

The tips and edges of a new blade are extremely sharp. Cutting at too fast of a feed rate or too slow of a blade speed can fracture these tips and edges, quickly dulling the blade. Properly breaking in a blade allows these sharp edges to wear without fracturing, thus keeping the blade sharp longer. Below is a typical break in procedure. For aftermarket blades, refer to the manufacturer's break-in procedure to keep from voiding the warrant y.

Entanglement Hazard! You MUST install the pulley cover before operating or severe injury may occur.

Model G0812 blade speeds: 95–380 FPM.

During operation, pay attention to the chips being produced from the cut and compare them to the Chip Inspection Chart on Page 31 to properly set the downfeed rate.

NOTICE

Only change speeds while the motor is running. Changing speeds when machine is OFF may result in damage to your machine. Always make sure belt guard is in use.

To change blade speeds:

Use the Chip Inspection Chart on Page 31 as a guide to evaluate the chips and ensure that the optimal blade speed and feed rate are being used.

To properly break-in new blade:

Choose correct speed for blade and material

type.

2. Reduce feed pressure by half for first 50–100

of material cut.

To avoid twisting blade when cutting, adjust

feed pressure when total width of blade is in cut.

1. Turn bandsaw ON and allow motor to reach

full speed.

2. Rotate speed adjustment knob (see Figure 33)

clockwise to decrease blade speed and counterclockwise to increase blade speed.

Speed Adjustment

Knob

Figure 33. Speed adjustment knob location.

Model G0812 (Mfd. Since 2/16)

-29-

Blade Speed Chart

The chart in Figure 34 offers blade speed guidelines for various metals, given in feet per minute (FPM) and meters per minute (M/Min). Choose the closest available speed on the machine, then adjust the feed rate as necessary, using the appearance of the chips produced as a guide. Refer to the Chip Inspection Chart that follows for recommendations on adjusting feed rate or blade speed based on the appearance of the chips produced.

Material

Carbon

Steel

Angle

Steel

Thin Tube

Aluminum

Alloy

Copper

Alloy

Speed FPM

(M/Min)

196~354

(60) (108)

180~220 (54) (67)

220~534

(67) (163)

229~482

(70) (147)

Material

Tool Steel

High-

Speed

Tool Steel

Cold-Work

Tool Steel

Hot-Work

Tool Steel

OilHardened Tool Steel

Figure 34. Dry-cutting blade speed chart.

Speed FPM

(M/Min)

203 (62)

75 ~118

(25) (36)

95~213

(29) (65)

203 (62)

203 ~213 (62) (65)

Material

Alloy Steel

Mold Steel

WaterHardened Tool Steel

Stainless

Steel

Stainless

Steel

Speed FPM

(M/Min)

111~ 321 (34) (98)

246

(75)

242 (74)

(26)

85~203

(26) (62)

Material

Free

Machining

Stainless

Steel

Gray Cast

Iron

Ductile

Austenitic

Cast Iron

Malleable

Cast Iron

Plastics &

Lumber

Speed FPM

(M/Min)

150 ~203

(46) (62)

108~225

(33) (75)

65~85

(20) (26)

321 (98)

220 (67)

-30-

Model G0812 (Mfd. Since 2/16)

Chip Inspection Chart

thin & curled

short, hard & thick

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

thin & curled

short, hard & thick

thick, hard & strong

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

hard & thin

thin & curled

short, hard & thick

thick, hard & strong

thin & straight

powdery

thin & curled tightly

hard & thin

The best method for choosing the cutting speed and feed rate for a cutting operation is to inspect the chips created by the cut. These chips are indicators of what is commonly referred to as the "chip load." Refer to the chip inspection chart below to evaluate chip characteristics and determine whether to adjust feed rate/ pressure, blade speed, or both.

Chip

Appearance

Chip

Description

Chip

Color

Blade

Speed

Feed Rate/

Pressure

Thin & Curled Silver Good Good

Hard, Thick &

Short

Hard, Strong &

Thick

Hard, Strong,

Curled & Thick

Hard, Coiled &

Thin

Brown or Blue Increase Decrease

Silver or Light

Brown

Good

Decrease

Slightly

Silver Increase Decrease

Straight & Thin Silver Good Increase

Powdery Silver Decrease Increase

Coiled, Tight &

Thin

Silver Good Decrease

Figure 35. Chip inspection chart.

Other

Actions

Check Blade

Pitch

Check Blade

Pitch

Check Blade

Pitch

Model G0812 (Mfd. Since 2/16)

-31-

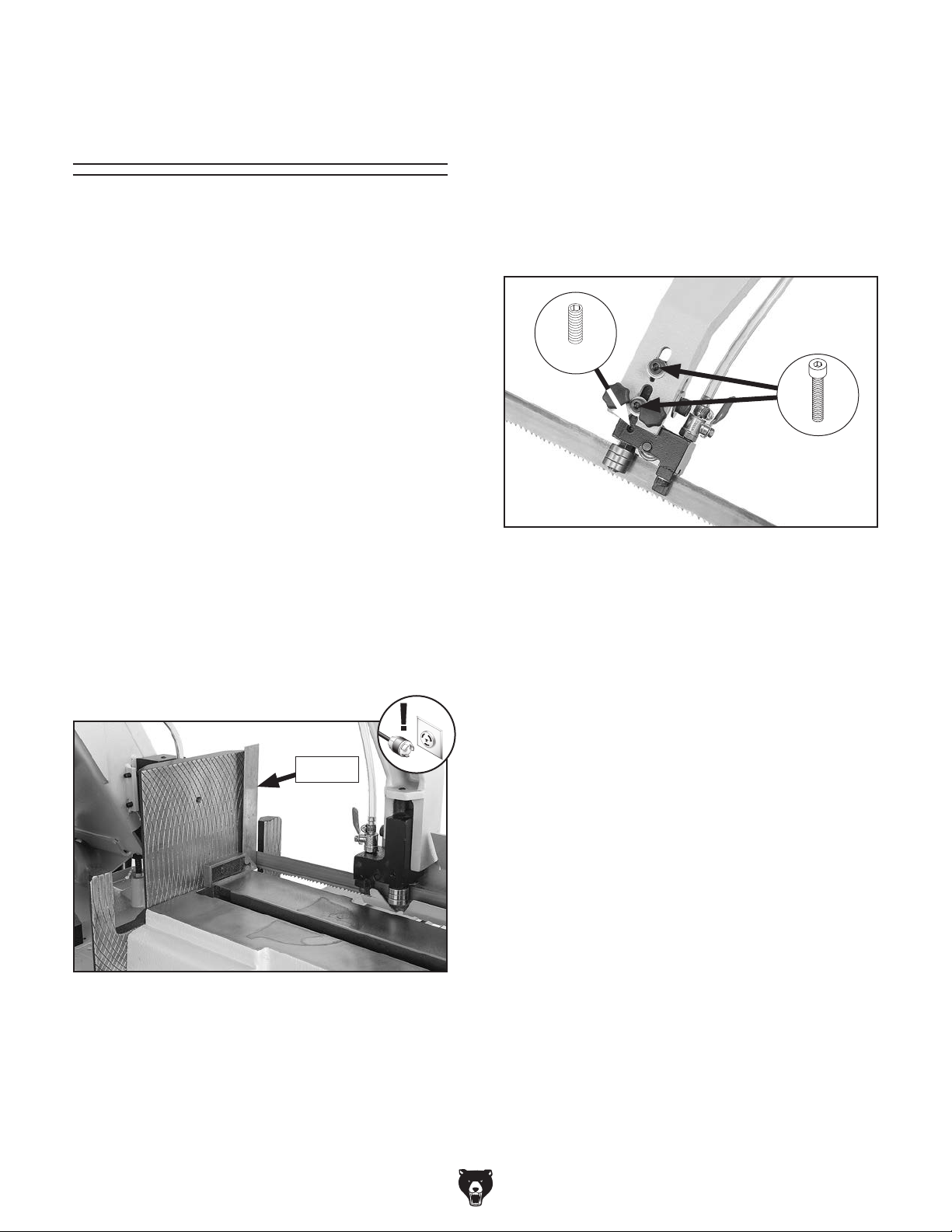

Feed Rate

Work Stop

The speed at which the saw blade will cut through a workpiece is controlled by blade type, feed rate, and feed pressure. The feed rate is controlled by the feed rate dial on the control panel.

Note: If a lubricant is used on the cut, the feed rate can be increased by approximately 15%.

To set feed rate:

Raise headstock to highest position.

2. Adjust feed rate dial shown in Figure 36

to desired feed rate from 0 (slowest) to 10 (fastest).

Feed Rate Dial

The Model G0812 is equipped with a work stop for repetitive cutting operations up to 16" long.

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

Hex Wrench 6mm

.............................................. 1

Setting Work Stop

1. Lower headstock completely.

DISCONNECT MACHINE FROM POWER!

Loosen set screws shown in Figures 37–38.

Set Screw

Work Stop

Rod

Cap Screw

Figure 36. Feed rate dial.

3. Proceed with cutting operations.

4. Examine metal chips created from cutting

operation, and adjust feed rate as necessary for optimum cutting performance (refer to Chip Inspection Chart on Page 31 for more details).

Figure 37. Location of front set screw for setting

stop rod.

Set Screw

Figure 38. Location of rear set screw for setting

stop rod flush with vise bed casting.

Slide work stop rod into hole in base on side

required for cutting workpiece.

Adjust work stop rod so it is flush with back of

vise bed casting, as shown in Figure 38.

Work Stop

Rod

-32-

Model G0812 (Mfd. Since 2/16)

6. Loosen cap screw shown in Figure 37 on Page 32, and align front of work stop arm

with "0" mark on stop rod scale, as shown in Figure 39.

Adjust hex bolt on work stop to just touch

blade, then tighten jam nut against work stop (see Figure 39).

Note: The work stop rod will need to be re-

calibrated any time it is removed or repositioned on the opposite side of the machine.

Hex Bolt

Blade

Repositioning Work Stop

1. To use work stop on opposite side of machine

for straight or angle cuts (see Figure 41), remove work stop arm from stop rod, then remove stop rod.

Work Stop

Prior Position

0 Mark

Scale

Figure 39. Top view of work stop rod aligned

with "0" on scale and hex bolt touching blade.

Work

Stop

Work Stop Arm

Jam Nut

Using Work Stop

Loosen cap screw shown in Figure 40, and

adjust work stop arm relative to depth of cut indicated on stop rod scale.

2. Loosen work stop knob (see Figure 40), and adjust horizontal position of hex bolt relative to end of workpiece, then tighten cap screw and knob.

Hex Bolt

Figure 41. Work stop repositioned.

2. Reposition vise as necessary for operation

(refer to Vise on Page 36).

Follow Steps 1–4 in Setting Work Stop on

3. Page 32 to properly re-install stop rod.

Re-install work stop onto work stop arm so

hex bolt and jam nut face blade, re-install work stop arm onto stop rod, then follow Steps 5–6 in Setting Work Stop.

Work Stop

Arm

Knob

Cap

Screw

Figure 40. Work stop set for repetitive cutting

operation.

Model G0812 (Mfd. Since 2/16)

Scale

-33-

Vise

I J

Changing Vise Position

1. Remove work stop, work stop rod, and splash

guard.

Always turn saw OFF and allow blade to

come to complete stop before using vise! Failure to follow this caution may lead to injur y.

The Model G0812 vise can be positioned on either side of the machine to perform a variety of straight or angle cuts. After the movable vise jaw is manually positioned near the workpiece, the vise open/close buttons can be used to quickly release and re-clamp the workpiece hydraulically during repetitive operations. The vise must be positioned to the left side for right angle cuts or the right side for left angle cuts.

Fixed Vise

Movable Vise

Lock

Bolt

Vise

Handwheel

2. Press hydraulic motor button (

raise headstock button ( stock to maximum height.

DISCONNECT MACHINE FROM POWER!

4. Loosen two vise locks at base of vise (see Figure 43).

Figure 43. Location of vise base locks.

), then press

) to raise head-

Vise

Locks

Figure 42. Location of vise components.

Tool Needed Qty

Open-End Wrench 19mm .................................. 1

. Pull vise all the way to opposite side of base

and tighten vise locks (see Figure 44).

. Re-install splash guard and work stop on side

of vise base opposite of vise, as shown in Figure 44.

Work Stop

Vise

Splash

Guard

Figure 44. Vise positioned to right.

-34-

Model G0812 (Mfd. Since 2/16)

Using Vise

I J

1. DISCONNECT MACHINE FROM POWER!

Rotate vise handwheel (see Figure 45) coun-

terclockwise on vise jaw.

Flip quick-release latch (see Figure 45) up to

disengage it from vise leadscrew.

Handwheel

⁄2-turn to relieve any pressure

Quick-

Release

Latch

Note: Figure 46 shows correct methods of

holding different workpiece shapes.

NOT

RECOMMENDED

Figure 45. Quick-release latch location.

Pull or push jaw in desired direction, as

required to accommodate workpiece.

5. Insert workpiece between jaws and engage

latch with leadscrew when vise is close to workpiece. Use handwheel to move vise jaw until it just contacts workpiece. If necessary, use a stand to support long workpieces to prevent tipping.

Reconnect machine to power.

7. Press hydraulic motor button (

Use vise close button (

workpiece. Between cuts, use vise open button ( new workpiece.

Note: As a safety precaution, the vise close

button ( stock must be raised before saw motor and blade will start.

) to release and reposition/reload a

) must be pressed and saw head-

) to clamp

Figure 46. Example of workholding options by

material shape.

Using Movable Vise

1. Loosen lock bolt shown in Figure 47 on

movable vise so jaw can match angle of workpiece and fixed jaw.

Fixed Vise

Figure 47. Movable vise positioned for angled

Movable Vise

Lock Bolt

workpiece.

Tighten movable vise against workpiece,

then tighten lock bolt.

Model G0812 (Mfd. Since 2/16)

-35-

Angle Cuts

The headstock can be swiveled to cut angles from 0°–60° to the left and 0°–45° to the right for a total swing of 105°. When making cuts to the right, the vise should remain in the left position. When making cuts to the left, the vise should be in the right position.

Move saw through its full range of motion

to make sure blade will not contact vise or control panel during operation, then tighten swivel lock handle and secure vise.

Install splash guard (and work stop if desired)

on right side.

0°–60º Cuts to Left

1. Raise headstock to highest position.

0°–45º Cuts to Right

1. Raise headstock to highest position.

2. DISCONNECT MACHINE FROM POWER!

3. Rotate flip-stop out completely, as shown in Figure 48.

Rotate swivel lock handle (see Figure 48)

toward base, then rotate headstock counterclockwise to desired angle using angle scale.

Angle Scale

Turret

Swivel Lock

Handle

Flip-Stop

2. DISCONNECT MACHINE FROM POWER!

3. Rotate flip-stop out completely, as shown in Figure 51 on Page 37.

Rotate swivel lock handle (see Figure 48),

toward base, then rotate headstock clockwise to desired angle, using angle scale as a

guide.

5. Slide vise to right position and secure (refer to Changing Vise Position on Page 34). Headstock should look similar to Figure 50.

Vise

Headstock

Figure 48. Swivel base controls for cuts to right.

5. Slide vise to left position and secure (refer

to Changing Vise Position on Page 34). Headstock should now look similar to Figure 49.

Headstock

Vise

Figure 49. Headstock positioned for cuts to right.

-36-

Figure 50. Headstock positioned for cuts to left.

Move saw through its full range of motion to

make sure the blade will not contact vise during operation, then tighten swivel lock handle and secure vise.

Install splash guard (and work stop if desired)

on left side.

Model G0812 (Mfd. Since 2/16)

Returning to 0° (90º) Cuts

1. DISCONNECT MACHINE FROM POWER!

Blade Guides

2. Loosen swivel lock handle (see Figure 51)

and rotate headstock slightly past "0" on angle scale.

Rotate flip-stop back in and move headstock

until turret (see Figure 51) contacts flip-stop bolt, then tighten swivel lock handle.

Angle Scale

Swivel Lock

Handle

Figure 51. Controls for returning headstock to

90° position.

Turret

Flip-Stop

The left blade guide should be as close to the workpiece as possible. This will help ensure straight cuts by keeping the blade from twisting and drifting off the cut line.

To adjust the left blade guide, loosen the knob shown in Figure 52 and slide left blade guide as close to the workpiece as possible, then tighten the knob.

Knob

Left Blade

Guide

Right Blade

Guide

Figure 52. Blade guides.

The right blade guide has a wire brush that makes contact with the blade to help clear away chips and extend blade life (see Figure 53).

Blade Brush

Figure 53. Blade brush.

Model G0812 (Mfd. Since 2/16)

-37-

Coolant

While simple in concept and function, many issues must be taken into account to find and use the correct coolant. Always follow all product warnings and contact the fluid manufacturer for unanswered questions.

Use the information below as a guideline to choose the appropriate coolant. Always refer to the coolant manufacturer for specific application and safety information:

Coolant System

FIRE HAZARD! DO NOT cut magnesium when using oilwater solutions as coolant! Always use coolant intended for magnesium. Water in the solution could cause a magnesium-chip fire.

• For cutting low alloy, low carbon, and general-purpose category metals with a bi-metal blade —use a water soluble coolant.

• For cutting stainless steels, high carbon, and high alloy metals, brass, copper and mild steels—use "Neat Cutting Oil" (commonly undiluted mineral oils) that have extreme pressure additives (EP additives).

• For cutting cast iron, coolant is not recommended.

Remember: Too much flow at the coolant nozzles will make a mess and can make the work area unsafe by creating a slipping hazard; and not enough fluid at the cut will heat the blade, causing the blade teeth to load up and break.

Tip: Using a refractometer or hydrometer to replenish water in water-based coolant can extend the life of blades and coolant, and ensure consistent cutting results.

BIOLOGICAL AND POISON HAZARD! Use proper personal protection equipment when handling coolant and follow federal, state, and fluid manufacturer requirements to properly dispose of coolant.

This bandsaw has a built-in coolant system that can extend the life of your bandsaw blades by lowering the temperature of the blade and workpiece if used properly when cutting.

The cutting fluid pump has two modes controlled by the switch on the control panel. The low-pressure setting ( directly to the blade through the fluid nozzles. The high-pressure setting ( pressure to the auxiliary sprayer for rinsing metal chips into the reservoir. See Coolant section for additional information.

) is used to supply cutting fluid

) is used to supply high

Using Coolant System

Add coolant (refer to Adding Coolant on Page

48) before using coolant system.

Turn cutting fluid pump switch ( sure position ( control flow of cutting fluid (see Figure 54).

Note: Too much flow at the fluid nozzle will make a mess and can make the work area unsafe; and not enough fluid at the cut will overheat the blade, causing the blade teeth to load up and break.

Coolant

Control

Valve

(1 of 2)

), and open coolant valves to

) to low pres-

-38-

Figure 54. Coolant valve (1 of 2) open.

Model G0812 (Mfd. Since 2/16)

Important: Monitor coolant level frequently to

keep system working properly. DO NOT let coolant level fall below halfway level on filter screen (see Figure 55).

Filter

Screen

Halfway

Line

Operation Tips

The following tips will help you safely and effectively operate your bandsaw, and help you get the maximum life out of your saw blades.

Tips for horizontal cutting:

• Use the work stop to quickly and accurately cut multiple pieces of stock to the same length.

• Clamp the material firmly in the vise jaws to ensure a straight cut through the material.

Figure 55. Halfway level on filter screen.

Using Spray Gun

1. Position splash guard on side of base near

location of spraying operation.

Close coolant control valves.

Turn coolant pump switch to high-pressure

setting( the trigger is pressed (see Figure 56).

) ON. Coolant will now spray when

• Use vise close ( tons to speed production.

• Let the blade reach full speed before engaging the workpiece. Never start a cut with the blade in contact with the workpiece, and do not start a cut on a sharp edge.

• Chips should be curled and silvery. If the chips are thin and powder like, increase your feed rate.

• Burned chips indicate a need to reduce your blade speed.

Wait until the blade has completely stopped

• before removing the workpiece from the vise, and avoid touching the cut end—it could be very hot!

• Support long pieces so they won't fall when cut, and flag the ends to alert passers-by of potential danger.

) and vise open (

) but-

• Adjust left blade guide as close as possible to the workpiece to minimize side-to-side blade

Figure 56. Example of spray gun in use.

Model G0812 (Mfd. Since 2/16)

movement.

• Use coolant when possible to increase blade life.

Loosen blade tension at the end of each day to prolong blade life.

-39-

Workpiece Inspection

• Material Hardness: Always factor in the hardness of the metal before cutting it. Hardened metals will take longer to cut, may require lubrication, and may require a different type of blade in order to efficiently cut them.

Some metal workpieces are not safe to cut with a metal cutting bandsaw; instead, a different tool or machine should be used.

Before cutting, inspect the material for any of the following conditions and take the necessary precautions:

• Small or Thin Workpieces: Small or thin

workpieces may be damaged during cutting—avoid cutting these workpieces if possible. If you must cut a small or thin workpiece, attach it to or clamp it between larger scrap pieces that will both support the workpiece through the cut. Some thin sheet metals will not withstand the forces from this bandsaw during cutting; instead, use a shear, nibblers, or sheet metal nippers to cut these pieces.

• Unstable Workpieces: Workpieces that can-

not be properly supported or stabilized with the vise should not be cut on this bandsaw. Examples are chains, cables, workpieces with internal or built-in moving or rotating parts, etc.

• Tanks, Cylinders, Containers, Valves, Etc: Cutting into containers that are pressurized or contain gasses or liquids can cause explosions, fires, caustic burns, or machine damage. Avoid cutting any of these types of containers unless you have verified that the container is empty and it can be properly supported during a cut.

• Magnesium: Pure magnesium burns easily. Cutting magnesium with a dull blade can create enough friction to ignite the small magnesium chips. Avoid cutting magnesium if possible.

-40-

Model G0812 (Mfd. Since 2/16)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

Variable Pitch Bi-Metal Blades T27644—150" x 1 x .035 3–4 Variable Pitch T27645—150" x 1 x .035 4–6 Variable Pitch T27646—150" x 1 x .035 5–8 Variable Pitch T27647—150" x 1 x .035 6–10 Variable Pitch T27648—150" x 1 x .035 8–12 Variable Pitch T27649—150" x 1 x .035 10–14 Variable Pitch

H9240—Water Soluble Machining Oil

Rustlick water soluble machining oil contains effective chlorinated E.P. additive to provide excellent tool life. Guaranteed to protect neoprene seals. Great for general purpose or heavy duty applications. Can be used on all metals except titanium.

Figure 59. H9240 Rustlick Machining Oil.

H6572—Grease-Resistant Mat 3' x 3' x

These Black Grease Resistant Mats are engineered for proper back and leg support, using super-tough virgin rubber material. The nonslip surface features a modular interlock design, which enables the user to create a custom floor. Mats measure 36" x 36" x

⁄4".

⁄4"

Figure 57. Typical variable pitch bi-metal cutting

blade.

D2271—Shop Fox

Use this versatile roller table wherever you need extra workpiece support.

Figure 58. D2271 Shop Fox® Roller Table.

Model G0812 (Mfd. Since 2/16)

Roller Table

Figure 60. Model H6572 Grease-Resistant Mat

3' x 3' x

⁄4".

-41-

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

Cleaning &

To reduce risk of shock or

power before adjustments, maintenance, or service.

Schedule

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Daily:

• Check/correct loose mounting bolts.

• Check/correct damaged or dull saw blade. Check/correct worn or damaged wires.

•

• Clean/protect table.

• Clean metal chips from upper and lower

wheel areas.

Correct any other unsafe condition.

•

Protecting

Use a brush and shop vacuum to remove chips and other debris from the working surfaces.

Remove any rust build-up from unpainted cast iron surfaces of your machine and treat with a non-staining lubricant after cleaning.

Keep unpainted cast iron surfaces rust-free with regular applications of ISO 68 way oil.

Lubrication

The bearings on your bandsaw are factory lubricated and sealed. Leave them alone unless they need to be replaced.

Monthly:

• Lubricate vise leadscrew (Page 43).

• Remove the blade and clean the wheels.

• Monitor gearbox oil level (Page 44); check

that oil level is even with halfway mark on sight glass with headstock in down position.

Yearly:

• Change gearbox oil (Page 44).

SB1365—South Bend Way Oil-ISO 68 T26419 —Syn–O–Gen Synthetic Grease

Figure 61. Recommended products for machine

-42-

lubrication.

Always disconnect bandsaw from power before beginning any lubrication task.

Use the schedule below and the following instructions to properly lubricate the other components that require lubrication.

Frequency

Lubrication Task

Blade Tension Leadscrew 8 Hrs.

Blade & Guides 8 Hrs.

Table & Vise 8 Hrs.

Vise Leadscrew 40 Hrs.

Gearbox 50 Hrs.

Headstock Pivot Point 8 Hrs.

Figure 62. Recommended lubrication tasks.

Model G0812 (Mfd. Since 2/16)

(Hours of

Operation)

Page

Ref.

43 43 43 43 44 44

Items Needed Qty

NLGI#2 Grease or Equivalent ........... As Needed

ISO 68 Oil (SB1365 or Equivalent) Clean Shop Rags 1-Gallon Catch Pan Grease Gun

.............................. As Needed

........................................... 1

....................................................... 1

.... As Needed

Blade Tension Leadscrew

Lube Type . . Model SB1365 or ISO 68 Equivalent Oil Amount Lubrication Frequency

Lubricate the tension leadscrew with 1–2 drops of light machine oil daily (see Figure 63). Wipe off excess oil with a clean rag.

...........................................1–2 Drops

...........8 Hrs. of Operation

Table & Vise

Lube Type . . Model SB1365 or ISO 68 Equivalent Oil Amount Lubrication Frequency

Keep the table, vise (see Figure 65), and other machined surfaces rust-free with regular applications of a quality way oil.

............................................Thin Coat

...........8 Hrs. of Operation

Vise

Figure 65. Table and vise.

Table

Tension

Leadscrew

Figure 63. Location to apply lubrication on blade

tension leadscrew.

Blade & Guides

Lube Type . . Model SB1365 or ISO 68 Equivalent Oil Amount Lubrication Frequency

Place one or two drops of light machine oil on blade and guides daily, especially when cutting cast iron, as no coolant is recommended.

...........................................1–2 Drops

...........8 Hrs. of Operation

Guides

Vise Leadscrew

Lube Type ............. SB1365 or ISO 68 Equivalent

Oil Amount Lubrication Frequency

Use mineral spirits, shop rags, and a brush to clean the vise leadscrew from underneath the table. When dry, use a clean brush to apply a thin coat of oil or grease to the leadscrew threads (see Figure 66).

............................................Thin Coat

.........40 Hrs. of Operation

Blade

Figure 64. Blade and guide lubrication points.

Model G0812 (Mfd. Since 2/16)

Leadscrew

Figure 66. Vise leadscrew lubrication area.

-43-

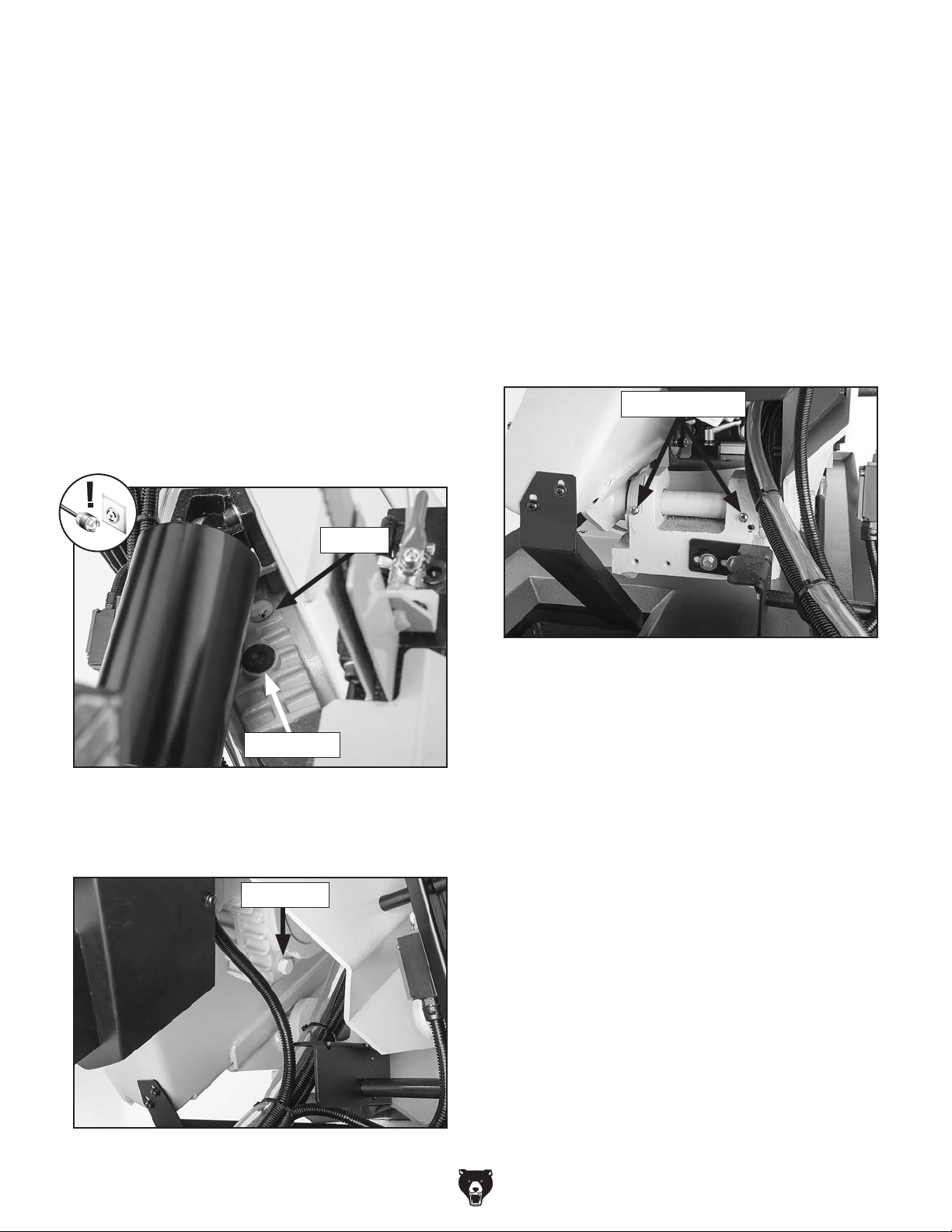

Gearbox

Lube Type ............................. ISO 320 Equivalent

Amount Lubrication Frequency

................................................... 0.84 Qt.

.........50 Hrs. of Operation

6. Replace drain plug, remove drain pan, then

lower headstock to its lowest position.

Fill gearbox with oil until oil level is at halfway

point in sight glass, then replace fill plug.

The gearbox should be drained and refilled after the first 50 hours of use, and then once every five months.

To change gearbox oil:

Run machine for 10 minutes to warm up oil in

gearbox.

Raise headstock to highest position.

DISCONNECT MACHINE FROM POWER!

Remove fill plug shown in Figure 67.

Fill Plug

Headstock Pivot-Point

Lube Type ............. T26419 or NLGI#2 Equivalent

Amount Lubrication Frequency Grease Gun

Add grease to headstock pivot-point grease fittings shown in Figure 69.

............................................. 1–2 Pumps.

...........8 Hrs. of Operation

....................................................... 1

Grease Fittings

Sight Glass

Figure 67. Gearbox fill plug and sight glass.

Place drain pan under drain plug, then remove

drain plug (see Figure 68) and drain oil.

Drain Plug

Figure 69. Pivot-point grease fitting locations.

-44-

Figure 68. Location of drain plug.

Model G0812 (Mfd. Since 2/16)

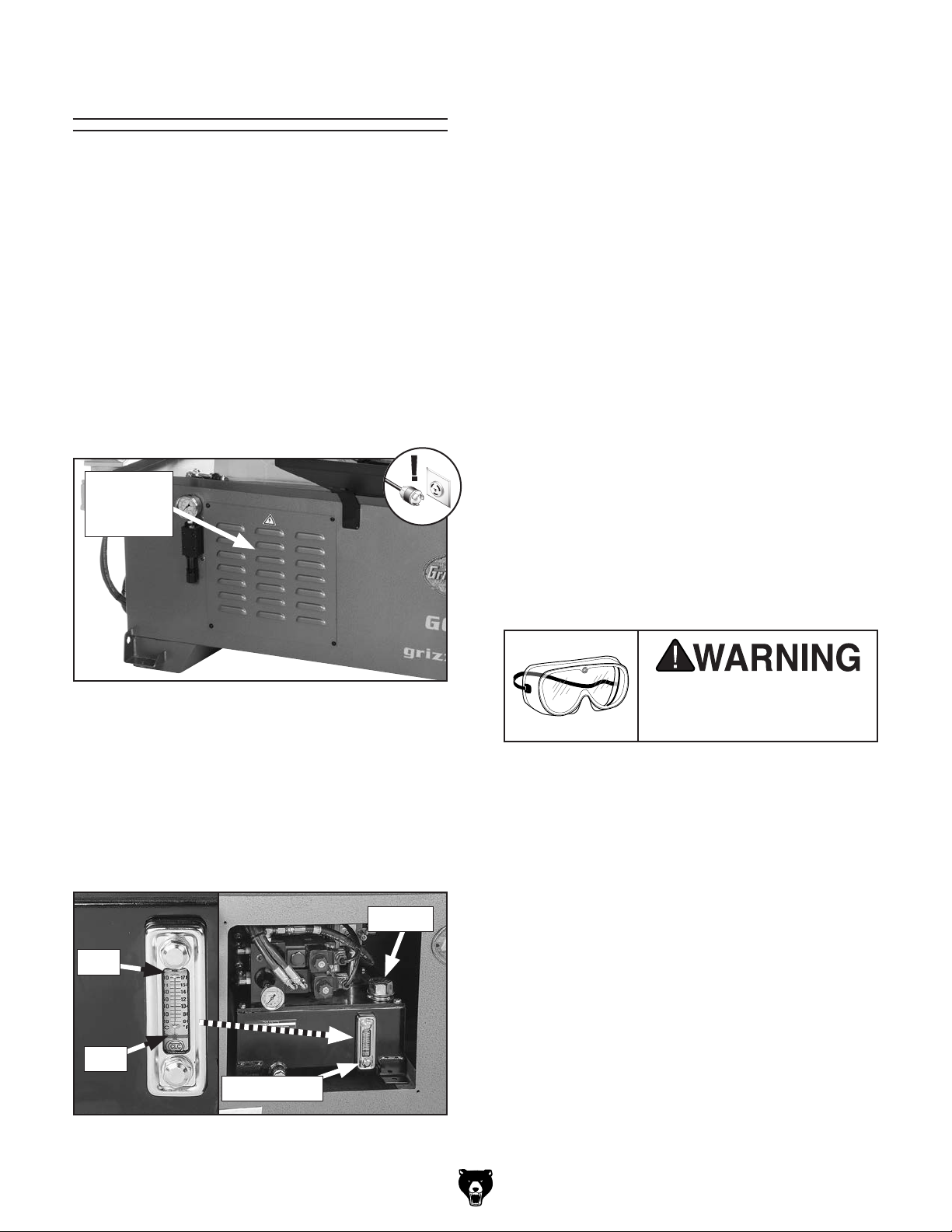

Hydraulic System

The hydraulic system must be maintained on a regular basis and kept in good operating condition to avoid premature wear of moving parts, hoses, and valves.

If you have never maintained a hydraulic system before, WE STRONGLY RECOMMEND that you read books, get formal training, or seek the help of a qualified hydraulic service technician.

Checking Hydraulic Fluid

1. DISCONNECT MACHINE FROM POWER!

Remove front access panel (see Figure 70).

IMPORTANT: The operating temperature of the

hydraulic fluid should not exceed 140°F (60°C) with an optimum operating temperature window of 50–95°F (10–35°C). If the fluid temperature rises above 140°F, stop the machine immediately and allow the fluid to cool down.

If this condition continues during operation, stop using the machine immediately, then review Troubleshooting on Page 51. If you still cannot remedy the problem, contact a qualified hydraulic service technician or our Tech Support.

Remove tank fill cap and inspect for burnt-

smelling or tan-colored, water-contaminated hydraulic fluid.

— If fluid is contaminated, proceed to

Changing Hydraulic Fluid.

Front

Access

Panel

Figure 70. Front access panel location.

3. Check fluid level and temperature on fluid

gauge mounted on front of hydraulic tank (see Figure 71). Fluid level indicator should be halfway between "L" (low) and "H" (high).

— If fluid level is low, proceed to Changing

Hydraulic Fluid.

Fill Cap

High

5. Re-install tank cap and front access panel.

Changing Hydraulic Fluid

The hydraulic fluid should be changed after the first 50 hours of use, then every 5,000 hours of use after the initial changing.

Always wear safety goggles when servicing the hydraulic system.

Items Needed Qty

3.17 Quarts (3 Liters) ISO 32 or Equivalent ....... 1

1-Gallon Drain Pan Open-End Wrench 13mm Mineral Spirits Air Compressor Safety Goggles

To change hydraulic fluid:

. Run machine for 10 minutes to warm up

hydraulic oil in tank.

............................................ 1

.................................. 1

.................................... As Needed

................................................. 1

.................................................. 1

Low

Fluid Gauge

Figure 71. Hydraulic tank fluid gauge and fill cap

location.

Model G0812 (Mfd. Since 2/16)

2. DISCONNECT MACHINE FROM POWER!

Remove front access panel (see Figure 70).

. Slide tank out, then place it on blocks high

enough to get drain plug over drain pan.

-45-

5. Remove fill cap (see Figure 72), then remove

drain plug and allow tank to empty into drain pan.

10. Wipe out as much residual fluid and con-

taminants from tank as possible. We highly recommend that tank be cleaned out with pressure washer or steam cleaner and fully dried with compressed air for best results.

Fill Cap

Drain Plug

Figure 72. Drain plug and fill cap location.

. Clean fill cap with mineral spirits and allow to

air dry.

. Clean tank screen (see Figure 73) with min-

eral spirits and blow dry with compressed air.

. Inspect screen (see Figure 73) and tank fill

cap for any holes, and replace if any damage exists.

. Re-install tank lid and screen.

. Replace drain plug, then fill tank approxi-

mately 80 percent full with 3.17 quarts of ISO 32 or equivalent hydraulic fluid.

13.

Re-install tank fill cap and front access panel.

9. Open tank by removing hex bolts that secure

lid (see Figure 73).

Tank Screen

Tank

Lid

Figure 73. Hydraulic fluid tank lid removed to

access for cleaning.

-46-

Model G0812 (Mfd. Since 2/16)

Tensioning/

While an assistant lifts motor to tension it,

tighten cap screws and hex nuts.

Replacing Belt

To ensure optimum power transmission from the motor to the bandsaw blade, the belt must be in good condition (free from cracks, fraying and wear) and properly tensioned. After the first 16 hours of belt life, re-tension the belt, as it will stretch and seat during this time.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Open-End Wrench 19mm Hex Wrench 10mm

............................................ 1

Tensioning Belt

DISCONNECT MACHINE FROM POWER!

2. Remove variable-speed covers and belt

cover shown in Figure 74.

.................................. 1

Belt

Cover

Press belt in center to check belt tension.

The belt is correctly tensioned when there is approximately pushed with moderate pressure, as shown in Figure 76.

Deflection

Figure 76. Checking belt tension.

— If there is more than 1⁄2" deflection when

belt is pushed with moderate pressure, loosen cap screws, adjust motor upward, then tighten cap screws.

⁄2" deflection when it is

Pulley

⁄2 "

Pulley

Variable-Speed

Cover (1 of 2)

Slot

Figure 74. Location of belt cover and variable-

speed covers.

Loosen cap screws and hex nuts on lower

motor pivot brackets (see Figure 75).

Pivot Brackets

Bracket

Re-install belt cover so bracket aligns with

slot (see Figure 74), then re-install variablespeed covers.

Replacing Belt

1. DISCONNECT MACHINE FROM POWER!

2. Remove variable-speed covers and belt

cover shown in Figure 74.

Loosen cap screws and hex nuts on lower

motor pivot bracket shown in Figure 74, to remove belt tension.

Remove belt and install new one, making

sure ribs of belt are seated in pulley grooves.

Follow Steps 4–5 in Tensioning Belt proce-

dure to set correct belt tension.

Re-install belt cover so bracket aligns with

slot (see Figure 74), then re-install variablespeed covers.

Figure 75. Motor pivot bracket location.

Model G0812 (Mfd. Since 2/16)

-47-

Coolant System

Service

The coolant system consists of a fluid tank, pump, and hose with valves. The pump pulls fluid from the tank and sends it to the valves, which control the flow of coolant. As the fluid leaves the work area, it drains through the cabinet, where the swarf and metal chips are screened out, and back into the tank.

Although most swarf from machining operations is screened out of the coolant before it returns to the tank, small particles will accumulate in the bottom of the tank in the form of sludge. To prevent this sludge from being pulled into the pump and damaging it, the pump’s intake is positioned above the bottom of the tank. This works well when the tank is regularly cleaned; however, if excess sludge is allowed to accumulate, the pump will inevitably begin sucking it up.

Adding Coolant

Items Needed Qty

Safety Wear ....................................See Hazards

New Coolant Disposable Shop Rags

To add coolant:

. DISCONNECT MACHINE FROM POWER!

Remove chip collection drawer shown in

2. Figure 77.

...................................... 7.5 Gallons

...................... As Needed

Hazards

As coolant ages and gets used, dangerous microbes can proliferate and create a biological hazard. The risk of exposure to this hazard can be greatly reduced by replacing the old fluid on a monthly basis, or as indicated by the fluid manufacturer.

When working with the coolant, minimize exposure to your skin, eyes, and lungs by wearing the proper PPE (Personal Protective Equipment), such as long-sleeve waterproof gloves, protective clothing, splash-resistant safety goggles, and a NIOSH-approved respirator.

BIOLOGICAL & POISON

HAZARD! Use correct personal protection equipment when handling coolant. Follow federal, state, and fluid manufacturer requirements for proper disposal.

Figure 77. Removing chip collection drawer.

Fill reservoir with coolant until it is at maxi-

3. mum fill line shown in Figure 78.

Maximum

Fill Line

Filter

Screen

Figure 78. Approximate maximum fill line on

filter screen.

4. Replace chip collection drawer.

-48-

Model G0812 (Mfd. Since 2/16)

Changing Coolant

Items Needed Qty

10-Gallon Drain Pan .......................................... 1

Hex Wrench 8mm Disposable Rags

To change coolant:

DISCONNECT MACHINE FROM POWER!

2. Remove chip collection drawer (see Figure 79) from coolant tank.

Remove drain plug (see Figure 79), empty

tank contents into drain pan, and dispose of fluid following federal, state, and fluid manufacturer requirements.

.............................................. 1

............................... As Needed

4. Thoroughly clean tank, pump with hot, soapy

water and dry.

Re-install drain plug, then refill tank with cool-

ant (refer to Adding Coolant on Page 48).

Replace chip collection drawer.

Chip

Collection

Drawer

Drain Plug

Figure 79. Coolant drain plug location.

Model G0812 (Mfd. Since 2/16)

-49-

Machine Storage

Loosen or remove blade so it does not stretch

or rust while machine is stored.

All machinery will develop serious rust problems and corrosion damage if not properly prepared for storage. If decommissioning this machine, use the steps in this section to ensure that it remains in good condition.

Items Needed Qty

NLGI#2 Grease ................................. As Needed

Rust Preventative Control Tags Tarp/Plastic Sheet Dessicant Packs

.............................. As Needed

...................................... As Needed

............................................. 1

................................ As Needed

Preparing Machine for Storage

1. DISCONNECT MACHINE FROM POWER!

2. Thoroughly clean all unpainted, bare metal

surfaces, then coat them with light weight grease or rust preventative. Take care to ensure these surfaces are completely covered but that grease or rust preventative is kept off of painted surfaces.

— If machine will be out of service for only a

short period of time, use quality mediumweight machine oil (not auto engine oil) in place of grease or rust preventative.

Remove old coolant, then add a few drops of

way oil and blow out lines with compressed air.

— If machine will be out of service for only a

short period of time, start machine once a week and run all gear-driven components for a few minutes. This will put fresh coat of gear oil on gearing components inside gearbox.

— If it will be out of service for a long period

of time, drain, then completely fill gearbox with recommended gear oil so components above normal oil level do not develop rust. (Make sure to put a tag on controls as a reminder for re-commissioning process to adjust gear oil level before starting machine.)

Place a few moisture-absorbing desiccant

packs inside of electrical box.

Completely cover machine with tarp or plastic

sheet that will keep out dust and resist liquid or moisture. If machine will be stored in/near direct sunlight, use a cover that will block the sun's rays.

Bringing Machine Out of Storage

1. DISCONNECT MACHINE FROM POWER!

2. Remove moisture-absorbing desiccant packs

from electrical box.

Re-tension blade as described on Page 27.

4. Repeat Test Run on Page 20.

-50-

Add coolant, as described in Coolant System

5. Service on Page 48.

Model G0812 (Mfd. Since 2/16)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start, or power supply breaker immediately trips after startup.

Machine stalls or underpowered.

Machine has vibration or noisy operation.

1. Emergency stop button depressed/at fault.

2. Stop button depressed.

3. Wheel cover limit switch engaged/at fault.

4. Blade tension limit switch engaged/at fault.

5. Hydraulic motor, vise close, and blade start buttons not pressed/buttons at fault.

6. Headstock not raised.

7. Incorrect power supply voltage or circuit size.

8. Power supply circuit breaker tripped or fuse blown.

9. Motor wires connected incorrectly.

10. Wiring open/has high resistance.

11. Motor centrifugal switch out of adjustment or at fault.

12. Start capacitor at fault.

13. Thermal overload relay has tripped.

14. Contactor not energized/has poor contacts.

15. Motor at fault.

1. Feed rate too fast; blade speed too low.

2. Machine undersized for task.

3. Blade not correct for material being cut.

4. Improper workpiece material for saw/blade.

5. Blade slipping on wheels.

6. Belt slipping; oil/grease on V-belt.

7. Blade dull.

8. Motor overheated.

9. Motor wired incorrectly.

10. Pulley/sprocket slipping on shaft.

11. Contactor has poor contacts.

12. Motor at fault.

1. Motor or component loose.

2. Blade damaged or dull.

3. V-Belt worn or loose.

4. Motor fan rubbing on fan cover.

5. Pulley loose.

1. Rotate button to reset. Replace if at fault.

2. Press stop button to reset.

3. Close wheel cover/replace limit switch.

4. Properly tension blade (Page 27)/replace limit

switch.

5. Press hydraulic motor, vise close, and blade start buttons/replace buttons if at fault.

6. Raise headstock.

7. Ensure correct power supply voltage and circuit size.

8. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.

9. Correct motor wiring connections.

10. Check/ﬁx broken, disconnected, or corroded wires.

11. Adjust/replace.

12. Test/replace.

13. Reset; adjust trip load dial if necessary; replace.

14. Test all legs for power/replace if at fault.

15. Test/repair/replace.

1. Reduce feed rate/pressure; increase blade speed.

2. Use correct, sharp blade; reduce feed rate/ pressure; use coolant if possible.

3. Use correct blade for operation (Page 24).

4. Only cut correct material for saw blade/type.

5. Adjust blade tracking (Page 28), tension (Page 27).

6. Tension/replace belt (Page 47); clean belt.

7. Replace blade (Page 26).

8. Clean motor, let cool, reduce workload.

9. Wire motor correctly (Page 64).

10. Replace loose pulley/shaft.

11. Test all legs for power/replace if at fault.

12. Test/repair/replace.

1. Retighten/replace damaged bolts/nuts.

2. Replace blade (Page 26).

3. Inspect/replace belt (Page 47).

4. Fix/replace fan cover; replace loose/damaged fan.

5. Re-align/replace shaft, pulley, set screw, and key.

Model G0812 (Mfd. Since 2/16)

-51-

Operation

Symptom Possible Cause Possible Solution

Vibration when operating or cutting.

Ticking sound when saw is running.

Machine or blade bogs down in cut.

Cuts not square, angle incorrect.

Blade dulls prematurely, or metal sticking to the blade.

Blade wears on one side or shows overheating.

Blade tracks incorrectly, or comes off wheels.

Cuts crooked.

Blade keeps moving or headstock not raising after cut.

Headstock not raising to desired height.

1. Loose or damaged blade.

2. Worn wheel bearing.

3. Bent or dull blade.

4. Machine component loose.

5. Wheels worn or incorrectly installed.

6. Wheel appears bent.

7. Gearbox at fault.

1. Blade weld contacting blade guides.

2. Blade weld may be failing.

3. Blade teeth missing or broken.

1. Feed rate too fast; blade speed too low.

2. V-belt slipping; oil/grease on belt; improper tension.

3. Blade loading up.

4. Blade dull.

5. Blade not supported/tracking properly.

6. Blade TPI incorrect.

7. Blade tension too low.

8. Material requires cutting ﬂuid/lubrication.

1. Angle stops on swivel base set incorrectly.

2. Blade not square to table.

1. Blade improperly broken in.

2. Blade gullets loading up with chips.

3. Blade TPI too ﬁne; teeth load-up and overheat.

4. Incorrect coolant mixture for workpiece/cut.

1. Blade guides worn or mis-adjusted.

2. Blade support inadequate.

3. Dull/incorrect blade.

4. Incorrect coolant mixture for workpiece/cut.

5. Blade bell-mouthed.

1. Feed rate too fast/wrong TPI.

2. Blade tracking requires adjustment.

3. Blade guides need adjustment.

4. Blade bell-mouthed.

1. Feed rate too fast; blade speed too low.

2. Guide bearings out of adjustment; guide arm too far from workpiece.

1. Upper limit switch not engaged/at fault. 1. Adjust/replace upper limit switch (Page 57).

1. Lower limit switch position incorrect. 1. Adjust lower limit switch position (Page 57).

1. Tighten or replace blade (Pages 26–27).

2. Check/replace wheel bearing.

3. Replace blade (Page 26).

4. Fix/replace fan cover; replace loose/damaged fan.

5. Replace wheels; adjust blade tracking (Page 28).

6. Check/replace wheel/wheelbearing.

7. Rebuild gearbox for bad gear(s)/bearing(s).

1. Grind blade weld down ﬂush.

2. Cut and reweld blade, or replace blade (Page 26).

3. Replace blade (Page 26).

1. Reduce feed rate (Page 32) or increase blade speed (Page 29).

2. Tighten/clean/replace V-belt (Page 47).

3. Install blade with fewer TPI/ different style of teeth (Page 24).

4. Replace blade (Page 26).

5. Adjust guides (Page 37), tracking (Page 28).

6. Use blade with at least 3 teeth contacting material at all times (Page 24).

7. Clean wheels, increase blade tension (Page 27).

8. Use applicable coolant/lubricant.

1. Adjust angle stops (Page 58).

2. Adjust blade square to table (Page 56).

1. Replace blade (Page 26); complete blade break-in procedure (Page 29).

2. Use blade with larger gullets.

3. Use coarser-tooth blade; adjust feed rate (Page 32), adjust blade speed (Page 29); make sure blade brush works (Page 54).

4. Use correct coolant mixture.

1. Re-adjust/replace.

2. Tighten blade guide close to workpiece as possible.

3. Replace blade (Page 26).

4. Use correct coolant mixture.

5. Replace blade Page 26).

1. Reduce feed rate/decrease blade TPI (Page 32).

2. Adjust blade tracking (Page 28).

3. Adjust blade guides (Page 55).

4. Install new blade (Page 26); regularly de-tension from blade when not in use (Page 27).

1. Reduce feed rate/increase blade speed (Page 32).

2. Re-adjust/replace (Page 55).

-52-

Model G0812 (Mfd. Since 2/16)

Hydraulic System

Symptom Possible Cause Possible Solution

Hydraulics aren't functioning.

Vise doesn't open/ close.

Headstock doesn't raise/lower.

Hydraulic tank fluid burnt or has tan discoloration.

1. Hydraulic ﬂuid level is low.

2. Hydraulic pump motor wiring connection is incorrect.

3. Hydraulic system is leaking.

4. Flow blocked or impeded.

5. Hydraulic pump is faulty.

6. Control panel wiring is faulty.

1. Vise valve solenoids are faulty.

2. Vise valve solenoids connections are bad.

3. Vise hydraulic system is leaking.

4. Control panel wiring is faulty.

1. Headstock valve solenoids are faulty.

2. Headstock valve solenoids connections are bad.

3. Headstock hydraulic system is leaking.

4. Control panel wiring is faulty.

1. Hydraulic ﬂuid is old or contaminated with water.

1. Check/ﬁll hydraulic ﬂuid level (Page 45).

2. Check/correct pump motor wiring (Page 66).

3. Test for leaks/repair.

4. Hydraulic line pinched or damaged.

5. Test/repair/replace.

6. Check that hydraulic pump motor is running and that solenoids are activating (indicated by red LED in solenoid plug).

1. Test/repair/replace.

2. Check solenoid plugs.

3. Test for leaks/repair.

4. Check that hydraulic pump motor is running and that solenoids are activating (indicated by red LED in solenoid plug).

1. Test/repair/replace.

2. Check solenoid plugs.

3. Test for leaks/repair.

4. Check that hydraulic pump motor is running and that solenoids are activating (indicated by red LED in solenoid plug).

1. Replace hydraulic ﬂuid (Page 45).

Model G0812 (Mfd. Since 2/16)

-53-

Blade Brush

Downfeed Stop Bolt

The Model G0812 has a blade brush to help keep metal chips off the blade wheels. It will wear over time and require re-adjustment when it no longer makes proper contact with the blade. Eventually the brush will require replacement. This is considered a normal wear item and is not covered by warrant y.

Tool Needed Qty

Open-End Wrench 14mm .................................. 1

To adjust blade brush:

DISCONNECT MACHINE FROM POWER!

Using hex nut shown in Figure 80, adjust

blade brush so blade extends of brush.

⁄8" into bristles

The Model G0812 has an adjustable stop bolt to help support the headstock at the bottom of its travel. If the blade does not travel far enough to complete the cut or hits the table, this bolt will have to be adjusted.

Tool Needed Qty

Open-End Wrench 19mm .................................. 1

To adjust downfeed stop bolt:

1. Without starting blade, lower headstock all the

way. When headstock stops, blade should be just below table, but not contacting it.

— If blade contacts table, raise headstock

enough so blade is just below surface.

DISCONNECT MACHINE FROM POWER!

3. Adjust downfeed stop bolt and jam nut shown

in Figure 81, so they contact bottom of headstock.

Blade Brush

Figure 80. Adjusting brush adjustment hex nut.

Stop Bolt

Jam Nut

Figure 81. Downfeed stop bolt and jam nut

location.

4. Tighten jam nut against base to prevent stop

bolt from loosening during use.

-54-

Model G0812 (Mfd. Since 2/16)

Blade Guide

Repeat Steps 1–5 in similar manner for right

blade guide assembly.

Bearings

The support bearings and blade guide bearings come adjusted from the factory, but due to shipping and storage, they may need adjustment. Uneven blade wear and crooked cuts may be the result of improper adjustment.

Tools Needed Qty

Hex Wrench 3, 4, 5, 6, 8mm .......................1 Ea.

Flat Head Screwdriver

Adjusting Support Bearings

1. Make sure blade is tensioned and tracking

correctly (refer to Page 27).

Raise headstock high enough to give you

room to work around bearings.

DISCONNECT MACHINE FROM POWER!

Remove blade guard from blade arm.

Verify that back of blade lightly contacts sup-

port bearing.

— If it does not, loosen cap screws on blade

guide arm, (see Figure 82), adjust upper set screw (see Figure 83), and move assembly up or down until support bearing lightly touches back of blade, then tighten cap screws.

Note: If it is difficult to slide blade guide

assembly onto blade, adjust roller bearings and carbide guides away from blade (refer to next sub-section). Also, clean blade guide assembly of any shipping protectant (refer to Cleanup section on Page 15).

....................................... 1

Adjusting Blade Guide Bearings

1. Remove coolant valve assembly from blade

guide.

Loosen set screws shown in Figure 83 to

allow guide bearings on front blade guide arm to turn.

Upper Set

Screw

Set

Eccentric

Shaft

Hex Nut

Carbide Blade

Guide

(1 of 2)

Figure 83. Adjustment controls on right front

blade guide.

Turn hex nut on each eccentric shaft. Adjust

guide bearings (see Figure 83) so they lightly contact blade or have maximum clearance of

0.002".

Note: Since bearings twist blade into posi-

tion, it is acceptable if there is 0.001"-0.002" gap between blade and front or back of bearing. Just make sure not to squeeze blade too tightly with bearings. After guide bearings are set, you should be able to rotate guide bearings (although they will be stiff) with your fingers.

Tighten set screws.

Adjust carbide blade guides (see Figure 83)

so they make same contact with blade as guide bearings.

Guide Bearing

Screw

(1 of 2)

Direction

Support Bearing

Figure 82. Support bearing touching blade.

Model G0812 (Mfd. Since 2/16)

to Move

Assembly

Adjust blade guide bearings on right blade

guide assembly in same manner, then reinstall blade guards.

-55-

Squaring Blade with

— If blade is square with table, no further

adjustments need to be made.

Table

This adjustment has been made at the factory and should not need to be adjusted under normal circumstances. However, if you find the saw is not cutting square, you may need to adjust the blade. Only make this adjustment after factors such as excessive feed rate or the blade guide being set too far away from the workpiece have been ruled out.

Tools Needed Qty

Hex Wrench 3mm .............................................. 1

Hex Wrench 6mm Machinist Square

To square blade with table:

Lower headstock until it contacts downfeed

stop bolt (refer to Page 54).

DISCONNECT MACHINE FROM POWER!

Place square on table bed and against edge

of blade (see Figure 84), and check different points along length of table between blade guide assemblies.

.............................................. 1

............................................... 1

— If blade is not square with table, loosen

two cap screws shown in Figure 85 one to two turns and repeat on second blade guide assembly, then turn set screws on blade guides as necessary until blade is perpendicular to bed.

1 of 2

Set Screws (1 of 2)

Figure 85. Screws for adjusting blade-to-table

squareness.

4. Re-tighten cap screws loosened earlier.

5. Repeat Step 3 and adjustments above as

necessary until blade is perfectly square to table.

Square

Figure 84. Checking blade-to-table squareness.

Tip: Cut small section from scrap piece of

material with known square end and measure for uniform thickness. If thickness is not uniform, repeat adjustments above until your personal requirements are met.

-56-

Model G0812 (Mfd. Since 2/16)

Limit Switches

Limit switches shut off the motor at the end of a cut, limit the maximum headstock travel, and prevent the machine from operating if the blade is not properly tensioned. If these functions do not operate correctly, you will need to adjust the appropriate limit switch.

Tools Needed Qty

Phillips Head Screwdriver #2 ............................ 1

Open-End Wrench 8mm.................................... 1

Open-End Wrench 19mm

Adjusting Blade Tension Switch

1. DISCONNECT MACHINE FROM POWER!

Tension bandsaw blade for blade type

2. (refer to Tensioning & Tracking Blade on Page 27).

.................................. 1

Adjusting Upper & Lower Limit Switches

The upper limit switch should only be adjusted if the blade does not shut off or the headstock does not move back to the top of travel after the cut is complete.

The lower limit switch can be adjusted to limit saw headstock travel to match the height of the workpiece. This speeds up repetitive cuts by eliminating unnecessary saw headstock travel.

To adjust limit switches:

1. Raise headstock several inches, start blade,

and lower headstock. When blade reaches bottom of travel, it should be just below table level but not touching it, and headstock should briefly contact stop bolt (see Figure 87) before blade shuts off and headstock moves back to top of its travel.

Loosen screws that secure blade tension limit

switch (see Figure 86) and slide switch bottom so it just touches switch plate.

Limit Switch

Screws

Figure 86. Blade tension limit switch screws.

Start hydraulic motor.

5. Turn tension handwheel counterclockwise 1⁄2

turn. The motor should turn OFF. If it does not, adjust switch closer to plate and repeat Steps 3–5.

Plate

— If headstock touched stop bolt and moved

— If blade continued moving or headstock

did not move upward, proceed to Step 2.

— If headstock did not contact stop bolt,

adjust stop bolt height (refer to Downfeed Stop Bolt on Page 54), then repeat Step 1.

Downfeed

Stop Bolt

Figure 87. Headstock stopped against downfeed

stop bolt.

Model G0812 (Mfd. Since 2/16)

2. DISCONNECT MACHINE FROM POWER!

-57-

Loosen Phillips head screws and hex nuts

that secure upper limit switch (see Figure 88).

Adjust upper limit switch so roller plunger is

depressed against feed stop (see Figure 88), then tighten screws and hex nuts.

Upper Limit

Switch

(1 of 2)

Roller

Plunger

Feed Stop

Angle Stops

The swivel base is equipped with three angle stops to provide quick adjustments to 60° to the left, 0°, and 45° to the right. If cuts made using these stops are not sufficiently accurate, the stops will need to be adjusted.

Tools Needed Qty

Open-End Wrench 12mm .................................. 1

Open-End Wrench 14mm 45° Square 60° Square 90° Square

........................................................ 1

.................................. 1

Figure 88. Upper limit switch and feed stop.

5. Connect machine to power and repeat Steps 1–4 until upper limit switch works correctly.

Without running blade, lower headstock to

lowest position.

Loosen auto stop lever (see Figure 89),

adjust lower limit switch until white indicator aligns with approximate cutting height marked in inches on scale.

Scale

Feed Stop

Auto Stop

Lever

Roller

Plunger

Indicator

Lower Limit

Switch

Setting 0° (90°) Angle Stop

1. Raise headstock to highest position.

2. DISCONNECT MACHINE FROM POWER!

3. Rotate swivel lock handle (see Figure 90)

toward base.

Swivel Lock

Handle

Figure 90. Swivel lock handle location.

While standing by motor, rotate headstock to

right approximately 5°, rotate flip-stop inward to engage it (see Figure 91), then rotate headstock to left until turret just contacts stop bolt.

Figure 89. Lower limit switch controls.

8. Raise headstock. It should automatically stop

at approximate height previously set on scale. Adjust limit switch position as needed to fine tune the height setting for your workpiece.

-58-

Flip-Stop Turret

Figure 91. Flip-stop engaged.

Stop Bolt

Model G0812 (Mfd. Since 2/16)

5. Connect machine to power and lower headstock all the way until it stops moving.

DISCONNECT MACHINE FROM POWER

and place a 90° square flat on table and against both fixed vise jaw and blade, as shown in Figure 92. The square should fit snugly against fixed jaw and blade.

Fixed Vise Jaw

Setting 45° Right Angle Stop

1. Raise headstock to highest position.

2. DISCONNECT MACHINE FROM POWER!

3. Rotate flip-stop out completely (see Figure 93).

Rotate swivel lock handle toward base, then

rotate headstock counterclockwise until base contacts 45° stop bolt (see Figure 94).

Square

Blade

Figure 92. Testing vise/blade squareness.

— If square fits snugly against fixed jaw and

blade, no further steps are necessary.

— If square does not fit snugly against sta-

tionary jaw and blade, rotate flip-stop out to disengage it, and loosen jam nut shown in Figure 93. Thread stop bolt inward or outward as necessary, then re-engage flip-stop.

Stop Bolt

45° Right Stop Bolt

Jam Nut

Figure 94. 45° right stop bolt and jam nut

location.

Slide vise to left position and secure it. Refer

to Changing Vise Position on Page 34.

Connect machine to power and lower head-

stock all the way until it stops moving.

DISCONNECT MACHINE FROM POWER

and place 45° square between vise jaw and blade, as shown in Figure 95. The square should fit snugly against outer fixed jaw and blade.

Swivel Lock

Handle

Stop Block

Jam Nut

Figure 93. Flip-stop bolt and jam nut location.

7. Rotate headstock until turret stops against

flip-stop bolt. Blade should be square to vise.

Repeat Steps 6–7 as necessary, then tighten

jam nut against stop block (see Figure 93) without turning stop bolt.

Model G0812 (Mfd. Since 2/16)

Outer

Blade

Figure 95. Using 60° square to check 45° stop.

Fixed Jaw

45° Square

-59-

— If square fits snugly against outer fixed jaw

and blade, no further steps are necessary.

— If square does not fit snugly against outer

fixed jaw and blade, loosen jam nut shown in Figure 94 on Page 59. Thread stop bolt inward or outward as necessary, until square fits snugly against fixed jaw base while base contacts stop bolt.

8. Tighten jam nut without turning stop bolt.

Setting 60° Left Angle Stop

1. Repeat Steps 1–3 from Setting 45° Right Angle Stop on Page 59.

Rotate swivel lock handle toward base, then

rotate headstock clockwise until base contacts 60° left stop bolt (see Figure 96).

5. DISCONNECT MACHINE FROM POWER

and place 60° square between outer fixed jaw and blade, as shown in Figure 97. The square should fit snugly against outer fixed jaw and blade.

60°

Square

Figure 97. Using 60° square to check 60° left

Outer Fixed Jaw

Blade

angle stop.

60° Left Stop Bolt

Jam Nut

Figure 96. 60° left stop bolt and jam nut location.

3. Slide vise to right position and secure it. Refer

to Changing Vise Position on Page 34.

Connect machine to power and lower head-

stock all the way until it stops moving.

— If square fits snugly against outer fixed jaw

and blade, no further steps are necessary.

— If square does not fit snugly against outer

fixed jaw and blade, loosen jam nut shown in Figure 96. Thread stop bolt inward or outward as necessary until square fits snugly against outer fixed jaw and blade while base contacts stop bolt.

6. Tighten jam nut without turning stop bolt, then

tighten swivel lock handle to secure headstock.

-60-

Model G0812 (Mfd. Since 2/16)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0812 (Mfd. Since 2/16)

-61-

Electrical Overview

Electrical Panel

Pages 63–64

Main Motor

Page 66

Hydraulic Pump

Page 69

Coolant Pump

Page 67

Ground

Hot

Control Panel

Page 65

220 VAC

L6-30 PLUG

(as recommended)

Limit Switch

Page 68

Limit Switch

Page 68

Limit Switch

Page 68

Limit Switch

Page 68

Control Panel

Component Locations

Main Motor

Coolant

Pump

Blade Cover

Limit Switch

Saw Down

Limit Switch

Saw Up

Limit Switch

Electrical

Panel

-62-

Hydraulic

Pump

READ ELECTRICAL SAFETY

ON PAGE 61!

Blade Tension

Limit Switch

Model G0812 (Mfd. Since 2/16)

Electrical Panel Photo

Model G0812 (Mfd. Since 2/16)

Figure 98. Electrical panel wiring.

READ ELECTRICAL SAFETY

-63-

ON PAGE 61!

Electrical Panel Wiring Diagram

Vise Open

Vise Close

Saw Up

Saw Down

Saw Up

Valve

Page 69

PUMPWATERMOTOR

Valve

Page 69

Valve

Page 69

Valve

Page 69

RF-0350-200801 0808

J95 0808

WATER

DOWNUPCLOSEOPEN(OV)

COM

AUTO

PUMP

FOOT

LS-DN

LS-UP

STOP

START

AUTO

DOWN

OPEN

Page 68

Wheel Door

Limit Switch

Page 68

Limit Switch

Control

Blade Tension

Page

Panel

0 0

Page 68

Limit Switch

3L2 5L3 13 A1

1L1

3L2 5L3 13 A1

1L1

3L2 5L3

1L1

Contactor

I 0

Contactor

I 0

TECO

KEDU JD6.10

Contactor

Fuse

L11

L13

Transformer

6T3

4T2

2T1

6T3

4T2

2T1

6T3

4T2

2T1

CU-

MET 1328-3 RF-122 LGE TBSM-100200

OL Relay

TECO RHU-10/4.8K1

L13

L11

4.8 A

4.5

TRIP IND.

OL Relay

TECO RHU-10/16K1

96 NC

RESET

OFF

3.5

TEST

16A

TRIP IND.

6T3

95 NC

4T2

98 NO

2T1

97 NO

96 NC

RESET

OFF

11.3

TEST

6T3

95 NC

4T2

98 NO

2T1

97 NO

Page 68

Saw Down

Limit Switch

Cord

Page

Power

Coolant

Hydraulic

Main

Pump

Page 67

Pump

Page 66

Page

Motor

Ground

-64-

READ ELECTRICAL SAFETY

ON PAGE 61!

Model G0812 (Mfd. Since 2/16)

Control Panel Wiring

CONTROL PANEL (viewed upside down and from behind)

0 0 0 0 0 0

Power

OFF

Button

NHD CB-01

ON Button

Hydraulic

NHD CB-10

Vise

Start

Button

NHD CB-01

Clamp Button

NHD CB-01

Coolant

Saw UP

Button

NHD CB-01

E-Stop Button

KEDU HY57B

NHD CB-10

Power

Lamp

NHD NLD-22

Pump

Switch

X1X2

Vise

Release

Button

NHD CB-01

Saw

DOWN

Button

NHD CB-01

To Electrical Panel Pages 63–64

Figure 99. Control panel wiring.

Model G0812 (Mfd. Since 2/16)

READ ELECTRICAL SAFETY

ON PAGE 61!

-65-

Main Motor Wiring

MAIN

MOTOR

220V

Ground

To Electrical Panel

Pages 63–64

Start

Capacitor

800MFD

125VAC

RTS

Breaker

88 Series 15A

Circuit

Kuoyuh

Figure 101. Main motor wiring.

Figure 100. Main motor

circuit breaker wiring.

Hydraulic Pump Wiring

Start

Capacitor

200MFD 250VAC

Ground

To Electrical Panel

Pages 63–64

Figure 102. Main motor

start capacitor wiring.

HYDRAULIC

PUMP 220V

Figure 103. Hydraulic pump wiring.

-66-

READ ELECTRICAL SAFETY

ON PAGE 61!

Model G0812 (Mfd. Since 2/16)

To Electrical Panel

Pages 63–64

Coolant Pump Wiring

COOLANT PUMP

220V

Run

Capacitor

3uF

400VAC

Ground

Bk Bk

Figure 104. Coolant pump wiring.

Model G0812 (Mfd. Since 2/16)

READ ELECTRICAL SAFETY

ON PAGE 61!

-67-

Limit Switch Wiring

TOP

Limit Switch

Shinozaki

AZD-1122

TOP

RIGHT

SIDE

TOP

111112

232324

Limit Switch

Shinozaki

AZD-1122

RIGHT

SIDE

TOP

111112

232324

Limit Switch

Shinozaki

AZD-1122

Limit Switch

Shinozaki

AZD-1122

Limit Switch

Shinozaki

AZD-1112

1112

2324

Electrical Panel

Pages 63–64

2324

1112

Limit Switch

Shinozaki

AZD-1112

Figure 105.

Saw Down limit

switch wiring.

Electrical Panel

Pages 63–64

Limit Switch

Shinozaki

AZD-1122

Figure 107.

Blade cover limit

switch wiring.

Limit Switch

Shinozaki

AZD-1112

11 12

23 24

Electrical Panel

Pages 63–64

Figure 106.

Saw Up limit

switch wiring.

Electrical Panel

Pages 63–64

Limit Switch

Shinozaki

AZD-1122

Figure 108. Blade tension limit switch

wiring.

-68-

READ ELECTRICAL SAFETY

ON PAGE 61!

Model G0812 (Mfd. Since 2/16)

VISE JAW

RAM

Hydraulic System Diagram

FEED RATE

CONTROL

VALVE

SAW BOW

RAM

HYDRAULIC FLUID RESERVOIR

HYDRAULIC

PUMP MOTOR

HYDRAULIC

MANIFOLD

PRESSURE

GAUGE

PUMP

SUCTION

FILTER

SOL.ASOL.

Directional Valve

SOL.

Directional Valve

DSG-02-D2-A2-N

DSG-02-3C4-A2-N

SOL.

FILL CAP

Copper Tube

PRESSURE

GAUGE

Model G0812 (Mfd. Since 2/16)

READ ELECTRICAL SAFETY

ON PAGE 61!

-69-

SECTION 9: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523- 4777 or visit our online parts store at www.grizzly.com to check for availability.

Frame

33-4

33-5

33-3

33-1

86-1

86-2

86-3

33-6

33-4

33-2

33-8

33-9

33-7

33-10

81-1

81-2

81-3

-70 -

Model G0812 (Mfd. Since 2/16)

Frame Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0812001 CAP SCREW M6-1 X 20 47 P0812047 LOCK WASHER 8MM 2 P0812002 HINGE 48 P0812048 PHLP HD SCR M5-.8 X 10 3 P0812003 FLAT WASHER 6MM 49 P0812049 GIB 4 P0812004 HEX NUT M6-1 50 P0812050 BRACKET 5 P0812005 HEX NUT M8-1.25 51 P0812051 BLADE TENSION HANDLE M10-1.5 X 20, 30 X 84L 6 P0812006 FLAT WASHER 8MM 52 P0812052 THRUST BEARING 51204 7 P0812007 BLADE BACK COVER 53 P0812053 HANDLE HUB 8 P0812008 PHLP HD SCR M5-.8 X 10 54 P0812054 BLADE TENSION SLIDING PLATE 9 P0812009 BRACKET 55 P0812055 TENSION INDICATING PLATE 10 P0812010 PHLP HD SCR M5-.8 X 10 56 P0812056 FLAT WASHER 5MM 11 P0812011 LIMIT SWITCH SUPPORT 57 P0812057 PHLP HD SCR M5-.8 X 8 12 P0812012 BLADE SELECTION CHART 58 P0812058 BUSHING 13 P0812013 REAR PIVOT BRACKET 59 P0812059 SHAFT 14 P0812014 LOCKING LATCH 60 P0812060 ROLL PIN 5 X 45 15 P0812015 HANDLE 61 P0812061 BLADE ANGLE ADJUSTING BRACKET 16 P0812016 CAP SCREW M8-1.25 X 20 62 P0812062 COMPRESSION SPRING (SIZE?) 17 P0812017 IDLER WHEEL ASSEMBLY 63 P0812063 BRACKET 18 P0812018 HANDLE M10-1.5 X 15 64 P0812064 CONE WASHER 10MM 19 P0812019 HEX NUT M10-1.5 65 P0812065 CAP SCREW M10-1.5 X 40 20 P0812020 HEX BOLT M8-1.25 X 20 66 P0812066 LOCK WASHER 6MM 21 P0812021 TABBED WASHER 5MM ID 67 P0812067 FLAT WASHER 10MM 22 P0812022 CAP SCREW M12-1.75 X 20 68 P0812068 CAP SCREW M6-1 X 15 23 P0812023 ARM GUIDE 69 P0812069 SHAFT BUSHING 24 P0812024 SCALE 70 P0812070 CAP SCREW M6-1 X 25 25 P0812025 RIVET 2 X 5MM 71 P0812071 PHLP HD SCR M5-.8 X 10 26 P0812026 SET SCREW M8-1.25 X 20 72 P0812072 SWITCH BASE 27 P0812027 BODY FRAME 73 P0812073 BELLEVILLE LOCK WASHER 28 P0812028 SPLASH BOARD 74 P0812074 PHLP HD SCR M4-.7 X 20 29 P0812029 FLAT WASHER 6MM 75 P0812075 TENSION SCALE POINTER 30 P0812030 CAP SCREW M6-1 X 12 76 P0812076 LEADSCREW 31 P0812031 BLADE COVER 77 P0812077 SET SCREW M5-.8 X 10 32 P0812032 CAP SCREW M6-1 X 10 78 P0812078 BEARING BRACKET (LEFT) 33 P0812033 3-WAY VALVE ASSEMBLY 79 P0812079 CARBIDE BLADE GUIDE 33-1 P0812033-1 CAP SCREW M6-1 X 30 80 P0812080 CAP SCREW M6-1 X 20 33-2 P0812033-2 3-WAY VALVE 81 P0812081 BEARING SHAFT ASSEMBLY 33-3 P0812033-3 CONNECTOR 1/4" NPT, STRAIGHT 81-1 P0812081-1 BEARING SHAFT 33-4 P0812033-4 HOSE CLAMP 12MM 81-2 P0812081-2 BALL BEARING 609ZZ 33-5 P0812033-5 BRAIDED HOSE 1/4" ID X 3/32" T X 56" L 81-3 P0812081-3 EXT RETAINING RING 10MM 33-6 P0812033-6 MICRO CONTROL BLOCK 1/4" NPT X 1/4" 82 P0812082 HEX NUT M8-1.25 33-7 P0812033-7 HOSE CLAMP 19MM 86 P0812086 ECCENTRIC SHAFT ASSEMBLY 33-8 P0812033-8 BRAIDED HOSE 1/4" ID X 3/32" T X 25" L 86-1 P0812086-1 ECCENTRIC SHAFT 33-9 P0812033-9 BRAIDED HOSE 1/2" ID X 7/64" T X 126" L 86-2 P0812086-2 BALL BEARING 609ZZ 33-10 P0812033-10 MICRO CONTROL BLOCK 1/4" NPT X 1/2" 86-3 P0812086-3 EXT RETAINING RING 10MM 34 P0812034 TENSION BRACKET 87 P0812087 BEARING PIN 35 P0812035 INT RETAINING RING 52MM 88 P0812088 BALL BEARING 609ZZ 36 P0812036 TAPERED ROLLER BEARING 30205J 89 P0812089 KNOB BOLT M6-1 X 10 37 P0812037 BEARING COVER 90 P0812090 FLAT WASHER 6MM 38 P0812038 SPANNER NUT 91 P0812091 FLAT WASHER 8MM 39 P0812039 GREASE FITTING 1/8 NPT STRAIGHT 92 P0812092 CAP SCREW M8-1.25 X 25 40 P0812040 GIB 93 P0812093 BLADE GUARD (FRONT) 41 P0812041 ARM (LEFT) 94 P0812094 BLADE DIRECTION LABEL 42 P0812042 HOSE CLIP 12MM 95 P0812095 BRAIDED HOSE 1/4" ID X 3/32" T X 56" L 43 P0812043 PHLP HD SCR M5-.8 X 10 96 P0812096 VALVE ASSEMBLY 44 P0812044 FLAT WASHER 10MM 97 P0812097 SET SCREW M6-1 X 10 45 P0812045 KNOB BOLT M10-1.5 X 60 6-LOBE 98 P0812098 HOSE CLAMP 1/2" 46 P0812046 CAP SCREW M8-1.25 X 40 99 P0812099 LEADSCREW GUIDE PLATE

Model G0812 (Mfd. Since 2/16)

-71-

Drive Wheel & Motor

161

101-1

101-4

101-6

117

101-11

101-2

101-5

101-7

119

175

101-10

101-3

101-8

101-9

174

101

118

110

102

111

114

115

109

103

116

177

176

104

105

106

108

107

113

112

173-17

173-15

173-14

173-11

173-21

173-9

173-18

173-20

173-4

173-3

173-8

173-16

173-10

173-19

121

178

125

126

173-1

122

124

173-7

173-6

173-22

173-2

173-5

120

123

127

168

173

138

167

128

137

139

140

149

150

169

170

166-1

166-2

166-3

142

166

136

141

146

147

148

135

130

134

144 145

171

133

132

143

151

172

161-1

161-2

161-3

129

131

157

160-5

152

153

154

155

156

158 159

160

160-1

160-4

160-3

160-2

-72-

Model G0812 (Mfd. Since 2/16)

Drive Wheel & Motor Parts List

REF PART # DES CRIP TI ON RE F PART # DE SCRIP TION

101 P0812101 MOTOR 2HP 220V 1-PH 149 P0812149 HEX SOCKER HEADLESS SCREW M5 X 10L 101-1 P0812101-1 MOTOR FAN CO VE R 150 P0812150 BLADE ADJUSTMENT BRACKET (REAR) 101-2 P0812101-2 CAPACI TOR COVER 151 P0812151 HEX SOCKER HEADLESS SCREW M6 X 10L 101-3 P0812101-3 MOTOR J UNCTI ON BO X 152 P0812152 FL AT WAS HER 8MM 101-4 P0812101-4 MOTOR FAN 153 P0812153 HEX SOCKET HEAD SCREW M8 X 25L 101-5 P0812101-5 S CAPACI TOR 800M 125V 1-3/4 X 3-3/8 154 P0812154 FLAT WA SHER 6MM 101-6 P0812101-6 CONTACT PL ATE 155 P0812155 PLUM SCREW M6 X 10L 101-7 P0812101-7 CENTRI FUG AL SWI TCH 156 P0812156 CROSS ROUND HE AD SCRE W M5 X 8 101-8 P0812101-8 FRONT MOTOR B EA RI NG 157 P0812157 BLADE GUARD (REAR) 101-9 P0812101-9 REAR MOTO R BE ARI NG 158 P0812158 HEX NUT M10 101-10 P0812101-10 CIRCUIT BREAKER KUOYUH 88 15A 159 P0812159 COMPRESSI ON SPRING 101-11 P0812101-11 STRAIN RELIEF 160 P0812160 BRUSH ASSEMBLY 102 P0812102 BELT 1422 360V 160-1 P0812160-1 BRUSH S HAFT 103 P0812103 MOTOR PULLEY COVER 160-2 P0812160-2 CROSS ROUND HEAD SCREW M6-1.0 X 40L 104 P0812104 CROSS ROUND HE AD SCRE W M5 X 10L 160-3 P0812160-3 FLAT WASHER 6 MM 105 P0812105 SPEED LABEL 160-4 P0812160-4 BRUSH 106 P0812106 SPINDLE PULLEY ASSEMBLY 160-5 P0812160-5 HEX NUT M6 107 P0812107 VARIABLE SPEED PULLEY 161 P0812161 BEARING SHAFT ASSEMBLY 108 P0812108 SPINDLE PULLEY 161-1 P0812161-1 BEARING SHAFT 109 P0812109 LOWER PULLEY COVER 161-2 P0812161-2 BALL BEARING 609ZZ 110 P0812110 KEY 7 X 7 X 30L 161-3 P0812161-3 C-RE TAI NER RI NG S10 111 P0812111 MOTOR PLATE 166 P0812166 ECCENTRI C S HAFT AS SE MBLY 112 P0812112 FLAT WASHE R 6MM 166-1 P0812166-1 ECCENTRI C SHAFT 113 P0812113 HEX SOCKET HEAD SCREW M6 X 10L 166-2 P0812166-2 BALL BEARING 609ZZ 114 P0812114 HEX NUT M12 166-3 P0812166-3 C-RETAI NER RI NG S1 0 115 P0812115 FLAT WASHER 12MM 167 P0812167 BLADE GUARD II (REAR) 116 P0812116 HEX SOCKET HEAD SCREW M12 X 50L 168 P0812168 CROS S RO UND HEAD S CREW M5 X 10 L 117 P0812117 GEAR BOX ASSEMBLY 169 P0812169 CARBI DE GUIDE 118 P0812118 DRIVE WHE EL 170 P0812170 HEX SOCKET HEAD SCREW M6 X 20L 119 P0812119 BLADE 27 X 0.9 X 3810L-4/6T 171 P0812171 BALL BEARI NG 609ZZ 120 P0812120 KEY 7 X 7 X 30 172 P0812172 BEARING PIN 121 P0812121 FLAT WASHER 10MM 173 P0812173 CYLINDER ASSEMBLY 122 P0812122 LOCK WASHER 10MM 173-1 P0812173-1 SUPPORT FLANGE 123 P0812123 HEX HEAD SCREW M10 X 25L 173-2 P0812173-2 HEX SOCKET HEAD SCREW M8 X 20L 124 P0812124 HEX SOCKET HEADLESS SCREW M6 X 10L 173-3 P0812173-3 S HAFT 125 P0812125 HEX SOCKET HEAD SCREW M8 X 20L 173-4 P0812173-4 C-RETANI NER RI NG S2 0 126 P0812126 FLAT WASHE R 8MM 173-5 P0812173-5 CONNECTOR 127 P0812127 CYLINDER UPPER SUPPORT 173-6 P0812173-6 SPRI NG 128 P0812128 VALVE ASSEMBLY 173-7 P0812173-7 SPRING CYLI NDER SLEEVE 129 P0812129 SUPPORT ROD 173-8 P0812173-8 HEX NUT M20 X P1.5 130 P0812130 TORSI O N SPRI NG 173-9 P0812173-9 BEARING POS 20 131 P0812131 HEX SOCKET HEAD SCREW M6 X 10L 173-10 P0812173-10 SHAFT 132 P0812132 NUT AN07 173-11 P0812173-11 CYLINDER SUPPORT 133 P0812133 BRACKET 173-14 P0812173-14 BUSHI NG 134 P0812134 WASHER AW07 173-15 P0812173-15 HEX SOCKET HEAD SCREW M6 X 30L 135 P0812135 BRACKET SPACER 173-16 P0812173-16 BRACKET 136 P0812136 HEX SOCKET HEAD SCREW M10 X 20L 173-17 P0812173-17 KNOB M8 X P1.25 X 20L 137 P0812137 HEX SOCKET HEAD SCREW M8 X 20L 173-18 P0812173-18 SHAFT 138 P0812138 FLAT WASHE R 8MM 173-19 P0812173-19 HEX SOCKET HEAD SCREW M8 X 12L 139 P0812139 BRACKET 173-20 P0812173-20 FLAT WA SHER 8MM 140 P0812140 LOCK WASHER 10MM 173-21 P0812173-21 GAUGE INCH 141 P0812141 FLAT WASHER 10MM 173-22 P0812173-22 CYLI NDER 142 P0812142 GAP RING 174 P0812174 FLAT WAS HER 8MM 143 P0812143 HEX SOCKET HEAD SCREW M10 X 20L 175 P0812175 HEX HEAD SCREW M8 X 25L 144 P0812144 HEX NUT M8-1 . 2 5 176 P0812176 COVER 145 P0812145 HEX SOCKER HEADLESS SCREW M8 X 25L 177 P0812177 CRO SS RO UND HEAD SCREW M5 X 5L 146 P0812146 ARM (RI G HT) 178 P0812178 PIVOT PIN 147 P0812147 NET TUBE ID1/4" X 2. 2T X 143CM 179 P0812179 LIMI T SWI TCH 148 P0812148 HOSE CLAMP 12MM

Model G0812 (Mfd. Since 2/16)

-73 -

347

345

343

342

341

373

338

335

212

213

215

346

339

334

216

348

351

217

273

349

350

352

372

330

202

203

211

214

218

272

353

201

274

355

356

363

366

337

209

210

219

368

358

332

331

329

354

362

365

340

336

333

367 205

225

361

364

208

226

371

275

359

327

224

276

360

Base & Vise

204

205

206

207

222

221

234

233

252

253

267

324

321

270

357

326

325

228

227

265

268

277

278

220

232

231

230

368

254

266

269

370

271

279

280

323

322

223

246

263

264

320

281

319

235

247

248

251

262

328

261

282

318

236

249

313

245

250

259

284

288

314

317

237

260

283

310

312

238

257

285

289

277

293

311

316

258

291

239

255

308

309

315

240

256

287-5

287-4

287-1

286

275

297

307

241

242

243

287-6

292

369

298

315-10

244

287-8

287-2

287-3

287-5

290

301

306

315-8

287

287-7

287-5

299

296

302

303

305

304

315-7

315-1

315-3

315-2

315-4

315-9

315-11

-74 -

Model G0812 (Mfd. Since 2/16)

Base & Vise Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0812201 HEX LOCK BOLT 80L M10-1.5 X 40 257 P0812257 CAP SCREW M5-.8 X 15 202 P0812202 COMPRESSION SPRING 1.9 X 9 X 30 258 P0812258 SLIDE BASE SHAFT 203 P0812203 LOCK BOLT PIN 259 P0812259 SWITCH BRACKET 204 P0812204 CAP SCREW M10-1.5 X 40 260 P0812260 FLAT WASHER 5MM 205 P0812205 FLAT WASHER 10MM 261 P0812261 SWITCH ADJUSTING PLATE 206 P0812206 VISE PIVOT BUSHING 262 P0812262 PHLP HD SCR M5-.8 X 12 207 P0812207 VISE JAW (MOVABLE) 263 P0812263 STOP BOLT M12-1.75 X 50 208 P0812208 SLIDING JAW MOUNT 264 P0812264 HEX NUT M12-1.75 209 P0812209 PIN 29 X 10MM 265 P0812265 SPANNER NUT M35-1.5 210 P0812210 RACK HOOK 266 P0812266 EXT TOOTH WASHER 35MM 211 P0812211 FLAT WASHER 10 X 23 X 3MM 267 P0812267 SPACER RING 212 P0812212 SET SCREW M6-1 X 10 268 P0812268 CAP SCREW M6-1 X 30 213 P0812213 HANDWHEEL TYPE-9 126D X 15B-K X M8-1.25 269 P0812269 STUD-DE 1/2 X 7-3/4, 1/2-20 X 1, 3/8-24 X 1/2 214 P0812214 CAP SCREW M8-1.25 X 30 270 P0812270 KNOB 1/2-20 X 1 X 2 215 P0812215 LOCK WASHER 8MM 271 P0812271 SET SCREW M6-1 X 12 216 P0812216 LEADSCREW SUPPORT 272 P0812272 CAP SCREW M8-1.25 X 20 217 P0812217 KEY 5 X 5 X 15 273 P0812273 LOCK WASHER 8MM 218 P0812218 VISE LEADSCREW 274 P0812274 FEED SUPPORT 219 P0812219 VISE BASE 275 P0812275 HEX BOLT M10-1.5 X 40 220 P0812220 SET SCREW M8-1.25 X 10 276 P0812276 ADJUSTABLE SUPPORT 221 P0812221 VISE JAW (FIXED) 277 P0812277 HEX NUT M10-1.5 222 P0812222 LOCK WASHER 12MM 278 P0812278 ANGLE MARGIN 223 P0812223 CAP SCREW M12-1.75 X 40 279 P0812279 CAP SCREW M8-1.25 X 20 224 P0812224 CAP SCREW M8-1.25 X 20 280 P0812280 SWIVEL ARM BASE 225 P0812225 LOCK WASHER 8MM 281 P0812281 CAP SCREW M10-1.5 X 35 226 P0812226 LEADSCREW RACK 282 P0812282 SWIVEL BASE (UPPER) 227 P0812227 CAP SCREW M8-1.25 X 20 283 P0812283 GREASE FITTING 1/8 NPT, STRAIGHT 228 P0812228 LOCK WASHER 8MM 284 P0812284 TAPERED ROLLER BEARING 32007 230 P0812230 CAUTION LABEL 285 P0812285 PIVOT SHAFT NUT 231 P0812231 CAP SCREW M8-1.25 X 20 286 P0812286 PIVOT SHAFT 232 P0812232 BASE SUPPORT 287 P0812287 SPRAY GUN ASSEMBLY 233 P0812233 STOP BLOCK SCALE 287-1 P0812287-1 HOSE FITTING 3/8 X 3/8 NPT, STRAIGHT 234 P0812234 RIVET 2 X 5MM NAMEPLATE, STEEL 287-2 P0812287-2 3-WAY HOSE FITTING 3/8 NPT 235 P0812235 2-WAY LIMIT BLOCK (LEFT) 287-3 P0812287-3 HOSE FITTING 3/8 X 1/2 NPT, STRAIGHT 236 P0812236 CAP SCREW M10-1.5 X 30 287-4 P0812287-4 HOSE FITTING 3/8 X 1/2 NPT, ELBOW 237 P0812237 FIXED BLOCK 287-5 P0812287-5 HOSE CLAMP 19MM 238 P0812238 FLAT WASHER 10 X 19 X 5MM 287-6 P0812287-6 BRAIDED HOSE 1/2" ID X 7/64" T X 49" L 239 P0812239 ADJ HANDLE M10-1.5 X 40, 60L (METAL) 287-7 P0812287-7 BRAIDED HOSE 1/2" ID X 7/64" T X 126" L 240 P0812240 SCALE INDICATOR 287-8 P0812287-8 SPRAY GUN A-1061 241 P0812241 RIVET 2 X 5MM NAMEPLATE, STEEL 288 P0812288 ANGLE SCALE 242 P0812242 2-WAY LIMIT BLOCK (RIGHT) 289 P0812289 RIVET 2 X 5MM NAMEPLATE, STEEL 243 P0812243 LOCK WASHER 6MM 290 P0812290 HEX BOLT M6-1 X 15 244 P0812244 CAP SCREW M6-1 X 20 291 P0812291 ANGLE LOCATING BLOCK

245 P0812245 SLIDE BASE 292 P0812292 BEARING PIN 246 P0812246 HEX BOLT M10-1.5 X 30 293 P0812293 ANGLE POSITION BRACKET 247 P0812247 HEX NUT M10-1.5 296 P0812296 PUMP COVER 248 P0812248 DISTANCE SET BRACKET 297 P0812297 FLAT WASHER 8MM 249 P0812249 FLAT WASHER 6MM 298 P0812298 HEX BOLT M8-1.25 X 25 250 P0812250 KNOB M6-1 X 12 6-LOBE 299 P0812299 COOLANT PUMP 1/8HP 220V 1-PH 251 P0812251 STOP BLOCK SUPPORT 301 P0812301 LOCK WASHER 6MM 252 P0812252 DISTANCE SET ROD 302 P0812302 CAP SCREW M6-1 X 12 253 P0812253 LOCK WASHER 8MM 303 P0812303 FLAT WASHER 6MM 254 P0812254 CAP SCREW M8-1.25 X 45 304 P0812304 FLAT WASHER 6MM 255 P0812255 CAP SCREW M10-1.5 X 35 305 P0812305 CAP SCREW M6-1 X 12 256 P0812256 LOCK WASHER 10MM 306 P0812306 COOLANT PUMP BRACKET

Model G0812 (Mfd. Since 2/16)

-75-

Base & Vise Parts List (Cont.)

REF PART # DESCRIPTION REF PART # DESCRIPTION

307 P0812307 COOLANT RESERVOIR 336 P0812336 ADJUSTABLE HANDLE M8-1.25 X 25, 60L

308 P0812308 HEX BOLT M16-2 X 80 337 P0812337 CONTROL BOX PIVOT BRACKET

309 P0812309 HEX NUT M16-2 338 P0812338 SET SCREW M8-1.25 X 20

310 P0812310 SPLASH BOARD 339 P0812339 HEX NUT M8-1.25

311 P0812311 BASE 340 P0812340 CONTROL ARM PIVOT BRACKET

312 P0812312 ACCESS PANEL (FRONT) 341 P0812341 CAP SCREW M5-.8 X 12

313 P0812313 FLAT WASHER 6MM 342 P0812342 FLAT WASHER 5MM

314 P0812314 CAP SCREW M6-1 X 15 343 P0812343 HEX NUT M8-1.25

315 P0812315 HYDRAULIC UNIT 3-1/4 HP 220V 344 P0812344 FLAT WASHER 8MM

315-1 P0812315-1 MOTOR FAN COVER 345 P0812345 CONTROL BOX

315-2 P0812315-2 CAPACITOR COVER 346 P0812346 CONTROL BOX SUPPORT ARM

315-3 P0812315-3 MOTOR JUNCTION BOX 347 P0812347 HYDRAULIC CONTROL UNIT

315-4 P0812315-4 MOTOR FAN 348 P0812348 SWITCH PLATE

315-5 P0812315-5 S CAPACITOR 800M 125V 1-3/4 X 3-3/8 349 P0812349 CAP SCREW M5-.8 X 12

315-6 P0812315-6 CONTACT PLATE 350 P0812350 FLAT WASHER 5MM

315-7 P0812315-7 CENTRIFUGAL SWITCH 351 P0812351 HANDLE

315-8 P0812315-8 FRONT MOTOR BEARING (TYPE?) 352 P0812352 CAP SCREW M8-1.25 X 20

315-9 P0812315-9 REAR MOTOR BEARING (TYPE?) 353 P0812353 COVER

316 P0812316 HYDRAULIC TUBING 1/4 W X 39-1/2 L 354 P0812354 CAP SCREW M5-.8 X 12

317 P0812317 HYDRAULIC TUBING 1/4 W X 78-3/4 L 355 P0812355 FLAT WASHER 5MM

318 P0812318 HYDRAULIC TUBING 1/4 W X 118 L 356 P0812356 CONNECTION SHAFT

319 P0812319 HYDRAULIC TUBING 1/4 W X 149 L 357 P0812357 VENTED ACCESS PANEL (REAR)

320 P0812320 HYDRAULIC TUBING 1/4 W X 39-1/2 L, 90-DEG 358 P0812358 SET SCREW M6-1 X 10

321 P0812321 HYDRAULIC PRESSURE GAUGE 359 P0812359 CAP SCREW M6-1 X 12

322 P0812322 CAP SCREW M6-1 X 12 360 P0812360 FLAT WASHER 6MM

323 P0812323 FLAT WASHER 6MM 361 P0812361 PHLP HD SCR M5-.8 X 10

324 P0812324 PRESSURE GAUGE BRACKET 362 P0812362 VALVE

325 P0812325 CAP SCREW M6-1 X 15 363 P0812363 FLAT WASHER 6MM

326 P0812326 FLAT WASHER 6MM 364 P0812364 CAP SCREW M6-1 X 12

327 P0812327 ACCESS PANEL (LEFT) 365 P0812365 CAP SCREW M8-1.25 X 15

328 P0812328 O-RETAINER RING P12 366 P0812366 FLAT WASHER 8MM

329 P0812329 CAP SCREW M6-1 X 12 367 P0812367 HEX NUT M10-1.5

330 P0812330 FLAT WASHER 6MM 368 P0812368 RACK SUPPORT

331 P0812331 CAP SCREW M8-1.25 X 15 369 P0812369 ROLL PIN 5 X 20

332 P0812332 FLAT WASHER 8MM 370 P0812370 BRACKET

333 P0812333 CONTROL BOX MOUNT 371 P0812371 CAP SCREW M8-1.25 X 25

334 P0812334 CAP SCREW M8-1.25 X 20 372 P0812372 CONTROL PEDESTAL SUPPORT COVER

335 P0812335 FLAT WASHER 8MM 373 P0812373 SET SCREW M8-1.25 X 8

-76-

Model G0812 (Mfd. Since 2/16)

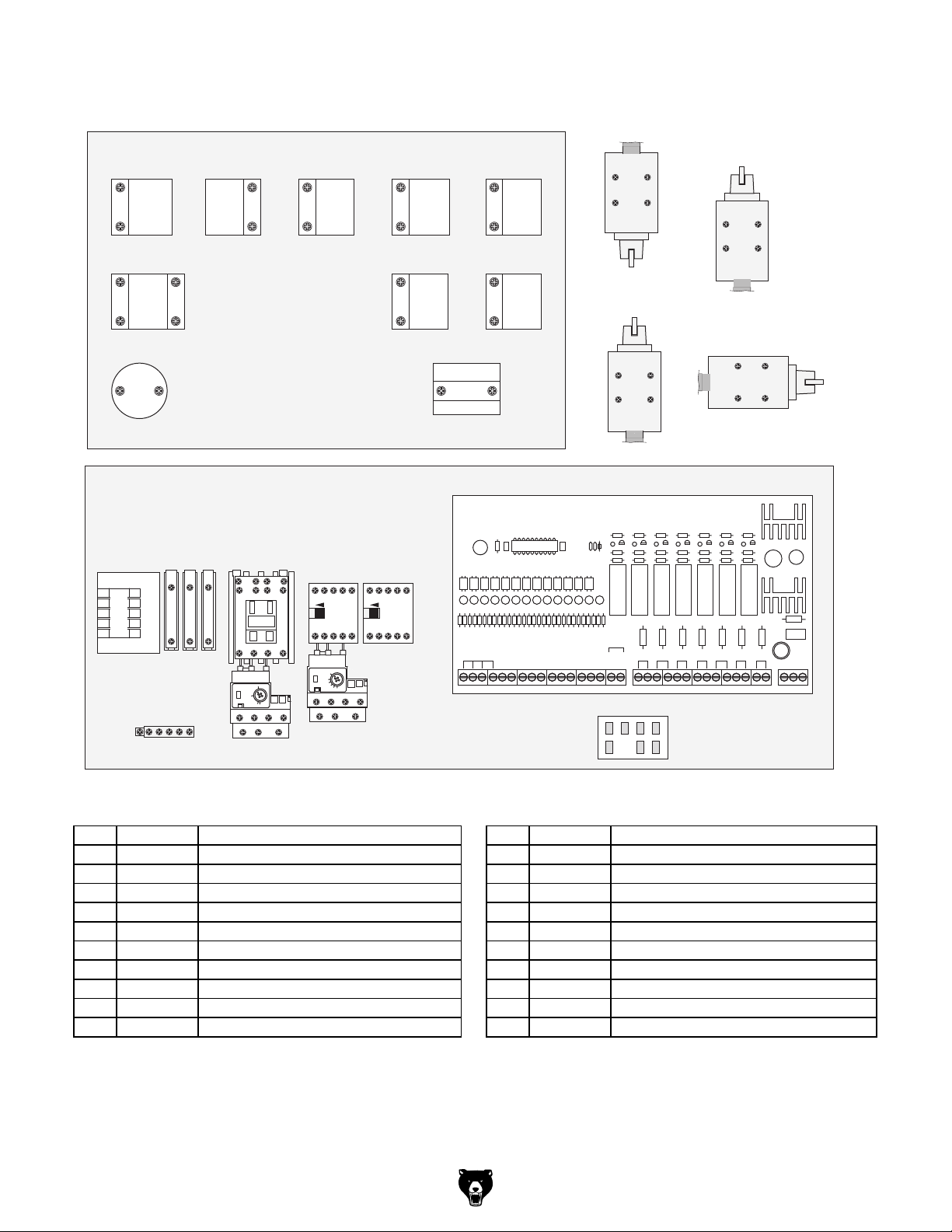

Electrical

CONTROL PANEL (viewed upside down and from behind)

401

406

Hydraulic ON Button

NHD CB-10

Coolant

Pump

Switch

NHD CB-10

402 403 404

Power

OFF

Button

NHD CB-01

Start

Button

NHD CB-01

407

Vise Clamp Button

NHD CB-01

Saw UP

Button

NHD CB-01

409

Power

Lamp

X1X2

NHD NLD-22

MAIN CABINET

415

TRANSFORMER

Transformer

LGE TBSM-100200

MET 1328-3 RF-122

416 417

FUSE CONTACTOR

421

TERMINAL BAR

3L2 5L3

1L1

TECO

Contactor

CU11

2T1

4T2

OL Relay

TECO RHU-10/16K1

TRIP IND.

TEST

98 NO

97 NO

2T1

6T3

4T2

3.5

95 NC

CONTACTOR

1L1

I 0

2T1

RESET

OFF

96 NC

6T3

419

3L2 5L3 13 A1

Contactor

KEDU JD6.10

4T2

6T3

418

CONTACTOR

3L2 5L3 13 A1

1L1

I 0

Contactor

KEDU JD6.10

4T2

2T1

6T3

11.3

95 NC

4T2

OL Relay

TECO RHU-10/4.8K1

4.8 A

TRIP IND.

4.5

TEST

98 NO

97 NO

RESET

OFF

2T1

96 NC

6T3

410

E-Stop Button

KEDU HY57B

CIRCUIT BOARD

COM

405

408

Vise

Release

Button

NHD CB-01

Saw DOWN Button

NHD CB-01

OPEN

420

J95 0808

DOWN

AUTO

START

LS-UP

STOP

422

LS-DN

Limit Switch

WATER

FOOT

PUMP

(UPPER

Limit Switch

411

LEFT)

2324

1112

Shinozaki AZD-1122

(LOWER

LEFT)

11 12

23 24

Shinozaki

AZD-1122

RF-0350-200801 0808

AUTO

TERMINAL

413

DOWNUPCLOSEOPEN(OV)

111112

232324

Limit Switch

Shinozaki AZD-1122

Limit Switch

Shinozaki

AZD-1122

LIMIT SWITCHES

412

(TOP)

414

(RIGHT

SIDE)

PUMPWATERMOTOR

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0812401 HYDRAULIC ON BUTTON NHD CB-10 412 P0812412 LIMIT SWITCH (TOP) AZD-1122 402 P0812402 POWER OFF BUTTON NHD CB-01 413 P0812413 LIMIT SWITCH (LOWER LEFT) AZD-1122 403 P0812403 START BUTTON NHD CB-01 414 P0812414 LIMIT SWITCH (RIGHT SIDE) AZD-1122 404 P0812404 VISE CLAMP BUTTON NHD CB-01 415 P0812415 TRANSFORMER LGE TBSM-100200 405 P0812405 VISE RELEASE BUTTON NHD CB-01 416 P0812416 FUSE 406 P0812406 COOLANT PUMP SWITCH NHD CB-10 417 P0812417 CONTACTOR TECO CU-11 407 P0812407 SAW UP BUTTON NHD CB-01 418 P0812418 CONTACTOR KEDU JD6.10 408 P0812408 SAW DOWN BUTTON NHD CB-01 419 P0812419 CONTACTOR KEDU JD6.10 409 P0812409 POWER LAMP NHD NLD-22 420 P0812420 CIRCUIT BOARD RF-0350-200801 410 P0812410 E-STOP BUTTON KEDU HY57B 421 P0812421 TERMINAL BAR 411 P0812411 LIMIT SWITCH (UPPER LEFT) AZD-1122 422 P0812422 TERMINAL

Model G0812 (Mfd. Since 2/16)

-77-

G0812 Machine Labels B

(11/2/15)

• Scale= 1:1

(unless otherwise noted)

• Labels MUST be made of

chemical-resistant material

***IMPORTANT***: Labels marked *** MUST have individual letters.

Do NOT print with a clear background.

***

Fluid Capacity

Hydraulic Tank

3.17 qt.

ISO 46 Hydraulic Oil or SAE 20 Equivalent

Component TypeCapacity

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

MODEL G0812

13" X 18" INDUSTRIAL BANDSAW

Main Motor: 2 HP, 1-Ph, 15A Hyd. Pump Motor: 1/2 HP, 4.7A Coolant Pump Motor: 53W, 0.3A Full-Load Current Rating: 20A Blade Speeds: 95–380 FPM Blade Length: 150" Max Round at 90˚: 13" Max Rect. at 90˚: 12"H x 18"W Max Round at 45˚: 12" Max Rect. at 45˚: 11"H x 12"W Weight: 1345 lbs.

Specifications

WARNING!

Date

Mfd. for Grizzly in Taiwan

S/N

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear approved eye protection and respirator.

4. Only plug power cord into a grounded outlet.

5. Only remove jammed cutoff pieces when blade is stopped.

6. Disconnect power before changing blades or adjusting.

7. Maintain adjustment of blade tension, tracking, & guides.

8. Always ensure workpiece is securely clamped in vise during cutting operation.

9. Only run saw with wheel covers closed & all guards in place.

10. DO NOT wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

11. DO NOT expose to rain or use in wet locations.

12. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

MODEL G0812

13" X 18" INDUSTRIAL BANDSAW

WARNING!

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear approved eye protection and respirator.

4. Only plug power cord into a grounded outlet.

5. Only remove jammed cutoff pieces when blade is stopped.

6. Disconnect power before changing blades or adjusting.

7. Maintain adjustment of blade tension, tracking, & guides.

8. Always ensure workpiece is securely clamped in vise during cutting operation.

9. Only run saw with wheel covers closed & all guards in place.

10. DO NOT wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

11. DO NOT expose to rain or use in wet locations.

12. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

MODEL G0812

WARNING!

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

G0812

grizzly.com

Fluid Capacity

Hydraulic Tank

3.17 qt. ISO 46 Hydraulic Oil or SAE 20 Equivalent

Component TypeCapacity

Fluid Capacity

Coolant Tank

7.5 gal. Specific to Operation and Material

Component TypeCapacity

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

MODEL G0812

WARNING!

INJURY/SHOCK

G0812

Fluid Capacity

Hydraulic Tank

3.17 qt. ISO 46 Hydraulic Oil or SAE 20 Equivalent

Component TypeCapacity

Fluid Capacity

Coolant Tank

7.5 gal. Specific to Operation and Material

Component TypeCapacity

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

501

WARNING!

To reduce risk of death or serious injury, read manual BEFORE using machine. To get a new manual, call (800) 523-4777 or go to www.grizzly.com.

505

Labels & Cosmetics

MODEL G0812

Specifications

Date

S/N

Mfd. for Grizzly in Taiwan

13" X 18" INDUSTRIAL BANDSAW

WARNING!

To reduce risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Never touch moving blade—keep hands out of blade path.

3. Always wear approved eye protection and respirator.

4. Only plug power cord into a grounded outlet.

5. Only remove jammed cutoff pieces when blade is stopped.

6. Disconnect power before changing blades or adjusting.

7. Maintain adjustment of blade tension, tracking, & guides.

8. Always ensure workpiece is securely clamped in vise during cutting operation.

9. Only run saw with wheel covers closed & all guards in place.

10. DO NOT wear loose clothing, gloves, jewelry, or other articles that can get entangled. Tie back long hair and roll up sleeves.

11. DO NOT expose to rain or use in wet locations.

12. Prevent unauthorized use by children or untrained users; restrict access or disable machine when unattended.

502

503

WARNING!

EYE/LUNG INJURY

HAZARD! Always wear safety glasses and a respirator when using this machine.

503

504

505

INJURY/SHOCK

HAZARD! Disconnect power before adjustments, maintenance, or service.

503

512

503

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 P0812501 READ MANUAL LABEL 507 P0812507 GRIZZLY.COM LABEL 502 P0812502 MACHINE ID LABEL 508 P0812508 TOUCH-UP PAINT, GRIZZLY BEIGE 503 P0812503 ELECTRICITY LABEL 509 P0812509 TOUCH-UP PAINT, GRIZZLY GREEN 504 P0812504 GLASSES/RESPIRATOR LABEL 510 P0812510 HYDRAULIC FLUID CAPACITY LABEL 505 P0812505 DISCONNECT POWER 110V 511 P0812511 COOLANT FLUID CAPACITY LABEL 506 P0812506 MODEL NUMBER LABEL 512 P0812512 GRIZZLY NAMEPLATE

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-78 -

Component TypeCapacity

Coolant Tank

Fluid Capacity

7.5 gal.

Specific to Operation and Material

508

509

503

511

506

507

510

Component TypeCapacity

Hydraulic Tank

Fluid Capacity

3.17 qt.

ISO 46 Hydraulic Oil or SAE 20 Equivalent

Model G0812 (Mfd. Since 2/16)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

Model G0812 (Mfd. Since 2/16)

-79 -

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0812 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

Contact Info

Manual Accuracy

Identification

Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery

Additional Safety for

Horizontal Metal Bandsaws

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Unpacking Inventory

Needed for Setup

Cleanup

Site Considerations

Lifting & Placing

Anchoring to Floor

Assembly

Test Run

SECTION 4: OPERATIONS

Operation Overview

Blade Selection

Changing Blade

Blade Breakage

Blade Care &

Break-In

Blade Speed

Blade Speed Chart

Chip Inspection Chart

Feed Rate

Work Stop

Vise

Angle Cuts

Blade Guides

Coolant

Coolant System

Operation Tips

Workpiece Inspection

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Lubrication

Hydraulic System

Machine Storage

SECTION 7: SERVICE

Troubleshooting

Blade Brush

Downfeed Stop Bolt

Limit Switches

Angle Stops

SECTION 8: WIRING

Wiring Safety Instructions

Electrical Overview

Component Locations

Electrical Panel Photo

Electrical Panel Wiring Diagram

Control Panel Wiring

Main Motor Wiring

Hydraulic Pump Wiring

Coolant Pump Wiring

Limit Switch Wiring

Hydraulic System Diagram

SECTION 9: PARTS

Frame

Drive Wheel & Motor

Base & Vise

Electrical

Labels & Cosmetics

WARRANTY & RETURNS
