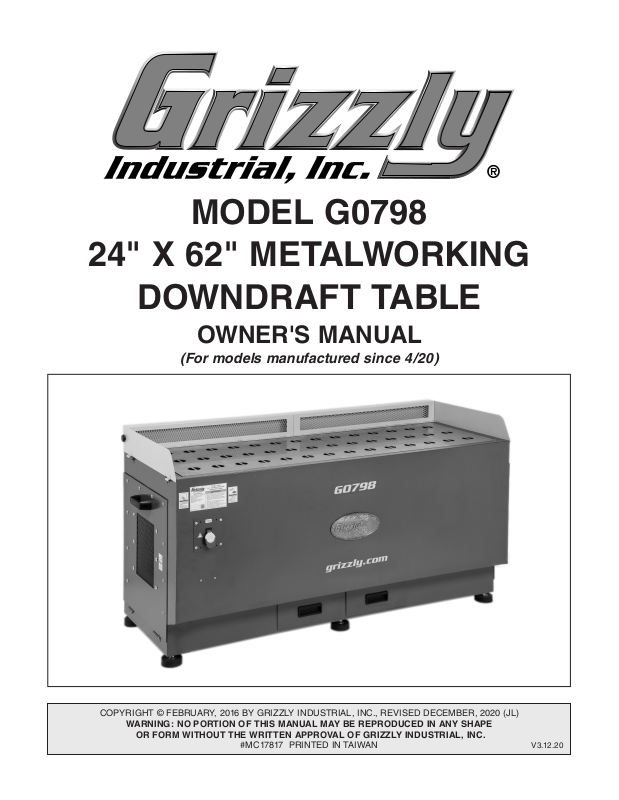

Grizzly G0798 User guide

MODEL G0798

24" X 62" METALWORKING

DOWNDRAFT TABLE

OWNER'S MANUAL

(For models manufactured since 4/20)

COPYRIGHT © FEBRUARY, 2016 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2020 (JL)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MC17817 PRINTED IN TAIWAN

V3.12.20

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Contact Info ................................................................................................................................ 2

Manual Accuracy ........................................................................................................................ 2

Identification ............................................................................................................................... 3

Machine Data Sheet ................................................................................................................... 4

SECTION 1: SAFETY ....................................................................................................................... 6

Safety Instructions for Machinery ............................................................................................... 6

Additional Safety for Downdraft Tables ...................................................................................... 8

SECTION 2: POWER SUPPLY ........................................................................................................ 9

SECTION 3: SETUP ....................................................................................................................... 11

Needed for Setup ..................................................................................................................... 11

Unpacking ................................................................................................................................ 11

Inventory ................................................................................................................................... 12

Site Considerations .................................................................................................................. 13

Lifting & Placing ....................................................................................................................... 14

Assembly .................................................................................................................................. 14

Power Connection .................................................................................................................... 15

Test Run ................................................................................................................................... 16

SECTION 4: OPERATIONS ........................................................................................................... 17

Operation .................................................................................................................................. 17

SECTION 5: ACCESSORIES ......................................................................................................... 18

SECTION 6: MAINTENANCE......................................................................................................... 20

Schedule .................................................................................................................................. 20

Cleaning & Protecting .............................................................................................................. 20

Cleaning Dust Drawers ............................................................................................................ 20

SECTION 7: SERVICE ................................................................................................................... 21

Troubleshooting ........................................................................................................................ 21

Replacing Filters....................................................................................................................... 22

SECTION 8: WIRING ...................................................................................................................... 23

Wiring Safety Instructions ........................................................................................................ 23

Electrical Components ............................................................................................................. 24

Wiring Diagram......................................................................................................................... 25

SECTION 9: PARTS ....................................................................................................................... 26

Breakdown ............................................................................................................................... 26

Labels & Cosmetics ................................................................................................................. 28

WARRANTY & RETURNS ............................................................................................................. 29

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

INTRODUCTION

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model G0798 (Mfd. Since 4/20)

Identification

To reduce your risk of
serious injury, read this
entire manual BEFORE

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

Left Panel

Motor Access Door

Suction Panels

Dust Drawers

ON/OFF Paddle Switch

Downdraft Plate

Right Panel

Motor Access Door

Model G0798 (Mfd. Since 4/20)

using machine.

-3-

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0798 24" X 62" METALWORKING DOWNDRAFT

TABLE

Product Dimensions:

Weight.............................................................................................................................................................. 300 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 65 x 24 x 33-1/2 in.

Footprint (Length x Width)............................................................................................................................ 62 x 21 in.

Shipping Dimensions:

Type............................................................................................................................ Cardboard Box on Wood Pallet

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 349 lbs.

Length x Width x Height....................................................................................................................... 64 x 28 x 34 in.

Must Ship Upright.................................................................................................................................................... No

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Full-Load Current Rating........................................................................................................................................ 12A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key

Motors:

Main #1

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps.............................................................................................................................................................. 6A

Speed................................................................................................................................................ 1150 RPM

Type................................................................................................................. TENV Capacitor-Start Induction

Power Transfer ............................................................................................................................... Direct Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type................................................................................................................ N/A

Main #2

Horsepower............................................................................................................................................. 3/4 HP

Phase............................................................................................................................................ Single-Phase

Amps.............................................................................................................................................................. 6A

Speed................................................................................................................................................ 1150 RPM

Type................................................................................................................. TENV Capacitor-Start Induction

Power Transfer ............................................................................................................................... Direct Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Centrifugal Switch/Contacts Type................................................................................................................ N/A

-4-

Model G0798 (Mfd. Since 4/20)

Main Specifications:

Operation Info

Filter Info

Table Info

Construction Info

Air Suction Capacity................................................................................................ 3700 CFM (1850 CFM X 2)

Filter Micron.................................................................................................................................................. 200

Filter Efficiency............................................................................................................................................ 90%

Impeller Type................................................................................................................................ Squirrel Cage

Impeller Size.................................................................................................................................... 9-1/2 x 7 in.

Inlet Hole Diameter...................................................................................................................................... 8 in.

Outlet Size........................................................................................................................................... 10 x 8 in.

Number of Filters.............................................................................................................................................. 4

Filter Length............................................................................................................................................... 20 in.

Filter Width................................................................................................................................................. 16 in.

Filter Thickness............................................................................................................................................ 1 in.

Table Size Length................................................................................................................................ 61-1/2 in.

Table Size Width................................................................................................................................. 23-3/4 in.

Floor to Table Height........................................................................................................................... 29-1/2 in.

Table Load Capacity.............................................................................................................................. 440 lbs.

Impeller....................................................................................................................................................... Steel

Table............................................................................................................................................ Formed Steel

Table Inserts............................................................................................................................... Stainless Steel

Paint Type/Finish....................................................................................................................... Powder Coated

Other Specifications:

Country of Origin .............................................................................................................................................. Taiwan

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time ........................................................................................................ 15 Minutes

Serial Number Location ................................................................................................. ID Label on Front of Machine

Sound Rating ..................................................................................................................................................... 78 dB

ISO 9001 Factory .................................................................................................................................................... No

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Equipped with Two Heavy-Duty Motors
Two Easy-to-Clean Dust Drawers
Designed to Accommodate Metal Sanding, Grinding, Soldering, and Polishing Applications
Dual 9-1/2" x 7" Squirrel Cage Fans
Durable Powder-Coated Finish
Quiet Operation
1/8" Thick Steel Table Inserts
Adjustable, Vibration-Dampening Rubber Feet
440 lb. Table Load Capacity

Model G0798 (Mfd. Since 4/20)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model G0798 (Mfd. Since 4/20)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G0798 (Mfd. Since 4/20)

-7-

Additional Safety for Downdraft Tables

Long-term respiratory damage, cancer, or birth defects can occur from using this machine
without proper use of a respirator. Explosions or fire can result if machine is used to capture
incorrect materials or dust/waste material is exposed to an ignition source. To reduce these
risks, operator and bystanders MUST completly heed the warnings below.

USE FOR INTENDED PURPOSE. This down-

draft table is designed to capture sparks and
particles created while grinding certain metals.
DO NOT use it to capture materials made from
wood or wood products, lead, magnesium, asbes­tos, crystalline silica, gypsum, or any other non­metal products. DO NOT use it to capture welding
fumes, gasses, vapors, liquids, or smoke.

WEAR PROPER PPE. Dust created from cutting,
grinding, sanding, etc. may cause cancer, birth
defects, or long-term respiratory damage. Be
aware of the dust hazards, exposure limits, and
toxicity associated with each type of workpiece
material. Very fine dust/particles are unlikely to be
captured and may become airborne in the work
area. Anyone working with or around this machine
MUST wear a NIOSH-approved respirator rated
for the workpiece material.

TOXIC METALS. Exposure (or over-exposure) to
certain types of metal dusts or fumes can result
in serious, potentially deadly health effects. To
reduce this risk, research toxic effects of metal
types you work with and always seek to minimize/
eliminate exposure to yourself and others.

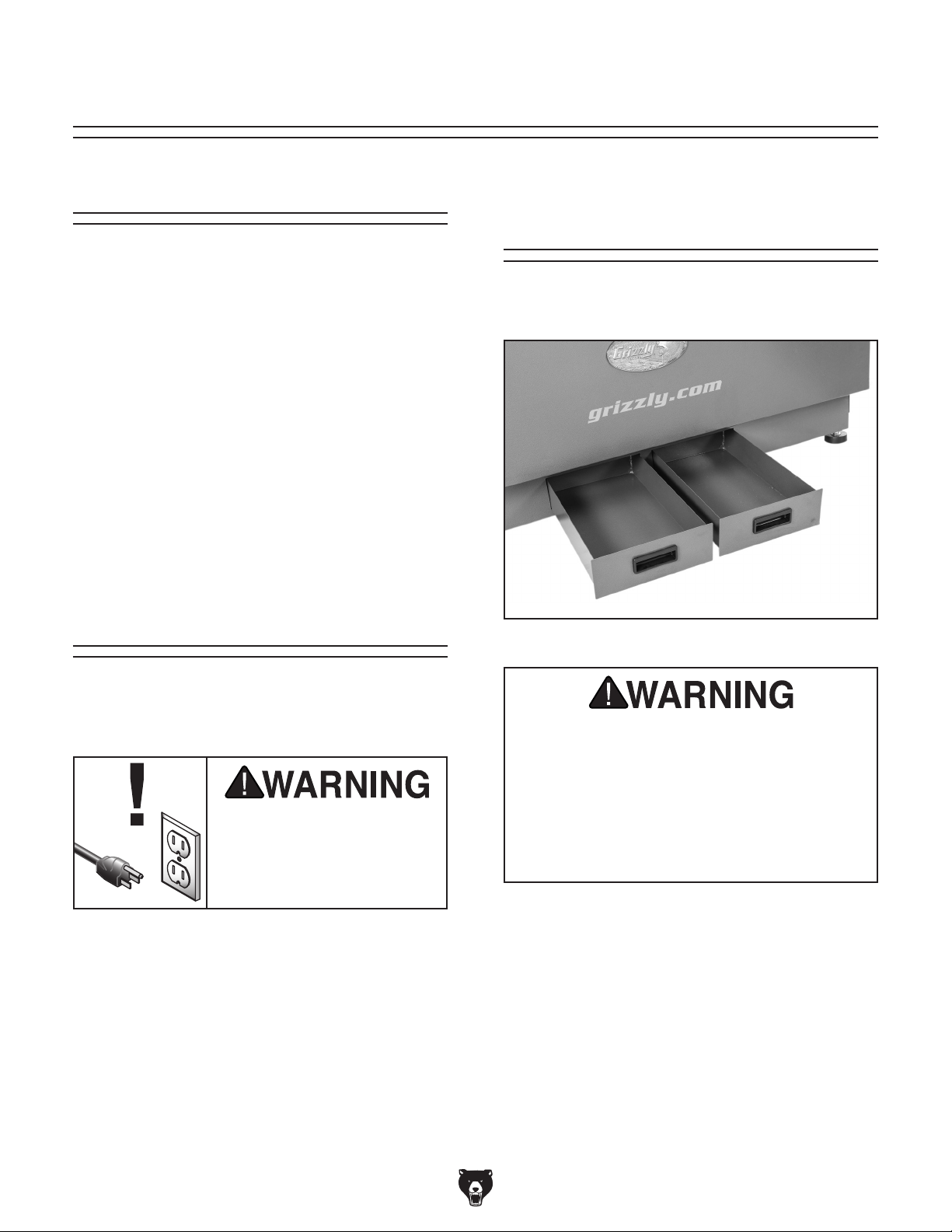

CLEANING DRAWERS. Wear safety glasses
and a NIOSH-approved respirator rated for the
waste metal type when emptying and cleaning
drawers. Empty only into an approved container,
taking care to minimize amount of dust allowed to
become airborne and prevent spread onto hands
or clothing. Dispose of waste properly.

HIGH-HAZARD MATERIAL. This machine does
NOT protect against highly hazardous materials,
such as lead dust, asbestos fibers, or radioactive
particles. These materials MUST be collected
with special filtration equipment because of their
high health/contamination hazard and difficulty of
filtration. DO NOT attempt to collect such materi­als with this machine.

SAFE OPERATING LOCATION. DO NOT place
downdraft table where it can be exposed to rain
or moisture exposure to water creates a shock
hazard and will reduce life of machine.

RISK OF FIRE/EXPLOSIONS. Fine metal dust
particles can ignite, depending on material type
and circumstances. Keep machine away from
pilot lights, open flames, or other ignition sources.
NEVER use near chemical fumes or within an
enclosed spray booth. NEVER use to capture
magnesium particles—as these particles can
ignite from exposure to water/moisture.

PROPERLY MAINTAIN MACHINE. Ke e p machine
in proper working condition to help ensure all
guards and other components work as intended
and function safely. Perform routine inspections
and all necessary maintenance, as indicated in
owner’s manual. Never operate machine with
damaged or worn parts. Never operate machine
with filters, guards, or covers removed.

-8-

Model G0798 (Mfd. Since 4/20)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

process. DO NOT connect to power until

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Availability

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Circuit Information

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V ...... 12 Amps

Model G0798 (Mfd. Since 4/20)

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Circuit Requirements for 110V

Nominal Voltage .................... 110V, 115 V, 120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 5-15

-9-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding Requirements

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

For 110V operation: This machine is equipped
with a power cord that has an equipment-ground­ing wire and a grounding plug (see following fig­ure). The plug must only be inserted into a match­ing receptacle (outlet) that is properly installed
and grounded in accordance with all local codes
and ordinances.

it will not fit the outlet, have a qualified
electrician install the proper outlet with a

GROUNDED

5-15 RECEPTACLE

Extension Cords

Grounding Pin

5-15 PLUG

Neutral Hot

Figure 1. Typical 5-15 plug and receptacle.

SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

verified ground.

-10 -

Model G0798 (Mfd. Since 4/20)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

The following items are needed, but not included,
for the setup/assembly of this machine.

Needed for Setup

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety glasses during
the entire setup process!

Description Qty

• Additional people ........................ As Needed

• Safety Glasses (for each person) ............... 1

• Forklift ......................................................... 1

• Phillips Screwdriver #2 ............................... 1

Unpacking

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

If items are damaged

call us immediately at [phone].

Save all packaging materials until

Model G0798 (Mfd. Since 4/20)

-11-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

B

C

Box 1 (Figure 2) Qty

A. Main Housing (Not Shown) ........................ 1

B. Suction Panels ........................................... 2

C. Handles ...................................................... 2

D. Hardware .................................................... 2

—Phillips Head Screws M6-1 x 15 ............. 4

—Flange Screws M5-.8 x 10 .................... 16

—Star Knobs .............................................. 2

E. Foot Pad Assemblies .................................6

E

Figure 2. Parts and hardware inventory.

D

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-12-

Model G0798 (Mfd. Since 4/20)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

= Power Connection

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

46"

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Wall

30" Minimum

Lighting around the machine must be adequate
enough that operations can be performed safely.

22"

23 3/4"

611/2"

Model G0798 (Mfd. Since 4/20)

108"

Figure 3. Minimum working clearances.

-13-

Lifting & Placing

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather
all
goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

Assembly

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

Keep the machine on its pallet and use a forklift
to place the machine next to its intended location.
With the help of several people, lift downdraft
table by bottom four corners and place into posi­tion on the floor (see Figure 4).

Needed for Setup

listed items. To ensure the assembly process

parts that are

To assemble downdraft table:

1. With help from another person, lay back of

downdraft table cabinet flat on floor.

Note: We recommend sweeping the floor

clean and laying down a piece of cardboard
or a blanket to prevent scratching the paint
during first step.

2. Thread (6) foot pads into bottom of downdraft
table, as shown in Figure 5.

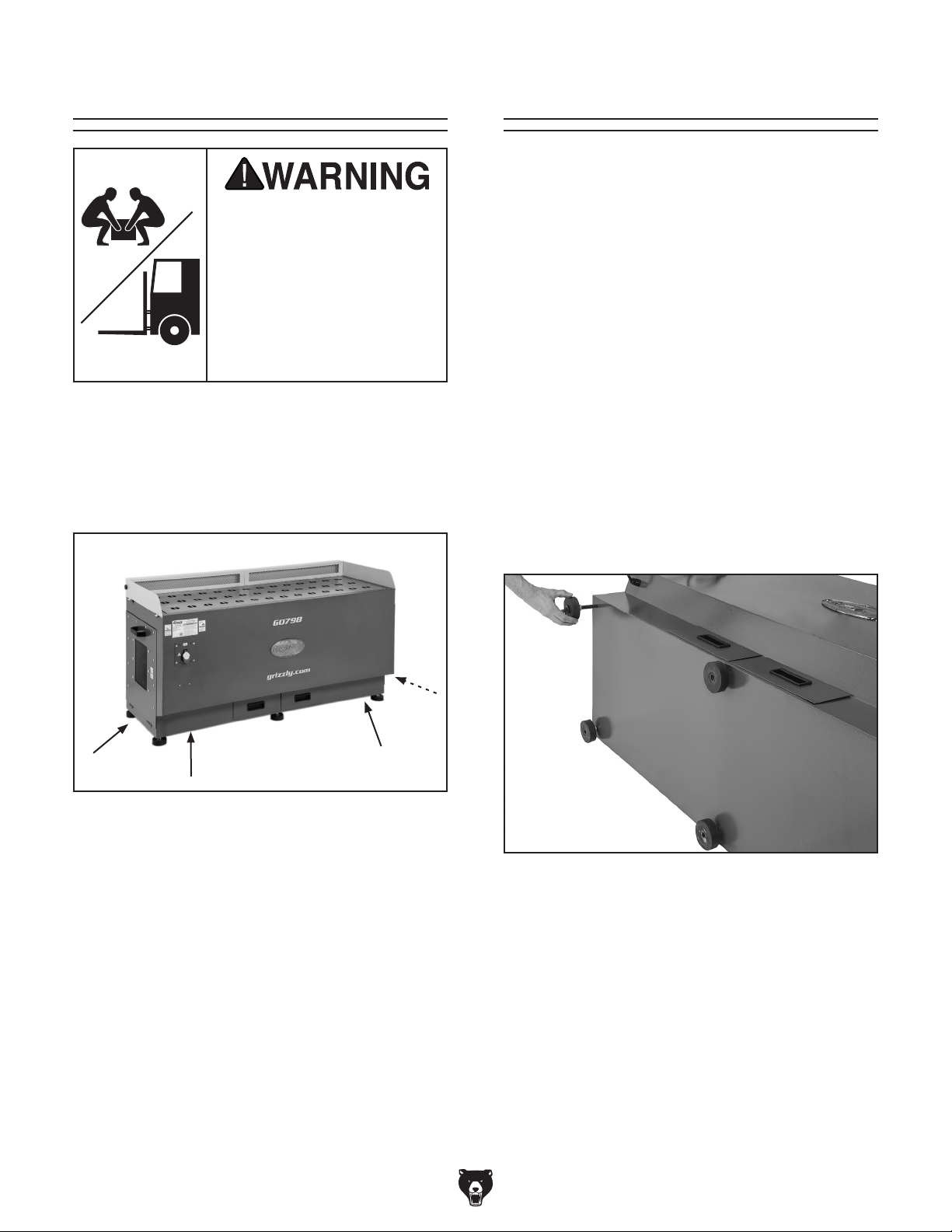

Figure 4. Lifting areas.

-14-

Figure 5. Installing foot pads.

3. Return downdraft table to upright position so

it rests on foot pads.

4. Ensure all six foot pads evenly touch floor.
Rotate individual footpads to adjust as
necessary.

5. Remove protective plastic wrapping and
cardboard from left and right suction panels.

Model G0798 (Mfd. Since 4/20)

6. Install suction panels on rear of downdraft

After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.

To avoid unexpected startups or property dam­age, use the following steps whenever connect­ing or disconnecting the machine from the power

1. Turn the machine power switch OFF.

2.

1. Turn the machine power switch OFF.

2.

Grasp the molded plug and pull it completely

table so screens face forward (see Figure 6).
Use (16) M5-.8 x 10 flange screws.

Suction Panel

Table Plate

Figure 6. Installed suction panels.

7. Tilt right panel up and attach star knob. Repeat

in similar manner on other side with remain­ing panel and star knobs (see Figure 6).

Power Connection

Connecting Power

Insert the power cord plug into a matching

power supply receptacle. The machine is
now connected to the power source.

8. Using (4) M6-1 x 15 Phillips head screws,
mount handles on motor access doors, as
shown in Figure 7.

Star Knob

Handle

Figure 7. Star knob and handle installed.

Figure 8. Connecting power.

Disconnecting Power

out of the receptacle. DO NOT pull by the
cord as this may damage the wires inside.

Model G0798 (Mfd. Since 4/20)

Figure 9. Disconnecting power.

-15-

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Troubleshooting

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Turn machine ON, verify motor operation,

and then turn machine OFF.

The motor should run smoothly and without

unusual problems or noises.

4. Remove switch-disabling key, as shown in
Figure 10.

may result in malfunction or unexpect-

death, or machine/property damage.

-16 -

Figure 10. Removing switch key from paddle

switch.

5. Try to start machine with paddle switch. The
machine should not start.

— If the machine does not start, the switch

disabling feature is working as designed.

— If the machine does start, immediately stop

the machine. The switch-disabling feature
is not working correctly. This safety fea­ture must work properly before proceeding
with regular operations. Call Tech Support
for help.

Model G0798 (Mfd. Since 4/20)

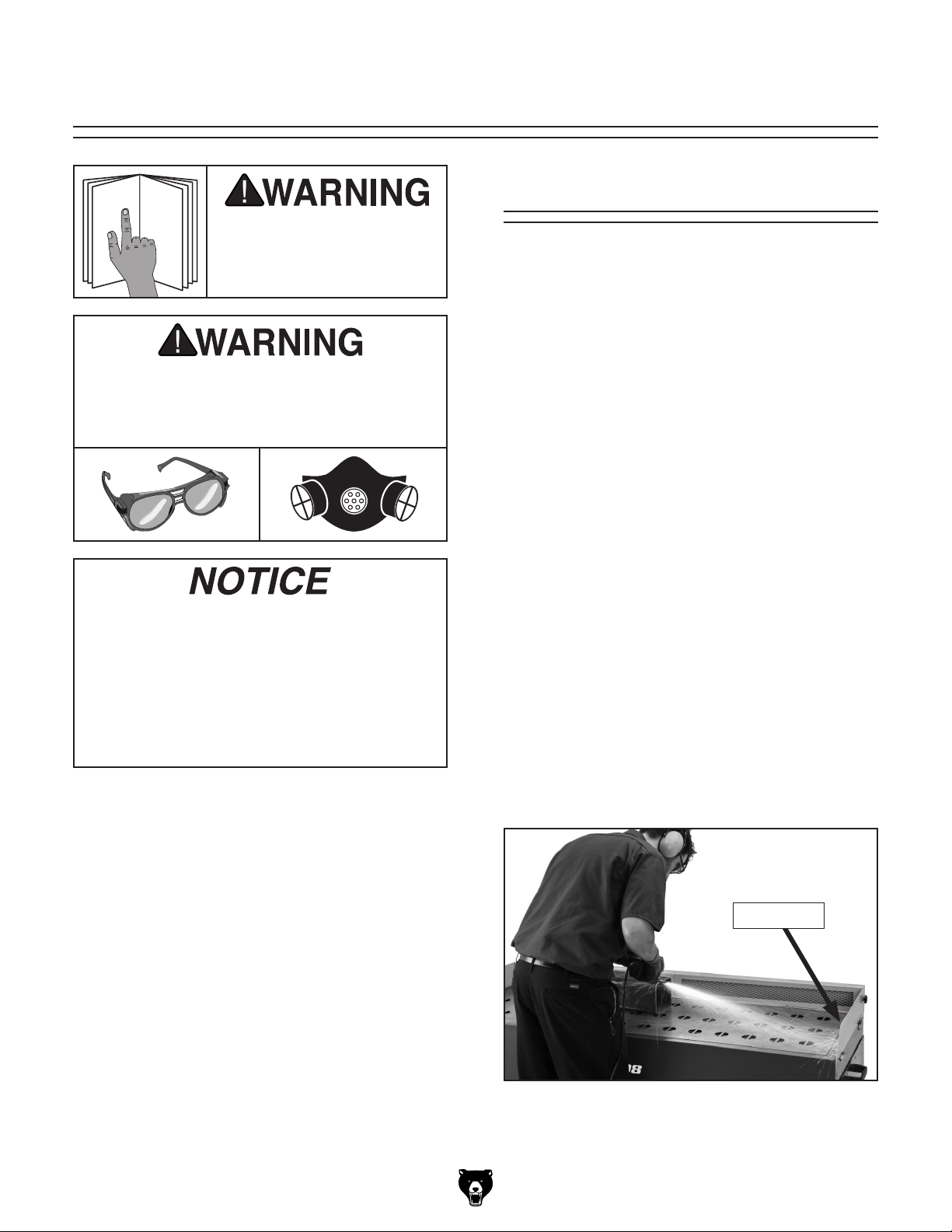

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

To reduce risk of eye injury from flying

Operation

This downdraft table features two separate 3⁄4

using machine.

HP, 110V, single-phase motors that draw dust
from the work table into a two-stage filter system,
virtually eliminating dust from the air. The side
panels can be latched in place or folded down to
make room for larger workpieces.

chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Dust is collected in two drawers that can be easily
removed at the front of the machine.

Always ensure objects have not fallen into or
between table plate and collection area. When
machine is not in use, remove safety key from ON/
OFF switch to avoid accidental start up.

To use downdraft table:

1. Place workpiece on table.

2. Place panels in upright position, latching

them with star knobs or folding side panels
down when working on larger pieces that
extend beyond the table.

3. Turn downdraft table ON and perform opera-
tion (see Figure 11).

4. Turn downdraft table OFF when finished.

Model G0798 (Mfd. Since 4/20)

Side Panel

Figure 11. Typical grinding operation.

-17-

SECTION 5: ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

T27576 —20" x 16" x 1" Metal Mesh Filter

A replacement metal mesh filter for the G0798
Downdraft Table. 2 pc.

T30299—20V 41⁄2” Angle Grinder
T30299X—20V 41⁄2” Angle Grinder w/Battery
T30299X1—20V 41⁄2” Angle Grinder w/Battery
and Charger
T30299X2—20V 41⁄2” Angle Grinder w/2
Batteries and Charger

Clean, sharpen, cut, sand and polish with this
handy tool. The Grizzly PRO™ Angle Grinder is
a great tool for your home, shop or jobsite. It is
powered by 2.0Ah Lithium-Ion batteries that are
low profile and incredible lightweight for all day
performance. The batteries can be used on all the
Grizzly PRO™ hand power tools and are easily
charged with a 2.4A Fast Charger.

Figure 13. Model T27576 Metal Mesh Filter.

Basic Eye Protection

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—“Kirova” Clear Safety Glasses
T20452—“Kirova” Anti-Reflective S. Glasses
T20456—DAKURA Safety Glasses, Black/Clear

T20502

T20503

T20452

T20451

T20456

Figure 14. Assortment of basic eye protection.

Figure 12. T30299 20V 41⁄2” Angle Grinder.

-18-

Model G0798 (Mfd. Since 4/20)

order online at www.grizzly.com or call 1-800-523-4777

H2499—Small Half-Mask Respirator
H3631—Medium Half-Mask Respirator
H3632—Large Half-Mask Respirator
H3635—Cartridge Filter Pair P100

Metal dust has been linked to nasal cancer and
severe respiratory illnesses. If you work around
dust everyday, a half-mask respirator can be a
lifesaver. Also compatible with safety glasses!

Figure 15. Half-mask respirator and disposable

cartridge filters.

H4978—Deluxe Earmuffs - 27dB
H4979—Twin Cup Hearing Protection - 29dB
T20446—Ear Plugs 200 Pair - 31dB

Protect your hearing before it's too late. Especially
important if you or employees operate for hours at
a time.

H8214 —Air Body Saw

This Air Body Saw features a compact design
and cuts sheet metal, rods, pipe, and light plate at
5000 strokes per minute with a 3/8" stroke length.
It is 10" in length without a blade and features a
safety paddle switch. Average air consumption is
2 CFM.

Figure 17. Model H8214 Air Body Saw.

T10456—Heavy-Duty Anti-Fatigue Mat

This Anti-Fatigue Mat features no-slip tread for
safety and comfort. Open-hole design allows liq­uid to drain. Perfect for wet and oily conditions.

H4978

H4979

Figure 16. Hearing Protection Assortment.

Model G0798 (Mfd. Since 4/20)

T20446

Figure 18. Model T10456 Anti-Fatigue Mat.

-19 -

SECTION 6: MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily Check

• Loose mounting bolts.

• Dust drawers

• Check/replace filters.

• Worn or damaged wires.

• Any other unsafe condition.

Monthly Check

• Clean/vacuum dust buildup from inside cabi­net and off motors.

Cleaning &

Protecting

Cleaning Dust

Drawers

Frequently monitor and empty the dust drawers
(see Figure 19).

Figure 19. Dust drawers.

Cleaning the Model G0798 is relatively easy.
Vacuum excess dust and wipe off the remaining
dust with a dry cloth.

maintenance, or service.

Wear safety glasses and a NIOSH-approved
respirator rated for the waste metal type
when emptying and cleaning drawers.
Empty only into an approved container, tak­ing care to minimize amount of dust allowed
to become airborne, and prevent spread
onto hands or clothing. Dispose of waste
properly.

-20-

Model G0798 (Mfd. Since 4/20)

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need

the

serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start or a fuse/
breaker trips.

1. Plug/receptacle at fault/wired wrong.

2. Switch disabling key removed.

3. Incorrect power supply voltage or circuit
size.

4. Power supply circuit breaker tripped or fuse
blown.

5. ON/OFF switch at fault.

6. Start capacitor at fault.

1. Test for good contacts; correct the wiring.

2. Install switch disabling key.

3. Ensure correct power supply voltage and circuit
size.

4. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

5. Replace switch.

6. Test/replace.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Filter element at fault.

2. Motor wired incorrectly.

3. Motor overheated.

4. Run capacitor at fault.

1. Motor or component loose.

2. Motor mount loose/broken.

3. Motor bearings at fault.

1. Filter element at fault.

2. Motor wired incorrectly.

3. Motor overheated.

4. Run capacitor at fault.

1. Inspect/replace damaged bolts/nuts, and retighten
with thread locking fluid.

2. Tighten/replace.

3. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

Operations

Symptom Possible Cause Possible Solution

Downdraft table
does not adequately
collect dust; poor
performance.

1. Dust collection drawer is full.

2. Filter is dirty.

1. Empty collection drawers.

2. Knock dust off filter; replace with new filter.

Model G0798 (Mfd. Since 4/20)

-21-

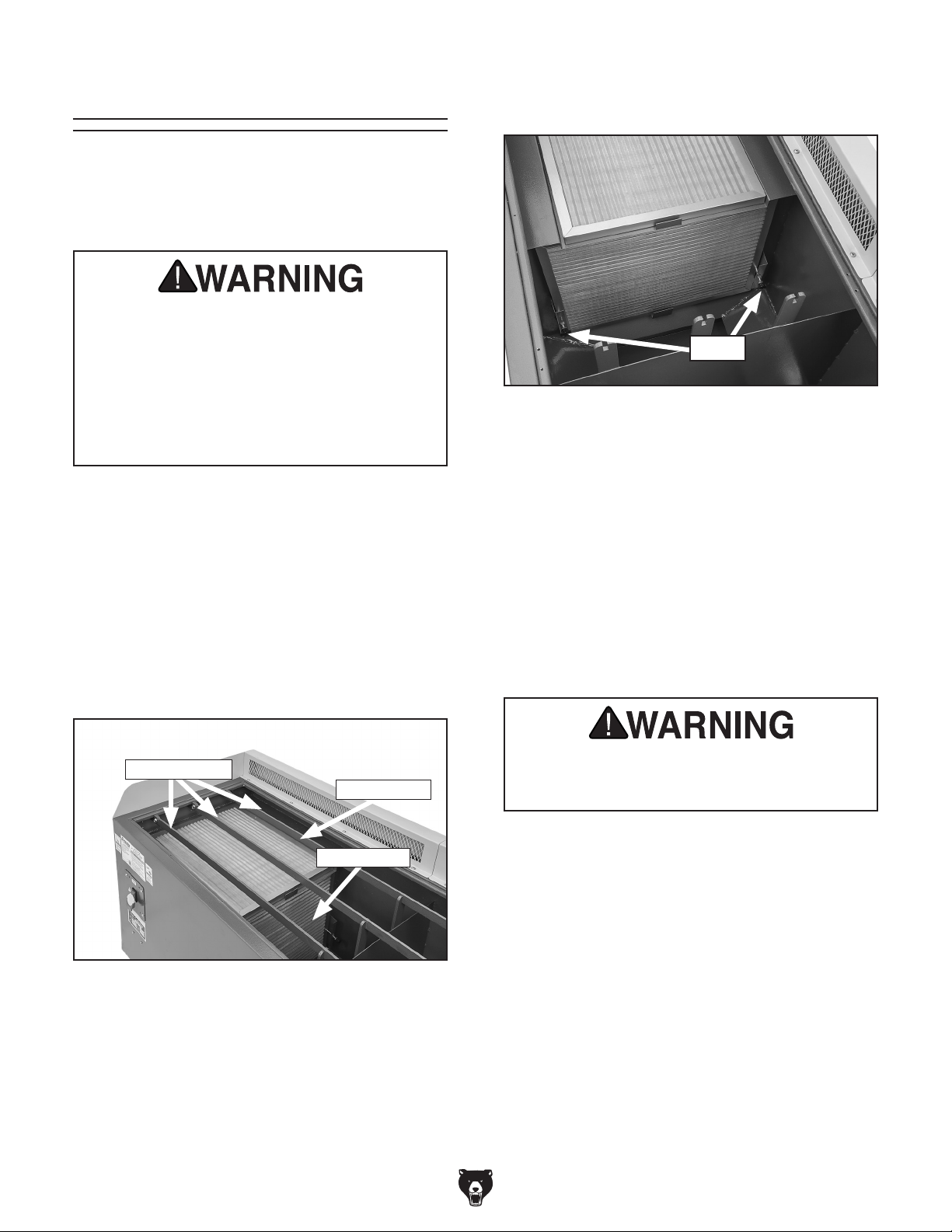

Replacing Filters

The filters need to be replaced when suction
becomes noticeably reduced. The amount of
use has a direct bearing on how often you must
change the filters.

Wear safety glasses and a NIOSH-approved
respirator rated for the waste metal type
when emptying and cleaning drawers.
Empty only into an approved container, tak­ing care to minimize amount of dust allowed
to become airborne, and prevent spread
onto hands or clothing. Dispose of waste
properly.

3. Loosen filter knobs counterclockwise to

remove lower filters (see Figure 21).

Knobs

Figure 21. Lower filters secured by knobs.

4. Remove both filters and gently knock the dust

off inside a garbage can.

Tools Needed: Qty

A. Phillips Screwdriver #2 ............................... 1

B. Wrench 13mm ............................................ 1

To replace filters:

1. DISCONNECT MACHINE FROM POWER!

2. Remove table plate and all three support bars

(see Figure 20).

Support Bars

Upper Filter

Lower Filter

Note: This technique will work two or three

times before filters must be replaced.

5. Re-install filters. All four filters are identical
in size and can be placed in any designated
spaces.

6. Re-install filter knobs, support bars, and table
plate.

Never operate machine with damaged or
worn parts. Never operate machine with
filters, guards, or covers removed.

Figure 20. Support bars before removal.

-22-

Model G0798 (Mfd. Since 4/20)

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

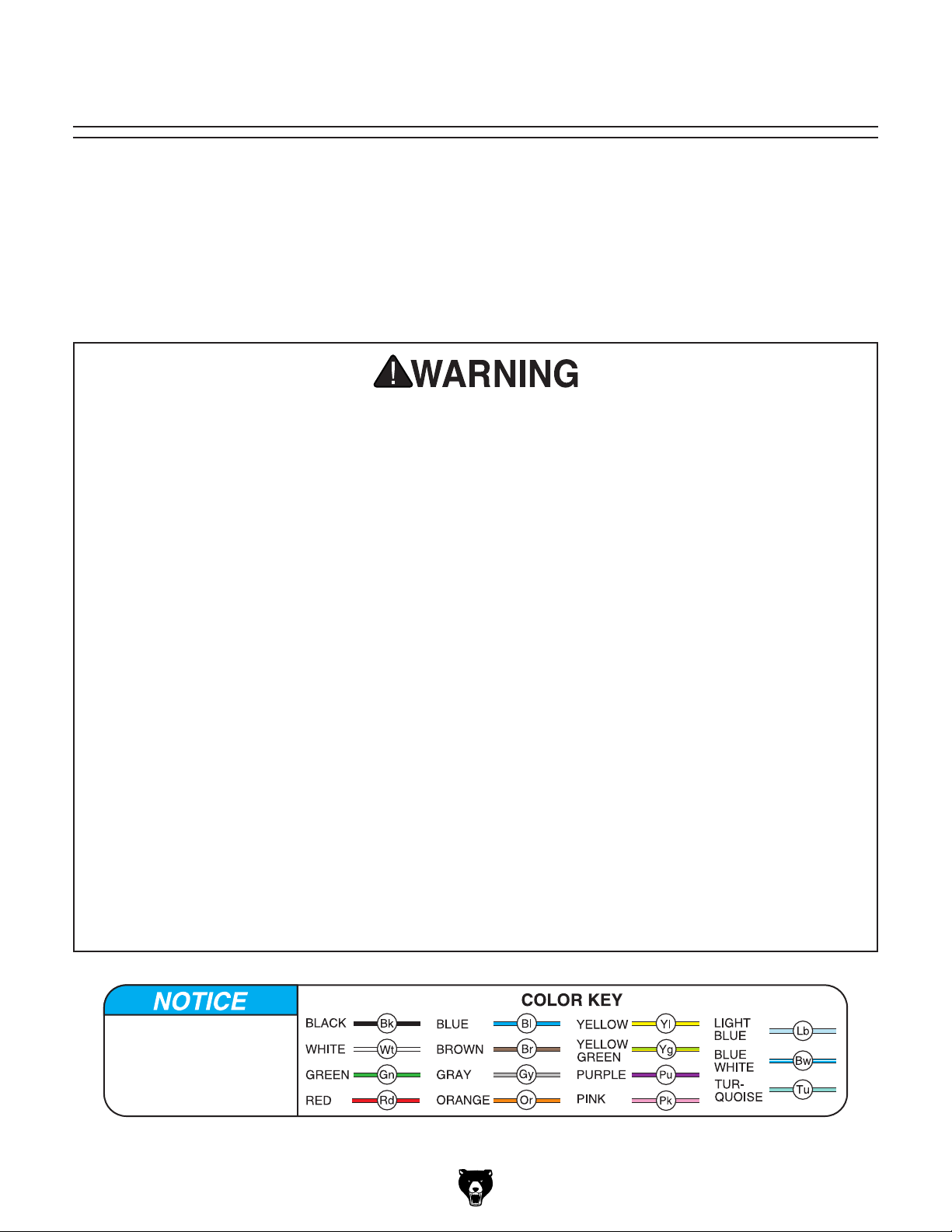

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

Model G0798 (Mfd. Since 4/20)

-23-

Electrical Components

Switch

Box

ON/OFF

Switch

Figure 22. ON/OFF switch wiring.

Terminal Bar

Dust Box

To Terminal

Bar

Left Side

Motor

Figure 25. Switch box and terminal dust box.

To Right

Side Motor

-24-

Figure 23. Left motor wiring.

Right Side

Figure 24. Right motor wiring.

READ ELECTRICAL SAFETY

ON PAGE 23

Motor

To

Switch

Box

Figure 26. Terminal wiring with dust box

removed.

Model G0798 (Mfd. Since 4/20)

To Left

Side Motor

Wiring Diagram

PADDLE SWITCH

(viewed from behind)

Terminal
Dust Box

JiHong

9301A
21(20) 125VAC
12(12) 250VAC

Ground

Right Motor

Ground

4

Run

3

2

1

Capacitor

30MFD

250VAC

Left Motor

Model G0798 (Mfd. Since 4/20)

Hot

Neutral

Ground

Run

Capacitor

30MFD

250VAC

5-15 Plug

110 VAC

READ ELECTRICAL SAFETY

ON PAGE 23

-25-

8

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

Breakdown

7V2

1

15

33

6

36

14

5

13

28

57

10

34

11

2V2

7V2

56

55

8

9

18

23

25

26

30

31

32

10

27

50
49

1

1

24

28

29

22

47

21

21

19

48

20

18

17

1

22

36

53

37

-26-

35

38

15

44
43
42

41

40

14

13

10

11

16V3

39

36

56

7V2

54V2

10

55

8

9

50

49

2V2

7V2

Model G0798 (Mfd. Since 4/20)

5

6

Parts List

REF P ART # DES CRIP TI ON REF P ART # DES CRIP TI ON

1 P0798001 HINGE PIN 6 X 66MM 29 P0798029 SAFETY PADDLE SWITCH W/KEY
2V2 P0798002V2 LEFT OUTLET COVER V2.11.16 30 P0798030 EXT TOO TH WASHER 4MM
5 P0798005 COVER HA NDLE 31 P0798031 HEX NUT #10-24
6 P0798006 PHLP HD SCR 1/4-20 X 5/8 32 P0798032 PHLP HD SCR 10-24 X 1/2
7V2 P0798007V2 FLANGE BOLT 5/ 16-18 X 3/4 V2.04.17 33 P0798033 TERMINAL BAR 4P
8 P0798008 BLOWER HOUSING 34 P0798034 SWITCH BOX CORD 16G 3W 12"
9 P0798009 IMPELLER 35 P0798035 POWER CORD 14G 3W 72" 5-15P
10 P0798010 FLAT WASHER 1/4 36 P0798036 STRAI N RELIEF TYPE-3 M16-1.5
11 P0798011 SPACER 37 P0798037 DRAWER HANDL E
13 P0798013 LOCK WASHER 1/4 38 P0798038 DRAWER
14 P0798014 HEX BOLT 1/ 4-20 X 1-1/4 39 P0798039 MOTOR CORD 16G 3W 100" (RIGHT)
15 P0798015 MOTOR 3/4HP 110V 1-PH 40 P0798040 CAP SCREW 1/2-13 X 4
16V3 P0798016V3 MAIN HOUSING V3.04.20 41 P0798041 RUBBER FOOT PAD
17 P0798017 RIGHT P ANEL 42 P0798042 FENDER WAS HER 1/ 2
18 P0798018 STAR KNOB 1/4-20 X 3/ 4 43 P0798043 LOCK NUT 1/2-13
19 P0798019 PHLP HD SCR 10-24 X 3/8 44 P0798044 HEX NUT 1/2-13

20 P0798020 FLANGE SCREW 10-24 X 3/8 47 P0798047 SUPPORT BAR
21 P0798021 CENTER SUCTI ON PANE L 48 P0798048 TOP SUCTION PLATE
22 P0798022 FILTER 20" X 16" X 1" 200-MICRON 49 P0798049 PHLP HD SCR M6-1 X 12
23 P0798023 LEFT PANEL 50 P0798050 HEX NUT M6 -1
24 P0798024 FLANGE BOLT 5/16-18 X 1/ 2 53 P0798053 MOTOR CORD 16G 3W 16" (LEFT)
25 P0798025 SWI TCH B OX 54V2 P0798054V2 RIGHT OUTLET COVER V2.11.16
26 P0798026 SWI TCH P LATE 55 P0798055 LOCK NUT 5/16-18
27 P0798027 FLANGE SCREW 10-24 X 1/2 56 P0798056 FLAT WASHER 5/16
28 P0798028 TAP SCREW M4 X 16 57 P0798057 TERMI NA L BAR DUST B OX

Model G0798 (Mfd. Since 4/20)

-27-

COPYRIGHT © GRIZZLY INDUSTRIAL, INC.

Grizzly will not accept labels changed without approval. If

PANTONE 7527 C

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before servicing or changing filters,
and make sure impeller stops moving before opening
cover.

5. Do not expose to rain or use in damp areas.

6. Do not make unapproved modifications to downdraft
table, or use without filters in place.

7. Never leave machine unattended during operation.

8. Do not use if cord, plug, or any other electrical equipment
becomes damaged—promptly repair!

9. Prevent unauthorized use by children or untrained users.

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance,
service, or opening.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before servicing or changing filters,
and make sure impeller stops moving before opening
cover.

5. Do not expose to rain or use in damp areas.

6. Do not make unapproved modifications to downdraft
table, or use without filters in place.

7. Never leave machine unattended during operation.

8. Do not use if cord, plug, or any other electrical equipment
becomes damaged—promptly repair!

9. Prevent unauthorized use by children or untrained users.

Date

S/N

WARNING!

EYE/LUNG INJURY

HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance,
service, or opening.

(10/06/15)

• Scale= 1:1
(unless otherwise noted)

• Labels MUST be made of
chemical-resistant material

WARNING!

• Scale= 1:1
(unless otherwise noted)

• Labels MUST be made of
chemical-resistant material

103

104

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call [phone] or
go to www.grizzly.com.

Specifications

Motors: 3/4 HP (x2), 110V, 1-Ph, 60 Hz, 12A
Air Suction Capacity: 3700 CFM
Filter Size: 16" x 20" x 1"
Filter Micron: 200
Impeller: 9-1/2" x 7" Squirrel Cage
Table Load Capacity: 440 lbs.
Weight: 300 lbs.

Date

S/N

Mfd. for Grizzly in Taiwan

Labels & Cosmetics

105

MODEL G0798

24" x 62" METALWORKING

DOWNDRAFT TABLE

WARNING!

To reduce risk of serious personal injury when using:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before servicing or changing filters,
and make sure impeller stops moving before opening
cover.

5. Do not expose to rain or use in damp areas.

6. Do not make unapproved modifications to downdraft
table, or use without filters in place.

7. Never leave machine unattended during operation.

8. Do not use if cord, plug, or any other electrical equipment
becomes damaged—promptly repair!

9. Prevent unauthorized use by children or untrained users.

106

WARNING!

EYE/LUNG INJURY

HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.

102

107

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0798101 TOUCH-UP PAINT GRIZZLY GREEN 106 P0798106 GLASSES/RESPIRATOR LABEL
102 P0798102 INJURY/SHOCK HAZARD LABEL 107 P0798107 TOUCH-UP PAINT PUTTY
103 P0798103 ELECTRICITY LABEL 108 P0798108 GRIZZLY NAMEPLATE-LARGE
104 P0798104 READ MANUAL LABEL 109 P0798109 GRIZZLY.COM LABEL
105 P0798105 MACHINE ID LABEL 110 P0798110 MODEL NUMBER LABEL

102

service, or opening.

INJURY/SHOCK

HAZARD!
Disconnect power
before adjustments,
maintenance,

101

grizzly.com

110 109

108

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

-28-

Model G0798 (Mfd. Since 4/20)

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

In the event you need to use this warranty, contact us by mail or phone and give us all the details. We will
then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of
the carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

To

warranty-card

registration page

take advantage of this warranty, you must register it at https://www.grizzly.com/secureforms/

, or you can scan the QR code below to be automatically directed to our warranty

. Enter all applicable information for the product.

WARRANTY
