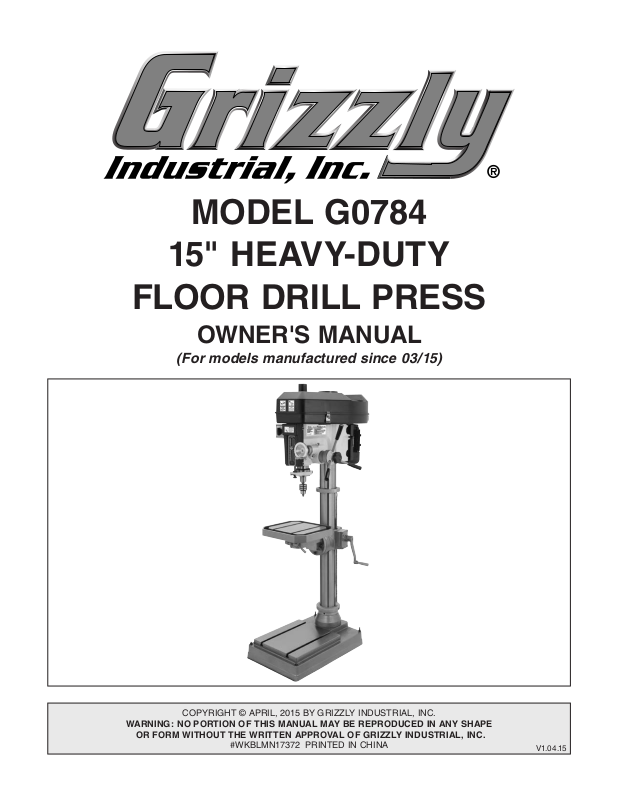

MODEL G0784

15" HEAVY-DUTY

FLOOR DRILL PRESS

OWNER'S MANUAL

(For models manufactured since 03/15)

COPYRIGHT © APRIL, 2015 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#WKBLMN17372 PRINTED IN CHINA

V1. 0 4 .15

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Model G0784 (Mfd. since 03/15)

Table of Contents

INTRODUCTION ............................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Machine Data Sheet ...................................... 5

SECTION 1: SAFETY ....................................... 7

Safety Instructions for Machinery .................. 7

Additional Safety for Drill Presses ................. 9

SECTION 2: POWER SUPPLY ...................... 10

SECTION 3: SETUP ....................................... 12

Unpacking .................................................... 12

Needed for Setup ......................................... 12

Inventory ...................................................... 12

Cleanup ........................................................ 13

Site Considerations ...................................... 14

Lifting & Placing ........................................... 15

Anchoring to Floor ....................................... 15

Joining Drill Chuck & Arbor .......................... 16

Power Connection........................................ 16

Test Run ...................................................... 17

Spindle Break-In .......................................... 18

SECTION 5: ACCESSORIES ......................... 26

SECTION 6: MAINTENANCE ......................... 28

Schedule ...................................................... 28

Cleaning and Protecting .............................. 28

Lubrication ................................................... 29

V-Belts ......................................................... 29

SECTION 7: SERVICE ................................... 30

Troubleshooting ........................................... 30

Tensioning Return Spring ............................ 32

Calibrating Depth Stop ................................. 32

SECTION 8: WIRING ...................................... 33

Wiring Safety Instructions ............................ 33

Electrical Components ................................ 34

Wiring Diagram ............................................ 35

SECTION 9: PARTS ....................................... 36

Main Breakdown .......................................... 36

Base Breakdown .......................................... 39

Accessories .................................................. 41

Labels & Cosmetics ..................................... 42

WARRANTY & RETURNS ............................. 45

SECTION 4: OPERATIONS ........................... 19

Operation Overview ..................................... 19

Calculating Spindle Speed for Drilling ......... 20

Changing Spindle Speed ............................. 21

Using Spindle Downfeed Controls ............... 22

Installing/Removing Tooling ......................... 22

Adjusting Headstock Position ...................... 24

Setting Depth Stop ....................................... 24

Positioning Table ......................................... 25

-1-

Model G0784 (Mfd. since 03/15)

INTRODUCTION

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the

from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta­tion is available for your machine.

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

Contact Info

and manufacture date from the

Grizzly Technical Support

1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Model G0784 (Mfd. since 03/15)

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

N

E

D

C

B

A

F

G

H

M

L

K

O

P

Q

R

J

I

S

T

U

A. Table Tilt Clamp
B. Table Lock Handles
C. Quill Lock Handle
D. Headstock Elevation Crank
E. Belt Cover
F. Fine Downfeed Handwheel
G. Table
H. Pivot Lock Handle
I. Chuck
J. Spindle
K. Depth Stop Adjustment Knob

L. Depth Stop Scale
M. Spindle Direction Switch
N. Drawbar Cap
O. Motor
P. Motor Locking Lever
Q. Coarse Downfeed Lever
R. Column
S. Rack
T. Table Elevation Crank
U. Base

-3-

Model G0784 (Mfd. since 03/15)

Controls &

To reduce your risk of
serious injury, read this
entire manual BEFORE

Components

using machine.

Refer to Figures 1–3 and the following descrip­tions to become familiar with the basic controls of
this machine.

F. Coarse Downfeed Levers: Provide coarse

vertical control over spindle when pulled
down. Automatically returns spindle to start­ing position when released.

G. Downfeed Selector Knob: Engages/disen-

gages fine downfeed handwheel.

I

Headstock

D

C

B

A

Figure 1. Headstock controls (right).

A. Depth Stop Adjustment Knob: Positions

depth stop height.

B. Depth Scale: Indicates drilling depth and

position of depth stop.

C. Depth Stop: Stops spindle travel at pre-

determined depth.

G

E

F

H

Figure 2. Headstock controls (left).

H. Headstock Elevation Crank: Changes ele-

vation of entire headstock along column.

I. Fine Downfeed Handwheel: When rotated,

provides fine vertical control in either direc­tion of spindle travel.

J. Quill Lock: Locks quill in position.

J

Table

L

K

M

D. Spindle Direction Switch: Turn s spindle ON

and OFF, and controls direction of spindle
rotation.

E. Motor Locking Lever: When loosened,

allows adjustment of motor position when
changing spindle speeds. When tightened,
locks motor in position to maintain belt ten­sion.

-4-

Figure 3. Table controls (from below).

K. Table Lock Handles: Secure table assem-

bly in place along column. Loosen to raise
or lower table, or to rotate table assembly
around column.

L. Pivot Lock Handle: Allows table to rotate

freely when loosened.

M. Table Elevation Crank: Changes elevation

of table assembly.

Model G0784 (Mfd. since 03/15)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0784 15" HEAVY‐DUTY FLOOR DRILL PRESS

Product Dimensions:

Weight.............................................................................................................................................................. 662 lbs.

Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 23 x 35-1/2 x 67 in.

Footprint (Length x Width)............................................................................................................................ 26 x 18 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight.............................................................................................................................................................. 772 lbs.

Length x Width x Height....................................................................................................................... 34 x 30 x 73 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 8.6A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 6-1/2 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type..................................................................................................................................... 6-15

Switch Type........................................................................................................................... Forward/Reverse Switch

Motors:

Main

Type................................................................................................................... TEFC Capicitor-Start Induction

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 8.6A

Speed................................................................................................................................................ 1720 RPM

Power Transfer ............................................................................................................................... V-Belt Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation Information

Type........................................................................................................................................................... Floor

Swing......................................................................................................................................................... 15 in.

Spindle Taper............................................................................................................................................... R-8

Spindle Travel........................................................................................................................................5-1/8 in.

Max. Distance From Spindle to Column................................................................................................ 7-1/2 in.

Max. Distance From Spindle to Table................................................................................................. 28-1/4 in.

Number of Spindle Speeds............................................................................................................................. 12

Range of Spindle Speeds........................................................................................................ 140 – 2436 RPM

Drilling Capacity (Mild Steel)................................................................................................................. 1-1/8 in.

Drill Chuck Type........................................................................................................................................... B16

Drill Chuck Size............................................................................................................................. 1/64 – 1/2 in.

-5-

Model G0784 (Mfd. since 03/15)

Spindle Information

Distance From Spindle to Base........................................................................................................... 45-1/4 in.

Quill Diameter............................................................................................................................ 75mm (2.95 in.)

Table Information

Max. Table Tilt (Left/Right)..................................................................................................................... 60 deg.

Table Swivel Around Center................................................................................................................. 360 deg.

Table Swivel Around Column............................................................................................................... 360 deg.

Max. Movement of Work Table............................................................................................................ 23-1/2 in.

Table Length.............................................................................................................................................. 15 in.

Table Width................................................................................................................................................ 14 in.

Table Thickness.................................................................................................................................... 1-5/8 in.

Vertical Table Travel.................................................................................................... Crank Handle Operation

Number of T-Slots............................................................................................................................................ 2

T-Slot Size................................................................................................................................................ 1/2 in.

T-Slot Centers................................................................................................................................. 10-13/16 in.

Floor-To-Table Height........................................................................................................... 18-1/2 – 41-3/4 in.

Construction

Table.................................................................................................................................................... Cast Iron

Column................................................................................................................................................. Cast Iron

Spindle Housing................................................................................................................................... Cast Iron

Head.................................................................................................................................................... Cast Iron

Base..................................................................................................................................................... Cast Iron

Paint Type/Finish.................................................................................................................................... Enamel

Other Related Information

Base Length........................................................................................................................................ 25-1/2 in.

Base Width.......................................................................................................................................... 17-1/2 in.

Column Diameter................................................................................................................................... 4-1/2 in.

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Serial Number Location ................................................................................................................... ID Label on Head

ISO 9001 Factory .................................................................................................................................................. Yes

Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

Features:

Solid cast-iron construction
12 speeds
Two T-slots accommodate 1/2" clamping kit
2 HP motor
R-8 spindle taper

-6-

Model G0784 (Mfd. since 03/15)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-7-

Model G0784 (Mfd. since 03/15)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec­ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8-

Model G0784 (Mfd. since 03/15)

Additional Safety for Drill Presses

EYE/FACE/HAND PROTECTION. A face shield

used with safety glasses is recommended. Always
keep hands and fingers away from the drill bit.
Never hold a workpiece by hand while drilling! DO
NOT wear gloves when operating the drill.

SECURING BIT. Properly tighten and securely
lock the drill bit in the chuck.

CORRECT BIT. Use only round, hex, or triangular
shank drill bits.

ADJUSTING KEYS AND WRENCHES. Remove
all adjusting keys and wrenches before turning the
machine ON.

DRILLING SHEET METAL. Never drill sheet
metal unless it is securely clamped to the table.

SURFACE/WORKPIECE PREP. Never turn the
drill press ON before clearing the table of all
objects (tools, scrap wood, etc.) DO NOT drill
material that does not have a flat surface, unless
a suitable support is used.

DRILL OPERATION. Never start the drill press
with the drill bit pressed against the workpiece.
Feed the drill bit evenly into the workpiece. Back
the bit out frequently to clear deep holes.

CLEARING CHIPS. Turn the machine OFF and
clear chips and scrap pieces with a brush.
Disconnect power, remove drill bit, and clean
table before leaving the machine.

OPERATING SPEED. Always operate your drill
press at speeds that are appropriate for the drill
bit size and the material that you are drilling.

MOUNTING WORKPIECES. Use clamps or vises
to secure workpiece before drilling. Position work
so you avoid drilling into the table.

TABLE LOCK. Make sure the table lock is tight­ened before starting the drill press.

MAINTENANCE/SPEED CHANGES. Never
change speeds or do maintenance with the
machine connected to power.

DAMAGED TOOLS. Never use drill bits in poor
condition. Dull or damaged drill bits are hard to
control and may cause serious injury.

Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, serious
personal injury may occur.

EXPERIENCING DIFFICULTIES. If at any time

you are experiencing difficulties performing the
intended operation, stop using the machine!
Contact our Technical Support at [phone].

No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per­sonal injury, damage to equipment, or poor
work results.

-9-

Model G0784 (Mfd. since 03/15)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

Availability

Electrocution, fire, shock,

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .........208V, 220V, 230V, 240V

Cycle .......................................................... 60 Hz

Phase .................................................... 1-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

Full-Load Current Rating .................. 8.6 Amps

-10 -

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

Model G0784 (Mfd. since 03/15)

We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with
a new one.

Serious injury could occur if you connect

process. DO NOT connect to power until

Grounding Instructions

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

The power cord and plug specified under “Circuit
Requirements for 220V”
has an equipment-grounding wire and a ground­ing prong. The plug must only be inserted into
a matching receptacle (outlet) that is properly
installed and grounded in accordance with all
local codes and ordinances (see figure below).

No adapter should be used with plug. If
plug does not fit available receptacle, or if

process. DO NOT connect to power until

on the previous page

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect
machine to power before completing setup

instructed later in this manual.

Grounding Prong

Figure 4. Typical 6-15 plug and receptacle.

machine to power before completing setup

instructed later in this manual.

machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

-11-

Model G0784 (Mfd. since 03/15)

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT:

you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

Keep children and pets away
from plastic bags or packing
materials shipped with this

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

Unpacking

If items are damaged

call us immediately at [phone].

Save all packaging materials until

SUFFOCATION HAZARD!

machine. Discard immediately.

Needed for Setup

Inventory

Box 1 (Figure 5) Qty

A. Toolbox ....................................................... 1

B. Bottle for Oil ............................................... 1

C. Lug Wrench 20/25mm ................................ 1

D. Open-End Wrench 17/19mm ...................... 1

E. Hex Wrenches 3, 4, 5mm ........................... 3

F. T-bolts M14-2 x 55 ...................................... 2

—Hex Nuts M14-2 ...................................... 2

—Flat Washers 14mm ................................ 2

G. Drift Key ...................................................... 1

H. Spindle Sleeve MT#3–MT#2 ...................... 1

I. Spindle Sleeve R-8–MT#3 ......................... 1

J. Drill Chuck Arbor R8-B16 ........................... 1

K. Drill Chuck B16 1–13mm ............................ 1

L. Chuck Key .................................................. 1

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Additional People ....................................... 1

• Safety Glasses ........................................... 1

• Cleaner/Degreaser (Page 13) .... As Needed

• Disposable Shop Rags ............... As Needed

• Forklift ......................................................... 1

• Lifting Sling (Rated 1000 lbs. Minimum)..... 2

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

-12-

NOTICE

A

J

I

K

L

Figure 5. Toolbox inventory.

B

C

D

E

H

G

F

Model G0784 (Mfd. since 03/15)

The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.

There are many ways to remove this rust preven­tative, but the following steps work well in a wide
variety of situations. Always follow the manufac­turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Av o i d
using these products
to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak
for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

acetone or brake parts cleaner, that may
damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping
grease from your machine during clean up.

Figure 6. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality
metal protectant to prevent rust.

-13-

Model G0784 (Mfd. since 03/15)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.

Electrical Installation

Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or
apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate
enough that operations can be performed safely.

35 1⁄2 "

-14-

30" Minimum

for Maintenance

Figure 7. Minimum working clearances.

23"

Model G0784 (Mfd. since 03/15)

Lifting & Placing

get help from other people

Anchoring machinery to the floor prevents tipping
or shifting and reduces vibration that may occur
during operation, resulting in a machine that runs
slightly quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connect­ed (hardwired) to the power supply, local codes
may require that it be anchored to the floor.

If not required by any local codes, fastening the
machine to the floor is an optional step. If you
choose not to do this with your machine, we rec­ommend placing it on machine mounts, as these
provide an easy method for leveling and they have
vibration-absorbing pads.

Lag shield anchors with lag screws (see below)
are a popular way to anchor machinery to a con­crete floor, because the anchors sit flush with the
floor surface, making it easy to unbolt and move
the machine later, if needed. However, anytime
local codes apply, you MUST follow the anchoring
methodology specified by the code.

Anchoring to Floor

HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,

and use a forklift (or other
lifting equipment) rated for
weight of this machine.

To move and place drill:

1. Place shipping crate near final machine

mounting location.

2. Remove top portion of crate from the shipping
pallet, place lifting slings around headstock
(see Figure 8), and attach them securely to
forklift (or other power lifting equipment).

Number of Mounting Holes ............................ 4

Diameter of Mounting Hardware .................

5

⁄8"

Anchoring to Concrete Floors

Note: Be sure slings are far enough apart to

avoid putting pressure on belt cover; other­wise, it can become damaged from the force
of the slings while lifting.

Figure 8. Lifting slings properly wrapped around

headstock and positioned to avoid damage to

belt cover while lifting.

3. Unbolt machine from pallet.

4. With another person to help to steady

machine, lift it just enough to clear pallet and
any floor obstacles, then place it in its final
position on shop floor.

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 9. Popular method for anchoring

machinery to a concrete floor.

Lag Shield Anchor

Drilled Hole

-15-

Model G0784 (Mfd. since 03/15)

Joining Drill Chuck

An arbor is included for the drill chuck that
comes with this machine. The following procedure
describes how to install the arbor in the chuck.

After the arbor is installed in the drill chuck, it
is very difficult to separate the assembly. If you
would like to use a different chuck in the future,
we recommend obtaining a new arbor.

Important: DO NOT install the drill chuck
and arbor assembly into the spindle until AFTER
the test run.

To join drill chuck and arbor:

1.

clean drill

2.

3.

4.

5. Attempt to separate drill chuck and arbor by
hand —if they separate, repeat Steps 3–4.

& Arbor

Use acetone or lacquer thinner to
chuck and arbor mating surfaces, especially
the bore.

Retract chuck jaws completely into chuck.

Insert small end of arbor into chuck.

Hold assembly by the arbor and tap chuck
onto a block of wood with medium force, as
illustrated below.

Power Connection

Electrocution or fire may
occur if machine is
ungrounded, incorrectly
connected to power, or
connected to an under­sized circuit. Use an electri­cian or a qualified service
personnel to ensure a safe
power connection.

Before the machine can be connected to the
power supply, there must be an electrical cir­cuit that meets the Circuit Requirements on
Page 10, and the correct plug must be installed
according to the instructions and wiring diagrams
provided by the plug manufacturer.

If the plug manufacturer did not include instruc­tions, the wiring of a generic NEMA 6-15 plug is
illustrated in the Wiring section on Page 35.

To minimize the risk of electrocution, fire, or equip­ment damage, installation work and electrical wir­ing MUST be done by an electrician or qualified
service personnel.

Figure 10. Joining drill chuck and arbor.

-16 -

Note About Extension Cords: Using an incor-
rectly sized extension cord may decrease the life
of electrical components on your machine. Refer
to Extension Cords on Page 11 for more infor­mation.

Model G0784 (Mfd. since 03/15)

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Rotate spindle switch to RIGHT position

to turn spindle ON. The motor should run
smoothly and without unusual problems or
noises.

Troubleshooting

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

4. Rotate spindle switch to STOP position to

turn spindle OFF. Allow spindle to come to a
complete stop.

5. Turn spindle switch to LEFT position to turn
spindle ON. The motor should run smoothly
and without unusual problems or noises.

6. Rotate spindle switch to STOP position to
turn spindle OFF. Allow spindle to come to a
complete stop.

-17-

Model G0784 (Mfd. since 03/15)

Spindle Break-In

The spindle break-in procedure distributes lubri­cation

reduce the risk

of early

if there are any "dry" spots
or areas where lubrication has settled in the bear­ings. You

efore

placing

for the
first time when the machine is new or if it has
been sitting idle for longer than 6 months.

Always start the spindle break-in at the lowest
speed to minimize wear if there
Allow the spindle to run long enough to warm up
and distribute the bearing grease, then incremen­tally increase spindle speeds and repeat this pro­cess at each speed until reaching the maximum
spindle speed. Following the break-in procedure
in this progressive manner helps minimize any
potential wear that could occur before lubrication
is fully distributed.

To perform spindle break-in:

1. Make sure machine has been properly lubri-

cated. Refer to Lubrication on Page 29.

throughout the bearings to

bearing failure

must complete this procedure b

operational loads on the spindle

are dry spots.

Complete the spindle bearing break-in pro­cedure to prevent rapid wear and tear of
spindle components once the drill press is
placed into operation.

2. Make sure spindle area is free of obstruc-

tions.

3. Set spindle speed to the lowest RPM. Refer
to Speed Changes on Page 21.

4. Run spindle for 5 minutes in each direction
at each speed listed below (refer to Speed
Changes on Page 21) and in progressive
order.

a. 140 RPM
b. 413 RPM
c. 819 RPM
d. 1450 RPM
e. 2436 RPM

5. Turn machine OFF.

Congratulations! Spindle break-in is now complete.

DO NOT perform this procedure indepen­dently of the Test Run section. The drill
press could be seriously damaged if the
controls are set differently than instructed
in that section.

-18-

Model G0784 (Mfd. since 03/15)

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

Keep hair, clothing, and

ing parts at all times.
Entanglement can result
in death, amputation, or

The purpose of this overview is to provide the nov­ice machine operator with a basic understanding
of how the machine is used during operation, so
the

discussed later

in this manual

Due to the generic nature of this overview, it is

not

more about specific operations,
manual,

training from experienced
machine operators
outside of this manual by reading "how-to" books,
trade magazines, or websites.

using machine.

To reduce risk of eye or face injury from
flying chips, always wear approved safety
glasses and a face shield when operating
this machine.

Operation Overview

machine controls/components

are easier to understand.

intended to be an instructional guide. To learn

read this entire

seek additional

, and do additional research

To complete a typical operation, the operator
does the following:

jewelry away from mov-

severe crushing injuries!

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

1. Examines workpiece to make sure it is suit-

able for drilling.

2. Puts on required safety glasses and face
shield.

3. Firmly secures workpiece to table using a
vise or T-slot clamps.

4. Installs correct cutting tool for operation.

5. Adjusts table to correct height, then locks it in

place.

6. Selects appropriate spindle speed according
to V-belt configuration chart located inside
belt cover.

7. Connects machine to power, and starts spin­dle rotation in proper direction for cutting tool
installed.

8. Begins drilling.

9. When finished, stops spindle rotation and

disconnects machine from power.

-19 -

Model G0784 (Mfd. since 03/15)

Calculating Spindle Speed for Drilling

Using the Drill Bit Speed Chart

The chart shown in Figure 11 is intended as
a guide only. Always follow the manufacturer's
speed recommendations if provided with your
drill bits, cutters, or hole saws. Exceeding the
recommended speeds may be dangerous to the
operator.

The speeds shown here are intended to get you
started. The optimum speed will always depend
on various factors, including tool diameter, drilling
pressure, material hardness, material quality, and
desired finish.

Often, when drilling materials other than wood,
some type of lubrication is necessary.

Twist/Brad Point Drill Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

1/16" – 3/16" 3000 2500 2500 2500 3000 2500
13/64" – 3/8" 2000 1500 2000 1250 2500 1250
25/64" – 5/8" 1500 750 1500 750 1500 600

11/16" – 1" 750 500 1000 400 1000 350

Lubrication Suggestions

Wood ...........................................................None

Plastics ............................................Soapy Water

Brass ...............................Water-Based Lubricant

Aluminum ..................... Paraffin-Based Lubricant

Mild Steel ............................. Oil-Based Lubricant

Larger bits turning at slower speeds tend
to grab the workpiece aggressively. This
can result in the operator's hand being
pulled into the bit or the workpiece being
thrown with great force. Always clamp the
workpiece to the table to prevent injuries.

pade/Forstner Bits Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

S

1/4" – 1/2" 2000 1500

9/16" – 1" 1500 1250

1-1/8" – 1-7/8" 1000 750

2–3" 500 350

ole Saws Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

H
1/2" – 7/8" 500 500 600 600 600 500
1" – 1-7/8" 400 400 500 500 500 400
2" – 2-7/8" 300 300 400 400 400 300
3" – 3-7/8" 200 200 300 300 300 200

4" – 5" 100 100 200 200 200 100

osette Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

R

Carbide Insert Type 350 250

One-Piece Type 1800 500

T

enon/Plug Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel

3/8" – 1/2" 1200 1000

5/8" – 1" 800 600

Figure 11. Drill bit speed chart.

-20-

Model G0784 (Mfd. since 03/15)

Changing Spindle

Speed

The Model G0784 is capable of twelve different
spindle speed RPMs. Spindle speed is controlled
by the configuration of V-belts and pulleys located
inside the belt cover on top of the machine.

3. Open belt cover, then loosen two idler cap
screws (see Figure 13) that hold idler pulley
in place, so it can move freely.

Tip: Lower headstock for easy access (see

Headstock Position on Page 24).

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

To change spindle speeds:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen motor lock lever shown in Figure
12, pull motor inward to relieve tension on

V-belts, then re-tighten lock lever.

Motor Lock Lever

Figure 12. Location of motor lock lever, used

when changing V-belt positions to select desired

spindle speed.

Idler Cap Screws

Figure 13. Spindle speed pulley system.

4. With center and rear pulleys loose, move

V-belts to corresponding position for desired
speed (see chart below).

5. Loosen motor locking lever and allow spring
to tighten rear V-belt, then re-tighten motor
locking lever.

6. Retighten idler cap screws, then close and
latch belt cover.

Spindle Pulley Idler Pulley Motor Pulley

RPM Position RPM Position

140 4-5 819 1-6

219 3-5 1075 2-7

263 4-6 1238 3-8

317 2-5 1450 1-7

413 3-6 1770 2-8

475 4-7 2436 1-8

1

2

3

4

Figure 14. Spindle speed chart.

5

6

7

8

-21-

Model G0784 (Mfd. since 03/15)

Using Spindle

Installing/Removing

Downfeed Controls

This machine has coarse downfeed levers and a
fine downfeed handwheel.

To operate the downfeed levers, simply pull for­ward and down on the lever nearest you. The
spindle will go down as far as it can until you stop
pulling or until it hits the depth stop, then it will
automatically return to the top when you release
pressure on the handle.

Note: Do not let go of the handle until the spindle
returns to the top position or the spindle will slam
upward into the quill.

Use the fine downfeed handwheel to control the
spindle travel up or down in slow, small amounts.
If necessary, you can lock the quill/spindle in a
lower position with the quill lock lever (see Figure

15).

Tooling

The Model G0784 includes the following spindle
tools (see Figure 16):

A. Drill Chuck w/R-8 Arbor: Use with drill bits.

B. R-8–MT#3 Spindle Adapter Sleeve: Use

with MT#3 tooling with or without a tang. Has
a drift key slot for tool removal.

C. MT#3–MT#2 Spindle Adapter Sleeve: Use

with the R-8–MT#3 spindle sleeve for MT#2
tooling. Has a drift key slot for tool removal.

D. Drift Key: Use for tool removal.

To operate fine downfeed handwheel:

1. Tighten dowfeed selector knob, shown

in Figure 15. This transfers control from
downfeed levers to fine downfeed handwheel.

Fine Downfeed

Handwheel

Quill Lock

Lever

Figure 15. Fine downfeed controls.

2. Loosen thumb screw on rim surface of

handwheel dial, turn dial until "0" lines up
with index line, then retighten thumb screw.

Handwheel

Dial

Dowfeed

Selector Knob

A

B

C

D

Figure 16. Drill chuck and arbors included with

Model G0784.

Cutting tools are sharp and
can easily cause laceration
injuries. Always protect
your hands with leather
gloves or shop rags when
handling cutting tools.

3. Rotate handwheel to move quill/spindle up

or down. Each complete revolution equals

0.108".

-22-

Model G0784 (Mfd. since 03/15)

Installing Tooling

This machine features a spindle that accepts R-8
collets and arbors. It can also use MT#3 or MT#2
tooling with the included adapter sleeves.

Note: If using a collet, insert tooling into collet

before tightening drawbar. Be sure to protect
your hands from sharp tooling with leather
gloves or a shop rag.

To install tooling:

1. DISCONNECT MACHINE FROM POWER!

2. Open belt cover.

3. Make sure tapered mating surfaces of tooling

and spindle are clean and free of grease or
other contaminants.

4. Insert tooling arbor/collet into spindle hous­ing, then rotate arbor/collet to align keyway
with matching pin in spindle opening.

5. Using lug wrench included with machine,
rotate top of drawbar clockwise (see Figure

17) until drawbar threads mesh with female
threads arbor/collet.

Tip: If necessary, insert included drill chuck

key into chuck to hold chuck in place when
loosening drawbar.

6. Continue to tighten drawbar until collet and
cutter (or arbor) are snugged firmly in place.
Do not over-tighten drawbar and never use
power tools to tighten it.

—If drawbar bottoms out in tooling and will

not tighten further before tooling is tight
in spindle, tighten drawbar lock nut (see

Figure 17) to secure tooling in spindle.

Removing Tooling

1. DISCONNECT MACHINE FROM POWER!

2. Loosen, but do not remove, drawbar.

Tip: If necessary, insert included drill chuck

key into chuck to hold chuck in place when
tightening drawbar.

3. Hold tooling to prevent it from dropping com­pletely out of machine. Tap on top of drawbar
with a brass hammer to loosen collet/arbor
from spindle, as shown in Figure 18.

Lug Wrench

Drawbar

Drawbar

Lock Nut

Arbor

Figure 17. Threading drawbar into collet/arbor to

install tooling.

Brass Hammer

Drawbar

Arbor

Figure 18. Tapping top of drawbar with drawbar

nut already loosened to remove tooling.

4. Unthread drawbar until it is free from tooling.
Remove tooling from spindle when not in use.

-23-

Model G0784 (Mfd. since 03/15)

Adjusting Headstock

Position

The headstock height and rotation can be adjust­ed as needed for various applications. For the
best results, fully retract the quill and set the
headstock as low as possible to increase quill
rigidity and reduce vibration.

Setting Depth Stop

The depth stop is used to limit the range of tooling
downward movement or drilling depth. Maximum
depth is 5

To set depth stop:

1. DISCONNECT MACHINE FROM POWER!

1

⁄8".

To adjust headstock position:

1. DISCONNECT MACHINE FROM POWER!

2. Using included lug wrench, loosen both head-

stock lock nuts shown in Figure 19.

Headstock

Lock Nuts

Figure 19. Loosening headstock lock nuts in

order to adjust headstock position.

3. Use headstock elevation crank (see Figure

20) to move head up or down as desired. Use

your hands to rotate headstock on column as
needed.

2. Install tooling (refer to Page 23), then make
sure spindle is drawn all the way up into
headstock.

3. Loosen headstock lock nuts (see Figure

19) and lower head until drill bit or cutter is

approximately
retighten headstock lock nuts.

4. Rotate knurled knob (Figure 21) until top of
indicator is level with desired depth as listed
on scale.

Note: The depth stop scale functions as a

general guide only. It is not intended for high­tolerance, precision results. To calibrate the
depth stop, see Calibrating Depth Stop on
Page 32.

1

⁄8" above workpiece, then

Headstock

Elevation Crank

Figure 20. Location of headstock elevation

crank.

4. Retighten headstock lock nuts.

-24-

Indicator

Knurled

Knob

Figure 21. Depth stop controls.

Model G0784 (Mfd. since 03/15)

Positioning Table

Pivoting Table Around Column

1. Remove any loose objects from table surface.

The table rotates on its axis, moves vertically, piv­ots 360 degrees around the column to accommo­date larger workpieces, and tilts 60° left to right.

Rotating Table on its Axis

1. Remove any loose objects from table surface.

2. Loosen rotation lock handle shown in
Figure 22.

Rotation Lock

Handle

Rack

Table Lock

Handles

Table Elevation

Crank

2. Slightly loosen table lock handles (see Figure

22).

3. Pivot table to desired location, making sure to
guide rack shown in Figure 22.

4. Retighten lock handles.

Tilting Table

1. Remove all objects from table surface.

2. Loosen three tilt-lock nuts shown in Figure 23.

Tilt-Lock

Nuts

Tilt Angle

Pointer and Scale

Figure 22. Table adjustment controls.

3. Rotate table to desired position, then re-

tighten rotation lock handle.

Raising/Lowering Table

1. Remove any loose objects from table surface.

2. Loosen table lock handles shown in Figure 22.

3. Adjust table height by rotating table elevation

crank (see Figure 22), then re-tighten table
lock handles.

Figure 23. Table tilt controls.

3. Tilt table until pointer aligns with desired
angle on scale (see Figure 23).

4. Retighten tilt-lock nuts.

-25-

Model G0784 (Mfd. since 03/15)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

G5753— 6" Cast-Iron Drill Press Vise

If you use a drill press and value your fingers, you
need one of these. Made from high-grade cast
iron, these hefty horizontal vises offer support
and stability, allowing you to keep your hands well
away from fast moving bits and cutters. Includes
a sturdy lip along both sides of the base, allowing
vise to be mounted to nearly any machine table,
using common T-slot clamps.

G1075—52-Pc. Clamping Kit

This clamping kit includes 24 studs, 6 step block
pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and
6 end hold-downs. The rack is slotted so it can be
mounted close to the machine for easy access.
Made for

T20501—Face Shield Crown Protector 4"
T20502—Face Shield Crown Protector 7"
T20503—Face Shield Window
T20451—"Kirova" Clear Safety Glasses
T20452—"Kirova" Anti-Reflective S. Glasses
H0736—Shop Fox
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5

1

⁄2 " T-slots.

Figure 25. Clamping Kit.

®

Safety Glasses

Figure 24. 6" Cast-iron drill press vise.

Figure 26. Safety glasses.

-26-

Model G0784 (Mfd. since 03/15)

G3658—Titanium Drill Bits

order online at www.grizzly.com or call 1-800-523-4777

Titanium nitride-coated bits last up to six times as
long as uncoated bits. This 115-piece set features

1

29 fractional bits, from

1

⁄64", letter bits from A–Z, and 60 number bits.

of

⁄6" to 1⁄2 " in increments

Housed in rugged steel case.

G1064 —Cross-Sliding Vise

This vise features an exclusive slide bar to prevent
the jaws from tilting up or sideways when tighten­ing. Adjustable gibs take up any slack on both top
and bottom slides. Use this vise on your drill press
for cutting keyways and doing light milling jobs.

Figure 27. 115 piece drill bit set.

T26688—R-8 Quick Change Collet 8-Pc. Set

These collets are hardened and ground for maxi­mum holding power and ultra precision. Threaded

7

⁄16"-20 draw bars, this set has a maximum run-

fro
out of 0.001". Set includes collect chuck,

3

⁄8", 1⁄2 ", 5⁄8", 3⁄4", and 1" collets, spanner wrench,

1

⁄4", 5⁄16",

and moulded plastic case.

Figure 29. G1064 Cross-Sliding Vise.

T26685—Moly-D Multi Function Oil-ISO 32
T23964—Armor Plate with Moly-D Grease

Moly-D lubricants are some of the best we've
found for maintaining the critical components of
machinery because they tend to resist run-off and
maintain their lubricity under a variety of condi­tions.

T26934T26685

Figure 30. T26685 Moly-D Oil-ISO 32 and

T23964 Armor Plate with Moly-D Grease

Figure 28. T26688 R-8 Quick Change Collet

8 pc. Set

-27-

Model G0784 (Mfd. since 03/15)

SECTION 6: MAINTENANCE

Cleaning and

Always disconnect power
to the machine before
performing maintenance.
Failure to do this may
result in serious person­al injur y.

Schedule

For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.

Daily Check

• Make sure drill is disconnected from power
when not in use.

• Check for loose mounting bolts.

• Make sure drill is clean and lubricated.

• Check for worn or damaged wires.

• Check for any other unsafe condition.

• Check belts for tension and wear.

Protecting

Sawdust, wood chips, and metal chips left on the
machine will invite oxidation and a gummy residue
buildup around the moving parts. Use a brush and
shop vacuum to remove chips and debris from the
working surfaces of the mill. Never blow off the
mill with compressed air, as this will force metal
chips deep into the mechanisms and may cause
injury to yourself or bystanders.

Remove any rust build-up from unpainted cast
iron surfaces of your mill and treat them with a
non-staining lubricant after cleaning.

Keep unpainted cast iron surfaces rust-free
with regular applications of products like G96
Gun Treatment, SLIPIT
Figure 31 and the Grizzly catalog or website).

®

, or Boeshield® T-9 (see

®

Every 90 Days

• Lubricate quill and column racks.

H7388

®

Gun

G96
Treat me n t

Figure 31. Products to clean and protect

unpainted cast iron surfaces.

G2870

Boeshield

®

T-9

G5562

SLIPIT

®

-28-

Model G0784 (Mfd. since 03/15)

Lubrication

V-Belts

For the quill, table, and column, an occasional
application of light machine oil is all that is neces­sary. For the quill and column racks, lubricate with
NLGI #2 grease every 90 days. Before applying
lubricant, clean off any dust or metal chips.

Your goal is to achieve adequate lubrication. Too
much lubrication will attract dirt and dust, which
could cause various parts of your machine to lose
their freedom of movement.

Downfeed Gears

Oil Ty p e ......Model T26685 or ISO 32 Equivalent

Oil Amount ......................................... Fill Oil Cup

Lubrication Frequency ...........8 Hrs. of Operation

Lift the oil cup cap (see Figure 32) to fill the cup
with oil. The oil will slowly drain into the downfeed
gears over time.

Inspect regularly for tension and wear. Refer to
Figure 33 for proper belt tension. Belt deflec­tion should be approximately
pressure. Replacement V-belts can be found in
the back of this manual in the part breakdowns.
Check pulleys to ensure that they are properly
aligned when installing V-belts.

To replace the V-belts, refer to Speed Changes
on Page 21 to loosen the belts. Remove them
from the pulleys, then install new V-belts.

1

⁄4"

Deflection

1

⁄4" under moderate

Pulley

Figure 32. Location of oil cup.

NOTICE

Follow reasonable lubrication practices as
outlined in this manual. Failure to do so
could lead to premature failure of your
machine and will void the warranty.

Pulley

Figure 33. Belt tension.

-29-

Model G0784 (Mfd. since 03/15)

Troubleshooting

SECTION 7: SERVICE

Review the troubleshooting and procedures in this section to fix or adjust your machine if a problem devel­ops. If you need replacement parts or you are unsure of your repair skills, then feel free to call our Technical
Support at [phone].

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not
start or a breaker
trips.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. Plug/receptacle at fault/wired wrong.

2. Incorrect power supply voltage or circuit
size.

3. Power supply circuit breaker tripped or fuse
blown.

4. Motor wires connected incorrectly.

5. Wiring open/has high resistance.

6. Spindle direction switch at fault.

7. Start capacitor at fault.

8. Centrifugal switch at fault.

9. Motor at fault.

1. Incorrect/dull cutter/bit for task.

2. Feed rate/cutting speed too fast.

3. Belt(s) slipping.

4. Machine undersized for task.

5. Plug/receptacle at fault.

6. Motor overheated.

7. Run capacitor at fault.

8. Pulley slipping on shaft.

9. Centrifugal switch at fault.

10. Motor bearings at fault.

1. Motor or other drive component loose.

2. V-belt(s) worn or loose.

3. Motor fan rubbing on fan cover.

4. Pulley loose.

5. Machine incorrectly mounted to floor.

6. Motor mount loose/broken.

7. Motor bearings at fault.

8. Chuck unbalanced or cutter dull.

9. Centrifugal switch out of adjustment or at
fault.

1. Test for good contacts; correct the wiring.

2. Ensure correct power supply voltage and circuit
size.

3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.

4. Correct motor wiring connections.

5. Check/fix broken, disconnected, or corroded wires.

6. Replace switch.

7. Test/replace.

8. Adjust/replace centrifugal switch if available.

9. Test/repair/replace.

1. Use correct cutter/bit.

2. Decrease feed rate/cutting speed.

3. Ensure belts are oil free, tension/replace belt(s);
ensure pulleys are aligned.

4. Perform operation with different machine.

5. Test for good contacts/correct wiring.

6. Clean motor, let cool, and reduce workload.

7. Test/repair/replace.

8. Tighten loose pulley; replace broken/missing parts.

9. Adjust/replace centrifugal switch if available.

10. Test/repair/replace.

1. Inspect/replace damaged bolts/nuts, and retighten
with thread locking fluid, if necessary.

2. Inspect/replace belts with a new matched set.

3. Fix/replace fan cover; replace loose/damaged fan.

4. Re-align/replace shaft, pulley set screw, and key.

5. Tighten mounting bolts; relocate/shim machine.

6. Tighten/replace.

7. Test by rotating shaft; rotational grinding/loose
shaft requires bearing replacement.

8. Replace chuck; replace/resharpen cutter.

9. Adjust or replace.

-30-

Model G0784 (Mfd. since 03/15)

Drill Press Operations

Symptom Possible Cause Solution

Tool loose/lack of
power in spindle.

Workpiece or tool
vibrates or chatters
during operation.

Headstock is hard to
raise.

Bad surface finish. 1. Spindle speed too fast for workpiece

Spindle overheats. 1. Drill operated at high speeds for extended

Spindle does not
return to highest
position.

Depth stop pro­ducing inaccurate
results.

1. Tool incorrectly installed in spindle taper.

2. Debris on tool or spindle taper mating
surfaces.

3. Taking too big of a cut.

4. V-belts are loose.

5. Wrong voltage.

1. Table locks not tight.

2. Workpiece not secure.

3. Spindle speed/feed rate is too fast.

4. Spindle or quill extended too far down.

5. Quill lock lever not tight.

1. Headstock lock nuts at fault.

2. Rack and pinion at fault or jammed with
grime/debris.

material.

2. Dull or incorrect cutting tool.

3. Wrong rotation direction of cutting tool.

4. Workpiece not secure.

5. Spindle extended too far down during
operation.

period.

1. Poorly adjusted return spring.

2. Worn return spring.

1. Depth stop not calibrated. 1. Calibrate depth stop (Page 32).

1. Remove and re-install, as instructed on Page 23.

2. Clean tool and spindle taper.

3. Lessen depth of cut and allow chips to clear.

4. Properly tension V-belts.

5. Correct voltage.

1. Tighten table locks (Page 25).

2. Properly clamp workpiece on table or in vise.

3. Set spindle speed correctly (Page 21) or use
slower feed rate.

4. Fully retract spindle and lower headstock. This
increases rigidity to decrease vibration.

5. Tighten quill lock lever (Page 22).

1. Loosen/replace lock nuts.

2. Fix/replace broken or loose parts; clean and
lubricate rack and pinion.

1. Set spindle speed correctly (Page 21).

2. Sharpen cutting tool or select one that better suits
the operation.

3. Check for proper cutting tool rotation.

4. Properly clamp workpiece on table or in vise.

5. Fully retract spindle and lower headstock. This
increases rigidity.

1. Allow drill to cool.

1. Increase return spring tension (Page 32).

2. Replace return spring.

-31-

Model G0784 (Mfd. since 03/15)

Tensioning Return

Spring

5. Rotate cover counterclockwise to increase

tension, then push cover back in to engage
roll pin with one of the notches, as shown in
Figure 35.

The spring tension for automatic quill recoil has
been pre-set at the factory. It should not need
adjustment under most normal circumstances. If
it does need adjustment, the spring housing is
located on the left side of the headstock.

If the return spring should
come loose from the spring
cap and rapidly unwind,
laceration or impact inju­ries could occur. Always
wear heavy leather gloves
and safety glasses when
adjusting the return spring
tension.

To adjust spring tension:

1. DISCONNECT MACHINE FROM POWER!

2. PUT ON SAFETY GLASSES!

3. Loosen thumb knob shown in Figure 34

2–3 turns (DO NOT completely remove
thumb knob).

Notch

Figure 35. Adjusting spring tension by rotating

spring cover to engage next notch with roll pin.

6. Tighten thumb knob.

Calibrating Depth

Stop

The depth stop accuracy may be improved by
calibrating the depth stop. Make sure the spindle
is retracted all the way into the quill, then follow
the steps below.

To calibrate depth stop:

Spring Cover

Thumb Knob

Figure 34. Spring tension components.

4. Wearing gloves, pull spring cover (Figure

35) out enough so notches just clear roll pin.

HOLD SPRING COVER TIGHTLY during this
step, or force of spring will cause cover to
spin out of your hands.

-32-

Roll Pin

1. Lower depth stop (see Figure 36) until indica-
tor plate reaches bottom of its travel.

2. Using a 3mm hex wrench, loosen cap screw
shown in Figure 36, and position plate so its
upper edge aligns with zero, then re-tighten
cap screw.

Indicator

Plate

Figure 36. Calibrating depth stop.

Cap

Screw

Model G0784 (Mfd. Since 03/15)

READ ELECTRICAL SAFETY

ON PAGE 33!

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at
[phone] for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-33-

Model G0784 (Mfd. Since 03/15)

READ ELECTRICAL SAFETY

ON PAGE 33!

Electrical Components

Motor

Junction

Box

Motor

Spindle

Switch

Figure 38. Switch box wiring (right side).

Figure 37. Electrical component wiring overview.

Figure 40. Motor junction box wiring.

Figure 39. Switch box wiring (left side).

-34-

Model G0784 (Mfd. Since 03/15)

READ ELECTRICAL SAFETY

ON PAGE 33!

Ground

Wiring Diagram

220V Motor

6-15 Plug

(As Recommended)

Hot

220

VAC

Hot

G

Ground

Start

Capacitor

150 MFD
250 VAC

U2

V1

V2

U2 V1

Z1

Z2

Z1

W1
U2

U1

V2

V2

Run

Capacitor

20 MFD

450 VAC

U1

PE

U1

Ground

N

V1

PE

PE

V2

U2

U1

L

9

11

L

5

L

7

1

L

N

3

Spindle Switch

Left
Side

CanSen

LW5D-16

Right

Side

V2V1 U2

2

4

6

V1

V2

U2

8 12

10

-35-

SECTION 9: PARTS

Main Breakdown

115

34

33

32

31

30

2

110

58

75

114

109

106

59

35

36

107

104

60

62

64

37

113

111

61

112

108

105

65

8

9

8

11

106

63

66

33

34

71

77

98-1

98-2

98-5

72

49

57

93

73

117

50

55

98

49

98-3

98-8

40

54

53

56

48

92

41

52

42

51

98-4

98-9

99

44

47

98-6

97

116

46

98-7

100

77

43

45

22

26

84

68
69

6

12
13

14

15

16

23

90

38

69

68

76

87

86

86

91

1

19

17

18

68

20

95

74

70

69

39

21

3

4

7

5

101

67

64

102

29

28

27

79

78

3

77

103

85

81
77

10

24
25

-36-

Model G0784 (Mfd. since 03/15)

Main Parts List

REF

PART # DESCRIPTION REF PART # DESCRIPTION

1 P0784001 HEAD CASTING 51 P0784051 QUILL WORM SHAFT COVER
2 P0784002 DRAWBAR 7/16-20 X 17-3/4 52 P0784052 CAP SCREW M5-.8 X16
3 P0784003 SPANNER NUT M42-2.5 53 P0784053 FINE DOWNFEED INDEX
4 P0784004 SPINDLE PULLEY 54 P0784054 KNURLED THUMB SCREW M5-.8 X 12
5 P0784005 SPINDLE TAPER SLEEVE 55 P0784055 HANDWHEEL DISHED 100MM
6 P0784006 CAP SCREW M5-.8 X 12 56 P0784056 SET SCREW M6-1 X 12
7 P0784007 OUTER BEARING PLATE 57 P0784057 HANDWHEEL HANDLE M6-1 X 6, 52 L
8 P0784008 BALL BEARING 6009ZZ 58 P0784058 KNOB BOLT M8-1.25 X 12
9 P0784009 SPACER 74MM 59 P0784059 BUSHING
10 P0784010 INT RETAINING RING 75MM 60 P0784060 SPRING COVER
11 P0784011 EXT RETAINING RING 45MM 61 P0784061 FLAT COIL SPRING
12 P0784012 SPANNER NUT M30-1.5 62 P0784062 CAP SCREW M6-1 X 12
13 P0784013 EXT TOOTH WASHER 30MM 63 P0784063 SPRING BASE
14 P0784014 TAPERED ROLLER BEARING 30206 64 P0784064 ROLL PIN 3 X 12
15 P0784015 RUBBER FLANGE 65 P0784065 CAP SCREW M10-1.5 X 12
16 P0784016 QUILL 66 P0784066 SET SCREW M10-1.5 X 12
17 P0784017 TAPERED ROLLER BEARING 30207 67 P0784067 CLAMPING BOLT M16-2 X 178
18 P0784018 BEARING COVER 68 P0784068 FLAT WASHER 16MM
19 P0784019 SPINDLE R-8 69 P0784069 HEX NUT M16-2
20 P0784020 SET SCREW M5-.8 X 6 DOG-PT 70 P0784070 LOCK HANDLE M8-1.25 X 25
21 P0784021 SET SCREW M5-.8 X 6 71 P0784071 COMPRESSION SPRING
22 P0784022 QUILL CLAMP 72 P0784072 BELT TENSION ROD
23 P0784023 CAP SCREW M8-1.25 X 30 73 P0784073 BELT TENSION CAP (RUBBER)
24 P0784024 INT THREADED BOLT M16-2 X 20 74 P0784074 BELT COVER
25 P0784025 KNURLED THUMB SCREW M12-1.75 X 230 75 P0784075 BELT COVER GUARD
26 P0784026 ROLL PIN 3 X 18 76 P0784076 DRAWBAR COVER
27 P0784027 HEX NUT M16-2 THIN 77 P0784077 FLAT WASHER 8MM
28 P0784028 DEPTH GAUGE LEADSCREW 78 P0784078 HEX BOLT M8-1.25 X 20
29 P0784029 DEPTH ROD DOG 79 P0784079 PULLEY IDLER PLATE
30 P0784030 CAP SCREW M4-.7 X 8 81 P0784081 CAP SCREW M8-1.25 X 40
31 P0784031 DEPTH POINTER 84 P0784084 IDLER PULLEY SHAFT
32 P0784032 FRONT COVER 85 P0784085 IDLER PULLEY
33 P0784033 FLAT WASHER 5MM 86 P0784086 BALL BEARING 6204Z
34 P0784034 CAP SCREW M5-.8 X 12 87 P0784087 INT RETAINING RING 47MM
35 P0784035 QUILL LOCK HANDLE 90 P0784090 V-BELT A33
36 P0784036 OUTER QUILL CLAMP 91 P0784091 V-BELT A39
37 P0784037 INNER QUILL CLAMP 92 P0784092 MOTOR MOUNT
38 P0784038 PINION SHAFT 93 P0784093 HEX BOLT M12-1.75 X 20
39 P0784039 KEY 8 X 8 X 20 95 P0784095 HEX NUT M8-1.25

40 P0784040 QUILL WORM GEAR CASE 97 P0784097 HEX BOLT M8-1.25 X 30
41 P0784041 CAP SCREW M6-1 X 20 98 P0784098 MOTOR 2HP 220V 1-PH
42 P0784042 QUILL WORM GEAR 98-1 P0784098-1 MOTOR FAN COVER
43 P0784043 COMPRESSION SPRING 98-2 P0784098-2 MOTOR FAN
44 P0784044 LEVER BASE 98-3 P0784098-3 R CAPACITOR 20M 450V 1-5/8 X 3-1/4
45 P0784045 KNOB BOLT M10-1.5 X 45 98-4 P0784098-4 S CAPACITOR 150M 250V 1-5/8 X 3
46 P0784046 LEVER M12-1.75 X 145 98-5 P0784098-5 CONTACT PLATE
47 P0784047 TAPERED KNOB M12-1.75 98-6 P0784098-6 CETRIFUGAL SWITCH
48 P0784048 QUILL WORM SHAFT 98-7 P0784098-7 MOTOR JUNCTION BOX
49 P0784049 BALL BEARING 6202ZZ 98-8 P0784098-8 BALL BEARING 6205Z (FRONT)
50 P0784050 SPACER 29MM 98-9 P0784098-9 BALL BEARING 6205Z (REAR)

Model G0784 (Mfd. since 03/15)

-37-

Main Parts List Cont.

REF PART # DESCRI PTIO N REF PART # DESCRI PTIO N

99 P0784099 KEY 8 X 8 X 25 109 P0784109 ELEVATION CRANK HANDLE 80MM L
100 P0784100 MOTOR PULLEY SET 110 P0784110 SHOULDER SCREW M10-1. 5 X 10, 11 X 45
101 P0784101 ELEVATION CRANK BRACKET 111 P0784111 CAP SCREW M6-1 X 20
102 P0784102 WORM SHA FT BUSHI NG 112 P0784112 SWI TCH BOX
103 P0784103 ELEVATION WORM SHAFT 113 P0784113 SWITCH BOX COVER
104 P0784104 ELEVATION GEAR SHAFT 114 P0784114 ROTARY SWI TCH CA NSEN LW5D-16
105 P0784105 HELICAL GEAR 15T 115 P0784115 CAP SCREW M4-. 7 X 6
106 P0784106 EXT RE TAINI NG RI NG 14 MM 116 P0784116 POWER CORD 14G 3W 72"
107 P0784107 ELEVATION CRANK 117 P0784117 OIL CUP 3/8" NPT X 6MM X 17MM ST
108 P0784108 CAP SCREW M10-1.5 X 12

-38-

Model G0784 (Mfd. since 03/15)

Model G0784 (Mfd. since 03/15)

Base Breakdown

212

209

202

207

213

208

210

203

219

221

224

225

218

205

217

222

221

241

220

240

204

242

243

244

247

201

245

248

243

246

249

250

211

214

226

206

215

216

-39-

Model G0784 (Mfd. since 03/15)

Base Parts List

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0784201 BASE CASTING 219 P0784219 LOCKING HANDLE M10-1.5 X 10
202 P0784202 COLUMN 220 P0784220 T-BOLT M12-1.75 X 45
203 P0784203 TABLE BRACKET 221 P0784221 FLAT WASHER 12MM
204 P0784204 TABLE ELEVATION CASTING 222 P0784222 HEX NUT M12-1.75
205 P0784205 WORK TABLE 224 P0784224 TABLE HANDLE BASE M12-1.75 X 95
206 P0784206 COLUMN COLLAR 225 P0784225 TABLE HANDLE M10-1.5 X 6
207 P0784207 COLUMN CAP 226 P0784226 SET SCREW M10-1.5 X 10
208 P0784208 LOCKED GUIDE RING 240 P0784240 TABLE ELEVATION BRACKET
209 P0784209 HEAD RACK 241 P0784241 TABLE ELEVATION WORM SHAFT
210 P0784210 TABLE RACK 242 P0784242 SPACER
211 P0784211 FIXED GUIDE RING 243 P0784243 EXT RETAINING RING 14MM
212 P0784212 SET SCREW M10-1.5 X 8 244 P0784244 HELICAL GEAR 15T
213 P0784213 CAP SCREW M10-1.5 X 40 245 P0784245 WORM GEAR SHAFT
214 P0784214 FLAT WASHER 16MM 246 P0784246 TABLE ELEVATION CRANK
215 P0784215 LOCK WASHER 16MM 247 P0784247 SET SCREW M10-1.5 X 12
216 P0784216 CAP SCREW M16-2 X 50 248 P0784248 CAP SCREW M6-1 X 20
217 P0784217 FLAT WASHER 12MM 249 P0784249 TABLE ELEVATION HANDLE 80MM L
218 P0784218 LOCKING HANDLE BASE M12-1.75 X 135 250 P0784250 SHOULDER SCREW M10-1.5 X 10, 11 X 45

-40-

Model G0784 (Mfd. since 03/15)

Accessories

315

301

316

314

313

312

302

303

304

305

306

307

308

311

309

310

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 P0784301 TOOLBOX, PLASTIC 309 P0784309 FLAT WASHER 14MM
302 P0784302 BOTTLE FOR OIL 310 P0784310 HEX NUT M14-2
303 P0784303 LUG WRENCH 20/25MM 311 P0784311 DRIFT KEY
304 P0784304 WRENCH 17 X 19MM OPEN-ENDS 312 P0784312 SPINDLE SLEEVE MT#3 X MT#2
305 P0784305 HEX WRENCH 5MM 313 P0784313 SPINDLE SLEEVE R-8 X MT#3
306 P0784306 HEX WRENCH 4MM 314 P0784314 DRILL CHUCK ARBOR R8 X B16
307 P0784307 HEX WRENCH 3MM 315 P0784315 DRILL CHUCK B16 1-13MM
308 P0784308 T-BOLT M14-2 X 55 316 P0784316 DRILL CHUCK KEY 8MM STD 11 SD-16MM

-41-

Model G0784 (Mfd. since 03/15)

INJURY/SHOCK

HAZARD!

Disconnect power
before adjustments,
maintenance, or
service.

Always keep this
cover closed
during operation.

PINCH

HAZARD!

WARNING!

WARNING!

ENTANGLEMENT

HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

WARNING!

WARNING!

(12/22/14)

• 1:1 Sizing (Labels are
actual size)

• Labels must be made of
chemical-resistant material

19 x 17mm

143 x 38mm

143 x 38mm

ENTANGLEMENT

HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

WARNING!

WARNING!

143 x 38mm

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up or servicing.

5. Avoid entanglement with spindle—tie back long hair, roll up
long sleeves, and DO NOT wear loose clothing, gloves, or
jewelry.

6. Properly set up machine before starting.

7. Keep all guards and covers in place during operation.

8. Clamp workpiece to table to prevent rotation.

9. Avoid positioning hands where they could slip into rotating
bits.

10. Always remove chuck keys and other tools before starting.

11. Never attempt to slow or stop spindle with hands or tools.

12. Use correct speeds for drilling accessories and workpiece.

13. Do not operate when tired or under influence of drugs or
alcohol.

14. Do not expose to rain or use in wet locations.

15. Prevent unauthorized use by children or untrained users;

restrict access or disable machine when unattended.

WARNING!

Mfd. for Grizzly in China

Drilling Capacity: 1-1/8"
Weight: 662 lbs.

98 x 87mm

88 x 71mm

grizzly.com

actual size)

• Labels must be made of
chemical-resistant material

Specifications

Motor: 2 HP, 220V, 1-Ph, 60 Hz, 8.6A
Swing: 15"
Spindle-to-Column Distance: 7-1/2"
Spindle-to-Table Distance: 28-1/4"
Spindle-to-Base Distance: 45-1/4"
Spindle Travel: 4-5/8"
Spindle Taper: R-8
Number of Spindle Speeds: 12
Spindle Speeds: 140–2436 RPM
Drilling Capacity: 1-1/8"
Weight: 662 lbs.

G0784 Machine Labels

(12/22/14)

• 1:1 Sizing (Labels are
actual size)

• Labels must be made of
chemical-resistant material

88 x 71mm

Labels & Cosmetics

401 P0784401 FACE SHIELD & SAFETY GLASSES LABEL 406 P0784406 PINCH COMBINED SAFETY LABEL

402 P0784402 ELECTRICITY LABEL 407 P0784407 PUTTY TOUCH-UP PAINT

403 P0784403 MODEL NUMBER LABEL 408 P0784408 MAIN WARNINGS LABEL

404 P0784404 MACHINE ID LABEL 409 P0784409 GRIZZLY GREEN TOUCH-UP PAINT

405 P0784405 MANUAL COMBINED SAFETY LABEL 410 P0784410 GRIZZLY.COM LABEL

404

Motor: 2 HP, 220V, 1-Ph, 60 Hz, 8.6A
Swing: 15"
Spindle-to-Column Distance: 7-1/2"
Spindle-to-Table Distance: 28-1/4"
Spindle-to-Base Distance: 45-1/4"
Spindle Travel: 4-5/8"
Spindle Taper: R-8
Number of Spindle Speeds: 12
Spindle Speeds: 140–2436 RPM
Drilling Capacity: 1-1/8"
Weight: 662 lbs.

403

401

MODEL G0784 15"

HEAVY-DUTY

FLOOR DRILL PRESS

Specifications

402

WARNING!

EYE/FACE INJURY

HAZARD!
Always wear
ANSI-approved safety
glasses and face
shield when using
this machine.

Mfd. for Grizzly in China

405

WARNING!

To reduce risk of death
or serious injury, read
manual BEFORE using
machine.

To get a new manual, call
[phone] or go to
www.grizzly.com.

WARNING!

ENTANGLEMENT

HAZARD!
Tie back long hair, roll up
long sleeves, and remove
loose clothing, jewelry, or
gloves to prevent getting
caught in moving parts.

406

Date

S/N

WARNING!

PINCH

HAZARD!

Always keep this
cover closed
during operation.

WARNING!

INJURY/SHOCK

HAZARD!

Disconnect power
before adjustments,
maintenance, or
service.

407

408

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved safety glasses.

3. Only plug power cord into a grounded outlet.

4. Disconnect power before setting up or servicing.

5. Avoid entanglement with spindle—tie back long hair, roll up

6. Properly set up machine before starting.

7. Keep all guards and covers in place during operation.

8. Clamp workpiece to table to prevent rotation.

9. Avoid positioning hands where they could slip into rotating

10. Always remove chuck keys and other tools before starting.

11. Never attempt to slow or stop spindle with hands or tools.

12. Use correct speeds for drilling accessories and workpiece.

13. Do not operate when tired or under influence of drugs or

14. Do not expose to rain or use in wet locations.

15. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.

WARNING!

long sleeves, and DO NOT wear loose clothing, gloves, or
jewelry.

bits.

alcohol.

410

409

REF PART # DESCRIPTION REF PART # DESCRIPTION

-42-

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.

1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics

3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group?
____ 20-29 ____30-39 ____ 40-49
____ 50-59 ____60-69 ____ 70+

5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood

____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par­ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.
