Page 1
MODEL G0777/G0777HEP
ULTRA-QUIET
CYCLONE DUST COLLECTOR
OWNER'S MANUAL
(For models manufactured since 04/19)
Model G0777 Model G0777HEP
COPYRIGHT © MAY, 2016 BY GRIZZLY INDUSTRIAL, INC. REVISED APRIL, 2019 (JL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#WK18047 PRINTED IN TAI WA N
V2 .04.19
Page 2
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Page 3
Table of Contents
INTRODUCTION ............................................... 2
Contact Info.................................................... 2
Machine Differences ...................................... 2
Manual Accuracy ........................................... 2
Identification ................................................... 3
Controls & Components ................................. 4
Glossary of Terms ......................................... 6
G0777 Machine Data Sheet .......................... 7
G0777HEP Machine Data Sheet ................... 9
SECTION 1: SAFETY ..................................... 11
Safety Instructions for Machinery ................ 11
Additional Safety for Dust Collectors ........... 13
SECTION 2: POWER SUPPLY ...................... 14

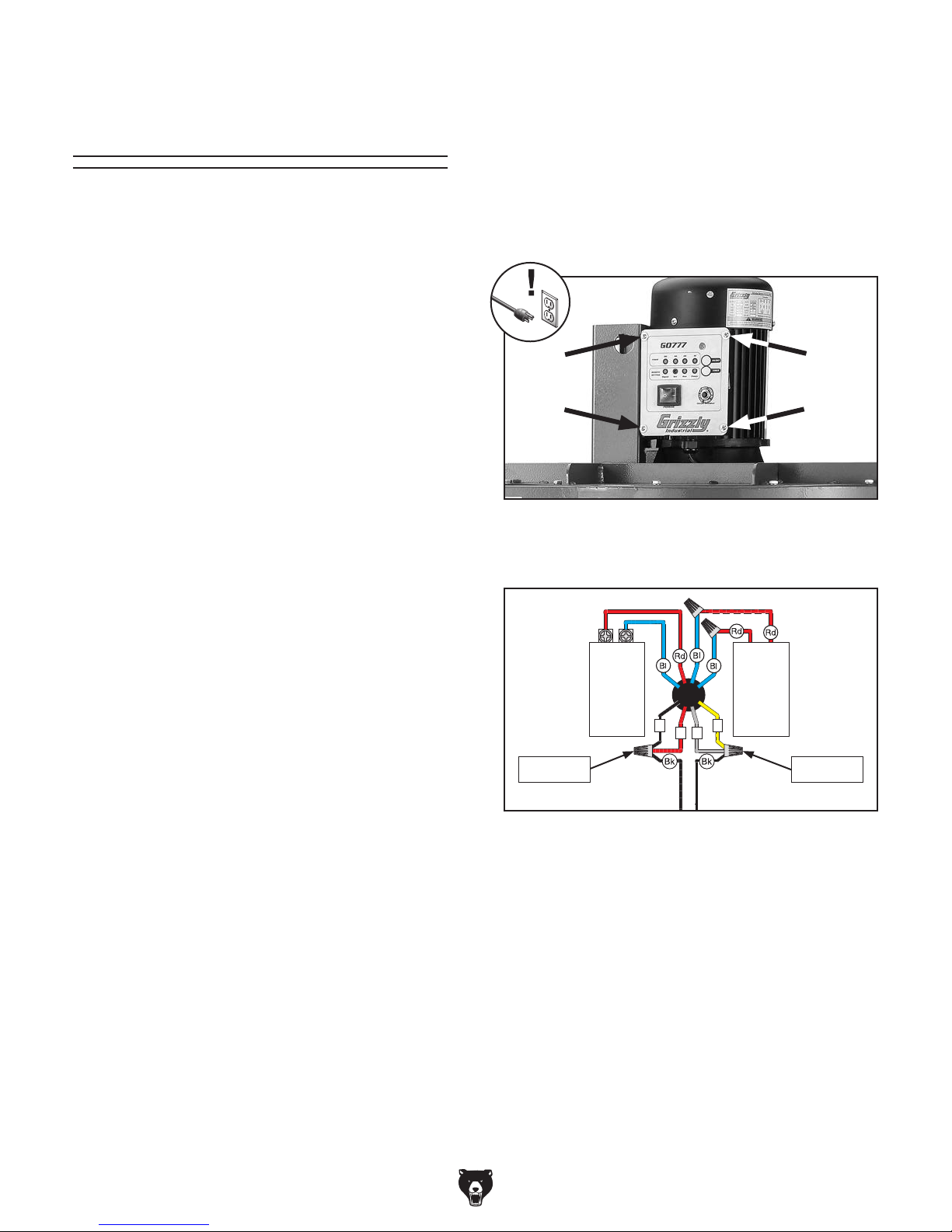

Converting Voltage to 220V ......................... 16
SECTION 3: SETUP ....................................... 18
Needed for Setup ......................................... 18
Unpacking .................................................... 18
Inventory ...................................................... 19
Hardware Recognition Chart ....................... 21
Site Considerations ...................................... 22
Assembly ..................................................... 23
Test Run ...................................................... 27
SECTION 4: DESIGNING THE SYSTEM ....... 28
General ........................................................ 28
Duct Material ................................................ 28
System Design ............................................. 30
System Grounding ....................................... 36
SECTION 5: OPERATIONS ........................... 37
General Operation ....................................... 37
Using Controls ............................................. 38
SECTION 6: ACCESSORIES ......................... 40
SECTION 7: MAINTENANCE ......................... 43
Schedule ...................................................... 43
Emptying Drum ............................................ 43
Cleaning Filter .............................................. 43
SECTION 8: SERVICE ................................... 44
Troubleshooting ........................................... 44
Replacing Canister Filter (G0777) ............... 46
Replacing Canister Filter (G0777HEP) ........ 47
Replacing HEPA Filter (G0777HEP) ........... 48
SECTION 9: WIRING ...................................... 49
Wiring Safety Instructions ............................ 49
G0777/G0777HEP 110V Wiring Diagram.... 50
G0777/G0777HEP 220V Wiring Diagram.... 51
SECTION 10: PARTS ..................................... 52
Main ............................................................. 52
Labels .......................................................... 54
WARRANTY & RETURNS ............................. 57
Page 4
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documentation is available for your machine.
INTRODUCTION
Contact Info
and manufacture date from the
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post
manual updates for free
www.grizzly.com.

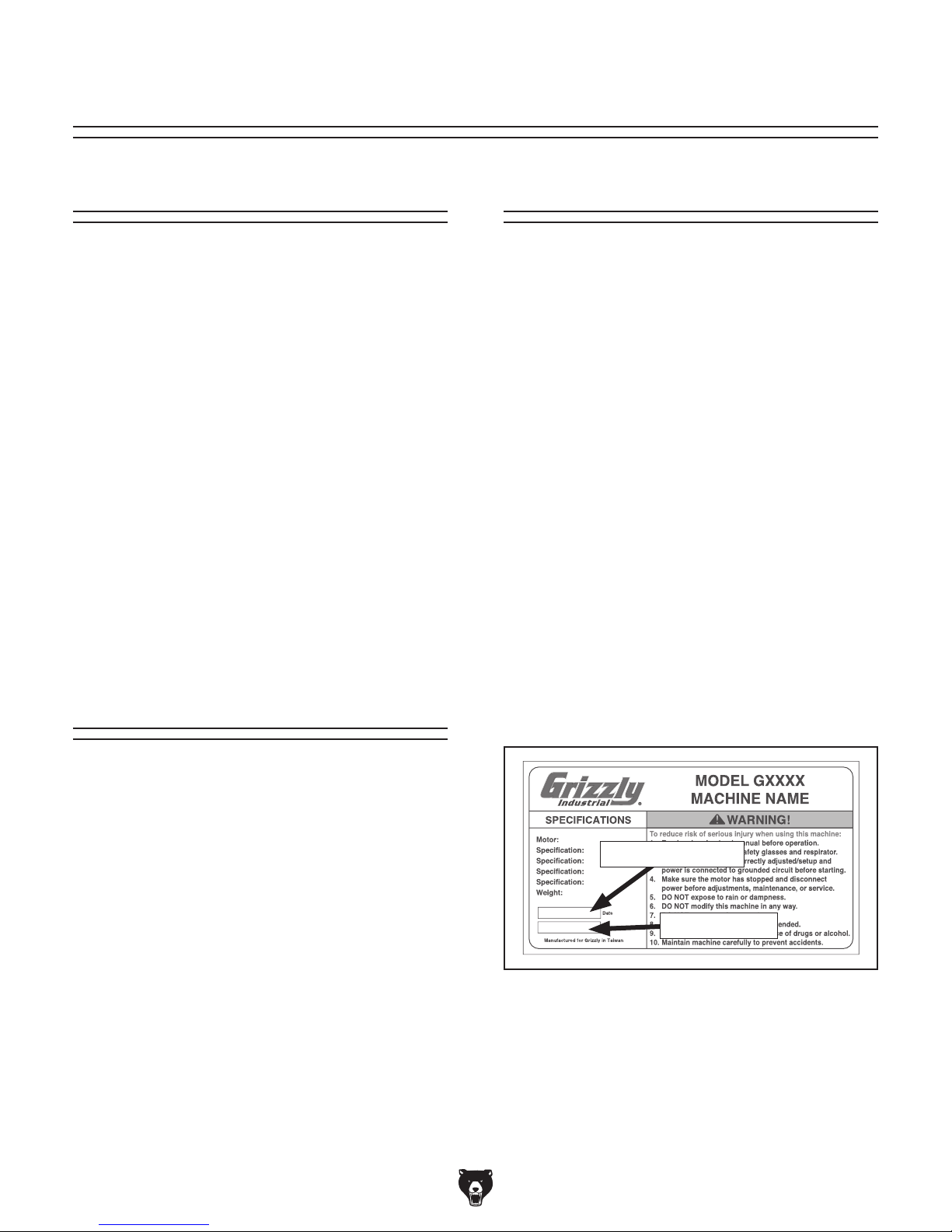

Manufacture Date and Serial Number
Machine Differences
Models G0777 and G0777HEP are identical
machines, with one exception.
Model G0777HEP is equipped with a MERV-17
HEPA filter. Model G0777 is not.
Manufacture Date
Serial Number
-2-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 5
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Canister Filter
Inside Housing
(G0777HEP)
HEPA Filter
Inside Filter Cage
(G0777HEP Only)
Filter Brush
Handle
Motor
Remote
Receiver
Blower
Housing
Inlet
Cyclone
Funnel
Drum
Ground Wire
Canister Filter
(G0777)
Collection Bag
Model G0777/G0777HEP (Mfd. Since 04/19)
Stand
using machine.
Collection
Drum
Locking
Caster
-3-
Page 6
Controls &
To reduce your risk of
serious injury, read this
entire manual BEFORE
Components
using machine.
Filtration Components
B
C
D
Refer to Figures 1–5 and the following descriptions to become familiar with the basic controls
and components of this machine. Understanding
these items and how they work will help you
understand the rest of the manual and stay safe
when operating this machine.
Collection Drum
A
Figure 1. Collection drum.
E
Figure 2. G0777HEP filtration components.
B
C
E
A. Collection Drum: Collects large chips/par-
ticles before they enter canister filter. Window
on side of drum shows when it is full and
needs to be emptied.
-4-
Figure 3. G0777 filtration components.
B. Filter Brush Handle: Rotates filter brush to
clean canister filter.
C. Canister Filter: Located inside canister fil-
ter housing. Removes 99% of particles at
0.2–2.0 micron. Can be cleaned by rotating
Filter Brush Handle.
D. MERV-17 HEPA Filter (G0777HEP Only):
Removes 99.97% of particles at 0.3 micron
after they leave canister filter.
E. Collection Bag: Collects dust and fine par-
ticles that drop from canister filter.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 7

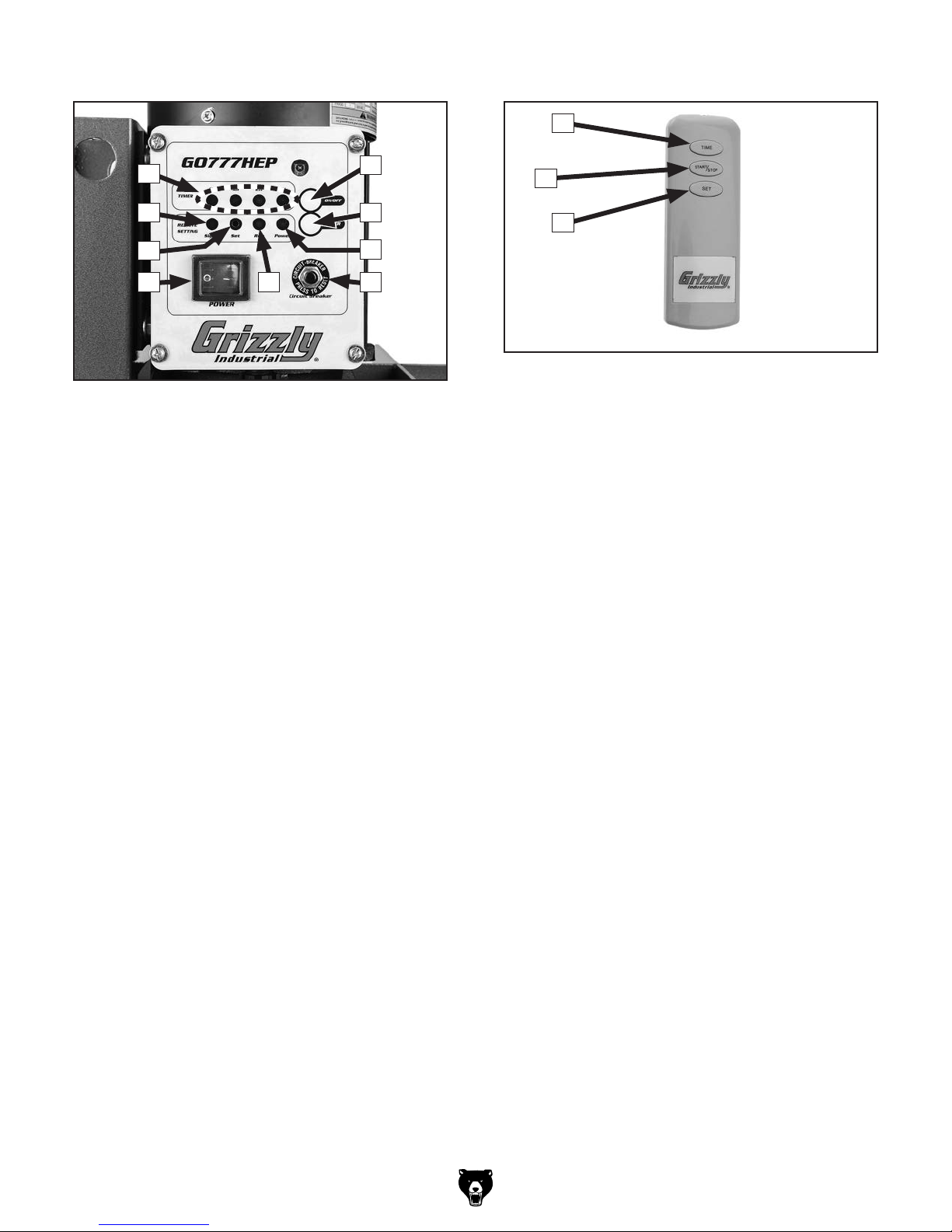

Control Panel/Remote Receiver Remote Controller
O
F
G
H
I KJ
Figure 4. Control panel functions.
F. Timer Indicator: Illuminates to display auto
shut-down time set by TIMER Button, or
TIME Button on remote controller. If not
illuminated, timer function is inactive, and
machine will run continuously until manually
turned OFF.
G. Remote Signal Indicator: Flashes when
remote is ready to be reprogrammed.
N
M
L
P
Q
Figure 5. Remote controller functions.
O. TIME Button: Selects auto shut-down time.
By pressing TIME Button once, dust collector will run for 1 hour; 1H illuminates on
Timer Indicator on control panel. Consecutive
pushes increase operation time in 1, 2, 4, or 8
hour intervals—up to 15 hours. The machine
will stop once set time period ends. To cancel timer before set time has elapsed, turn
POWER Switch OFF or press START/STOP
button on remote controller.
H. Set Button: Used to reprogram receiver.
I. POWER Switch: Turns machine power ON
or OFF.
J. Run Indicator: Illuminates when dust collec-
tor is ON.
K. Circuit Breaker/Thermal Overload: Pops
out if machine overloads. Press to reset.
L. Power Indicator: Illuminates when there is
power to machine.
M. Timer Button: Selects auto shut-down time.
By pressing TIMER Button once, dust collector will run for 1 hour; 1H illuminates on Timer
Indicator. Consecutive pushes increase operation time in 1, 2, 4, or 8 hour intervals—up to
15 hours. The machine will stop once set time
period ends. To cancel timer before set time
has elapsed, turn Power Switch OFF or press
START/STOP button on remote controller.
P. START/STOP Button: Turns dust collector
ON or OFF.
Q. SET Button: Used to reprogram receiver.
N. ON/OFF Button: Turns dust collector ON or
OFF.
Model G0777/G0777HEP (Mfd. Since 04/19)
-5-
Page 8
The following is a list of common definitions, terms and phrases that relate to dust collection and dust collectors in general. To get the most out of this manual, familiarize yourself with these terms before reading.
Air Suction Capacity:
Branch Line:
Collection Bag/Drum:
CFM (Cubic Feet per Minute):
Cyclone:
Duct (Ducting):
Dust Collection System:
Dust Port/Hood:
Filter:
Fittings (Y's, T's, Elbows, etc.):
-
-
-
mum amount of airflow required at the dust port/
hood of a dust-producing machine for adequate
removal of the waste produced. Essentially, the
Dust Collection
the air. Typically operated during and after dust-
where all collected chips and dust are expelled
water, this describes the difference in pressure
lector. It is a measure of the suction created by
-
-
Glossary Of Terms
The maximum volume
of air (rated in CFM) that a dust collector can
move, at the inlet, when fully assembled and
not connected to any ducting.
A secondary length of duct that
connects a dust-producing machine to the
Main Line of a permanent dust collection system. The minimum recommended Velocity for
branch lines is 4000 FPM.
The part of the dust col-
lector that holds the majority of captured dust.
A measurement
describing the volume of air that moves through
an area in one minute. CFM = Velocity (FPM) x
Cross-Sectional Area of Duct (ft.
A type of two-stage dust collector that
uses centrifugal force to remove large dust particles before they can reach the filter.
Metal/plastic pipe or hose that
connects the dust collector to dust-producing
machines. Typically available in rigid or flexible
options.
The entire assembly of
dust collector, duct, and fittings used to capture
dust from machines.
The part of a dust-producing
machine that connects to dust collection duct.
2
).
Duct Grounding: A method of using bare wire
with plastic duct to safely dissipate static elec
tricity buildup during operation.
Main Line: The primary length of duct that con
nects the dust collector to the branch lines of
a permanent dust collection system. The mini
mum recommended Velocity for main lines is
3500 FPM.
Machine CFM Requirement: Indicates the mini
performance required by the
System after accounting for the drop in CFM
from the static pressure loss of the duct line
between the machine and the dust collector.
Powered Air Filter: An independently operated
machine that removes fine dust suspended in
producing operations as a secondary method
to improve the air quality in a shop.
Single-Stage Collector: A type of dust collector
directly into the filter.
Static Pressure: Expressed in units of inches of
between the air inside and outside the dust col
the blower.
The part of the dust collector that prevents
the majority of suctioned dust from returning to
the shop environment. Filters are rated by the
size of fine dust (measured in microns) that can
pass through them.
duct connections that allow the branch and
main lines of a dust collection system to be
routed from the machine to the dust collector.
-6-
The various
Two-Stage Collector: A type of dust collector
where large/heavy waste is captured in a sepa
rate container before the airflow reaches the
filter. Benefits include longer operation times
between filter maintenance or replacement.
Velocity: The speed of airflow movement, mea
sured in FPM (Feet Per Minute). Velocity =
Volume (CFM) / Cross-Sectional Area of Duct
2
).
(ft.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 9
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0777 1‐1/2 HP ULTRA‐QUIET CYCLONE DUST
COLLECTOR
Product Dimensions:
Weight.............................................................................................................................................................. 223 lbs.
Width (side-to-side) x Depth (front-to-back) x Height............................................................... 47-1/2 x 34-1/2 x 72 in.
Footprint (Length x Width)............................................................................................................... 47-1/2 x 34-1/2 in.
Shipping Dimensions:
Type...................................................................................................................................................... Wooden Crate
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 374 lbs.
Length x Width x Height..................................................................................................... 53-1/2 x 36-1/2 x 50-1/2 in.
Must Ship Upright................................................................................................................................................... Yes
Electrical:
Power Requirement............................................................................................. 110V or 220V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 110V
Full-Load Current Rating.................................................................................................... 15A at 110V, 7.5A at 220V
Minimum Circuit Size.......................................................................................................... 20A at 110V, 15A at 220V
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length........................................................................................................................................ 10-1/2 ft.
Power Cord Gauge......................................................................................................................................... 12 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................. 5-15 for 110V
Recommended Plug Type...................................................................................................................... 6-15 for 220V
Switch Type................................................................................................................. Relay Switch w/Circuit Breaker
Motors:
Main
Horsepower............................................................................................................................................. 1.5 HP
Phase............................................................................................................................................ Single-Phase
Amps.................................................................................................................................................... 15A/7.5A
Speed................................................................................................................................................ 1750 RPM
Type.................................................................................................. TEFC Capacitor-Start-Induction (Class F)
Power Transfer ............................................................................................................................... Direct Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type......................................................................................................... External
Model G0777/G0777HEP (Mfd. Since 04/19)
-7-
Page 10
Main Specifications:
Operation
Dust Collector Type.......................................................................................................... Two-Stage (Cyclone)
Approved Dust Types................................................................................................................................ Wood
Filter Type............................................................................................................................... Pleated Cartridge
Airflow Performance....................................................................................................... 880 CFM @ 1.9 in. SP
Max Static Pressure (at 0 CFM).................................................................................................................. 9 in.
Main Inlet Size............................................................................................................................................. 6 in.
Inlet Adapter Included.................................................................................................................................. Yes
Number of Adapter Inlets.................................................................................................................................. 1
Adapter Inlet Size........................................................................................................................................ 5 in.
Machine Collection Capacity At One Time....................................................................................................... 1
Maximum Material Collection Capacity.............................................................................................. 3.47 cu. ft.
Filtration Rating............................................................................................................................ 0.2 – 2 Micron
Filter Surface Area................................................................................................................................ 48 sq. ft.
Bag Information
Number of Lower Bags..................................................................................................................................... 1
Lower Bag Diameter............................................................................................................................ 15-3/4 in.
Lower Bag Length............................................................................................................................... 23-5/8 in.
Canister Information
Number of Canister Filters................................................................................................................................ 1
Canister Filter Diameter....................................................................................................................... 15-3/4 in.
Canister Filter Length................................................................................................................................ 21 in.
Collection Drum Size......................................................................................................................... 26 Gallons
Impeller Information
Impeller Type...................................................................................................................................... Radial Fin
Impeller Size.............................................................................................................................................. 24 in.
Impeller Blade Thickness.......................................................................................................................... 1/8 in.
Construction
Lower Bag...................................................................................................................................... Clear Plastic
Canister............................................................................................................................ Spun Bond Polyester
Base........................................................................................................................................................... Steel
Frame......................................................................................................................................................... Steel
Impeller............................................................................................................................................... Aluminum
Blower Housing......................................................................................................................... 19-Gauge Steel
Body.......................................................................................................................................... 18-Gauge Steel
Collection Drum.......................................................................................................................................... Steel
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .............................................................................................................. 1 Hour
Serial Number Location ................................................................................................................... Machine ID Label
Sound Rating ..................................................................................................................................................... 71 dB
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No
Features:
Steel Collection Drum with Casters for Easy Dust Disposal
Class "F" Motor
Dual-Pleated Filter with Cleaning Brushes to Maximize Air Flow
Cartridge Filter with Crank-Handle Shaker for Maximum Filter Efficiency
Unique Vacuum Equalizer Built into Collection Drum for Use with Disposable Plastic Bags
Remote-Control Switch
-8-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 11
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0777HEP 1‐1/2 HP ULTRA‐QUIET DUAL‐
FILTRATION HEPA CYCLONE DUST COLLECTOR
Product Dimensions:
Weight.............................................................................................................................................................. 223 lbs.
Width (side-to-side) x Depth (front-to-back) x Height............................................................... 59-3/4 x 34-1/2 x 72 in.
Footprint (Length x Width)............................................................................................................... 59-3/4 x 34-1/2 in.
Shipping Dimensions:
Type...................................................................................................................................... Cardboard Box on Pallet
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 353 lbs.
Length x Width x Height..................................................................................................... 53-1/2 x 36-1/2 x 50-1/2 in.
Must Ship Upright................................................................................................................................................... Yes
Electrical:
Power Requirement............................................................................................. 110V or 220V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 110V
Full-Load Current Rating.................................................................................................... 15A at 110V, 7.5A at 220V
Minimum Circuit Size.......................................................................................................... 20A at 110V, 15A at 220V
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length........................................................................................................................................ 10-1/2 ft.
Power Cord Gauge......................................................................................................................................... 12 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................. 5-15 for 110V
Recommended Plug Type...................................................................................................................... 6-15 for 220V
Switch Type................................................................................................................. Relay Switch w/Circuit Breaker
Motors:
Main
Horsepower............................................................................................................................................. 1.5 HP
Phase............................................................................................................................................ Single-Phase
Amps.................................................................................................................................................... 15A/7.5A
Speed................................................................................................................................................ 1750 RPM
Type.................................................................................................. TEFC Capacitor-Start-Induction (Class F)
Power Transfer ............................................................................................................................... Direct Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type......................................................................................................... External
Model G0777/G0777HEP (Mfd. Since 04/19)
-9-
Page 12
Main Specifications:
Operation
Dust Collector Type.......................................................................................................... Two-Stage (Cyclone)
Approved Dust Types................................................................................................................................ Wood
Filter Type.......................................................................................................................... Cartridge and HEPA
Airflow Performance....................................................................................................... 880 CFM @ 1.9 in. SP
Max Static Pressure (at 0 CFM).................................................................................................................. 9 in.
Main Inlet Size............................................................................................................................................. 6 in.
Inlet Adapter Included.................................................................................................................................. Yes
Number of Adapter Inlets.................................................................................................................................. 1
Adapter Inlet Size........................................................................................................................................ 5 in.
Machine Collection Capacity At One Time....................................................................................................... 1
Maximum Material Collection Capacity.............................................................................................. 3.47 cu. ft.
Filtration Rating................................................................................................................ 99.97% @ 0.3 Micron
Filter Surface Area................................................................................................................................ 48 sq. ft.
Bag Information
Number of Lower Bags..................................................................................................................................... 1
Lower Bag Diameter............................................................................................................................ 15-3/4 in.
Lower Bag Length............................................................................................................................... 23-5/8 in.
Canister Information
Number of Canister Filters................................................................................................................................ 1
Canister Filter Diameter....................................................................................................................... 15-3/4 in.
Canister Filter Length................................................................................................................................ 21 in.
Collection Drum Size......................................................................................................................... 26 Gallons
Impeller Information
Impeller Type...................................................................................................................................... Radial Fin
Impeller Size.............................................................................................................................................. 24 in.
Impeller Blade Thickness.......................................................................................................................... 1/8 in.
Construction
Lower Bag...................................................................................................................................... Clear Plastic
Canister............................................................................................................................ Spun Bond Polyester
Base........................................................................................................................................................... Steel
Frame......................................................................................................................................................... Steel
Impeller........................................................................................................................................ Steel, Riveted
Body.......................................................................................................................................... 18-Gauge Steel
Collection Drum.......................................................................................................................................... Steel
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .............................................................................................................. 1 Hour
Serial Number Location ................................................................................................................... Machine ID Label
Sound Rating ..................................................................................................................................................... 71 dB
ISO 9001 Factory .................................................................................................................................................. Yes
Features:
Dual-Filtration with BIA-Certified Pleated Cartridge Filter and V-Cell MERV-17 HEPA Filter
Steel Collection Drum with Casters for Easy Dust Disposal
Powerful Class "F" Motor
Pleated Filter has Crank-Handle Shaker for Maximum Efficiency
Unique Vacuum Equalizer Built into Collection Drum for Use with Disposable Plastic Bags
Remote-Controlled Switch
Filter 1: 99% at 0.2 – 2 Micron
Filter 2: 99.97% at 0.3 Micron (MERV-17 HEPA)
-10 -
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 13
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Alerts the user to useful information about proper operation of the
NOTICE
machine to avoid machine damage.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unintended startup or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model G0777/G0777HEP (Mfd. Since 04/19)
-11-
Page 14
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-12-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 15
Additional Safety for Dust Collectors
To reduce risk of start-
of death or injury caused by explosions or fires, DO
Long-term respiratory damage can occur from using dust collectors without proper use of a
respirator. Fire or explosions can result in smoke inhalation, serious burns, or death—if machine
is used to collect incorrect materials, is operated near potential explosion sources, or ducting is
improperly grounded. Entanglement, amputation, or death can occur if hair, clothing, or fingers
are pulled into the inlet. To reduce the risk of these hazards, operator and bystanders MUST
completely heed the hazards and warnings below.
INTENDED USE. Collecting the wrong materi-
als can result in serious inhalation hazards, fire,
explosions, or machine damage. This machine
is ONLY designed to collect wood dust and chips
from woodworking machines. DO NOT use it to
collect silica, polyurethane, toxic fumes, metal dust
or shavings, lead paint, drywall, asbestos, biohazards, explosive dusts, flammable or combustible
liquids or fumes, nor burning or smoking material.
WEAR A RESPIRATOR. Fine dust that is too
small to be caught in filter will be blown into ambient air. Always wear a NIOSH-approved respirator during operation and for a short time after to
reduce your risk of permanent respiratory damage.
Never collect dust from any hazardous material.
IMPELLER HAZARDS. To reduce risk of entanglement or contact with impeller, DO NOT place
hands, hair, clothing, or tools in or near open dust
collection inlet during operation, and keep small
animals and children away. The powerful suction
could easily pull them into impeller.
HAZARDOUS DUST. Dust exposure created while
using machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator.
EMPTYING DUST. When emptying bag or drum,
wear respirator and safety glasses. Empty dust
away from ignition sources and into approved
container.
OPERATING LOCATIO N. To reduce respiratory
exposure to fine dust, locate permanently installed
dust collectors away from working area or in another room. DO NOT place dust collector where it can
be exposed to rain or moisture, which creates a
shock hazard and will reduce life of machine.
POWER DISCONNECT. Turn machine OFF, dis-
connect from power supply, and allow impeller
to completely stop before leaving machine unattended, or doing any maintenance or service.
REGULAR CLEANING.
ing a fire, regularly check/empty collection bags
or drum to avoid buildup of fine dust, which can
increase risk of fire. Regularly clean surrounding
area where machine is operated—excessive dust
buildup on overhead lights, heaters, electrical panels, or other heat sources will increase risk of fire.
SUSPENDED DUST PARTICLES. To reduce risk
NOT operate in areas where these risks are high,
including spaces near pilot lights, open flames, or
other ignition sources.
AVOIDING SPARKS. To reduce risk of fire, avoid
collecting any metal objects or stones. These can
possibly produce sparks when they strike impeller,
which can smolder in wood dust for a long time
before a fire is detected. If you accidentally cut
into wood containing metal, immediately turn OFF
dust collector, disconnect from power, and wait
for impeller to stop. Then empty bag or drum into
approved airtight metal container.
FIRE SUPPRESSION. Only operate dust collector
in locations that contain fire suppression system or
have fire extinguisher nearby.
STATIC ELECTRICITY. To reduce risk of fire or
explosions caused by sparks from static electricity,
ground all ducting using grounding wire.
DUST ALLERGIES. Dust from certain woods will
cause an allergic reaction. Make sure you know
what type of wood dust you will be exposed to in
case of an allergic reaction.
Model G0777/G0777HEP (Mfd. Since 04/19)
-13-
Page 16
SECTION 2: POWER SUPPLY
Before installing the machine, consider the availability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
or equipment damage
may occur if machine is
not properly grounded
and connected to power
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid overloading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power supply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, consult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
This machine can be converted to operate on a
power supply circuit that has a verified ground
and meets the requirements listed below. (Refer
to Voltage Conversion instructions for details.)
Availability
Electrocution, fire, shock,
supply.
Full-Load Current Rating
Circuit Information
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Full-Load Current Rating at 110V ...... 15 Amps
Full-Load Current Rating at 220V .... 7.5 Amps
-14-
Circuit Requirements for 110V
Nominal Voltage .................... 110V, 115V, 12 0V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 20 Amps
Plug/Receptacle ............................. NEMA 5-15
Circuit Requirements for 220V
Nominal Voltage .........208V, 220V, 23 0V, 240V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 15 Amps
Plug/Receptacle ............................. NEMA 6-15
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 17
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is necessary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with
a new one.
We do not recommend using an extension cord
with this machine.
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
For 110V operation: This machine is equipped
with a power cord that has an equipment-grounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed
and grounded in accordance with all local codes
and ordinances.
For 220V operation: The plug specified under
“
page has a grounding prong that must be attached
to the equipment-grounding wire on the included
power cord. The plug must only be inserted into
a matching receptacle (see following figure) that
is properly installed and grounded in accordance
with all local codes and ordinances.
it will not fit the outlet, have a qualified
electrician install the proper outlet with a
GROUNDED
5-15 RECEPTACLE
Grounding Pin
GROUNDED
6-15 RECEPTACLE
Current Carrying Prongs
6-15 PLUG
Grounding Pin
Figure 7. Typical 6-15 plug and receptacle.
5-15 PLUG
Neutral Hot
Figure 6. Typical 5-15 plug and receptacle.
SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if
verified ground.
Circuit Requirements for 220V” on the previous
Model G0777/G0777HEP (Mfd. Since 04/19)
Extension Cords
If you must use an extension
Minimum Gauge Size ...........................12 AWG
Maximum Length (Shorter is Better).......50 ft.
-15-
Page 18
Converting Voltage
to 220V
To convert Model G0777/G0777HEP to 220V:
1. DISCONNECT MACHINE FROM POWER!
2. Cut 110V plug from power cord.
For your own safety, and to maintain the warranty
for the machine, the voltage conversion MUST be
performed by an electrician or qualified service
personnel.
The voltage conversion procedure consists of
installing the correct plug, rewiring the motor, and
replacing the 110V circuit board with a 220V circuit
board. The 220V circuit board (part #P0777054)
can be purchased by calling Grizzly Customer
Service at (800) 523-4777.
Wiring diagrams are provided on Pages 50–51
for your reference.
IMPORTANT: If the diagram included on the
motor conflicts with the ones on Pages 50–51, the
motor may have changed since the manual was
printed. Use the diagram included on the motor
instead.
Items Needed Qty
• Phillips Head Screwdriver #2 ..................... 1
• Electrical Tap e ............................ As Needed
• Wire Nut (14 AWG x 3) ............................... 1
• Plug 6-15 .................................................... 1
• Wire Cutters/Stripper .................................. 1
3. Remove four screws that secure remote
control receiver panel to control box (see
Figure 8).
Figure 8. Remote receiver panel screws.
4. Remove wire nuts indicated in Figure 9.
41
Run
Capacitor
60MFD
250VAC
Start
Capacitor
400MFD
125VAC
3
2
-16 -
Remove Remove
Figure 9. Motor wires at 110V.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 19
5. Use wire nuts to connect wires, as indicated
COM
M1
CN1
SF1101-1
9908
TL1016-1 1430 AC120V
SF1001-1
20150317-175
in Figure 10. Twist wire nuts onto their
respective wires and wrap them with electrical tape so they will not come loose from
vibration of motor operation.
2
Capacitor
60MFD
250VAC
4
Run
Re-Connect
and Tighten
Re-Connect
and Tighten
Start
Capacitor
400MFD
125VAC
3
1
Figure 10. Motor wires repositioned for 220V.
6. Remove wires connected to circuit board, as
indicated in Figure 11.
8. Re-connect wires removed in Step 6 to 220V
circuit board exactly as they were connected
to 110V circuit board.
9. Re-install remote control receiver panel with
screws removed in Step 3.
10. Install a NEMA 6-15 plug, according to manufacturer's instructions included with plug. If
no instructions were included, use wiring
diagram on Page 50.
7. Remove three screws indicated by short
black arrows on 110V circuit board (see
Figure 11), remove circuit board, then install
220V circuit board with three screws.
Remove
Wires
L2
M2
Remove
Wires
CIRCUIT
BOARD
Figure 11. Location of wires to remove from
circuit board.
Model G0777/G0777HEP (Mfd. Since 04/19)
-17-
Page 20
Serious injury could occur if you connect
process. DO NOT connect to power until
SECTION 3: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Keep children and pets away
from plastic bags or packing
materials shipped with this
get help from other people
The following items are needed, but not included,
for the setup/assembly of this machine.
Needed for Setup
This machine presents
serious injury hazards
to untrained users. Read
through this entire manual to become familiar with
the controls and operations before starting the
machine!
Wear safety glasses during
the entire setup process!
Description Qty
• Assistant ..................................................... 1
• Safety Glasses .................. For Each Person
• Open-End Wrench
• Open-End Wrench
• Phillips Head Screwdriver #2 ..................... 1
• 4x4x12 Wood Blocks .................................. 2
3
⁄8" ................................ 2
5
⁄16" ............................... 1
Unpacking
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
machine to power before completing setup
instructed later in this manual.
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
SUFFOCATION HAZARD!
machine.
-18-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 21
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
A
B
Box 1 Inventory (Figures 12–14): Qty
A. Dust Collector, Motor, & Filter Assembly .... 1
B. Remote Control .......................................... 1
C. Intake Barrel ............................................... 1
D. Collection Drum .......................................... 1
E. Cyclone Funnel .......................................... 1
F. Stand .......................................................... 1
G. Collection Drum Bag Seat .......................... 1
H. Collection Drum Lid .................................... 1
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or they are pre-installed at the factory.
Figure 12. Box 1: Dust collector assembly and
controls (G0777HEP shown).
C
Figure 13. Box 1: Intake barrel.
E
D
F
Model G0777/G0777HEP (Mfd. Since 04/19)
E
G
Figure 14. Box 1: Stand and collection drum
components.
H
-19 -
Page 22
Box 1 Inventory (Figure 15): Qty
I. Pull Handle ................................................. 1
J. Drum Suction Hose 1" ................................ 1
K. Flexible Hose 5" ......................................... 1
L. Collection Drum Seal 2M ........................... 1
M. Frame Support Plate .................................. 1
N. Inlet Restrictor 5" X 6" ................................ 1
O. Spring Clamp .............................................. 1
P. Filter Element Dust Collection Bags ........... 2
Q. Hose Clamps 1" .......................................... 2
R. Foam Tape 3 x 6mm .................................. 1
S. Foam Tape 5 x 50mm ................................ 1
I
N
J
K
L
M
O
Q
S
P
R
Box 2 Inventory (Figure 16): Qty
T. Hose Clamps 5" ......................................... 2
U. Hand Crank ................................................ 1
V. Casters 2" ................................................... 4
1
W. Casters 2
X. Locking Casters 2
⁄2 " ................................................ 2
1
⁄2 " .................................. 2
Y. Frame Braces ............................................. 2
Z. Collection Drum Lid Latches ...................... 3
AA. Drum Dust Collection Bags ........................ 2
AB. Collection Drum Seal ................................. 1
AC. Hardware Bag (refer to Page 21) ............... 1
3
—Phillips Head Screws #10-24 x
⁄8" ......... 6
—Hex Nuts #10-24 ..................................... 6
3
—Fender Washers
3
—Hex Nuts
⁄8"-16 ...................................... 4
—Lock Washers
1
—Hex Nuts
⁄2 "-13 ....................................... 4
—Lock Washers
5
—Hex Bolts
⁄16"-18 x 3⁄4" .......................... 33
—Fender Washers
—Flat Washers
5
—Hex Nuts
—Hex Bolts
⁄16"-18 ................................... 12
5
⁄16"-18 x 5⁄8" .......................... 16
⁄8" ............................... 4
3
⁄8" ................................... 4
1
⁄2 " ................................... 4
5
⁄16" ............................ 21
5
⁄16" .................................. 24
—Tap Screws M4 x 12 ............................... 3
G0777HEP Only:
1
—Hex Bolts
—Fender Washers
⁄4"-20 x 3⁄4" ............................. 8
1
⁄4" ................................ 8
Figure 15. Box 1: loose inventory.
T
U
V
Z
Y
AB
Figure 16. Box 2: loose inventory.
AD
W
X
AA
AC
AE
Box 3 Inventory (G0777HEP, Figure 17): Qty
AD. HEPA Filter ................................................. 1
AE. HEPA Filter Cage ....................................... 1
-20-
Figure 17. Box 2: HEPA inventory (G0777HEP).
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 23
Hardware Recognition Chart
USE THIS CHART TO MATCH UP
HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.
Flat
Head
Cap
Screw
5mm
Model G0777/G0777HEP (Mfd. Since 04/19)
5mm
-21-
Page 24
Site Considerations
Weight Load
Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
See below for required space allocation.
Physical Environment
Extreme conditions for this type of machinery are
Place this machine near an existing power source.
other hazards. Make sure to leave enough space
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Machine Data Sheet for the weight
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
34½"
The physical environment where the machine is
operated is important for safe operation and longevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Electrical Installation
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
around machine to disconnect power supply or
apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
34½"
-22-
G0777
47½"
Figure 18. Minimum working clearances.
59¾"
G0777HEP
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 25
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
all
goes smoothly, first clean any
ered or coated in heavy-duty rust preventative (if
applicable).
Needed for Setup and gather
listed items. To ensure the assembly process
parts that are cov-
5. With help from an assistant, carefully tip dust
collector upright and prop one side up on (2)
4x4x12 blocks, as shown in Figure 21.
1
6. Install two 2
shown in Figure 21 using (1)
and (1)
Wood Blocks
(1 of 2)
⁄2" locking casters in locations
1
1
⁄2" lock washer for each wheel.
⁄2"-13 hex nut
Locking Casters
(1 of 2)
1. Install frame braces on stand using (8) 5⁄16"-
3
⁄4" hex bolts and (8) 5⁄16" fender washers
18 x
(see Figure 19).
Stand
x 8
Frame
Braces
Figure 19. Frame braces installed.
2. With help from an assistant, gently lay dust
collector assembly on its side (see Figure 20).
3. Install stand onto dust collector assembly
5
using (8)
⁄16"-18 x 3⁄4" hex bolts and (8) 5⁄16"
fender washers (see Figure 20).
Figure 21. Dust collector propped up on wood
blocks for locking caster installation.
7. Lock casters from Step 6 to prevent move-
ment during following steps.
8. Remove wood blocks, then repeat Steps
5–6 on other side of machine with 21⁄2" non-
locking casters (see Figure 22), then remove
wood blocks.
Wood Blocks
(1 of 2)
4. Install frame support plate using (4)
1
⁄2" hex bolts, (4) 5⁄16" fender washers, (4) 5⁄16"
1
flat washers, and (4)
5
⁄16"-18 hex nuts (see
Figure 20).
x 8
Figure 20. Stand installed (G0777HEP shown).
x 4
Model G0777/G0777HEP (Mfd. Since 04/19)
5
⁄16"-18 x
Frame
Support
Plate
Non-Locking
Casters (1 of 2)
Figure 22. Dust collector propped up on wood
blocks for caster installation.
-23-
Page 26
9. Apply foam tape to top and bottom mating
surfaces of intake barrel (see Figure 23).
Important: Apply foam tape evenly and uni-
formly to entire mating surface to prevent air
leaks. Any leaks in the system will reduce
the machine's suction capacity, causing poor
dust collection performance.
Apply Foam
Tape Here
Apply Foam
Tape Here
12. G0777HEP Only: Install HEPA filter and
HEPA filter cage onto filter housing with (8)
1
⁄4"-20 x 3⁄4" hex bolts and (8) 1⁄4" fender wash-
ers (see Figures 25–26).
HEPA
Filter
Filter
Housing
Cage
x 8
HEPA Filter
Figure 25. G0777HEP HEPA filter, cage, and
housing (filter housing shown removed for
illustration purposes).
Figure 23. Locations to apply foam tape to
intake barrel.
10. Install intake barrel onto dust collection
5
assembly using (12)
⁄16"-18 x 5⁄8" hex bolts
(see Figure 24).
11. Install cyclone funnel onto intake barrel using
5
⁄16"-18 x 3⁄4" hex bolts, (24) 5⁄16" flat
(12)
washers, and (12)
5
⁄16"-18 hex nuts (see
Figure 24).
Intake
Barrel
x 12
Cyclone
Funnel
Figure 26. G0777HEP HEPA filter system
installed.
13. Install pull handle using (4)
5
hex bolts and (4)
⁄16" fender washers (see
5
⁄16"-18 x 3⁄4"
Figure 27).
x 4
x 12
Figure 24. Intake barrel and cyclone funnel
installed (G0777HEP shown).
-24-
Handle
Figure 27. Installing frame handle.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 27
5
14. Install hand crank on shaft with (1)
3
⁄4" hex bolt and (1) 5⁄16" fender washer (see
⁄16"-18 x
Figure 28).
x 1
Figure 28. Installing crank handle.
15. Install 2" casters to bottom of drum using (4)
3
⁄8"-16 hex nuts, (4) 3⁄8" fender washers, and
3
⁄8" lock washers (see Figure 29).
(4)
16. Install lid latches to side of drum using (6)
3
#10-24 x
⁄8" Phillips head screws and (6)
#10-24 hex nuts (see Figure 30).
Note: To avoid bag snags, place screw
heads inside of drum with shanks facing outward, as shown in Figure 30.
Latch (1 of 3)
x 6
Figure 30. Installing lid latch (1 of 3 shown).
x 4
Figure 29. Collection drum casters installed.
17. Place dust collection bag seat into collection
drum (see Figure 31).
Bag Seat
Drum
Figure 31. Installing the dust collection bag seat.
Model G0777/G0777HEP (Mfd. Since 04/19)
-25-
Page 28
18. Install rubber drum seal over top lip of drum
rim. Pay special attention to orientation of
seal shown in inset (see Figure 32).
Seal
21. Connect 1" hose and 5" hose to collection
drum (see Figure 34).
22. Connect other ends of both hoses to cyclone
housing (see Figure 34), and secure them in
place with appropriate diameter hose clamps.
23. Install filter dust bag (see Figure 34) to filter
and clamp it in place using spring clamp.
Drum
Rim
Figure 32. Installing canister seal.
19. Place dust collection bag into collection drum,
as shown in Figure 33.
Tip: To make filter element bag installation
easier, use a piece of tape to hold bag in
place while you position spring clamp and
tighten it.
24. Ground wire is pre-installed on drum lid.
Remove one mounting bolt from frame, slide
wire terminal onto bolt, then re-install bolt in
frame (see Figure 34).
Spring
Clamp
Dust
Bag
Attach Ground
Wire Here
5" Hose
Ground
Wire
-26-
Figure 33. Bag installation.
1" Hose
Figure 34. Hoses and filter dust bag installed.
20. Place drum lid onto drum and tighten latches,
then roll drum under cyclone port so drum
spout faces dust collector, (see Figure 35).
Cyclone
Port
Drum
Lid
Drum
Spout
Figure 35. Collection drum positioning.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 29
Test Run
Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The
table in the
SERVICE section of this manual can help.
DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine
ed results that can lead to serious injury,
Serious injury or death can result from
Troubleshooting
3. Toggle power switch (see Figure 36) to ON
(—). Power indicator light will illuminate.
IR Sensor
On/Off
Button
Timer
Power
Switch
Button
using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
may result in malfunction or unexpect-
death, or machine/property damage.
Before starting dust collector, you must
first hook it up to your ducting system
with either a blast gate half-opened, a 4"x
1
⁄2" reducer, or your intended machine
2
connected to the other end. This provides
resistance necessary for proper machine
functioning. Without this resistance, the
machine will draw too many amps from the
circuit and cause the breaker to trip.
To test run dust collection system:
TIME
Button
Figure 36. Control panel and remote power
4. Press ON/OFF button (see Figure 36) to
turn machine ON. Make sure your hand
stays poised over switch in case you need to
quickly turn machine OFF.
5. The machine should run smoothly with little
or no vibration or rubbing noises.
— If you suspect any problems, immediately
6. Press TIMER button on remote control
receiver (see Figure 36) and cycle through
each time setting (1, 2, 4, and 8 hours) to
make sure the indicators illuminate.
START/STOP
Button
controls.
turn the machine OFF and disconnect it
from power. Refer to Troubleshooting on
Page 44 to identify and fix any problems. If
you do not solve the problem with the use
of the Troubleshooting guide, contact
our Tech Support at (570) 546-9663 for
assistance.
Remote Control
1. Connect dust collector to a half-opened blast
gate, a 4" x 2
machine (see Notice on this page), then
clear all setup tools away from machine.
2. Review Power Supply on Page 14 and con-
nect machine to power source.
Model G0777/G0777HEP (Mfd. Since 04/19)
1
⁄2" reducer, or your intended
7. Press TIME button on remote control (see
Figure 36) and cycle through remaining times
(9–15 hours) in same manner as Step 6.
8. Toggle power switch to OFF (O) on receiver
or press START/STOP button on remote
control (see Figure 36) to turn machine OFF.
-27-
Page 30
SECTION 4: DESIGNING THE
You have many choices regarding main line and
branch line duct material. For best results, use
smooth metal duct for the main line and branch
lines, then use short lengths of flexible hose to
connect each machine to the branch lines.
Plastic duct is also a popular material for home
shops. However, be aware that there is a fire or
explosion hazard if plastic duct material is not
properly grounded to prevent static electrical
buildup (refer to
at the end of
this section)
duct is that it is less efficient per foot than metal.
electrical buildup that can
The popularity of plastic duct is due to the fact
that it is an economical and readily available
product. It is also simple to assemble and easily
sealed against air loss. The primary disadvantage
of plastic duct for dust collection is the inherent
danger of static electrical buildup.
Always guard against
by grounding all dust
SYSTEM
General
static electrical build up
collection lines.
The Model G0777/G0777HEP is designed to collect dust from one machine at a time. This can
be accomplished by either connecting it to one
machine at a time or by connecting it to multiple
machines and using blast gates to control which
branch is active.
The Model G0777/G0777HEP works quite well as
a point-of-use dust collector. The wheels make it
easy to move around the shop near the machine
being used.
Tips for Optimum Performance
• Avoid using more than 10' of flexible hose on
any connection.
Duct Material
System Grounding
. Another problem with using plastic
Plastic duct generates static
cause fire or shock. Properly
ground it to reduce this risk.
Plastic Duct
• Keep ducts between the dust collector and
machines as short as possible.
• Keep ducting directional changes to a mini-
mum. The more curved fittings you use, the
greater the loss of suction at the dust producing machine.
• Gradual directional changes are more effi-
cient than sudden directional changes (i.e.
use 45° elbows in place of 90° elbows whenever possible).
• The simpler the system, the more efficient
and less costly it will be.
-28-
Figure 37. Examples of plastic ducting
components (see Accessories on Page 40).
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 31
There are also many kinds of pure plastic flexible
hose, such as non-perforated drainage type hose
and dryer vent hose. Drainage type hose, while
being economical, does not quite have the flexibility required for dust collection. The inside of the
duct is also deeply corrugated and can increase
the static pressure loss by as much as 50% over
smooth wall duct. Dryer vent hose, while being
completely flexible, is non-resistant to abrasion
and has a tendency to collapse in a negative
pressure system. We DO NOT recommend using
dryer vent hose in your dust collection system.
If using flex-hose, you should choose one of the
many types that are designed specifically for the
movement of solid particles, i.e. dust, grains,
and plastics. However, the cost of specifically
designed flexible duct can vary greatly. Grizzly
offers polyethylene hose, which is well suited for
the removal of particulate matter, especially sawdust, since it is durable and completely flexible.
Polyethylene is also very economical and available in a wide variety of diameters and lengths for
most applications.
Flexible hose is generally used for short runs,
small shops and at rigid duct-to-tool connections.
There are many different types of flex hose on
the market today. These are manufactured from
materials such as polyethylene, PVC, cloth hose
dipped in rubber and even metal, including steel
and aluminum.
The superior choice here is metal flex hose that is
designed to be flexible, yet be as smooth as possible inside to reduce static pressure loss.
There are a number of options when it comes to
metal duct, but metal duct that is specially manufactured for dust collection is the best choice.
When selecting your metal duct, choose high
quality metal duct with smooth welded internal
seams that will minimize airflow resistance. This
type of duct usually connects to other ducts or
elbows with a simple, self-sealing clamp, is very
quick and easy to assemble, and can be readily dismantled and re-installed in a different configuration. This is especially important if you ever
need to change things around in your shop or add
more tools.
Avoid inferior metal duct that requires you to cut it
to length and snap it together. This type of duct is
time consuming to install because it requires you
to seal all the seams with silicone and screw the
components on the ends with sheet metal screws.
Another disadvantage is the rough internal seams
and crimped ends that unavoidably increase static
Metal Duct
Advantages of metal duct is its conductivity and
that it does not contribute to static electrical
charge build-up. However, static charges are still
produced when dust particles strike other dust
particles as they move through the duct. Since
metal duct is a conductor, it can be grounded quite
easily to dissipate any static electrical charges.
Figure 38. Examples of metal pipe and
components (see Accessories on Page 40).
Flexible Duct
Model G0777/G0777HEP (Mfd. Since 04/19)
Figure 39. Example of flexible metal duct.
-29-
Page 32
System Design
For most small-to-medium sized shops, you can
design and build the dust collection system yourself without hiring engineers or consultants. We
have included some basic information here to get
you started on a basic design.
If you have a large shop or plan to design a complicated system, we recommend doing additional
research beyond this manual or seeking the help
of an expert.
When designing a successful dust collection system, planning is the most important step. In this
step, sketch a basic layout of your shop, including
space requirements of different machines.
Before you get out your pencil and paper, we recommend you visit our FREE
,
at
Our
and easily design and print a basic shop layout.
Don't worry, non-Grizzly brand machines can be
substituted with Grizzly machines for layout purposes.
After you're finished, make sure to
save your layout for later modification.
Your sketch only needs the basic details of the
shop layout, similar to
ing all your current/planned machines and your
planned placement of the dust collector
For the next step, sketch how you will connect
your machines to the dust collector. Consider
these general guidelines for an efficient system:
1.
should be placed nearest to the dust collector
2. Ideally, you should design the duct system to
have the shortest possible main line and sec-
below
layouts.
Decide Who Will Design
Sketch a Basic Duct Layout
Machines that produce the most saw dust
(i.e. planers and sanders).
ondary branch ducts. See the figures
for ideas of efficient versus inefficient duct
Sketch Your Shop Layout
Workshop Planner
http://www.grizzly.com/workshopplanner.
Workshop Planner will allow you to quickly
Note:
the figure below, includ-
Branch
Line
Ducts
Main
Line Duct
Figure 41. Efficient duct layout.
.
BAD
GOOD
Dust
Collector
Dust
Collector
Figure 40. Basic sketch of shop layout.
-30-
Dust
Collector
Figure 42. Inefficient duct layout.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 33
3. Directional changes should be kept to a mini-
mum. The more directional change fittings
4.
5.
6.
and less costly it will be.
Since each machine produces a different amount
of sawdust, the requirements for the minimum
amount of CFM to move that sawdust is unique
to the machine (for example, a planer produces
more sawdust than a table saw). Knowing this
required CFM is important to gauging which size
of duct to use.
Refer to the
below for a close estimation of
the airflow each machine requires. Keep in mind
that machines that generate the most sawdust
should be placed closest to the dust collector.
If the machine has multiple dust ports, the total
CFM required is the sum of all ports.
If the machine does not have a built-in dust port,
use
to determine which size of
dust port to install.
Write the required CFM for each machine on your
sketch, as shown in the figure below.
you use directly increases the overall resistance to airflow.
the following table
Gradual directional changes are more effi-
cient than sudden directional changes (i.e.
use the largest corner radius possible when
changing hose or pipe direction).
Each individual branch line should have a
blast gate immediately after the branch to
control suction from one machine to another.
The simpler the system, the more efficient
Determine Required CFMs
figure
Machine Average Dust Port Size
Table Saw ...................................................... 4"
Miter/Radial-Arm Saw ....................................2"
Jointer (6" and smaller) .................................4"
Jointer (8"-12") ............................................... 5"
Thickness Planer (13" and smaller) ............... 4"
Thickness Planer (14"-20") ............................ 6"
Shaper ........................................................... 4"
Router (mounted to table) ..............................2"
Bandsaw ........................................................ 4"
Lathe ..............................................................4"
Disc Sander (12" and smaller) .......................2"
Disc Sander (13-18") ...................................... 4"
Belt Sander (6" and smaller) .........................2"
Belt Sander (7"-9") ........................................3"
Edge Sander (6" x 80" and smaller) .............. 4"
Edge Sander (6" x 80" and larger) ................5"
Drum Sander (24" and smaller) ............... 2 x 4"
Drum Sander (24" and larger) ................. 4 x 4"
Widebelt Sander (18" and smaller) ................ 5"
Widebelt Sander (24"-37" single head) ...2 x 6"
Widebelt Sander (24"-51" double head) .. 5 x 4"
Figure 44. Dust port size and quantity per
average machine.
Machine
Dust Port Size
2"
2.5"
3"
4"
5"
6"
7"
8"
9"
10"
Approximate
Required CFM
100
150
250
400
600
850
1200
1600
2000
2500
Figure 43. Approximate required airflow for
machines, based on dust port size.
Model G0777/G0777HEP (Mfd. Since 04/19)
400
Sander
850400
Dust
Collector
600
PlanerShaper
Miter
Saw
100
Planer/
Moulder
250
Table Saw
Jointer
400
Figure 45. CFM requirements labeled for each
machine.
-31-
Page 34
Determining Main Line Duct Size
The general rule of thumb for a main line duct is
that the velocity of the airflow must not fall below
3500 FPM.
For small/medium sized shops, using the inlet size
of the dust collector as the main line duct size
will usually keep the air velocity above 3500 FPM
and, depending on your system, will allow you to
keep multiple branches open at one time.
Mark your drawing, as shown in the
below,
but using the inlet size for your dust collector as
the main line.
The general rule of thumb for a branch line duct is
that the velocity of the airflow must not fall below
4000 FPM.
For small/medium sized shops, using the dust
port size from the machine as the branch line duct
size will achieve the correct velocity in most applications. However, if the dust port on the machine
is smaller than 4", make the branch line 4" and
neck the line down right before the dust port.
Note: Systems with powerful dust collectors work
better if multiple blast gates are left open. This
also allows you to run two machines at once.
Experiment with different combinations of blast
gates open/closed to find the best results for your
system.
Write your determined branch line sizes on your
drawing, as shown in the following figure.
If two machines will connect to the same branch
line and both will operate at the same time, then
add the required CFM for each machine together
and
to determine the correct branch size
If both machines will never run at the same time,
reference the machine with the biggest dust port
in the table
Y-branch to open/close the line to each machine.
Planer/
Moulder
4"
Jointer Sander
400
400
4" 6"
850
figure
Jointer Sander
400
400
Table Saw
850400
Collector
600
PlanerShaper
Miter
Saw
100
Planer/
Moulder
5" 6" 7"
250
Figure 46. Main line size labeled on sketch.
Determining Branch Line Duct Size
Dust
Miter
Saw
100
5" 6" 7"
4"
4" 4" 5"
250
Table Saw
400
PlanerShaper
Dust
Collector
600
Figure 47. Branch line duct sizes labeled.
find the closest total CFM in the table below
.
below and add blast gates after the
Total CFM Branch Line Size
400 4"
500 4"
600 5"
700 5"
800 6"
900 6"
1000 6"
Figure 48. Sizing chart for multiple machines on
the same branch line.
-32-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 35
In most small/medium shops it is only necessary
to calculate the line with the longest duct length or
the most fittings (operating under the assumption
that if the line with the highest resistance works,
the others will be fine).
To calculate the static pressure of any given
line in the system, follow these steps:
1.
the
2.
pressure loss given in the previous table.
Adding duct work, elbows, branches and any
other components to a duct line increases airflow
resistance (static pressure loss). This resistance
can be minimized by using rigid (smooth) duct
and gradual curves, as opposed to flexible duct
and 90˚ elbows.
To help you think about this resistance, imagine
riding a bicycle in a tunnel that is an exact replica
of your duct work. If the inside of the tunnel is very
bumpy (flexible
) and has a lot of sharp turns
(90˚ elbows), it will take a lot more effort to travel
from one end to the other.
The purpose of calculating the resistance is to
determine if it is low enough from the machine to
the dust collector to meet the given CFM requirement for the machine. Use the
to
calculate the resistance of duct work.
Planning Drop Downs
Plan the drop downs for each machine, using
blast gates wherever possible to control airflow.
Elbow
Rigid Duct
(Main Line)
Y Branch
Clamp
Flexible Duct
To Planer
Figure 49. Drop down setup.
Rigid Duct
Blast Gate
Calculating Duct Resistance
Approximate
Static Pressure
Duct
Dia.
2" 0.091 0.122 0.35 0.453
2.5" 0.08 0.107 0.306 0.397
3" 0.071 0.094 0.271 0.352
4" 0.057 0.075 0.215 0.28
5" 0.046 0.059 0.172 0.225
6" 0.037 0.047 0.136 0.18
7" 0.029 0.036 0.106 0.141
8" 0.023 0.027 0.08 0.108
9" 0.017 0.019 0.057 0.079
Fitting
Dia.
Loss Per Foot of
Rigid Duct
Main
Lines
at 3500
FPM
90˚
Elbow
Branch
Lines
at 4000
FPM
45˚
Elbow
Approximate
Static Pressure
Loss Per Foot
of Flexible Duct
Main
Lines
at 3500
FPM
45˚
Wye(Y)
Branch
Lines
at 4000
FPM
90˚
Wye(Y)
duct
Model G0777/G0777HEP (Mfd. Since 04/19)
following tables
3" 0.47 0.235 0.282 0.188
4" 0.45 0.225 0.375 0.225
5" 0.531 0.266 0.354 0.236
6" 0.564 0.282 0.329 0.235
7" 0.468 0.234 0.324 0.216
8" 0.405 0.203 0.297 0.189
Figure 50. Static pressure loss charts.
Make a list of each size duct in the line,
including the length, and multiply those numbers by the static pressure value given in
previous table.
List each type of elbow or branch and multiply
the quantity (if more than one) by the static
-33-
Page 36
4. Total your list as shown in the example below
Always account for a seasoned filter,
so you don't end up with a system that only
works right when the filter is clean.
Note: When calculating static pressure loss
to determine if multiple lines can be left open
at the same time, only include the main line
3. Add the additional factors from the following
table to your list.
5. Compare the total static pressure loss for that
DATA SHEET
12.0 13.0
— If the CFM for your static pressure loss
moving machine closer to dust collector to
eliminate duct length, and 5) reducing 90˚
elbows or replacing them with 45˚ elbows.
line to the closest CFM given in Figure 53 for
your dust collector.
Additional Factors Static Pressure
Seasoned (well used)
Dust Collection Filter
Entry Loss at Large
Machine Hood
Figure 51. Additional factors affecting static
pressure.
to come up with your overall static pressure
loss number for that line.
Note:
Main Line
6" Rigid Duct (0.037) at 20' ................ 0.740
Branch Line
4" Rigid Duct (0.075) at 10' ................ 0.750
4" Flexible Duct (0.28) at 5' ................ 1.400
Elbows/Branches
6" 45˚ Y-Branch ................................ 0.329
4" 45˚ Elbow ........................................ 0.225
Additional Factors
Seasoned Filter ................................ 1.000
Total Static Pressure Loss ................ 4.444
Figure 52. Totaling static pressure numbers.
1"
2"
Example: A typical Data Sheet Performance
Curve is illustrated in Figure 53. Find 4.4 on
the Static Pressure axis (the amount of total
static pressure loss calculated in Figures 54
& 55), then refer to the closest value on the
CFM axis—approximately 1120 CFM.
The 1120 CFM for the static pressure loss of
the line connected to the router is well above
the 220 CFM requirement of that machine.
Performance Curve
2500
2250
2000
1750
1500
1250
1000
750
500
250
0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0
CFM
1354
4.4 SP
Loss
STATIC PRESSURE (Inch/H2O)
Figure 53. CFM for static pressure loss of line
connected to a dust collector & router.
— If the CFM for your static pressure loss
is above the requirement of the machine
connected to the end of that branch line,
then dust collection will most likely be
successful. Congratulations! You've just
designed your own dust system. Refer to
the Accessories section on Page 40 to
start buying the components necessary to
make your system a reality.
Closest
CFM
(1120)
-34-
is below the requirement of the machine,
then that line will not effectively collect
the dust. You must then modify some of
the factors in that line to reduce the static
pressure loss. Some of the ways to do
this include 1) installing larger duct, 2)
reducing amount of flexible duct used,
3) increasing machine dust port size, 4)
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 37
After the system is designed, create a materials
list of all the items you will need to build your dust
collection system. This will make it easy when it
comes time to purchase the materials.
Below is an example of some items that might be
needed. Refer to
for dust collection
components available through g rizzly.com.
2500
G0777 Performance Curve
2250
2000
1750
1500
1250
1000
750
500
250
0
CFM
1.5 HP DUST COLLECTOR PERFORMANCE RESULTS
Max CFM Max SP HP Volts Inlet Impeller
880 9 1-1/2 HP 110/220V 6" 24"
Restrictor Plate (Inch) Dia. 6"
Static Pressure (Inch/
H2O)
CFM 880 846
The airflow test probe is located 1.5x duct diameter upstream from
the air inlet. Test pipe length is a minimum of 10x duct diameter.
880
1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0
STATIC PRESSURE (Inch/H2O)
Dia. 5"
1.9 3.3
Example Materials List
Accessories
Description Model Quantity
6" Rigid Duct at 20' G7364 4
4" Rigid Duct at 10' G6162 2
4" Flex Hose at 5' H7215 6
6" 45° Y-Branch G7353 6
4" 45° Elbow G6167 6
Figure 56. Example materials list.
Figure 54. G0777 performance curve table and
data.
G0777HEP Performance Curve
2500
2250
2000
1750
1500
1250
1000
750
500
250
0
CFM
1.5 HP DUST COLLECTOR PERFORMANCE RESULTS
Max CFM Max SP HP Volts Inlet Impeller
792 9 1-1/2 HP 110/220V 6" 24"
Restrictor Plate (Inch) Dia. 6"
Static Pressure (Inch/
H2O)
CFM 792 761
792
1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0
STATIC PRESSURE (Inch/H2O)
Dia. 5"
1.9 3.3
The airflow test probe is located 1.5x duct diameter upstream from
the air inlet. Test pipe length is a minimum of 10x duct diameter.
Figure 55. G0777HEP performance curve table
and data.
Model G0777/G0777HEP (Mfd. Since 04/19)
-35-
Page 38
System Grounding
Since plastic hose is abundant, relatively inexpensive, easily assembled and air tight, it is a very
popular material for conveying dust from woodworking machines to the dust collector.
We recommend only using short lengths of flexible hose (flex-hose) to connect the woodworking
machine to the dust collector. However, plastic
flex-hose and plastic duct are an insulator, and
dust particles moving against the walls of the
plastic duct create a static electrical buildup. This
charge will build until it discharges to a ground.
If a grounding medium is not available to prevent
static electrical buildup, the electrical charge will
arc to the nearest grounded source. This electrical discharge may cause an explosion and subsequent fire inside the system.
To protect against static electrical buildup inside
a non-conducting duct, a bare copper wire should
be placed inside the duct along its length and
grounded to the dust collector. You must also
confirm that the dust collector is continuously
grounded through the electrical circuit to the electric service panel.
If you connect the dust collector to more than one
machine by way of a non-conducting branching
duct system and blast gates, the system must still
be grounded as mentioned above. We recommend inserting a continuous bare copper ground
Always guard against
by grounding all dust
We also recommend wrapping the outside of all
plastic ducts with bare copper wire to ground
the outside of the system against static electrical
buildup. Wire connections at Y’s and T’s should
be made with wire nuts.
Attach the bare ground wire to each stationary
woodworking machine and attach to the dust
collector frame with a ground screw as shown
in the
continuously grounded to the grounding terminal
in your electric service panel.
Be sure that you extend the bare copper wire down
all branches of the system. Do not forget to connect the wires to each other with wire nuts when
two branches meet at a “Y” or “T” connection.
Ensure that the entire system is grounded. If using
plastic blast gates to direct air flow, the grounding wire must be jumped (see the figure below)
around the blast gate without interruption to the
grounding system.
Plastic Blast
Gate
Metal Duct
Copper
Ground Wire
-36-
static electrical build up
collection lines.
Figure 57. Ground jumper wire when using
plastic blast gates and metal duct.
figure below. Ensure that each machine is
External
Ground Wire
Internal
Ground Wire
Flex-Hose
Figure 58. Flex-hose grounded to machine.
Model G0777/G0777HEP (Mfd. Since 04/19)
Ground
Screw
Page 39
SECTION 5: OPERATIONS
To reduce your risk of
serious injury, read this
entire manual BEFORE
To reduce risk of eye injury from flying
General Operation
This cyclone dust collector creates a vortex of
using machine.
incoming air that extracts heavy wood chips (see
Figure 59) and large dust particles, and then
drops them into the steel drum below, which is
lined with a plastic bag.
chips or lung damage from breathing dust,
always wear safety glasses and a respirator
when operating this machine.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
Incoming
Hand Crank
Wood
Chips and
Fine Dust
Filter
Cartridge
Fine
Dust
Wood
Chips
Figure 59. Model G0777 dust collection flow.
Model G0777/G0777HEP (Mfd. Since 04/19)
The remaining dust travels past the impeller and
is then caught by the filter cartridge and deposited
in the plastic collection bag below. This spunbond polyester filter catches 99% of particles from
0.2 to 2 microns in size, and is pleated to provide
maximum surface area for efficient airflow.
G0777HEP Only: The MERV-17 HEPA filter
catches an additional 99.97% of particles at 0.3
microns.
To maintain CFM during heavy dust collection
operations, the cleaning hand crank is manually rotated and the internal filter flaps knock off
caked-on dust into the plastic collection bag.
-37-
Page 40
Using Controls
A remote control receiver and remote controller
(see Figure 60) allow the dust collector to be
turned ON and OFF from up to 75 feet away, providing that direct line-of-sight is maintained.
To prevent accidental startups by other common
RF items like garage door openers, the remote
control signal for the Model G0777/G0777HEP is
IR (infrared) rather than a RF (radio frequency)
signal. The remote control switch features a factory-set 256-code channel setting, which prevents
the simultaneous startup of two G0777's.
The Model G0777/G0777HEP is equipped with a
circuit breaker/thermal overload button. If the dust
collector experiences an overload, this button
pops out and the machine shuts down.
To restart the machine, you must first fix the cause
of the overload, press the circuit breaker/thermal
overload button, then turn the power switch OFF,
then ON to reset the thermal overload.
Remote
Controller
Power
Switch
Figure 60. Remote control receiver and
handheld features.
Remote
Receiver
Circuit
Breaker/
Thermal
Overload
Operating Remote Controller
Refer to Figure 61 and the following descriptions
to understand the remote control functions.
A
B
C
Figure 61. Remote controls.
A. TIME Button: Selects auto shut-down time.
By pressing TIME Button once, dust collector will run for 1 hour; 1H illuminates on
Timer Indicator on control panel. Consecutive
pushes increase operation time in 1, 2, 4 or 8
hour intervals—up to 15 hours. The machine
will stop once set time period ends. To cancel timer before set time has elapsed, turn
POWER Switch OFF or press START/STOP
button on remote controller.
-38-
B. START/STOP Button: Turns the dust collec-
tor ON or OFF.
C. SET Button: Used to reprogram receiver.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 41
Reprogramming Receiver Operating Control Panel
This procedure covers how to reprogram the
remote receiver to accept a new remote frequency from the remote controller. Use these instructions if you ever replace the two AA batteries in
the remote controller, or if the controller cannot
be activated.
To reprogram remote receiver:
1. Press and hold Set button on control panel
until Signal indicator light starts to flash (see
Figure 62).
2. While Signal light flashes, press Set button
on remote controller to complete the setting.
Signal light will stop flashing.
Refer to Figure 62 and the following descriptions
to understand the receiver control functions.
A
B
C
D FE
Figure 62. Machine-mounted controls.
A. Timer Indicator: Illuminates to display auto
shut-down time set by TIMER Buttons on
control panel, or remote controller. If not illuminated, the timer function is inactive, and
machine will run until manually turned OFF.
I
H
G
B. Remote Signal Indicator: Flashes when
remote is ready to be reprogrammed.
C. Set Button: Used to reprogram receiver.
D. POWER Switch: Toggles incoming power
ON or OFF.
E. Run Indicator: Illuminates when the dust
collector is ON.
F. Circuit Breaker/Thermal Overload: Pops
out if machine overloads.
G. Power Indicator: Illuminates when there is
power to the machine.
H. Timer Button: Selects auto shut down time.
Consecutive pushes increase operation time
in 1, 2, 4 or 8 hour intervals—up to 15 hours.
The machine will stop once set time period
ends. To cancel timer before set time has
elapsed, turn Power Switch OFF or press
OFF button on remote controller.
Model G0777/G0777HEP (Mfd. Since 04/19)
I. ON/OFF Button: Turns dust collector ON or
OFF.
-39-
Page 42
ACCESSORIES
Installing unapproved accessories may
order online at www.grizzly.com or call 1-800-523-4777
SECTION 6: ACCESSORIES
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
W1054—Dust Collection Kit #1
W1055—Dust Collection Kit #2
Use these kits to connect your dust collection
system to dust collection attachments with 4" dust
ports (see Page 42).
Note: To connect to G0777/G0777HEP, these
accessories require an adapter, such as W1309
(see Page 41).
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
H5295—Industrial Dust Collection Kit 5"
This includes everything you will need for a
simple, single machine setup. The advantage of
these metal fittings lies in their design flexibility.
They can be unclamped and reconfigured in a
new shop layout, meaning they can last a lifetime.
The branch and end cap make your dust collection system expansion ready for future growth. Kit
includes: (2) machine adapters, (10) pipe clamps,
(3) 5-foot pipes, (1) "Y" branch, (3) pipe hangers,
(1) end cap, (3) adjustable nipples, (1) 60 degree
elbow, and (1) 90 degree elbow.
W1054 is designed for a one-machine hook-up,
and includes (1) 4" x 10' Hose, (1) Universal Dust
Hood 4" OD, and (2) Wire Hose Clamps.
W1055 is designed for a two-machine hook-up,
and includes (2) 4" Blast Gates,
(2) 4" x 10' Hoses, (1) Table Saw Dust Hood 4"
OD, (1) Universal Dust Hood 4" OD, (1) Y-Fitting 4"
x 4" x 4" OD, and (10) Wire Hose Clamps.
W1054
W1055
Figure 63. H5295 Industrial Dust Collection
Kit 5".
Figure 64. Dust collection kits for Models G0777
and G0777HEP.
-40-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 43
order online at www.grizzly.com or call 1-800-523-4777
W1039—Universal Adapter
This adapter provides a multitude of reducing
options. Simply cut off unneeded steps. Outside
diameter sizes include 1", 2", 2.5", 3", 4", 5", and
1
6". Wall thickness is
⁄8".
D4206—Clear Flexible Hose 4" x 10'
D4256—45° Elbow 4"
D4216—Black Flexible Hose 4" x 10'
W1034—Heavy-Duty Clear Flex Hose 4" x 10'
1
D2107—Hose Hanger 4
⁄4"
W1015—Y-Fitting 4" x 4" x 4"
W1017—90° Elbow 4"
W1019—Hose Coupler (Splice) 4"
W1317—Wire Hose Clamp 4"
W1007—Plastic Blast Gate 4"
W1053—Anti-Static Grounding Kit
Note: To connect to G0777/G0777HEP, these
accessories require an adapter, such as W1039
(see This Page).
Figure 65. W1039 Universal Adapter.
Dust Collection Reducers
1
W1044—4" x 2
⁄2" Reducer
W1037—5" x 4" Reducer
W1011—4" x 3" Reducer
W1020—3" x 2" Reducer
1
W1041—3" x 2
⁄2" Reducer
W1044
W1020
W1037
W1011
D4206
D4216
D4256
W1053
W1007
W1317
W1017
Figure 67. Dust collection accessories.
D4240—Dust Collector Adapter 6" x 4"
W1041
Figure 66. Dust Collection Reducers.
Figure 68. D4240 Dust Collector Adapter 6" x 4".
Model G0777/G0777HEP (Mfd. Since 04/19)
-41-
Page 44
order online at www.grizzly.com or call 1-800-523-4777
T10117—Big Mouth Dust Hood with Stand
G2753—4" Bench Attachment
G2754—4" Floor Attachment
These attachments are indispensable for collecting dust at machines without a port. Designed for
use with 4" flexible hose (not included).
G2753
T10117
G2754
Figure 69. Dust collection attachments.
T10878—G0777 Dual-Filtration HEPA Upgrade
Easily upgrade the filtration capability of your
existing G0777 cyclone to dual-filtration HEPA
(with MERV-17 rating) by replacing your stock
cartridge filter with the components included in
this kit.
T27086—Replacement HEPA Filter
This V-Cell HEPA filter is 289x595x292mm in size
and can be used with the G0777HEP and G0777
with T10878 upgrade.
Figure 71. T27086 replacement HEPA filter for
G0777HEP and G0777 with upgrade.
W1050—Dust Collection Basics Book
This incisive book skillfully guides the woodworker
through all the steps necessary in the design and
construction of an efficient central dust collection
system and tells you what you need to know for
easy installation. The text offers practical hints
and techniques and takes the mystery, misery
and hype away from a subject that should be as
clear as the air you breathe. 64 pages of concise,
carefully illustrated text. A Must!
Upgrade Kit
Figure 72. W1050 Dust Collection Basics Book.
Kit Shown Installed
Figure 70. Dual-filtration HEPA upgrade kit.
-42-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 45
SECTION 7: MAINTENANCE
accidental startup, always
disconnect machine from
Cleaning Filter
To reduce risk of shock or
The Model G0777/G0777HEP dust collector has a
power before adjustments,
maintenance, or service.
crank handle-driven filter flap system (see Figure
73) for removing any built-up dust and debris from
the filter pleats.
Schedule
For optimum performance from your machine,
follow this maintenance schedule and refer to any
specific instructions given in this section.
Daily Check:
• Dust collector is completely powered down at
the end of use.
• Dust collection drum or bag leaks.
• Loose mounting bolts.
• Suction leaks.
• Worn or damaged wires.
• Any other condition that would hamper the
safe and efficient operation of this machine.
Emptying Drum
Empty the collection drum when it is approximately
3
⁄4 full. If the drum becomes overfilled, the dust
will be sucked into the intake barrel and passed
through to the canister filter.
How quickly the drum will fill up is based on the
type of work being done at the time:
• Fine dust from a sander or table saw will
slowly fill the drums.
Crank
Handle
Filter Flap System
(as Viewed From
Inside Canister Filter)
Figure 73. Crank handle-driven filter flap system
for cleaning canister filters (G0777 shown).
To clean the filter, rotate the crank handle a few
turns in one direction. The caked-on dust and
debris will fall into the plastic bag below.
For a more thorough cleaning every few months
under heavy use, remove the filter from the dust
collector (see Page 46) and rinse it with warm
water. Allow the filters to air dry only. Do not leave
the filters in the sun to dry or apply heat to speed
the process; heat exposure can damage your
filters.
• Curly shavings from a planer or jointer will
quickly fill the drums.
When first using the dust collector, check the
drum regularly to get an idea of how often it needs
to be emptied.
Model G0777/G0777HEP (Mfd. Since 04/19)
To avoid damage to your
eyes and lungs, always
wear safety glasses and
a respirator when working
with the dust collection
bags or canisters.
-43-
Page 46
Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
the
serial number and manufacture date of your machine before calling.
SECTION 8: SERVICE
replacement parts or additional help with a procedure, call our Technical Support. Note: Please gather
Troubleshooting
Motor & Electrical
Symptom Possible Cause Possible Solution
Machine does not
start or a breaker
trips.
Machine stalls or is
underpowered.
Machine has
vibration or noisy
operation.
1. Dust collector not properly hooked up to
ducting with resistance at the other end.
2. Incorrect power supply voltage or circuit
size.
3. Power supply circuit breaker tripped or fuse
blown.
4. Hand-held controller not working.
5. Motor wires connected incorrectly.
6. Wiring open/has high resistance.
7. ON/OFF switch at fault.
8. Start capacitor at fault.
9. Remote receiver at fault.
10. Machine circuit breaker has tripped.
11. Centrifugal switch at fault.
12. Circuit board at fault.
13. Motor at fault.
1. Motor overheated.
2. Dust collection ducting problem.
3. Filter element clogged/at fault.
4. Dust collector undersized.
5. Motor wired incorrectly.
6. Run capacitor at fault.
7. Centrifugal switch at fault.
8. Motor bearings at fault.
1. Motor or component loose.
2. Motor fan rubbing on fan cover.
3. Motor mount loose/broken.
4. Centrifugal switch is at fault.
5. Motor bearings at fault.
6. Motor shaft bent.
1. Hook dust collector up to ducting with resistance at
the other end (Page 27).
2. Ensure correct power supply voltage and circuit
size.
3. Ensure circuit is sized correctly and free of shorts.
Reset circuit breaker or replace fuse.
4. Replace batteries; stay in signal range; reprogram
receiver (Page 39).
5. Correct motor wiring connections.
6. Check/fix broken, disconnected, or corroded wires.
7. Replace switch.
8. Test/replace.
9. Inspect/replace.
10. Let motor cool, improve ventilation, and reset;
contact tech support if relay frequently trips.
11. Adjust/replace centrifugal switch if available.
12. Ensure circuit board voltage matches power supply;
Inspect/replace.
13. Test/repair/replace.
1. Allow motor to cool, reset overload if necessary.
2. Clear blockages, seal leaks, use smooth wall duct,
eliminate bends, close other branches.
3. Clean/replace filter(s) (Pages 4 & 46).
4. Move closer to machine/redesign ducting layout/
upgrade dust collector.
5. Wire motor correctly (Page 49).
6. Test/repair/replace.
7. Adjust/replace centrifugal switch if available.
8. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.
1. Inspect/replace damaged bolts/nuts, and retighten
with thread-locking fluid.
2. Fix/replace fan cover; replace loose/damaged fan.
3. Tighten/replace.
4. Adjust/replace centrifugal switch if available.
5. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.
6. Test with dial indicator. Replace motor if damaged.
-44-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 47
Dust Collector Operation
Symptom Possible Cause Possible Solution
Loud, repetitious
noise, or excessive
vibration coming
from dust collector
(non-motor related).
Dust collector does
not adequately
collect dust or chips;
poor performance.
Dust collector blows
sawdust into the air.
1. Dust collector not on a flat surface and
wobbles.
2. Impeller is damaged and unbalanced.
3. Impeller is loose on the motor shaft.
1. Dust collection bag is full.
2. Filter is clogged/at fault.
3. Ducting blocked/restricted.
4. The dust collector is too far away from
the point of suction, or there are too many
sharp bends in the ducting.
5. The lumber is wet and dust is not flowing
smoothly through ducting.
6. Ducting has one or more leaks, or too
many open ports.
7. Not enough open branch lines at one time,
thereby causing a velocity drop in the main
line.
8. Ducting and ports are incorrectly sized.
9. The machine dust collection design is
inadequate.
10. Dust collector is undersized.
1. Duct clamps or dust collection bag is not
properly clamped and secured.
2. Cylinder or funnel seals are loose or
damaged.
1. Stabilize dust collector; lock casters.
2. Disconnect dust collector from power. Inspect
impeller for dents, bends, or loose fins. Replace
impeller if damaged.
3. Secure impeller; replace motor and impeller as a set
if motor shaft and impeller hub are damaged.
1. Empty collection bag.
2. Rotate filter brush handle to clean filter; replace
(Pages 4 & 46).
3. Remove ducting from dust collector inlet and
unblock the restriction. A plumbing snake may be
necessary.
4. Relocate the dust collector closer to the point of
suction; remove sharp bends in ducting.
5. Process lumber with less than 20% moisture
content.
6. Seal/eliminate all ducting leaks; close dust ports for
lines not being used.
7. Open 1 or 2 more blast gates to different branch
lines to increase main line velocity.
8. Install correctly sized ducts and fittings.
9. Use a dust collection hood on a stand (Page 42).
10. Install a larger dust collector.
1. Re-secure ducts and dust collection bag, making
sure duct and bag clamp are tight.
2. Retighten all mounting and sealing points; replace
damaged seals/gaskets.
Model G0777/G0777HEP (Mfd. Since 04/19)
-45-
Page 48
Replacing Canister
Filter (G0777)
To avoid damage to your
eyes and lungs, always
wear safety glasses and
a respirator when working
with the dust collection
bags or canister filter.
If the canister filter is clogged/dirty and causing
poor dust collection performance, and cleaning
it does not remedy the situation, you will need to
replace the filter.
Tool Needed:
Wrench or Socket 12mm ................................... 1
4. Remove twelve hex nuts that secure canister
cage to blower housing (see Figure 75).
Figure 75. Removing hex bolts from canister
assembly (G0777).
5. Remove canister cage from blower housing
and filter.
Note: Canister filter will remain stuck to filter
flap assembly due to friction (see Figure 76).
To replace canister filter:
1. DISCONNECT MACHINE FROM POWER!
2. Remove bag clamp and collection bag from
canister assembly.
3. Remove hex bolt and flat washer from canister cage cross support (see Figure 74).
Cross Support
Hex Bolt
6. Carefully flex filter as you remove it from filter
flap assembly (see Figure 76).
Filter Flap
Assembly
Canister
Filter
Figure 76. Canister filter stuck to filter flap
assembly (G0777).
7. Carefully mount clean/new filter over filter
flap assembly, as shown in Figure 76.
8. Re-install canister cage and cross support by
repeating Steps 3–4 in reverse.
Figure 74. Location of canister cage cross
support and hex bolt (G0777).
-46-
9. Secure a fresh collection bag with the bag
clamp.
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 49
Replacing Canister
Filter (G0777HEP)
To avoid damage to your
eyes and lungs, always
wear safety glasses and
a respirator when working
with the dust collection
bags or canister filter.
4. Remove hex bolt and flat washer from canis-
ter cage cross support (see Figure 78).
Hex Bolt
Cross Support
Figure 78. Location of canister cage cross
support and hex bolt (G0777HEP).
If the canister filter is clogged/dirty and causing
poor dust collection performance, and cleaning
it does not remedy the situation, you will need to
replace the filter.
Tool Needed:
Wrench or Socket 12mm ................................... 1
To replace canister filter:
1. DISCONNECT MACHINE FROM POWER!
2. Remove collection bag from canister cage.
3. Remove pull handle (see Figure 77).
5. Remove twelve hex nuts that secure canister
cage to blower housing (see Figure 79).
Hex Nuts
(1 of 12)
Figure 79. Removing hex bolts from canister
assembly (G0777HEP).
Pull Handle
Figure 77. Removing pull handle (G0777HEP).
Model G0777/G0777HEP (Mfd. Since 04/19)
-47-
Page 50
6. Remove canister cage from blower housing
and filter.
Note: Canister filter will remain stuck to filter
flap assembly due to friction (see Figure 80).
Replacing the HEPA filter should rarely be necessary. However, if your machine shows poor dust
collection performance, and cleaning/replacing
the canister filter does not remedy the situation,
you may need to replace the HEPA filter.
7. Carefully flex filter as you remove it from filter
flap assembly (see Figure 80).
Filter Flap
Assembly
Canister
Filter
Figure 80. Canister filter stuck to filter flap
assembly (G0777HEP).
8. Carefully mount clean/new filter over filter
flap assembly, as shown in Figure 76.
9. Re-install canister cage and cross support by
repeating Steps 4–5 in reverse.
Tool Needed:
Wrench or Socket
To replace HEPA filter:
1. DISCONNECT MACHINE FROM POWER!
2. Remove (8)
fender washers, and HEPA filter cage from
filter housing (see Figure 81).
x 8
3
⁄8" ........................................ 1
1
⁄4"-20 x 3⁄4" hex bolts, (8) 1⁄4"
Filter
Housing
HEPA
Filter Cage
10. Re-install pull handle.
11. Secure a fresh collection bag with the bag
clamp.
Replacing HEPA
Filter (G0777HEP)
To avoid damage to your
eyes and lungs, always
wear safety glasses and
a respirator when working
with the dust collection
bags or canister filter.
Figure 81. Location of HEPA filter cage and filter
housing (G0777HEP).
3. Replace old HEPA filter with a new one, then
re-install HEPA filter cage, as illustrated in
Figure 82.
HEPA
Filter
Cage
x 8
Figure 82. G0777HEP HEPA filter re-installation
(filter housing shown removed for illustration
Filter
Housing
HEPA Filter
purposes).
-48-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 51
These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one
number and manufacture date of your
machine before calling. This information can be found on the main machine label.
SECTION 9: WIRING
stated in this manual, and study this section carefully.
If there are differences between your machine and what is shown in this section, call Technical Support at
(570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated
wiring diagram may be available. Note: Please gather the serial
Wiring Safety Instructions
SHOCK HAZARD. Working on wiring that is con-
nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical components!
MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpredictable results, including serious injury or fire.
This includes the installation of unapproved aftermarket parts.
WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires disconnected or connected during any wiring task to
ensure tight connections.
CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.
WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious personal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.
MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.
CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.
EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information
included in this section, contact our Technical
Support at (570) 546-9663.
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.
Model G0777/G0777HEP (Mfd. Since 04/19)
-49-
Page 52
G0777/G0777HEP 110V Wiring Diagram
Control
MOTOR 110V
Panel
Capacitor
400MFD
125VAC
GND
TLORD SF527
CIRCUIT
BOARD
(Viewed from behind)
CN1
ZING EAR
ZE-700-25 25A
CIRCUIT
BREAKER
Start
L2 M2
SF1101-1
9908
FUSE
Run
Capacitor
60MFD
250VAC
41
3
2
Figure 83. Electrical component
locations (G0777 shown).
D1
D2D3D4D5
SF1001-1
20150317-175
TL1016-1 1430 AC120V
COM
M1
125V 20A
ENEC
3 6
POWER
SWITCH
1 4
2 5
L1
Figure 84. 110V circuit board.
-50-
READ ELECTRICAL SAFETY
ON PAGE 49!
Neutral
Hot
110 VAC
Ground
5-15 Plug
(Included)
Model G0777/G0777HEP (Mfd. Since 01/16)
Page 53
G0777/G0777HEP 220V Wiring Diagram
The 220V conversion consists of
MOTOR 220V
changing the wiring connections to
the motor and replacing the factoryinstalled circuit board with the 220V
circuit board (see Page 16 for more
information).
Capacitor
400MFD
125VAC
GND
TLORD SF527
CIRCUIT
(Viewed from behind)
CN1
ZING EAR
ZE-700-25 25A
CIRCUIT
BREAKER
Start
L2 M2
SF1101-1
BOARD
9908
FUSE
Run
Capacitor
60MFD
250VAC
41
3
2
D1
D2D3D4D5
SF1001-2
20130119-3266
COM
M1
125V 20A
3 6
ENEC
2 5
1 4
L1
Figure 85. 220V conversion circuit board
(part #P0777054).
POWER
SWITCH
Model G0777/G0777HEP (Mfd. Since 01/16)
Ground
Hot
220
VAC
Hot
(As Recommended)
G
6-15 Plug
READ ELECTRICAL SAFETY
ON PAGE 49!
-51-
Page 54
50
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability.
95
51
71
80
64
86
34
29
79
39
71
33
71
87
32
81
G0777
Only
G0777HEP
39
SECTION 10: PARTS
Main
72
48
45
97
90
69
58
91
98
1
2
65
3
4
5
72
71
72
24
67
73
9
46
72
92
13
14-1
71
22
23
20-1
89
35
37
38
Only
72
28
30
31
88
72
53
79
36V2
68
39-1
26-3
26-1
27
39-1
72
68
26-2
26
72
92
82
52
47
56
91
54
90
25
85
55
60
62
83
96
97
59
57
93
71
42
43
40
41
1-1 1-2 1-3 1-4
1-5 1-6 1-7 1-8
6-1
70
70
49
75
44
21
76
14
77
78
79
20
17
18
82
11
16
83
19
6
66
8-1
10
7
93
15
74
63
84
8
12
71
94
71
72
81
61
-52-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 55
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0777001 MOTOR 1-1/2HP 110V/220V 1-PH 41 P0777041 PLASTIC BAG 400 X 600MM
1-1 P0777001-1 MOTOR FAN COVER 42 P0777042 LOWER FRAME
1-2 P0777001-2 S CAPACITOR 400M 125V 1-3/8 X 2-5/8 43 P0777043 CASTER 2-1/2" (LOCKING)
1-3 P0777001-3 R CAPACITOR 60M 250V 1-3/8 X 3-3/8 44 P0777044 FRAME END CAP 22 X 47MM
1-4 P0777001-4 CENTRIFUGAL SWITCH 45 P0777045 FRAME BRACE
1-5 P0777001-5 MOTOR FAN 46 P0777046 UPPER FRAME
1-6 P0777001-6 BALL BEARING 6205ZZ (FRONT) 47 P0777047 FRAME SUPPORT PLATE
1-7 P0777001-7 BALL BEARING 6203ZZ (REAR) 48 P0777048 FRAME HANDLE
1-8 P0777001-8 CONTACT PLATE 49 P0777049 CYCLONE FUNNEL
2 P0777002 MOTOR GASKET 50 P0777HEP050 HEPA FILTER 595 X 295 X 300 (G0777HEP)
3 P0777003 MOTOR MOUNT PLATE 51 P0777HEP051 HEPA FILTER CAGE (G0777HEP)
4 P0777004 IMPELLER 24" ALUMINUM 52 P0777052 STRAIN RELIEF M20-1.5 TYPE-3
5 P0777005 BLOWER HOUSING 53 P0777053 POWER CORD 12G 3W 72" 5-15P
6 P0777006 INTAKE CYLINDER 8" 54 P0777054 CIRCUIT BOARD FOR 220V CONVERSION
6-1 P0777006-1 INTAKE CYLINDER SEAL 55 P0777055 FLAT WASHER 5/16
7 P0777007 INTAKE BARREL 56 P0777056 CASTER 2-1/2"
8 P0777008 FUNNEL SUCTION PIPE 57 P0777057 HEX BOLT 3/8-16 X 1
8-1 P0777008-1 FUNNEL SUCTION PIPE SEAL 58 P0777058 HEX BOLT 3/8-16 X 1
9 P0777009 INLET RESTRICTOR 5" X 6" 59 P0777059 EXT TOOTH WASHER 3/8
10 P0777010 DUST HOSE CLEAR 5" X 6" 60 P0777060 HEX NUT 3/8-16
11 P0777011 HOSE CLAMP 5" 61 P0777061 HEX NUT 3/8-16
12 P0777012 COLLECTION DRUM LID, 5" PORT 62 P0777062 FENDER WASHER 3/8
13 P0777013 GROUND WIRE 12G 36" 63 P0777063 FENDER WASHER 3/8
14 P0777014 LATCH HOOK 64 P0777064 FENDER WASHER 3/8
14-1 P0777014-1 BLIND RIVET 65 P0777065 HEX BOLT 5/16-18 X 5/8
15 P0777015 VACUUM SUCTION PLATE 66 P0777066 HEX BOLT 5/16-18 X 5/8
16 P0777016 COLLECTION DRUM 67 P0777067 HEX BOLT 5/16-18 X 5/8
17 P0777017 COLLECTION DRUM WINDOW (ACRYLIC) 68 P0777068 HEX BOLT 5/16-18 X 5/8
18 P0777018 DRUM LID LATCH 69 P0777069 IMPELLER WASHER 3/8 X 1-3/4 X 1/8
19 P0777019 CASTER 2" 70 P0777070 FOAM TAPE 3 X 6MM
20 P0777020 DRUM SUCTION PIPE 71 P0777071 HEX BOLT 5/16-18 X 3/4
20-1 P0777020-1 DRUM SUCTION PIPE SEAL 72 P0777072 FENDER WASHER 5/16
21 P0777021 HOSE PLUG 1-1/8" (PLASTIC) 73 P0777073 TAP SCREW M4 X 12
22 P0777022 DUST HOSE 1-1/8" X 6-1/2' 74 P0777074 COLLECTION DRUM SEAL 5 X 50MM
23 P0777023 HOSE CLAMP 1-1/8" 75 P0777075 HEX BOLT M5-.8 X 12 (COPPER)
24 P0777024 PLASTIC BAG 610MM X 700MM 76 P0777076 EXT TOOTH WASHER 5MM
25 P0777025 REMOTE RECEIVER BOX 77 P0777077 HEX NUT M5-.8 (COPPER)
26 P0777026 REMOTE CONTROL PANEL 78 P0777078 PHLP HD SCR 1/4-20 X 1/2
26-1 P0777026-1 CIRCUIT BREAKER ZING EAR ZE-700 125V 25A 79 P0777079 FENDER WASHER 1/4
26-2 P0777026-2 CIRCUIT BOARD SF527 110V 80 P0777HEP080 FENDER WASHER 1/4 (G0777HEP)
26-3 P0777026-3 ROCKER SWITCH ENEC 125V 20A 81 P0777081 HEX NUT 1/4-20
27 P0777027 REMOTE CONTROLLER 256 CODE 82 P0777082 PHLP HD SCR 10-24 X 3/8
28 P0777028 PADDLE CRANK ARM 83 P0777083 HEX NUT 10-24
29 P0777029 HANDLE 3/8-16, 1-3/8 X 4-7/16 (PLASTIC) 84 P0777084 LOCK WASHER 3/8
30 P0777030 EXT RETAINING RING 20MM 85 P0777085 FLAT WASHER #10
31 P0777031 PADDLE SHAFT SEAL 86 P0777086 LOCK NUT 3/8-16
32 P0777032 PADDLE SHAFT CAP 87 P0777087 HEX BOLT 1/4-20 X 1
33 P0777033 CARTRIDGE FILTER COVER PLATE 88 P0777088 PHLP HD SCR 10-24 X 1/2
34 P0777034 PADDLE SHAFT 89 P0777089 HEX BOLT 1/4-20 X 5/8
35 P0777035 PADDLE BRACKET 90 P0777090 LOCK WASHER 1/2
36V2 P0777036V2 PADDLE V2.04.19 91 P0777091 HEX NUT 1/2-13
37 P0777037 CANISTER FILTER SEAL 92 P0777092 HEX BOLT 5/16-18 X 1-1/2
38 P0777038 CANISTER FILTER 386DIA X 534L 93 P0777093 HEX NUT 5/16-18
39 P0777039 CANISTER FILTER CAGE (G0777) 94 P0777094 FLAT WASHER 5/16
39 P0777HEP039 CANISTER FILTER CAGE (G0777HEP) 95 P0777HEP095 HEX BOLT 1/4-20 X 3/4 (G0777HEP)
39-1 P0777039-1 CANISTER FILTER CAGE SEAL (G0777) 96 P0777096 HEX BOLT 3/8-16 X 1-1/4
39-1 P0777HEP039-1 CANISTER FILTER CAGE SEAL (G0777HEP) 97 P0777097 FENDER WASHER 3/8
40 P0777040 BAG CLAMP 400MM 98 P0777098 HEX NUT 3/8-16
Model G0777/G0777HEP (Mfd. Since 04/19)
-53-
Page 56
Labels
101
108
107
WARNING!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
101
Specifications
Motor: 1-1/2 HP, 120V/220V, 1-Ph, 60 Hz, 1750 RPM
Full-Load Amps: 15A at 120V, 7.5A at 220V
Airflow: 880 CFM @ 1.9 in. SP
Max Static Pressure: 9"
Inlet Size: 6"
Filtration: 99.9% at 0.2–2 Microns
Weight: 223 lbs.
Mfd. for Grizzly in Taiwan
ULTRA-QUIET CYCLONE DUST COLLECTOR
To reduce the risk of serious injury when using this machine:
1. Read and understand owner’s manual before
operating.
2. Always wear approved eye protection and
respirator.
Date
3. Only plug power cord into a grounded outlet.
4. Only use this machine to collect wood
dust/chips—never use to collect glass, metal,
S/N
liquids, asbestos, silica, animal parts,
biohazards, burning material/ashes, etc.
MODEL G0777
5. Always disconnect power before servicing or
cleaning.
6. Do not expose to rain or use in wet areas.
7. Keep hands, long hair, and loose clothing away
from inlet.
8. Never leave machine unattended during
operation.
9. Do not use if cord, plug, or any other electrical
equipment becomes damaged—promptly repair!
WARNING!
20. Do not use without dust bag or filters in place.
11. Do not connect cord to power supply with wet hands.
12. Grasp and pull the plug, not the cord, when
unplugging.
13. Always wear a respirator when emptying bags.
14. Do not modify machine in any way.
15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.
102
103
106
G0777
104
105
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0777101 ELECTRICITY LABEL 105 P0777105 GRIZZLY.COM LABEL
102 P0777102 MACHINE ID LABEL (G0777) 106 P0777106 MODEL NUMBER LABEL (G0777)
102 P0777HEP102 MACHINE ID LABEL (G0777HEP) 106 P0777HEP106 MODEL NUMBER LABEL (G0777HEP)
103 P0777103 EYE/LUNG INJURY HAZARD LABEL 107 P0777107 READ MANUAL LABEL
104 P0777104 REMOTE CONTROL GRIZZLY LABEL 108 P0777108 TOUCH-UP PAINT, GRIZZLY GREEN
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
-54-
Model G0777/G0777HEP (Mfd. Since 04/19)
Page 57
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________ Email _________________________________________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinetmaker & FDM
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Old House Journal
____ Popular Mechanics
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
CUT ALONG DOTTED LINE
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+
____ Popular Science
____ Popular Woodworking
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times. _____ Yes _____No
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
Page 58
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Page 59
WARRANTY & RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue
you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We
will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Page 60
Loading...
