Grizzly G0757 User guide

Download

Page 1

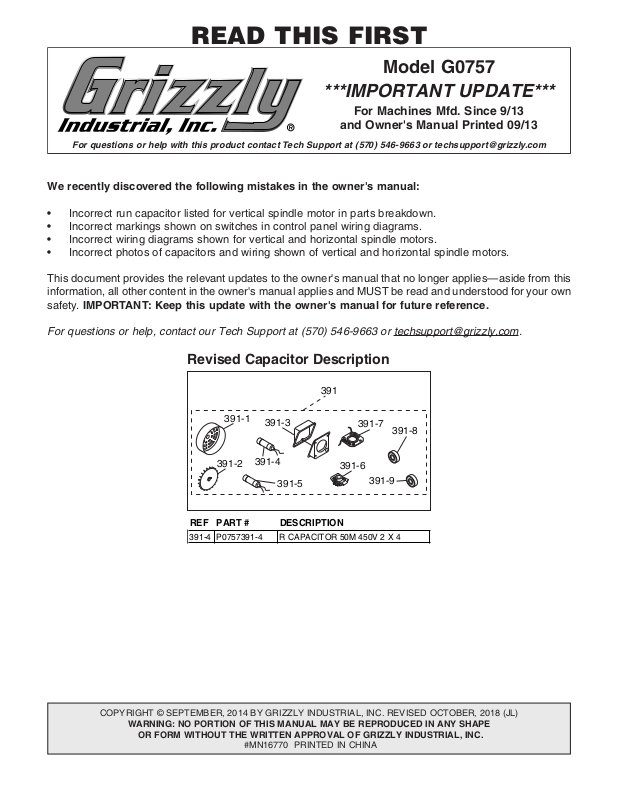

READ THIS FIRST

REF PART # DESCRIPTION

391-4 P0757391-4

R CAPACITOR 50M 450V 2 X 4

Model G0757

***IMPORTANT UPDATE***

For Machines Mfd. Since 9/13

and Owner's Manual Printed 09/13

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

We recently discovered the following mistakes in the owner's manual:

• Incorrect run capacitor listed for vertical spindle motor in parts breakdown.

• Incorrect markings shown on switches in control panel wiring diagrams.

• Incorrect wiring diagrams shown for vertical and horizontal spindle motors.

• Incorrect photos of capacitors and wiring shown of vertical and horizontal spindle motors.

This document provides the relevant updates to the owner's manual that no longer applies—aside from this information, all other content in the owner's manual applies and MUST be read and understood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.

For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.

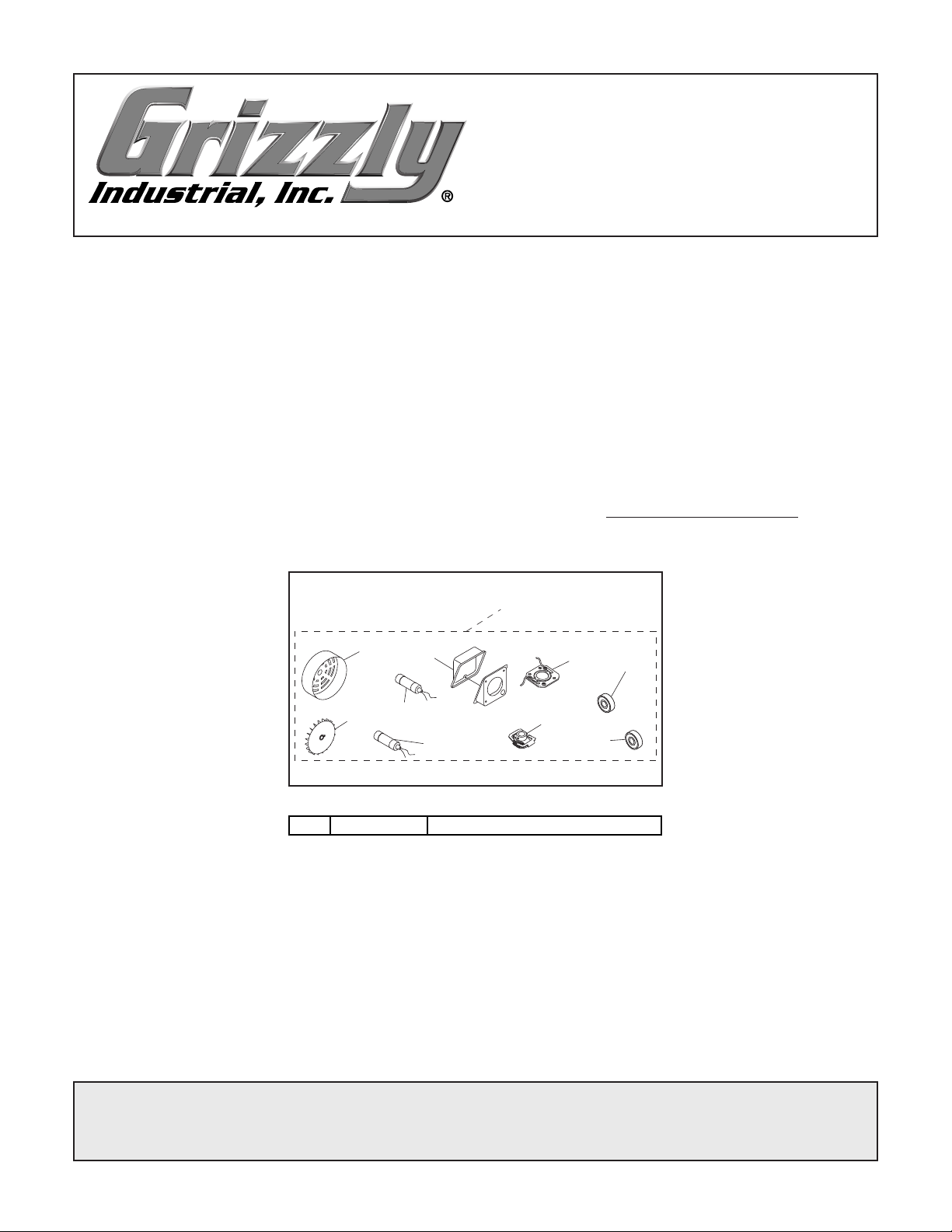

Revised Capacitor Description

391

391-1

391-2

391-3

391-4

391-5

391-7

391-6

391-9

391-8

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#MN16770 PRINTED IN CHINA

Page 2

Replaces Page 57

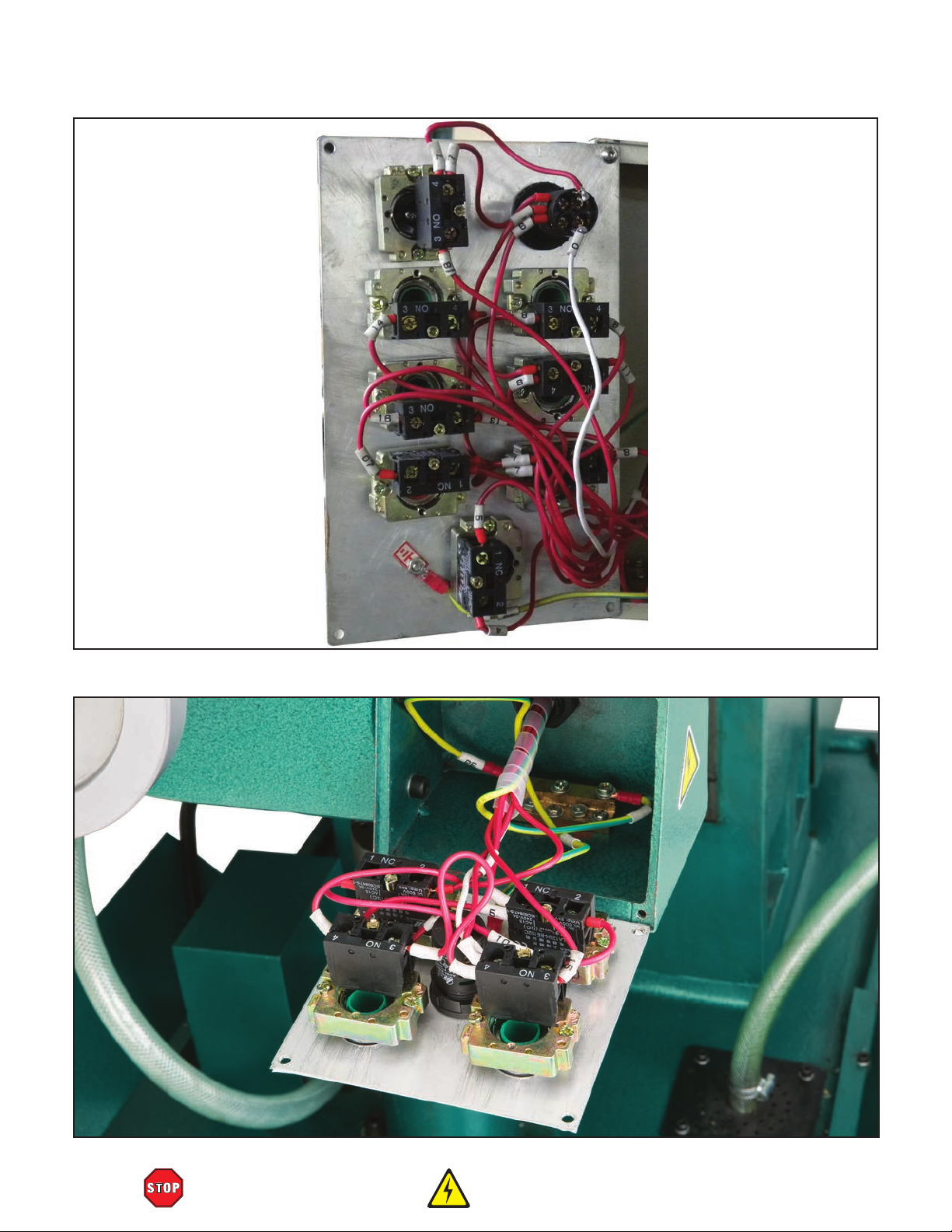

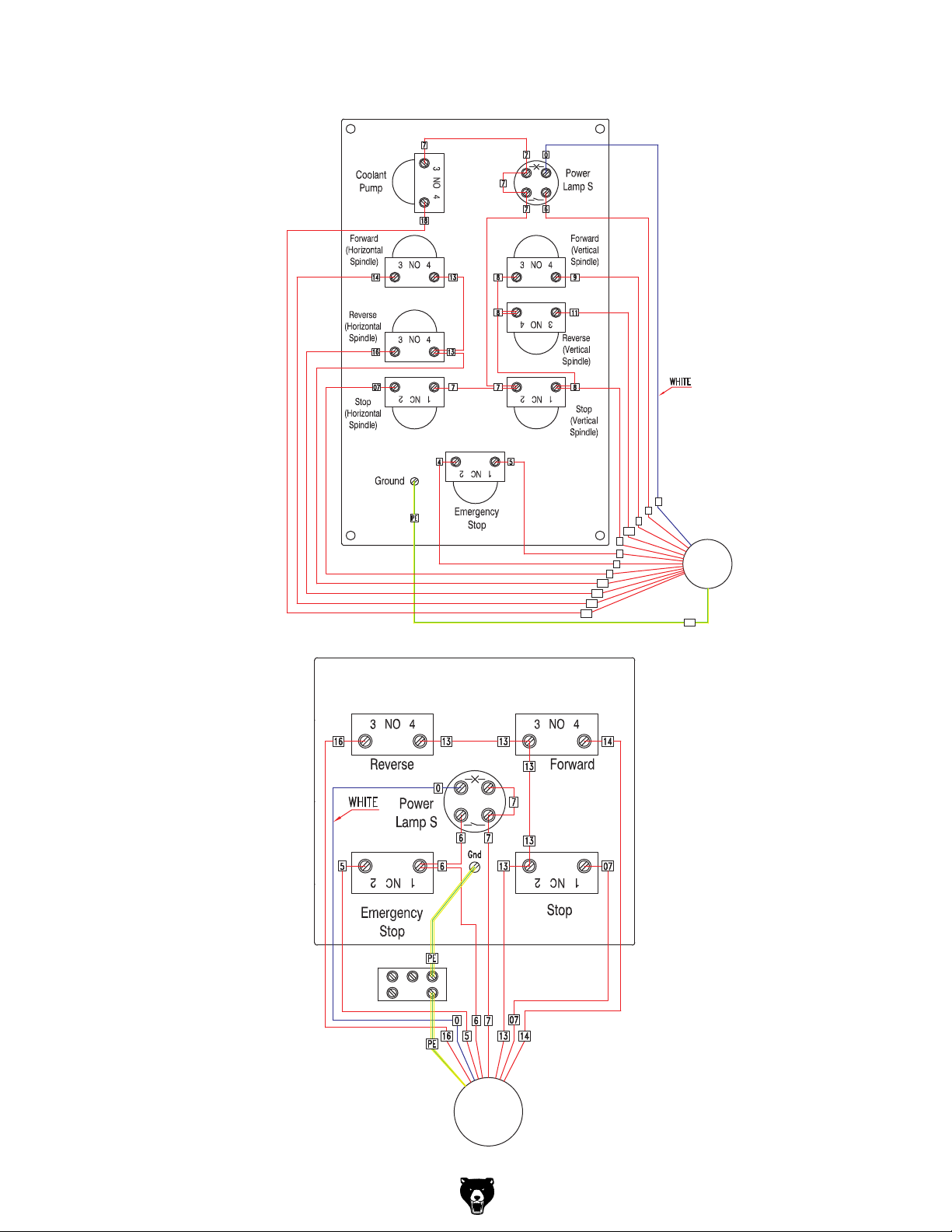

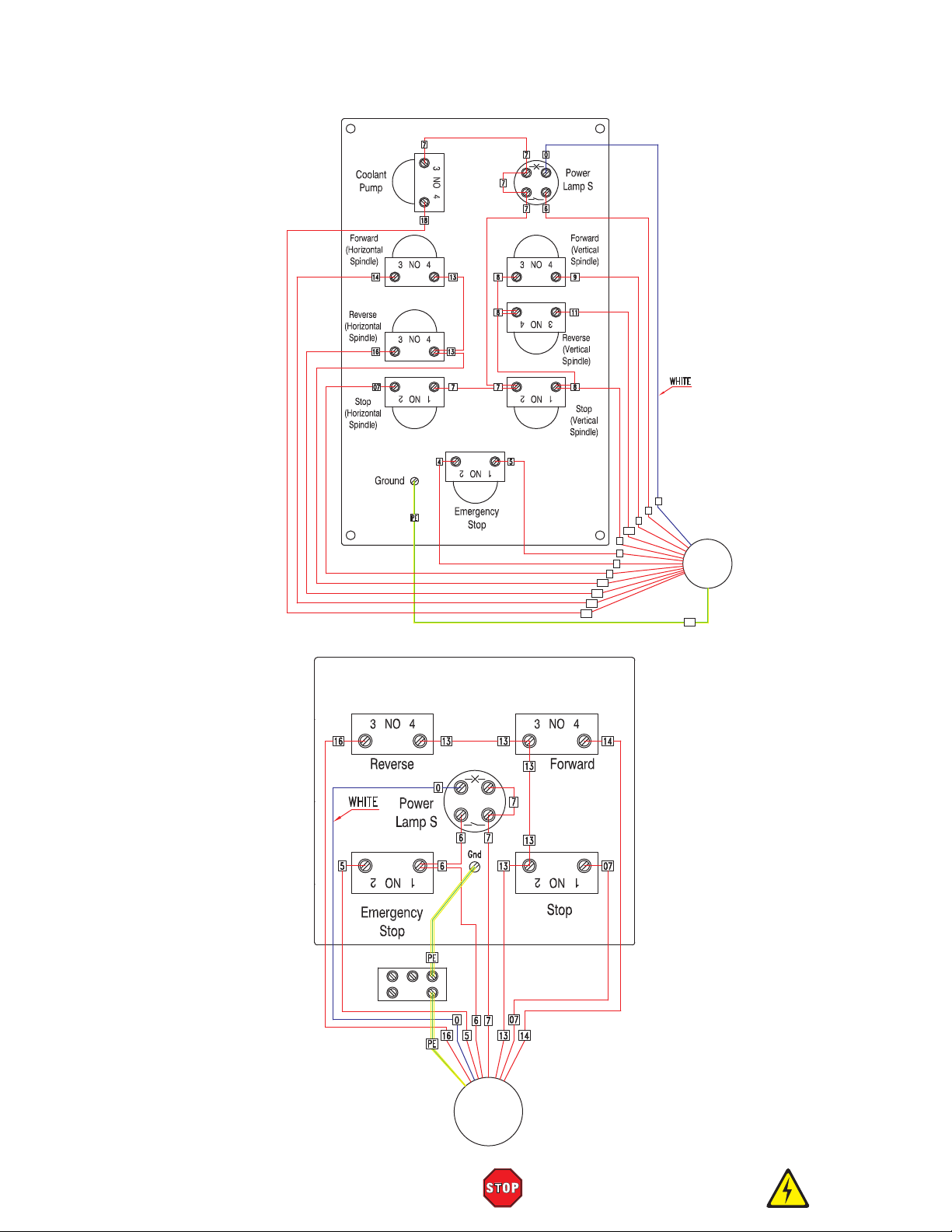

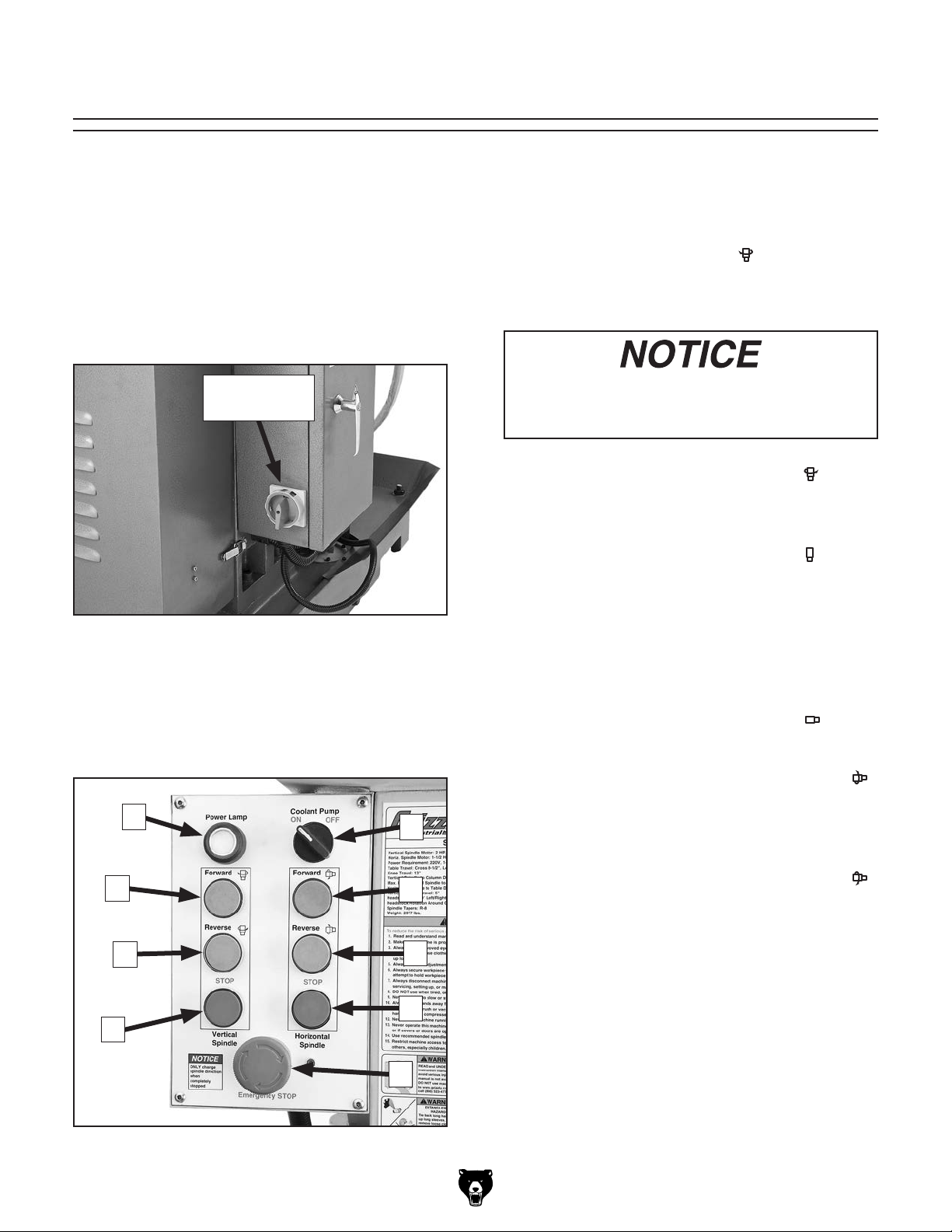

Control Panel Wiring Diagrams

Master

Control

Panel

To Electrical Cabinet (Page 55)

Horizontal

Control

Panel

To Electrical Cabinet (Page 55)

-2-

G0757 Manual Update (Mfd. Since 9/13)

Page 3

To M ast e r

Control Panel

(Page 57)

Replaces Page 59

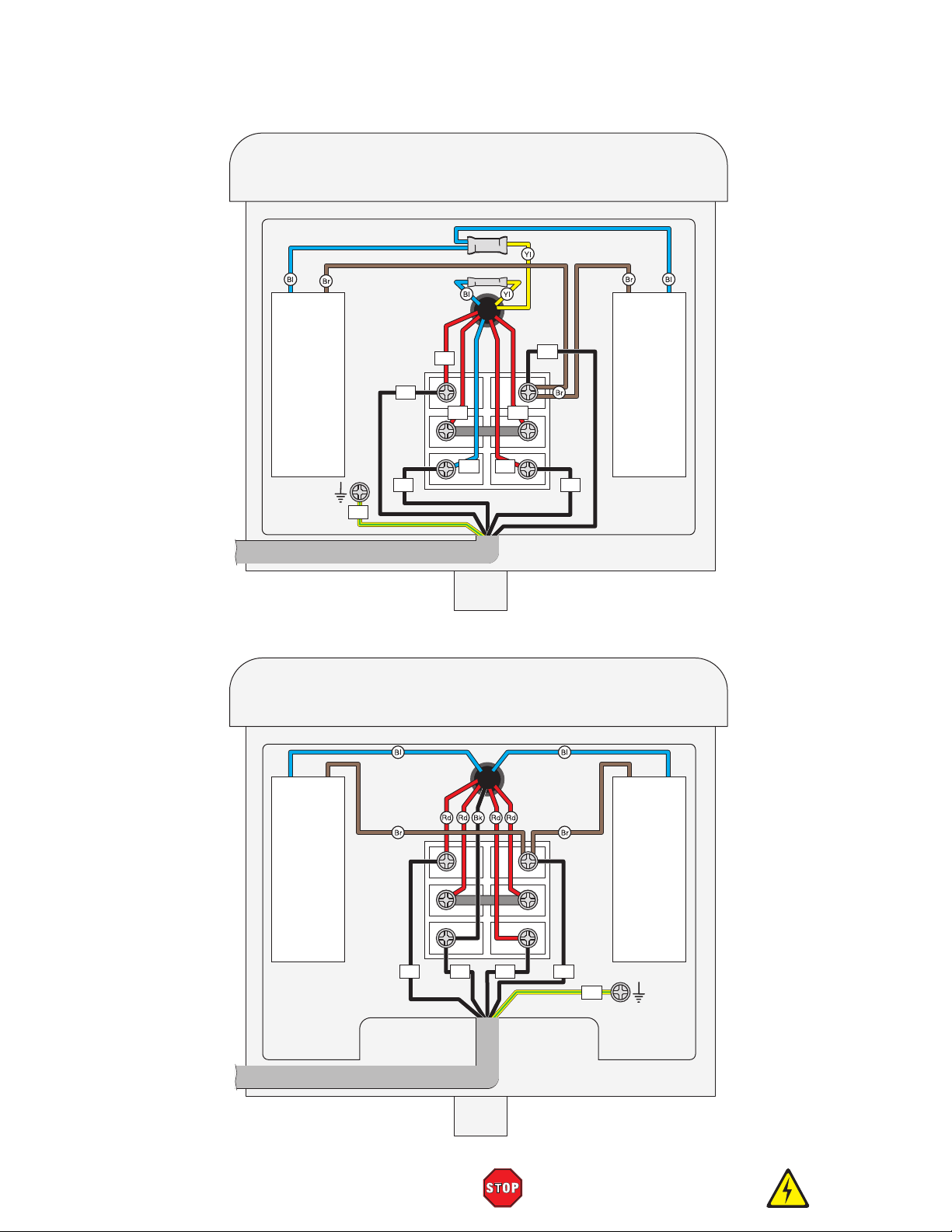

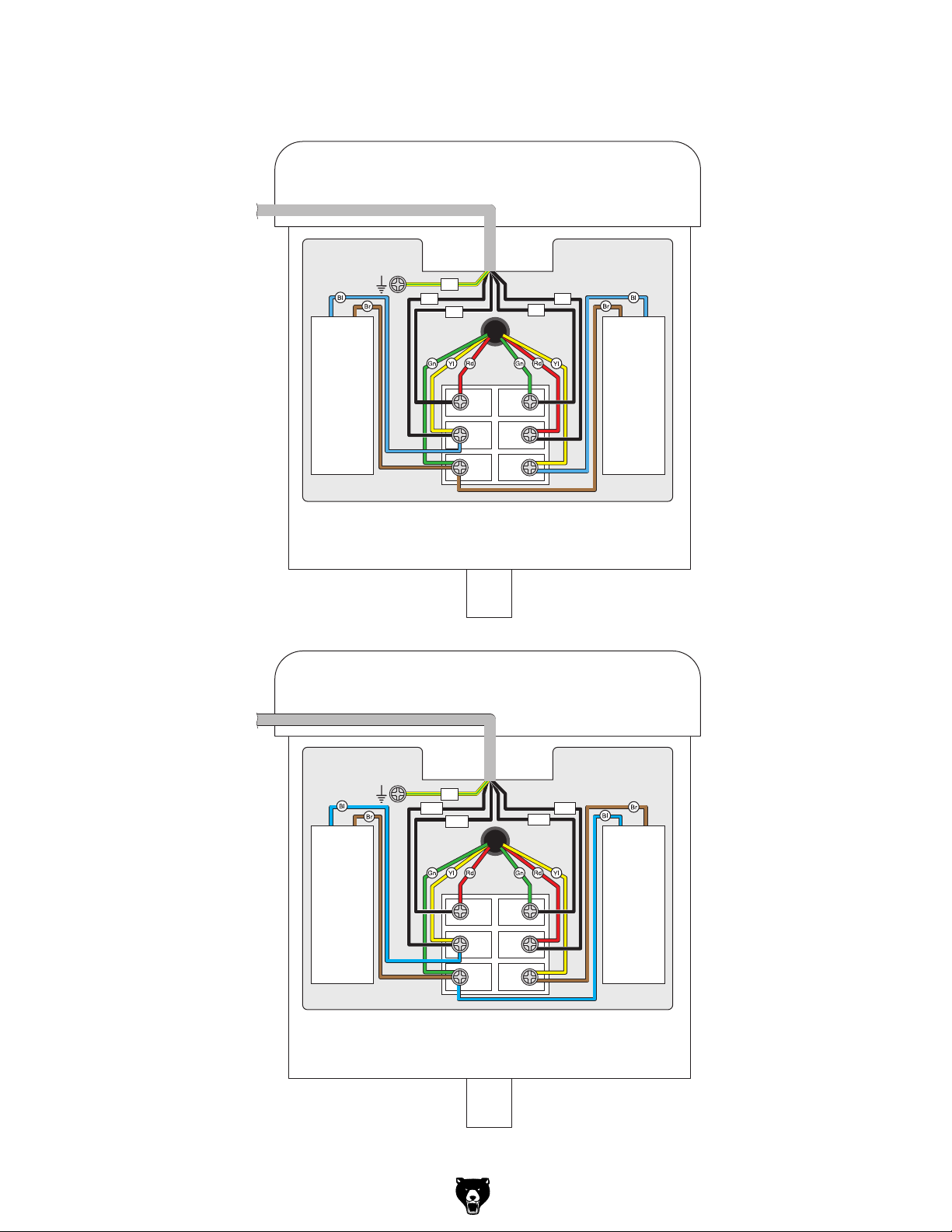

Motor Wiring Diagrams

Vertical Spindle Motor

To Electrical

Cabinet

(Page 55)

Ground

Run

Capacitor

50MFD

450VAC

V1 U2

V2W1

Horizonal Spindle Motor

Start

Capacitor

300MFD 250VAC

Ground

Run

Capacitor

20MFD

450VAC

G0757 Manual Update (Mfd. Since 9/13)

V21

U11

V1 U2

V11

U21

Start

Capacitor

150MFD 250VAC

-3-

Page 4

Replaces Page 61

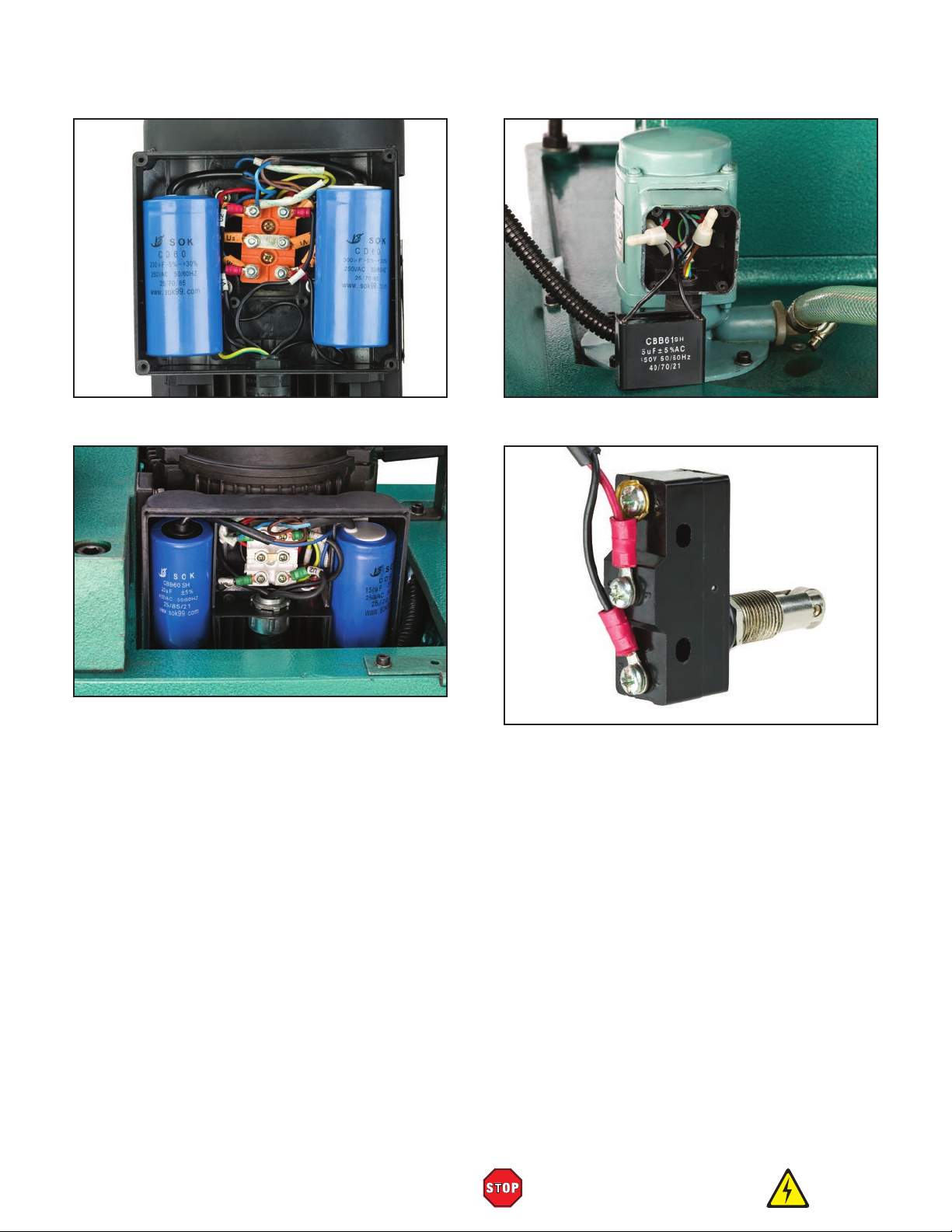

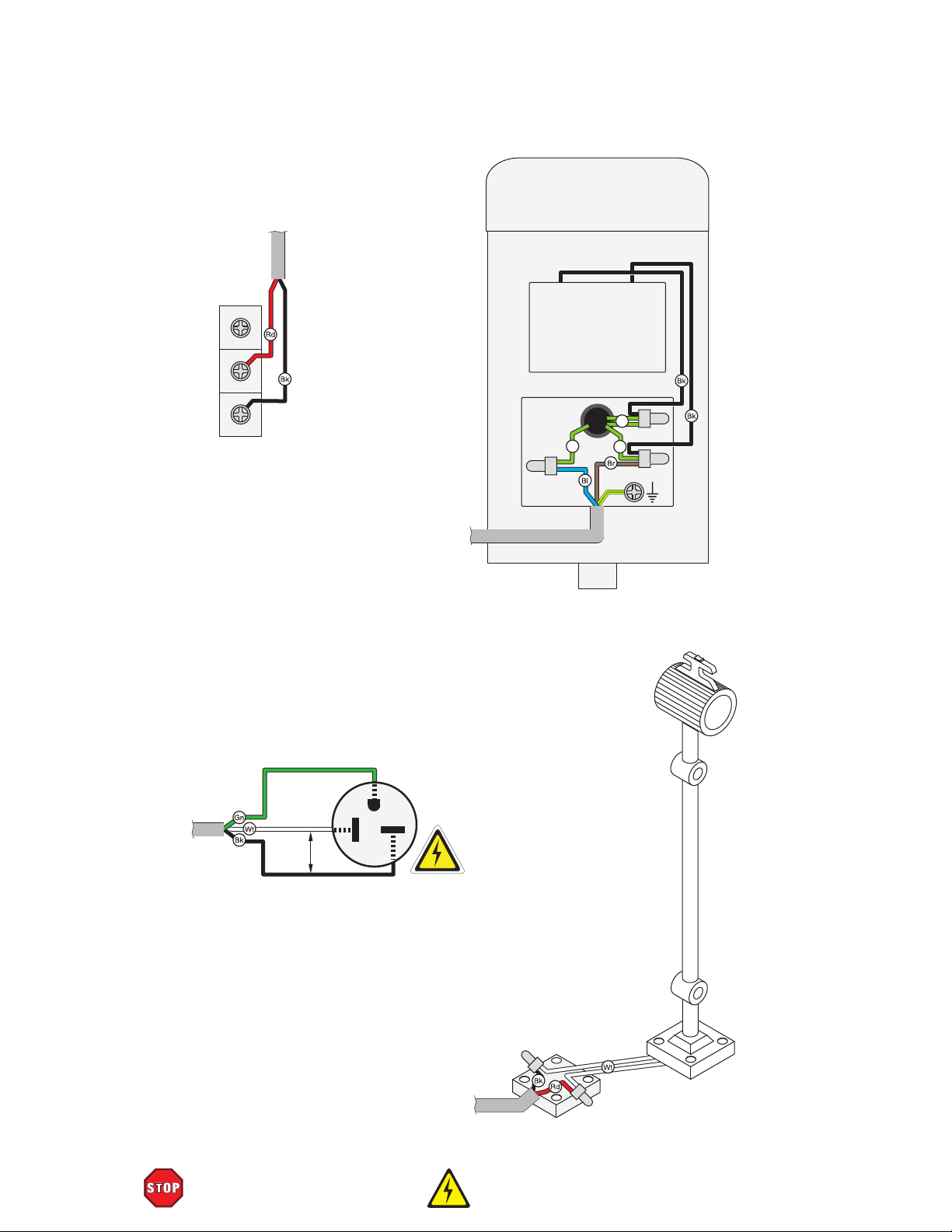

Motor & Other Component Wiring

Figure 75. Vertical spindle motor wiring.

Figure 77. Coolant pump wiring.

Figure 76. Horizontal spindle motor wiring.

Figure 78. Horizontal spindle V-belt cover safety

switch.

-4-

G0757 Manual Update (Mfd. Since 9/13)

Page 5

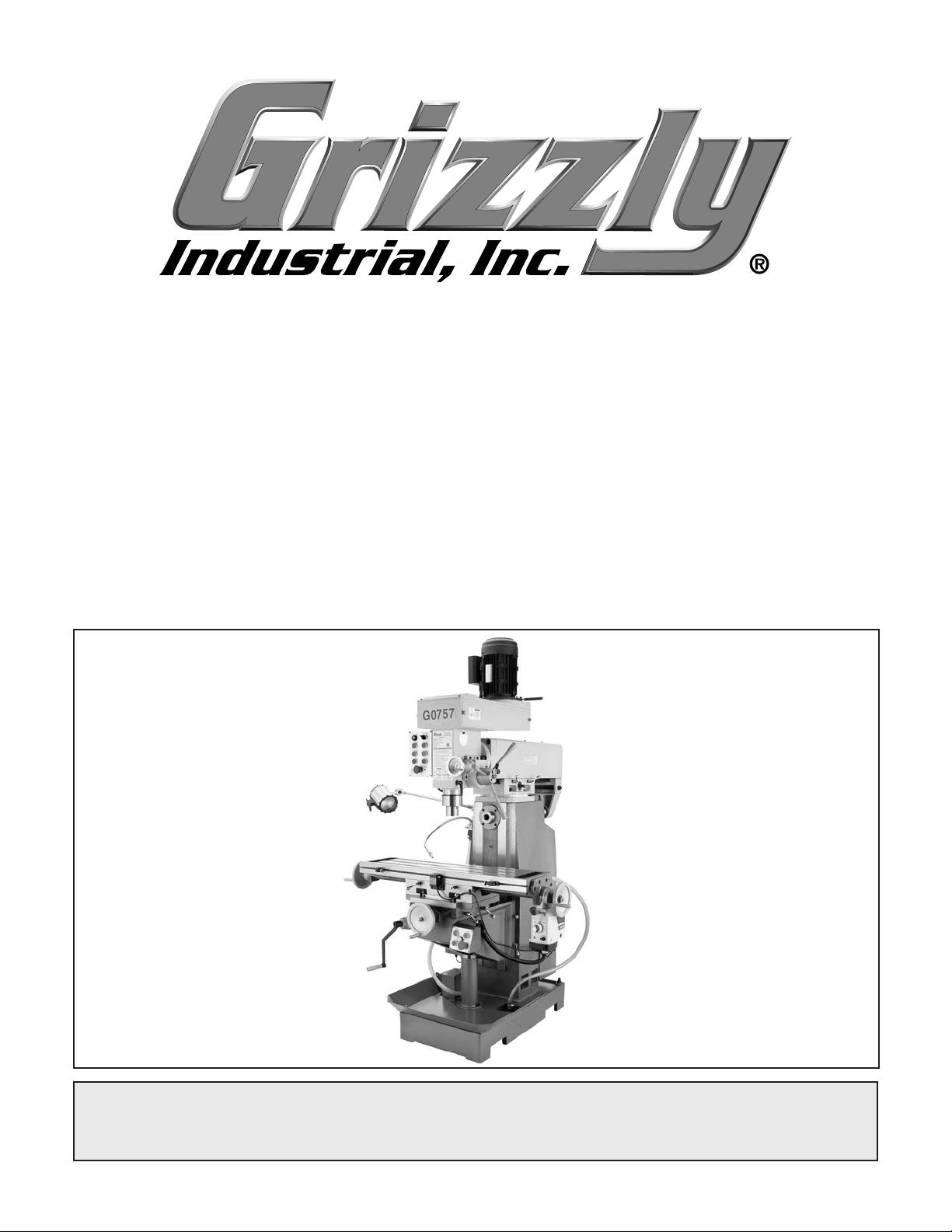

MODEL G0757

9" X 39"

HORIZONTAL/VERTICAL

MILLING MACHINE

w/POWER FEED

OWNER'S MANUAL

(For models manufactured since 6/13)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS15822 PRINTED IN CHINA

Page 6

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 7

Table of Contents

INTRODUCTION ............................................... 2

Machine Description

...................................... 2

Contact Info.................................................... 2

Manual Accuracy Left Front View Identification Right Front View Identification Basic Controls Machine Data Sheet

SECTION 1: SAFETY

Safety Instructions for Machinery Additional Safety for Milling Machines

SECTION 2: POWER SUPPLY

Availability .................................................................13

Full-Load Current Rating ...........................................13

Circuit Requirements for 220V ..................................13

Grounding Instructions ..............................................14

Extension Cords ........................................................14

SECTION 3: SETUP

Unpacking

.................................................... 15

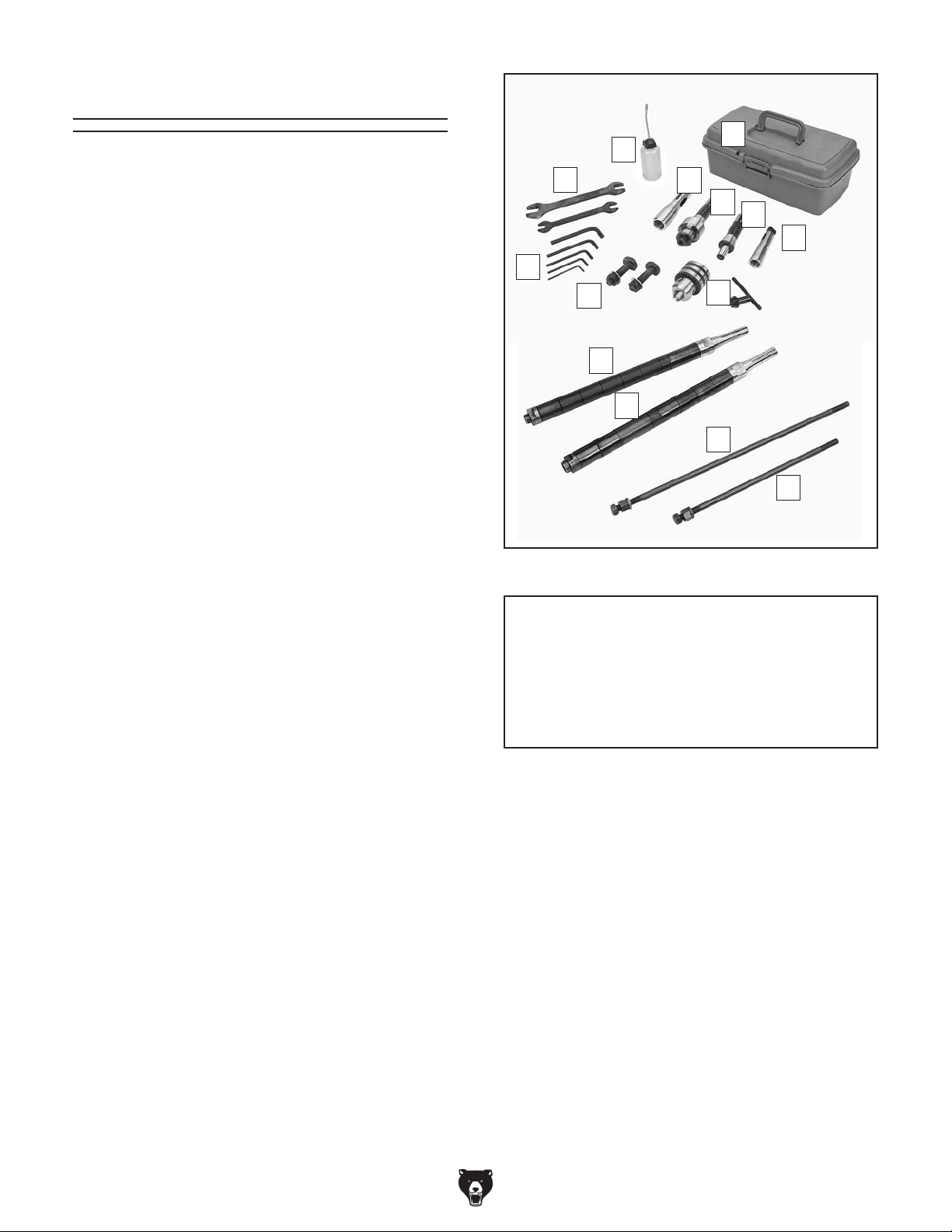

Needed for Setup Inventory Cleanup

...................................................... 16

........................................................ 17

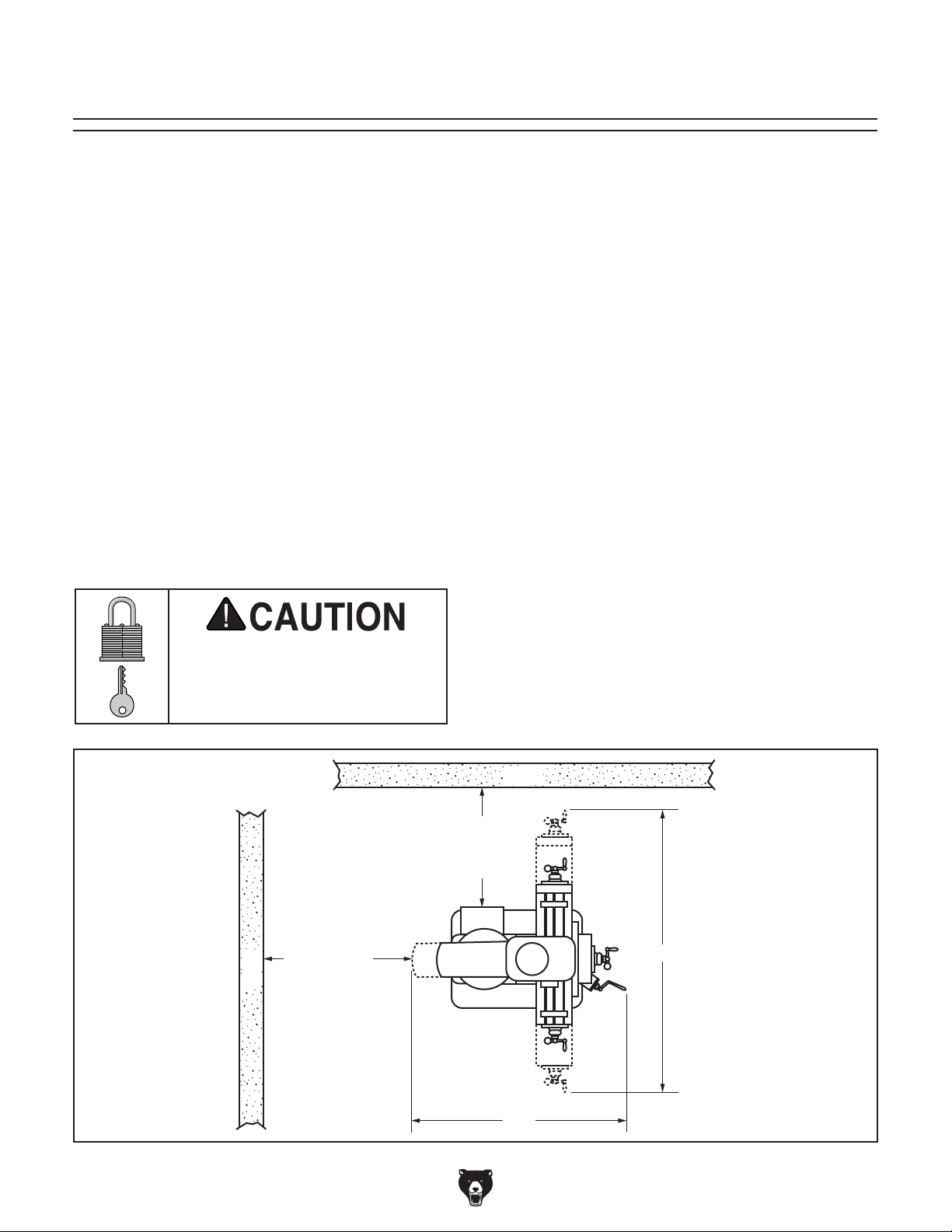

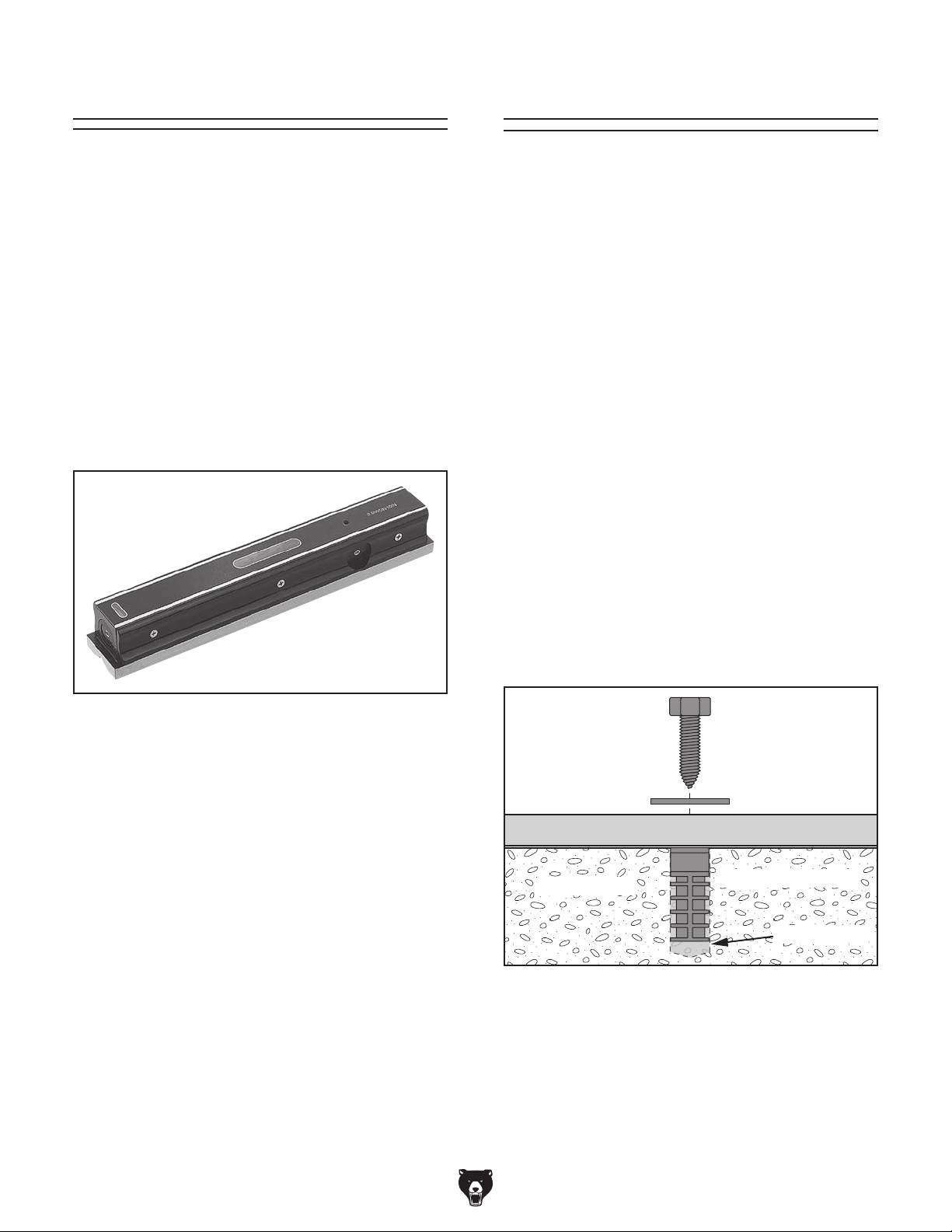

Site Considerations Lifting & Placing Leveling

........................................................ 20

Anchoring to Floor Test Run

Mill Test Run .............................................................21

Power Feed Test Run ...............................................22

...................................................... 21

Spindle Break-In Inspections & Adjustments

........................................... 2

......................... 3

....................... 4

................................................ 5

...................................... 7

..................................... 10

................ 10

......... 12

...................... 13

....................................... 15

......................................... 15

...................................... 18

........................................... 19

....................................... 20

.......................................... 23

.......................... 23

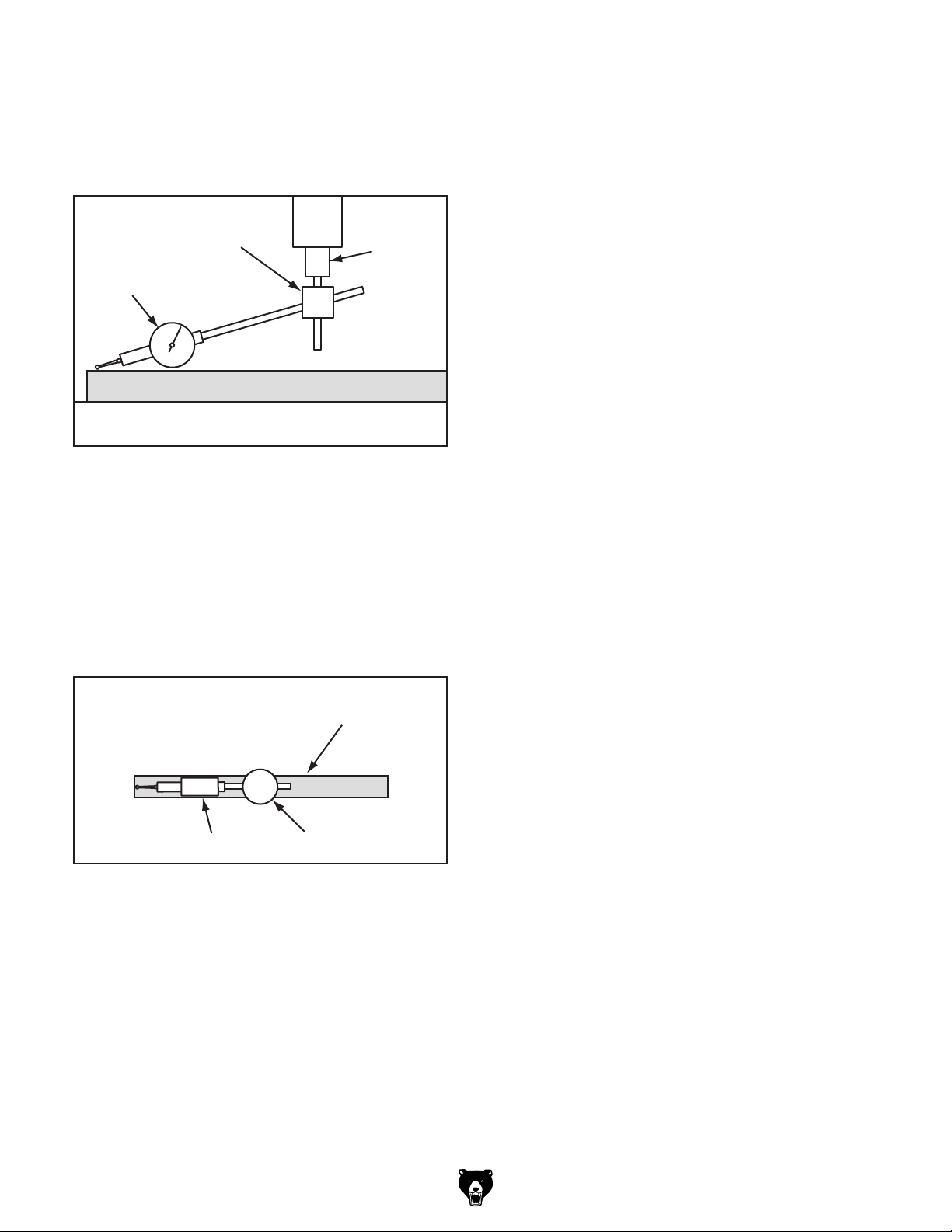

Downfeed Controls Tramming the Mill

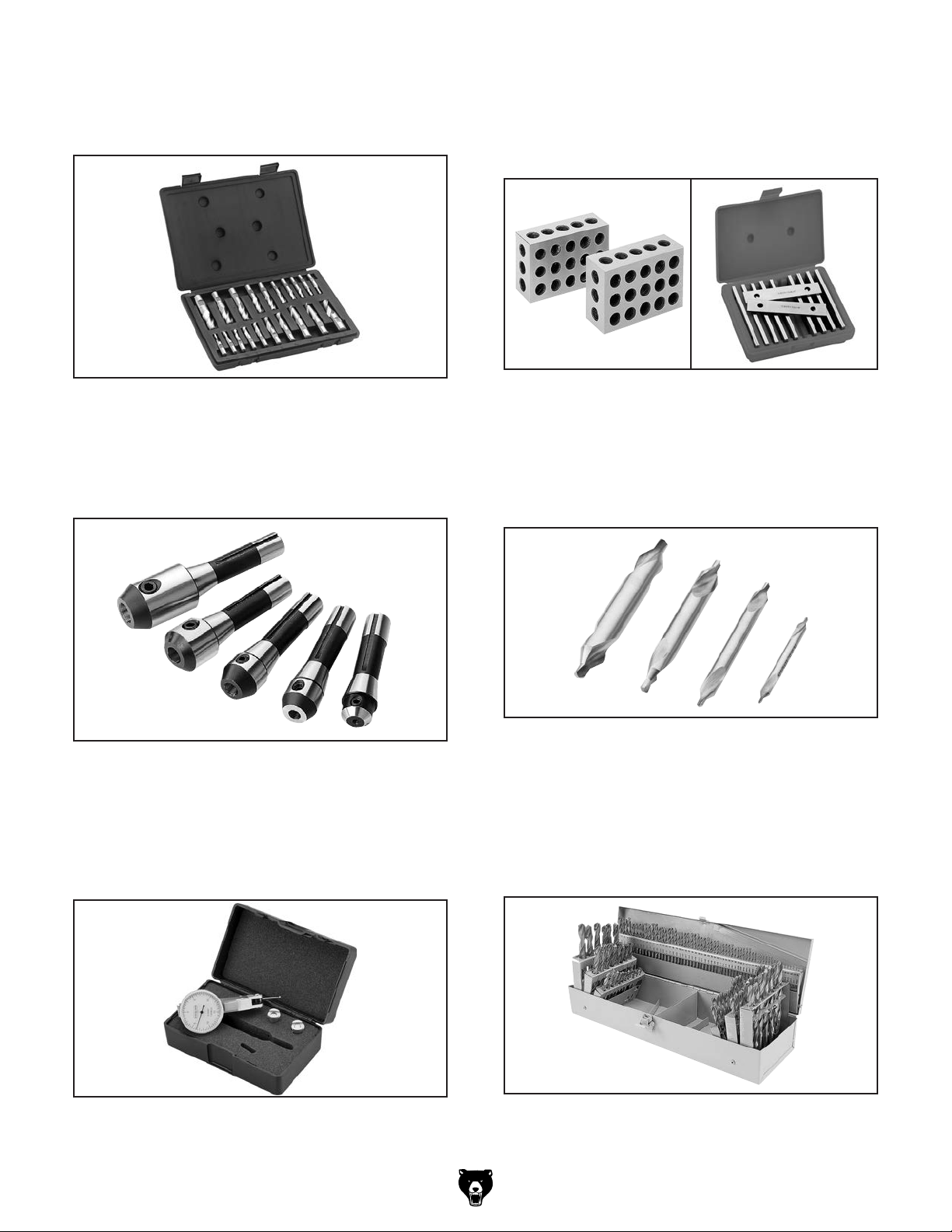

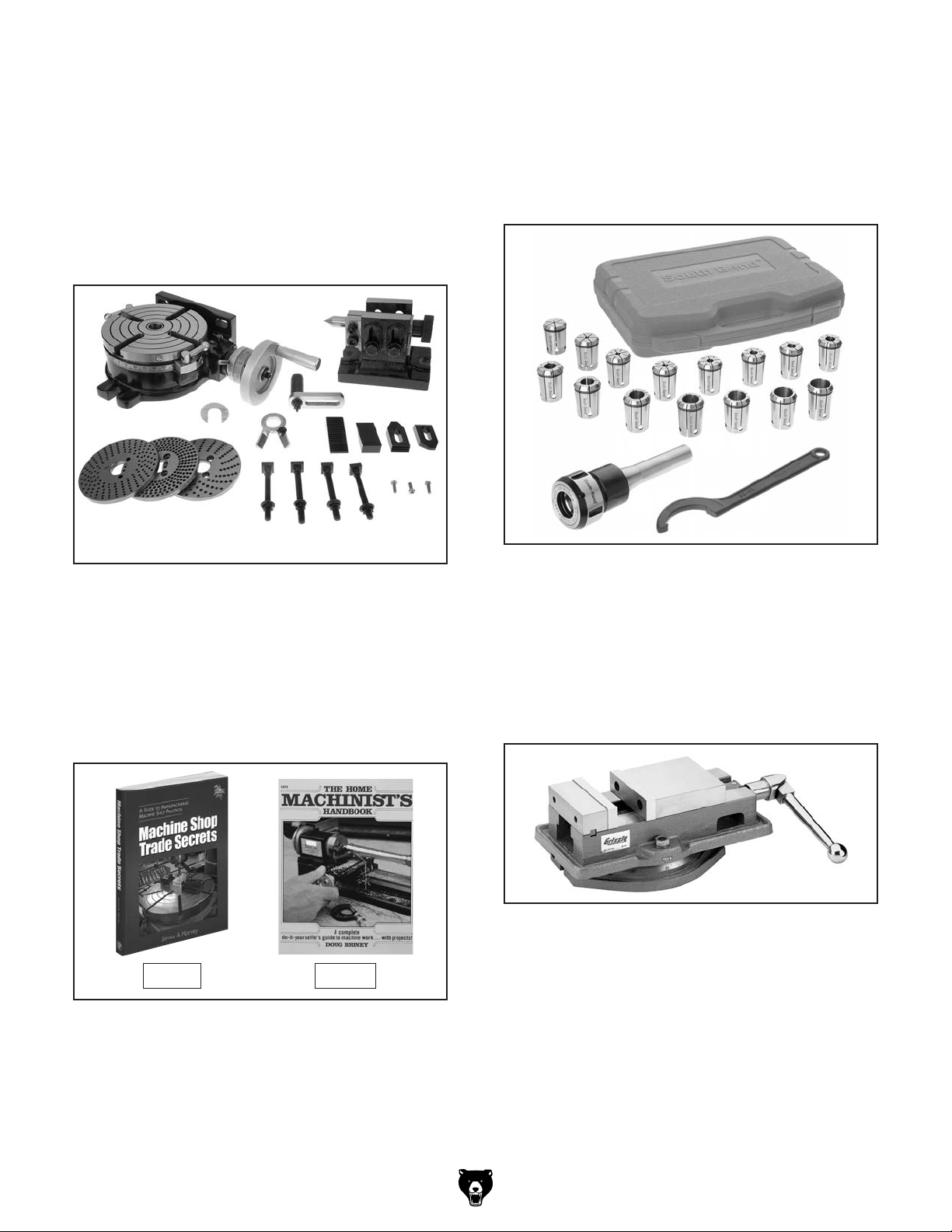

SECTION 5: ACCESSORIES

SECTION 6: MAINTENANCE

Schedule

Ongoing .....................................................................40

Before Beginning Operations ....................................40

Daily, After Operations ..............................................40

...................................................... 40

Cleaning & Protecting Lubrication

Ball Oilers ..................................................................42

Vertical Spindle Bearings ..........................................43

Quill Exterior ..............................................................43

Quill Rack & Pinion ...................................................43

Table Leadscrews .....................................................44

Ram Ways .................................................................44

Z-Axis Bevel Gears ...................................................44

X-Axis Power Feed Gears ........................................45

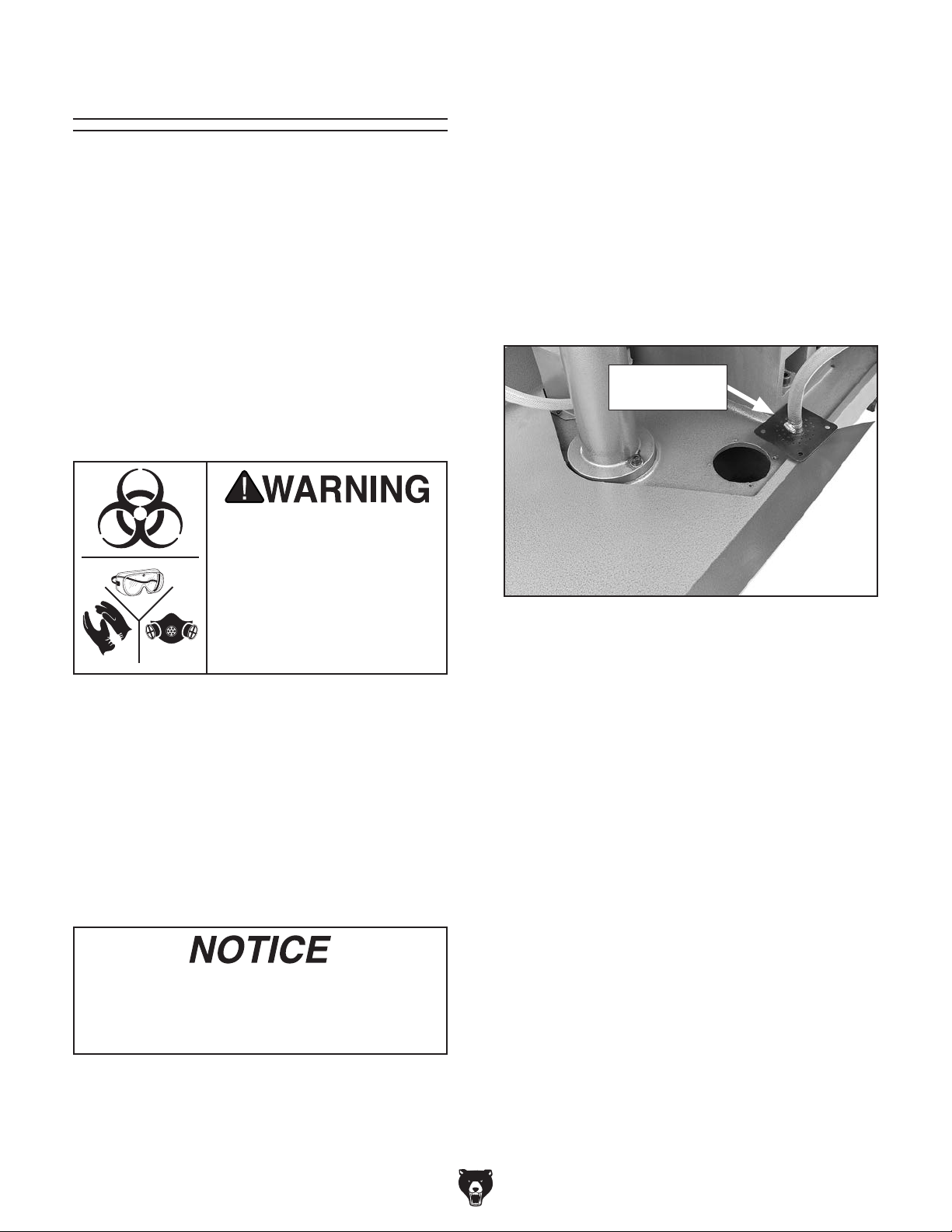

Coolant

Hazards .....................................................................46

Checking/Adding Coolant ..........................................46

Changing Coolant .....................................................47

................................................... 41

......................................................... 46

Machine Storage

SECTION 7: SERVICE

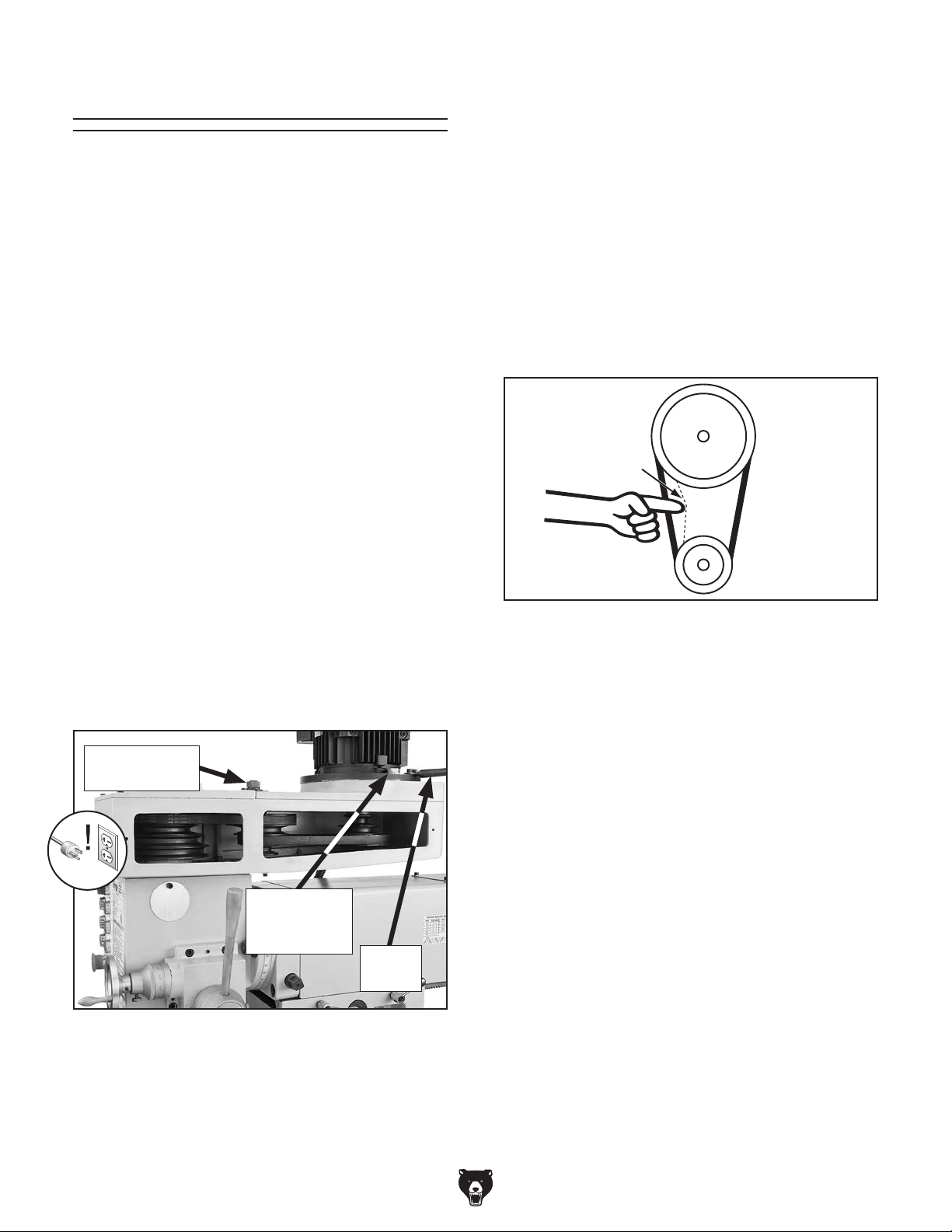

Troubleshooting V-Belt Service

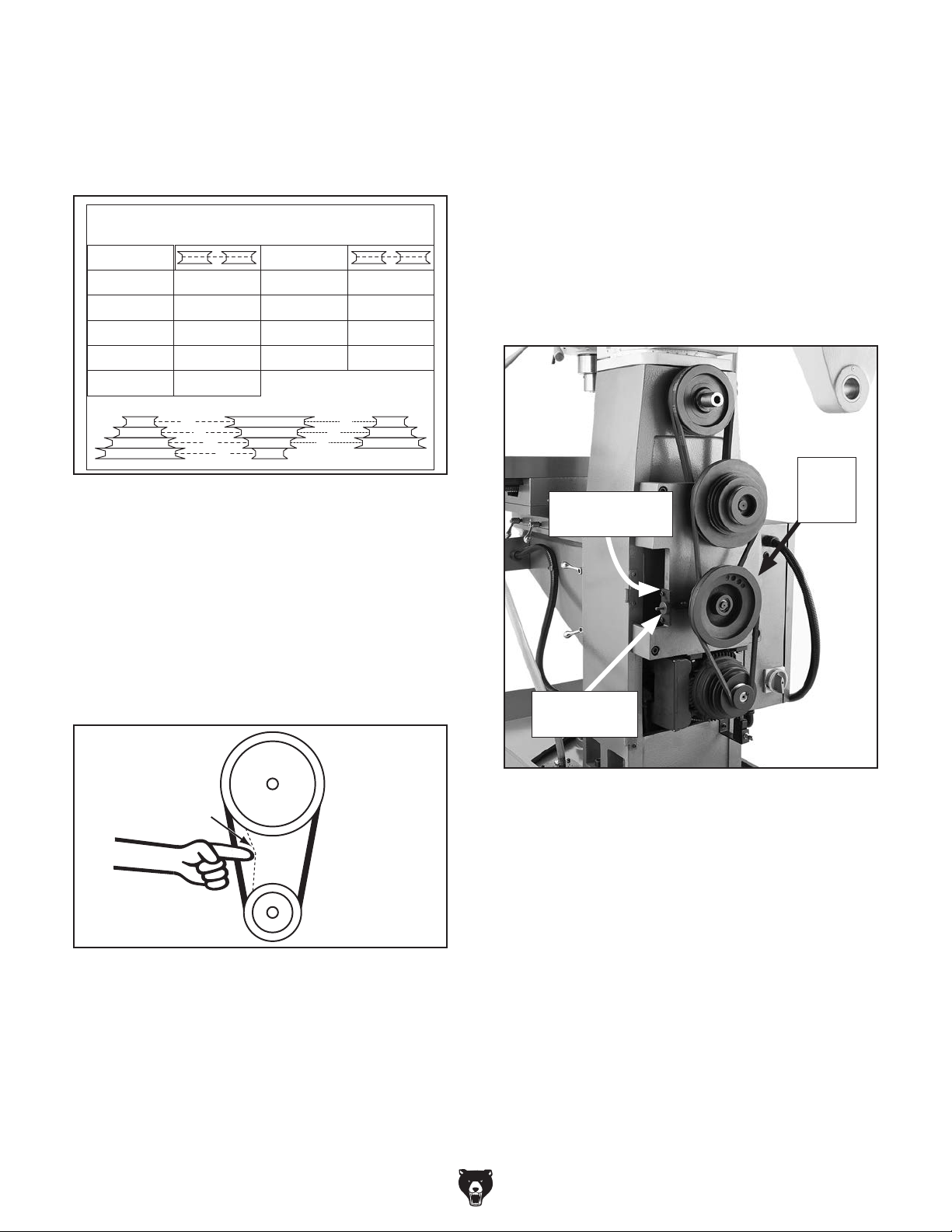

Tensioning Vertical Spindle V-Belts ..........................50

Tensioning Lower Horizontal Spindle V-Belts ...........51

Tensioning Upper Horizontal Spindle V-Belts ...........51

Adjusting Gibs Adjusting Leadscrew Backlash

...................................... 33

........................................ 34

......................... 36

......................... 40

.................................. 41

.......................................... 47

................................... 48

........................................... 48

.............................................. 50

.............................................. 52

.................... 53

SECTION 4: OPERATIONS

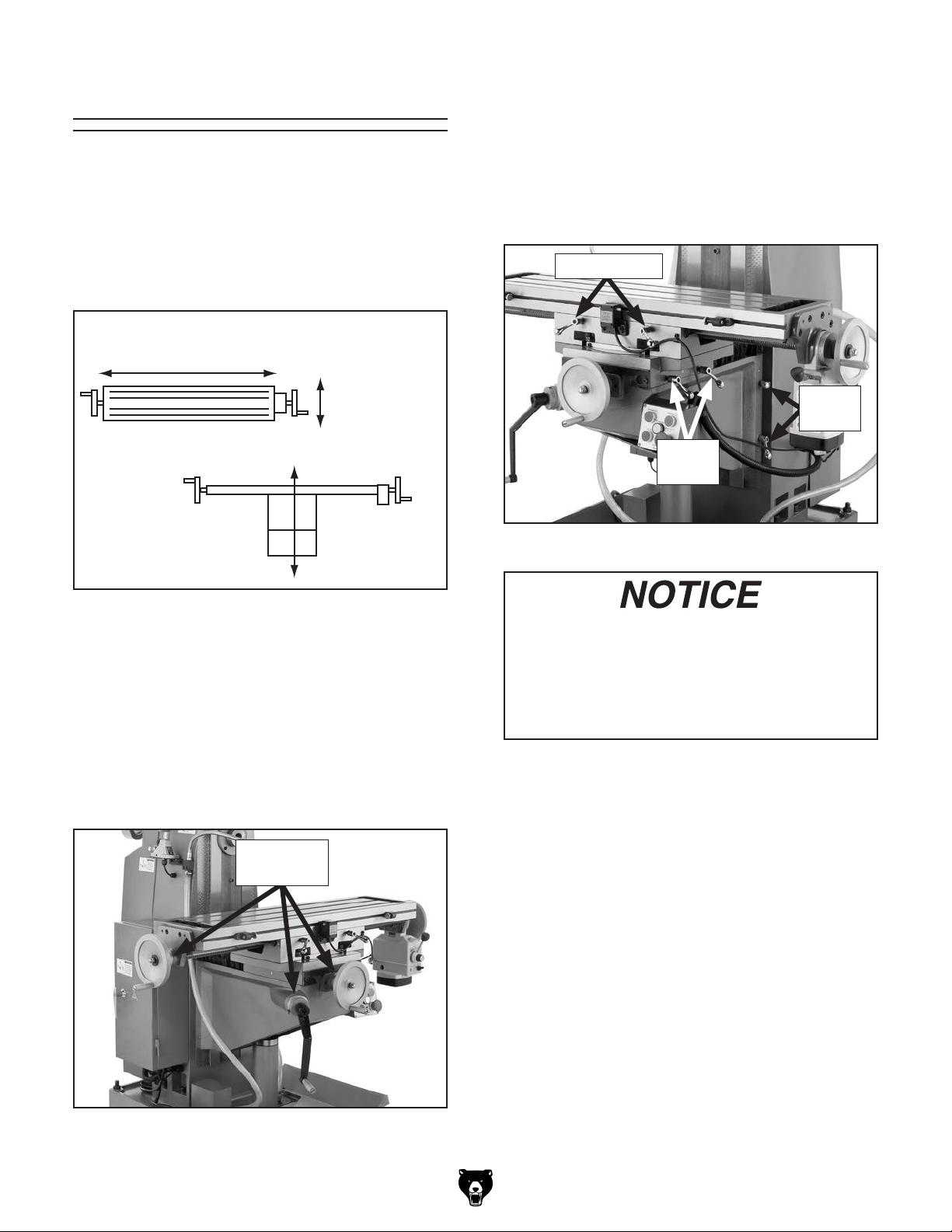

Operation Overview Table Movement

Graduated Index Rings .............................................25

Table Locks ...............................................................25

Table Rotation ...........................................................26

.......................................... 25

........................... 24

..................................... 24

Head Tilt....................................................... 26

Ram Movement............................................ 27

Moving Ram Back and Forth ....................................27

Rotating Ram Around Turret .....................................27

Loading/Unloading Tooling

Vertical Spindle .........................................................28

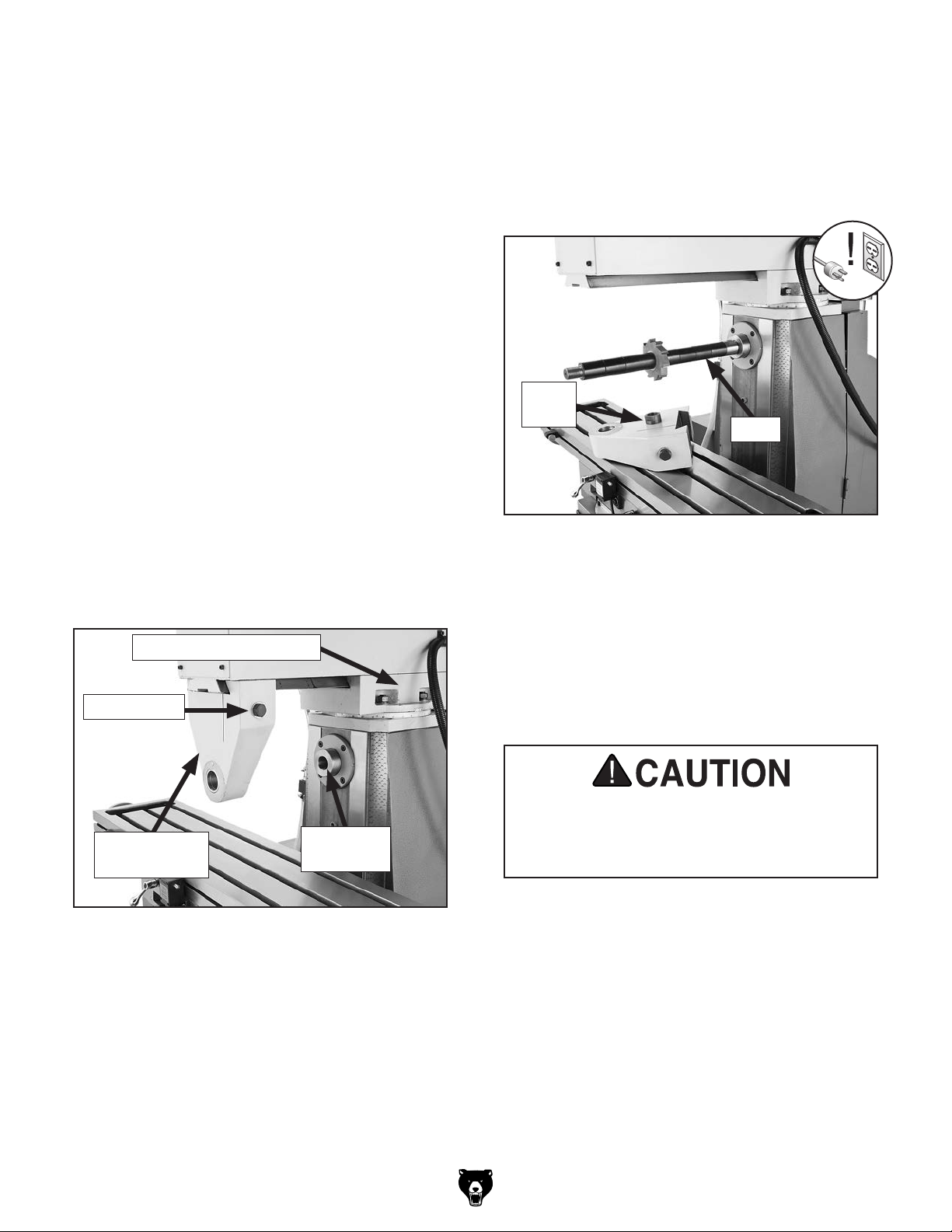

Converting to Horizontal Setup .................................29

.......................... 28

Spindle Speed.............................................. 31

Determining Spindle Speed ......................................31

Setting Vertical Spindle Speed .................................31

Setting Horizontal Spindle Speed .............................32

SECTION 8: WIRING

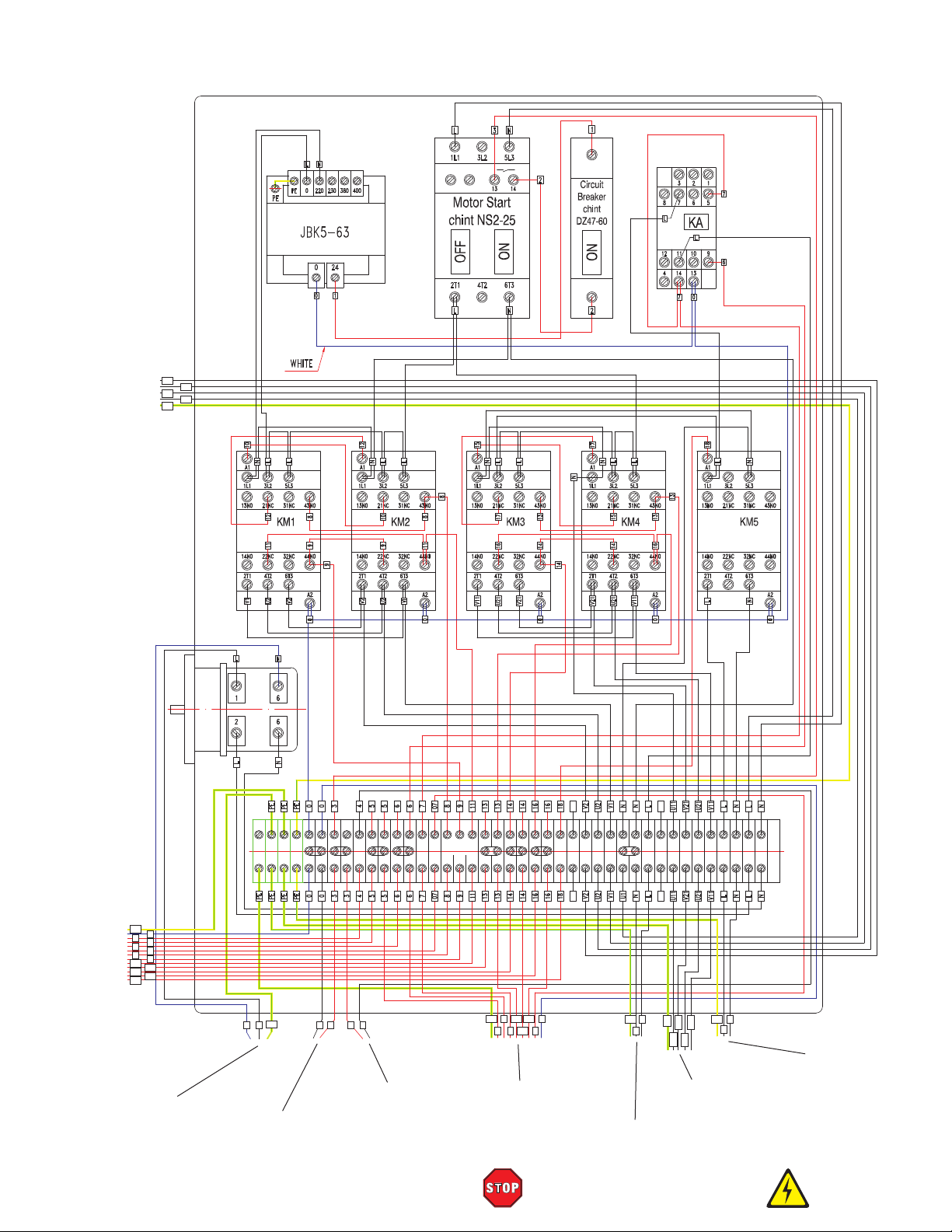

Wiring Safety Instructions Electrical Cabinet Wiring Diagram Control Panel Wiring Diagrams Motor Wiring Diagrams

...................................... 54

............................ 54

............... 55

................... 57

................................ 59

Other Component Wiring Diagrams............. 60

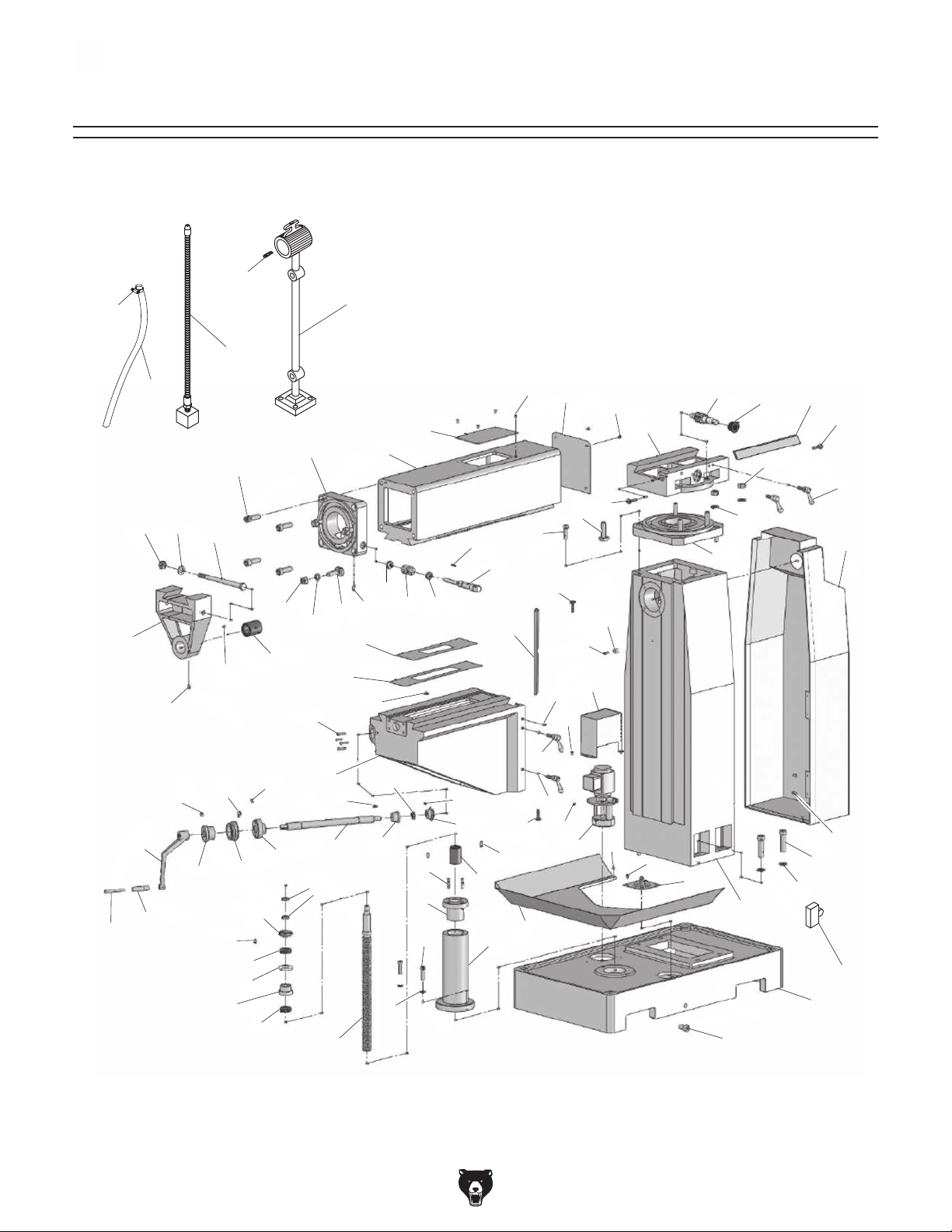

SECTION 9: PARTS

Column Table

......................................................... 62

............................................................ 64

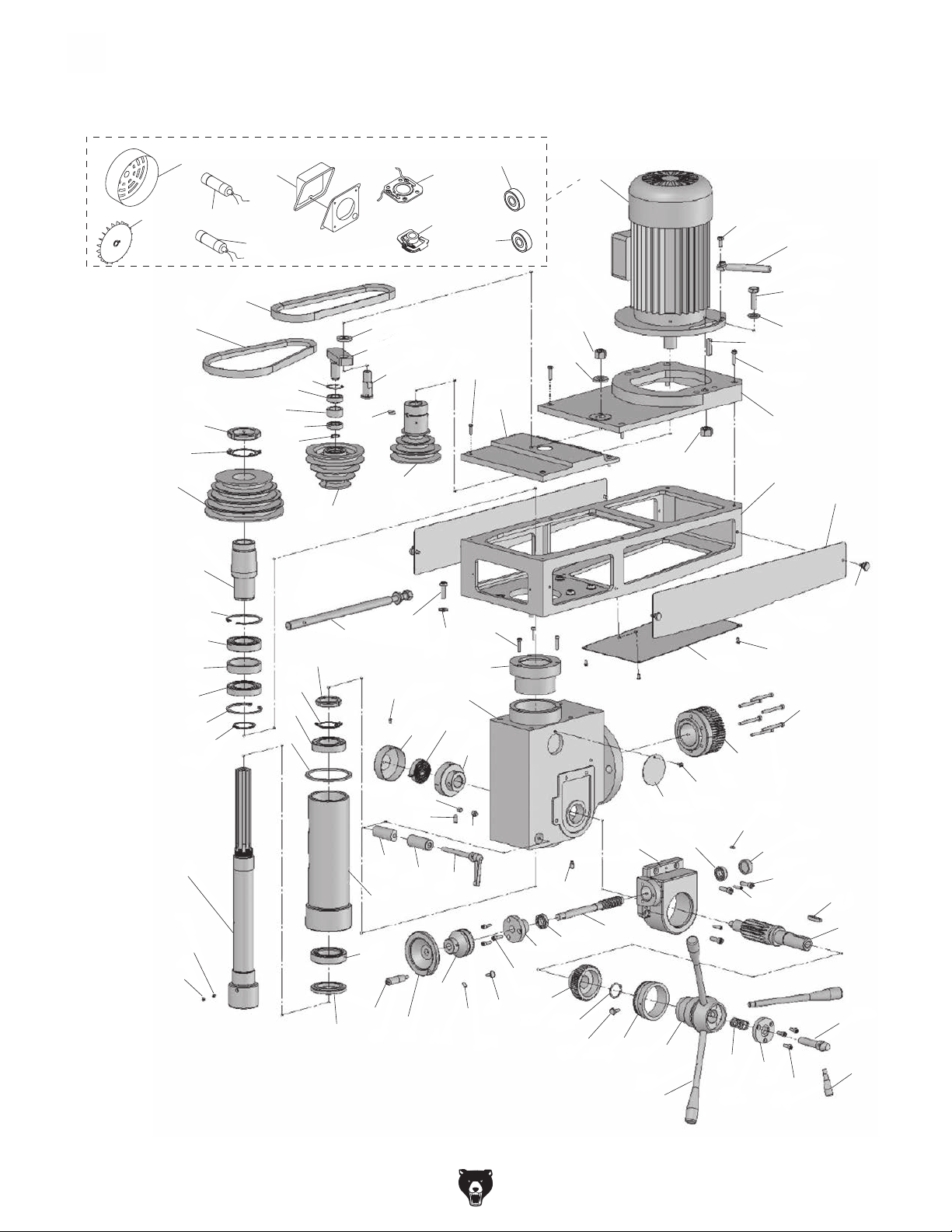

Horizontal Spindle & Motor Headstock

.................................................... 68

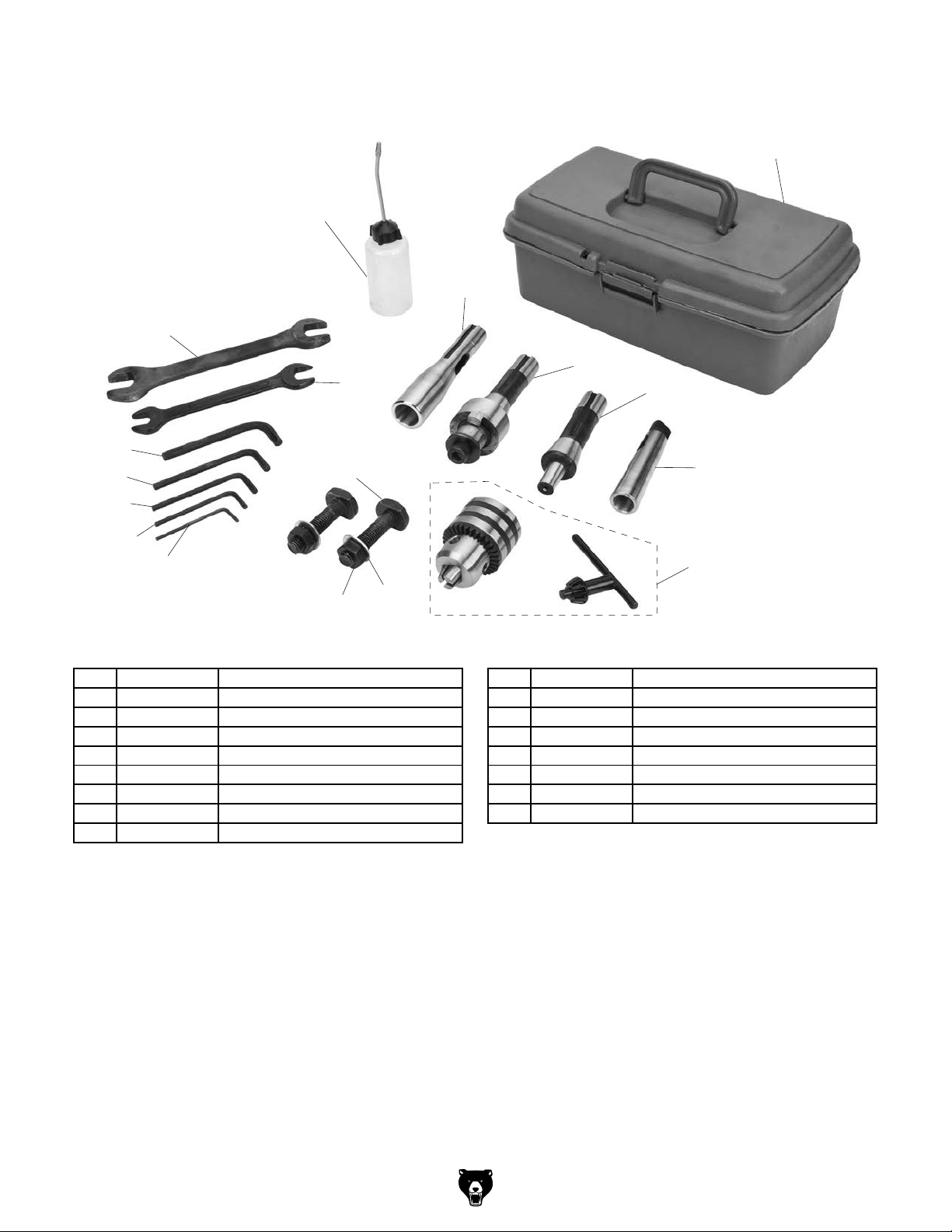

Electrical Components Accessories

.................................................. 71

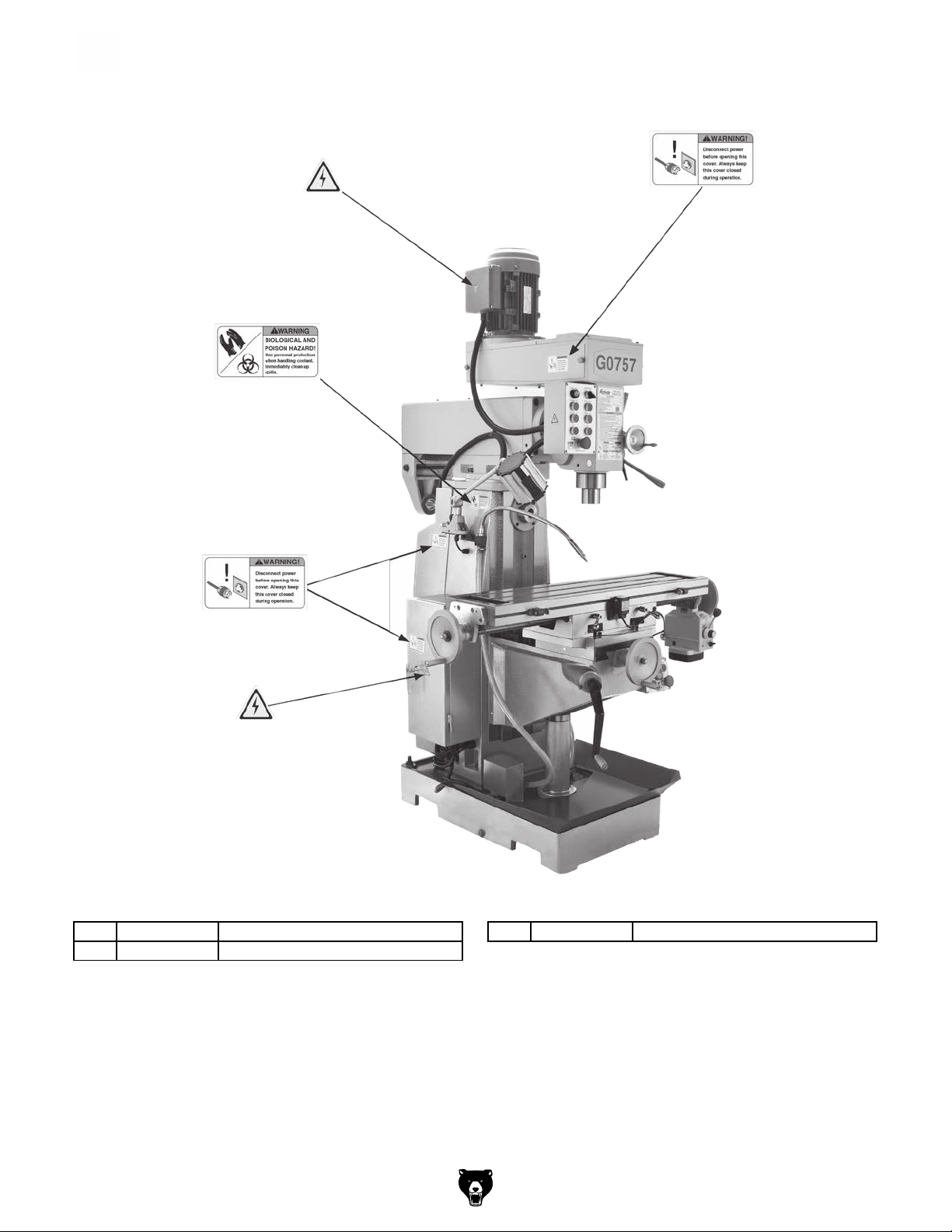

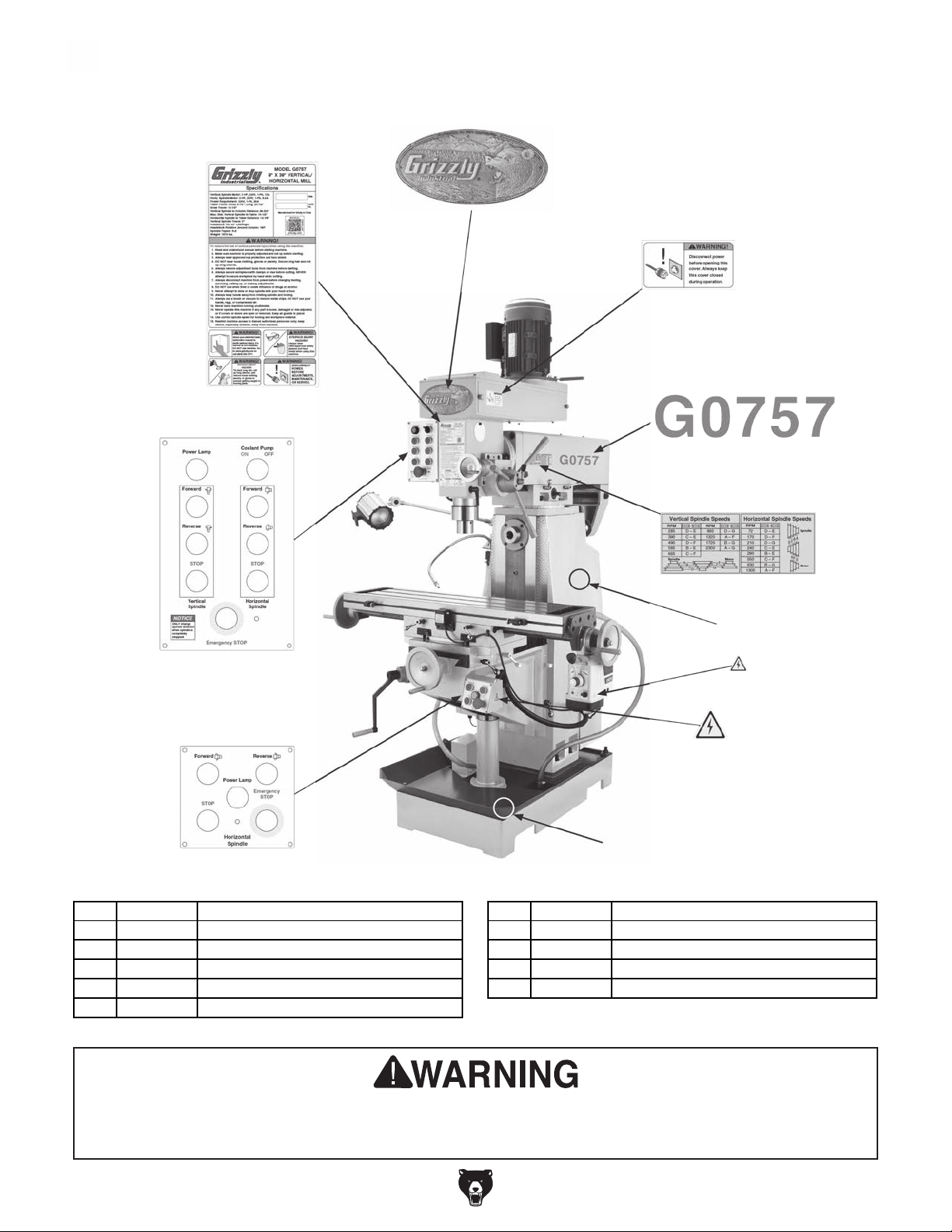

Right Side Machine Labels Left Side Machine Labels

WARRANTY & RETURNS

....................................... 62

.......................... 66

................................. 70

.......................... 72

............................ 73

............................. 77

Page 8

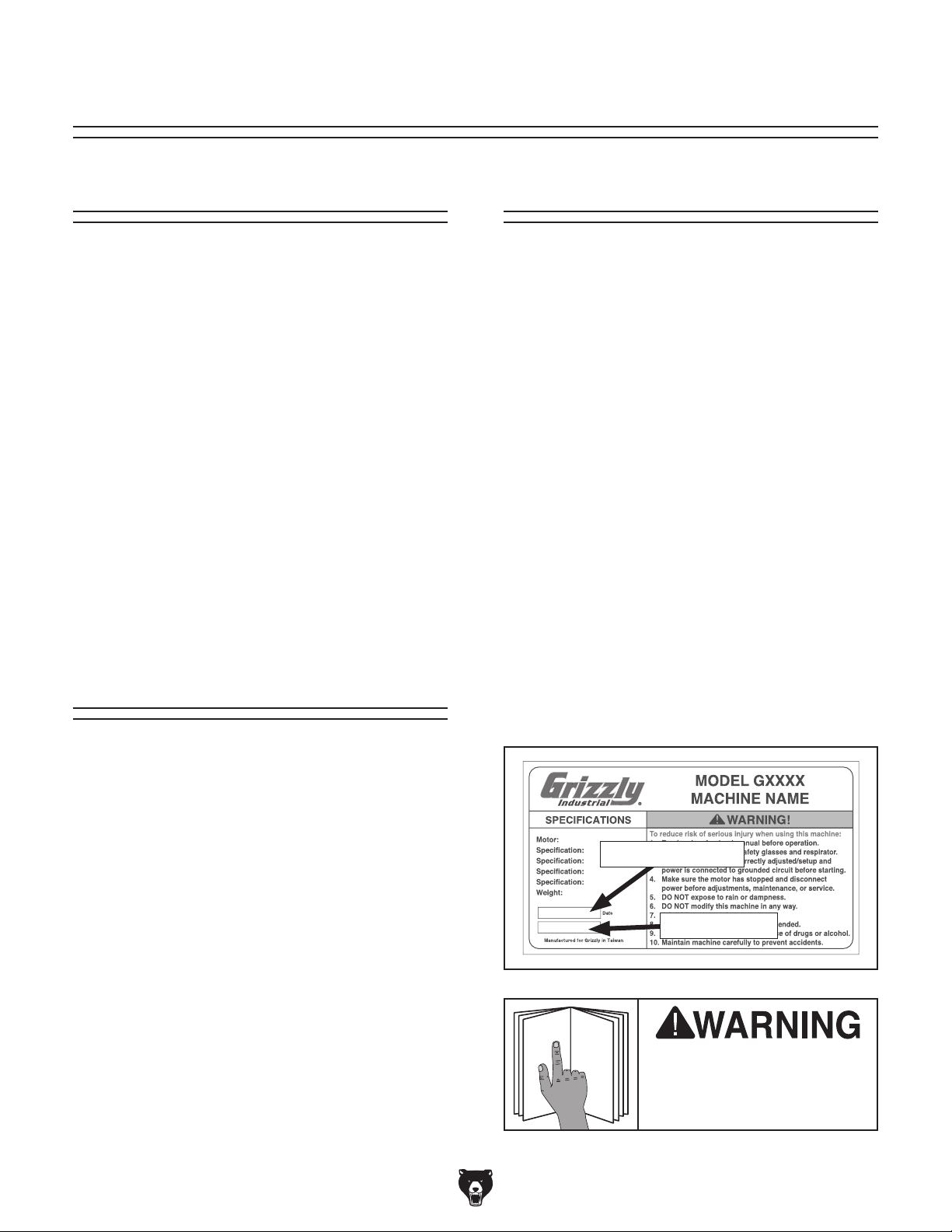

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs in this manual. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

from the machine ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documentation is available for your machine.

We stand behind our machines. If you have any questions or need help, use the information below to contact us. Before contacting, please get the serial number and manufacture date of your machine. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

To reduce your risk of serious injury, read this entire manual BEFORE

Machine Description

The Model G0757 Milling Machine has a vertical and horizontal spindle that are designed to remove material from a metal workpiece secured to the work table or a mill vise. The cutting tool is fixed to the rotating spindle and the workpiece is moved into the cutting tool by lowering the spindle or moving the table.

Spindle downfeed options are rapid (coarse) control or slow (fine) control with adjustable autodownfeed controls.

The Model G0757 features high-precision P5 spindle bearings.

The wide range of cutting tools and optional available equipment combined with the flexible features of this milling machine makes countless metalworking operations possible.

Contact Info

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post

manual updates for free

www.grizzly.com.

Manufacture Date and Serial Number

Manufacture Date

Serial Number

-2-

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

using machine.

Model G0757 (Mfg. Since 6/13)

Page 9

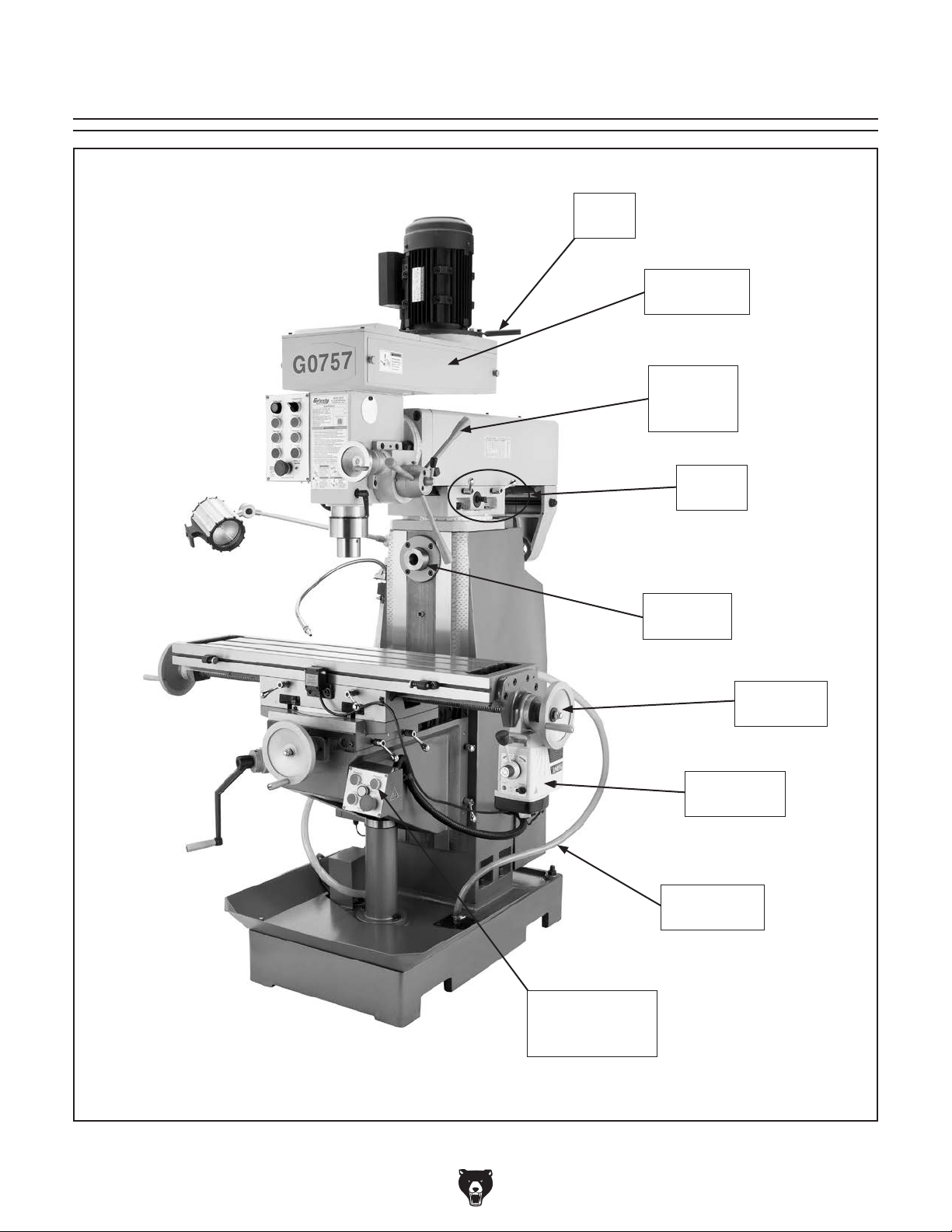

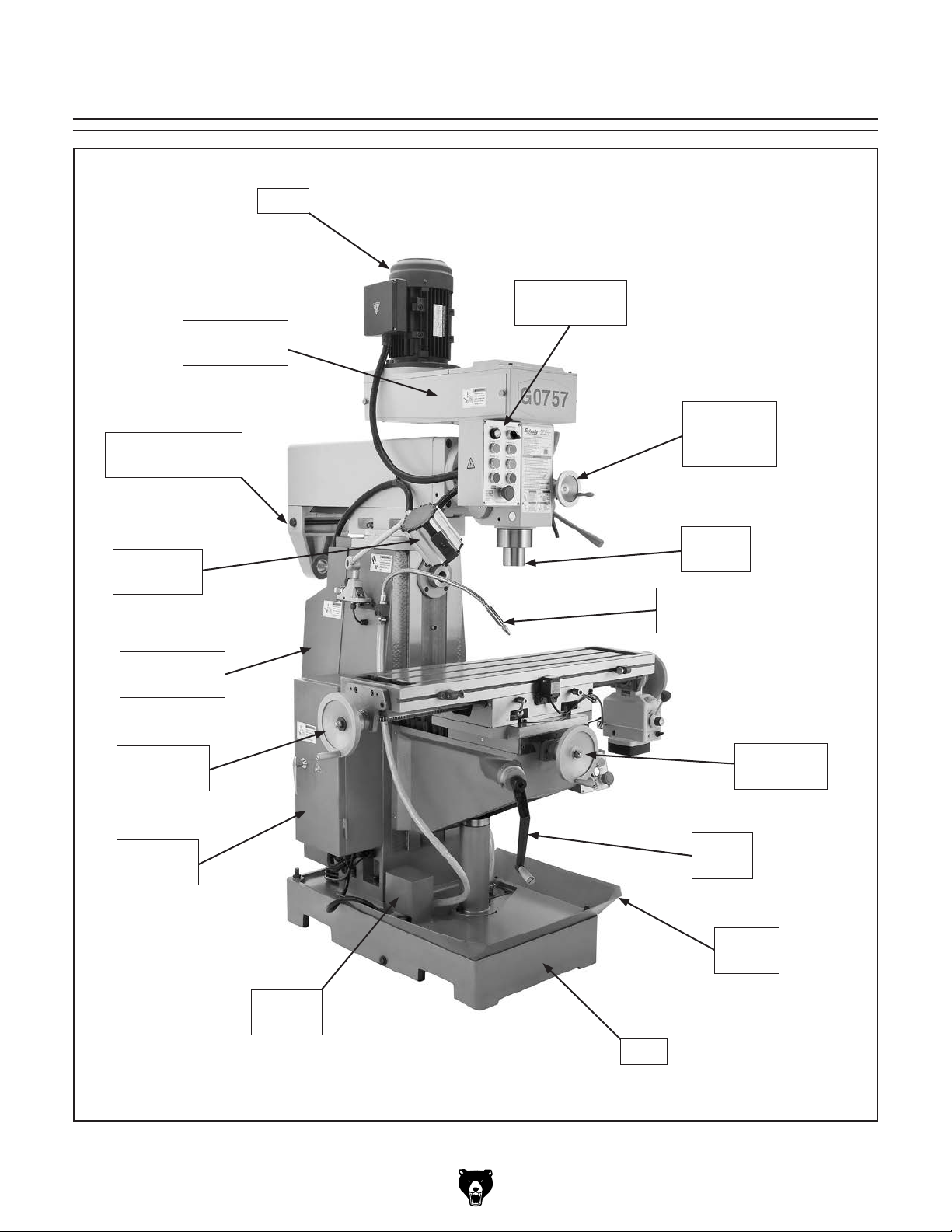

Left Front View Identification

Vertical

V-Belt Cover

Horizontal Arbor

Support

Halogen

Work Light

Motor

Master

Control Panel

Fine

Downfeed

Handwheel

Vertical Spindle

Coolant

Nozzle

Horizontal

V-Belt Cover

X-Axis

Handwheel

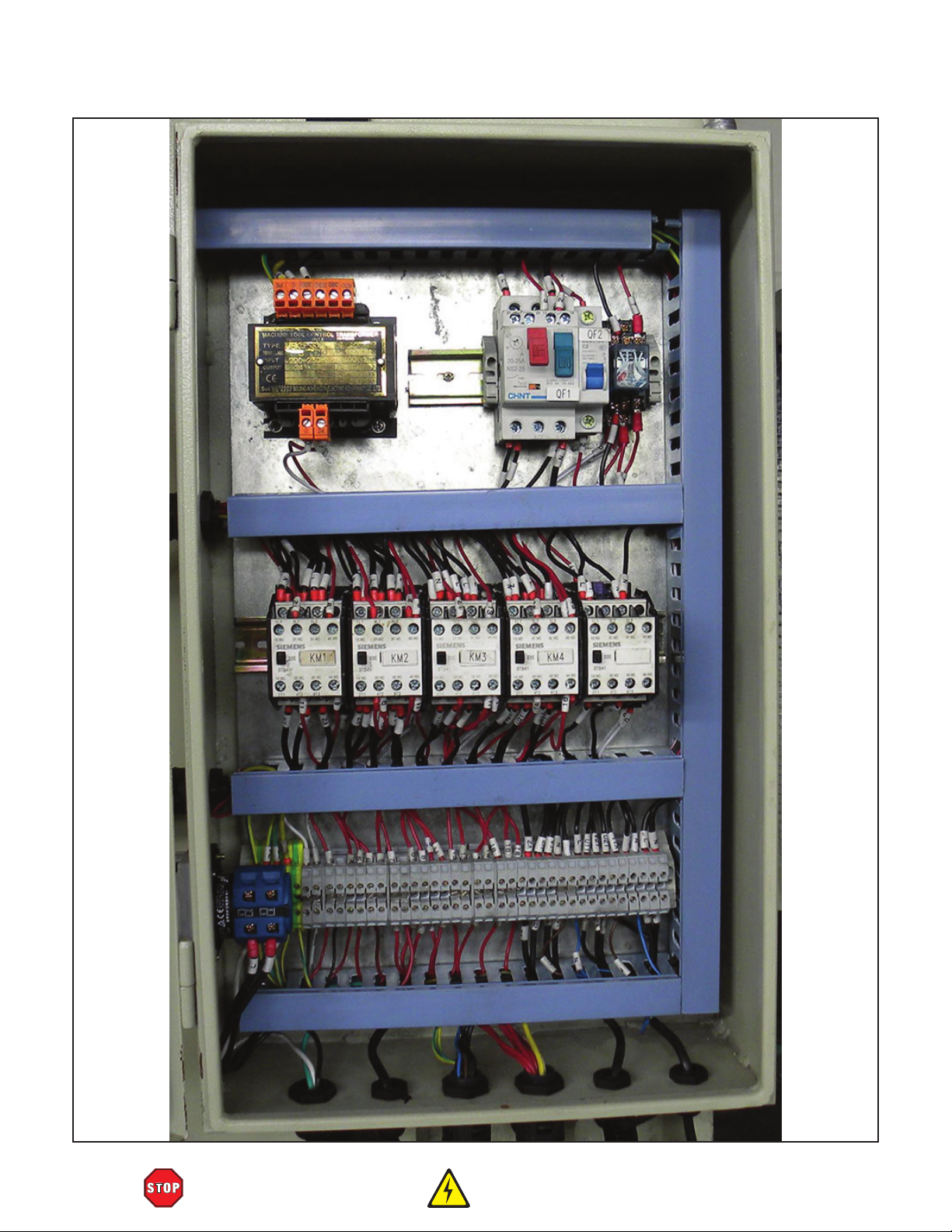

Electrical

Cabinet

Y-Axis

Handwheel

Z-Axis

Crank

Splash

Pan

Coolant

Pump

Base

Model G0757 (Mfg. Since 6/13)

-3-

Page 10

Right Front View Identification

Motor

Handle

Vertical

V-Belt Cover

Coarse

Downfeed

Lever

Ram

Controls

Horizontal

Spindle Control

Sub-Panel

Horizontal

Spindle

X-Axis

Handwheel

X-Axis

Power Feed

Coolant

Return Hose

-4-

Model G0757 (Mfg. Since 6/13)

Page 11

Basic Controls

Refer to Figures 1–3 and the following descrip- tions to develop an understanding of the basic controls used to operate the milling machine. This knowledge will be necessary to safely complete the Test Run later in this manual.

Additional details for certain controls are also located in the Operations section.

Master Power Switch

Master

Power Switch

A. Power Lamp Button: When pressed, illu-

minates and enables power to both control panels. Both Emergency STOP buttons must be reset first.

B. Forward Button (Vertical Spindle): Starts

vertical spindle forward rotation (clockwise looking down on the headstock).

Spindle rotation direction can ONLY be changed when the spindle is completely stopped.

C. Reverse Button (Vertical Spindle ): Starts

vertical spindle reverse rotation (counterclockwise looking down on the headstock).

D. STOP Button (Vertical Spindle ): Stops

vertical spindle rotation.

Figure 1. Location of master power switch.

Master Power Switch: Enables power to flow to

the machine when the “l” is visible at the top of the switch.

Master Control Panel

E. Emergency STOP Button: Disables power

to both control panels and stops all machine functions. To reset, twist the button clockwise until it pops out.

F. STOP Button (Horizontal Spindle ): Stops

horizontal spindle rotation.

G. Reverse Button (Horizontal Spindle ):

Starts horizontal spindle reverse rotation (clockwise as viewed from the front of the machine).

H. Forward Button (Horizontal Spindle ):

Starts horizontal spindle forward rotation (counterclockwise as viewed from the front of the machine).

I. Coolant Pump Switch: Starts/stops the

coolant pump and the flow of coolant.

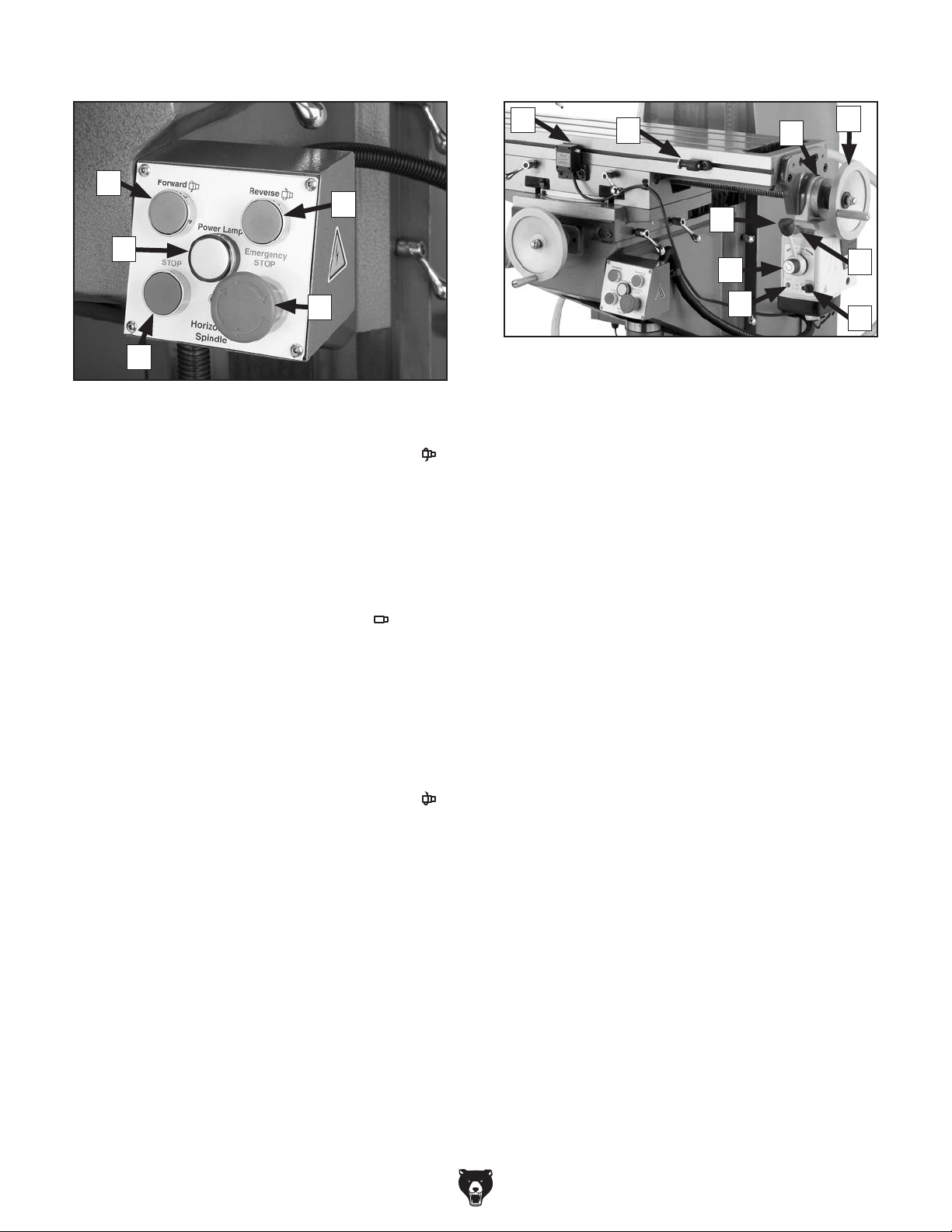

Figure 2. Master control panel.

Model G0757 (Mfg. Since 6/13)

-5-

Page 12

Horizontal Spindle Control Sub-Panel Power Feed

Figure 3. Horizontal spindle control sub-panel

located on knee.

J. Forward Button (Horizontal Spindle ):

Starts horizontal spindle forward rotation (counterclockwise as viewed from the front of the machine).

K. Horizontal Spindle Power Lamp: Illuminates

when power is enabled to the control panels.

Figure 4. Power feed components.

. Limit Switch: Stops powered table move-

ment when either of the side plungers come in contact with the limit stops.

. Limit Stop: Limits X-axis table travel (one on

either end of the table).

. Graduated Dial: Displays X-axis table move-

ment in 0.001" increments, with each revolution equaling 0.200" of travel.

L. STOP Button (Horizontal Spindle ): Stops

horizontal spindle rotation.

M. Emergency STOP Button: Only disables

power to all horizontal spindle controls in both panels, and stops horizontal spindle rotation. To reset, twist the button clockwise until it pops out.

N. Reverse Button (Horizontal Spindle ):

Starts horizontal spindle reverse rotation (clockwise as viewed from the front of the machine).

. Handwheel: Manually positions the table.

Directional Lever: Selects the direction of

table movement. The center position is neutral.

. Speed Dial: Controls the speed of table

movement. Turning the dial clockwise causes the table to move faster.

Note: Feed rates for table travel are extreme-

ly difficult to precisely calculate. We recommend that you combine research and experimentation to find the feed rates that best work for your operations.

G. Reset Button: Resets the internal circuit

breaker if the unit is overloaded and shuts down.

. ON/OFF Switch: Enables/disables power to

the unit.

-6-

. Rapid Traverse Button: Once the direction-

al lever has been activated, causes the table to travel at full speed while pushed.

Model G0757 (Mfg. Since 6/13)

Page 13

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0757 9" X 39" 2 HP HORIZONTAL/VERTICAL MILL

WITH POWER FEED

Product Dimensions:

Weight............................................................................................................................................................ 1874 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 53-1/2 x 54-7/8 x 81-7/8 in.

Footprint (Length x Width)..................................................................................................................... 35-1/2 x 20 in.

Space Required for Full Range of Movement (Width x Depth).............................................................. 76 x 57-7/8 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight............................................................................................................................................................ 2050 lbs.

Length x Width x Height............................................................................................................ 52-3/4 x 45 x 87-1/2 in

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Full-Load Current Rating..................................................................................................................................... 13.2A

Minimum Circuit Size.............................................................................................................................................. 20A

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length.......................................................................................................................................... 6-1/2 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type..................................................................................................................................... 6-20

Motors:

Coolant Pump

Vertical Spindle

Horsepower................................................................................................................................................. 40W

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 0.2A

Speed................................................................................................................................................ 2800 RPM

Type............................................................................................................... TEFC Permanent-Split Capacitor

Power Transfer ............................................................................................................................... Direct Drive

Bearings........................................................................................................................................ Ball Bearings

Centrifugal Switch/Contacts Type................................................................................................................ N/A

Horsepower................................................................................................................................................ 3 HP

Phase............................................................................................................................................ Single-Phase

Amps............................................................................................................................................................ 13A

Speed................................................................................................................................................ 1725 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................... V-Belt Drive

Bearings........................................................................................................................................ Ball Bearings

Centrifugal Switch/Contacts Type.......................................................................................................... Internal

Model G0757 (Mfg. Since 6/13)

-7-

Page 14

Horizontal Spindle

Column/Base....................................................................................................................................... Cast Iron

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 8.6A

Speed................................................................................................................................................ 1725 RPM

Type................................................................................................................. TEFC Capacitor-Start Induction

Power Transfer ............................................................................................................................... V-Belt Drive

Bearings........................................................................................................................................ Ball Bearings

Centrifugal Switch/Contacts Type.......................................................................................................... Internal

Main Specifications:

Operation Info

Spindle Travel.............................................................................................................................................. 5 in.

Max Distance Spindle to Column........................................................................................................ 26-3/4 in.

Max Distance Spindle to Table............................................................................................................ 14-1/2 in.

Maximum Distance Horizontal Spindle Center to Table...................................................................... 14-1/8 in.

Longitudinal Table Travel (X-Axis)...................................................................................................... 23-1/2 in.

Cross Table Travel (Y-Axis).................................................................................................................. 8-1/2 in.

Vertical Table Travel (Z-Axis).............................................................................................................. 12-1/2 in.

Table Swivel (Left/Right)........................................................................................................................ 45 Deg.

Ram Travel................................................................................................................................................ 11 in.

Turret or Column Swivel (Left /Right)................................................................................................... 180 deg.

Head Tilt (Left/Right).............................................................................................................................. 90 deg.

Drilling Capacity for Cast Iron................................................................................................................ 1-1/8 in.

Drilling Capacity for Steel............................................................................................................................ 1 in.

End Milling Capacity.................................................................................................................................... 1 in.

Face Milling Capacity................................................................................................................................... 4 in.

Table Info

Table Length........................................................................................................................................ 39-3/8 in.

Table Width........................................................................................................................................... 9-1/2 in.

Table Thickness.................................................................................................................................... 2-3/8 in.

Number of T-Slots............................................................................................................................................ 3

T-Slot Size................................................................................................................................................ 5/8 in.

T-Slots Centers............................................................................................................................................ 3 in.

Number of Longitudinal Feeds.............................................................................................................. Variable

X-Axis Table Power Feed Rate................................................................................................... 0 – 11.67 FPM

X/Y-Axis Travel per Handwheel Revolution.......................................................................................... 0.200 in.

Z-Axis Travel per Handwheel Revolution............................................................................................. 0.200 in.

Spindle Info

Spindle Taper............................................................................................................................................... R-8

Number of Vertical Spindle Speeds.................................................................................................................. 9

Range of Vertical Spindle Speeds........................................................................................... 285 – 2300 RPM

Quill Diameter........................................................................................................................................ 3-1/2 in.

Drawbar Thread Size............................................................................................................................. 7/16-20

Drawbar Length............................................................................................................................. 20, 13-3/4 in.

Spindle Bearings.................................................................................................. Tapered Roller Bearings (P5)

Horizontal Spindle Taper.............................................................................................................................. R-8

Number of Horizontal Spindle Speeds............................................................................................................. 8

Range of Horizontal Spindle Speeds......................................................................................... 72 – 1300 RPM

Horizontal Spindle Bearing Type......................................................................... Tapered Roller Bearings (P5)

Construction

Spindle Housing/Quill........................................................................................................... Chromed Cast Iron

Table....................................................................................................................... Precision-Ground Cast Iron

Head.................................................................................................................................................... Cast Iron

-8-

Model G0757 (Mfg. Since 6/13)

Page 15

Other Specifications:

Country of Origin ................................................................................................................................................ China

Warranty ........................................................................................................................................................... 1 Year

Serial Number Location ..................................................................................................... Machine ID Label on Head

ISO 9001 Factory .................................................................................................................................................. Yes

Features:

Recycling Coolant System Longitudinal Power Feed High-Precision P5 Spindle Bearings Halogen Work Light

Accessories Included:

Arbor Adapter, R-8 to MT#3 Horizontal Arbors w/Spacers, 1-1/4" & 1" 1-13mm Drill Chuck w/Key & Arbor MT#3 to MT#2 Adapter Sleeve T-Bolts w/Washers & Nuts Service Tools & Tool Box

Model G0757 (Mfg. Since 6/13)

-9-

Page 16

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-10 -

Model G0757 (Mfg. Since 6/13)

Page 17

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

Model G0757 (Mfg. Since 6/13)

-11-

Page 18

Additional Safety for Milling Machines

risk of operator injury. If normal safety precautions are overlooked or ignored,

UNDERSTANDING CONTROLS: The mill is a

complex machine that presents severe cutting or amputation hazards if used incorrectly. Make sure you understand the use and operation of all controls before you begin milling.

SAFETY ACCESSORIES: Flying chips or debris from the cutting operation can cause eye injury or blindness. Always use safety glasses or a face shield when milling.

WORK HOLDING: Milling a workpiece that is not properly secured to the table or in a vise could cause the workpiece to fly into the operator with deadly force! Before starting the machine, be certain the workpiece has been properly clamped to the table. NEVER hold the workpiece by hand during operation.

SPINDLE SPEED: To avoid tool or workpiece breakage that could send flying debris at the operator and bystanders, use the correct spindle speed for the operation. Allow the spindle to gain full speed before beginning the cut.

SPINDLE DIRECTION CHANGE: Changing spindle rotation direction while it is spinning could lead to impact injury from broken tool or workpiece debris, and workpiece or machine damage. ALWAYS make sure the spindle is at a complete stop before changing spindle direction.

STOPPING SPINDLE: To reduce the risk of hand injuries or entanglement hazards, DO NOT attempt to stop the spindle with your hand or a tool. Allow the spindle to stop on its own or use the spindle brake.

CHIP CLEANUP: Chips from the operation are sharp and hot, which can cause burns or cuts. Using compressed air to clear chips could cause them to fly into your eyes, and may drive them deep into the working parts of the machine. Use a brush or vacuum to clear away chips and debris from machine or workpiece and NEVER clear chips while spindle is turning.

MACHINE CARE & MAINTENANCE: Operating the mill with excessively worn or damaged machine parts increases risk of machine or workpiece breakage which could eject hazardous debris at the operator. To reduce this risk, maintain the mill in proper working condition by ALWAYS promptly performing routine inspections and maintenance.

CUTTING TOOL USAGE: Cutting tools have very sharp leading edges—handle them with care! Using cutting tools that are in good condition helps to ensure quality milling results and reduces risk of personal injury from broken tool debris. Inspect cutting tools for sharpness, chips, or cracks before each use, and ALWAYS make sure cutting tools are firmly held in place before starting the machine.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the

serious personal injury may occur.

-12-

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Model G0757 (Mfg. Since 6/13)

Page 19

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrican or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the following requirements:

For your own safety and protection of

Note: The circuit requirements listed in this manual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage .............................. 220V/240V

..........................................................60 Hz

Cycle Phase Power Supply Circuit Plug/Receptacle

.................................................... 1-Phase

......................... 20 Amps

............................. NEMA 6-20

Full-Load Current Rating at 220V .. 13.2 Amps

Model G0757 (Mfg. Since 6/13)

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

-13-

Page 20

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding Instructions

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

The power cord and plug specified under “Circuit Requirements for 220V” has an equipment-grounding wire and a grounding prong. The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances (see figure below).

No adapter should be used with the required plug. If the plug does not fit the available receptacle, or the machine must

on the previous page

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Serious injury could occur if you connect the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

Grounding Pin

Figure 5. Typical 6-20 plug and receptacle.

be reconnected for use on a different type of circuit, the reconnection must be made by a qualified electrician and comply with all local codes and ordinances.

-14-

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................12 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0757 (Mfg. Since 6/13)

Page 21

SECTION 3: SETUP

Your machine was carefully packaged for safe transportation. Remove the packaging materials from around your machine and inspect it. If you discover any damage, please call us immediately

at (570) 546-9663

Save the containers and all packing materials for possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condition of your shipment, inventory the contents.

Keep children and pets away from plastic bags or packing materials shipped with this

Unpacking

for advice.

SUFFOCATION HAZARD!

machine. Discard immediately.

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

For Lifting (Page 19)

• A forklift or other power lifting device rated for 50% more than the weight of the machine.

• Two lifting straps and a chain with a safety hook, each rated for 50% more than the weight of the machine.

• At least two other persons to help with the operation.

• Safety glasses for each person.

For Cleanup

• Cotton disposable rags.

• Cleaner/degreaser (see Page 17).

For Power Connection

• We recommend a qualified electrician to ensure a safe and code-compliant connection to the power source (refer to Page 13 for details).

Model G0757 (Mfg. Since 6/13)

-15-

Page 22

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Small Item Inventory (see Figure 6): Qty A. Open-End Wrenches 17/19, 22/24mm ..1 Ea

Bottle for Oil ............................................... 1

Toolbox ....................................................... 1

Spindle Sleeve R-8–MT#3 ......................... 1

End Mill Arbor R-8–1" ................................. 1

Drill Chuck Arbor R-8–B16 ......................... 1

Spindle Sleeve MT#3–MT#2 ...................... 1

Drill Chuck B16, 1–13mm w/Chuck Key ..... 1

T-Bolts M14-2 x 60 ..................................... 2

— Flat Washers 14mm ................................ 2

— Hex Nuts M14-2 ...................................... 2

Hex Wrenches 8, 6, 5, 4, 3mm .............1 Ea

J. K. Horizontal Arbor 1

L. Horizontal Arbor 1" Dia. w/Spacers ............ 1

M. Vertical Spindle Drawbar N. Horizontal Spindle Drawbar

⁄16 –20 x 13 3⁄4" ............................................. 1

⁄4" Dia. w/Spacers ......... 1

⁄16 –20 x 20" ....... 1

Figure 6. Small item inventory.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

-16 -

Model G0757 (Mfg. Since 6/13)

Page 23

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. A v oid using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

Avoid harsh solvents like acetone or brake parts cleaner that may damage painted surfaces. Always test on a small, inconspicuous location first.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from the non-painted parts of the machine during clean up.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Model G0757 (Mfg. Since 6/13)

-17-

Page 24

Site Considerations

Weight Load

Physical Environment

Place this machine near an existing power source.

Shadows, glare, or strobe effects that may distract

Refer to the Machine Data Sheet for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

-18-

Wall

30"

Minimum

Clearance

30"

Minimum

Clearance

Figure 8. Minimum working clearances.

56"

763⁄4"

Model G0757 (Mfg. Since 6/13)

Page 25

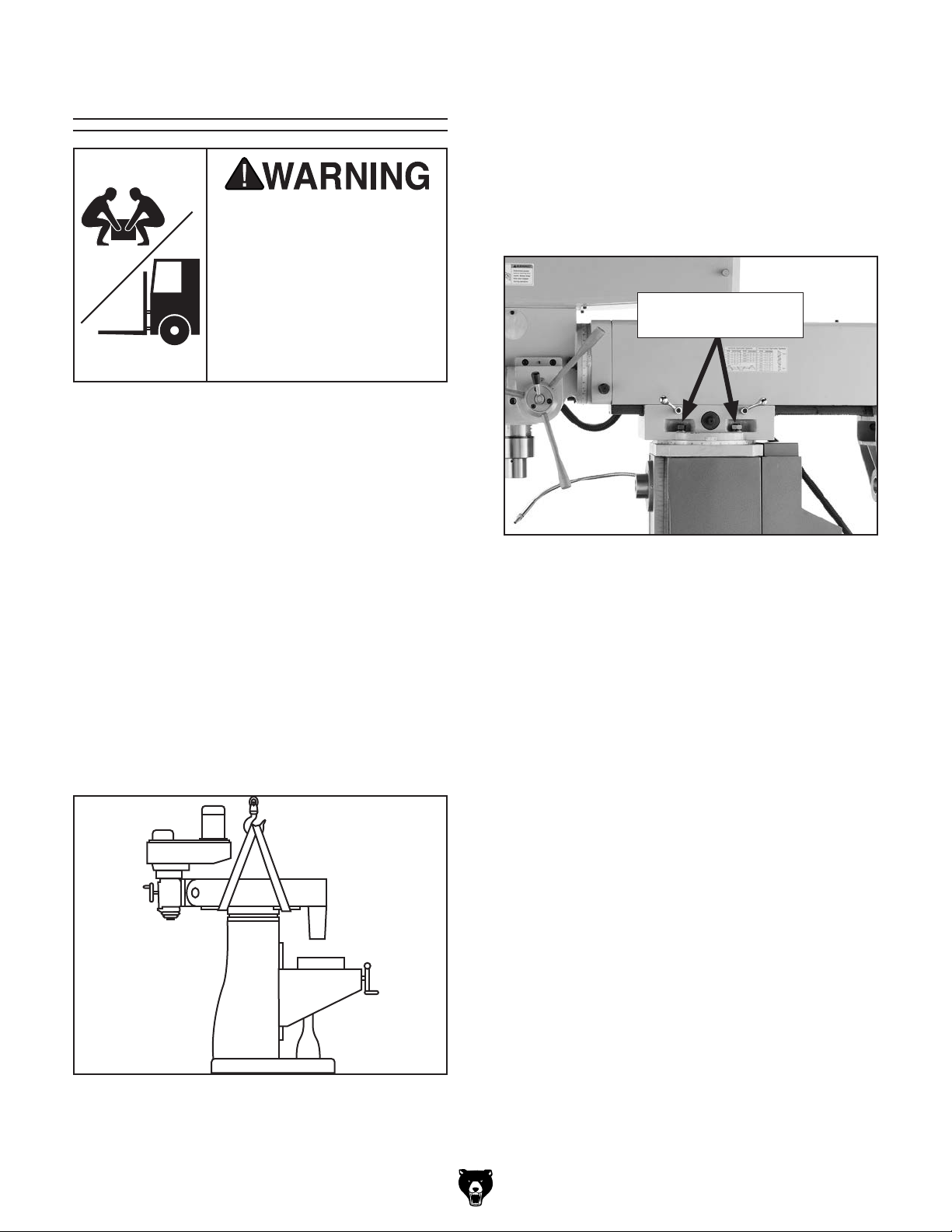

Lifting & Placing

HEAVY LIFT! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk, get help from other people and use a forklift (or other lifting equipment) rated for weight of this machine.

Power lifting equipment rated for at least 50% more than the weight of the machine and at least two other people are required to lift and place the mill.

To lift and move the mill:

Note: After repositioning ram and headstock,

make sure they are locked in place to prevent unexpected movement while lifting.

Torque the four turret lock bolts (two on each

side of ram, as shown in Figure 10) to 47 ft/ lbs. This will help keep ram from unexpectedly moving from force of lifting straps.

Turret Locking Bolts

(2 of 4)

Remove crate from shipping pallet then,

while still on pallet, move machine to installation location.

Rotate ram 180° so headstock faces back-

wards (see Figure 9), then rotate head upright.

Refer to Head Tilt on Page 26 and Ram

Movement on Page 27 for detailed instructions to help with this step.

Figure 10. Locations of turret locking bolts.

Place lifting straps under ram and connect to

a safety hook, as illustrated in Figure 9.

Note: Place protective material between

straps and mill to protect ram and ways, and to prevent cutting lifting straps.

Unbolt mill from shipping pallet.

6. With other people steadying the load to keep

it from swaying, lift machine a couple of inches.

— If mill tips to one side, lower it to the pallet

and adjust ram or table to balance load. Make sure to retighten lock levers and bolts before lifting mill again.

— If mill lifts evenly, remove shipping pallet

and lower mill.

Figure 9. Using lifting straps to lift and move

mill.

Model G0757 (Mfg. Since 6/13)

-19 -

Page 26

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

Leveling

Leveling machinery helps precision components, such as dovetail ways, remain straight and flat during the lifespan of the machine. Components on an unleveled machine may slowly twist due to the dynamic loads placed on the machine during operation.

For best results, use a precision level that is at least 12" long and sensitive enough to show a distinct movement when a 0.003" shim (approximately the thickness of one sheet of standard newspaper) is placed under one end of the level.

See Figure 11 for an example of a high precision level available from Grizzly.

Anchoring to Floor

Anchoring to Concrete Floors

Figure 11. Example of a precision level

(Model H2683 shown).

-20-

Lag Screw

Flat Washer

Machine Base

Concrete

Figure 12. Popular method for anchoring

machinery to a concrete floor.

Model G0757 (Mfg. Since 6/13)

Lag Shield Anchor

Drilled Hole

Page 27

Test Run

DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components function properly.

During the test run, you will check for proper operation of the vertical and horizontal spindle motors, the Emergency STOP buttons, and the power feed unit.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The Troubleshooting table in the SERVICE section of this manual can help.

Position vertical spindle V-belts for 285 RPM

and horizontal spindle V-belts for 72 RPM (refer to Spindle Speed, beginning on Page 31 for detailed instructions).

Push both Emergency STOP buttons to avoid

unexpected start up when machine is connected to power.

Connect mill to power source specified in

6. SECTION 2: POWER SUPPLY on Page 13.

Turn master power switch ON.

Twist both Emergency STOP buttons clock-

wise until they pop out—this resets them for operation (see Figure 13).

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

may result in malfunction or unexpect-

death, or machine/property damage.

Mill Test Run

1. Read and follow the safety instructions at the

beginning of the manual, take required safety precautions, and make sure the machine is set up and adjusted properly.

Clear away all tools and objects used during

assembly and preparation.

To Reset Switch...

Twist Button

Clockwise

OFF

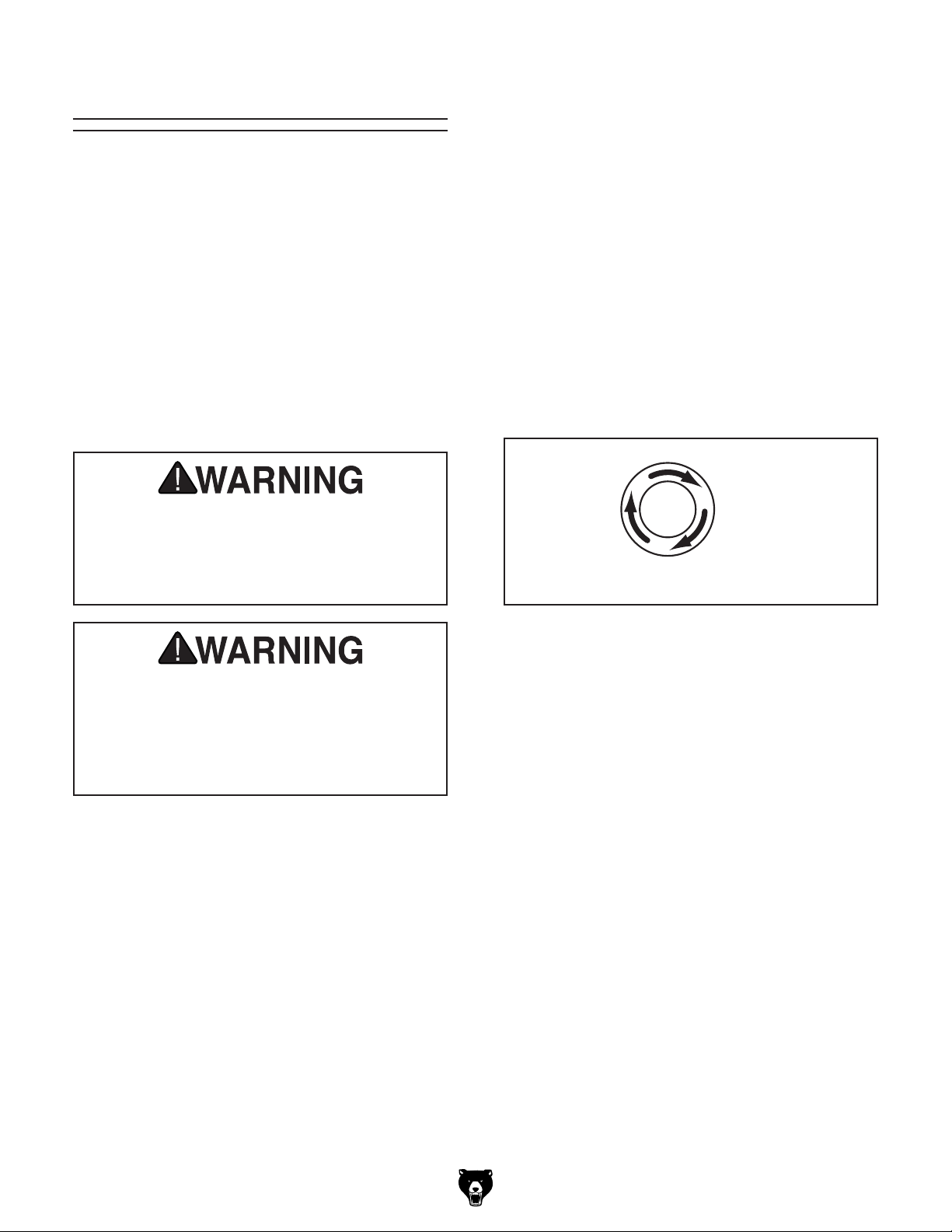

Figure 13. Resetting the Emergency STOP

button.

Press Power Lamp button on master control

panel to enable power to all control panels— the button should light.

Start vertical spindle forward rotation.

10.

Listen for abnormal noises and watch for

11.

anything unexpected from the mill. The mill should run smoothly and without excessive vibration or rubbing noises.

— Strange or unusual noises or actions must

be investigated immediately. Turn the machine OFF and disconnect it from the power source before investigating or correcting potential problems.

Make sure mill is properly lubricated (refer to

3. Lubrication section beginning on Page 41

for specific details).

Model G0757 (Mfg. Since 6/13)

-21-

Page 28

12. Stop spindle rotation and wait for spindle to completely stop.

Repeat Steps 11–12 with vertical spindle

13.

reverse rotation.

Repeat Steps 10–12 with horizontal spindle.

14.

Press Emergency STOP button on master

15.

control panel.

Power Feed Test Run

The mill comes with a power feed unit for X-axis table travel. Proper operation of the limit switch attached to the front middle of the table is critical for the safe use of this power feed unit. If the power feed does not operate as expected during the following steps, disconnect it from power and contact our Tech Support at (570) 546-9663 for assistance.

WITHOUT resetting the Emergency STOP

16.

button, attempt to start vertical spindle rotation. The machine should not start.

—If the machine does start (with the

Emergency STOP button pushed in), immediately disconnect power to the machine. The Emergency STOP button safety feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Reset Emergency STOP button.

17.

18. Repeat Steps 15–17 with horizontal spindle

control sub-panel and horizontal spindle.

To test the power feed:

Make sure all tools, cables, and other items

are well clear of table movement as you follow these steps.

Refer to Power Feed identification on

2. Page 6, to understand how power feed, table

locks, and limit switch function.

Loosen table locks on the front of table.

4. Make sure power feed directional lever is

in neutral (middle) position, turn speed dial counterclockwise to lowest setting, then turn power feed ON.

Move direction knob to the left, slowly rotate

speed dial clockwise to increase speed, then confirm table is moving left.

Watch for table limit stop to hit limit switch

and turn the power feed OFF, stopping table movement.

-22-

Move direction knob through the neutral

(middle) position and all the way right. Table should begin moving right.

Confirm table stops moving when limit stop

presses against limit switch plunger.

Move direction knob to the neutral (middle)

position, turn speed dial counterclockwise to lowest setting, and turn power feed OFF.

Congratulations! The Test Run of the mill is complete. Continue to the next page to perform the Spindle Break-In and Inspections & Adjustments procedures.

Model G0757 (Mfg. Since 6/13)

Page 29

Spindle Break-In

Before placing operational loads on the spindle, complete this break-in procedure to fully distribute lubrication throughout the bearings and help ensure trouble-free performance.

Inspections &

Adjustments

The following list of adjustments were performed at the factory before the machine was shipped:

• Gib Adjustments ..............................Page 52

• X-Axis Leadscrew Backlash ........... Page 53

Failure to complete the spindle break-in process may lead to premature failure of the bearings—this will not be covered under warranty.

To perform the spindle break-in procedure:

DISCONNECT MACHINE FROM POWER!

2. Set up vertical spindle for lowest spindle speed (refer to Spindle Speed, beginning on Page 31 for detailed instructions).

Do not leave the machine unattended during the Spindle Break-In procedure. If your attention is needed elsewhere during this procedure, stop the machine and restart the procedure later from the beginning.

3. Connect machine to power, and run vertical

spindle for a minimum of 5 minutes.

Repeat Step 3 for each spindle speed, work-

ing to progressively higher speeds.

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments during operation of the machine. If you find that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

Since the head has been moved around for shipping purposes, you will need to tram it so that the spindle is perpendicular to the table. Refer to the Tramming the Mill section on Page 34 for detailed instructions.

After the first 16 hours of use, the V-belts will stretch and seat into the pulley grooves. The V-belts must be properly retensioned after this period to ensure proper power transmission and avoid reducing the life of the belts. Refer to V-Belt Service on Page 50 for detailed instructions.

Repeat Steps 2–4 with horizontal spindle.

Check tension of all V-belts, and retension

6. if necessary (refer to V-Belt Service on Page 50 for detailed instructions).

The spindle break-in is now complete!

Model G0757 (Mfg. Since 6/13)

-23-

Page 30

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual and

rienced research outside of this manual by reading "howto" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

To complete a typical operation, the operator does the following:

Examines the workpiece to make sure it is

suitable for the operation.

Firmly clamps the workpiece to the table or a

mill vise.

Installs the correct cutting tool for the opera-

tion.

Uses the downfeed and table controls to cor-

rectly position the cutting tool and workpiece for the operation. If the X-axis power feed will be used during the operation, the operator confirms the speed and length of table movement required.

using machine.

To reduce risk of eye or face injury from flying chips, always wear approved safety glasses and a face shield when operating this machine.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

-24-

Configures the machine for the correct spin-

dle speed of the operation.

Puts on personal protective gear, and makes

sure the workpiece and table are clear of all tools, cords, and other items.

Starts the spindle rotation and performs the

operation.

Turns the machine OFF.

Model G0757 (Mfg. Since 6/13)

Page 31

Table Movement

The mill table travels in three directions, as illustrated in Figure 14.

These movements are controlled by table handwheels and the Z-axis crank. Additionally, the table can be moved along the X-axis with the power feed and rotated 45° left and right.

X-Axis or Longitudinal Travel

(Left & Right)

Y-Axis or Cross Travel (In & Out)

Z-Axis or

Vertical Elevation

(Up & Down)

Table Locks

Use table locks to increase the rigidity of the table when movement in that direction is not required for the operation.

Refer to Figure 16 to identify the locks for each table axis.

X-Axis Locks

Z-Axis

Locks

Y-Axis

Locks

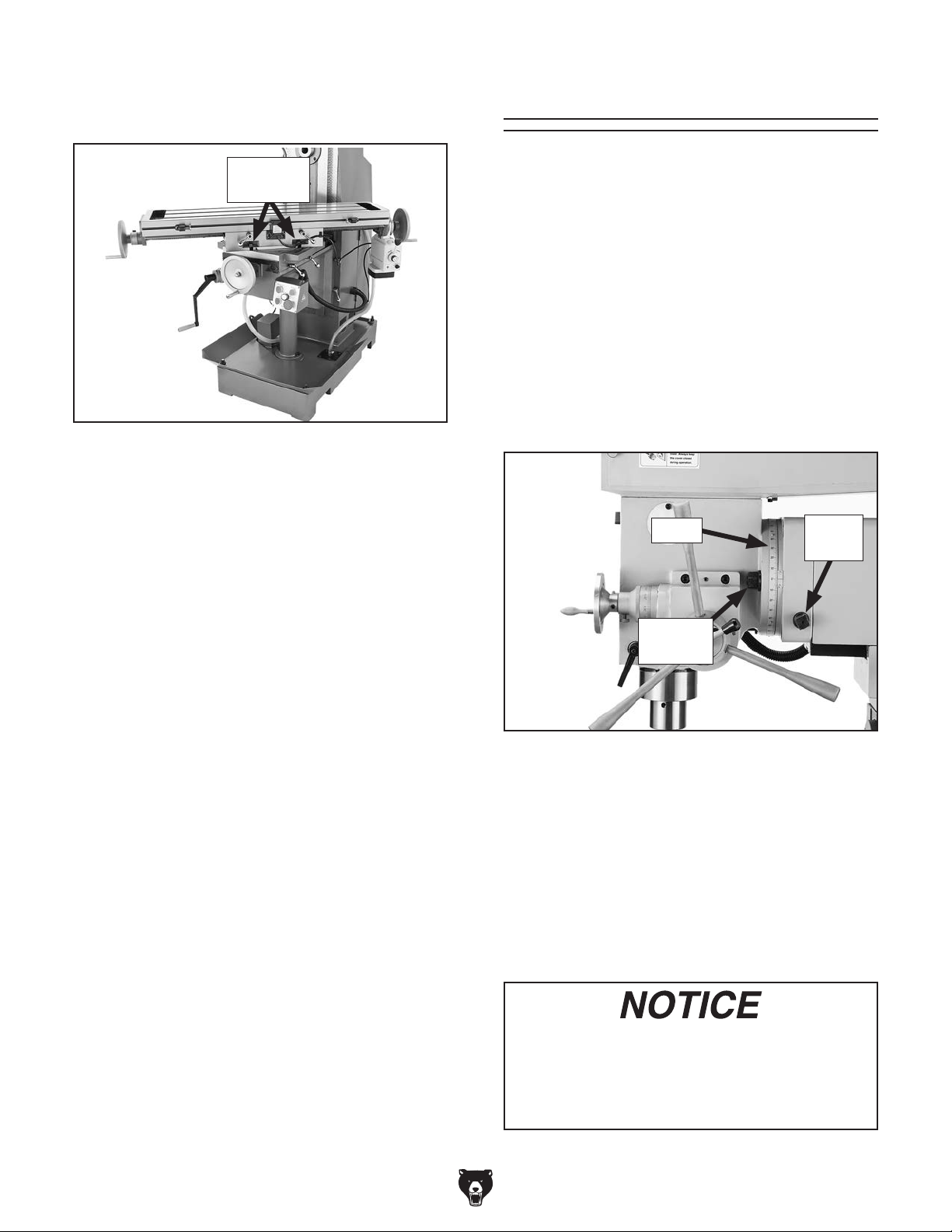

Figure 16. Locations of table locks.

Figure 14. The directions of table movement.

Graduated Index Rings

The table handwheels and knee crank have graduated rings (see Figure 15) that are used to determine table movement in 0.001" increments with one full revolution equaling 0.200" of travel.

Additionally, each dial has a thumbscrew that is used to adjust the dial to zero.

Graduated

Rings

Always keep the table locked in place unless table movement is required for your operation. Unexpected table and workpiece movement could cause the tooling to bind with the workpiece, which may damage the tooling or the workpiece.

Figure 15. Locations of graduated rings.

Model G0757 (Mfg. Since 6/13)

-25-

Page 32

Table Rotation

The table rotates 45° left or right (see Figure 17).

Head Tilt

Hex Nuts

(2 of 4)

Figure 17. Table rotated 45° to the right.

Tool Needed Qty

Wrench 19mm ................................................... 1

To rotate the table:

DISCONNECT MACHINE FROM POWER!

The head tilts 90° left or right at the end of the ram.

Tools Needed Qty

Wrench 19mm ................................................... 1

Wrench 24mm

To tilt the head:

DISCONNECT MACHINE FROM POWER!

2. Loosen the three hex nuts (one on each side

of head and one underneath) that secure head to ram (see Figure 18).

................................................... 1

Scale

Tilting

Bolt

2. Remove as many items from table as possible. This makes rotating the table easier.

Loosen the four hex nuts that secure table to

knee (see Figure 17).

Note: There are two hex nuts behind the

table as well.

Using the angle scale on knee as a guide,

rotate table to desired position.

Retighten the four hex nuts that secure table

to knee before resuming operation.

Hex Nut

(1 of 3)

Figure 18. Head tilting controls.

3. With assistance from another person to sup-

port the head, turn tilting bolt until head is in desired position.

Note: Use the angle scale shown in Figure

18 as a guide for setting tilt angle.

Retighten hex nuts that secure head to ram

before resuming operation.

When tilting the head back to 90°, you will need to tram it to ensure the spindle is perpendicular to the table. Refer to the Tramming the Mill section on Page 34 for detailed instructions.

-26-

Model G0757 (Mfg. Since 6/13)

Page 33

Ram Movement

Rotating Ram On Turret

1. DISCONNECT MACHINE FROM POWER!

The ram travels forward/backward 11" and rotates 180° on the turret.

Tools Needed Qty

Wrench 15mm ................................................... 1

Wrench 24mm

................................................... 1

Moving Ram Forward/Backward

1. DISCONNECT MACHINE FROM POWER!

2. Loosen the two lock handles shown in Figure 19.

Lock Handles

2. Loosen the four hex nuts (two on each side of the ram) that secure ram to turret (see Figure 20).

Hex Nuts

(2 of 4)

Figure 20. Ram rotation hex nuts

(left side shown).

3. Make sure that cables and hoses are not entangled or stretched as you move ram on turret.

Pinion Gear Bolt

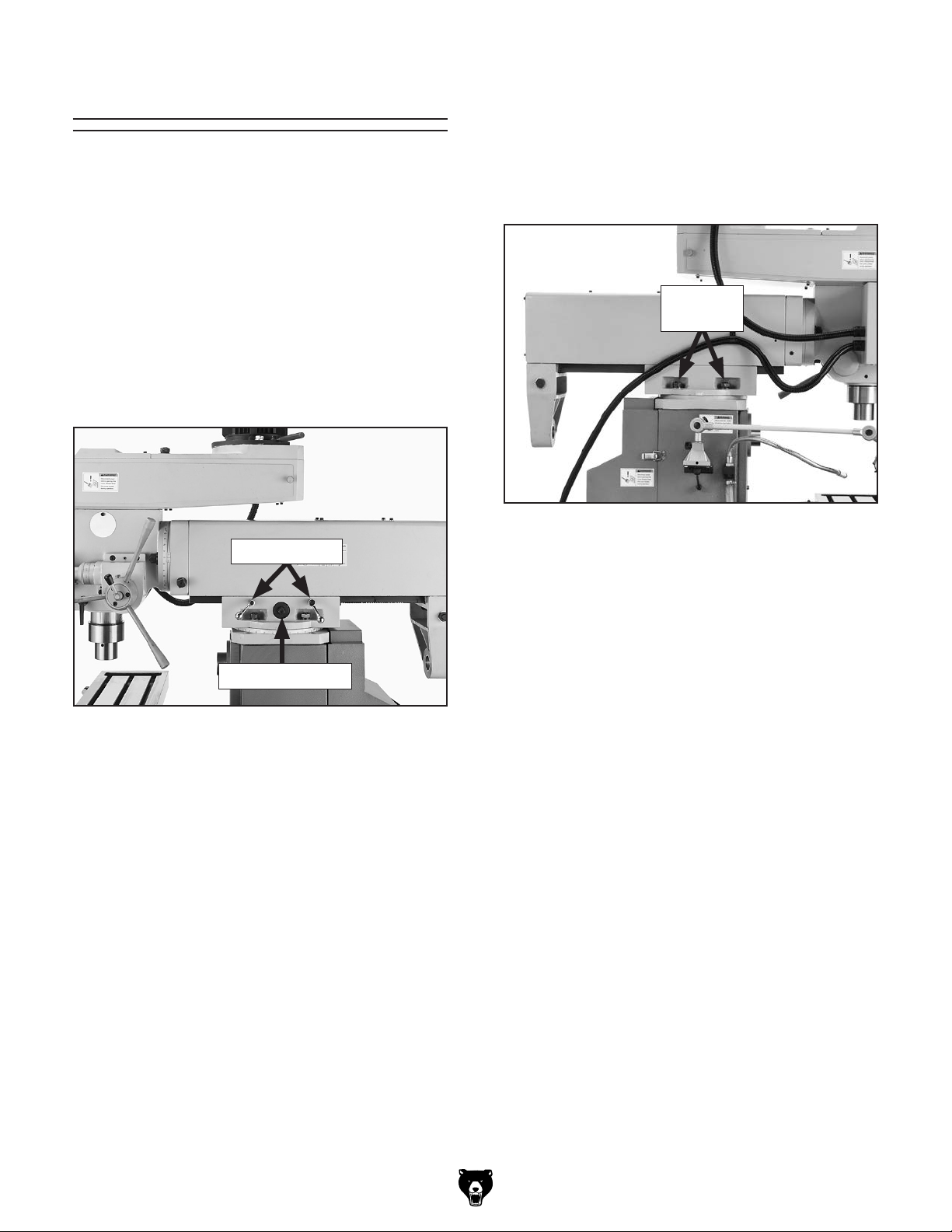

Figure 19. Ram back-and-forth controls.

3. Rotate pinion gear bolt to move ram until

spindle is in desired position.

Retighten lock handles to secure ram move-

ment vbefore resuming operation before resuming operation.

Retighten the four hex nuts that secure the

ram on turret before resuming operation.

Model G0757 (Mfg. Since 6/13)

-27-

Page 34

Loading/Unloading

Tooling

With one hand holding the tooling in place,

insert vertical drawbar (longer of two drawbars) into spindle from the top of the head, then thread it into tooling (see Figure 21).

Vertical Spindle

Tooling is held in the vertical spindle by a combination of the R-8 taper, a pin inside the spindle, and a

Tools Needed Qty

Wrench 19mm ................................................... 1

Brass Hammer

To load tooling:

2. Clean any debris or surface substances from

Note: Debris or oily substances can prevent

⁄16"-20 drawbar.

.................................................. 1

DISCONNECT MACHINE FROM POWER!

inside spindle taper and mating surface of tooling.

tooling and spindle from properly mating. This condition can cause excessive vibration, poor cutting results, or tool/workpiece damage.

Note: The drawbar has an adjustment hex

nut under the head that is used to raise/lower the drawbar to compensate for different tooling lengths.

Vertical

Drawbar

Adjustment

Nut

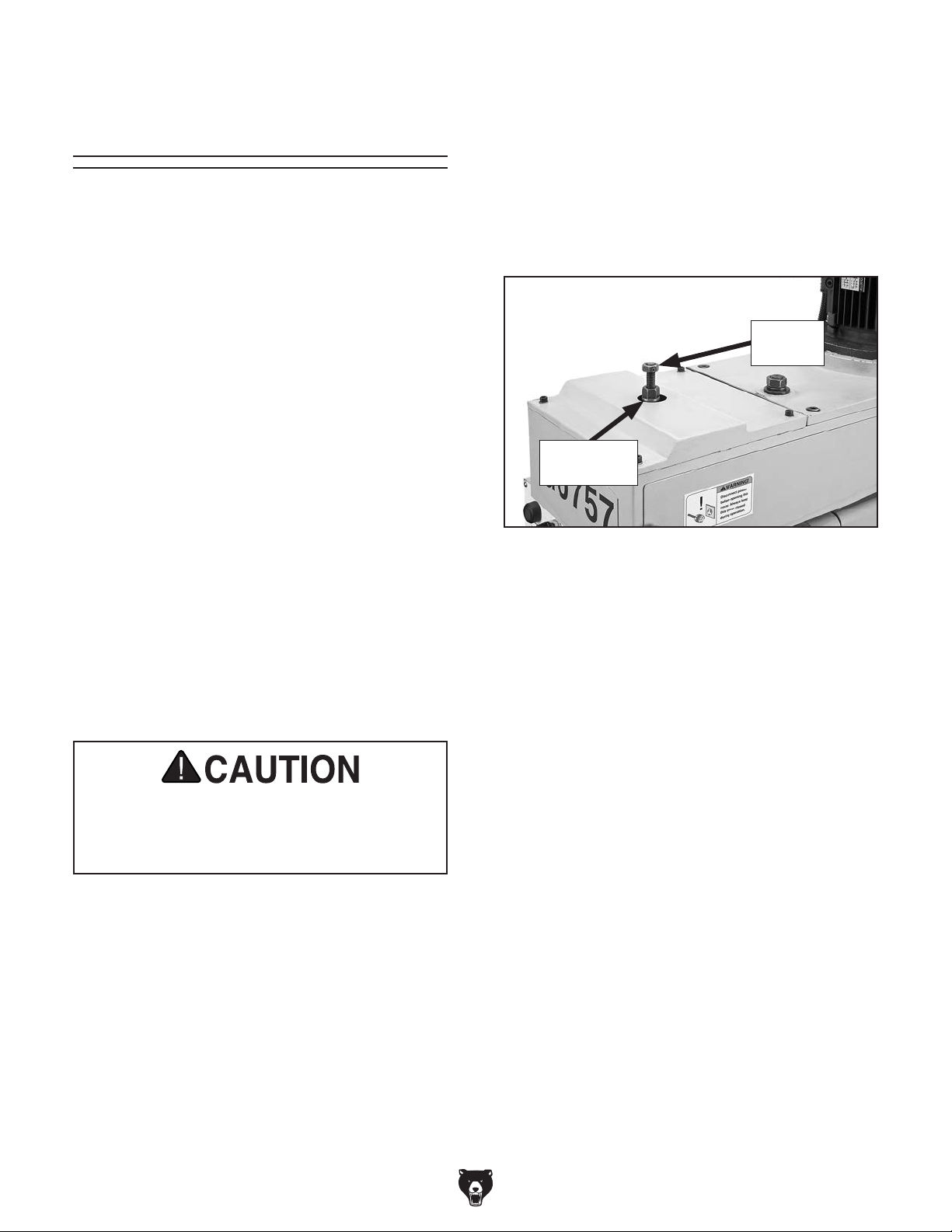

Figure 21. Vertical drawbar inserted.

5. Tighten drawbar until it is snug. Avoid over-

tightening, as this could make removing tooling difficult later.

Align tooling keyway with pin inside spindle

taper, then firmly push tooling into spindle to seat it.

Cutting tools are sharp and can easily cause laceration injuries. Use heavy leather gloves or shop rags to protect your hands when handling cutting tools.

To unload tooling:

DISCONNECT MACHINE FROM POWER!

Note: Make sure drawbar has at least three

threads engaged with tooling in the next step to avoid damaging drawbar threads or tool.

Loosen drawbar a couple of turns, then tap

the top of it with a brass hammer to knock taper between the spindle and tooling loose.

Support tooling with one hand, then com-

pletely unthread drawbar from tooling.

-28-

Model G0757 (Mfg. Since 6/13)

Page 35

Converting to Horizontal Setup

Single or multiple cutters (gang milling) can be arranged anywhere along the length of the arbor for simple to very complex cutting operations.

The Model G0757 includes two horizontal arbors with spacers that accommodate tooling with 1" bores and 1 1⁄4" bores.

Tools Needed Qty

Wrench 19mm ................................................... 1

Wrench 24mm Wrench 32mm Brass Hammer

................................................... 1

.................................................. 1

Clean any debris or surface substances from

inside spindle taper and mating surface of arbor.

Align keyway of arbor with protruding pin

inside spindle taper, then firmly push arbor into spindle to seat it (see Figure 23).

To load tooling:

DISCONNECT MACHINE FROM POWER!

2. Rotate ram 180° until horizontal arbor sup-

port is in-line with horizontal spindle (see

Figure 22).

Note: Make sure the "0" marks on the ram

base and angle scale are aligned and the four ram rotation hex nuts are retightened.

Ram Rotation Hex Nuts

Locking Bolt

Horizontal

Arbor Support

Horizontal

Spindle

Arbor

Nut

Figure 23. Horizontal arbor seated in spindle.

7. With one hand holding arbor in place, insert

horizontal drawbar (shorter of two drawbars) into spindle from rear of column, then thread it into arbor.

Tighten drawbar until it is snug. Avoid over-

tightening, as this could make removing arbor difficult later.

Cutting tools are sharp and can easily cause laceration injuries. Use heavy leather gloves or shop rags to protect your hands when handling cutting tools.

Arbor

Figure 22. Horizontal arbor support in position.

Extend ram until horizontal arbor is all the

way forward.

Loosen locking bolt on side of arbor support,

and slide support off ram dovetail way.

Model G0757 (Mfg. Since 6/13)

-29-

Page 36

9. Add ISO 68 oil or an equivalent to horizontal spindle and arbor support ball oilers (refer to the Ball Oilers, beginning on Page 42).

To unload tooling:

DISCONNECT MACHINE FROM POWER!

Install cutter(s) and spacers on arbor in such

10.

a way that the last spacer is inside brass bushing and arbor threads are fully exposed as you slide arbor support back onto ram dovetail ways (see Figure 24).

Arbor

Threads

Brass

Bushing

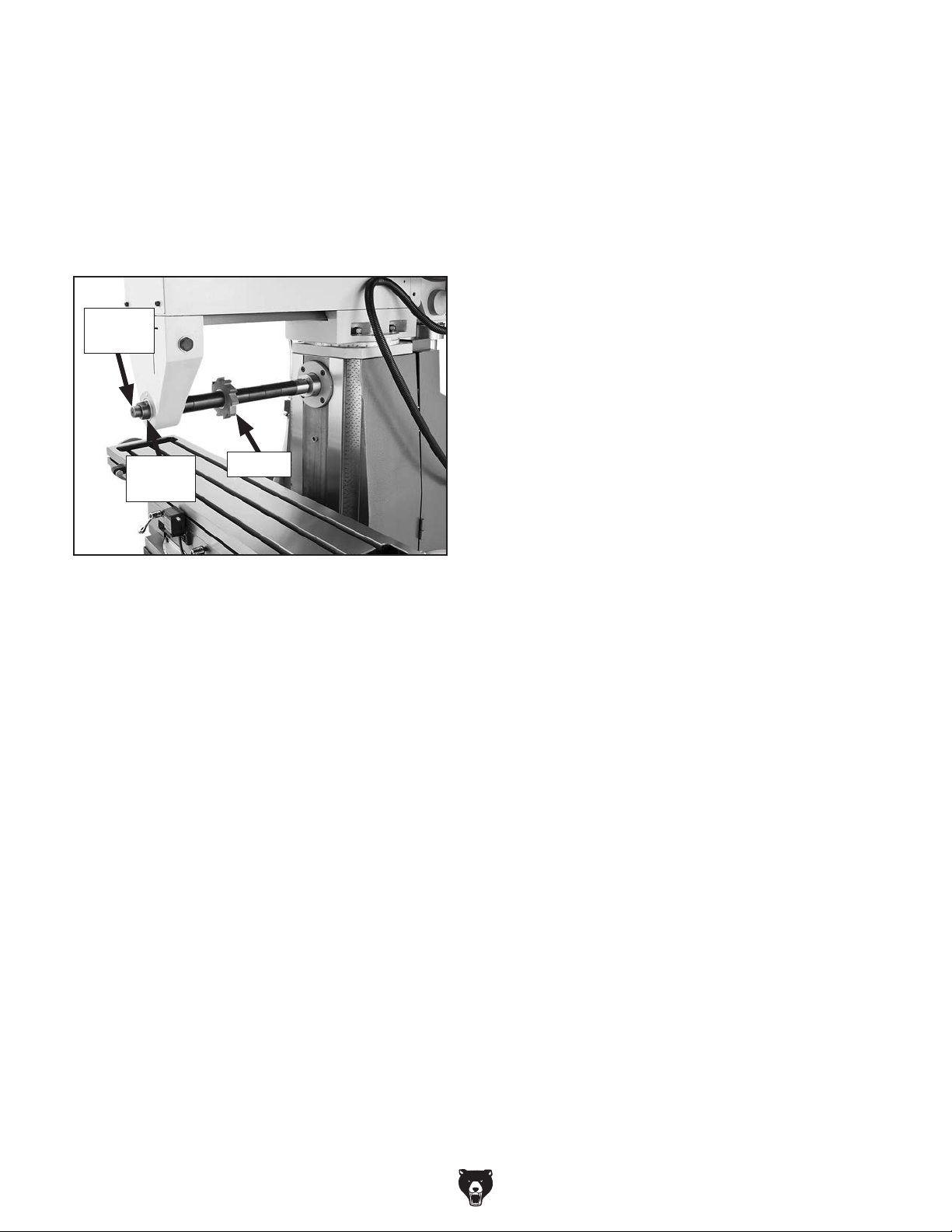

Figure 24. Horizontal arbor and cutter installed.

Secure arbor support by retightening support

11.

locking bolt.

Tooling

2. Remove arbor nut from arbor, then remove arbor support from ram dovetail ways.

Note: Make sure drawbar has at least three

threads engaged with arbor in next step to avoid damaging the drawbar threads or arbor.

Loosen drawbar a couple of turns, then tap

end of drawbar with a brass hammer to knock taper loose between spindle and arbor.

Support arbor with one hand, then completely

unthread drawbar from arbor.

5. Remove arbor.

Re-install arbor support and properly position

and secure ram for the next operation.

Secure arbor assembly with the right-hand

12.

arbor nut.

-30-

Model G0757 (Mfg. Since 6/13)

Page 37

Spindle Speed

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

To set the spindle speed for your operation, you will need to: (1) Determine the best spindle speed for the cutting task, and (2) configure the mill controls to match the closest spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the cutting tool, as noted in Figure 25:

Setting Vertical Spindle Speed

Tools Needed Qty

Wrench 22mm ................................................... 1

Wrench 24mm

To set vertical spindle speed:

DISCONNECT MACHINE FROM POWER!

2. Remove vertical spindle V-belt covers to gain

access to vertical V-belts and pulleys (see Figure 26).

Center Pulley

Hex Nut

................................................... 1

Recommended

Cutting Speed (FPM) x 12

= RPM

Tool Diameter (in inches) x 3.14

Double if using carbide cutting tool

Figure 25. Spindle speed formula for milling.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and are a good educational resource.

Motor Mount

Hex Bolt

(1 of 2)

Motor

Handle

Figure 26. V-belt covers removed to gain access

to vertical spindle V-belts and pulleys.

3. Loosen center pulley hex nut.

4. Loosen the two motor mount hex bolts (one

on each side of motor).

Use motor handle to pull motor towards the

front of machine and release V-belt tension.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account all applicable variables to determine the best spindle speed for the operation.

Model G0757 (Mfg. Since 6/13)

-31-

Page 38

6. Arrange V-belts for desired vertical spindle speed (see Figure 27).

Note: The vertical spindle speed chart shown

below is also on side of ram.

Setting Horizontal Spindle Speed

Tools Needed Qty

Wrench 24mm ................................................... 1

Dead Blow Hammer

To set vertical spindle speed:

.......................................... 1

Vertical Spindle Speeds

RPM RPM

285 860 390 490 585 665

Spindle Motor

Figure 27. Vertical spindle speed chart.

Apply pressure on motor handle toward the

back of machine to tension V-belts as you retighten center pulley hex nut and motor mount hex bolts.

Note: There is proper V-belt tension when

approximately (see Figure 28) by applying moderate pressure midway between pulleys.

D – E D – G C – E

D – F B – E

1320 1720 2300

A – F B – G A – G

C – F

⁄4" –1⁄2" deflection is achieved

DISCONNECT MACHINE FROM POWER!

2. Open horizontal V-belt cover to gain access

to horizontal spindle V-belts and pulleys, as shown in Figure 29.

Lower

Idler

Hex Nut

Pulley

Behind Bracket

Tension

Thumbwheel

⁄4"–1⁄2"

Pulley

Deflection

Pulley

Figure 28. Checking V-belt tension.

Re-install V-belt covers before connecting

machine to power.

-32-

Figure 29. Horizontal spindle V-belts and pulleys

(cover removed for photo clarity).

Loosen tension thumbwheel and hex nut

behind lower idler pulley bracket.

Move lower idler pulley to the right to release

V-belt tension.

Note: You may have to bump the lower idler

pulley with the deadblow hammer to get it to move.

Model G0757 (Mfg. Since 6/13)

Page 39

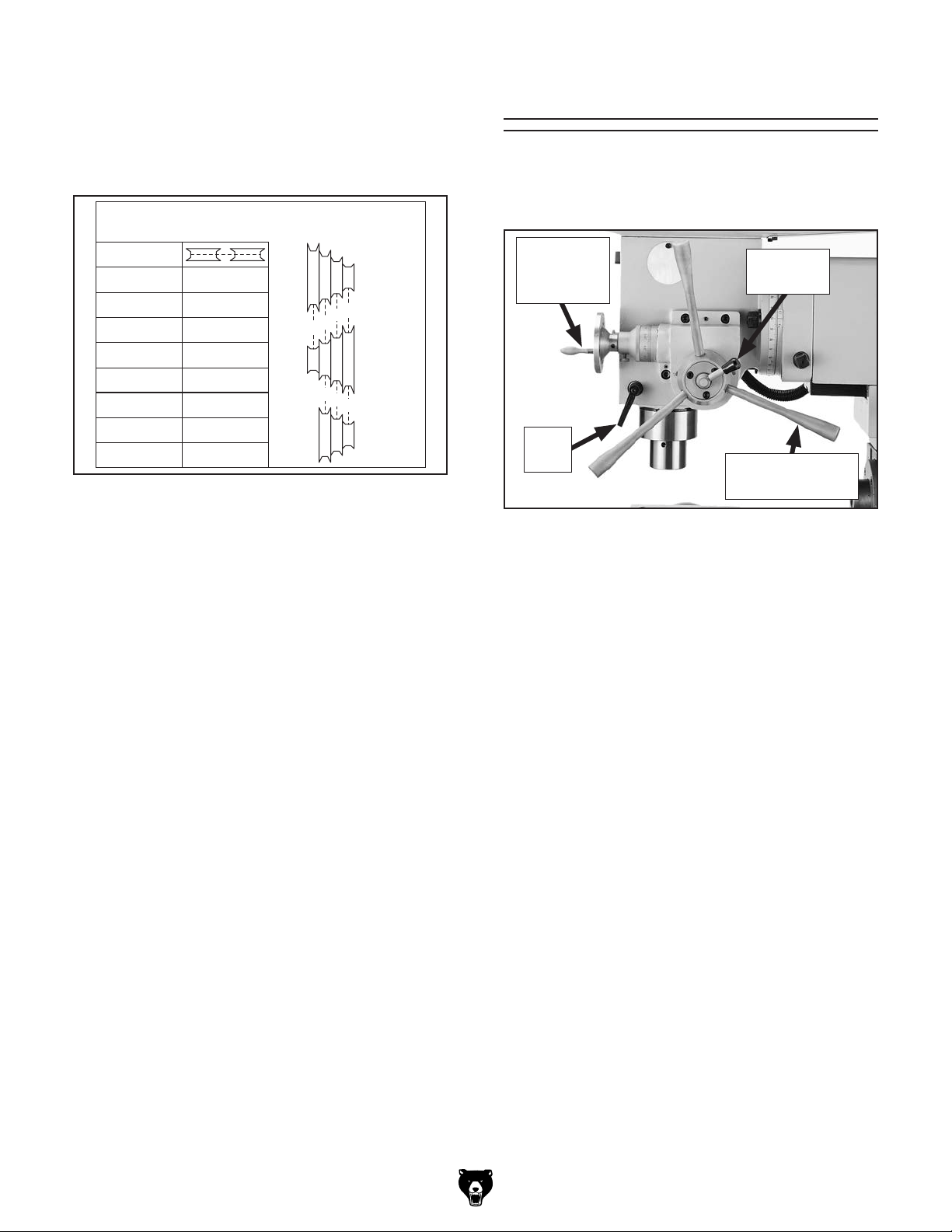

5. Arrange V-belts for the desired horizontal

Vertical Spindle Speeds

285 860

1320 1720 2300

D – E D – G

A – F

A – G

B – G

C – E

D – F B – E C – F

390 490 585 665

RPM RPM

Spindle Motor

spindle speed (see Figure 30).

Downfeed Controls

Note: The horizontal spindle speed chart

shown below is also on side of ram.

Horizontal Spindle Speeds

RPM

72 D – E 170 210 240

Figure 30. Horizontal spindle speed chart.

Apply pressure on lower idler pulley to the left

as you tighten tension thumbwheel.

Note: There is proper V-belt tension when

approximately (see Figure 28 on the previous page) by applying moderate pressure midway between pulleys.

Retighten hex nut behind lower idler pulley

bracket.

Close and latch V-belt cover.

D – F

D – G

C – E B – E290

C – F550

B – G830

A – F1300

⁄4" –1⁄2" deflection is achieved

Spindle

Motor

Use Figure 31 and the descriptions below to understand the downfeed components that control the 5" spindle downfeed travel.

Fine

Downfeed

Handwheel

Quill Lock

Figure 31. Spindle downfeed controls.

Fine Downfeed Handwheel: Manually controls

slow downfeed travel. The attached graduated dial has increments of 0.001" with one full revolution representing 0.200" of travel.

Selection Lever: When tightened, enables the fine downfeed handwheel; conversely, when loosened enables the coarse downfeed levers.

Coarse Downfeed Levers: Manually control rapid downfeed travel.

Selection

Lever

Coarse

Downfeed Lever

Model G0757 (Mfg. Since 6/13)

Quill Lock: Secures the quill in place for increased stability during operations.

-33-

Page 40

Tramming the Mill

When your operation requires that the spindle axis be precisely perpendicular to the table, you must tram the mill. Simply adjusting the headstock tilt to the 90° mark on the tilt scale will not be precise enough for highly accurate results.

This procedure involves mounting a dial indicator to the quill or spindle, rotating it around the table, and adjusting the head position so that the spindle axis is 90° to the table X-axis, as illustrated in

Figure 32.

Tools Needed Qty

Dial Indicator (with at least 0.0005" resolution) . 1 Indicator Holder (mounted on quill/spindle) Precision Parallel Block (1-2-3 Blocks)

Note: A precision-ground plate can be substituted for the parallel block. The farther the indicator point can be placed from the spindle axis, the more accurate the alignment measurements will be.

To tram the mill:

DISCONNECT MACHINE FROM POWER!

2. Prepare the machine by performing the fol-

lowing tasks:

....... 1

.............. 1

Spindle

Table

Figure 32. Spindle centerline properly trammed

to the table.

Note: Keep in mind that the top surface of your workpiece will not likely be exactly parallel with the table top. Depending on your operation, you may choose to tram the spindle to the top surface of the workpiece after it is mounted instead of tramming to the table.

Z-Axis

90º

X-Axis

— Stone the table to remove all nicks and

burrs, then clean off all debris. Verify the table is clean by running your hand over the top of it.

— Position the table for the operation you

intend to perform after tramming—preferably centered with the saddle.

— Tighten any table locks that should be tight

during the intended milling operation.

Place the parallel block underneath spindle.

-34-

Model G0757 (Mfg. Since 6/13)

Page 41

4. Install the indicator holder into the spindle or onto the quill, then mount the indicator onto it so that the point is as parallel to the block as possible (see the illustration in Figure 33 for an example).

Indicator

Holder

Spindle

Dial Indicator

Note: Generally, the goal is to get the differ-

ence of the indicator readings between ends of the parallel bar down to 0.0005". However, the acceptable variance will depend on the requirements for your operation.

Rotate the spindle by hand so that the indi-

cator point rests on one end of the parallel block, as illustrated in Figure 34, then zero the dial.

Rotate the spindle so that the indicator point

rests in the same manner on the other end of block, then read the dial.

Parallel Block

Table

Figure 33. Dial indicator mounted.

Place the parallel block directly under the

spindle and the indicator across the length of the table, as illustrated in Figure 34.

Note: If you must reposition the quill to

accommodate the above step, then review tasks in Step 2 to make sure the machine is properly prepared for tramming.

Table (Top View)

Parallel Block

— If the indicator dial still reads zero or is

within the acceptable variance, continue on with Step 8.

— If the indicator dial has moved from zero

beyond the acceptable variance, you will

need to compensate for

⁄2 that amount by tilting the head left or right. Repeat Steps 6–7 until you are satisfied with the spindle axis alignment along table X-axis.

Tip: Keep one of the tilting hex nuts snug so

that the head does not move loosely while you adjust it in small amounts.

Retighten the tilting hex nuts.

Indicator

Spindle

Figure 34. Setup for the X-axis adjustment.

Model G0757 (Mfg. Since 6/13)

-35-

Page 42

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

T23962—ISO 68 Moly-D Way Oil, 5 gal. T23963—ISO 32 Moly-D Machine Oil, 5 gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip. Buy in bulk and save with 5-gallon quantities.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

T23964—Armor Plate with Moly-D MultiPurpose Grease, 14.5 oz. (NLGI#2 Equivalent)

Armor Plate with Moly-D is a rich green moly grease that provides excellent stability and unsurpassed performance under a wide range of temperatures and operating conditions. Armor Plate grease is entirely unique due to the fact that the moly in it is solubilized, which provides superior performance to other greases containing the black solid form of molybdenum disulfide.

Figure 35. T23964 Armor Plate with Moly-D

Multi-Purpose Grease

T23962

Figure 36. ISO 68 and ISO 32 machine oil.

High Pressure Oil Cans H7616—Plastic Nozzle H7617—Flexible Plastic Nozzle

Whether you are lubricating cutting tools or maintaining machinery in top operating condition, you will appreciate these High Pressure Oil Cans. Each can holds 5 ounces of oil and has a triggeractivated, high-pressure pump.

T23963

H7616

H7617

Figure 37. High Pressure Oil Cans.

-36-

Model G0757 (Mfg. Since 6/13)

Page 43

H7527—6" Rotary Table Set

order online at www.grizzly.com or call 1-800-523-4777

Use this 6" Rotary Table in either the horizontal or vertical position for a variety of milling applications and with the set of dividing plates and adjustable tailstock, your milling applications are nearly unlimited. With 4° table movement per handle rotation and 20 second vernier scale, control

is very accurate and precise. Also includes a

⁄8" clamping set for the 4-slot table. Everything you need in one great set!

SB1348—South Bend® 8-Pc. R-8 Collet Set

SB1349—South Bend

Get true South Bend

16-Pc. R-8 Collet Set

quality and precision with one of these Quick-Change Collet Sets. Each set includes hardened and precision-ground spring collets for maximum holding power, collet chuck, spanner wrench, and protective moulded case.

Figure 38. H7527 6" Rotary Table Set.

H9599—Machine Shop Trade Secrets G5053—The Home Machinist’s Handbook

Excellent reference pages for novices and professionals alike. Each book is filled with drawings charts and tables for getting the most of your milling machine. Model H9599 has 320 pages. Model G5053 has 275 pages.

H9599 G5053

Figure 40. Model SB1349 South Bend 16-Pc.

R-8 Collet Set.

G7156—4" (3

⁄8") Precision Milling Vise G7154—5" (4 1⁄2") Precision Milling Vise G7155—6" (5 5⁄8") Precision Milling Vise

Swiveling Milling Vises feature perfectly aligned,

precision ground jaws, large Acme

screws and

easy to read 0°–360° scales.

Figure 41. G7154 Precision Milling Vise.

Figure 39. Great texts for mill/drills.

Model G0757 (Mfg. Since 6/13)

-37-

Page 44

order online at www.grizzly.com or call 1-800-523-4777

T10442—10 Pc. Milling Tool Kit

Increase your milling capabilities with this versatile tool kit. Kit includes: Collet chuck with R-8

shank and spanner wrench;

⁄2 " collets; 2" self centering vise with preci-

and

⁄32", 3⁄16", 1⁄4", 5⁄16", 3⁄8"

sion ground jaws; 3" 3-jaw chuck with reversible jaws; 3" rotary table with 15 minute graduations; 6 T-slot clamps; a fitted tool box.

Tilt Tables G5758—5" x 7" x 3 3⁄4" G5759—7" x 10" x 5"

Set your work at any angle from -45° to +45° with these sturdy Tilt Tables. Heavy-duty construction

includes cision base.

⁄16" T-slots, two locking screws, and pre-

⁄2 " mounting slots.

Figure 44. Tilt Table.

Figure 42. T10442 10-Pc. Milling Tool Kit.

G7066—5" Tilting/Swiveling Milling Vise H7576—Precision Self-Centering Vise

G7066

H7576

G1076—52-PC. Clamping Kit for

⁄8" T-Slots

This clamping kit includes 24 studs, 6 step block pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and 6 end hold-downs. The rack is slotted so it can be mounted close to the machine for easy access.

Figure 45. G1076 52-PC. Clamping Kit.

Figure 43. Specialty milling vises.

-38-

Model G0757 (Mfg. Since 6/13)

Page 45

order online at www.grizzly.com or call 1-800-523-4777

G9760—20-PC. 2 & 4 Flute TiN End Mill Set.

Includes these sizes and styles in two and four

flute styles:

/16", and 3/4".

/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8",

G5641—1-2-3 Blocks G9815—Parallel Set

Blocks are square to within .0003". Measure 1" x

2" x 3". Parallel set measures 6" long by

⁄4", 7⁄8", 1", 11⁄8", 11⁄4", 13⁄8", 11⁄2 ", and 15⁄8".

⁄2 ", 5⁄8",

Figure 46. G9760 20-PC End Mill Set.

G5774—R-8 End Mill Holder Set

Hold various sized end mills in your R-8 spindle with this End Mill Holder Set. Includes holders for

⁄16", 3⁄8", 1⁄2 ", 5⁄8" and 3⁄4" end mills.

Figure 47. G5774 R-8 End Mill Holder Set.

G9612—Test Indicator

This Test Indicator has a 0.03" range in graduations of 0.0005", an easy-to-read dial, and a pivoting stylus that moves at right angles to the dial face.

Figure 49. G5641 1-2-3 Blocks and G9815

Parallel Set.

H5930—4-Pc Center Drill Set 60° H5931—4-Pc Center Drill Set 82°

Double ended HSS Center Drills are precision ground. Includes sizes 1-4.

Figure 50. H5930 4-pc Center Drill Set 60°.

G3658—Titanium Drill Bits

Titanium nitride-coated bits last up to six times as long as uncoated bits. This 115-piece set features

29 fractional bits, from

⁄64", letter bits from A–Z, and 60 number bits.

⁄6" to 1⁄2 " in increments

Housed in rugged steel case.

Figure 48. G9612 Test Indicator.

Figure 51. G3658 Titanium Drill Bits.

Model G0757 (Mfg. Since 6/13)

-39-

Page 46

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

To reduce risk of shock or

power before adjustments, maintenance, or service.

Schedule

Regular maintenance will help ensure proper care of the equipment. We strongly recommend that all operators make a habit of following the maintenance procedures found in this section. For optimum performance from this machine, this maintenance schedule must be strictly followed.

Ongoing

To maintain a low risk of injury and proper machine operation, if you ever observe any of the items below, shut the machine down immediately, disconnect it from power, and fix the problem before continuing operations.

Before Beginning Operations

• Make sure the electric cabinet door is closed

and properly latched.

• Press the Emergency STOP button on the

master control panel to prevent high-speed spindle startup when connected to power.

• Make sure the X-axis power feed is turned

OFF to prevent unintentional table movement when connected to power.

• Check the coolant reservoir in the base. Fill it

or clean it out if necessary (see Page 46).

• Perform all required lubrication tasks (see

Page 41).

• Check table movement in all three axes for

loose/tight gibs. Adjust the gibs if necessary.

Daily, After Operations

• Push the Emergency STOP button, turn the

master power switch OFF, and disconnect the machine from power.

• Vacuum/clean all chips and swarf from table,

slides, and base.

• Wipe down all unpainted or machined sur-

faces with a high-quality rust preventative.

• Loose mounting bolts or fasteners.

• Worn, frayed, cracked, or damaged wires.

• Emergency STOP button not working correctly.

• Worn or loose V-belts (see Page 50).

• Missing or open belt guards/door.

• Coolant not flowing correctly.

• Any other unsafe condition.

-40-

Model G0757 (Mfg. Since 6/13)

Page 47

Cleaning &

Protecting

Regular cleaning is one of the most important steps in taking good care of this machine. In most shops, each operator is responsible for cleaning the machine immediately after using it or at the end of the day. We recommend that the cleaning routine be planned into the workflow schedule, so that adequate time is set aside to do the job right.

Typically, the easiest way to clean swarf from the ways and table is to use a wet/dry shop vacuum that is dedicated for this purpose only. The small chips leftover after vacuuming can be wiped up with a slightly oiled rag. Avoid using compressed air to blow off chips, as it may drive them deeper into moving surfaces and could cause sharp chips to fly into your face or hands.

All visible swarf should be removed from the mill during cleaning.

Besides the ways, all other unpainted and machined surfaces should be wiped down daily to keep them rust-free and in top condition. This includes any surface that is vulnerable to rust if left unprotected (especially any parts that are exposed to water soluble coolant). Typically, a thin film of way oil is all that is necessary for protection (refer to Page 36 for way oil from Grizzly).

Lubrication

The mill has numerous moving metal-to-metal contacts that require regular and proper lubrication to ensure efficient and long-lasting operation.

Other than the lubrication points covered in this section, all other bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced.

DISCONNECT MACHINE FROM POWER before performing any lubrication task!

Important: Before adding lubricant, clean the debris and grime from the device and the immediate area to prevent contamination of the new lubricant.

Use the schedule and information in the chart below as a daily guide for lubrication tasks.

Frequency

Lubrication Task

Ball Oilers 4–8

Vertical Spindle Bearings 4–8

Quill Exterior 4–8

Quill Rack & Pinion 40

Table Leadscrews 40

Ram Ways 40

Z-Axis Bevel Gears 80

X-Axis Power Feed Gears 80

(Hours of Operation)

Page Ref.

Model G0757 (Mfg. Since 6/13)

The recommended lubrication schedule is based on light-to-medium usage. Keeping in mind that lubrication helps to protect the value and operation of the mill, these lubrication tasks may need to be performed more frequently depending on usage.

-41-

Page 48

Ball Oilers

Oi l Ty p e ......Model T23963 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

Proper lubrication of ball oilers is done with a pump-type oil can that has a plastic or rubberized cone tip (see Page 36 for offerings from Grizzly). We do not recommend using metal needle or lance tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

Push the tip of the oil can nozzle against the ball oiler to create a hydraulic seal, then pump the oil can once or twice. If you see sludge and contaminants coming out of the lubrication area, continue pumping the oil can until the oil runs clear. Move the components through the entire path of travel a few times to distribute the oil. When finished, wipe away the excess oil.

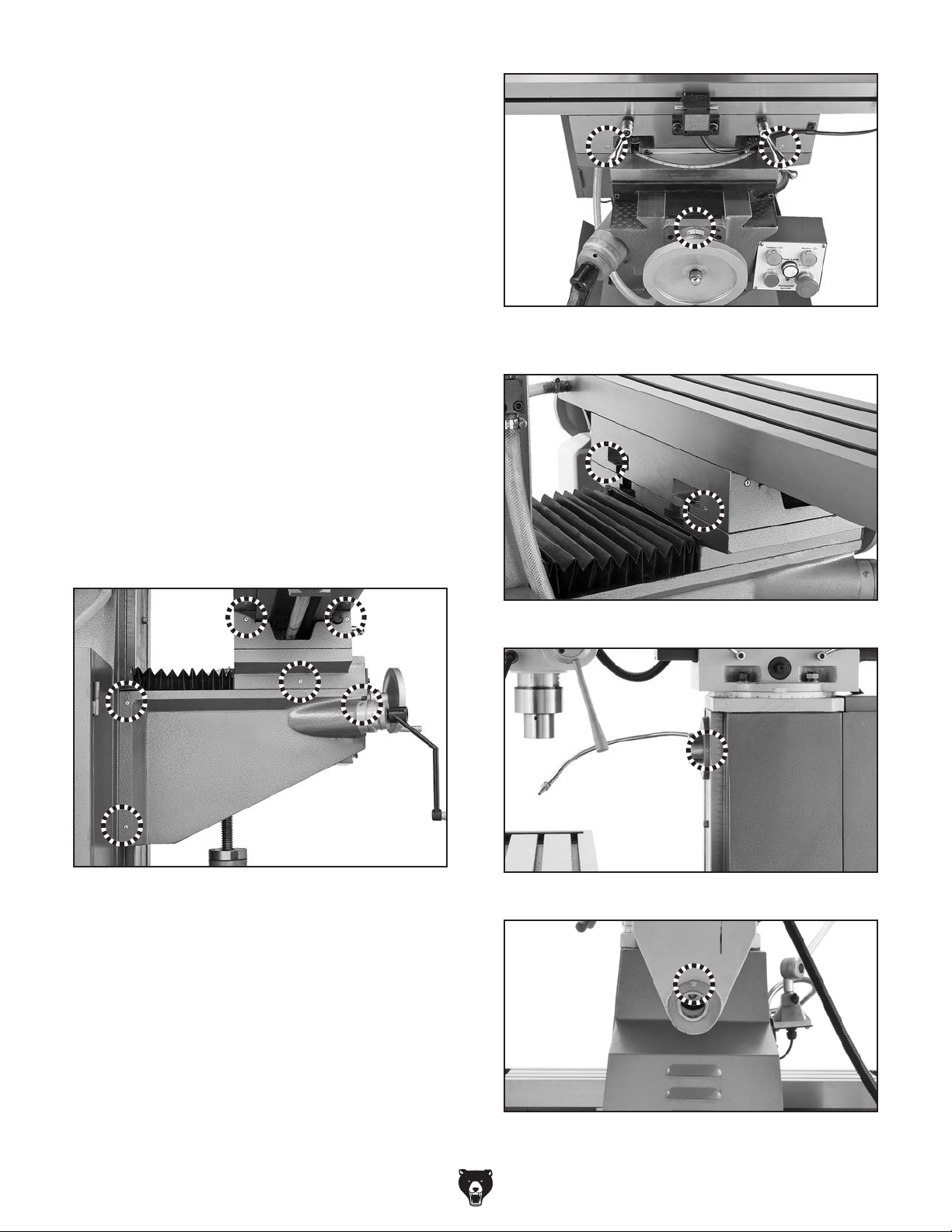

Use Figures 52–56 to locate the 13 ball oilers on the Model G0757.

......................................... 1–2 Pumps

...... 4–8 Hrs. of Operation

Figure 53. Front saddle and Y-axis handwheel

ball oilers.

Figure 52. Ball oilers on the side of the knee

and Z-axis crank ball oiler.

Note: The five way ball oilers shown in Figure 52 are duplicated on the other side of the machine.

Figure 54. Rear saddle ball oilers.

Figure 55. Horizontal spindle ball oiler.

-42-

Figure 56. Horizontal spindle arbor support ball

oiler.

Model G0757 (Mfg. Since 6/13)

Page 49

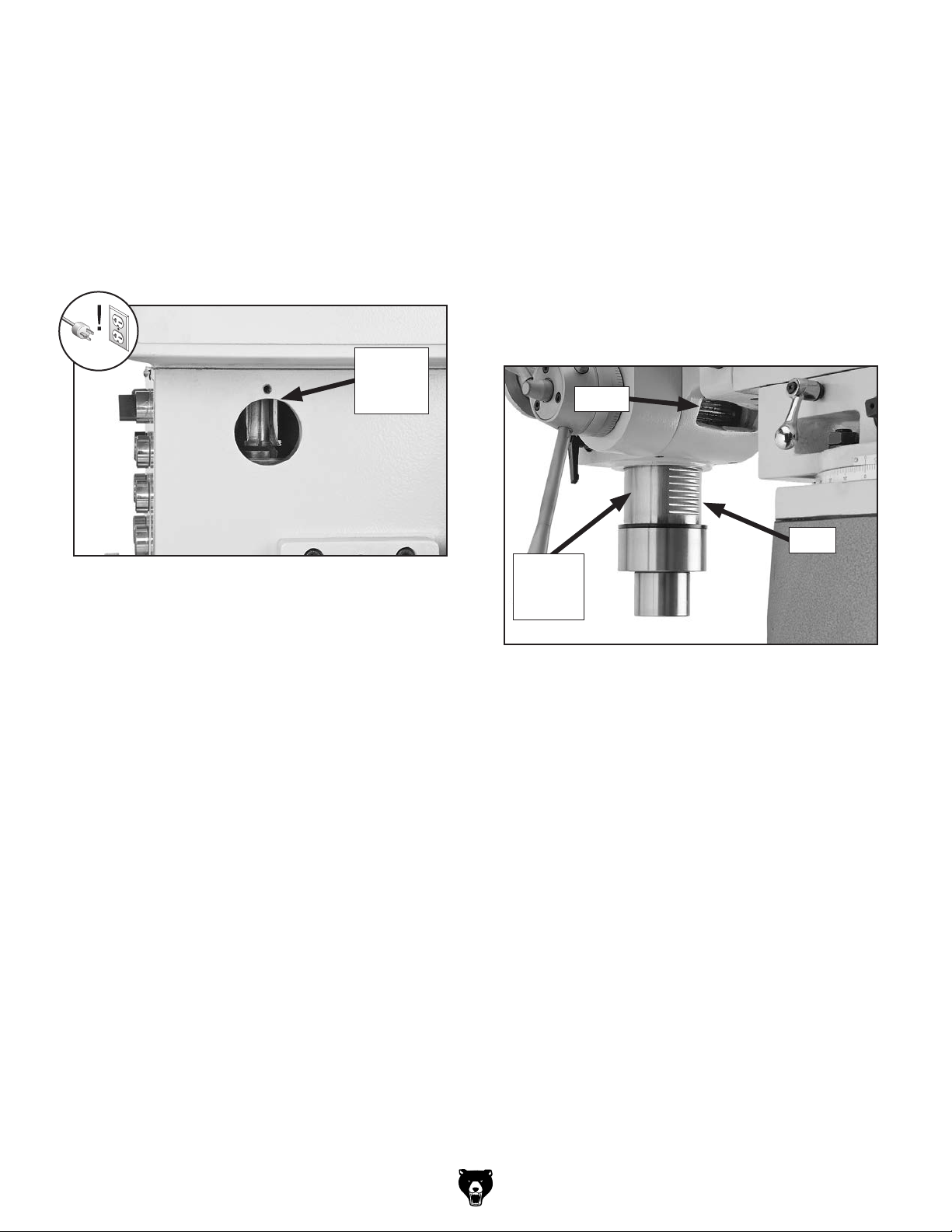

Vertical Spindle Bearings

Oi l Ty p e ......Model T23963 or ISO 32 Equivalent

Oil Amount Lubrication Frequency

......................................... 1–2 Pumps

...... 4–8 Hrs. of Operation

Quill Exterior

Oi l Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

...... 4–8 Hrs. of Operation

To lubricate the vertical spindle bearings:

Remove the circular cover on the right side of

the head to expose the vertical spindle spline (see Figure 57).

Spindle

Spline

Exposed

Figure 57. Vertical spindle spline exposed for

lubrication.

Raise the spindle until you can see the top of

the quill.

Add 2–3 pumps from an oil can between the

spindle spline and the top of the quill.

Replace the circular cover and run the verti-

cal spindle for a few minutes to distribute the oil in the bearings.

Fully extend the spindle to expose the quill (see Figure 58), then use an oily shop rag to apply a thin coat of lubricant to the smooth surface of the quill.

Note: If you remove any of the grease from the teeth of the quill rack, replace it as instructed below.

Pinion

Rack

Quill Smooth Surface

Figure 58. Quill lubrication points.

Quill Rack & Pinion

Gre a se Typ e ......... NLGI#2 Grease or Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

.........40 Hrs. of Operation

Model G0757 (Mfg. Since 6/13)

Fully extend the spindle to expose the quill rack (see Figure 58), then use mineral spirits, shop rags, and a brush to clean the old grease from the teeth of the rack and pinion.

When dry, use a brush to apply a thin coat of grease to the teeth, then move the quill up and down several times to evenly distribute the grease.

-43-

Page 50

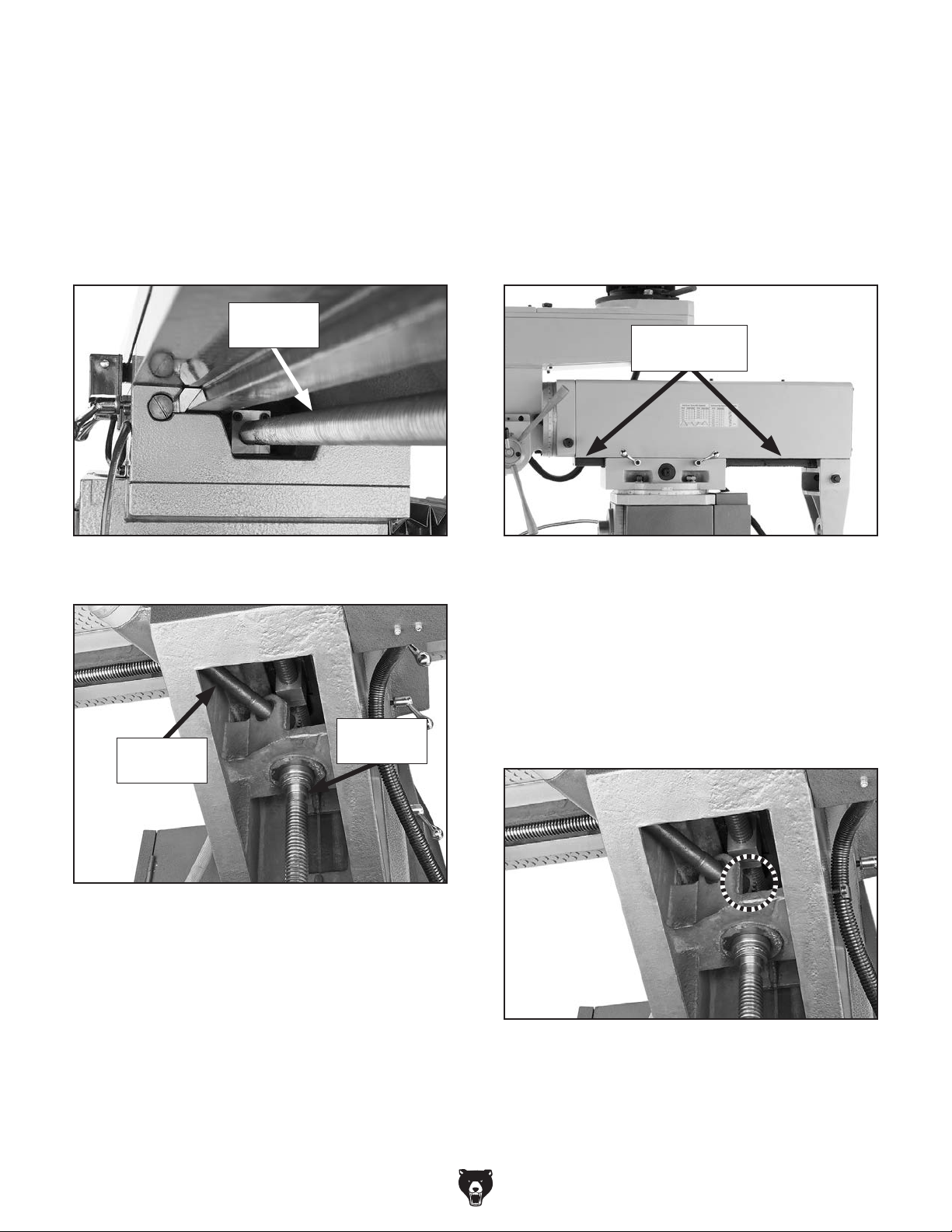

Table Leadscrews

Oi l Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

.........40 Hrs. of Operation

Ram Ways

Oi l Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

.........40 Hrs. of Operation

Move the table as necessary to access the entire length of the X-, Y-, and Z-axis leadscrews (see Figures 59–60), then use mineral spirits, shop rags, and a brush to clean them.

X-Axis

Leadscrew

Figure 59. X-axis leadscrew

(as viewed underneath the table).

Move the ram as necessary to gain access to the entire length of the dovetail ways (see Figure 61), use mineral spirits and shop rags to clean the ways, then apply a thin coat of lubricant.

Ram Dovetail

Ways

Figure 61. Ram dovetail ways.

Z-Axis Bevel Gears

Gre a se Typ e ......... NLGI#2 Grease or Equivalent

Oil Amount Lubrication Frequency

............................................Thin Coat

.........80 Hrs. of Operation

Z-Axis

Y-Axis

Leadscrew

Figure 60. Y- and Z-axis leadscrews

(as viewed underneath the knee).

When dry, use a clean brush to apply a thin coat of oil to the leadscrew threads, then move the table through the X-, Y-, and Z-axis paths to distribute the oil.

Leadscrew

Use mineral spirits, shop rags, and a brush to clean the old grease from the teeth of the bevel gears shown in Figure 62.

Figure 62. Location of Z-axis bevel gears.

When dry, use a brush to apply a thin coat of grease to the teeth, then move the table up and down to evenly distribute the grease.

-44-

Model G0757 (Mfg. Since 6/13)

Page 51

X-Axis Power Feed Gears

Gre a se Typ e ...................... NLGI#2 or Equivalent

Amount Add Frequency

Tool Needed Qty

Wrench 19mm ................................................... 1

To lubricate the power feed gears:

2. Remove the hex nut and ball handle from the

.................................................Thin Coat

.................... 40 hrs. of Operation

DISCONNECT MACHINE FROM POWER!

power unit end of the X-axis leadscrew.

Unthread and remove the knurled retaining

ring and graduated dial ring from the end of leadscrew.

Remove the brass bevel gear from the

leadscrew, then remove the leadscrew alignment key (see Figure 63).

5. Brush a light coat of grease on the bevel gear teeth and the smaller drive gear.

Replace the leadscrew alignment key, then

align the bevel gear keyway with the key as you slide the gear onto the leadscrew and mesh its teeth with the drive gear.

Replace the graduated dial ring and secure it

with the knurled retaining ring—do not overtighten.

Slide the ball handle onto the leadscrew,

align the keyway with the leadscrew alignment key, then secure it with the hex nut removed in Step 2.

Move the table with the ball handle to check

gear movement and distribute the grease on the gears. If the movement is not smooth, repeat Steps 2–8 until it is.

Key

Brass

Bevel Gear

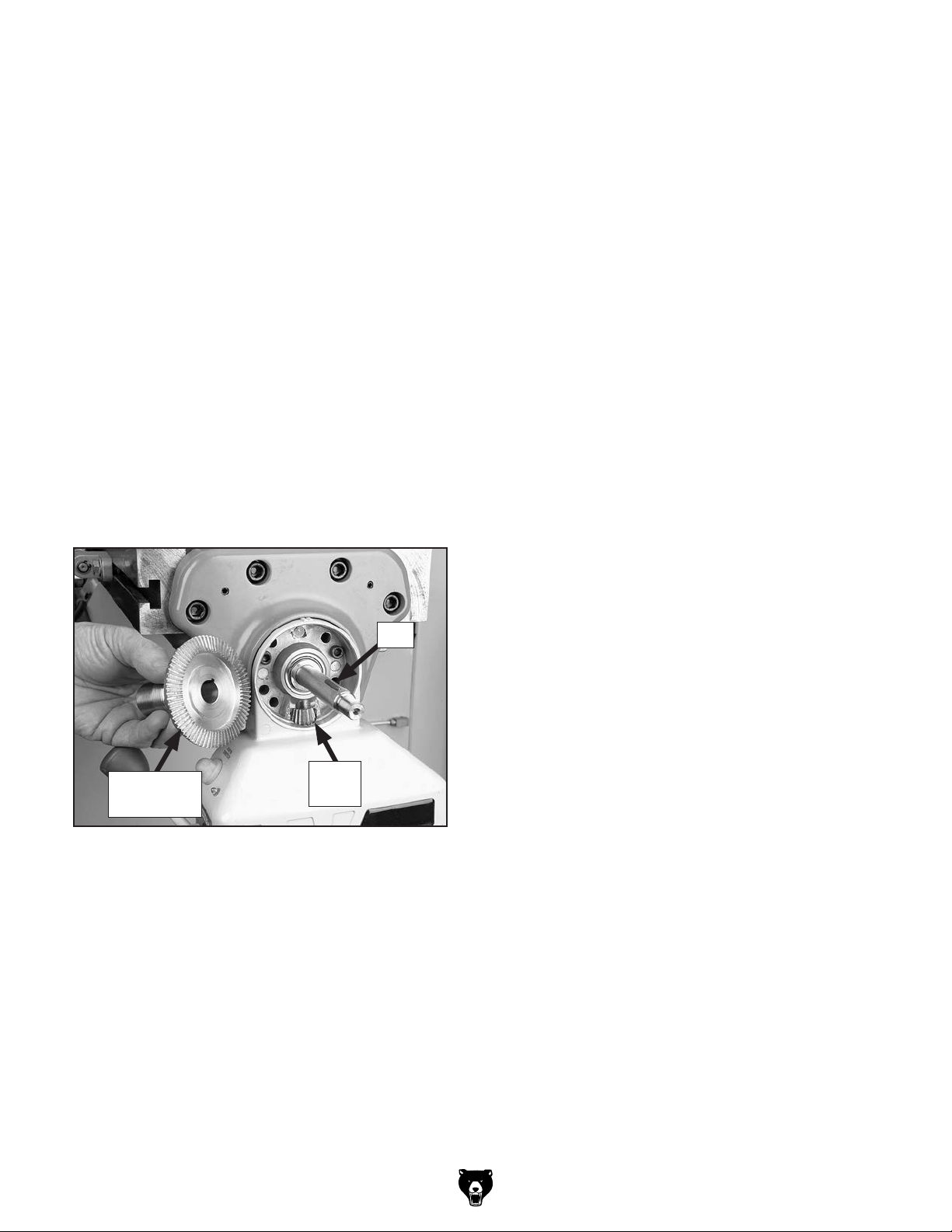

Figure 63. Power feed gears and key.

Drive

Gear

Model G0757 (Mfg. Since 6/13)

-45-

Page 52

Coolant

Checking/Adding Coolant

Tool Needed Qty

Hex Wrench 4mm .............................................. 1

Hazards

As some coolant ages, dangerous microbes can proliferate and create a biological hazard. The risk of exposure to this hazard can be greatly reduced by replacing the old coolant on a regular basis, as indicated in the maintenance schedule.

The important thing to keep in mind when working with the coolant is to minimize exposure to your skin, eyes, and respiratory system by wearing the proper PPE (personal protective equipment), such as splash-resistant safety glasses, longsleeve gloves, protective clothing, and a NIOSH approved respirator.

BIOLOGICAL & POISON

HAZARD! Use the correct personal protection equipment when handling coolant. Follow federal, state, and fluid manufacturer requirements for proper disposal.

A small amount of coolant is lost during normal operation. Check the coolant reservoir regularly and fill it if necessary. We recommend changing the coolant every three months or sooner if it develops an unpleasant odor. However, be sure to follow the coolant manufacturer's instructions when checking, adding, or changing coolant.

The coolant reservoir holds approximately 2 gallons (7.5 liters) of fluid.

Running the coolant pump without adequate coolant in the reservoir may permanently damage the coolant pump, which will not covered by the warranty.

To check/add coolant:

1. DISCONNECT MACHINE FROM POWER!

Clean away debris and grime from the cool-

ant return screen and the surrounding area, then remove the screen from the base, as shown in Figure 64.

Coolant

Return Screen

Figure 64. Coolant return screen removed.

Use a clean metal tool as a dip stick to mea-

sure the level of coolant in the reservoir. If the level is lower than 1 1⁄2", add coolant by pouring it through the hole in the base left by the return screen.

Re-install the return screen before resuming

milling operations.

Tip: As an alternate method, leave the return

screen in place and use a clean, small instrument through the holes in the return screen as a dip stick. If more coolant is necessary, make sure the screen and surrounding area are clean from any containments, then add the coolant through the screen.

-46-

Model G0757 (Mfg. Since 6/13)

Page 53

Changing Coolant

Tools Needed Qty

Hex Wrench 4mm .............................................. 1

Catch Pan

Empty Bucket 5 Gal........................................... 1

Rubber Hose (optional) New Coolant

To change the coolant:

Put on personal protective equipment.

.......................................................... 1

..................................... 1

..........Approx. 2 Gallons (7.5 Liters)

Machine Storage

The machine must be properly prepared if it will be stored for any period of time. Doing this will help prevent the development of rust and corrosion and ensure the mill remains in good condition for later use.

Note: When taking the machine out of storage, repeat the Test Run and the Spindle Break-In.

2. Place the catch pan on the table, position the coolant nozzle into the pan, then use the coolant pump to drain the reservoir.

Note: When the catch pan is near full, empty

it into a 5 gallon bucket, then repeat the process until the reservoir is empty.

Tip: Alternately, slide a rubber hose onto

the coolant nozzle and point it into 5 gallon bucket.

DISCONNECT MACHINE FROM POWER!

4. Clean away debris and grime from the cool-

ant return screen and the surrounding area, then remove the screen from the base.

Thoroughly clean out the reservoir. Make

sure the interior is completely dry before adding new coolant.

Note: Use a shop vacuum and a cleaning

solution that is compatible with type of coolant. For instance, if you are using a waterbase coolant, then use a water-base cleaning solvent. Also, use magnets to remove any metal chips left behind.

When the reservoir is clean and dry, fill the

reservoir with new coolant through the hole in the base left by the return screen.

Tip: Place a couple of magnets inside the

reservoir under the return screen to collect metal particles and keep them out of the coolant pump.

To prepare the machine for storage:

DISCONNECT MACHINE FROM POWER!

2. Lubricate the machine as directed in Lubrication, beginning on Page 41.

Clean out coolant reservoir as directed in

3. Changing Coolant on this page.

Thoroughly clean all unpainted, bare metal

surfaces, then coat them with quality rust preventative. Take care to ensure these surfaces are completely covered but rust preventative is kept off painted surfaces.

Note: If the machine will be out of service

for only a short period of time, use way oil in place of rust preventative.

Loosen belts to prevent them from stretch-

ing during storage. Post a reminder on the machine that belts need to be re-installed or tensioned before resuming operations.

Place a few moisture-absorbing desiccant

packs inside the electrical cabinet.

Cover and place the machine in a dry area

that is out of direct sunlight and away from hazardous fumes, paint, solvents, or gas. Fumes and sunlight can bleach or discolor paint and plastic parts.

Re-install the return screen before resuming

milling operations.

Model G0757 (Mfg. Since 6/13)

-47-

Page 54

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start.

Machine stalls or is overloaded.

Machine has vibration or noisy operation.

1. Emergency STOP button depressed.

2. Plug at fault or wired incorrectly.

3. Incorrect power supply voltage.

4. Wall fuse/circuit breaker is blown/tripped.

5. Wiring is open/has high resistance.

6. Motor wired incorrectly.

7. Control panel buttons at fault.

8. Motor or motor components are at fault.

1. Feed rate/cutting speed too fast.

2. Wrong tool type.

3. Machine is undersized for the task or tooling is incorrect for the task.

4. Motor has overheated.

5. Motor wired incorrectly.

6. Motor bearings are at fault.

7. Motor or motor components are at fault.

1. Motor or machine component is loose.

2. Workpiece not secure.

3. Excessive depth of cut.

4. Tooling is loose.

5. Tooling is dull or at fault.

6. Machine is incorrectly anchored to ﬂoor or sits unevenly.

7. Motor fan is rubbing on fan cover.

8. Motor bearings are at fault.

1. Twist emergency STOP button clockwise until it pops out to reset it.

2. Ensure plug is not damaged and is wired correctly.

3. Ensure power supply voltage matches circuit requirements (Page 13).

4. Ensure circuit size is correct and a short does not exist. Reset breaker or replace fuse.

5. Check for broken wires or disconnected/corroded connections; repair/replace as necessary.

6. Ensure motor wiring is correct (Page 59).

7. Ensure each button is wired correctly; replace if at fault (Page 57).

8. Test/repair/replace.

1. Decrease feed rate/cutting speed.

2. Use the correct tool for the task.

3. Use smaller or sharper tooling; reduce feed rate or spindle speed; use coolant.

4. Clean off motor, let cool, and reduce workload.

5. Ensure motor wiring is correct (Page 59).

6. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

7. Test/repair/replace motor.

1. Inspect/replace stripped or damaged bolts/nuts, and retighten with thread locking ﬂuid.

2. Properly clamp workpiece on table or in vise.

3. Decrease depth of cut.

4. Make sure tooling is properly secured.

5. Replace/resharpen tooling.

6. Tighten/replace anchor bolts; relocate/shim machine.

7. Replace dented fan cover or damaged fan.

8. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

-48-

Model G0757 (Mfg. Since 6/13)

Page 55

Symptom Possible Cause Possible Solution

Tool loose in spindle. 1. Tool is not fully drawn up into

spindle taper.

2. Debris on tooling or in spindle taper.

3. Taking too big of a cut.

Breaking tooling. 1. Spindle speed/feed rate is too fast.

2. Tooling too small.

3. Tooling getting too hot.

4. Taking too big of a cut.

5. Spindle extended too far down.

Workpiece vibrates or chatters during operation.

Table is hard to move.

Bad surface finish.

Cutting results not square.

1. Table locks not tight.

2. Workpiece not secure.

3. Spindle speed/feed rate is too fast.

4. Spindle extended too far down.

1. Table locks are tightened down.

2. Chips have loaded up on ways.

3. Ways are dry and need lubrication.

4. Table limit stops are interfering.

5. Gibs are too tight.

1. Spindle speed/feed rate is too fast.

2. Using a dull or incorrect tooling.

3. Wrong rotation of tooling.

4. Workpiece not secure.

5. Spindle extended too far down.

1. Table and spindle are not at 90° to each other.

1. Tighten drawbar.

2. Clean tooling and spindle taper.

3. Lessen depth of cut and allow chips to clear.

1. Set spindle speed correctly (Page 31) or use slower feed rate.

2. Use larger tooling and slower feed rate.

3. Use coolant or oil for appropriate application.

4. Decrease depth of cut.

5. Fully retract spindle and lower headstock. This increases rigidity.

1. Tighten down table locks.

2. Properly clamp workpiece on table or in vise.

3. Set spindle speed correctly (Page 31) or use a slower feed rate.

4. Fully retract spindle and raise table. This increases rigidity.

1. Make sure table locks are fully released.

2. Frequently clean away chips that load up during operations.

3. Lubricate ways (Page 42).

4. Check to make sure that all table limit stops are not in the way.

5. Adjust gibs (see Page 52).

1. Set spindle speed correctly (Page 31) or use a slower feed rate.

2. Sharpen tooling or select one that better suits the operation.

3. Check for proper cutting rotation for tooling.

4. Properly clamp workpiece on table or in vise.

5. Fully retract spindle and raise table. This increases rigidity.

1. Tram the spindle (Page 34).

Model G0757 (Mfg. Since 6/13)

-49-

Page 56

V-Belt Service

After approximately 16 hours of use, the V-belts stretch slightly and seat into the pulleys. It is important to check and adjust them to compensate for this initial wear. Check the tension thereafter on a regular basis. If the belts become excessively worn or damaged, replace them.

All V-belts can be replaced by releasing the tension and rolling them off the pulleys, then rolling the new belts back onto the pulleys.

Note: Replace the upper horizontal spindle V-Belts as a matched pair. This will ensure even wear and power transmission.

Tensioning Vertical Spindle V-Belts

Tools Needed Qty

Wrench 22mm ................................................... 1

Wrench 24mm

................................................... 1

Loosen the center pulley hex nut.

4. Loosen the two motor mount hex bolts (one

on each side of the motor).

Apply pressure on the motor handle toward

the back of the machine to tension the V-belts as you retighten the center pulley hex nut and the motor mount hex bolts.

Note: There is proper V-belt tension when

approximately (see Figure 66) by applying moderate pressure midway between the pulleys.

⁄4"–1⁄2"

Deflection

⁄4" –1⁄2" deflection is achieved

Pulley

To tension the vertical spindle V-belts:

DISCONNECT MACHINE FROM POWER!

2. Remove the vertical spindle V-belt covers to

gain access to the vertical V-belts and pulleys (see Figure 65).

Center Pulley

Hex Nut

Motor Mount

Hex Bolt

(1 of 2)

Motor

Handle

Figure 65. Vertical spindle V-belt covers

removed to gain access to vertical spindle

V-belts and pulleys.

Pulley

Figure 66. Checking V-belt tension.

Re-install the V-belt covers before connect-

ing the machine to power.

-50-

Model G0757 (Mfg. Since 6/13)

Page 57

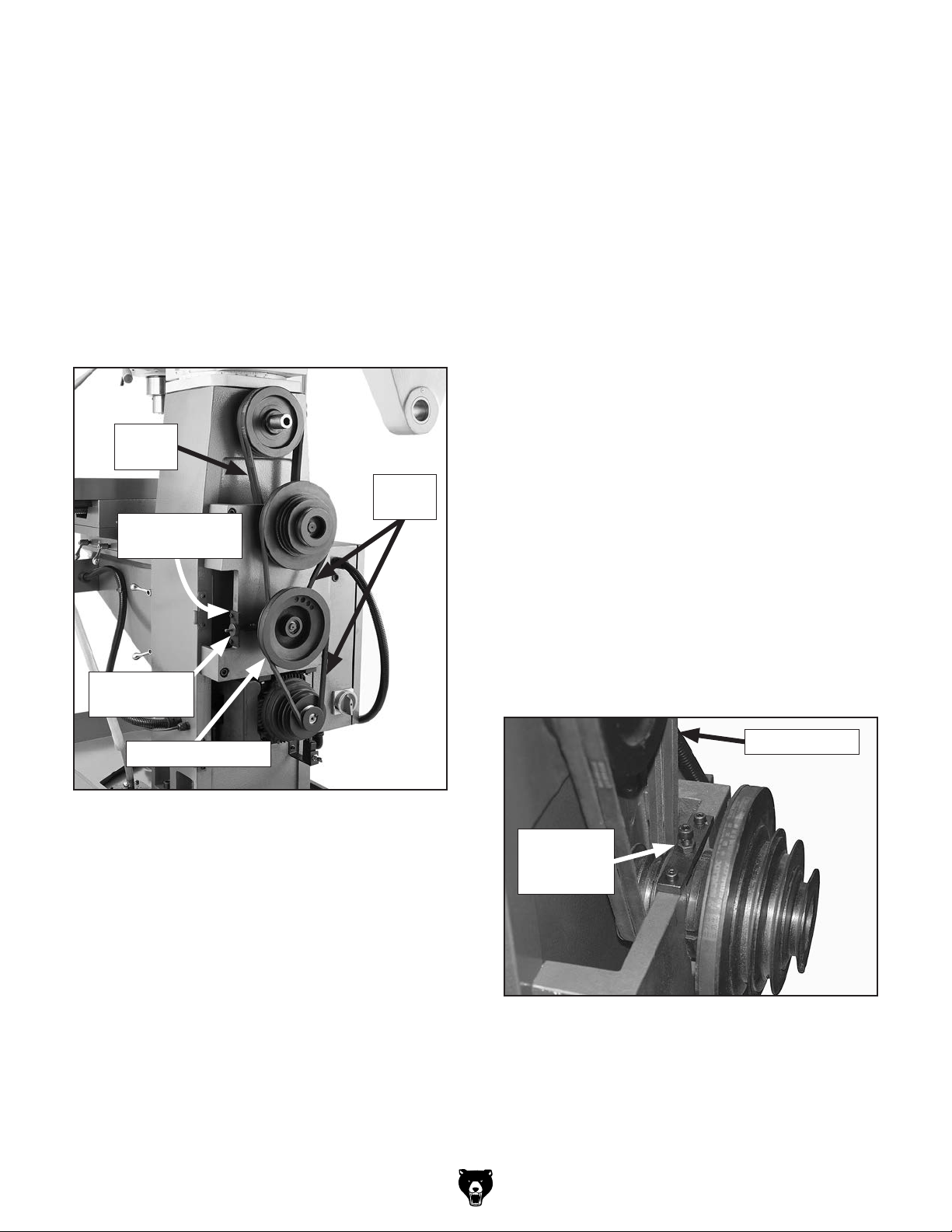

Tensioning Lower Horizontal Spindle V-Belts

Tools Needed Qty

Wrench 24mm ................................................... 1

Dead Blow Hammer

To tension the lower horizontal spindle V-belts:

DISCONNECT MACHINE FROM POWER!

2. Open the horizontal V-belt cover to gain

access to the horizontal spindle V-belts and pulleys, as shown in Figure 67.

Upper

V-Belts

Hex Nut

Behind Bracket

.......................................... 1

Lower

V-Belts

Retighten the hex nut behind the center pul-

ley bracket.

Close and latch the V-belt cover.

Tensioning Upper Horizontal Spindle V-Belts

Tools Needed Qty

Hex Wrench 6mm .............................................. 1

Wrench 14mm

To tension the upper horizontal spindle V-belts:

DISCONNECT MACHINE FROM POWER!

2. Open the horizontal V-belt cover to gain

access to the horizontal spindle V-belts and pulleys.

Loosen the hex nut on the center cap screw

shown in Figure 68, then rotate the cap screw clockwise to increase tension in the upper V-belts.

................................................... 1

Tension

Thumbwheel

Lower Idler Pulley

Figure 67. Horizontal spindle V-belts and pulleys

(cover removed for photo clarity).

Loosen the tension thumbwheel and the hex

nut behind the lower idler pulley bracket.

Note: In the next step, you may have to

bump the lower idler pulley with the deadblow hammer to get it to move.

Apply pressure on the lower idler pulley to the

left as you tighten the tension thumbwheel.

Note: There is proper V-belt tension when

approximately (see Figure 66 on the previous page) by applying moderate pressure midway between the pulleys.

Center

Cap Screw

& Hex Nut

Figure 68. Upper horizontal V-belt tensioning

⁄4" –1⁄2" deflection is achieved

Upper V-Belts

cap screw.

Note: There is proper V-belt tension when

approximately (see Figure 66 on the previous page) by applying moderate pressure midway between the pulleys.

Model G0757 (Mfg. Since 6/13)

⁄4" –1⁄2" deflection is achieved

4. Retighten the hex nut and secure the V-belt cover.

-51-

Page 58

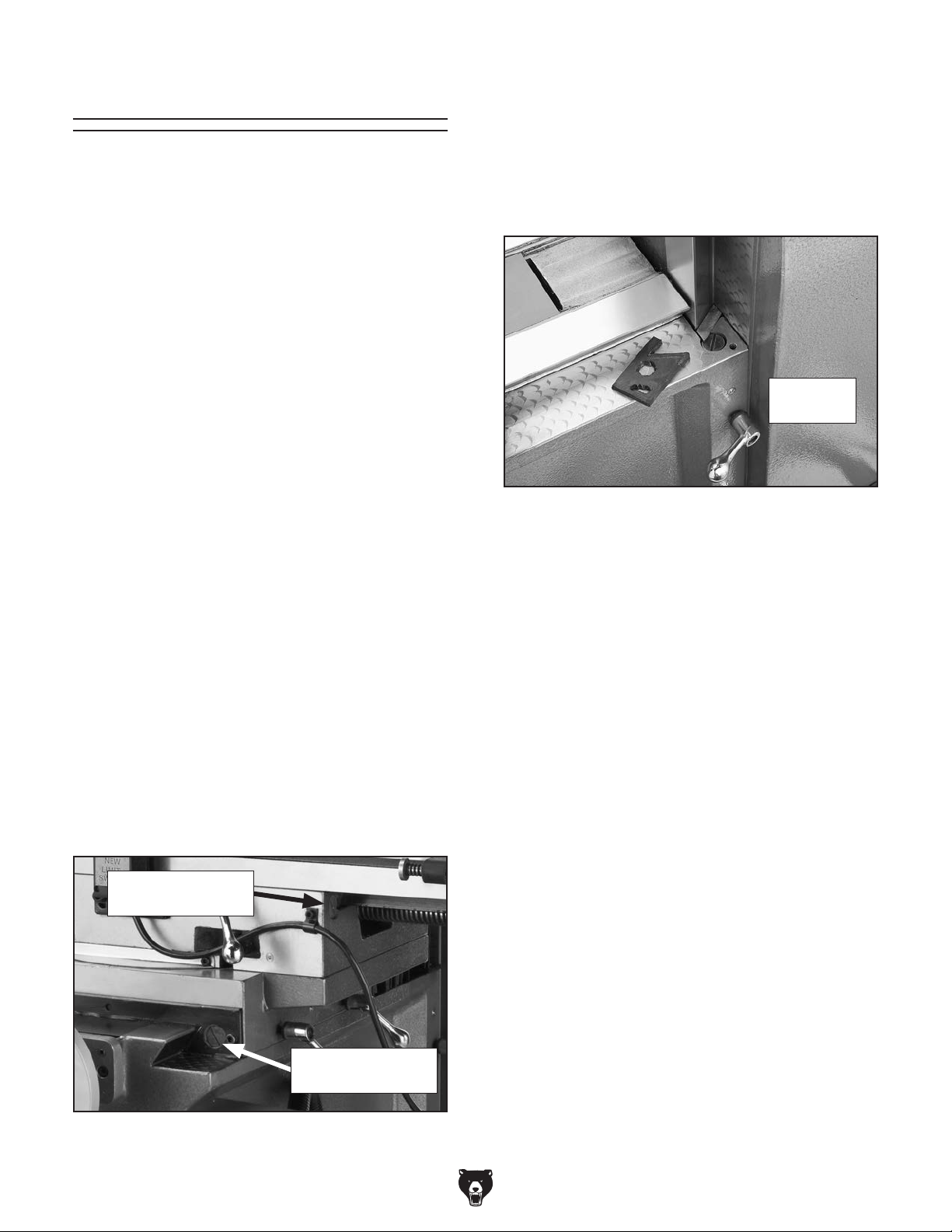

Adjusting Gibs

Gibs are tapered lengths of metal that are sandwiched between two moving surfaces. Gibs control the gap between these surfaces and how they slide past one another. Correctly adjusting the gibs is critical to producing good results.

Correctly positioning gibs is a matter of trial and error and patience. Tight gibs make table movement more accurate but stiff. Loose gibs make table movement sloppy but easier to do. The goal of gib adjustment is to remove unnecessary sloppiness without causing the ways to bind.

Many experienced machinists adjust the gibs just to the point where they can feel a slight drag in table movement.

The Z-axis gib has only one adjustment screw on the top of the gib (see Figure 70) that moves the gib up and down. Use the same method of adjustment as the other gibs with the one screw.

Note: Remove the way cover behind the table to gain access to the Z-axis gib adjustment screw.

Z-Axis

Gib Screw

Screws on each end of the gib allow gib adjustment to increase or decrease the friction between the sliding surfaces.

DISCONNECT MACHINE FROM POWER BEFORE ADJUSTING THE GIBS!

Make sure all table locks are loose. For the X- and Y-axis gibs, loosen one gib adjustment screw (see Figure 69) and tighten the opposite screw the same amount to move the gib, while at the same time rotating the handwheel to move the table until you feel a slight drag in that path of movement.

Note: Remove the way cover behind the table to gain access to the rear Y-axis gib adjustment screw.

X-Axis Gib Screw

(1 of 2)

Figure 70. Location of Z-axis gib adjustment

screw.

Y-Axis Gib Screw

(1 of 2)

Figure 69. Locations of X- and Y-axis gib

adjustment screws.

-52-

Model G0757 (Mfg. Since 6/13)

Page 59

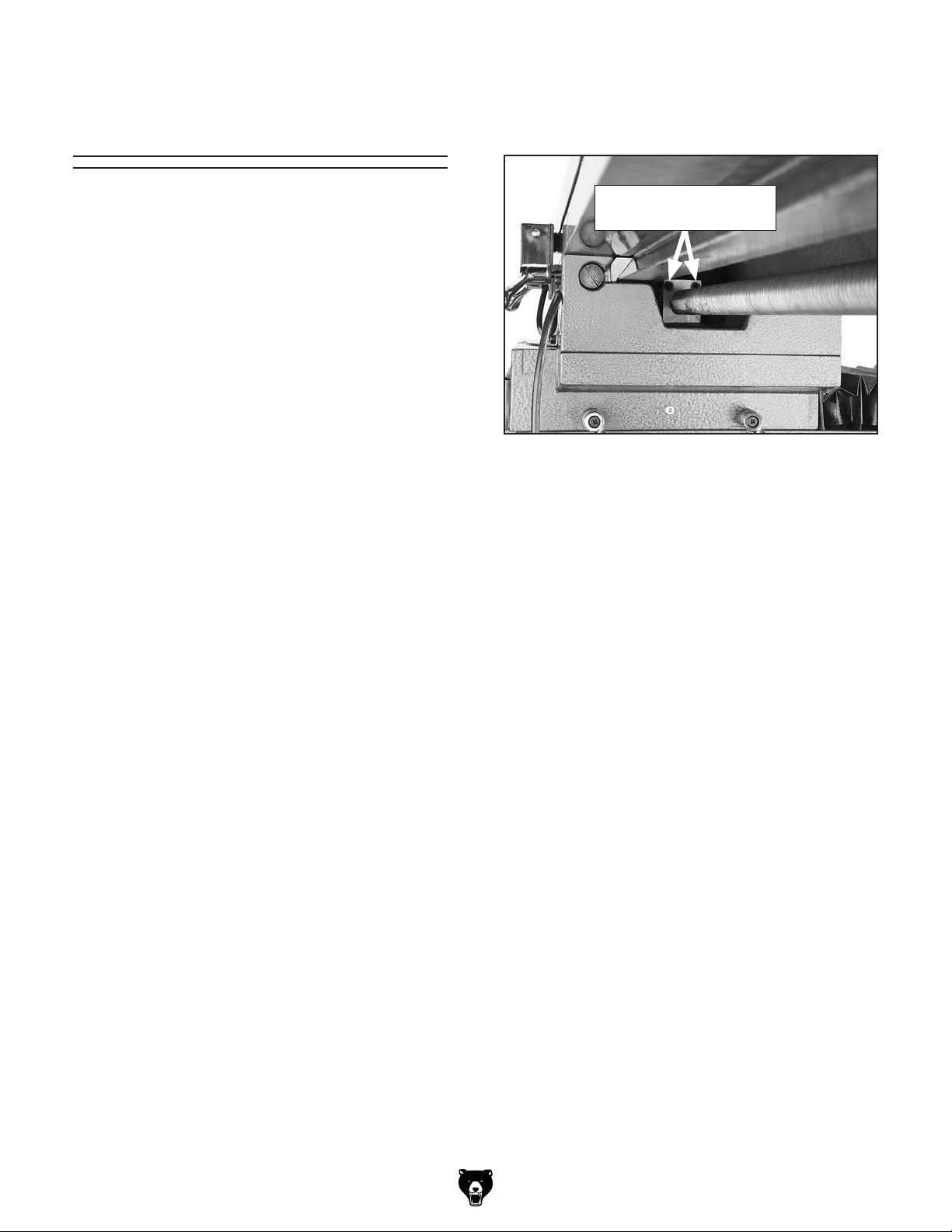

Adjusting Leadscrew

Backlash

The X-axis leadscrew nut shown in Figure 71 is accessed from underneath the right side of the table.

Leadscrew backlash is the amount of free play movement in the leadscrew (when the leadscrew moves but the table does not) after changing the direction of rotation.

A leadscrew must have a certain amount of backlash to rotate easily, but over time, it increases with wear. Generally, 0.003"–0.006" leadscrew backlash is acceptable to ensure smooth movement and reduce the risk of premature thread wear.

The X-axis leadscrew backlash is adjusted using a long 4mm hex wrench to tighten/loosen the cap screws on the leadscrew nut. This adjusts the force the leadscrew nut exerts on the leadscrew threads.

X-Axis Leadscrew Nut

Cap Screws

Figure 71. Location of X-axis leadscrew nut cap

screws for adjusting backlash.

Model G0757 (Mfg. Since 6/13)

-53-

Page 60

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

-54-

Model G0757 (Mfg. Since 6/13)

Page 61

To Ver ti cal

Spindle

Motor

(Page 59)

Electrical Cabinet Wiring Diagram

To M ast e r

Control

Panel

(Page 57)

To Po wer

Supply

(Page 60)

To Wo rk

Lamp

(Page 60)

Model G0757 (Mfg. Since 6/13)

0 3 3 4LN

PE 131416

567 7

L PE

U11

V21

U21

V11

To Coolant

Pump

(Page 60)

-55-

To Horizontal

V-Belt Cover

Limit Switch

(Page 60)

To Horizontal

Spindle Control

Sub-Panel

(Page 57)

READ ELECTRICAL SAFETY

To Table

Power Feed

To Horizontal

Spindle

Motor

(Page 59)

ON PAGE 54!

Page 62

Electrical Cabinet Wiring

-56-

Figure 72. Electrical cabinet wiring.

READ ELECTRICAL SAFETY

ON PAGE 54!

Model G0757 (Mfg. Since 6/13)

Page 63

Control Panel Wiring Diagrams

Master

Control

Panel

To Electrical Cabinet (Page 55)

Horizontal

Control

Panel

To Electrical Cabinet (Page 55)

Model G0757 (Mfg. Since 6/13)

READ ELECTRICAL SAFETY

ON PAGE 54!

-57-

Page 64

Control Panel Wiring

Figure 73. Master control panel wiring.

-58-

Figure 74. Horizontal spindle control sub-panel.

READ ELECTRICAL SAFETY

ON PAGE 54!

Model G0757 (Mfg. Since 6/13)

Page 65

Motor Wiring Diagrams

Vertical Spindle Motor

To M ast e r

Control Panel

(Page 57)

Run

Capacitor

200MFD 250VAC

Ground

W2PEU1

Horizontal Spindle Motor

Start

Capacitor

300MFD 250VAC

Run

Capacitor

20MFD

450VAC

To Electrical

Cabinet

(Page 55)

Model G0757 (Mfg. Since 6/13)

Start

Capacitor

150MFD 250VAC

U2V2U1 V1

Ground

READ ELECTRICAL SAFETY

ON PAGE 54!

-59-

Page 66

Other Component Wiring Diagrams

To Electrical

Cabinet

(Page 55)

Coolant Pump

Capacitor

5MFD

150VAC

Chint YBLXW-W11Q1

To Electrical

Cabinet

(Page 55)

COM NO

Horizontal

V-Belt Door

Limit Switch

Ground

Hot

220

VAC

Hot

To Electrical

Cabinet

(Page 55)

220VAC

Nema 6-20 Plug

(As Recommended)

Gnd

Halogen

Work Lamp

-60-

To Electrical

Cabinet

(Page 55)

READ ELECTRICAL SAFETY

ON PAGE 54!

Model G0757 (Mfg. Since 6/13)

Page 67

Motor & Other Component Wiring

Figure 75. Vertical spindle motor wiring.

Figure 76. Horizontal spindle motor wiring.

Figure 77. Coolant pump wiring.

Figure 78. Horizontal spindle V-belt cover safety

switch.

Model G0757 (Mfg. Since 6/13)

READ ELECTRICAL SAFETY

ON PAGE 54!

-61-

Page 68

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.

SECTION 9: PARTS

Column

30 31

-62-

Model G0757 (Mfg. Since 6/13)

Page 69

Column

REF

PART # DESCRIPTION

1 P0757001 BASE 48 P0757048 LOWER WAY COVER 2 P0757002 COLUMN 49 P0757049 UPPER WAY COVER 3 P0757003 Z-AXIS LEADSCREW HOUSING 50 P0757050 CAP SCREW M6-1 X 25 4 P0757004 LOCK WASHER 10MM 51 P0757051 KNEE 5 P0757005 HEX BOLT M10-1.5 X 45 52 P0757052 SPLASH PAN 6 P0757006 COOLANT DRAIN SCREEN 53 P0757053 CAP SCREW M6-1 X 12 7 P0757007 PHLP HD SCR M6-1 X 12 54 P0757054 Z-AXIS LEADSCREW 8 P0757008 HEX BOLT M16-2 X 65 55 P0757055 SPANNER NUT M16-1.5 9 P0757009 LOCK WASHER 16MM 56 P0757056 BEVEL GEAR 25T 10 P0757010 Z-AXIS LEADSCREW COLLAR 57 P0757057 KEY 6 X 6 X 12 11 P0757011 CAP SCREW M8-1.25 X 25 58 P0757058 SPACER 12 P0757012 TURRET BASE 59 P0757059 BEARING SEAT 13 P0757013 CAP SCREW M12-1.75 X 30 60 P0757060 THRUST BEARING 51105 14 P0757014 TURRET 61 P0757061 Z-AXIS LEADSCREW NUT 42 X 60MM 15 P0757015 GEAR SHAFT 15T 62 P0757062 SET SCREW M8-1.25 X 20 16 P0757016 SHAFT COLLAR 63 P0757063 BEVEL GEAR 25T 17 P0757017 ADJUSTABLE HANDLE M10-1.5 X 25 (CHROME) 64 P0757064 SET SCREW M6-1 X 10 18 P0757018 LOCK PLUNGER 65 P0757065 THRUST BEARING 51103 19 P0757019 RAM GIB 66 P0757066 BEARING SEAT 20 P0757020 FLAT HD SCR M8-1.25 X 40 67 P0757067 KEY 5 X 5 X 20 21 P0757021 RAM 68 P0757068 Z-AXIS CRANK SHAFT 22 P0757022 RAM END COVER 69 P0757069 SHAFT BRACKET 23 P0757023 PHLP HD SCR M6-1 X 10 70 P0757070 CAP SCREW M6-1 X 25 24 P0757024 RAM TOP COVER 71 P0757071 Z-AXIS GRADUATED DIAL 25 P0757025 PHLP HD SCR M6-1 X 10 72 P0757072 THUMB SCREW M6-1 X 10 26 P0757026 HEADSTOCK MOUNT 73 P0757073 CRANK BRACKET 27 P0757027 CAP SCREW M16-2 X 50 74 P0757074 SET SCREW M8-1.25 X 16 28 P0757028 CAP SCREW M8-1.25 X 20 75 P0757075 Z-AXIS CRANK 29 P0757029 THRUST BEARING 51101 76 P0757076 CRANK HANDLE 30 P0757030 WORM GEAR 77 P0757077 HANDLE STEP SCREW M10-1.5 X 15 31 P0757031 THRUST BEARING 51102 78 P0757078 FLANGE BOLT M10-1.5 X 16 32 P0757032 KEY 4 X 4 X 20 79 P0757079 COLUMN REAR COVER 33 P0757033 WORM SHAFT 80 P0757080 FLAT HD SCR M5-.8 X 12 34 P0757034 T-BOLT M16-2 X 60 81 P0757081 HORIZONTAL ARBOR SUPPORT 35 P0757035 LOCK WASHER 16MM 82 P0757082 SET SCREW M8-1.25 X 16 36 P0757036 HEX NUT M16-2 83 P0757083 BUSHING (BRASS) 37 P0757037 T-BOLT M16-2 X 50 84 P0757084 BALL OILER 8MM TAP-IN 38 P0757038 FLAT WASHER 16MM 85 P0757085 CLAMP BOLT M16-2 X 218 39 P0757039 HEX NUT M16-2 86 P0757086 FLAT WASHER 16MM 40 P0757040 COOLANT PUMP 40W 220V 1-PH 87 P0757087 HEX NUT M16-2 41 P0757041 CAP SCREW M5-.8 X 12 88 P0757088 HALOGEN WORK LIGHT ASSEMBLY 42 P0757042 COOLANT PUMP COVER 89 P0757089 HALOGEN BULB 24W BI-PIN 43 P0757043 CAP SCREW M5-.8 X 12 90 P0757090 COOLANT NOZZLE ASSEMBLY 44 P0757044 SLEEVE 91 P0757091 COOLANT HOSE 1/2" X 36" 45 P0757045 CAP SCREW M6-1 X 18 92 P0757092 COOLANT HOSE CLAMP 3/4" 46 P0757046 Z-AXIS GIB 93 P0757093 LIMIT SWITCH CHINT XBLXW-W11Q1 47 P0757047 BALL OILER 8MM TAP-IN

PART # DESCRIPTION

Model G0757 (Mfg. Since 6/13)

-63-

Page 70

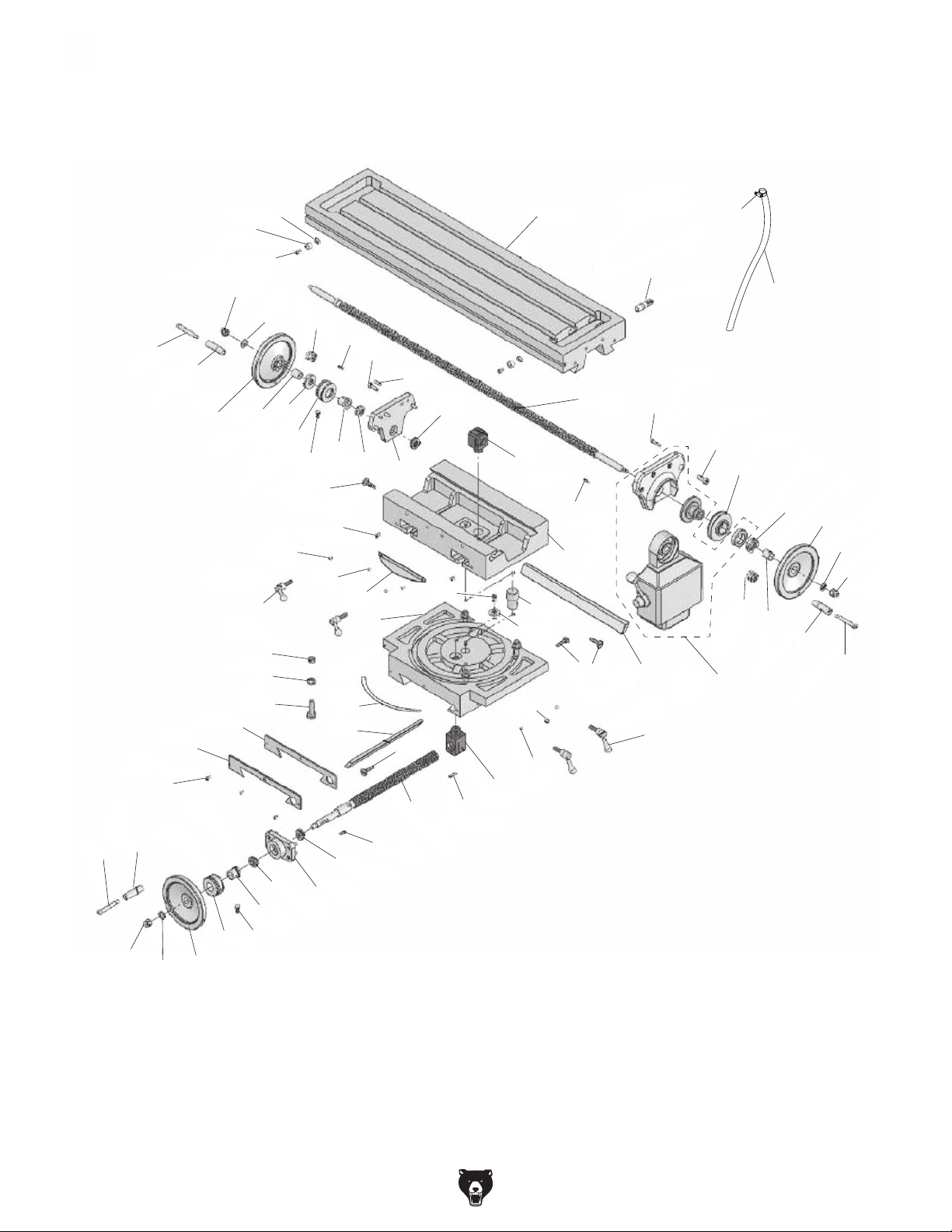

Table

101

145

102

144

105

103

143

147

106

139

140

146

148

104

141

142

108

110

138

107

111

126

137

136

112

135

134

128

109

113

115

127

114

126

116

131

113

151

130

129

117

150

137

138

120

149

119

124

118

126

153

152

125

139

154

122

121

123

107

155

108

105

104

103

106

102

101

-64-

102

103

104

105

110

112

111

113

132

113

133

Model G0757 (Mfg. Since 6/13)

Page 71

Table

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 P0757101 HANDLE STEP SCREW M8-1.25 X 12 129 P0757129 Y-AXIS LEADSCREW NUT 102 P0757102 HANDWHEEL HANDLE 130 P0757130 CAP SCREW M5-.8 X 25 103 P0757103 HEX NUT M12-1.75 131 P0757131 Y-AXIS LEADSCREW 104 P0757104 LOCK WASHER 12MM 132 P0757132 KEY 5 X 5 X 30 105 P0757105 HANDWHEEL 133 P0757133 Y-AXIS LEADSCREW BRACKET 106 P0757106 BUSHING 134 P0757134 ANGLE SCALE 107 P0757107 SPRING PLATE 135 P0757135 ANGLE INDICATOR PLATE 108 P0757108 CLUTCH 136 P0757136 PHLP HD SCR M5-.8 X 10 109 P0757109 KEY 5 X 5 X 20 137 P0757137 BALL OILER 8MM TAP-IN 110 P0757110 GRADUATED DIAL 138 P0757138 LOCK PLUNGER 111 P0757111 CAP SCREW M6-1 X 16 139 P0757139 ADJUSTABLE HANDLE M10-1.5 X 25 112 P0757112 BUSHING 140 P0757140 HEX NUT M12-1.75 113 P0757113 THRUST BEARING 51103 141 P0757141 FLAT WASHER 12MM 114 P0757114 X-AXIS LEADSCREW BRACKET 142 P0757142 T-BOLT M12-1.75 X 42 115 P0757115 CAP SCREW M8-1.25 X 25 143 P0757143 SADDLE WAY WIPER 116 P0757116 DOWEL PIN 6 X 25 144 P0757144 WAY WIPER PLATE 117 P0757117 X-AXIS LEADSCREW NUT 145 P0757145 PHLP HD SCR M5-.8 X 12 118 P0757118 X-AXIS LEADSCREW 146 P0757146 T-NUT M6-1 119 P0757119 KEY 5 X 5 X 20 147 P0757147 SLEEVE 120 P0757120 TABLE 148 P0757148 CAP SCREW M6-1 X 16 121 P0757121 POWER FEED ASSEMBLY ASONG AS-235 149 P0757149 TABLE PIVOT PIN 122 P0757122 CAP SCREW M10-1.5 X 25 150 P0757150 FLAT WASHER 6MM 123 P0757123 X-AXIS GRADUATED DIAL (RH) 151 P0757151 CAP SCREW M6-1 X 30 124 P0757124 ROTARY TABLE BASE 152 P0757152 DOWEL PIN 6 X 25 125 P0757125 X-AXIS GIB 153 P0757153 COOLANT HOSE CONNECTOR 1/2" NPT 126 P0757126 GIB SCREW M8-1.25 154 P0757154 COOLANT HOSE CLAMP 3/4" 127 P0757127 SADDLE 155 P0757155 COOLANT HOSE 1/2" X 36" 128 P0757128 Y-AXIS GIB

Model G0757 (Mfg. Since 6/13)

-65-

Page 72

264

Horizontal Spindle & Motor

266

265

267

201

258

202

203

261

218

259

257

219

260

256

204

221

220

215

255

223

263

205

234

222

231

224

233

221

206

262

232

225

209

207

238

208

226

243

210

217

244

211

227

245

228

212

229

235

246

213 214

247

230

248

216

249

-66-

250-1

250-2

250-5

250-7

250-4

250-6

250-3

250-8

250-9

236

250

237

251

253

254

239

244

242

241

240

252

Model G0757 (Mfg. Since 6/13)

Page 73

Horizontal Spindle & Motor

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0757201 CAP SCREW M8-1.25 X 25 239 P0757239 TENSION ROD END BRACKET 202 P0757202 BALL OILER 8MM TAP-IN 240 P0757240 CAP SCREW M6-1 X 25 203 P0757203 INBOARD END COVER 241 P0757241 THUMB WHEEL M8-1.25 204 P0757204 HORIZONTAL SPINDLE R-8 242 P0757242 LOWER IDLER PULLEY SHAFT 205 P0757205 TAPERED ROLLER BEARING 32011 P5 243 P0757243 TENSION PIVOT ARM 206 P0757206 HORIZONTAL QUILL 244 P0757244 BALL BEARING 6003ZZ 207 P0757207 TAPERED ROLLER BEARING 30308 P5 245 P0757245 SPACER 208 P0757208 SPANNER LOCK WASHER 39MM 246 P0757246 INT RETAINING RING 35MM 209 P0757209 SPANNER NUT M39-1.5 247 P0757247 EXT RETAINING RING 17MM 210 P0757210 SPACER 4 X 90MM 248 P0757248 LOWER IDLER PULLEY 211 P0757211 OUTBOARD END COVER 249 P0757249 V-BELT A31.5 212 P0757212 CAP SCREW M8-1.25 X 25 250 P0757250 HORIZONTAL SPINDLE MOTOR 2HP 220V 1-PH 213 P0757213 HORIZONTAL SPINDLE PULLEY 250-1 P0757250-1 MOTOR FAN COVER 214 P0757214 EXT RETAINING RING 35MM 250-2 P0757250-2 MOTOR FAN 215 P0757215 KEY 10 X 8 X 30 250-3 P0757250-3 MOTOR JUNCTION BOX 216 P0757216 V-BELT A33 250-4 P0757250-4 R CAPACITOR 20M 450V 1-5/8 X 3-1/8 217 P0757217 KEY 6 X 6 X 30 250-5 P0757250-5 S CAPACITOR 150M 250V 1-5/8 X 3-1/8 218 P0757218 EXT RETAINING RING 20MM 250-6 P0757250-6 CENTRIFUGAL SWITCH 219 P0757219 TRANSFER PULLEY 250-7 P0757250-7 CONTACT PLATE 220 P0757220 EXT RETAINING RING 28MM 250-8 P0757250-8 BALL BEARING 6205ZZ 221 P0757221 INT RETAINING RING 47MM 250-9 P0757250-9 BALL BEARING 6205ZZ 222 P0757222 BALL BEARING 6005ZZ 251 P0757251 KEY 8 X 8 X 45 223 P0757223 SPACER 252 P0757252 HORIZONTAL MOTOR PULLEY 224 P0757224 BEARING SEAT 253 P0757253 LOCK WASHER 8MM 225 P0757225 SPANNER NUT M64-2 254 P0757254 HEX BOLT M8-1.25 X 30 226 P0757226 UPPER IDLER PULLEY SHAFT 255 P0757255 HORIZONTAL ARBOR 1-1/4" 227 P0757227 KEY 8 X 8 X 40 256 P0757256 SET SCREW M5-.8 X 8 DOG-PT 228 P0757228 UPPER IDLER PULLEY 257 P0757257 SET SCREW M5-.8 X 6 229 P0757229 EXT RETAINING RING 25MM 258 P0757258 HORIZONTAL ARBOR NUT 1-1/4-7 230 P0757230 V-BELT A34 259 P0757259 ARBOR SPACER 1-1/4" X 1" 231 P0757231 SPANNER NUT LOCKDOWN BAR 260 P0757260 ARBOR SPACER 1-1/4" X 2" 232 P0757232 CAP SCREW M6-1 X 25 261 P0757261 ARBOR SPACER 1-1/4" X 3-1/8" 233 P0757233 CAP SCREW M8-1.25 X 60 262 P0757262 HORIZONTAL DRAWBAR 7/16-20 X 13-3/4 234 P0757234 HORIZONTAL MOTOR/PULLEY BRACKET 263 P0757263 HORIZONTAL ARBOR 1" 235 P0757235 CAP SCREW M12-1.75 X 80 264 P0757264 HORIZONTAL ARBOR NUT 1-8 236 P0757236 HEX NUT M16-2 265 P0757265 ARBOR SPACER 1" X 1" 237 P0757237 FLAT WASHER 16MM 266 P0757266 ARBOR SPACER 1" X 2" 238 P0757238 TENSION ROD END M8-1.25 X 90 267 P0757267 ARBOR SPACER 1" X 3-1/8"

Model G0757 (Mfg. Since 6/13)

-67-

Page 74

Headstock

391-2

397

363

362

359

391-1

364

361

358

359

360

358

391-4

398

357

391-3

391-5

367

368

366

310

367

312

311

369

313

365

376

399

372

370

314

371

375

379

391-7

315

391-6

378

301

316

391-8

391-9

387

356

355

317

386

374

373

391

396

395

393

392

390

389

388

394

377

384

385

383

382

303

302

-68-

306

304

305

308

348

309

307

347

318

346

352

349

350

344

351

345

342

343

341

325

319

340

326

327

354

353

331

337

336

321

322

332

333

339

328

320

330

338

329

Model G0757 (Mfg. Since 6/13)

324

323

334

335

Page 75

Headstock

REF PART # DES CRIPTI ON REF PART # DES CRIP TION

301 P0757301 HE ADSTOCK CA STING 354 P0757354 CAP SCREW M5-.8 X 10 302 P0757302 GEAR 50T 355 P0757355 QUILL TOP COVER 303 P0757303 CAP SCREW M6-1 X 70 356 P0757356 CAP SCREW M5-.8 X 30 304 P0757304 SET SCREW M5-.8 X 6 DOG-PT 357 P0757357 EXT RETAI NI NG RI NG 45 MM 305 P0757305 SET SCREW M5-.8 X 6 358 P0757358 I NT RE TAINI NG RING 7 5MM 306 P0757306 VERTICAL SPINDLE R-8 359 P0757359 BALL BEARING 6009ZZ P5 307 P0757307 TAPERED ROLLER BEARING 32010 P5 360 P0757360 SPACER 308 P0757308 VERTICAL SPINDLE LOWER OIL SEAL 361 P0757361 I NTERNAL SPLINE SHAFT 309 P0757309 QUILL 362 P0757362 VERTICAL SPINDLE PULLEY 310 P0757310 GASKET 363 P0757363 S PANNER NUT TOO THED WASHER 50MM 311 P0757311 BALL BEARING 6009ZZ P5 364 P0757364 SPA NNER NUT M50-1 . 5 312 P0757312 S PANNER NUT TOO THED WASHER 40MM 365 P0757365 VERTICAL SPINDLE IDLER PULLEY 313 P0757313 S PANNER NUT M40 -1. 5 366 P0757366 EXT RETAI NI NG RI NG 17 MM 314 P0757314 CAP SCREW M4-.7 X 8 367 P0757367 BALL BEARING 6003ZZ 315 P0757315 SPRING CAP 368 P0757368 SPACER 316 P0757316 RE TURN COIL S PRING 369 P0757369 I NT RETAINI NG RING 3 5MM 317 P0757317 SPRING BASE 370 P0757370 IDLER PULLEY PIVOT ARM 318 P0757318 SET SCREW M8-1.25 X 16 371 P0757371 I DLER PULLEY PIVOT SHAFT 319 P0757319 SET SCREW M8-1.25 X 16 372 P0757372 FLAT WASHER 16MM 320 P0757320 DO WNFEED GEA R HOUSI NG 373 P0757373 FLAT WASHER 16MM 321 P0757321 CAP SCREW M8-1.25 X 25 374 P0757374 HE X NUT M16-2 322 P0757322 DOWEL PIN 6 X 25 375 P0757375 VERTICAL SPINDLE MOTOR PULLEY 323 P0757323 COARSE DOWNFEED GEAR SHAFT 16T 376 P0757376 SET SCREW M8-1.25 X 12 324 P0757324 KEY 8 X 8 X 38 377 P0757377 VERTICAL SPINDLE PULLEY HOUSING 325 P0757325 WORM GEAR 378 P0757378 FLAT WASHER 10MM 326 P0757326 E XT RETAI NI NG RING 3 0MM 379 P0757379 CAP SCREW M10-1.5 X 30 327 P0757327 THUMB SCREW M6-1 X 1 6 382 P0757382 PULLEY HOUSING BOTTOM COVER 328 P0757328 CO ARSE DOWNFE ED GRADUATED DI AL 383 P0757383 CAP SCREW M5-.8 X 10 329 P0757329 COARSE DOWNFEED LEVER HUB 384 P0757384 PULLEY HOUSING SIDE COVER 330 P0757330 COARSE DOWNFEED LEVER M12-1.75 X 15 385 P0757385 THUMB SCREW M6-1 X 1 0 331 P0757331 COMPRESSION SPRING 386 P0757386 PULLEY HOUSING TOP COVER 332 P0757332 LEVER HUB END CAP 387 P0757387 CAP SCREW M6-1 X 16 333 P0757333 CAP SCREW M6-1 X 12 388 P0757388 V ERTICAL SPI NDLE MO TOR MOUNT 334 P0757334 DO WNFEED SEL ECTION SHAFT 389 P0757389 CAP SCREW M8-1.25 X 30 335 P0757335 SHAFT HANDLE M8-1.25 X 10 390 P0757390 KEY 8 X 8 X 40 336 P0757336 BEARING CAP 391 P0757391 VERTICAL SPINDLE MOTOR 3HP 220V 1-PH 337 P0757337 CAP SCREW M6-1 X 12 391-1 P0757391-1 MOTOR FAN COV ER 338 P0757338 BALL BEARING 6002ZZ 391-2 P0757391-2 MOTOR FA N 339 P0757339 FI NE DOWNFEED WORM S HAFT 391-3 P0757391-3 MOTOR J UNCTI ON BOX 340 P0757340 BALL BEARING 6002ZZ 391-4 P0757391-4 R CAPACITOR 50M 450V 2 X 4 341 P0757341 WO RM SHAFT BRACK ET 391-5 P0757391-5 S CAPACITOR 300M 250V 2 X 4 342 P0757342 CAP SCREW M6-1 X 20 391-6 P0757391-6 CENTRIFUGA L SWI TCH 343 P0757343 THUMB SCREW M6-1 X 1 6 391-7 P0757391-7 CONTA CT PLATE 344 P0757344 FI NE DOWNFEED GRA DUATED DI AL 391-8 P0757391-8 BALL BEARING 6206ZZ 345 P0757345 SET SCREW M6-1 X 12 391-9 P0757391-9 BALL BEARING 6206ZZ 346 P0757346 FI NE DOWNFEED HANDWHE EL 392 P0757392 FLAT WASHER 14MM 347 P0757347 HANDWHEEL HANDLE M8-1.25 X 10 393 P0757393 HEX BOLT M14-2 X 40 348 P0757348 I NNER QUILL LOCK SLEEVE 394 P0757394 HEX NUT M14 -2 349 P0757349 OUTER QUILL LOCK SLEEVE 395 P0757395 MOTOR HA NDLE 350 P0757350 ADJUSTABLE HANDLE M10-1.5 X 90 396 P0757396 CAP SCREW M8-1.25 X 25 351 P0757351 SET SCREW M10-1.5 X 10 397 P0757397 V-BELT B29 352 P0757352 SET SCREW M10-1.5 X 10 398 P0757398 V-BELT B29 353 P0757353 COVER PLATE 399 P0757399 VERTICAL DRAWBAR 7/16-20 X 20

Model G0757 (Mfg. Since 6/13)

-69-

Page 76

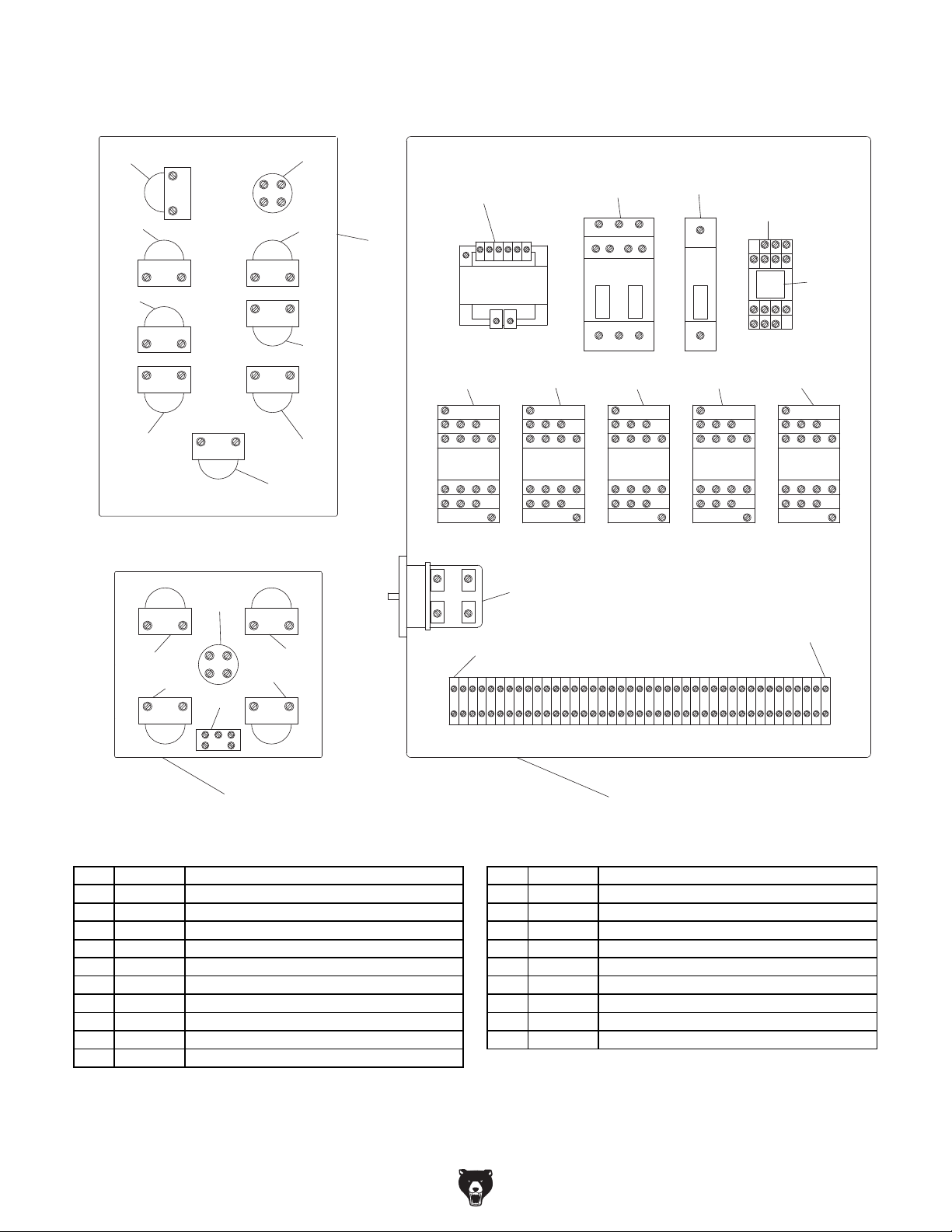

Electrical Components

413 414

Electrical CabinetMain Control Panel

415

416

417

Horizontal Control Panel

414

415

417

416

420

416

415

411 412

401

402

403

404

405 405 405 405 405

406

408

407

421

418 419

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0757401 TRANSFORMER AOHENGDA ELEC JBK5-63 412 P0757412 MASTER CONTROL PANEL BOX 402 P0757402 MOTOR START CHINT NS2-25 413 P0757413 COOLANT SWITCH MINGER LA125H-BE101C 403 P0757403 CIRCUIT BREAKER CHINT DZ47-60 414 P0757414 POWER LAMP BUTTON PNC EB2 404 P0757404 RELAY SOCKET OMRON 2-M4X10 415 P0757415 ON BUTTON MINGER LA125H-BE101C 405 P0757405 CONTACTOR SIEMENS 3TB41 29V 416 P0757416 OFF BUTTON MINGER LA125H-BE102C 406 P0757406 ROTARY SWITCH JUCHE AC21A 417 P0757417 E-STOP BUTTON MINGER LA125H-BE102C 407 P0757407 GROUND TERMINAL BAR 1P 418 P0757418 HORIZONTAL CONTROL PANEL PLATE 408 P0757408 TERMINAL BAR 1P 419 P0757419 HORIZONTAL CONTROL PANEL BOX 409 P0757409 ELECTRICAL BACK PLATE 420 P0757420 GROUNDING BLOCK 410 P0757410 ELECTRICAL CABINET W/DOOR 421 P0757421 RELAY OMRON MY4N-J 411 P0757411 MASTER CONTROL PANEL PLATE

-70 -

409 410

Model G0757 (Mfg. Since 6/13)

Page 77

507

Accessories

502

501

506

508

509

510

511

512

513

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 P0757501 BOTTLE FOR OIL 510 P0757510 HEX WRENCH 6MM 502 P0757502 TOOLBOX 511 P0757511 HEX WRENCH 5MM 503 P0757503 SPINDLE SLEEVE MT#3-MT#2 512 P0757512 HEX WRENCH 4MM 504 P0757504 DRILL CHUCK ARBOR R8-B16 513 P0757513 HEX WRENCH 3MM 505 P0757505 END MILL ARBOR R8-1" 514 P0757514 T-BOLT M14-2 X 60 506 P0757506 SPINDLE SLEEVE R8-MT#3 515 P0757515 FLAT WASHER 14MM 507 P0757507 WRENCH 17 X 19MM OPEN-ENDS 516 P0757516 HEX NUT M14-2 508 P0757508 WRENCH 22 X 24MM OPEN-ENDS 517 P0757517 DRILL CHUCK B16 W/CHUCK KEY 509 P0757509 HEX WRENCH 8MM

514

516

515

505

504

503

517

Model G0757 (Mfg. Since 6/13)

-71-

Page 78

Right Side Machine Labels

602

601

603

604

605

611

606

607

608

610

609

REF PART # DESCRIPTION REF PART # DESCRIPTION

601 P0757601 MACHINE ID LABEL 607 P0757607 ELECTRICITY LABEL 0.7"W 602 P0757602 GRIZZLY NAMEPLATE-SMALL 608 P0757608 ELECTRICITY LABEL 1.4"W 603 P0757603 DISCONNECT WARNING LABEL 609 P0757609 GRIZZLY GREEN TOUCH-UP PAINT 604 P0757604 MODEL NUMBER LABEL 610 P0757610 HORIZONTAL CONTROL PANEL LABEL 605 P0757605 V-BELT CONFIGURATION LABEL 611 P0757611 MASTER CONTROL PANEL LABEL 606 P0757606 GRIZZLY PUTTY TOUCH-UP PAINT

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-72-

Model G0757 (Mfg. Since 6/13)

Page 79

Left Side Machine Labels

612

603

608

603

608

REF PART # DESCRIPTION REF PART # DESCRIPTION

603 P0757603 DISCONNECT WARNING LABEL 612 P0757612 BIOHAZARD WARNING LABEL 606 P0757606 GRIZZLY PUTTY TOUCH-UP PAINT

Model G0757 (Mfg. Since 6/13)

-73 -

Page 80

-74 -

Model G0757 (Mfg. Since 6/13)

Page 81

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

Page 82

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

Page 83

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Page 84
