MODEL G0755

HEAVY-DUTY MILL/DRILL

w/STAND & POWER FEED

OWNER'S MANUAL

(For models manufactured since 1/13)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#TS15627 PRINTED IN CHINA

V1.01.14

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Machine Data Sheet ...................................... 4

SECTION 1: SAFETY ....................................... 6

Safety Instructions for Machinery .................. 6

Additional Safety for Mill/Drills ....................... 8

SECTION 2: POWER SUPPLY ........................ 9

Availability ........................................................... 9

Full-Load Current Rating .................................... 9

Circuit Requirements for 220V ............................ 9

Grounding Instructions ...................................... 10

Extension Cords ................................................ 10

SECTION 3: SETUP ....................................... 11

Unpacking .................................................... 11

Needed for Setup ......................................... 11

Inventory ...................................................... 11

Cleanup ........................................................ 12

Site Considerations ...................................... 13

Lifting & Placing ........................................... 14

Anchoring to Floor ....................................... 15

Anchoring to Concrete Floors ........................... 15

Assembly ..................................................... 15

Joining Drill Chuck & Arbor .......................... 16

Lubricating Mill/Drill ...................................... 16

Test Run ...................................................... 17

Spindle Break-In .......................................... 18

Inspections & Adjustments .......................... 18

SECTION 4: OPERATIONS ........................... 19

Operation Overview ..................................... 19

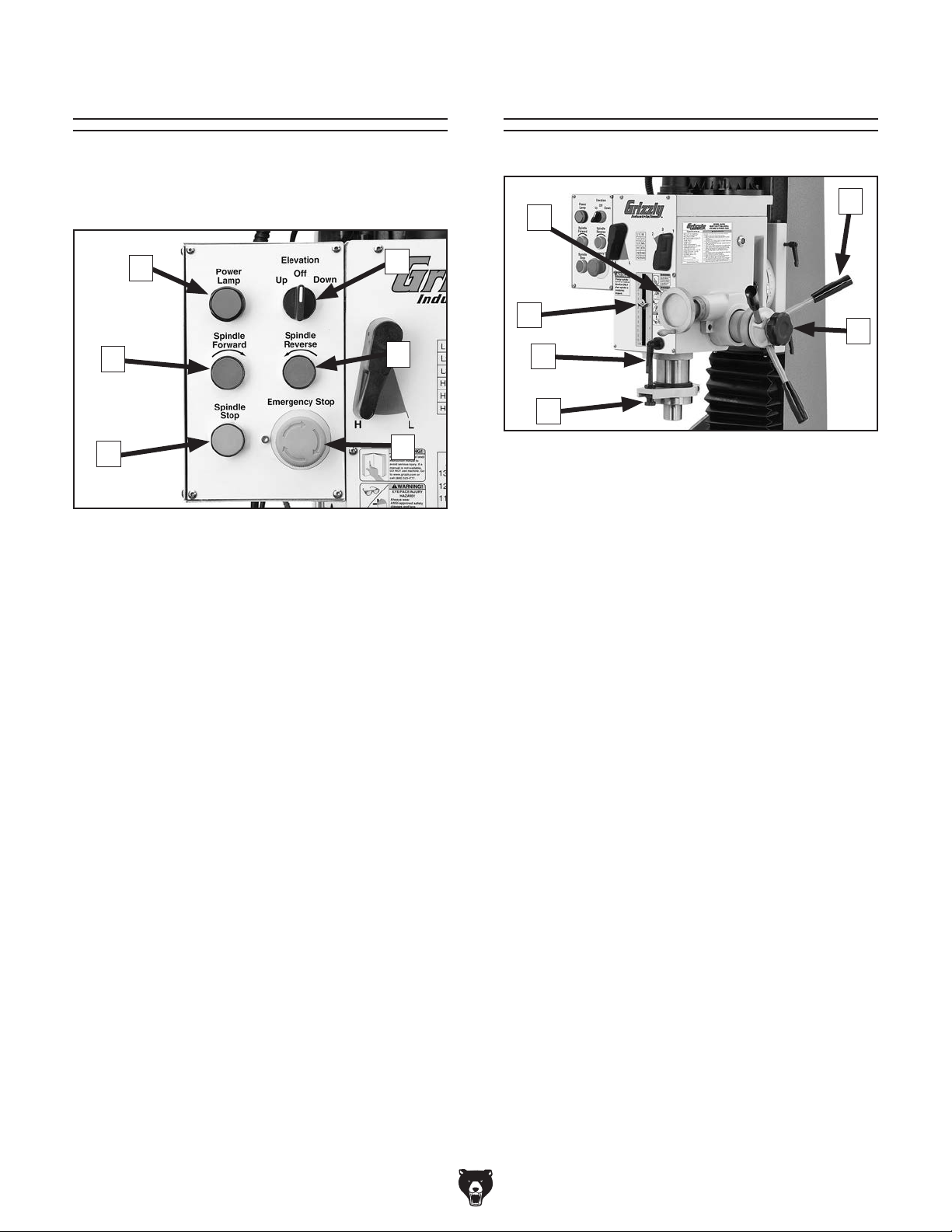

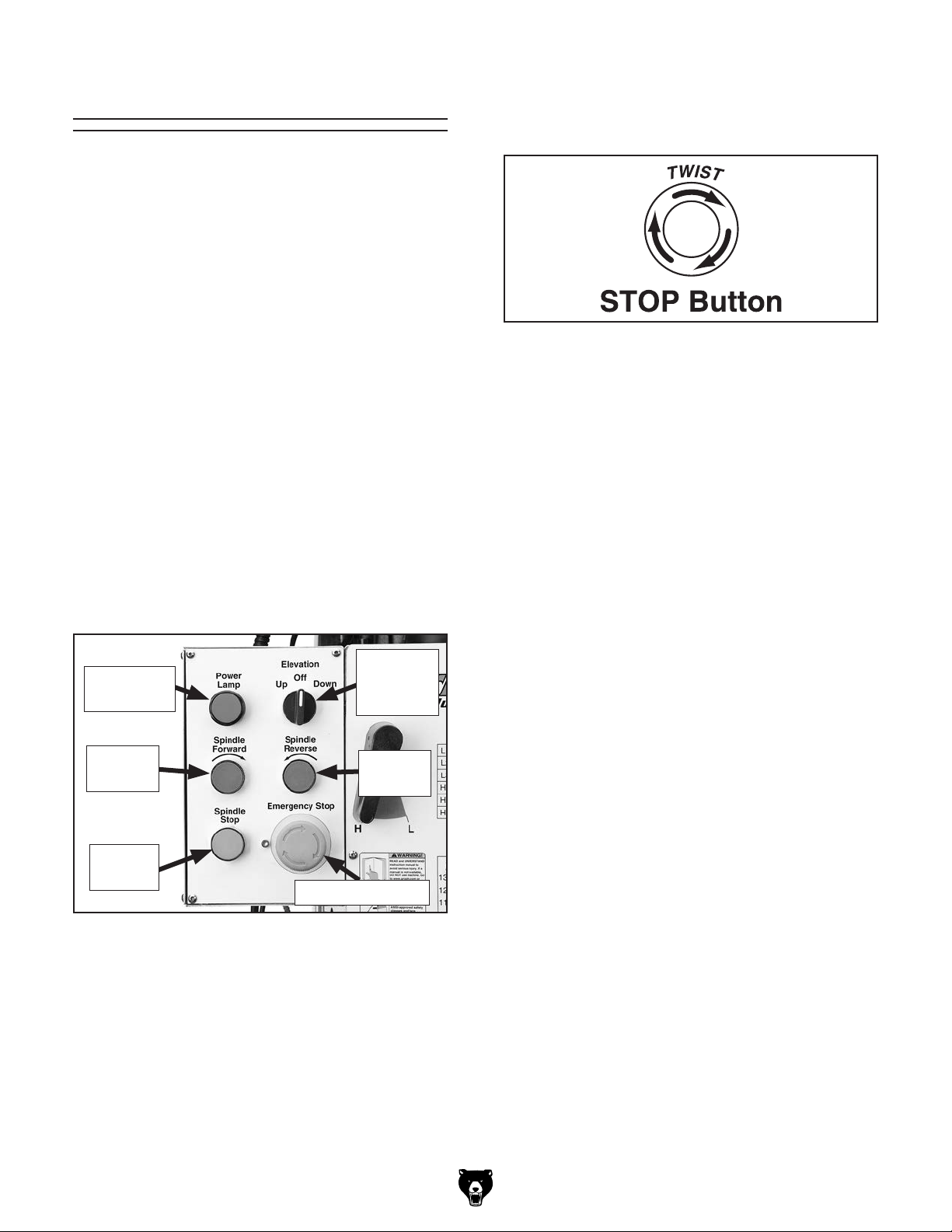

Control Panel ............................................... 20

Downfeed Controls ...................................... 20

Identification ...................................................... 20

Using Coarse Downfeed ................................... 20

Using Fine Downfeed ....................................... 20

Depth Stop ................................................... 21

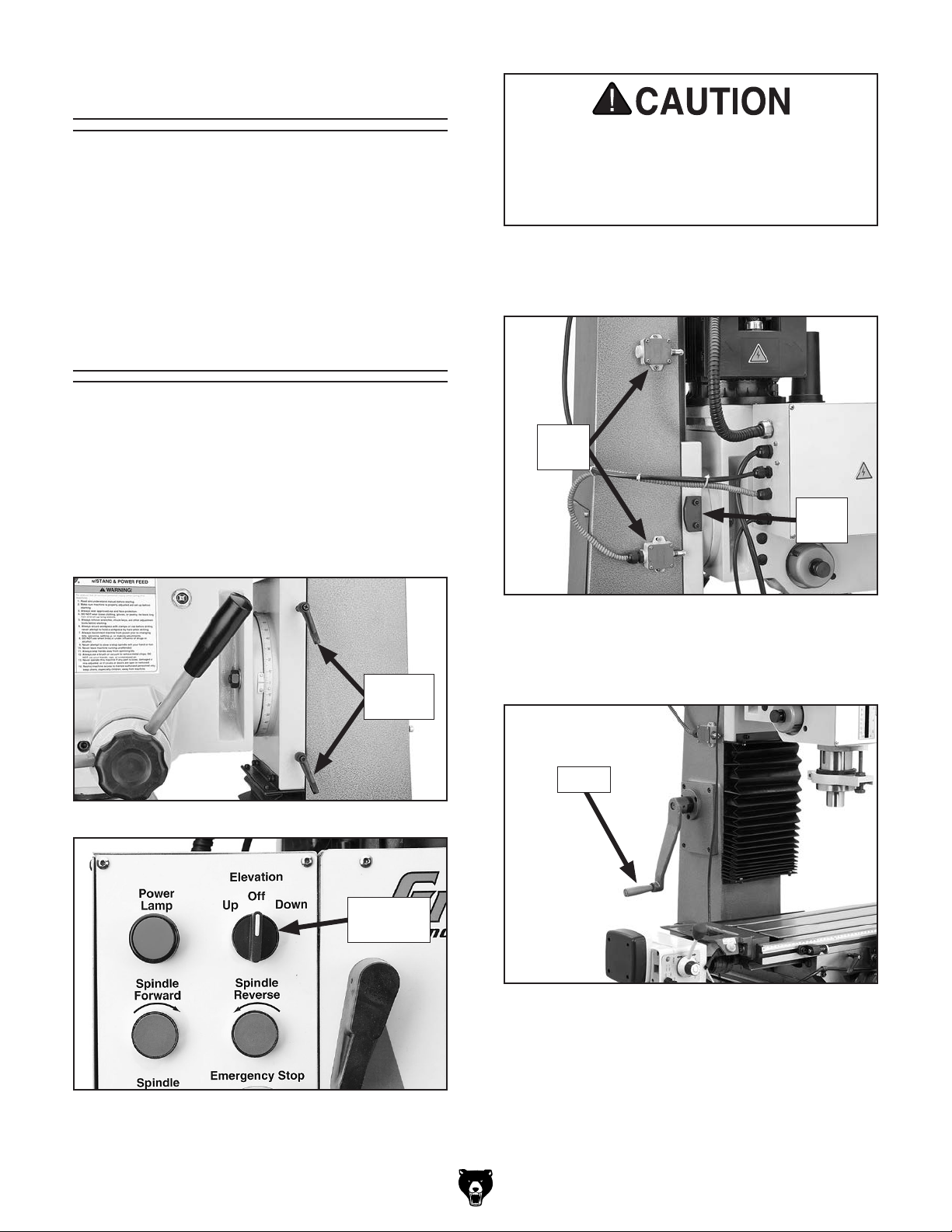

Headstock Movement .................................. 21

Raising/Lowering Headstock ............................21

Tilting Headstock ..............................................22

Table Travel ................................................. 22

Graduated Dials ................................................ 22

X- & Y-Axis Handwheels ................................... 23

X-Axis Power Feed ........................................... 23

Installing/Removing Tooling ......................... 24

Installing Tool Holder ........................................ 24

Removing Tool Holder ...................................... 25

Spindle Speed.............................................. 25

Determining Spindle Speed .............................. 25

Setting Spindle Speed ......................................26

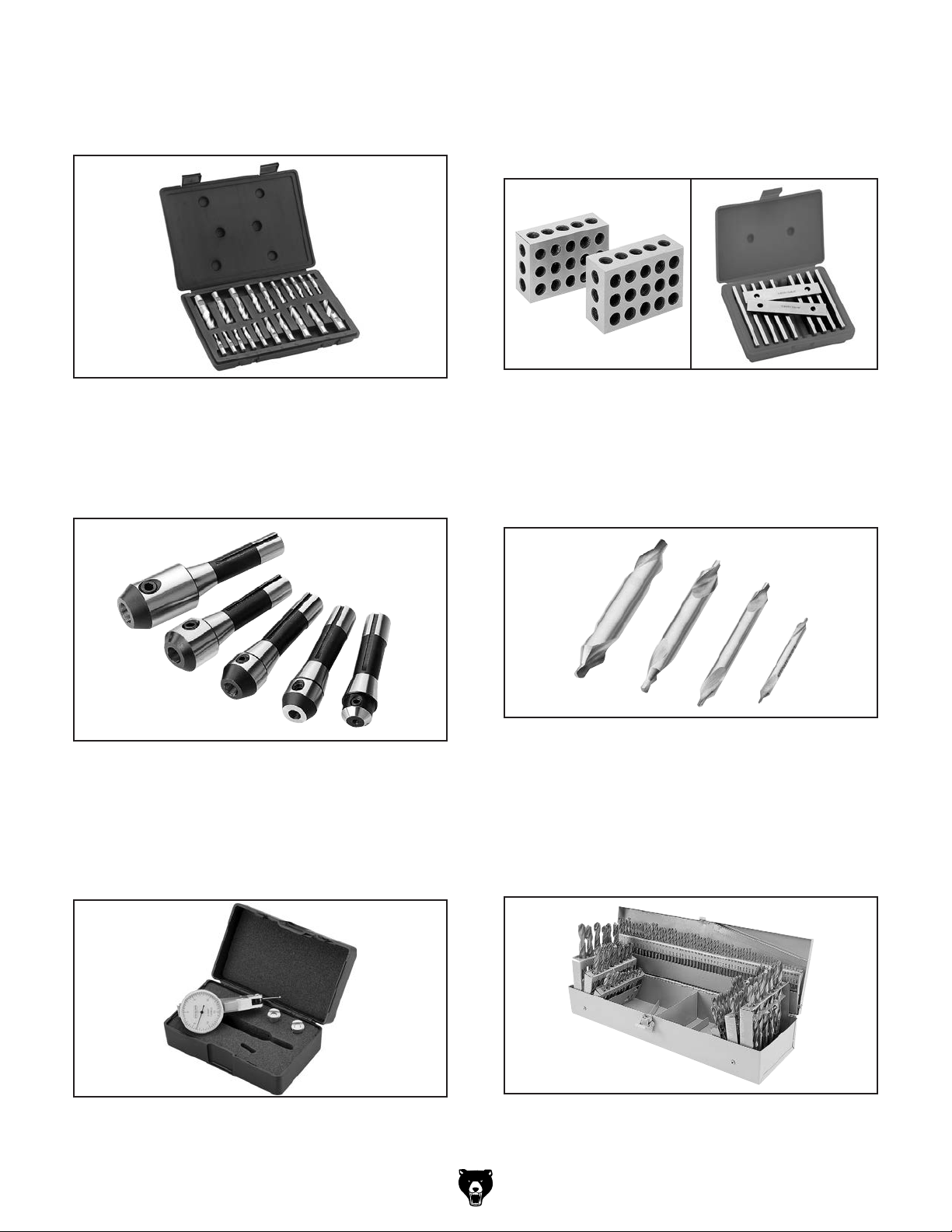

SECTION 5: ACCESSORIES ......................... 27

SECTION 6: MAINTENANCE ......................... 30

Schedule ...................................................... 30

Cleaning and Protecting .............................. 30

Lubrication ................................................... 30

Headstock Reservoir ......................................... 31

Ball Oilers .......................................................... 32

Table/Column Ways & Quill .............................. 32

Table Leadscrews ............................................. 33

Quill Rack & Pinion ........................................... 33

Z-Axis Leadscrew .............................................34

SECTION 7: SERVICE ................................... 35

Troubleshooting ........................................... 35

Adjusting Gibs .............................................. 37

Adjusting Leadscrew Backlash .................... 37

Tramming Spindle ........................................ 38

Replacing Power Feed Carbon Brushes ..... 39

Tightening Return Spring Tension ............... 40

SECTION 8: WIRING ...................................... 41

Wiring Safety Instructions ............................ 41

Electrical Box Wiring .................................... 42

Motors & Other Electrical Wiring ................. 43

SECTION 9: PARTS ....................................... 46

Head ............................................................ 46

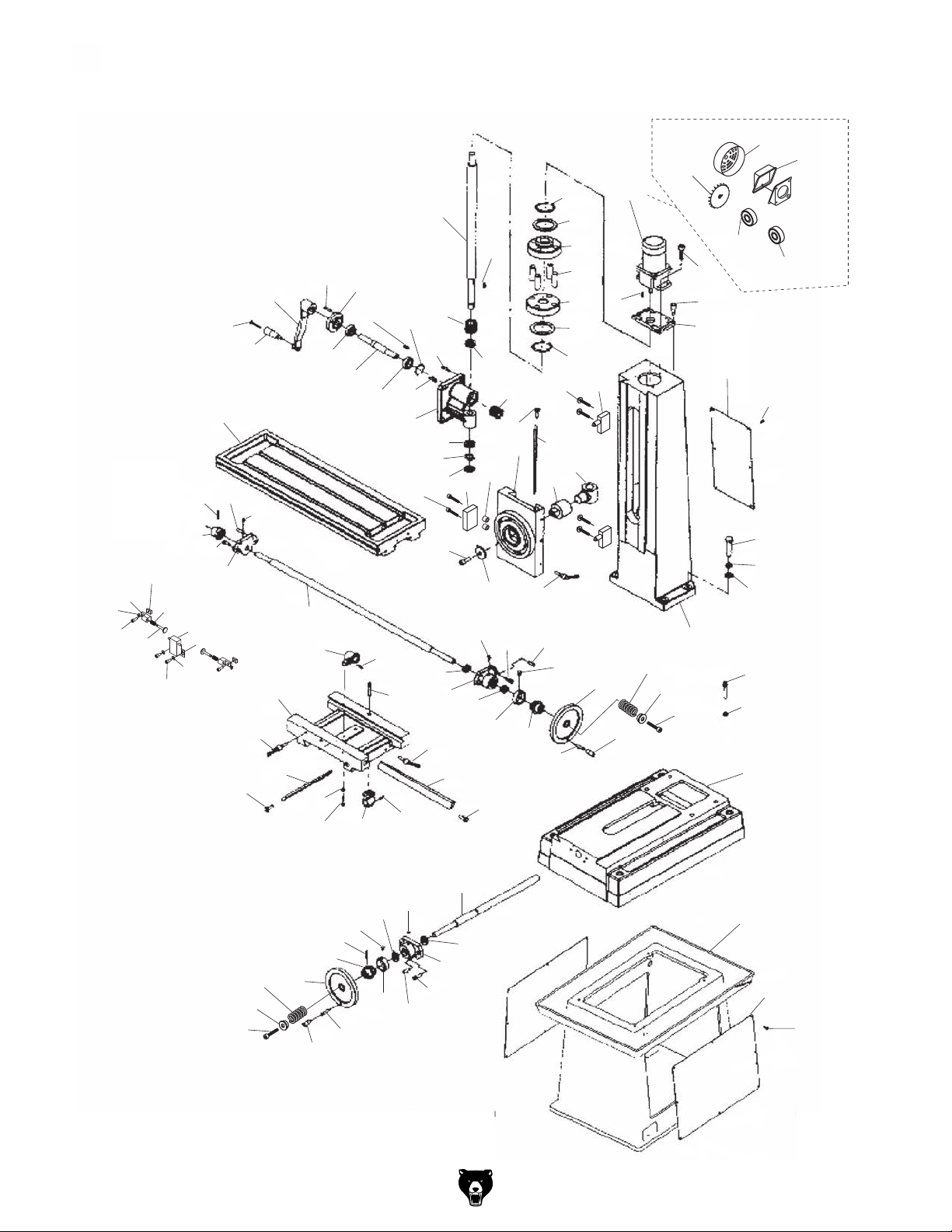

Table & Column ........................................... 49

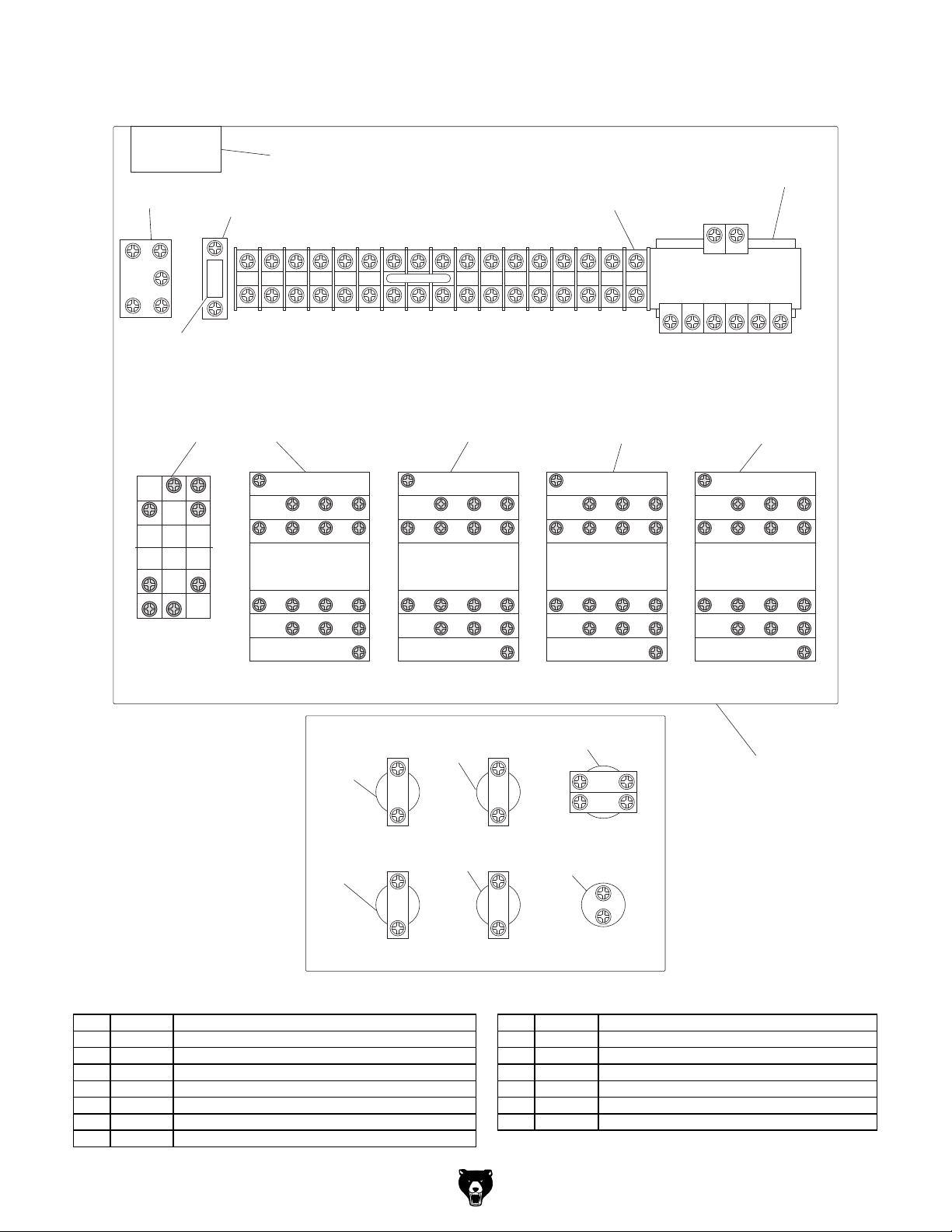

Electrical Components ................................. 51

Power Feed.................................................. 52

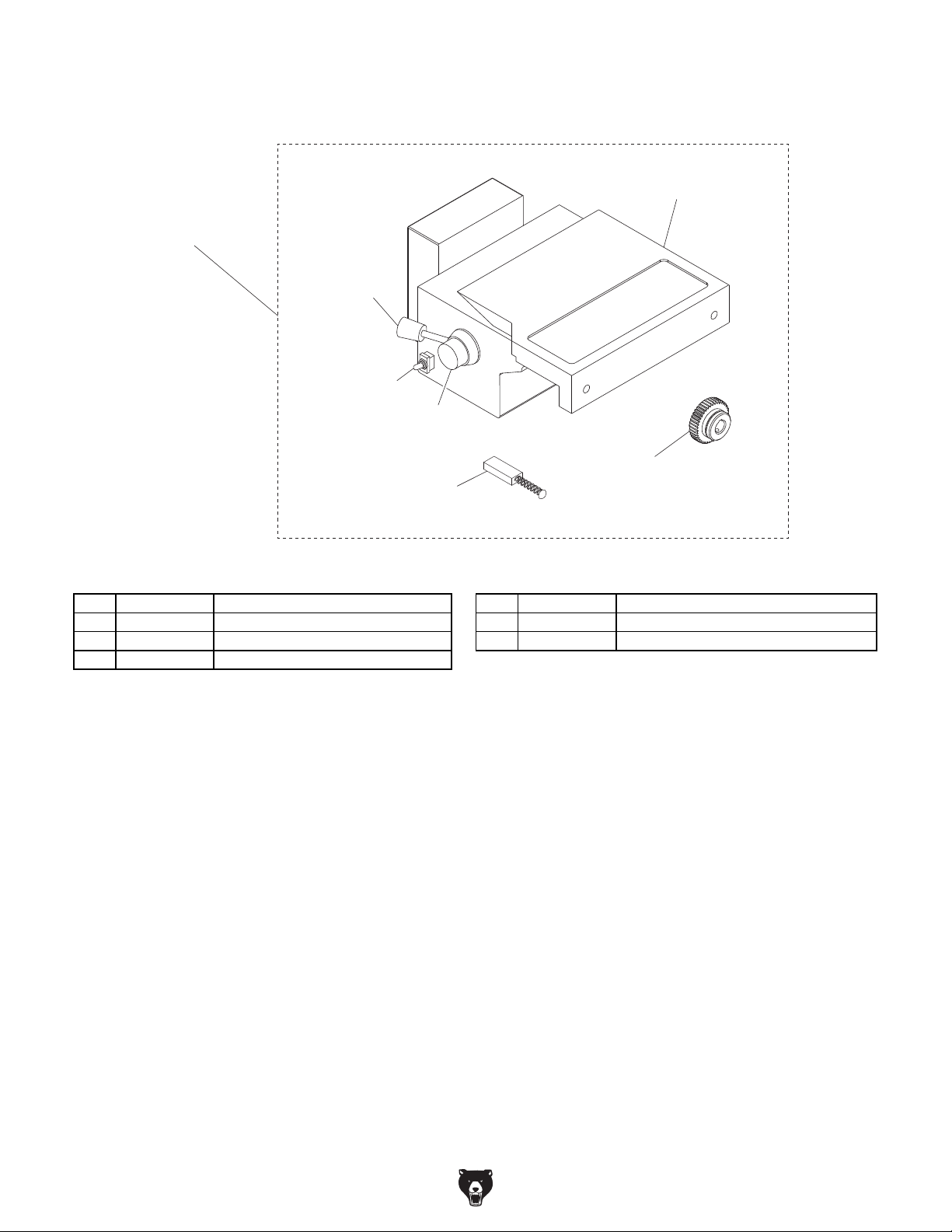

Accessories .................................................. 53

Machine Labels & Cosmetics ...................... 54

WARRANTY & RETURNS ............................. 57

INTRODUCTION

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs contained inside. Sometimes we make mistakes, but

also

means that

you receive will be slightly different than what is shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused about a procedure for an updated version. W

manuals

and

www.grizzly.com

Alternatively, you can call our Technical Support for help. Before calling, please write down the

Manufacture Date

stamped into the machine ID label (see below). This information helps us determine if updated documentation is available for your machine.

We stand behind our machines. If you have any questions or need help, use the information below to contact us. Before contacting, please get the serial number and manufacture date of your machine. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Machine Description

The Model G0755 is a free-standing mill/drill that strikes a great balance between being heavy-duty and high-precision.

The spindle is equipped with precision P5 spindle bearings and is driven by an oil-bath-lubricated and gear-driven headstock. The spindle is fully reversible and features both coarse and fine downfeed controls. The six spindle speeds range from 90–1970 RPM and are controlled by convenient gear-change levers.

The headstock tilts 90° left/right and moves in the Z-axis along precision dovetailed ways—with both manual and powered elevation control. The table also features both manual and powered X-axis control, but with a manually-controlled Y-axis. All table movement is along scraped dovetail ways.

Contact Info

Manual Accuracy

made every effort to be exact with the

our policy of continuous improvement

sometimes the machine

, check our website

e post current

manual updates for free on our website at

and Serial Number

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

Manufacture Date

Serial Number

-2-

Model G0755 (Mfg. Since 1/13)

To reduce your risk of serious injury, read this entire manual BEFORE

Control

Panel

X-Axis

Power Feed

Z-Axis

Motor

Z-Axis

Crank

Identification

Spindle

Motor

Spindle Speed

Levers

Coarse Downfeed

Levers

Fine Downfeed

Handwheel

Quill &

Spindle

X-Axis

Handwheel

Stand

w/Splash Pan

Mounting

Location

Work

Table

Y-Axis

Handwheel

using machine.

Model G0755 (Mfg. Since 1/13)

-3-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0755 HEAVY-DUTY MILL/DRILL WITH STAND AND

POWER FEED

Product Dimensions:

Weight.............................................................................................................................................................. 992 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 49-1/2 x 34-1/2 x 75-1/4 in.

Footprint (Length x Width)............................................................................................................................ 29 x 21 in.

Space Required for Full Range of Movement (Width x Depth).................................................................... 68 x 34 in.

Shipping Dimensions:

Type.......................................................................................................................................................... Wood Crate

Content........................................................................................................................................................... Machine

Weight............................................................................................................................................................ 1102 lbs.

Length x Width x Height........................................................................................................... 49 x 36-3/4 x 80-3/4 in.

Must Ship Upright................................................................................................................................................... Yes

Electrical:

Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 220V

Full-Load Current Rating....................................................................................................................................... 8.6A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 6 ft.

Power Cord Gauge......................................................................................................................................... 14 AWG

Plug Included........................................................................................................................................................... No

Recommended Plug Type..................................................................................................................................... 6-15

Switch Type.................................................................................................... Magnetic Switch w/Overload Protection

-4-

Motors:

Main

Type................................................................................................................. TEFC Capacitor-Start Induction

Horsepower................................................................................................................................................ 2 HP

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 8.6A

Speed................................................................................................................................................ 1725 RPM

Power Transfer ................................................................................................................................. Gear Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Elevation

Type................................................................................................................. TEFC Capacitor-Start Induction

Horsepower............................................................................................................................................. 1/8 HP

Phase............................................................................................................................................ Single-Phase

Amps......................................................................................................................................................... 0.75A

Speed................................................................................................................................................ 1725 RPM

Power Transfer ................................................................................................................................. Gear Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Model G0755 (Mfg. Since 1/13)

Main Specifications:

Made in ISO 9001 Factory

Operation Info

Spindle Travel.............................................................................................................................................. 5 in.

Max Distance Spindle to Column............................................................................................................... 10 in.

Max Distance Spindle to Table.................................................................................................................. 18 in.

Longitudinal Table Travel (X-Axis)............................................................................................................. 17 in.

Cross Table Travel (Y-Axis).................................................................................................................. 7-7/8 in.

Vertical Head Travel (Z-Axis).............................................................................................................. 13-3/4 in.

Head Tilt (Left/Right)....................................................................................................................... 90 / 45 deg.

Drilling Capacity for Cast Iron................................................................................................................ 1-3/4 in.

Drilling Capacity for Steel...................................................................................................................... 1-1/4 in.

End Milling Capacity.............................................................................................................................. 1-1/4 in.

Face Milling Capacity............................................................................................................................ 3-1/8 in.

Table Info

Table Length........................................................................................................................................ 31-1/2 in.

Table Width........................................................................................................................................... 9-1/2 in.

Table Thickness.................................................................................................................................... 1-5/8 in.

Number of T-Slots............................................................................................................................................ 3

T-Slot Size................................................................................................................................................ 1/2 in.

T-Slots Centers...................................................................................................................................... 3-1/8 in.

Spindle Info

Spindle Taper............................................................................................................................................... R-8

Number of Vertical Spindle Speeds.................................................................................................................. 6

Range of Vertical Spindle Speeds............................................................................................. 90 – 1970 RPM

Quill Diameter.............................................................................................................................................. 3 in.

Drawbar Thread Size............................................................................................................................. 7/16-20

Drawbar Length................................................................................................................................... 17-3/4 in.

Spindle Bearings.................................................................................................... P5 Tapered Roller Bearings

Construction

Spindle Housing/Quill........................................................................................................................... Cast Iron

Table....................................................................................................................... Precision-Ground Cast Iron

Head.................................................................................................................................................... Cast Iron

Column/Base....................................................................................................................................... Cast Iron

Base..................................................................................................................................................... Cast Iron

Stand.................................................................................................................................................... Cast Iron

Paint....................................................................................................................................................... Enamel

Other Specifications:

Country Of Origin ............................................................................................................................................... China

Warranty ........................................................................................................................................................... 1 Year

Approximate Assembly & Setup Time .............................................................................................................. 1 Hour

Serial Number Location ........................................................................................................... ID Label on Headstock

ISO 9001 Factory .................................................................................................................................................. Yes

CSA Certified .......................................................................................................................................................... No

Features:

Motorized Head Elevation Spindle Speeds Controlled w/Gearhead Levers Longitudinal Variable-Speed Power Feed Fine Downfeed Control Adjustable Spindle Depth Stop Reversible Spindle Rotation for Tapping Operations High-Precision P5 (ABEC-5 Equivalent) Spindle Bearings Dovetail Column Scraped Dovetail Ways

Model G0755 (Mfg. Since 1/13)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model G0755 (Mfg. Since 1/13)

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control.

HAZARDOUS DUST. Dust created while using machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, and always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect machine for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly.

Model G0755 (Mfg. Since 1/13)

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-7-

Additional Safety for Mill/Drills

UNDERSTANDING CONTROLS. Make sure you

understand the use and operation of all controls before starting the mill/drill.

SAFETY ACCESSORIES. To reduce the risk of injury from flying chips, always use a face shield in addition to safety glasses when using the mill/drill.

CL E AN - U P. Metal chips can cut your hands. DO NOT clear chips by hand or compressed air that can force the chips farther into the machine. Use a brush or vacuum, and never clear chips while the spindle is turning.

SECURING TOOLING. Objects that are thrown by the spinning action of the mill/drill can be deadly missiles. Always firmly secure the cutting tool before starting the machine. Always remove the chuck key, drawbar wrench, and any tools immediately after use.

CUTTING TOOL INSPECTION. Inspect cutting tools for sharpness, chips, or cracks before each use. Replace dull, chipped, or cracked cutting tools immediately. Handle cutting tools with care. Leading edges are very sharp and can cause lacerations.

STOPPING SPINDLE. Serious injury may occur if you try to stop the moving spindle by hand. DO NOT stop the spindle using your hand or any other object. Allow the spindle to stop on its own.

WORK HOLDING. A workpiece that moves unexpectedly during operation can be ejected from the machine, causing personal injury or property damage. Before starting the machine, be certain the workpiece is properly clamped to the table. NEVER hold the workpiece by hand during operation.

MACHINE CARE AND MAINTENANCE. Never operate the mill/drill with damaged or worn parts that can break apart during operation. Maintain your mill/drill in proper working condition. Perform routine inspections and maintenance promptly. Put tools away after use.

MAINTENANCE/ADJUSTMENTS. To avoid possible electrocution or physical injury, make sure the mill is turned OFF, disconnected from power, and all moving parts have come to a complete stop before changing cutting tools or starting any inspection, adjustment or maintenance procedure.

SPINDLE SPEEDS. For safe and good results, select the spindle speed that is correct for the type of work and material. Allow the spindle to reach full speed before beginning a cut.

POWER DISRUPTION. In the event of a local power outage during operation, turn spindle switch OFF to avoid a possible sudden start up once power is restored.

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

-8-

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

Model G0755 (Mfg. Since 1/13)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrican or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the following requirements:

For your own safety and protection of

Note: The circuit requirements listed in this manual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Availability

supply.

Full-Load Current Rating

Circuit Requirements for 220V

Nominal Voltage ........................................220V

Cycle ..........................................................60 Hz

Phase .................................................... 1-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 6-15

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 220V .... 9.4 Amps

Model G0755 (Mfg. Since 1/13)

-9-

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding Instructions

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

Serious injury could occur if you connect

The power cord and plug specified under “Circuit Requirements for 220V” has an equipment-grounding wire and a grounding prong. The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances (see figure below).

No adapter should be used with the required plug. If the plug does not fit the available receptacle, or the machine must

on the previous page

GROUNDED

6-15 RECEPTACLE

Current Carrying Prongs

6-15 PLUG

Serious injury could occur if you connect the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

Grounding Prong

Figure 1. Typical 6-15 plug and receptacle.

the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

be reconnected for use on a different type of circuit, the reconnection must be made by a qualified electrician and comply with all local codes and ordinances.

-10 -

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0755 (Mfg. Since 1/13)

SECTION 3: SETUP

Your machine was carefully packaged for safe transportation. Remove the packaging materials from around your machine and inspect it. If you discover any damage, please call us immediately

at (570) 546-9663

Save the containers and all packing materials for possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condition of your shipment, inventory the contents.

Keep children and pets away from plastic bags or packing materials shipped with this

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Unpacking

for advice.

SUFFOCATION HAZARD!

machine. Discard immediately.

Inventory

Small Item Inventory (Figure 2): Qty

A. Handwheel Handles w/Screws ................... 2

B. T-Bolts M12-1.75 x 55 w/Washers & Nuts .. 2

C. Bottle for Oil ............................................... 1

D. Toolbox ....................................................... 1

E. Open-End Wrenches 17/19, 22/24mm ..1 Ea

F. Hex Wrench Set 2.5, 3, 4, 5, 10mm ......1 Ea

G. Drift Key ...................................................... 1

H. Drill Chuck B16, 1–13mm w/Chuck Key ..... 1

I. Spindle Sleeve R-8–MT#3 ......................... 1

J. Drill Chuck Arbor R-8–B16 ......................... 1

K. Spindle Sleeve MT#3–MT#2 ...................... 1

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Additional People ....................................... 2

• Safety Glasses ........................ 1 Per Person

• Cleaner/Degreaser (Page 12) .... As Needed

• Disposable Shop Rags ............... As Needed

• Forklift (rated for at least 1500 lbs.) ............ 1

• Solid Steel Rod 1" Dia. x 42" L .................. 2

• Slotted Screwdriver #2 ............................... 1

If you cannot find an item on the inventory list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Model G0755 (Mfg. Since 1/13)

Figure 2. Small item inventory.

-11-

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avoid using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from your machine during clean up.

Figure 3. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

-12-

Model G0755 (Mfg. Since 1/13)

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Physical Environment

Extreme conditions for this type of machinery are

range exceeds 20–95% (non-condensing); or the

Place this machine near an existing power source.

other hazards. Make sure to leave enough space

Shadows, glare, or strobe effects that may distract or impede the operator must be eliminated.

Machine Data Sheet for the weight

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions.

generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity

environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or

around machine to disconnect power supply or apply a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

Figure 4. Minimum working clearances.

Model G0755 (Mfg. Since 1/13)

34"

68"

-13-

Lifting & Placing

get help from other people

HEAV Y LIFT! Straining or crushing injury may occur from improperly lifting machine or some of its parts. To reduce this risk,

and use a fork lift (or other lifting equipment) rated for weight of this machine.

Power lifting equipment, steel rods (refer to Page 11), and at least two other people are required to lift and place the mill.

4. Insert steel rods into holes in stand, as shown in Figure 5.

Steel Rods

To move your machine into position:

1. Remove outside crating material from ship-

ping crate, but leave machine bolted to pallet (for now).

2. Move machine next to its intended installation location, then unbolt it from pallet.

3. To help balance machine during moving, position table as close to column as possible, and adjust headstock to its lowest position.

Figure 5. LIfting setup.

5. Evenly position forklift forks under steel rods

on each side of cabinet.

Note: Before next step, make sure all locks

are tight to avoid sudden shifts which could unbalance machine.

6. With help of additional people to steady load, slowly lift machine, remove pallet, then lower machine into position.

-14-

Model G0755 (Mfg. Since 1/13)

Anchoring machinery to the floor prevents tipping or shifting and reduces vibration that may occur during operation, resulting in a machine that runs slightly quieter and feels more solid.

If the machine will be installed in a commercial or workplace setting, or if it is permanently connected (hardwired) to the power supply, local codes may require that it be anchored to the floor.

If not required by any local codes, fastening the machine to the floor is an optional step. If you choose not to do this with your machine, we recommend placing it on machine mounts, as these provide an easy method for leveling and they have vibration-absorbing pads.

Anchoring to Floor

Lag shield anchors with lag screws (see below) are a popular way to anchor machinery to a concrete floor, because the anchors sit flush with the floor surface, making it easy to unbolt and move the machine later, if needed. However, anytime local codes apply, you MUST follow the anchoring methodology specified by the code.

Anchoring to Concrete Floors

Assembly

Except for the handwheel handles, the mill/drill was fully assembled at the factory.

Use a slotted screwdriver to attach the handwheel handles, as shown in Figure 7.

Handwheel

Handles

Lag Screw

Machine Base

Concrete

Figure 6. Popular method for anchoring

machinery to a concrete floor.

Flat Washer

Lag Shield Anchor

Drilled Hole

Figure 7. Handwheel handles attached.

Model G0755 (Mfg. Since 1/13)

-15-

Joining Drill Chuck

& Arbor

Lubricating Mill/Drill

An arbor is included for the drill chuck that comes with this machine. The following procedure describes how to install the arbor in the chuck.

After the arbor is installed in the drill chuck, it is very difficult to separate the assembly. If you would like to use a different chuck in the future, we recommend obtaining a new arbor.

Important: DO NOT install the drill chuck and arbor assembly into the spindle until AFTER the test run.

To join the drill chuck and arbor:

1. Use acetone or lacquer thinner to clean drill

chuck and arbor mating surfaces, especially the bore.

2. Retract chuck jaws completely into chuck.

3. Insert small end of arbor into chuck.

GEARBOX MUST

BE FILLED WITH OI L!

OIL MAY NOT BE

SHIPPED WITH MACHINE!

Refer to Lubrication Section

for Correct Oil Type.

The headstock oil reservoir must be properly filled with oil before the mill/drill can be operated for the first time.

Damage caused by running the mill/drill without the proper amount of oil in the reservoir will not be covered under warranty. Refer to the Lubrication section, beginning on Page 30, for details on how to check and add oil.

4. Hold assembly by the arbor and tap chuck onto a block of wood with medium force, as illustrated in Figure 8.

Figure 8. Tapping drill chuck/arbor on block of

wood.

5. Attempt to separate drill chuck and arbor by hand —if they separate, repeat Steps 3–4.

-16 -

Model G0755 (Mfg. Since 1/13)

Test Run

The purpose of the test run is to verify that the machine functions properly and is ready for regular operation.

Before beginning this procedure, make sure: (1) you understand the safety instructions at the beginning of this manual, (2) the machine is set up properly, and (3) all tools and objects used during setup are cleared away from the machine.

IMPORTANT: If the machine or its components do not function as described, or if the machine has unusual noises or vibrations, immediately turn it OFF and disconnect power.

For your convenience, a Troubleshooting table is provided on Page 35. If you cannot find a remedy, contact our Tech Support at (570) 546-9663 for assistance.

To test run the machine:

1. Push Emergency Stop button (see Figure 9).

4. Twist Emergency Stop button clockwise until

it pops out—this resets the switch so the machine can be started (see Figure 10).

Figure 10. Resetting the switch.

5. Push the Power Lamp/ON button to enable

power to the motor—the lamp should light.

6. Push Spindle Forward button to start machine. A correctly operating machine runs smoothly with little or no vibration or rubbing noises.

7. Press Emergency Stop button to stop machine.

8. WITHOUT resetting Emergency Stop button, press Spindle Forward button—the machine should not start.

Elevation

Power/ON

Lamp

Spindle

Forward

Spindle

Stop

Emergency Stop

Figure 9. Control panel.

2. Rotate Elevation Power Feed switch to OFF.

3. Connect machine to power source by insert-

ing power cord plug into matching receptacle.

Power

Feed

Spindle

Reverse

—If the machine does start (with the

Emergency Stop button pushed in), immediately disconnect machine from power.

The Emergency Stop button safety feature

is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

9. Reset Emergency Stop button and use Elevation Power Feed switch to raise and lower headstock.

The Test Run is complete. Before beginning any regular operations, perform the Spindle Break-In procedure on the next page.

Model G0755 (Mfg. Since 1/13)

-17-

Spindle Break-In

Before placing operationql loads on the spindle, complete this break-in procedure to fully distribute lubrication throughout the bearings and ensure trouble-free performance.

Failure to complete the spindle break-in process may lead to premature failure of the bearings—this will not be covered under warranty.

To perform the spindle break-in procedure:

1. Make sure the spindle is completely stopped,

then set spindle speed to 90 RPM (refer to

Page 26 for detailed instructions).

Inspections &

Adjustments

The following list of adjustments were performed at the factory before the machine was shipped:

• Gib Adjustments ..............................Page 37

• Leadscrew Backlash

Adjustments .....................................Page 37

• Return Spring Tension .................... Page 40

Be aware that machine components can shift during the shipping process. Pay careful attention to these adjustments during operation of the machine. If you find that the adjustments are not set according to the procedures in this manual or your personal preferences, re-adjust them.

Do not leave the mill/drill unattended during the Spindle Break-In procedure. If your attention is needed elsewhere during this procedure, stop the mill/drill and restart the procedure later from the beginning.

2. Run machine for a minimum of 10 minutes.

3. Repeat Step 2 for each spindle speed, work-

ing to progressively higher speeds.

Note: If the machine is new, we recommend changing the headstock oil while it is still warm and any particles from the manufacturing process are still in suspension (refer to Page 31 in the Lubrication subsection for detailed instructions).

The spindle break-in is now complete!

-18-

Model G0755 (Mfg. Since 1/13)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual and

rienced research outside of this manual by reading "howto" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

To complete a typical operation, the operator does the following:

1. Examines workpiece to make sure it is suit-

able for cutting.

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

using machine.

To reduce risk of eye or face injury from flying chips, always wear approved safety glasses and a face shield when operating this machine.

2. Puts on protective gear.

3. Securely clamps workpiece to table.

4. With machine disconnected from power,

installs correct cutting tool.

5. Adjusts headstock height above table.

6. Without the machine running, checks range

of table or spindle movement to make sure setup is safe and correct for operation.

7. Selects correct spindle speed.

8. Connects machine to power and turns it ON.

9. Uses downfeed controls or table controls to

perform cutting operation.

10. Turns machine OFF and waits for spindle to completely stop before removing workpiece.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0755 (Mfg. Since 1/13)

-19 -

Control Panel

Downfeed Controls

Refer to Figure 11 and the following descriptions to become familiar with the control panel functions.

Figure 11. Control panel components.

A. Power/ON Lamp Button: Lights when

machine is connected to power. Push this button to enable power to the motor.

Identification

Figure 12. Downfeed controls.

A. Fine Downfeed Handwheel

B. Depth Pointer and Scale

C. Quill Lock Lever

D. Depth Pointer Adjustment Knob

B. Elevation (Z-Axis) Power Feed Switch:

Controls headstock elevation.

C. Spindle Reverse Button: Starts counter-

clockwise spindle rotation.

D. Emergency Stop Button: Cuts power to

spindle and Z-axis motors. This button does NOT disconnect machine from power.

E. Spindle Stop Button: Stops spindle motor.

F. Spindle Forward Button: Starts clockwise

spindle rotation.

E. Downfeed Selector Knob

F. Coarse Downfeed Lever

Using Coarse Downfeed

1. Loosen downfeed selector knob to engage

coarse downfeed levers.

2. Use adjustment knob to adjust depth pointer.

3. Use coarse downfeed levers to lower spindle.

Using Fine Downfeed

1. Tighten downfeed selector knob to engage

fine downfeed handwheel.

2. Use adjustment knob to adjust depth pointer.

3. Rotate fine downfeed handwheel to raise and

lower spindle.

-20-

Model G0755 (Mfg. Since 1/13)

Depth Stop

The depth stop limits the downward movement of the cutting tool. With the use of the depth pointer adjustment knob (see D in Figure 12), it can be adjusted anywhere within 0"–5". This is useful when performing repeat operations.

Headstock

Movement

The headstock travels up and down the column, and tilts 90° left and right relative to the table.

Raising/Lowering Headstock

Loosen the lock handles shown in Figure 13, then use the Elevation (Z-Axis) Switch (see Figure 14) on the control panel to raise/lower the headstock.

The Z-axis crank will rotate rapidly and may cause impact injuries if left attached during powered Z-axis operation. Always remove Z-axis crank before using the switch on the control panel.

The limit stops shown in Figure 15 stop headstock travel when contacted by the limit block.

Limit

Stops

Limit

Block

Lock

Handles

Figure 13. Lock handles for headstock elevation.

Elevation

Switch

Figure 14. Elevation switch that controls

motorized head travel.

Figure 15. Z-axis limit controls.

The headstock can also be raised/lowered by hand using the crank shown in Figure 16.

Crank

Figure 16. Z-axis crank.

Note: Lock the headstock in place by re-tighten-

ing the lock handles before beginning operation to avoid unexpected headstock movement.

Model G0755 (Mfg. Since 1/13)

-21-

Tilting Headstock

1. Use a 22mm wrench to loosen the three lock-

ing hex nuts (see Figures 17–18), then tilt headstock to desired angle on tilt scale.

Tilt

Scale

Hex Nut

Table Travel

The table travels in two directions, as illustrated in Figure 19. These movements are controlled by handwheels and the X-axis power feed. When using the power feed, travel is limited by the position of the limit stops along the front of the table.

X-Axis or Longitudinal Travel

(Left & Right)

Y-Axis or Cross Travel (In & Out)

Figure 19. The directions of table movement.

Figure 17. Tilt locking hex nut

(one on each side of head).

Hex Nut

Figure 18. Hex nut underneath head.

2. Lock headstock in place by re-tightening the

three hex nuts.

Graduated Dials

The handwheels have graduated scales that are used to determine table movement in 0.001" increments. One full revolution of the handwheel equals 0.100" of table movement.

Loosen the locking thumb screw shown in Figure 20, adjust the graduated dial to “zero” it for a relative starting point, then re-tighten the thumb screw.

Graduated Dial

When tilting the head back to 90°, you will need to tram the spindle with the table to ensure a that it is set perfectly. Refer to the Tramming Spindle section on Page 38 for detailed instructions.

-22-

Thumb Screw

Figure 20. Graduated dial and locking thumb

screw.

Model G0755 (Mfg. Since 1/13)

X- & Y-Axis Handwheels

Use Figure 21 and the following descriptions to become familiar with the X- and Y-axis manual table movement.

X-Axis Power Feed

Use Figures 22–23 and the following descriptions to become familiar with the power feed controls.

Figure 21. Table locks and limit stops.

A. Y-Axis Handwheel: Moves table back and

forth.

B. X-Axis Table Locks: Increase rigidity of

table when X-axis movement is not required for operation.

C. Y-Axis Table Lock: Increase rigidity of table

when Y -axis movement is not required for operation.

Figure 22. X-axis power feed controls.

Figure 23. Limit switch and limit stops.

D. X-Axis Handwheel: Moves table side to

side.

A. ON/OFF Light: Lights when unit is turned

ON.

B. Direction Lever: Controls direction of pow-

ered table travel.

C. Rapid Switch: When held down, moves

table rapidly in chosen direction.

D. Power Light: Lights when unit is connected

to power.

E. Speed Dial: Controls rate of power feed.

F. ON/OFF Switch

G. X-Axis Limit Stops: Adjustable along front

of table to restrict X-axis table movement, particularly when using the power feed.

H. Limit Switch: Stops power feed when con-

tacted by a limit stop.

Model G0755 (Mfg. Since 1/13)

-23-

Installing/Removing

Tooling

The Model G0755 includes the following spindle tools (see Figure 24):

Installing Tool Holder

Tool Needed Qty

Wrench 19mm ................................................... 1

To install tool holder:

1. DISCONNECT MACHINE FROM POWER!

A. B16 Drill Chuck w/R-8 Arbor: Use with drill

bits.

B. R-8–MT#3 Spindle Sleeve: Use with MT#3

tooling with or without a tang. Has a drift key slot for tool removal.

C. MT#3–MT#2 Spindle Sleeve: Use with the

R-8–MT#3 spindle sleeve for MT#2 tooling. Has a drift key slot for tool removal.

Alignment Slot

Figure 24. Drill chuck and arbors included with

Model G0755.

Drift Key Slot

2. Remove drawbar cap as shown in Figure 25.

Drawbar

Adjustment

Drawbar Cap

Figure 25. Drawbar components.

3. Align tool holder alignment slot (see Figure

24) with pin inside spindle, then insert tool

holder into spindle until it contacts drawbar.

Note: Drawbar height inside spindle can be

changed by rotating the adjustment nut (see Figure 25).

4. Working from the top, hand-thread drawbar into tool holder until snug, then use a 19mm wrench to tighten it.

Nut

-24-

Cutting tools are sharp and can easily cause laceration injuries. Always protect your hands with leather gloves or shop rags when handling cutting tools.

Note: DO NOT overtighten drawbar.

Overtightening makes tool holder removal difficult and could damage arbor and drawbar threads.

5. Re-install drawbar cap.

Model G0755 (Mfg. Since 1/13)

Removing Tool Holder

Tools Needed Qty

Wrench 19mm ................................................... 1

Brass or Dead Blow Hammer ............................ 1

To remove tool holder:

Spindle Speed

Using the correct spindle speed is important for safe and satisfactory results, as well as maximizing tool life.

1. DISCONNECT MACHINE FROM POWER!

2. Remove drawbar cap, and only unthread

drawbar from tool holder one full rotation.

Note: Do not fully unthread tool holder from

drawbar, or drawbar and tool holder threads could be damaged during the next step.

3. Tap top of drawbar with hammer to unseat taper.

4. Hold onto tool holder with one hand and fully unthread drawbar with the other hand.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure the spindle speed levers to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the cutting tool, as noted in the formula shown in Figure 26.

*Recommended

Cutting Speed (FPM) x 12

Tool Dia. (in inches) x 3.14

Spindle

Speed (RPM)

*Double if using carbide cutting tool

Figure 26. Spindle speed formula for mill/drills.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

Model G0755 (Mfg. Since 1/13)

-25-

Setting Spindle Speed

The chart below explains how to position the spindle range and speed levers to set the desired spindle speed.

Spindle Speed Range Lever Speed Lever

90 RPM L 1

210 RPM L 2

345 RPM L 3

670 RPM H 1

118 0 RPM H 2

1970 RPM H 3

Change spindle speed ONLY when the spindle is completely stopped. Otherwise, machine damage could occur.

With the spindle completely stopped, position the spindle range and speed levers (see Figure 27) to set the spindle speed.

Note: If the levers will not move to the desired position, rotate the spindle by hand while applying pressure on the lever. When the gear teeth align, the lever will move into place.

Spindle Speed Chart

Speed

Lever

Range

Lever

Figure 27. Spindle speed controls.

-26-

Model G0755 (Mfg. Since 1/13)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

T23962—ISO 68 Moly-D Way Oil, 5 gal. T23963—ISO 32 Moly-D Machine Oil, 5 gal.

Moly-D oils are some of the best we've found for maintaining the critical components of machinery because they tend to resist run-off and maintain their lubricity under a variety of conditions—as well as reduce chatter or slip. Buy in bulk and save with 5-gallon quantities.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

G1075—52-PC. Clamping Kit for 1⁄2" T-Slots

This clamping kit includes 24 studs, 6 step block pairs, 6 T-nuts, 6 flange nuts, 4 coupling nuts, and 6 end hold-downs. The rack is slotted so it can be mounted close to the machine for easy access.

Figure 28. G1075 52-PC. Clamping Kit.

T23962

Figure 30. ISO 68 and ISO 32 machine oil.

High Pressure Oil Cans H7616—Plastic Nozzle H7617—Flexible Plastic Nozzle

Whether you are lubricating cutting tools or maintaining machinery in top operating condition, you will appreciate these High Pressure Oil Cans. Each can holds 5 ounces of oil and has a triggeractivated, high-pressure pump.

T23963

G7066—5" Tilting/Swiveling Milling Vise H7576—Precision Self-Centering Vise

G7066

H7617

H7576

Figure 29. Specialty milling vises.

Model G0755 (Mfg. Since 1/13)

Figure 31. High Pressure Oil Cans.

H7616

-27-

H7527—6" Rotary Table Set

order online at www.grizzly.com or call 1-800-523-4777

Use this 6" Rotary Table in either the horizontal or vertical position for a variety of milling applications and with the set of dividing plates and adjustable tailstock, your milling applications are nearly unlimited. With 4° table movement per handle rotation and 20 second vernier scale, control

is very accurate and precise. Also includes a

⁄8" clamping set for the 4-slot table. Everything you need in one great set!

SB1348—South Bend® 8-Pc. R-8 Collet Set

SB1349—South Bend

Get true South Bend

16-Pc. R-8 Collet Set

quality and precision with one of these Quick-Change Collet Sets. Each set includes hardened and precision-ground spring collets for maximum holding power, collet chuck, spanner wrench, and protective moulded case.

Figure 32. H7527 6" Rotary Table Set.

H9599—Machine Shop Trade Secrets G5053—The Home Machinist’s Handbook

Excellent reference pages for novices and professionals alike. Each book is filled with drawings charts and tables for getting the most of your milling machine. Model H9599 has 320 pages. Model G5053 has 275 pages.

H9599 G5053

Figure 34. Model SB1349 South Bend 16-Pc.

R-8 Collet Set.

G7156—4" (3 G7154—5" (4 G7155—6" (5

⁄8") Precision Milling Vise

⁄2") Precision Milling Vise

⁄8") Precision Milling Vise

Swiveling Milling Vises feature perfectly aligned,

precision ground jaws, large Acme

screws and

easy to read 0°–360° scales.

Figure 35. G7154 Precision Milling Vise.

Figure 33. Great texts for mill/drills.

-28-

Model G0755 (Mfg. Since 1/13)

order online at www.grizzly.com or call 1-800-523-4777

G9760—20-PC. 2 & 4 Flute TiN End Mill Set.

Includes these sizes and styles in two and four

flute styles:

/16", and 3/4".

/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/8",

G5641—1-2-3 Blocks G9815—Parallel Set

Blocks are square to within .0003". Measure 1" x

2" x 3". Parallel set measures 6" long by

⁄4", 7⁄8", 1", 11⁄8", 11⁄4", 11⁄8", 13⁄8", 11⁄2 ", and 15⁄8".

⁄2 ", 5⁄8",

Figure 36. G9760 20-PC End Mill Set.

G5774—R-8 End Mill Holder Set

Hold various sized end mills in your R-8 spindle with this End Mill Holder Set. Includes holders for

⁄16", 3⁄8", 1⁄2 ", 5⁄8" and 3⁄4" end mills.

Figure 37. G5774 R-8 End Mill Holder Set.

G9612—Test Indicator

This Test Indicator has a 0.03" range in graduations of 0.0005", an easy-to-read dial, and a pivoting stylus that moves at right angles to the dial face.

Figure 39. G5641 1-2-3 Blocks and G9815

Parallel Set.

H5930—4-Pc Center Drill Set 60° H5931—4-Pc Center Drill Set 82°

Double ended HSS Center Drills are precision ground. Includes sizes 1-4.

Figure 40. H5930 4-pc Center Drill Set 60°.

G3658—Titanium Drill Bits

Titanium nitride-coated bits last up to six times as long as uncoated bits. This 115-piece set features

29 fractional bits, from

⁄64", letter bits from A–Z, and 60 number bits.

⁄6" to 1⁄2 " in increments

Housed in rugged steel case.

Figure 38. G9612 Test Indicator.

Figure 41. G3658 Titanium Drill Bits.

Model G0755 (Mfg. Since 1/13)

-29-

SECTION 6: MAINTENANCE

To reduce risk of shock or accidental startup, always disconnect machine from

Cleaning and

Protecting

power before adjustments, maintenance, or service.

Schedule

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Daily Check:

• Loose mounting bolts.

• Damaged tooling.

• Worn or damaged wires.

• Clean debris and built up grime off of machine.

• Any other unsafe condition.

Every 8 Hours of Operation:

• Check/add headstock oil (Page 31).

• Lubricate ball oilers (Page 32).

• Lubricate table/column ways and quill (Page

32).

Metal chips left on the machine will invite oxidation and a gummy residue build-up around the moving parts. Use a brush and shop vacuum to remove chips and debris from the working surfaces of the mill/drill. Never blow off the mill/drill with compressed air, as this will force metal chips deep into the mechanisms and may cause injury to yourself or bystanders.

Remove any rust build-up from unpainted cast iron surfaces of your mill/drill and treat with a nonstaining lubricant after cleaning.

Keep unpainted cast iron surfaces rust-free with regular applications of ISO 68 way oil (see

Page 27 for offerings from Grizzly).

Lubrication

An essential part of lubrication is cleaning the components before lubricating them.

Every 40 Hours of Operation:

• Lubricate table leadscrews (Page 33).

Every 90 Days of Operation:

• Lubricate quill rack and pinion (Page 33).

• Lubricate Z-axis leadscrew (Page 34).

Annually:

• Change headstock oil (Page 31).

-30-

This step is critical because grime and chips build up on lubricated components, which makes them hard to move. Simply adding more lubricant will not result in smooth moving parts.

Clean all exterior components in this section with mineral spirits, shop rags, and brushes before lubricating.

DISCONNECT MACHINE FROM POWER BEFORE PERFORMING LUBRICATION.

NOTICE

Follow reasonable lubrication practices as outlined in this manual. Failure to do so could lead to premature failure of your machine and will void the warranty.

Model G0755 (Mfg. Since 1/13)

Headstock Reservoir

Oil Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount ................................................ 3

Check/Add Frequency ...........8 Hrs. of Operation

Change Frequency ................................ Annually

The headstock has the proper amount of oil when the sight glass is halfway full (see Figure 42).

Sight

Glass

⁄4 Qt.

4. Place a 1-gallon or larger drain pan on the

table under the headstock.

5. Remove the drain plug (see Figure 44) from

underneath the headstock. Allow the oil to completely drain into the pan.

Drain

Plug

Figure 44. Headstock drain plug

(headstock tilted 90° for clarity).

Figure 42. Headstock sight glass.

Tool Needed Qty

Hex Wrench 8mm .............................................. 1

To change the headstock oil:

1. Run the spindle at 670 RPM for approximate-

ly 10 minutes to warm the oil.

2. DISCONNECT MACHINE FROM POWER!

3. Remove the fill plug (see Figure 43).

Fill

Plug

Follow federal, state, and local requirements for proper disposal of used oil.

6. Replace the drain plug.

7. Add oil until the sight glass is halfway full,

then replace the fill plug.

8. Clean up any spilled oil to prevent slipping

hazards.

Figure 43. Headstock oil fill plug.

Model G0755 (Mfg. Since 1/13)

-31-

Ball Oilers

Oil Ty p e ......Model T23963 or ISO 32 Equivalent

Oil Amount ......................................... 1–2 Pumps

Lubrication Frequency ...........8 Hrs. of Operation

Table/Column Ways & Quill

Oil Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount ............................................Thin Coat

Lubrication Frequency ...........8 Hrs. of Operation

Proper lubrication of ball oilers (shown in Figures 45–46) is done with a pump-type oil can that has a plastic or rubberized cone tip (see Page 27 for offerings from Grizzly). We do not recommend using metal needle or lance tips, as they can push the ball too far into the oiler, break the spring seat, and lodge the ball in the oil galley.

Y-Axis

Ball Oiler

Y-Axis Table Ways

Figure 45. Y-axis ball oiler and ways.

Refer to Figures 45–48 to identify each compo- nent to lubricate.

Column

Ways

Figure 47. Column ways.

X-Axis

Ball Oiler

X-Axis

Table Ways

Figure 46. X-axis ball oiler and ways.

Push the tip of the oil can nozzle against the ball oiler to create a hydraulic seal, then pump the oil can once or twice. If you see sludge and contaminants coming out of the lubrication area, continue pumping the oil can until the oil runs clear. When finished, wipe away the excess oil.

Quill

Figure 48. Outside surface of the quill.

Use the component controls to access the entire length of the surfaces, then clean them with mineral spirits and shop rags.

When dry, apply a thin coat of oil to the surfaces. Move each component through the entire path of travel several times to distribute the lubricant.

-32-

Model G0755 (Mfg. Since 1/13)

Table Leadscrews

Oil Ty p e ......Model T23962 or ISO 68 Equivalent

Oil Amount ............................................Thin Coat

Lubrication Frequency .........40 Hrs. of Operation

Quill Rack & Pinion

Oil Ty p e ................NLGI#2 Grease or Equivalent

Oil Amount ............................................Thin Coat

Lubrication Frequency ....... 90 Days of Operation

Move the table as necessary to access the entire length of the X- and Y-axis leadscrews (see Figures 49–50), then use mineral spirits, shop rags, and a brush to clean them.

X-Axis Leadscrew

Figure 49. X-axis leadscrew.

Note: Use a 4mm hex wrench to remove the way

cover from the column and access the Y-axis leadscrew.

Y-Axis Leadscrew

Move the quill up and down to gain full access to the rack and pinion (see Figure 51), then clean the teeth with mineral spirits, shop rags, and a brush.

Pinion

Rack

Figure 51. Quill rack and pinion.

Use a brush to apply a thin coat of grease to the teeth, then raise/lower the quill several times to distribute the grease.

Note: Re-apply oil to the smooth outside surface of the quill that was removed during the cleaning process.

Figure 50. Y-axis leadscrew.

Use a clean brush to apply a thin coat of oil to the leadscrew threads, then move the table through the X- and Y-axis paths to distribute the oil.

Replace the way cover before connecting the machine to power.

Model G0755 (Mfg. Since 1/13)

-33-

Z-Axis Leadscrew

Oil Ty p e ................NLGI#2 Grease or Equivalent

Oil Amount ............................................Thin Coat

Lubrication Frequency ....... 90 Days of Operation

Using a 5mm hex wrench, remove the rear column cover to access the Z-axis leadscrew and worm gear (see Figure 52).

Z-Axis

Leadscrew

Use mineral spirits, shop rags, and a brush to clean away the old grease from the leadscrew threads and the worm gear teeth.

Use a brush to apply a thin coat of grease to the threads and teeth, then raise/lower the headstock several times to distribute the grease.

Note: Replace the rear column cover before reconnecting the machine to power.

Worm

Gear

Figure 52. Z-axis leadscrew and worm gear

exposed.

-34-

Model G0755 (Mfg. Since 1/13)

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start.

Machine stalls or is overloaded.

Machine has vibration or noisy operation.

1. Emergency stop button depressed.

2. Plug at fault or wired incorrectly.

3. Incorrect power supply voltage.

4. Wall fuse/circuit breaker is blown/tripped.

5. Wiring is open/has high resistance.

6. Motor wired incorrectly.

7. Control panel buttons at fault.

8. Motor or motor components are at fault.

1. Feed rate/cutting speed too fast.

2. Wrong cutter type.

3. Machine is undersized for the task or tooling is incorrect for the task.

4. Motor has overheated.

5. Motor wired incorrectly.

6. Motor bearings are at fault.

7. Motor or motor components are at fault.

1. Motor or machine component is loose.

2. Workpiece not secure.

3. Excessive depth of cut.

4. Cutter/tooling is loose.

5. Cutter is dull or at fault.

6. Bit is chattering.

7. Machine is incorrectly anchored to ﬂoor or sits unevenly.

8. Motor fan is rubbing on fan cover.

9. Motor bearings are at fault.

1. Twist emergency stop button clockwise until it pops out to reset it.

2. Ensure plug is not damaged and is wired correctly.

3. Ensure power supply voltage matches circuit requirements (Page 11).

4. Ensure circuit size is correct and a short does not exist. Reset breaker or replace fuse.

5. Check for broken wires or disconnected/corroded connections; repair/replace as necessary.

6. Ensure motor wiring is correct (Page 43).

7. Ensure each button is wired correctly; replace if at fault (Page 42).

8. Test/repair/replace.

1. Decrease feed rate/cutting speed.

2. Use the correct cutter for the task.

3. Use smaller or sharper tooling; reduce feed rate or spindle speed; use cutting ﬂuid if possible.

4. Clean off motor, let cool, and reduce workload.

5. Ensure motor wiring is correct (Page 43).

6. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

7. Test/repair/replace motor.

1. Inspect/replace stripped or damaged bolts/nuts, and re-tighten with thread locking ﬂuid.

2. Properly clamp workpiece on table or in vise.

3. Decrease depth of cut.

4. Make sure tooling is properly secured.

5. Replace/resharpen cutter.

6. Replace/sharpen bit; index bit to workpiece; use appropriate feed rate and cutting RPM.

7. Tighten/replace anchor bolts; relocate/shim machine.

8. Replace dented fan cover or damaged fan.

9. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

Model G0755 (Mfg. Since 1/13)

-35-

Symptom Possible Cause Possible Solution

Tool loose in spindle. 1. Tool is not fully drawn up into

spindle taper.

2. Debris on tool or in spindle taper.

3. Taking too big of a cut.

Breaking tools or cutters. 1. Spindle speed/feed rate is too fast.

2. Cutting tool too small.

3. Cutting tool getting too hot.

4. Taking too big of a cut.

5. Spindle extended too far down.

Workpiece vibrates or chatters during operation.

Table is hard to move. 1. Table locks are tightened down.

Bad surface finish. 1. Spindle speed/feed rate is too fast.

Cutting results not square. 1. Table and spindle are not at 90° to

1. Table locks not tight.

2. Workpiece not secure.

3. Spindle speed/feed rate is too fast.

4. Spindle extended too far down.

2. Chips have loaded up on ways.

3. Ways are dry and need lubrication.

4. Table limit stops are interfering.

5. Gibs are too tight.

2. Using a dull or incorrect cutting tool.

3. Wrong rotation of cutting tool.

4. Workpiece not secure.

5. Spindle extended too far down.

each other.

1. Tighten draw bar.

2. Clean collet and spindle taper.

3. Lessen depth of cut and allow chips to clear.

1. Set spindle speed correctly (Page 25) or use slower feed rate.

2. Use larger cutting tool and slower feed rate.

3. Use coolant ﬂuid or oil for appropriate application.

4. Decrease depth of cut.

5. Fully retract spindle and lower headstock. This increases rigidity.

1. Tighten down table locks.

2. Properly clamp workpiece on table or in vise.

3. Set spindle speed correctly (Page 25) or use a slower feed rate.

4. Fully retract spindle and lower headstock. This increases rigidity.

1. Make sure table locks are fully released.

2. Frequently clean away chips that load up during operations.

3. Lubricate ways (Page 32).

4. Check to make sure that all table limit stops are not in the way.

5. Adjust gibs (see Page 37).

1. Set spindle speed correctly (Page 25) or use a slower feed rate.

2. Sharpen cutting tool or select one that better suits the operation.

3. Check for proper cutting rotation for cutting tool.

4. Properly clamp workpiece on table or in vise.

5. Fully retract spindle and lower headstock. This increases rigidity.

1. Tram the spindle (Page 38).

-36-

Model G0755 (Mfg. Since 1/13)

Adjusting Gibs

Gibs are tapered lengths of metal that are sandwiched between two moving surfaces. Gibs control the gap between these surfaces and how they slide past one another. Correctly adjusting the gibs is critical to producing good results.

Correctly positioning gibs is a matter of trial and error and patience. Tight gibs make table movement more accurate but stiff. Loose gibs make table movement sloppy but easier to do. The goal of gib adjustment is to remove unnecessary sloppiness without causing the ways to bind.

Many experienced machinists adjust the gibs just to the point where they can feel a slight drag in table movement.

Screws on each end of the gib allow gib adjustment to increase or decrease the friction between the sliding surfaces.

DISCONNECT MACHINE FROM POWER BEFORE ADJUSTING THE GIBS!

Adjusting Leadscrew

Backlash

Leadscrew backlash is the amount of freeplay movement in the leadscrew (when the leadscrew moves but the table does not) after changing the direction of rotation.

Leadscrews must have a certain amount of backlash to rotate easily, but over time, it increases with wear. Generally, 0.003"–0.006" leadscrew backlash is acceptable to ensure smooth movement and reduce the risk of premature thread wear.

The X- and Y-axis leadscrew backlash is adjusted using a long 4mm hex wrench to tighten/ loosen the cap screw on the leadscrew nut. This adjusts the force the leadscrew nut exerts on the leadscrew threads.

The X-axis leadscrew nut shown in Figure 54 is accessed from underneath the left side of the table.

Make sure all table locks are loose. Then, loosen one gib adjustment screw (see Figure 53) and tighten the opposing screw the same amount to move the gib, while at the same time rotating the handwheel to move the table until you feel a slight drag in that path of movement.

Y-Axis Gib Screw

(1 of 2)

Figure 53. Location of table gib screws.

X-Axis Gib Screw

(1 of 2)

The Y-axis leadscrew nut is similar and is accessed from inside the cabinet underneath the machine base.

X-Axis Leadscrew Nut

Cap Screw

Figure 54. Location of X-axis leadscrew nut for

adjusting backlash.

Model G0755 (Mfg. Since 1/13)

-37-

Tramming Spindle

When your operation requires that the spindle axis be precisely perpendicular to the table, you must tram the spindle with the table. Simply adjusting the headstock tilt to the 90° mark on the tilt scale will not be precise enough for highly accurate results.

Tools Needed Qty

Dial Indicator (with at least 0.0005" resolution) . 1

Indicator Holder (mounted on quill/spindle) ....... 1

Precision Parallel Block (1-2-3 Blocks) .............. 1

Note: A precision-ground plate can be substituted for the parallel block. The farther the indicator point can be placed from the spindle axis, the more accurate the alignment measurements will be.

This procedure involves mounting a dial indicator to the quill or spindle, rotating it around the table, and adjusting the head position so that the spindle axis is 90° to the table X-axis, as illustrated in Figure 55.

Spindle

Table

Figure 55. Spindle centerline properly trammed

to the table.

Note: Keep in mind that the top surface of your workpiece will not likely be exactly parallel with the table top. Depending on your operation, you may choose to tram the spindle to the top surface of the workpiece after it is mounted instead of tramming to the table.

Z-Axis

90º

X-Axis

To tram the spindle with the table:

1. DISCONNECT MACHINE FROM POWER!

2. Prepare machine by performing the following

tasks:

— Stone table to remove all nicks and burrs,

then clean off all debris. Verify table is clean by running your hand over the top of it.

— Position table for the operation you intend

to perform after tramming—preferably centered with saddle.

— Tighten any table locks that should be tight

during intended milling operation.

3. Place parallel block underneath spindle.

4. Install indicator holder into spindle or onto

quill, then mount indicator onto it so that the point is as parallel to the block as possible (see the illustration in Figure 56 for an example).

Indicator

Holder

Spindle

-38-

Dial Indicator

Parallel Block

Table

Figure 56. Dial indicator mounted.

Model G0755 (Mfg. Since 1/13)

5. Place the parallel block directly under spindle and indicator across length of table, as illustrated in Figure 57.

Replacing Power

Feed Carbon

Note: If you must re-position quill to accom-

modate the above step, then review tasks in Step 2 to make sure mill is properly prepared for tramming.

Table (Top View)

Parallel Block

Indicator

Figure 57. Setup for the X-axis adjustment.

Note: Generally, the goal is to get the differ-

ence of the indicator readings between ends of the parallel bar down to 0.0005". However, the acceptable variance will depend on the requirements for your operation.

Spindle

Brushes

The X-axis power feed motor has a carbon brushes that will wear with normal use. There is one on the top of the power feed (see Figure 58) and one on the bottom.

Cap

Carbon

Brush

Hole

Figure 58. Carbon brush removed from power

feed.

6. Rotate spindle by hand so that the indicator point rests on one end of parallel block, as illustrated in Figure 57, then zero dial.

7. Rotate spindle so that the indicator point rests in the same manner on other end of block, then read dial.

— If indicator dial still reads zero or is within

the acceptable variance, continue on with Step 8.

— If indicator dial has moved from zero

beyond the acceptable variance, you will need to compensate for that amount by tilting head left or right. Repeat Steps 6–7 until you are satisfied with spindle axis alignment along table X-axis.

Tip: Keep one of the tilting hex nuts snug so

that the head does not move loosely while you adjust it in small amounts.

If, over time, the power feed starts to seem sluggish or will not operate, check the carbon brushes. If they are less than with new ones (Part No. P0755501-6).

Note: For proper performance, replace both carbon brushes at the same time.

Use a flat screwdriver to unthread (turn counterclockwise) the cap covering the carbon brush, replace the brush assembly, then secure it with the cap.

⁄16" in length, replace them

8. Re-tighten tilting hex nuts.

Model G0755 (Mfg. Since 1/13)

-39-

Tightening Return

Spring Tension

The return spring moves the spindle back up when the coarse downfeed handles are released. The tension of this spring was adjusted at the factory, but it may need to be tightened during the life of the mill/drill.

Important: Do not perform this procedure unless it is absolutely necessary.

To adjust the return spring tension:

1. DISCONNECT MACHINE FROM POWER!

2. Wipe off any oil on spring cover so it does not

slip when you hold it during adjustments.

3. Mark slot on cover that engages the roll pin at the top—this is the factory setting.

4. Put on heavy leather gloves to protect your hands from lacerations if spring uncoils during next step.

During this procedure, you will loosen the spring cover thumb screw (See Figure 59) just enough to pull the cover back to clear the roll pin, then rotate the cover counterclockwise to fit the roll pin in the next slot.

Roll Pin

Cover

Thumb

Screw

Figure 59. Return spring components.

Cover

Slots

Note: Keep a good grip on spring cover dur-

ing next step. Letting go of cover when roll pin is not engaged will cause spring to rapidly uncoil.

5. While holding spring cover against side of headstock so the spring will not unwind, loosen thumb screw approximately

6. Pull cover out to disengage it with roll pin, then rotate it counterclockwise to engage roll pin in the next slot in cover.

7. Re-tighten thumb screw to secure setting.

⁄4".

-40-

If the return spring should come loose from the spring cap and rapidly unwind, laceration or impact injuries could occur. Always wear heavy leather gloves and safety glasses when adjusting the return spring tension.

Model G0755 (Mfg. Since 1/13)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0755 (Mfg. Since 1/13)

-41-

Electrical Box Wiring

Control

Control Panel

Component Legend:

* = PNC EB2

§ = Minger LA125H-BE101C ‡ = Minger LA125H-BE102C

1L1

13NO

Siemens 3TB41 29V

14NO 22NC 32NC

2T1 4T2 6T3

W1W2W2W3W3

3L2 5L3

21NC 31NC

KM3 Capacitor

Power

Lamp *

Spindle

Forward

43 NO

3 4NO

Z-Axis

Switch

Spindle

Reverse

34 NO

43NC

44NO

N N

1L1

13NO 21NC 31NC 43NC

Siemens 3TB41 29V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

3L2 5L3

KM4 Capacitor

L L

1L1

3L2 5L3

13NO 21NC 31NC 43NC

KM1 Capacitor

Siemens 3TB41 29V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

0 0 0

Ground

Spindle

Stop

Emegency

Stop

‡

3L2 5L3

1L1

13NO 21NC 31NC 43NC

KM2 Capacitor

Siemens 3TB41 29V

14NO 22NC 32NC 44NO

2T1 4T2 6T3

V2V1U2U2V1

Omron MY2N-J

Relay

1414

6 5

220 230

Transformer

Aohengda Elec

JBK-63VA 24V–400V

Electrical Box

-42-

380 400

556

85 6 9

To Z-Axis

Limit Switches

(Page 43)

READ ELECTRICAL SAFETY

ON PAGE 41!

W1 W2 W3

Motor

V2 U2 V1

V2 U2 U1V1

To Spindle

Motor

(Page 43)

2A Fuse Ceramic

250V 2A

Ø5 x 25

Elevation Motor

Capacitor

7MFD 500VAC

To Power

Supply

(Page 43)

Power Feed

Model G0755 (Mfg. Since 1/13)

Plate

Ground

Motors & Other Electrical Wiring

220V Spindle Motor

To Electrical

Box

(Page 42)

220V

NEMA 6-15

(As Recommended)

Ground

Hot

To Electrical

Box

(Page 42)

Upper Z-Axis

Limit Switch

Ground

Run

Capacitor

20MFD

450VAC

V1 U2

220V

Z-Axis Motor

V2W1

Start

Capacitor

150MFD 250VAC

Lower Z-Axis

Limit Switch

566

To Electrical

Box

(Page 42)

Model G0755 (Mfg. Since 1/13)

To Electrical

Box

(Page 42)

READ ELECTRICAL SAFETY

ON PAGE 41!

-43-

Electrical Box

Electrical Photos

Transformer

Contactors

Capacitor

Z-Axis Motor Z-Axis Limit Switch

-44-

READ ELECTRICAL SAFETY

ON PAGE 41!

Model G0755 (Mfg. Since 1/13)

Control Panel (Rear View)

Z-Axis Switch

Spindle

Reverse

Electrical Photos

Power

Lamp

Spindle

Forward

Spindle

Stop

Spindle Motor

Emergency

Stop

Model G0755 (Mfg. Since 1/13)

READ ELECTRICAL SAFETY

ON PAGE 41!

-45-

SECTION 9: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523 -4777 or visit our online parts store at www.grizzly.com to check for availability.

Head

124

108

123

115

107

112

121

105

106

109

113

112

115

110

114

116

111

118

113

114

122

100

117

101 85

43 36

103

101

119

7-2

7-7

7-8

7-1

7-3

7-4

7-5

7-6

7-9

-46-

Model G0755 (Mfg. Since 1/13)

Head Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0754001 HEADSTOCK HOUSING 48 P0754048 GEAR 43T 2 P0754002 HEADSTOCK TOP COVER 49 P0754049 GEAR 16T 3 PR38M INT RETAINING RING 62MM 50 PK36M KEY 5 X 5 X 50 4 PR21M INT RETAINING RING 35MM 51 PK147M KEY 6 X 6 X 18 5 P0754005 FLANGED END CAP 53 P0754053 QUILL 6 P0754006 QUILL SEAL 54 P0754054 SPINDLE R-8 7 P0754007 MOTOR 2HP 220V 1-PH 55 P30207-P5 TAPERED ROLLER BEARING 30207 P5 7-1 P0754007-1 MOTOR FAN COVER 56 P30206-P5 TAPERED ROLLER BEARING 30206 P5 7-2 P0754007-2 MOTOR FAN 57 P0754057 SPLINED SLEEVE 7-3 P0754007-3 MOTOR JUNCTION BOX 58 P0754058 GEAR 53T 7-4 PC150E S CAPACITOR 150M 250V 1-5/8 X 3 59 PR12M EXT RETAINING RING 35MM 7-5 PC20D R CAPACITOR 20M 450V 1-1/2 X 3-1/4 60 P0754060 DEPTH ROD MOUNT 7-6 P0754007-6 CENTRIFUGAL SWITCH 25-1725 61 P0754061 INT THREADED SHOULDER BOLT M16-2 X 10 7-7 P0754007-7 CONTACT PLATE 62 PN48M HEX NUT M16-2 THIN 7-8 P6205ZZ BALL BEARING 6205ZZ 63 P0754063 DEPTH ROD KNURLED THUMB KNOB M16-2 7-9 P6205ZZ BALL BEARING 6205ZZ 64 P0754064 STUD-FT M12-1.75 X 230 8 PB07M HEX BOLT M8-1.25 X 25 65 P0754065 DEPTH ROD DOG 9 PW01M FLAT WASHER 8MM 66 P0754066 DEPTH POINTER 10 P0755010 HEADSTOCK FRONT COVER 67 P0754067 SPANNER NUT LOCK WASHER 30MM 11 P0754011 DRAWBAR CAP 68 P0754068 SPANNER NUT M30-1.5 12 P0754012 DRAWBAR CAP RUBBER SEAL 69 P0754069 QUILL RUBBER SEAL 13 PCAP45M CAP SCREW M8-1.25 X 45 70 PCAP18M CAP SCREW M4-.7 X 8 14 P0755014 TAPER PIN 8 X 40 71 PRP64M ROLL PIN 3 X 18 18 P0754018 OIL FILL PLUG 1/2" NPT 72 PCAP13M CAP SCREW M8-1.25 X 30 19 P0754019 CASTING PLUG 73 P0754073 SPACER 20 P0754020 SHIFT LEVER 74 P0754074 SPINDLE END CAP 21 PRP72M ROLL PIN 3 X 15 75 P0754075 SPINDLE SEAL 22 P0755022 OIL DRAIN PLUG 3/8" NPT 76 PRP02M ROLL PIN 3 X 16 23 PS09M PHLP HD SCR M5-.8 X 10 77 P0754077 WORM GEAR HOUSING 24 PCAP18M CAP SCREW M4-.7 X 8 78 P0754078 WORM SHAFT 25 P0754025 OIL SIGHT GLASS 3/4" NPT 79 P0754079 WORM SHAFT END BRACKET 26 P0754026 DRIVE SHAFT 80 PR02M EXT RETAINING RING 14MM 27 P0754027 GEAR 14T 81 P0754081 SPACER 28 P6003ZZ BALL BEARING 6003ZZ 82 P0754082 WORM GEAR 29 P6007ZZ BALL BEARING 6007ZZ 83 P0754083 PINION SHAFT 30 PK23M KEY 5 X 5 X 25 84 P0754084 LEVER HUB 31 P0754031 IDLER SHAFT 85 P0754085 SPRING BASE 32 P0754032 GEAR 29T 86 P0754086 SPRING COVER 33 P0754033 GEAR 35T 87 P0754087 COILED SPRING 34 P0754034 GEAR 21T 88 P0754088 KNOB BOLT M10-1.5 X 45 35 P0754035 GEAR 41T 90 P0754090 FINE DOWNFEED GRADUATED DIAL 36 P6202ZZ BALL BEARING 6202ZZ 91 P0754091 SHOULDER STUD-UDE M12-1.75 X 145 15,20 37 PK101M KEY 6 X 6 X 14 92 P0754092 TAPERED KNOB M12-1.75 38 PK32M KEY 6 X 6 X 28 93 P0754093 FINE DOWNFEED HANDWHEEL 39 PSTB002M STEEL BALL 8MM 94 P0754094 HANDWHEEL HANDLE 40 P0754040 COMPRESSION SPRING 96 P0754096 KNURLED THUMB SCREW M5-.8 X 12 41 PR07M EXT RETAINING RING 18MM 97 PW03M FLAT WASHER 6MM 42 PK36M KEY 5 X 5 X 50 98 P0754098 KNURLED THUMB SCREW M6-1 X 12 43 PSS107M SET SCREW M6-.75 X 12 99 PS05M PHLP HD SCR M5-.8 X 8 44 P0754044 SPINDLE SHAFT 100 PFH86M FLAT HD CAP SCR M6-1 X 12 45 P0754045 GEAR 25T 101 PCOTS004M STANDARD COTTER PIN 8 X 20 46 P0754046 GEAR 18T 103 PCAP50M CAP SCREW M5-.8 X 10 47 P0754047 GEAR 32T 105 P0754105 LOCK LEVER SHAFT

Model G0755 (Mfg. Since 1/13)

-47-

Head Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

106 P0754106 INNER LOCK PLUNGER 115 P0754115 SHAFT SEAL 107 P0754107 OUTER LOCK PLUNGER 116 P0754116 SPEED SHIFT SHAFT 108 P0754108 ADJUSTABLE HANDLE 117 P0754117 SPEED SHIFT FORK 109 P0754109 SPEED RANGE SHIFT SHAFT 118 P0754118 SPEED SHIFT ROCKER ARM 110 P0754110 SPEED RANGE SHIFT ROCKER ARM 119 P0754119 COMPRESSION SPRING 111 P0754111 SPEED RANGE SHIFT FORK 121 P0754121 DRAWBAR ASSEMBLY 7/16-20 X 17-3/4 112 PR03M EXT RETAINING RING 12MM 122 P0755122 ELECTRICAL CABINET 113 PCAP27M CAP SCREW M6-1 X 14 123 P0755123 ELECTRICAL CABINET FRONT COVER 114 P0754114 SHIFT ROD 124 P0755124 ELECTRICAL CABINET SIDE COVER

-48-

Model G0755 (Mfg. Since 1/13)

326

218

330

328

327

329

323

219

242

324

249

325

268

236

240

269

231

222

206

267

221

235

252

Table & Column

260

262

265

259

258

266

254

321

246

245

256

265

261

263

264

227

207

239

222

320

207

248

322

226

221

210

261

256

206

204

249

209

206

241

237

244 218

262

257

255

257

245

238

286

318 319

205

214

215

222

231

220

213

285

284

283

282

281

280

317

211

212

315

293

315-2

202

294

295

316

314

313

315-1

315-3

315-4

315-5

228

230

225

223

224

292

291

201

293

211

294

295

Model G0755 (Mfg. Since 1/13)

209

212

219

220

213

207

210

221

231

218

208

287

207

203

288

230

-49-

Table & Column Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0755201 BASE 260 P0755260 Z-AXIS LEADSCREW 202 P0755202 COLUMN 261 P51104 THRUST BEARING 51104 203 P0754203 Y-AXIS LEADSCREW BRACKET 262 PK07M KEY 6 X 6 X 20 204 P0755204 HEAD MOUNT 263 P0755263 SPANNER NUT LOCK WASHER 20MM 205 P0755205 Z-AXIS GIB 264 P0755264 SPANNER NUT M20-1.5 206 P0754206 GIB ADJUSTMENT SCREW 265 PCAP06M CAP SCREW M6-1 X 25 207 P51103 THRUST BEARING 51103 266 P0755266 DOWEL PIN 6 X 30 208 P0755208 Y-AXIS LEADSCREW 267 P0755267 Z-AXIS CRANK 209 P0754209 DIAL CLUTCH 268 P0755268 SHOULDER SCREW M10-1.5 X 20 90L 210 P0754210 TABLE GRADUATED DIAL 269 P0755269 CRANK HANDLE 211 P0754211 TABLE HANDWHEEL 280 PR15M EXT RETAINING RING 30MM 212 P0754094 HANDWHEEL HANDLE 281 P0755281 SPACER 213 P0754213 SHOULDER SCREW M8-1.25 X 12 72L 282 P0755282 LOWER COUPLER 214 P0755214 Z-AXIS LEADSCREW NUT 283 P0755283 NYLON SHAFT 215 P0755215 LEADSCREW NUT BRACKET 284 P0755282 UPPER COUPLER 218 PCAP14M CAP SCREW M8-1.25 X 20 285 P0755281 SPACER 219 P0754219 DOWEL PIN 5 X 45 286 PR15M EXT RETAINING RING 30MM 220 P0754096 KNURLED THUMB SCREW M5-.8 X 12 287 P0755287 STAND 221 PLUBE002M TAP-IN BALL OILER 8MM 288 P0755288 STAND SIDE COVER 222 P0754222 ADJUSTABLE HANDLE M8-1.25 291 PW06M FLAT WASHER 12MM 223 PLW10M LOCK WASHER 16MM 292 P0755292 CAP SCREW M12-1.75 X 140 224 PW08M FLAT WASHER 16MM 293 P0755293 HANDWHEEL COMPRESSION SPRING 225 PCAP123M CAP SCREW M16-2 X 60 294 P0755294 HANDWHEEL SPRING BUSHING 226 P0755226 HEAD MOUNT FLAT WASHER 12MM 295 PCAP01M CAP SCREW M6-1 X 16 227 PCAP111M CAP SCREW M12-1.75 X 35 313 P0755313 MOTOR MOUNT 228 P0755228 COLUMN REAR COVER 314 PCAP31M CAP SCREW M8-1.25 X 25 230 PCAP26M CAP SCREW M6-1 X 12 315 P0755315 ELEVATION MOTOR 1/8HP 220V 1-PH 231 P0755231 DOWEL PIN 8 X 30 315-1 P0755315-1 MOTOR FAN COVER 235 P0755235 SADDLE 315-2 P0755315-2 MOTOR FAN 236 P0755236 TABLE 315-3 P0755315-3 MOTOR JUNCTION BOX 237 P0754237 X-AXIS LEADSCREW NUT 315-4 P6001ZZ BALL BEARING 6001ZZ 238 P0754238 Y-AXIS LEADSCREW NUT 315-5 P6000ZZ BALL BEARING 6000ZZ 239 P0754239 X-AXIS LEADSCREW RIGHT BRACKET 316 PCAP31M CAP SCREW M8-1.25 X 25 240 P0755240 X-AXIS LEADSCREW LEFT BRACKET 317 P0755317 DOWEL PIN 5 X 25 241 P0755241 X-AXIS LEADSCREW 318 PS09M PHLP HD SCR M5-.8 X 10 242 P0755242 POWER FEED CLUTCH 319 P0755319 LIMIT SWITCH CHINT YBLX-JW2/11H/L 244 PW01M FLAT WASHER 8MM 320 P0755320 Z-AXIS LIMIT BLOCK 245 PCAP38M CAP SCREW M5-.8 X 25 321 PCAP02M CAP SCREW M6-1 X 20 246 PCAP45M CAP SCREW M8-1.25 X 45 322 P0755322 SPACER 248 P0755248 TABLE GIB 323 PCAP201M CAP SCREW M8-1.25 X 6 249 PCAP38M CAP SCREW M5-.8 X 25 324 PW01M FLAT WASHER 8MM 252 P0755252 SADDLE GIB 325 P0754274 POWER FEED LIMIT SWITCH 254 P0755254 Z-AXIS GEAR HOUSING 326 PR39M EXT RETAINING RING 8MM 255 P0755255 Z-AXIS CRANK SHAFT 327 P0754276 T-SLOT NUT M8-1.25 256 P0755256 GEAR 12T 328 P0754277 POWER FEED LIMIT STOP 257 P0755257 BALL BEARING 604ZZ 329 P0754278 COMPRESSION SPRING 258 PR24M INT RETAINING RING 42MM 330 P0754279 LIMIT STOP HOUSING 259 P0755259 FLANGED BEARING CAP

-50-

Model G0755 (Mfg. Since 1/13)

402

404

Electrical Components

401

403

407415 407 407 407

405

406

409

410

411

408

412

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 P0755401 CAPACITOR 7M 500V 20 X 32 X 48MM 409 P0755409 SPINDLE REV BUTTON MINGER LA125HBE102C 402 P0755402 GROUNDING PLATE 410 P0755410 Z-AXIS SWITCH MINGER LA125HBE102C 403 P0755403 FUSE HOLDER 411 P0755411 E-STOP BUTTON MINGER LA125HBE101C 404 P0755404 FUSE 2A 250V 5 X 25MM 412 P0755412 SPINDLE FWD BUTTON MINGER LA125HBE102C 405 P0755405 TERMINAL BAR 1-PC 413 P0755413 POWER LAMP/ON BUTTON MINGER LA125J-11D 406 P0755406 TRANSFORMER AOHENGDA ELEC JBK63VA 24-400V 414 P0755414 ELECTRICAL MOUNTING PLATE 407 P0755407 CONTACTOR SIEMENS 3TB41 29V 415 P0755415 RELAY OMRON MY2N-J 408 P0755408 SPINDLE STOP BUTTON MINGER LA125HBE101C

413

Model G0755 (Mfg. Since 1/13)

414

-51-

501

Power Feed

501-1

501-2

501-4

501-3

501-5

501-6

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 T24824 POWER FEED ASSY ALIGN AS-235 501-4 PT24824004 ON/OFF SWITCH 501-1 PT24824001A MOUNTING BRACKET 2-PC 501-5 PT24824008 ZYTEL GEAR ASSEMBLY 501-2 PT24824002 CONTROL HANDLE 501-6 P0755501-6 POWER FEED MOTOR CARBON BRUSH 501-3 PT24824003 SPEED CONTROL KNOB

-52-

Model G0755 (Mfg. Since 1/13)

507

Accessories

504

505

506

512

511

510

518

509

508

REF PART # DESCRIPTION REF PART # DESCRIPTION

504 P0754304 TOOLBOX 513 P0754313 DRIFT KEY 505 P0754305 T-BOLT M12-1.75 X 55 514 PAW10M HEX WRENCH 10MM 506 PW06M FLAT WASHER 12MM 515 PAW05M HEX WRENCH 5MM 507 PN09M HEX NUT M12-1.75 516 PAW04M HEX WRENCH 4MM 508 P0754308 DRILL CHUCK B16 W/CHUCK KEY 517 PAW03M HEX WRENCH 3MM 509 P0754309 SPINDLE SLEEVE MT#3-MT#2 518 PWR1719 WRENCH 17 X 19 OPEN-ENDS 510 P0754310 DRILL CHUCK ARBOR R8-B16 519 PWR2224 WRENCH 22 X 24 OPEN-ENDS 511 P0754311 SPINDLE SLEEVE R8-MT#3 520 PAW02.5M HEX WRENCH 2.5MM 512 P0754312 BOTTLE FOR OIL

519

513

520

514

515

516

517

Model G0755 (Mfg. Since 1/13)

-53-

Machine Labels & Cosmetics

606

601

605

602

604

603

REF PART # DESCRIPTION REF PART # DESCRIPTION

601 P0755601 HEADSTOCK LABEL 604 PPAINT-01 GRIZZLY GREEN TOUCH-UP PAINT 602 P0755602 MODEL NUMBER LABEL 605 P0755605 CONTROL PANEL LABEL 603 P0755603 MACHINE ID LABEL 606 PLABEL-14A ELECTRICITY LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-54-

Model G0755 (Mfg. Since 1/13)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____ Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____ Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0755 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
