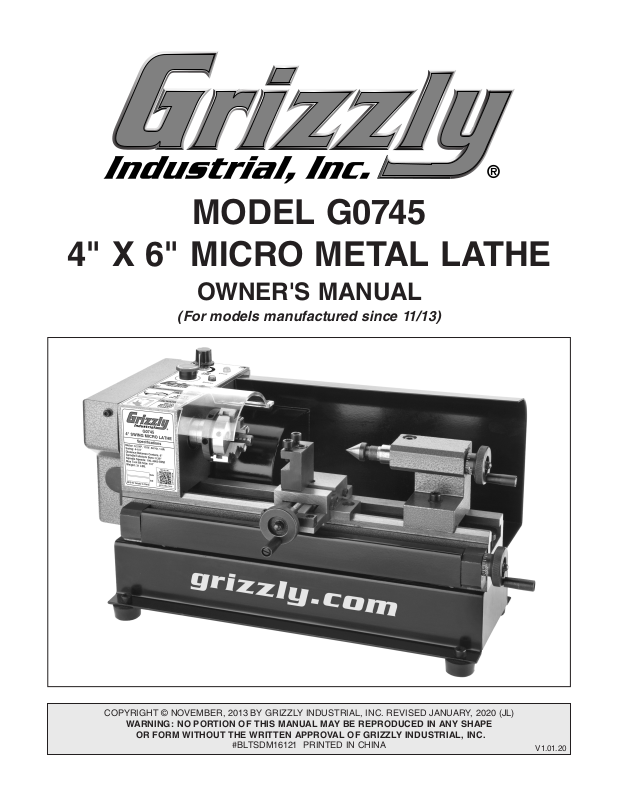

MODEL G0745

4" X 6" MICRO METAL LATHE

OWNER'S MANUAL

(For models manufactured since 11/13)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#BLTSDM16121 PRINTED IN CHINA

V1.01.20

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................... 2

Machine Description ...................................... 2

Contact Info.................................................... 2

Manual Accuracy ........................................... 2

Identification ................................................... 3

Controls & Components ................................. 4

Electrical Controls .......................................................4

Tailstock ...................................................................... 4

Carriage .......................................................................4

Glossary of Terms ......................................... 5

V-Belt & Pulleys .......................................................... 5

Machine Data Sheet ...................................... 6

SECTION 1: SAFETY ....................................... 8

Safety Instructions for Machinery .................. 8

Additional Safety for Metal Lathes ............... 10

SECTION 2: POWER SUPPLY ...................... 11

Availability .................................................................11

Full-Load Current Rating ...........................................11

110V Circuit Requirements .......................................11

Grounding & Plug Requirements ..............................12

Extension Cords ........................................................12

Center .......................................................... 25

Mounting Center in Tailstock ....................................25

Mounting Workpiece Between Centers .....................25

Carriage & Slide Locks ................................ 26

Tool Post ...................................................... 26

Installing Tool ............................................................26

Aligning Cutting Tool with Spindle Centerline ...........27

Manual Feed ................................................ 28

Spindle Speed.............................................. 29

Determining Spindle Speed ......................................29

Selecting Spindle Speed ...........................................29

SECTION 5: ACCESSORIES ......................... 30

SECTION 6: MAINTENANCE ......................... 31

Schedule ...................................................... 31

Ongoing .....................................................................31

Daily, Before Operations ...........................................31

Daily, After Operations ..............................................31

Cleaning/Protecting ...................................... 31

Lubrication ................................................... 32

Leadscrews ...............................................................32

Bedways ....................................................................32

SECTION 3: SETUP ....................................... 13

Unpacking .................................................... 13

Needed for Setup ......................................... 13

Inventory ...................................................... 14

Cleanup ........................................................ 15

Site Considerations ...................................... 16

Assembly ..................................................... 17

Power Connection........................................ 17

Connecting Power .....................................................17

Disconnecting Power ................................................17

Test Run ...................................................... 17

Recommended Adjustments ........................ 18

SECTION 4: OPERATIONS ........................... 19

Operation Overview ..................................... 19

Chuck & Faceplate Mounting....................... 20

Installation & Removal Device ..................... 20

Chuck Installation & Removal ...................... 21

Chuck Installation ......................................................21

Chuck Removal .........................................................21

Reversing Jaws............................................ 22

Scroll Chuck Clamping ................................ 23

Tailstock ....................................................... 24

Tailstock Quill Specs .................................................24

Positioning Tailstock .................................................24

Using Quill .................................................................24

SECTION 7: SERVICE ................................... 33

Troubleshooting ........................................... 33

Backlash Adjustment ................................... 35

Cross Slide ................................................................35

Carriage .....................................................................35

Gib Adjustment ............................................ 36

V-Belt Tension & Replacement.................... 36

Tensioning V-Belt ......................................................36

Replacing V-Belt .......................................................37

Fuse Replacement ....................................... 37

Brush Replacement ..................................... 38

SECTION 8: WIRING ...................................... 39

Wiring Safety Instructions ............................ 39

Control Panel Wiring .................................... 40

Circuit Board Wiring ..................................... 41

SECTION 9: PARTS ....................................... 43

Body & Bed .................................................. 43

Headstock & Motor ...................................... 44

Carriage & Tailstock .................................... 45

Machine Labels & Cosmetics ...................... 46

WARRANTY & RETURNS ............................. 49

INTRODUCTION

We stand behind our machines. If you have any questions or need help, use the information below to contact us. Before contacting, please get the serial number and manufacture date of your machine. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs contained inside. Sometimes we make mistakes, but

also

means that

you receive will be slightly different than what is shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused about a procedure

check our website

for an updated version. W

manuals

and

www.grizzly.com

Alternatively, you can call our Technical Support for help. Before calling, please write down the

Manufacture Date

stamped into the machine ID label (see below). This information helps us determine if updated documentation is available for your machine.

Machine Description

A lathe removes material from a rotating workpiece secured to the spindle with a chuck or faceplate. A cutting tool is mounted in the tool post or tailstock and moved against the spinning workpiece to perform the cut.

This micro lathe is great for jewelers, model makers, or hobbyists who want to turn small parts, but don't have the need (or space) for a full-sized lathe. It features a 4" swing, 6" distance between centers, variable-speed spindle, and a 3-jaw chuck.

Contact Info

Manual Accuracy

made every effort to be exact with the

our policy of continuous improvement

sometimes the machine

e post current

manual updates for free on our website at

and Serial Number

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

Bellingham, WA 98227-2069

Email: manuals@grizzly.com

P.O. Box 2069

Manufacture Date

Serial Number

-2-

Model G0745 (Mfg. Since 11/13)

Identification

C F

Figure 1. G0745 identification.

A. Headstock End Cover B. Emergency Stop Button C. Spindle Speed Dial D. Fault Indicator Light E. Power Light F. Chuck Guard G. 3-Jaw Chuck H. Tool Post

Serious personal injury could occur if you connect the machine to power before completing the setup process. DO NOT connect power until instructed to do so later in this manual.

I. Cross Slide J. Center K. Tailstock L. Backsplash M. Carriage Handwheel N. Carriage O. Cross Slide Handwheel P. Rubber Foot

Untrained lathe operators have an increased risk of becoming seriously injured. Do not operate this machine until you have understood this entire manual and received proper training.

Model G0745 (Mfg. Since 11/13)

-3-

Controls &

To reduce your risk of serious injury, read this entire manual BEFORE

Components

Tailstock

using machine.

Refer to Figures 2–6 and the following descriptions to become familiar with the basic controls of this lathe.

Electrical Controls

Figure 2. Electrical controls.

A. Spindle Speed Dial: Starts and stops spin-

dle rotation, and controls spindle speed when rotated. Rotate fully counterclockwise to turn OFF. Rotate fully clockwise to maximize spindle speed.

Figure 3. Tailstock controls.

E. Tailstock Quill: Holds centers or tooling.

F. Quill Lock Screw: Secures the quill.

G. Tailstock Quill Handwheel: Moves the

mounted center toward or away from the workpiece.

H. Tailstock Lock: Secures tailstock to bedway.

Carriage

B. Fault Indicator Light: Illuminates if chuck

guard is opened during spindle rotation. Close guard and turn spindle speed dial OFF to reset indicator.

C. Power Light: Illuminates when machine is

connected to power.

D. Emergency Stop Button: Cuts power to

motor and electrical controls when pressed. Remains depressed until reset by twisting clockwise.

-4-

Figure 4. Carriage controls.

I. Tool Post: Holds tooling.

J. Carriage Lock Screw: Secures the carriage

for greater rigidity when it should not move.

K. Cross Slide Handwheel: Moves the tool

toward and away from the workpiece.

Model G0745 (Mfg. Since 11/13)

V-Belt & Pulleys

Figure 5. Carriage handwheel location.

L. Carriage Handwheel: Moves carriage along

bedway.

M. Pulleys: Transfer power from motor to the

N. V-Belt: Transfers power from the motor pul-

Figure 6. G0745 V-belt and pulleys.

spindle with the V-belt.

ley to the spindle pulley.

Glossary of Terms

The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this lathe and metalworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. Your safety is VERY important to us at Grizzly!

Arbor: A machine shaft that supports a cutting

tool.

Backlash: The amount of free-play felt

while changing rotation directions with the handwheels.

Cutting Speed: The distance a point on a cutter

moves in one minute, expressed in meters or feet per minute.

Facing: In lathe work, cutting across the end of

a workpiece, usually to machine a flat surface.

Feed: The movement of a cutting tool into a

workpiece.

Gib: A tapered wedge located along a sliding

member to take up wear or to ensure a proper fit.

Model G0745 (Mfg. Since 11/13)

-5-

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0745 4" X 6" MICRO METAL LATHE

Product Dimensions:

Weight................................................................................................................................................................ 31 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 16-1/4 x 11-1/2 x 11-1/2 in.

Footprint (Length x Width)....................................................................................................................... 14 x 5-1/2 in.

Shipping Dimensions:

Type..................................................................................................................................................... Cardboard Box

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 36 lbs.

Length x Width x Height......................................................................................................................... 21 x 9 x 15 in.

Electrical:

Power Requirement........................................................................................................... 110V, Single-Phase, 60 Hz

Prewired Voltage.................................................................................................................................................. 110V

Full-Load Current Rating....................................................................................................................................... 1.8A

Minimum Circuit Size.............................................................................................................................................. 15A

Connection Type....................................................................................................................................... Cord & Plug

Power Cord Included.............................................................................................................................................. Yes

Power Cord Length................................................................................................................................................. 5 ft.

Power Cord Gauge......................................................................................................................................... 18 AWG

Plug Included.......................................................................................................................................................... Yes

Included Plug Type................................................................................................................................................ 5-15

Switch Type.................................................................................................................................. Variable Speed Dial

Motors:

Main

Type..................................................................................................................................................... Universal

Horsepower................................................................................................................................ 150W (1/5 HP)

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 1.8A

Speed.......................................................................................................................................... 0 – 4000 RPM

Power Transfer ............................................................................................................................... V-Belt Drive

Bearings..................................................................................................... Shielded & Permanently Lubricated

Main Specifications:

Operation Info

Swing Over Bed...................................................................................................................................... 4.25 in.

Distance Between Centers.......................................................................................................................... 6 in.

Swing Over Cross Slide............................................................................................................................... 2 in.

Swing Over Saddle................................................................................................................................ 2-3/4 in.

Maximum Tool Bit Size........................................................................................................................... 5/16 in.

Carriage Travel...................................................................................................................................... 7-1/8 in.

Cross Slide Travel................................................................................................................................. 1-1/2 in.

-6-

Model G0745 (Mfg. Since 11/13)

Headstock Info

Spindle Bore........................................................................................................................................... 0.39 in.

Spindle Threads.................................................................................................................................... M14-1.0

Number of Spindle Speeds................................................................................................................... Variable

Spindle Speeds....................................................................................................................... 100 – 3800 RPM

Spindle Bearings...................................................................... Sealed & Permanently Lubricated Ball Bearing

Tailstock Info

Tailstock Quill Travel................................................................................................................................ 7/8 in.

Tailstock Barrel Diameter....................................................................................................................... 0.39 in.

Dimensions

Bed Width............................................................................................................................................ 2-5/16 in.

Leadscrew Diameter............................................................................................................................... 5/16 in.

Leadscrew TPI......................................................................................................................................... 18 TPI

Leadscrew Length..................................................................................................................................... 12 in.

Construction

Headstock............................................................................................................................................ Cast Iron

Bed.................................................................................................. Hardened and Precision-Ground Cast Iron

Body..................................................................................................................................................... Cast Iron

Stand............................................................................................................................................. Formed Steel

Paint......................................................................................................................................................... Epoxy

Other Specifications:

Country Of Origin ............................................................................................................................................... China

Warranty ........................................................................................................................................................... 1 Year

Serial Number Location ........................................................................................................... ID Label on Headstock

ISO 9001 Factory .................................................................................................................................................. Yes

CSA Certified .......................................................................................................................................................... No

Features:

Chuck Safety Shield Variable Spindle Speeds of 100 – 3800 RPM Small Footprint Non-Marring Rubber Feet

Accessories Included:

2" 3-Jaw Chuck Tailstock Dead Center Cross-Slide Mounted Tool Holder Open-End Wrench 5.5 x 7mm Phillips Screwdriver #2 Hex Wrenches 3, 4, and 5mm

Model G0745 (Mfg. Since 11/13)

-7-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.

This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always discon-

-8-

Model G0745 (Mfg. Since 11/13)

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to avoid accidental slips, which could cause loss of workpiece control.

HAZARDOUS DUST. Dust created while using machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazards associated with each workpiece material, and always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

CHECK DAMAGED PARTS. Regularly inspect machine for any condition that may affect safe operation. Immediately repair or replace damaged or mis-adjusted parts before operating machine.

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly.

Model G0745 (Mfg. Since 11/13)

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-9-

Additional Safety for Metal Lathes

Serious injury or death can occur from getting entangled in, crushed between, or struck by rotating parts on a lathe! Unsecured tools or workpieces attached to rotating objects can also strike nearby operators with deadly force. To minimize the risk of getting hurt or killed, anyone operating this machine MUST completely heed the hazards and warnings below.

CLOTHING, JEWELRY & LONG HAIR. Tie back

long hair, remove jewelry, and do not wear loose clothing or gloves. These can easily get caught on rotating parts and pull you into lathe.

ROTATING PAR T S. Always keep hands and body at a safe distance from rotating parts—especially those with projecting surfaces. Never hold anything against rotating workpiece, such as emery cloth, that can pull you into lathe.

GUARDING. Guards and covers protect against injuries from entanglement or flying objects. Always ensure they are properly installed and positioned before startup.

ADJUSTMENT TOOLS. Remove all chuck keys, wrenches, and adjustment tools before turning lathe ON. A chuck key or other tool left on the lathe can become a deadly projectile when spindle is started.

SAFE CLEARANCES. Before starting spindle, verify workpiece has adequate clearance by handrotating it through its entire range of motion.

NEW SETUPS. Test each new setup by standing to the side of the lathe and starting spindle rotation at the lowest speed until workpiece reaches full speed and you can verify safe rotation.

SPINDLE SPEEDS. Using spindle speeds that are too fast for the workpiece or clamping equipment can cause rotating parts to come loose and strike nearby people with deadly force. Always use slow spindle speeds with large or non-concentric workpieces. Never exceed rate RPM of the chuck.

LONG STOCK SAFETY. Long stock can whip violently if not properly supported. Always support any stock that extends from the chuck/headstock more than three times its own diameter.

CLEARING CHIPS. Metal chips can be razor sharp. Avoid clearing them by hand or with a rag. Use a brush or vacuum instead.

SECURE WORKPIECE. An improperly secured workpiece can fly off spindle with deadly force. Make sure workpiece is properly secured before starting the lathe.

STOPPING SPINDLE. Always allow spindle to completely stop on its own. Never put hands or another object on a spinning workpiece to make it stop faster.

CRASHING. A serious explosion of metal parts can occur if cutting tool or other lathe component hits rotating chuck or a projecting part of workpiece. Resulting metal fragments can strike nearby people and lathe will be seriously damaged. To reduce risk of crashing, NEVER leave lathe unattended, and CHECK all clearances before starting lathe.

SANDING/POLISHING. To reduce risk of entanglement, never wrap emery cloth around rotating workpiece. Instead, use emery cloth with the aid of a tool or backing board.

MEASURING WORKPIECE. To reduce risk of entanglement, never measure a spinning workpiece.

-10 -

Model G0745 (Mfg. Since 11/13)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrician or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the specified circuit requirements.

For your own safety and protection of

Note: The circuit requirements listed in this man-

ual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

Availability

Serious injury could occur if you connect the machine to power before completing the setup process. DO NOT connect to power until instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V ..... 1.8 Amps

Model G0745 (Mfg. Since 11/13)

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

-11-

Improper connection of the equipment-grounding wire can result in a risk of electric shock. The wire with green insulation (with or without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding & Plug Requirements

it will not fit the outlet, have a qualified electrician install the proper outlet with a

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

This machine is equipped with a power cord that has an equipment-grounding wire and a grounding plug (similar to the figure below). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

GROUNDED

5-15 RECEPTACLE

Grounding Prong

5-15 PLUG

Extension Cords

If you must use an extension

Neutral Hot

Figure 7. Typical 5-15 plug and receptacle.

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

verified ground.

-12-

Minimum Gauge Size ...........................18 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0745 (Mfg. Since 11/13)

SECTION 3: SETUP

Your machine was carefully packaged for safe transportation. Remove the packaging materials from around your machine and inspect it. If you discover any damage, please call us immediately

at (570) 546-9663

Save the containers and all packing materials for possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condition of your shipment, inventory the contents.

Keep children and pets away from plastic bags or packing materials shipped with this

Unpacking

for advice.

SUFFOCATION HAZARD!

Needed for Setup

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Safety Glasses ........................................... 1

• Cleaner/Degreaser (Page 15) .... As Needed

• Disposable Shop Rags ............... As Needed

• Screwdriver Flat Head #1 ........................... 1

machine. Discard immediately.

Model G0745 (Mfg. Since 11/13)

-13-

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

If any non-proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

NOTICE

If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Box 1 (Figures 8–9) Qty

A. 3-Jaw Chuck 2" (Pre-installed) ................... 1

B. Tool Post (Pre-installed) ............................ 1

C. Tail stoc k (Pre-installed) .............................. 1

D. Handwheel Handles ................................... 3

E. Chuck Guard .............................................. 1

F. Spindle Key 5mm ....................................... 1

G. Chuck Keys 5mm ....................................... 2

H. Wrench 5.5 x 7mm Open-Ends .................. 1

I. Phillips Head Screwdriver #1...................... 1

J. Hex Wrenches 3, 4, 5mm .....................1 Ea.

K. Center ......................................................... 1

L. Replacement Fuse 2A ................................ 1

Figure 8. Lathe as shipped, with pre-installed

inventory items shown.

Figure 9. Loose inventory items.

-14-

Model G0745 (Mfg. Since 11/13)

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

Many cleaning solvents

work in a well-ventilated

Avoid chlorine-based solvents, such as

Cleanup

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean machinery. Avo id using these products to clean machinery.

Put on safety glasses.

Coat the rust preventative with a liberal

amount of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreas-

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

are toxic if inhaled. Only

area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces.

T23692—Orange Power Degreaser

A great product for removing the waxy shipping grease from your machine during clean up.

Figure 10. T23692 Orange Power Degreaser.

Repeat Steps 2–3 as necessary until clean,

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Model G0745 (Mfg. Since 11/13)

-15-

Site Considerations

Weight Load

Physical Environment

Place this machine near an existing power source.

Shadows, glare, or strobe effects that may distract

Refer to the Machine Data Sheet for the weight of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

See below for required space allocation.

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device, if required.

Lighting

Lighting around the machine must be adequate enough that operations can be performed safely.

or impede the operator must be eliminated.

-16 -

Access Door

Keep Workpiece Loading Area Unobstructed

23"

Lathe

Figure 11. Minimum working clearances.

13.5"

Model G0745 (Mfg. Since 11/13)

Assembly

Serious injury or death can result from

Power Connection

With the exception of the handwheel handles and the chuck guard, the lathe is fully assembled when shipped.

To assemble your machine:

1. Thread the handles onto the cross slide, car-

riage, and tailstock handwheels, as shown in Figure 12.

Before the machine can be connected to the power source, all previous setup instructions in this manual must be completed to ensure that the machine has been assembled and installed properly.

Connecting Power

Make sure the spindle speed dial on the headstock is turned to "0" (rotated fully counterclockwise) before connecting power.

Insert the power cord plug into a matching power supply receptacle.

Disconnecting Power

If you need to disconnect the machine from power for maintenance, service, or adjustments, press the emergency stop button, rotate the spindle speed dial fully counterclockwise, and pull the plug completely out of the receptacle.

Handles

Figure 12. Handles installed on handwheels.

2. Install the chuck guard with the two pre- installed M4-.7 x 8 flat head screws (see Figure 13).

Flat Head

Screws

Figure 13. Chuck guard installed.

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components function properly.

The test run consist of verifying the following: 1) The motor powers up and runs correctly, and 2) the safety features of the emergency stop button and chuck guard work correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. The Troubleshooting table in the

SERVICE section of this manual can help.

using this machine BEFORE understanding its controls and related safety information. DO NOT operate, or allow others to operate, machine until the information is understood.

Model G0745 (Mfg. Since 11/13)

-17-

DO NOT start machine until all preceding

setup instructions have been performed. Operating an improperly setup machine

5. Push the emergency stop button to turn

the lathe OFF, then, without resetting the emergency stop, try to restart spindle rotation. The spindle should not start.

may result in malfunction or unexpected results that can lead to serious injury, death, or machine/property damage.

To test run your machine:

1. Turn the spindle speed dial (see Figure 14)

fully counterclockwise to "0", then press the emergency stop button.

Spindle Speed Dial

Emergency

Stop Button

Pointing to "0"

— If spindle stop does start with the emergency

stop button pressed in, the button is not operating correctly. This safety feature must operate properly before continuing operation. Use the spindle speed dial to stop the machine, disconnect it from power, and call Tech Support for help.

6. Reset the emergency stop button, then lift the chuck guard all the way up. Try restarting the spindle. It should not start when the chuck guard is up.

— If spindle rotation does start with the chuck

guard open, the chuck guard is not operating correctly. This safety feature must operate properly before continuing operation. Use the spindle speed dial to stop the machine, disconnect it from power, and call Tech Support for help.

7. Reposition the chuck guard over the chuck.

Figure 14. Headstock controls.

2. Make sure chuck and jaws, if installed, are secure (see Chuck Installation on Page 21).

Note: If a chuck is not installed on the lathe,

you do not need to install one for this test.

3. Reset the emergency stop button by twisting it clockwise until it pops out. The green power light should illuminate to indicate the lathe is connected to the power supply.

4. Turn the spindle speed dial past "1" on the RPM label. The spindle should begin rotating counterclockwise—down and toward you as you face the lathe.

Congratulations! The test run is complete.

Recommended

Adjustments

The following adjustments have been made at the factory. However, because of the many variables involved with shipping, we recommend you verify these adjustments to ensure the best results:

Factory adjustments that should be verified:

• Cross slide and carriage backlash (see Page

35).

• Gib (see Page 36).

-18-

Model G0745 (Mfg. Since 11/13)

SECTION 4: OPERATIONS

The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the

discussed later

in this manual

Due to the generic nature of this overview, it is not intended to be an instructional guide. To learn more about specific operations, read this entire manual and

rienced research outside of this manual by reading "howto" books, trade magazines, or websites.

To reduce your risk of serious injury, read this entire manual BEFORE

Operation Overview

machine controls/components

are easier to understand.

seek additional training from expe

machine operators, and do additional

using machine.

To complete a typical operation, the operator does the following:

1. Puts on safety glasses and a face shield, ties

back long hair, rolls up long sleeves, removes loose clothing, jewelry, or gloves that could get entangled in moving parts.

2. Examines the workpiece to make sure it is suitable for turning, then securely mounts the workpiece in a chuck, faceplate, or between centers.

3. Mounts the tooling, aligns it with the workpiece, then backs it away to establish a safe startup clearance.

4. Clears all setup tools from the lathe.

5. Checks for safe clearances by rotating the

workpiece by hand at least one full revolution.

6. Starts spindle rotation.

7. Sets the correct spindle speed for the opera-

tion.

To reduce risk of eye injury from flying chips always wear safety glasses & face shield when operating.

If you are not experienced with this type of machine, WE STRONGLY RECOMMEND that you seek additional training outside of this manual. Read books/magazines or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

Model G0745 (Mfg. Since 11/13)

8. Uses various handwheel controls to move the tooling into the workpiece for operations.

9. When finished, moves the spindle speed dial to the "0" position, waits for the spindle to completely stop, then removes the workpiece.

-19 -

Chuck & Faceplate

Installation &

Mounting

This lathe is equipped with an M14-1.0 threaded spindle nose. With this type of spindle, the chuck or faceplate (not included) screws directly onto the spindle nose.

Never use spindle speeds faster than the chuck RPM rating or the safe limits of your workpiece. Excessive spindle speeds greatly increase the risk of the workpiece or chuck being thrown from the machine with deadly force!

Loose hair, clothing, or jewelry could get caught in machinery and cause serious personal injury. Keep these items away from moving parts at all times to reduce this risk.

Removal Device

Because a chuck may become damaged or damage the bedways if dropped, always use a support or protective device during installation or removal. Refer to the following figure for an example.

Plywood Protection Plate for Chucks Installed by Hand

Figure 15. Example of common device used

during chuck installation and removal.

This lathe ships with the 3-jaw chuck installed. This is a scroll-type chuck where all three jaws move in unison when the chuck key is used.

If the chuck cannot hold your workpiece, use a faceplate (not included) with slots for T-bolts that hold standard or custom clamping hardware. With the correct clamping hardware, a faceplate offers a wide range of uses, including machining nonconcentric workpieces, straight turning between centers, and boring.

-20-

Model G0745 (Mfg. Since 11/13)

Chuck Installation &

Removal

To ensure accurate work, it is extremely important that the spindle nose and chuck mating surfaces remain clean during installation. Even a small amount of dirt or debris can affect accuracy.

The chuck is properly installed when it threads all the way onto the spindle nose (see Figure 16) and evenly seated against the spindle shoulder.

6. Insert the spindle key and chuck key, as shown in Figure 17, and tighten the chuck snug against the spindle shoulder.

Spindle Key

Spindle

Shoulder

Threads

Figure 16. Spindle nose (M14-1.0 threads).

Tools Needed: Qty

Chuck Keys ....................................................... 2

Spindle Key ....................................................... 1

Chuck Installation

1. DISCONNECT LATHE FROM POWER!

Chuck Key

Figure 17. Tightening chuck onto spindle with

spindle and chuck keys.

7. Close and secure the end cover.

Chuck Removal

1. DISCONNECT LATHE FROM POWER!

2. Use an appropriate device to protect the ways (refer to Installation & Removal Device on Page 20).

3. Remove the cap screw that secures the end

cover, then open the end cover.

4. Use the spindle key and chuck key, as shown in Figure 17, to loosen and remove the chuck.

2. Use an appropriate device to protect the ways during the installation process (refer to Installation & Removal Device on Page

20).

3. Thoroughly clean, inspect, deburr, and lightly

oil all threads and mating surfaces.

4. Thread the chuck onto the spindle nose and hand-tighten it.

5. Remove the cap screw that secures the end cover, then open the end cover.

Model G0745 (Mfg. Since 11/13)

-21-

Reversing Jaws

The included 3-jaw scroll chuck features reversible hardened steel jaws (see Figure 18) that move in unison to converge evenly against concentric workpieces.

Using the stamped numbers, the jaws are installed in numerical order in the jaw guides (see Figure

20), so they will converge.

Jaw Guide

Tall Sides

Low Side

Facing Each Other

Figure 18. Chuck with reversible jaws.

When installing the jaws, it is important to make sure they are installed correctly. Incorrect installation will result in jaws that do not converge evenly and are unable to securely clamp a workpiece.

All of the tall ends of the jaws—or all of the low ends—should face each other when installed (see Figure 18). The jaws should be oriented so they correctly hold the workpiece (refer to Figure 22 on Page 23).

Each end of a jaw is stamped with a number (1, 2, or 3), as shown in Figure 19.

Outer Ring

Key Holes

Figure 20. Jaw installation sequence using

numbers stamped on tall end of jaw.

To reverse the jaws:

1. DISCONNECT LATHE FROM POWER!

2. Use an appropriate device to protect the

ways during the installation process (refer to Installation & Removal Device on Page

20).

3. Insert chuck keys into holes in chuck and

outer ring (see Figure 20). Hold chuck key stationary while turning outer ring counterclockwise, then back jaws out and remove them.

4. Use mineral spirits to clean debris and grime from jaws and chuck jaw guides.

Figure 19. Numbers stamped into each end of

jaws.

-22-

Model G0745 (Mfg. Since 11/13)

5. Rotate outer ring until tip of scroll-gear lead thread begins to enter a jaw guide (see Figure 21).

Scroll Gear

Lead Thread

Figure 21. Lead thread entering jaw guide.

Scroll Chuck

Clamping

This 3-jaw scroll-type chuck has an internal scrollgear that moves all jaws in unison when adjusted with the chuck key. This chuck holds cylindrical parts on-center with the axis of spindle rotation and can be rotated at high speeds if the workpiece is properly clamped and balanced.

Never mix jaw types or positions to accommodate an odd-shaped workpiece. The

chuck will spin out of balance and may throw the workpiece! Instead, use an independent jaw chuck or a faceplate (not included).

6. Insert jaw #1 into the same jaw guide.

7. Rotate outer ring so tip of scroll-gear lead

thread engages jaw. Pull the jaw; it should be locked into the jaw guide.

8. Install remaining jaws in numerical order in the same manner, starting to the right of the jaw you just installed. The jaws should converge evenly at the center of the chuck when properly installed.

Tip: To ensure smooth installation, make

sure the jaws are straight up and down and do not bind in the scroll gear.

— If the jaws do not converge evenly, remove

them. Re-install the jaws sequentially 1–3, and make sure each one engages with the scroll-gear lead thread during its first rotation.

Safer Inside

Jaw Use

CORRECT

Safer Outside

Jaw Use

CORRECT

Safer Outside

Jaw Use

Insufficient Jaw Clamping

Bar Stock

INCORRECT

Unsafe Jaw Position and Poor Scroll Gear Engagement

Poor Grip

Shallow

Bar Stock

INCORRECT

Unsafe Inside

Jaw Use

Poor Scroll

Shallow

Bar Stock

Gear Engagement

Unstable

Workpiece

Unstable

Workpiece

Model G0745 (Mfg. Since 11/13)

Unsafe Jaw

CORRECT

Safer Inside

Jaw Use

CORRECT

Position

Unsafe Jaw Position

Cylinder

Poor Scroll

Gear Engagement

INCORRECT

Figure 22. Jaw selection and workpiece holding.

-23-

Tailstock

The tailstock is typically used to support long workpieces at the opposite end of the spindle, using a center. It can hold a drill chuck (not included) with a regular drill bit for boring holes. Unlike boring done with a drill press where the workpiece is fixed and the drill bit rotates, the drill bit in a tailstock remains stationary while the workpiece is rotated by the spindle.

The entire tailstock can be repositioned and locked in place along the length of the bed with the tailstock lock screw.

The tailstock quill features a handwheel that moves it toward or away from the spindle in a precise manner; it is locked with the quill lock screw.

Quill Lock

Screw

Quill

Handwheel

Tailstock Quill Specs

Graduated Dial

Increments .................................................0.002"

One Full Revolution ................................... 0.056"

Positioning Tailstock

1. Loosen the tailstock lock screw to unlock the

tailstock from the bedway.

2. Slide the tailstock to the desired position.

3. Tighten the tailstock lock screw to secure the

tailstock against the bedway.

Using Quill

1. Loosen the quill lock screw to unlock the quill.

2. Turn the quill handwheel clockwise to move

the quill toward the spindle or counterclockwise to move it away from the spindle.

3. Tighten the quill lock screw to secure the quill.

Quill

Tailstock Lock

Screw

Figure 23. Tailstock controls and features.

Tools Needed to Make Adjustments: Qty

Hex Wrench 5mm .............................................. 1

-24-

Model G0745 (Mfg. Since 11/13)

Center

Figure 24 shows the center included with the

lathe.

Note: Only apply enough pressure with the

tailstock quill to securely mount the workpiece between centers. Avoid overtightening the center against the workpiece, as it will result in excessive friction and heat, which may damage the workpiece and center.

Mounting Workpiece Between Centers

1. DISCONNECT LATHE FROM POWER!

2. Drill center holes in both ends of the workpiece.

Figure 24. Included center.

The center is used to support long, slender workpieces when held between the tailstock and spindle.

Mounting Center in Tailstock

The Figure below shows an example photo of a center mounted in a tailstock.

Center

Figure 25. Example of using center installed in

tailstock.

To mount a center in the tailstock:

3. Install a center in the chuck with a lathe dog

(not included), then install the included center in the tailstock quill.

4. Lubricate the workpiece center holes, then mount it between the centers and hold it in place with light pressure from the tailstock center.

5. Rotate the quill handwheel clockwise to apply pressure against the workpiece (see example in Figure below).

Figure 26. Example photo of workpiece mounted

between centers.

1. DISCONNECT LATHE FROM POWER!

2. Thoroughly clean and dry the mating surfac-

es of the tailstock quill bore and the center, making sure that no debris remains.

3. Lubricate the shaft and tip of the center with NLGI#2 grease, then insert it into the tailstock quill.

4. Seat the center into the quill during workpiece installation by rotating the quill handwheel clockwise to apply pressure against the workpiece.

Model G0745 (Mfg. Since 11/13)

-25-

Carriage & Slide

Locks

The carriage and cross slide have screws that can be tightened to provide additional rigidity during operation, especially during heavy cuts.

See Figure 27 to identify the locations of the locks for each device.

Tool Post

The tool post is mounted on top of the cross slide and allows one tool to be loaded at a time.

Installing Tool

Tool Needed Qty

Hex Wrench 5mm .............................................. 1

To install a tool in the tool post:

Cross Slide Lock Screw

Carriage

Lock Screw

Figure 27. Carriage and cross slide locks.

1. Adjust the tool post screws so the cutting tool can fit underneath them (see Figure 28).

Cutting

Tool

Figure 28. Example of tool mounted in tool post.

Over-extending a cutting tool from the tool post will increase the risk of tool chatter, breakage, or tool loosening during operation, which could cause metal pieces to be thrown at the operator or bystanders with great force. DO NOT extend a cutting tool more than 2.5 times the width of its cross-section (e.g., 2.5 x 0.5" = 1.25").

Tool Post Screw

-26-

2. Firmly secure the cutting tool with both tool post screws.

3. Check and adjust the tip of the cutting tool to the spindle centerline, as instructed in the next subsection.

Model G0745 (Mfg. Since 11/13)

Aligning Cutting Tool with Spindle

To align the cutting tool with the tailstock center:

secure the post so the tool faces the tailstock.

tool tip is aligned vertically with the center tip, as illustrated below.

Centerline

For most operations, the cutting tool tip should be aligned with the spindle centerline, as illustrated in Figure 29.

Tools Needed Qty

Hex Wrench 5mm .............................................. 1

Steel Shims ....................................... As Needed

Cutting Tool ....................................................... 1

Tailstock Center ................................................. 1

Cutting

Tool

Figure 29. Cutting tool aligned with spindle

centerline (viewed from tailstock).

There are a number of ways to check and align the cutting tool to the spindle centerline. If necessary, you can raise the cutting tool by placing steel shims underneath it. The shims should be as long and as wide as the cutting tool to properly support it.

Below are two common methods:

• Move the tailstock center over the cross slide and use a fine ruler to measure the distance from the surface of the cross slide to the tip of the center. Adjust the cutting tool height so it is the same distance above the cross slide as the tailstock center.

Spindle Center

Line

Mount the cutting tool in the tool post, then

Install a center in the tailstock, and position

the center tip near the cutting tool tip.

Lock the tailstock and quill in place.

Adjust the height of the cutting tool so that the

(Top View)

Tailstock

Center

Cutting

Tool

Cutting

Tool

Tailstock

Center

• Align the tip of the cutting tool with a tailstock center, as instructed in the following procedure.

Model G0745 (Mfg. Since 11/13)

(Side View)

Figure 30. Cutting tool aligned to the tailstock

center.

-27-

Manual Feed

The handwheels shown in Figure 31 allow the operator to manually move the cutting tool.

Carriage Handwheel

Use the carriage handwheel to move the carriage left or right along the bed when setting up and performing turning operations.

Cross Slide Handwheel

Graduated Dial

Increments ............................... 0.002" (0.051mm)

One Full Revolution ................... 0.056" (1.42mm)

Use this handwheel to move the tool toward and away from the work. The cross slide handwheel has an indirect-read graduated dial. This means the distance shown on the scale represents the actual distance the tool moves.

Cross Slide

Handwheel

Figure 31. Manual handwheel controls.

Carriage

Handwheel

-28-

Model G0745 (Mfg. Since 11/13)

Spindle Speed

Using the correct spindle speed is important for getting safe and satisfactory results, as well as maximizing tool life.

The books Machinery’s Handbook or Machine Shop Practice, and some internet sites, provide excellent recommendations for which cutting speeds to use when calculating the spindle speed. These sources also provide a wealth of additional information about the variables that affect cutting speed and they are a good educational resource.

To set the spindle speed for your operation, you will need to: 1) Determine the best spindle speed for the cutting task, and 2) configure the lathe controls to produce the required spindle speed.

Determining Spindle Speed

Many variables affect the optimum spindle speed to use for any given operation, but the two most important are the recommended cutting speed for the workpiece material and the diameter of the workpiece, as noted in the formula shown below.

*Recommended

Cutting Speed (FPM) x 12

Dia. of Cut (in inches) x 3.14

Spindle

Speed

(RPM)

*Double if using carbide cutting tool

Figure 32. Spindle speed formula for lathes.

Cutting speed, typically defined in feet per minute (FPM), is the speed at which the edge of a tool moves across the material surface.

Also, there are a large number of easy-to-use spindle speed calculators that can be found on the internet. These sources will help you take into account the applicable variables in order to determine the best spindle speed for the operation.

Selecting Spindle Speed

Twist the emergency stop button clockwise to reset it, then rotate the spindle speed dial (Figure

33) until the desired spindle speed is achieved.

Spindle Speed

Dial

Figure 33. Spindle speed dial location.

A recommended cutting speed is an ideal speed for cutting a type of material in order to produce the desired finish and optimize tool life.

Model G0745 (Mfg. Since 11/13)

-29-

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in serious personal injury or machine damage. To reduce this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for additional recommended accessories.

D2056—Woodstock Tool Table

Get that bench-top tool off your bench and put it on this sturdy Shop Fox legs and adjustable rubber feet ensure stability and reduce machine vibration. Butcher block finish table top measures 1" x 13" x 23" and is 30 from the floor. Bottom measures 21" x 32". 700 lb. Capacity!

stand instead! Flared

⁄2"

T25206—11 Pc. Carbide Bit Set

This 11-Pc. Carbide-Tipped Tool Bit Set includes a wide variety of tool types for just about any machining operation. This set also includes two boring bars. Boring bars measure 4 Shank size for all is

Figure 35. 11-Pc. Carbide-Tipped Tool Set.

SB1365—South Bend Way Oil for Lathes

Engineered for the high pressure exerted on horizontal or vertical ways and slides. Protects against rust and corrosion. Ensures stick-free, smooth motion which maximizes finishes and extends the life of your machine. Won’t gum up! 12 oz. AMGA#2 (ISO 68 Equivalent).

⁄16".

⁄16"

⁄8" long.

Figure 34. D2056 Tool Table.

T26622—Threaded Tailstock Chuck

This tailstock chuck, which features M14-1.0 threads and Model G0745.

-30-

⁄64"–5⁄16" capacity, is designed for the

Figure 36. Way Oil.

Model G0745 (Mfg. Since 11/13)

SECTION 6: MAINTENANCE

accidental startup, always disconnect machine from

Cleaning/Protecting

To reduce risk of shock or

Typically, the easiest way to clean swarf from the

power before adjustments, maintenance, or service.

Schedule

machine is to use a wet/dry shop vacuum that is dedicated for this purpose. The small chips left over after vacuuming can be wiped up with a slightly oiled rag. Avoid using compressed air to blow off chips, as this may drive them deeper into the moving surfaces or cause sharp chips to fly into your face or hands.

Ongoing

To help reduce the risk of injury and ensure proper machine operation, if you ever observe any of the items below, shut down the machine immediately and fix the problem before continuing operations.

• Worn, frayed, cracked, or damaged wires.

• Guards or covers open or removed.

• Emergency STOP button not working correctly.

• Damaged or malfunctioning components.

Daily, Before Operations

• Clean/lubricate the longitudinal and cross slide leadscrews (Page 32).

• Lubricate the bedways (Page 32).

• Ensure carriage lock bolt is loose.

Daily, After Operations

• Turn the spindle direction switch to "0", and press the emergency stop button (to prevent accidental startup).

• Vacuum/clean all chips and swarf from bed and slides.

• Wipe down all unpainted or machined surfaces with an oiled rag.

All unpainted and machined surfaces should be wiped down daily with way oil to keep them rust free and in top condition. This includes any surface that is vulnerable to rust if left unprotected.

Model G0745 (Mfg. Since 11/13)

-31-

Lubrication

The lathe has metal-to-metal sliding surfaces that require regular lubrication to maintain smooth movement and ensure long-lasting operation.

Other than the lubrication points covered in this section, all other bearings are internally lubricated and sealed at the factory. Simply leave them alone unless they need to be replaced.

Before performing any lubrication task, DISCONNECT LATHE FROM POWER!

We recommend using Model SB1365 Way Oil (see Accessories on Page 30) for most of the lubrication tasks.

NOTICE

The recommended lubrication is based on light-to-medium usage. Keeping in mind that lubrication helps to protect the value and operation of the lathe, these lubrication tasks may need to be performed more frequently than recommended here, depending on usage.

Failure to follow reasonable lubrication practices as instructed in this manual could lead to premature failure of lathe components and will void the warranty.

Leadscrews

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Oil Amount ......................................... As Needed

Lubrication Frequency ................................. Daily

Before lubricating the longitudinal and cross slide leadscrews (see Figure 37), clean them first with mineral spirits. To access the longitudinal leadscrew, remove the leadscrew cover, which is attached with screws. Use a stiff brush to help remove any debris or grime. Apply a thin coat of oil along the length of the leadscrews. Use a stiff brush to make sure oil is applied into the leadscrew threads. Re-install the longitudinal leadscrew cover when finished.

Cross Slide

Leadscrew

Longitudinal

Leadscrew

Figure 37. Leadscrews and bedways (tailstock

and leadscrew cover removed).

Bedways

Oil Type ....Grizzly SB1365 or ISO 68 Equivalent

Oil Amount ......................................... As Needed

Lubrication Frequency ................................. Daily

-32-

Before lubricating the bedways (see Figure 37), clean them with mineral spirits. Apply a thin coat of oil along the length of the bedway. Move the carriage and remove the tailstock (remove cap screw at end of bed) to access the entire length of the bedways. Re-install the tailstock when finished.

Model G0745 (Mfg. Since 11/13)

Review the troubleshooting and procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, call our Technical Support at (570) 546-9663. Note: Please gather the serial number and manufacture date of your machine before calling.

SECTION 7: SERVICE

Troubleshooting

Symptom Possible Cause Possible Solution

Machine does not start or a circuit breaker trips.

Motor is loud when cutting, bogs down under load, or overheats.

Entire machine vibrates upon startup and while running.

Bad surface ﬁnish. 1. Wrong spindle speed or feed rate.

1. Emergency stop button engaged or at fault.

2. Spindle speed dial turned to "0" or at fault.

3. Wall fuse/circuit breaker is blown/tripped; short in electrical system; start-up load too high for circuit.

4. Wiring is open/has high resistance.

5. Motor connection wired wrong.

6. Machine fuse at fault.

7. Motor brushes at fault.

8. Motor at fault.

1. Excessive depth of cut or feed rate.

2. Spindle speed or feed rate wrong for cutting operation.

3. Cutting tool is dull.

1. Workpiece is unbalanced.

2. Workpiece is hitting stationary object.

3. Loose or damaged V-belt.

4. Chuck or faceplate is unbalanced or not installed properly.

5. Spindle bearings at fault.

2. Dull tooling or poor tool selection.

3. Tool height not at spindle centerline.

4. Too much play in gib.

1. Rotate button clockwise until it pops out to reset it for operation; replace if not working properly.

2. Turn spindle speed dial past "1". Ensure dial has correct voltage. Replace if faulty.

3. Verify circuit is rated for machine amp load; troubleshoot and repair cause of overload; replace weak breaker; ﬁnd/repair electrical short.

4. Check for broken wires or disconnected/corroded connections, and repair/replace as necessary.

5. Correct motor wiring connections (Page 40).

6. Replace fuse (Page 37).

7. Replace brushes (Page 38).

8. Test/repair/replace.

1. Decrease depth of cut or feed rate.

2. Refer to the feeds and speed charts in Machinery's Handbook or a speeds and feeds calculator on the internet.

3. Sharpen or replace the cutting tool.

1. Re-install workpiece as centered with the spindle centerline as possible.

2. Stop lathe immediately and correct interference problem.

3. Retension/replace the V-belt as necessary (Page

36).

4. Check installation; rebalance chuck or faceplate; contact a local machine shop for help.

5. Replace worn spindle bearings.

1. Adjust for appropriate spindle speed and feed rate.

2. Sharpen tooling or select a better tool for the intended operation.

3. Adjust tool height to spindle centerline (Page 27).

4. Tighten gib (Page 36).

Model G0745 (Mfg. Since 11/13)

-33-

Cross slide or carriage has sloppy operation.

Cross slide or carriage feed handwheel hard to move.

Cutting tool or machine components vibrate excessively while cutting.

Chuck jaws will not move or do not move easily.

1. Gib out of adjustment.

2. Excessive backlash.

1. Ways loaded with shavings, dust, or grime.

2. Lock screws tightened.

3. Gib screws are too tight.

4. Backlash setting too tight.

5. Bedways are dry.

1. Tool post not tight enough.

2. Cutting tool sticks too far out of tool post; lack of support.

3. Gib out of adjustment.

4. Dull cutting tool.

5. Incorrect spindle speed or feed rate.

1. Chips lodged in the jaws or scroll plate. 1. Remove jaws, clean and lubricate scroll plate and

1. Adjust gib (see Page 36).

2. Adjust backlash to a minimum (see Page 35).

1. Clean ways and relubricate.

2. Loosen lock screws.

3. Loosen gib screw(s) slightly (see Page 36).

4. Slightly loosen backlash setting (see Page 35).

5. Lubricate bedways.

1. Check for debris, clean, and retighten.

2. Re-install cutting tool so no more than length is sticking out of tool post.

3. Adjust gib (see Page 36).

4. Replace or resharpen cutting tool.

5. Use the recommended spindle speed and feed rate.

jaws, then replace jaws.

⁄3 of the total

-34-

Model G0745 (Mfg. Since 11/13)

Backlash Adjustment

Backlash is the amount of free-play in the leadscrews. It can be felt while changing rotation directions with the cross slide and longitudinal feed handwheels. Before beginning any adjustment, make sure all associated components are cleaned and lubricated, and the locks are loose.

Reducing backlash to less than 0.002" is impractical and can lead to accelerated wear in the leadscrew and other components. Avoid the temptation to overtighten the backlash nut or screw while adjusting.

Cross Slide

Tools Needed: Qty

Phillips Head Screwdriver #1 ............................. 1

Carriage

Tools Needed: Qty

Hex Wrench 5mm .............................................. 1

The carriage handwheel backlash is adjusted with the leadscrew supports (see Figure 39).

Cap Screws

Supports

Figure 39. Carriage adjustment screws and

leadscrew supports.

The cross slide backlash is adjusted by loosening Phillips head screw (see Figure 38). When the screw is tightened, the leadscrew nut draws the leadscrew up, removing free-play.

Adjustment

Screw

Figure 38. Cross slide backlash adjustment

screw.

To adjust the backlash, move the tool post out of the way, or remove it. Then, rock the cross slide handwheel back and forth, and tighten the screw slowly until the backlash is approximately

0.002"–0.003" as indicated on the graduated dial.

To access the leadscrew supports, remove the leadscrew cover. Loosen the four cap screws, push the leadscrew supports towards the center of the lathe, then tighten the cap screws. Turn the handwheel—backlash should be approximately

0.002"–0.003" as indicated on the graduated dial. If the adjustment is too tight, loosen the cap screws, and re-adjust the supports until the handwheel turns freely. Re-install the leadscrew cover when finished.

If you end up adjusting the nut too tight, loosen the screw, turn the handwheel back and forth until it turns freely—then try again.

Model G0745 (Mfg. Since 11/13)

-35-

Gib Adjustment

The goal of adjusting the cross slide gib is to remove sloppiness or free-play from the ways without making the cross slide overly stiff and difficult to move.

In general, loose gibs cause poor finishes and tool chatter. Over-tightened gibs cause premature wear and make the handwheel difficult to turn.

V-Belt Tension &

Replacement

The V-belt stretches and wears with use. An improperly tensioned V-belt will slip or poorly transmit power from the motor. Check the tension on a monthly basis to ensure optimal power transmission. Replace the V-belt if it becomes cracked, frayed, or glazed.

Tools Needed Qty

Open-End Wrench 7mm .................................... 1

Hex Wrench 2mm .............................................. 1

To adjust the cross slide gib:

1. DISCONNECT LATHE FROM POWER!

2. Loosen the two hex nuts on the side of the

slide (see Figure 40).

Cross Slide Adjustment

Fasteners

Tools Needed Qty

Hex Wrench 3mm .............................................. 1

Hex Wrench 5mm .............................................. 1

Tensioning V-Belt

1. DISCONNECT LATHE FROM POWER!

2. Open the end cover, which is secured with a

cap screw.

3. Loosen the cap screws shown in Figure 41.

Cap Screws

Figure 40. Cross slide gib adjustment hex nuts

and set screws.

3. Adjust the set screws in small and equal increments, then test the movement of the slide by rotating the handwheel.

Note: Turning the set screws clockwise tight-

ens the gib, and turning them counterclockwise loosens the gib.

4. When you are satisfied with the gib adjustment, keep the set screws from moving and re-tighten the hex nuts to secure the settings.

5. Re-check the movement of the slide and, if necessary, repeat Steps 2–4.

-36-

Figure 41. Location of cap screws for loosening

V-belt.

4. Pull the motor away from the bed to tension the V-belt, then tighten the cap screws.

Model G0745 (Mfg. Since 11/13)

The V-belt is correctly tensioned when there

is approximately pushed with moderate pressure, as shown in Figure 42.

Deflection

⁄8" deflection when it is

Pulley

Fuse Replacement

Tool Needed Qty

Flat Head Screwdriver #1 .................................. 1

Replacement part number: P074 5125 .

If the spindle does not start, replace the fuse.

⁄8"

Pulley

Figure 42. Correct V-belt deflection.

—If there is more than 1⁄8" deflection when the

V-belt is pushed with moderate pressure, loosen the four cap screws, and adjust the tension until it is correct.

5. Close and secure the end cover.

Replacing V-Belt

1. DISCONNECT LATHE FROM POWER!

2. Open the end cover.

3. Loosen the four cap screws shown in Figure 41 on Page 36.

To replace the fuse:

1. Using the screwdriver, push and twist the

fuse holder (see Figure 43) to remove it from the hole in the rear of the headstock.

Fuse

Fuse Holder

Hole

Figure 43. Fuse holder and fuse.

2. Insert a new fuse into the fuse holder.

4. Carefully roll the V-belt off of the pulleys.

5. Install a new V-belt, then tension it as described on Page 36.

Model G0745 (Mfg. Since 11/13)

3. Re-install the fuse holder.

-37-

Brush Replacement

Tool Needed Qty

Hex Wrench 3mm .............................................. 1

Hex Wrench 5mm .............................................. 1

Flat Head Screwdriver #1 .................................. 1

Replacement part number: P0745134

3. Unscrew each brush cap and carefully remove each brush from the motor (see Figure 45).

Replace the carbon brushes if the motor does not develop full power, or the brushes measure less

⁄4" long.

than

To replace the motor brushes:

1. DISCONNECT LATHE FROM POWER!

2. Remove the backsplash to gain acess to both

brushes (see Figure 44).

Brush Caps

Brush

Cap

Figure 45. Motor brush components removed

(1 of 2 motor brushes shown).

4. Install new brushes.

5. Re-install the brush caps, then replace the

backsplash.

Figure 44. Location of motor brush caps

(backsplash removed).

-38-

Model G0745 (Mfg. Since 11/13)

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one

number and manufacture date of your

machine before calling. This information can be found on the main machine label.

machine

SECTION 8: WIRING

stated in this manual, and study this section carefully.

If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine. An updated wiring diagram may be available. Note: Please gather the serial

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0745 (Mfg. Since 11/13)

-39-

Control Panel Wiring

To Circuit Board

Fuse

250VAC

BF021

5A250V

SE4TB5

Limit

Switch

SE4TB5 5A250V

Fault

Power

Control Panel

(Backside View)

WH24-2

Z4K7

Variable

Speed

JHK16-822

Emergency

Stop

K1K2

-40-

Figure 46. Control panel wiring.

READ ELECTRICAL SAFETY

ON PAGE 39!

Model G0745 (Mfg. Since 11/13)

GAN

L2 A- A+ K1 K2

Front View of Board

A-

A+

To Control Panel

Gnd Gnd

Neutral

Hot

Ground

110 VAC

5-15 Plug

Motor

Circuit Board Wiring

(See Figure 47 on Page 42)

Model G0745 (Mfg. Since 11/13)

-41-

Figure 47. Circuit board.

-42-

Model G0745 (Mfg. Since 11/13)

SECTION 9: PARTS

Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here

are available for purchase. Call (800) 523 - 4777 or visit our online parts store at www.grizzly.com to check for availability.

Body & Bed

116

117

110

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0745001 BED 18 P0745018 HEX NUT M4-.7 2 P0745002 LEADSCREW SUPPORT (LH) 19 P0745019 LOCK WASHER 4MM 3 P0745003 CAP SCREW M6-1 X 14 20 P0745020 PHLP HD SCR M4-.7 X 10 4 P0745004 LEADSCREW COVER 21 P0745021 LONGITUDINAL LEADSCREW 6 P0745006 TAP SCREW M2.9 X 6.5 22 P0745022 LEADSCREW SUPPORT (RH) 7 P0745007 TAP SCREW M3 X 8 23 P0745023 HANDWHEEL 8 P0745008 CIRCUIT BOARD XMT1115 24 P0745024 ACORN NUT M5-.8 9 P0745009 CIRCUIT BOARD BACK PLATE 25 P0745025 HANDWHEEL HANDLE 10 P0745010 CAP SCREW M6-1 X 12 26 P0745026 HANDLE STEP SCREW M4-.7 X 8, 25L 11 P0745011 FOOT (RUBBER) 27 P0745027 PHLP HD SCR M4-.7 X 6 12 P0745012 HEX NUT M6-1 28 P0745028 FLAT WASHER 4MM 13 P0745013 FLAT WASHER 6MM 29 P0745029 BACK SPLASH 15 P0745015 STRAIN RELIEF M12 110 P0745110 CAP SCREW M5-.8 X 10 16 P0745016 POWER CORD 18G 3W 48" 5-15P 116 P0745116 BAFFLE 17 P0745017 BASE 117 P0745117 TAP SCREW M2.9 X 6.5

Model G0745 (Mfg. Since 11/13)

-43-

109

Headstock & Motor

30-1

124

134

125

REF PART # DESCRIPTION REF PART # DESCRIPTION

3 P0745003 CAP SCREW M6-1 X 14 53 P0745053 HEX NUT M5-.8 5 P0745005 CAP SCREW M4-.7 X 6 54 P0745054 MOTOR MOUNT 12 P0745012 HEX NUT M6-1 55 P0745055 FLAT WASHER 5MM 13 P0745013 FLAT WASHER 6MM 56 P0745056 CAP SCREW M5-.8 X 14 15 P0745015 STRAIN RELIEF M12 57 P0745057 KEY 3 X 3 X 16 27 P0745027 PHLP HD SCR M4-.7 X 6 58 P0745058 MOTOR 150W 110VDC 60HZ 1.8A 28 P0745028 FLAT WASHER 4MM 59 P0745059 SPACER PLATE 30 P0745030 3-JAW CHUCK 2" 60 P0745060 TAP SCREW M2.9 X 6.5 30-1 P0745030-1 REVERSIBLE CHUCK JAWS 3-PC SET 61 P0745061 CONTROL PANEL PLATE 31 P0745031 SPINDLE 62 P0745062 E-STOP BUTTON LAS-AY-22TS/P 32 P0745032 BALL BEARING 6003ZZ 63 P0745063 VARIABLE SPEED CONTROL KNOB 33 P0745033 INT RETAINING RING 35MM 64 P0745064 LAMP HL2 (YELLOW) 34 P0745034 CAP SCREW M6-1 X 40 65 P0745065 LAMP XD7-3 (GREEN) 35 P0745035 L-BRACKET 66 P0745066 POTENTIOMETER WH24-2 36 P0745036 CAP SCREW M4-.7 X 8 67 P0745067 FUSE HOLDER 37 P0745037 EXT RETAINING RING 17MM 68 P0745068 FLEXIBLE CORD ASS7 13 X 270MM 38 P0745038 SPINDLE PULLEY 69 P0745069 FLAT HD SCR M4-.7 X 8 39 P0745039 SPACER 70 P0745070 CHUCK GUARD 40 P0745040 SPACER 71 P0745071 CHUCK GUARD PIVOT SHAFT 41 P0745041 HEADSTOCK 72 P0745072 KEY 3 X 3 X 6 42 P0745042 PULLEY COVER 73 P0745073 SPACER 43 P0745043 HEX NUT M4-.7 74 P0745074 COMPRESSION SPRING 16MM 44 P0745044 FLAT WASHER 4MM 75 P0745075 PHLP HD SCR M2-.4 X 20 45 P0745045 PHLP HD SCR M4-.7 X 8 76 P0745076 CHUCK GUARD LIMIT SWITCH SS5-GL 46 P0745046 HINGE 38 X 31MM 77 P0745077 HEX NUT M2-.4 47 P0745047 EXT RETAINING RING 8MM 78 P0745078 CIRCUIT BOARD COVER 48 P0745048 V-BELT K-1 5/16" X 1/4" X 14-1/2" 109 P0745109 FINGER-HOLE COVER 49 P0745049 MOTOR PULLEY 124 P0745124 MOTOR BRUSH CAP 50 P0745050 LOCK WASHER 6MM 125 P0745125 FUSE 2A F2AL250V (GLASS) 51 P0745051 CAP SCREW M5-.8 X 20 134 P0745134 CARBON BRUSH 2-PC SET 52 P0745052 FLAT WASHER 5MM

-44-

Model G0745 (Mfg. Since 11/13)

Carriage & Tailstock

121

120

103

104

107

106

105

122

130

128

127

102

126

101

100

123

131

132

129

133

REF PART # DESCRIPTION REF PART # DESCRIPTION

3 P0745003 CAP SCREW M6-1 X 14 95 P0745095 CARRIAGE CLAMP PLATE 13 P0745013 FLAT WASHER 6MM 97 P0745097 FLAT WASHER 4MM 18 P0745018 HEX NUT M4-.7 98 P0745098 CAP SCREW M4-.7 X 10 19 P0745019 LOCK WASHER 4MM 99 P0745099 SLIDE BLOCK SUPPORT 23 P0745023 HANDWHEEL 100 P0745100 HEX BOLT M4-.7 X 10 24 P0745024 ACORN NUT M5-.8 101 P0745101 FLAT WASHER 4MM 25 P0745025 HANDWHEEL HANDLE 102 P0745102 LEADSCREW SLIDE BLOCK 26 P0745026 HANDLE STEP SCREW M4-.7 X 8, 25L 103 P0745103 SADDLE 34 P0745034 CAP SCREW M6-1 X 40 104 P0745104 CAP SCREW M6-1 X 20 79 P0745079 TOOL HOLDER 105 P0745105 CROSS SLIDE GIB 80 P0745080 PHLP HD SCR M4-.7 X 6 106 P0745106 CROSS SLIDE 81 P0745081 CAP SCREW M6-1 X 35 107 P0745107 TOOL HOLDER T-SLOT NUT 82 P0745082 QUILL 120 P0745120 CAP SCREW M4-.7 X 14 83 P0745083 CAP SCREW M6-1 X 16 121 P0745121 CROSS LEADSCREW BRACKET 84 P0745084 SET SCREW M6-1 X 8 DOG-PT 122 P0745122 CARRIAGE GIB PLATE 85 P0745085 SET SCREW M6-1 X 8 123 P0745123 SET SCREW M4-.7 X 6 86 P0745086 TAILSTOCK LEADSCREW 126 P0745126 CHUCK KEY 5MM 88 P0745088 GRADUATED DIAL 127 P0745127 SPINDLE KEY 5MM 89 P0745089 TAILSTOCK CLAMP PLATE 128 P0745128 PHILLIPS HEAD SCREWDRIVER #1 90 P0745090 TAILSTOCK CASTING 129 P0745129 WRENCH 5.5 X 7MM OPEN-ENDS 91 P0745091 SET SCREW M5-.8 X 8 130 P0745130 HEX WRENCH 5MM 92 P0745092 SET SCREW M4-.7 X 16 131 P0745131 HEX WRENCH 4MM 93 P0745093 CROSS LEADSCREW NUT 132 P0745132 HEX WRENCH 3MM 94 P0745094 CROSS LEADSCREW 133 P0745133 DEAD CENTER

Model G0745 (Mfg. Since 11/13)

-45-

Machine Labels & Cosmetics

203

204

202

201

205

206

207

209

208

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 P0745201 GENERAL WARNINGS LABEL 206 P0745206 GLOSSY BLACK TOUCH-UP PAINT 202 P0745202 GRIZZLY GREEN TOUCH-UP PAINT 207 P0745207 MACHINE ID LABEL 203 P0745203 CONTROL PANEL LABEL 208 P0745208 GRIZZLY.COM LABEL 204 P0745204 SAFETY GLASSES LABEL 209 P0745209 ELECTRICITY LABEL 205 P0745205 READ MANUAL LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-46-

Model G0745 (Mfg. Since 11/13)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY & RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0745 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
