Grizzly G0707 User guide

MODEL G0707

24" X 37" BLAST CABINET

OWNER'S MANUAL

(For models manufactured since 12/23)

COPYRIGHT © NOVEMBER, 2009 BY GRIZZLY INDUSTRIAL, INC., REVISED DECEMBER, 2023 (LW)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CR12334 PRINTED IN CHINA

***Keep for Future Reference***

V5 .12 . 2 3

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre­hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip­ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy
Contact Info
Machine Description
Identification
Machine Data Sheet

.........................................................................................................................2

.................................................................................................................................2

....................................................................................................................2

................................................................................................................................3

....................................................................................................................4

SECTION 1: SAFETY

Safety Instructions for Machinery
Additional Safety for Blast Cabinets

SECTION 2: POWER SUPPLY

SECTION 3: SETUP

Needed for Setup
Unpacking
Inventory
Hardware Recognition Chart
Site Considerations
Mounting to Shop Floor
Air Supply Setup
Assembly
Test Run

SECTION 4: OPERATIONS

Preparation
Control Panel
Basic Operation
Blasting Media

SECTION 5: ACCESSORIES

.................................................................................................................................11

....................................................................................................................................12

...................................................................................................................................17

....................................................................................................................................20

................................................................................................................................21

....................................................................................................................... 6

........................................................................................................................11

......................................................................................................................11

...................................................................................................................14

.............................................................................................................15

.......................................................................................................................16

............................................................................................................ 21

............................................................................................................................22

.........................................................................................................................23

...........................................................................................................................25

......................................................................................................... 29

................................................................................................6

............................................................................................8

........................................................................................................ 9

.....................................................................................................13

SECTION 6: MAINTENANCE

Schedule
Cleaning

SECTION 7: SERVICE

Troubleshooting
Filter Replacement
Motor Brush Replacement
LED Replacement

SECTION 8: WIRING

Wiring Safety Instructions
Control Box Wiring Diagram
Electronic Component Photos
Other Electrical Component Wiring
Air System Diagram

SECTION 9: PARTS

Main
Labels & Cosmetics

WARRANTY & RETURNS

...................................................................................................................................30

....................................................................................................................................30

................................................................................................................... 31

.........................................................................................................................31

....................................................................................................................32

.....................................................................................................................35

...................................................................................................................... 36

..................................................................................................................40

....................................................................................................................... 41

...........................................................................................................................................41

..................................................................................................................44

.............................................................................................................. 45

........................................................................................................ 30

........................................................................................................32

.........................................................................................................36

.....................................................................................................37

...................................................................................................38

...........................................................................................39

INTRODUCTION

We stand behind our machines! If you have ques­tions or need help, contact us with the information
below. Before contacting, make sure you get the

serial number

from the

machine ID label. This will help us help you faster.

We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Email: [e-mail]

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive is

slightly different than shown in the manual

If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something

check our

website for an updated version. W

current

manuals and

on our web-

site at

Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the

serial number

from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.

Manual Accuracy

made every effort to be exact with the

sometimes the machine

,

www.grizzly.com.

manual updates for free

manufacture date and

e post

Contact Info

and manufacture date

Grizzly Technical Support

1815 W. Battlefield

.

Springfield, MO 65807
Phone: [phone]

Email: [e-mail]

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Manufacture Date

Serial Number

Machine Description

This blast cabinet is designed for high-use media
blasting operations, where air flow up to 25 CFM
and air pressure up to 120 PSI can be used. Air
pressure is fully adjustable with a control panel
air pressure regulator. A fixed blasting gun and
a hand-held blasting gun are included in this
machine. Blasting operations through a hand-held
blast gun or fixed gun are controlled by a foot
valve and control panel.

An internal set of LED work lights provide illumina­tion during blasting operations, and a built-in dust
collector maintains blasting environment visibility.
The cabinet is equipped with two side loading
doors for ease of workpiece loading and unload­ing. Media is quickly unloaded through the hopper
dump port door, and reloaded through a side door.

-2-

Model G0707 (Mfd. Since 12/23)

Identification

Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.

B

A

L

C

D

E

F

K

J

A. Control Panel
B. Pressure Regulator w/Gauge
C. Dust Collector
D. LED Light Assembly
E. Canister Plunger for Filter Cleaning
F. Side-Loading Door

I

G

H

G. Door Latch
H. Hopper Dump Chute
I. Gloves
J. Foot Pedal Blasting Switch
K. Heavy Duty Leg Support System
L. Viewing Window

Model G0707 (Mfd. Since 12/23)

-3-

Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]

MODEL G0707

24" X 37" BLAST CABINET

Product Dimensions:

Weight ............................................................................................................................................................................ 198 lbs.

Width (side-to-side) x Depth (front-to-back) x Height ..................................................................................41 x 36 x 64-1/2 in.

Footprint (Length x Width) ......................................................................................................................................... 23 x 37 in.

Shipping Dimensions:

Type ................................................................................................................................................................... Cardboard Box

Content .......................................................................................................................................................................... Machine

Weight ............................................................................................................................................................................ 231 lbs.

Length x Width x Height .....................................................................................................................................52 x 39 x 30 in.

Electrical:

Power Requirement ........................................................................................................................ 110V, Single-Phase, 60 Hz

Full-Load Current Rating ...................................................................................................................................................... 11A

Minimum Circuit Size ........................................................................................................................................................... 15A

Connection Type ..................................................................................................................................................... Cord & Plug

Power Cord Included ............................................................................................................................................................Yes

Power Cord Length ............................................................................................................................................................ 72 in.

Power Cord Gauge .......................................................................................................................................................14 AWG

Plug Included ........................................................................................................................................................................Yes

Included Plug Type ..............................................................................................................................................................5-15

Switch Type ..............................................................................................................................Sealed ON/OFF Rocker Switch

Number of Lights .......................................................................................................................................................................2

Lighting Type ..................................................................................................................................................... 9W LED, 24 in.

Motors:

Main

Horsepower .................................................................................................................................................................. 1-1/2 HP

Phase .................................................................................................................................................................... Single-Phase

Amps .................................................................................................................................................................................... 11A

Type .............................................................................................................................................................................Universal

Power Transfer ................................................................................................................................................................. Direct

Bearings ............................................................................................................................. Shielded & Permanently Lubricated

Main Specifications:

Operation Information

Suggested Operating Air Pressure Range ..................................................................................................... 60 - 80 PSI

Maximum Air Pressure ......................................................................................................................................... 120 PSI

Recommended Air Supply .............................................................................................................................. 5 - 28 CFM

Maximum Abrasive Capacity ................................................................................................................................ 400 lbs.

Suggested Abrasive Capacity ................................................................................................................................55 lbs.

Abrasive Type .....................................................................................................................................................Dry Only

Load & Unload Access .............................................................................................................................................Sides

Maximum Load Capacity ................................................................................................................................. 20 Gallons

Design Type ..............................................................................................................................................................Floor

-4-

Model G0707 (Mfd. Since 12/23)

Dust Collector Filter Information

Other Specifications:

Features:

Dimensions .......................................................................................................................................6-3/4" Dia. x 12" Tall

Type .......................................................................................................................................................................Pleated

Rating ................................................................................................................................................................ 5 Microns

Construction Information

Body ........................................................................................................................................ Welded Heavy-Duty Steel

Paint Type/Finish ...................................................................................................................................... Powder Coated

Country of Origin ............................................................................................................................................................... China

Warranty ........................................................................................................................................................................... 1 Year

Serial Number Location ................................................................................................................................................ ID Label

Assembly Time ......................................................................................................................................................... 60 Minutes

Dual Side-Loading Doors

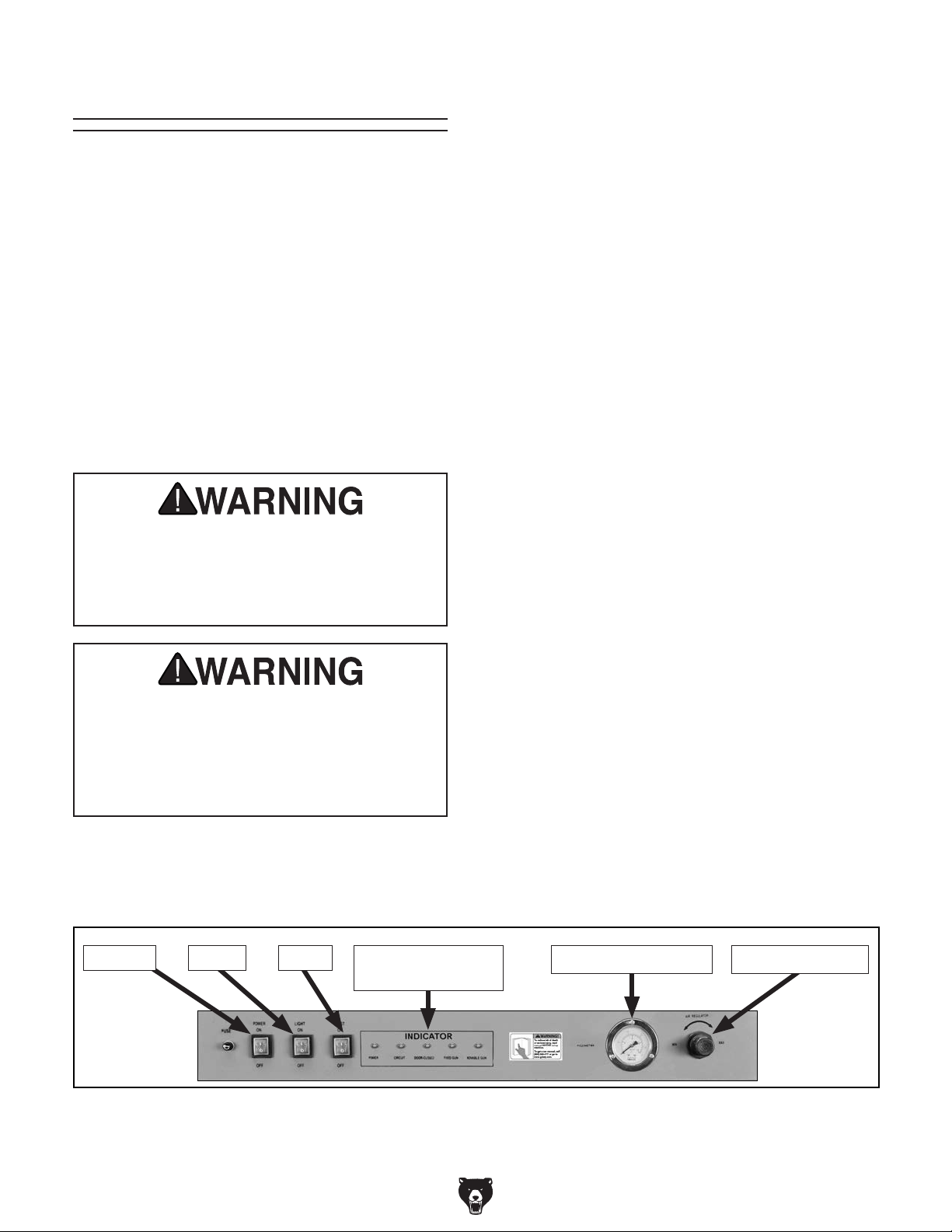

Panel-Mounted Electric and Air Controls
Spare Blast Tips
Spare Window Protection Sheets
Included Dust Collector Filter
Screened Work Table
Foot Pedal Blasting Control
Gun Blasting System
Hands-Free Blasting System
Hopper Dump Gate
Easy-Clean Dust Collector
Reusable Dust Collector Filter Element
External Lighting System

Model G0707 (Mfd. Since 12/23)

-5-

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor­tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.

Alerts the user to useful information about proper operation of the

NOTICE

machine to avoid machine damage.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained oper­ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis­connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin­ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.

DISCONNECT POWER FIRST.
nect machine from power supply BEFORE mak­ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin­tended startup or contact with live electrical com­ponents.

EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.

Always discon-

-6-

Model G0707 (Mfd. Since 12/23)

may damage the wires inside. Do not handle

WEARING PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, or jewelry that
can become entangled in moving parts. Always tie
back or cover long hair. Wear non-slip footwear to
reduce risk of slipping and losing control or acci­dentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate­rial. Always wear a NIOSH-approved respirator to
reduce your risk.

HEARING PROTECTION. Always wear hear­ing protection when operating or observing loud
machinery. Extended exposure to this noise with­out hearing protection can cause permanent
hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica­tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.

FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.

NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement dur­ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult

this owner’s manual or the manufacturer for rec-

ommended accessories. Using improper acces­sories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!

MAINTAIN POWER CORDS. When disconnect­ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord

cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend­ed operation, stop using the machine! Contact our
Technical Support at [phone].

Model G0707 (Mfd. Since 12/23)

-7-

Additional Safety for Blast Cabinets

Serious injury or death can occur from not using proper protective equipment. Connecting and
using system with higher rated PSI than this machine may cause it to burst. To reduce the risk
of these hazards, operator and bystanders MUST completely heed hazards and warnings below.

PERSONAL PROTECTION EQUIPMENT. Media

blasting presents a real hazard of silicosis and
other lung contamination injuries! These injuries
are permanent and can get worse over time. If
you use media blasting equipment without the
proper headgear, eye protection, and respirator,
your lungs and eyes may become permanently
damaged. DO NOT use this blast cabinet unless
you know how to use it. Protect yourself correctly,
and keep all unprotected bystanders away. For
latest types of protective equipment and accept­able respirator types, contact your local OSHA or
NIOSH office.

MAINTAINING MACHINE. To prevent accidental
contamination of shop air, check the blast cabinet
for any leaks before use, and reseal immediately.

WORK AREA SAFETY. To prevent accidental
contamination of shop air, clean dust collector and
filters often, and repair any suction hose leaks
immediately.

SAFE MAINTENANCE. To prevent accidental
blasting injury or shock, disconnect air supply and
power before doing maintenance.

SAFE ENVIRONMENT. To avoid media escaping
from the cabinet or to prevent an entrapment haz­ard for animals or children, always close and latch
shut the blast cabinet doors when not in use.

LEAVING THE AREA. To prevent accidental
blasting injury, disconnect air supply when leaving
the blast cabinet.

MAINTAINING COMPONENTS. To prevent acci­dental contamination or blast injury, replace tips,
hoses, lenses, and gloves when they become
worn.

LOADING & UNLOADING. To prevent accidental
blasting injury, disconnect the air supply before
loading or unloading the workpiece from the blast
cabinet.

SAFE MEDIA BLASTING. Do not use system
over the rated PSI or lines and seals may burst and
cause injury. To prevent dust exposure, always
secure the door(s) before beginning media blast­ing operations.

Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre­cautions are overlooked or ignored, seri­ous personal injury may occur.

-8-

No list of safety guidelines can be com­plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip­ment, or poor work results.

Model G0707 (Mfd. Since 12/23)

SECTION 2: POWER SUPPLY

Before installing the machine, consider the avail­ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.

or equipment damage
may occur if machine is
not properly grounded
and connected to power

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.

The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.

If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over­loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.

For your own safety and protection of

Note: Circuit requirements in this manual apply to

a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con­sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.

A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup­ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:

Availability

Electrocution, fire, shock,

Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

110V Circuit Requirements

Nominal Voltage .................... 110V, 115V, 120V

..........................................................60 Hz

Cycle
Phase
Power Supply Circuit

........................................... Single-Phase

......................... 15 Amps

supply.

Full-Load Current Rating

Full-Load Current Rating at 110V ..... 11 Amps

Model G0707 (Mfd. Since 12/23)

property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.

-9-

Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec­essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon­nect it from power, and immediately replace it with

We do not recommend using an extension cord
with this machine. If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.

Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:

Grounding & Plug Requirements

Two-prong outlets do not meet the
grounding requirements for this machine.

provided—if it will not fit the outlet, have a

This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!

GROUNDED

5-15 RECEPTACLE

Grounding Pin

5-15 PLUG

Extension Cords

Neutral Hot

Figure 1. Typical 5-15 plug and receptacle.

SHOCK HAZARD!

Do not modify or use an adapter on the plug

qualified electrician install the proper outlet
with a verified ground.

-10-

Minimum Gauge Size ........................... 14 AWG

Maximum Length (Shorter is Better)

Model G0707 (Mfd. Since 12/23)

.......50 ft.

SECTION 3: SETUP

This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.

,

please

IMPORTANT: Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-

aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

Wear safety goggles
during the entire setup
process!

Needed for Setup

The following are needed to complete the setup
process, but are not included with your machine.

Description Qty

• Safety Goggles for Each Person ................ 1

• Forklift ......................................................... 1

• Open-End Wrench 3⁄8", 10mm .............. 1 Ea.

• Additional People (For Lifting) .................... 1

• Phillips Head Screwdriver #2 ..................... 1

• Exterior-Grade Silicone Caulking ...... 1 Tub e

Unpacking

HEAVY LIF T!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

If items are damaged

call us immediately at [phone].

Model G0707 (Mfd. Since 12/23)

-11-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.

If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack­ing or they are pre-installed at the factory.

A

E

D

C

G

B

F

Inventory (Figure 2) Qty

A. Cabinet ....................................................... 1

B. Dust Collector Assembly w/Filter ............... 1

C. Canister Plunger Assembly ........................ 1

D. Teflon Tape ................................................. 1

E. Push-On Hose Adapter 3⁄8" ......................... 1

F. Lever and Latch Set (for 2 Doors) .............. 1

G. Blast Tip Set ............................................... 1

—Blast Tips 6mm ID

— Blast Tips 7mm ID .................................. 2

H. Legs ............................................................ 4

I. Hopper Chute Door .................................... 1

J. Side Leg Supports ...................................... 2

K. Left Door..................................................... 1

L. Right Door .................................................. 1

M. Door Hinges ............................................... 4

N. Viewing Window Dust Sheets 231⁄2 " x 10".. 5

O. Light Window Dust Sheets 211⁄2 " x 4" ......... 5

Fasteners (Not Shown) Qty

P. Cabinet Screws M6-1 x 12 ....................... 26

Q. Flange Nuts M6-1 ..................................... 26

R. Door Hinge Pins ......................................... 4

S. Phillips Head Screws M6-1 x 12 ................ 8

T. Flange Nuts M6-1 ....................................... 8

.................................. 2

H

I

J

M

Figure 2. Inventory.

K

N

L

O

-12-

Model G0707 (Mfd. Since 12/23)

Hardware Recognition Chart

USE THIS CHART TO MATCH UP

HARDWARE DURING THE INVENTORY
AND ASSEMBLY PROCESS.

Flat
Head
Cap
Screw

5mm

Model G0707 (Mfd. Since 12/23)

5mm

-13-

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work­piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

See below for required space allocation.

Physical Environment

The physical environment where the machine is
operated is important for safe operation and lon­gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi­cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,

Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or

Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.

Machine Data Sheet for the weight

or bumps.

Electrical Installation

Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

22"

apply a lockout/tagout device, if required.

Lighting

81"

22"

36"

-14-

Figure 3. Space required for full range of movement.

Model G0707 (Mfd. Since 12/23)

Mounting to Shop

Floor

Although not required, we recommend that you
mount your new machine to the floor. Because
this is an optional step and floor materials may
vary, floor mounting hardware is not included.
Generally, you can either bolt your machine to
the floor or mount it on machine mounts. Both
options are described below. Whichever option
you choose, it is necessary to level your machine
with a precision level.

Bolting to Concrete Floors

Lag shield anchors with lag bolts (Figure 4) and
anchor studs are two popular methods for anchor­ing an object to a concrete floor. We suggest
you research the many options and methods for
mounting your machine and choose the best that
fits your specific application.

Using Machine Mounts

Using machine mounts, shown in Figure 5, gives
the advantage of fast leveling and vibration reduc­tion. The large size of the foot pads distributes
the weight of the machine to reduce strain on the
floor.

Figure 5. Machine mount example.

Figure 4. Typical fasteners for mounting to

concrete floors.

NOTICE

Anchor studs are stronger and more per­manent alternatives to lag shield anchors;
however, they will stick out of the floor,
which may cause a tripping hazard if you
decide to move your machine.

NOTICE

We strongly recommend securing your
machine to the floor if it is hardwired to the
power source. Consult with your electrician
to ensure compliance with local codes.

Model G0707 (Mfd. Since 12/23)

-15-

Air Supply Setup

The ability of this blast cabinet to accomplish its
task is directly related to how well the air supply
system is designed. For this blast cabinet to oper­ate at its maximum potential with the largest blast
tip, the CFM feeding the regulator should be 35
CFM at 120 PSI.

Remove any in-line oilers, make the supply line
long enough to allow the compressed air to fully
cool before it reaches the gun, and install an
in-line water separator or air dryer. Tilt air sup­ply lines slightly back toward the compressor so
residual condensation in the lines will run back to
the tank instead of the media blasting unit. For a
general summary of the typical air system of this
blast cabinet and supply system, refer to the Air
System Diagram on Page 40.

Refer to your compressor Owner’s Manual and

make sure that the compressor can handle the
load of a blasting cabinet. Often a 5 HP compres­sors are used, but the duration of the work shift
and tip size installed must be reduced so the
compressor duty cycle is not exceeded. Ignoring
this requirement could lead to compressor over­heating and failure. The rule of thumb is that, the
smaller the compressor, the less CFM available,
and greater cool-down time required.

If this blast cabinet is to be used at full capacity
in eight-hour work shifts at the maximum air pres­sure of 120 PSI using the largest tip, an industrial­grade compressor capable of delivering up to 35
CFM may be required.

For smaller compressors, make sure to increase
the compressor maintenance interval and verify
that your compressor has the best cooling airflow
possible.

When filling or servicing the blast cabinet, there
is a risk of subjecting the compressor to airborne
media or dust. Be sure to locate the blast cabinet
away from the compressor operating environ­ment. If even small amounts of fine media dust
enter the compressor through the intake or during
general service, rings, pistons, valves, and bear­ings can be quickly destroyed.

If using an existing air system, eliminate air supply
restrictions and pressure drops that may occur at
small quick-disconnect fittings, elbows, small sup­ply piping, undersized water separators, kinked
lines, or rust-filled piping.
Typically, when installing a new supply line for the
blast cabinet with a 125 foot run or less, the air
supply line up to the regulator inlet should have an
inside diameter of
ply line with a 1" inside diameter is recommended.

If an air compressor is not available or the blast
cabinet is to be used at a remote location, NEVER
connect this blast cabinet to pressurized bottled
gasses such as oxygen bottles used in welding
operations. Line ruptures or explosions can occur,
causing equipment damage, serious injury, or
death.

Make sure to install an air supply quick-discon­nect fitting or a shut-off valve that can be locked
out to prevent the air pressure from accidentally
being turned on. These items allow for the blast
cabinet to be serviced safely or allow it to sit idle
when not in use.

3

⁄4". For runs up to 300', a sup-

-16-

Model G0707 (Mfd. Since 12/23)

Assembly

The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to

and gather

all

To ensure the assembly process

goes smoothly, first clean any

cov­ered or coated in heavy-duty rust preventative (if
applicable).

listed items.

Needed for Setup

parts that are

Using (3) M6-1 x 12 cabinet screws and

5.

flange nuts, fasten hopper chute door to hop­per, as shown in Figure 7. When secured,
latch hopper door closed.

To assemble machine:

With help of assistant, lay sheet of cardboard

1.

on floor to protect media blasting cabinet, and
place cabinet on its back.

Using #2 Phillips screwdriver, fasten (4)

2.

legs to underside of cabinet with (16) M6-1
x 12 cabinet screws and flange nuts (see
Figure 6).

Attach (2) side supports (see Figure 6) to left

3.

and right set of legs with (4) M6-1 x 12 cabi­net screws and flange nuts.

x 16

Side

Support

Hopper

Chute Door

Figure 7. Hopper chute door.

Using Phillips screwdriver, remove suction

6.

port baffle (see Figure 8).

Suction Port

Baffle

Figure 8. Suction port baffle.

Figure 6. Leg installation.

4. With help of assistant, stand blast cabinet up

on legs.

Model G0707 (Mfd. Since 12/23)

Using (4) M6-1 x 12 cabinet screws and

7.

flange nuts, fasten dust collector to rear of
cabinet, so suction port protrudes through
hole cut into back of cabinet (see Figure 9).

Plug dust collector in to in-line power sup-

8.

ply plug protruding from control box (see
Figure 9).

-17-

9.

Unlatch dust collector motor (see Figure 9),

lift dust collector out of canister, and set it
aside.

x 4

12.

Re-install dust collector into canister.

13. Using 10mm wrench, tighten jam nut against

knob.

Using silicone (not supplied), seal gap

14.

between suction port and hole in cabinet wall
(see Figure 11).

Dust Collector

Motor Latch

In-line Plug

Suction

Port

Figure 9. Dust collector.

Working from inside of canister, insert canis-

10.

ter plunger through canister wall so it can be
seen protruding from outside of canister.

Gap

Figure 11. Dust collector suction port.

15. Re-install baffle.

16. Install (4) door hinges on cabinet body with

(8) M6-1 x 12 Phillips head screws and M6-1
flange nuts (see Figure 12).

x 8

Door Hinge

(1 of 4)

Place spring on plunger shaft, and thread

11.

jam nut and knob onto plunger, as shown in
Figure 10.

Knob

-18-

Jam Nut

Spring &

Plunger

Figure 10. Canister plunger.

Figure 12. Mounting locations for door hinges.

Model G0707 (Mfd. Since 12/23)

17. Line up welded hinges on side doors with

cabinet hinges, then secure doors with (4)
door hinge pins (see Figure 13).

Hinge

Pin

(1 of 4)

Right

Door

20. Route blasting guns and hoses to eliminate
any kinks or binds (see Figure 16).

Figure 13. Installing side doors on cabinet.

18. Verify that plastic dust sheet is affixed to

inside of cabinet viewing window and light
window (see Figure 14).

Dust

Dust

Sheets

Sheets

Figure 14. Location of dust sheets.

19.

Using fasteners pre-installed in cabinet and

doors, install doors latches, then receivers,
and adjust receivers so doors slightly com­press seal when closed (see Figure 15).

Figure 16. Blast gun and hose positioning.

21.

Position foot pedal (see Figure 17) between

legs where it will be convenient to use. Pedal
may also be fastened to floor if unit will not be
moved.

Foot Pedal

Figure 17. Foot pedal positioning.

Door Latch

Figure 15. Door latched closed.

Model G0707 (Mfd. Since 12/23)

Receiver

Pour desired amount of media into cabinet

22.

through side door. DO NOT overfill.

Wait 24 hours for silicone sealant to fully

23.

setup and dry. Otherwise, when machine is
turned ON and media blasting begins, seal
may be broken, causing leakage.

Inspect all seals, hose clamps, glove clamps,

24.

and window seals for any potential leaks.
Correct as required.

-19-

Test Run

Once assembly is complete, test run the machine
to ensure it is properly connected to power and
safety components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The

table in the

SERVICE section of this manual can help.

DO NOT start machine until all preceding
setup instructions have been performed.
Operating an improperly set up machine

ed results that can lead to serious injury,

Serious injury or death can result from

Troubleshooting

The Test Run consists of verifying the following: 1)
The dust collector powers up and runs correctly,

2) the ON/OFF button works correctly, 3) the air
system, controls, and lights work correctly, and 4)
there are no air leaks.

using this machine BEFORE understanding
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

2. Make sure POWER switch (see Figure 18) is

in OFF position.

Connect machine to power supply.

3.

4. Verify machine operation by toggling POWER,

LAMP, and DUST switches to ON position.

— When operating correctly, dust collector

runs smoothly with little or no vibration or
rubbing noises and LED lights illuminate.

Toggle DUST, LAMP and POWER switches

5.

to OFF position.

Put on safety glasses, and connect blast

6.

cabinet to air supply.

7. Adjust regulator knob to 120 PSI, as shown
on gauge.

8. Close all doors, grasp blast gun, and press
foot pedal. Air should exit from blast gun.

Note: If, after this test, regulator gauge

needle drops more than a few PSI when you
press foot pedal, verify that air supply is not
restricted. If set up correctly, blast gun media
suction tube should draw 15-17 inches of
mercury on manometer.

may result in malfunction or unexpect-

death, or machine/property damage.

To test run machine:

Clear all setup tools away from machine.

1.

DUSTLIGHTPOWER INDICATOR Light

-20-

9. Listen for air leaks, and use solution of warm
water and dish soap on any areas where
possible leaks may be located. Correct and
reseal as required.

10. Adjust air pressure down to 60 PSI, discon­nect air supply, and disconnect machine from
power.

Congratulations! The Test Run is complete.

Air Pressure Gauge

Panel

Figure 18. Control panel.

Regulator Knob

Model G0707 (Mfd. Since 12/23)

SECTION 4: OPERATIONS

To reduce your risk of
serious injury, read this
entire manual BEFORE

ry or lung damage from
dust, always wear safety
goggles and a respirator

Media blasting presents hazard of silicosis
and other lung contamination injuries!
These injuries are permanent and can get
worse over time. If you use media blasting
equipment without proper eye protection
and respirator, lungs and eyes may become
irreversibly contaminated. DO NOT use
blast cabinet unless you know how to use
it, protect yourself correctly, and keep
all unprotected bystanders away. For
latest types of protective equipment and
acceptable respirator types, contact your

local OSHA or NIOSH ofce.

Preparation

NEVER sand blast with doors open, point
gun at yourself or anyone else, or attempt
to service any part of machine while it
is plugged in or connected to air pres­sure. ALWAYS disconnect blast cabinet
from power and air pressure when not in
use, or during maintenance or adjustments.
Ignoring this warning may lead to severe
injury.

To prepare for a typical media blasting opera­tion:

using machine.

To reduce risk of eye inju-

when operating machine!

If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj­ects. Regardless of the content in this sec­tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.

Conduct daily check of cabinet.

1.

2. Select and install required blast tip, load

media, and empty dust collector canister.

Empty air supply water separators, connect

3.

power and air to cabinet, and adjust regulator
to required air pressure.

Remove water, oil, grease, and loose paint or

4.

scale from workpiece, then place workpiece
into blast cabinet.

Put on safety goggles and respirator, and

5.

begin media blasting operation.

Model G0707 (Mfd. Since 12/23)

-21-

Control Panel

E F G H I

D

C

B

A

J

K

L

Figure 19. Control panel.

A. DUST Switch: Starts and stops dust collector.

B. LIGHT Switch: Turns LED work light system

ON and OFF.

C. POWER Switch: Toggles power to circuit

board and rest of system ON and OFF.

D. FUSE: Protects circuit board and controls

from overload.

E. POWER Light: Illuminates when power is

supplied to blasting cabinet.

F. CIRCUIT Light: Illuminates when machine

controls are ready for use.

G. DOOR-CLOSED Light: Illuminates when

both side doors are closed, indicating that
blast cabinet is sealed.

H. FIXED GUN Light: Illuminates when fixed

gun is in use.

I. MOVABLE GUN Light: Illuminates when

hand-held gun is in use.

J. PIEZOMETER Gauge: Indicates applied air

pressure to blast cabinet for blasting, which
typically will be set between 60–80 PSI.

K. AIR REGULATOR Knob: When turned clock-

wise, air pressure in blast gun is increased.
When turned counterclockwise, air pressure
is decreased.

L. Foot Switch: Controls fixed-blast gun air ON

and OFF.

-22-

Model G0707 (Mfd. Since 12/23)

Basic Operation

This section details the correct order of operations
for using the Model G0707.

To use blast cabinet:

Prepare cabinet and workpiece for blasting as

1.

discussed in Preparation on Page 21.

PUT ON safety goggles and respirator.

2.

Select and load blasting media through

3.

cabinet door. Avoid using media that contains

free silica, as this is a leading cause of
silicosis. Refer to Page 25 for media types.

Note: Loading only enough media for job

at hand will help you prevent over-using or
having to screen excess media. Typically
use just enough media to cover suction tube
opening by 6".

Install correct blast tip in position shown in

4.
Figure 20. For lower air pressure systems,

6mm tip is the best choice. Refer to Page 25
for air pressure and media options.

Empty dust collector canister periodically

5.

during long blasting operations and after every
use. Every five hours of blasting operations,
clean canister filter using compressed air
(see Figure 21).

Dump
Chute

Figure 21. Dust collector dump chute.

Empty applicable water separators and

6.

connect blasting cabinet to power and air
supply.

Turn regulator knob to adjust air pressure to

7.

desired setting. Typically this is a trial-and­error process, but a good range to start is
between 60–80 PSI.

Blast Tip

Figure 20. Blast tip installation.

IMPORTANT: Maintain concentricity of tip

orifice as it wears. To do this you must rotate
media blasting tip
of use. Worn tips make an inconsistent media
spray pattern. As a result, surfaces can be
left with streaking or tear-out. Replace any tip
that has worn
original size.

1

⁄4-turn every 10–12 hours

1

⁄16" in diameter larger than its

Place properly-cleaned workpiece into blast

8.

cabinet, close doors, then move latches until
they are completely locked (see Figure 22).

Latch

Figure 22. Properly latched door.

Model G0707 (Mfd. Since 12/23)

-23-

9. Inspect windows (see Figure 23) for clarity
and for any evidence of damage to protective
film. Peel off worn/damaged films and
replace BEFORE they are worn through. If

using aggressive media, you may have to
double sheets to protect from wear-through
before blasting project is finished. Only clean
windows using method described in Cleaning
on Page 30. If visibility becomes a problem,
refer to Troubleshooting on Page 31 for
further solutions.

12.

Press foot pedal for fixed gun blasting, or pull

hand-held blast gun trigger and media will
begin spraying from blast tip. Depending on
blasting gun selection (see Figure 24), move
workpiece or blast gun slowly in methodical
circular motion.

Fixed Gun

Hand-Held

Gun

Figure 24. Location of fixed and hand-held guns.

Windows

Figure 23. Location of windows.

Toggle POWER, LIGHT, and DUST switches

10.

to ON position to start dust collector and to
turn work lights ON.

Point blast gun tip at workpiece in a direction

11.

where ricochetting spray of abrasive will not
contact windows.

Note: For most media blasting operations,

maintain blast distance of six inches.
Maintain blasting spray at 45°–60° angle from
workpiece so media will ricochet off and not
directly impact lights or viewing window. Doing
this will help maintain workpiece visibility and
make protective viewing window film and
media last longer. Do not point gun or hold
workpiece so spray pattern is perpendicular
or 90°degrees to surface.

Note: When media blasting thin materials

made of aluminum, copper, brass, wood, or
other delicate parts, select correct media and
begin blasting at low pressure, such as 45
PSI. Next, slowly increase air pressure until
you achieve finish required. When using some
types of glass bead media, you may have to
keep operating pressure between 50–80 PSI
or media will break down prematurely. Some
media like silicon carbide and aluminium
oxide can withstand pressures of up to 120
PSI on this machine; however, most media
blasting operations should occur at 80 PSI.

-24-

Model G0707 (Mfd. Since 12/23)

Note: If gun or metering valve begins to clog

or becomes completely clogged during use,
cover hole in blast tip tightly, then pull gun
trigger or push foot valve. Air pressure will
be then diverted back through media suction
piping and usually blow out clog.

If clogging still persists, it is likely that moisture

or contamination ratio in media is too high, or
there could be a loose fitting or leak in hose.
Dry out media, install moisture trap, screen or
replace media, or check for leaking hose.

Only use high quality DRY media. DO NOT

use regular sand, and recognize when media
has broken down and is too fine or loaded up
with contaminants to work properly. Worn-out
media and contaminants will cause caking
and clogging.

If clogging persists, refer to Troubleshooting

on Page 31 for further solutions.

Blasting Media

Media Cost vs. Productivity

It is often assumed that by using low-cost media,
such as basic builder's sand or play sand, the
worker can enjoy increased productivity costs
because sand is so cheap. However, since sand
is a "Dull Media," the blasting tip size must be
increased and higher air pressure and more CFM
are required to increase the blast velocity to over­come the dull media problem. This compensation
usually results in longer compressor duty cycles
that can overheat some units.

Compressor maintenance cycles, power con­sumption, and water separator service intervals
may increase. Additionally, general sand can
cause increased down-time from clogging tips,
hoses, and valves, and generally create a hazard­ous, silica-laden environment.

13.

Every 20–30 minutes during cabinet use,

push canister plunger in until it stops, then
let your thumb slide off of button so spring
slaps plunger back against canister wall.
This causes vibration that knocks off material
which is caked onto outside of filter (Figure

25). Every five hours of cabinet use, service
dust collector filter. Refer to Maintenance on
Page 30 for procedures.

Canister

Plunger

Figure 25. Canister plunger.

With the correct research, excellent productivity
can be achieved using sharp media with a smaller
tip and less air pressure than with dull media at a
higher pressure.

Maximizing Media Life

Screen the used media with a series of wire mesh
screens to refine it to one consistent size. When
using the blasting cabinet, experiment with using
the least amount of media as possible. The result
of using less media is that you will have less mate­rial to screen or discard and more fresh media for
mixed projects. Store media in a dry place.

Grizzly Blasting Media

G6535: 15 lbs. Aluminum Oxide 220 Grit.
G6536: 15 lbs. Aluminum Oxide 120 Grit.
G6537: 15 lbs. Aluminum Oxide 60 Grit.
G6538: 15 lbs. Glass Bead 50-Micron Grit.

14. When media blasting is complete, disconnect

cabinet from power and air supply.

Model G0707 (Mfd. Since 12/23)

-25-

Some of the common blasting media types are
listed below and on the following pages with the
MOH scale hardness value. All media have bene­fits and drawbacks, such as the quality of surface

finish, media life, toxicity, and the precautions that
must be taken to prevent environmental damage
or personal injury to your respiratory system.

Howeve r, all media presents a health risk. Never
use media that contains free silica.

Aluminum Oxide (8.5–9)

For surface finishing, aluminum oxide is one of
the most common and widely used media. Having
an angular shape, it is considered extremely
sharp, has extended blasting times, and is highly
recyclable.

Silicon Carbide (9–9.5)

This blast media is considered to be the hardest
available. The crystal structure is sharp, cutting
is fast and aggressive. This media is often use to
engrave and etch glass and stone. Shorter blast­ing periods also result from this hard and sharp
media. Silicon carbide has no free silica and it can
be recycled many times.

Sand Type Media (6–7)

This media is easy to find and gives an average
finish that is acceptable for many projects. Sand
has a good recycling life and is economical.
However, the cutting ability at lower air pressure
and CFM can be poor—with a higher hazard of
silicosis and machine clogging. Many sand-type
media contain free silica and present a health
hazard for silicosis.

Steel Type Media

This aggressive media creates a rough finish that
accepts paint well. The media is very durable and

has a long life; however, it MUST be kept very dry
to prevent rusting. The main types are as follows:

—Steel Grit (8–9): Compared to aluminum

oxide, steel grit is softer and has a low
habit of fracture, which leaves an excellent
etched surface on rubber coatings, paints,
and other coatings. This is a popular choice
for aircraft applications. Steel grit comes in
many grit sizes and hardness.

—Steel Shot (6–7.5): Steel shot is one of

the most widely used media for stripping,
cleaning, and general improvements of
metal surfaces. This media has a rounded­ball shape and comes in many grades,
sizes, and hardness. In most instances,
this type of media gives the surface a shiny
or polished look. Steel shot peening also
serves as a method to strengthen machin­ery parts such as impeller fins, bearing
parts, springs, and torsional components.
This media does not create high amounts
of dust and has a superior recycle rate.

Glass and Garnet Type Media

Glass media contains no free silica or heavy met­als and is non-toxic and inert. This media works
well for soft metals and is a common choice when
critical tolerances of machine parts must not be
affected. The life of this media is limited and is not
well-suited for repetitive screening and recycling.

—Glass Beads (5.5): Just as the name indi-

cates, this media is round in shape, chemi­cally inert, and is free of no dangerous free
silica. The glass beads come in various
grit sizes and hardness. It is manufac­tured from lead-free, soda lime-type glass.
Unlike angular abrasives that cut, these
beads burnish and leave a bright finish that
typically will have no dimensional change.
The beads can be recycled many times.
Common applications are honing wood,
blending surfaces, polishing, peening, fin­ishing surfaces, removing scratches, and
basic cleaning of most materials.

-26-

Model G0707 (Mfd. Since 12/23)

—Crushed Glass (5.5): This media is cre-

ated from recycled bottle glass, and other
glass. The media described here has a
sharp cutting behavior, as the particles are
angular shaped. Often this media is used
to remove epoxy coatings, glues, polyure­thanes, vinyls, elastomers, rubbers and tar.
Surfaces have less imbedded particles with
this media, and as a result, the finishes are
usually very light and clean-looking.

—Garnet (6.5–7.5): This is a very effective

blast media typically used in shipyards
and the oil and gas sector where steel
pipes and fittings must be cleaned. This
media is also used on brick, stone, and
stainless steel. It is naturally occurring and
very dense and hard. The recyclability is
good, and it is a common choice for use in
cabinet-type blast cabinets.

Slag Media

Slag media are by-products of various types of
smelting and coal burning processes. Be aware
that some slag media may contain unwanted by­products from these processes.

—Copper Slag (7–8): This media is consid-

ered an expendable media and is a very
good alternative to sand media. Copper
slag is a by-product from the copper manu­facturing process and it is very economical
but non-reusable. Compared to the use of
silica sand, it does not present a silicosis
health hazard. Blasting operations best
suited for this media are cleaning rust,
mill scale, and paint from steel. Copper
slag leaves a good surface that is ready to
anchor and bond coatings and paints. The
structure is blocky and sharp-edged.

—Coal Slag (6–7): This type of media is

made from liquid coal slag from utility boil­ers. The material is hardened and crushed
into a fast-cutting media that is sharp and
angular. This media creates little dust, but
can release hazardous pollutants into the
air. Various grit sizes can be used from
light blasting operations to heavy-duty rust,
paint, and mill scale removal. The resulting
finish is a good surface ready to anchor
and bond coatings and paints.

Plastic Beads

Plastic abrasives are available in a variety of
types such as urea, melamine, and acrylic com­positions. These beads are shaped just as indi­cated and give reliable and consistent stripping
results. Paints, varnishes, rusts, and oxidation can
be stripped from soft metals, plastics, and wood.
The aerospace and automotive industry are chief
consumers of this blast media.

—Urea (3–4): Considered to be an environ-

mentally-friendly choice, urea is the most
commonly used plastic media. It is recy­clable and is an excellent choice for strip­ping tough coatings when speed is a high
priority and the surface is not critical.

—Melamine (3–4): Also a long-lasting recy-

clable media, this abrasive is the most
aggressive in the family of the plastic
beads. Due to its hardness, it can strip
hard-to-remove coatings and be the sub­stitute for some of the other types of glass
beads.

—Acrylic (3–4): This is a multipurpose blast

media that is one of the longest lasting
types available. It is often used for strip­ping sensitive surfaces or delicate parts
that may consist of multiple types of com­pounds. It is available in a wide range of
grit sizes.

Model G0707 (Mfd. Since 12/23)

-27-

Soft Blast Media

There are many types of "Soft" blast media, many
of which are minerals, inert, and organic. Some
blast cabinets with dust collection systems require
special filters or dust collectors for soft types of
media. For the Model G0708, filter cleaning inter-

val will have to be increased to maintain flow.

—Ground Walnut: (4.5–5) This is a soft

media that is produced from crushed or
ground walnut shells. The structure is
multi-faceted and angular with no free
silica in the media. Durability is excellent,
and this media is a good choice for blast­ing operations where the paint, varnish, or
coating must be cleaned but not marred or
removed. Hardwoods, jewelry, and electri­cal items can also be cleaned with this
media. Using a larger grit under higher
pressure settings, paint and varnishes, and
engine parts can be cleaned of coke and
carbon deposits.

—Pumice (6–7): This media is the softest

media available and is a natural volcanic
ash that is an inert mineral. Pumice can
be used for the most sensitive blasting
operations where the painted or finished
surface must be entirely unaffected by the
removal of the foreign matter. The structure
is block-shaped and is honeycombed.

—Ground Corn Cob (4.5): Is an organic,

soft blasting grit that has an angular shape.
It has excellent surface cleaning behavior
that is similar to ground walnut and peanut
shells. Corn cob media is commonly used
to strip bark off of wood, light coatings,
and dirt without surface damage or grain
blowout. It is available in a selection of grit
sizes.

—Sodium Bicarbonate (2.4): Baking soda is

inert and has an excellent ability to remove
and absorb the dirt or contaminants from a
surface. It will not peen or cut the underly­ing workpiece. This important media can
be used where small ports and bores must
be cleaned without the hazard of clogging
the passages. The workpiece and its pas­sages can be cleaned with water as this
blast media is water soluble.

-28-

Model G0707 (Mfd. Since 12/23)

ACCESSORIES

Installing unapproved accessories may

order online at www.grizzly.com or call 1-800-523-4777

SECTION 5: ACCESSORIES

cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.

NOTICE

Refer to our website or latest catalog for
additional recommended accessories.

G0957—80-Gallon 5 HP Extreme-Series Air
Compressor

This compressor operates with a maximum pres­sure of 175 PSI and delivers 18.5 CFM at 90 PSI
and 24 CFM at 40 PSI. The fan pulley and cooling
fin design provide efficient cooling to keep the
unit from overheating. Includes a tank pressure
gauge,
glass.

1

⁄2 " NPT threaded fitting, and an oil sight

H2499—Small Half-Mask Respirator
H3631—Medium Half-Mask Respirator
H3632—Large Half-Mask Respirator

Wood dust has been linked to nasal cancer and
severe respiratory illnesses. If you work around
dust everyday, a half-mask respirator can be a
lifesaver. Also compatible with safety glasses!

Figure 27. Half-mask respirator

T32403—Khor G2 Safety Glasses, Black
Frame, Clear Lens

These safety glasses feature curved, wrap-around
frames and lenses that protect your eyes from the
side and give you a comfortable fit to boot. Tough
polycarbonate lenses meet ANSI Z87.1 2003
safety standards, provide UVA, UVB and UVC
protection, and are coated with fog-resistant and
scratch-resistant layers.

Figure 28. Khor G2, Black Frame, Clear Lens.

Figure 26. G0957 80-Gallon 5 HP Extreme-

Series Air Compressor.

Model G0707 (Mfd. Since 12/23)

-29-

SECTION 6: MAINTENANCE

CleaningSchedule

Always disconnect
power and air supply to
machine before perform­ing maintenance. Failure
to do this may result in
serious personal injury.

For optimum performance from this machine, this
maintenance schedule must be strictly followed.

Ongoing

To minimize your risk of injury and maintain proper
machine operation, shut down the machine imme­diately if you ever observe any of the items below,
and fix the problem before continuing operations:

• Loose fasteners/clamps/bolts.

• Leaks in fittings, hoses, or door seals.

Damaged/worn window protective films.

•

Incorrect air pressure or media for task.

•

Worn or damaged wires/cords.

•

Any other unsafe condition.

•

Daily Maintenance

• Drain water in air separators.

• Empty dust collector.

• Blow out/clean dust collector filter.

• Rotate blast tips to compensate for wear.

Monthly Maintenance

• Use soapy water to check fittings/hoses for
leaks. Bubbles indicate leak.

• Inspect suction lines carefully for leaks/col­lapsed spots during operation.

• Clean/vacuum dust buildup from inside cabi­net and off motor.

• Inspect work gloves for holes/wear.

• Empty cabinet, wipe down inside, and inspect
for leaks/damage.

• Repaint bare metal portions of cabinet (with
windows covered).

• Replace filter as required.

Wear safety goggles and respirator when
cleaning cabinet or filter. Failure to comply
can cause serious personal injury.

Wipe down the exterior of the cabinet with a light
solution of mild dish soap and water, then dry
with a clean towel. To avoid scratching windows,
never wipe windows with wet or dry rags. Instead,
vacuum media away and then gently brush the
remnants off of the glass with a soft paint brush.

3

The blast cabinet is equipped with 6 

x 12" long pleated filter that is designed to filter
media and contaminants from air that re-enters
the shop. During operation, basic de-caking is
done manually every 20 to 30 minutes with the
canister plunger. Empty the canister (see Figure

29) at least every five hours of use. Typically, this
media is discarded as it has a high ratio of fine
dust contaminants. For major cleaning, unlatch
the top of the dust collector and remove the filter
element. Inspect all sealing foam and replace
as required. Clean the filter canister pleats by
carefully blowing it from the inside out with com­pressed air. If usability of the filter is in question,
or any holes or tears exist, replace it.

Figure 29. Dust collector service.

⁄4" diameter

-30-

Model G0707 (Mfd. Since 12/23)

SECTION 7: SERVICE

Review the troubleshooting procedures in this section if a problem develops with your machine. If you need
replacement parts or additional help with a procedure, call our Technical Support.

the

serial number and manufacture date of your machine before calling.

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Dust collector
won't start or circuit
breaker trips.

LED lights are dim
or will not illuminate.

1. Damaged or loose power cord.

2. ON/OFF switch at fault.

3. Circuit breaker/fuse has tripped.

4. Wiring at fault.

5. Motor brushes at fault.

6. Motor at fault.

1. LED light(s) at fault.

2. ON/OFF switch at fault.

3. Wiring at fault.

1. Re-secure and test power cord. Replace as
required.

2. Test and replace switch.

3. Verify that short does not exist and that motor
brushes are not shorted, replace motor brushes if
required, and reset circuit breaker.

4. Repair for open or shorted wiring connections.

5. Replace motor brushes.

6. Test and replace motor as required.

1. Replace LED light(s).

2. Test and replace switch.

3. Repair for open or shorted wiring connections.

Note: Please gather

Operation

Intermittent,
clogging, or no
media spray at blast
gun; or striping
is occurring on
workpiece.

1. Suction tube has been clogged from
contaminant.

2. Incorrect media.

3. Worn or incorrect blast tip.

4. Low air flow or pressure up to cabinet.

5. Blasting system has incorrect air flow or
pressure.

6. Cabinet is overloaded with media.

7. Blast gun is damaged or has bad seals.

8. Foot valve is damaged, clogged, or has
leaks.

1. Cover blast tip and press foot pedal to use air
pressure to purge foot valve and suction system.
Repeat this step periodically during blasting
operations.

2. Verify that media chosen is correct material for
blasting operation, and that media is not worn out
or contaminated with moisture. Screen or replace
media as required.

3. Disconnect machine from air and inspect blast
tip for wear and rotate 1⁄4 -turn to unworn tip area.
Replace or install with correct blast tip.

4. Troubleshoot air supply system and verify
compressor, supply lines, moisture separators, and
air dryers have correct air flow and are in good
working order.

5. Adjust air regulator on cabinet to maintain correct
air pressure and flow, and verify no hose kinks or
clogs exist.

6. Remove media but leave just enough for blasting
operation.

7. Disassemble blast gun, clean and reseal.

8. Clean and reseal foot valve.

Model G0707 (Mfd. Since 12/23)

-31-

Filter Replacement

Motor Brush

Replacement

Wear safety goggles and a respirator when
cleaning cabinet or filter. Failure to comply
can cause serious personal injury.

Replace the filter when it no longer cleans the
air–even after being cleaned with compressed air.

To replace filter:

DISCONNECT MACHINE FROM POWER!

1.

2. Unlatch (see Figure 30) dust collector and lift

entire motor and filter unit out of canister and
place it on workbench upside down.

Spin wing nut off of retaining stud, and

3.

remove filter (see Figure 30).

During the life of your media blasting cabinet, you
may find it necessary to replace the dust collector
motor brushes. If the motor operates loudly, or the
dust collector still has low suction after a new filter
has been installed, the motor brushes likely have
reached the end of their usable life and need to
be replaced.

Tools Needed Qty

Phillips Head Screwdriver #2 ........................... 1

Flat Head Screwdriver
Acetone and Cotton Rag
Crocus Cloth (From Local Auto Parts Store)
Brush Set

To replace brushes:

DISCONNECT MACHINE FROM POWER!

1.

2. Unlatch dust collector and lift entire motor and

........................................................... 1

filter unit out of canister and place it on work­bench for ease of service (see Figure 31).

1

⁄8" ................................ 1

................................... 1

..... 1

Place new five-micron filter over retain-

4.

ing stud, then re-install wing nut and dust
collector (see Figure 30).

Dust

Collector

Wing Nut

Latch

Canister

Figure 30. Dust collector and filter.

Remove (4) motor cover screws and cover

3.

(see Figure 31).

Motor Cover

Latch

Canister

Figure 31. Motor cover.

-32-

Model G0707 (Mfd. Since 12/23)

4. While pulling fan cover upwards, use stan-

dard screwdriver to slightly pry out cover lock
tangs (see Figure 32) and remove cover from
the motor.

Fan Cover

7. Slide brush assembly apart, clean housings

and brass sleeves with mineral spirits, and
allow parts to dry (see Figure 35).

Reassemble housings with brass sleeves

8.

and new carbon brushes (see Figure 35) and
set aside.

Lock
Tang

Figure 32. Brush removal.

5.

Remove (2) retainer screws for each brush

housing and remove retainers (see Figure 33).

Retainer

Brush

Housing

Figure 33. Retainer removal.

6. Lift each brush housing out of its seat and

unplug power wire (see Figure 34).

Power Wire

Housing

Figure 35. Brush assembly.

Inspect commutator surface (see Figure 36).

9.

Carbon Tracking on

Commutator Surface

Figure 36. Commutator.

— If brushes have worn deep grooves in com-

mutator, we recommend replacing motor.
Typically, labor involved with re-turning
commutator on lathe and then undercut­ting insulator segments far exceeds price
of new motor.

— If commutator only has minor wear and

black-colored carbon tracking (see Figure

36), use fine crocus cloth to polish com­mutator where brushes ride. DO NOT use
emery cloth or sandpaper to clean com­mutator or you will make it out-of-round,
which will cause new brushes to arc, over­heat, and wear out quickly.

Brass Sleeve

Carbon

Brush

Figure 34. Brush housing removal.

Model G0707 (Mfd. Since 12/23)

-33-

Finish cleaning process by using acetone

and cotton rag to wipe off any oils or contami­nants from commutator.

Insert power wire spade terminal into brush

10.

assembly between brass sleeve and housing
(see Figure 37).

Insert Power Wire Spade Terminal Here.

13.

When brush housings are installed, make

sure to route brush power wires well away
from commutator, as shown in Figure 39, or
commutator will wear into wire, causing an
electrical short.

Figure 37. Brush power lead location.

11. Place brush housing into brush seat on

motor, and place retainer over brush housing
so lock lug drops into slot in brush housing
(see Figure 38).

Incorrect

Figure 39. Safe power wire routing.

14.

Place fan cover back onto motor so lock

tangs lock onto brush housings, as shown in
Figure 40.

Lock Tangs

Correct

Figure 38. Brush retainer installation.

12. Install and tighten brush housing retaining

screws.

-34-

Figure 40. Fan cover installation.

Re-install motor cover and dust collector

15.

assembly into canister, and latch dust collec­tor in place.

Test dust collector operation.

16.

Model G0707 (Mfd. Since 12/23)

LED Replacement

The two LED lights are accessed through the
outside top of the cabinet (not from the inside of
the cabinet).

Items Needed Qty

LED Light (Part #P0707010V2) .......................... 1

Phillips Head Screwdriver #2
Small Step Ladder

To replace LED light:

DISCONNECT MACHINE FROM POWER!

1.

............................................ 1

........................... 1

4.

Turn LED assembly over so lights face up

(see Figure 43).

Disconnect any cords attached to LED you

5.

want to replace, and remove LED (see
Figure 43).

LED

(1 of 2)

Cord

(1 of 2)

2. Remove (21) screws shown in Figure 41 to

remove control box cover.

Control Box

Cover

x 21

Figure 41. Control box cover and screws.

Note: There are (5) additional screws that do

not extend through control box cover and do
not need to be removed.

Remove (4) screws and carefully lift (2) light

3.

supports to pull LED lights out of light com­partment (see Figure 42).

Figure 43. Cords attached to LEDs (control box

removed for clarity).

Note: LEDs are held in place by spring

clamps.

Install new LED and connect to cord(s) dis-

6.

connected in Step 5.

Connect machine to power and toggle

7.

POWER and LIGHT switches to ON position
to test new lights.

— If all lights light quickly without much flick-

ering or lag, lights are fully functional.

— If any lights struggle for more than

five seconds, are dim, or do not light,
DISCONNECT POWER, then check cord/
wire connections.

Note: Refer to Wiring Diagram on Page 37

if you are unsure about wiring connections.

Light Support

(1 of 2)

x 4

Figure 42. Location of light supports and screws.

Model G0707 (Mfd. Since 12/23)

DISCONNECT MACHINE FROM POWER!

8.

9. Turn LED light assembly over and attach light

supports to control box frame with screws
removed in Step 3.

Install control box cover with screws removed

10.

in Step 2.

-35-

SECTION 8: WIRING

These pages are current at the time of printing. However, in the spirit of improvement, we may make chang­es to the electrical systems of future machines. Study this section carefully. If there are differences between
your machine and what is shown in this section, call Technical Support at [phone] for assistance
BEFORE making any changes to the wiring on your machine.

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is con-

nected to a power source is extremely dangerous.
Touching electrified parts will result in personal
injury including but not limited to severe burns,
electrocution, or death. Disconnect the power
from the machine before servicing electrical com­ponents!

MODIFICATIONS. Modifying the wiring beyond
what is shown in the diagram may lead to unpre­dictable results, including serious injury or fire.
This includes the installation of unapproved after­market parts.

WIRE CONNECTIONS. All connections must
be tight to prevent wires from loosening during
machine operation. Double-check all wires dis­connected or connected during any wiring task to
ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow
the requirements at the beginning of this manual
when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires
or components increase the risk of serious per­sonal injury, fire, or machine damage. If you notice
that any wires or components are damaged while
performing a wiring task, replace those wires or
components.

MOTOR WIRING. The motor wiring shown in
these diagrams is current at the time of printing
but may not match your machine. If you find this
to be the case, use the wiring diagram inside the
motor junction box.

CAPACITORS/INVERTERS. Some capacitors
and power inverters store an electrical charge for
up to 10 minutes after being disconnected from
the power source. To reduce the risk of being
shocked, wait at least this long before working on
capacitors.

EXPERIENCING DIFFICULTIES. If you are expe­riencing difficulties understanding the information
included in this section, contact our Technical
Support at [phone].

The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.grizzly.com.

-36-

Model G0707 (Mfd. Since 12/23)

Main Wiring Diagram

110 VAC

Plug

Ground

Control Box Wiring Diagram

5-15

Ground

Hot

Limit Switches

Transformer

In: 110VAC 60Hz

Out: 16VAC

Neutral

To D o or

Page 39

B

To

Dust Collector

Male Plug

Page 39

Hot

Hot

To F o ot

Pedal

Switch

Page 39

A

Worklight Assembly

LED

LED

125 PSI

Incoming

Air

Supply

To

Hand-Held

Blast Gun

Page 40

15A Fuse

POWER

Switch

K3K2K1

T-IN

T-OUT

LIGHT
Switch

Circuit Board

XH350

DUST

Switch

K4
K4

CF2
CF1

CN2 CN1

CN7 CN6 CN5 CN4 CN3

Light

POWER

CIRCUIT

Light

DOOR-

CLOSED

Light

Light

FIXED

GUN

Light

GUN

MOVABLE

Fixed Blast

Gun Page 40

PSI Gauge

Air

Spool

Valve

To

Air

Control

Solenoid

Air Regulator

Model G0707 (Mfd. Since 12/23)

READ ELECTRICAL SAFETY

ON PAGE 36!

-37-

Dust Collector

Motor

Electrical Component Photos

Control

Box

Door

Limit Switch

(1 of 2)

Foot Pedal

Switch

Figure 44. Locations of electrical components.

-38-

Figure 45. Control box wiring.

READ ELECTRICAL SAFETY

ON PAGE 36!

Model G0707 (Mfd. Since 12/23)

Ground

Wiring Parts Page

Other Electrical Component Wiring

To

Blast Cabinet

Female Plug

Page 37

Dust

Collector

Motor

Figure 46

To

Circuit Board

Page 37

To

Circuit Board

Page 37

A

Foot Pedal

Switch

Figure 47

Hot

Hot

Figure 46. Dust collector motor.

B

Door Limit Switches
are Solid State. Wire
as follows:

Brown: 10-30 VDC
Black: PNP NO
Blue: 0V

Left

Door Limit

Switch

Figure 48

Model G0707 (Mfd. Since 12/23)

OMKQN

OMKQN

Right

Door Limit

Switch

Figure 48

Figure 47. Foot pedal switch.

Figure 48. Door limit switch.

READ ELECTRICAL SAFETY

ON PAGE 36!

-39-

Air System Diagram

Air System Diagram

WARNING!

DISCONNECT
POWER AND AIR
SUPPLY BEFORE
ADJUSTMENTS,
MAINTENANCE, OR
SERVICE.

Two-Stage

Air Compresssor

Dedicated Media Blasting

Air Dryer System

To

Circuit Board

Page 37

Blast Cabinet

Control Panel

Hand-Held

Blast Gun

To Air Spool Valve

Page 37

Blast Gun

Fixed

Quick
Disconnect
Fitting

-40-

Fixed Gun
Foot Valve

READ ELECTRICAL SAFETY

ON PAGE 36!

Cabinet Hopper

with Media

Model G0707 (Mfd. Since 12/23)

SECTION 9: PARTS

We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.

29

Main

48

15

38

91

58-1

65

65-3

90

60-1

61-1

49

35

65-2

65-4

57-1

37

65-1

65-5

36

59-1

83V3

65-12

48

49

47

46

93

45

44

42V3

4

43

29,30

27V2

65-6

94

5V2

3

81V2

65-11

2

50

15

65-7

13V2

10V2

7

51,8

89V2

65-8

6

52,9,8

65-9

34

1

9

15,79, 86

26V2

65-10

23

53

31

28V2

29

19

39

66

14V2

88

29

89V2

21

54

30

25

24

82

55

59,60,61

56V2

22V2

16

18

8

20

57,58

96V2

85V2

80

90-1

29

32
33

17

84

69

63

76

79, 86, 92

41

12

73

70

29,30

95V2

72

90A

56-3

56-4

67

74V2

71
75

66

67-1

67-2

67-3

67-4

68

56V2-1

56-2

29

56V2-5

56-6

56-7

56V2-8

56-9

56V2-10

90

91

62

64V3

87V2

40

Model G0707 (Mfd. Since 12/23)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-41-

Main Parts List

REF PART # DES CRIP TION REF PART # DES CRIP TION

1 P0707001 LED INDICATOR 56-2 P0707056-2 MOTOR 1.5HP 110V 1-PH
2 P0707002 POWER SWITCH 56-3 P0707056-3 PLASTIC/BRASS BRUSH HOLDER
3 P0707003 FUSE HOUSING 56-4 P0707056-4 CARBON BRUSH SET
4 P0707004 FUSE 15A 250V 5X20MM TIME DELAY, GLASS 56V2-5 P0707056V2-5 MAIN HOUSING V2.12.23
5V2 P0707005V2 CONTROL PANEL V2.12.23 56-6 P0707056-6 MALE POWER CORD 14G 3W
6 P0707006 LAMP COVER 56-7 P0707056-7 CARTRIDGE FILTER 5-MICRON
7 P0707007 LAMP COVER RETAINER CLIP 56V2-8 P0707056V2-8 CANISTER V2.12.23
8 P0707008 HEX NUT M3-.5 56-9 P0707056-9 CANISTER PLUNGER W/SPRING
9 P0707009 PHLP HD SCR M3-.5 X 10 56V2-10 P0707056V2-10 CLEANOUT DOOR V2.12.23
10V2 P0707010V2 LED LIGHT 9W V2.05.22 57 P0707057 NIPPLE FITTING
12 P0707012 LAMP HOUSING 57-1 P0707057-1 AIR CONTROL HOSE - ORANGE
13V2 P0707013V2 LIGHT SUPPORT V2.05.22 58 P0707058 ELBOW FITTING
14V2 P0707014V2 CONTROL BOX COVER V2.12.23 58-1 P0707058-1 AIR CONTROL HOSE - ORANGE
15 P0707015 FLAT WASHER 4MM 59 P0707059 SOLENOID VALVE
16 P0707016 JET FITTING 59-1 P0707059-1 AIR CONTROL HOSE - ORANGE
17 P0707017 PUSH-ON SWIVEL FITTING 3/8" 60 P0707060 BRASS NIPPLE
18 P0707018 BRASS NIPPLE 60-1 P0707060-1 AIR CONTROL HOSE - ORANGE
19 P0707019 AIR REGULATOR 61 P0707061 BRASS ELBOW
20 P0707020 BRASS NIPPLE 61-1 P0707061-1 AIR CONTROL HOSE - ORANGE
21 P0707021 BRASS ELBOW 62 P0707062 DOOR HINGE PIN 6.2 X 75MM
22V2 P0707022V2 MOUNTING PLATE V2.12.23 63 P0707063 WORK TABLE
23 P0707023 AIR PRESSURE GAUGE 64V3 P0707064V3 RIGHT DOOR V3.12.23
24 P0707024 LOCK WASHER 3MM 65 P0707065 BLAST GUN ASSEMBLY
25 P0707025 LED MOUNTING BRACKET 65-1 P0707065-1 MEDIA PORT
26V2 P0707026V2 FOOT PEDAL V2.12.23 65-2 P0707065-2 AIR JET
27V2 P0707027V2 LEG V2.12.23 65-3 P0707065-3 NOZZLE NUT
28V2 P0707028V2 DUMP CHUTE DOOR V2.12.23 65-4 P0707065-4 DOWEL PIN
29 P0707029 CABINET SCREW M6-1 X 12 65-5 P0707065-5 TRIGGER
30 P0707030 FLANGE NUT M6-1 65-6 P0707065-6 O-RING 6.6 X 3
31 P0707031 LATCH 65-7 P0707065-7 METERING PIN
32 P0707032 LED 3-PIN CABLE 65-8 P0707065-8 COMPRESSION SPRING
33 P0707033 MAIN LED CORD 20G 3W 14.5" 65-9 P0707065-9 O-RING 9.8 X 1.9 P10
34 P0707034 PHLP HD SCR M6-1 X 12 65-10 P0707065-10 PLUG
35 P0707035 RUBBER GLOVE SET 65-11 P0707065-11 PUSH-ON FITTING 3/8"
36 P0707036 GLOVE CLAMP 65-12 P0707065-12 BLAST GUN BODY
37 P0707037 SUPPORT RING 66 P0707066 AIR HOSE
38 P0707038 GLOVE MOUNTING RING 67 P0707067 FIXED GUN ASSEMBLY
39 P0707039 RIVET 4 X 10MM BLIND 67-1 P0707067-1 CONNECTOR FITTING
40 P0707040 LOCK NUT M6-1 67-2 P0707067-2 MEDIA PORT
41 P0707041 DOOR HINGE 67-3 P0707067-3 BRASS JET
42V3 P0707042V3 BLAST CABINET BODY V3.12.23 67-4 P0707067-4 NOZZLE NUT M25 X 1.5
43 P0707043 VIEWING WINDOW SEAL 68 P0707068 FENDER WASHER 6MM
44 P0707044 WINDOW COVER FILM 23-1/2" x 10" 69 P0707069 DRAW TUBE
45 P0707045 VIEWING WINDOW GLASS 70 P0707070 LARGE WINDOW COVER FILM (5 PK)
46 P0707046 PLEXIGLASS WINDOW 71 P0707071 AIR HOSE 1/2" ID
47 P0707047 WINDOW FRAME 72 P0707072 HOSE CLAMP 1/2"
48 P0707048 PHLP HD SCR M4-.7 X 25 73 P0707073 MEDIA HOSE 1/2" ID
49 P0707049 HEX NUT M4-.7 74V2 P0707074V2 DOOR GASKET V2.01.21
50 P0707050 CIRCUIT BOARD 75 P0707075 SMALL WINDOW COVER FILM (5 PK)
51 P0707051 PHLP HD SCR M3-.5 X 20 76 P0707076 ADHESIVE DOOR SEAL 3/8" x 1" x 79"
52 P0707052 TRANSFORMER 8W 110V/60HZ-16V 79 P0707079 PHLP HD SCR M4-.7 X 6
53 P0707053 STRAIN RELIEF 80 P0707080 TEFLON TAPE
54 P0707054 LAMP WINDOW GLASS 24-1/4 X 6" 81V2 P0707081V2 LATCH RECEIVER V2.12.23
55 P0707055 LAMP WINDOW SEAL 82 P0707082 WINDOW COVER FILM 21-1/2" x 4"
56V2 P0707056V2 DUST COLLECTOR ASSY V2.12.23 83V3 P0707083V3 LEFT DOOR V2.12.23
56V2-1 P0707056V2-1 MOTOR COVER V2.12.23 84 P0707084 GROMMET M9.5

-42-

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

Model G0707 (Mfd. Since 12/23)

Main Parts List (Cont.)

REF P ART # DES CRIP TION RE F PART # DESCRI PTI ON

85V2 P0707085V2 BAFFLE PLATE V2.12.23 90A P0707090A NOZZLE SET 6PC
86 P0707079 FLAT WASHER 4MM 91 P0707091 BLAST TIP 5MM ID
87V2 P0707087V2 DOOR LEVER V2.12.23 92 P0707092 LATCH ASSEMBLY
88 P0707088 LIMIT SWITCH 93 P0707093 FEMALE POWER CORD 3-WIRE 14-GA
89V2 P0707089V2 CROSS BRACE V2.12.23 94 P0707094 MACHINE POWER CORD 3-WIRE 14-GA
90 P0707090 BLAST TIP 6MM ID 95V2 P0707095V2 PHLP HD SCR M6-1 X 12 V2.01.21
90-1 P0707090-1 BLAST TIP 7MM ID 96V2 P0707096V2 FLANGE NUT M6-1 V2.01.21

Model G0707 (Mfd. Since 12/23)

BUY PARTS ONLI NE AT GRIZZLY.COM!

Scan QR code to visit our Par ts Store.

-43-

Labels & Cosmetics

REF P ART # DES CRIP TIO N REF P ART # DESCRI PTION

105V2

100V2

Manufactured for Grizzly in China

102

101

106V2

109V2

104

108

103V2

110

100V2 P0707100V2 MACHINE ID LABEL V2.01.15 105V2 P0707105V2 MODEL NUMBER LABEL V2. 01.15
101 P0707101 READ MANUAL LABEL 106V2 P0707106V2 AIR PRESSURE HAZARD LABEL V2.01.15
102 P0707102 GLASSES/RESPIRATOR LABEL 108 P0707108 FILTER CLEANING LABEL
103V2 P0707103V2 DISCONNECT AI R/POWER LABEL V2.01.15 109V2 P0707109V2 GENERAL WARNING LABEL V2.01.15
104 P0707104 DUST WARNING LABEL 110 P0707110 GRI ZZLY.COM LABEL
