Grizzly G0702 User Manual

Download

MODEL G0702

12" DISC SANDER w/BRAKE

OWNER'S MANUAL

(For models manufactured since 1/12)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

(FOR MODELS MANUFACTURED SINCE 12/11) #CR12124 PRINTED IN TAIWAN.

This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators.

Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

The owner of this machine/tool is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modifications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Table of Contents

INTRODUCTION ............................................................................................................................... 2

Manual Accuracy ........................................................................................................................ 2

Contact Info ................................................................................................................................ 2

Machine Description ................................................................................................................... 2

Machine Data Sheet ................................................................................................................... 3

Identification ............................................................................................................................... 4

SECTION 1: SAFETY ....................................................................................................................... 5

Safety Instructions for Machinery ............................................................................................... 5

Additional Safety for Disc Sanders ............................................................................................ 7

SECTION 2: POWER SUPPLY ........................................................................................................ 8

SECTION 3: SETUP ....................................................................................................................... 10

Unpacking ................................................................................................................................ 10

Inventory ................................................................................................................................... 10

Cleanup .................................................................................................................................... 10

Site Considerations .................................................................................................................. 11

Mounting ................................................................................................................................... 12

Power Connection .................................................................................................................... 12

Test Run ................................................................................................................................... 13

SECTION 4: OPERATIONS ........................................................................................................... 14

Operation Overview.................................................................................................................. 14

Attaching Sandpaper ................................................................................................................ 15

X & Y Miter Slots ...................................................................................................................... 15

Miter Sanding ........................................................................................................................... 16

Angle Sanding .......................................................................................................................... 16

SECTION 5: ACCESSORIES ......................................................................................................... 17

SECTION 6: MAINTENANCE......................................................................................................... 18

Schedule .................................................................................................................................. 18

Cleaning ................................................................................................................................... 18

Unpainted Cast Iron ................................................................................................................. 18

Lubrication ................................................................................................................................ 18

Machine Storage ...................................................................................................................... 18

SECTION 7: SERVICE ................................................................................................................... 19

Troubleshooting ........................................................................................................................ 19

Table/Disc Parallelism .............................................................................................................. 21

Miter Gauge Calibration ........................................................................................................... 21

Table Tilt Calibration ................................................................................................................ 22

SECTION 8: WIRING ...................................................................................................................... 23

Wiring Safety Instructions ........................................................................................................ 23

Wiring Diagram......................................................................................................................... 24

SECTION 9: PARTS ....................................................................................................................... 25

Main Breakdown and Parts List ............................................................................................... 25

Label Parts List ........................................................................................................................ 26

Model G0702 (Mfg. since 1/12)

-1-

INTRODUCTION

We stand behind our machines. If you have any questions or need help, use the information below to contact us. Before contacting, please get the serial number and manufacture date of your machine. This will help us help you faster.

We want your feedback on this manual. What did you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Email: manuals@grizzly.com

We are proud to offer this manual with your new machine! We've made every effort to be exact with the instructions, specifications, drawings, and photographs of the machine we used when writing this manual. However, sometimes we still make

Also, owing to our policy of continuous improvement, your machine may not exactly match the

manual. If you find this to be the case, and the dif-

ference between the manual and machine leaves you in doubt, manual update or call technical support for help.

Before calling, find the manufacture date of your machine by looking at the date stamped into the machine ID label (see below). This will help us determine if the manual version you received matches the manufacture date of your machine.

For your convenience, we

uals and

on our website

model of as soon as they are complete.

Manual Accuracy

an occasional mistake.

www.grizzly.com. Any updates to your

machine will be reflected in these documents

check our website for the latest

Manufacture Date

of Your Machine

post all available man

manual updates for free

Contact Info

Grizzly Technical Support

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Email: techsupport@grizzly.com

Grizzly Documentation Manager

P.O. Box 2069

Bellingham, WA 98227-2069

Machine Description

The Model G0702 Disc Sander features a 1 HP, 120V, 1720 RPM motor equipped with a motor brake and a 12" diameter sanding disc. The precision ground cast iron table is cut with two miter slots that allow for an included miter gauge to move a workpiece in either an X or Y direction against the sanding disc. An adjustable miter gauge provides a means for angle sanding. A built

⁄2 " OD dust port allows for dust collection. A

in 2 selection of adhesive sanding discs are available through the Grizzly catalog.

-2-

Model G0702 (Mfg. since 1/12)

Machine Data Sheet

MACHINE DATA

SHEET

Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901

MODEL G0702 12" DISC SANDER WITH BRAKE

Product Dimensions:

Weight................................................................................................................................................................ 84 lbs.

Width (side-to-side) x Depth (front-to-back) x Height........................................................ 26-1/2 x 17-1/8 x 16-3/8 in.

Footprint (Length x Width)............................................................................................................... 16-1/2 x 16-1/2 in.

Shipping Dimensions:

Type............................................................................................................................................................. Cardboard

Content........................................................................................................................................................... Machine

Weight................................................................................................................................................................ 92 lbs.

Length x Width x Height....................................................................................................................... 26 x 18 x 17 in.

Electrical:

Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz

Full-Load Current Rating....................................................................................................................................... 9.5A

Minimum Circuit Size........................................................................................................................................ 15 Amp

Switch.......................................................................................................................................... Keyed Safety Switch

Switch Voltage..................................................................................................................................................... 120V

Cord Length............................................................................................................................................................ 5 ft.

Cord Gauge.................................................................................................................................................... 16 AWG

Plug Included.......................................................................................................................................................... Yes

Recommended Plug/Outlet Type............................................................................................................... NEMA 5-15

Motors:

Main

Type................................................................................................................... TEFC Capacitor Start w/Brake

Horsepower................................................................................................................................................ 1 HP

Voltage....................................................................................................................................................... 120V

Phase............................................................................................................................................ Single-Phase

Amps........................................................................................................................................................... 9.5A

Speed................................................................................................................................................ 1720 RPM

Cycle......................................................................................................................................................... 60 Hz

Power Transfer ............................................................................................................................... Direct Drive

Bearings.................................................................................................... Sealed and Permanently Lubricated

Main Specifications:

Table Info

Table Width................................................................................................................................................ 15 in.

Table Length........................................................................................................................................ 15-1/2 in.

Table Tilt.............................................................................................................................. +15 to -45 Degrees

Miter Gauge Slot Width............................................................................................................................. 5/8 in.

Miter Gauge Slot Height......................................................................................................................... 3/16 in.

Disc Info

Sanding Disc Diameter.............................................................................................................................. 12 in.

Sanding Disc Speed.......................................................................................................................... 1720 RPM

Model G0702 (Mfg. since 1/12)

-3-

Identification

Figure 1. Model G0702 Disc Sander.

A. Motor B. Cast Iron Disc (Sanding Disc Attached) C. Disc Guard D. Extended Work Table E. Miter Gauge

For Your Own Safety Read Instruction

Manual Before Operating the Sander

a) Wear eye and ear protection. b) Support workpiece on worktable. c) Maintain the smallest gap possible

between the worktable and sanding disc.

d) Avoid kickback by sanding in accordance

with directional arrows.

F. Dust Port (Opening Not Visible) G. Adapter Base H. Tilt Scale I. Universal Lock Lever J. Power Switch

-4-

Model G0702 (Mfg. since 1/12)

SECTION 1: SAFETY

For Your Own Safety, Read Instruction

Manual Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. nect machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This prevents an injury risk from unintended startup or contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are not approved safety glasses.

Always discon-

Model G0702 (Mfg. since 1/12)

-5-



WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or coverlong hair.Wear non-slip footwearto avoid accidentalslips,whichcouldcauseloss ofworkpiececontrol.

hAzARdOus dusT. Dust created while using machinery may cause cancer, birth defects, or long-term respiratory damage. Be aware of dust hazardsassociatedwitheachworkpiecematerial, andalwayswearaNIOSH-approvedrespiratorto reduceyourrisk.

hEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise withouthearing protection can causepermanent hearingloss.

REMOVE AdJusTING TOOLs. Tools left on machinery can become dangerous projectiles uponstartup.Neverleavechuckkeys,wrenches, or any other tools on machine. Always verify removalbeforestarting!

INTENdEd usAGE. Only use machine for its intendedpurposeand nevermakemodifications not approved by Grizzly. Modifying machine or using it differently than intended may result in malfunctionormechanicalfailurethatcanleadto seriouspersonalinjuryordeath!

AWKWARd POsITIONs. Keep proper footing andbalanceatalltimeswhenoperatingmachine. Donotoverreach!Avoidawkwardhandpositions that make workpiece control difficult or increase the

riskofaccidentalinjury.

ChILdREN & BYsTANdERs. Keepchildrenand bystandersatasafedistancefromtheworkarea. Stopusingmachineiftheybecomeadistraction.

FORCING MAChINERY.Donot forcemachine. Itwill do the job saferand better at the ratefor whichitwasdesigned.

NEVER sTANd ON MAChINE. Serious injury may occur if machine is tipped or if the cutting toolisunintentionallycontacted.

sTABLE MAChINE. Unexpectedmovementduring operation greatly increases risk of injury or lossofcontrol.Beforestarting,verifymachineis stableandmobilebase(ifused)islocked.

usE RECOMMENdEd ACCEssORIEs.Consult thisowner’smanualorthemanufacturerforrecommended accessories. Using improper accessorieswillincreasetheriskofseriousinjury.

uNATTENdEd OPERATION. To reduce the risk of accidental injury, turn machine off and ensure all moving parts completely stop before walking away. Never leave machine running whileunattended.

MAINTAIN WITh CARE.Followallmaintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading

ChECK dAMAGEd PARTs. Regularly inspect machine for any condition that may affect safe operation.Immediatelyrepairorreplacedamaged ormis-adjustedpartsbeforeoperatingmachine.

MAINTAIN POWER CORds. When disconnecting cord-connected machines from power, grab andpulltheplug—NOTthecord.Pullingthecord may damage the wires inside. Do not handle cord/plugwithwethands.Avoidcorddamageby keepingitawayfromheatedsurfaces,hightraffic areas,harshchemicals,andwet/damplocations.

toseriouspersonalinjuryordeath.

GuARds & COVERs.Guardsandcoversreduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged,andworkingcorrectly.

-6-

EXPERIENCING dIFFICuLT I Es. If at any time youexperiencedifficulties performingtheintendedoperation,stopusingthemachine!Contactour TechnicalSupportat(570)546-9663.

Model G0702 (Mfg. since 1/12)

Additional Safety for Disc Sanders

AVOID FINGER INJURIES. Never purposely

touch the moving sanding disc. Take care to keep fingers away from sanding disc during operations. If the workpiece is small or difficult to hold, use a workpiece holding fixture. Sanding abrasives can quickly remove large amounts of skin!

AVOID WORKPIECE GRAB. Support the workpiece on the work table against the rotation direction of the sanding disc. Otherwise, the sanding disc could grab the workpiece and pull your hands into the moving disc.

AVOID KICKBACK. Avoid kickback by sanding in accordance with directional arrows and keeping the guard in place. Always sand on the downward side of the disc—pay close attention to the direction of disc rotation to avoid placing the workpiece against the upward side of the disc. Avoid sanding with excessive force. Always keep the sanding disc guard installed.

ONLY SAND SAFE WORKPIECES. If there is any doubt about stability or integrity of the material to be sanded, do not sand it. Never attempt to sand any sort of cable, chain, or wire. If you do, entanglement can occur and cause serious injury.

DISCONNECT POWER WHEN SERVICING. Disconnect the machine from power and allow the disc to come to a complete stop before service, maintenance, or adjustments. Avoid pulling cord-connected machinery by the cord— instead, grasp the plug when disconnecting it from power.

POSITION TABLE CORRECTLY. Make sure the gap between the table and sanding disc does not exceed increases the risk of workpiece grab and pinch injuries, while too small of a gap increases the risk of sandpaper damage and restricts the removal of dust during operation.

ONLY USE SAFE SANDPAPER DISCS. Never use sanding discs that are damaged or torn; or if the adhesive is not sticking firmly. If sandpaper rips or comes off of the disc during operation, the workpiece or your hands could become entangled with the moving disc.

AVOID ENTANGLEMENT. Tie back long hair and remove any loose-fitting clothing or jewelry that could be caught up in the sanding disc or other moving machine parts.

BE AWARE OF DUST ALLERGIES. Be aware that certain woods may cause an allergic reaction in people and animals, especially when fine dust is created by sanding. Make sure you know what type of wood dust you will be exposed to in case there is a possibility of an allergic reaction.

PROTECT YOURSELF FROM FINE DUST.

This machine puts fine dust particles into the air during operation. Wood dust is harmful to respiratory systems and long term exposure may lead to severe health problems. Reduce your risk by always using an adequate dust collection system and wearing a NIOSHapproved respirator during machine operation and for a short time after.

⁄16"—too large of a gap

Like all machinery there is potential danger when operating this machine. Accidents are frequently caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious personal injury may occur.

Model G0702 (Mfg. since 1/12)

No list of safety guidelines can be complete. Every shop environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment, or poor work results.

-7-

SECTION 2: POWER SUPPLY

Before installing the machine, consider the availability and proximity of the required power supply circuit. If an existing circuit does not meet the requirements for this machine, a new circuit must be installed. To minimize the risk of electrocution, fire, or equipment damage, installation work and electrical wiring must be done by an electrican or qualified service personnel in accordance with all applicable codes and standards.

Electrocution, fire, or equipment damage may occur if machine is not correctly grounded and connected to the power

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

The full-load current is not the maximum amount of amps that the machine will draw. If the machine is overloaded, it will draw additional amps beyond the full-load rating.

If the machine is overloaded for a sufficient length of time, damage, overheating, or fire may result— especially if connected to an undersized circuit. To reduce the risk of these hazards, avoid overloading the machine during operation and make sure it is connected to a power supply circuit that meets the requirements in the following section.

For your own safety and protection of

Note: The circuit requirements listed in this manual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

This machine is prewired to operate on a 110V power supply circuit that has a verified ground and meets the following requirements:

Availability

supply.

Full-Load Current Rating

Circuit Information

property, consult an electrician if you are unsure about wiring practices or electrical codes in your area.

Full-Load Current Rating at 120V .... 9.5 Amps

-8-

Circuit Requirements for 120V

Nominal Voltage ........................................120V

Cycle .......................................................... 60 Hz

Phase ........................................... Single-Phase

Power Supply Circuit ......................... 15 Amps

Plug/Receptacle ............................. NEMA 5-15

Model G0702 (Mfg. since 1/12)

We do not recommend using an extension cord with this machine. cord, only use it if absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases as the extension cord size gets longer and the gauge size gets smaller (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Grounding Requirements

This machine MUST be grounded. In the event of certain malfunctions or breakdowns, grounding reduces the risk of electric shock by providing a path of least resistance for electric current.

it will not fit the outlet, have a qualified

For 120V operation: This machine is equipped with a power cord that has an equipmentgrounding wire and a grounding plug (see following figure). The plug must only be inserted into a matching receptacle (outlet) that is properly installed and grounded in accordance with all local codes and ordinances.

GROUNDED

5-15 RECEPTACLE

SHOCK HAZARD! Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if

electrician install the proper outlet with a verified ground.

Grounding Prong

5-15 PLUG

Neutral Hot

Figure 2. Typical 5-15 plug and receptacle.

Extension Cords

If you must use an extension

Minimum Gauge Size ...........................14 AWG

Maximum Length (Shorter is Better).......50 ft.

Model G0702 (Mfg. since 1/12)

-9-

SECTION 3: SETUP

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preventative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Gasoline or products with low flash points can explode or cause fire if used to clean machin- ery. Avoid cleaning with these products.

Many cleaning solvents are toxic if concentrat- ed amounts are inhaled. Only work in a well-venti- lated area.

NOTICE

Avoid chlorine-based solvents, such as

Inventory

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

The following is a description of the main components shipped with your machine. Lay the components out to inventory them.

Note: If you can't find an item on this list, check the mounting location on the machine or examine the packaging materials carefully. Occasionally we pre-install certain components for shipping purposes.

Wear safety glasses during the entire setup process!

This machine and its components are very heavy. Get lifting help or use power lifting equipment such as a forklift to move heavy items.

Unpacking

Your machine was carefully packaged for safe transportation. Remove the packaging materials from around your machine and inspect it. If you discover the machine is damaged, please imme-

diately call Customer Service at (570) 546-9663 for advice.

Save the containers and all packing materials for possible inspection by the carrier or its agent.

Otherwise, filing a freight claim can be difficult.

When you are completely satisfied with the condition of your shipment, inventory the contents.

-10 -

Description Qty

• Sander Assembly ....................................... 1

• Sanding Disc (Installed) ............................. 1

• Miter Gauge ................................................ 1

• Handle ........................................................ 1

• Cap Screw M6-1 x 20 ................................ 2

If any non proprietary parts are missing (e.g. a nut or a washer), we will gladly replace them; or for the sake of expediency, replacements can be obtained at your local hardware store.

Cleanup

Model G0702 (Mfg. since 1/12)

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

There are many ways to remove this rust preven- tative, but the following steps work well in a wide variety of situations. Always follow the manufac- turer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Before cleaning, gather the following:

•

Disposable Rags

•

Basic steps for removing rust preventative:

amount of cleaner/degreaser, then let it soak

3. Wipe off the surfaces. If your cleaner/degreas

scrape off as much as you can first, then wipe

then coat all unpainted surfaces with a quality metal protectant to prevent rust.

Gasoline or products with low flash points can explode or cause fire if used to clean machin- ery. Avoid cleaning with these products.

Many cleaning solvents are toxic if concentrat- ed amounts are inhaled. Only work in a well-venti- lated area.

NOTICE

Avoid chlorine-based solvents, such as acetone or brake parts cleaner, that may damage painted surfaces. Test all cleaners in an inconspicuous area before using to make sure they will not damage paint.

Gasoline or products

Many cleaning solvents

ed amounts are inhaled.

Avoid chlorine-based solvents, such as

Physical Environment

The physical environment where the machine is operated is important for safe operation and lon- gevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemi- cals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20–95% (non-condensing); or the environment is subject to vibration, shocks, or bumps.

Electrical Installation

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave access to a means of disconnecting the power source or engaging a lockout/tagout device, if required.

Cleaner/degreaser (WD•40 works well) Safety glasses & disposable gloves Plastic paint scraper (optional)

Put on safety glasses.

Coat the rust preventative with a liberal

Site Considerations

Workbench Load

Refer to the Machine Data Sheet for the weight and footprint specifications of your machine. Some workbenches may require additional reinforcement to support both the machine and materials.

for 5–10 minutes.

er is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper,

off the rest with the rag.

Repeat Steps 2–3 as necessary until clean,

with low flash points can explode or cause fire if used to clean machinery. Avoid cleaning with these products.

are toxic if concentrat-

Only work in a well-ventilated area.

NOTICE

acetone or brake parts cleaner, that may damage painted surfaces. Test all cleaners in an inconspicuous area before using to make sure they will not damage paint.

Model G0702 (Mfg. since 1/12)

Placement Location

Consider existing and anticipated needs, size of

material to be processed through each machine, and space for auxiliary stands, work tables or other machinery when establishing a location for your new machine. See Figure 3 for the minimum working clearances.

Minimum 3"

Air Gap

Figure 3. Minimum working clearances.

Children and visitors may be seriously injured if unsupervised around this machine. Lock entrances to the shop or disable start switch or power connection to prevent unsupervised use.

⁄2"

-11-

Mounting

After you have completed all previous setup instructions and circuit requirements, the machine is ready to be connected to the power supply.

To avoid unexpected startups or property damage, use the following steps whenever connecting or disconnecting the machine.

1. TurnthemachinepowerswitchOFF.

matching

is

We strongly recommend that you mount your sander to a workbench to prevent it from moving during operation. An unexpected movement could result in an injury or property damage.

There are two machine positioning scenarios that also must be recognized. If the sander is mounted directly to a workbench surface, the extended sanding table will contact the workbench top and stop at 35° instead of 45°. To prevent this contact, the sander must be mounted so 6" of the cast iron table overhangs past the workbench edge, or the sander can be mounted upon a 2 riser block, which is fastened to the table. In either of these positions, the table will then be able to reach a full tilt of 45°.

When you have chosen the location to mount the sander, the strongest mounting option is the "Through Mount" option (Figure 4) where the holes are drilled all the way through the workbench and hex bolts, washers, and hex nuts are used to secure the machine.

⁄2" thick

Another option for mounting is a "Direct Mount" (Figure 5) where the machine is simply secured to the workbench with a lag screw.

Lag Screw

Flat Washer

Machine Base

Workbench

Figure 5. Example of a direct mount setup.

Power Connection

Hex Bolt

Flat Washer

Machine Base

Workbench

Flat Washer

Lock Washer

Figure 4. Example of a through mount setup.

Hex Nut

Connecting Power

 Insert the power cord plug into a

power supply receptacle. The machine nowconnectedtothepowersource.

Figure 6. Connecting power.

-12-

Model G0702 (Mfg. since 1/12)

Disconnecting Power

1. TurnthemachinepowerswitchOFF.

completely



 Graspthemoldedplugandpullit

outofthereceptacle.Donotpullbythecord asthismaydamagethewiresinside.

Figure 7. Disconnecting power.

4. Connect the machine to the power source.

5. Verify that the machine is operating correctly

by turning the machine ON.

—When operating correctly, the machine

runs smoothly with little or no vibration or rubbing noises.

— Investigate and correct strange or unusual

noises or vibrations before operating the machine further. Always disconnect the machine from power when investigating or correcting potential problems.

6. Turn the machine OFF.

7. Remove the switch disabling key, as shown in Figure 8.

Test Run

Once the assembly is complete, test run your machine to make sure it runs properly and is ready for regular operation.

The test run consists of verifying the following:

1) The motor powers up and runs correctly, and

2) the safety disabling mechanism on the switch works correctly.

If, during the test run, you cannot easily locate the source of an unusual noise or vibration, stop using the machine immediately, then review Troubleshooting on Page 19.

If you still cannot remedy a problem, contact our Tech Support at (570) 546-9663 for assistance.

To test run the machine:

1. Rotate the disc by hand and make sure it

turns freely.

Figure 8. Removing switch key from paddle

switch.

8. Try to turn the start the machine with the paddle switch.

—If the machine does not start, the switch

disabling feature is working as designed.

—If the machine does starts, immediately

stop the machine. The switch disabling feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

2. Make sure you have read the safety instructions at the beginning of the manual and that the machine is setup properly.

3. Make sure all tools and objects used during setup are cleared away from the machine.

Model G0702 (Mfg. since 1/12)

-13-

SECTION 4: OPERATIONS

Operation Overview

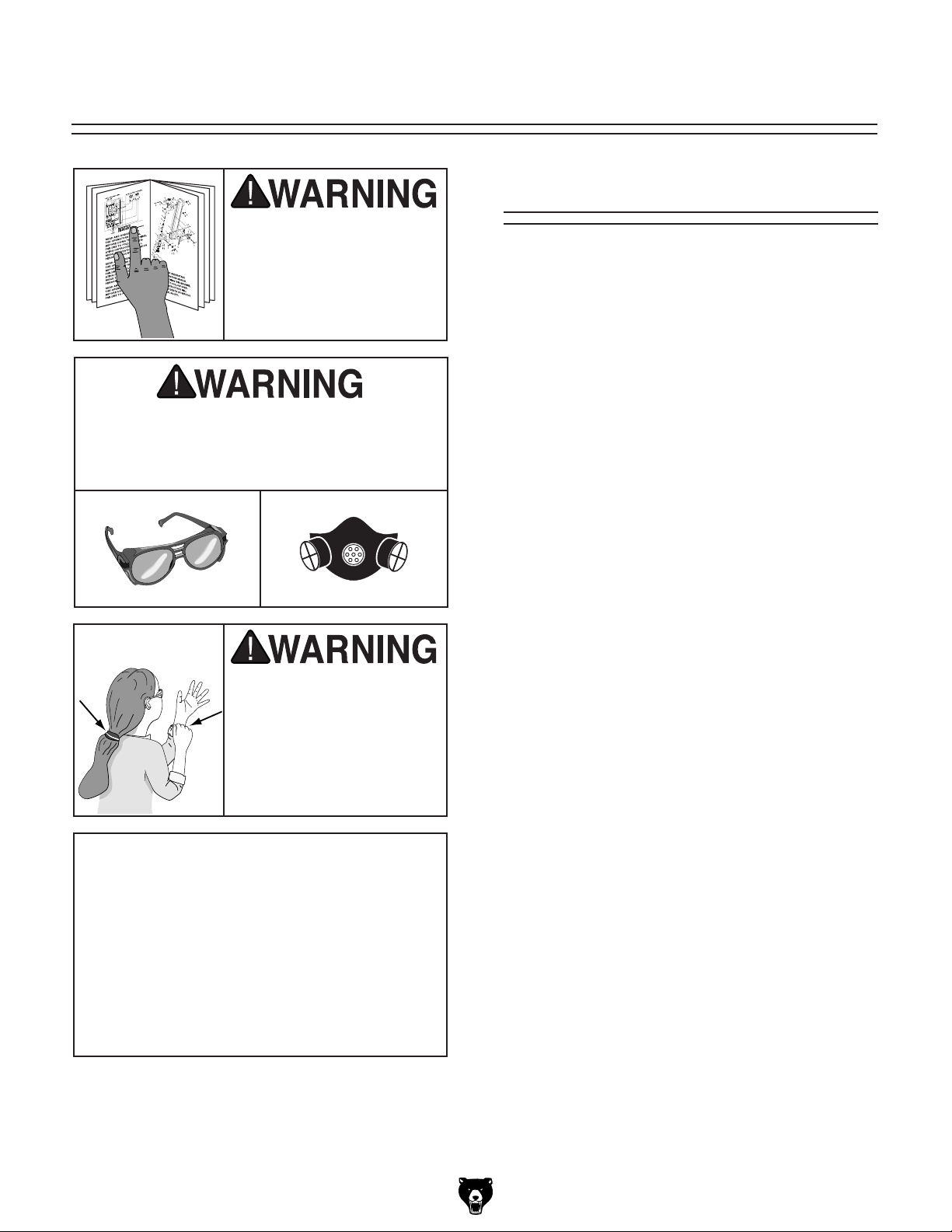

To reduce the risk of serious injury when using this machine, read and understand this entire manual before beginning any operations.

This overview gives you the basic process that happens during an operation with this machine. Familiarize yourself with this process to better understand the Operations section.

To complete a sanding operation, the operator does the following:

Damage to your eyes and lungs could result from using this machine without proper protective gear. Always wear safety glasses and a respirator when operating this machine.

Loose hair, clothing, or jewelry could get caught in machinery and cause serious personal injury. Keep these items away from moving parts at all times to reduce this risk.

NOTICE

If you have never used this type of machine or equipment before, WE STRONGLY RECOMMEND that you read books, review industry trade magazines, or get formal training before beginning any projects. Regardless of the content in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training.

1. Examines the workpiece to make sure it is

suitable for sanding.

2. Adjusts the table tilt, if necessary, to the required sanding angle, and locks the table in place.

3. Inserts the miter bar in either the X-axis or Y-axis miter slots.

4. Adjusts the miter angle for the required horizontal sanding angle, and locks it in place.

5. Uses the appropriate clamping device or jig for small workpieces.

6. Wears safety glasses and a respirator, and locates push sticks if needed.

7. Starts the machine and dust collector.

8. Holds the workpiece firmly and flatly against

both the table and miter, then pushes the workpiece into or along the sanding disc.

9. Moves the workpiece to different locations on the sanding disc to wear the sandpaper evenly and to prevent the sandpaper from overheating.

10. Stops the machine.

-14-

Model G0702 (Mfg. since 1/12)

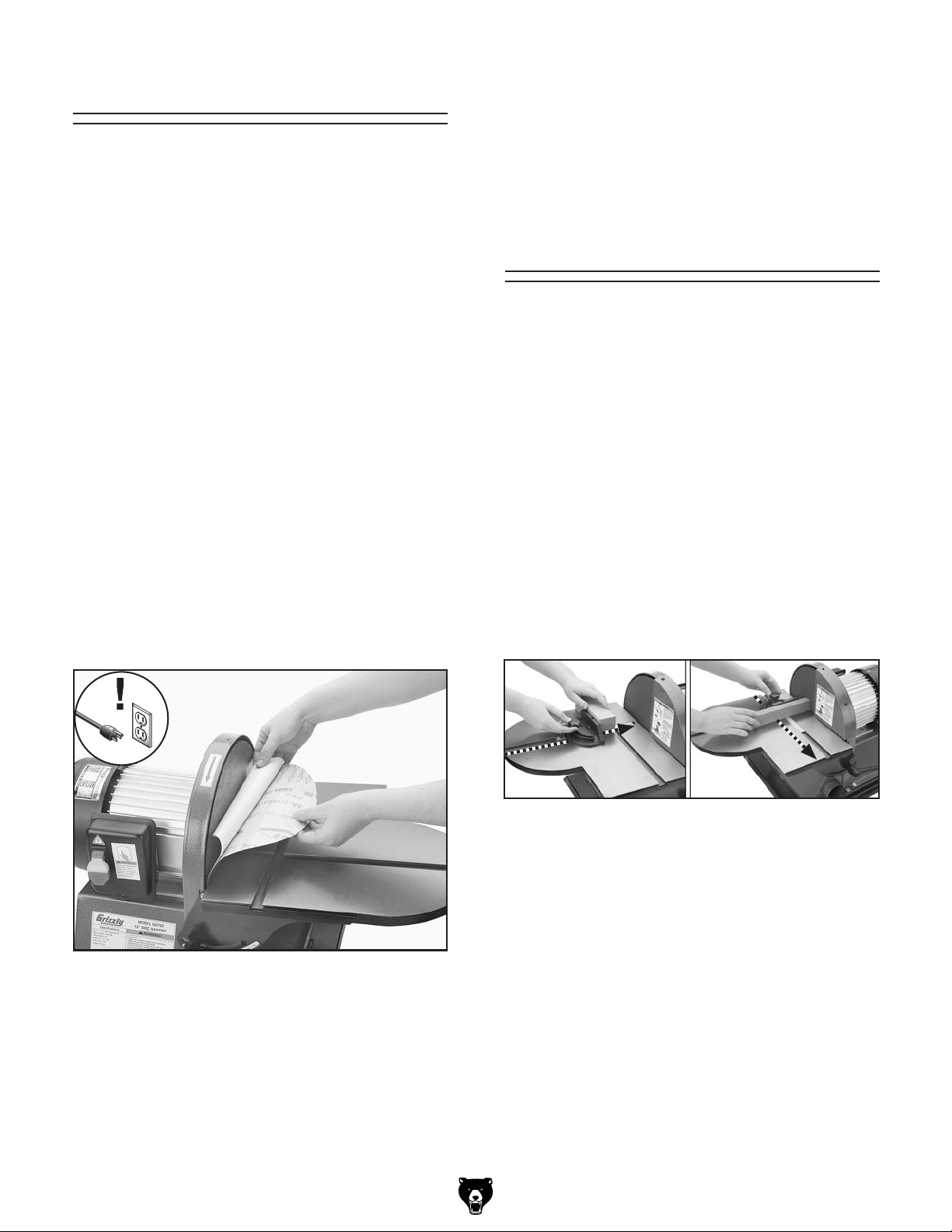

Attaching Sandpaper

The Model G0702 sander accepts 12" diameter adhesive-backed sanding discs. These are available in a variety of grits. See the current Grizzly catalog for prices and ordering information.

6. Now rotate the disc so the lower half is above the table and peal-off the other half of the protective paper, and press the sanding disc against the disc so adhesion is complete.

7. Reinstall the safety guard.

The sanding disc sticks to the surface of the cast iron disc platen, using the pressure sensitive adhesive backing (PSA). The sandpaper can be replaced without removing either the table or the dust port.

To attach sandpaper:

1. DISCONNECT MACHINE FROM POWER!

2. Remove the safety guard, peal-off the old

sandpaper, and clean the disc surface with mineral spirits, and wipe dry.

3. Peel-back the protective layer on one-half of the sandpaper disc and fold it against the remaining half.

4. Slip the half with the protective layer between the disc and the table edge (Figure 9).

X & Y Miter Slots

The Model G0702 uses dual-axis miter slot design for increased versatility of workpiece control or special jig or fixture mounting ability.

To sand using the miter slot:

1. Set the angle of the table relative to the sand-

ing disc. The angle can be set with the angle gauge on the disc sander or with a protractor for greater accuracy.

2. When a 90˚ horizontal angle is required, place one surface of the workpiece firmly against the face of the miter gauge (set at 90˚) with the other surface against the face of the disc (Figure 10).

Figure 9. Sandpaper being slipped between the

disc and table.

5. Position the exposed adhesive on the upper half of the disc that extends above the table. Once it is positioned evenly across the disc, press the adhesive onto the surface.

Model G0702 (Mfg. since 1/12)

Figure 10. Miter slot and work path.

Note: For sanding curves or irregular shapes,

remove the miter gauge from the disc table. Always keep the workpiece on the side of the wheel that is rotating down toward the table. This will keep the workpiece from flying out of your hands from the rotational forces.

-15-

Miter Sanding

Angle Sanding

The most efficient way to get a perfect miter is to cut the workpiece slightly long and sand it to the desired dimension. Miter sanding can be done easily with the miter gauge.

To perform miter sanding operations:

1. Loosen the knob on the miter gauge and

adjust the angle to the desired point. Tighten the knob.

2. Slide the miter gauge into its slot and use it to hold your workpiece in position.

Note: The miter gauge can be used in either

direction in the slot to achieve the proper relation of the workpiece to the disc.

3. With light, but firm pressure, push the workpiece slowly into the down-spin side of the rotating disc (Figure 11).

The disc table can be positioned from -15˚ to 45˚, relative to the plane of the sanding disc. Sanding in an "open angle zone" rather than in a "closed angle zone" is typically safest (Figure 12). Understanding this relationship helps prevent trapping the workpiece between the sanding surface and the table, and reduces the hazard of workpiece kickback.

High Trapping Angle Hazard

Closed-Angle

Zone

Open-Angle

Zone

Low Trapping Hazard

Low Kickback Hazard

High Kickback Angle Hazard

Rotation

Figure 11. Angle sanding.

Figure 12. Trapping and kickback zones.

To perform angle sanding operations:

1. Position the table to the desired angle as

shown on the angle scale.

2. Use the miter gauge to hold your workpiece in position, and with light, but firm pressure, push the workpiece slowly into the down-spin side of the rotating disc (Figure 13).

Rotation

-16 -

Figure 13. Sanding with table angled.

Model G0702 (Mfg. since 1/12)

SECTION 5: ACCESSORIES

Some aftermarket accessories can be installed on this machine that could cause it to function improperly, increasing the risk of serious personal injury. To minimize this risk, only install accessories recommended for this machine by Grizzly.

NOTICE

Refer to the newest copy of the Grizzly Catalog for other accessories available for this machine.

Sanding Discs from ISO 9002 Factories

MODEL and TYPE GRIT

G1220 12" PSA.............................................. 60

G4255 12" PSA ............................................. 80

G1221 12" PSA ............................................ 100

G4256 12" PSA ........................................... 120

G1222 12" PSA ........................................... 150

G4257 12" PSA ........................................... 180

G4258 12" PSA ........................................... 220

G0572—Bench Top Dual Fan Dust Filter

This Hanging Air Filter has a convenient remote control and features a three speed motor, automatic shutoff timer and 1 micron inner filter and 5 micron outer filter. Air flow is 556, 702 and 1044 CFM. Overall size is 26"L x 19-1/2"W x 15"H.

Figure 15. G0572 Air filter.

PRO-STICK® Abrasive Surface Cleaners

Extend the life of your sanding discs and sleeves! Choose the Pro-Stick control or without a handle for more usable area.

Size Model

⁄2" X 11⁄2" X 81⁄2" .....................................G1511

2" X 2" X 12"............................................. G1512

⁄2" X 11⁄2" X 9" with Handle ..................... G2519

2" X 2" X 11" with Handle......................... G2520

with a handle for greater

Figure 14. Sanding discs.

Model G0702 (Mfg. since 1/12)

Figure 16. PRO-STICK® abrasive cleaners.

-17-

SECTION 6: MAINTENANCE

Unpainted Cast Iron

Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious personal injury.

Protect the unpainted cast iron surfaces on the table by wiping the table clean after every use— this ensures moisture from wood dust does not remain on bare metal surfaces.

Schedule

For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section.

Daily Check:

• Loose mounting bolts.

• Worn loose, or damaged sanding disc.

• Worn or damaged power cord.

• Any other condition that could hamper the

safe operation of this machine.

Weekly Maintenance:

• Wipe off the sawdust build-up from the table surface.

• Vacuum out dust from the motor fan area and from around the base of the machine.

Cleaning

Keep tables rust-free with regular applications of products like G96 Boeshield

T-9.

Gun Treatment, SLIPIT®, or

Lubrication

This machine uses permanently lubricated ball bearings. No bearing maintenance is required.

Machine Storage

When the dust collector is not in use, unplug the power cord from the power source. Place the cord away from potential damage sources, such as high traffic areas, sharp objects, heat sources, harsh chemicals, water, damp areas, etc. When the dust collector is not in use, Keep unpainted surfaces rust free with products such as Boeshield® T-9.

Cleaning the Model G0702 is easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it. Treat all unpainted cast iron and steel with a non-staining lubricant after cleaning.

-18-

Model G0702 (Mfg. since 1/12)

SECTION 7: SERVICE

Review the troubleshooting and procedures in this section to fix or adjust your machine if a problem develops. If you need replacement parts or you are unsure of your repair skills, then feel free to call our Technical Support at (570) 546-9663.

Troubleshooting

Motor & Electrical

Symptom Possible Cause Possible Solution

Machine does not start.

Machine has excessive vibration or noise.

Machine stalls or slows when operating.

1. Switch disabling key removed. 1. Reinstall switch disabling key.

2. Break or short in wiring, loose connections, plug or receptacle is corroded or miswired.

3. Power supply switched off/has incorrect voltage.

4. Blown fuse/tripped circuit breaker at main panel.

5. Motor connection wired incorrectly. 5. Wire motor correctly (refer to inside junction box

6. Motor ON/OFF switch at fault. 6. Replace switch.

7. Start capacitor has blown. 7. Test/replace if at fault.

8. Centrifugal switch at fault. 8. Adjust/replace centrifugal switch.

9. Motor at fault. 9. Test for shorted windings or bad bearings; repair or

1. Workpiece loose or incorrectly secured. 1. Use correct holding fixture and re-clamp workpiece.

2. Motor fan rubbing on fan cover. 2. Fix/replace fan cover; replace loose or damaged fan.

3. Motor mounting loose. 3. Tighten mounting bolts/nuts; use thread locking fluid.

4. Lock lever is loose. 4. Tighten the lock lever.

5. Machine incorrectly mounted to bench. 5. Level/shim base; tighten/adjust mounting hardware

6. Centrifugal switch out of adjustment; at fault. 6. Adjust/replace centrifugal switch.

7. Motor bearings worn or damaged. 7. Replace motor bearings or replace motor.

1. Too much pressure when feeding workpiece 1. Reduce pressure when feeding workpiece.

2. Workpiece is warped. 2. Straighten workpiece or use a different one.

3. Workpiece is incorrect for machine. 3. Only sand wood and ensure moisture is below 20%.

4. Motor connection wired incorrectly. 4. Review wiring diagram on motor cover; correct wire

5. Motor overheated. 5. Let cool, clean motor, and reduce workload.

6. Centrifugal switch at fault. 6. Adjust/replace centrifugal switch if available.

7. Motor at fault. 7. Test, repair, or replace motor.

2. Trace/replace broken or corroded wires, fix loose connections, correct wiring.

3. Switch power supply on/verify voltage.

4. Correct the cause of overload, then reset/replace fuse or breaker.

cover or manual).

replace.

or feet.

connections.

Model G0702 (Mfg. since 1/12)

-19 -

Troubleshooting

Workpiece Finish

Symptom Possible Cause Possible Solution

Miter bar loose or binds in miter slot.

Workpiece angle incorrect or out of square.

Sandpaper clogs quickly or burns.

Glossy spots, burning, or streaks on workpiece.

Abrasive rubs off the belt easily.

1. Miter slot dirty or gummed up. 1. Carefully clean miter slot.

1. Pointer or scale not calibrated correctly. 1. Adjust pointer or scale to reflect real path of cut.

1. Sandpaper grit is too fine for the job. 1. Replace with a coarser grit sandpaper.

2. Workpiece is too moist. 2. Allow workpiece to dry out.

3. Sanding depth too aggressive. 3. Reduce sanding depth or install coarser sandpaper.

4. Paint, varnish, pitch, or other coating is loading up sandpaper.

5. Sanding soft workpiece. 5. Use different stock. Or, accept the characteristics

1. Sandpaper too fine for the desired finish. 1. Use a coarser grit sandpaper.

2. Work held still for too long. 2. Do not keep workpiece in one place for too long.

3. Workpiece is too moist. 3. Allow workpiece to dry out.

4. Sanding stock with high residue. 4. Use different stock. Or, accept the characteristics of

5. Worn sandpaper. 5. Replace sandpaper.

6. Sanding depth too aggressive. 6. Reduce sanding depth or install coarser sandpaper.

1. Sandpaper has been stored in an incorrect environment.

4. Install a coarse grit sandpaper, or strip coating off before sanding.

of the stock and plan on cleaning/replacing discs frequently.

the stock and plan on cleaning/replacing sandpapers frequently.

1. Store sandpaper away from extremely dry, hot, or

damp conditions.

-20-

Model G0702 (Mfg. since 1/12)

Table/Disc

Miter Gauge

Parallelism

The edge of the table must be parallel with the face of the sanding disc, and there should be a gap between the two. This gap should be large enough so that the sandpaper does not rub against the table, but small enough so that the gap is not a pinch hazard.

To make the table and sanding disc parallel:

1. DISCONNECT MACHINE FROM POWER!

2. Using a 10mm wrench, loosen the six hex

bolts that secure the table to the table support brackets.

3. Adjust the table so that there is a (Figure 17) between the 12" disc (with sandpaper installed) and the table.

⁄16'' gap

Calibration

At 90˚ the miter gauge should be perpendicular to the face of the wheel when it is mounted in the table slot. If not follow this procedure.

To calibrate the miter gauge:

1. DISCONNECT MACHINE FROM POWER!

2. Use a try square or machinist’s square with

one edge against the face of the miter gauge and the other against the disc face, as shown in Figure 18.

⁄16'' Gap

Figure 17. Table parallel with sanding disc.

4. When the table is parallel with the sanding

disc, tighten the hex bolts.

5. Spin the disc by hand to check if the sandpaper is touching the table.

Note: DO NOT turn the disc sander on at this

point.

6. Re-adjust the table parallelism if the sandpaper touches the table at any point in its rotation.

Figure 18. Squaring miter gauge to disc.

3. Loosen the lock knob on the miter gauge and

adjust the face of the miter gauge so it is flush with the edge of the square, tighten the gauge lock knob, and verify the setting.

4. Using a Phillips head screwdriver, loosen the degree scale pointer, position the pointer on 90˚, and retighten the screw.

5. Recheck the miter scale accuracy with the square.

Model G0702 (Mfg. since 1/12)

-21-

Table Tilt Calibration

Note: This can be done with the sandpaper

installed, although it is somewhat more precise if the sandpaper is not installed.

When the table tilt is set to 90˚, the table should be positioned perpendicular to the sanding disc face. If not follow this procedure.

To calibrate the table tilt:

1. DISCONNECT MACHINE FROM POWER!

2. Using a try square or machinist’s square, set

one edge on the table surface and the other against the face of the disc, as shown in

Figure 19.

Tilt Scale and

Pointer

3. Loosen the lock levers and adjust the table angle until it is perfectly perpendicular to the disc, then tighten the lock levers while holding the table in place.

4. Using a Phillips head screwdriver, loosen the degree scale pointer, index the pointer on 0˚, and retighten the screw.

5. Recheck the scale accuracy with the square.

Figure 19. Squaring the table.

-22-

Model G0702 (Mfg. since 1/12)

SECTION 8: WIRING

These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Study this section carefully. If there are differences between your machine and what is shown in this section, call Technical Support at (570) 546-9663 for assistance BEFORE making any changes to the wiring on your machine.

Wiring Safety Instructions

SHOCK HAZARD. Working on wiring that is connected to a power source is extremely dangerous. Touching electrified parts will result in personal injury including but not limited to severe burns, electrocution, or death. Disconnect the power from the machine before servicing electrical components!

MODIFICATIONS. Modifying the wiring beyond what is shown in the diagram may lead to unpredictable results, including serious injury or fire. This includes the installation of unapproved aftermarket parts.

WIRE CONNECTIONS. All connections must be tight to prevent wires from loosening during machine operation. Double-check all wires disconnected or connected during any wiring task to ensure tight connections.

CIRCUIT REQUIREMENTS. You MUST follow the requirements at the beginning of this manual when connecting your machine to a power source.

WIRE/COMPONENT DAMAGE. Damaged wires or components increase the risk of serious personal injury, fire, or machine damage. If you notice that any wires or components are damaged while performing a wiring task, replace those wires or components.

MOTOR WIRING. The motor wiring shown in these diagrams is current at the time of printing but may not match your machine. If you find this to be the case, use the wiring diagram inside the motor junction box.

CAPACITORS/INVERTERS. Some capacitors and power inverters store an electrical charge for up to 10 minutes after being disconnected from the power source. To reduce the risk of being shocked, wait at least this long before working on capacitors.

EXPERIENCING DIFFICULTIES. If you are experiencing difficulties understanding the information included in this section, contact our Technical Support at (570) 546-9663.

The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com.

Model G0702 (Mfg. since 1/12)

READ ELECTRICAL SAFETY

ON PAGE 23!

-23-

Wiring Diagram

Ground

The motor wiring shown here is current at the time of printing, but it may not match your machine. Always use the wiring diagram

View this page in color at

www.grizzly.com.

MOTOR 120VAC

Ground

Hot

Neutral

120 VAC

5-15 PLUG

PADDLE SWITCH

(viewed from behind)

START

CAPACITOR

300MFD/125VAC

REGULATOR TYPE CS-021

MOTOR ELECTRICAL BOX COVER

Figure 20. Electrical system.

inside the motor junction box.

-24-

READ ELECTRICAL SAFETY

ON PAGE 23!

Model G0702 (Mfg. since 1/12)

SECTION 9: PARTS

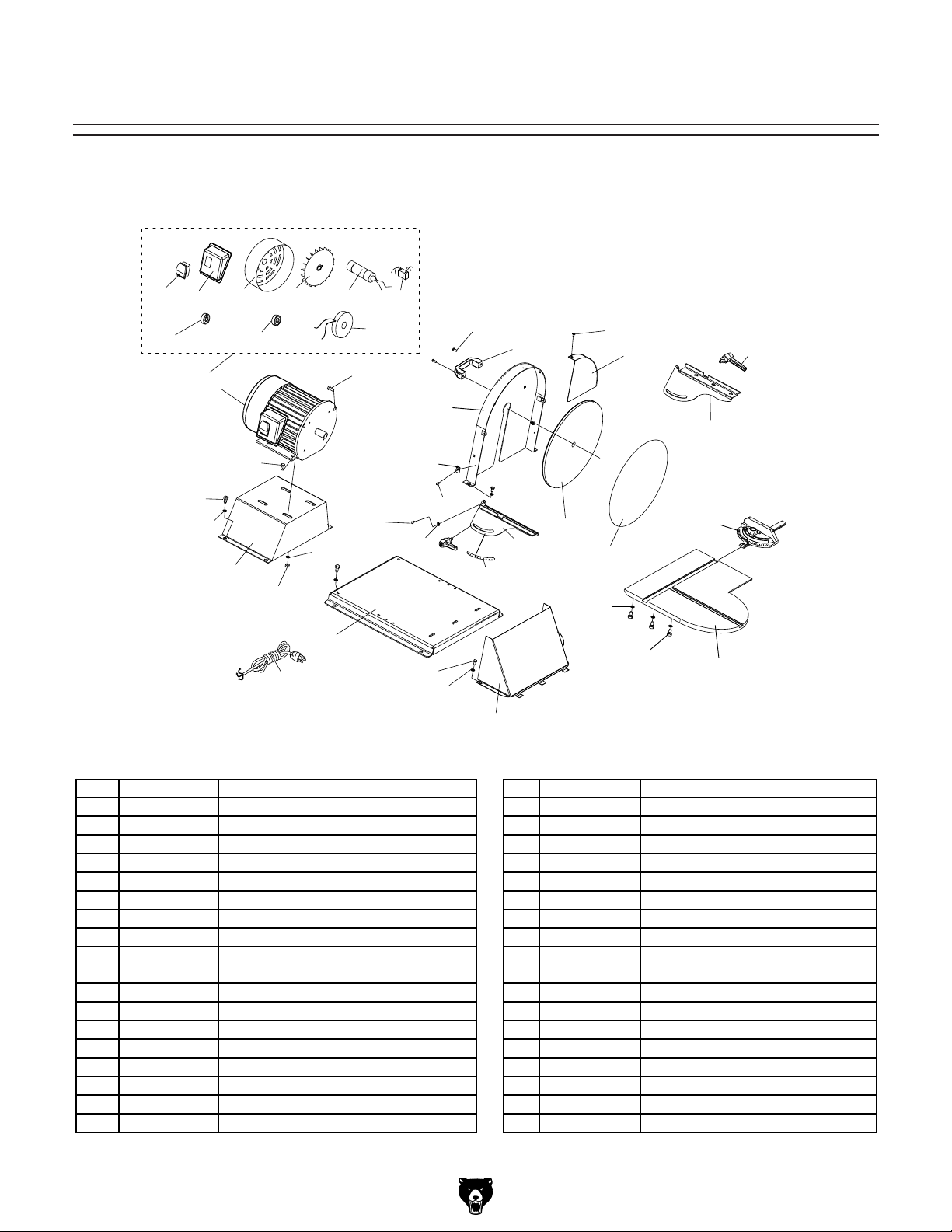

Main Breakdown and Parts List

3V2-6

3-1

3V2-2 3V2-3

3V2-7

3V2

3-4

3V2-8

3-5

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P0702001 MACHINE BASE 13 PS07M PHLP HD SCR M4-.7 X 8 2 P0702002 MOTOR BASE 14 PLW03M LOCK WASHER 6MM 3V2 P0702003V2 MOTOR 1HP 120V 1-PH V2.01.12 15 PS03M PHLP HD SCR M6-1 X 8 3V2-1 P0702003V2-1 ELECTRICAL BOX COVER V2.01.12 16 PS14M PHLP HD SCR M6-1 X 12 3V2-2 P0702003V2-2 MOTOR FAN COVER V2.01.12 17 PW03M FLAT WASHER 6MM 3V2-3 P0702003V2-3 MOTOR FAN V2.01.12 18 PS32M PHLP HD SCR M8-1.25 X 25 3V2-4 PC300B S. CAPACITOR 300M 125V 1-3/4 X 3-3/8 19 PS04M PHLP HD SCR M8-1.25 X 20 3V2-5 P0702003V2-5 REGULATOR TYPE CS-021 21 PN03M HEX NUT M8-1.25 3V2-6 P6205ZZ BALL BEARING 6205ZZ 23 PWRCRD110L POWER CORD 16AWG X 3C X 73"L 3V2-7 P6203ZZ BALL BEARING 6203ZZ 29 PW03M FLAT WASHER 6MM 3V2-8 P0702003V2-8 MOTOR BRAKE MCN CS-02-CS 31 P0702031 MITER GAUGE ASSEMBLY 4 P0702004 DISC HOUSING 39 P0702039 LIFTING HANDLE 5 P0702005 ADHESIVE SCALE 40 PCAP02M CAP SCREW M6-1 X 20 6 P0702006 ADHESIVE 12" SANDING DISC 100 GRIT 41 P0702041 SAFETY GUARD 7 P0702007 LEFT TRUNNION 42 PS05M PHLP HD SCR M5-.8 X 8 8 P0702008 RIGHT TRUNNION 43 PB02M HEX BOLT M6-1 X 12 10 P0702010 DUST HOOD 44 P0702044 CAST IRON DISC 11 P0702011 ADJUSTABLE HANDLE 45 P0702045 TABLE 12 P0702012 TRUNNION SCALE POINTER 46V2 G8988 GRIZZLY SAFETY PADDLE SWITCH

Model G0702 (Mfg. since 1/12)

-25-

Label Parts List

100

101

102

103

105

104V2

REF PART # DESCRIPTION REF PART # DESCRIPTION

100 PLABEL-12C READ MANUAL LABEL 103 P0702103 COMBO WARNING LABEL 101 P0702101 ARROW LABEL 104V2 P0702104V2 MACHINE ID LABEL CSA V2.11.11 102 P0702102 GUARD WARNING LABEL 105 PLABEL-14B ELECTRICITY LABEL

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

-26-

Model G0702 (Mfg. since 1/12)

WARRANTY CARD

Name _____________________________________________________________________________

Street _____________________________________________________________________________

City _______________________ State _________________________ Zip _____________________

Phone # ____________________ Email _________________________________________________

Model # ____________________ Order # _______________________ Serial # __________________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? ____ Advertisement ____ Friend ____ Catalog ____ Card Deck ____ Website ____ Other:

2. Which of the following magazines do you subscribe to?

____ Cabinetmaker & FDM ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Old House Journal ____ Popular Mechanics

3. What is your annual household income? ____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000 ____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+

CUT ALONG DOTTED LINE

4. What is your age group? ____ 20-29 ____ 30-39 ____ 40-49 ____ 50-59 ____ 60-69 ____ 70+

5. How long have you been a woodworker/metalworker? ____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

6. How many of your machines or tools are Grizzly? ____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

____ Popular Science ____ Popular Woodworking ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News ____ Today’s Homeowner ____ Wood

____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

7. Do you think your machine represents a good value? _____Yes _____No

8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No

9. Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____Yes _____No

10. Comments: _____________________________________________________________________

_________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069

Send a Grizzly Catalog to a friend:

Name_______________________________

Street_______________________________

City______________State______Zip______

TAPE ALONG EDGES--PLEASE DO NOT STAPLE

WARRANTY AND RETURNS

Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.

We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.

The manufacturers reserve the right to change specifications at any time because they constantly strive to achieve better quality equipment. We make every effort to ensure that our products meet high quality and durability standards and we hope you never need to use this warranty.

Please feel free to write or call us if you have any questions about the machine or the manual.

Thank you again for your business and continued support. We hope to serve you again soon.

Grizzly G0702 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
