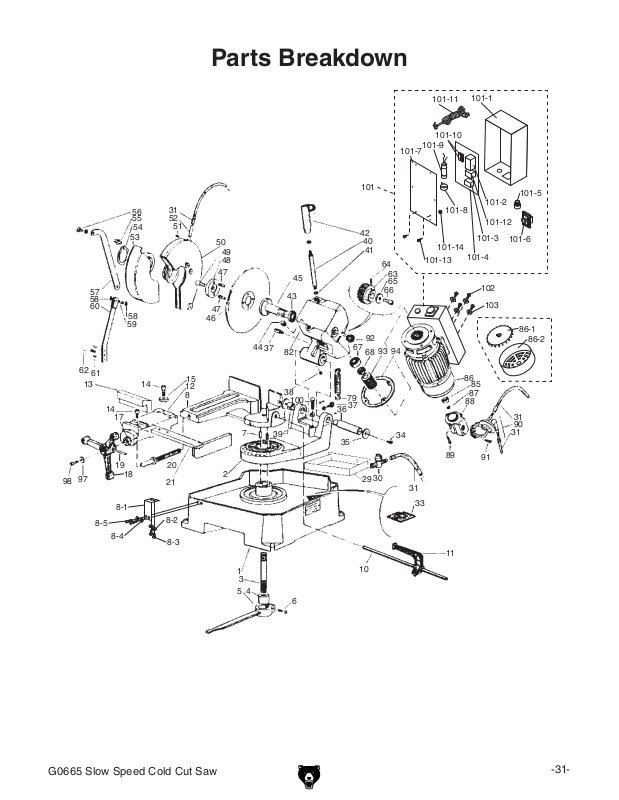

Parts Breakdown
g0665 slow speed Cold Cut saw
-31-
Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0665001 MACHINE BED 55 PSB06M CAP SCREW M6-1 X 25
2 P0665002 REVOLVING ARM 56 PSB04M CAP SCREW M6-1 X 10
3 P0665003 LOCK PIN 57 P0665057 MOBILE GUARD ROD
4 P0665004 BUSHING 58 PSB14M CAP SCREW M8-1.25 X 20
5 P0665005 LEVER 59 PLN04M LOCK NUT M8-1.25
6 PSB13M CAP SCREW M8-1.25 X 30 60 P0665060 TIE ROD SUPPORT
7 P0665007 BASE PIN 61 PRP03M ROLL PIN 5 X 20
8 P0665008 VISE BASE 62 PSB11M CAP SCREW M8-1.25 X 16
8-1 P0665008-1 SUPPORT PLATE 63 P0665063 PINION GEAR
8-2 PW02M FLAT WASHER 5MM 64 PSS20M SET SCREW M8-1.25 X 8
8-3 PSB33M CAP SCREW M5-.8 X 12 65 P0665065 PINION GEAR RETAINING WASHER
8-4 PW03M FLAT WASHER 6MM 66 P0665066 SPECIAL SCREW M12-1.75 X 25
8-5 PSB04M CAP SCREW M6-1 X 10 67 P0665067 BALL BEARING 6301ZZ
10 P0665010 WORK STOP ROD 68 P0665068 SPECIAL NUT M16
11 P0665011 WORK STOP 79 P0665079 HEAD RETURN TENSION SPRING
12 P0665012 VISE 82 P0665082 GEARBOX CASE
13 P0665013 VISE JAW 85 P0665085 BALL BEARING 609
14 PSB36M CAP SCREW M12-1.75 X 25 86 P0665086 MOTOR 1-1/4HP 220V SINGLE PHASE
15 P0665015 CLAMP WASHER 86-1 P0665086-1 MOTOR FAN
17 P0665017 OILER 86-2 P0665086-2 MOTOR FAN COVER
18 P0665018 VISE HANDWHEEL 87 PR16M EXT RETAINING RING 9MM
19 PRP32M ROLL PIN 6 X 40 88 P0665088 PUMP CONNECTION BOX
20 P0665020 LEADSCREW 89 PSB16M CAP SCREW M4-.7 X 16
21 P0665021 AUXILIARY STABILIZING BRACKET 90 P0665090 COOLANT PUMP
29 P0665029 COOLANT TRAY 91 PSB02M CAP SCREW M6-1 X 20
30 P0665030 COOLANT VALVE 92 P0665092 OIL LEVEL DRAIN PLUG
31 P0665031 COOLANT TUBE 93 P0665093 WORM SCREW
33 P0665033 TANK FILTER 94 P0665094 HEAD GASKET
34 P0665034 FLAT HD SCR M8-1.25 X 20 97 PW01M FLAT WASHER 8MM
35 P0665035 SPECIAL NUT 98 PSB14M CAP SCREW M8-1.25 X 20
36 P0665036 HINGE PIN 100 PB01M HEX BOLT M10-1.5 X 30
37 P0665037 SPRING HOOK SCREW 101 P0665101 CONTROL BOX
38 PSB31M CAP SCREW M8-1.25 X 25 101-1 P0665101-1 CASE
39 P0665039 HINGE BUSHING 101-2 P0665101-2 MAGNETIC SWITCH TC-11
40 P0665040 HEAD LEVER 101-3 P0665101-3 TRANSFORMER 250V
41 PN13M HEX NUT M16-2 101-4 P0665101-4 BACKING PLATE
42 P0665042 HEAD LEVER HANDGRIP 101-5 P0665101-5 INDICATOR LIGHT
43 P0665043 RING 101-6 P0665101-6 ON/OFF SWITCH
44 P0665044 PLUG 101-7 P0665101-7 COVER
45 P0665045 BLADE SHAFT 101-8 P0665101-8 CAPACITOR STRAP
46 P0665046 BLADE 101-9 P0665101-9 R CAPACITOR 30M 350V 1-5/8 X 3-3/8
47 P0665047 BLADE FLANGE PIN SCREW 101-10 P0665101-10 FUSE
48 P0665048 BLADE FLANGE 101-11 P0665101-11 POWER CORD
49 PSB77M CAP SCREW M12-1.75 X 30 101-12 P0665101-12 OVERLOAD RELAY TEND THR12
50 P0665050 FIXED GUARD 101-13 PS17M PHLP HD SCR M4-.7 X 6
51 PSB28M CAP SCREW M6-1 X 15 101-14 PN04M HEX NUT M4-.7
52 P0665052 COOLANT TUBE 102 PS08M PHLP HD SCR M5-.8 X 12
53 P0665053 MOBILE GUARD 103 PW02M FLAT WASHER 5MM
54 PR71M EXT RETAINING RING 60MM
-32-
