1 HP CANISTER
DUST COLLECTOR
MODEL G0583
INSTRUCTION MANUAL
COPYRIGHT © JANUARY, 2005 BY GRIZZLY INDUSTRIAL, INC.; UPDATED SEPTEMBER, 2005.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#CR6902 PRINTED IN TAIWAN
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and
other masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to fil
ter out microscopic particles.
-
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Foreword .................................................................................................................................... 2
Contact Info ................................................................................................................................
Identification ............................................................................................................................... 4
SECTION 1: SAFETY .......................................................................................................................
Additional Safety for Canister Dust Collectors ...........................................................................
SECTION 2: CIRCUIT REQUIREMENTS ........................................................................................
110/220V Operation ...................................................................................................................
SECTION 3: SET UP ......................................................................................................................
Unpacking ................................................................................................................................ 10
Inventory ................................................................................................................................... 10
Site Considerations ..................................................................................................................
Hardware Recognition Chart ....................................................................................................
Base and Supports ...................................................................................................................

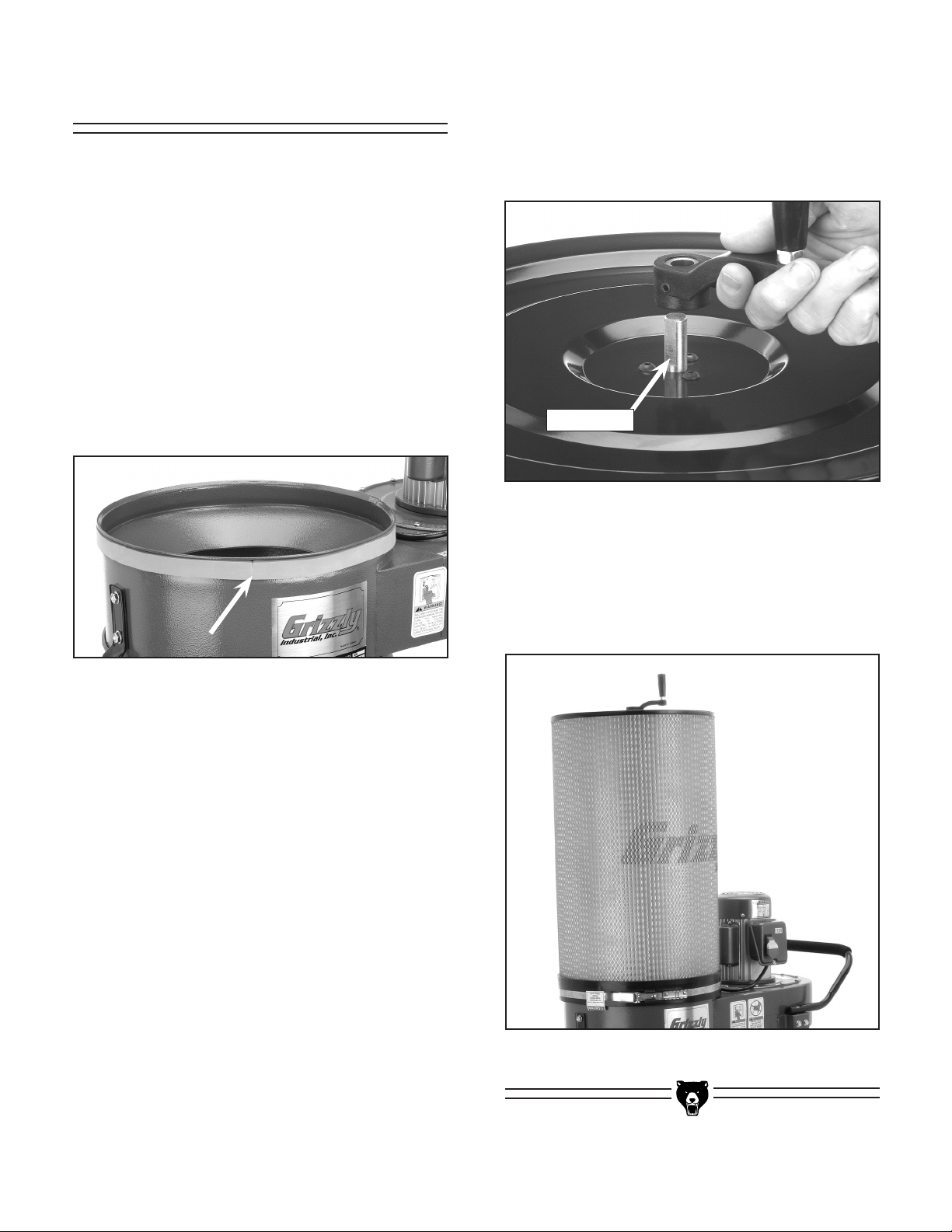

Canister Filter ...........................................................................................................................
Collection Bag ..........................................................................................................................
SECTION 4: COLLECTION SYSTEM ............................................................................................
General ..................................................................................................................................... 16
Material Selection .....................................................................................................................
SECTION 5: OPERATION ..............................................................................................................
Operation Safety ......................................................................................................................
Test Run ...................................................................................................................................
General ..................................................................................................................................... 20
SECTION 6: MAINTENANCE ........................................................................................................
Schedule .................................................................................................................................. 21
Lubrication ................................................................................................................................ 21
Bag and Canister Cleaning ......................................................................................................
G0583 Parts Breakdown ..........................................................................................................
Canister Breakdown .................................................................................................................
Parts List ..................................................................................................................................
Accessories .............................................................................................................................. 27
10
11
12
13
14
15
16
16
20
20
20
21
21
24
25
26
2
5
7
8
8
INTRODUCTION
Foreword
Grizzly Industrial, Inc. is proud to offer the
Model G0583 1 HP Canister Dust Collector. This
machine is part of Grizzly’s growing family of fine
machinery. When used according to the guide
lines stated in this manual, you can expect years
of trouble-free, enjoyable operation.
We are also pleased to provide this manual with
the Model G0583. It was written to guide you
through assembly, review safety considerations,
and cover general operating procedures. It repre
sents our latest effort to produce the best docu
mentation possible.
Contact Info
If you have any comments or criticisms that
you feel we should address in our next printing,
please write to us at:
Grizzly Industrial, Inc.
C
⁄O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227
Most important, we stand behind our machines.
-
-
We have excellent regional service departments
at your disposal should the need arise.
If you have any service questions or parts
requests, please call or write to us at the location
listed below.
Grizzly Industrial, Inc
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone:(570) 546-9663
Fax:(800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G0583 as supplied when the manual was pre
pared. However, owing to Grizzly’s policy of con
tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
grizzly.com. Any updates to your machine will be
reflected in these manuals as soon as they are
complete.
-2- G0583 1 HP Canister Dust Collector
www.
-
-
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
MODEL G0583 1 HP CANISTER DUST COLLECTOR
Design Type ................................................................................. Single Stage Floor Model
Overall Dimensions:
Base ..............................................................................................................151⁄4" x 26"
Height .....................................................................................................................
Machine Size .......................................................................
Shipping Weight (Machine) .............................................................................. 59.4 lbs.
Shipping Weight
Net Weight (Machine) ...................................................................................... 52.8 lbs.
Net Weight
st
1
Box Size (Machine) ........................................................ 283⁄4" L x 161⁄4" W x 181⁄8" H
nd
2
Specifications:
Intake Hole Size ..........................................................................................................
Intake Adapter Hole Size ..................................................................... 4" Elbow Fitting
Canister Size ..........................................................................
Canister Material ................................................. Wire Reinforced Pleated Filter Paper
Canister Filtration Rating ............................................................................... 2.5 Micron
Storage Bag Size .......................................................................
Storage Bag Material .......................................................................Heavy Duty Plastic
Storage Bag Capacity ............................................................................ 2.1 Cubic Feet
Air Suction Capacity (With
Air Suction Capacity (Without 4" Elbow) ......................................................... 800 CFM
Static Pressure (Inches of Water) ............................................................................
Construction:
Base ...................................................................................... Sheet Metal with Casters
Body ........................................................................................................... Sheet Metal
Impeller Type .................................................................................................Radial Fin
Impeller Construction .............................................................
Impeller Size ...............................................................................................................
Motor:
Type ....................................................................................... TEFC (Aluminum finned)
Horsepower ............................................................................................................ 1 HP
Phase / Voltage .........................................Single Phase 110V / 220V (Prewired 110V)
Amps .................................................................................................................
Cycle/ RPM ..................................................................................60 Hertz / 3450 RPM
Switch ........................................................................................ On / Off Paddle Switch
Bearings ................................................................... Sealed & Permanently Lubricated
Box Size (Canister) ....................................................... 173⁄8" L x 173⁄8" W x 283⁄8" H
(Canister) .............................................................................. 17.6 lbs.
(Canister) .......................................................................................... 13 lbs.
4" Elbow) .............................................................. 630 CFM
153⁄4" D x 303⁄4" L x 585⁄8" H
141⁄2" Diameter x 235⁄8" H
143⁄4" Diameter x 243⁄8"
3
⁄32" Steel, 7 Riveted Fins
585⁄8"
4"
3.3"
9"
9A/4.5A
Specifications, while deemed accurate, are not guaranteed.
G0583 1 HP Canister Dust Collector -3-

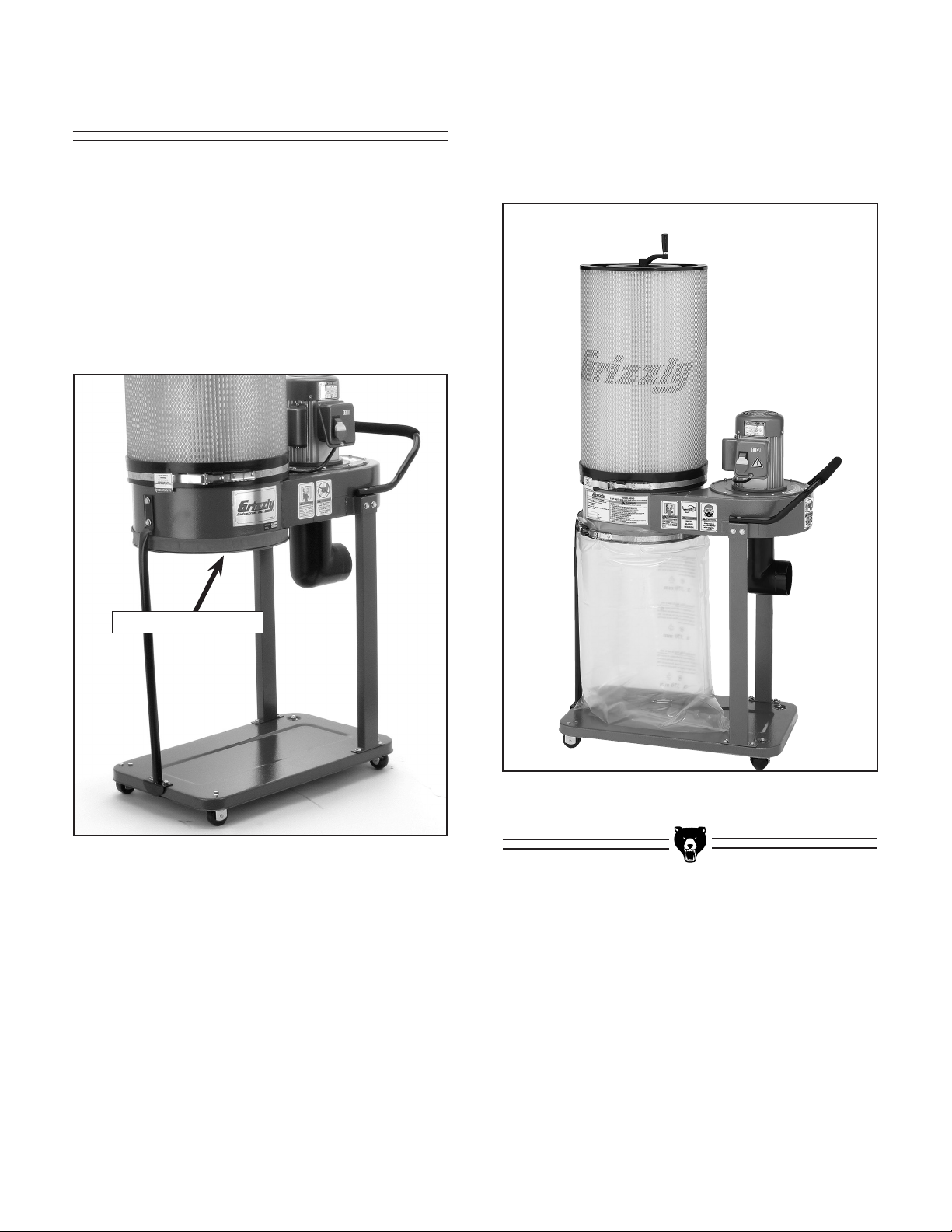

Identification
1
2
5
3
4
1. Canister Filter Cleaning Handle
2. Canister Filter
3. 4" Duct Elbow
4. Clear Dust Storage Bag
5. Power Switch w/ Safety Key
6. Roller Base
7. Handle
7
6
-4- G0583 1 HP Canister Dust Collector
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words which are intended to convey the level of
importance of the safety messages. The progression of symbols is described below. Remember
that safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to
alert against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
1. READ THROUGH THE ENTIRE MANUAL
BEFORE STARTING MACHINERY.
Machinery presents serious injury hazards
to untrained users.
2. ALWAYS USE ANSI APPROVED
SAFETY GLASSES WHEN OPERATING
MACHINERY. Everyday eyeglasses only
have impact resistant lenses, they are
NOT safety glasses.
4. ALWAYS USE HEARING PROTECTION
WHEN
Machinery noise can cause permanent
hearing damage.
5. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties, rings,
or jewelry which may get caught in moving
parts. Wear protective hair covering to con
tain long hair and wear non-slip footwear.
OPERATING MACHINERY.
-
3. ALWAYS WEAR AN ANSI APPROVED
RESPIRATOR WHEN OPERATING
MACHINERY THAT PRODUCES DUST.
Wood dust is
cancer and severe respiratory illnesses.
G0583 1 HP Canister Dust Collector -5-
a carcinogen and can cause
6. NEVER OPERATE MACHINERY WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Be mentally alert
at all times when running machinery.
Safety Instructions for Machinery
7. ONLY ALLOW TRAINED AND PROPERLY SUPERVISED PERSONNEL TO
OPERATE MACHINERY. Make sure
operation instructions are safe and clearly
understood.
8. KEEP CHILDREN AND VISITORS AWAY.
Keep all children and visitors a safe distance from the work area.
9. MAKE WORKSHOP CHILD PROOF. Use
padlocks, master switches, and remove
start switch keys.
10. NEVER LEAVE WHEN MACHINE IS
RUNNING. Turn power OFF and allow all
moving parts to come to a complete stop
before leaving machine unattended.
11. DO NOT USE IN DANGEROUS
ENVIRONMENTS. DO NOT use machin-
ery in damp, wet locations, or where any
flammable or noxious fumes may exist.
12. KEEP WORK AREA CLEAN AND WELL
LIT. Clutter and dark shadows may cause
accidents.
13. USE A GROUNDED EXTENSION CORD
RATED FOR THE MACHINE AMPERAGE.
Undersized cords overheat and lose power.
Replace extension cords if they become
damaged. DO NOT use extension cords
for 220V machinery.
16. MAKE SURE GUARDS ARE IN PLACE
AND WORK CORRECTLY BEFORE
USING MACHINERY.
17. REMOVE ADJUSTING KEYS AND
WRENCHES. Make a habit of checking for
keys and adjusting wrenches before turn
ing machinery
18. CHECK FOR DAMAGED PARTS
BEFORE USING MACHINERY. Check
for binding and alignment of parts, broken
parts, part mounting, loose bolts, and any
other conditions that may affect machine
operation. Repair or replace damaged
parts.
19. USE RECOMMENDED ACCESSORIES.
Refer to the instruction manual for recom
mended accessories. The use of improper
accessories may cause risk of injury.
20. DO NOT FORCE MACHINERY. Work at
the speed for which the machine or acces
sory was designed.
21. SECURE WORKPIECE. Use clamps or
a vise to hold the workpiece when practical. A secured workpiece protects your
hands and frees both hands to operate the
machine.
22. DO NOT OVERREACH. Keep proper foot
ing and balance at all times.
ON.
-
-
-
-
14.
ALWAYS DISCONNECT FROM POWER
SOURCE BEFORE SERVICING
MACHINERY. Make sure switch is in
position before reconnecting.
15. MAINTAIN MACHINERY WITH CARE.
Keep blades sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
-6- G0583 1 HP Canister Dust Collector
OFF
23. MANY MACHINES WILL EJECT THE
WORKPIECE TOWARD THE OPERATOR.
Know and avoid conditions that cause the
workpiece to "kickback."
24. ALWAYS LOCK MOBILE BASES
BEFORE OPERATING MACHINERY
.
Additional Safety for Canister Dust Collectors
1. MACHINE USE. Do not use this dust col-
lector to pick up liquids and metal scrap
including, but not limited to, nails and fil
ings. Metallic debris will contact the spinning impeller and could spark. The spark
could then cause a sawdust explosion or
severe fire hazard. Also, do not pick up
material which cannot safely pass through
the impeller such as solid wood scraps.
2. KEEPING FINGERS SAFE. Do not place
your hands or tools near the open inlet du
ing operation for any reason including, but
not limited to, unclogging material and test
ing suction. The impeller could cause seri
ous damage to body parts if touched while
spinning.
3. SAFE SERVICING. Disconnect power and
allow impeller to come to a complete stop
before servicing or working on the dust col
lector ducting system.
4. SUSPENDED DUST PARTICLES AND
IGNITION SOURCES. Do not operate the
dust collector in areas where explosion risks
would be high if dust were dispersed into
the area. Areas of high risk include, but are
not limited to, areas near pilot lights and/or
open flames.
5. EMPTYING BAGS. When emptying dust
from the collection bags, wear a respirator and safety glasses. Empty dust into an
approved container and dispose of prop
erly.
r-
6. AVOIDING FIRES. Do not allow steel to
strike against impeller which may produce
-
-
-
-
-
a spark. Sparks can smolder in wood dust
for a long time before fire or flame is detect
ed. If metal contacts metal during opera
tion, immediately turn off the dust collector,
unplug the power cord from the outlet or
flip the disconnect switch and wait for all
moving parts to stop. Remove collection
bags and empty the dust into an approved
air tight metal container in case of spark.
Remedy the metal to metal contact problem
before resuming operation.
7. OPERATIONAL QUESTIONS. If at any
time you are experiencing difficulties per
forming the intended operation, stop using
the machine! Then contact our service
department or ask a qualified expert how
the operation should be performed.
8. DUST HAZARD. Be aware that certain
woods may cause an allergic reaction
in people and animals, especially when
exposed to fine dust. Make sure you know
what type of wood dust you will be exposed
to in case there is a possibility of an allergic
reaction. Always wear an approved respira
tor!
-
-
-
-
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to follow guidelines could
result in serious personal injury, damage to
equipment or poor work results.
G0583 1 HP Canister Dust Collector -7-
DO NOT use the dust collector for any
other purpose besides collecting dust from
connected woodworking machines. A dust
collector should NEVER be used as an air
cleaner. For safest use, wear a respirator
and use an air cleaner in addition to the
dust collector.
SECTION 2: CIRCUIT REQUIREMENTS
110/220V Operation
The Model G0583 features a single phase
110V/220V 1 HP motor, which is prewired to
110V.
Amperage Draw
110V ....................................................... 9 Amps
220V .................................................... 4.5 Amps
Circuit Breaker Requirements
Use the following guidelines when choosing a
circuit breaker (circuit breakers rated any higher
are not adequate to protect the circuit):
Circuit Breaker
110V .......................................................15 Amp
220V .......................................................10 Amp
Always check to see if the wires in your circuit
are capable of handling the amperage draw from
your machine, as well as any other machines that
could be operating on the same circuit. If you are
unsure, consult a qualified electrician.
Plug and Recepticle Requirements
The motor is prewired to 110V and no plug
replacement is required. For 220V connection,
rewire the motor as in
NEMA 6-15 plug (
Figure 1). You may also “hardwire” the dust collector directly to your panel, pro
vided you place a disconnect near the machine.
Check the electrical codes in your area for specif
ics on wiring requirements.
Figure 1. NEMA 6-15 plug and receptacle.
Figure 2, and install a
-
-
A fire may occur if your particular electrical
configuration does not comply with local and
state codes. The best way to ensure compli
ance is to check with your local municipality
or a qualified electrician.
-8- G0583 1 HP Canister Dust Collector
Figure 2. 110V/220V motor wiring diagram.
Grounding
Electrocution or a fire
can result if the machine
is not grounded cor
rectly. Make sure all
electrical circuits are
grounded. DO NOT use
the machine if it is not
grounded.
-
NOTICE
The wire on the power cord with green or
green and yellow striped insulation is the
grounding conductor.
In the event of an electrical short, grounding
reduces the risk of electric shock by providing a
path of least resistance to disperse electric cur
rent. This tool is equipped with a power cord that
has an equipment-grounding prong. The outlet
must be properly installed and grounded in accor
dance with all local codes and ordinances.
Extension Cords
We do not recommend the use of extension cords
with 220V equipment. Instead, arrange the place
ment of your equipment and the installed wiring
to eliminate the need for extension cords. Should
the situation be necessary to use an extension,
make sure the cord is rated Standard Service
(grade S) or better. The extension cord must also
contain a ground wire and plug pin. Always repair
or replace extension cords when they become
worn or damaged.
-
-
-
G0583 1 HP Canister Dust Collector -9-
SECTION 3: SET UP
Items Needed For
This machine presents
serious injury hazards
to untrained users. Read
through this entire man
ual to become familiar
with the controls and
operations BEFORE
starting the machine!
Wear safety glasses during the entire set up pro
cess!
The Model G0583 is a
heavy machine (approxi
mately 60 lbs. shipping
weight). DO NOT overexert yourself while
unpacking or moving
your machine—get assistance.
-
-
Set Up
Items Needed for Setup
Hex Wrench 3mm ...............................................
Wrench or Socket 12mm ....................................
#2 Phillips Screwdriver .......................................
QTY
1
1
1
Inventory
After all the parts have been removed from the
two boxes, you should have the following items:
Box 1: Canister Components
A. Canister Filter ............................................. 1
-
B. Gasket Bag ................................................. 1
— Wide Foam Strip ....................................
— Narrow Foam Strip .................................
C. Canister Filter Cleaning Handle ................. 1
D. Metal Canister Clamp ................................ 1
A
(Figure 3)
QTY
1
1
Unpacking
Your machine left our warehouse in two carefully packed boxes. If you discover the machine
is damaged after you have signed for delivery,
please immediately call Customer Service at
(570) 546-9663
Save the containers and all packing materials
for possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the con
dition of the shipment, you should inventory the
equipment.
-10- G0583 1 HP Canister Dust Collector
for advice.
-
Figure 3. Canister filter box components.
D
C
B
Box 2: Main Components (Figure 4)
E. Elbow 4" ...................................................... 1
F. Base ............................................................ 1
G. Clear Dust Storage Bag ............................. 1
H. Round Support ........................................... 1
I. Rectangle Supports .................................... 2
J. Swivel Casters ........................................... 2
K. Fixed Casters ............................................ 2
L. Impeller/Separator ...................................... 1
M. Lower Bag Clamp ....................................... 1
N. Handle ........................................................ 1
O. Hardware Bag ............................................. 1
5
— Hex Bolt
— Acorn Nut
— Flat Washer
— Flat Head Screw
— Flange Screw 10-24 x
/16"-18 x 1/2" ........................... 12
5
/16"-18 ....................................4
5
/16" .....................................2
5
/16"-18 x 1" ..................2
3
/8" ...................... 1
— Open-End Wrench 10-12mm ................. 1
— Hex Wrench 5mm ................................. 1
— Hex Bolt M6-1.0 x 10 ............................. 4
Site Considerations
Working Clearances
Consider existing and anticipated needs, size of
material to be processed through each machine,
and space for auxiliary stands, work tables or
other machinery when establishing a location for
the machine. See Figure 5 for the machine footprint dimensions of the Model G0583.
30"
16"
L
F
K
J
M
G
O
I
E
H
N
Figure 4. Main box items.
In the event that any non proprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or, for the sake of expedi
ency, replacements can be obtained at your local
hardware store.
Figure 5. Dust collector footprint.
Unsupervised children and
visitors inside your shop
could receive serious per
sonal injury. Ensure child
and visitor safety by keep
ing all entrances to the
shop locked at all times.
DO NOT allow unsuper
vised children or visitors
in the shop at any time.
-
G0583 1 HP Canister Dust Collector -11-
Hardware Recognition Chart
-12- G0583 1 HP Canister Dust Collector
Base and Supports
Components and Hardware Needed: QTY
Base ...................................................................1
Casters ...............................................................4
Round Support ...................................................
Rectangle Support ..............................................
Impeller/Separator
Handle
Hex Bolts
................................................................
5
⁄16"-18 x 1⁄2" ........................................6
..............................................
Hex Bolts M6-1.0 x 10 ........................................
5
Acorn Nuts
⁄16"-18 .............................................4
Flat Head Screws M6-1.0 x 10 ...........................
1
2
2
1
4
2
Phlips Screw 10-24 x 3⁄8" ................................... 1
5
Flat Washers
⁄16"-18 ...........................................2
Tools Needed:
Wrench or Socket 12mm ....................................
#2 Phillips Screwdriver .......................................
1
1
To assemble the dust collector base:
1. Make sure the dust collector motor is
unplugged!
2. Install the the casters with the four 5⁄16"-18
acorn nuts and washers. (see
Figure 6).
4. Place the round and rectangle supports on
5
the base and install with six
bolts (see
Figure 7).
⁄16"-18 x 5⁄16" hex
Figure 7. Impeller/separator supports.
5. Align the impeller/separator assembly with
5
the supports, and install six
bolts (see
Figure 8).
⁄16"-18 x 1⁄2" hex
6. Position the elbow as shown in Figure 8,
3
and secure it in place with the #10-24 x
⁄8"
phlips head screw.
7. Position the handle as shown in Figure 8,
and secure it in place with two M6-1 x 10 flat
head screws.
Figure 6. Installing casters.
Figure 8. Impeller/separator attached to base.
G0583 1 HP Canister Dust Collector -13-
Canister Filter
Components and Hardware Needed: QTY
Canister Filter .....................................................
Handle ................................................................1
Metal Canister Clamp .........................................
Narrow Foam Strip .............................................
Tools Needed:
Hex Wrench 3mm ...............................................
To install the canister:
1. Secure the narrow foam strip around the
outside top rim of the collector as shown in
Figure 9.
1
1
1
1
3. Install the handle onto the top of the canister
and tighten the set screw against the flat of
the shaft (
Shaft Flat
Figure 10. Installing canister handle.
4. Place the canister on top of the collector.
Figure 10).
Figure 9. Narrow foam strip.
2. Trim the excess foam strip so the ends come
together evenly as shown in
Figure 9.
5. Position the metal canister clamp around the
bottom of the canister filter, so it will com
press around the foam strip (
latch the clamp closed.
Figure 11), and
-
Figure 11. Installed and secured canister filter.
-14- G0583 1 HP Canister Dust Collector
Collection Bag
Components and Hardware Needed: QTY
Clear Collection Bag ...........................................
Lower Bag Clamp ...............................................
Wide Foam Strip .................................................
To install the collection bag:
1. Secure the wide foam strip around the out-
side bottom rim of the collector and trim the
excess (
Figure 12).
3. Tighten the lower bag clamp around the wide
foam strip to seal and secure the lower col
1
1
1
lection bag (
Figure 13).
-
Wide Foam Strip
Figure 12. Installed and trimmed wide foam
strip.
2. Slide the clear collection bag around the
bottom of the collector so the rim of the bag
overlaps onto the foam strip.
Figure 13. Dust collection bag installed.
G0583 1 HP Canister Dust Collector -15-
SECTION 4: COLLECTION SYSTEM
General
The Model G0583 is designed to be a singlemachine dust collector. Locate the dust collec
tor where it will not interfere with the workpiece
being processed, and no more than 10' of duct
ing is used, otherwise the CFM will be reduced.
To solve dust collection questions, Grizzly offers
a guide book entitled Canister Dust Collection
Basics that will help you design your system.
Whatever system you choose, always make sure
there are no open flames or pilot lights in the
same room as the dust collector. There is a risk
of explosion if dust is dispersed into the air.
Material Selection
You have many choices regarding dust collection
-
-
ducting, but flexible hose is the most common.
However, be aware that there is a fire or explo
sion hazard if plastic duct material is used for
dust collection without being grounded against
static electrical charge build-up. This topic will be
discussed later in the manual.
Metal Rigid Duct
Metal ducting comes in many varieties, make
sure that what you use is suitable for dust
collection. Advantages of metal ducting is its
conductivity and that it does not contribute to
static electrical charge build-up. However, static
charges are still produced when dust particles
strike other dust particles as they move through
the ducting. Since metal ducting is a conductor,
it can be grounded quite easily to dissipate any
static electrical charges. However, metal ducting
is generally more expensive than plastic duct
ing and it is not usually airtight unless specifi
cally manufactured for dust collection. Specially
manufactured metal ducting, on the other hand,
is quite expensive. Metal ducting is also gener
ally more difficult to cut and assemble.
-
-
-
-
Plastic Flexible Duct
Flexible rubber hose, polyethylene, plastic flexhose and other flexible ribbed hose is generally
used for short runs, small shops, and at rigid
duct-to-tool connections. There are many dif
ferent types of flex hose on the market today.
These are manufactured from materials such as
polyethylene, PVC, cloth hose dipped in rubber
and even metal, including steel and aluminum.
-16- G0583 1 HP Canister Dust Collector
-
There are also many kinds of pure plastic flexible hose, such as non-perforated drainage type
hose and dryer vent hose. Drainage type hose,
while being economical, does not quite have the
flexibility required for dust collection. The inside
of the duct is also deeply corrugated and can
increase the static pressure loss by as much as
50% over smooth wall duct. Dryer vent hose,
while being completely flexible, is non-resistant
to abrasion and has a tendency to collapse in a
negative pressure system.
If using flex-hose, you should choose one of the
many types that are designed specifically for
the movement of solid particles, i.e. dust, grains
and plastics. However, the cost of specifically
designed flexible duct can vary greatly. Grizzly
offers polyethylene hose, which is well suited for
the removal of particulate matter, especially saw
dust, since it is durable and completely flexible.
Polyethylene is also very economical and avail
able in a wide variety of diameters and lengths for
most applications.
Plastic Rigid Duct
The popularity of plastic duct is due to the fact that
it is an economical and readily available product.
It is also simple to assemble and easily sealed
against air loss. The primary disadvantage of
plastic duct for Canister Dust collection, whether
black ABS or white PVC and even rubber or
polyethylene flex-hose, is the inherent danger of
static electrical build-up.
Duct Grounding
Since plastic hose is abundant, relatively inexpensive, easily assembled and air tight, it is a
very popular material for conveying dust from
woodworking machines to the dust collector. We
recommend using flexible hose (flex-hose) to
connect the woodworking machine to the dust
collector. However, plastic flex-hose and plastic
ducting are an insulator, and dust particles mov
ing against the walls of the plastic duct create a
static electrical build up. This charge will build
until it discharges to a ground. If a grounding
medium is not available to prevent static electrical
build up, the electrical charge will arc to the nearest grounded source. This electrical discharge
-
-
may cause an explosion and subsequent fire
inside the system.
To protect against static electrical build up inside
a non-conducting duct, a bare copper wire should
be placed inside the duct along its length and
grounded to the dust collector. You must also
confirm that the dust collector is continuously
grounded through the electrical circuit to the elec
tric service panel.
Always guard against
static electrical build up
by grounding all dust
collection lines.
-
-
G0583 1 HP Canister Dust Collector -17-
Be sure that you extend the bare copper wire
down all branches of the system. Do not forget
to connect the wires to each other with wire nuts
when two branches meet at a “Y” or “T” connec
tion.
We also recommend wrapping the outside of all
plastic ducts with bare copper wire to ground the
outside of the system against static electrical
-
build up. Wire connections at Y’s and T’s should
be made with wire nuts.
Ensure that the entire system is grounded. If
using plastic blast gates to direct air flow, the
grounding wire must be jumped (
Figure 14)
around the blast gate without interruption to the
grounding system.
Plastic Blast Gate
Copper Ground Wire
Metal Duct
Figure 14. Ground jumper wire when using
plastic blast gates or elbows and metal duct.
Attach the bare ground wire to each stationary
woodworking machine and attach the canister
dust collector frame with a ground screw as
shown in
Figure 15. Ensure that each machine is
continuously grounded to the grounding terminal
in your electric service panel.
Ground Screw
Flex-Hose
External Ground Wire
Internal Ground Wire
Figure 15. Flex-hose grounded to machine.
-18- G0583 1 HP Canister Dust Collector
Ducting Suggestions
This dust collector is intended for single machine
use and not designed to draw dust through long
runs and multiple ports simultaneously. We do
not recommend using ducting any longer than
10 feet. Otherwise, dust collection efficiency will
be greatly reduced. However, still consider these
general guidelines for efficient dust collection:
1. Machines that produce the most sawdust
should have the shortest run of ducting
between the dust collector and the machine.
These machines include thickness planers,
shapers, sanders, and bandsaws.
2. Ideally, you should design your shop layout
so machines will have the shortest possible
run to the dust collector.
3. Keep ducting directional changes to a minimum. The more directional change fittings
you use, the greater the loss of overall pres
sure.
4. Gradual directional changes are more effi-
cient than sudden directional changes (i.e.
use the largest corner radius possible when
changing hose or pipe direction).
5. The simpler the system, the more efficient
and less costly it will be.
-
G0583 1 HP Canister Dust Collector -19-
SECTION 5: OPERATION
Operation Safety
Disconnect power to the
machine when perform
ing any maintenance,
assembly or adjust
ments. Failure to do this
may result in serious
personal injury.
Keep loose clothing
rolled up and out of the
way of machinery and
keep hair pulled back.
Test Run
Once assembly is complete and adjustments are
done to your satisfaction, you are ready to test
run the machine.
-
-
Turn on the power supply at the main panel.
Turn the dust collector ON. Make sure that your
finger is poised on the toggle switch, just in case
there is a problem shut-off will be quick. The dust
collector should run smoothly, with little or no
vibration or rubbing noises. Strange or unnatu
ral noises should be investigated and corrected
before operating the machine further.
If you cannot easily locate the source of an
unusual noise or vibration, contact our service
department for help.
-
Wear safety glasses during the entire operations
process. Failure to com
ply may result in serious
personal injury.
Always wear a respirator when operating
your dust collector. This
machine circulates saw
dust dust which may
cause allergic reactions
or respiratory problems.
-
General
-
Operating your Model G0583 is simple and
straightforward. Move the dust collector to the
machine location, connect the duct, connect the
ducting ground, and you are ready to begin.
DO NOT use the dust collector for any
other purpose besides collecting dust from
connected woodworking machines. A dust
collector should NEVER be used as an air
cleaner. For safest use, wear a respirator
and use an air cleaner in addition to the
dust collector.
-20- G0583 1 HP Canister Dust Collector
SECTION 6: MAINTENANCE
Lubrication
Disconnect power to the
machine when perform
ing any maintenance,
assembly or adjust
ments. Failure to do this
may result in serious
personal injury.
Keep loose clothing
rolled up and out of the
way of machinery and
keep hair pulled back.
Wear safety glasses during the entire mainte
nance process. Failure
to comply may result in
serious personal injury.
-
-
Since all bearings are shielded and permanently
lubricated, simply leave them alone until they
need to be replaced. Do not lubricate them.
Bag and Canister
Cleaning
Always wear a respirator or dust mask and safety
glasses when emptying the storage bag (
16). The safest opyion is to seal and discard the
entire bag and its contents. Small dust particles
-
can escape the bags during emptying, causing
them to become airborne and easily inhaled. This
microscopic airborne dust is extremely unhealthy
to breathe and can cause serious health problems.
Figure
Schedule
Regular periodic maintenance on your Model
G0583 Canister Dust Collector will ensure its
optimum performance. Make a habit of inspecting
your machine each time you use it. Check for the
following conditions and repair or replace when
necessary:
1. Loose mounting bolts.
2. Worn switch.
3. Worn or damaged cords and plugs.
4. Any other condition that could hamper the
safe operation of this machine.
5. Do not let collection bags get completely
full.
Grizzly offers replacement plastic collection bags
(Part Number H2290) and canister filters for your
Model G0583 Canister Dust Collector.
Figure 16. Safely disposing of wood dust.
G0583 1 HP Canister Dust Collector -21-
To clean the canister filter:
1. Rotate the canister handle 360º in both direc-
tion to vibrate the pleated canister element
and free trapped dust particles from the filter
(Figure 17). The particles will fall into the collection bag.
Figure 17. Rotate canister handle 360º back
and forth.
While the Model G0583 excels at collecting the
majority of wood dust produced by your machines,
it is not an air filter; therefore, we strongly rec-
ommend the supplemental aid of a shop air filter
such as the Grizzly G5955 or G9956. Air filters
are designed to collect the smaller dust particles
that a canister style dust collector cannot trap.
To empty the collection bag:
1. Make sure you are wearing a respirator and
the canister dust collector is unplugged.
2. When the collection bag is full, un-clamp the
collection bag and empty it, or tie it off and
dispose of it altogether.
3. Reinstall or replace the collection bag.
-22- G0583 1 HP Canister Dust Collector
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Motor will not start, or it
growls on start up
Motor runs slower than
normal.
Loud, repetitious noise, or
excessive vibration coming
from dust collector
Dust collector does not
adequately collect dust or
chips; poor performance.
.
.
Troubleshooting
1. Power supply fuse or circuit
breaker has tripped.
2. Toggle switch is broken inside
Start capacitor is at fault.
3.
4. Motor fan cover is dented, stopping
the fan from being able to spin.
5. Motor is at fault.
1. Poor electrical connection
2. Low power source voltage.
3. Motor is at fault.
1. Dust collector is not on a flat
surface and wobbles.
2. Impeller fan is damaged and
unbalanced
3. The motor mounting is loose.
4. Impeller is loose on the motor
shaft
5. Motor fan cover is dented, causing
the motor fan to hit the cover
while spinning.
1. Dust collection bag is full.
2. There is a restriction at the inlet
grate.
3. The dust collector is too far away
from the point of suction, or there
are too many sharp bends in the
ducting.
4. The lumber is wet and not flowing
through the dust lines smoothly.
5. There is a leak in the ducting, or a
series of small leaks, or too many
open ports
6. There is a restriction in the
ducting, or the ducting and ports
are incorrectly sized
7. The machine dust collection design
is inadequate.
8. The dust collector is too small for
the dust collection system.
.
.
.
.
.
.
1. Disconnect power, and inspect circuit for electrical
shorts and repair
old or has tripped many times.
2. Disconnect power, and use an ohmmeter to check
switch terminals for continuity, and replace switch
if required.
3. Replace start capacitor.
4. Replace motor fan cover (and fan, if damaged).
5. Replace motor.
1. Inspect the power supply for loose, corroded, or
overheated electrical connections and repair
2. Have the power source voltage checked; reduce
the length of extension cord.
3. Replace the motor.
1. Stabilize the dust collector.
2. Unplug dust collector, and inspect the impeller for
dents, bends, loose fins
damage is found.
3. Make sure all fasteners on the dust collector are
tight.
4. Replace the motor and impeller as a set if the
motor shaft and the impeller hub is damaged
5. Replace motor fan cover.
1. Empty bags
2. Remove dust line from dust collector inlet and
clean debris from the inlet grate (and wireconnector, if installed).
3. Relocate the dust collector closer to the point of
suction, and rework ducting without sharp bends.
Refer to the Dust Collection Basics handbook (ISBN
0-9635821-2-7) to help configure your dust system.
4. Process lumber with less than 20% moisture
content.
5. Rework the ducting as to eliminate all leaks, and
refer to the Dust Collection Basics handbook (ISBN
0-9635821-2-7) for more solutions.
6. Rework the ducting as to eliminate all restrictions,
and refer to the Dust Collection Basics handbook
(ISBN 0-9635821-2-7) for more solutions.
7. Ask your dealer for proper dust collection
accessories or the SHOP FOX
Nozzle on Stand.
8. Install a larger dust collector to power your dust
collection system.
. Replace circuit breaker if it is
. Replace impeller if any
.
®
Dust Collection
.
.
G0583 1 HP Canister Dust Collector -23-
G0583 Parts Breakdown
Refer to
Page 28 for
Breakdown.
-24- G0583 1 HP Canister Dust Collector
50-1
37
44
45
46
48
47
53
52
42
38
39
41
40
43
54
53
52
51
31-1
50
37
36
35
33
Canister Breakdown
G0583 1 HP Canister Dust Collector -25-
Parts List
REF PART # DESCRIPTION
1 P0583001 1 HP MOTOR
1-1 PC035 S. CAPACITOR 35MFD/300V
1-2 PSW09 SWITCH
1-3 PSW09-1 SWITCH KEY
1-4 P0583031-4 FAN
1-5 P0583031-5 FAN COVER
1-6 P0583031-6 SWITCH HOUSING
1-7 PFS03 FLANGE SCR 10-24 X 3/8"
1-8 P0583031-8 SWITCH COVER
1-9 P0583031-9 POWER CORD
2 PK01M KEY 5 X 5 X 22MM
3 P0583003 SHAFT SEAL
4 PW06 FLAT WASHER 1/4"
5 PWR1012 WRENCH 10-12MM
6 PAW05M 5MM HEX WRENCH
7 PSB02M CAP SCREW M6-1.0 X 20
8 P0583008 INLET COVER
9 PSS17 SET SCREW 5/16"-18 X 5/16"
10 PB19 HEX BOLT 1/4”-20 X 1/2”
11 P0583011 IMPELLER/HUB ASSEMBLY
12 PS09M PHLP HD SCR M5-0.8 X 10
13 PB09 HEX BOLT 5/16"-18 X 1/2"
14 P0583014 RECTANGLE SUPPORT LEG
15 P0583015 BASE
16 P0583016 SWIVEL CASTER
17 P0583017 FIXED CASTER
18 PW07 FLAT WASHER 5/16"
19 PN40 ACORN NUT 5/16"-18
20 PB04M HEX BOLT M6-1.0 X 10
21 P0583021 ROUND SUPPORT LEG
22 P0583022 FOAM GASKET
23 PFH25 FLAT HD SCR 5/16"-18 X 1"
REF PART # DESCRIPTION
24 P0583024 FOAM HAND GRIP
25 PFS03 FLANGE SCR 10-24 X 3/8"
26 P0583026 4" ELBOW
27 H2290 DUST STORAGE BAG
28 P0583028 LOWER BAG CLAMP
29 P0583029 HAND RAIL
30 P0583030 PLASTIC CAP 5/8"
31 P0583031 IMPELLER HOUSING
31-1 P0583031-1 FOAM STRP 5 X 42MM
32 P0583032 6MM CONCAVE WASHER
33 P0583033 HANDLE
35 PSS01M SET SCREW M6-1.0 X 10
36 P0583036 HANDLE
37 PS09M PHLP HD SCR M5-.8 X 10
38 P0583038 FLAP BOARD
39 PB04M HEX BOLT M6-1 X 10
40 P0583040 RUBBER FLAP
41 P0583041 FLAP PLATE
42 PS20M PHLP HD SCR M5-.8 X 15
43 PLN02M LOCK NUT M5-.8
44 P0583044 BOTTOM PLATE
45 P0583045 SUPPORT TAB
46 PN06M HEX NUT M5-.8
47 PW06 FLAT WASHER 1/4
48 PS68M PHLP HD SCR M6-1 X 10
50 P0583050 FILTER
50-1 P0583050-1 FOAM GASKET 10 X 15 MM
51 P0583051 CANISTER BAND CLAMP
52 P0583052 THREAD BEARING
53 P0583053 BEARING PLATE
54 P0583054 HEX SPINDLE
55 P0583055 COMPLETE CANISTER ASSY
-26- G0583 1 HP Canister Dust Collector
Accessories
H2797—
Switch.
This remote switch turns your dust collector on
and off from anywhere in your shop up to 75 feet
away, saving you trips to your collector when
ever you operate a shop machine. Includes two
controls with 9V batteries. Use H2797 on 110V
dust collectors up to 1
dust collectors up to 3 HP.
G3181—Dust Collection Kit #1
Designed for a one machine hook-up, kit #1
comes complete with installation instructions
and an accessories list for expanding your
dust collection system in the future. Acessories
included:
• (1) G1536 4" x 10' Hose
• (1) G1838 Universal Dust Hood
• (2) G2974 Wire Hose Clamps
SHOP FOX
®
Remote Dust Collector
1⁄2 HP. Use H5397 on 220V
G4679—Grounding Kit
Eliminate potential hazards by dissipating static
-
charges. Kit includes 50' of 14-gauge bare cop
per wire, electrical connectors, grounding screws,
terminal ends and instructions.
G2525—Dust Collection Basics
This incisive book skillfully guides the wood
worker through all the steps necessary in
the design and construction of an efficient cen
tral dust collection system and tells you what
you need to know for easy installation. The
text offers practical hints and techniques and
takes the mystery, misery and hype away from
a subject that should be as clear as the air you
breathe. Fifty pages of concise, carefully illustrated text. A MUST!
-
-
-
G0583 1 HP Canister Dust Collector -27-
Notes
-28- G0583 1 HP Canister Dust Collector
Notes
G0583 1 HP Canister Dust Collector -29-
WARRANTY AND RETURNS
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any par
ticular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special,
or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the
carton. We will not accept any item back without this number. Proof of purchase must accompany the
merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
-
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
-30- G0583 1 HP Canister Dust Collector
WARRANTY CARD
Name _____________________________________________________________________________
Street _____________________________________________________________________________
City _______________________ State _________________________ Zip _____________________
Phone # ____________________
Model # ____________________ Order # _______________________ Serial # __________________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop
better products and services. Of course, all information is strictly confidential.
1. How did you learn about us?
____ Advertisement ____ Friend ____ Catalog
____ Card Deck ____ Website ____ Other:
2. Which of the following magazines do you subscribe to?
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
3. What is your annual household income?
____ $20,000-$29,000 ____ $30,000-$39,000 ____ $40,000-$49,000
____ $50,000-$59,000 ____ $60,000-$69,000 ____ $70,000+
Email ________________________ Invoice # _________________
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rifle
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
4. What is your age group?
____ 20-29 ____ 30-39 ____ 40-49
CUT ALONG DOTTED LINE
____ 50-59 ____ 60-69 ____ 70+
5. How long have you been a woodworker/metalworker?
____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____20+ Years
6. How many of your machines or tools are Grizzly?
____ 0-2 ____ 3-5 ____ 6-9 ____ 10+
7. Do you think your machine represents a good value? _____Yes _____No
8. Would you recommend Grizzly Industrial to a friend? _____Yes _____No
9. Would you allow us to use your name as a reference for Grizzly customers in your area?
Note: We never use names more than 3 times.
10. Comments: _____________________________________________________________________
_________________________________________________________________________________
_________________________________________________________________________________
_____Yes _____No
_________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
GRIZZLY INDUSTRIAL, INC.
P.O. BOX 2069
BELLINGHAM, WA 98227-2069
Send a Grizzly Catalog to a friend:
Name_______________________________
Street_______________________________
City______________State______Zip______
TAPE ALONG EDGES--PLEASE DO NOT STAPLE
Buy Direct and Save with Grizzly® – Trusted, Proven and a Great Value!
Visit Our Website Today And Discover Why
Grizzly® Is The Industry Leader!
• SECURE ORDERING
• ORDERS SHIPPED WITHIN 24 HOURS
• E-MAIL RESPONSE WITHIN ONE HOUR
-OR-
Call Today For A
Full Color Catalog
FREE
Loading...
