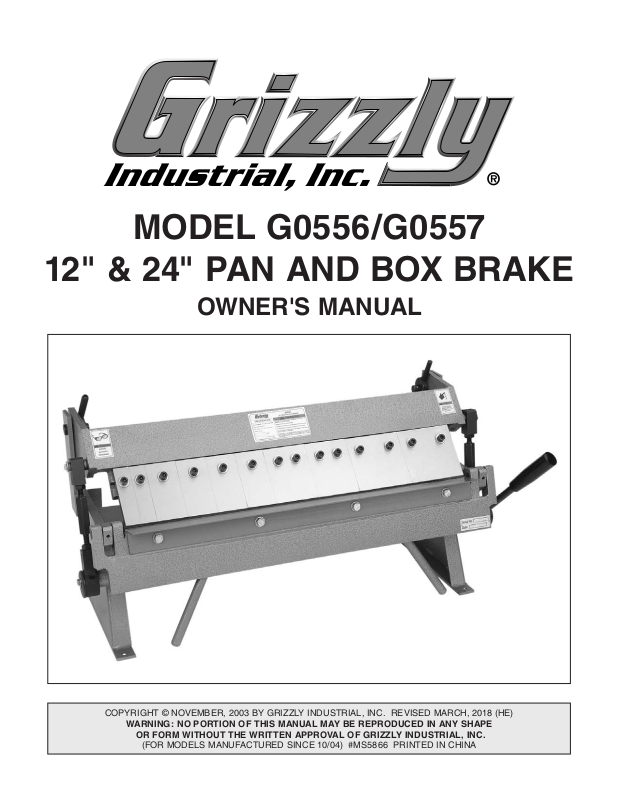

MODEL G0556/G0557
12" & 24" PAN AND BOX BRAKE
OWNER'S MANUAL
COPYRIGHT © NOVEMBER, 2003 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2018 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MANUFACTURED SINCE 10/04) #MS5866 PRINTED IN CHINA
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and comprehension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter
out microscopic particles.
Table of Contents
INTRODUCTION ............................................................................................................................... 2
Manual Accuracy ........................................................................................................................ 2
Contact Info ................................................................................................................................ 2
SECTION 1: SAFETY ....................................................................................................................... 3
Safety Instructions for Machinery ............................................................................................... 3
Additional Safety for Pan and Box Brakes ................................................................................. 5
SECTION 2: SET UP ........................................................................................................................ 6
About This Section ..................................................................................................................... 6
Inspection ................................................................................................................................... 6
Unpacking and Clean-Up ........................................................................................................... 6
Mounting ..................................................................................................................................... 6
Adjustments ................................................................................................................................ 7
SECTION 3: OPERATIONS ............................................................................................................. 8
Technical Data ........................................................................................................................... 8
Bending Metal ............................................................................................................................ 8
Model G0556/G0557 Parts Breakdown ..................................................................................... 9
Model G0556/G0557 Parts List ................................................................................................ 10
WARRANTY AND RETURNS ........................................................................................................ 13
INTRODUCTION
We stand behind our machines! If you have questions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
from the
machine ID label. This will help us help you faster.
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Email: manuals@grizzly.com
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive is
slightly different than shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
check our
website for an updated version. W
current
manuals and
on our web-
site at
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documentation is available for your machine.
Manual Accuracy
made every effort to be exact with the
sometimes the machine
,
www.grizzly.com.
Manufacture Date and Serial Number
manual updates for free
e post
Contact Info
and manufacture date
Grizzly Technical Support
1815 W. Battlefield
.
Springfield, MO 65807
Phone: (570) 546-9663
Email: techsupport@grizzly.com
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Manufacture Date
Serial Number
-2-
Model G0556/G0557 (Mfg. since 10/04)
SECTION 1: SAFETY
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
NOTICE
proper operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, disconnect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machinery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
Always discon-
Model G0556/G0557 (Mfg. since 10/04)
-3-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifications—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intended operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-4-
Model G0556/G0557 (Mfg. since 10/04)
Additional Safety for Pan and Box Brakes
1. OVERLOADING PAN AND BOX BRAKE.
Overloading this tool can cause injury from
flying parts. Do not exceed the capacities
specified on Page 8.
2. USAGE. Do not use this pan and box brake
as a press or a lever-operated crushing
tool. Never use this machine without fully
understanding its limitations.
3. METAL EDGES. Always chamfer and deburr sharp sheet metal edges before bending in the pan and box brake. Sharp edges
on sheet metal can cut your fingers to the
bone.
4. PINCHING. Always keep hands away from
the clamping leaf. This area presents a
severe pinching hazard.
5. GLOVES AND GLASSES. Always wear
leather gloves and approved safety glasses
when using this tool.
6. EXPERIENCING DIFFICULTIES. If at any
time you are experiencing difficulties performing the intended operation, STOP using
the tool and contact our Technical Support at
(570) 546-9663, or ask a qualified expert how
the operation should be performed.
7. TOOLS IN POOR CONDITION. Inspect the
pan and box brake for any cracked linkage,
levers, or loose fasteners. Correct any problems before use.
Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety precautions are overlooked or ignored, serious
personal injury may occur.
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious personal injury, damage to equipment, or poor
work results.
Model G0556/G0557 (Mfg. since 10/04)
-5-
SECTION 2: SET UP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
,
please
IMPORTANT:
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
About This Section
The purpose of this section is to guide you
through the required steps to get your machine
out of its packaging and into operating condition.
This equipment presents serious injury hazards to untrained users.
Read through this entire
manual to become familiar with the operating
procedures before using
this equipment!
Wear safety glasses during the entire setup process!
Unpacking
Clean-Up
1. Remove the box from around the Model
G0556/G0557 Pan and Box Brake.
2. Clean the protective coating from machine
surfaces. Note—Use a mild solvent and soft
rag. Thinners, gasoline, acetone ect. will
damage painted surfaces.
3. Place a light coat of machine oil on all
machined surfaces to prevent rust.
Mounting
1. Before mounting the Model G0556/G0557 to
a flat and level work surface, make sure the
mounting surface is solid enough to hold the
pan and box brake and the work material.
2. Place the pan and box brake onto the work
surface and make sure adequate work room
has been given on all sides.
3. Using a pen or pencil, transfer the hole location to the mounting surface.
If items are damaged
call us immediately at (570) 546-9663.
Save all packaging materials until
-6-
4. Mount the pan and box brake to work surface
5
using
/16" bolts.
Model G0556/G0557 (Mfg. since 10/04)
Adjustments
To adjust for metal thickness:
1. Loosen the setscrews on the back of both
sides of the hold down assembly.
A
B
C
D
E
Figure 1. Brake parts.
A. Hold Down Assembly
B. Hold Down Stop
C. Fingers
D. Finger Knife Edge
E. Apron Face
F. Apron
2. Rotate the eccentric on the back of the hold
down assembly. The hold down assembly will
move in and out, moving the front of the fingers toward or away from the apron face
3. When the fingers are adjusted to the proper
offset and are parallel to the apron face and
base, tighten the set screw to secure the
eccentric. Note—The offset between the front
edge of the finger and the face of the apron
needs to be approximately 1
F
thickness of the material being bent or greater. It cannot be less than 1
age will occur to the finger knife edge.
4. Loosen the two turnbuckle hex nuts on each
side of the hold down assembly (Figure 3).
1
⁄2 times the
1
⁄2 times or dam-
To adjust the fingers:
1. Loosen the cap screws on the fingers, then
push the fingers up into the hold down
assembly stop.
2. Making sure the fingers are held square and
tight to the hold down assembly stop (Figure
2), then tighten the cap screws to secure
fingers.
Figure 2. Fingers located square and tight
against hold down assembly stop.
Figure 3. Turnbuckle.
5. Adjust the hold down assembly for the metal
thickness, using the turnbuckle on each side
of the hold down assembly. The holding pressure should be great enough to hold the
metal from moving when bending, but not so
tight that the hold down handle is hard to
operate.
6. When the desired tension is reached, tighten
hex nuts on each side of the hold down
assembly.
Model G0556/G0557 (Mfg. since 10/04)
-7-
SECTION 3: OPERATIONS
Bending Metal
Wear safety glasses during the entire setup process!
The fabrication of metal is a process which takes
many years to learn and perfect. The steps below
will help you in getting started with this process,
and make it more enjoyable.
Loose hair and clothing
could get caught in
equipment and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
moving equipment.
Technical Data
Steel 20 gauge sheet metal (1mm)
Capacity: (MILD STEEL)
Width Model G0556 12" (305mm)
Capacity: Model G0557 24" (610mm)
Working 9" (230mm)
Height:
Max. Pan
Depth:
Overall Model G0556 12"
Dimensions: 1811⁄16" x 11" x 143⁄8" (475x280x365mm)
Model G0557 24"
3011⁄16" x 11" x 143⁄8" (780x280x365mm)
Weight: Model G0556 79 lbs (27kgs)
Model G0557 124 lbs (42kgs)
7
⁄8" (22mm)
Bending metal procedures:
1. Lift the hold down handle to open the hold
down assembly all the way.
2. Insert the sheet metal workpiece between
the hold down assembly and the body.
3. Align the fingers of the hold down assembly
to the bend mark on the workpiece.
4. Move the hold down handle to hold the workpiece with the hold down assembly. Note—
Do not force the hold down handle. If the
handle is hard to put in the locked position,
the brake may need to be adjusted for the
workpiece thickness. The clamping pressure
of the hold down assembly needs to be just
tight enough to hold the workpiece from moving when bending.
5. Lift up on the apron handles (using both
hands) until the workpiece has reached the
desired angle.
6. Lift the hold down handle to open the hold
down assembly then remove the bent workpiece. Note—If a pan or box bend is desired,
choose a die or a selection of dies that are as
close as possible to the length of pan or box
side.
-8-
Model G0556/G0557 (Mfg. since 10/04)
Model G0556/G0557 Parts Breakdown
5-1
24-4
5-1
23
24-1
24-2
24-3
24
30
32
31
25
Model G0556/G0557 (Mfg. since 10/04)
-9-
Model G0556/G0557 Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0556001 APRON (G0556) 18 P0556018 SET SCREW M6-1 X 10
1 P0557001 APRON (G0557) 19 P0556019 KEY 4 X 4 X 15MM
2 P0556002 SHAFT (G0556) 20 P0556020 BUSHING
2 P0557002 SHAFT (G0557) 21 P0556021 SMALL SHAFT
3 P0556003 BODY (G0556) 22 P0556022 LOWER LEFT ECCENTRIC
3 P0557003 BODY (G0557) 23 P0556023 T-NUT
4 P0556004 HOLD DOWN ASSEMBLY (G0556) 24 P0556024 COMPLETE FINGER SET (G0556)
4 P0557004 HOLD DOWN ASSEMBLY (G0057) 24 P0557024 COMPLETE FINGER SET (G0557)
5 P0556005 UPPER ECCENTRIC 24-1 P0556024-1 FINGER 1"
5-1 P0556005-1 HANDLE M6-1 X 1-3/4 24-2 P0556024-2 FINGER 2"
6 P0556006 CONNECTING BLOCK 24-3 P0556024-3 FINGER 3"
7 P0556007 FLAT WASHER 6MM 24-4 P0557024-4 FINGER 4" (G0557)
8 P0556008 CAP SCREW M6-1 X 10 25 P0556025 CAP SCREW M8-1.25 X 20
9 P0556009 HEX NUT M10-1.5 26 P0556026 SAFETY GLASSES LABEL
10 P0556010 TURNBUCKLE 27 P0556027 PINCH HAZARD LABEL
11 P0556011 HEX NUT M10-1.5 28 P0556028 READ MANUAL LABEL
12 P0556012 BUSHING 29 P0556029 MACHINE ID LABEL (G0556)
13 P0556013 LOWER RIGHT ECCENTRIC 29 P0557029 MACHINE ID LABEL (G0557)
14 P0556014 SCREW ROD 30 P0556030 WORKPIECE SUPPORT
15 P0556015 HANDLE 31 P0556031 HEX BOLT M8-1.25 X 16
16 P0556016 PIN SHAFT 32 P0556032 FLAT WASHER 8MM
17 P0556017 SPLIT PIN
-10 -
Model G0556/G0557 (Mfg. since 10/04)
