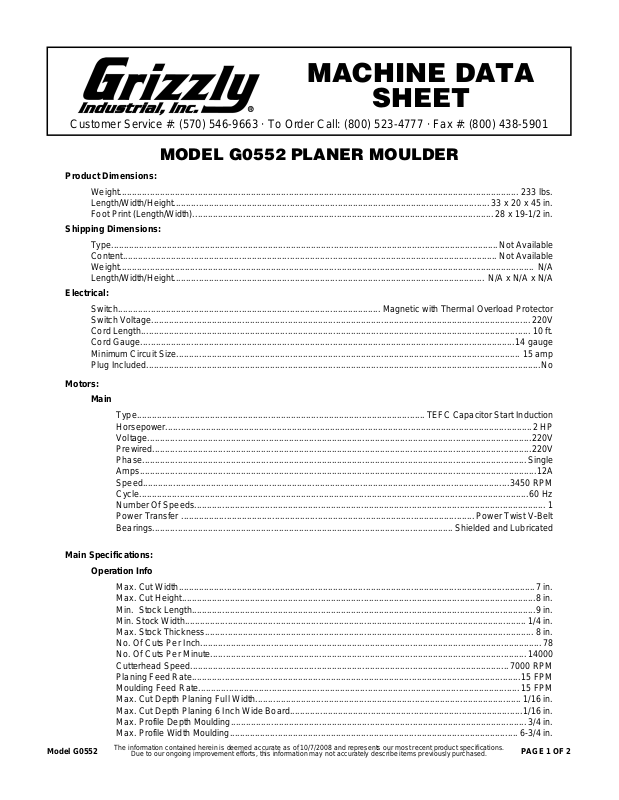

Grizzly G0552 User Manual

MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0552 PLANER MOULDER
Product Dimensions:
Foot Print (Length/Width)....................................................................................................................... 28 x 19-1/2 in.
Shipping Dimensions:
Type.........................................................................................................................................................Not Available
Content.................................................................................................................................................... Not Available
Weight.................................................................................................................................................................... N/A
Length/Width/Height........................................................................................................................... N/A x N/A x N/A
Electrical:
Switch........................................................................................................ Magnetic with Thermal Overload Protector
Switch Voltage......................................................................................................................................................220V
Cord Length.......................................................................................................................................................... 10 ft.
Cord Gauge....................................................................................................................................................14 gauge
Minimum Circuit Size........................................................................................................................................ 15 amp
Plug Included............................................................................................................................................................No
Motors:
Main
Type..................................................................................................................TEFC Capacitor Start Induction
Horsepower.................................................................................................................................................2 HP
Voltage........................................................................................................................................................220V
Prewired......................................................................................................................................................220V
Phase........................................................................................................................................................Single
Amps.............................................................................................................................................................12A
Speed.................................................................................................................................................3450 RPM
Cycle..........................................................................................................................................................60 Hz
Number Of Speeds........................................................................................................................................... 1
Power Transfer ....................................................................................................................Power Twist V-Belt
Bearings.......................................................................................................................Shielded and Lubricated
Main Specifications:
Operation Info
Max. Cut Width.............................................................................................................................................7 in.
Max. Cut Height............................................................................................................................................8 in.
Min. Stock Length........................................................................................................................................9 in.
Min. Stock Width....................................................................................................................................... 1/4 in.
Max. Stock Thickness.................................................................................................................................. 8 in.
No. Of Cuts Per Inch.......................................................................................................................................78
No. Of Cuts Per Minute.............................................................................................................................14000
Cutterhead Speed..............................................................................................................................7000 RPM
Planing Feed Rate..................................................................................................................................15 FPM
Moulding Feed Rate...............................................................................................................................15 FPM
Max. Cut Depth Planing Full Width......................................................................................................... 1/16 in.
Max. Cut Depth Planing 6 Inch Wide Board............................................................................................1/16 in.
Max. Profile Depth Moulding.....................................................................................................................3/4 in.
Max. Profile Width Moulding.................................................................................................................. 6-3/4 in.
The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 1 OF 2Model G0552
Cutterhead Info
Cutterhead Type......................................................................................................................................2 Knife
Cutterhead Dia.......................................................................................................................................1-1/4 in.
No. Of Knives....................................................................................................................................................2
Knife Type....................................................................................................................................................HSS
Knife Size Length...................................................................................................................................7-1/8 in.
Knife Size Width.....................................................................................................................................1-1/2 in.
Knife Size Thickness.................................................................................................................................1/8 in.
Knife Adjustment..................................................................................................................................Hex Bolts
Table Info
Table Bed Size Length...........................................................................................................................8-1/2 in.
Table Bed Size Width...........................................................................................................................14-1/4 in.
Table Bed Size Thickness......................................................................................................................2-3/8 in.
Floor To Table Height.................................................................................................................................31 in.
Construction
Table Construction...................................................................................................Precision Ground Cast Iron
Body Construction................................................................................................................................Cast Iron
Stand Construction.................................................................................................................Pre-Formed Steel
Cutterhead Assembly Construction................ One Piece Machined Square Arbor with Shielded Ball Bearings
Infeed Roller Construction.......................................................................................................................Rubber
Outfeed Roller Construction....................................................................................................................Rubber
Paint...........................................................................................................................................Powder Coated
Other
Measurement Scale..................................................................................................................................... Inch
No. Of Dust Ports..............................................................................................................................................1
Dust Port Size.............................................................................................................................................. 4 in.
Mobile Base..............................................................................................................................................G7314
Other Specifications:
Country Of Origin ..............................................................................................................................................Taiwan
Warranty ............................................................................................................................................................2 Year
Serial Number Location ............................................................................ Upper Left Corner of Machine Stand Front
Assembly Time .......................................................................................................................................... 1-1/2 hours
Features:
Open Sides Allow Profiling of Mouldings Such as Casings with Ease Feed Rollers Provide Consistent Performance Easy Access Knife Changing Includes Sturdy Work Stand Segmented Belt Includes Infeed and Outfeed Rollers
The information contained herein is deemed accurate as of 10/7/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 2 OF 2Model G0552
