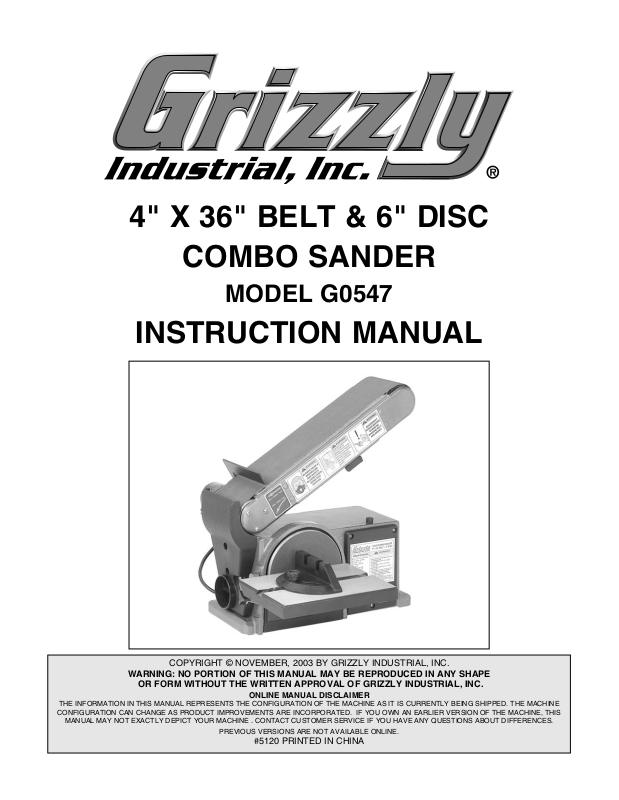

4" X 36" BELT & 6" DISC
COMBO SANDER
MODEL G0547
INSTRUCTION MANUAL
WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement,
and other masonry products.
• Arsenic and chromium from chemically
treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work
in a well ventilated area, and work with
approved safety equipment, such as those dust
masks that are specially designed to filter out
microscopic particles.
SECTION 1: SAFETY ..................................................................................................................................2
Safety Instructions for Power Tools ......................................................................................................2
Additional Safety Instructions for the G0547 Combo Sander................................................................4
SECTION 2: INTRODUCTION ....................................................................................................................5
SECTION 3: CIRCUIT REQUIREMENTS ....................................................................................................6
110 Volt..................................................................................................................................................6
Grounding ..............................................................................................................................................7
Extension Cords ....................................................................................................................................7
SECTION 4: MACHINE FEATURES............................................................................................................8
SECTION 5: SET UP ....................................................................................................................................9
Unpacking ..............................................................................................................................................9
Parts Inventory ......................................................................................................................................9
Hardware Recognition Chart................................................................................................................10
Site Considerations..............................................................................................................................11
Beginning Assembly ............................................................................................................................12
Mounting Sander..................................................................................................................................12
Installing Disc Guard............................................................................................................................12
Installing Disc Table ............................................................................................................................13
Squaring Table ....................................................................................................................................13
Attaching Sandpaper ..........................................................................................................................14
Aligning Table ......................................................................................................................................15
Adjusting Miter Gauge ........................................................................................................................15
Adjusting Belt Angle ............................................................................................................................16
Installing Back Stop ............................................................................................................................16
Installing Sanding Belt ........................................................................................................................16
Adjusting Sanding Belt Tracking..........................................................................................................17
Installing Dust Collection Hose ............................................................................................................17
SECTION 6: OPERATIONS ......................................................................................................................18
General ................................................................................................................................................18
Power Switch ......................................................................................................................................18
Disc Sanding........................................................................................................................................19
Miter Sanding ......................................................................................................................................19
Angle Sanding......................................................................................................................................20
Installing Table on Sanding Belt ..........................................................................................................20
Horizontal Sanding ..............................................................................................................................21
Curved Sanding ..................................................................................................................................21
SECTION 7: MAINTENANCE ....................................................................................................................22
Maintenance Safety ............................................................................................................................22
Schedule ..............................................................................................................................................22
Replacing Drive Belt ............................................................................................................................23
Lubricating Sleeve Bearings ................................................................................................................23
SECTION 8: REFERENCE INFO ..............................................................................................................24
General ................................................................................................................................................24
Aftermarket Accessories ......................................................................................................................24
Machine Data Sheet ............................................................................................................................25
Parts Breakdown..................................................................................................................................26
Parts List ..............................................................................................................................................27
Troubleshooting Guide ........................................................................................................................28
Maintenance Notes ..............................................................................................................................29
Warranty and Returns..........................................................................................................................30
Table of Contents
-2-
G0547 Combo Sander
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
6. MAKE WORKSHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.
7. NEVER FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
8. USE RIGHT TOOL. DO NOT force tool or
attachment to do a job for which it was not
designed.
1. KEEP GUARDS IN PLACE and in working
order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form a habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning on.
3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
4. NEVER USE IN DANGEROUS ENVIRONMENT. DO NOT use power tools in damp
or wet locations, or where any flammable
or noxious fumes may exist. Keep work
area well lighted.
For Your Own Safety Read Instruction
Manual Before Operating This Equipment
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
MAY
result in minor or moderate injury. It may also be used to alert
against unsafe practices.
This symbol is used to alert the user to useful information about
proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words which are intended to convey the level
of importance of the safety messages. The progression of symbols is described below.
Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
NOTICE
Safety Instructions for Power Tools
SECTION 1: SAFETY
G0547 Combo Sander -3-
9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause
a drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace extension cords if they become damaged.
Minimum Gauge for Extension Cords
10. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which may
get caught in moving parts. Non-slip
footwear is recommended. Wear protective
hair covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.
12. ALLERGIES: Certain wood may cause an
allergic reaction in people or animals, especially when exposed to fine dust. Make sure you
know what type of wood dust you will be
exposed to and wear proper respirators.
13. DO NOT OVER-REACH. Keep proper
footing and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubricating and changing accessories.
LENGTH
AMP RATING 25ft 50ft 100ft
0-6 16 16 16
7-10 16 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No
Safety Instructions for Power Tools
15. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recommended accessories. The use of improper
accessories may cause risk of injury.
16. REDUCE THE RISK OF UNINTENTION-
AL STARTING. On machines with magnet-
ic contact starting switches there is a risk of
starting if the machine is bumped or jarred.
Always disconnect from power source
before adjusting or servicing. Make sure
switch is in OFF position before reconnecting.
17. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.
18. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. DO NOT
leave tool until it comes to a complete stop.
19. NEVER OPERATE A MACHINE WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Full mental alert-
ness is required at all times when running a
machine.
20. NEVER ALLOW UNSUPERVISED OR
UNTRAINED PERSONNEL TO OPERATE THE MACHINE. Make sure any
instructions you give in regards to machine
operation are approved, correct, safe, and
clearly understood.
21. IF AT ANY TIME YOU ARE EXPERIENCING DIFFICULTIES performing the intend-
ed operation, stop using the machine! Then
contact our service department or ask a
qualified expert how the operation should
be performed.
-4-
G0547 Combo Sander
No list of safety guidelines can be complete. Every shop environment is different.
Always consider safety first, as it applies to
your individual working conditions. Use
this and other machinery with caution and
respect. Failure to follow guidelines could
result in serious personal injury, damage to
equipment or poor work results.
Additional Safety Instructions
for the G0547 Combo Sander
• READ THIS MANUAL. This manual con-
tains proper operating instructions for this
machine.
• DO NOT jam the workpiece against the
sanding surfaces. Firmly grasp the workpiece in both hands and ease it against the
belt/disc using light pressure.
• DO NOT wear loose clothing while operat-
ing this machine. Roll up or button sleeves
at the cuff.
• DO NOT place hands near, or in contact
with, sanding surfaces during operation.
• GRIP THE WORKPIECE WITH BOTH
HANDS.
• PERFORM machine inspections and
maintenance promptly when needed.
• NEVER leave the machine running unattended.
• REPLACE sanding discs and belts when
they become worn.
• NEVER sand more than one piece of stock
at a time.
• ALWAYS inspect board stock for nails,
staples, knots, and other imperfections
that could be dislodged and thrown from
the machine during sanding operations.
• NEVER operate the sander without an
adequate dust collection system in place
and running.
• NEVER sand tapered or pointed stock with
the point facing the feed direction.
• DISCONNECT THE MACHINE FROM
THE POWER SOURCE before changing
the sanding disc or belt.
• TEST RUN THE MACHINE before starting
any work.
Always wear a respirator when operating the
Model G0547. Using this
machine produces sawdust which may cause
allergic reactions or respiratory problems.
G0547 Combo Sander -5-
We are proud to offer the Model G0547 4" x 36"
Belt & 6" Disc Combo Sander. This machine is
part of a growing Grizzly family of fine woodworking machinery. When used according to the
guidelines set forth in this manual, you can
expect years of trouble-free, enjoyable operation
and proof of Grizzly’s commitment to customer
satisfaction.
We are pleased to provide this manual with the
Model G0547. It was written to guide you through
assembly, review safety considerations, and
cover general operating procedures. It represents
our effort to produce the best documentation possible.
If you have any comments regarding this manual,
please write to us at the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com
The specifications, drawings, and photographs
illustrated in this manual represent the Model
G0547 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com
. Any updates to your machine
will be reflected in these manuals as soon as they
are complete. Visit our site often to check for the
latest updates to this manual!
SECTION 2: INTRODUCTION
Lack of familiarity with
this manual could
cause serious personal injury. Become
familiar with the contents of this manual,
including all the safety
warnings.
-6-
G0547 Combo Sander
Amperage Draw
The Model G0547
1
⁄3 HP motor is wired to oper-
ate at 110V and will draw the following load:
Motor Load..............................................5 Amps
Plug Type
The Model G0547 is supplied with a NEMA 5-15
plug. DO NOT modify the plug or power cord in
any way. See Figure 1 for a NEMA 5-15 plug and
grounded outlet.
Circuit Breaker Requirements
We recommend that the circuit you use your
machine on should be dedicated. Use the following guidelines when choosing a circuit breaker for
your machine (circuit breakers rated any higher
are not adequate to protect the circuit):
Recommended Circuit Breaker ..............10 Amp
Your Circuit Capacity
Always check to see if the wires in your circuit are
capable of handling the amperage load from your
machine. If you are unsure, consult a qualified
electrician.
If you operate this machine on any circuit that is
already close to its capacity, it might blow a fuse
or trip a circuit breaker. However, if you are not
placing an unusual load on the machine and a
power failure still occurs, contact a qualified electrician or our Service Department at (570) 546-
9663.
Serious personal injury could occur if you
connect your machine to the power source
before you have completed the assembly
process. DO NOT connect the machine to
the power source until instructed to do so.
Figure 1. NEMA 5-15 plug and
grounded outlet.
110 Volt
SECTION 3: CIRCUIT REQUIREMENTS
i
G0547 Combo Sander -7-
In the event of an electrical short, grounding
reduces the risk of electric shock by providing a
path of least resistance to disperse electric current. This tool is equipped with a power cord that
has an equipment-grounding prong. The outlet
must be properly installed and grounded in accordance with all local codes and ordinances.
110V Operation
If you find it necessary to use an extension cord
at 110V:
• Make sure the cord is rated Standard Service
(grade S) or better.
• The extension cord must also contain a
ground wire and plug pin.
• Use at least a 16 gauge cord.
• DO NOT use a cord longer that 100 feet!
This machine must have a ground prong in
the plug to help ensure that it is grounded.
DO NOT remove ground prong from plug to
fit into a two-pronged outlet! If the plug will
not fit the outlet, have the proper outlet
installed by a qualified electrician.
Electrocution or a fire
can result if the machine
is not grounded correctly. Make sure all electrical circuits are grounded. DO NOT use the
machine if it is not
grounded.
No single list of electrical guidelines can
be comprehensive for all shop environments. Operating this machinery may
require additional electrical upgrades specific to your machine and shop environment. It is your responsibility to make sure
your electrical systems comply with all
local electrical codes and ordinances.
NOTICE
The wire on the power cord with green or
green and yellow striped insulation is the
grounding conductor.
Extension CordsGrounding
-8-
G0547 Combo Sander
1. Sanding Belt
2. Back Stop
3. Dust Port
4. Miter Gauge
5. Disc Sanding Table
6. Sanding Disc
7. Sander Base
8. Tracking Knob
9. Belt Tensioning Lever
10. Bed Angle Release Screw
11. Table Angle Knob
SECTION 4: MACHINE FEATURES
Figure 2. Machine Features.
An important part of safety is knowing your machine and its components. Take the time to familiarize
yourself with the features of your new Model G0547 Combo Sander. They will be frequently mentioned
throughout the instructions in this manual.
1
7
6
5
4
3
2
8
9
10
11
G0547 Combo Sander -9-
When you are completely satisfied with the condition of your shipment, you should inventory its
parts.
DESCRIPTION Qty
A. Sander Unit (Not Shown) . . . . . . . . . . . .1
B. Disc Sanding Table . . . . . . . . . . . . . . . . .1
C. Sanding Disc . . . . . . . . . . . . . . . . . . . . .1
D. Sanding Belt (Not Shown) . . . . . . . . . . . .1
E. Table Support . . . . . . . . . . . . . . . . . . . . .1
F. Disc Guard . . . . . . . . . . . . . . . . . . . . . . .1
G. Back Stop . . . . . . . . . . . . . . . . . . . . . . . .1
H. Miter Gauge . . . . . . . . . . . . . . . . . . . . . .1
I. Hardware Bag
• Switch Key . . . . . . . . . . . . . . . . . . . . . .1
• Knob . . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Washer 6mm . . . . . . . . . . . . . . . . . . . .5
• Lock Washer 6mm . . . . . . . . . . . . . . . .4
• Hex Head Bolt M6-1.0 x 14 . . . . . . . . . .4
• Self Tapping Screw M4 x 8 . . . . . . . . . .2
Figure 3. G0547 inventory.
Sharp edges on metal
parts may cause personal injury. Examine the
edges of all metal parts
before handling.
B
E
C
F
H
G
I
Parts InventoryUnpacking
SECTION 5: SET UP
The machine was carefully packed when it left the
Grizzly warehouse. If you discover the machine is
damaged after you have signed for delivery, and
the truck and driver are gone, you will need to file
a freight claim with the carrier. Save the containers and all packing materials for possible inspection by the carrier or its agent. Without the packing materials, filing a freight claim can be difficult.
If you need assistance determining whether you
need to file a freight claim, or with the procedure
to file one, please contact our Customer Service.
-10-
G0547 Combo Sander
Hardware Recognition Chart
G0547 Combo Sander -11-
Site Considerations
Unsupervised children
and visitors inside your
shop could receive serious personal injury.
Ensure child and visitor
safety by keeping all
entrances to the shop
locked at all times. DO
NOT allow unsupervised
children or visitors in the
shop at any time.
Weight Load
The Model G0547 Combo Sander is a small
weight load with a small footprint. Most tables and
workbenches should be sufficient to carry the
weight of the machine. Reinforce the table or
workbench if you question its ability to support the
added weight.
Working Clearance
Working clearances can be thought of as the distances between machines and obstacles that
allow safe operation of every machine without
limitation. Consider existing and anticipated
machine needs, size of material to be processed
through each machine, and space for auxiliary
stands or work tables. Also consider the relative
position of each machine to one another for efficient material handling.
Lighting and Outlets Lighting should be bright
enough to eliminate shadow and prevent eye
strain. Electrical circuits should be dedicated or
large enough to handle the amperage draw.
Outlets should be located near each machine so
power or extension cords are clear of high-traffic
areas. Observe local electrical codes for proper
installation of new lighting, outlets, or circuits.
-12-
G0547 Combo Sander
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
Serious personal injury
could occur if you connect your machine to the
power source before you
have completed the
assembly process. DO
NOT connect the
machine to the power
source until instructed to
do so.
Sharp edges on metal
parts may cause personal injury. Examine the
edges of all metal parts
before handling.
This section will cover the basic assembly and
adjustment instructions needed to begin operation. Complete the assembly in the order provided in this manual and then read the remaining
portion of the manual before attempting any type
of operation.
Your safety is important! Please follow the
warnings below during this entire section:
To mount the sander to a workbench:
1. Screw
1
⁄4" x 11⁄2" (or longer) lag bolts with 1⁄4"
washers through the holes in the base and
into the workbench.
To attach the sander to a mounting board:
1. Mount the base of the sander to the center of
a piece of
3
⁄4" plywood that is at least 18"W x
24"D.
2. Clamp the plywood securely to a workbench.
To install the disc guard:
1. Align the disc guard with the holes on the
lower half of the disc.
2. Use the M4 x 8 self tapping screws to attach
the disc guard to the sander base as shown
in Figure 4.
Figure 4. Attaching the disc guard.
Installing Disc
Guard
Mounting SanderBeginning Assembly
!
G0547 Combo Sander -13-
To install the disc table:
1. Lay the table upside down and align the table
support with the holes in the table.
2. Take three hex bolts out of the hardware bag
and put a lock washer and a flat washer on
each bolt.
3. Screw the hex bolts with washers through
the table support and into the disc table as
shown in Figure 5.
Figure 5. Bolting the table support to the disc table.
Figure 6. Inserting the index pin into the base.
4. Insert the index pin shown in Figure 6 into
the upper hole on the base and tighten the
knob.
Squaring Table
When the table tilt is set to 0˚, the table should be
adjusted perpendicular to the sanding disc face.
To square the table:
1. Disconnect the machine from the power
source!
2. Using a try square or machinist’s square, set
one edge on the table surface and the other
against the face of the disc as shown in
Figure 7.
Figure 7. Squaring disc table.
Installing Disc Table
!
3. Loosen the lock knob and adjust the table
angle until there is no gap between the disc
face and the square.
4. Tighten the lock knob while holding the table
perpendicular.
5. Place the angle measurement label on the
base so the angle indicator points to 0˚.
Index Pin
-14-
G0547 Combo Sander
The Model G0547 Combo Sander accepts 6"
diameter cloth or paper-backed pressure sensitive adhesive (PSA) sanding discs. These are
available in a variety of grits. See the current
Grizzly catalog for prices and ordering information.
The PSA sanding disc sticks directly to the surface of the aluminum disc and can be replaced
without removing either the table or the dust port.
To attach sandpaper:
1. Disconnect the machine from the power
source!
2. Remove the disc table and the lower guard.
3. Remove the worn out sandpaper.
Note—Make sure that all dust, grit, and
adhesive from the old sandpaper is cleaned
off the aluminum disc. This will ensure a
good bond between the sandpaper and the
disc.
4. Peel back the protective layer on one-half of
the sandpaper disc and fold it against the
remaining half.
Figure 8. Center the sandpaper on the disc.
5. Center the sticky half of the sandpaper on
the upper half of the disc and press the sandpaper onto the surface (Figure 8).
6. Remove the remaining half of the protective
layer and then press this portion against the
disc.
7. Rotate the disc by hand and check to make
sure the sandpaper is firmly attached to the
disc. Note—DO NOT turn the disc sander on
at this point.
Attaching Sandpaper
!
G0547 Combo Sander -15-
Figure 9. The gap between the table and the disc
The table must be aligned to the face of the sanding disc so that the sandpaper does not rub
against the table.
To align the table:
1. Disconnect the machine from the power
source!
2. Loosen the hex bolts that secure the table to
the table support bracket.
3. Adjust the table so that there is
3
⁄64" or 1 mm
between the table and the sanding disc as
shown in Figure 9.
4. Tighten the screws loosened in step 1.
5. Spin the disc by hand to check if the sand-
paper is touching the table. Note—DO NOT
turn the disc sander on at this point.
6. Repeat steps 1-4 if the sandpaper touches
the table at any point in the rotation.
Adjusting Miter
Gauge
Figure 10. Squaring the miter gauge.
The miter gauge needs to be adjusted perpendicular to the face of the wheel when it is mounted in
the table slot.
To adjust miter gauge:
1. Disconnect the machine from the power
source!
2. Use a machinist square with one edge
against the face of the miter gauge and the
other against the disc face as shown in
Figure 10.
3. Loosen the lock knob on the miter gauge to
adjust it flush with the edge of the square.
4. Tighten the lock knob, and verify the setting.
Note—Sometimes the tightening procedure
can affect the adjustment.
5. Loosen the setscrew that secures the angle
pointer and adjust the pointer to the 0˚ mark
on the scale.
6. Retighten the setscrew that secures the
angle pointer.
Aligning Table
!
!
3
⁄64" Gap
Figure 12. Squaring the back stop
Figure 11. Raising the sanding belt bed.
!
-16-
3. Slide the belt onto the drive drums as shown
in Figure 13 and release the belt tensioning
lever.
Note—make sure that the arrow on the inside of
the sanding belt points the same direction as the
belt rotation arrow on the machine.
G0547 Combo Sander
To adjust the sanding belt angle:
1. Disconnect the machine from the power
source!
2. Loosen the cap screw shown in Figure 11.
To install the back stop:
1. Screw a hex bolt, with a flat washer and a
lock washer on it, through the back stop and
into the hole shown in Figure 12.
2. Square the back stop as shown in Figure 12
and tighten the hex bolt.
3. Raise the sanding belt to the desired angle
and tighten the cap screw.
Figure 13. Installing belt.
To install the sanding belt:
1. Disconnect the machine from the power
source!
2. Loosen the belt tension by pulling out the
tensioning lever shown in Figure 13.
!
Belt
Tensioning
Lever
Installing Sanding
Belt
Installing Back Stop
Adjusting Belt Angle
G0547 Combo Sander -17-
Figure 15. Hose connected to dust port.
Installing Dust
Collection Hose
The dust collection for the sanding disc and the
belt are fed into the same port that is located on
the end of the sander as shown in Figure 15.
To connect your machine to a dust collection
system:
1. Place a 2
1
⁄2" diameter hose over the dust
port.
2. Secure the hose in place with a hose clamp.
Once the sanding belt is installed, test the belt
tracking to see if the belt slides off the drum.
To test the tracking:
1. Remove all tools from the sander.
2. Plug the sander into the power source. Flip
the switch ON and immediately turn the
sander OFF.
3. If the sanding belt moves toward the disc,
turn the tracking knob shown in Figure 14
clockwise
1
⁄4 turn.
5. Flip the switch ON and immediately turn the
sander OFF. The belt is tracking properly if it
stays centered on the drive drums. If the belt
moves to the side, return to step 3.
Note—Listen for any unusual noises, vibrations
or rubbing while adjusting the tracking. If anything
sounds unusual, stop the sander immediately.
Disconnect the machine from the power source
and find the source of the problem before operating further. If you cannot locate the source of an
unusual noise or vibration, feel free to contact our
service department for help.
Adjusting Sanding
Belt Tracking
Before starting the sander, make sure you
have performed the preceding assembly
and adjustment instructions, and you
have read through the rest of the manual
and are familiar with the various functions
and safety issues associated with this
machine. Failure to follow this warning
could result in serious personal injury.
Figure 14. Sanding belt tracking knob.
4. If the sanding belt moves away from the disc,
turn the tracking knob counterclockwise
1
⁄4
turn.
Tracking Knob
G0547 Combo Sander-18-
Damage to your eyes, lungs, and ears
could result from failure to wear safety
glasses, a respirator, and hearing protection while sanding with this machine.
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
This section covers basic sanding operations.
Please read the remaining portion of the manual
before attempting any type of operation.
Your safety is important! Please follow the
warnings below during this entire section:
Operating this equipment has the potential
to propel debris into the air which can
cause eye injury. Always wear safety glasses or goggles when operating equipment.
Everyday glasses or reading glasses only
have impact resistant lenses, they are not
safety glasses. Be certain the safety glasses you wear meet the appropriate standards of the American National Standards
Institute (ANSI).
The Model G0547 Combo Sander is equipped
with a paddle-type power switch with a safety
key.
To operate the power switch:
1. Plug in the sander and insert the safety lock-
ing key shown in Figure 16.
Figure 16. Inserting the safety key.
2. Lift the switch to start and press the switch
down to stop the motor.
3. Remove the locking key when the machine is
not in use and store the key in a safe place.
Make sure the power switch is in the OFF
position before connecting the sander to the
power source. Serious personal injury could
occur if you connect your machine to the
power source with the power switch on.
Power Switch
General
SECTION 6: OPERATIONS
G0547 Combo Sander -19-
Never use the Model G0547 for applications other than those for which it was
made. DO NOT overload the machine or
use excess force when sanding. Severe
personal injury, damage to the machine,
or damage to your workpiece could
occur.
Always keep the workpiece on the side of
the wheel that is rotating down toward the
table. This will keep the workpiece from
flying out of your hands from the rotational forces.
Miter Sanding
The most efficient way to get a perfect miter is to
cut the workpiece slightly long and sand it to the
desired dimension. Miter sanding can be done
easily with the miter gauge:
To perform miter sanding operations:
1. Loosen the knob on the miter gauge, adjust
the angle to the desired point, and tighten the
knob.
2. Slide the miter gauge into its slot and use it
to hold your workpiece in position. Note—
The miter gauge can be used in either direction in the slot to achieve the proper relation
of the workpiece to the disc.
3. Use light pressure and move the workpiece
slowly back and forth across the disc as
shown in Figure 18.
Figure 18. Disc sanding with a miter gauge.
To perform disc sanding operations:
1. Set the angle of the table relative to the
sanding disc. The angle can be set with the
angle scale on the disc sander or with a protractor for greater accuracy.
2. When a 90˚ horizontal angle is required,
place one surface of the workpiece firmly
against the face of the miter gauge (set at
0˚), with the other surface against the face of
the disc (Figure 17).
Figure 17. Disc sanding.
Disc Sanding
3. Use light pressure and move the workpiece
slowly back and forth across the disc to prevent the workpiece from burning and to prevent excessive loading of the sanding disc.
Note—For sanding curves or irregular shapes,
remove the miter gauge from the disc table.
-20-
G0547 Combo Sander
Miters can also be sanded by changing the angle
of the table.
To perform angle sanding operations:
1. Loosen the knob securing the table.
2. Use the angle gauge to acheive the desired
table angle and tighten the handles. Note—
The disc table can be positioned from 0˚ to
45˚, relative to the plane of the sanding surface.
3. Slide the miter gauge into the miter slot and
use the miter gauge to hold your workpiece
in position.
4. With light, but firm pressure, push the workpiece slowly into the downspin side of the
rotating disc (Figure 19).
Figure 19. Mitering with the table angled.
The disc sanding table can be removed and
installed on the sanding belt bed when the sanding belt bed is vertical. This gives the operator
more working room when using the sanding belt.
To install the table on the sanding belt bed:
1. Disconnect the machine from the power
source!
2. Raise the belt bed to vertical and remove the
back stop.
3. Remove the disc sanding table.
4. Place the index pin of the disc sanding table
in the upper hole in the sanding belt table.
5. Rotate the sanding table perpendicular to the
sanding belt and screw in the knob as shown
in Figure 20.
Figure 20. Installing the table for belt sanding.
Installing Table on
Sanding Belt
Angle Sanding
5. Move the workpiece slowly back and forth
across the downspin side of the disc.
Always keep the workpiece on the side of
the wheel that is rotating down toward the
table. This will keep the workpiece from
flying out of your hands from the rotational forces.
!
G0547 Combo Sander -21-
Figure 21. Horizontal sanding.
Figure 22. Sanding an inside curve.
Horizontal sanding allows you to sand the flat
surface of a board.
To perform horizontal sanding operations:
1. Turn the power ON and allow the sander to
reach full speed.
2. Place the workpiece against the surface of
the sanding belt. Hold the workpiece firmly
with both hands but keep fingers away from
the sanding surface as shown in Figure 21.
Curved Sanding
Inside curves can be sanded using the curved
end of the sanding belt.
To perform curved sanding operations:
1. Turn the power ON and allow the sander to
reach full speed.
2. Hold the workpiece against the end of the
sanding belt. Move the workpiece slowly
across the entire surface of the belt as
shown in Figure 22.
Horizontal Sanding
Hold the workpiece firmly when the backstop is removed to prevent the workpiece
from being thrown. Keep bystanders
away from the machine while in operation.
3. Move the workpiece across the surface of
the belt for even belt wear.
4. Use the back stop to prevent the workpiece
from being thrown off by the rotation of the
sanding belt.
5. Remove the backstop from the sander if the
workpiece is longer than the sanding bed.
-22-
G0547 Combo Sander
Serious personal injury
could occur if you connect your machine to the
power source during the
maintenance process.
DO NOT connect the
machine to the power
source while performing
any maintenance on this
machine.
Your safety is important! Please follow the
warnings below during this entire section:
Check for the following conditions before
each use:
• Loose table bolts.
• Worn or damaged sanding discs or
belts.
• Worn or damaged wires.
• Any other condition that could hamper
the safe operation of this machine.
Perform the following tasks at the scheduled
time intervals:
After Each Use
• Wipe off the sawdust build-up from the
table surface.
• Turn off power switch and remove the
switch key.
Weekly
• Wipe a lubricant such as SLIPIT
®
onto
the table.
Long-Term Storage
• Keep unpainted surfaces rust free
with products such as Boeshield
®
T-9.
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
Projectiles from the
machine could cause
serious eye injury.
Wear safety glasses at
all times.
ScheduleMaintenance Safety
SECTION 7: MAINTENANCE
!
G0547 Combo Sander -23-
Figure 25. Lubricating the sleeve bearings.
Lubricating Sleeve
Bearings
Lubricate the sleeve bearing with 30 WT oil every
10 hours of operation. No other lubrication is necessary for this machine.
To lubricate the sleeve bearings:
1. Disconnect the machine from the power
source!
2. Remove the sanding belt.
3. Apply two or three drops of oil in the hole at
the end of the idler pulley (Figure 25).
Note—DO NOT apply extra oil. Too much oil can
cause the belt to slip.
Figure 23. Drive belt housing screws.
Figure 24. Tensioning the drive belt.
Replacing Drive Belt
To replace and tension the drive belt:
1. Disconnect the machine from the power
source!
2. Remove the drive belt cover plate.
3. Loosen the three screws shown in Figure 23
and slide the drive belt housing down and
remove the old belt.
4. Place the new belt around the pulley wheels.
5. Put a screwdriver in the tension hole shown
in Figure 24 and pull up to tighten the drive
belt.
6. Tighten the drive belt housing screws while
keeping tension on the drive belt.
7. Test the belt tension by squeezing the belt
between your fingers. There should be no
more than
1
⁄4" of play in the belt.
Note—Too much tension in the drive belt will
cause increased noise and may overload the
motor, however, if the drive belt is too loose it
may slip and cause excessive wear on the belt.
!
!
!
Drive Belt Housing
-24-
G0547 Combo Sander
This section contains the following subsections
for the Model G0547: aftermarket accessories,
data sheets, parts diagrams and list, troubleshooting, and warranty/return information.
If you need parts or help in assembling your
machine, or if you need operational information,
call the service department at (570) 546-9663.
Trained service technicians will be glad to help
you.
If you have any comments regarding this manual,
please write to Grizzly at the address below:
Grizzly Industrial, Inc.
C
/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the Service
Department at the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: techsupport@grizzly.com
Web Site: http://www.grizzly.com.
To order replacement sanding discs or sanding
belts, call our customer service line 24 hours a
day at 1-800-523-4777 or visit our website at
www.grizzly.com.
EXTRA A/O BELTS:
Grit
..........................................................Model
60 Grit Belts - 2 pk ..................................G1442
80 Grit Belts - 2 pk ..................................G4279
100 Grit Belts - 2 pk ................................G1443
120 Grit Belts - 2 pk ................................G4280
150 Grit Belts - 2 pk ................................G1444
180 Grit Belts - 2 pk ................................G4281
220 Grit Belts - 2 pk ................................G4282
EXTRA PSA A/O DISCS:
Grit
..........................................................Model
60 Grit Discs - 3 pk ..................................G1445
80 Grit Discs - 3 pk ..................................G4236
100 Grit Discs - 3 pk ................................G1446
120 Grit Discs - 3 pk ................................G4237
150 Grit Discs - 3 pk ................................G1447
180 Grit Discs - 3 pk ................................G4238
220 Grit Discs - 3 pk ................................G4239
PRO-STICK
®
Abrasive Surface Cleaners
Extend the life of your sanding discs and belts!
Size
..........................................................Model
11⁄2" X 11⁄2" X 81⁄2" ....................................G1511
2" X 2" X 12" ............................................G1512
Aftermarket
Accessories
General
SECTION 8: REFERENCE INFO
G0547 Combo Sander -25-
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901
MACHINE DATA
SHEET
Design Type.................................................................................................... Bench Model
Overall Dimensions and Specifications:
Height (Belt Horizontal) ........................................................................................10
3
⁄4"
Height (Belt Vertical) ............................................................................................23
3
⁄4"
Width......................................................................................................................14
3
⁄8"
Length....................................................................................................................17
1
⁄2"
Table ............................................................................................................6
1
⁄4” x 87⁄8”
Weight ................................................................................................................38 lbs.
Footprint ......................................................................................................6
5
⁄8" x 145⁄8"
Disc Features:
Disc Size ....................................................................................................................6”
Disc Speed ..................................................................................................3450 RPM
Table Tilt Range....................................................................................................0-45°
Belt Features:
Belt Size ............................................................................................................4" x 36"
Belt Speed ....................................................................................................1970 RPM
Belt Tilt Range ......................................................................................................0-90°
Construction:
Base ................................................................................................................Cast Iron
Table ..............................................................................................Die-Cast Aluminum
Motor:
Type ................................................................................................OPAO Split Phase
Horsepower ..........................................................................................................
1
⁄3 HP
Phase ⁄ Voltage ............................................................................Single Phase ⁄ 110V
Amperage ....................................................................................................................5
Cycle and RPM ............................................................................60 Hertz ⁄ 3450 RPM
Switch ......................................................................................Toggle with Safety Key
Power Transfer ....................................................................................Direct Drive/Belt
Bearings ....................................................................Sealed, Permanently Lubricated
Features:
................................................................................................................2
1
⁄2" Dust Port
................................................................................................Adjustable Miter Guage
....................................................................................................Accepts 6" PSA Discs
....................................................................................Accepts 4" x 36" Sanding Belts
..................................................................................Single Knob Tracking Adjustment
Specifications, while deemed accurate, are not guaranteed.
GRIZZLY MODEL G0547 4" X 36" BELT
6" DISC COMBO SANDER
-26- G0547 Combo Sander
Parts Breakdown
39 P0547039 MOTOR
40 P0547040 WIRE HANGER
41 PN01M HEX NUT M6-1
42 P0547042 BASE
43 P0547043 DRIVE BELT 140XL037
44 PFH07M FLAT HD SCR M5-.8 X 10
45 P0547045 COUNTERSUNK WASHER 5MM
46 P0547046 DRIVE PULLEY
47 PS47M PHLP HD SCR M6-1 X 25
48 PW03M FLAT WASHER 6MM
49 P0547049 DRIVE PULLEY
50 PFH37M FLAT HD SCR M5-.8 X 25
51 P0547051 BEARING HOUSING
52 P0547052 BELT COVER
53 P0547053 BED SUPPORT
54 P0547054 SQUARE NUT M8-1.25
55 P0547055 RUBBER BUMPER
56 PSB31M CAP SCREW M8-1.25 X 25
57 P6001 BALL BEARING 6001ZZ
58 PR03M EXT RETAINING RING 12MM
59 P0547059 DRIVE SHAFT
60 P0547060 FLANGE NUT M5-.8
61 P0547061 GUIDE SPACER
62 P0547062 INDEX SPRING
63 P0547063 GUIDE DRUM
64 P0547064 IDLER SHAFT
65 P0547065 IDLER DRUM
66 P0547066 TENSION LEVER
67 P0547067 TENSION SPRING
68 P0547068 LEVER SPACER
69 P0547069 BOTTOM COVER PLATE
70 P0547070 WARNING LABEL-ID LABEL
71 P0547071 LABEL-BELT DIRECTION
72 P0547072 LABEL-RESPIRATOR/GLASSES
73 P0547073 LABEL-READ MANUAL
74 P0547074 LABEL-DISCONNECT
G0547 Combo Sander -27-
1 P0547001 KNOB M6-1 X 27 (MALE)
2 P0547002 RUBBER WASHER
3 P0547003 NOTCHED WASHER
4 P0547004 BED
5 PS75M PHLP HD SCR M5-.8 X 35
6 PB02M HEX BOLT M6-1 X 12
7 PLW03M LOCK WASHER 6MM
8 PW03M FLAT WASHER 6MM
9 P0547009 BACK STOP
10 P0547010 SANDING BELT 4" X 36"
11 PLW01M LOCK WASHER 5MM
12 PS09M PHLP HD SCR M5-.8 X 10
13 P0547013 DRIVE DRUM
14 PSS16M SET SCREW M8-1.25 X 10
15 P0547015 BEARING CAP
16 P6001 BALL BEARING 6001ZZ
17 P0547017 BEARING SPACER
18 P0547018 SWITCH HOUSING
19 PW02M FLAT WASHER 5MM
20 PS05M PHLP HD SCR M5-.8 X 8
21 P0547021 SWITCH KEY
22 P0547022 LOCKING SWITCH
23 PS06M PHLP HD SCR M5-.8 X 20
24 PHTEK28M TAP SCREW M4 X 25
25 P0547025 SWITCH BOX COVER
26 P0547026 RELAY
27 P0547027 6" PSA SANDPAPER DISC
28 PSB26M CAP SCREW M6-1 X 12
29 PLW03M LOCK WASHER 6MM
30 P0547030 DISC
31 PHTEK4M TAP SCR M4 X 8
32 P0547032 DISC GUARD
33 P0547033 DISC SHROUD
34 P0547034 DUST COLLECTOR
35 P0547035 DISC TABLE
36 P0547036 TABLE SUPPORT
37 P0547037 ANGLE MEASUREMENT LABEL
38 P0547038 CORD WITH PLUG
REF PART # DESCRIPTION REF PART # DESCRIPTION
-28-
G0547 Combo Sander
Troubleshooting Guide
TROUBLE
Grains easily rub off the belt
or disc.
Deep sanding grooves or
scars in workpiece.
Sanding surface clogs
quickly or burns.
Glazed sanding surfaces.
Motor will not start.
Motor will not start; fuses or
circuit breakers blow.
Motor overheats.
Motor stalls (resulting in
blown fuses or tripped
circuit).
Burn marks on workpiece.
Machine slows when
operating.
Machine vibrates
excessively.
Workpiece frequently gets
pulled out of your hand.
Workpiece lifts up from
sanding disc table.
CAUSE
1. Sanding belt/disc has been stored in an
incorrect environment.
2. Sanding belt/disc has been smashed or
folded.
1. Sanding belt/disc grit is too coarse for
the desired finish.
2. Workpiece sanded across the grain.
3. Too much sanding force on workpiece.
4. Workpiece held still against the
belt/disc.
1. Too much pressure against belt/disc.
2. Sanding softwood.
1. Sanding wet stock.
2. Sanding stock with high residue.
1. Low voltage.
2. Open circuit in motor or loose connections.
1. Short circuit in line cord or plug.
2. Short circuit in motor or loose connections.
3. Incorrect fuses or circuit breakers in
power line.
1. Motor overloaded.
2. Incorrect usage of machine.
3. Air circulation through the motor
restricted.
1. Short circuit in motor or loose connections.
2. Low voltage.
3. Incorrect fuses or circuit breakers in
power line.
4. Motor overloaded.
1. Using too fine of sanding grit.
2. Using too much pressure.
3. Work held still for too long.
1. Applying too much pressure to workpiece.
2. Undersized circuit or using ext cord.
1. Incorrect motor mounting.
2. Incorrect sanding belt tension.
3. Weak or broken tension spring.
4. Idler roller is too loose.
5. Broken/defective sanding belt/disc.
1. Not supporting the workpiece against
the stop.
1. Sanding on the up spinning side of the
disc
CORRECTION
1. Store sanding belt/disc away from extremely hot or dry temperatures.
2. Store sanding belt/disc flat not bent or folded.
1. Use a finer grit sanding belt/disc.
2. Sand with the grain.
3. Reduce pressure on workpiece while sanding.
4. Keep workpiece moving while sanding on the belt/disc.
1. Reduce pressure on workpiece while sanding.
2. Use different stock. Or, accept the characteristics of the stock
and plan on cleaning/replacing belts frequently.
1. Dry stock properly before sanding.
2. Use different stock. Or, accept the characteristics of the stock
and plan on cleaning/replacing belts/discs frequently.
1. Check power supply for proper voltage.
2. Inspect all lead connections on motor for loose or open connections.
1. Inspect cord or plug for damaged insulation and shorted wires.
2. Inspect all connections on motor for loose or shorted terminals
or worn insulation.
3. Install correct fuses or circuit breakers.
1. Reduce load on motor.
2. Reduce the applied load on the machine.
3. Clean out motor to provide normal air circulation.
1. Inspect connections on motor for loose or shorted terminals or
worn insulation.
2 Correct the low voltage conditions.
3. Install correct fuses or circuit breakers.
4. Reduce load on motor.
1. Use a coarser grit sanding belt/disc.
2. Reduce pressure on workpiece while sanding.
3. Do not keep workpiece in one place for too long.
1. Sand with less pressure—let the movement of the belt/disc do
the work.
2. Make sure circuit wires are proper gauge & don’t use ext cords!
1. Check/adjust motor mounting.
2. Make sure tension lever is in tensioning position. Follow belt tensioning instructions in this manual.
3. Replace spring.
4. Adjust idler roller.
5. Replace sanding belt/disc.
1. Use back stop to support workpiece.
1. Sand on the down spinning side of the disc.
G0547 Combo Sander -29-
Service Performed
Approximate Hours Of Use
Date
Maintenance Notes
-30-
G0547 Combo Sander
Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from
the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse,
negligence, accidents, repairs or alterations or lack of maintenance. This is Grizzly’s sole written warranty
and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent
that the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants.
In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and
any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty, contact us by mail or phone and give us all the details. We will then
issue you a “Return Number,’’ which must be clearly posted on the outside as well as the inside of the carton. We will not accept any item back without this number. Proof of purchase must accompany the merchandise.
The manufacturers reserve the right to change specifications at any time because they constantly strive to
achieve better quality equipment. We make every effort to ensure that our products meet high quality and
durability standards and we hope you never need to use this warranty.
Please feel free to write or call us if you have any questions about the machine or the manual.
Thank you again for your business and continued support. We hope to serve you again soon.
Warranty & Returns
CUT ALONG DOTTED LINE
9. How many of your woodworking machines are Grizzly? _____________
10. Which benchtop tools do you own? Check all that apply.
___1" x 42" Belt Sander ___6" - 8" Grinder
___5" - 8" Drill Press ___Mini Lathe
___8" Table Saw ___10" - 12" Thickness Planer
___8" - 10" Bandsaw ___Scroll Saw
___Disc/Belt Sander ___Spindle/Belt Sander
___Mini Jointer
___Other__________________________________________________
11. How many of the machines checked above are Grizzly? ____________
12. Which portable/hand held power tools do you own? Check all that apply.
___Belt Sander ___Orbital Sander
___Biscuit Joiner ___Palm Sander
___Circular Saw ___Portable Planer
___Detail Sander ___Saber Saw
___Drill/Driver ___Reciprocating Saw
___Miter Saw ___Router
___Other__________________________________________________
13. What machines/supplies would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
14. What new accessories would you like Grizzly Industrial to carry?
__________________________________________________________
__________________________________________________________
15. What other companies do you purchase your tools and supplies from?
__________________________________________________________
__________________________________________________________
16. Do you think your purchase represents good value?
___Yes ___No
17. Would you recommend Grizzly Industrial to a friend?
___Yes ___No
18. Would you allow us to use your name as a reference for Grizzly customers
in your area? Note: We never use names more than three times.
___Yes ___No
19. Comments:_________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
1. How did you learn about us?
___Advertisement ___Friend
___Catalog ___Card Deck
___World Wide Web
___Other__________________________________________________
2. Which of the following magazines do you subscribe to.
___American Woodworker ___Practical Homeowner
___Cabinetmaker ___Shop Notes
___Family Handyman ___Today’s Homeowner
___Fine Homebuilding ___WOOD
___Fine Woodworking ___Wooden Boat
___Home Handyman ___Woodshop News
___Journal of Light Construction ___Woodsmith
___Old House Journal ___Woodwork
___Popular Mechanics ___Woodworker
___Popular Science ___Woodworker’s Journal
___Popular Woodworking ___Workbench
___Other__________________________________________________
3. Which of the following woodworking/remodeling shows do you watch?
___Backyard America ___The New Yankee Workshop
___Home Time ___This Old House
