Grizzly G0530 User Manual

VARIABLE SPEED BUFFER

MODEL G0530

INSTRUCTION MANUAL

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#CR5679 REVISED APRIL 2005, PRINTED IN TAIWAN

WARNING

Some dust created by power sanding, sawing, grinding, drilling, buffing, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and other masonry products.

• Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fil ter out microscopic particles.

Table of Contents

SECTION 1: SAFETY ....................................................................................................................... 2

Safety Instructions for Power Tools ...........................................................................................

Additional Safety Instructions for Buffers ...................................................................................

SECTION 2: INTRODUCTION .........................................................................................................

Commentary ............................................................................................................................... 5

SECTION 3: CIRCUIT REQUIREMENTS ........................................................................................

220V 3-Phase ............................................................................................................................

SECTION 4: MACHINE FEATURES ................................................................................................

SECTION 5: SET UP ........................................................................................................................

G0530 Inventory ........................................................................................................................

Clean Up ....................................................................................................................................

Site Considerations ....................................................................................................................

Assembly .................................................................................................................................. 10

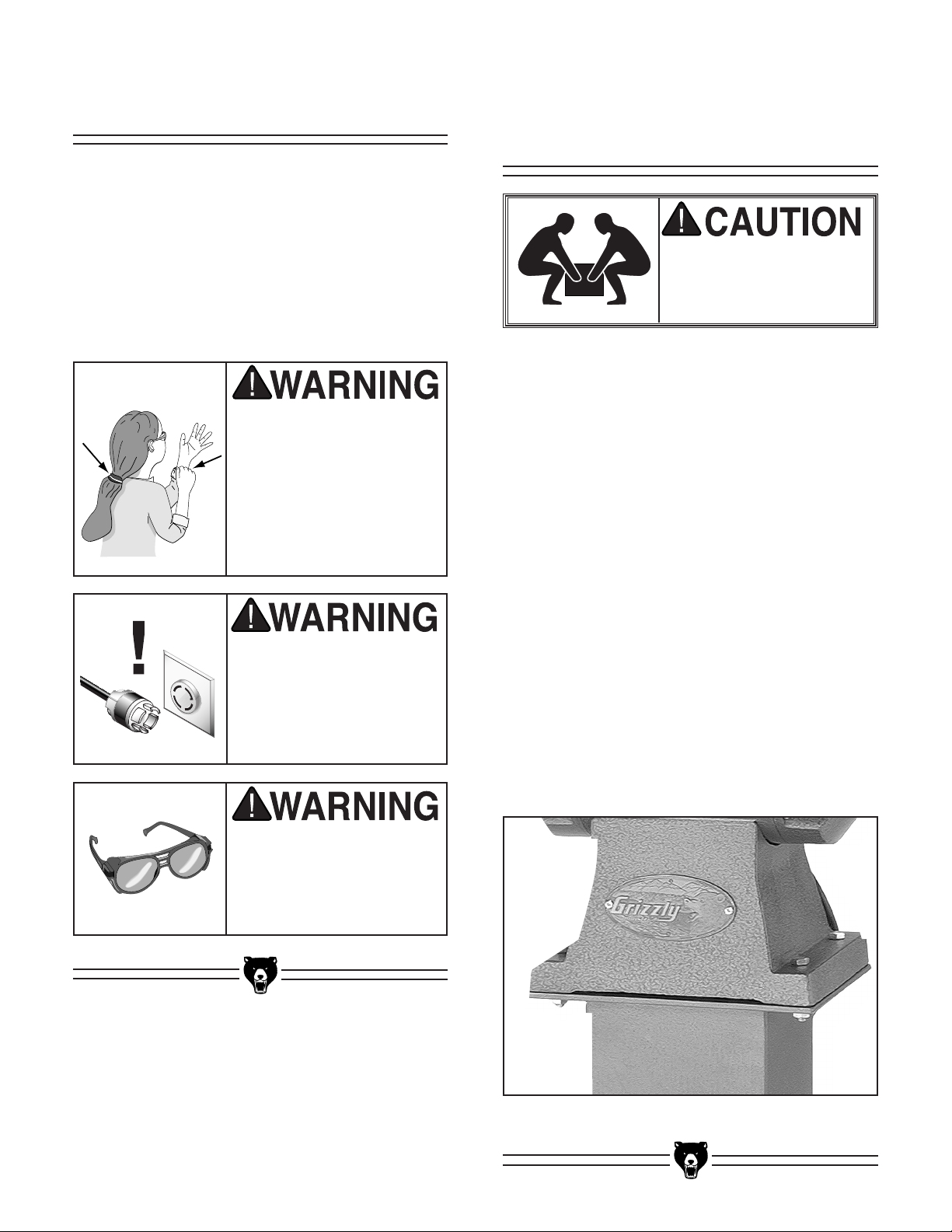

Mounting Buffer to

Buffing Wheel Installation .........................................................................................................

SECTION 6: OPERATIONS ...........................................................................................................

Before Buffing ..........................................................................................................................

Basic Buffing ............................................................................................................................

SECTION 7: REFERENCE INFO ...................................................................................................

Assistance ................................................................................................................................ 13

Accessories .............................................................................................................................. 13

G0530 Machine Data Sheet ....................................................................................................

Parts Diagram ..........................................................................................................................

Parts List ..................................................................................................................................

Wiring Diagram ........................................................................................................................

Warranty & Returns ..................................................................................................................

Workbench or Stand .................................................................................. 10

12 12

15 16 17 18 19

2 4

7 8

8 9 9

G0530 Variable Speed Buffer -1-

SECTION 1: SAFETY

For Your Own Safety Read Instruction

Manual Before Operating This Equipment

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about

NOTICE

proper operation of the equipment.

Safety Instructions for Power Tools

1. KEEP GUARDS IN PLACE and in working

order.

2. REMOVE ADJUSTING KEYS AND

WRENCHES. Form a habit of checking to

see that keys and adjusting wrenches are removed from tool before turning on.

3. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.

4. NEVER USE IN DANGEROUS ENVIRONMENT. DO NOT use power tools

in damp or wet locations, or where any flammable or noxious fumes may exist. Keep work area well lighted.

5. KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept at a safe distance from work area.

6. MAKE WORKSHOP CHILD PROOF with padlocks, master switches, or by removing starter keys.

7. NEVER FORCE TOOL. It will do the job better and safer at the rate for which it was designed.

8. USE RIGHT TOOL. DO NOT force tool or attachment to do a job for which it was not designed.

-2-

G0530 Variable Speed Buffer

Safety Instructions for Power Tools

9. USE PROPER EXTENSION CORD. Make

sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage rating should be listed on the motor or control panel faceplate. An undersized cord will cause a drop in line voltage result ing in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords if they become damaged.

Minimum Gauge for Extension Cords

LENGTH

AMP RATING 25ft 50ft 100ft 0-6 16 16 16 7-10 16 16 14 11-12 16 16 14 13-16 14 12 12 17-20 12 12 10 21-30 10 10 No

10. WEAR PROPER APPAREL. DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair cov ering to contain long hair.

11. ALWAYS USE A SAFETY FACE SHIELD.

Also use a respirator. Everyday eyeglasses are NOT safety glasses, and paper dust masks are not respirators.

12. SECURE WORK. Use clamps or a vise to

hold a small workpiece work when practical.

16. REDUCE THE RISK OF UNINTENTIONAL

STARTING. On machines with magnetic

contact starting switches there is a risk of starting if the machine is bumped or jarred. Always disconnect from power source before adjusting or servicing. Make sure

switch is in OFF position before reconnect ing.

17. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

18. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. DO

NOT leave tool until it comes to a complete stop.

19. NEVER OPERATE A MACHINE WHEN TIRED, OR UNDER THE INFLUENCE OF DRUGS OR ALCOHOL. Full mental alert-

ness is required at all times when running a machine.

20. NEVER ALLOW UNSUPERVISED OR UNTRAINED PERSONNEL TO OPERATE THE MACHINE. Make sure any instruc-

tions you give in regards to machine opera tion are approved, correct, safe, and clearly understood.

13. DO NOT OVER-REACH. Keep proper footing and balance at all times.

14. MAINTAIN TOOLS WITH CARE. Keep

tools clean and in adjustment for the best and safest performance. Follow instructions for changing accessories and lubricating.

15. USE RECOMMENDED ACCESSORIES.

Consult the owner’s manual for recommended accessories. The use of improper accessories may cause risk of injury.

G0530 Variable Speed Buffer -3-

21. IF AT ANY TIME YOU ARE EXPERIENC-

ING DIFFICULTIES

ed operation, stop using the machine! Then contact our service department or ask a qualified expert how the operation should be performed.

performing the intend-

Additional Safety Instructions for Buffers

1. ALWAYS WEAR a face shield.

2. SECURE THIS BUFFER firmly to the floor or

a stand.

3. NEVER INSTALL A GRINDING WHEEL ON

THIS BUFFER

ing and polishing only.

4. DO NOT STAND DIRECTLY IN FRONT OF THE buffer wheel when turning the machine

ON, or when buffing.

5. DO NOT JAM WORK AGAINST THE BUFFING WHEEL

buffing wheel.

6. ALLOW THE WHEEL TO REACH FULL SPEED before introducing the workpiece.

7. DO NOT ALLOW YOUR HANDS TO COME INTO CONTACT WITH THE BUFFING WHEEL. Abrasive accessories are designed

to remove material that is harder than your skin very quickly.

8. NEVER PERFORM ANY ADJUSTMENT OR MAINTENANCE PROCEDURE while

the buffer is connected to power.

. It is strictly designed for buff-

. Slowly ease the work into the

10. NEVER LEAVE THE BUFFER RUN-

NING UNATTENDED

11. NEVER ATTEMPT TO BUFF SMALL PARTS. If you cannot hold small parts

securely, do not buff them with this machine. Secure them with clamps or similar jigs or use a smaller buffer.

12. BUFFING CAN PRODUCE LARGE AMOUNTS OF DUST

the appropriate respirator to prevent breathing harmful particles. Follow the respirator instructions for use.

13. BE AWARE OF MAXIMUM SPEEDS FOR THE BUFFING WHEELS

exceed the maximum speed listed on each buffing/polishing wheel.

14. ALWAYS REMOVE THE WORKPIECE from the buffing wheel before you adjust the RPM while buffing.

15. NEVER BUFF a workpiece with protruding nails, loose knots, large splinters, and any other condition that may cause the buffing wheel to grab and project the workpiece or object.

. Be sure to wear

. Never

9. NEVER BUFF MATERIAL FROM THE

REAR OF THE MACHINE

Unfamiliarity with this manual could result in serious personal injury. Read and become familiar with the contents of this manual, including all the safety warnings.

-4-

No list of safety guidelines can be complete. Operating this machinery may require additional safety precautions spe cific to your shop environment. Failure to use reasonable caution while operating this machine could result in serious per sonal injury.

G0530 Variable Speed Buffer

SECTION 2: INTRODUCTION

Commentary

Lack of familiarity with this manual could cause serious per sonal injury. Become familiar with the con tents of this manual, including all the safety warnings.

We are proud to offer the Model G0530 Variable Speed Buffer. This machine is part of a growing Grizzly family of fine woodworking and metal working machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction.

Most importantly, we stand behind our machines. If you have any service questions or parts requests, please call or write us at the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: (570) 546-9663

Fax: (800) 438-5901 E-Mail: techsupport@grizzly.com Web Site: http://www.grizzly.com

The specifications, drawings, and photographs illustrated in this manual represent the Model G0530 as supplied when the manual was pre pared. However, owing to Grizzly’s policy of con tinuous improvement, changes may be made at

any time with no obligation on the part of Grizzly. For your convenience, we always keep current Grizzly manuals available on our website at grizzly.com. Any updates to your machine will be reflected in these manuals as soon as they are complete. Visit our site often to check for the lat est updates to this manual!

www.

We are pleased to provide this manual with the Model G0530. It was written to guide you through assembly, review safety considerations, and cover general operating procedures. It represents our effort to produce the best documentation pos sible. If you have any comments regarding this manual, please write to us at the address below:

Grizzly Industrial, Inc.

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

G0530 Variable Speed Buffer -5-

SECTION 3: CIRCUIT REQUIREMENTS

Plug Type

220V 3-Phase

The plug you install on your cord will depend upon the type of service you currently have or plan to install. We recommend using the following plug and receptacle for your machine on a dedicated circuit only (see Figure 1 for an example

Serious personal injury could occur if you connect your machine to the power source before you have completed the set up pro cess. DO NOT connect the machine to the power source until instructed to do so.

Wiring

The Model G0530 is prewired for 220V 3-phase operation.

Amperage Draw

The Model G0530 has a 5 HP motor that will draw the following amps at 220V 3-phase:

Buffer Motor ........................................... 15 Amps

Circuit Breaker Requirements

Install the machine on a dedicated circuit to reduce the possibility of overloading the circuit and tripping the circuit breaker.

If the circuit breaker trips and the circuit is of the correct load capacity, have the circuit inspected by qualified electrician. Never use a larger circuit breaker than stated below, or you will increase the risk of fire.

Plug & Receptacle ...................................

Figure 1. Typical locking type L15-30 plug and

receptacle.

Your Shop Circuit Capacity

Always check to see if the wires in your circuit are capable of handling the amperage draw from your machine, as well as any other machines that could be operating on the same circuit. If you are unsure, consult a qualified electrician.

L15-30

Circuit Breaker ............................ 15 Amp, 3 Pole

Minimum Cord Requirements

For 220V 3-phase operation, use the following type of cord (a cord is not provided):

Cord ................................................3 pole, 4 wire

Gauge .............................................................. 14

-6-

A fire may occur if your particular electrical configuration does not comply with local and state codes. The best way to ensure compli ance is to check with your local municipality or a licensed electrician.

G0530 Variable Speed Buffer
