Grizzly G0527 User Manual

COPYRIGHT © JUNE 2003 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#509703624 PRINTED IN TAIWAN

18" WIDE BELT SANDER

MODEL G0527

INSTRUCTION MANUAL

WARNING

Some dust created by power sanding, sawing, grind­ing, drilling, and other construction activities contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement, and
other masonry products.

• Arsenic and chromium from chemically treated
lumber.

Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to fil­ter out microscopic particles.

Table Of Contents

SECTION 1: SAFETY........................................................................................................................2

Safety Instructions For Power Tools ..........................................................................................2

Additional Safety For Wide Belt Sanders....................................................................................4

SECTION 2: INTRODUCTION ..........................................................................................................5

Commentary................................................................................................................................5

SECTION 3: CIRCUIT REQUIREMENTS ........................................................................................6

Amperage Draw ..........................................................................................................................6

Circuit Breaker ............................................................................................................................6

Connection Type ........................................................................................................................6

Circuit Capacity ..........................................................................................................................6

Minimum Cord Size ....................................................................................................................7

Grounding ..................................................................................................................................7

Extension Cords..........................................................................................................................7

SECTION 4: MACHINE FEATURES ................................................................................................8

External Features........................................................................................................................8

Control Panel ..............................................................................................................................9

Access Doors ............................................................................................................................10

SECTION 5: SET UP ......................................................................................................................12

G0527 Inventory........................................................................................................................12

Hardware Recognition Chart ....................................................................................................13

Clean Up ..................................................................................................................................14

Site Considerations ..................................................................................................................14

Beginning Assembly..................................................................................................................15

Floor Mounting ..........................................................................................................................15

Air Line Hook-Up ......................................................................................................................16

Dust Collection ..........................................................................................................................16

Sanding Belt..............................................................................................................................17

Pressure Rollers........................................................................................................................18

Recommended Adjustments ....................................................................................................19

SECTION 6: OPERATIONS ............................................................................................................20

Before Sanding ........................................................................................................................20

Choosing Sandpaper ................................................................................................................20

Table Movement ......................................................................................................................21

Adjusting Feed Rate ................................................................................................................21

Amperage Meter ......................................................................................................................22

Sanding Workpiece ..................................................................................................................22

SECTION 7: MAINTENANCE ........................................................................................................23

General ....................................................................................................................................23

Schedule ..................................................................................................................................23

Servicing Brakes ......................................................................................................................24

Air Circuit Filters........................................................................................................................25

Clean Sanding Belts ................................................................................................................25

Maintenance Log ......................................................................................................................26

SECTION 8: SERVICE ADJUSTMENTS ........................................................................................27

Calibration ................................................................................................................................27

Feed Belt Tension ....................................................................................................................28

Feed Belt Tracking....................................................................................................................28

Belt Oscillation ..........................................................................................................................29

Table Parallelism ......................................................................................................................30

Pressure Rollers........................................................................................................................31

V-Belt Adjustment ....................................................................................................................32

Air System ................................................................................................................................32

Air Line Circuit ..........................................................................................................................33

Service Log ..............................................................................................................................34

SECTION 9: REFERENCE INFO ....................................................................................................35

General ....................................................................................................................................35

Aftermarket Accessories ..........................................................................................................35

G0527 Machine Data Sheet......................................................................................................36

Parts Diagrams & Lists ............................................................................................................37

Machine Troubleshooting..........................................................................................................53

Sanding Troubleshooting ..........................................................................................................54

Wiring Diagrams........................................................................................................................55

Notes ........................................................................................................................................57

Warranty & Returns ..................................................................................................................58

-2-

G0527 18" Wide Belt Sander

Safety Instructions For Power Tools

SECTION 1: SAFETY

5. KEEP CHILDREN AND VISITORS

AWAY. All children and visitors should be

kept at a safe distance from work area.

6. MAKE WORKSHOP CHILD PROOF with
padlocks, master switches, or by removing
starter keys.

7. NEVER FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.

8. USE RIGHT TOOL. DO NOT force tool or
attachment to do a job for which it was not
designed.

1. KEEP GUARDS IN PLACE and in working
order.

2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form a habit of checking to

see that keys and adjusting wrenches are
removed from tool before turning on.

3. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.

4. NEVER USE IN DANGEROUS ENVIRON­MENT. DO NOT use power tools in damp

or wet locations, or where any flammable
or noxious fumes may exist. Keep work
area well lighted.

For Your Own Safety Read Instruction

Manual Before Operating This Equipment

Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided,
MAY

result in minor or moderate injury. It may also be used to alert

against unsafe practices.

This symbol is used to alert the user to useful information about
proper operation of the equipment.

The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words which are intended to convey the level
of importance of the safety messages. The progression of symbols is described below.
Remember that safety messages by themselves do not eliminate danger and are not a substi­tute for proper accident prevention measures.

NOTICE

G0527 18" Wide Belt Sander -3-

9. USE PROPER EXTENSION CORD. Make
sure your extension cord is in good condi­tion. Conductor size should be in accor­dance with the chart below. The amperage
rating should be listed on the motor or tool
nameplate. An undersized cord will cause
a drop in line voltage resulting in loss of
power and overheating. Your extension
cord must also contain a ground wire and
plug pin. Always repair or replace exten­sion cords if they become damaged.

Minimum Gauge for Extension Cords

10. WEAR PROPER APPAREL. DO NOT
wear loose clothing, gloves, neckties,
rings, bracelets, or other jewelry which may
get caught in moving parts. Non-slip
footwear is recommended. Wear protective
hair covering to contain long hair.

11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation is
dusty. Everyday eyeglasses only have impact
resistant lenses, they are NOT safety glasses.

12. SECURE WORK. Use clamps or a vise to hold

work when practical. It’s safer than using your
hand and frees both hands to operate tool.

13. DO NOT OVER-REACH. Keep proper

footing and balance at all times.

14. MAINTAIN TOOLS WITH CARE. Keep
tools sharp and clean for best and safest
performance. Follow instructions for lubri­cating and changing accessories.

LENGTH

AMP RATING 25ft 50ft 100ft

0-6 16 16 16
7-10 16 16 14
11-12 16 16 14
13-16 14 12 12
17-20 12 12 10
21-30 10 10 No

Safety Instructions For Power Tools

15. USE RECOMMENDED ACCESSORIES.

Consult the owner’s manual for recom­mended accessories. The use of improper
accessories may cause risk of injury.

16. REDUCE THE RISK OF UNINTENTION-

AL STARTING. On machines with magnet-

ic contact starting switches there is a risk of
starting if the machine is bumped or jarred.
Always disconnect from power source
before adjusting or servicing. Make sure
switch is in OFF position before reconnecting.

17. CHECK DAMAGED PARTS. Before fur­ther use of the tool, a guard or other part
that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function.
Check for alignment of moving parts, bind­ing of moving parts, breakage of parts,
mounting, and any other conditions that
may affect its operation. A guard or other
part that is damaged should be properly
repaired or replaced.

18. NEVER LEAVE TOOL RUNNING UNAT­TENDED. TURN POWER OFF. DO NOT

leave tool until it comes to a complete stop.

19. NEVER OPERATE A MACHINE WHEN
TIRED, OR UNDER THE INFLUENCE OF
DRUGS OR ALCOHOL. Full mental alert-

ness is required at all times when running a
machine.

20. NEVER ALLOW UNSUPERVISED OR
UNTRAINED PERSONNEL TO OPER­ATE THE MACHINE. Make sure any

instructions you give in regards to machine
operation are approved, correct, safe, and
clearly understood.

21. IF AT ANY TIME YOU ARE EXPERIENC­ING DIFFICULTIES performing the intend-

ed operation, stop using the machine! Then
contact our service department or ask a
qualified expert how the operation should
be performed.

-4-

G0527 18" Wide Belt Sander

Additional Safety For Wide Belt Sanders

1. INFEED/OUTFEED AREA: DO NOT

stand in-line with the infeed or outfeed
areas when feeding the workpiece.

2. WORKPIECE FEEDING: DO NOT jam
the workpiece into the machine and never
feed more than one workpiece at a time.

3. CLOTHING: DO NOT wear loose clothing
while operating this machine. Roll up or
button sleeves at the cuff.

4. NARROW WORKPIECES: DO NOT sand
workpieces narrower than

1

⁄8''.

5. THIN WORKPIECES: DO NOT sand
workpieces thinner than

1

⁄8''.

6. SHORT WORKPIECES: DO NOT sand
workpieces shorter than 9''.

7. HANDS: DO NOT place hands near, or in
contact with, sanding drums or conveyor
belt during operation.

8. MAINTENANCE: Perform machine

inspections and maintenance service at
the appropriate time intervals. See Section
7: Maintenance.

9. POWER DISCONNECT: Unless specifi­cally stated in the manual, always discon­nect the power source from the machine
when performing maintenance, adjust­ments, or assembly. Always read and fol-

low specific safety instructions for each
section.

10. UNATTENDED MACHINE: Never leave
the machine running unattended.

11. SANDPAPER: Replace sanding belt
when it becomes worn.

12. FOREIGN MATERIAL: Always inspect
workpiece for nails, staples, knots, and
other imperfections that could be dis­lodged and thrown from the machine dur­ing sanding operations.

13. DUST COLLECTION: Never operate the
sander without an adequate dust collec­tion system in place and running.

14. ALLERGIES: Certain woods may cause

an allergic reaction in people and animals,
especially when exposed to fine dust.
Make sure you know what type of wood
dust you will be exposed to and always
wear an approved respirator.

15. ACCESS DOORS: Never perform sanding

operations when the side access doors are
open.

16. UNDERSTAND INSTRUCTIONS: Never

allow unsupervised or untrained personnel
to operate the machine. Make sure any
instructions you give in regards to machine
operation are approved, correct, safe, and
clearly understood.

Unfamiliarity with this manual could result
in serious personal injury. Spend a suffi­cient amount of time becoming familiar the
contents of this manual, including all the
safety warnings.

No list of safety guidelines can be com­plete. Operating this machinery may
require additional safety precautions spe­cific to your shop environment. Failure to
use reasonable caution while operating
this machine could result in serious per­sonal injury.

G0527 18" Wide Belt Sander -5-

We are proud to offer the Model G0527 18" Wide
Belt Sander. This machine is part of a growing
Grizzly family of fine woodworking machinery.
When used according to the guidelines set forth
in this manual, you can expect years of trouble­free, enjoyable operation and proof of Grizzly’s
commitment to customer satisfaction.

We are pleased to provide this manual with the
Model G0527. It was written to guide you through
assembly, review safety considerations, and
cover general operating procedures. It represents
our effort to produce the best documentation pos­sible. If you have any comments regarding this
manual, please write to us at the address below:

Grizzly Industrial, Inc.

C

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

Most importantly, we stand behind our machines.
If you have any service questions or parts
requests, please call or write us at the location
listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

Fax: [phone]
E-Mail: [e-mail]
Web Site: http://www.grizzly.com

The specifications, drawings, and photographs
illustrated in this manual represent the Model
G0527 as supplied when the manual was pre­pared. However, owing to Grizzly’s policy of con­tinuous improvement, changes may be made at
any time with no obligation on the part of Grizzly.
For your convenience, we always keep current
Grizzly manuals available on our website at
www.grizzly.com

. Any updates to your machine
will be reflected in these manuals as soon as they
are complete. Visit our site often to check for the
latest updates to this manual!

Lack of familiarity with
this manual could
cause serious person­al injury. Become
familiar with the con­tents of this manual,
including all the safety
warnings.

Commentary

SECTION 2: INTRODUCTION

-6-

G0527 18" Wide Belt Sander

The Model G0527 has three motors that are
wired to operate on a 220V single-phase power
source. They will draw the following loads:

Sanding Drum Motor ............................30 Amps

Conveyor Feed Motor ..........................3.8 Amps

Elevation Motor ......................................3 Amps

Use the following guidelines when choosing a cir­cuit breaker (circuit breakers rated any higher are
not adequate to protect the circuit):

Circuit Breaker ............................40 Amp, 2 Pole

Always check to see if the wires in your circuit are
capable of handling the amperage load from your
machine. If you are unsure, consult a qualified
electrician.

If you operate this machine on any circuit that is
already close to its capacity, it might blow a fuse
or trip a circuit breaker. However, if an unusual
load does not exist and a power failure still
occurs, contact a qualified electrician or our
Service Department at [phone].

Circuit Capacity

Figure 1. Locking shut-off lever.

Connection Type

Circuit Breaker

Amperage Draw

Because of the high amperage draw from this
machine, we recommend that you hardwire it
directly to your circuit breaker and install a lock­ing shut-off lever (Figure 1) near the machine as
a way to quickly disconnect the power.

SECTION 3: CIRCUIT REQUIREMENTS

G0527 18" Wide Belt Sander -7-

Electrocution or a fire
can result if the machine
is not grounded correct­ly. Make sure all electri­cal circuits are ground­ed. DO NOT use the
machine if it is not
grounded.

In the event of an electrical short, grounding pro­vides electric current a path of least resistance to
reduce the risk of electrical shock to the operator.
Ground the power cord and this machine in
accordance with all local codes and ordinances.

Operating this machine when it is not properly
grounded can result in electric shock or electro­cution.

We have covered some basic electrical
requirements for the safe operation of your
machine. These requirements are not nec­essarily comprehensive. You must be sure
that your particular electrical configuration
complies with local and state codes.
Ensure compliance by checking with your
local municipality or a licensed electrician.

Because of the high amperage draw from this
machine, we do not recommend the use of exten­sion cords. Instead, position your equipment near
installed wiring to eliminate the need for exten­sion cords.

Extension Cords

Grounding

Minimum Cord Size

For 220V single-phase operation, use the follow­ing power cord:

Cord ..............................................2 Pole, 3 Wire

Gauge ................................................................6

-8-

G0527 18" Wide Belt Sander

External Features

B

A

D

C

E

G

F

Figure 2. Front view.

A. Control Panel
B. Table Height Handwheel
C. Air Regulator/Water Collector
D. Emergency Stop Bar
E. Dust Port
F. Amp (Load) Meter
G. Digital Readout

SECTION 4: MACHINE FEATURES

G0527 18" Wide Belt Sander -9-

H. TABLE UP Key
I. SANDING BELT START Button
J. FEED BELT START Button
K. Power Light
L. EMERGENCY STOP Button
M. FEED BELT STOP Button
N. SANDING BELT STOP Button
O. TABLE DOWN Key
P. FEED BELT STOP Key
Q. FEED BELT START Key
R. SET (Enter) Key

J

Q

K

R

M

L

N

O

I

P

H

Figure 3. Control panel.

Control Panel

123

4 5 6

7 8 9

0

-10-

G0527 18" Wide Belt Sander

A. Belt Tension Switch
B. Lock Handle Bolt

Figure 4. Inside the left access door.

A

B

Access Doors

G0527 18" Wide Belt Sander -11-

C. Upper Roller
D. Air Flow Adjustment Knob (Solenoid Expansion)
E. Air Flow Adjustment Knob (Solenoid Contraction)
F. Oscillation Solenoid
G. Pressure Roller Adjustments
H. Oscillation Electronic Eye

Figure 5. Inside the right access door.

C

D

E

F

G

H

-12-

G0527 18" Wide Belt Sander

G0527 Inventory

The following parts shown in Figure 6 should
be enclosed:

• Sanding Unit (Not Pictured)

• 4" Dust Hood

• #100 Grit Sanding Belt

• #150 Grit Sanding Belt

• Tool Box

—Phillips Head Screwdriver
—Large Flat Screwdriver
—Small Flat Screwdriver
—8/10mm Open End Wrench
—12/14mm Open End Wrench
—17/19mm Open End Wrench
—Metric Allen Wrench Set
—(2) Door Wrenches

SECTION 5: SET UP

Figure 6. G0527 inventory.

The Model G0527 was carefully packed when it
left our warehouse. If you discover the machine
is damaged after you have signed for delivery,
immediately call our Service Department at (570)
546-9663.

The Model G0527 is a
heavy machine weigh­ing in at 1870 lbs.
Personal injury can
occur if the machine is
moved without addition­al assistance. Use lifting
devices such as a fork
lift when moving or lift­ing the machine.

NOTICE

A parts diagram and parts list are located
near the end of the manual. Use the diagram
and list to identify missing parts or to sup­plement the assembly instructions provided
in this manual.

G0527 18" Wide Belt Sander -13-

Hardware Recognition Chart

USE THIS CHART TO MATCH UP

D

I

A

R

H

S

W

M

E

T

9

R

E

W

⁄8''

H

S

D

⁄16''

1

⁄2''

R

7

E

A

W

D

R

E

H

S

I

A

I

D

⁄16''

3

⁄8''

R

5

A

R

E

H

S

A

M

A

I

A

D

D

⁄16''

W

1

⁄4''

W

R

E

H

S

A

#

10

M

I

D

W

E

R

E

T

E

R

E

T

E

R

M

E

T

E

R

A

M

E

T

E

R

I

A

M

E

T

E

R

I

A

M

E

T

E

R

D

I

A

M

E

T

E

R

5

R

E

E

H

S

A

HARDWARE DURING THE ASSEMBLY
PROCESS!

#

10

1

⁄4''

5

⁄16''

Thumb

Screw

Phillips

Head
Screw

Lock

Nut

Flat Head

Phillips

Screw

Wing

Nut

Slotted

Screw

S

A

W

E

H

H

S

A

W

3

⁄8''

7

⁄16''

1

⁄2''

Cap

Screw

Setscrew

Carriage

Bolt

Hex

Head

Bolt

Flange

Bolt

Phillips

Head

Hex
Bolt

Button

Head

Screw

A

Phillips

Head

Sheet

Metal

Screw

D

I

A

R

12mm

D

I

A

D

I

A

M

R

M

E

M

E

T

E

R

D

I

A

R

M

E

H

E

S

T

E

A

R

W

4mm

E

T

E

R

D

I

A

R

M

E

H

E

T

S

E

A

R

W

6mm

T

E

5

⁄8''

Lock

Washer

MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE

4mm

6mm

5mm

10mm

8mm

15mm
20mm

Washer

1

⁄4''

3

⁄8''

1

⁄2''

5

⁄8''

25mm

10mm

30mm
35mm
40mm
45mm

12mm

LINES ARE 1MM APART

50mm
55mm
60mm

⁄16'' INCH APART

1

65mm

16mm

70mm
75mm

LINES ARE

Hex

Nut

5

⁄16''

7

⁄16''

9

⁄16''

3

⁄4''

7

⁄8''

1''
11⁄4''

1

⁄2''

1

3

⁄4''

1
2

1

⁄4''

2

1

⁄2''

2

3

⁄4''

2
3

E

H

S

A

W

R

E

H

S

A

10mm

W

R

E

H

S

8mm

A

W

WASHERS ARE MEASURED BY THE INSIDE DIAMETER

-14-

G0527 18" Wide Belt Sander

Site ConsiderationsClean Up

The unpainted surfaces are coated with a waxy
oil to protect them from corrosion during ship­ment. Remove this protective coating with a sol­vent cleaner or citrus-based degreaser such as
Grizzly’s G7895 Degreaser. To clean thoroughly,
some parts may need to be removed. For opti-

mum performance from your machine, make
sure you clean all moving parts or sliding
contact surfaces that are coated. Avoid chlo-

rine-based solvents as they may damage painted
surfaces should they come in contact.

Gasoline and petroleum
products have low flash
points and could explode
if used to clean machin­ery. DO NOT use gaso­line or petroleum prod­ucts to clean the machin­ery.

Smoking near solvents
could ignite an explosion
or fire and cause serious
injury. DO NOT smoke
while using solvents.

Lack of ventilation while
using solvents could
cause serious personal
health risks, fire, or
environmental hazards.
Always work in a well
ventilated area to pre­vent the accumulation
of dangerous fumes.
Supply the work area
with a constant source
of fresh air.

Unsupervised children
and visitors inside your
shop could receive seri­ous personal injury.
Ensure child and visitor
safety by keeping all
entrances to the shop
locked at all times. DO
NOT allow unsupervised
children or visitors in the
shop at any time.

Weight Load

The Model G0527 weighs 890 lbs and has a 29"
x 16

3

⁄4" footprint. Most shop floors should be suf­ficient to carry the weight of the machine.
Reinforce the floor if you question its ability to
support the weight.

Working Clearance

Working clearances can be thought of as the dis­tances between machines and obstacles that
allow safe operation of every machine without
limitation. Consider existing and anticipated
machine needs, size of material to be processed
through each machine, and space for auxiliary
stands or work tables. Also, consider the relative
position of each machine to one another for effi­cient material handling.

Work Area Lightening

Lighting should be bright enough to eliminate
shadow and prevent eye strain.

G0527 18" Wide Belt Sander -15-

Floor Mounting

To mount the sander to the floor:

The sander needs to be mounted in a level loca­tion where it can be easily serviced from all sides.
Also, consider the largest workpiece you might
need to sand before deciding on a final position.

Mount the sander to wooden floors with

1

⁄2" lag
bolts and washers. Mount the sander to concrete
floors with

1

⁄2" anchor-style bolts designed for

concrete applications. Note—Be sure to carefully

follow the anchor bolt manufacturer’s instructions.

Beginning Assembly

Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.

Sharp edges on metal
parts may cause person­al injury. Examine the
edges of all metal parts
before handling.

This section will cover the basic assembly and
adjustment instructions needed to begin opera­tion. Complete the assembly in the order provid­ed in this manual and then read the remaining
portion of the manual before attempting any type
of operation.

Your safety is important! Please follow the
warnings below during this entire section:

Disconnect power to
the machine during the
entire assembly
process. Failure to do
this may result in seri­ous personal injury.

ON

OFF

-16-

G0527 18" Wide Belt Sander

To hook up the air line:

1. Connect the hose from your air compressor
to the air inlet (Figure 7) on the regulator.

2. Make sure the red handle on the regulator is

in the open position (parallel with the air
inlet).

3. Lift the black regulator knob (Figure 7) and
adjust it until the air pressure gauge reads 75
PSI. Note—Turn the dial clockwise to

increase the air pressure and counterclock­wise to lower the air pressure.

4. Push the regulator knob down until it snaps.

Figure 7. Air inlet located on regulator.

Dust CollectionAir Line Hook-Up

Figure 8. Dust collection hook-up.

An efficient and clean dust collection system is
essential to the proper function of the sander.
Ensuring a healthy work environment is also
dependent upon cleaning and maintaining your
dust collection system.

To hook up the dust collection system:

1. Install the 4" dust port (Figure 8) on the

mounting locations at the top of the sanding
unit with the supplied M6-1.0 x 10 phillips
head screws.

2. Clamp a hose from your dust collection sys­tem to the dust port.

Air Inlet

Red Handle

(Closed Position)

Black

Regulator

Knob

G0527 18" Wide Belt Sander -17-

To install the sanding belt:

1. Disconnect the sander from the power
source!

2. De-activate the belt tension by using the belt
tension switch (Figure 9).

Sanding Belt

Figure 9.

Roller tension switch

.

Figure 10. Components used when changing a

sanding belt.

3. Remove the lock handle bolt (Figure 10) by
turning it counter-clockwise

1

⁄2 a turn and

pulling it up and out of the mounting hole.

Lock Handle Bolt

Spacer Block

4. Remove the spacer block (Figure 10).

5. Install the sanding belt by starting first on the

upper roller and then the lower roller. Note—

The sanding belt must be centered between
the limit switches. If either edge of the sand­ing belt is touching either limit switch, turn the
belt tension switch off and adjust the belt
until it is properly centered as shown in
Figure 11.

Figure 11. Proper position of belt between the

limit switches.

6. Replace the spacer block and tighten down
the lock handle bolt.

7. With your hands clear of all moving parts,
tension the belt.

Sanding Belt

Limit Switches

Sander Outline

(Top View)

NOTICE

The directional arrow on the back of the
sanding belt must be pointing in a counter­clockwise direction when installing it.
Failure to install the sanding belt correctly
could result in damage to the sanding belt
or the sander itself.

-18-

G0527 18" Wide Belt Sander

Pressure Rollers

It is absolutely essential to keep the pres­sure rollers set below the level of the sand­ing roller. If the pressure rollers are even, or
higher than the sanding roller, the wood
could be propelled from the sander at a
high rate of speed. This situation could
cause serious personal injury.

To check the pressure roller height:

1. Disconnect the sander from the power
source!

2. Place a piece of scrap wood of uniform thick-

ness across the table so it spans both the
front and rear pressure rollers at the same
time.

3. With the air pressure connected and the
sanding belt installed and tensioned, manu­ally raise the table and verify that the board
touches both pressure rollers before it touch­es the sanding belt. Note—If the board does

not touch both pressure rollers before it
touches the sanding belt, then the pressure
rollers must be adjusted before operation.
See "Pressure Rollers" on page 31 for step­by-step instructions on how to do this.

The pressure rollers have been set at the factory,
but for safety, you should verify that they are set
below the level of the sanding roller.

Before starting the machine:

1. Read this manual and make sure you take all

safety precautions before operating this
machine.

2. Make sure the machine is connected to an
air compressor and the pressure gauge
reads 75 PSI.

3. Make sure all tools or foreign objects have
been removed from the machine.

4. Review Section 3: Circuit Requirements on
page 6 and make sure all the wiring is cor-

rect.

Loose hair and clothing
could get caught in
machinery causing seri­ous personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.

Projectiles thrown from
the machine could cause
serious eye injury. Wear
safety glasses during
start up.

Serious personal injury could result if the
machine is connected to the power source
during assembly or adjustment. Wait until
the machine is turned off, unplugged and all
working parts have come to a complete stop
before you attempt to assemble or adjust the
machine!

G0527 18" Wide Belt Sander -19-

Recommended

Adjustments

For your convenience, the adjustments listed
below have been performed at the factory and
require no further adjustment. However, because
of the many variables involved with shipping, we
recommend that you read through Section 8:
Service Adjustments on page 27 and verify that
the adjustments are correct.

Recommended adjustment checklist:

• Calibration

• Feed Belt Tension

• Feed Belt Tracking

• Oscillation Timing

• Oscillation Speed

• Pressure Rollers

• Table Parallelism

• V-Belt Adjustment

• Air System

Starting the machine:

1. Wear safety glasses at all times when run­ning the machine!

2. Connect the machine to the power source.

3. Press the TABLE UP and TABLE DOWN

keys. The table should go up and down
smoothly.

4. Press the FEED BELT START and FEED
BELT STOP buttons. The feed belt should
start, run and stop smoothly.

5. Press the SANDING BELT START and
SANDING BELT STOP buttons. The sanding
belt should start, run and stop smoothly.

The machine should run smoothly, with little or no
vibration or rubbing noises. Strange or unnatural
noises should be investigated and corrected
before operating the machine further.

If the machine seems to be running correctly, let
it run for a short time to ensure that the moving
parts are working properly with no excessive
vibration. DO NOT operate the machine if prob­lems cannot be corrected.

If you cannot locate the source of unusual noises,
feel free to contact our Service Department at
[phone].

-20-

G0527 18" Wide Belt Sander

Your safety is important! Please follow the
warnings below during this entire section:

Choosing Sandpaper

The grit you choose will depend on the type of
work, the species of wood and the stage of fin­ishing. Below is a chart that groups abrasives into
different categories and shows which grits fall into
each one. We recommend using aluminum oxide
sanding belts for best results.

The general rule of thumb is to sand a workpiece
with progressively higher grit numbers, with no
one grit increase of more than 50; however, the
type of wood and desired finish will determine the
best grit to use.

Grit Type

60

80-100

120-150

Coarse

Medium

Fine

Before Sanding

NOTICE

#100 and #150 grit sanding belts are includ­ed with the Model G0527.

To avoid serious personal injury, read and
become familiar with the entire instruction
manual before using the Model G0527.

Damage to your eyes, lungs, and ears
could result from failure to wear safety
glasses, a dust mask, and hearing protec­tion while sanding with this machine.

Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.

SECTION 6: OPERATIONS

G0527 18" Wide Belt Sander -21-

Adjusting Feed RateTable Movement

The feed belt motor and gear assembly (Figure

13) controls the speed of the feed belt. The Model

G0527 features feed belt speeds of 16.4, 23, and

32.8 FPM.

Figure 13. Table drive chain and sprockets.

To change feed belt speed:

1. Disconnect the sander from the power
source!

2. Remove the cap screw that secures the feed

belt motor cover.

3. Loosen the motor mount bolts so that the
motor will slide up enough to get the chain off
the sprockets.

4. Determine which speed is best for your appli­cation and place the chain accordingly.

5. Tighten the motor mount bolts loosened in
step 3.

6. Replace the motor cover and secure it with

the cap screw removed in step 2.

32.8

23

16.4

The table height can be adjusted either manually
or by power assist.

Manual Adjustment—Manual adjustments are
made by turning the handwheel located under the
front of the infeed table. The thickness measure­ment is displayed on the digital readout.

Power Assist—Press the TABLE UP or TABLE
DOWN key on the control panel shown in Figure

12. The digital display reading changes as the
table moves up and down.

Figure 12.

Controls for adjusting

the table height.

NOTICE

The thickness gauge is pre-calibrated from
the factory; however, correct calibration
should be verified by using the instructions
on page 27.

23

0

5 6

8 9

-22-

G0527 18" Wide Belt Sander

The amperage meter is located above the control
panel as shown in

Figure 14.

Use the meter to
monitor the amperage load on the machine while
performing sanding operations.

Figure 14. Amperage meter.

Normal Operating Load

G0527, single-phase, 220V....................35 amps

If the sanding operation draws current in excess
of this limit, you run the risk of tripping the circuit
breaker and the overload relays in the electrical
box.

NOTICE

There are many variables that affect the
overall load on the sander. Depth of cut, the
species of wood being sanded, the grit size
on the sanding belt, and the feed rate, all
contribute to the load on the sander. As a
general rule, always start with a small load
and work your way up. DO NOT push your
machine to its maximum load; instead,
make multiple passes, install a coarser grit
paper, or reduce the feed rate.

Typically, no more than 0.5mm (approx. 1⁄64") of
material is removed during each pass. Attempts
to remove too much material can cause jamming,
wood burning, rapid paper wear or tearing, poor
finish and belt slippage.

The following is the correct sanding operating
procedure:

1. Wear safety glasses, a dust mask, and
hearing protection!

2. Turn on the dust collector.

3. On the initial pass, adjust the table to

approximately

1

⁄4" greater than the thickness

of the workpiece. Note—This reduces the

chance of jamming the sander on undetect­ed high points on the workpiece.

4. Continue to raise the table

1

⁄16" between each
successive pass until the sander begins to
sand the workpiece.

NOTICE

It may be necessary to send wide stock
through the sander two or three times
between table height adjustments. This
reduces the likelihood of burning the wood
and produces a more consistent finished
thickness.

Sanding WorkpieceAmperage Meter

G0527 18" Wide Belt Sander -23-

Disconnect power to the
machine when perform­ing maintenance, assem­bly or adjustments.
Failure to do this may
result in serious person­al injury.

Wear safety glasses dur­ing the entire mainte­nance process. Failure
to comply may result in
serious personal injury.

The following items should be checked each
time the sander is used:

• Loose mounting bolts.

• Damaged sanding belt.

• Worn or damaged wires.

• Air line water collection cup is filled with

water.

• Any other condition that could hamper the
safe operation of this machine.

Weekly:

• Grease the eight fittings located on the feed
belt roller axles and the sanding belt roller
axles. They are identified with yellow stick­ers.

Monthly:

• Apply a generous amount of grease to the
table elevation screws. Be sure to cover the
adjustment screws with the dust covers
when finished.

• Remove the lower side panel to access the
table lifting mechanism. Apply a generous
amount of grease to the chain and gears
associated with the table lifting mechanism.
Be careful to not get grease on any of the V­belts. This could cause them to slip off their
pulleys.

• Apply a generous amount of multi-purposed
grease to the table drive chain and sprocket
assembly.

Loose hair and clothing
could get caught in
machinery causing seri­ous personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.

Your safety is important! Please follow the
warnings below during this entire section:

ScheduleGeneral

SECTION 7: MAINTENANCE

ON

OFF

-24-

G0527 18" Wide Belt Sander

Servicing Brakes

Eventually the brake pads will wear out. Checking
and replacing these is a simple project that can
be done in the shop, with the exception of having
the rotor resurfaced.

To check the brake pads:

1. Disconnect the sander from the power
source and remove air pressure com­pletely!

2. Remove the four screws that secure the

motor cover on the right-hand side of the
machine. Note—The brake caliper is located
underneath the rotor, which is attached to the
motor arbor.

3. The brake pads consist of a metal plate with
a composite pad. With a fine ruler, measure
the thickness of the composite pad only. If
one of the pads is below

1

⁄8" (approx. 3mm),

replace both.

To perform a pad replacement:

1. Disconnect the sander from the power
source and remove air pressure com­pletely!

2. Remove the nuts from the two mounting

bolts. There are two snap rings on the
mounting pins behind the bracket. Remove
these.

Figure 15. Disc brake components.

3. Pull the mounting pins out of the caliper

bracket and remove the air line from the
caliper. The caliper should now be able to be
removed as in Figure 15.

4. The brake pads are secured to the caliper
with cap screws. One of these screws is eas­ily accessible; the other can only be reached
by disassembling the brake caliper. Do this
and remove the cap screws to remove the
brake pads.

5. Remove the brake rotor and have it profes­sionally resurfaced. For this, find a local
machinist or auto supply store that regularly
resurfaces brake rotors for automobiles. If
visible cracks are present in the brake rotor,
replace it with a new one. Remove oil and
dirt from the rotor with automotive brake
cleaner. Once clean, only handle the rotor
with a dry rag and install exactly the reverse
of removal.

6. Install new brake pads, mount the caliper
and reconnect the air line.

Caliper

G0527 18" Wide Belt Sander -25-

The air filter on the Model G0527 is located on
the main regulator (Figure 16). Empty the filter
trap as it becomes filled with moisture and dirt.
The internal white filter should be replaced year­ly.

Figure 16. Regulator filter trap. Push lower

drain valve to empty it.

Regulator

Filter Trap

Drain Valve

Clean Sanding Belts

You can greatly increase the lifespan of your
sanding belts if you clean them often. As men­tioned on page 35, cleaning pads are the fastest
way to clean wood dust from the sanding belts.

Air Circuit Filters

-26-

G0527 18" Wide Belt Sander

Maintenance Performed

Approximate Hours Of Use

Maintenance Log

Date

G0527 18" Wide Belt Sander -27-

Calibration

NOTICE

The digital thickness gauge has been cali­brated at the factory and should require no
further adjustment, however, we recom­mend verifying its accuracy.

The first board fed through the sander will be
used to test the accuracy of the digital thickness
gauge.

To calibrate the digital thickness scale:

1. Follow the start up procedures from
Section 5: Set Up beginning on page 12.

2. Using a properly set-up planer, plane a board

to uniform thickness.

3. Lower the sander table far enough to place
the planed board under the sander roller.

4. Manually raise the table until the board just
touches the sanding roller.

5. Remove the board without changing the
table height. This ensures the table will be
properly adjusted for the first sanding pass.

6. Run the board through the sander several
times at the initial height setting. Manually
raise the table 0.020" and pass the board
through the sander several more times.
Monitor the amperage meter and the result­ing load on the sander.

7. Using a precise micrometer or set of calipers,
measure the thickness at various points
around the board.

8. Continue sanding the board until the average
thickness measurement is within

+

⁄-0.003".

Note—The final several passes should be

done without adjusting the table height. This
ensures the most consistent average thick­ness.

9. Make note of the digital display read-out. It
should be the same as the average thickness
of the sanded wood.

— If they are the same, the sander is prop-

erly calibrated and accurate to the near­est 0.001". Continue to the next sub-sec­tion.

— If the digital display readout is not the

same, recalibration is needed. Continue
on to step 10.

10. Without moving the table height, enter the
numerical measurement of the average
thickness of the sanded wood into the digital
key pad on the control panel. Note—The

average thickness of the sanded wood
should now be flashing on the digital read­out.

11. Press and hold the SET key until the display
stops flashing. The sander is now correctly
calibrated.

SECTION 8: SERVICE ADJUSTMENTS

-28-

G0527 18" Wide Belt Sander

Figure 17. Feed belt tension

adjustment controls.

Safety Guard

Feed Belt

Adjustment Bolt

Feed Belt

Tension Bolt

DO NOT sand boards with the guard
removed. Failure to follow this warning
could result in serious personal injury.

To adjust the feed belt tension:

1. Disconnect the sander from the power
source!

2. Raise the safety guard (Figure 17) on the

front end of the feed table.

3. Increase or decrease the feed belt tension by
adjusting the bolts located on the left and
right side of the front table roller (Figure 17).
Note—When tensioned properly, you should

not be able to lift the feed belt off the table
surface or slide it back and forth.

NOTICE

Adjust the feed belt tension before adjusting
the feed belt tracking.

Feed Belt Tracking

To adjust the feed belt tracking:

1. Start the feed belt.

— If the feed belt is tracking to the right side

of the table, turn the right adjustment bolt
(Figure 22) clockwise.

— If the feed belt is tracking to the left side

of the table, turn the left adjustment bolt
(Figure 18) clockwise.

Note—The edge of the feed belt should just touch

the guide wheels as shown in Figure 18.

2. Run the feed belt for 3-5 minutes and verify
the tracking.

Figure 18. Feed belt tracking components.

Guide Wheel

Feed Belt Tension

Adjustment Bolt

G0527 18" Wide Belt Sander -29-

Belt Oscillation

NOTICE

The oscillation adjustments have been per­formed at the factory and should require no
further attention. However, we recommend
verifying the settings.

Figure 19. Improper oscillation.

Sanding Belt

Limit Switches

Sander Outline

(Top View)

When the oscillation is correctly adjusted, the
sanding belt oscillates to the left and to the right
at the same speed and without coming into con­tact with the limit switches. If the sanding belt
oscillates too far to the left or right, making con­tact with the limit switches as shown in Figure 19,
the emergency braking system will activate.

To check the sanding belt oscillation:

1. Be sure the sanding belt is properly installed

and the belt tension switch is set to tension
the belt.

2. With safety glasses on and the left access
door still open, press the SANDING BELT
START Button.

3. Watch as the belt either oscillates back and
forth continuously, or tracks into one of the
two limit switches, triggering the emergency
brake.

— If the belt tracks into either limit switch,

adjust the two air flow adjustment knobs
independently of one another until the the
belt no longer hits the limit switches. Trial
and error may be necessary.

— If the oscillation time is not consistent

from one direction to the other, the air
cylinder arm needs to be lengthened or
shortened according to the following
guidelines:

• If the belt tracks away from the air
cylinder faster, shorten the arm.

• If the belts tracks towards the air cylin­der faster, lengthen the arm. Note—A

small adjustment goes a long way.
Make many smaller adjustments rather
than one or two large adjustments.

— If the oscillation rate needs to be

increased or decreased, adjust the air
flow adjustment counter-clockwise in
small, equal amounts until the desired
speed is achieved. Note—A combination

of knob adjustments and air cylinder arm
length adjustments may be needed to
achieve the ideal oscillation timing and
speed. Trial and error adjustments may
be necessary.

-30-

G0527 18" Wide Belt Sander

NOTICE

The table has been adjusted at the factory
and should require no further attention.
However, we recommend verifying that it is
parallel with the sanding roller.

NOTICE

When adjusting the left front elevation
screw, make the same adjustment to the left
rear elevation screw. This ensures the
height from the front to the back of the table
remains unchanged. Do the same when
adjusting the right elevation screws.

Table Parallelism

Adjusting the table parallelism can be a very
tedious task that takes a great amount of
patience. DO NOT adjust the table unless you are
having trouble sanding your workpiece to a uni­form thickness. Take precise notes on any
adjustments you make to any of the table eleva­tion screws (Figure 20). This will allow the origi­nal setting to be re-established.

To adjust the table parallelism:

1. Pass a 24" wide board through the sander

until the entire surface of the board is mak­ing contact with the sanding belt.

2. Measure the thickness of the board at vari­ous points around the edge.

— If there is a variation of thickness, the

table can be adjusted accordingly.

3. Disconnect the sander from the power
source!

4. The corners of the table can be indepen-

dently adjusted up or down by spinning the
table elevation screws (Figure 20) located
under each corner of the table. Note—The

table mounting bolts (Figure 29) need to be
removed first.

5. To raise the elevation screws, turn them
counterclockwise. To lower them, turn them
clockwise. One quarter of a turn raises or
lowers the elevation screws approximately

0.020".

6. Retighten the table mounting bolts loosened
in step 4.

7. Connect the sander to the power source.

8. Repeat Steps 1-7 until the board is sanded

to a uniform thickness.

Figure 20. View of table underside.

Table Mounting Bolts

Elevation Screws

(Inside Dust Boots)

G0527 18" Wide Belt Sander -31-

Pressure Rollers

Figure 21. Roller tension switch.

Figure 22. Pressure roller parts.

5. Disconnect the sander from the power
source!

6. Loosen the roller lock nuts (Figure 22) on the

infeed pressure roller.Turn the adjustment
bolts (Figure 22) to lower the pressure roller
until it just touches the board. Note—DO

NOT continue to lower the roller beyond that
point.

Roller Lock

Nut

Adjustment

Bolt

7. Tighten the roller lock nuts and recheck your
settings.

8. Connect the sander to the power source and
make note of the reading on the digital dis­play. Then manually lower the table an addi­tional 0.020" to 0.030". This is how much
lower the outfeed pressure roller should be
set when compared to the height of the
infeed roller.

9. Loosen the roller lock nuts on the outfeed
pressure roller.Turn the adjustment bolts to
lower the pressure roller until it just touches
the board. Note—DO NOT continue to lower

the roller beyond that point.

10. Tighten the roller lock nuts and recheck your
settings.

Note—Variables such as feed rate, depth of the

cut, and the type of sanding belt can play a big
part in determining the proper amount of down­ward pressure exerted by the rollers. Some
experimentation may be necessary to achieve
the desired results. However, under no circum­stances should the pressure rollers be set even
with, or higher than, the sanding roller.

To adjust the pressure rollers:

1. Disconnect the sander from the power
source!

2. Plane (2) 36" long 2x4’s to a uniform thick-

nesses. Place one board along the length of
the feed belt on the right-hand side and place
the other board on the left-hand side.

3. With the sanding belt tensioned (Figure 21),
grab the edge of the sanding belt and move
it up and down about an inch or so. At the
same time, manually raise the table until you
just hear the sandpaper make contact with
the surface of the wood. DO NOT continue to
raise the table beyond that point.

4. Connect the sander to the power source and
make note of the reading on the digital dis­play. Then manually lower the table 0.020" to

0.030". This is how much lower the infeed
pressure roller should be set when compared
to the sanding surface of the sanding roller.

-32-

G0527 18" Wide Belt Sander

There are two V-belts on the Model G0527—one
on the table lifting motor (

Figure 23

) and one on

the sanding drum motor (

Figure 24

).

NOTICE

The V-belts have been properly adjusted at
the factory and should require no further
attention. If future adjustment is needed fol­low the instructions below.

Figure 23. Table lifting motor V-belt.

Figure 24. Sanding drum motor V-belt.

Adjustment

Nut

Adjustment Nut

(Below Plate)

Lock Nut

Lock Nut

V-Belt

V-Belt

To adjust either V-belt:

1. Disconnect the sander from the power
source!

2. Loosen the lock nut (

Figure 23 & 24

).

3. Turn the adjustment nut up or down until the
proper V-belt tension is achieved. Note—The

V-belt should deflect 1" off of center when
pushed with your finger.

4. Retighten the lock nut.

Air System

If you ever determine that a component in
the air system is malfunctioning, DO NOT
operate the sander. Fix the problem before
resuming operation.

The air system is durable and reliable; however,
components do wear with age. If you suspect that
an item in your air system may be having prob­lems, see the air line circuit on the next page.

Periodically inspect the following:

• Carefully inspect all air lines for leaks.
Replace faulty hoses.

• Check the air connections for leaks. A small
amount of soapy water in a questionable
area will bubble if there is a leak.

• Make sure the lines are not clogged.
Remove questionable lines and blow through
them as a test.

V-Belt Adjustment

G0527 18" Wide Belt Sander -33-

A

B

C

D

E

FG

H

E. Air Cylinder for Sanding Belt Oscillation
F. Air Flow Adjustment Knobs
G. Air Cylinder for Sanding Belt Tension
H. Roller Tension Switch

A. Compressor
B. Pressure Regulator
C. Solenoid
D. Disc Brake

Front View Of Sander

(Not To Scale)

Air Line Circuit

-34-

G0527 18" Wide Belt Sander

Service Performed

Approximate Hours Of Use

Service Log

Date

G0527 18" Wide Belt Sander -35-

This section contains the following subsections
for the Model G0527: aftermarket accessories,
data sheets, wiring diagrams, parts diagrams and
list, troubleshooting, and warranty/return informa­tion.

If you need parts or help in assembling your
machine, or if you need operational information,
call the service department at [phone].
Trained service technicians will be glad to help
you.

If you have any comments regarding this manual,
please write to Grizzly at the address below:

Grizzly Industrial, Inc.

C

/O Technical Documentation

P.O. Box 2069

Bellingham, WA 98227-2069

We recommend you keep a copy of our current
catalog for complete information regarding
Grizzly's warranty and return policy. If you need
additional technical information relating to this
machine, or if you need general assistance or
replacement parts, please contact the Service
Department at the location listed below.

Grizzly Industrial, Inc.

1203 Lycoming Mall Circle

Muncy, PA 17756

Phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web Site: http://www.grizzly.com.

Aftermarket

Accessories

Figure 25. Sanding belt cleaning pad.

Cleaning Pads

Cleaning pads (Figure 25) are the perfect acces-
sory for wide-belt sanders. Simply set the con­veyor table to height and feed the pad through to
“unload” a dirty sanding belt. Regular cleaning
greatly increases the lifespan of sanding belts.
Check with the current Grizzly catalog or
www.grizzly.com for more details.

General

SECTION 9: REFERENCE INFO

-36-

G0527 18" Wide Belt Sander

Customer Service #: [phone] • To Order Call: [phone] • Fax #: [phone]

MACHINE DATA

SHEET

Design Type ......................................................................................................Floor Model

Overall Dimensions:

Width ........................................................................................................................30"

Height ......................................................................................................................57"

Depth ........................................................................................................................37"

Belt Height....................................................................................................26

3

⁄4"-323⁄4"

Weight (Shipping)............................................................................................1012 lbs.

Net Weight ........................................................................................................890 lbs.

Approximate Crate Size........................................................32

1

⁄4" L x 393⁄4" W x 64" H

Footprint ......................................................................................................29" x 16

3

⁄4"

Capacities:

Maximum Board Width ..........................................................................................17

1

⁄2"

Maximum Board Thickness ........................................................................................6"

Minimum Board Length ..............................................................................................9"

Minimum Board Thickness ........................................................................................

1

⁄8"

Surface Speed of Drums ..............................................................................3550 FPM

Conveyor Speed ............................................................................16.4, 23, 32.8 FPM

Dust Port ....................................................................................................................4''

Sanding Belt Size ........................................................................................18

1

⁄2" x 48"

Sanding Drum Size..................................................................................................7

3

⁄4"

Air Pressure ........................................................................................................57 PSI

Sanding Drum Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower............................................................................................................5 HP

Voltage / Phase / Cycle ..................................................220V / Single-Phase / 60 HZ

Amps ......................................................................................................................30 A

RPM..............................................................................................................1725 RPM

Power Transfer to Drums ........................................................................................Belt

Conveyor Feed Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower ..........................................................................................................

1

⁄2 HP

Voltage / Phase / Cycle ..................................................220V / Single-Phase / 60 HZ

Amps ........................................................................................................................3.8

RPM ......................................................................................................................1725

Power Transfer ....................................................................................................Chain

Elevation Motor:

Type ............................................................................TEFC Capacitor Start Induction

Horsepower ..........................................................................................................

1

⁄3 HP

Voltage / Phase / Cycle ..................................................220V / Single-Phase / 60 HZ

Amps ........................................................................................................................3 A

RPM ......................................................................................................................1725

Power Transfer ........................................................................................................Belt

General Construction:

Cabinet ..................................................................................................................Steel

Sanding Belt Oscillation ....................................................................

1

⁄2"-5⁄8" Adjustable

Sanding Belt Brake ................................................................................................Disc

Control Panel ........................................Push Button for each motor, plus load sensor

Specifications, while deemed accurate, are not guaranteed.

MODEL G0527 18" WIDE-BELT SANDER

G0527 18" Wide Belt Sander -37-

2

7A, 7B

6

8

9

10, 11, 12

13

3

Parts Diagrams & Lists

2 P05270002 LIMIT SWITCH TUBE
3 P05270003 TOOL BOX
6 P05270006 DOOR HANDLE
7 P05270007A SANDING BELT (#100 GRIT)
7 P05270007B SANDING BELT (#150 GRIT)
8 P99620008 PHILLIP'S SCREWDRIVER
9 P99620009 FLAT SCREWDRIVER
10 PWR810 8 x 10 WRENCH
11 PWR1214 12 x 14 WRENCH
12 PWR1719 17 x 19 WRENCH
13 P05270013 HEX WRENCH SET

REF PART # DESCRIPTION

-38-

G0527 18" Wide Belt Sander

1128

1129

1126

1127

1101

1125

1124

1132

1133

1122

1123

1311

1310

1307

1121

1130

1131

1104

1105

1109

1114

1115

1116

1118

1113

1110

1112

1111

1119

1104

1108

1122

1107

1106

1312

1312

1302-2

1302-1

1301

1303

1304

1305

1313

1308

1301-1

1306

1103

1102

G0527 18" Wide Belt Sander -39-

1101 P05271101 MACHINE FRAME
1102 P05271102 MOTOR BASE
1103 P05271103 MOTOR BASE HINGE
1104 PN06 HEX NUT 1⁄2-12
1105 P05271105 ADJUSTMENT ROD
1106 PLW07 LOCK WASHER 1⁄2
1107 PB24 HEX BOLT 3⁄8-16 X 11⁄4"
1108 PW01 FLAT WASHER 1⁄2"
1109 P05271109 MOTOR 5 HP
1109-1 P05271109-1 FAN COVER
1109-2 P05071109-2 FAN
1109-3 PC600A CAPACITOR 600MFD 250V
1109-4 PC030A CAPACITOR 30UF 300W VAC
1109-5 P05271109-5 CAPACITOR COVER
1109-6 P05271109-6 WIRING COVER
1110 P05271110 PULLEY
1111 PSB11 CAP SCREW 5⁄16-18 X 11⁄4"
1112 PLW01 LOCK WASHER 5⁄16"
1113 P05271113 SLIDE
1114 PB03 HEX BOLT 5⁄16-18 X 1"
1115 PLW01 LOCK WASHER 5⁄16"
1116 P05271116 DISC BRAKE
1118 P05271118 PULLEY BUSHING
1119 PVA68 V-BELT A-68
1121 P05271121 BRAKE BRACKET

REF PART # DESCRIPTION

1122 PW02 FLAT WASHER 3⁄8"
1123 PB21 HEX BOLT 3⁄8-16 X 3⁄4"
1124 P05271124 ELEVATION SCREW RING
1125 PSB05 CAP SCREW 1⁄4-20 X 3⁄4"
1126 P05271126 LIMIT SWITCH
1127 P05271127 LIMIT SWITCH PLATE
1128 PB19 HEX BOLT 1⁄4-20 X 1⁄2"
1129 PW06 FLAT WASHER 1⁄4"
1130 PSS18 SETSCREW 5⁄16-18 X 3⁄4"
1131 P05271131 MOTOR BASE
1132 P05271132 COVER OF PULLEY
1133 PS04 PHLP HD SCR 1⁄4-20 X 1⁄2"
1301 P05271301 BRAKE BRACKET
1301-1 P05271301-1 BRACKET FRONT GUARD
1302-1 P05271302-1 BRAKE LINING
1302-2 P05271302-2 BRAKE LINING
1303 P05271303 BRAKE ARBOR
1304 P05271304 BRAKE LOCK
1305 P05271305 BRAKE INSIDE PIECE
1306 PFH12M FLAT HD SCR M6-1 X 25
1307 P05271307 BRAKE PIN
1308 PSB10M CAP SCREW M5-.8 X 15
1310 PLW04 LOCK WASHER 3⁄8"
1311 PN08 HEX NUT 3⁄8-16
1312 PSB26M CAP SCREW M6-1 x 12
1313 P05271313 BRAKE GASKET

REF PART # DESCRIPTION

-40-

G0527 18" Wide Belt Sander

2101

2103
2104

2102

2202

2203

2109

2110

2201

2206

2204

2108

2410

2409

2407

2406

2401

2406

2405

2404

2402

2328

2327

2325

2331

2327

2326

2316

2315

2321

2340

2306

2307

2310

2311

2319

2318

2312

2313

2309

2308

2307

2301

2303

2304

2305

2339

2303

2302

2334

2338

2336

2324

2335

2337

2106

2105

2107

2333

2332

2323

2324

2322

2341

2317

2317

2314

2111

2408

2403

2320

G0527 18" Wide Belt Sander -41-

2101 P052762101 ELEVATION SCREW
2102 PB03 HEX BOLT

5

⁄16-18 x 1"

2103 PW07 FLAT WASHER

5

⁄16"

2104 PLW01 LOCK WASHER

5

⁄16"
2105 PLW04 LOCK WASHER 3⁄8"
2106 PB21 HEX BOLT

3

⁄8-16 x 3⁄4"
2107 P052762107 ELEVATION SLIDE
2108 P052762108 DUST GUARD BELLOW
2109 PB07 HEX BOLT

5

⁄16-18 x 3⁄4"
2110 PLW01 LOCK WASHER

5

⁄16"
2111 P052762111 CHAIN
2201 P052762201 NUT HOUSUNG
2202 P052762202 NUT
2203 P51107 THRUST BEARING 51107
2204 PEC11M E-CLIP 35MM
2206 P052762206 SPROCKET WHEEL
2301 P052762301 ELEVATION GEAR BOX
2302 P052762302 WORM GEAR
2303 P6005 BEARING 6005Z
2304 P052762304 BEARING CAP
2305 PSB05 CAP SCREW 1⁄4-20 x 3⁄4"
2306 P052762306 WORM SHAFT
2307 P6002 BEARING 6002Z
2308 P052762308 BEARING CAP
2309 PSB31 CAP SCREW 10-24 x 5⁄8"
2310 P052762310 BEARING CAP
2311 PSB01 CAP SCREW 1⁄4-20 x 5⁄8"
2312 P052762312 SPROCKET WHEEL
2313 PSS08 SETSCREW 5⁄16-18 x 1⁄2"
2314 P052762314 PULLEY
2315 PVA28 V-BELT A-28 4L280
2316 P052762316 PULLEY
2317 PSS07 SETSCREW 1⁄4-20 x 1⁄2"
2318 PLW01 LOCK WASHER 5⁄16"
2319 PB32 HEX BOLT 5⁄16-18 x 5⁄8"
2320 PSS07 SETSCREW 1⁄4-20 x 1⁄2"

REF PART # DESCRIPTION

2321 P052762321 HAND WHEEL
2322 P052762322 MOTOR BASE
2323 PB31 HEX BOLT 1⁄4-20 x 1"
2324 PLW02 LOCK WASHER 1⁄4"
2325 P052762325 ADJUSTMENT ROD
2326 PW01 FLAT WASHER 1⁄2"
2327 PN06 HEX NUT 1⁄2-12
2328 PLW07 LOCK WASHER 1⁄2"
2331 P052762331 MOTOR 1⁄3 HP
2331-1 P05272331-1 FAN COVER
2331-2 P05072331-2 FAN
2331-3 PC100A CAPACITOR 100 MFD 250V
2331-4 P05272331-4 CAPACITOR COVER
2331-5 P05272331-5 WIRING COVER
2332 PN05 HEX NUT 1⁄4-20
2333 PB89 HEX BOLT 1⁄2-12 x 41⁄2"
2334 P052762334 SWITCH FIXING PLATE
2335 PB19 HEX BOLT

1

⁄4-20 x 1⁄2"
2336 P052762336 PROXIMITY SWITCH
2337 PS55M PHLP HD SCR M3-.5 x 35
2338 PN07M HEX NUT M3-.5
2339 PK14 KEY 5⁄16 x5⁄16 x3⁄4"
2340 PK48M KEY 4 x 4 x 20MM
2341 PK38M KEY 4 x 4 x 23MM
2401 P052762401 ADJUSTMENT PIECE
2402 P052762402 SPROCKET WHEEL SHAFT
2403 P6003 BALL BEARING 6003ZZ
2404 P052762404 SPROCKET WHEEL
2405 P052762405 WHEEL ADJUSTMENT ROD
2406 PW02 FLAT WASHER 3⁄8"
2407 PN08 HEX NUT 3⁄8-16
2408 PN02 HEX NUT 5⁄16-18
2409 PLW01 LOCK WASHER 5⁄16"
2410 PB07 HEX BOLT 5⁄16-18 x 3⁄4"

REF PART # DESCRIPTION

-42-

G0527 18" Wide Belt Sander

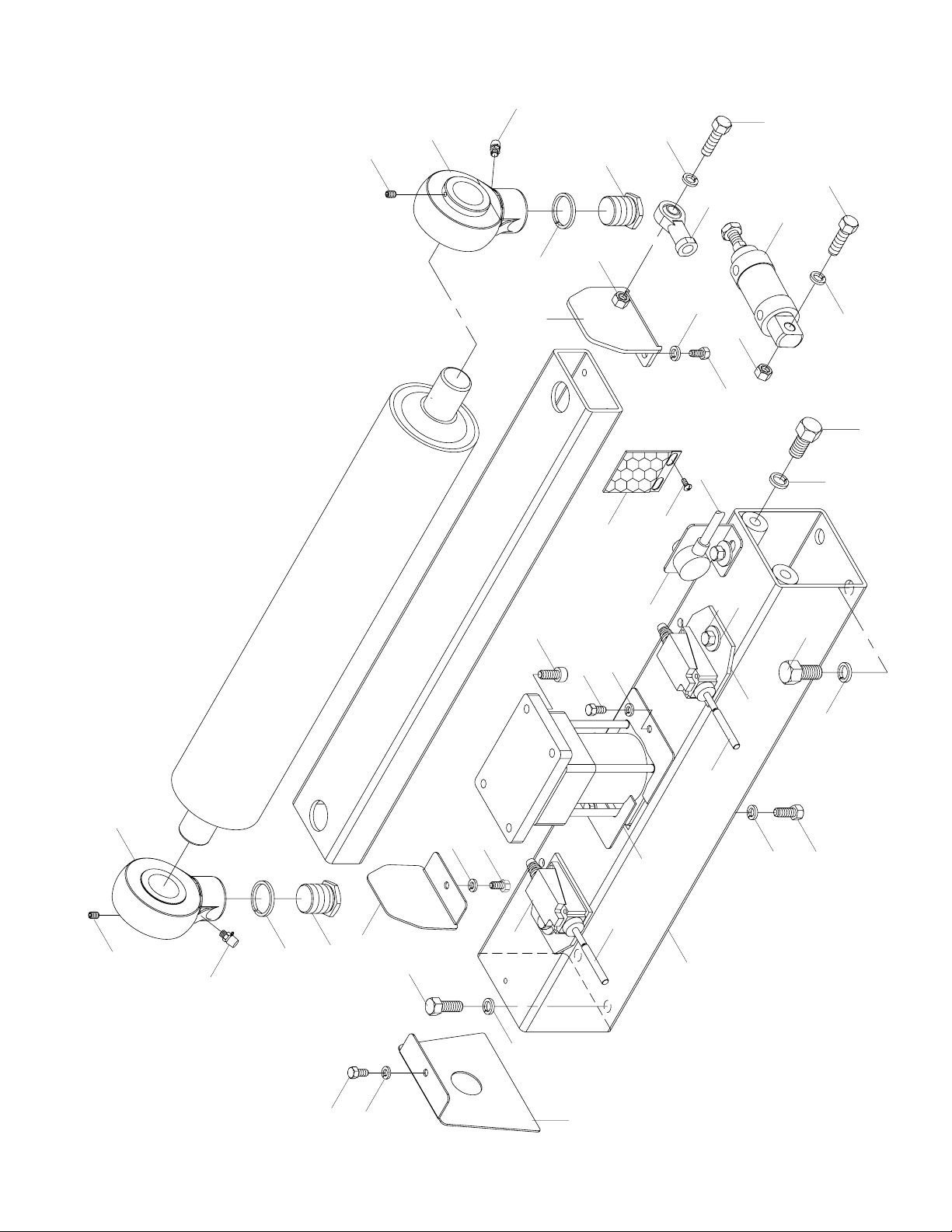

3102

3101

3140

3205

3207

3208

3117

3116

3115

3114

3113

3112

3107

3119

3103

3110

3111

3110

3114

3130

3128

3108

3125

3104

3105

3106

3120

3118

3124

3123

3132

3135

3136

3138

3137

3204

3203

3144

3142

3143

3133

3202

3201

3141

3121

3206

3131
