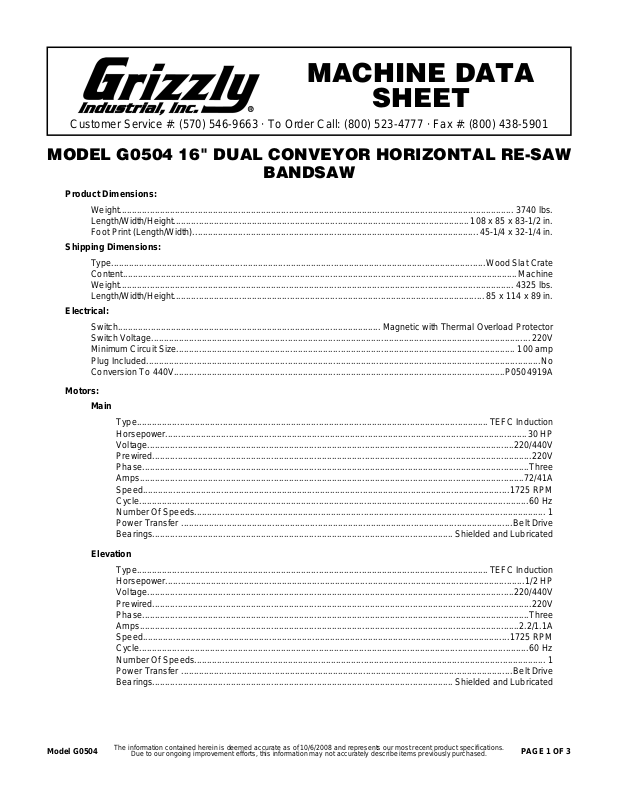

Grizzly DS300-AC User Manual
MACHINE DATA
SHEET
Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901
MODEL G0504 16" DUAL CONVEYOR HORIZONTAL RE-SAW
BANDSAW
Product Dimensions:
Weight............................................................................................................................................................ 3740 lbs.
Length/Width/Height.....................................................................................................................108 x 85 x 83-1/2 in.
Foot Print (Length/Width).................................................................................................................45-1/4 x 32-1/4 in.
Shipping Dimensions:
Type....................................................................................................................................................Wood Slat Crate
Content............................................................................................................................................................Machine
Weight............................................................................................................................................................ 4325 lbs.
Length/Width/Height........................................................................................................................... 85 x 114 x 89 in.
Electrical:
Switch........................................................................................................ Magnetic with Thermal Overload Protector
Switch Voltage......................................................................................................................................................220V
Minimum Circuit Size...................................................................................................................................... 100 amp
Plug Included............................................................................................................................................................No
Conversion To 440V...................................................................................................................................P0504919A
Motors:
Main
Type...........................................................................................................................................TEFC Induction
Horsepower...............................................................................................................................................30 HP
Voltage.................................................................................................................................................220/440V
Prewired......................................................................................................................................................220V
Phase.........................................................................................................................................................Three
Amps........................................................................................................................................................72/41A
Speed.................................................................................................................................................1725 RPM
Cycle..........................................................................................................................................................60 Hz
Number Of Speeds........................................................................................................................................... 1
Power Transfer ...................................................................................................................................Belt Drive
Bearings.......................................................................................................................Shielded and Lubricated
Elevation
Type...........................................................................................................................................TEFC Induction
Horsepower..............................................................................................................................................1/2 HP
Voltage.................................................................................................................................................220/440V
Prewired......................................................................................................................................................220V
Phase.........................................................................................................................................................Three
Amps......................................................................................................................................................2.2/1.1A
Speed.................................................................................................................................................1725 RPM
Cycle..........................................................................................................................................................60 Hz
Number Of Speeds........................................................................................................................................... 1
Power Transfer ...................................................................................................................................Belt Drive
Bearings.......................................................................................................................Shielded and Lubricated
The information contained herein is deemed accurate as of 10/6/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 1 OF 3Model G0504
Main Specifications:
Operation
Blade Speeds.....................................................................................................................................7300 FPM
Feed Speed.......................................................................................................................................0 - 61 FPM
Cutting Capacities
Height Capacity At Blade........................................................................................................................... 10 in.
Maximum Workpiece Width........................................................................................................................16 in.
Blade Information
Standard Blade Length.............................................................................................................................180 in.
Blade Width Range...................................................................................................................................... 1 in.
Upper Blade Guides.............................................................................................................................. Ceramic
Lower Blade Guides.............................................................................................................................. Ceramic
Table Information
Floor to Table Height..................................................................................................................................40 in.
Conveyor Information
Distance from Blade to Conveyor Table............................................................................................ 1/4 - 10 in.
Conveyor Table Width................................................................................................................................16 in.
Conveyor Table Length............................................................................................................................106 in.
Conveyor Table Thickness.....................................................................................................................4-3/4 in.
Floor to Back Roller Height........................................................................................................................ 30 in.
Feed Belt Length................................................................................................................................215-3/4 in.
Feed Belt Width....................................................................................................................................15-1/4 in.
Return Belt Length.............................................................................................................................215-3/4 in.
Return Belt Width...................................................................................................................................7-1/4 in.
Construction
Base Construction.......................................................................................................................................Steel
Body Construction.......................................................................................................................................Steel
Upper Wheel...............................................................................................................................................Steel
Lower Wheel...............................................................................................................................................Steel
Wheel Cover ..........................................................................................................................Pre-Formed Steel
Conveyor Belt .........................................................................................................................................Rubber
Conveyor Table ..........................................................................................................................................Steel
Pressure Roller .........................................................................................................Cast Iron w/ Polyurethune
Paint..........................................................................................................................................................Epoxy
Other Related Information
Wheel Diameter..........................................................................................................................................28 in.
Wheel Width..............................................................................................................................................7/8 in.
Hydraulic Pressure...............................................................................................................................1000 PSI
Pressure Roller Diameter.............................................................................................................................4 in.
Number of Dust Ports........................................................................................................................................2
Dust Port Size.............................................................................................................................................. 4 in.
Other Specifications:
Country Of Origin ..............................................................................................................................................Taiwan
Warranty ............................................................................................................................................................1 Year
Serial Number Location .............................................................................................................Label on Blade Guard
Assembly Time ...........................................................................................................................................30 minutes
The information contained herein is deemed accurate as of 10/6/2008 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased.
PAGE 2 OF 3Model G0504
