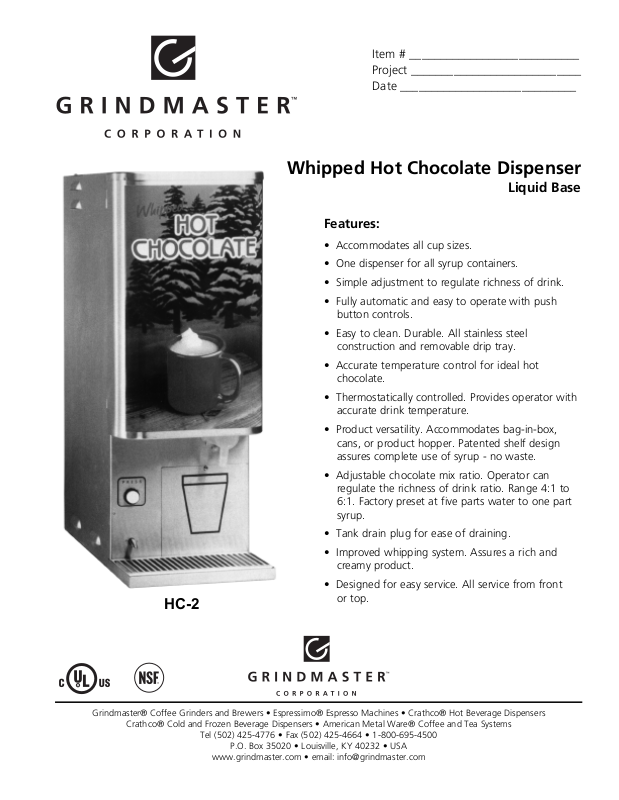

Grindmaster HC-2 User Manual
Item # ____________________________
Project ____________________________
Date _____________________________
Whipped Hot Chocolate Dispenser
Liquid Base
Features:
• Accommodates all cup sizes.
• One dispenser for all syrup containers.
• Simple adjustment to regulate richness of drink.
• Fully automatic and easy to operate with push
button controls.
• Easy to clean. Durable. All stainless steel
construction and removable drip tray.
HC-2
• Accurate temperature control for ideal hot
chocolate.
• Thermostatically controlled. Provides operator with
accurate drink temperature.
• Product versatility. Accommodates bag-in-box,
cans, or product hopper. Patented shelf design
assures complete use of syrup - no waste.
• Adjustable chocolate mix ratio. Operator can
regulate the richness of drink ratio. Range 4:1 to
6:1. Factory preset at five parts water to one part
syrup.
• Tank drain plug for ease of draining.
• Improved whipping system. Assures a rich and
creamy product.
• Designed for easy service. All service from front
or top.
Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Crathco® Hot Beverage Dispensers
Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: info@grindmaster.com
Whipped Hot Chocolate Dispenser
Model HC-2
SYRUP
CONNECTION
PRODUCT/RINSE
PUSH BUTTON SWITCHES
OVERFLOW
10 1/2”
PRODUCT
SHELF
DRINK STRENGTH
ADJUSTMENT
(BEHIND HOLE PLUG)
27”
17 11/16”
6”
5”
17 1/2”
14”
6 FT. 120 VAC
CORD WITH
NEMA 5-20 PLUG
Specifications Model HC-2
Electrical & Listings 120V / 1800W / 20A (UL, CUL, NSF)
3 3/4”
1 3/16”
5”
7 13/16”
WATER INLET
1/4”SAE MALE
FLARE FITTING
WATER TANK
DRAIN PLUG
Grindmaster® Coffee Grinders and Brewers • Espressimo® Espresso Machines • Crathco® Hot Beverage Dispensers
PRINTED IN USA
Water Line Connection 1/4” (6.35 mm) flare
Tank Size 2.75 Gallons (10 liters)
Dispense Temperature 185°F (85°C) +/- 5°
Dispense Flow Rate 1 fluid ounce/second
Cup Clearance 6” (15 cm)
Dimensions
(H x W x D)
Ship Dimensions
(H x W x D)
27” x 9” x 10”
(69 cm x 23 cm x 25 cm)
28” x 12” x 28”
(71 cm x 30 cm x 71 cm)
Ship Weight 50 lbs (23 kg)
Specifications are subject to improvement or change without notice.
Crathco® Cold and Frozen Beverage Dispensers • American Metal Ware® Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: info@grindmaster.com
1104 Form # CC-216-03© Grindmaster Corporation, 1996
