Page 1
CDM8240
Technical Manual
1
Version：V1.3
Release：2009-6-24
Page 2
Contents
1. General Description.................................................................................................... 1
2. Model............................................................................................................................ 1
3. Terms ........................................................................................................................... 1
4. Overview...................................................................................................................... 1
4.1 Presentation............................................................................................................ 1
4.2 Dimensions (mm).................................................................................................... 4
5. Functionalities ............................................................................................................. 7
6. Features....................................................................................................................... 7
7. Technical Specifications ............................................................................................ 8
7.1 Electrical specifications........................................................................................... 8
7.2 Performance specifications..................................................................................... 9
CDM8240 Technical Manual Page i of i
Page 3
1. General Description
CDM8240 dispenser is an advanced cash dispensing module, experiencing
years of research and development by GRGBanking, has possessed
completely independent intellectual property and reached international
advanced level. It consists of cassette and frame, reject tray, note feeder,
high-precise detection unit, note stacker unit, note transport and note
presenter. The cassette may be expanded up to four. The dispenser precisely
picks up required notes from the assigned cassette to the user, lets the
unqualified notes to the reject tray, and it also has the notes auto-retract
function if the customer forgets to take the money away. In a word, it has the
advantage of high-reliability, easy to operate and maintain.
2. Model
CDM8240
3. Terms
CDM----Cash Dispense Module
4. Overview
4.1 Presentation
CDM8240 Technical Manual Page 1 of 9
Page 4

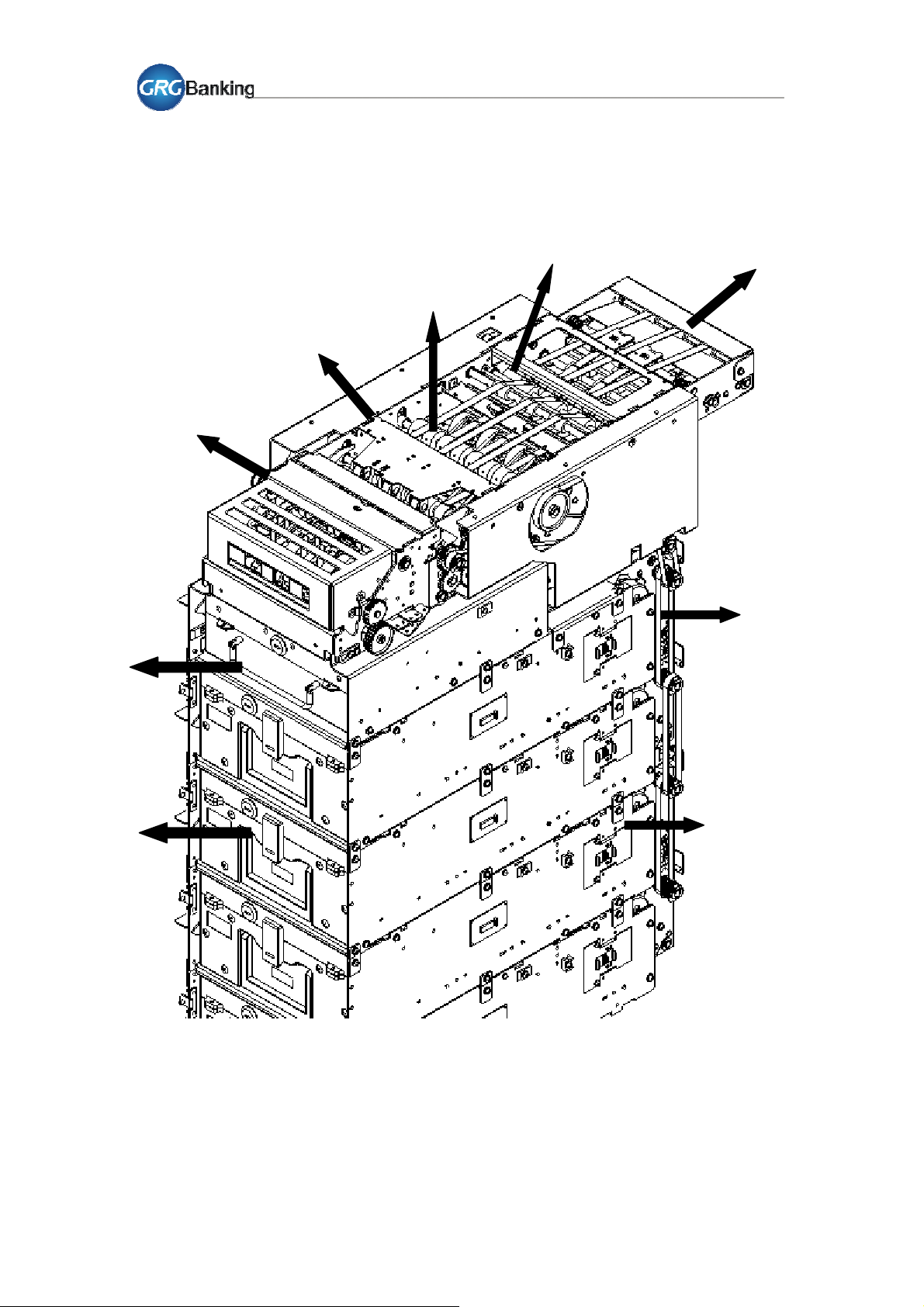

Note Stacker
CDM8240 Rear service, standard throat
Single Note Diverter
Note Presenter
Bundle Note Diverter
Note Transport
Reject Vault
Note Cassette
Note Feeder
Cassette Frame
CDM8240 Technical Manual Page 2 of 9
Page 5
Note Presenter

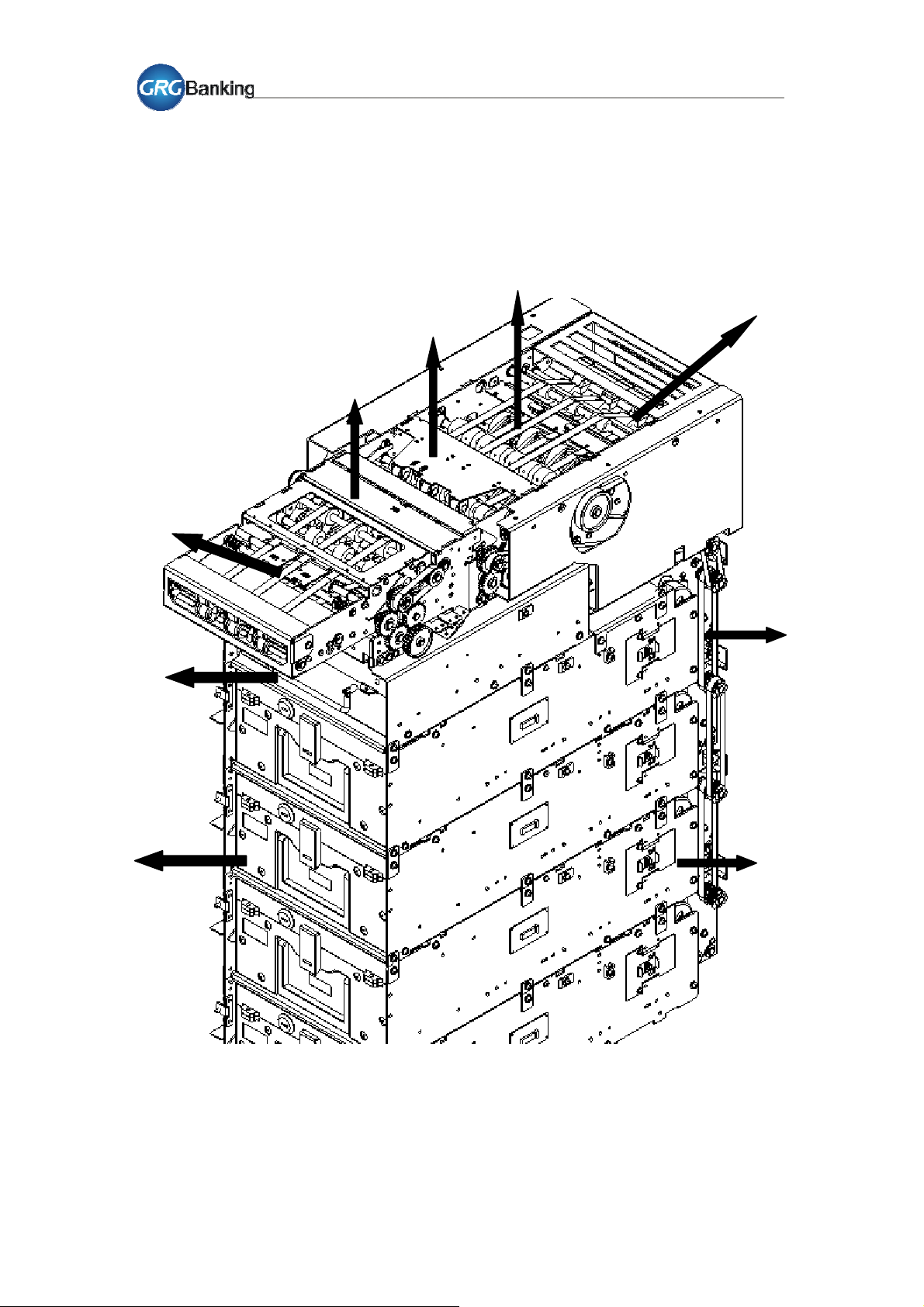

CDM8240 Front service, standard throat
Single Note Diverter
Bundle Note Diverter
Note Stacker
Note Transport
Reject Vault
Note Cassette
Note Feeder
Cassette Frame
CDM8240 Technical Manual Page 3 of 9
Page 6
4.2 Dimensions (mm)

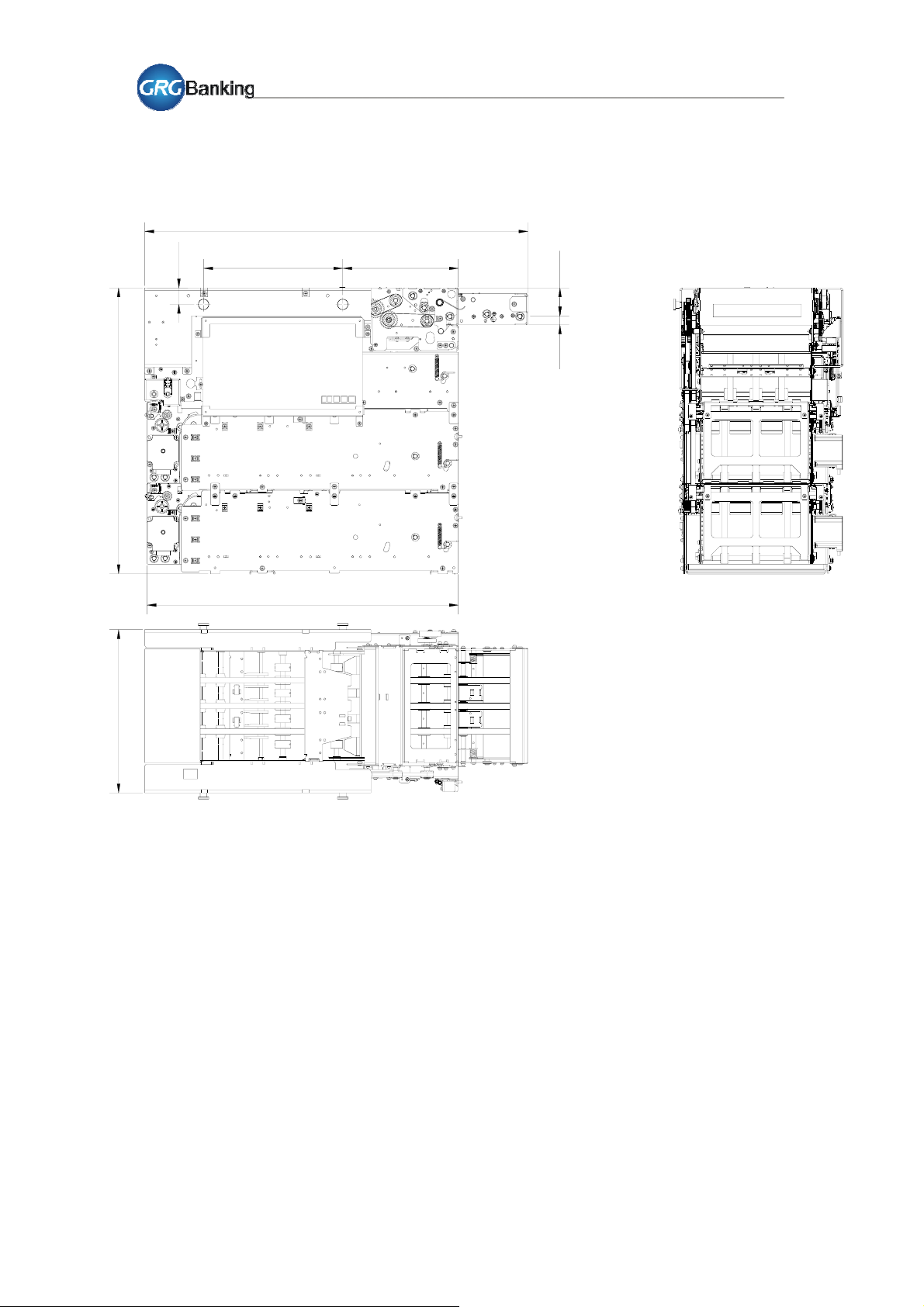

CDM8240 Front service, standard throat dimensions
Depth: 672
29
Height: 502
244.2
546
202.8
4916
Width: 286.6
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 4 of 9
Page 7

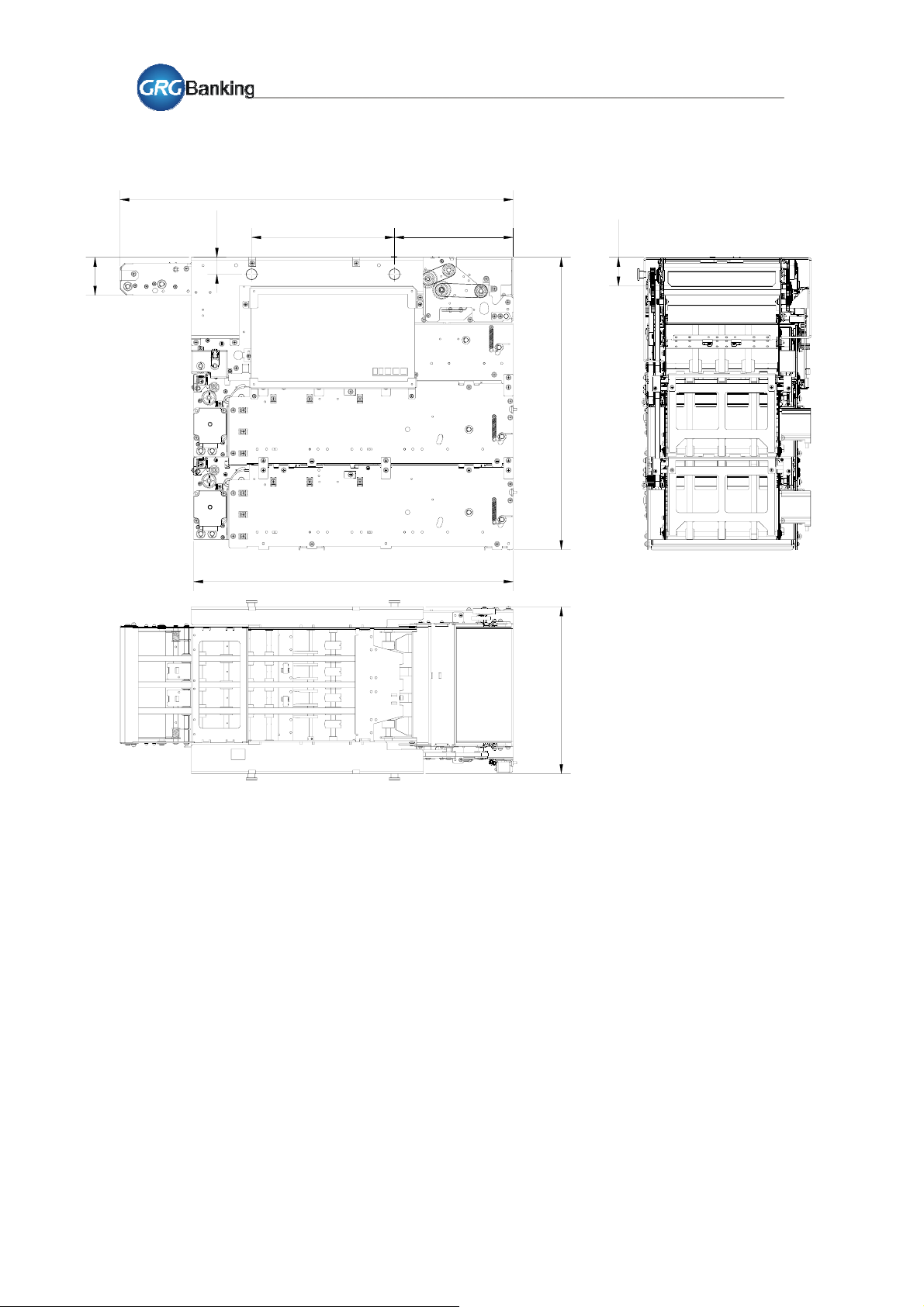

CDM8240 Rear service, standard throat dimensions
Depth: 672
65
29
244.2
202.8
49
Height: 502
546
Width: 286.6
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 5 of 9
Page 8

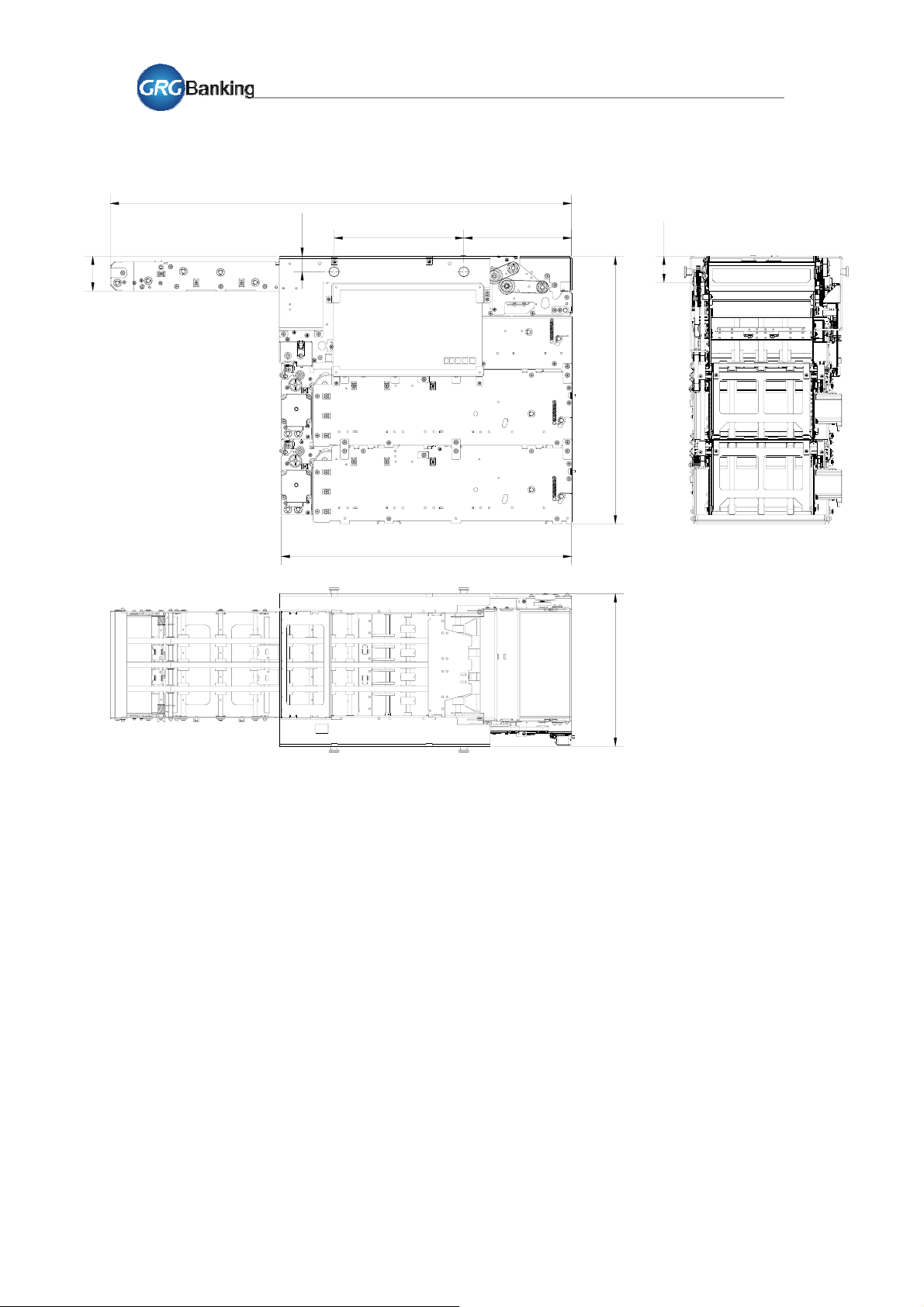

CDM8240 Rear service, long throat dimensions
65
Depth: 868
29
244.2
546
202.8
49
Height: 502
Width: 286.6
Above is the two cassettes height, with the increase of every cassette, the
height shall be added by 142.5mm.
CDM8240 Technical Manual Page 6 of 9
Page 9
5. Functionalities
Friction dispensing, strongly adapts to all kinds of paper money.
Up to four cassettes, each contains 3000 notes.
7 notes/second high dispensing speed.
Maximum 60 notes per transaction.
Reliable and steady detect unit (double, folded and worn notes etc
detected).
Low level detection.
Has the note stacker area, pre-delivery and auto retract function.
Separate reject tray with mechanical lock.
Self Calibration function, automatically records the note information.
6. Features
Optional high-security cassette and separate reject tray with lock and
seal-leading.
Double transport path for the note diverter. Separate single reject and
bundle retract area.
Optional long throat for the presenter.
Easy operation for the front service to rear or rear service to front.
Log record and inquiry function, transaction log recorded for at least
three months.
Offline self-diagnostic function, convenient to debug.
Onsite replacement of wearing part, easy to maintain.
Modular design, easy to disassemble and assemble.
CDM8240 Technical Manual Page 7 of 9
Page 10
7. Technical Specifications
7.1 Electrical specifications Item Description
Input voltage
Power
Output voltage DC 24V, 200W
Consumption Idle 30W; Operating 100W
temperature
Environmental
conditions
Operating humidity
Temperature change
Humidity change rate
Communication interface
Weight
Operating
rate
AC 110V±10%; 220V±10%
00C~500C
20%~90%RH（non-condensing）
100C per hour
10％ per hour
RS-232/ USB (optional)
CDM8240 standard throat: 42 Kg
(two cassettes weight, with the
increase of every cassette, the weight
shall be added by 11kg.)
CDM8240 long throat: 44 Kg (two
cassettes weight, with the increase of
every cassette, the weight shall be
added by 11kg.)
Dimension
CDM8240 standard throat:
284.6 (W) x 672 (D) x502 (H) mm
(two cassettes dimension, with the
increase of every cassette, the height
will be added by 142.5 )
CDM8240 long throat:
284.6 (W) x 868 (D) x502 (H) mm
(two cassettes dimension, with the
increase of every cassette, the height
will be added by 142.5 )
CDM8240 Technical Manual Page 8 of 9
Page 11
7.2 Performance specifications
Item Description
Expandability Up to 4
Cassette capacity
Note Cassette
Reject tray capacity 100(single area)+250(bundle area)
Security
Length 110mm ~172 mm
Media ranges
Width 55mm ~85 mm
Thickness 0.06mm ~0.18 mm
Dispensing system
Dispensing mode
Dispensing speed
Maximum notes per transaction
Low level detection
Reject mode
Maintenance
3000 notes
Mechanical lock and lead sealing
Friction
Bundle
7 notes/second
60 notes
50~250 notes (adjustable)
Single/Bundle
Front/Rear
CDM8240 Technical Manual Page 9 of 9
