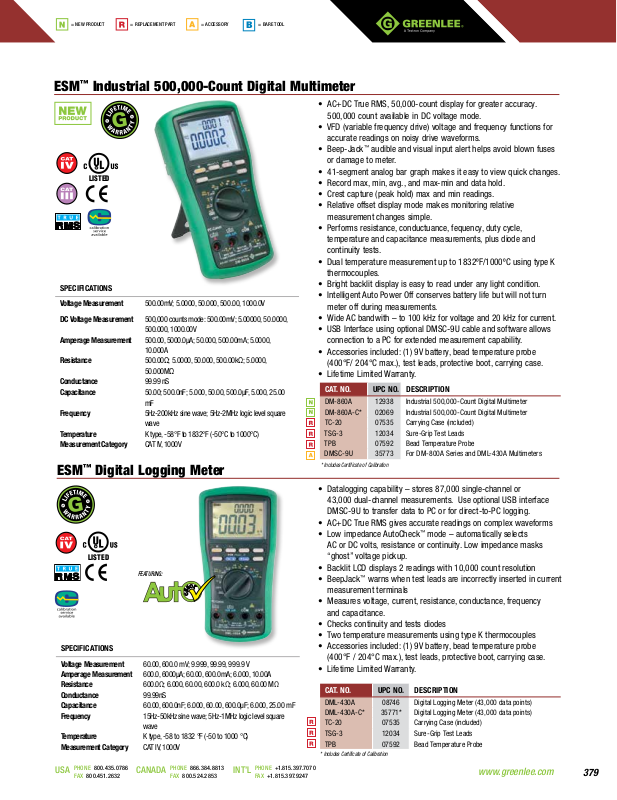

Greenlee ESM Series Digital Multimeters Catalog Page

= NEw PrODUCT

LISTED

LISTED

= rEPLACEmENT PArT = ACCESSOry

B

= BArE TOOL

ESM™ Industrial 500,000-Count Digital Multimeter

• AC+DC True RMS, 50,000-count display for greater accuracy.

500,000 count available in DC voltage mode.

• VFD (variable frequency drive) voltage and frequency functions for

accurate readings on noisy drive waveforms.

• Beep-Jack

or damage to meter.

• 41-segment analog bar graph makes it easy to view quick changes.

• Record max, min, avg., and max-min and data hold.

• Crest capture (peak hold) max and min readings.

• Relative offset display mode makes monitoring relative

measurement changes simple.

• Performs resistance, conductuance, fequency, duty cycle,

temperature and capacitance measurements, plus diode and
continuity tests.

• Dual temperature measurement up to 1832ºF/1000ºC using type K

thermocouples.

SPECIFICATIONS

Voltage Measurement 500.00mV; 5.0000, 50.000, 500.00, 1000.0V

DC Voltage Measurement 500,000 counts mode: 500.00mV; 5.00000, 50.0000,

500.000, 1000.00V

Amperage Measurement 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000,

10.000A

Resistance

Conductance 99.99 nS
Capacitance 50.00; 500.0nF; 5.000, 50.00, 500.0µF, 5.000, 25.00

Frequency 5Hz-200kHz sine wave; 5Hz-2MHz logic level square

Temperature K type, -58°F to 1832°F (-50°C to 1000°C)
Measurement Category CAT IV, 1000V

500.00Ω; 5.0000, 50.000, 500.00kΩ; 5.0000,

50.000MΩ

mF

wave

ESM™ Digital Logging Meter

FEATURING:

SPECIFICATIONS

Voltage Measurement 60.00, 600.0 mV; 9.999, 99.99, 999.9 V
Amperage Measurement 600.0, 6000μA; 60.00, 600.0mA; 6.000, 10.00A
Resistance 600.0Ω; 6.000, 60.00, 600.0 kΩ; 6.000, 60.00 MΩ
Conductance 99.99nS
Capacitance 60.00, 600.0nF; 6.000, 60.00, 600.0μF; 6.000, 25.00 mF
Frequency 15Hz-50kHz sine wave; 5Hz-1MHz logic level square

wave

Temperature K type, -58 to 1832 °F (-50 to 1000 °C)
Measurement Category CAT IV, 1000V

PHONE [phone] PHONE [phone] PHONE [phone]

USA CANADA INT’L

FAX [phone] FAX [phone] FAX [phone]

• Bright backlit display is easy to read under any light condition.

• Intelligent Auto Power Off conserves battery life but will not turn

meter off during measurements.

• Wide AC bandwith – to 100 kHz for voltage and 20 kHz for current.

• USB Interface using optional DMSC-9U cable and software allows

connection to a PC for extended measurement capability.

• Accessories included: (1) 9V battery, bead temperature probe
(400°F/ 204°C max.), test leads, protective boot, carrying case.

• Lifetime Limited Warranty.

CAT. N O . UPC NO. DESCRIPTION

DM-860A 129 3 8 Industrial 500,000-Count Digital Multimeter
DM-860A-C* 02069 Industrial 500,000-Count Digital Multimeter
TC-20 07535 Carrying Case (included)
TSG-3
TPB
DMSC-9U 35773 For DM-8 00A Series and DML-430A Multimeters

* Includes Certificate of Calibration

• Datalogging capability – stores 87,000 single-channel or
43,000 dual-channel measurements. Use optional USB interface
DMSC-9U to transfer data to PC or for direct-to-PC logging.

• AC+DC True RMS gives accurate readings on complex waveforms

• Low impedance AutoCheck

AC or DC volts, resistance or continuity. Low impedance masks

“ghost” voltage pickup.

• Backlit LCD displays 2 readings with 10,000 count resolution

• BeepJack

measurement terminals

• Measures voltage, current, resistance, conductance, frequency
and capacitance.

• Checks continuity and tests diodes

• Two temperature measurements using type K thermocouples

• Accessories included: (1) 9V battery, bead temperature probe
(400°F / 204°C max.), test leads, protective boot, carrying case.

• Lifetime Limited Warranty.

CAT. N O . UPC NO. DESCRIPTION

DML-430A 08 746 Digital Logging Meter (43,000 data points)
DML-430A-C* 3 57 71* Digital Logging Meter (43,000 data points)
TC-20 07535 Carr ying Case (included)
TSG-3
TPB

* Includes Certificate of Calibration

™

audible and visual input alert helps avoid blown fuses

120 34

Sure-Grip Test Leads

07592

Bead Temperature Probe

™

mode – automatically selects

™

warns when test leads are incorrectly inserted in current

120 34
07592

Sure-Grip Test Leads
Bead Temperature Probe

www.greenlee.com

379
